Document Overview

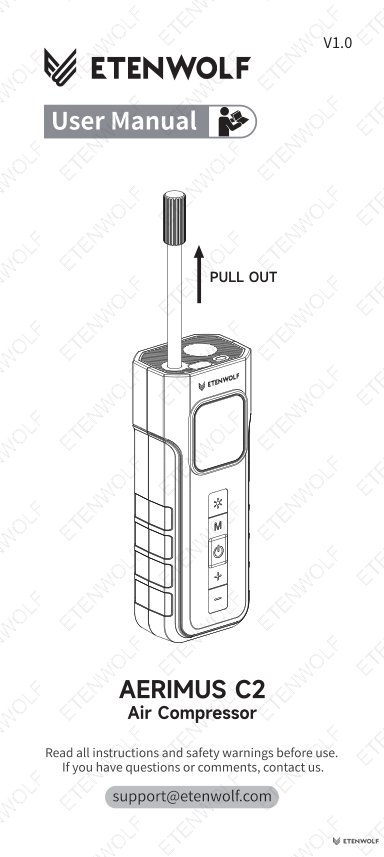

This is the official user manual for the ETENWOLF C2 portable air compressor, version 1.0, issued in November 2025. The document provides comprehensive instructions for safe operation, maintenance, and troubleshooting of the C2 air inflator. It covers all aspects of product usage including button operations, inflation modes, battery management, and technical specifications.

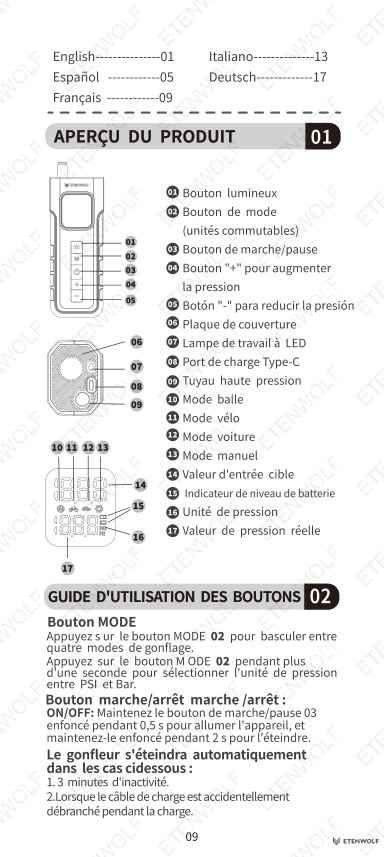

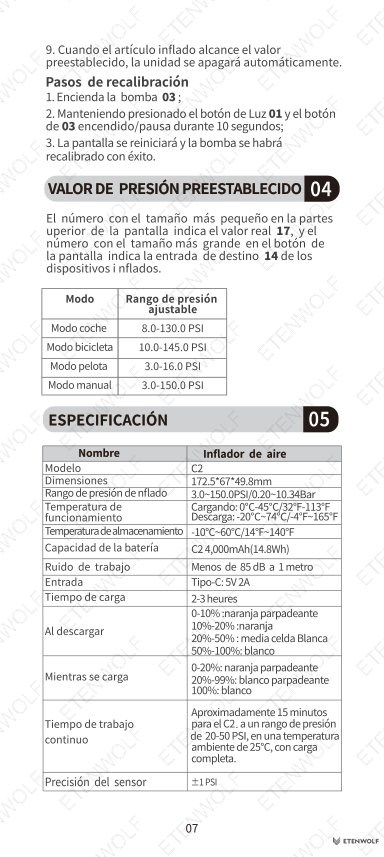

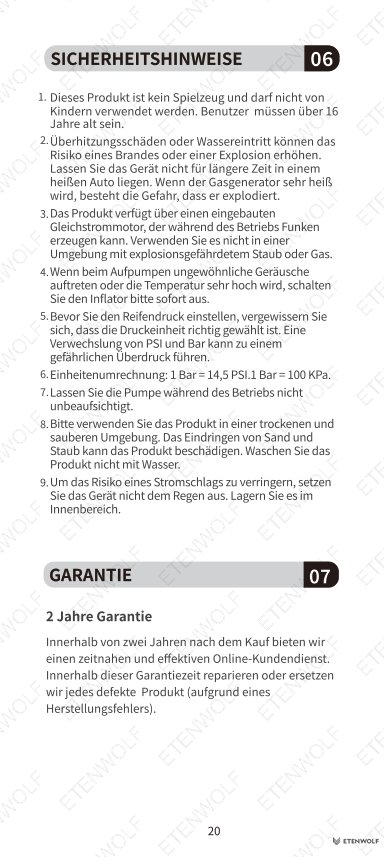

The manual is provided in multiple languages (English, Spanish, French, Italian, and German) to serve ETENWOLF’s global customer base. Users are instructed to read all safety warnings before first use and contact [email protected] with questions.
Product Information
The ETENWOLF C2 is a compact portable air compressor designed for inflating car tires, bicycle tires, sports balls, and other inflatables. The device measures 172.5 × 67 × 49.8mm and weighs minimally for portability.
Key Features:
- 4,000mAh battery capacity (14.8Wh) for cordless operation
- Pressure range: 3.0-150.0 PSI / 0.20-10.34 Bar
- Four preset inflation modes: Car, Bicycle, Ball, and Manual
- Built-in LED work light for low-light conditions
- Type-C charging port with 5V 2A input
- Digital display showing actual and target pressure values
- Automatic shutoff when target pressure is reached
- Sensor accuracy: ±1 PSI
The device includes a high-pressure hose stored in an integrated channel, making it convenient for travel and emergency use.

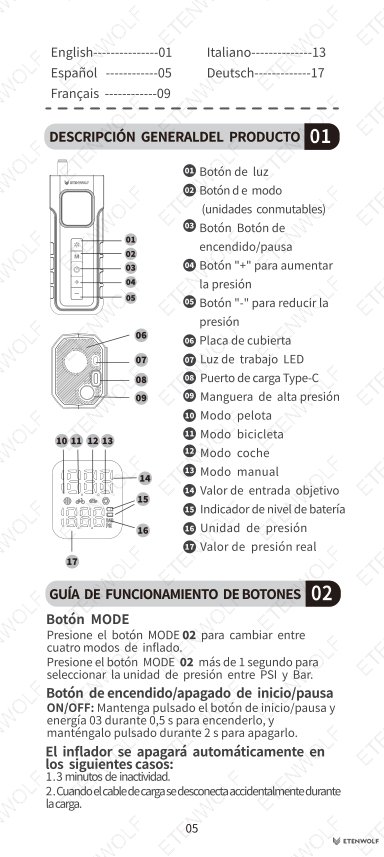

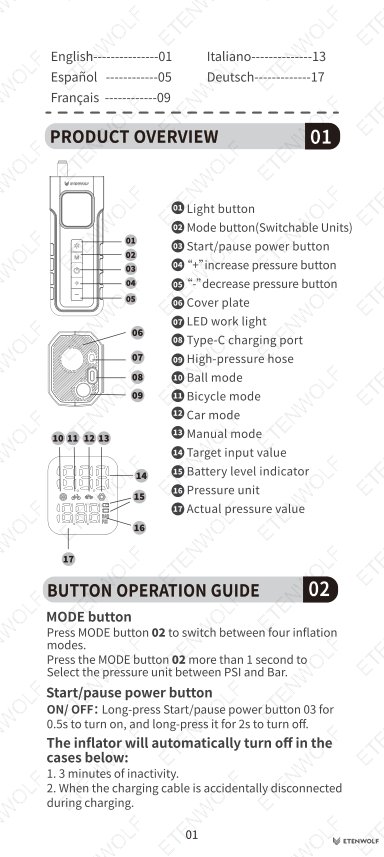

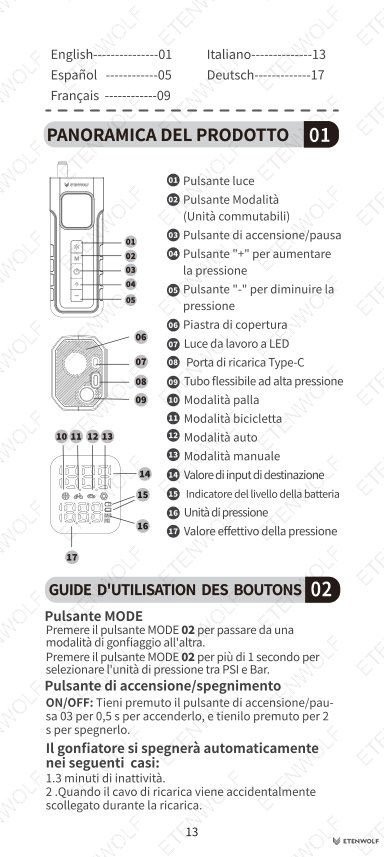

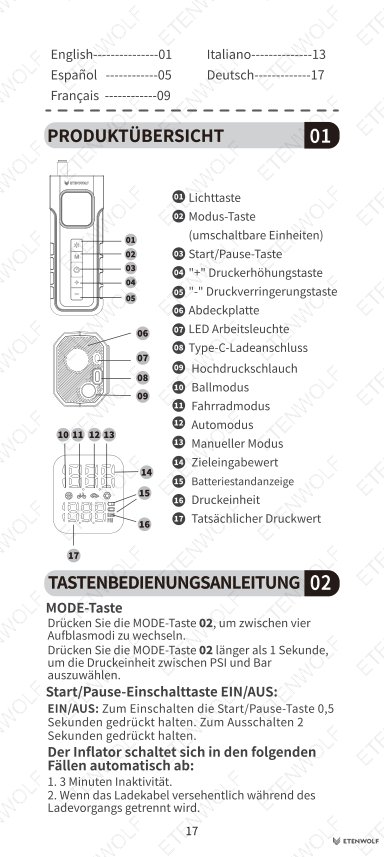

Key Details
| Component | Description |
|---|---|
| Light Button (01) | Controls LED work light |
| Mode Button (02) | Switches between inflation modes; long-press to toggle PSI/Bar units |
| Start/Pause Button (03) | Power on/off and inflation control (0.5s to turn on, 2s to turn off) |
| + Button (04) | Increases target pressure value |
| – Button (05) | Decreases target pressure value |
| High-Pressure Hose (09) | Extendable inflation nozzle with clockwise connection |
| Type-C Port (08) | 5V 2A charging interface |

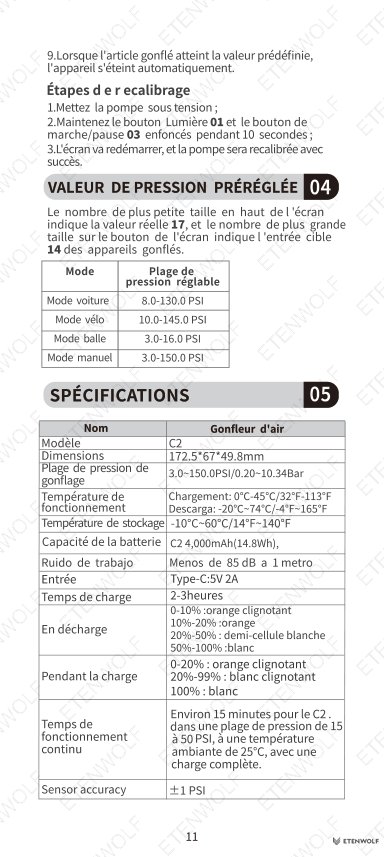

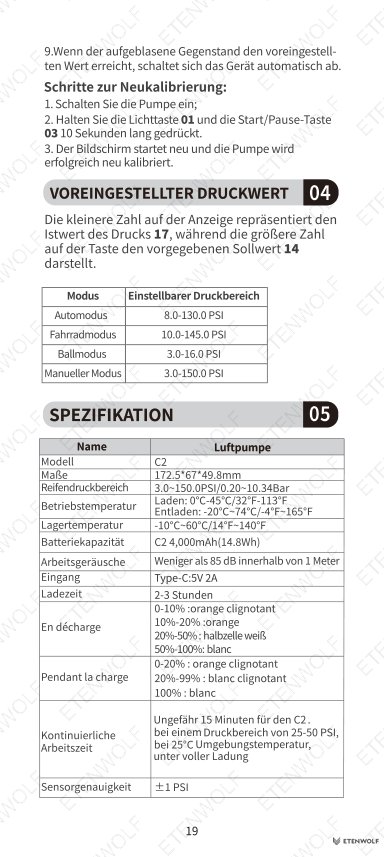

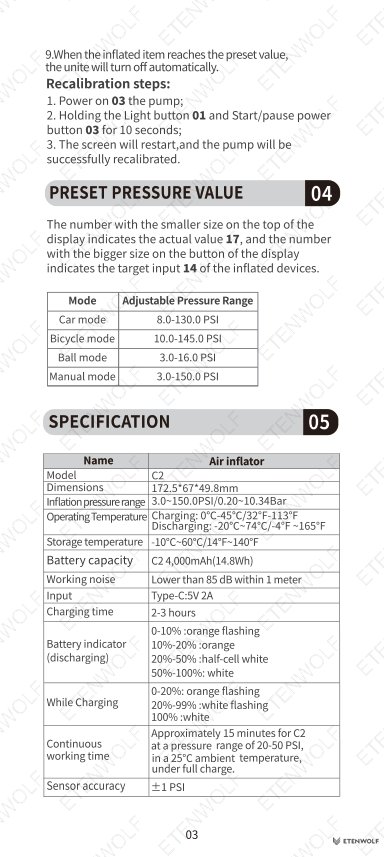

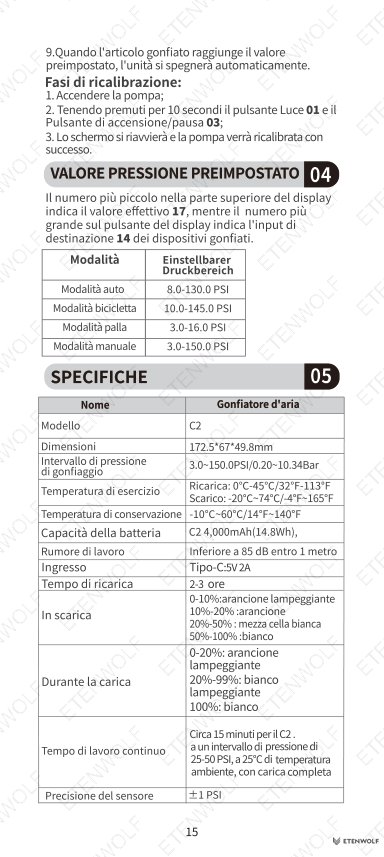

Preset Pressure Ranges by Mode:
| Mode | Adjustable Pressure Range |
|---|---|
| Car Mode (12) | 8.0-130.0 PSI |
| Bicycle Mode (11) | 10.0-145.0 PSI |
| Ball Mode (10) | 3.0-16.0 PSI |
| Manual Mode (13) | 3.0-150.0 PSI |
Battery Indicator:
- During discharge: 0-10% orange flashing, 10-20% orange, 20-50% half-cell white, 50-100% white
- While charging: 0-20% orange flashing, 20-99% white flashing, 100% solid white
- Charging time: 2-3 hours from empty to full
- Continuous working time: Approximately 15 minutes at 20-50 PSI pressure range in 25°C ambient temperature under full charge
Standards & Compliance
The ETENWOLF C2 air compressor operates within the following environmental and performance parameters:
Operating Temperatures:
- Charging: 0°C to 45°C (32°F to 113°F)
- Discharging: -20°C to 74°C (-4°F to 165°F)
- Storage: -10°C to 60°C (14°F to 140°F)
Performance Standards:
- Working noise: Lower than 85 dB within 1 meter distance
- Sensor accuracy: ±1 PSI tolerance
- Automatic safety shutoffs prevent overheating and overcharging
The device incorporates multiple safety features including automatic shutoff after 3 minutes of inactivity, protection against accidental cable disconnection during charging, and thermal protection after 10 minutes of continuous operation above 120 PSI.

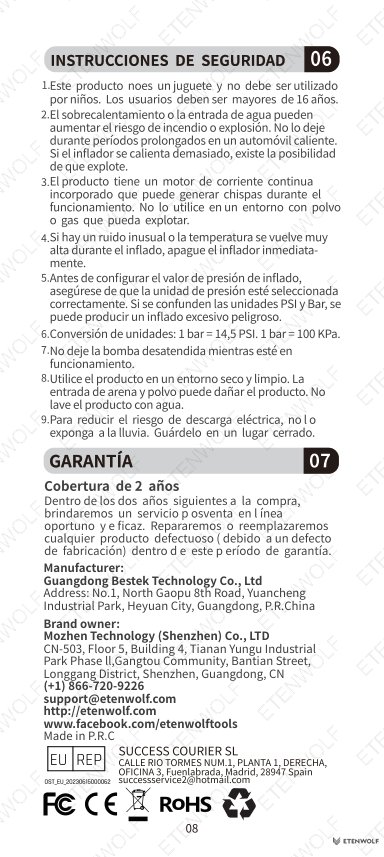

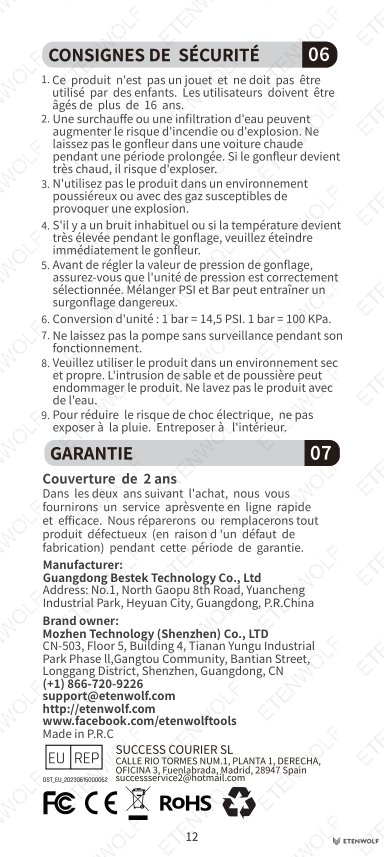

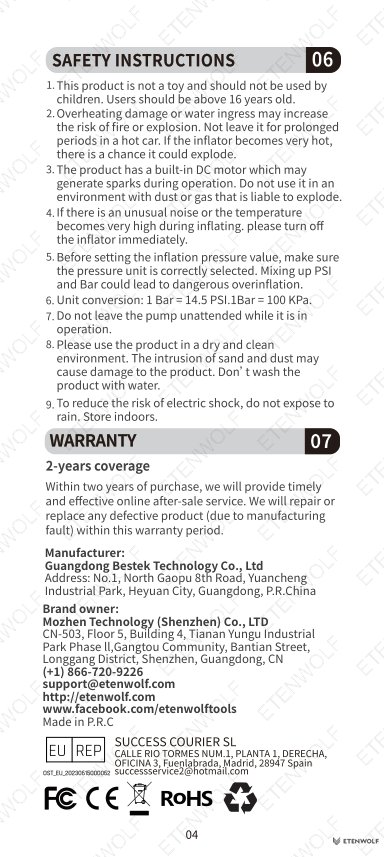

Validity & Certification Body

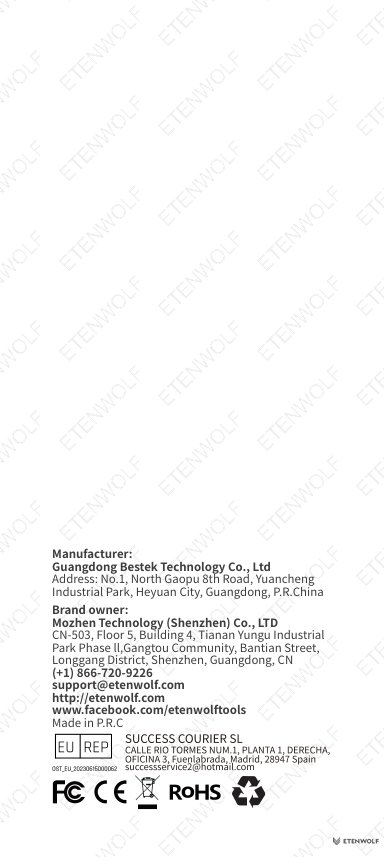

Manufacturer: Guangdong Bestek Technology Co., Ltd
Address: No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China
Brand Owner: Mozhen Technology (Shenzhen) Co., LTD
Address: CN-503, Floor 5, Building 4, Tianan Yungu Industrial Park Phase II, Gangtou Community, Bantian Street, Longgang District, Shenzhen, Guangdong, CN
Contact Information:
Phone: (+1) 866-720-9226
Email: [email protected]
Website: http://etenwolf.com
Social Media: www.facebook.com/etenwolftools
Product manufactured in P.R.C. (People’s Republic of China). Manual version 1.0 issued November 2025.
Frequently Asked Questions
Q: How do I recalibrate the pressure sensor on my C2?
A: To recalibrate, power on the pump, then hold both the Light button (01) and Start/Pause button (03) for 10 seconds. The screen will restart automatically, confirming successful recalibration. This process ensures accurate pressure readings over time.
Q: Why does my C2 automatically shut off during inflation?
A: The C2 has five automatic shutoff conditions for safety: (1) 3 minutes of inactivity, (2) charging cable disconnection, (3) inflation over 5 minutes with less than 2 PSI pressure change, (4) continuous operation above 120 PSI for more than 10 minutes, or (5) completing a full charge cycle. These features protect the battery and motor.
Q: How long does the battery last on a full charge?
A: Under optimal conditions (20-50 PSI pressure range, 25°C ambient temperature), the 4,000mAh battery provides approximately 15 minutes of continuous operation. Actual runtime varies based on pressure requirements and temperature.
Q: Can I switch between PSI and Bar units?
A: Yes. Press and hold the Mode button (02) for more than 1 second to toggle between PSI and Bar pressure units. The selected unit will display on the digital screen.
Related Documents
For comprehensive information about the ETENWOLF C2 portable air compressor, consider reviewing these related resources:
- Product Specifications Sheet: Detailed technical specifications including dimensions, weight, battery chemistry, and performance curves
- Safety Data Sheet: Information about battery handling, disposal procedures, and environmental considerations
- Warranty Information: Coverage terms, claim procedures, and authorized service centers
- Quick Start Guide: Simplified setup instructions for first-time users
- Troubleshooting Guide: Common issues and solutions for optimal device performance
- Accessory Compatibility List: Compatible nozzles, adapters, and replacement parts
For additional support or documentation requests, contact ETENWOLF customer service at [email protected] or call (+1) 866-720-9226.
