Document Overview

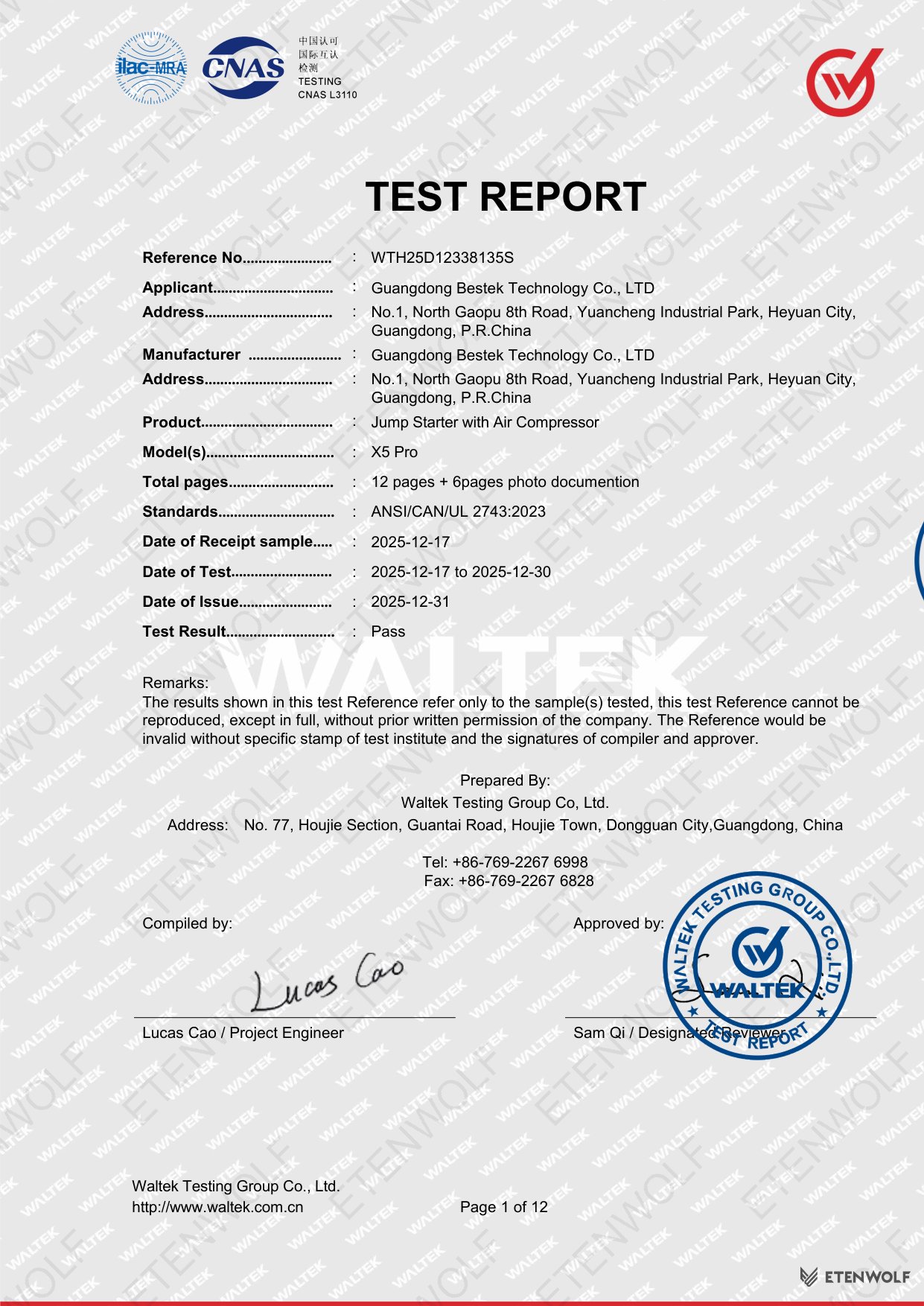

This article summarises the official UL 2743 test report issued by Waltek Testing Group Co., Ltd. for the ETENWOLF X5 Pro Jump Starter with Air Compressor. The report reference number is WTH25D12338135S and was issued on 2025-12-31, covering tests conducted from 2025-12-17 to 2025-12-30.

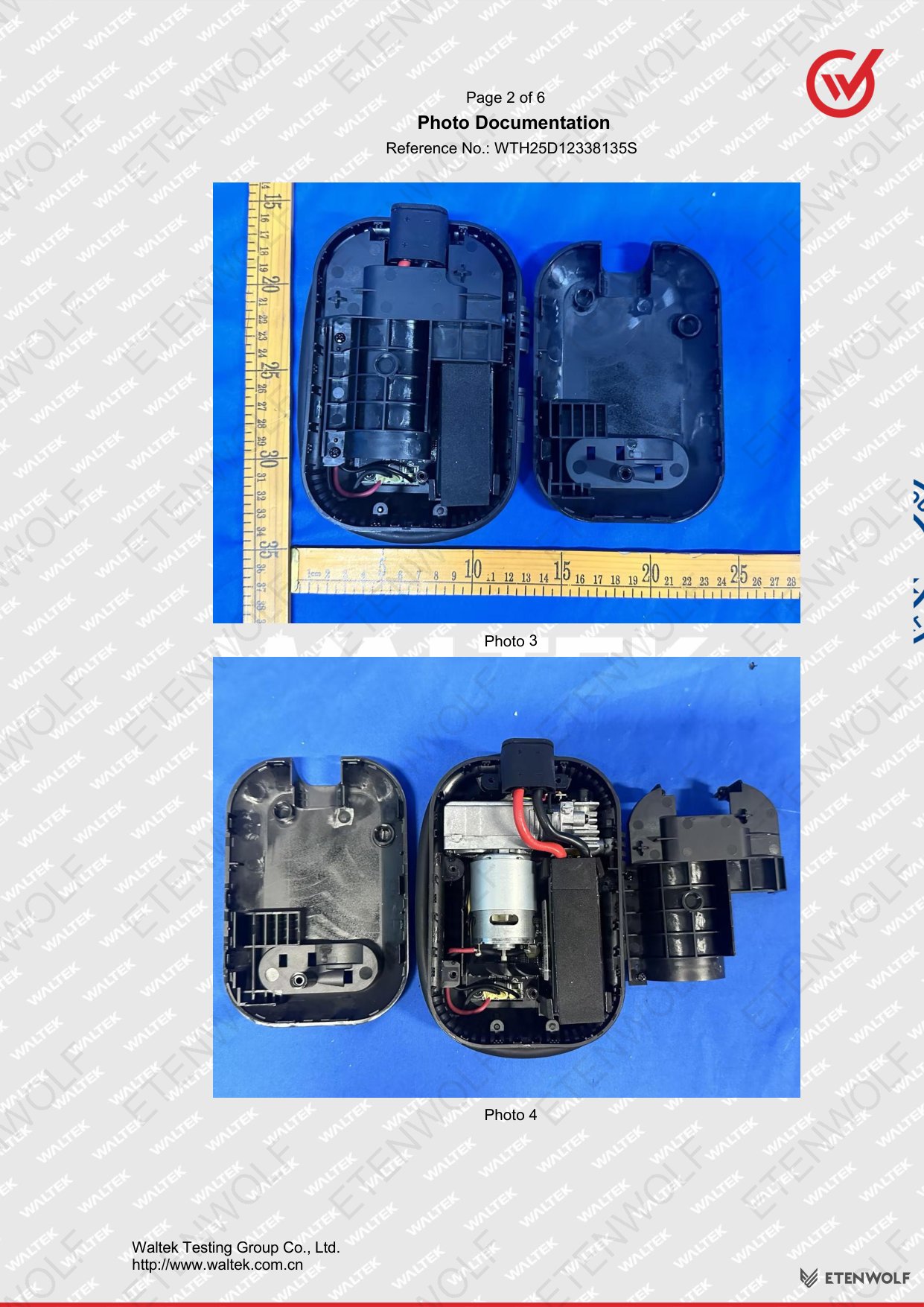

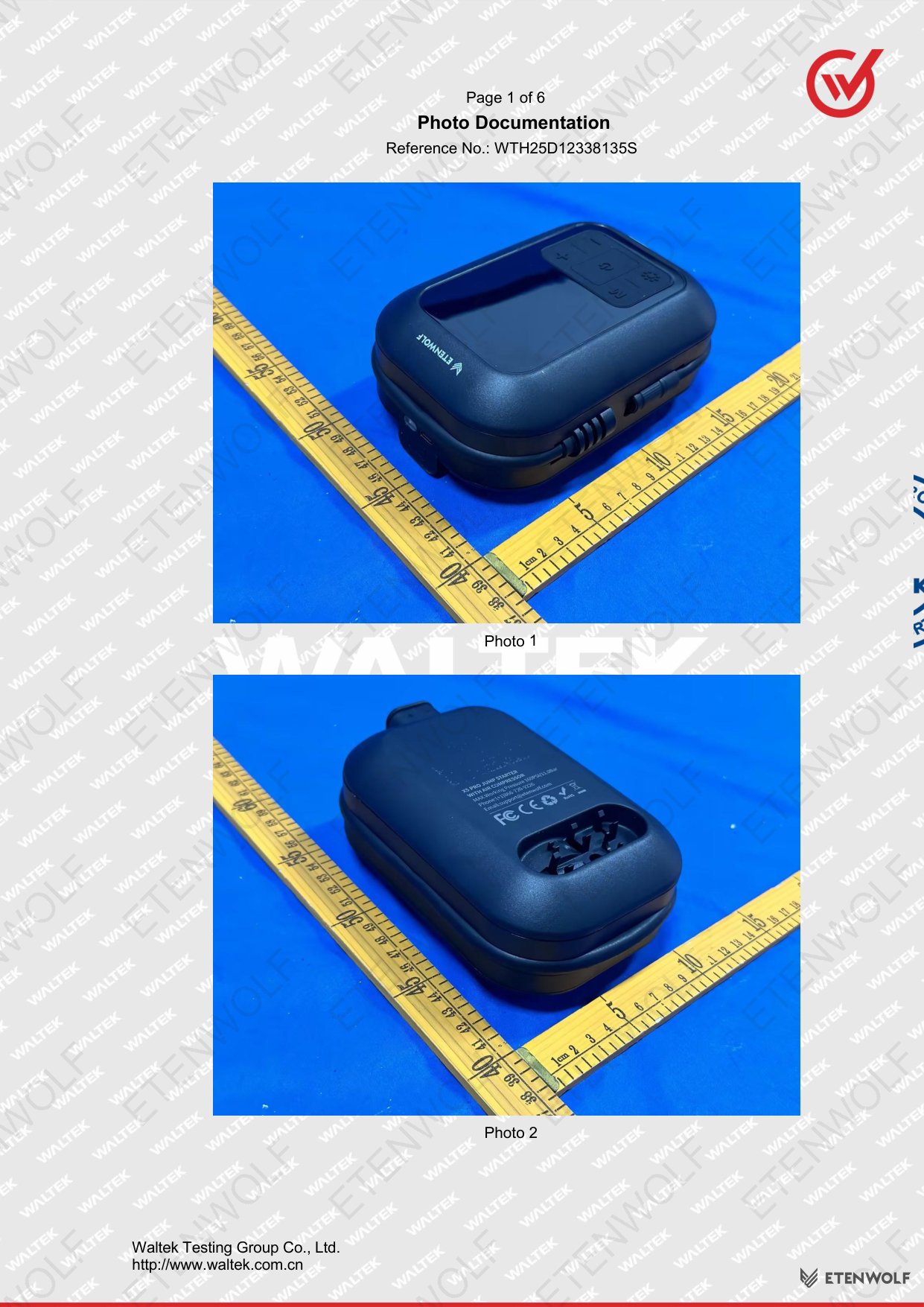

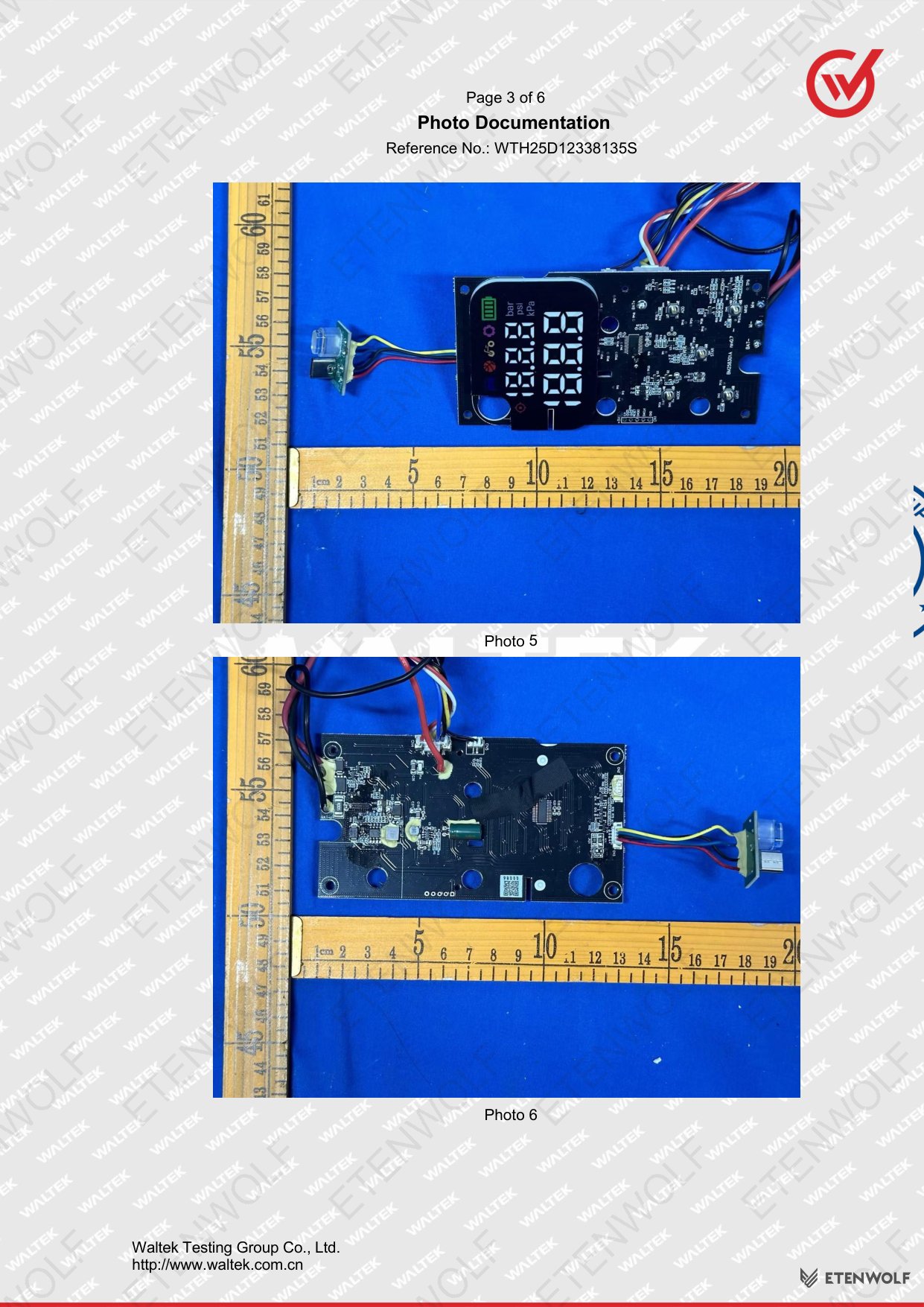

The applicable standard is ANSI/CAN/UL 2743:2023 — the North American safety standard for portable jump starters and associated equipment. The overall test result is PASS. The report covers 12 pages of test data plus 6 pages of photo documentation and was compiled by Lucas Cao (Project Engineer) and approved by Sam Qi (Designated Reviewer) at Waltek’s Dongguan facility.
| Field | Detail |
|---|---|
| Report Reference No. | WTH25D12338135S |
| Issuing Laboratory | Waltek Testing Group Co., Ltd. |
| Applicable Standard | ANSI/CAN/UL 2743:2023 |
| Date of Issue | 2025-12-31 |
| Test Period | 2025-12-17 to 2025-12-30 |
| Overall Result | PASS |
| Total Pages | 12 pages + 6 pages photo documentation |
Product Information
The product evaluated under this report is the X5 Pro Jump Starter with Air Compressor, manufactured and supplied by Guangdong Bestek Technology Co., Ltd., located at No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China.

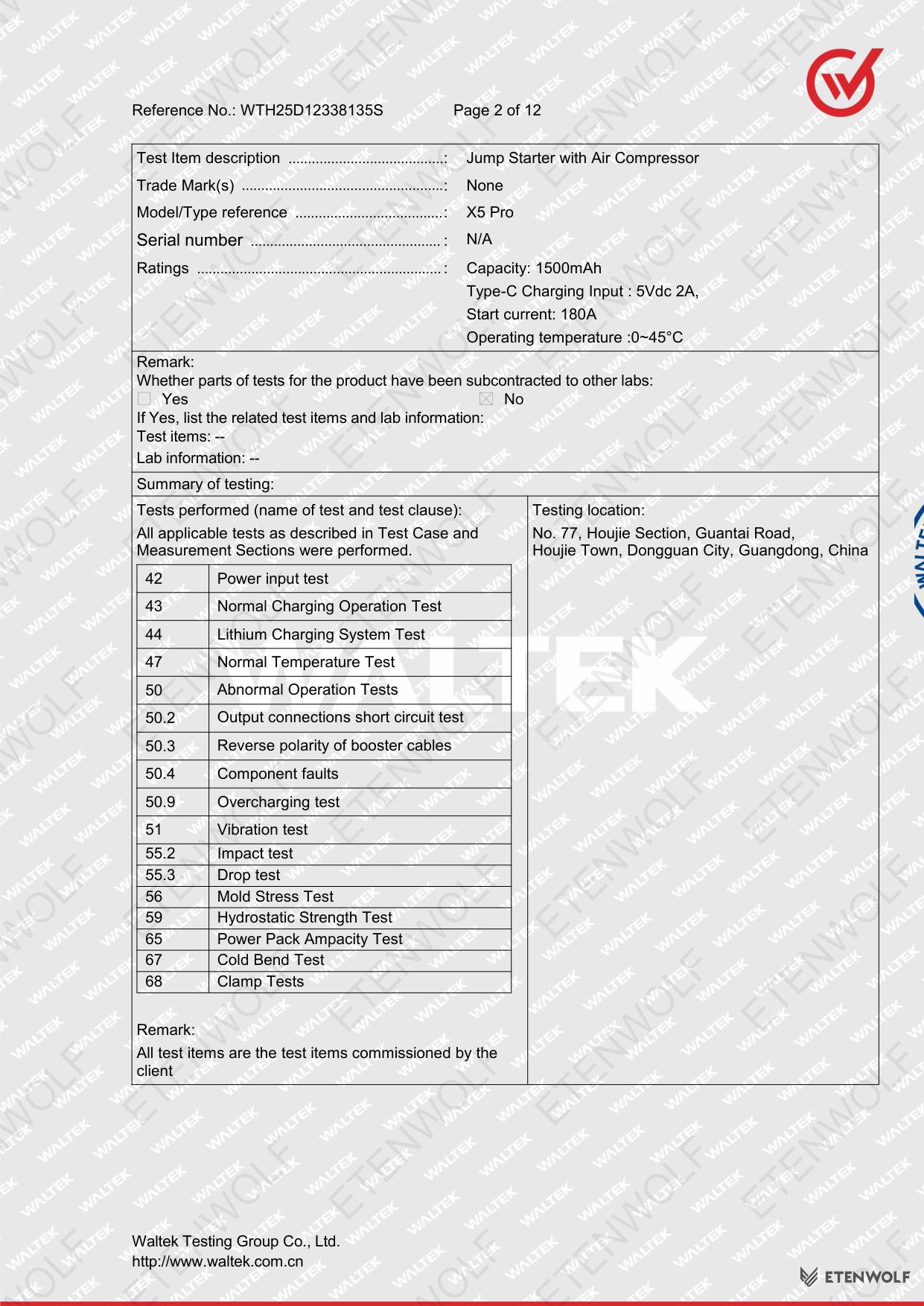

| Attribute | Value |
|---|---|
| Product Name | Jump Starter with Air Compressor |
| Model | X5 Pro |
| Trade Mark | None declared |
| Serial Number | N/A |
| Battery Capacity | 1500 mAh |
| Type-C Charging Input | 5 V DC, 2 A |
| Peak Start Current | 180 A |
| Operating Temperature | 0 °C to 45 °C |
| Equipment Mobility | Portable |
| Operating Condition | Duty cycle |
| Mass | Approx. 0.81 kg + 0.27 kg (booster cable) |
| Battery Configuration | 4 cells in series (4S1P lithium) |

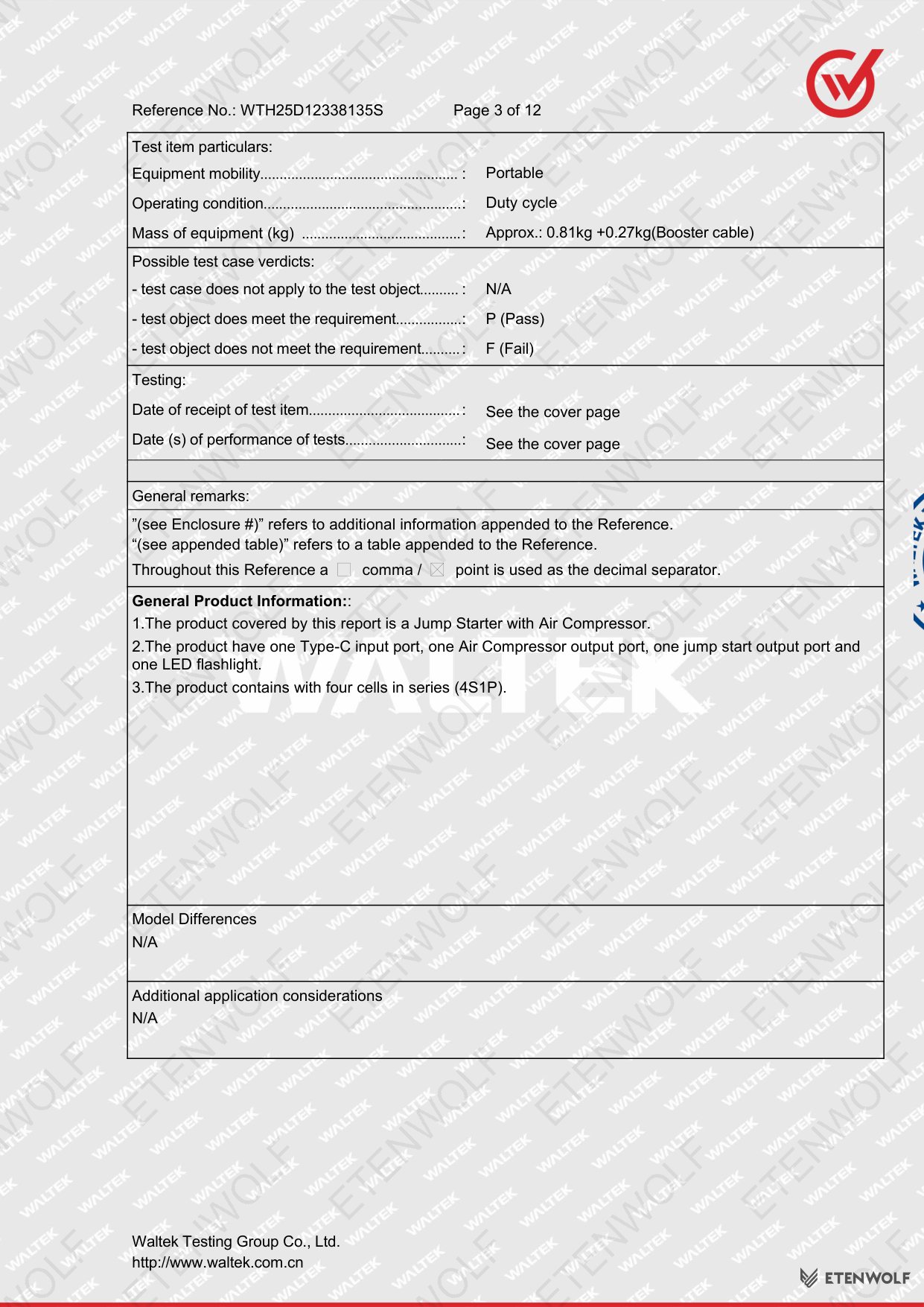

The X5 Pro features one Type-C input port, one air compressor output port, one jump-start output port, and an integrated LED flashlight — making it a compact, multi-function portable power solution for automotive and outdoor use.
Key Details
All applicable test clauses under ANSI/CAN/UL 2743:2023 were performed at Waltek’s Dongguan laboratory. The table below lists each tested clause, its description, and the recorded verdict.

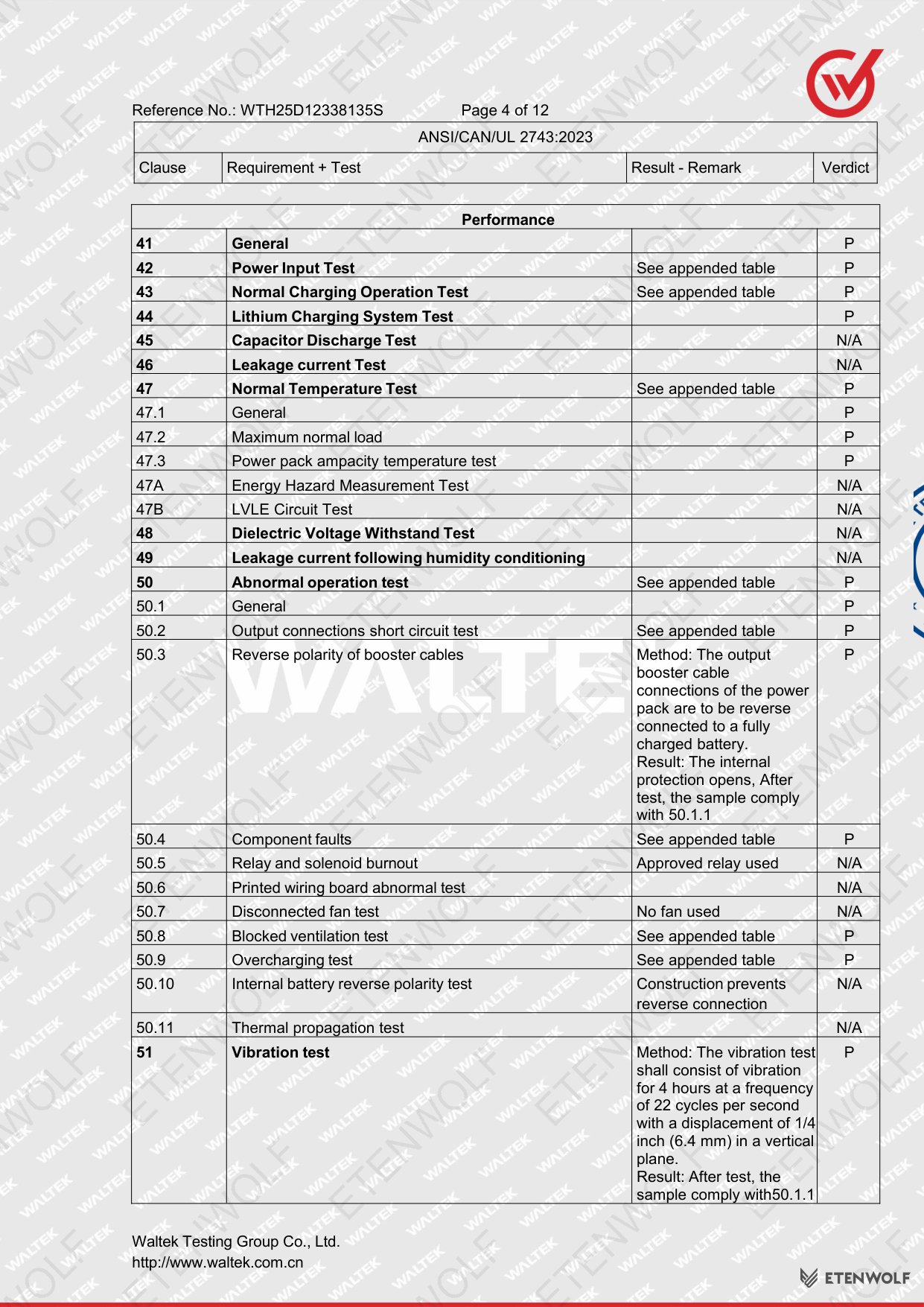

| Clause | Test Name | Verdict |
|---|---|---|
| 41 | General Performance | PASS |

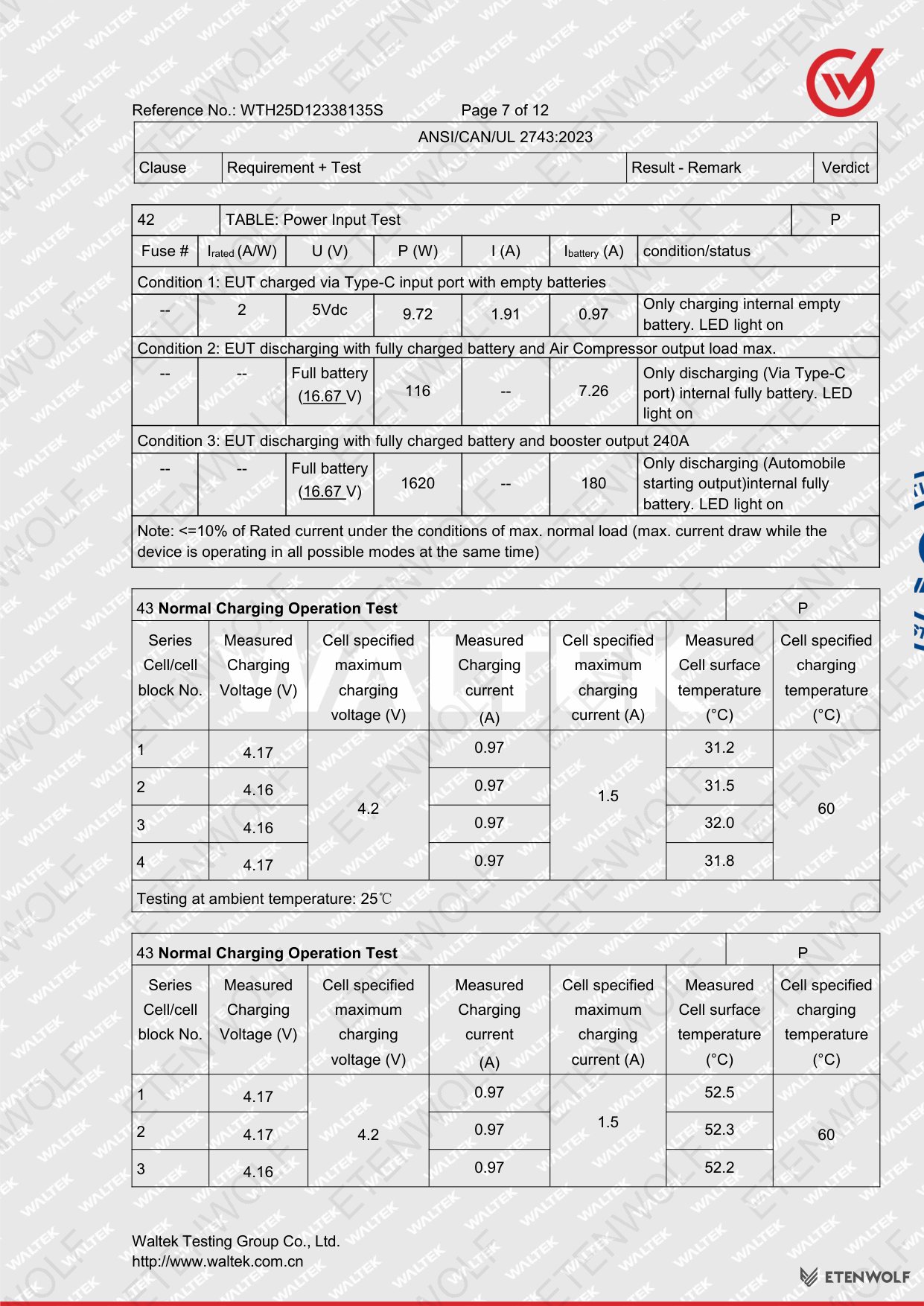

| 42 | Power Input Test | PASS |

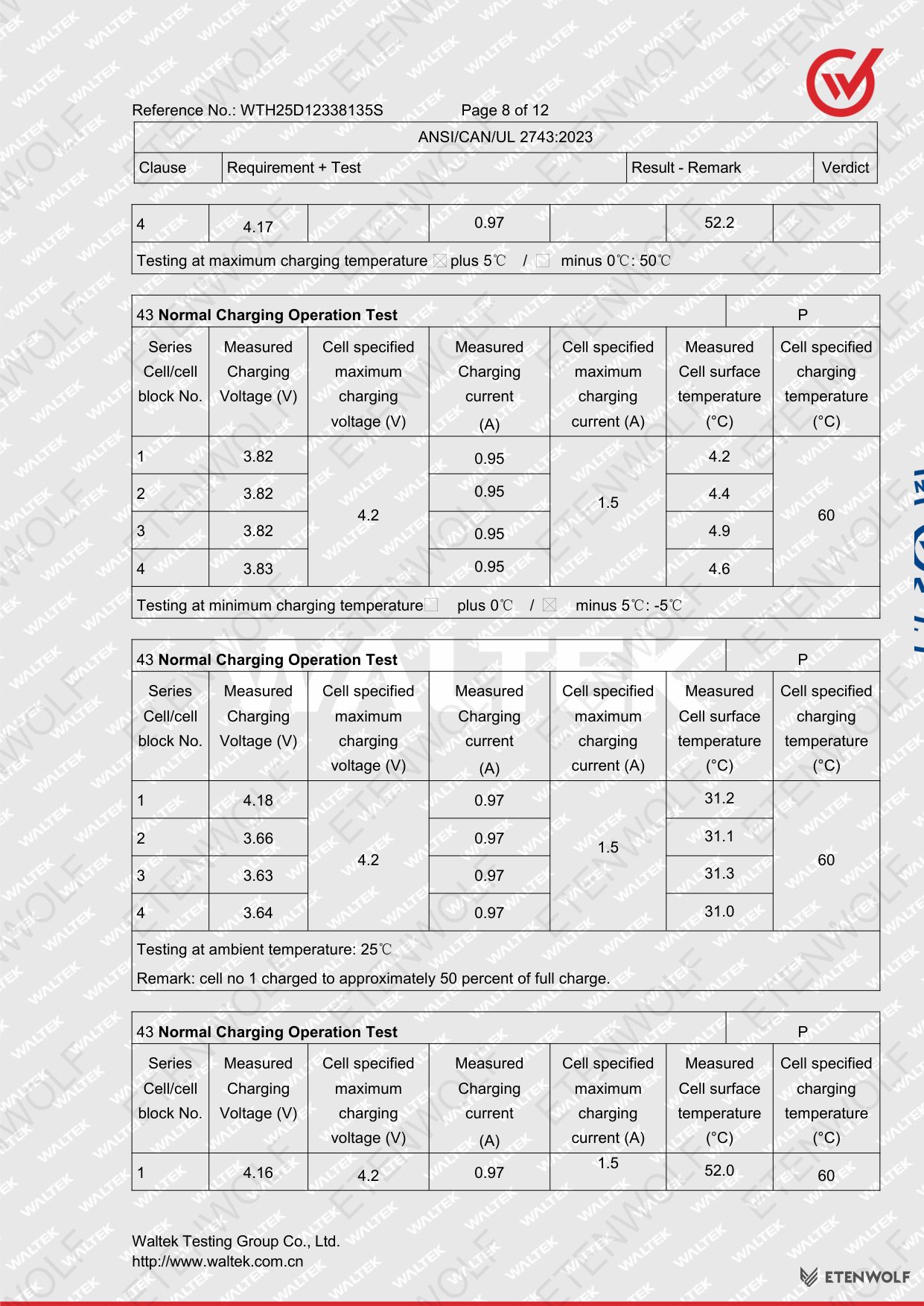

| 43 | Normal Charging Operation Test | PASS |
| 44 | Lithium Charging System Test | PASS |
| 45 | Capacitor Discharge Test | N/A |
| 46 | Leakage Current Test | N/A |

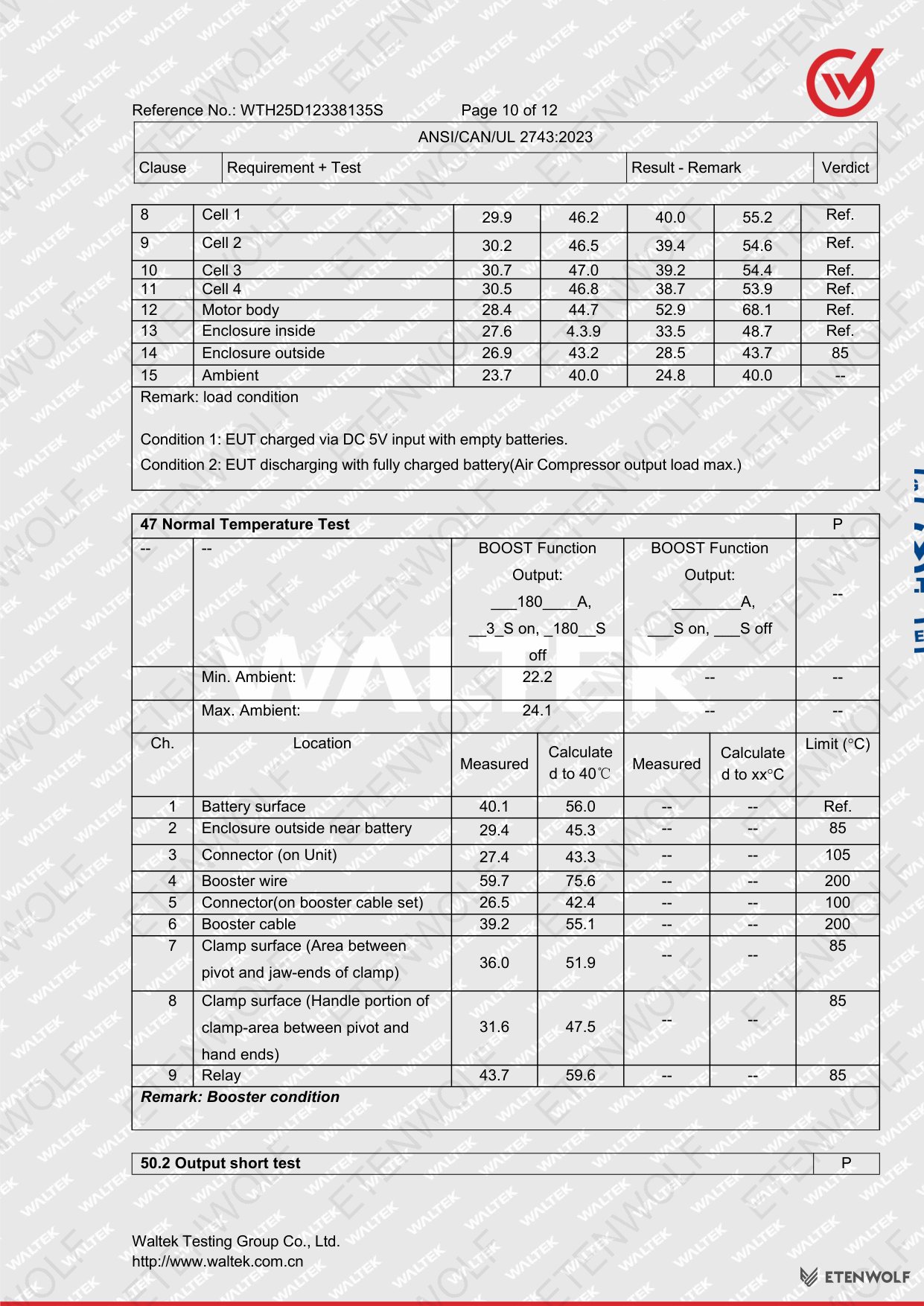

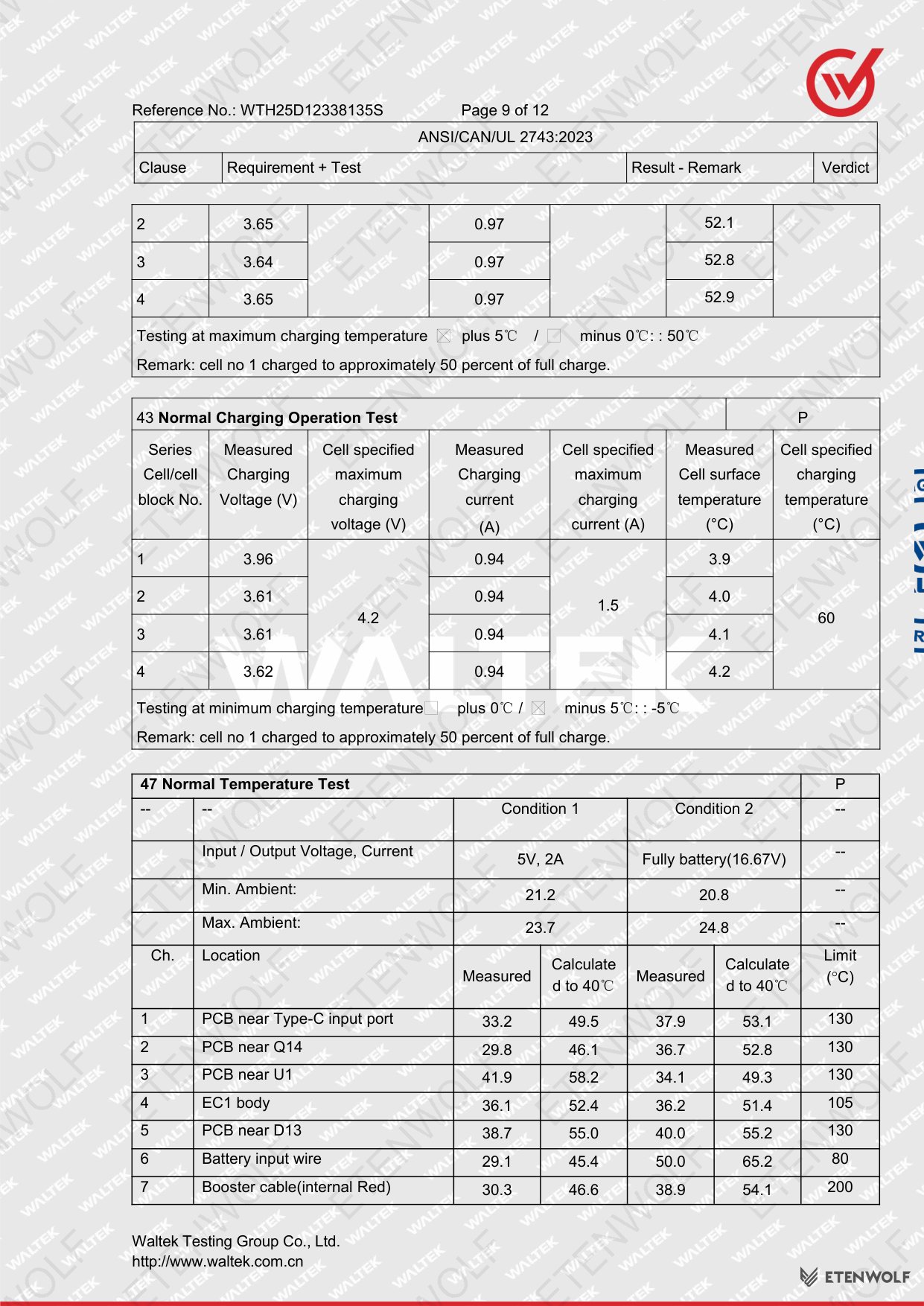

| 47 | Normal Temperature Test | PASS |
| 50 | Abnormal Operation Tests | PASS |
| 50.2 | Output Connections Short Circuit Test | PASS |
| 50.3 | Reverse Polarity of Booster Cables | PASS |

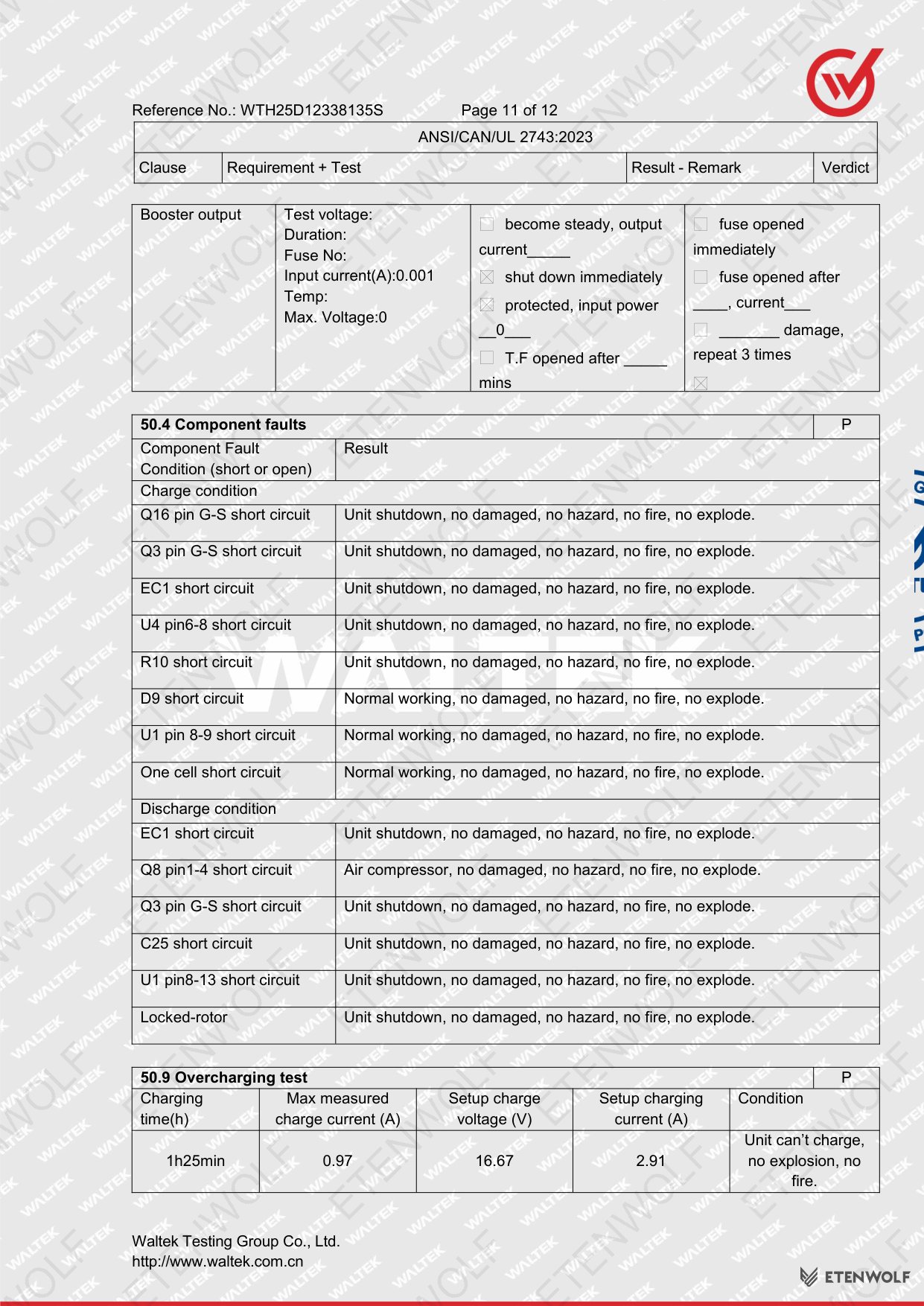

| 50.4 | Component Faults | PASS |
| 50.9 | Overcharging Test | PASS |
| 51 | Vibration Test | PASS |

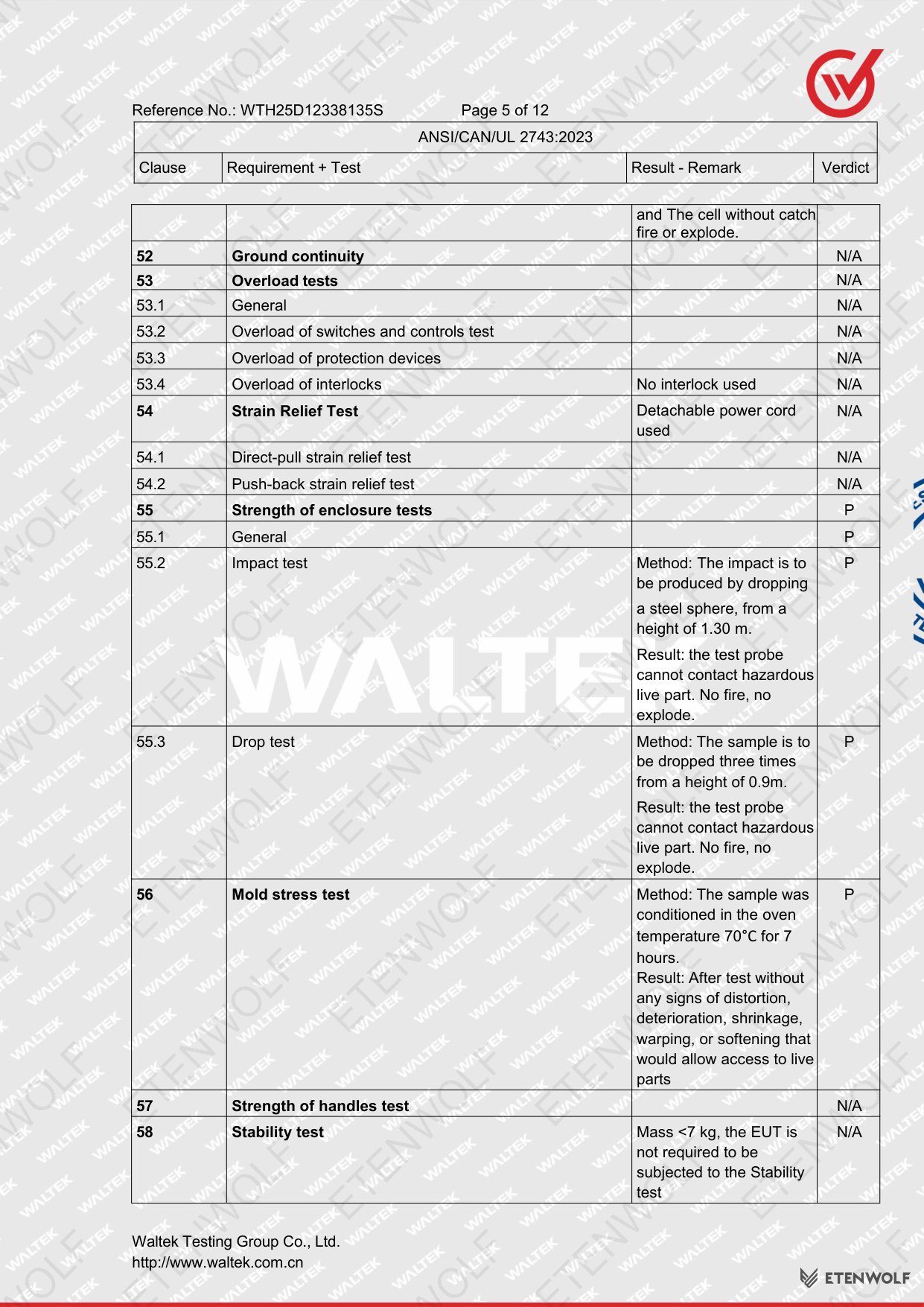

| 55.2 | Impact Test | PASS |
| 55.3 | Drop Test | PASS |
| 56 | Mold Stress Test | PASS |

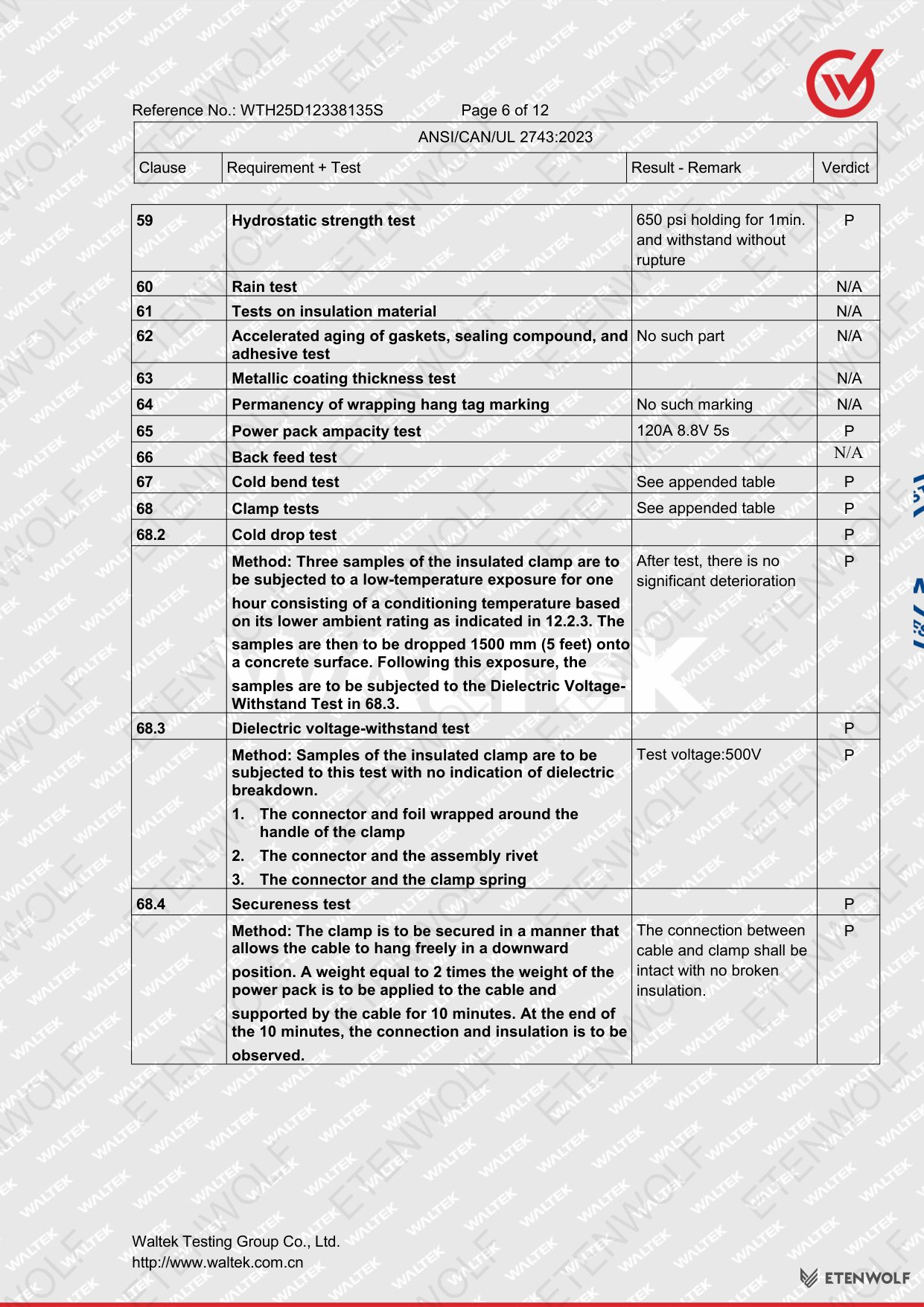

| 59 | Hydrostatic Strength Test | PASS |
| 65 | Power Pack Ampacity Test | PASS |

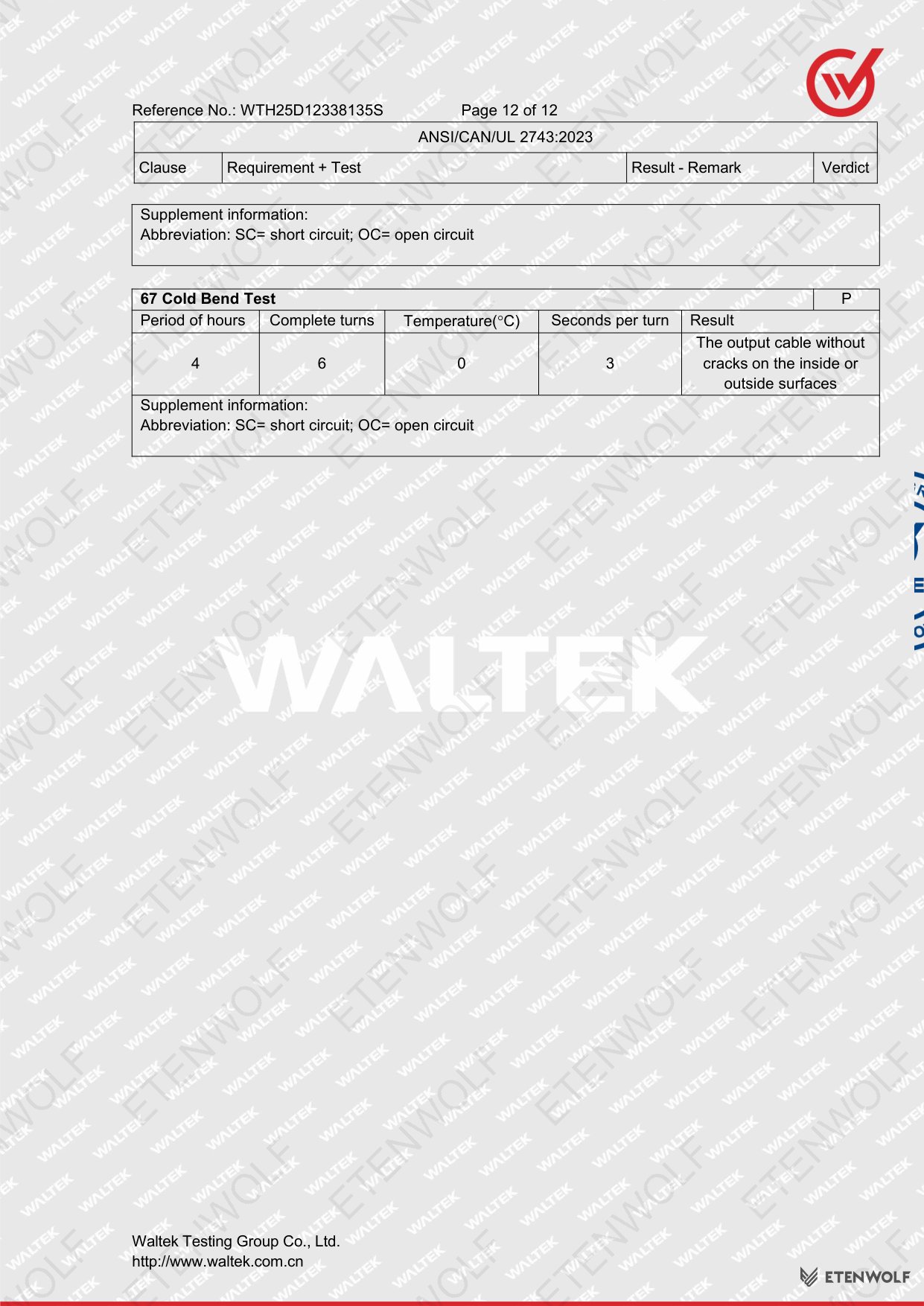

| 67 | Cold Bend Test | PASS |
| 68 | Clamp Tests | PASS |
Test verdicts are encoded as follows: P / PASS — the test object meets the requirement; F / FAIL — the test object does not meet the requirement; N/A — the test clause does not apply to this product.
Standards & Compliance
The X5 Pro was evaluated against the following standard:
- ANSI/CAN/UL 2743:2023 — Standard for Safety of Portable Jump Starters. This is a harmonised American National Standard and Canadian standard covering portable battery-based jump starters including those incorporating an integrated air compressor. It addresses electrical safety, mechanical robustness, thermal performance, and abnormal condition resilience.
Key safety areas verified under UL 2743:2023 include:
- Electrical safety — power input limits, charging system integrity, output short-circuit protection, and reverse polarity protection.
- Thermal safety — normal temperature operation and overcharge protection for the 4S1P lithium cell pack.
- Mechanical durability — vibration, impact, drop, hydrostatic strength, cold bend, and mold stress tests confirming the enclosure and cable assembly withstand real-world stresses.
- Clamp and ampacity — booster cable clamps and internal conductors are validated to safely carry the rated 180 A start current.
No subcontracting of test items to external laboratories was declared. All tests were performed in-house at the Waltek Dongguan facility.
Validity & Certification Body
The test report WTH25D12338135S was issued on 2025-12-31 by:
| Field | Detail |
|---|---|
| Laboratory Name | Waltek Testing Group Co., Ltd. |
| Laboratory Website | http://www.waltek.com.cn |
| Laboratory Address | No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China |
| Telephone | +86-769-2267 6998 |
| Fax | +86-769-2267 6828 |
| Compiled By | Lucas Cao, Project Engineer |
| Approved By | Sam Qi, Designated Reviewer |
| Applicant / Manufacturer | Guangdong Bestek Technology Co., Ltd. |
Important validity notice: The results documented in report WTH25D12338135S apply exclusively to the specific sample(s) tested. The report may not be reproduced except in full, and only with prior written permission from Waltek Testing Group. The report is considered invalid without the official stamp of the test institute together with the signatures of the compiler and approver.
Frequently Asked Questions
- What does ANSI/CAN/UL 2743:2023 certification mean for the X5 Pro?
-
It means the X5 Pro has been independently tested by an accredited laboratory — Waltek Testing Group — and confirmed to meet the safety requirements of ANSI/CAN/UL 2743:2023, the North American safety standard for portable jump starters. This covers electrical, thermal, and mechanical safety and is required for legal sale in the US and Canadian markets.
- Which tests did the X5 Pro pass under UL 2743?
-
The X5 Pro passed all applicable clauses including Power Input, Normal Charging, Lithium Charging System, Normal Temperature, Overcharging, Short Circuit, Reverse Polarity, Component Fault, Vibration, Impact, Drop, Mold Stress, Hydrostatic Strength, Ampacity, Cold Bend, and Clamp Tests. Full details are recorded in report reference WTH25D12338135S.
- What is the peak jump-start current of the X5 Pro?
-
The X5 Pro is rated at a peak start current of 180 A. The unit uses a 4-cell series lithium battery pack (4S1P) with a capacity of 1500 mAh and accepts charging via Type-C at 5 V DC / 2 A.
- Who conducted the UL 2743 testing and where?
-
All testing was conducted by Waltek Testing Group Co., Ltd. at their Dongguan, Guangdong facility (No. 77, Houjie Section, Guantai Road, Houjie Town). No test items were subcontracted to other laboratories. The report was compiled by Lucas Cao and approved by Sam Qi.
Related Documents
The following certification and compliance documents are typically associated with a product of this type and may be relevant for the X5 Pro:
- UN 38.3 Transportation Test Report — Required for international air and sea shipment of lithium battery products. Verifies the 4S1P cell pack meets UN 38.3 transport safety requirements.
- CE Declaration of Conformity (LVD / EMC) — Required for sale in the European Economic Area. Covers Low Voltage Directive and Electromagnetic Compatibility Directive compliance.
- FCC Declaration of Conformity — Required for the US market to confirm the device does not cause harmful radio frequency interference, per FCC regulations.
- RoHS Compliance Certificate — Confirms the product is free from restricted hazardous substances (lead, mercury, cadmium, etc.) as required by the EU RoHS Directive.
- REACH SVHC Declaration — Confirms compliance with REACH regulations regarding substances of very high concern in product materials.
- KC Certification — Required for sale in South Korea under the KC mark safety scheme.
- Battery Cell IEC 62133 Test Report — Cell-level safety certification for the lithium cells used in the 4S1P pack, per IEC 62133.
