Document Overview
This page presents the CE Electromagnetic Compatibility (EMC) test report for the Helios J1 Portable Automotive Jump Starter. The report was issued by Waltek Testing Group HCT (Shenzhen) Co., Ltd., an accredited electromagnetic compatibility testing laboratory located in Longgang District, Shenzhen, Guangdong, China.
| Field | Detail |
|---|---|
| Report Reference Number | WTH25H06163591R1E |
| Test Report Form Number | TRF EN IEC 55014-1: 2021-EMC-001-V01 |
| Internal Lab Reference | HCT/RF-23-21 |
| Document Type | CE-EMC Test Report |
| Issuing Body | Waltek Testing Group HCT (Shenzhen) Co., Ltd. |
| Date Sample Received | 2025-06-23 |
| Date of Testing | 2025-06-24 to 2025-06-27 |
| Date of Issue | 2025-09-23 |
| Overall Test Result | Pass |
The scope of this report covers electromagnetic emissions testing — including conducted disturbances at mains terminals, disturbance power in the frequency range, and radiated disturbances — as required under the applicable CE marking directives for portable power equipment sold in the European Economic Area.

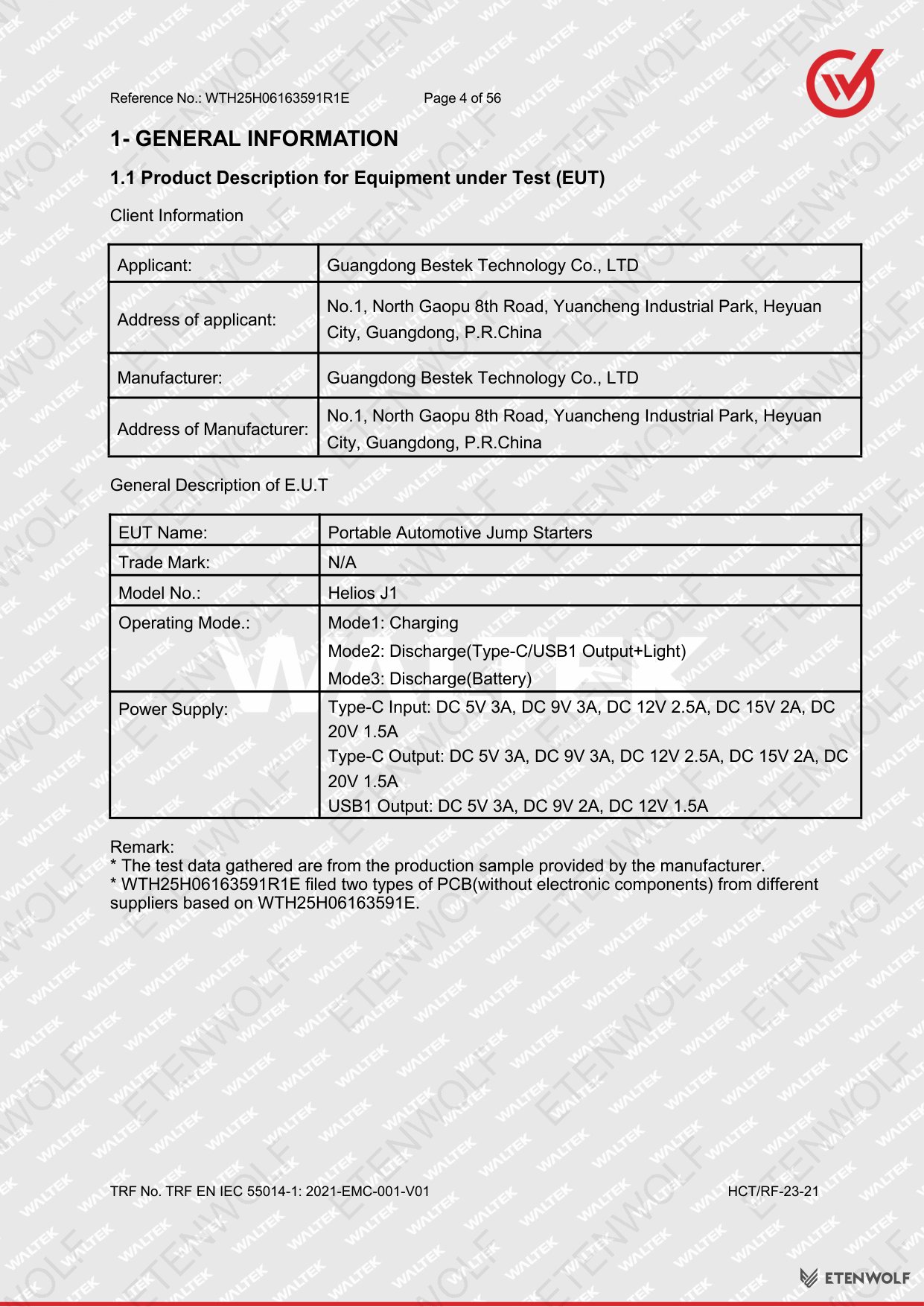

Product Information
The equipment under test (EUT) is the Helios J1, a portable automotive jump starter designed to provide emergency starting power for vehicles without requiring a secondary vehicle or external power source.
| Field | Detail |
|---|---|
| Product Name | Portable Automotive Jump Starter |
| Model Number | Helios J1 |
| Applicant | Guangdong Bestek Technology Co., Ltd. |
| Manufacturer | Guangdong Bestek Technology Co., Ltd. |
| Manufacturer Address | No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China |
| Product Category | Portable automotive starting and power supply equipment |
The Helios J1 is a battery-powered, handheld device intended for use in automotive environments. As a portable electronic product containing internal lithium battery cells and power electronics, it is subject to electromagnetic emissions requirements to ensure it does not cause harmful interference to other equipment or radio communications.
Key Details
The test report covers four primary EMC test categories as defined by the applicable standards. The following table summarises the test areas, the corresponding standard clauses, and the outcome of each evaluation.
| Test Category | Standard Reference | Report Section | Result |
|---|---|---|---|

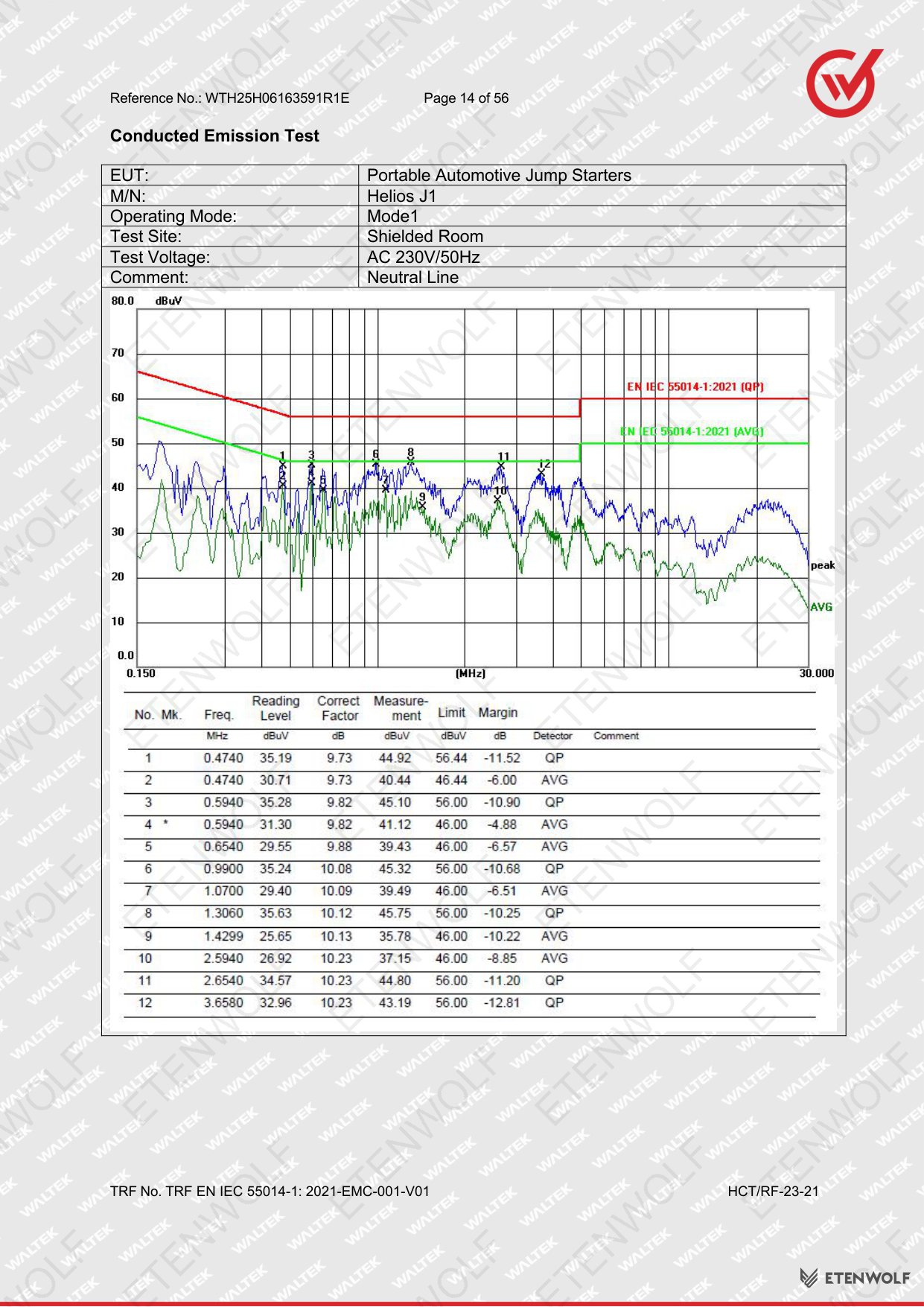

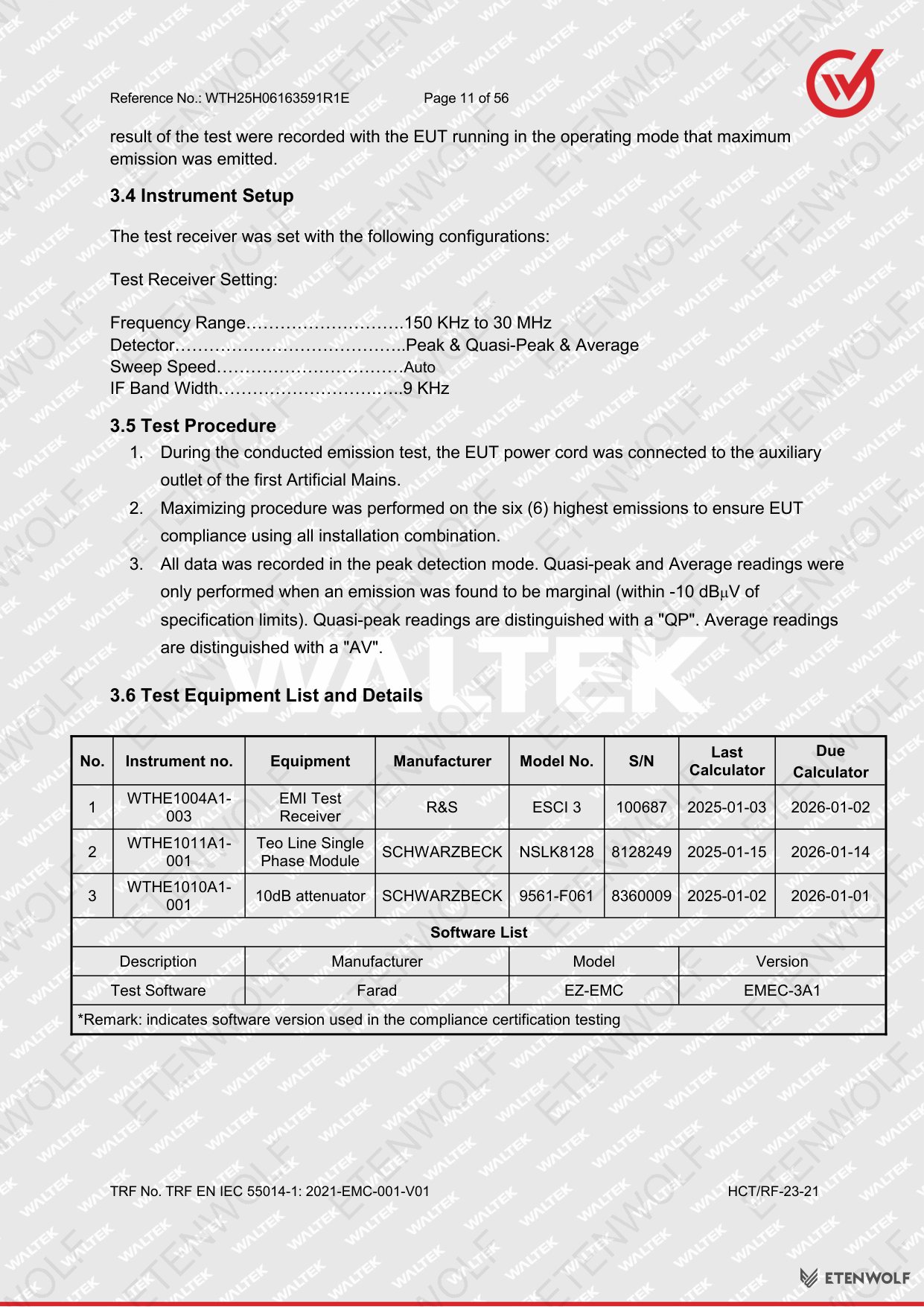

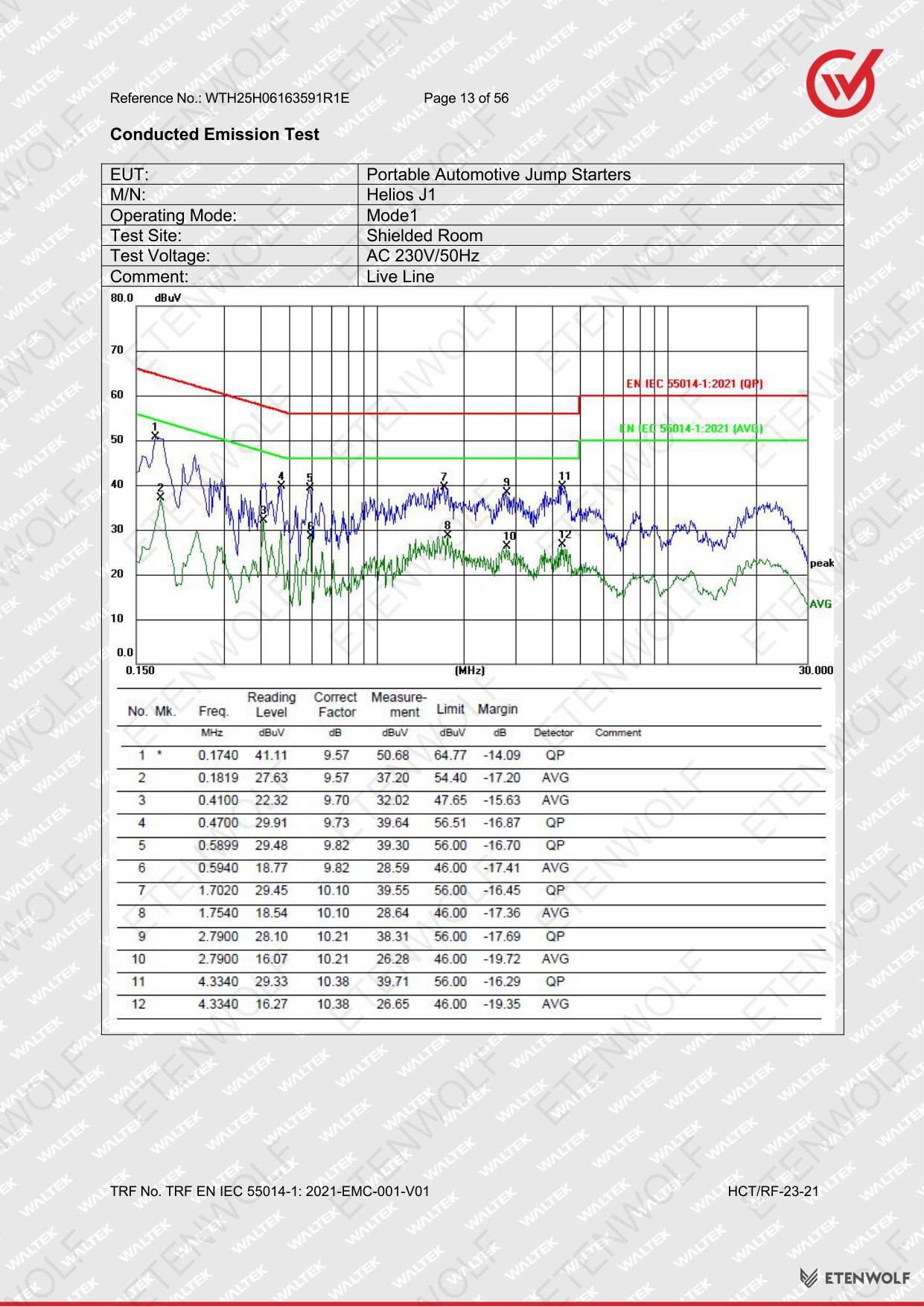

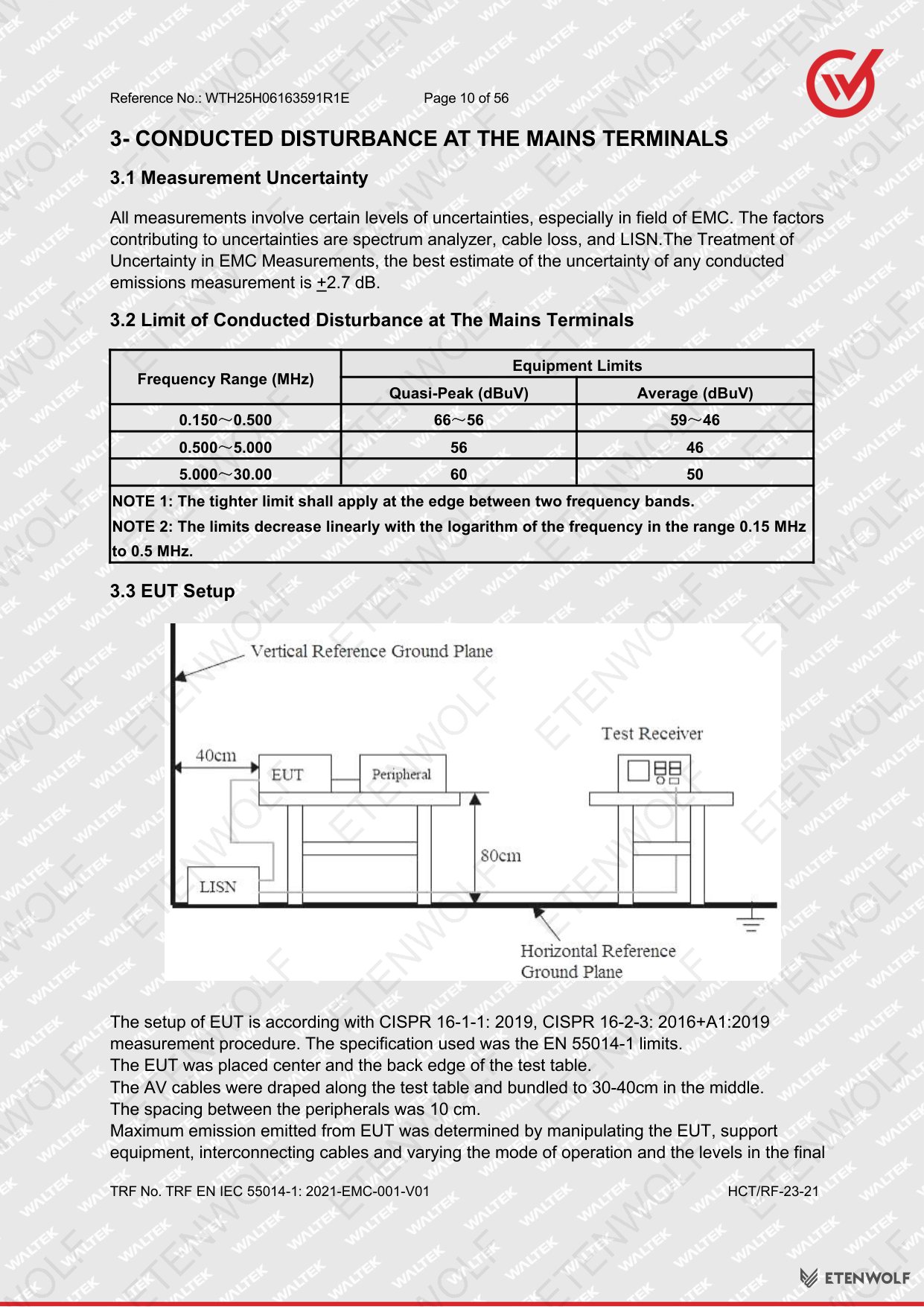

| Conducted Disturbance at Mains Terminals | EN IEC 55014-1: 2021 | Section 3 | Pass |

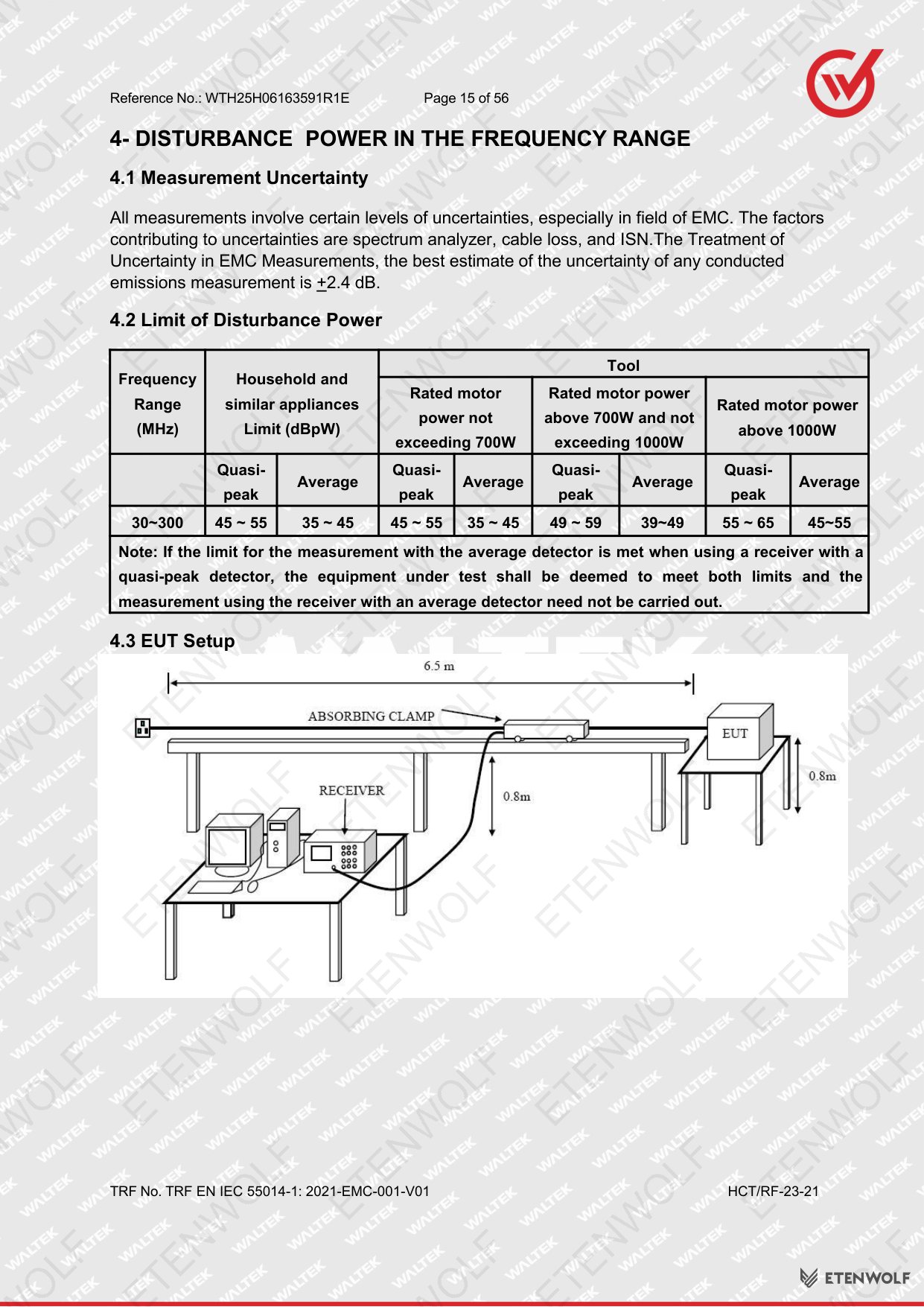

| Disturbance Power in Frequency Range | EN IEC 55014-1: 2021 | Section 4 | Pass |

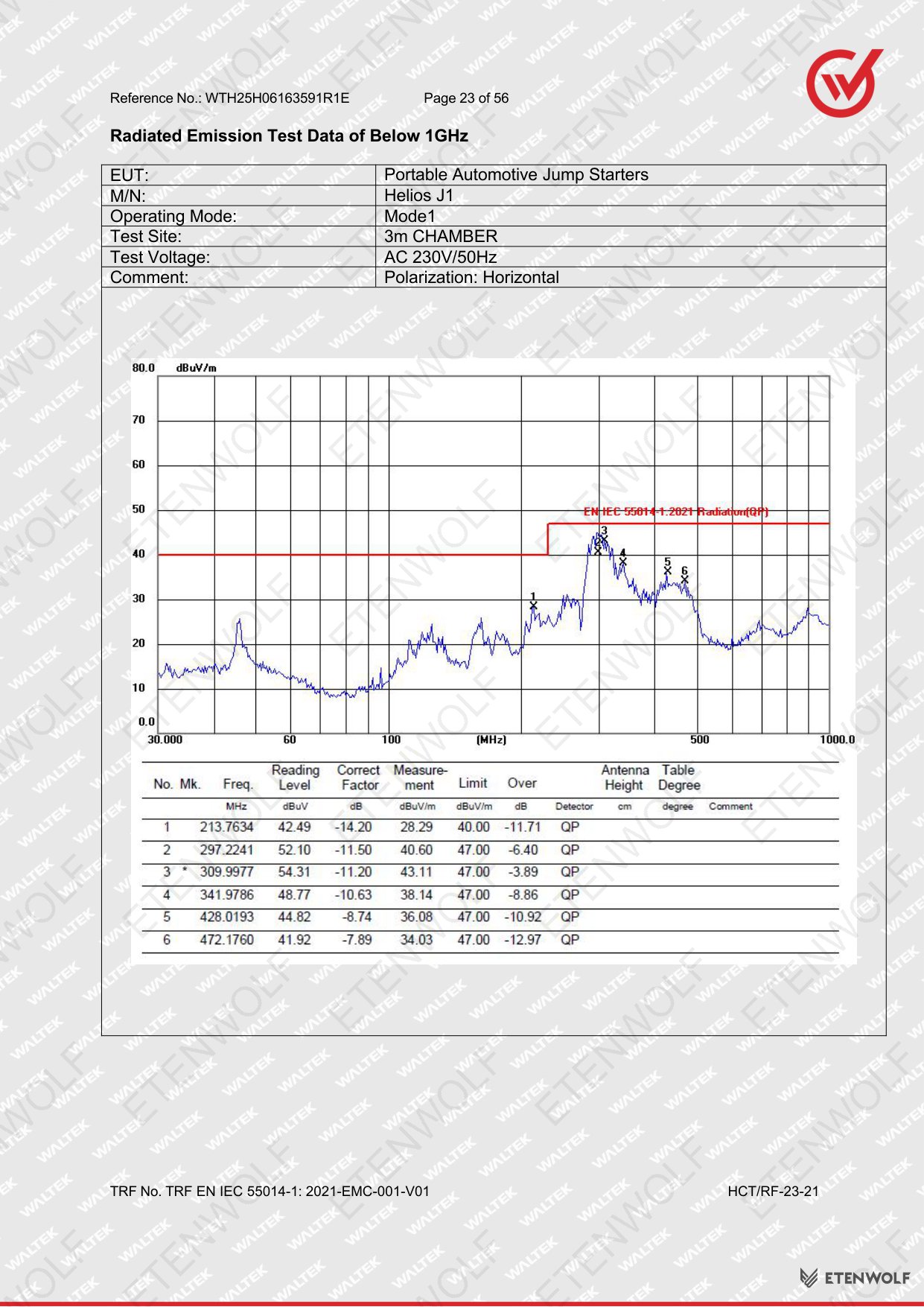

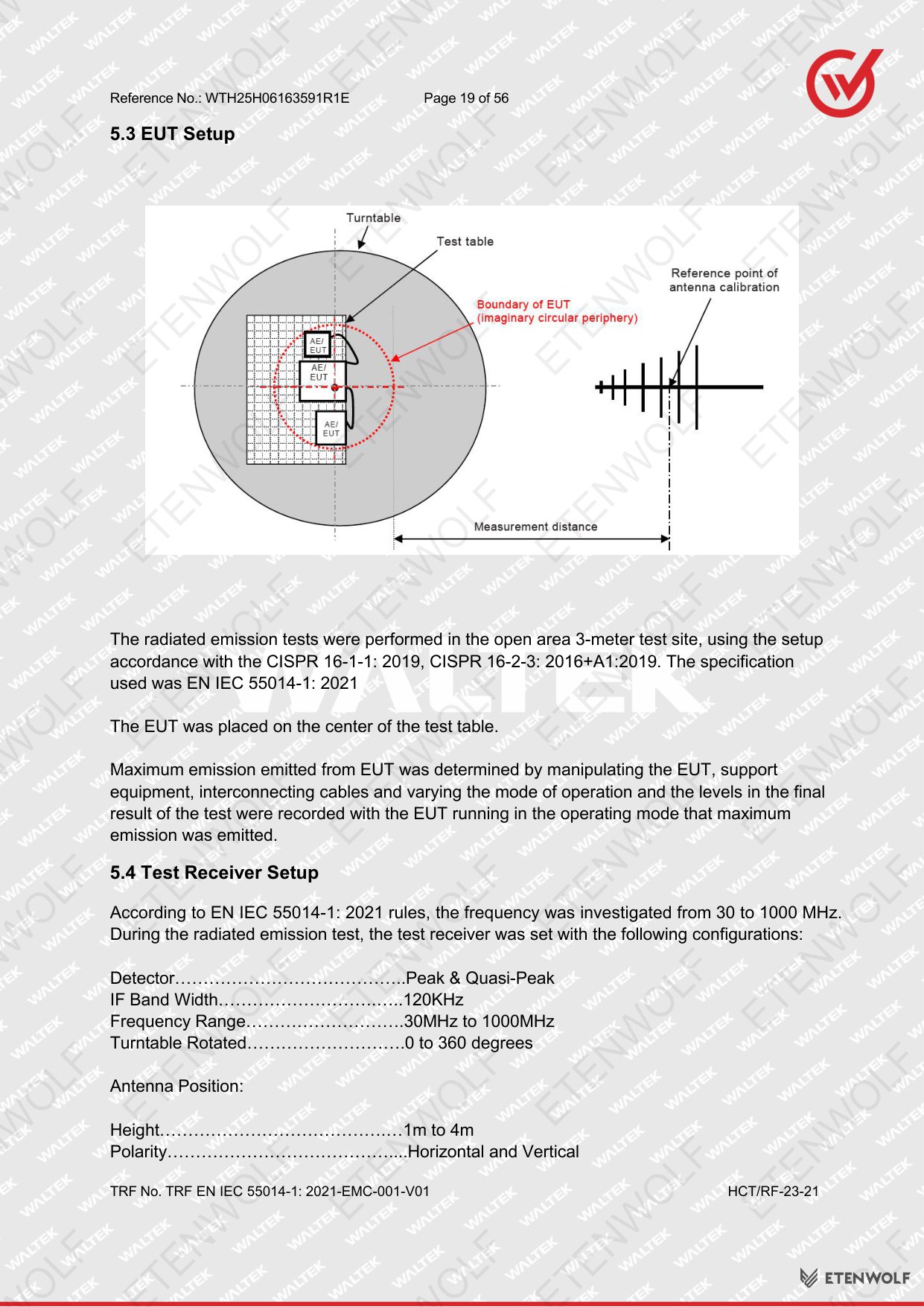

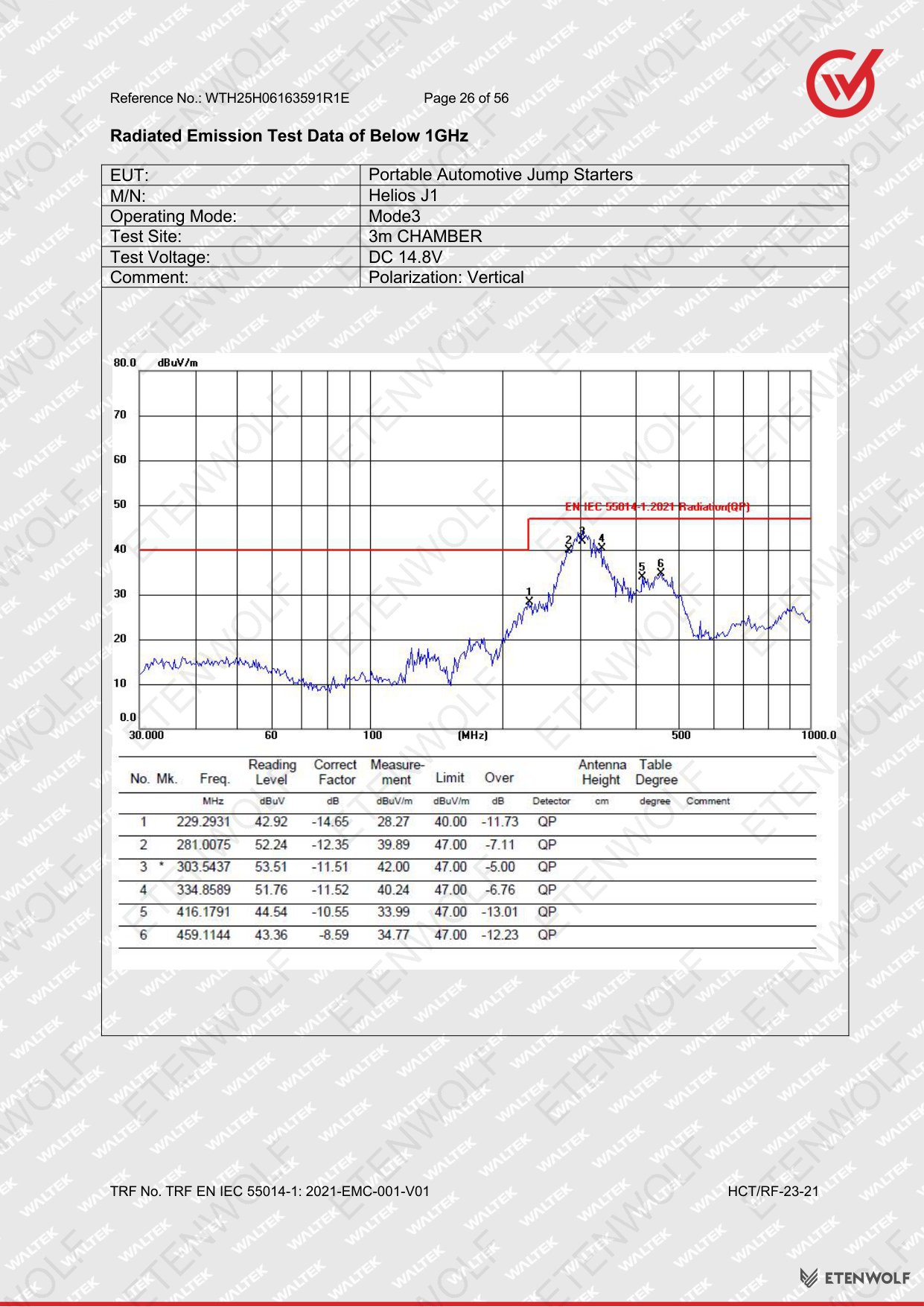

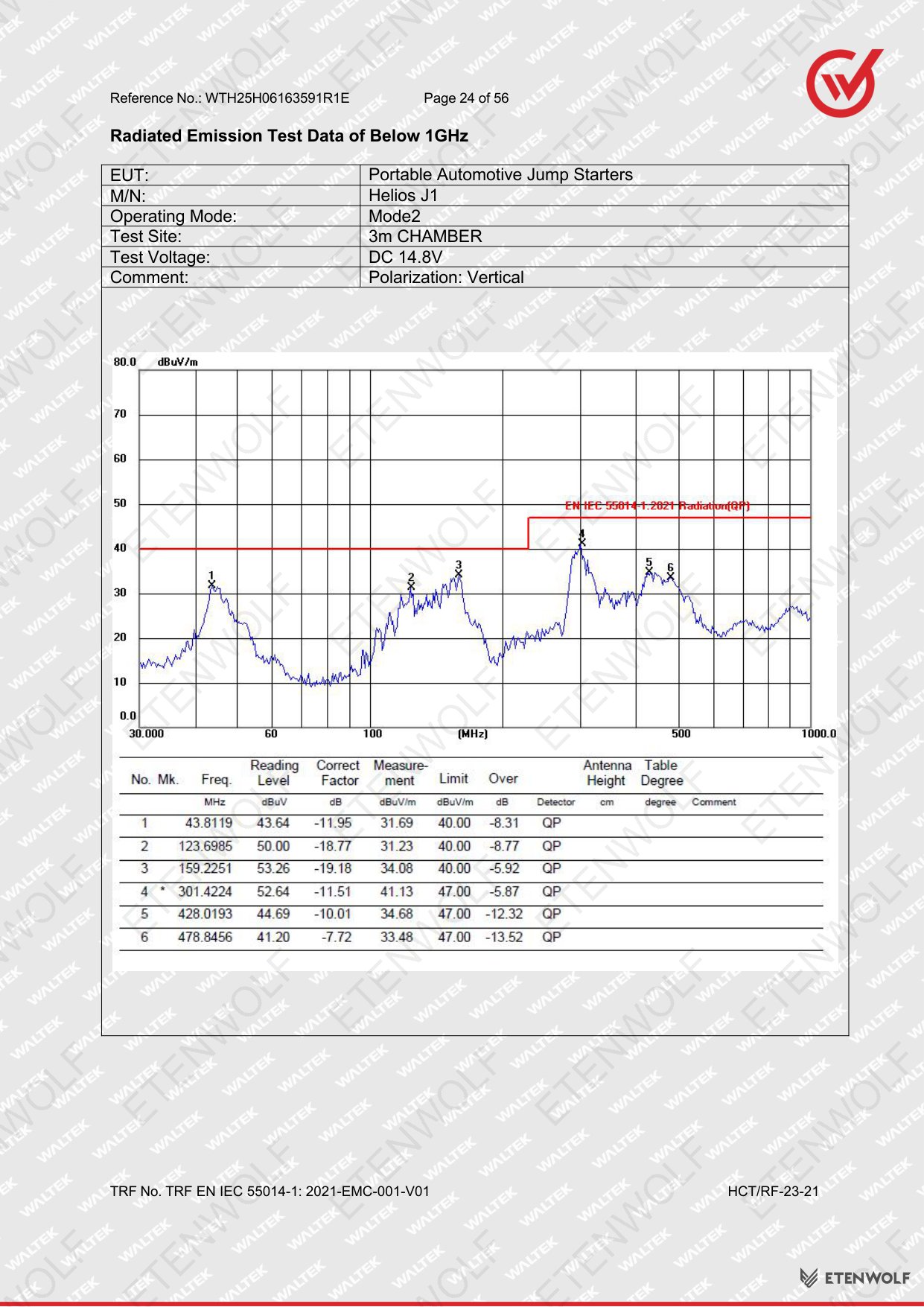

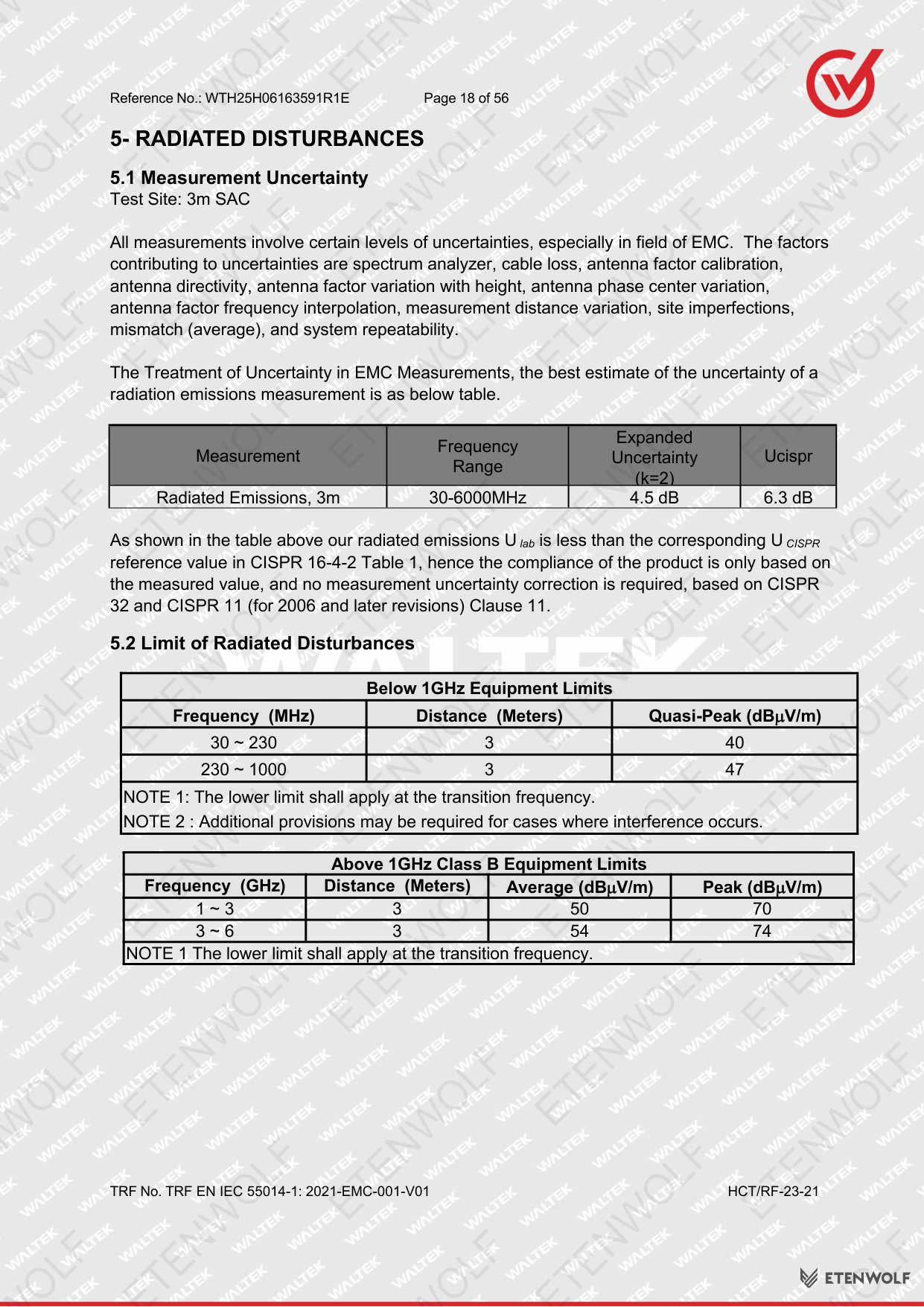

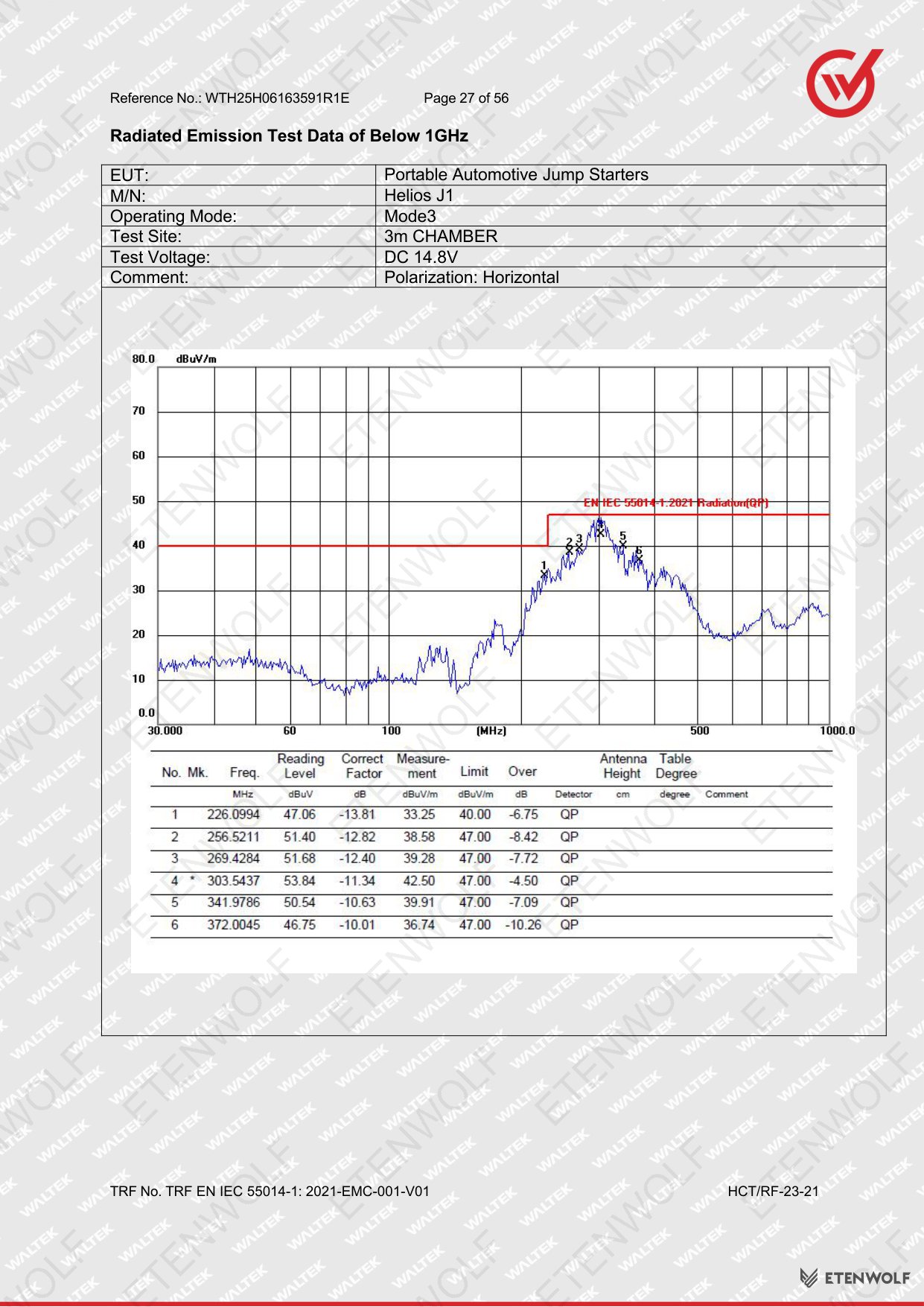

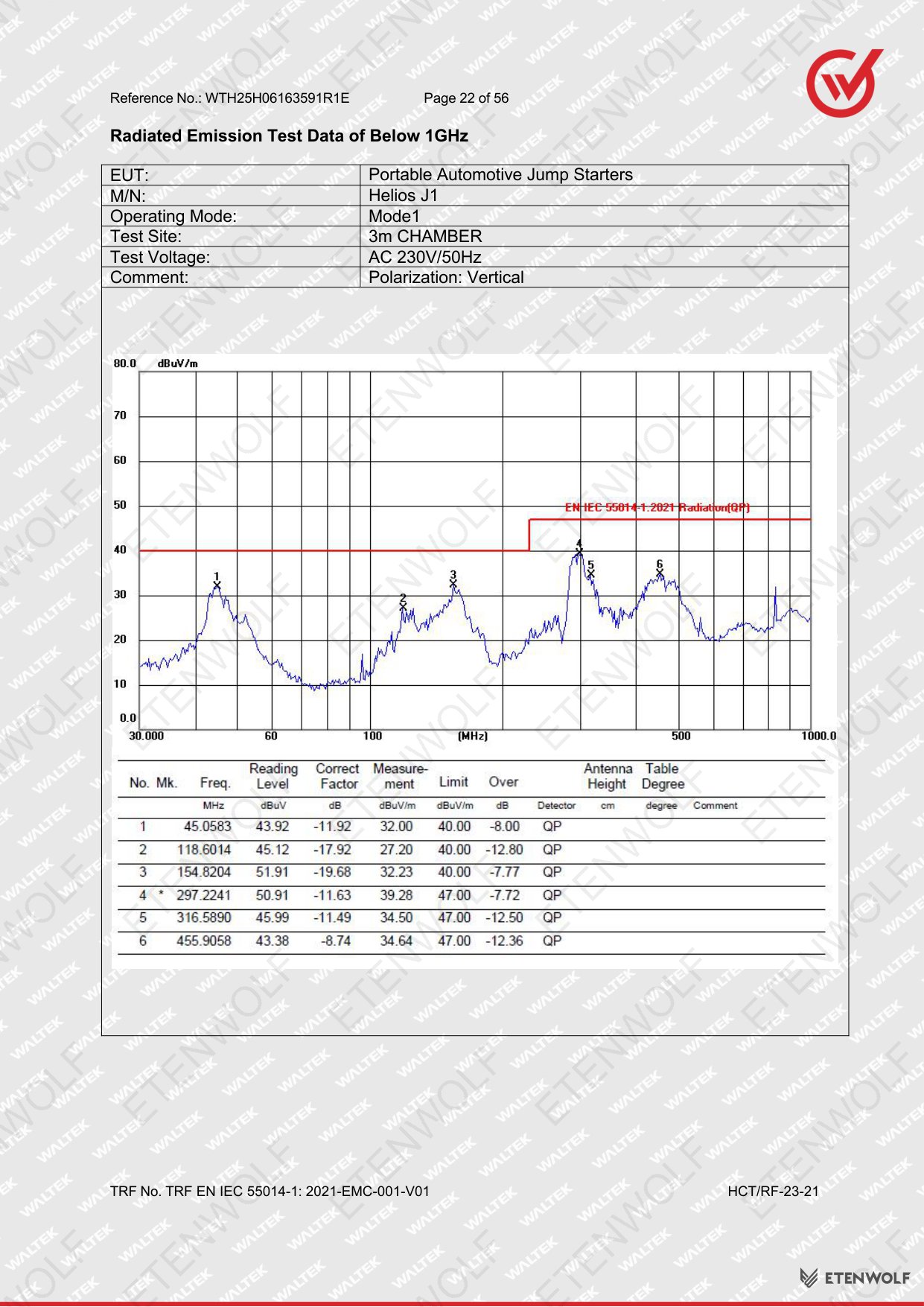

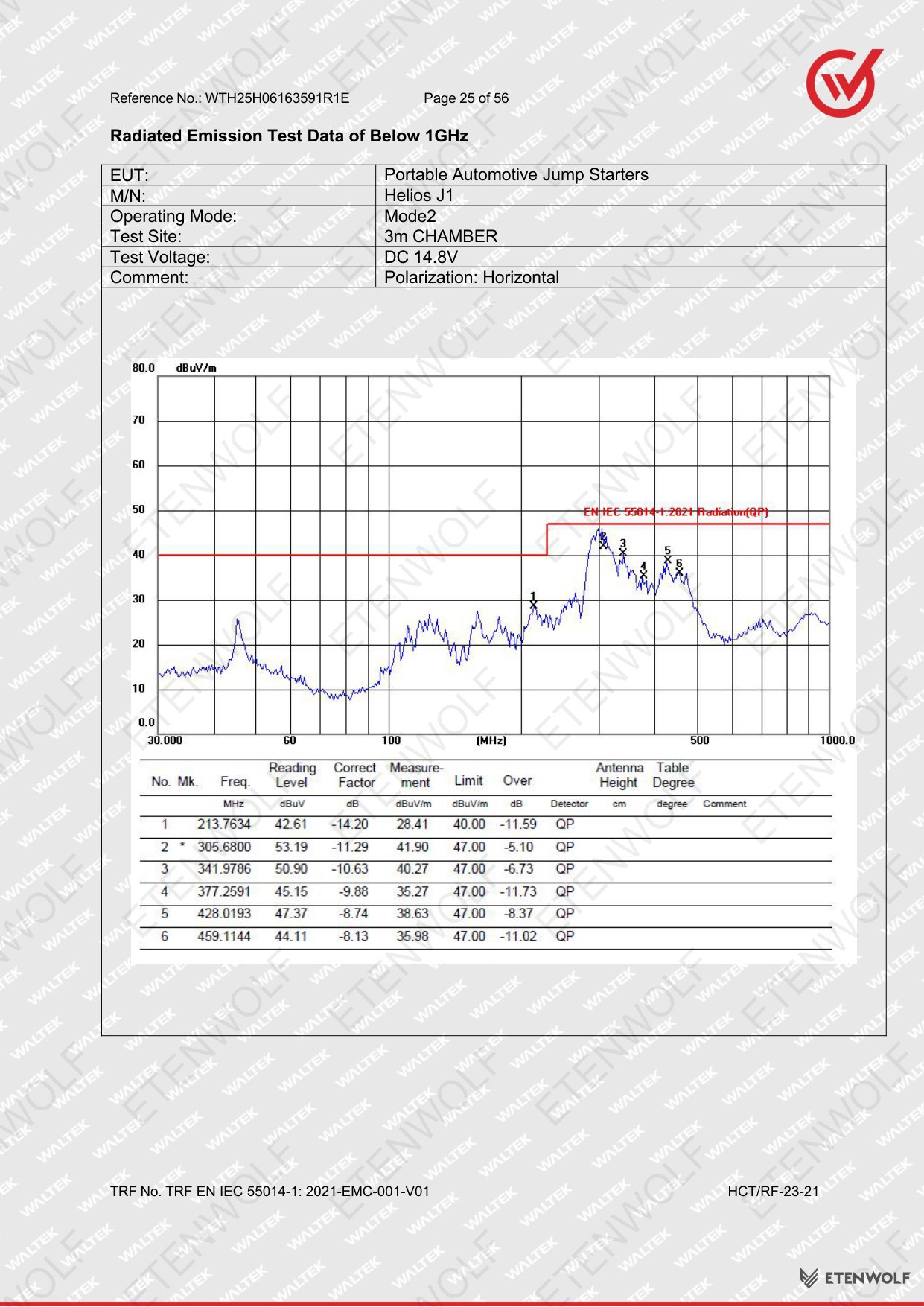

| Radiated Disturbances | EN IEC 55014-1: 2021 | Section 5 | Pass |

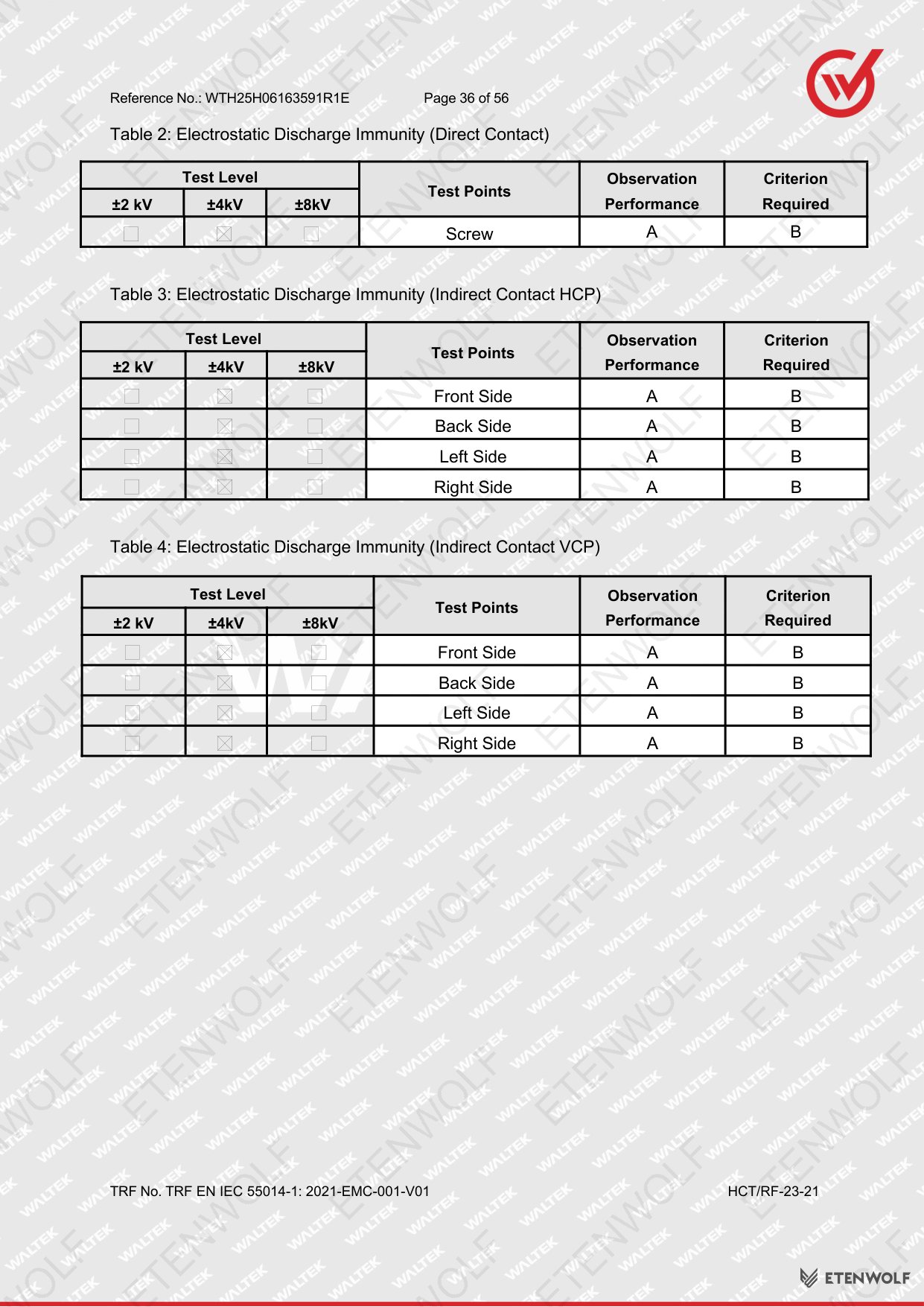

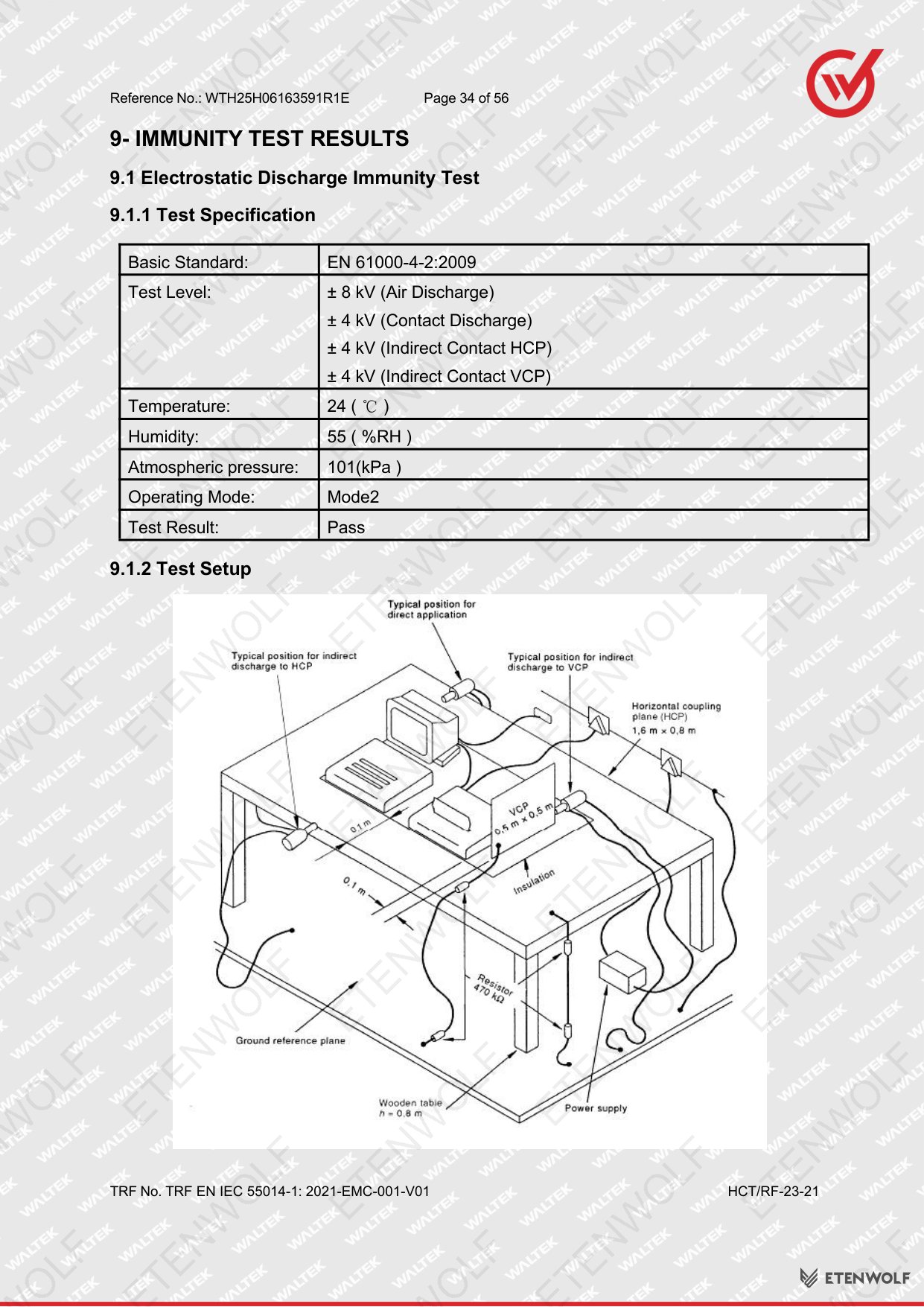

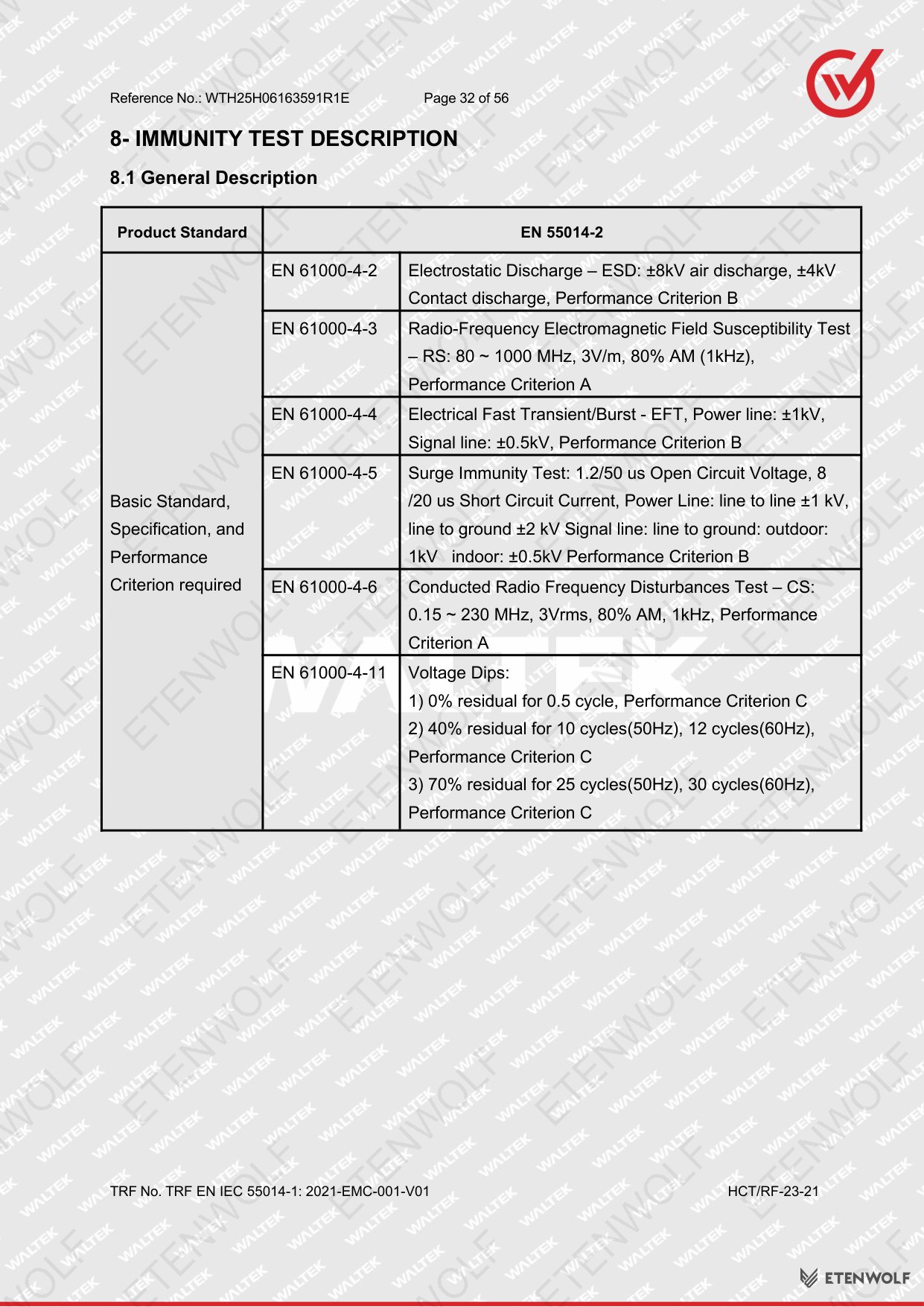

| Immunity (General) | EN IEC 55014-2: 2021 | Sections 6+ | Pass |

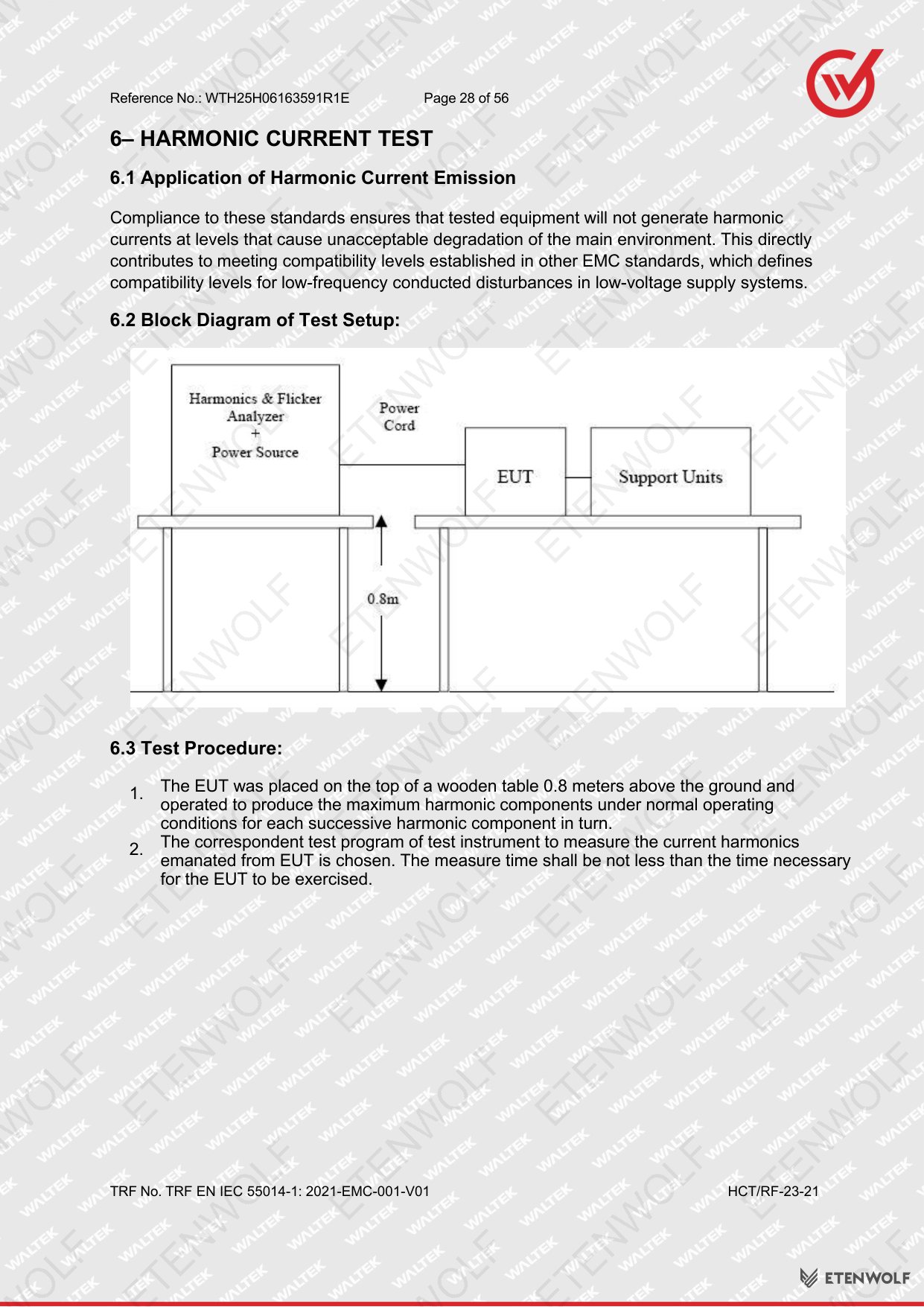

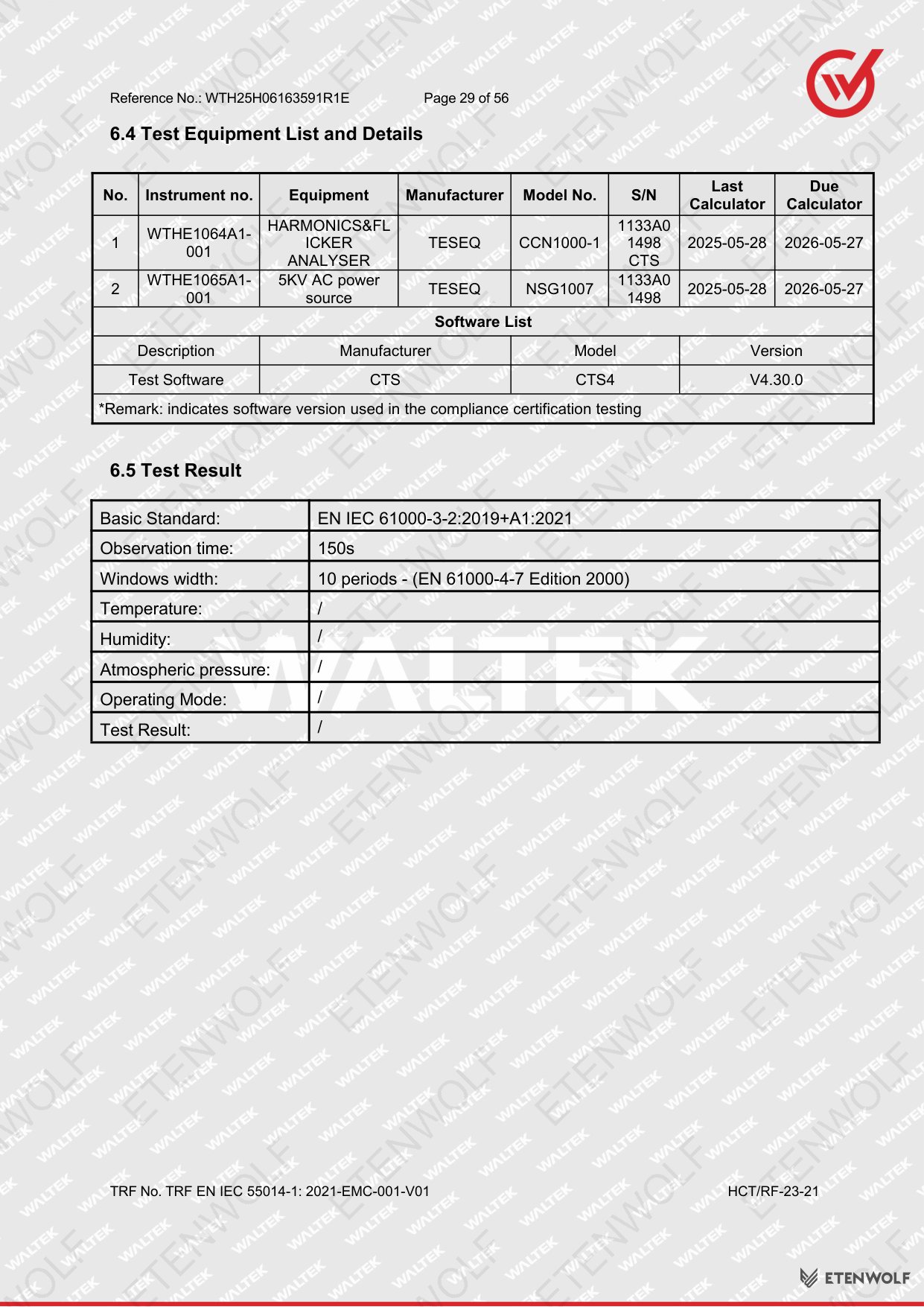

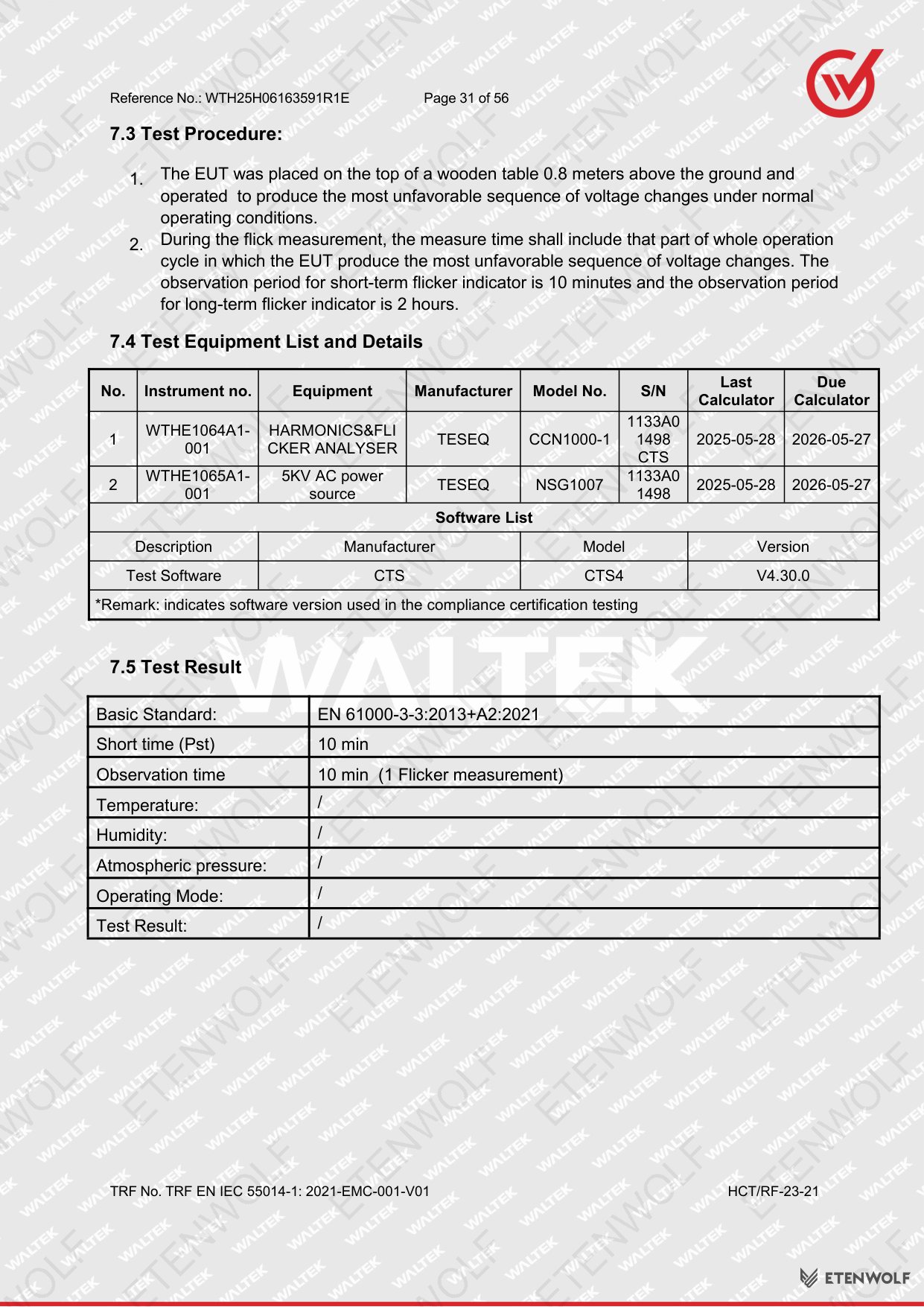

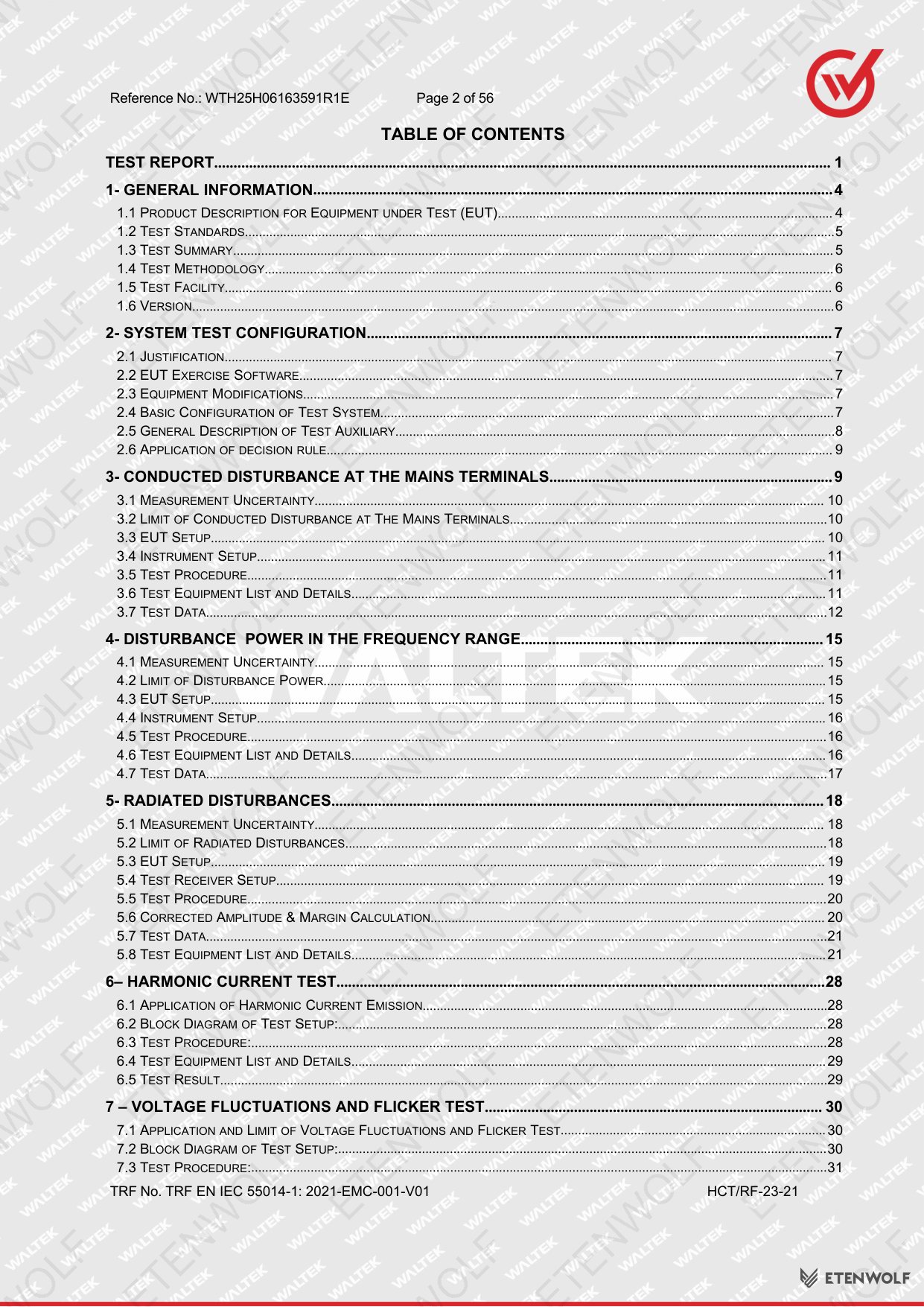

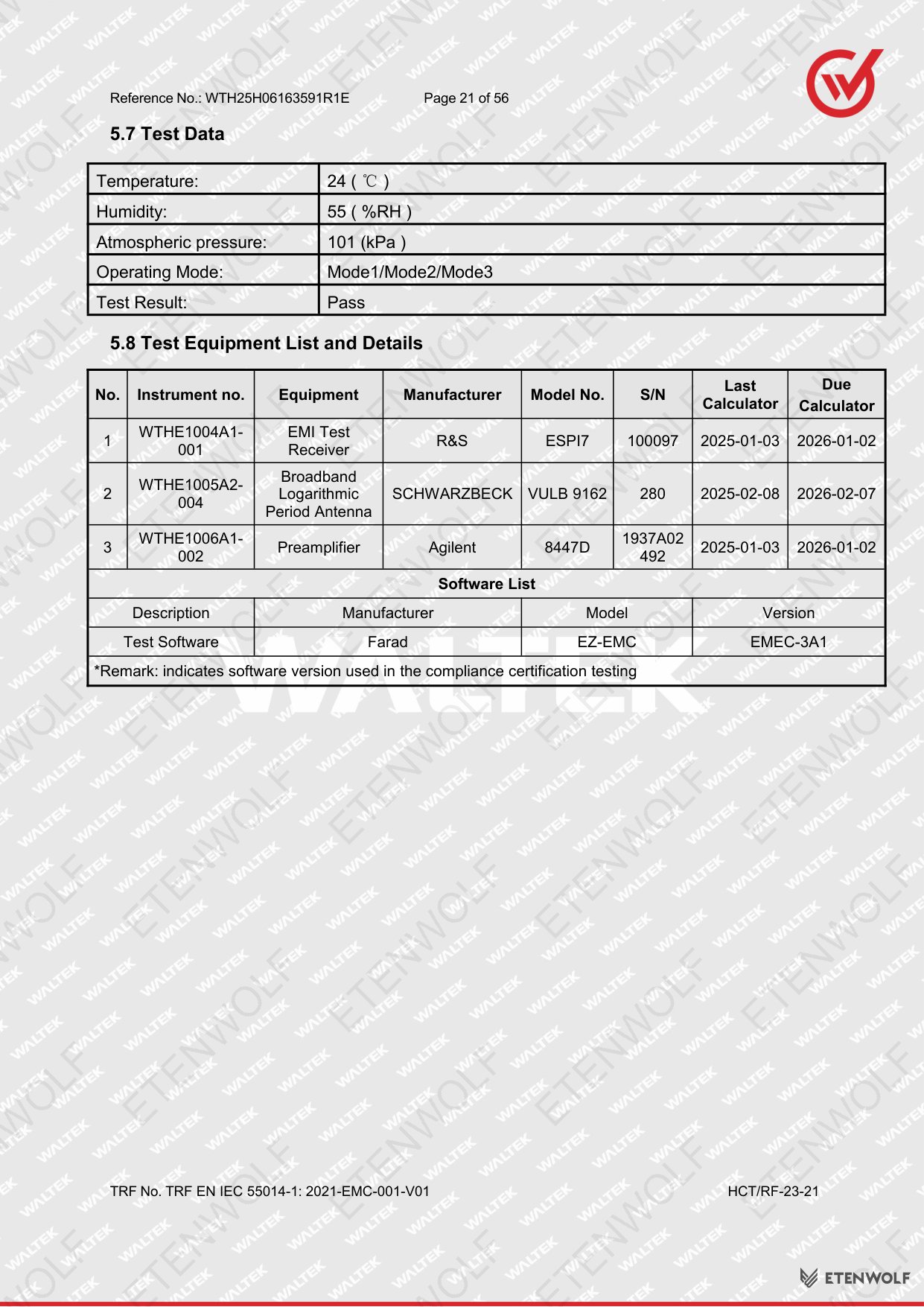

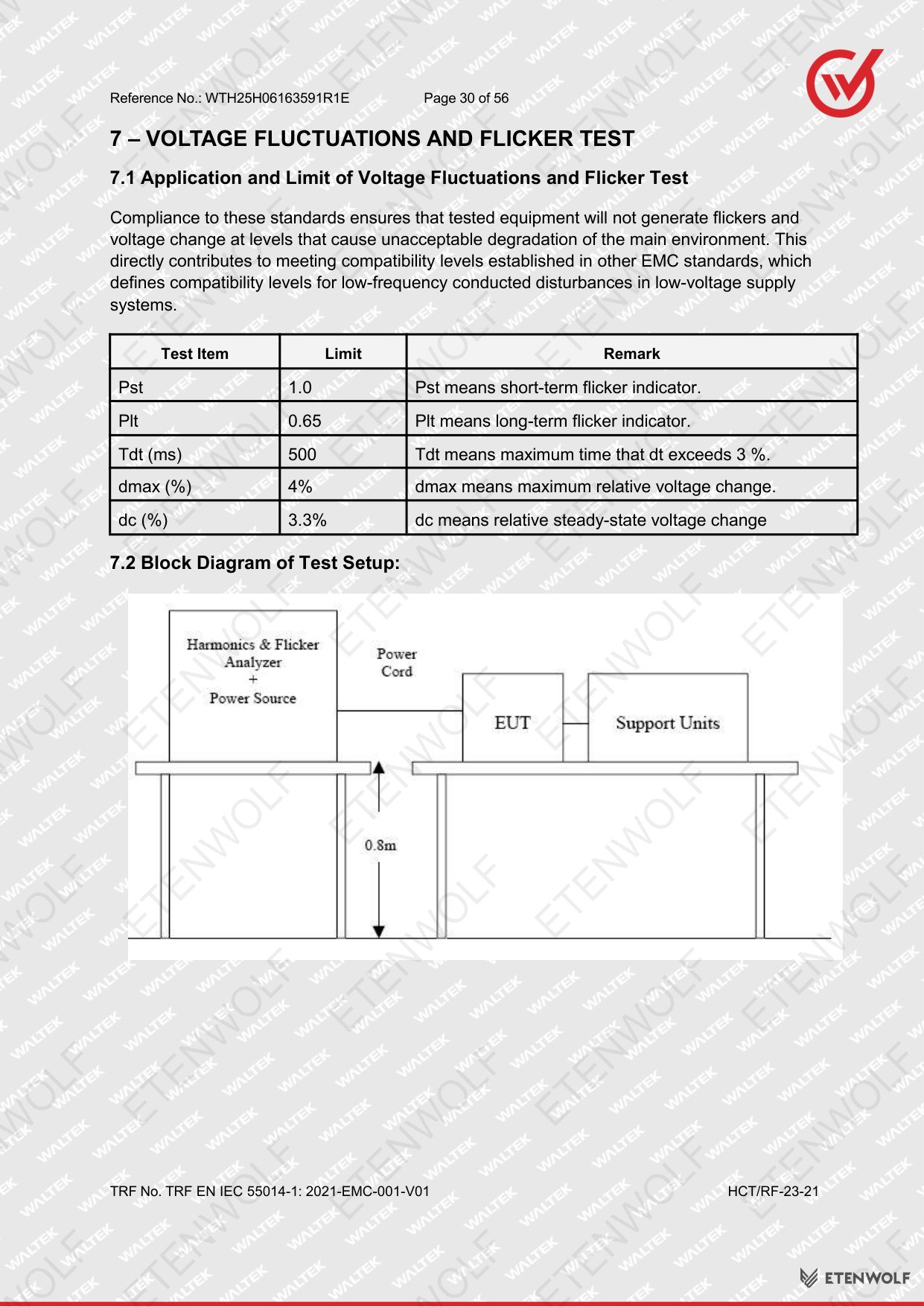

Additional supporting measurements were carried out in accordance with EN IEC 61000-3-2:2019+A1:2021 (harmonic current emissions) and EN 61000-3-3:2013+A2:2021 (voltage fluctuations and flicker). The full 56-page report documents detailed measurement uncertainty budgets, EUT configuration, instrument setup, and tabulated test data for each section.

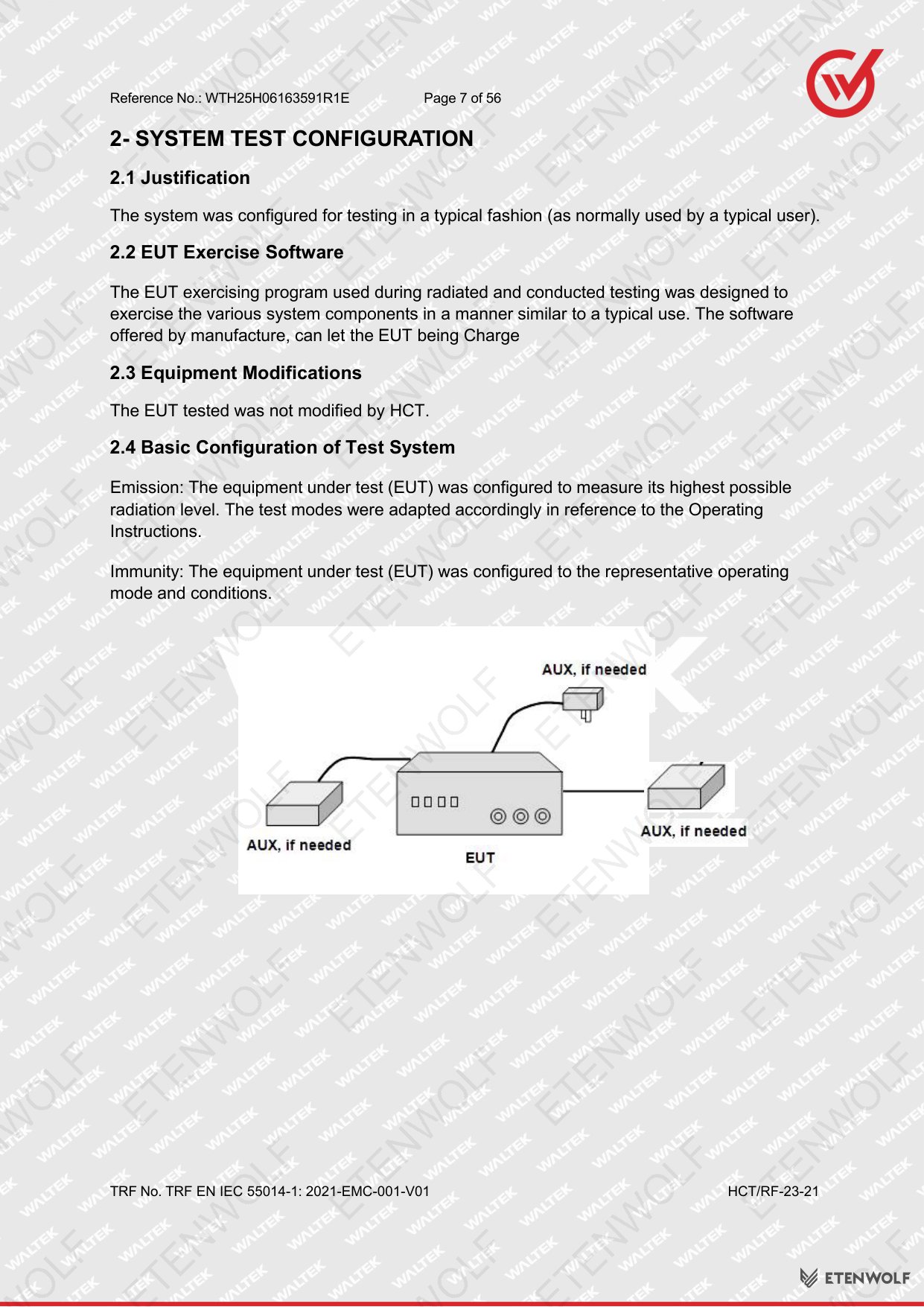

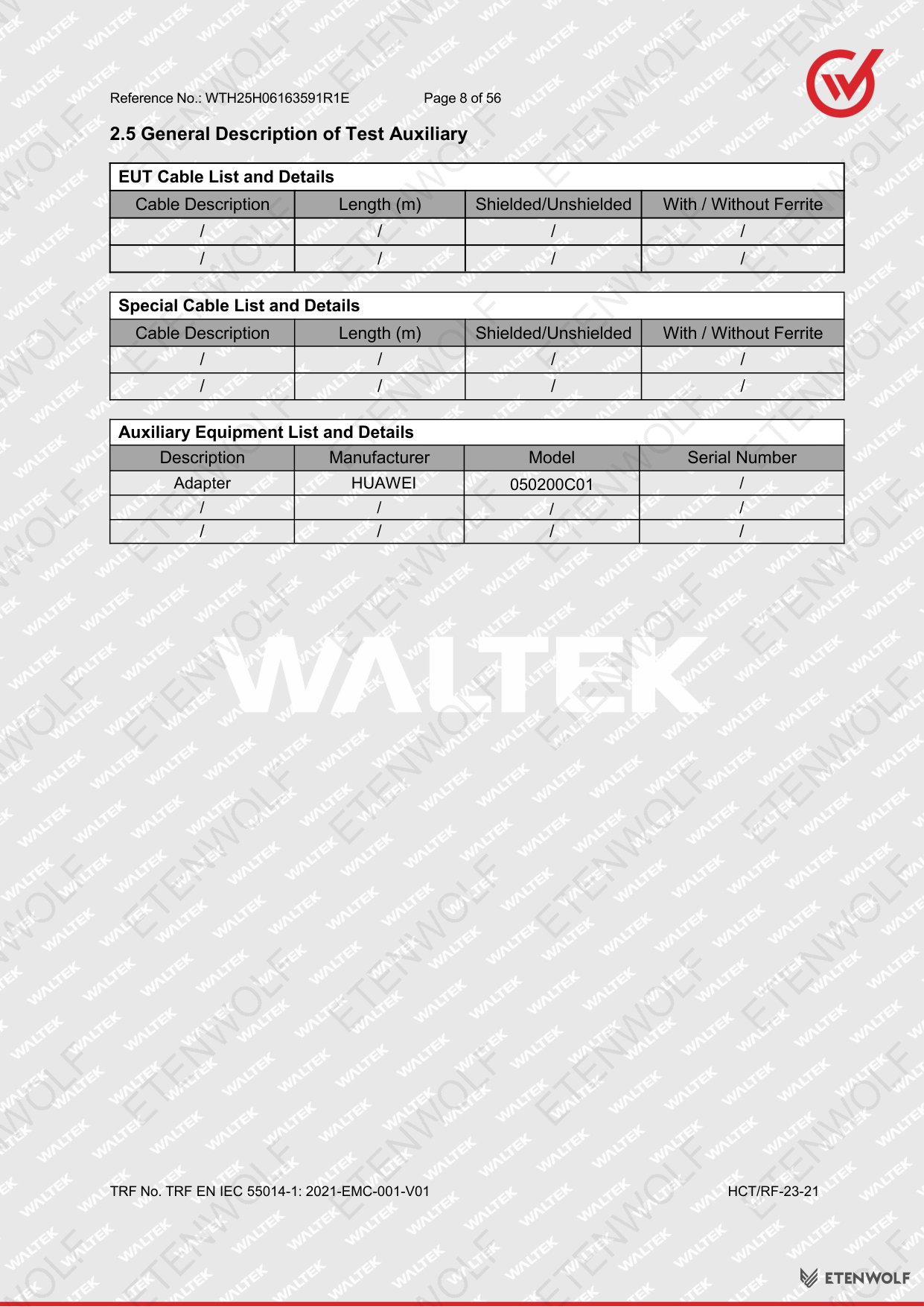

The test system configuration included justification documentation, EUT exercise software details, equipment modification records, basic test system configuration, general description of test auxiliaries, and a defined decision rule applied consistently throughout testing.
Standards & Compliance
The Helios J1 was evaluated against the following European harmonised standards as required for CE marking under the Radio Equipment Directive (RED) and Electromagnetic Compatibility Directive (2014/30/EU).

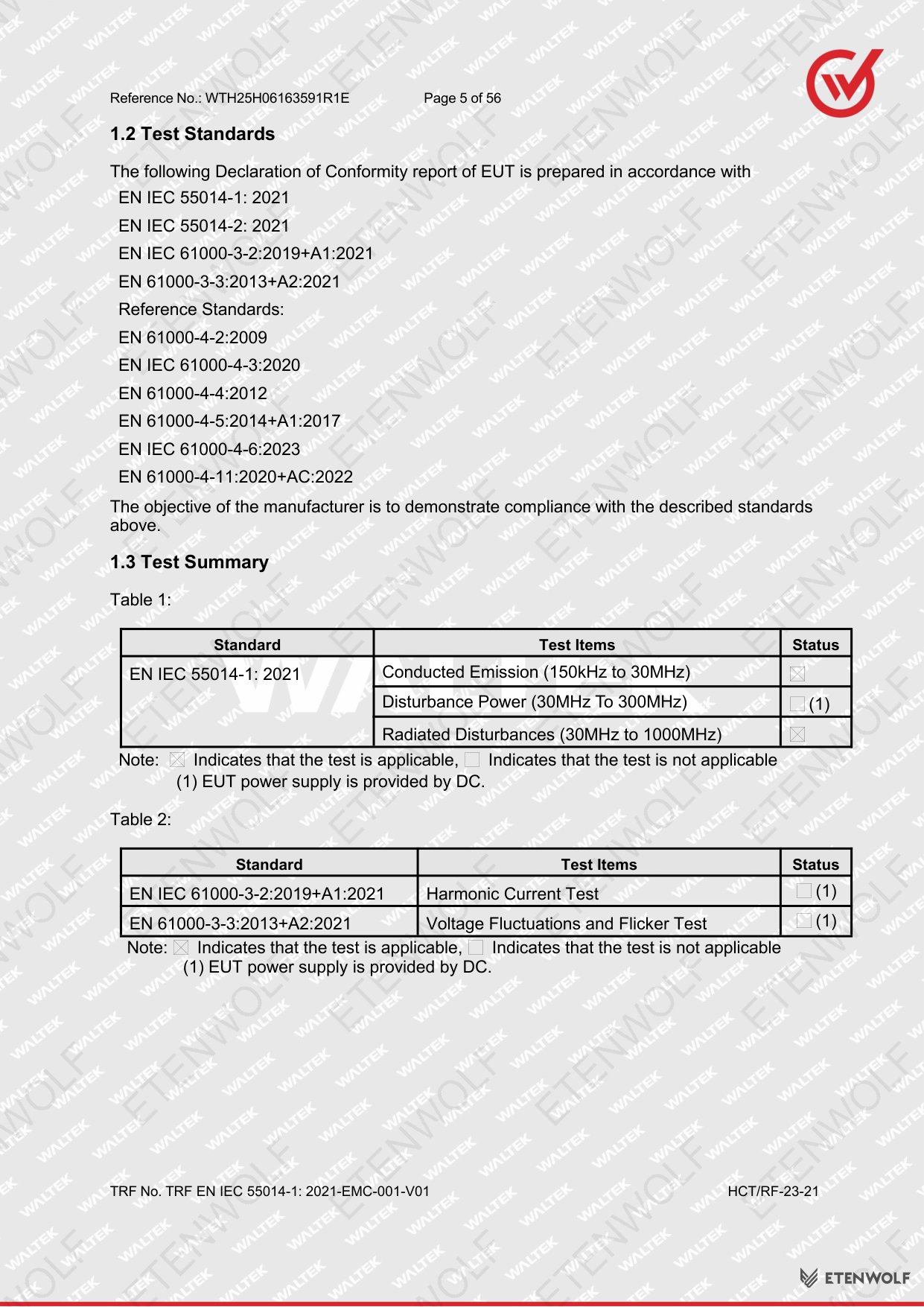

| Standard | Title / Scope | Edition Applied |
|---|---|---|
| EN IEC 55014-1: 2021 | Electromagnetic compatibility — Requirements for household appliances, electric tools and similar apparatus — Part 1: Emission | 2021 |
| EN IEC 55014-2: 2021 | Electromagnetic compatibility — Requirements for household appliances, electric tools and similar apparatus — Part 2: Immunity | 2021 |
| EN IEC 61000-3-2:2019+A1:2021 | Electromagnetic compatibility — Limits for harmonic current emissions (equipment input current ≤16 A per phase) | 2019 + Amendment 1:2021 |
| EN 61000-3-3:2013+A2:2021 | Electromagnetic compatibility — Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems | 2013 + Amendment 2:2021 |

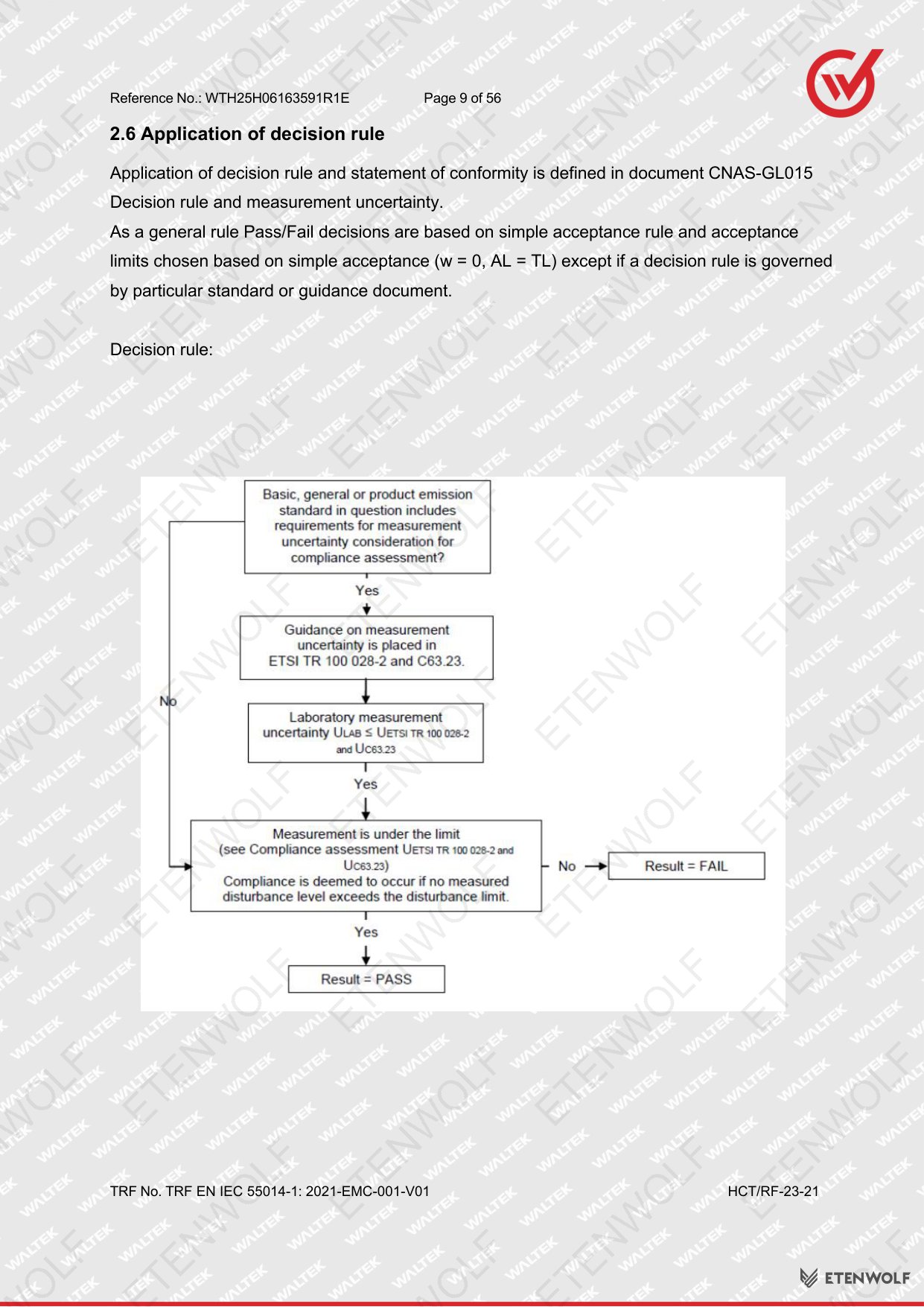

All test methods were applied using the test report form TRF EN IEC 55014-1: 2021-EMC-001-V01. Measurement uncertainty was documented per section and applied in accordance with the laboratory’s accreditation requirements. A formal decision rule was applied to all pass/fail determinations, consistent with ILAC guidelines on measurement uncertainty.
Validity & Certification Body
This test report was prepared and issued by Waltek Testing Group HCT (Shenzhen) Co., Ltd., operating under internal lab reference HCT/RF-23-21. The laboratory is part of the Waltek Testing Group network, which provides accredited testing services for CE, FCC, KC, and other international market access certifications.
| Field | Detail |
|---|---|
| Laboratory Name | Waltek Testing Group HCT (Shenzhen) Co., Ltd. |
| Laboratory Address | Building B, Tianji Industrial Park, 1/F, 2/F & 3/F, No.30-9, Laiyin Road, Xinsheng Community, Longgang Subdistrict, Longgang District, Shenzhen, Guangdong, China |
| Contact Telephone | 0755-84616666 |
| Service Hotline | 400-0066-989 |
| Service Email | [email protected] |
| Report Prepared By | Snow Zeng |
| Report Approved By | Tony Wu |
| Date of Issue | 2025-09-23 |
The validity of this test report is tied to the product configuration tested. Any modifications to the hardware, firmware, internal circuitry, or enclosure of the Helios J1 that could affect electromagnetic emissions or immunity performance would require re-evaluation. The report is valid for CE marking purposes for the exact model and configuration described herein.
Frequently Asked Questions
- What does CE-EMC certification mean for the Helios J1?
-
CE-EMC certification confirms that the Helios J1 meets the electromagnetic compatibility requirements of the European Union’s EMC Directive (2014/30/EU). This means the device does not emit electromagnetic interference beyond permitted limits and is sufficiently immune to interference from other equipment — making it safe and legal to sell throughout the European Economic Area.
- Which specific standards were used to test the Helios J1?
-
The Helios J1 was tested against four harmonised standards: EN IEC 55014-1:2021 (emissions), EN IEC 55014-2:2021 (immunity), EN IEC 61000-3-2:2019+A1:2021 (harmonic currents), and EN 61000-3-3:2013+A2:2021 (voltage fluctuations and flicker). All tests returned a Pass result.
- Who issued the test report and is the laboratory accredited?
-
The report reference WTH25H06163591R1E was issued by Waltek Testing Group HCT (Shenzhen) Co., Ltd., a professional EMC and safety testing laboratory based in Shenzhen, China. Waltek Testing Group operates accredited facilities that support CE, FCC, KC, and other international certification programmes. The report was prepared by Snow Zeng and approved by Tony Wu.
- Does this report cover both emissions and immunity testing?
-
Yes. The report covers emissions testing under EN IEC 55014-1:2021 — including conducted disturbances at mains terminals, disturbance power measurements, and radiated disturbances — as well as immunity testing under EN IEC 55014-2:2021. Both aspects are required for a complete CE-EMC declaration of conformity for the Helios J1.
Related Documents
For complete CE market access and regulatory compliance of the Helios J1, the following related certification and test documents are typically required alongside this CE-EMC report:
- CE-LVD Test Report — Low Voltage Directive (2014/35/EU) safety testing, typically covering IEC 62133 or equivalent battery safety standards for lithium-based portable power devices.
- UN 38.3 Transportation Test Report — Mandatory certification for lithium battery cells and packs for safe air, sea, and road transport. Covers altitude simulation, thermal, vibration, shock, external short circuit, impact, overcharge, and forced discharge tests.
- RoHS Compliance Report — Confirms restriction of hazardous substances (lead, mercury, cadmium, hexavalent chromium, PBB, PBDE) per EU RoHS Directive 2011/65/EU.
- REACH SVHC Declaration — Declaration confirming absence or disclosure of Substances of Very High Concern per REACH Regulation (EC) No 1907/2006.
- FCC ID Certification — Required for sale in the United States market, covering Part 15 radiated and conducted emissions requirements.
- KC Certification — Required for sale in the South Korean market under the Radio Waves Act and Electrical Appliances and Consumer Products Safety Management Act.
- CE Declaration of Conformity (DoC) — The formal manufacturer’s declaration referencing this and other supporting test reports, required to affix the CE mark to the product and its packaging.

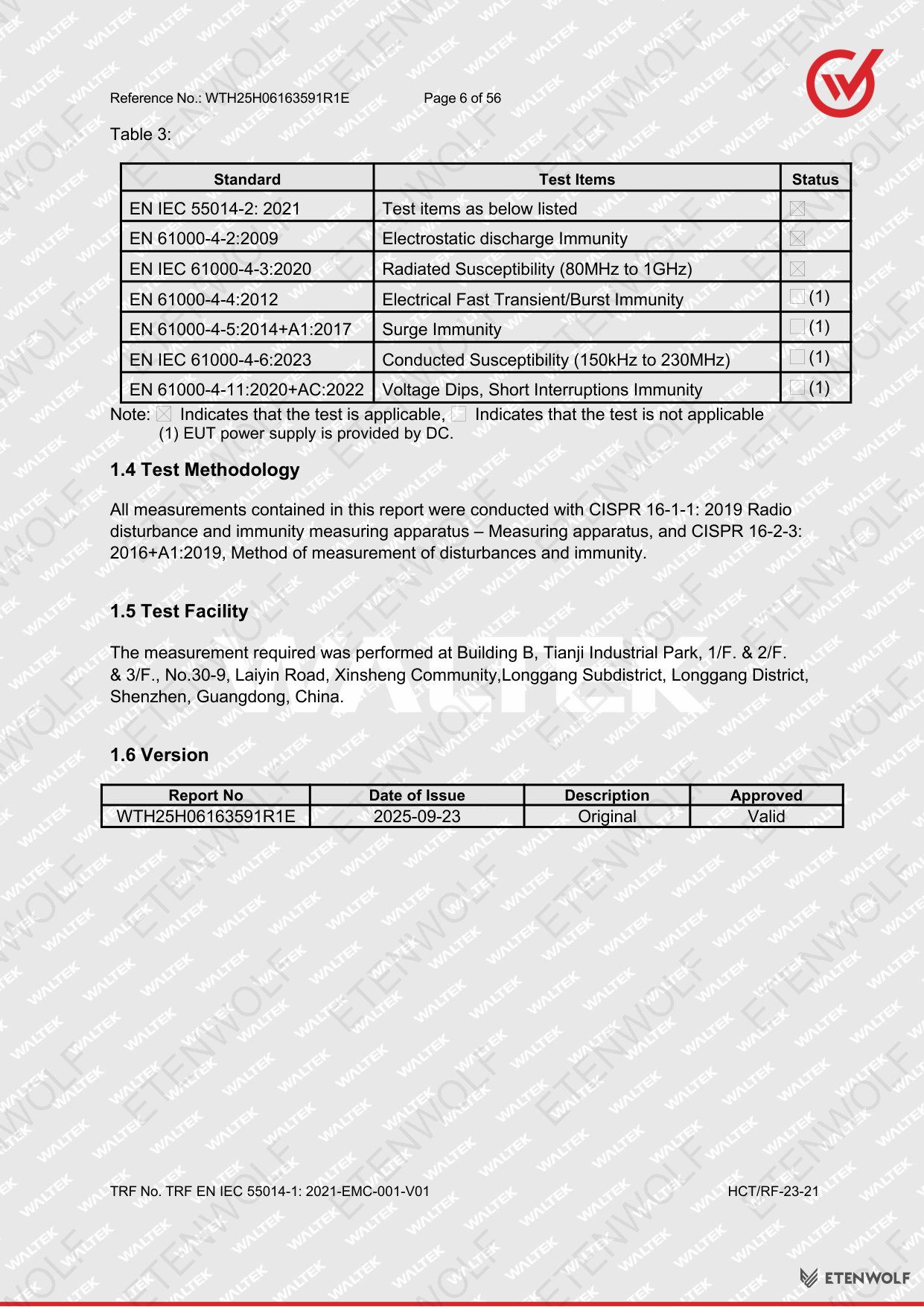

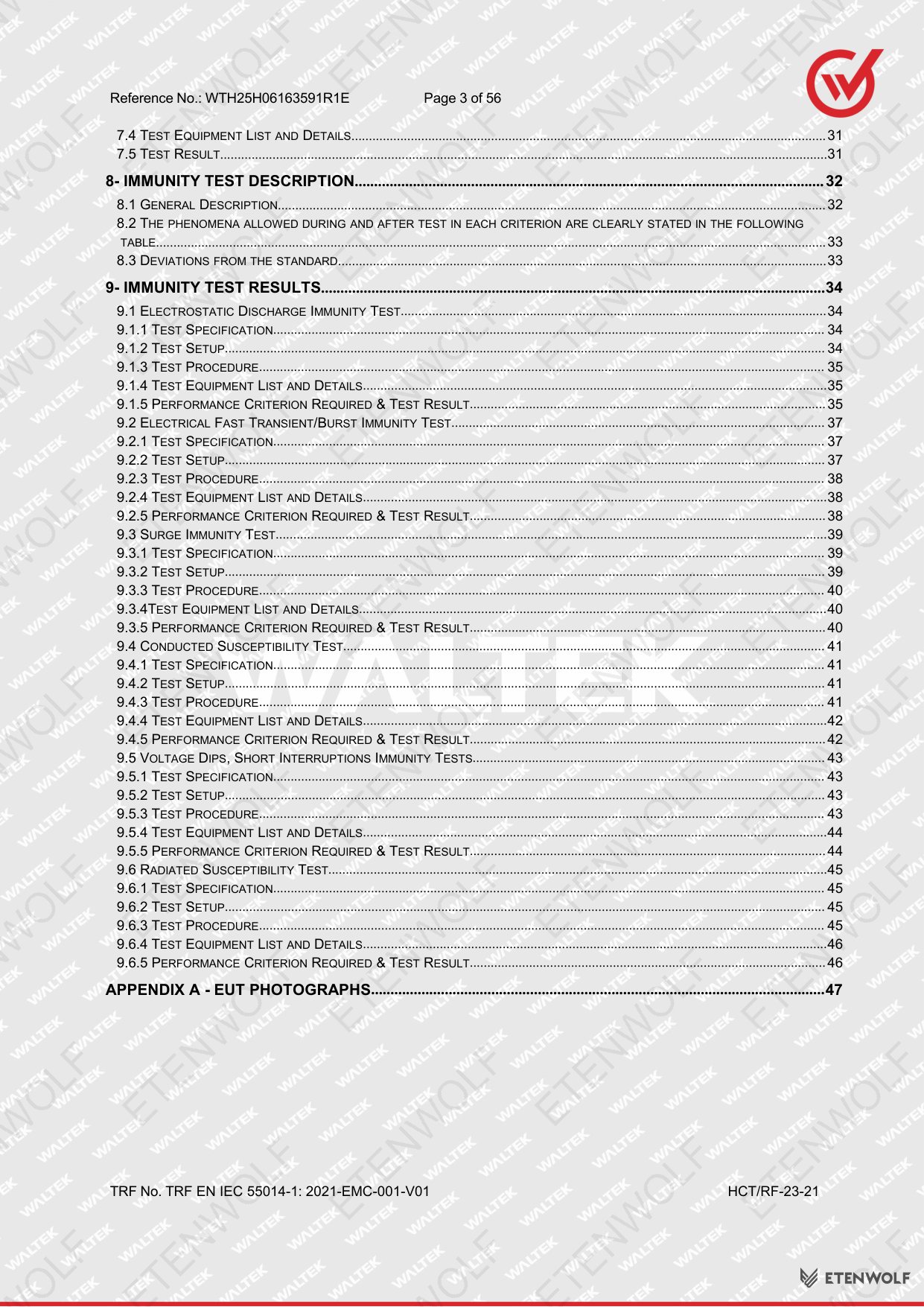

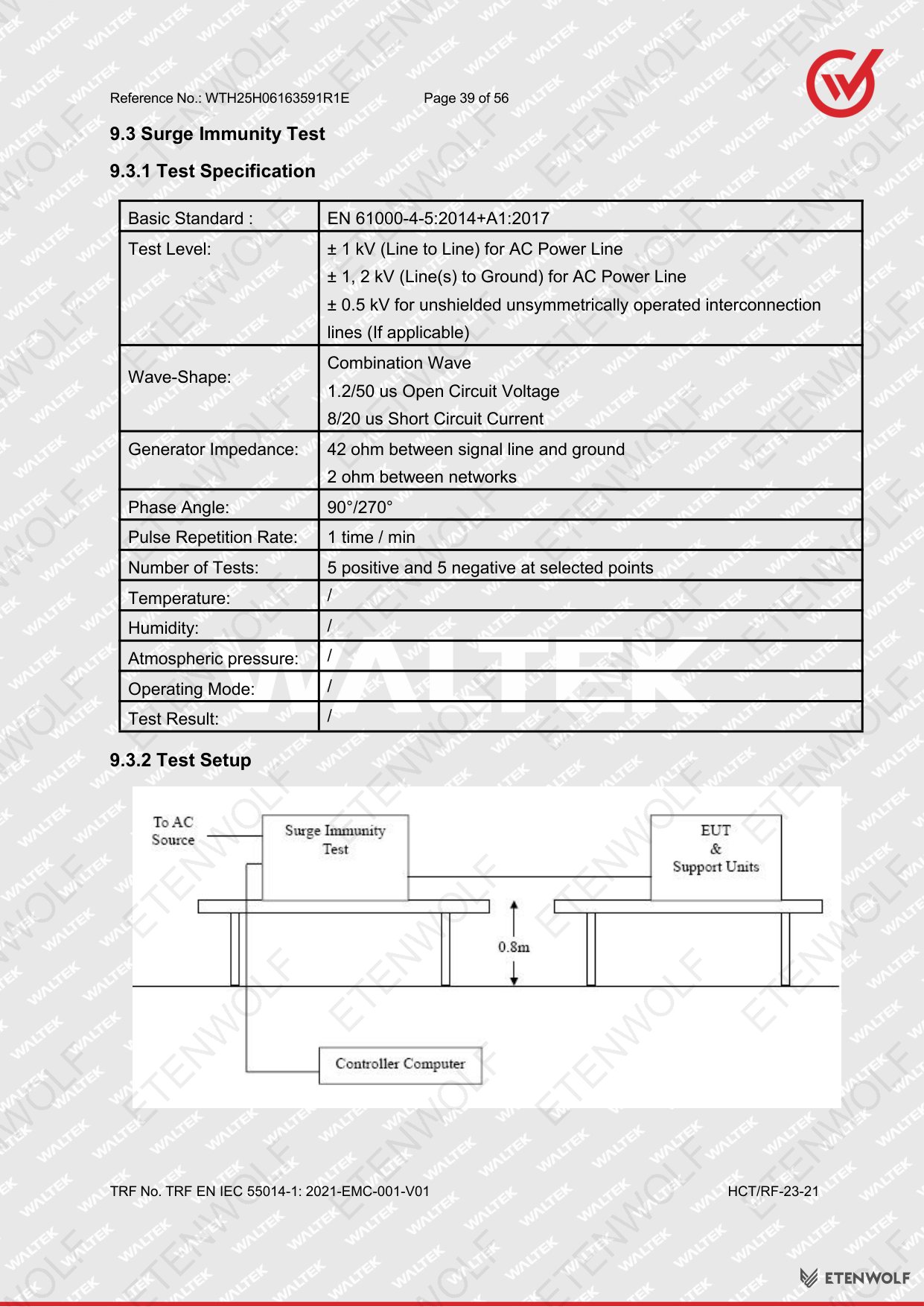

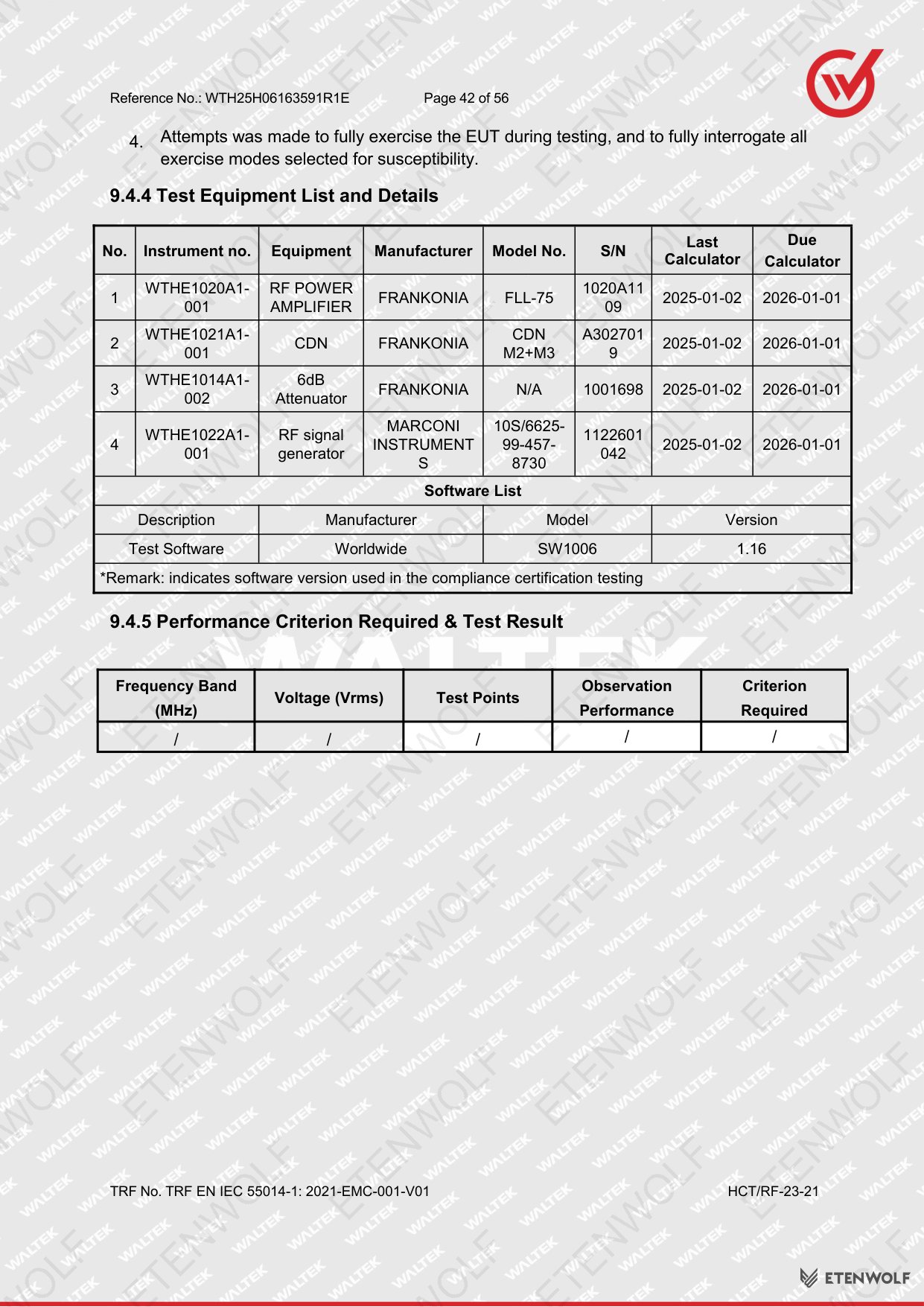

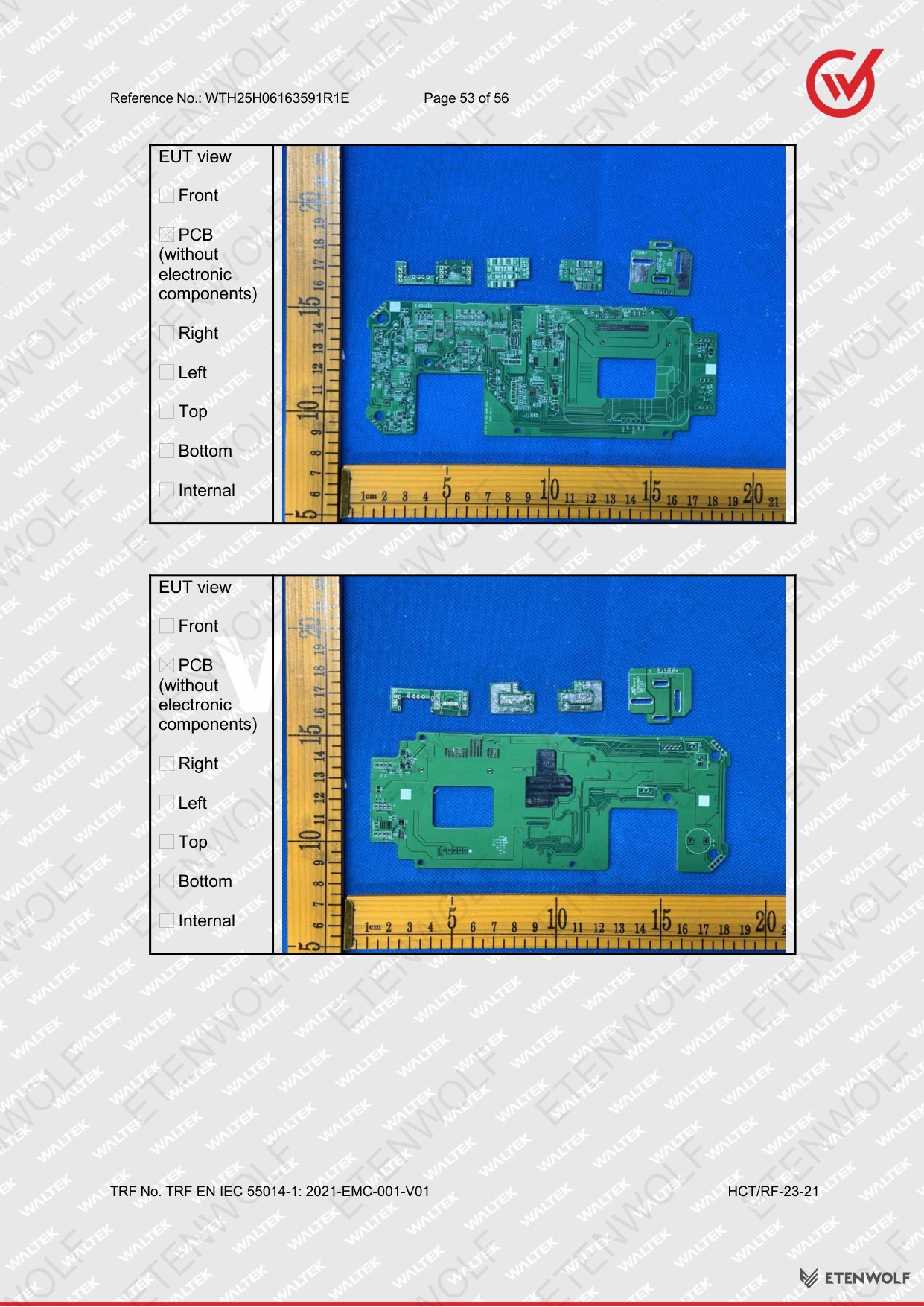

Document Pages
