Document Overview
Document Overview This page presents the official Identification and Classification Report for Transport of Dangerous Goods issued for the rechargeable lithium-ion battery contained in the ETENWOLF Vortex S7 tire inflator. The report was issued under the accreditation framework of CNAS (China National Accreditation Service for…
- Document type
- Certification Report
- Prepared by
- Michelle Torres
- Published
- Last reviewed
- Topics
- International Transportation: CB / MSDS / UN38.3
Document Overview

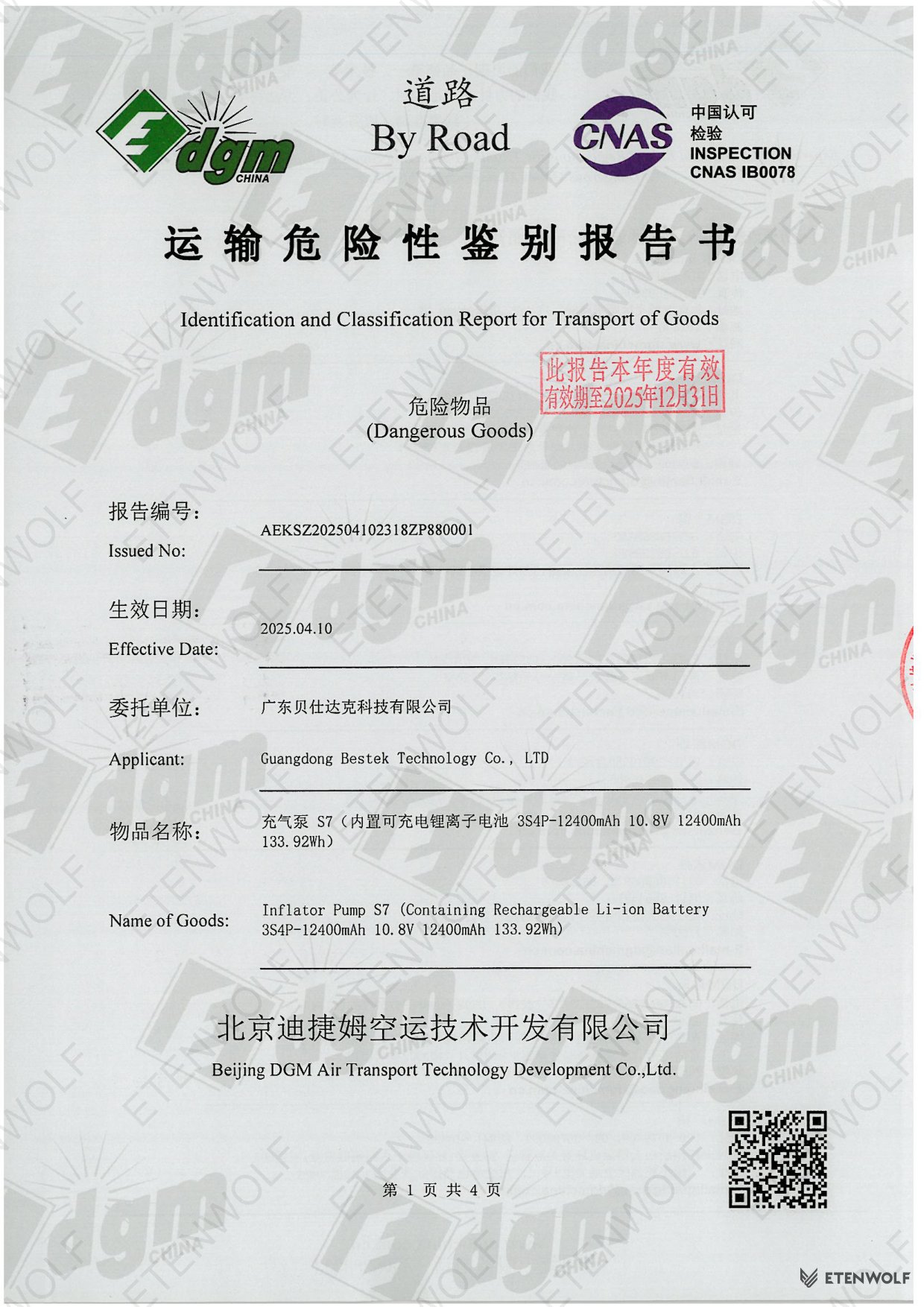

This page presents the official Identification and Classification Report for Transport of Dangerous Goods issued for the rechargeable lithium-ion battery contained in the ETENWOLF Vortex S7 tire inflator. The report was issued under the accreditation framework of CNAS (China National Accreditation Service for Conformity Assessment), laboratory registration number CNAS IB0078.
| Field | Detail |
|---|---|
| Document Type | Identification and Classification Report for Transport of Goods (Dangerous Goods) |
| Report Number | AEKSZ202504102318 |
| Issued No. | ASU 2025124318 |
| Issuing Body | Beijing DGM Air Transport Technology Development Co., Ltd. |
| Issue Date | 2025-04-10 |
| Effective Date | Valid within the year of issue |
| Identification Criteria | ADR (Agreement concerning the International Carriage of Dangerous Goods by Road) |
| Identification Purpose | Determination of whether goods are Dangerous Goods or Not Restricted |
The report was prepared based on information and samples provided by the applicant, Guangdong Bestek Technology Co., Ltd. It is valid only when signed by the inspector, checker, and approver, and stamped by DGM China. Reproduction without written approval from DGM China is prohibited.
Product Information
The subject of this certification is the rechargeable lithium-ion battery assembly built into the ETENWOLF Vortex S7 tire inflator. Full product and battery details are listed below.
| Attribute | Value |
|---|---|
| Product Name (Chinese) | 充气泵 S7（含可充电锂离子电池 3S4P-12400mAh 10.8V 12400mAh 133.92Wh） |
| Product Name (English) | Inflator Pump S7 (Containing Rechargeable Li-ion Battery 3S4P-12400mAh 10.8V 12400mAh 133.92Wh) |
| Product Model | S7 |
| Battery Model / Group | 3S4P-12400mAh |
| Battery Type | Rechargeable Li-ion Battery |
| Classification | Li-ion Battery |
| Nominal Voltage | 10.8 V |
| Rated Capacity | 12,400 mAh (12,800 mAh rated) |
| Watt-Hour Rating | 133.92 Wh |
| Battery Dimensions | 134.7 × 94.1 × 57.9 mm |
| Battery Mass | 698.6 g |
| Appearance / Shape | Purple, Prismatic |
| Lithium Content | N/A (Li-ion, no free lithium metal) |
| Number of Cells per Package | 3 pieces |
| Configuration | Contained in equipment |
| Manufacturer | Guangdong Bestek Technology Co., Ltd. |
| Manufacturer Address | No. 1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China |
| Manufacturer Tel | 0762-3429081 |
| Manufacturer Email | [email protected] |
The battery label bears the following safety warning: WARNING — Risk of Fire and Burns. Do Not Open, Crush, Heat Above 60°C / 140°F or Incinerate. Do not short circuit. If bulges severely, discontinue use.
Key Details

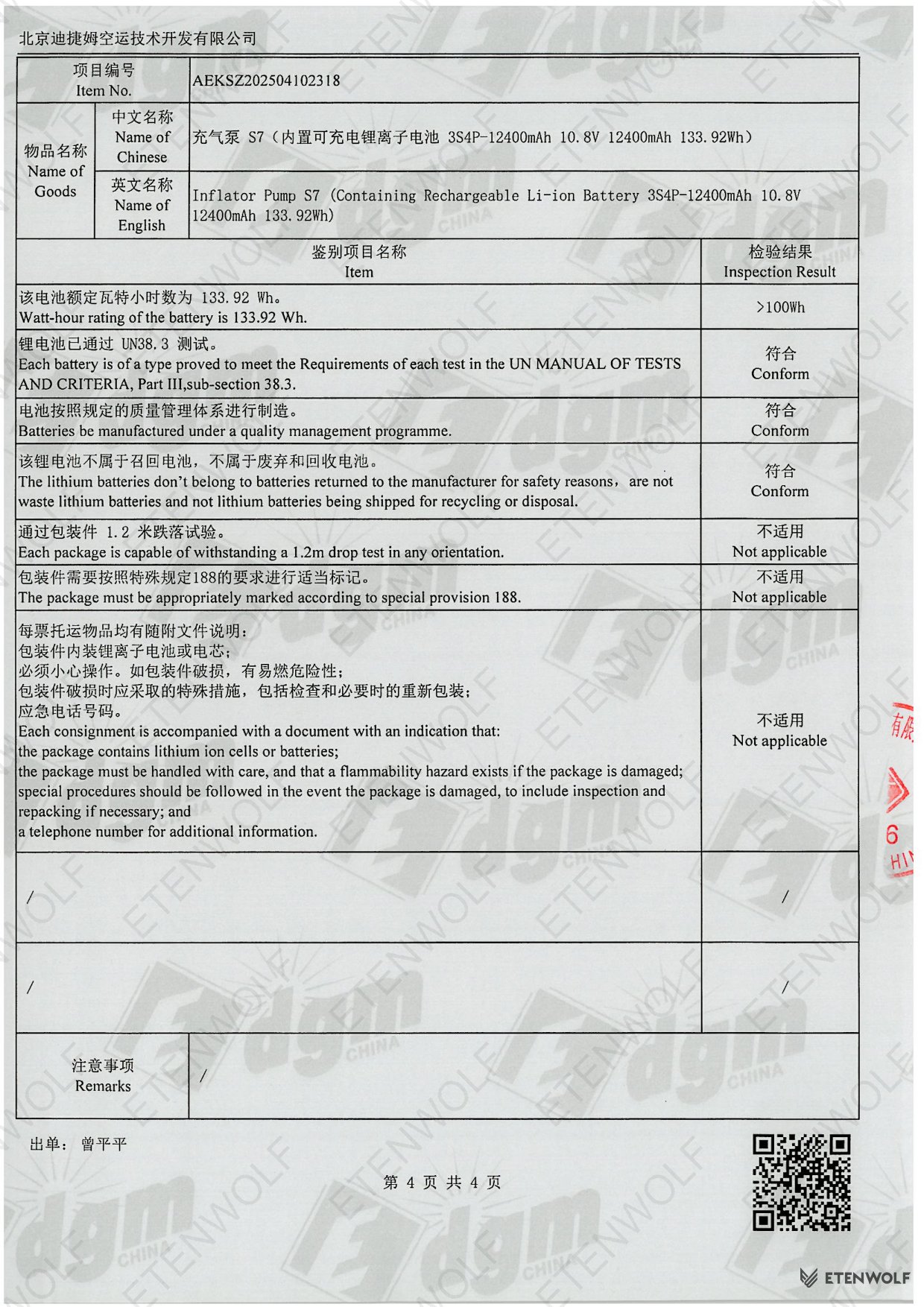

The classification report documents the result of a full dangerous goods identification assessment and references the UN38.3 test summary conducted by Waltek Testing Group Co., Ltd. The following table summarises the inspection findings.
| Item | Inspection Result |
|---|---|
| Watt-hour rating of the battery | 133.92 Wh — exceeds 100 Wh threshold |
| UN38.3 compliance | Each battery type proved to meet all requirements of UN Manual of Tests and Criteria, Part III, Sub-section 38.3 — Conform |
| Quality management programme | Batteries manufactured under a quality management programme — Conform |
| Battery status | Not returned for safety reasons; not waste batteries; not shipped for recycling or disposal — Conform |
| 1.2 m drop test | Each package capable of withstanding a 1.2 m drop test in any orientation — Conform |
| Special Provision 188 marking | Package marked appropriately per Special Provision 188 |
| Consignment documentation | Each consignment accompanied by a document stating: package contains Li-ion cells or batteries; handle with care — flammability hazard if damaged; special procedures to follow if package is damaged; telephone number for additional information |
The UN38.3 test summary was generated under report reference AEKSZ202504102318. The edition of the UN Manual of Tests and Criteria used is ST/SG/AC.10/11/Rev.8, Sub-section 38.3. The test date of the underlying test report is 2025-07.
| Test | Code | Result |
|---|---|---|
| Altitude Simulation | T.1 | Pass |
| Thermal Test | T.2 | Pass |
| Vibration | T.3 | Pass |
| Shock | T.4 | Pass |
| External Short Circuit | T.5 | Pass |
| Impact / Crush | T.6 | Pass |
| Overcharge | T.7 | Pass |
| Forced Discharge | T.8 | Pass |

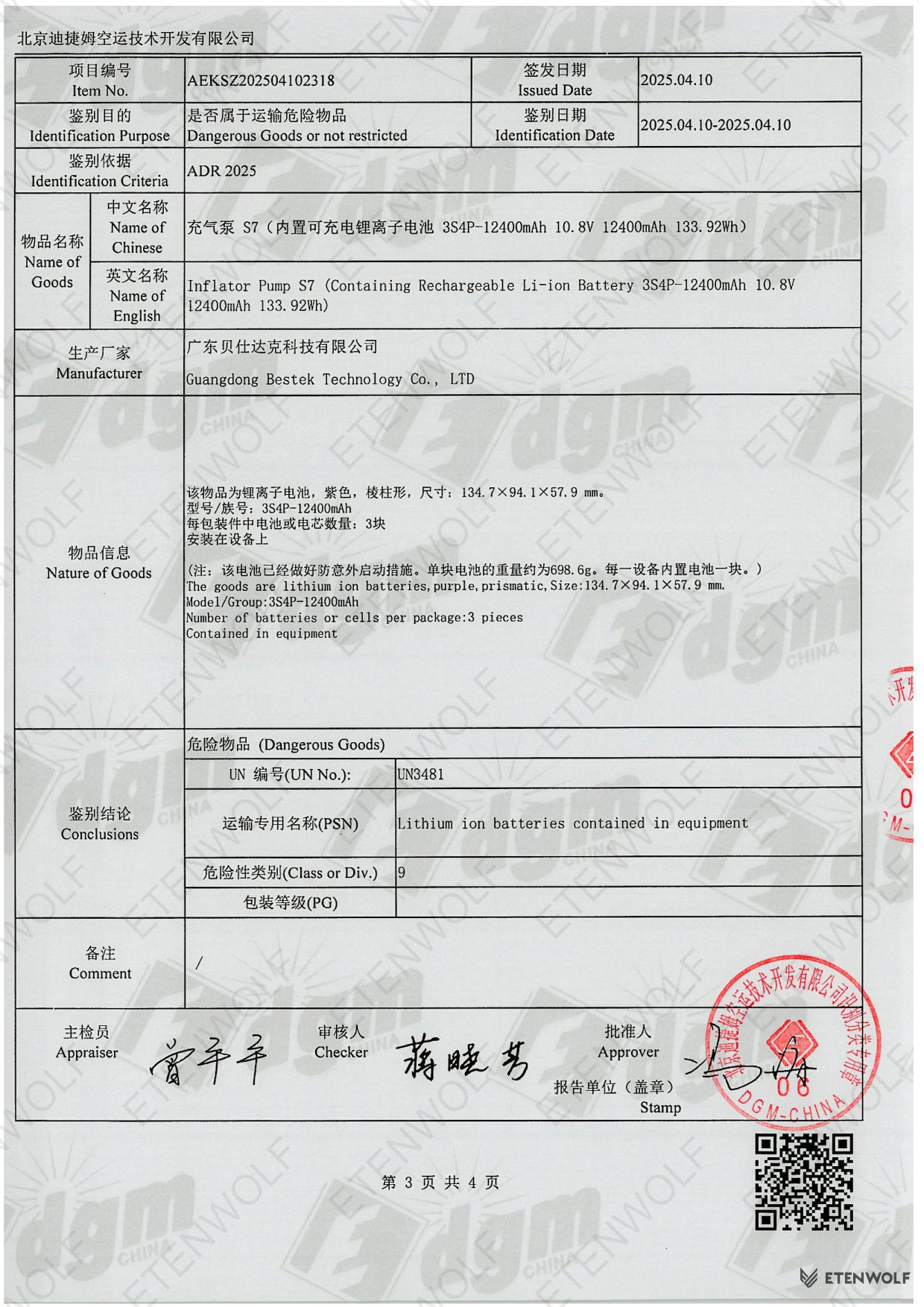

Dangerous goods classification result: UN3481 — Lithium ion batteries contained in equipment. Packing Group (PG): not assigned (lithium battery entries do not carry a packing group under ADR/IATA).
Standards & Compliance
The ETENWOLF Vortex S7 battery was evaluated against the following regulatory standards and test frameworks.
| Standard / Regulation | Description | Scope |
|---|---|---|
| UN38.3 (ST/SG/AC.10/11/Rev.8) | UN Manual of Tests and Criteria, Part III, Sub-section 38.3 | Safety testing for lithium cells and batteries intended for transport |
| ADR | European Agreement concerning the International Carriage of Dangerous Goods by Road | Identification and classification criteria for dangerous goods transport |
| Special Provision 188 | IATA/ICAO/ADR Special Provision 188 | Marking and documentation requirements for lithium batteries in equipment exceeding 100 Wh |
| CNAS IB0078 | China National Accreditation Service for Conformity Assessment | Accreditation of the issuing body DGM China |
The battery carries the UN3481 designation, applicable to lithium-ion batteries when packed with or contained in equipment. Because the watt-hour rating of 133.92 Wh exceeds the 100 Wh threshold defined under Special Provision 188, additional marking and documentation obligations apply to every consignment.
Testing was carried out by Waltek Testing Group Co., Ltd., located at No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China. Contact: +86-769-2267 6998 | [email protected] | www.waltek.com.cn.
Validity & Certification Body
The identification and classification report is valid for one year from the date of issue. Key details regarding the certification authority and validity are provided below.
| Field | Detail |
|---|---|
| Report Number | AEKSZ202504102318 |
| Issue Date | 2025-04-10 |
| Validity Period | Valid within the year of issue (expires 2026-04-09) |
| Issuing Authority | Beijing DGM Air Transport Technology Development Co., Ltd. |
| DGM Website | www.dgmchina.com.cn |
| DGM Tel | 010-69479673 |
| DGM Fax | 010-69479621 |
| DGM Email | [email protected] |
| DGM Address | Beijing, China — Postal Code 101300 |
| CNAS Accreditation No. | CNAS IB0078 |
| Applicant | Guangdong Bestek Technology Co., Ltd. |
| Test Laboratory | Waltek Testing Group Co., Ltd., Dongguan, Guangdong, China |

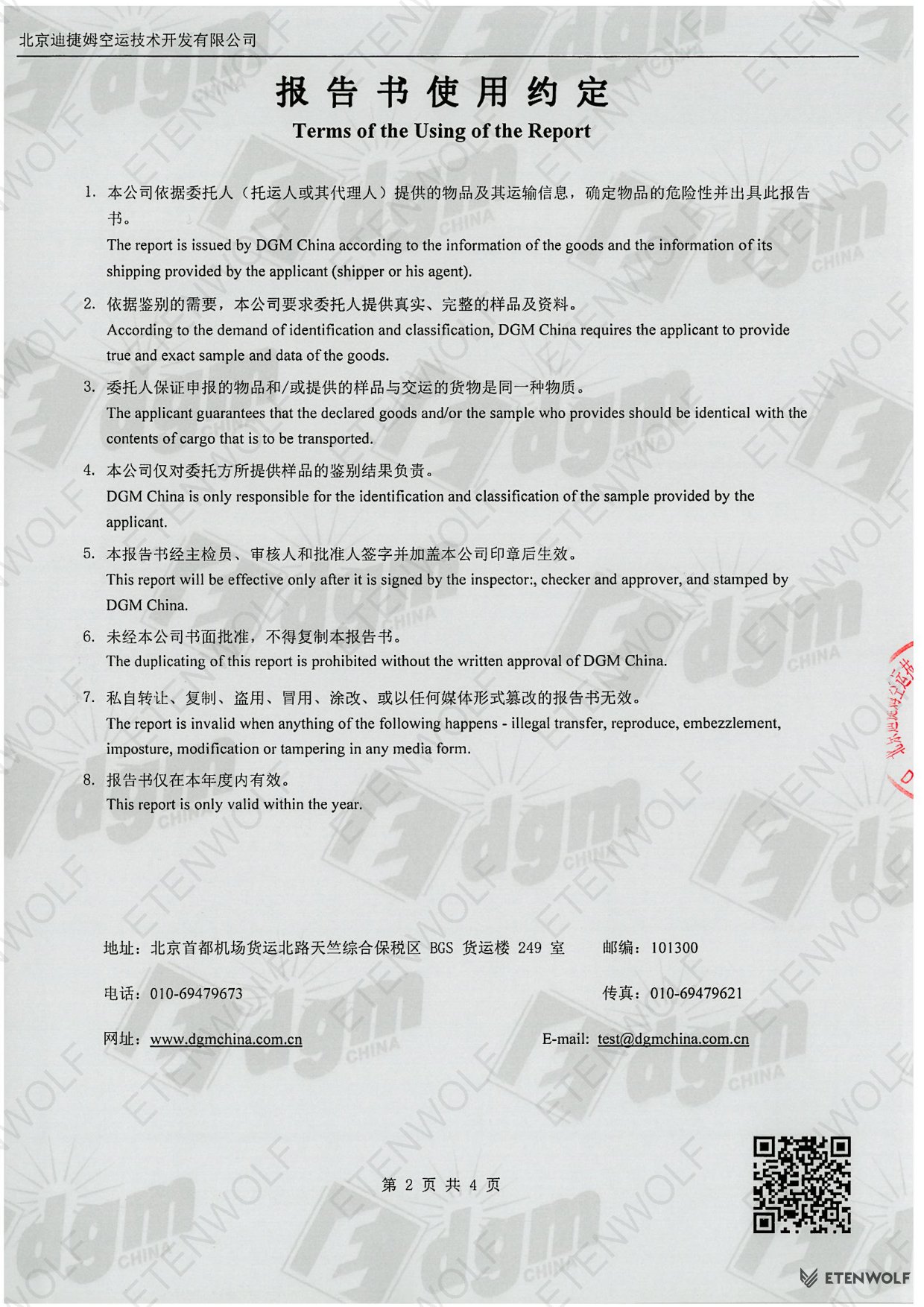

The report is rendered invalid in any of the following circumstances: illegal transfer, reproduction, embezzlement, imposture, modification, or tampering in any media form. Duplication without written approval from DGM China is strictly prohibited. The report is only considered official when bearing the signatures of the inspector, checker, and approver, together with the DGM China stamp.
Frequently Asked Questions
- What does UN38.3 certification mean for the ETENWOLF Vortex S7 tire inflator?
-
UN38.3 is the internationally recognised safety standard for lithium batteries used in transport. Passing all eight UN38.3 tests — altitude simulation, thermal, vibration, shock, external short circuit, impact/crush, overcharge, and forced discharge — confirms that the battery inside the ETENWOLF Vortex S7 meets the minimum safety requirements for air, road, and sea shipment.
- Why is the S7 battery classified as UN3481 and not UN3480?
-
UN3480 applies to lithium-ion batteries shipped on their own (standalone). UN3481 applies to lithium-ion batteries that are packed with or contained inside a piece of equipment. Because the 133.92 Wh battery in the ETENWOLF Vortex S7 is integrated into the inflator pump, the correct UN number is UN3481.
- Can the ETENWOLF Vortex S7 be transported by air?
-
Because the battery watt-hour rating is 133.92 Wh — above the 100 Wh threshold — the ETENWOLF Vortex S7 is subject to additional IATA/ICAO restrictions for air transport. Carriage is generally permitted with airline approval and must comply with Special Provision 188 marking and documentation requirements. Always check with your airline or freight forwarder before shipping.
- How long is the UN38.3 report for the S7 battery valid?
-
Report number AEKSZ202504102318, issued on 2025-04-10 by Beijing DGM Air Transport Technology Development Co., Ltd., is valid for one year from the date of issue. Shipments dispatched after the expiry date require a renewed report based on a fresh assessment.
Related Documents
The UN38.3 identification and classification report is one part of the broader compliance documentation that supports the ETENWOLF Vortex S7. The following related certification types are typically obtained for a lithium-battery-powered inflator of this specification.
- CE Declaration of Conformity — confirms compliance with applicable CE directives for the European market, including the Low Voltage Directive and Radio Equipment Directive where applicable.
- FCC Declaration of Conformity / FCC ID — required for sale in the United States; covers radio frequency emissions if the product includes wireless functionality. See FCC.
- KC Certification — Korean certification mark required for electronic products sold in South Korea. See KC.
- RoHS Compliance Report — confirms restriction of hazardous substances per RoHS Directive 2011/65/EU as amended.
- REACH SVHC Declaration — documents absence or controlled presence of substances of very high concern per REACH Regulation (EC) No 1907/2006.
- IEC 62133 Battery Safety Test Report — standard safety requirements for portable sealed secondary lithium cells and batteries. See IEC.
- MSDS / Safety Data Sheet — material safety data sheet for the lithium-ion battery, required for hazardous goods shipments and workplace safety compliance.
- IATA Dangerous Goods Declaration — shipping document required when transporting the S7 by air, referencing the UN3481 classification established in this report.
Document Pages
