Document Overview
This article covers the official Identification and Classification Report for Transport of Dangerous Goods issued for the ETENWOLF Vortex S7 tire inflator and its contained rechargeable lithium-ion battery. The document was issued under the UN38.3 framework, which governs the safe transport of lithium cells and batteries by air, sea, and road.
- Document Type: Identification and Classification Report for Transport of Goods (Dangerous Goods)
- Issued Number: SEKSZ202504106142
- Issuing Body: Beijing DGM Air Transport Technology Development Co., Ltd. (DGM China)
- Effective Date: 2025-04-10
- Scope: Dangerous goods identification and UN classification for the lithium-ion battery contained within the inflator pump, for international transport purposes
- Validity: Valid within one year of the effective date
DGM China is responsible solely for the identification and classification of the sample provided by the applicant. The report is only valid when signed by the inspector, checker, and approver, and stamped by DGM China. Reproduction or modification in any form without written approval renders the report invalid.
Product Information
The subject product is the ETENWOLF Vortex S7 tire inflator pump manufactured by Guangdong Bestek Technology Co., Ltd. The unit contains a built-in rechargeable lithium-ion battery pack as described below.
| Attribute | Detail |
|---|---|
| Product Name (Chinese) | 充气泵 S7（含可充电锂离子电池 3S4P-12400mAh 10.8V 12400mAh 133.92Wh） |
| Product Name (English) | Inflator Pump S7 (Containing Rechargeable Li-ion Battery 3S4P-12400mAh 10.8V 12400mAh 133.92Wh) |
| Manufacturer | Guangdong Bestek Technology Co., Ltd. |
| Manufacturer Address | No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China |
| Battery Model / Group | 3S4P-12400mAh |
| Battery Type | Rechargeable Li-ion Battery (Li-ion Battery) |
| Configuration | Violet Prismatic |
| Nominal Voltage | 10.8 V |
| Rated Capacity | 12400 mAh |
| Watt-hour Rating | 133.92 Wh |
| Battery Dimensions | 134.7 × 94.1 × 57.9 mm |
| Mass | 698.6 g |
| Number of Battery Cells per Package | 3 pieces |
| Lithium Content | N/A |
The battery is contained within the equipment (inflator pump) and is not shipped separately. The battery label includes the rated voltage, capacity, watt-hour rating, manufacturer name, manufacture date field (YYYY/MM/DD), and standard safety warnings against opening, crushing, heating above 60°C / 140°F, incineration, or short-circuiting the cells.
Key Details
The following table summarises the inspection results and compliance findings recorded in report SEKSZ202504106142 for the ETENWOLF Vortex S7 battery.
| Inspection Item | Finding / Result |
|---|---|
| Watt-hour Rating | 133.92 Wh — exceeds 100 Wh threshold |
| UN38.3 Type Testing | Each battery type has been proven to meet all requirements of UN Manual of Tests and Criteria, Part III, Sub-section 38.3 — Conform |
| Quality Management Programme | Batteries manufactured under a quality management programme — Conform |
| Recalled / Waste / Recycling Batteries | Batteries do not belong to any recalled, waste, or recycling/disposal category — Conform |
| 1.2 m Drop Test Capability | Not applicable (contained in equipment) |
| Special Provision 188 Marking | Package must be appropriately marked per Special Provision 188 — Not applicable (contained in equipment) |
| Consignment Documentation | Not applicable — lithium ion batteries contained in equipment category applies |
| Accidental Activation Prevention | Equipment is equipped with an effective means of preventing accidental activation; cells protected against short circuits — Conform |
| Transport Classification Attribute | Value |
|---|---|
| UN Number | UN3481 |
| Proper Shipping Name (PSN) | Lithium ion batteries contained in equipment |
| Hazard Class / Division | 9 |
| Packing Group (PG) | — |
| Identification Purpose | Dangerous Goods or Not Restricted Identification |
Standards & Compliance
The identification and classification of the ETENWOLF Vortex S7 battery was conducted in accordance with the following standard and test criteria.
- Primary Standard: UN Manual of Tests and Criteria, ST/SG/AC.10/11/Rev.8, Sub-section 38.3 — the internationally recognised standard governing lithium battery testing and classification for transport
- Identification Criteria: Applicable regulations for dangerous goods identification and classification
The following individual UN38.3 tests were performed and results recorded in Test Report Number WTH25D03074332B:
| Test Code | Test Name | Result |
|---|---|---|
| T1 | Altitude Simulation | Pass |
| T2 | Thermal Test | Pass |
| T3 | Vibration | Pass |
| T4 | Shock | Pass |
| T5 | External Short Circuit | Pass |
| T6 | Impact / Crush | Pass |
| T7 | Overcharge | Pass |
| T8 | Forced Discharge | Pass |
| UN38.3.3.1(f) and/or UN38.3.3.2(d) | Additional Cell/Battery Requirements | N/A |
All eight core UN38.3 tests were passed, confirming the 3S4P Li-ion battery pack meets the requirements for international transport under Class 9 as UN3481.
Validity & Certification Body
Issuing Authority — DGM China
Beijing DGM Air Transport Technology Development Co., Ltd. is the body that issued the Identification and Classification Report. DGM China conducts dangerous goods identification in accordance with applicable international transport regulations.
- Website: www.dgmchina.com.cn
- Tel: 010-69479673
- Fax: 010-69479621
- Email: [email protected]
- Postal Code: 101300
Test Laboratory — Waltek Testing Group
The physical UN38.3 battery tests were performed by Waltek Testing Group Co., Ltd., which generated Test Report Number WTH25D03074332B.
- Address: No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China
- Tel: +86-769-2267 6998
- Email: [email protected]
- Website: www.waltek.com.cn
Validity Period: The classification report SEKSZ202504106142 is valid for one year from the effective date of 2025-04-10, i.e., through 2026-04-10. After this period, a new identification report must be obtained for continued compliant transport. The report is invalidated by any unauthorised transfer, reproduction, embezzlement, impersonation, modification, or tampering in any media form.
Applicant / Consignor: Guangdong Bestek Technology Co., Ltd.
Frequently Asked Questions
- What does the UN3481 classification mean for the ETENWOLF S7?
- UN3481 is the United Nations identification number for lithium ion batteries contained in equipment. It means the ETENWOLF Vortex S7 must be transported under Class 9 (miscellaneous dangerous goods) regulations when shipped by air, sea, or road. Carriers and shippers are required to follow the applicable packaging, marking, and documentation requirements for UN3481.
- Why is the watt-hour rating of 133.92 Wh significant for shipping?
- Most international transport regulations set a threshold of 100 Wh for lithium-ion batteries contained in equipment. At 133.92 Wh, the battery in the ETENWOLF Vortex S7 exceeds this threshold, which means more stringent handling, documentation, and carrier approval requirements may apply — particularly for air freight under IATA Dangerous Goods Regulations.
- How long is report SEKSZ202504106142 valid?
- The report is valid for one year from its effective date of 2025-04-10, expiring on 2026-04-10. If the product continues to be shipped after that date, the applicant (Guangdong Bestek Technology Co., Ltd.) must obtain a new identification and classification report from an authorised body such as DGM China.
- What UN38.3 tests did the S7 battery pass?
- The 3S4P-12400mAh Li-ion battery pack completed all eight core UN38.3 tests — Altitude Simulation (T1), Thermal Test (T2), Vibration (T3), Shock (T4), External Short Circuit (T5), Impact/Crush (T6), Overcharge (T7), and Forced Discharge (T8) — all with a Pass result, as documented in test report WTH25D03074332B issued by Waltek Testing Group Co., Ltd.
Related Documents
The following certification and compliance documents are relevant to the ETENWOLF Vortex S7 and are recommended for a complete transport and market compliance package:
- MSDS / Safety Data Sheet (SDS): Required for international shipment of products containing lithium-ion batteries; details chemical composition, hazard information, and emergency response procedures
- IEC 62133 Battery Safety Certification: International standard covering safety requirements for portable sealed secondary lithium cells and batteries; complements UN38.3 for product safety certification
- CE Declaration of Conformity: Required for the inflator pump to be sold in European Economic Area markets; covers applicable EU directives including the Low Voltage Directive and Radio Equipment Directive as applicable
- FCC ID Certification: Required for sale in the United States; covers radio frequency emissions and electronic device compliance
- KC Certification: Required for the South Korean market; covers electrical safety and electromagnetic compatibility
- RoHS Compliance Report: Confirms the product and its components comply with the Restriction of Hazardous Substances Directive, restricting the use of specific hazardous materials in electrical and electronic equipment
- REACH Compliance Declaration: Confirms that substances of very high concern (SVHCs) in the product are within permissible limits under EU REACH regulation
- IATA Dangerous Goods Declaration: Required for each air shipment consignment of the S7; must reference UN3481 classification and this identification report

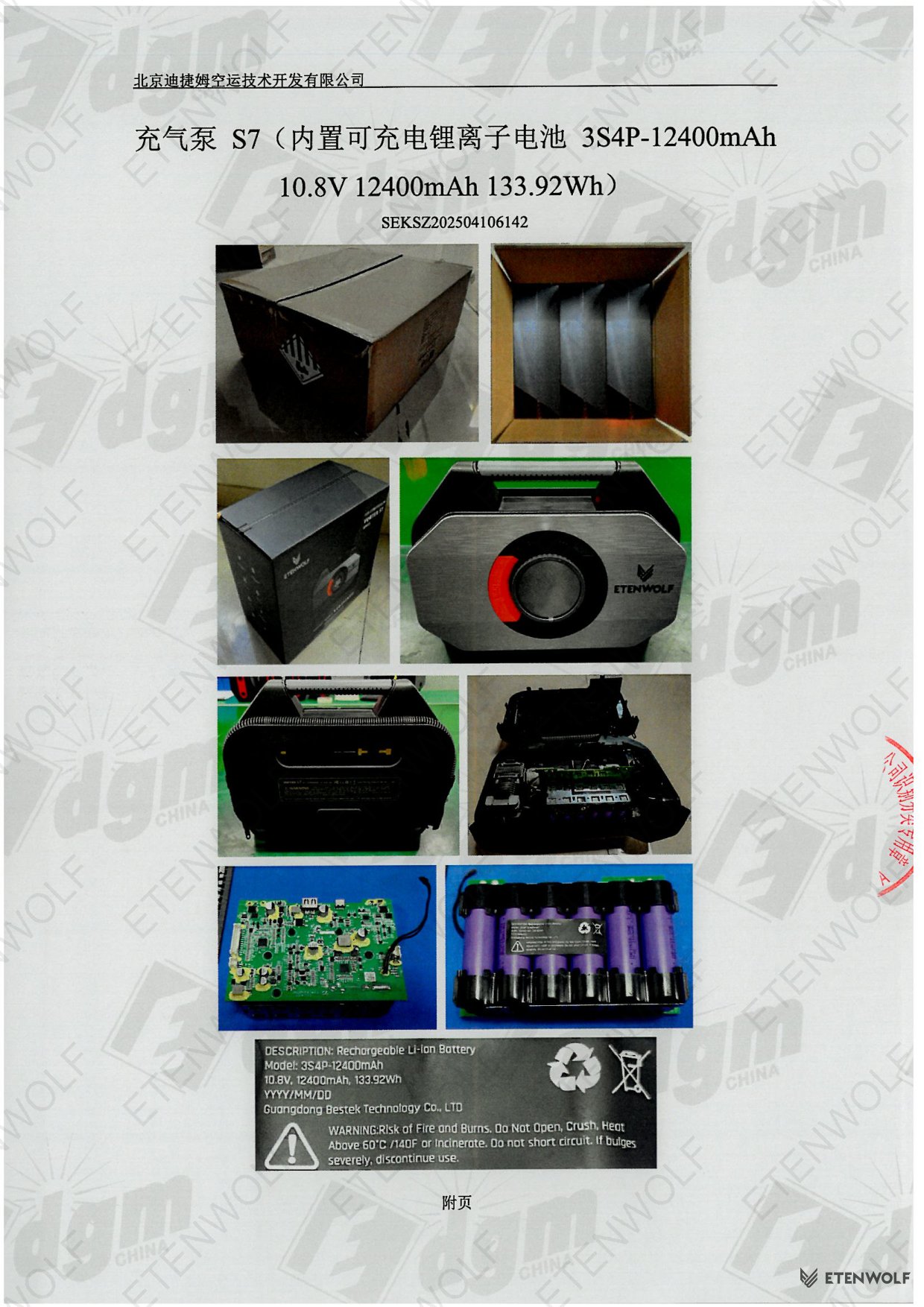

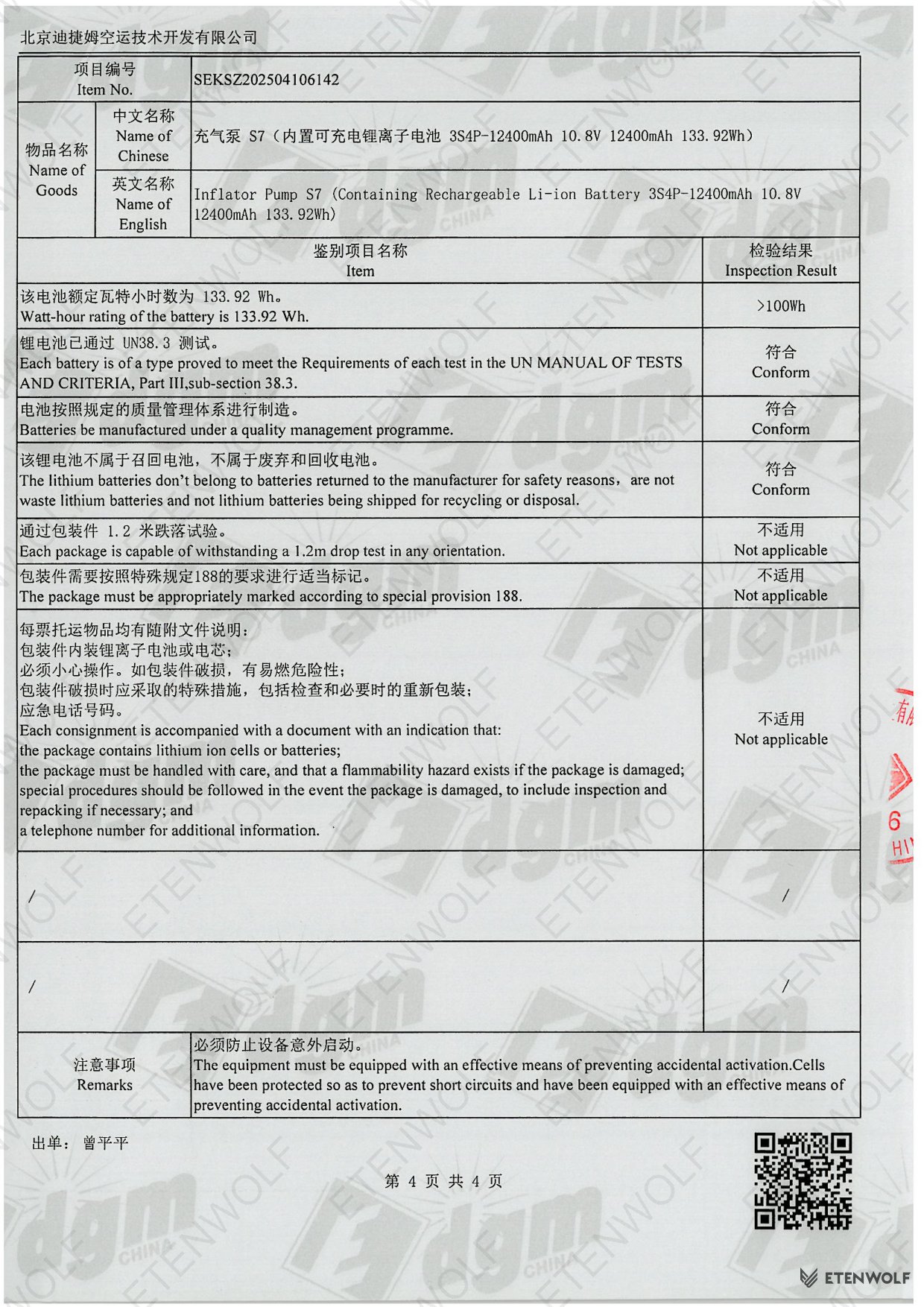

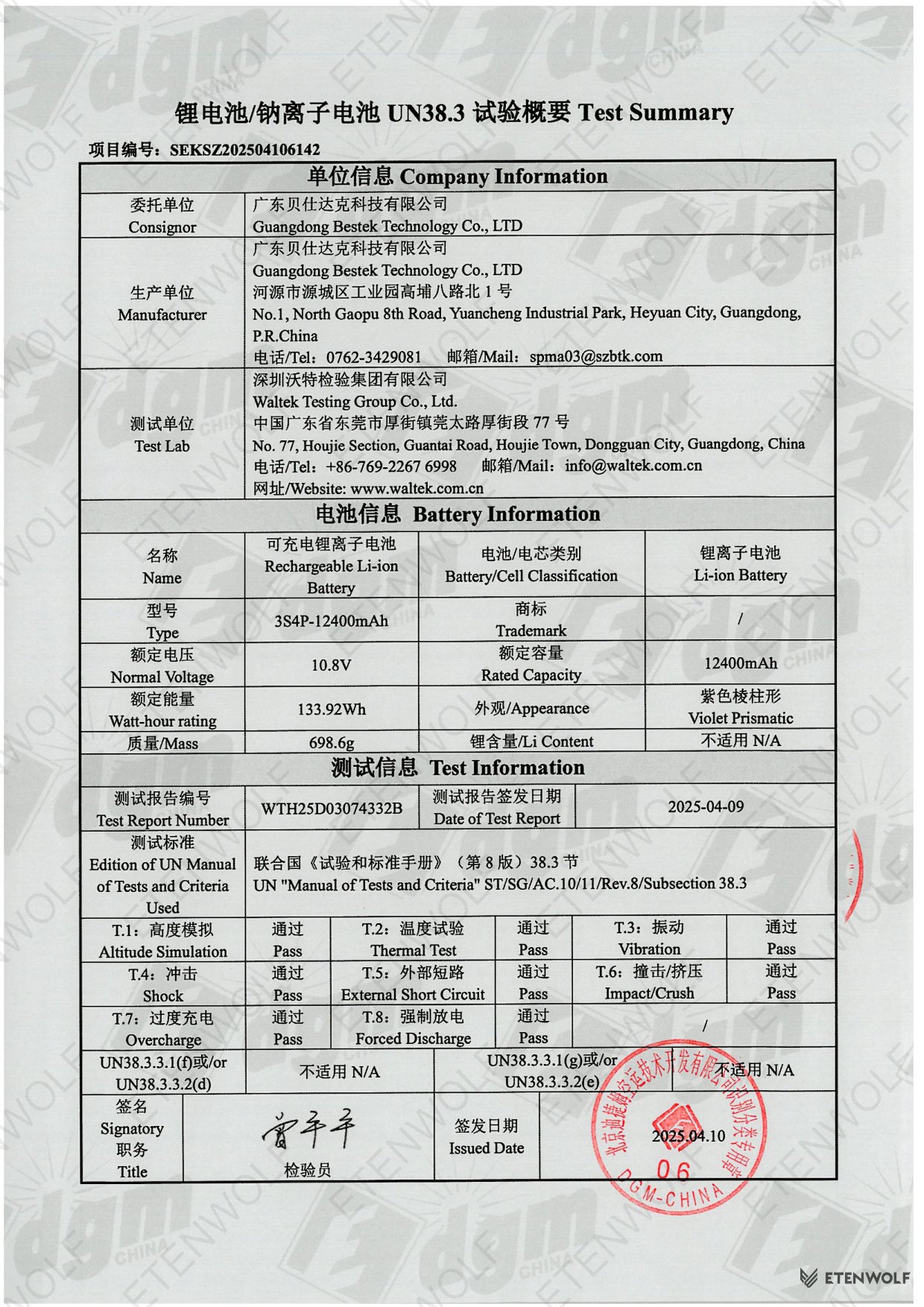

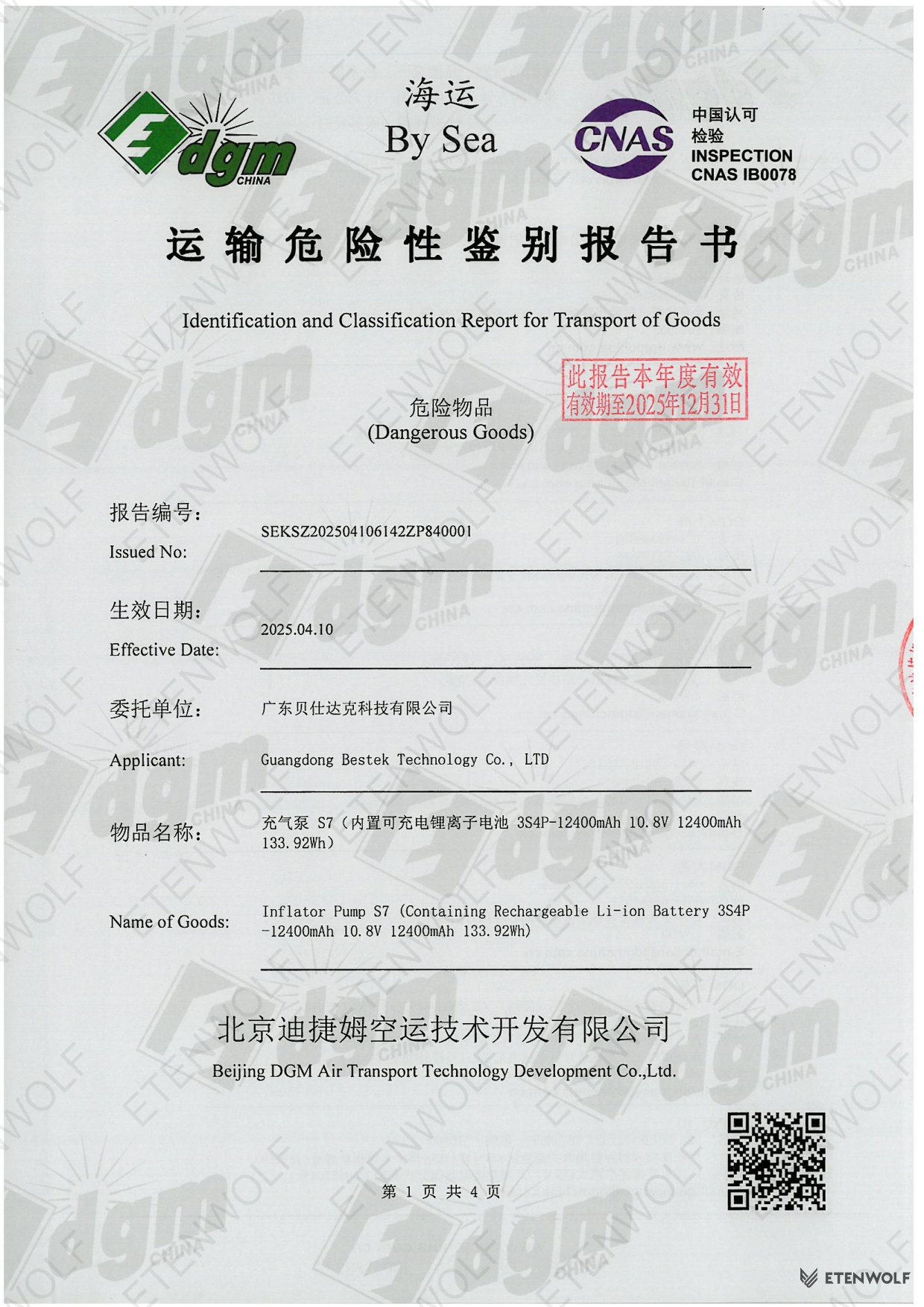

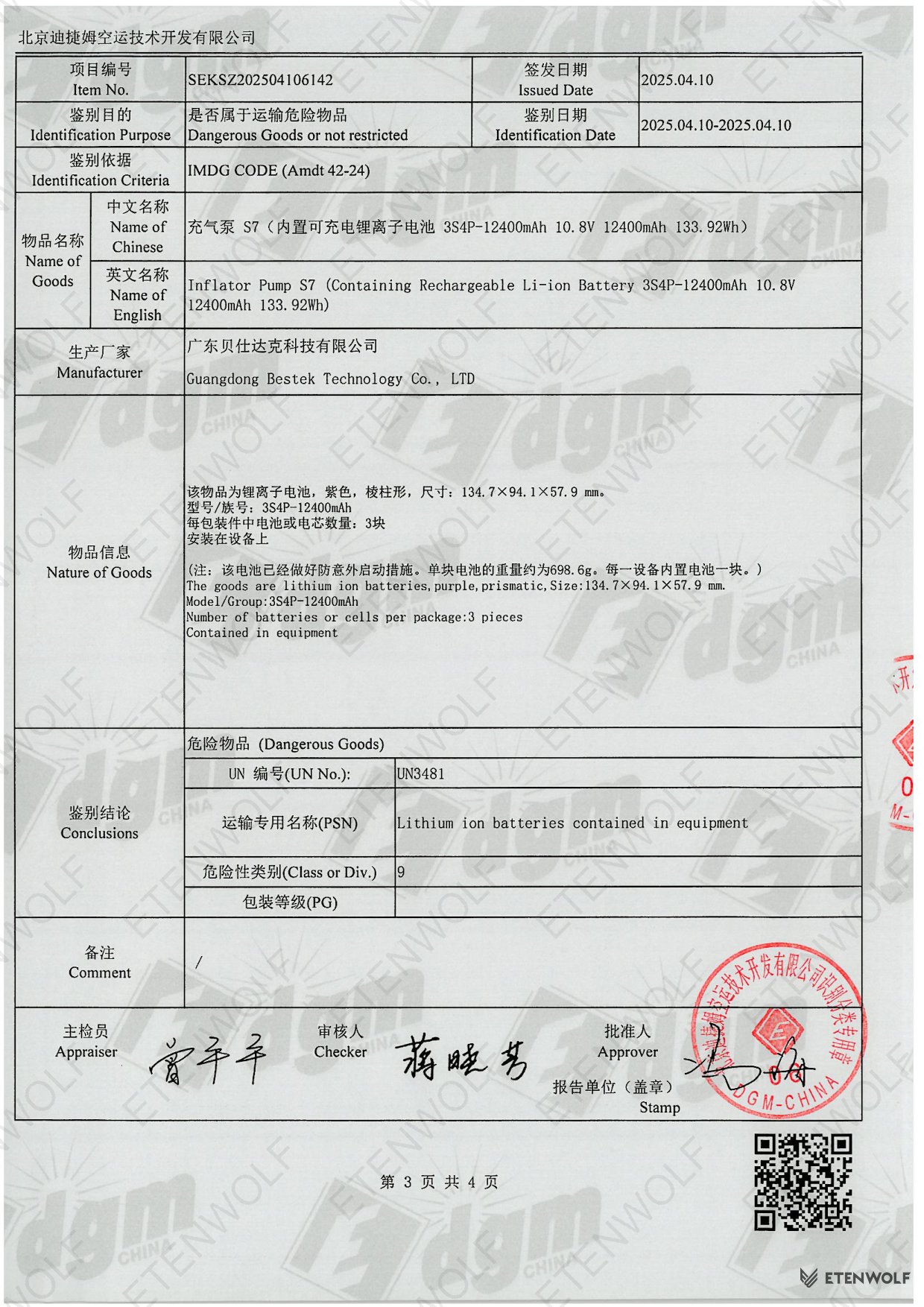

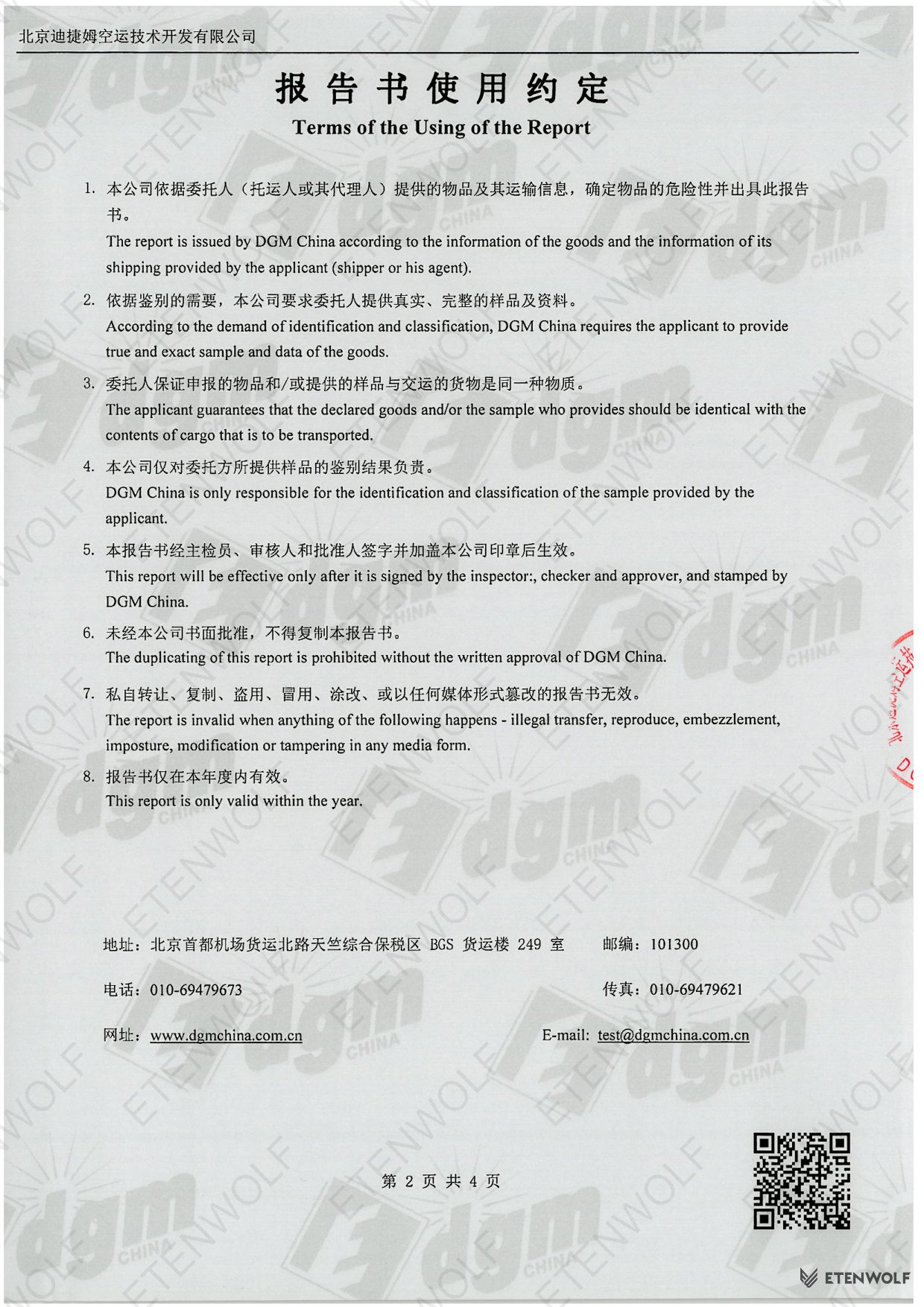

Document Pages
