Document Overview
This article covers the official UN38.3 Test Summary for the Helios J1 portable automotive jump starter, issued by Waltek Testing Group Co., Ltd. (深圳沃特检验集团股份有限公司). The unique test report identification number is WTH25D06164718B, and the report was issued on 2025-07-04. The testing was conducted in accordance with the UN Manual of Tests and Criteria, Revision 8, which governs the safe transport of lithium batteries by all modes of transport. This certification is mandatory for shipping lithium-ion battery products internationally and confirms that the product meets all relevant safety criteria under UN38.3.
Product Information
The Helios J1 is a lithium-ion battery-powered portable automotive jump starter designed to start vehicle engines. Below are the key product specifications as documented in the test report.
| Parameter | Detail |
|---|---|
| Model Number | Helios J1 |
| Product Name | Portable Automotive Jump Starter (发动机启动电源) |
| Battery Type | Lithium Ion Battery |
| Rated Voltage | 14.8 V |
| Rated Capacity | 4000 mAh |
| Energy Rating | 59.2 Wh |
| Physical Form | Almost cuboid (近长方体) |
| Approximate Mass | 774.1 g |
The manufacturer of record is Guangdong Bestek Technology Co., Ltd. (广东贝仕达克科技有限公司), located at No. 1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China. Contact telephone: 0762-3429081. Contact email: [email protected].
Key Details
The UN38.3 test summary lists all required transport safety tests performed on the Helios J1 battery pack. All eight mandatory test items were completed with a Pass result, as shown in the table below.
| Test Item | Chinese Reference | Result |
|---|---|---|
| Altitude Simulation | 高度模拟 | Pass |
| Thermal Test | 热测试 | Pass |
| Vibration | 振动 | Pass |
| Shock | 冲击 | Pass |
| External Short Circuit | 外部短路 | Pass |
| Impact / Crush | 撞击 / 挤压 | Pass |
| Overcharge | 过充电 | Pass |
| Forced Discharge | 强制放电 | Pass |
The report was reviewed and authorized by Deval Qin (秦林伟), Designated Reviewer at Waltek Testing Group, with an issue date of 2025-07-04.
Standards & Compliance
The Helios J1 was tested against the requirements set out in the UN Manual of Tests and Criteria, Revision 8, specifically Section 38.3, which applies to lithium metal and lithium-ion cells and batteries intended for transport. UN38.3 is a globally recognized standard required by IATA, ICAO, IMDG, and ADR regulations for the air, sea, and road transport of lithium battery products. The test covers a comprehensive battery of assessments designed to simulate transport stresses including low-pressure environments, extreme temperatures, mechanical vibration and shock, electrical abuse scenarios, and physical deformation. Passing all eight test items demonstrates that the Helios J1 battery pack does not pose a safety hazard during normal transport conditions.
Validity & Certification Body
The test report WTH25D06164718B was issued on 2025-07-04 and is valid in accordance with the standard practice for UN38.3 test summaries, which remain applicable as long as the product design and cell specifications remain unchanged. Any modification to the battery cell type, configuration, or rating would require re-testing.
The testing was conducted by:
| Field | Detail |
|---|---|
| Laboratory Name | Waltek Testing Group Co., Ltd. (深圳沃特检验集团股份有限公司) |
| Address | No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China |
| Telephone | +86-769-2267 6998 |
| [email protected] | |
| Website | www.waltek.com.cn |
| Authorized Signatory | Deval Qin (秦林伟), Designated Reviewer |
| Issue Date | 2025-07-04 |
| Report ID | WTH25D06164718B |
Frequently Asked Questions
- What is UN38.3 and why does the Helios J1 need it?
-
UN38.3 is a mandatory international transport safety standard for lithium batteries defined in the UN Manual of Tests and Criteria. It is required by air carriers (IATA/ICAO), sea freight (IMDG), and road transport (ADR) regulations before any lithium battery product can be legally shipped. The Helios J1 must hold this certification to be exported and distributed globally.
- Which revision of UN38.3 was used for the Helios J1 test?
-
The Helios J1 was tested under Revision 8 of the UN Manual of Tests and Criteria, which is the current applicable revision referenced in report WTH25D06164718B, issued 2025-07-04.
- Did the Helios J1 pass all UN38.3 test items?
-
Yes. The Helios J1 passed all eight required test items: Altitude Simulation, Thermal Test, Vibration, Shock, External Short Circuit, Impact/Crush, Overcharge, and Forced Discharge. All results are recorded as Pass in report WTH25D06164718B.
- Who conducted the UN38.3 testing for the Helios J1?
-
Testing was performed by Waltek Testing Group Co., Ltd., an accredited third-party laboratory based in Dongguan, Guangdong, China. The report was authorized by Designated Reviewer Deval Qin (秦林伟) on 2025-07-04.
Related Documents
For a complete compliance picture of the Helios J1 portable jump starter, the following related certification and test documents are recommended:
- CE Declaration of Conformity — required for sale in the European Economic Area, covering the Low Voltage Directive and EMC Directive as applicable to portable power devices.
- FCC ID Certification — required for sale in the United States, verifying electromagnetic compatibility and radio frequency compliance.
- RoHS Compliance Report — confirms restriction of hazardous substances (lead, mercury, cadmium, etc.) in the product and its battery pack per EU RoHS Directive 2011/65/EU.
- REACH SVHC Declaration — confirms compliance with the EU REACH Regulation regarding substances of very high concern.
- IEC 62133 Battery Safety Test Report — covers safety requirements for portable sealed secondary lithium cells and batteries used in portable applications.
- KC Certification — required for the South Korean market, covering electrical safety and EMC for battery-powered devices.
- MSDS / Safety Data Sheet — material safety documentation for the lithium-ion battery pack, required for transport and customs declarations.

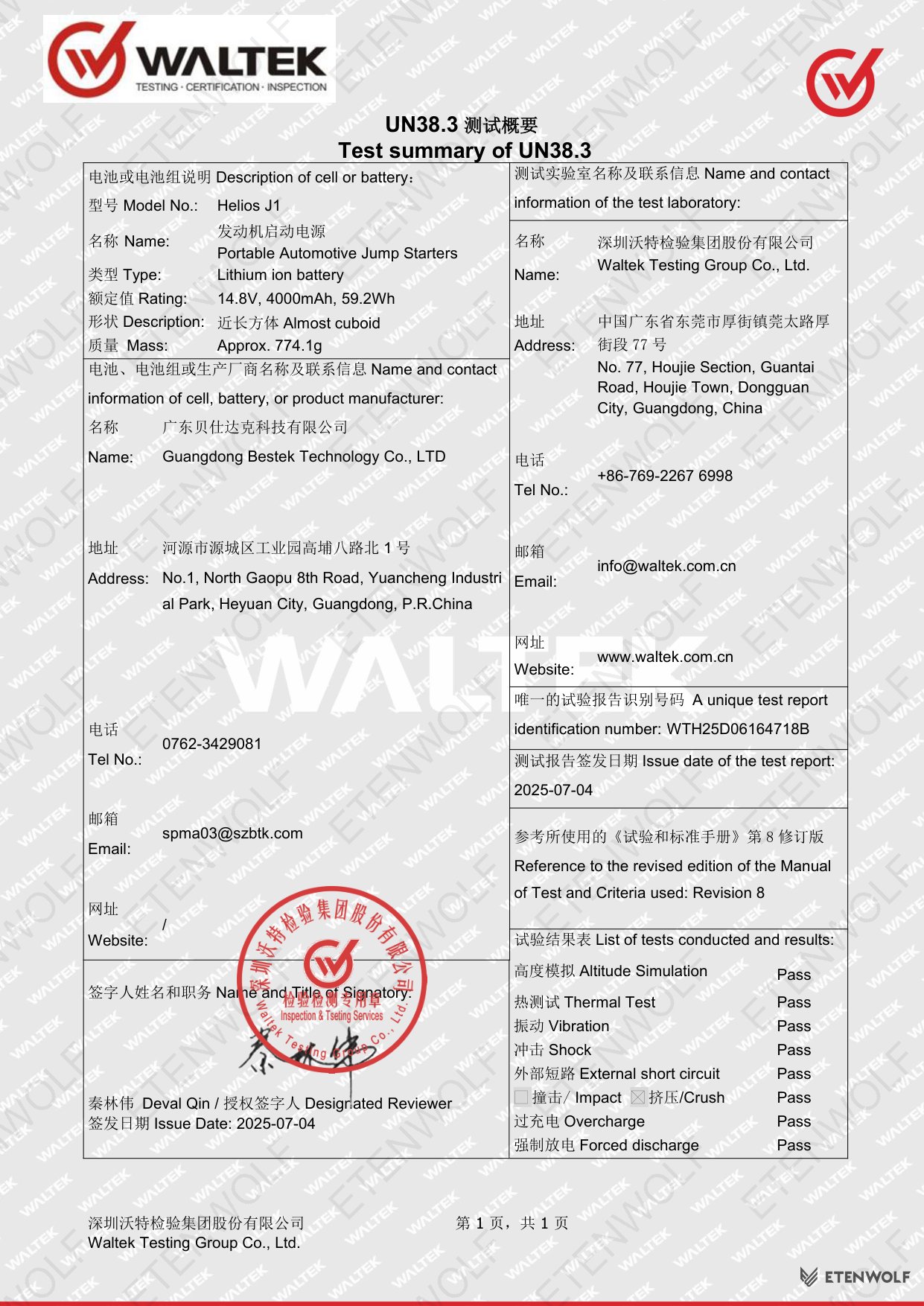

Document Pages
