Document Overview
Document Overview This page presents the Identification and Classification Report for Transport of Goods issued under UN38.3 regulations for the ETENWOLF P100 Ball Pump. The report was issued by Beijing DGM Air Transport Technology Development Co., Ltd. (DGM China), an accredited dangerous goods classification body…
- Document type
- Certification Report
- Prepared by
- Michelle Torres
- Published
- Last reviewed
- Topics
- International Transportation: CB / MSDS / UN38.3
Document Overview
This page presents the Identification and Classification Report for Transport of Goods issued under UN38.3 regulations for the ETENWOLF P100 Ball Pump. The report was issued by Beijing DGM Air Transport Technology Development Co., Ltd. (DGM China), an accredited dangerous goods classification body holding CNAS accreditation.
| Field | Details |
|---|---|
| Report Number | AEKSZ202504290231ZP760001 |
| Item Number | AEKSZ202504290231 |
| Document Type | Identification and Classification Report for Transport of Goods |
| Issuing Body | Beijing DGM Air Transport Technology Development Co., Ltd. |
| Effective / Issue Date | 2025-04-29 |
| Identification Date | 2025-04-29 to 2025-04-29 |
| Validity | Valid within one year of issue date |
| Applicant | Guangdong Bestek Technology Co., LTD |
| Regulation Reference | UN38.3 — UN Manual of Tests and Criteria, Part III, Sub-section 38.3 |
The classification conclusion is Not Subject to These Regulations, confirmed under ADR Special Provision 188, meaning the product may be transported without being classified as dangerous goods under applicable transport regulations.
Product Information
The subject product is the ETENWOLF P100 Ball Pump, a portable electric ball inflation pump containing an integrated lithium-ion battery pack. Below are the full product and battery specifications as declared in the report.
| Attribute | Value |
|---|---|
| Product Name (English) | Ball Pump P100 |
| Product Name (Chinese) | 球泵 P100 |
| Battery Pack Type | 1S1P-1500 (Single Cell Li-ion Battery) |
| Rated Voltage | 3.7 V |
| Rated Capacity | 1500 mAh |
| Watt-Hour Rating | 5.55 Wh |
| Battery Mass | 55.3 g |
| Appearance | Multi-color, Irregular shape, Solid |
| Lithium Content | N/A (Li-ion, not metallic lithium) |
| Battery Dimensions | 80.0 × 41.0 × 28.0 mm |
| Quantity per Package | 72 pieces |
| Configuration | Contained in equipment |
| Manufacturer | Guangdong Bestek Technology Co., LTD |
| Manufacturer Address | No. 1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China |
Key Details
The following table summarizes all inspection checklist items evaluated during the classification process, as recorded in report AEKSZ202504290231.
| Inspection Item | Requirement | Result |
|---|---|---|
| Watt-hour rating threshold | Less than 20 Wh per cell | Conform — 5.55 Wh |
| UN38.3 type testing | Each battery type must have passed all tests in UN Manual of Tests and Criteria, Part III, Sub-section 38.3 | Conform |
| Quality management programme | Batteries manufactured under an approved quality management programme | Conform |
| Not recalled or waste batteries | Batteries must not be returned for safety reasons, waste, or destined for recycling/disposal | Conform |
| 1.2 m drop test (package) | Each package capable of withstanding a 1.2 m drop in any orientation | Not Applicable |
| Marking per Special Provision 188 | Package must be marked in accordance with ADR Special Provision 188 | Conform |
| Accompanying documentation | Each consignment accompanied by a document stating: contains Li-ion batteries; handle with care; flammability hazard if damaged; special procedures if damaged; telephone number for information | Not Applicable |
| Accidental activation prevention | Equipment equipped with effective means to prevent accidental activation; cells protected against short circuits | Conform (per Remarks) |
The UN38.3 test report used for this classification was conducted by Waltek Testing Group Co., Ltd. The edition of the UN Manual applied was ST/SG/AC.10/11/Rev.8, Sub-section 38.3 (8th edition).
| Test Item | Test Code | Result |
|---|---|---|
| Altitude Simulation | T1 | Pass |
| Thermal Test | T2 | Pass |
| Vibration | T3 | Pass |
| Shock | T4 | Pass |
| External Short Circuit | T5 | Pass |
| Impact / Crush | T6 | Pass |
| Overcharge | T7 | Pass |
| Forced Discharge | T8 | Pass |
Standards & Compliance
The ETENWOLF P100 Ball Pump battery pack was evaluated against the following regulatory frameworks and test standards.
| Standard / Regulation | Scope | Result |
|---|---|---|
| UN38.3 — ST/SG/AC.10/11/Rev.8 | Lithium battery transport safety testing — 8 test categories | All 8 tests passed |
| ADR Special Provision 188 | Road transport classification exemption for small lithium batteries contained in equipment | Not Restricted |
| UN No. Classification | UN number assignment for lithium batteries contained in equipment | Classified: Contained in Equipment |
| Quality Management Programme | Manufacturing quality controls for lithium battery production | Conform |
The classification conclusion is Not Restricted — Not Subject to Dangerous Goods Regulations under ADR 2025, as per ADR Special Provision 188. This applies because the watt-hour rating of 5.55 Wh is below the 20 Wh threshold for single cells and the battery is contained within the equipment.
The test laboratory, Waltek Testing Group Co., Ltd., is located at No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China. Contact: +86-769-2267 6998 | [email protected] | www.waltek.com.cn.
Validity & Certification Body
The classification report is valid for one year from the date of issue (2025-04-29), expiring on or before 2026-04-29, subject to no changes in product design, battery configuration, or transport conditions.
| Field | Details |
|---|---|
| Report Number | AEKSZ202504290231ZP760001 |
| Issue Date | 2025-04-29 |
| Validity Period | One year (expires approximately 2026-04-29) |
| Issuing Authority | Beijing DGM Air Transport Technology Development Co., Ltd. |
| DGM China Address | 249 Shuangying West Road, Beijing 101300, China |
| DGM China Tel | 010-69479673 |
| DGM China Fax | 010-69479621 |
| DGM China Website | www.dgmchina.com.cn |
| DGM China Email | [email protected] |
| Accreditation | CNAS accredited |
The report is valid only when bearing the signatures of the Appraiser, Checker, and Approver, along with the official DGM China stamp. Any unauthorized duplication, transfer, modification, or tampering renders the report invalid. The applicant — Guangdong Bestek Technology Co., LTD — is responsible for ensuring that transported goods are identical to the declared sample.
Frequently Asked Questions
- What does the UN38.3 classification result mean for the ETENWOLF P100 Ball Pump?
-
The ETENWOLF P100 Ball Pump received a classification of Not Subject to Dangerous Goods Regulations under the ADR 2025 framework, citing Special Provision 188. This means the product’s lithium-ion battery (5.55 Wh, contained in equipment) falls below the regulatory thresholds that would require it to be shipped as a dangerous good, simplifying air, road, and sea transport logistics.
- Which specific tests did the P100 battery pack pass under UN38.3?
-
The 1S1P-1500 battery pack in the P100 passed all eight mandatory UN38.3 tests: T1 Altitude Simulation, T2 Thermal Test, T3 Vibration, T4 Shock, T5 External Short Circuit, T6 Impact/Crush, T7 Overcharge, and T8 Forced Discharge. Testing was conducted by Waltek Testing Group Co., Ltd. using UN Manual ST/SG/AC.10/11/Rev.8.
- How long is the UN38.3 classification report valid?
-
The report (AEKSZ202504290231ZP760001) is valid for one year from its issue date of 2025-04-29, meaning it remains effective until approximately 2026-04-29. The report becomes invalid if the product design, battery specifications, or applicable regulations change before that date, or if the document is modified or transferred without DGM China’s written approval.
- Who conducted the UN38.3 testing and who issued the classification report?
-
The physical UN38.3 battery tests were performed by Waltek Testing Group Co., Ltd., based in Dongguan, Guangdong, China. The transport identification and classification report was issued by Beijing DGM Air Transport Technology Development Co., Ltd. (DGM China), a CNAS-accredited dangerous goods classification authority. The applicant and manufacturer is Guangdong Bestek Technology Co., LTD, the maker of the ETENWOLF P100 Ball Pump.
Related Documents
For a comprehensive regulatory compliance picture of the ETENWOLF P100 Ball Pump, the following additional certification and test documents are relevant and recommended.
- IEC 62133 Battery Safety Test Report — Safety standard for portable sealed secondary lithium cells and batteries used in portable applications. Issued by an accredited test laboratory.
- CE Declaration of Conformity — Required for sale within the European Economic Area, covering applicable directives such as the Low Voltage Directive (LVD) and Radio Equipment Directive (RED) if applicable. Refer to CE Marking authority.
- FCC Declaration of Conformity — Required for the US market, confirming electromagnetic compatibility. See FCC.gov for requirements.
- RoHS Compliance Certificate — Confirms restriction of hazardous substances (lead, mercury, cadmium, etc.) in the product per EU RoHS Directive 2011/65/EU.
- REACH SVHC Declaration — Confirms the product does not contain substances of very high concern above threshold limits under EU REACH Regulation (EC) No 1907/2006.
- MSDS / Safety Data Sheet for Li-ion Battery — Material safety data sheet for the 1S1P-1500 battery pack, required for shipping documentation under various transport regulations.
- ISO 9001 Quality Management Certificate — Confirms the manufacturer operates under a certified quality management system, supporting the quality management programme requirement of UN38.3.

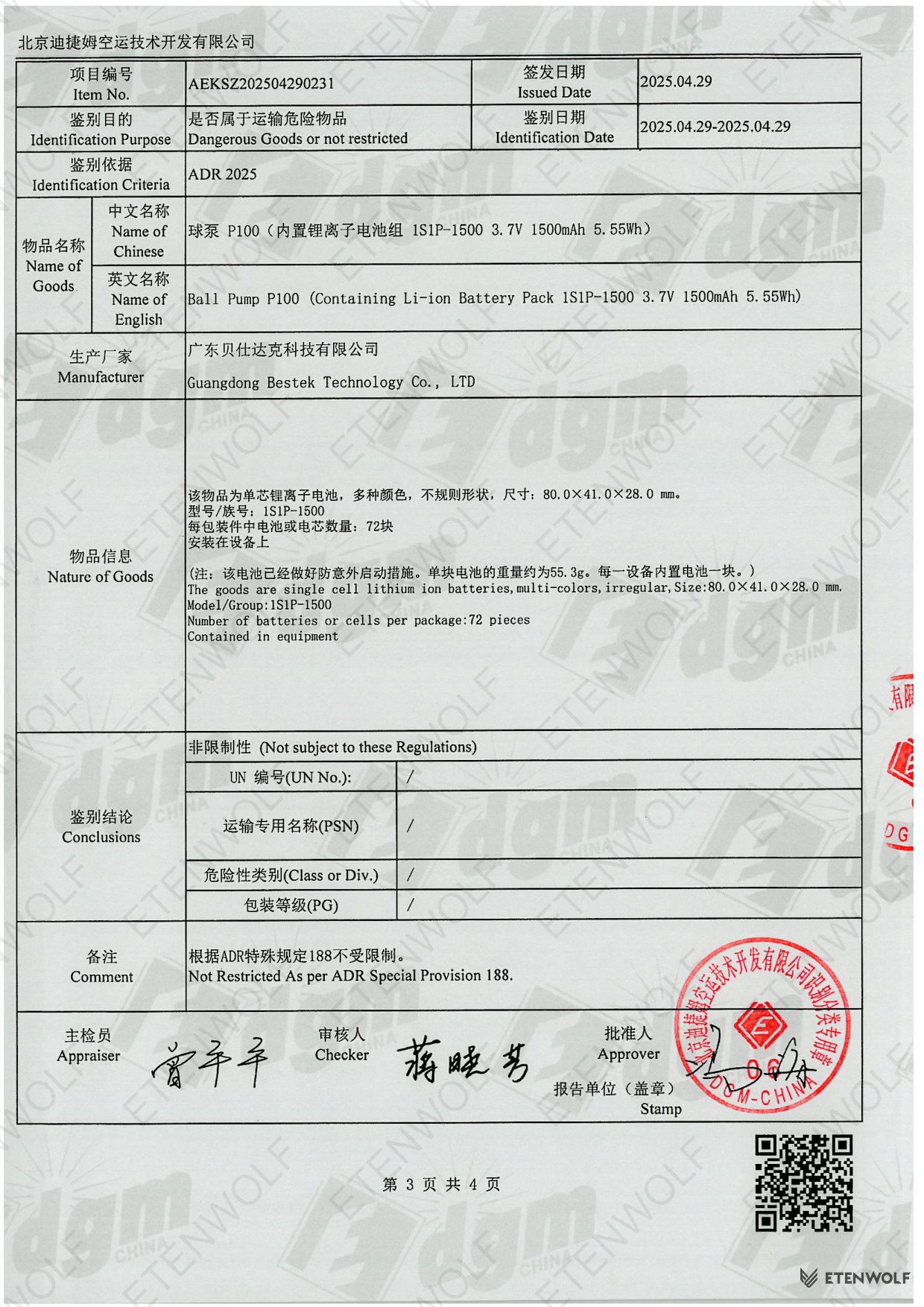

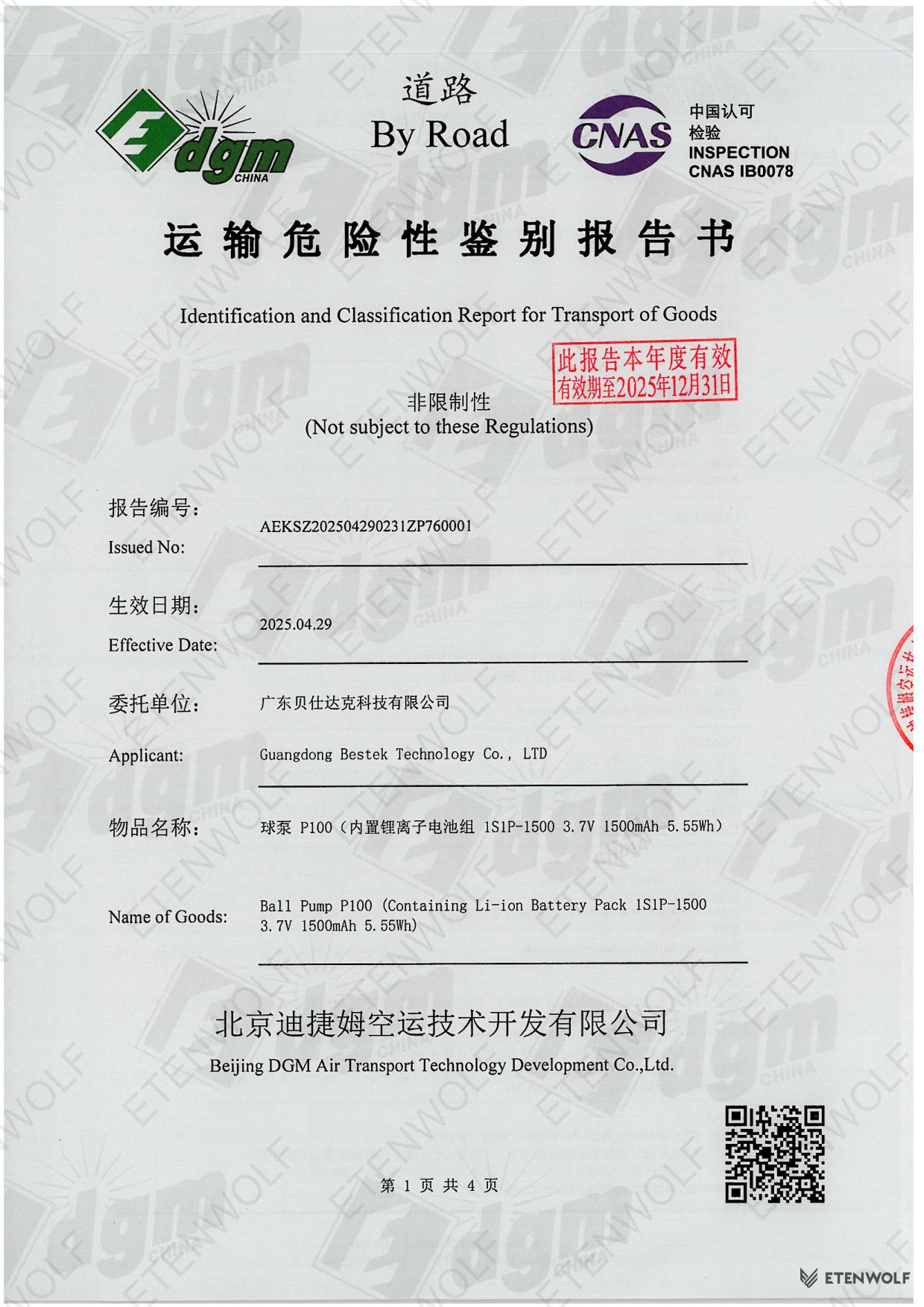

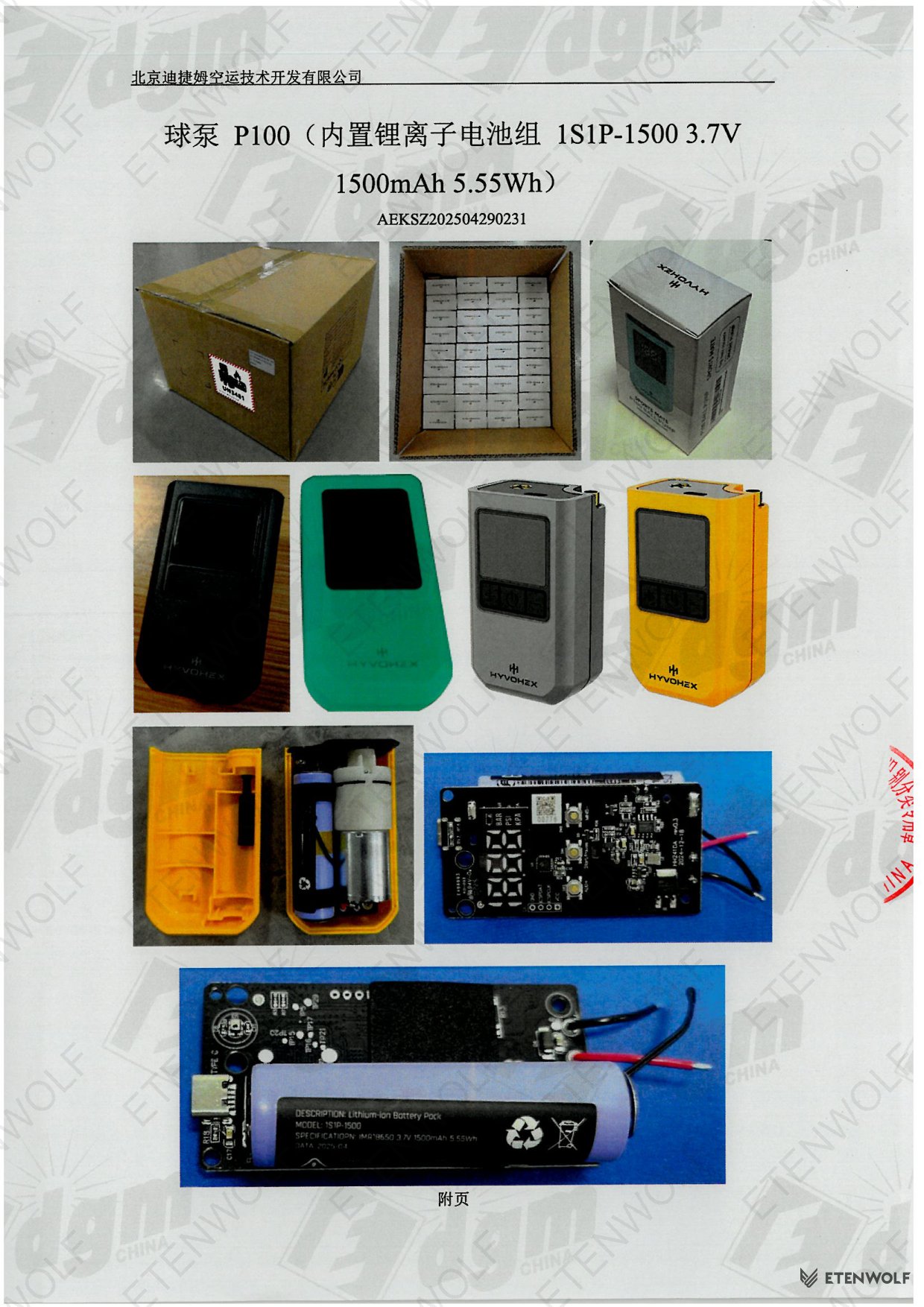

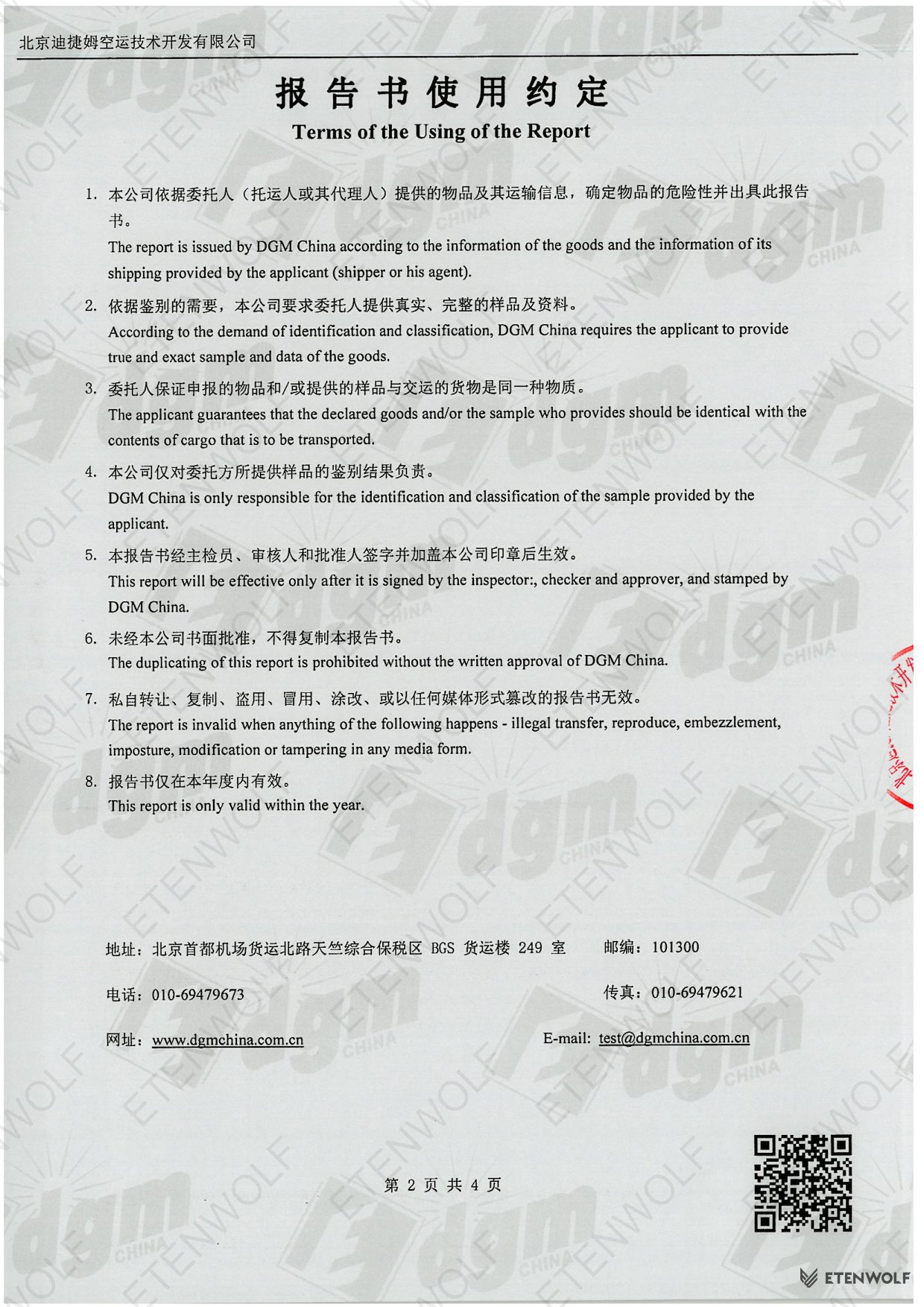

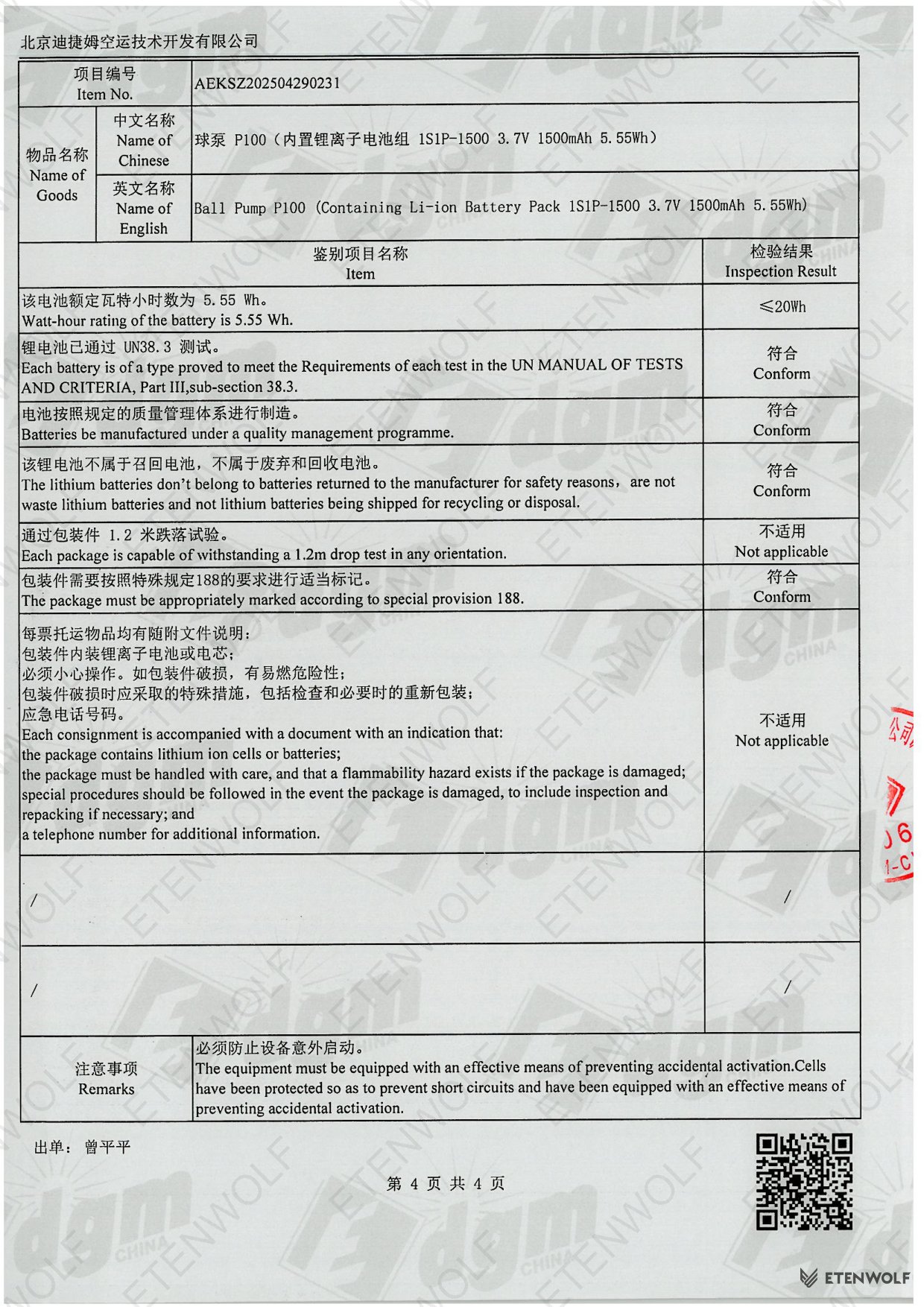

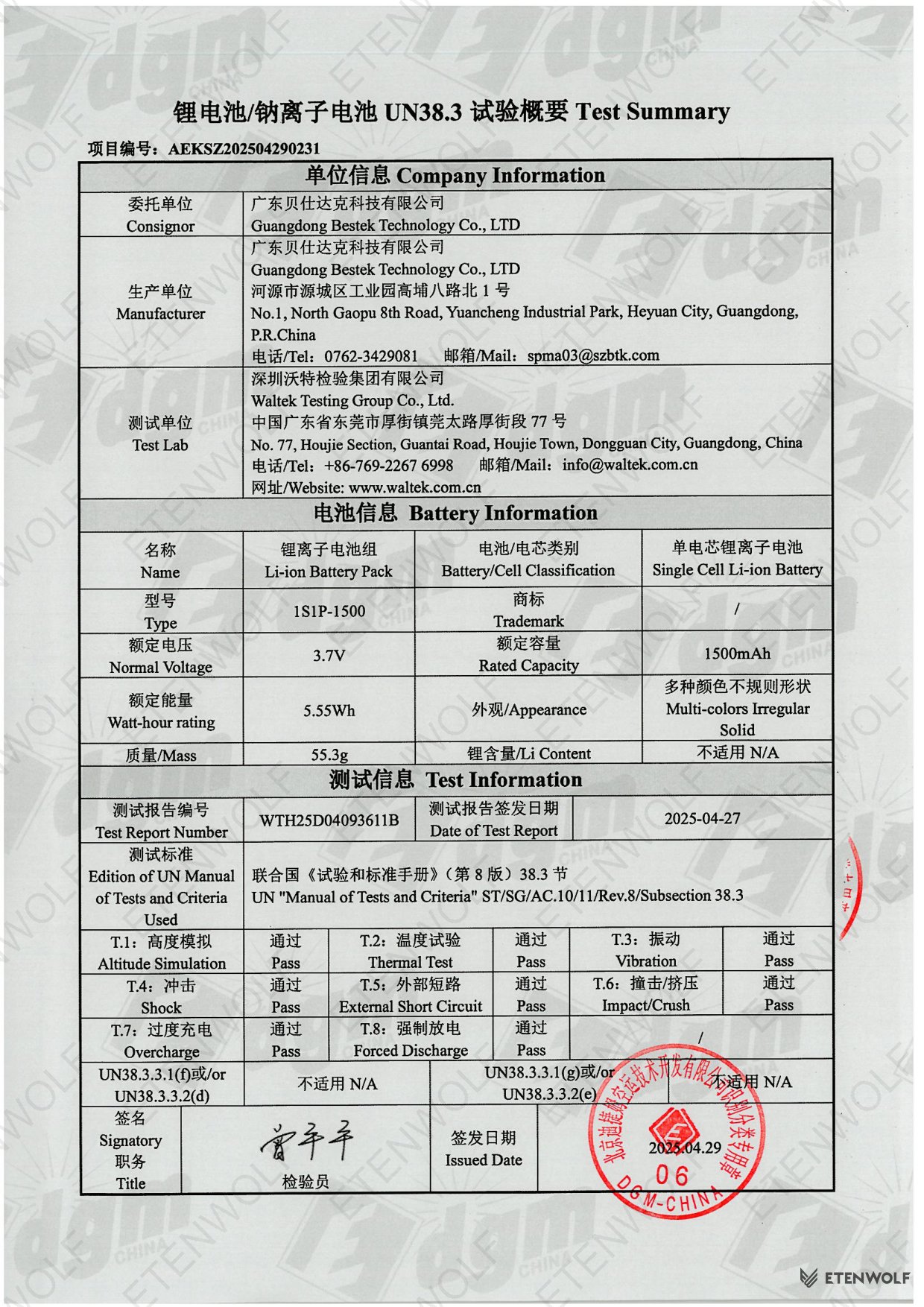

Document Pages
