Document Overview
This page presents the Identification and Classification Report for Air Transport of Goods issued for the ETENWOLF HB1 Air Pump PUMP MINI and its contained lithium-ion battery pack. The report was issued by Beijing DGM Air Transport Technology Development Co., Ltd. (DGM China), a recognised Dangerous Goods Management authority responsible for air transport classification under IATA Dangerous Goods Regulations (DGR).
| Field | Detail |
|---|---|
| Report Number | PEKSZ202510308891 |
| Document Type | Identification and Classification Report for Air Transport |
| Issuing Body | Beijing DGM Air Transport Technology Development Co., Ltd. |
| Effective / Issued Date | 2025-10-30 |
| Applicant | Guangdong Bestek Technology Co., LTD |
| Scope | Air transport classification of lithium-ion battery contained in equipment |
| Validity | Valid within the calendar year the applicable IATA DGR edition is in force |
The report confirms that the product and its battery have been assessed against current UN Manual of Tests and Criteria requirements and IATA DGR packing instruction provisions, qualifying the goods for commercial air transport.
Product Information
The product covered by this report is the ETENWOLF HB1 Air Pump, marketed under the sub-model name PUMP MINI. The pump contains an integrated lithium-ion battery pack with the following technical characteristics.
| Parameter | Value |
|---|---|
| Product Name | Air Pump PUMP MINI |
| Battery Pack Model | 1S1P-1100 |
| Battery / Cell Classification | Single Cell Li-ion Battery |
| Configuration | 1S1P (1 series, 1 parallel) |
| Nominal Voltage | 3.7 V |
| Rated Capacity | 1100 mAh |
| Watt-hour Rating | 4.07 Wh |
| Cell Size | 19.4 × 33.7 mm (blue cylinder) |
| Net Mass per Package (120 cells) | 3.144 kg |
| Number of Cells per Package | 120 |
| Lithium Content | N/A (lithium-ion type) |
| Manufacturer | Guangdong Bestek Technology Co., LTD |
| Manufacturer Address | No. 1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China |
The battery is a lithium-ion cell of the cylindrical blue type. The HB1 PUMP MINI is classified as lithium-ion batteries contained in equipment for air transport purposes, meaning the battery is installed inside the pump device during shipment.
Key Details
The classification assessment and UN38.3 test summary for the HB1 battery pack are documented below. All eight sub-tests required by UN38.3 were performed and passed.

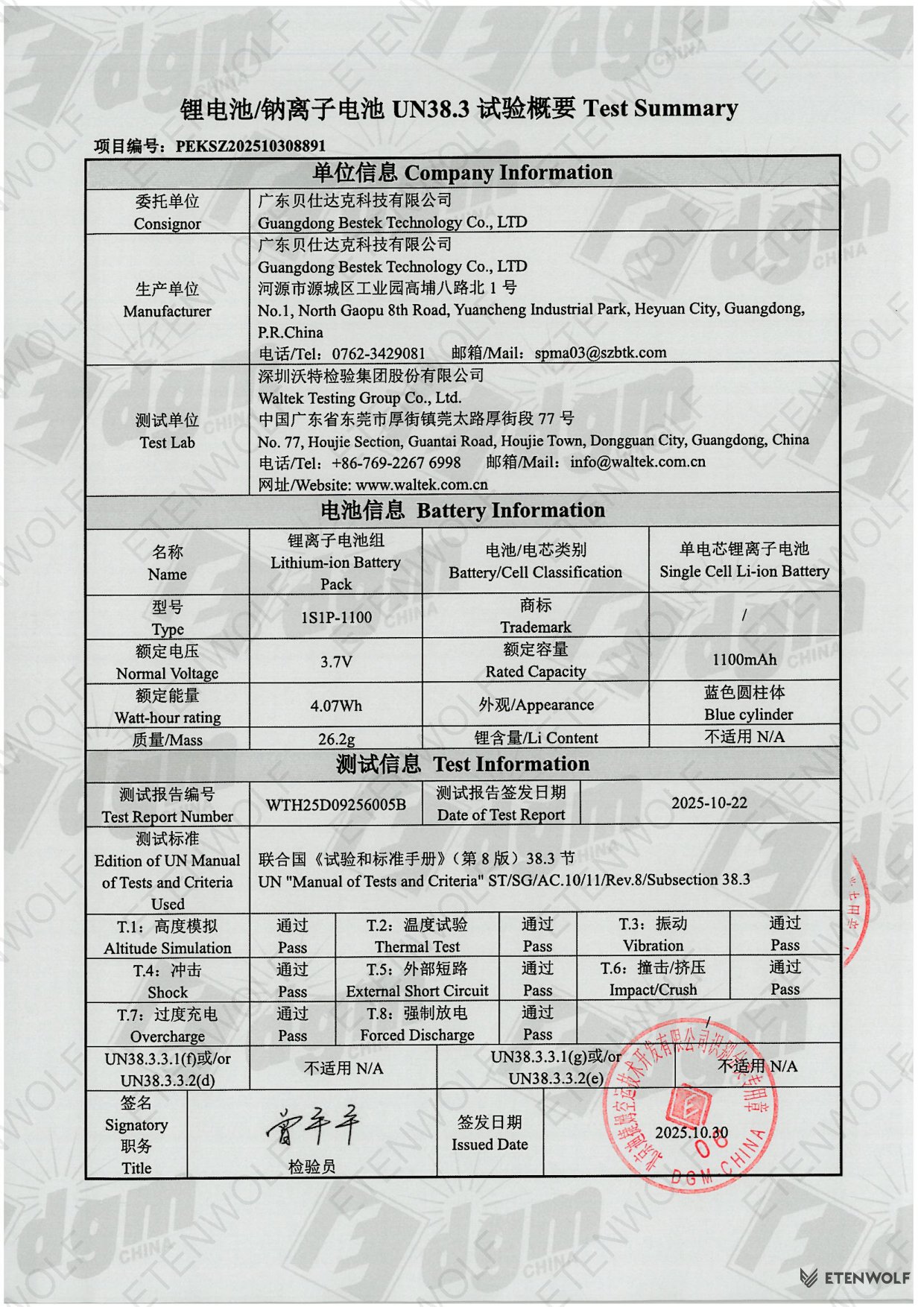

UN38.3 Test Results Summary
| Test | Description | Result |
|---|---|---|
| T.1 | Altitude Simulation | Pass |
| T.2 | Thermal Test | Pass |
| T.3 | Vibration | Pass |
| T.4 | Shock | Pass |
| T.5 | External Short Circuit | Pass |
| T.6 | Impact / Crush | Pass |
| T.7 | Overcharge | Pass |
| T.8 | Forced Discharge | Pass |
Air Transport Classification
| Field | Detail |
|---|---|
| UN/ID Number | UN3481 (PI 967 Section II — Lithium-ion batteries contained in equipment) |
| Packing Instruction | PI 967, Section II |
| Passenger and Cargo Aircraft | Permitted |
| Cargo Aircraft Only | Permitted |
| Subsidiary Risk | None |
| Packing Group | N/A |
Additional Declaration Conditions
- The batteries are not returned-to-manufacturer, waste, or disposal-purpose batteries.
- Batteries are manufactured under a quality management programme as described in UN38.3 Section 3.9.2.6.1(e).
- Each package has been assessed and is capable of withstanding a force equivalent to the total mass of identical packages stacked to a height of 3 m for a duration of 24 hours.
- Batteries and cells must be protected to prevent short circuits, and the equipment must have an effective means of preventing accidental activation.
- Each package is marked with the required battery mark.
Test Laboratory
| Field | Detail |
|---|---|
| Test Lab | Waltek Testing Group Co., Ltd. |
| Lab Address | No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China |
| Test Report Number | PEKSZ202510308891 |
| Date of Test Report | 2025-10 |
| UN Manual Edition Used | UN Manual of Tests and Criteria ST/SG/AC.10/11/Rev.8, Subsection 38.3 |
| Tel | +86-769-2267 6998 |
| [email protected] | |
| Website | www.waltek.com.cn |
Standards & Compliance
The HB1 PUMP MINI battery pack has been evaluated against the following international standards and regulatory frameworks.
| Standard / Regulation | Description | Role in This Report |
|---|---|---|
| UN38.3 (ST/SG/AC.10/11/Rev.8) | UN Manual of Tests and Criteria, Part III, Sub-section 38.3 — Lithium Metal and Lithium-ion Batteries | Primary test standard; all 8 tests passed |
| IATA Dangerous Goods Regulations (DGR) — Current Edition | International Air Transport Association rules governing air shipment of dangerous goods including lithium batteries | Classification and packing instruction basis (PI 967 Section II) |
| IATA PI 967, Section II | Packing instruction for lithium-ion batteries contained in equipment (<100 Wh per battery) | Applicable packing instruction confirmed |
The report was issued in compliance with the terms and conditions of DGM China, which requires the applicant to provide true and accurate samples and data. The classification is based solely on the sample provided by the applicant (Guangdong Bestek Technology Co., LTD) and is the responsibility of DGM China only for that sample.
Validity & Certification Body
Validity Period
This identification and classification report is valid within the calendar year in which the applicable edition of the IATA Dangerous Goods Regulations is in force. The report was issued on 2025-10-30 and is therefore valid for the 2025 IATA DGR edition year. It must be renewed when a new IATA DGR edition takes effect.
The report becomes invalid if any of the following occurs: illegal transfer, reproduction, embezzlement, impersonation, modification, or tampering in any media form. It is only valid after being signed by the inspector, checker, and approver, and stamped by DGM China. Duplication without DGM China’s written approval is prohibited.
Issuing Authority
| Field | Detail |
|---|---|
| Issuing Body | Beijing DGM Air Transport Technology Development Co., Ltd. (DGM China) |
| Address | Altitude 101300, Beijing, China |
| Tel | 010-69479673 |
| Fax | 010-69479621 |
| Website | www.dgmchina.com.cn |
| [email protected] |
Applicant on Record
| Field | Detail |
|---|---|
| Applicant / Consignor | Guangdong Bestek Technology Co., LTD |
| Address | No. 1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China |
| Tel | 0762-3429081 |
| [email protected] |
Frequently Asked Questions
- What does the UN38.3 certification mean for the ETENWOLF HB1 air pump battery?
-
UN38.3 is the internationally recognised test standard for lithium batteries intended for transport. It requires batteries to pass eight specific safety tests — covering altitude simulation, thermal extremes, vibration, shock, external short circuit, impact or crush, overcharge, and forced discharge. The HB1 PUMP MINI battery pack (1S1P-1100, 3.7 V, 4.07 Wh) passed all eight tests, confirming it is safe for commercial air transport.
- Can the HB1 PUMP MINI be shipped on passenger aircraft?
-
Yes. According to report PEKSZ202510308891, the HB1 battery qualifies under IATA PI 967 Section II, which permits carriage on both passenger and cargo aircraft, subject to standard IATA DGR conditions such as short-circuit protection and anti-activation measures.
- How long is the UN38.3 report valid?
-
The report is valid within the calendar year of the IATA Dangerous Goods Regulations edition under which it was issued. Report PEKSZ202510308891, issued on 2025-10-30, is valid for the 2025 IATA DGR year. Shippers should verify currency when a new IATA DGR edition is released.
- Which test laboratory performed the UN38.3 tests for the HB1 battery?
-
The UN38.3 tests were conducted by Waltek Testing Group Co., Ltd., located at No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China. The tests were completed in October 2025 using the UN Manual of Tests and Criteria, ST/SG/AC.10/11/Rev.8, Subsection 38.3.
Related Documents
For complete regulatory compliance of the HB1 PUMP MINI across all markets and transport modes, the following certification documents are typically required alongside this UN38.3 report.
- IEC 62133 Battery Safety Certificate — Confirms electrochemical safety of the lithium-ion cell under standard use and abuse conditions, required for many consumer electronics markets.
- CE Declaration of Conformity (LVD / EMC) — Required for sale in the European Economic Area; covers low-voltage safety and electromagnetic compatibility of the pump device.
- FCC ID Certification — Required for the US market; covers radio frequency emissions and equipment authorisation.
- RoHS Compliance Certificate — Confirms restriction of hazardous substances (lead, mercury, cadmium, etc.) in the product and battery, required for EU and many global markets.
- REACH SVHC Declaration — Confirms absence or declaration of substances of very high concern under EU REACH regulation.
- KC Certification (Korea) — Required for sale in the Republic of Korea; covers electrical safety and EMC of the battery and device.
- MSDS / Safety Data Sheet — Material Safety Data Sheet for the lithium-ion battery, often required by freight forwarders alongside the UN38.3 report for air shipment documentation.

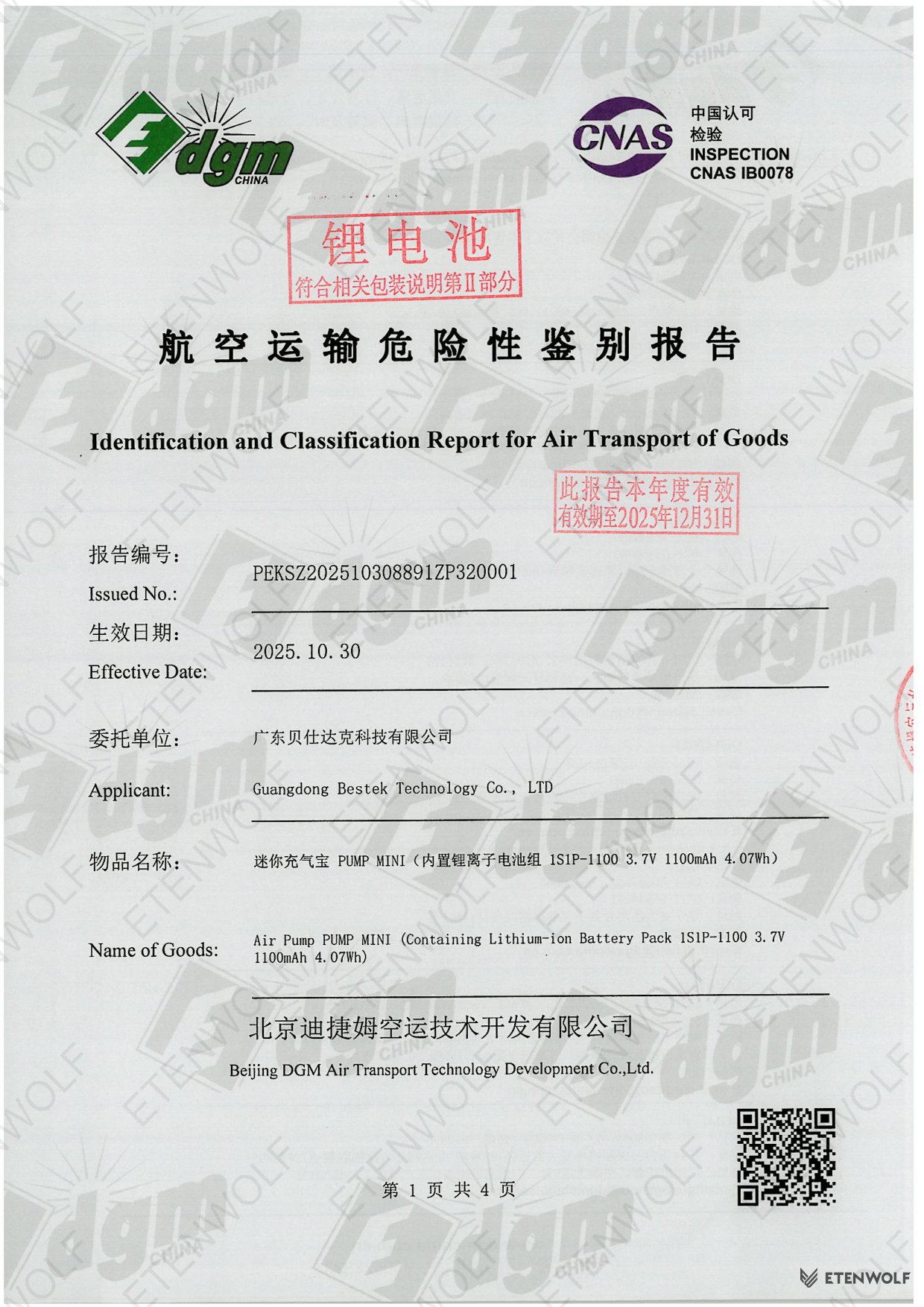

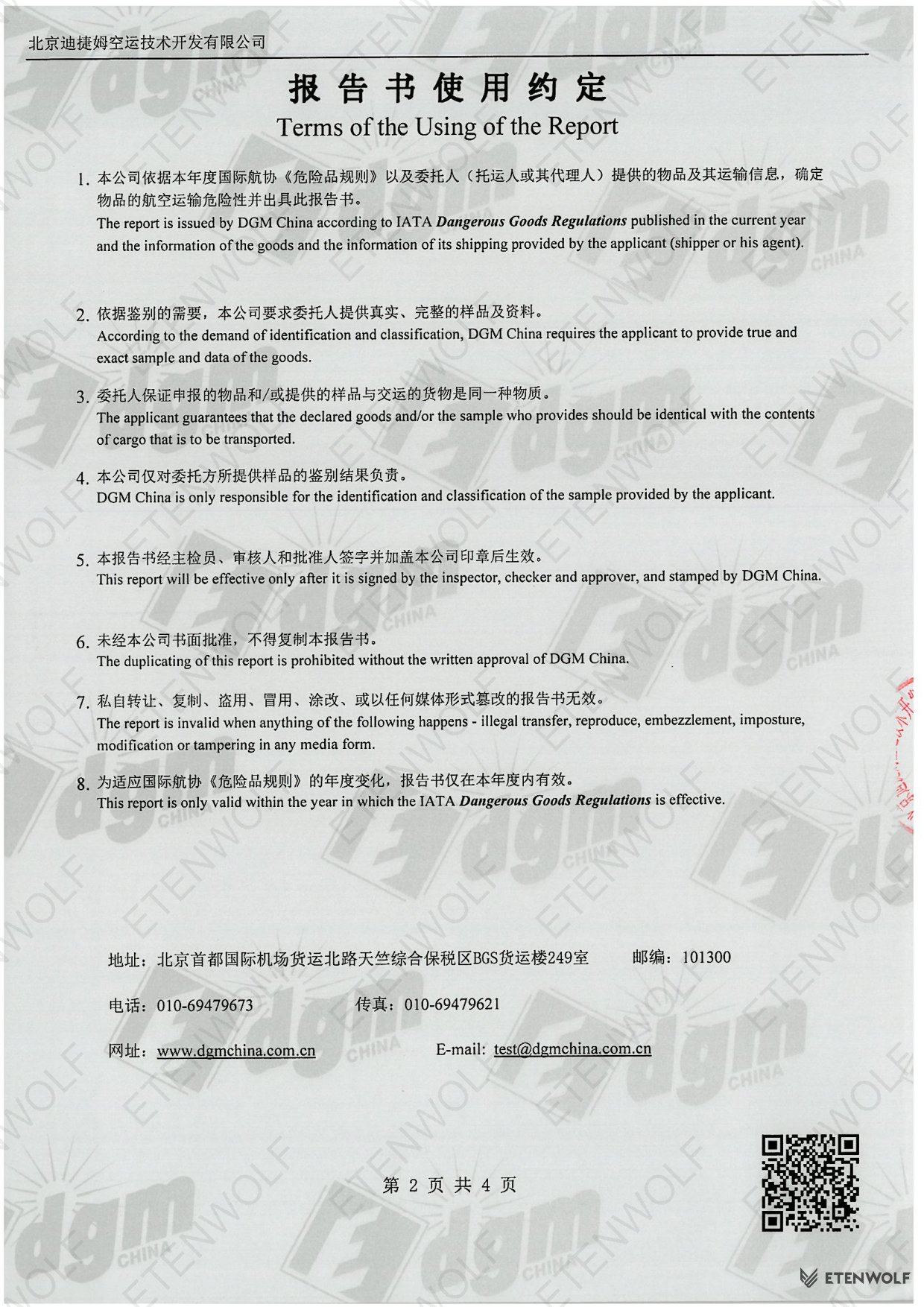

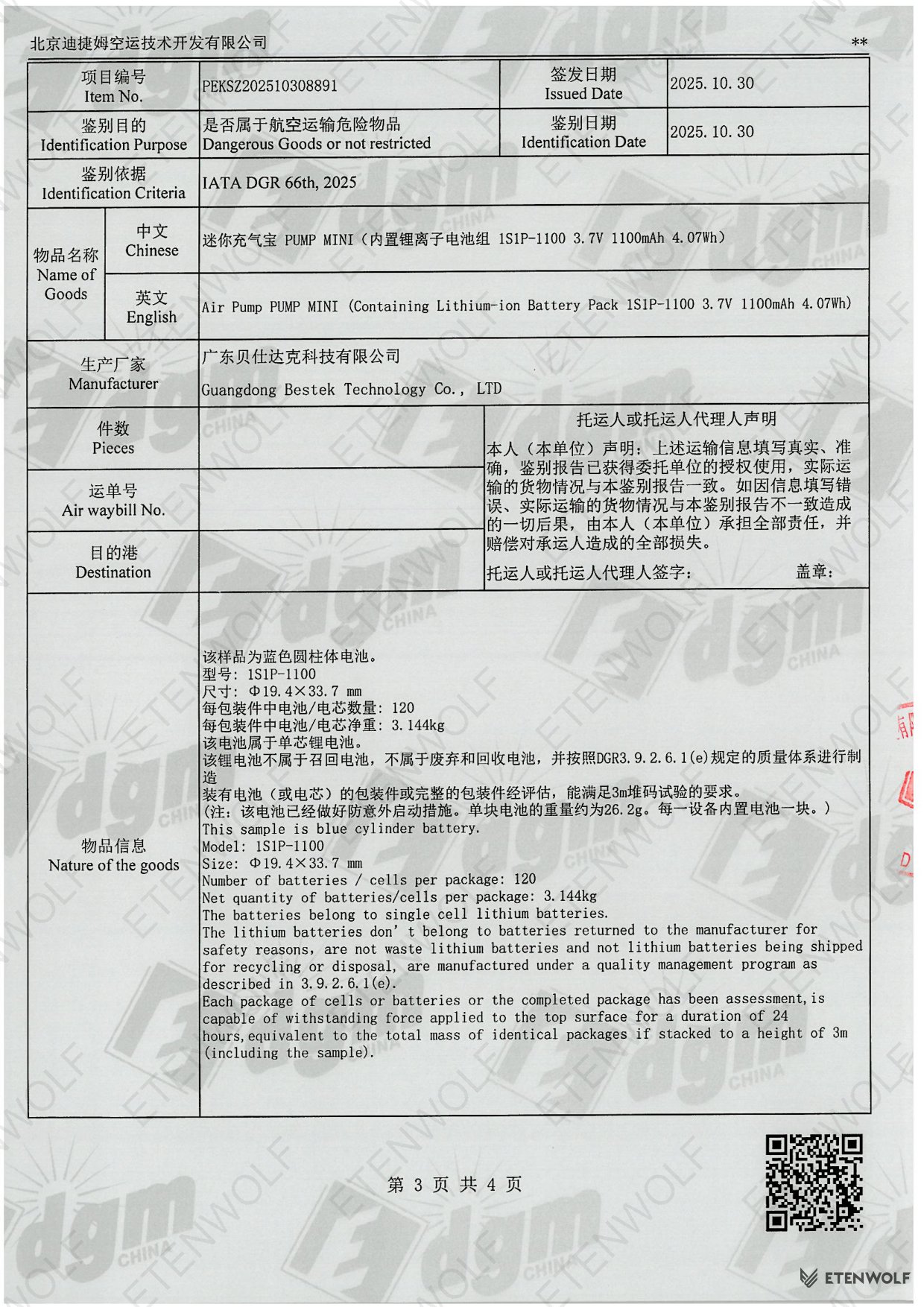

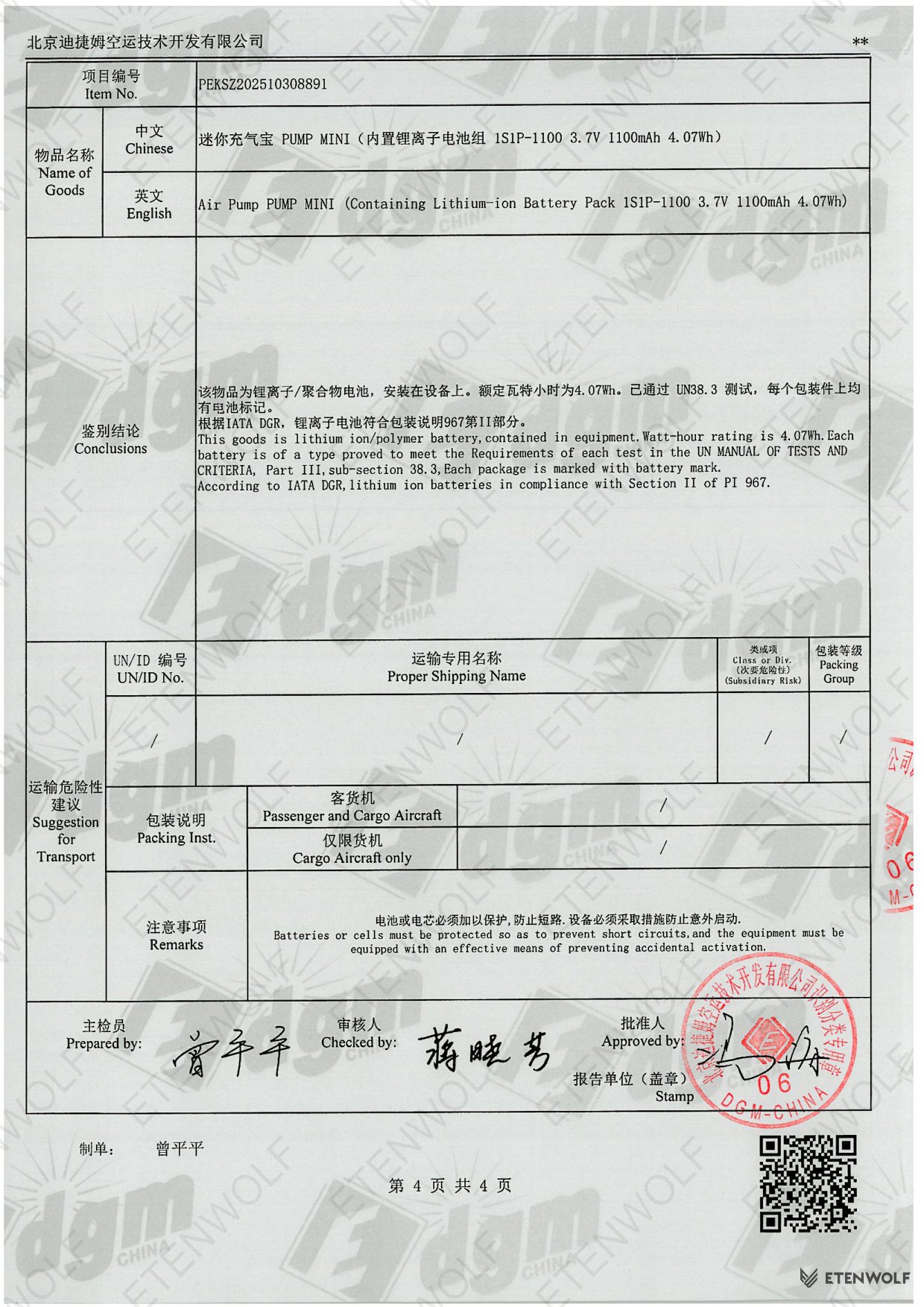

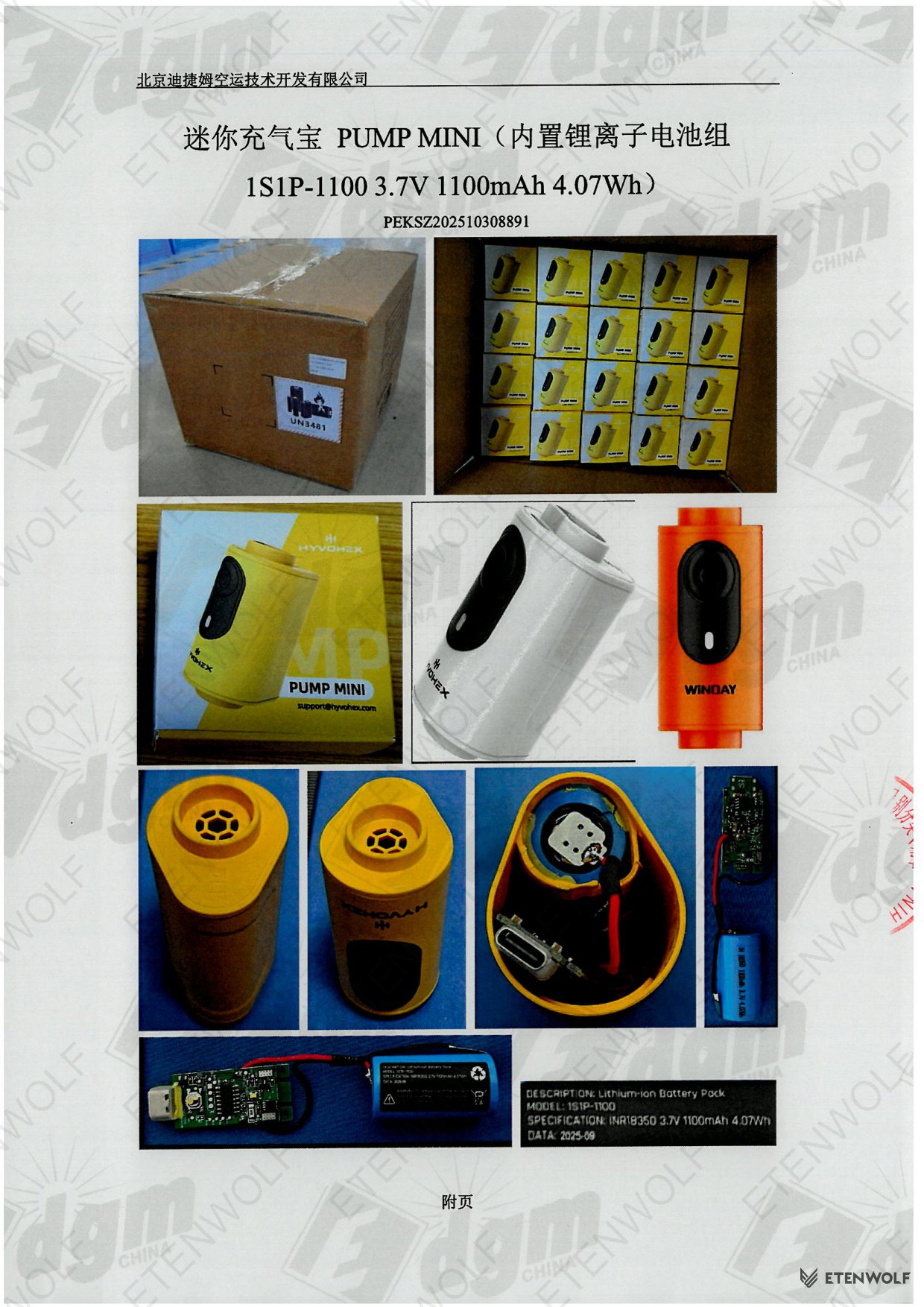

Document Pages
