Document Overview

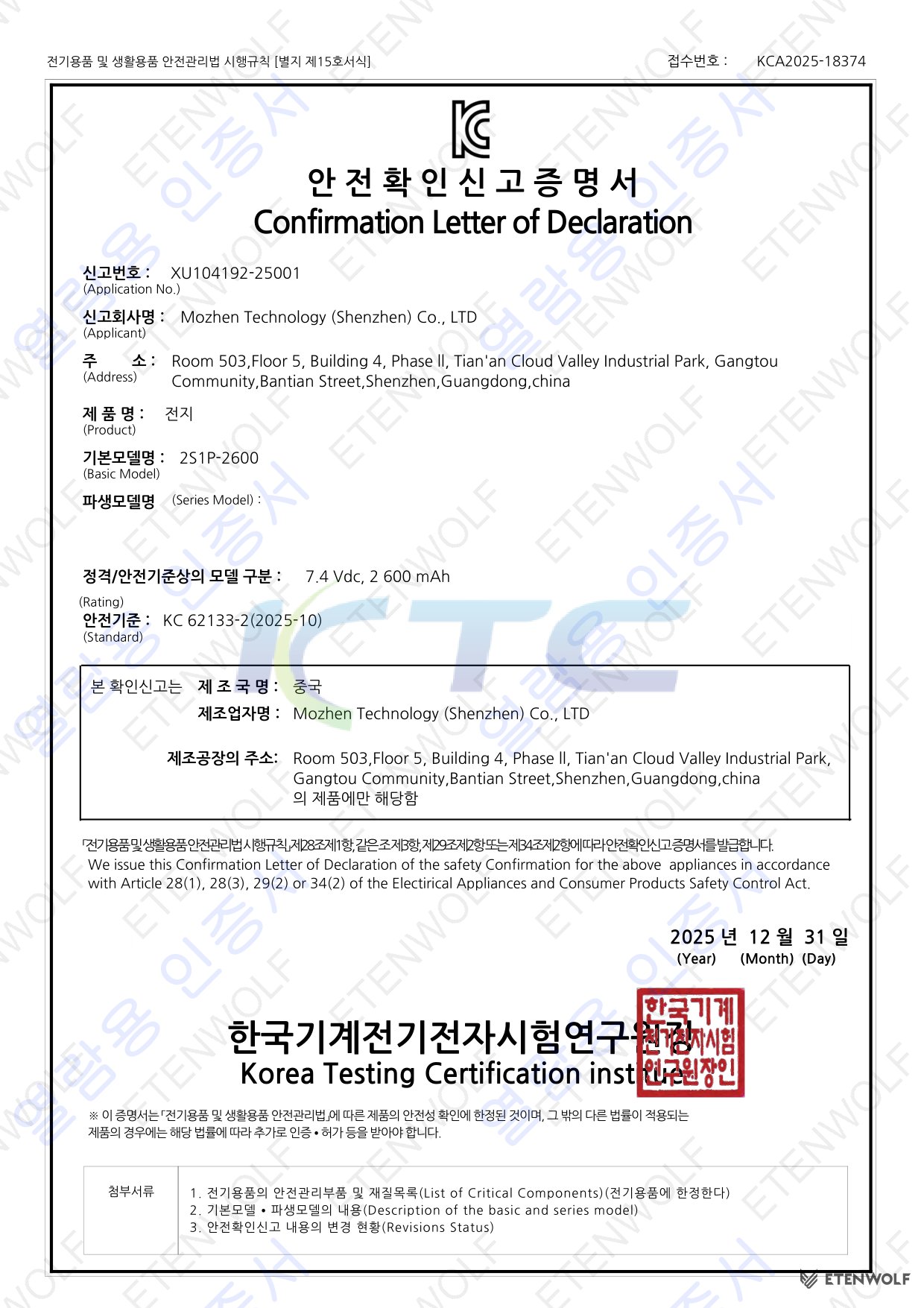

This page presents the Confirmation Letter of Declaration (안전확인신고증명서) issued under the Electrical Appliances and Consumer Products Safety Control Act of the Republic of Korea. The certificate was processed and issued by the Korea Testing Certification institute (KTC / 한국기계전기전자시험연구원), which is the designated Korean conformity assessment body for electrical and consumer products.
- Certificate Number (신고번호 / Application No.): XU104192-25001
- Receipt Number (접수번호): KCA2025-18374
- Document Type: Confirmation Letter of Declaration – KC Safety Confirmation (안전확인신고증명서)
- Issuing Authority: Korea Testing Certification Institute (한국기계전기전자시험연구원장)
- Issue / Validity Date: 2025-12-31
- Applicable Safety Standard: KC 62133-2 (2025-10)
- Regulatory Basis: Articles 28(1), 28(3), 29(2) and 34(2) of the Electrical Appliances and Consumer Products Safety Control Act (전기용품 및 생활용품 안전관리법 시행규칙)
The certificate scope is limited to confirming the safety of the declared product as manufactured at the registered factory. It does not substitute for any additional approvals required under other applicable laws.

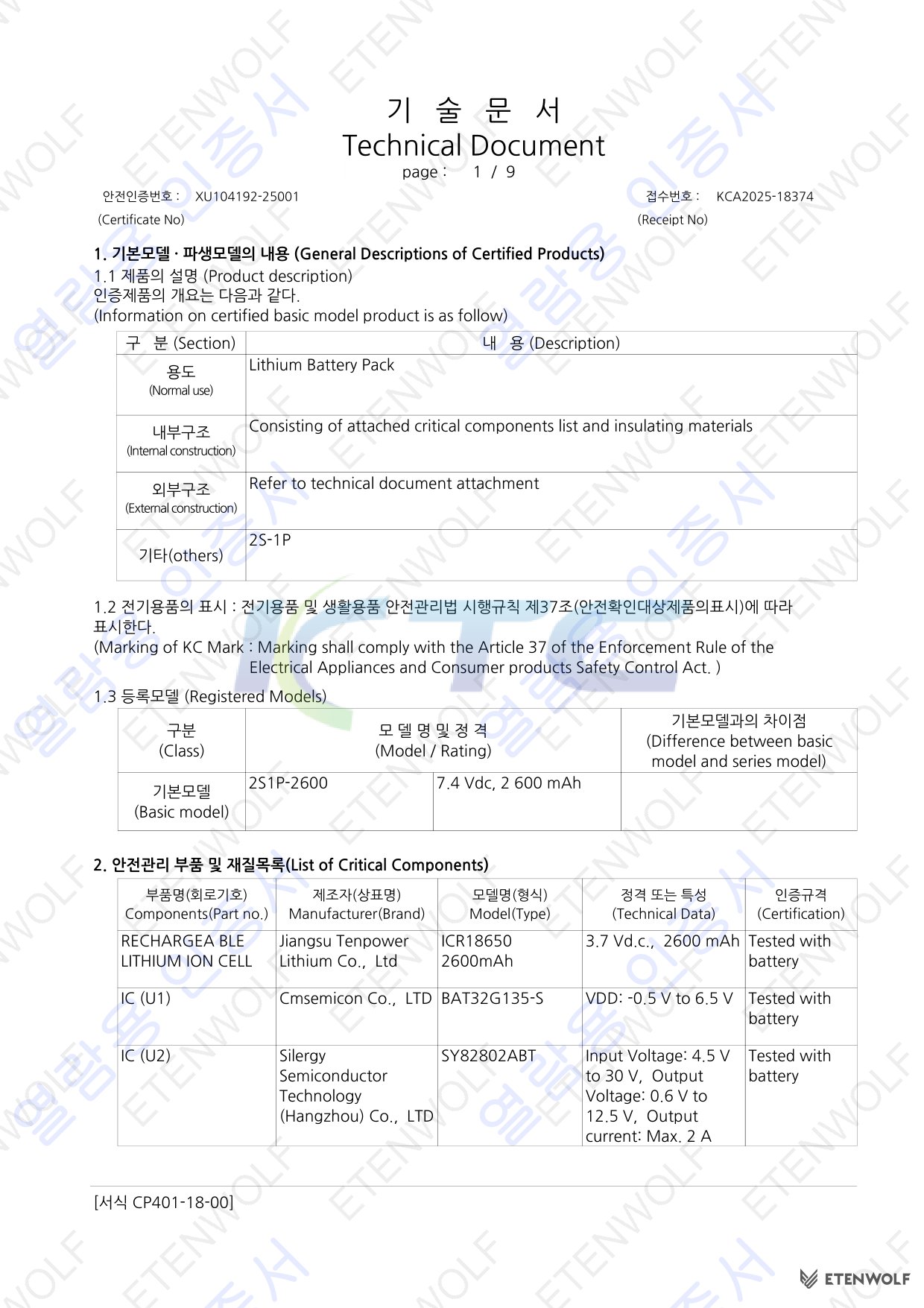

Product Information
The certified product is the lithium battery pack integrated into the ETENWOLF S1 Portable Tire Inflator. The S1 is a compact, rechargeable inflation tool designed for passenger vehicle tires, sports equipment, and similar inflatables.
| Field | Detail |
|---|---|
| Product Name (제품명) | 전지 (Lithium Battery Pack) |
| Basic Model Name (기본모델명) | 2S1P-2600 |
| Series / Derived Model (파생모델명) | — |
| Rated Voltage | 7.4 Vdc |
| Rated Capacity | 2,600 mAh |
| Cell Configuration | 2S-1P (two cells in series, one cell in parallel) |
| Country of Manufacture (제조국) | China (중국) |
| Manufacturer (제조업자명) | Mozhen Technology (Shenzhen) Co., LTD |
| Manufacturing Address | Room 503, Floor 5, Building 4, Phase II, Tian’an Cloud Valley Industrial Park, Gangtou Community, Bantian Street, Shenzhen, Guangdong, China |
| Applicant (신고회사명) | Mozhen Technology (Shenzhen) Co., LTD |
The battery pack powers the ETENWOLF S1 motor and control electronics, enabling cordless operation without requiring a vehicle’s 12V outlet or an external power source.
Key Details
The following tables document the critical safety components registered under certificate XU104192-25001. Any change to these components requires a formal revision application to the certification authority.
Critical Component List (안전관리 부품 및 재질목록)
| Component (Part Symbol) | Manufacturer (Brand) | Model / Type | Rated Characteristics | Certification Status |
|---|---|---|---|---|
| Rechargeable Lithium-Ion Cell | Jiangsu Tenpower Lithium Co., Ltd | ICR18650 2600mAh | 3.7 Vdc, 2,600 mAh | Tested with battery |
| IC (U1) | Cmsemicon Co., LTD | BAT32G135-S | VDD: −0.5 V to 6.5 V | Tested with battery |
| IC (U2) | Silergy Semiconductor Technology (Hangzhou) Co., LTD | SY82802ABT | Input: 4.5–30 V; Output: 0.6–12.5 V; Max output current: 2 A | Tested with battery |
| IC (U3) | Microne | ME7300QS28PG | VDD: 3.3–5.5 V | Tested with battery |
| IC (U4) | INJOINIC TECHNOLOGY | IP2320 | VIN: 4.5–5.5 V; Under-voltage threshold: 4.4–4.6 V; Over-voltage threshold: 5.6–6.0 V | Tested with battery |
| MOSFET (Q10) | JUNSHINE | JFG263N40L | VDS: 40 V; VGS: ±20 V; ID: 263 A (TC = 25 °C) | Tested with battery |
| Fuse (F1) | Dongguan Hongda Electronic Technology Co., Ltd | 12T.30 | 30 A, 32 Vdc; Breaking capacity: 150 A | Tested with battery |
Certificate Revision History (변경현황)
| Date | Status | Modification |
|---|---|---|
| 2025-12-31 | New Issue (신규발급) | Initial issuance — no prior revisions |
Standards & Compliance
The ETENWOLF S1 battery pack was evaluated and declared conformant to the following Korean national safety standard, which is harmonized with the international IEC standard for secondary lithium cells and batteries used in portable applications.
| Standard Reference | Full Title | Scope |
|---|---|---|
| KC 62133-2 (2025-10) | Secondary cells and batteries containing alkaline or other non-acid electrolytes – Safety requirements for portable sealed secondary lithium cells, and for batteries made from them, for use in portable applications – Part 2: Lithium systems | Safety testing of lithium-ion cells and battery packs used in portable consumer devices |
Key test areas covered under KC 62133-2 include:
- Overcharge and over-discharge protection
- Short-circuit protection (external and internal)
- Crush, impact, and vibration resistance
- Thermal abuse and thermal runaway assessment
- Charging and discharging cycle performance
- Insulation resistance and dielectric strength
Compliance with KC 62133-2 also satisfies South Korea’s product safety notification requirements under Articles 28 and 29 of the Electrical Appliances and Consumer Products Safety Control Act. The KC mark must be displayed on the product and its packaging in accordance with Article 37 of the same Act’s enforcement rules.
Validity & Certification Body
Certificate Validity

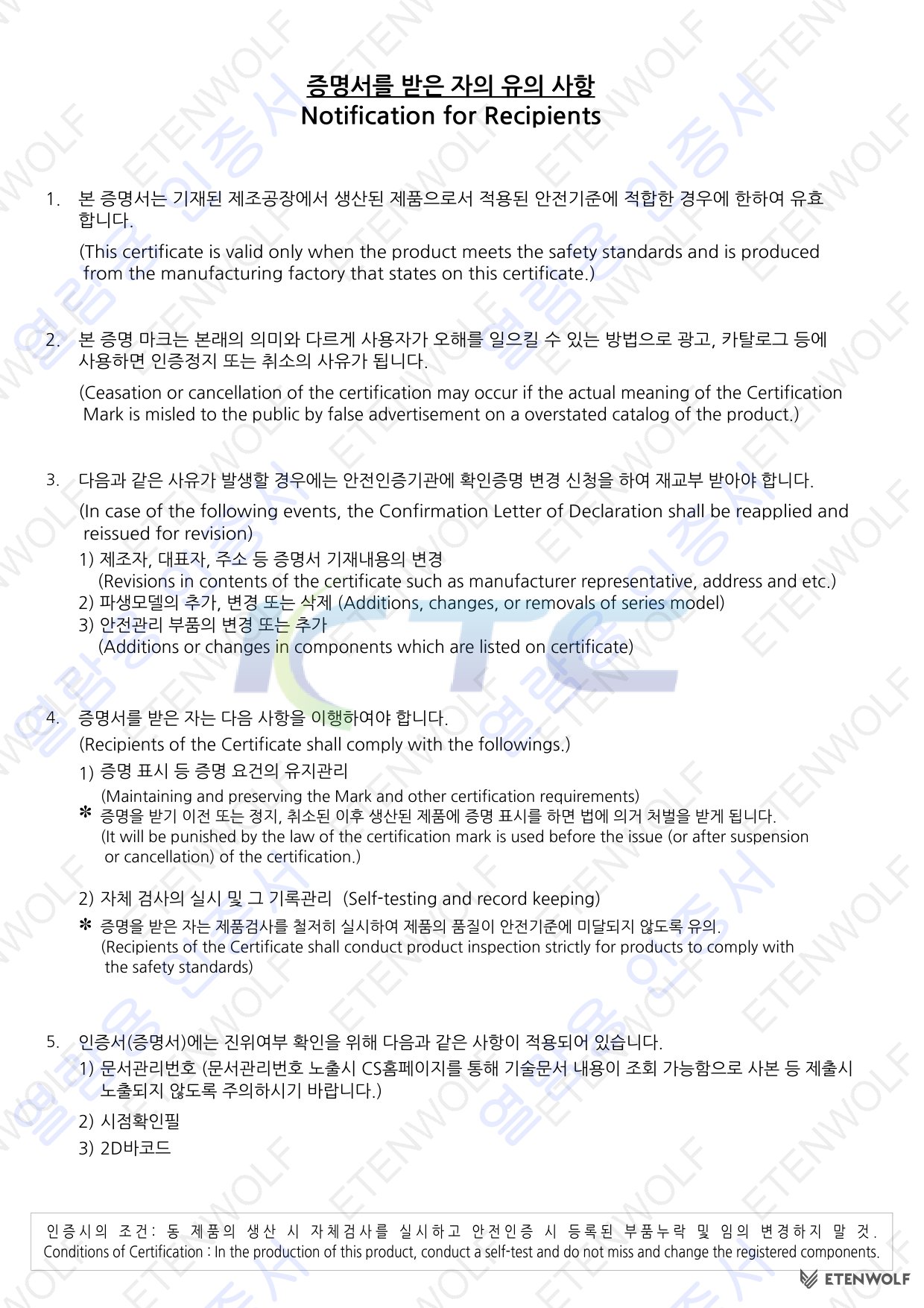

The Confirmation Letter of Declaration bearing certificate number XU104192-25001 was issued on 2025-12-31. Under Korean safety law, the declaration remains valid provided that:
- The product continues to be manufactured at the registered factory (Mozhen Technology (Shenzhen) Co., LTD, Shenzhen, Guangdong, China) without unauthorized changes.

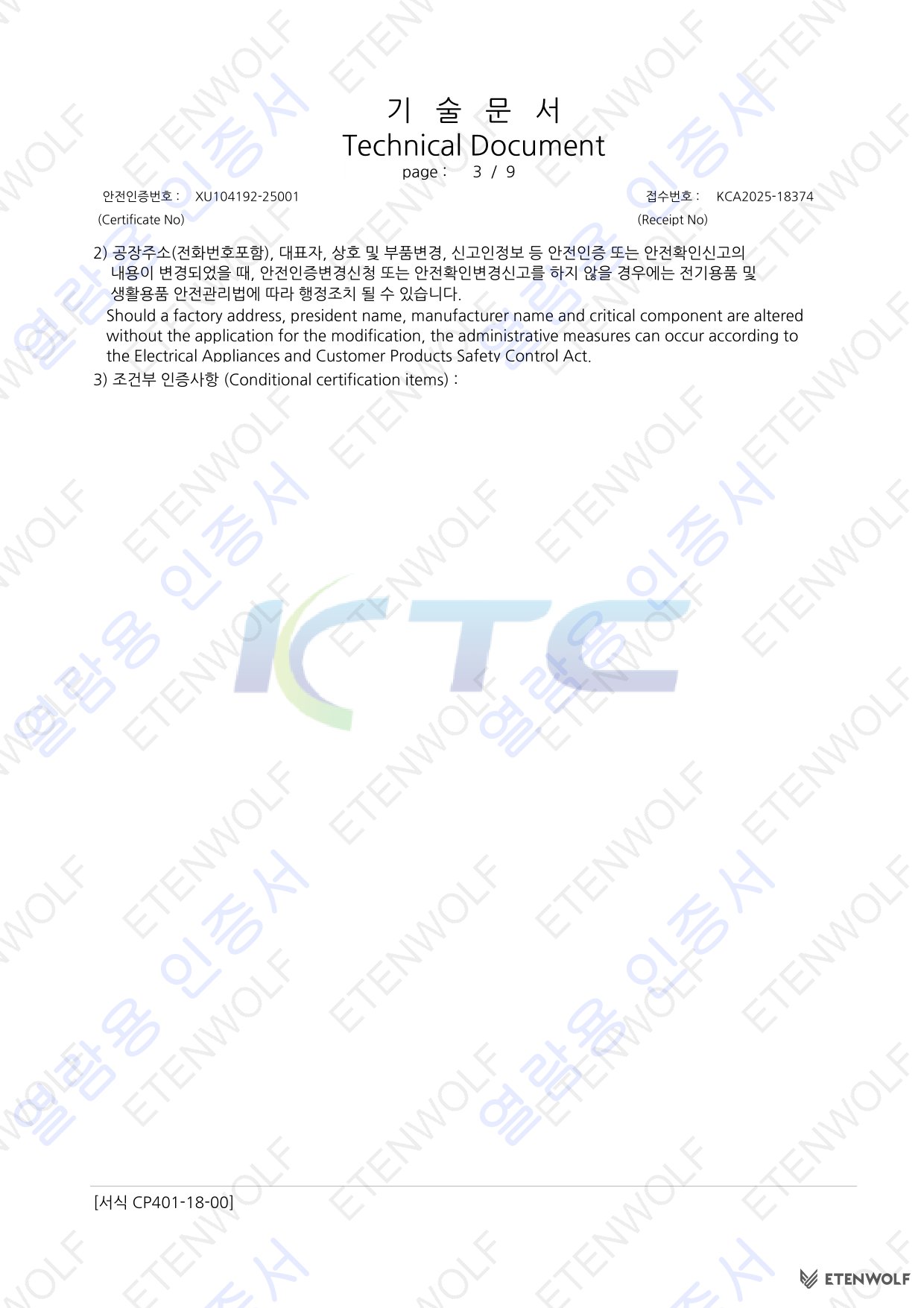

- All registered critical components remain unchanged. Any substitution requires a formal revision application (안전인증변경신청 또는 안전확인변경신고).
- The certificate holder conducts ongoing self-inspection (자체검사) and maintains inspection records.
- The KC certification mark is used only for products covered by this declaration and not before issue or after suspension/cancellation.
Issuing Certification Body
| Field | Detail |
|---|---|
| Korean Name | 한국기계전기전자시험연구원 |
| English Name | Korea Testing Certification Institute (KTC) |
| Role | Designated conformity assessment body under the Electrical Appliances and Consumer Products Safety Control Act |
| Receipt Number | KCA2025-18374 |
| Certificate Number | XU104192-25001 |
The KTC is a government-designated testing and certification body in South Korea responsible for evaluating electrical appliances, consumer products, and telecommunications equipment for safety and regulatory compliance. Its certification is recognized by the Korean Agency for Technology and Standards (KATS) under the Ministry of Trade, Industry and Energy.
Frequently Asked Questions
- What does the KC certificate XU104192-25001 confirm for the ETENWOLF S1?
- It confirms that the lithium battery pack (model 2S1P-2600, 7.4 Vdc / 2,600 mAh) installed in the ETENWOLF S1 meets the safety requirements of KC 62133-2 (2025-10). The certificate was issued by Korea Testing Certification Institute under receipt number KCA2025-18374 and is valid as long as the product is manufactured without changes to the registered components or factory.
- Which standard was used to test the ETENWOLF S1 battery, and what does it cover?
- KC 62133-2 (2025-10) is the applicable standard. It is the Korean national implementation of IEC 62133-2 and covers safety requirements for portable sealed secondary lithium cells and battery packs, including overcharge, short-circuit, thermal abuse, vibration, and mechanical integrity testing.
- Can the registered critical components in the ETENWOLF S1 battery be changed without notifying the authority?
- No. Any change to the components listed in the certificate — including the lithium-ion cells (ICR18650), ICs (U1–U4), MOSFET (Q10), or fuse (F1) — requires a formal revision application (안전확인변경신고) to the certification body before implementation. Unauthorized changes may result in administrative sanctions under the Electrical Appliances and Consumer Products Safety Control Act.
- Is the KC mark on the ETENWOLF S1 sufficient for sale throughout South Korea?
- The KC Safety Confirmation mark covers the battery pack’s compliance with electrical safety standards under the Electrical Appliances and Consumer Products Safety Control Act. However, the certificate itself notes that products subject to other applicable Korean laws may require additional approvals or permits beyond this safety confirmation.
Related Documents
The following certification types are relevant to the ETENWOLF S1 Portable Tire Inflator and its battery system. Holding a complete set of these documents demonstrates thorough regulatory coverage across major global markets.
- UN 38.3 Transportation Test Report — Mandatory for international air and sea shipment of lithium-ion battery packs; covers altitude simulation, thermal cycling, vibration, shock, external short-circuit, impact/crush, overcharge, and forced discharge tests.
- IEC 62133-2 Test Report — International baseline standard for lithium battery safety, underpinning the KC 62133-2 applied in this certificate; required by many global markets.
- CE Declaration of Conformity — Required for sale in the European Economic Area; for a lithium-battery-powered inflator, relevant directives include the Battery Regulation (EU) 2023/1542 and the Radio Equipment Directive if wireless charging is present.
- FCC Declaration of Conformity — Required for sale in the United States if the device contains any radio frequency components or emits unintentional radiation above threshold limits.
- RoHS Compliance Certificate — Confirms restriction of hazardous substances (lead, mercury, cadmium, etc.) in electrical and electronic equipment; required in the EU and recognized in many other markets.
- REACH SVHC Declaration — Confirms that substances of very high concern are below 0.1% w/w threshold in the product’s components; required for EU market entry.

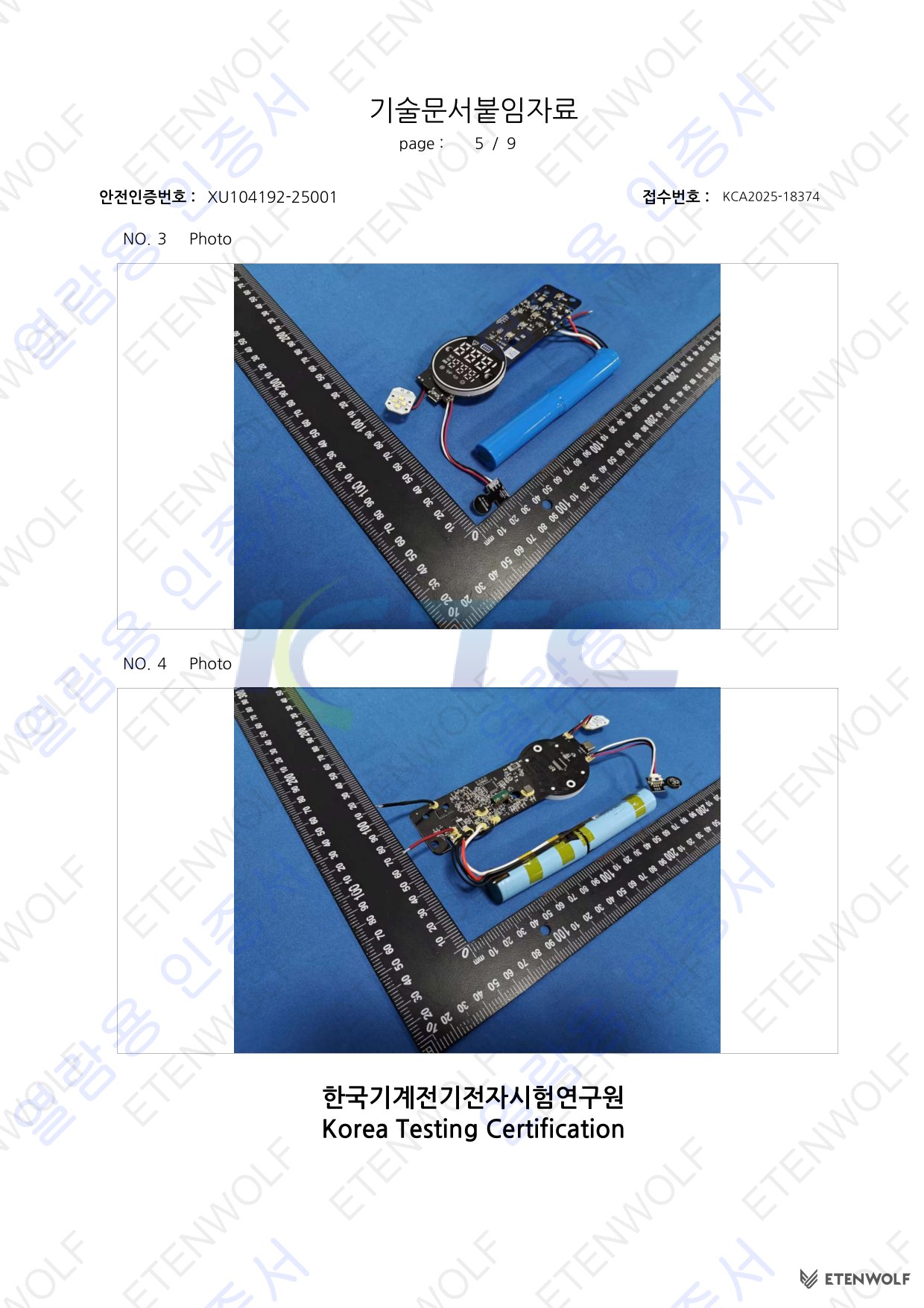

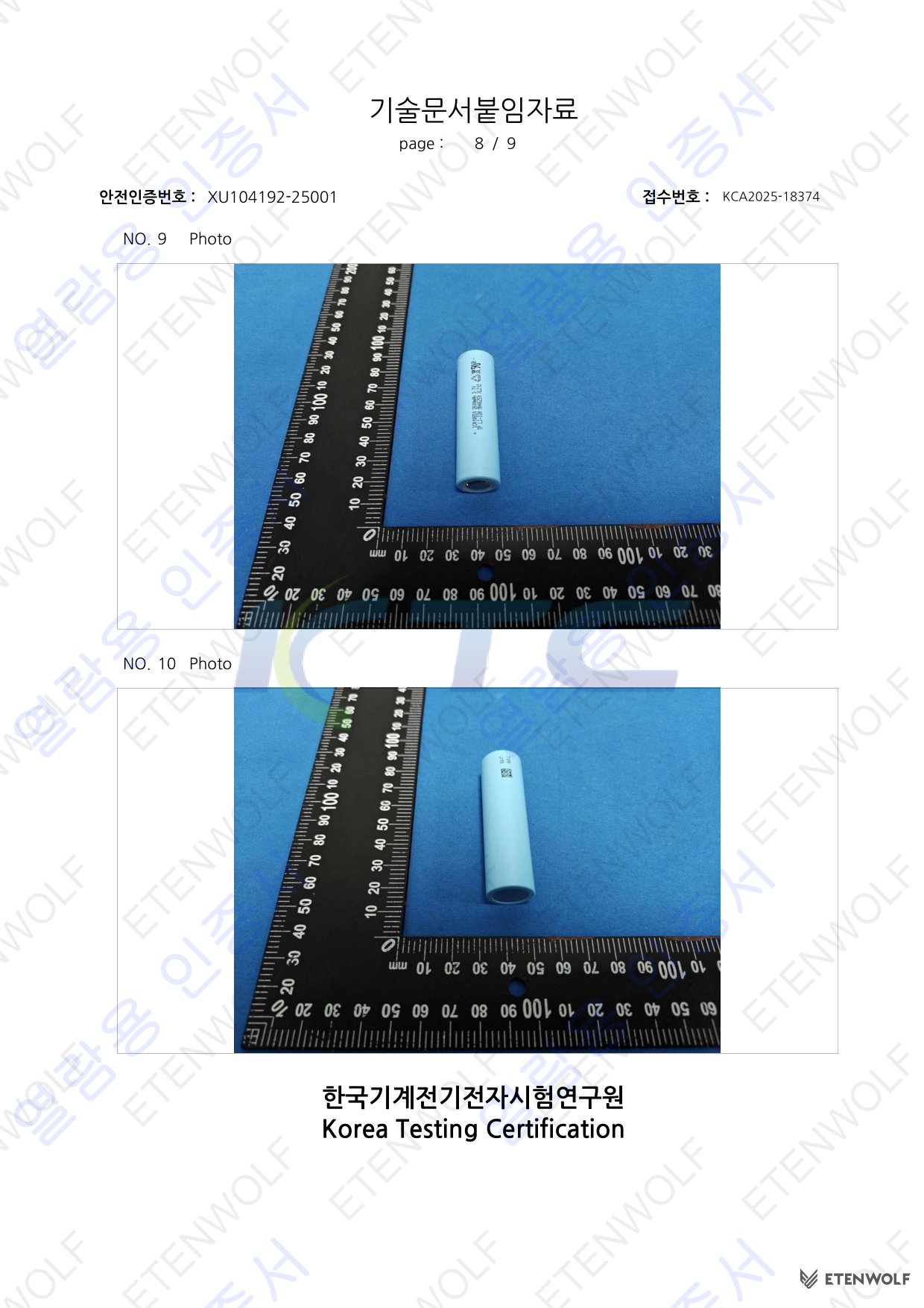

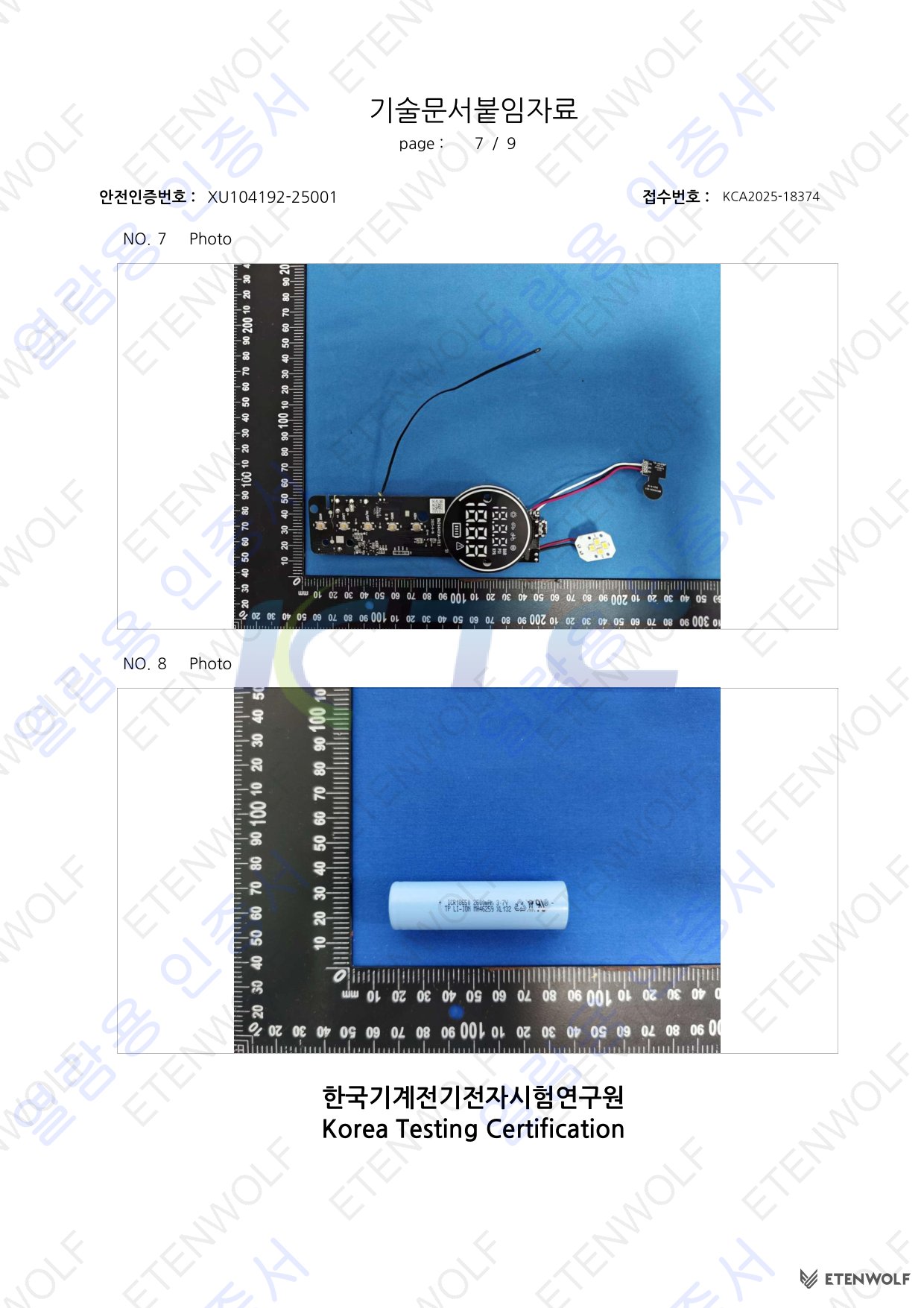

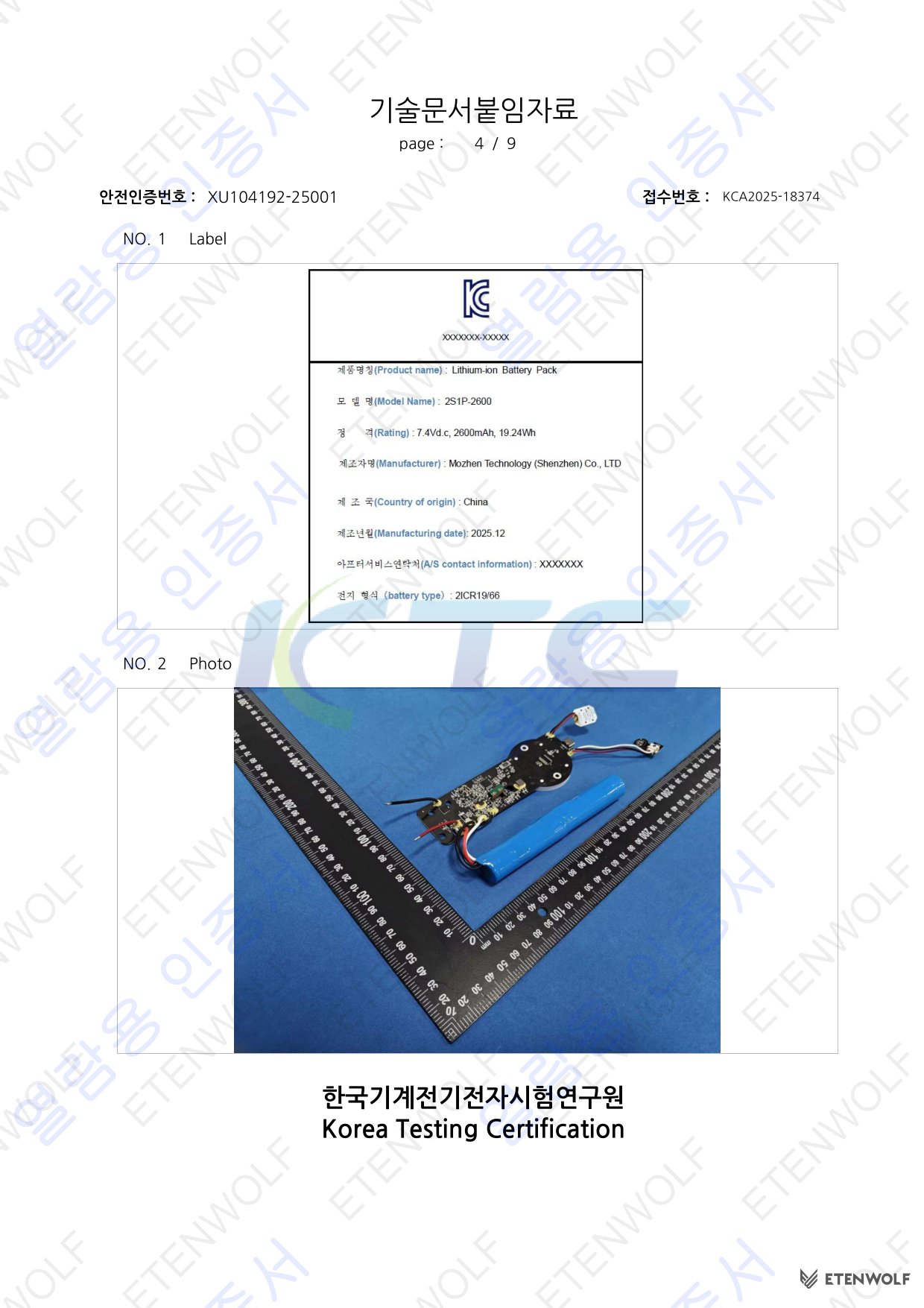

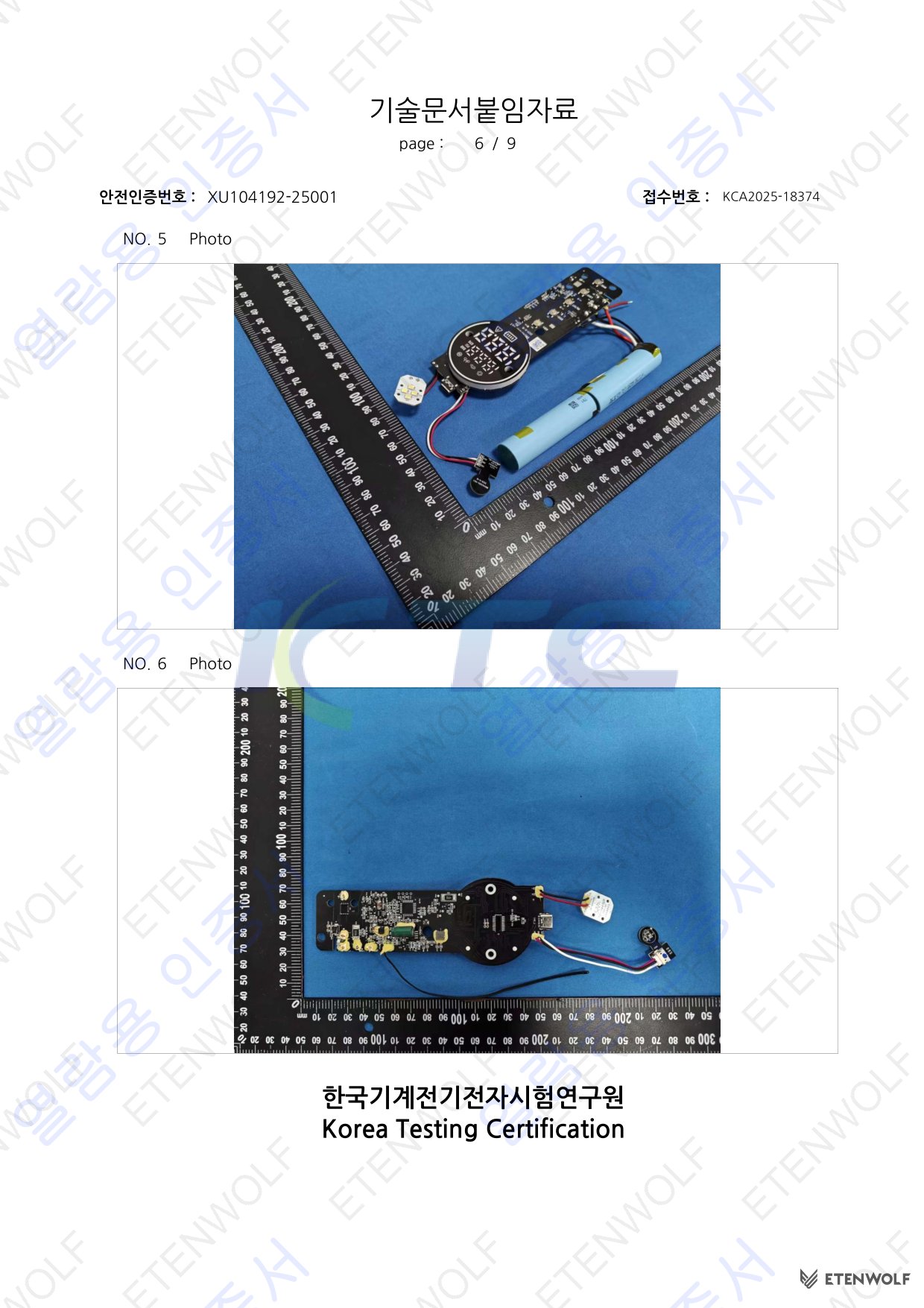

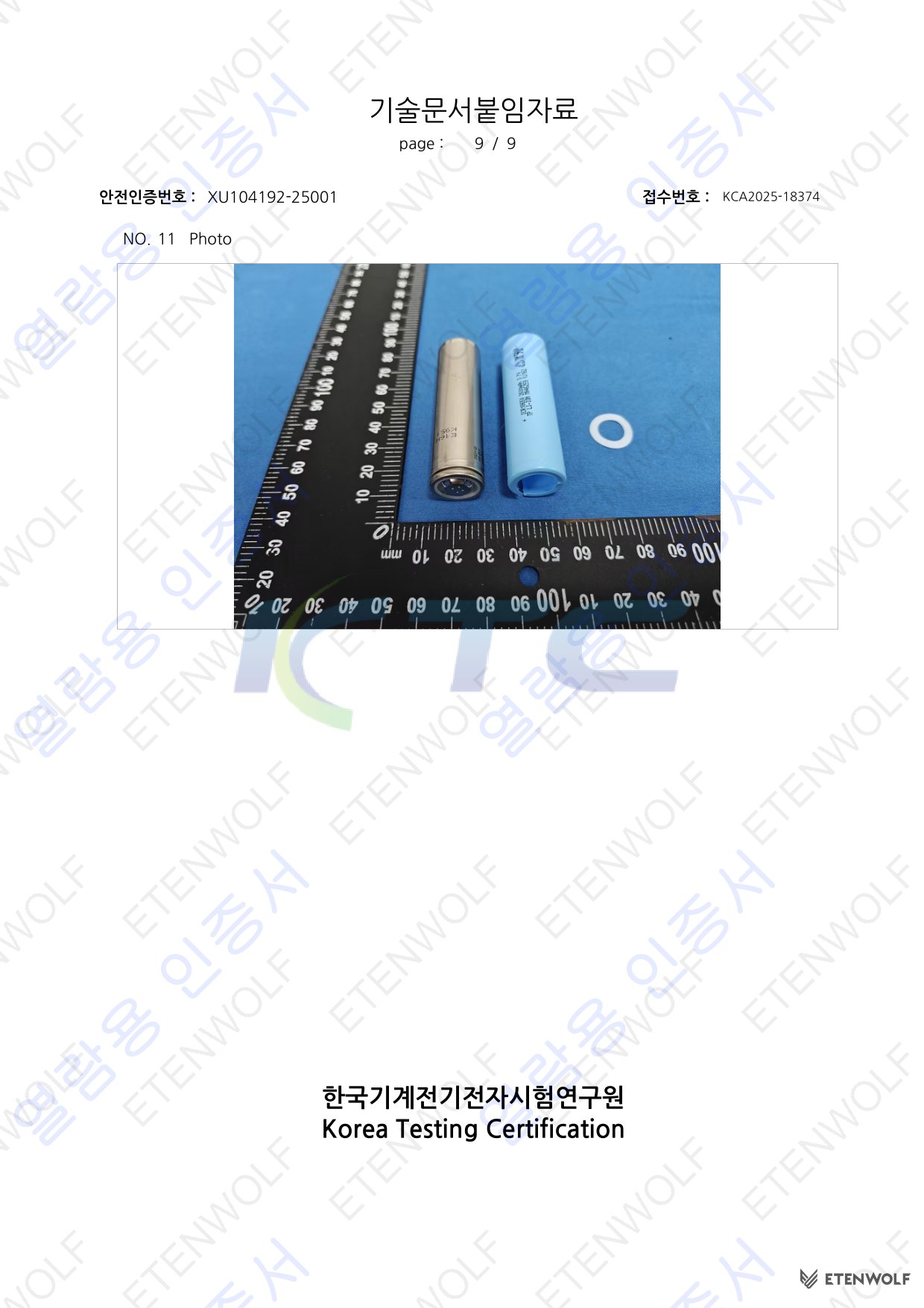

Document Pages
