S5C Inflator Pump UN38.3 Transport Classification Report – DGM China Certification

Document Overview

Document Overview This is an Identification and Classification Report for Transport of Goods issued by Beijing DGM Air Transport Technology Development Co., Ltd. (DGM China), a CNAS L1B0078 accredited laboratory. The report determines the dangerous goods classification status of the S5C Inflator Pump for transportation…

Document type: Certification Report
Prepared by: Michelle Torres
Published: July 22, 2026
Last reviewed: July 22, 2026
Topics: International Transportation: CB / MSDS / UN38.3

Document Overview

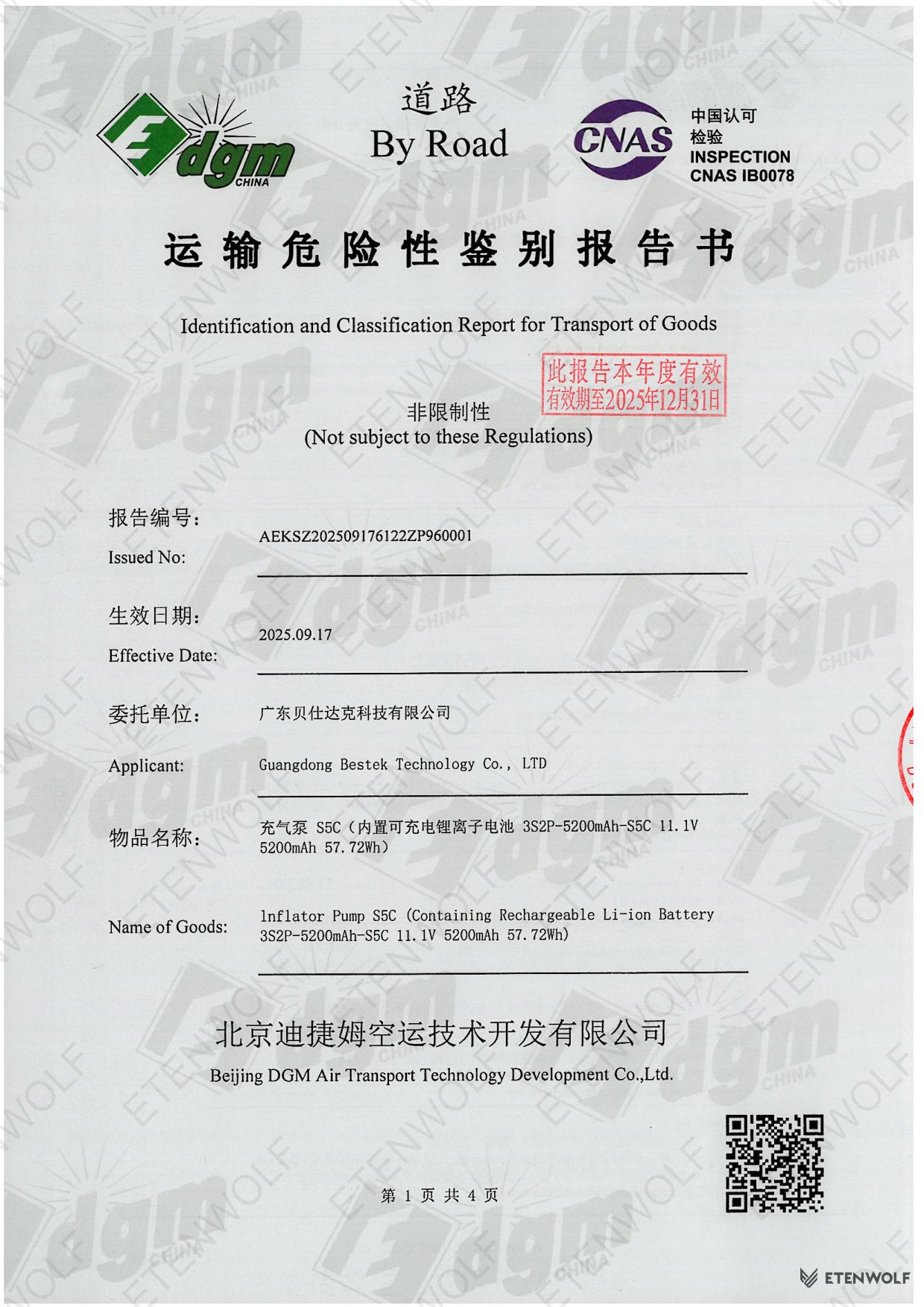

This is an Identification and Classification Report for Transport of Goods issued by Beijing DGM Air Transport Technology Development Co., Ltd. (DGM China), a CNAS L1B0078 accredited laboratory. The report determines the dangerous goods classification status of the S5C Inflator Pump for transportation purposes.

Report Number: AEKSZ202509176122ZP960001

Issue Date: September 17, 2025

Validity: One year from issue date

Scope: Classification for air, road, and general transport of lithium battery-containing equipment

Classification Result: Not subject to dangerous goods regulations (Not Restricted)

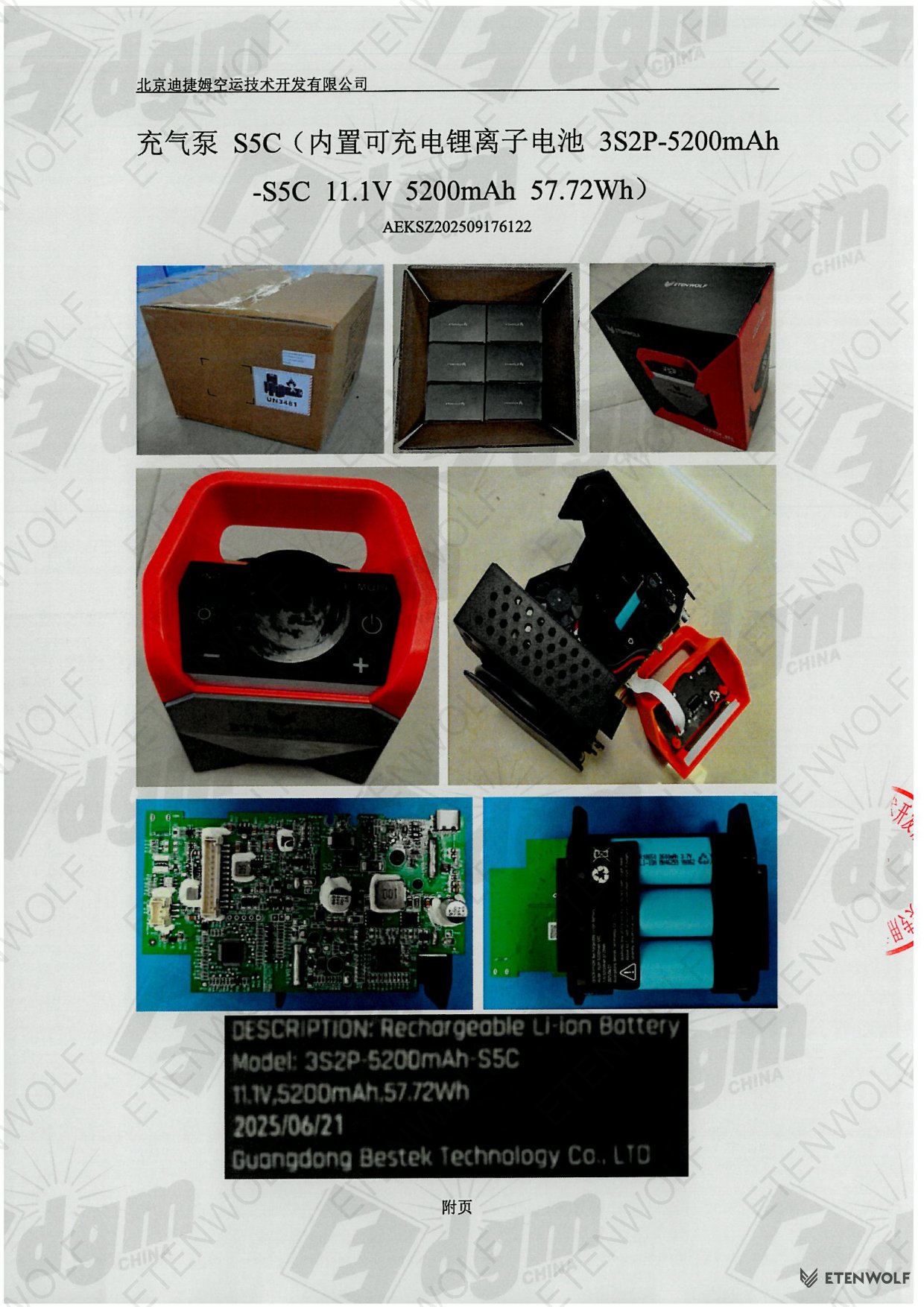

Product Information

Product Name: Inflator Pump S5C (Containing Rechargeable Li-ion Battery)

Model/Group: 3S2P-5200mAh-S5C

Battery Specifications:

Voltage: 11.1V
Capacity: 5200mAh
Watt-hour Rating: 57.72Wh
Configuration: 3S2P (3 series, 2 parallel)

Physical Description: Blue/black colored device, approximately cuboid shape with dimensions 64.8 × 43.4 × 28.9 mm. Contains 6 lithium ion battery cells per package, contained in equipment.

Applicant/Manufacturer: Guangdong Bestek Technology Co., LTD

Weight: Approximately 355.0g

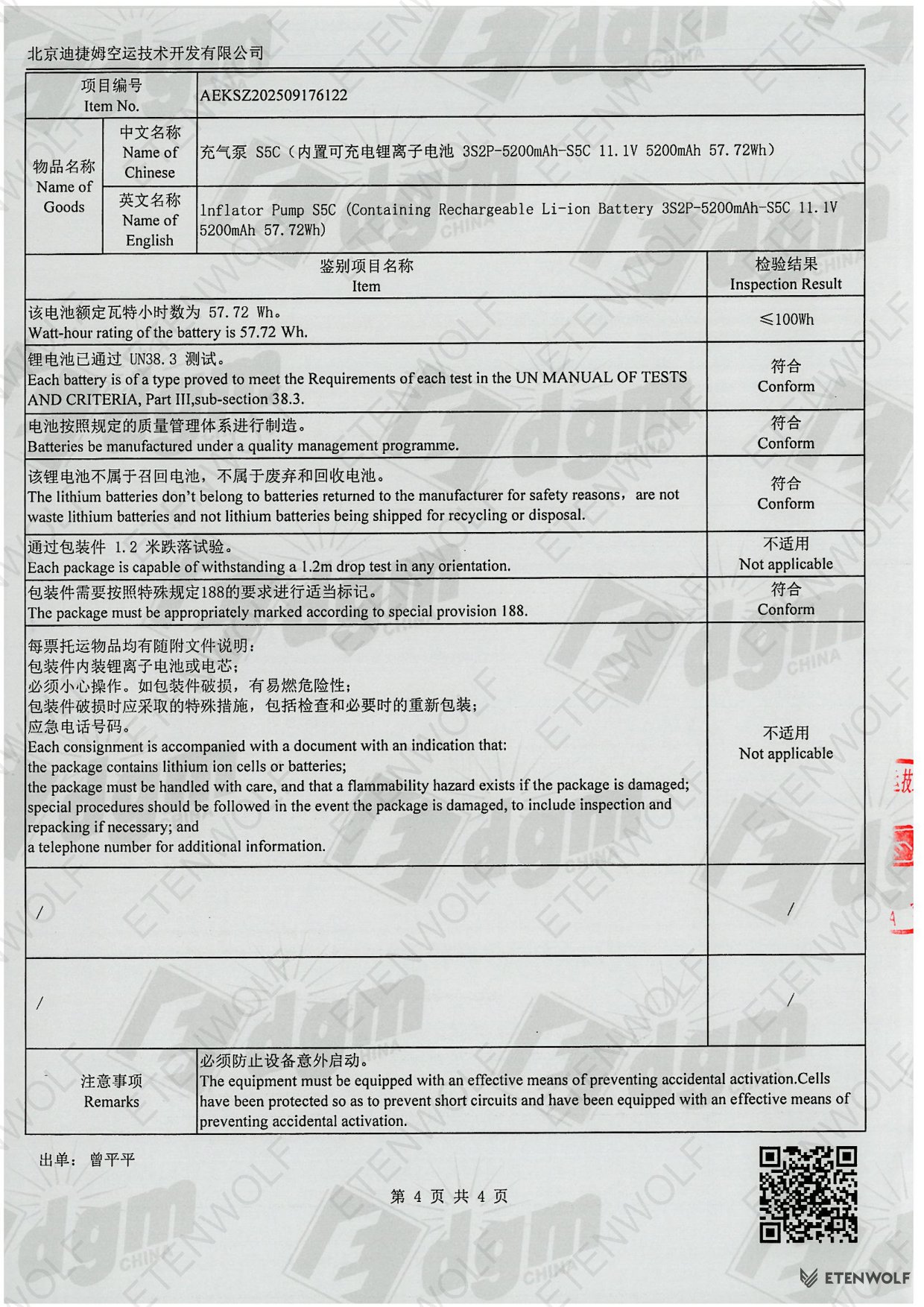

Key Details

Inspection Item	Result	Status
Watt-hour Rating	57.72 Wh	Compliant
UN Manual of Tests and Criteria Part III, sub-section 38.3	Each battery is of a type proved to meet requirements	Conform
Quality Management Programme	Batteries manufactured under quality management programme	Conform
Battery Safety Status	Not returned for safety reasons, not waste, not for recycling/disposal	Conform
1.2m Drop Test Capability	Package capable of withstanding drop test in any orientation	Not applicable (contained in equipment)
Package Marking (Special Provision 188)	Appropriately marked according to requirements	Conform
Consignment Documentation	Accompanied with required indication documents	Conform

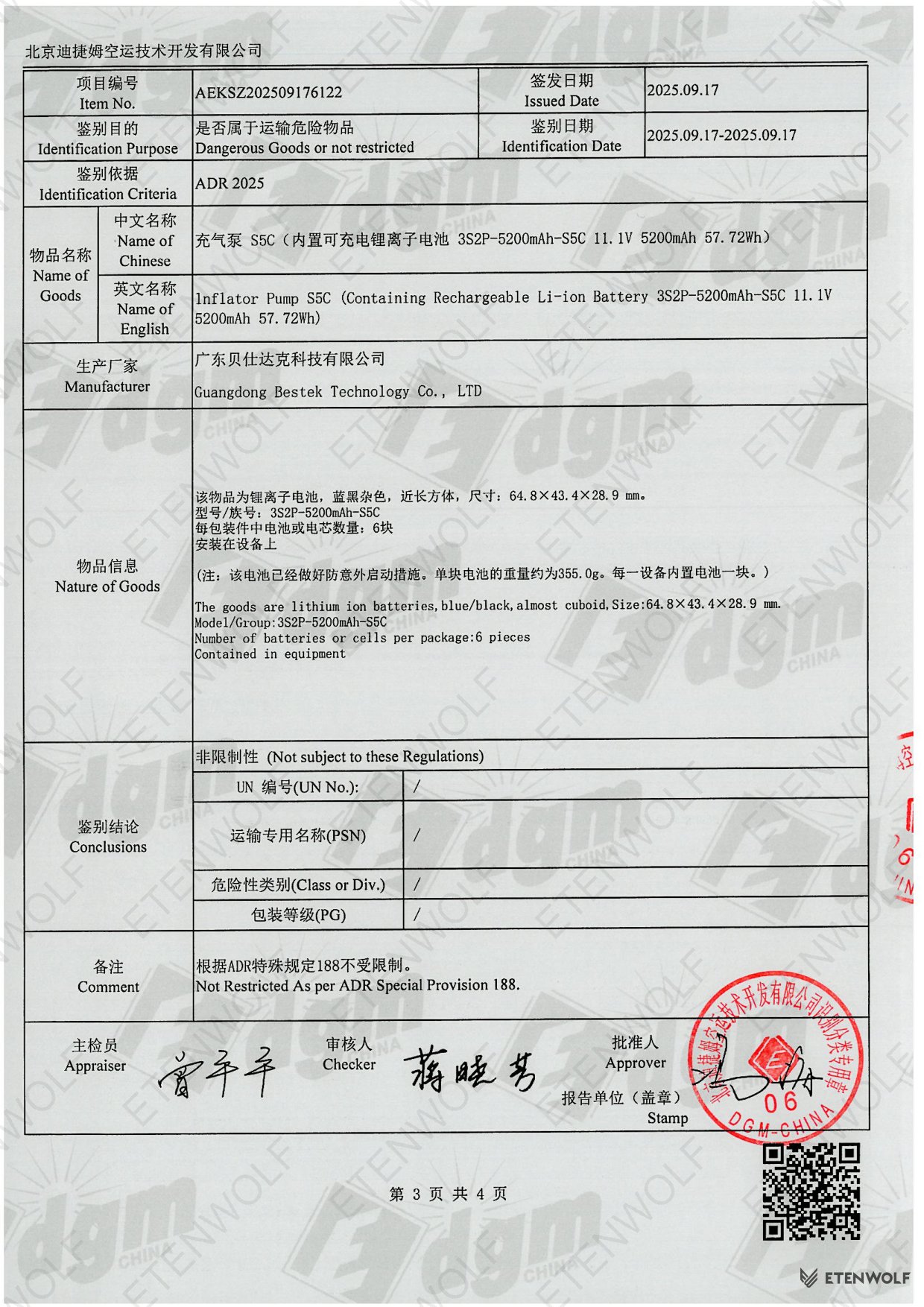

Final Classification: Not Restricted as per ADR Special Provision 188

Class or Division: Not applicable

Packing Group: Not applicable

Standards & Compliance

The S5C Inflator Pump transport classification was conducted according to the following standards and regulations:

Primary Standards

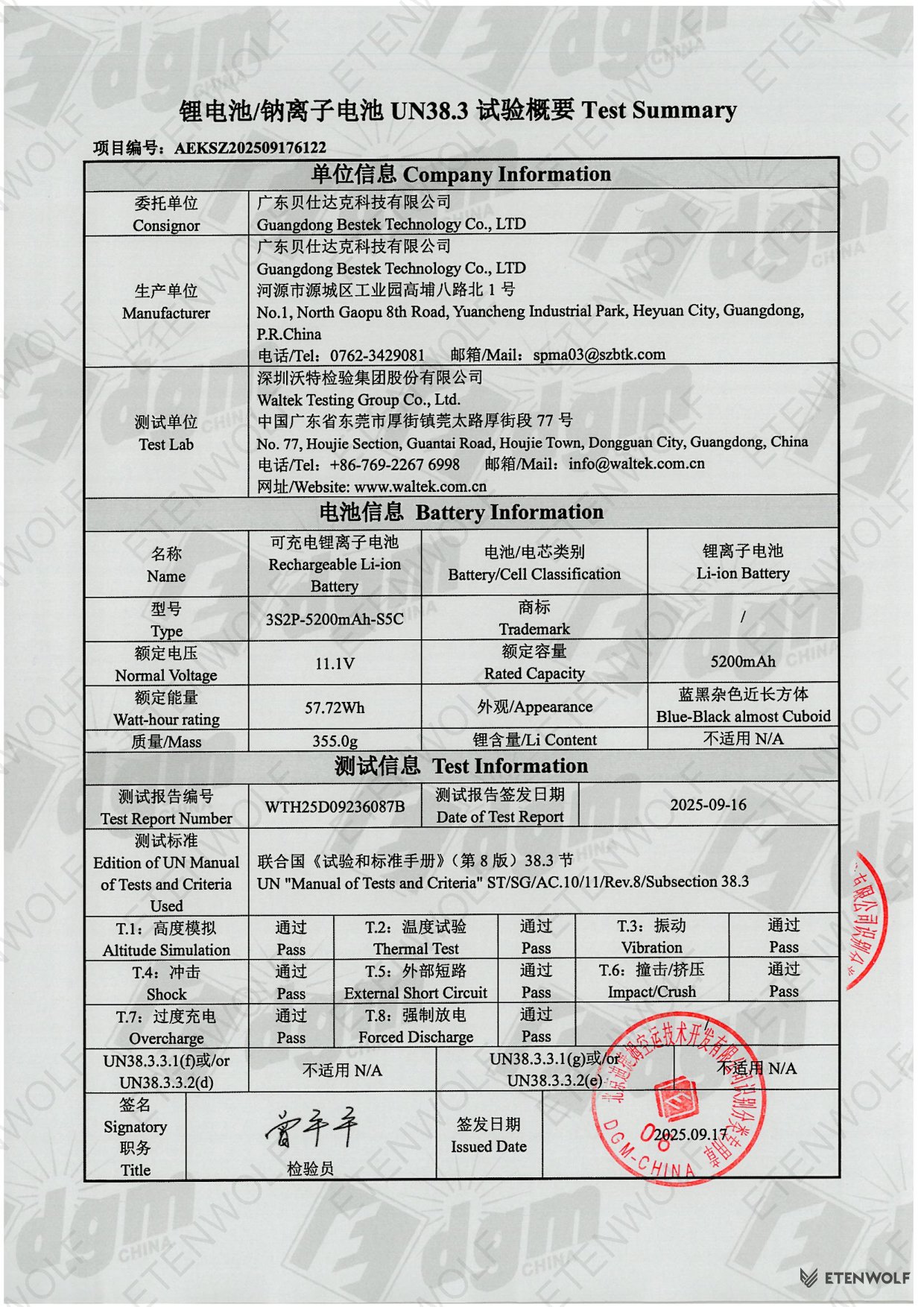

UN Manual of Tests and Criteria, Part III, Sub-section 38.3: The battery type has been proven to meet all requirements of the UN38.3 testing protocol for lithium batteries
ADR (European Agreement concerning the International Carriage of Dangerous Goods by Road): Specifically Special Provision 188 for lithium batteries contained in equipment

Special Provision 188 Requirements

Special Provision 188 applies to lithium batteries contained in equipment where the battery is designed to provide power to the equipment. The provision exempts such goods from dangerous goods classification when:

The lithium ion battery does not exceed 100 Wh per battery
Equipment is secured against movement and accidental activation
Packages are marked appropriately
Documentation requirements are met

The S5C product with 57.72Wh battery capacity falls well within the 100Wh threshold and meets all exemption criteria.

Quality Assurance

DGM China (CNAS L1B0078 accredited) conducted the identification and classification based on:

Physical sample examination
Technical documentation review
Quality management system verification
Packaging assessment

Validity & Certification Body

Validity Period: This report is valid for one year from the issue date (September 17, 2025 to September 16, 2026).

Issuing Laboratory: Beijing DGM Air Transport Technology Development Co., Ltd. (DGM China)

Accreditation: CNAS L1B0078

Address: District 101300, China

Contact Information:

Phone: 010-69479673
Fax: 010-69479621
Website: www.dgmchina.com.cn
Email: [email protected]

Report Authentication: The report is signed and stamped by authorized personnel including appraiser, checker, and approver. Any reproduction, modification, or tampering renders the report invalid.

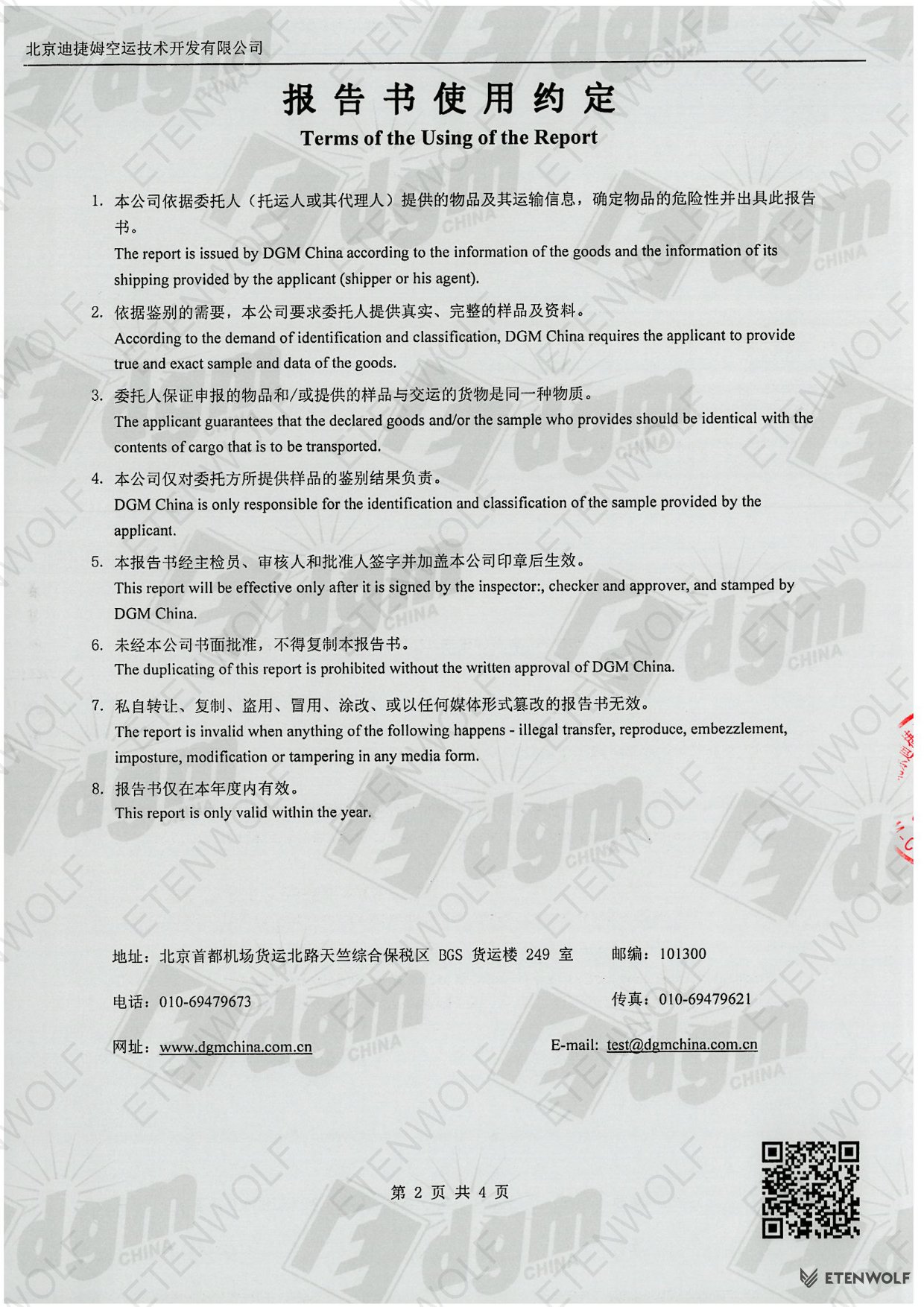

Important Notes:

DGM China is only responsible for identification and classification of the sample provided by the applicant
The applicant guarantees that declared goods are identical to contents being transported
Duplicating this report is prohibited without written approval from DGM China

Frequently Asked Questions

What does ‘Not Restricted’ mean for shipping the S5C inflator pump?

‘Not Restricted’ means the S5C Inflator Pump is not subject to dangerous goods regulations for transport. It can be shipped via standard freight methods without special dangerous goods handling, packaging, or documentation requirements, as long as it meets the conditions of ADR Special Provision 188.

Why is the S5C battery exempt from dangerous goods classification?

The lithium ion battery in the S5C (57.72Wh) is contained within equipment and falls below the 100Wh threshold specified in ADR Special Provision 188. When batteries are installed in equipment and meet UN38.3 testing requirements, they qualify for exemption from dangerous goods classification.

How long is this transport classification valid?

The transport classification report is valid for one year from the issue date (until September 16, 2026). After expiration, a new identification and classification report must be obtained if transport classification documentation is required.

Can this report be used for international shipping?

Yes, this DGM China report based on UN38.3 and ADR standards is internationally recognized for transport classification purposes. It can be used for air, road, sea, and rail transport compliance, as these modes reference the same UN testing protocols and classification framework.
