Document Overview

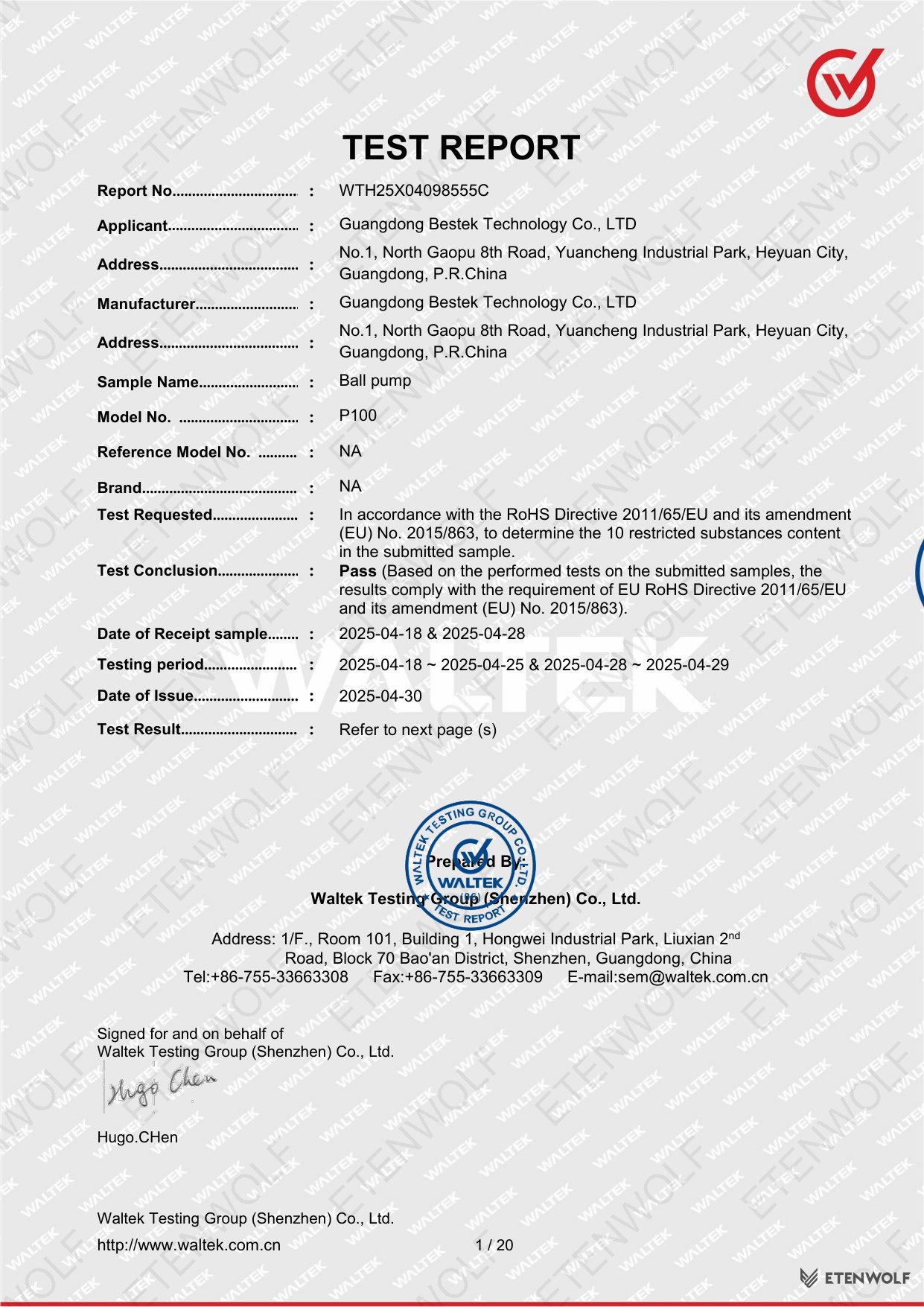

This test report certifies the P100 Ball Pump compliance with the RoHS Directive 2011/65/EU and its amendment (EU) No. 2015/863. The certification was issued by Waltek Testing Group (Shenzhen) Co., Ltd., an accredited testing laboratory located in Shenzhen, Guangdong, China.
Report Number: WTH25X04098555C
Issue Date: April 30, 2025
Testing Period: April 18-25, 2025 and April 28-29, 2025
Test Conclusion: PASS – Based on performed tests on submitted samples, results comply with the requirements of EU RoHS Directive 2011/65/EU and its amendment (EU) No. 2015/863.
Product Information
The tested product is a ball pump designed for inflation applications, manufactured by Guangdong Bestek Technology Co., LTD.
| Attribute | Details |
|---|---|
| Product Name | Ball pump |
| Model Number | P100 |
| Brand | ETENWOLF |
| Manufacturer | Guangdong Bestek Technology Co., LTD |
| Manufacturing Address | No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R.China |
| Sample Receipt Date | April 18 & April 28, 2025 |

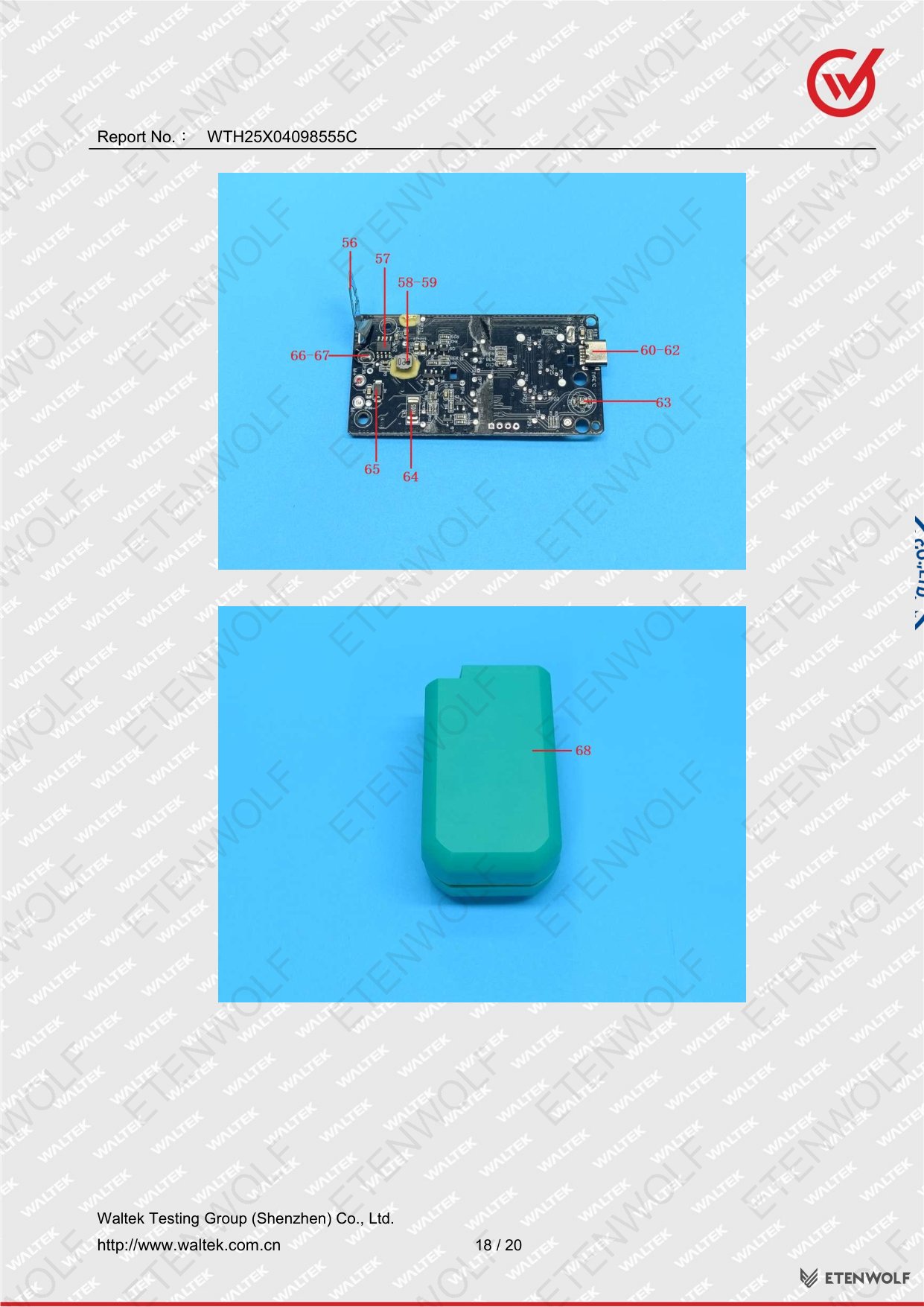

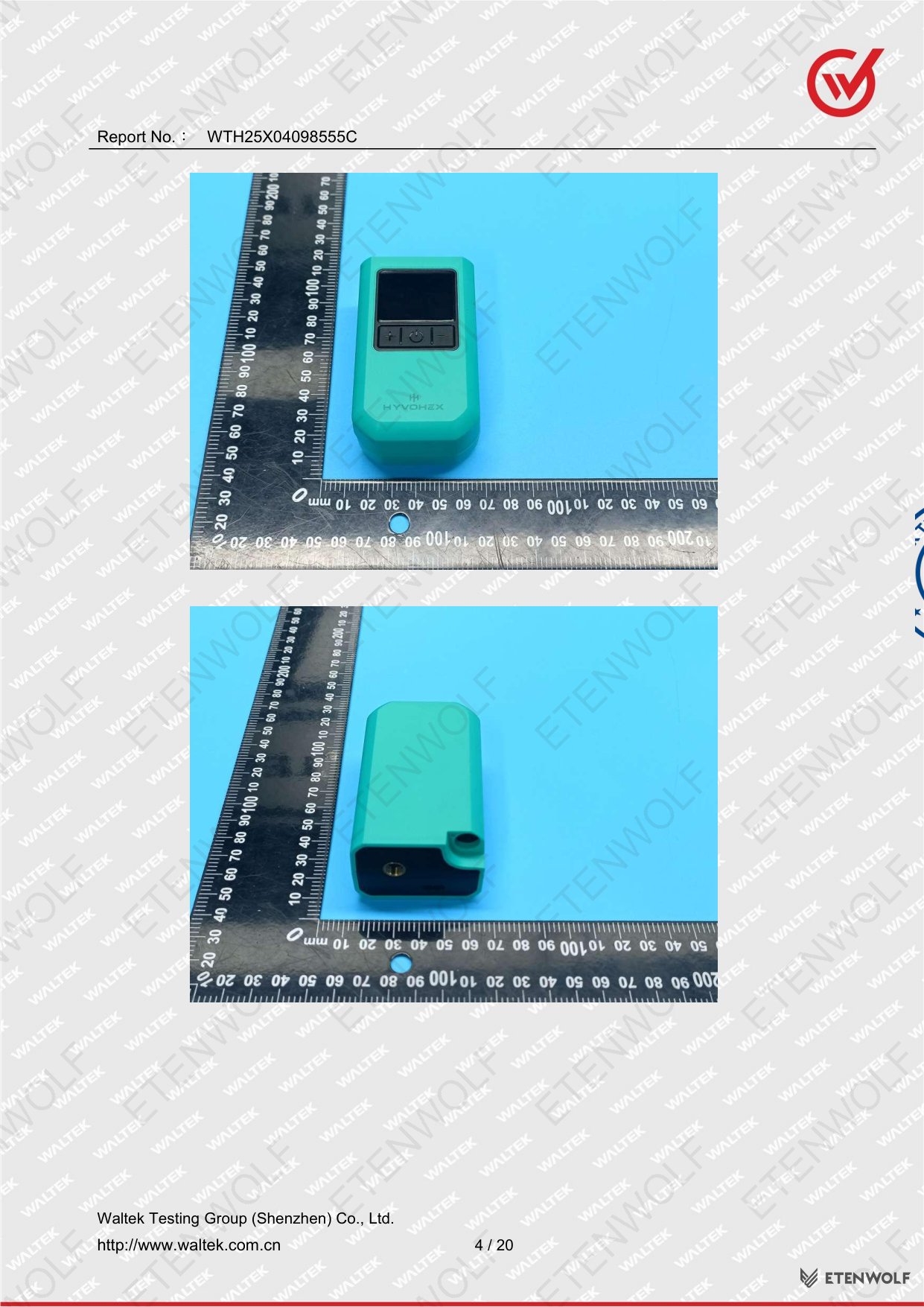

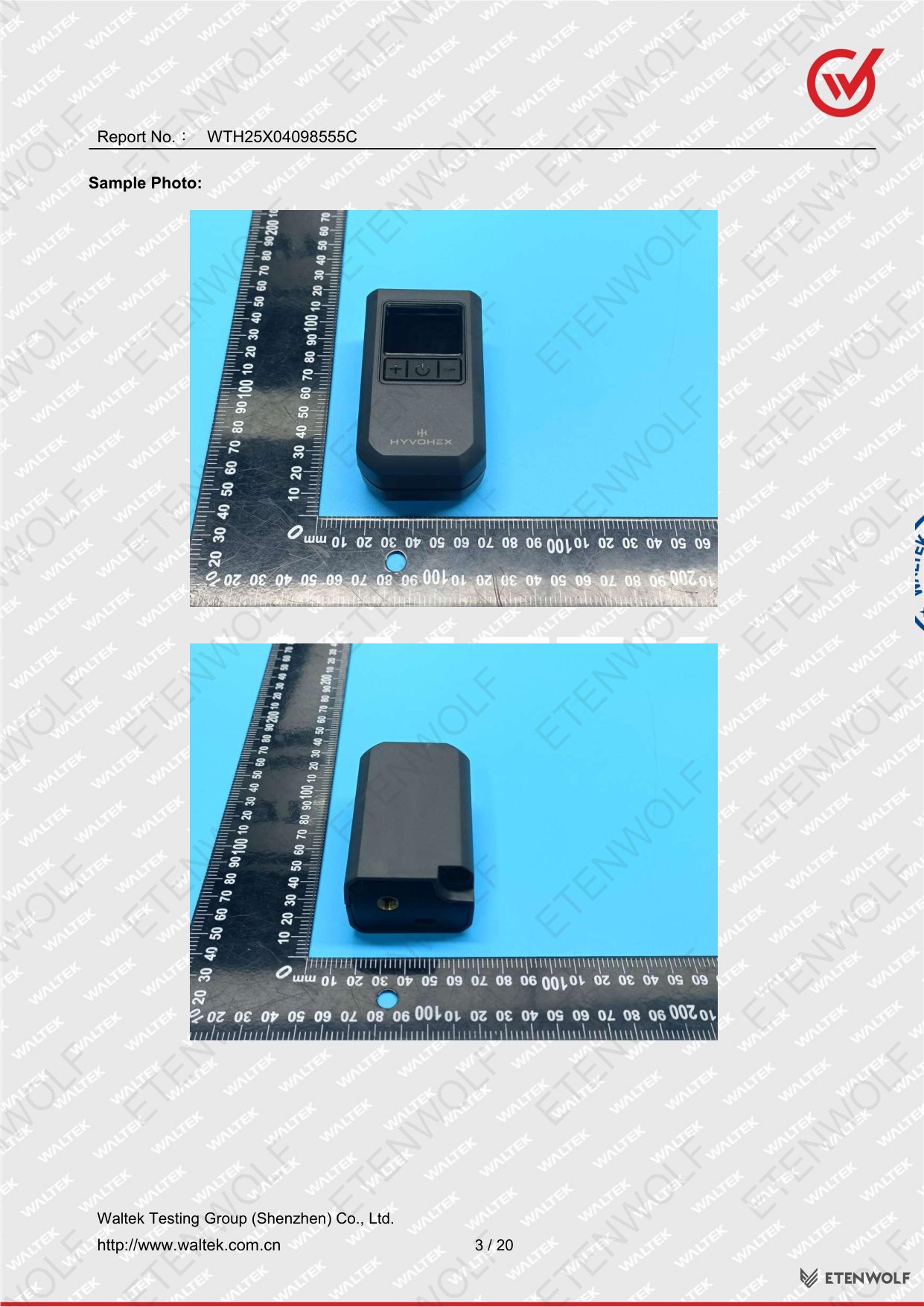

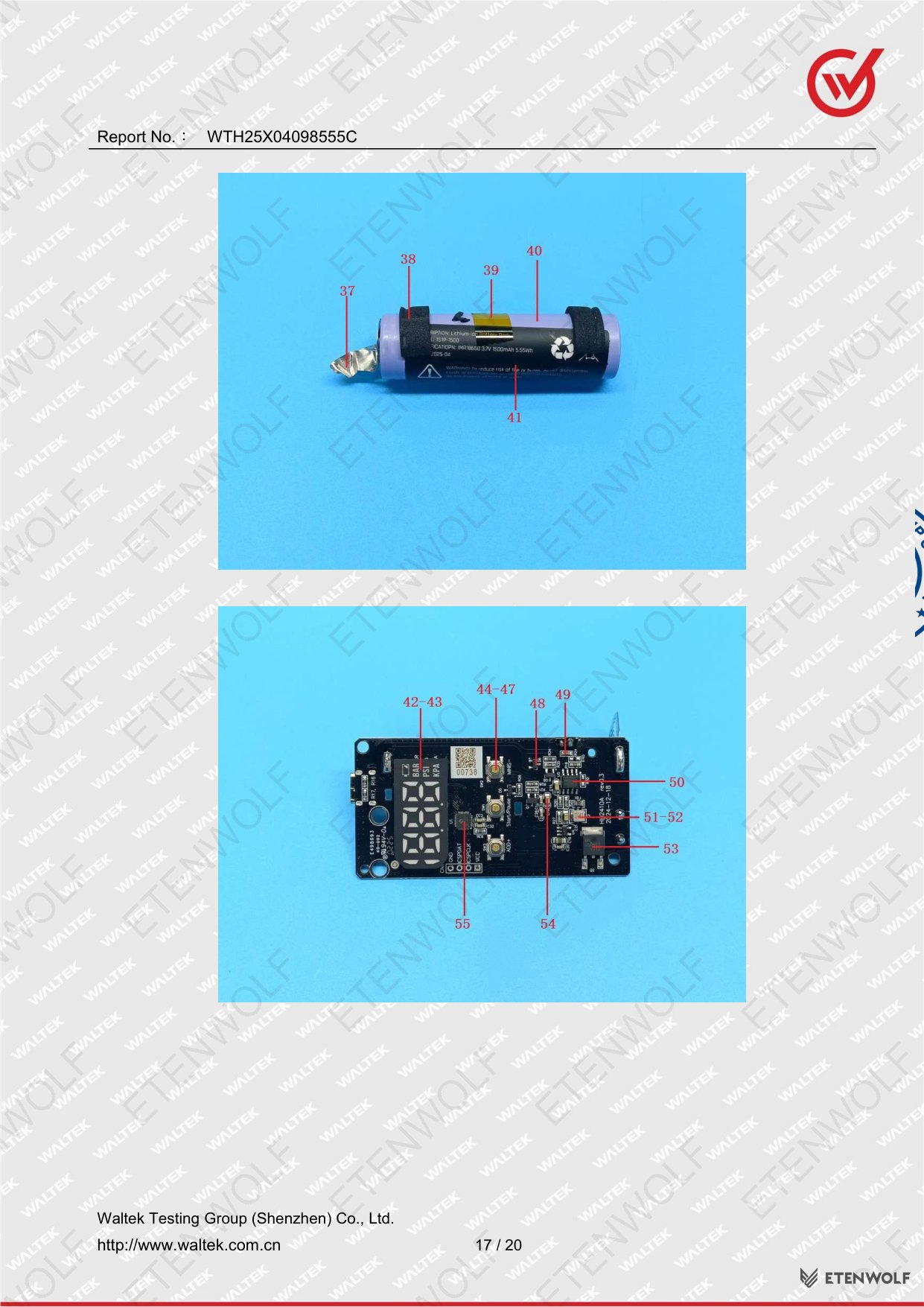

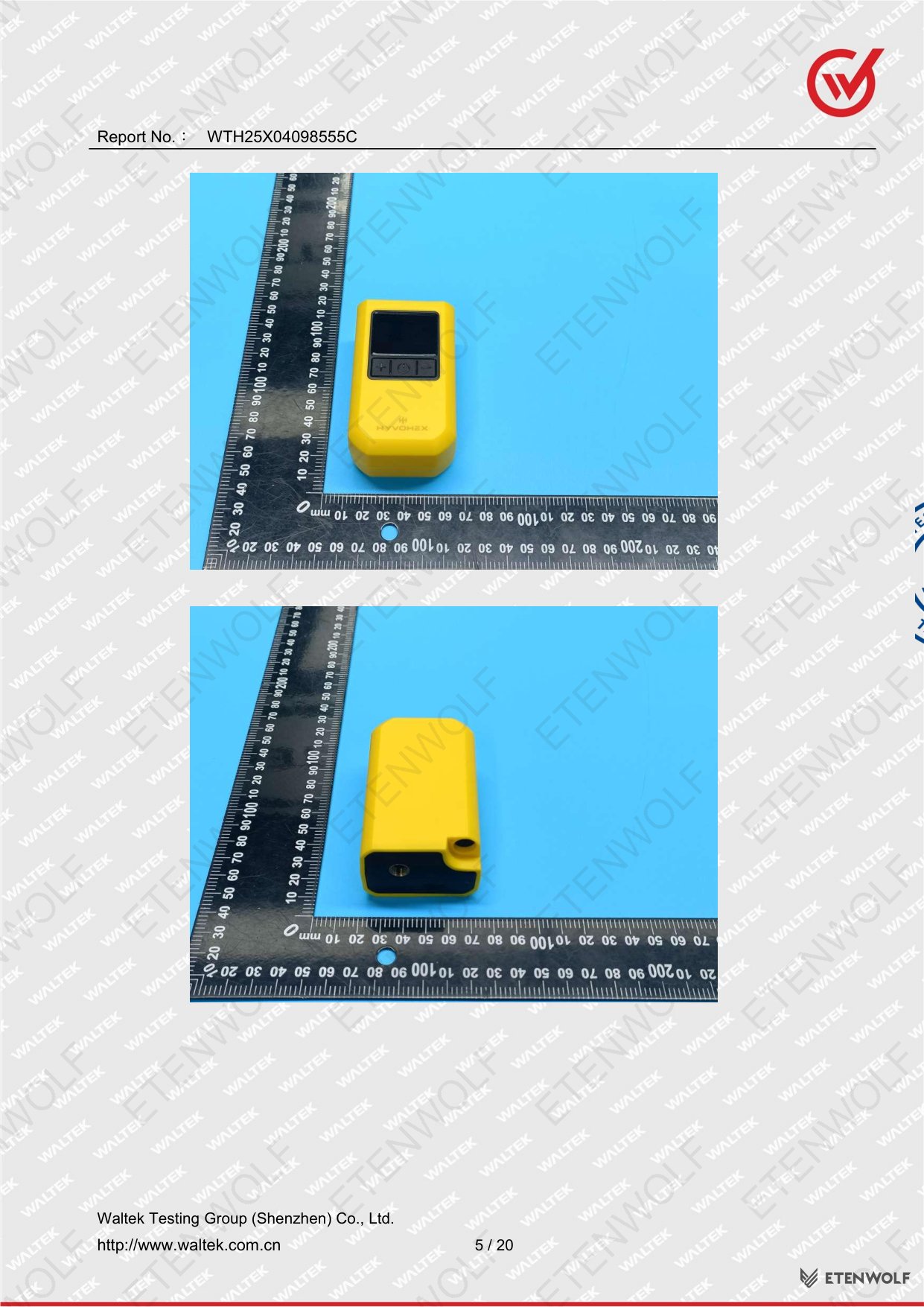

The P100 ball pump is a portable inflation tool consisting of multiple components including plastic housing, rubber seals, metal fasteners, motor assembly, and electronic components – all tested for hazardous substance compliance.
Key Details

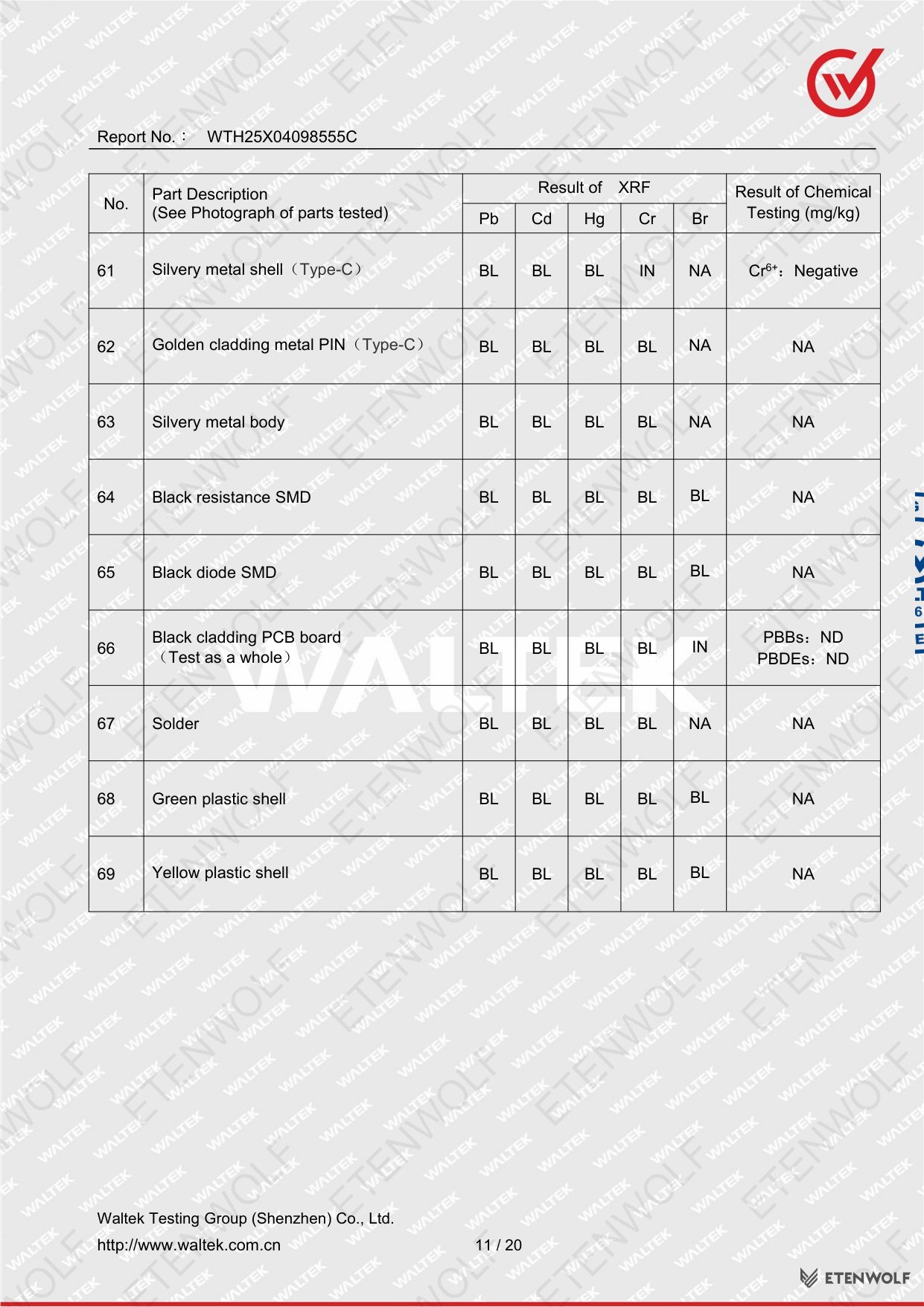

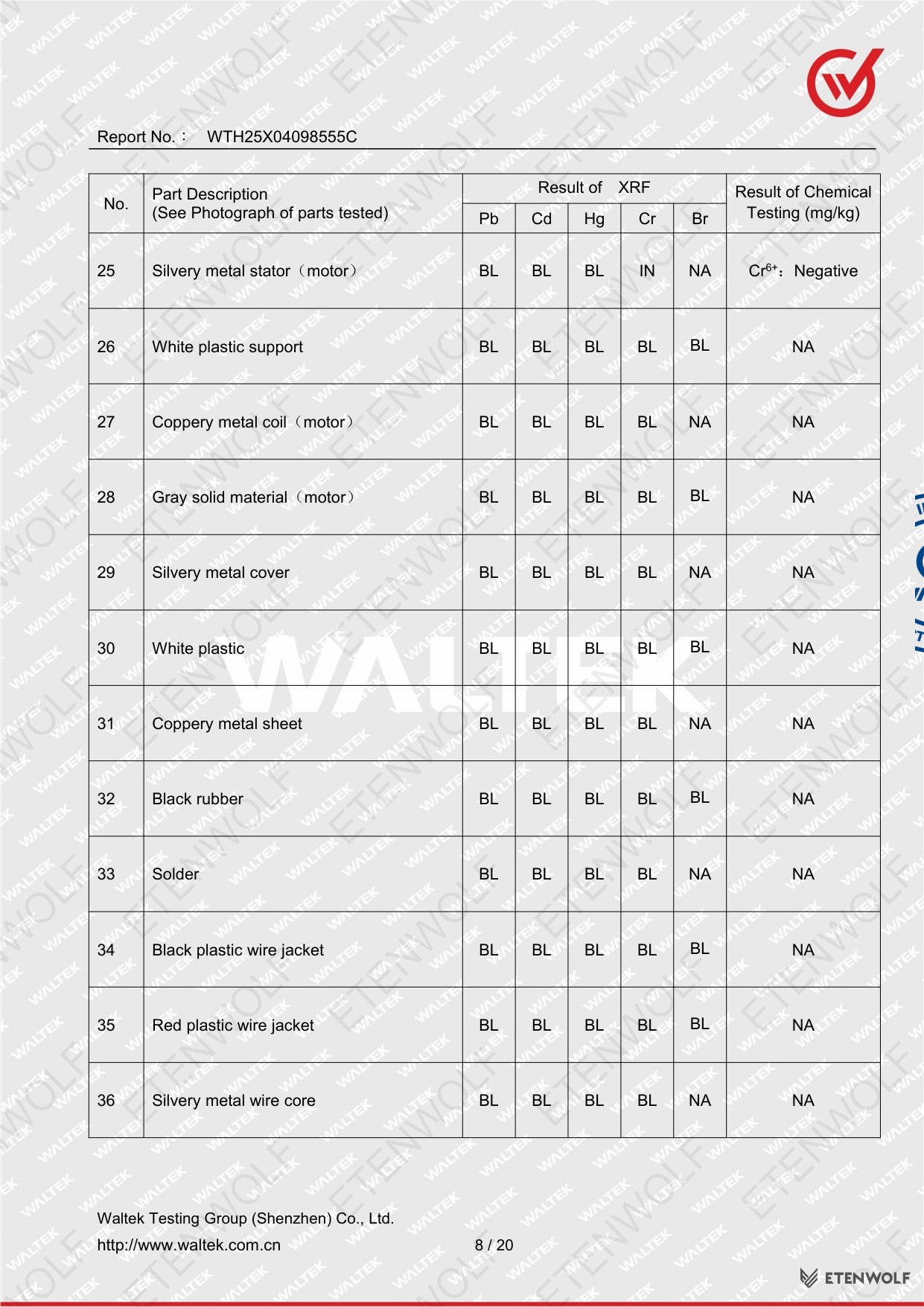

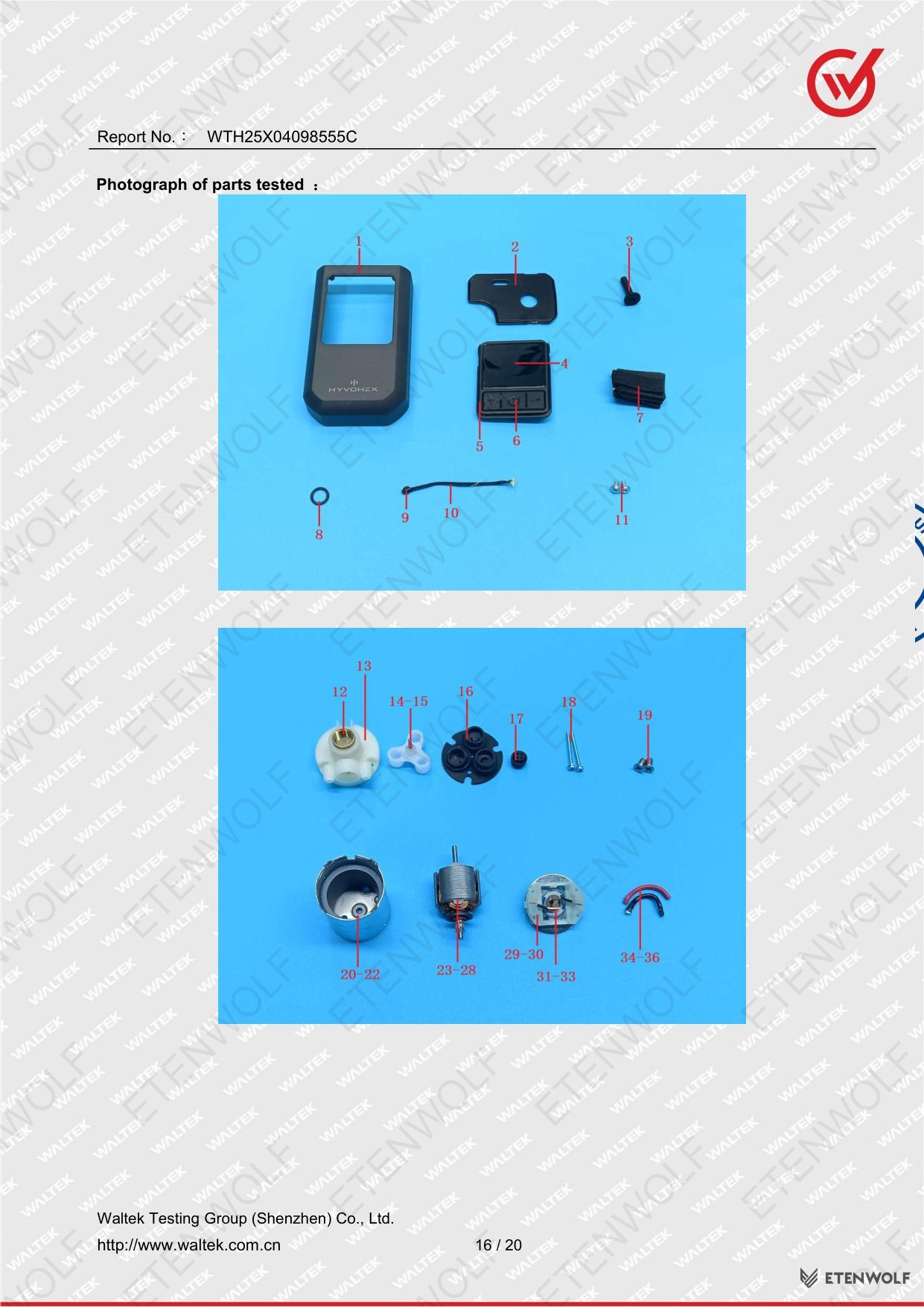

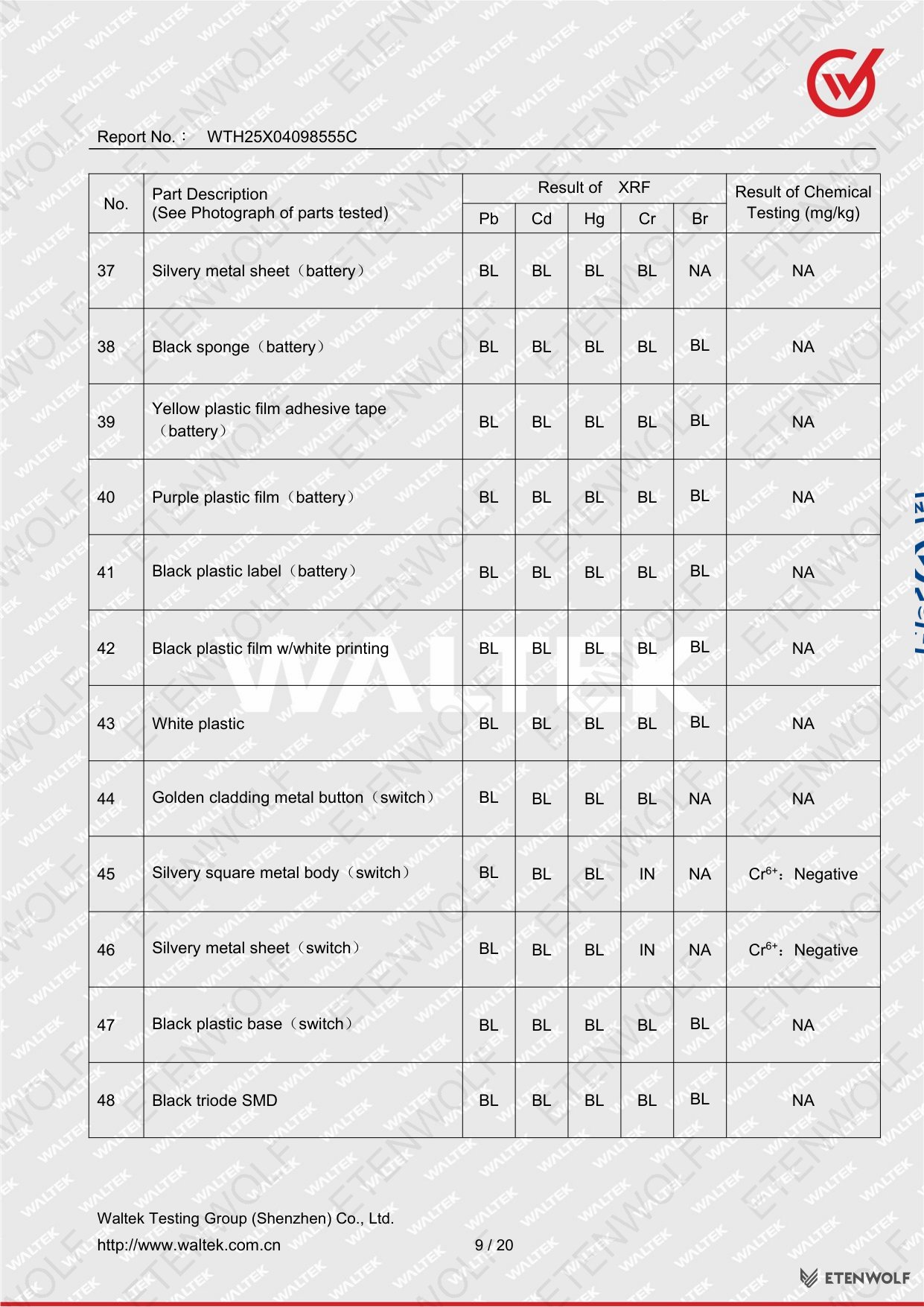

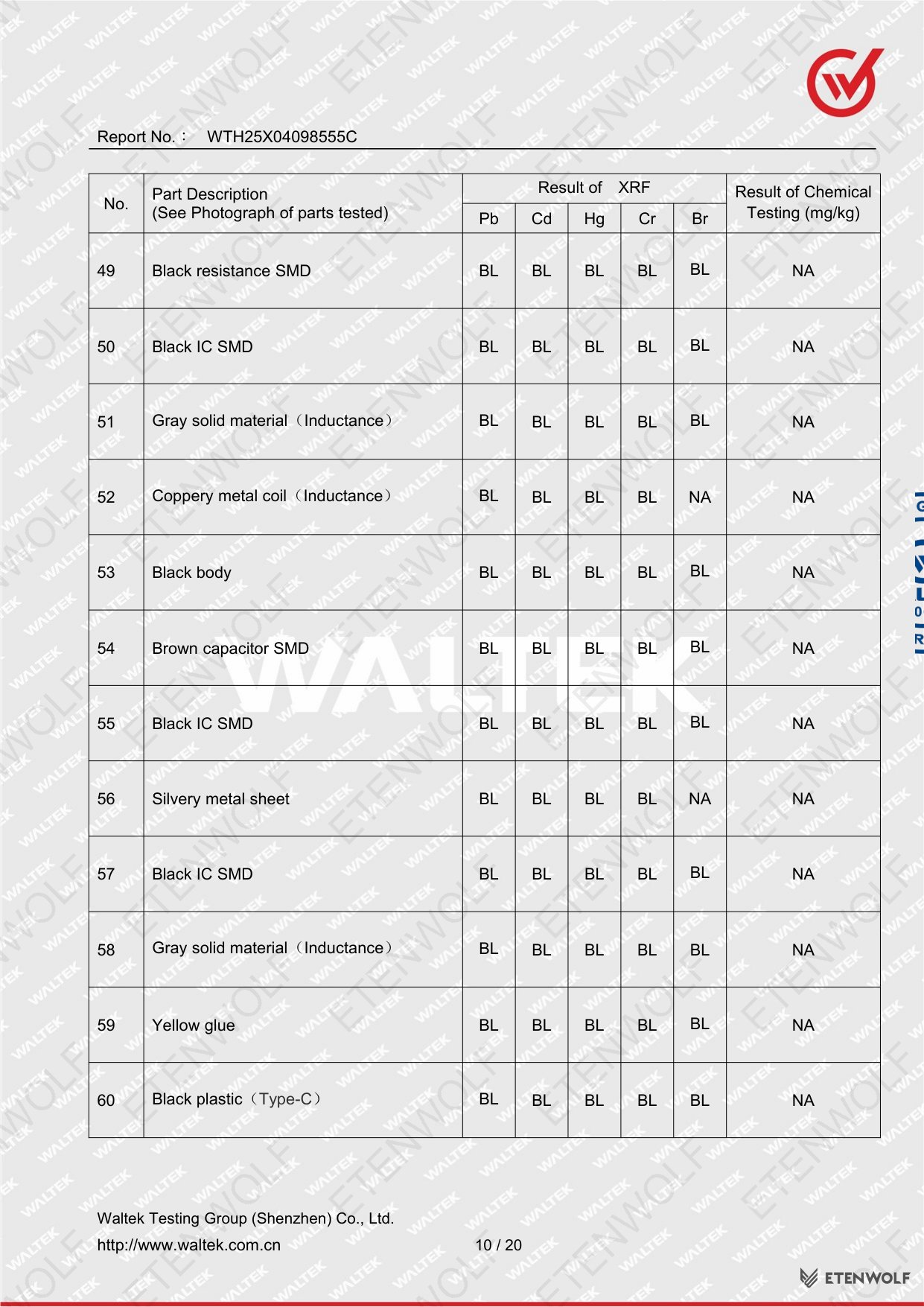

The RoHS testing evaluated 34 distinct component parts of the P100 Ball Pump for the presence of 10 restricted substances. All tested components passed the requirements.

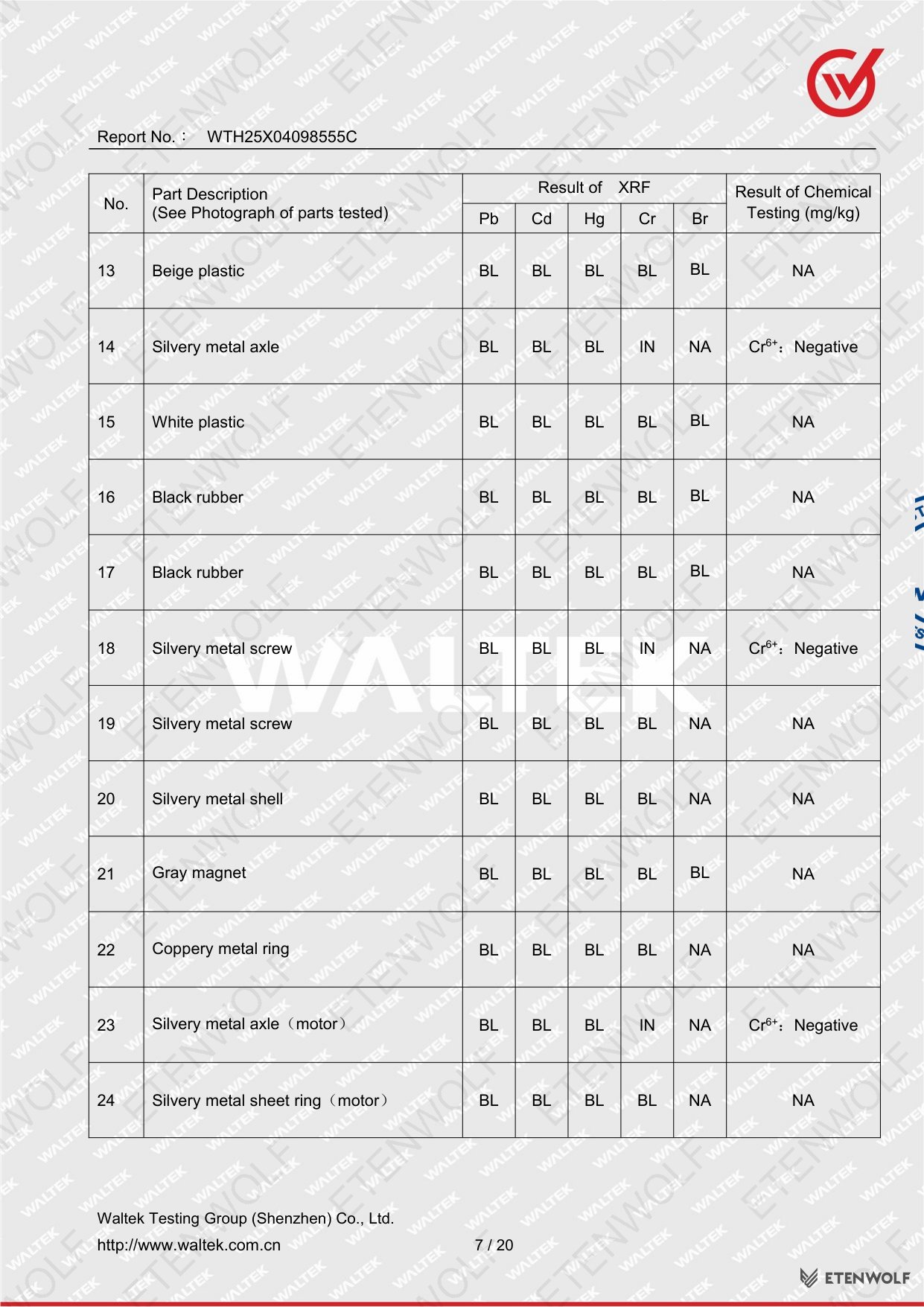

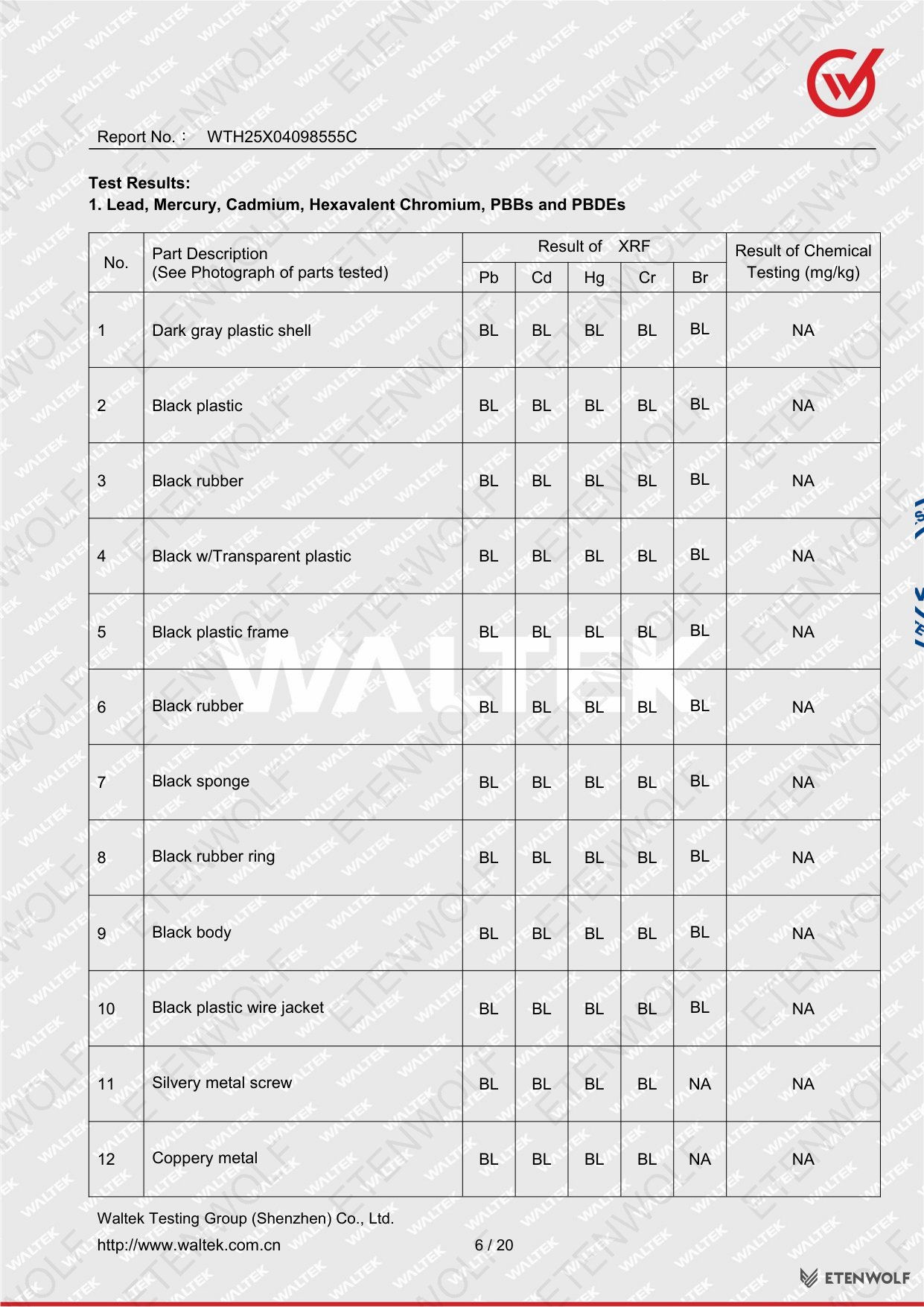

| No. | Component Description | Pb (Lead) | Cd (Cadmium) | Hg (Mercury) | Cr (Chromium) | Br (Bromine) | Chemical Test Result |
|---|---|---|---|---|---|---|---|
| 1 | Dark gray plastic shell | BL | BL | BL | BL | BL | NA |
| 2-10 | Various plastic and rubber components | BL | BL | BL | BL | BL | NA |
| 11-12 | Metal screws and connectors | BL | BL | BL | BL | NA | NA |
| 14 | Silvery metal axle | BL | BL | BL | IN | NA | Cr6+: Negative |
| 18 | Silvery metal screw | BL | BL | BL | IN | NA | Cr6+: Negative |
| 23 | Silvery metal axle (motor) | BL | BL | BL | IN | NA | Cr6+: Negative |
| 25 | Silvery metal stator (motor) | BL | BL | BL | IN | NA | Cr6+: Negative |
| 13-34 | Remaining components (plastics, metals, rubber, magnets, coils) | BL | BL | BL | BL/IN | BL/NA | All Negative/NA |

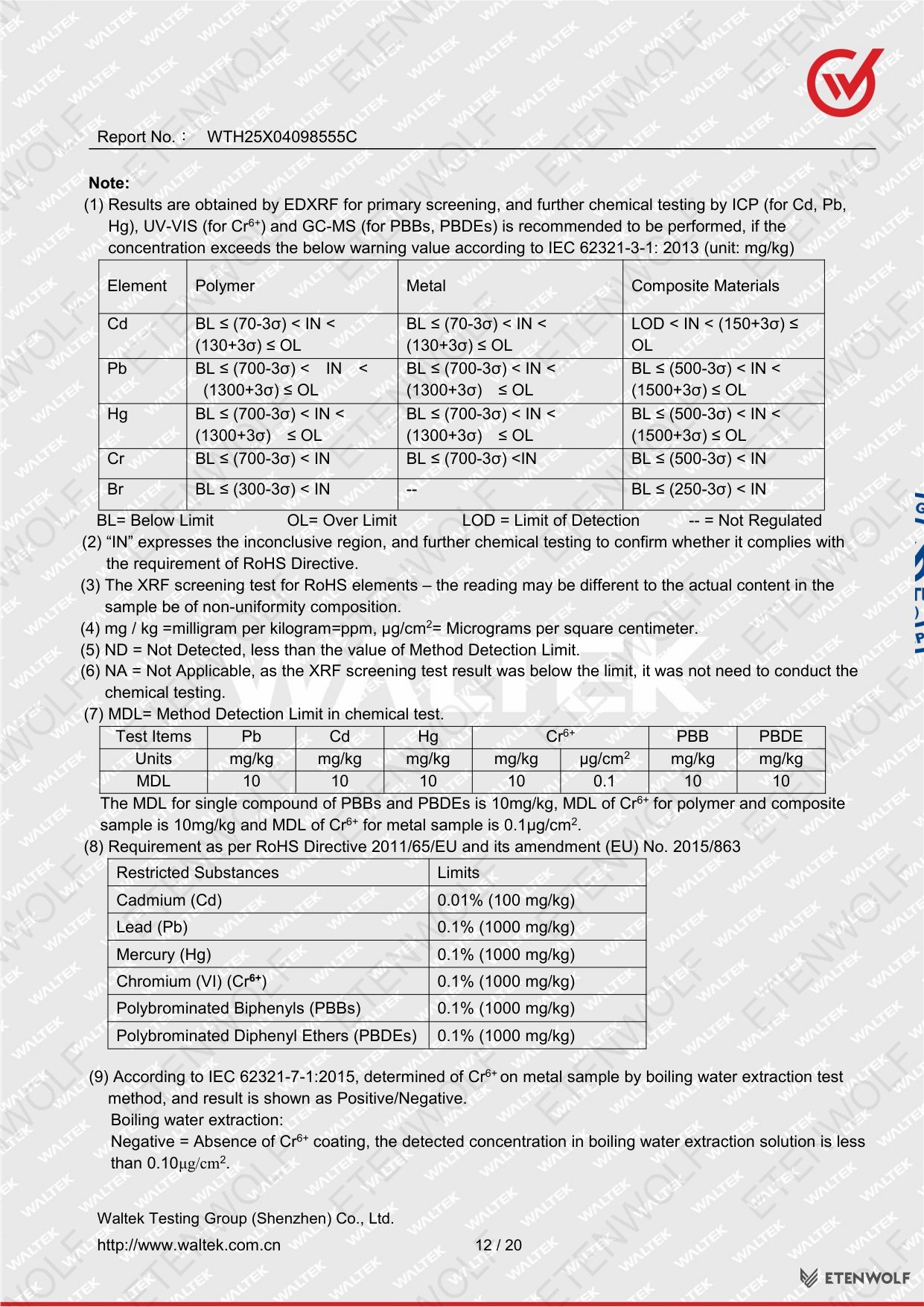

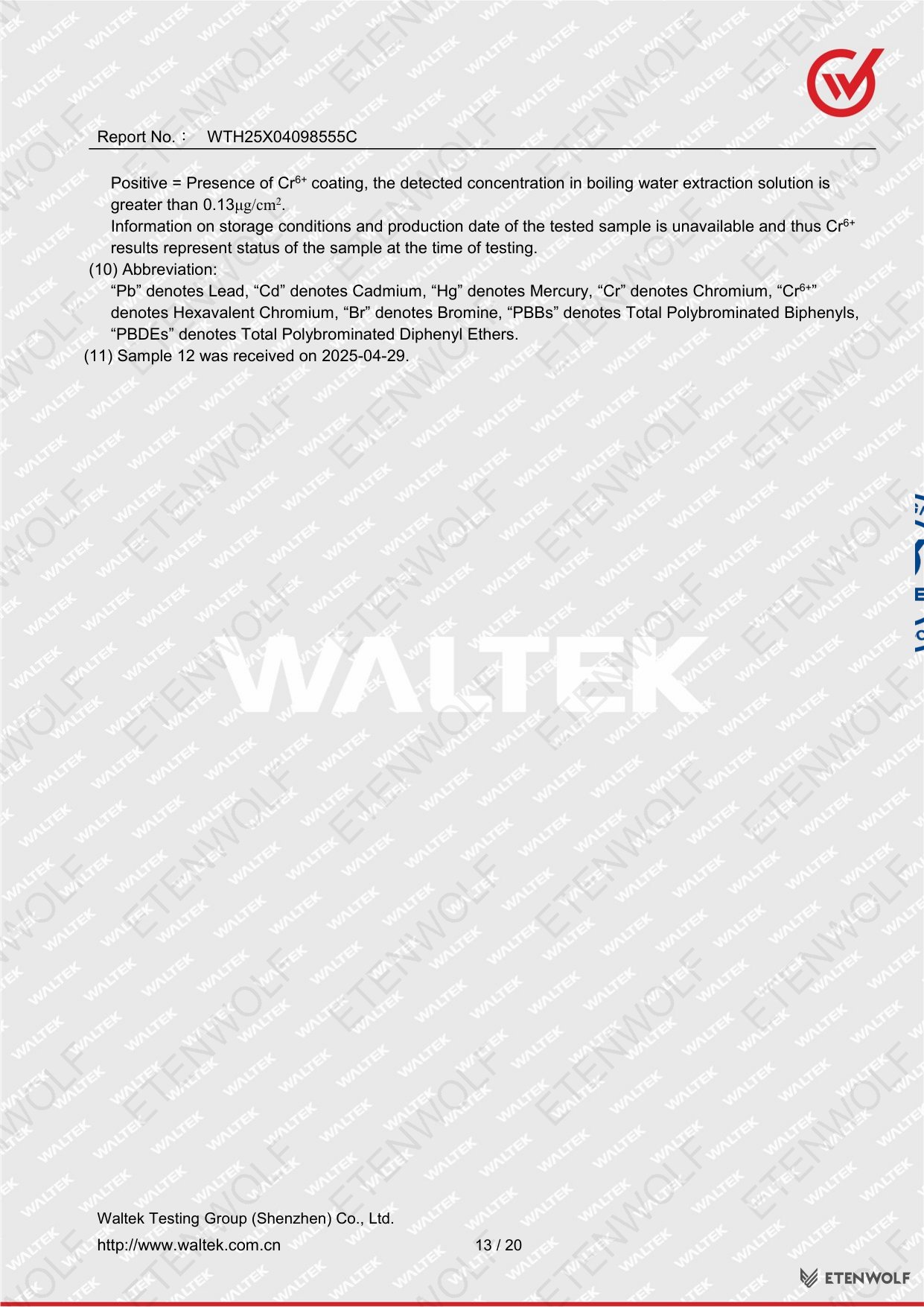

Legend: BL = Below Limit, IN = Inconclusive by XRF (requires chemical testing), NA = Not Applicable, Cr6+ = Hexavalent Chromium
All components containing chromium were further tested for hexavalent chromium (Cr6+) and returned negative results, confirming compliance.
Standards & Compliance
The P100 Ball Pump was tested according to the following international standards and test methods:
Regulatory Framework
- RoHS Directive 2011/65/EU – Restriction of Hazardous Substances in Electrical and Electronic Equipment
- EU Directive 2015/863 – Amendment adding four phthalates to restricted substances list

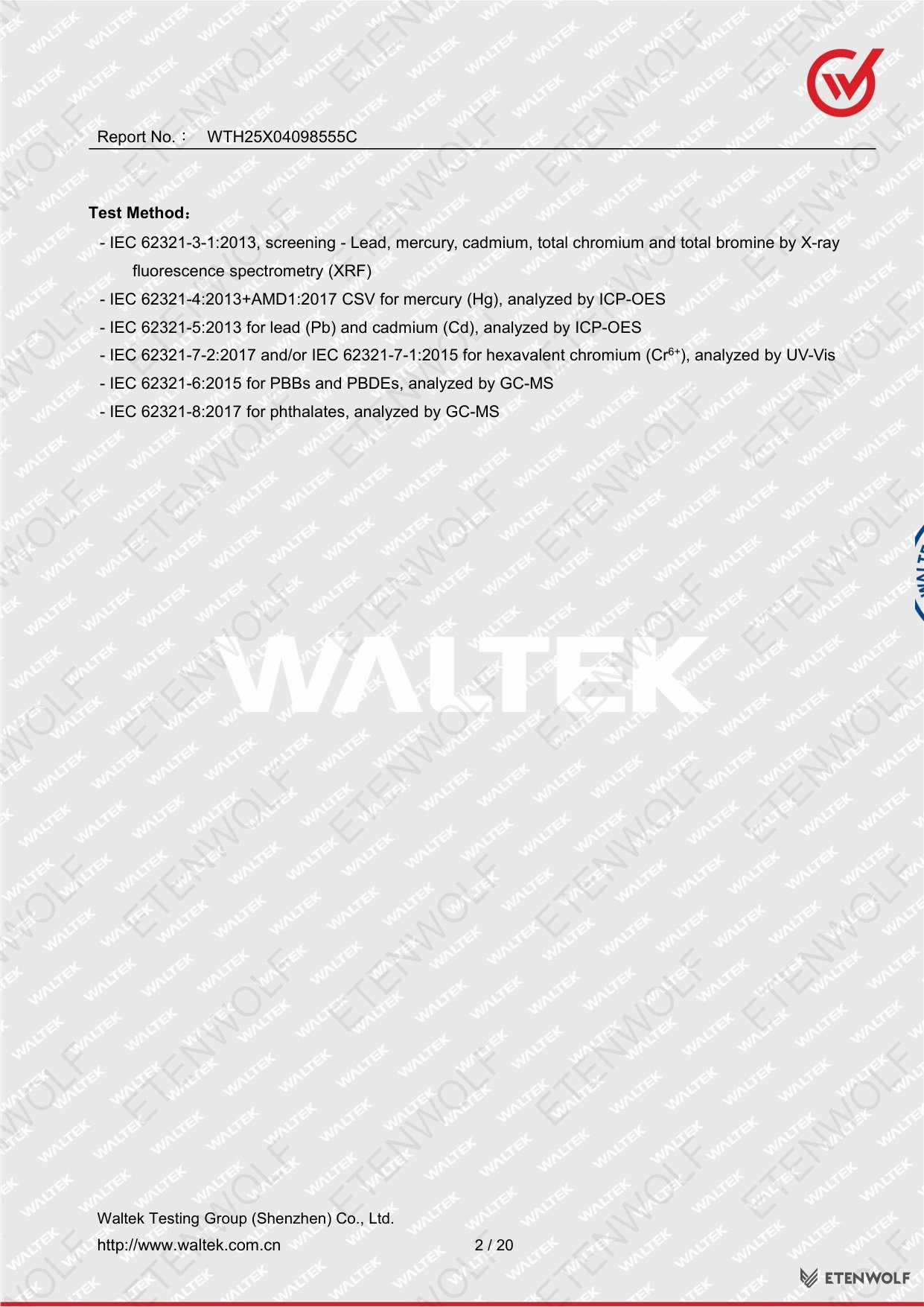

Test Methods Applied
- IEC 62321-3-1:2013 – Screening for lead, mercury, cadmium, total chromium and total bromine by X-ray fluorescence spectrometry (XRF)
- IEC 62321-4:2013+AMD1:2017 CSV – Determination of mercury (Hg) by ICP-OES
- IEC 62321-5:2013 – Determination of lead (Pb) and cadmium (Cd) by ICP-OES
- IEC 62321-7-2:2017 and/or IEC 62321-7-1:2015 – Determination of hexavalent chromium (Cr6+) by UV-Vis spectroscopy
- IEC 62321-6:2015 – Determination of polybrominated biphenyls (PBBs) and polybrominated diphenyl ethers (PBDEs) by GC-MS
- IEC 62321-8:2017 – Determination of phthalates by GC-MS

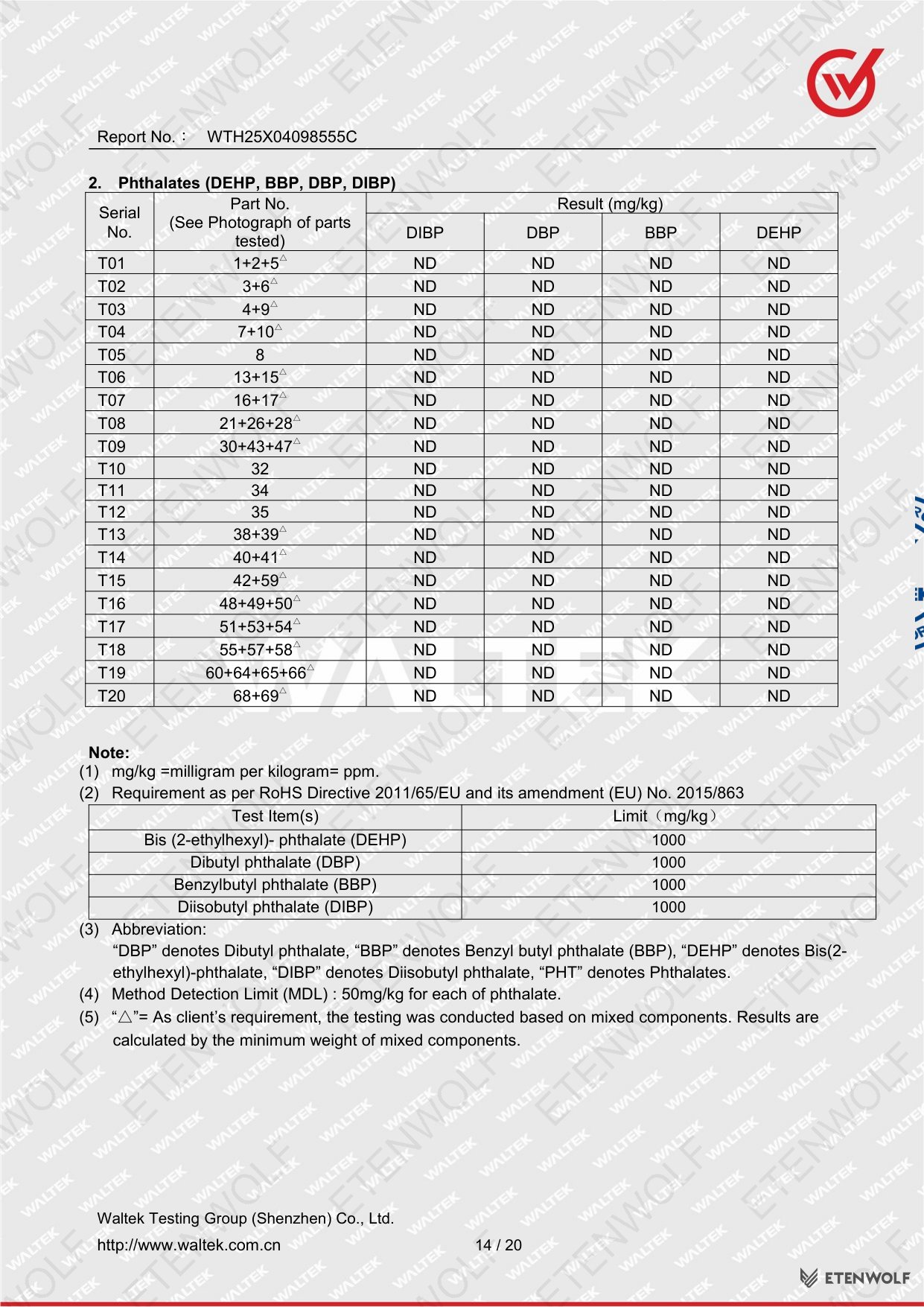

Restricted Substances Tested (10 Total)
- Lead (Pb) – Maximum concentration limit: 1000 ppm
- Mercury (Hg) – Maximum concentration limit: 1000 ppm
- Cadmium (Cd) – Maximum concentration limit: 100 ppm
- Hexavalent Chromium (Cr6+) – Maximum concentration limit: 1000 ppm
- Polybrominated Biphenyls (PBB) – Maximum concentration limit: 1000 ppm
- Polybrominated Diphenyl Ethers (PBDE) – Maximum concentration limit: 1000 ppm
- Bis(2-ethylhexyl) phthalate (DEHP) – Maximum concentration limit: 1000 ppm
- Butyl benzyl phthalate (BBP) – Maximum concentration limit: 1000 ppm
- Dibutyl phthalate (DBP) – Maximum concentration limit: 1000 ppm
- Diisobutyl phthalate (DIBP) – Maximum concentration limit: 1000 ppm
Validity & Certification Body
Testing Laboratory Information
Laboratory Name: Waltek Testing Group (Shenzhen) Co., Ltd.
Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao’an District, Shenzhen, Guangdong, China
Contact:
- Tel: +86-755-33663308
- Fax: +86-755-33663309
- Email: [email protected]
- Website: http://www.waltek.com.cn
Report Authorization
Authorized Signatory: Hugo Chen
Position: Signed for and on behalf of Waltek Testing Group (Shenzhen) Co., Ltd.
Report Issue Date: April 30, 2025
Certificate Validity
This RoHS test report is valid from the date of issue. RoHS compliance certificates typically remain valid unless:
- Product design or materials change
- Manufacturing process is modified
- Component suppliers change
- Regulatory requirements are updated
Regular re-testing is recommended to maintain ongoing compliance, especially when changes occur in product composition or regulatory standards.
Frequently Asked Questions
What does RoHS certification mean for the P100 Ball Pump?
RoHS certification confirms that the P100 Ball Pump complies with the European Union’s Restriction of Hazardous Substances Directive. This means the product contains restricted materials below the maximum concentration values allowed by EU law, making it safe for sale in EU markets and environmentally responsible for disposal.
Which substances were tested in this RoHS report?
The test evaluated all 10 substances restricted under RoHS Directive 2011/65/EU and amendment 2015/863: lead (Pb), mercury (Hg), cadmium (Cd), hexavalent chromium (Cr6+), polybrominated biphenyls (PBB), polybrominated diphenyl ethers (PBDE), and four phthalates (DEHP, BBP, DBP, DIBP). All tested components passed the requirements.
How was the P100 tested for RoHS compliance?

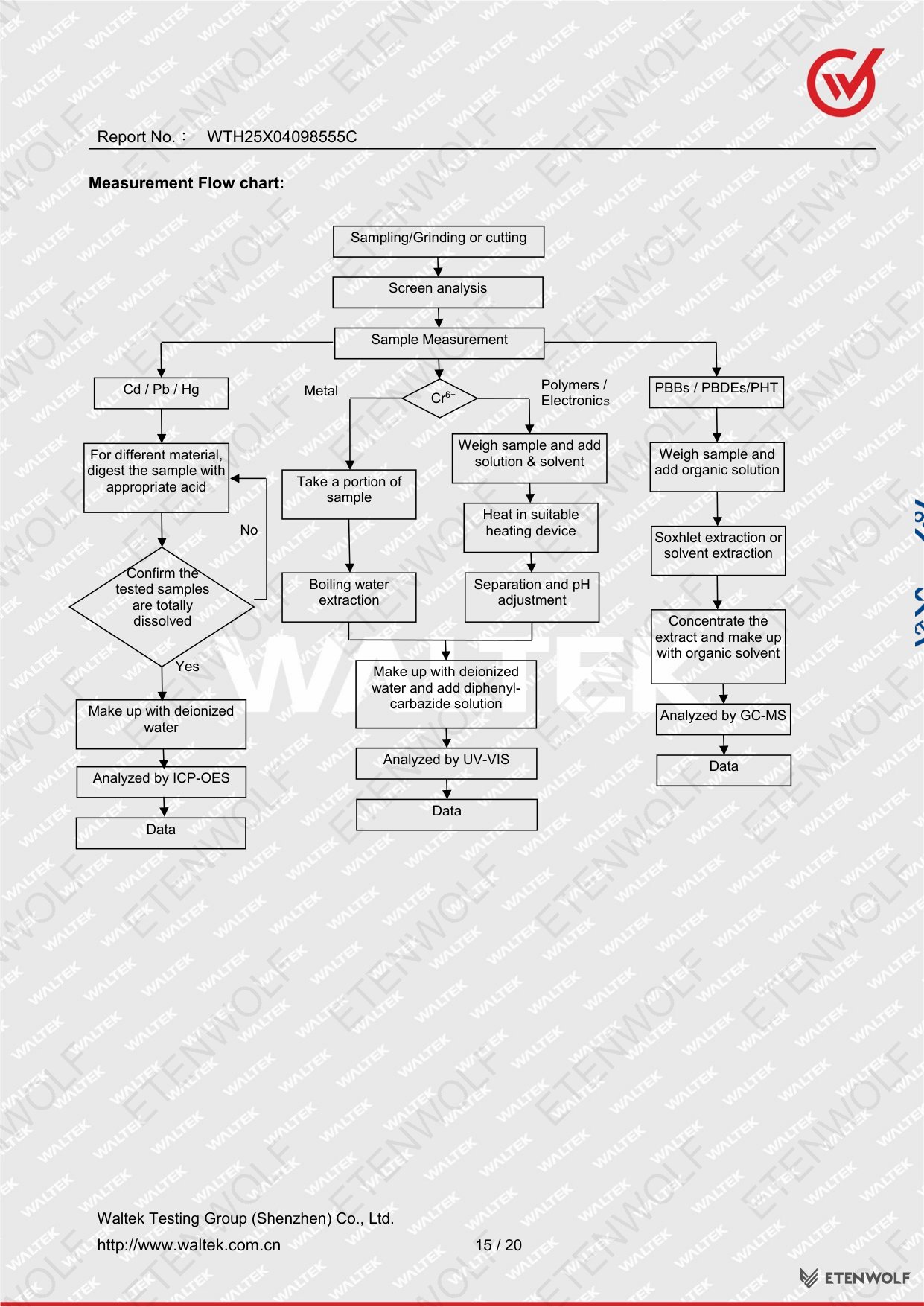

The P100 Ball Pump underwent comprehensive testing using multiple IEC 62321 standard methods. Initial screening used X-ray fluorescence (XRF) spectrometry, followed by chemical analysis using ICP-OES for metals, UV-Vis spectroscopy for hexavalent chromium, and GC-MS for organic compounds like PBBs, PBDEs, and phthalates. A total of 34 component parts were individually tested.
Is this RoHS certificate accepted internationally?
While this RoHS test report is issued for EU Directive compliance, RoHS certification is widely recognized globally. Many countries and regions reference EU RoHS standards or have adopted similar restrictions. However, specific markets may have additional requirements. This certification demonstrates the P100‘s commitment to hazardous substance restrictions and environmental responsibility worldwide.
