Document Overview
This page presents the CE Electromagnetic Compatibility (EMC) test report issued for the ETENWOLF P100 Ball Pump. The document is an official test report — not a certificate — prepared by an accredited third-party laboratory following the completion of both emission and immunity evaluations required for CE marking under the EMC Directive.

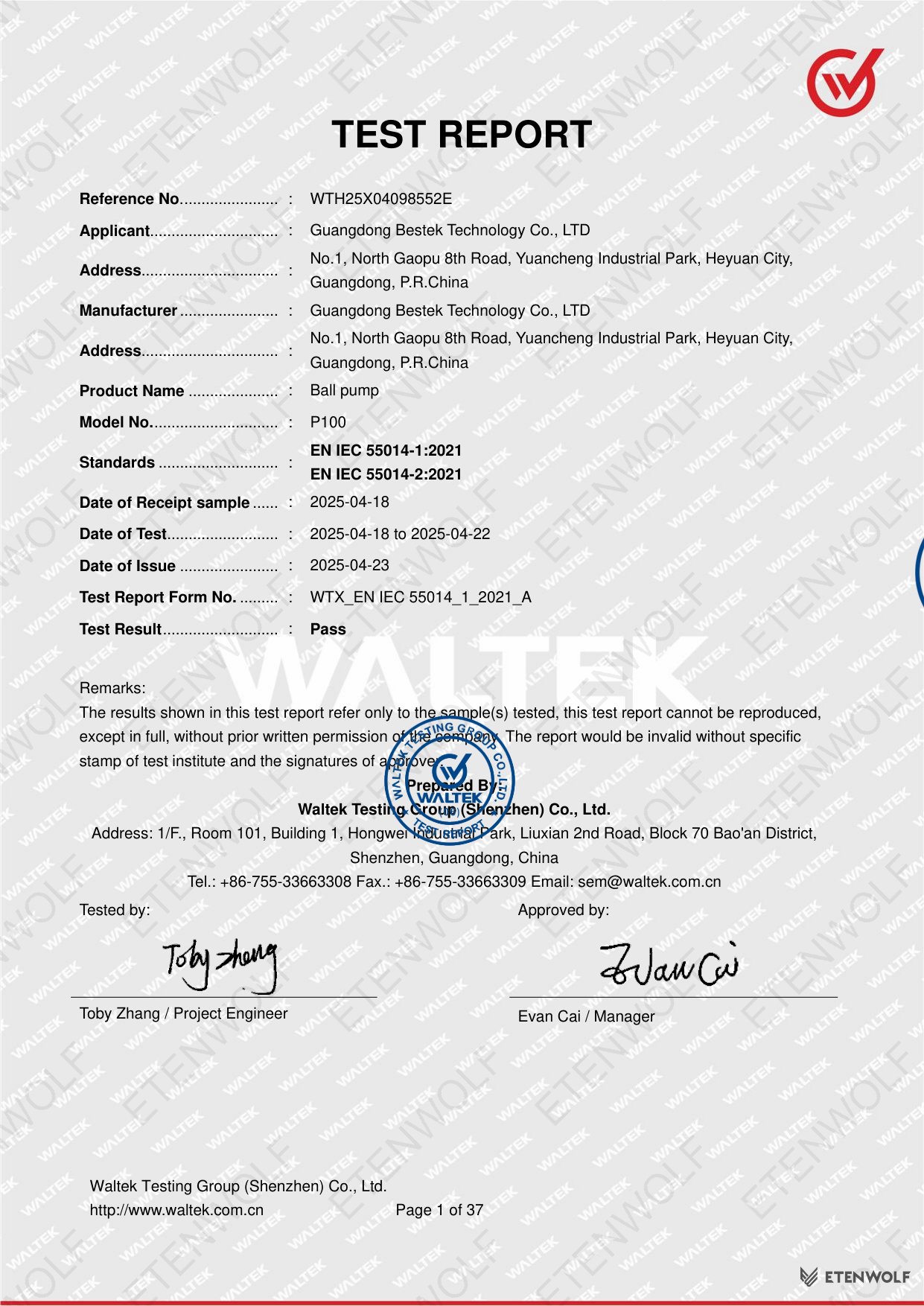

| Field | Detail |
|---|---|
| Document Type | CE-EMC Test Report |
| Reference Number | WTH25X04098552E |
| Test Report Form No. | WTX_EN IEC 55014_1_2021_A |
| Issuing Laboratory | Waltek Testing Group (Shenzhen) Co., Ltd. |
| Date of Sample Receipt | 2025-04-18 |
| Date of Test | 2025-04-18 to 2025-04-22 |
| Date of Issue | 2025-04-23 |

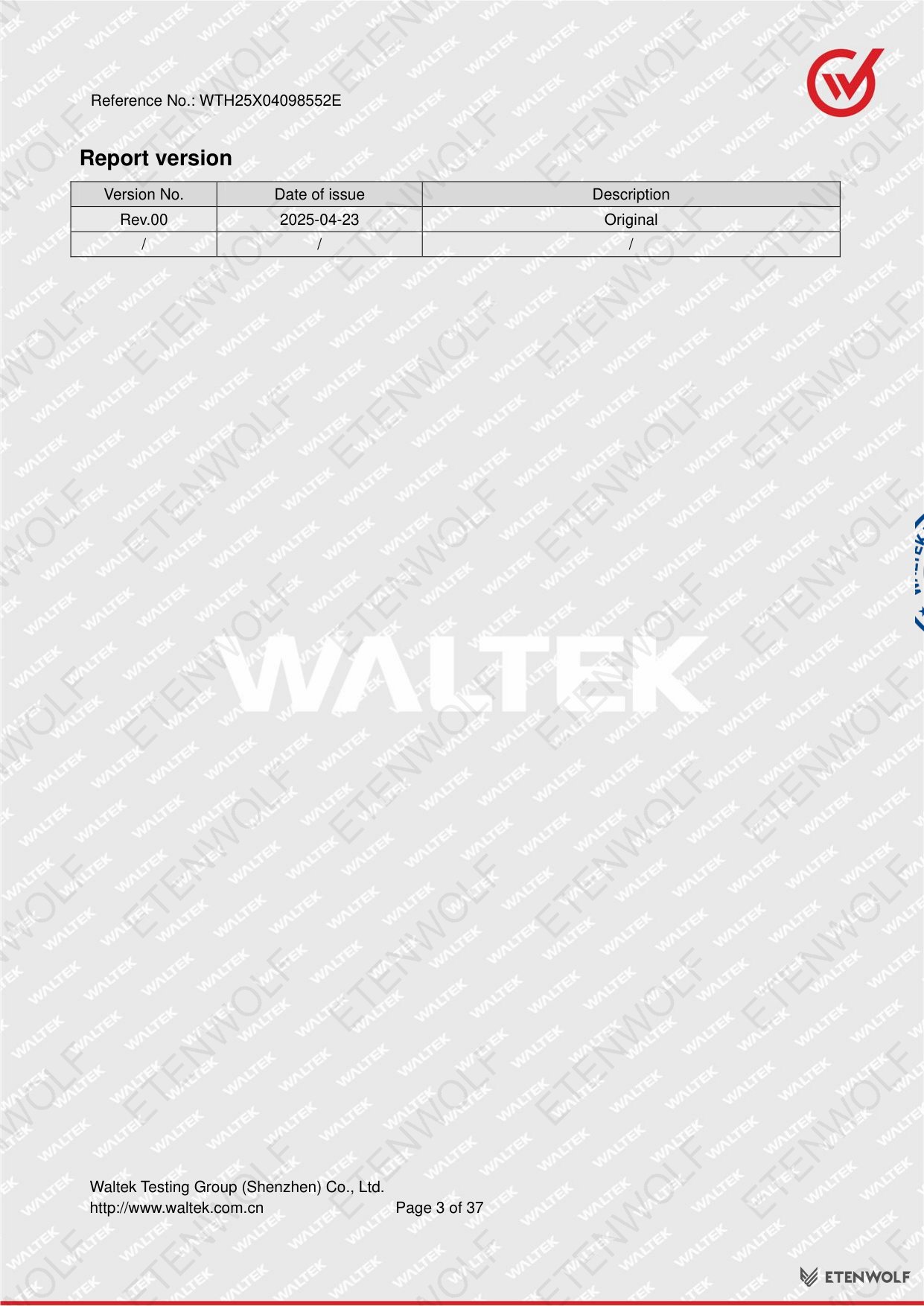

| Report Version | Rev.00 (Original) |
| Overall Test Result | Pass |
The test report covers electromagnetic emission (EMI) and electromagnetic immunity (EMS) evaluations. Results are valid solely for the production sample tested and may not be reproduced in part without prior written permission from Waltek Testing Group.

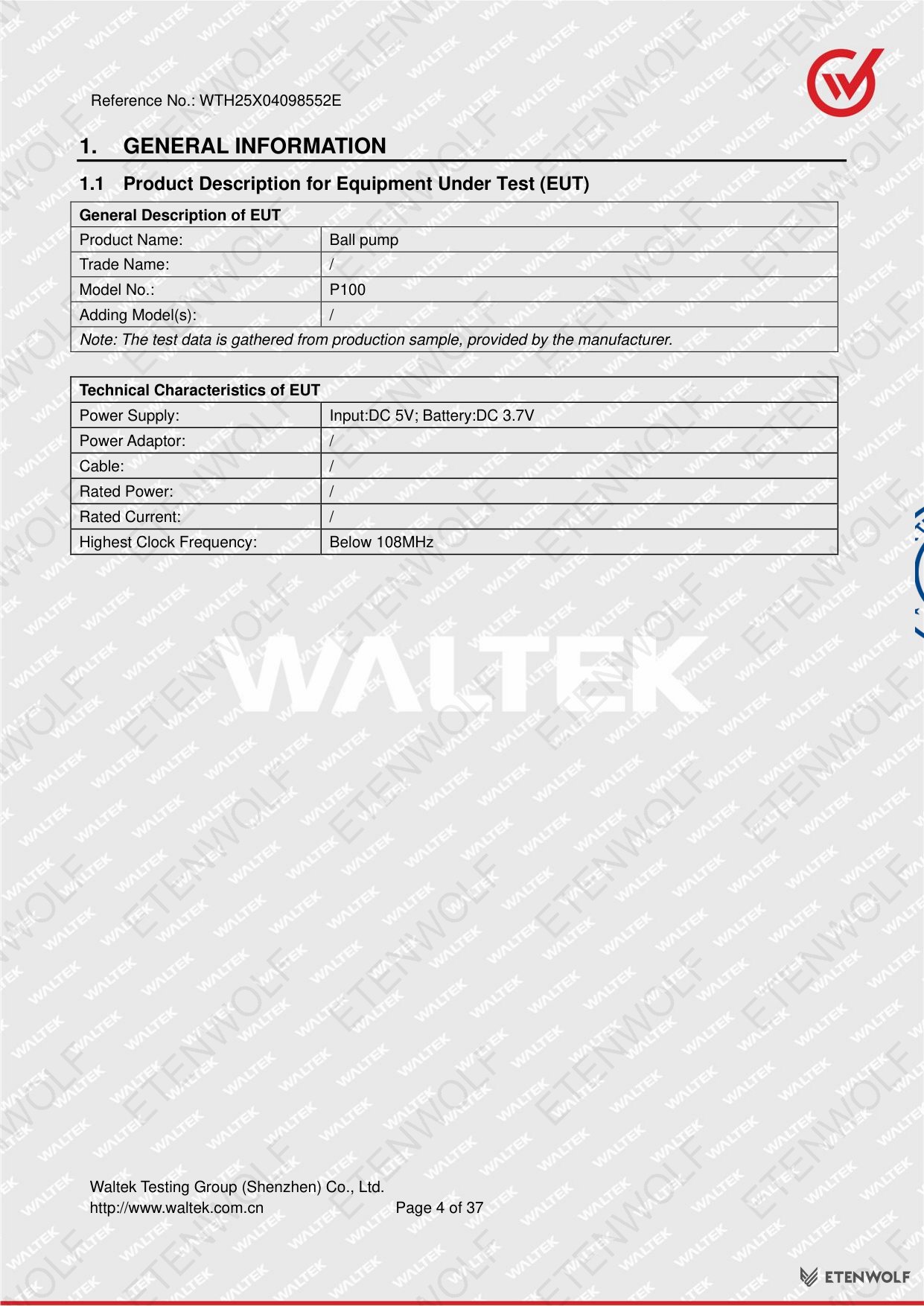

Product Information

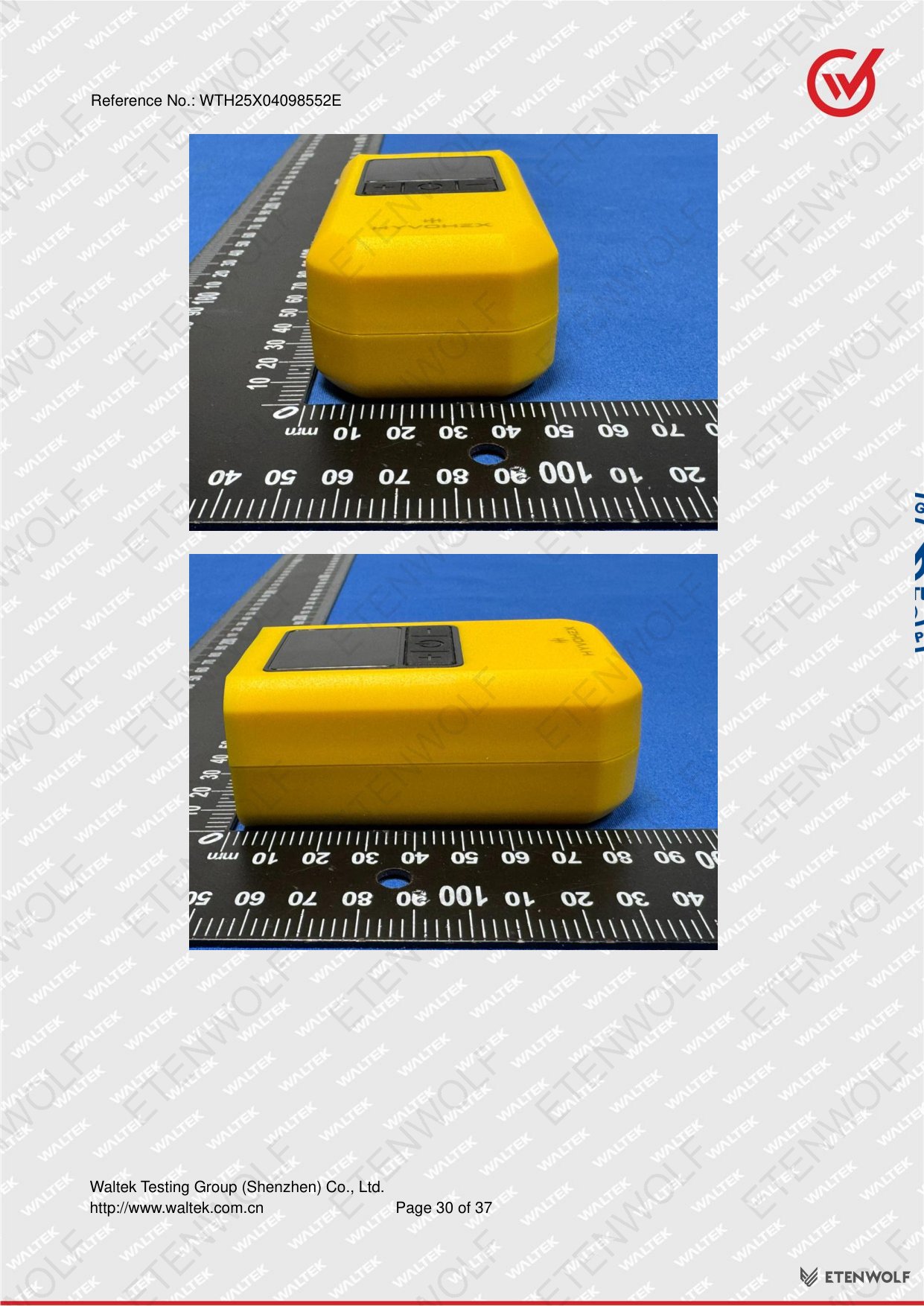

The equipment under test (EUT) is the ETENWOLF P100 Ball Pump, a compact cordless inflation tool designed for sports balls and similar applications. The product is manufactured and marketed by Guangdong Bestek Technology Co., Ltd.
| Attribute | Value |
|---|---|
| Product Name | Ball Pump |
| Model Number | P100 |
| Trade Name | — |
| Additional Models | — |
| Applicant | Guangdong Bestek Technology Co., Ltd. |
| Manufacturer | Guangdong Bestek Technology Co., Ltd. |
| Manufacturer Address | No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China |
| Power Supply Input | DC 5V (via adapter); Battery: DC 3.7V |
| Power Adapter | Xiaomi MDY-12-EQ (S/N: QA622020106645G) — auxiliary equipment |
| Highest Clock Frequency | Below 108 MHz |
| Rated Power | Not specified |
| Rated Current | Not specified |
The sample tested was drawn from production and provided directly by the manufacturer. Two operating modes were configured during testing to capture the full emission and immunity profile of the device.
Key Details
Testing was conducted across two operating modes and covered both conducted and radiated emission measurements as well as a full suite of immunity tests. The following tables summarise the test configuration and measurement uncertainty values declared by the laboratory.

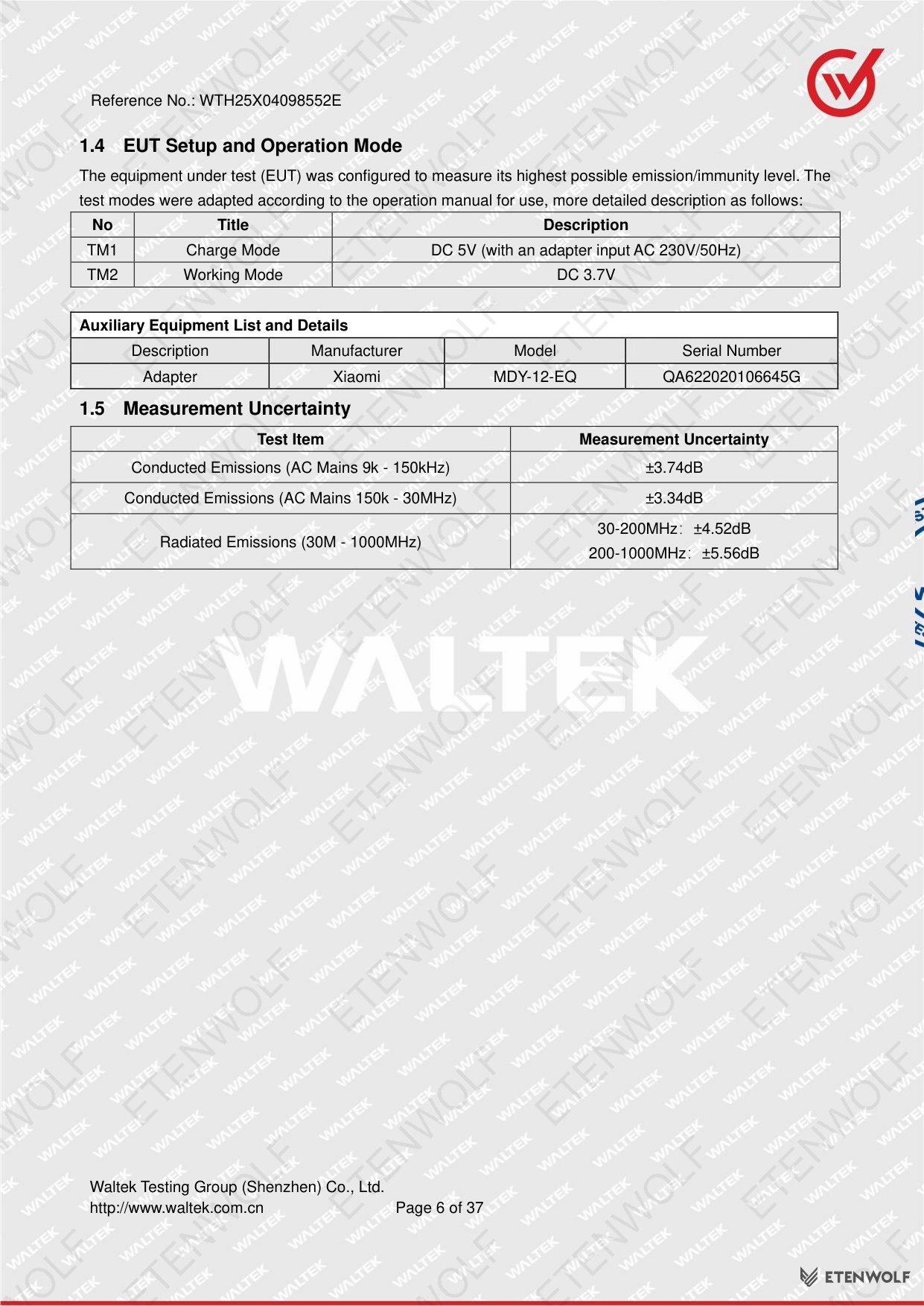

Test Modes (EUT Configuration)
| Mode ID | Title | Description |
|---|---|---|
| TM1 | Charge Mode | DC 5V input via adapter (AC 230V / 50Hz) |
| TM2 | Working Mode | Battery DC 3.7V |
Measurement Uncertainty
| Test Item | Measurement Uncertainty |
|---|---|
| Conducted Emissions — AC Mains 9kHz to 150kHz | ±3.74 dB |
| Conducted Emissions — AC Mains 150kHz to 30MHz | ±3.34 dB |
| Radiated Emissions — 30MHz to 200MHz | ±4.52 dB |
| Radiated Emissions — 200MHz to 1000MHz | ±5.56 dB |

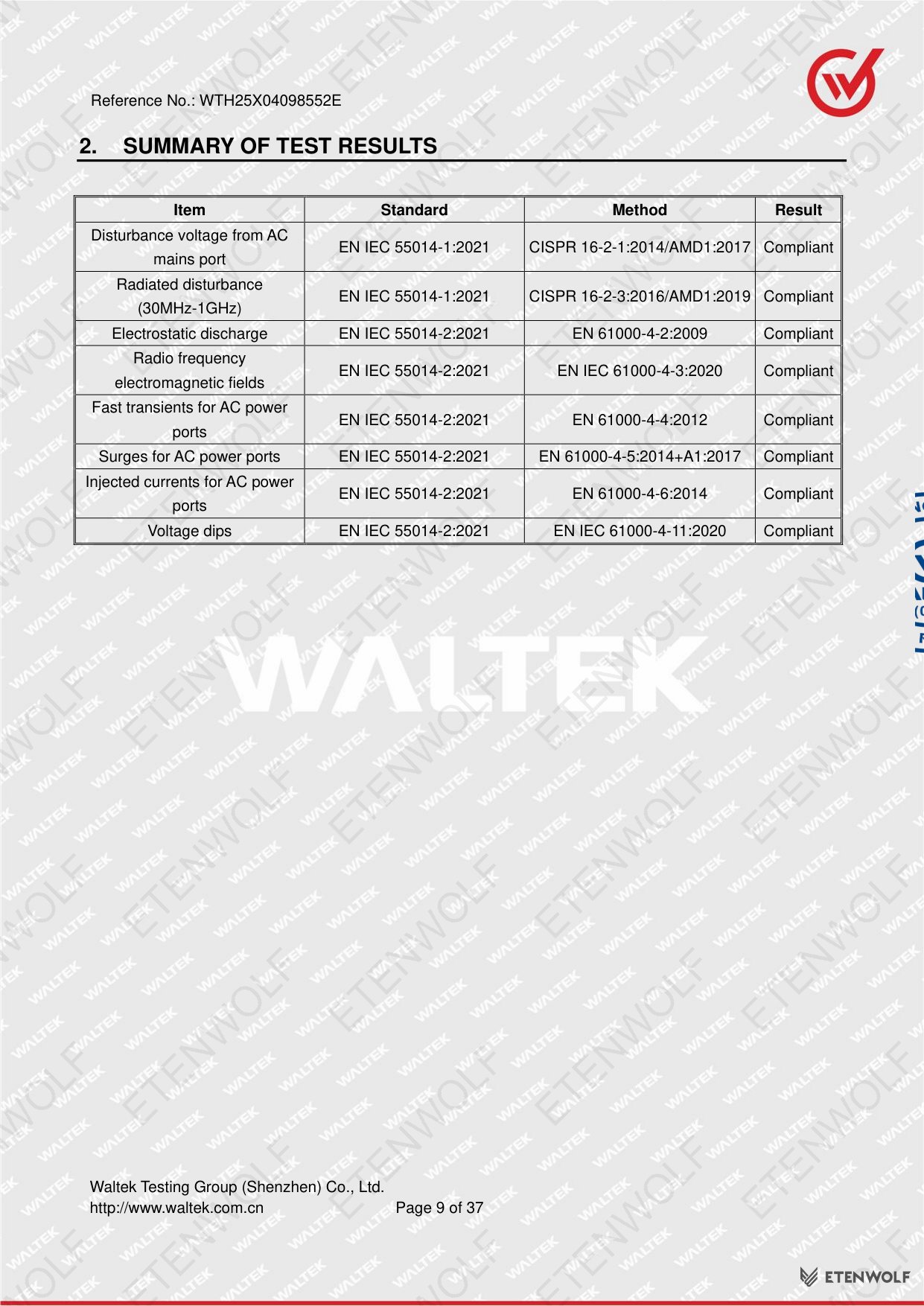

Test Scope Summary
| Section | Test Category | Description |
|---|---|---|

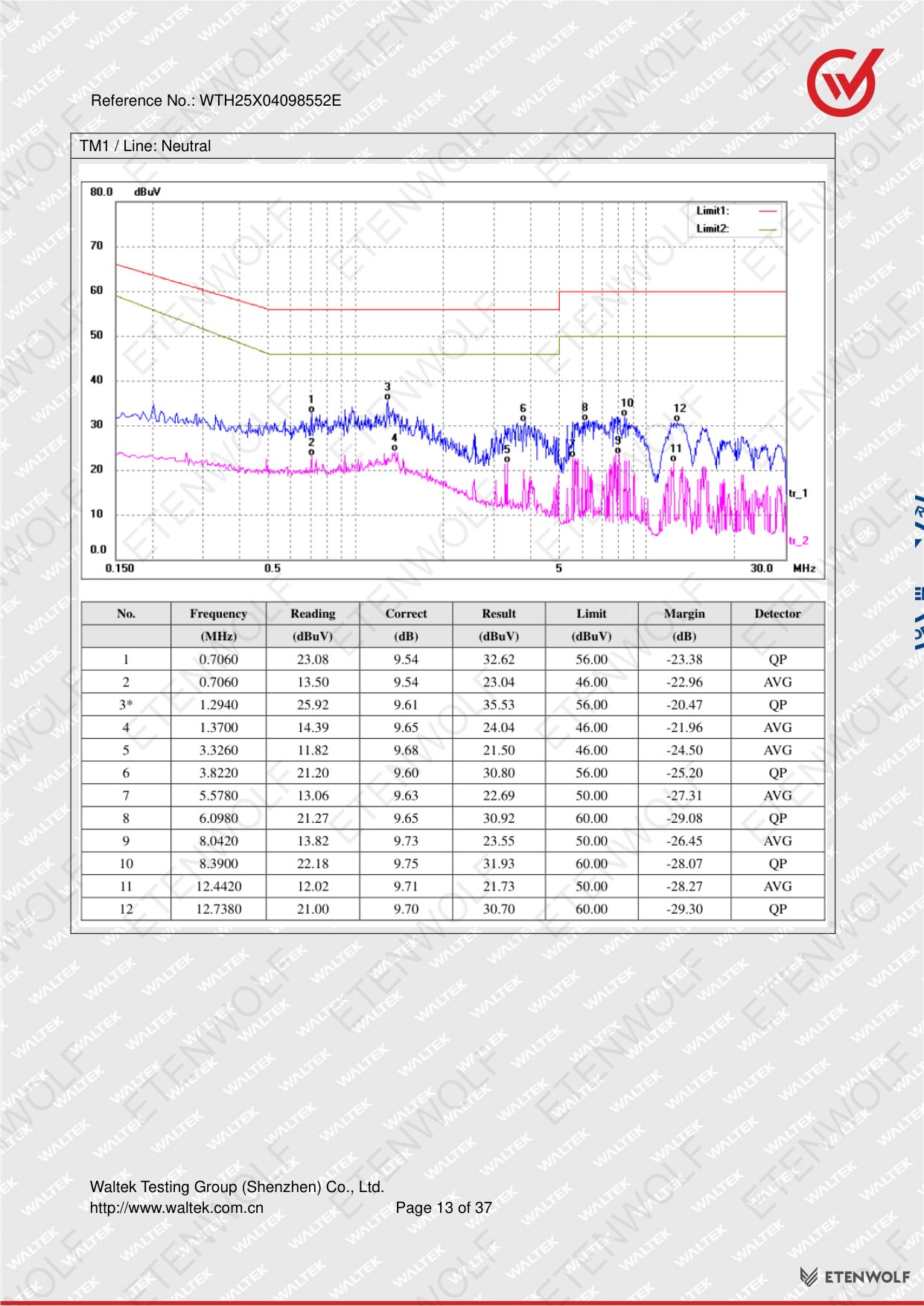

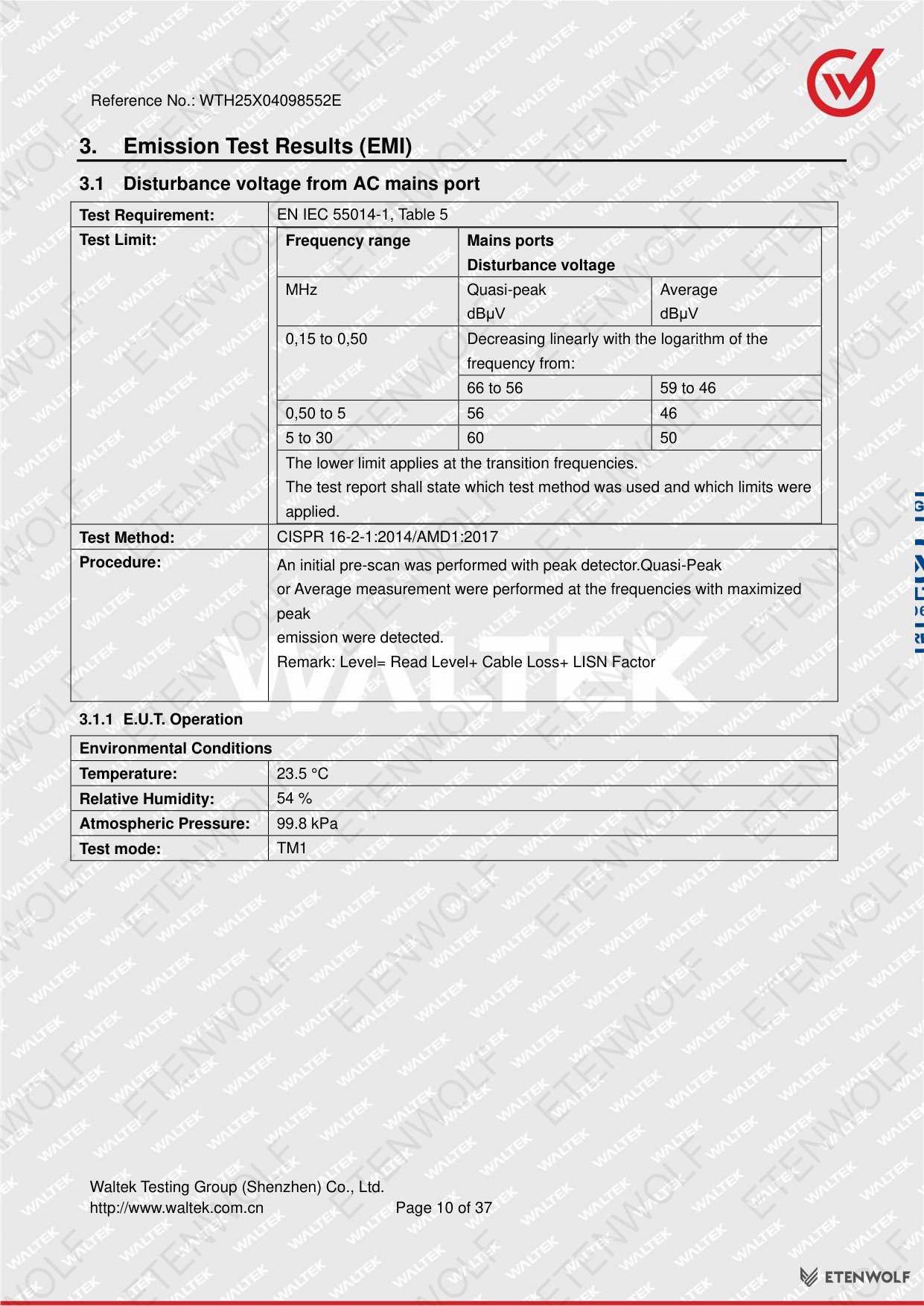

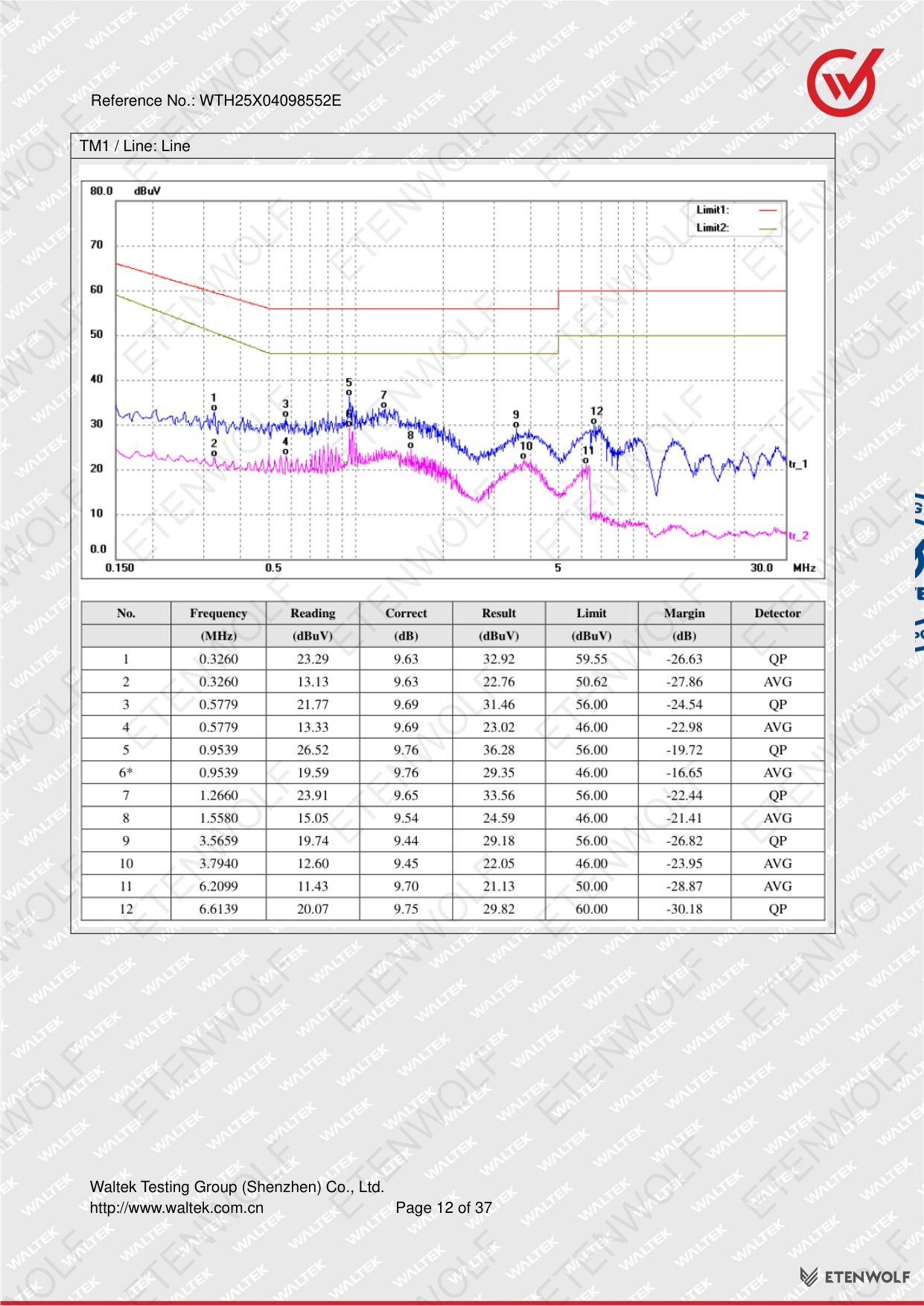

| 3.1 | EMI — Emission | Disturbance voltage from AC mains port |

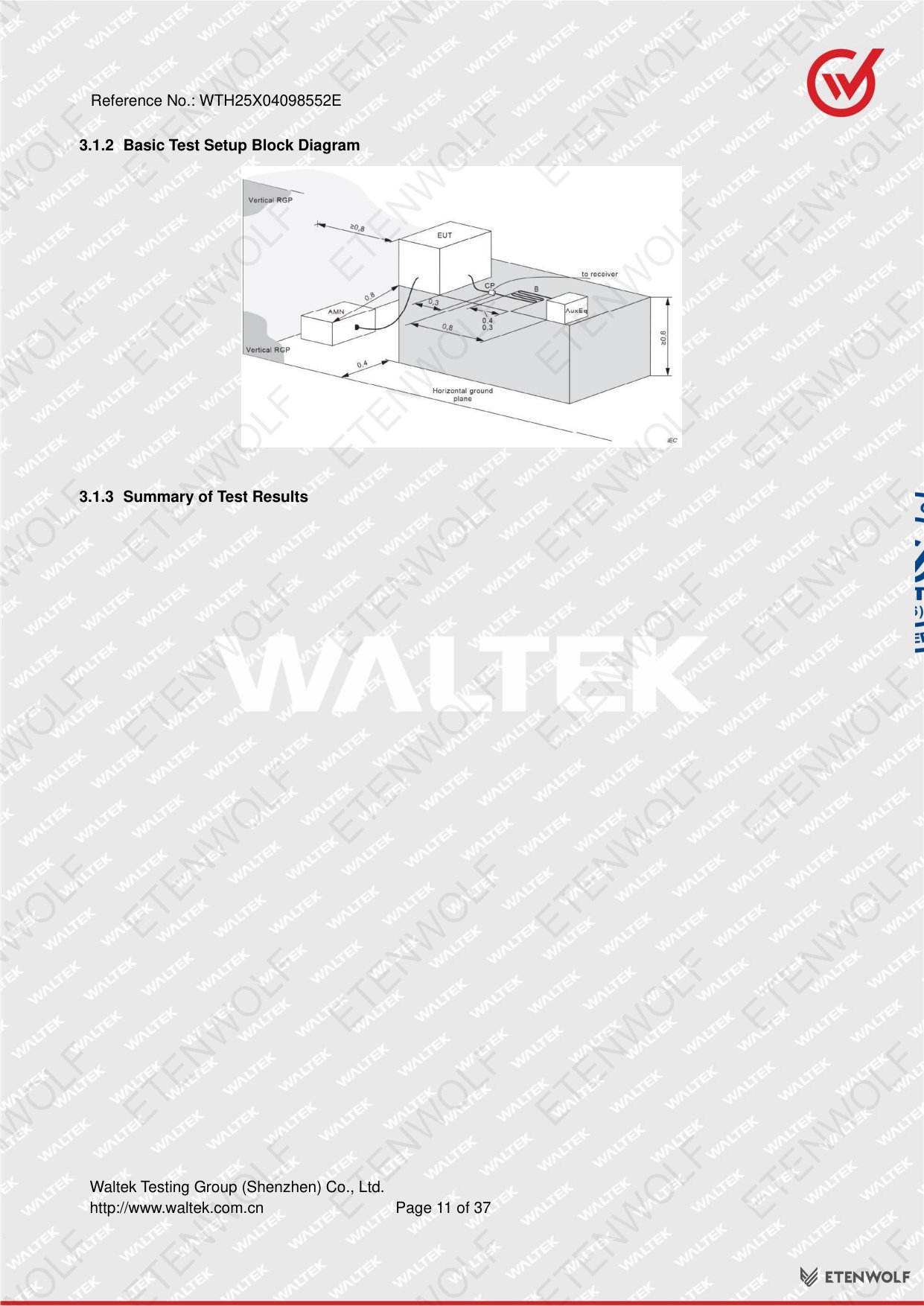

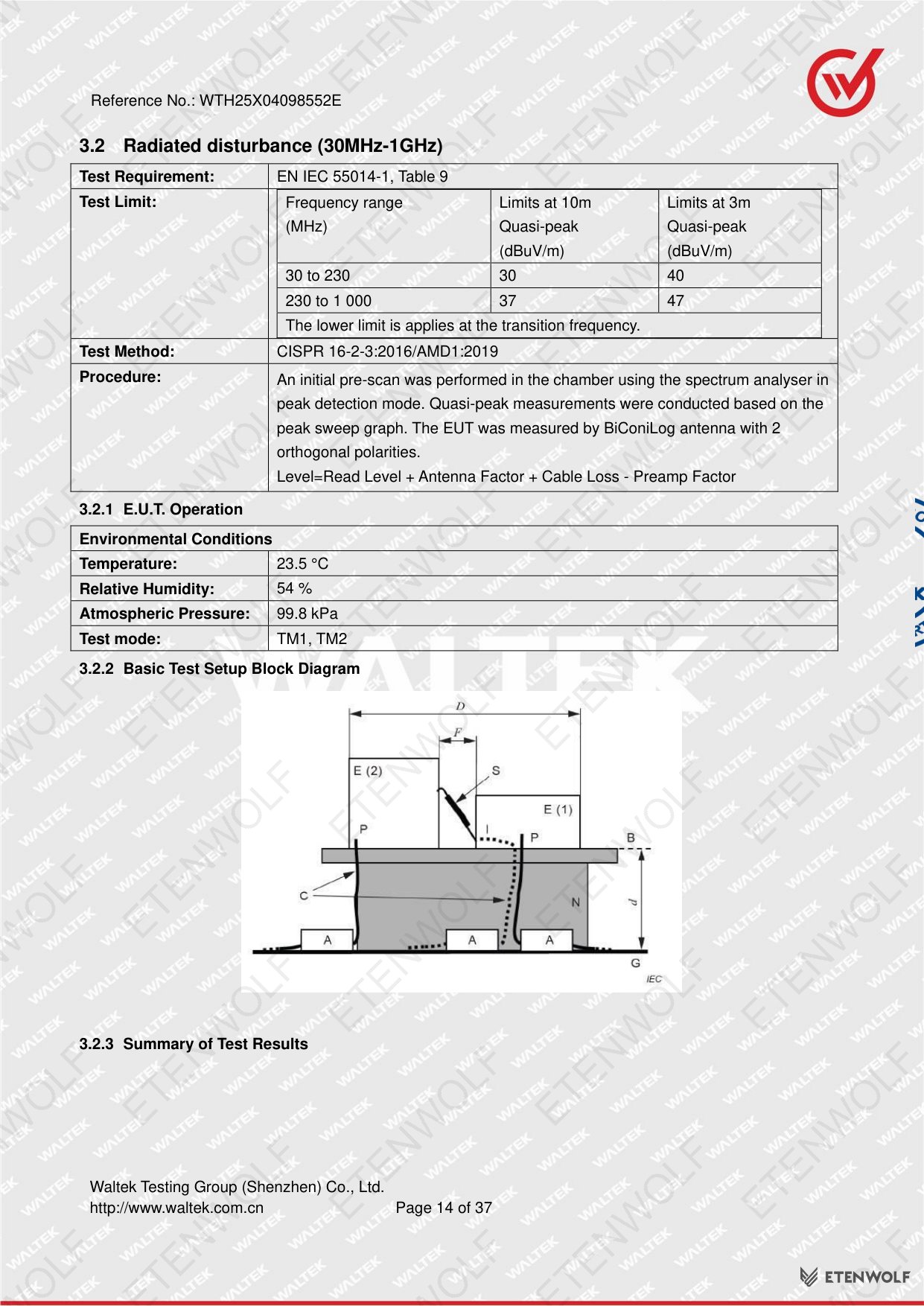

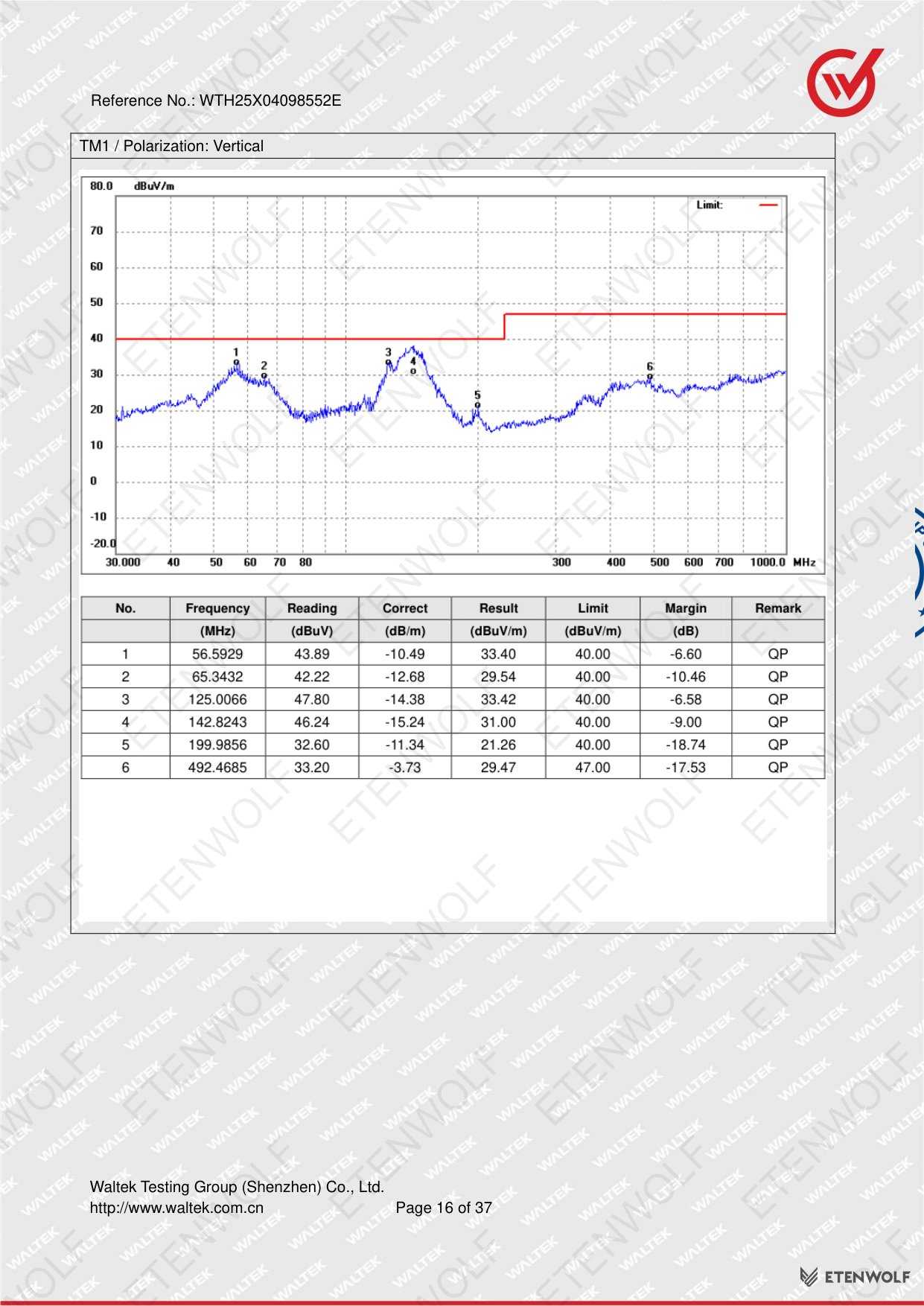

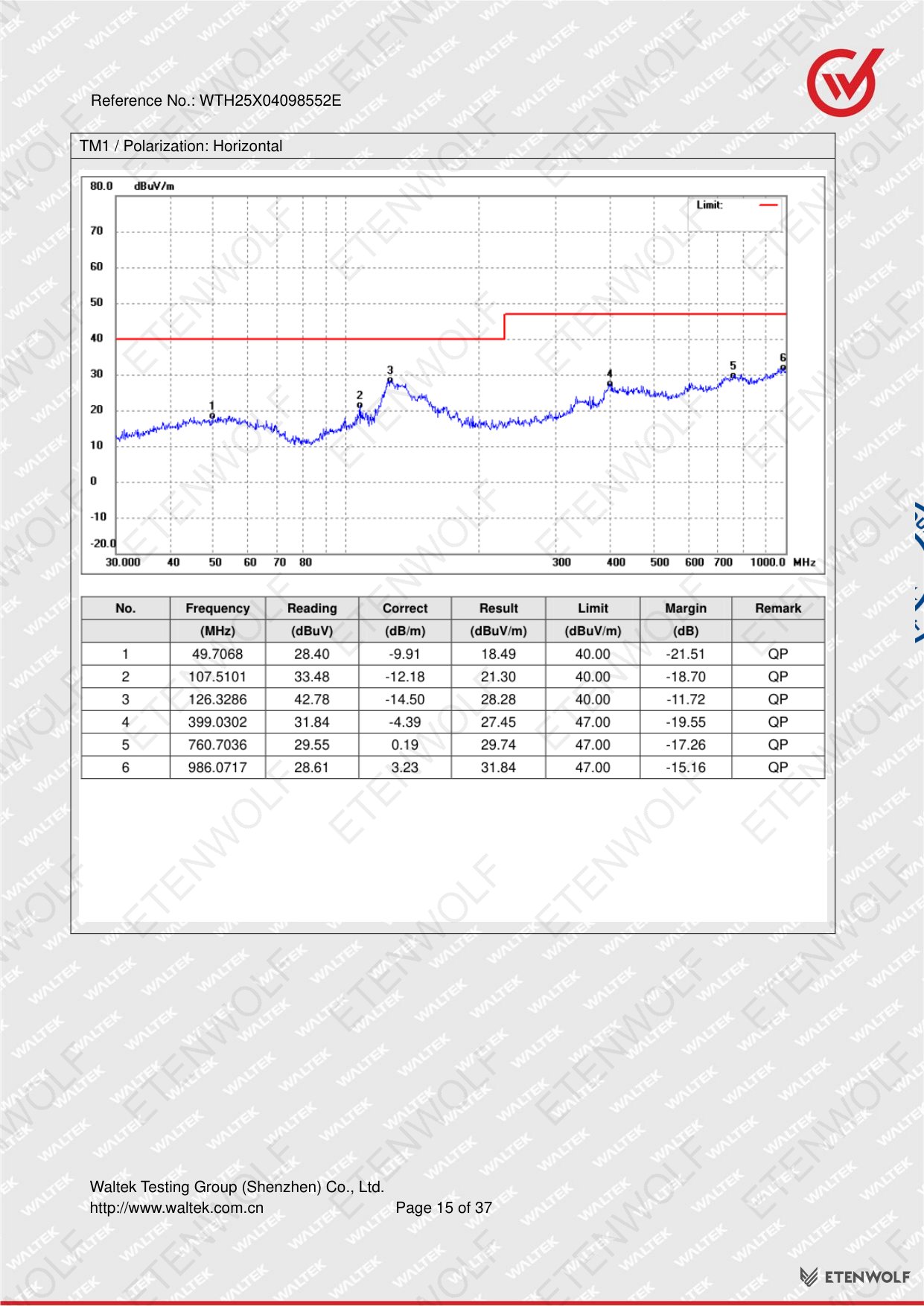

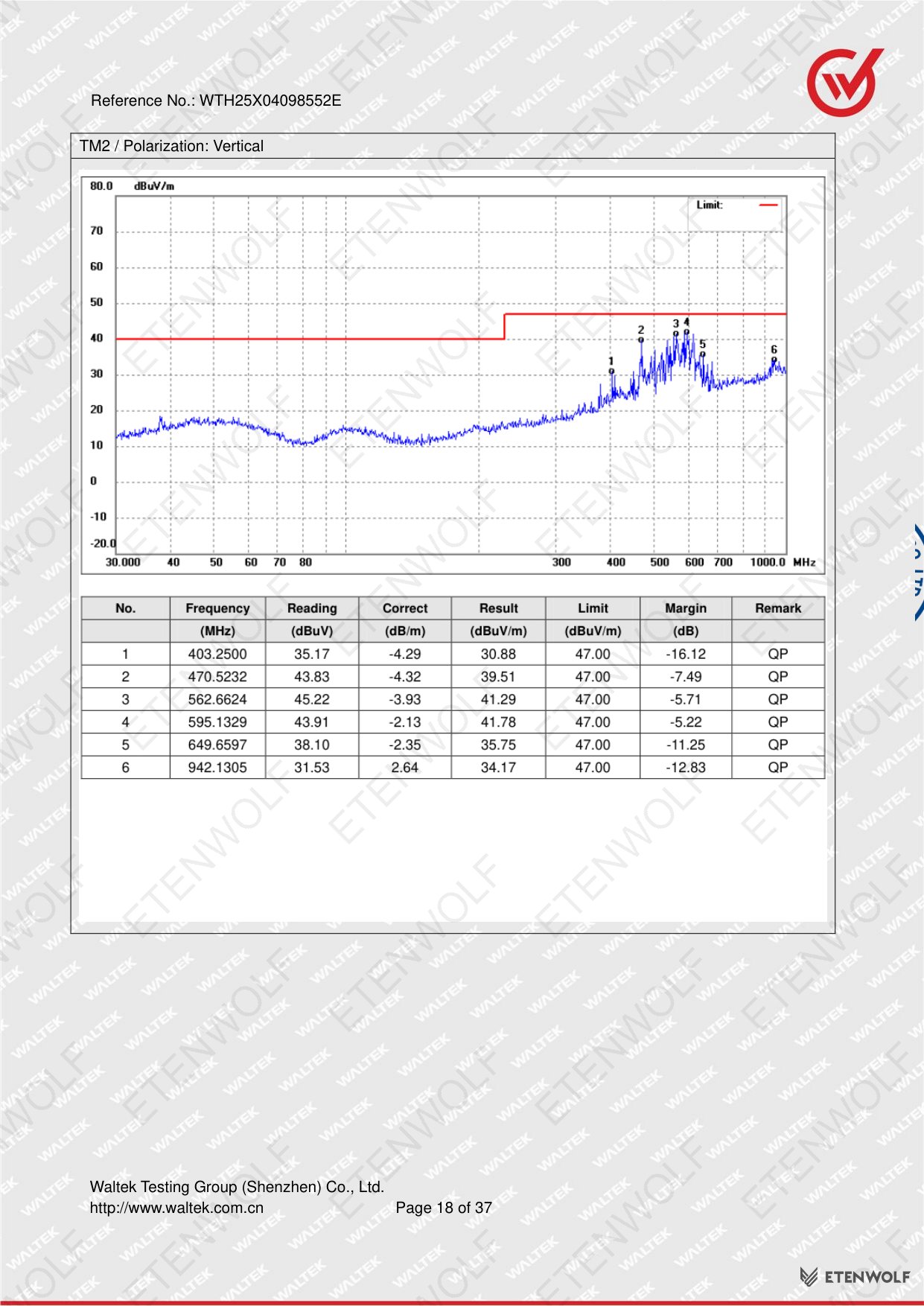

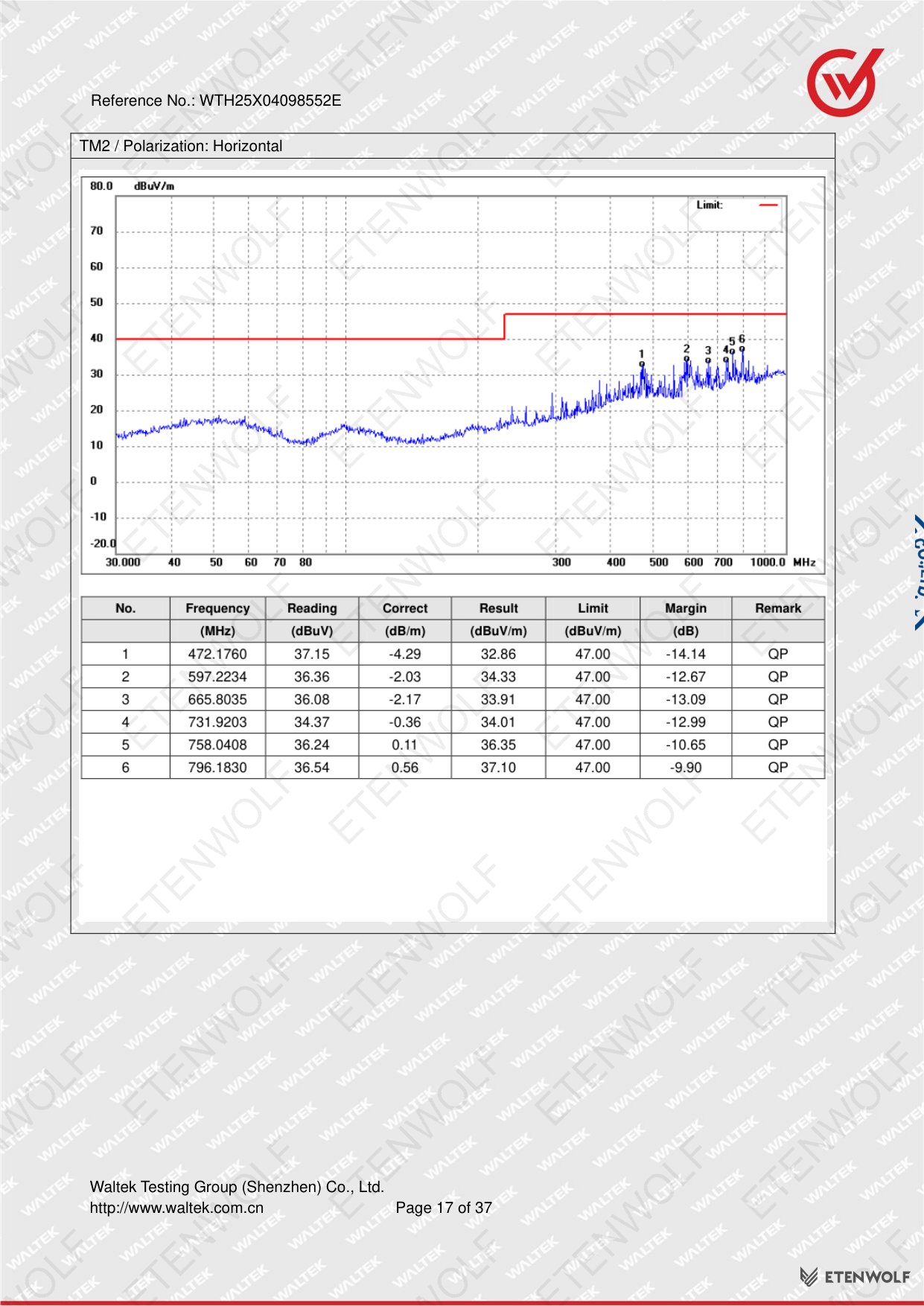

| 3.2 | EMI — Emission | Radiated disturbance (30MHz – 1GHz) |

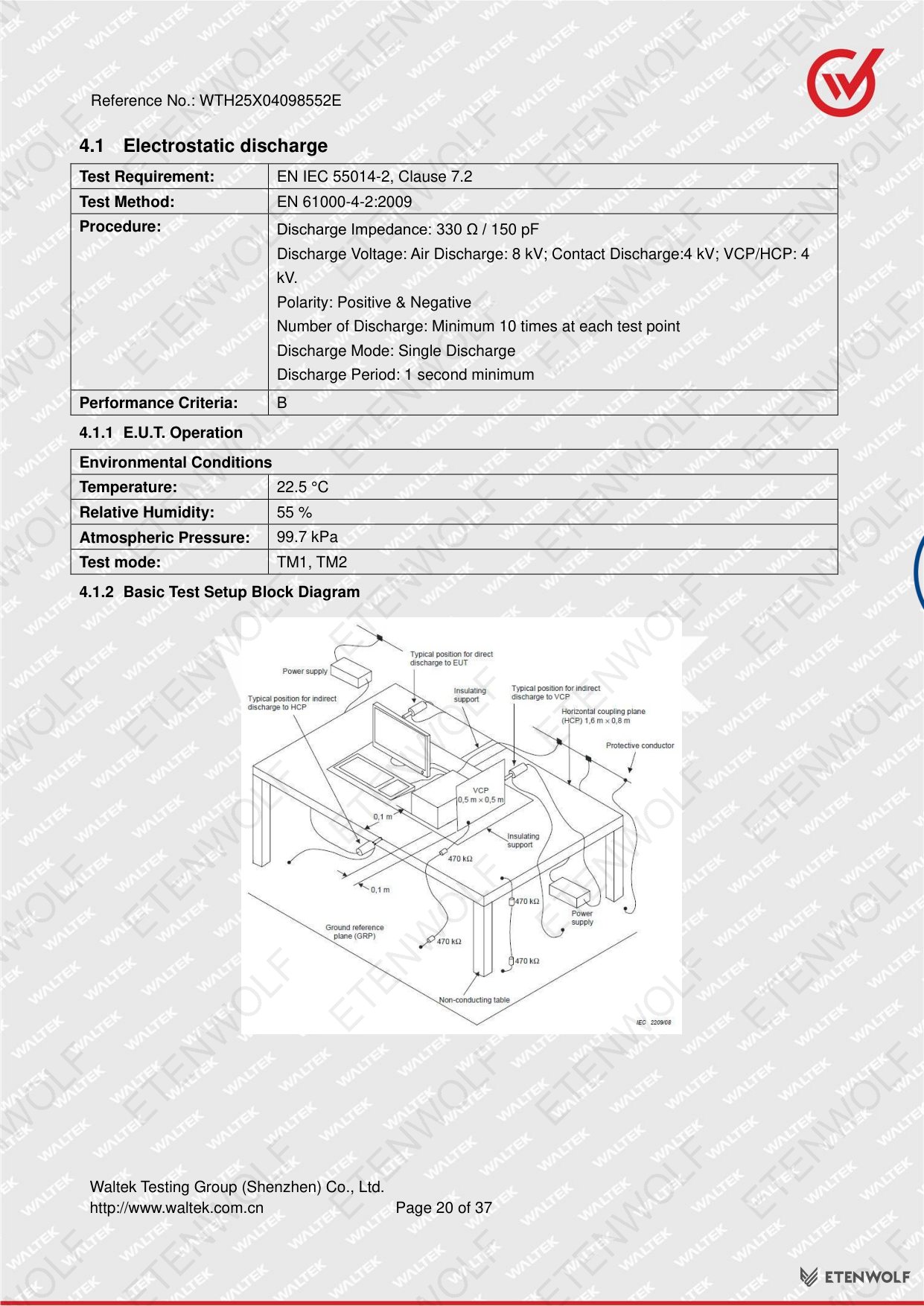

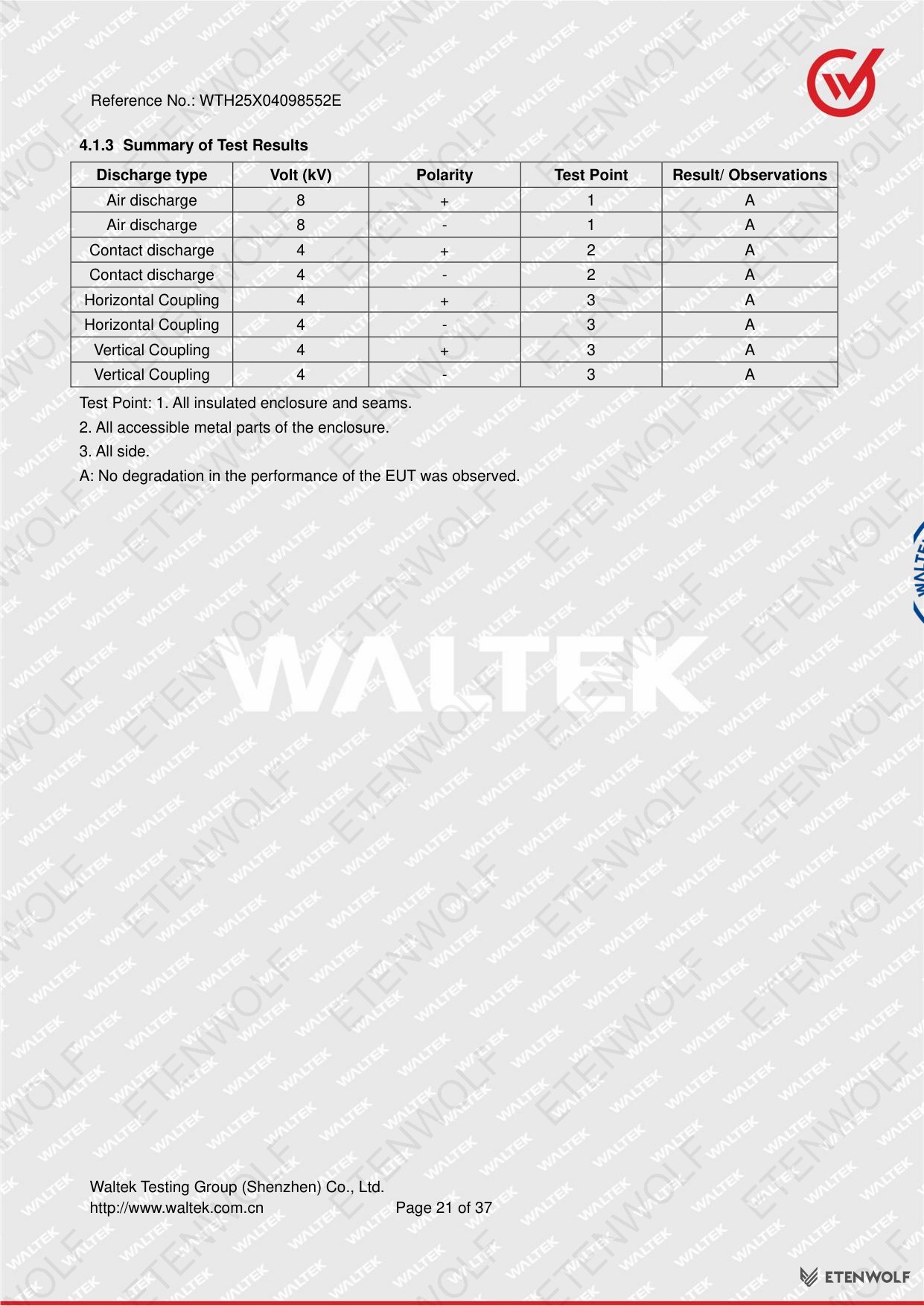

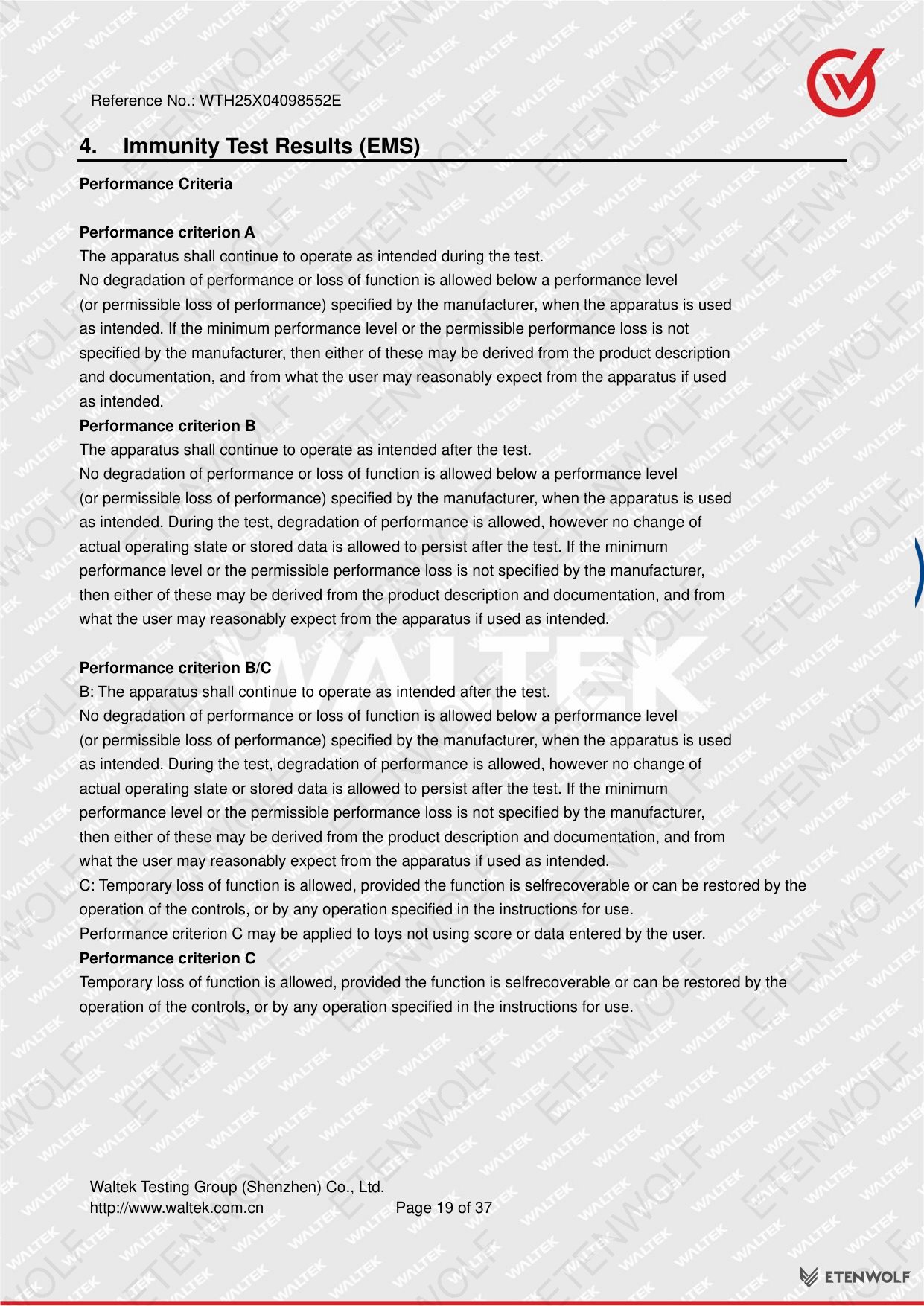

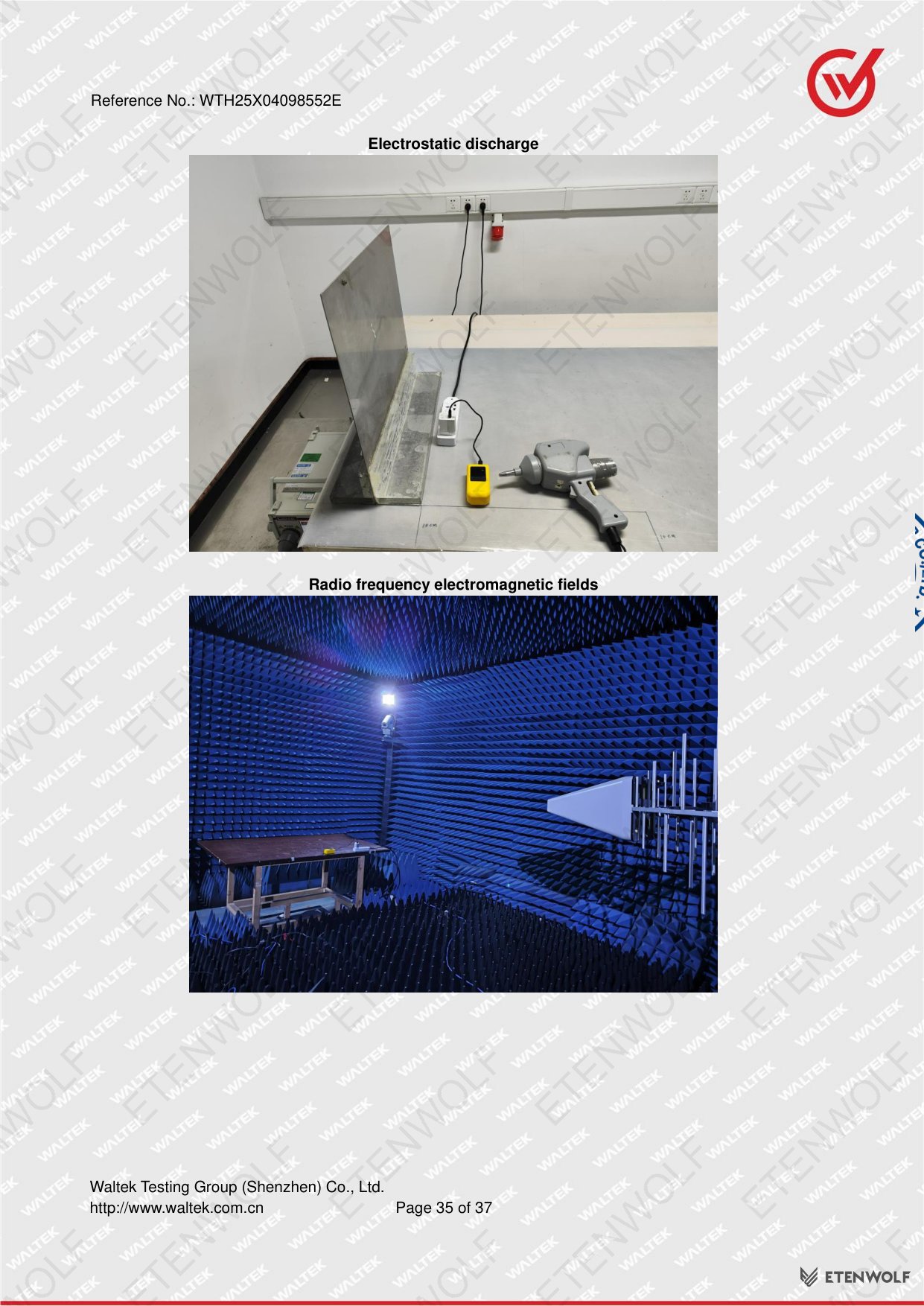

| 4.1 | EMS — Immunity | Electrostatic discharge (ESD) |

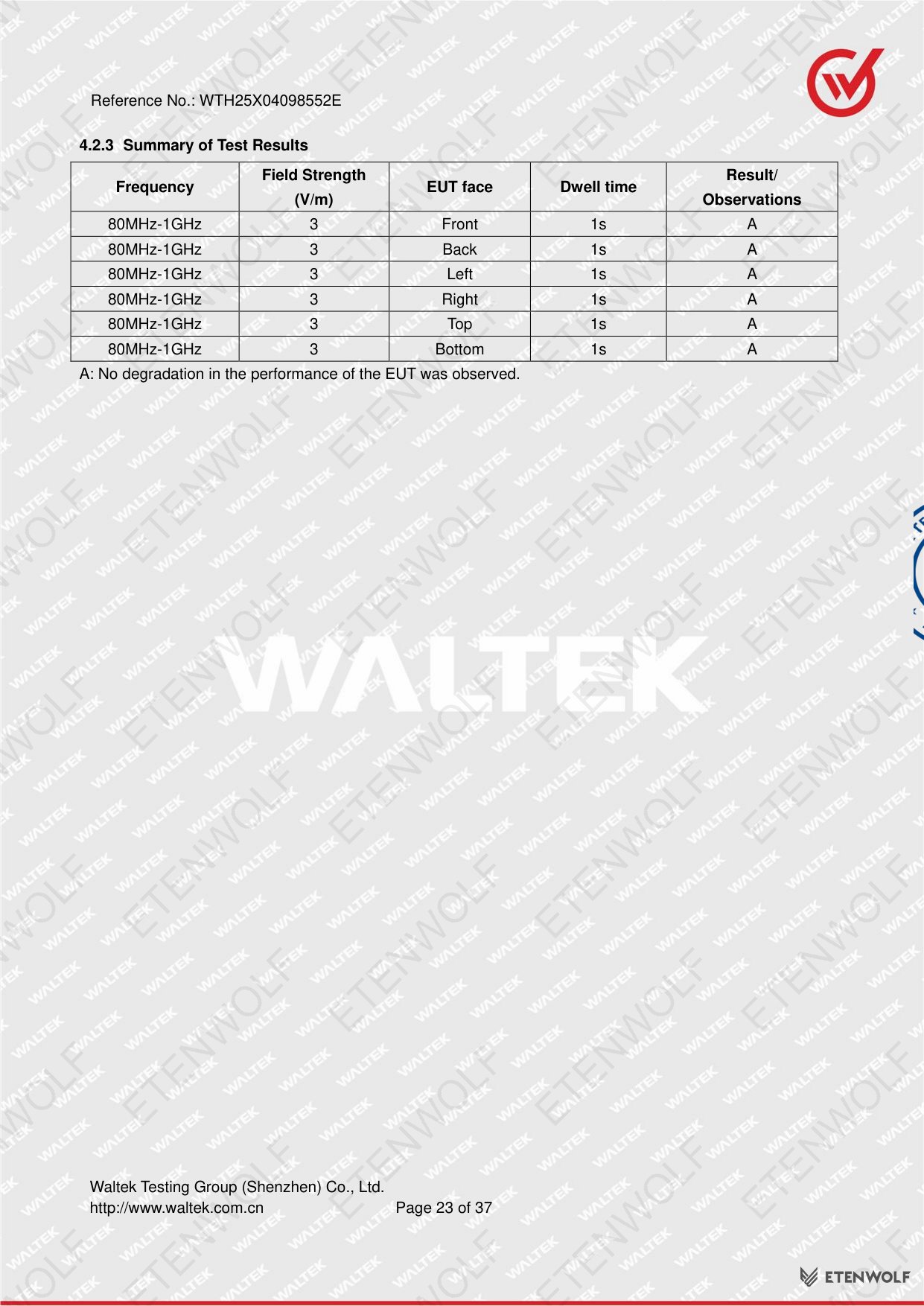

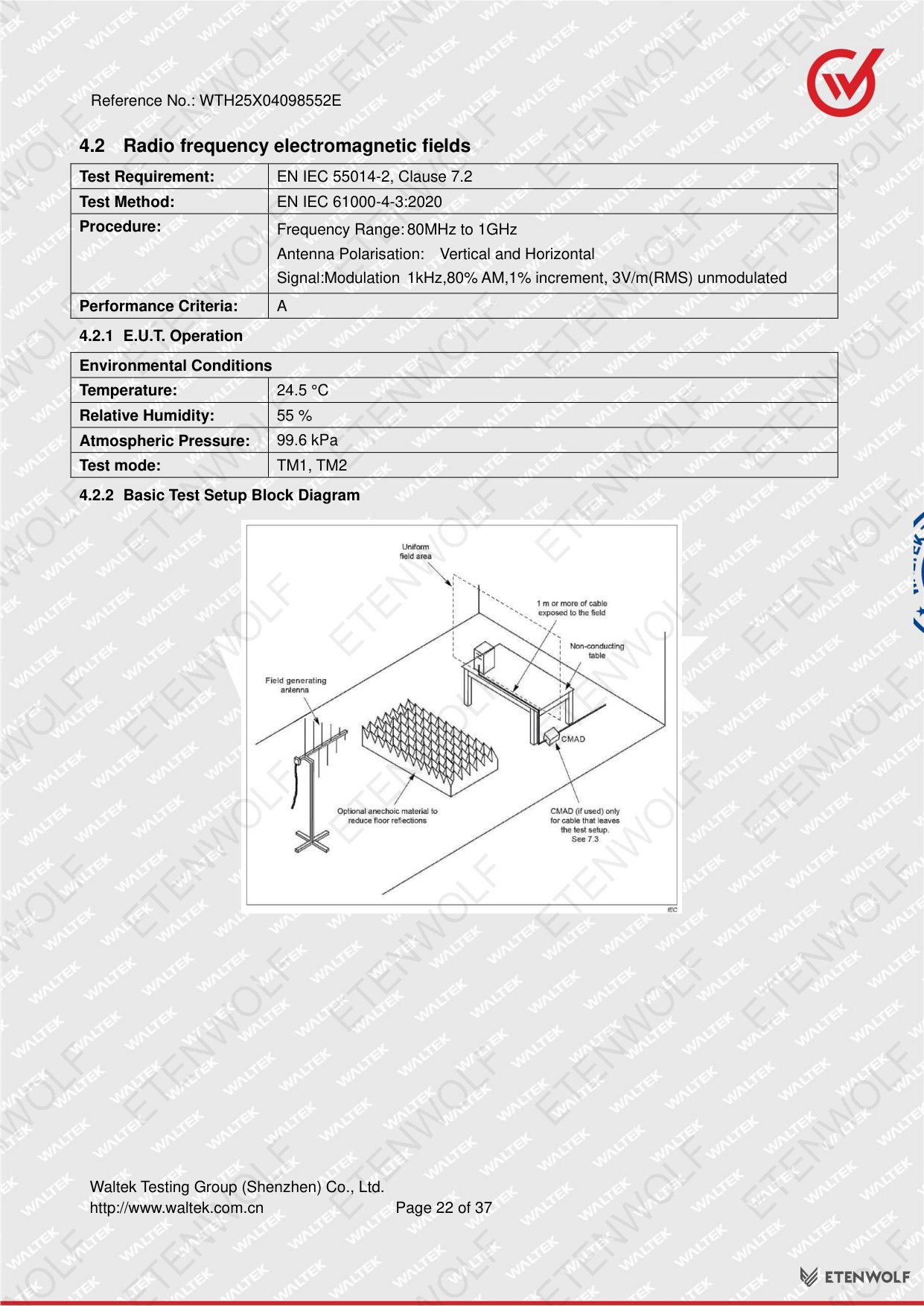

| 4.2 | EMS — Immunity | Radio frequency electromagnetic fields |

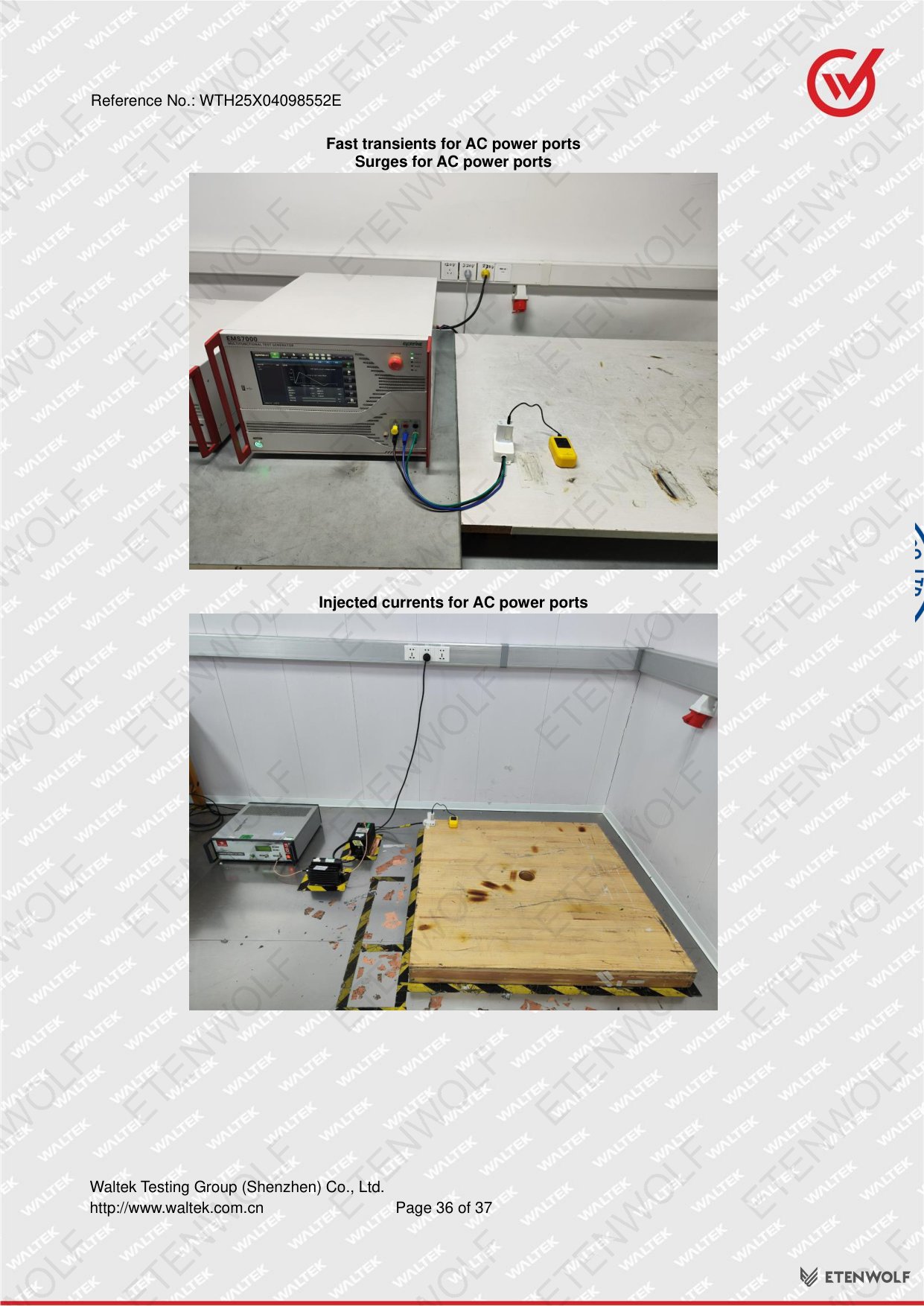

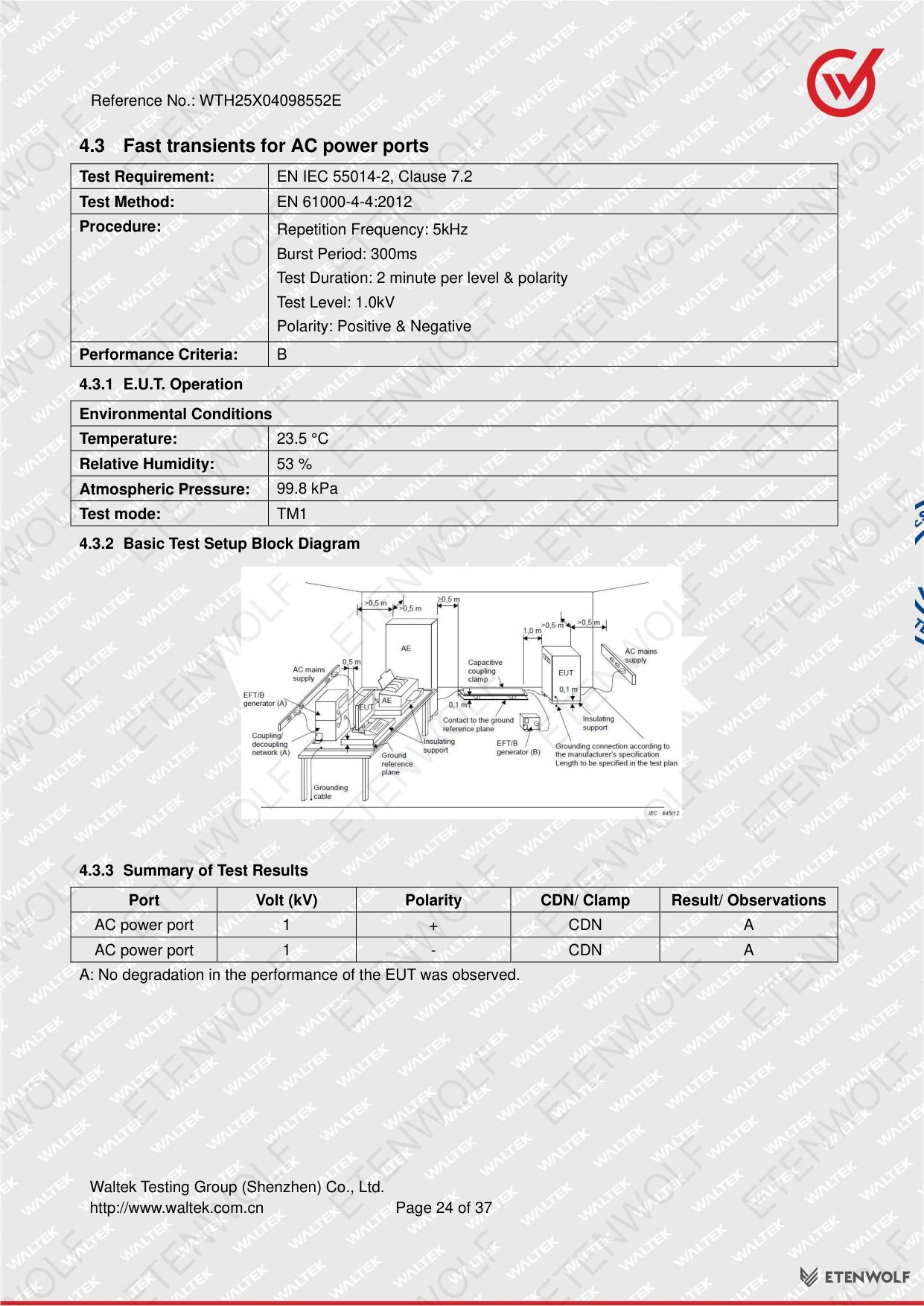

| 4.3 | EMS — Immunity | Fast transients for AC power ports (EFT/Burst) |

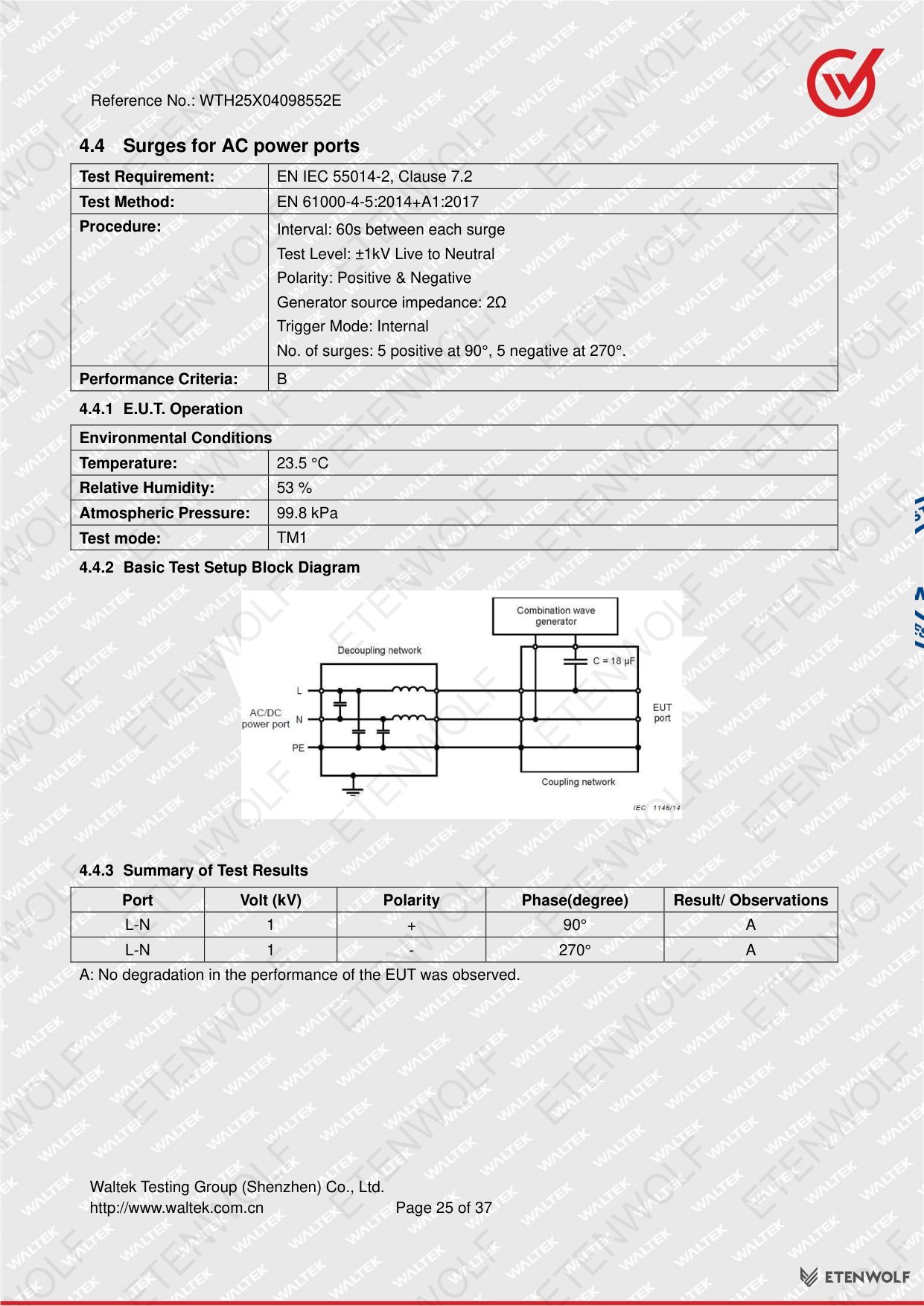

| 4.4 | EMS — Immunity | Surges for AC power ports |

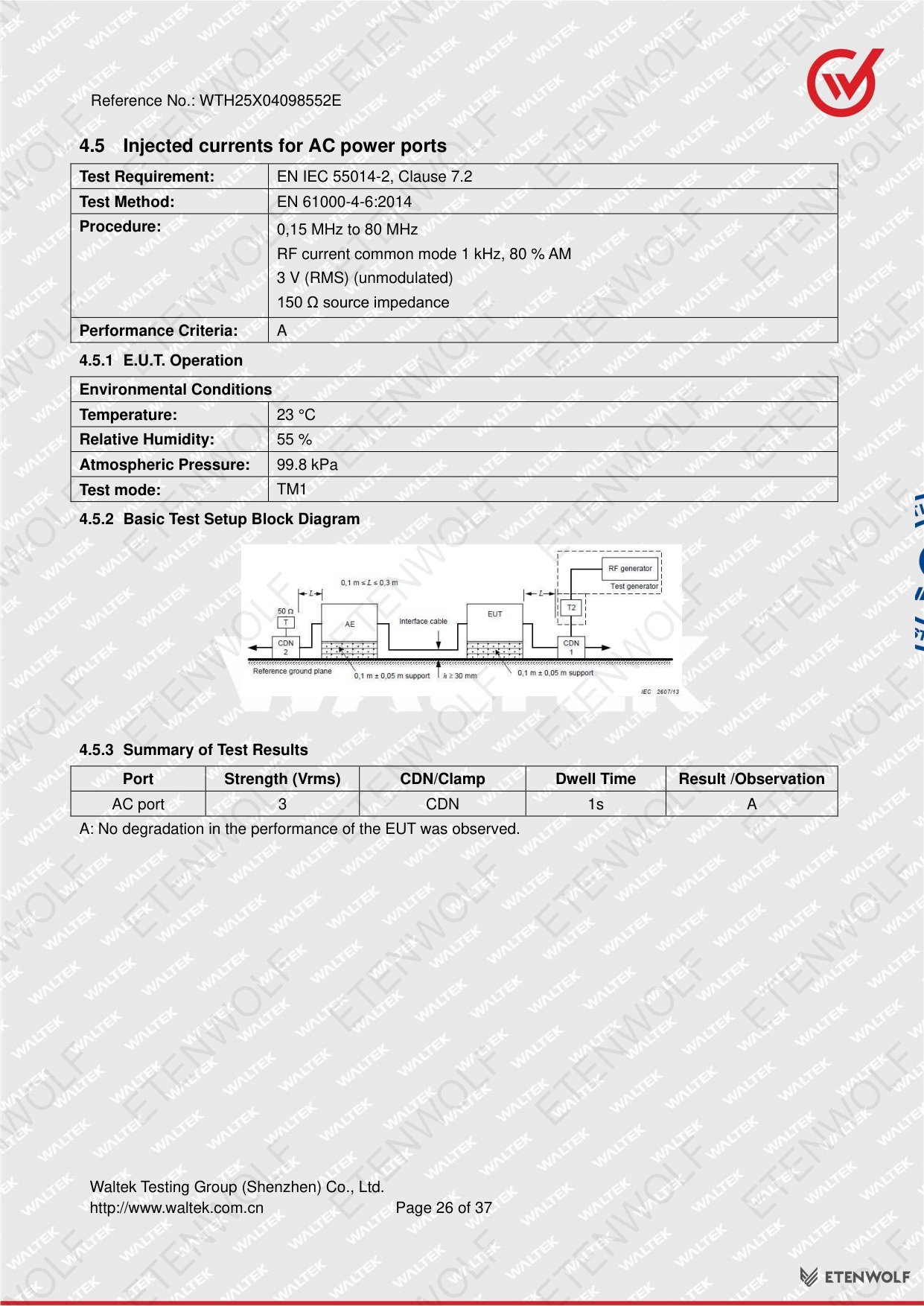

| 4.5 | EMS — Immunity | Injected currents for AC power ports (conducted RF immunity) |

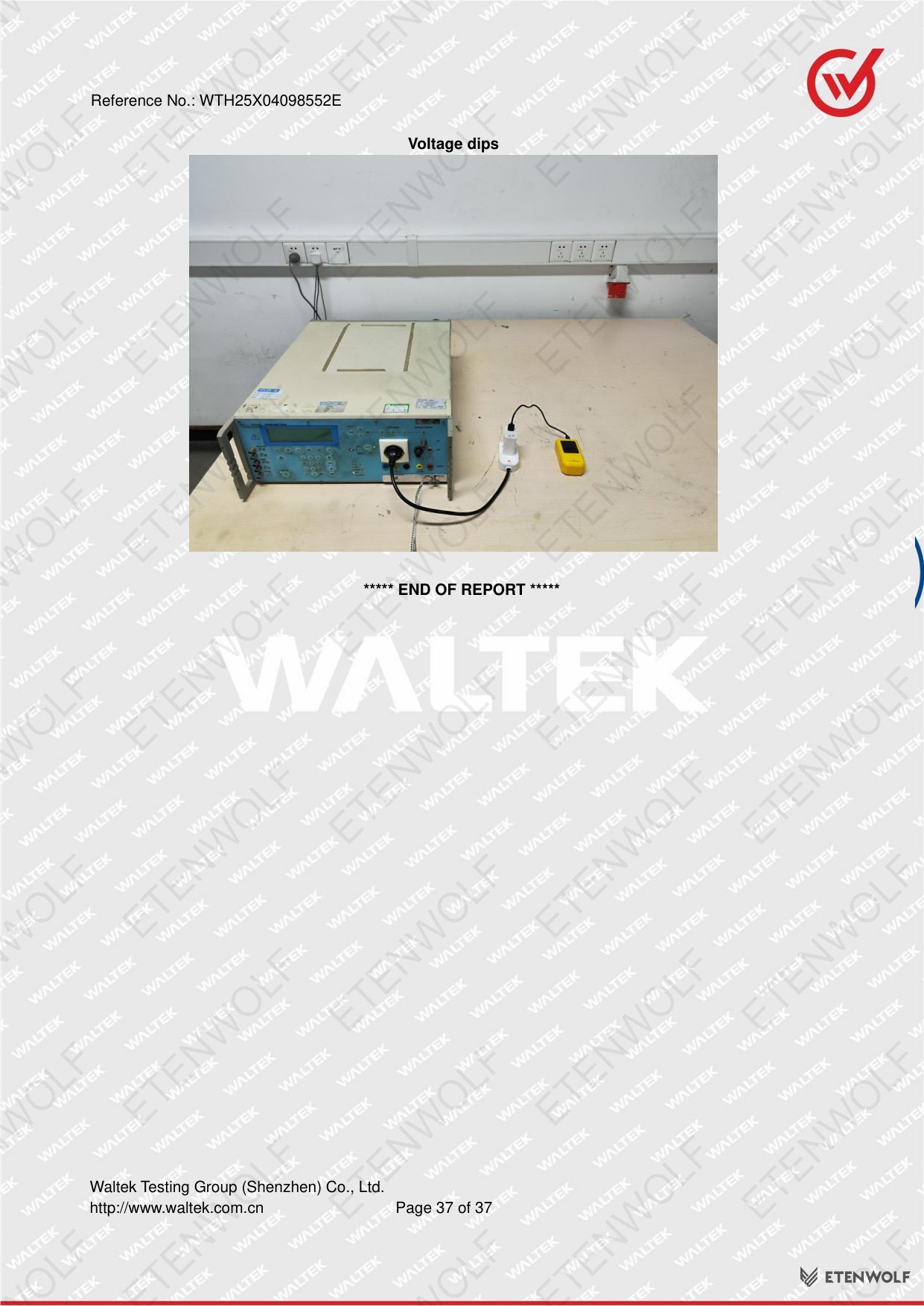

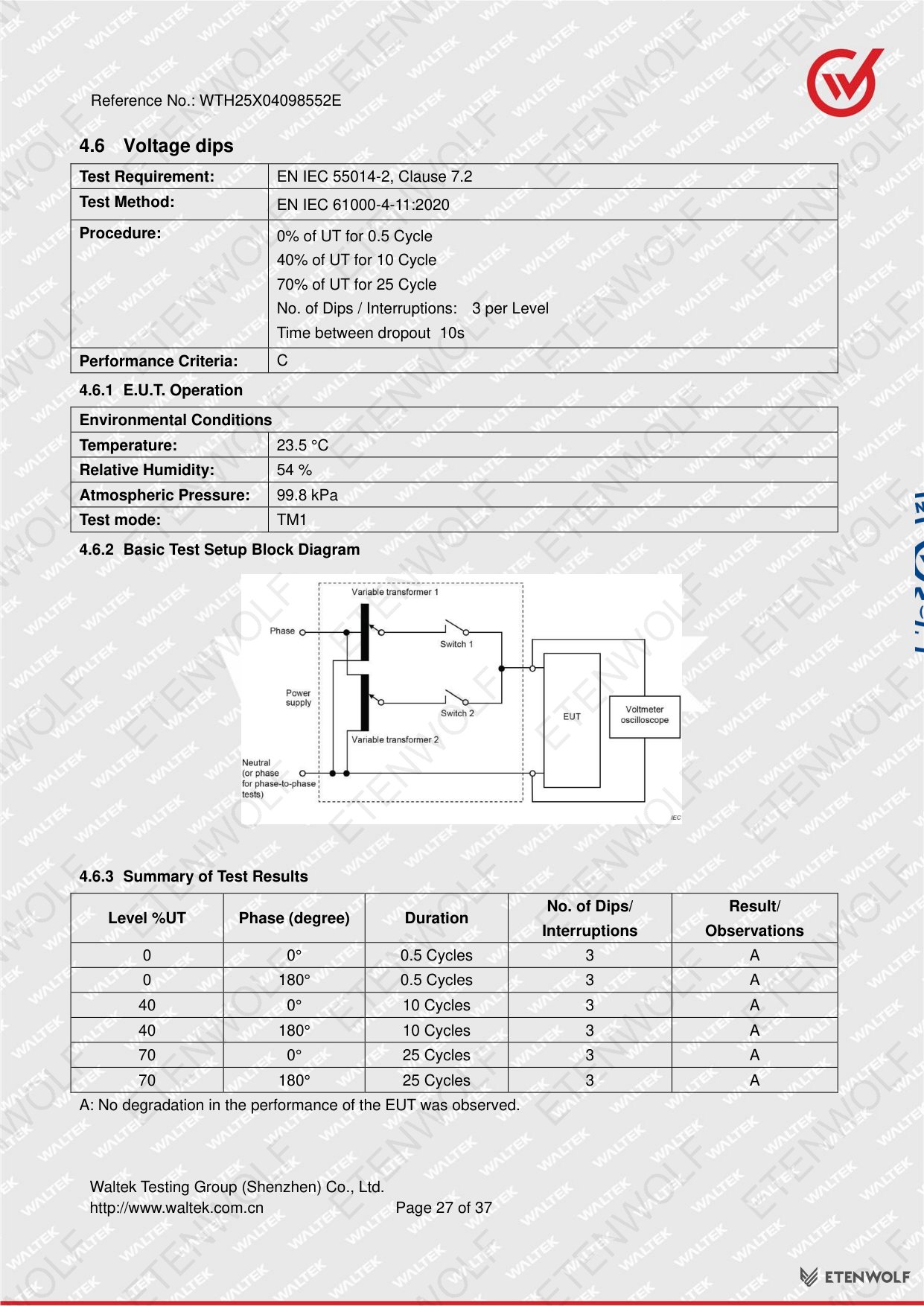

| 4.6 | EMS — Immunity | Voltage dips and short interruptions |

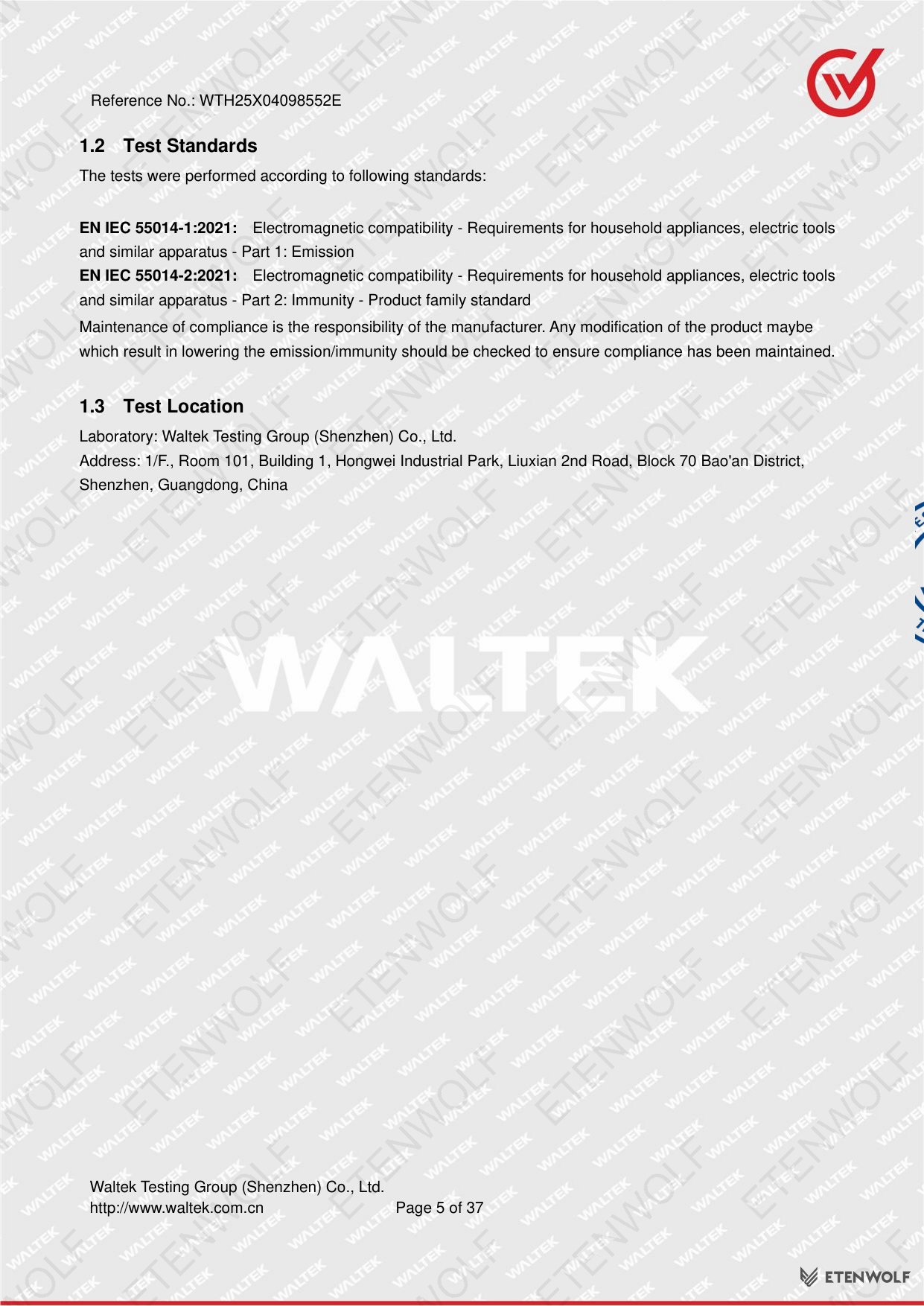

Standards & Compliance
The P100 Ball Pump was evaluated against the following harmonised European standards applicable to household appliances and electric tools under the EU EMC Directive 2014/30/EU.
| Standard | Title | Scope |
|---|---|---|
| EN IEC 55014-1:2021 | Electromagnetic Compatibility — Requirements for household appliances, electric tools and similar apparatus — Part 1: Emission | Limits and measurement methods for electromagnetic emission from equipment in the frequency range 9kHz to 400GHz |
| EN IEC 55014-2:2021 | Electromagnetic Compatibility — Requirements for household appliances, electric tools and similar apparatus — Part 2: Immunity — Product family standard | Immunity requirements covering ESD, radiated RF fields, EFT/burst, surges, conducted RF immunity, and voltage dips |
Compliance with these standards supports CE marking of the product for sale in the European Economic Area. The manufacturer bears ongoing responsibility for maintaining compliance; any product modification that could affect emission or immunity levels must be re-evaluated to confirm continued conformity.
Validity & Certification Body
This test report was prepared by Waltek Testing Group (Shenzhen) Co., Ltd., an accredited EMC and safety testing laboratory. The report is valid for the specific production sample submitted and is not transferable to other units or model variants without re-testing.
| Field | Detail |
|---|---|
| Laboratory Name | Waltek Testing Group (Shenzhen) Co., Ltd. |
| Laboratory Website | http://www.waltek.com.cn |
| Laboratory Address | 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70, Bao’an District, Shenzhen, Guangdong, China |
| Telephone | +86-755-33663308 |
| Fax | +86-755-33663309 |
| [email protected] | |
| Tested By | Toby Zhang — Project Engineer |
| Approved By | Evan Cai — Manager |
| Date of Issue | 2025-04-23 |
| Report Version | Rev.00 (Original, no subsequent revisions) |
| Total Pages | 37 |
The report is invalidated if the laboratory’s specific stamp or the approver’s signature is absent. Partial reproduction of this report is prohibited without prior written consent from Waltek Testing Group.
Frequently Asked Questions
- What does this CE-EMC test report confirm about the P100 Ball Pump?
-
The report confirms that the ETENWOLF P100 Ball Pump passed both electromagnetic emission (EMI) and electromagnetic immunity (EMS) evaluations conducted by Waltek Testing Group. The device complies with EN IEC 55014-1:2021 and EN IEC 55014-2:2021, which are the harmonised standards required for CE marking under the EU EMC Directive 2014/30/EU.
- What is the difference between EMI and EMS testing covered in this report?
-
EMI (Electromagnetic Interference / Emission) testing measures the level of electromagnetic noise the device generates — both conducted noise on the power line and radiated noise through the air — to ensure it does not interfere with other equipment. EMS (Electromagnetic Susceptibility / Immunity) testing verifies that the device continues to operate correctly when exposed to external electromagnetic disturbances such as electrostatic discharge, RF fields, power line surges, and voltage dips.
- Does this report cover all CE certification requirements for the P100?
-
No. This report addresses only the EMC (electromagnetic compatibility) requirements. CE marking for a product like the P100 Ball Pump may also require evaluation under additional directives, such as the Low Voltage Directive (LVD) or the Radio Equipment Directive (RED), depending on the product’s features. Separate test reports or declarations would cover those requirements.
- If the P100 design is modified, is this test report still valid?
-
Not necessarily. As stated in the report, any modification to the product that could affect its emission or immunity characteristics must be re-evaluated to confirm that compliance has been maintained. The manufacturer — Guangdong Bestek Technology Co., Ltd. — is responsible for ensuring ongoing conformity after any design change.
Related Documents
The following certification and compliance documents are typically required alongside a CE-EMC test report for a cordless inflation tool like the ETENWOLF P100 Ball Pump. These documents together support a complete CE Declaration of Conformity and market access in key regions.
| Document Type | Applicable Standard / Directive | Relevance to P100 |
|---|---|---|
| CE-LVD Test Report | EU Low Voltage Directive 2014/35/EU; EN 62368-1 or EN 60335-1 | Electrical safety evaluation for the DC-powered pump and charging circuit |
| CE Declaration of Conformity (DoC) | EU EMC Directive 2014/30/EU | Manufacturer’s formal declaration referencing this EMC report |
| UN38.3 Battery Test Report | UN38.3 | Transport safety certification for the built-in DC 3.7V lithium battery |
| RoHS Compliance Report | RoHS Directive 2011/65/EU | Restriction of hazardous substances in electrical and electronic equipment |
| REACH SVHC Declaration | REACH Regulation (EC) No 1907/2006 | Substance of Very High Concern compliance declaration for EU market |
| FCC ID / SDOC Report | FCC Part 15 | Radio frequency emission compliance for the US market |
| KC Certification | Korean KC Mark — Radio Waves Act | Electromagnetic compatibility certification required for the Korean market |
