ETENWOLF Vortex S7 Tire Inflator CE-LVD Test Report | WTH25X04079093J

Document Overview

Document Overview This article covers the CE Low Voltage Directive (LVD) test report issued for the ETENWOLF Vortex S7 tire inflator pump. The report was prepared and issued by Waltek Testing Group (Shenzhen) Co., Ltd., an accredited third-party testing laboratory located at 1/F., Room 101,…

Document type
Certification Report
Prepared by
Michelle Torres
Published
Last reviewed
Topics
European Union: CE / RoHS / REACH / WEEE

Document Overview

This article covers the CE Low Voltage Directive (LVD) test report issued for the ETENWOLF Vortex S7 tire inflator pump. The report was prepared and issued by Waltek Testing Group (Shenzhen) Co., Ltd., an accredited third-party testing laboratory located at 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao’an District, Shenzhen, Guangdong, China.

  • Reference Number: WTH25X04079093J
  • Document Type: CE-LVD Test Report
  • Test Report Form No.: WTX_EN IEC 60335_1_2023B
  • Date of Sample Receipt: 2025-04-14
  • Testing Period: 2025-04-14 to 2025-04-22
  • Date of Issue: 2025-05-23
  • Overall Test Result: Pass

The test report spans 131 pages in total. All results refer exclusively to the sample(s) submitted for testing and cannot be reproduced in part without prior written permission from Waltek Testing Group.

Product Information

The product evaluated in this report is the ETENWOLF Vortex S7 tire inflator pump, a portable, battery-powered inflation device designed for household and indoor use.

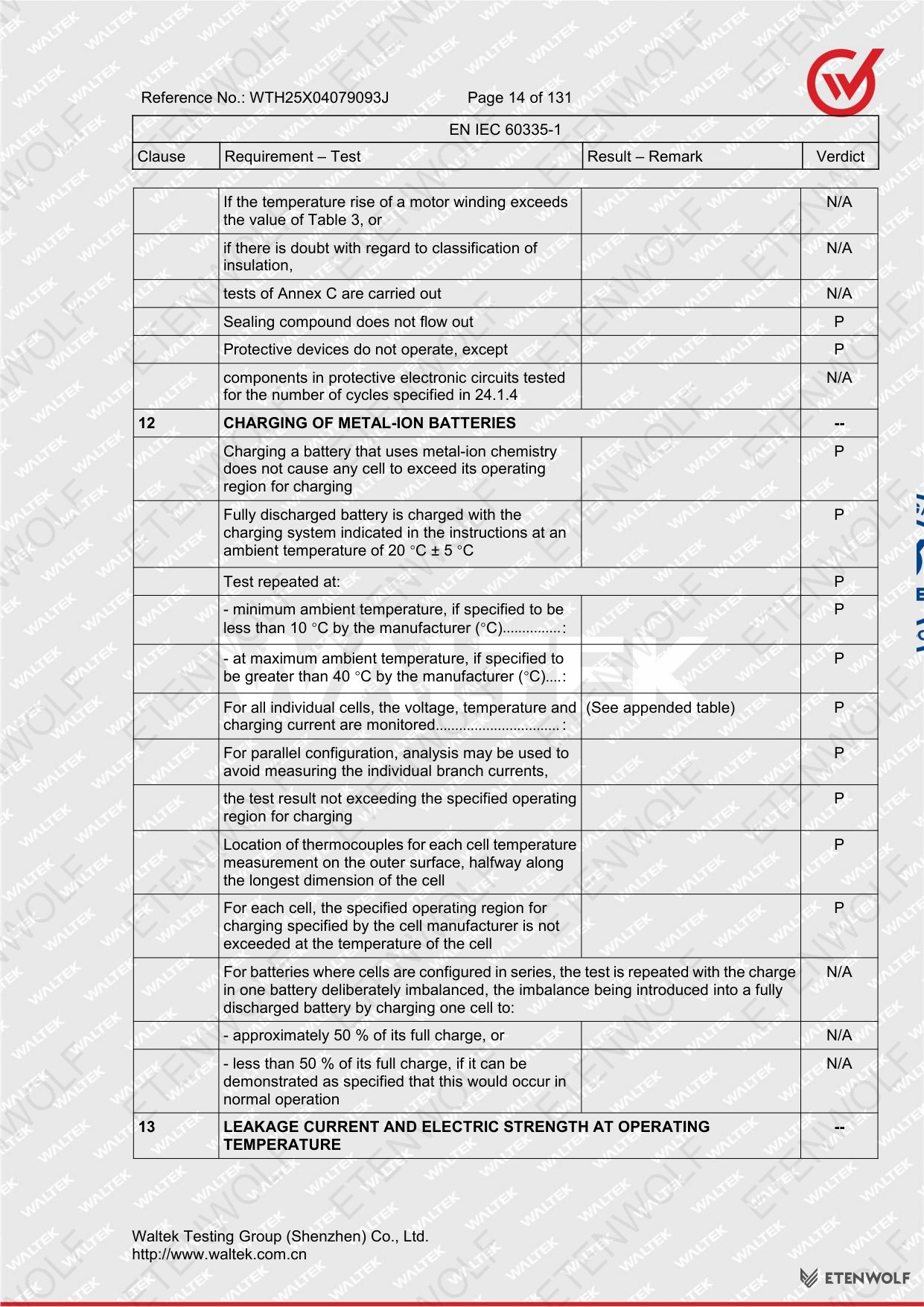

Field Details
Product Name Inflator Pump
Brand / Trademark ETENWOLF
Model Number S7
Input Ratings 5V 3A / 9V 3A / 12V 3A / 15V 3A / 20V 2.25A
Supply Connection DC Connector
Equipment Class Class III (Extra-Low Voltage)
Installation Type Portable appliance, indoor use only
Ingress Protection IPX0
Country of Manufacture China
Applicant / Manufacturer Guangdong Bestek Technology Co., Ltd., No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China

The appliance is intended for household and indoor use only. LED lighting components present in the unit were not evaluated within the scope of this report.

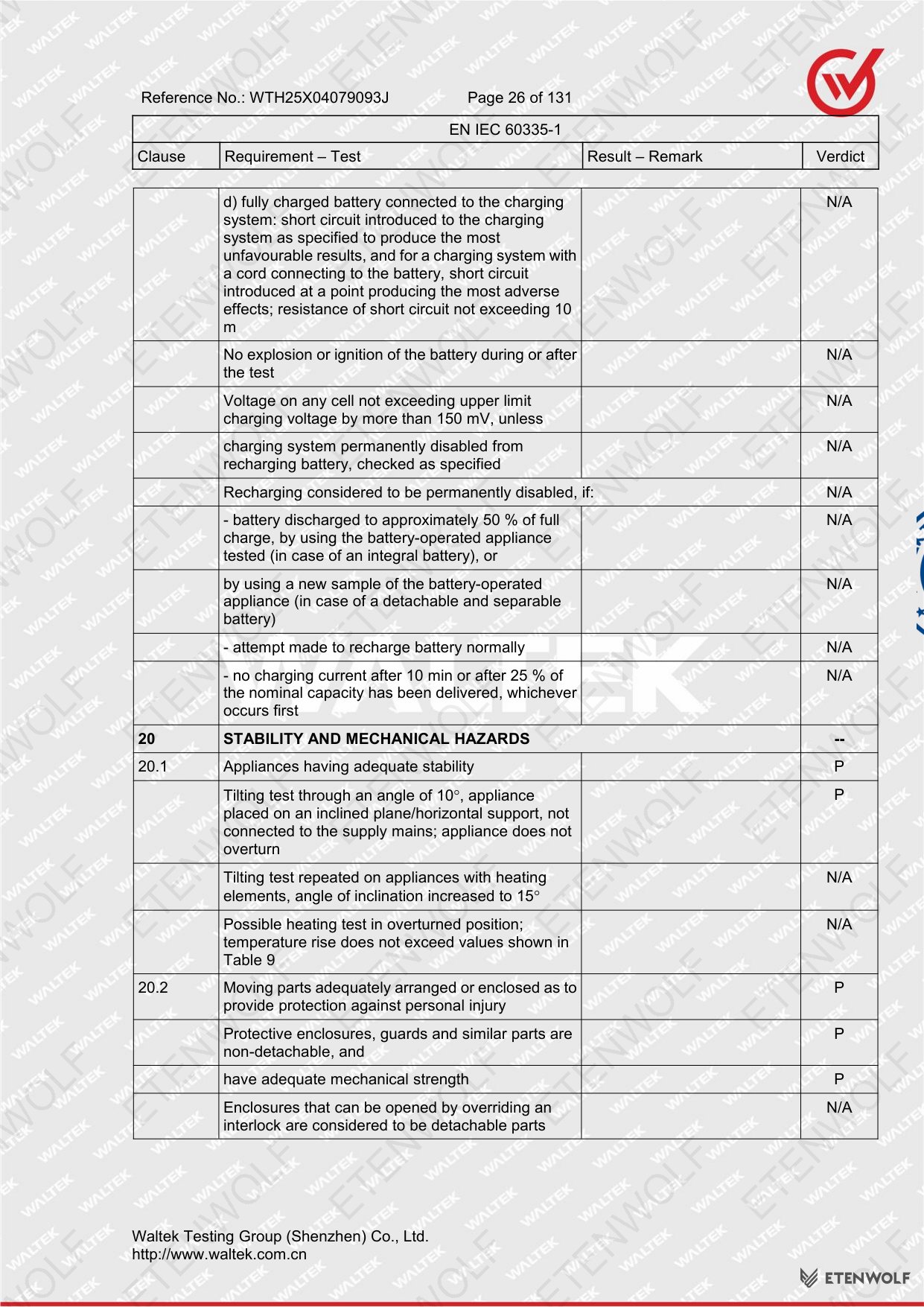

Key Details

The following table summarises the main test clauses evaluated under EN IEC 60335-1:2023+A11:2023 and the corresponding verdicts for the ETENWOLF Vortex S7.

Clause Requirement / Test Area Verdict
5 General Conditions for Tests (nature of supply, sequence of testing) Pass
6 Classification Pass
6.1 Protection against electric shock — Class III Pass
6.2 Protection against harmful ingress of water — IPX0 N/A
7 Marking and Instructions Pass
7.1 Rated voltage / current / manufacturer identity / model reference on label Pass
7.1 Symbol IEC 60417-5180 (Class III) — appliance powered by rechargeable batteries Pass
7.1 Appliances supplied from detachable power supply part — battery recharge symbols Pass

Additional test particulars confirmed during evaluation:

  • All subcontracting of test items: None — all tests performed in-house at Waltek Shenzhen.

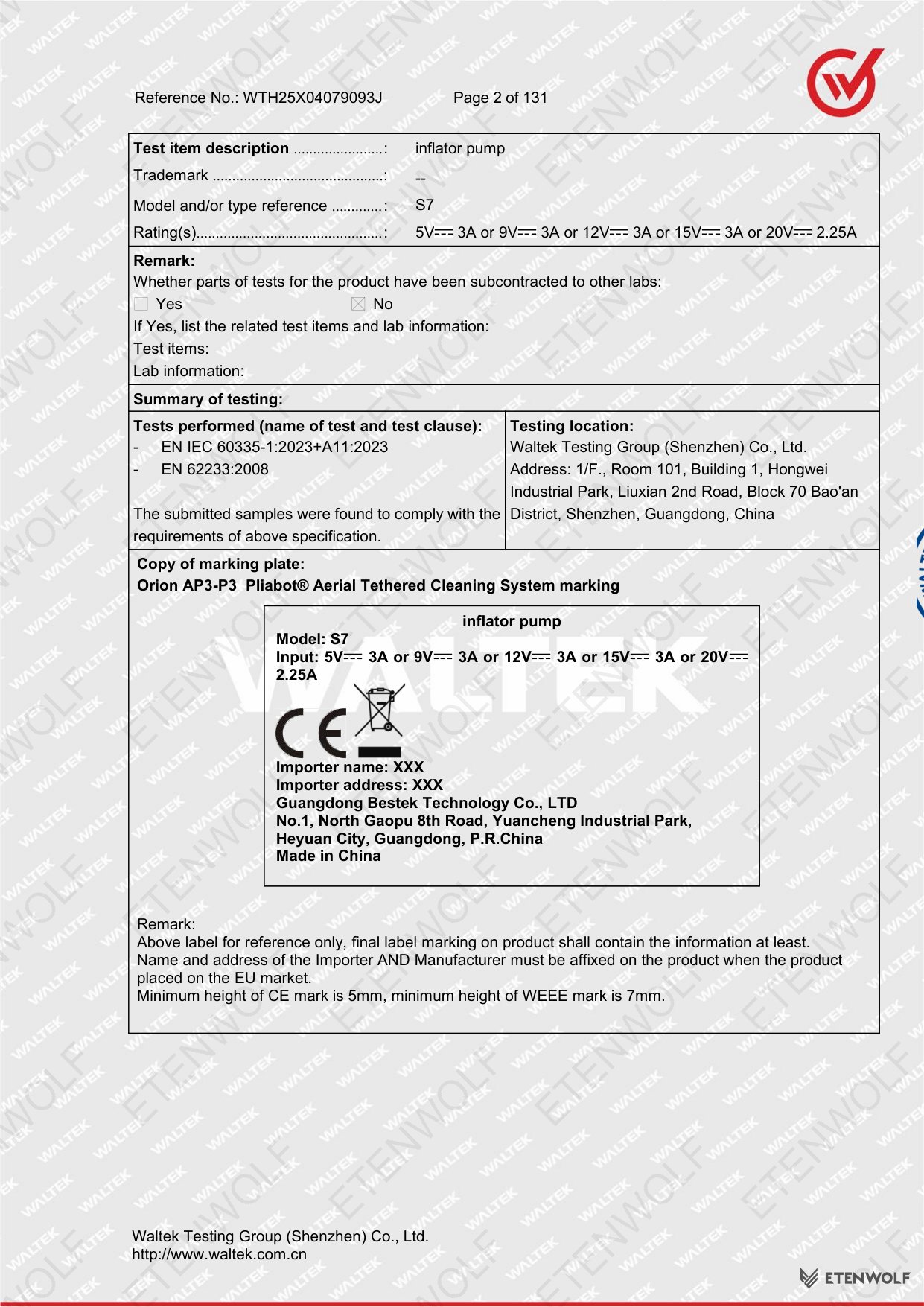

  • Marking plate confirmed to display input ratings, manufacturer name and address, model reference, and country of origin.
  • EU market placement requirement noted: importer name and address must be affixed to the product before placing on the EU market.
  • Minimum CE mark height: 5 mm; minimum WEEE mark height: 7 mm.

Standards & Compliance

The ETENWOLF Vortex S7 was tested against the following applicable standards as part of the CE-LVD conformity assessment process:

Standard Title Scope
EN IEC 60335-1:2023+A11:2023 Household and Similar Electrical Appliances — Safety — Part 1: General Requirements Core electrical safety requirements for household appliances including classification, marking, protection against electric shock, and insulation
EN 62233:2008 Measurement Methods for Electromagnetic Fields of Household Appliances and Similar Apparatus with Regard to Human Exposure EMF measurement methodology to assess human exposure limits from the device during normal operation

The product is classified as a Class III appliance, meaning it operates at safety extra-low voltage (SELV) and relies on a DC connector for power input. This classification negates requirements applicable to Class I and Class II equipment such as protective earthing and reinforced insulation markings.

The CE marking affixed to the product signals conformity with EU directives including the Low Voltage Directive (LVD) 2014/35/EU. Compliance with both standards listed above was fully verified with a Pass result.

Validity & Certification Body

The test report WTH25X04079093J was issued on 2025-05-23 following testing conducted between 2025-04-14 and 2025-04-22.

Field Details
Issuing Laboratory Waltek Testing Group (Shenzhen) Co., Ltd.
Laboratory Address 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao’an District, Shenzhen, Guangdong, China
Laboratory Website http://www.waltek.com.cn
Telephone +86-755-33663308
Fax +86-755-33663309
Email [email protected]
Tested By John Zhong / Project Engineer
Approved By Harvid Wei / Manager
Report Reference No. WTH25X04079093J
Report Form No. WTX_EN IEC 60335_1_2023B
Total Pages 131

The report is valid only when accompanied by the specific stamp of the test institute and the original signatures of the approver. Partial reproduction of this report is not permitted without prior written consent from Waltek Testing Group (Shenzhen) Co., Ltd.

Frequently Asked Questions

What does the CE-LVD test report for the ETENWOLF Vortex S7 confirm?

The CE-LVD test report (reference WTH25X04079093J) confirms that the ETENWOLF Vortex S7 tire inflator complies with the safety requirements of EN IEC 60335-1:2023+A11:2023 and the electromagnetic field exposure measurement standard EN 62233:2008. The overall result is Pass, supporting CE marking and legal sale within the European Economic Area.

Which testing laboratory conducted the CE-LVD evaluation for the S7?

All testing was conducted in-house by Waltek Testing Group (Shenzhen) Co., Ltd., an accredited third-party laboratory in Shenzhen, China. No test items were subcontracted to external laboratories. The report was approved by Harvid Wei, Manager at Waltek.

What equipment class is the ETENWOLF Vortex S7 and why does it matter?

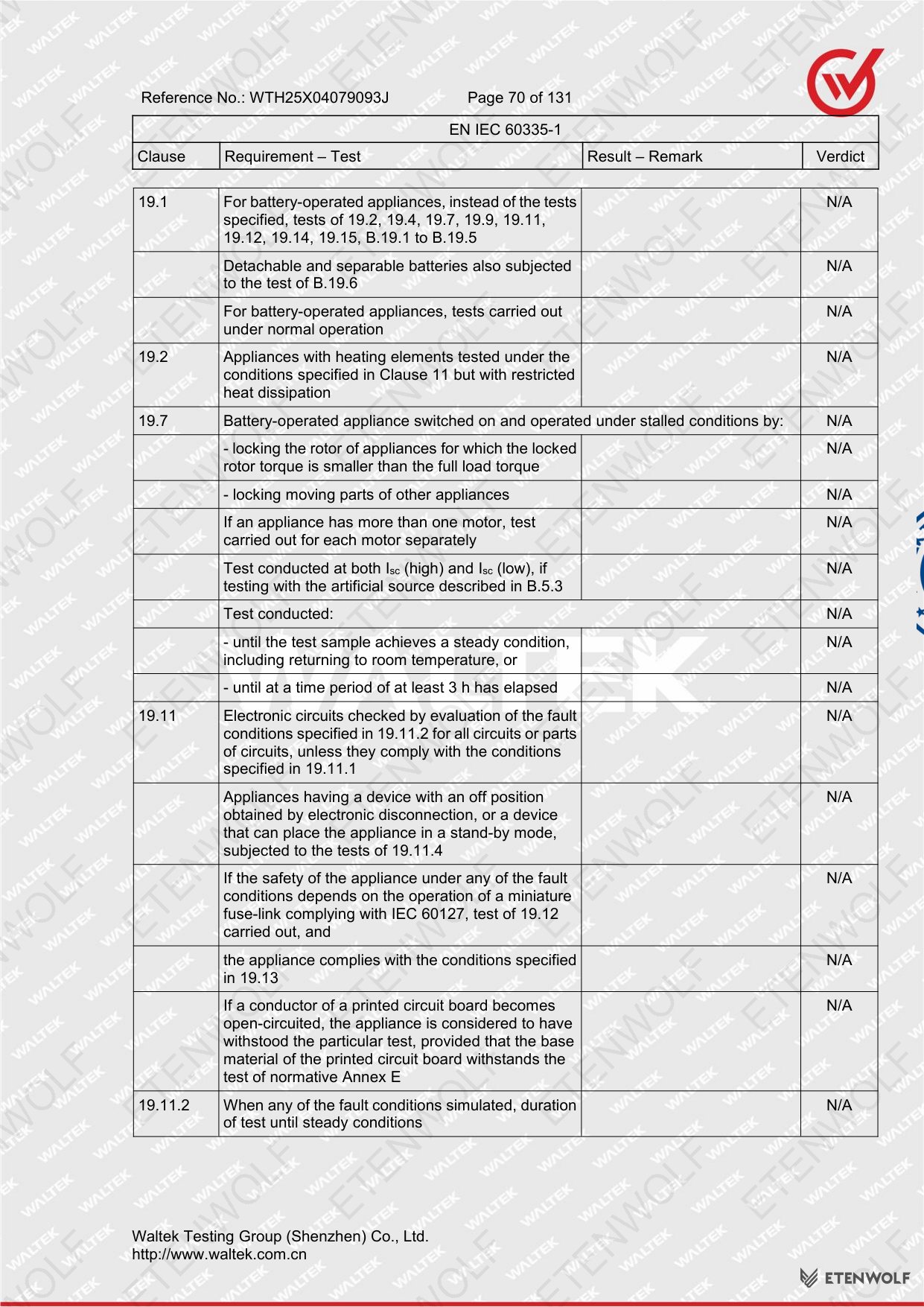

The ETENWOLF Vortex S7 is classified as a Class III appliance under EN IEC 60335-1. Class III means the device operates at safety extra-low voltage (SELV) via a DC connector, which provides an inherent level of protection against electric shock without requiring a protective earth connection. This makes it particularly safe for portable, handheld use.

Are there any requirements for selling the ETENWOLF Vortex S7 in the EU market?

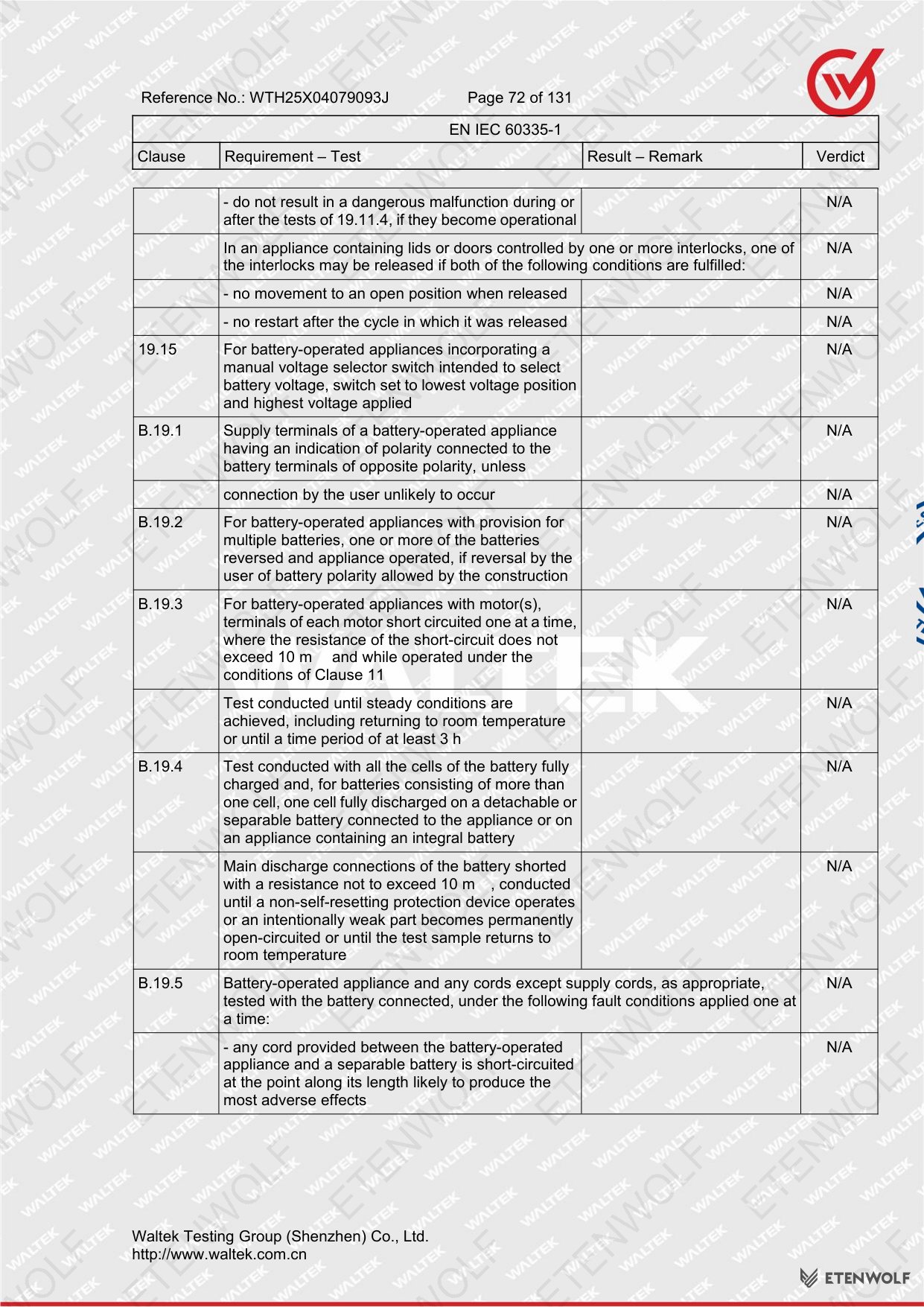

Yes. When placing the product on the EU market, the importer’s name and address must be physically affixed to the product in addition to the manufacturer information already on the label. The CE mark must be at least 5 mm in height and the WEEE mark at least 7 mm. These requirements are specified in the test report and align with EU market surveillance regulations.

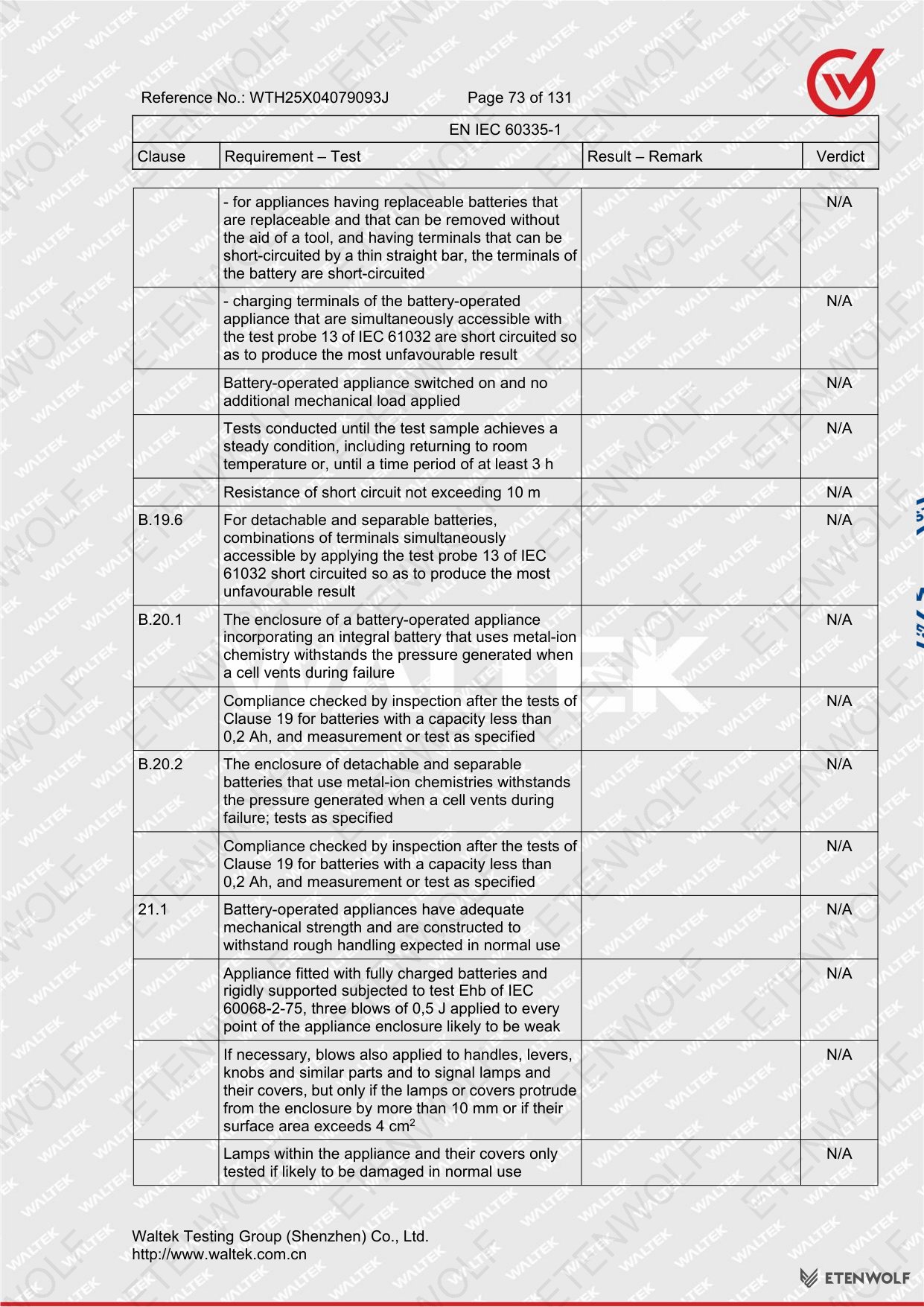

Related Documents

For a complete compliance picture of the ETENWOLF Vortex S7 tire inflator, the following related certification and compliance documents are relevant alongside this CE-LVD test report:

  • CE-EMC Test Report — Electromagnetic Compatibility testing under EN 55014-1 and EN 55014-2 for conducted and radiated emissions and immunity, required alongside LVD for full CE marking.
  • UN 38.3 Battery Transport Test Report — Required for the lithium-ion battery pack within the S7 to confirm safe air and ground transport compliance under UN 38.3 provisions.
  • RoHS Compliance Report — Confirms restriction of hazardous substances (lead, mercury, cadmium, etc.) per EU RoHS Directive 2011/65/EU.
  • REACH SVHC Declaration — Substance of Very High Concern declaration confirming compliance with REACH Regulation (EC) No 1907/2006.
  • FCC ID / SDOC Report — For North American market sales, an FCC Supplier Declaration of Conformity or ID registration confirming RF and electrical emissions compliance with FCC Part 15 regulations.
  • EU Declaration of Conformity (DoC) — The formal manufacturer declaration referencing all applicable EU directives and standards, required to accompany the product on the EU market.

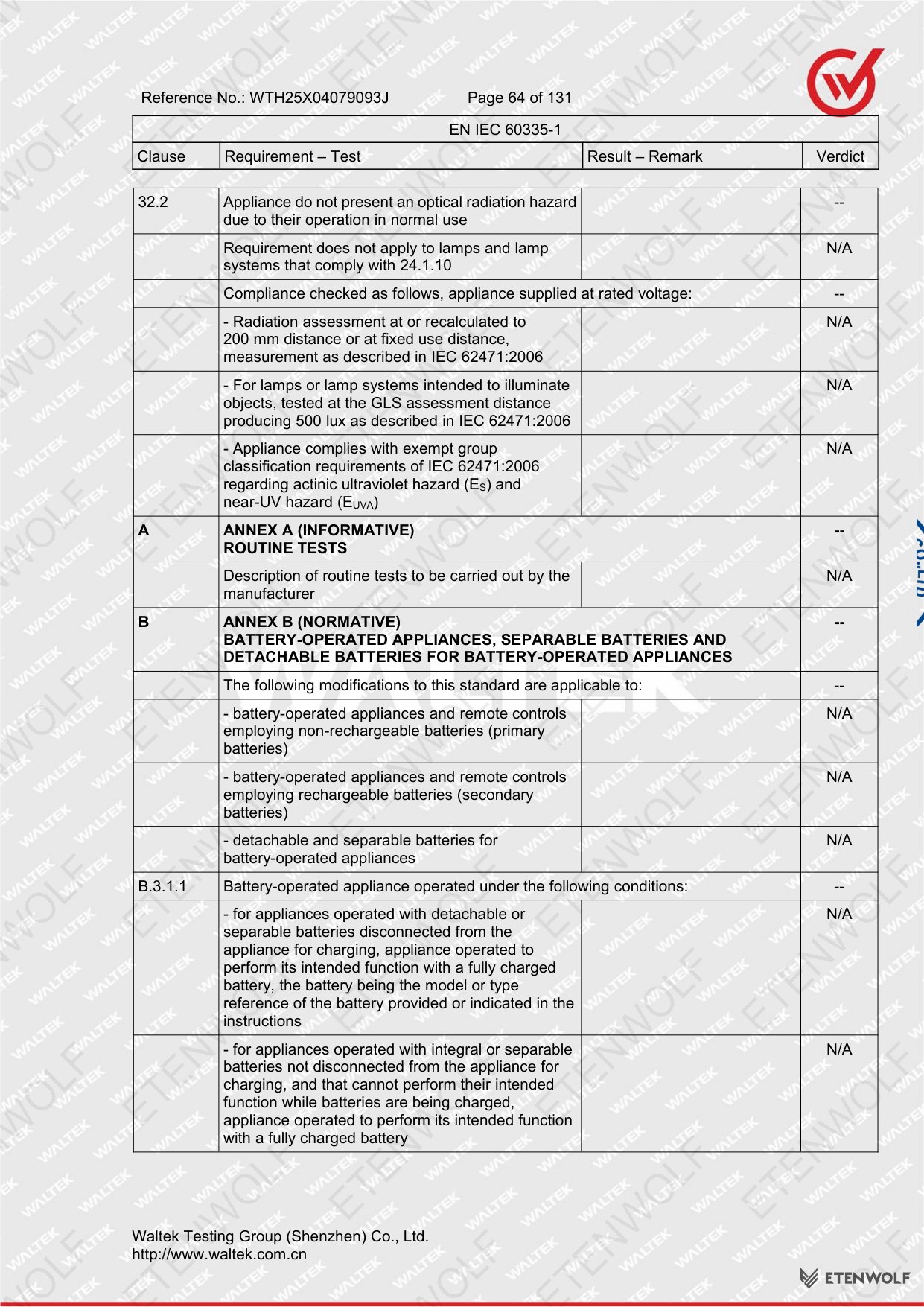

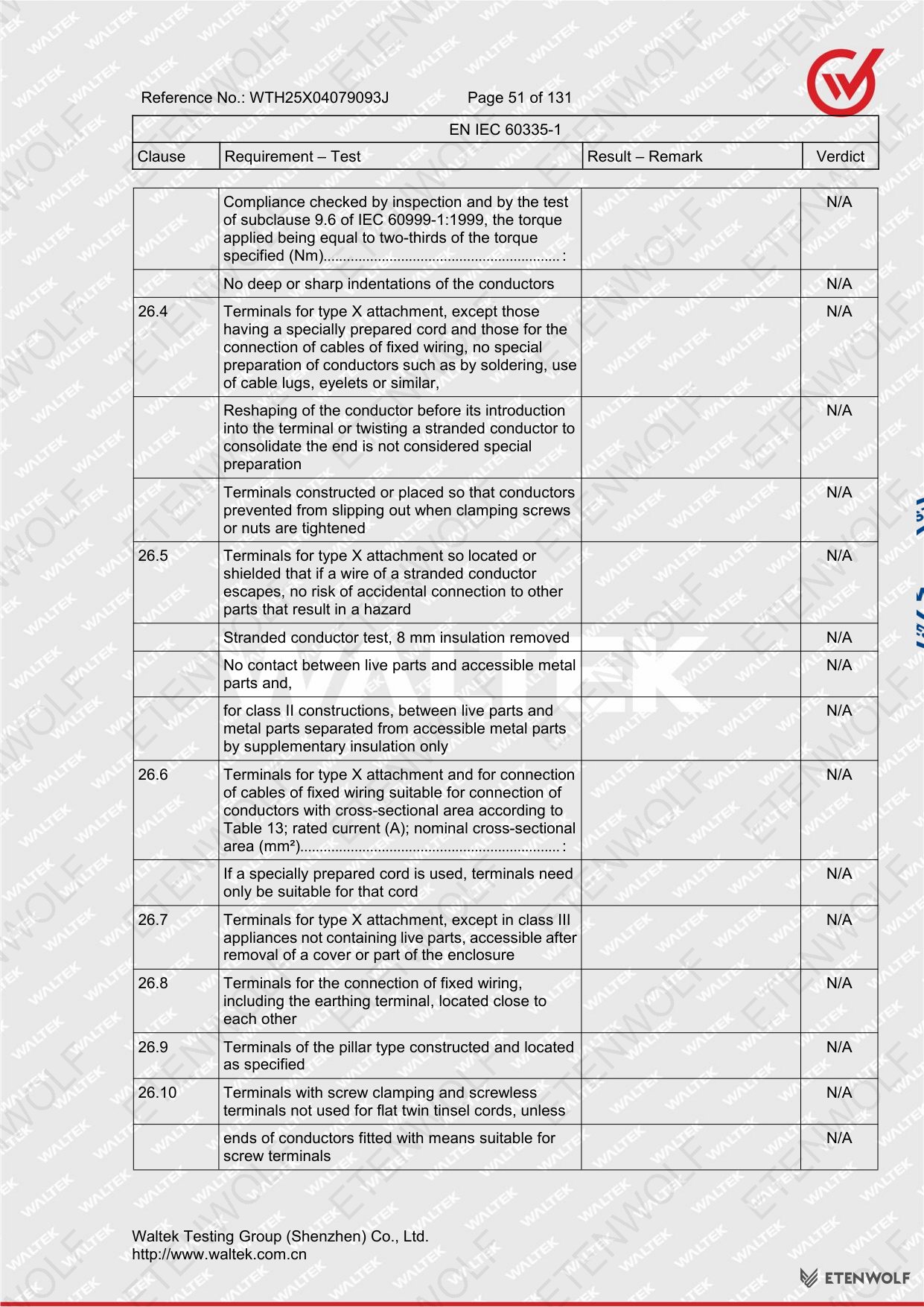

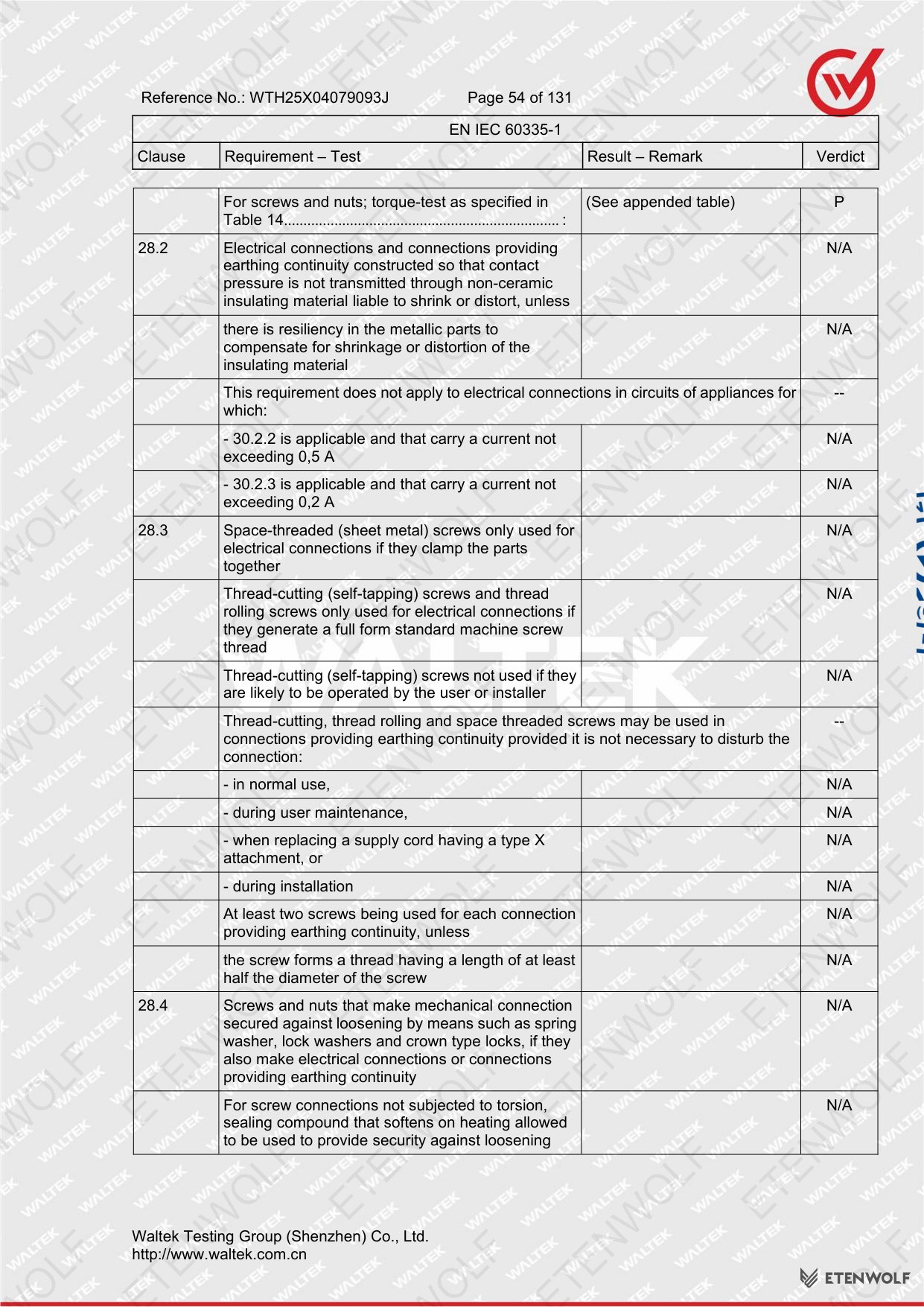

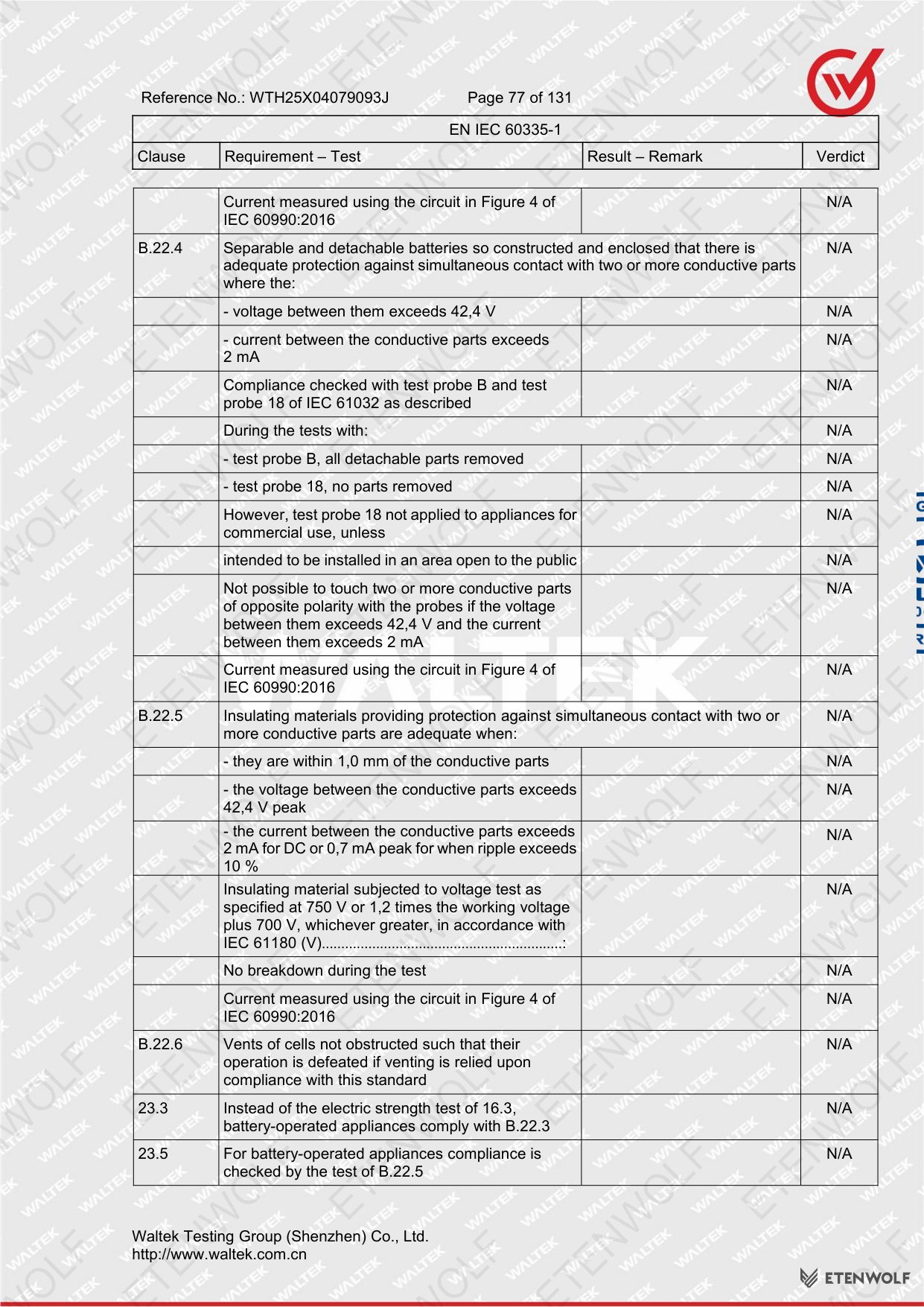

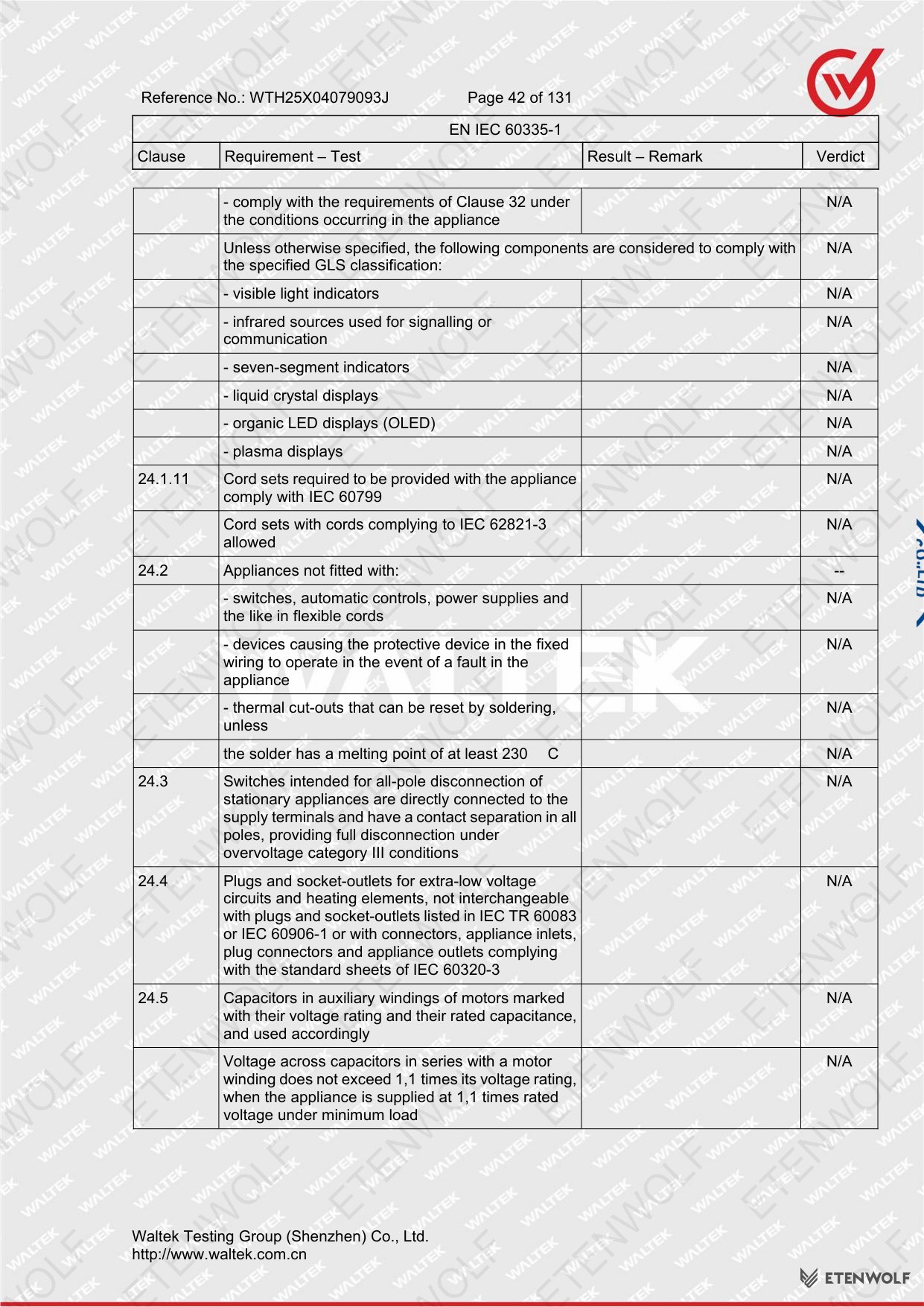

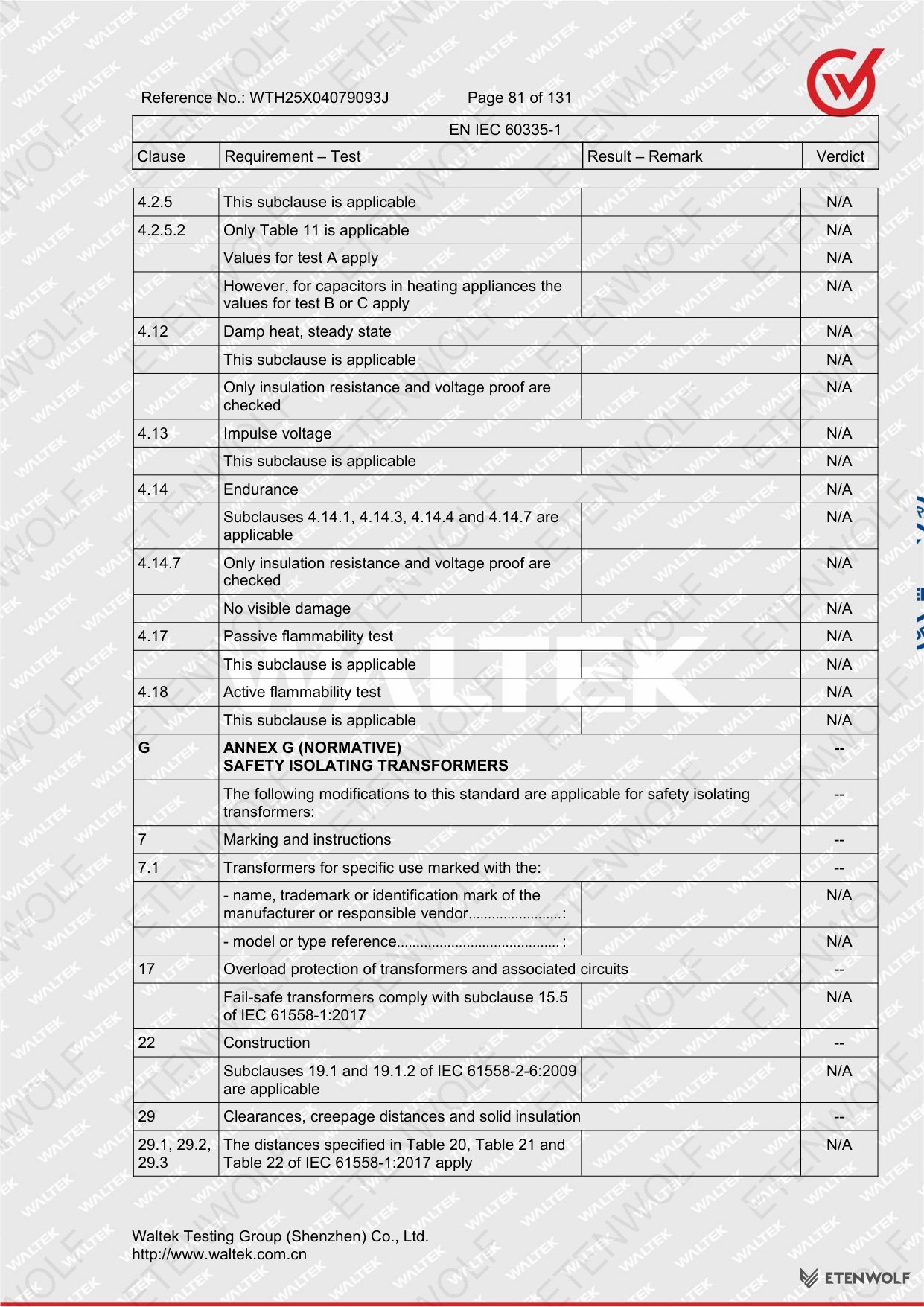

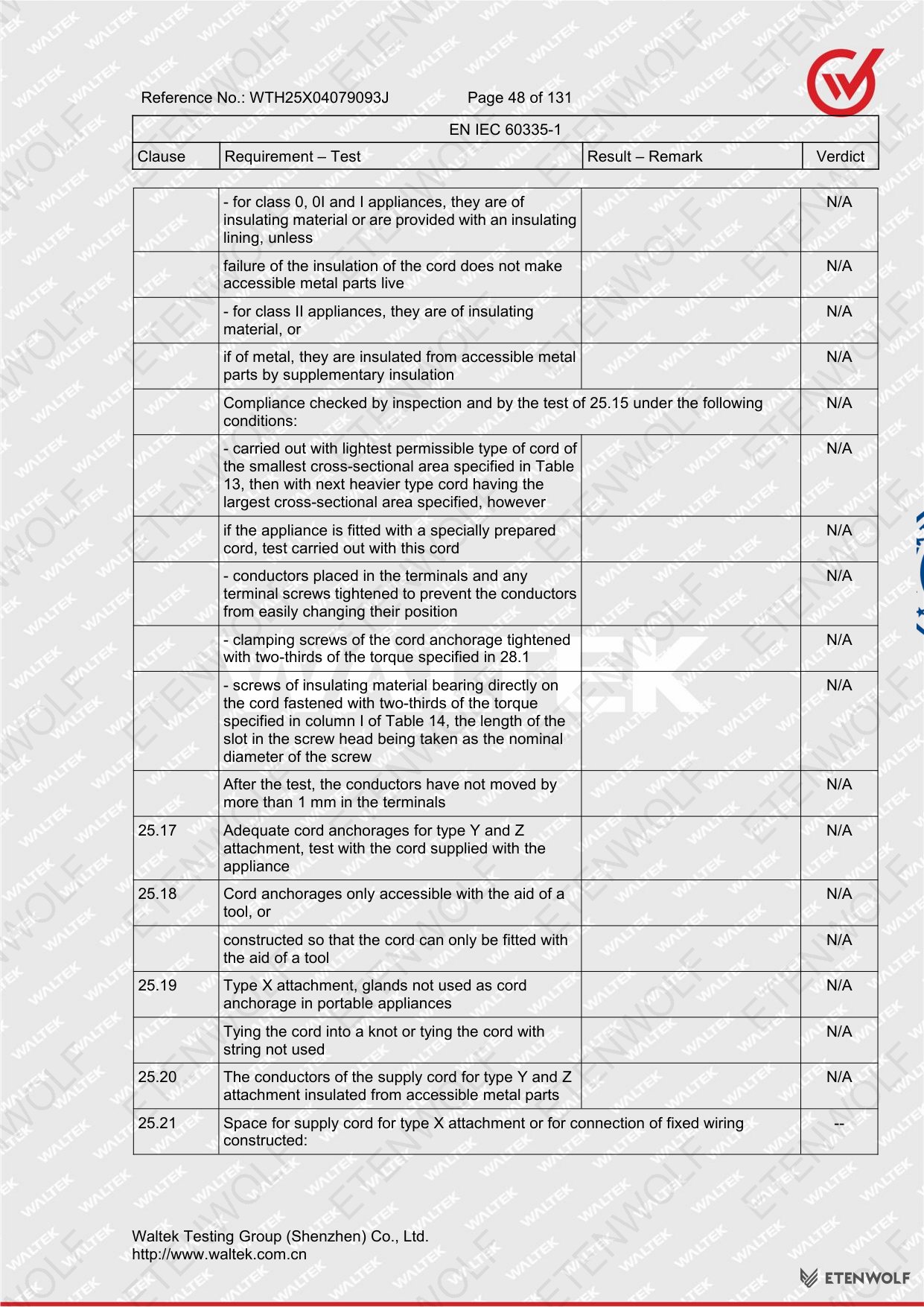

Document Pages

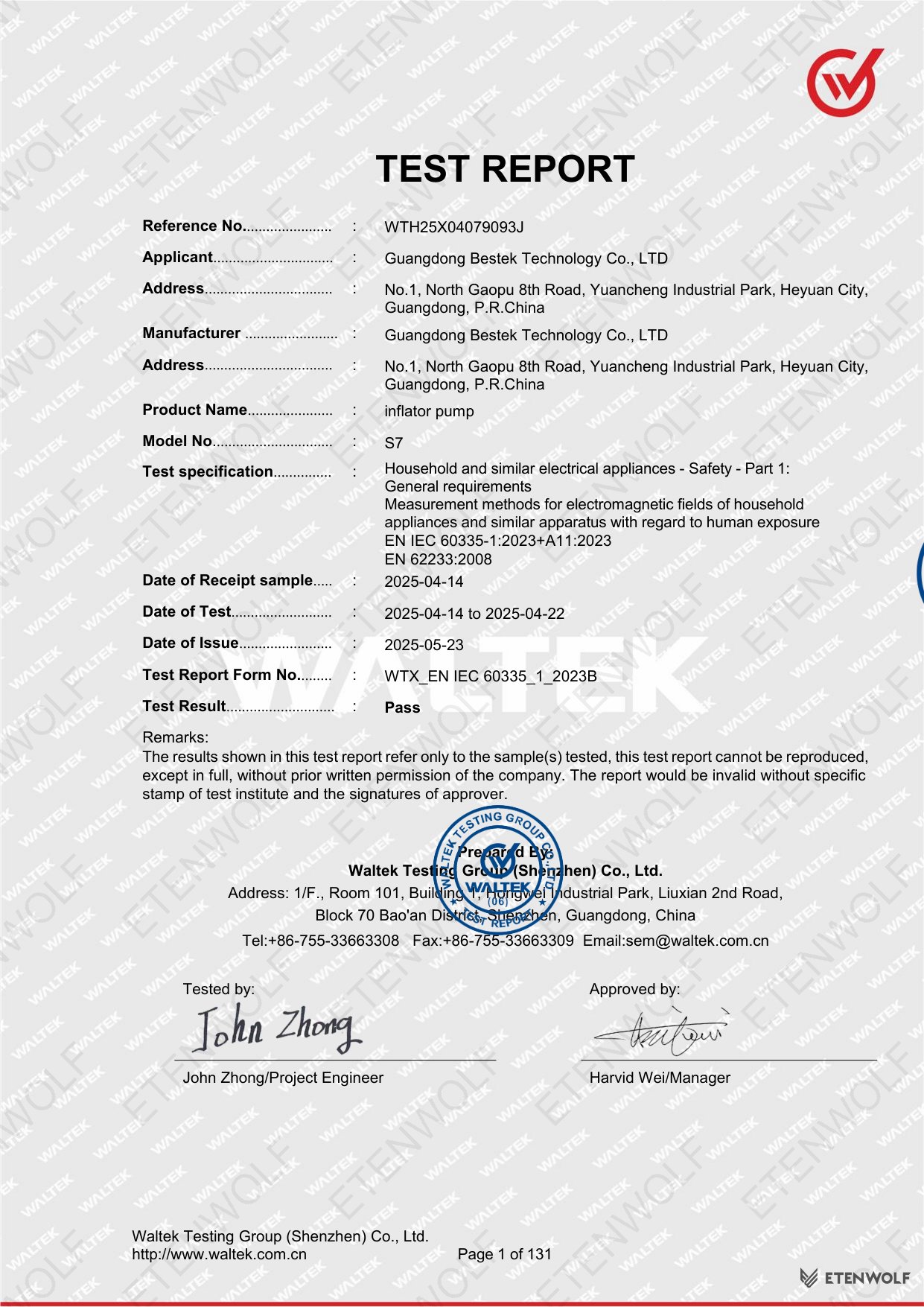

Document Page 1
Document Page 2

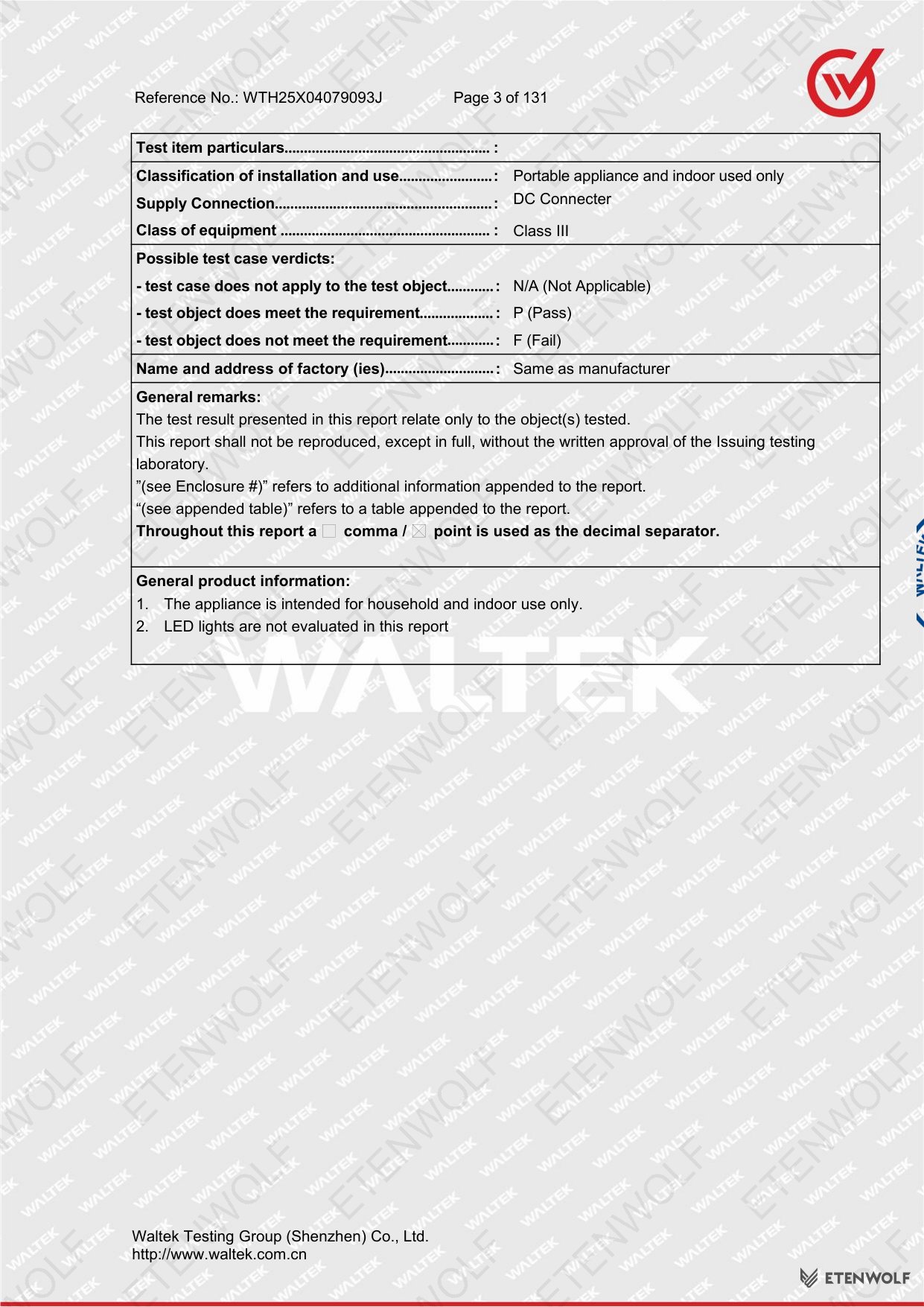

Document Page 3

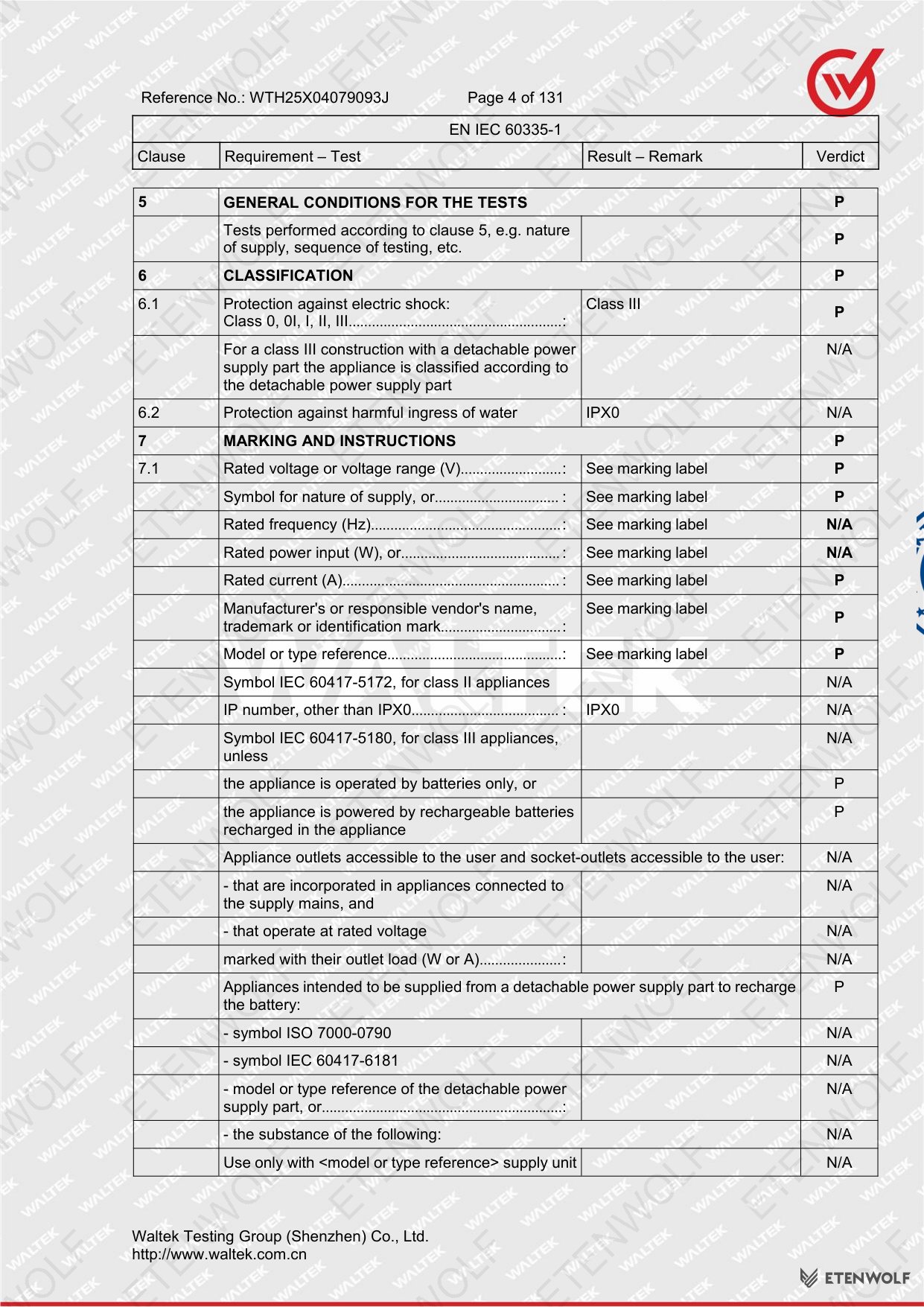

Document Page 4

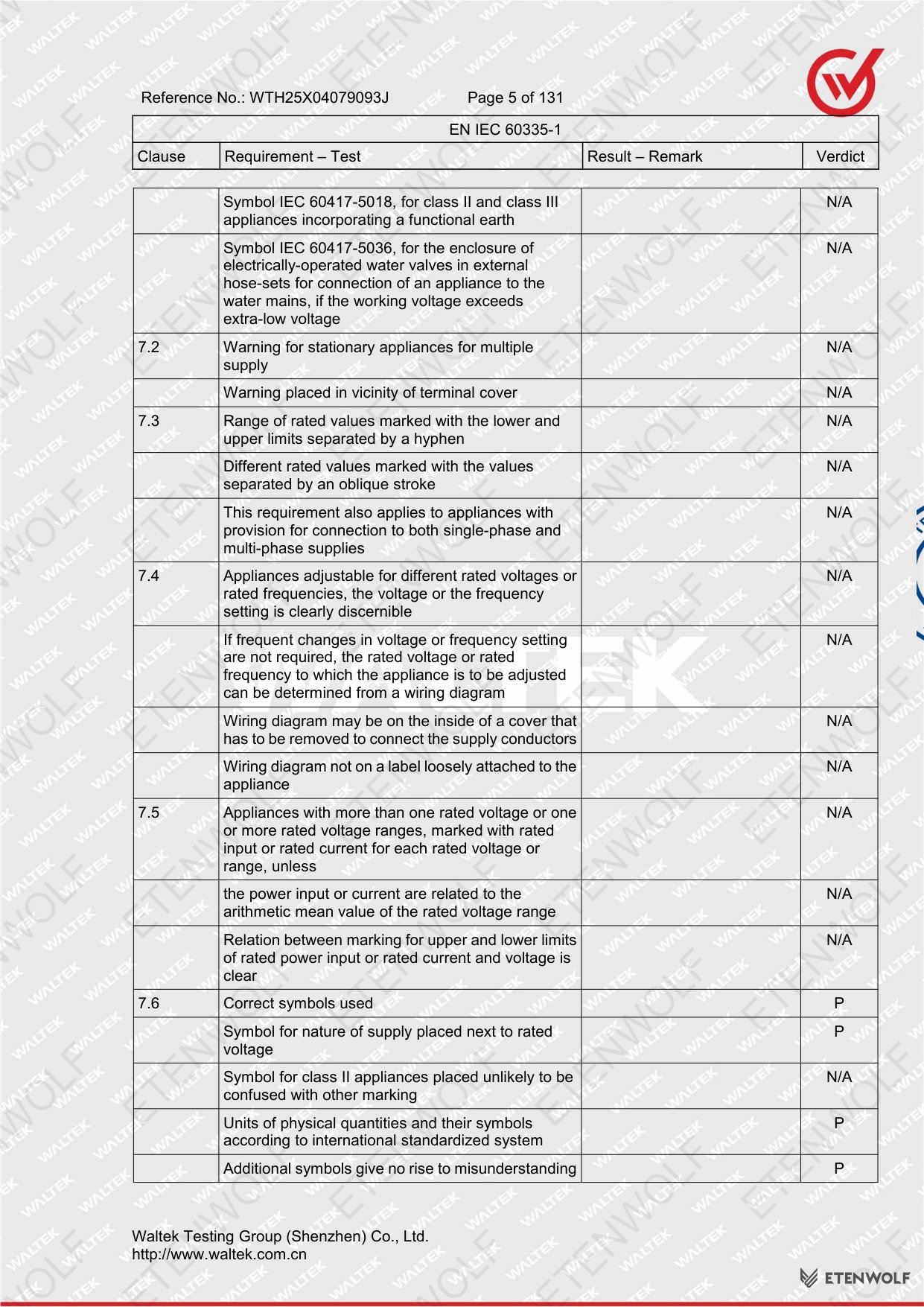

Document Page 5

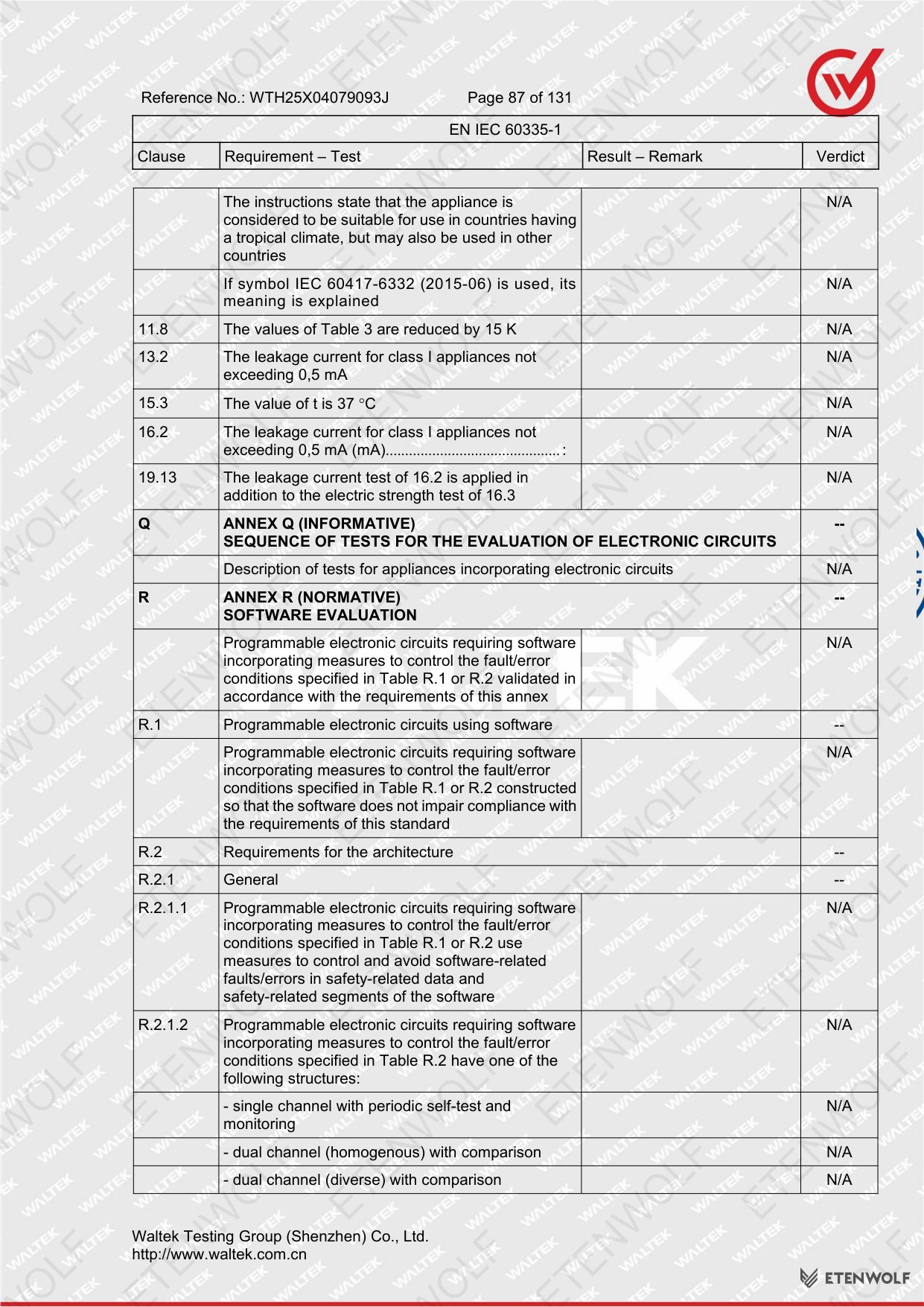

Document Page 6

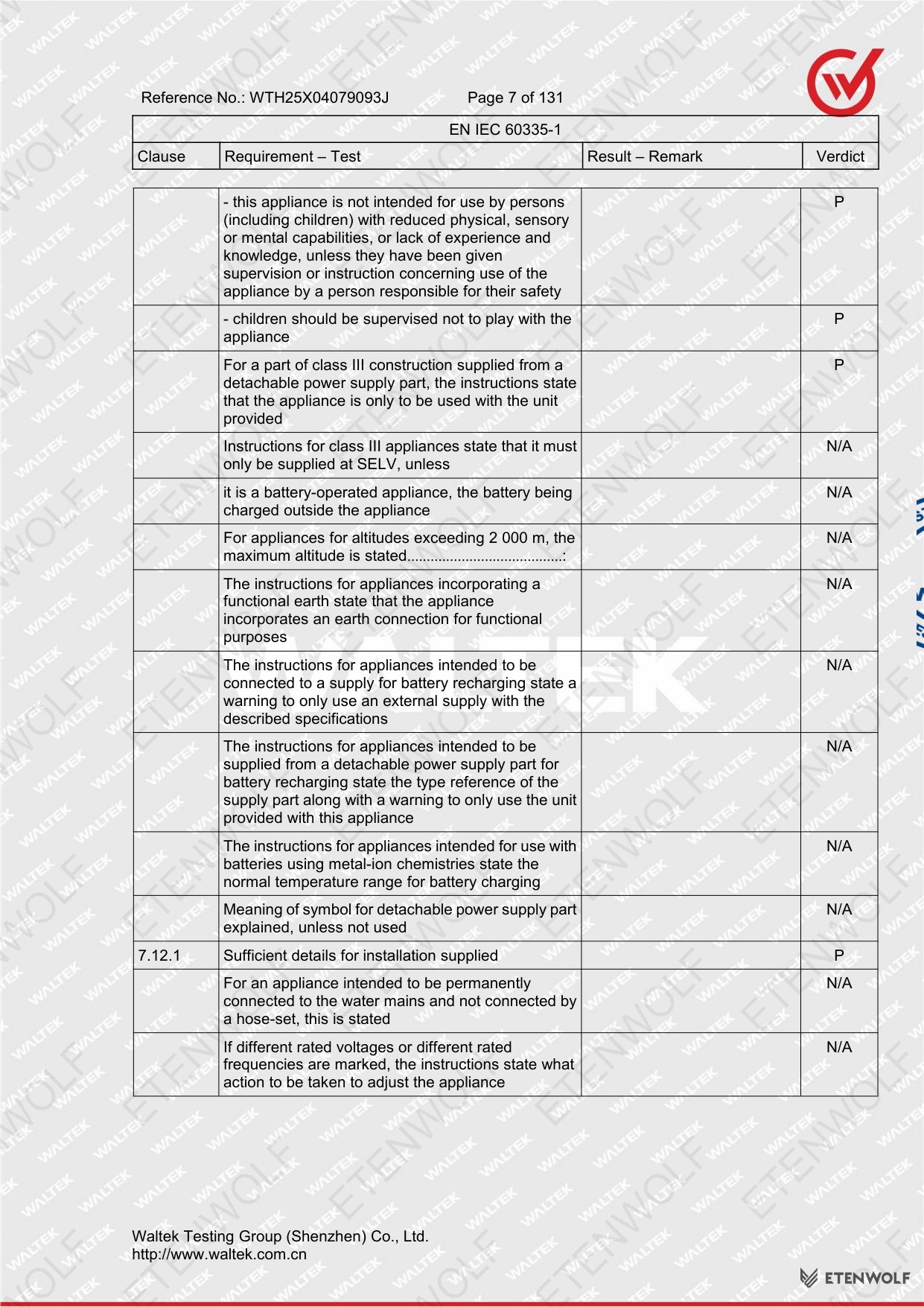

Document Page 7

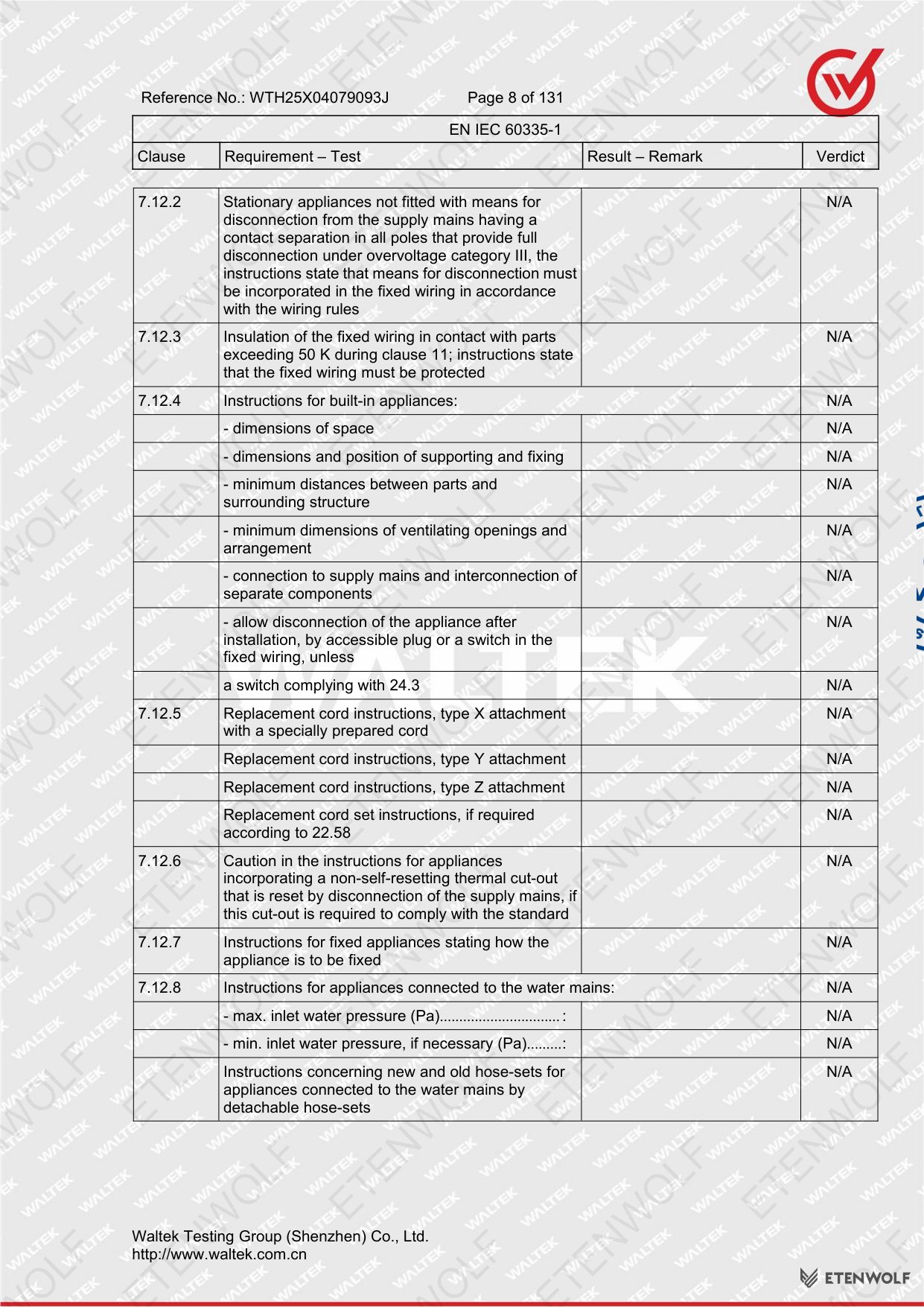

Document Page 8

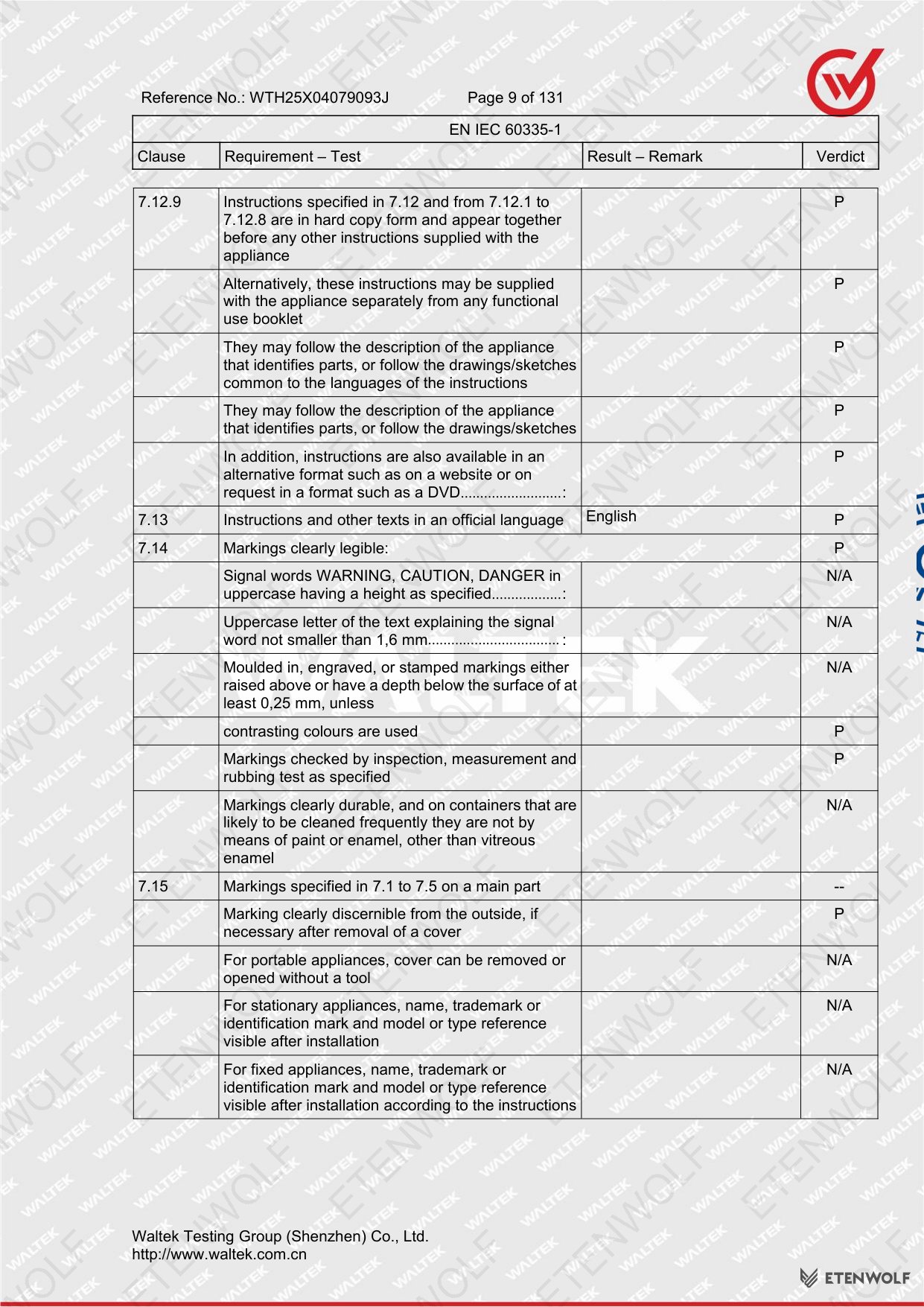

Document Page 9

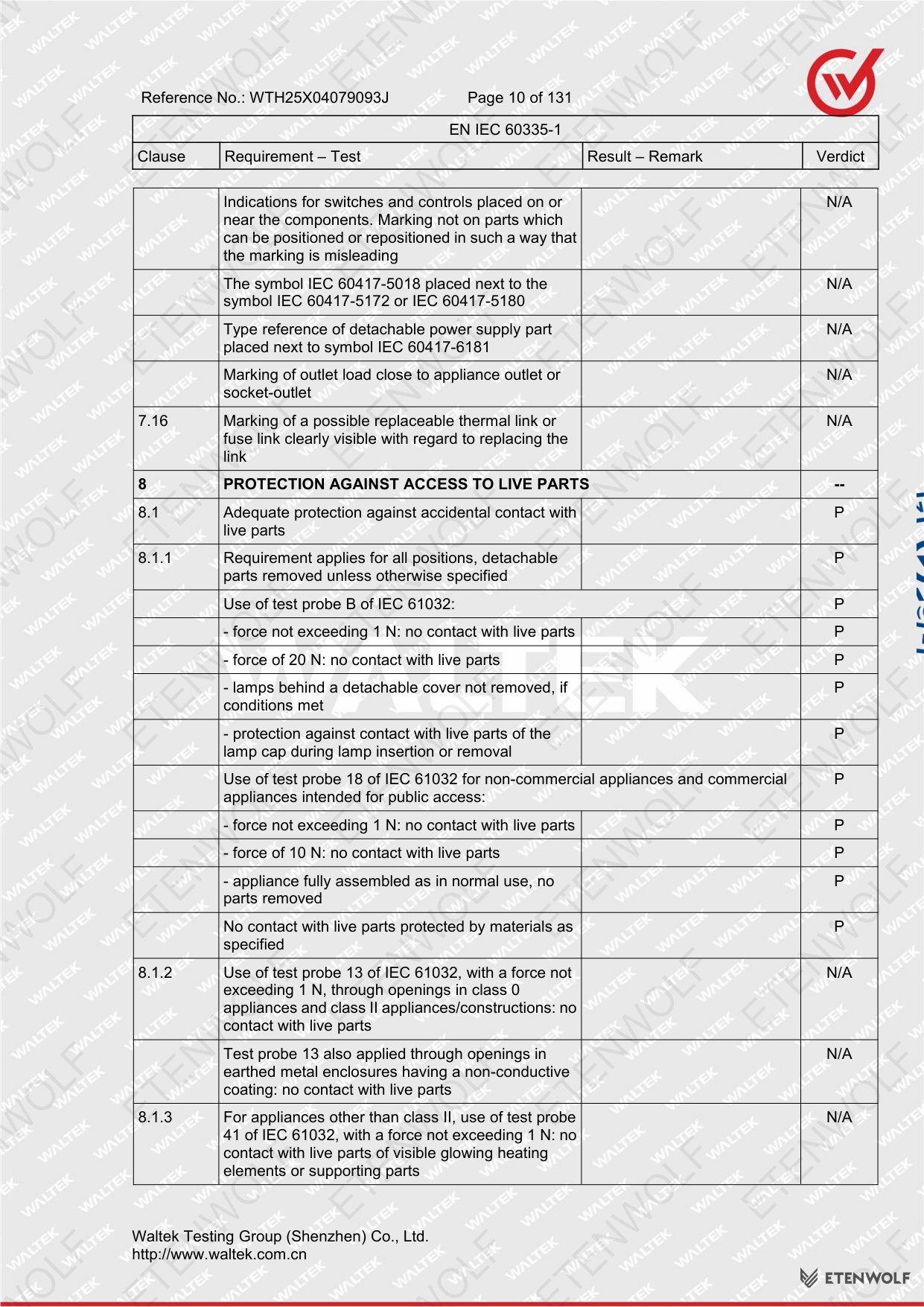

Document Page 10

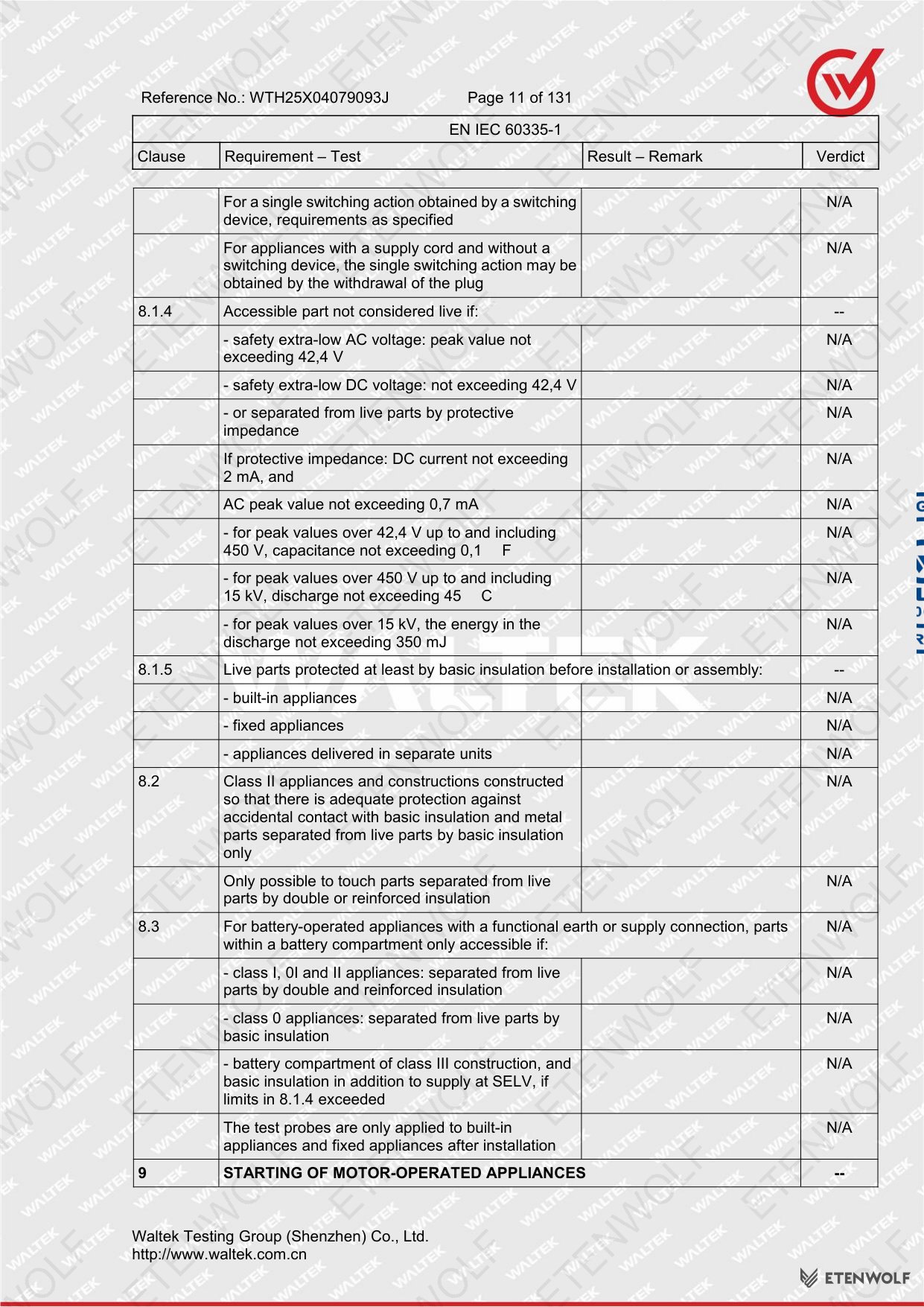

Document Page 11
Document Page 12

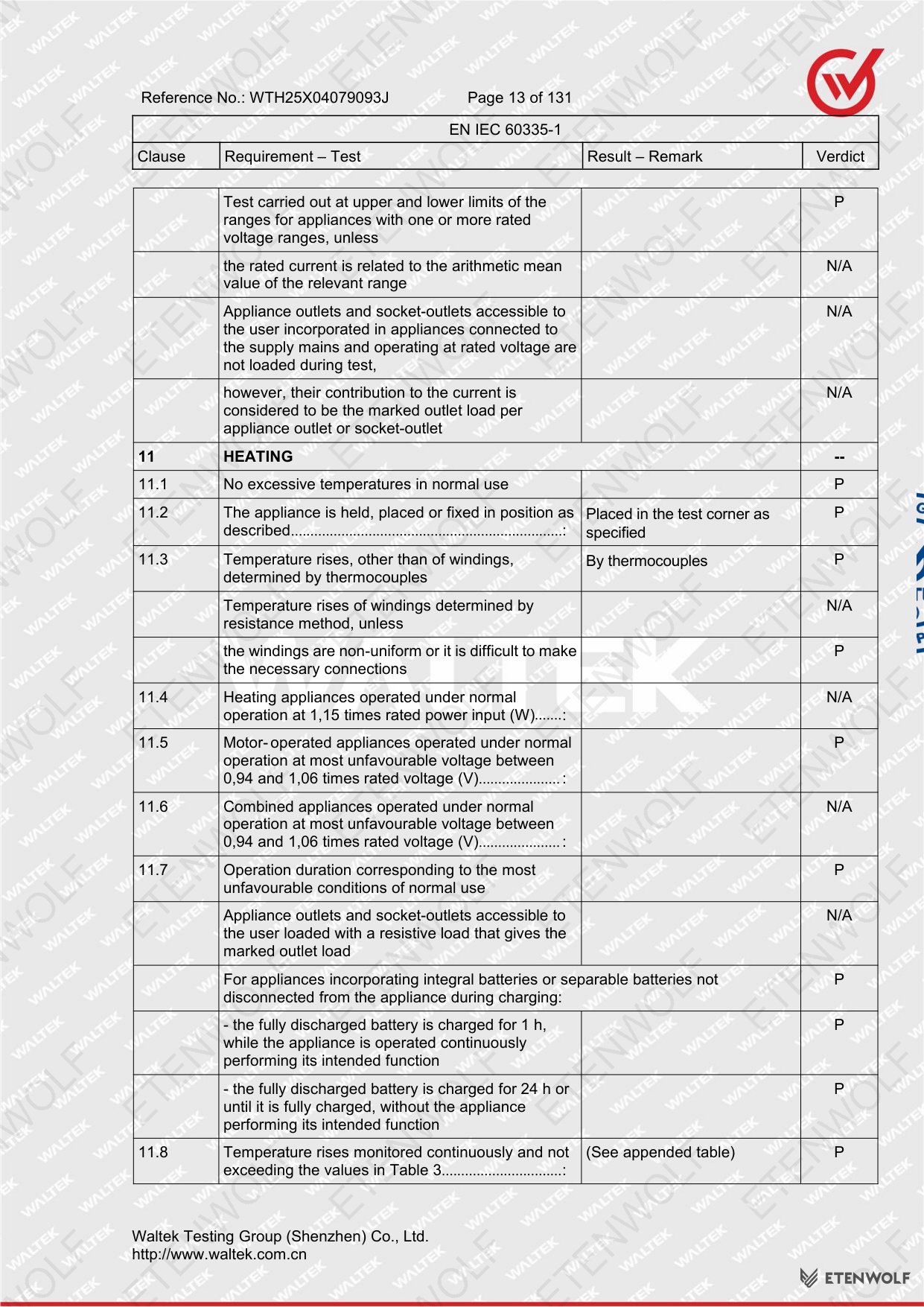

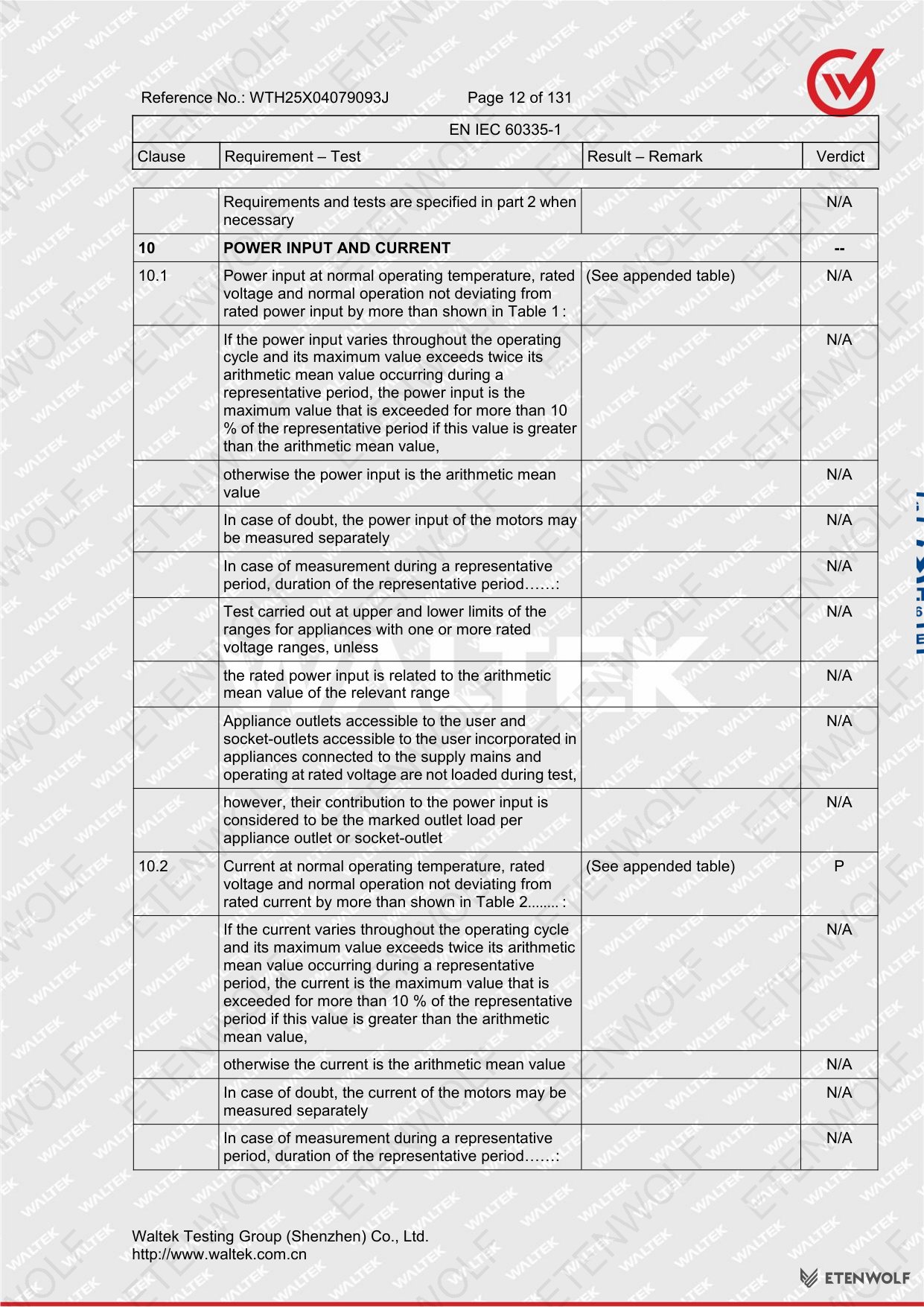

Document Page 13
Document Page 14

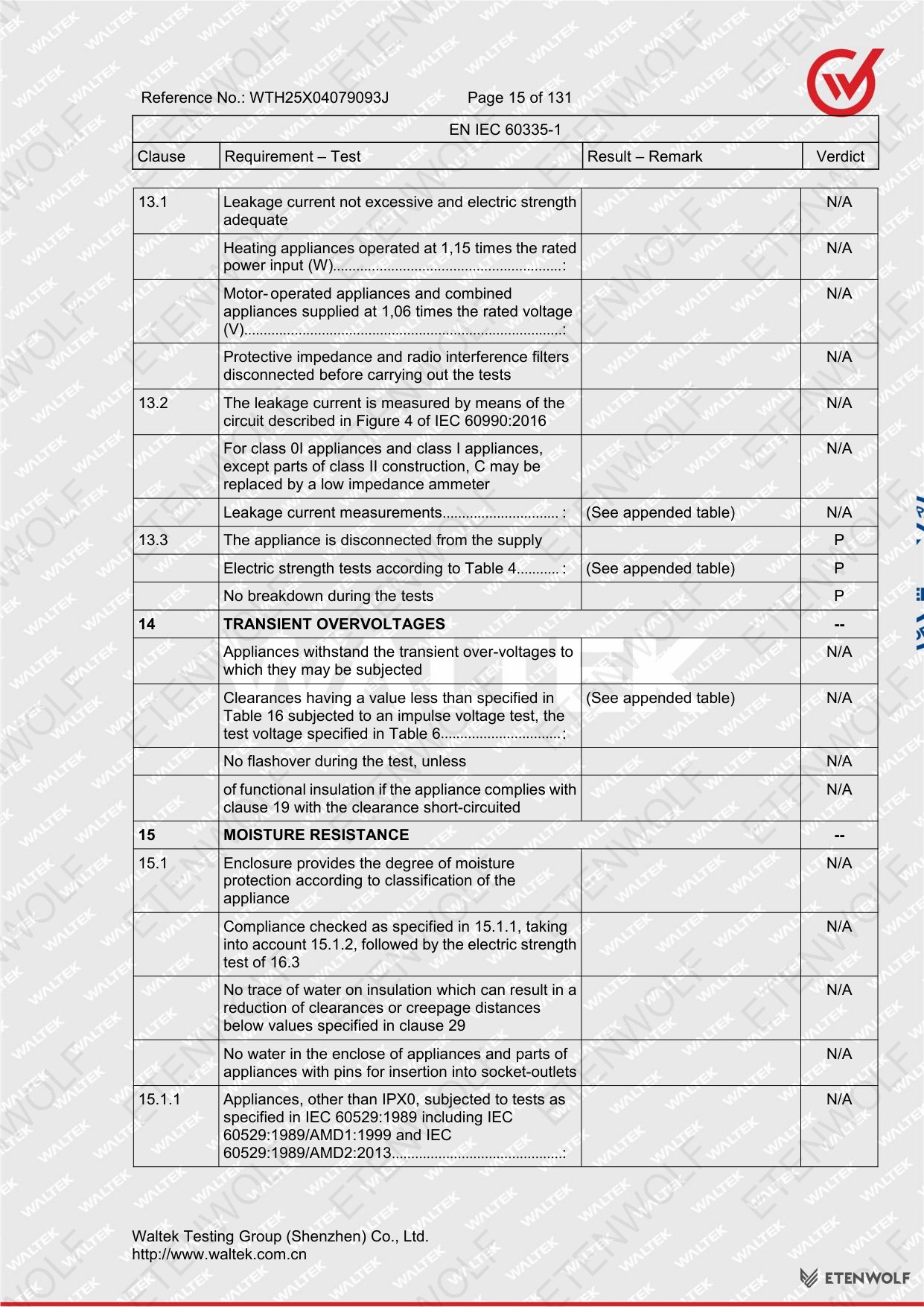

Document Page 15

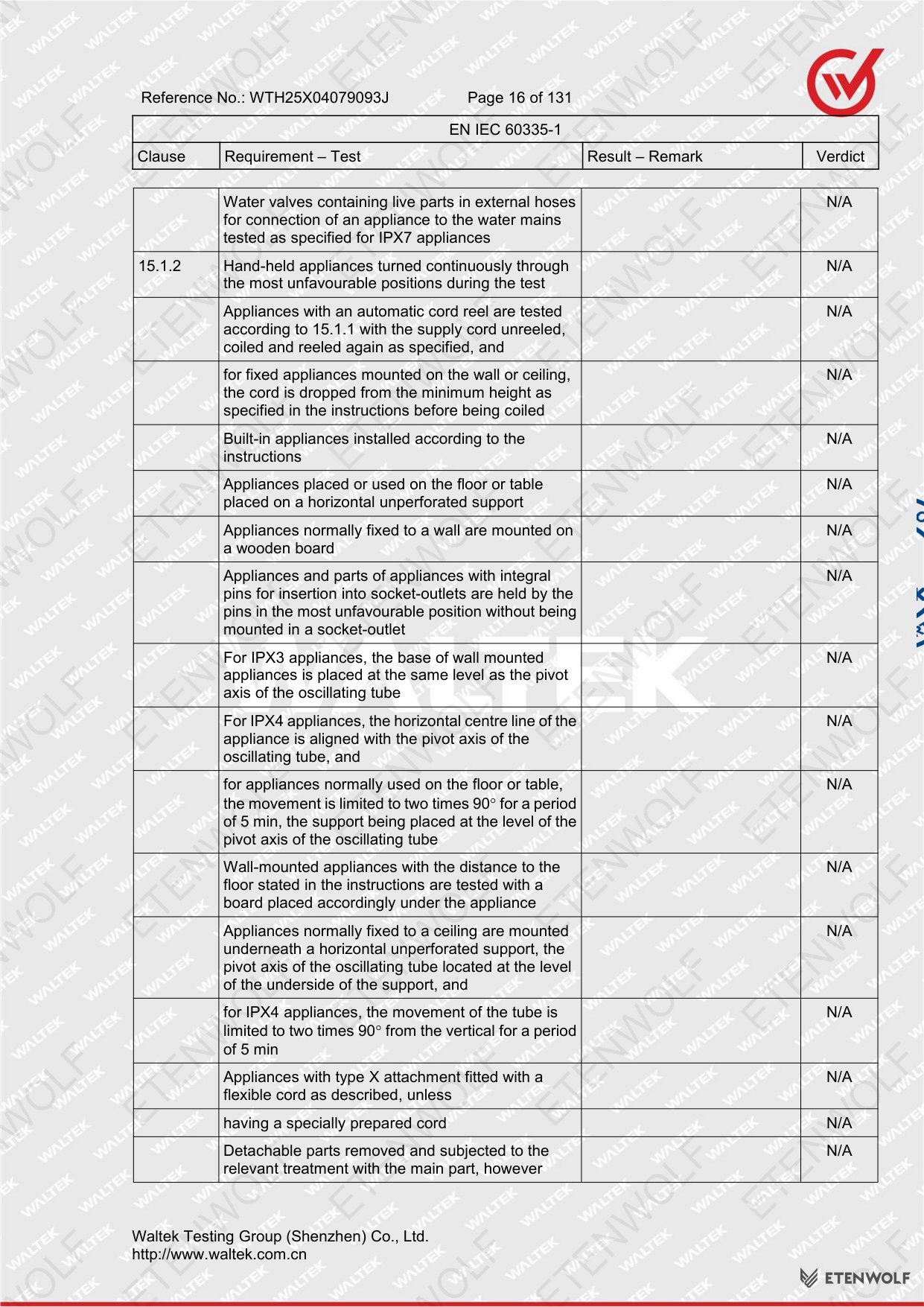

Document Page 16

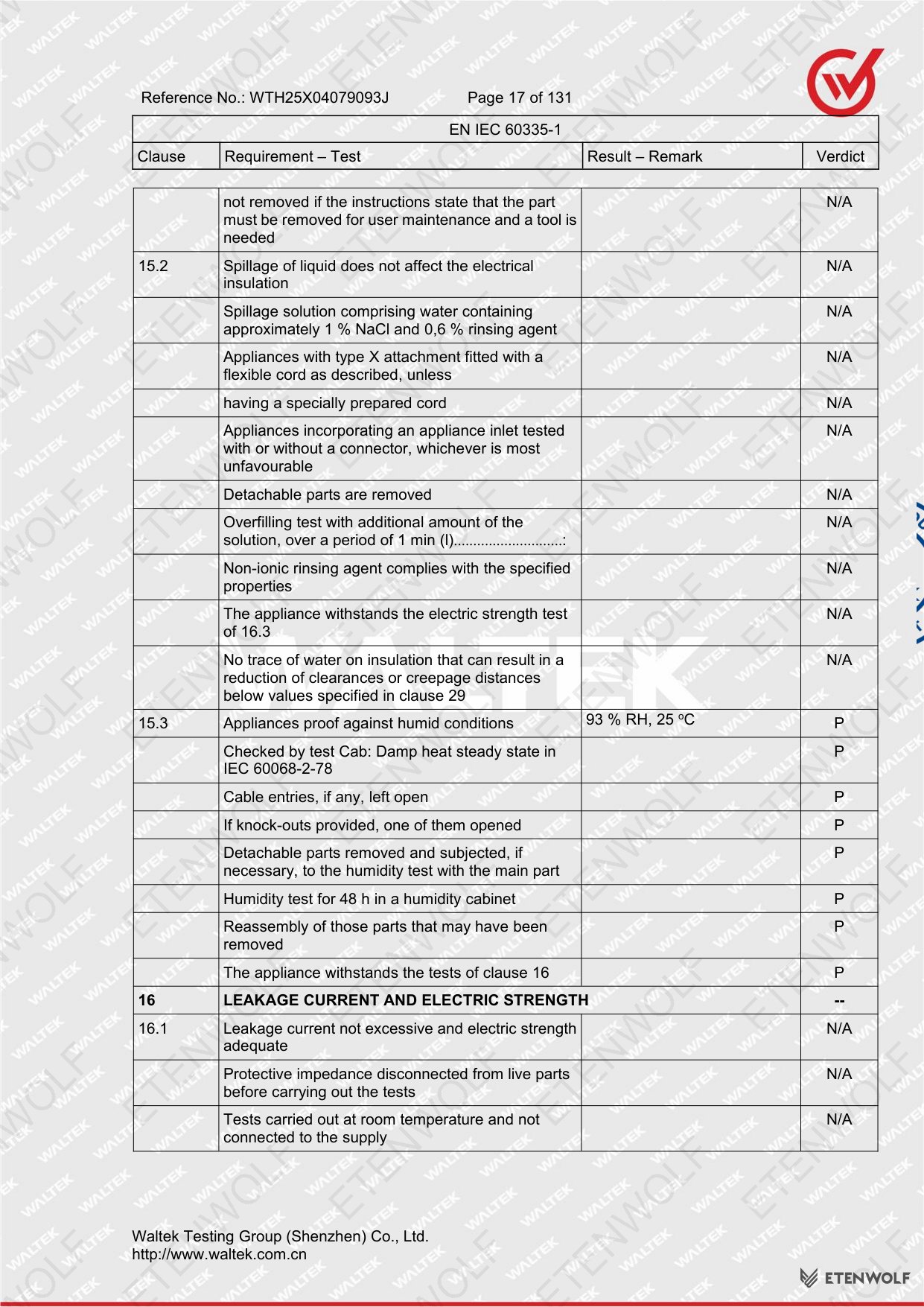

Document Page 17

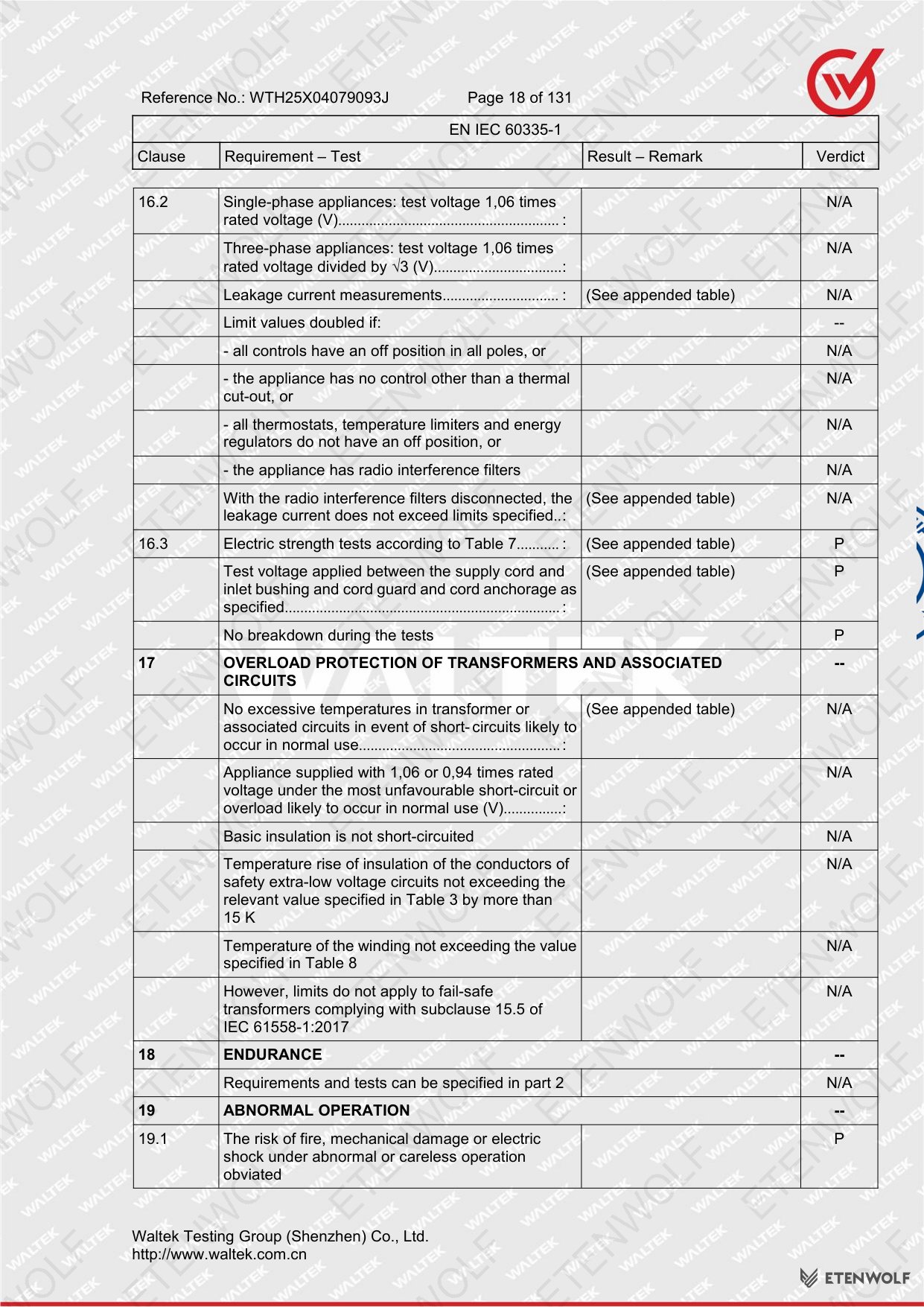

Document Page 18

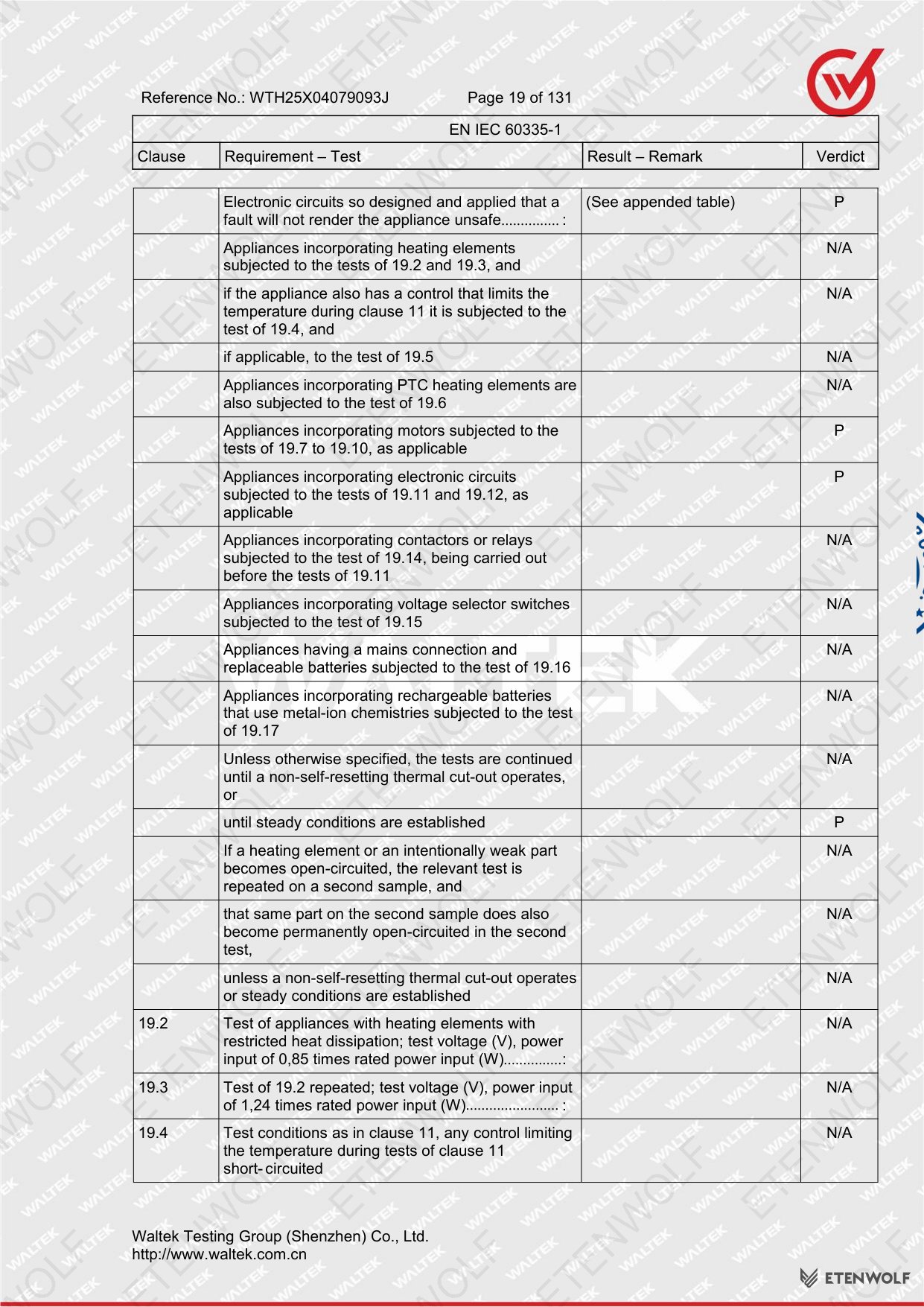

Document Page 19

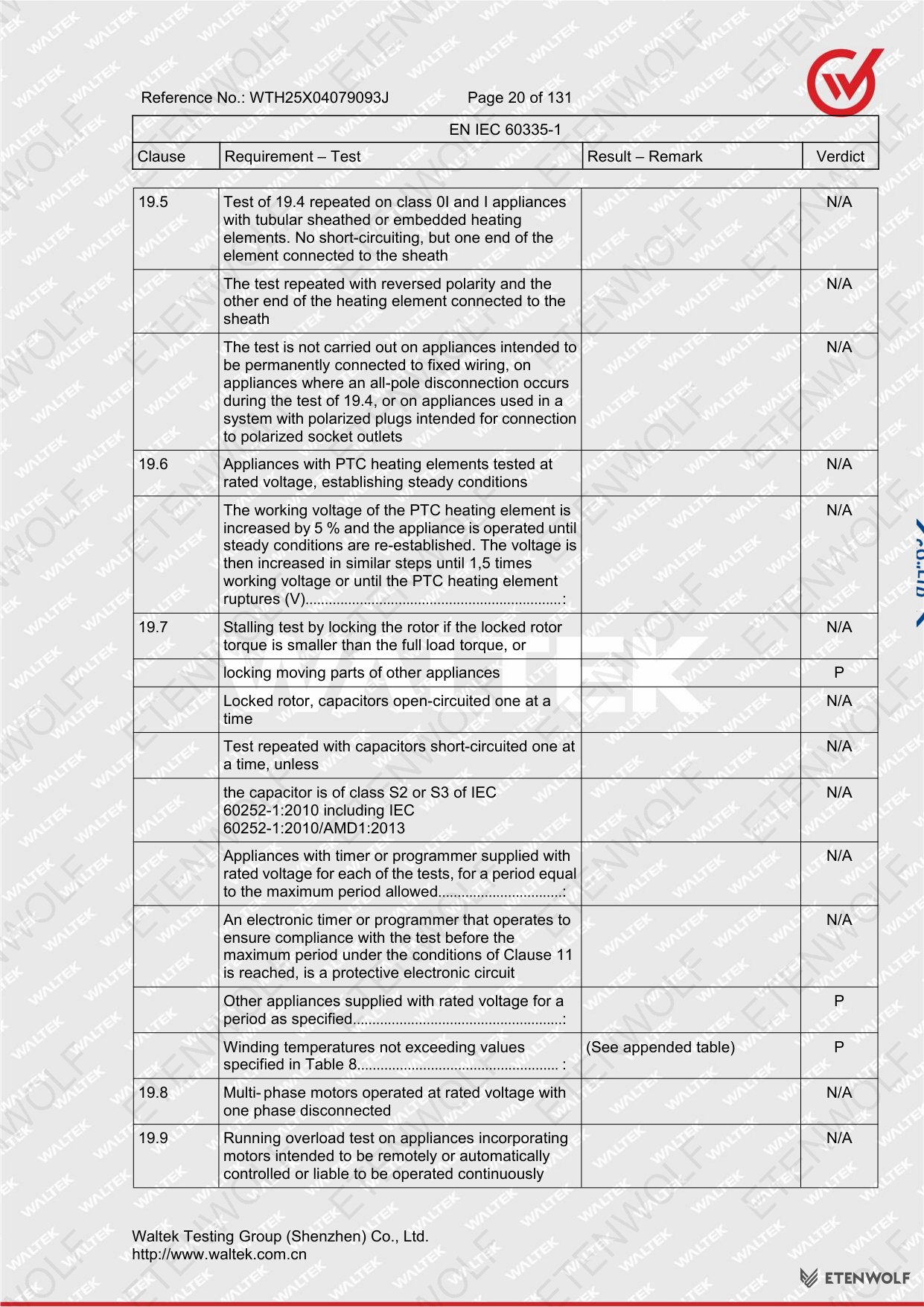

Document Page 20

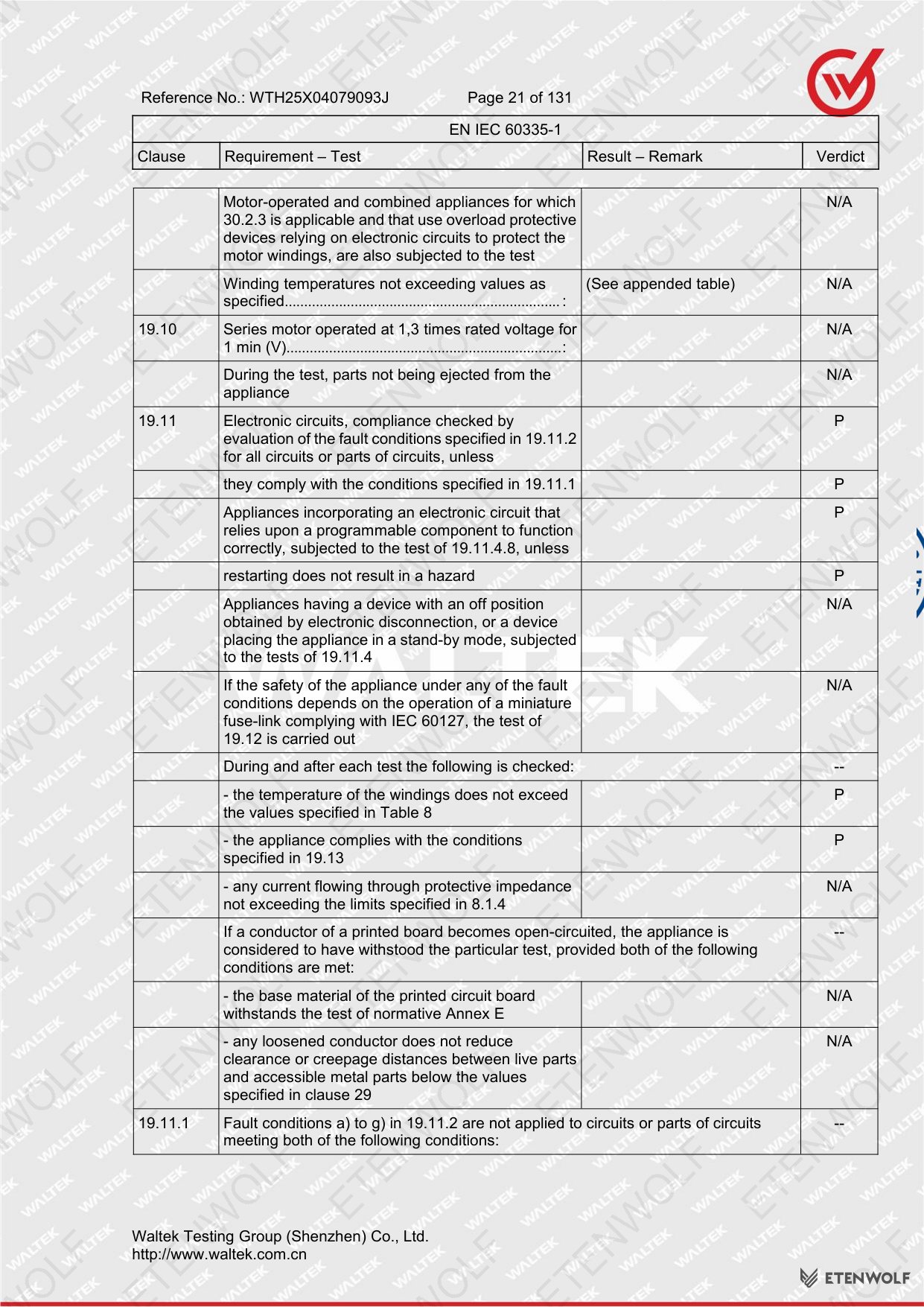

Document Page 21

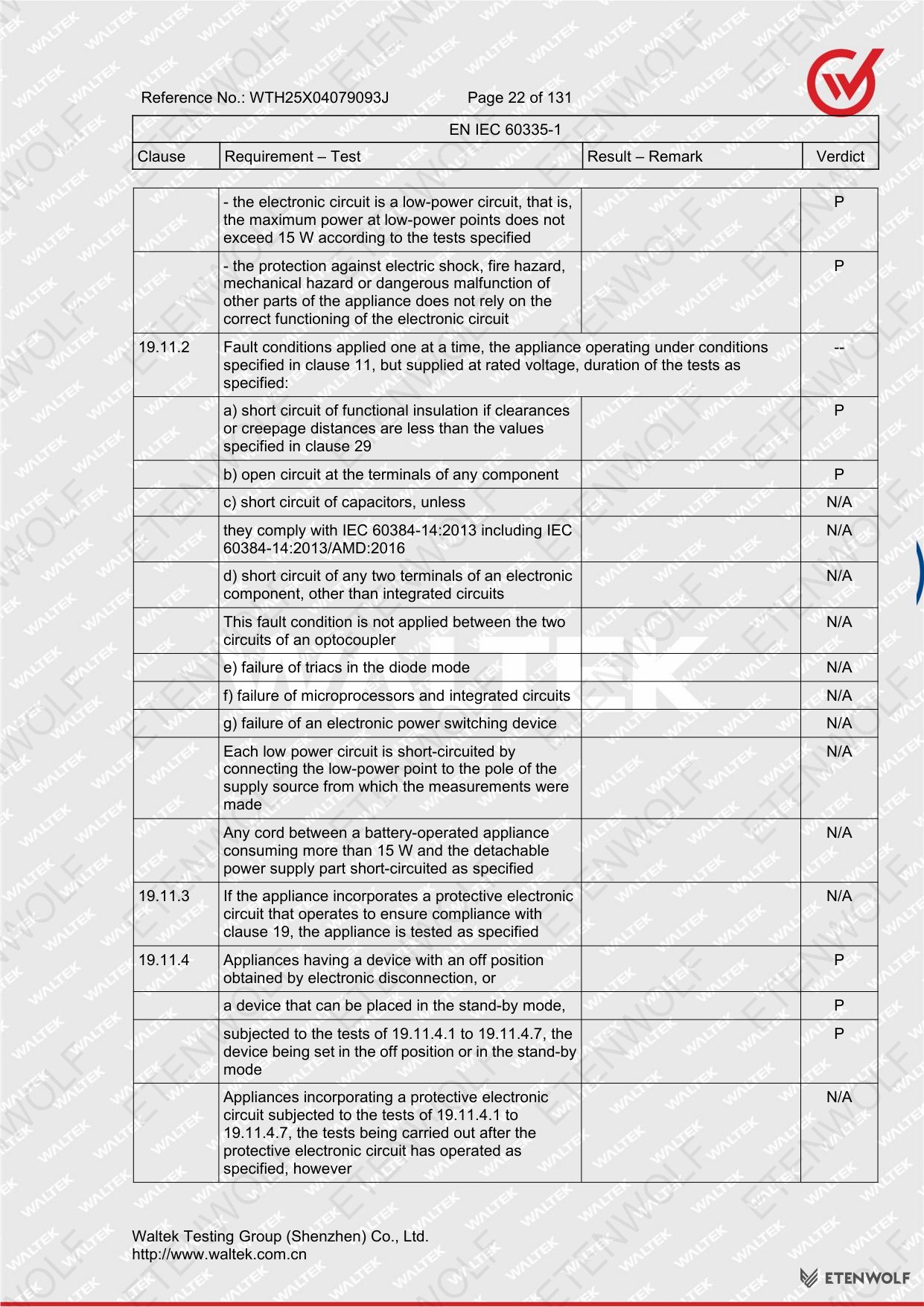

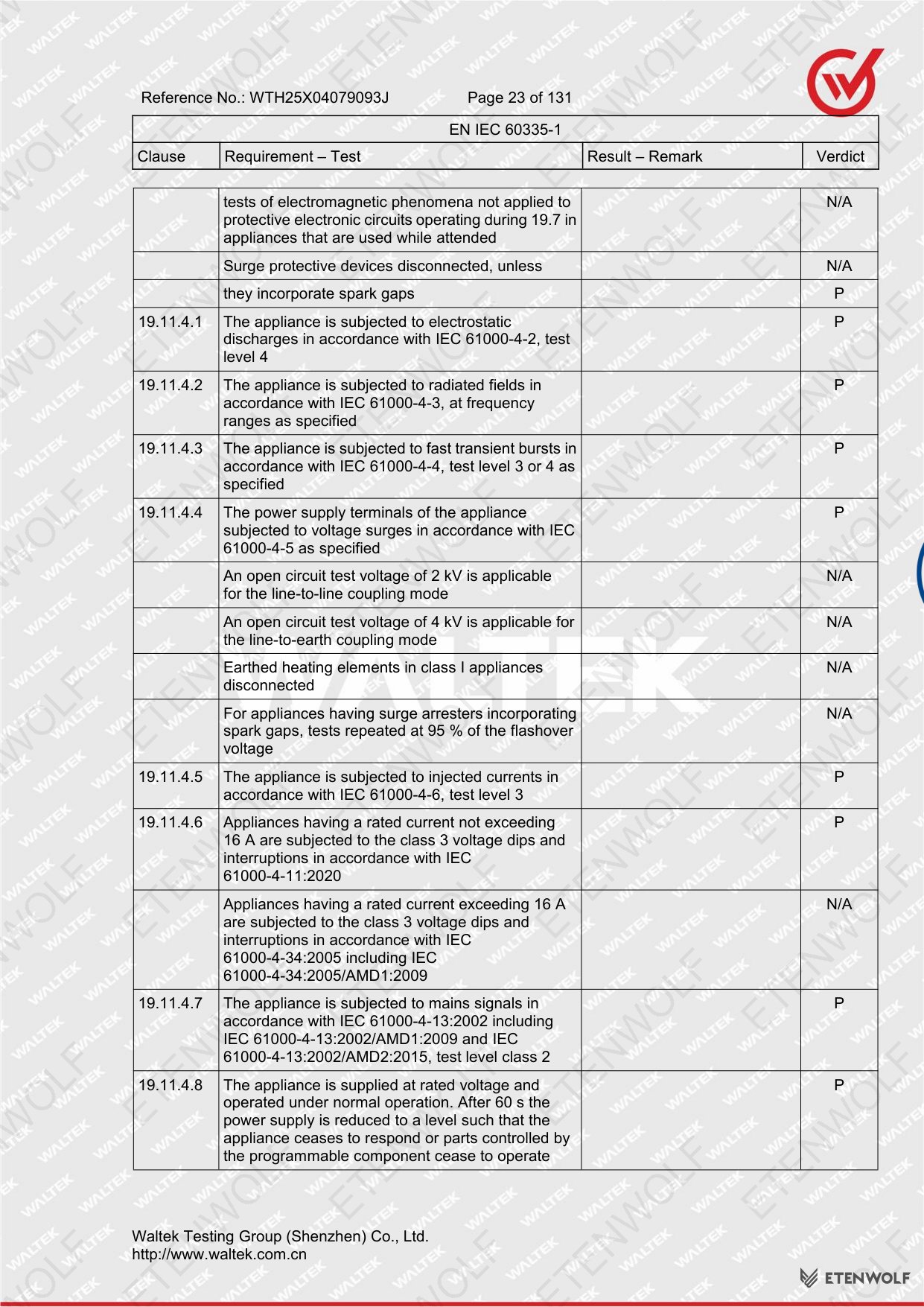

Document Page 22
Document Page 23

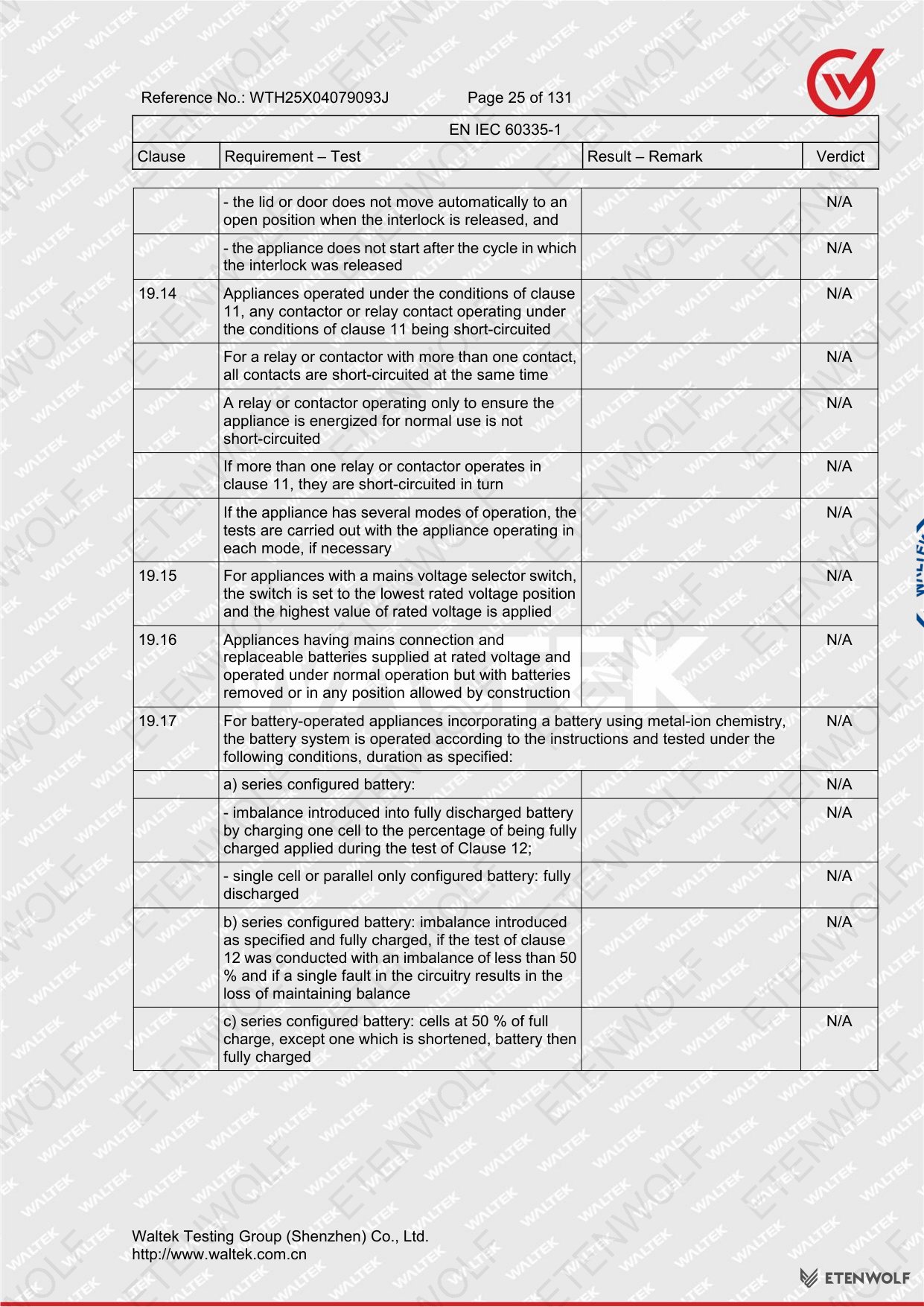

Document Page 24
Document Page 25
Document Page 26

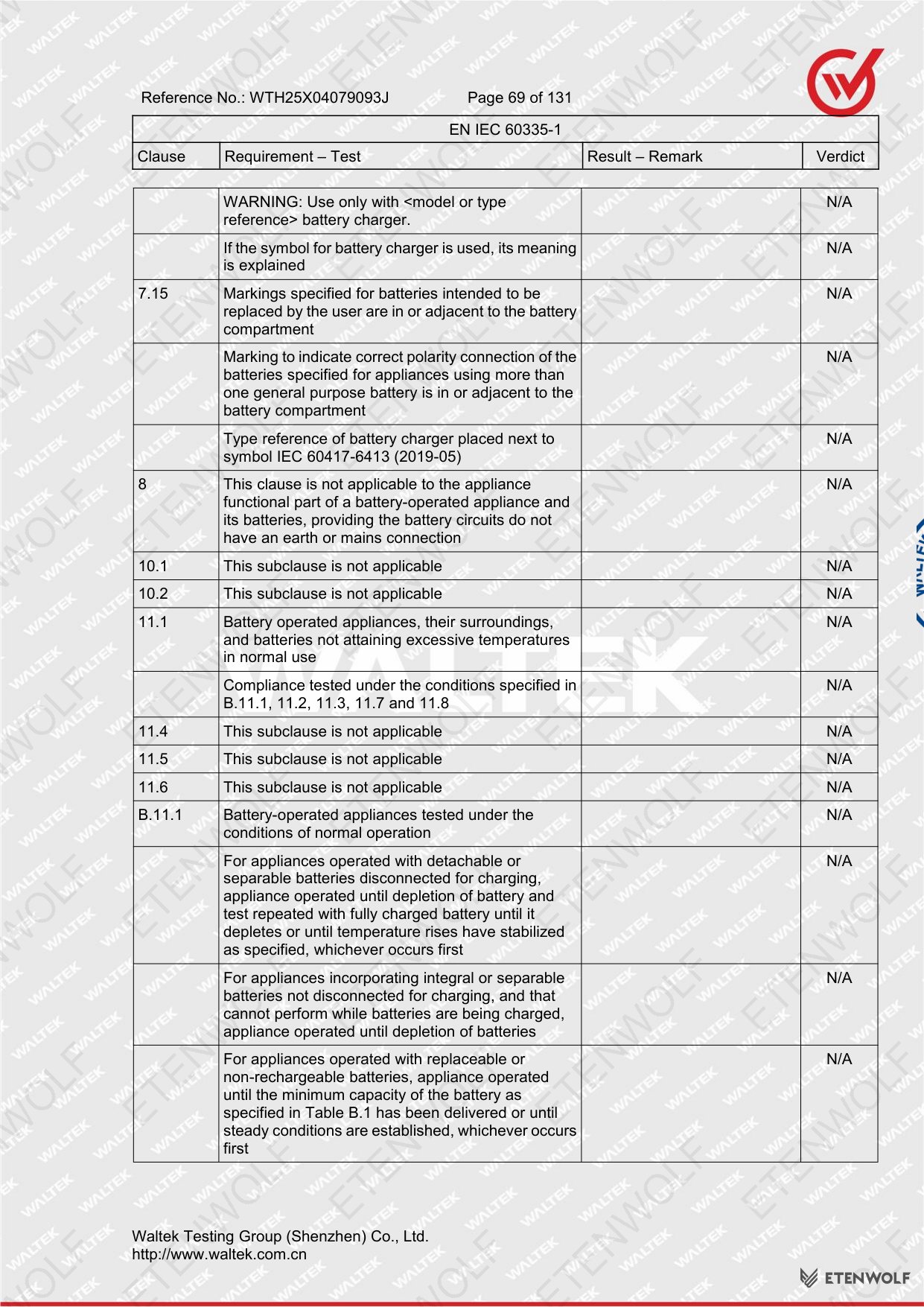

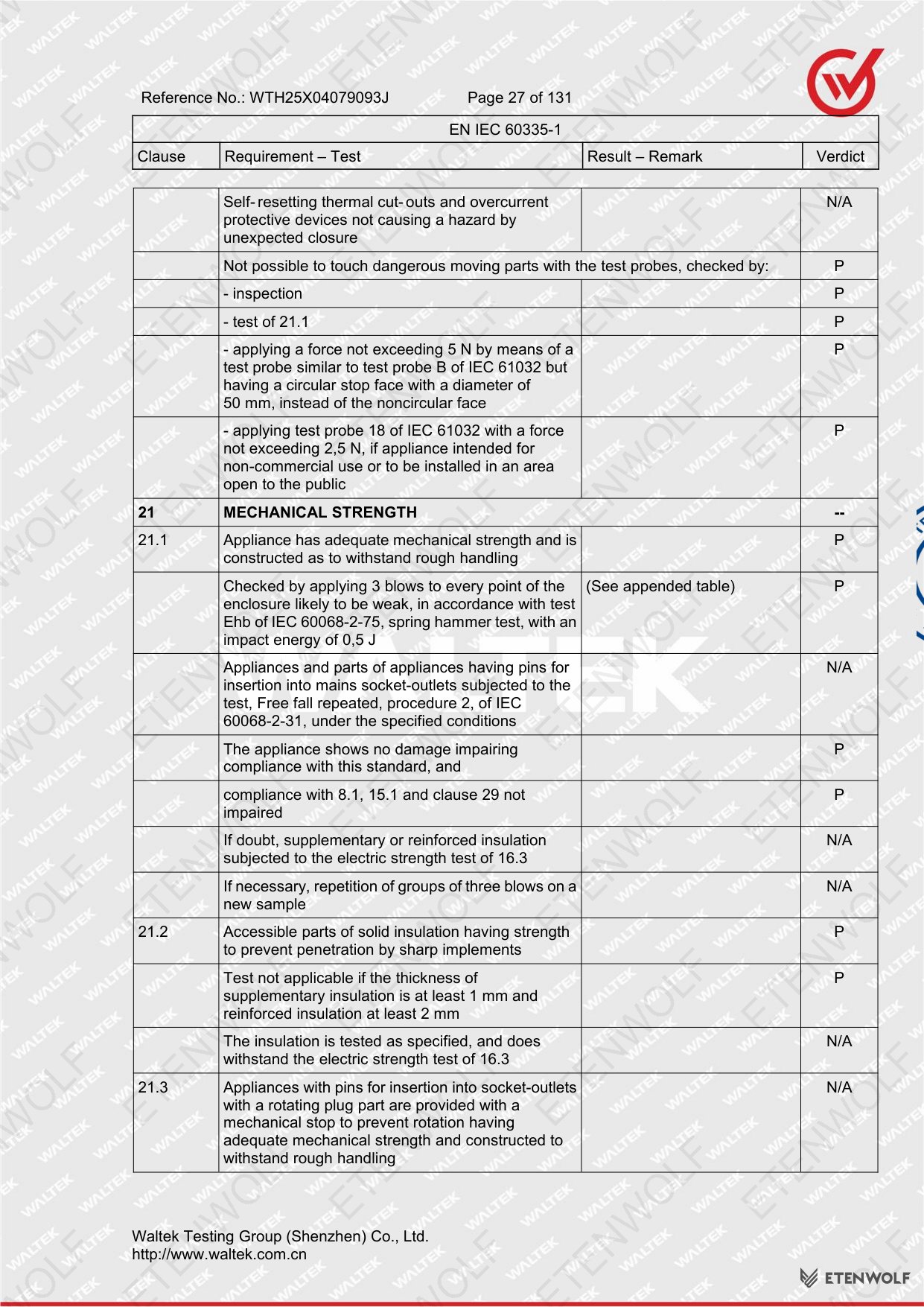

Document Page 27
Document Page 28

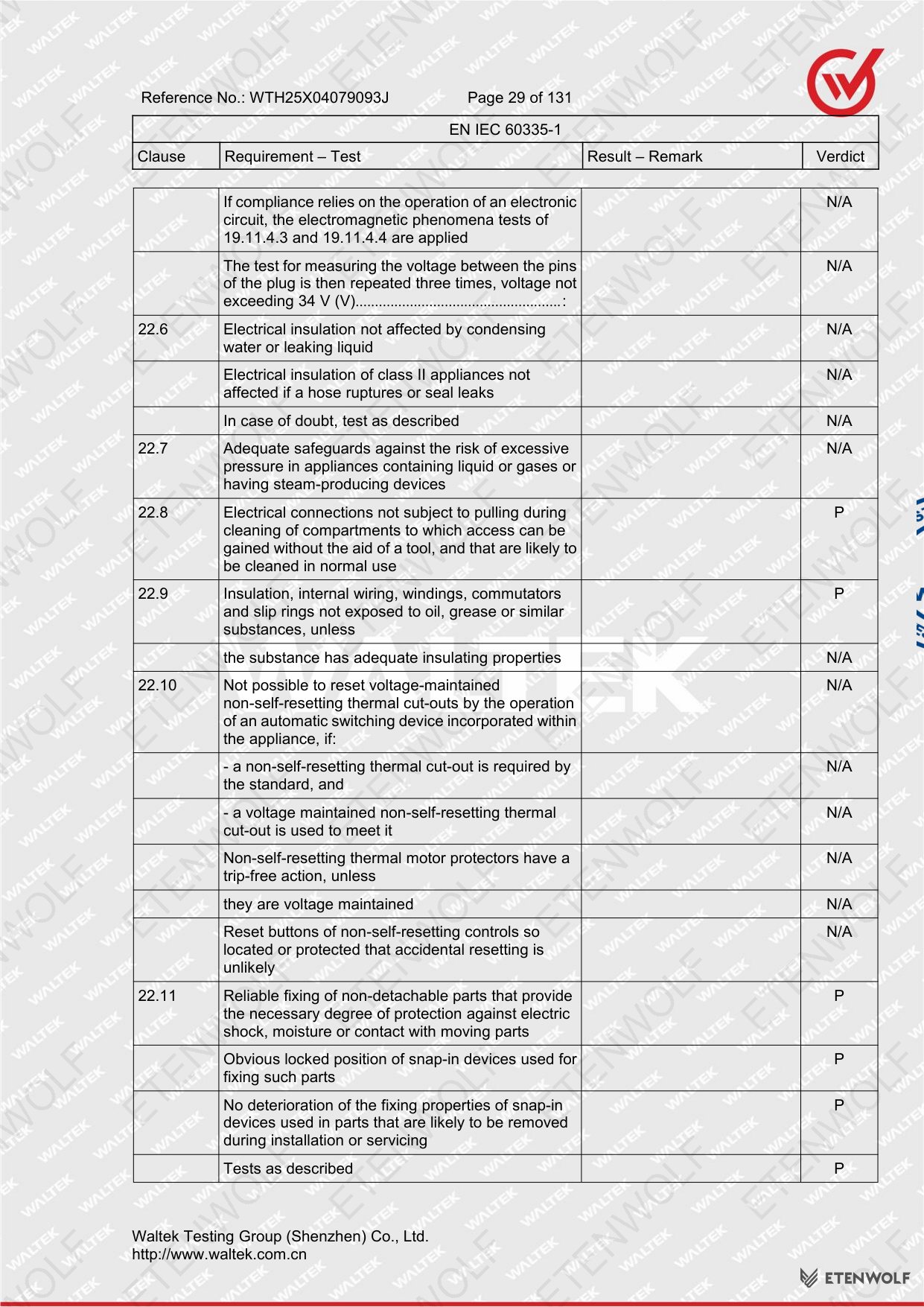

Document Page 29
Document Page 30

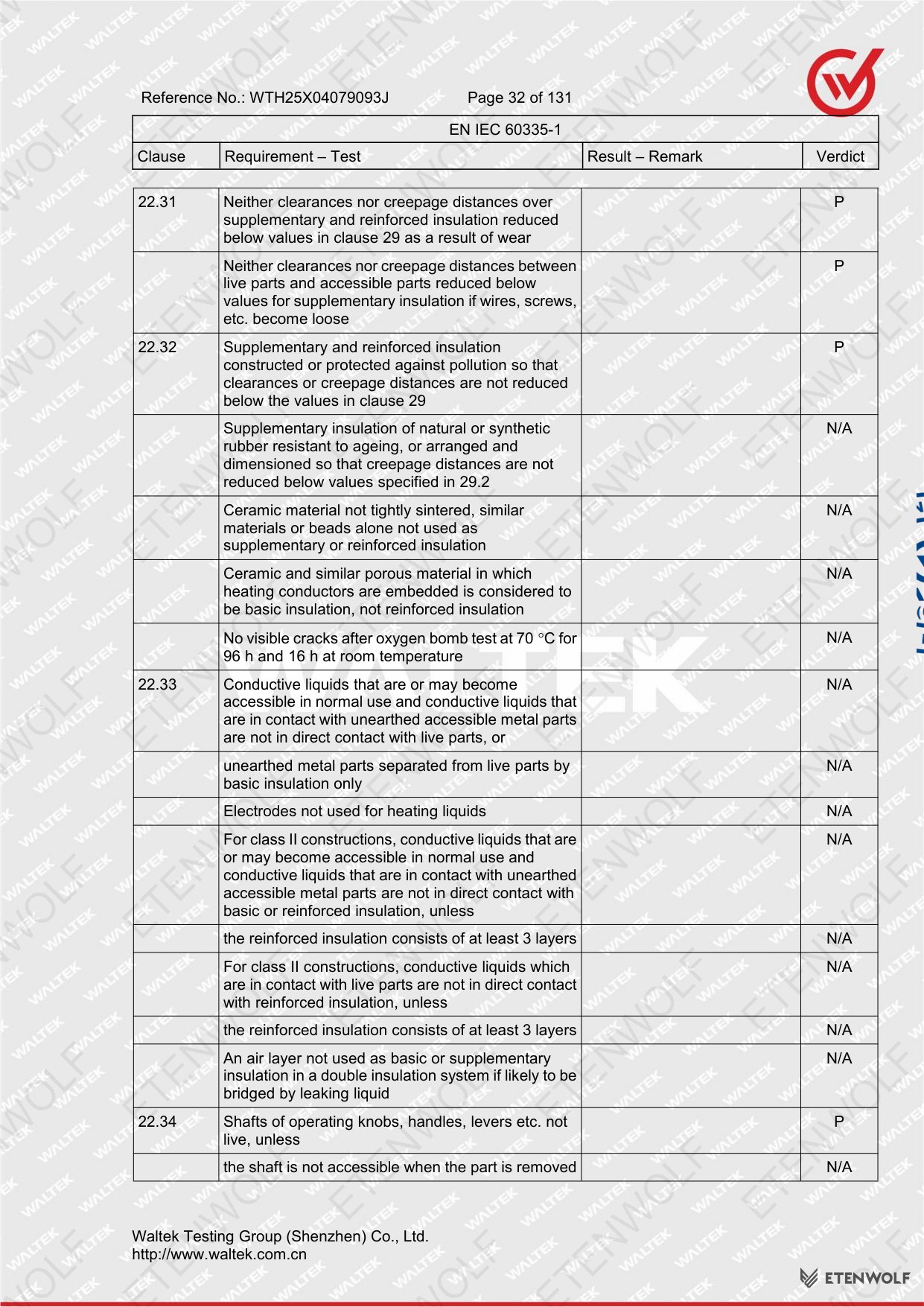

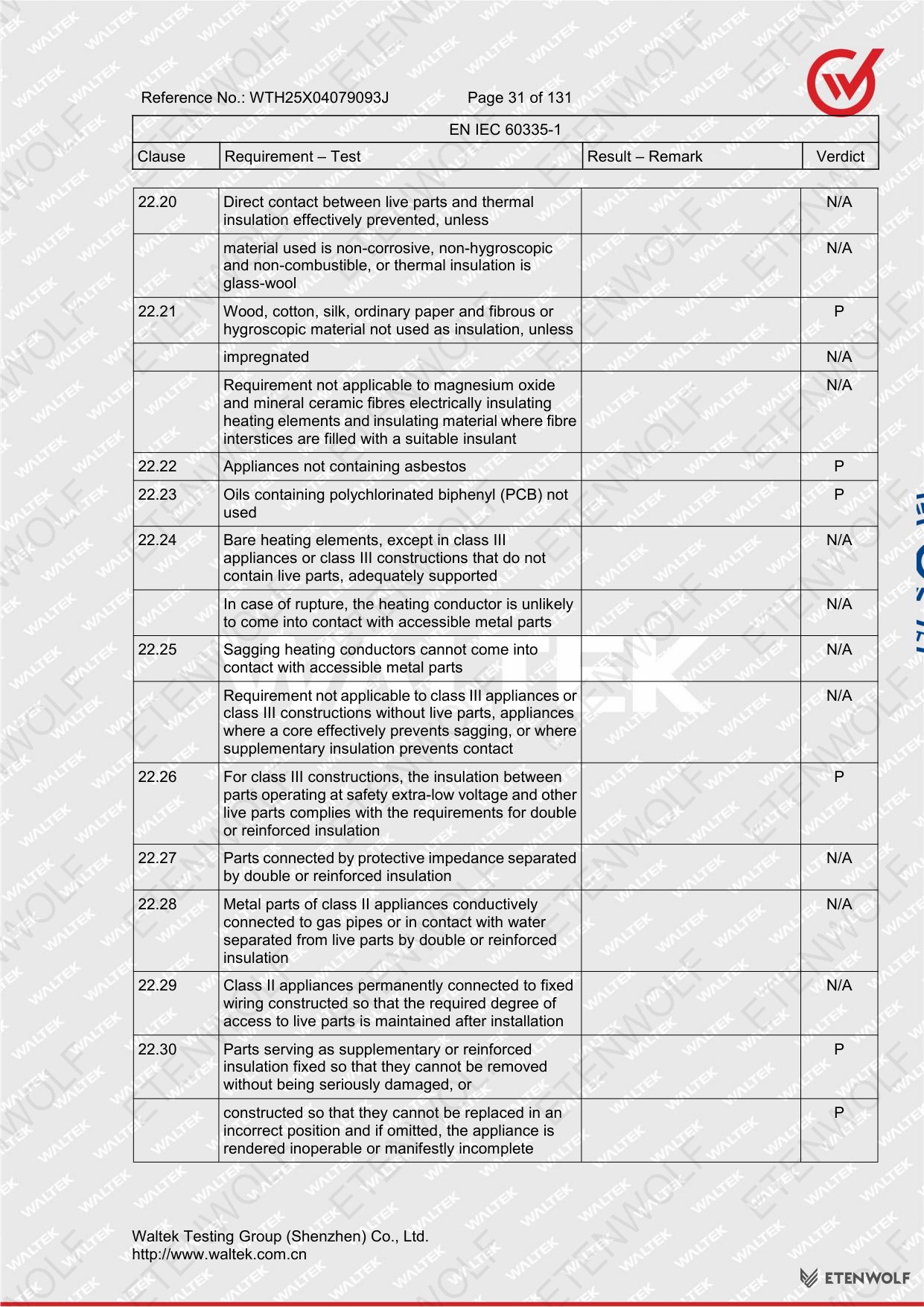

Document Page 31

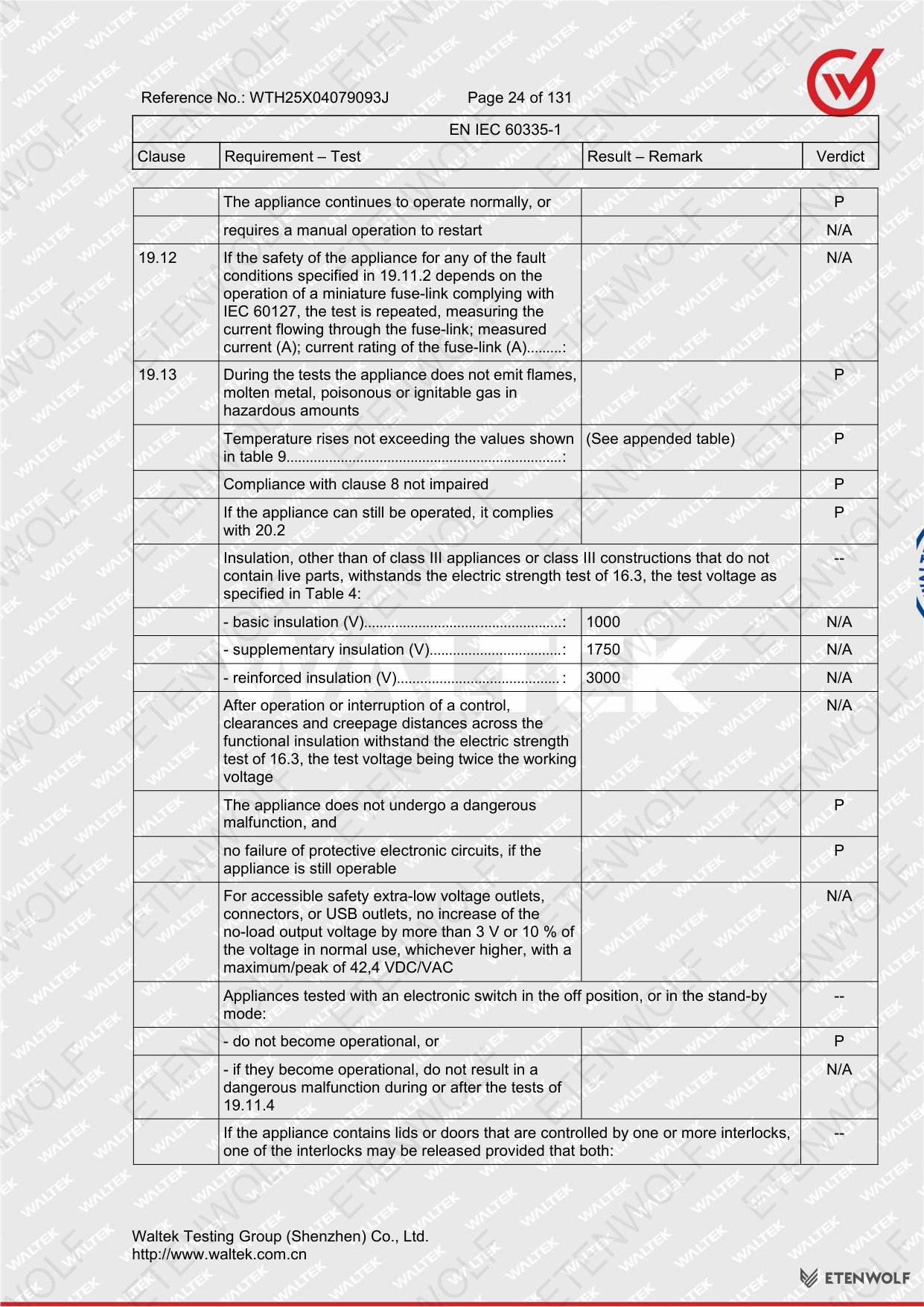

Document Page 32
Document Page 33

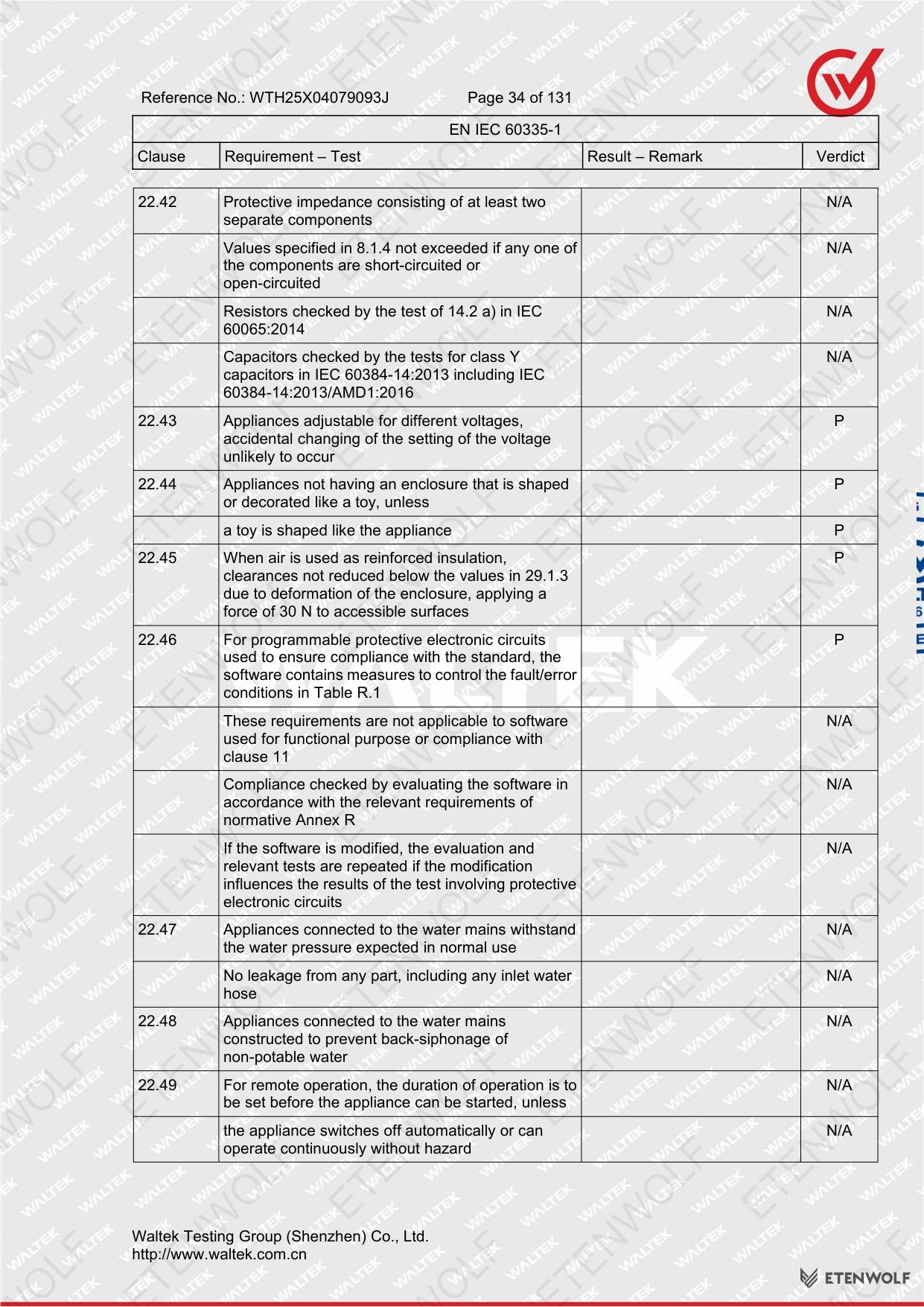

Document Page 34

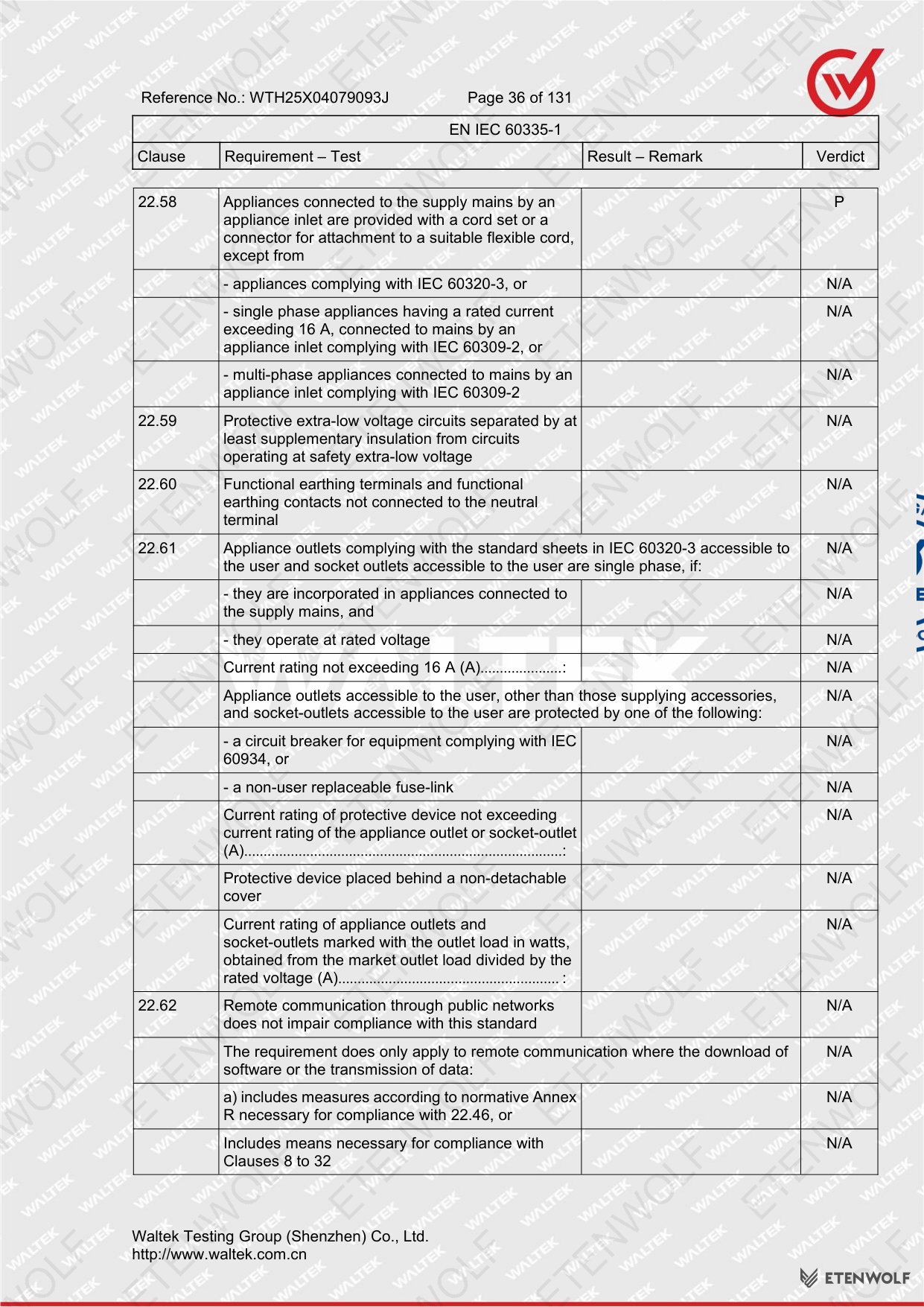

Document Page 35

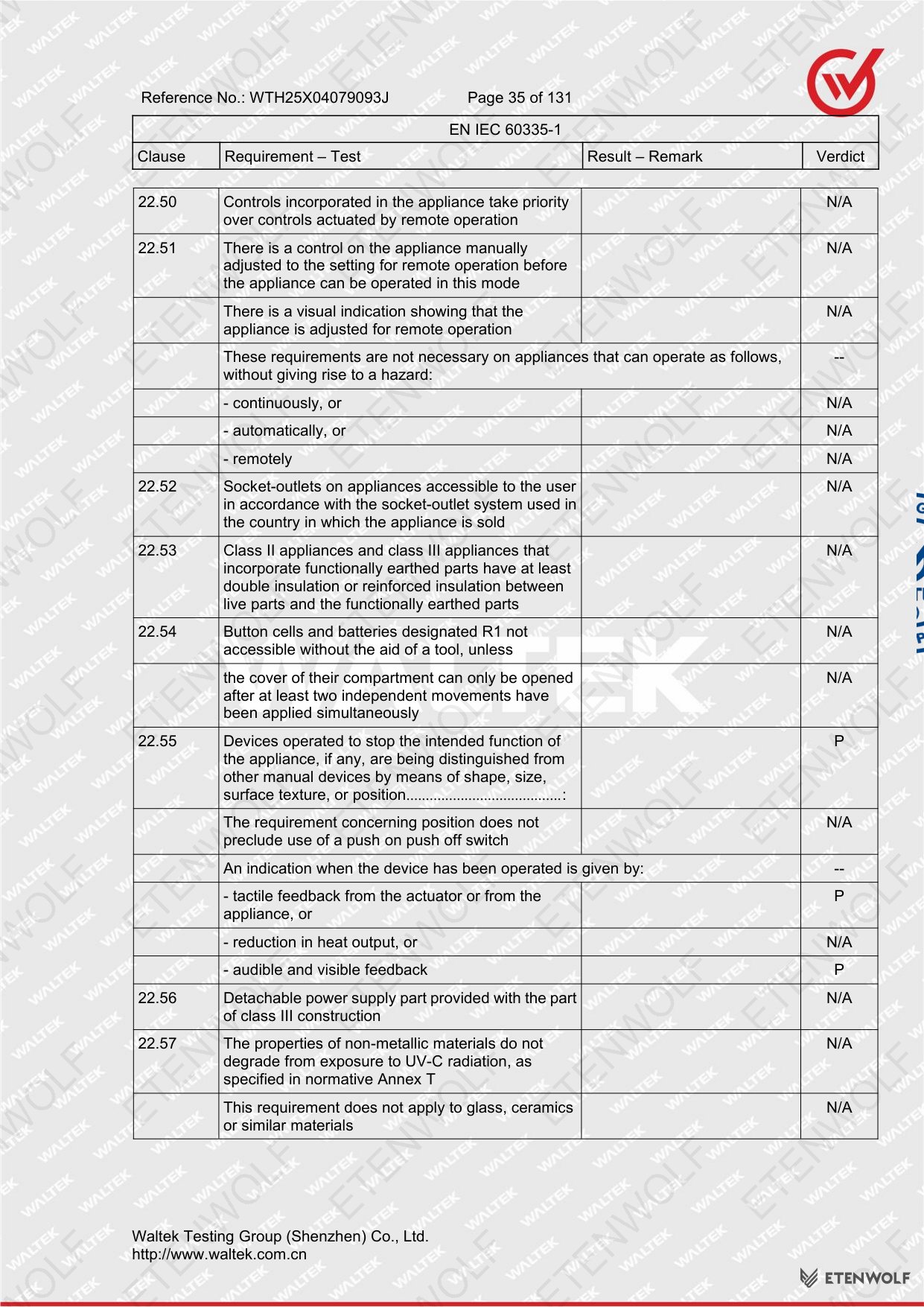

Document Page 36

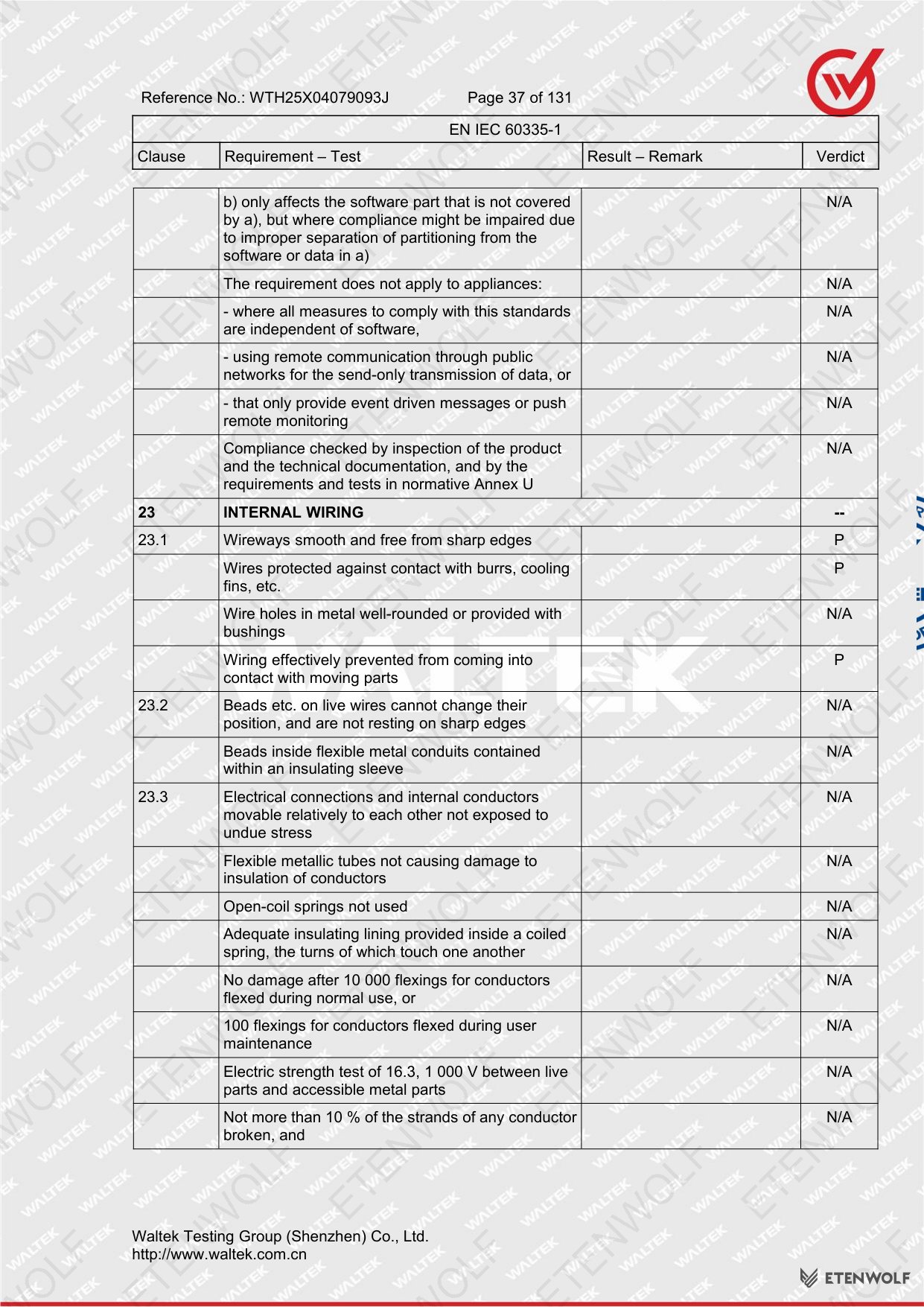

Document Page 37

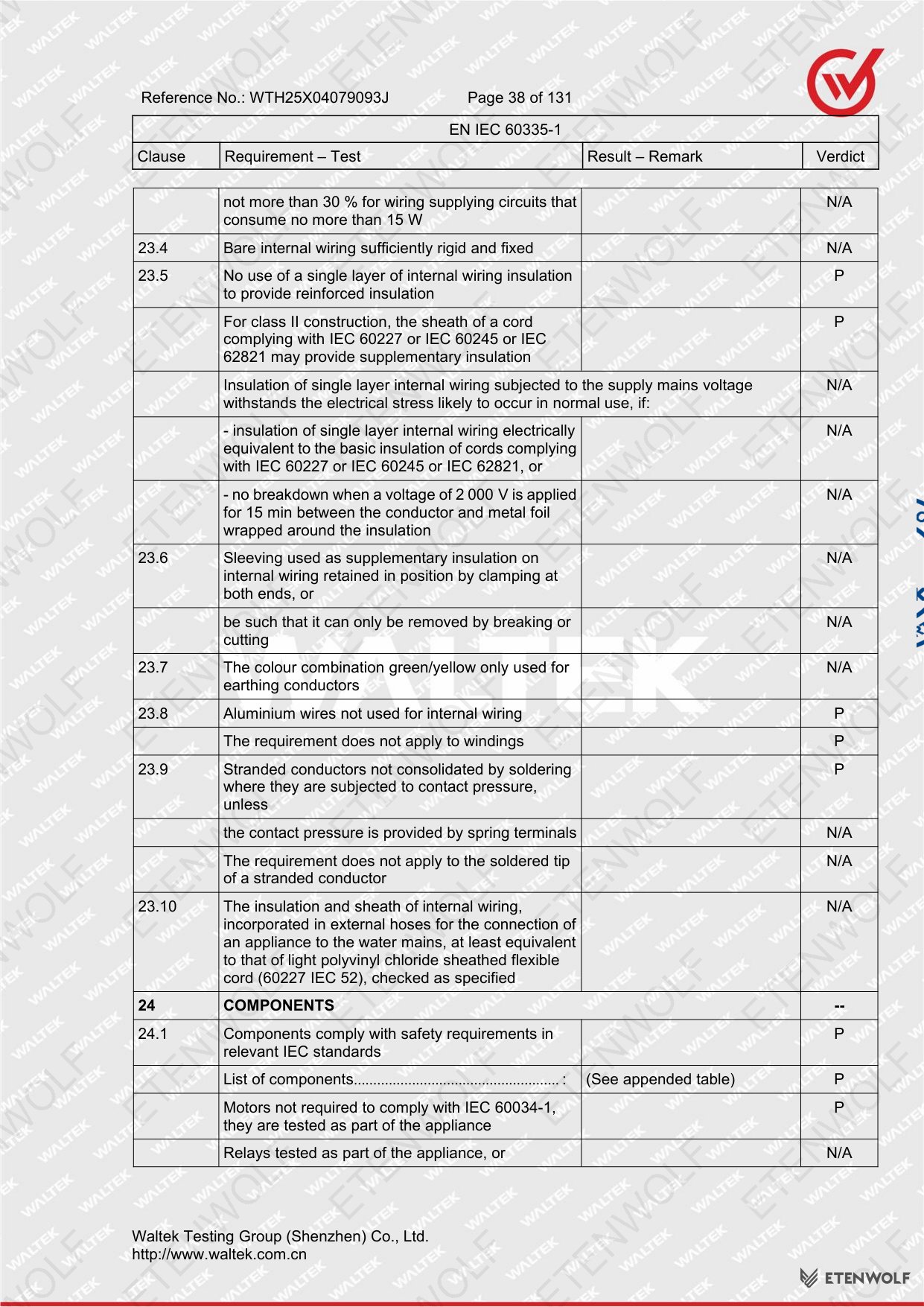

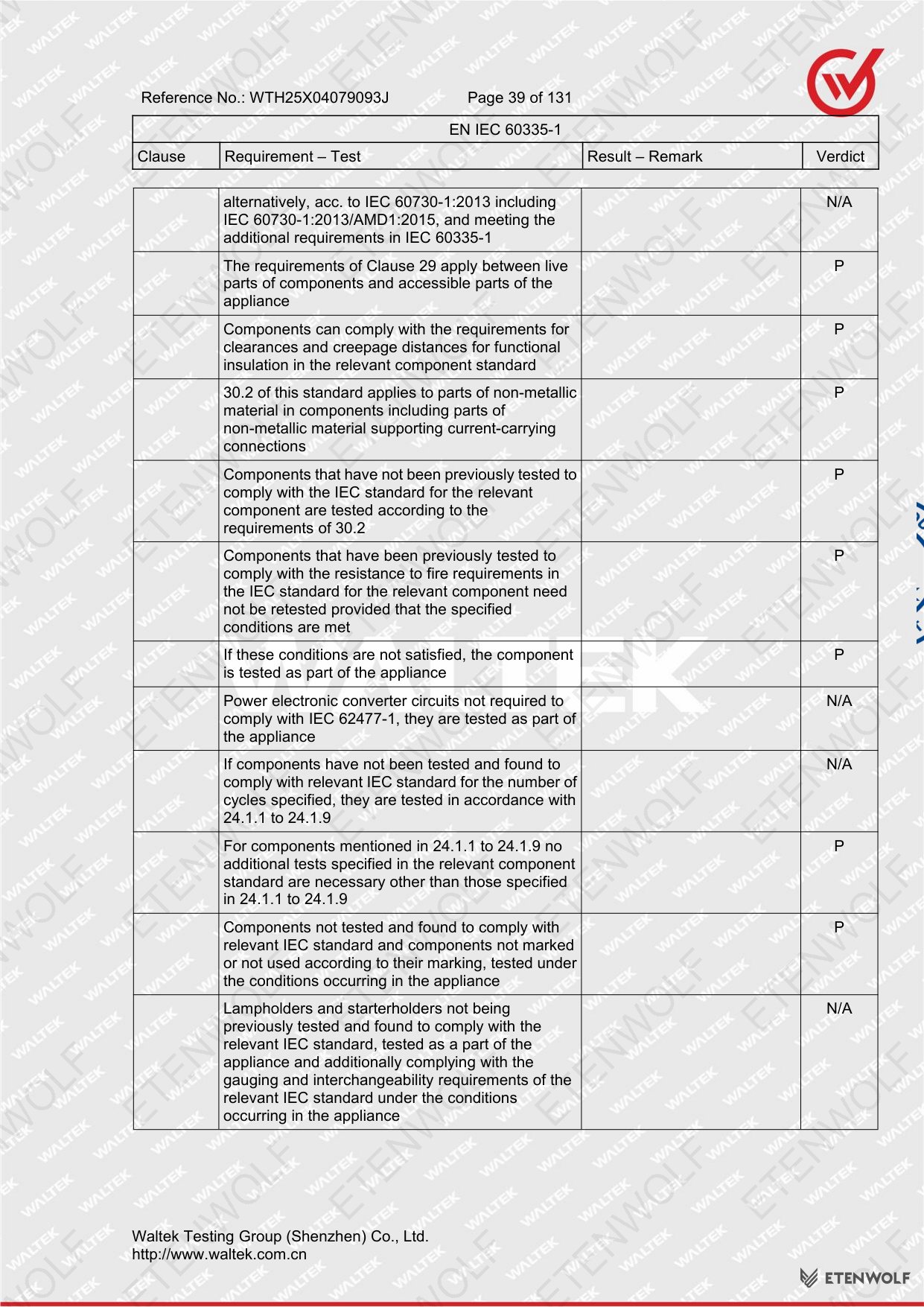

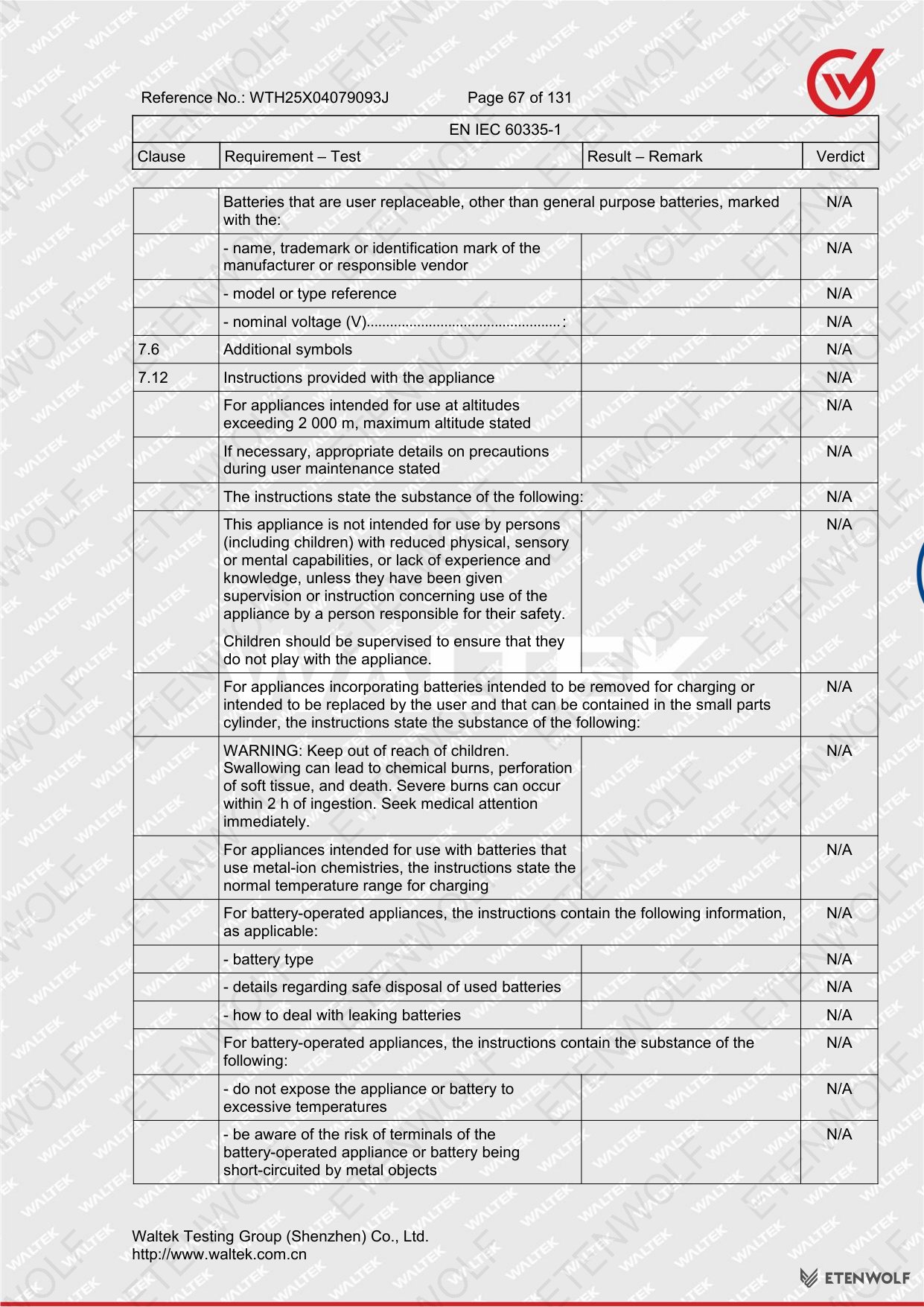

Document Page 38

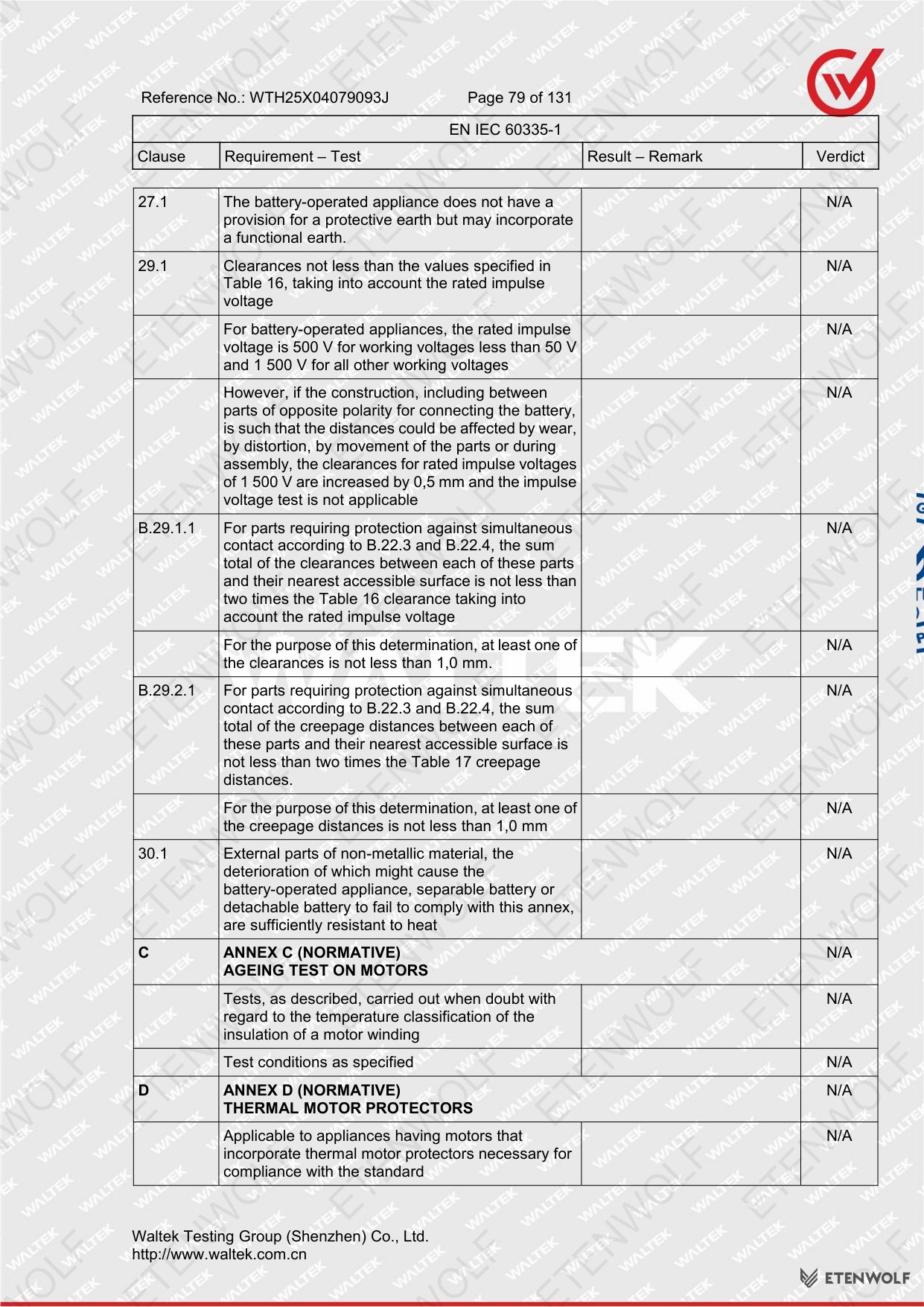

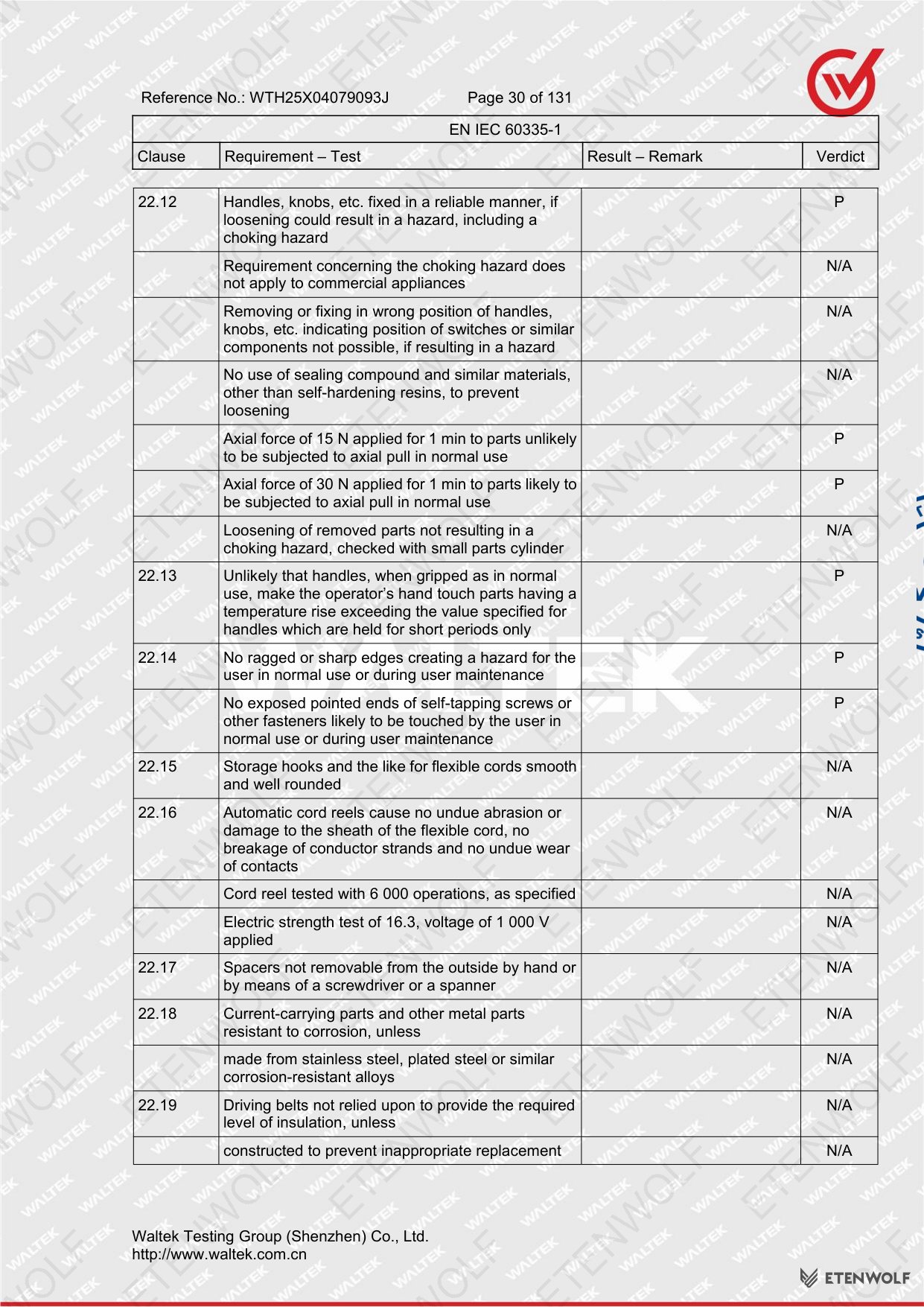

Document Page 39

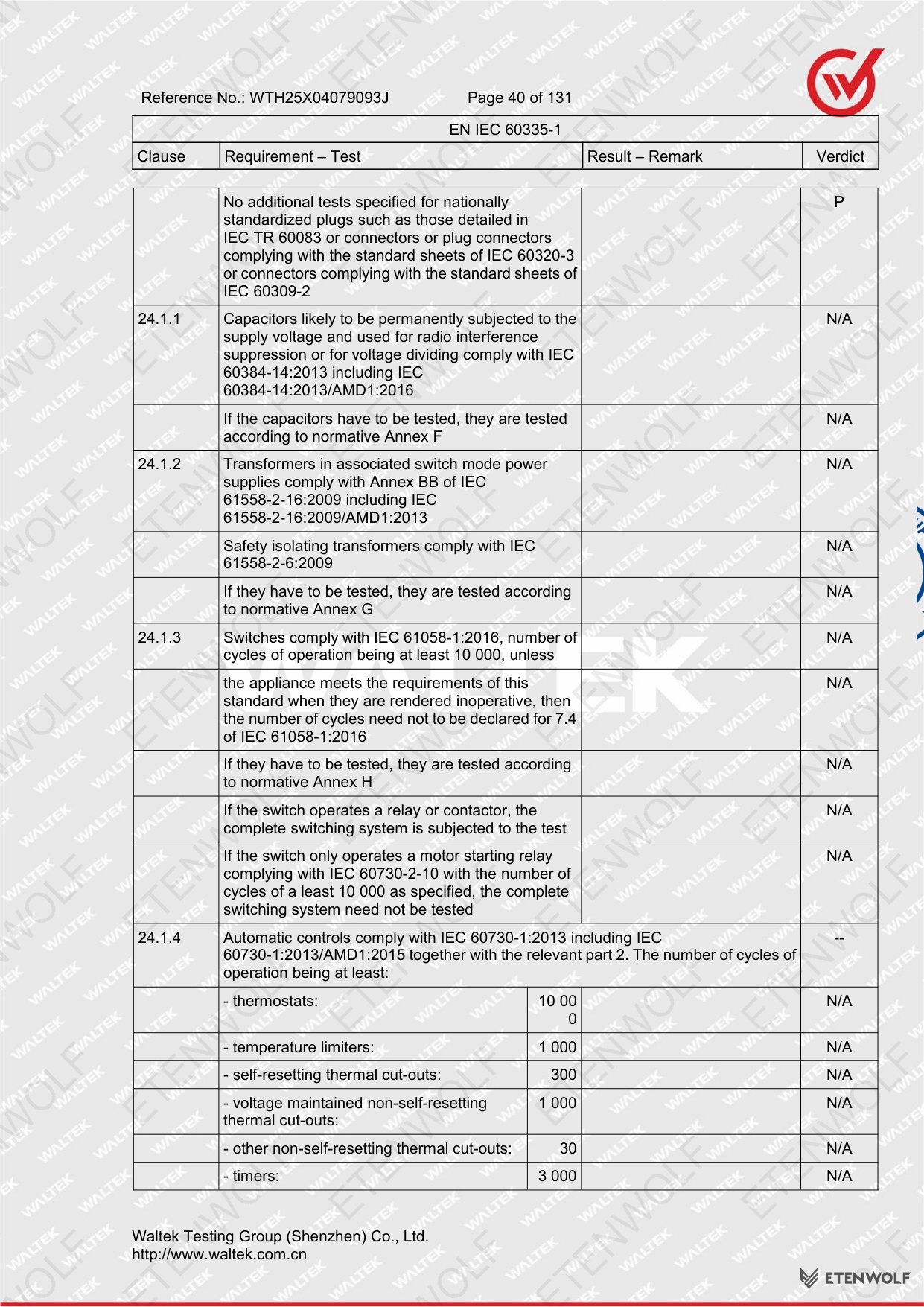

Document Page 40

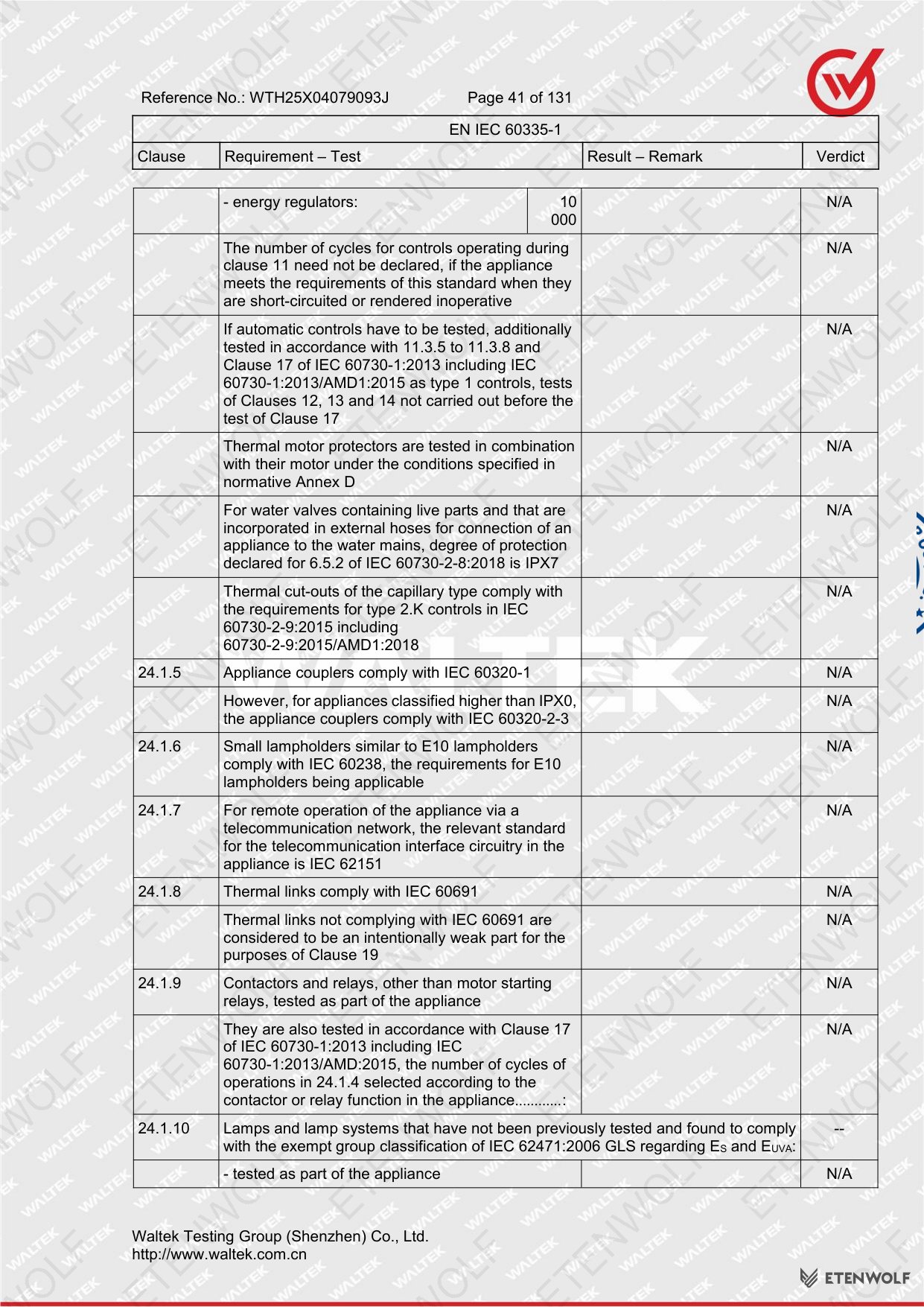

Document Page 41
Document Page 42

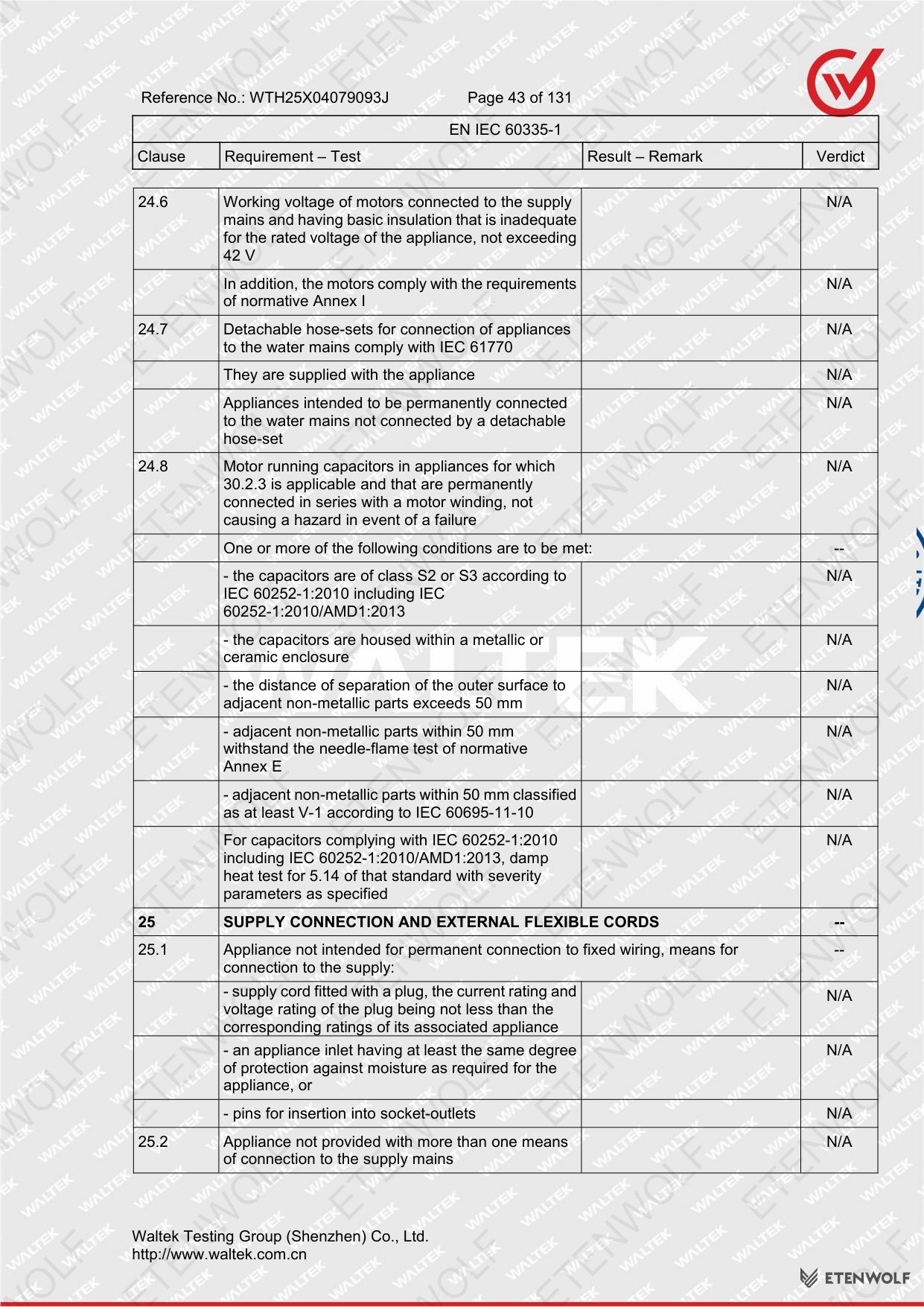

Document Page 43

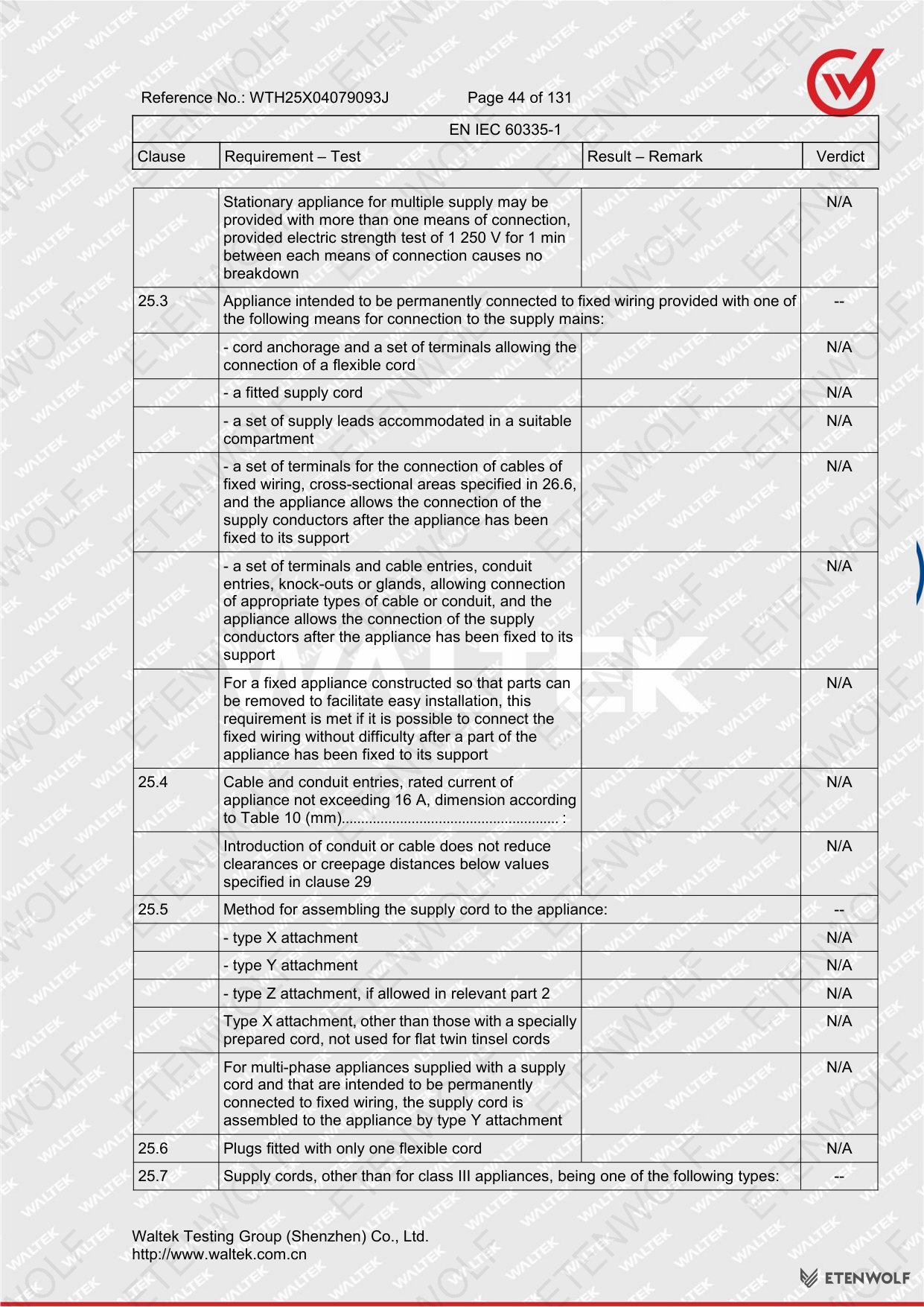

Document Page 44

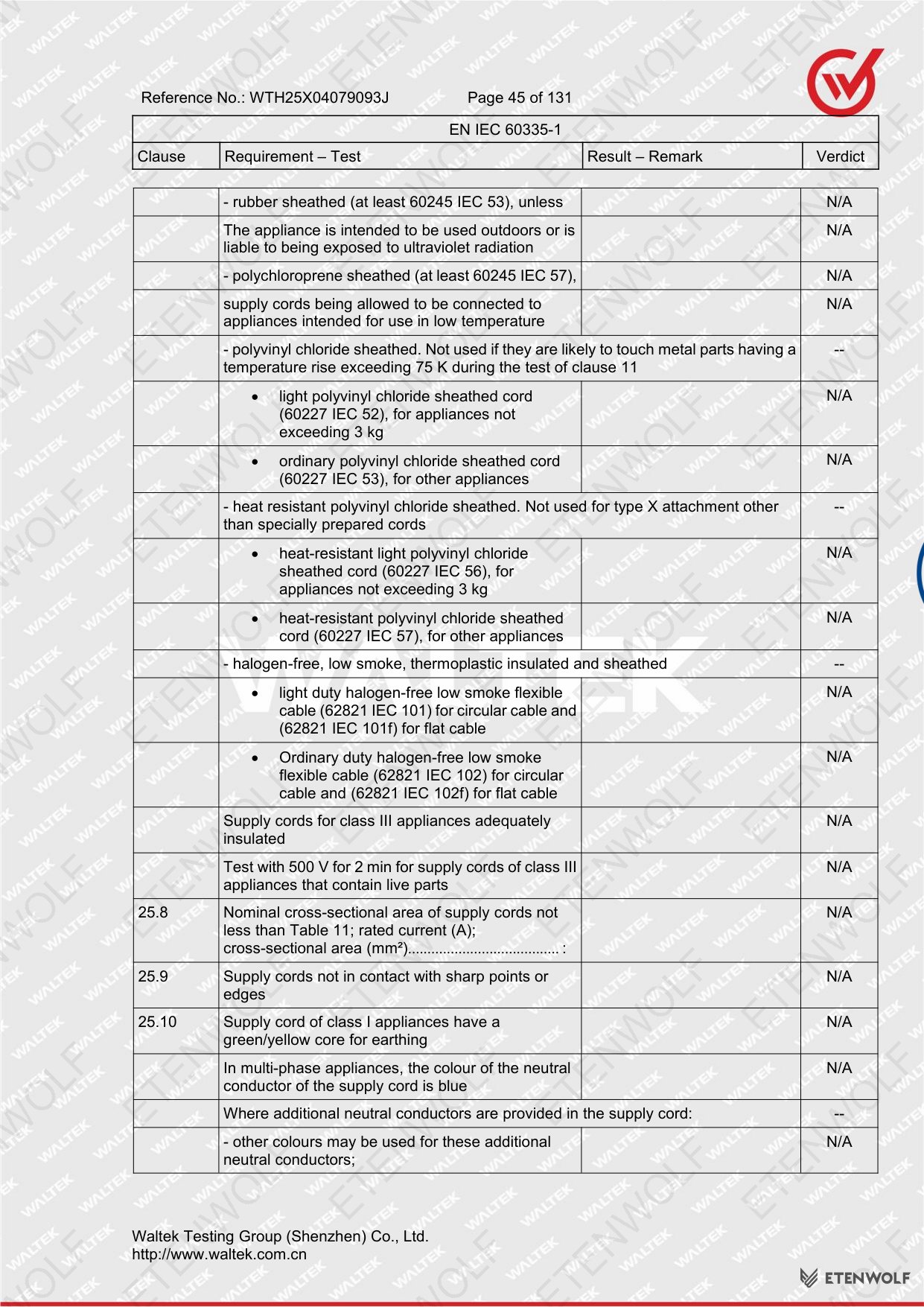

Document Page 45

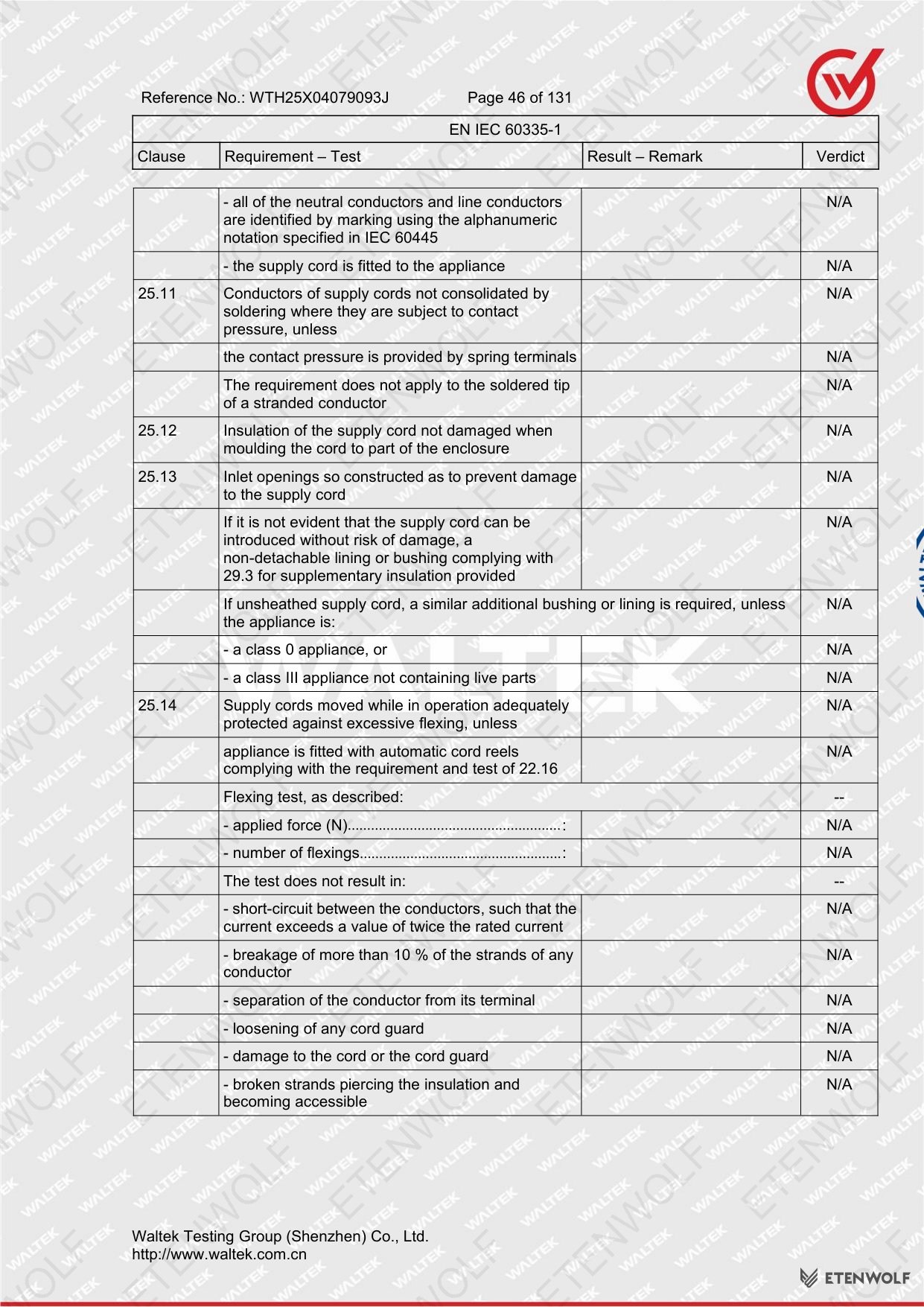

Document Page 46

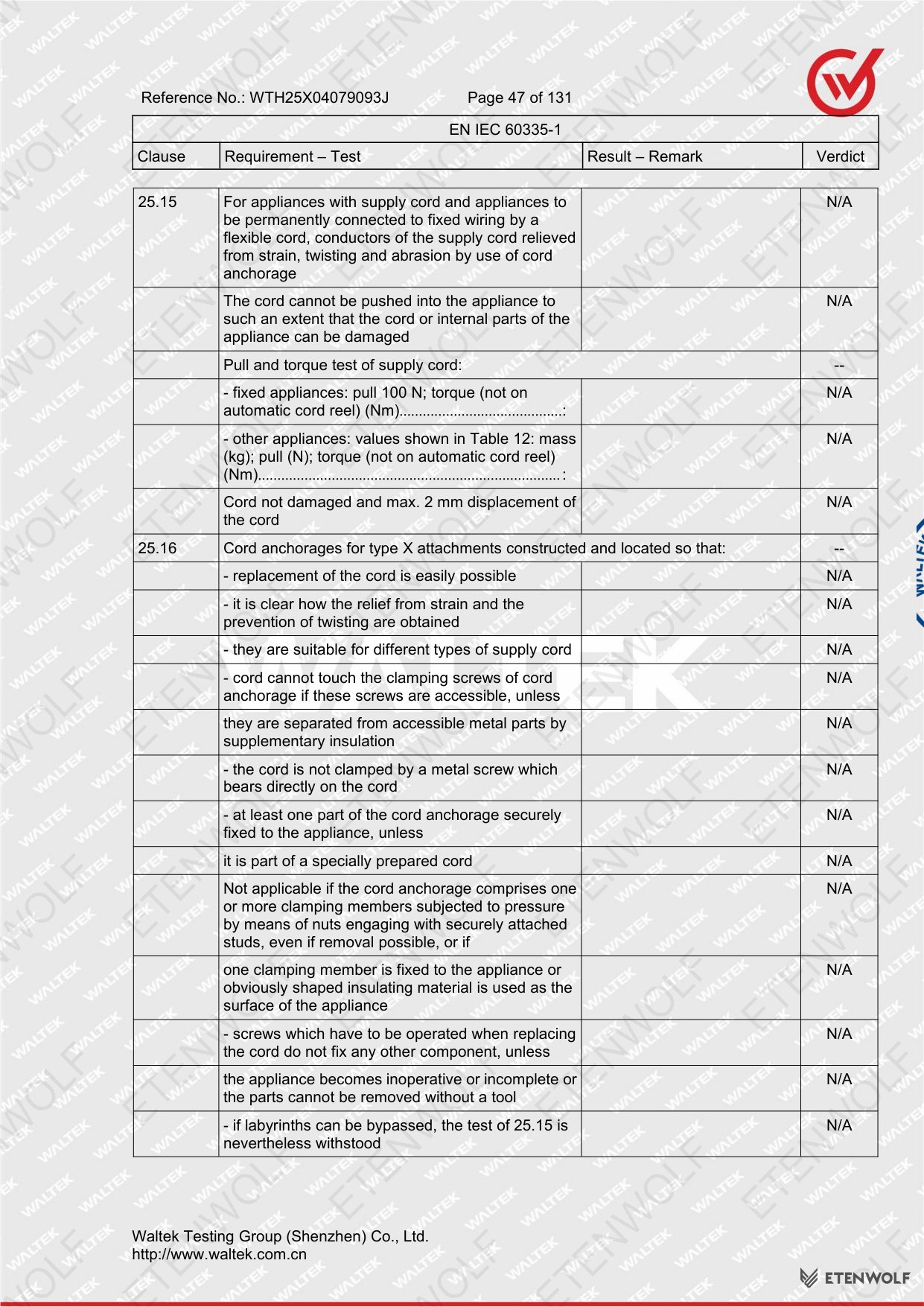

Document Page 47
Document Page 48
Document Page 49

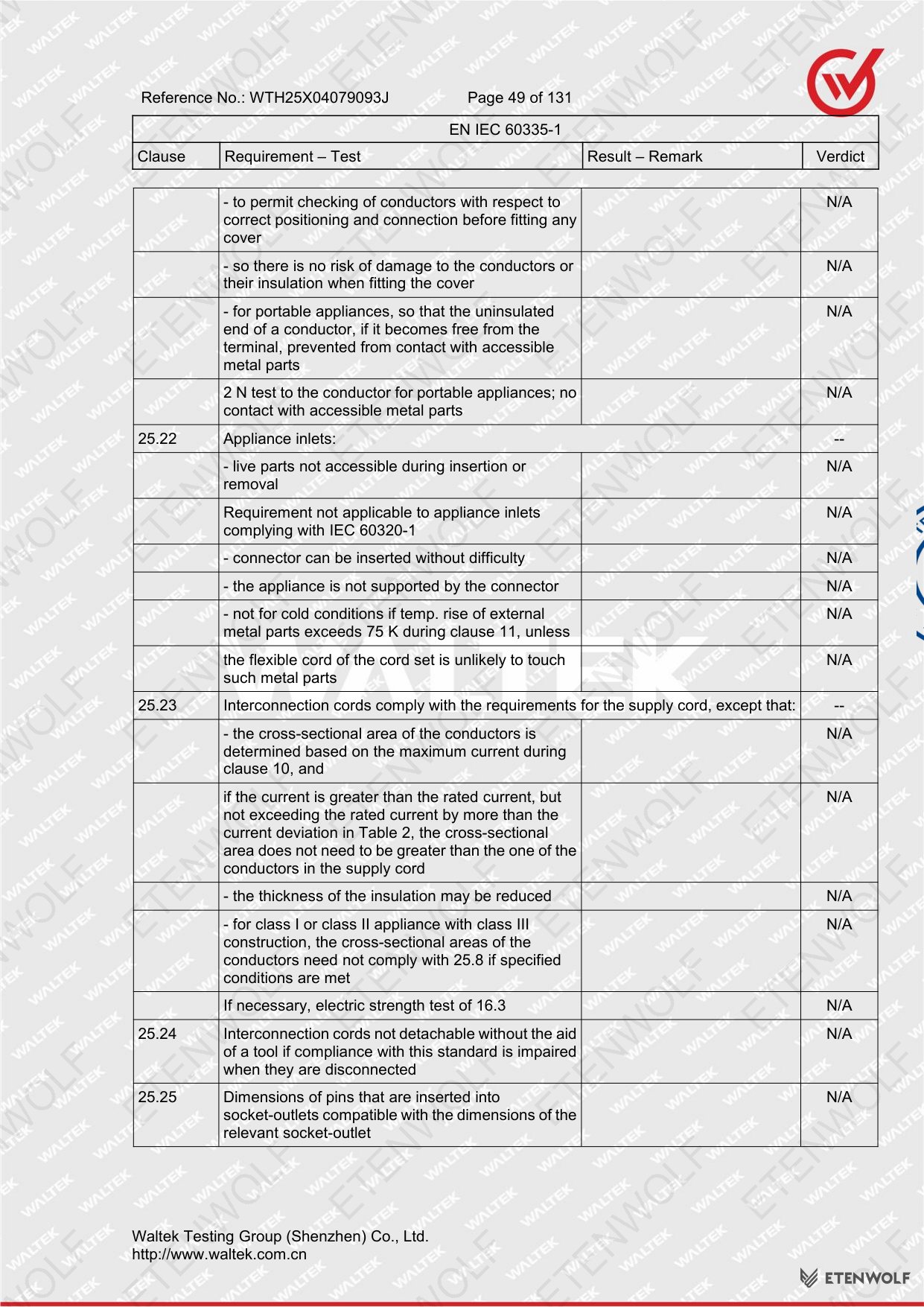

Document Page 50

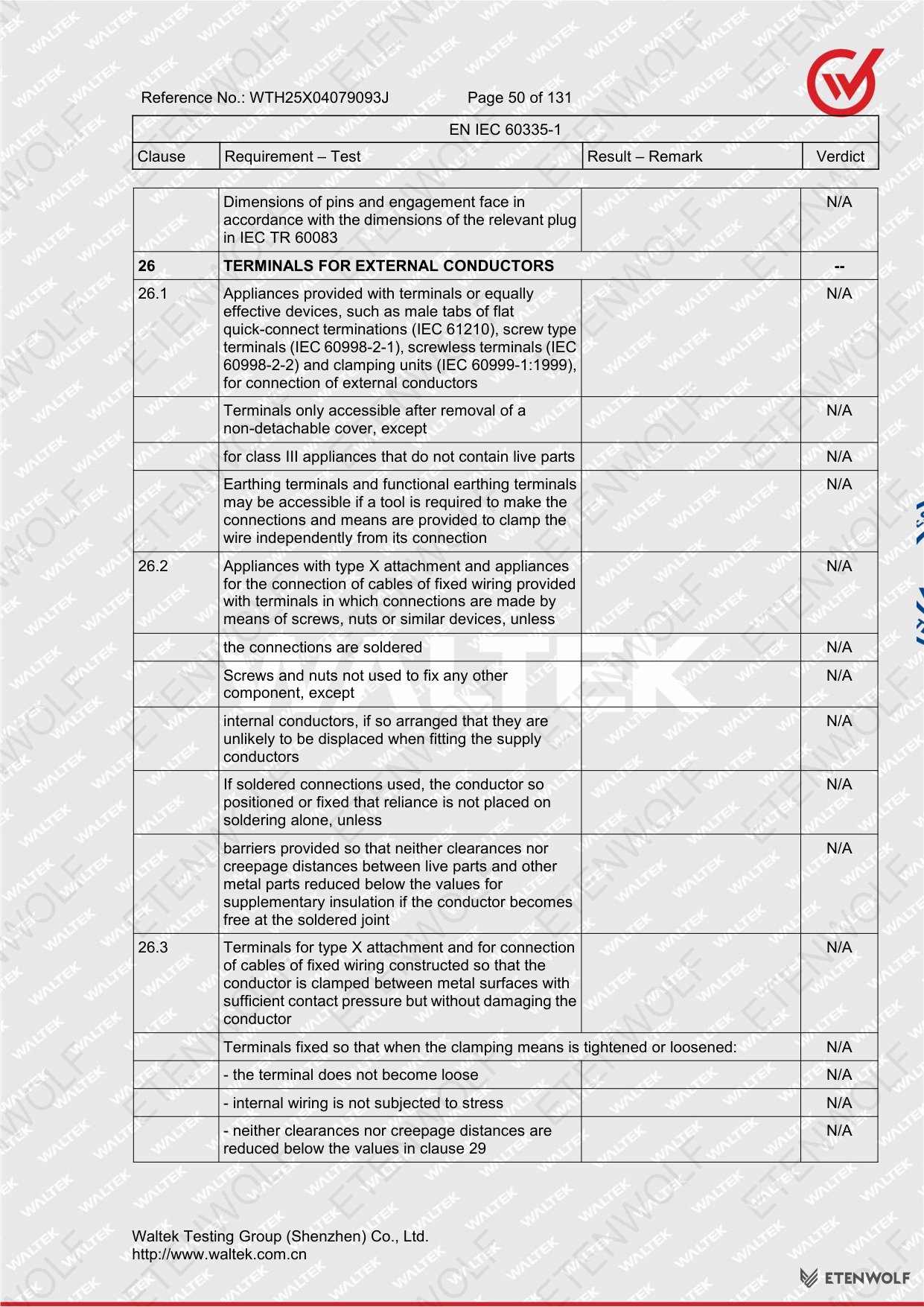

Document Page 51

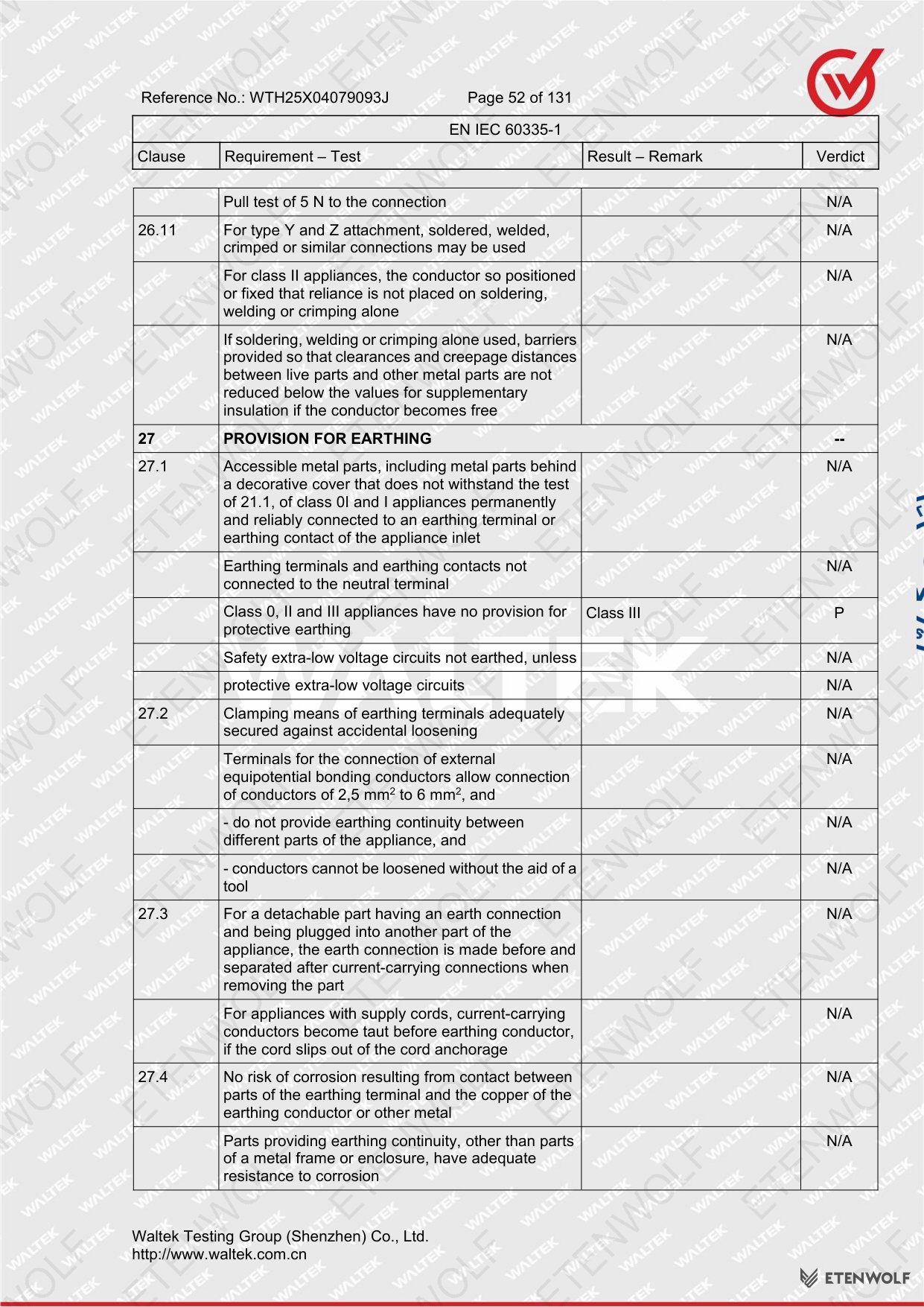

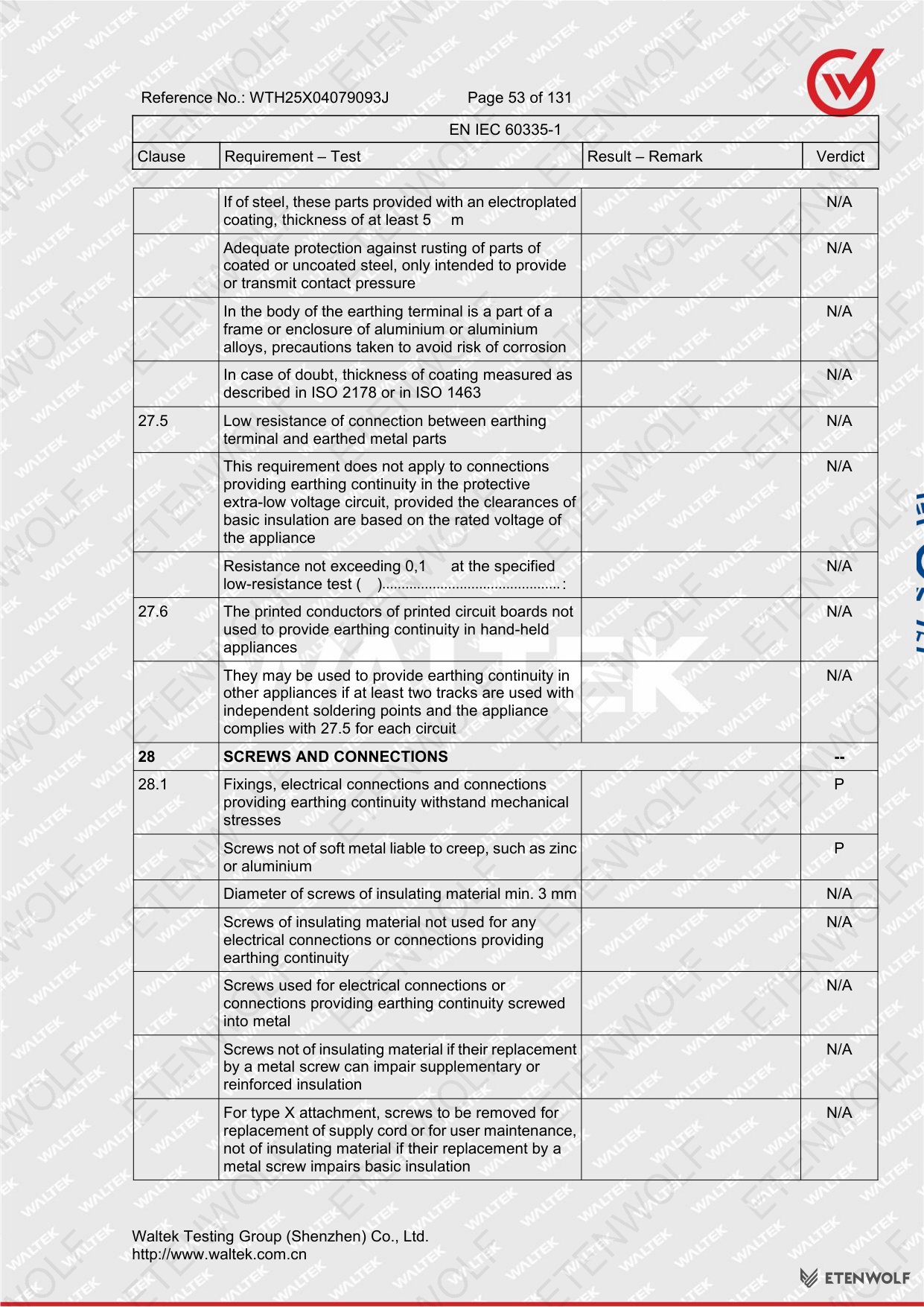

Document Page 52
Document Page 53
Document Page 54
Document Page 55

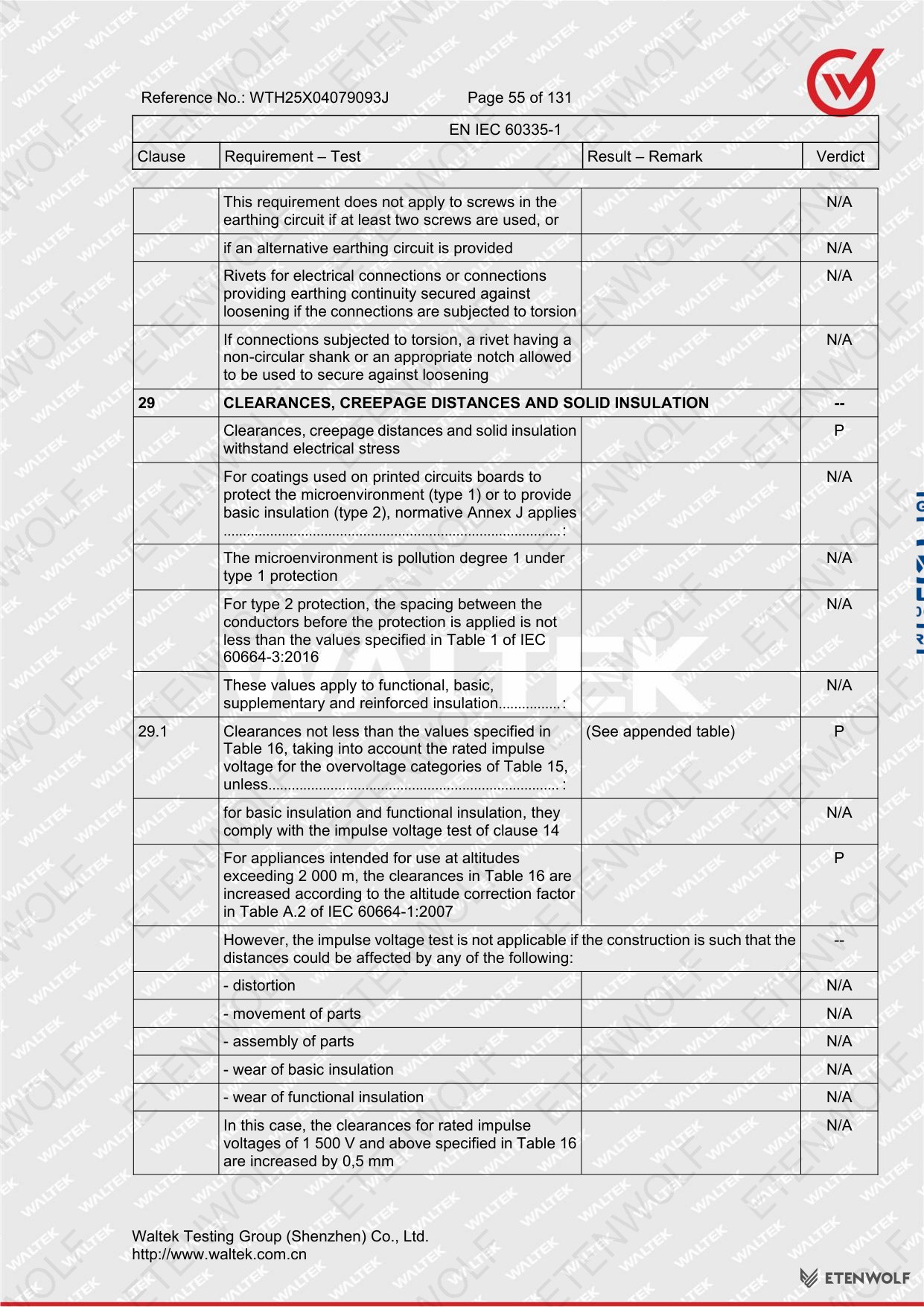

Document Page 56

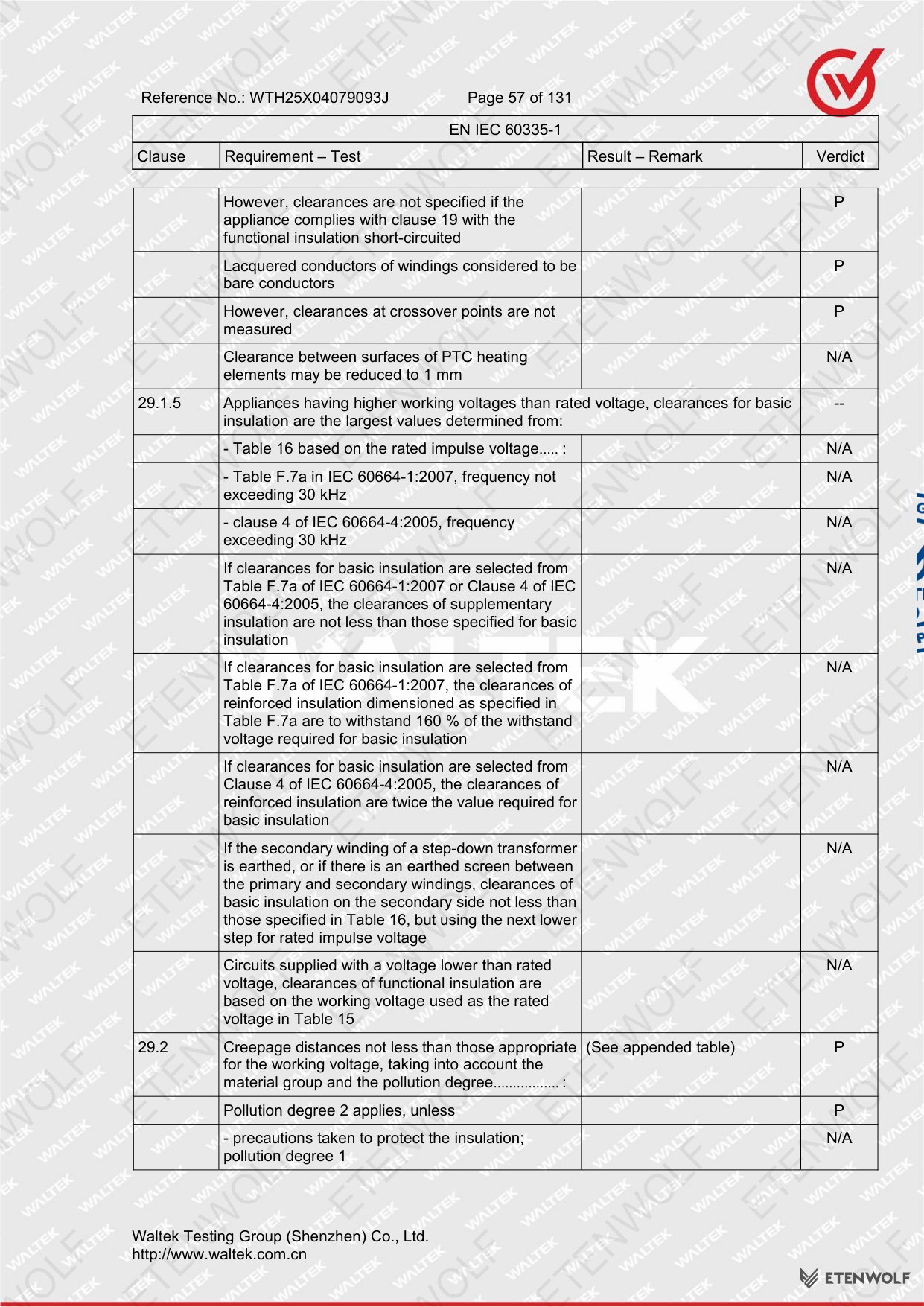

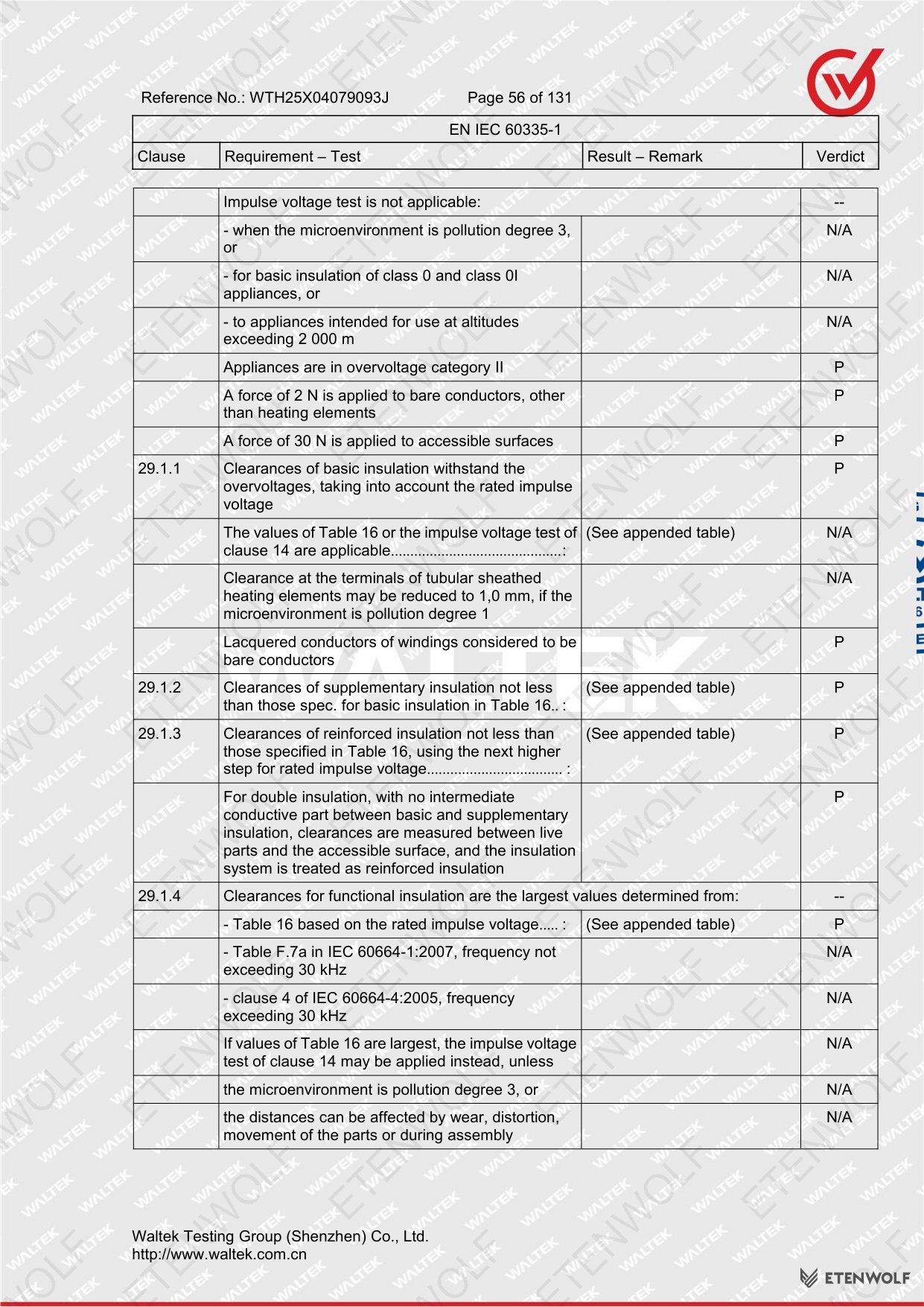

Document Page 57

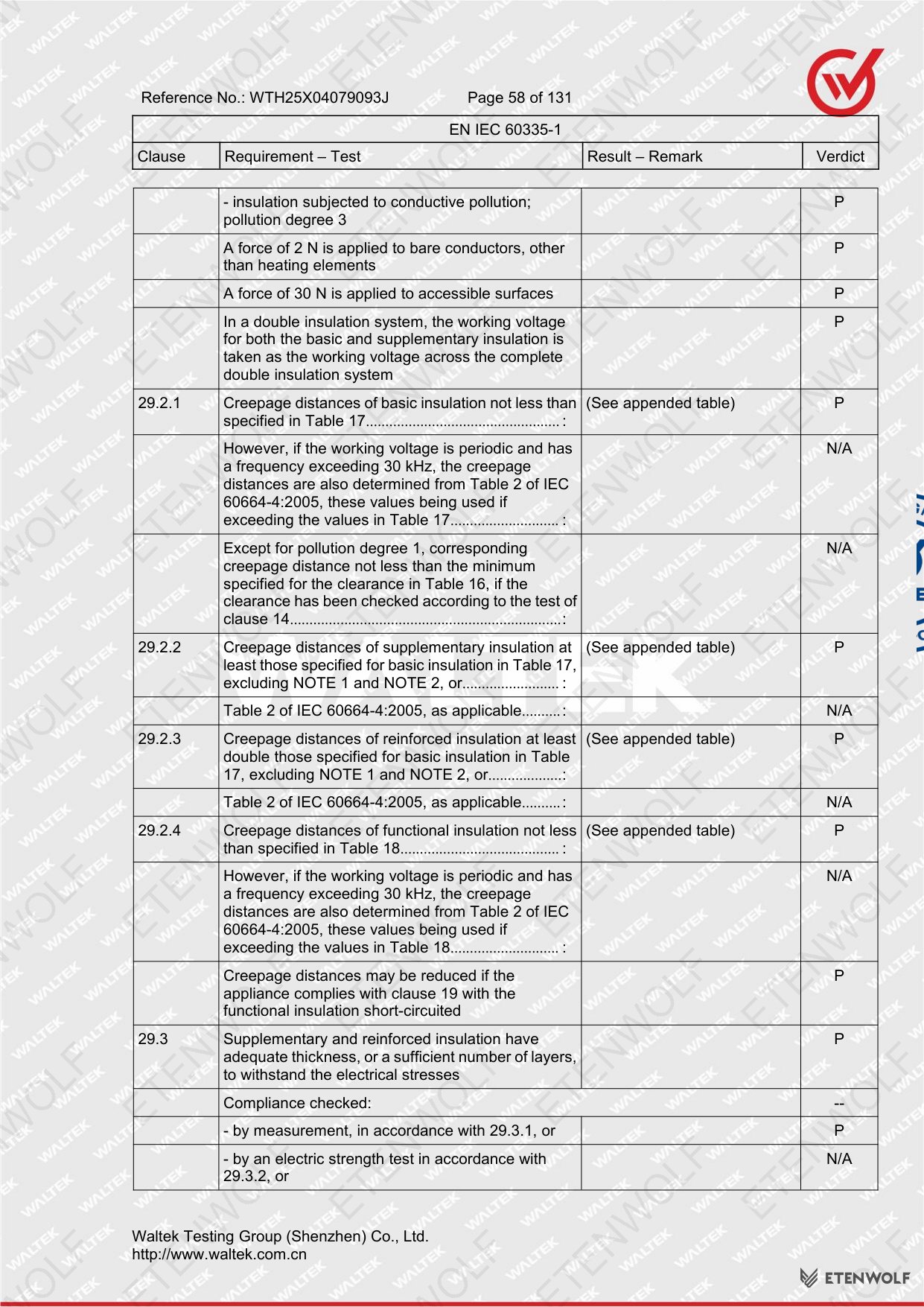

Document Page 58
Document Page 59

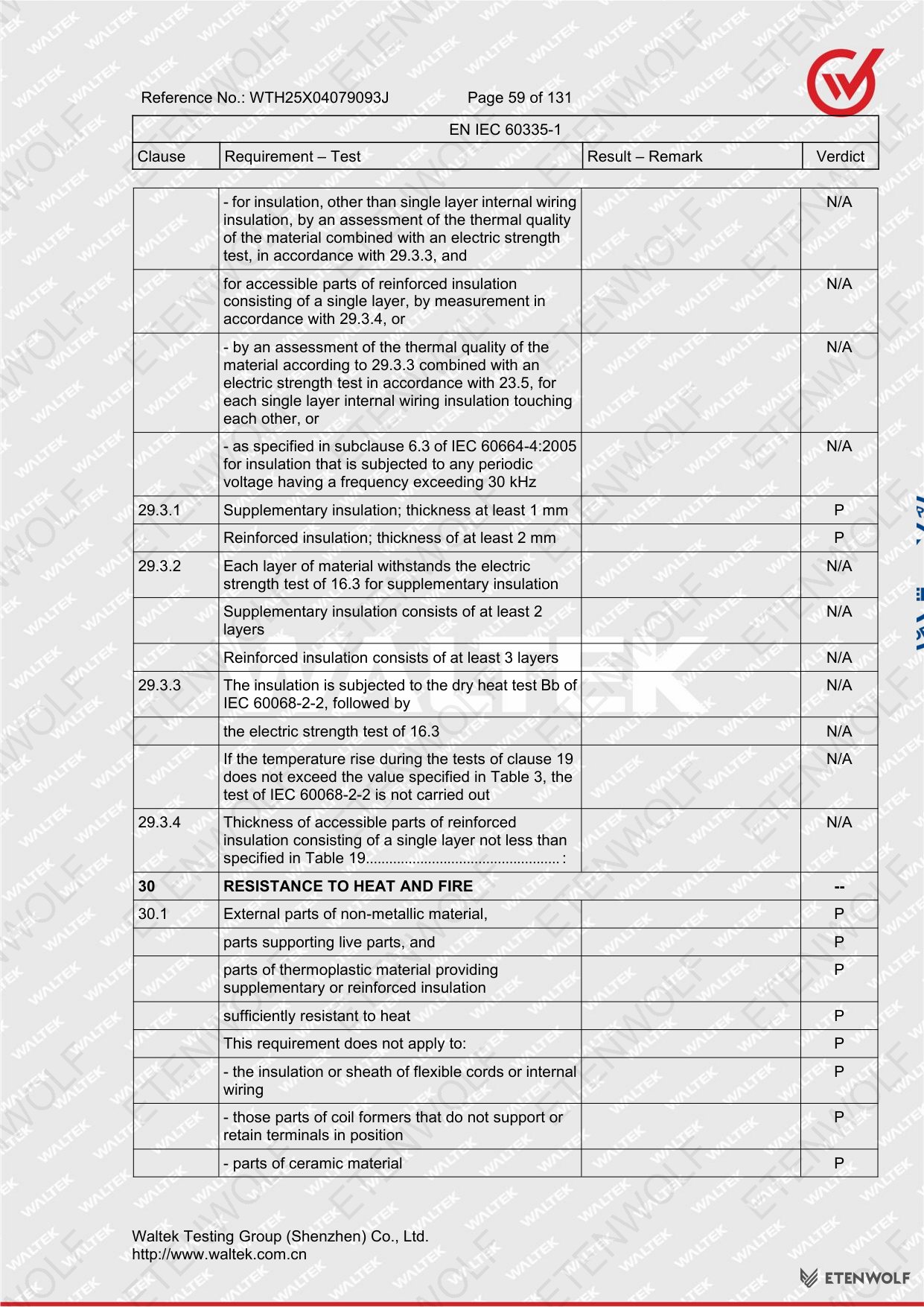

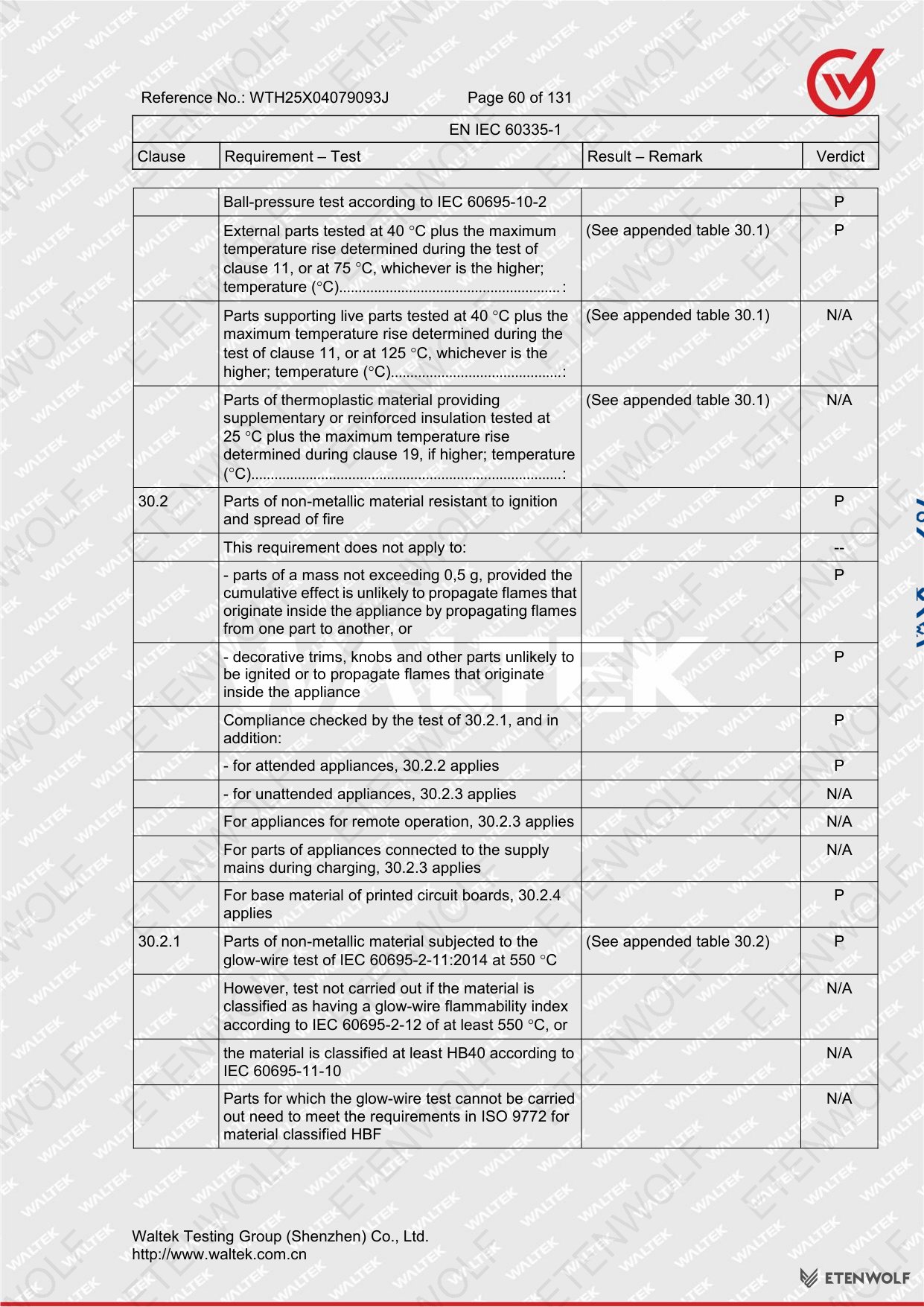

Document Page 60
Document Page 61
Document Page 62

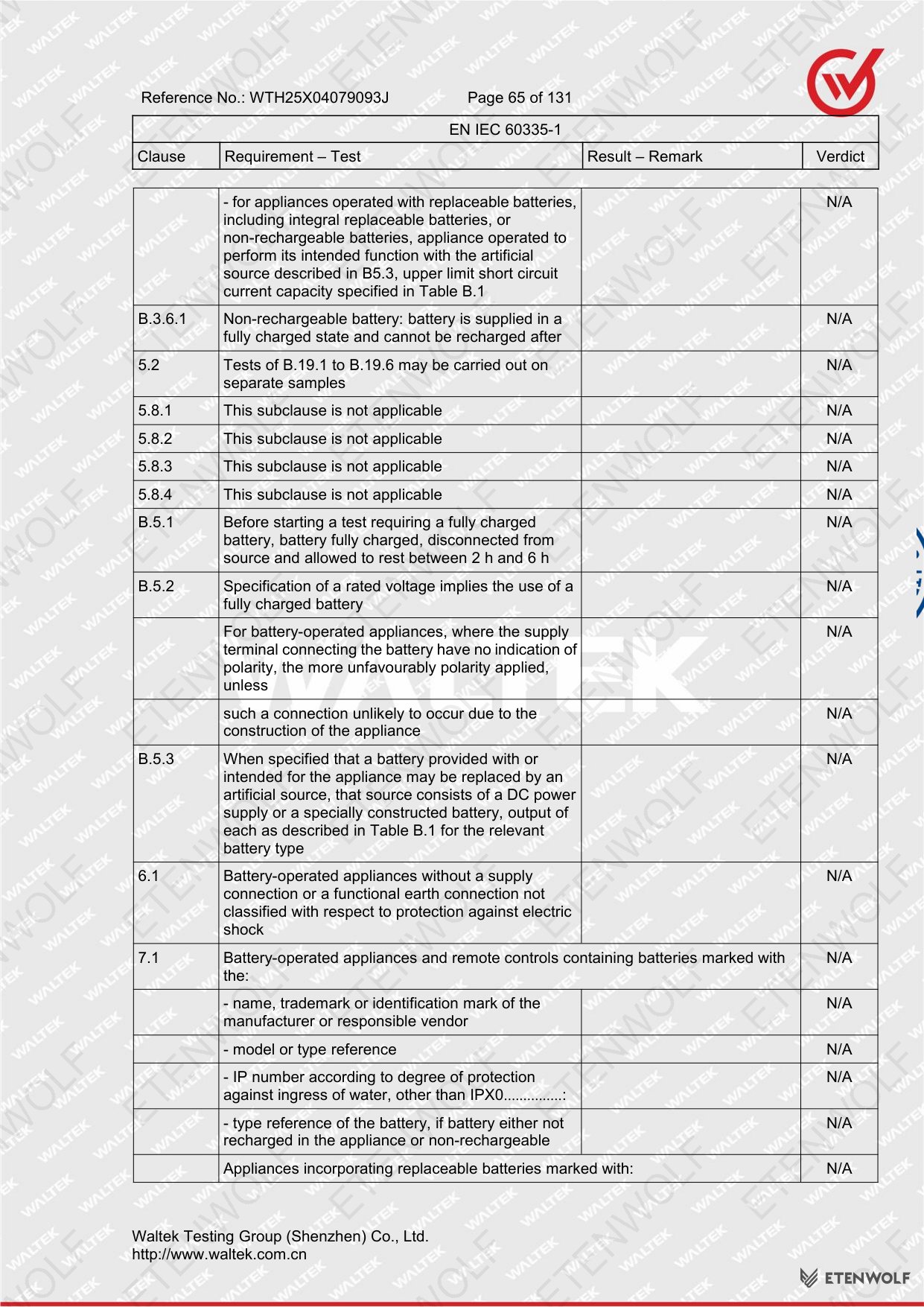

Document Page 63
Document Page 64
Document Page 65

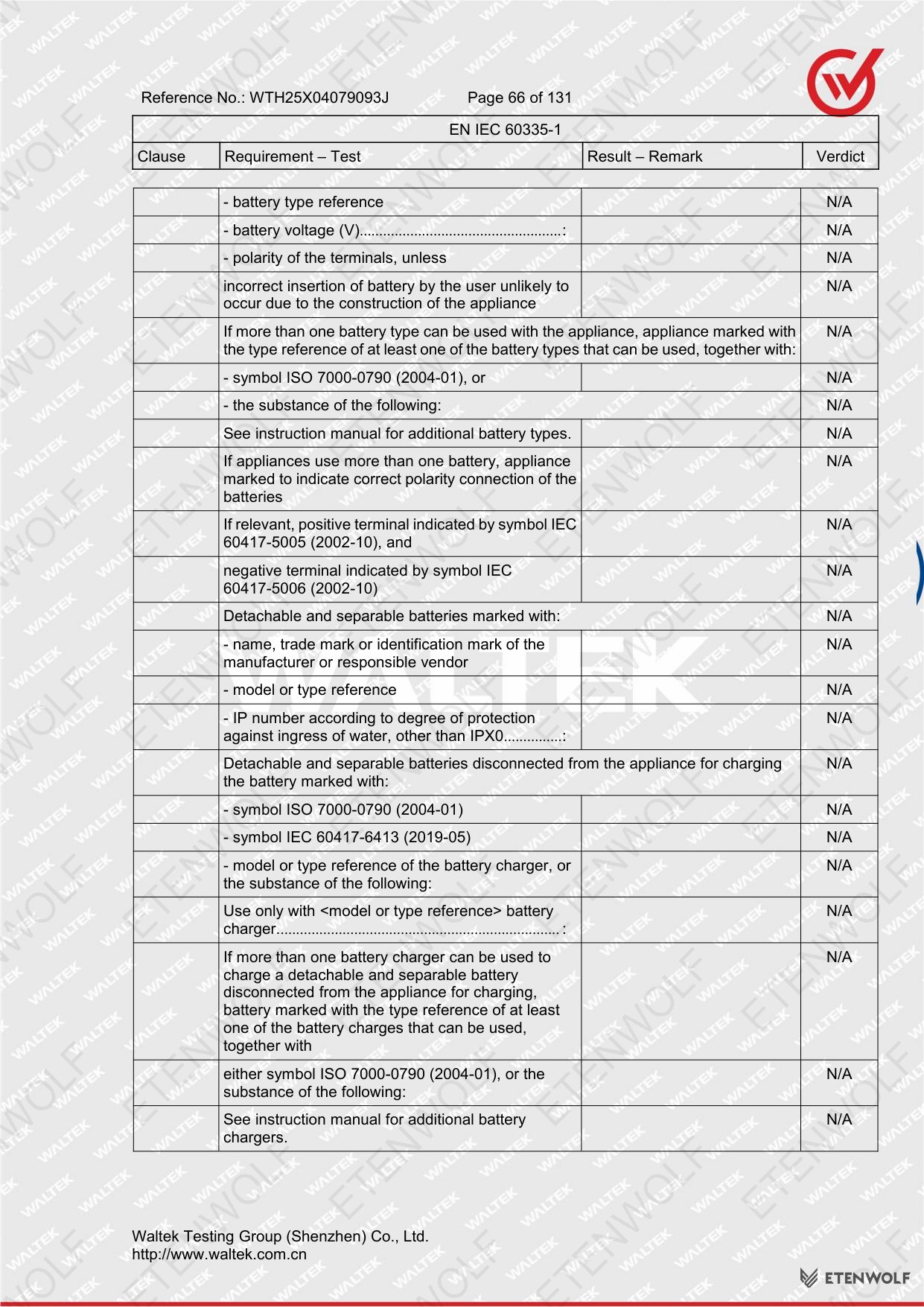

Document Page 66

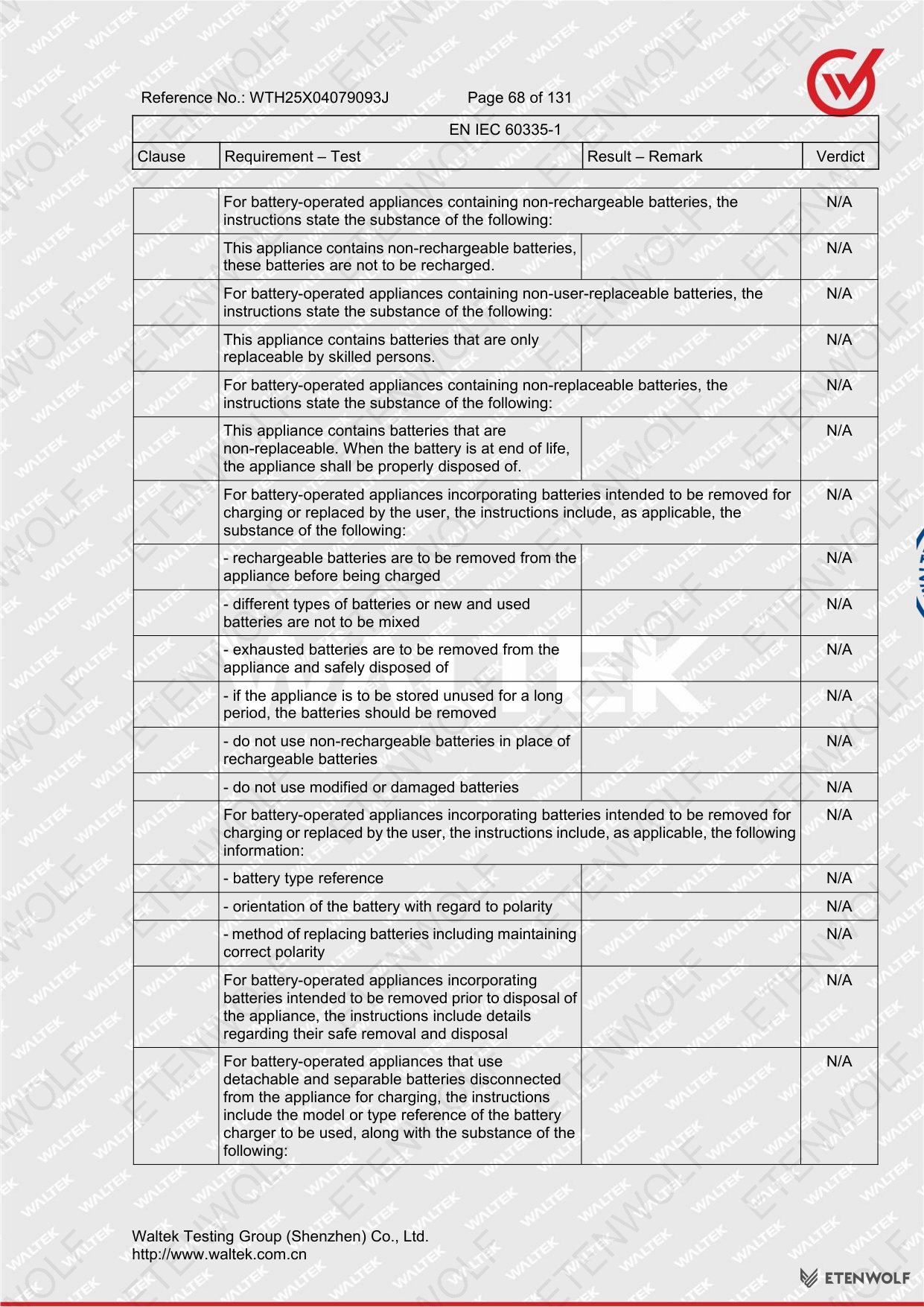

Document Page 67
Document Page 68
Document Page 69
Document Page 70

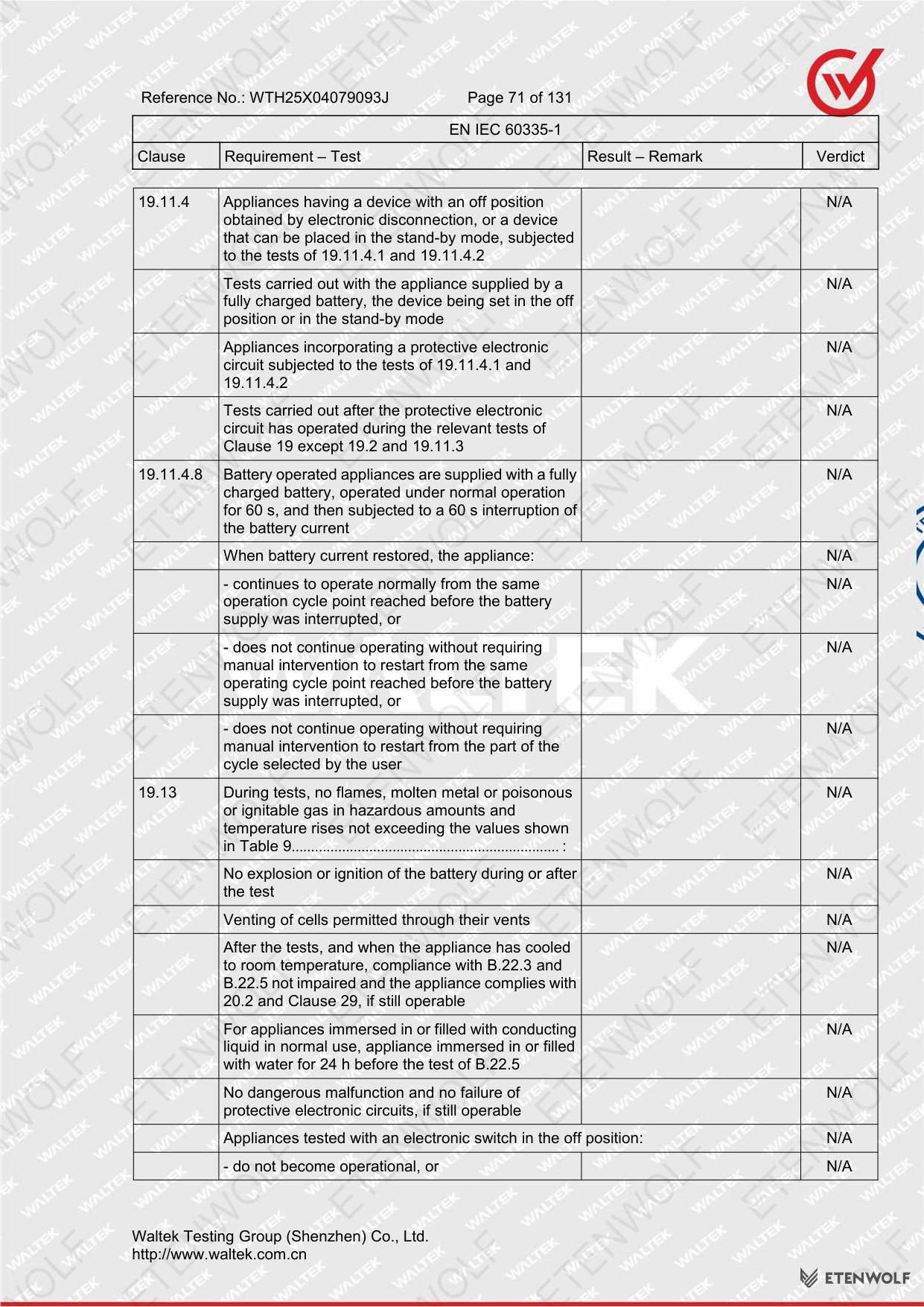

Document Page 71
Document Page 72

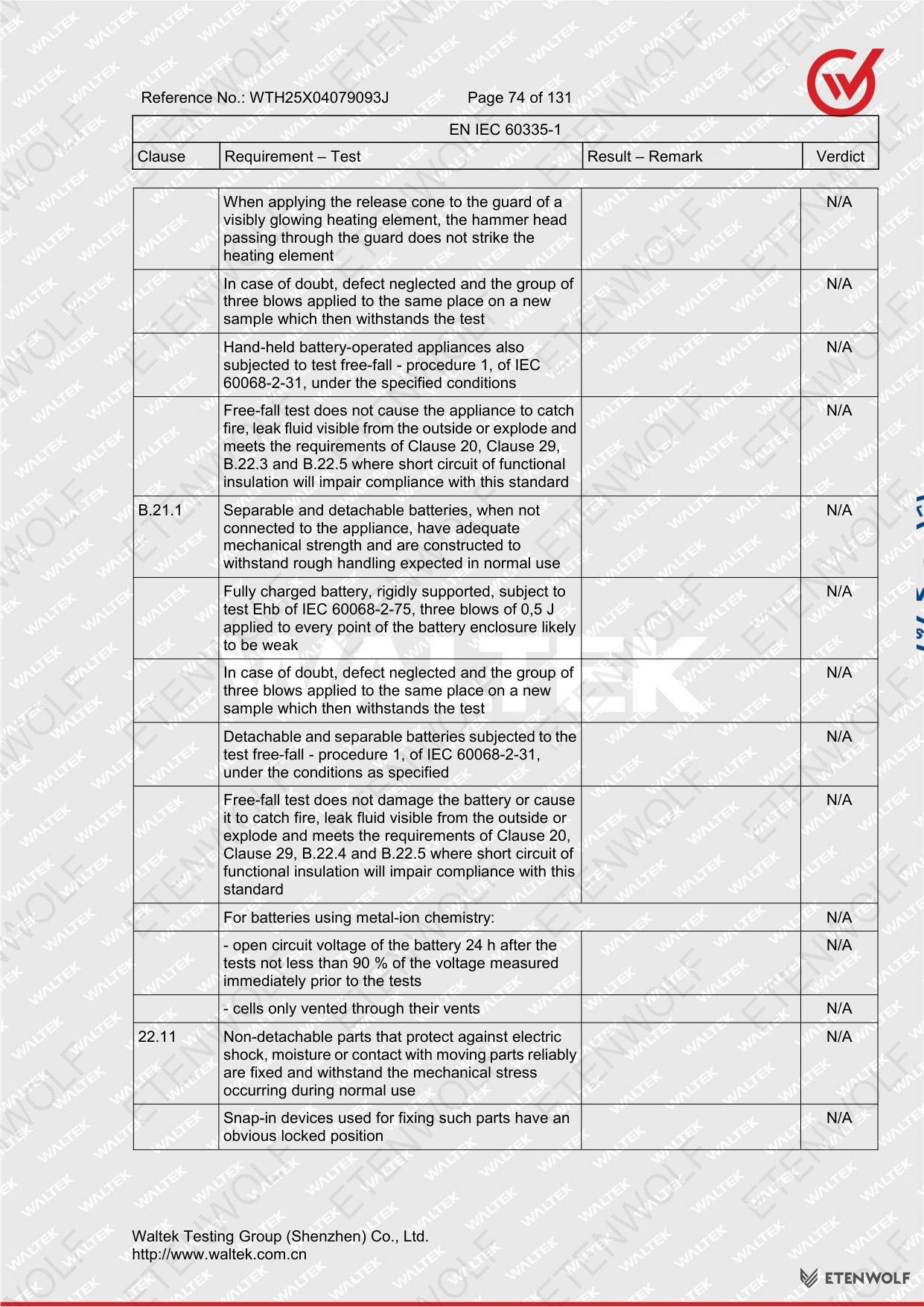

Document Page 73
Document Page 74

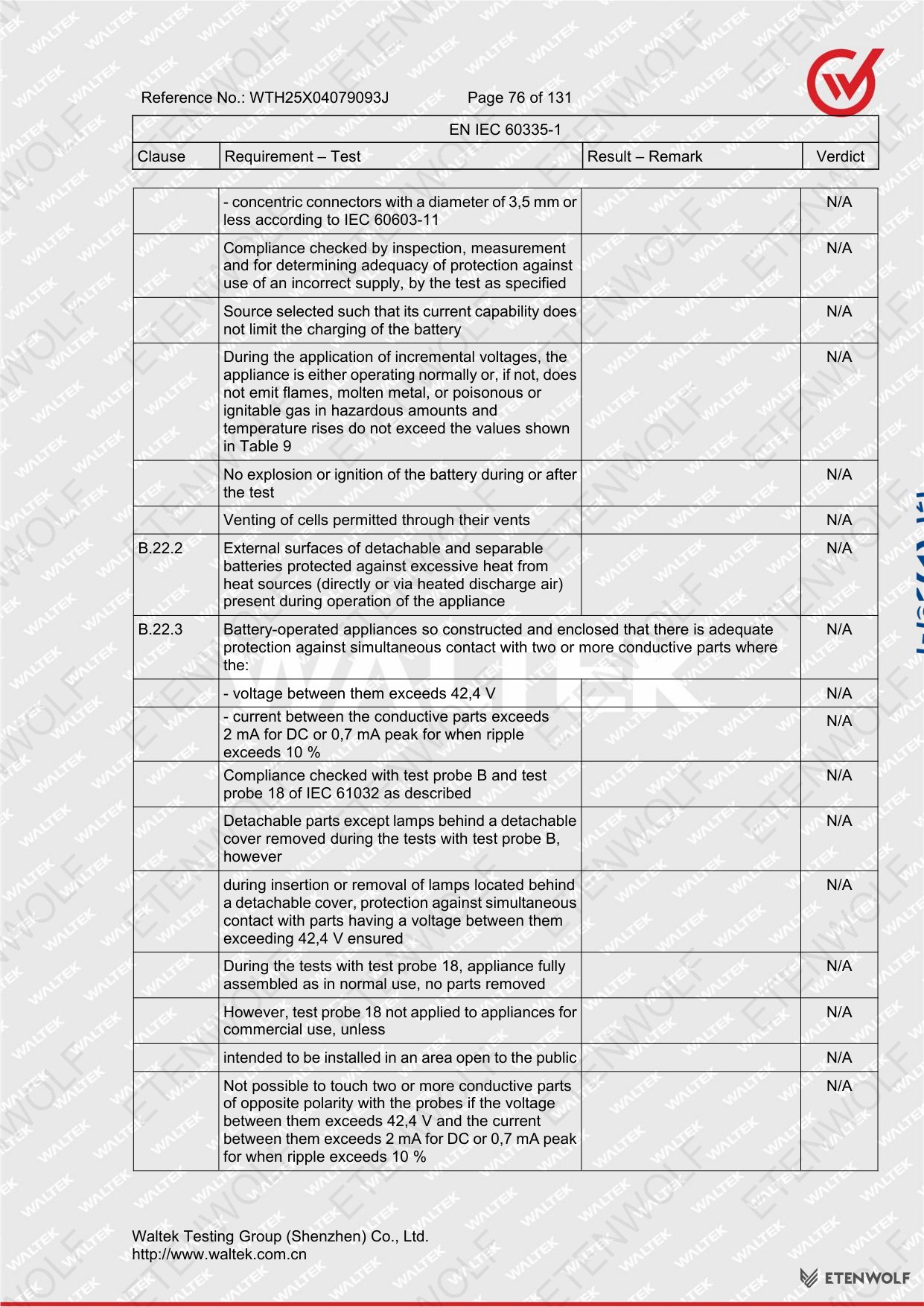

Document Page 75
Document Page 76
Document Page 77

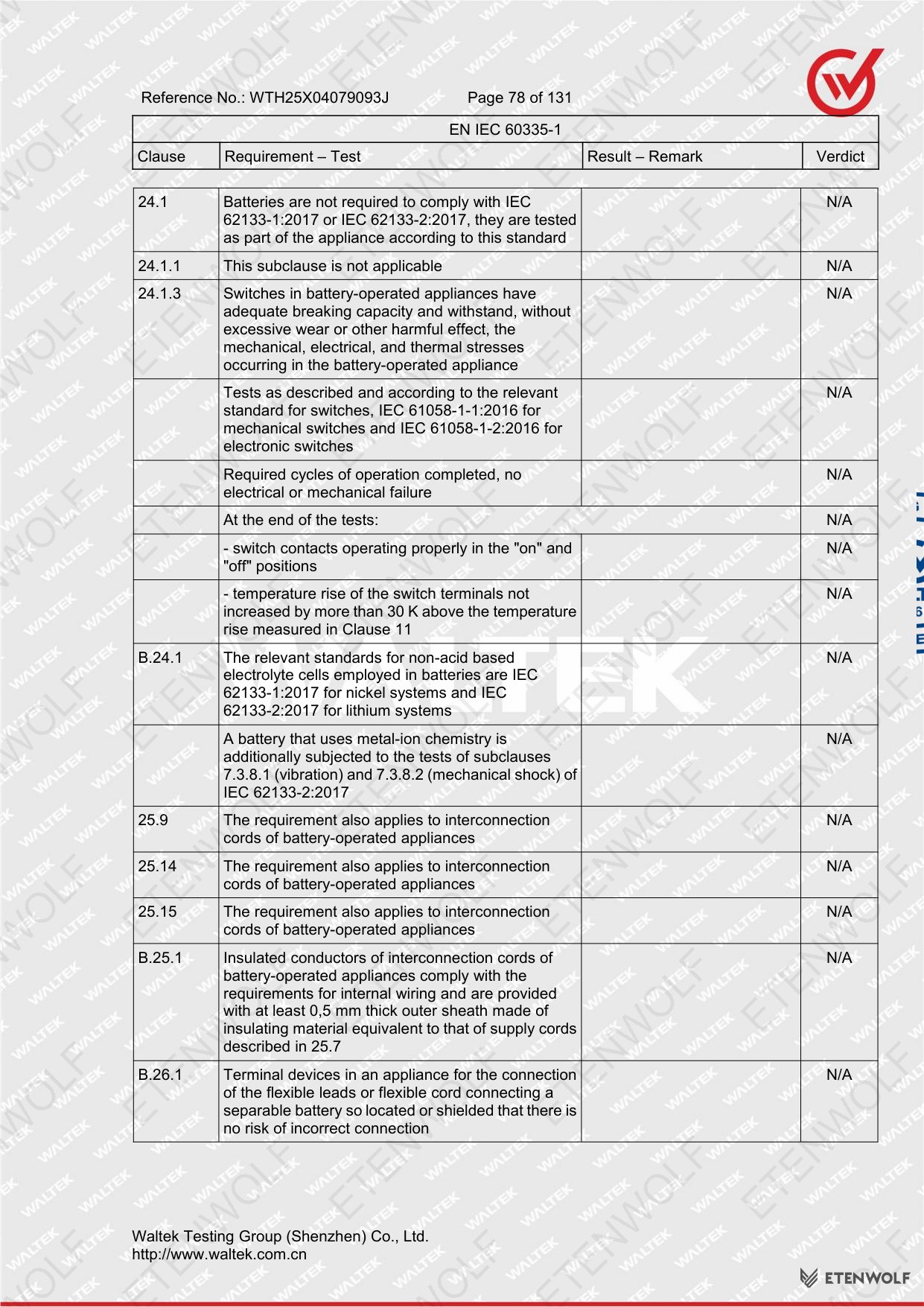

Document Page 78

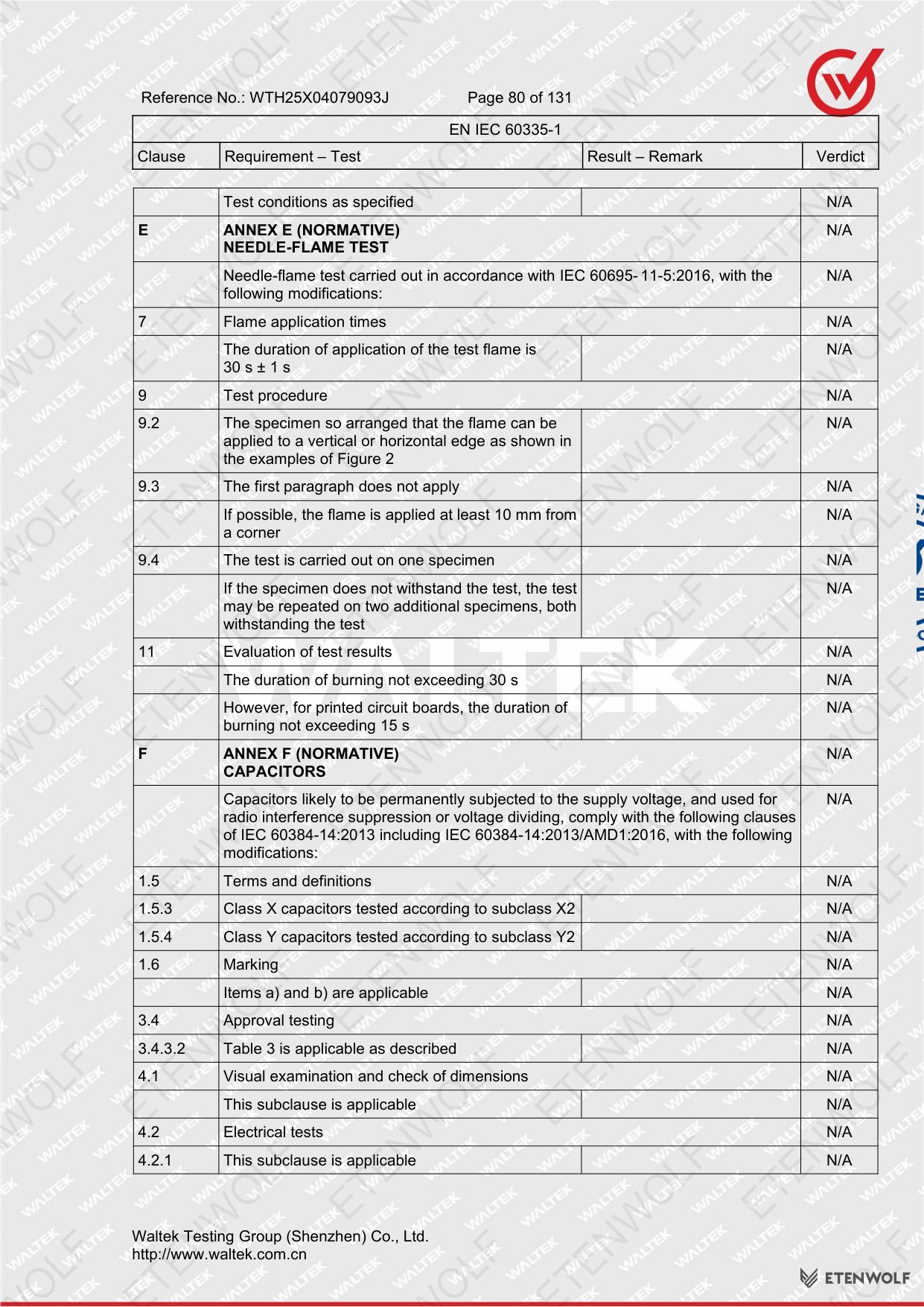

Document Page 79
Document Page 80
Document Page 81
Document Page 82

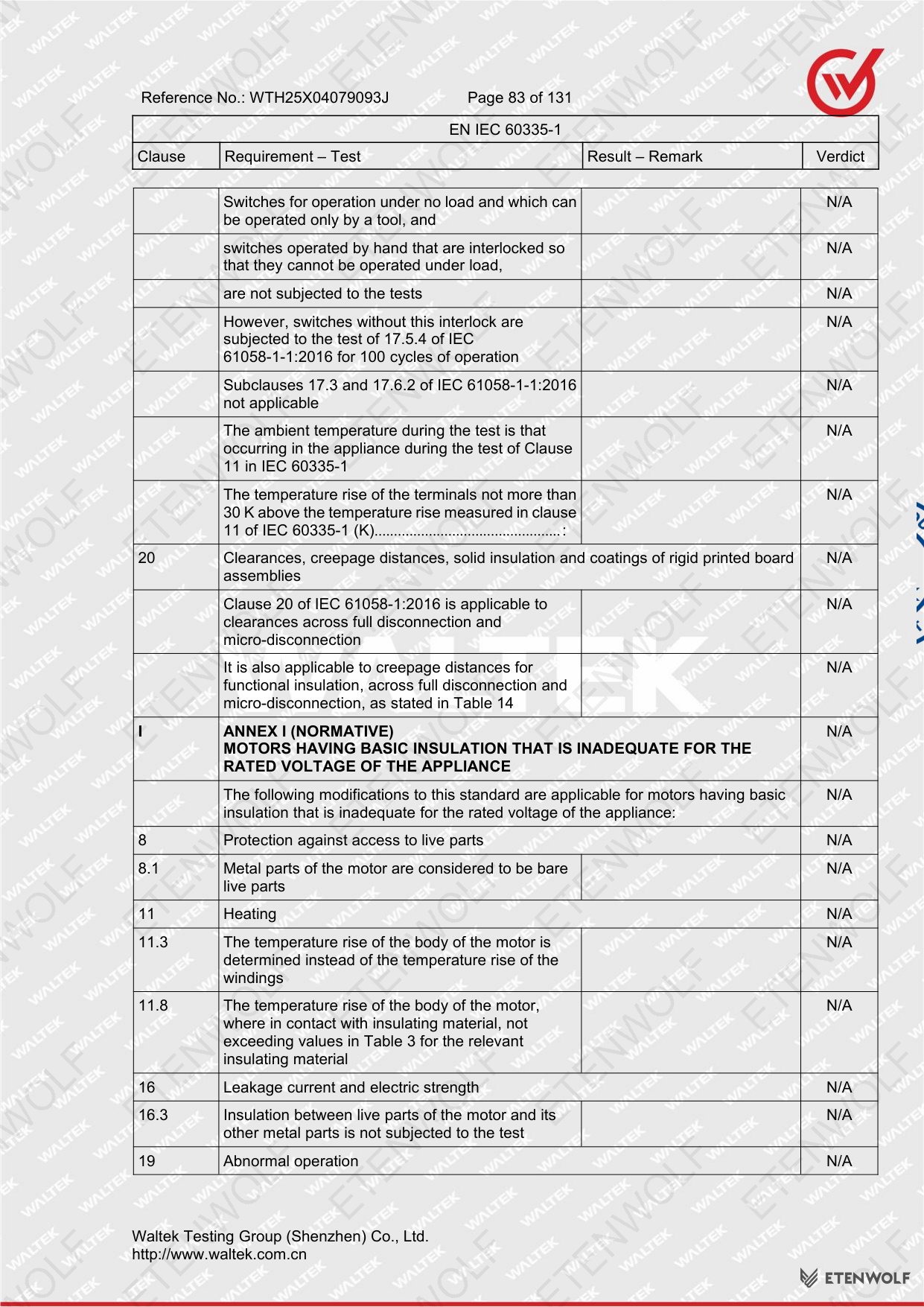

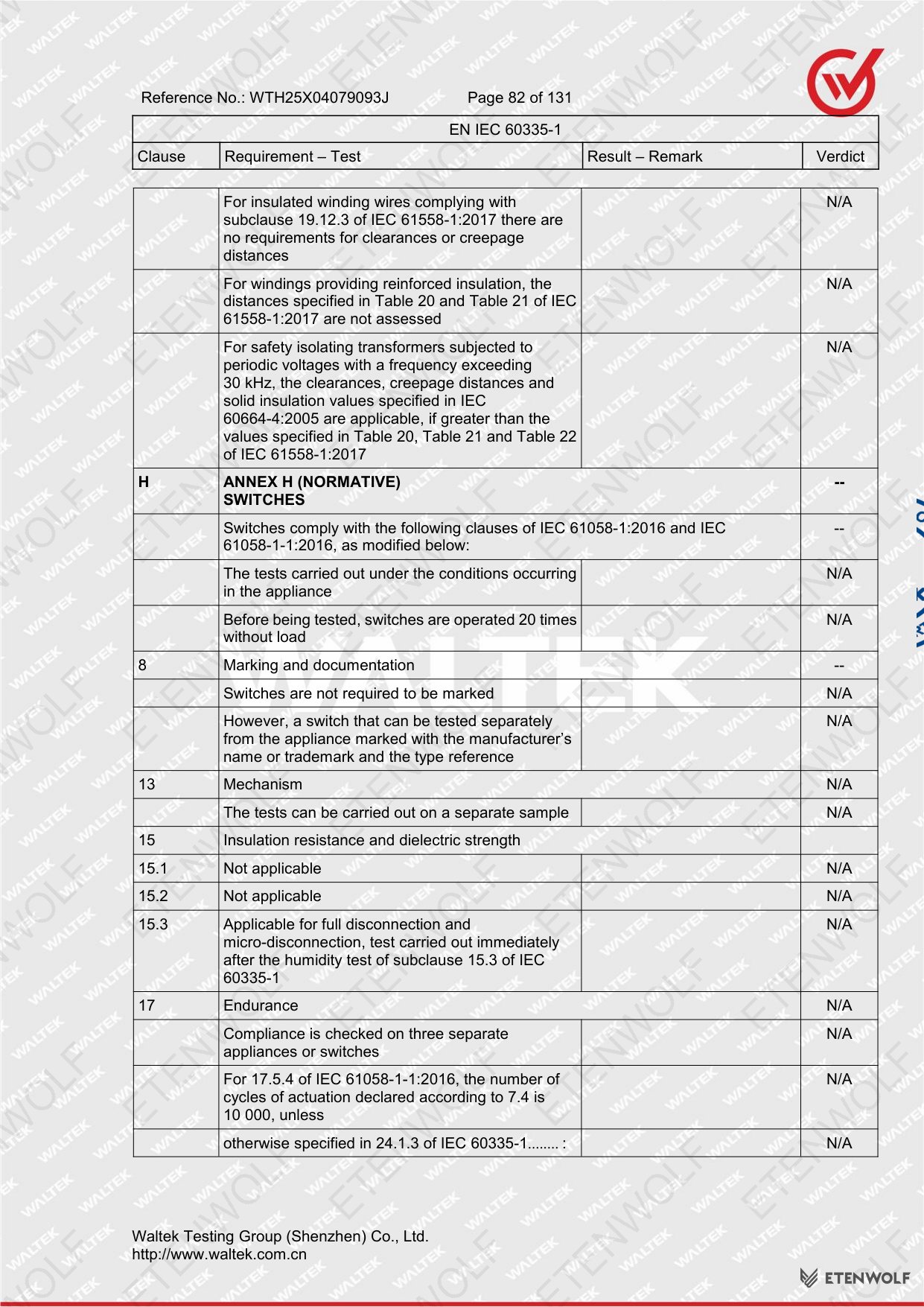

Document Page 83

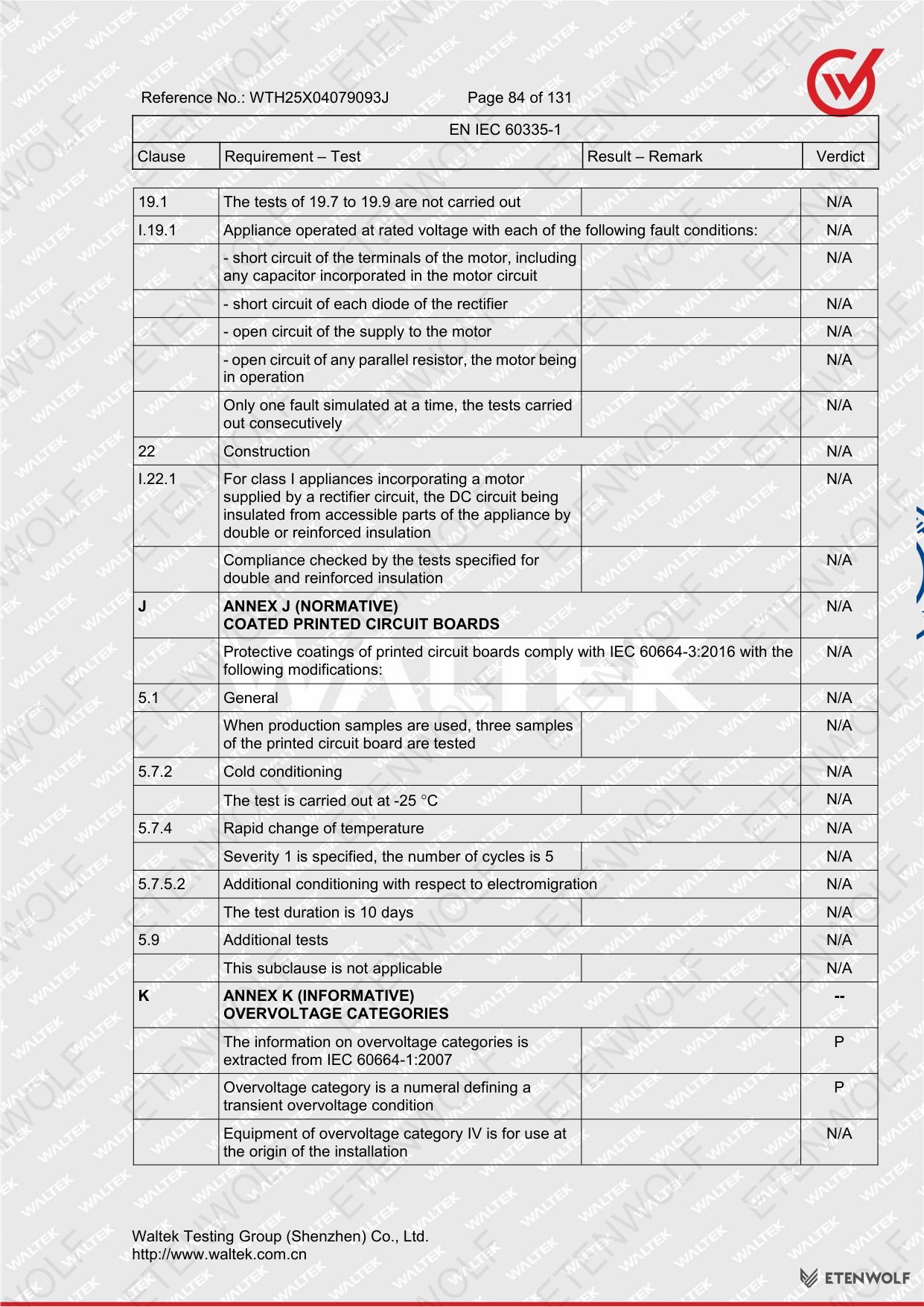

Document Page 84

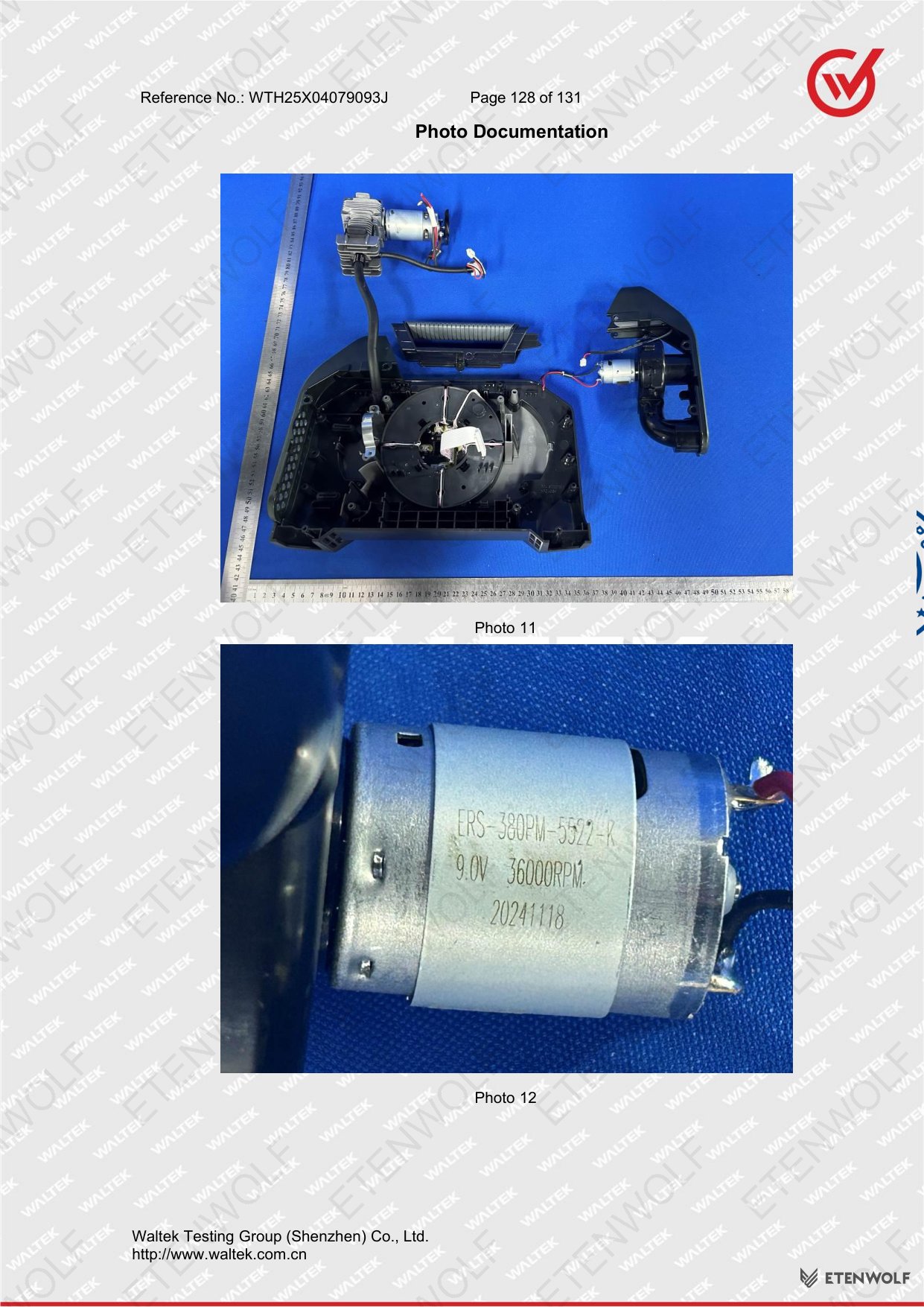

Document Page 85

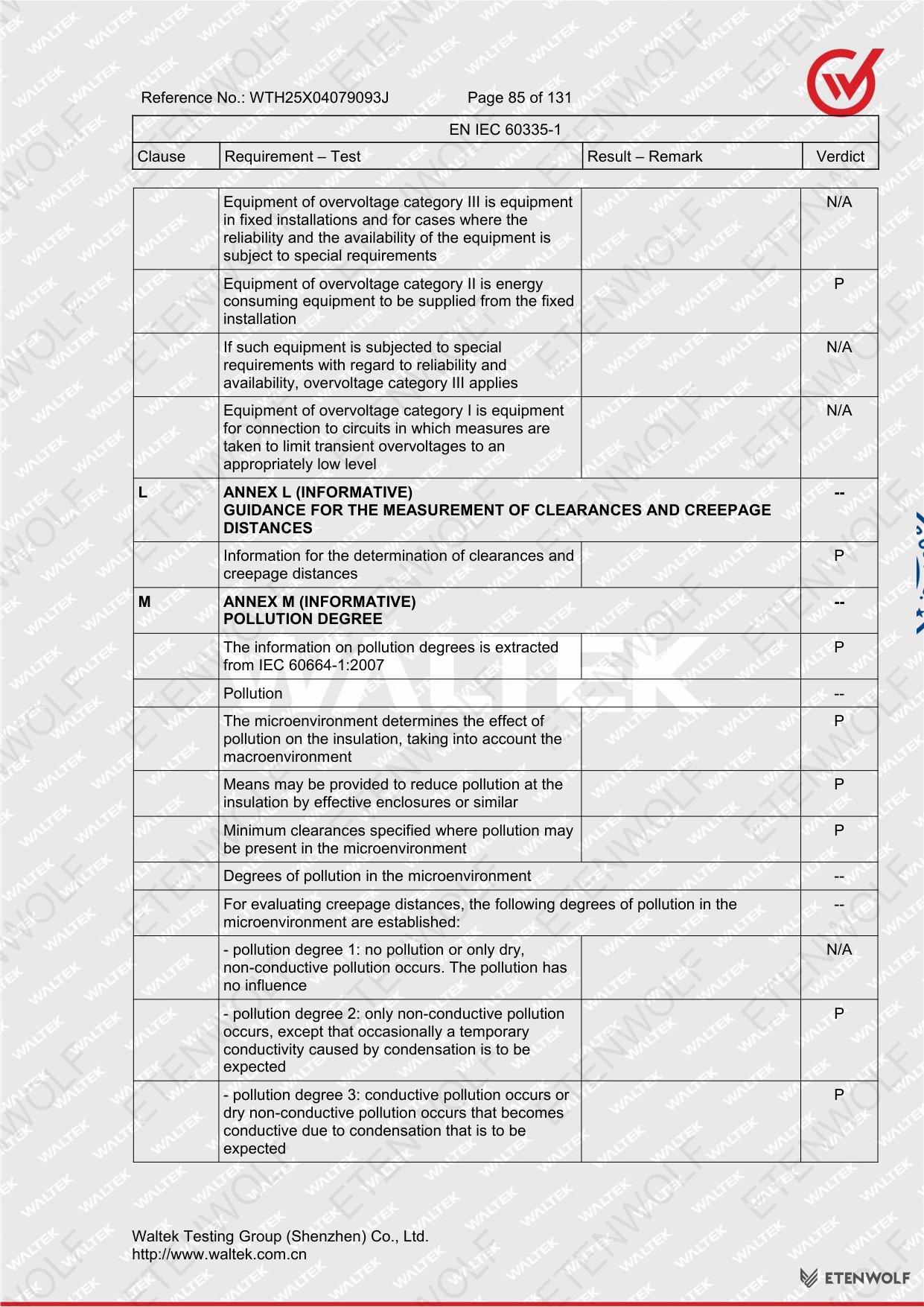

Document Page 86
Document Page 87
Document Page 88

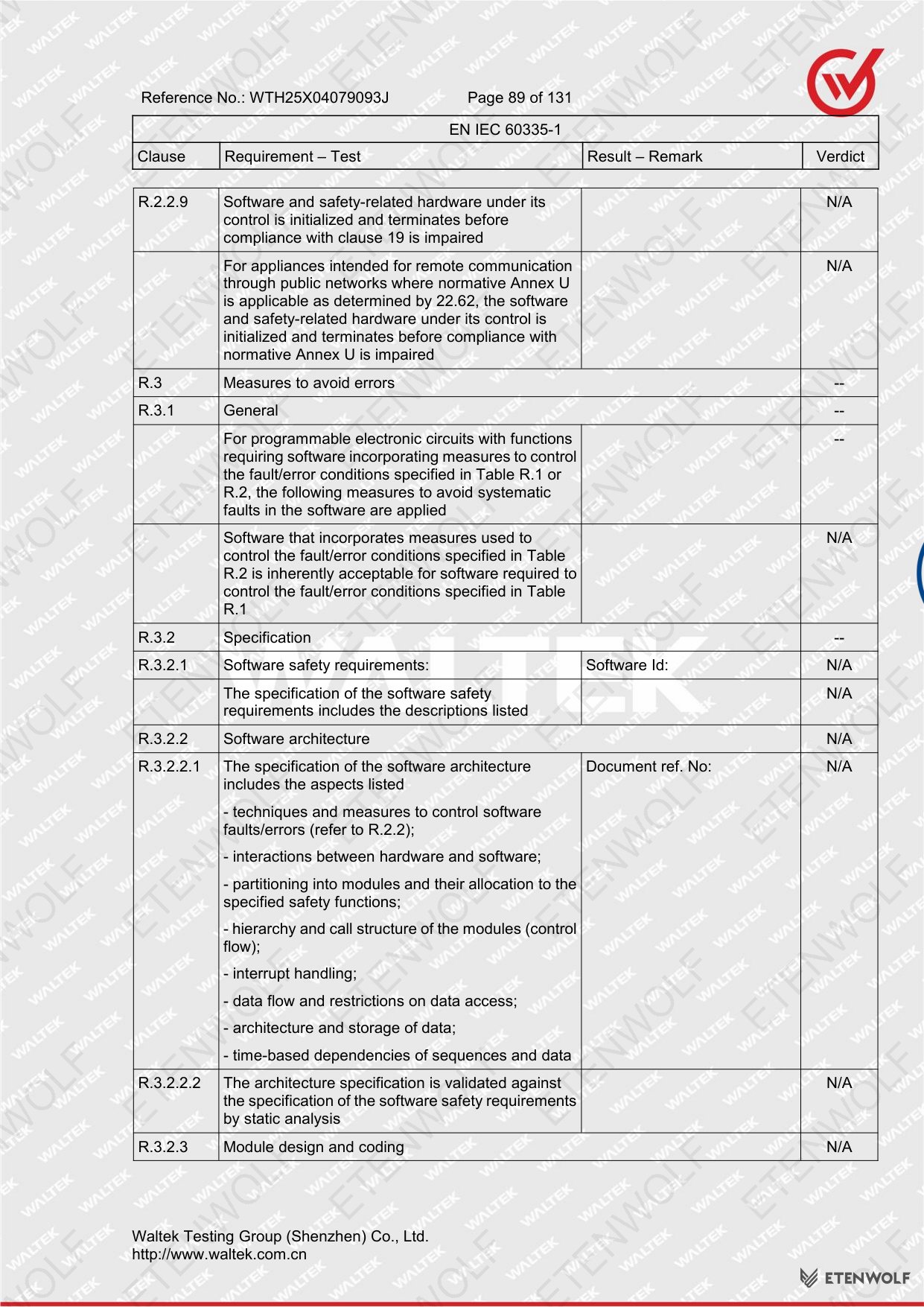

Document Page 89
Document Page 90

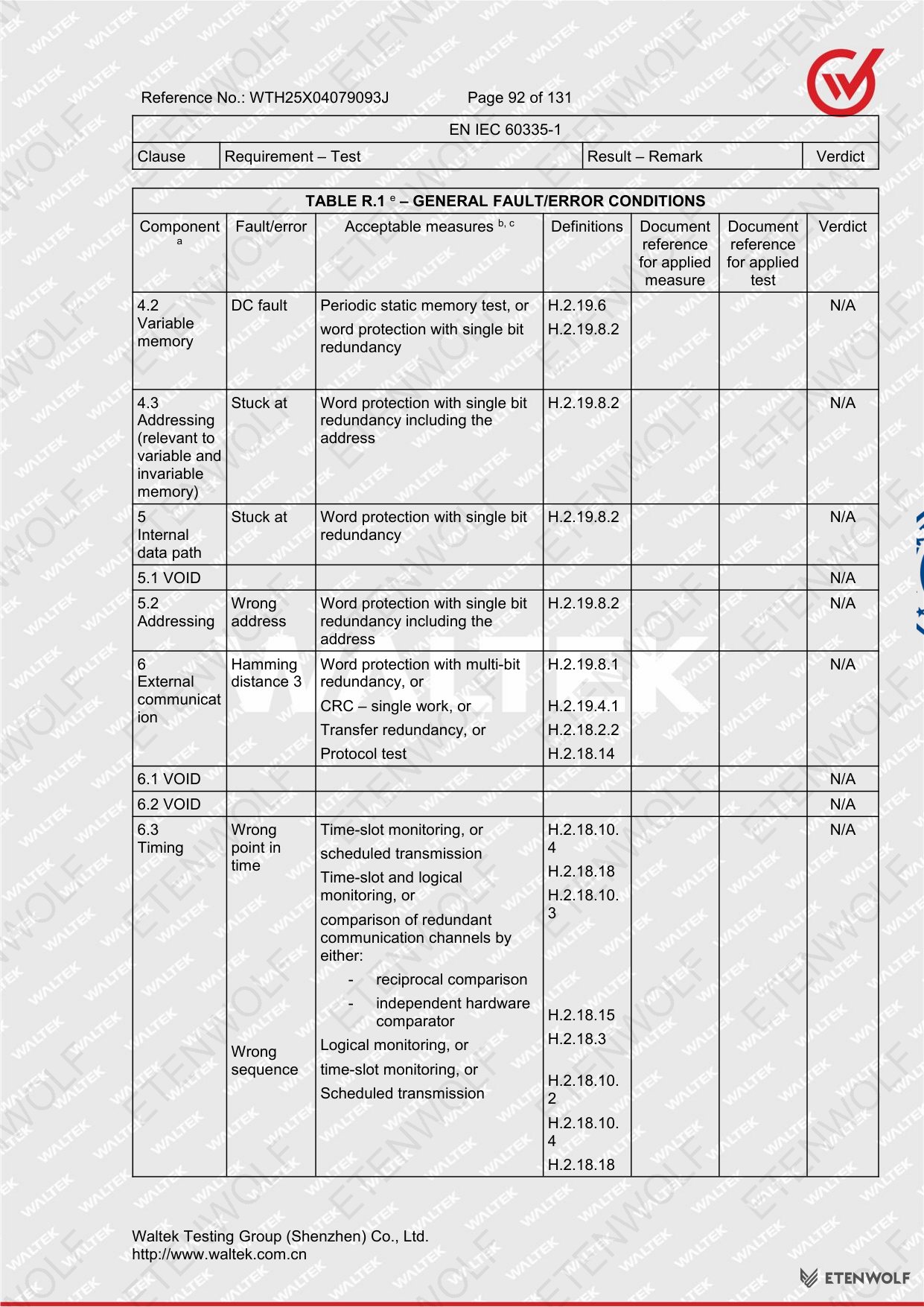

Document Page 91
Document Page 92

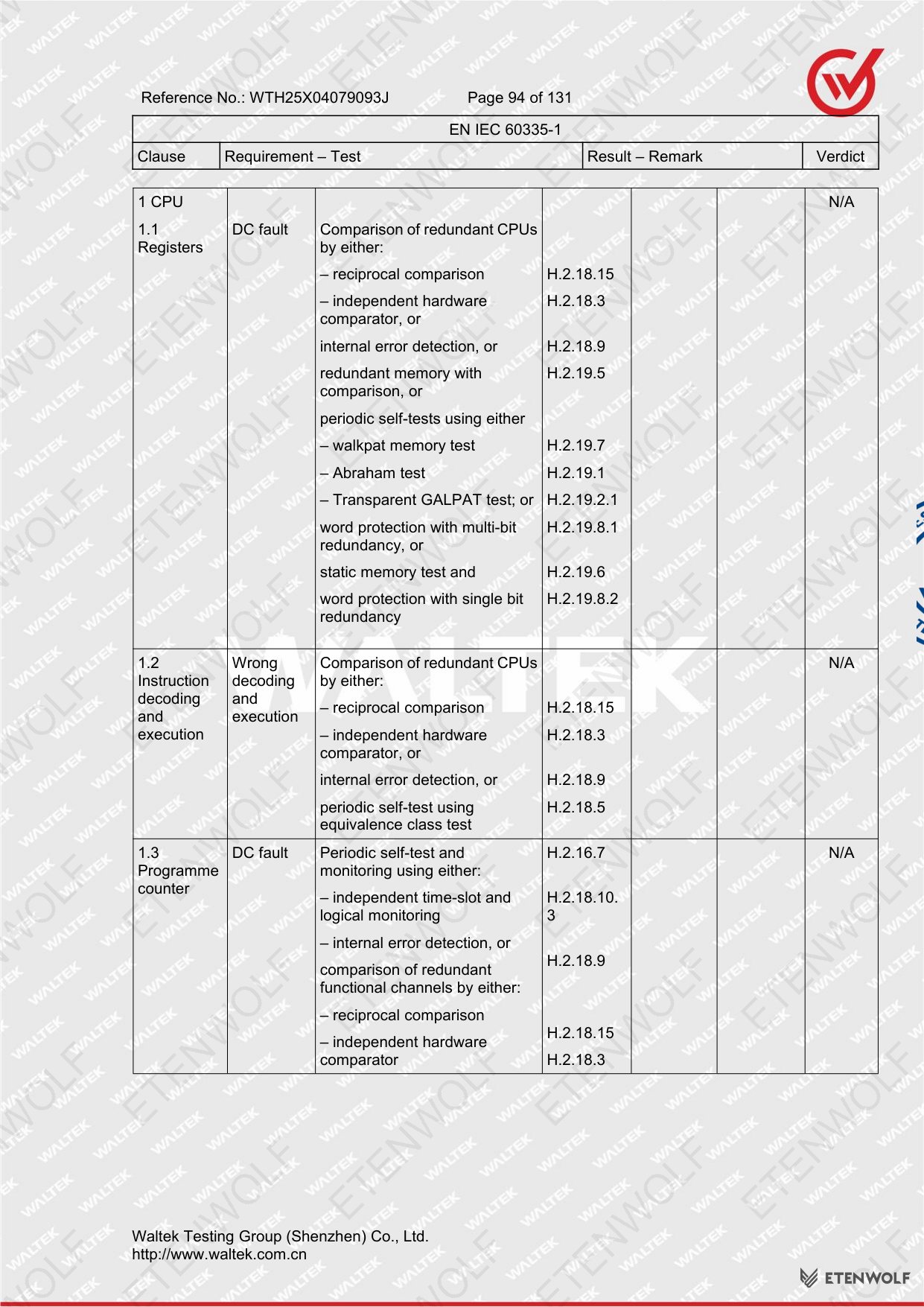

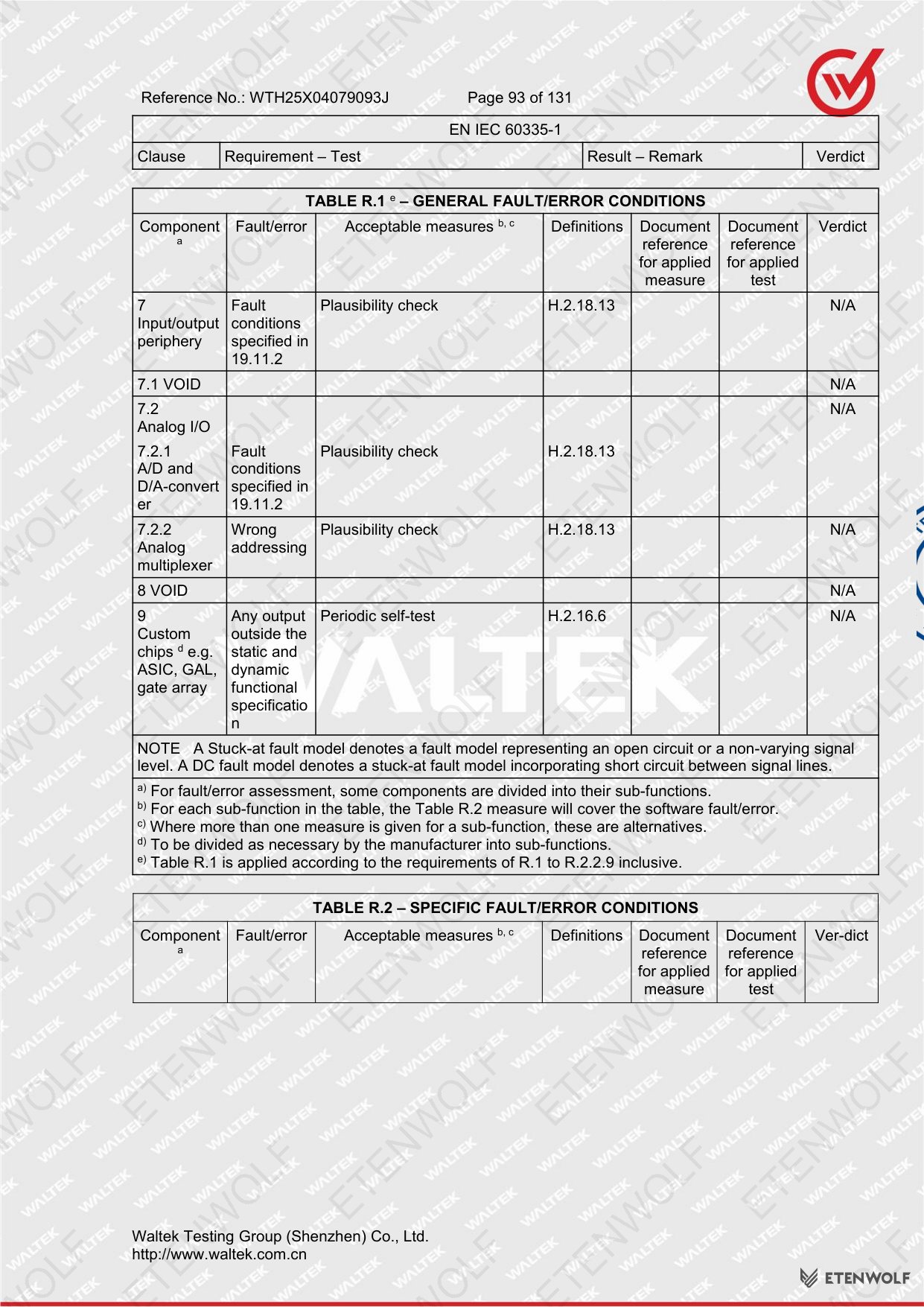

Document Page 93
Document Page 94
Document Page 95

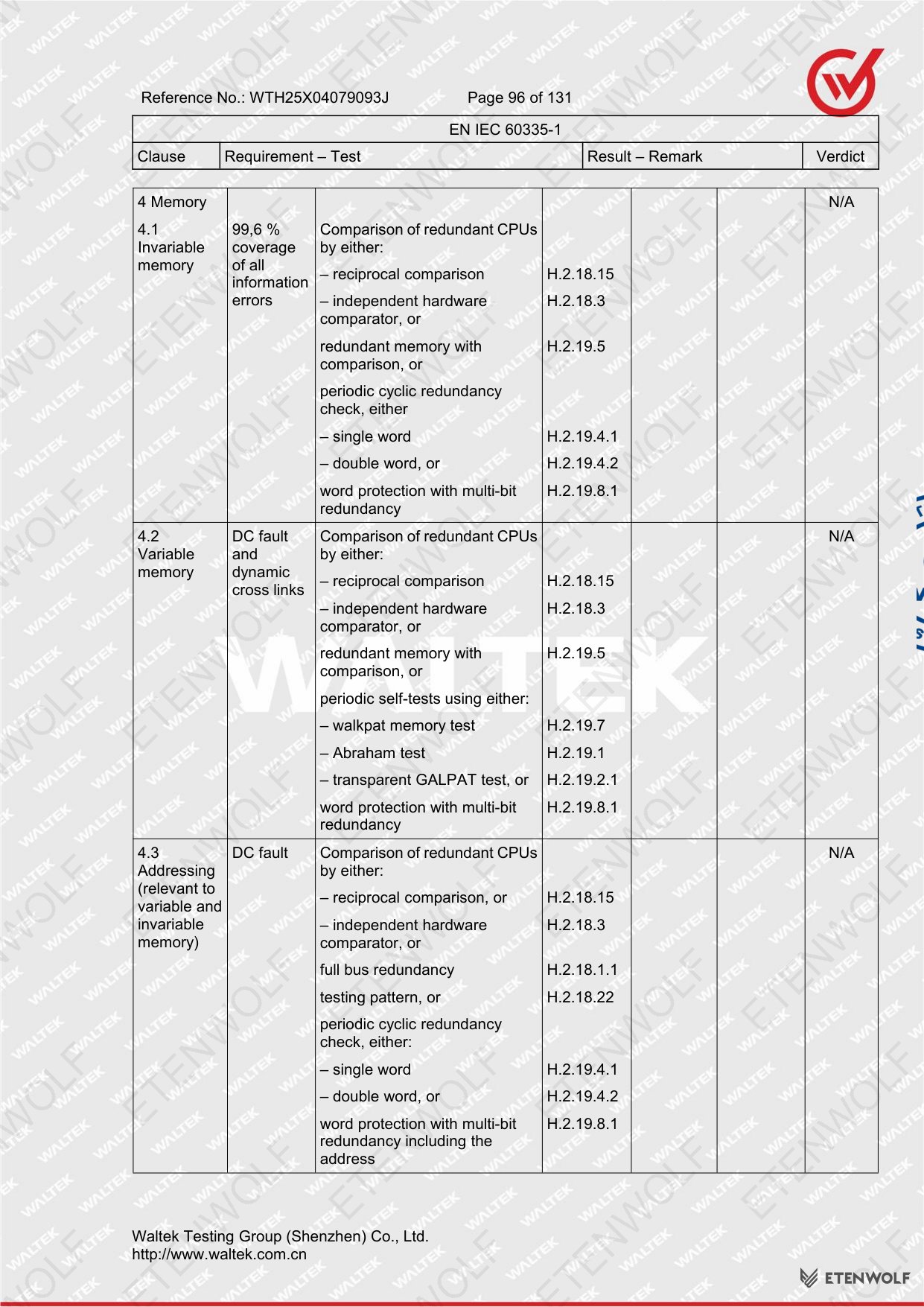

Document Page 96

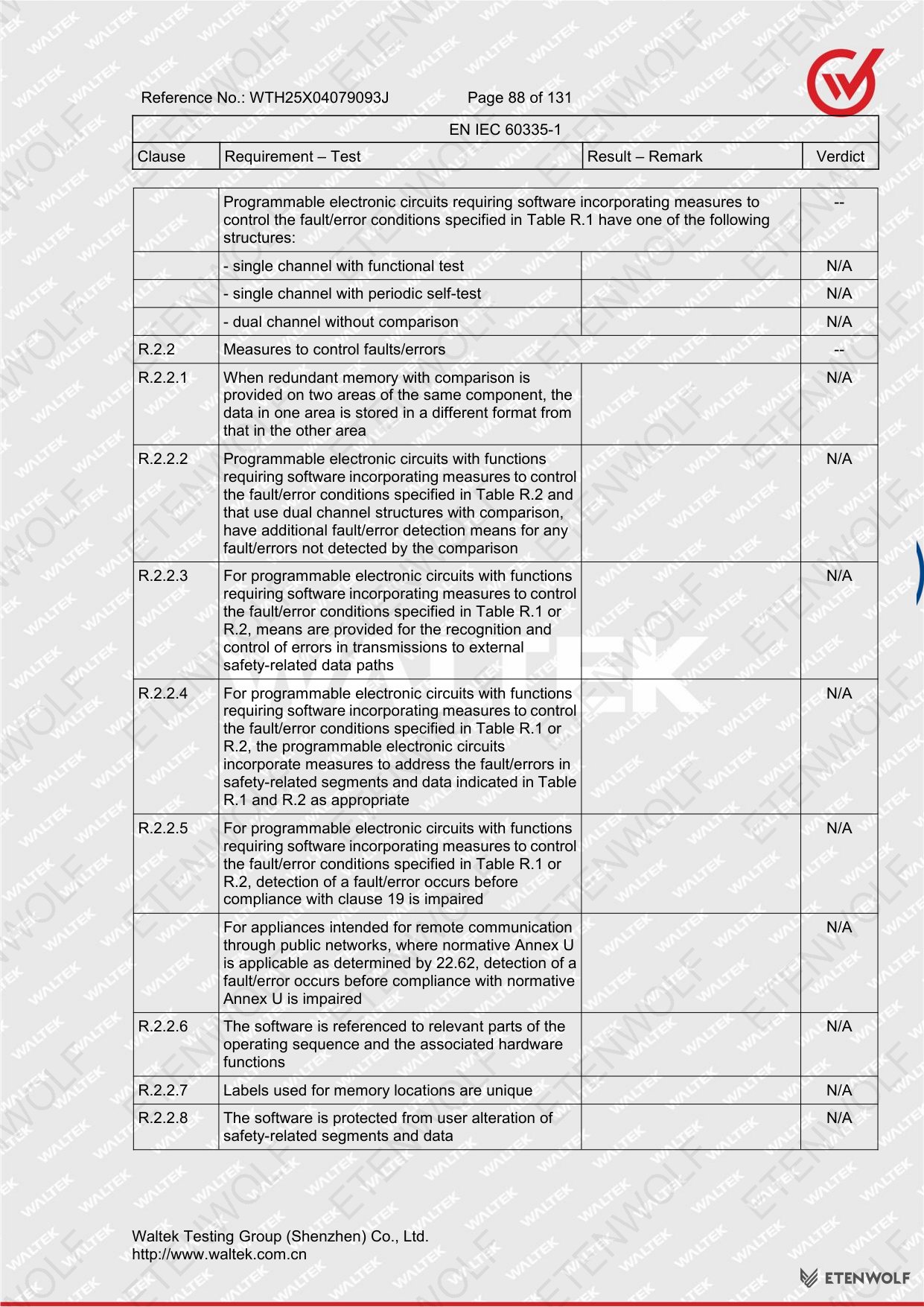

Document Page 97

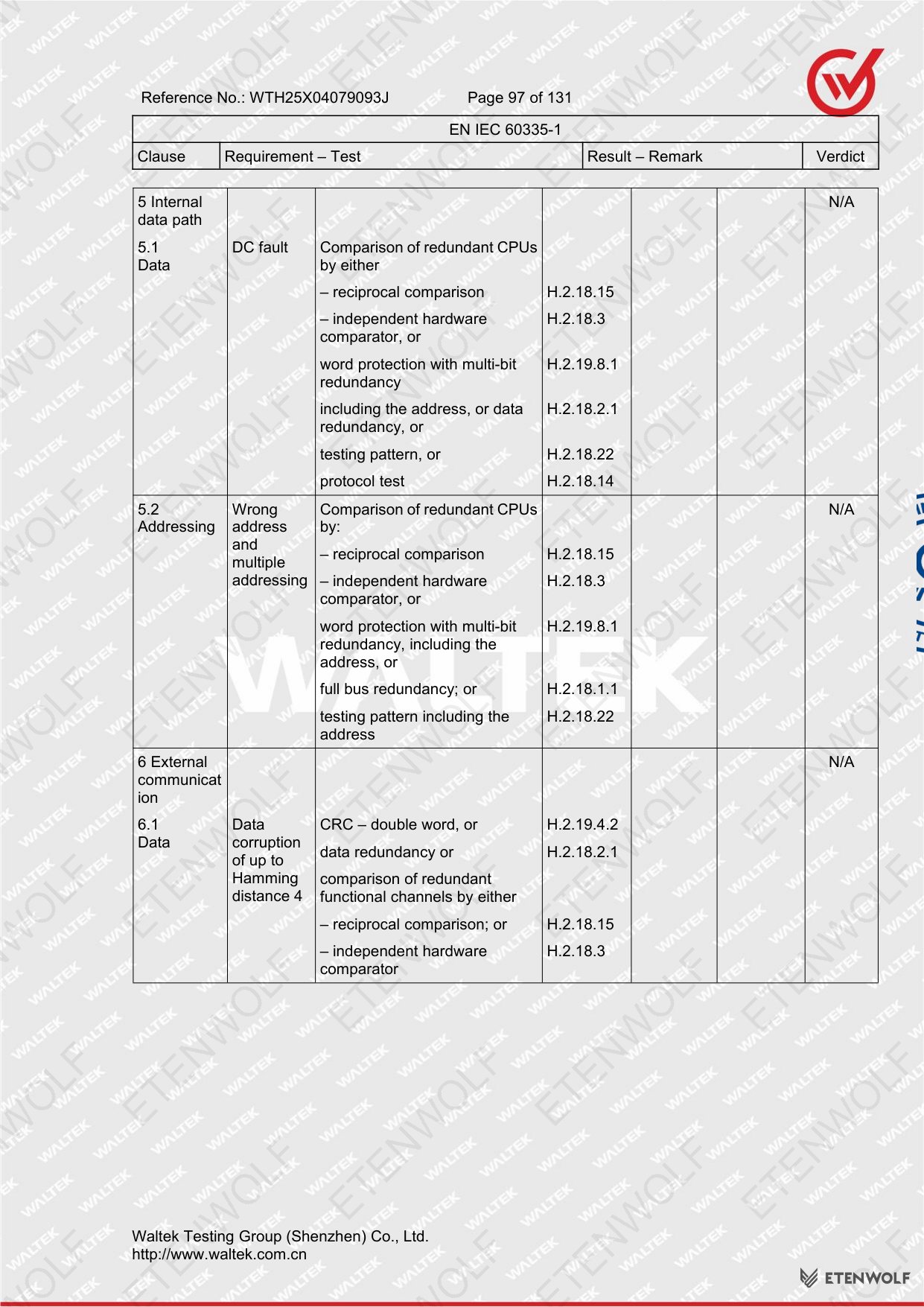

Document Page 98

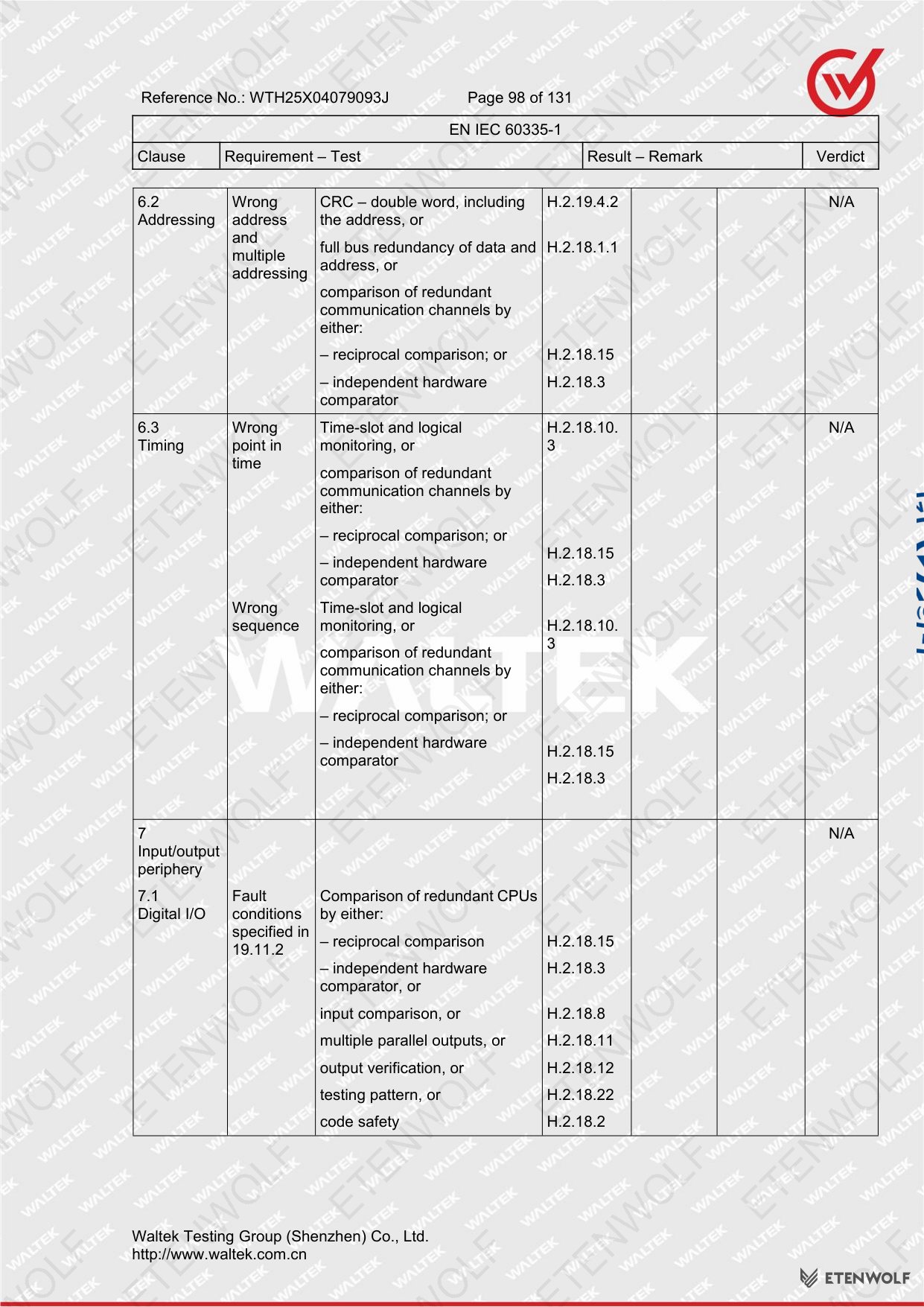

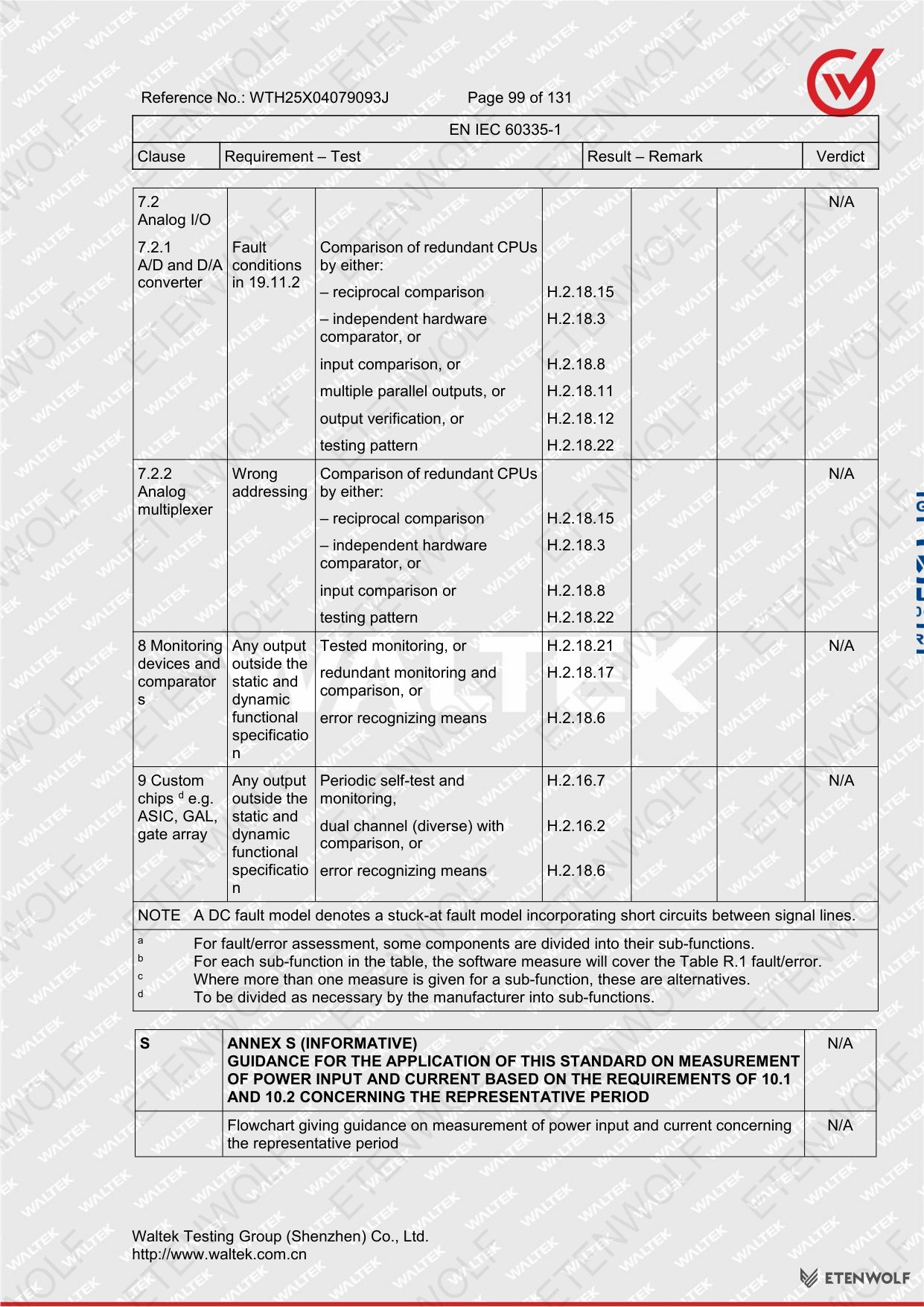

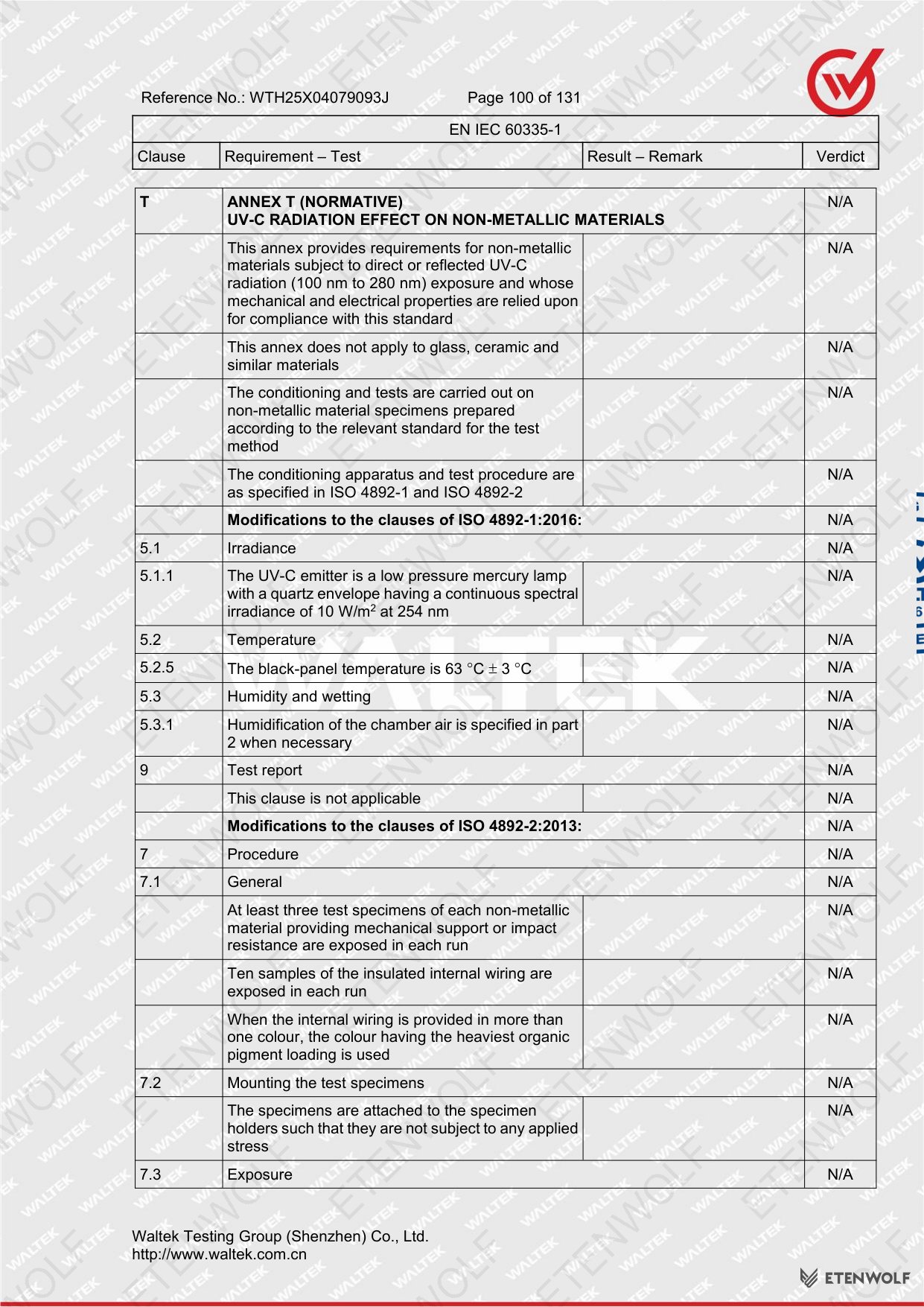

Document Page 99
Document Page 100

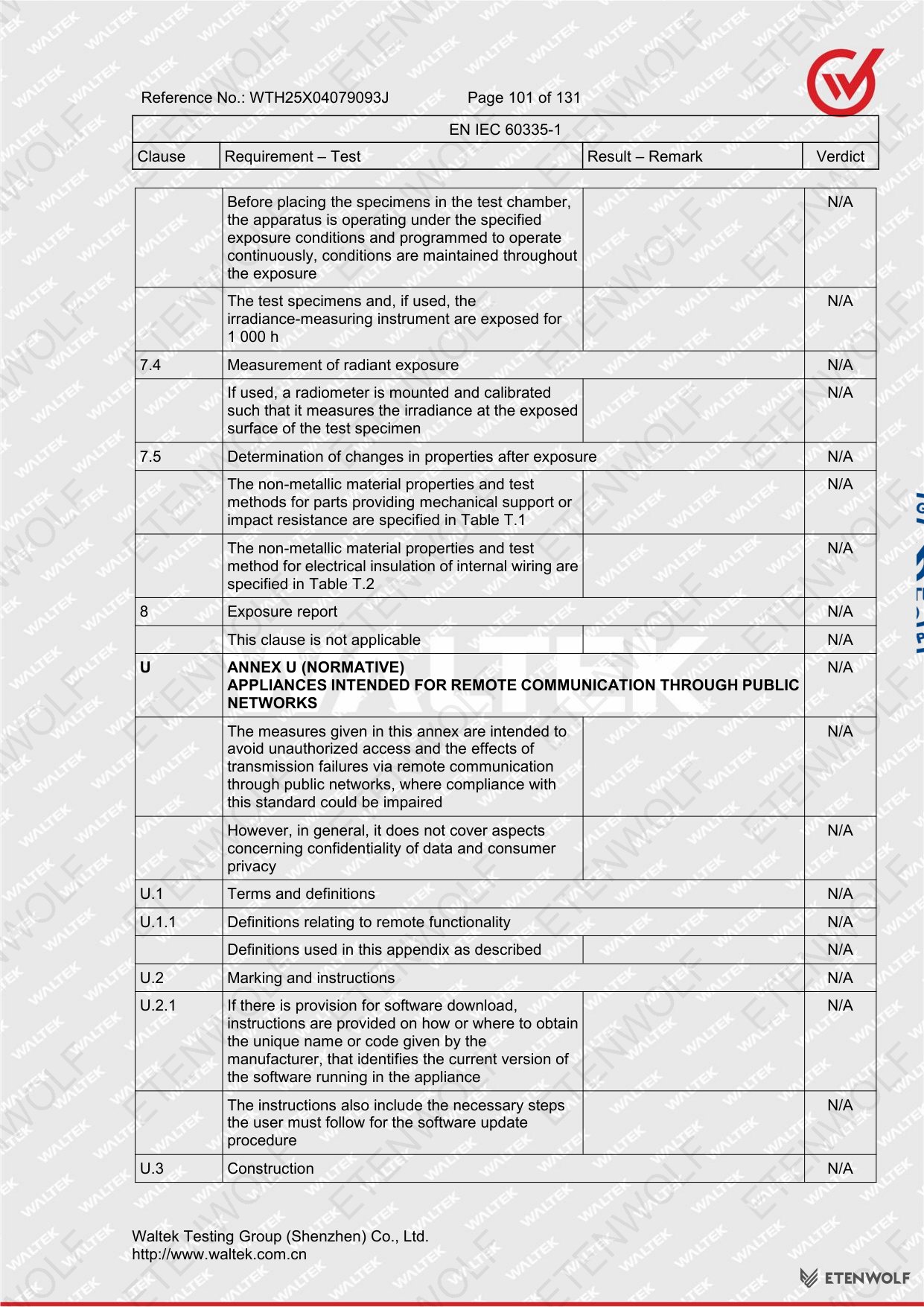

Document Page 101
Document Page 102

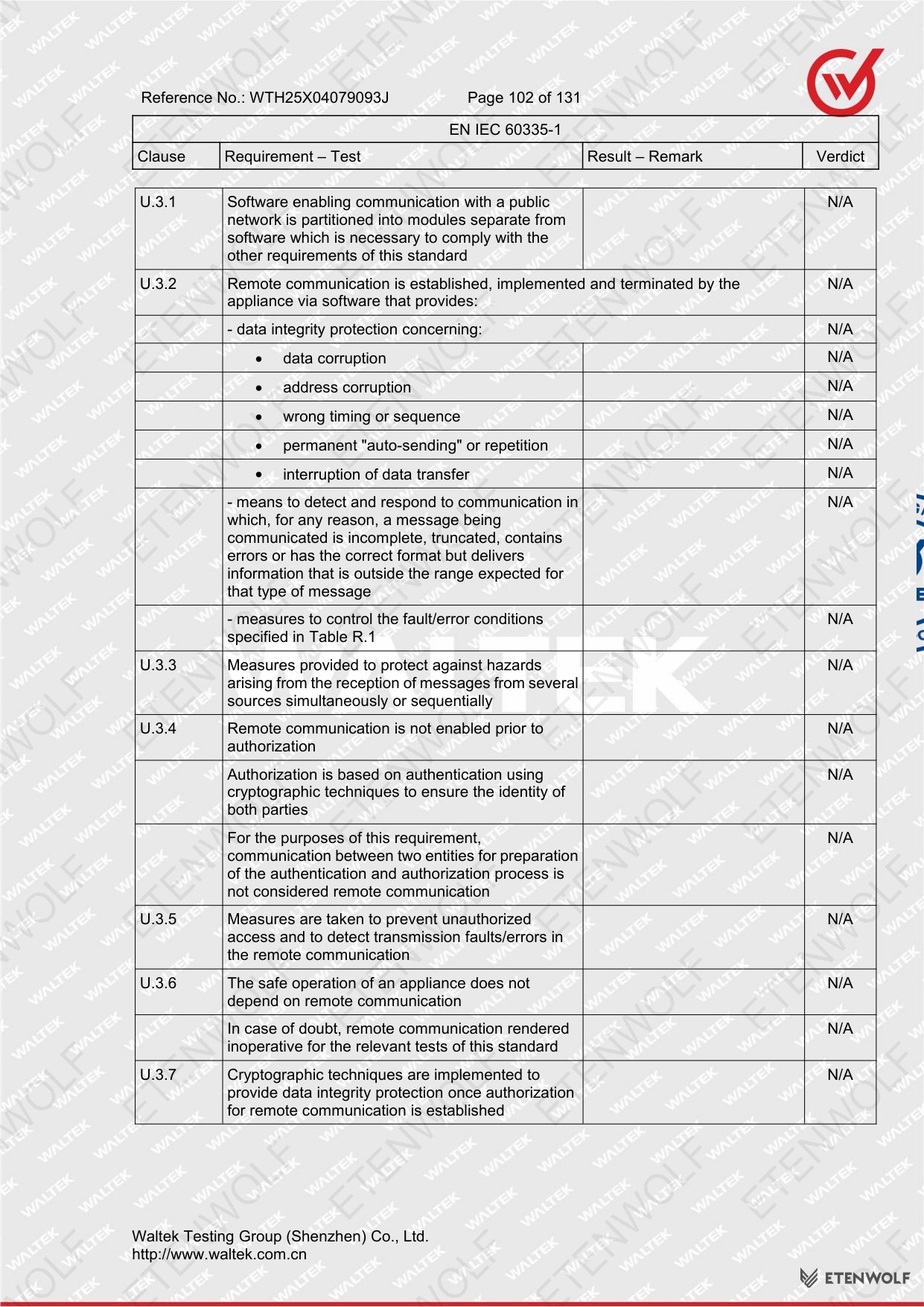

Document Page 103

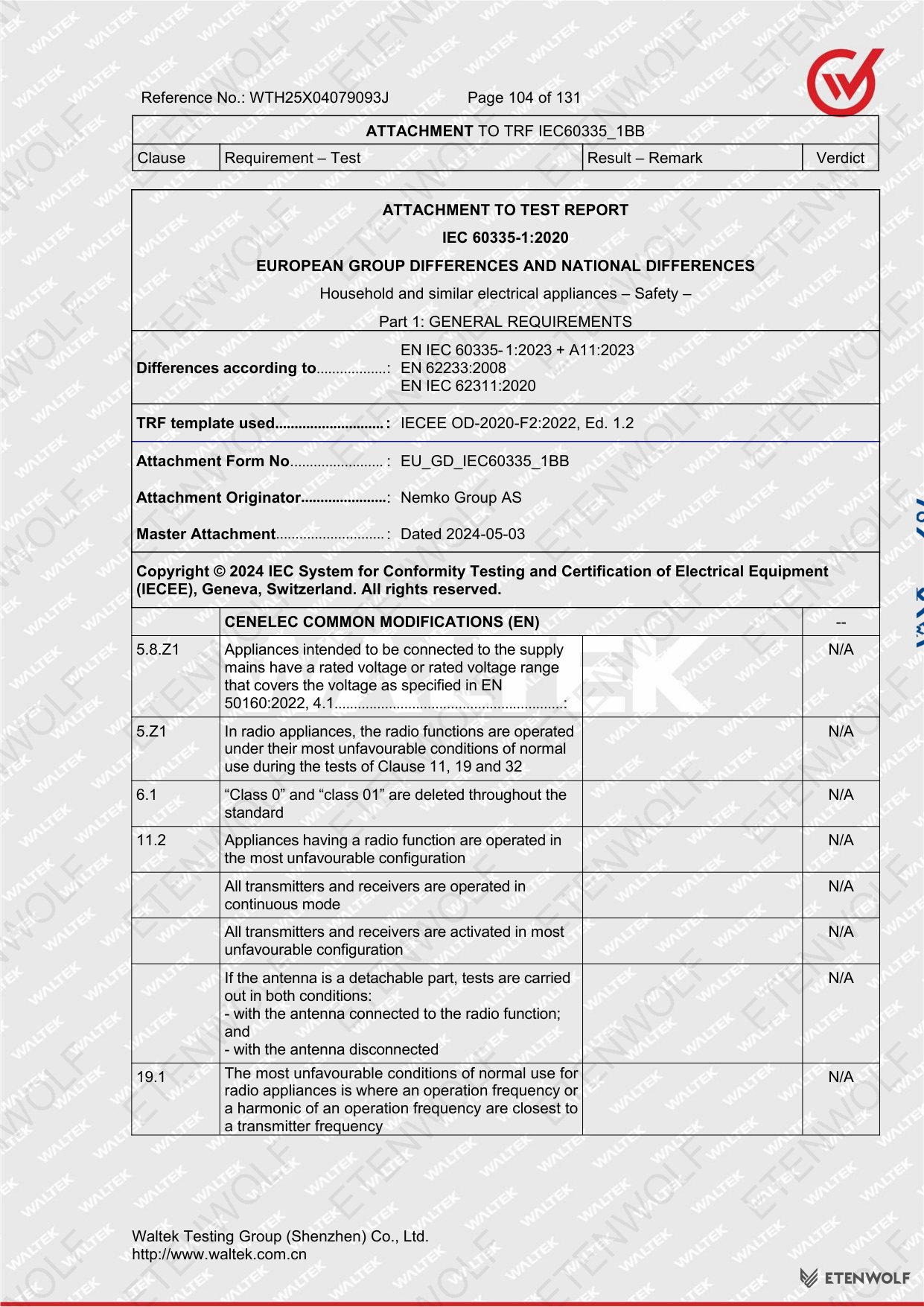

Document Page 104

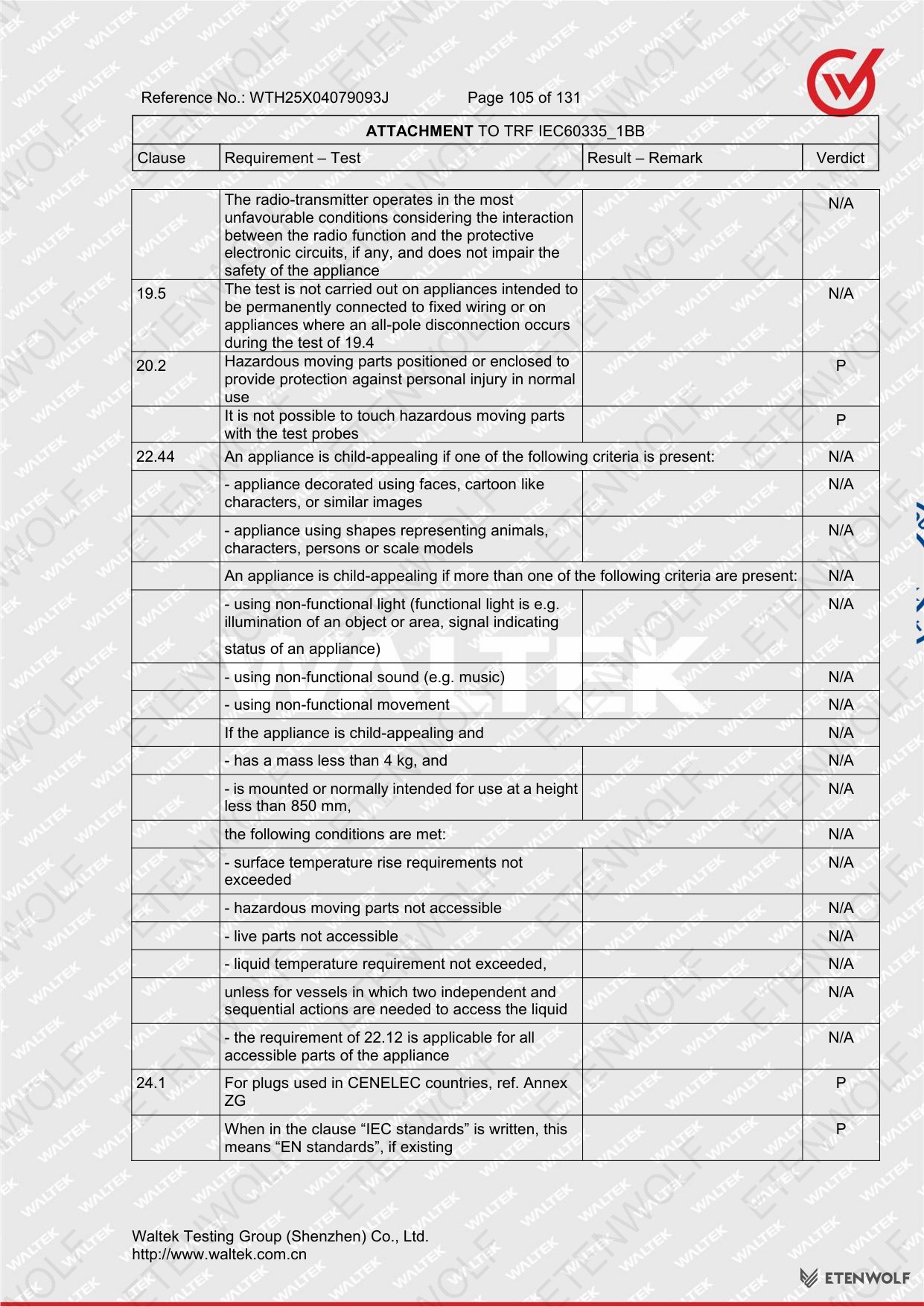

Document Page 105

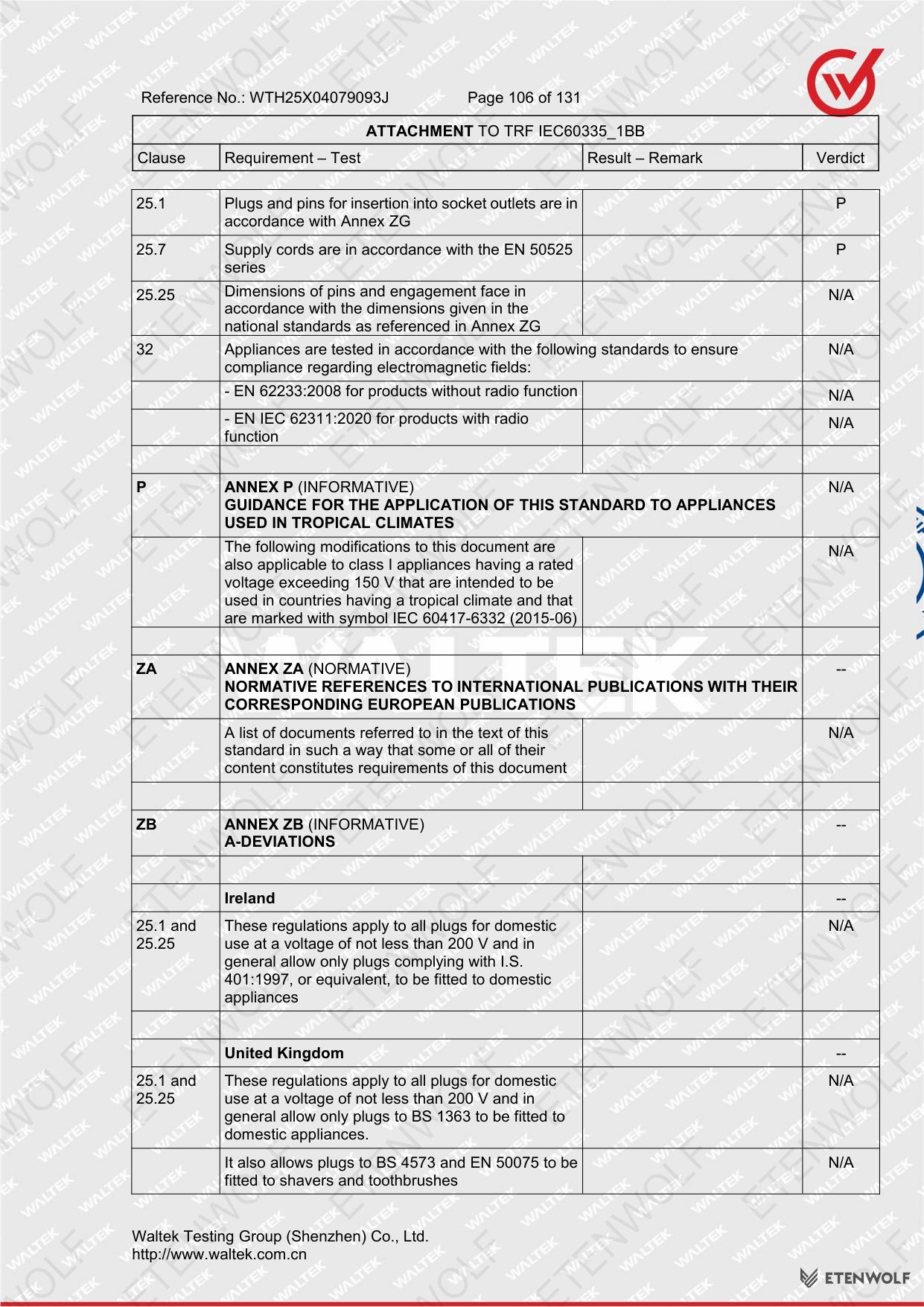

Document Page 106
Document Page 107

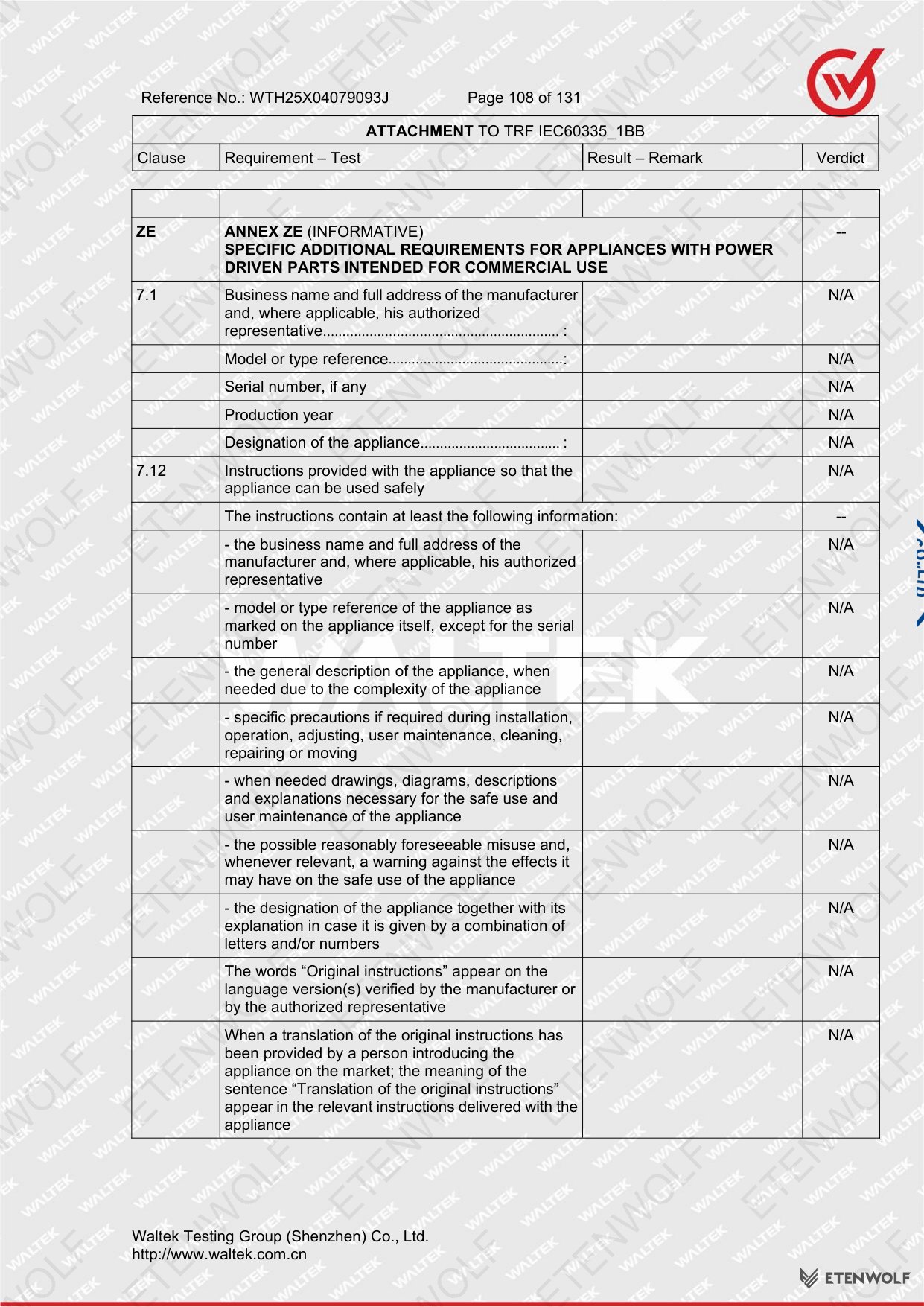

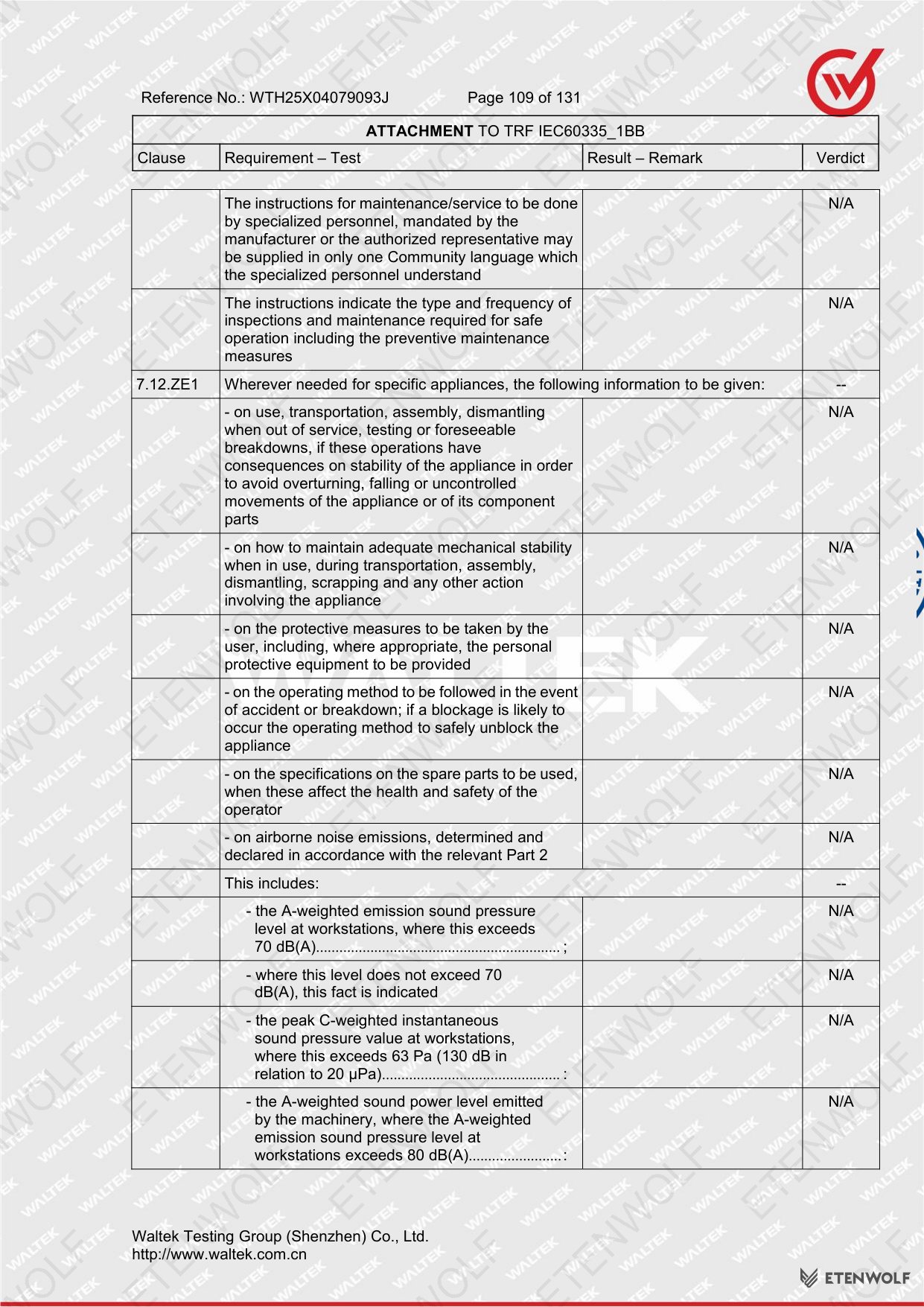

Document Page 108
Document Page 109
Document Page 110
Document Page 111

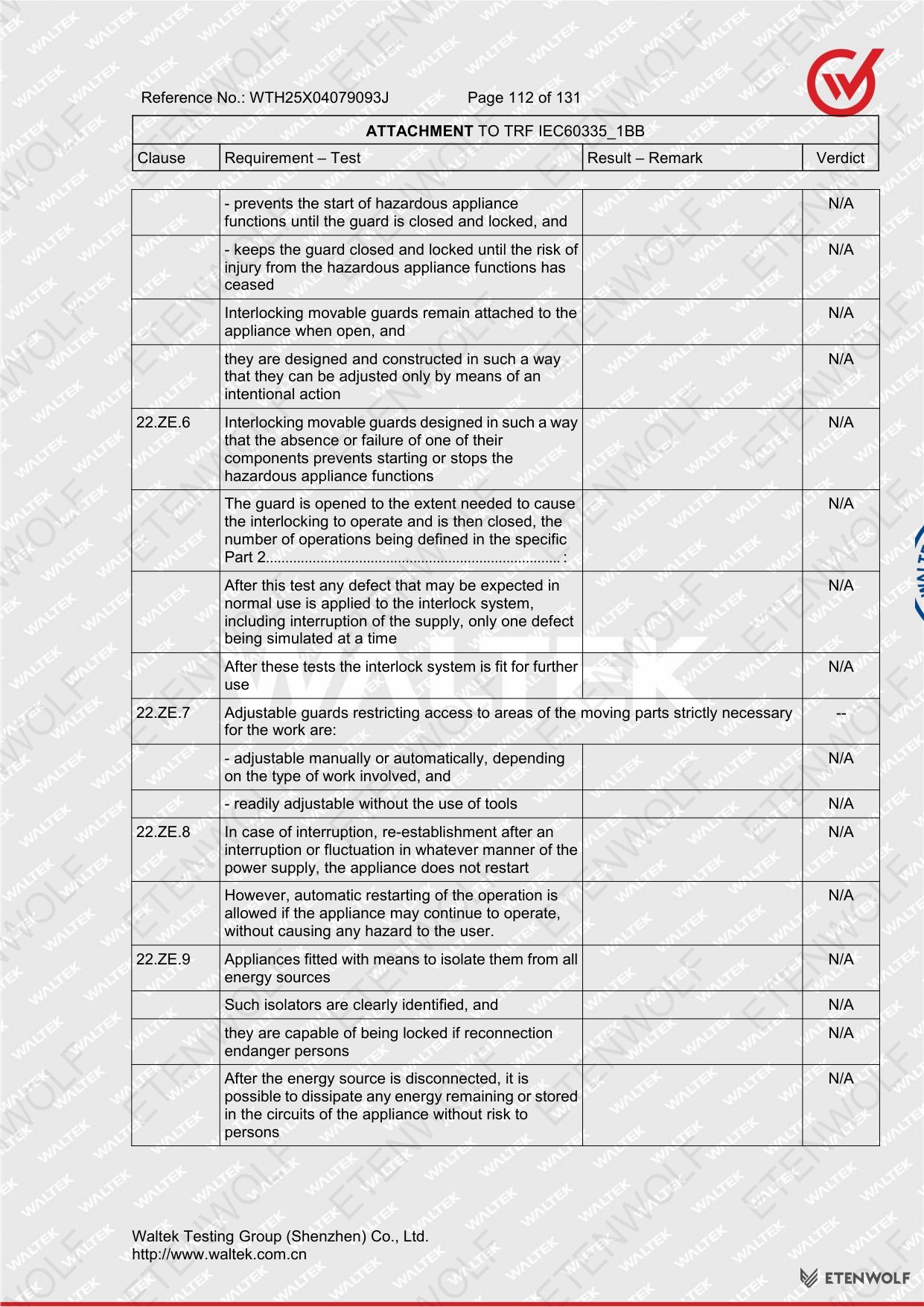

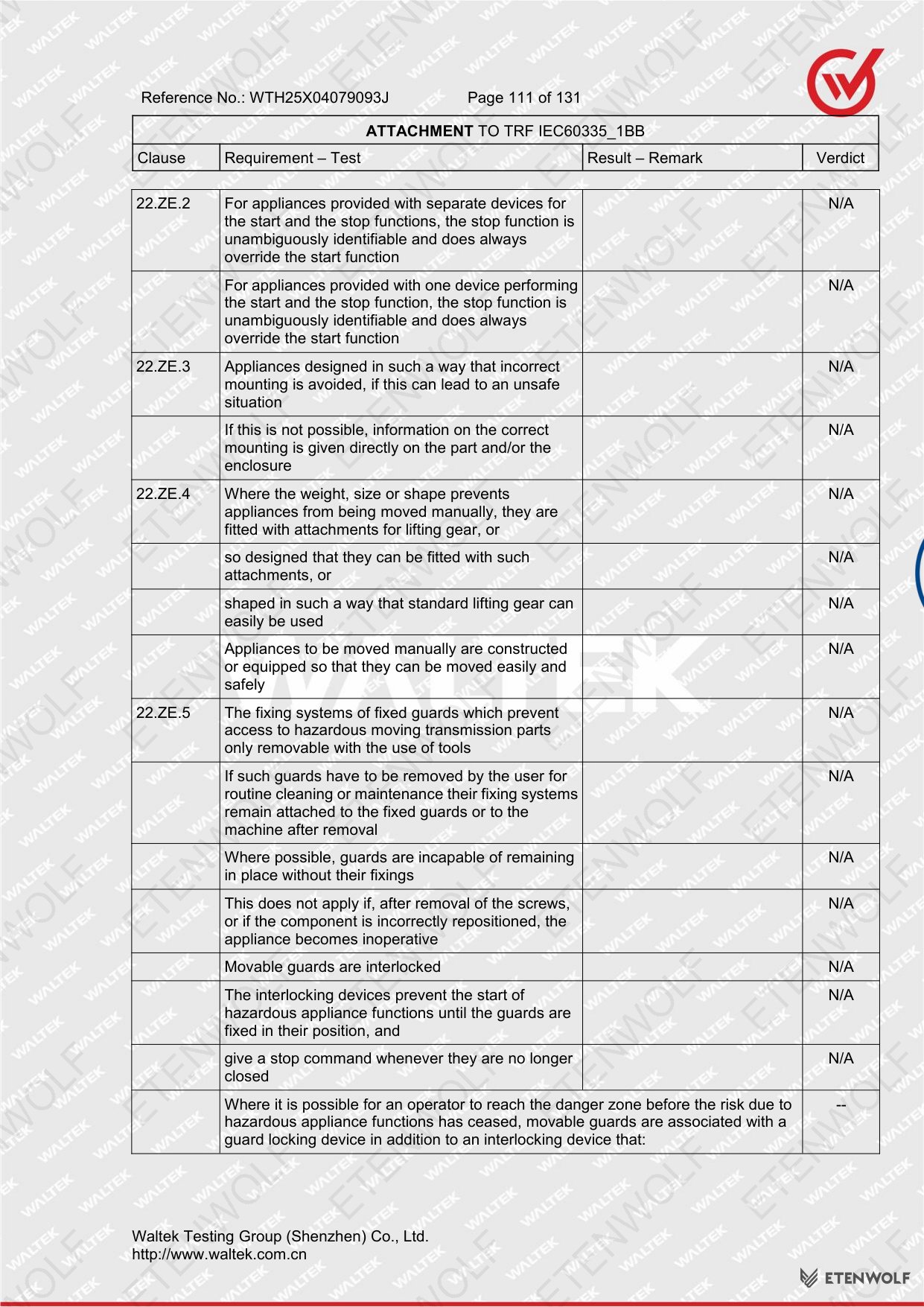

Document Page 112
Document Page 113

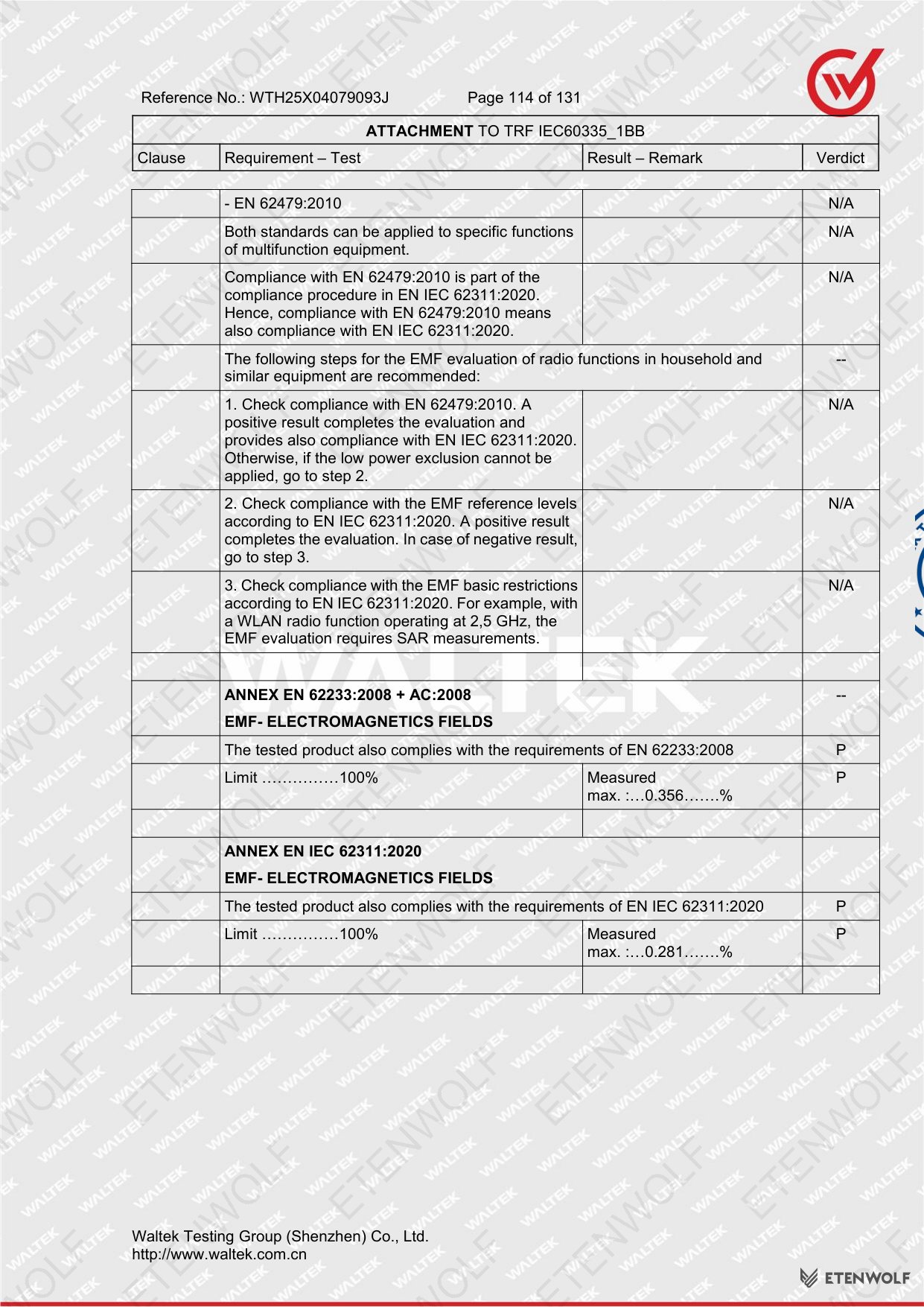

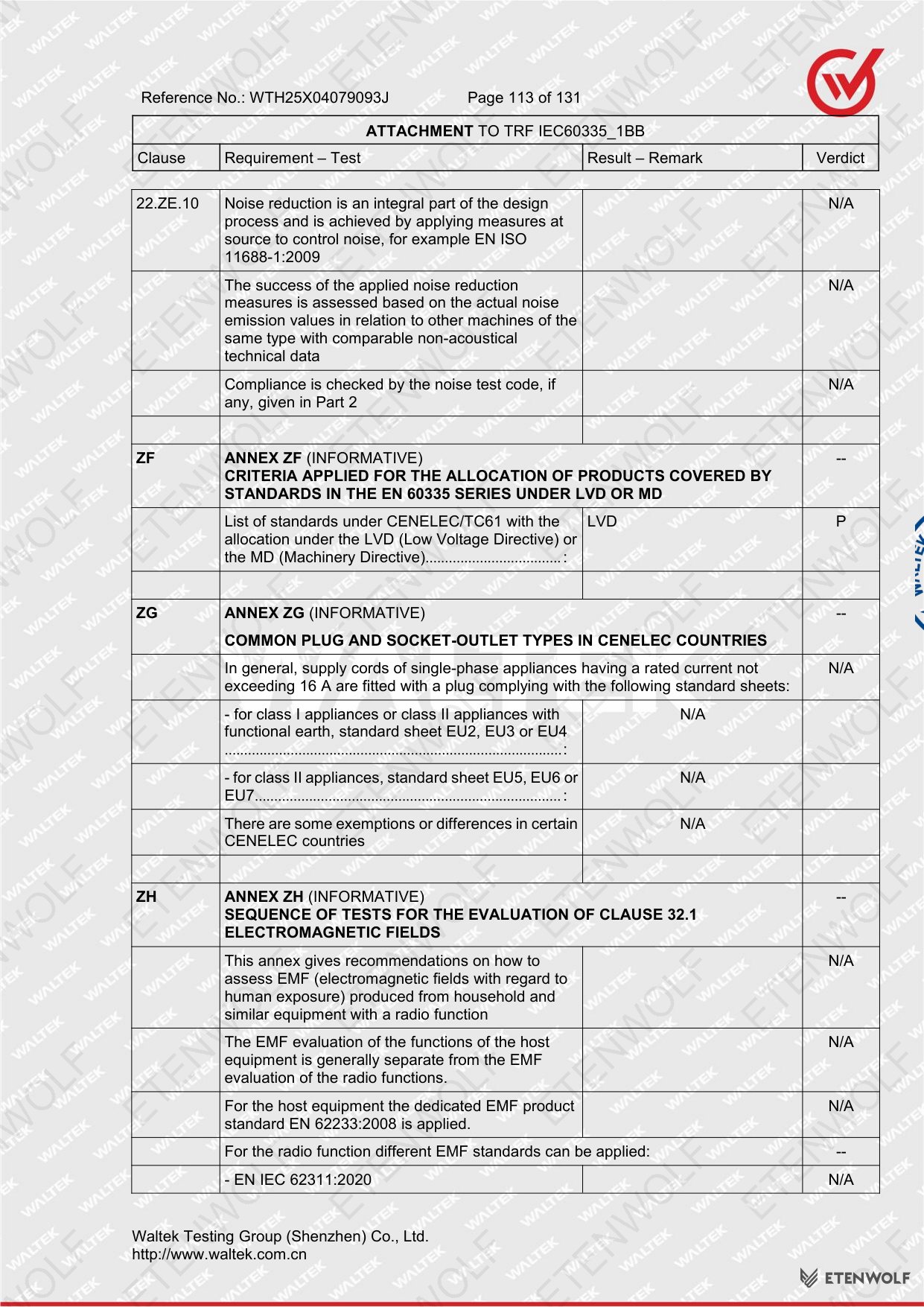

Document Page 114

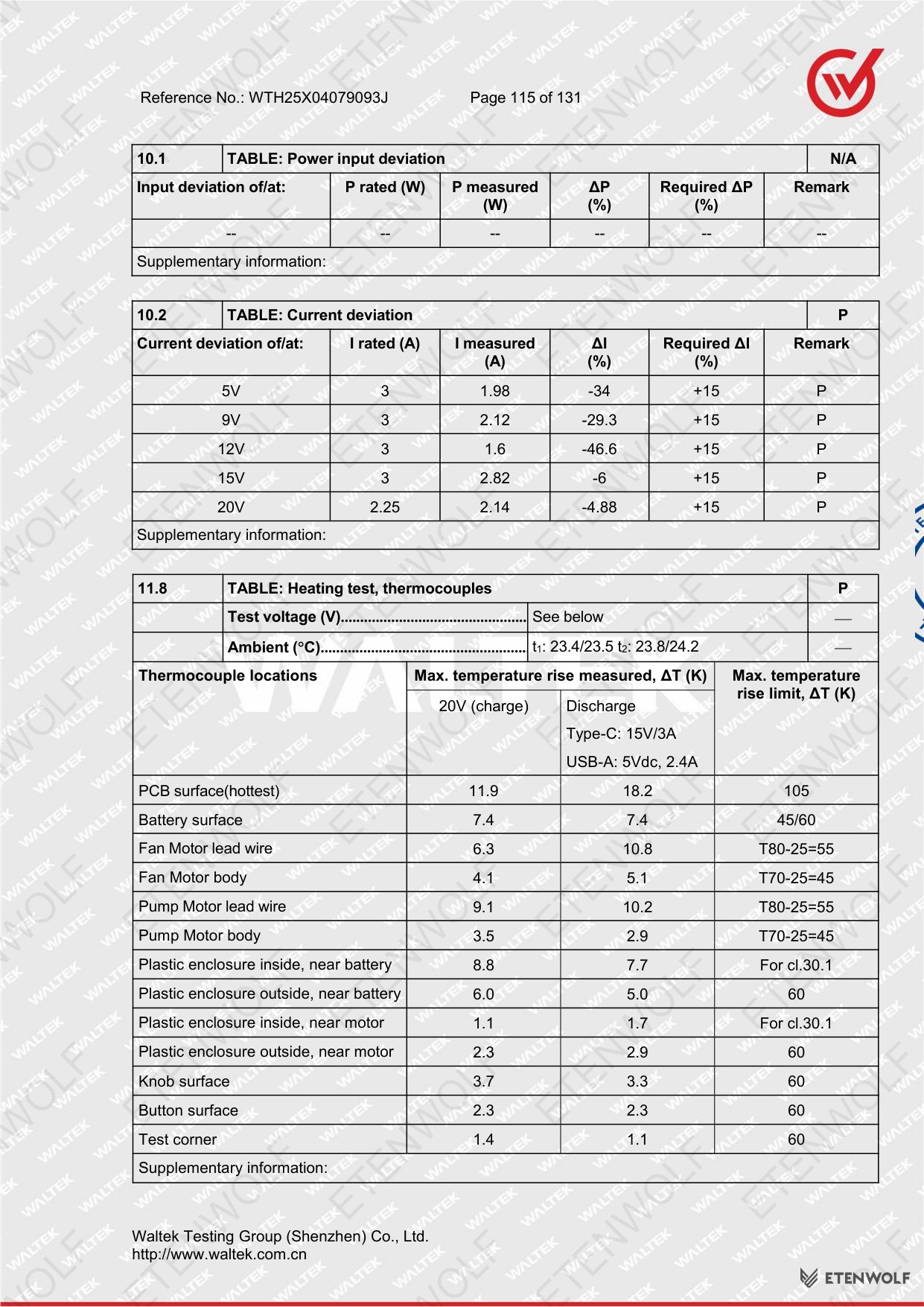

Document Page 115

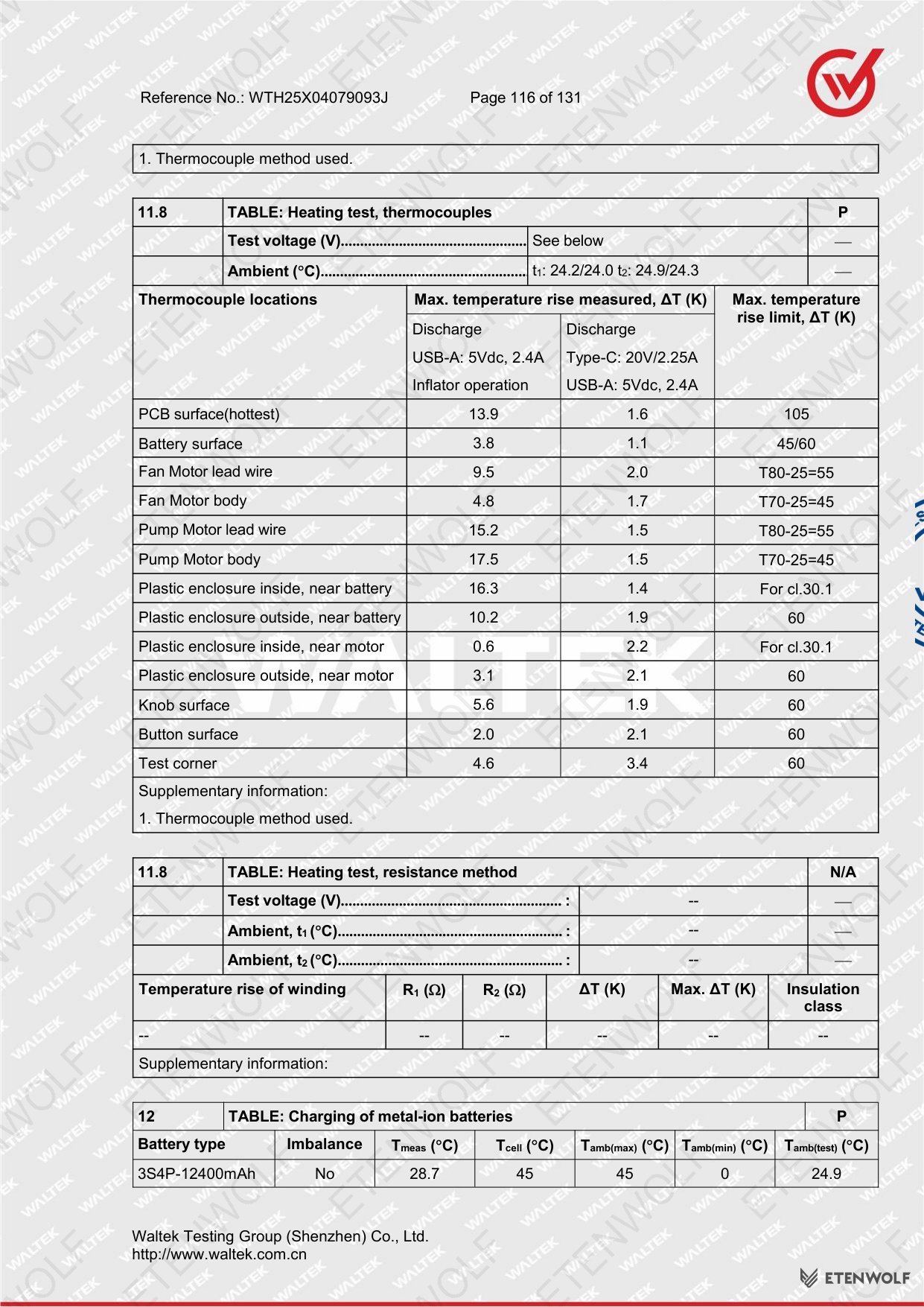

Document Page 116

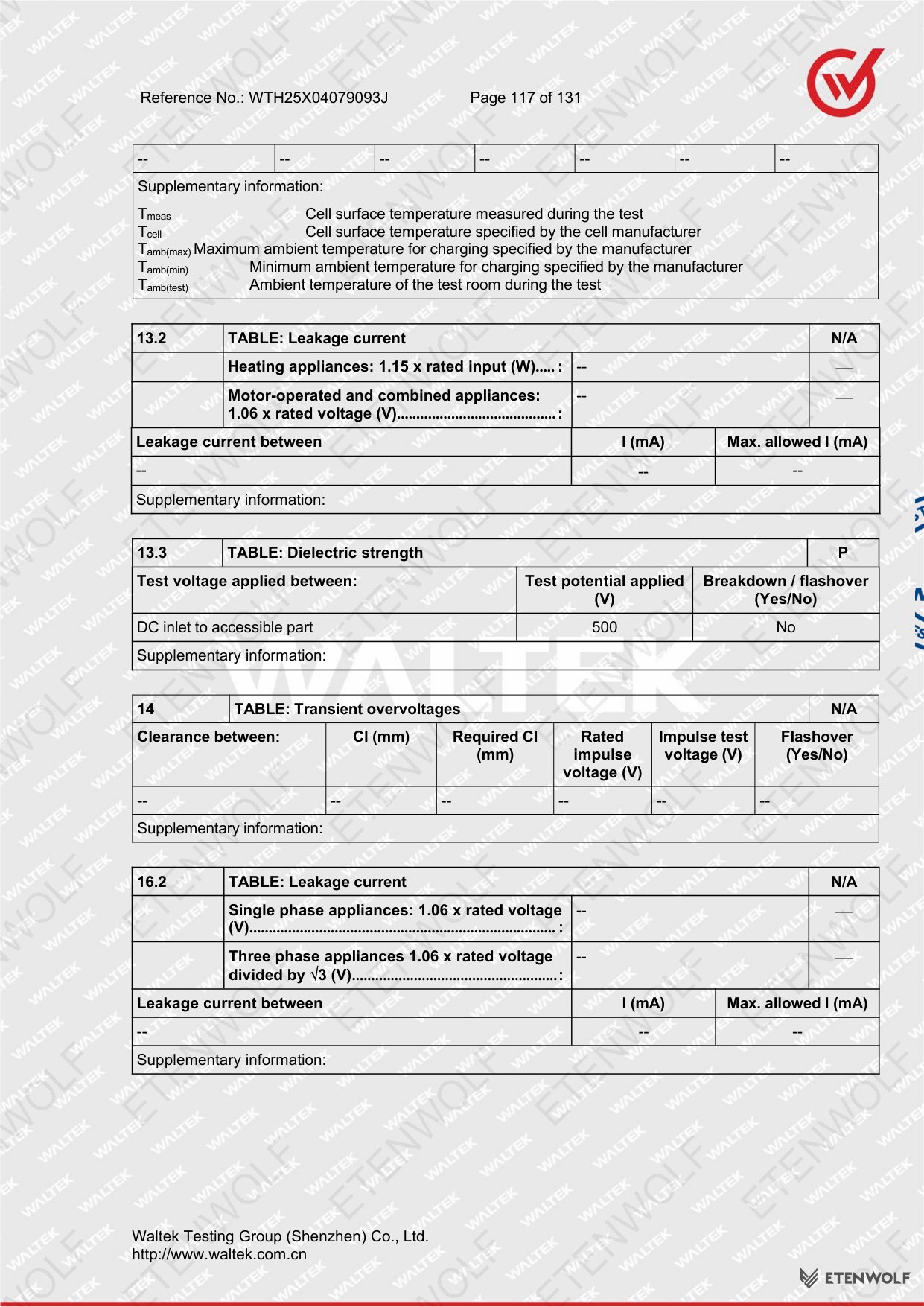

Document Page 117

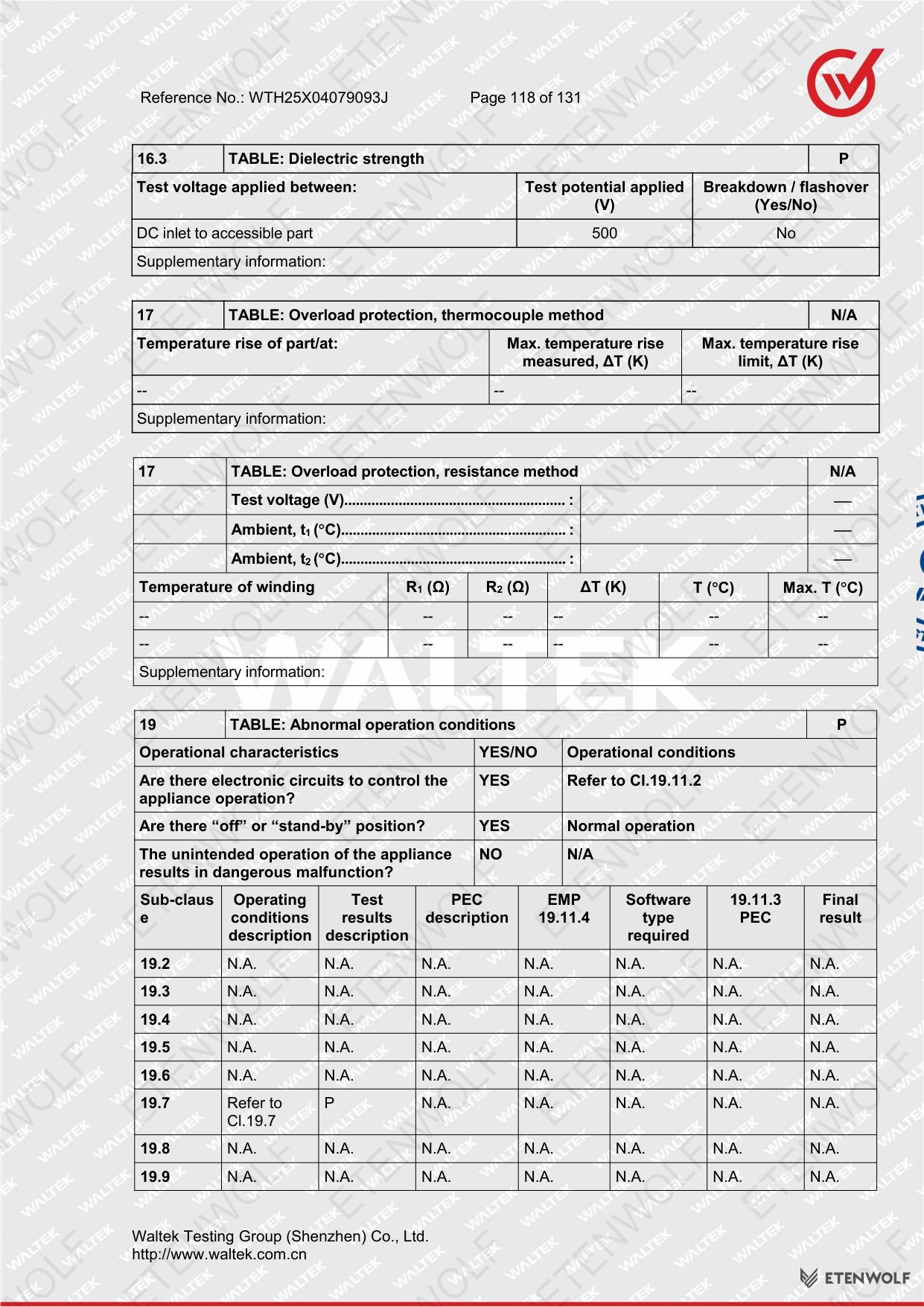

Document Page 118

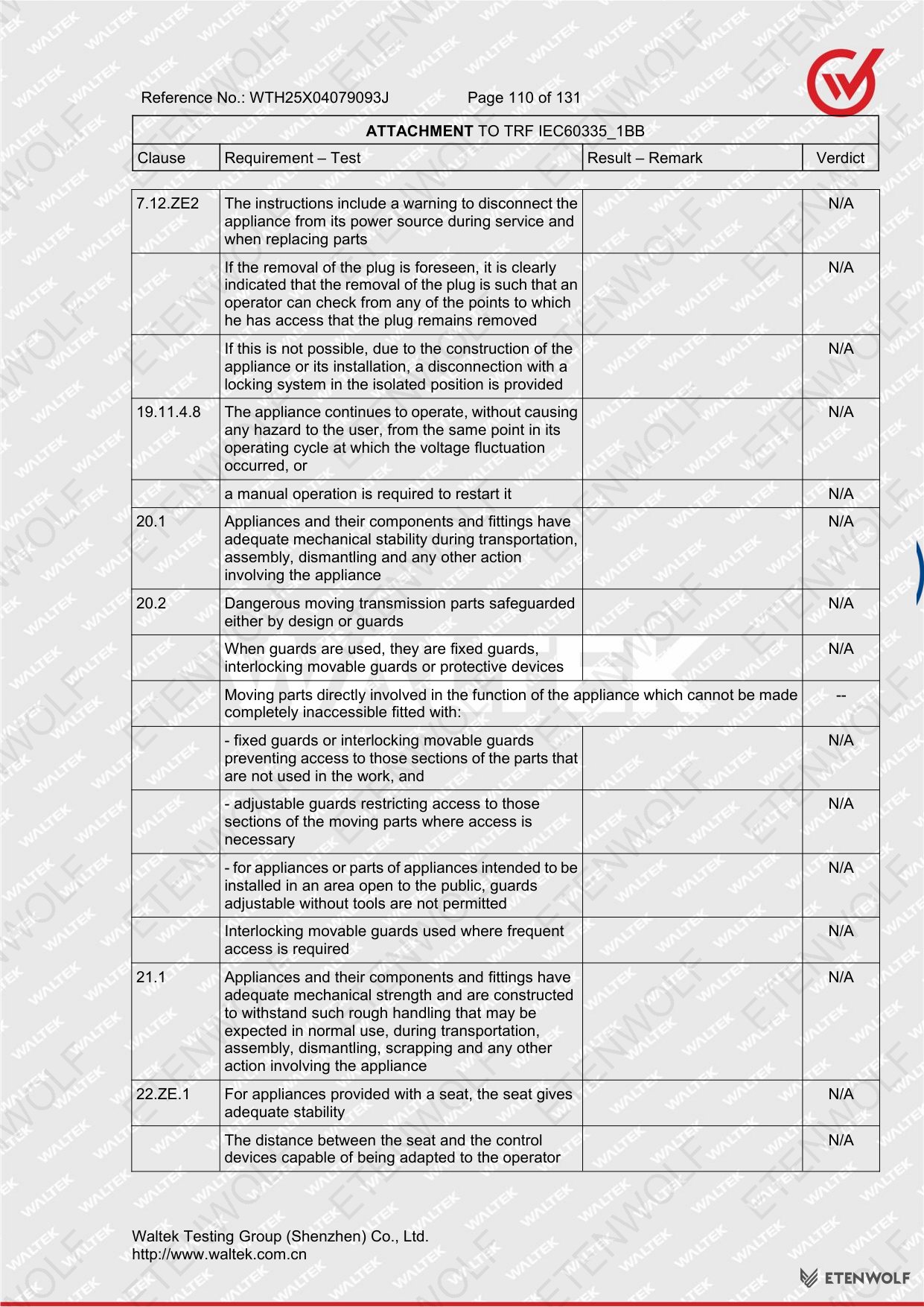

Document Page 119

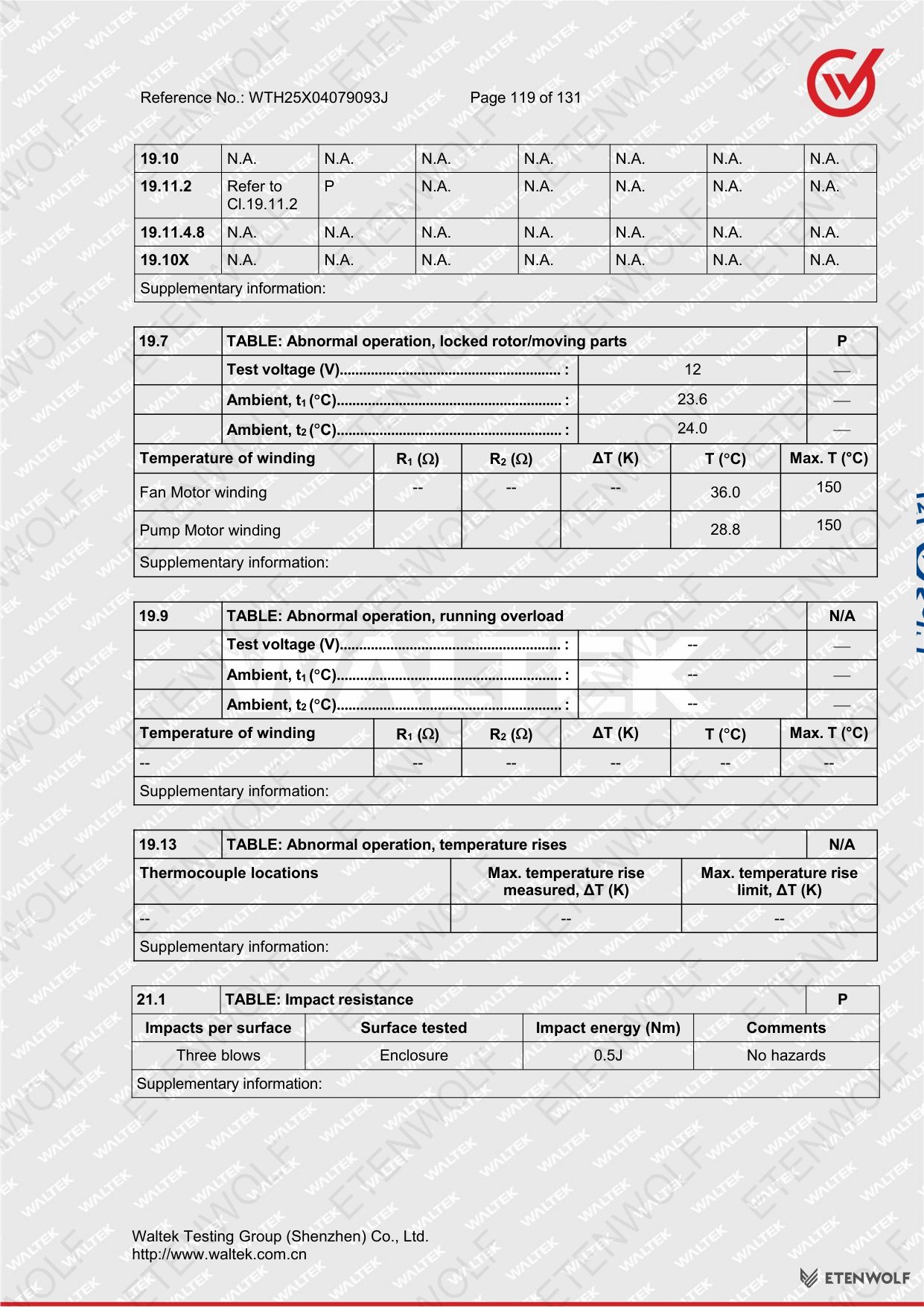

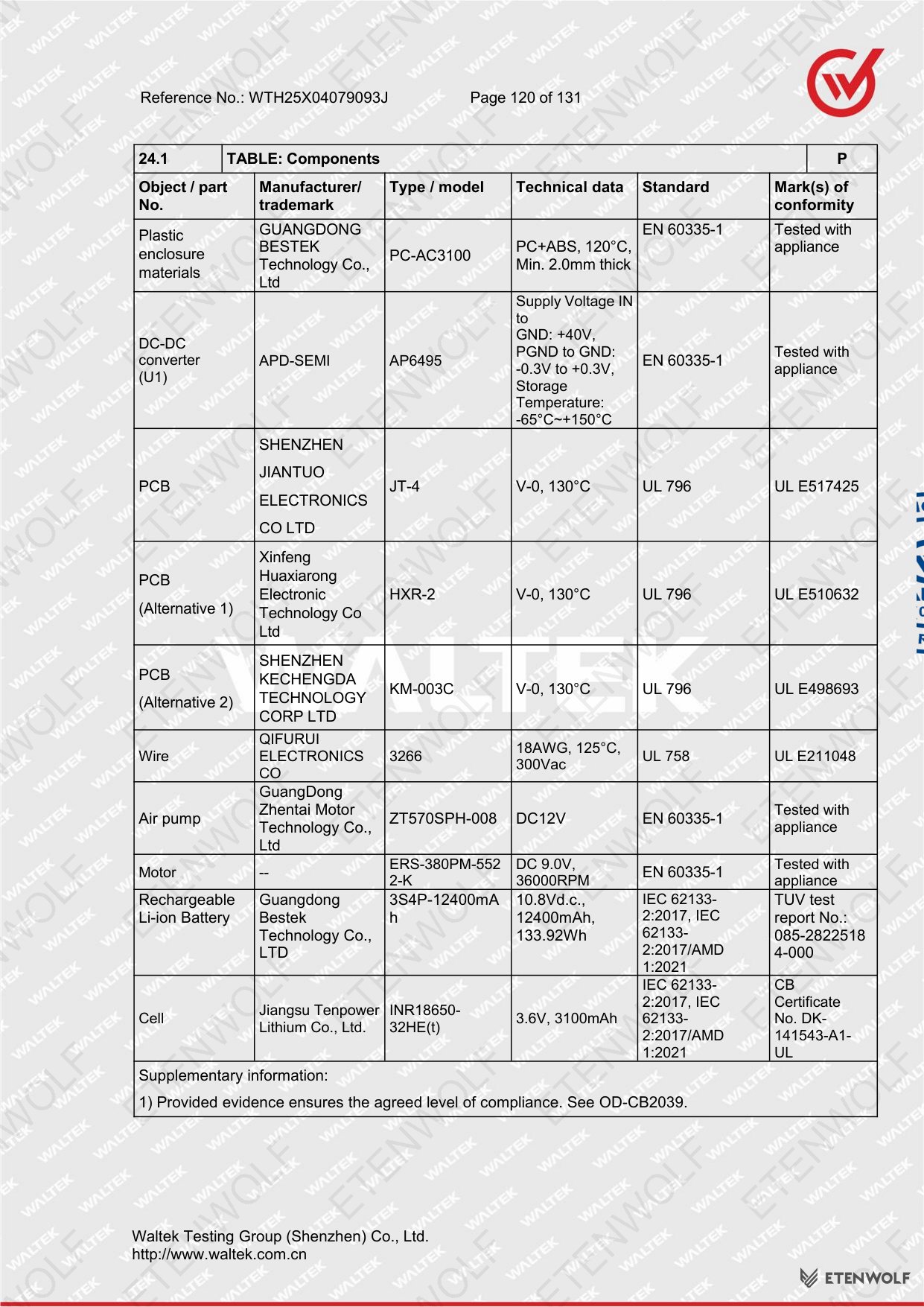

Document Page 120

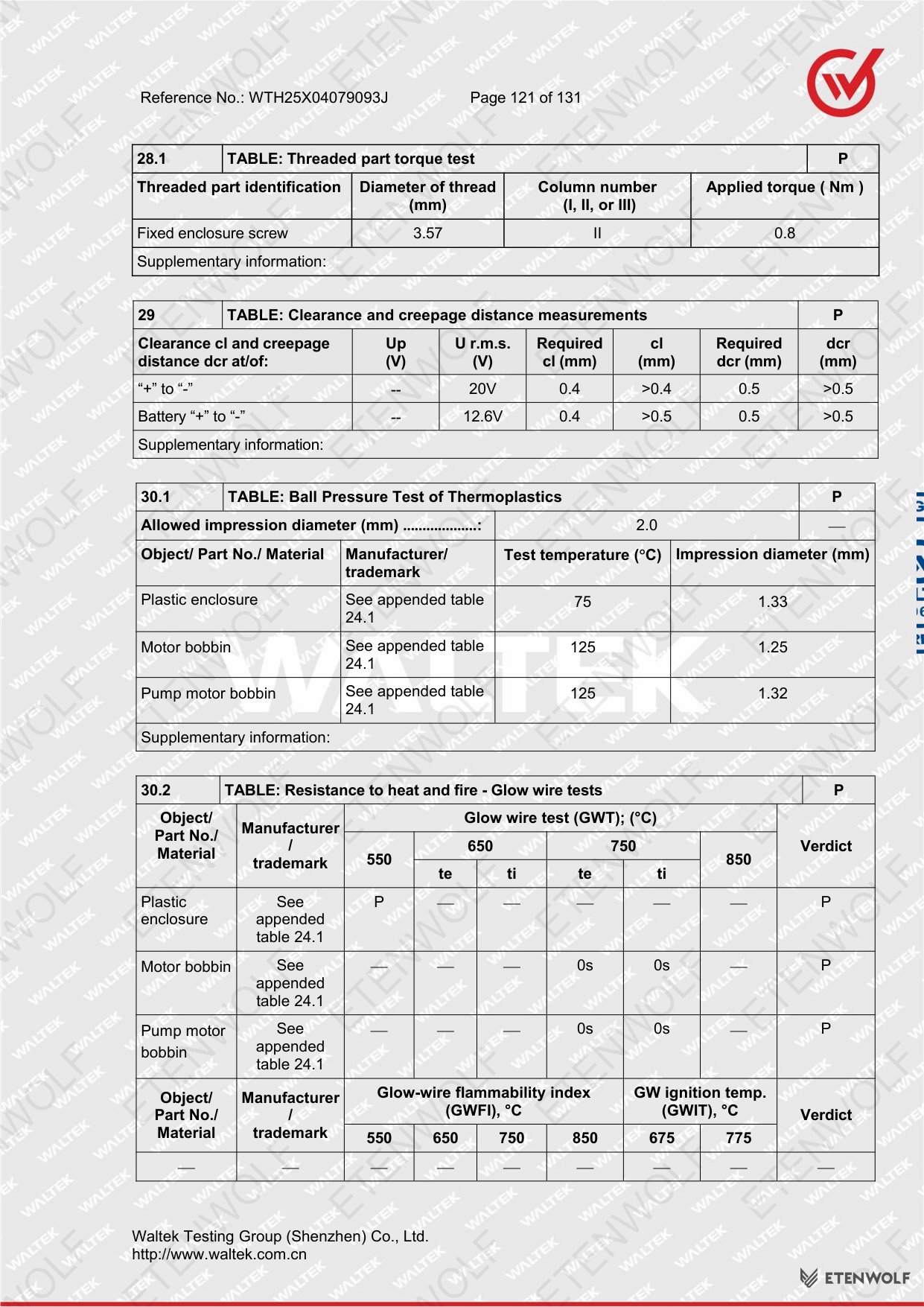

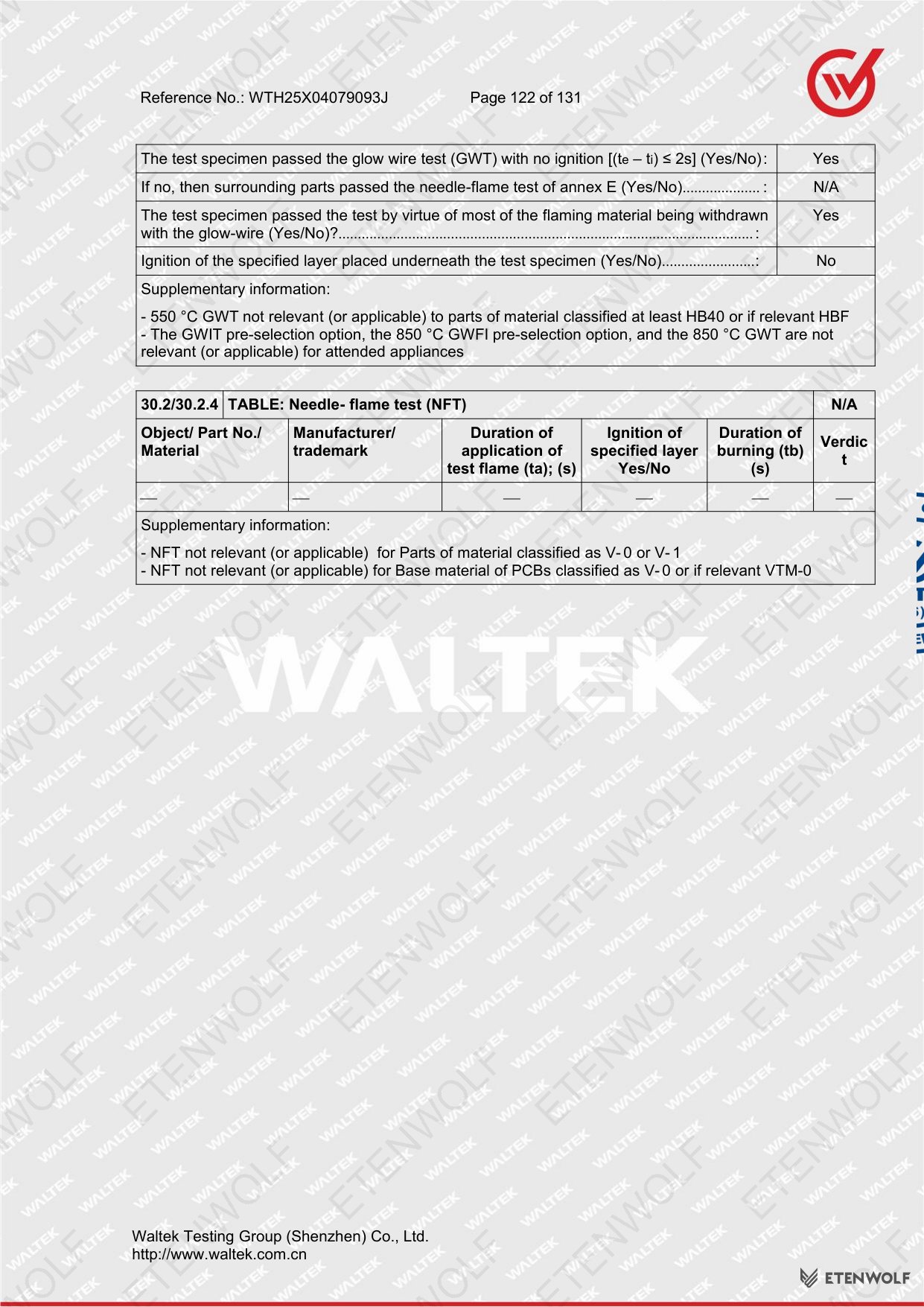

Document Page 121
Document Page 122

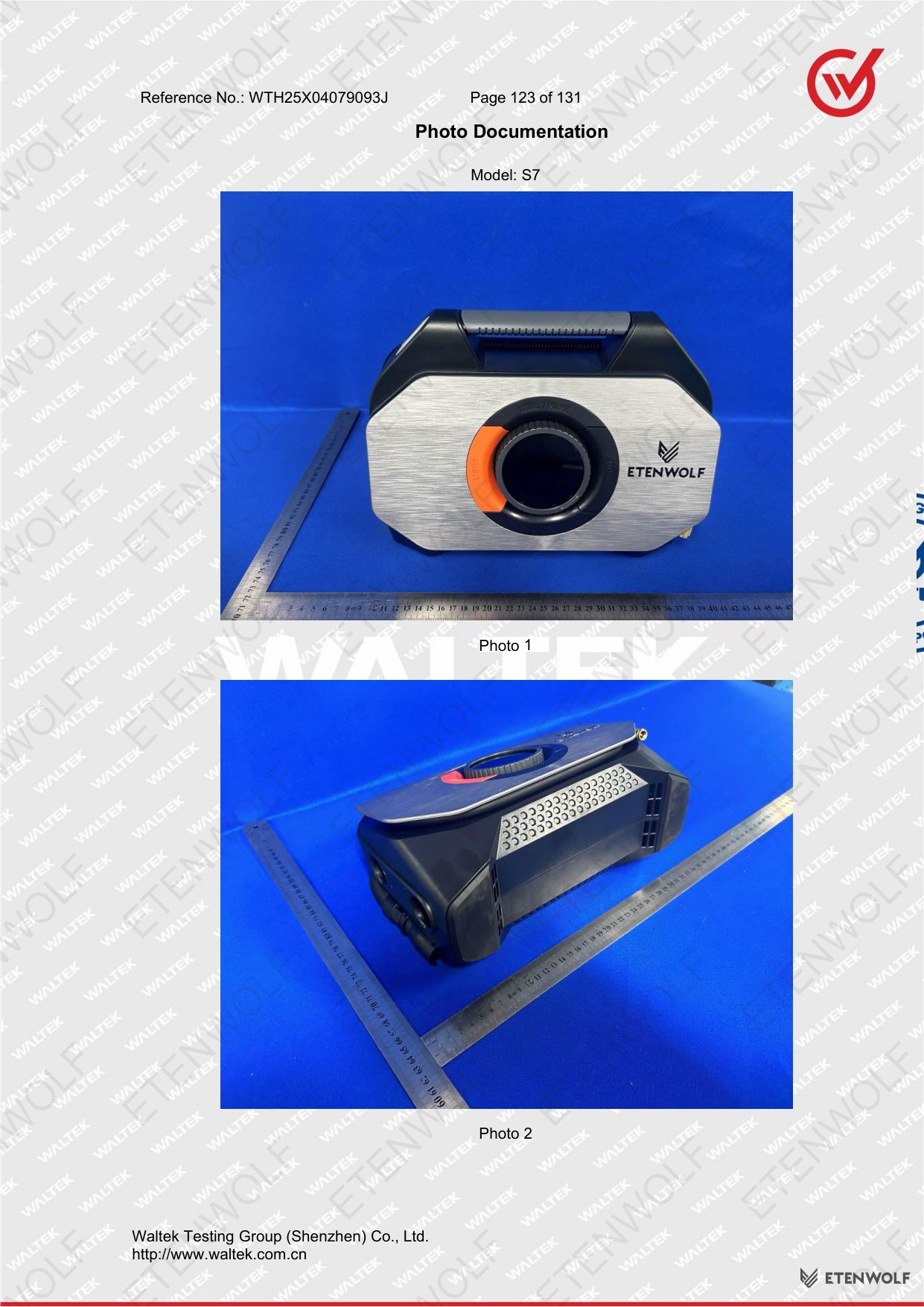

Document Page 123
Document Page 124

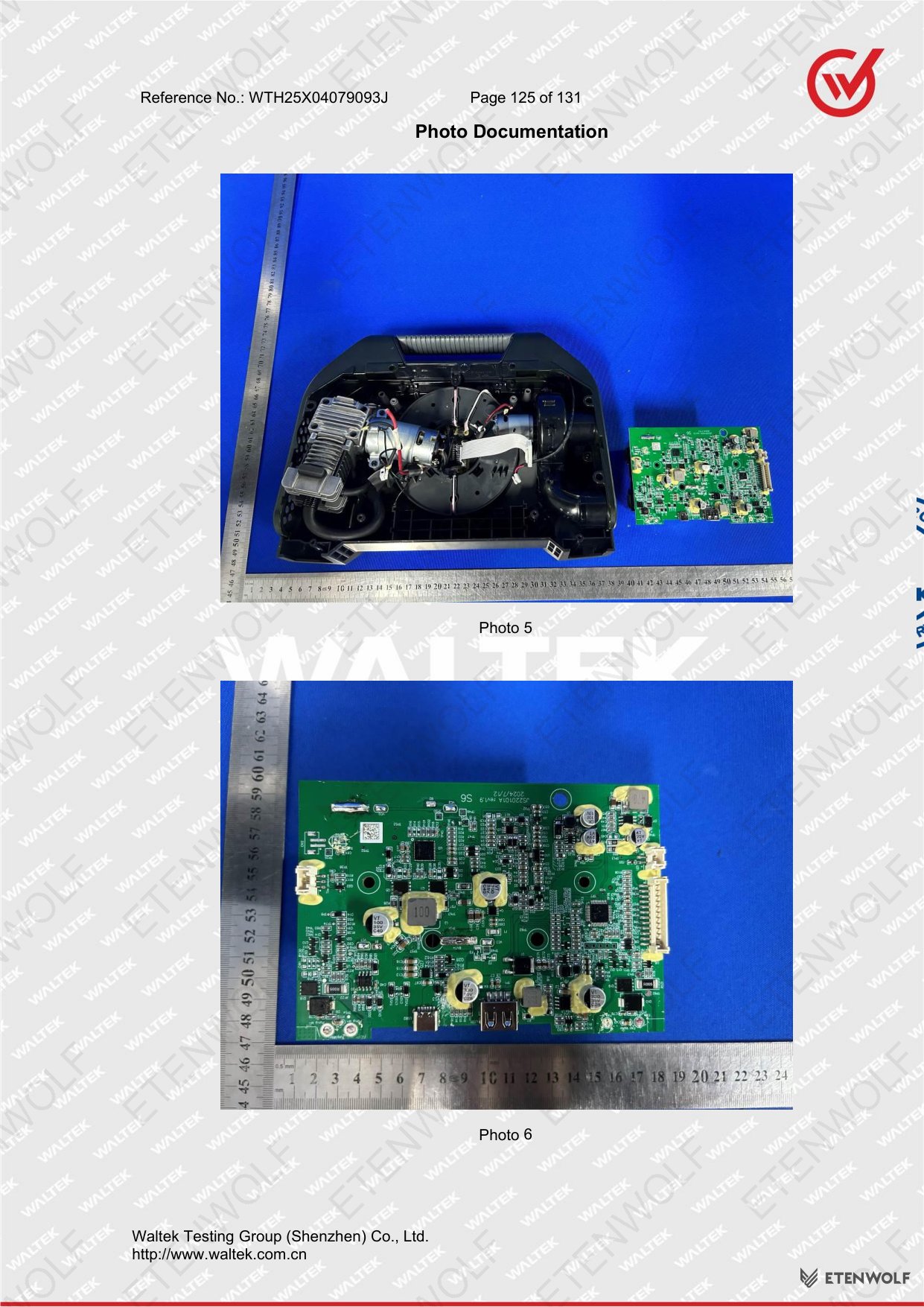

Document Page 125

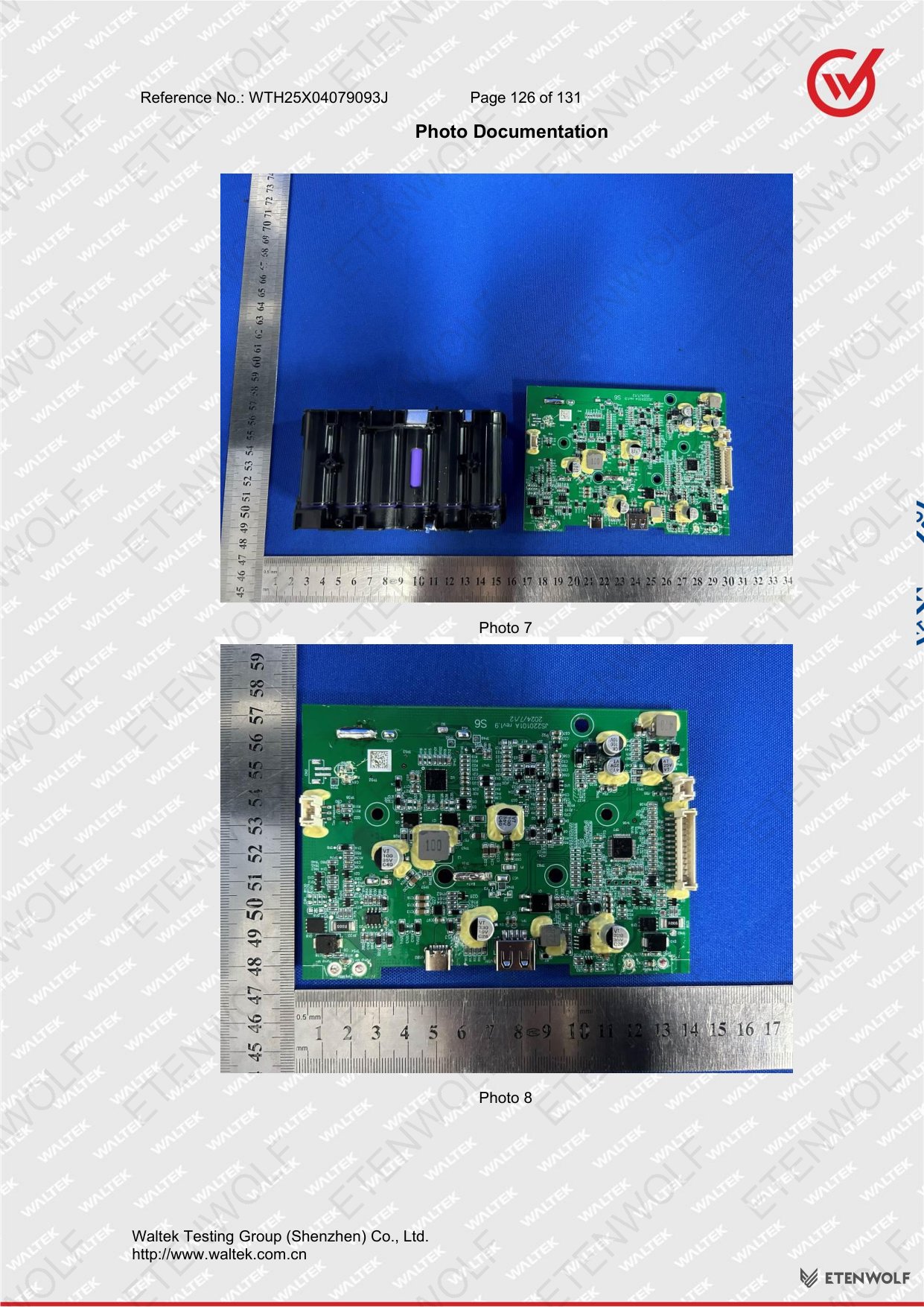

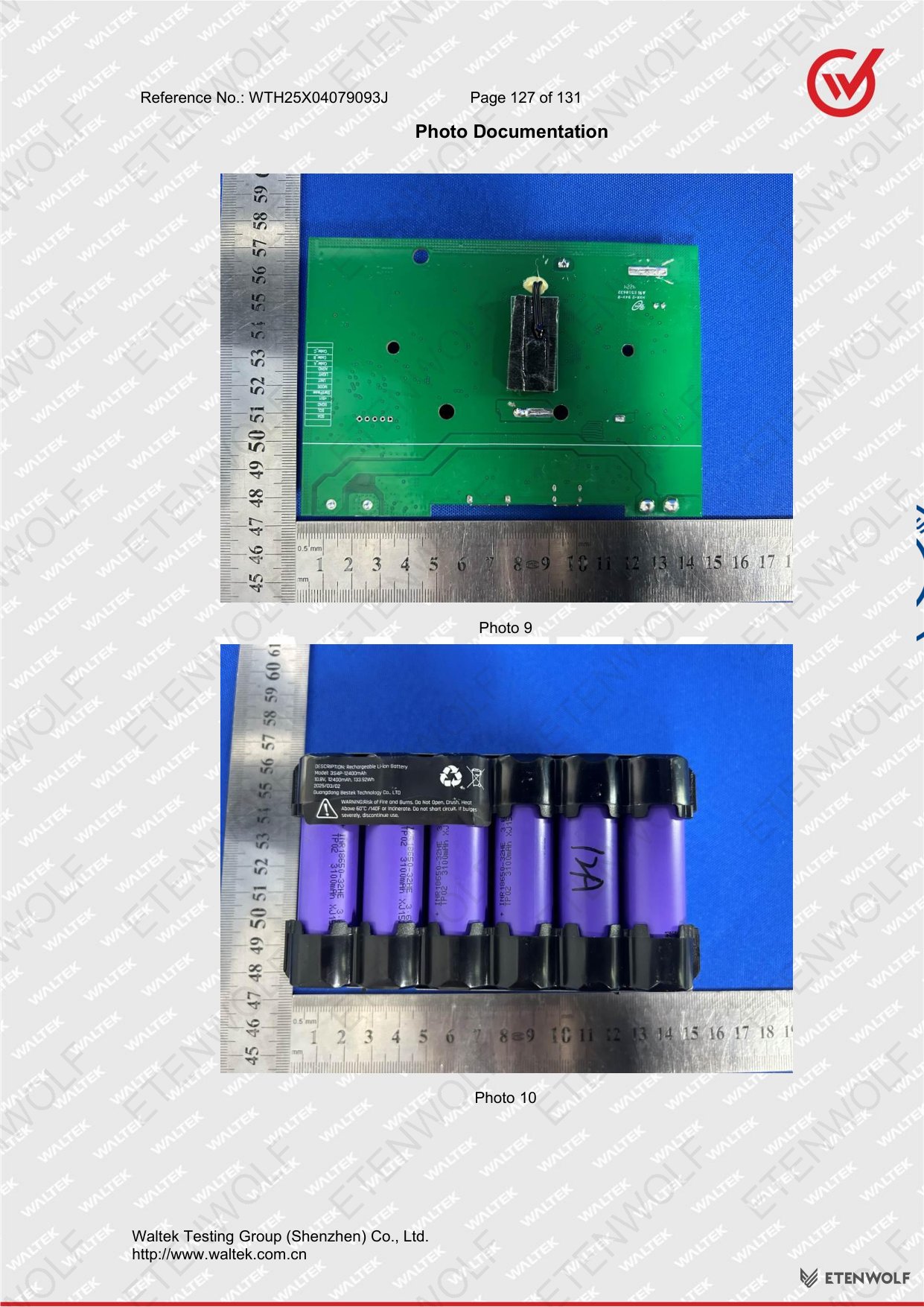

Document Page 126
Document Page 127
Document Page 128
Document Page 129

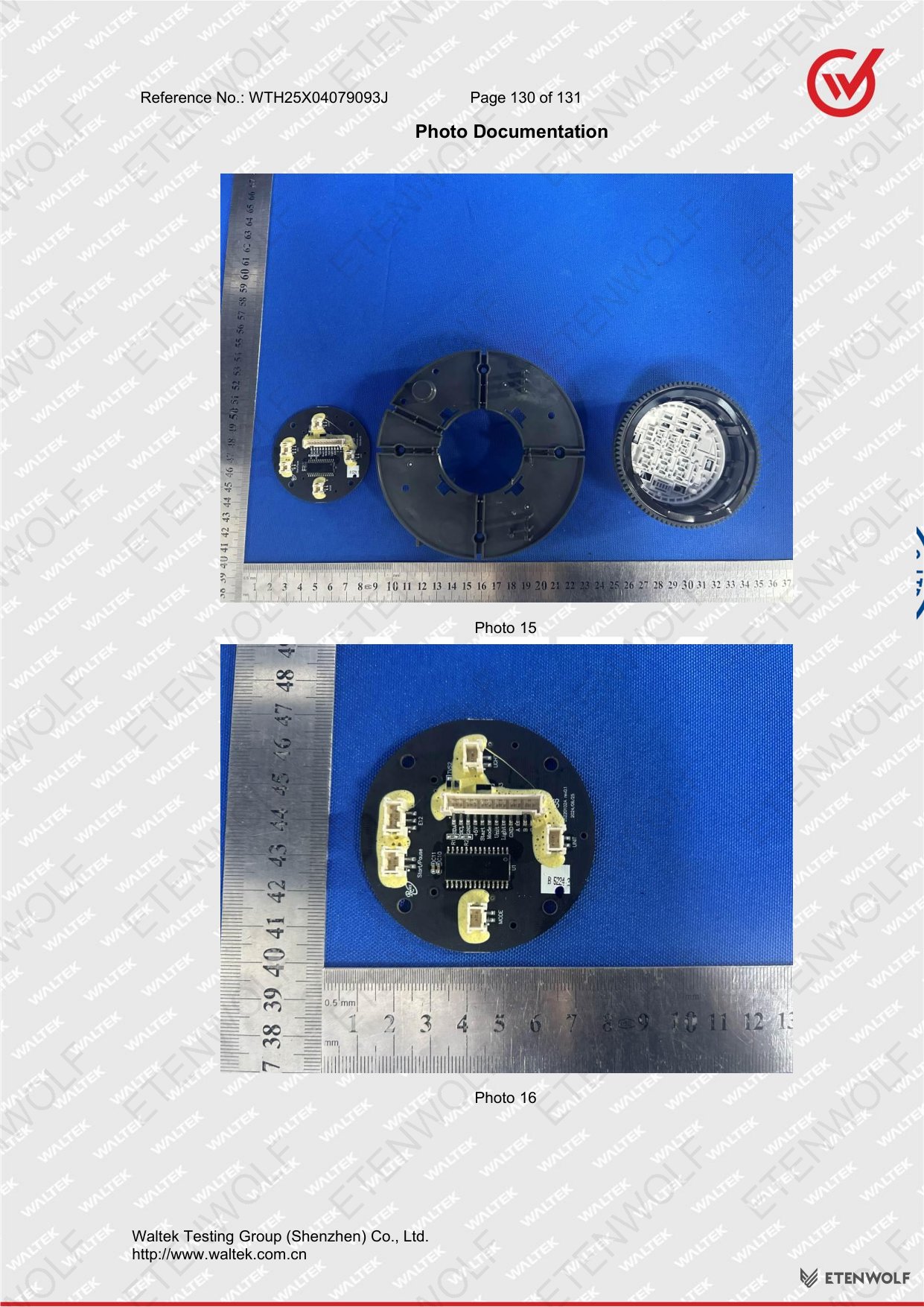

Document Page 130
Document Page 131
