Document Overview This article covers the official CE Low Voltage Directive (LVD) test report issued by Waltek Testing Group (Shenzhen) Co., Ltd. for the ETENWOLF S6C inflator pump. The report reference number is WTH25X07183681J, issued on 2025-07-23, covering tests conducted from 2025-07-14 to 2025-07-22. The…

Document type
Certification Report
Prepared by
Michelle Torres
Published
Last reviewed
Topics
European Union: CE / RoHS / REACH / WEEE

Document Overview

This article covers the official CE Low Voltage Directive (LVD) test report issued by Waltek Testing Group (Shenzhen) Co., Ltd. for the ETENWOLF S6C inflator pump. The report reference number is WTH25X07183681J, issued on 2025-07-23, covering tests conducted from 2025-07-14 to 2025-07-22. The document certifies compliance with applicable EU safety directives for household and similar electrical appliances intended for indoor use.

Field Detail
Document Type CE-LVD Test Report
Reference No. WTH25X07183681J
Issuing Body Waltek Testing Group (Shenzhen) Co., Ltd.
Date of Issue 2025-07-23
Test Report Form No. WTX_EN IEC 60335_1_2023B
Overall Result Pass

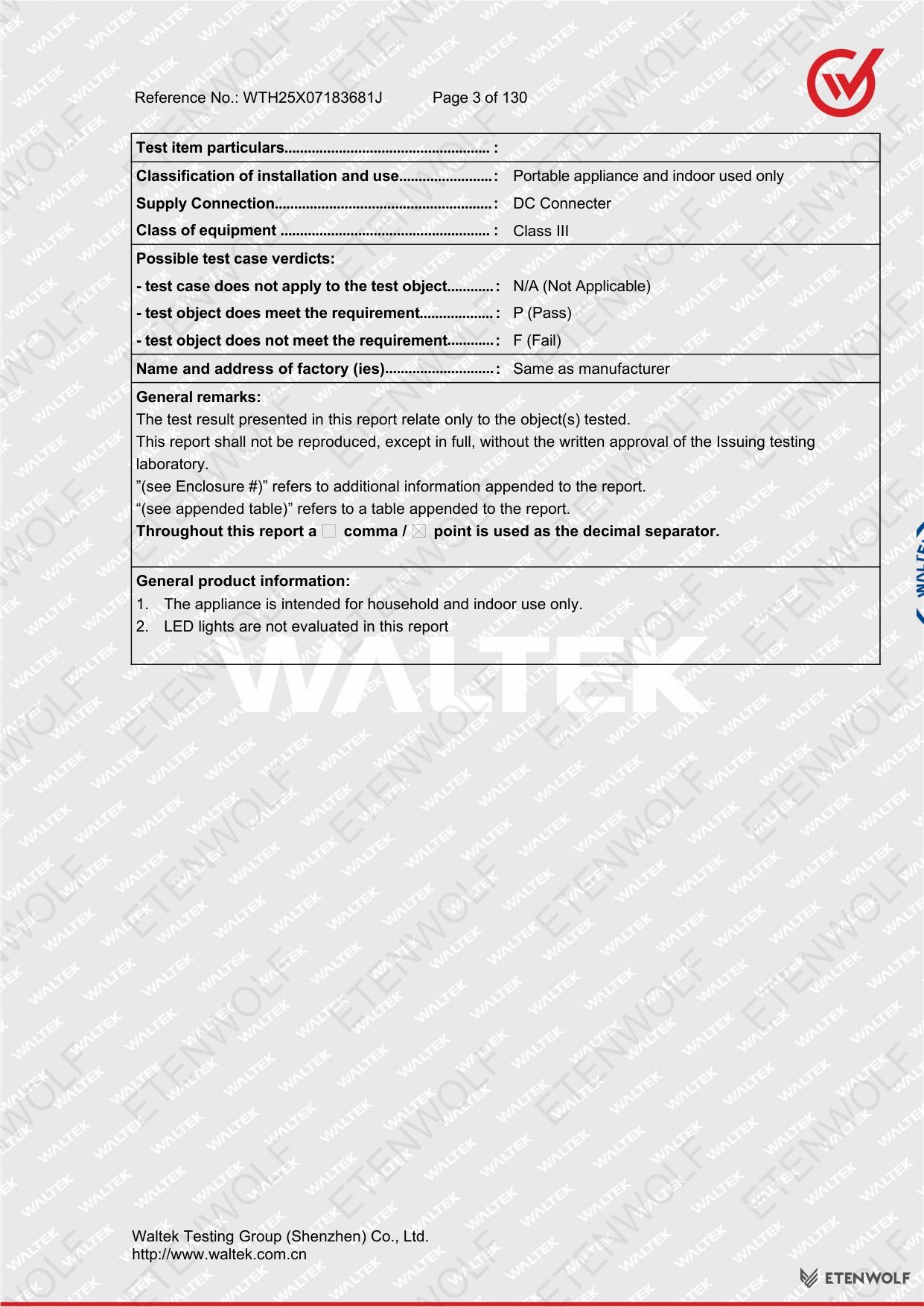

Product Information

The product evaluated in this report is the S6C inflator pump, manufactured and supplied by Guangdong Bestek Technology Co., Ltd. It is classified as a portable, indoor-use household appliance powered via DC connector under Class III equipment classification.

Field Detail
Product Name Inflator Pump
Model No. S6C
Trademark —
Input Ratings 5V 3A / 9V 3A / 12V 3A / 15V 3A / 20V 2.2A
Supply Connection DC Connector
Equipment Class Class III
Installation Type Portable appliance, indoor use only
Water Ingress Protection IPX0
Manufacturer Guangdong Bestek Technology Co., Ltd.
Manufacturer Address No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China
Country of Origin Made in China

Note: LED lights incorporated in the product were not evaluated as part of this test report.

Key Details

The following table summarises the key test clauses evaluated under EN IEC 60335-1:2023+A11:2023, with results recorded per clause.

Clause Requirement / Test Verdict
5 General Conditions for the Tests Pass
6 Classification Pass
6.1 Protection against electric shock — Class III Pass
6.2 Protection against harmful ingress of water — IPX0 N/A
7 Marking and Instructions Pass
7.1 Rated voltage, current, manufacturer identification, model reference on marking label Pass
7.1 Symbol IEC 60417-5172 (Class II) — not applicable to Class III N/A
7.1 Appliance powered by rechargeable batteries recharged in the appliance Pass

Additional marking requirements noted in the report:

  • Minimum CE mark height: 5 mm
  • Minimum WEEE mark height: 7 mm
  • The name and address of the EU Importer AND Manufacturer must be affixed on the product when placed on the EU market.
  • Importer fields on the reference label are indicated as placeholder (XXX) pending final EU importer designation.

Standards & Compliance

The S6C inflator pump was tested against the following standards as part of its CE-LVD certification process:

Standard Title Result
EN IEC 60335-1:2023+A11:2023 Household and similar electrical appliances — Safety — Part 1: General requirements Pass
EN 62233:2008 Measurement methods for electromagnetic fields of household appliances and similar apparatus with regard to human exposure Pass

The product classification and applicable scope are as follows:

  • Equipment Class: Class III (operates at Safety Extra-Low Voltage, SELV)
  • Use Category: Household and indoor portable appliance
  • Subcontracting: No test items were subcontracted to other laboratories; all testing was performed in-house at Waltek Testing Group (Shenzhen) Co., Ltd.

Validity & Certification Body

The test report was prepared and approved by Waltek Testing Group (Shenzhen) Co., Ltd., an accredited third-party testing laboratory. The report is valid under the condition that it bears the specific stamp of the test institute and the authorised signatures of the approver. Reproduction of the report is only permitted in full, with prior written permission from Waltek.

Field Detail
Testing Laboratory Waltek Testing Group (Shenzhen) Co., Ltd.
Laboratory Address 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70, Bao’an District, Shenzhen, Guangdong, China
Laboratory Website http://www.waltek.com.cn
Tel +86-755-33663308
Fax +86-755-33663309
Email [email protected]
Tested By John Zhong / Project Engineer
Approved By Harvid Wei / Manager
Date of Sample Receipt 2025-07-14
Test Period 2025-07-14 to 2025-07-22
Date of Issue 2025-07-23

Frequently Asked Questions

What does the CE-LVD certification mean for the S6C inflator pump?

CE-LVD (Low Voltage Directive) certification confirms that the S6C inflator pump meets the EU’s essential health and safety requirements for electrical equipment. It allows the product to be legally placed on the European market.

Which standards was the S6C tested against?

The S6C was tested against EN IEC 60335-1:2023+A11:2023 (general household appliance safety) and EN 62233:2008 (electromagnetic field measurement for human exposure). Both tests returned a Pass result.

What is the equipment class of the S6C, and why does it matter?

The S6C is classified as Class III equipment, meaning it operates at Safety Extra-Low Voltage (SELV) supplied via a DC connector. This classification means no mains-level insulation is required, but the power supply must itself be safety-certified before EU market placement.

Are the LED lights in the S6C covered by this test report?

No. The test report explicitly states that LED lights incorporated into the S6C were not evaluated as part of this certification. A separate assessment may be required for those components depending on applicable directives.

Related Documents

For a complete compliance picture of the S6C inflator pump, the following related certification documents are recommended:

  • CE-EMC Test Report — Electromagnetic Compatibility testing under EN 55014 series, required alongside LVD for full CE marking.
  • CE-RED Certification — If the S6C incorporates any wireless or Bluetooth functionality, Radio Equipment Directive compliance is required.
  • RoHS Compliance Report — Confirms restriction of hazardous substances per EU RoHS Directive 2011/65/EU.
  • REACH SVHC Declaration — Substances of Very High Concern declaration under REACH Regulation (EC) No 1907/2006.
  • UN38.3 Battery Transport Report — Required if the S6C contains a lithium-ion battery, covering transport safety testing per UN Manual of Tests and Criteria.

Document Pages

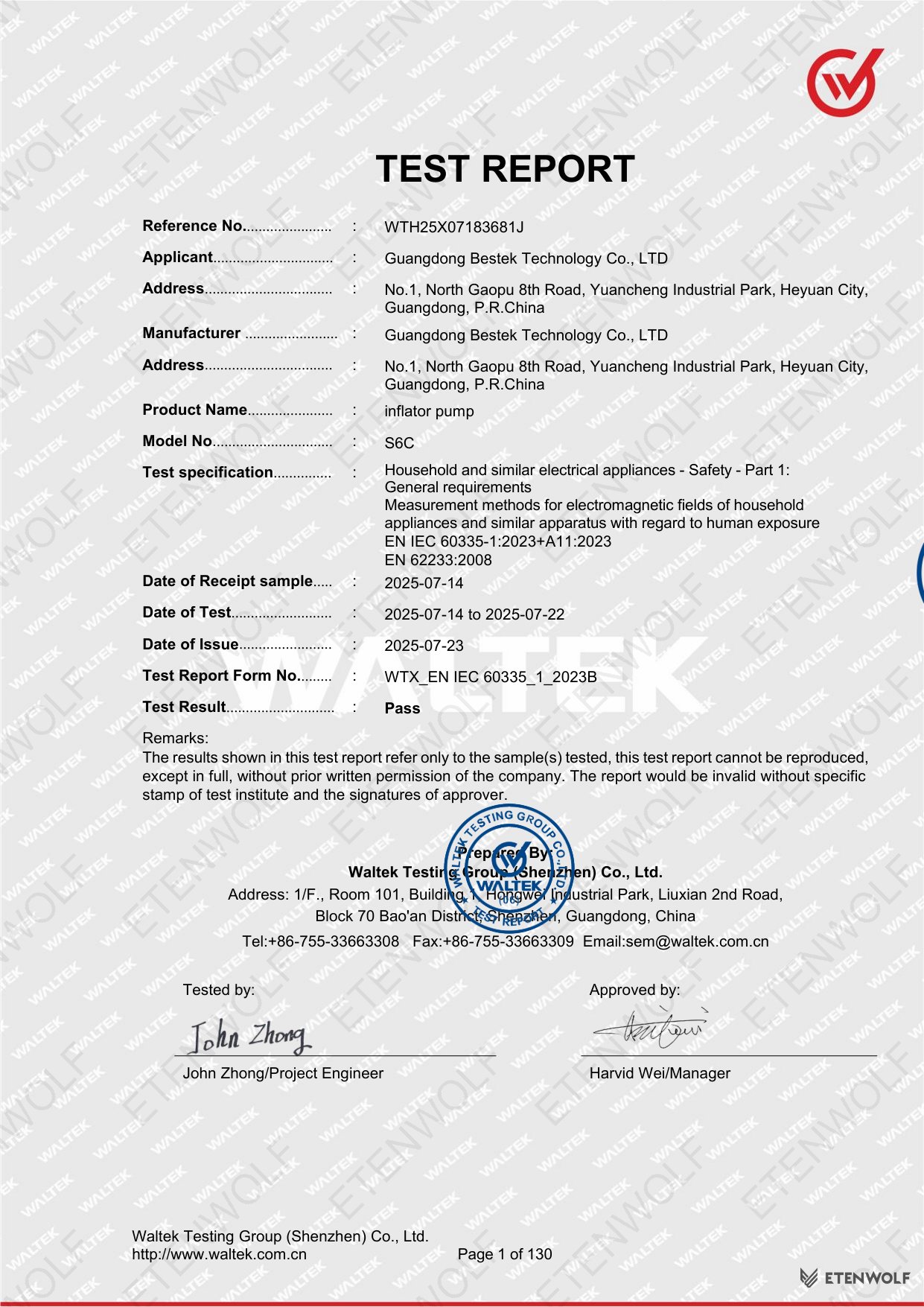

Document Page 1

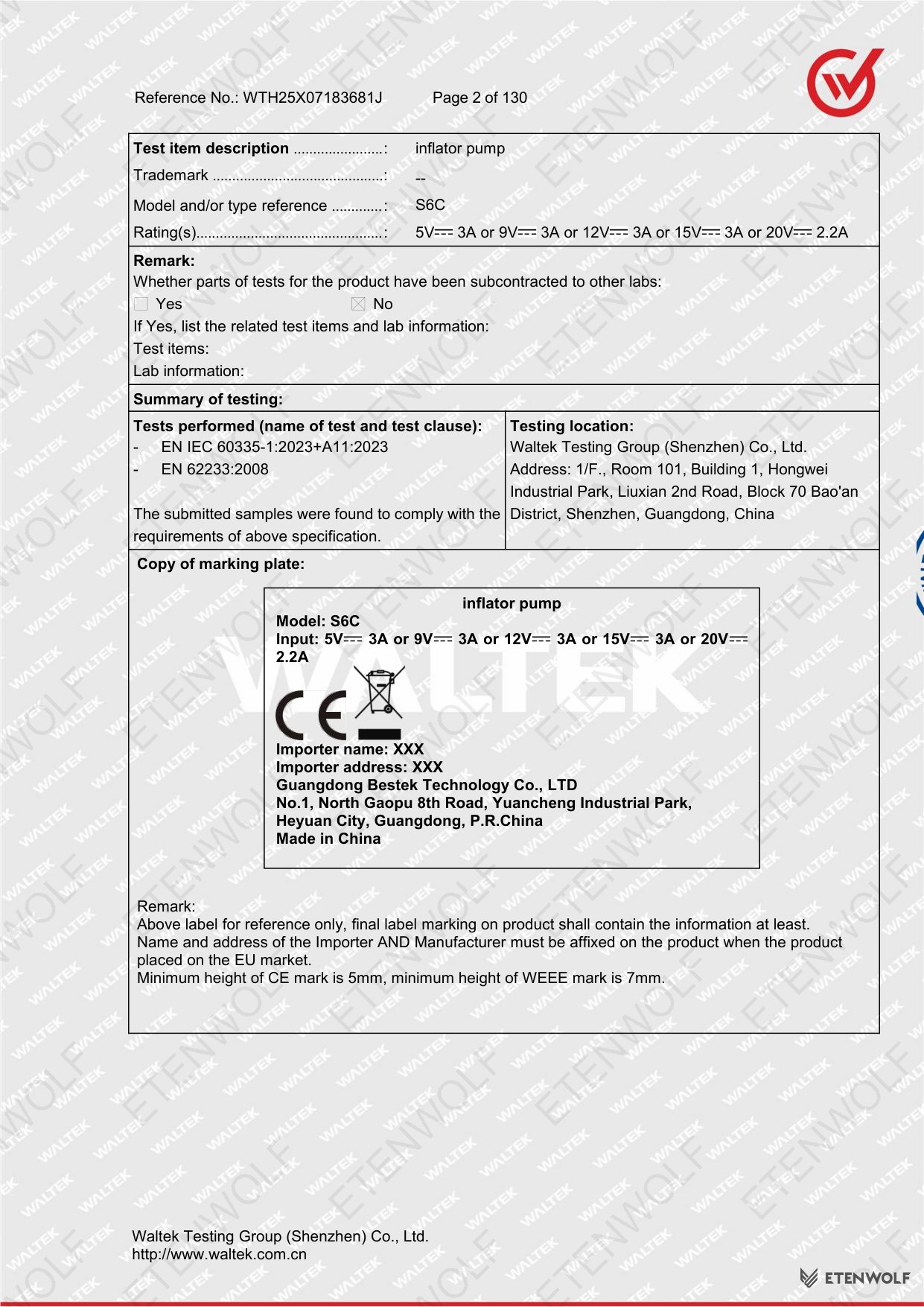

Document Page 2

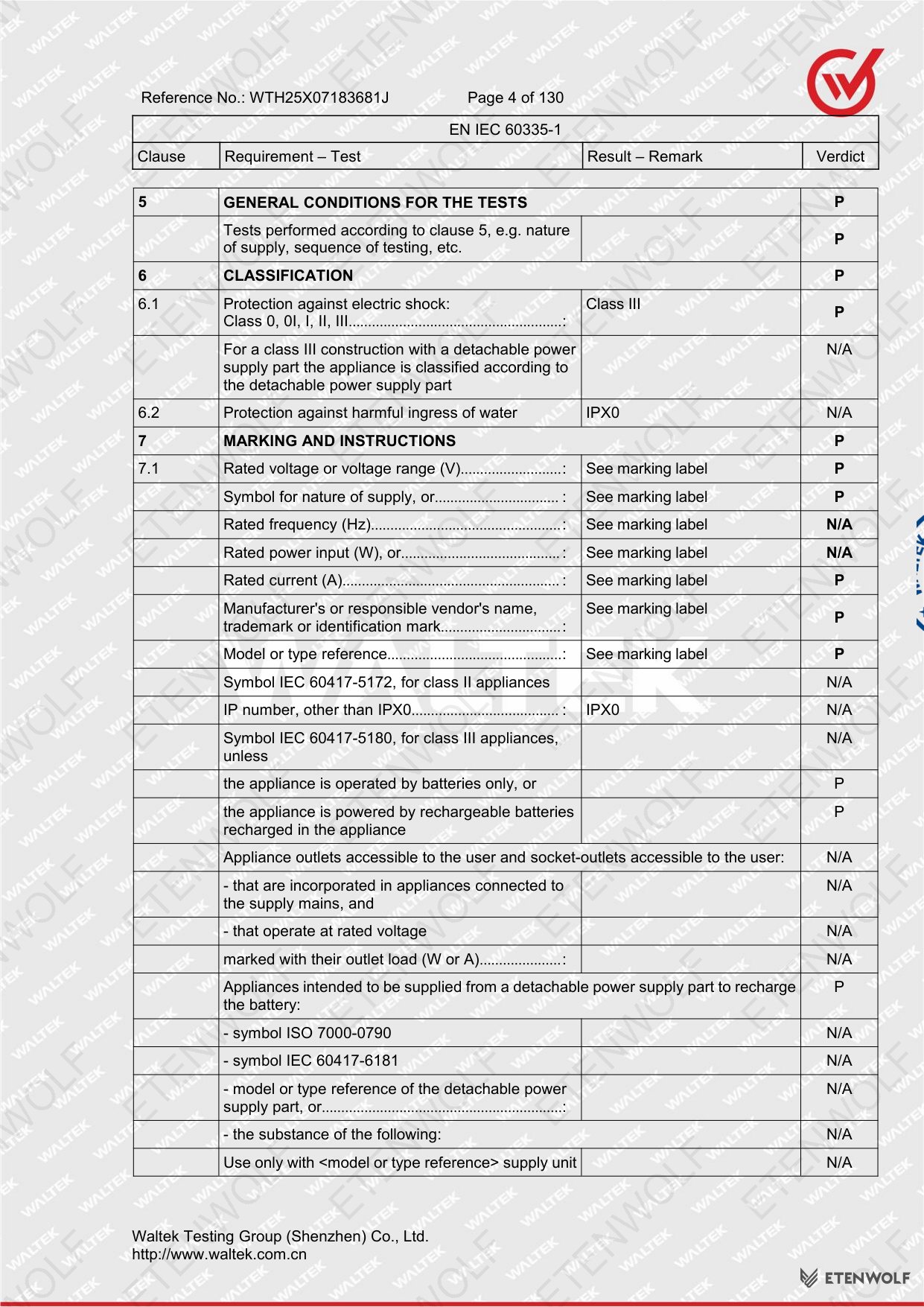

Document Page 3
Document Page 4

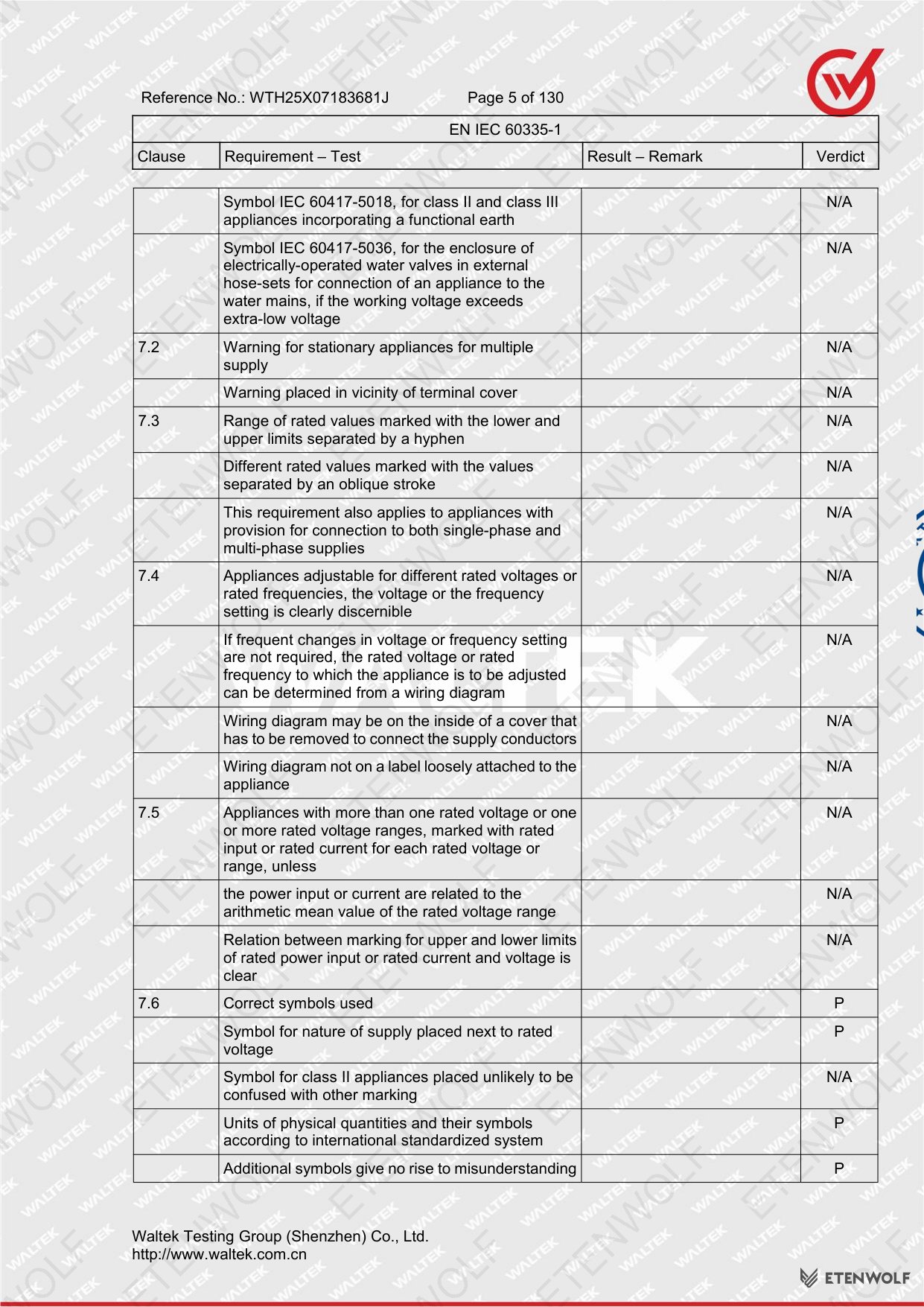

Document Page 5

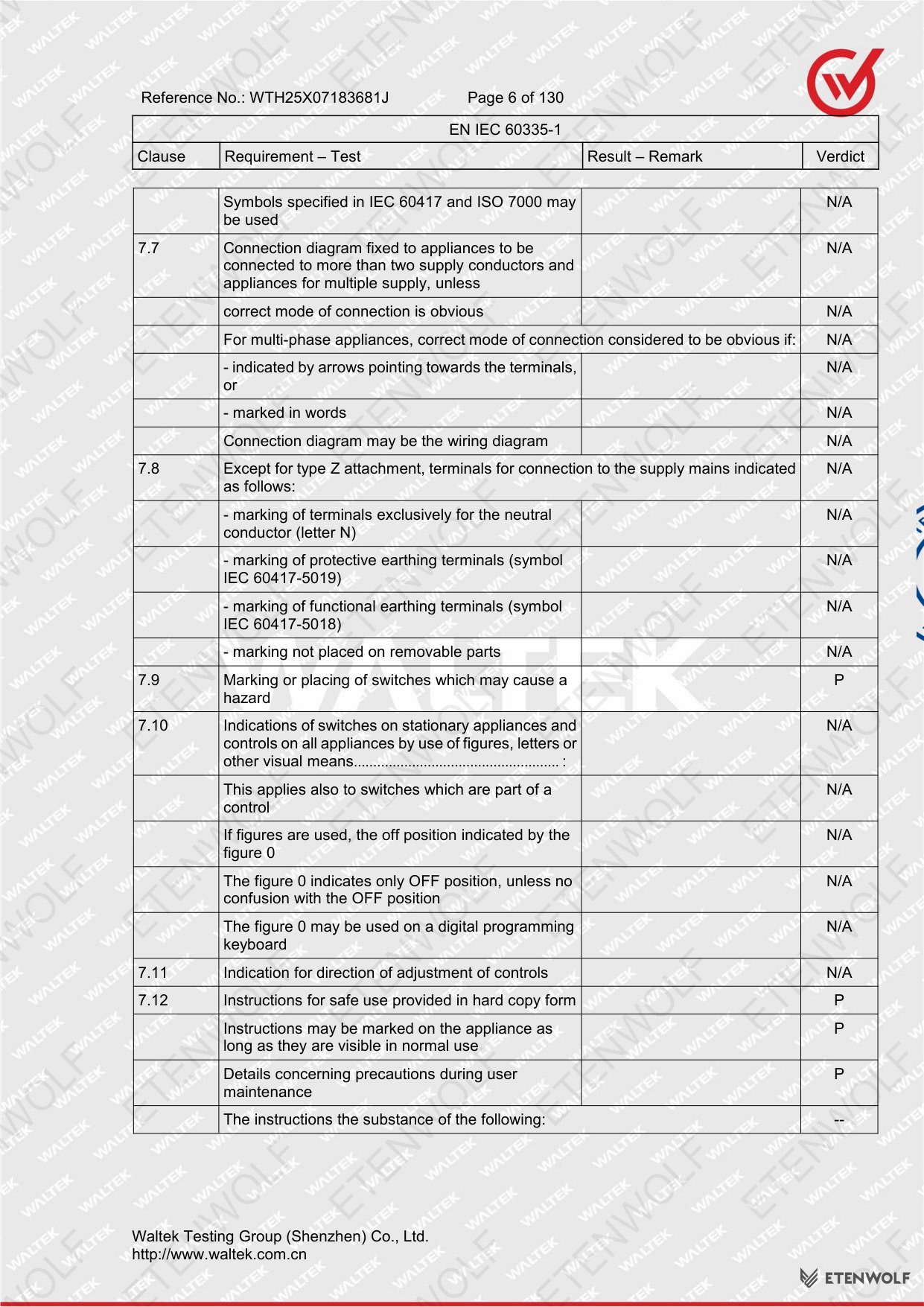

Document Page 6

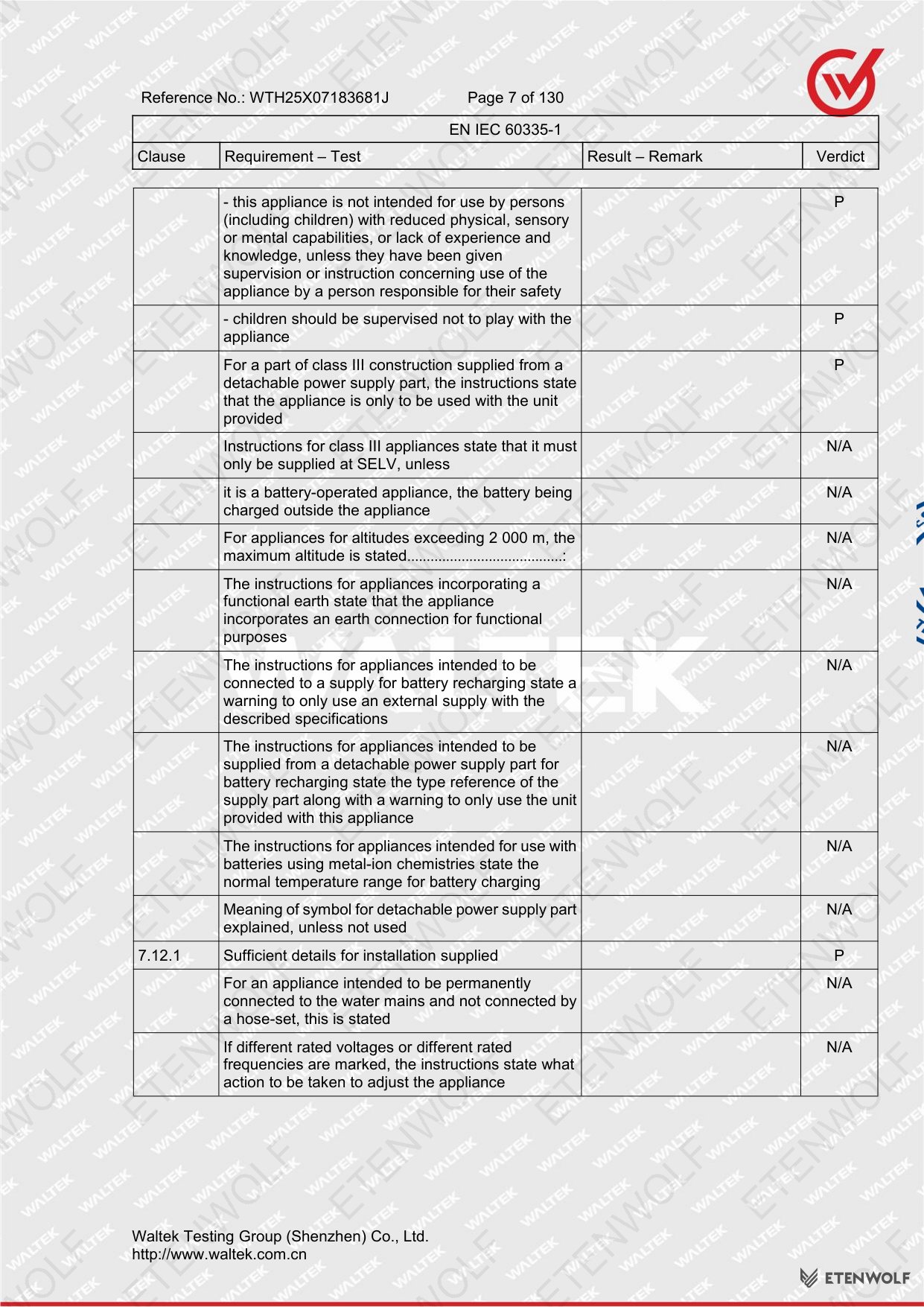

Document Page 7
Document Page 8
Document Page 9

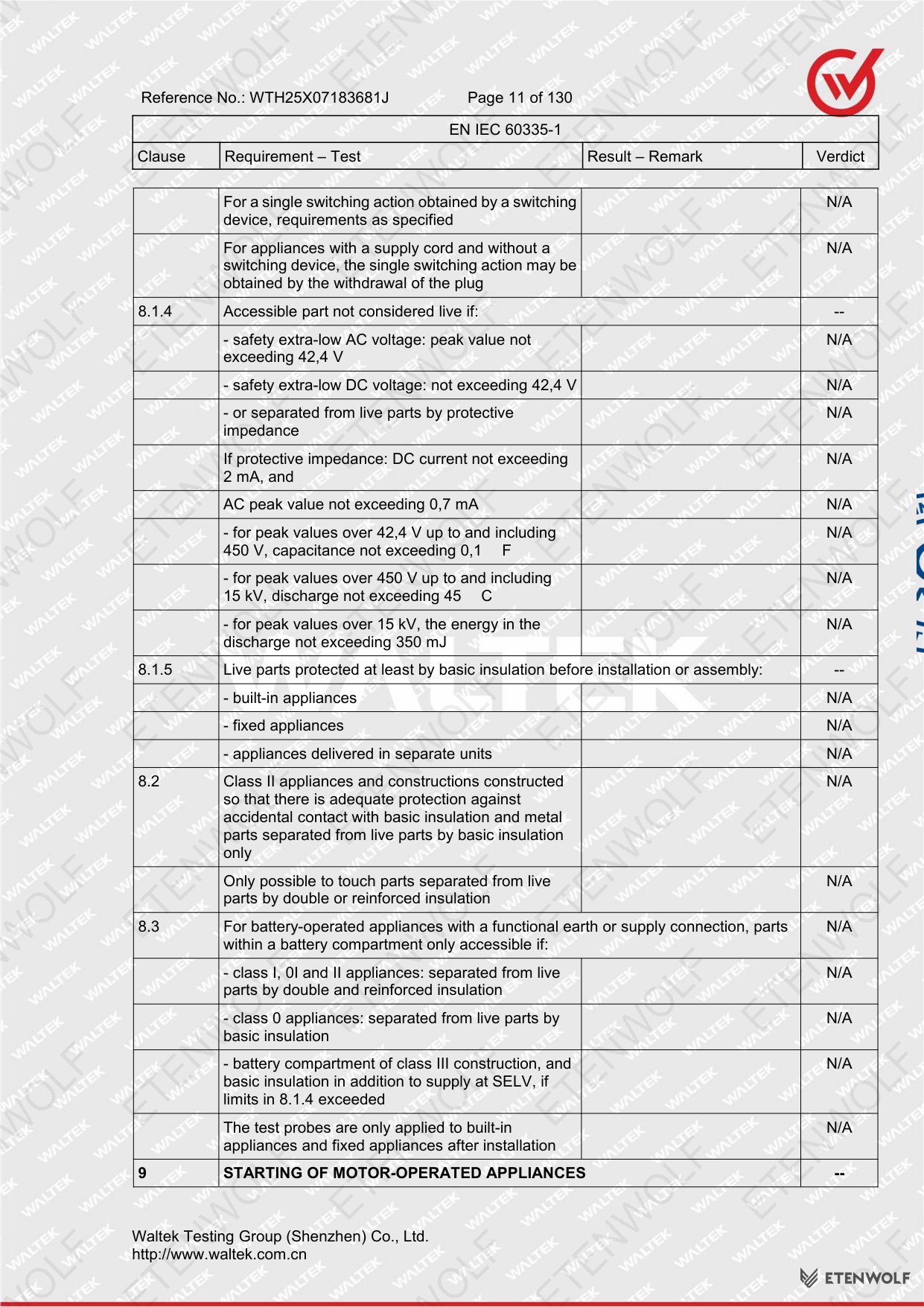

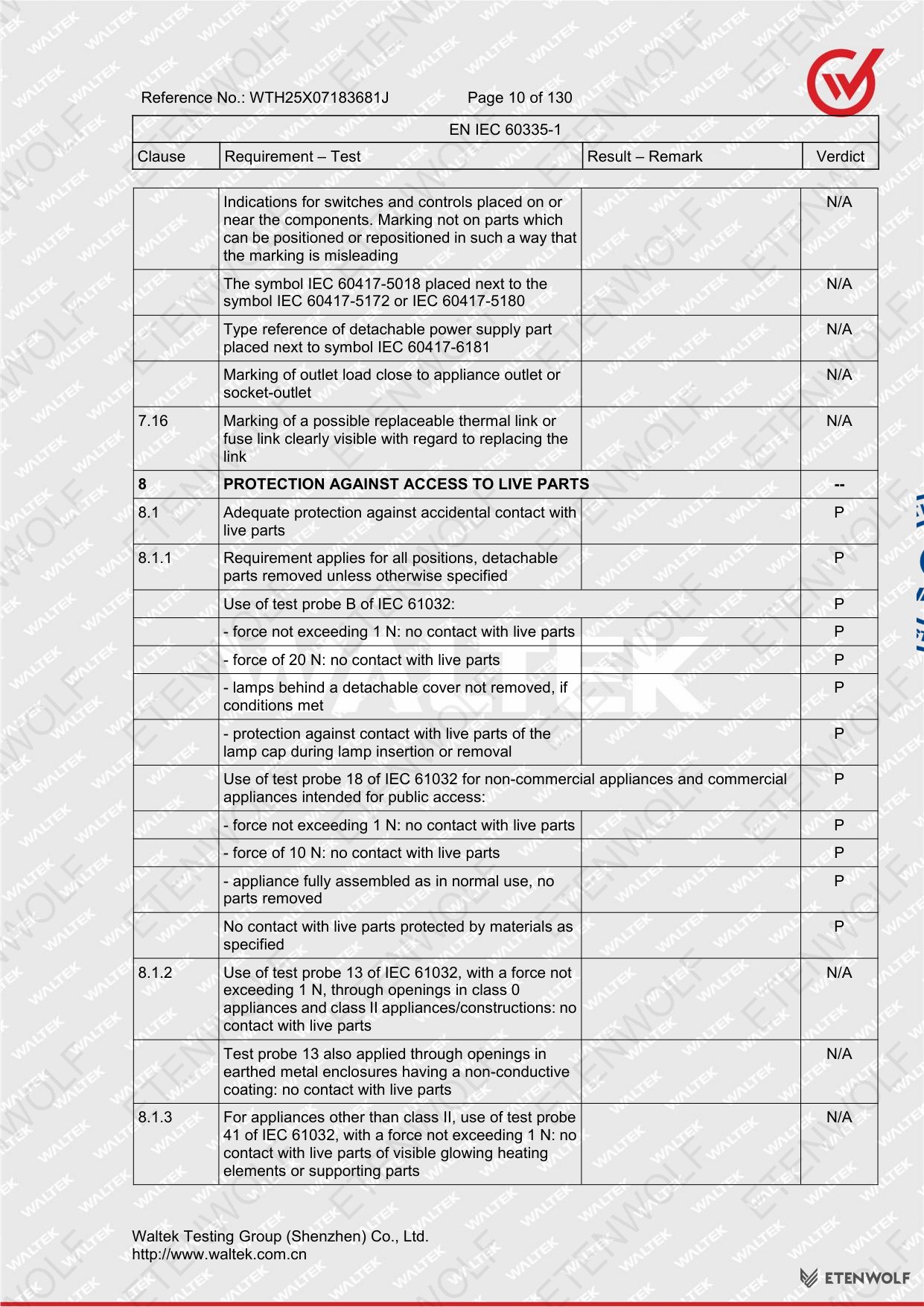

Document Page 10

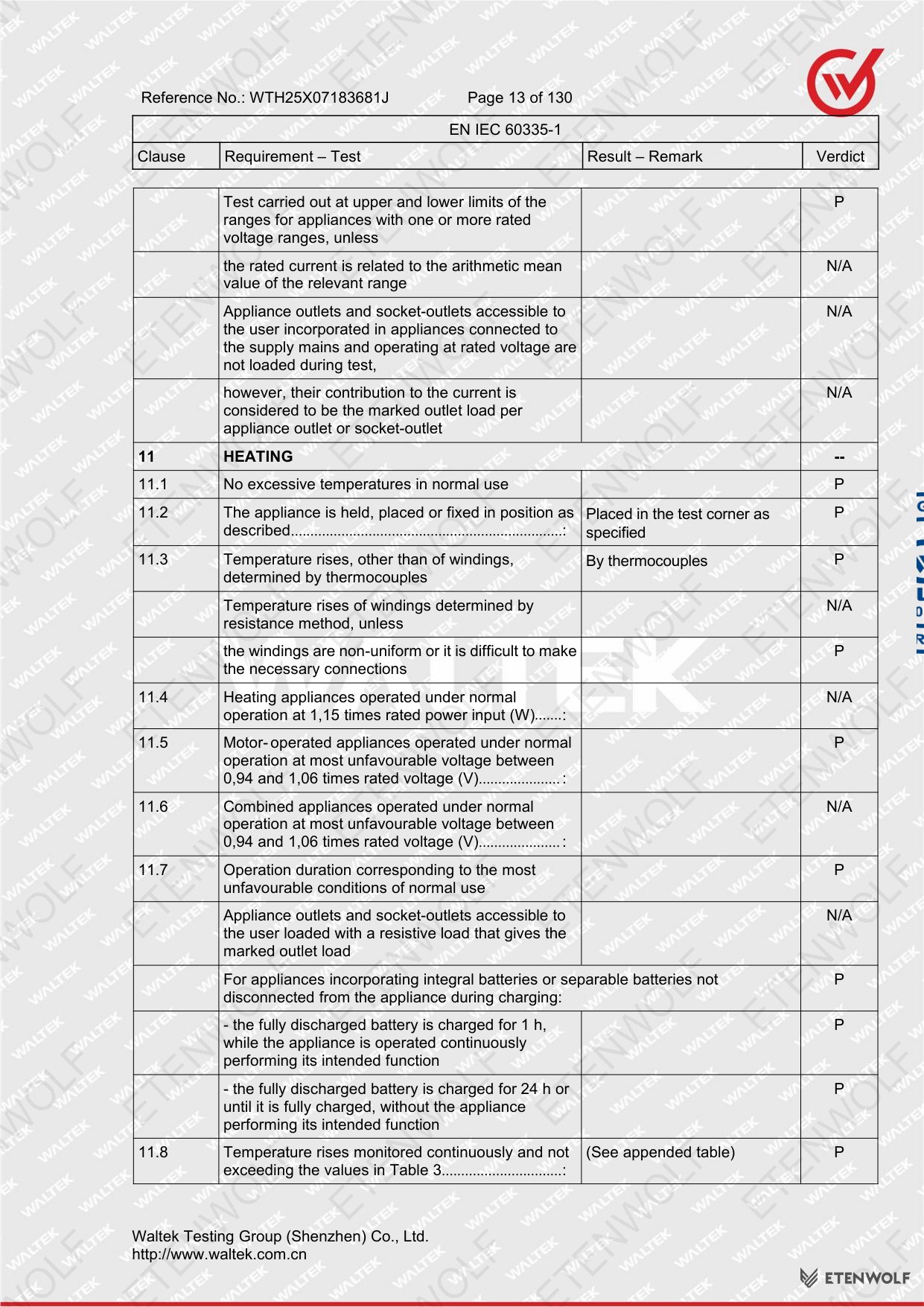

Document Page 11

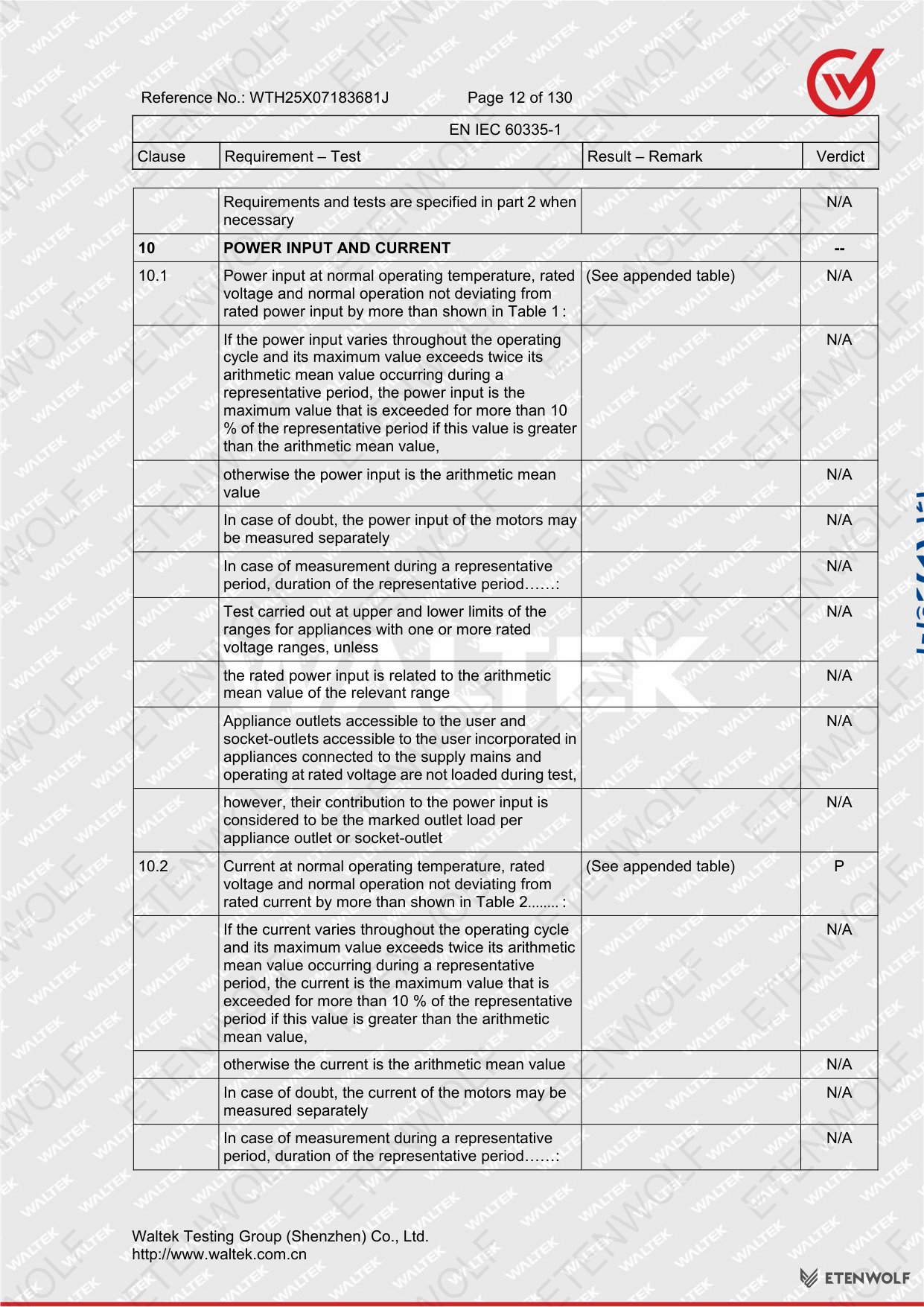

Document Page 12

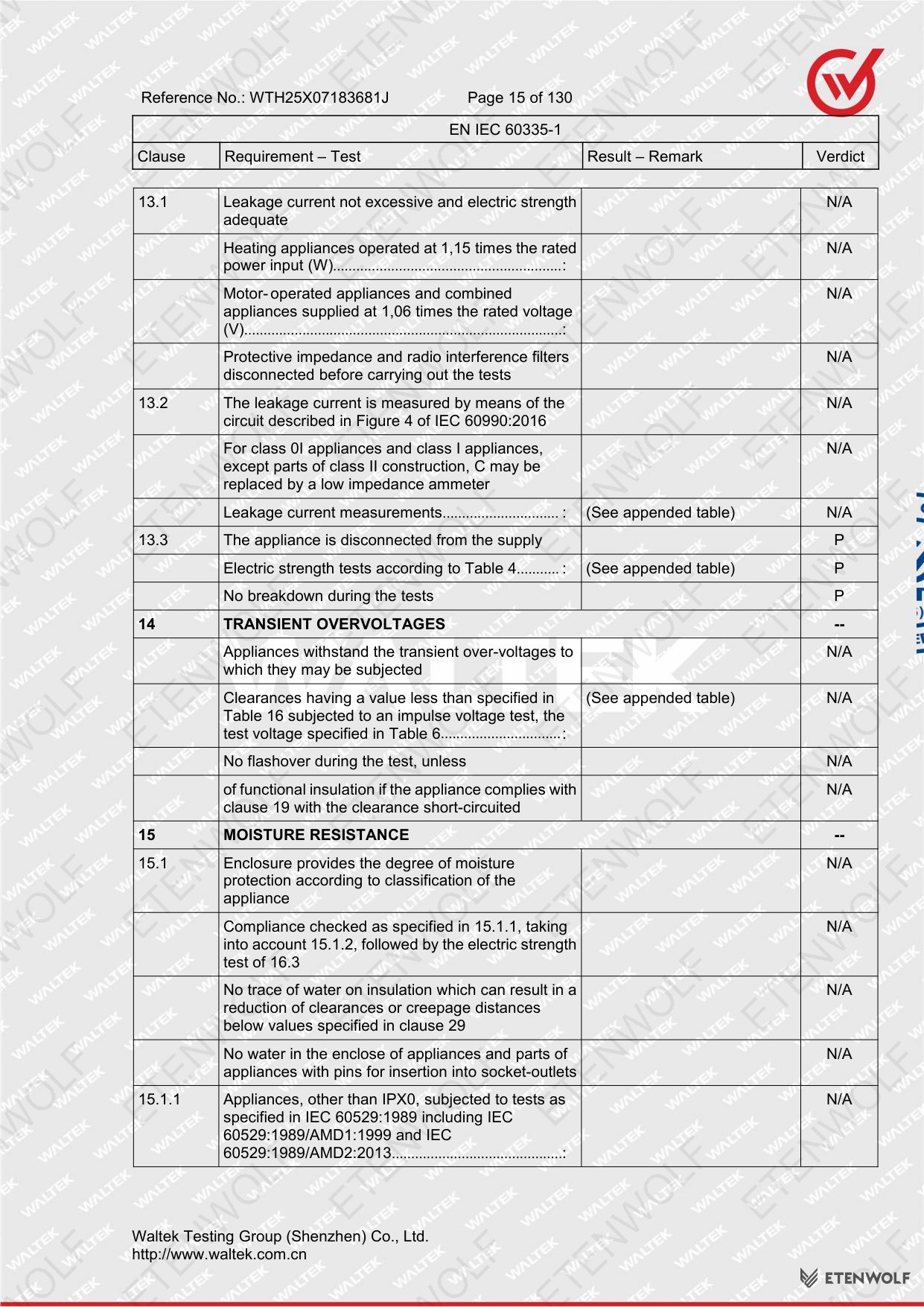

Document Page 13

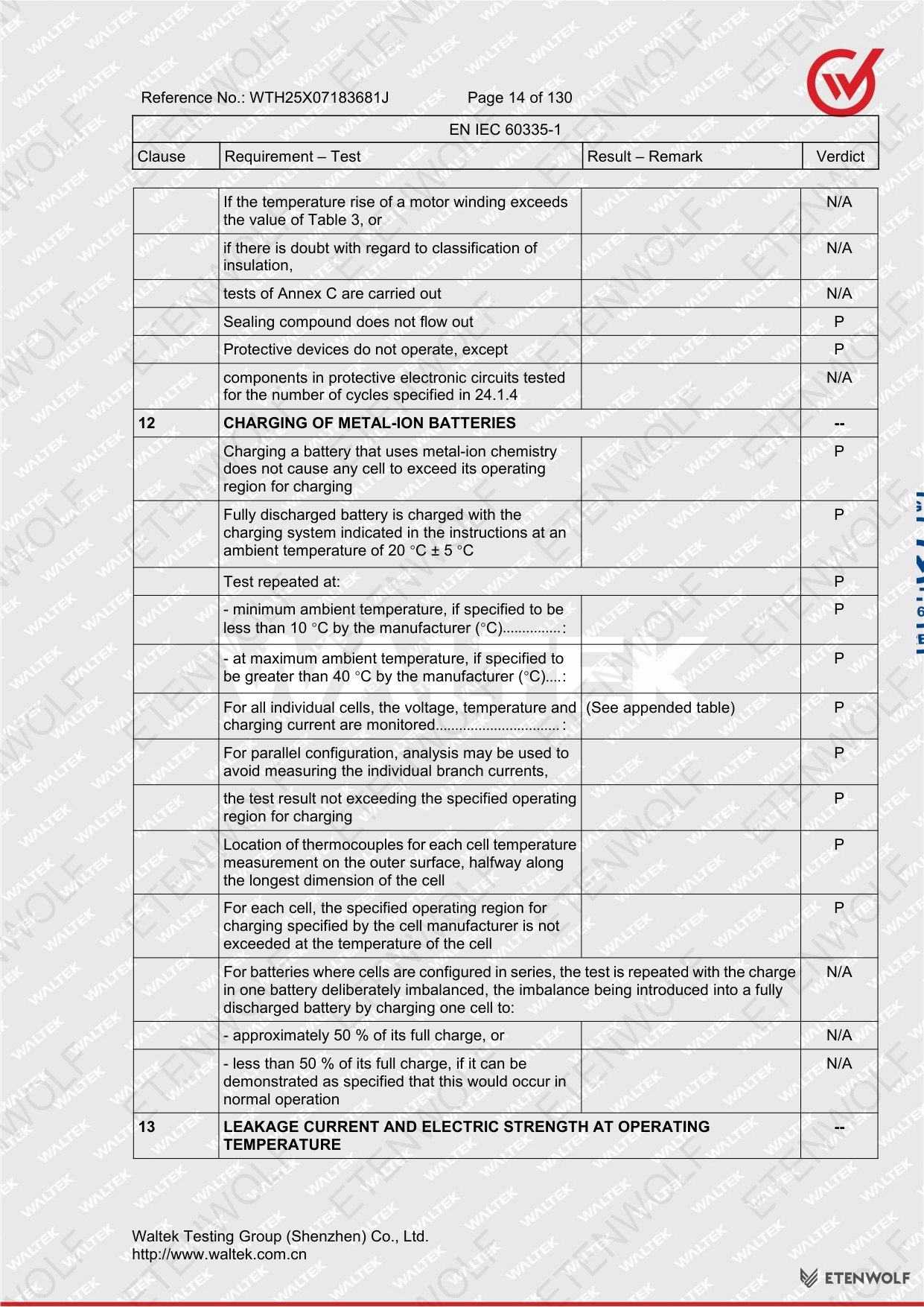

Document Page 14

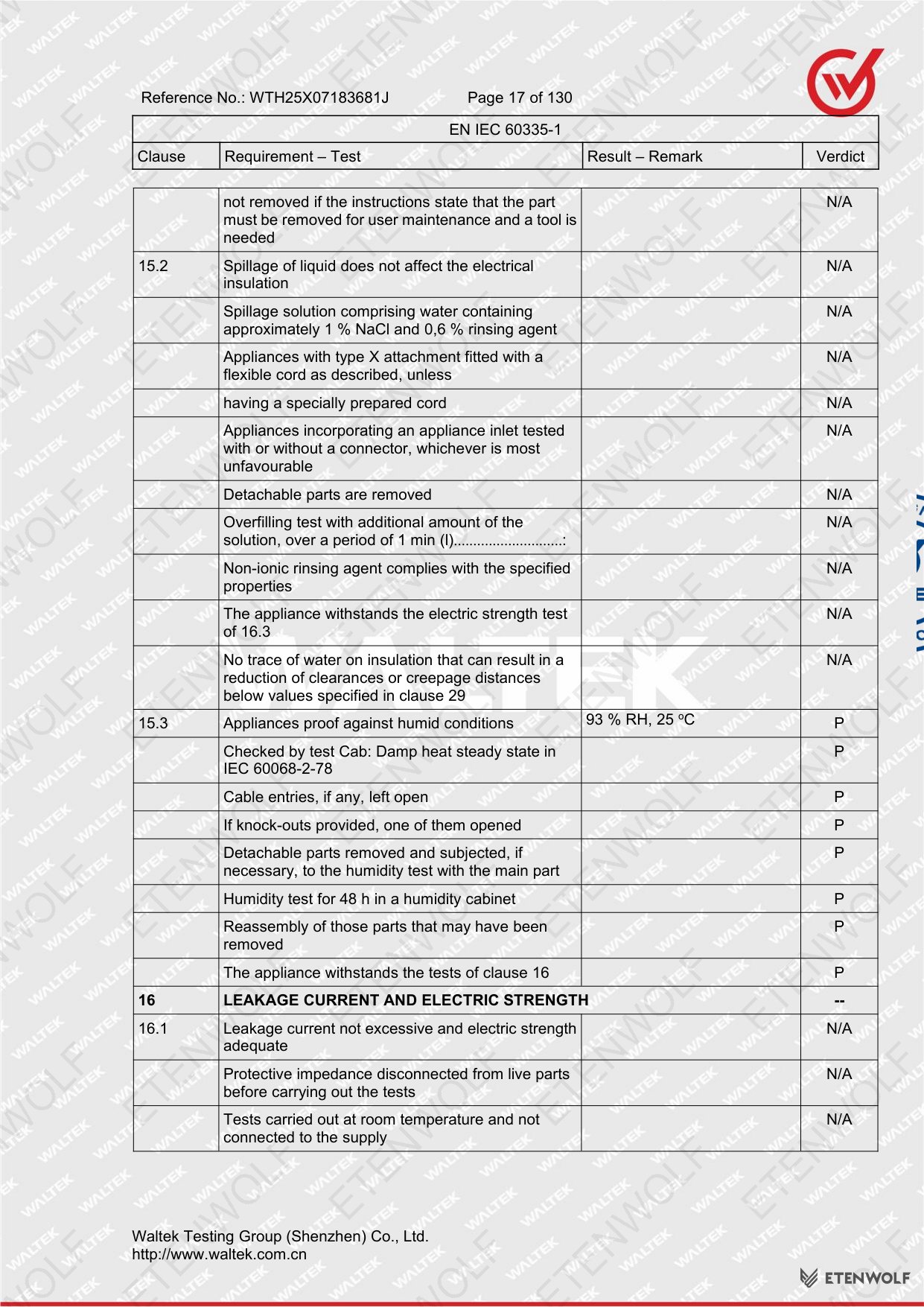

Document Page 15

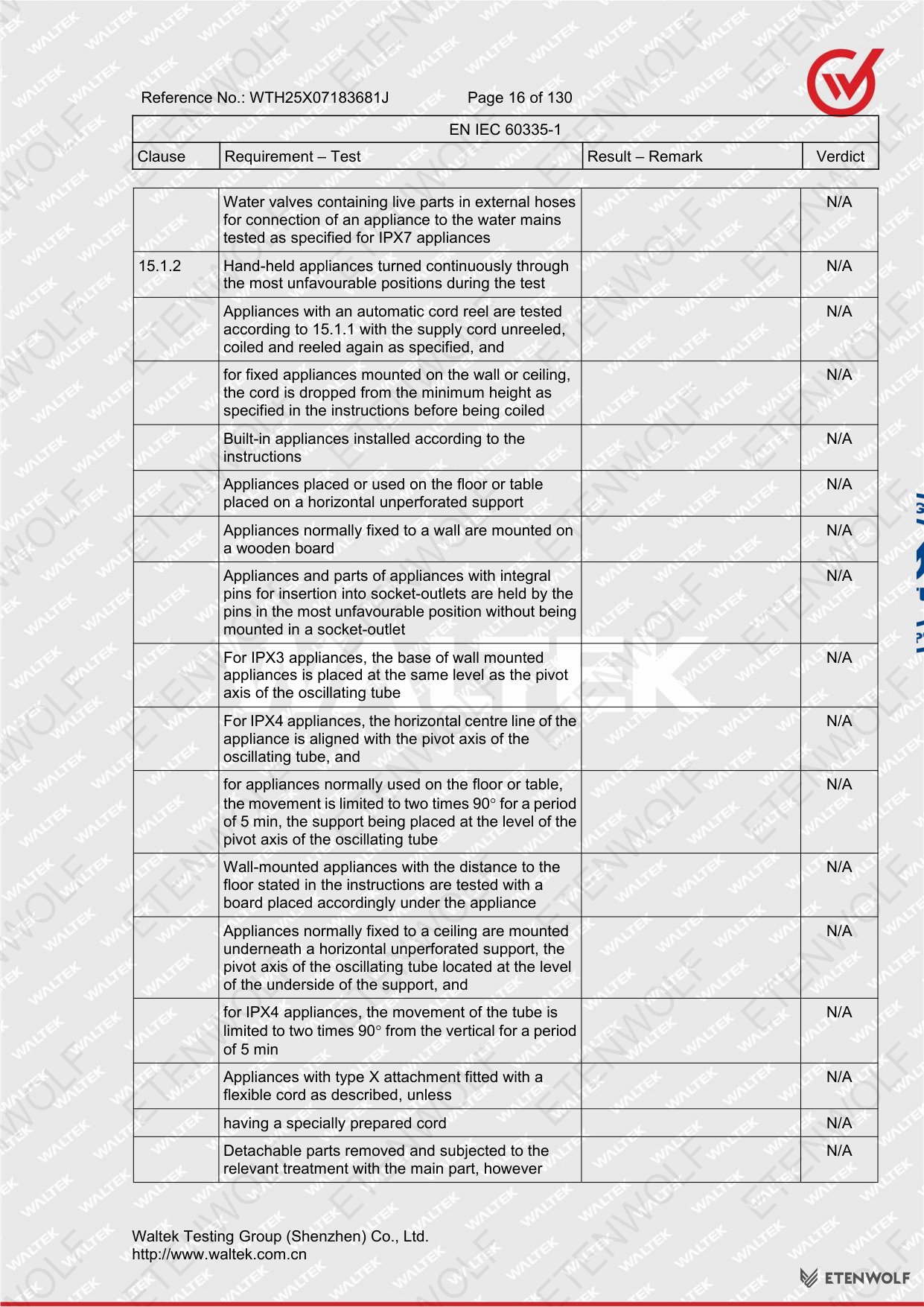

Document Page 16
Document Page 17
Document Page 18

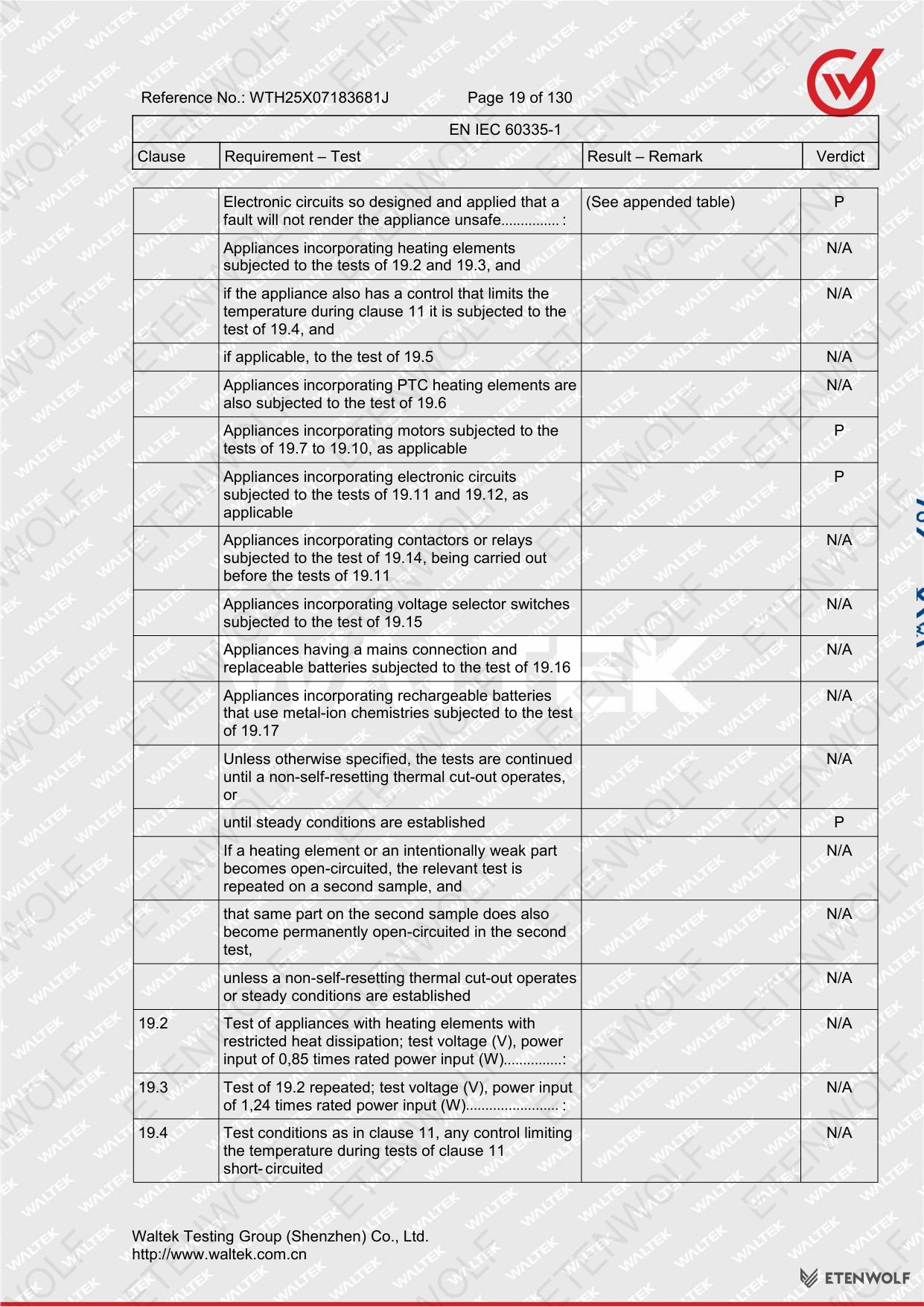

Document Page 19

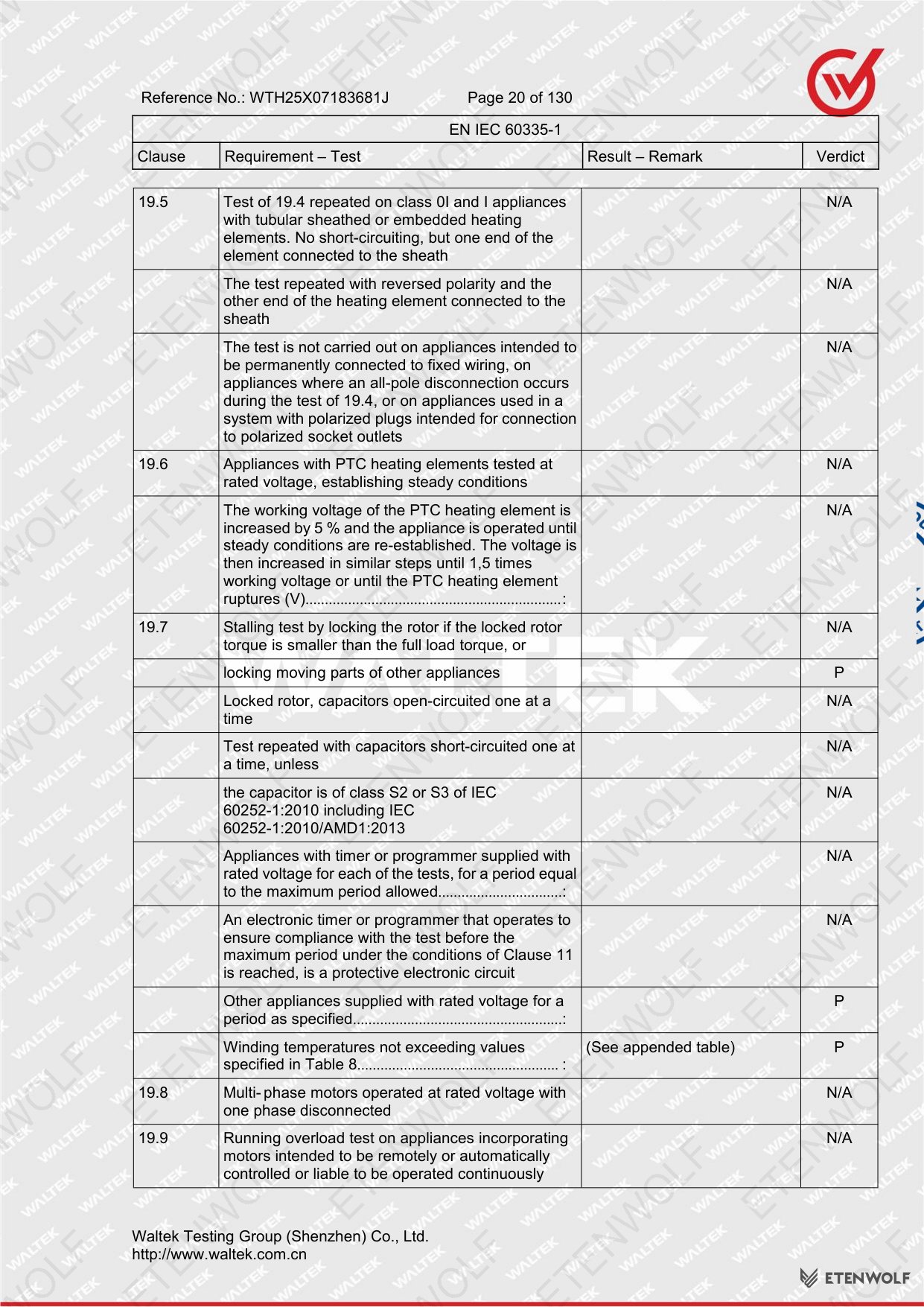

Document Page 20

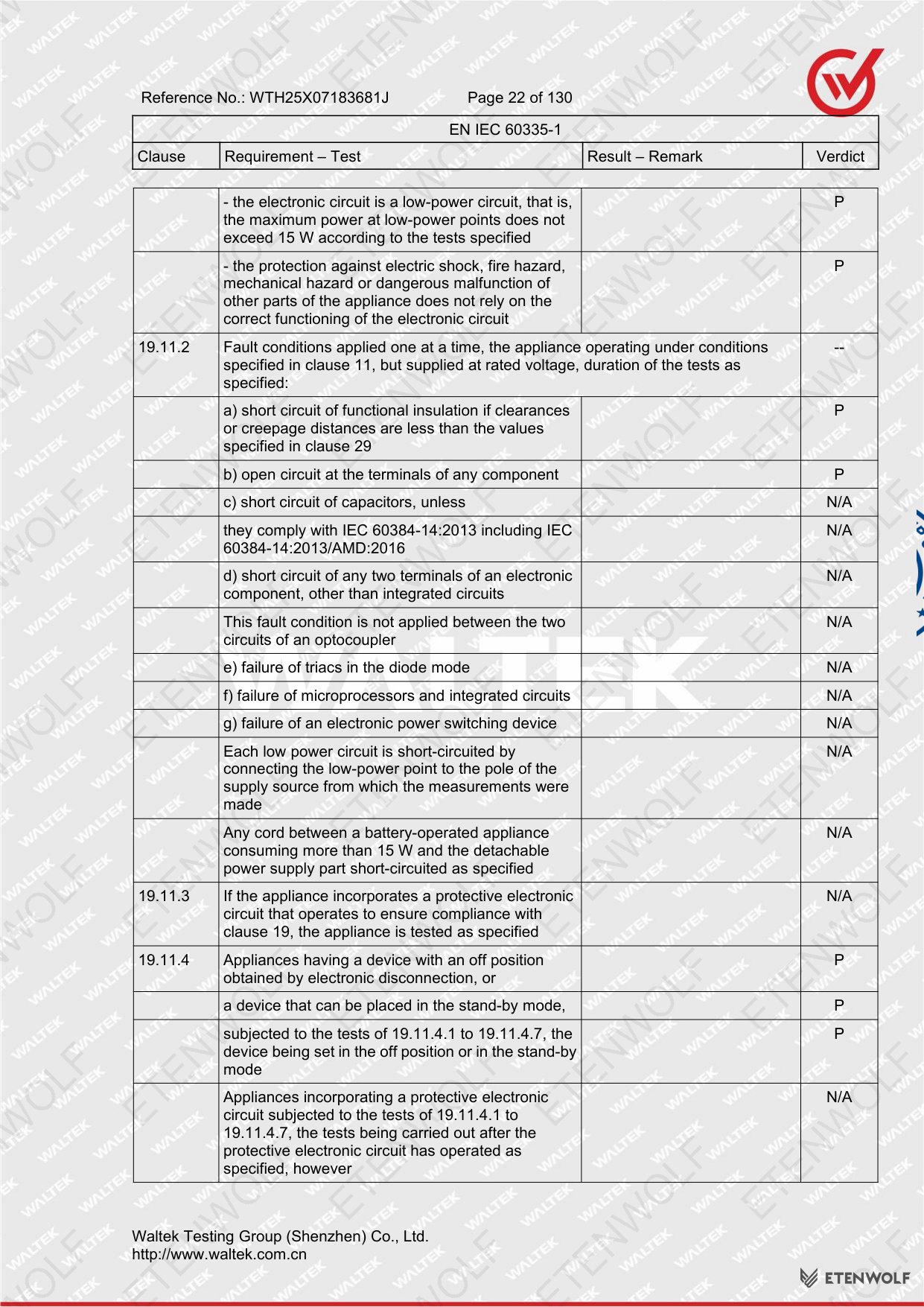

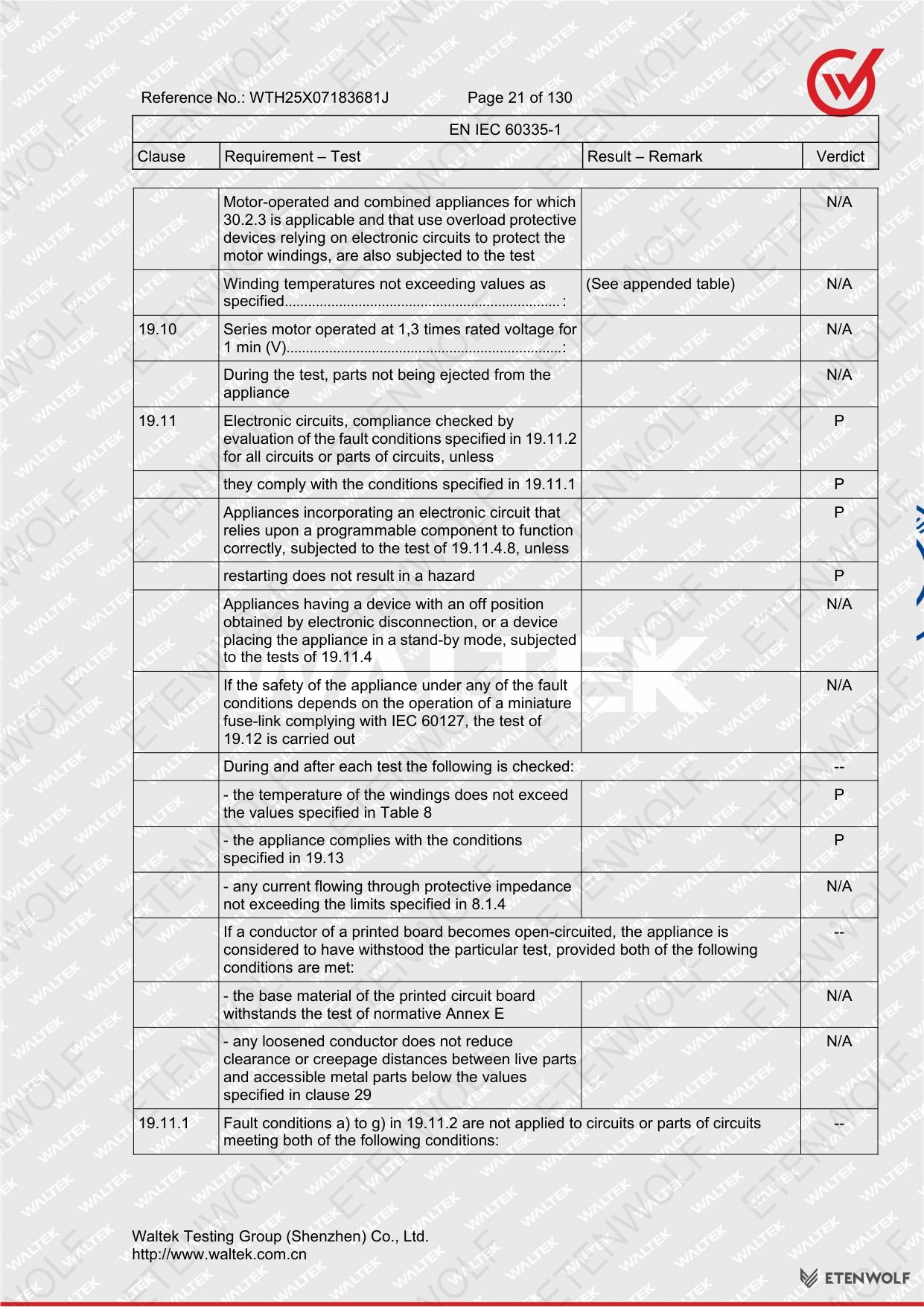

Document Page 21
Document Page 22

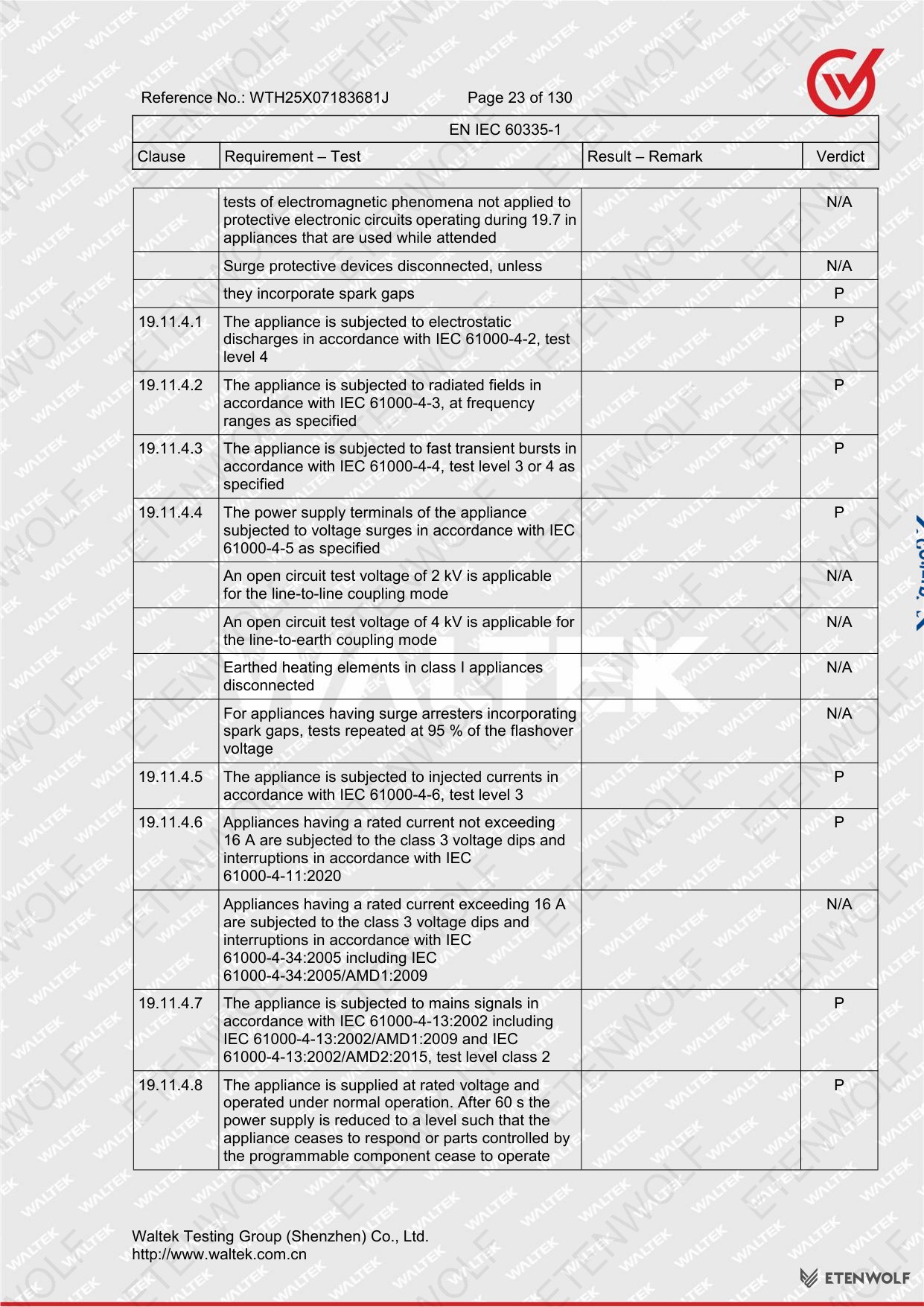

Document Page 23

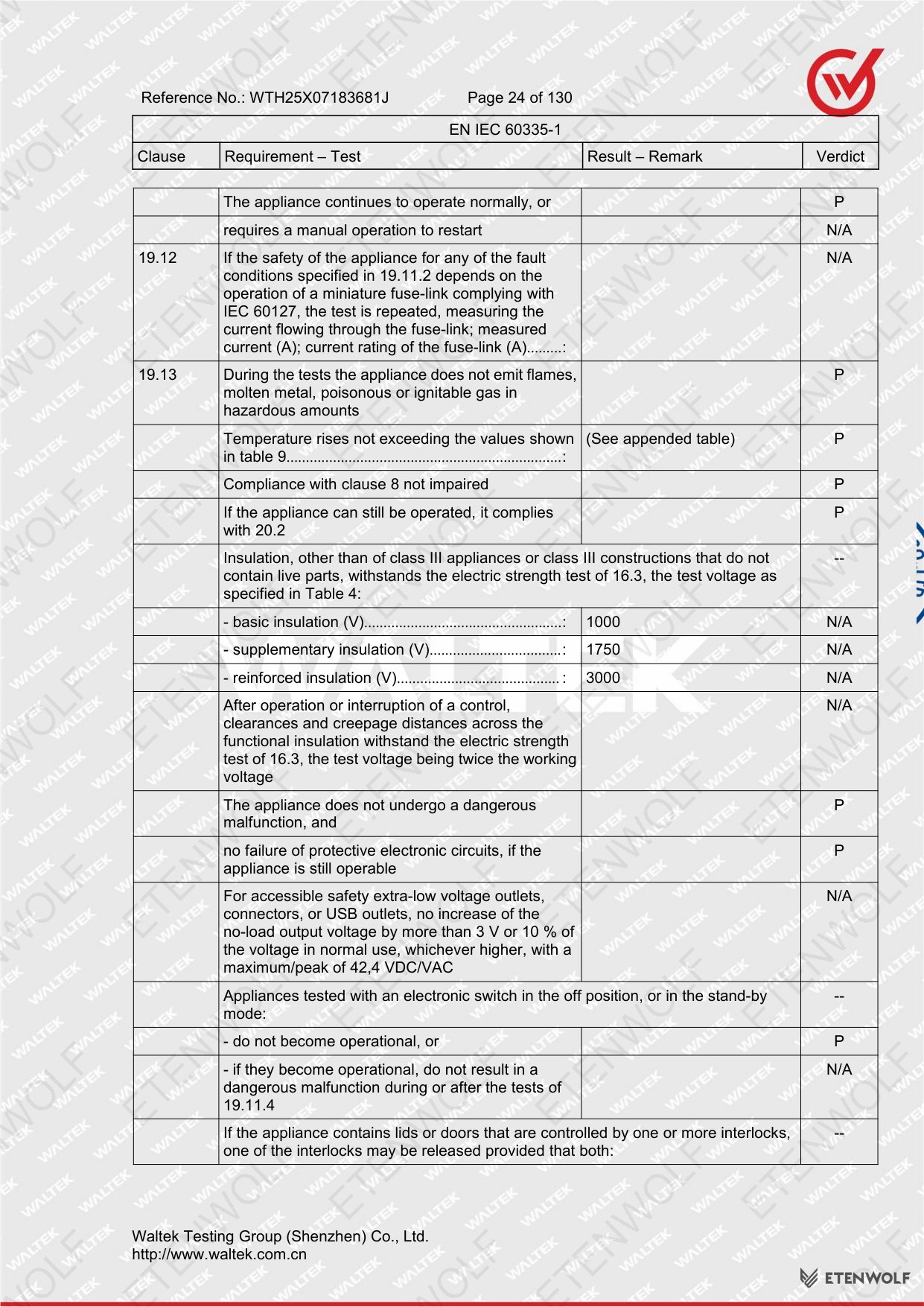

Document Page 24
Document Page 25

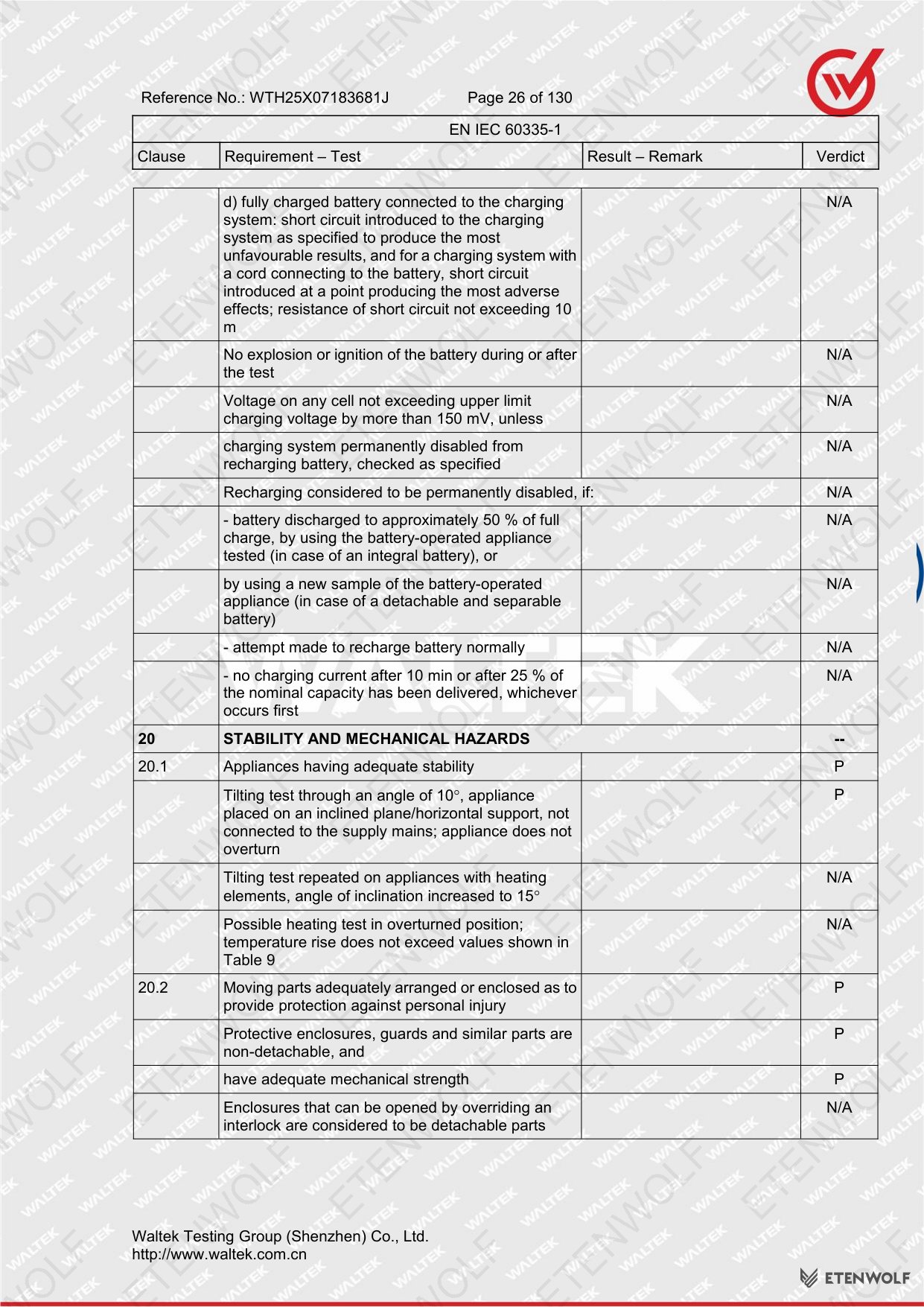

Document Page 26

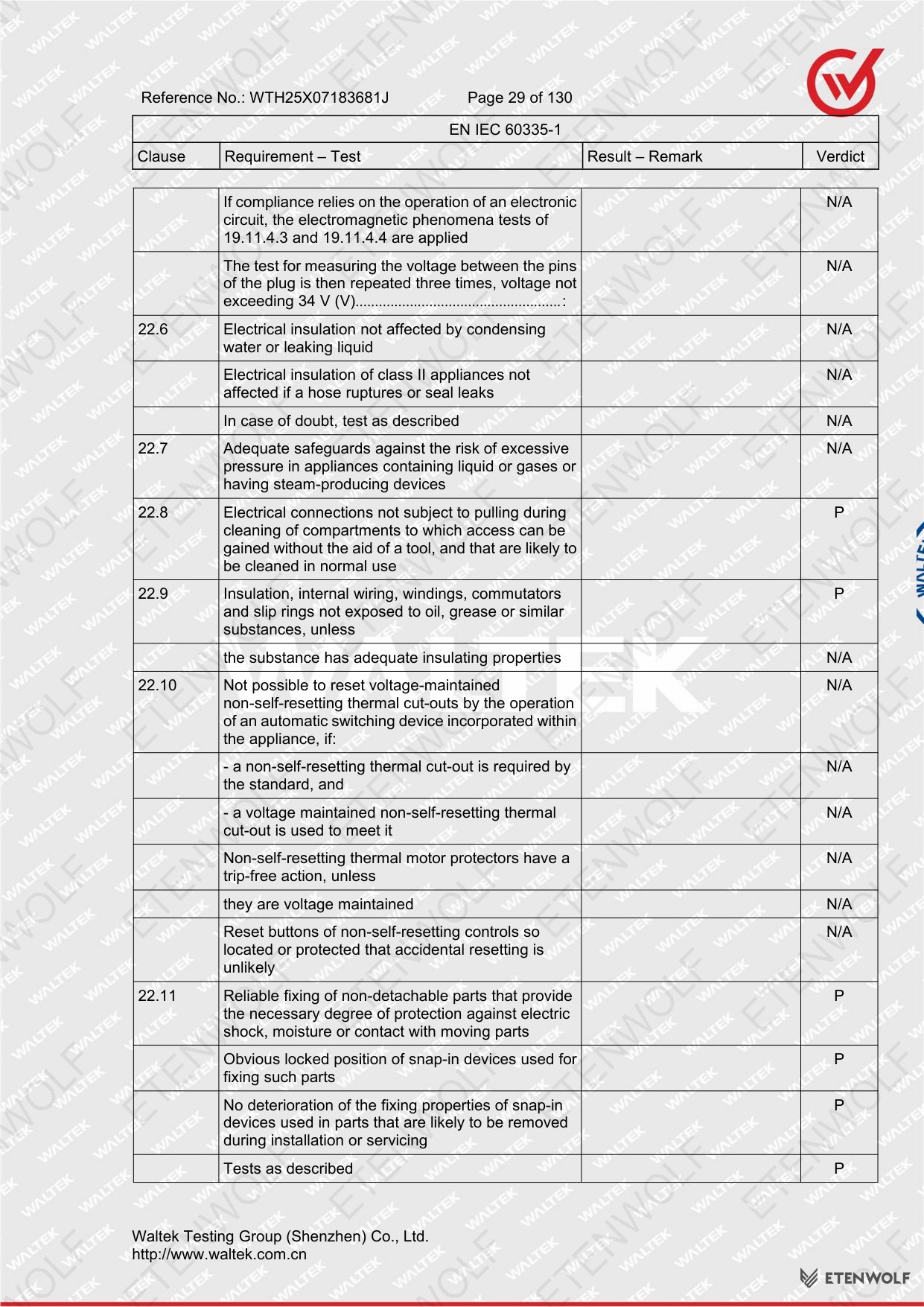

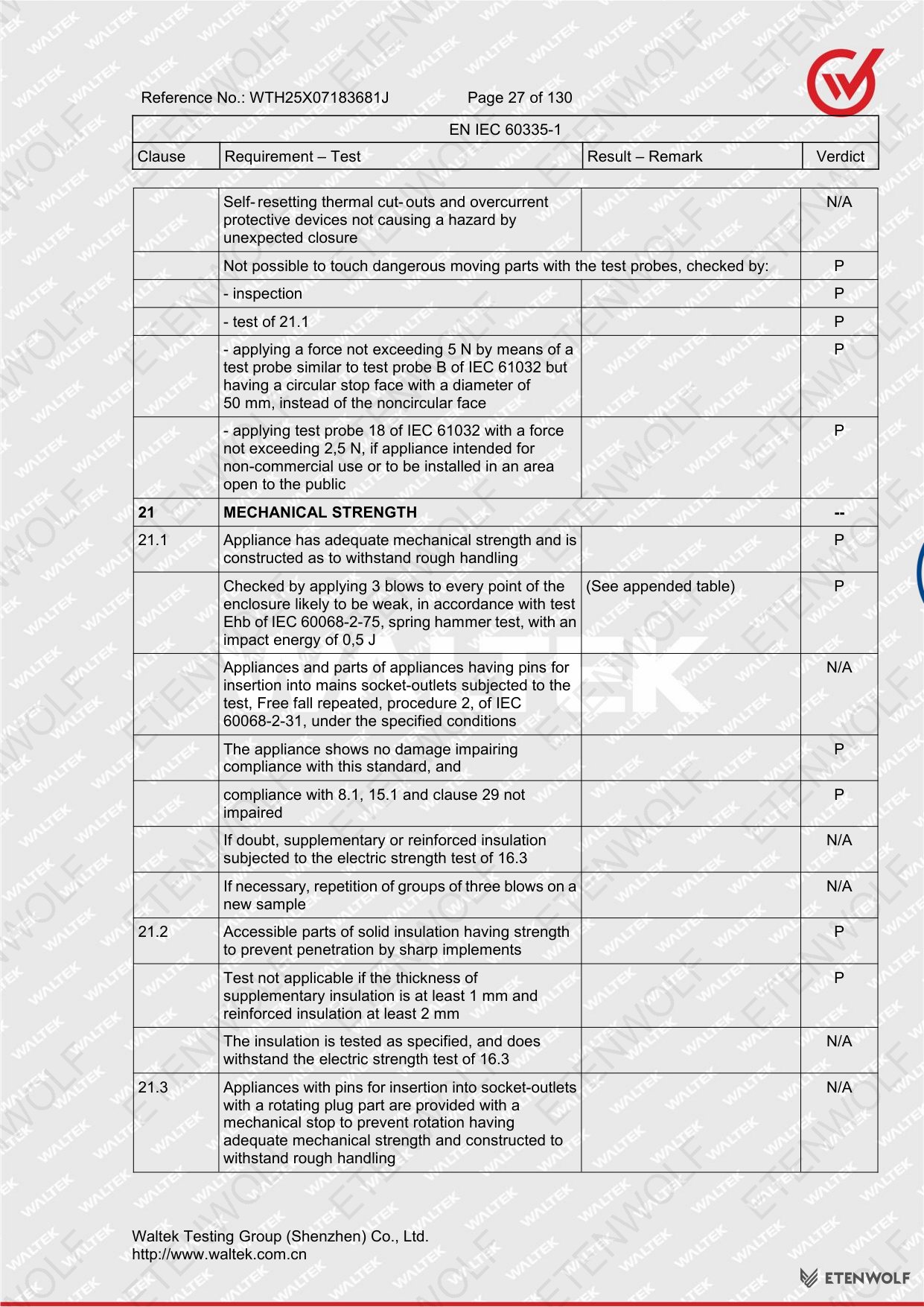

Document Page 27
Document Page 28

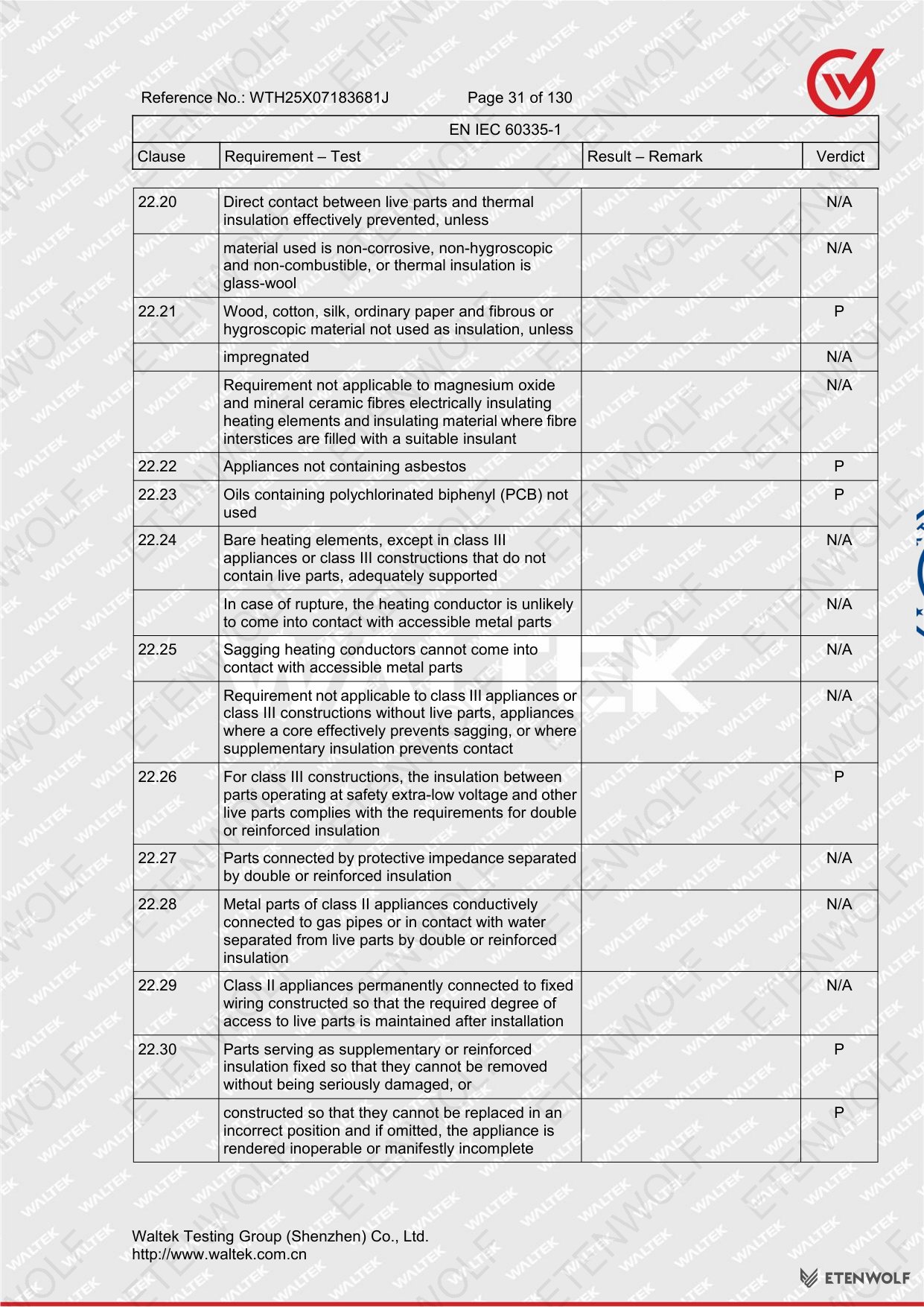

Document Page 29
Document Page 30

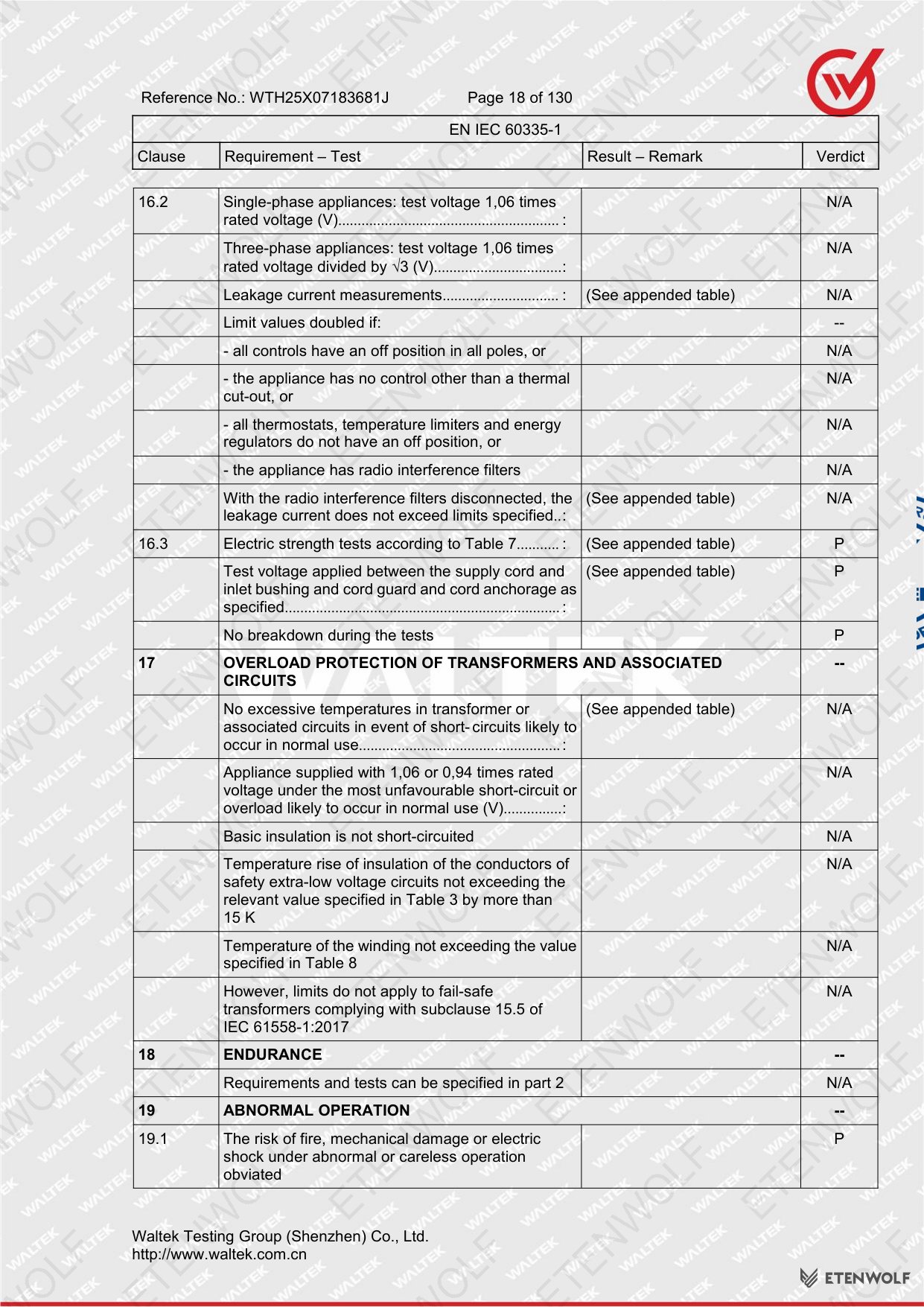

Document Page 31

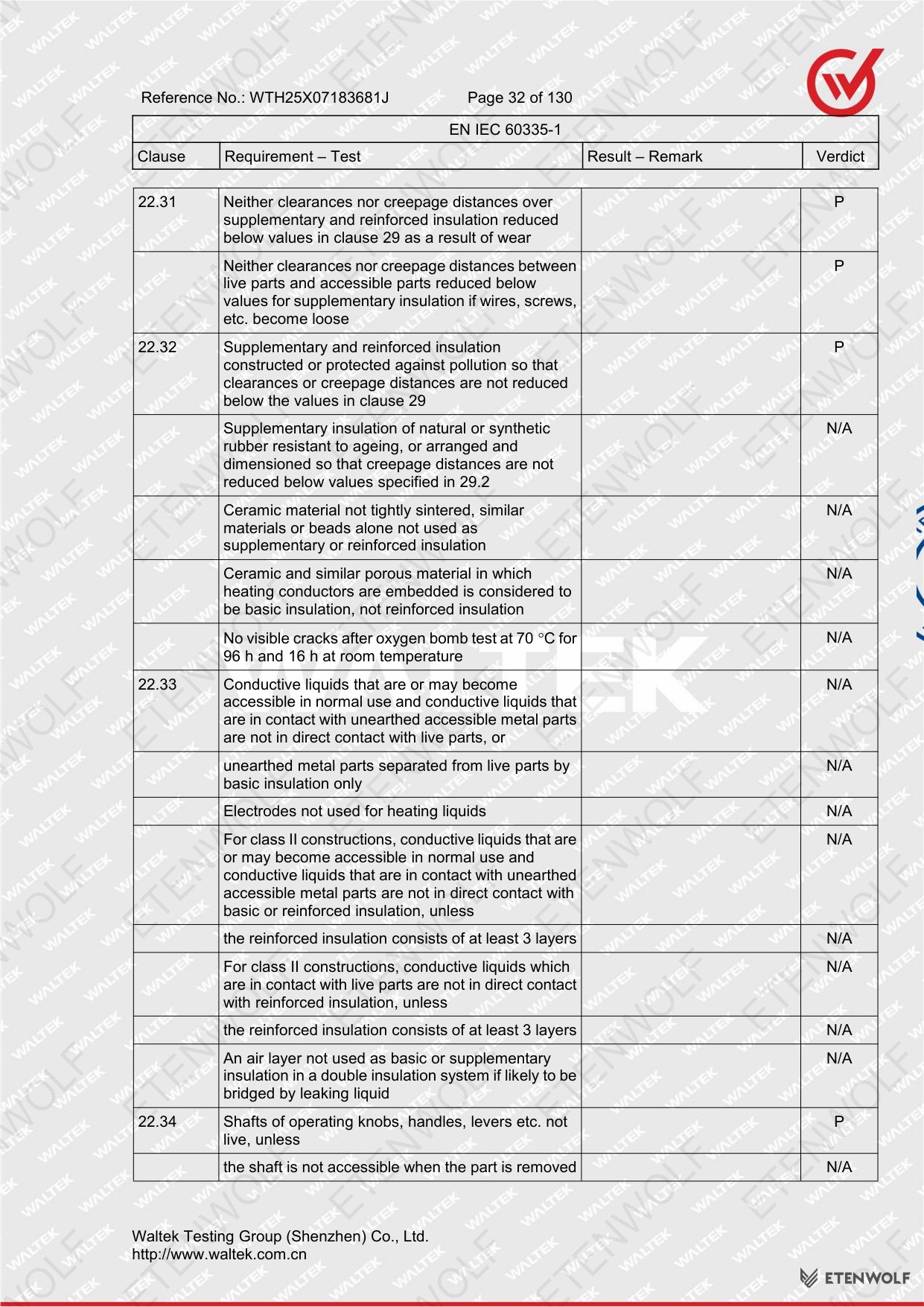

Document Page 32
Document Page 33

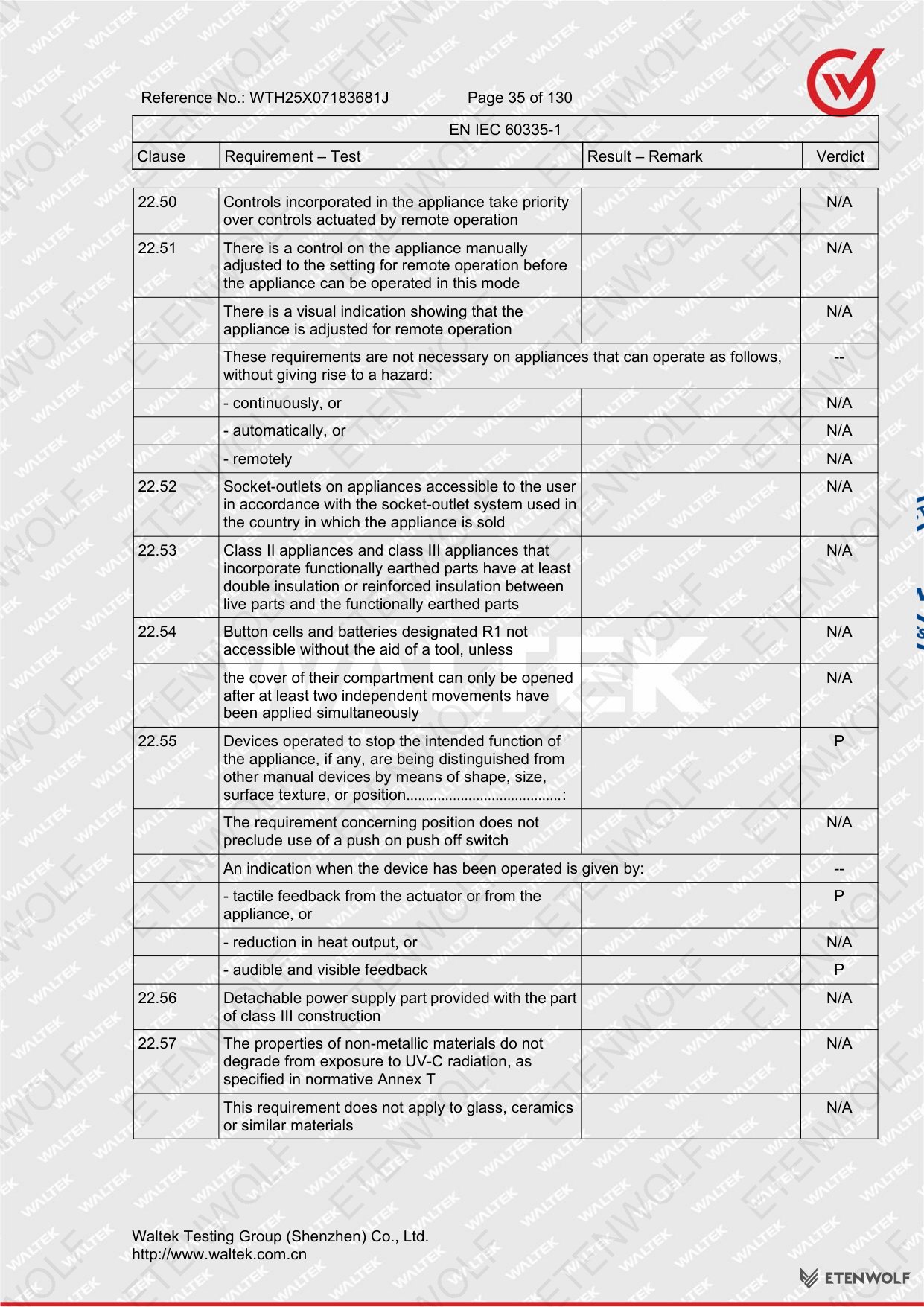

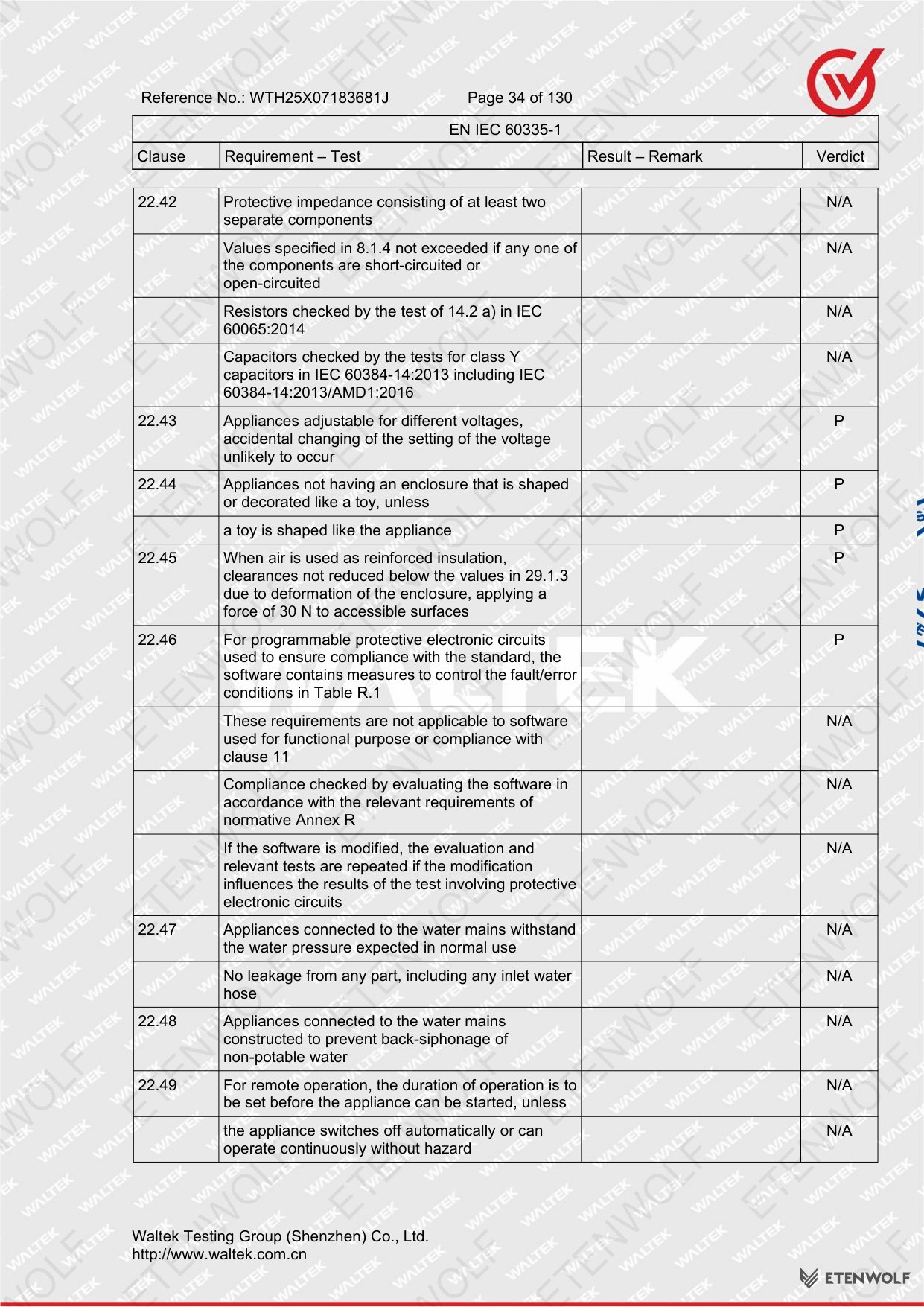

Document Page 34
Document Page 35

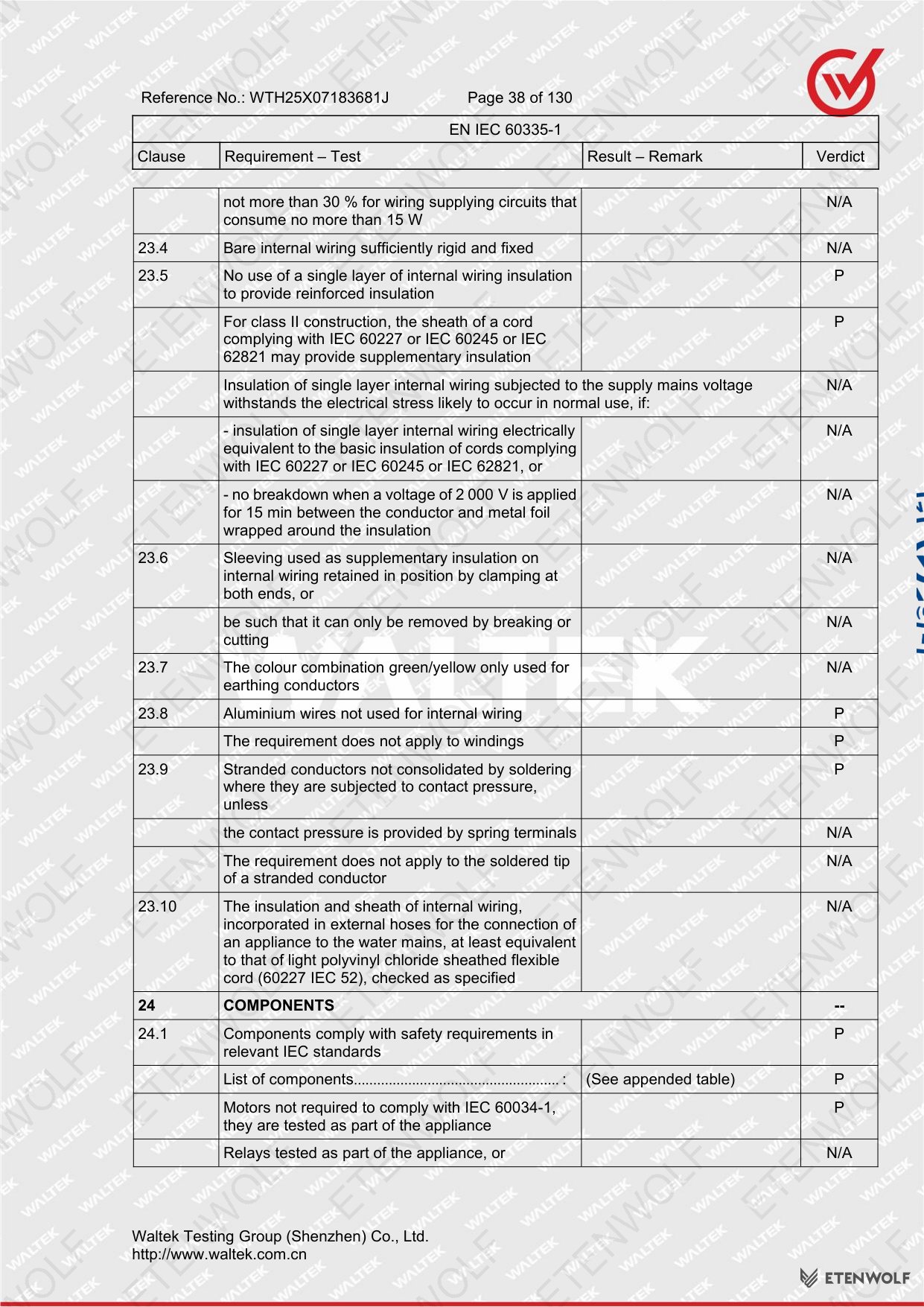

Document Page 36

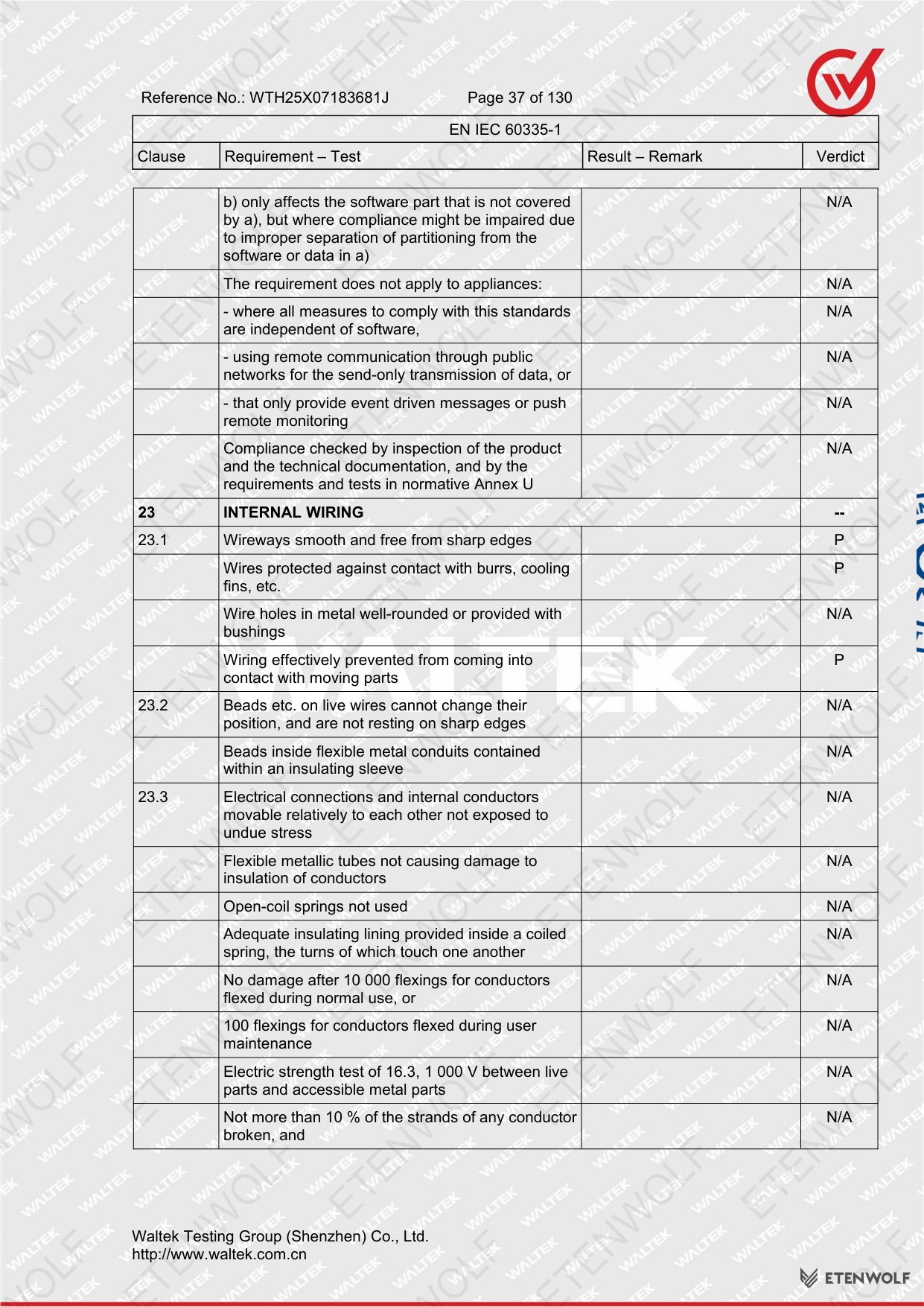

Document Page 37
Document Page 38
Document Page 39

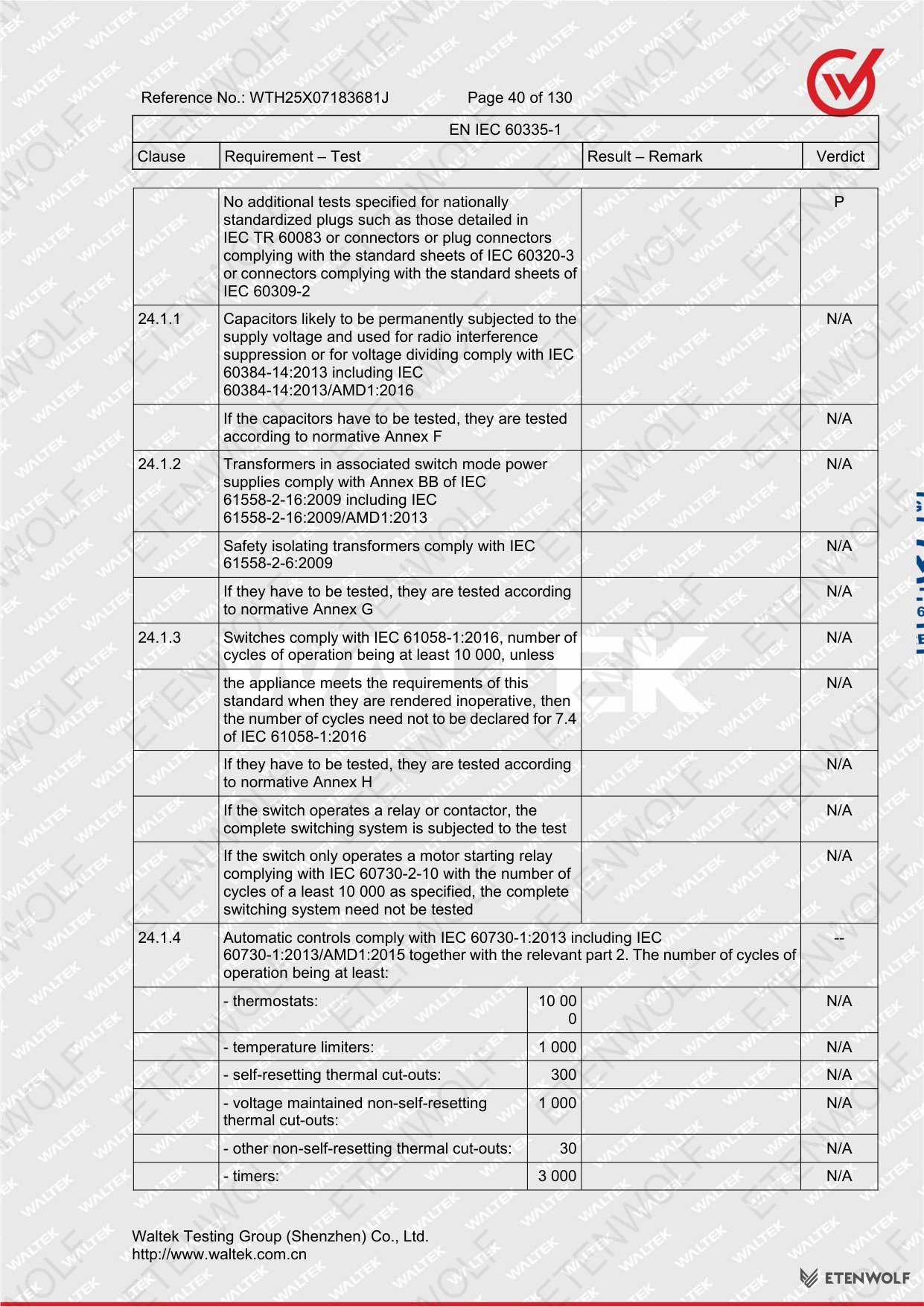

Document Page 40

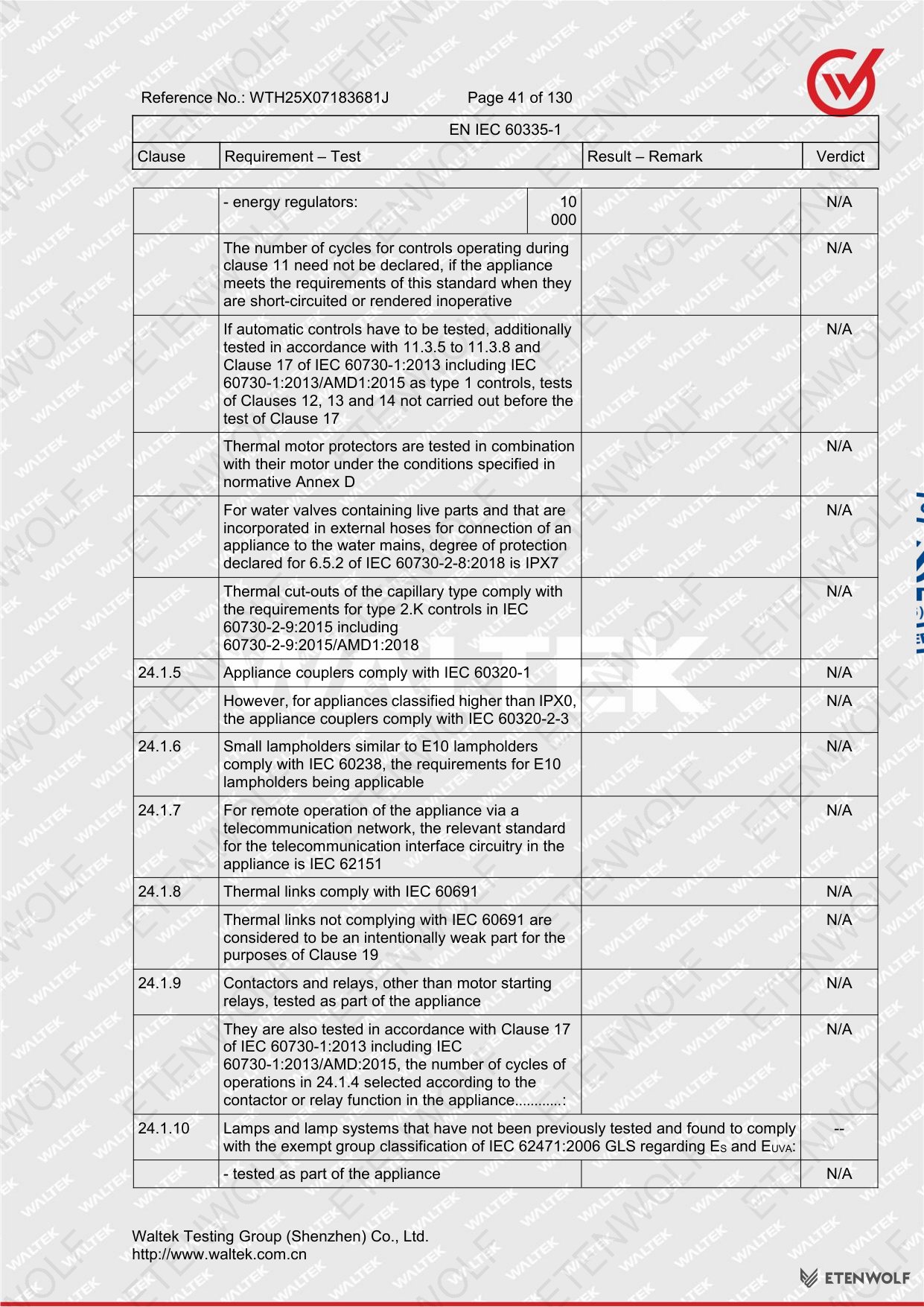

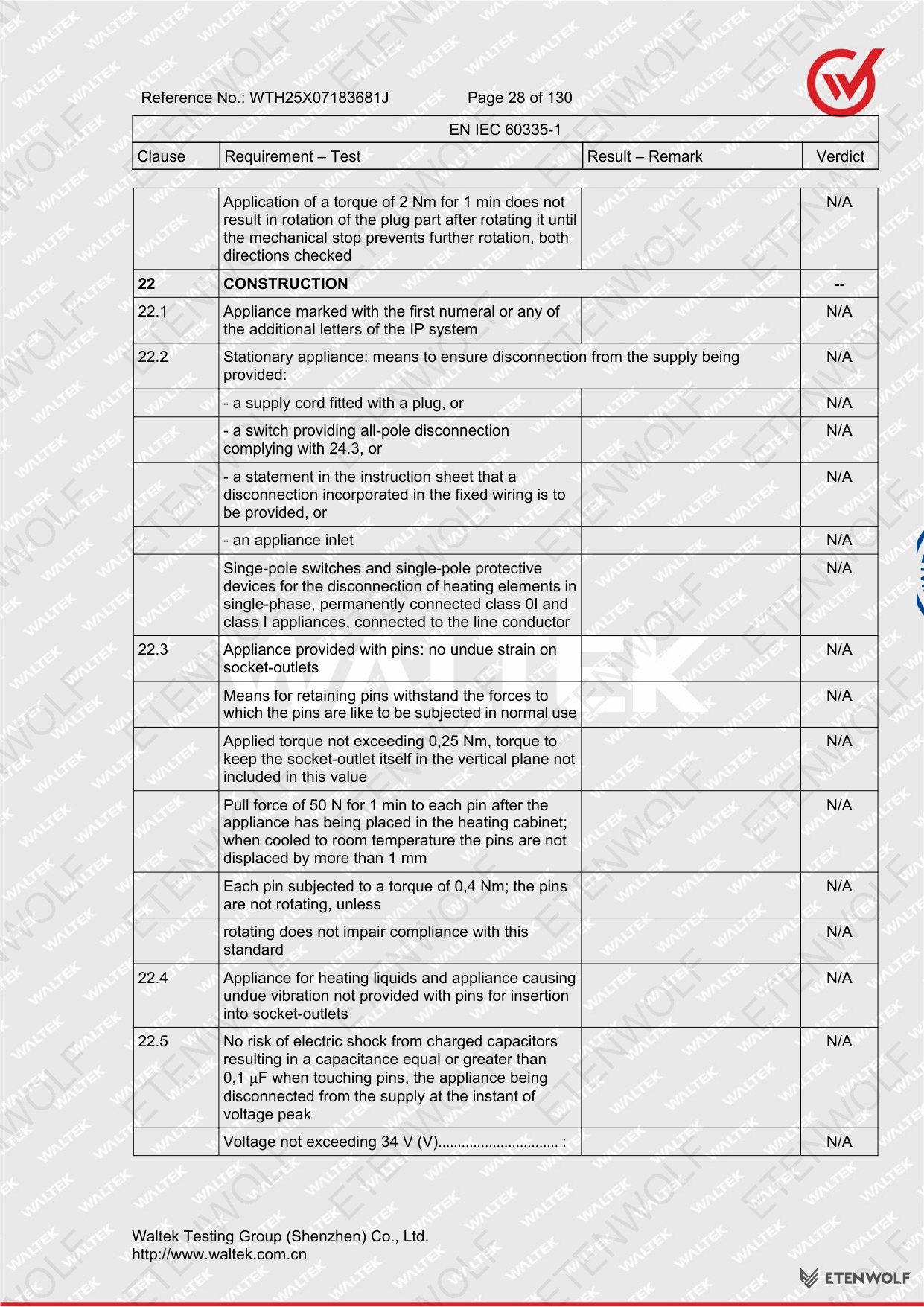

Document Page 41
Document Page 42
Document Page 43

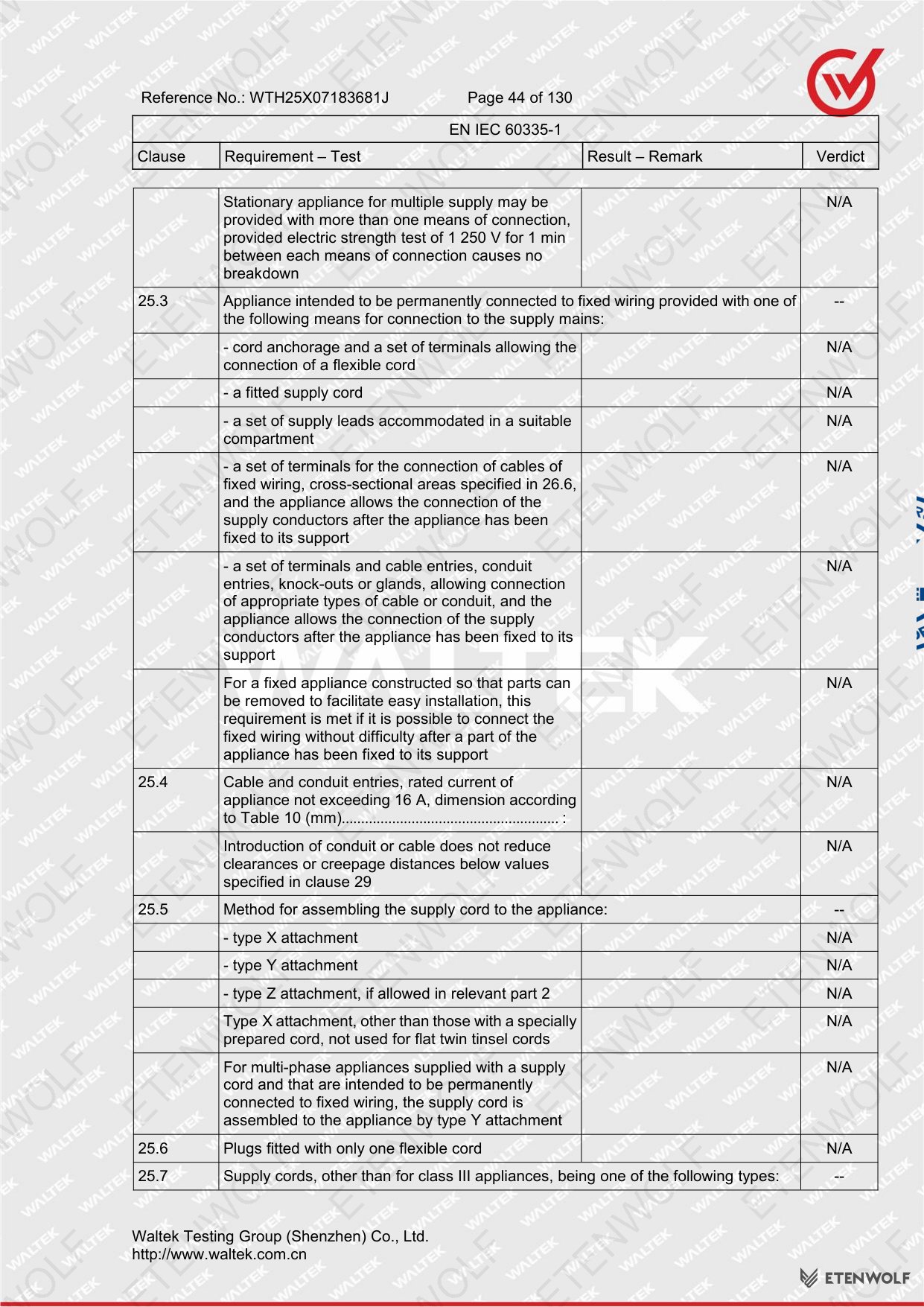

Document Page 44

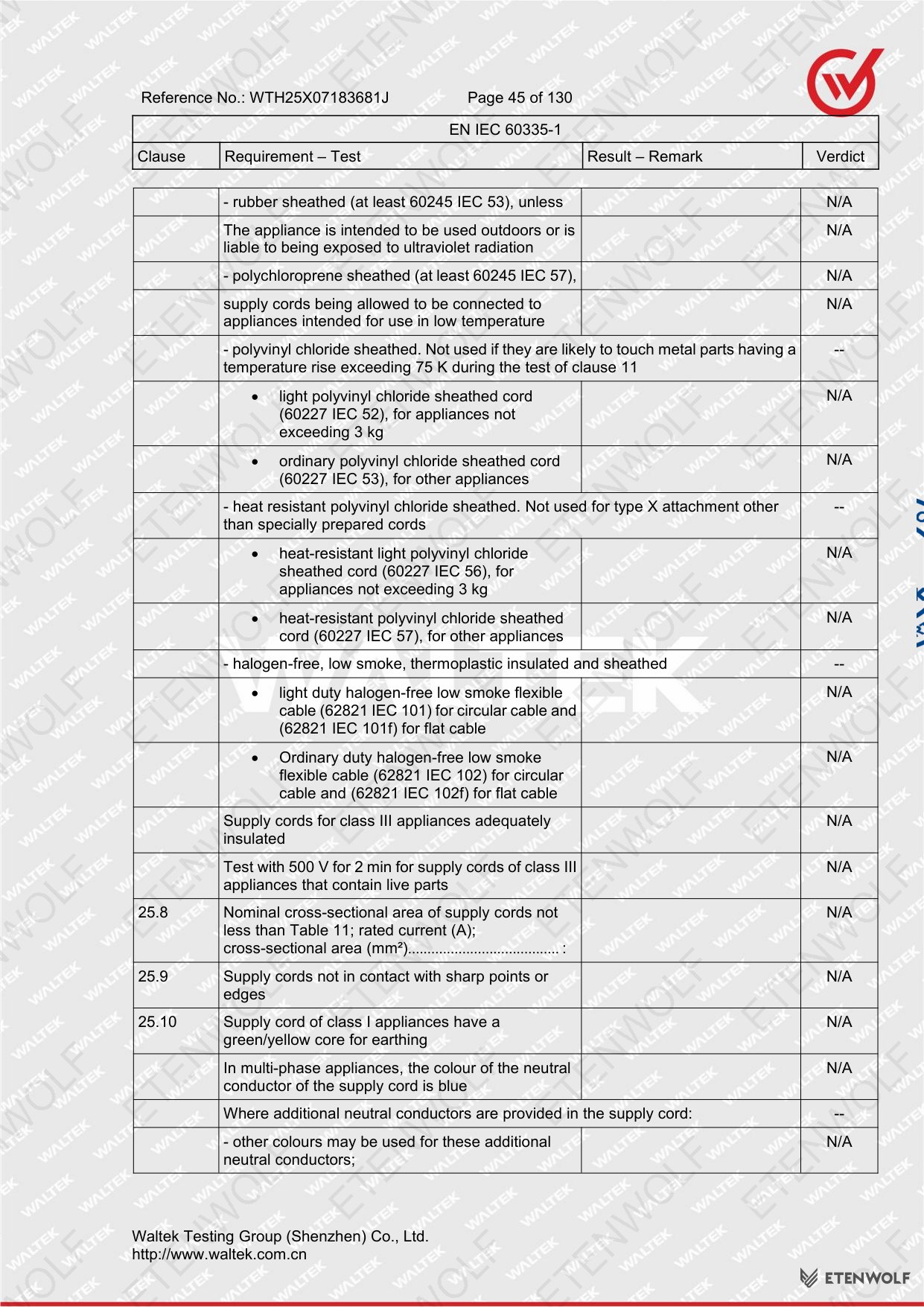

Document Page 45
Document Page 46

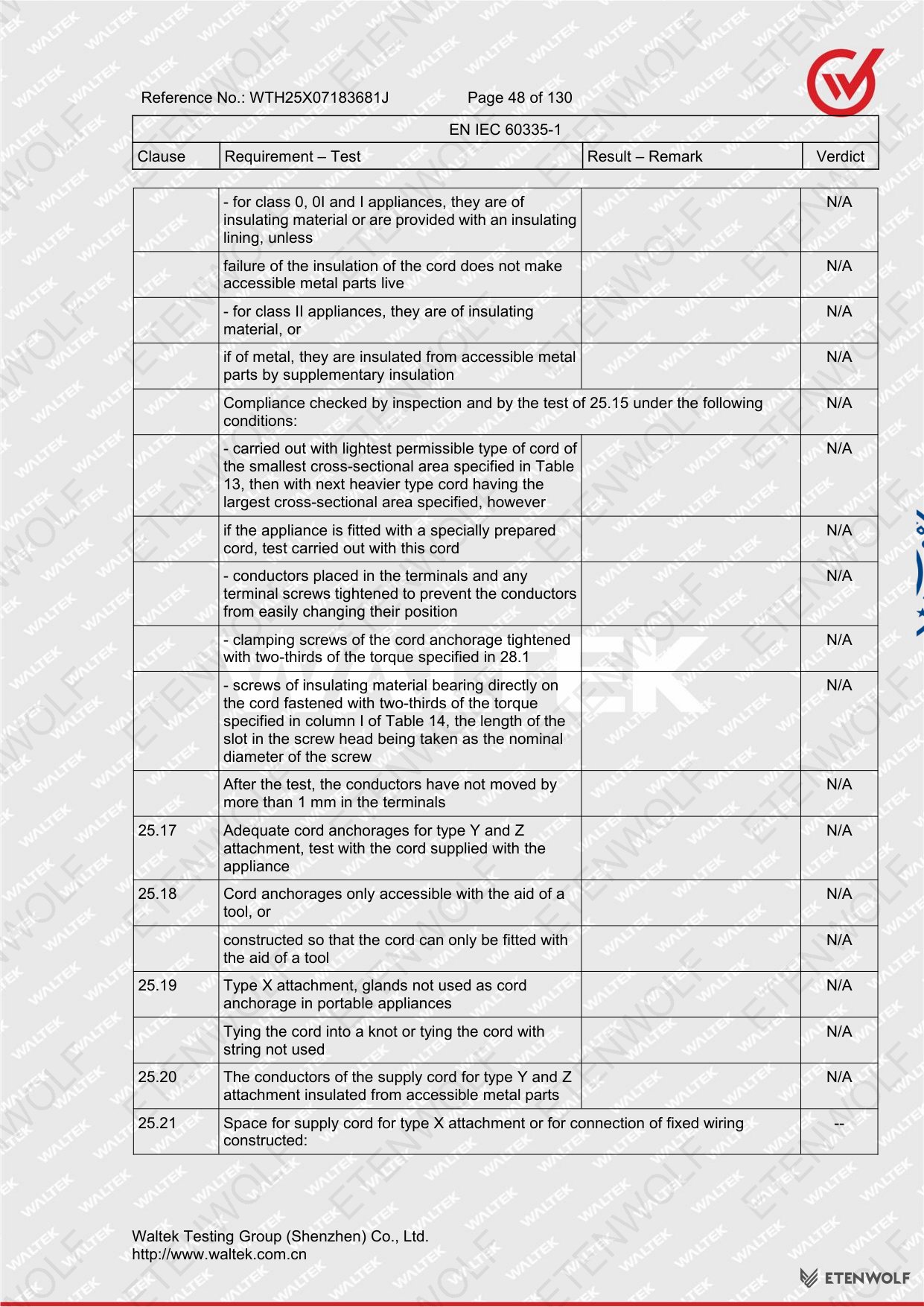

Document Page 47
Document Page 48

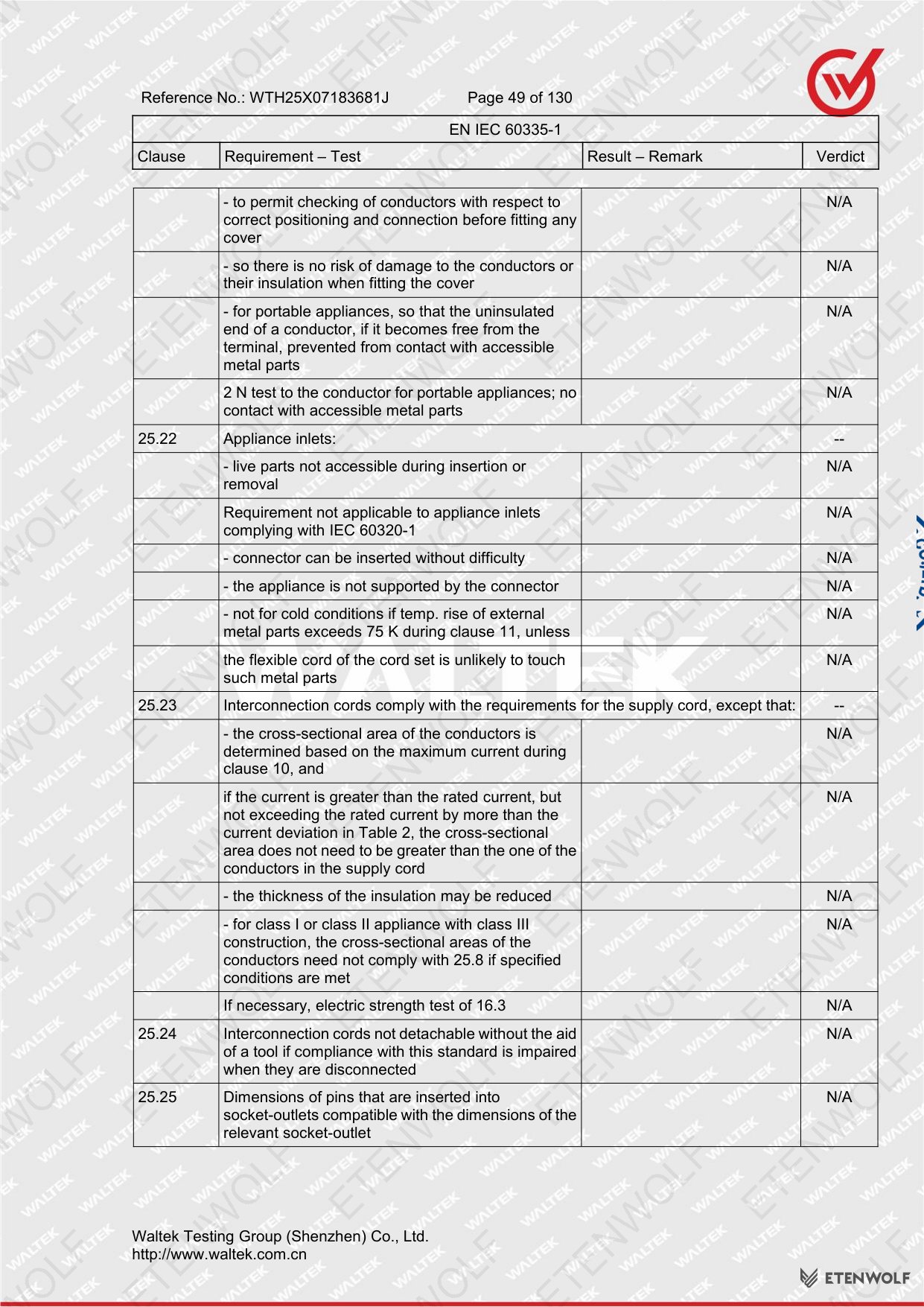

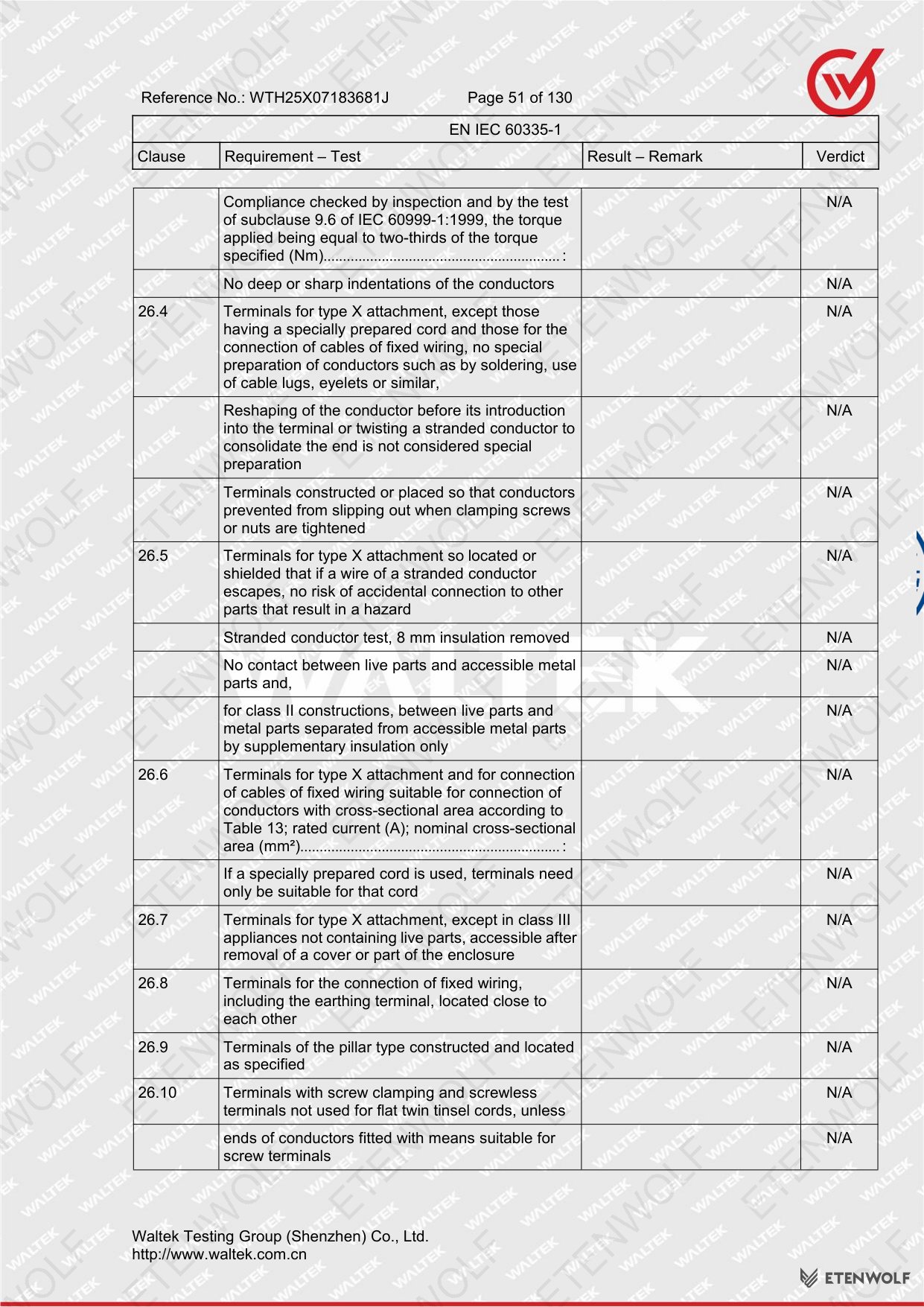

Document Page 49

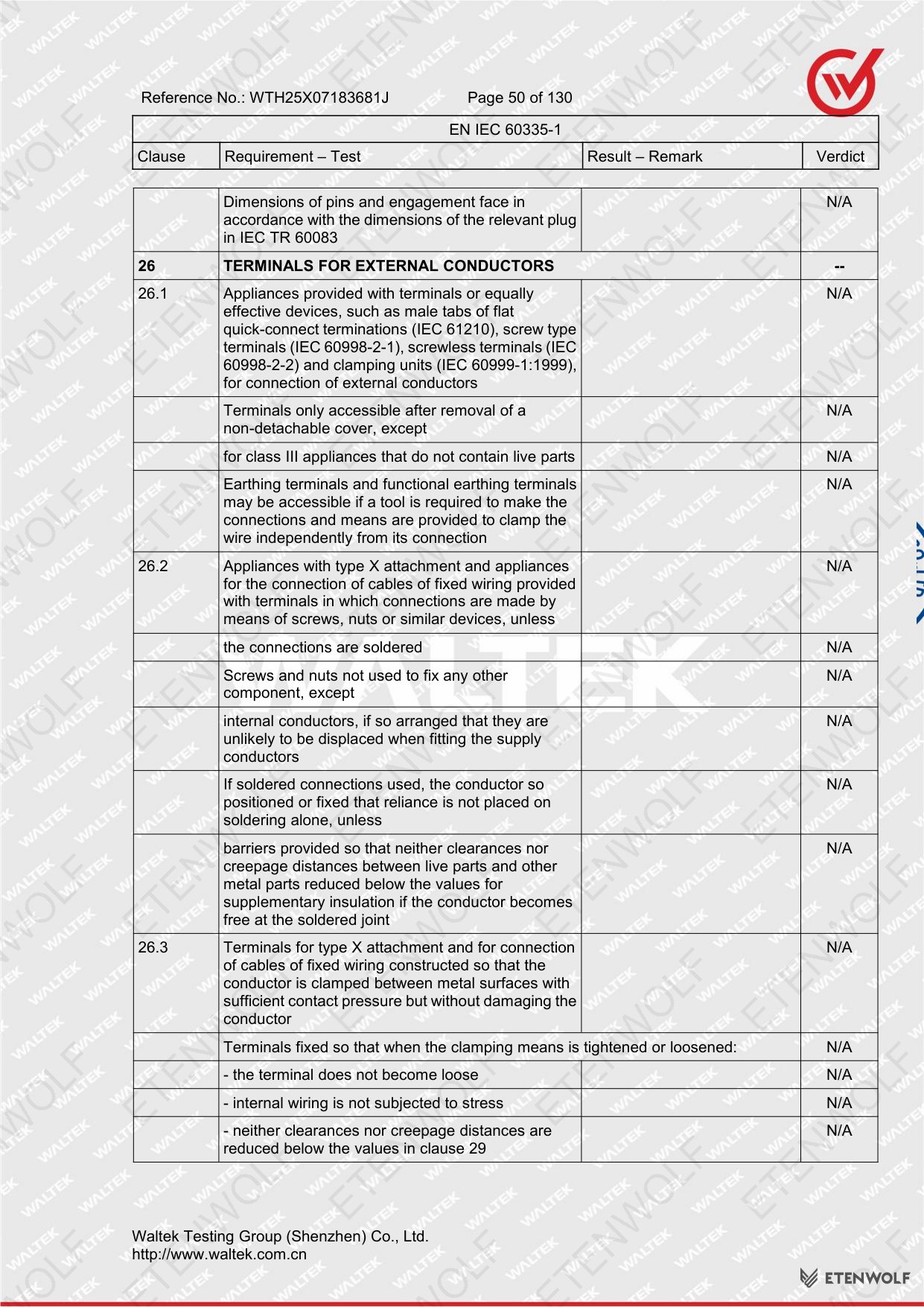

Document Page 50
Document Page 51

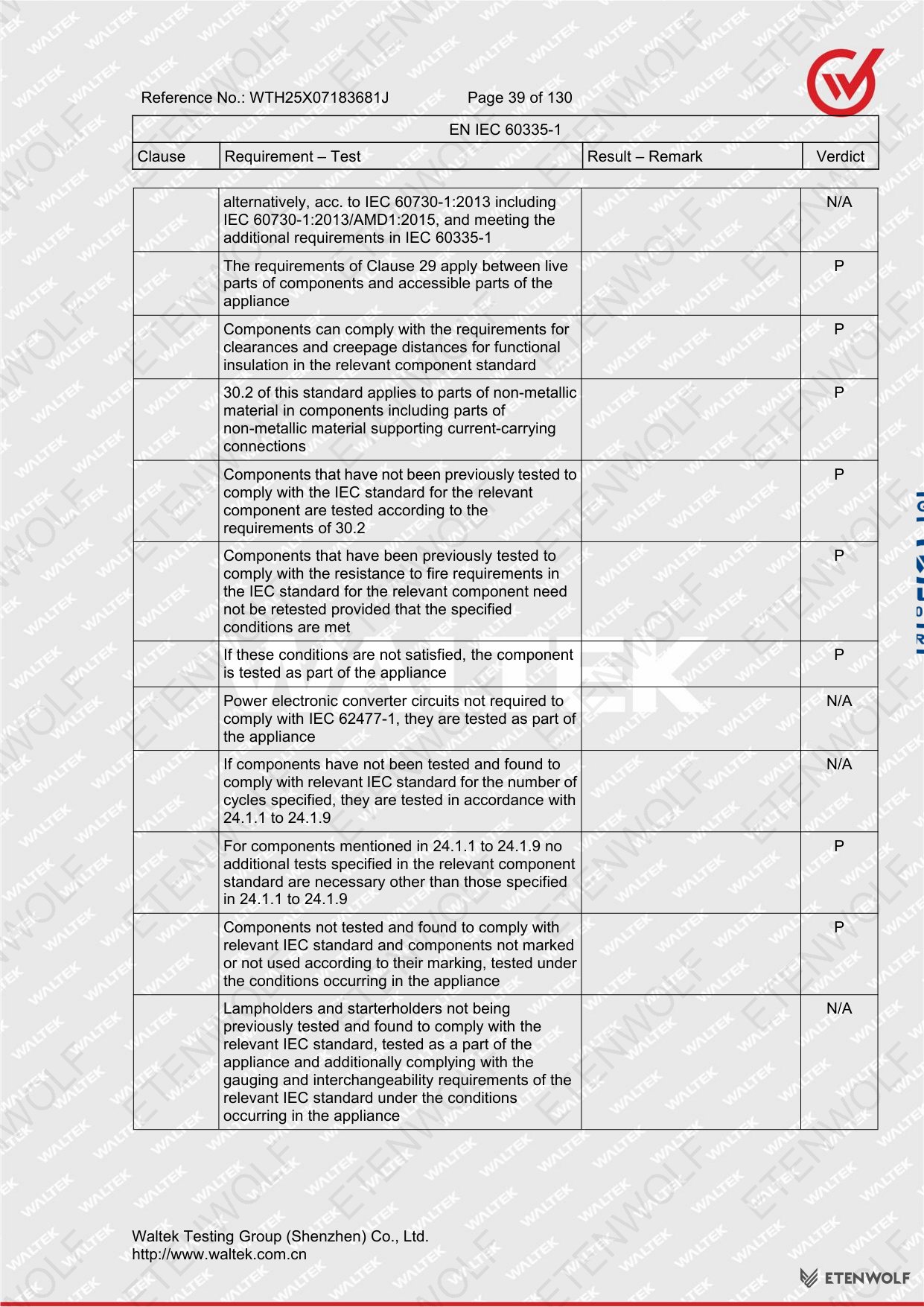

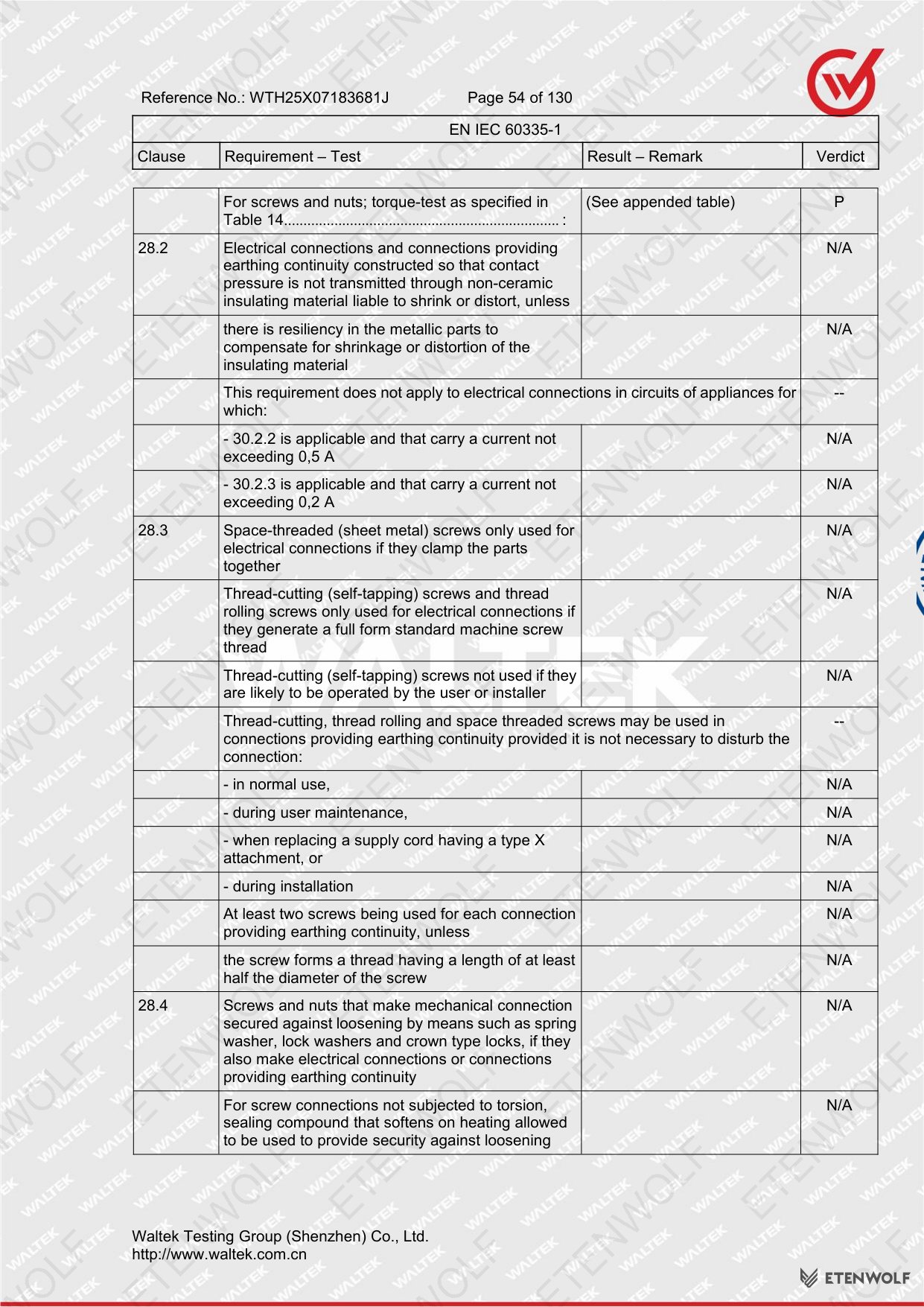

Document Page 52

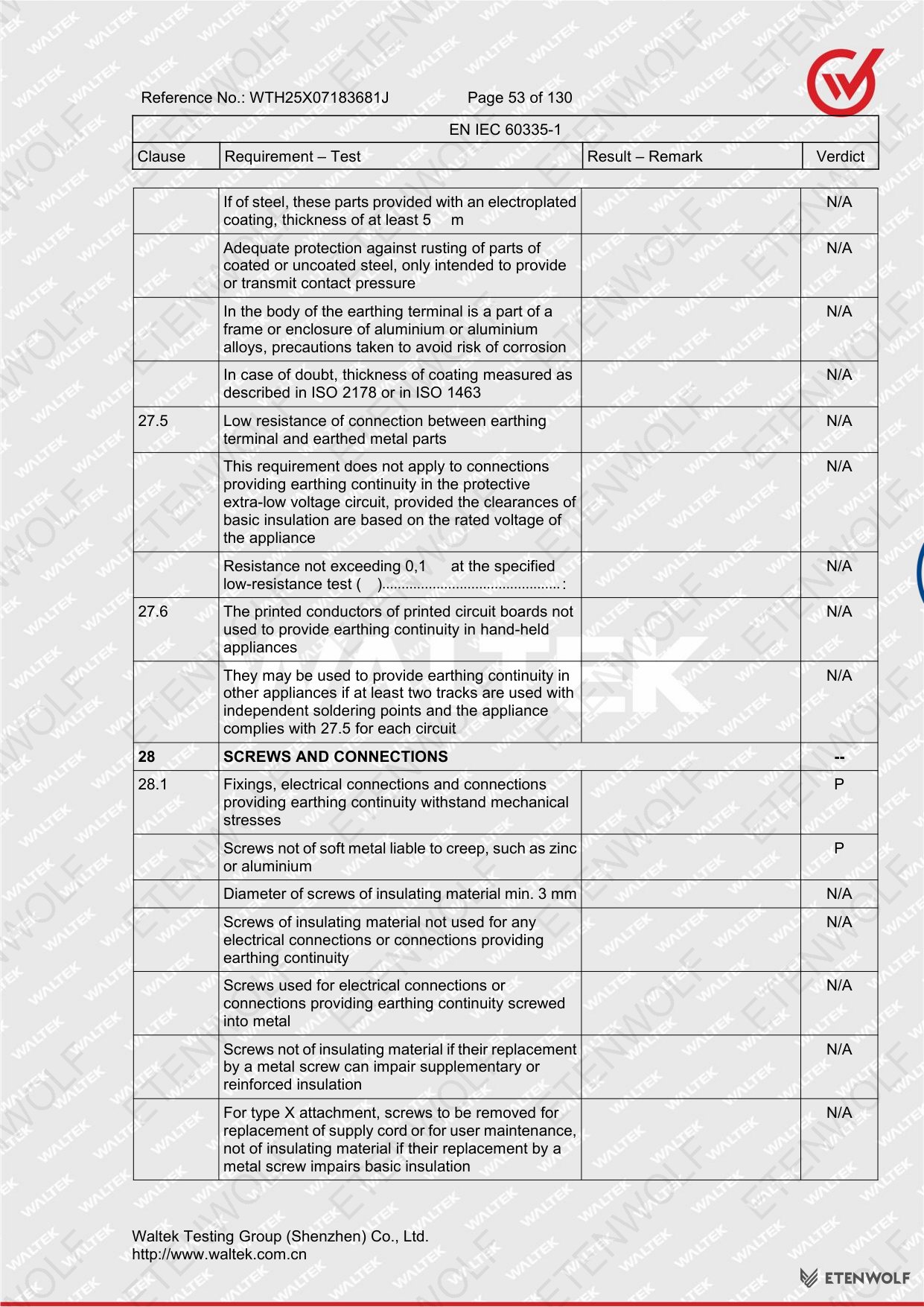

Document Page 53
Document Page 54

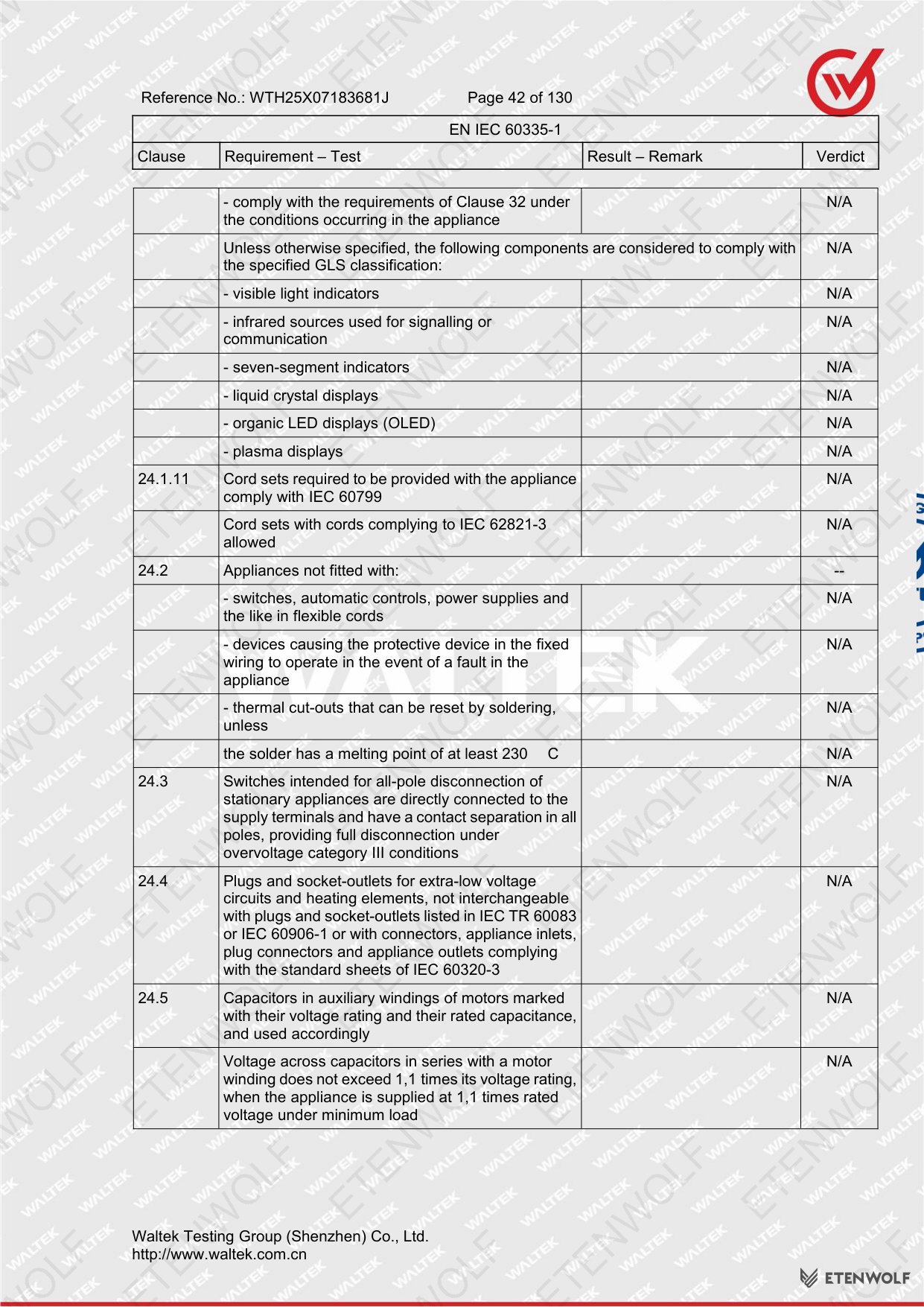

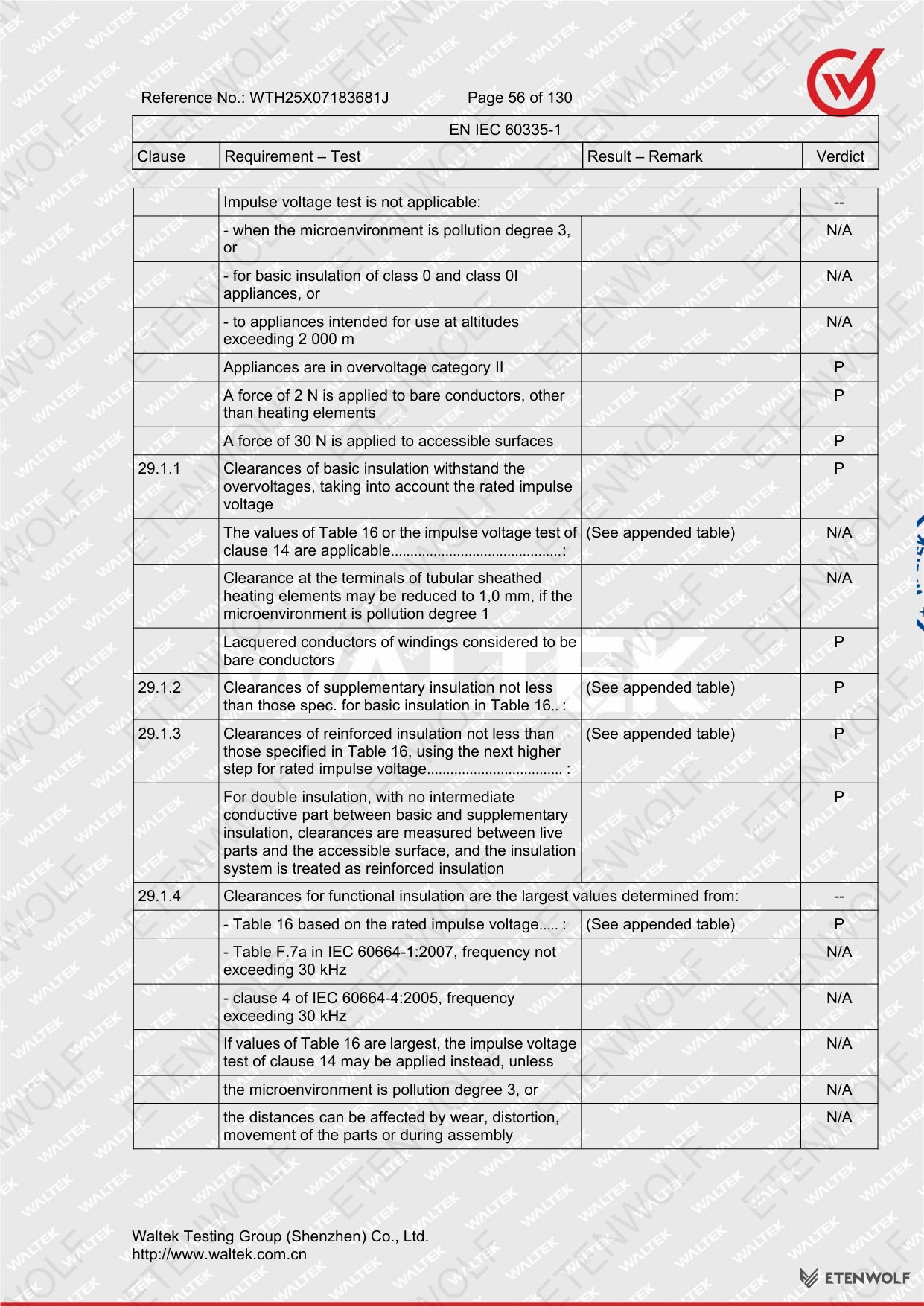

Document Page 55
Document Page 56
Document Page 57

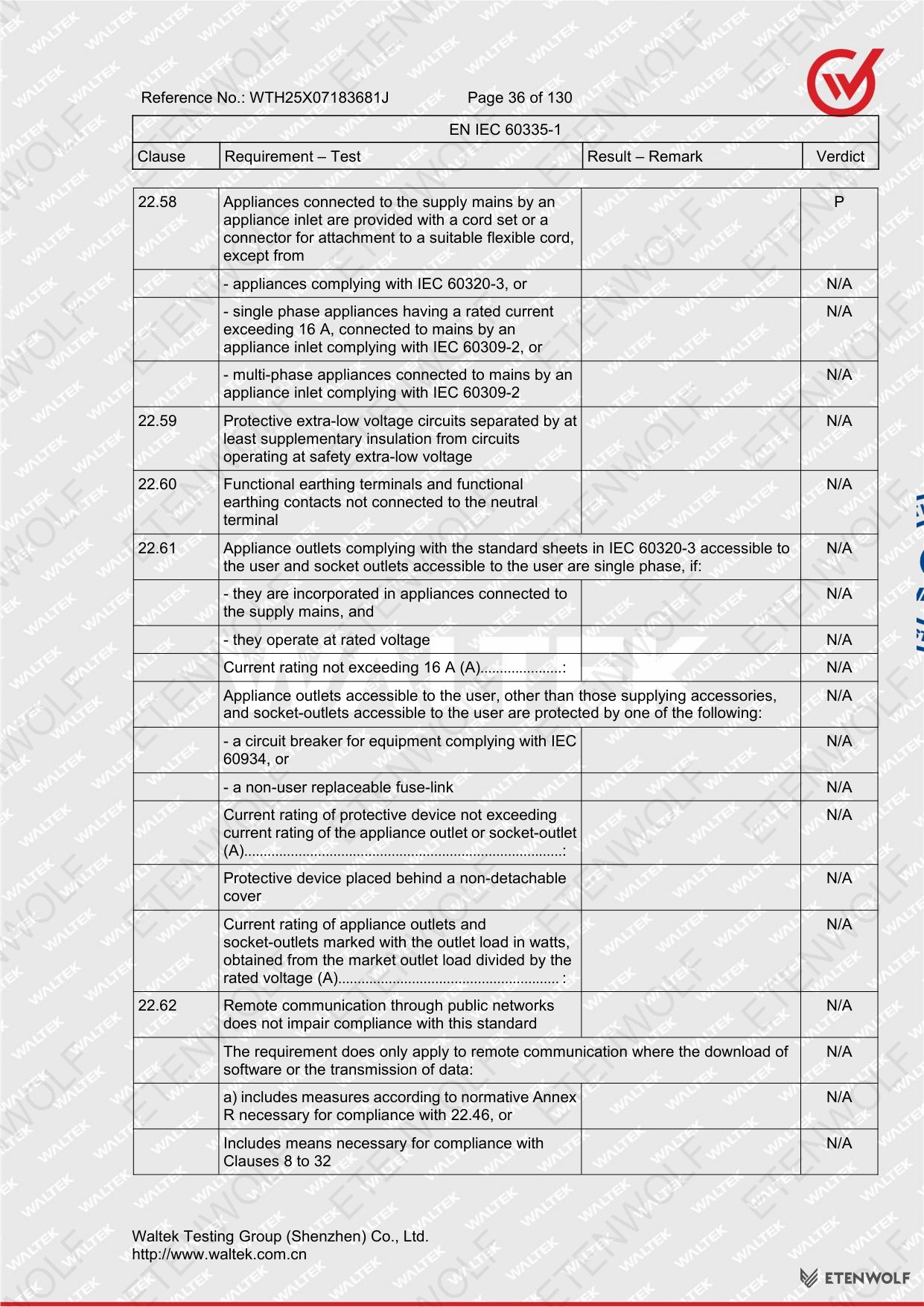

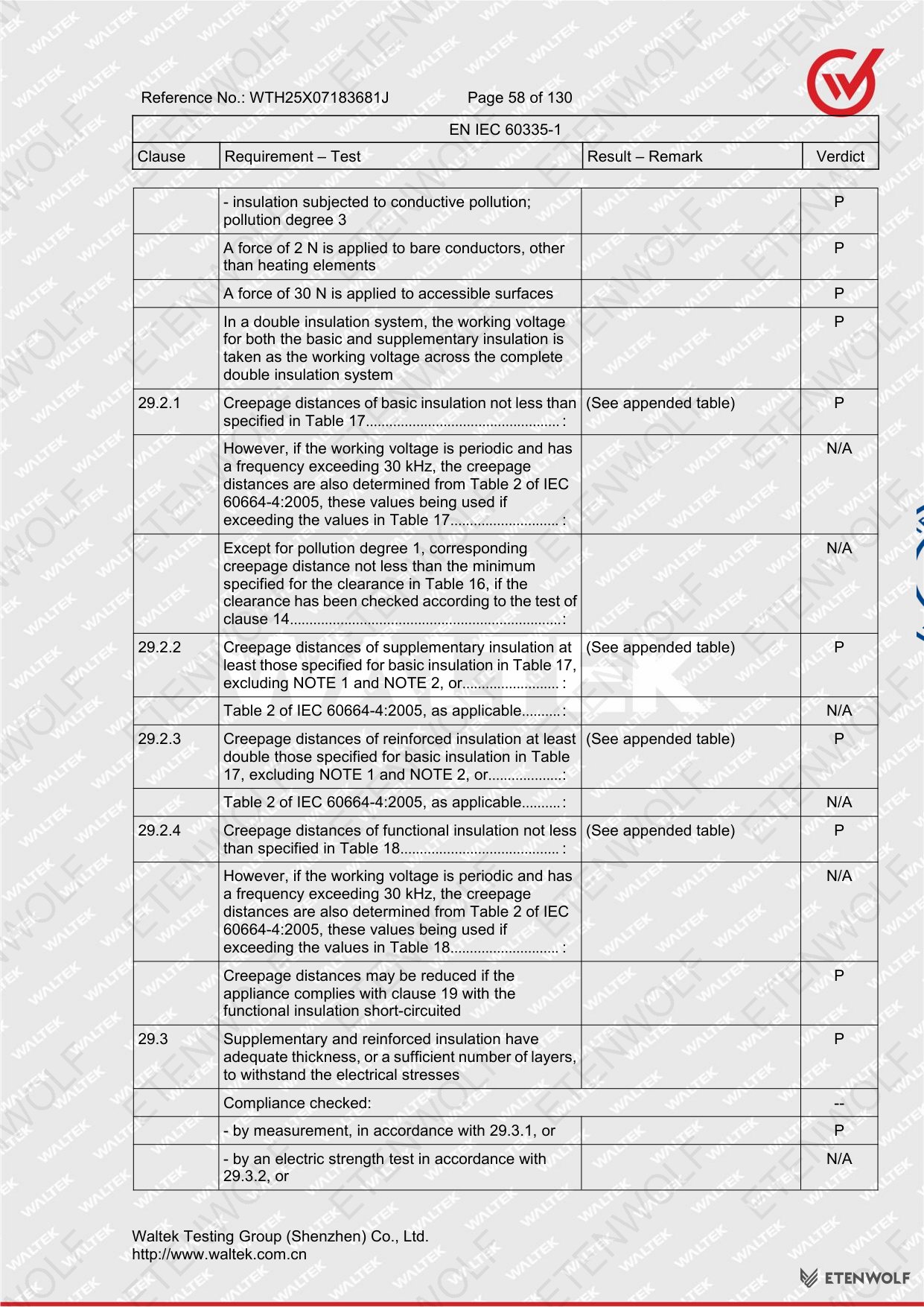

Document Page 58
Document Page 59
Document Page 60
Document Page 61

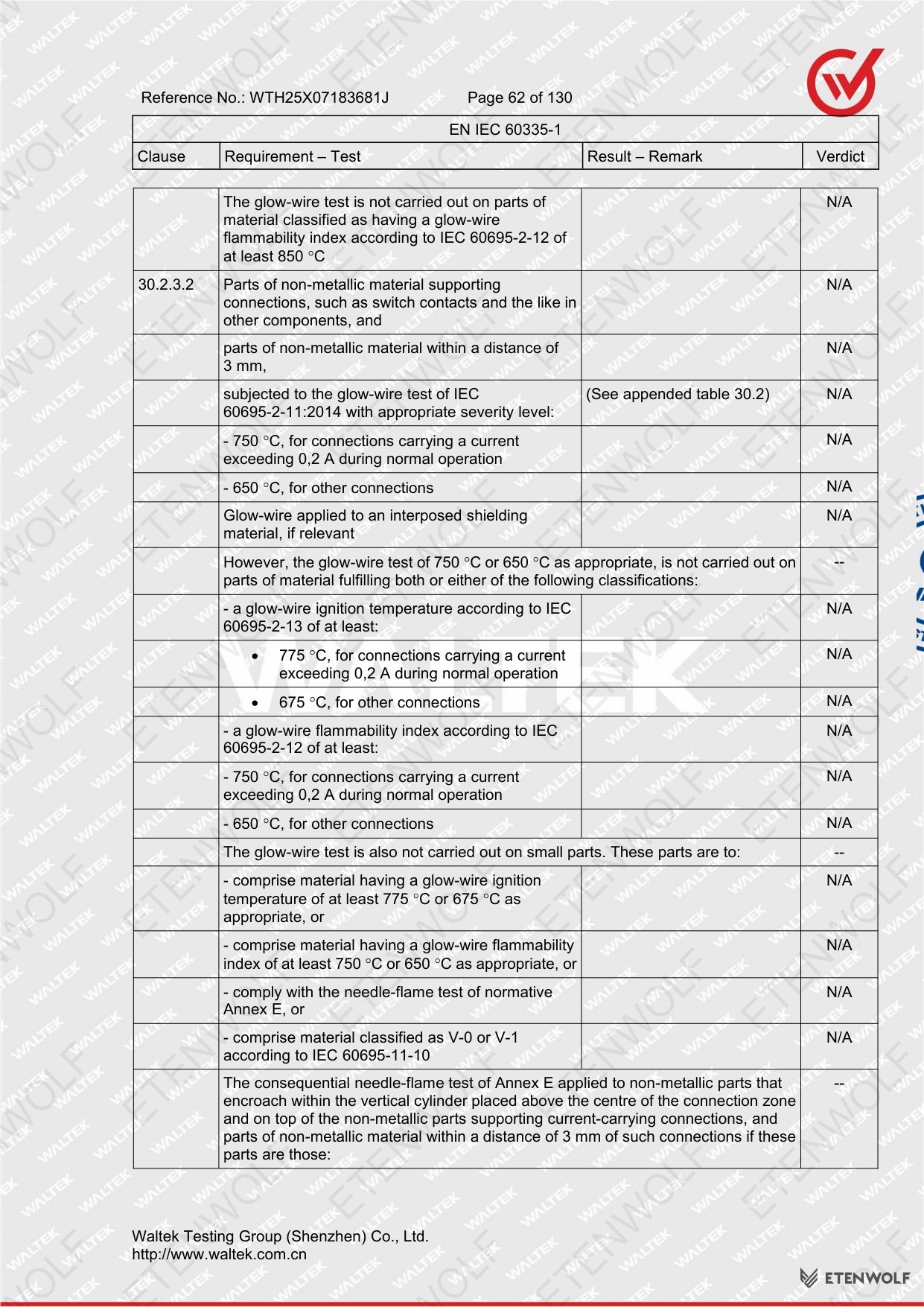

Document Page 62
Document Page 63

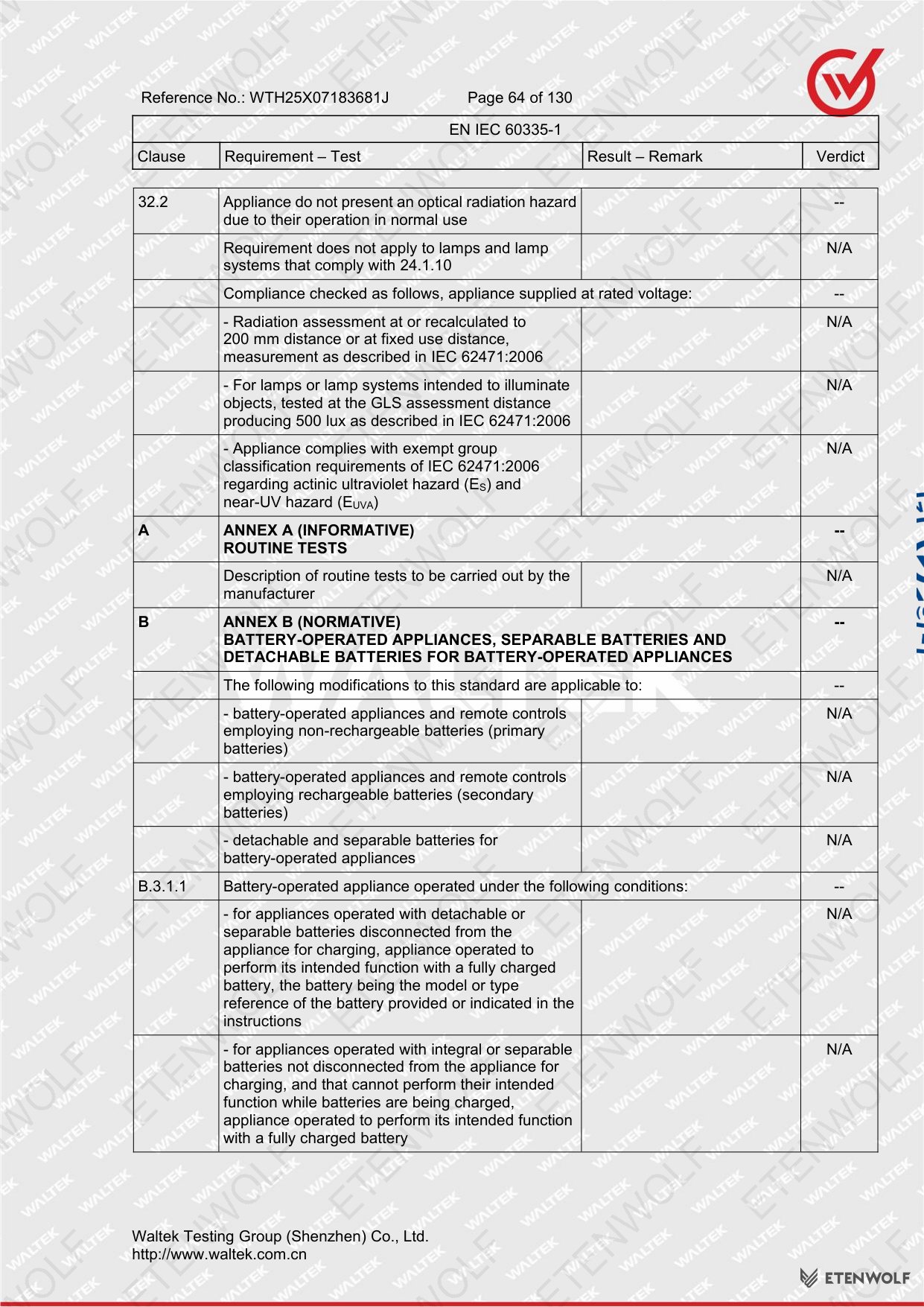

Document Page 64

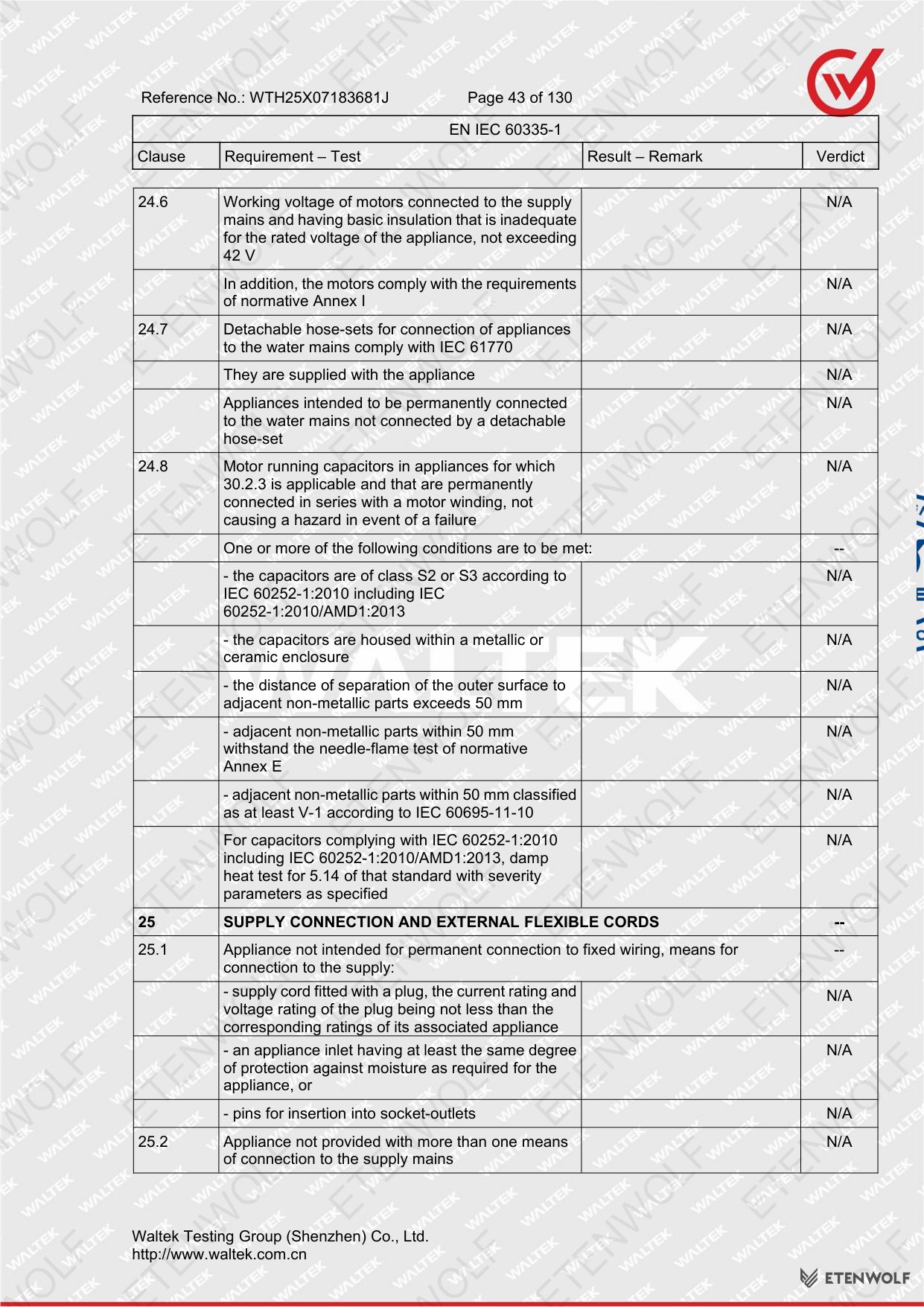

Document Page 65
Document Page 66
Document Page 67
Document Page 68

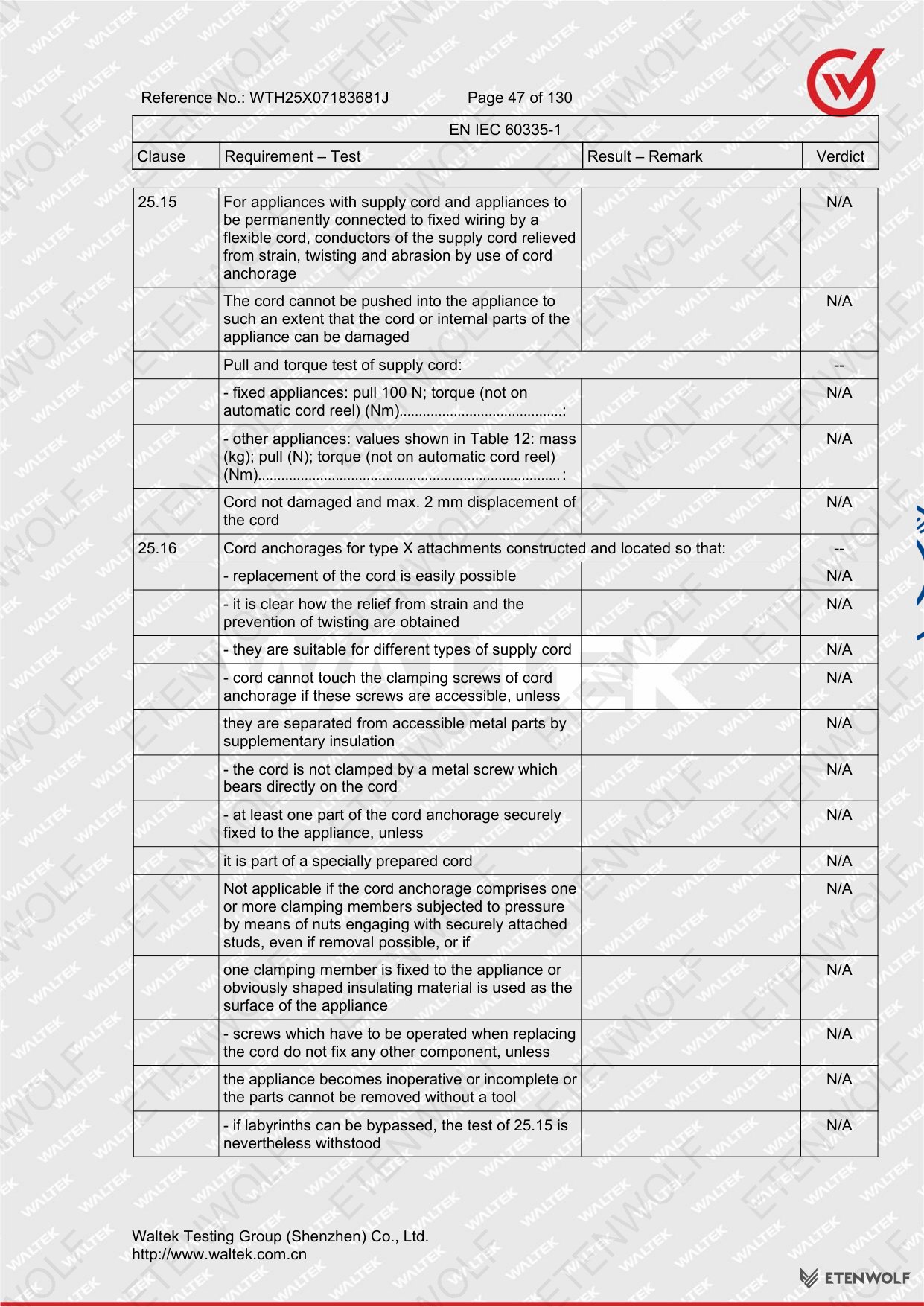

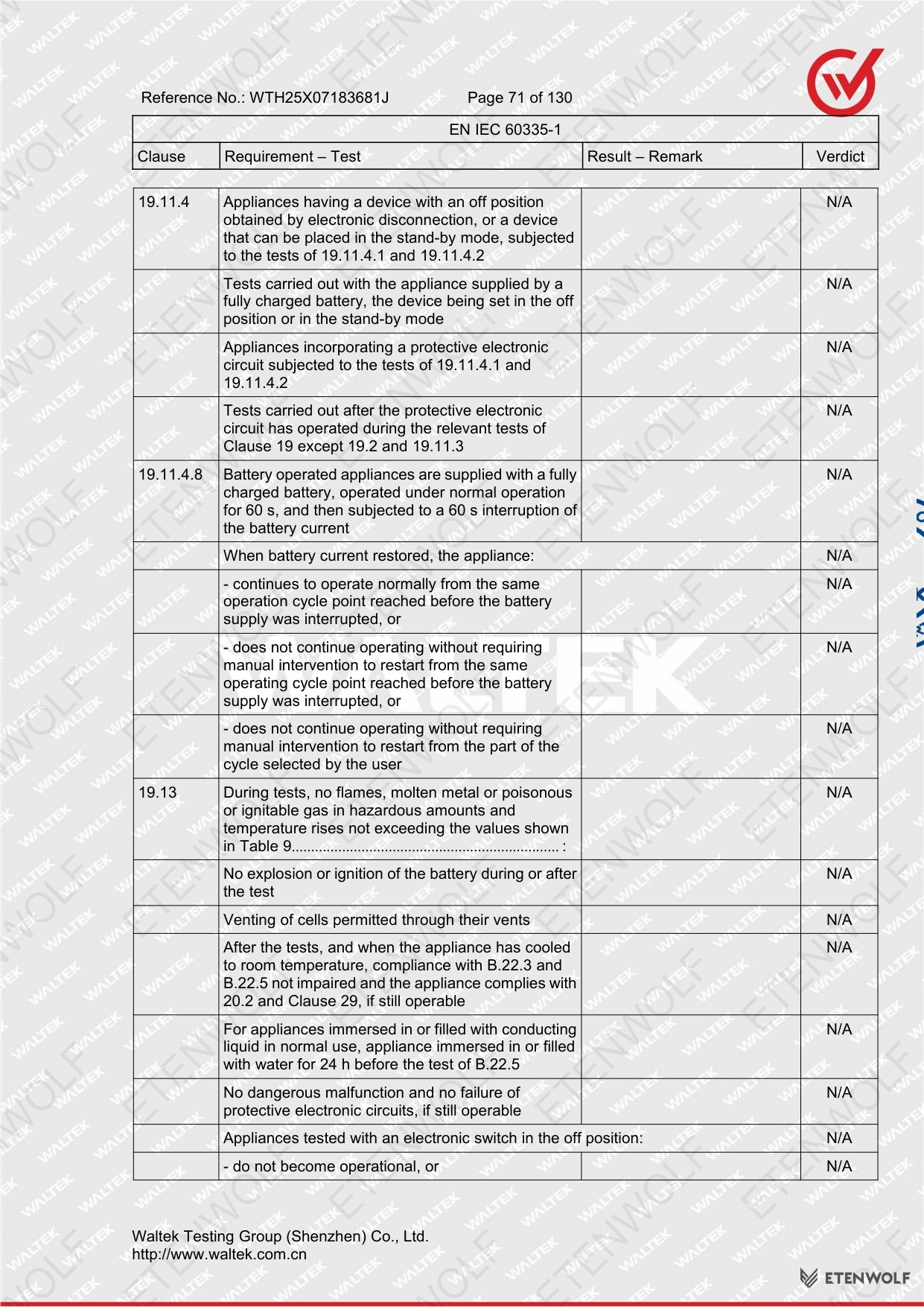

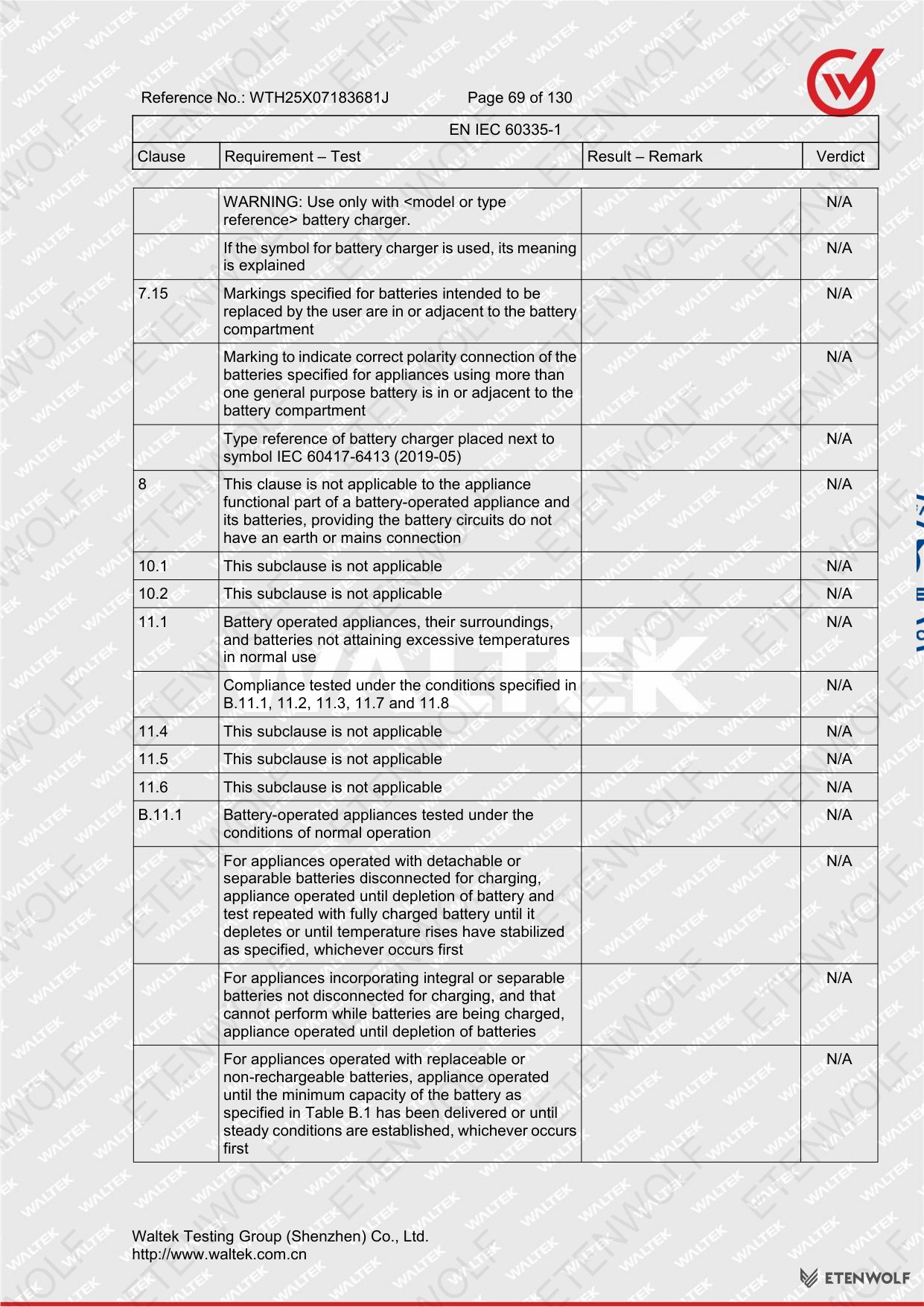

Document Page 69

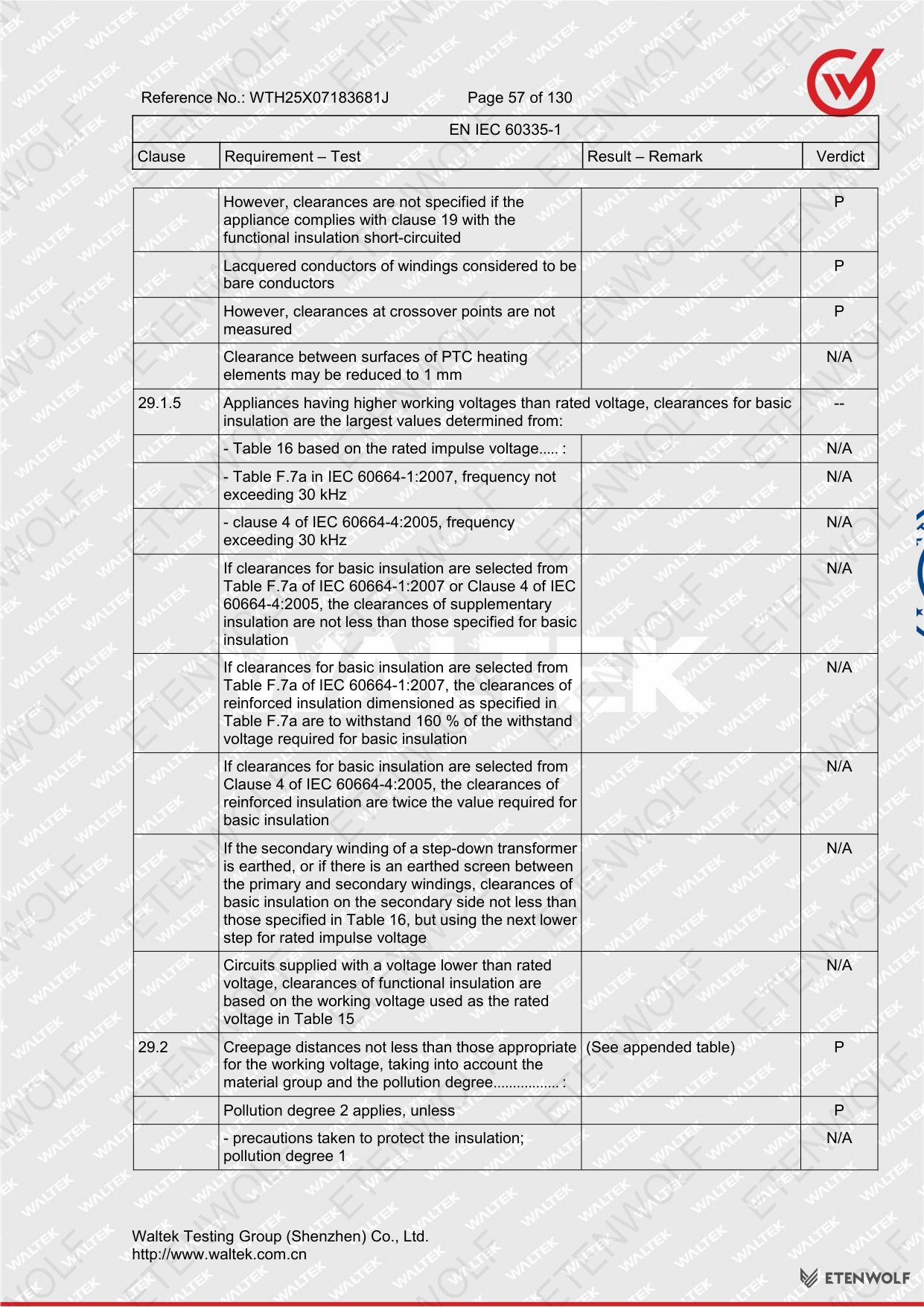

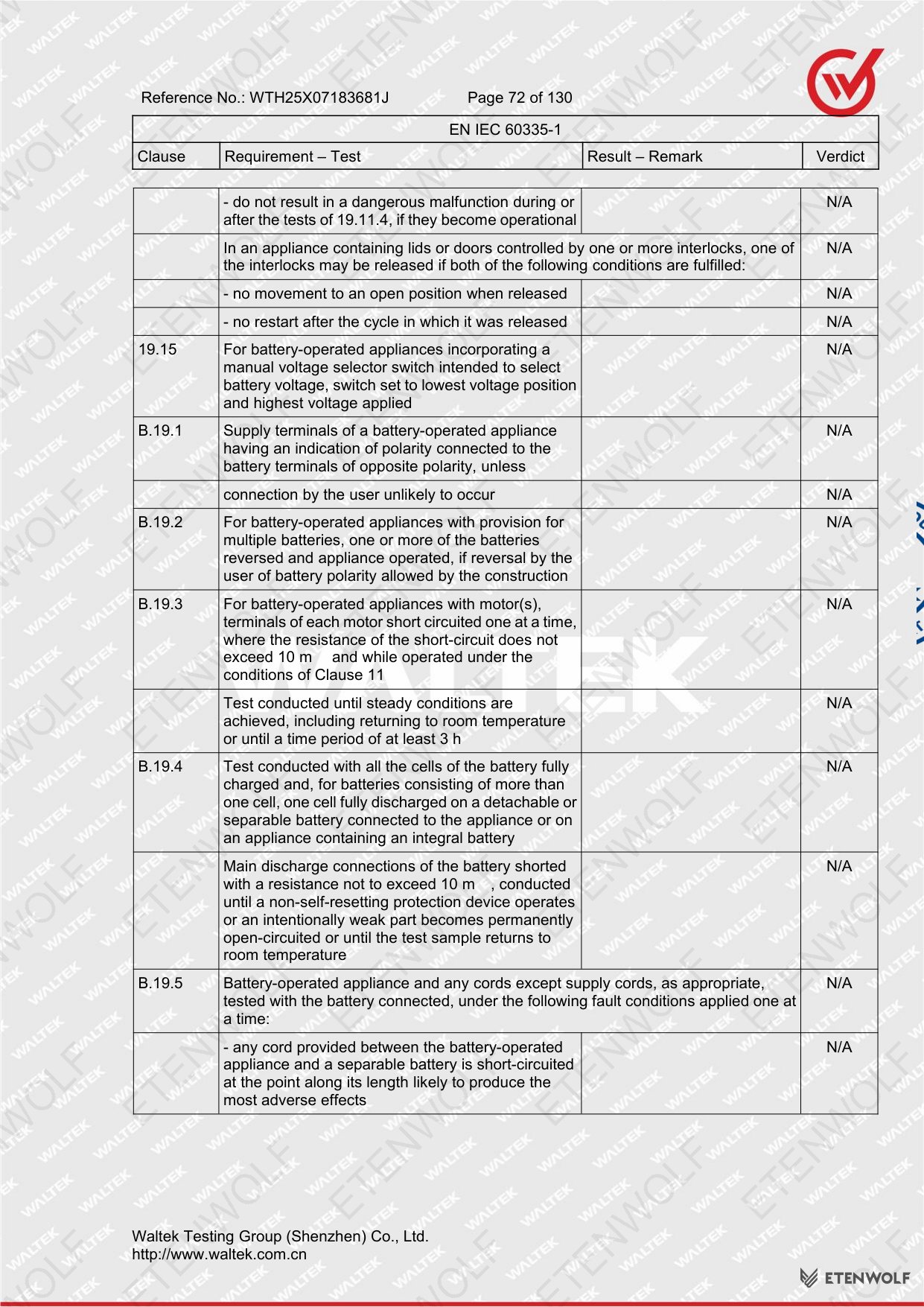

Document Page 70
Document Page 71

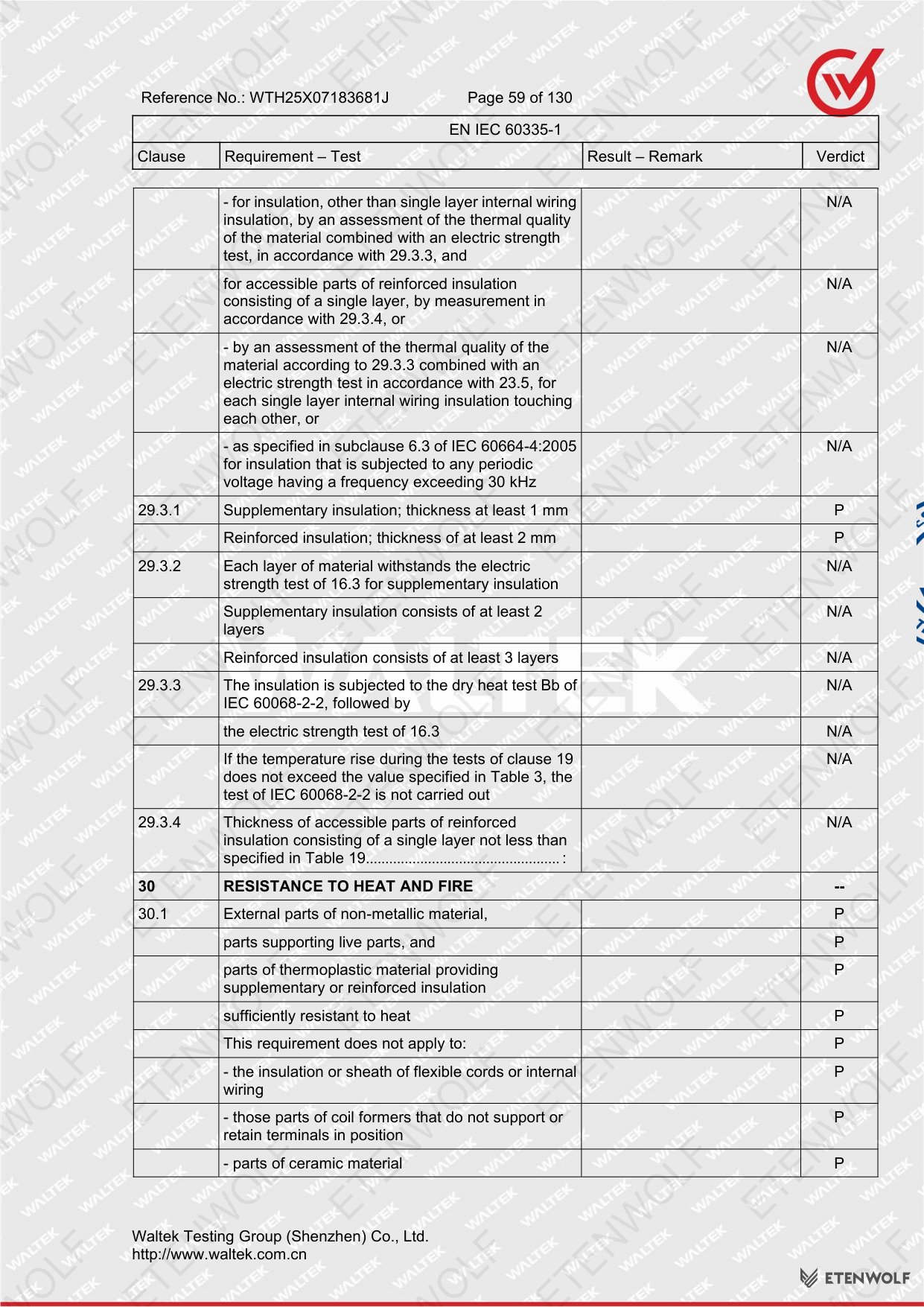

Document Page 72

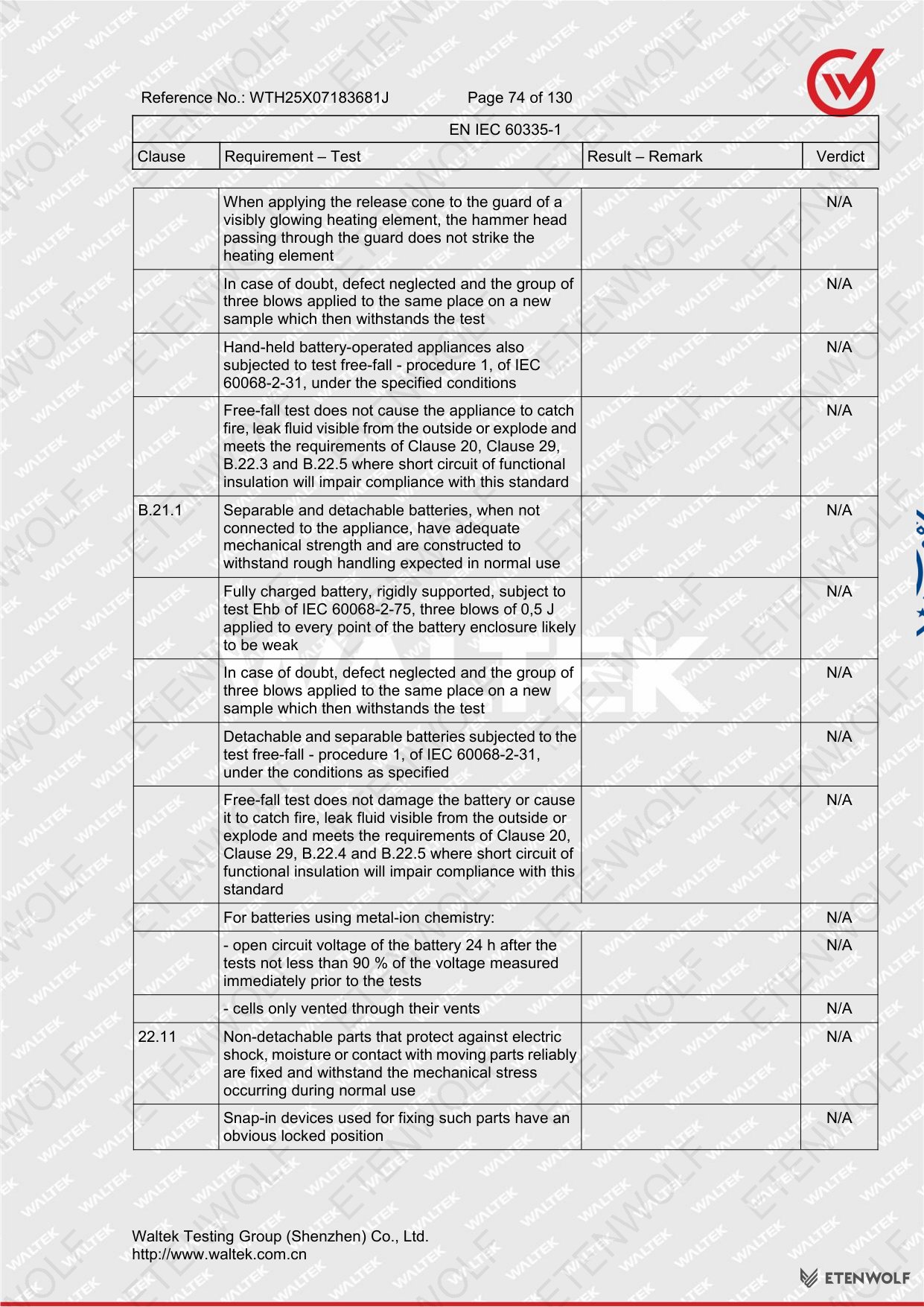

Document Page 73
Document Page 74

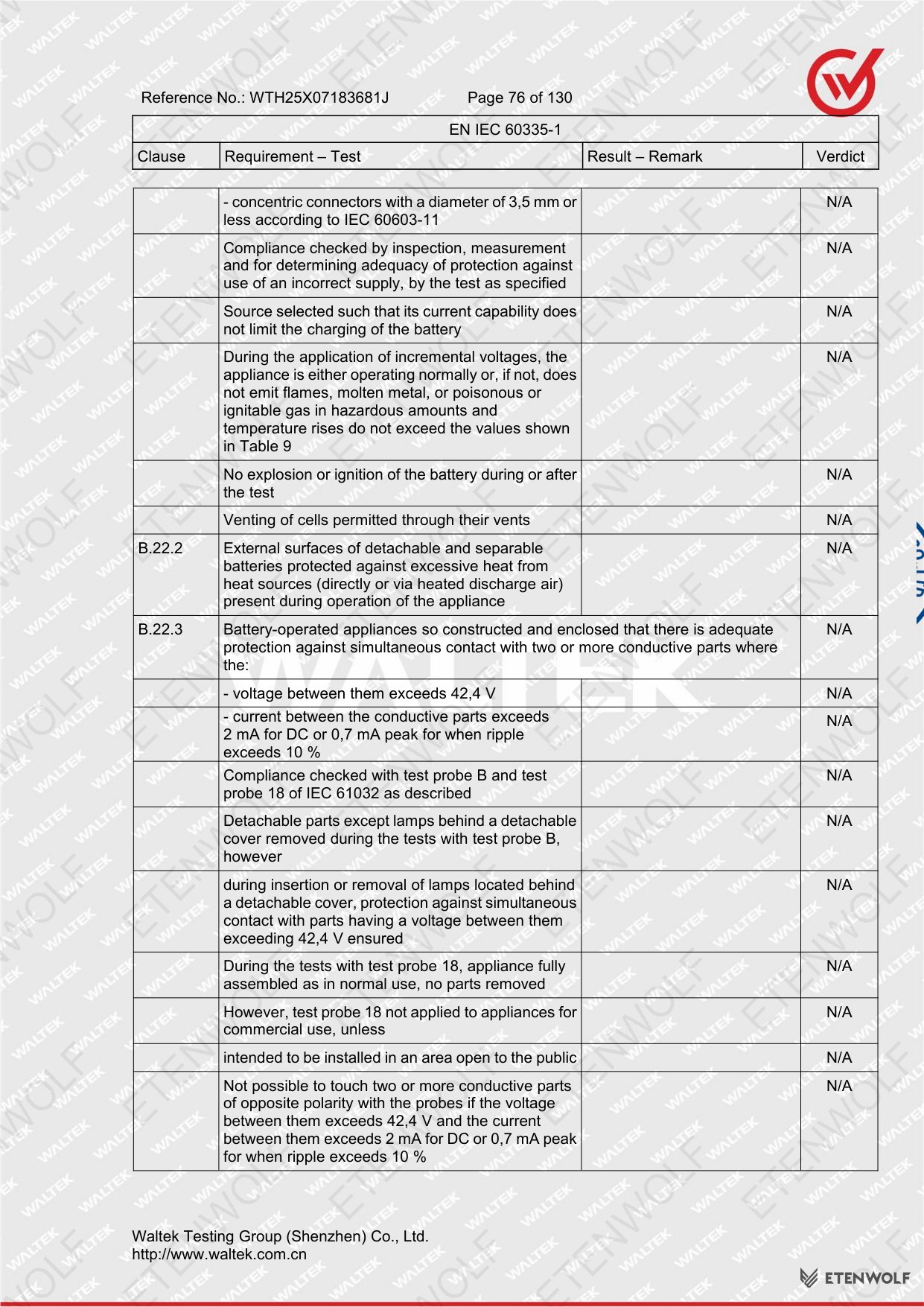

Document Page 75
Document Page 76

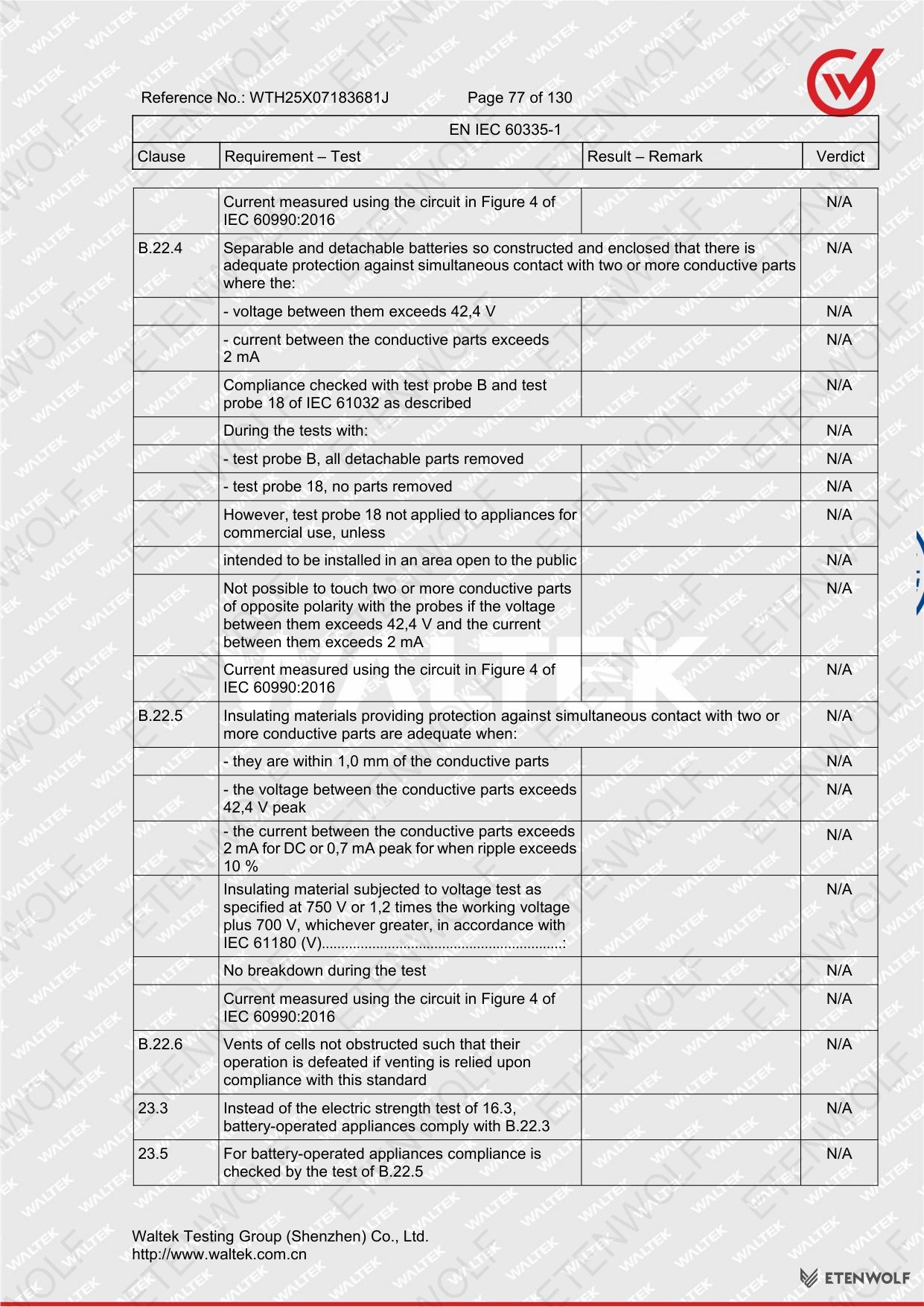

Document Page 77
Document Page 78

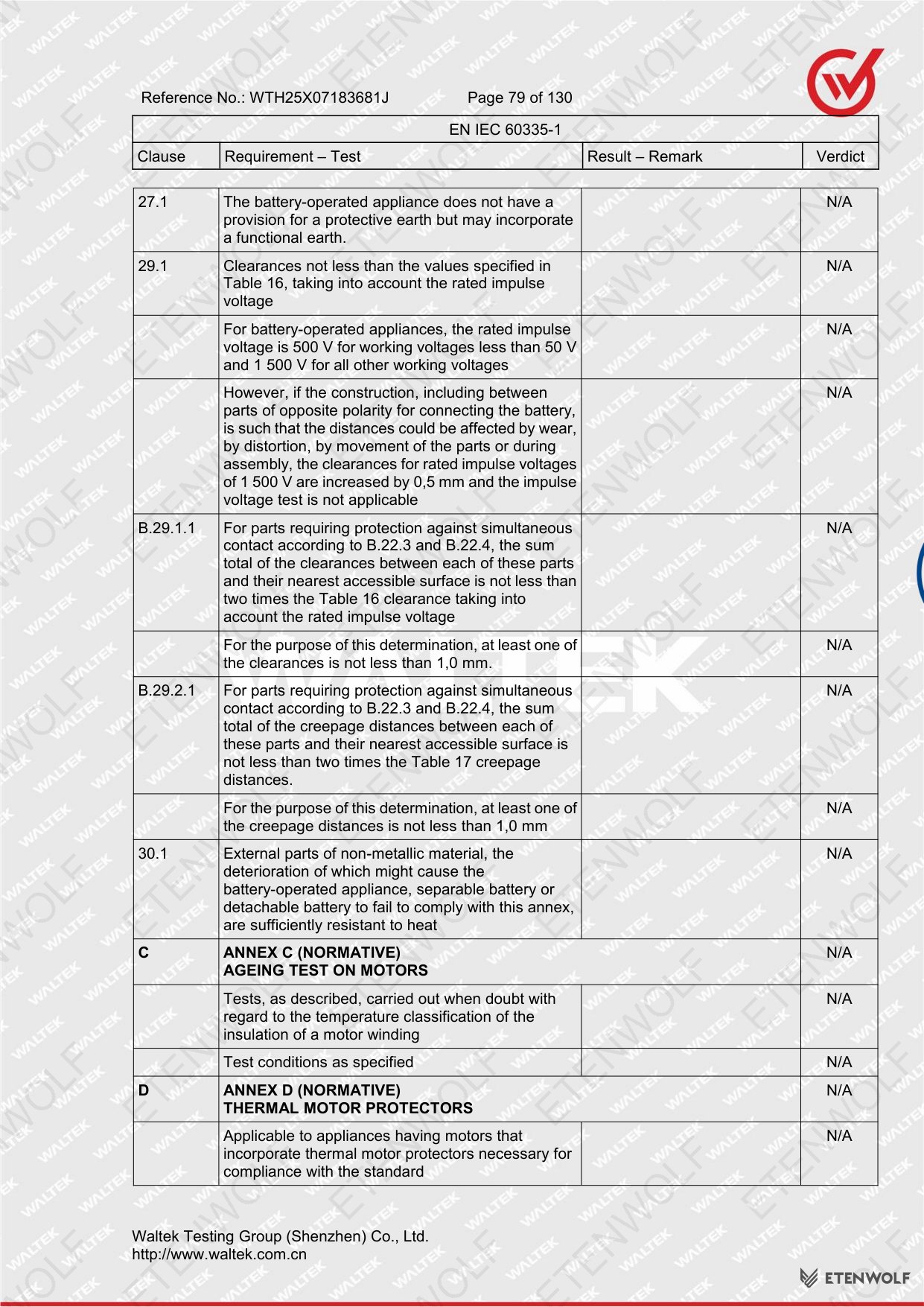

Document Page 79

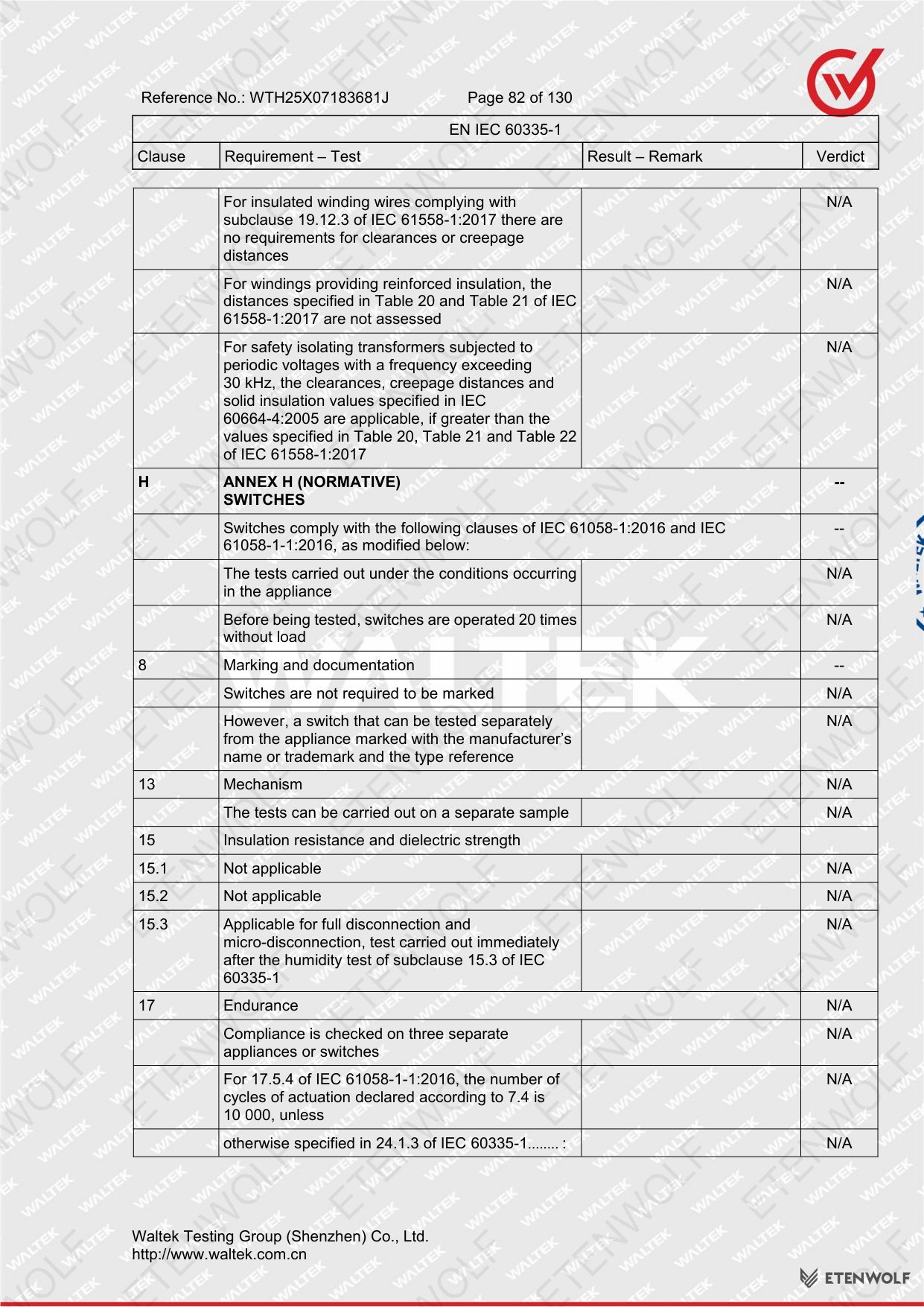

Document Page 80
Document Page 81
Document Page 82

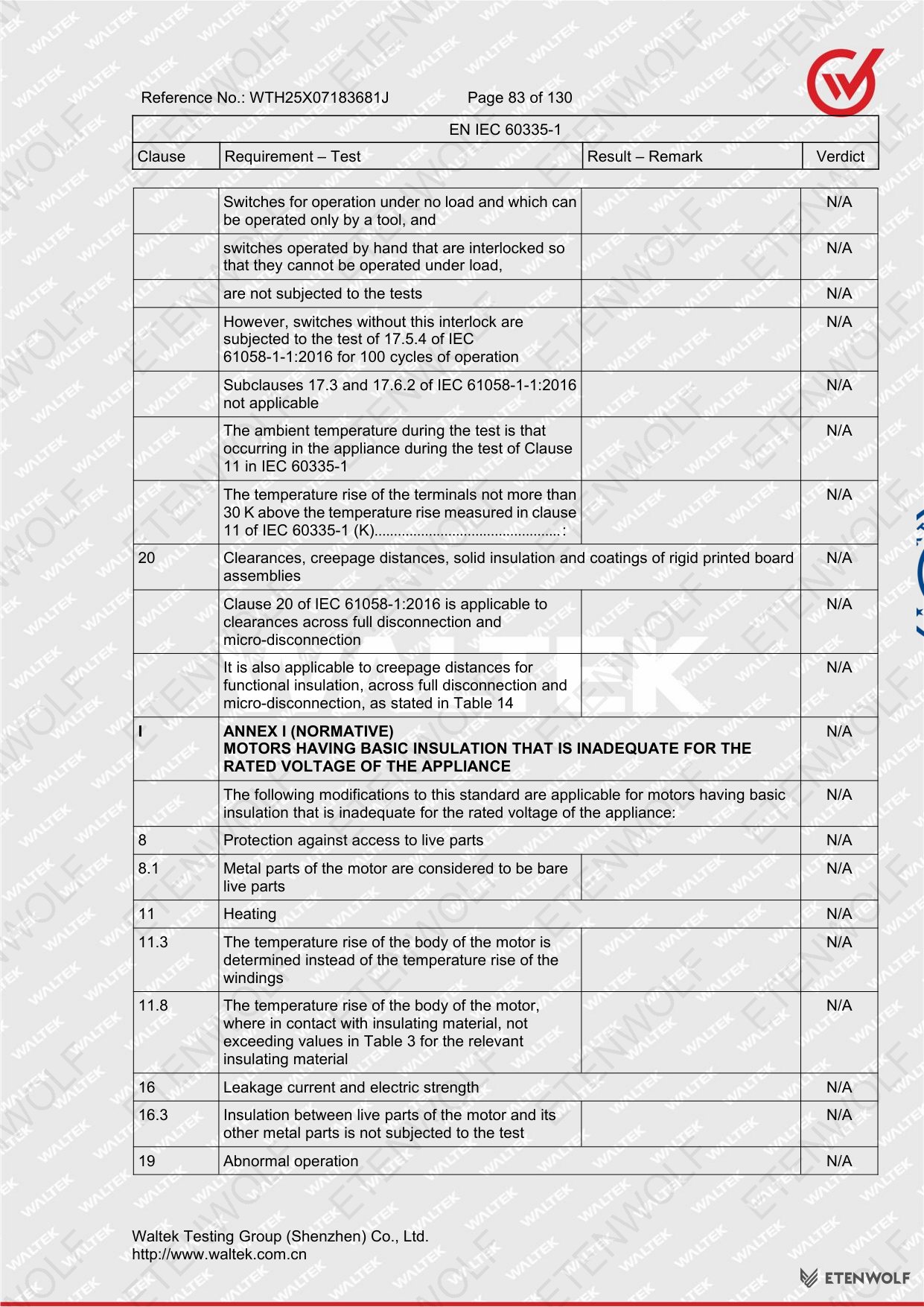

Document Page 83
Document Page 84

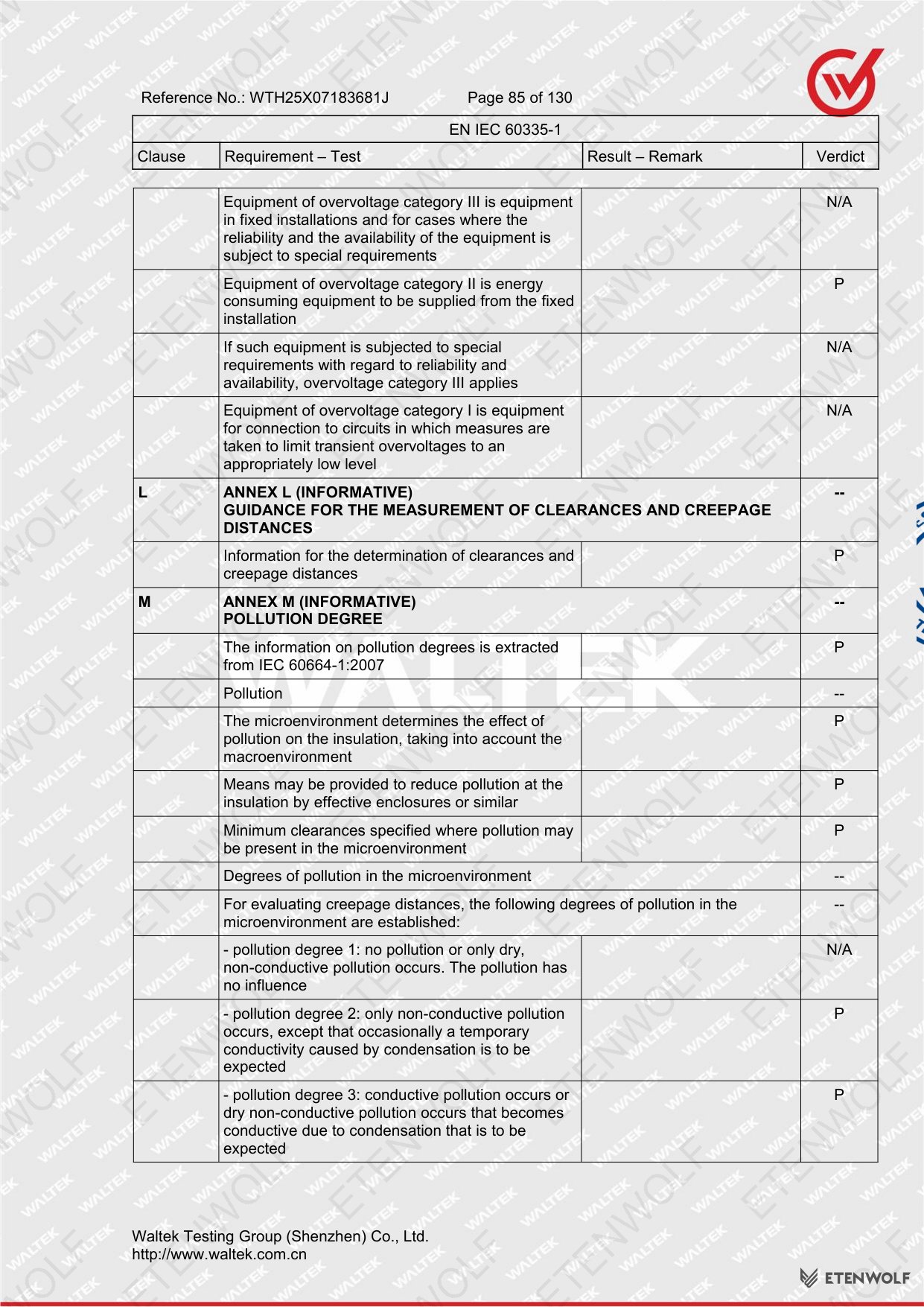

Document Page 85
Document Page 86

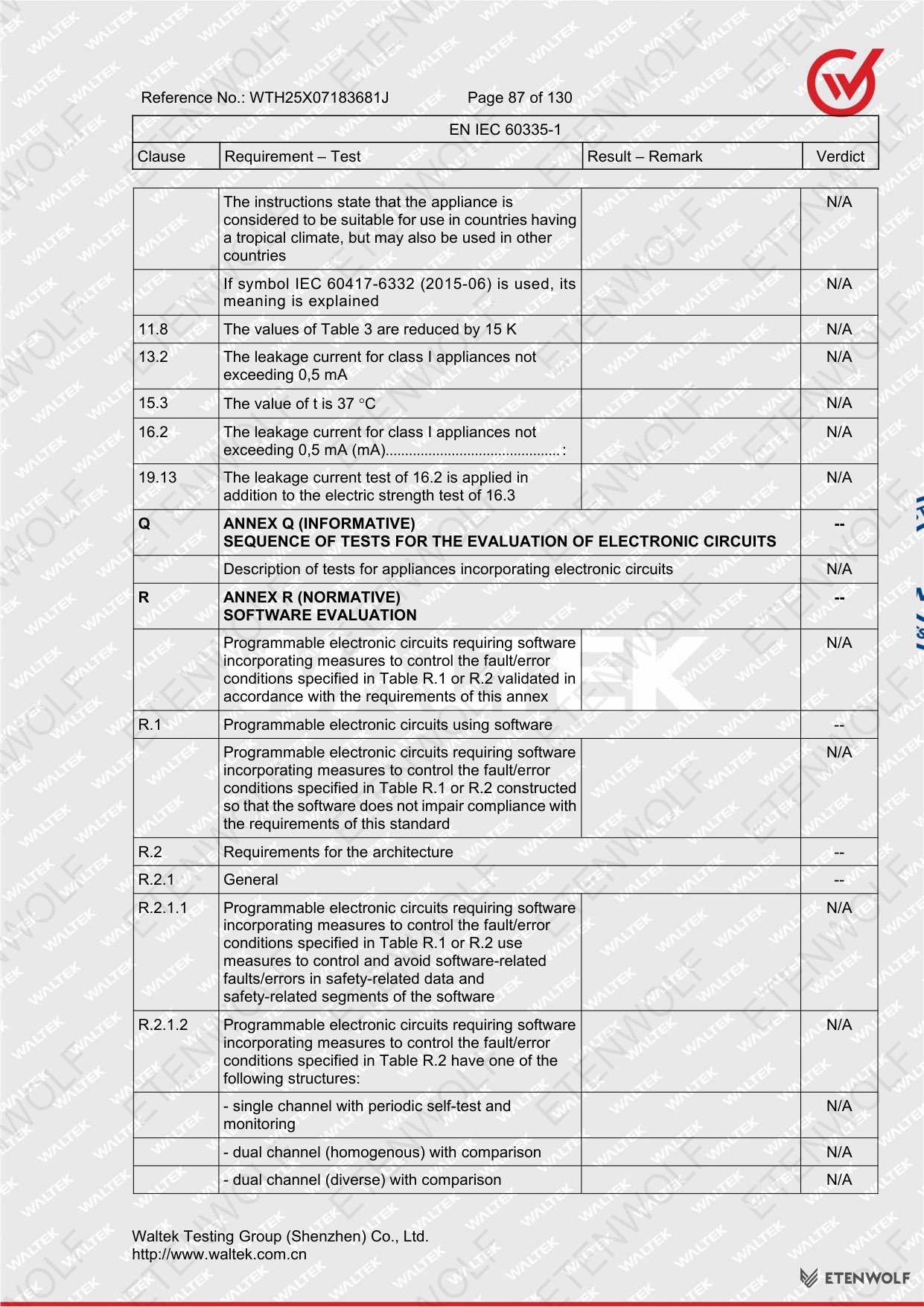

Document Page 87
Document Page 88

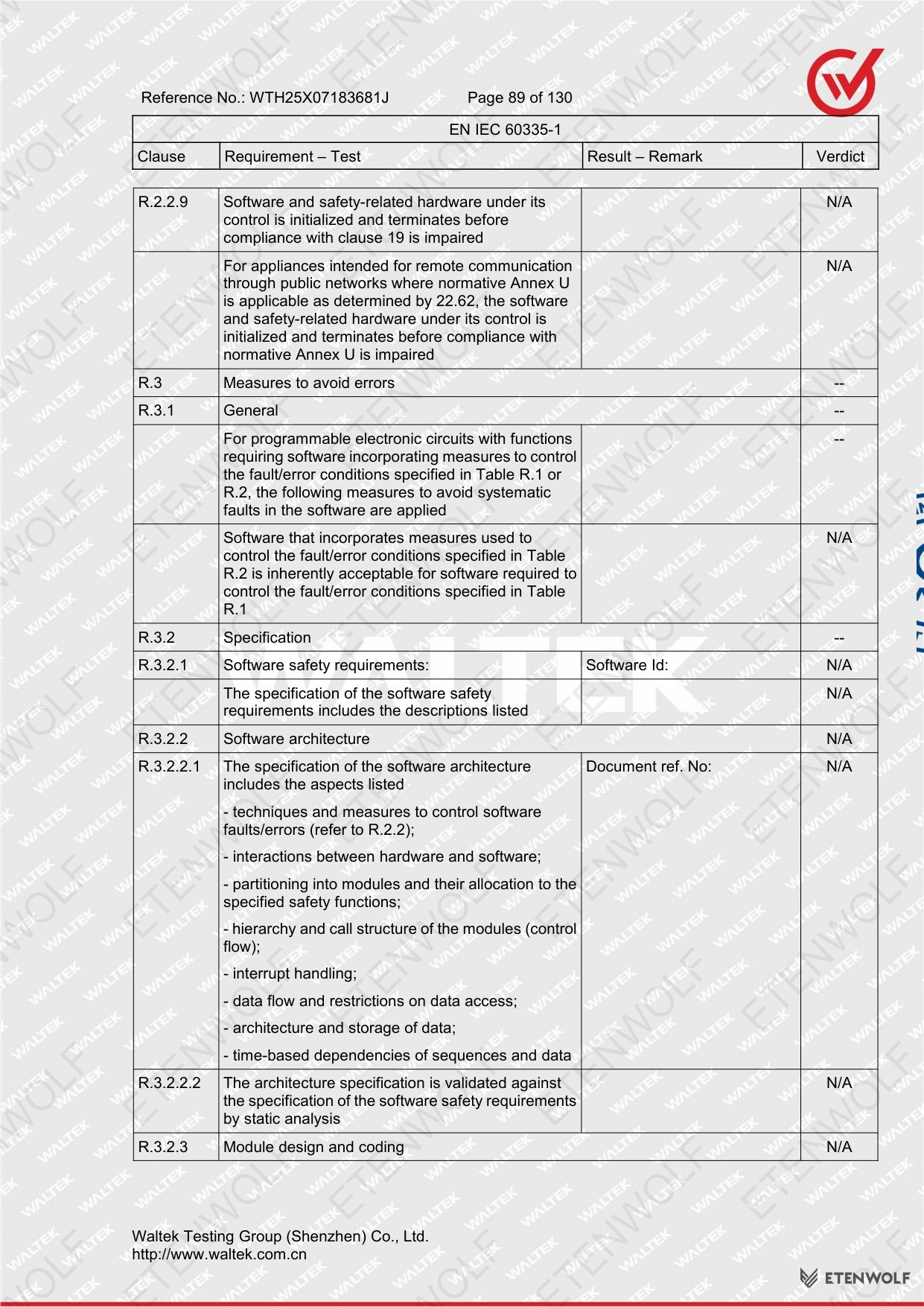

Document Page 89

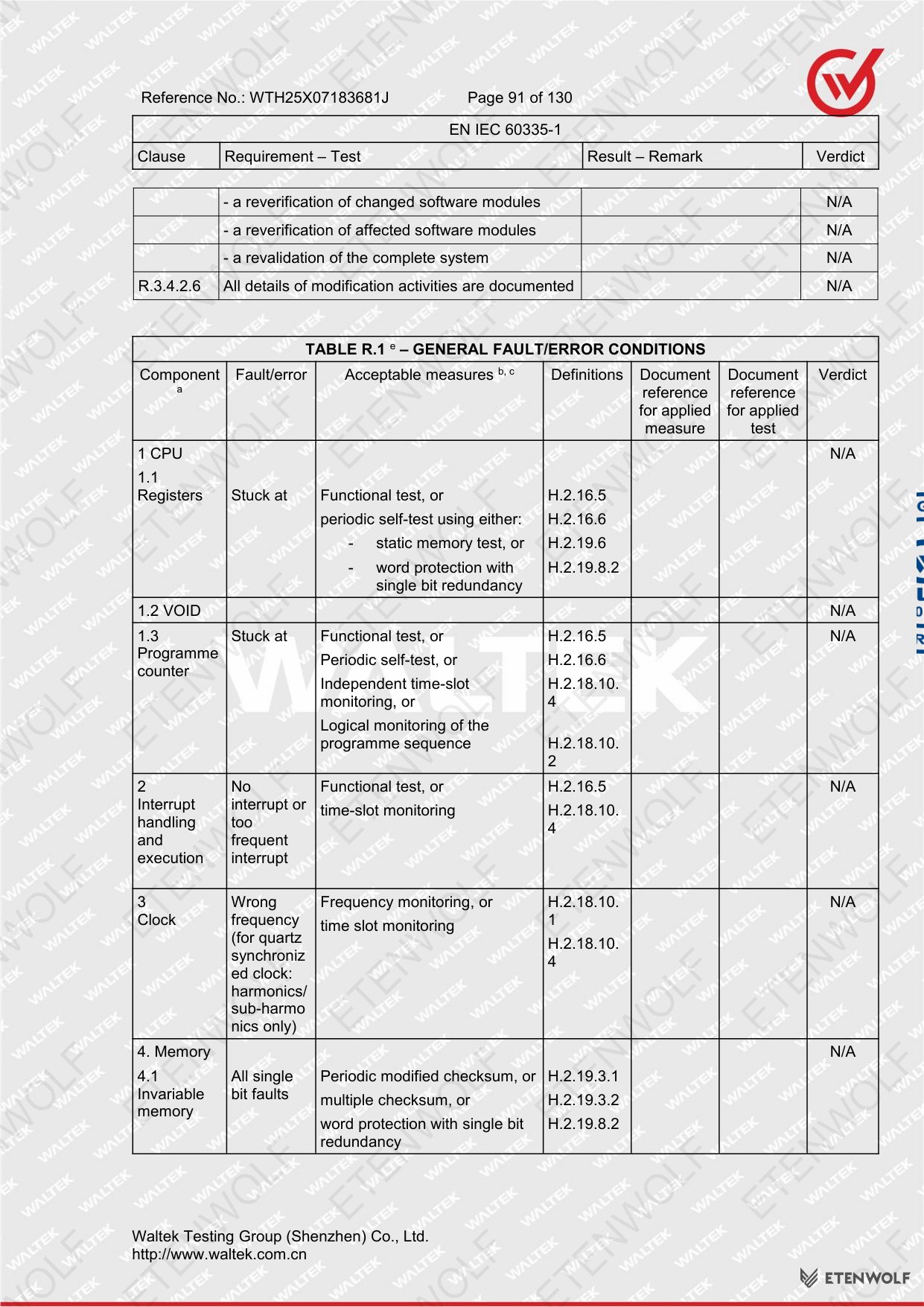

Document Page 90

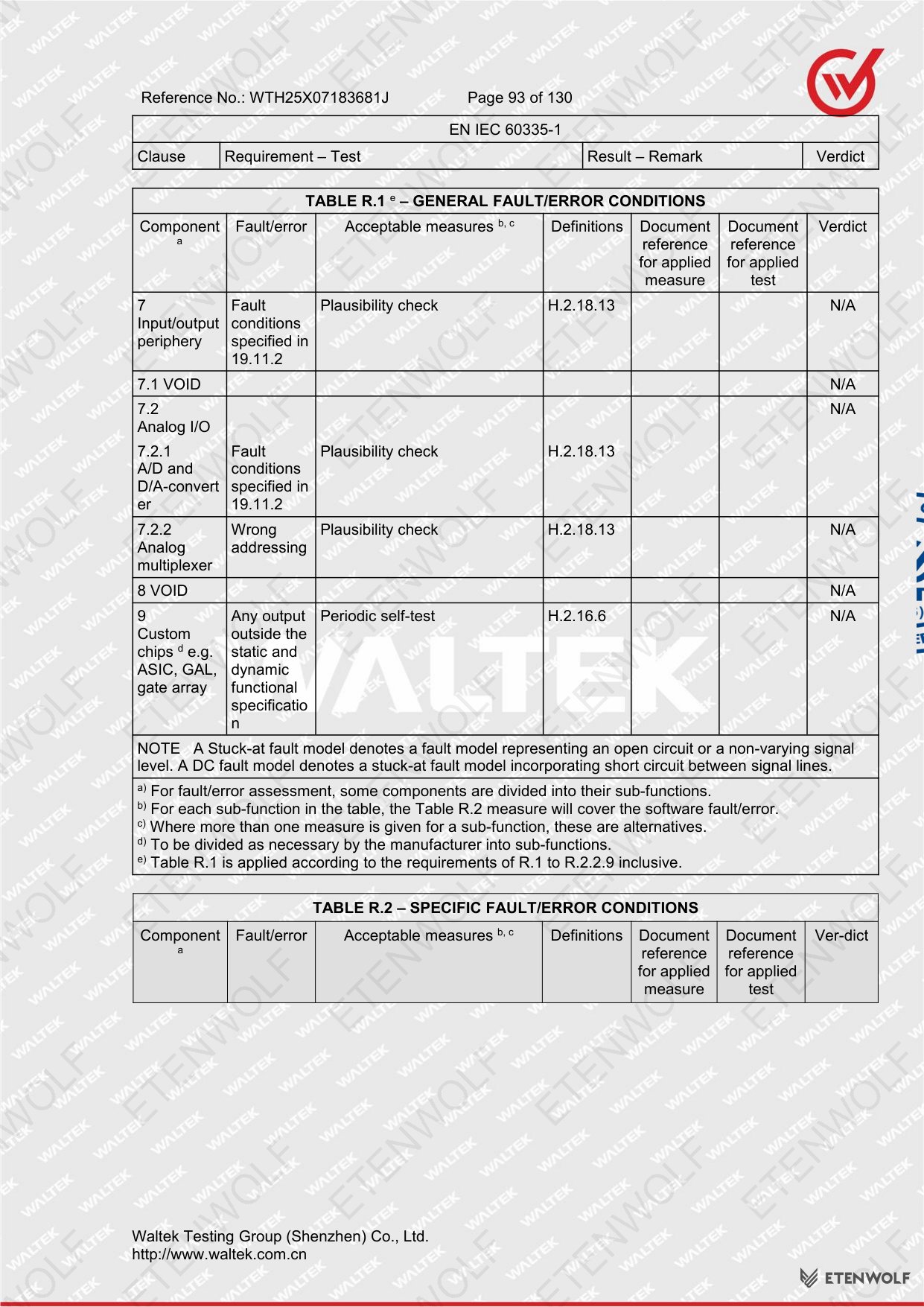

Document Page 91
Document Page 92
Document Page 93
Document Page 94

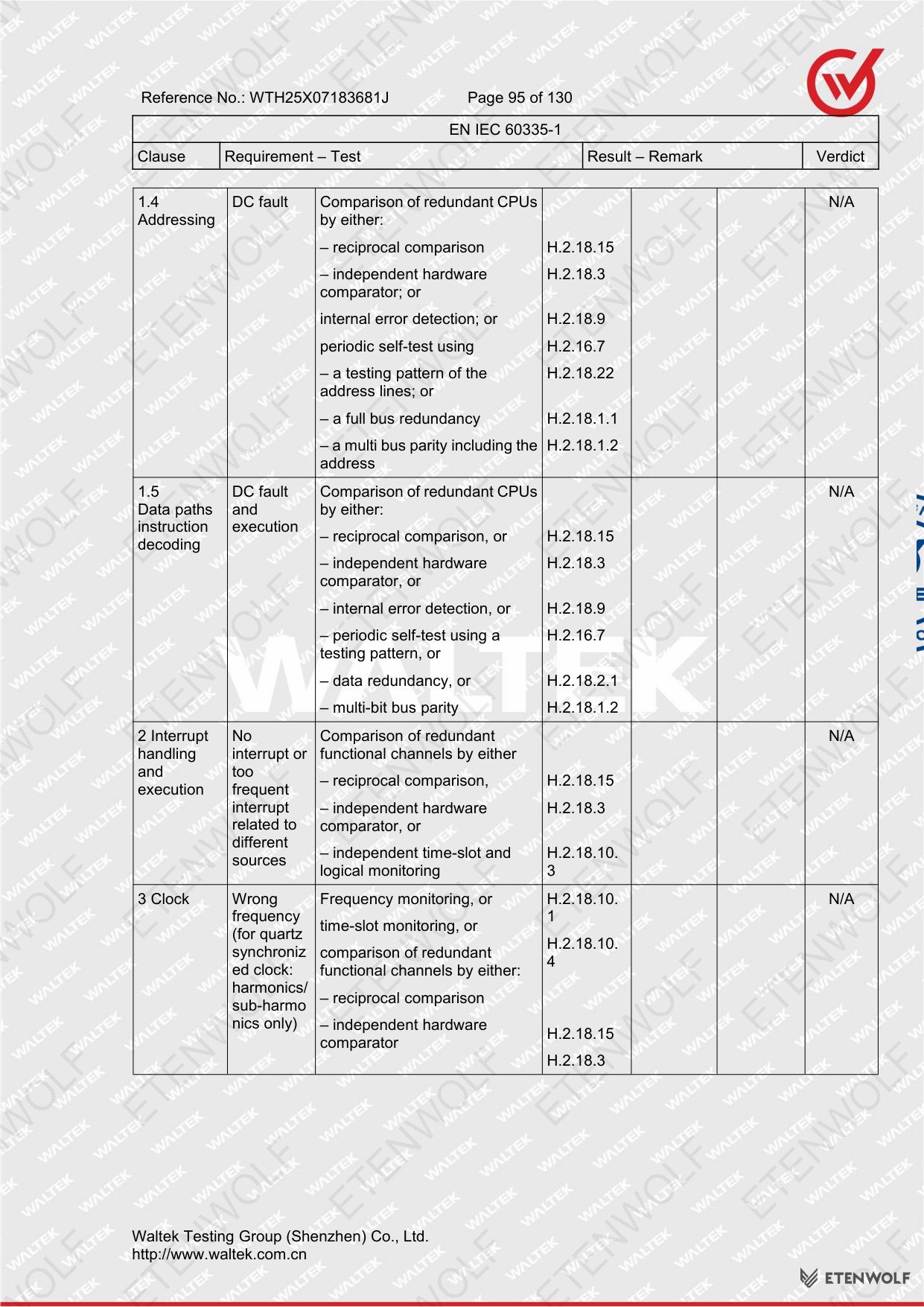

Document Page 95
Document Page 96
Document Page 97

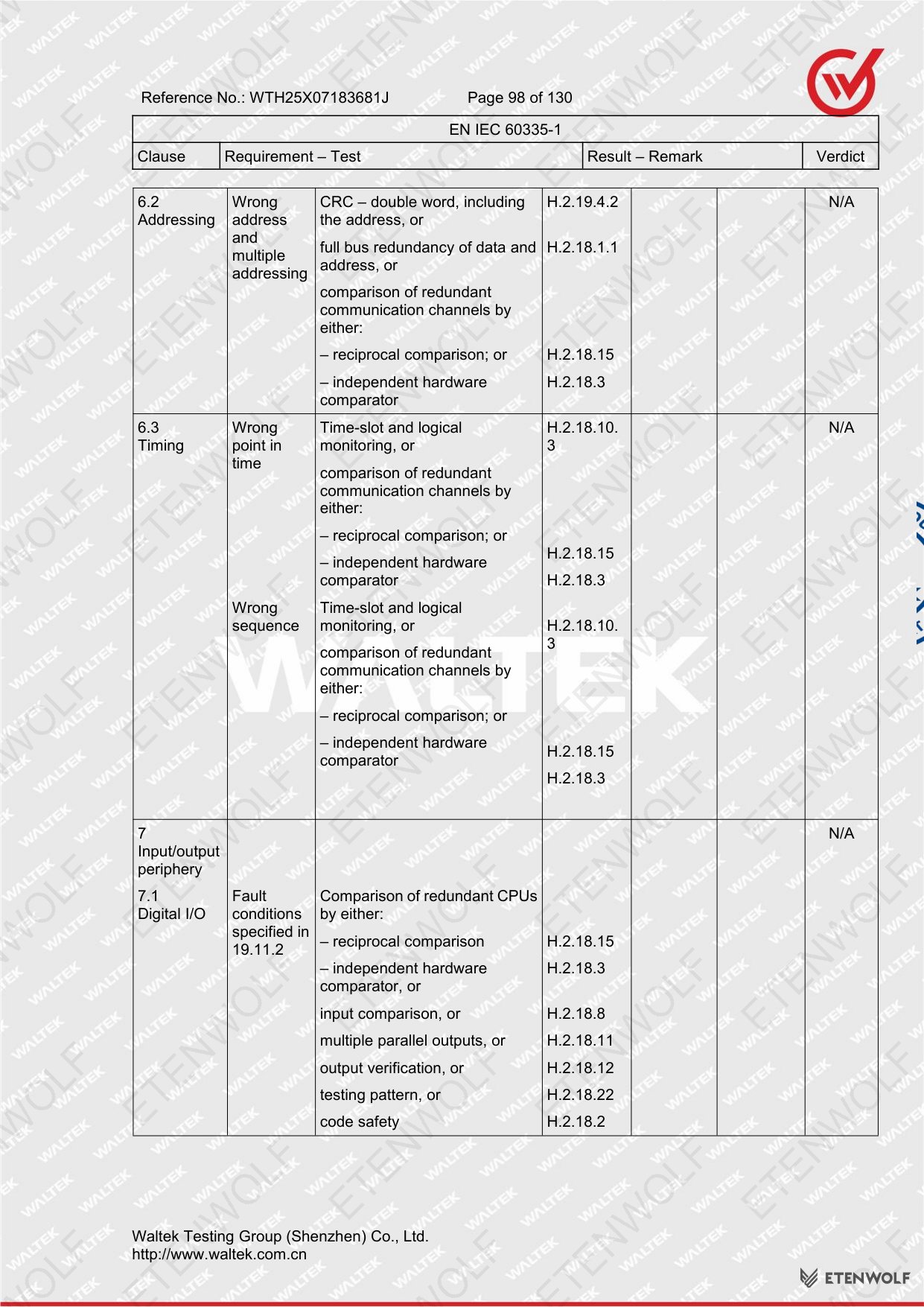

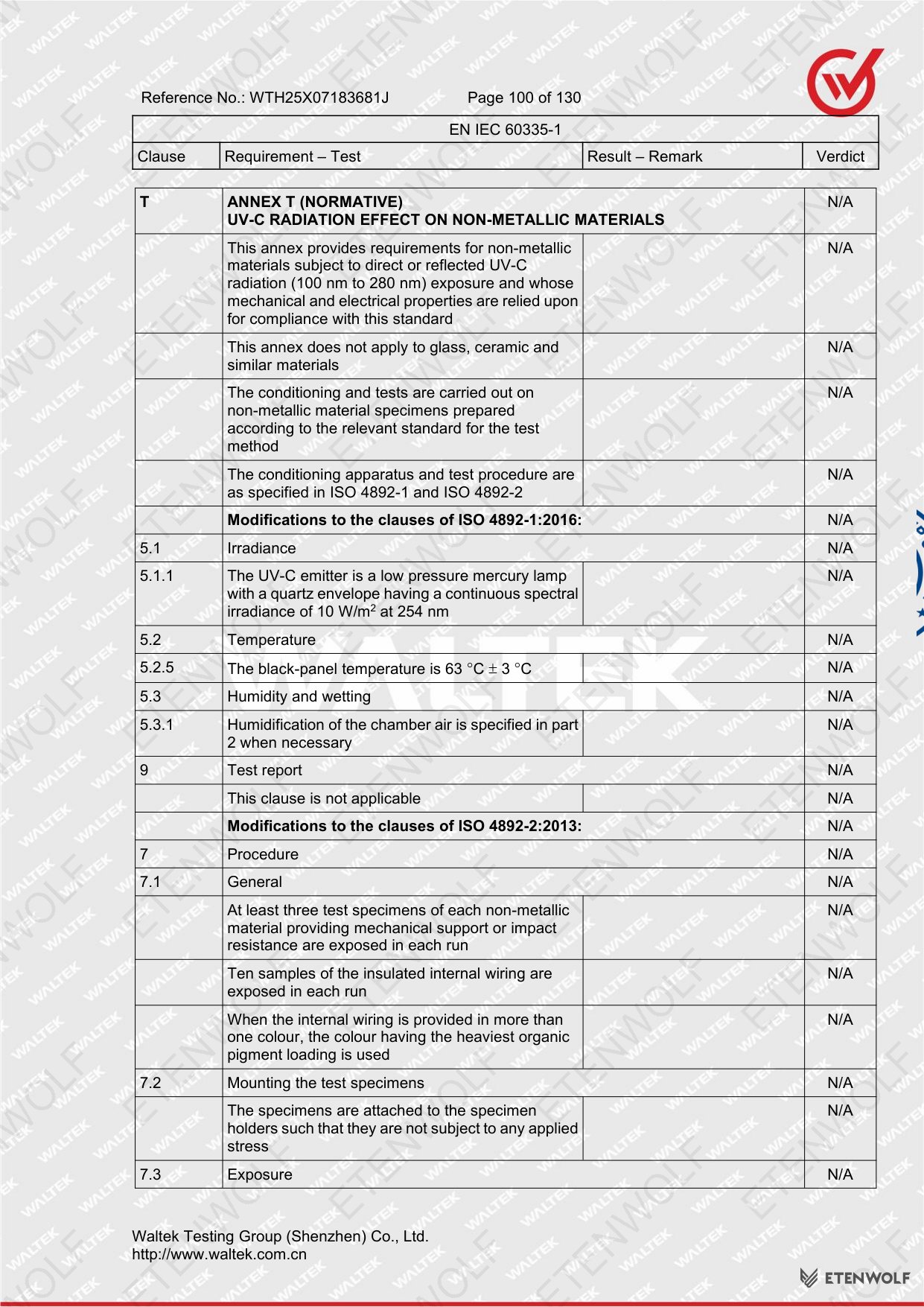

Document Page 98
Document Page 99
Document Page 100

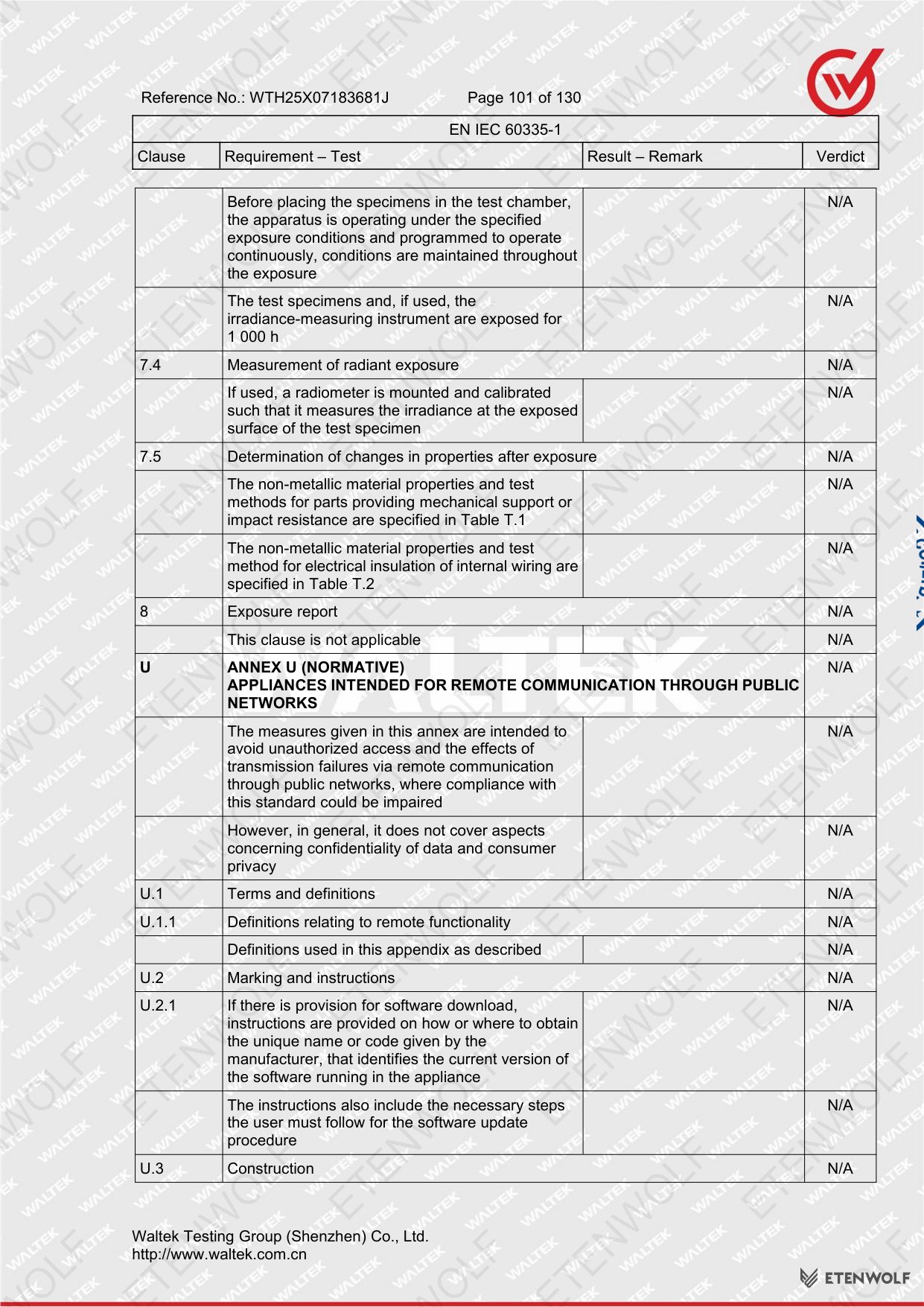

Document Page 101

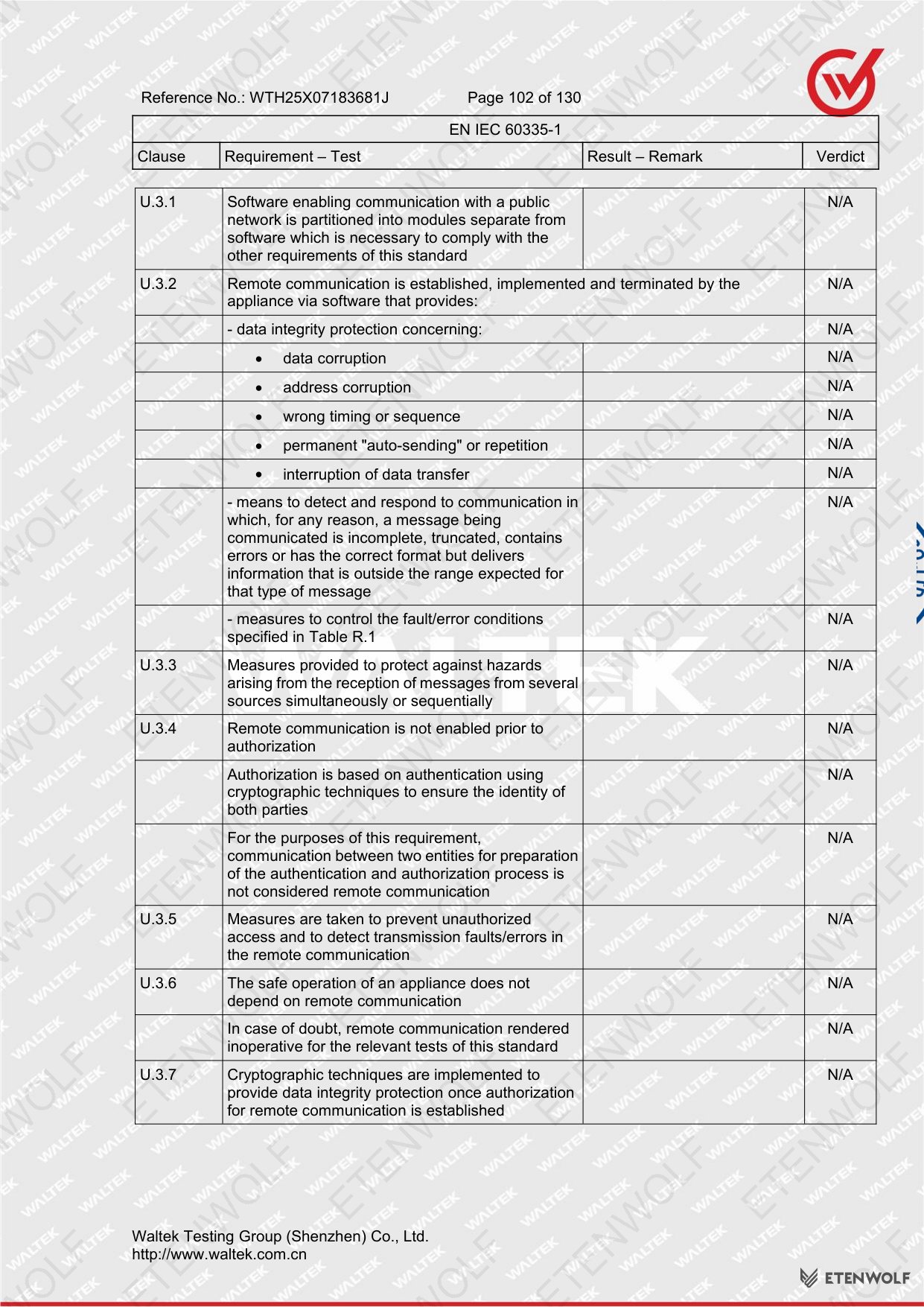

Document Page 102

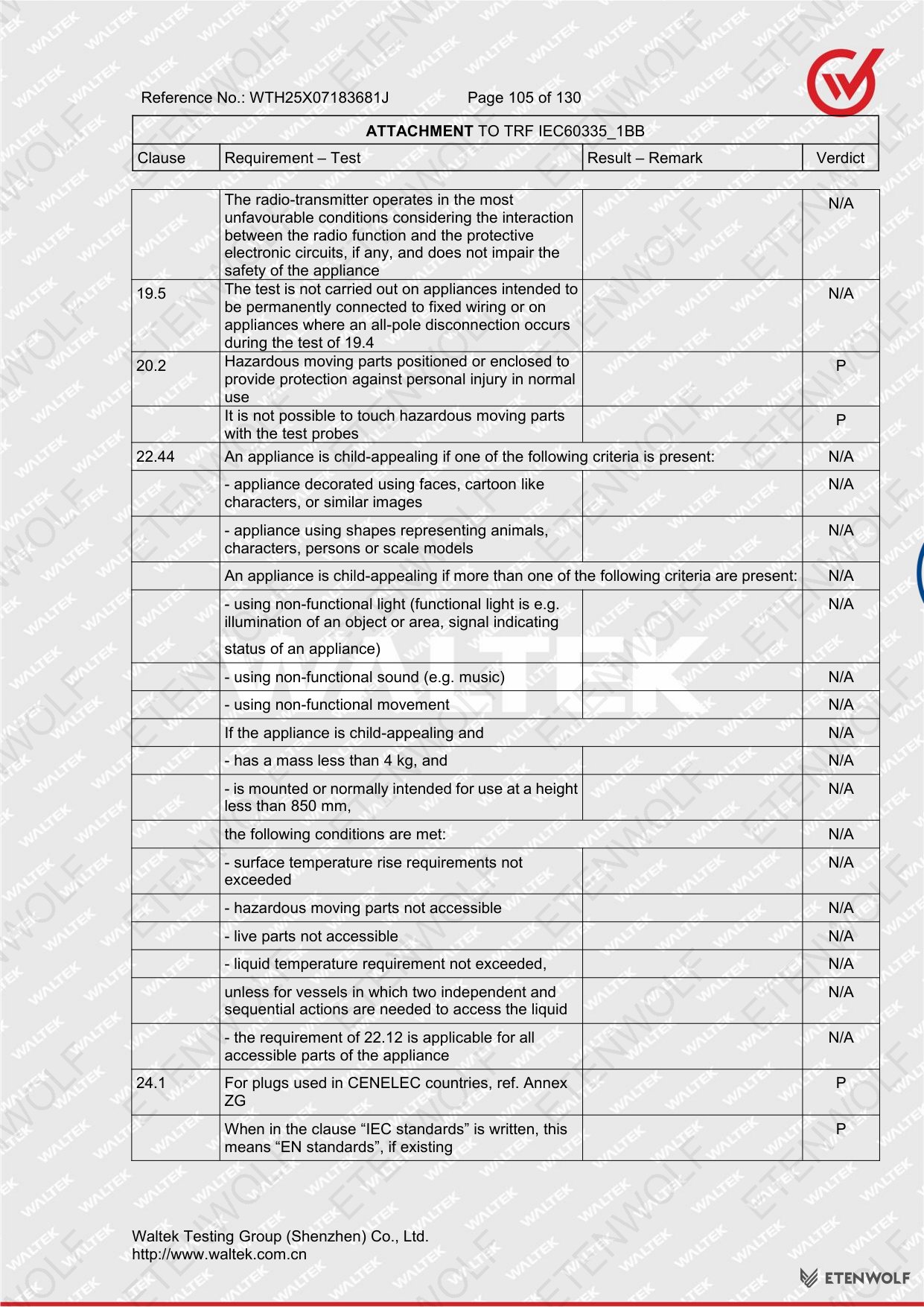

Document Page 103
Document Page 104
Document Page 105
Document Page 106

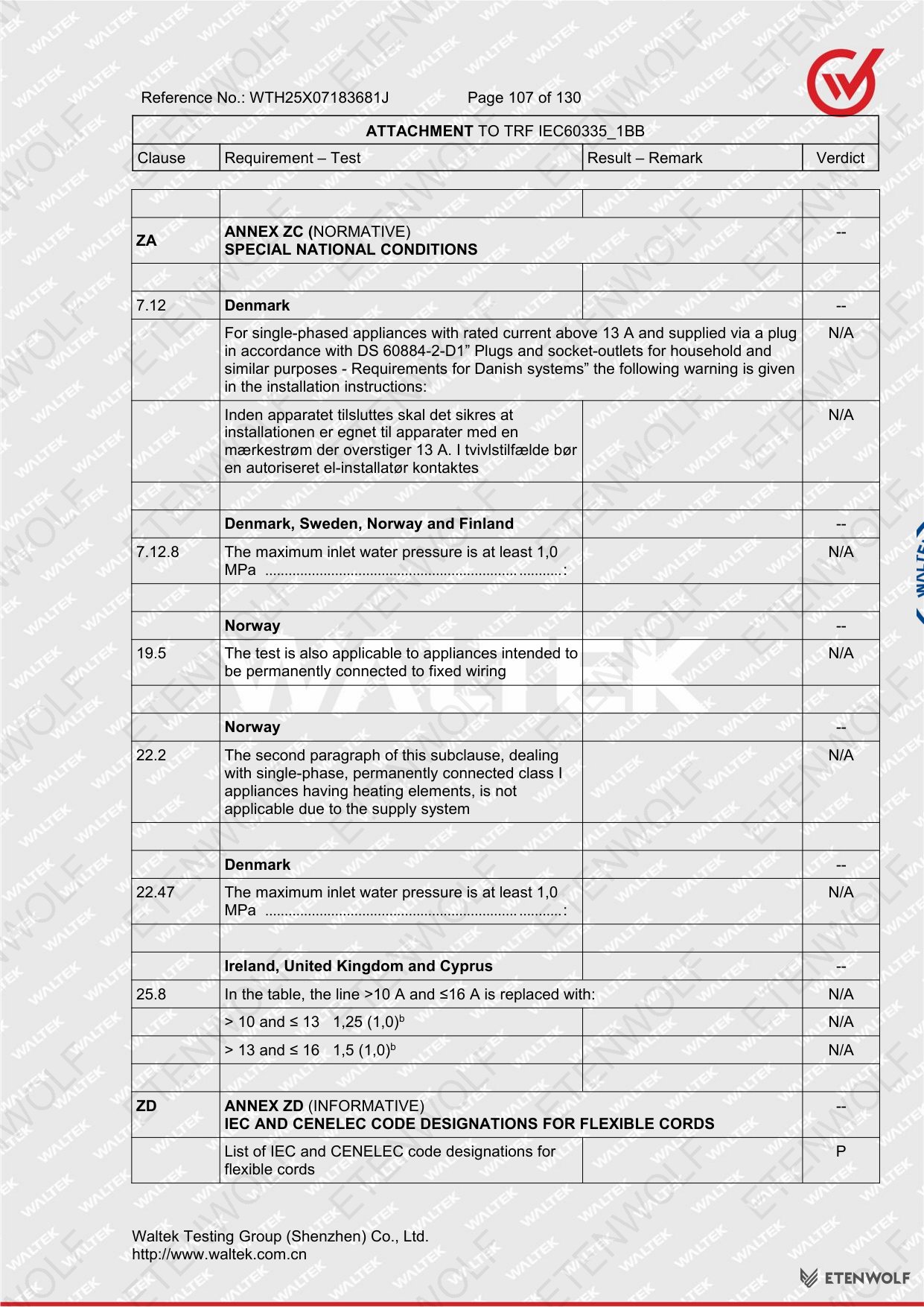

Document Page 107

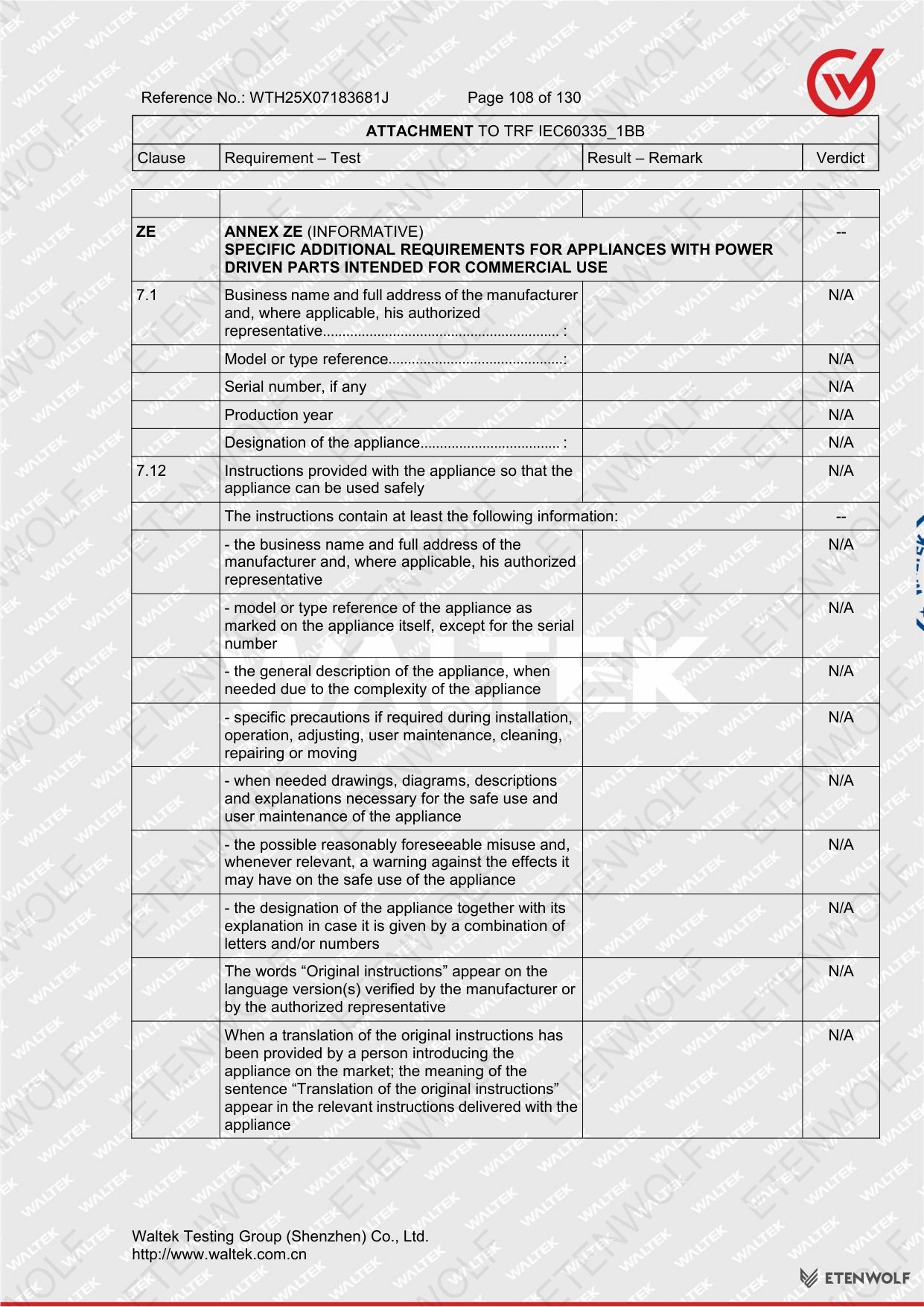

Document Page 108

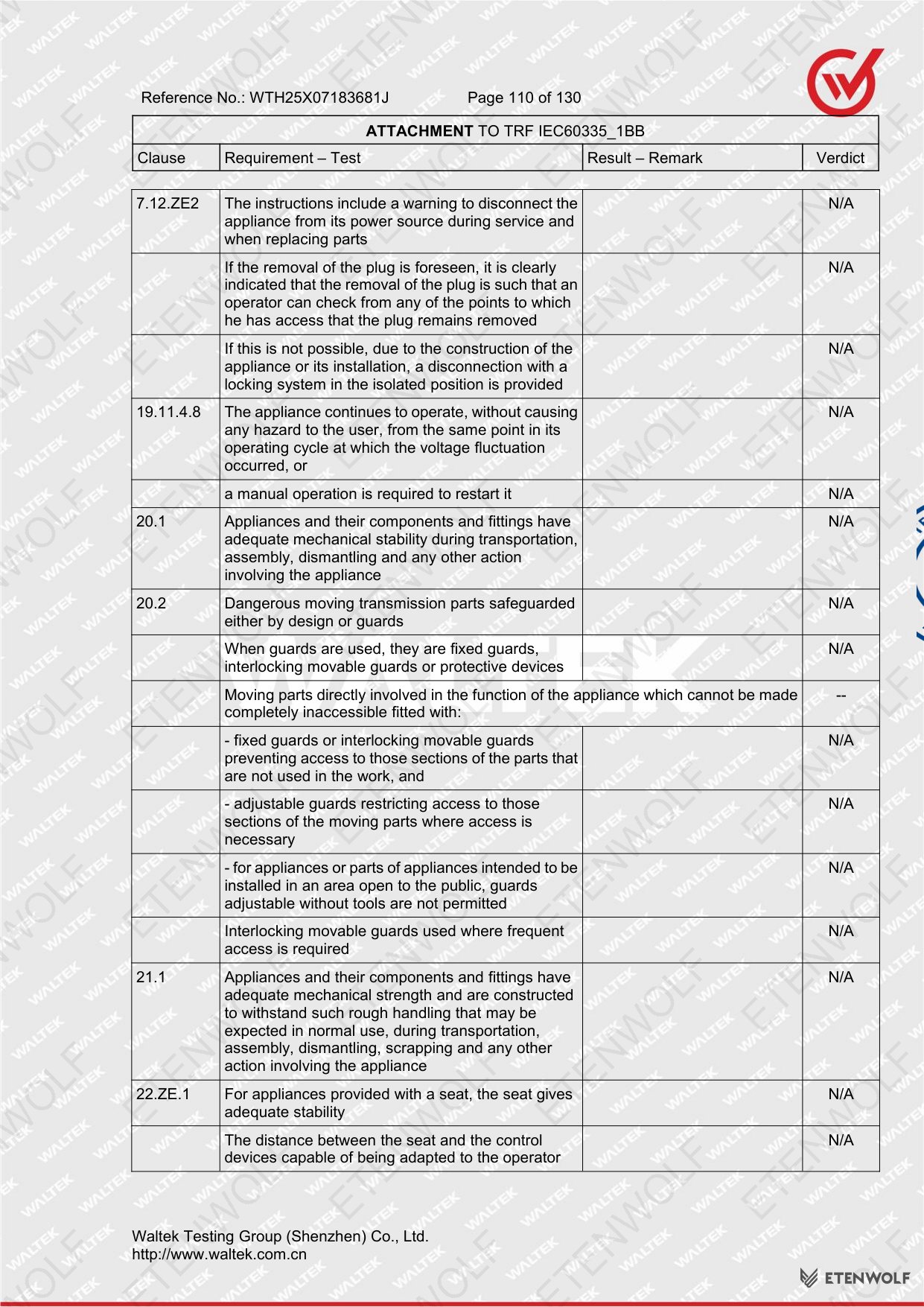

Document Page 109
Document Page 110
Document Page 111

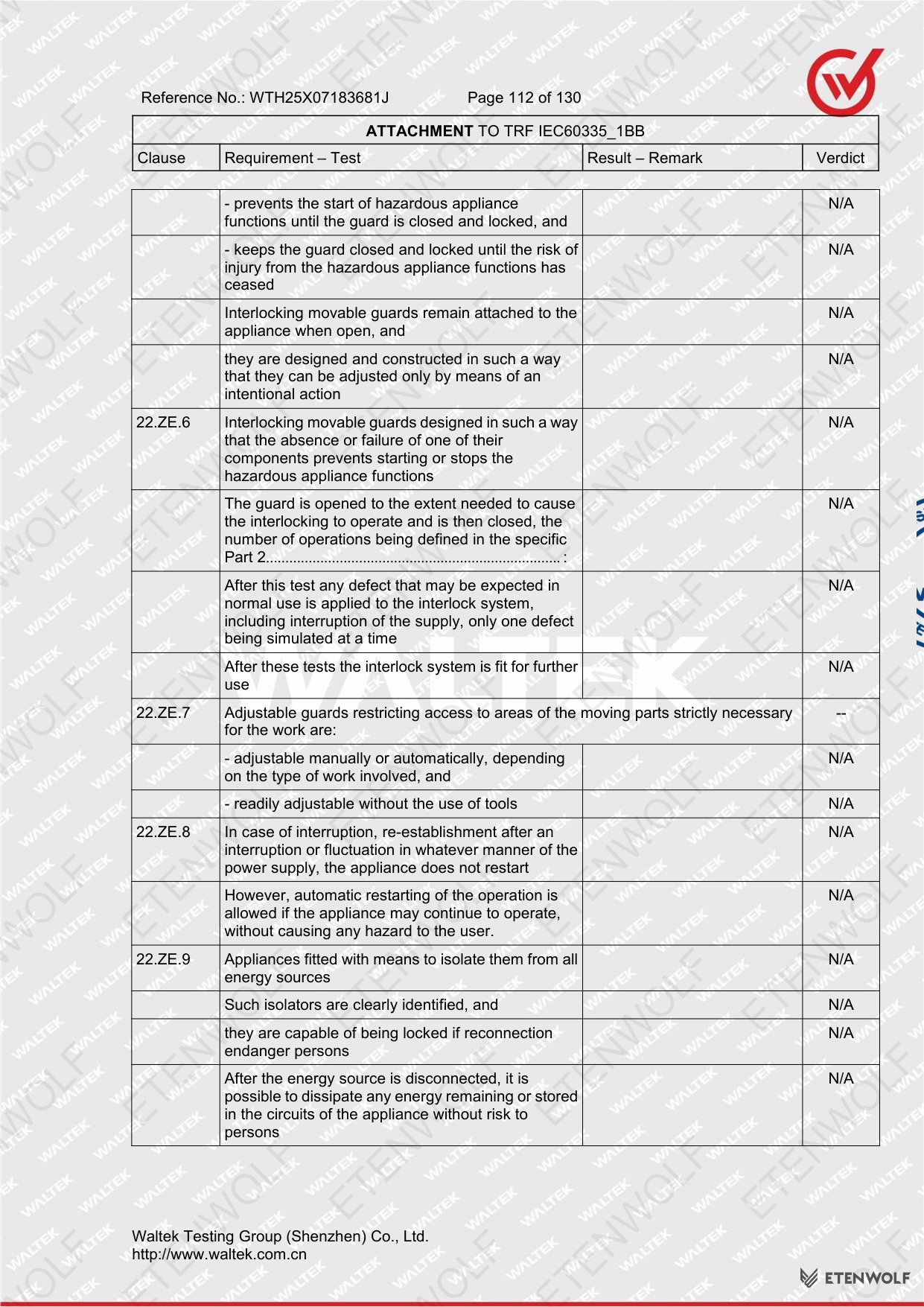

Document Page 112
Document Page 113

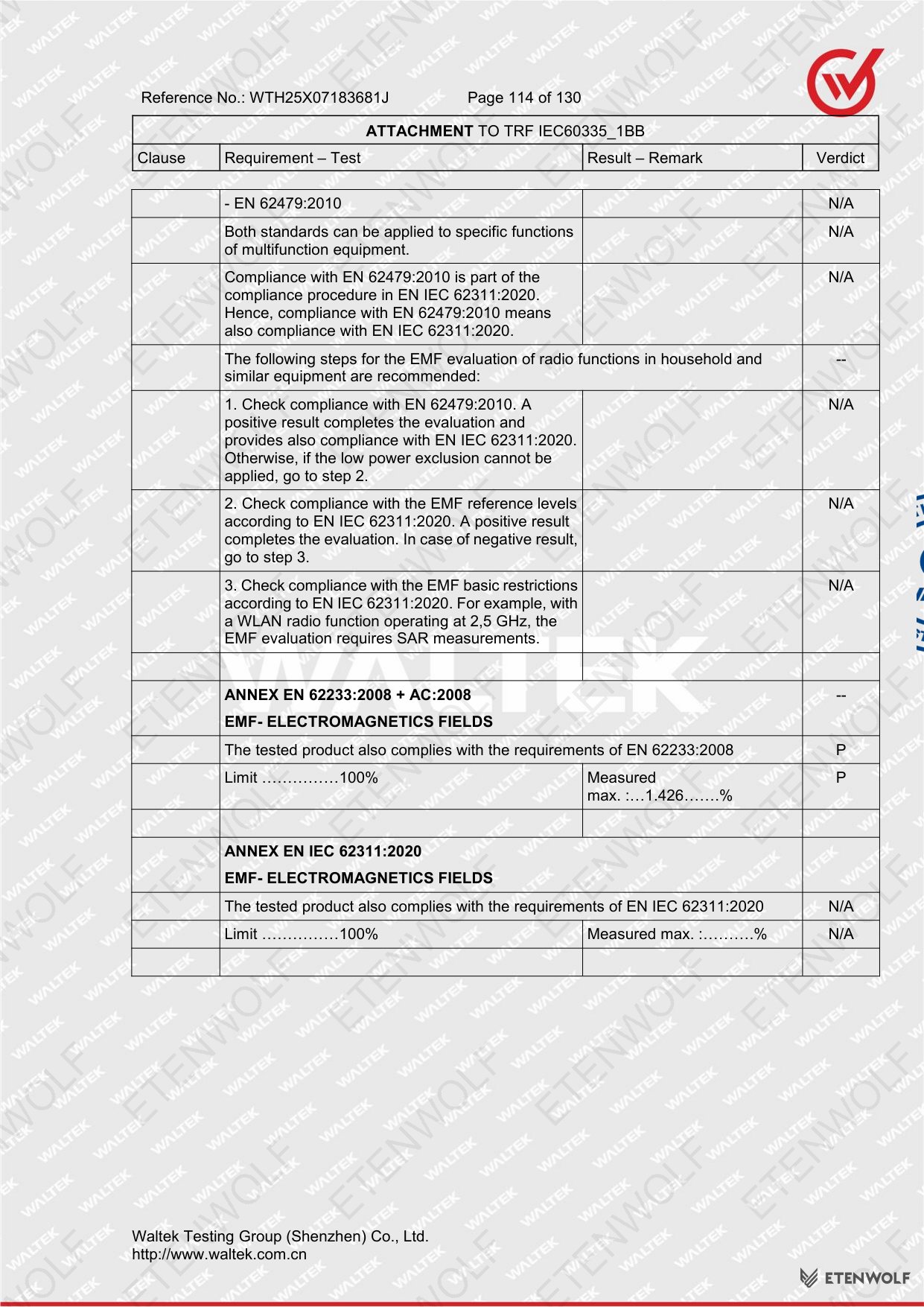

Document Page 114
Document Page 115

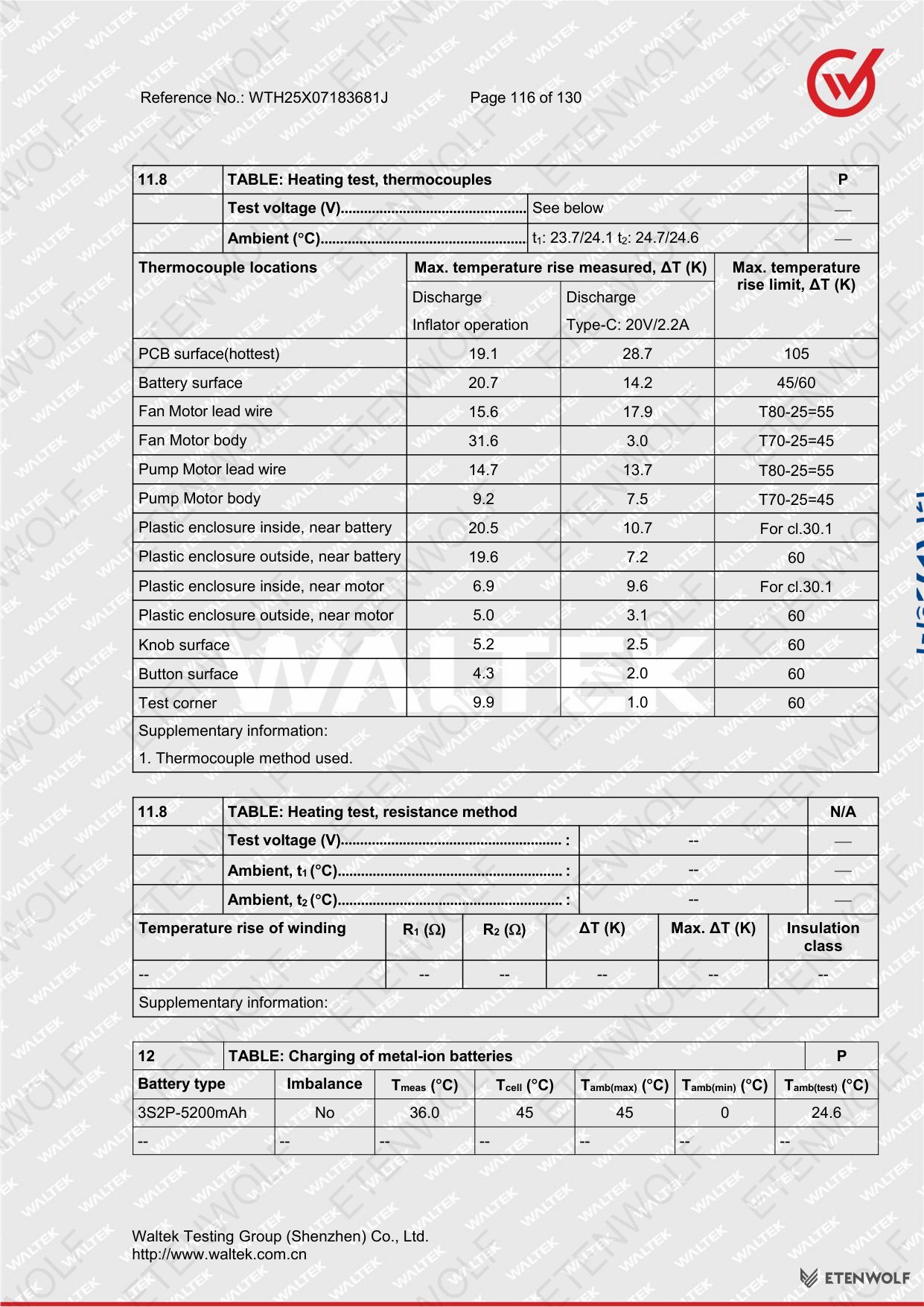

Document Page 116

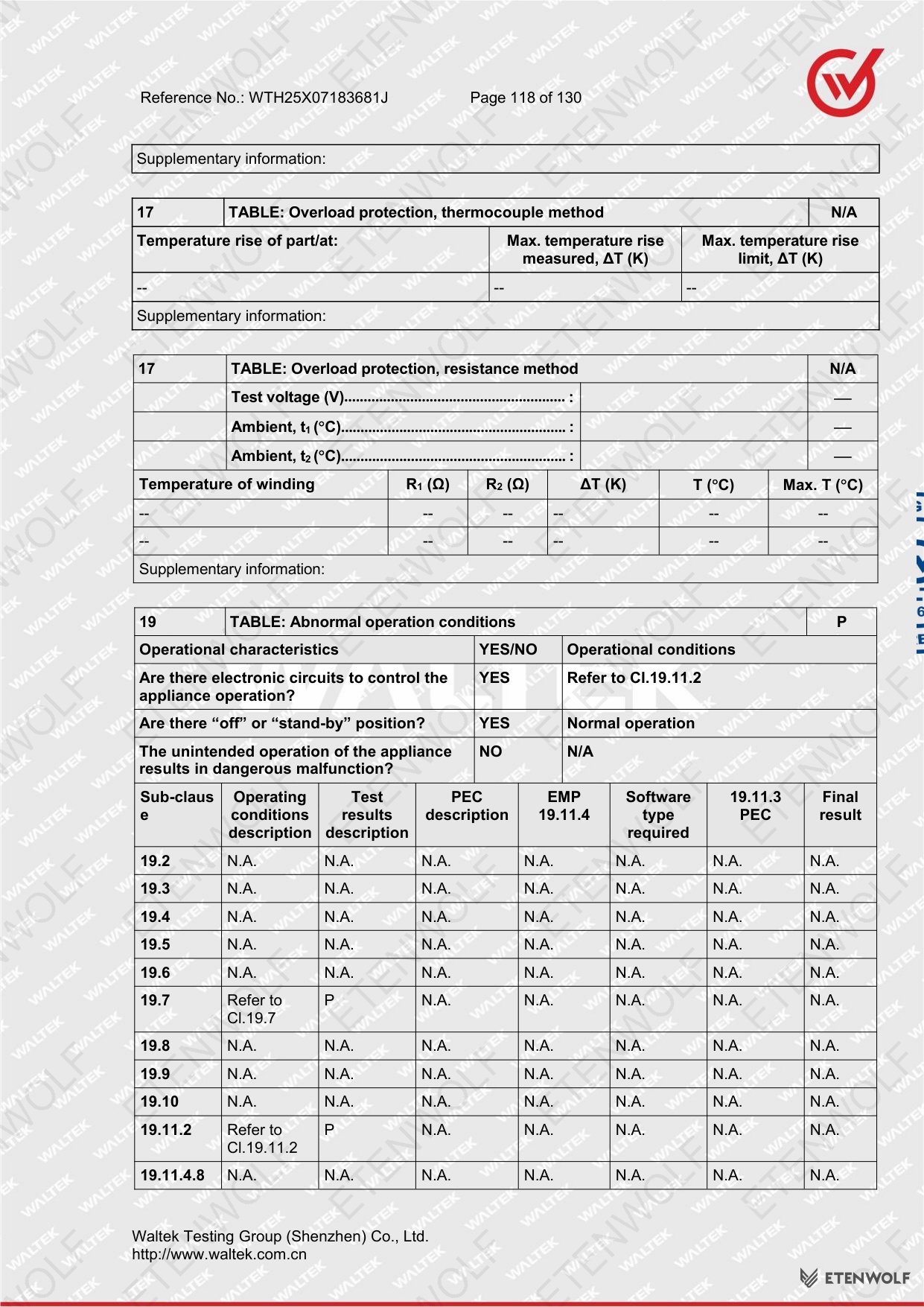

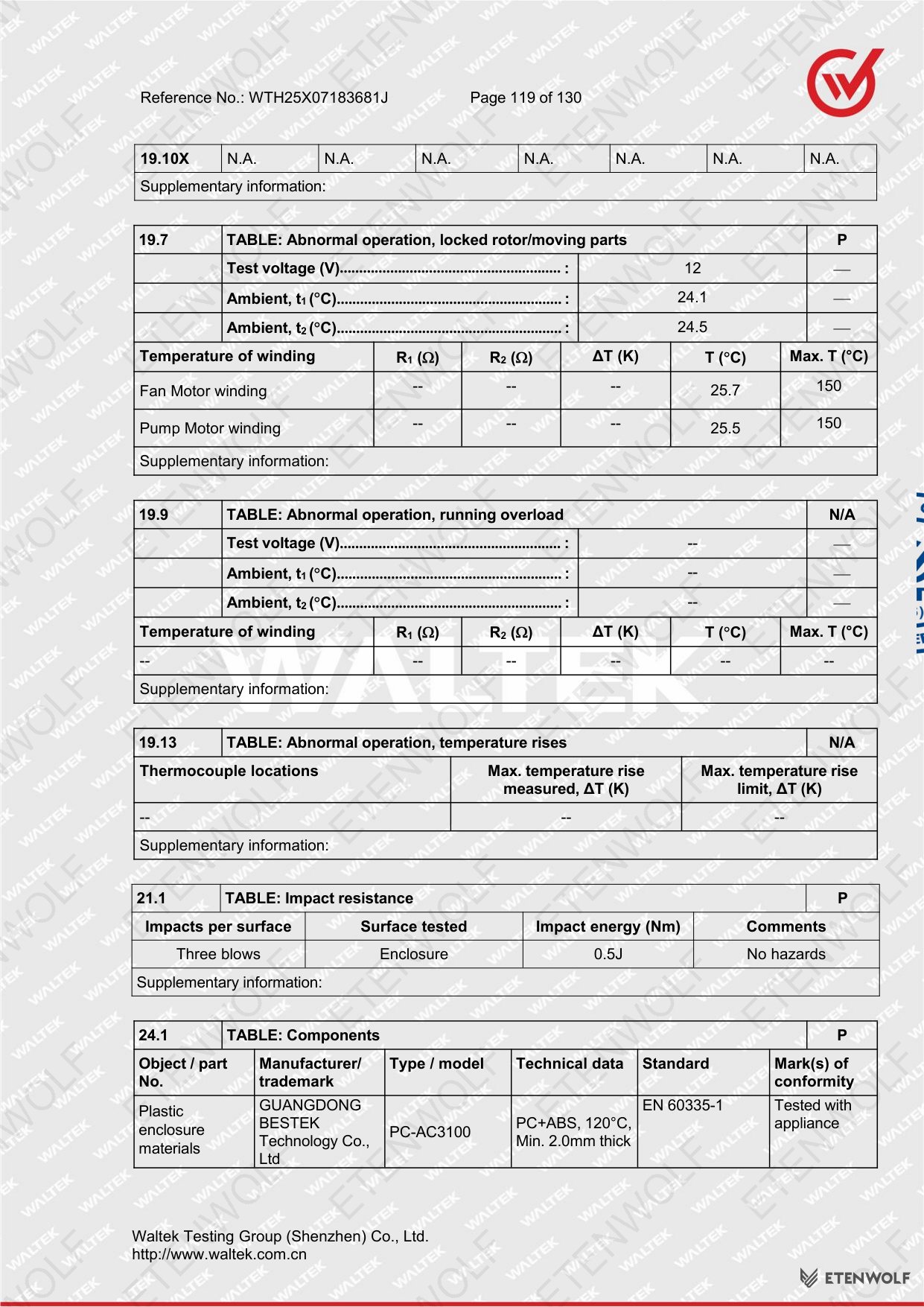

Document Page 117
Document Page 118

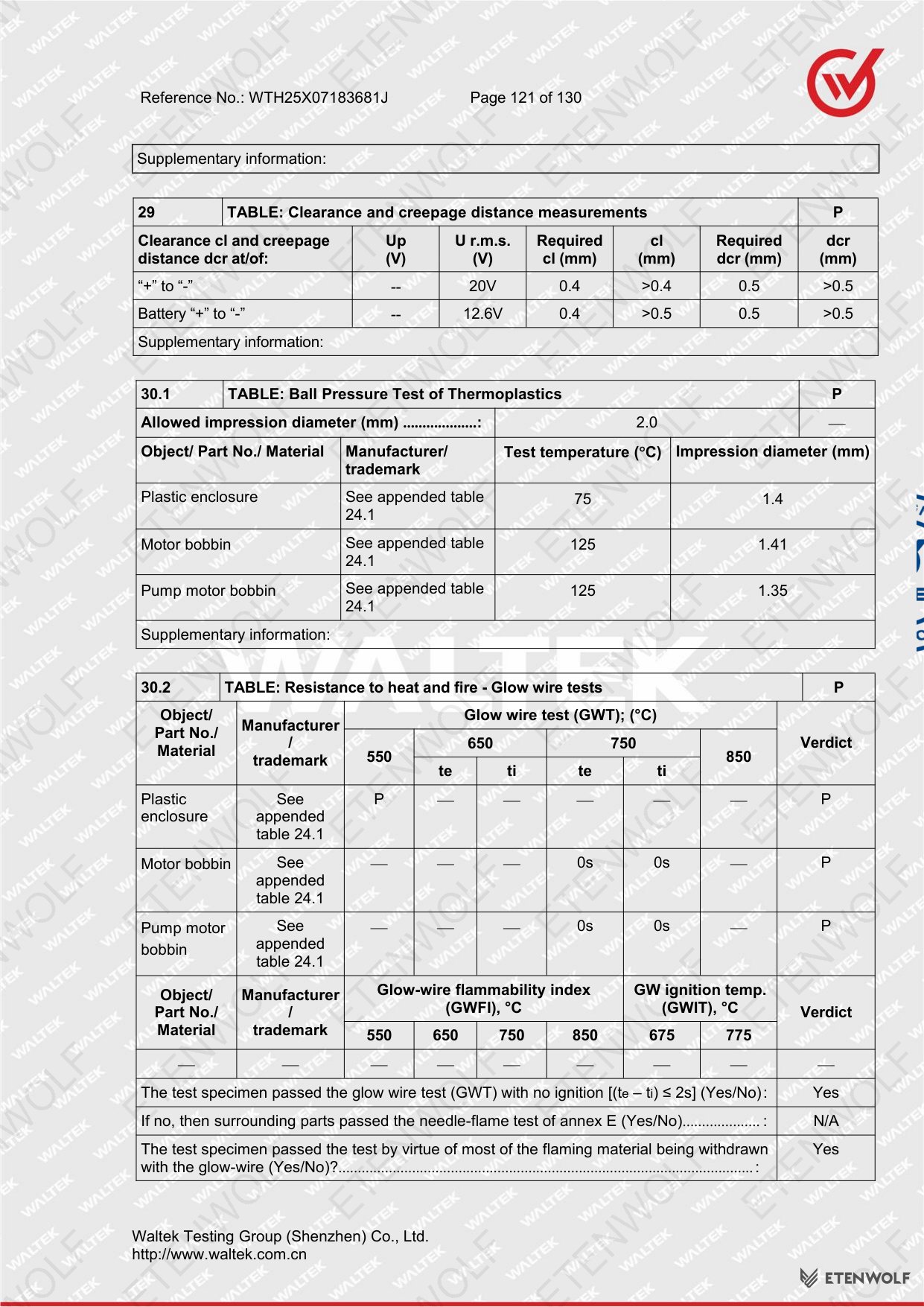

Document Page 119
Document Page 120
Document Page 121

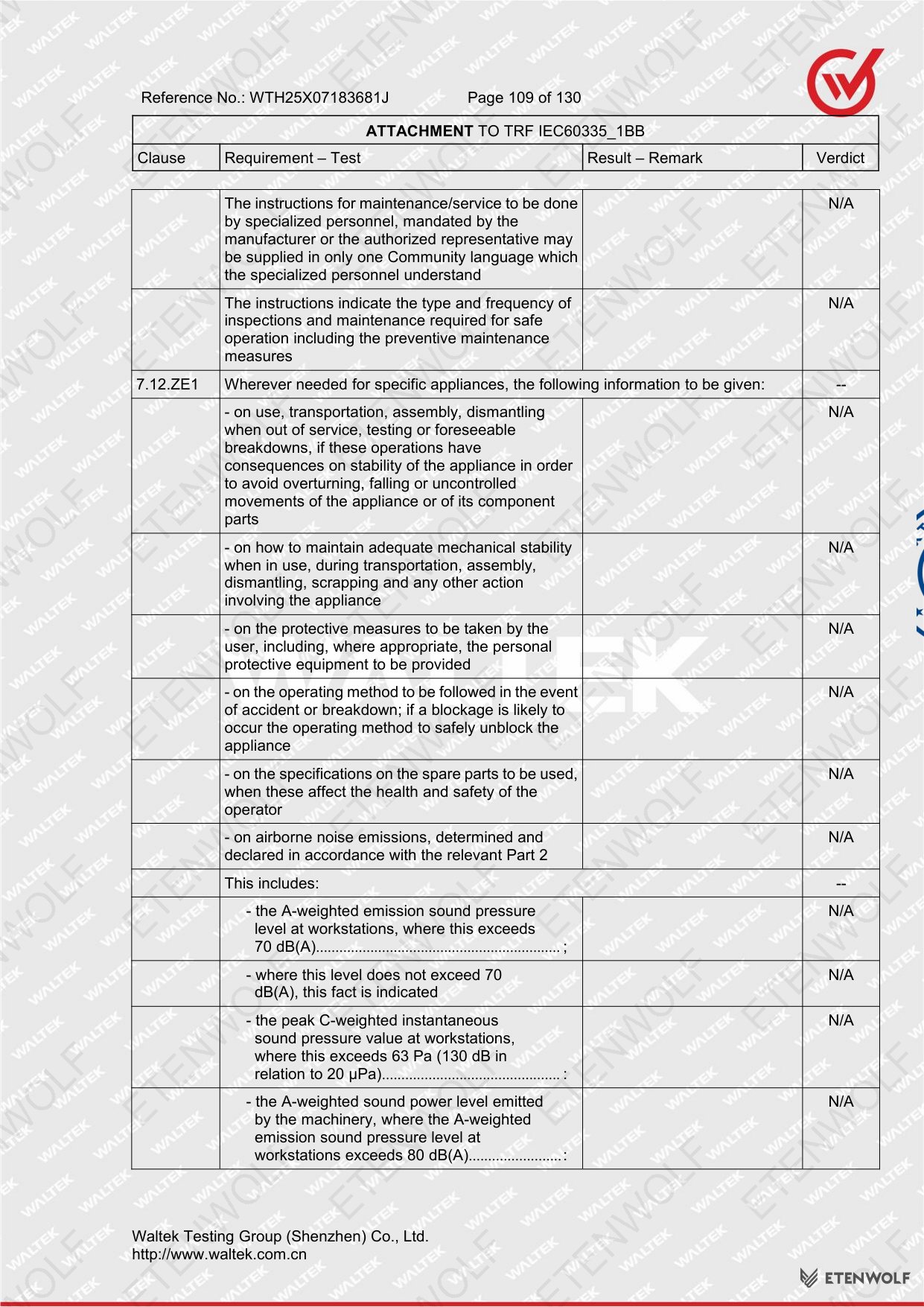

Document Page 122

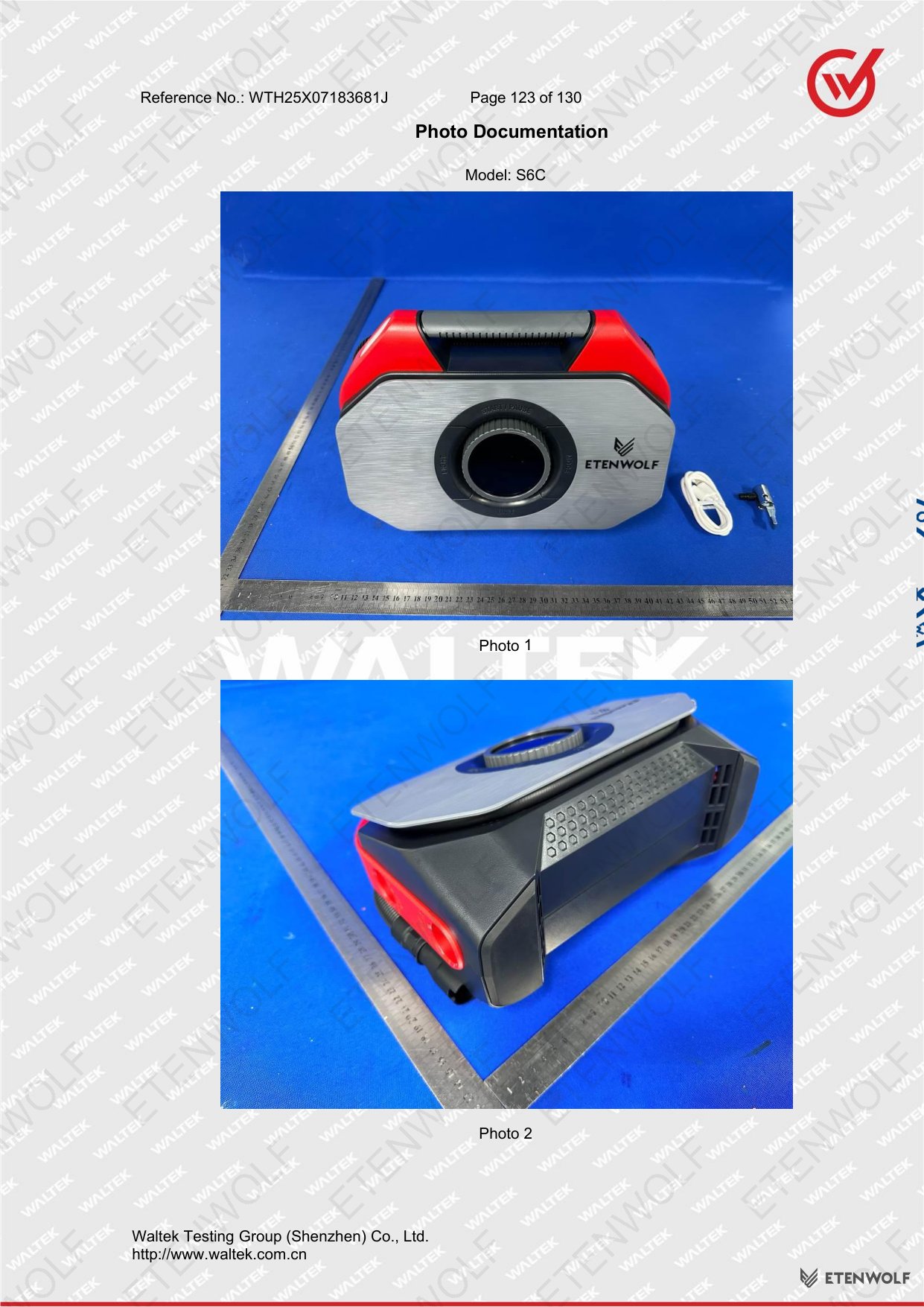

Document Page 123
Document Page 124
Document Page 125

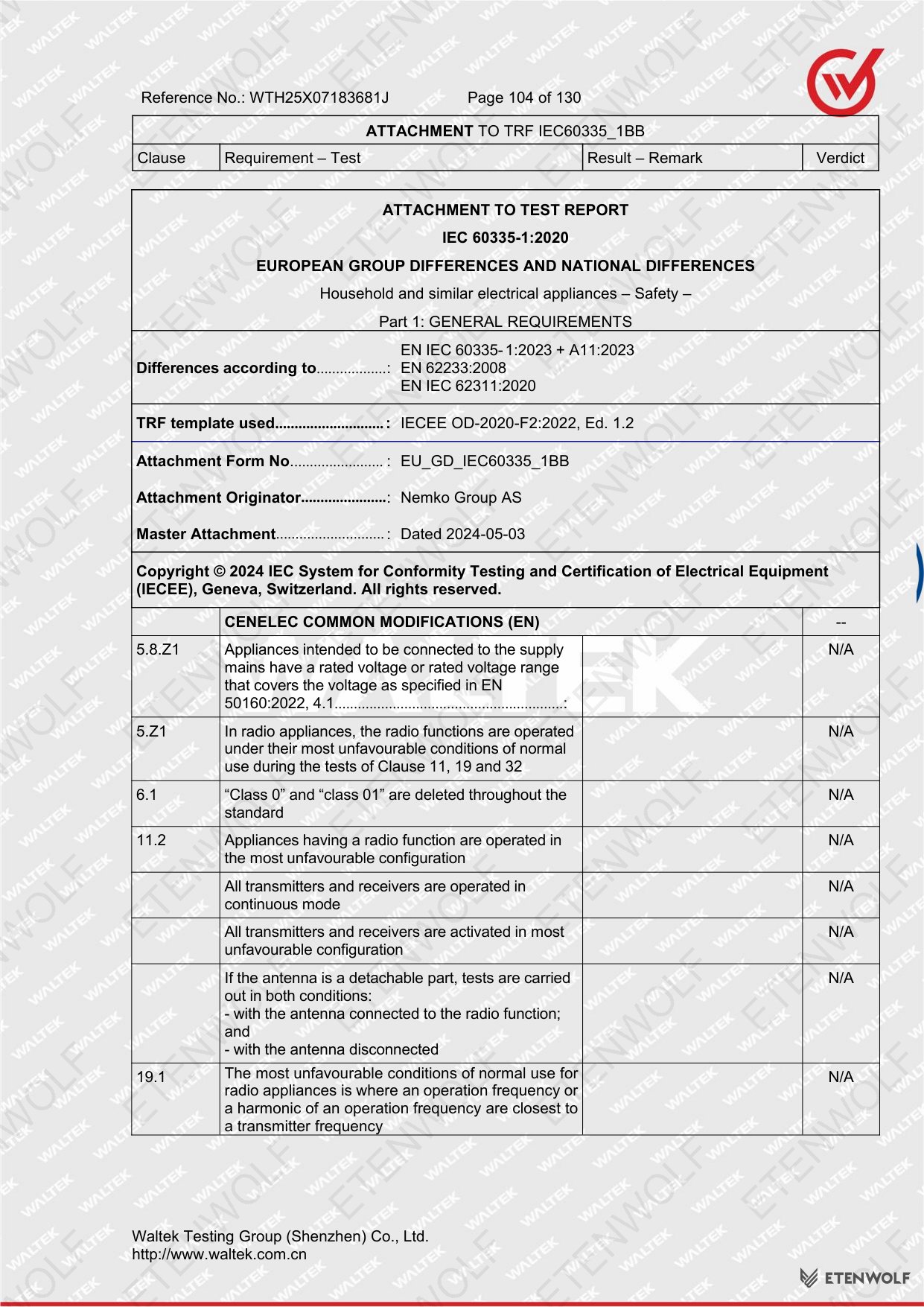

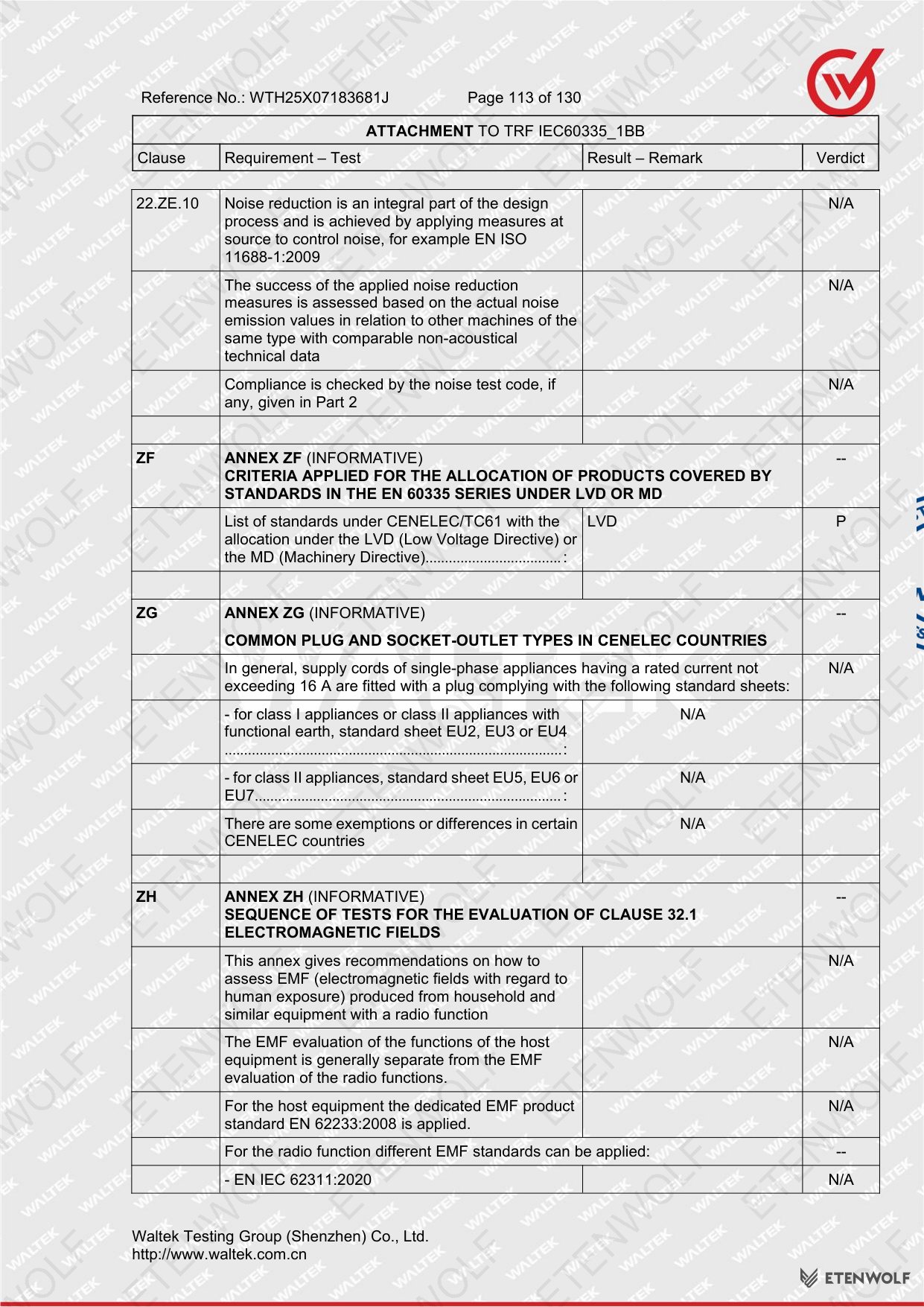

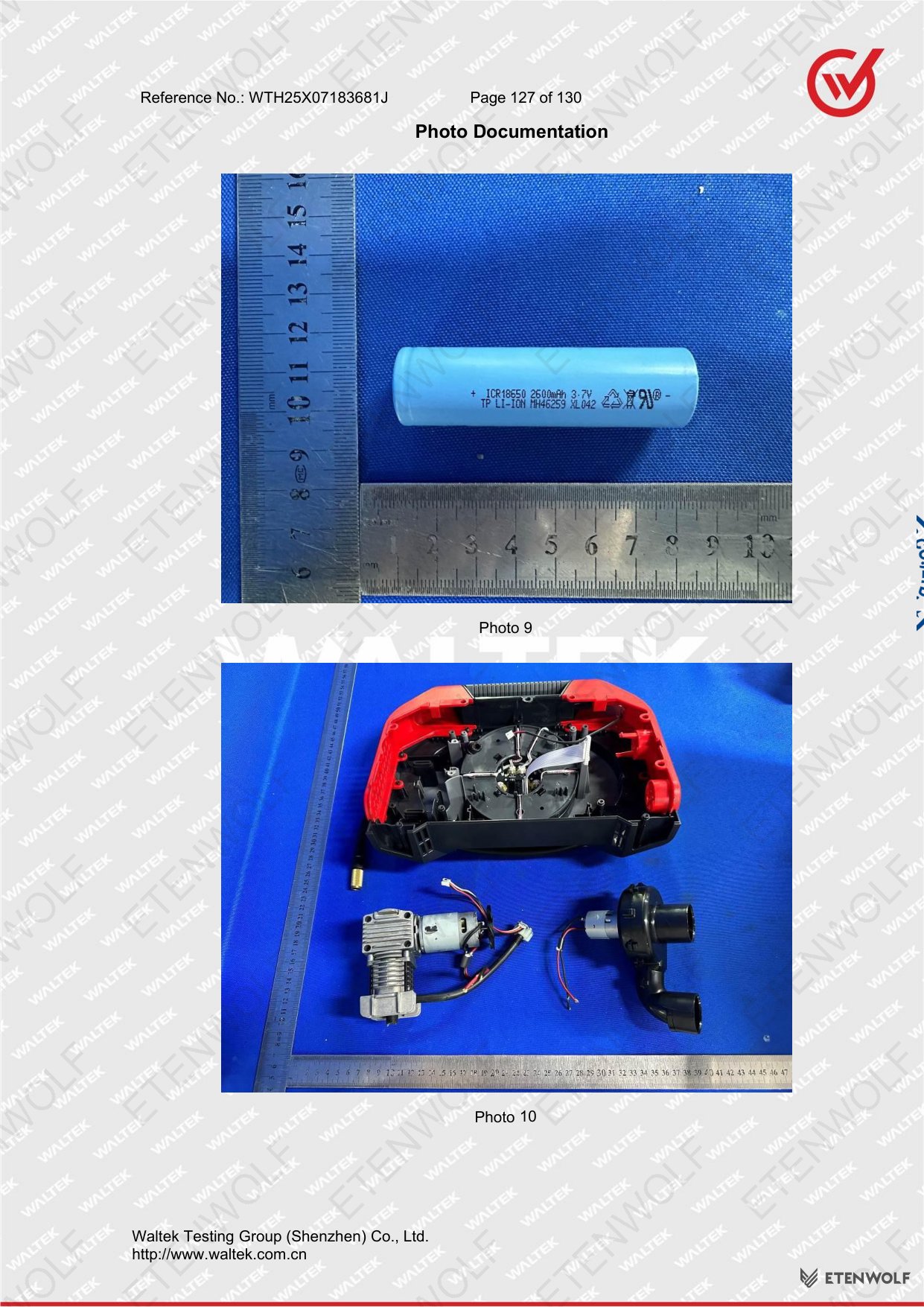

Document Page 126
Document Page 127
Document Page 128
Document Page 129
Document Page 130
