Drop Test Report – ETENWOLF X5 PRO Jump Starter with Air Compressor | GB/T 4857.5-1992

Document Overview

Document Overview This page presents the official free drop test report issued by Waltek Testing Group HCT (Shenzhen) Co., Ltd. (http://www.hct-test.com), an accredited third-party testing laboratory located in Longgang District, Shenzhen, Guangdong, China. Field Detail Report Number WTH25H12334291P Document Type Free Drop Test Report (自由跌落测试)…

Document type: Certification Report
Prepared by: Michelle Torres
Published: July 22, 2026
Last reviewed: July 22, 2026
Topics: Mechanical Reliability

Document Overview

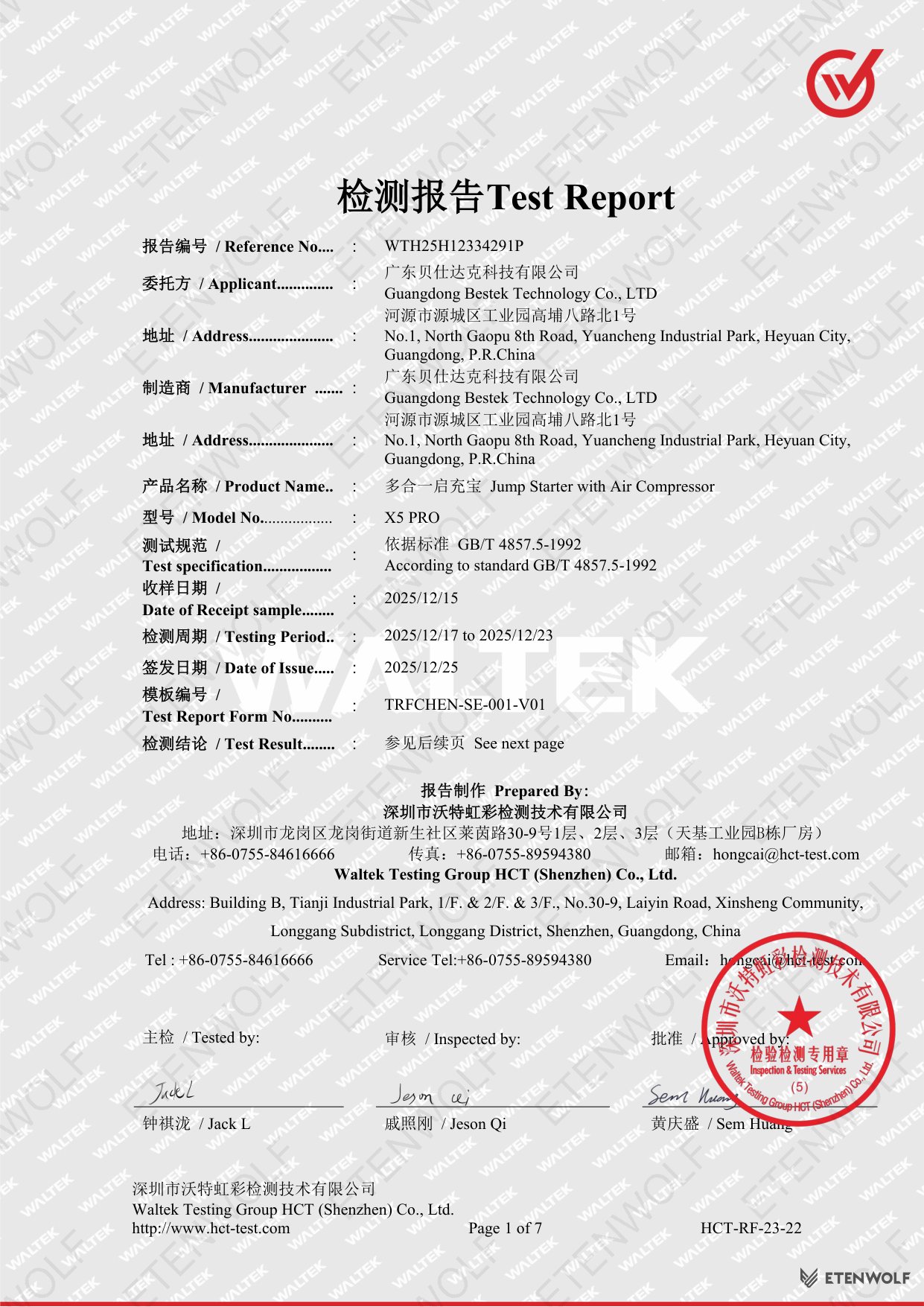

This page presents the official free drop test report issued by Waltek Testing Group HCT (Shenzhen) Co., Ltd. (http://www.hct-test.com), an accredited third-party testing laboratory located in Longgang District, Shenzhen, Guangdong, China.

Field	Detail
Report Number	WTH25H12334291P
Document Type	Free Drop Test Report (自由跌落测试)
Test Standard	GB/T 4857.5-1992
Date of Sample Receipt	2025/12/15
Testing Period	2025/12/17 to 2025/12/23
Date of Issue	2025/12/25
Test Report Form No.	TRFCHEN-SE-001-V01
Total Pages	7

The report was prepared by Jack L (钟祺泷), inspected by Jeson Qi (戚照刚), and approved by Sem Huang (黄庆盛). It evaluates whether the product packaging and unit integrity survive a standardised free drop sequence simulating real-world handling and shipping conditions.

Product Information

The tested product is the X5 PRO Jump Starter with Air Compressor (多合一启充宝), a multi-function portable power device combining jump-start capability with an integrated air compressor.

Field	Detail
Product Name	Jump Starter with Air Compressor (多合一启充宝)
Model Number	X5 PRO
Sample ID	WTH25H12334291P_S-01
Applicant	Guangdong Bestek Technology Co., LTD (广东贝仕达克科技有限公司)
Manufacturer	Guangdong Bestek Technology Co., LTD (广东贝仕达克科技有限公司)
Manufacturer Address	No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R.China

The X5 PRO is designed for automotive emergency use and outdoor activities, combining high-capacity battery cells with an onboard compressor. Robust drop performance is critical for a device intended for roadside and field deployment.

Key Details

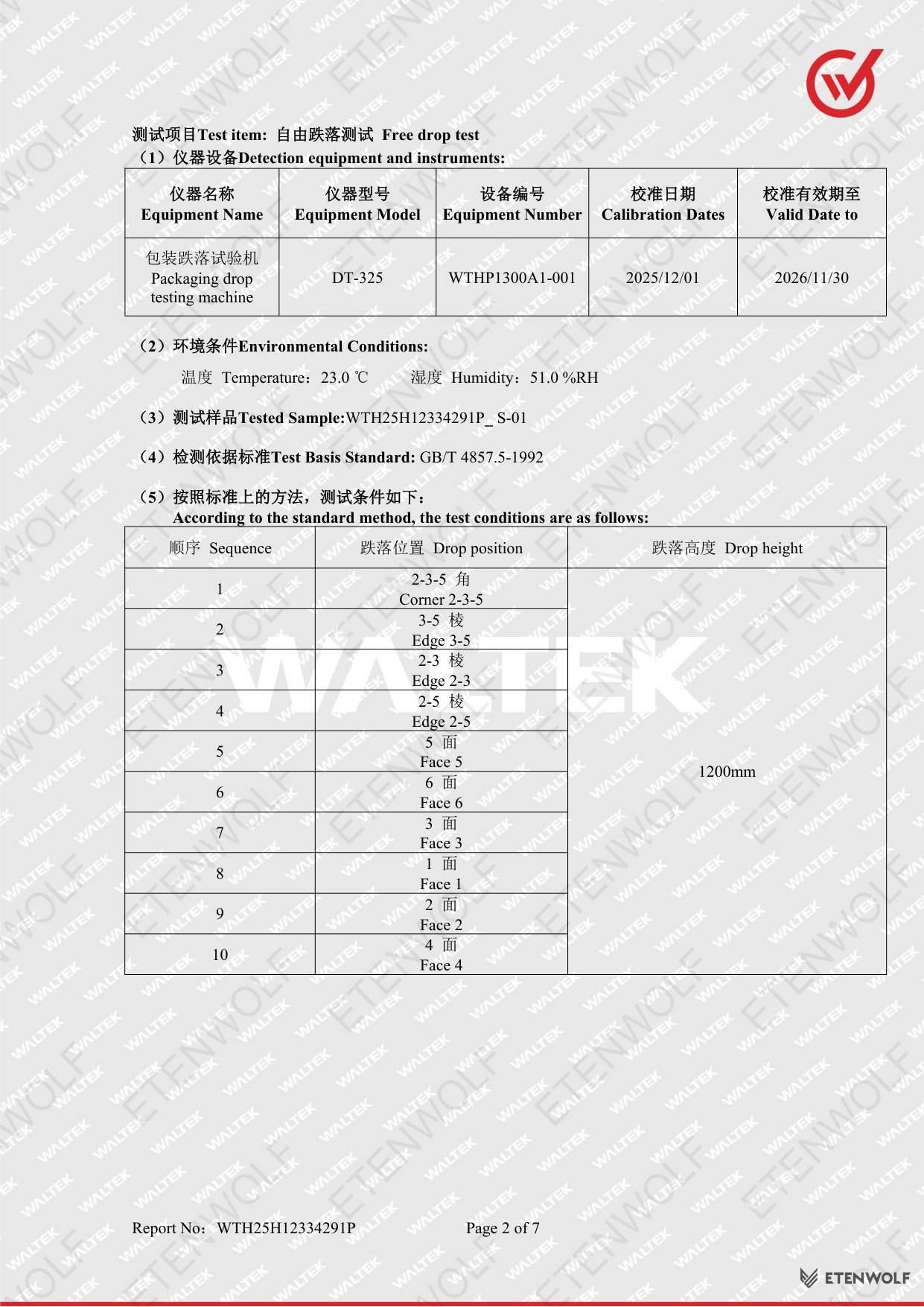

Testing was performed using a Packaging Drop Testing Machine (Model: DT-325, Equipment No.: WTHP1300A1-001), calibrated on 2025/12/01 with calibration valid through 2026/11/30. All instruments are traceable to national or international standards.

Environmental Conditions

Parameter	Value
Temperature	23.0 °C
Humidity	51.0 %RH

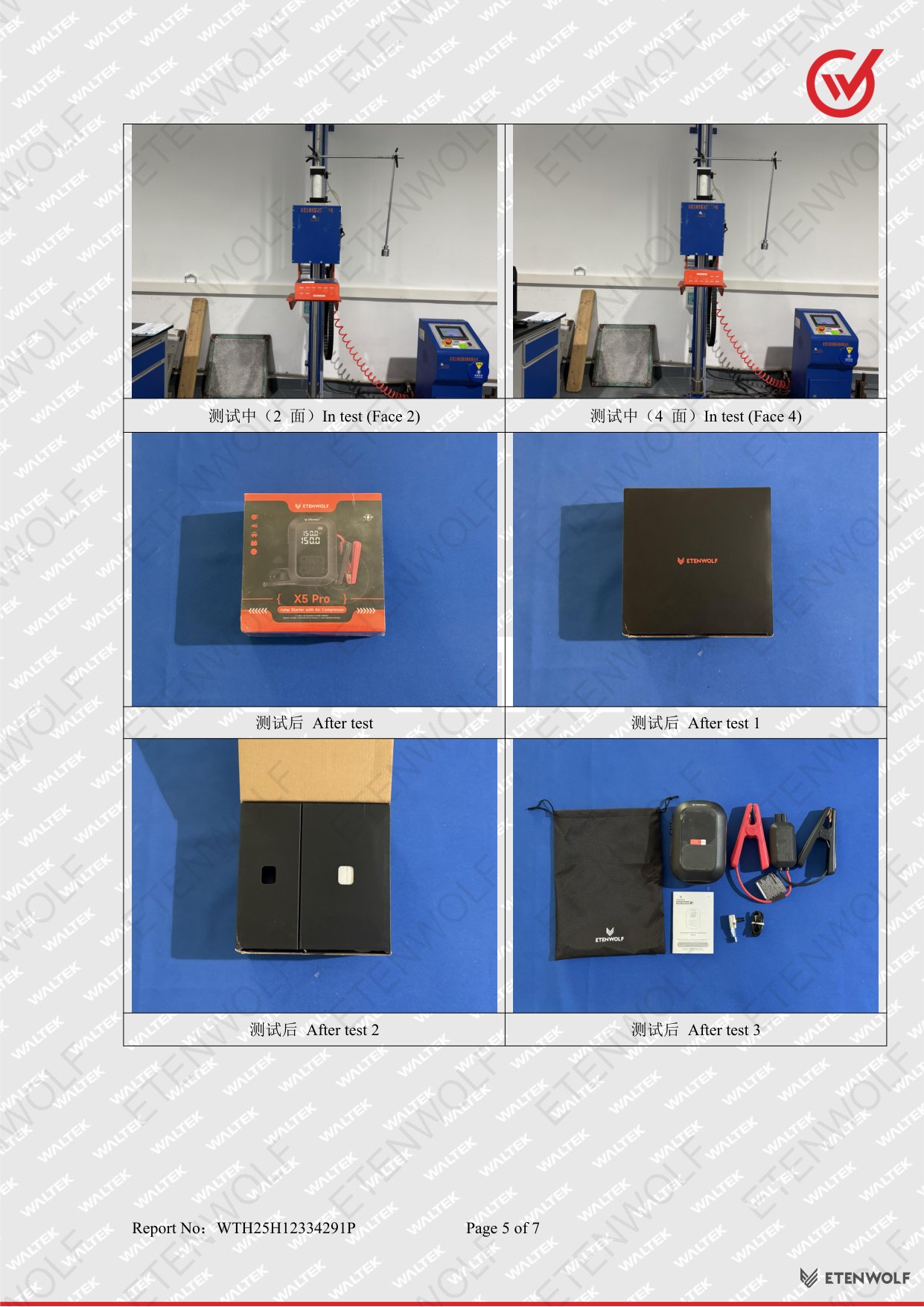

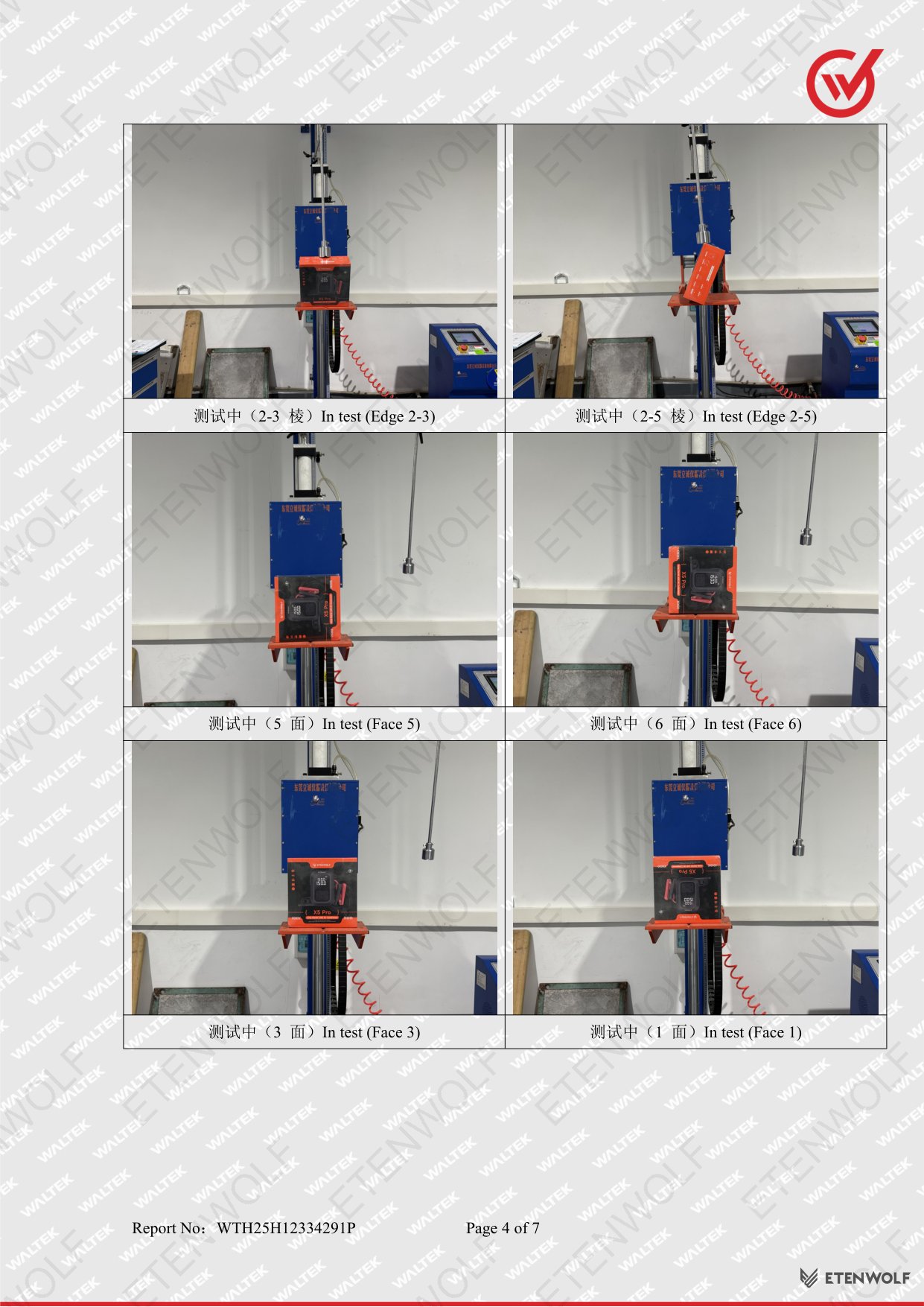

Drop Test Sequence — Drop Height: 1200 mm

Sequence	Drop Position
1	Corner 2-3-5 (2-3-5 角)
2	Edge 3-5 (3-5 棱)
3	Edge 2-3 (2-3 棱)
4	Edge 2-5 (2-5 棱)
5	Face 5 (5 面)
6	Face 6 (6 面)
7	Face 3 (3 面)
8	Face 1 (1 面)
9	Face 2 (2 面)
10	Face 4 (4 面)

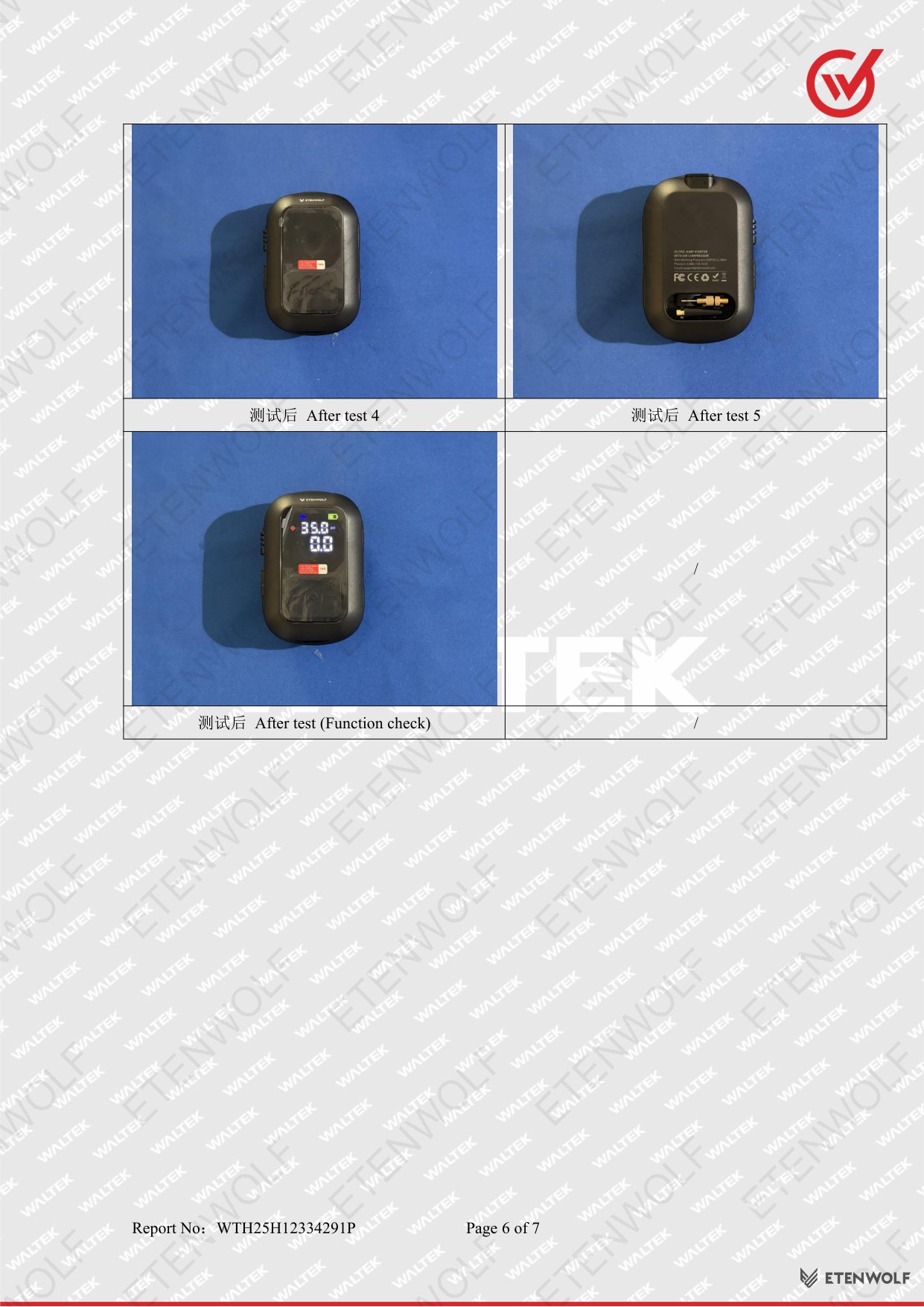

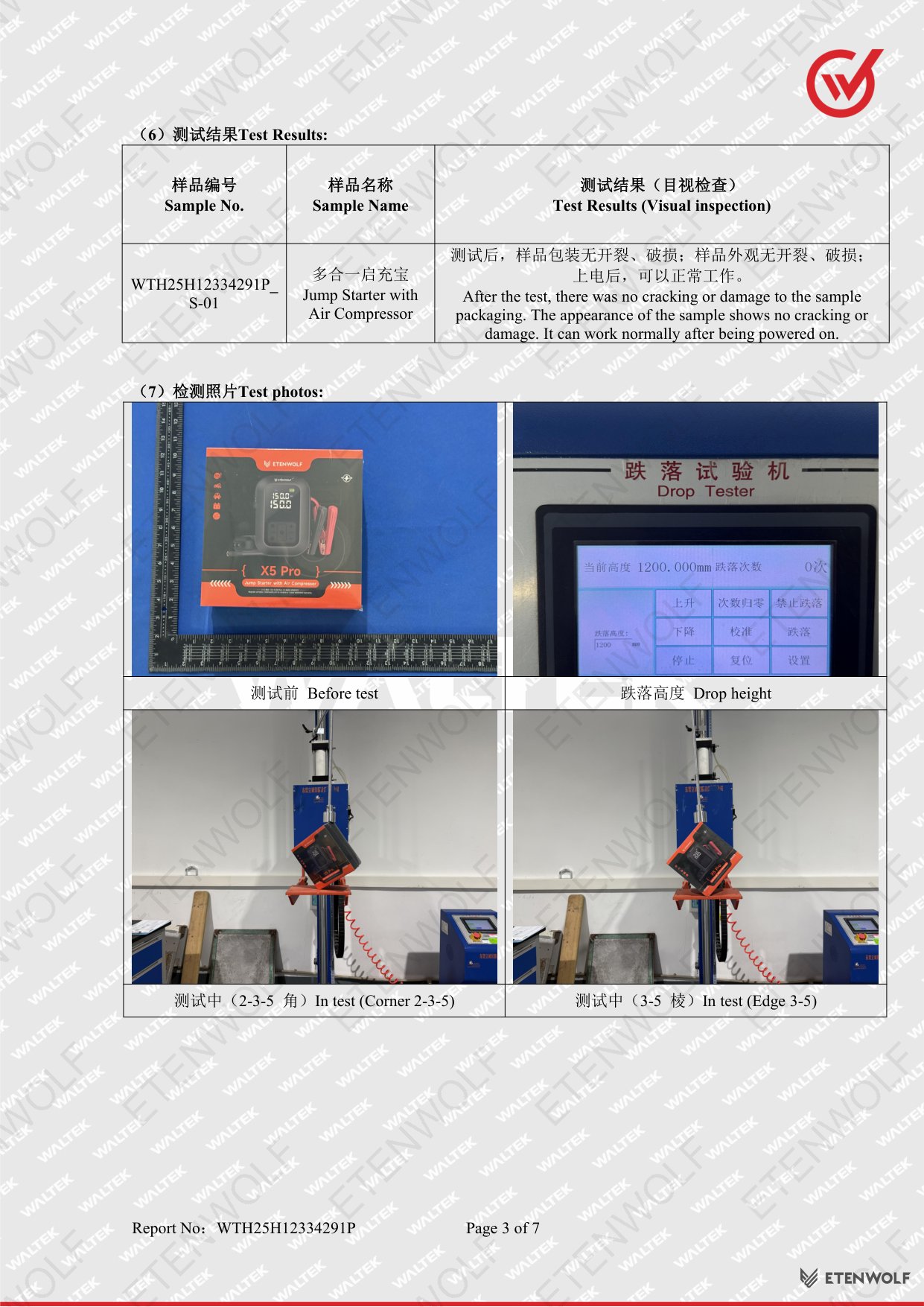

Test Results

Sample ID	Sample Name	Visual Inspection Result	Functional Result
WTH25H12334291P_S-01	Jump Starter with Air Compressor	No cracking or damage to packaging; no cracking or damage to product exterior	Unit powers on and operates normally after all 10 drop sequences

Overall Conclusion: PASSED. The X5 PRO sample sustained no structural or functional damage across all 10 drop positions at a height of 1200 mm.

Standards & Compliance

The free drop test was conducted in strict accordance with the Chinese national packaging standard GB/T 4857.5-1992 — Packaging — Basic tests for transport packages — Part 5: Free drop test method. This standard specifies the test procedures for evaluating the ability of a packaged product to withstand free drops from a defined height onto a rigid surface, covering corner, edge, and face impact orientations.

Standard	Scope	Applicability
GB/T 4857.5-1992	Free drop test for transport packages	Packaging integrity and product protection during handling and shipping

The evaluation rule applied states: if the measured outcome is equal to or below the defined limit (i.e., no cracking, damage, or functional failure), the test is passed, regardless of measurement uncertainty. If the outcome exceeds the limit, the test is not passed.

All calibration equipment used is traceable to national or international metrological standards. Further traceability information is available from Waltek HCT upon request.

Validity & Certification Body

This test report was issued on 2025/12/25 by Waltek Testing Group HCT (Shenzhen) Co., Ltd., an independent testing laboratory. The report is valid only when bearing the approved signature of Sem Huang (黄庆盛) and the laboratory’s official seal.

Field	Detail
Issuing Laboratory	Waltek Testing Group HCT (Shenzhen) Co., Ltd.
Laboratory Address	Building B, Tianji Industrial Park, 1/F, 2/F & 3/F, No.30-9, Laiyin Road, Xinsheng Community, Longgang Subdistrict, Longgang District, Shenzhen, Guangdong, China
Telephone	+86-0755-84616666
Email	[email protected]
Report Issue Date	2025/12/25
Calibration Equipment Valid Until	2026/11/30
Prepared By	Jack L (钟祺泷)
Inspected By	Jeson Qi (戚照刚)
Approved By	Sem Huang (黄庆盛)

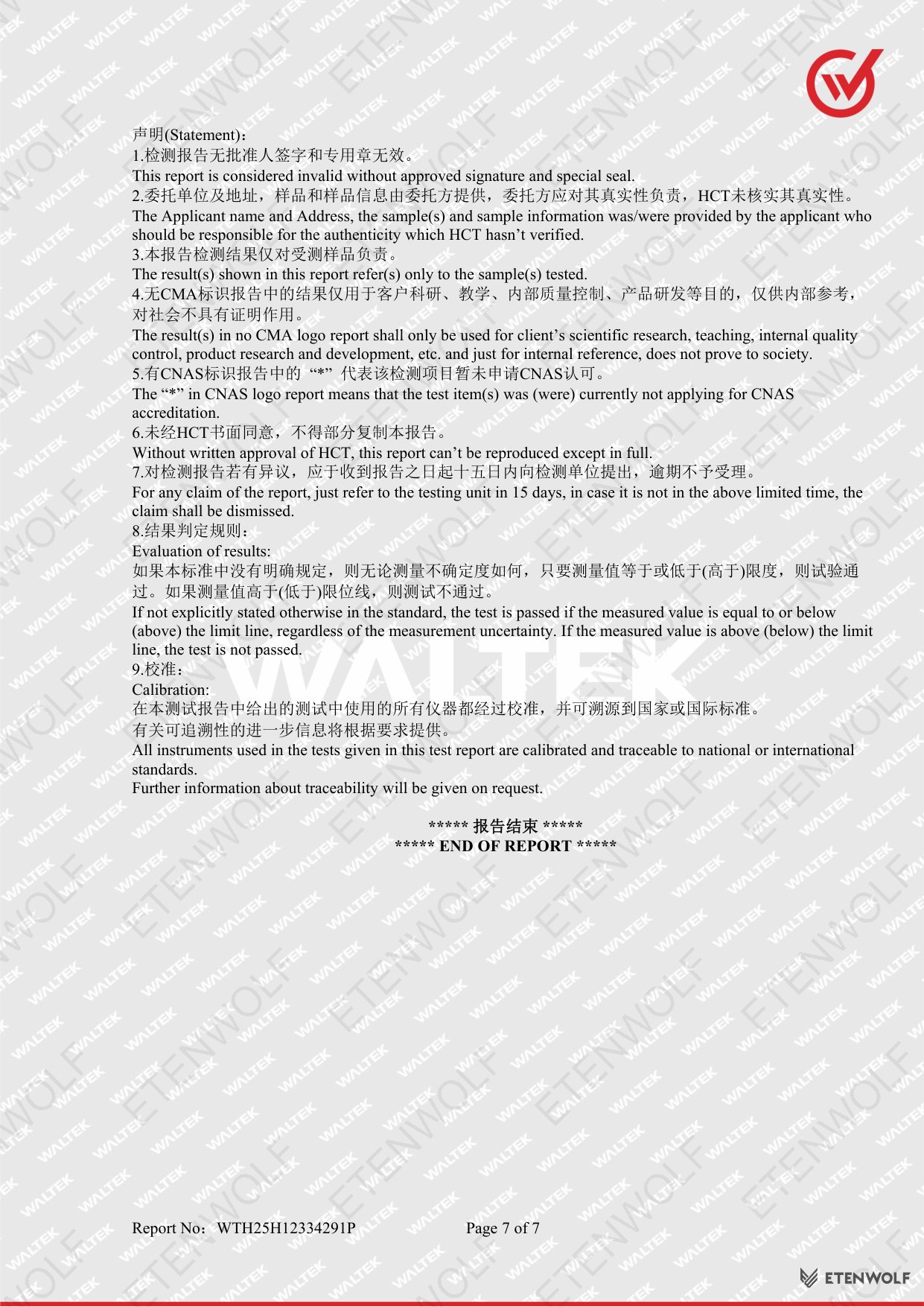

Important notes regarding report validity:

This report is invalid without the approving signatory and the laboratory’s special seal.
The report results apply solely to the specific sample tested (WTH25H12334291P_S-01).
Reports without the CMA logo are intended for internal reference purposes such as R&D, quality control, and scientific research, and do not constitute public certification.
Partial reproduction of this report is prohibited without written consent from Waltek HCT.
Any dispute regarding this report must be raised within 15 days of receipt.

Frequently Asked Questions

What does the drop test for the X5 PRO evaluate?: The drop test evaluates the ability of the X5 PRO packaging and product to withstand impacts from a height of 1200 mm across 10 different orientations — including corners, edges, and all six faces — as specified by GB/T 4857.5-1992. It confirms that the product arrives intact and fully functional after normal shipping and handling stresses.
What was the outcome of the drop test?: The X5 PRO passed all 10 drop sequences. After testing, the packaging showed no cracking or damage, the product exterior was undamaged, and the unit powered on and functioned normally. The result is documented in report WTH25H12334291P, issued on 2025/12/25.
Which laboratory conducted the drop test?: The test was conducted by Waltek Testing Group HCT (Shenzhen) Co., Ltd., an independent third-party testing laboratory in Shenzhen, China. The laboratory’s equipment is calibrated and traceable to national and international standards.
Does this report serve as a public certification?: This report does not carry the CMA logo and is therefore intended for internal purposes such as product development, quality control, and research. It confirms drop test performance against GB/T 4857.5-1992 but does not constitute a regulatory certification for public market access on its own. For full regulatory compliance, refer to the product’s broader certification portfolio.
