Document Overview

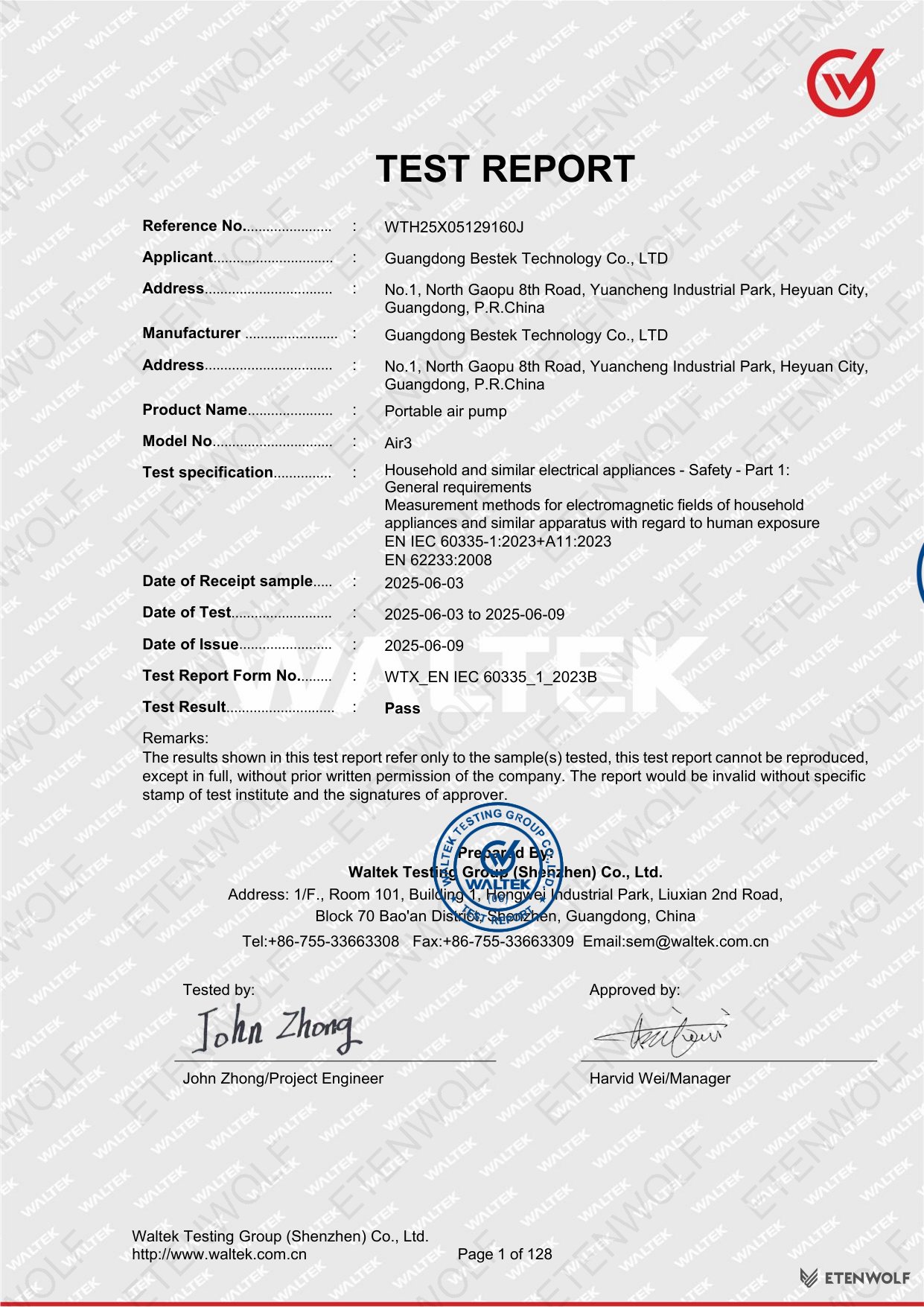

This article covers the official CE/CE-LVD safety test report issued for the ETENWOLF Air3 portable air pump. The document is a full compliance test report — not a certificate — prepared by Waltek Testing Group (Shenzhen) Co., Ltd., an accredited third-party testing laboratory based in Shenzhen, Guangdong, China.
| Field | Details |
|---|---|
| Reference Number | WTH25X05129160J |
| Document Type | CE / CE-LVD Safety Test Report |
| Issuing Laboratory | Waltek Testing Group (Shenzhen) Co., Ltd. |
| Date of Issue | 2025-06-09 |
| Test Period | 2025-06-03 to 2025-06-09 |
| Date Sample Received | 2025-06-03 |
| Test Report Form No. | WTX_EN IEC 60335_1_2023B |
| Overall Test Result | Pass |
The report evaluates the product against the EU Low Voltage Directive (LVD) requirements and electromagnetic field exposure limits applicable to household and similar electrical appliances. Results are valid solely for the sample(s) submitted and tested.
Product Information

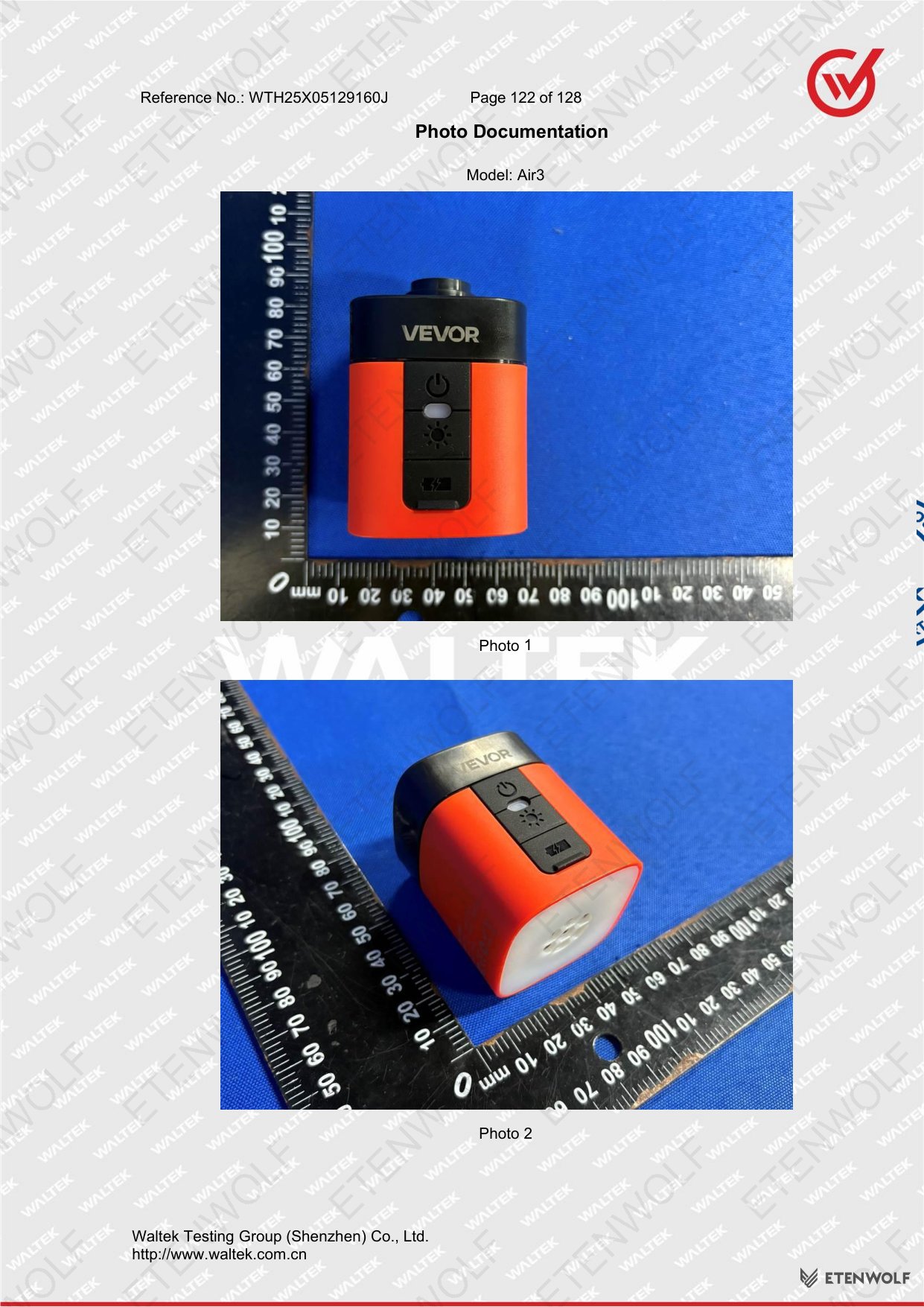

The product under test is the ETENWOLF Air3, a compact portable air pump designed for household and indoor inflation tasks. Full product particulars recorded in the test report are listed below.
| Attribute | Value |
|---|---|
| Product Name | Portable Air Pump |
| Model Number | Air3 |
| Trademark / Brand | ETENWOLF (filed as —) |
| Rated Input Voltage | 5 V DC |
| Rated Input Current | 2.0 A |
| Supply Connection | DC Connector |
| Equipment Class | Class III (Safety Extra-Low Voltage) |
| Installation Type | Portable appliance, indoor use only |
| IP Rating | IPX0 (no ingress protection required) |
| Applicant / Manufacturer | Guangdong Bestek Technology Co., Ltd. |
| Manufacturer Address | No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China |
| Country of Origin | Made in China |
As a Class III appliance, the Air3 operates at safety extra-low voltage (SELV) supplied via a detachable DC power supply unit. LED lighting functionality present on the device was explicitly noted as out of scope for this particular report.
Key Details

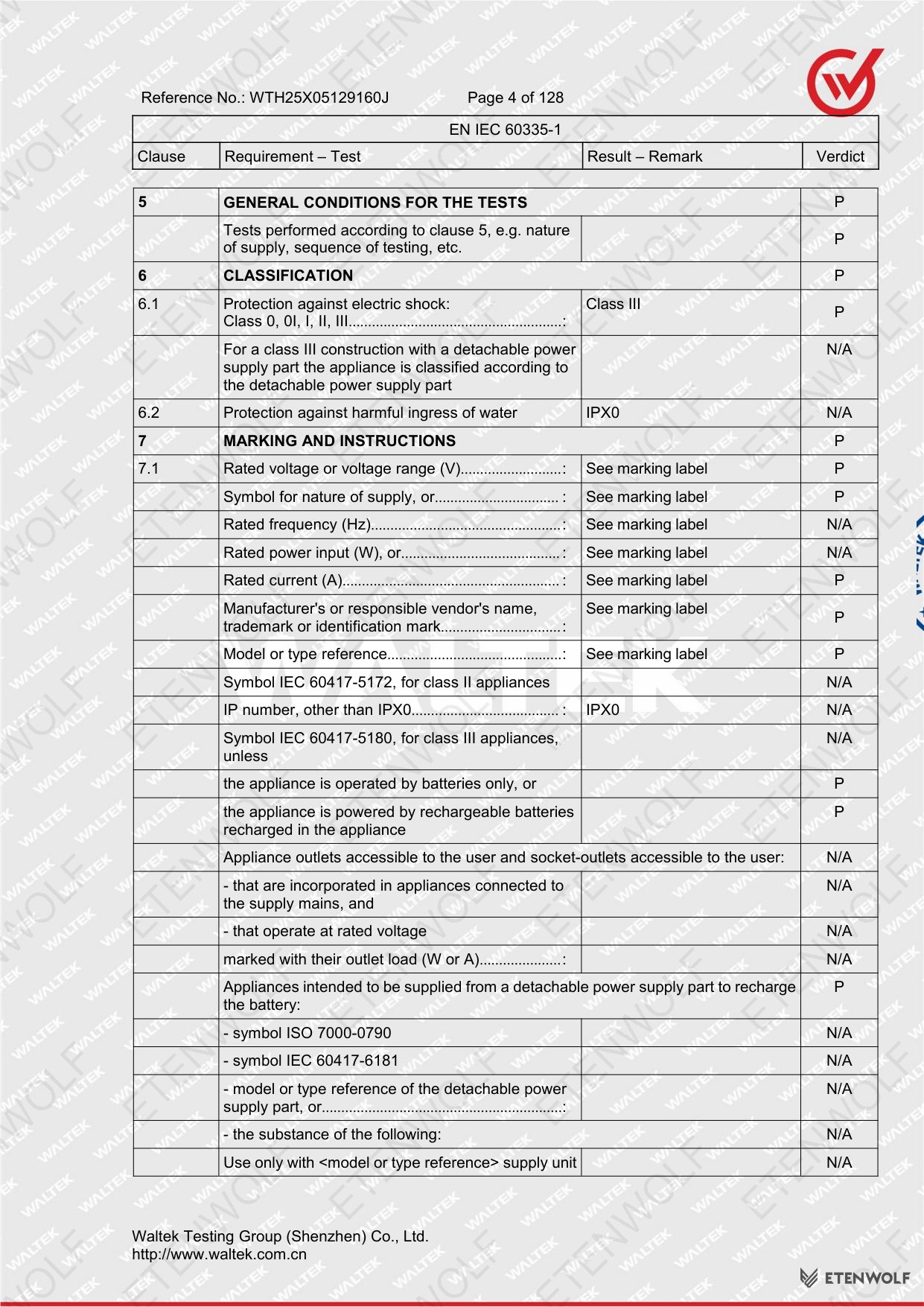

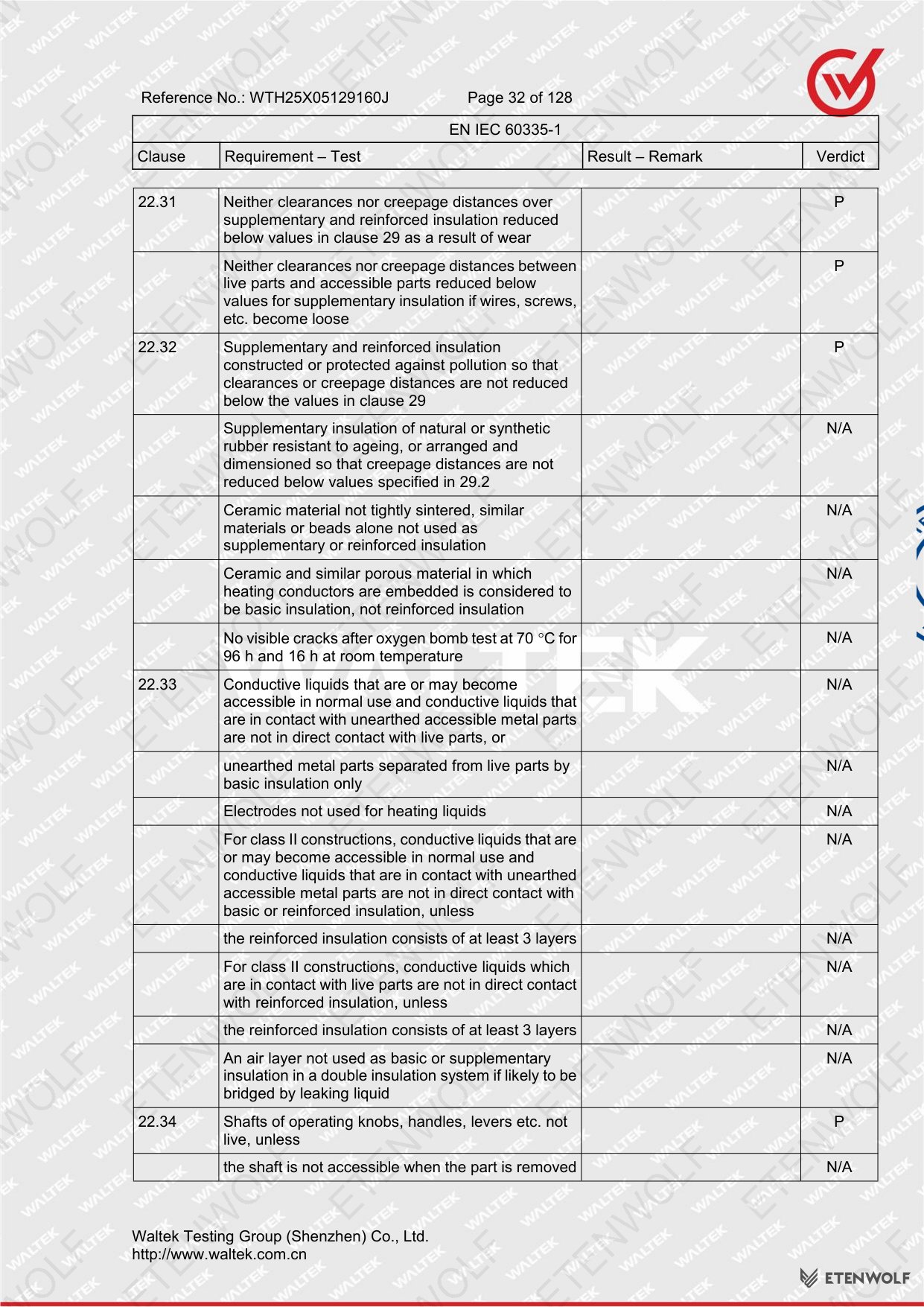

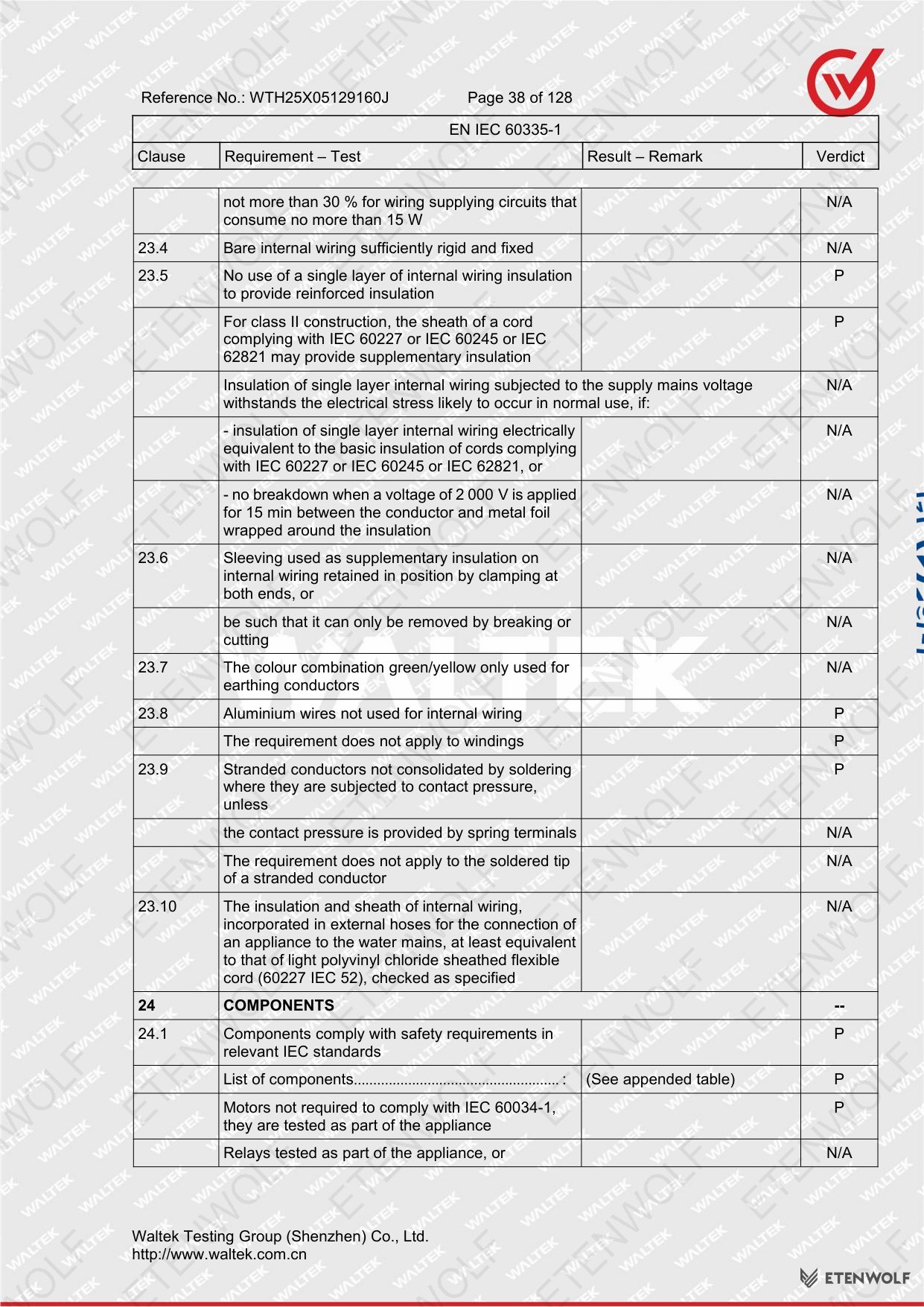

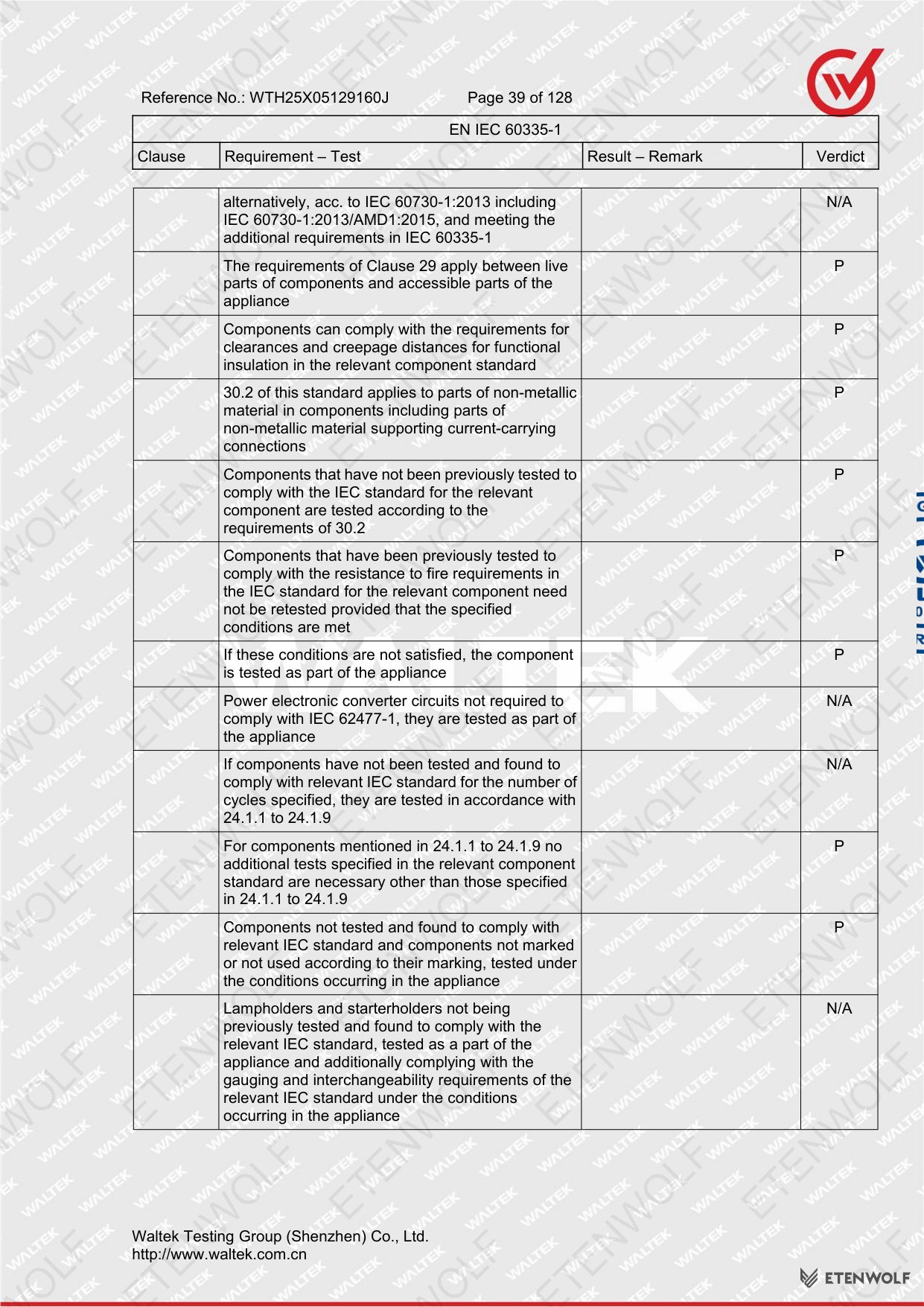

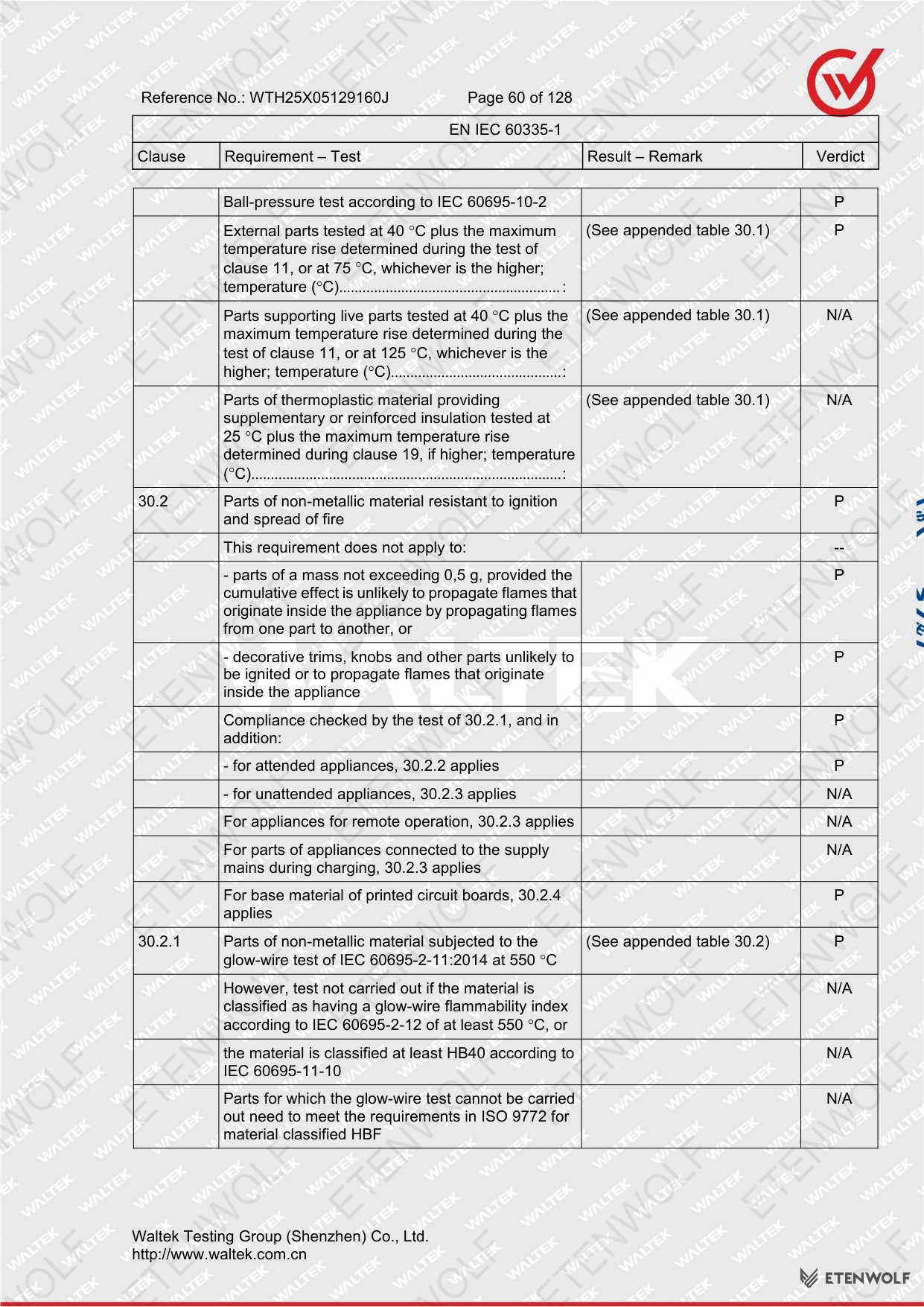

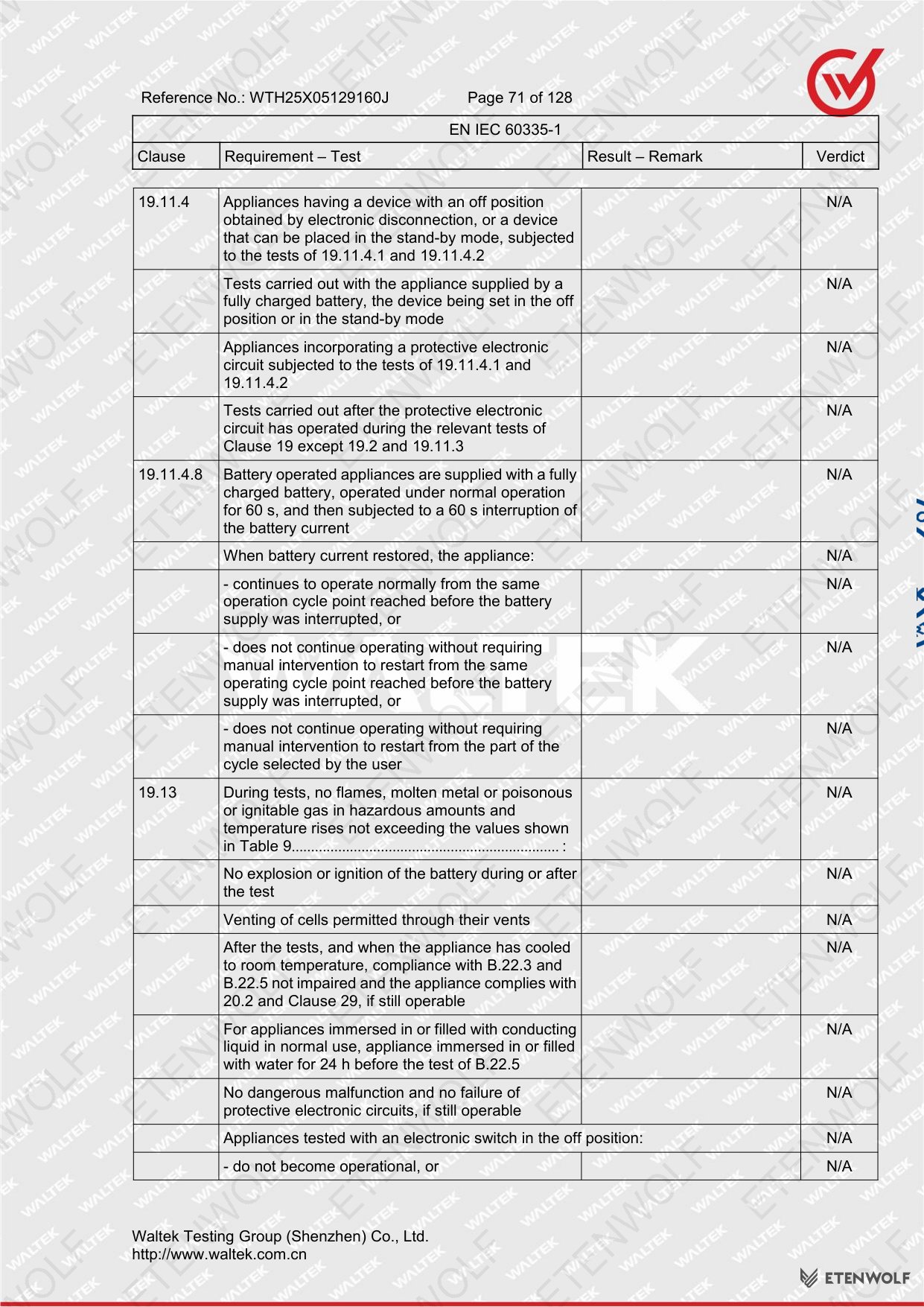

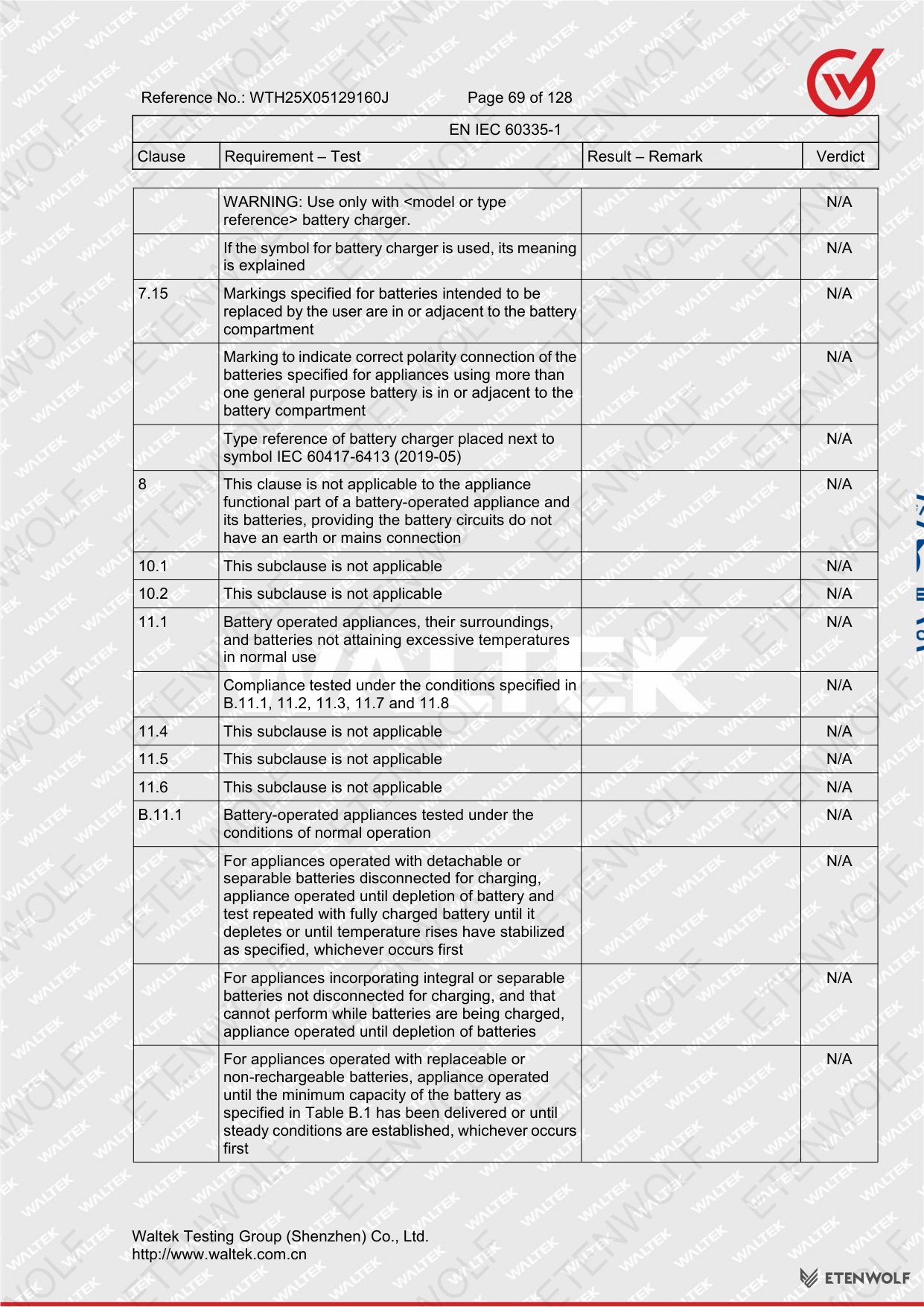

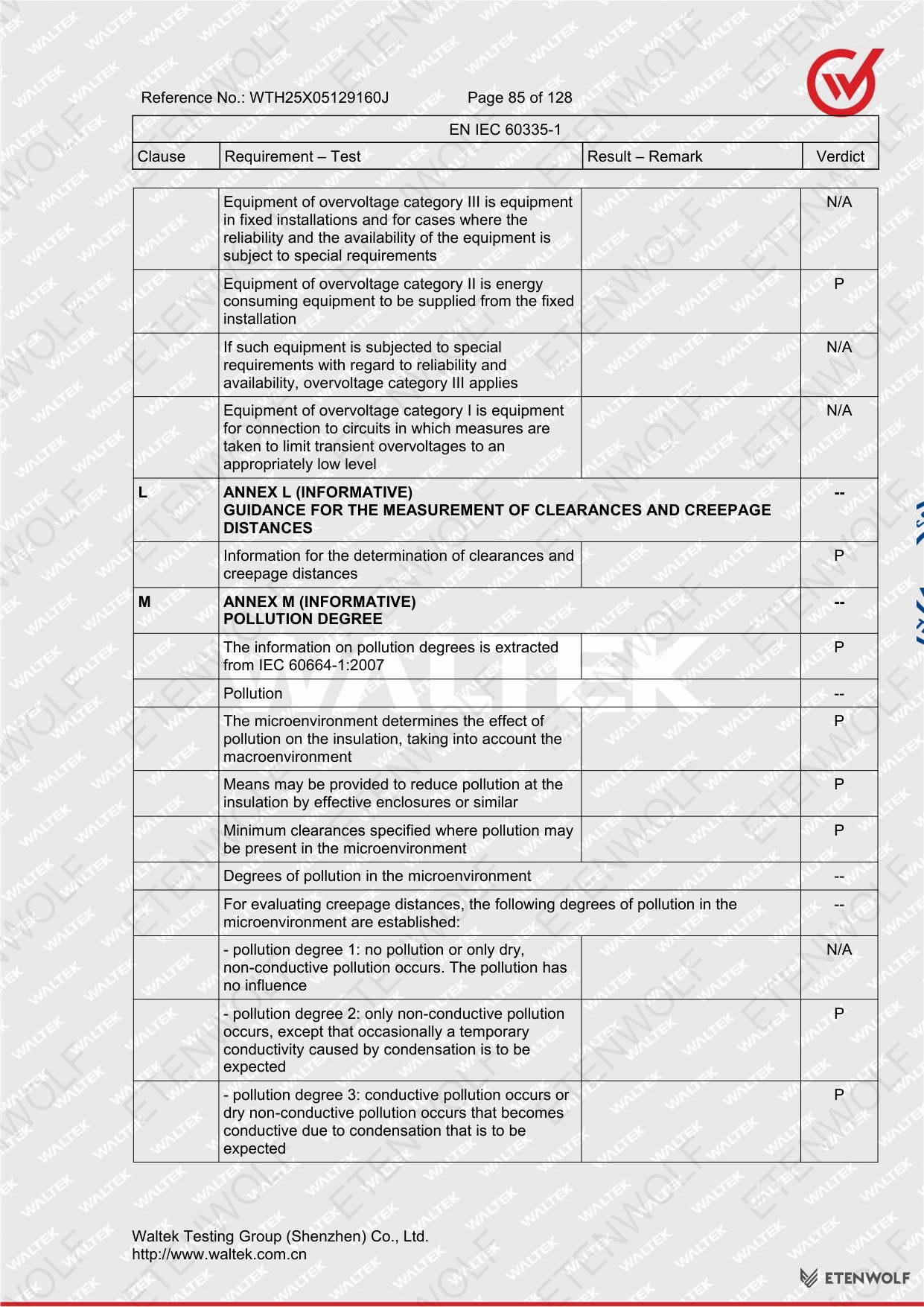

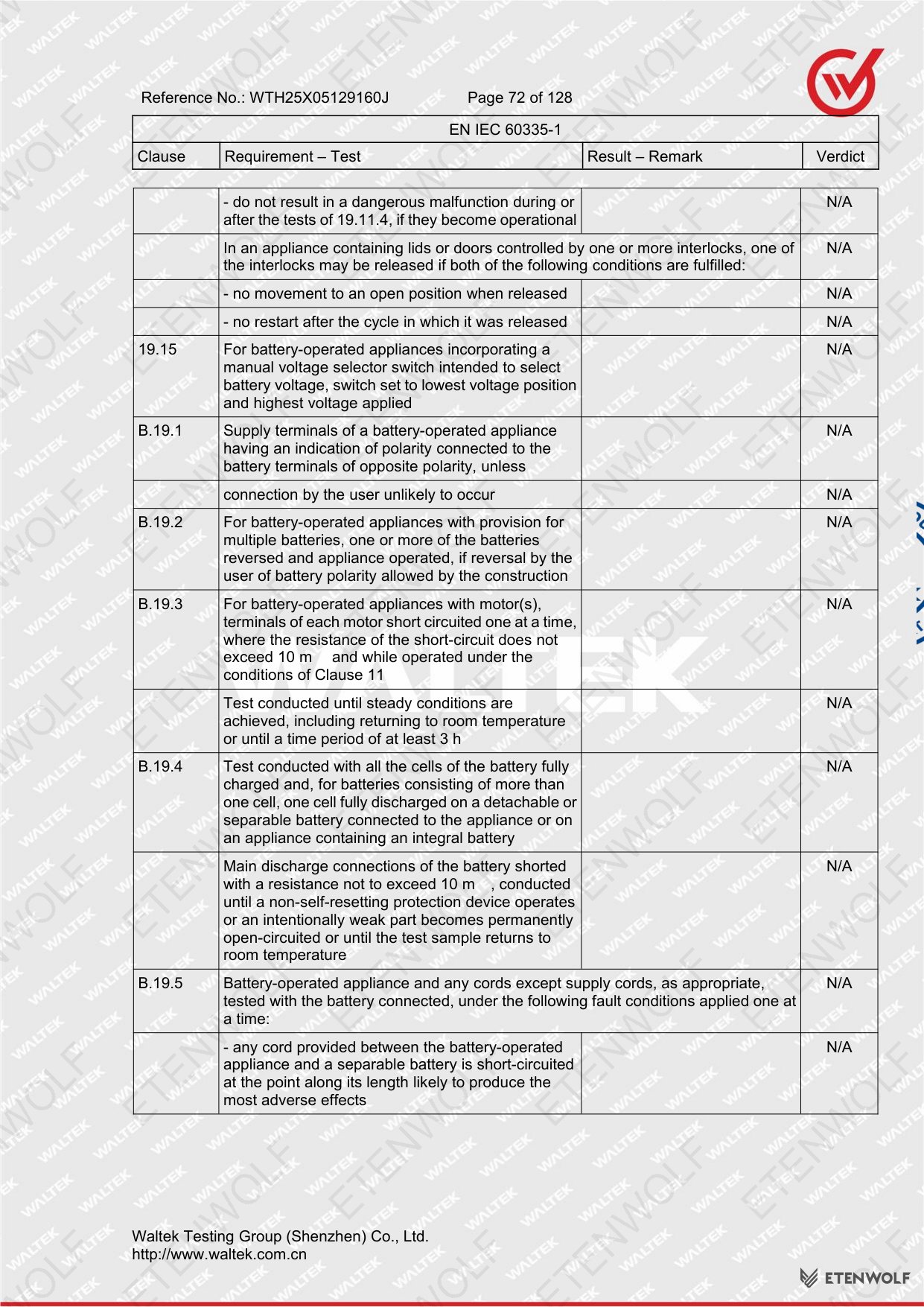

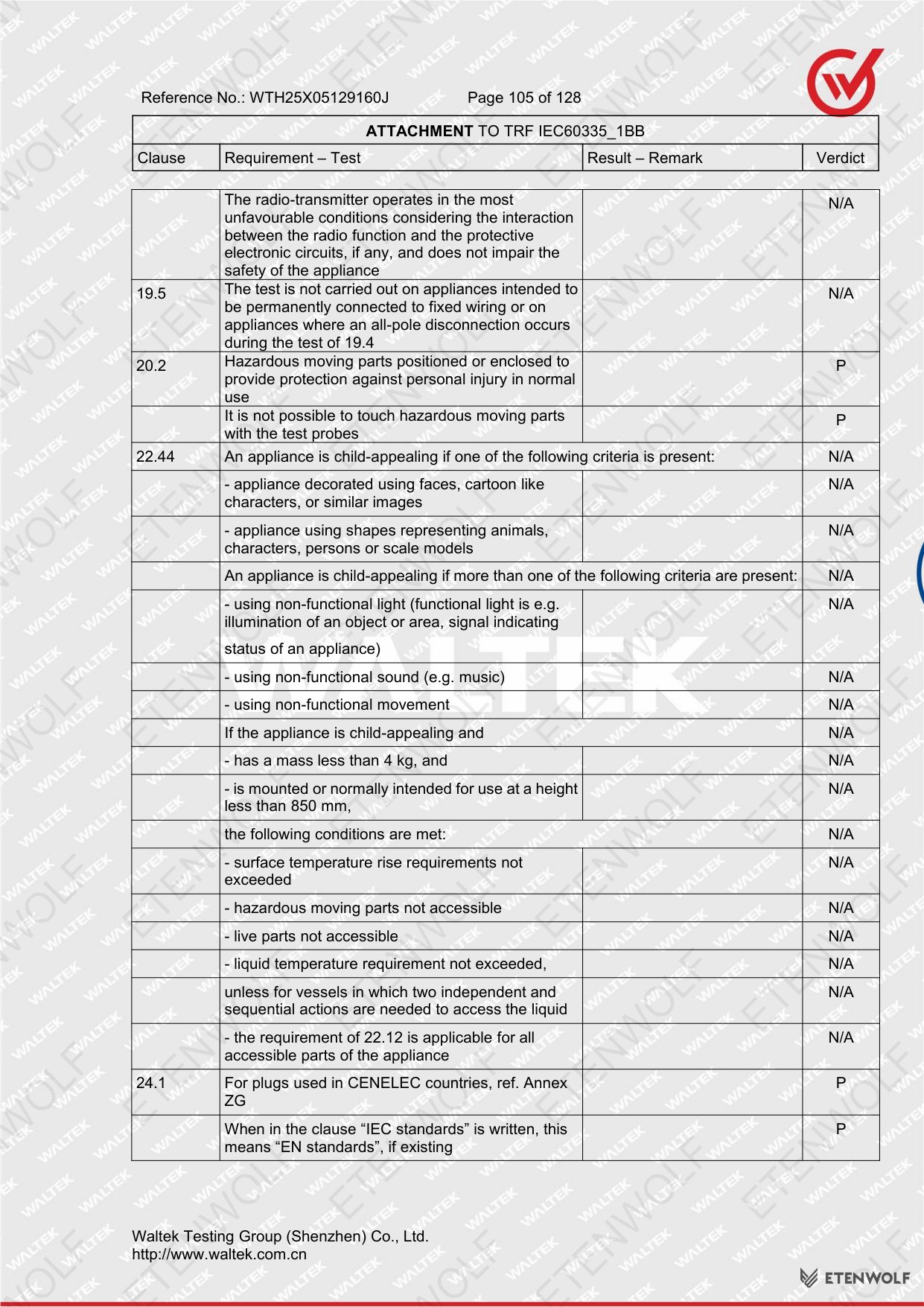

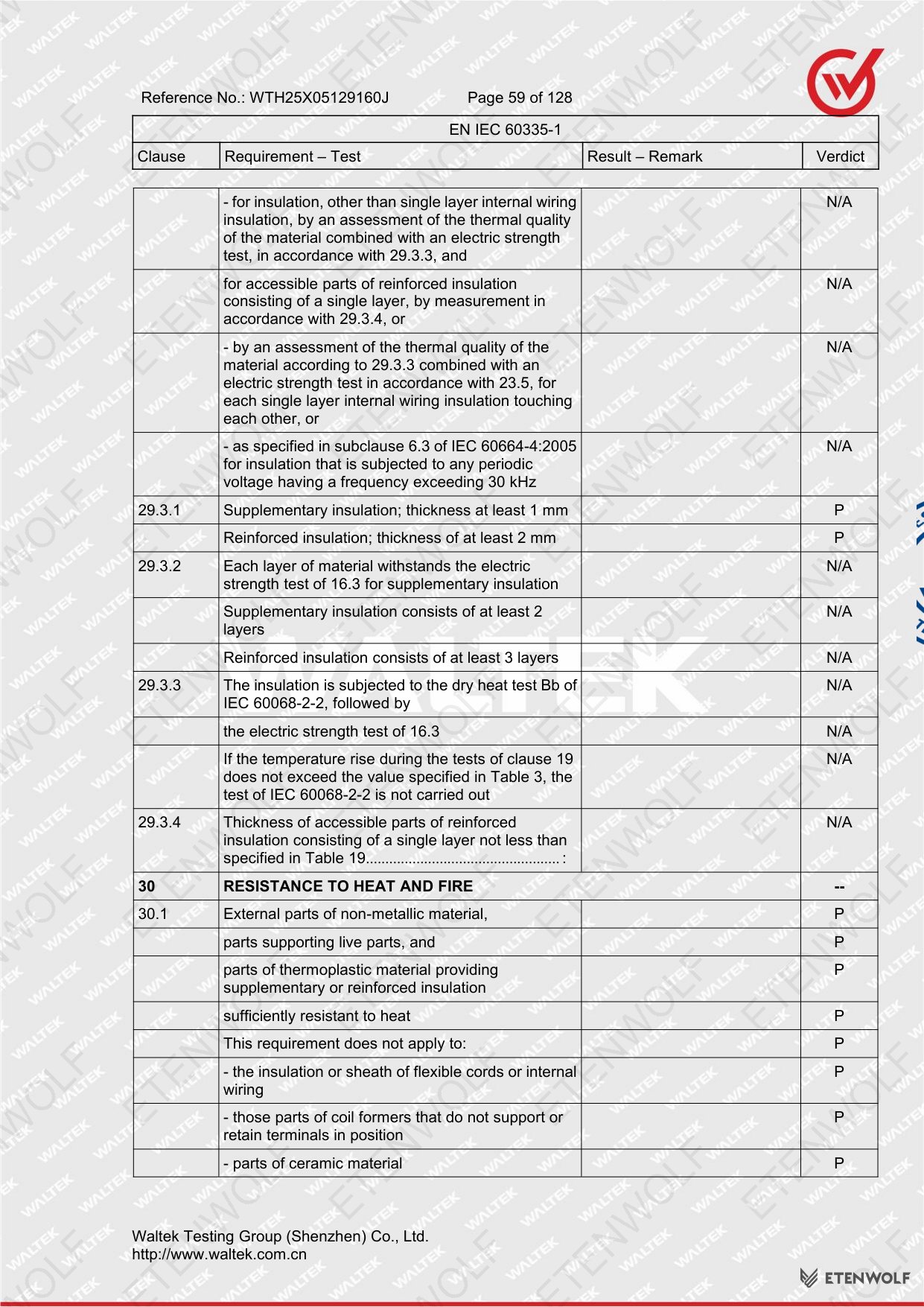

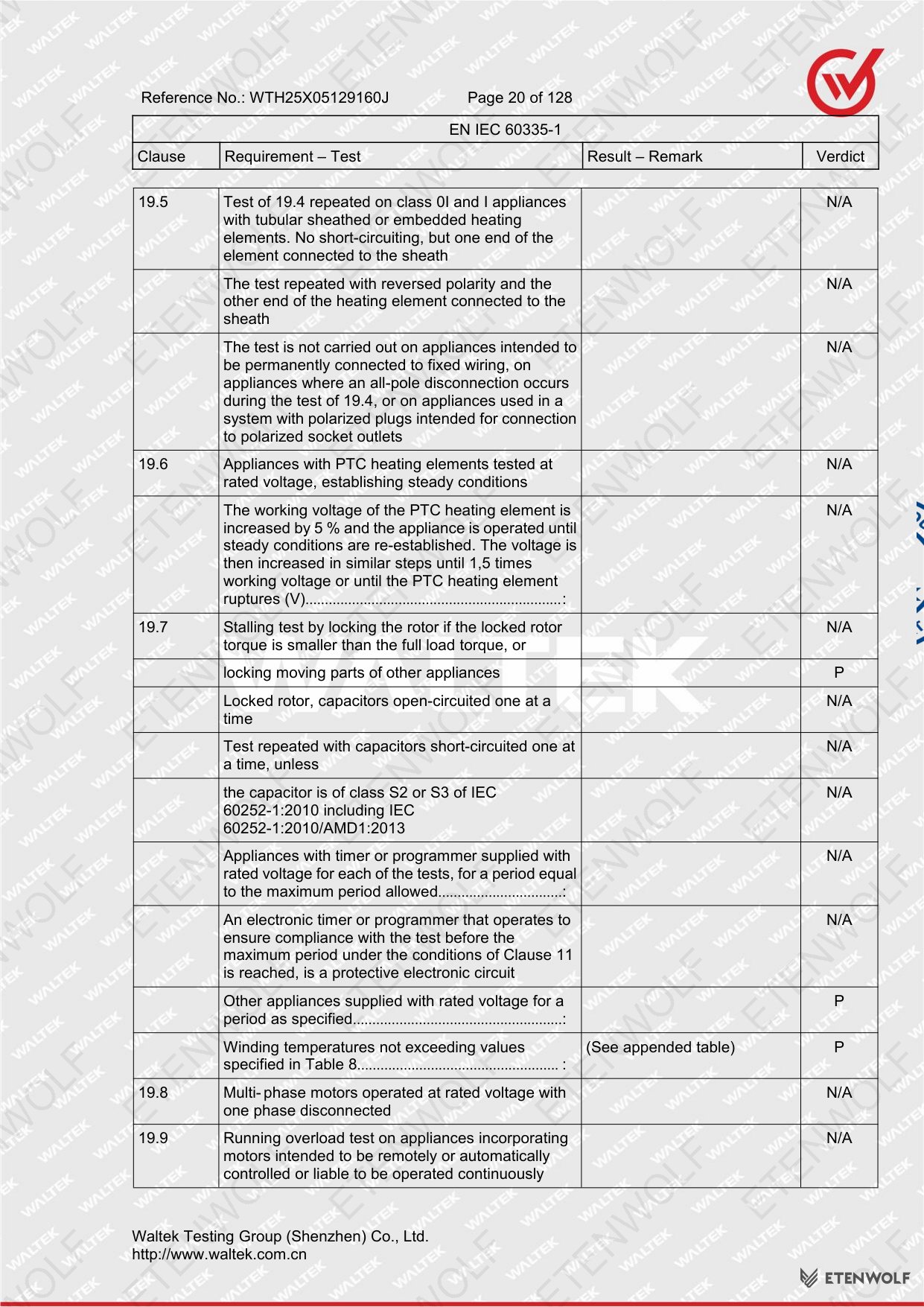

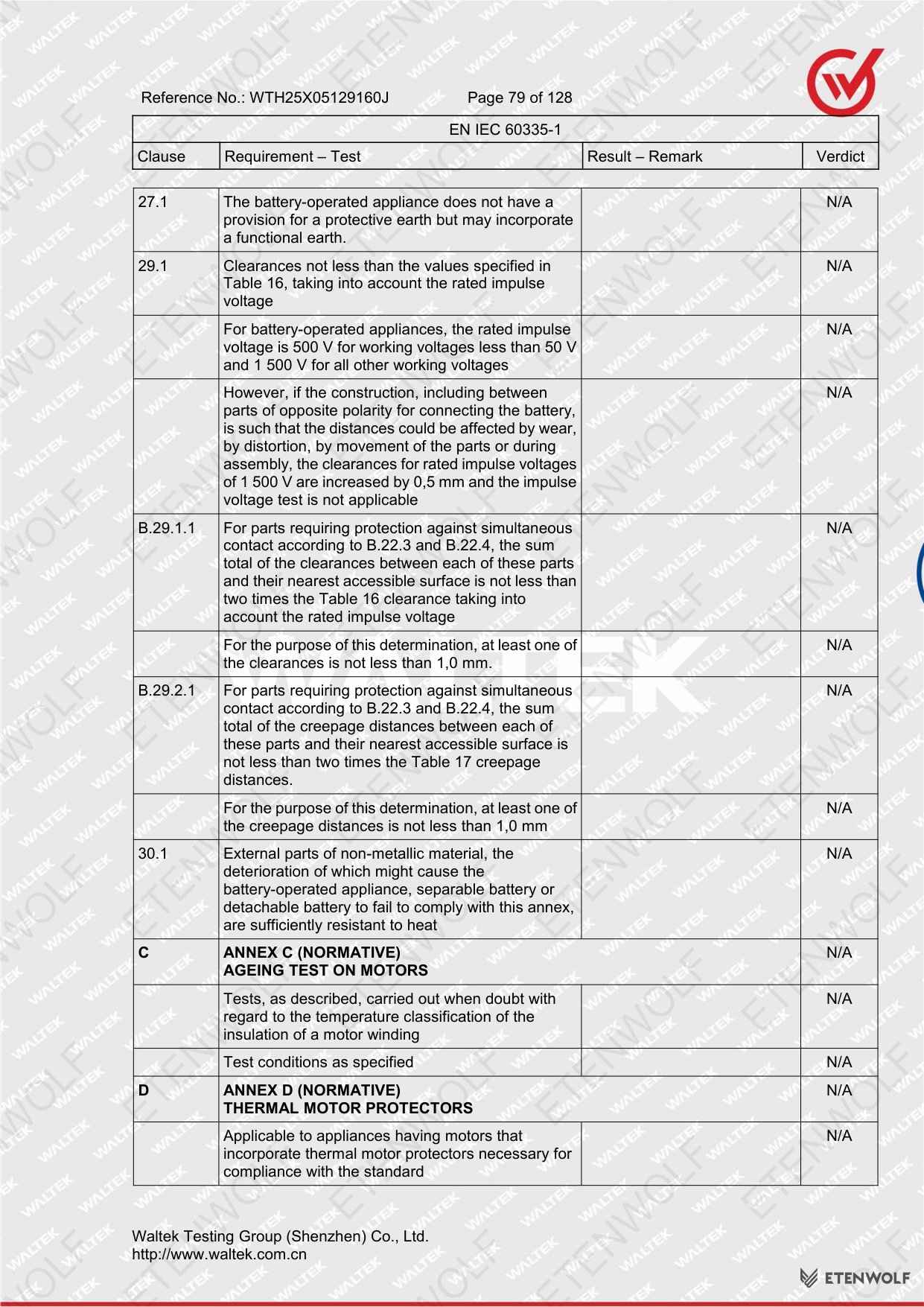

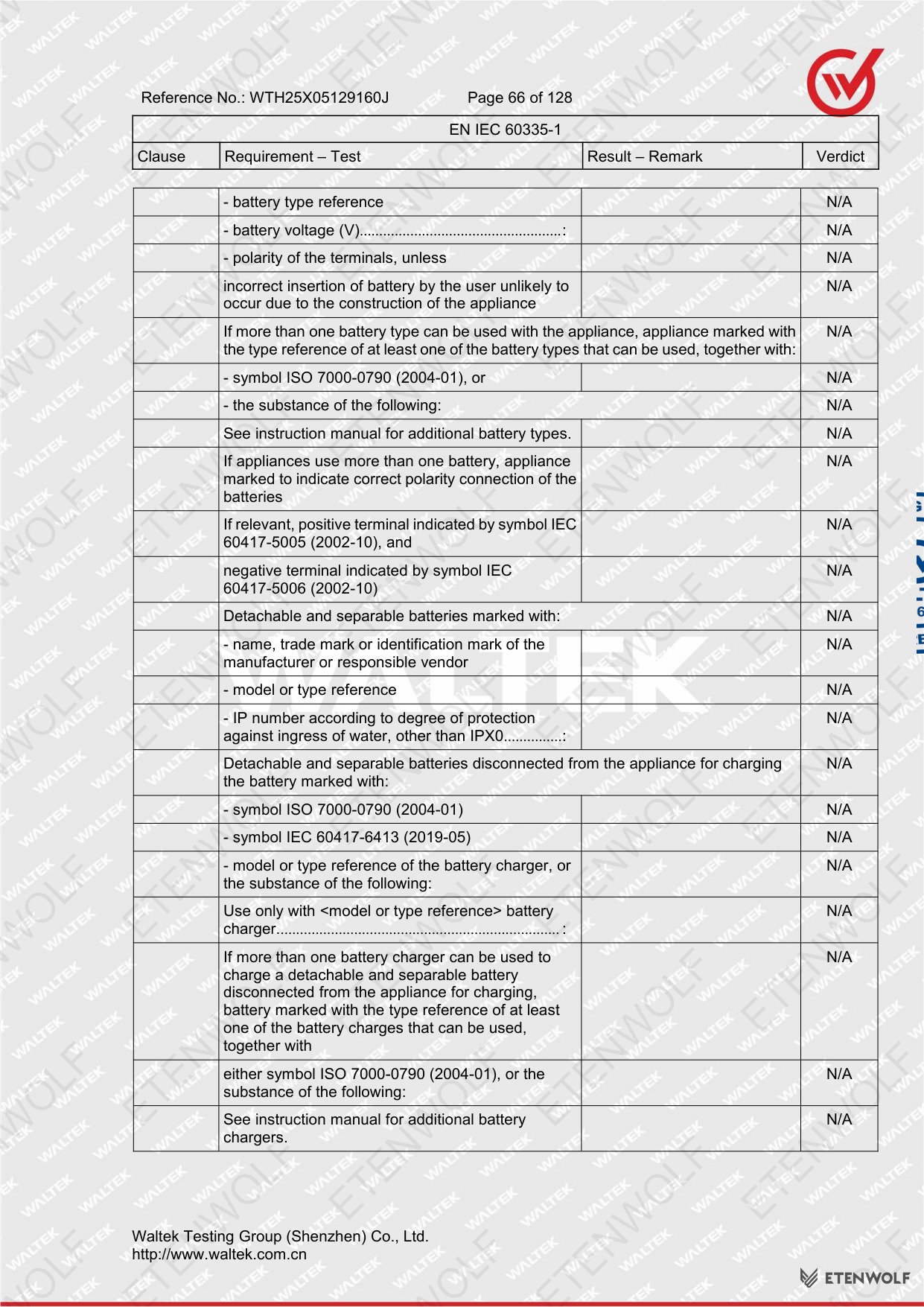

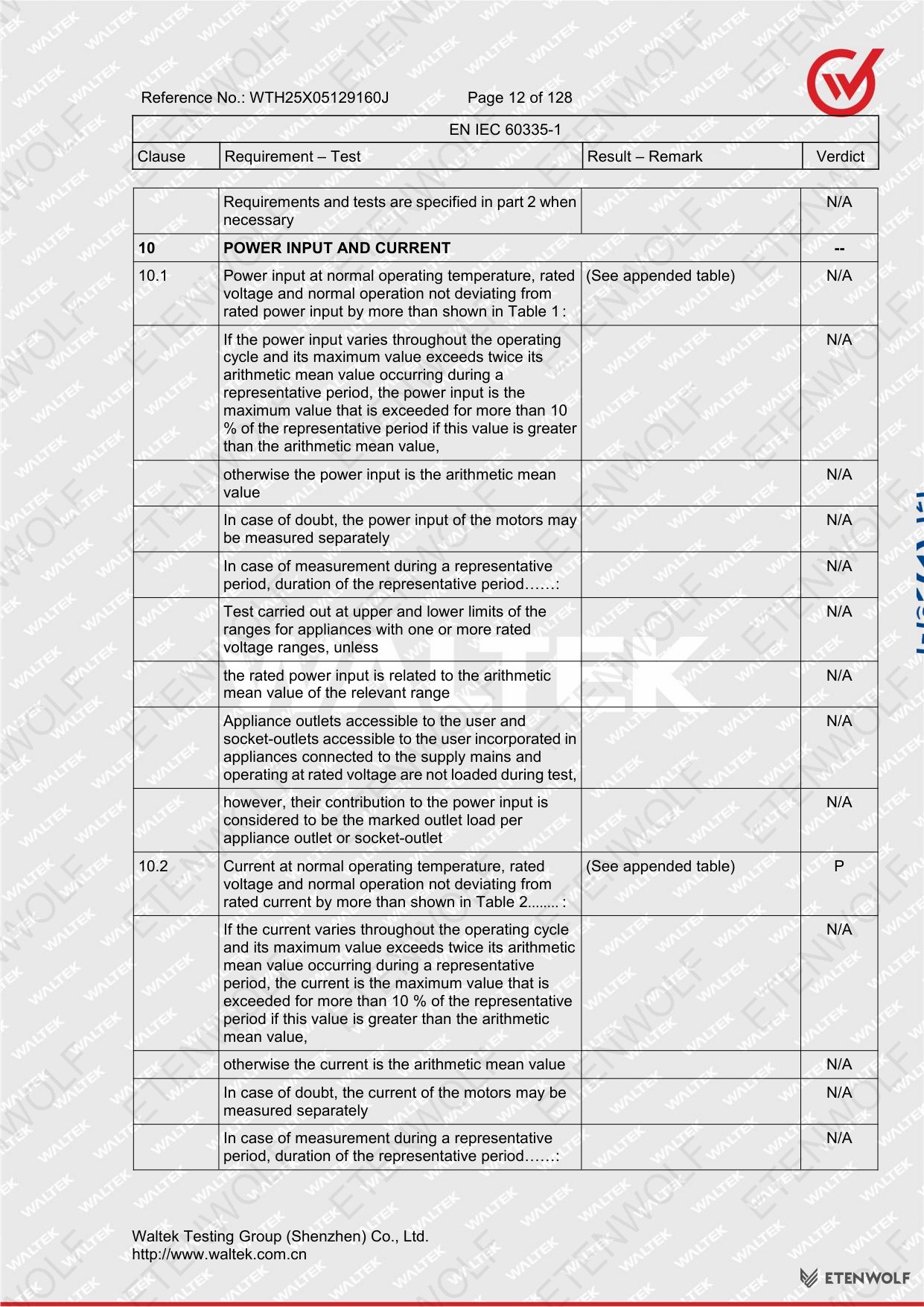

The test report evaluates compliance clause by clause against EN IEC 60335-1:2023+A11:2023. The following table summarises the key clauses assessed and their verdicts.
| Clause | Requirement / Test Area | Verdict |
|---|---|---|
| 5 | General Conditions for the Tests (supply nature, test sequence) | Pass |
| 6 | Classification | Pass |
| 6.1 | Protection against electric shock — Class III confirmed | Pass |
| 6.2 | Protection against harmful ingress of water — IPX0 | N/A |
| 7 | Marking and Instructions (overall) | Pass |
| 7.1 | Rated voltage, current, manufacturer identity, model reference on label | Pass |
| 7.1 | Class III symbol (IEC 60417-5180) — appliance powered by rechargeable batteries recharged in-appliance | Pass |
| 7.1 | Class II symbol (IEC 60417-5172) | N/A |
| 7.1 | Appliance outlets / socket-outlets accessible to user | N/A |
| 7.2 | Warning for stationary appliances with multiple supply | N/A |

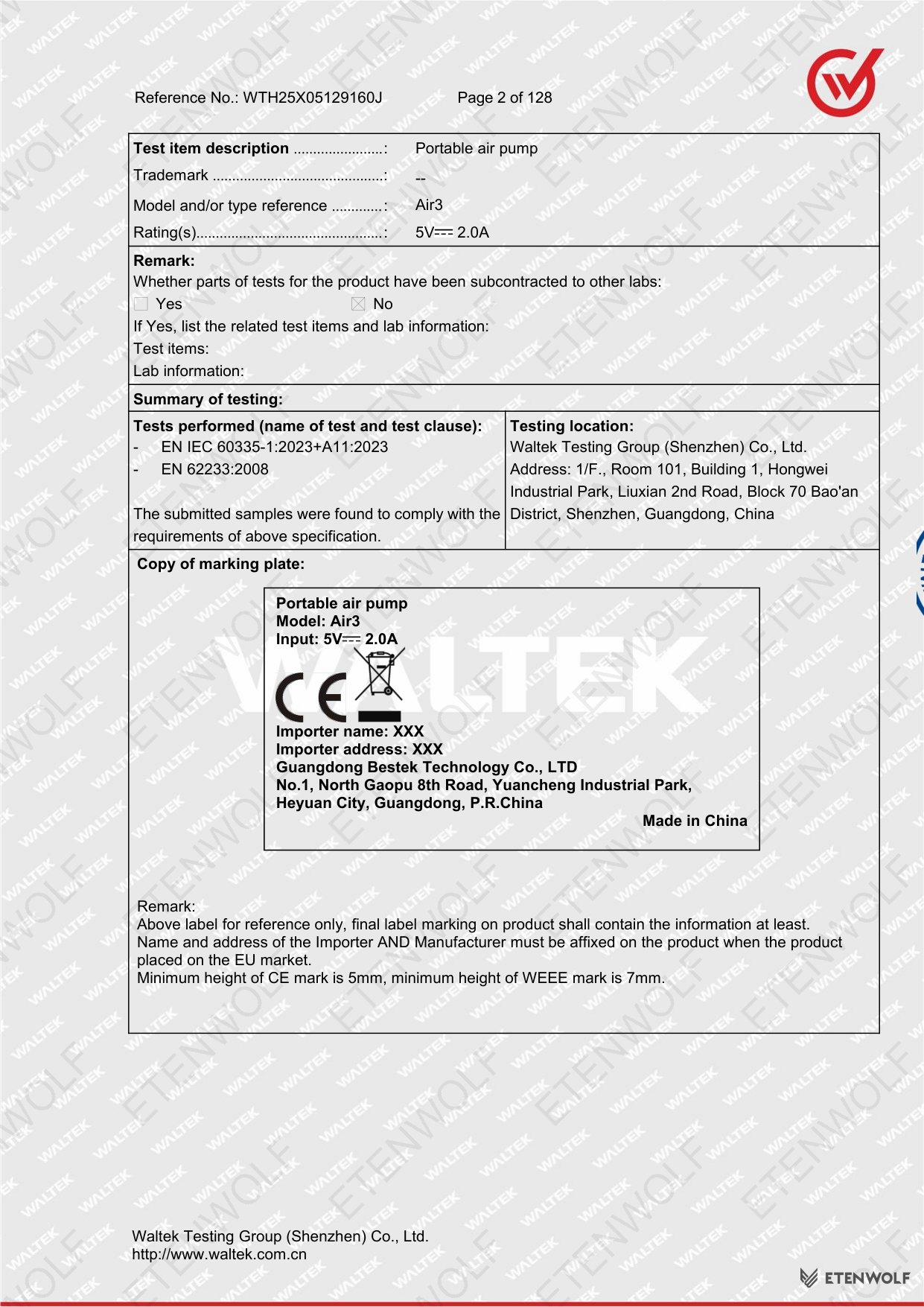

Marking requirements confirmed on the product label include: model (Air3), rated input (5 V / 2.0 A), manufacturer name and address, country of origin, CE mark (minimum 5 mm height), and WEEE mark (minimum 7 mm height). The label also carries a placeholder for EU importer name and address, which must be completed before the product is placed on the EU market.
All subcontracting fields in the report were marked No, confirming that all testing was performed entirely at the Waltek Shenzhen facility with no work subcontracted to external laboratories.
Standards & Compliance
The Air3 was evaluated against the following normative standards. Both standards are listed under the EU Low Voltage Directive (LVD) 2014/35/EU harmonised standards framework.
| Standard | Title | Scope |
|---|---|---|
| EN IEC 60335-1:2023+A11:2023 | Household and Similar Electrical Appliances – Safety – Part 1: General Requirements | Core safety requirements covering construction, insulation, temperature limits, mechanical strength, and marking for household electrical appliances |
| EN 62233:2008 | Measurement Methods for Electromagnetic Fields of Household Appliances and Similar Apparatus with Regard to Human Exposure | Defines measurement procedures for EMF emissions to assess human exposure limits for household appliances |
The product is classified as a Class III appliance under EN IEC 60335-1:2023, meaning it operates exclusively on safety extra-low voltage supplied by an external DC power adapter. This classification exempts several clauses related to mains-voltage insulation and earthing that are Not Applicable (N/A) in the test report.
The CE marking affixed to the product indicates conformity with applicable EU directives including the Low Voltage Directive (LVD) 2014/35/EU. The minimum CE mark height of 5 mm and WEEE symbol height of 7 mm are mandatory requirements confirmed during marking inspection.
Validity & Certification Body
The test report was issued by Waltek Testing Group (Shenzhen) Co., Ltd., a professional third-party testing and certification organisation operating across multiple accreditations. Full laboratory contact details are provided below.
| Field | Details |
|---|---|
| Laboratory Name | Waltek Testing Group (Shenzhen) Co., Ltd. |
| Laboratory Address | 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70, Bao’an District, Shenzhen, Guangdong, China |
| Website | http://www.waltek.com.cn |
| Telephone | +86-755-33663308 |
| Fax | +86-755-33663309 |
| [email protected] | |
| Tested By | John Zhong, Project Engineer |
| Approved By | Harvid Wei, Manager |
| Report Issue Date | 2025-06-09 |
| Total Report Pages | 128 pages |
This test report is valid solely for the specific sample(s) tested under reference number WTH25X05129160J. The report is not reproducible in part; any reproduction requires full content and prior written permission from Waltek Testing Group. The report carries the specific stamp of the test institute and the signatures of both the project engineer and approving manager to maintain its legal validity.
There is no independently stated expiry date for the test report itself; CE declaration validity is the responsibility of the manufacturer (Guangdong Bestek Technology Co., Ltd.) and must be maintained in line with any product or standard changes.
Frequently Asked Questions
- What does the CE/LVD test report WTH25X05129160J confirm for the Air3?
-
It confirms that the ETENWOLF Air3 portable air pump was tested and found to comply with EN IEC 60335-1:2023+A11:2023 (household appliance safety) and EN 62233:2008 (electromagnetic field exposure). The overall result is Pass, supporting CE marking under the EU Low Voltage Directive 2014/35/EU.
- Why is the Air3 classified as a Class III appliance?
-
Class III means the appliance is designed to operate at Safety Extra-Low Voltage (SELV) and is powered by an external DC supply unit (5 V / 2.0 A) rather than directly from mains voltage. This classification provides an inherently safer design by eliminating exposure to dangerous mains-level voltages during normal use.
- Was all testing performed at Waltek’s own laboratory?
-
Yes. The test report explicitly records that no test items were subcontracted to any external laboratory. All evaluations under EN IEC 60335-1:2023+A11:2023 and EN 62233:2008 were conducted entirely at the Waltek Testing Group facility in Bao’an District, Shenzhen.
- Are the LED lights on the Air3 covered by this test report?
-

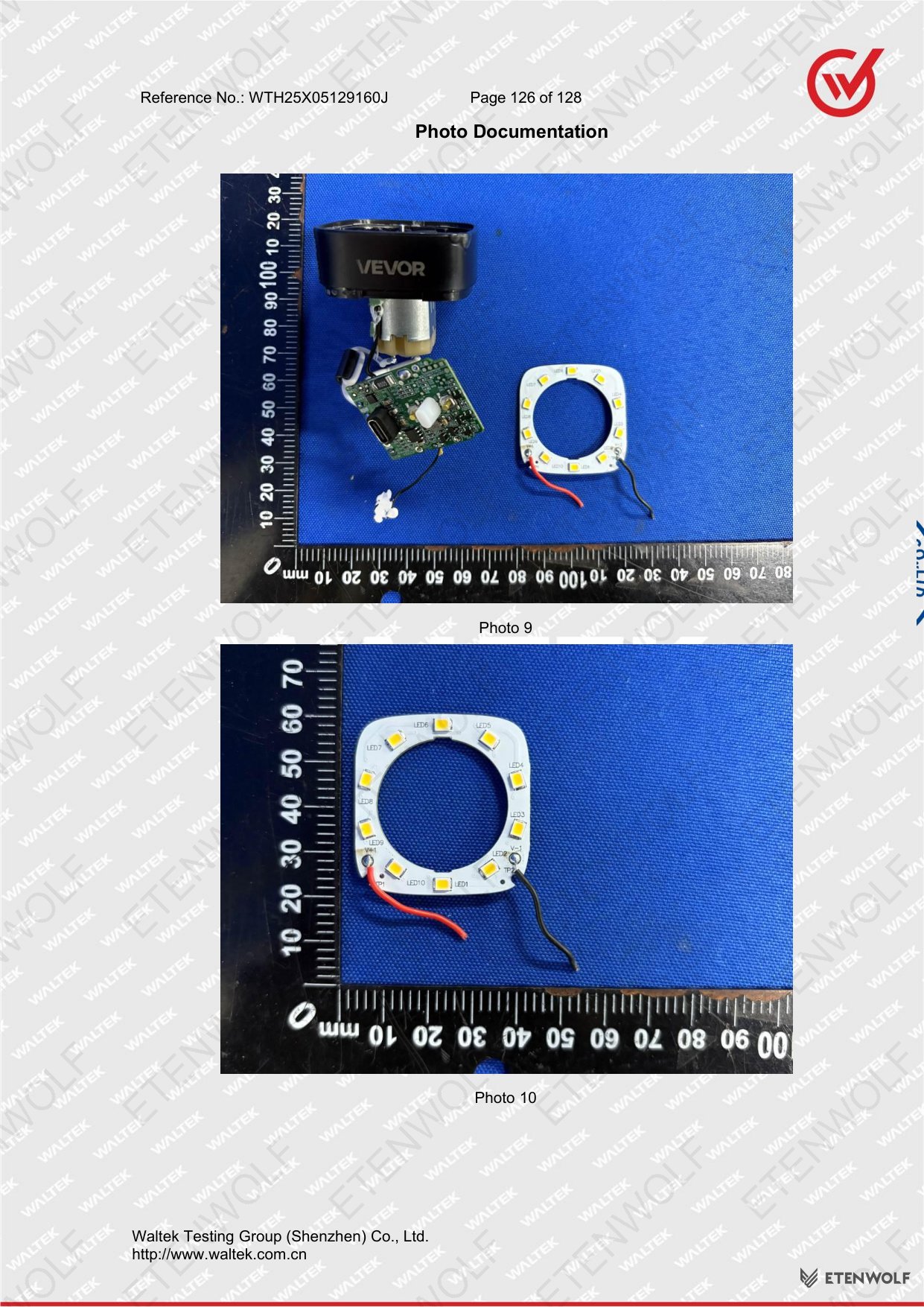

No. The report explicitly states that LED lights incorporated in the Air3 were not evaluated as part of this particular test scope. Separate testing or documentation may be required to address LED-related compliance requirements.
Related Documents
The CE/LVD safety test report is one layer of a complete compliance documentation set. For a product like the ETENWOLF Air3, the following related certification and documentation types are typically required or recommended:
- CE EMC Test Report — Electromagnetic Compatibility testing under EN 55014-1 and EN 55014-2 to satisfy the EMC Directive 2014/30/EU, complementing this LVD report.
- EU Declaration of Conformity (DoC) — The manufacturer’s formal declaration referencing all applicable directives and harmonised standards, required for CE marking on the EU market.
- RoHS Compliance Report — Confirms restriction of hazardous substances (lead, mercury, cadmium, etc.) under EU RoHS Directive 2011/65/EU as amended by 2015/863/EU.
- REACH SVHC Declaration — Substances of Very High Concern screening under REACH Regulation (EC) No 1907/2006.
- UN 38.3 Battery Transport Test Report — If the Air3 contains a lithium-ion or lithium-polymer rechargeable battery, a UN 38.3 transport safety test report is required for air and multimodal shipping compliance.
- FCC / IC Certification — Required for market access in the United States and Canada, covering intentional and unintentional radio frequency emissions.
- LED Safety and Photobiological Report — Given that LED evaluation was explicitly excluded from report WTH25X05129160J, a separate IEC 62471 photobiological safety assessment for the integrated LED lights is advisable.

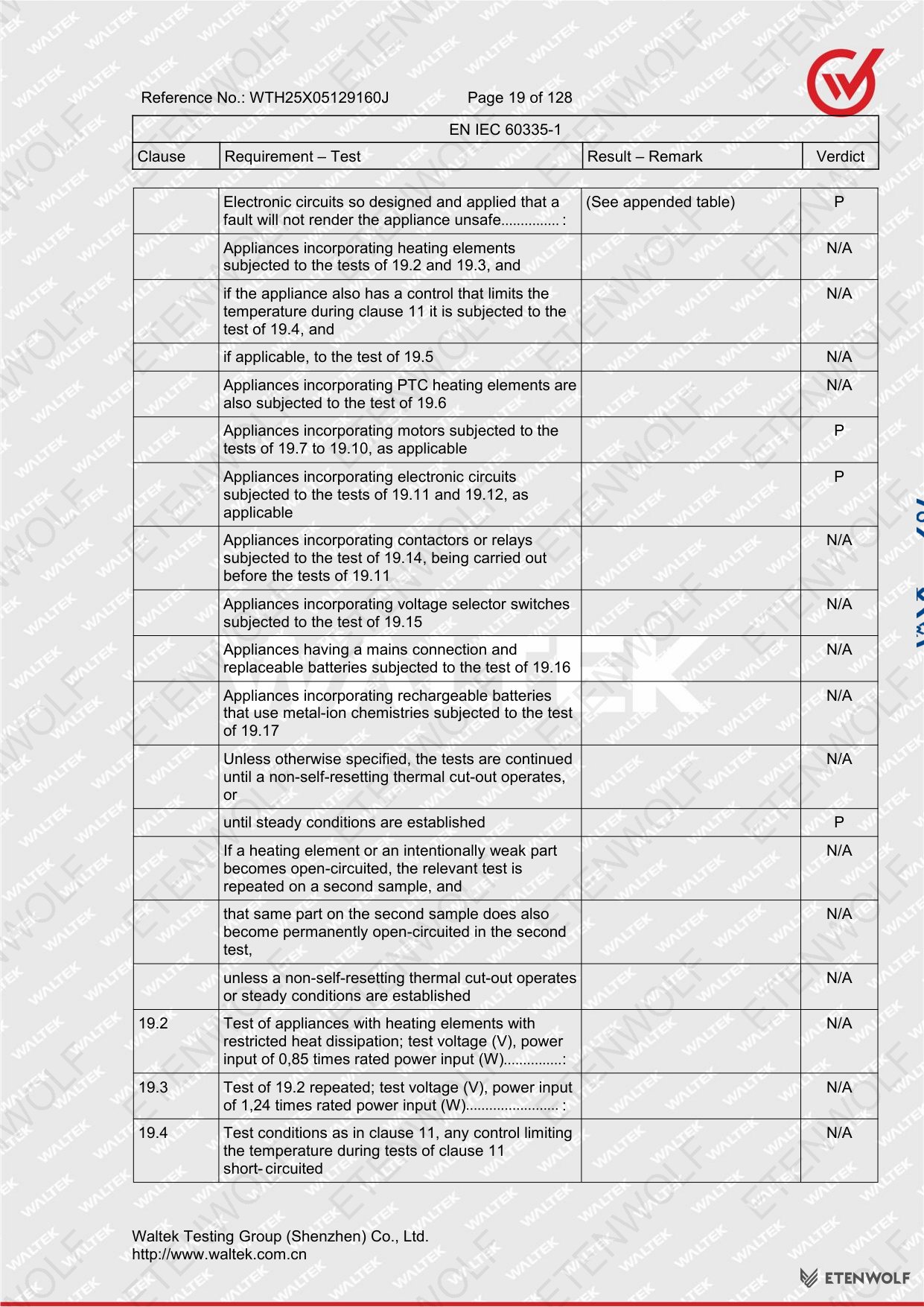

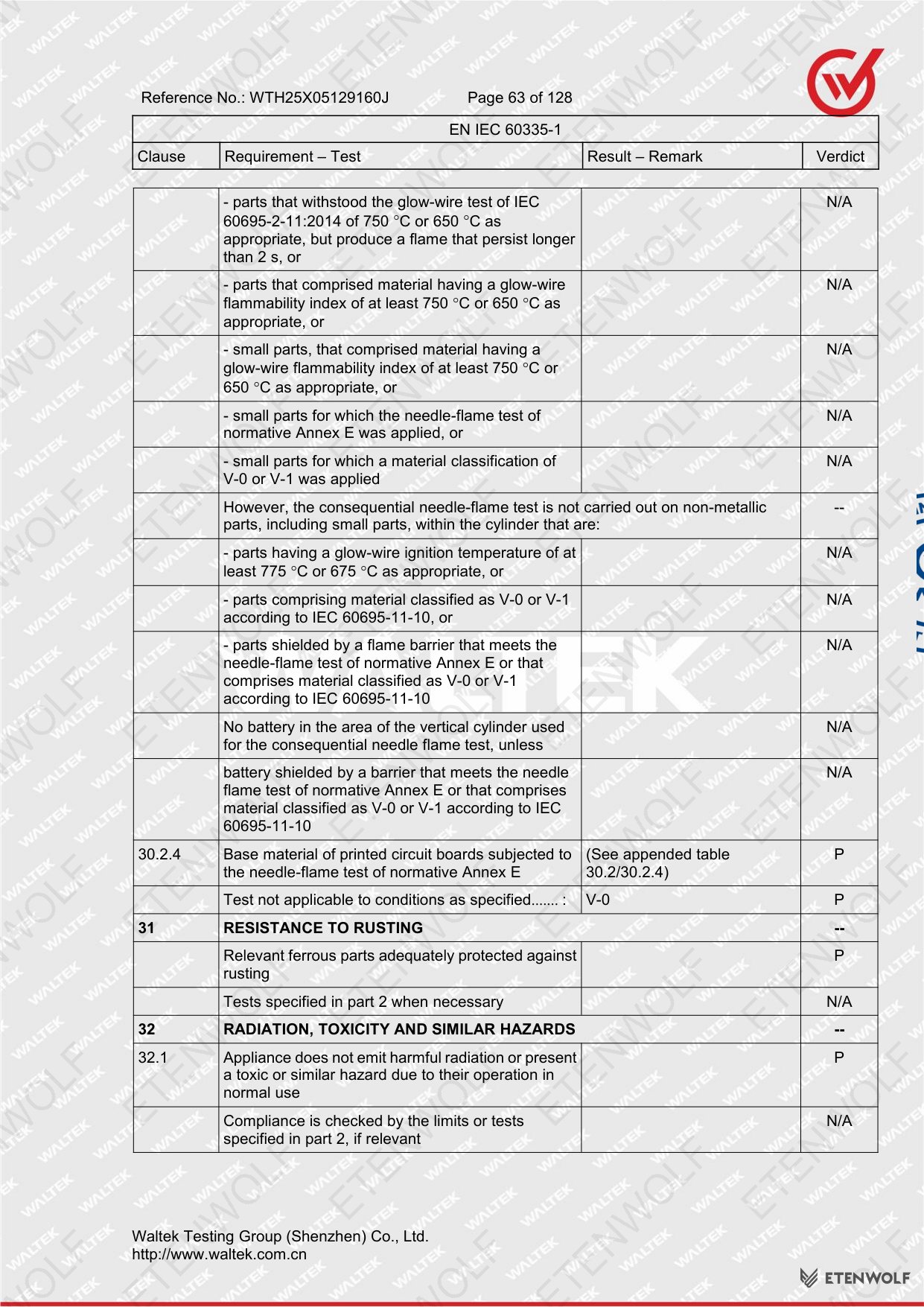

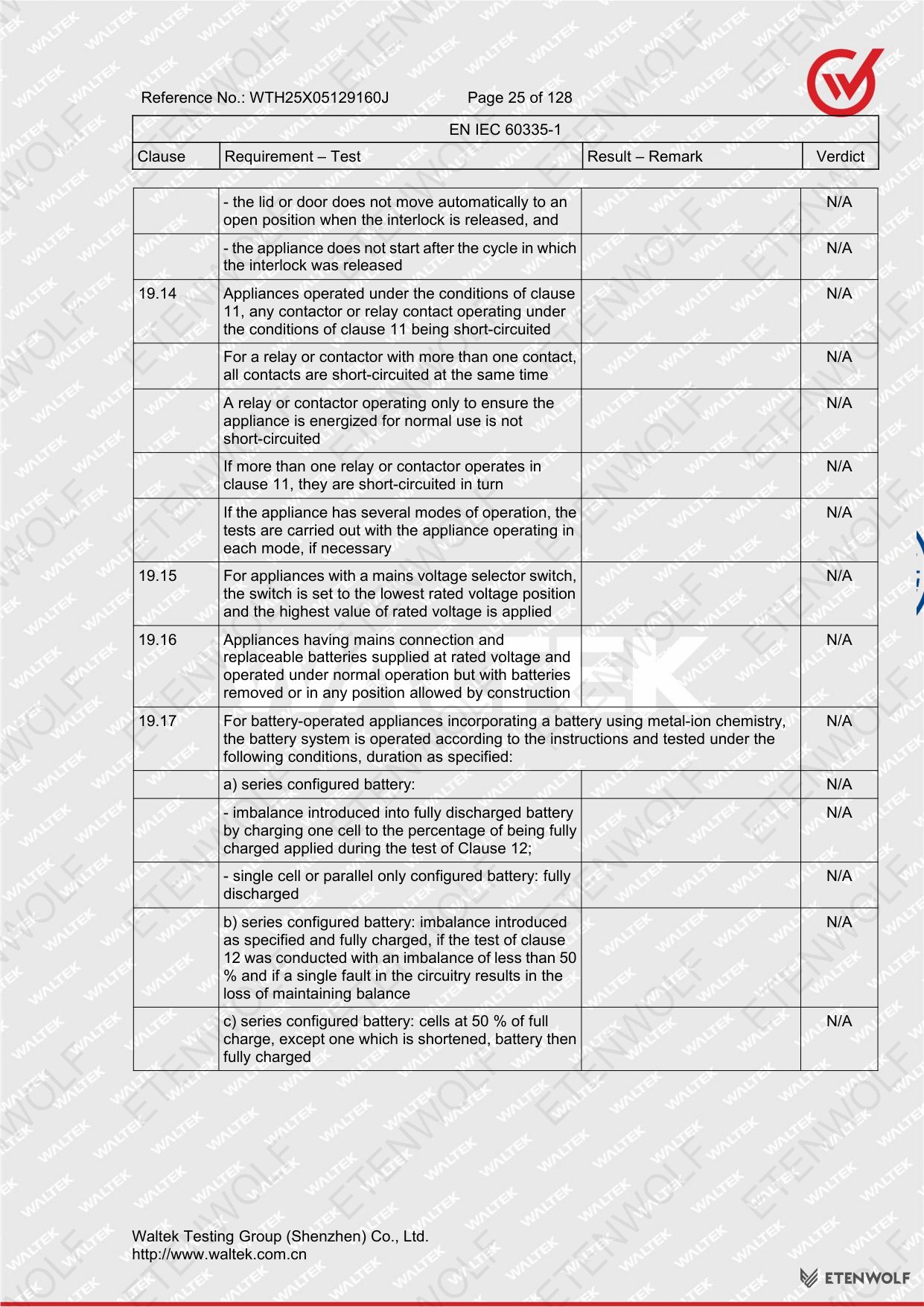

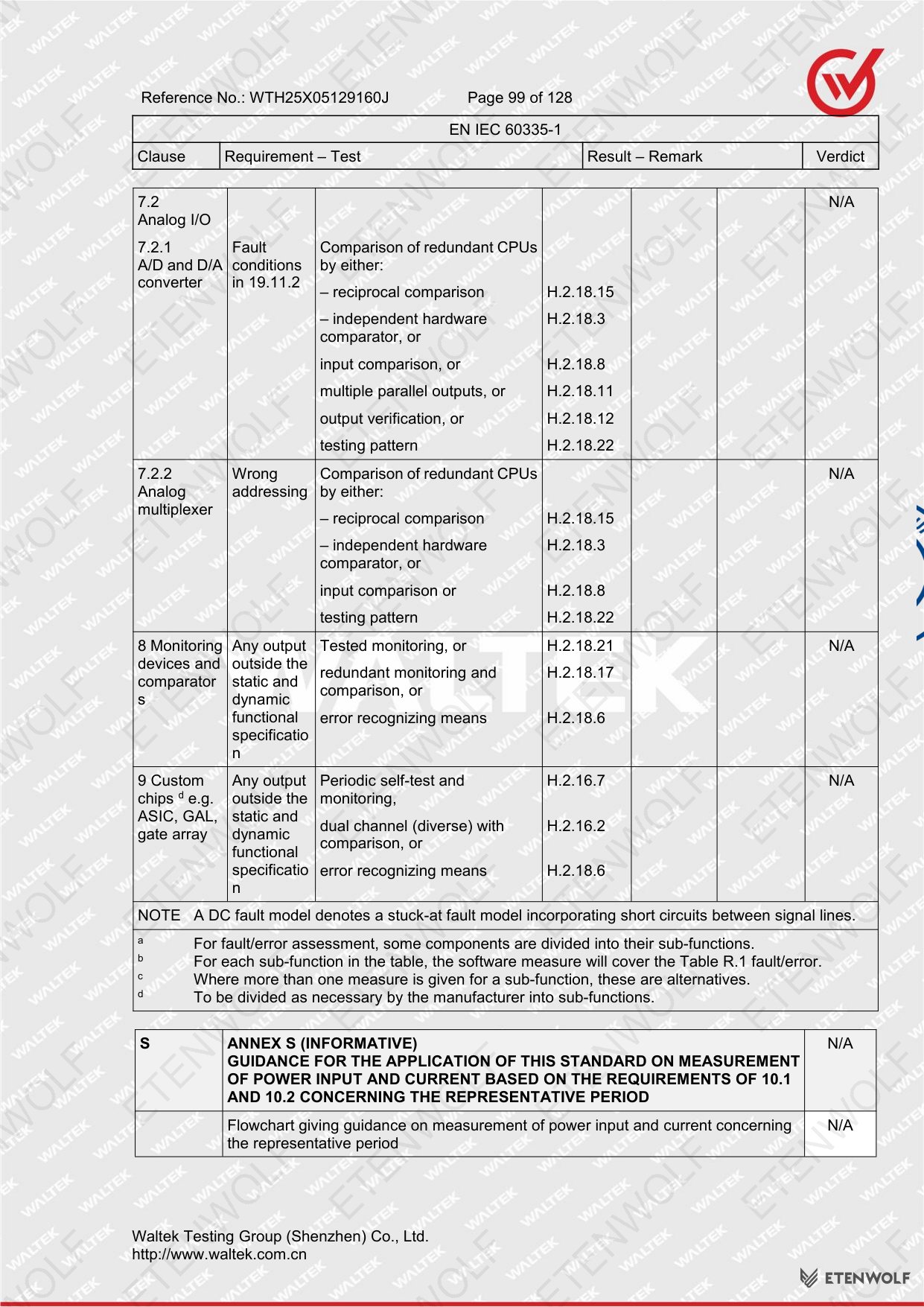

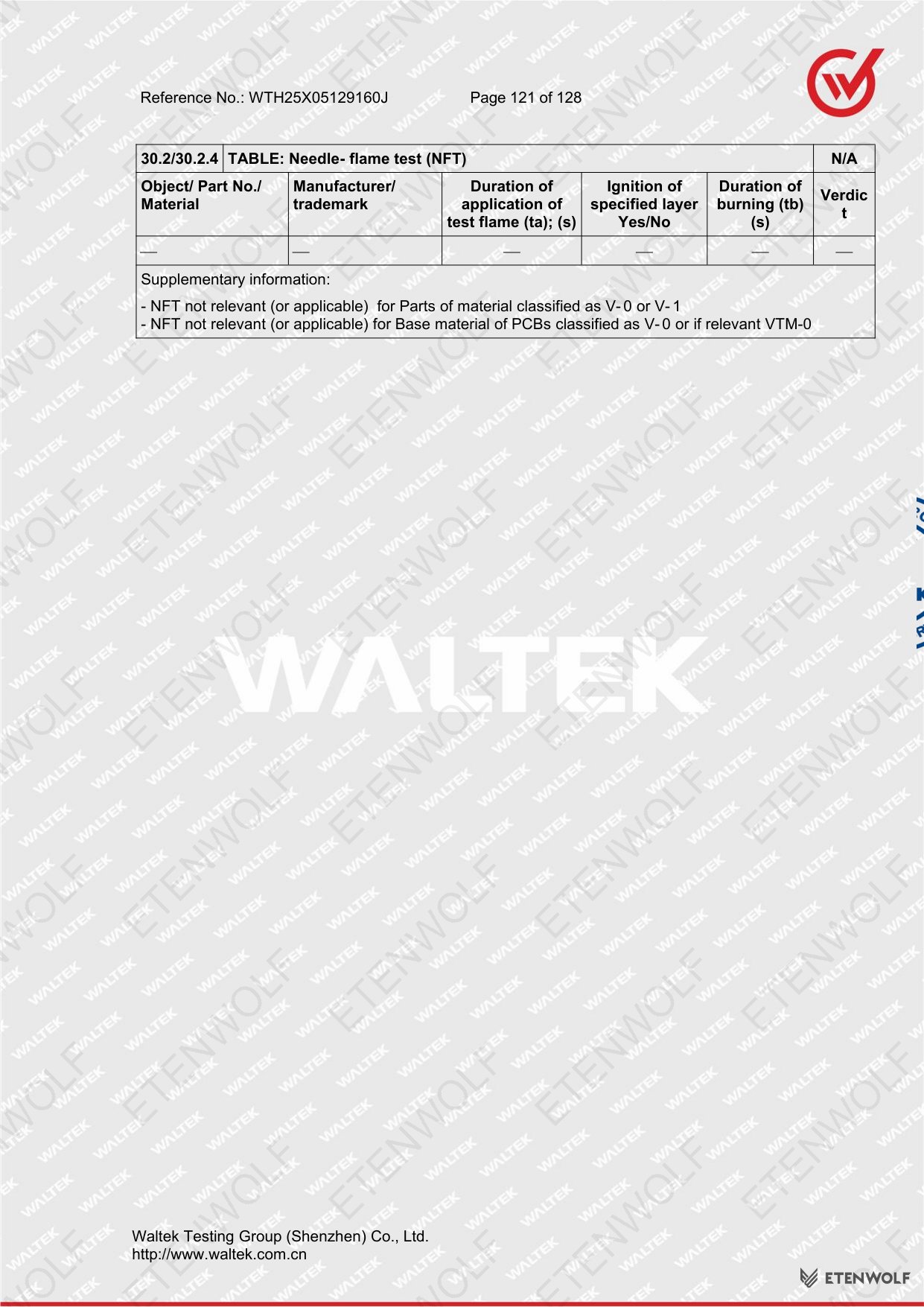

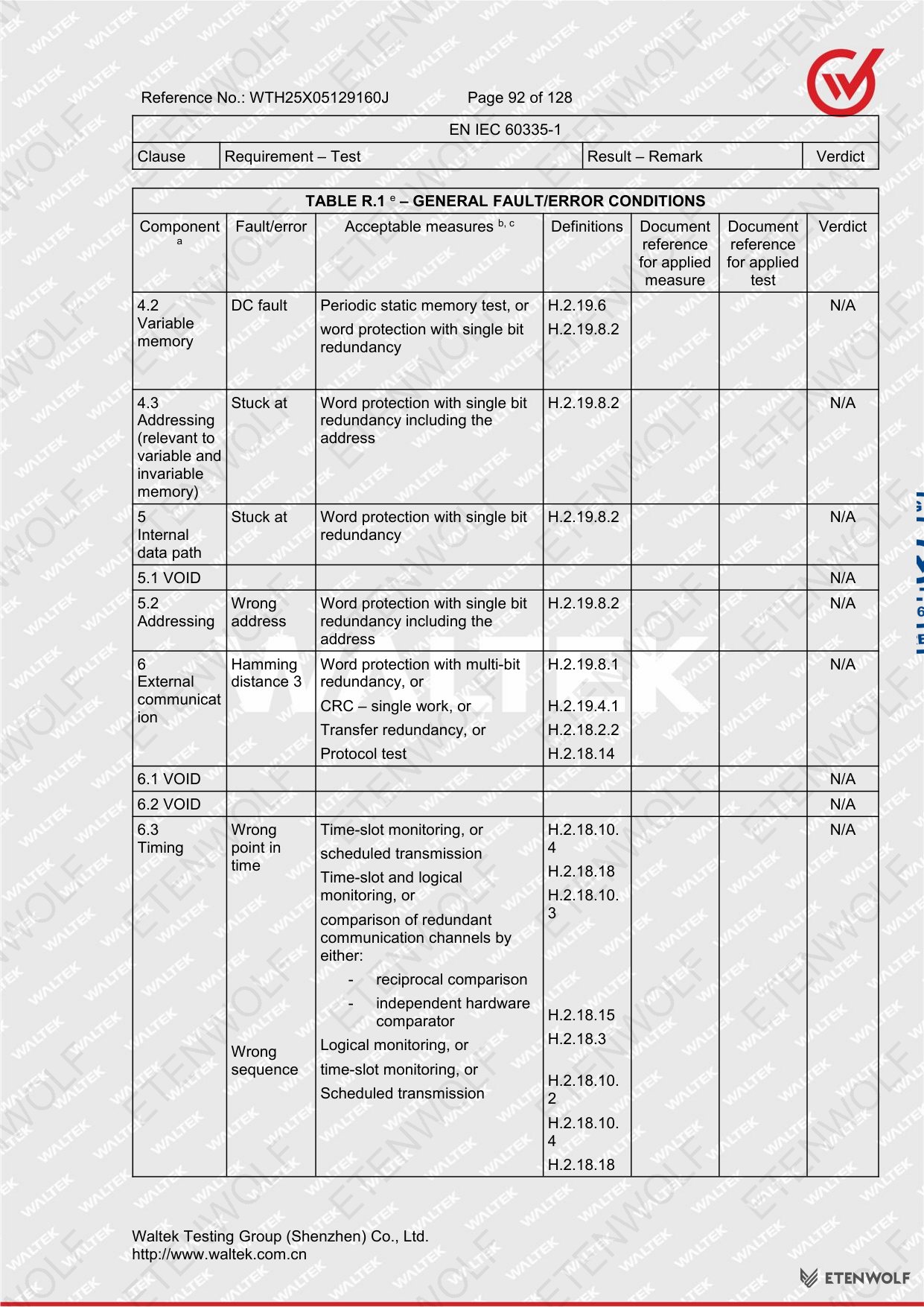

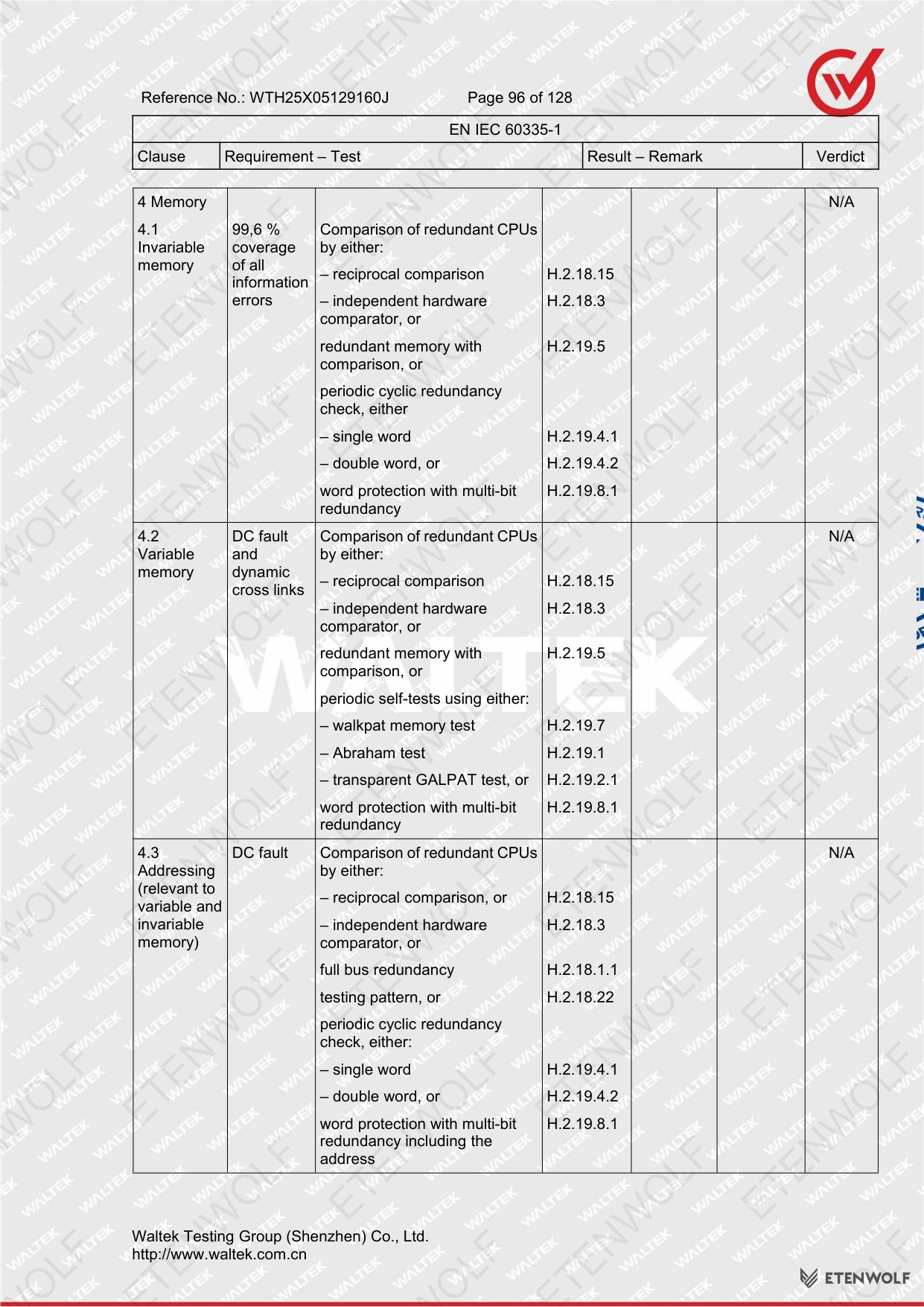

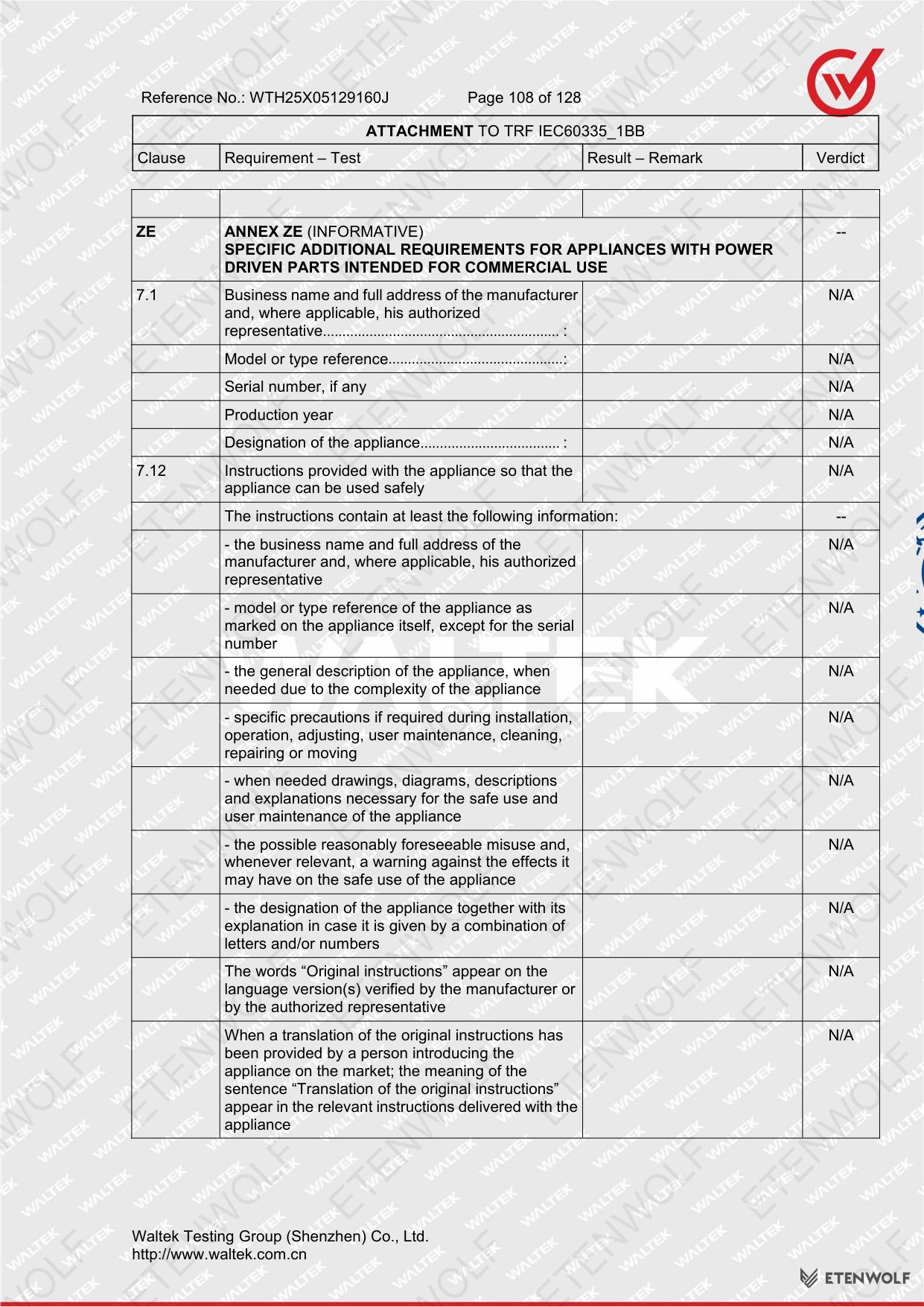

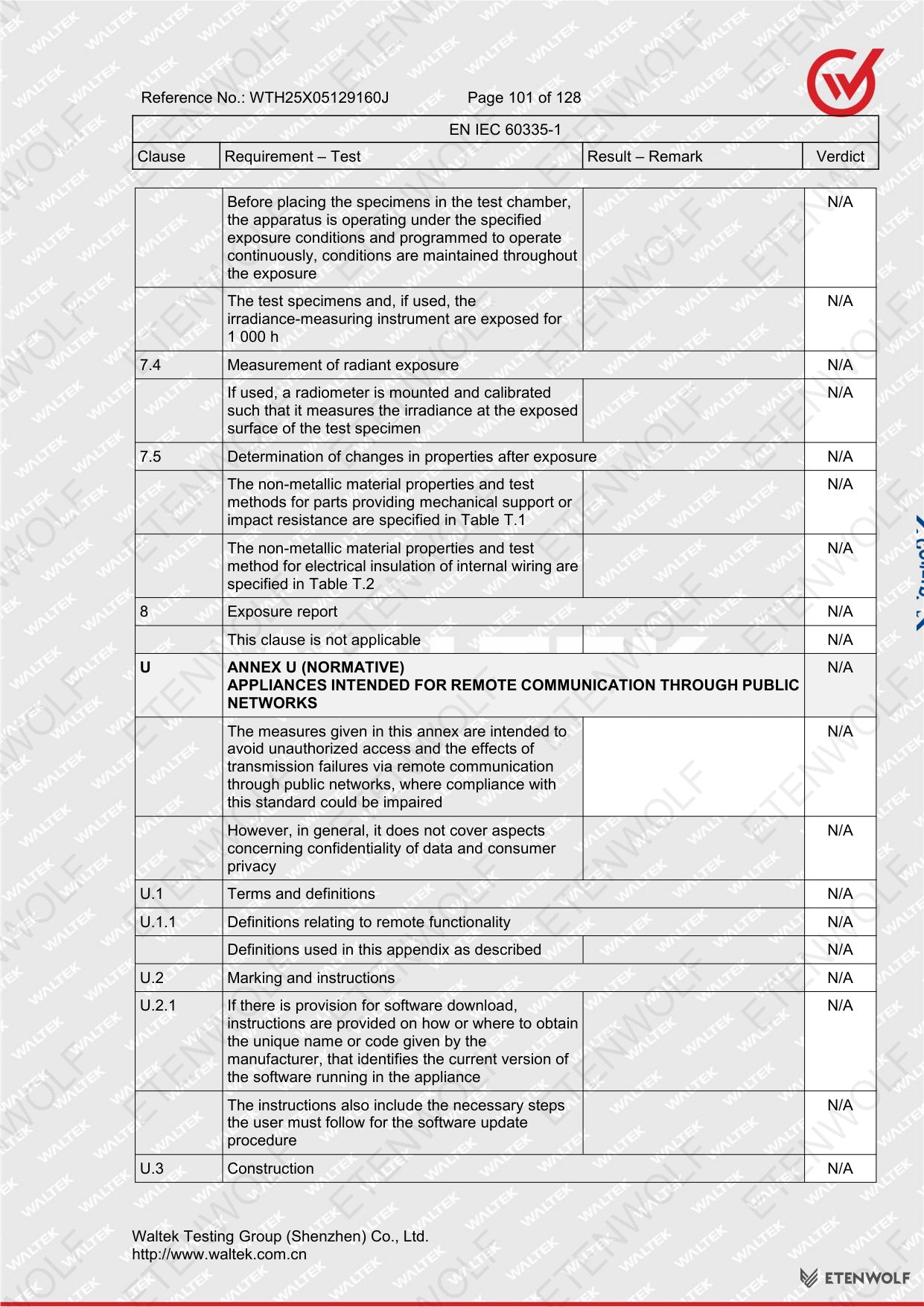

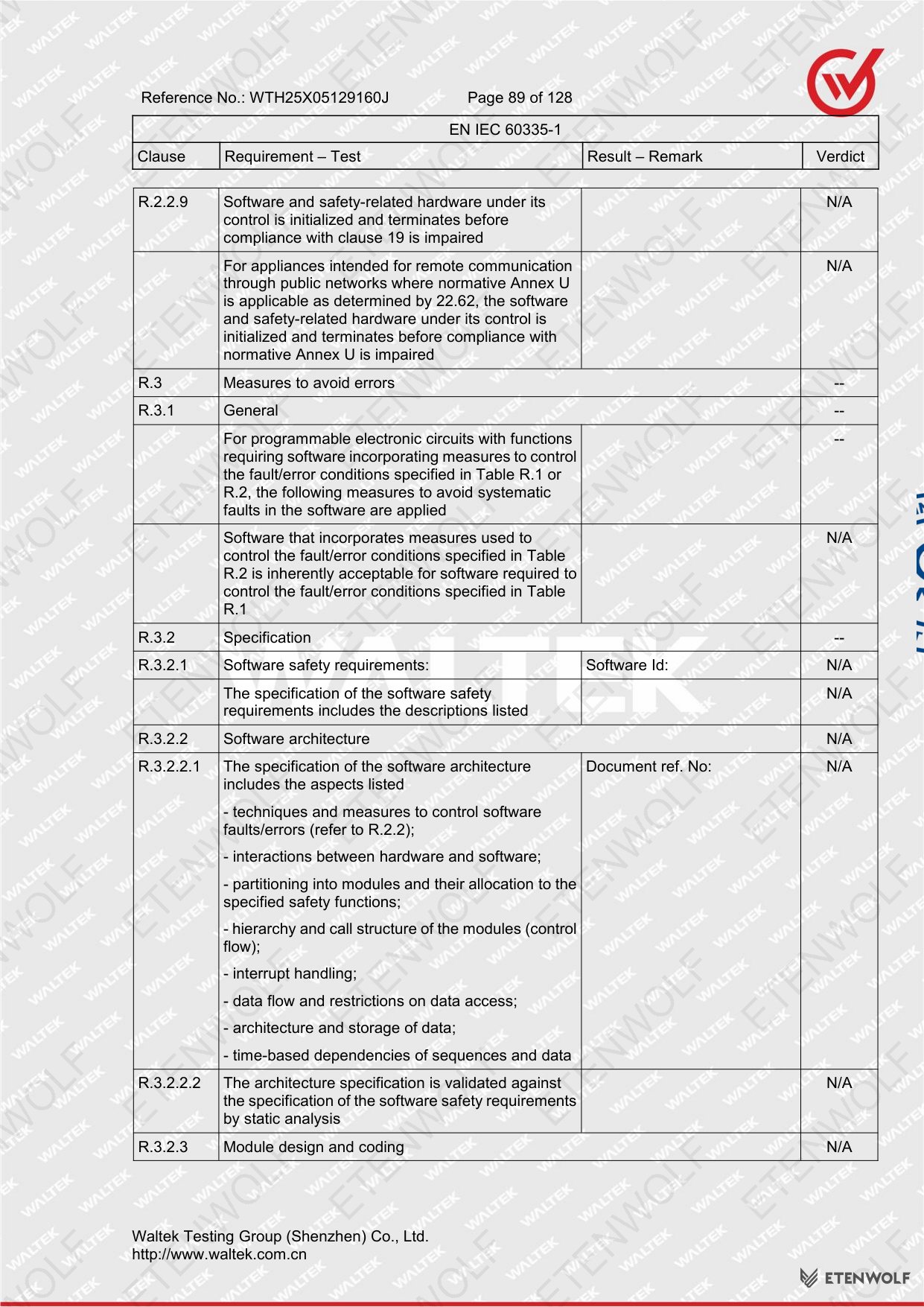

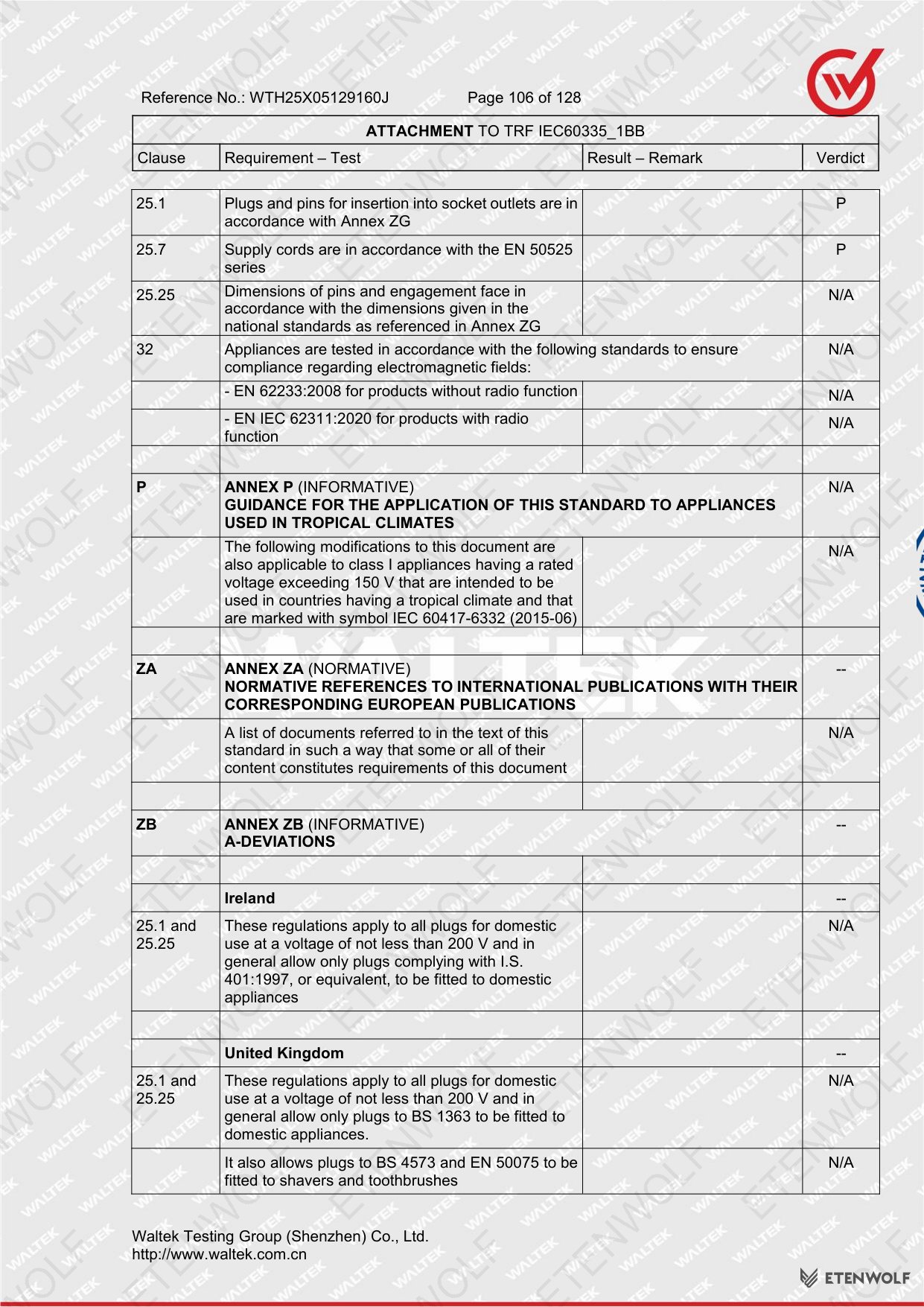

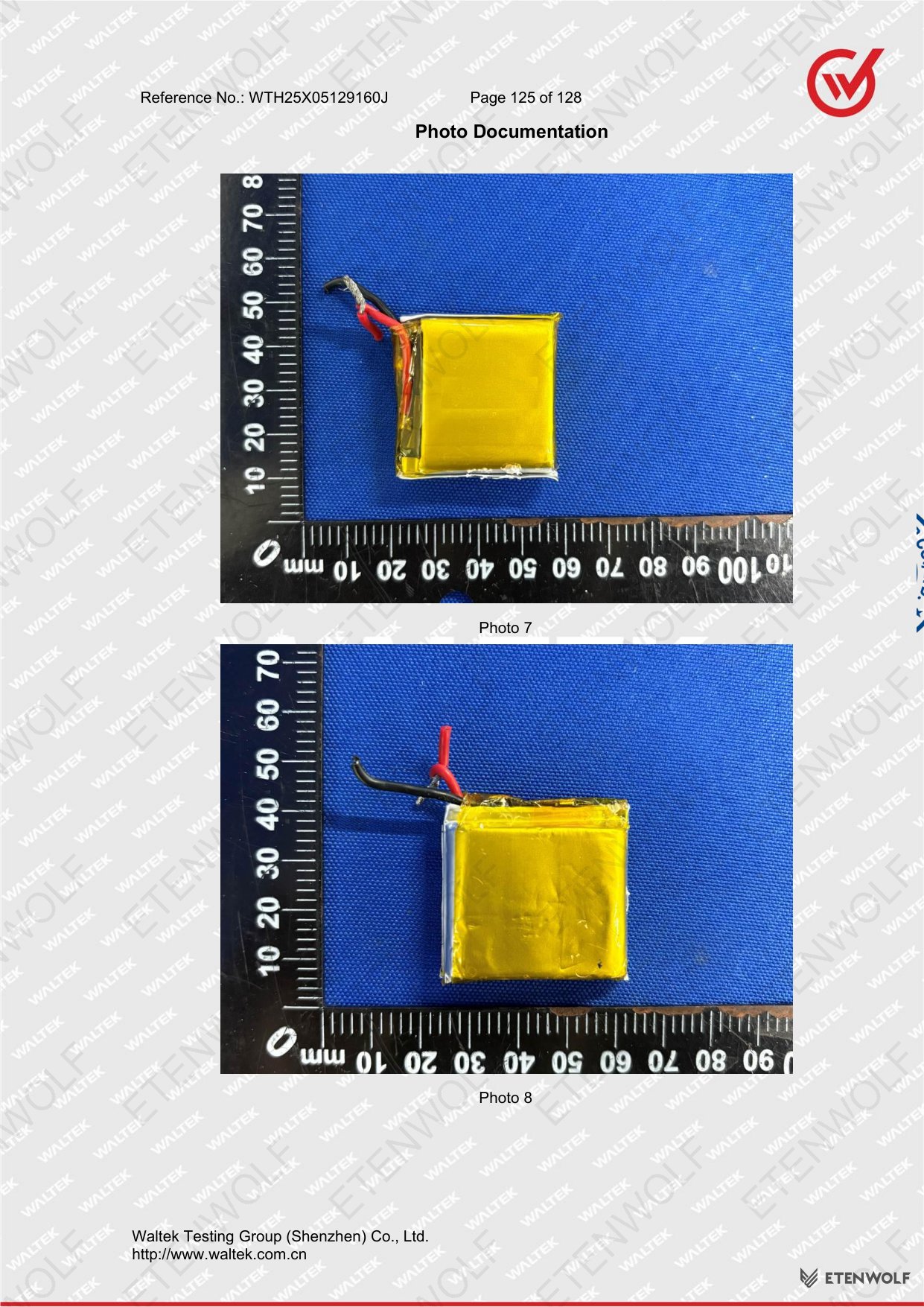

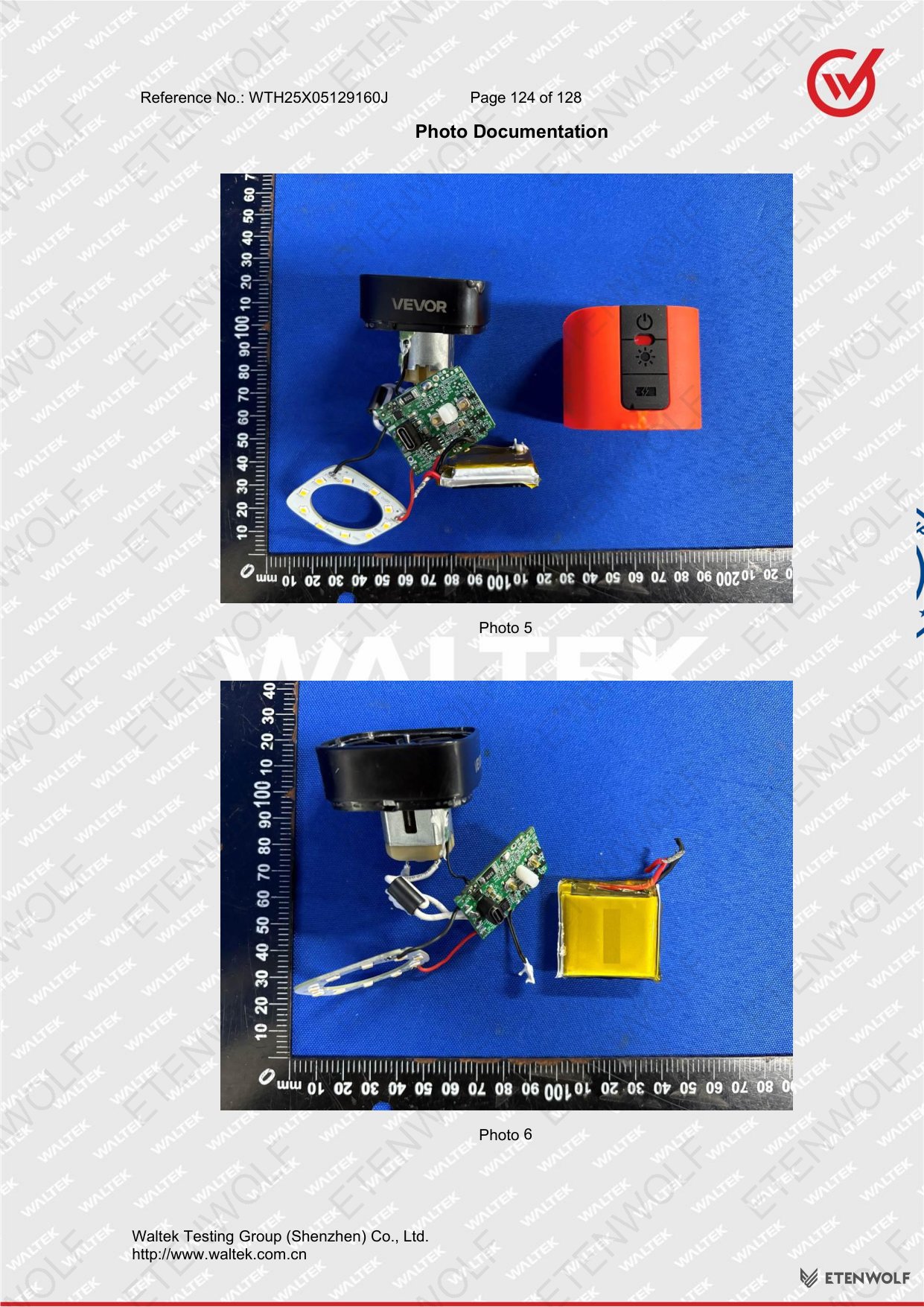

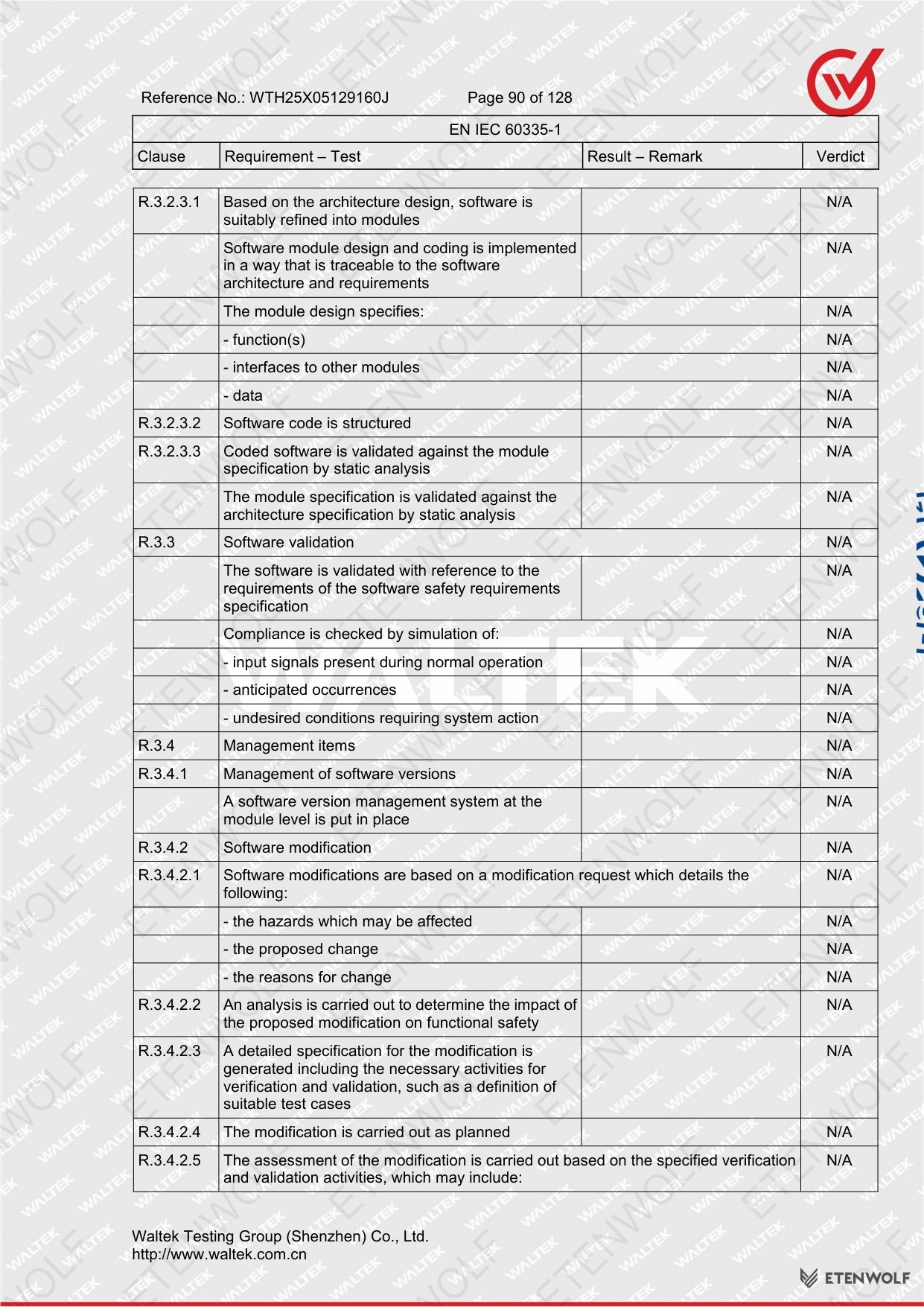

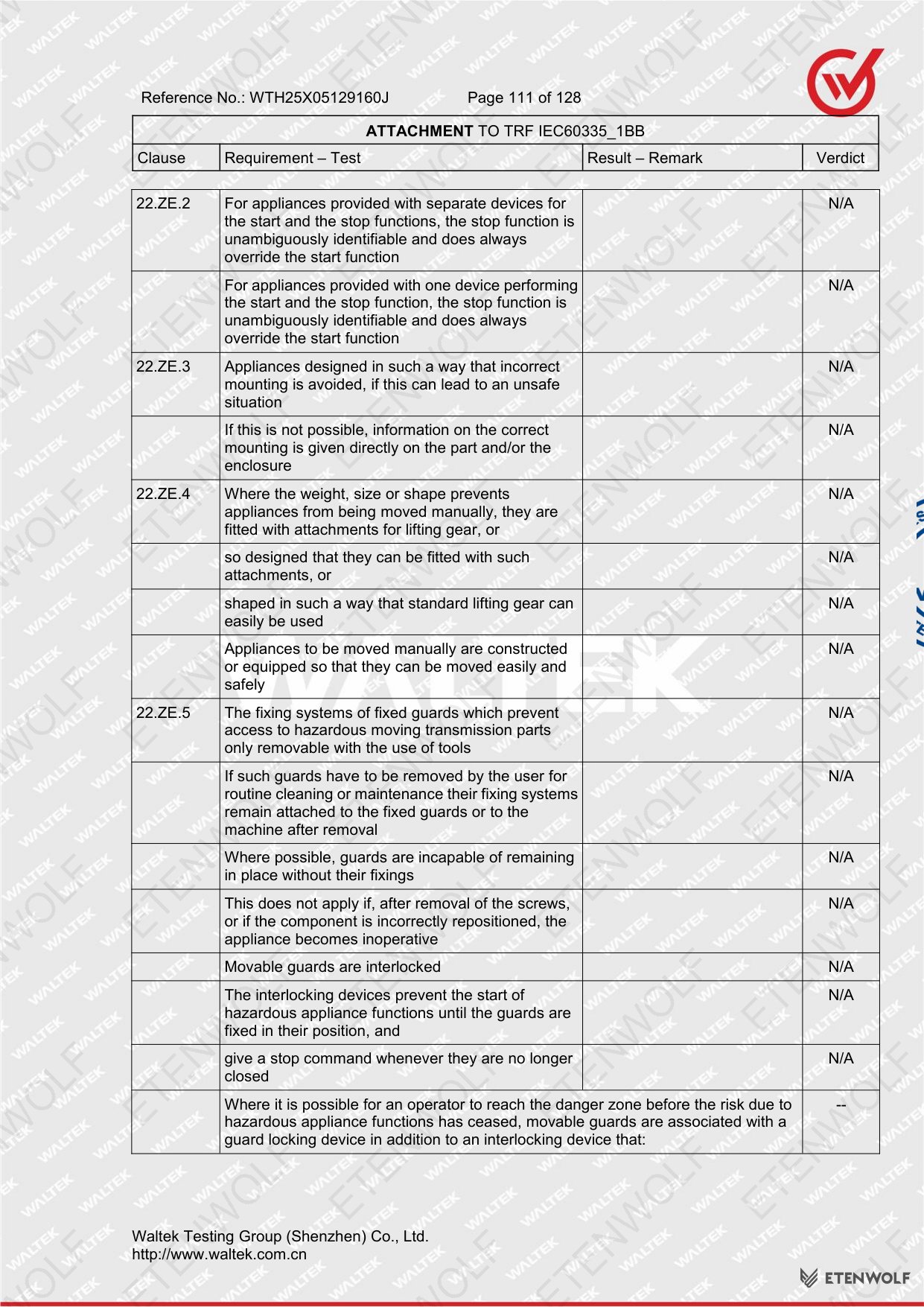

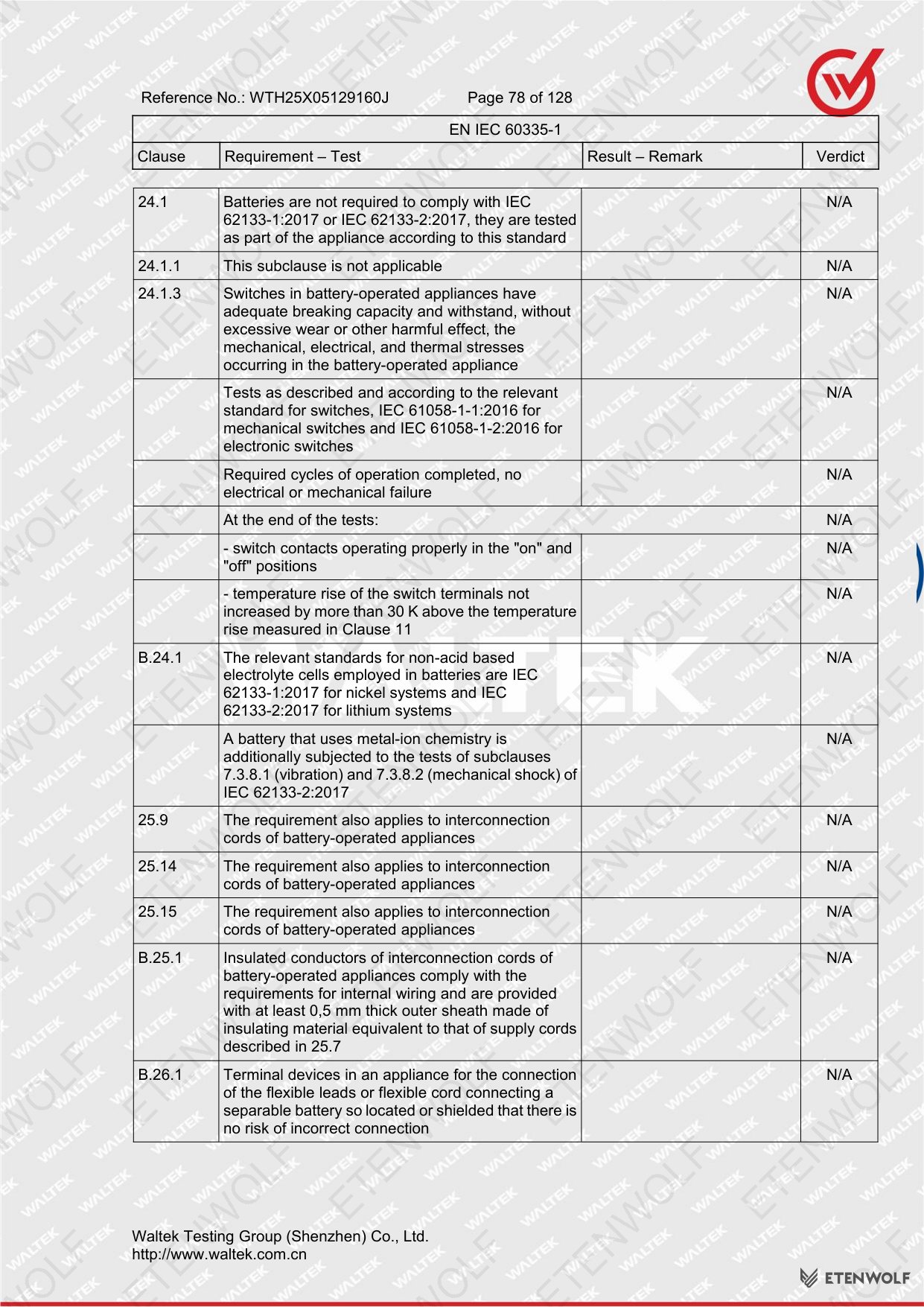

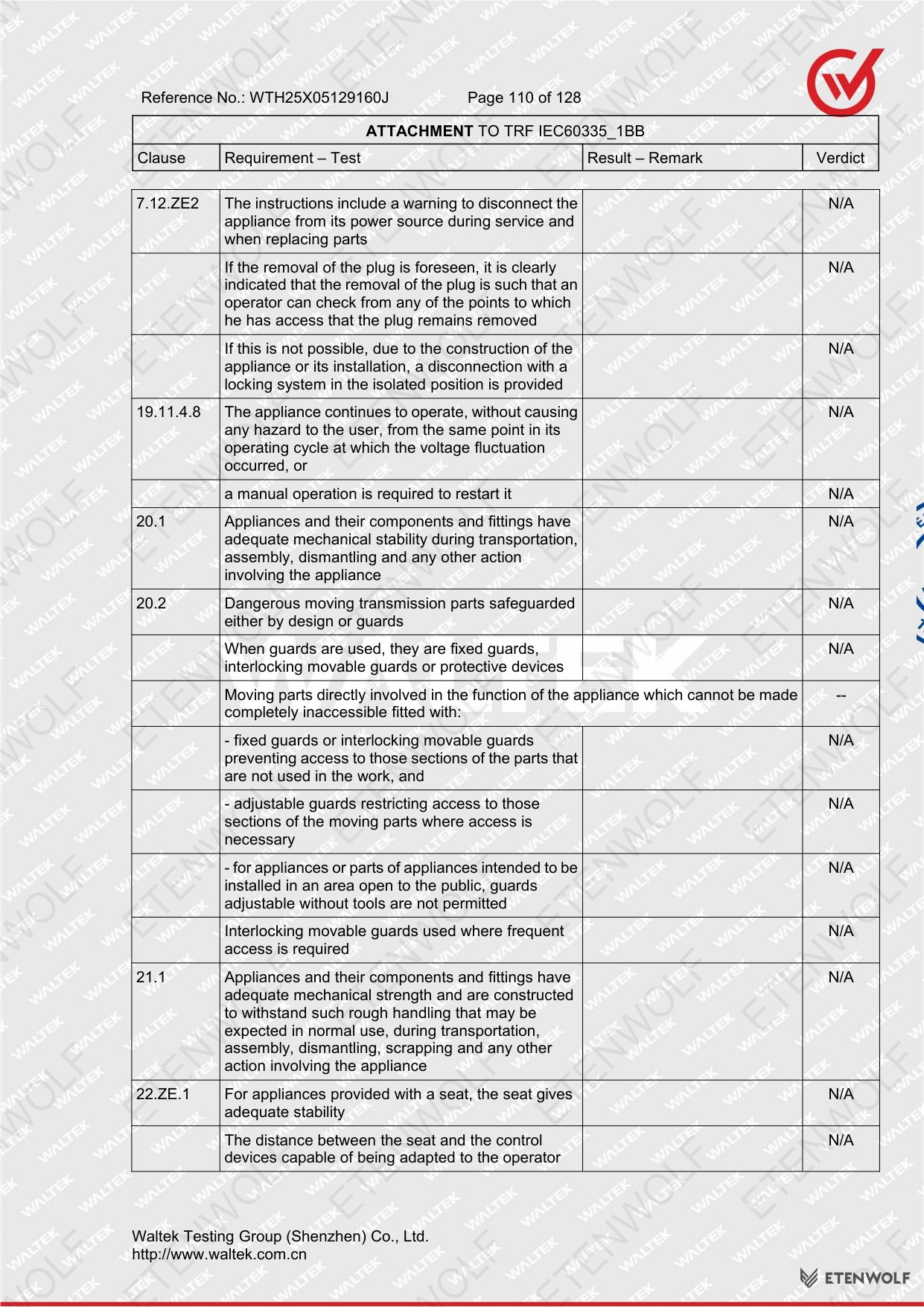

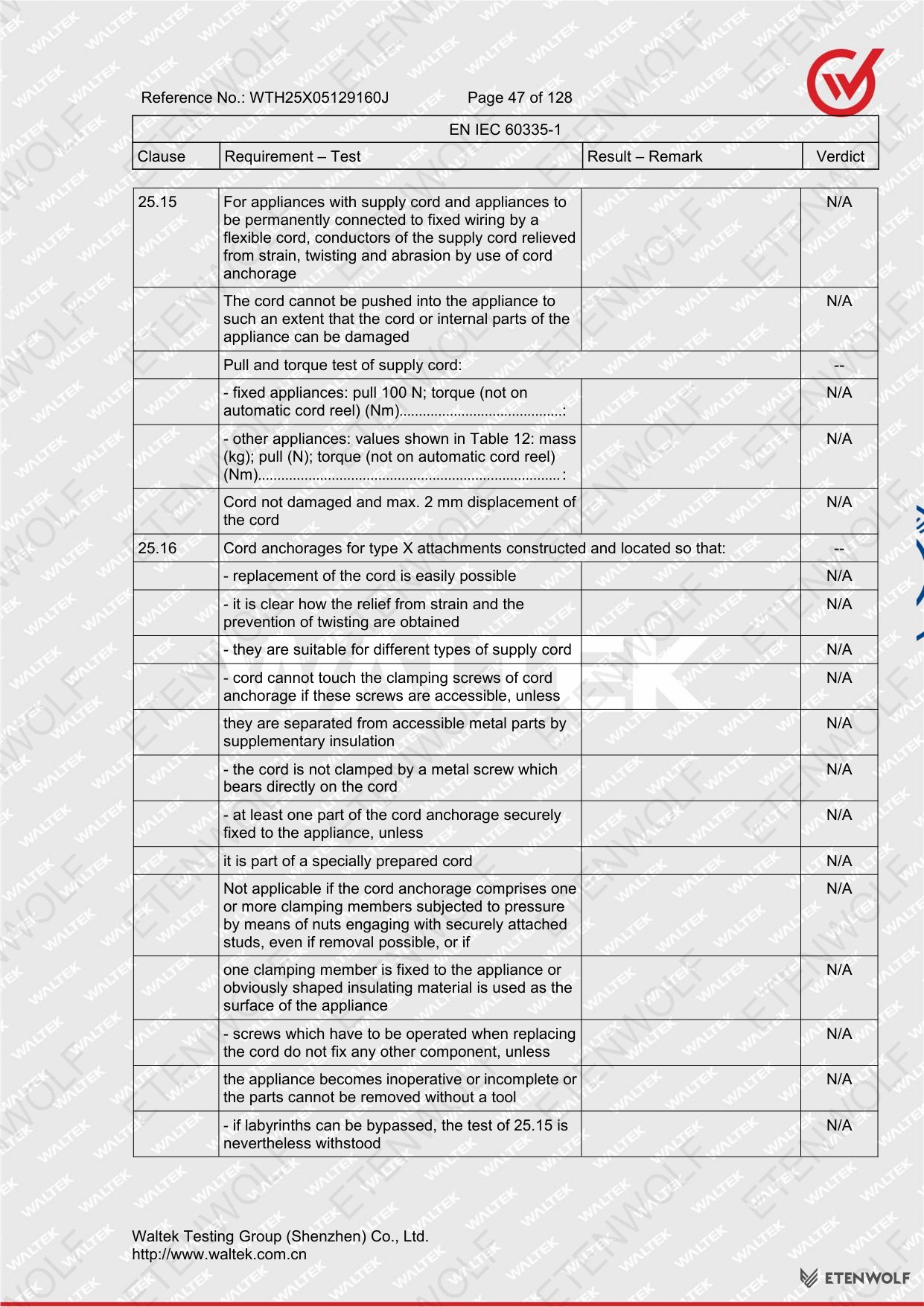

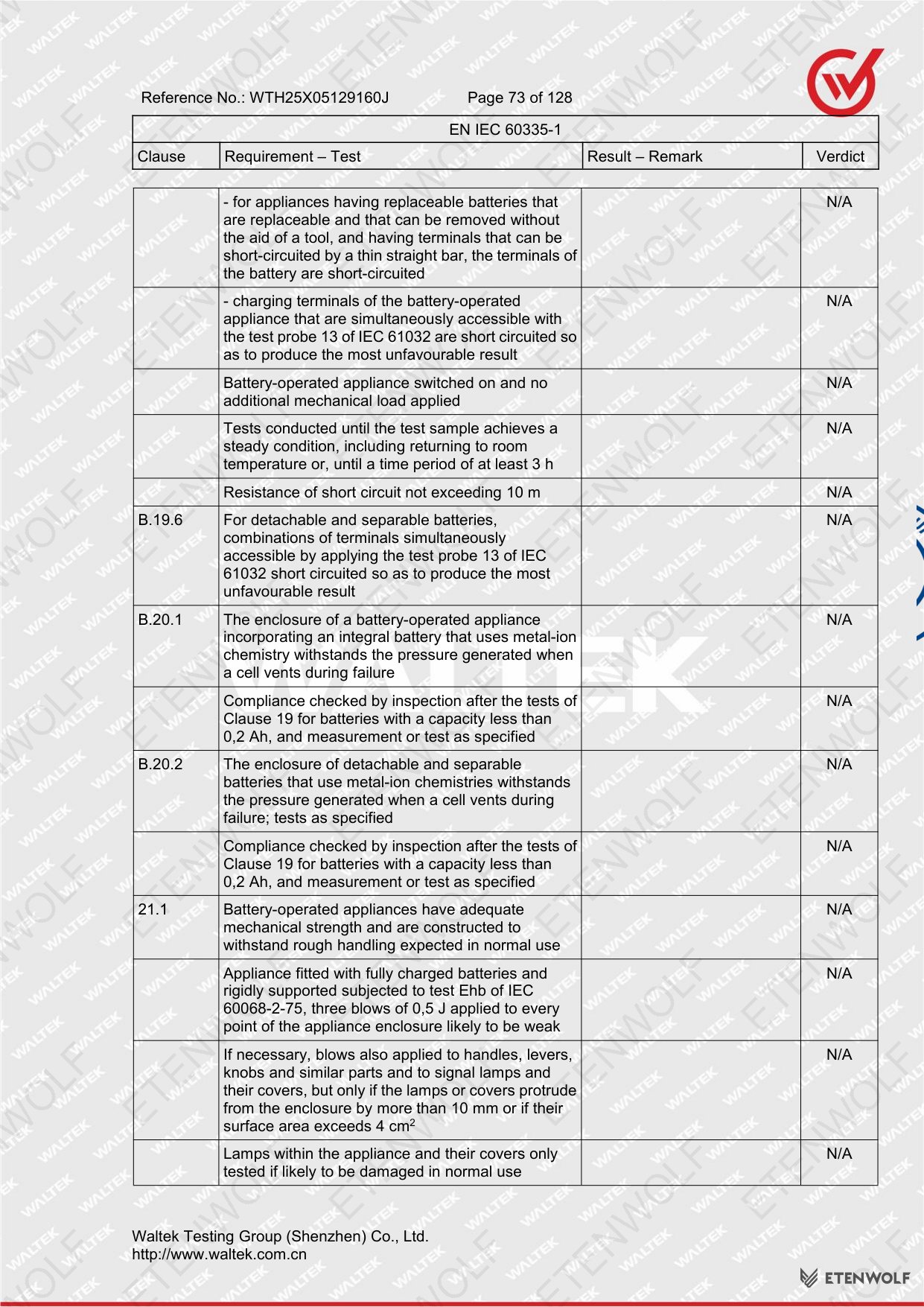

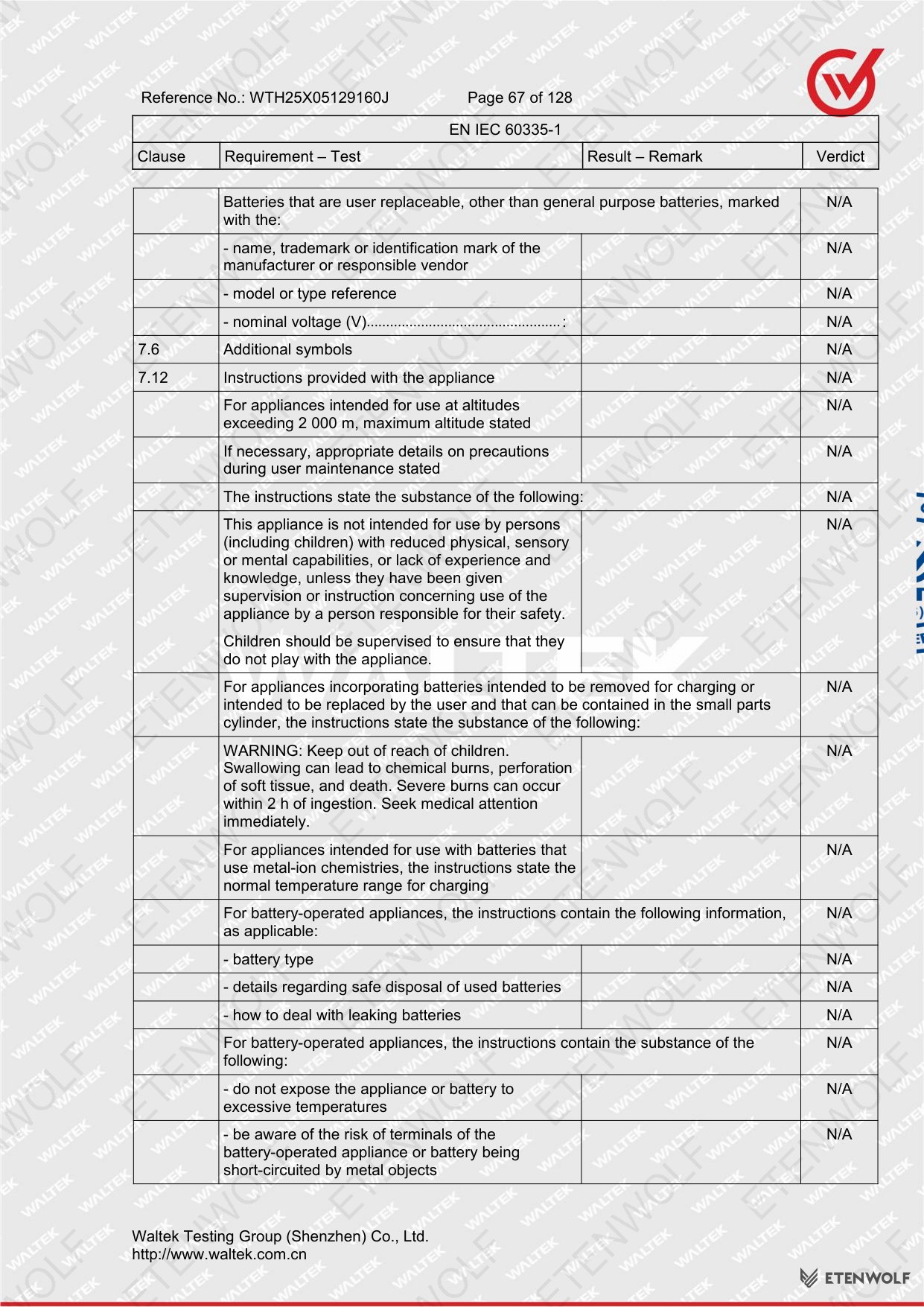

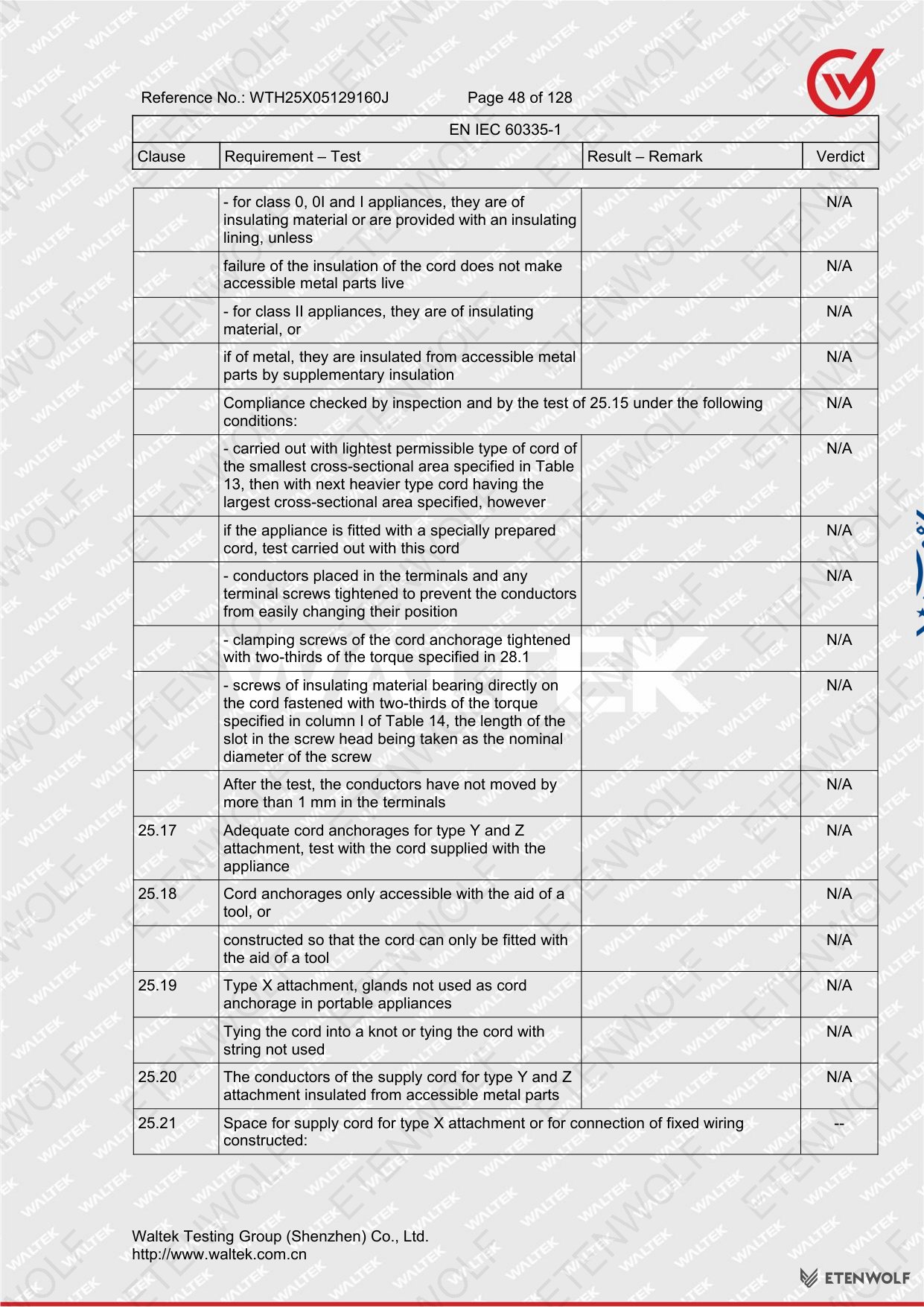

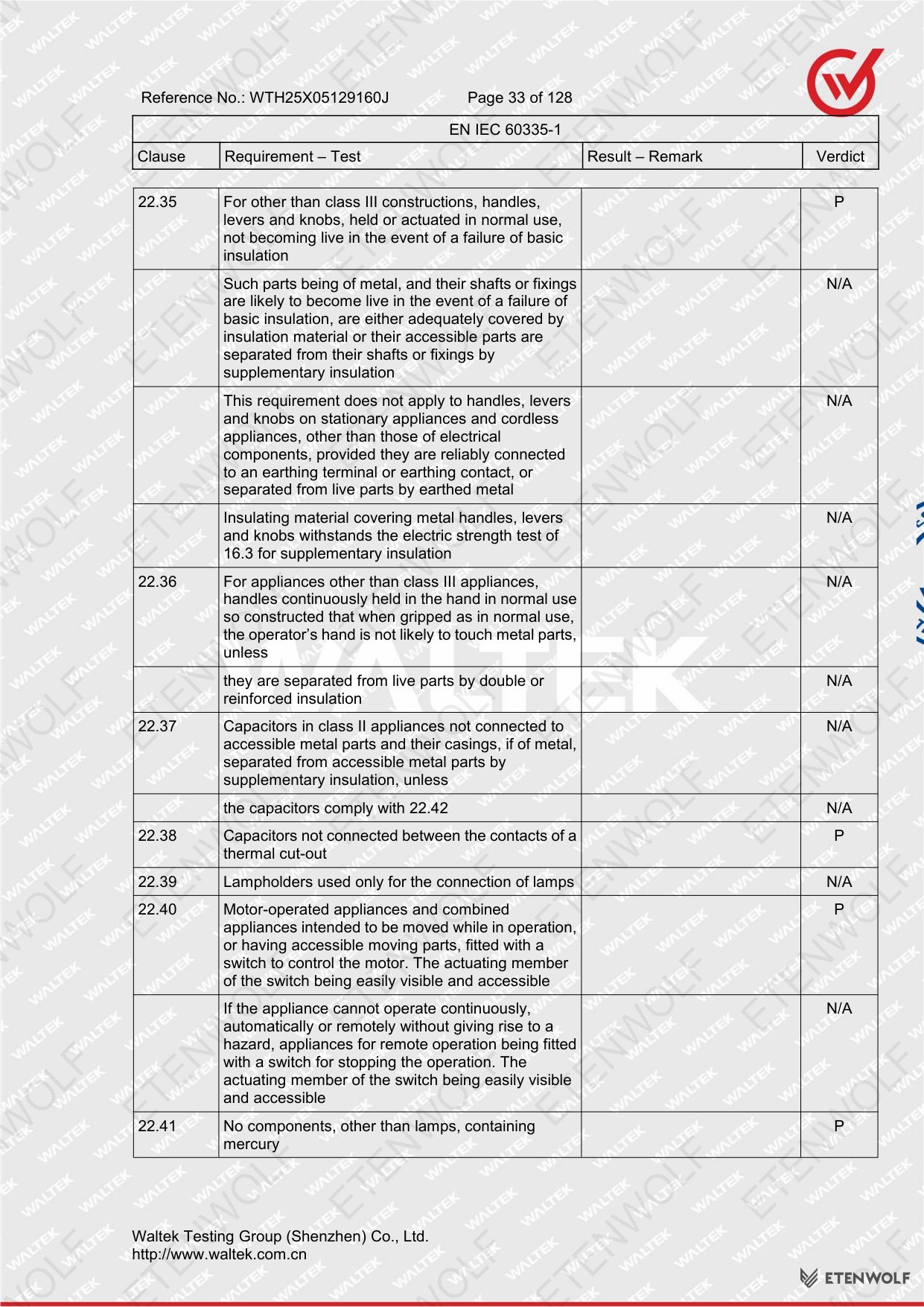

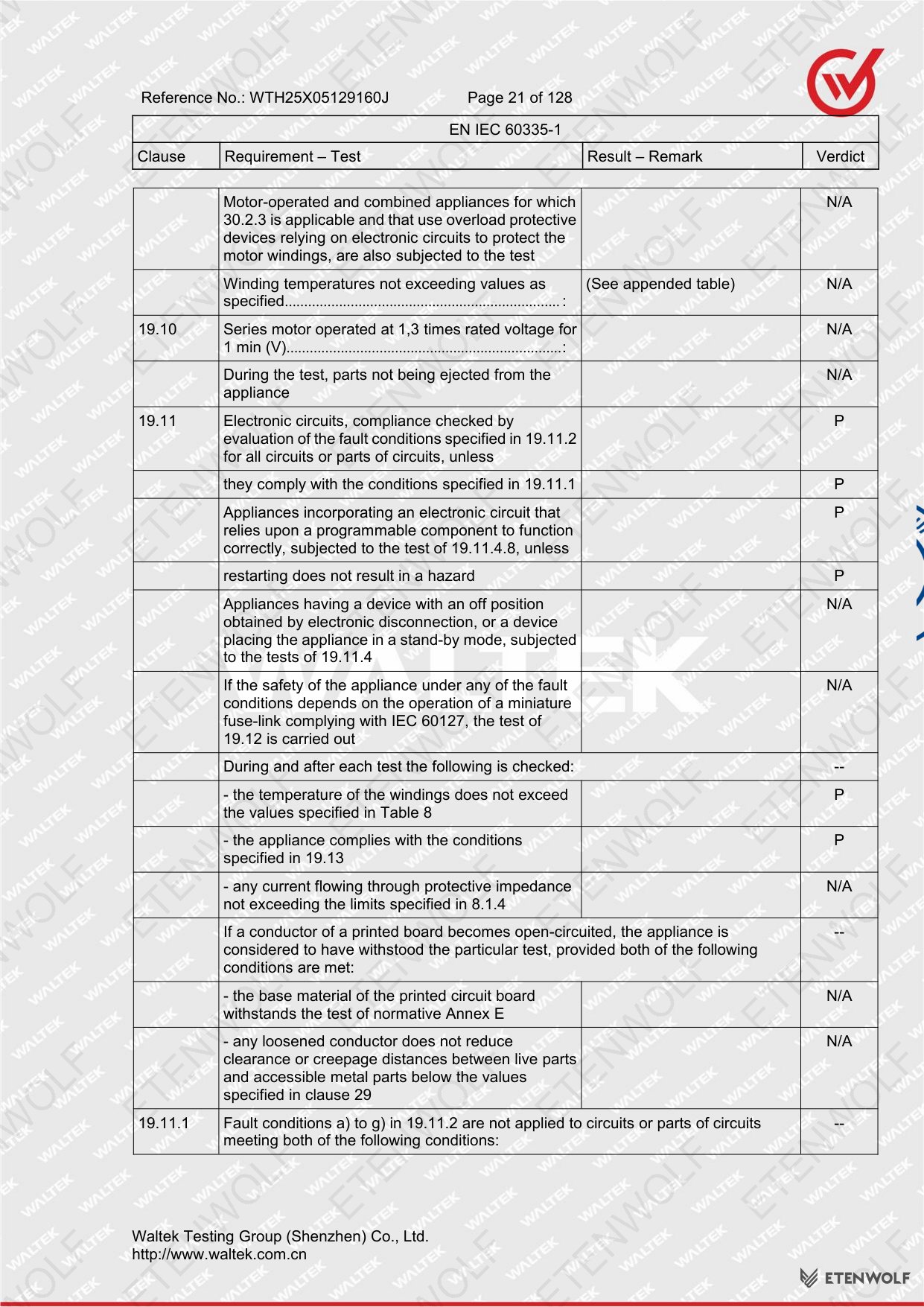

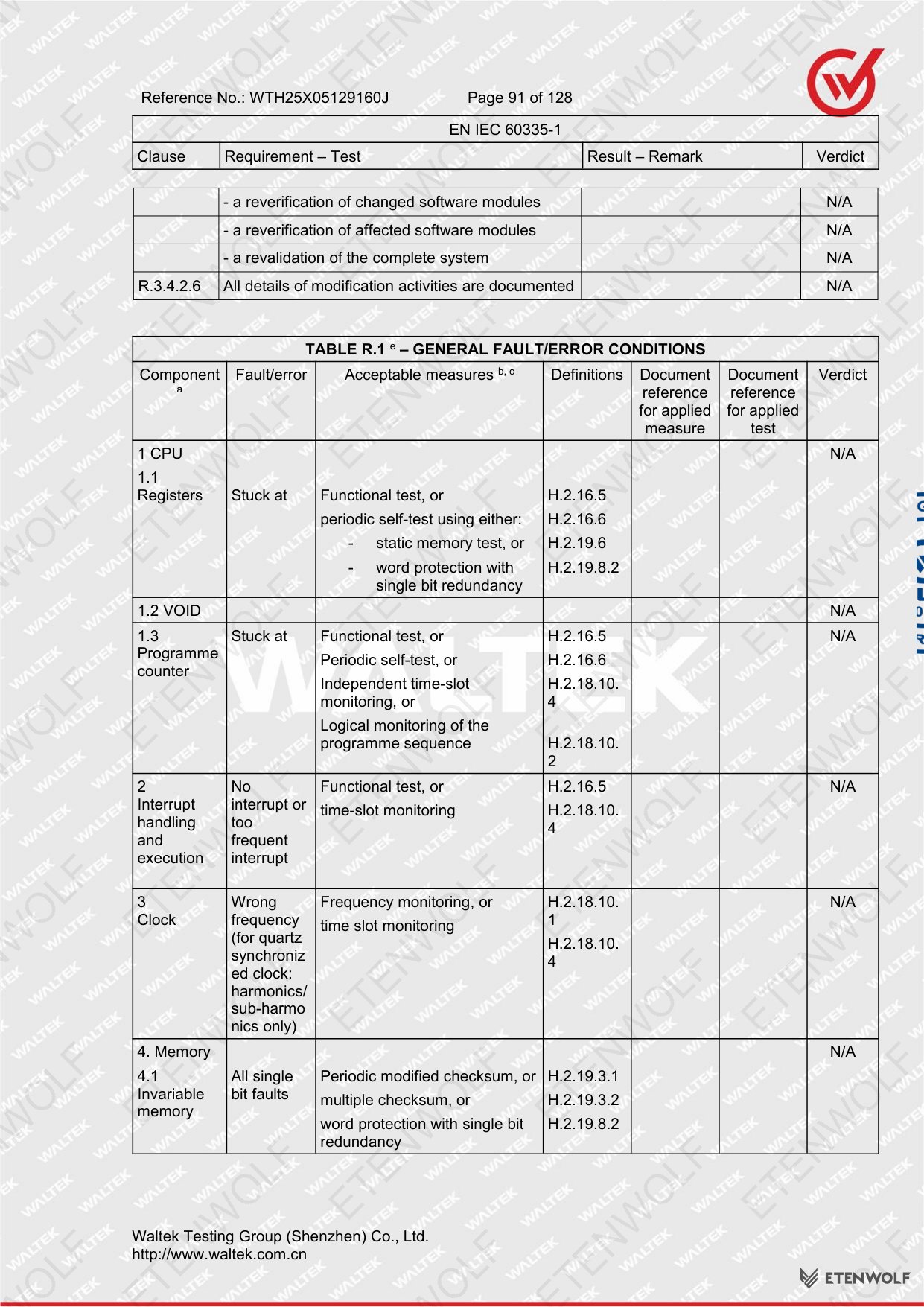

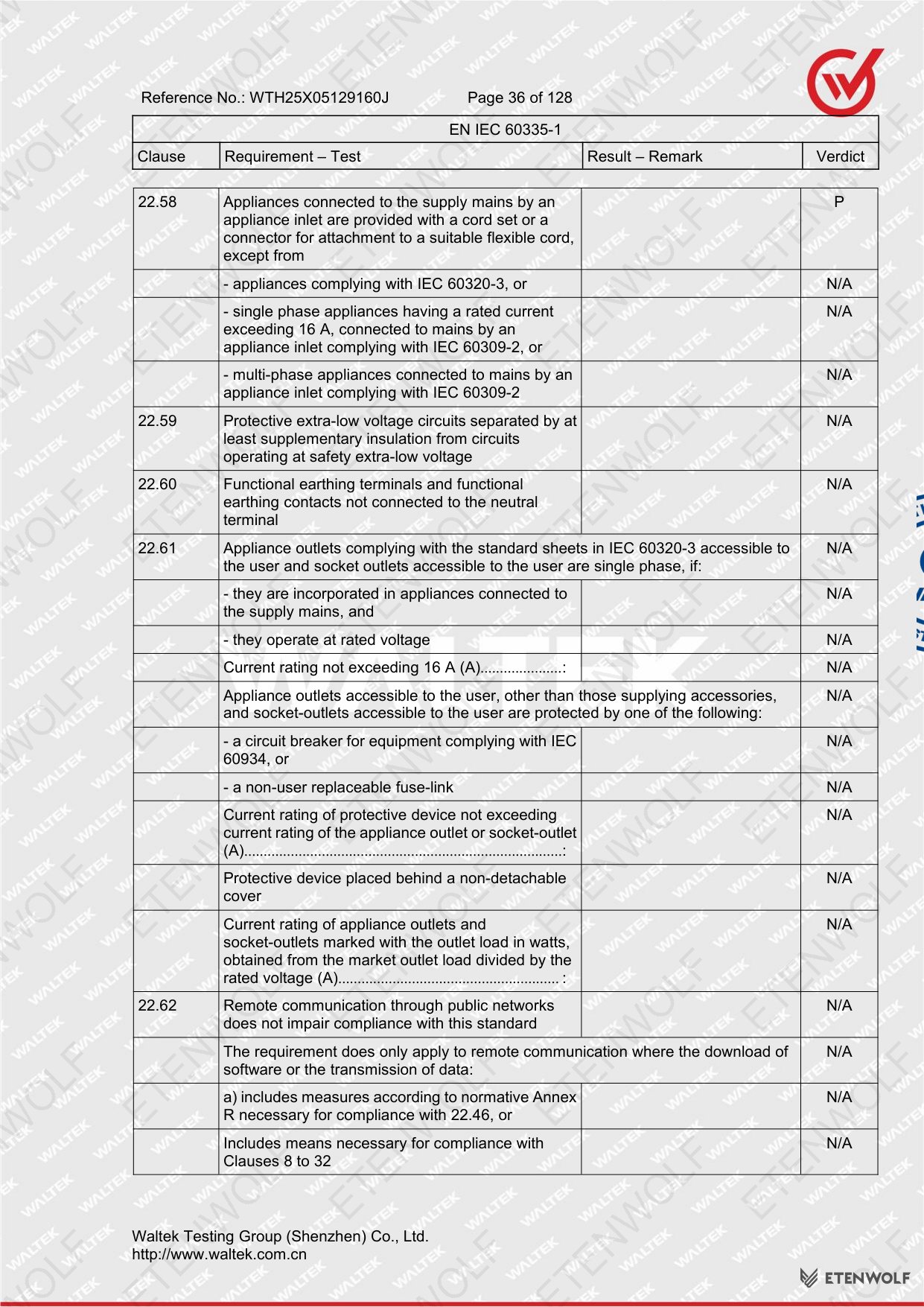

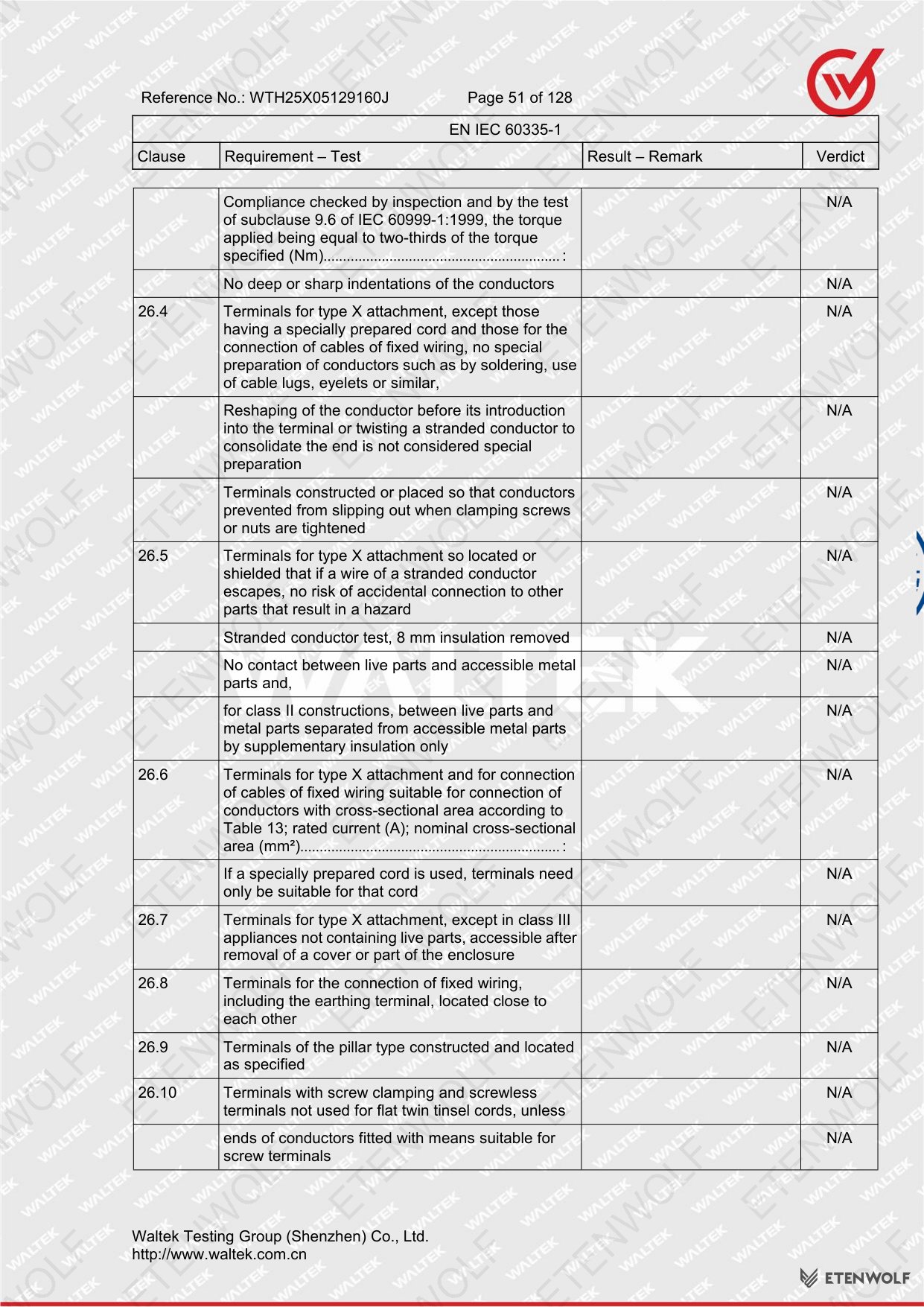

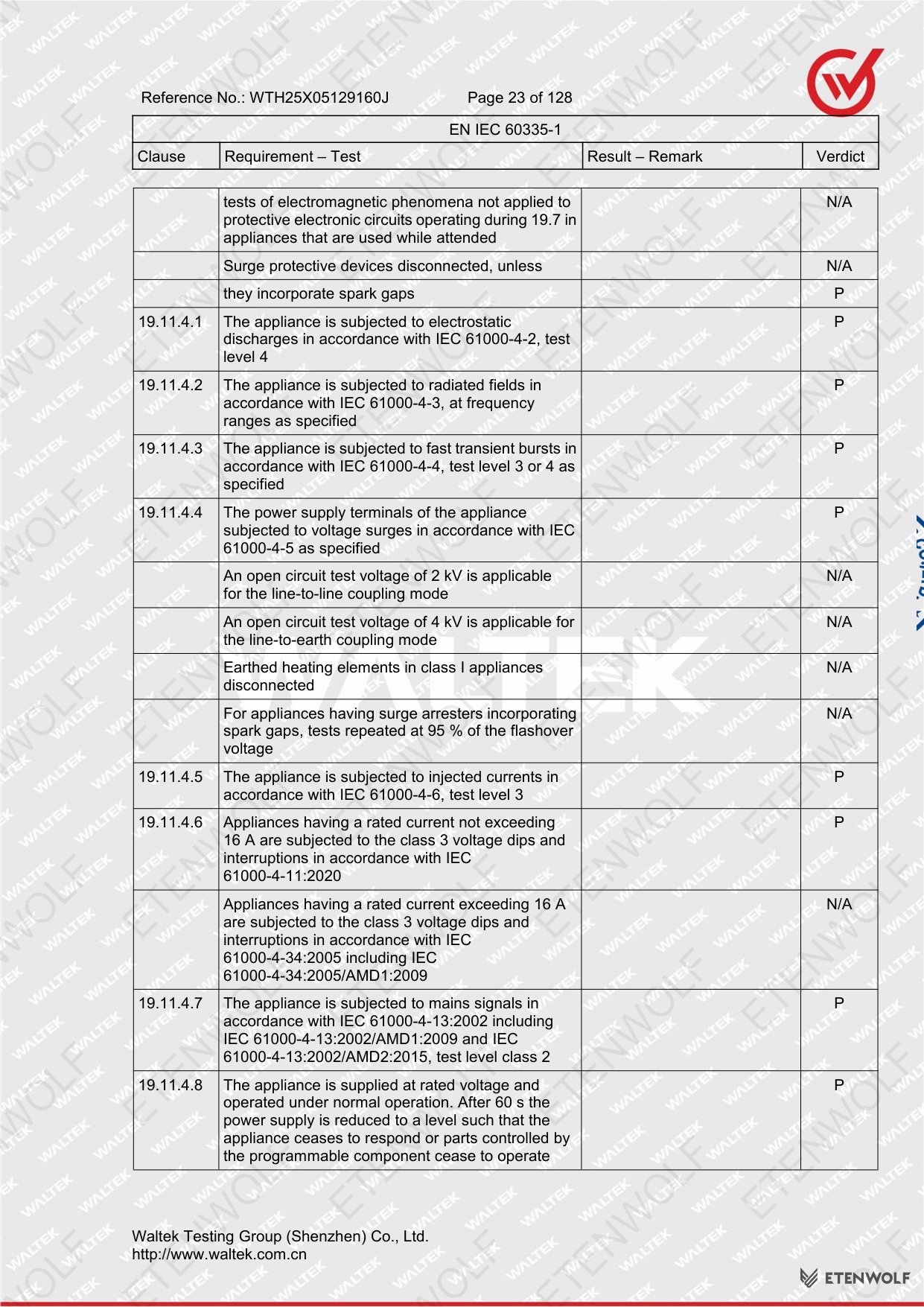

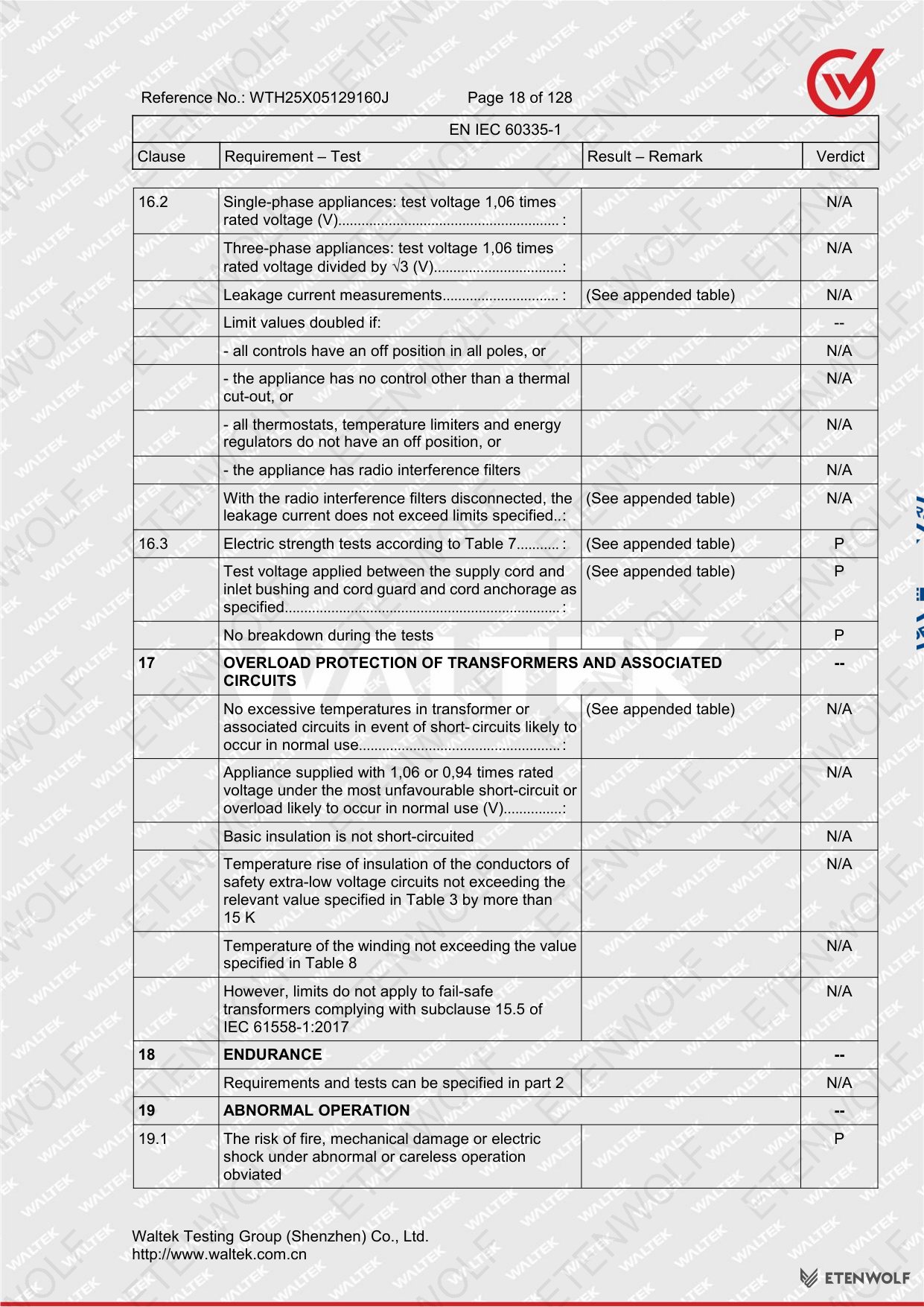

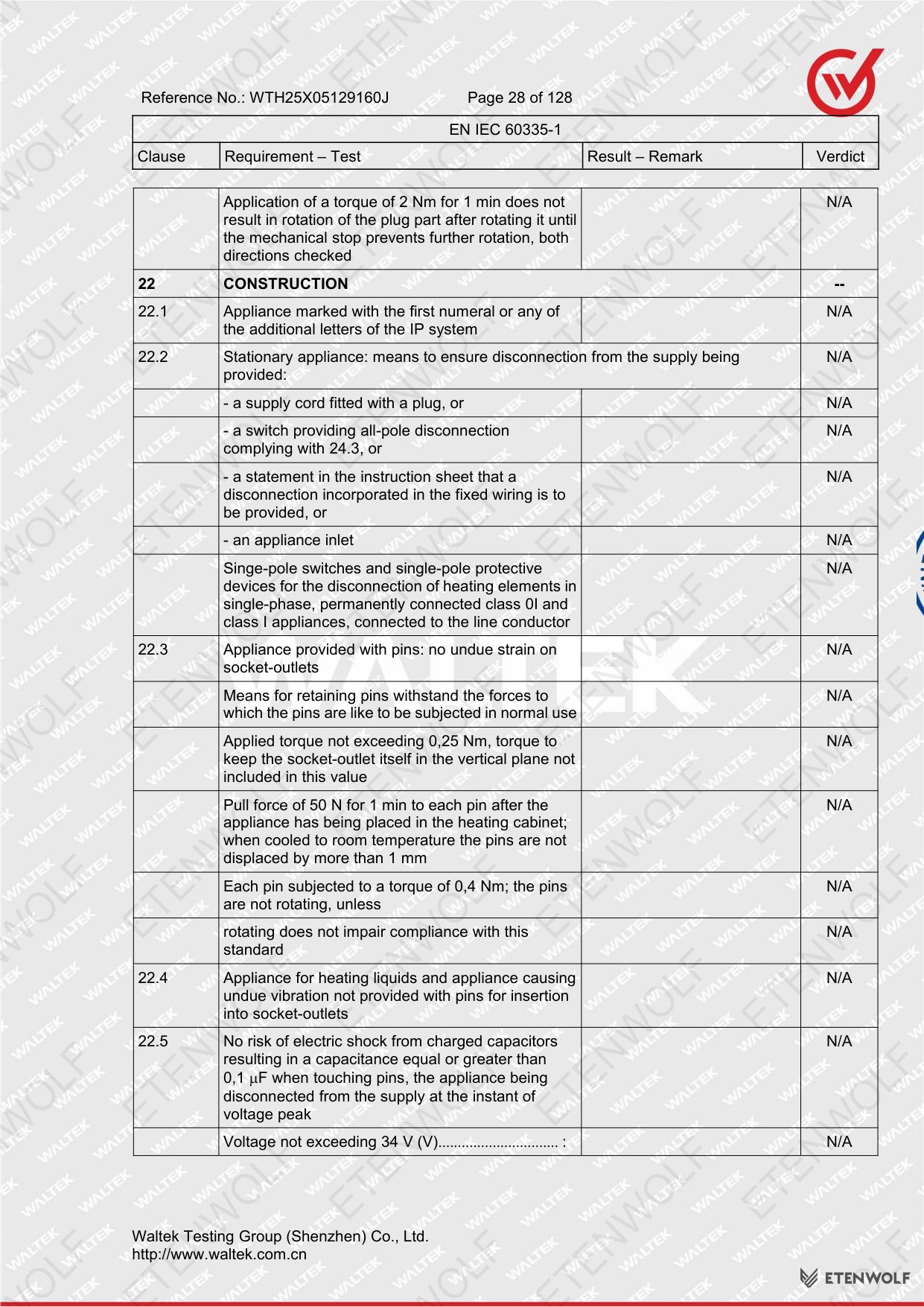

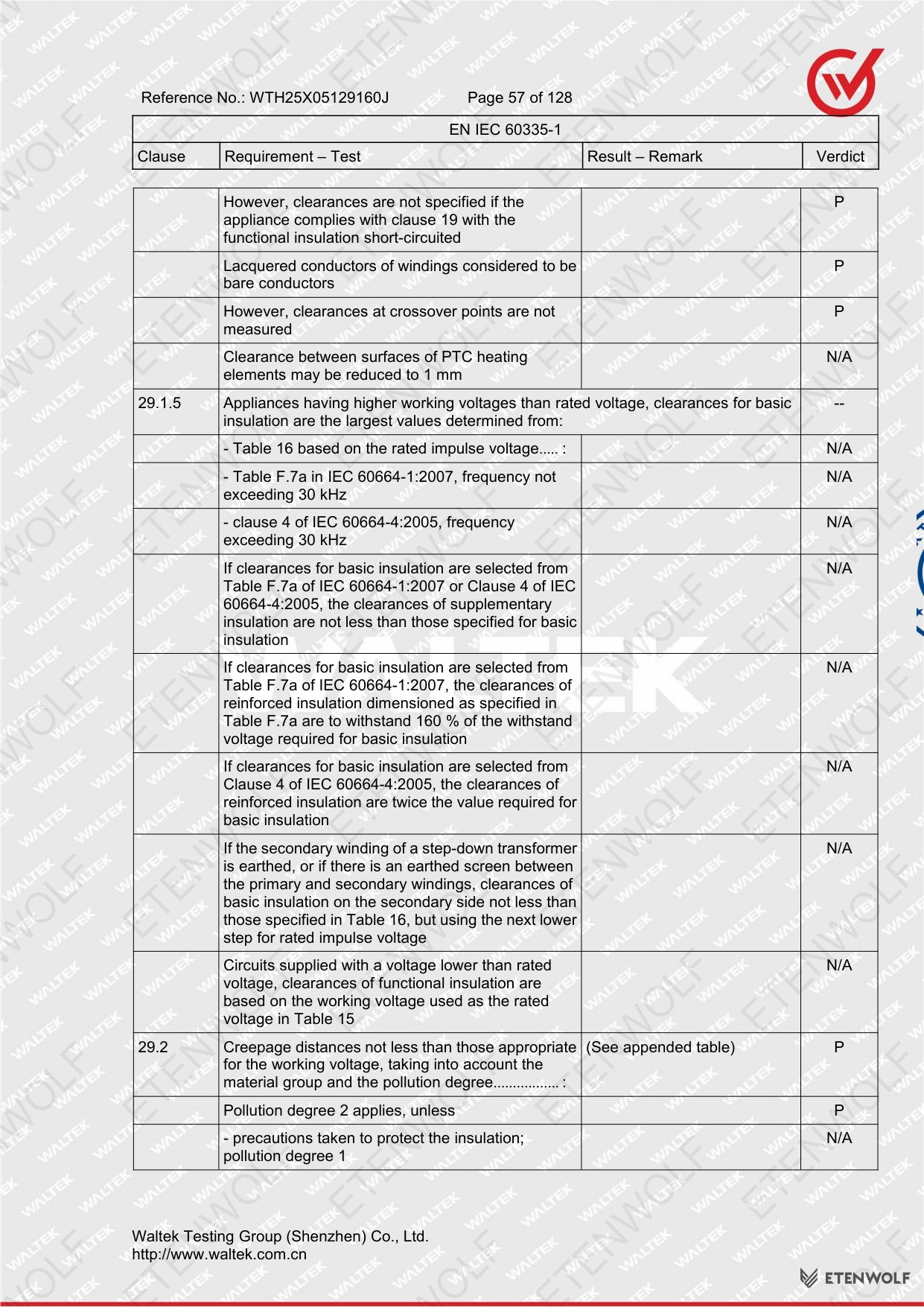

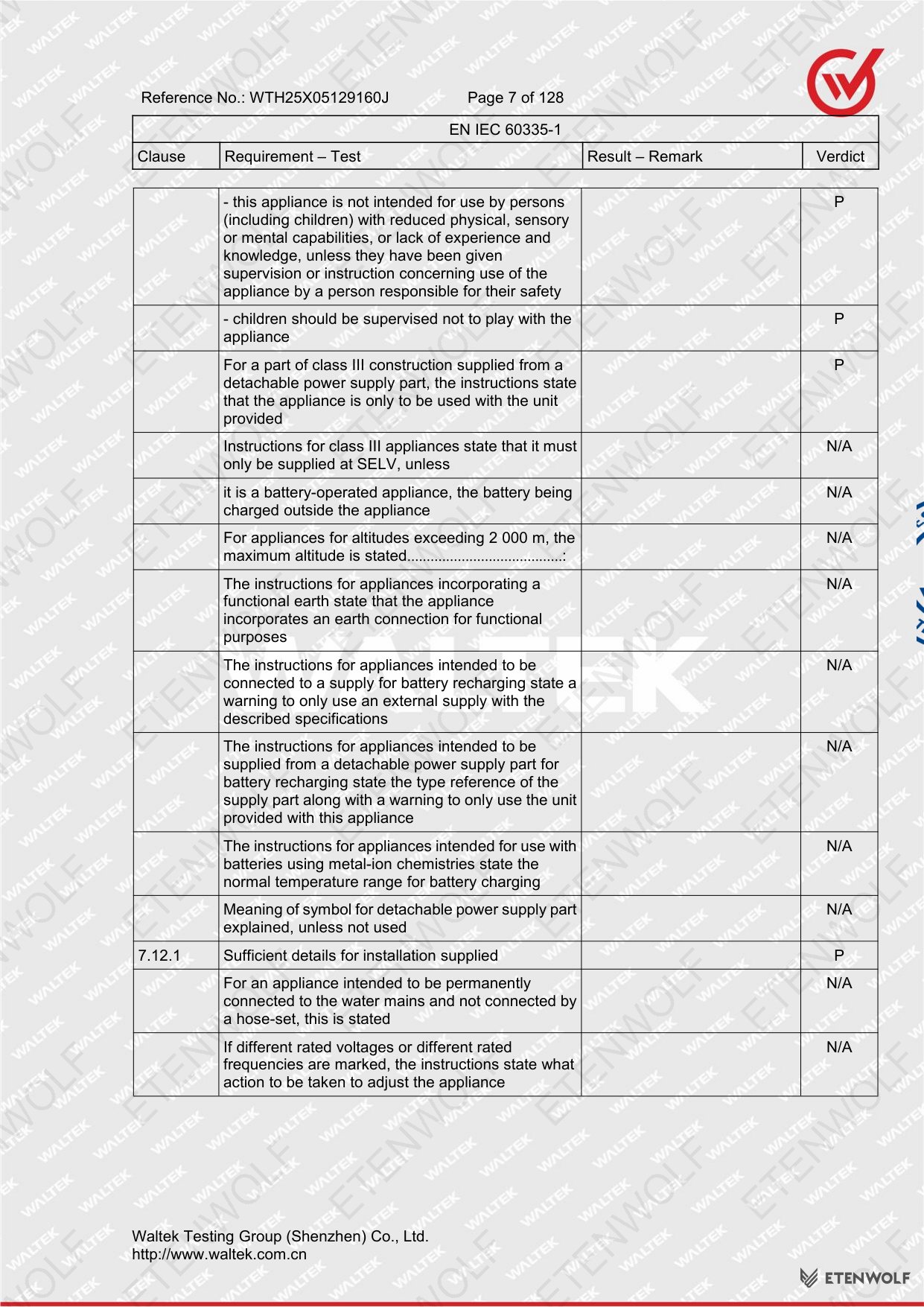

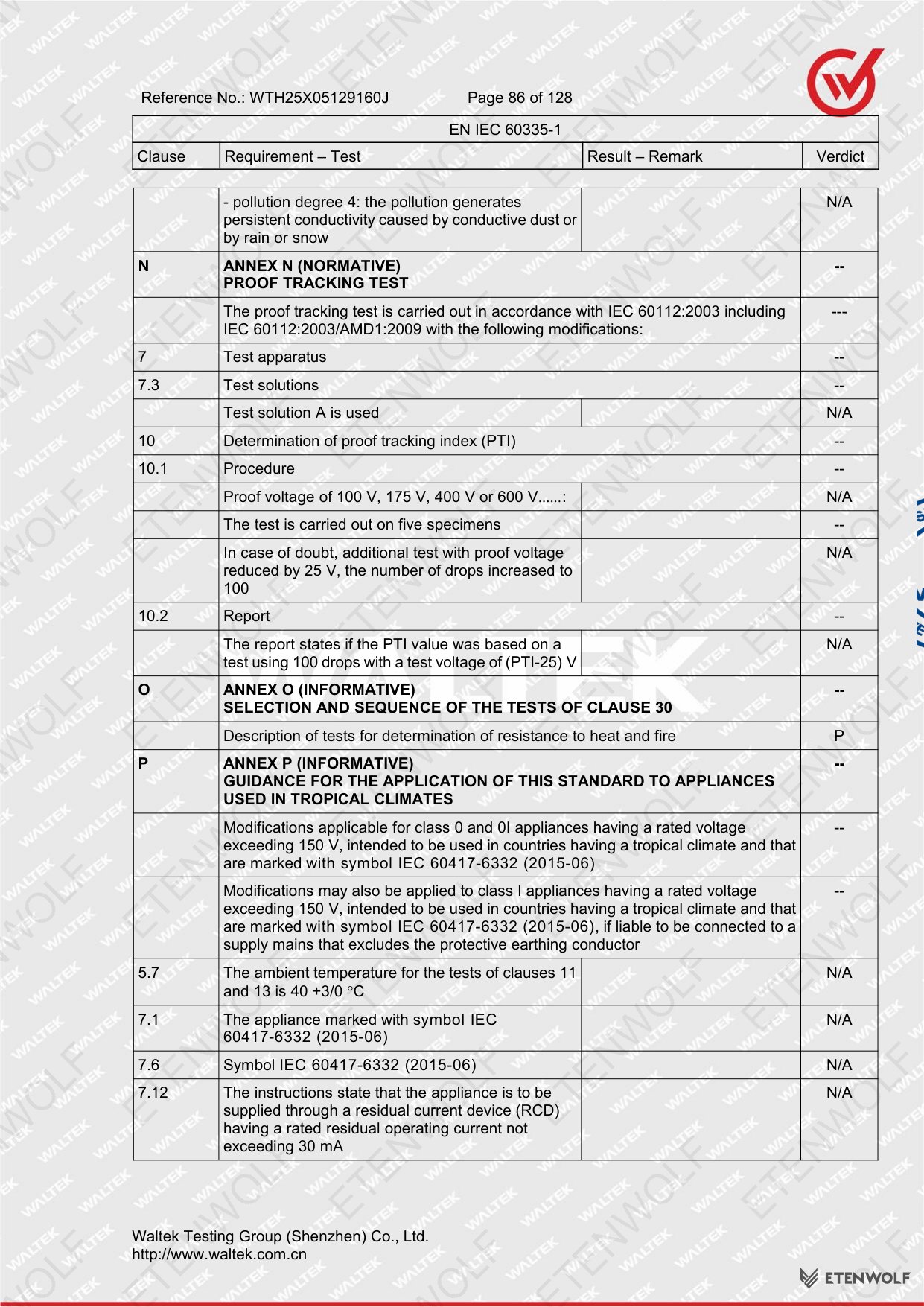

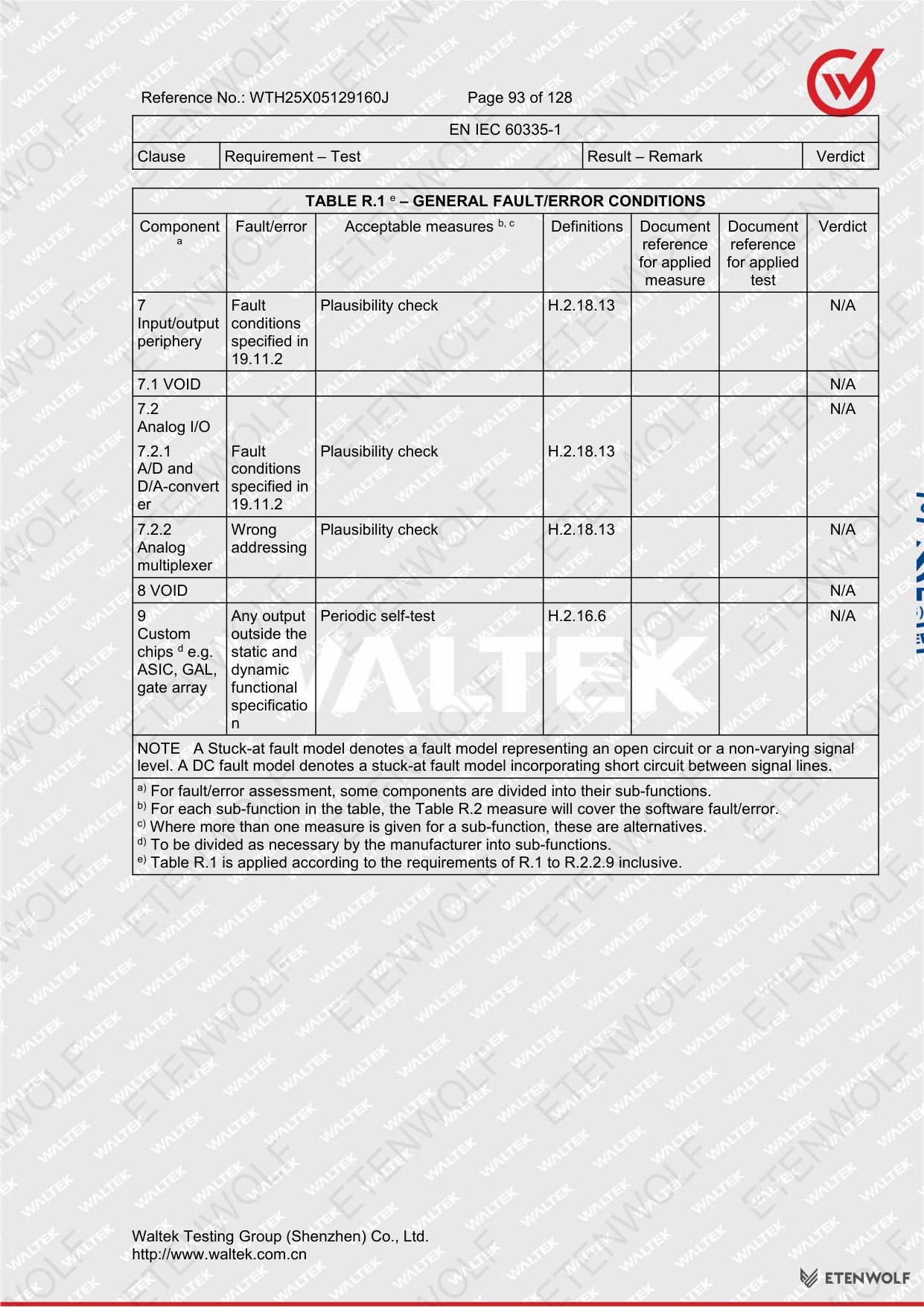

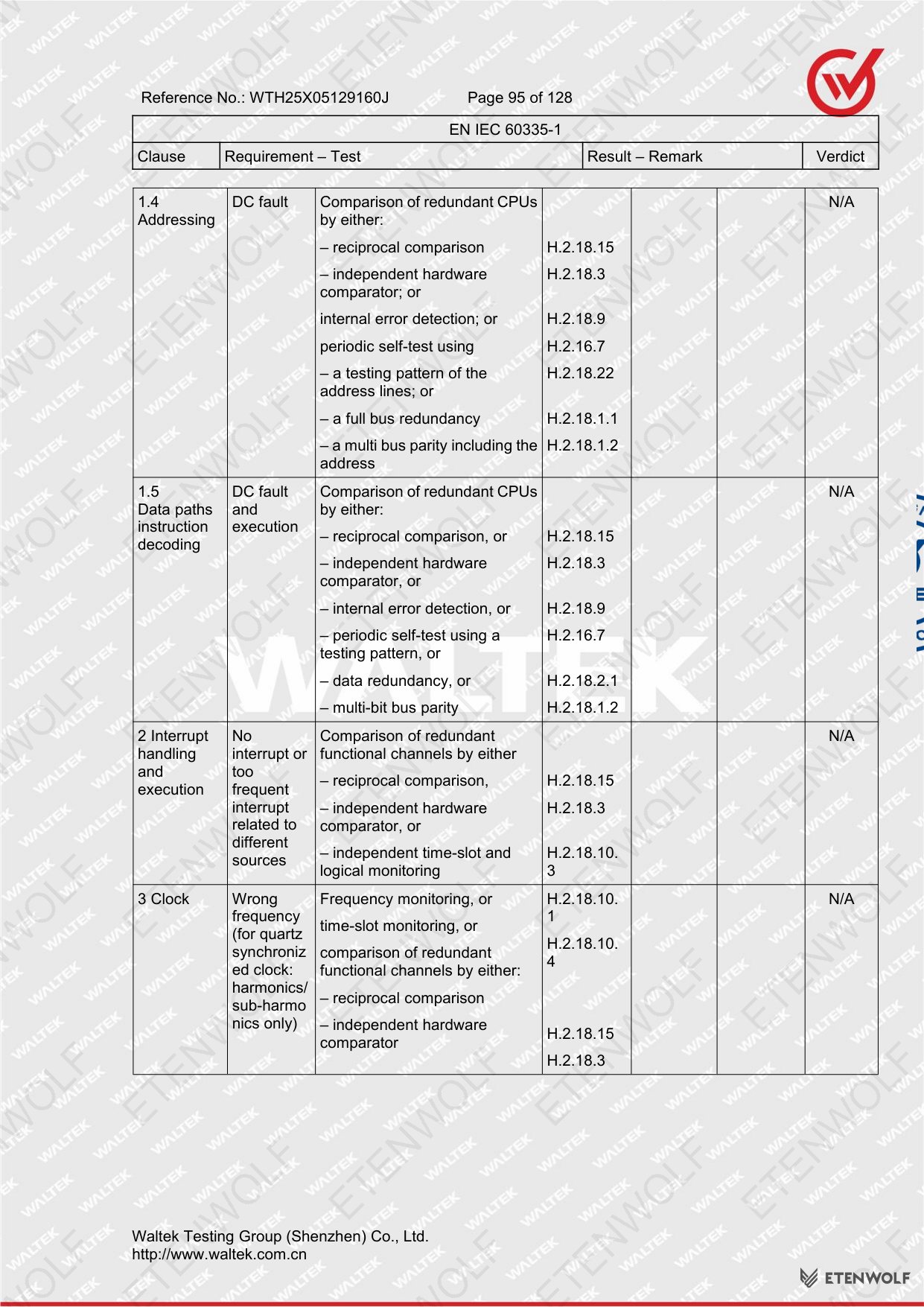

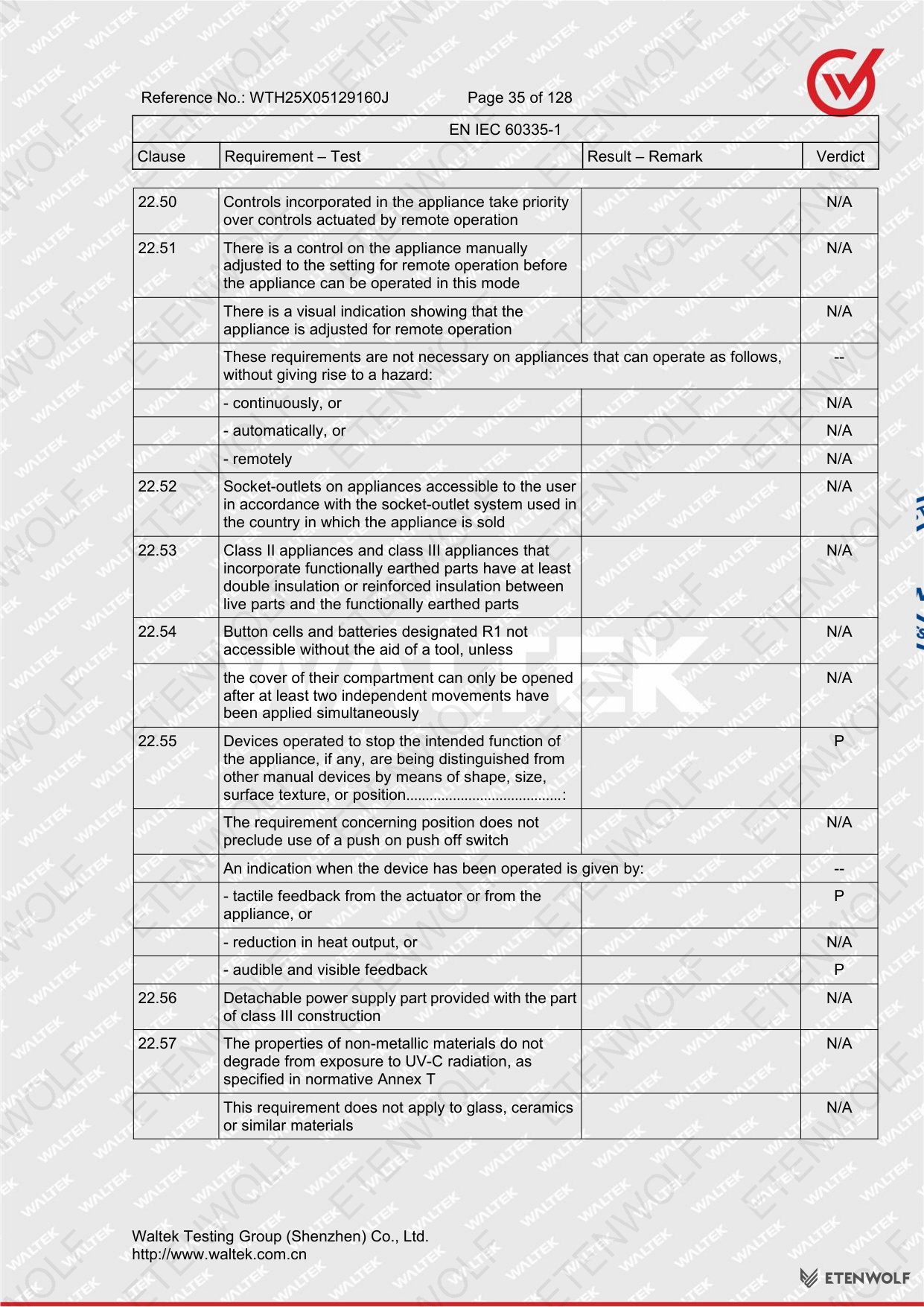

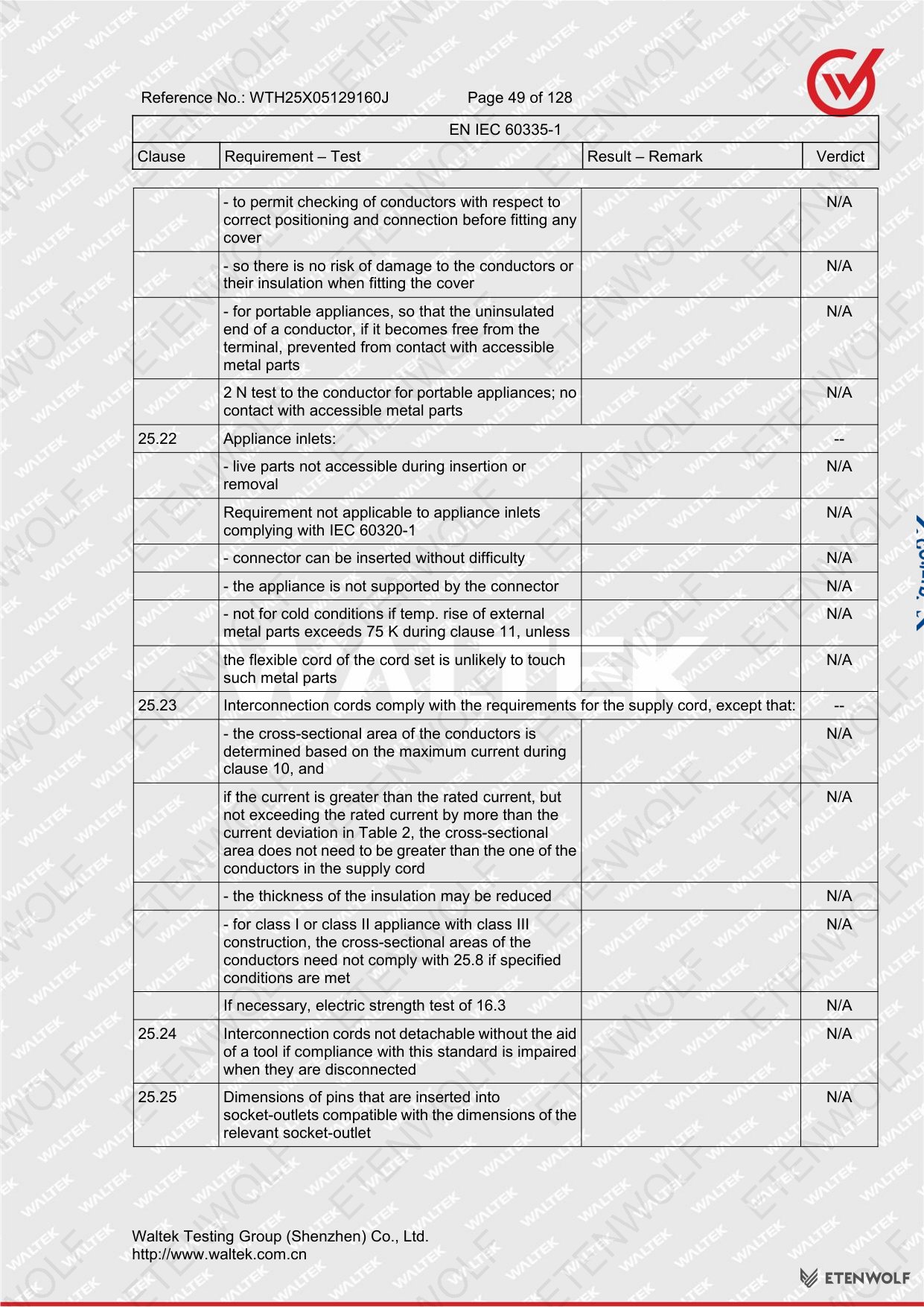

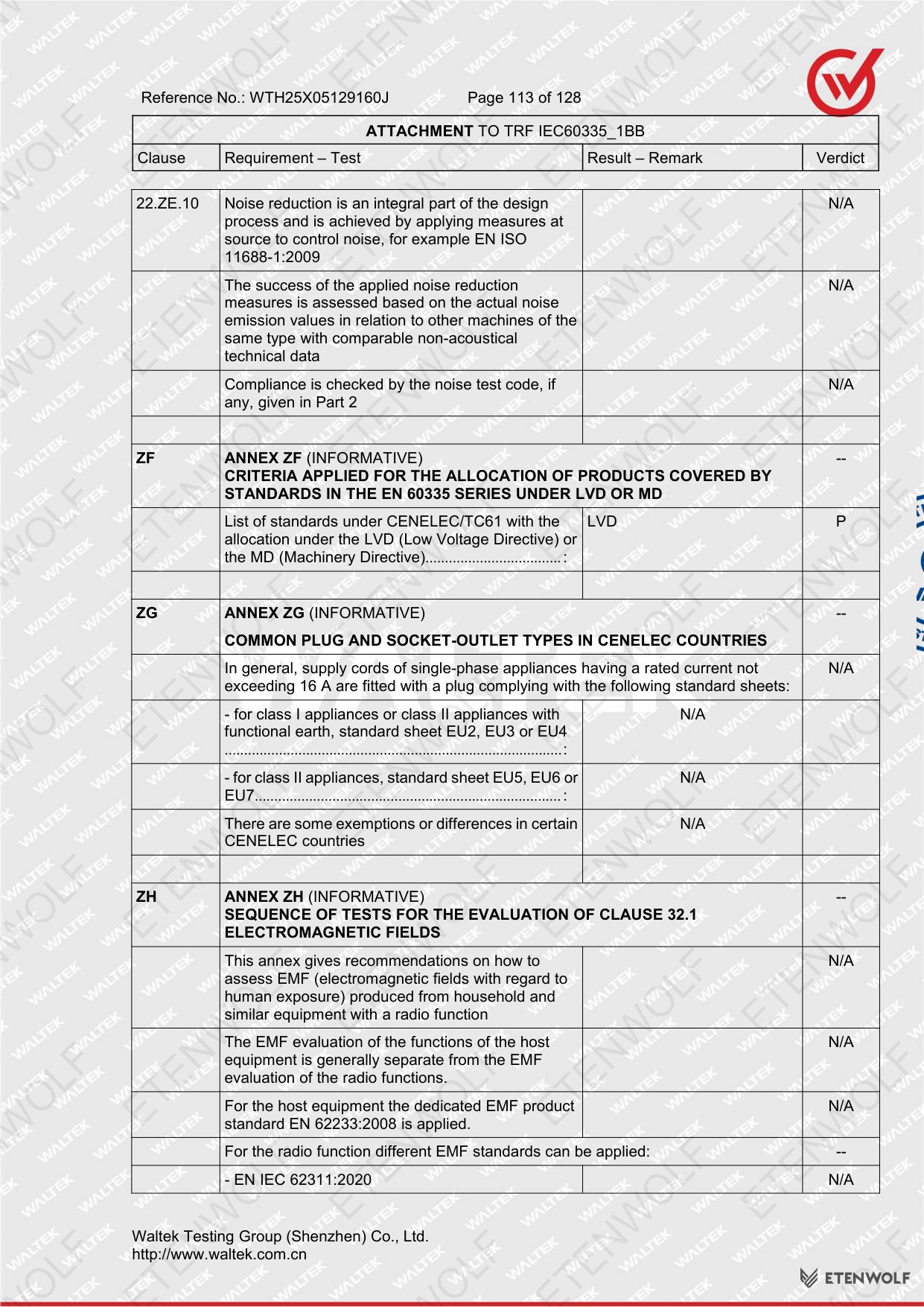

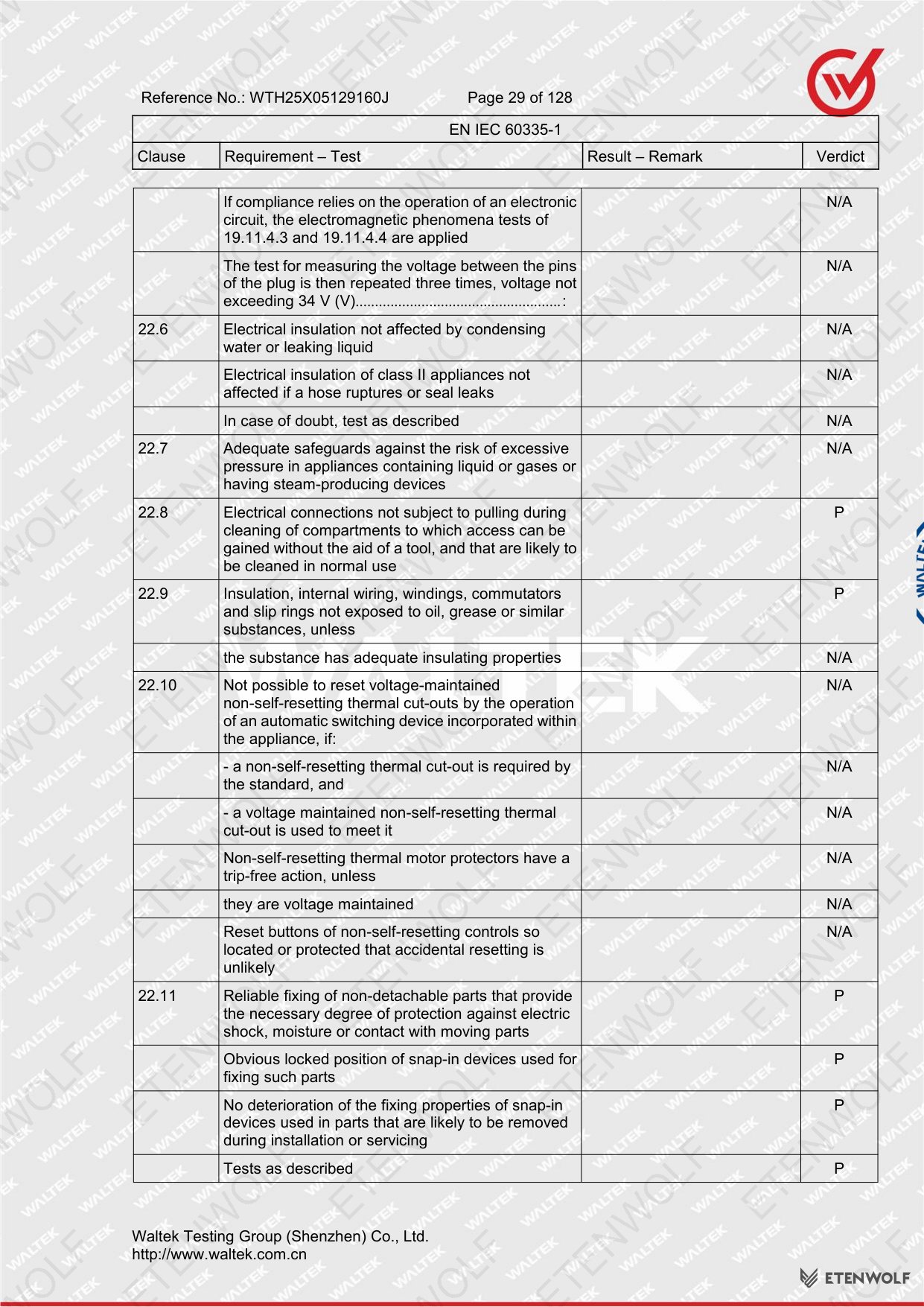

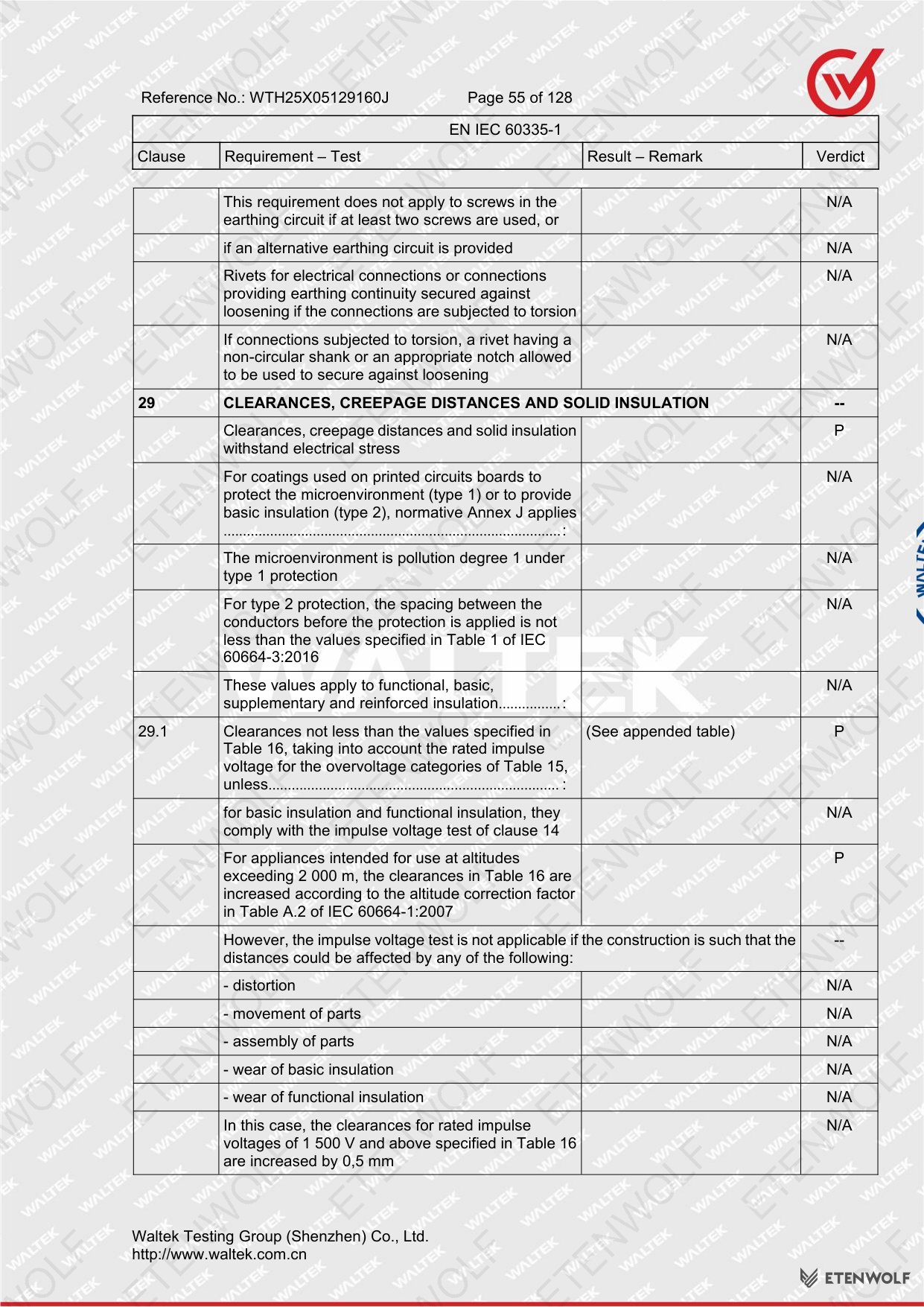

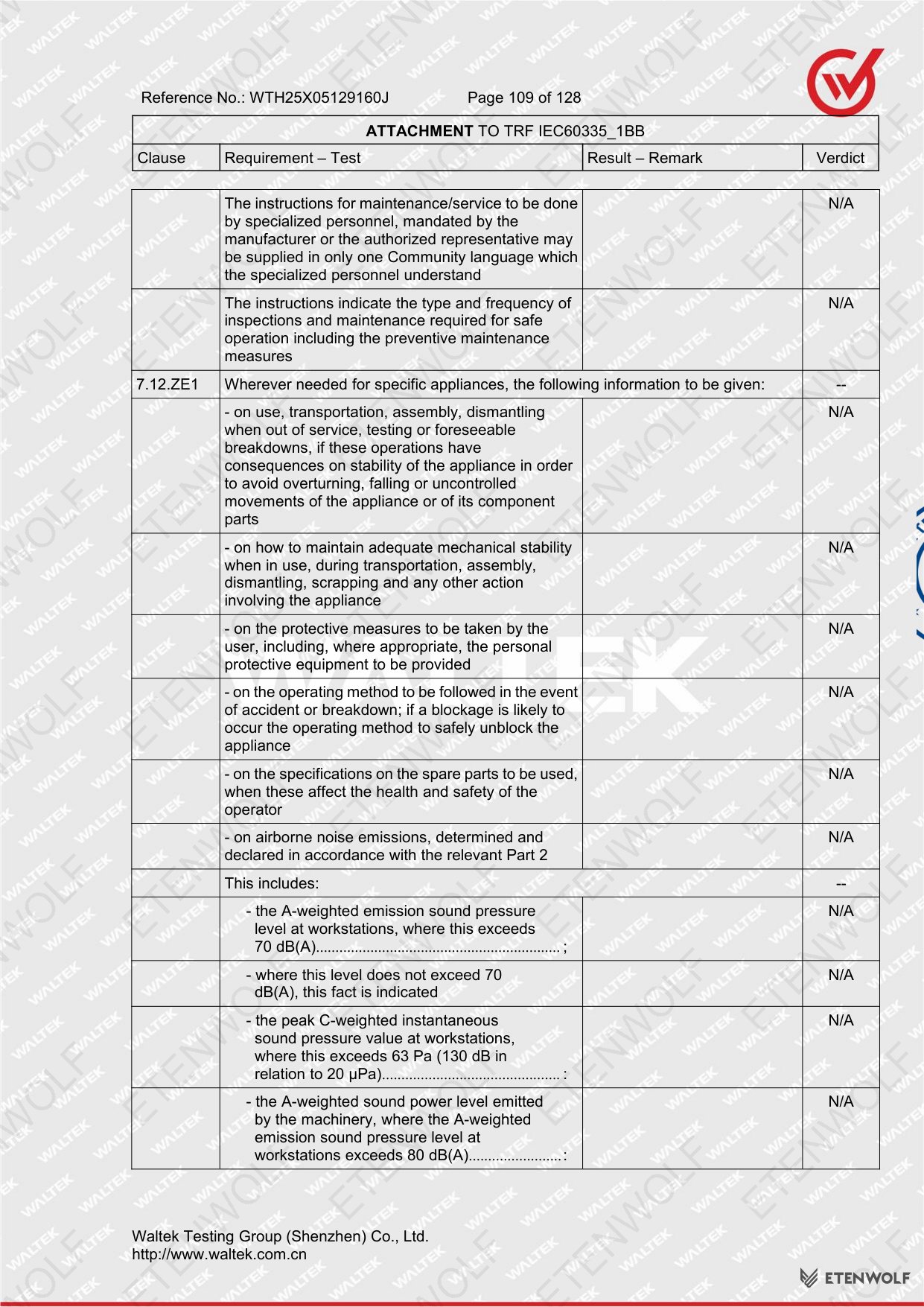

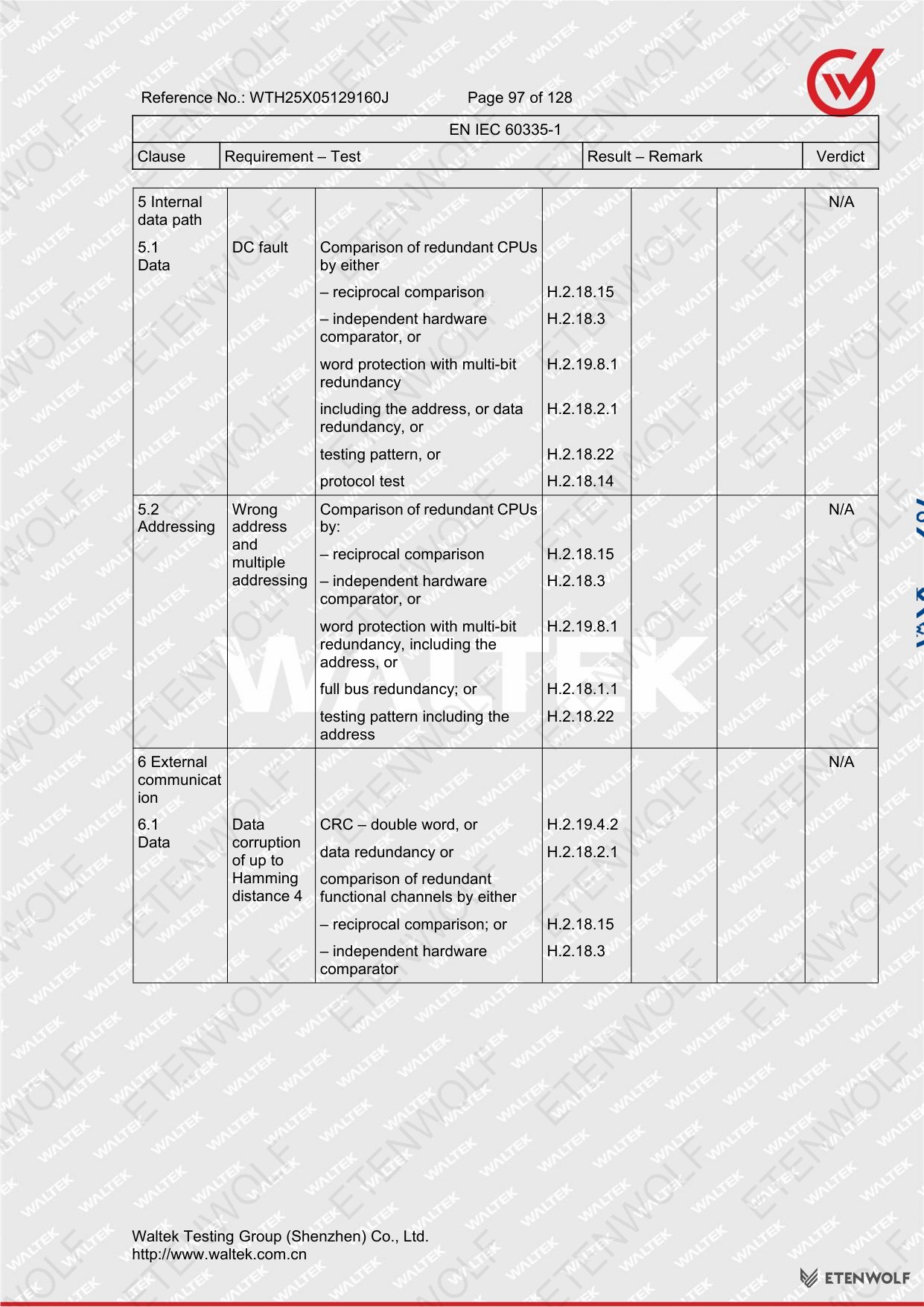

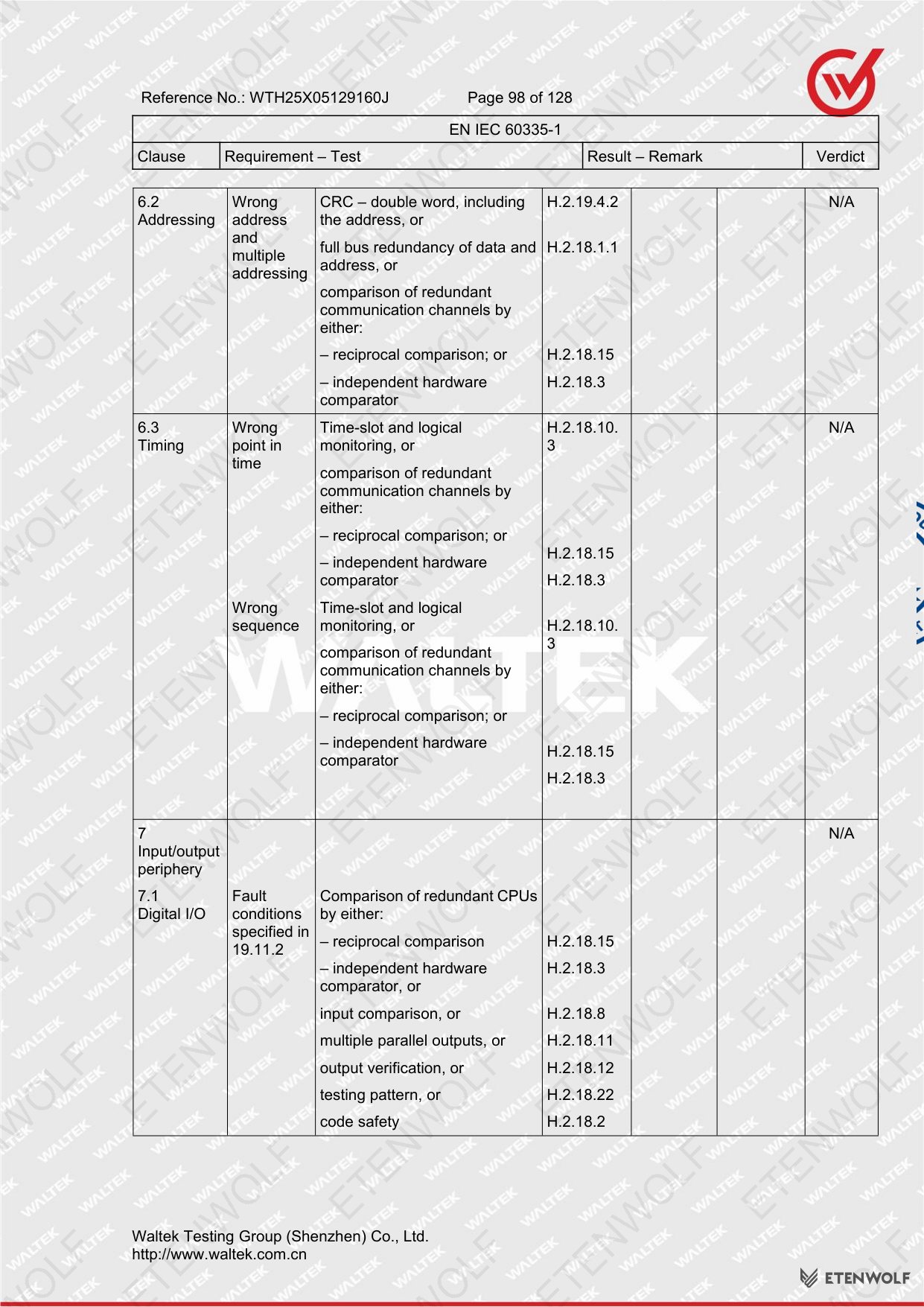

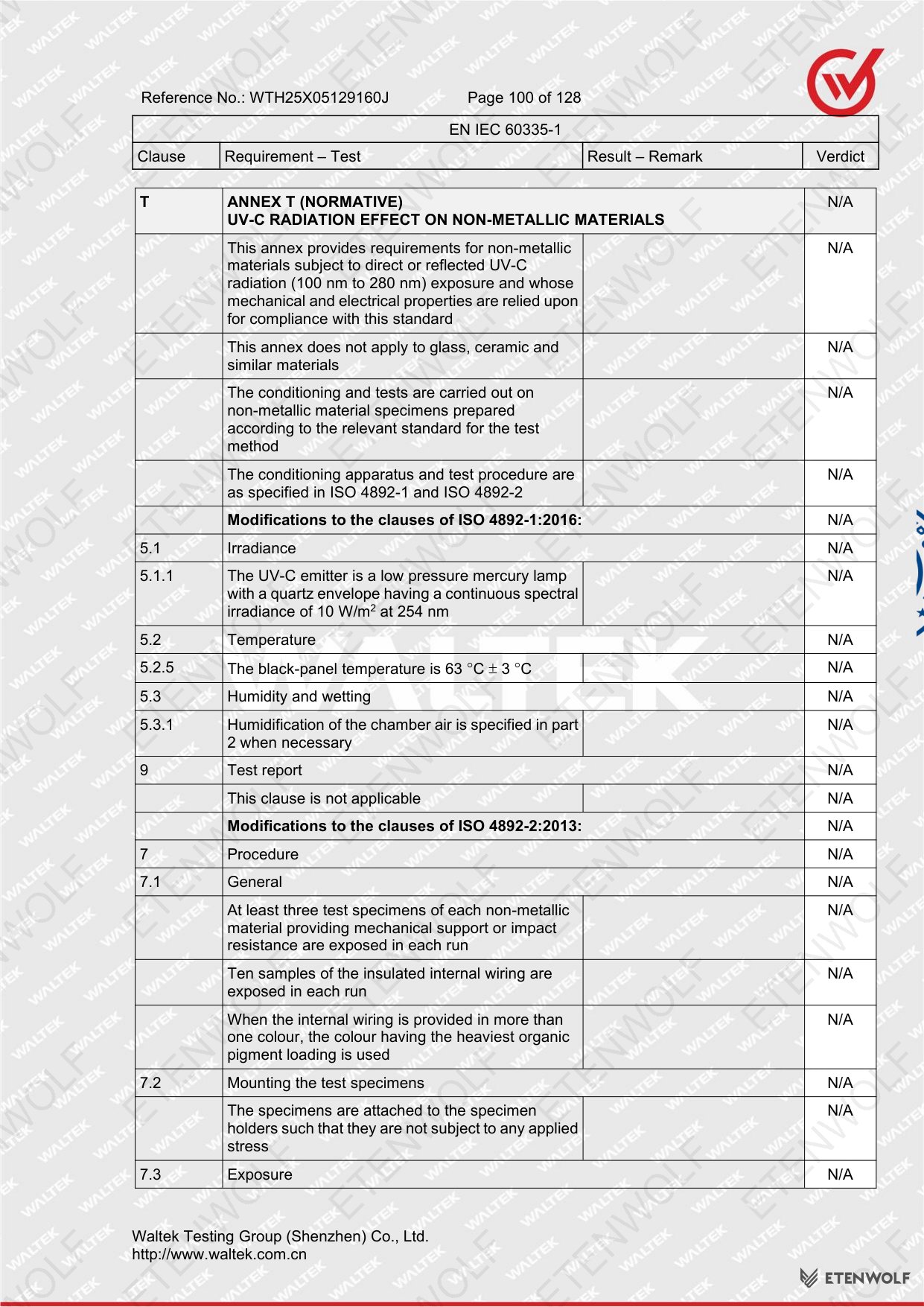

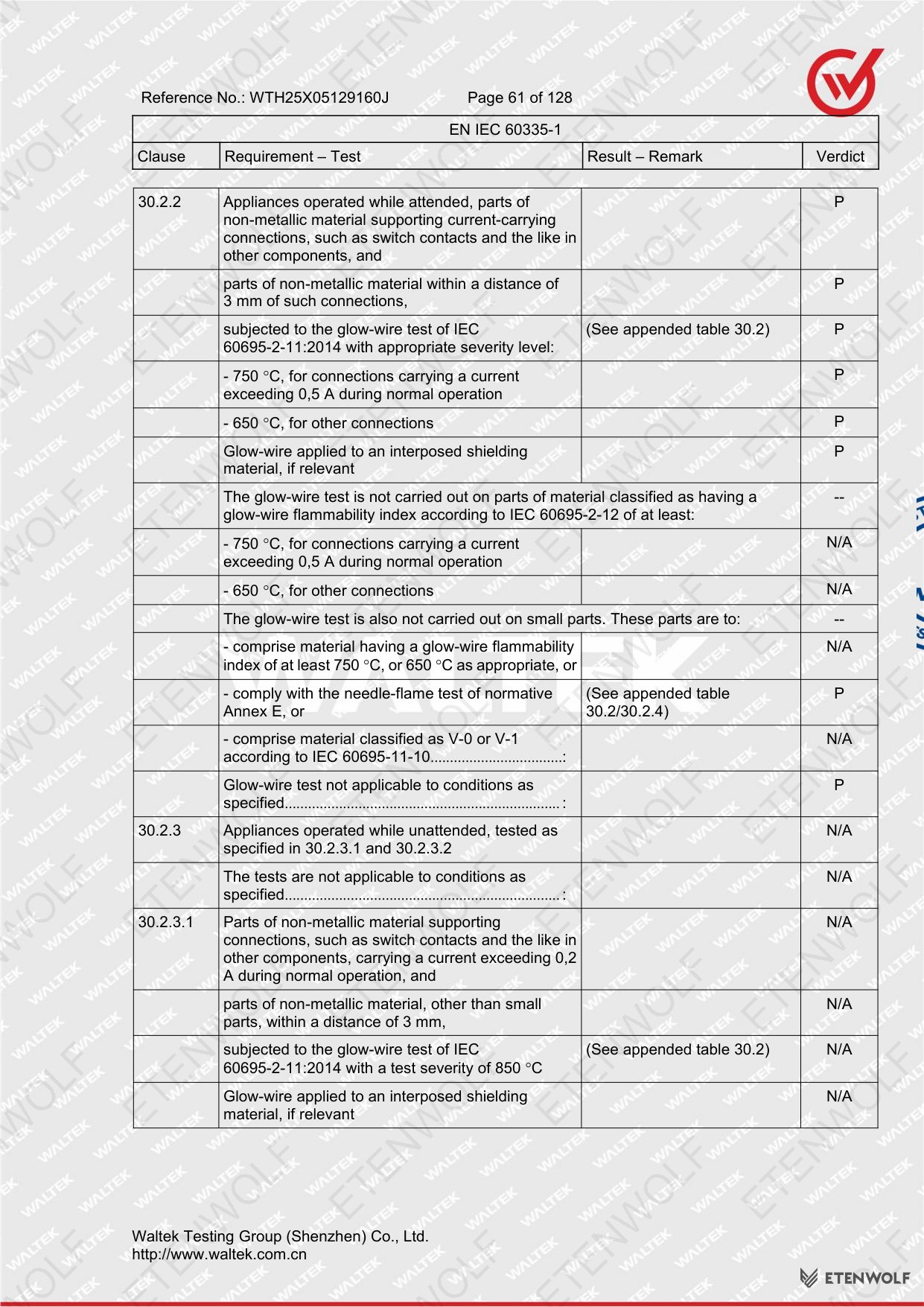

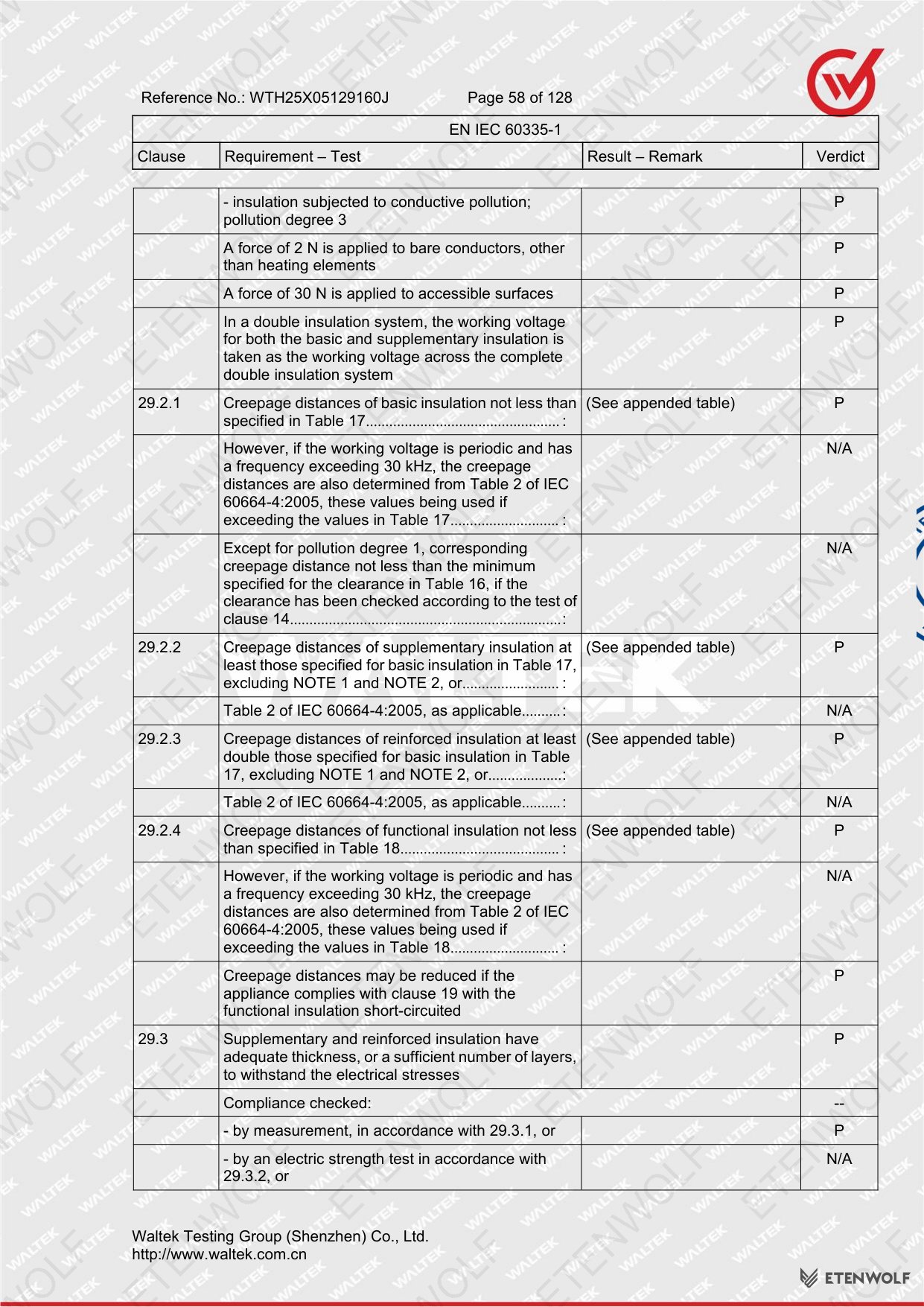

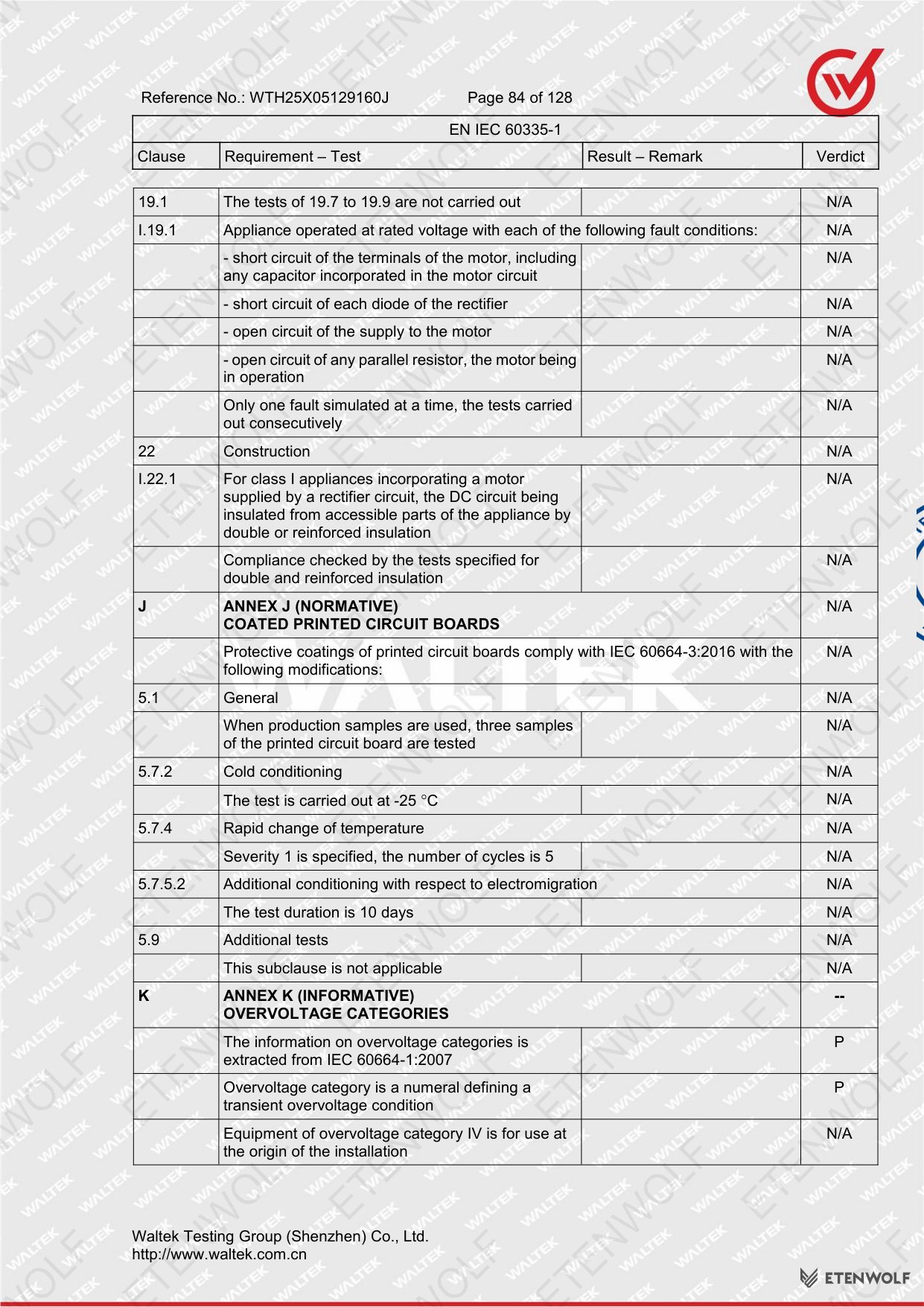

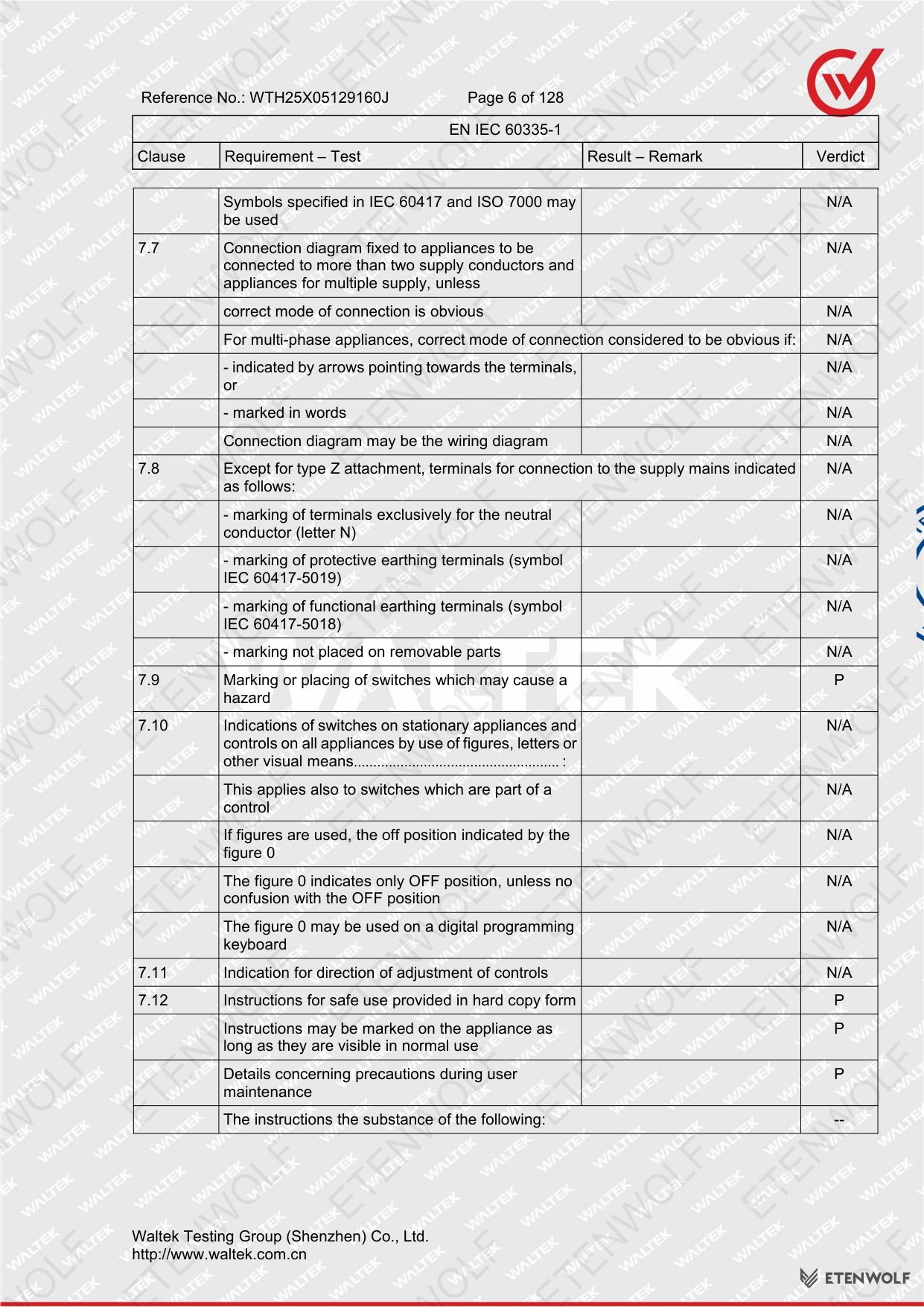

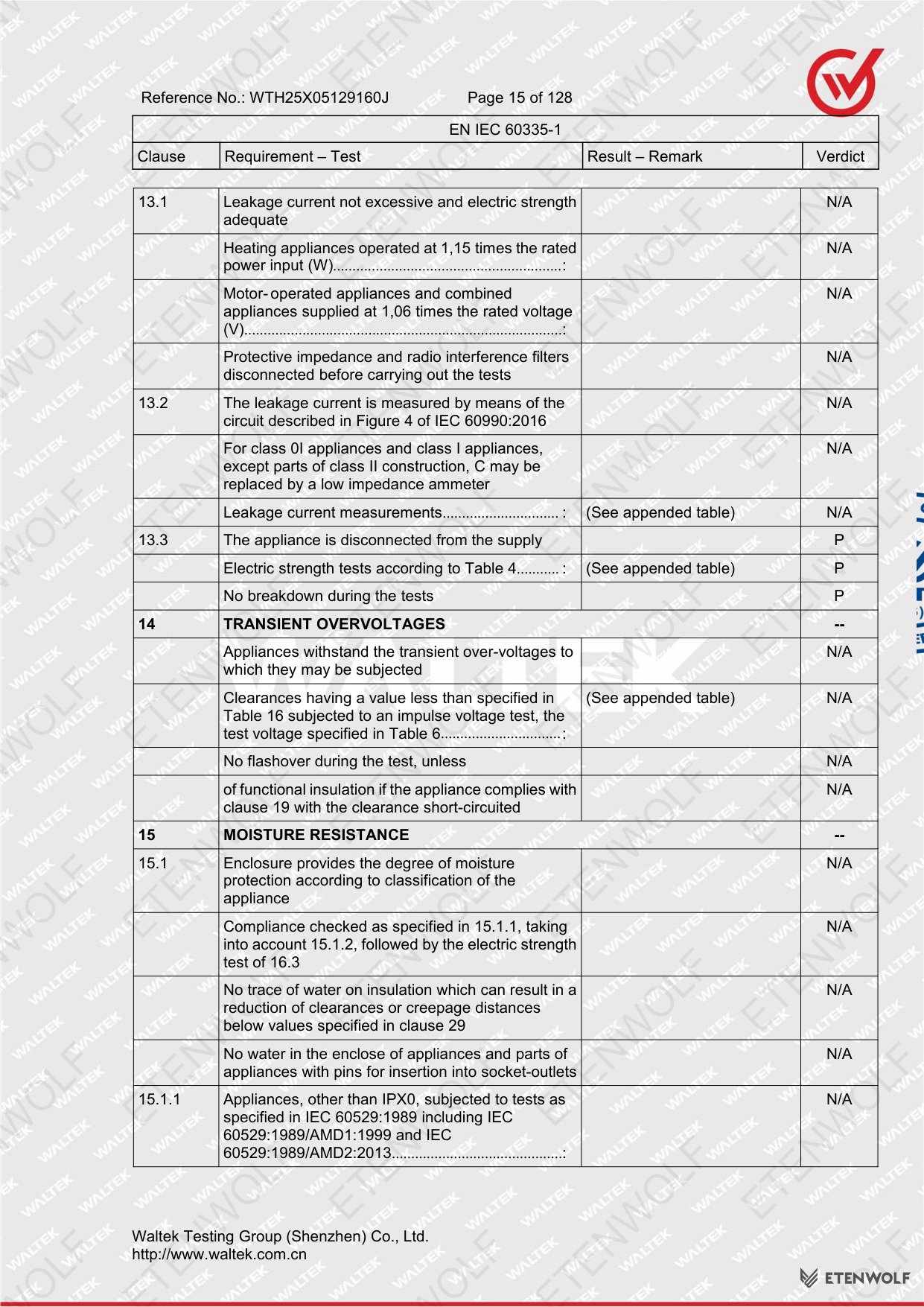

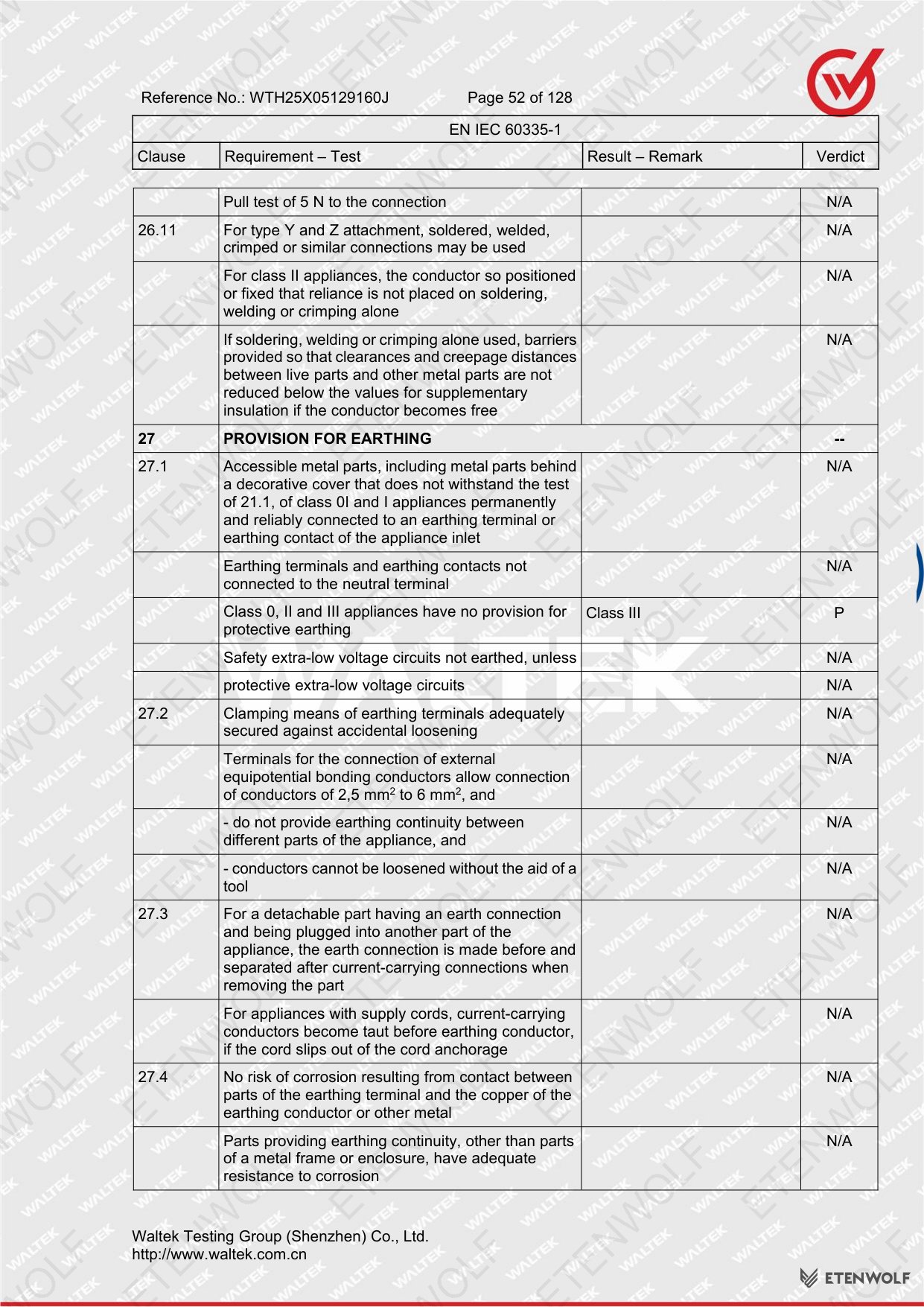

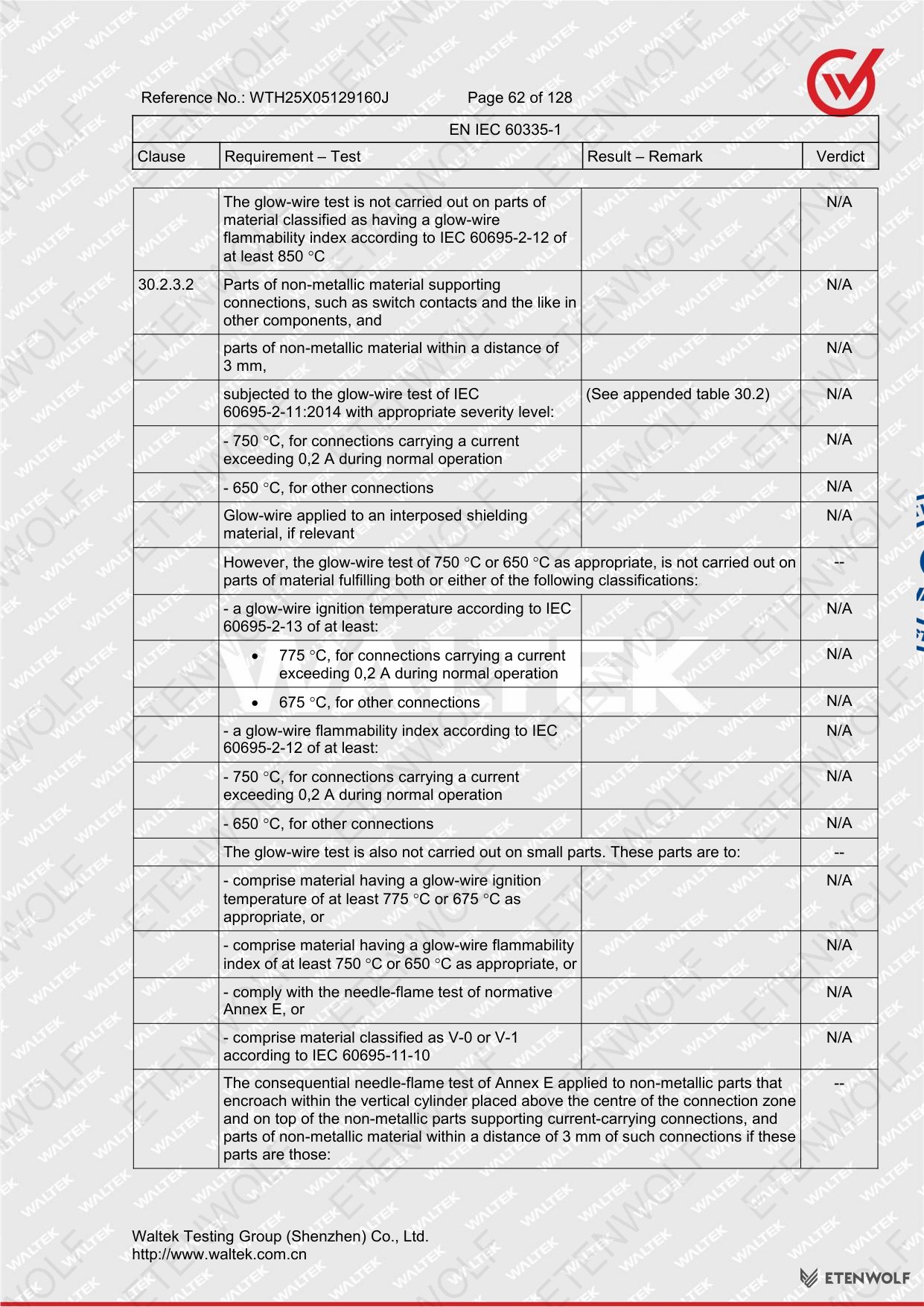

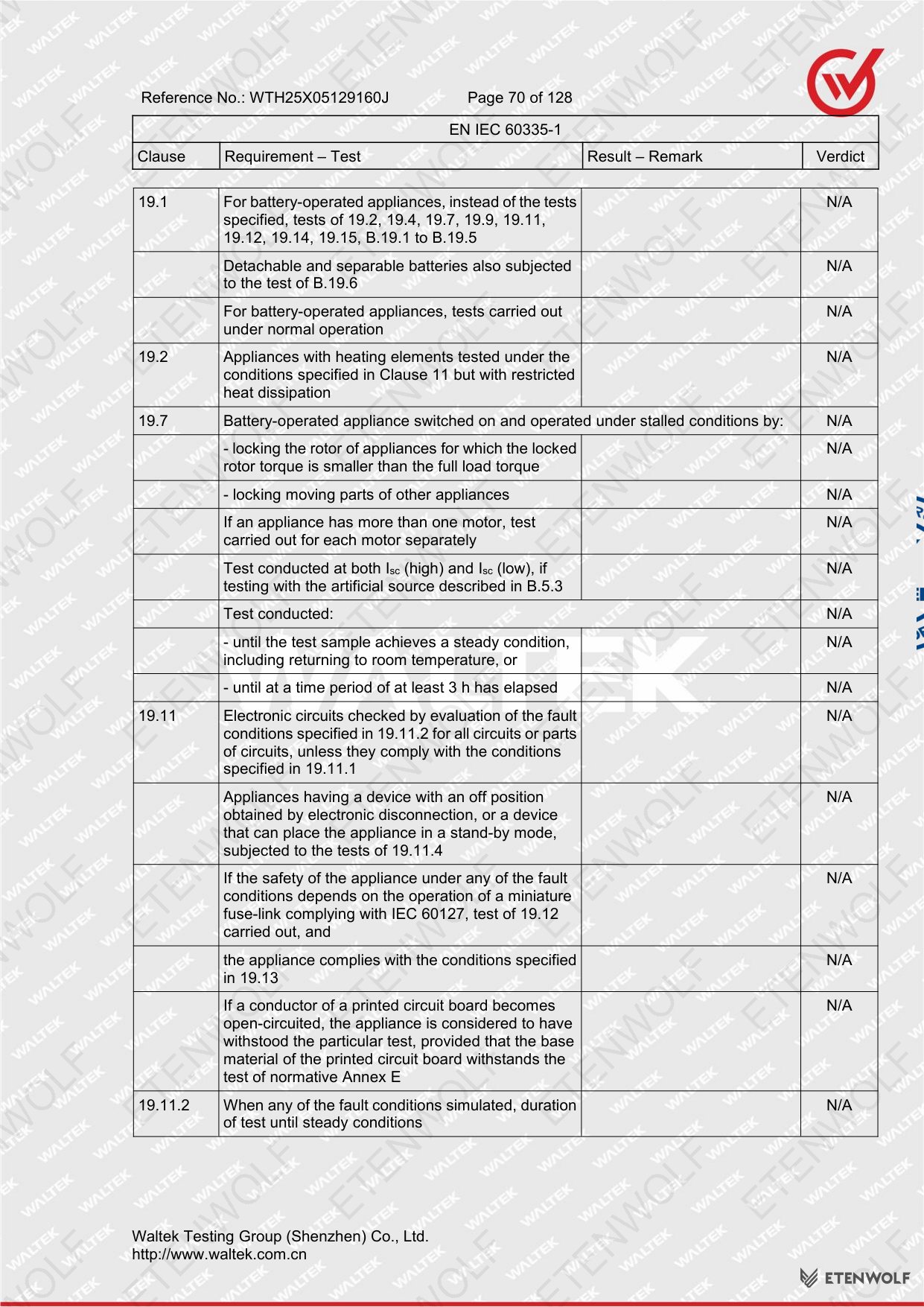

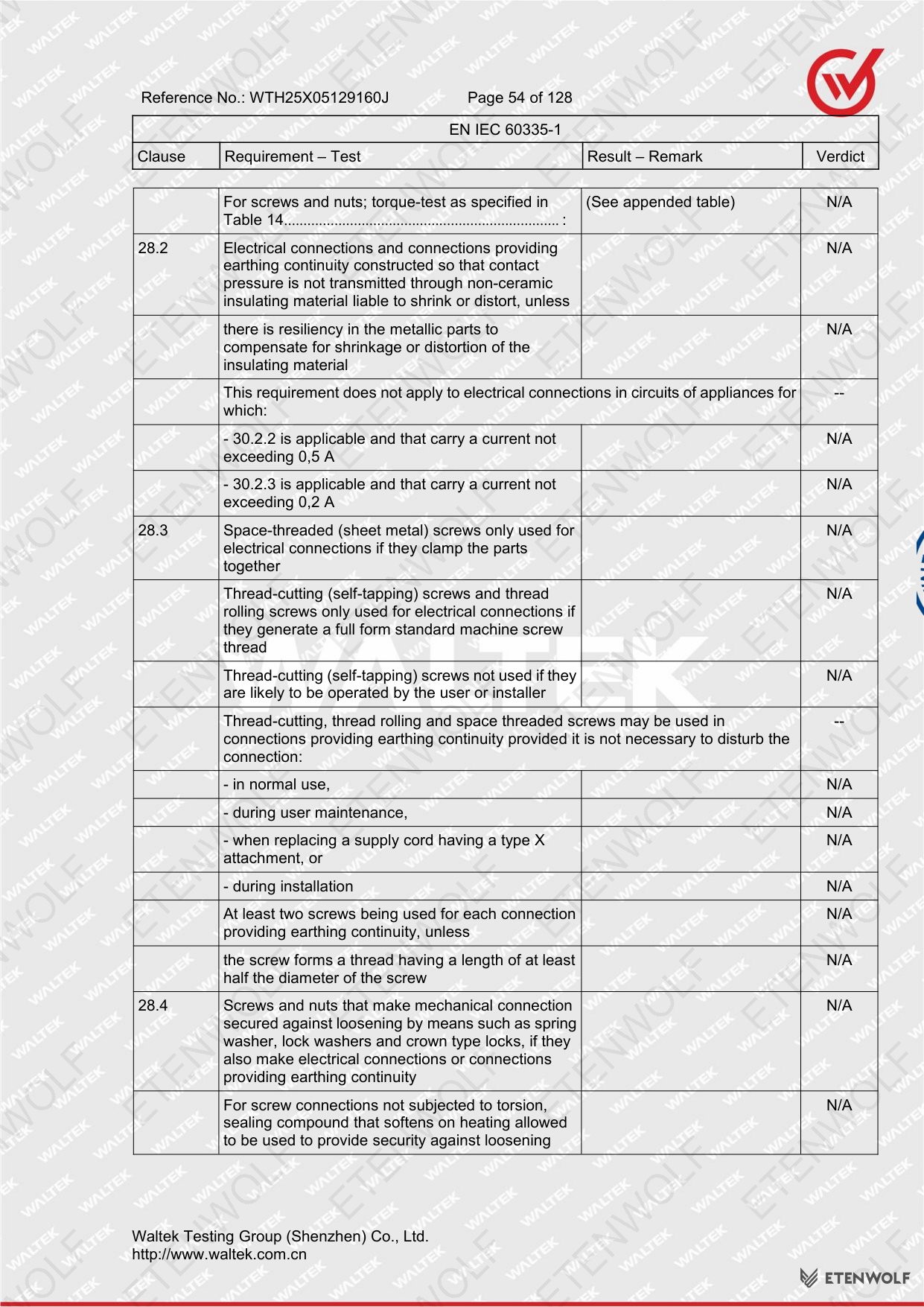

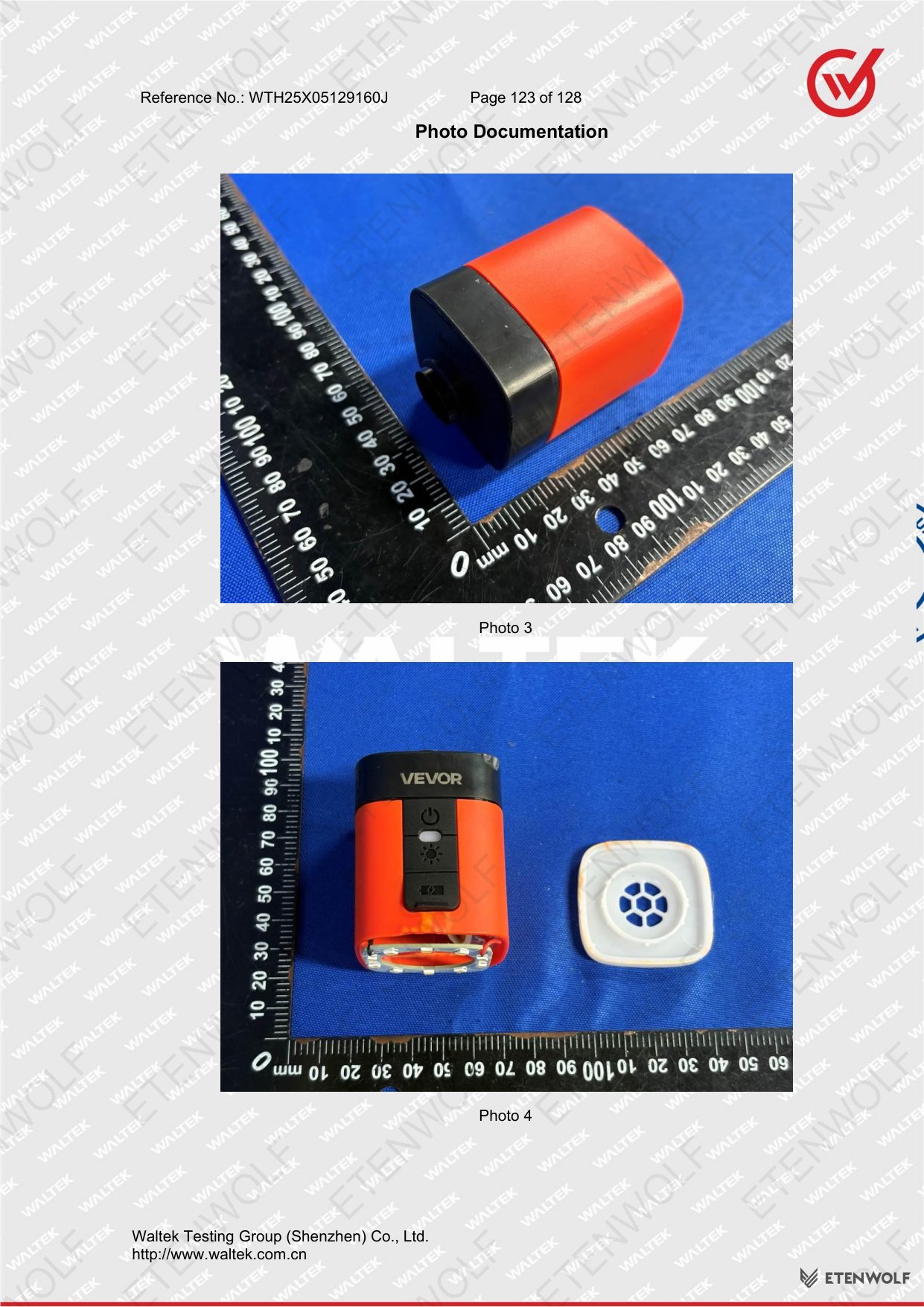

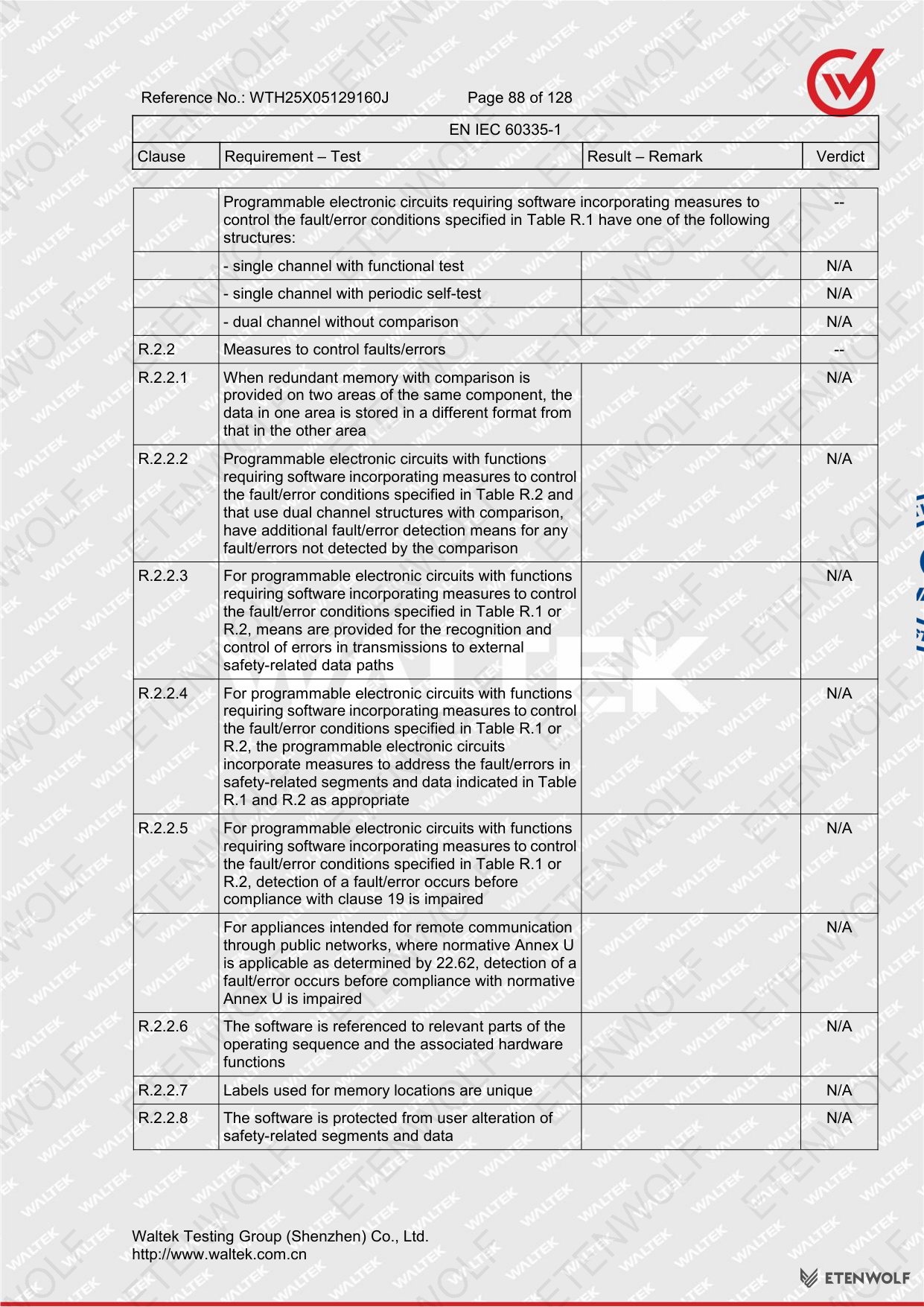

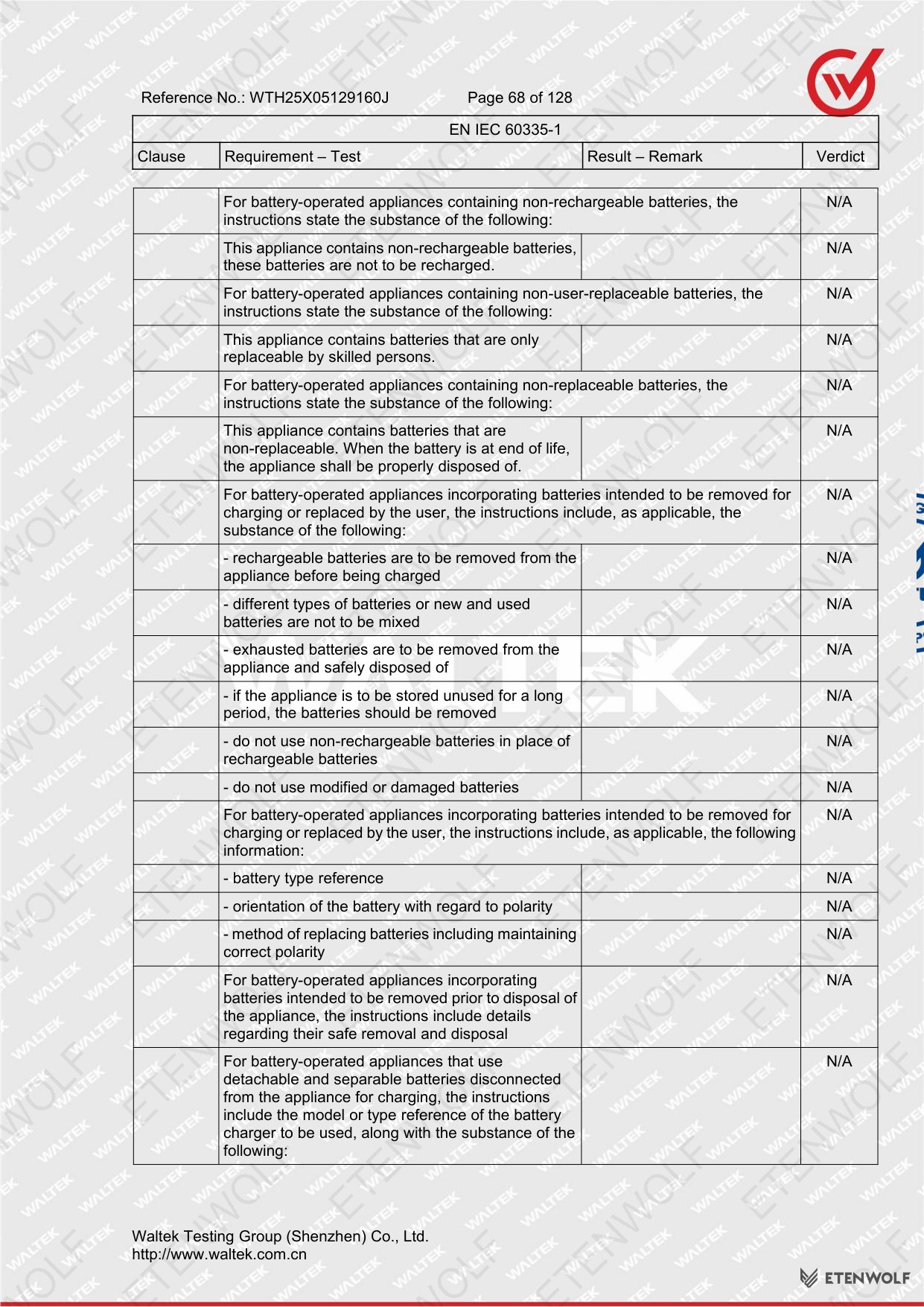

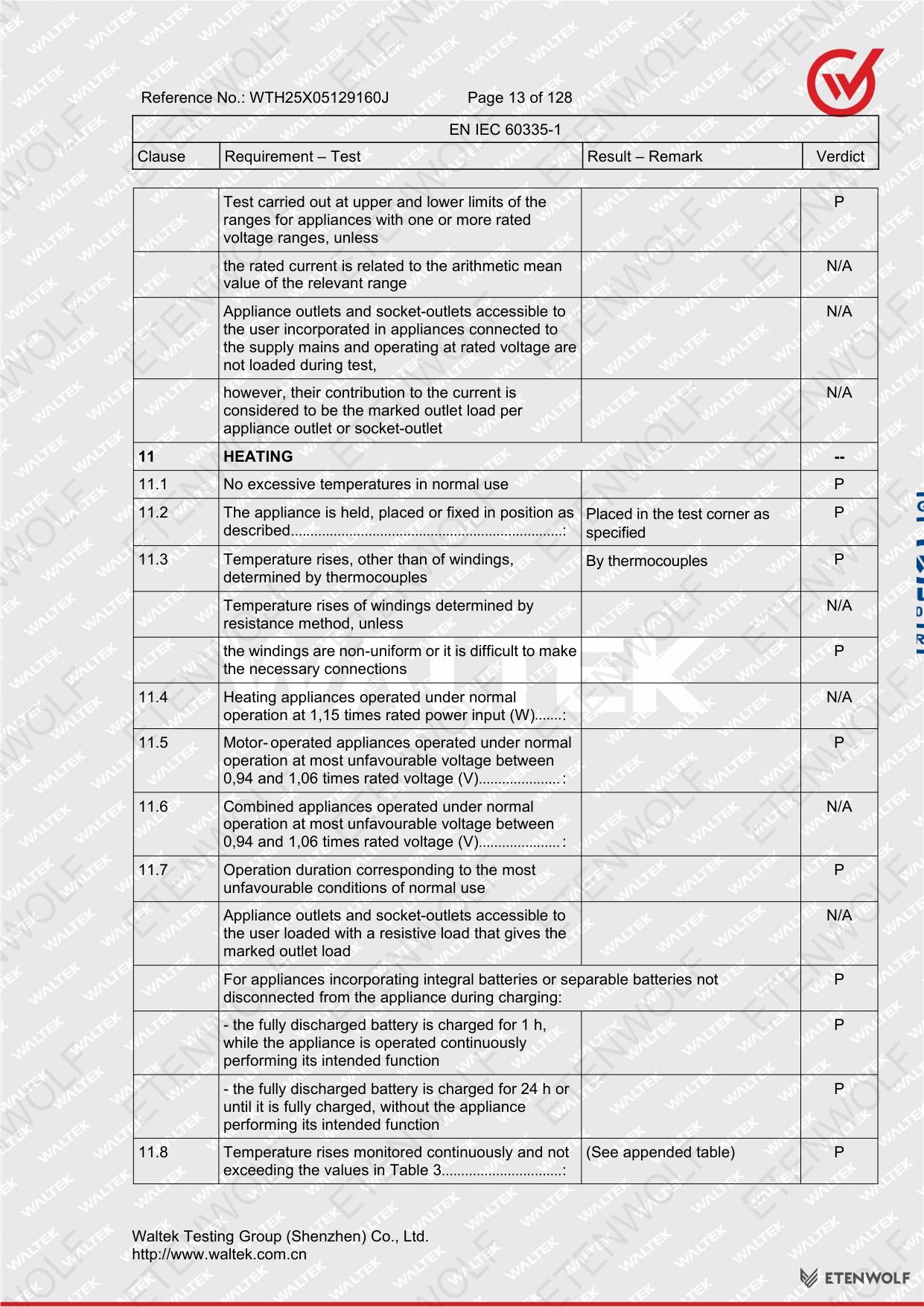

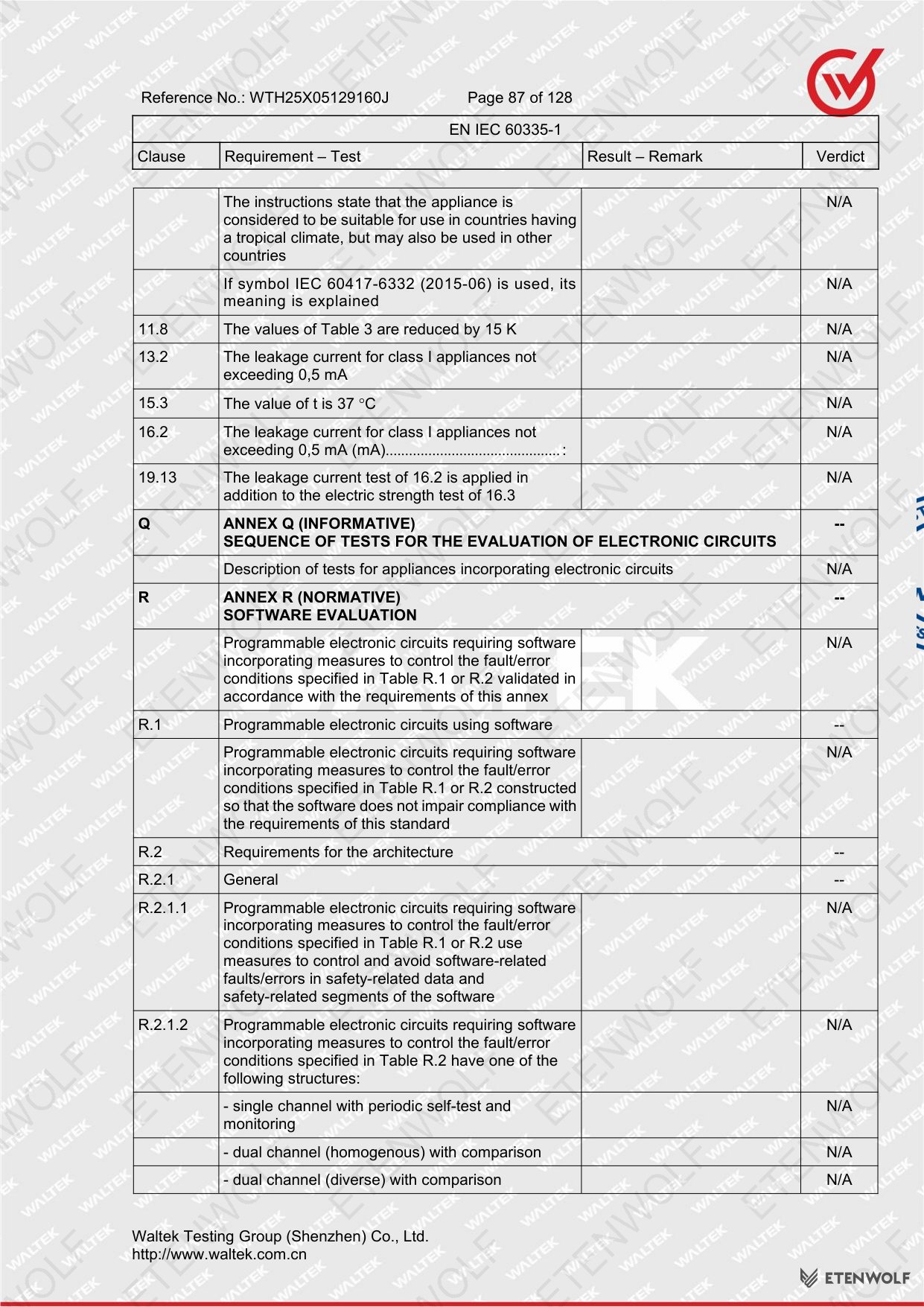

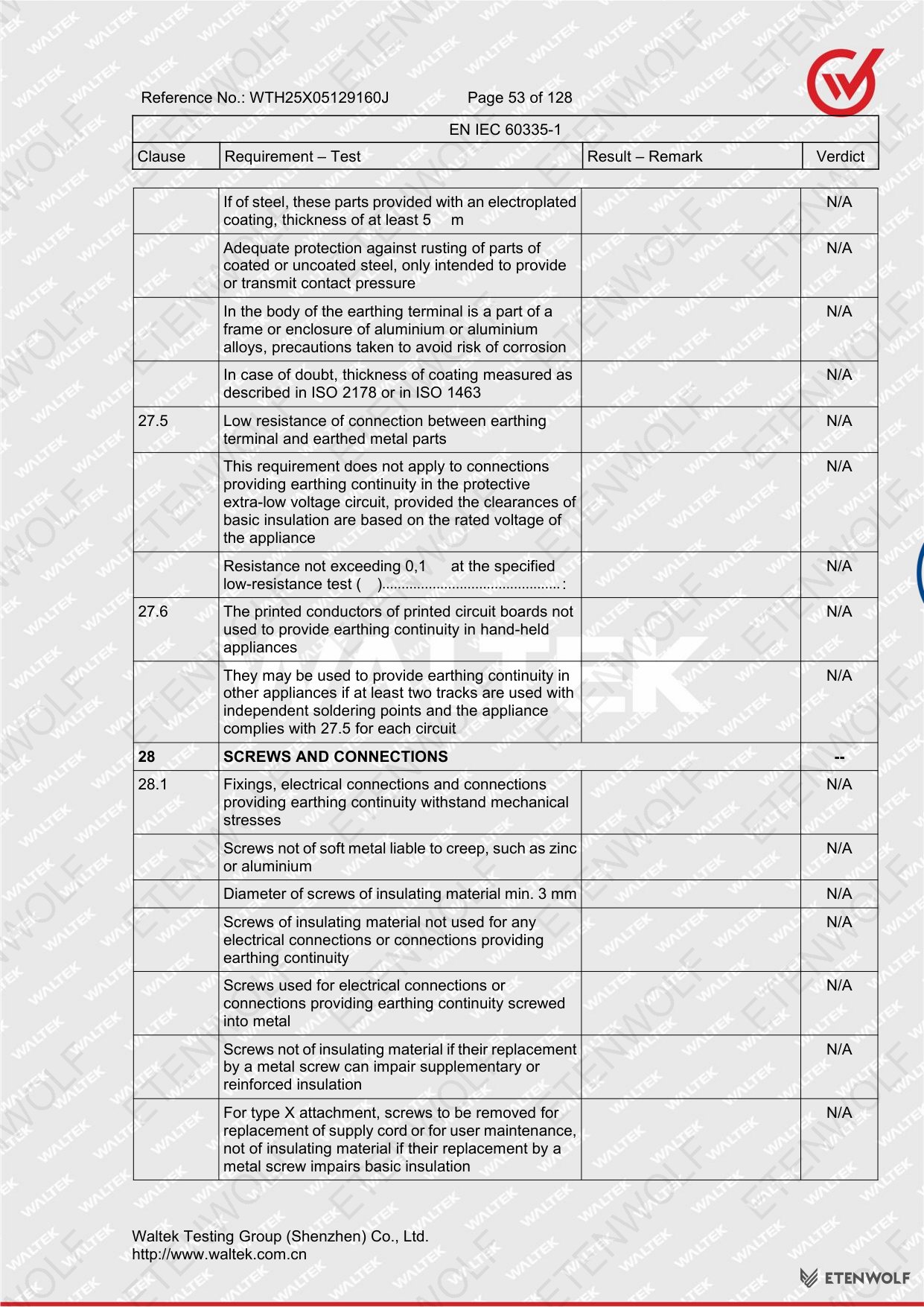

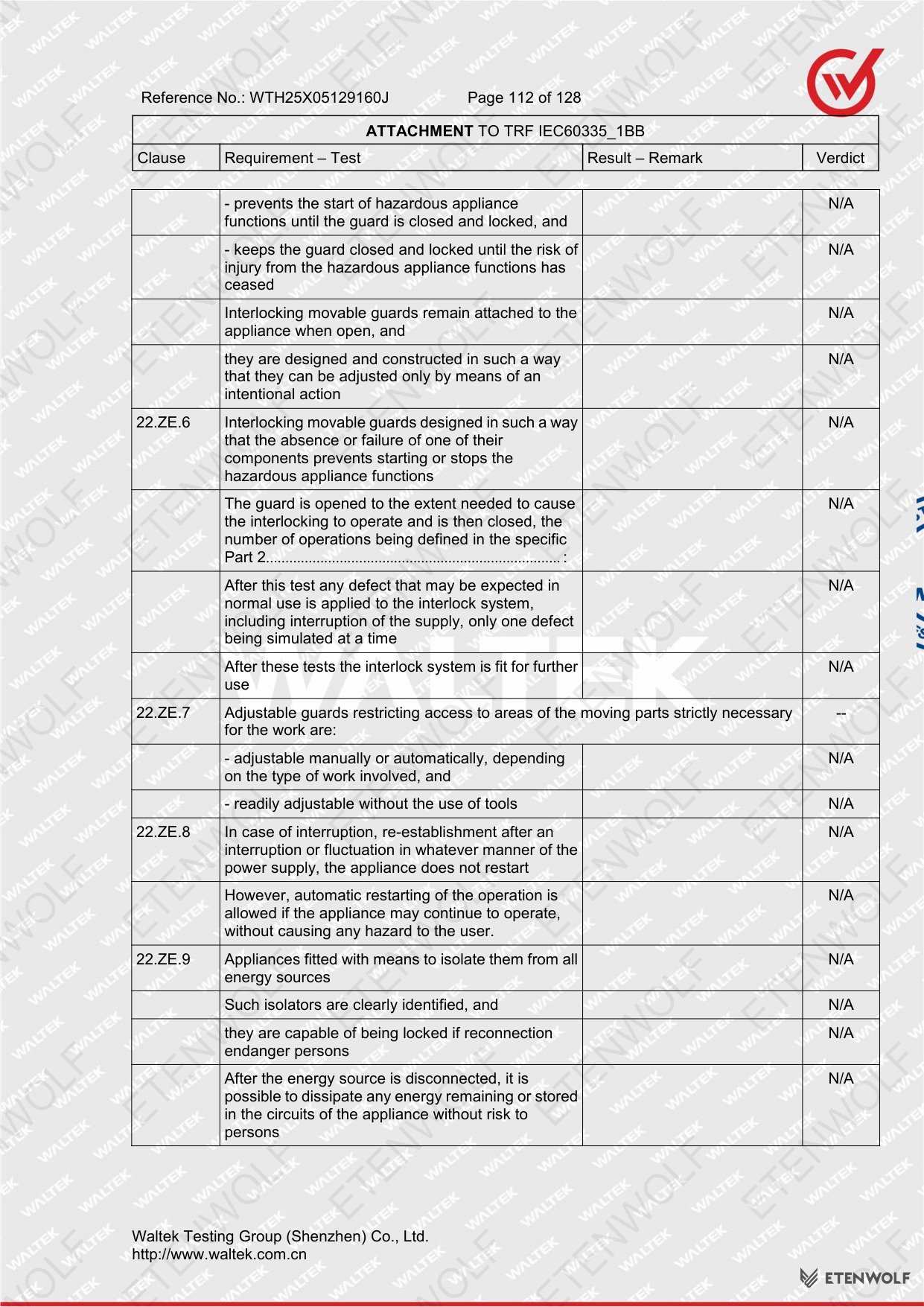

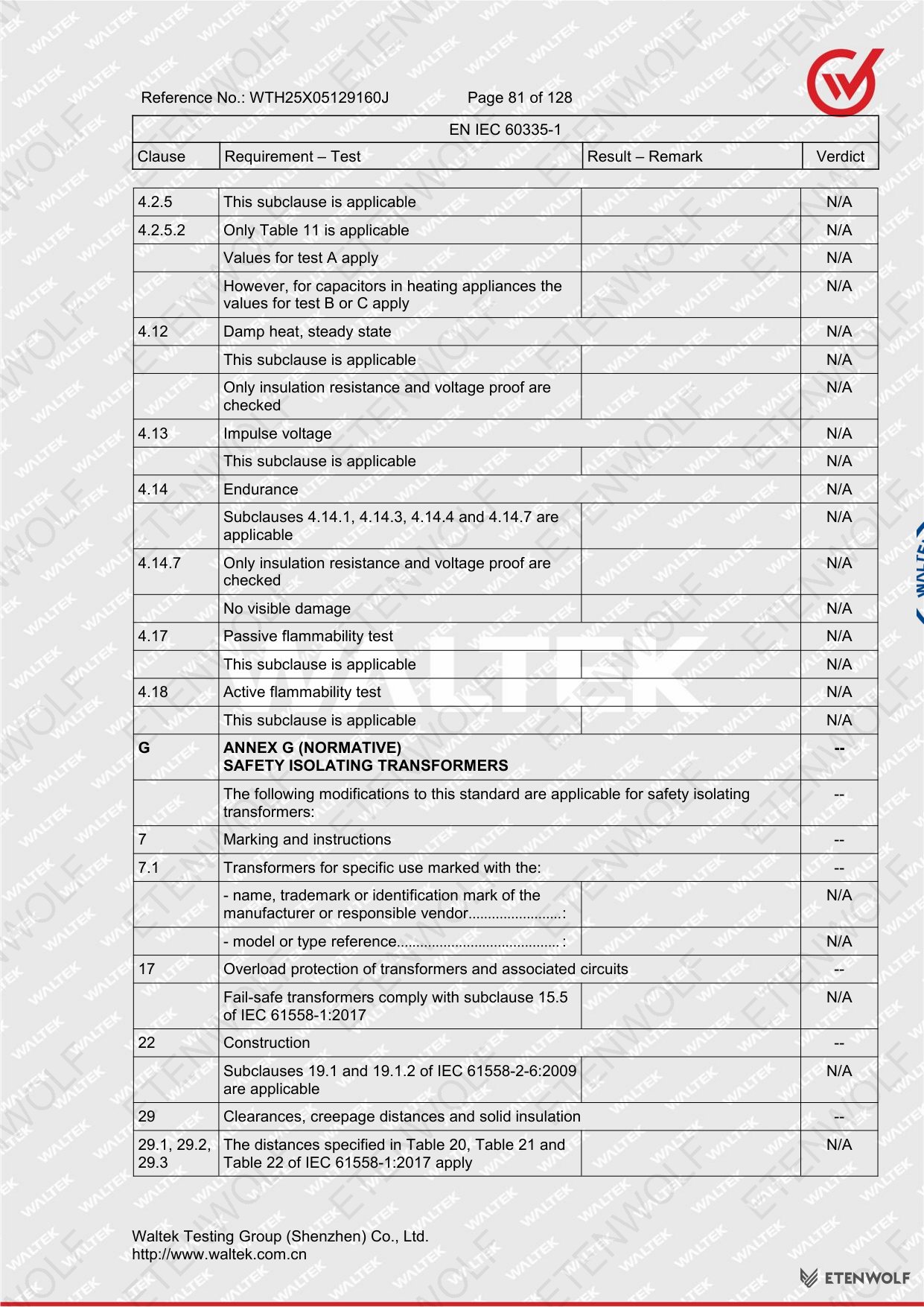

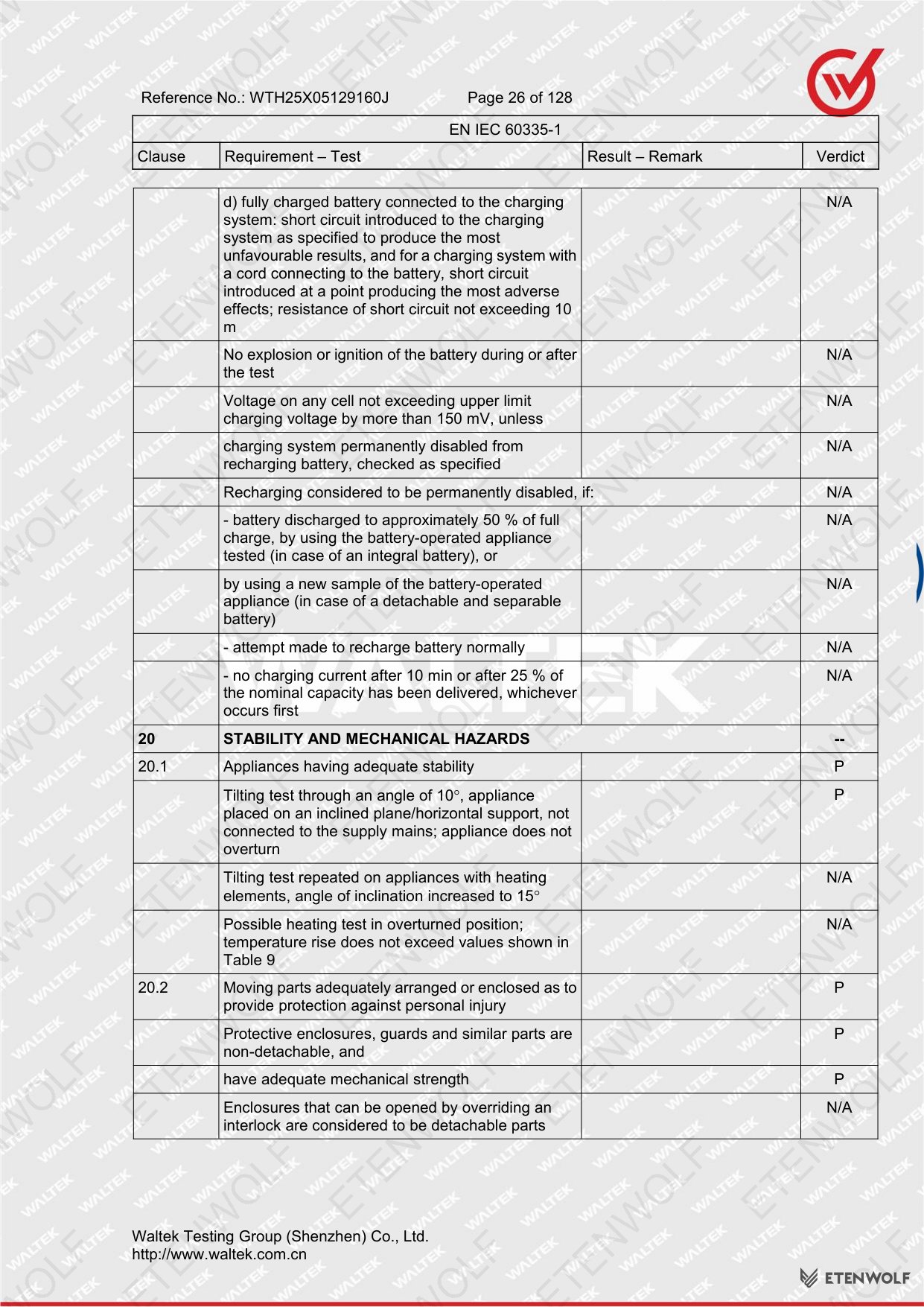

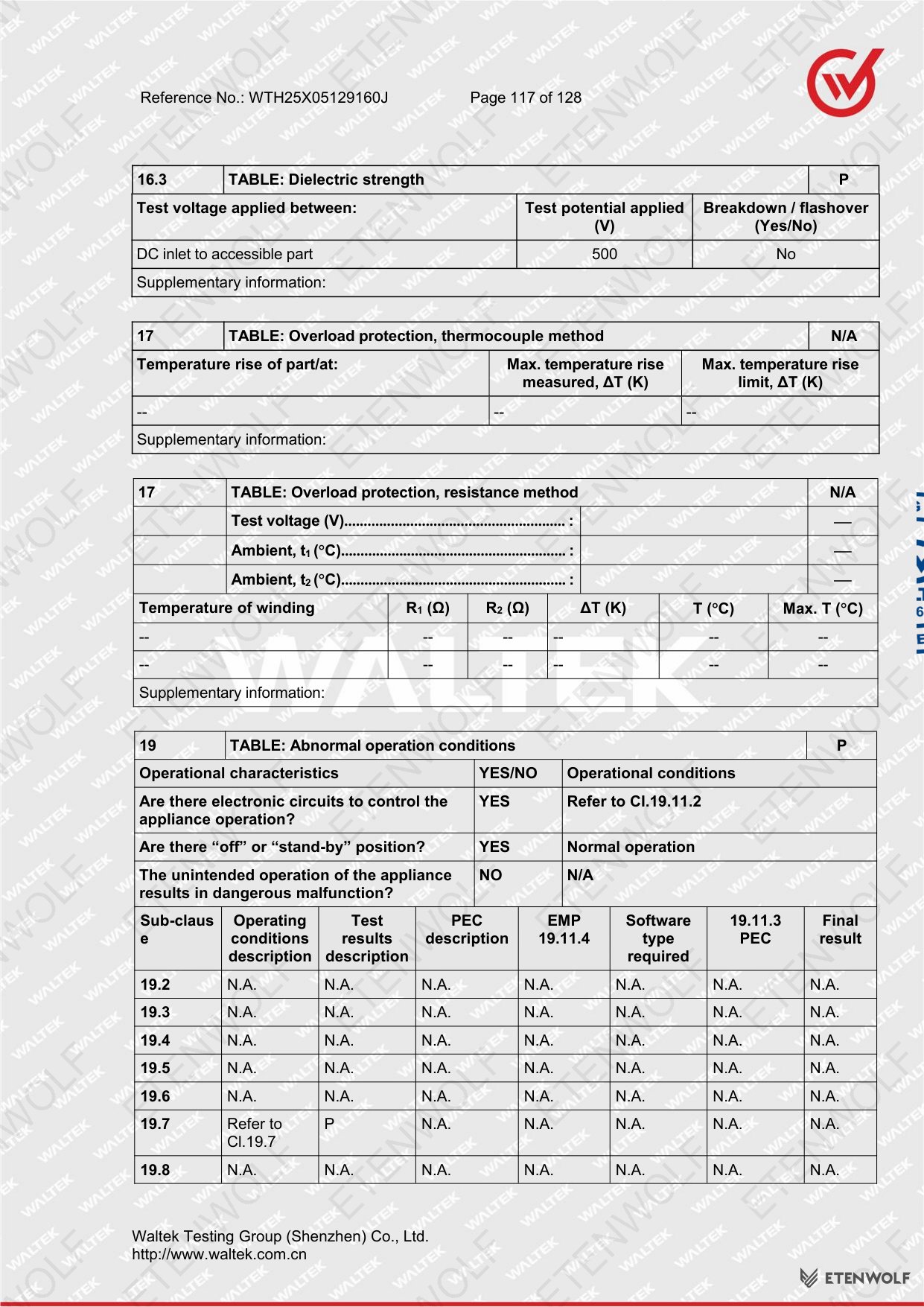

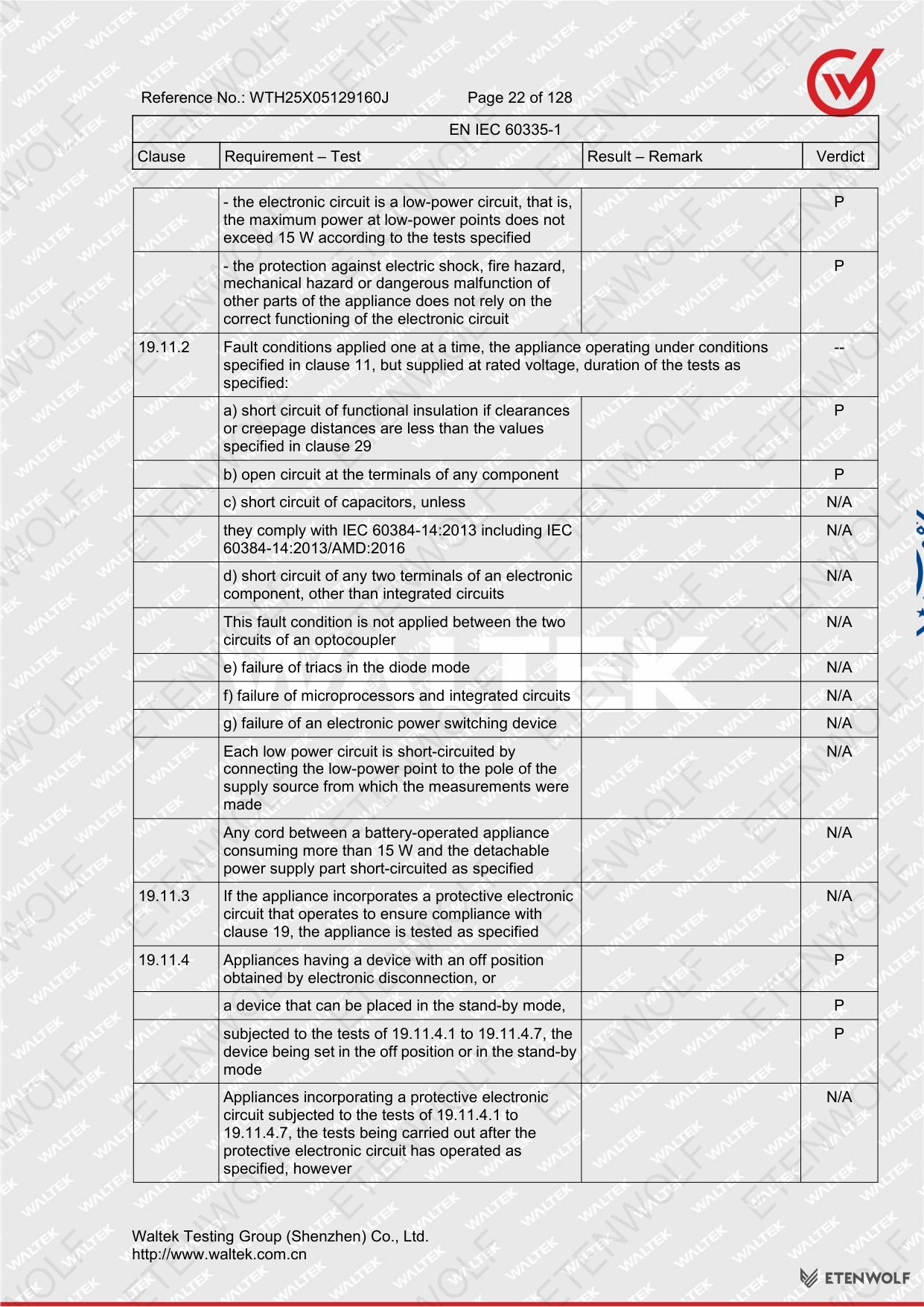

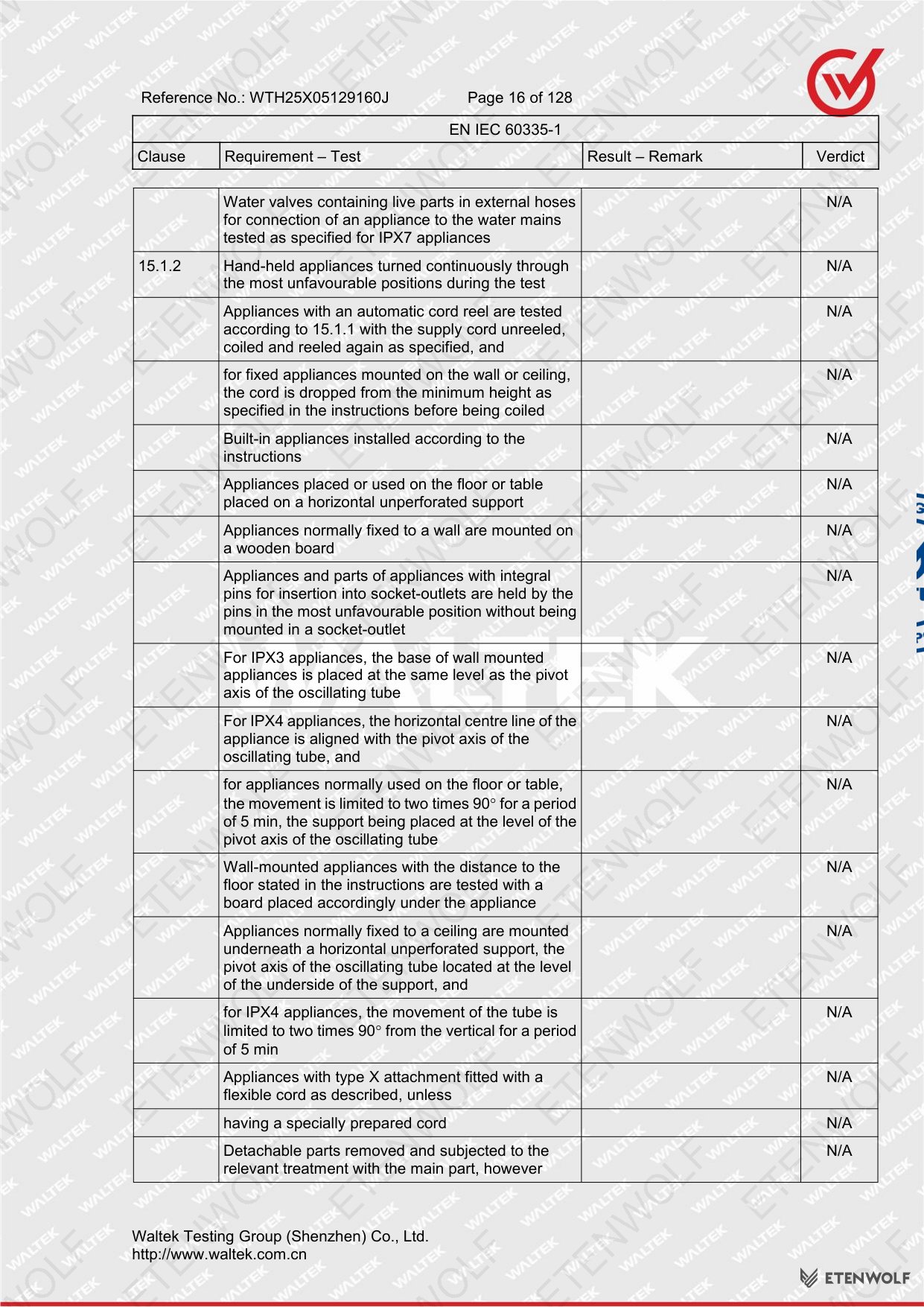

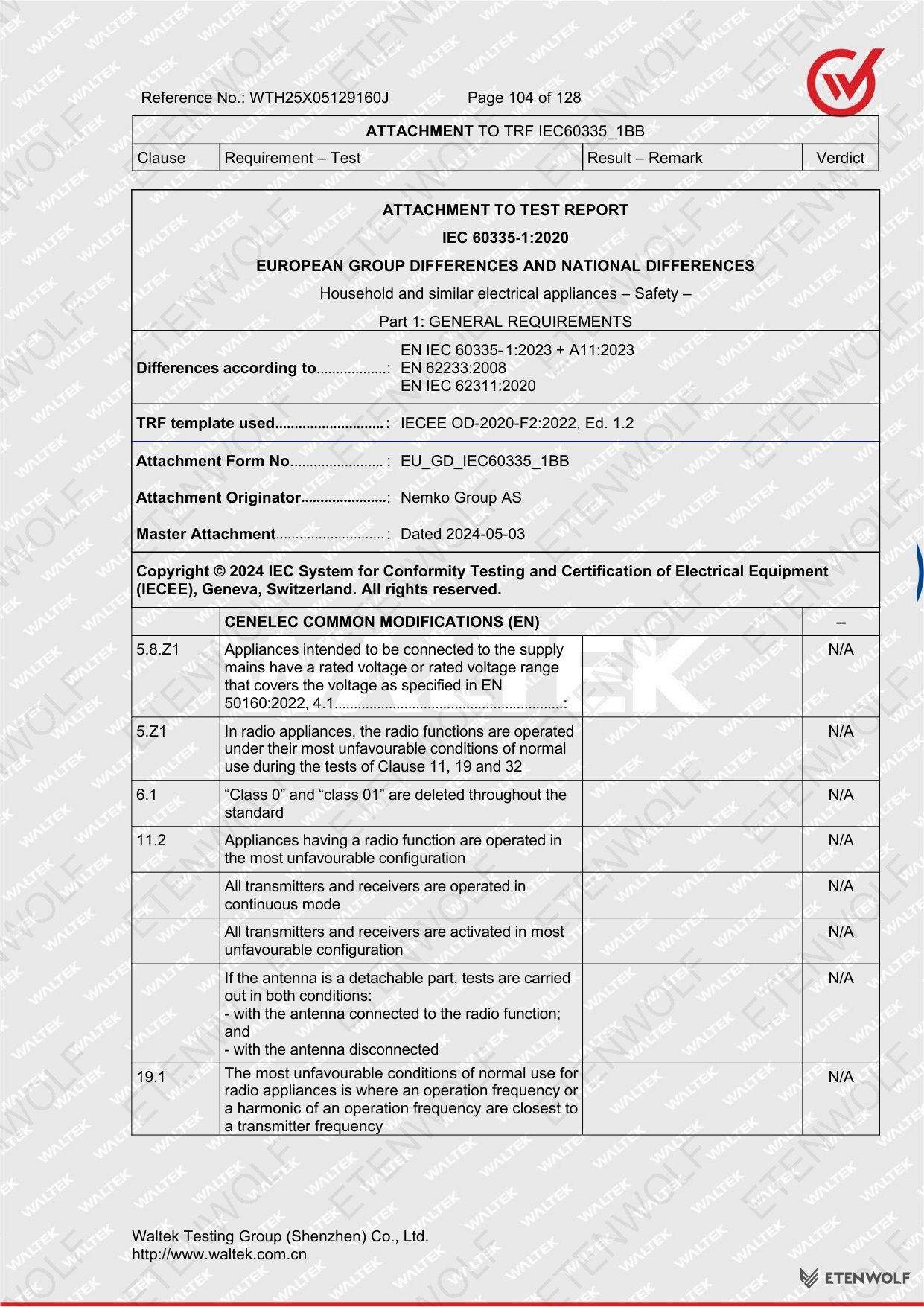

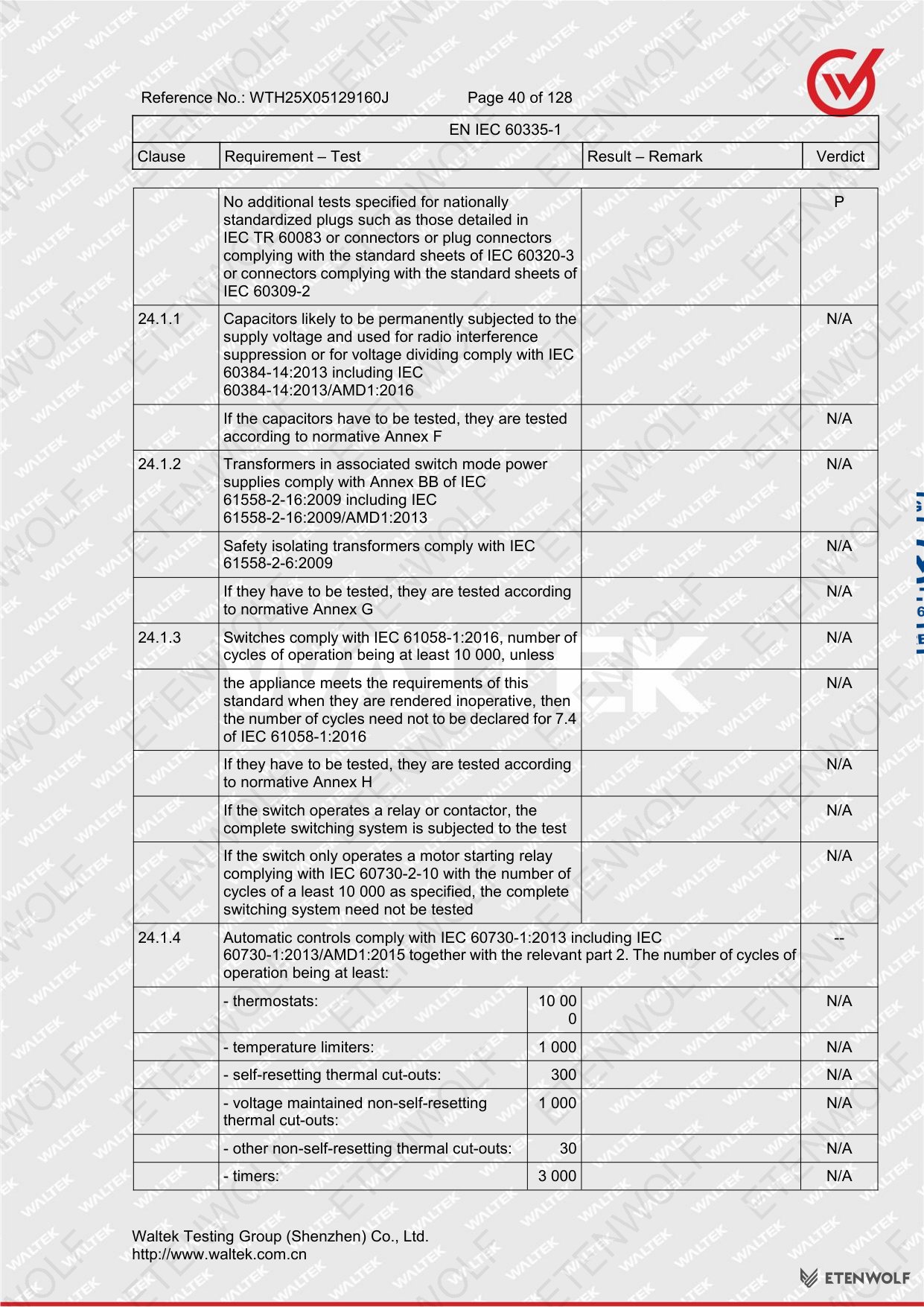

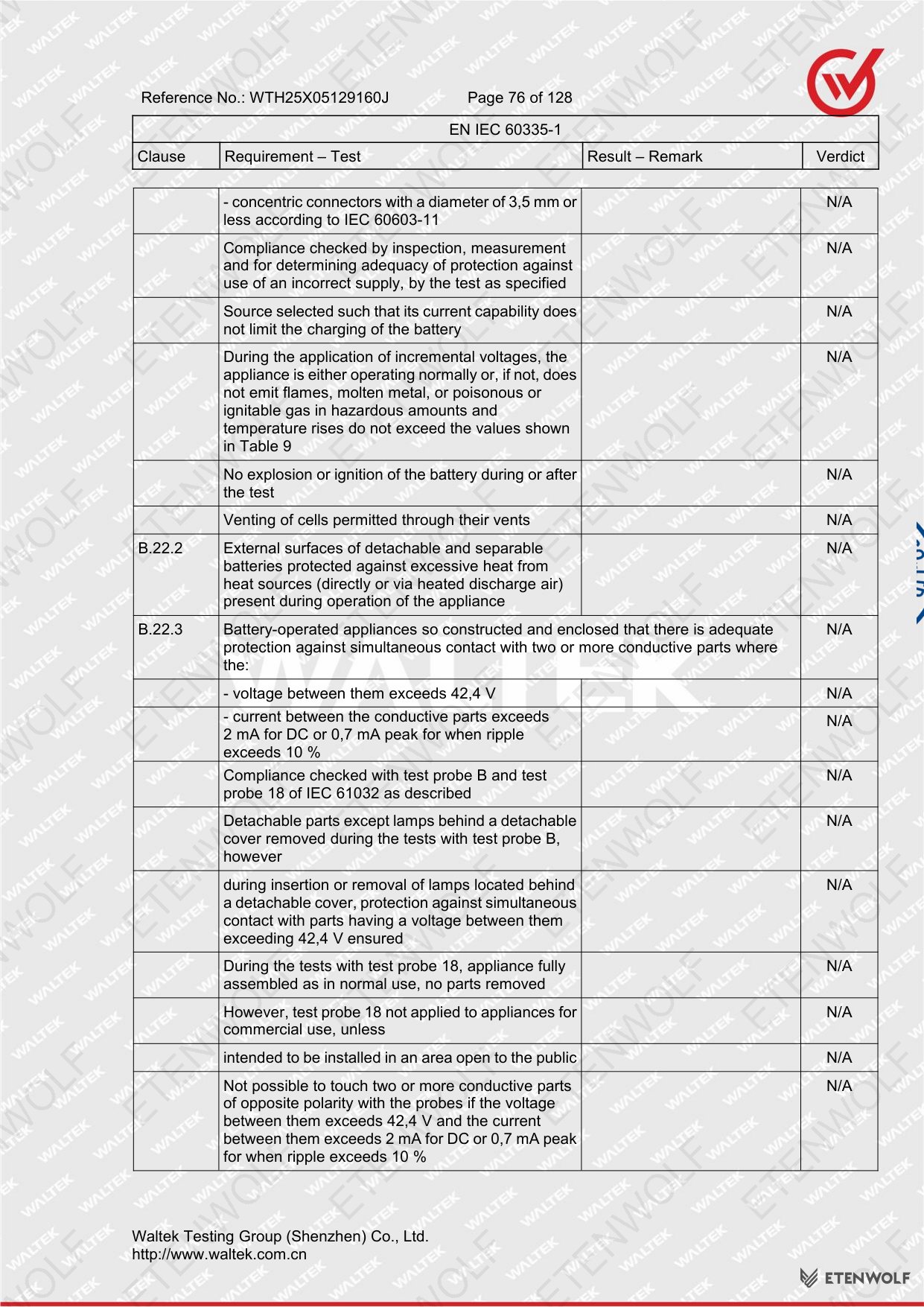

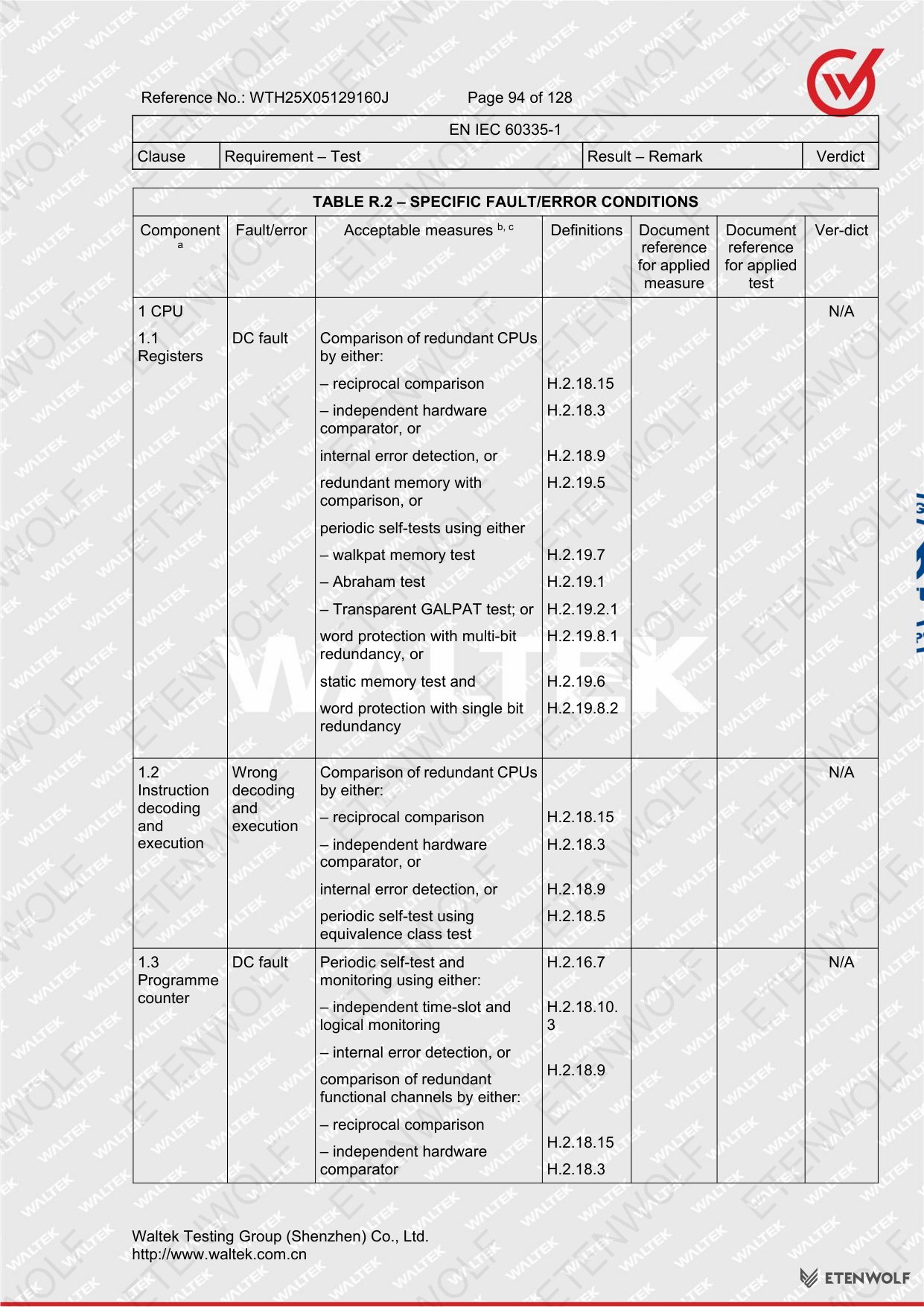

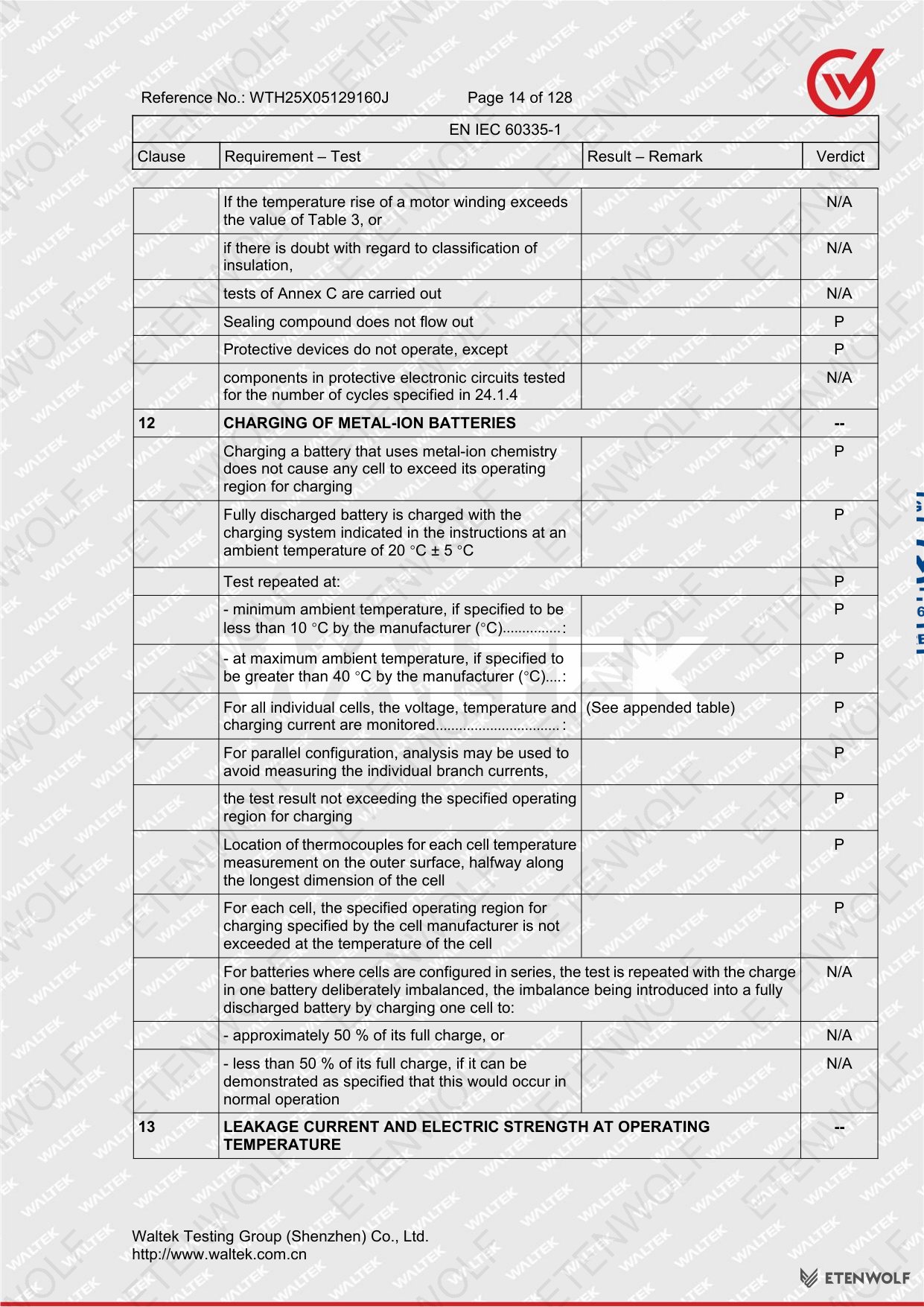

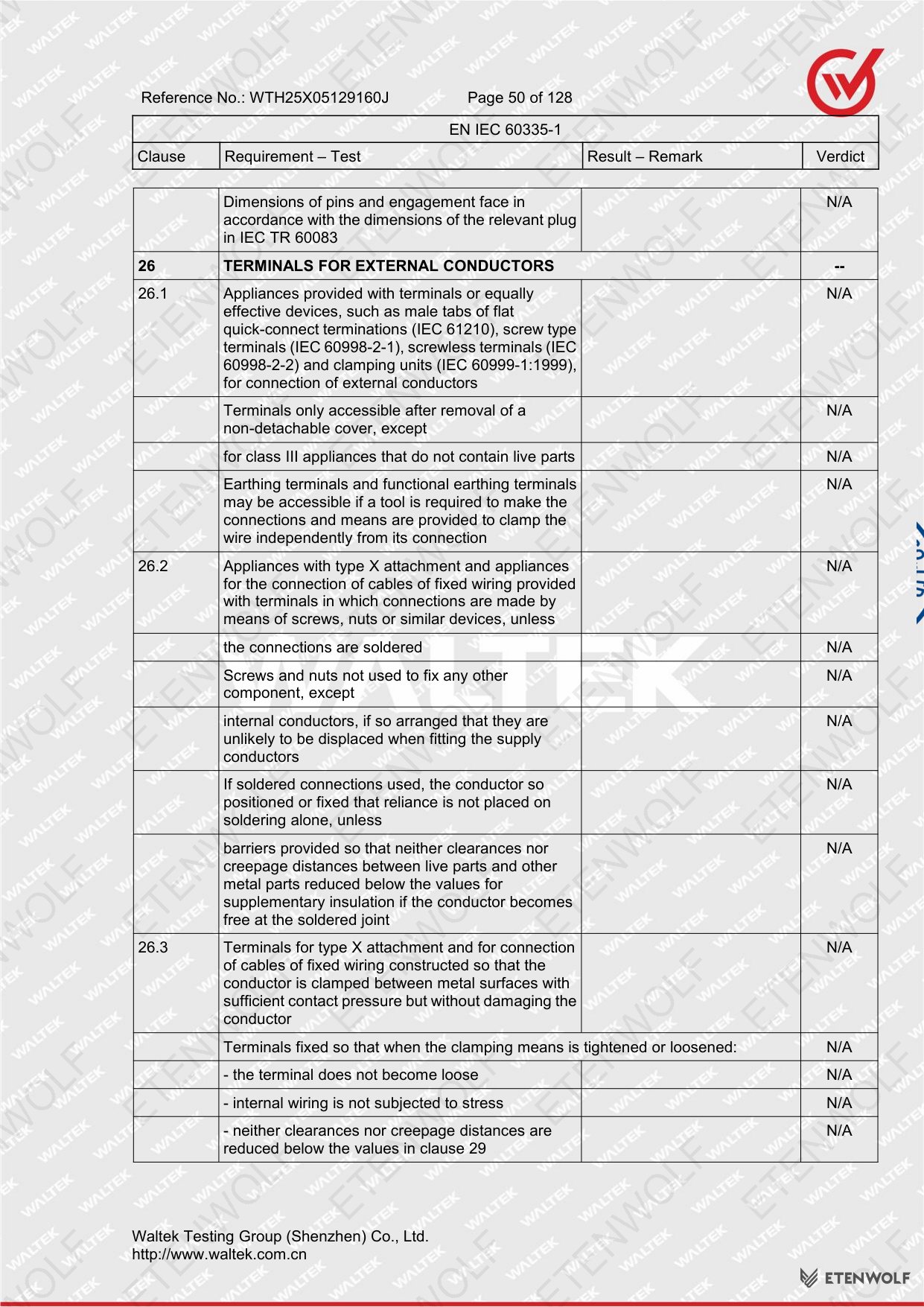

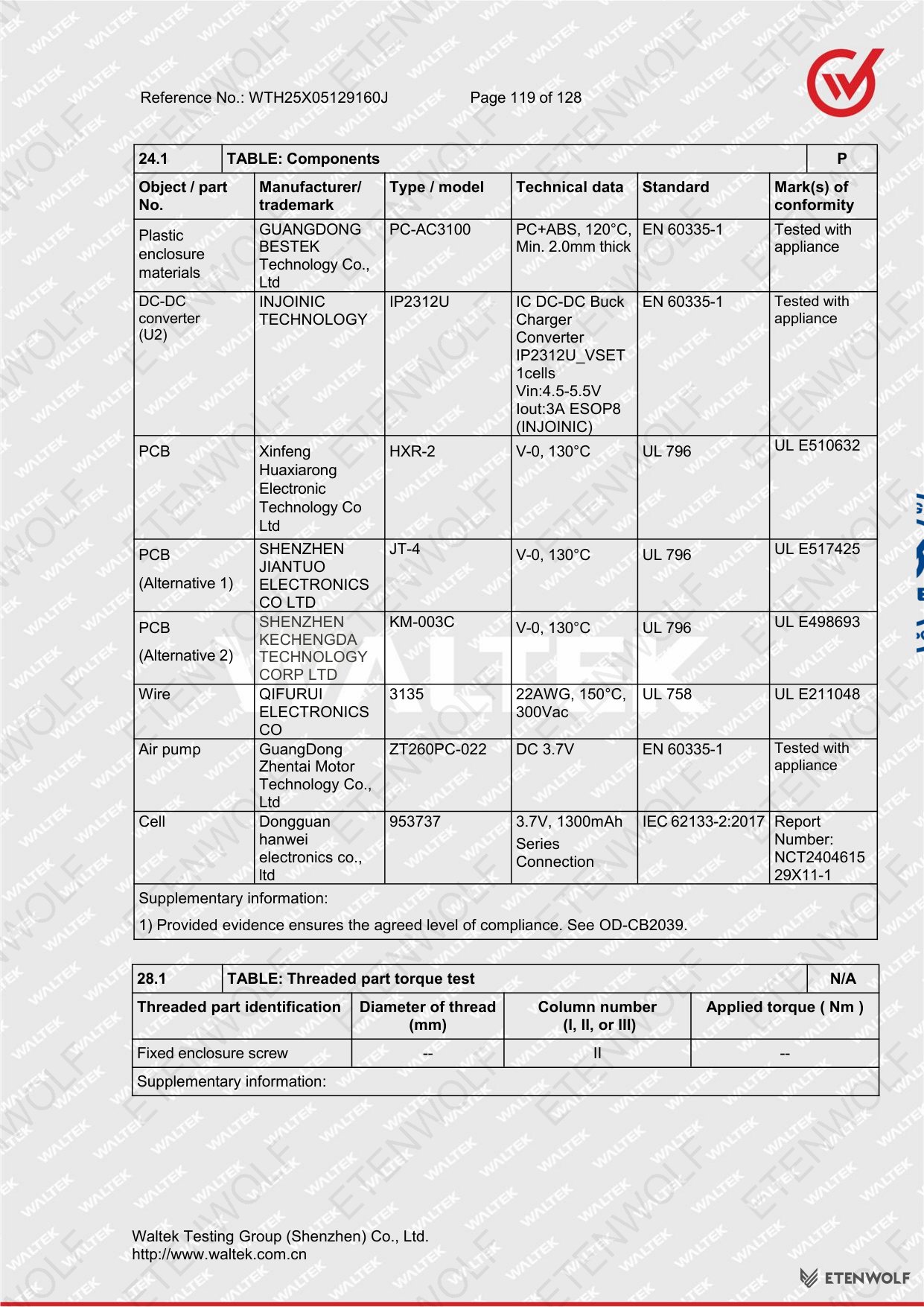

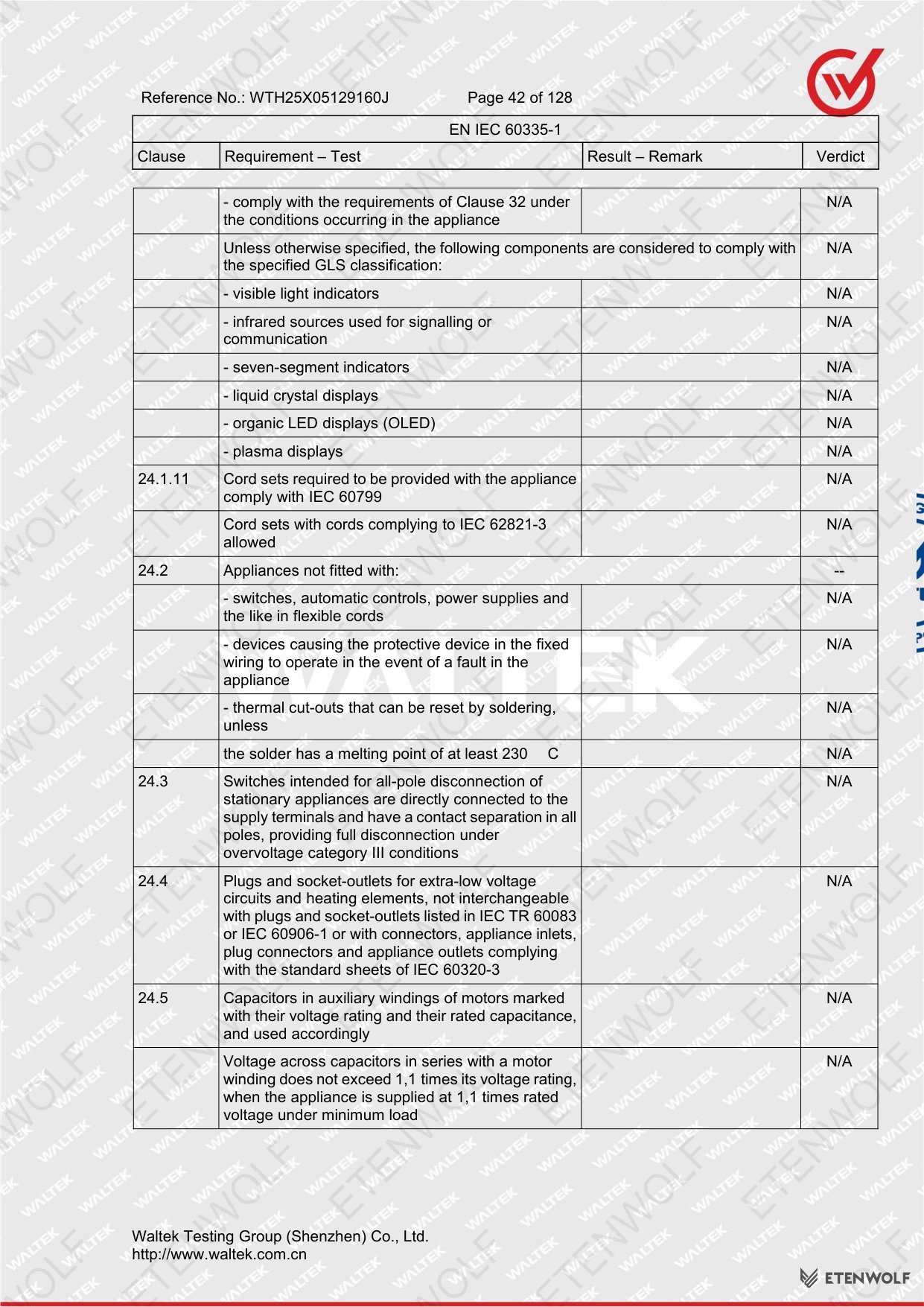

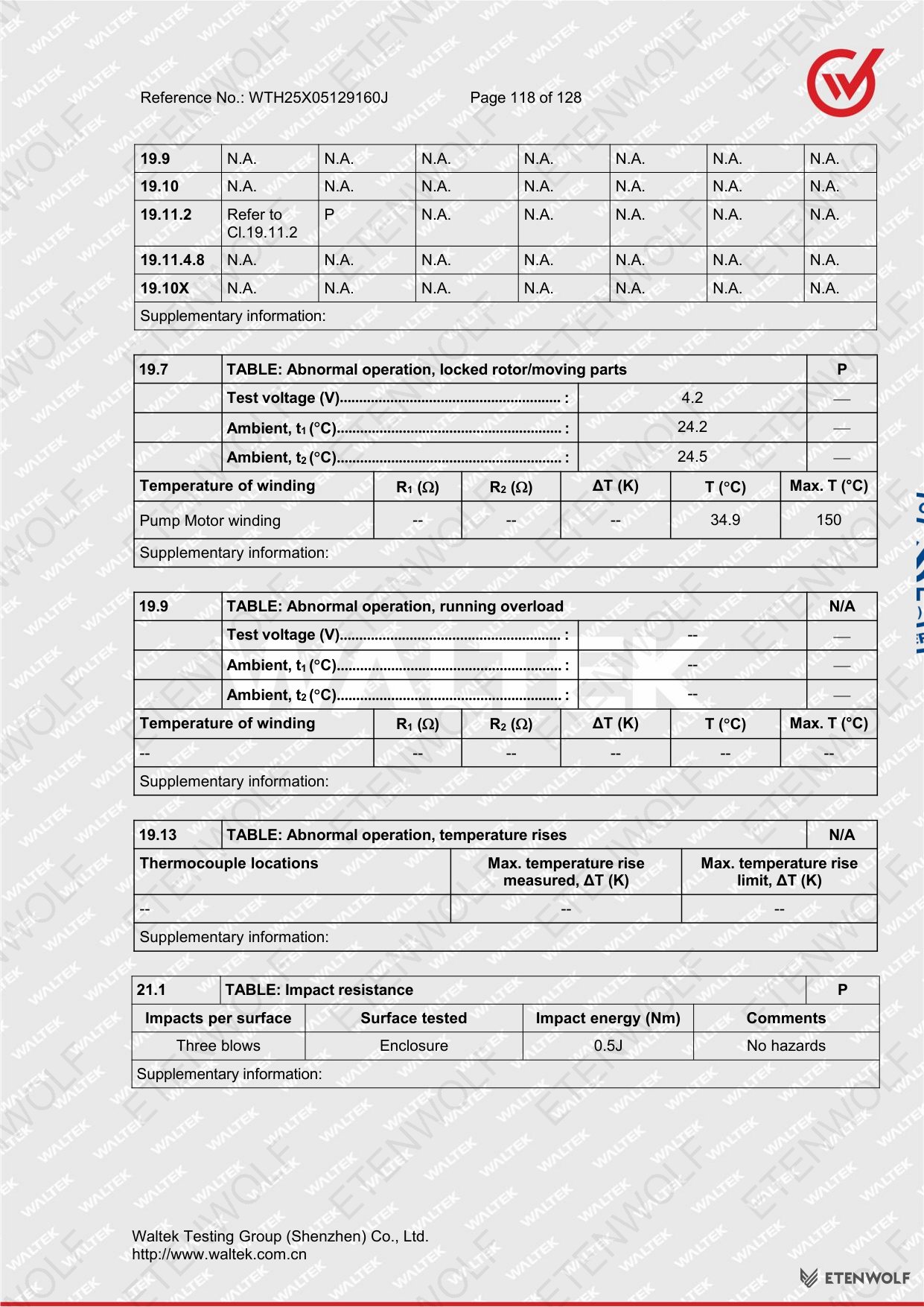

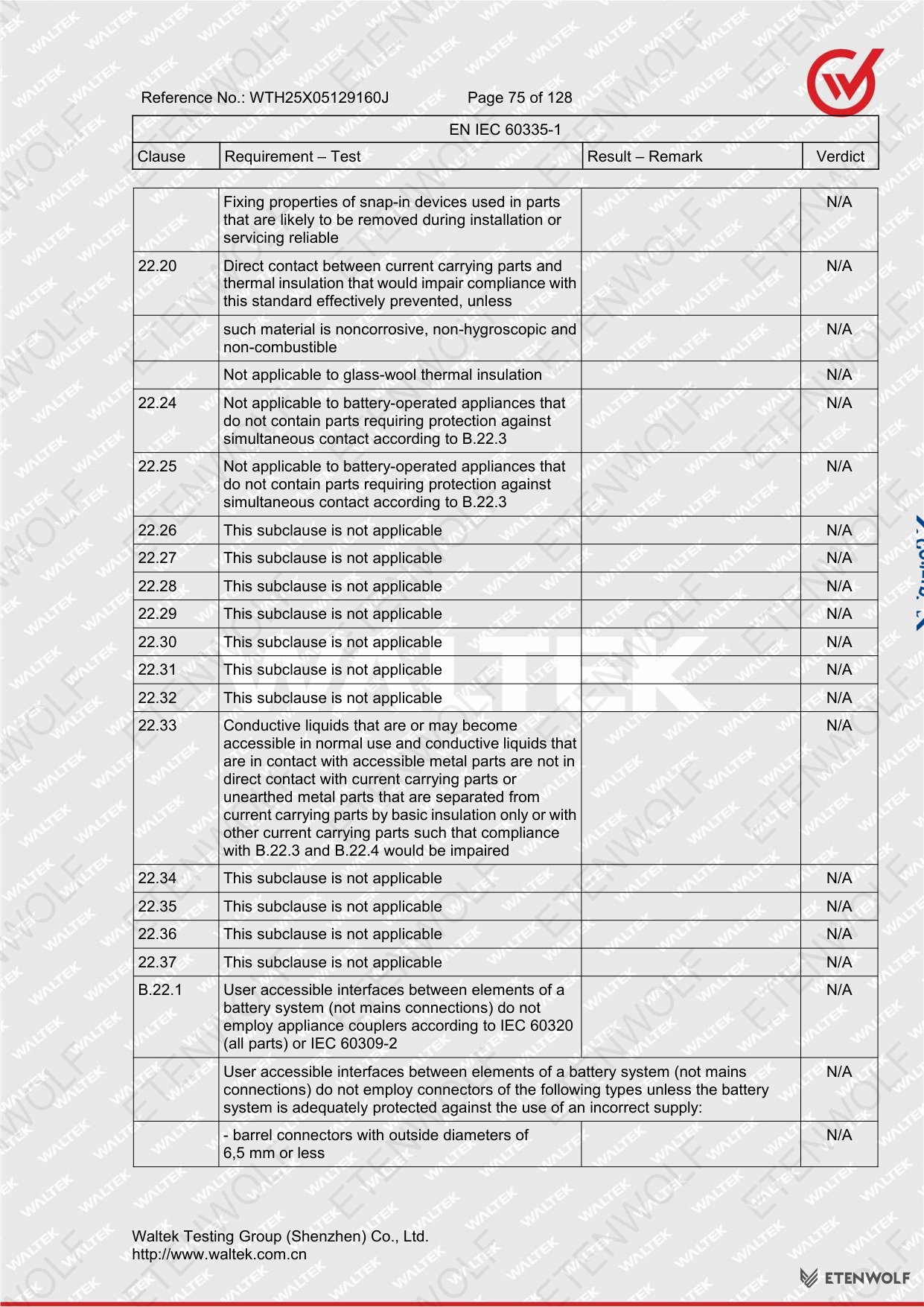

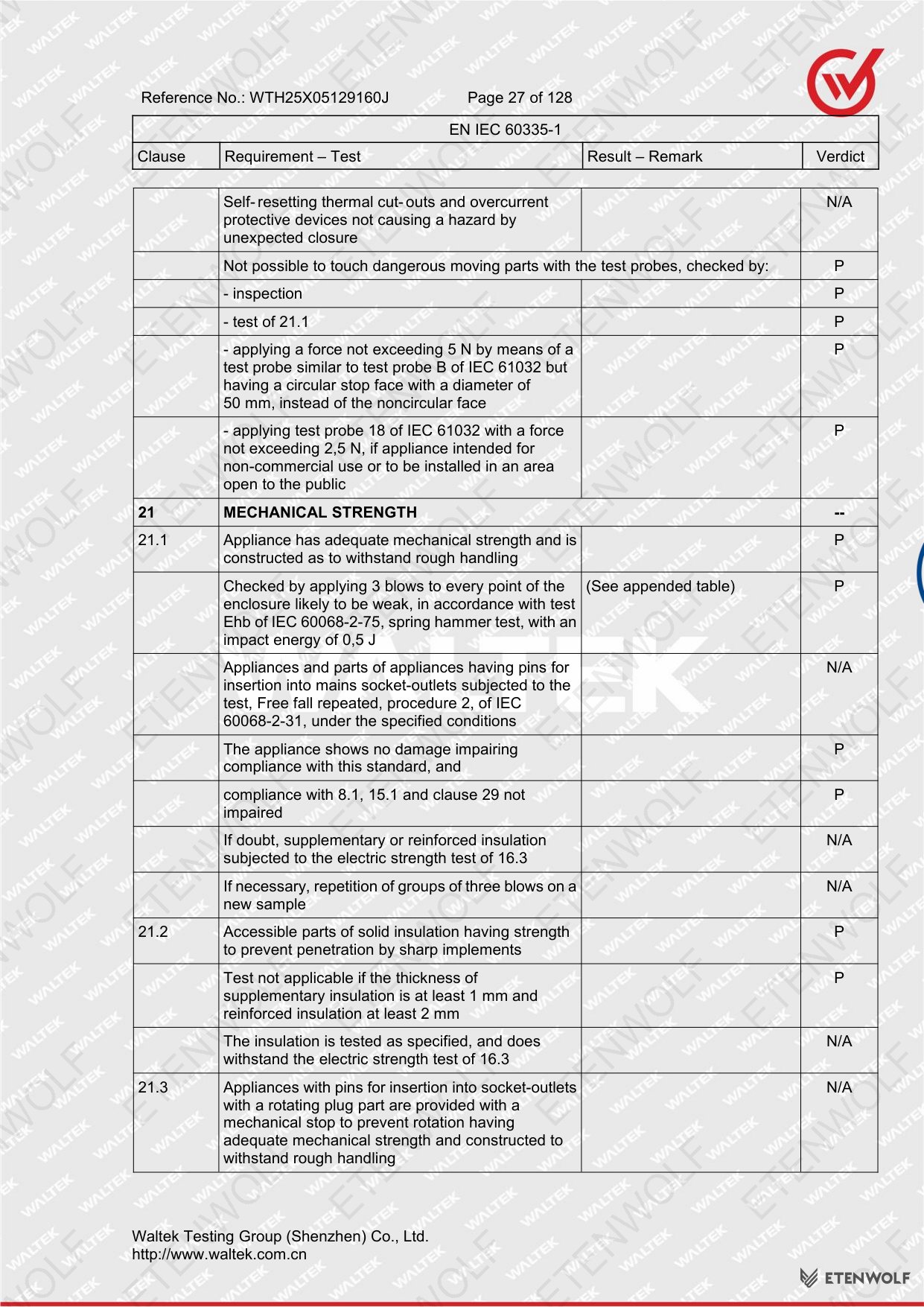

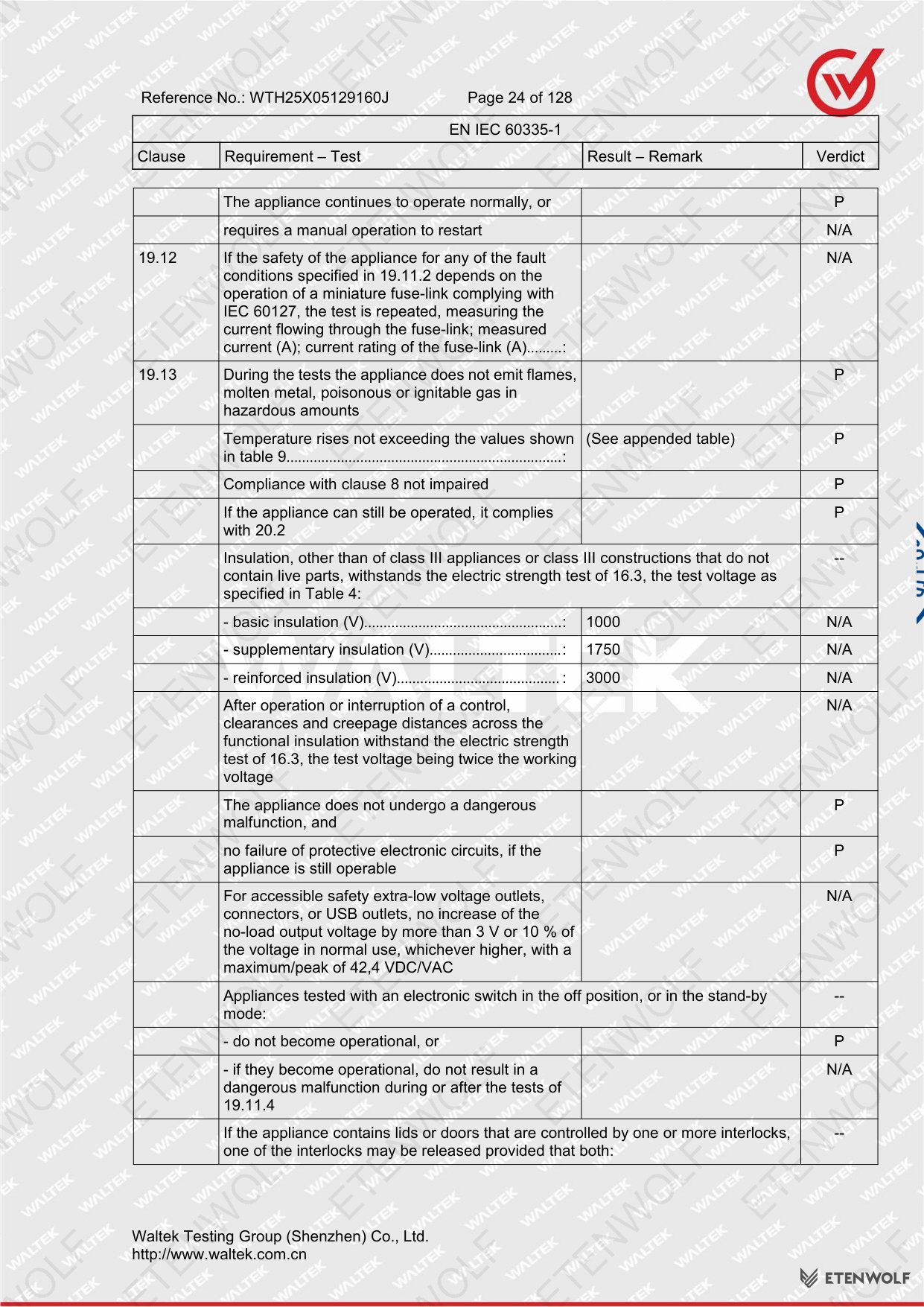

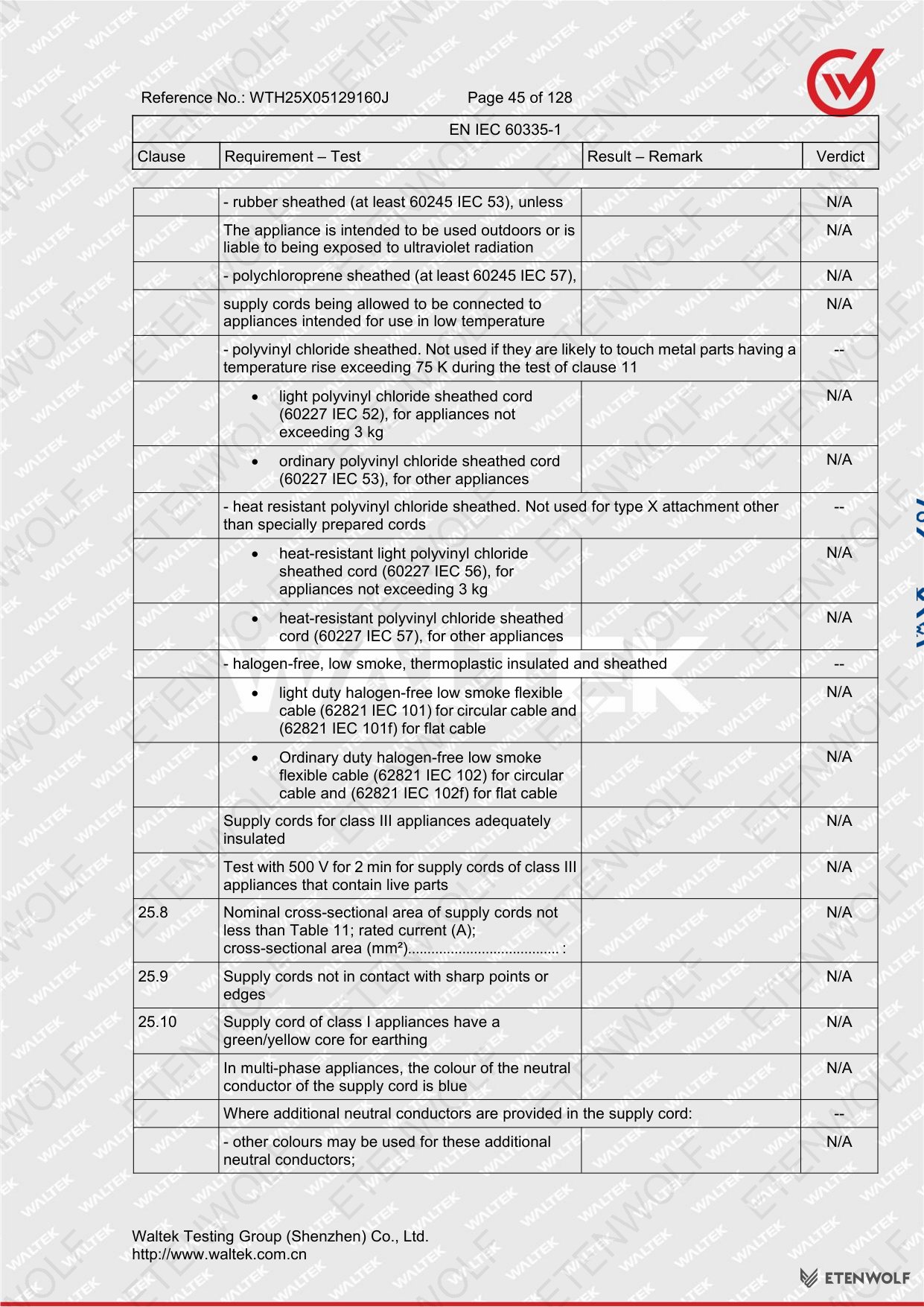

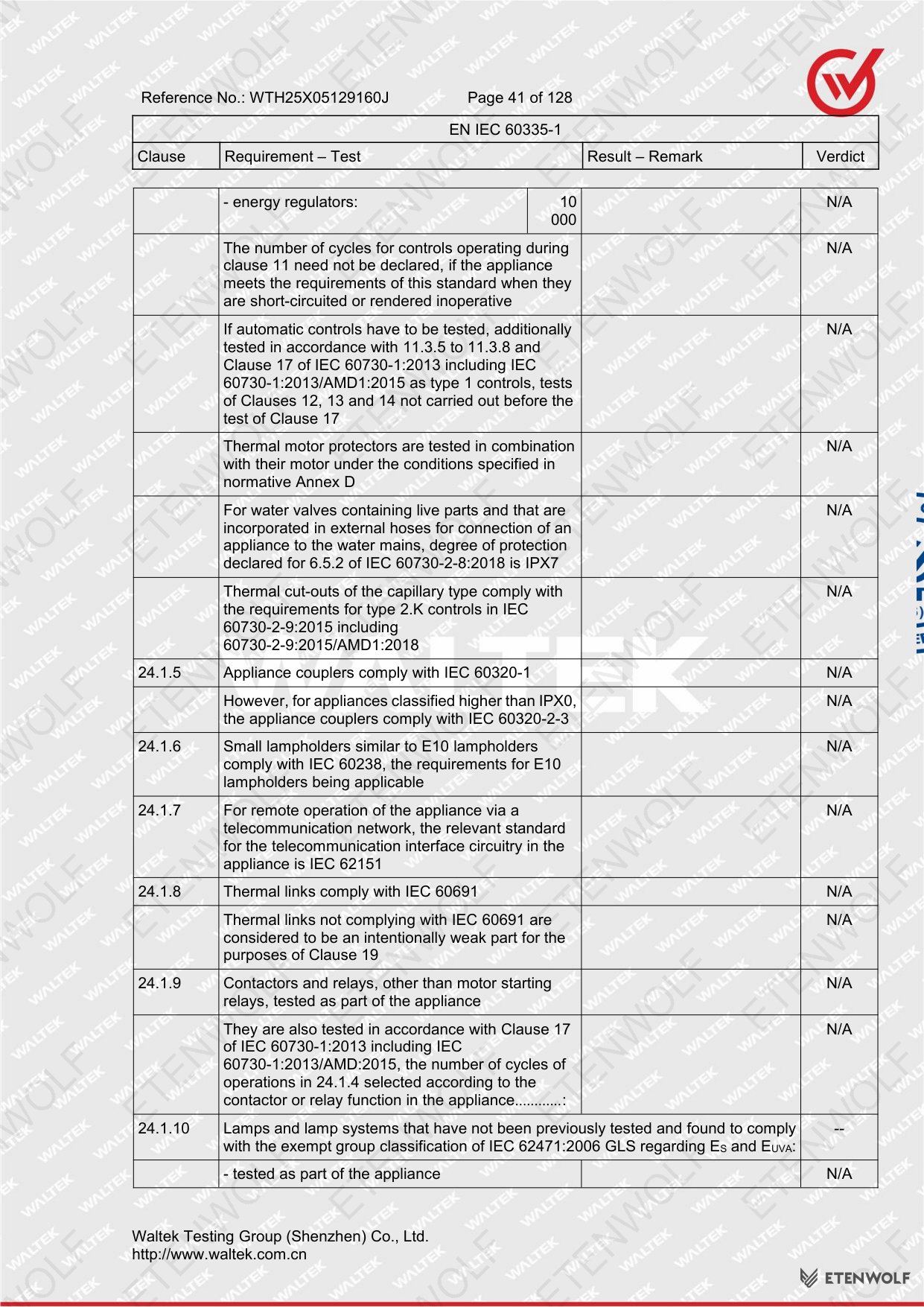

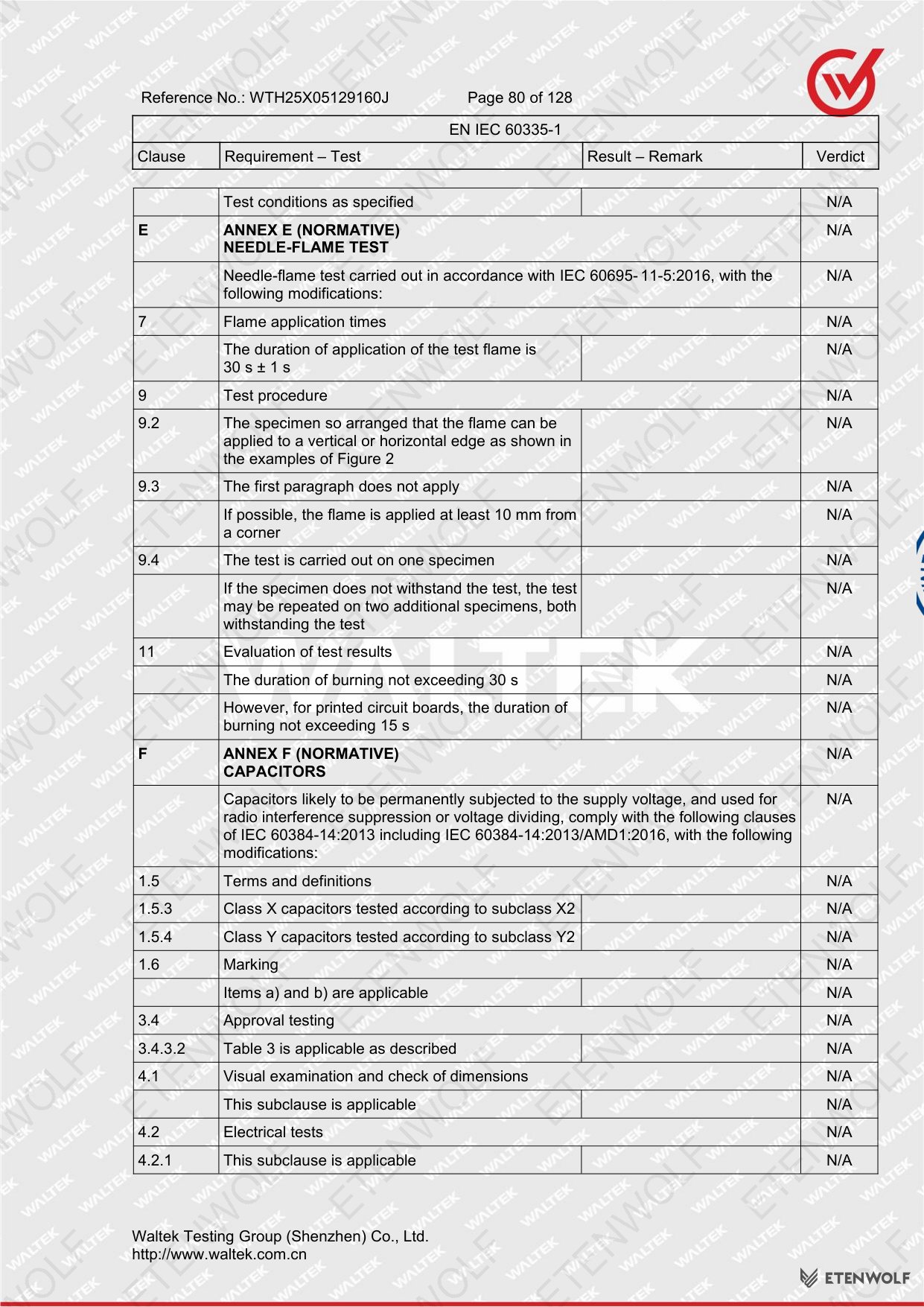

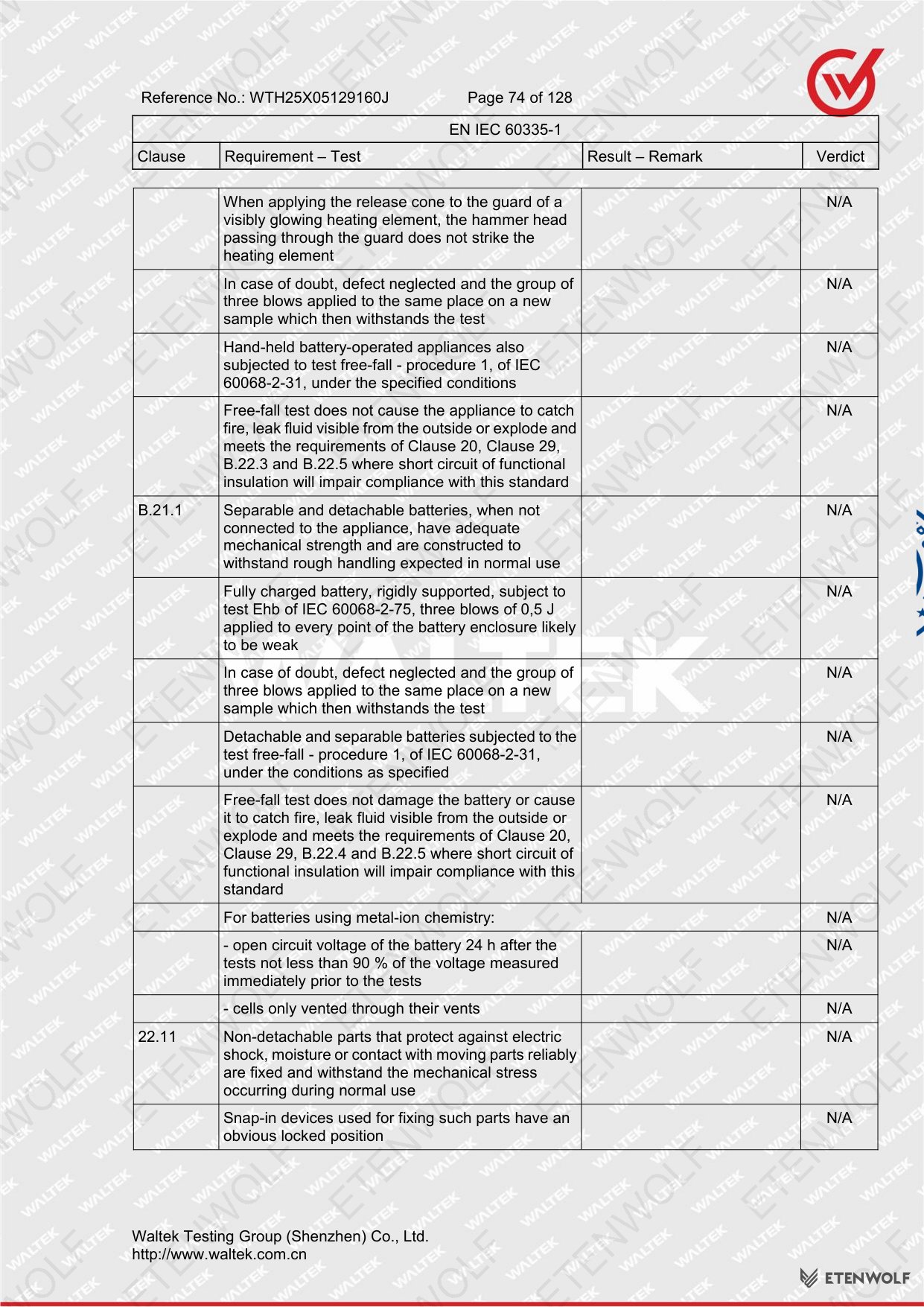

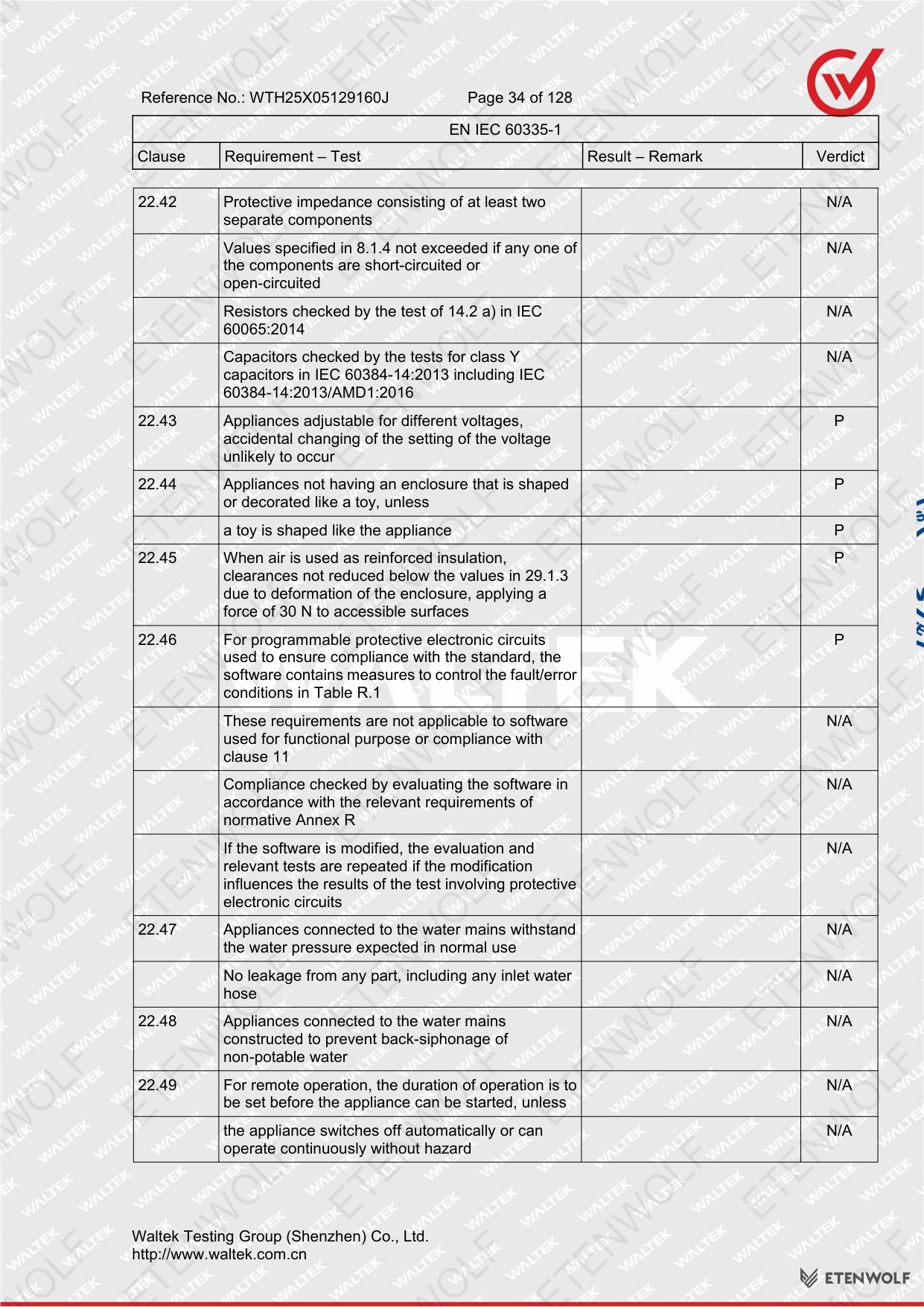

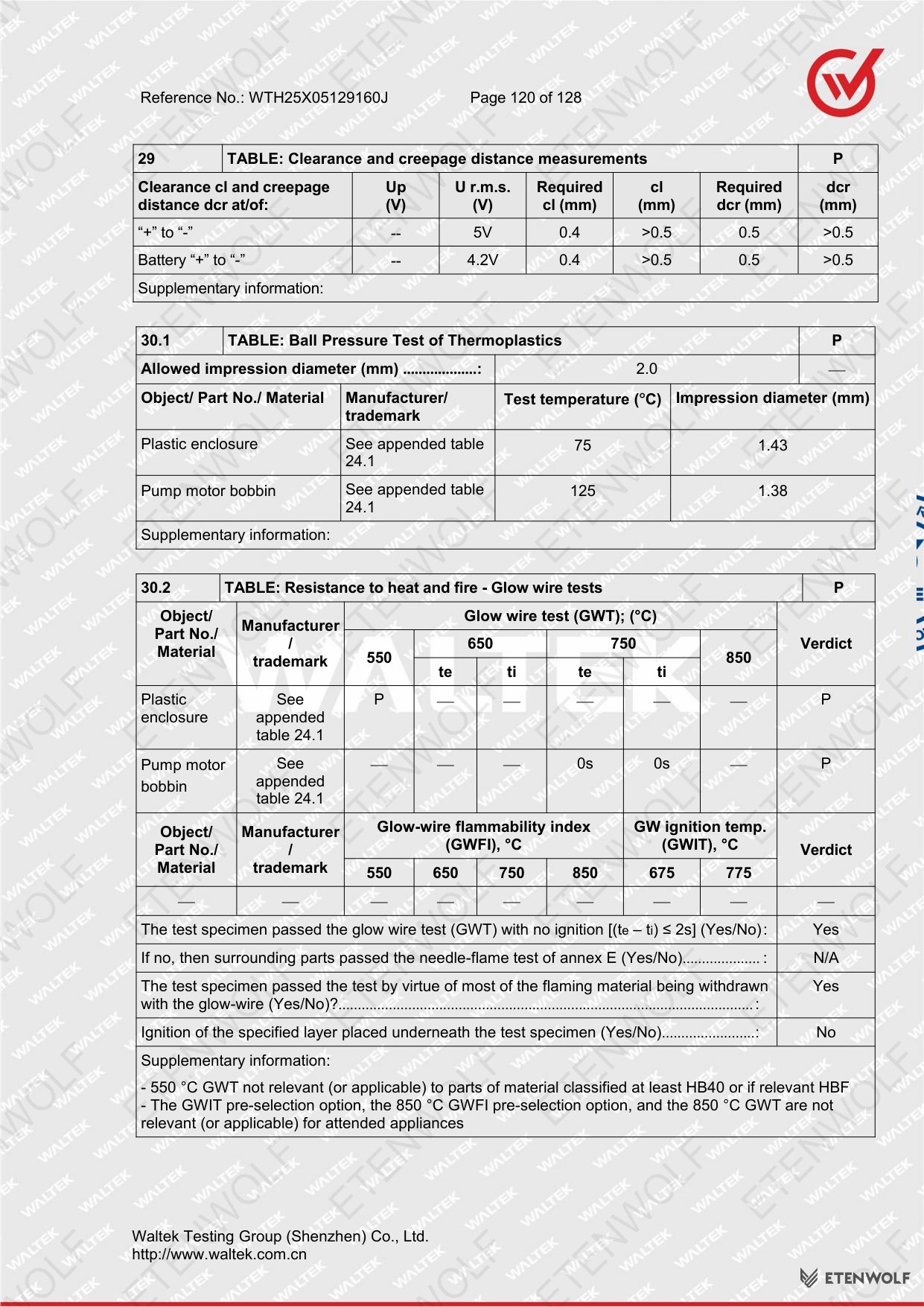

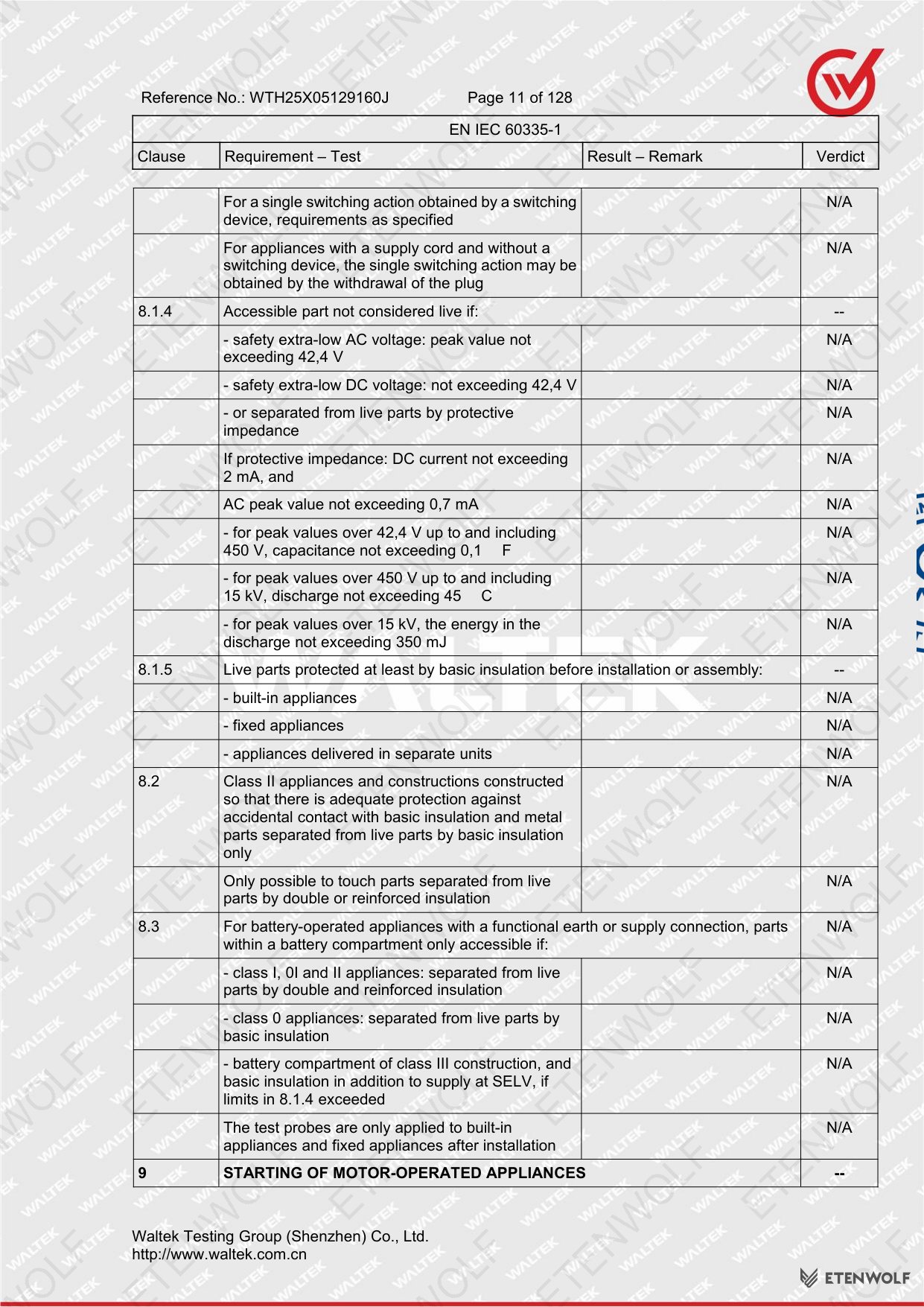

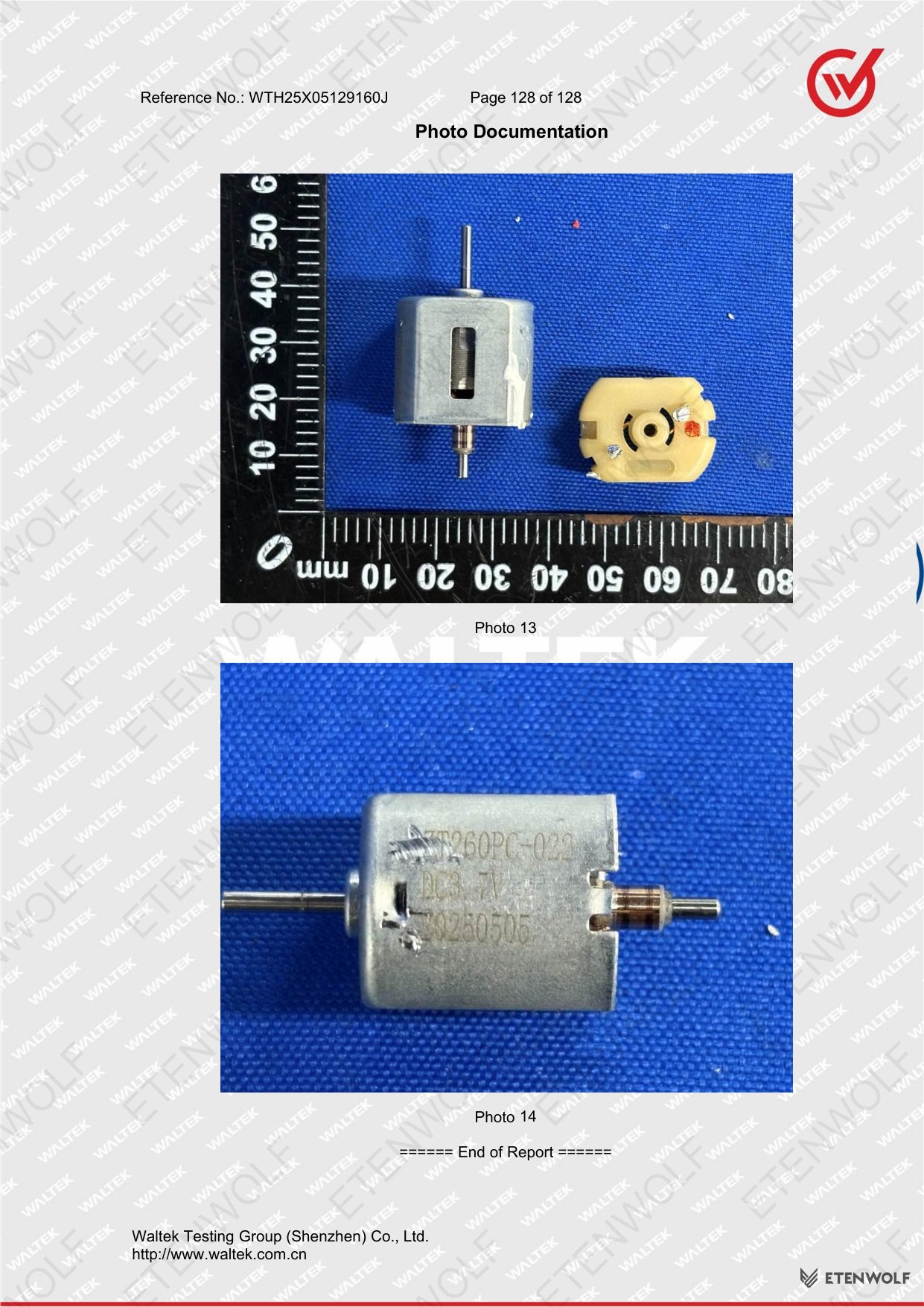

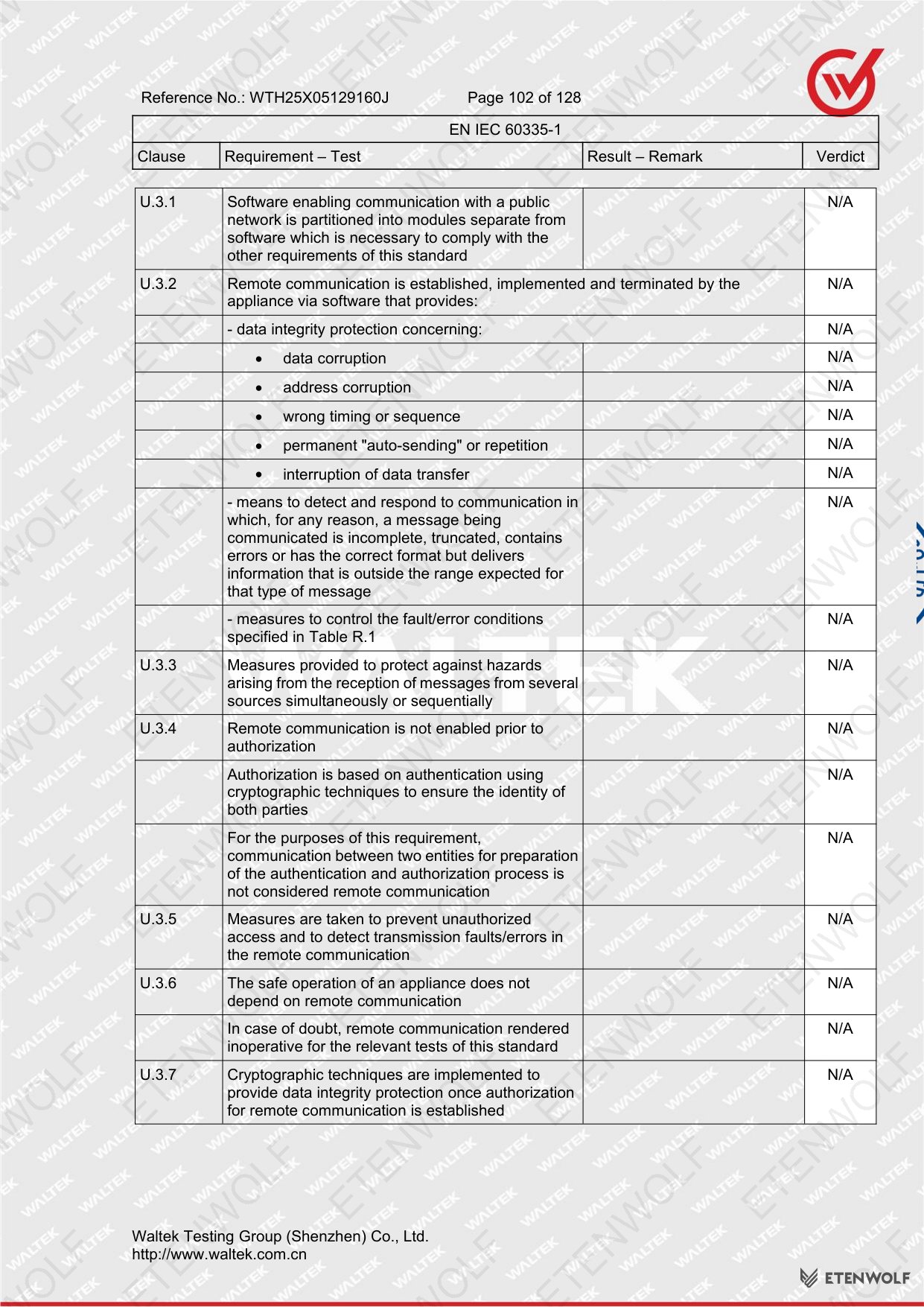

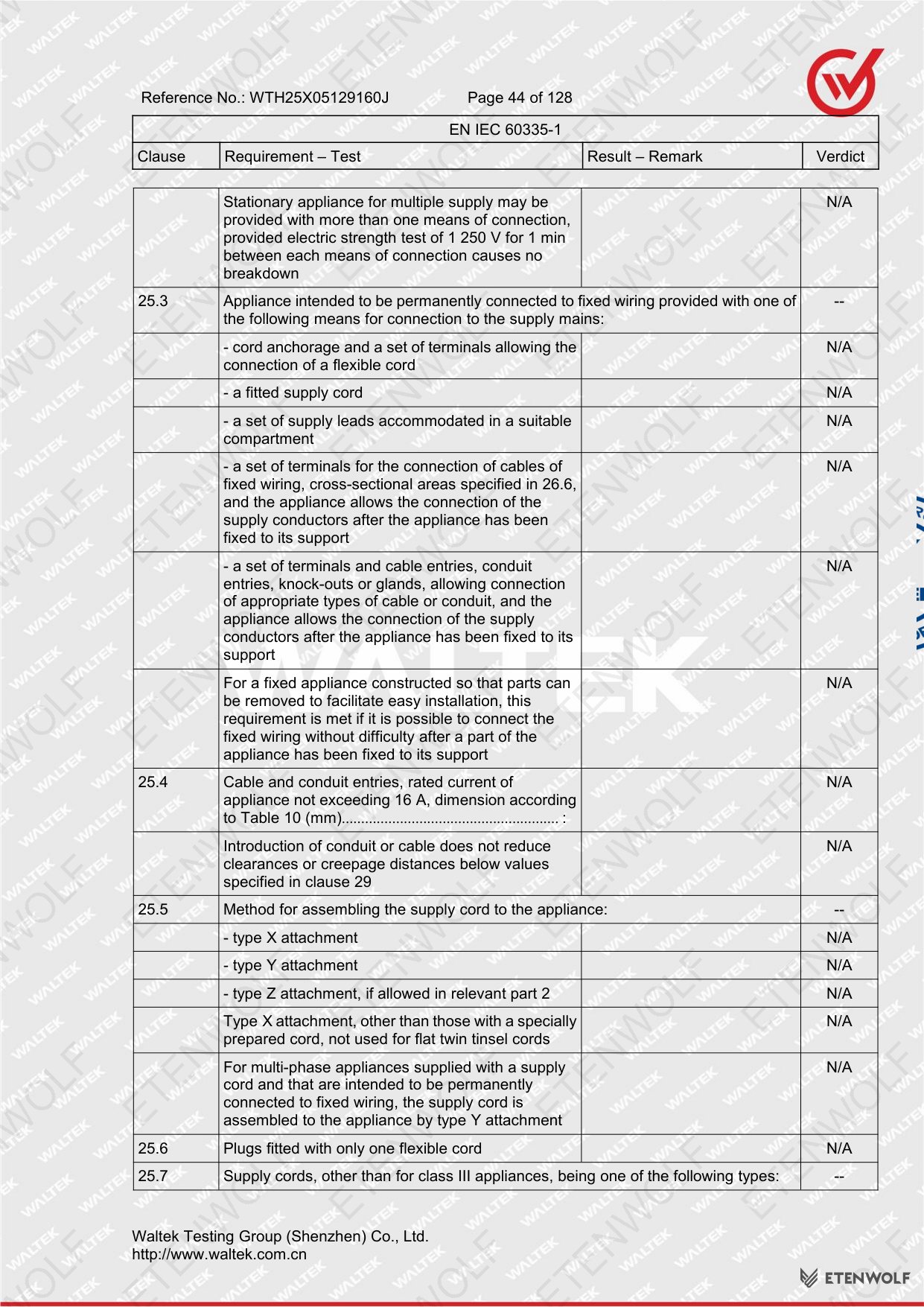

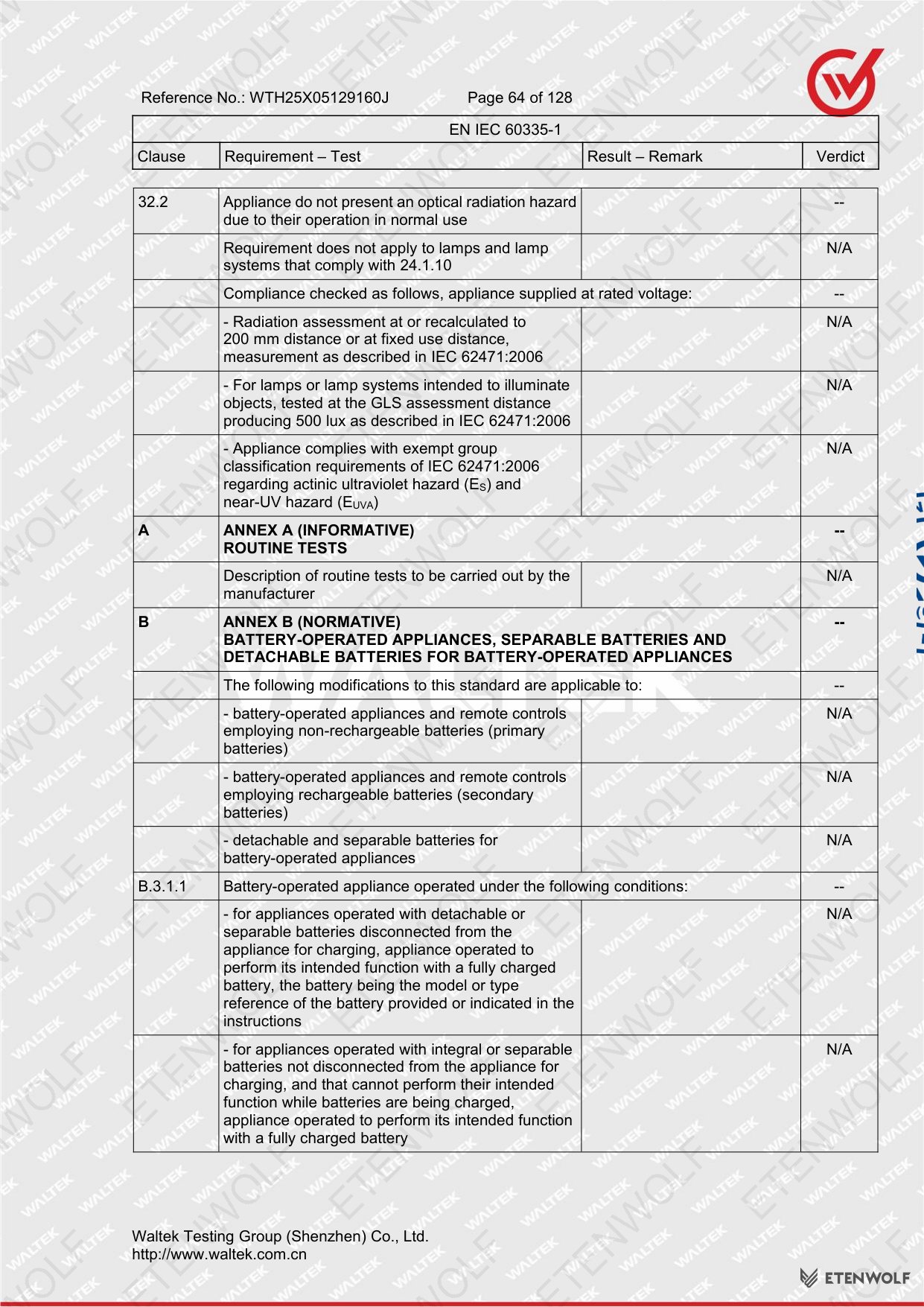

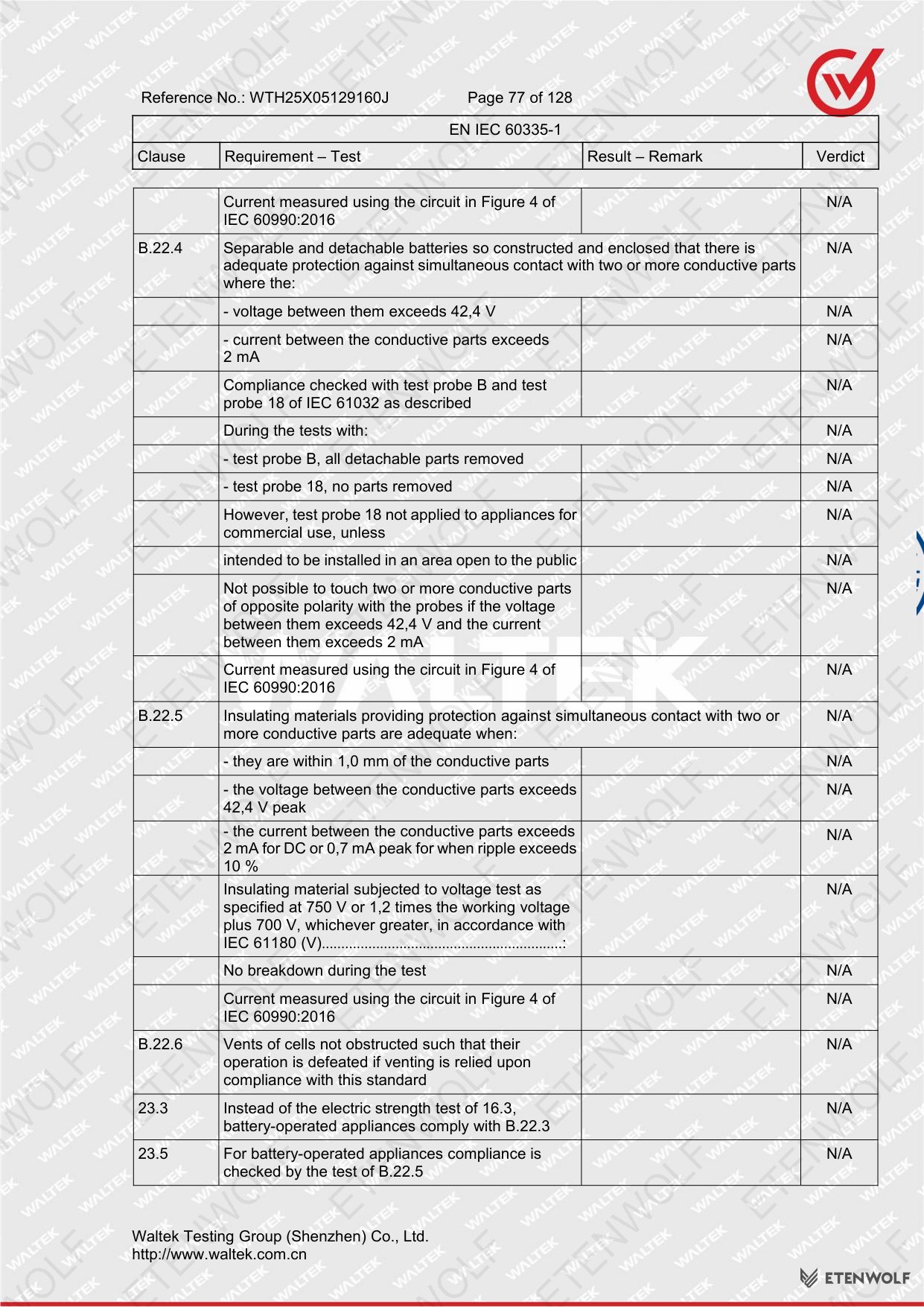

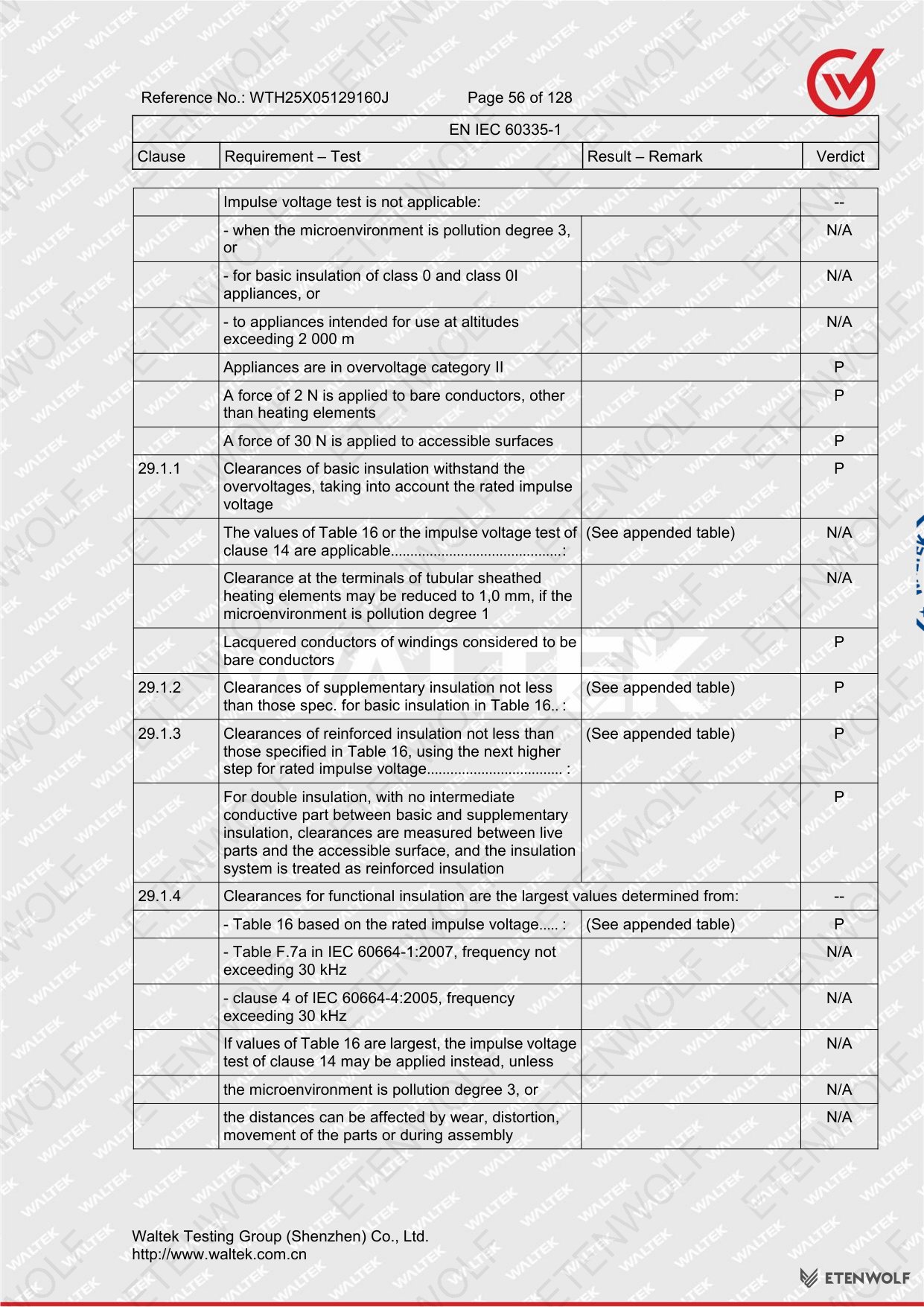

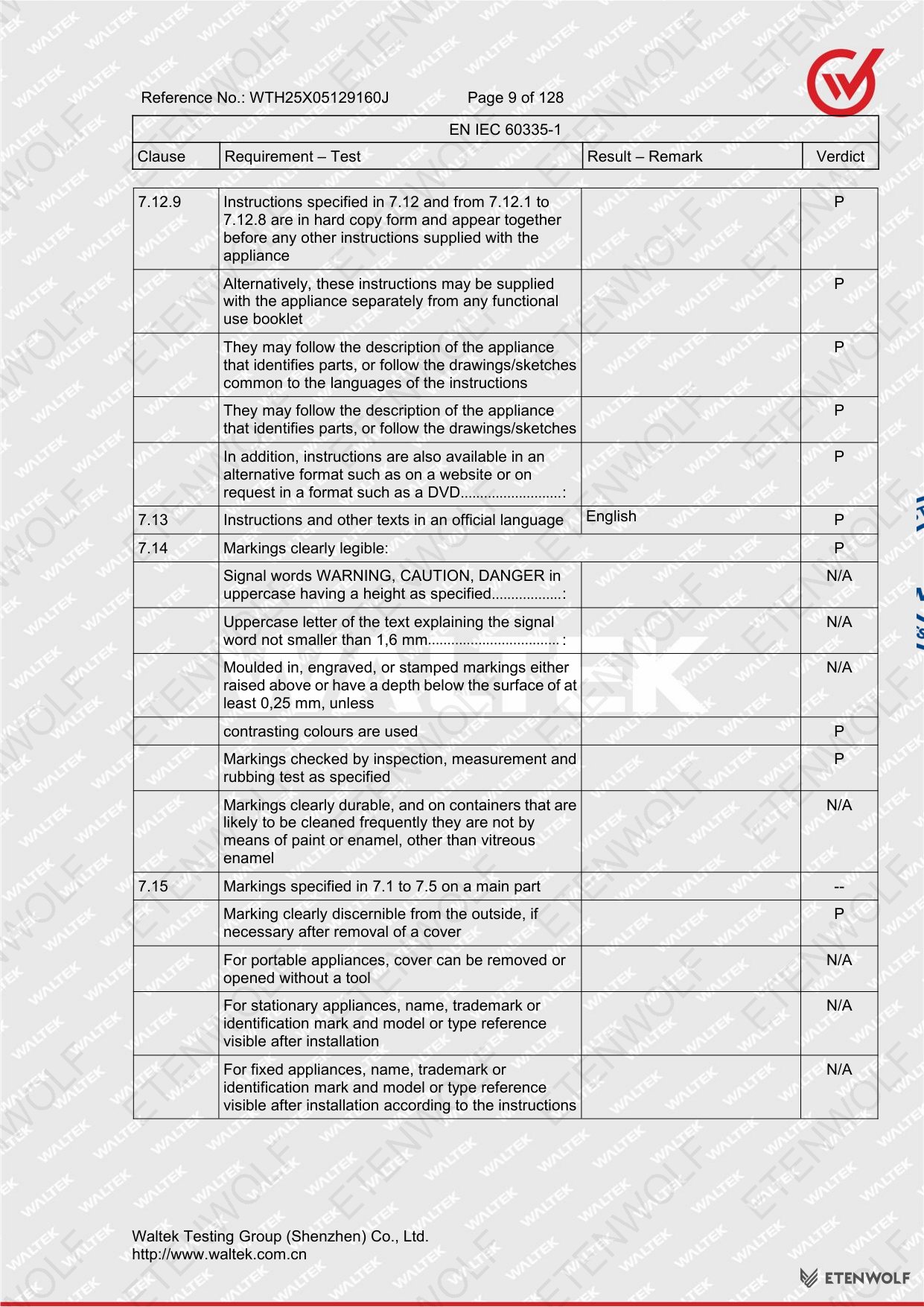

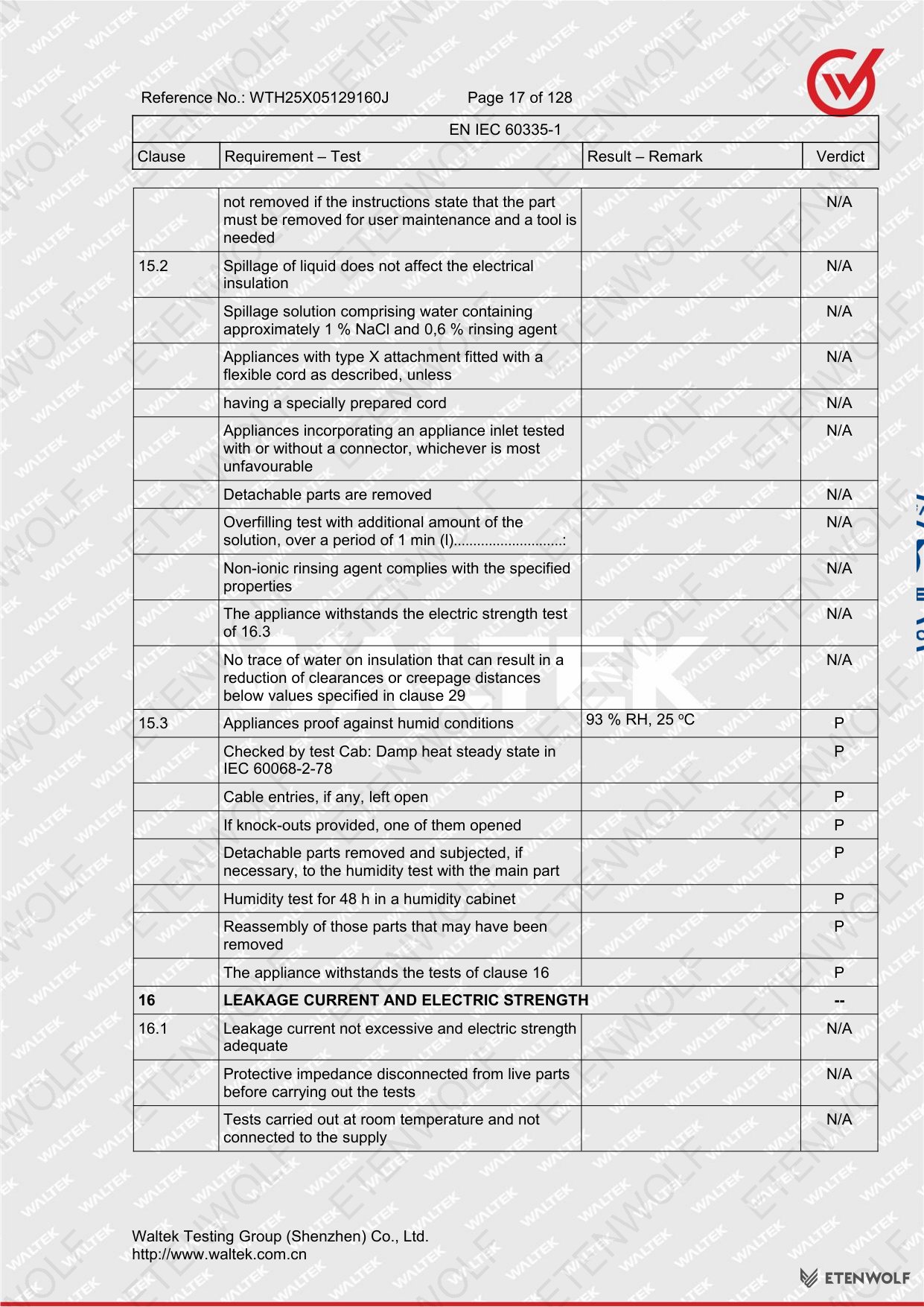

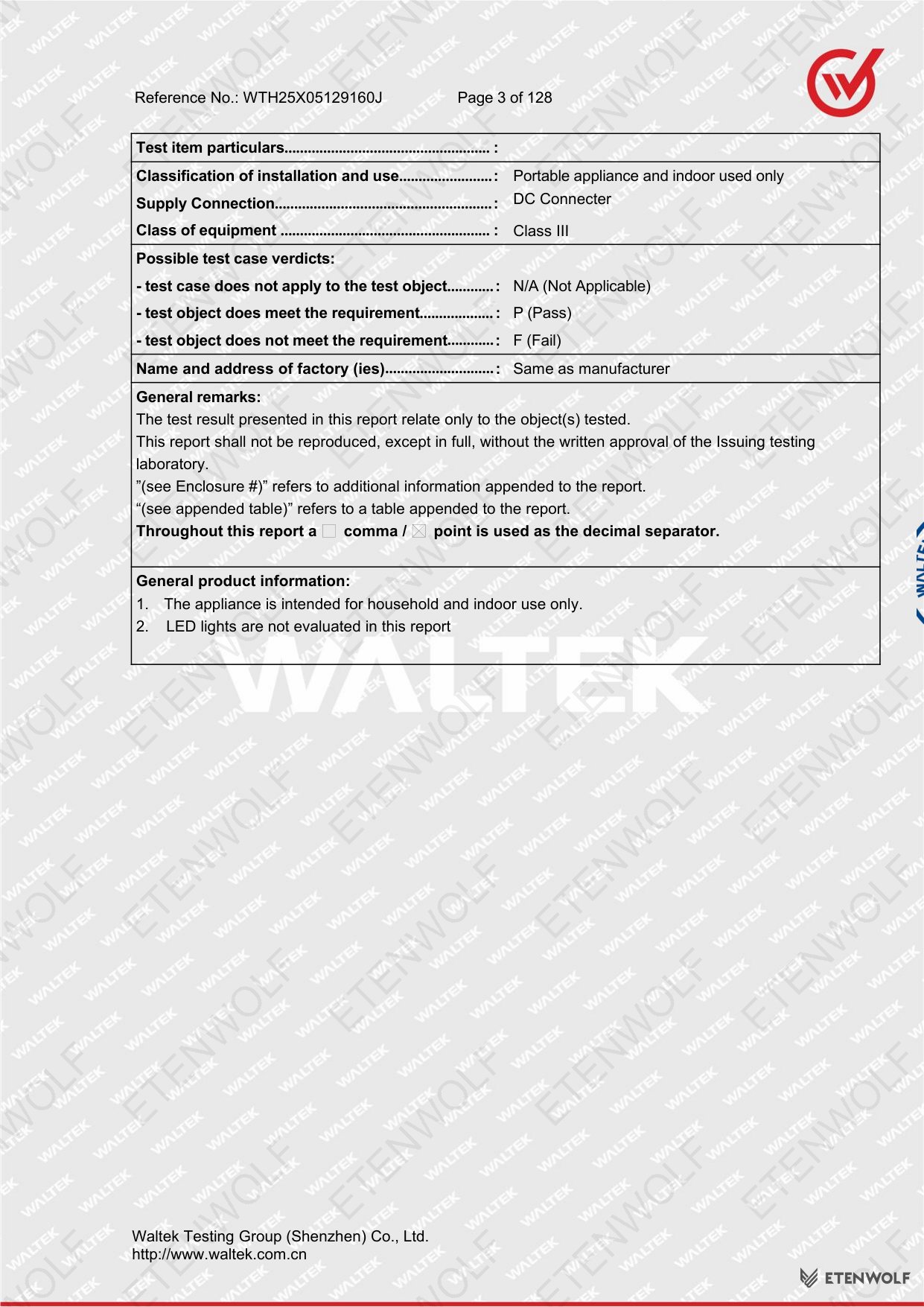

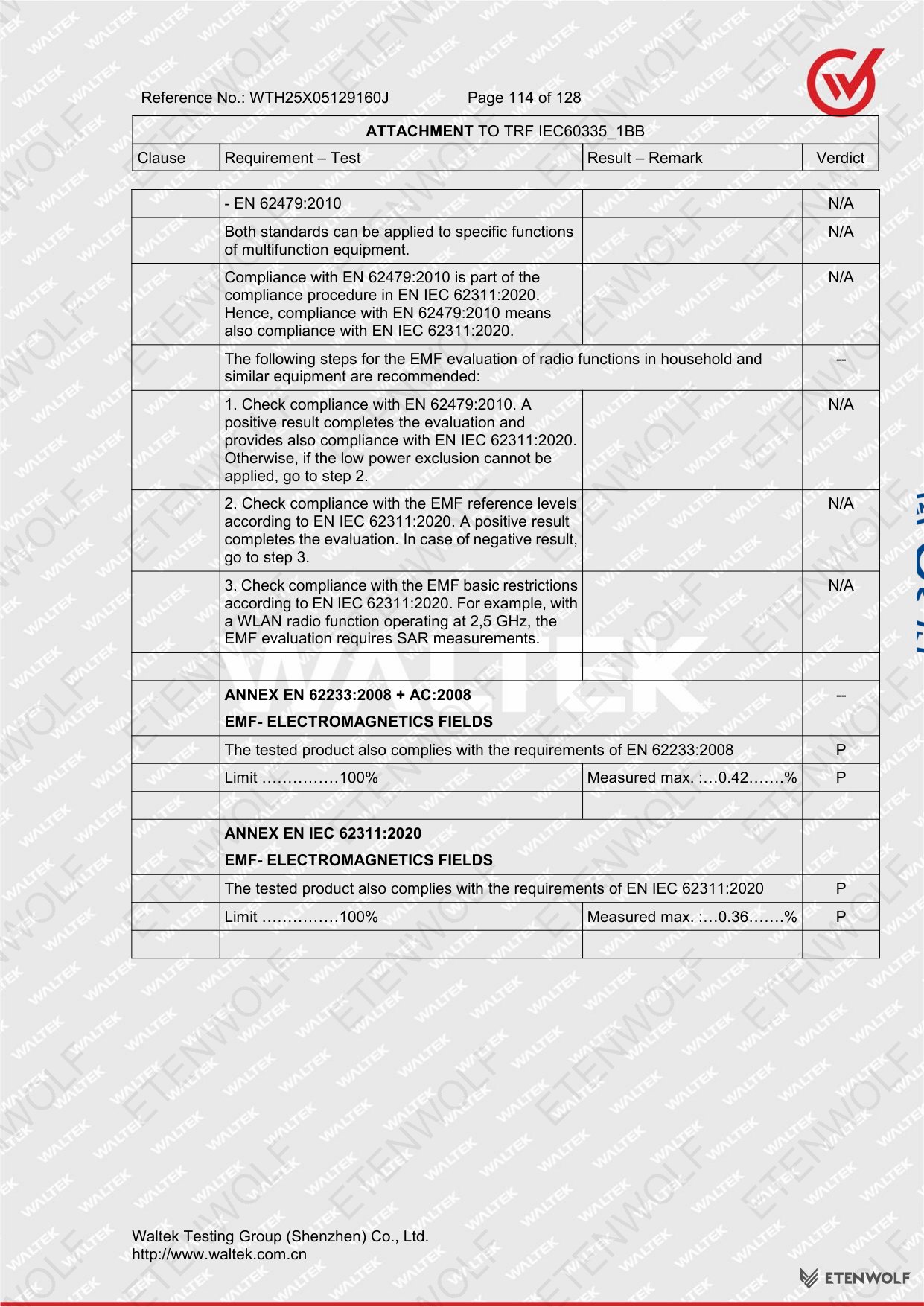

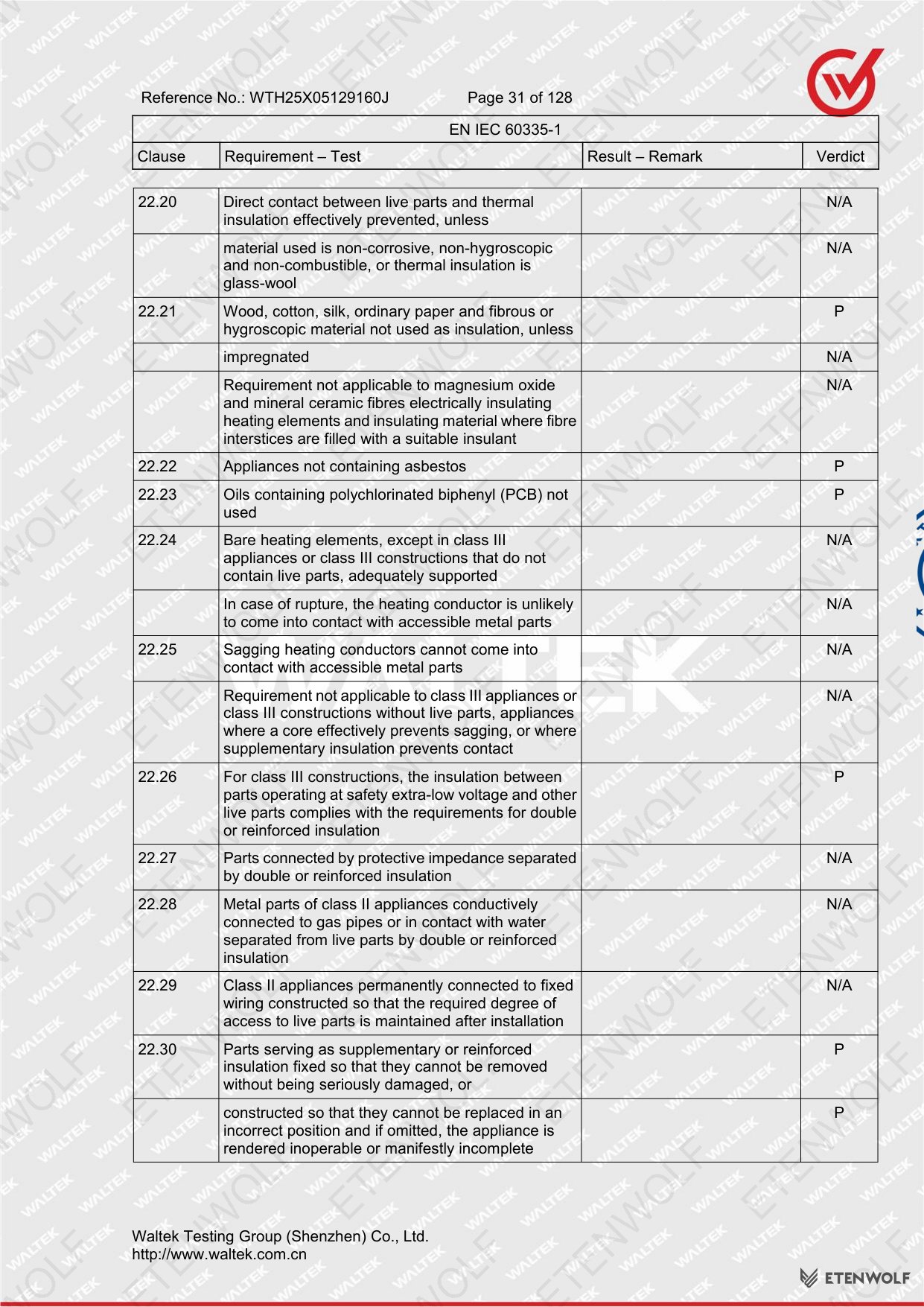

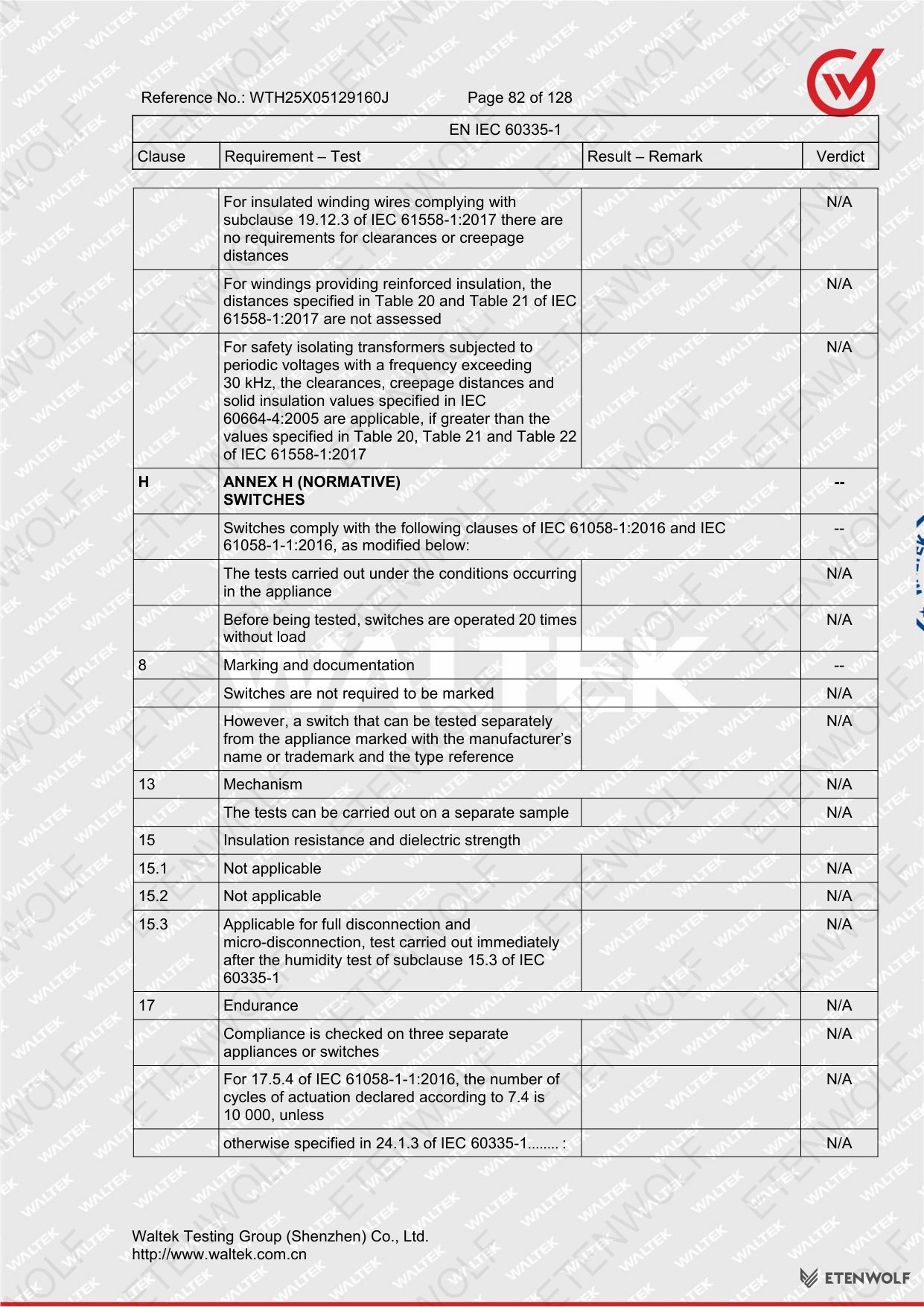

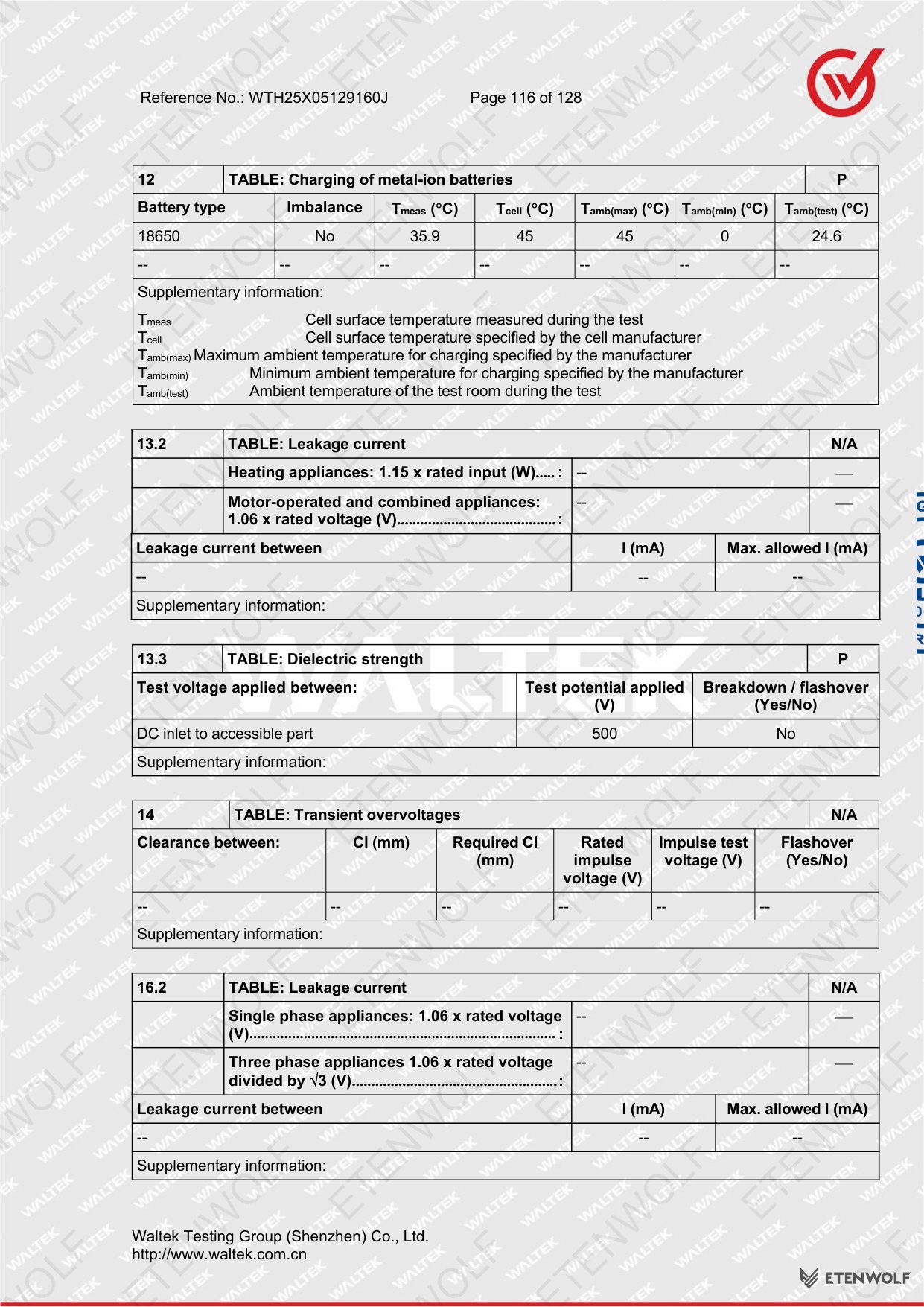

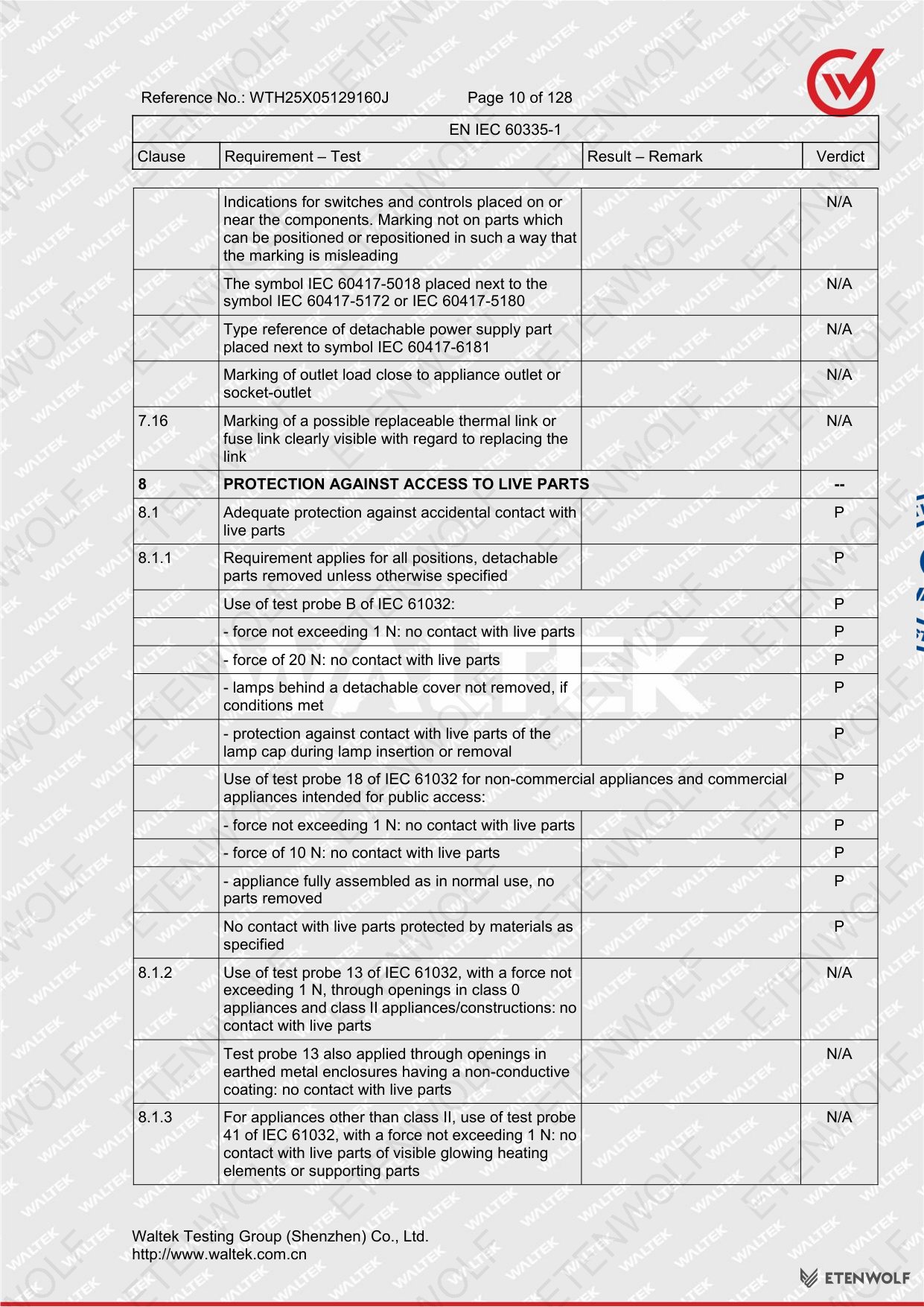

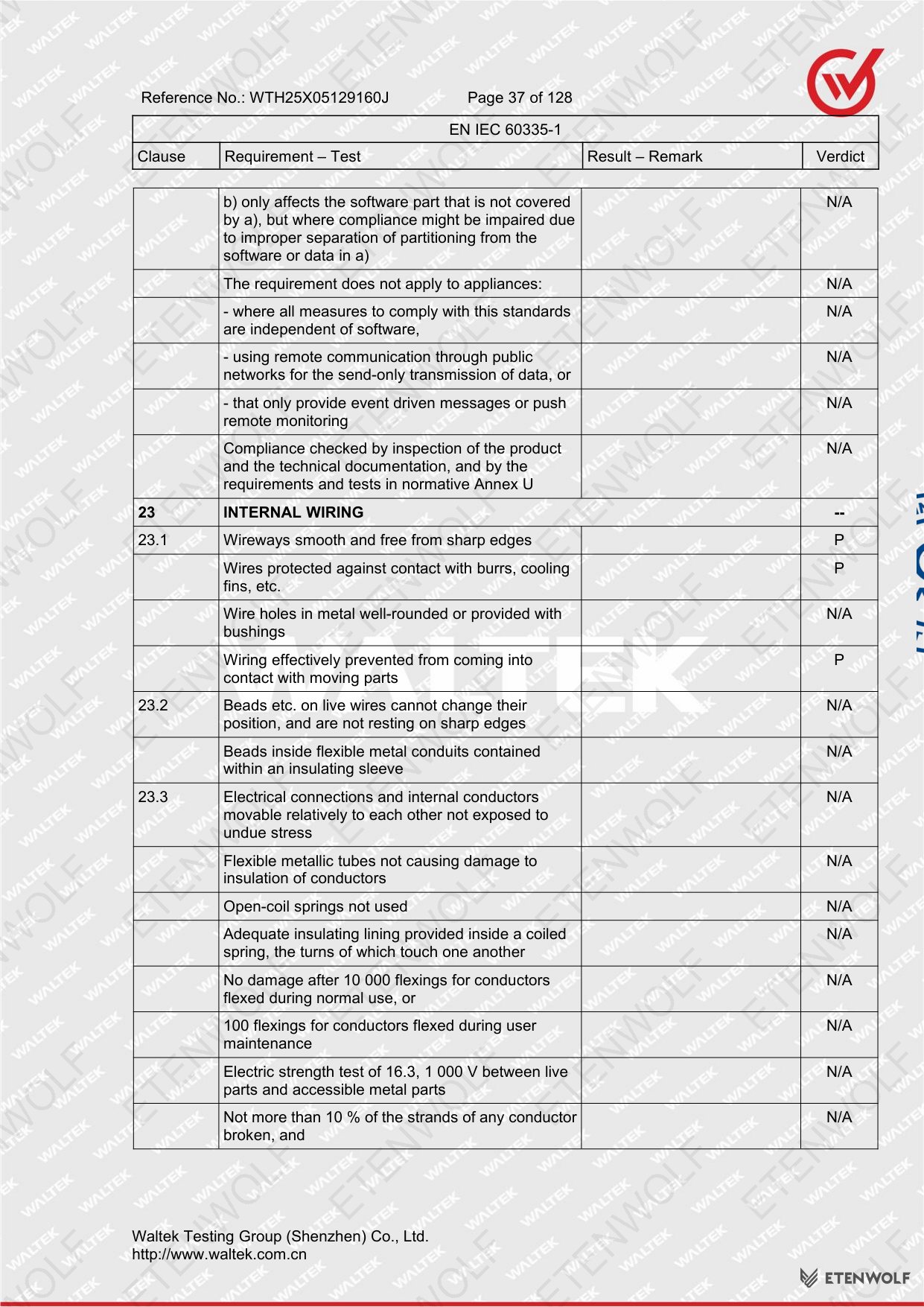

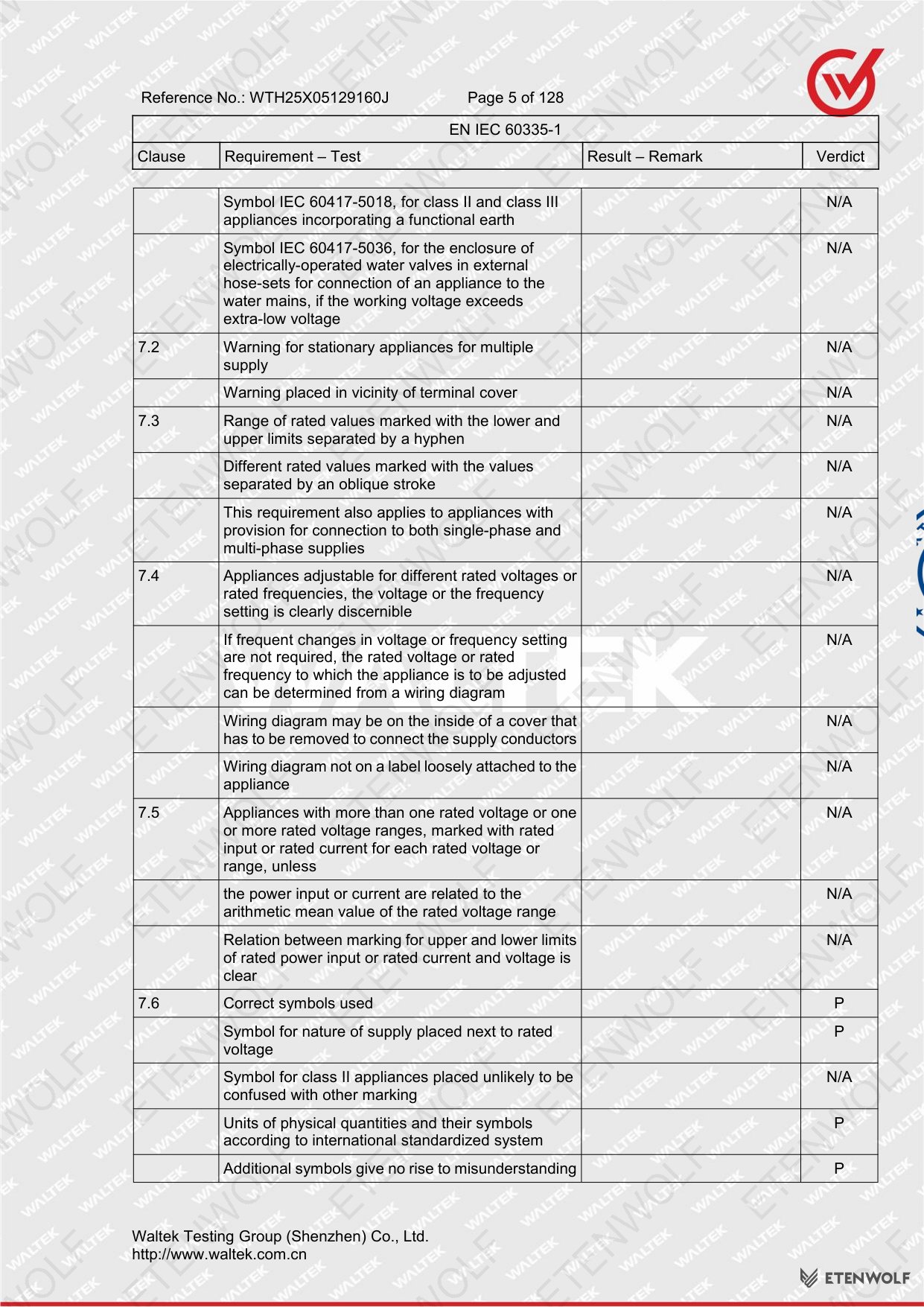

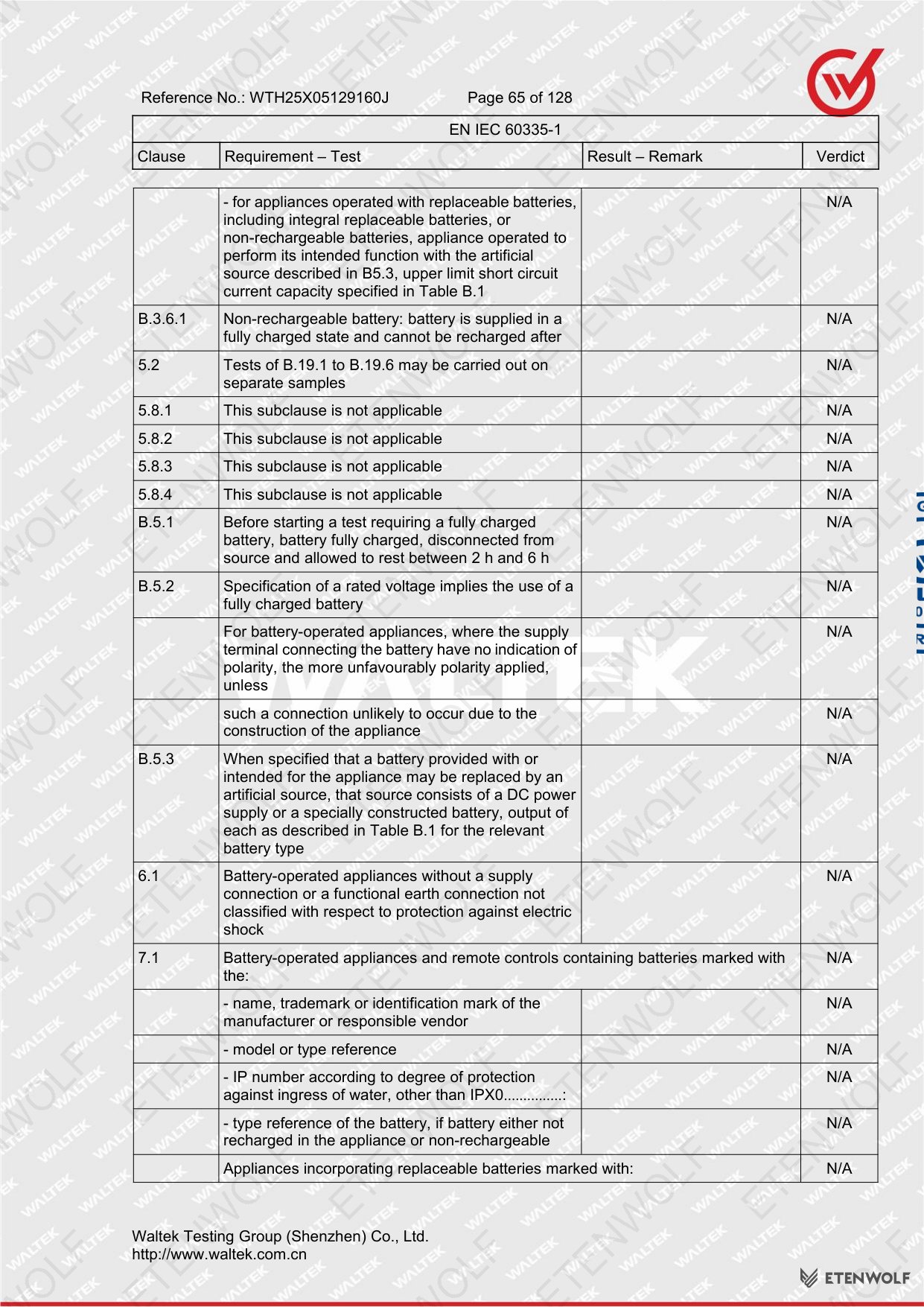

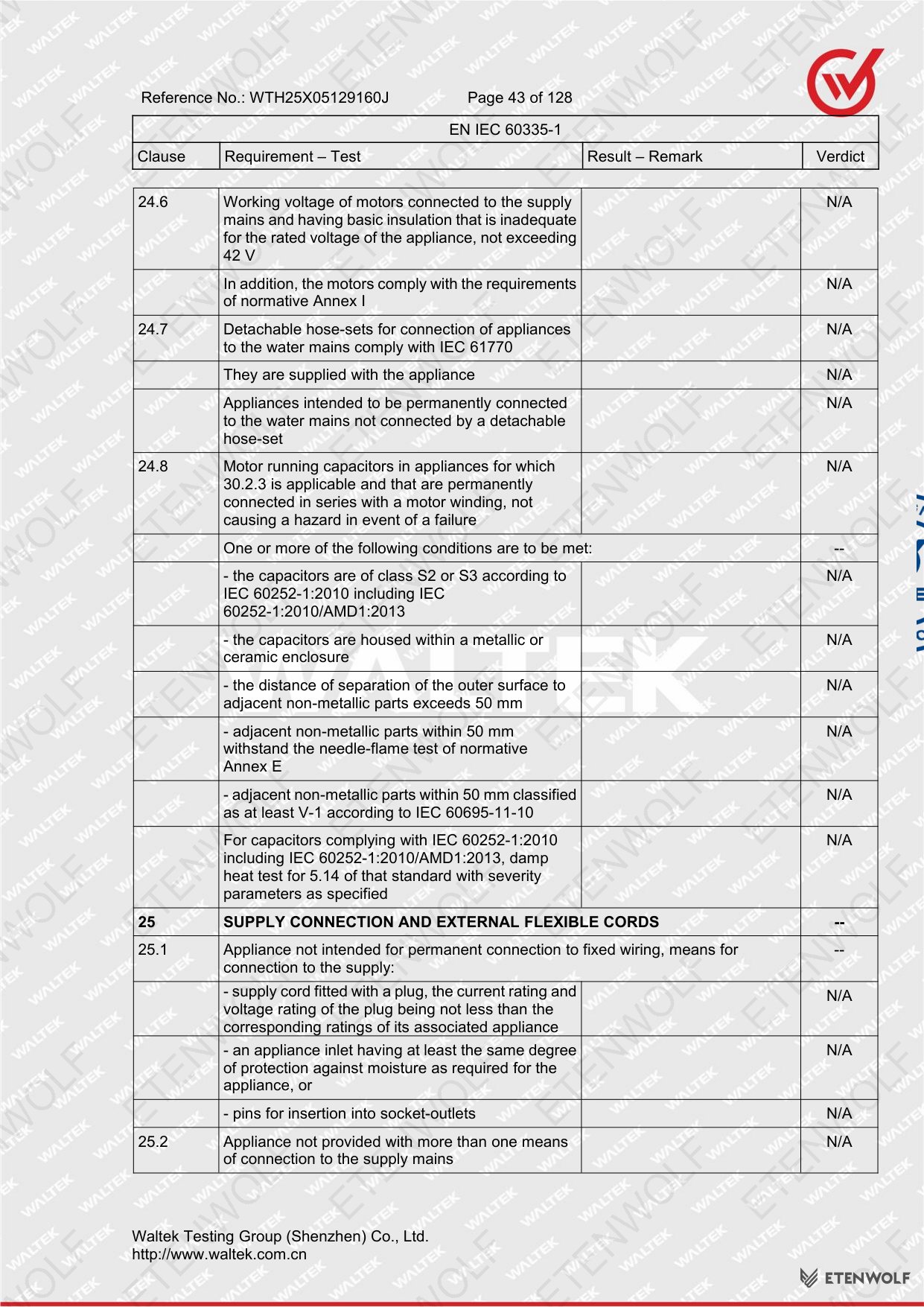

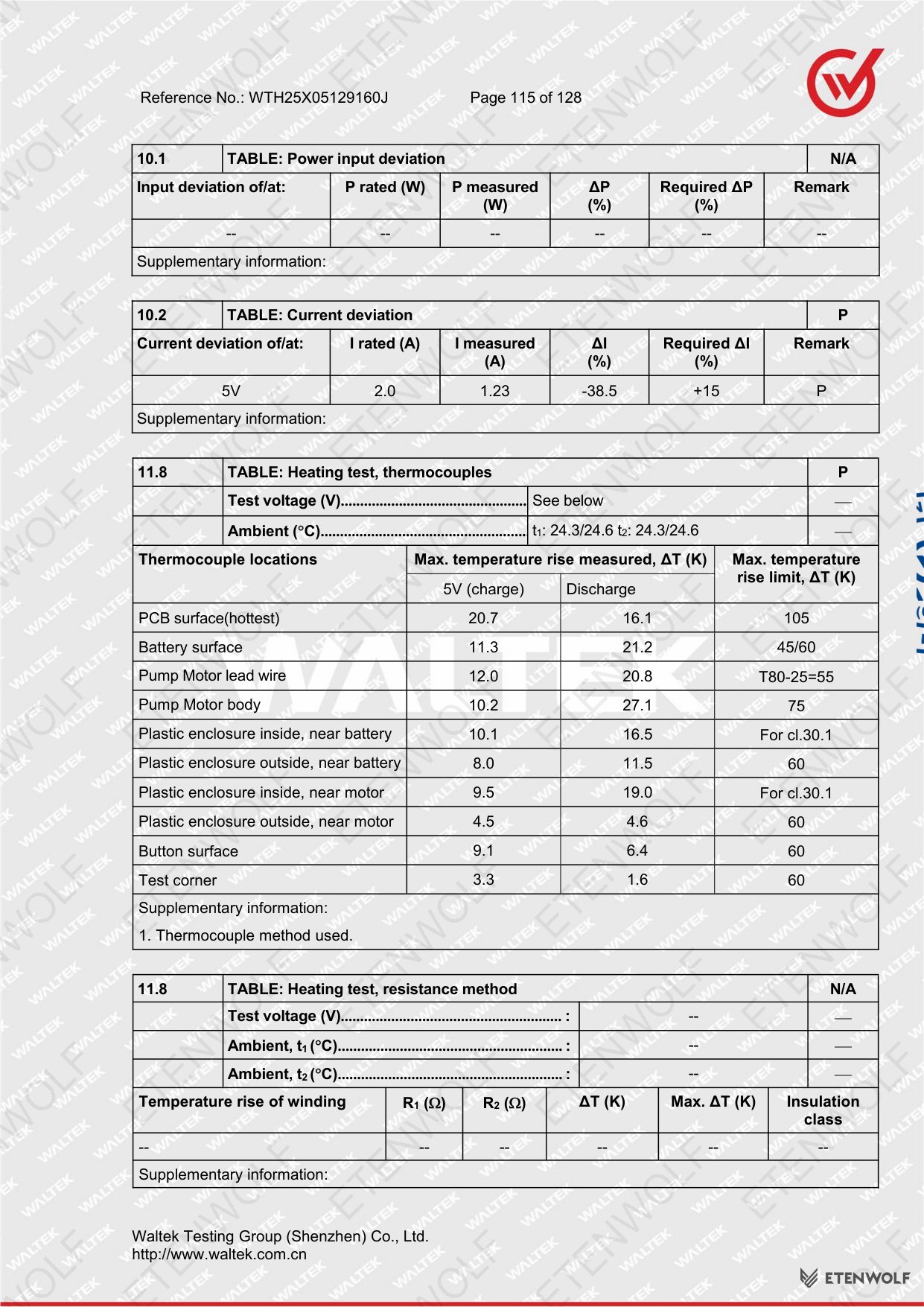

Document Pages
