ETENWOLF V3 Air Inflation Tool – CE-LVD Test Report (WTH25X05129145J)

Document Overview

Document Overview This article covers the official CE Low Voltage Directive (LVD) test report issued for the ETENWOLF V3 Air Inflation Tool. The report was prepared by Waltek Testing Group (Shenzhen) Co., Ltd., an accredited third-party testing laboratory, and carries reference number WTH25X05129145J. The document…

Document type
Certification Report
Prepared by
Michelle Torres
Published
Last reviewed
Topics
European Union: CE / RoHS / REACH / WEEE

Document Overview

This article covers the official CE Low Voltage Directive (LVD) test report issued for the ETENWOLF V3 Air Inflation Tool. The report was prepared by Waltek Testing Group (Shenzhen) Co., Ltd., an accredited third-party testing laboratory, and carries reference number WTH25X05129145J.

The document establishes that the V3 model complies with the applicable European safety standards for household and similar electrical appliances, satisfying the requirements necessary for CE marking and placement on the EU market. The test report was issued on 2025-07-18, following sample receipt on 2025-05-26 and testing conducted from 2025-05-26 to 2025-06-03.

Field Detail
Document Type CE-LVD Test Report
Reference Number WTH25X05129145J
Test Report Form No. WTX_EN IEC 60335_1_2023B
Issuing Laboratory Waltek Testing Group (Shenzhen) Co., Ltd.
Date of Issue 2025-07-18
Overall Test Result Pass

Product Information

The product evaluated in this report is the ETENWOLF V3, a portable cordless air inflation tool designed for household and indoor use. It is manufactured and supplied by Guangdong Bestek Technology Co., Ltd., located at No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China.

Attribute Value
Product Name Air Inflation
Model Number V3
Input Rating 5V 3.0A or 9V 1.5A
Equipment Class Class III
IP Rating IPX0 (no water ingress protection)
Installation Type Portable appliance, indoor use only
Supply Connection DC Connector
Country of Origin China
Manufacturer Guangdong Bestek Technology Co., Ltd.

The appliance is intended exclusively for household and indoor use. LED lighting components incorporated in the unit were not evaluated as part of this report scope.

Key Details

The test report covers a comprehensive set of safety clauses as defined under EN IEC 60335-1:2023+A11:2023. Below is a summary of the primary test clauses assessed, along with their verdicts.

Clause Requirement / Test Area Verdict
Clause 5 General conditions for the tests (nature of supply, sequence of testing) Pass
Clause 6 Classification — Class III, protection against electric shock Pass
Clause 6.1 Protection against electric shock: Class III construction Pass
Clause 6.2 Protection against harmful ingress of water: IPX0 N/A
Clause 7 Marking and instructions Pass
Clause 7.1 Rated voltage, current, manufacturer identification, model reference on marking label Pass

Additional marking requirements noted in the report include:

  • The CE mark minimum height must be 5 mm.
  • The WEEE mark minimum height must be 7 mm.
  • The name and address of the EU importer and manufacturer must be affixed to the product before it is placed on the EU market.
  • The label shown in the report is for reference only; the final product label must contain at minimum all specified information fields.

Testing was performed solely at the Waltek Testing Group (Shenzhen) facility. No portions of the testing were subcontracted to external laboratories.

Standards & Compliance

The ETENWOLF V3 was evaluated against the following applicable European harmonised standards:

Standard Title Scope
EN IEC 60335-1:2023+A11:2023 Household and similar electrical appliances – Safety – Part 1: General requirements Primary safety standard covering construction, marking, protection against electric shock, mechanical and thermal hazards
EN 62233:2008 Measurement methods for electromagnetic fields of household appliances and similar apparatus with regard to human exposure EMF human exposure measurement methodology for household appliances

Compliance with these harmonised standards supports the presumption of conformity with the EU Low Voltage Directive (LVD 2014/35/EU), enabling the product to carry the CE mark for distribution across the European Economic Area.

Key compliance characteristics confirmed during testing:

  • Equipment classified as Class III (supplied by safety extra-low voltage — SELV), which eliminates risks associated with mains voltage exposure.
  • No water ingress protection required or claimed (IPX0); product is rated for dry indoor use only.
  • All required marking and instructional information verified as present on the product label.
  • EMF human exposure levels measured and confirmed within permissible limits per EN 62233:2008.

Validity & Certification Body

The test report WTH25X05129145J was issued by Waltek Testing Group (Shenzhen) Co., Ltd., an independent third-party testing and certification laboratory based in Shenzhen, China.

Detail Information
Laboratory Name Waltek Testing Group (Shenzhen) Co., Ltd.
Laboratory Address 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70, Bao’an District, Shenzhen, Guangdong, China
Website http://www.waltek.com.cn
Telephone +86-755-33663308
Fax +86-755-33663309
Email [email protected]
Report Prepared By John Zhong, Project Engineer
Report Approved By Harvid Wei, Manager
Date of Sample Receipt 2025-05-26
Testing Period 2025-05-26 to 2025-06-03
Date of Issue 2025-07-18

The test results documented in report WTH25X05129145J apply exclusively to the specific sample(s) submitted for testing. The report is valid only when bearing the official stamp of the testing institute and the original signatures of both the preparer and approver. Reproduction of the report is not permitted except in full and only with prior written permission from Waltek Testing Group.

Frequently Asked Questions

What does the CE-LVD test report WTH25X05129145J confirm for the ETENWOLF V3?

Report WTH25X05129145J confirms that the ETENWOLF V3 Air Inflation Tool passed all applicable safety tests under EN IEC 60335-1:2023+A11:2023 and EN 62233:2008. This demonstrates the product meets the essential safety requirements of the EU Low Voltage Directive (LVD 2014/35/EU), qualifying it for CE marking and sale throughout the European Economic Area.

What is the equipment class of the ETENWOLF V3, and why does it matter?

The V3 is classified as Class III equipment, meaning it operates on safety extra-low voltage (SELV) supplied via a DC connector rather than directly from mains voltage. This classification significantly reduces the risk of electric shock and removes the need for protective earthing, making the device inherently safer for portable, handheld consumer use.

Is the ETENWOLF V3 waterproof or suitable for outdoor use?

No. The V3 carries an IPX0 rating, meaning it has no protection against water ingress. The product is classified as a portable indoor appliance and should only be used in dry, indoor environments. Using it in wet conditions or outdoors could pose a safety risk and would void the basis of its CE compliance.

Were the LED lights on the ETENWOLF V3 included in this CE-LVD test?

No. The test report explicitly states that LED lights incorporated into the V3 were not evaluated as part of this report’s scope. Separate compliance documentation may be required for the LED lighting functionality depending on applicable directives.

Related Documents

For a complete compliance picture of the ETENWOLF V3 Air Inflation Tool, the following related certification and compliance documents are recommended:

  • CE-EMC Test Report — Electromagnetic compatibility testing under the EMC Directive 2014/30/EU, covering conducted and radiated emissions as well as immunity tests.
  • CE Declaration of Conformity (DoC) — The formal manufacturer’s declaration listing all applicable EU directives and harmonised standards to which the V3 conforms.
  • UN 38.3 Battery Test Report — Safety testing for the lithium-ion battery pack inside the V3, required for transport classification under UN 38.3 regulations.
  • RoHS Compliance Report — Confirmation that the V3 meets RoHS Directive 2011/65/EU restrictions on hazardous substances in electrical and electronic equipment.
  • REACH SVHC Declaration — Substance of Very High Concern screening under REACH Regulation (EC) No 1907/2006.
  • FCC ID / IC Certification — Radio frequency and electromagnetic interference compliance documentation for distribution in North American markets.

Document Pages

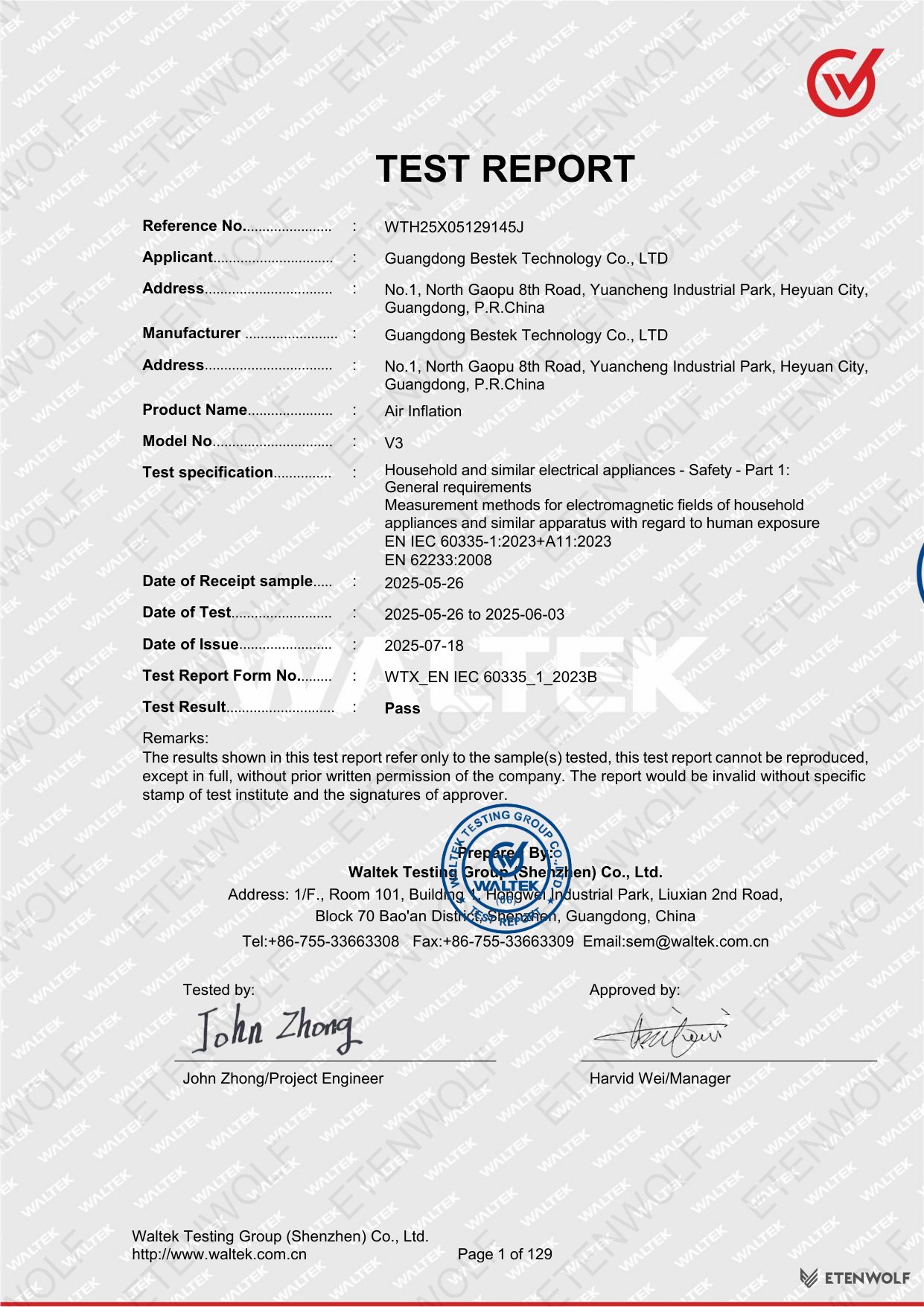

Document Page 1

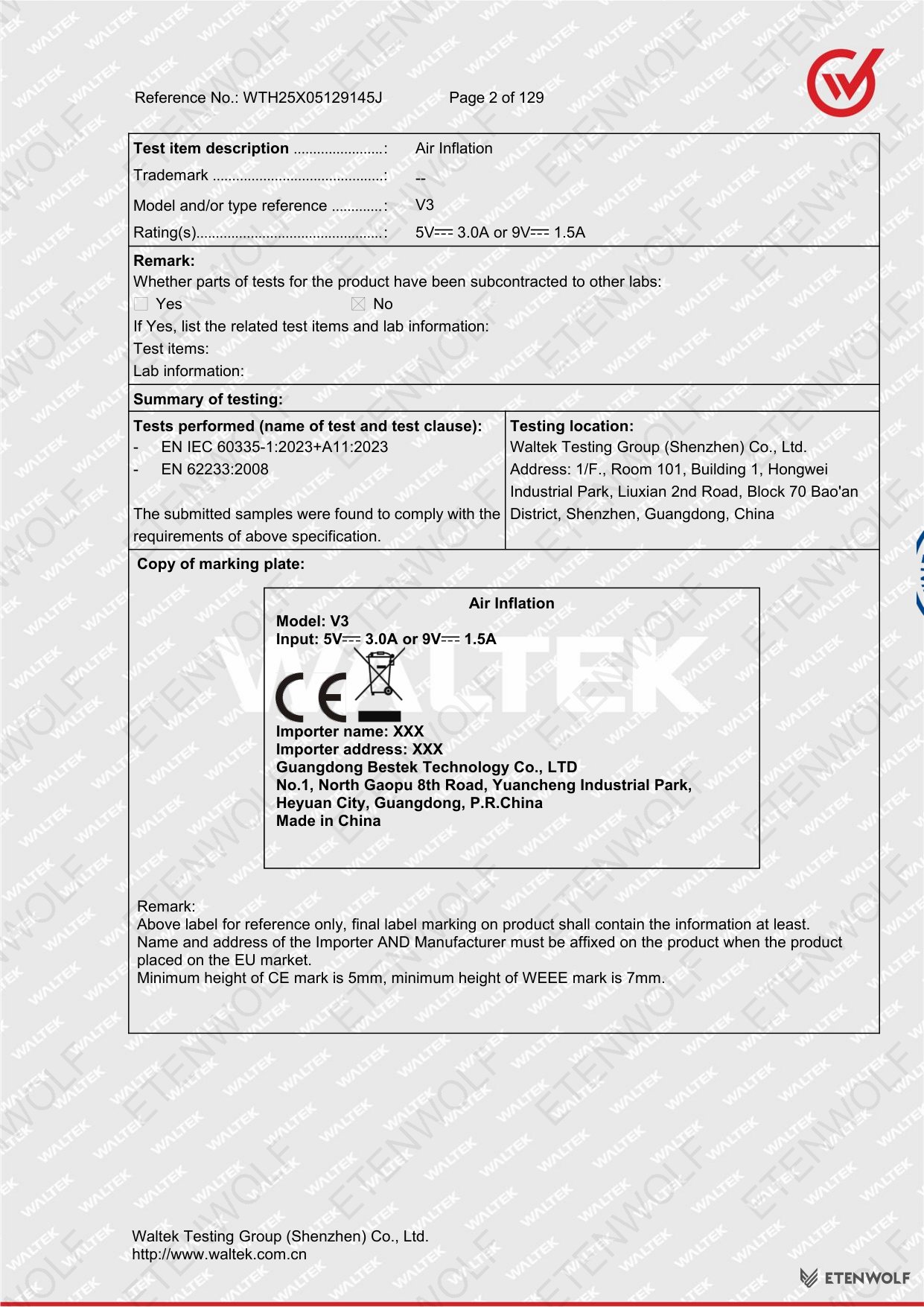

Document Page 2

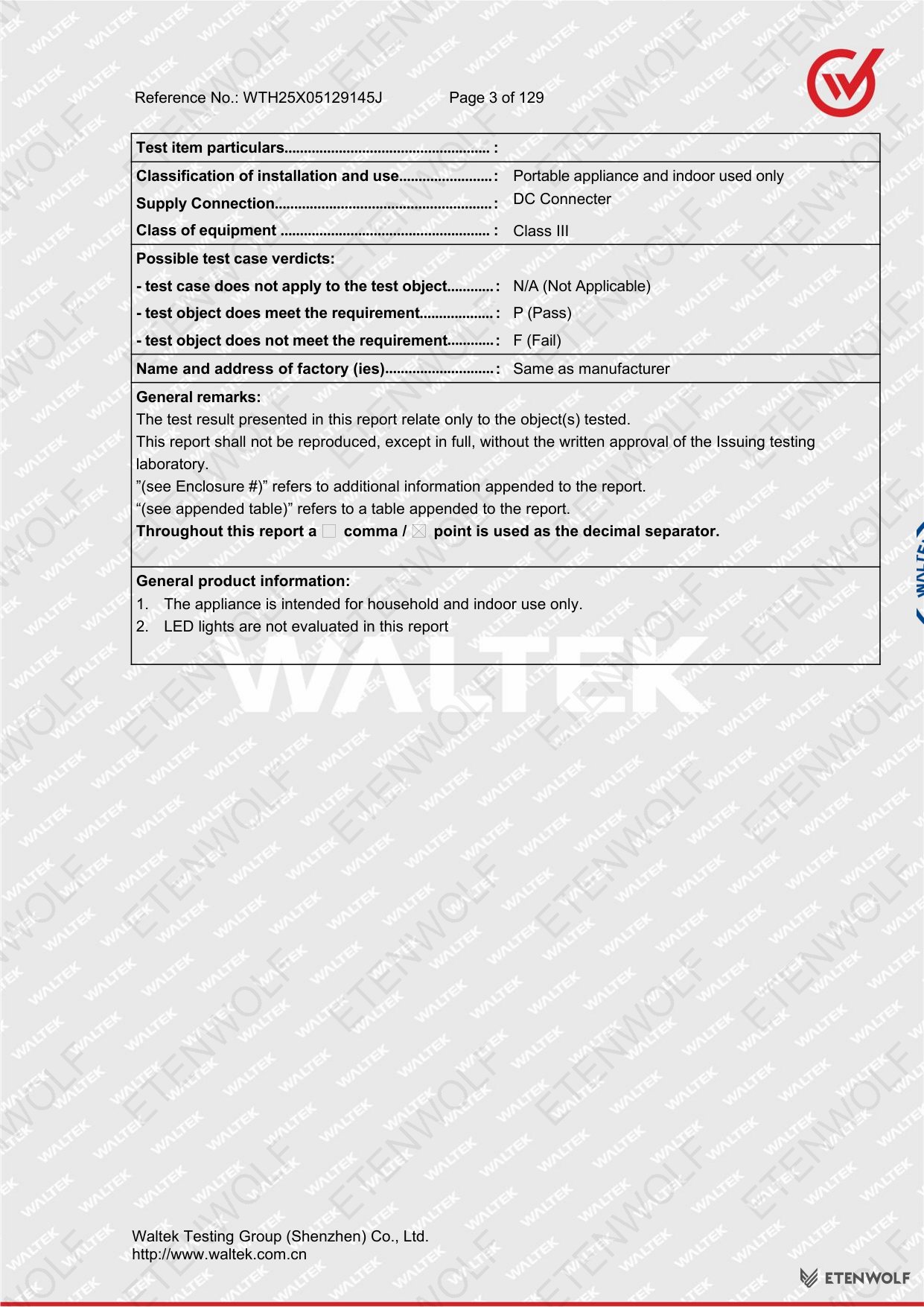

Document Page 3
Document Page 4

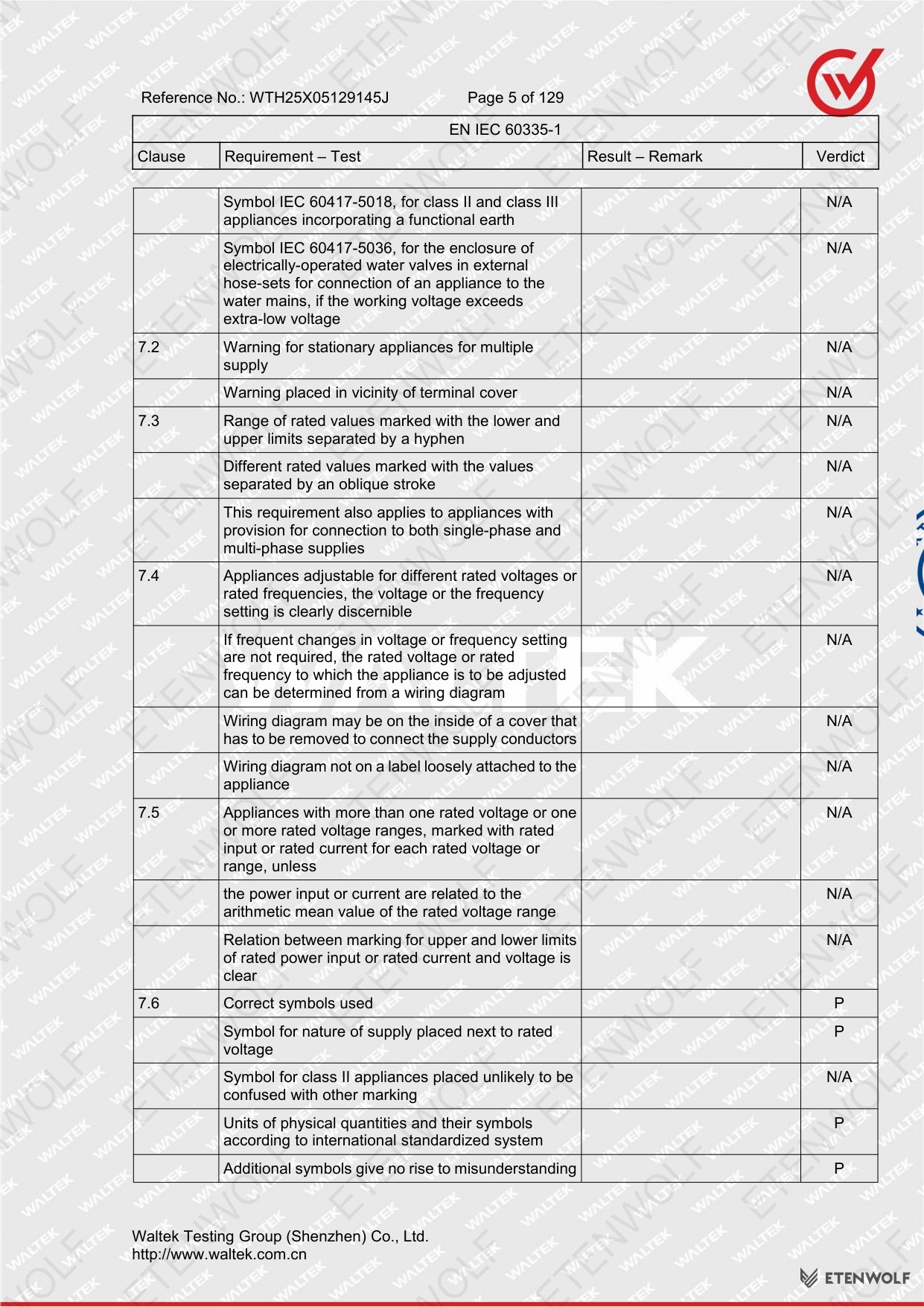

Document Page 5

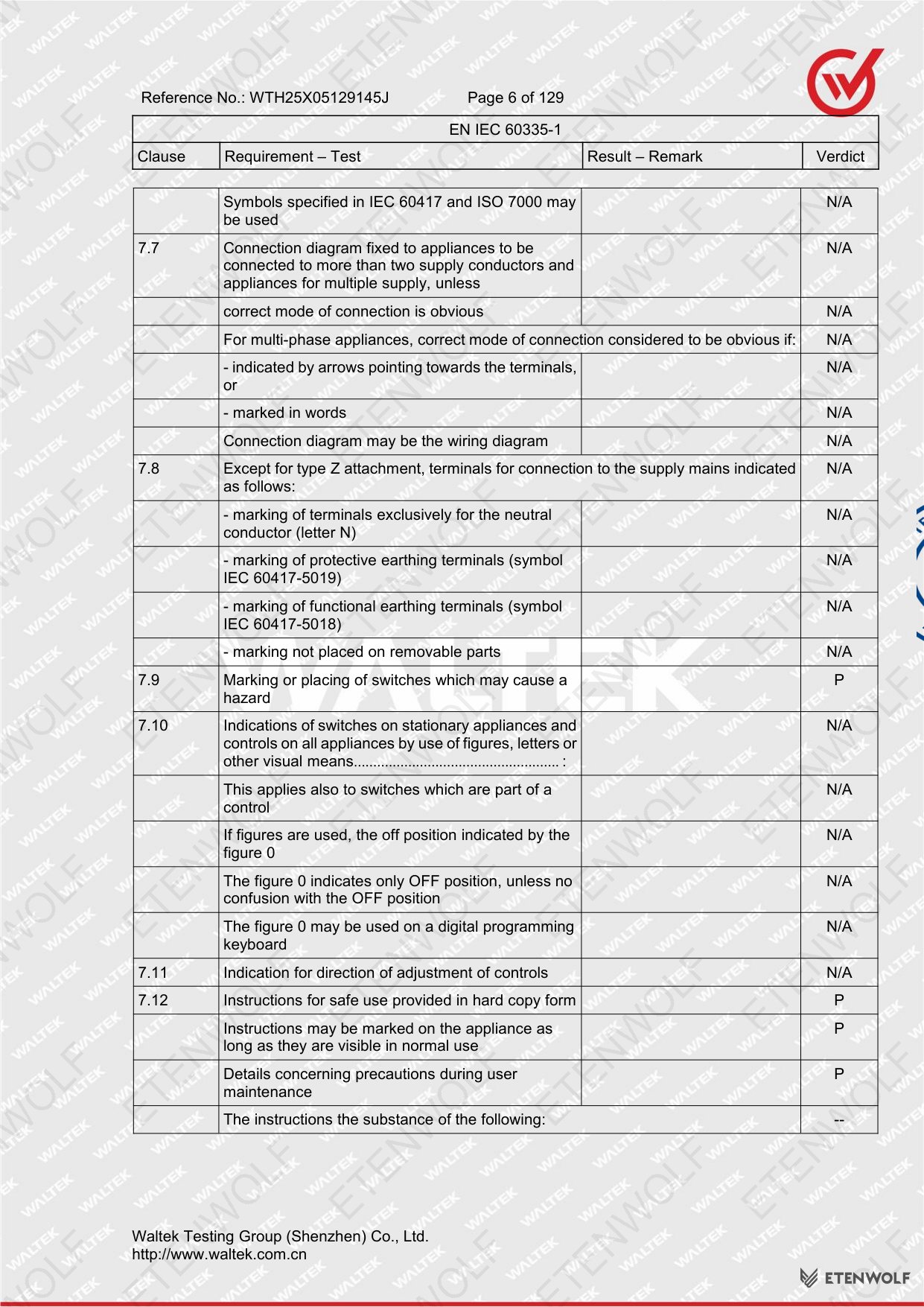

Document Page 6

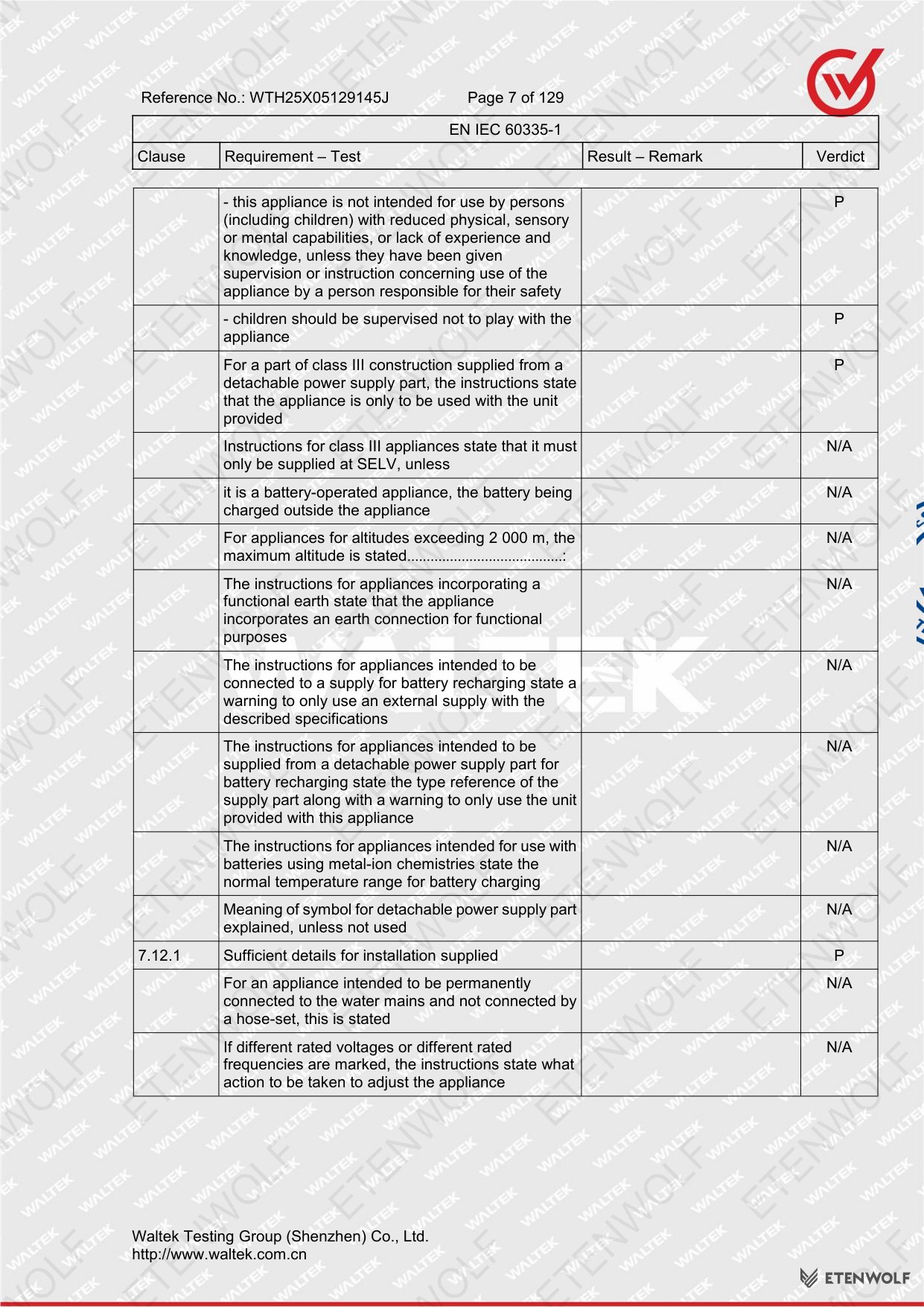

Document Page 7

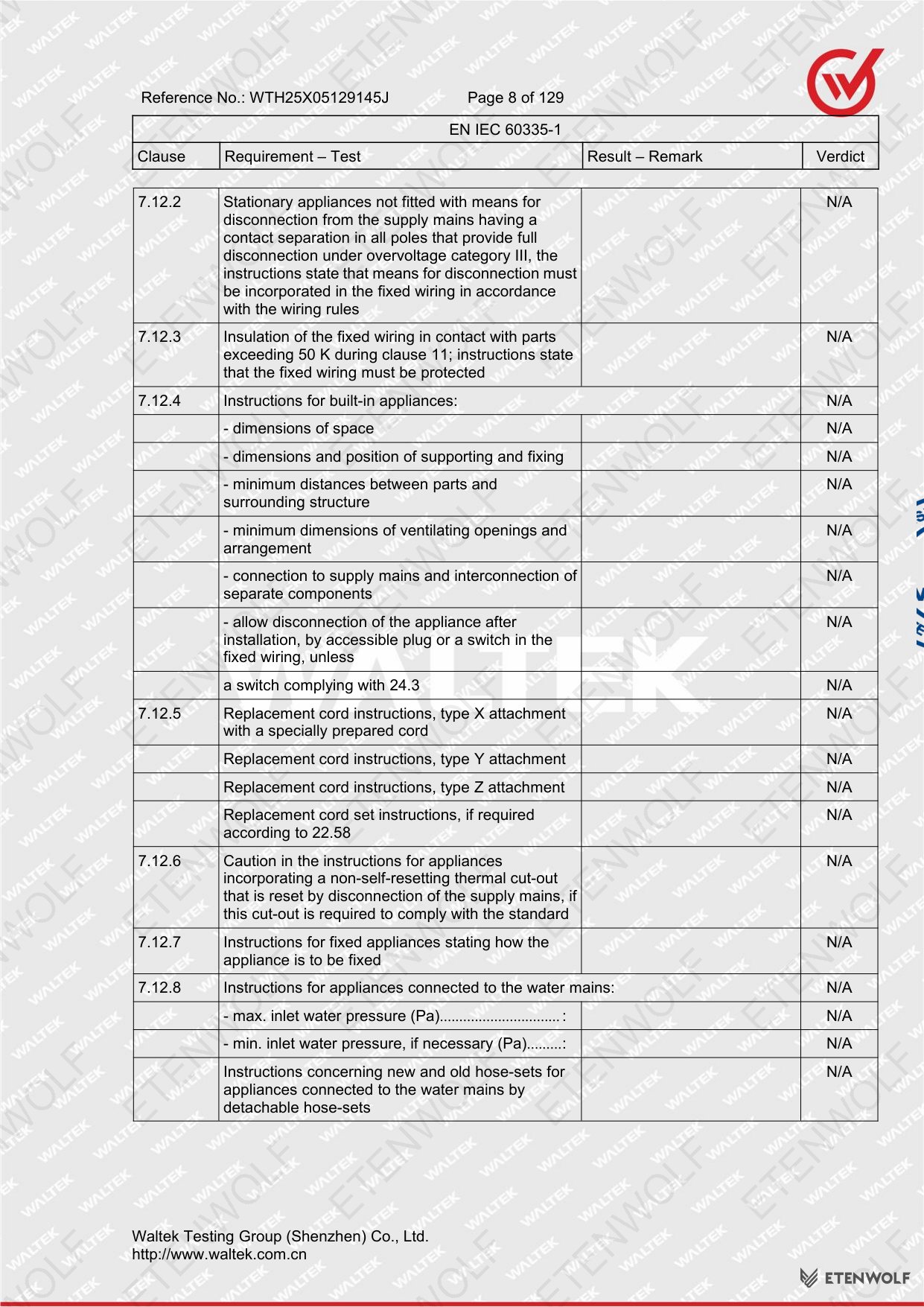

Document Page 8

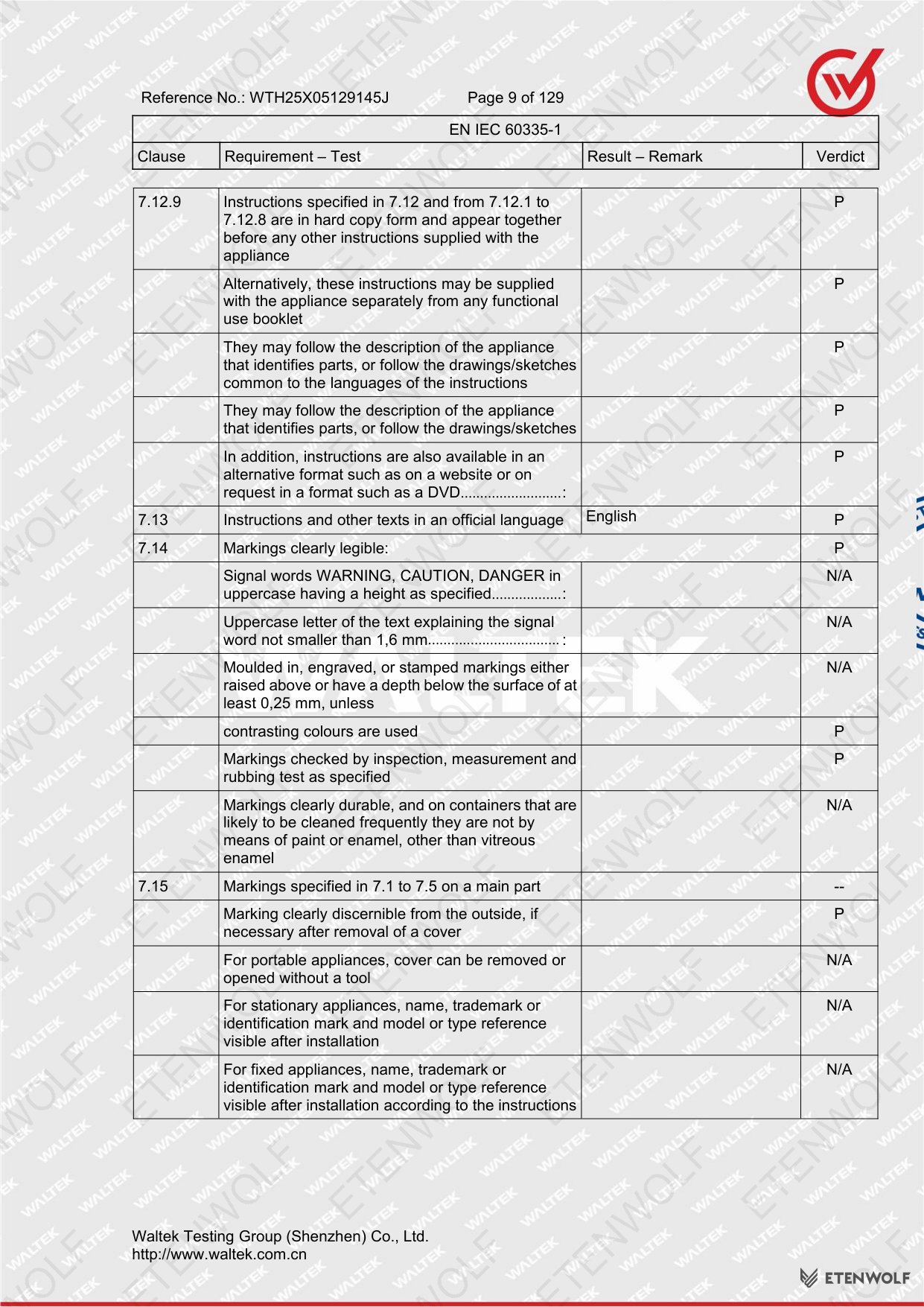

Document Page 9

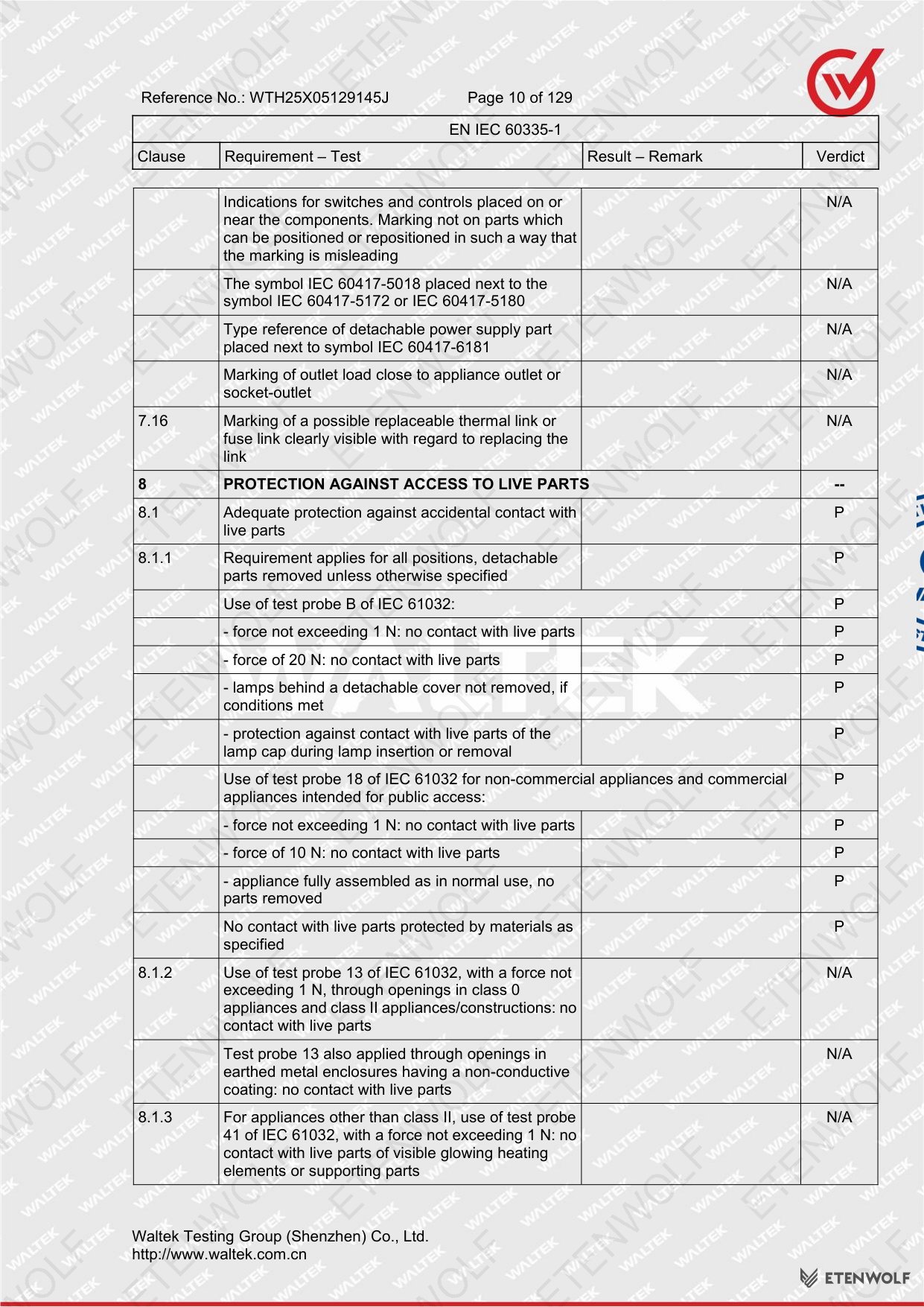

Document Page 10
Document Page 11

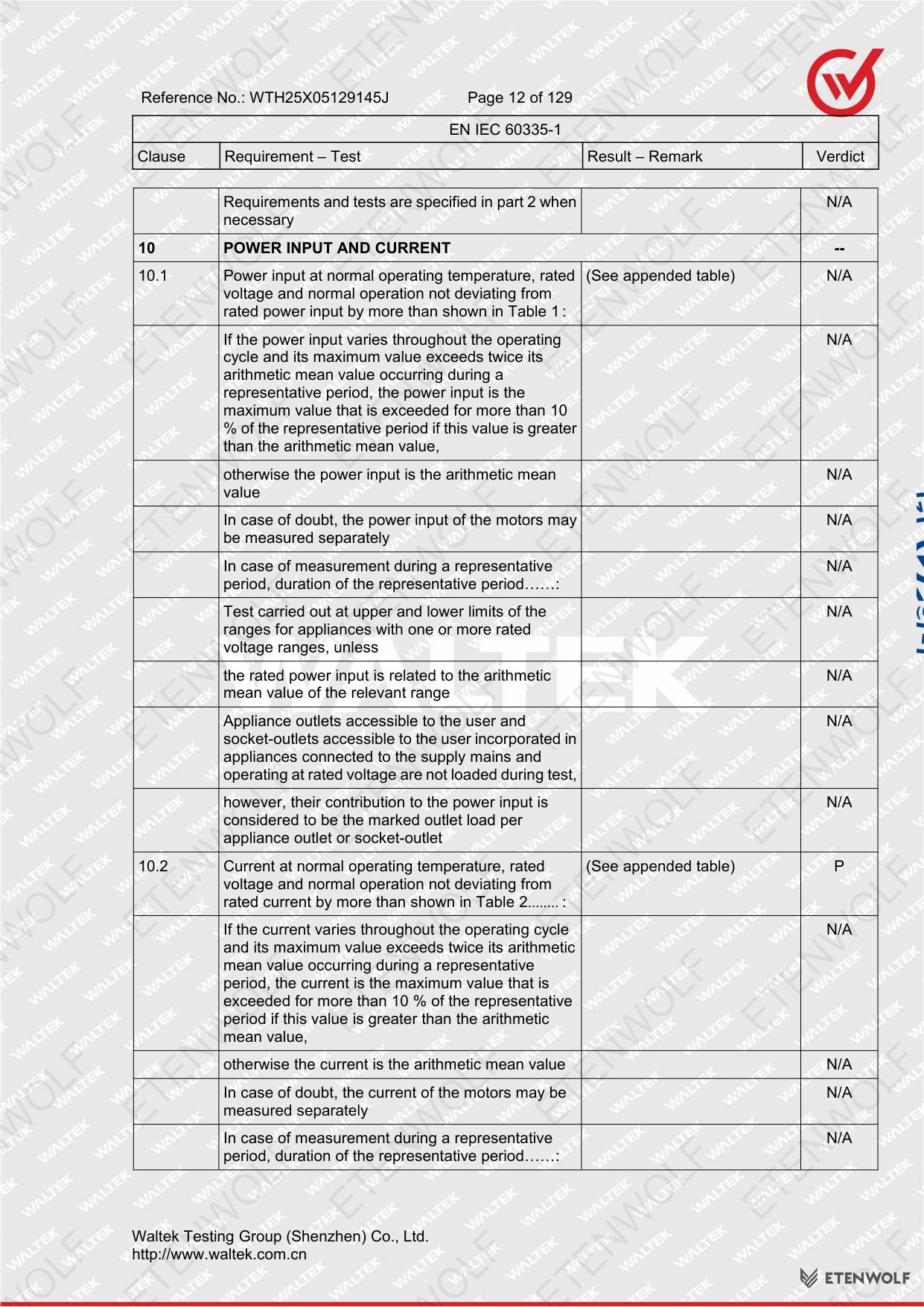

Document Page 12

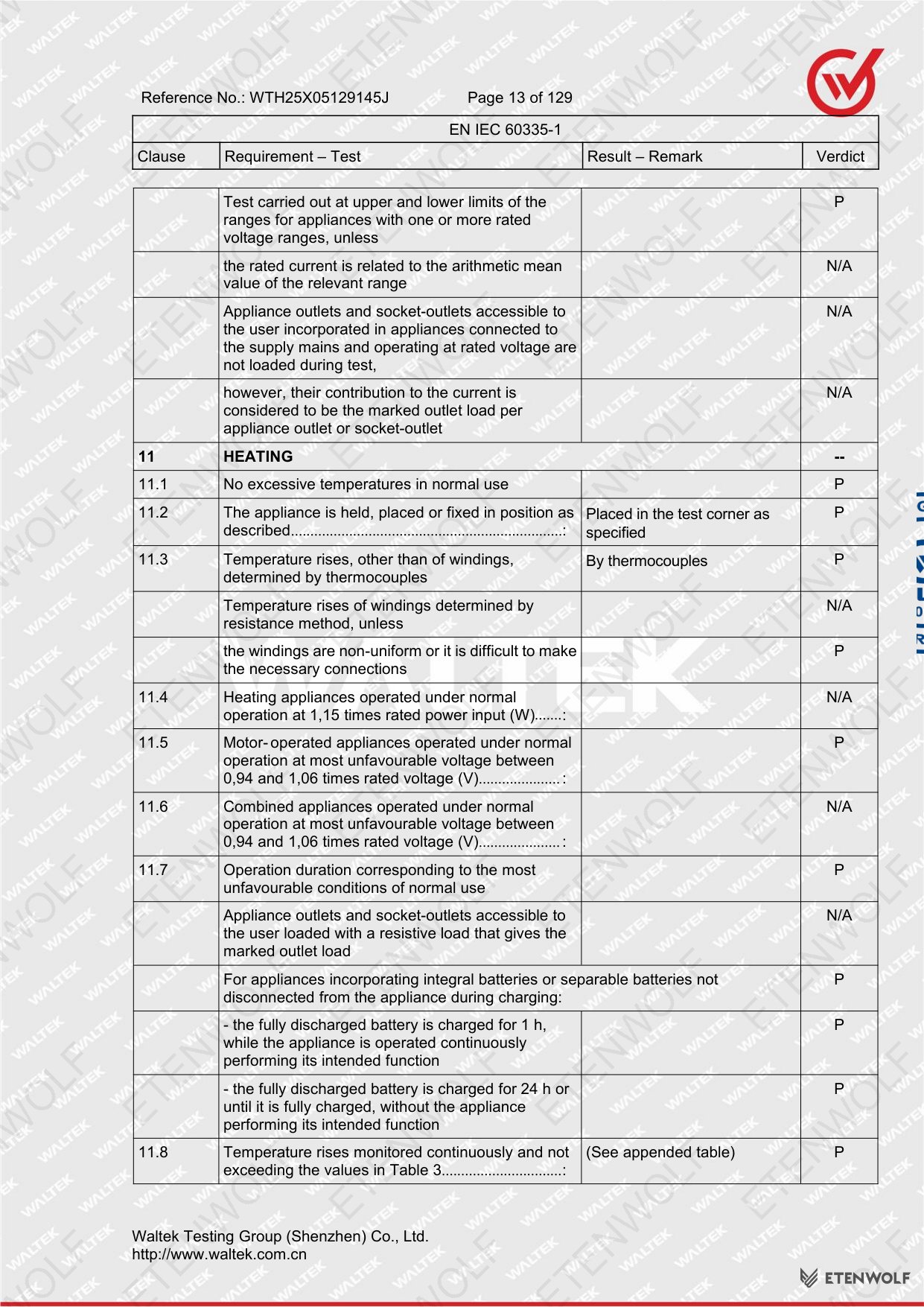

Document Page 13

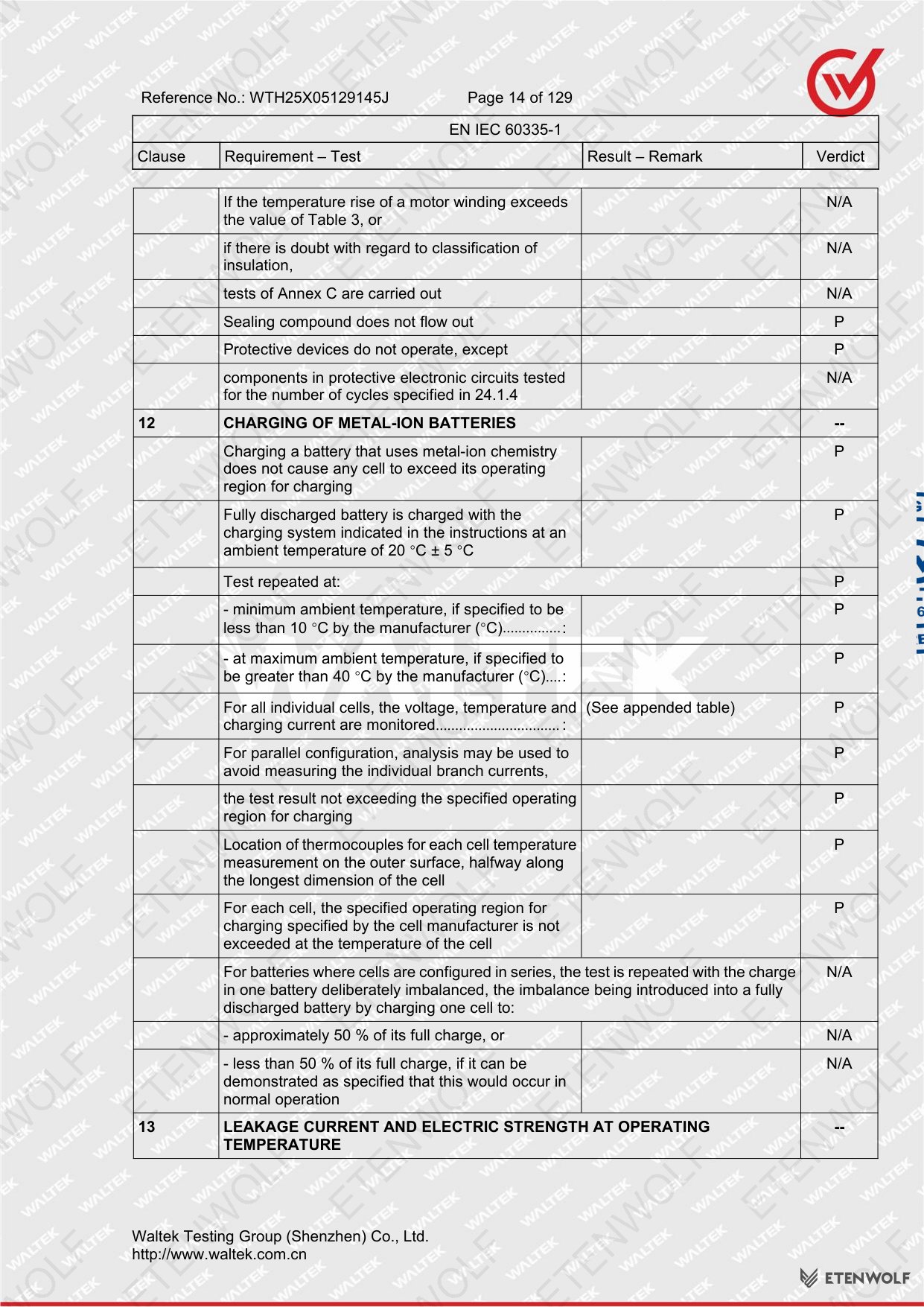

Document Page 14

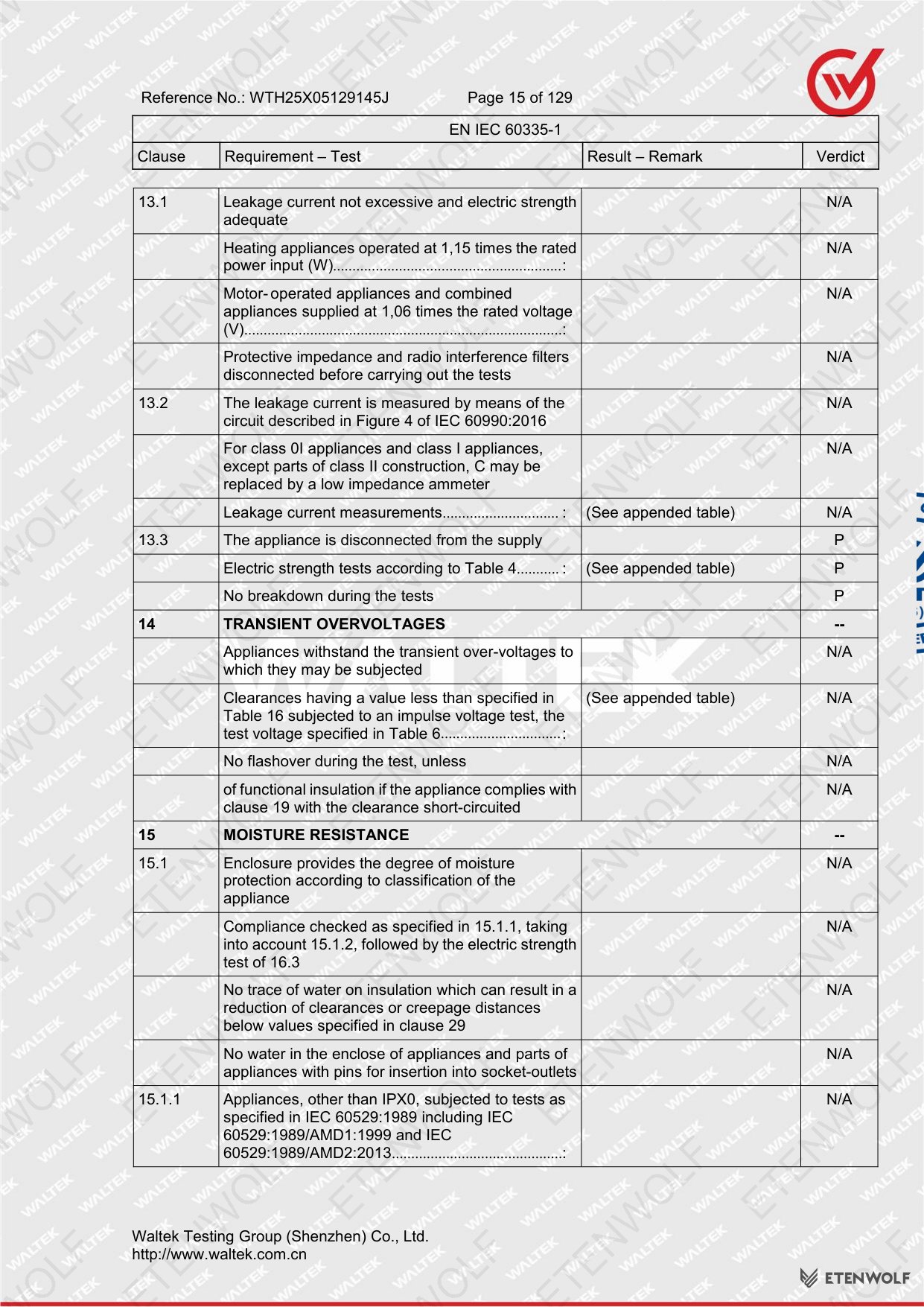

Document Page 15
Document Page 16
Document Page 17

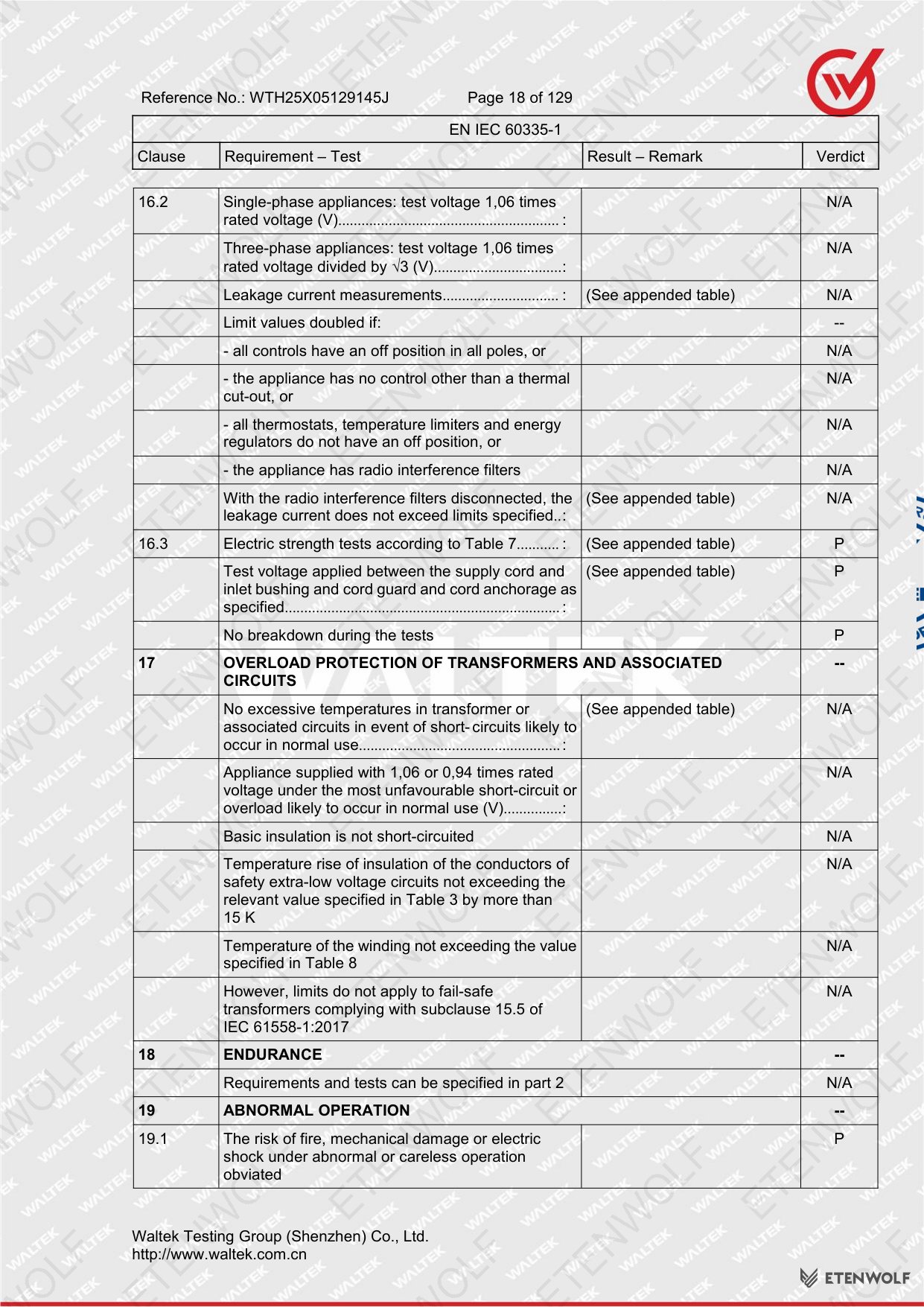

Document Page 18

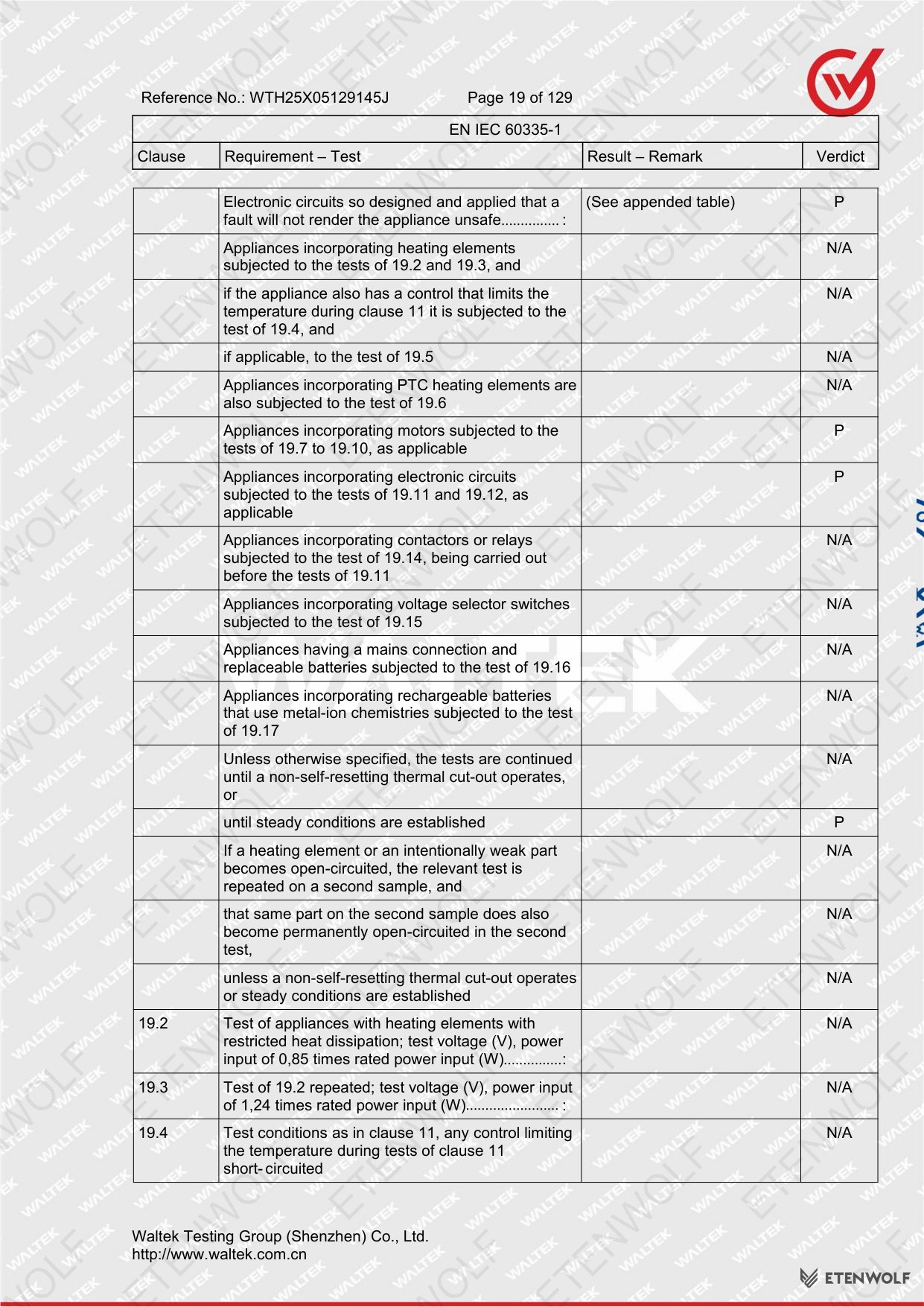

Document Page 19
Document Page 20

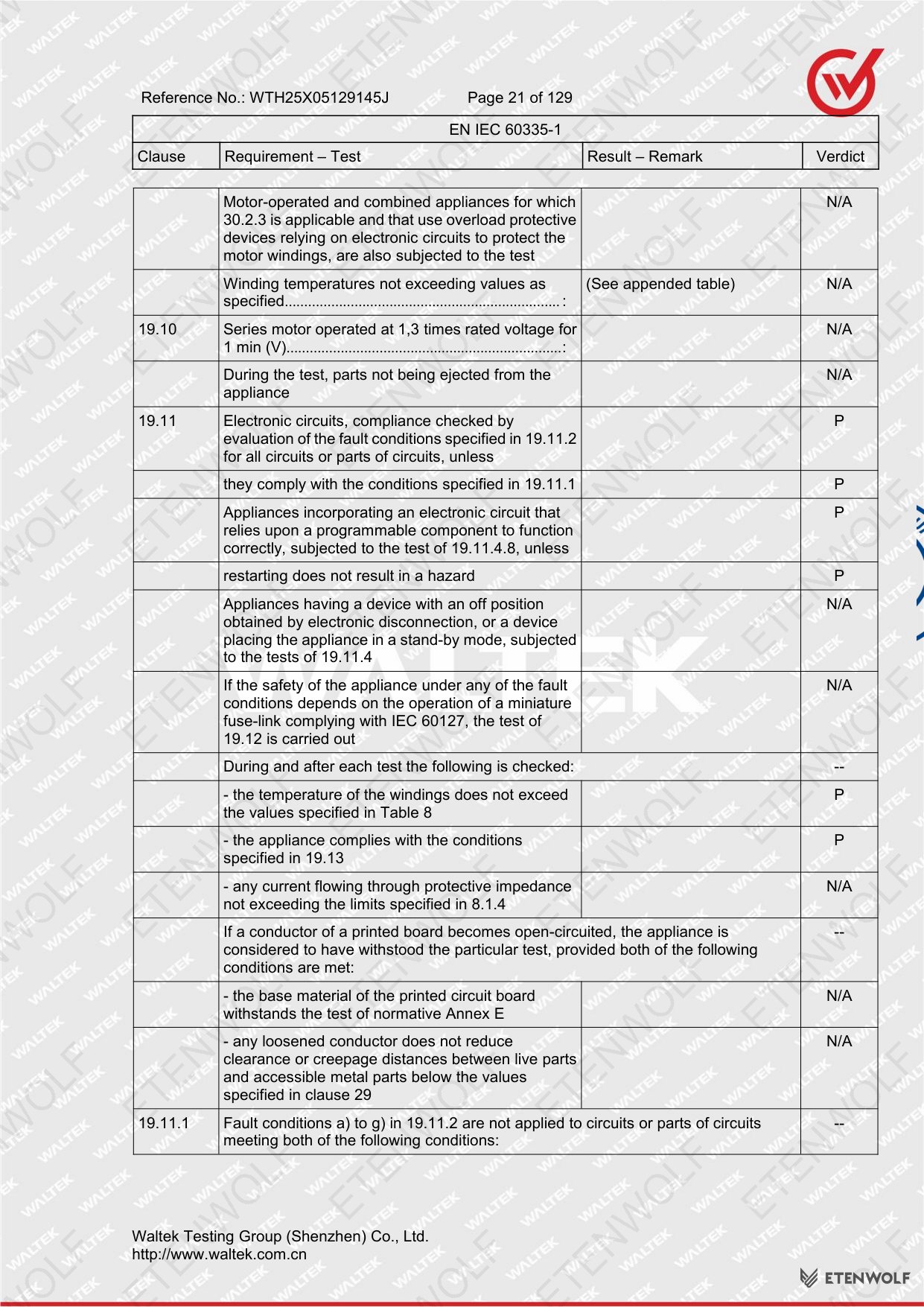

Document Page 21

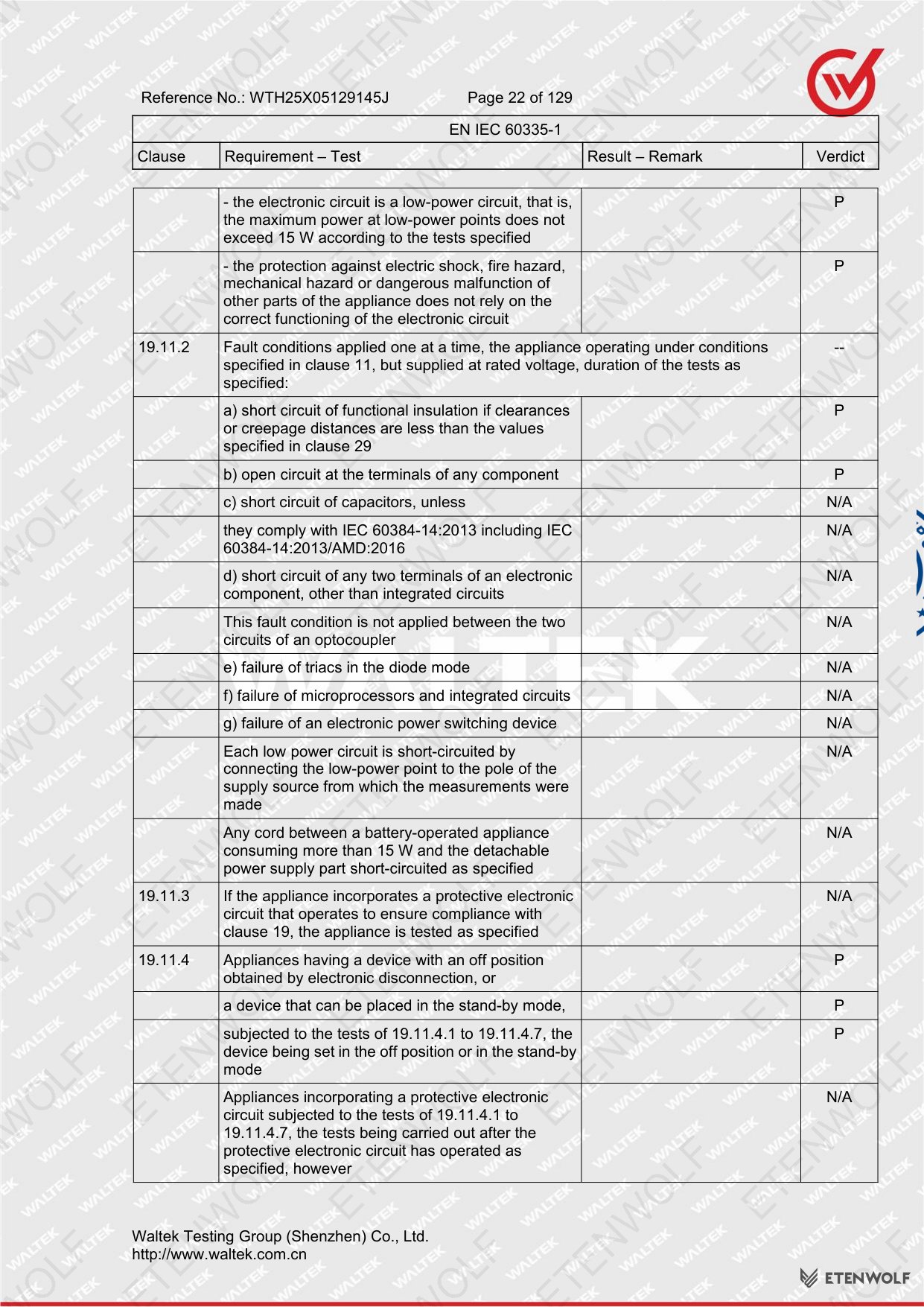

Document Page 22
Document Page 23

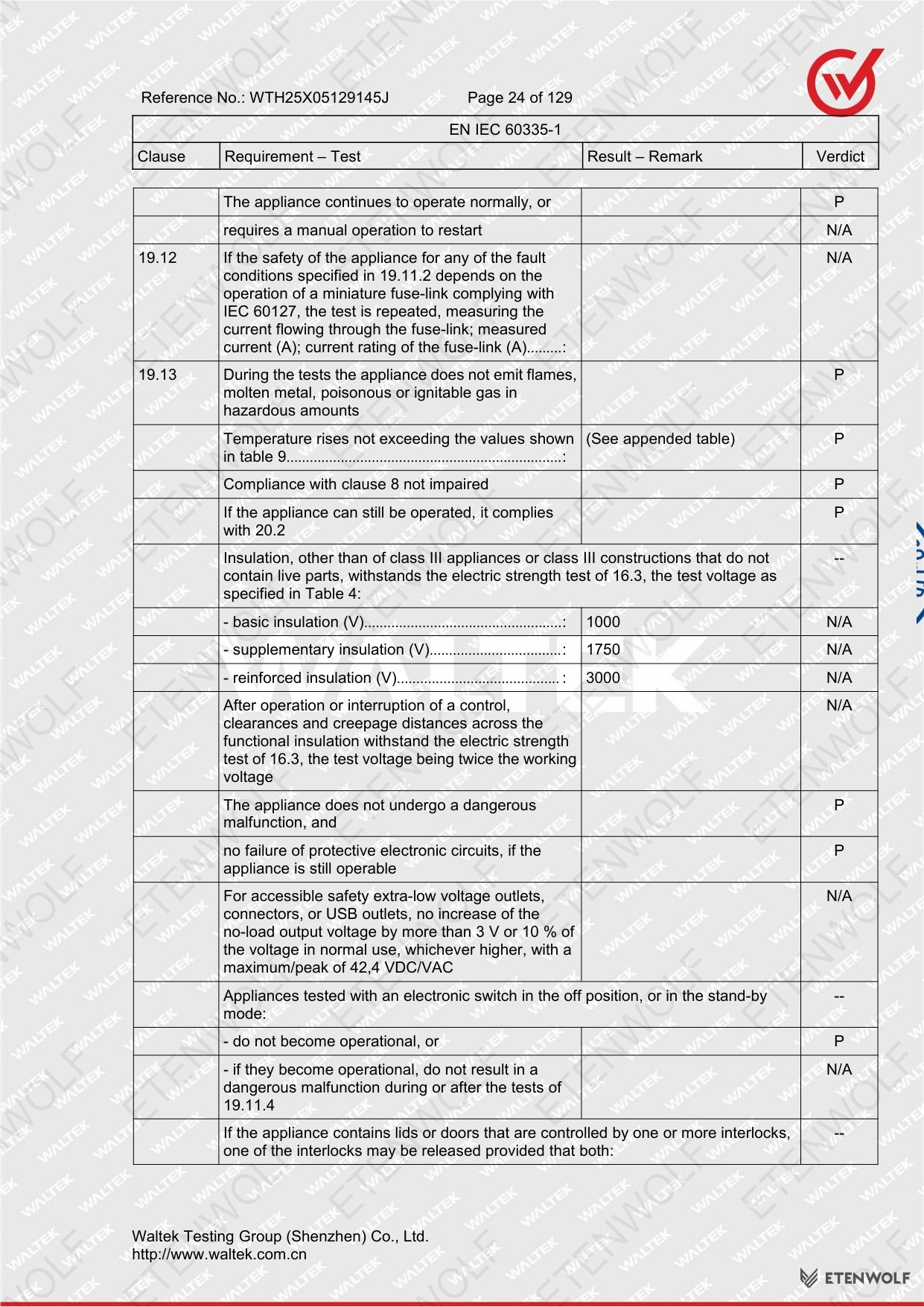

Document Page 24
Document Page 25

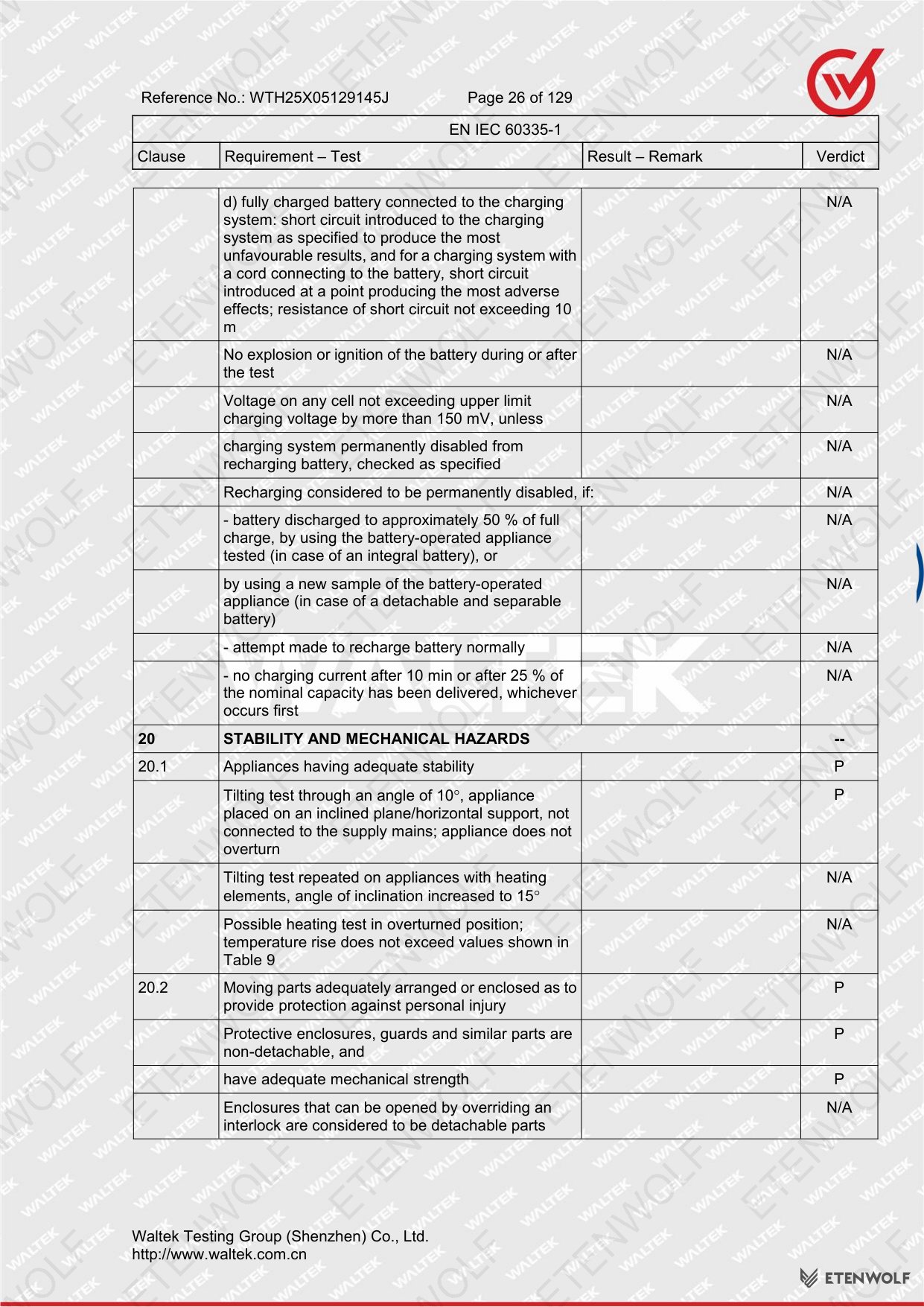

Document Page 26

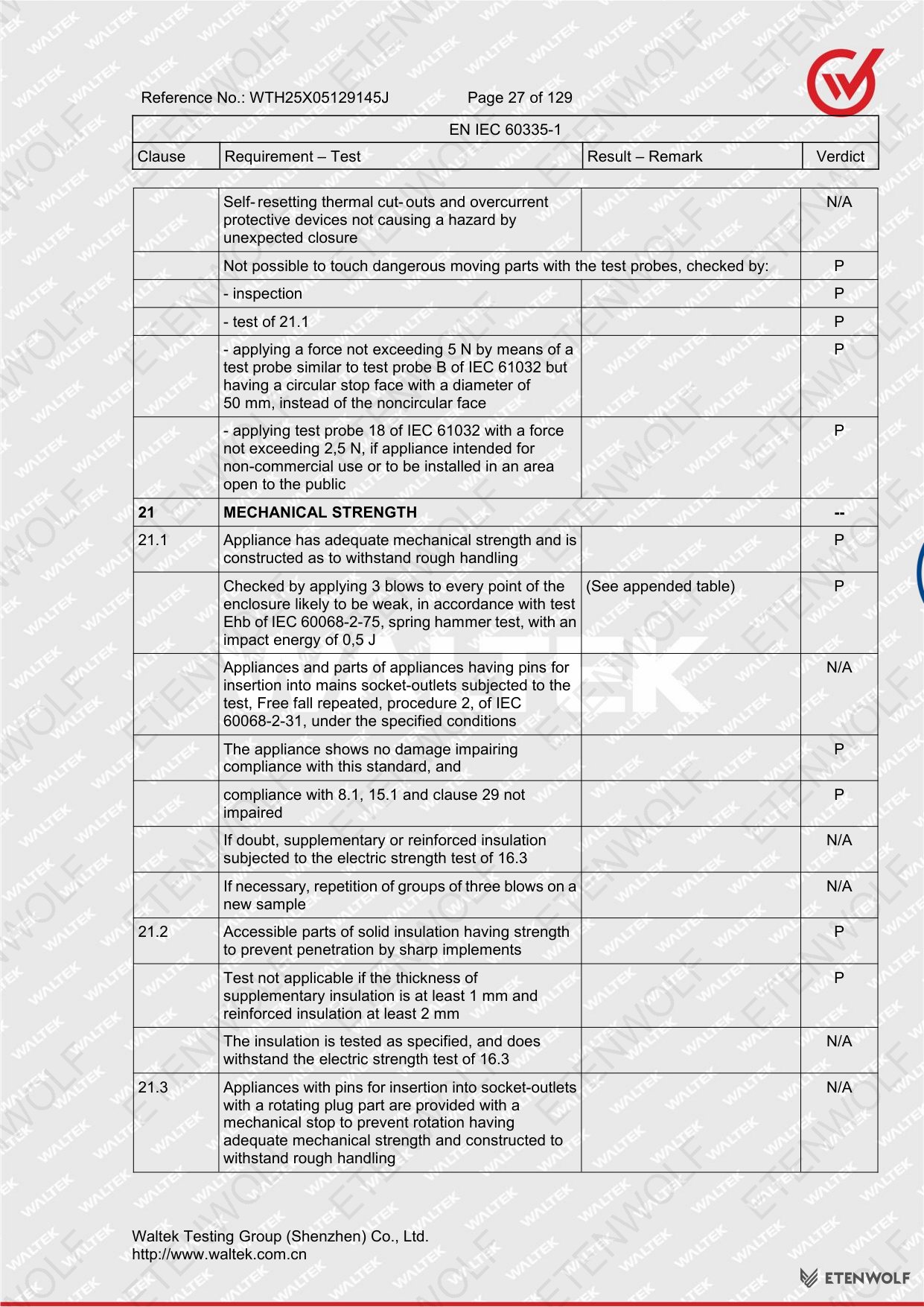

Document Page 27

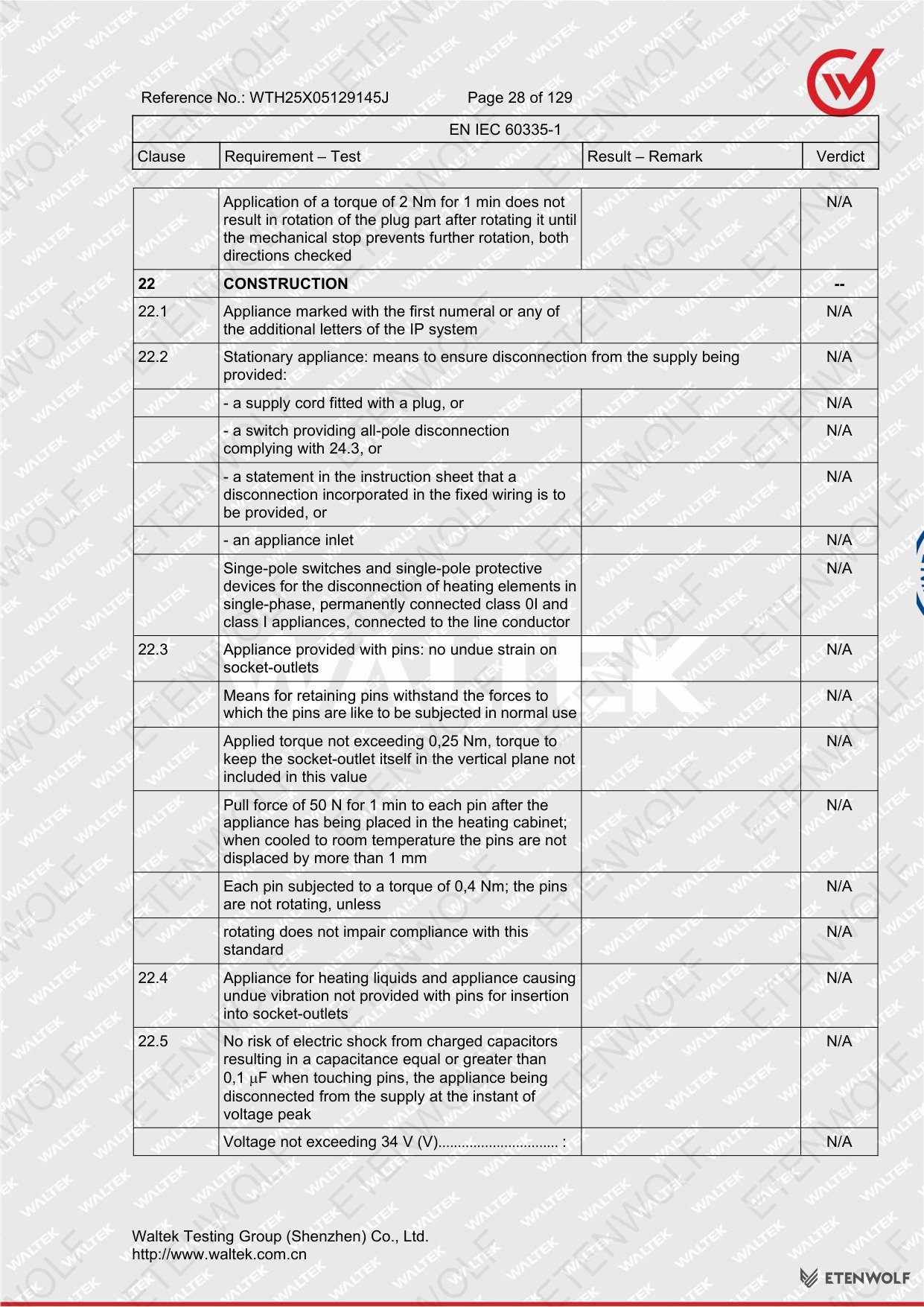

Document Page 28

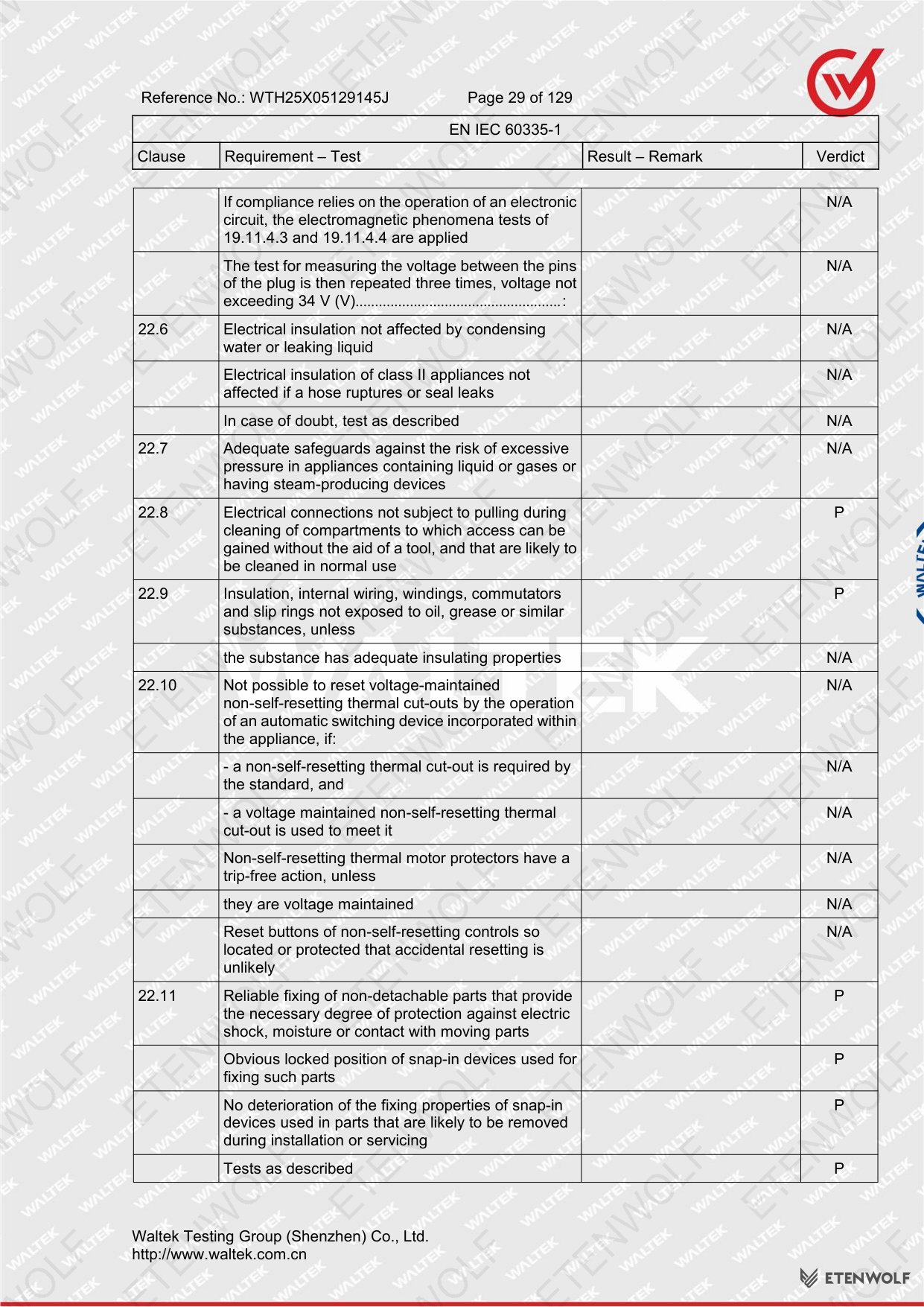

Document Page 29

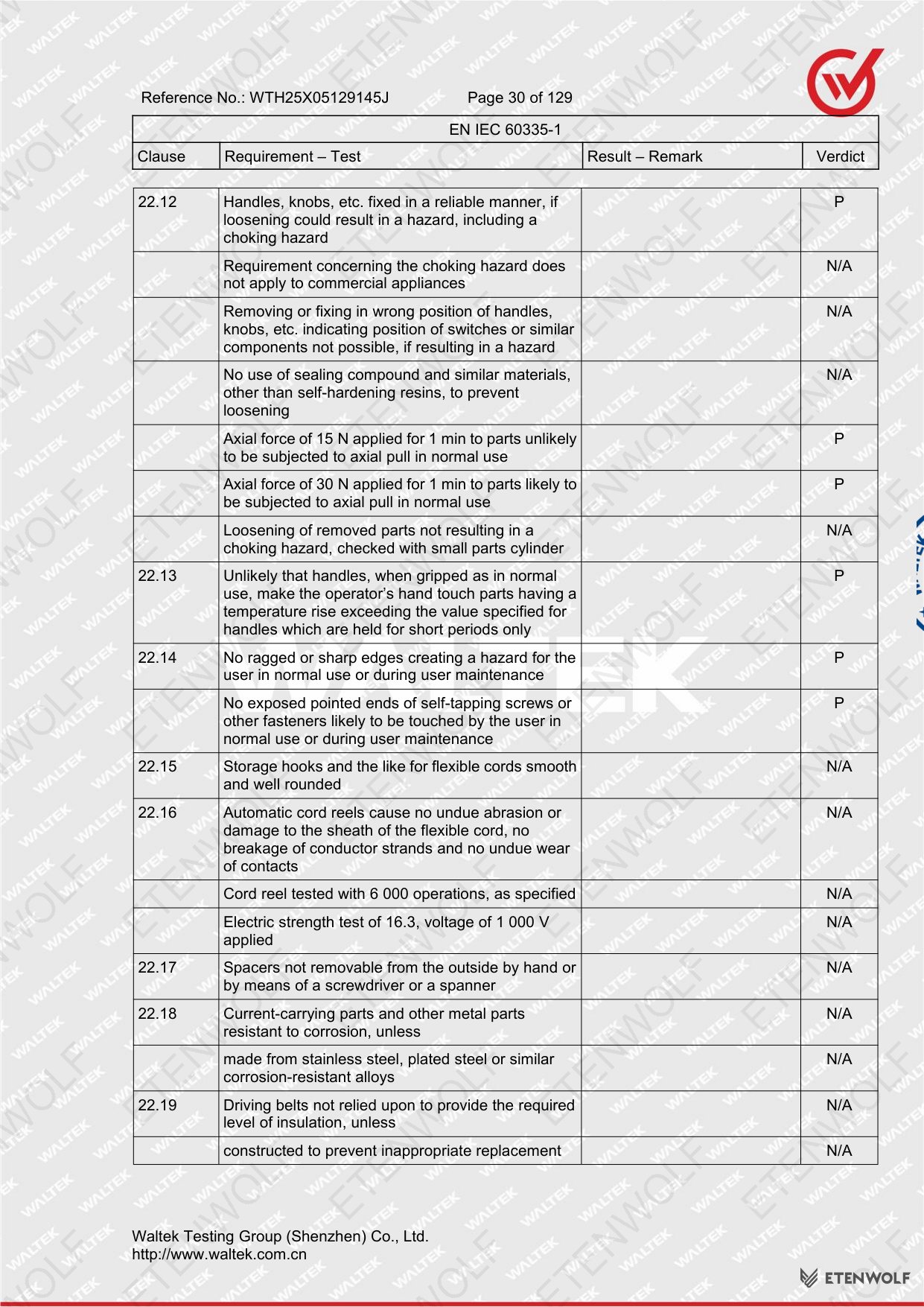

Document Page 30

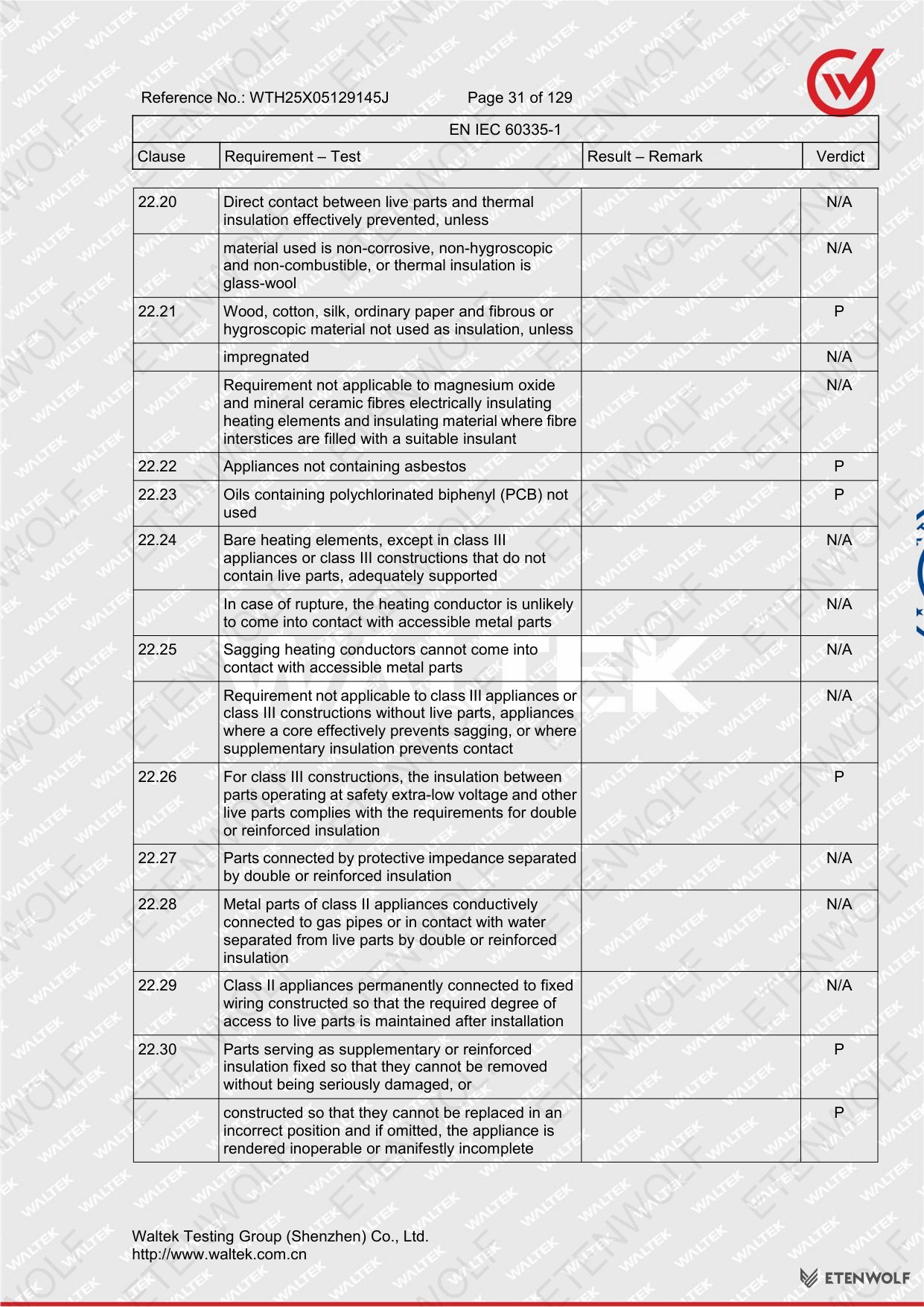

Document Page 31

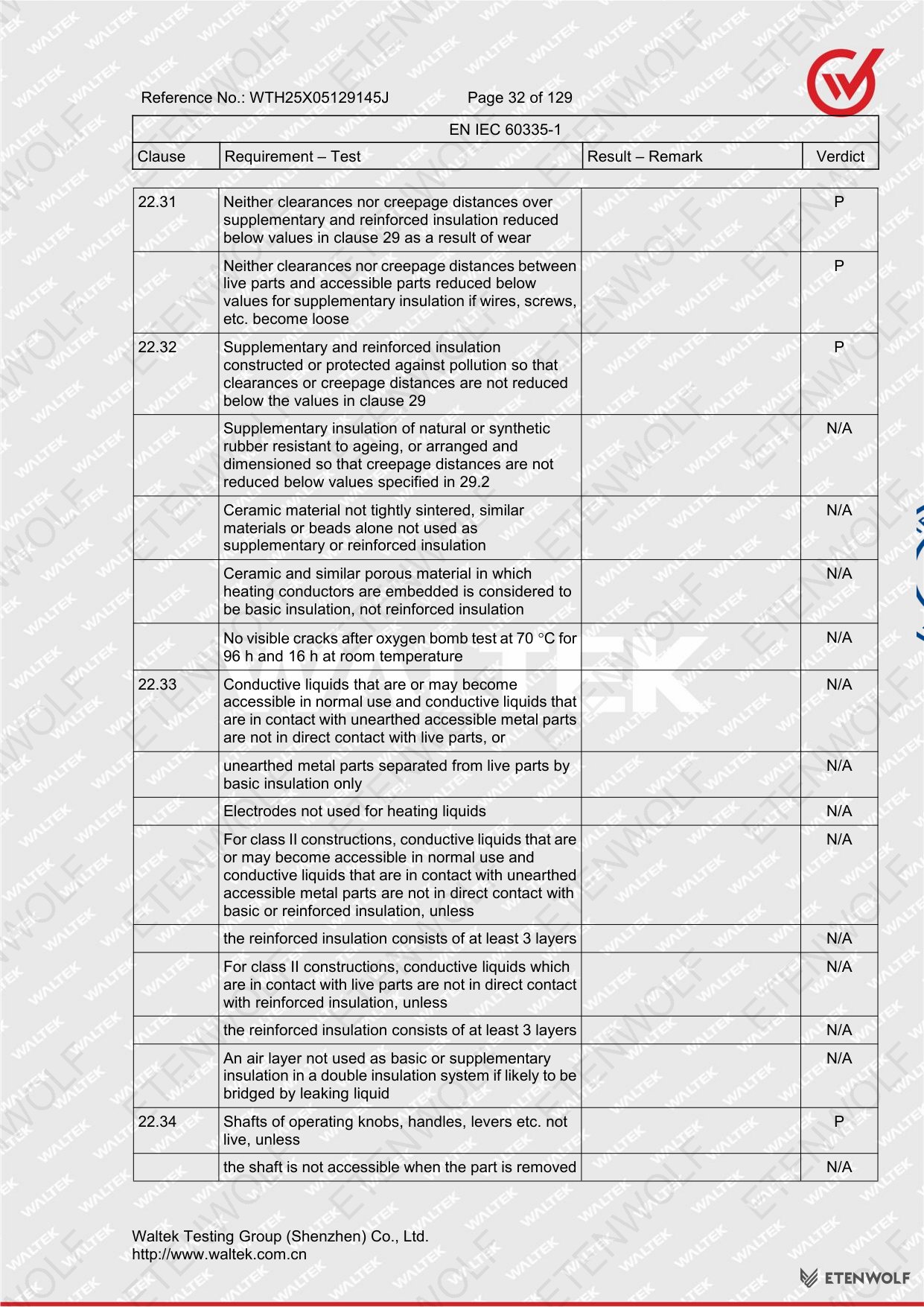

Document Page 32

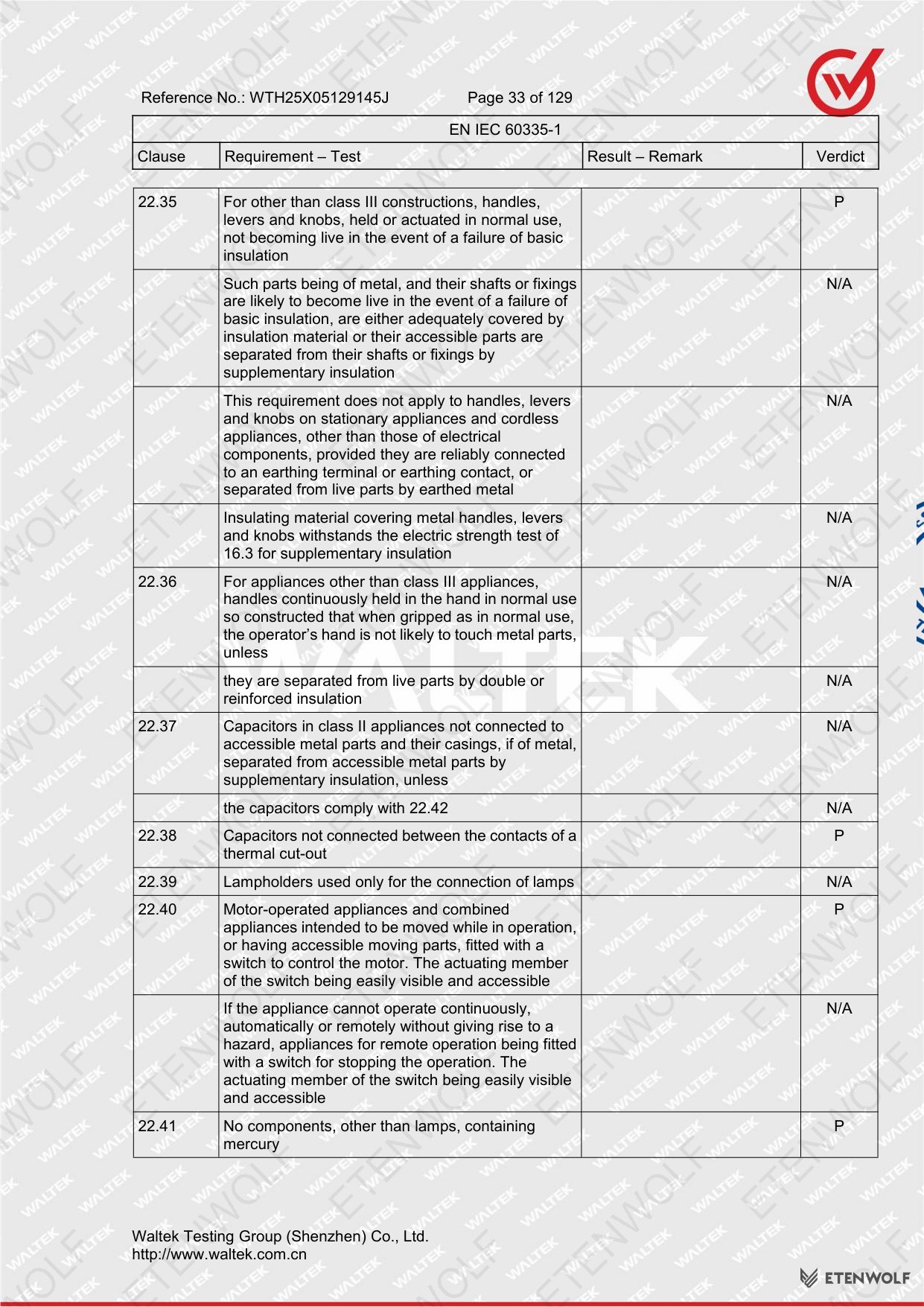

Document Page 33

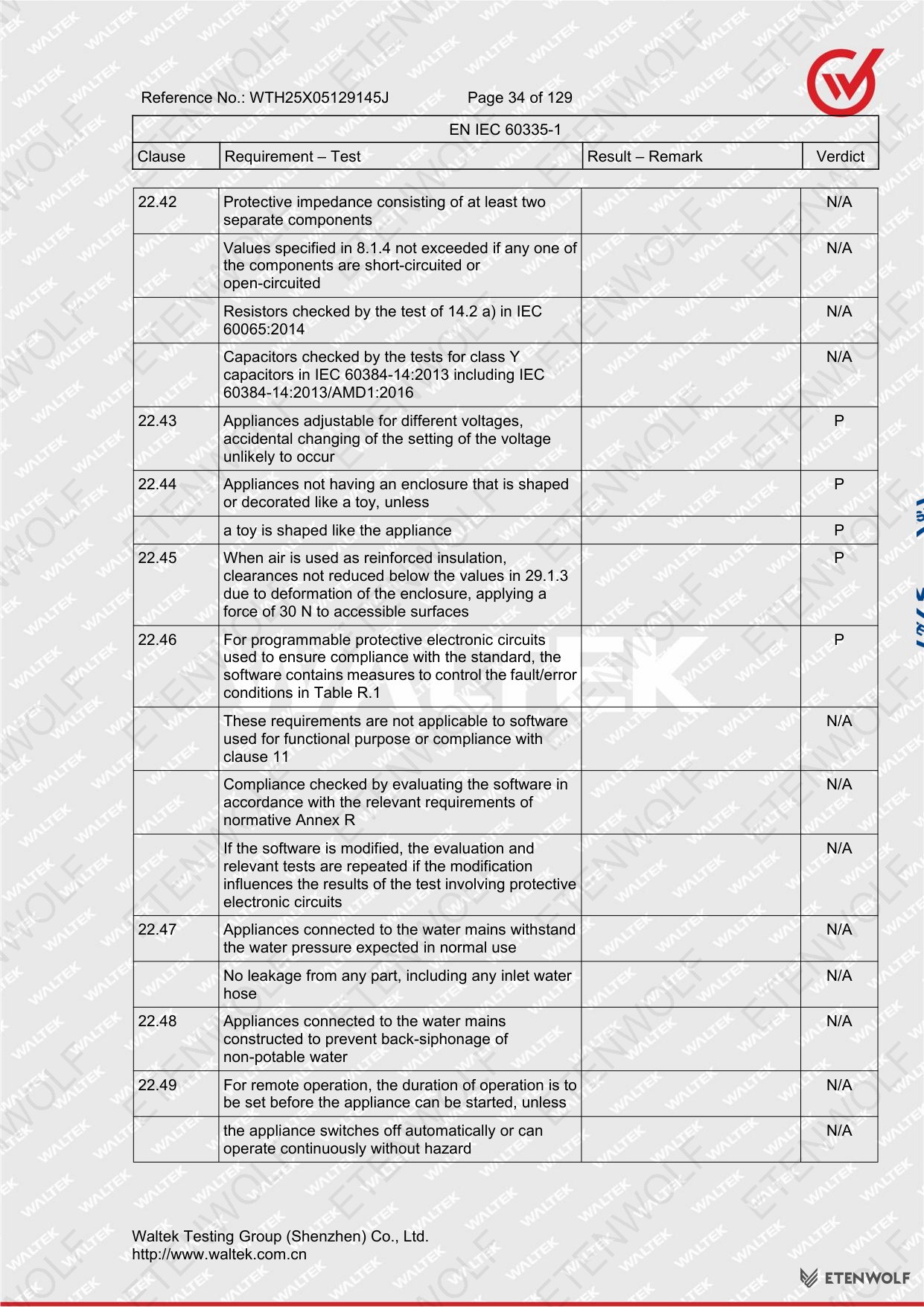

Document Page 34

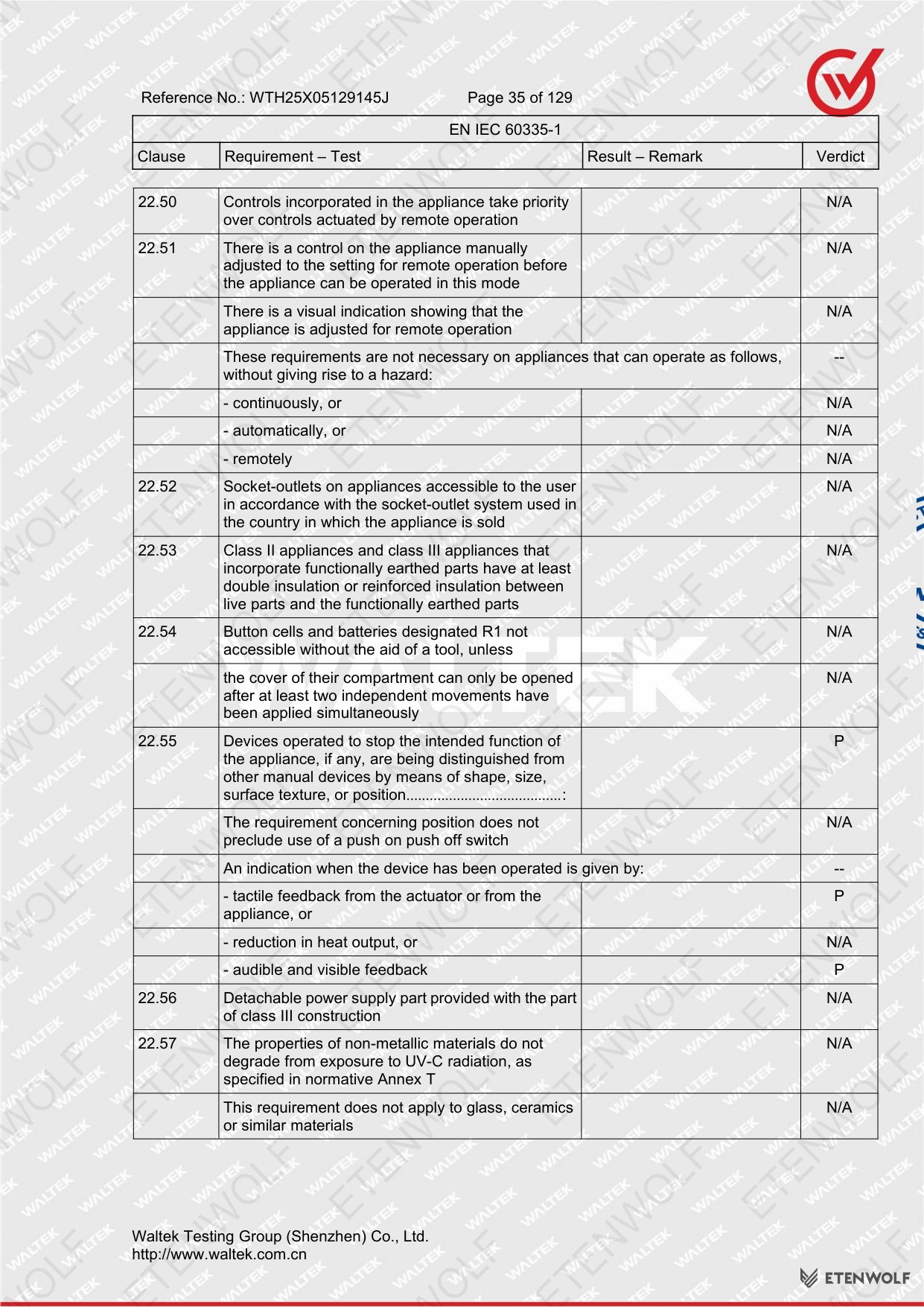

Document Page 35

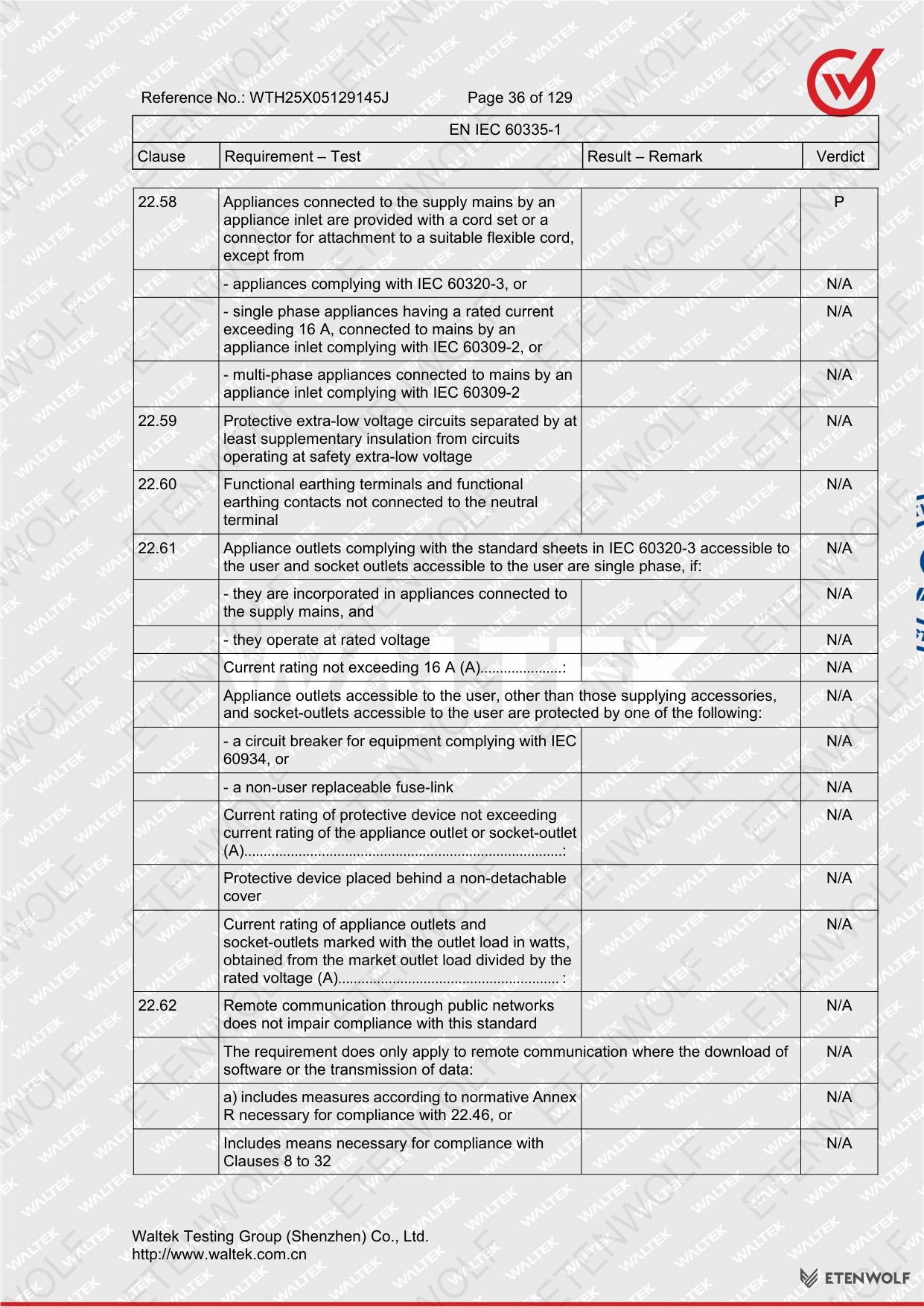

Document Page 36

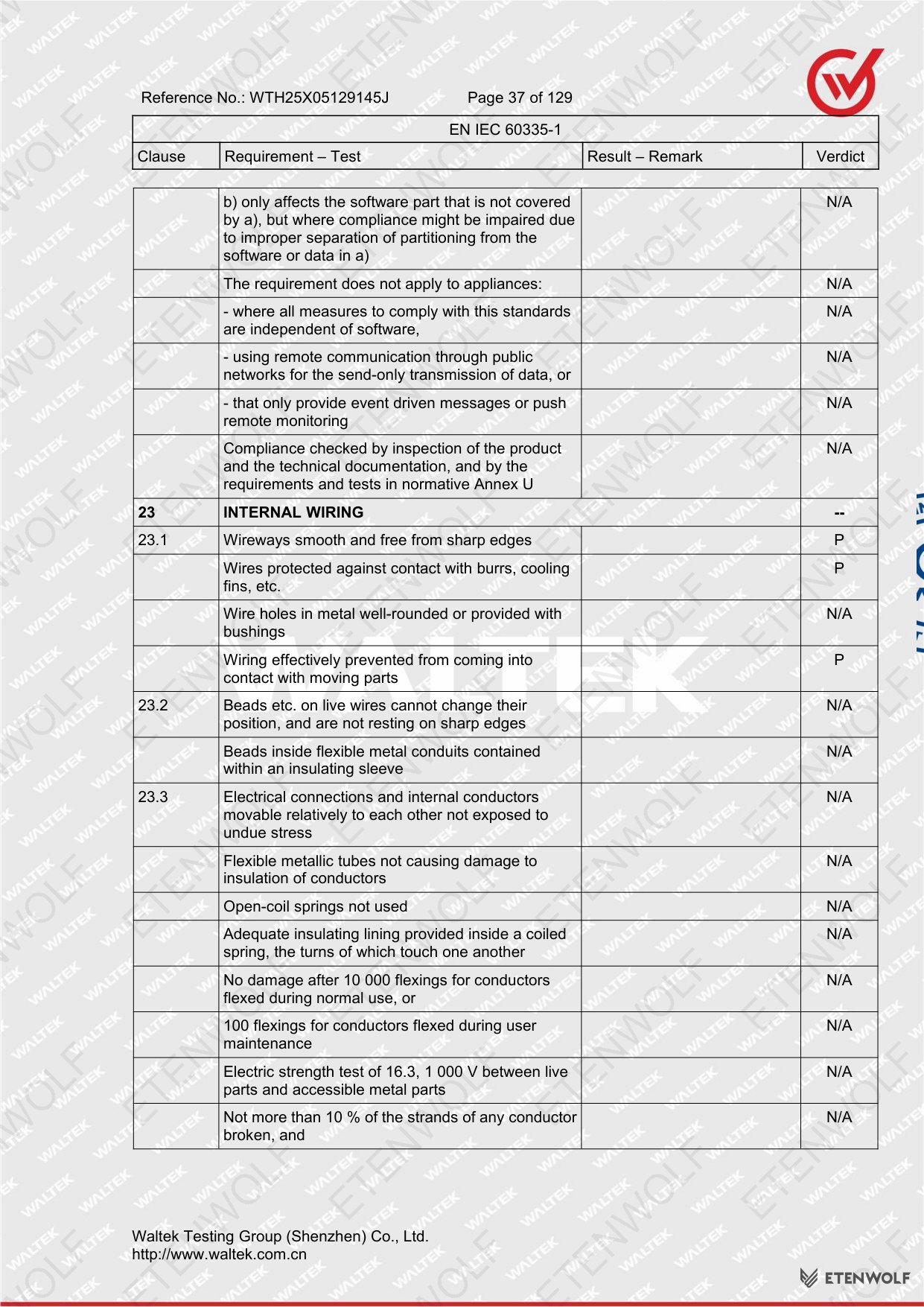

Document Page 37

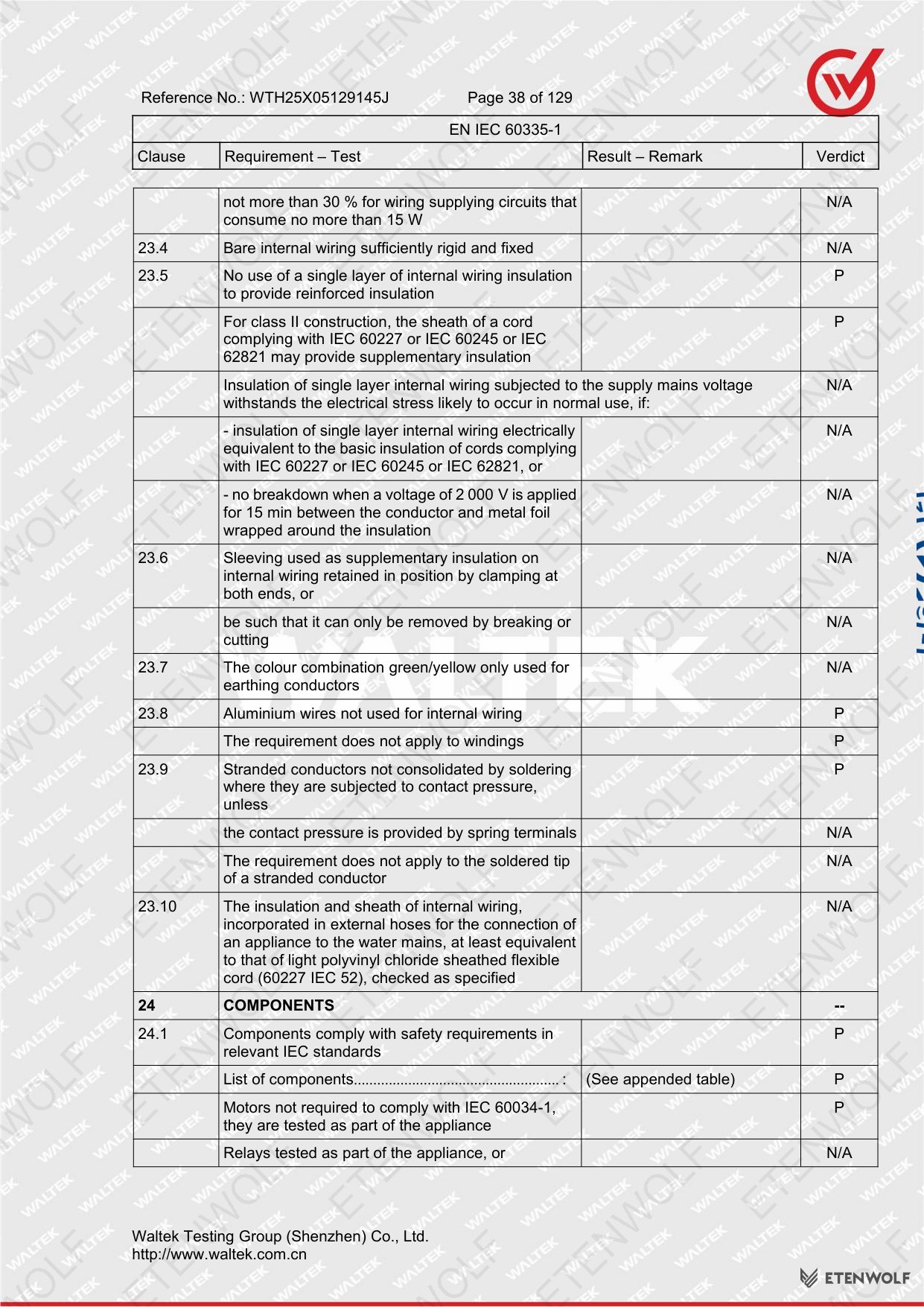

Document Page 38

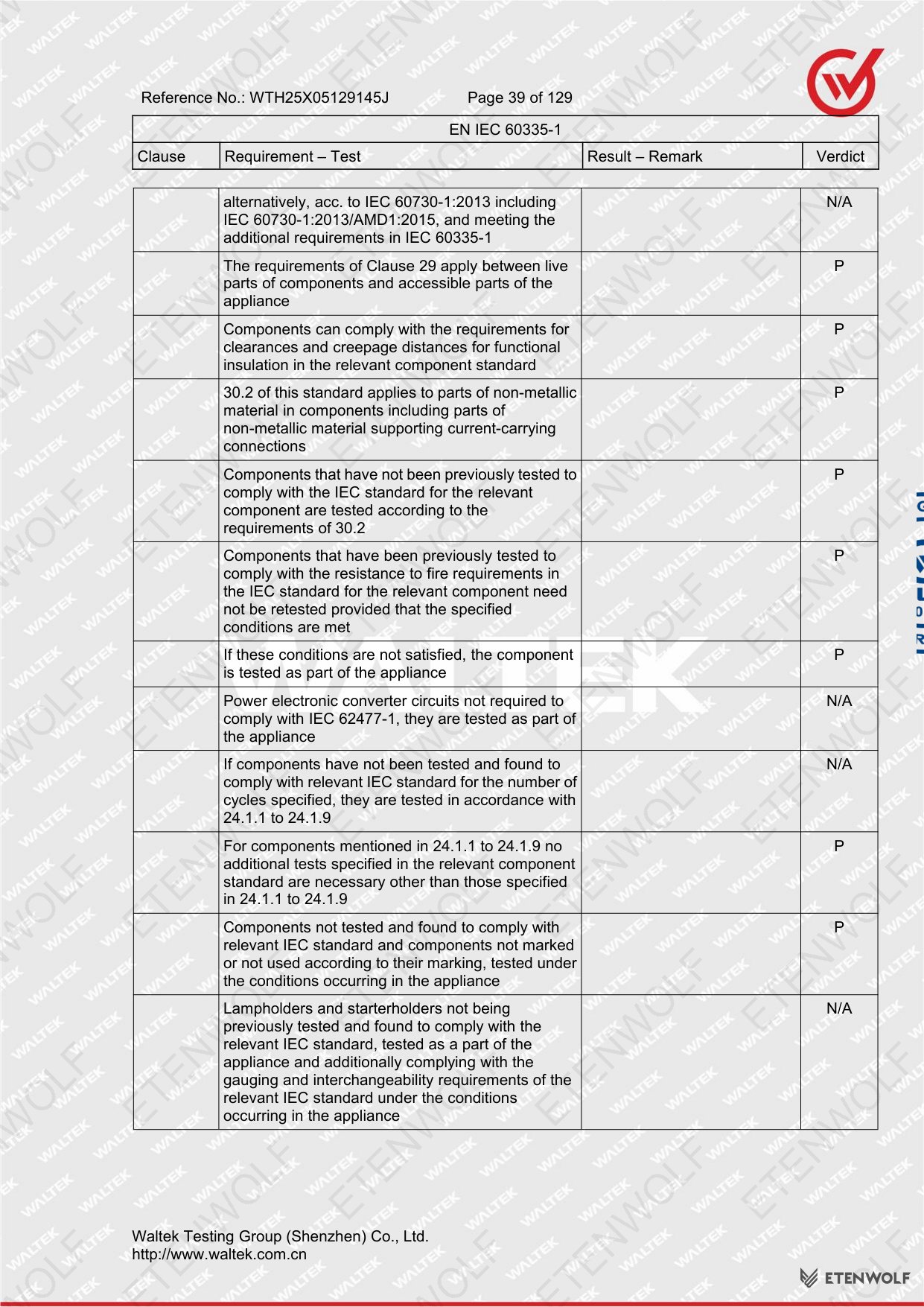

Document Page 39

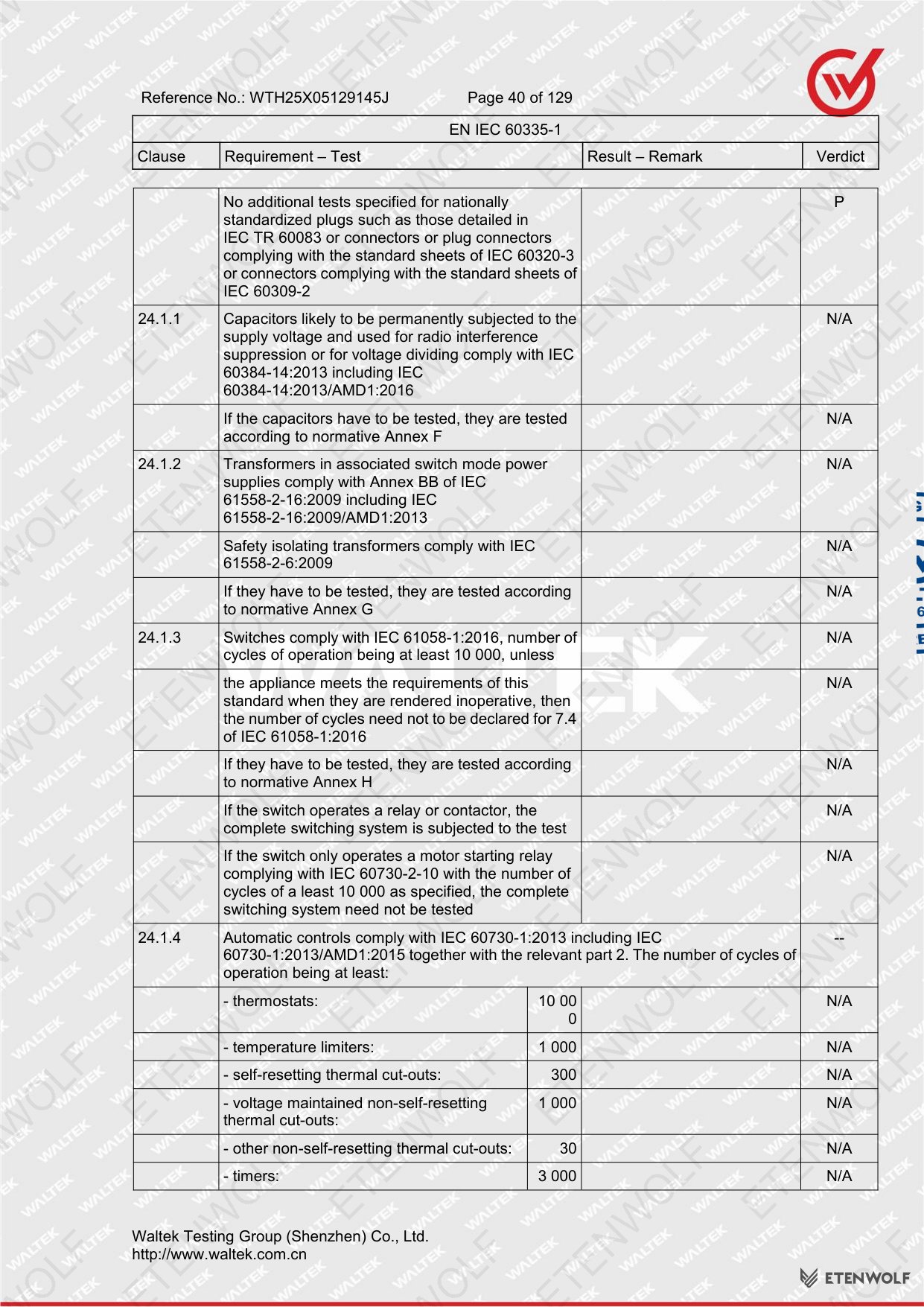

Document Page 40

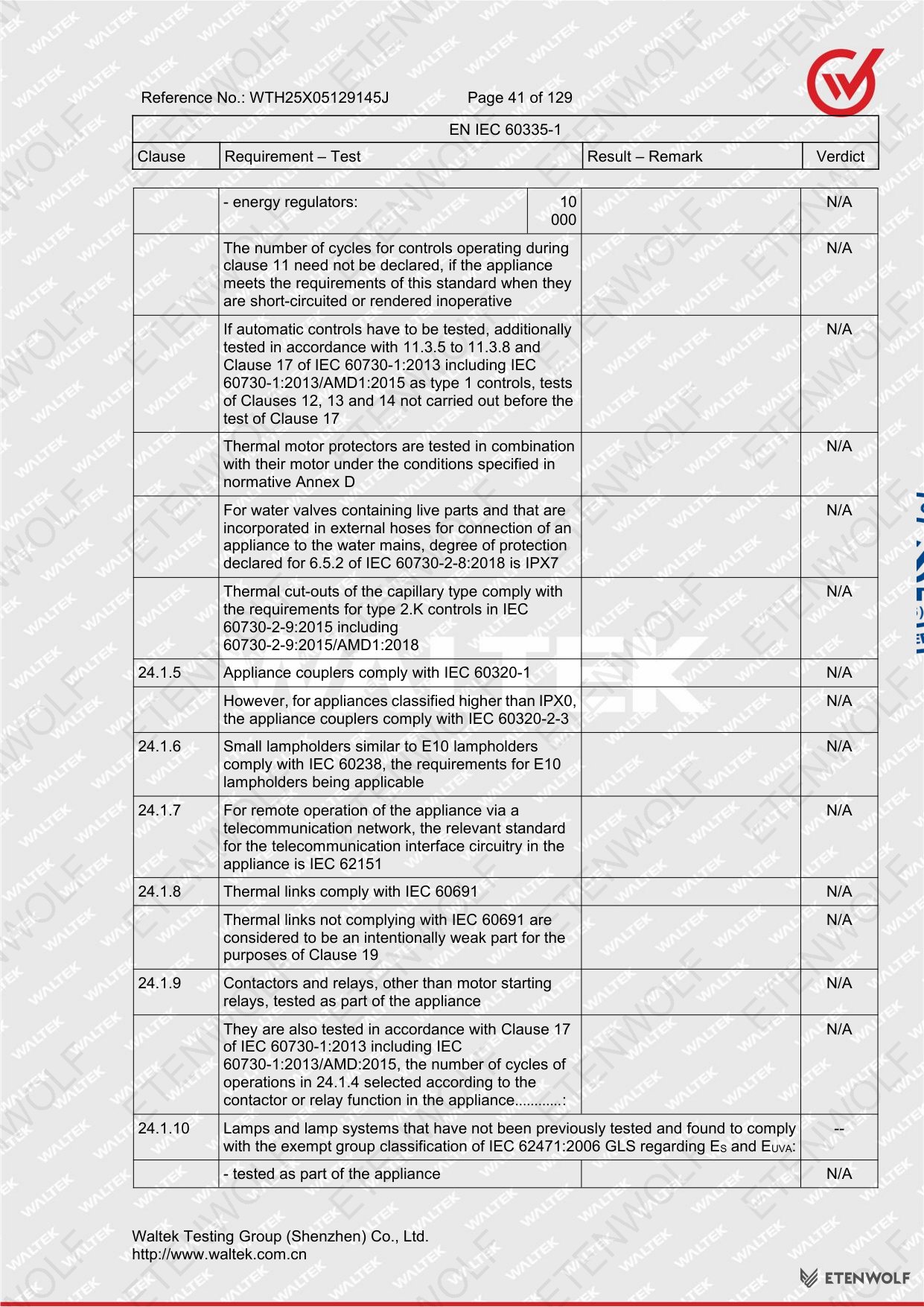

Document Page 41

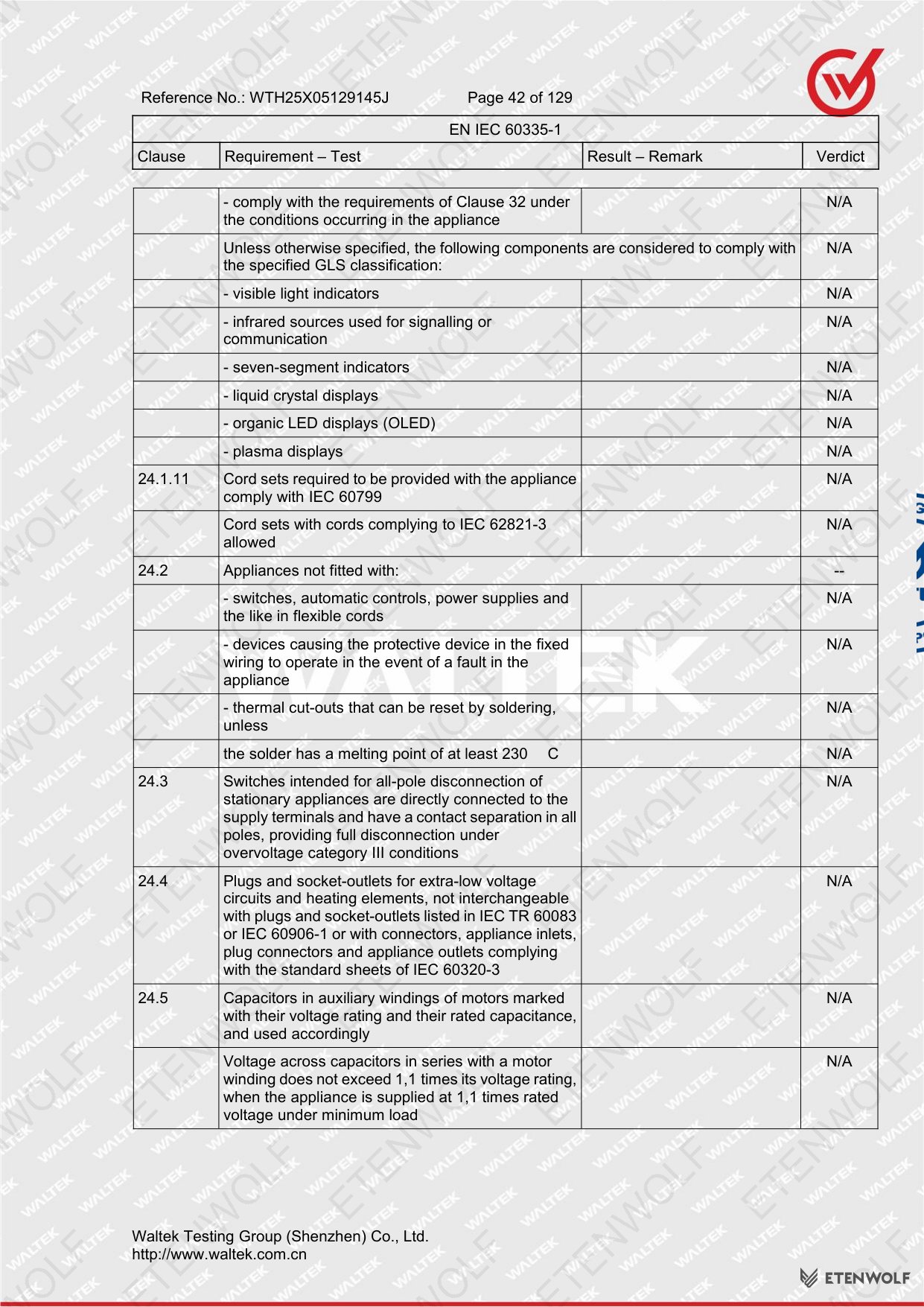

Document Page 42
Document Page 43
Document Page 44
Document Page 45

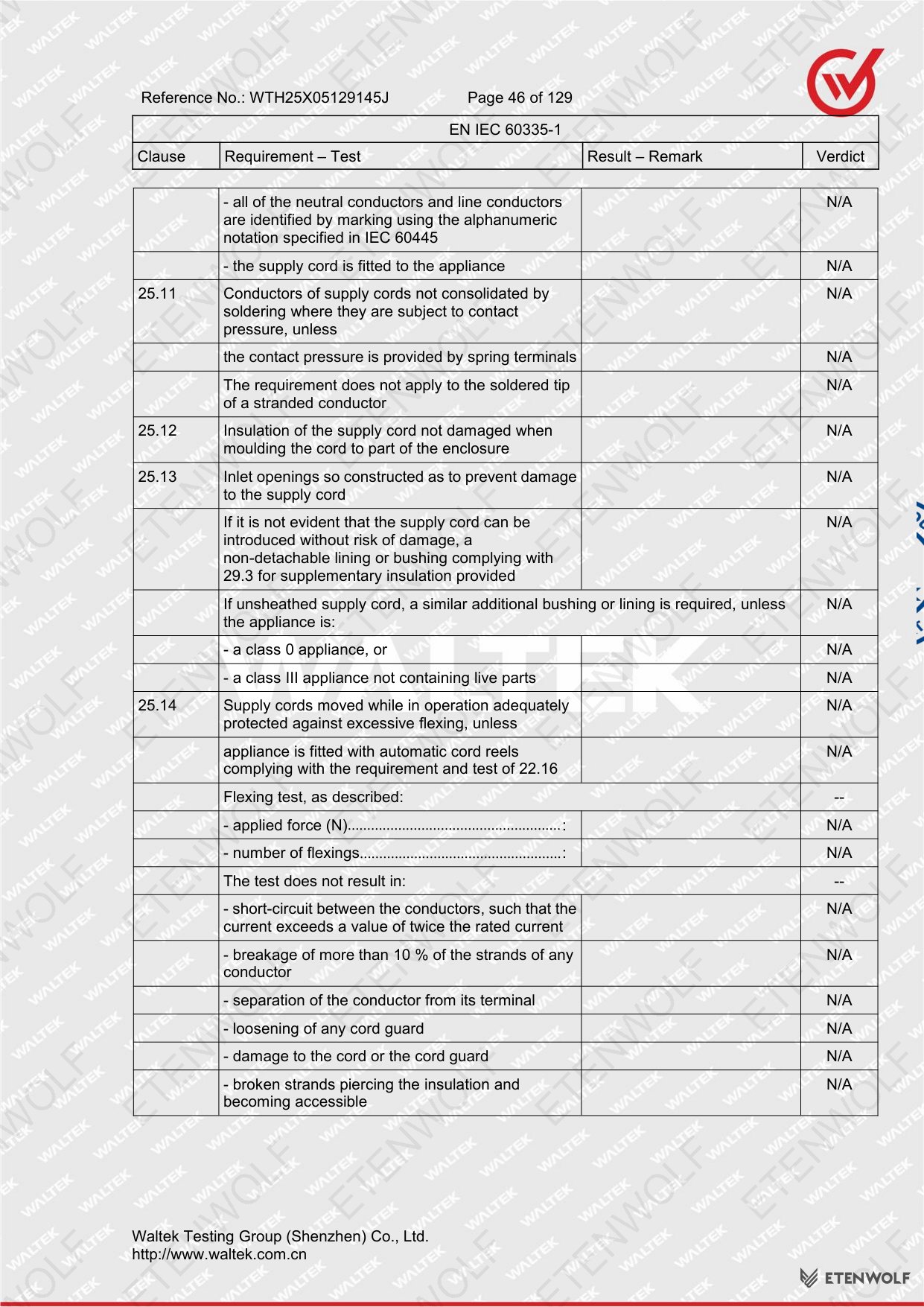

Document Page 46

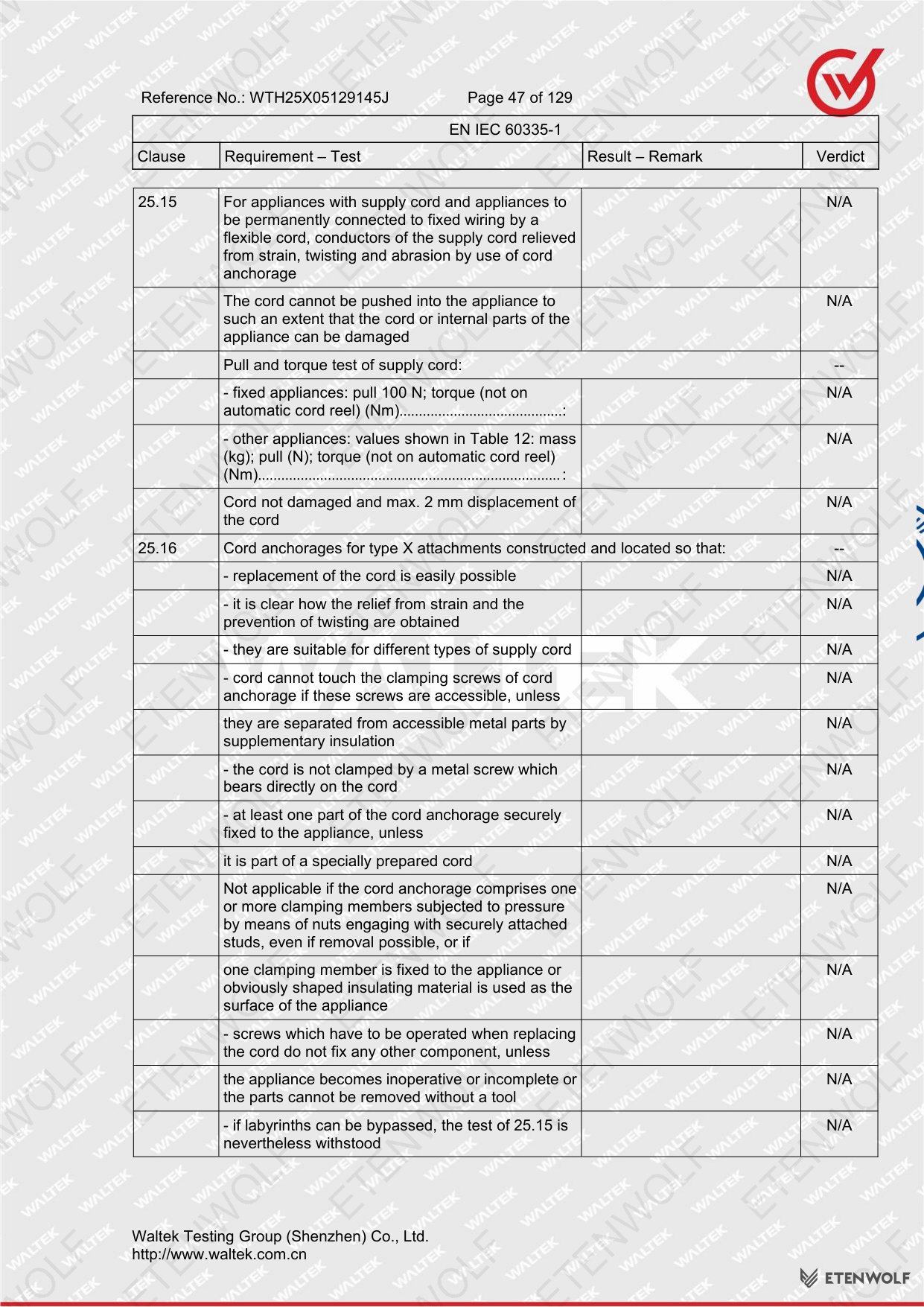

Document Page 47

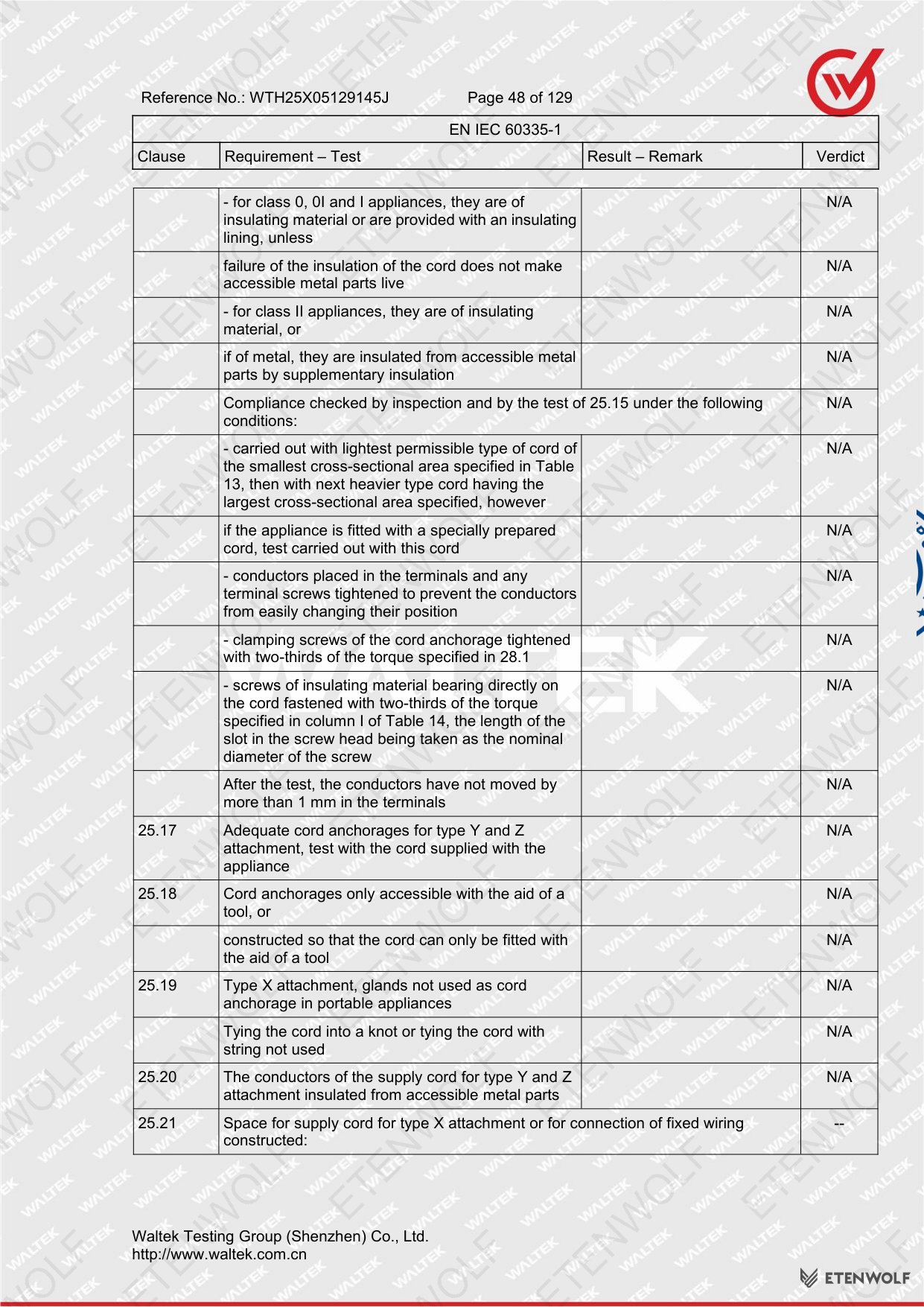

Document Page 48

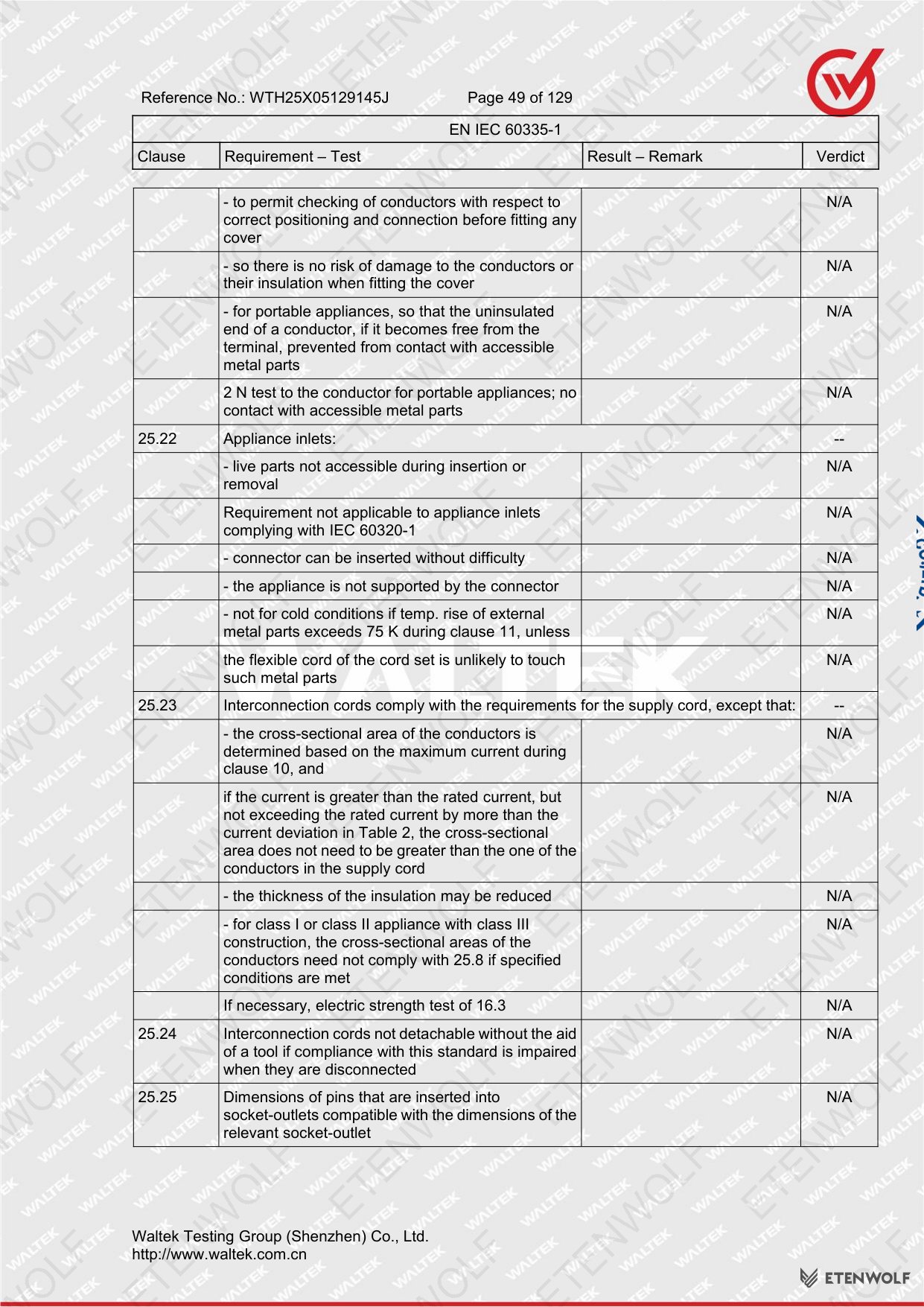

Document Page 49

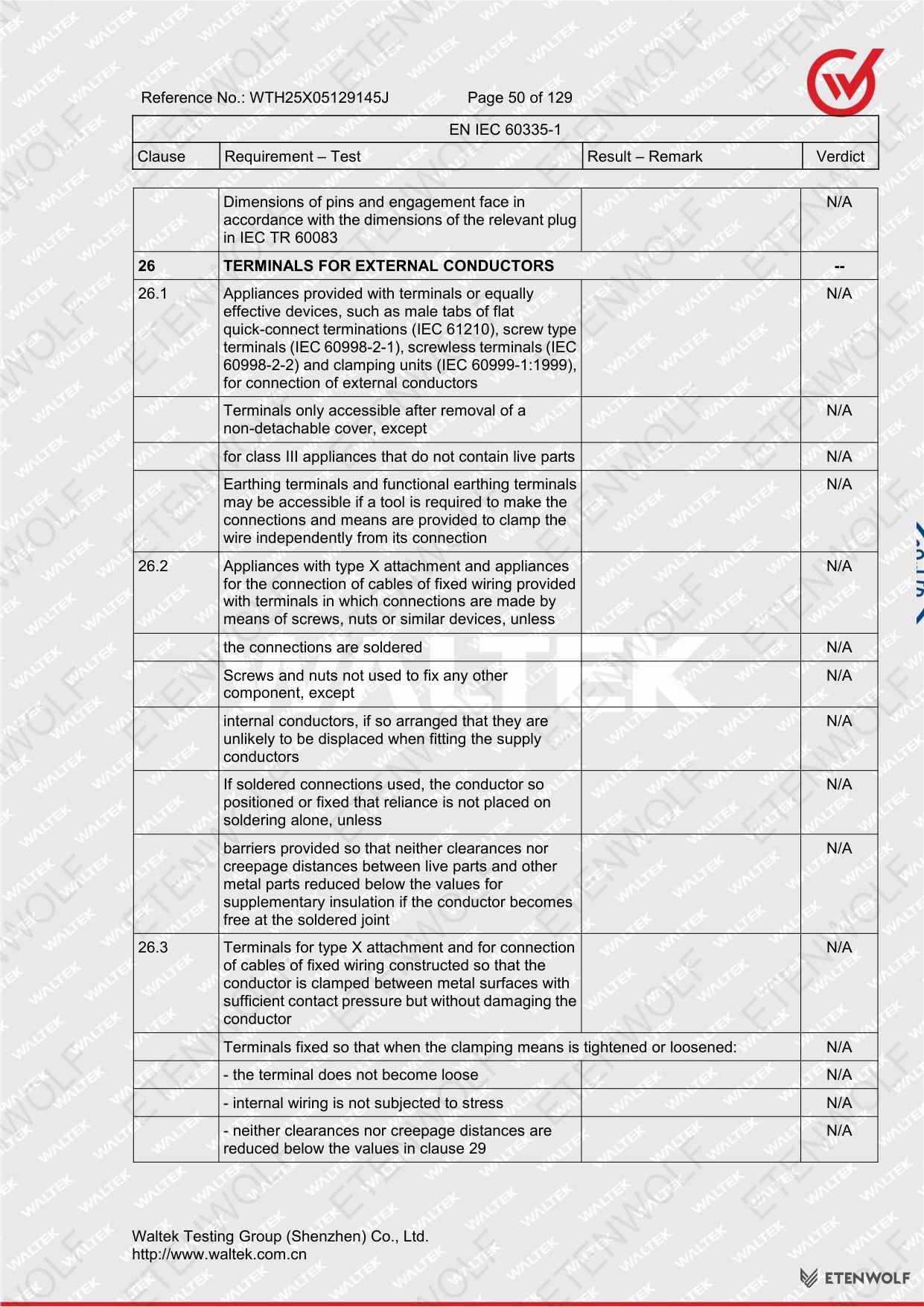

Document Page 50

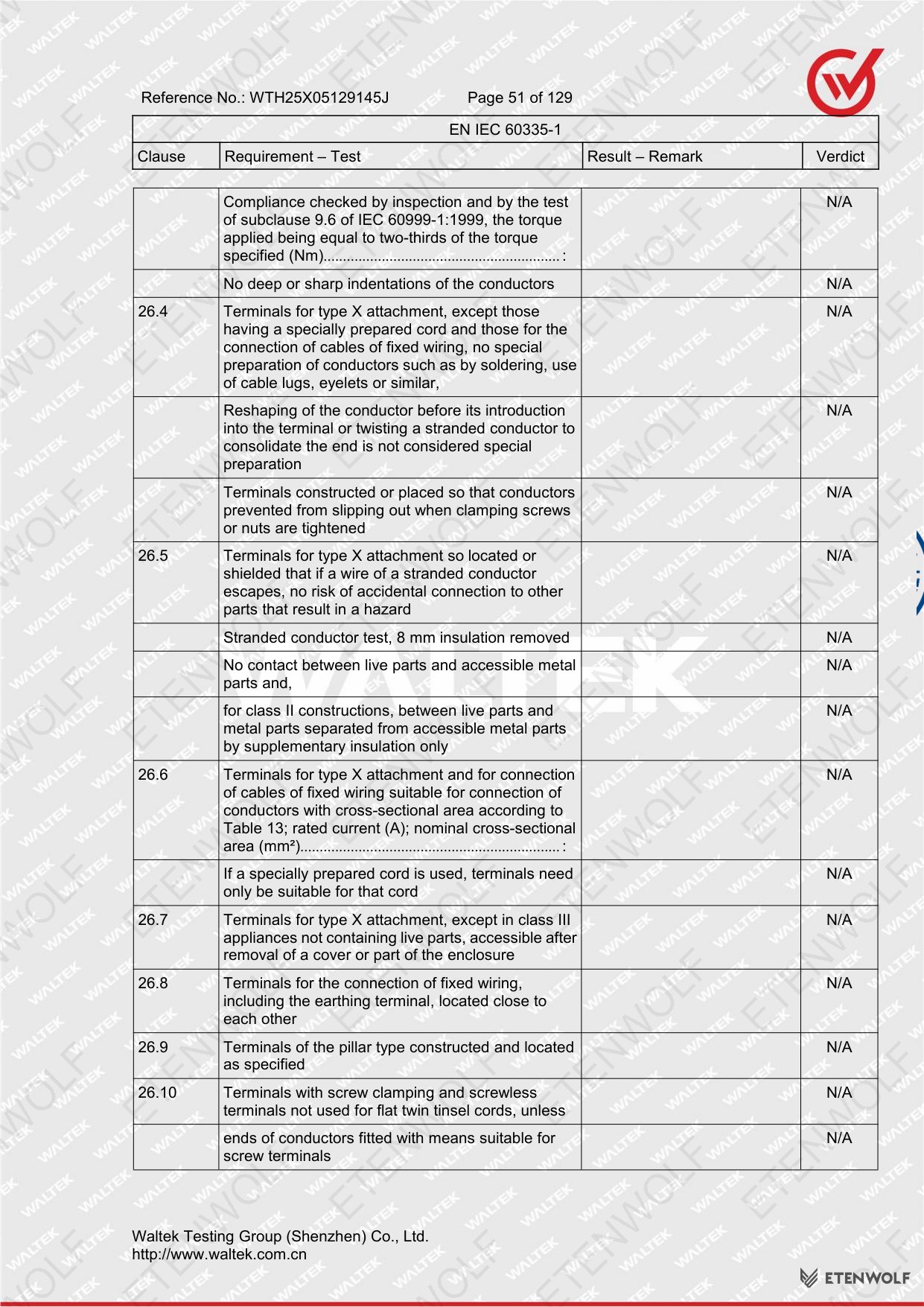

Document Page 51

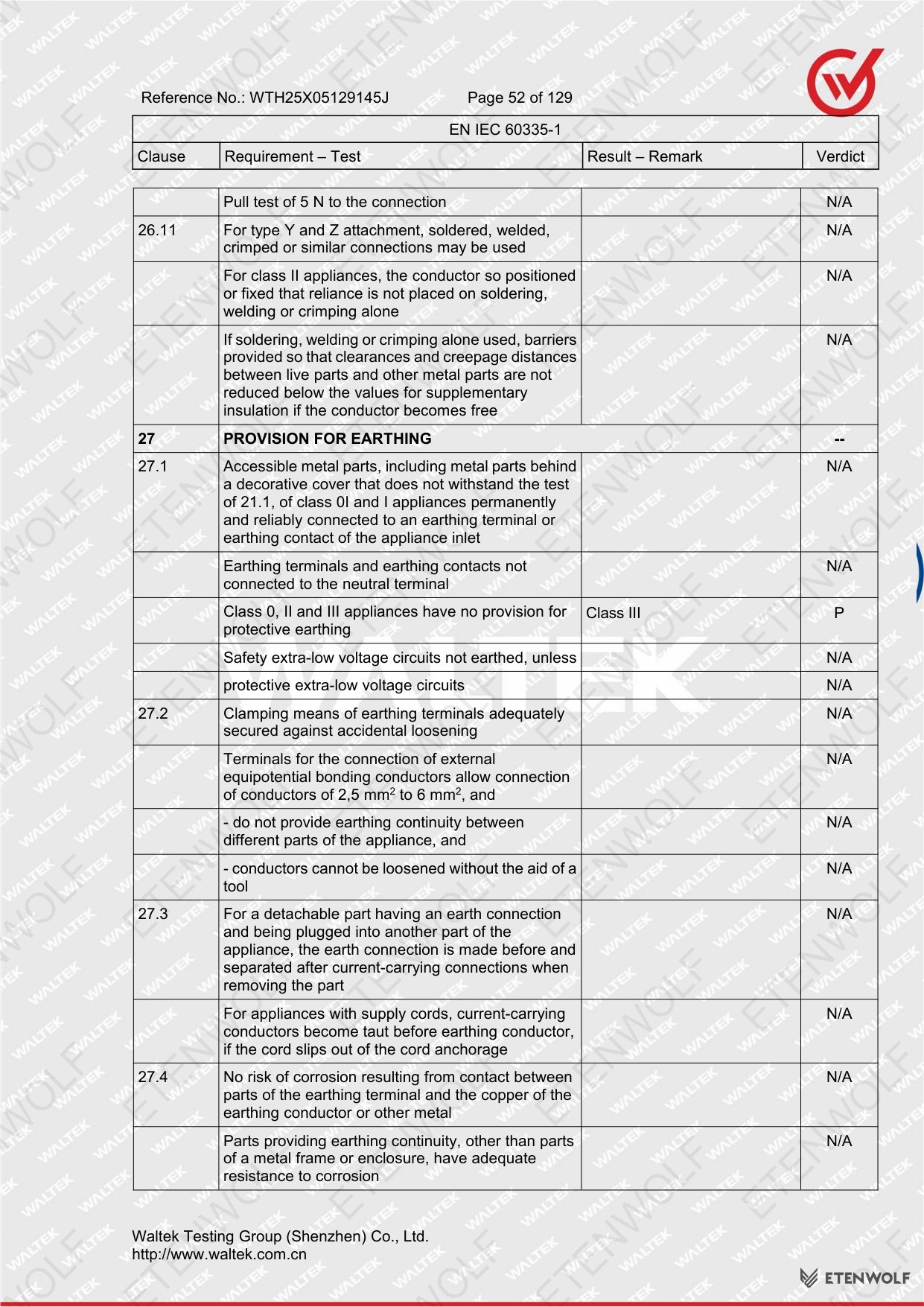

Document Page 52

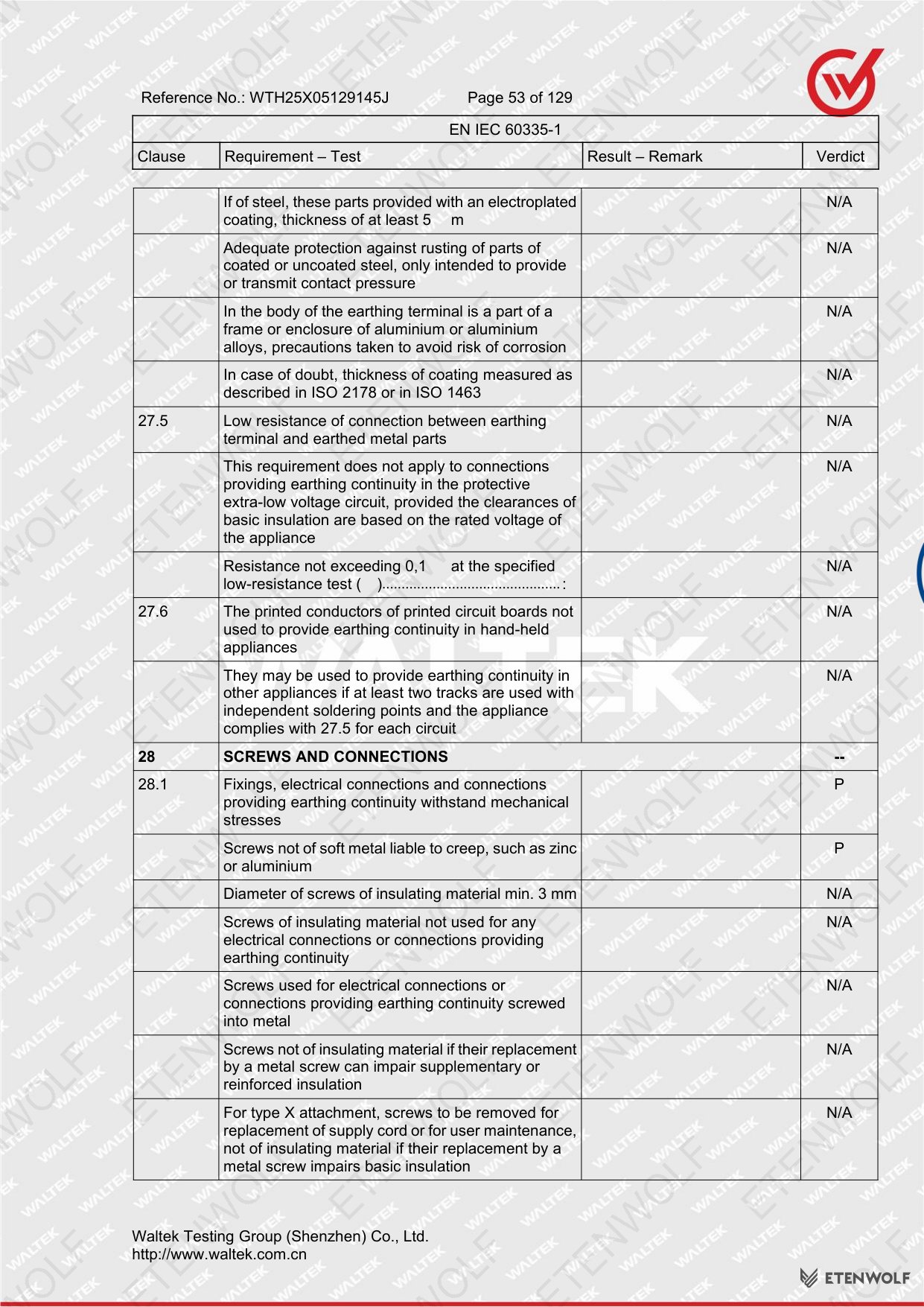

Document Page 53
Document Page 54
Document Page 55

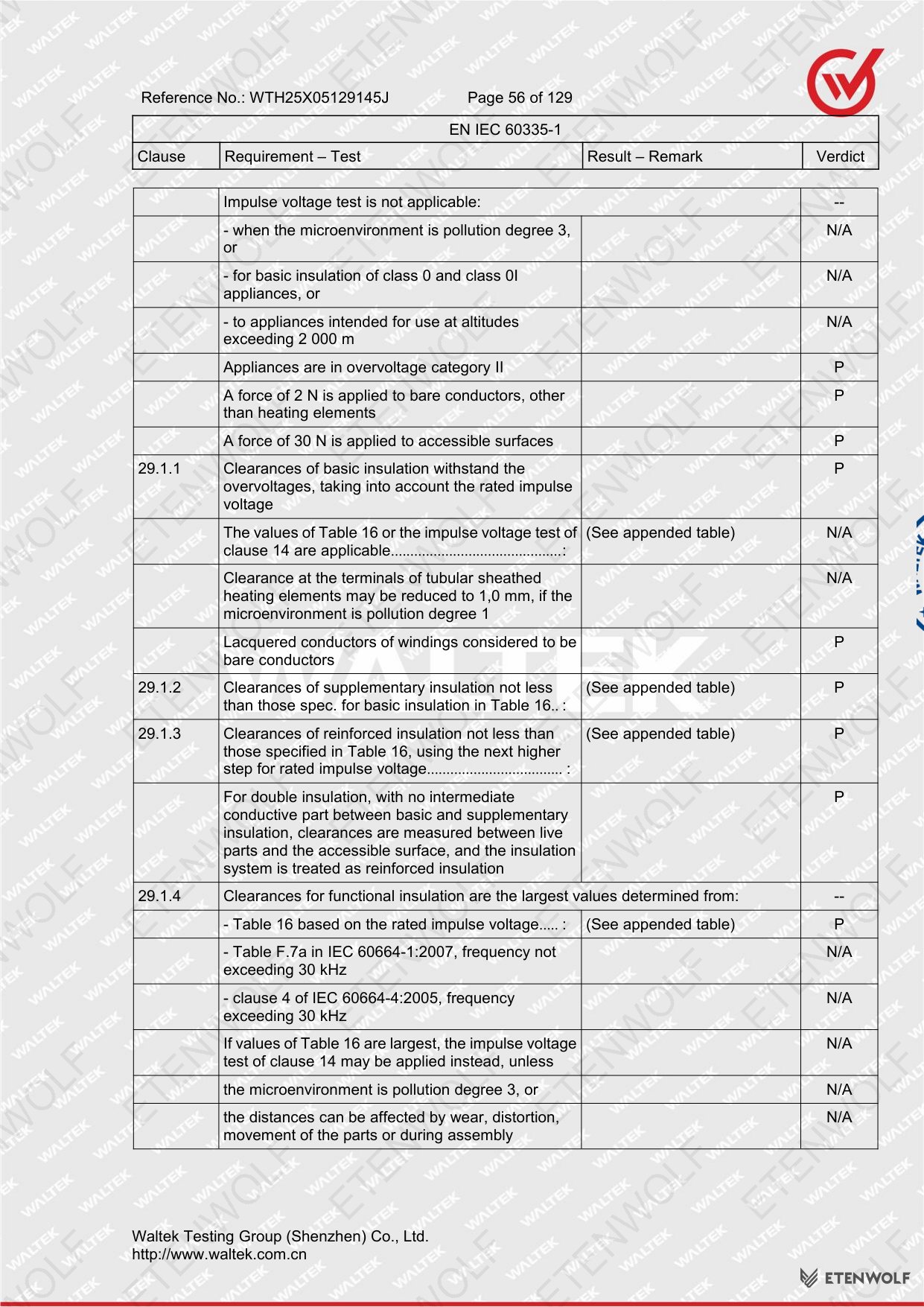

Document Page 56
Document Page 57
Document Page 58

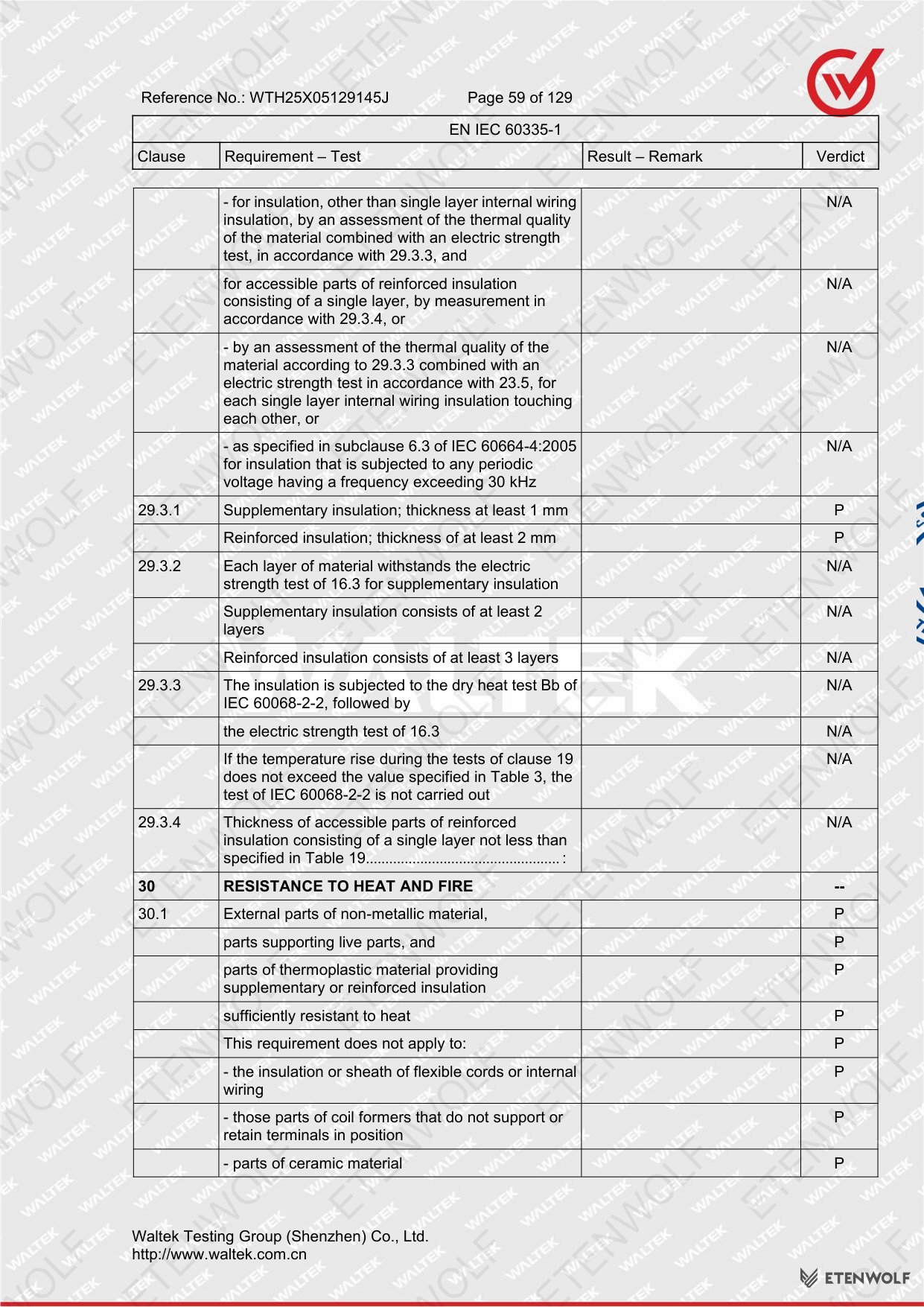

Document Page 59
Document Page 60
Document Page 61

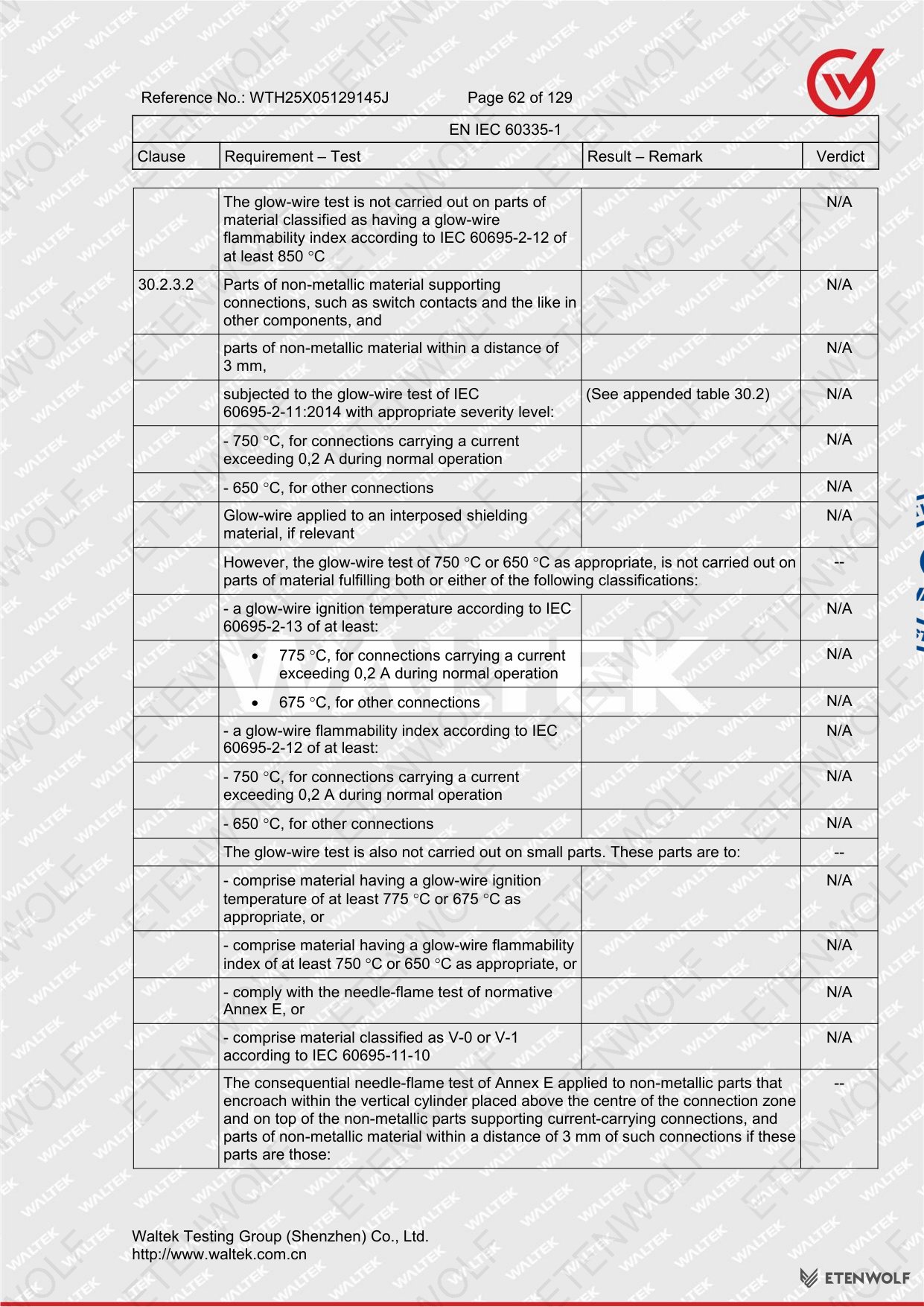

Document Page 62
Document Page 63

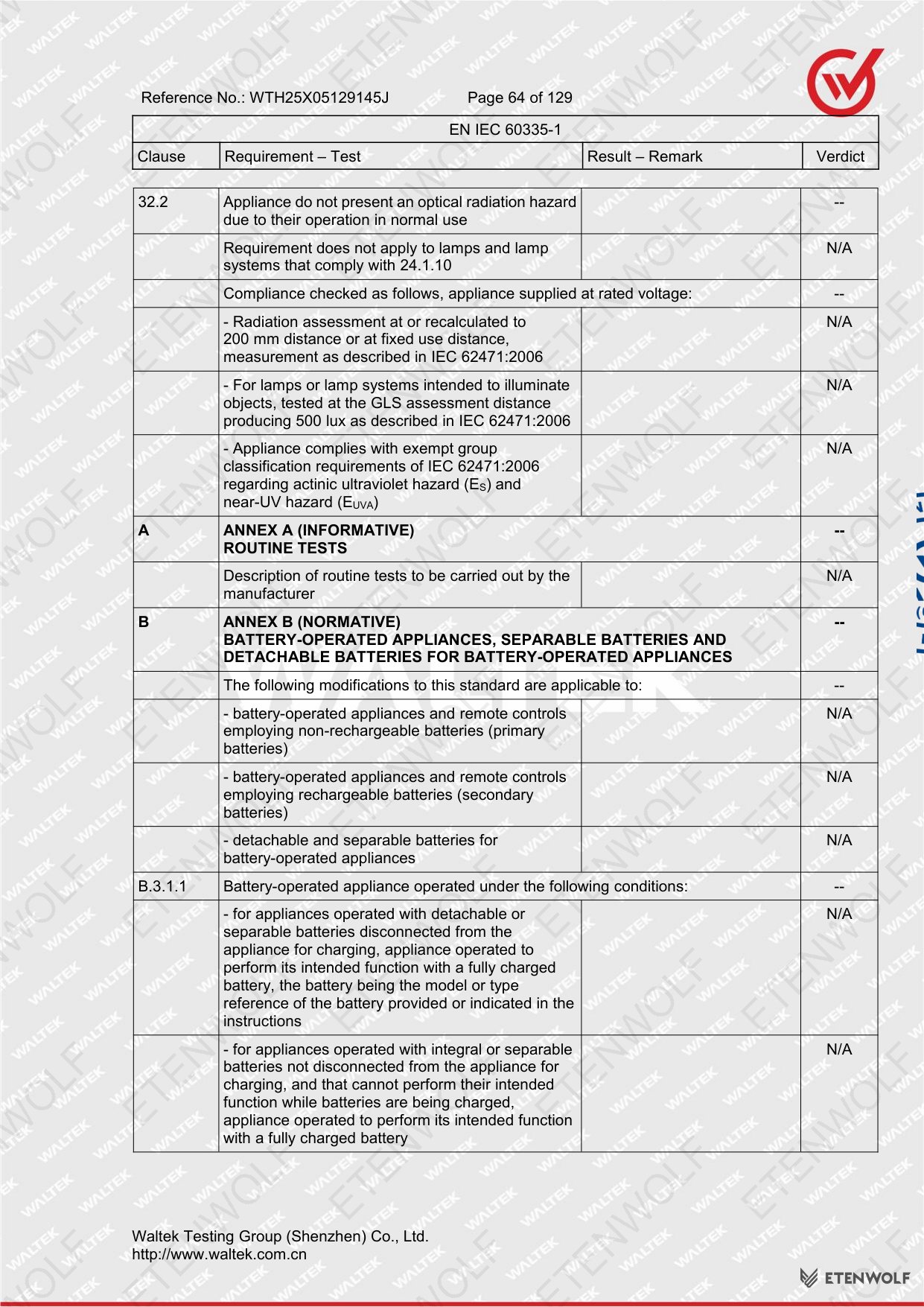

Document Page 64

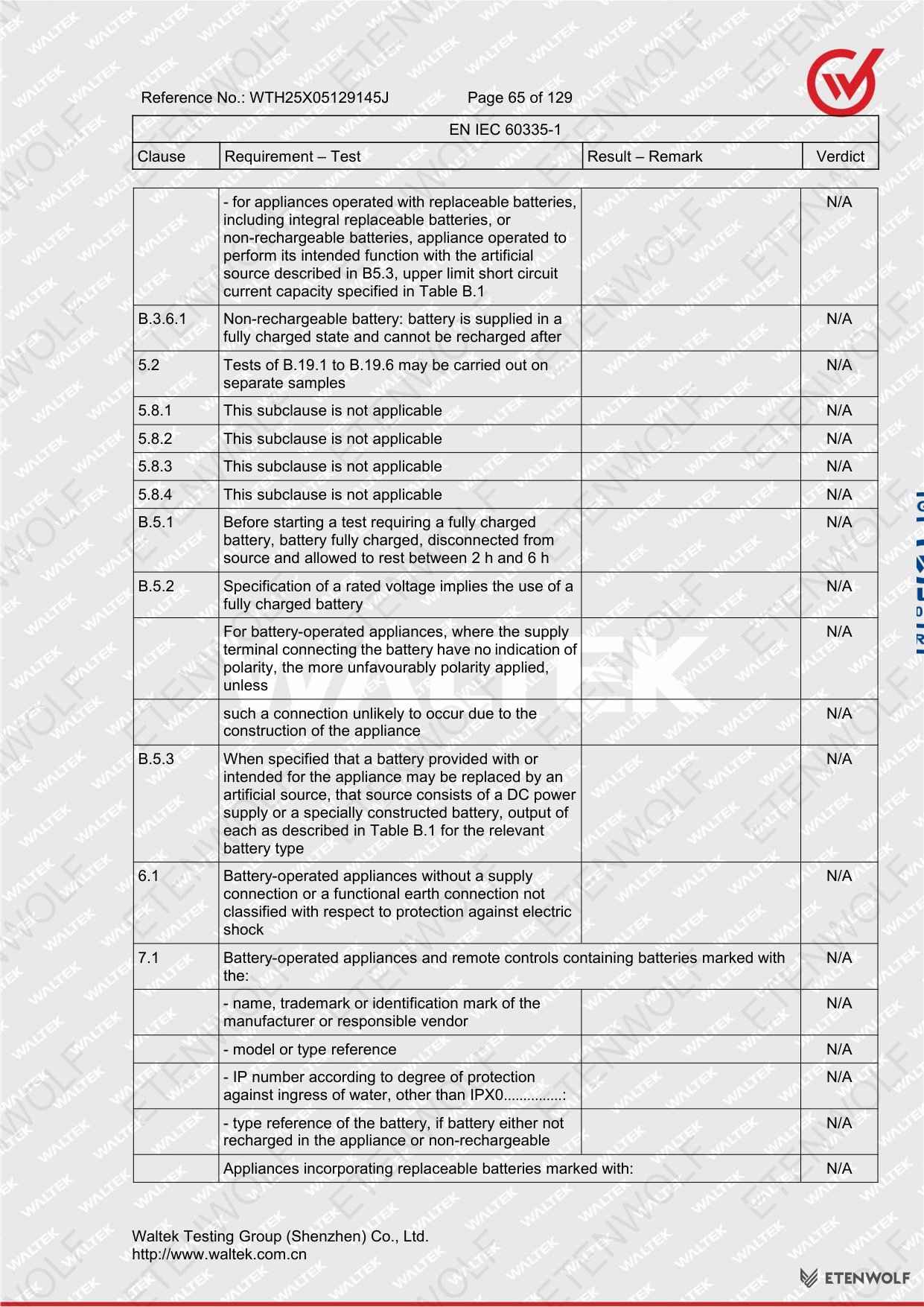

Document Page 65
Document Page 66
Document Page 67

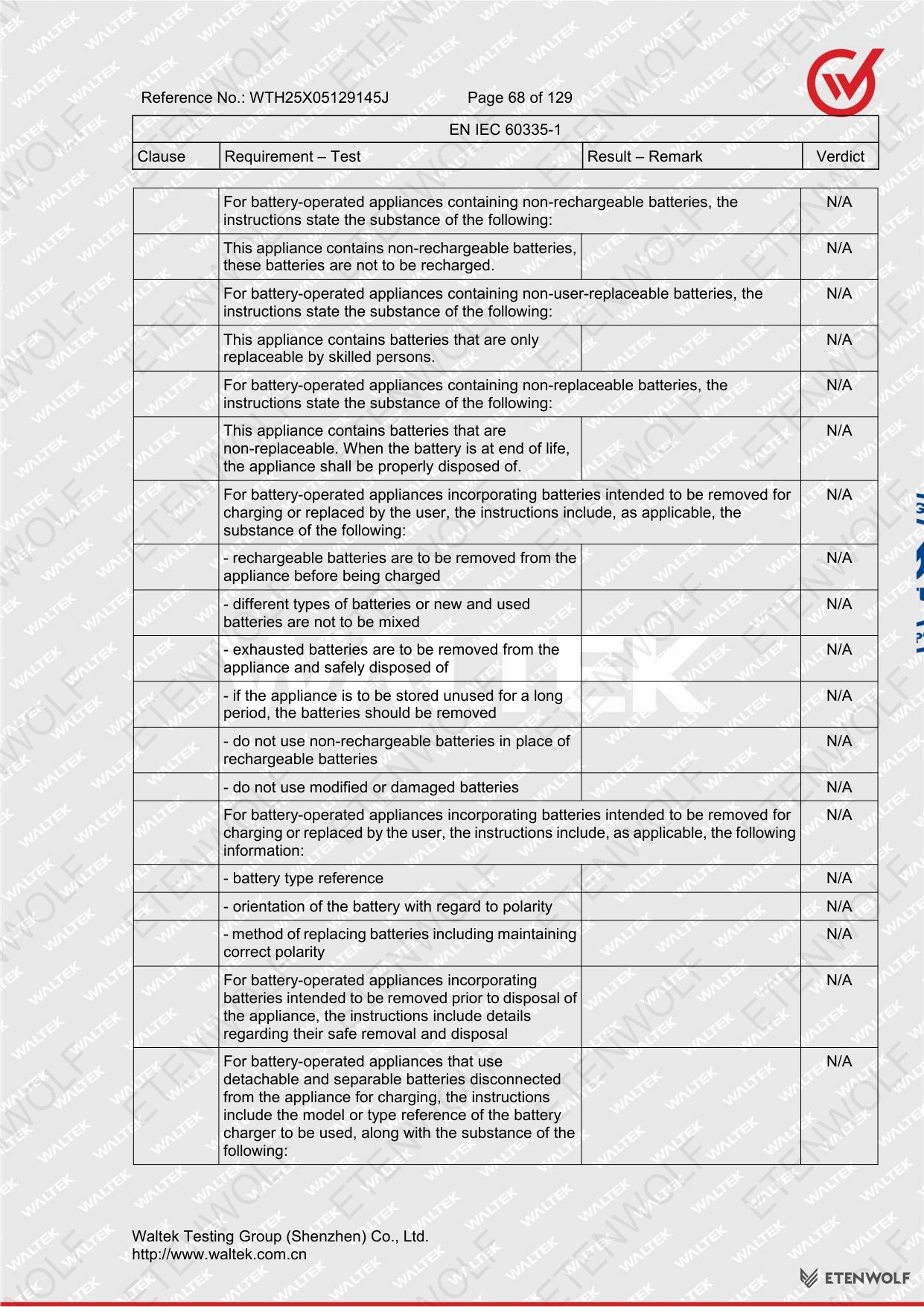

Document Page 68
Document Page 69

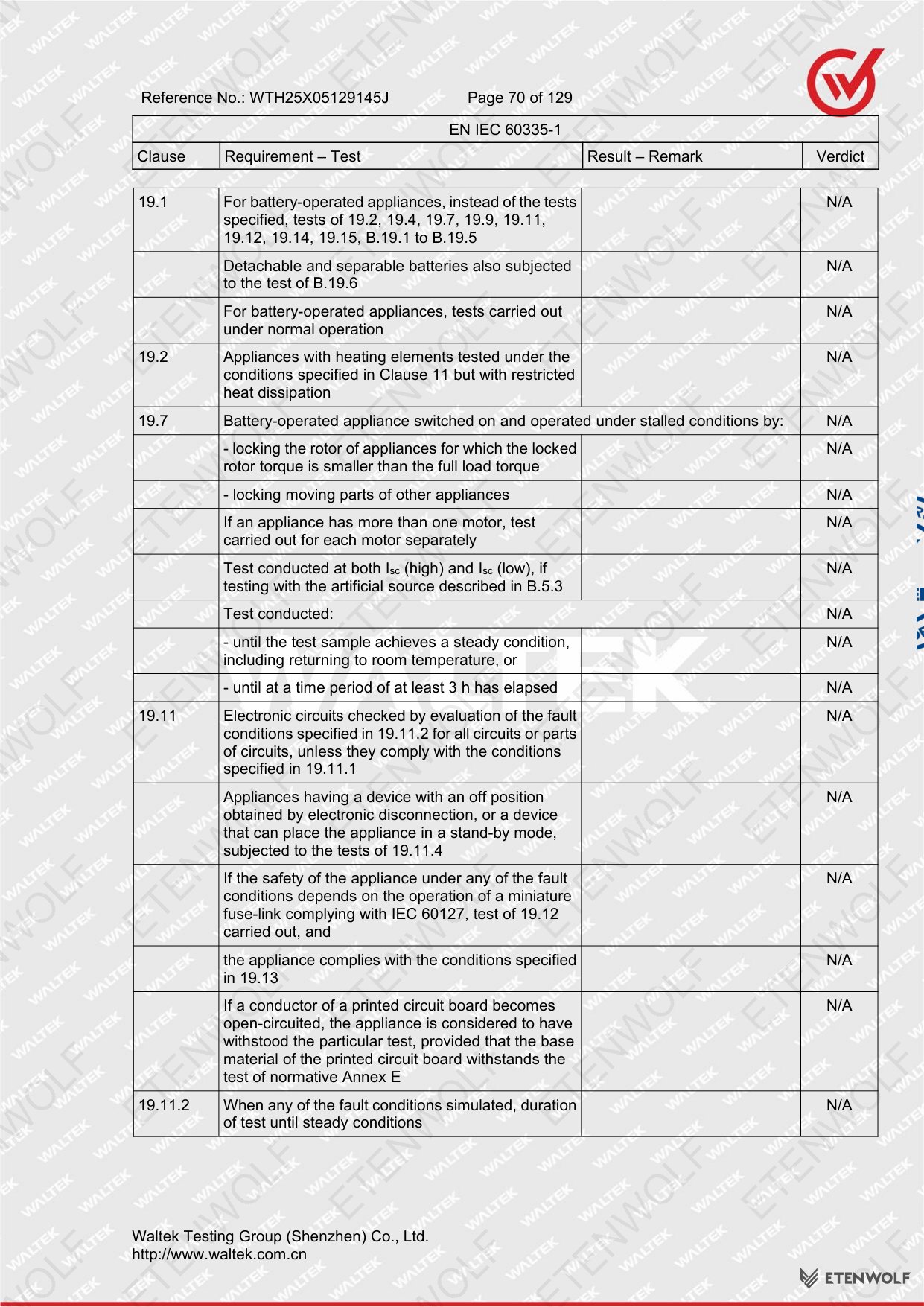

Document Page 70
Document Page 71

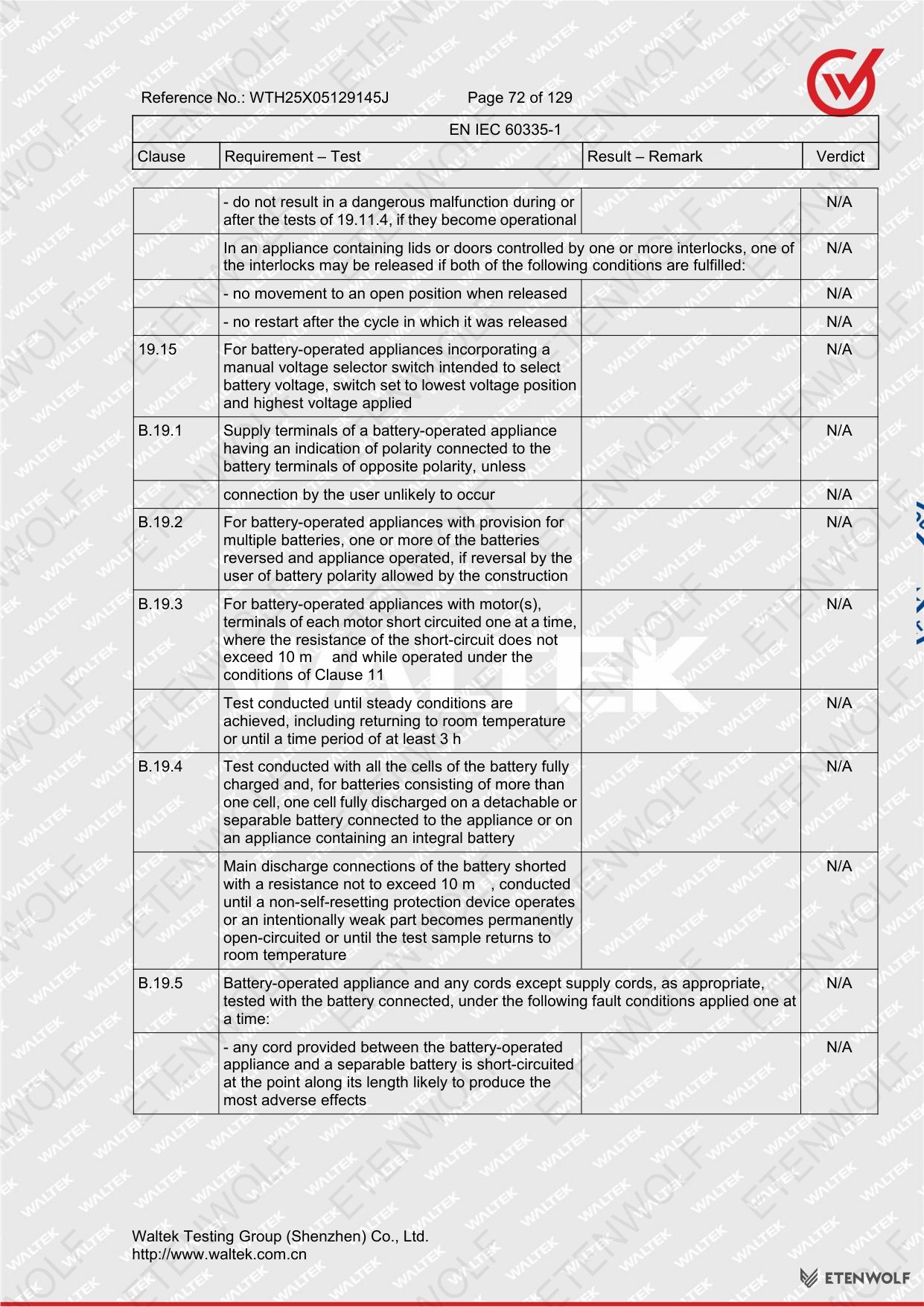

Document Page 72

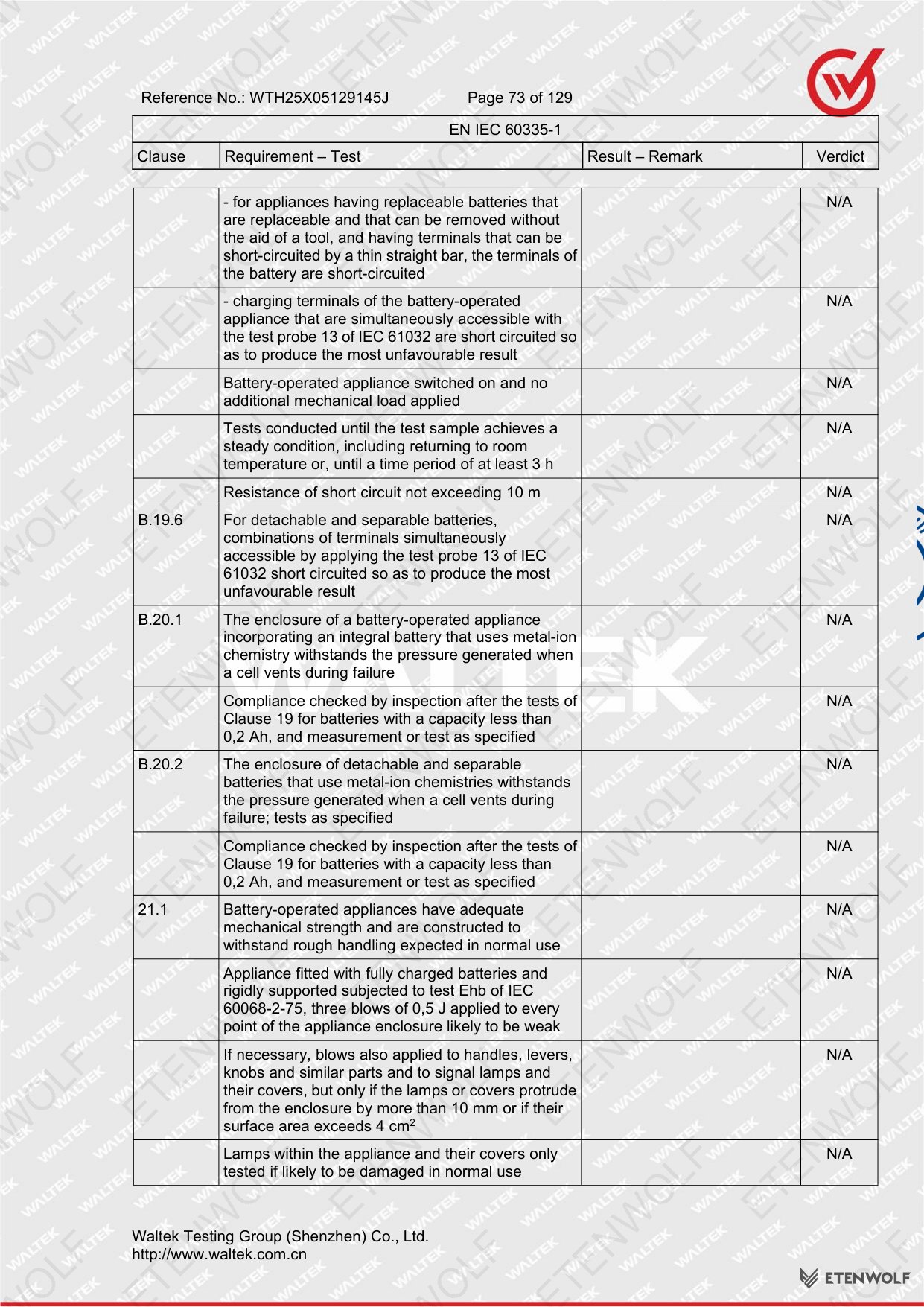

Document Page 73
Document Page 74

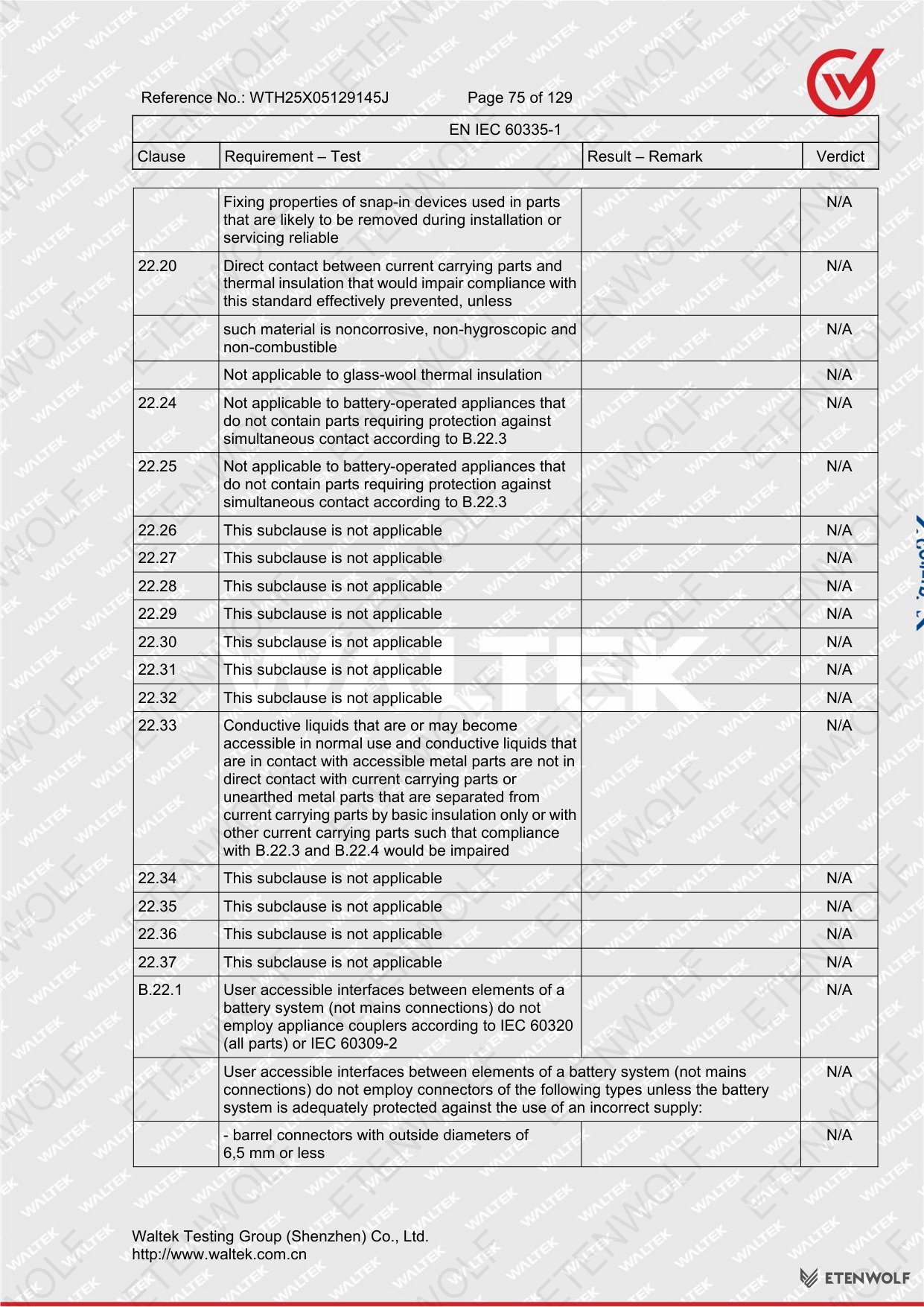

Document Page 75
Document Page 76

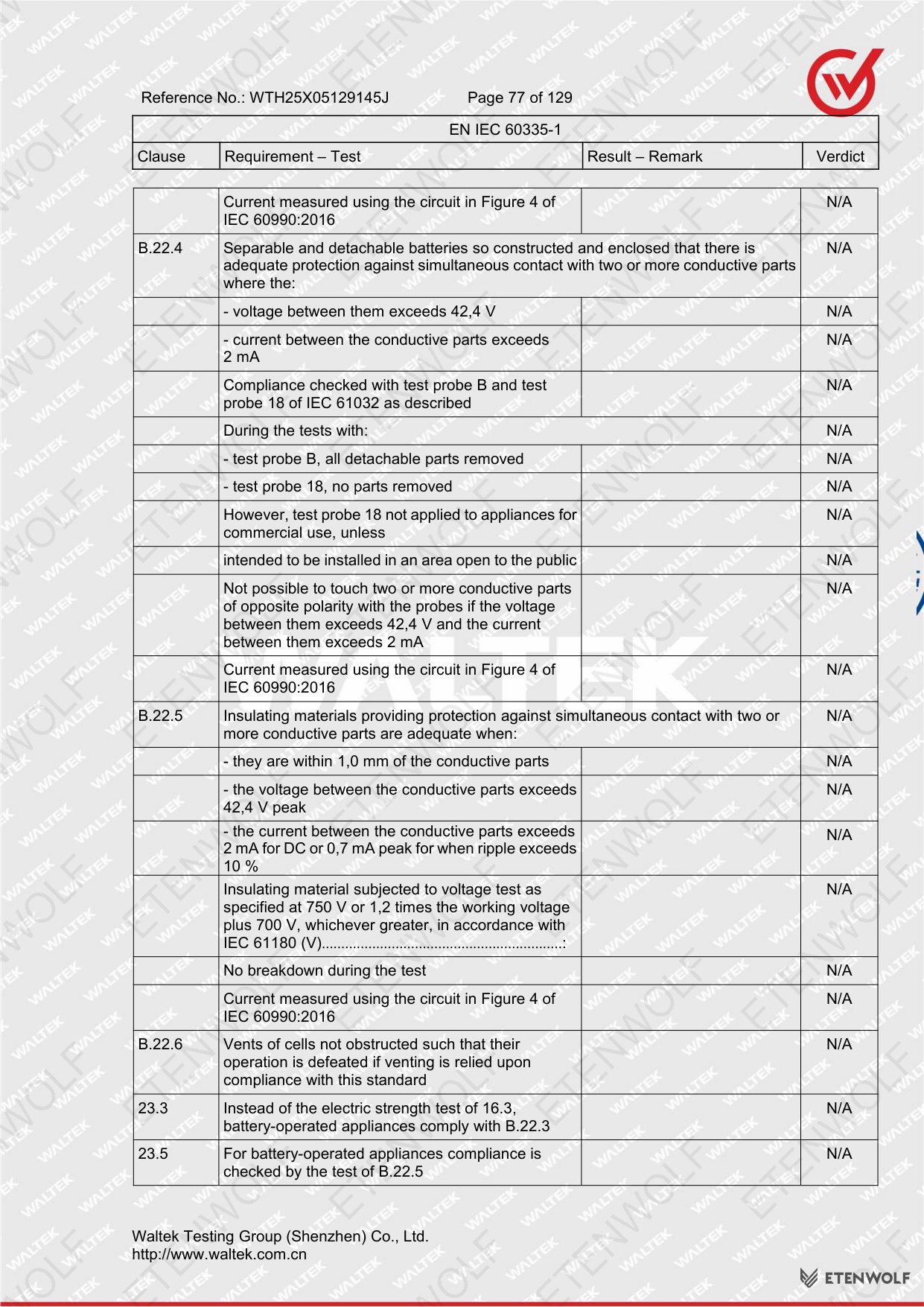

Document Page 77
Document Page 78
Document Page 79

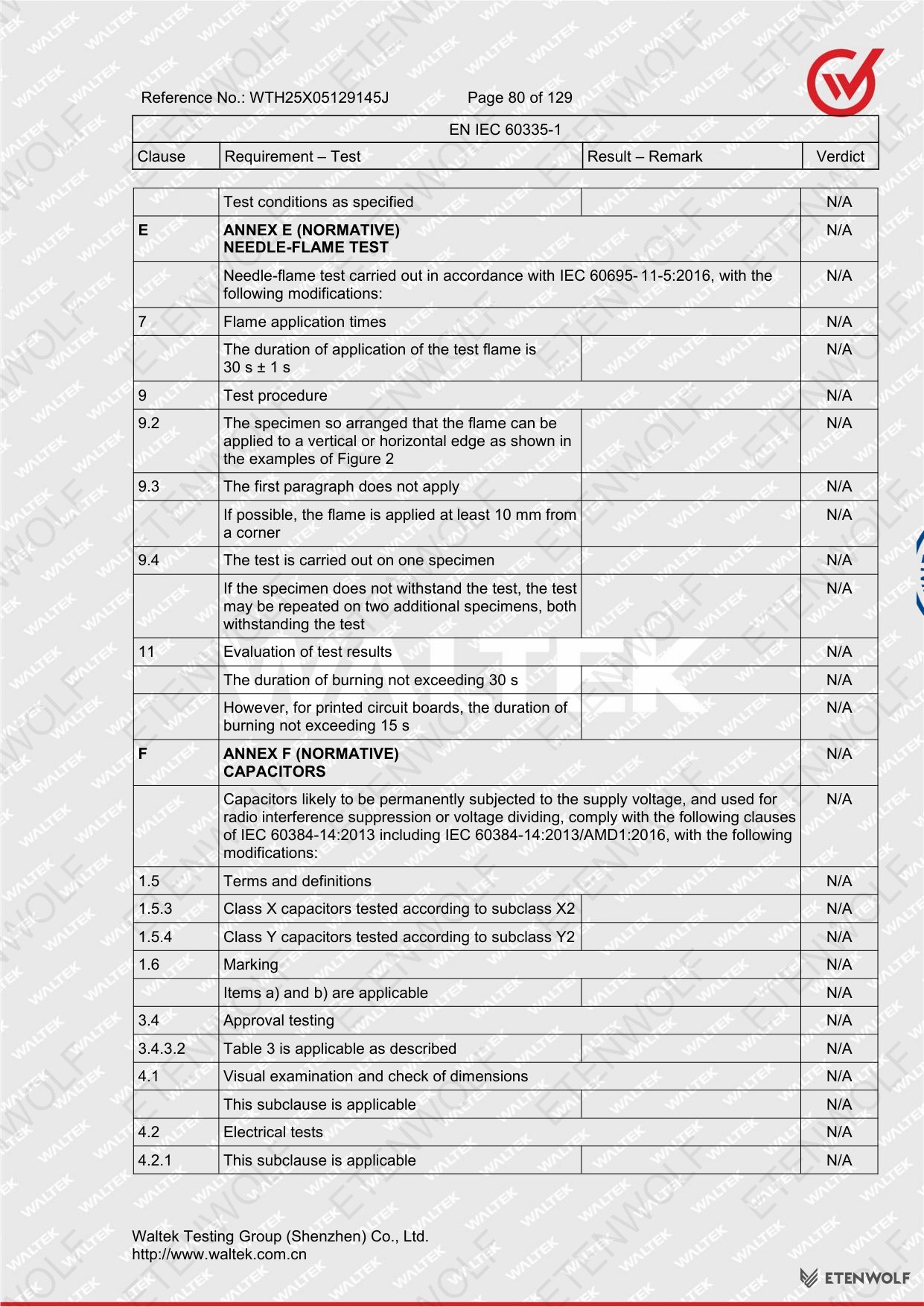

Document Page 80

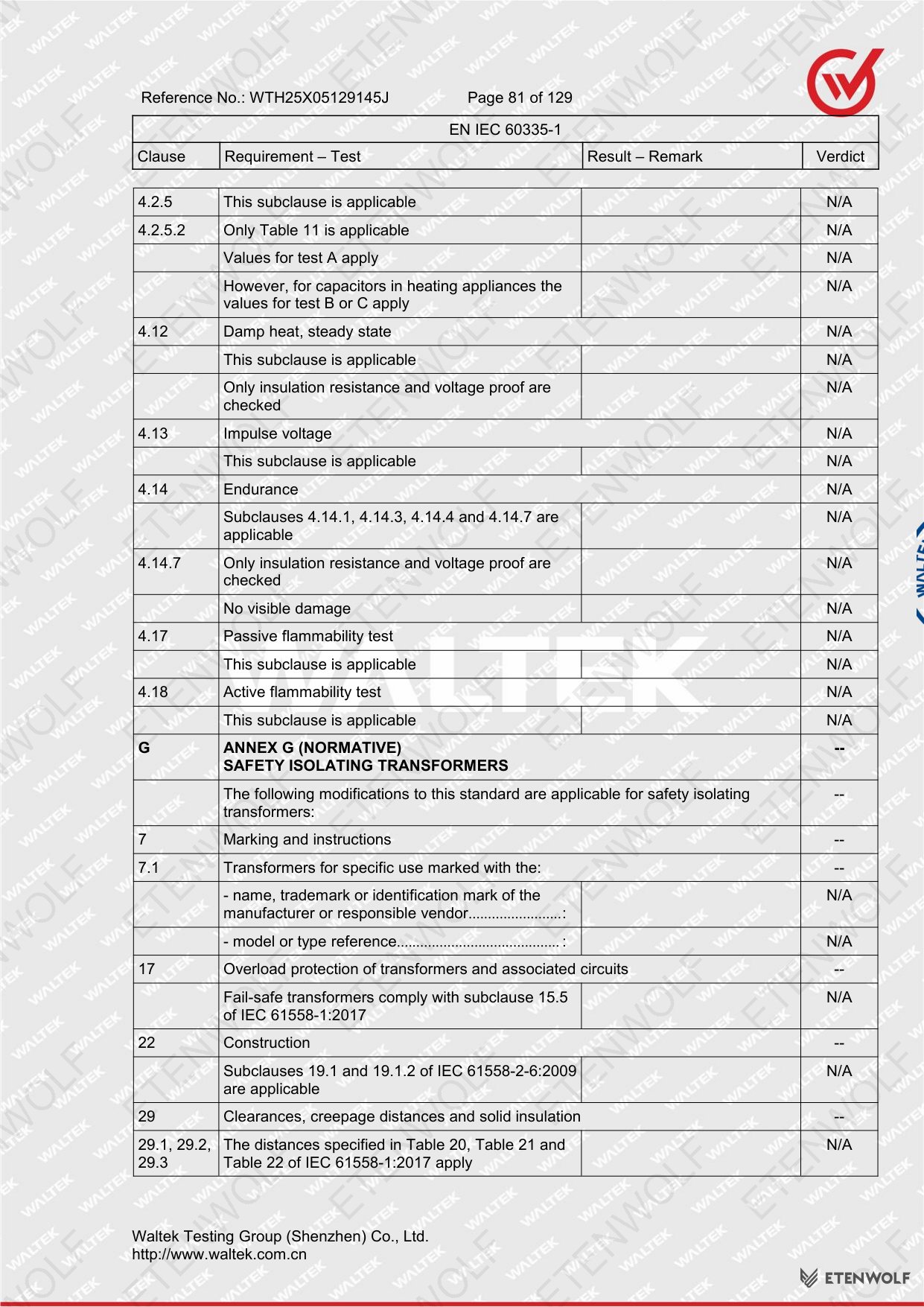

Document Page 81

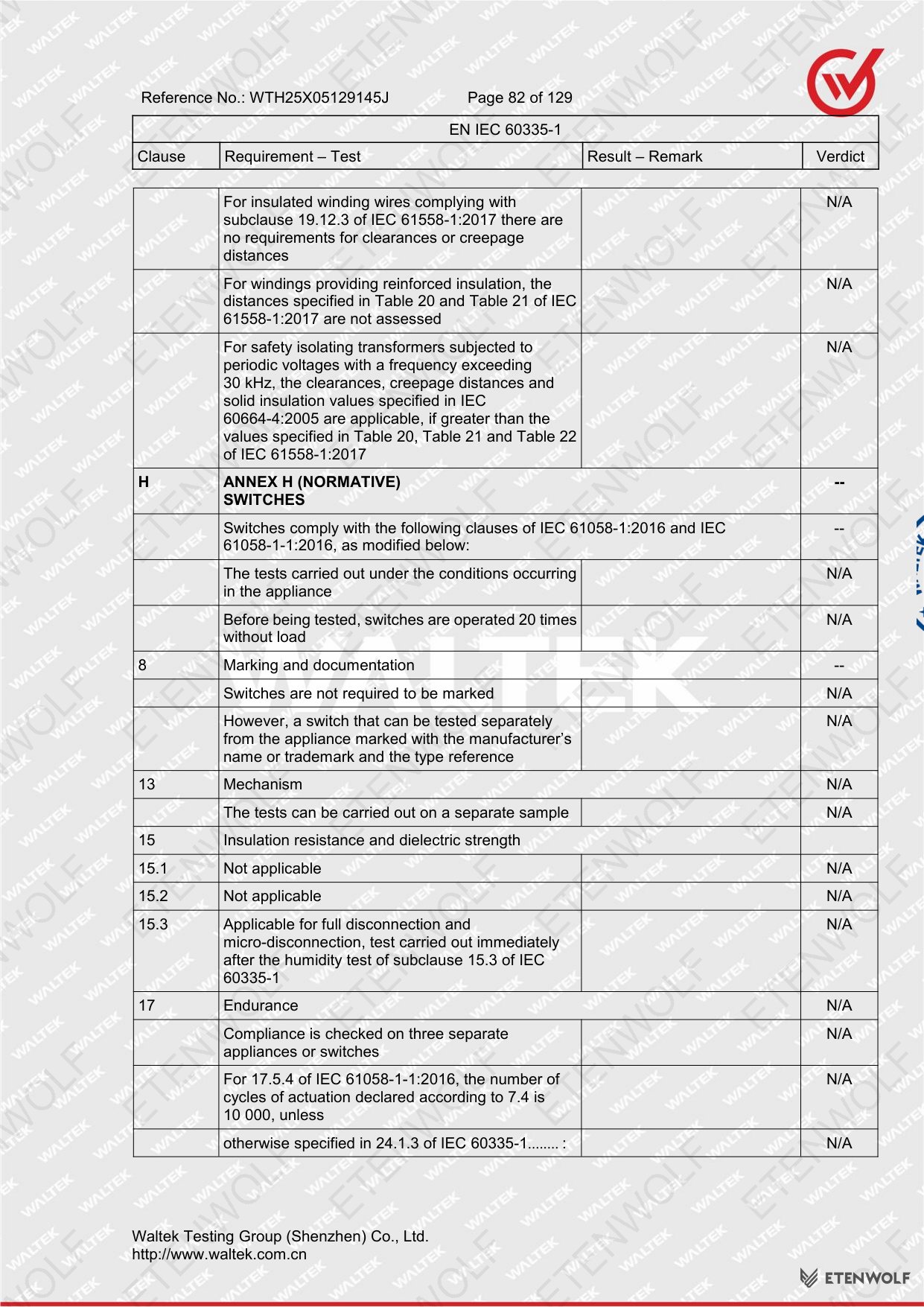

Document Page 82

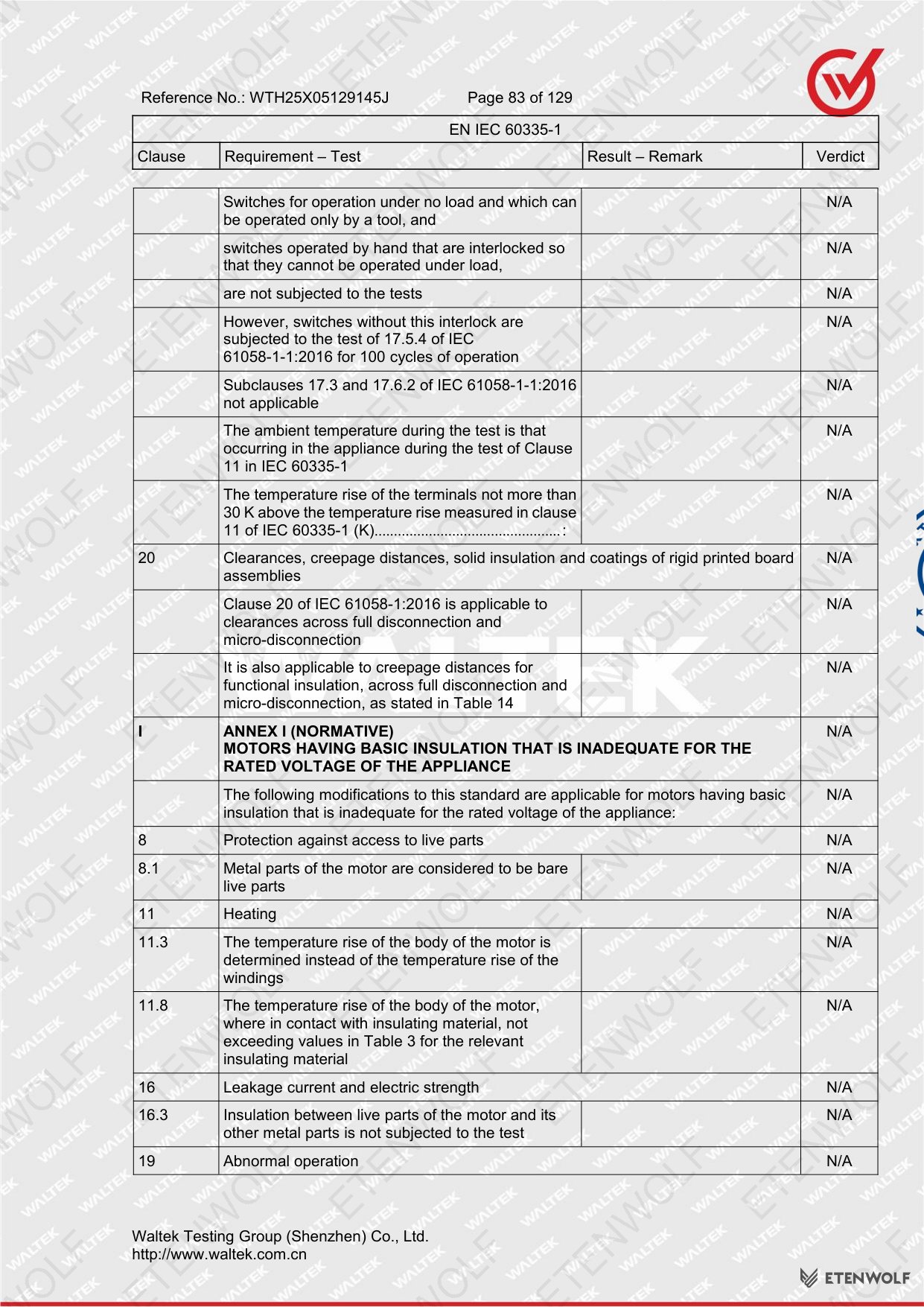

Document Page 83
Document Page 84
Document Page 85

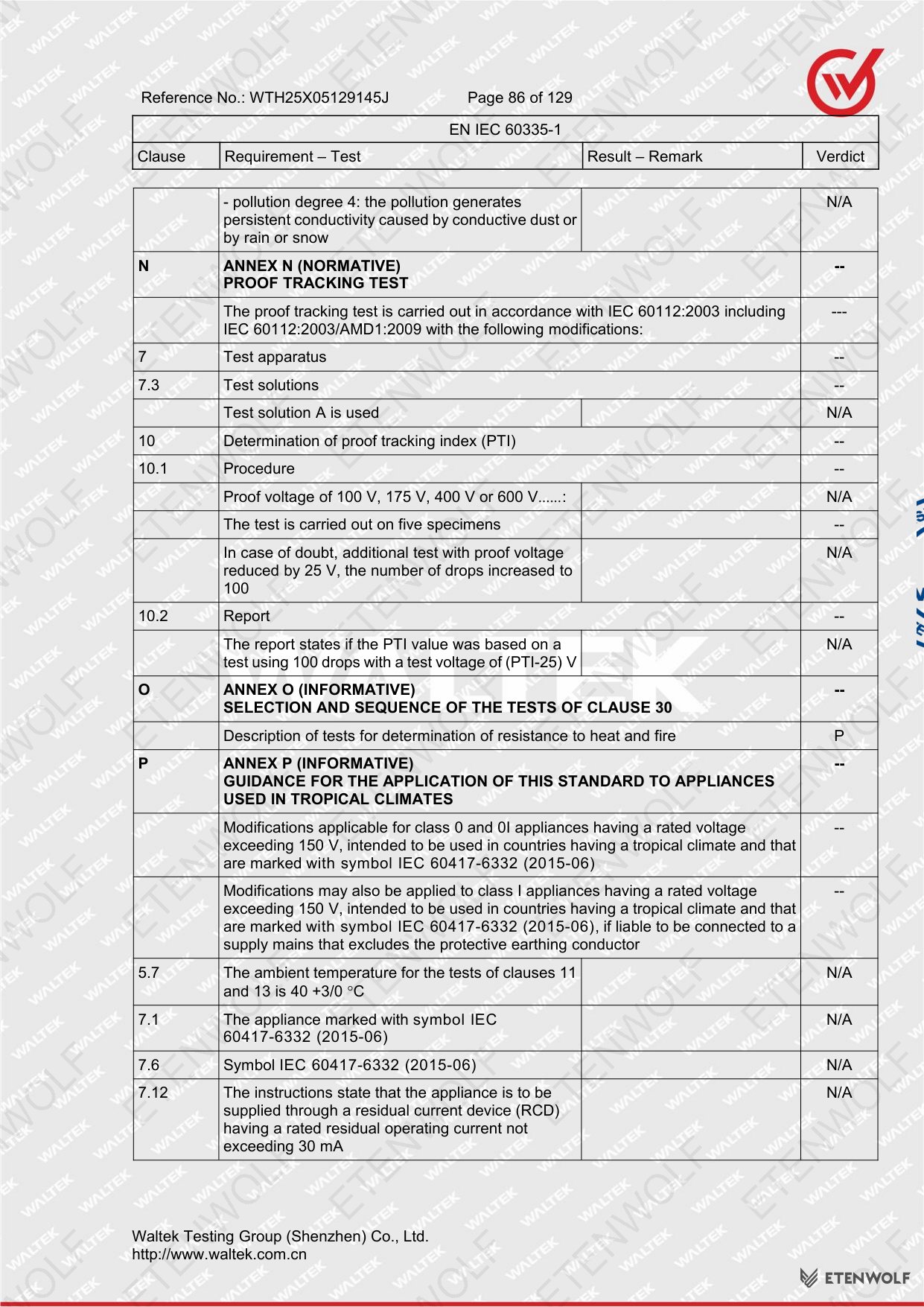

Document Page 86
Document Page 87
Document Page 88

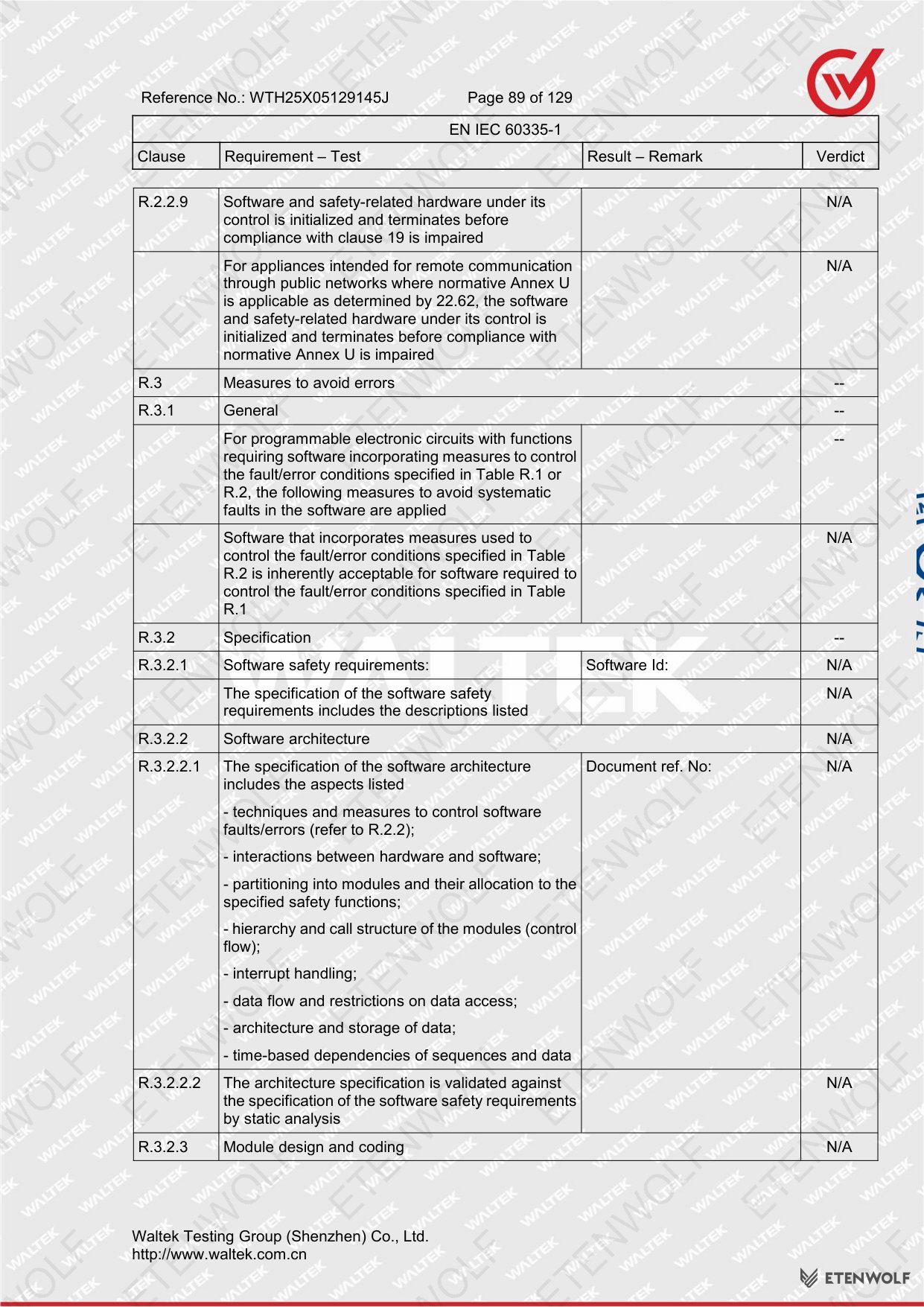

Document Page 89

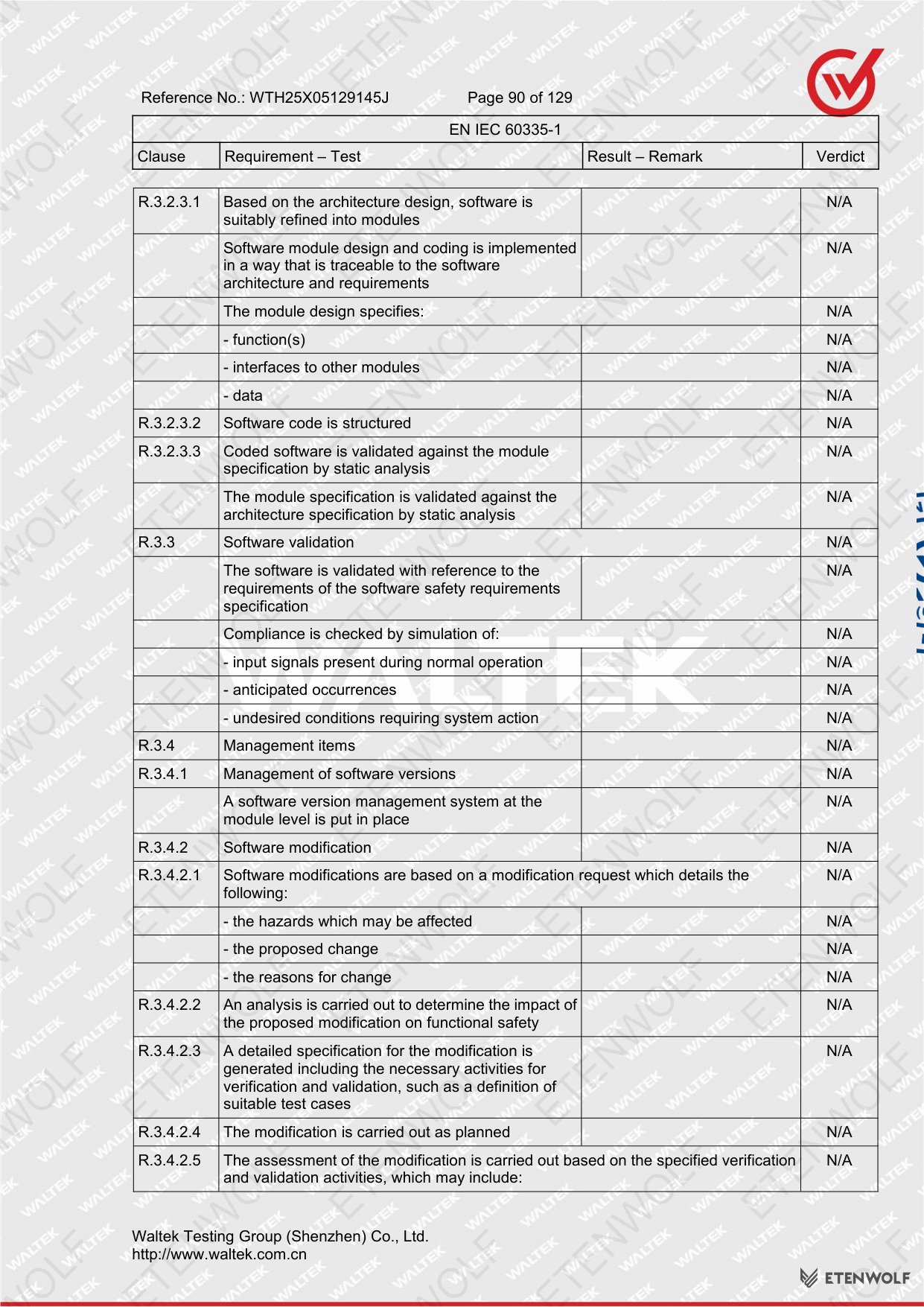

Document Page 90

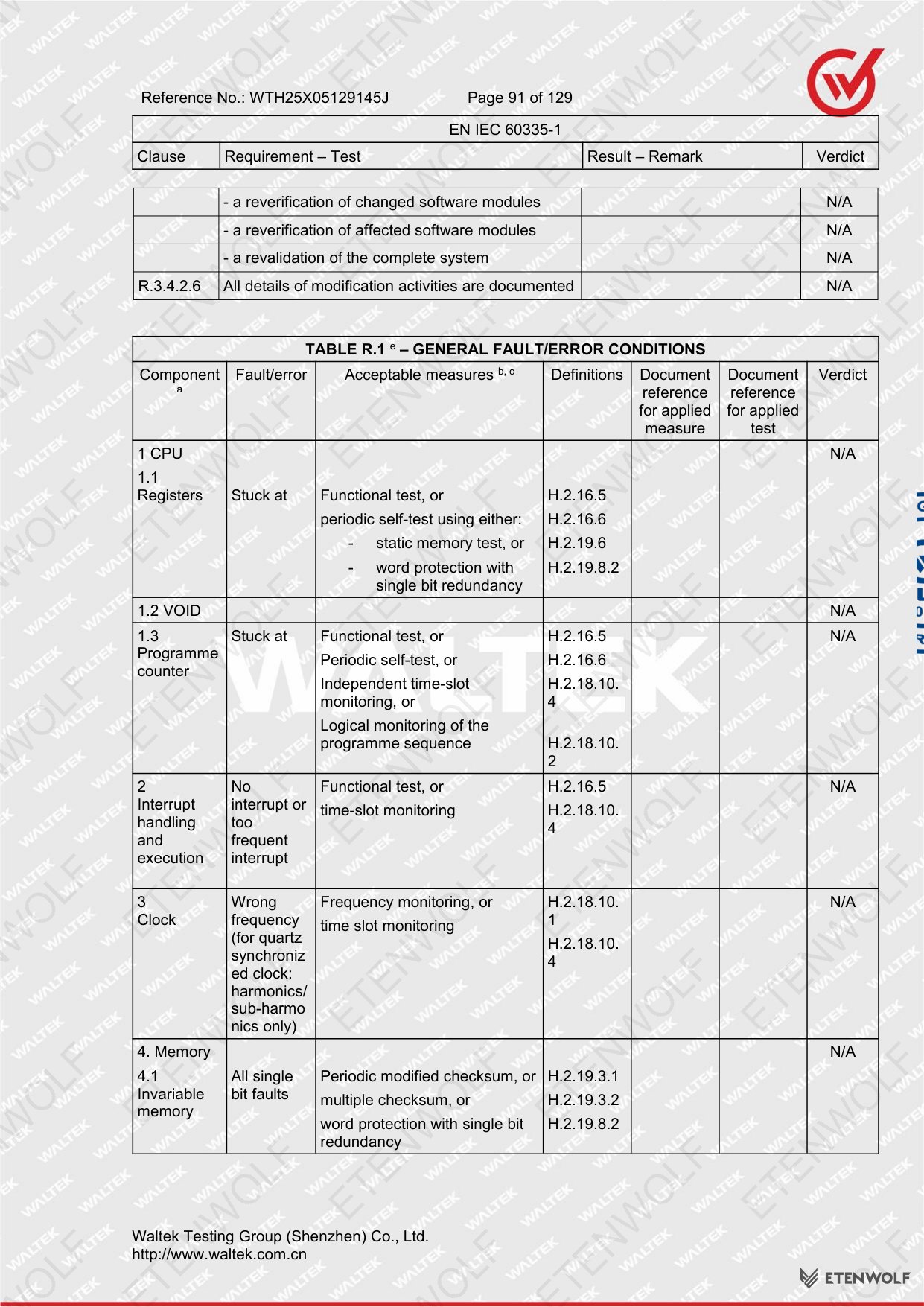

Document Page 91

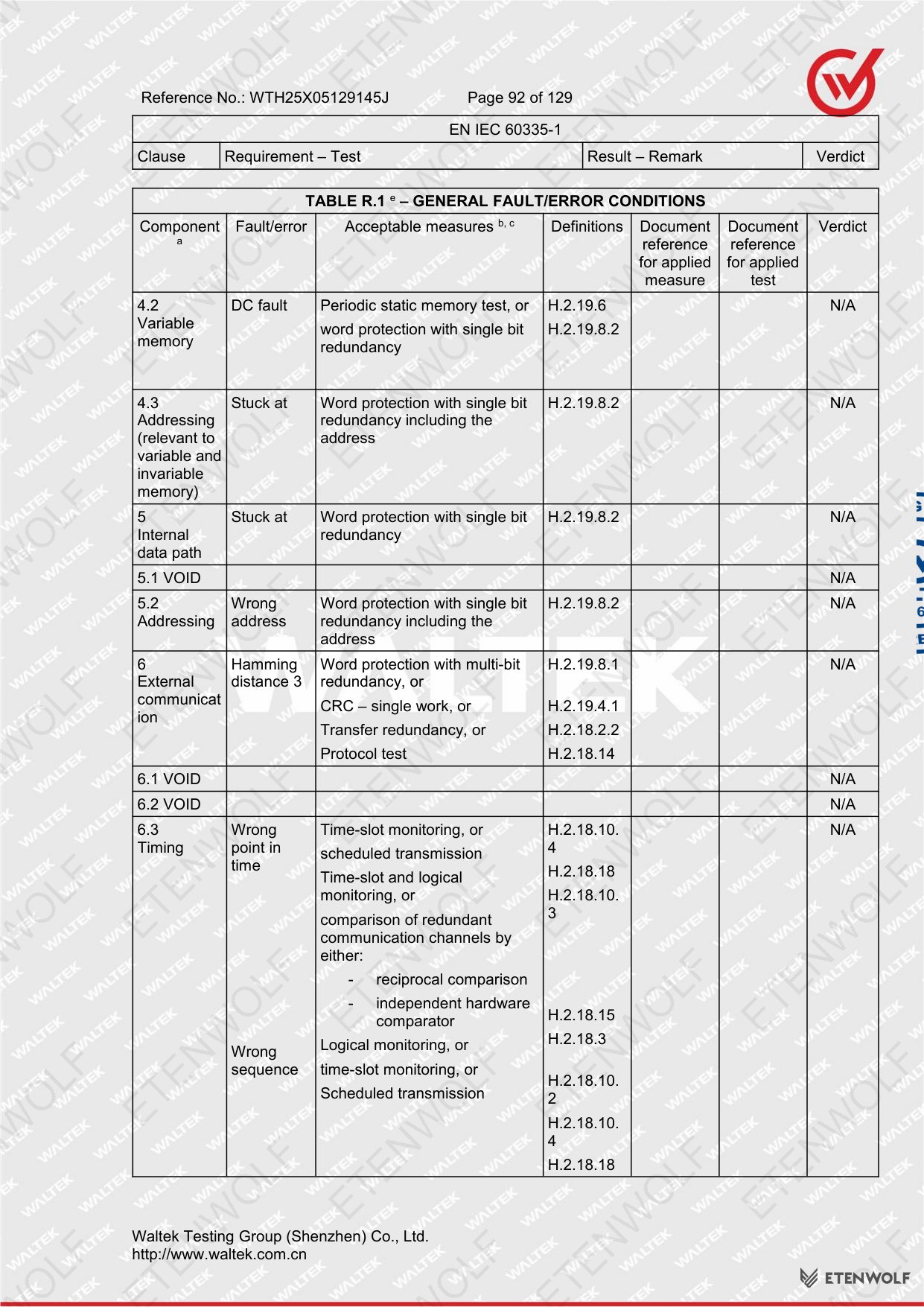

Document Page 92

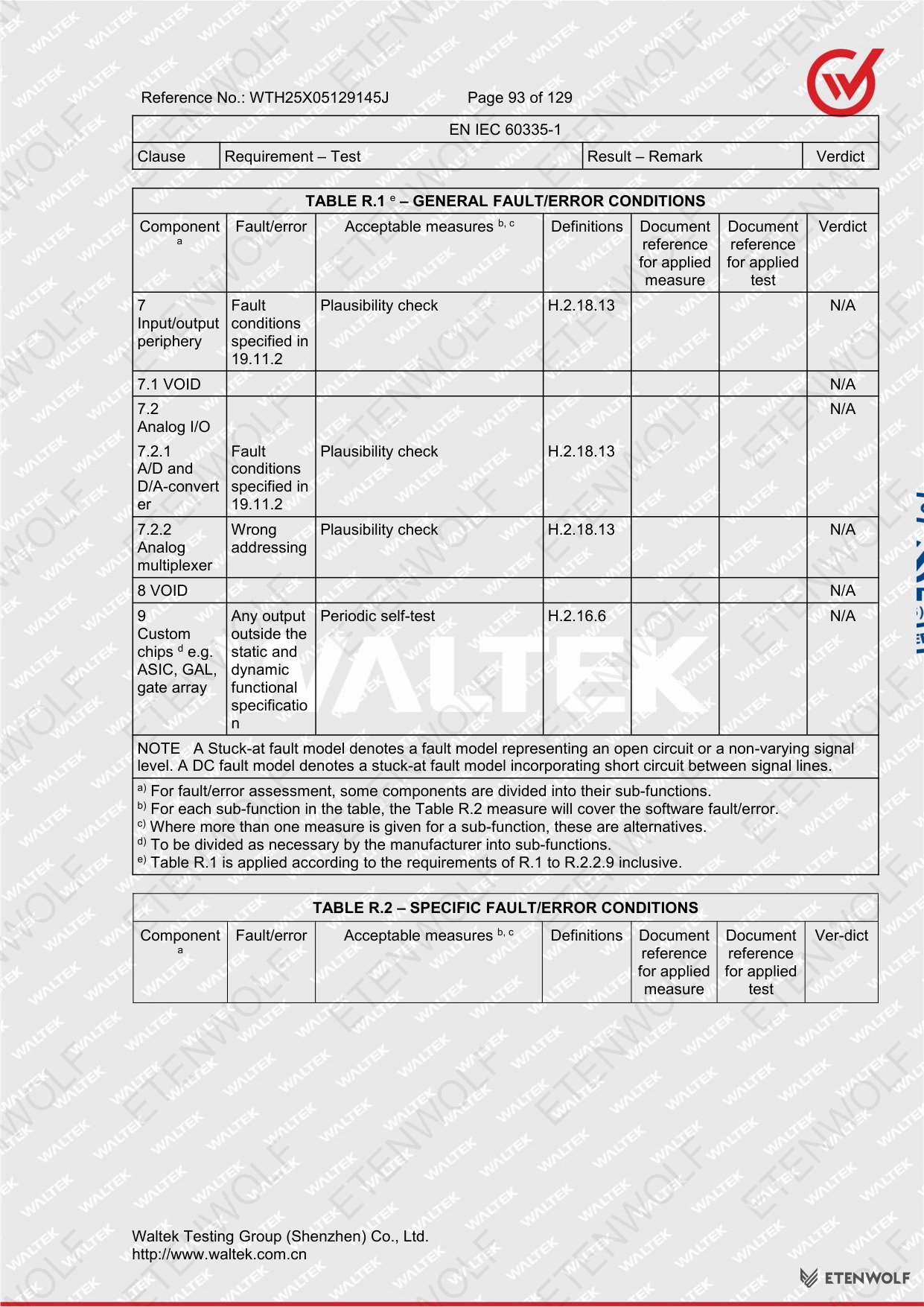

Document Page 93
Document Page 94
Document Page 95

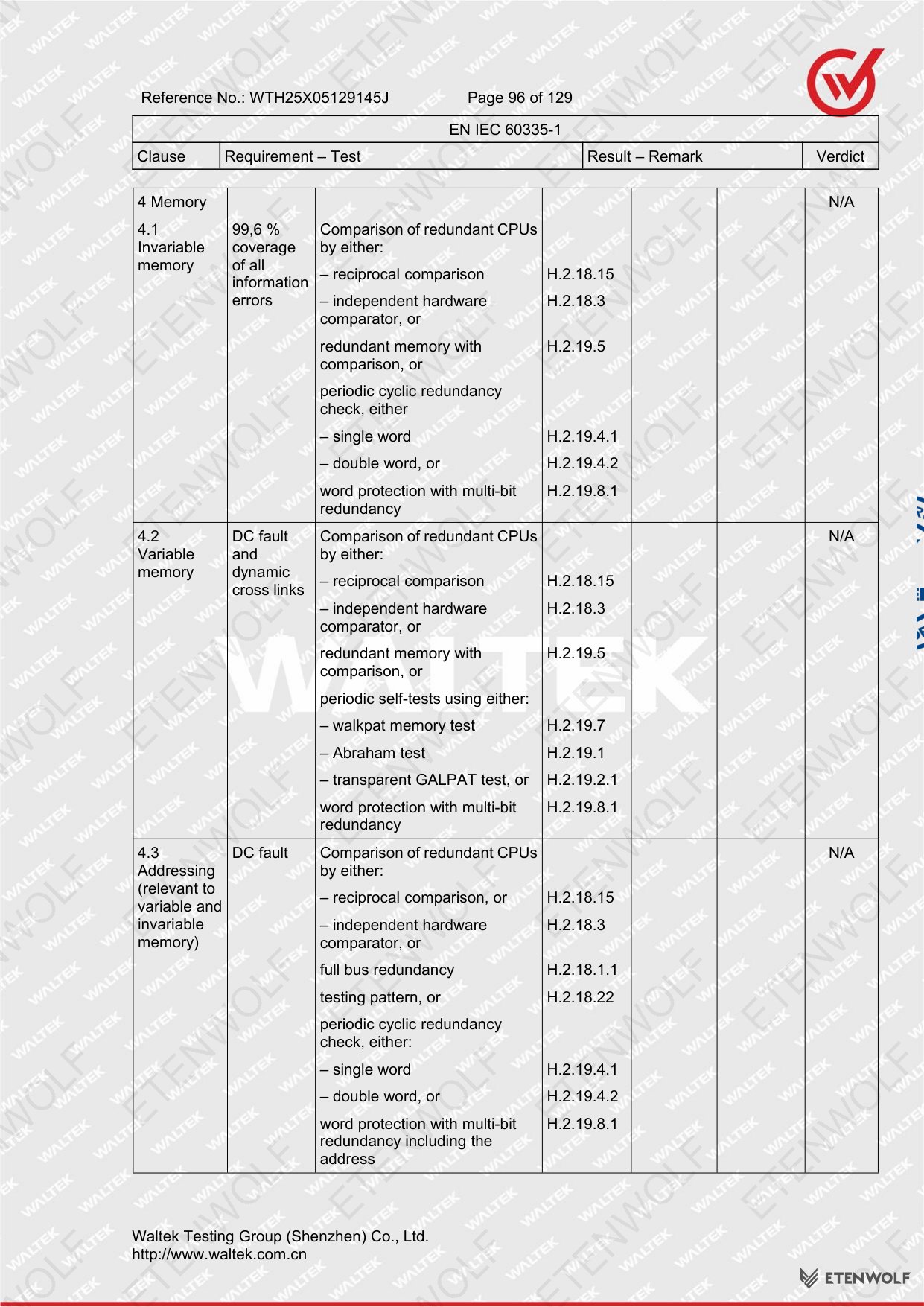

Document Page 96
Document Page 97
Document Page 98
Document Page 99

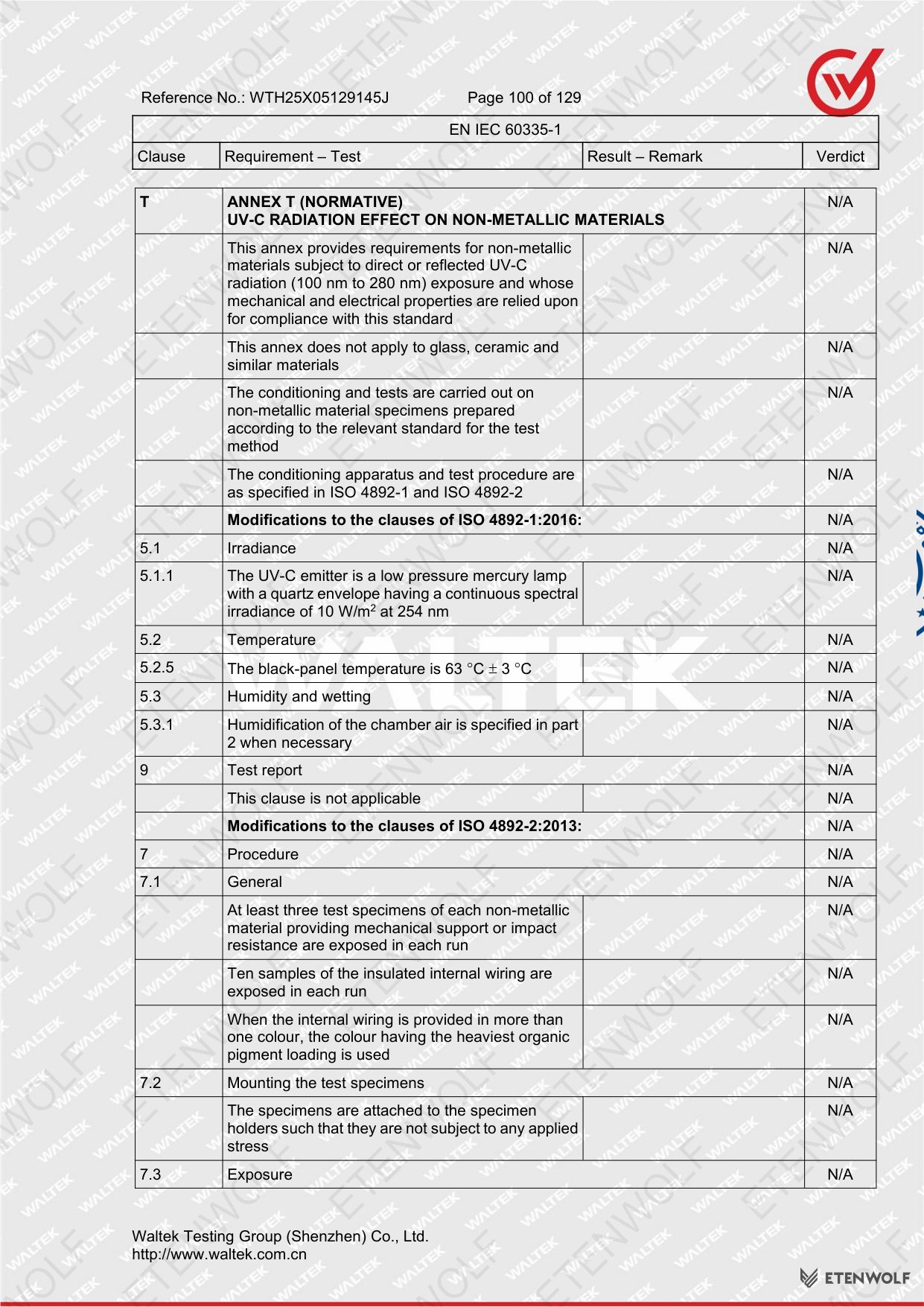

Document Page 100
Document Page 101

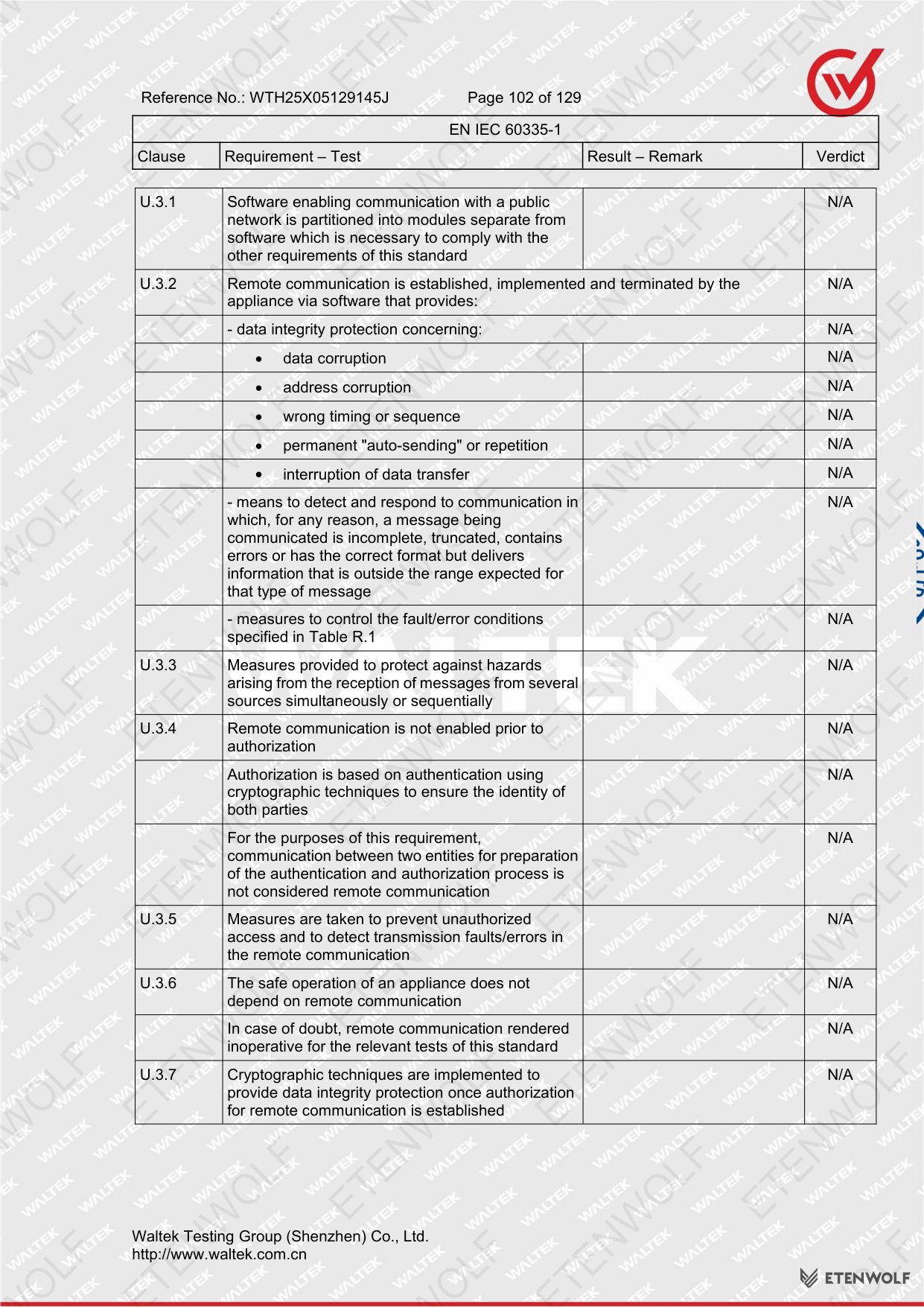

Document Page 102

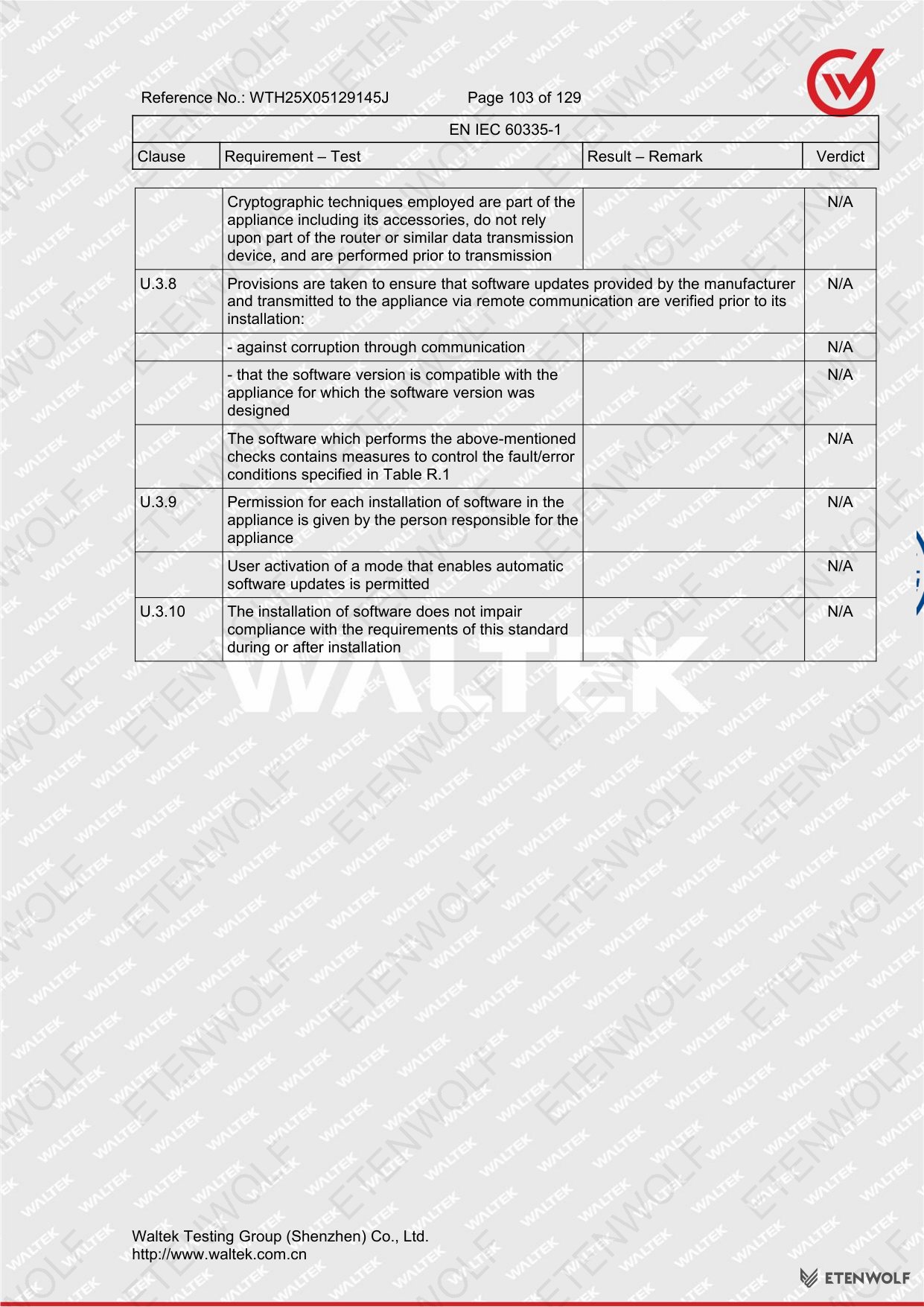

Document Page 103

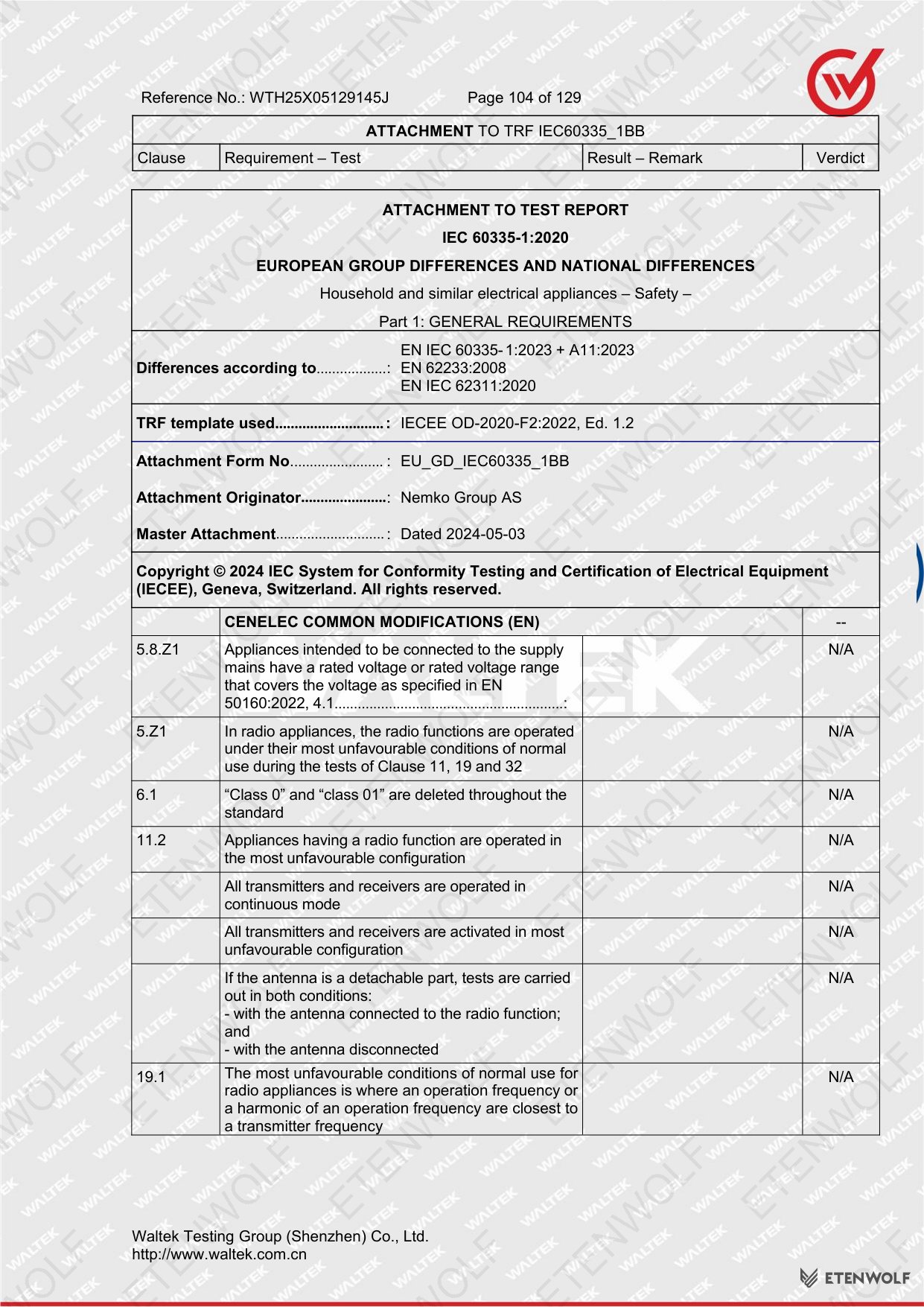

Document Page 104

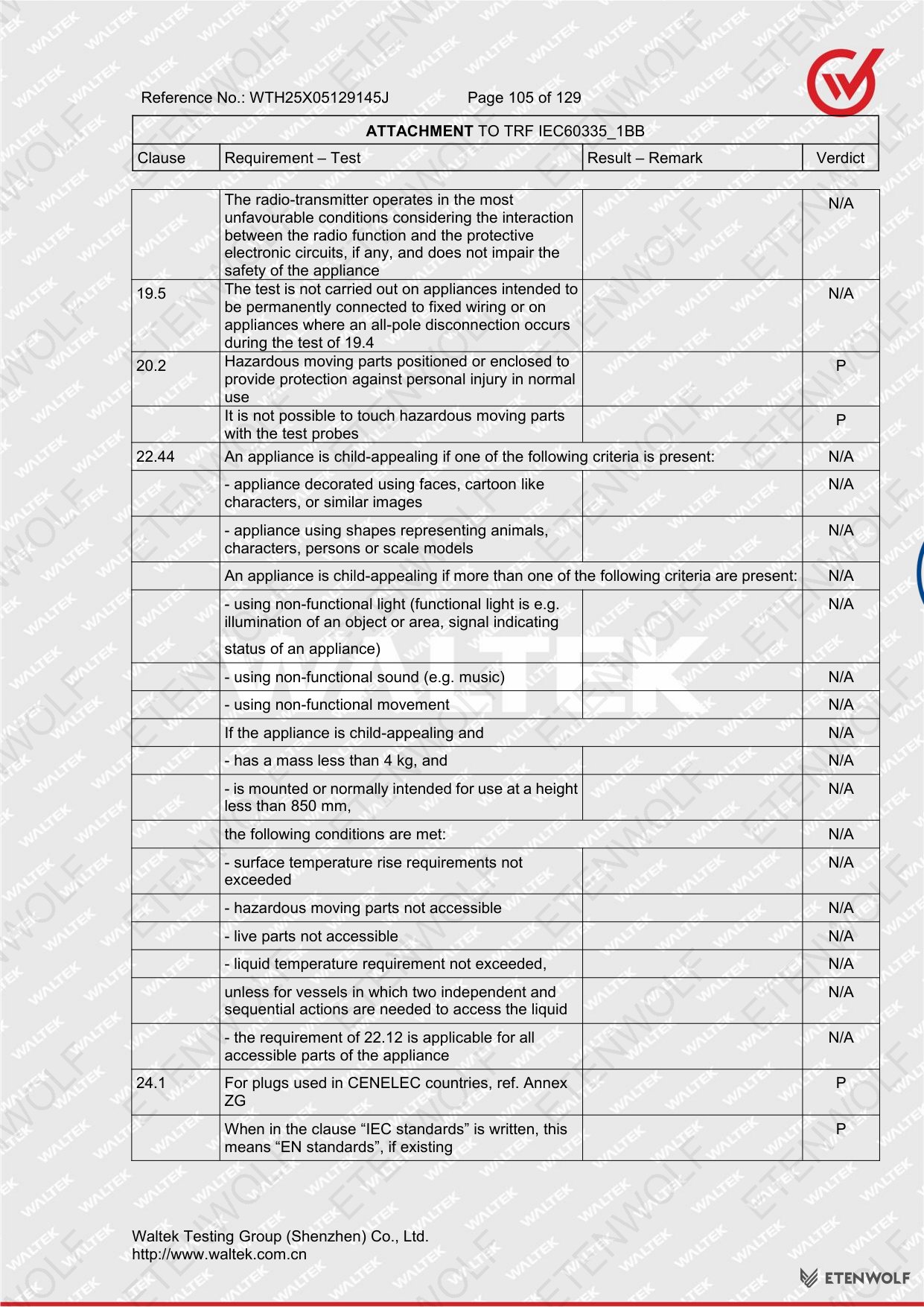

Document Page 105
Document Page 106
Document Page 107
Document Page 108

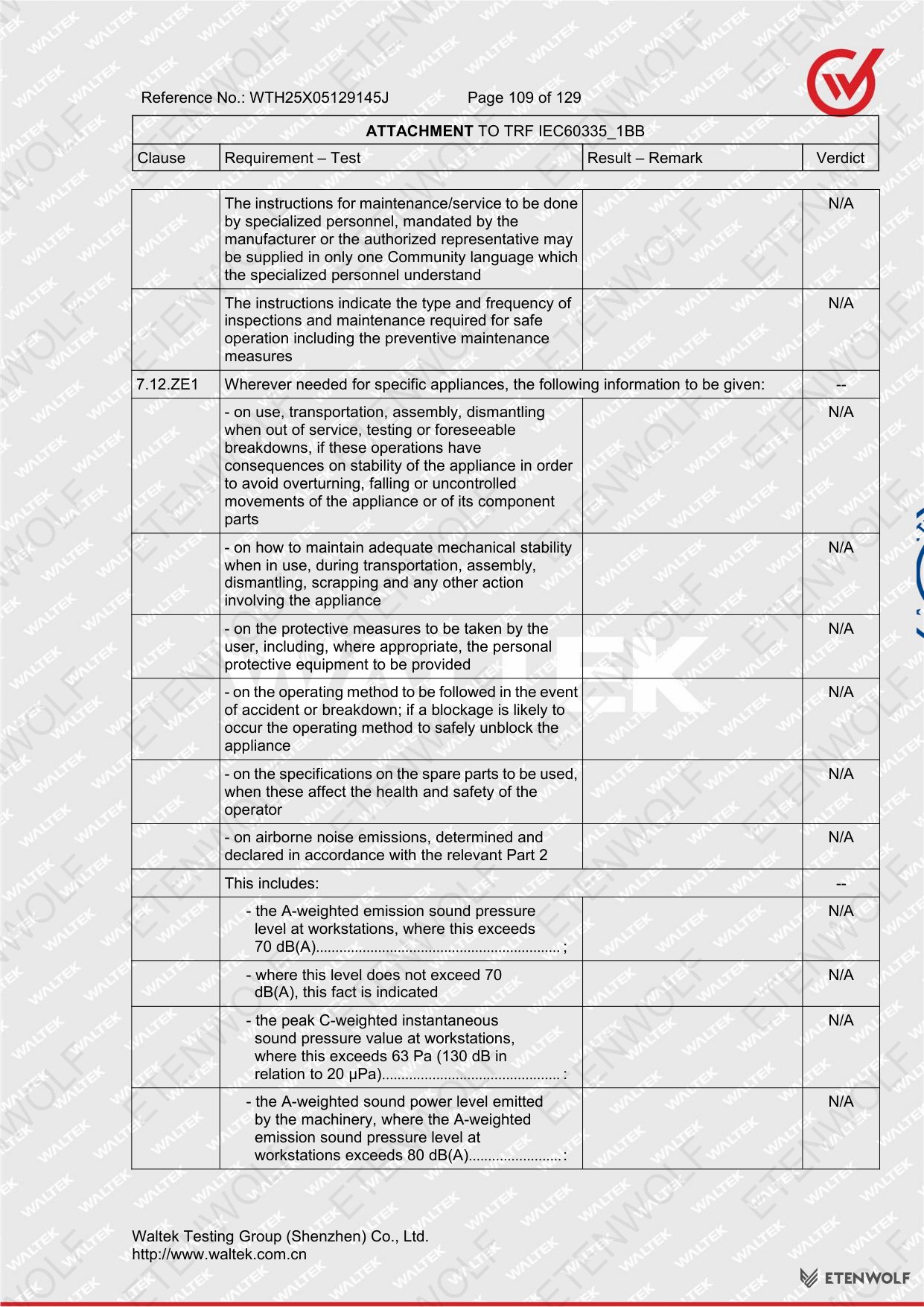

Document Page 109
Document Page 110

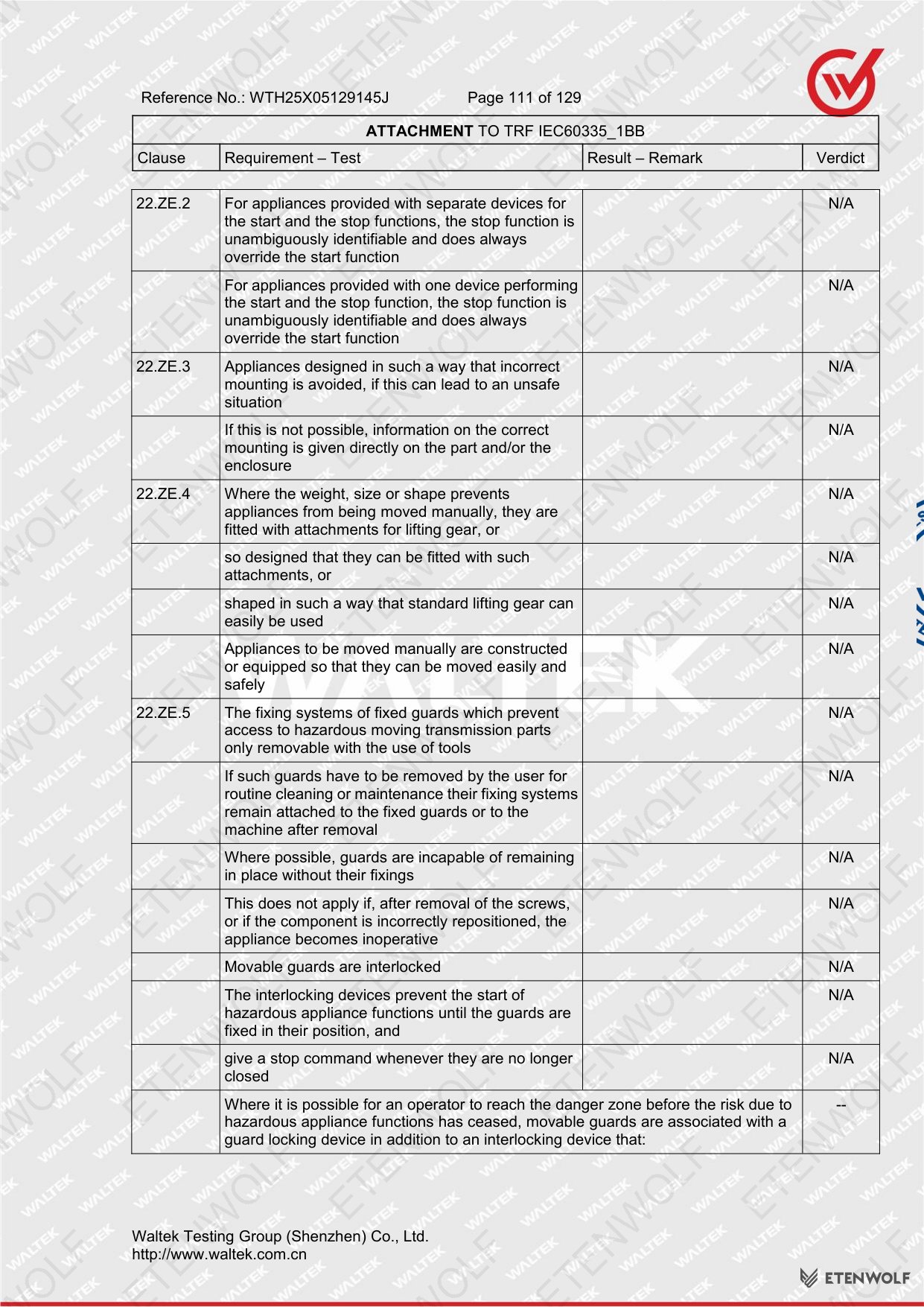

Document Page 111

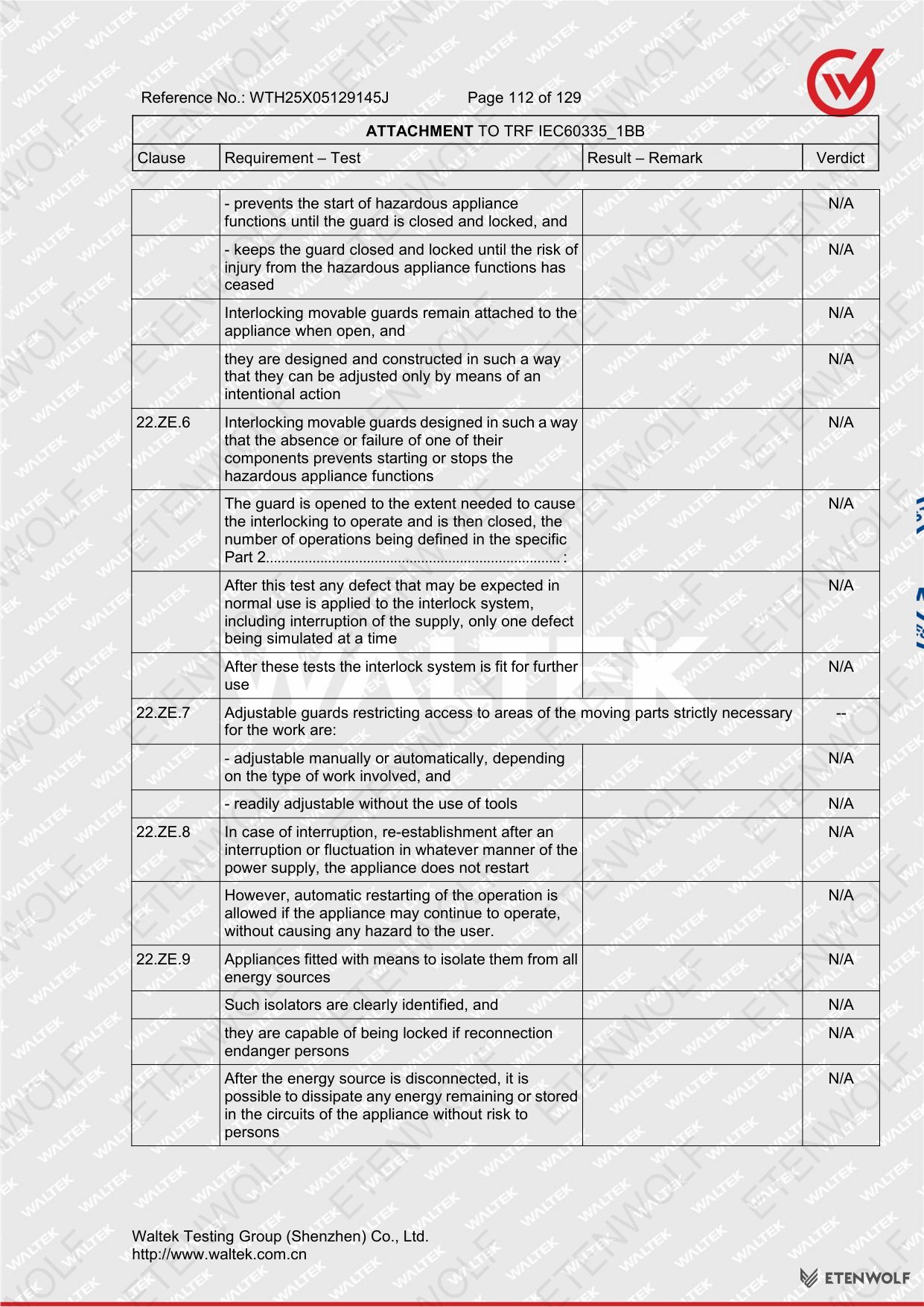

Document Page 112

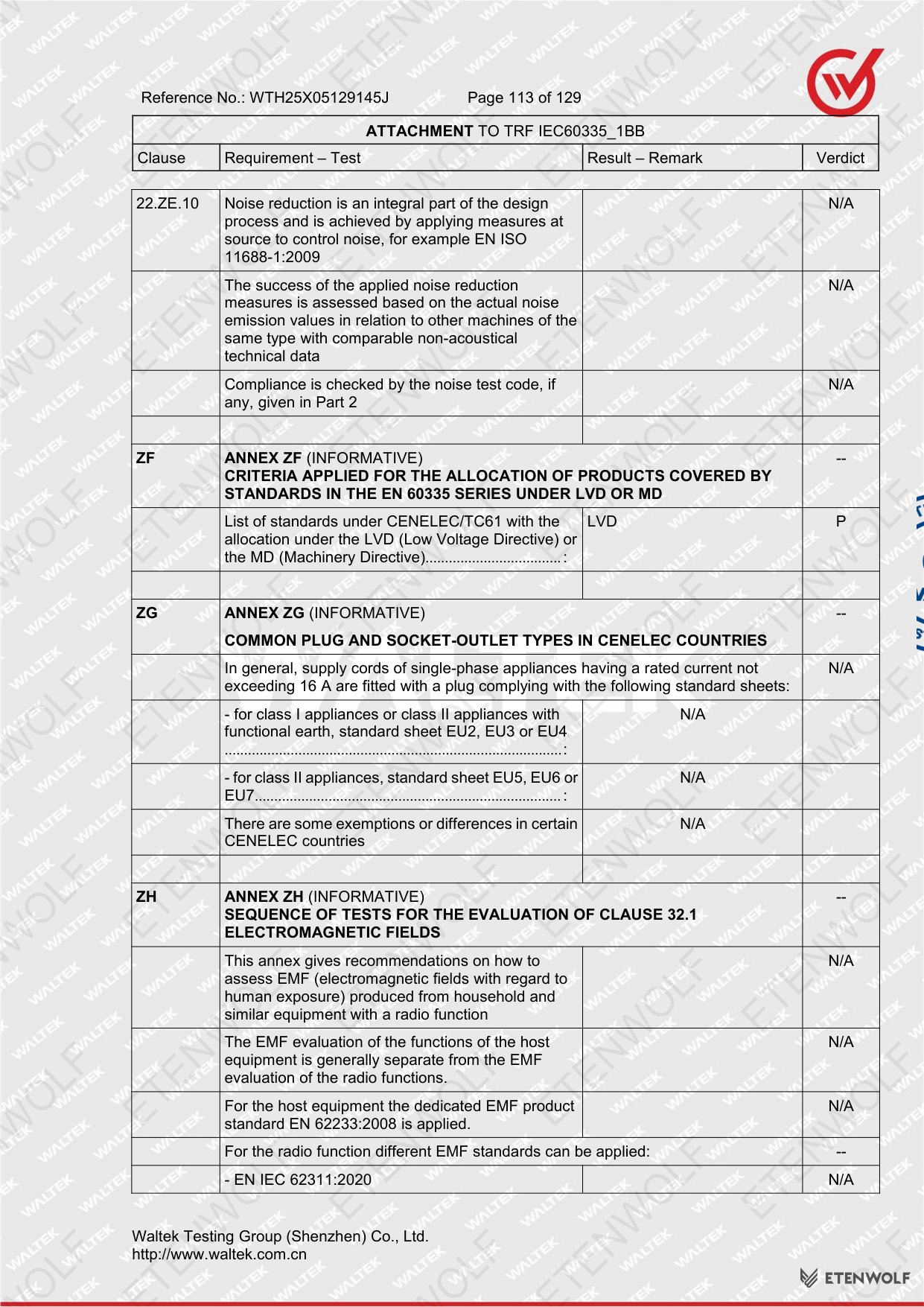

Document Page 113

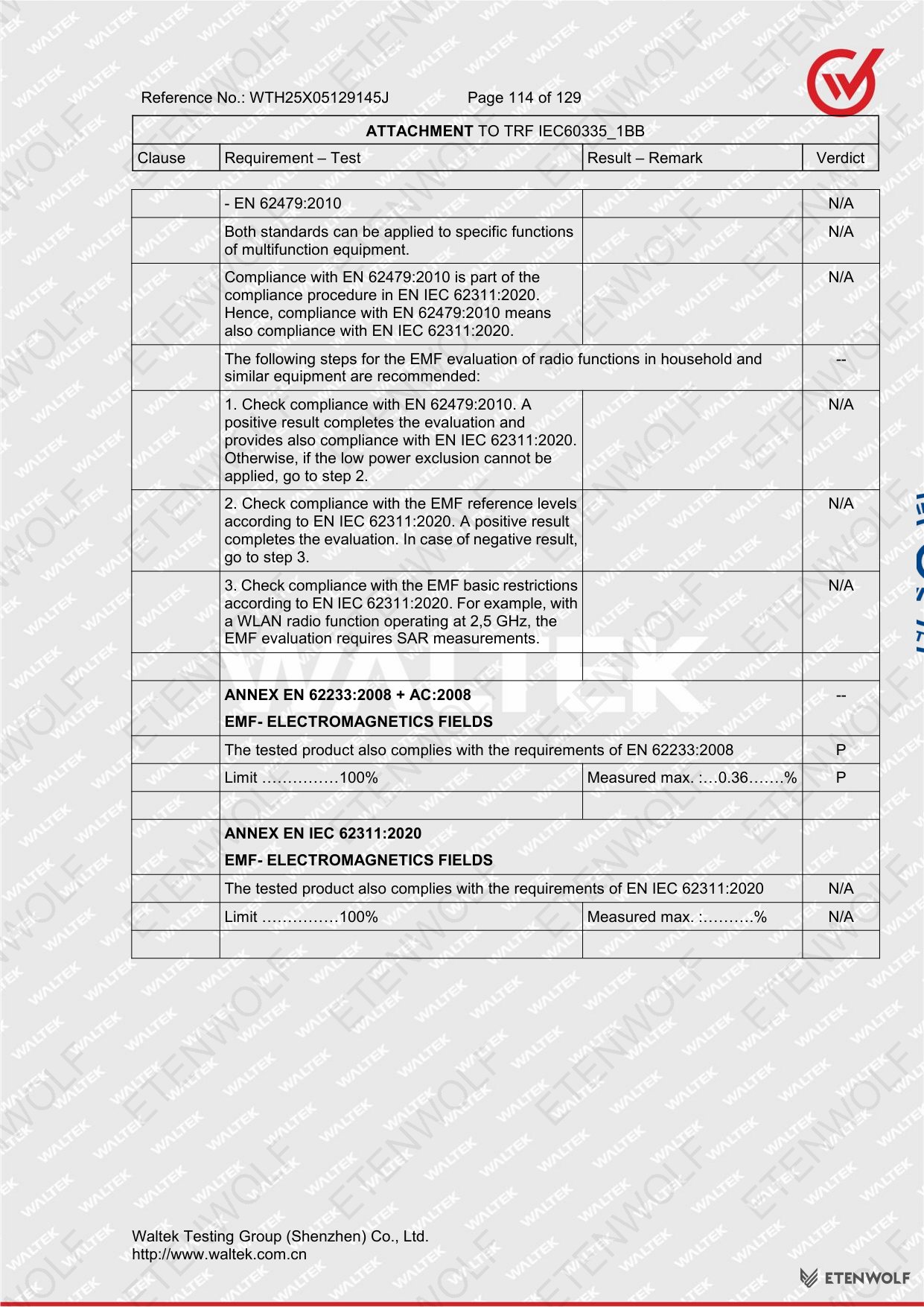

Document Page 114

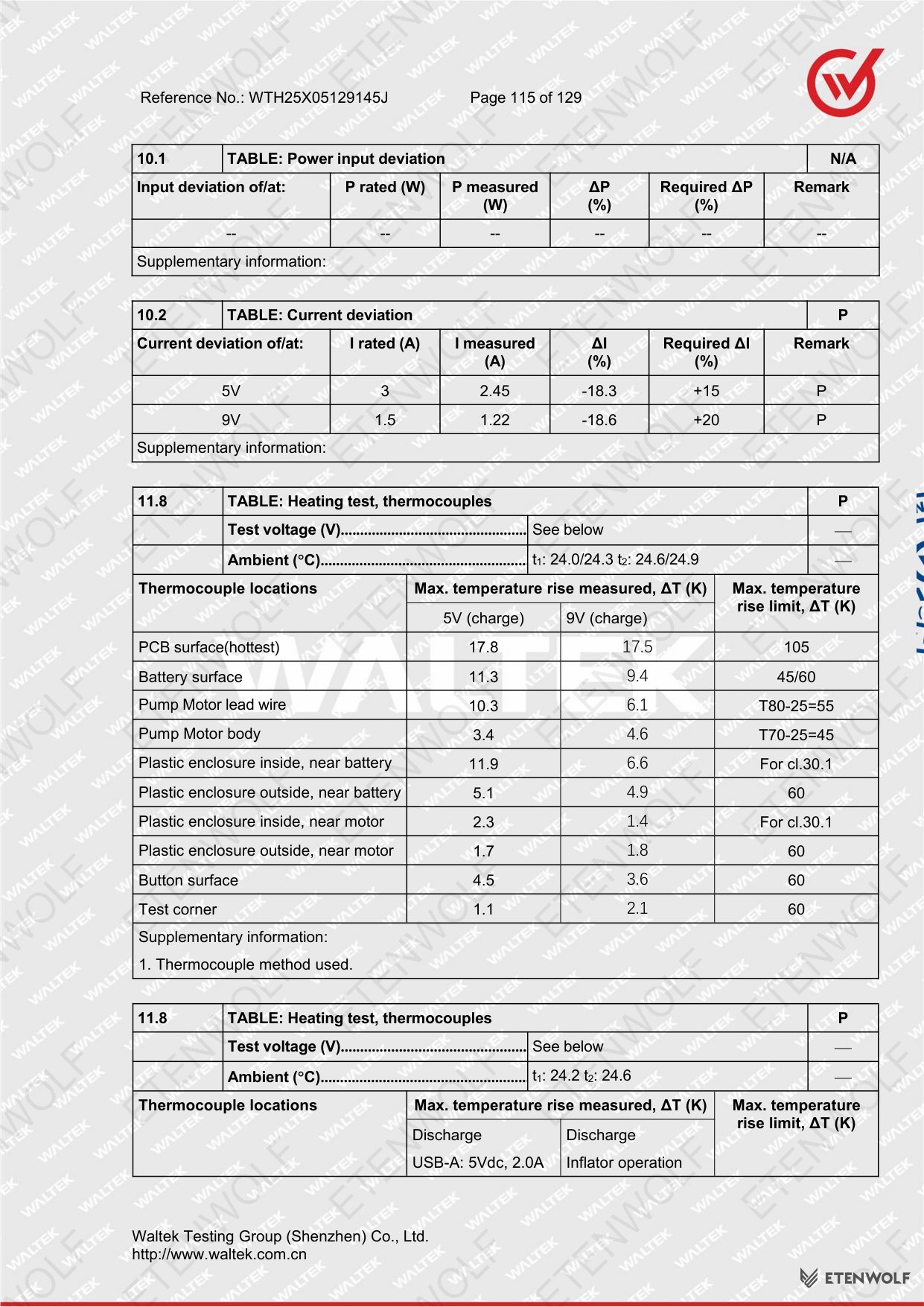

Document Page 115

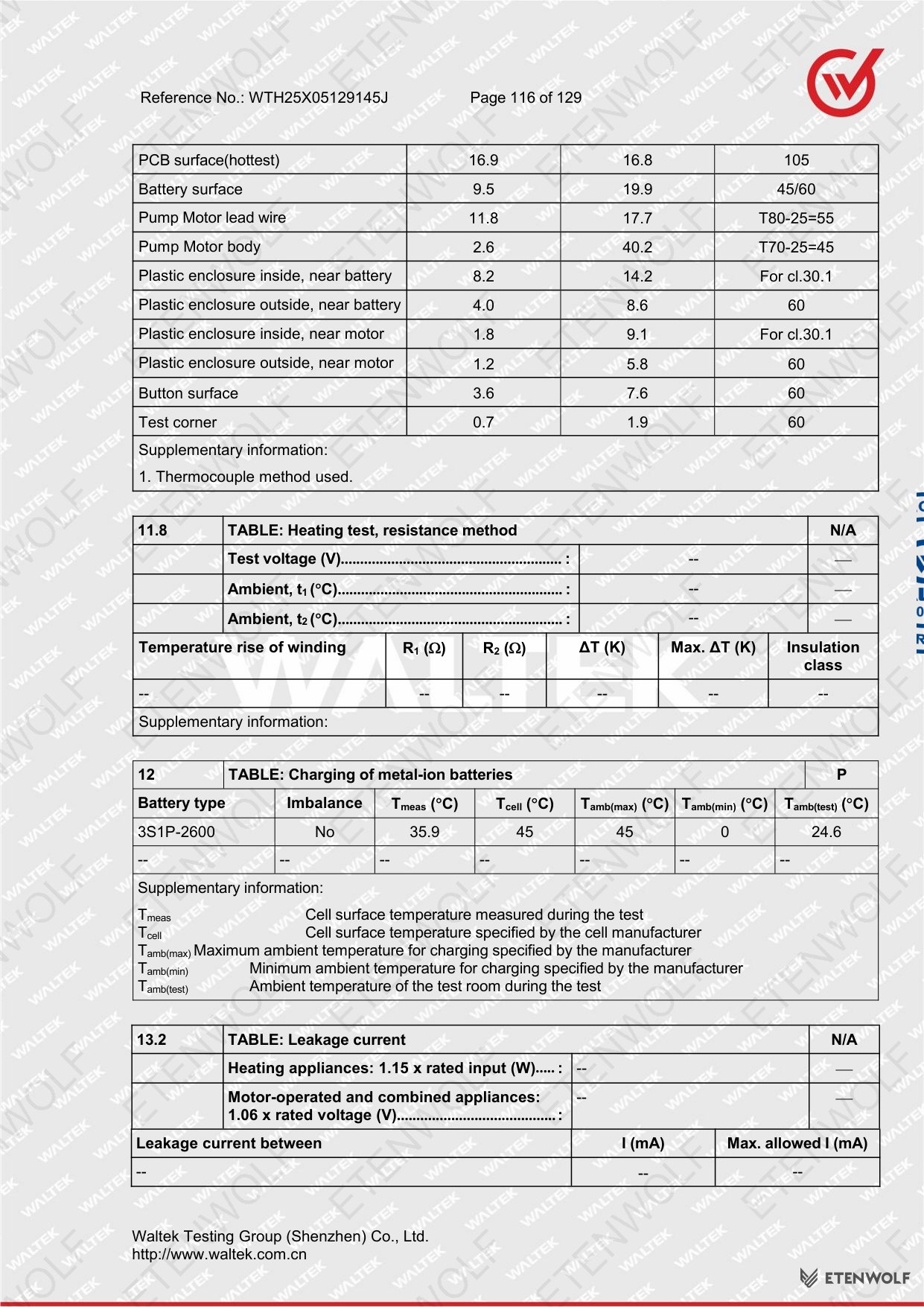

Document Page 116
Document Page 117
Document Page 118

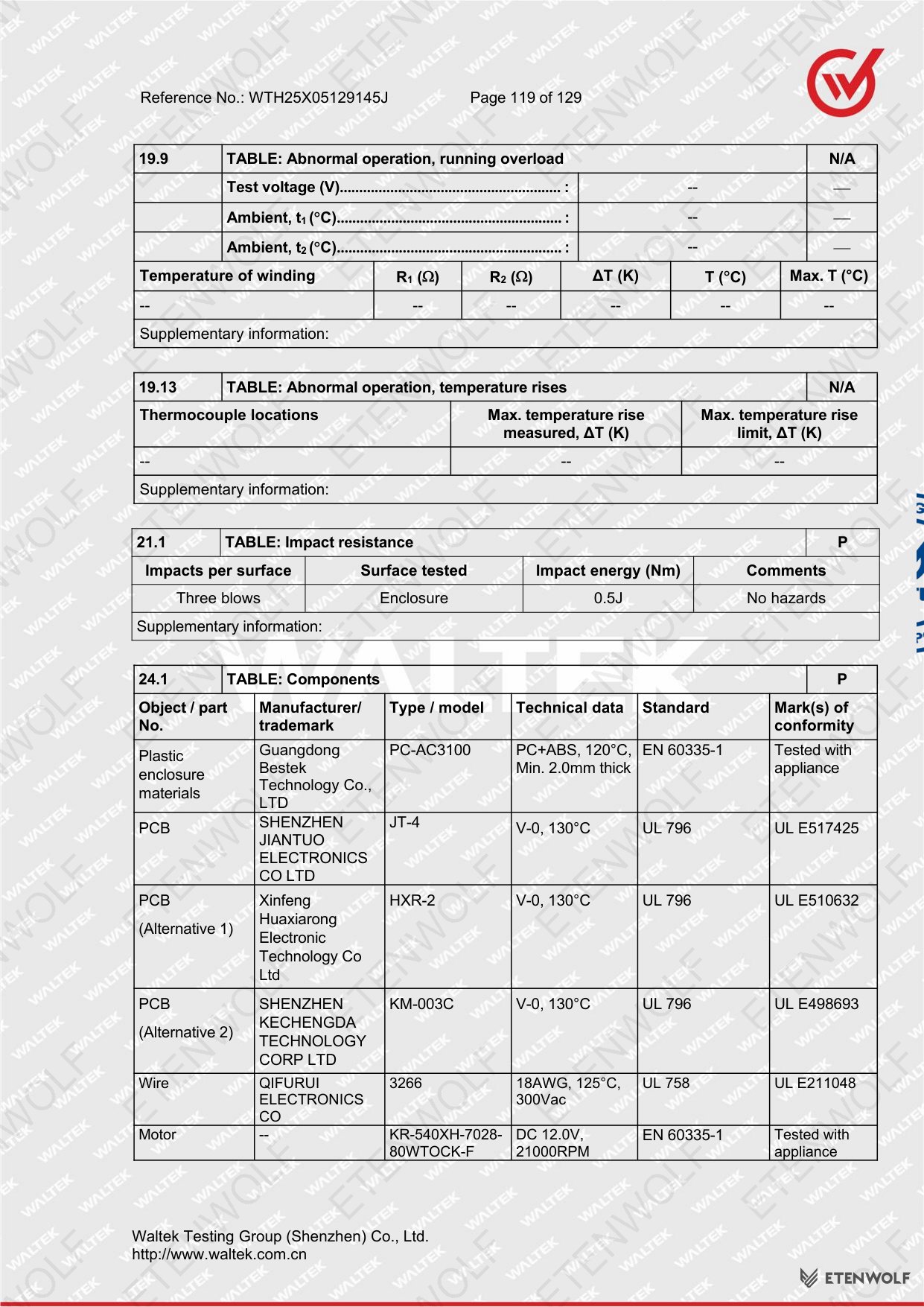

Document Page 119
Document Page 120
Document Page 121

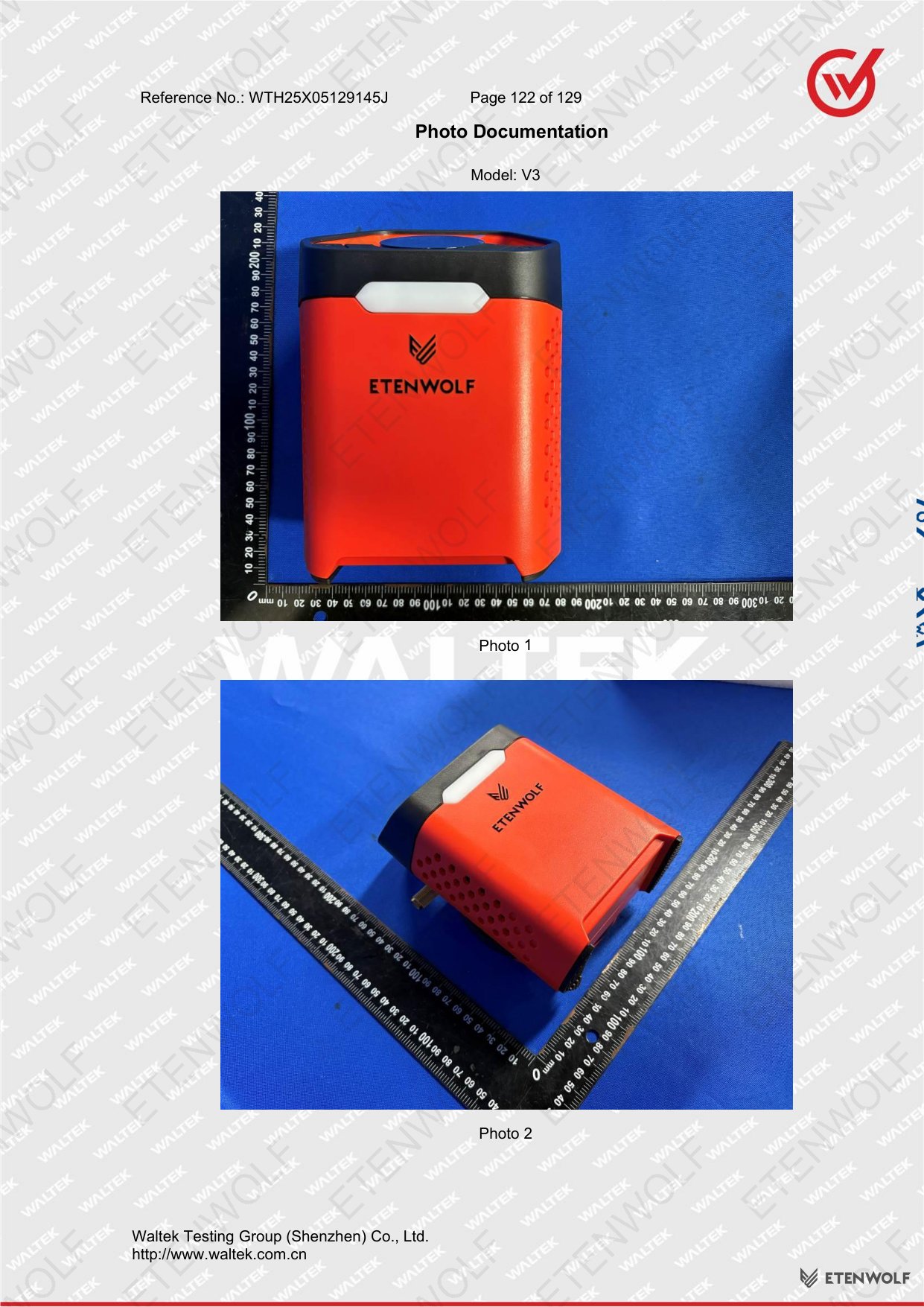

Document Page 122

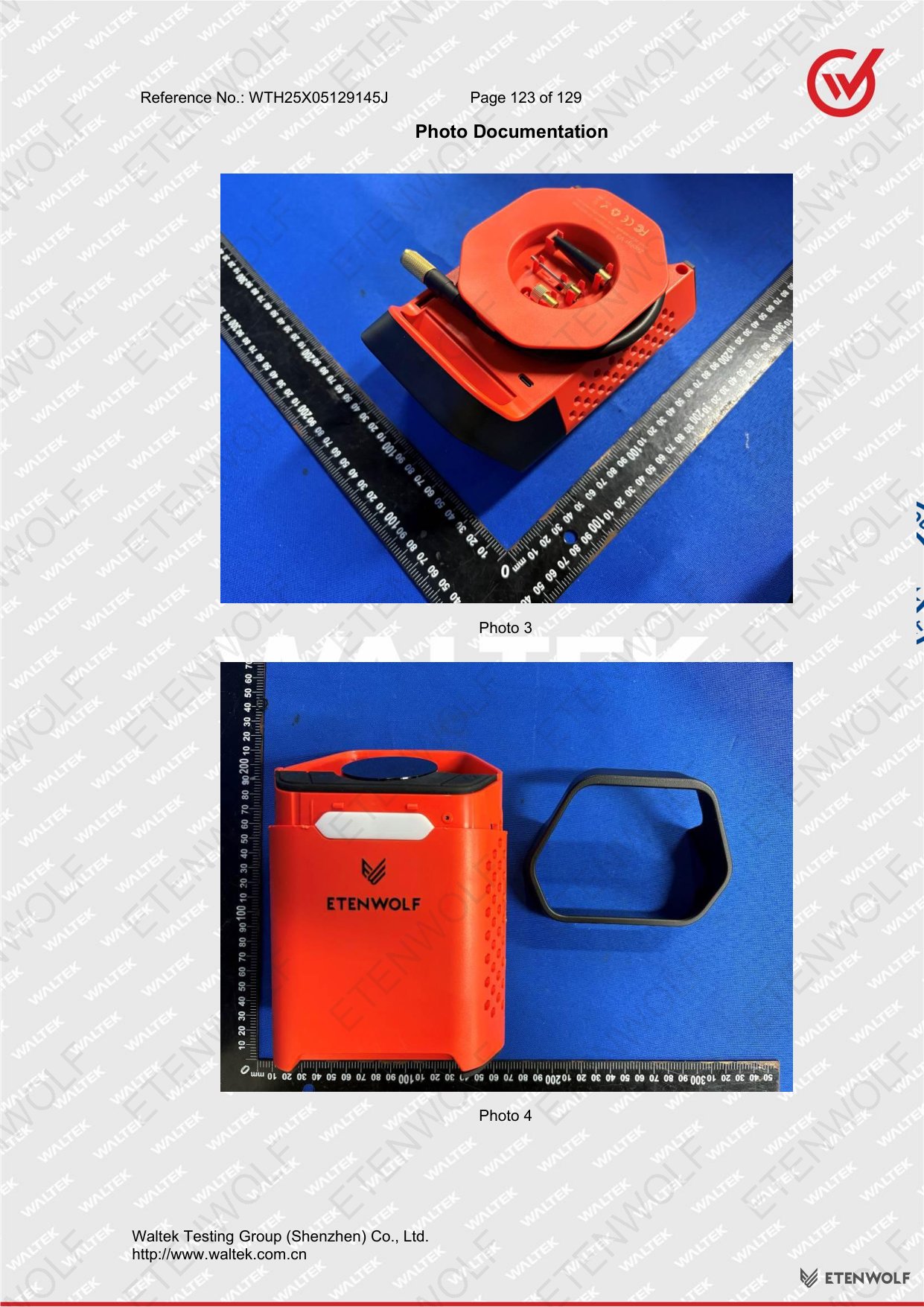

Document Page 123

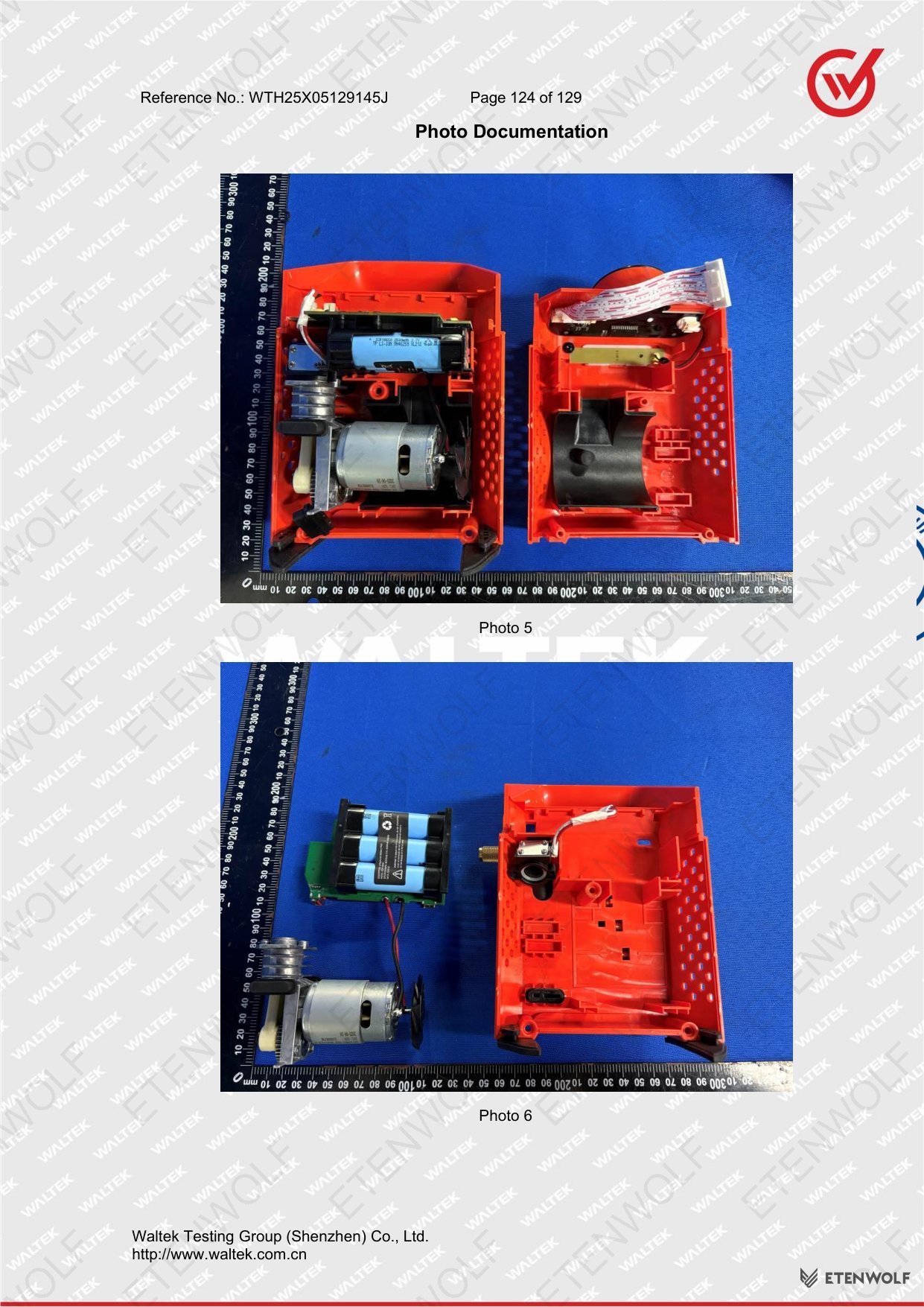

Document Page 124
Document Page 125

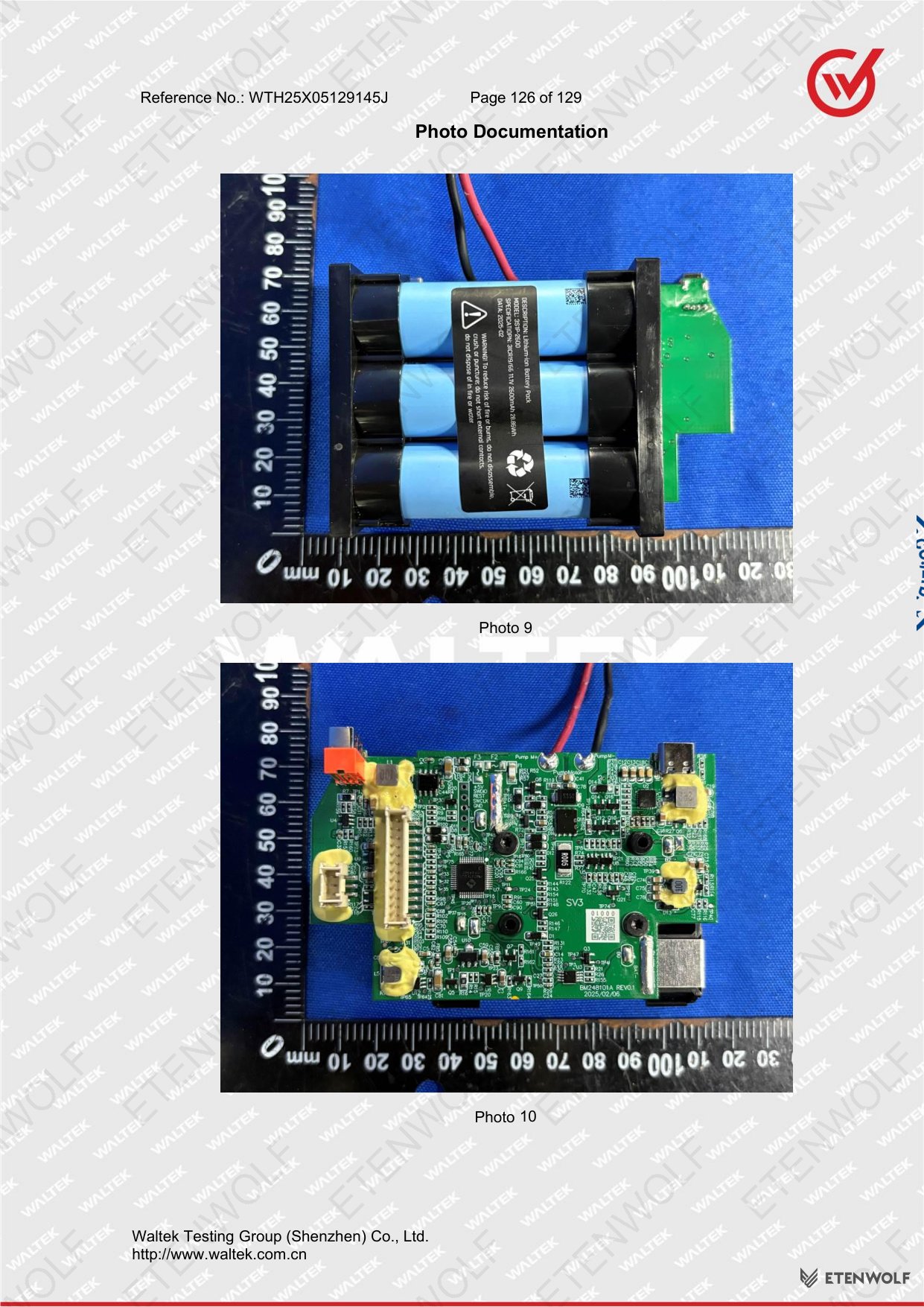

Document Page 126
Document Page 127
Document Page 128

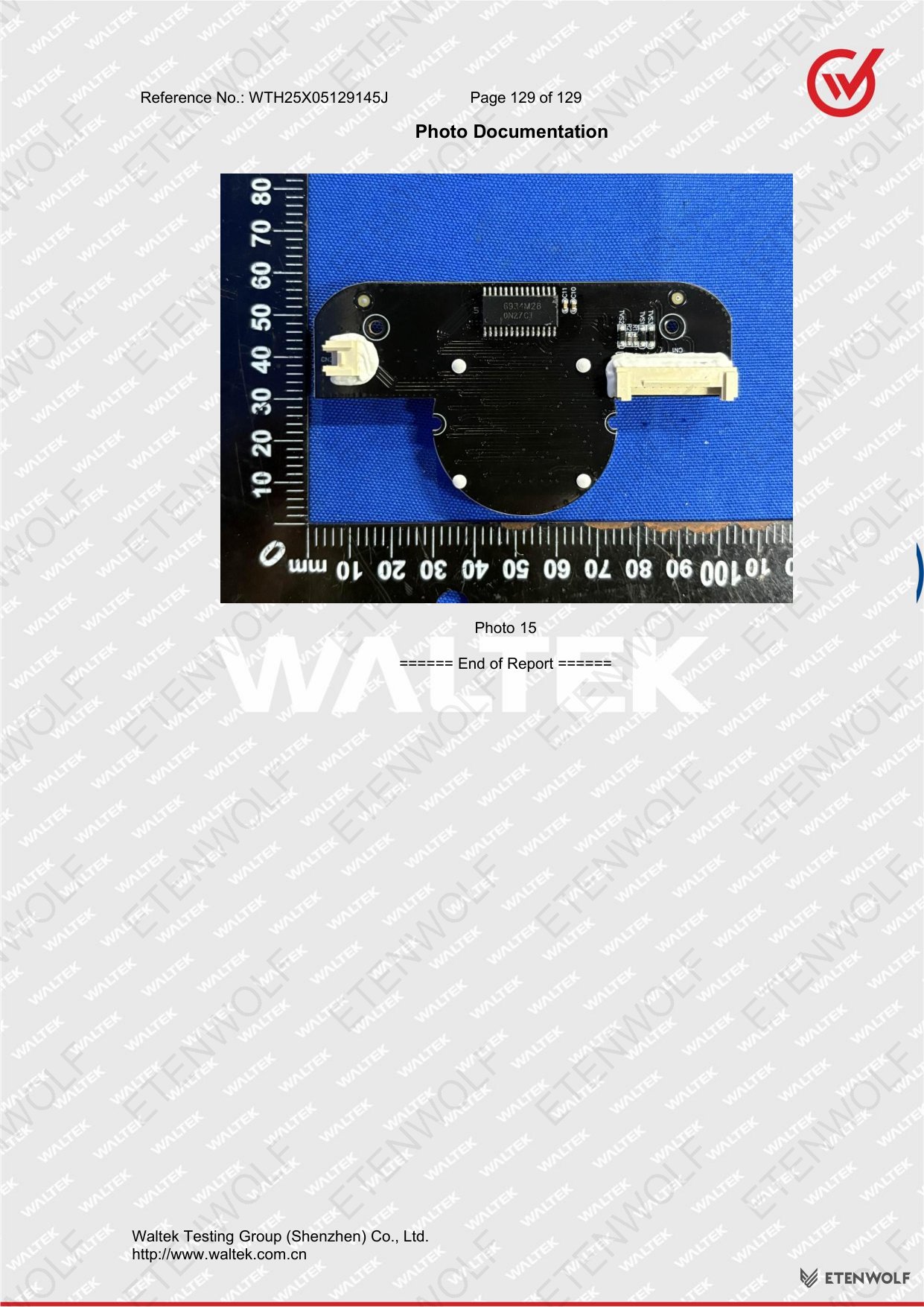

Document Page 129
