Document Overview

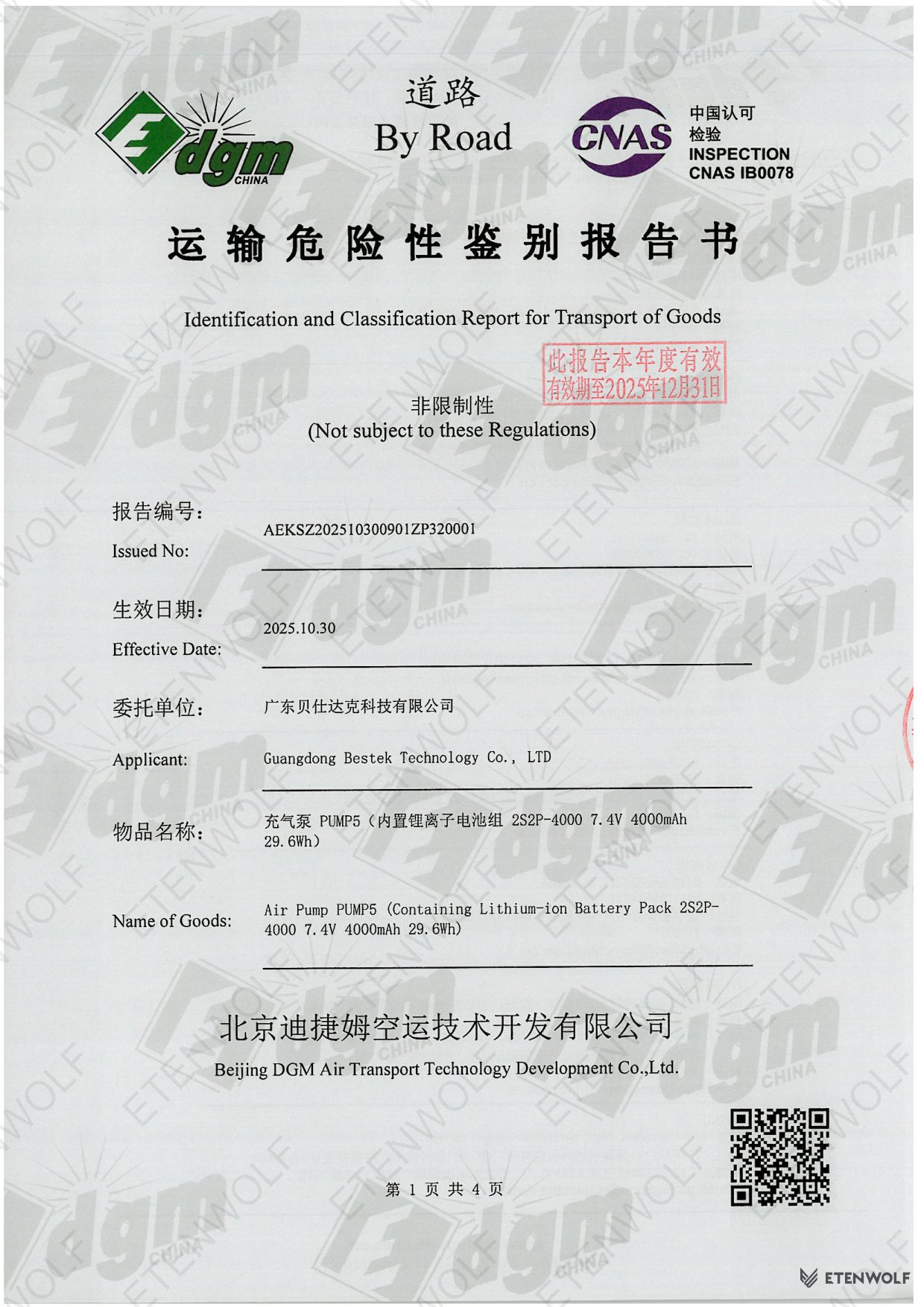

This page presents the Identification and Classification Report for Transport of Goods issued for the HB3 air pump’s internal lithium-ion battery pack. The report determines whether the battery constitutes a dangerous good under international transport regulations.
| Field | Detail |
|---|---|
| Document Type | Identification and Classification Report for Transport of Goods |
| Issued Number | AEKSZ202510300901ZP320001 |
| Issuing Body | Beijing DGM Air Transport Technology Development Co., Ltd. |
| Effective Date | 2025-10-30 |
| Identification Date | 2025-10-30 to 2025-10-30 |
| Validity | Valid within one year of issue date |
| Applicant | Guangdong Bestek Technology Co., LTD |
| Identification Criteria | ADR 2025 |

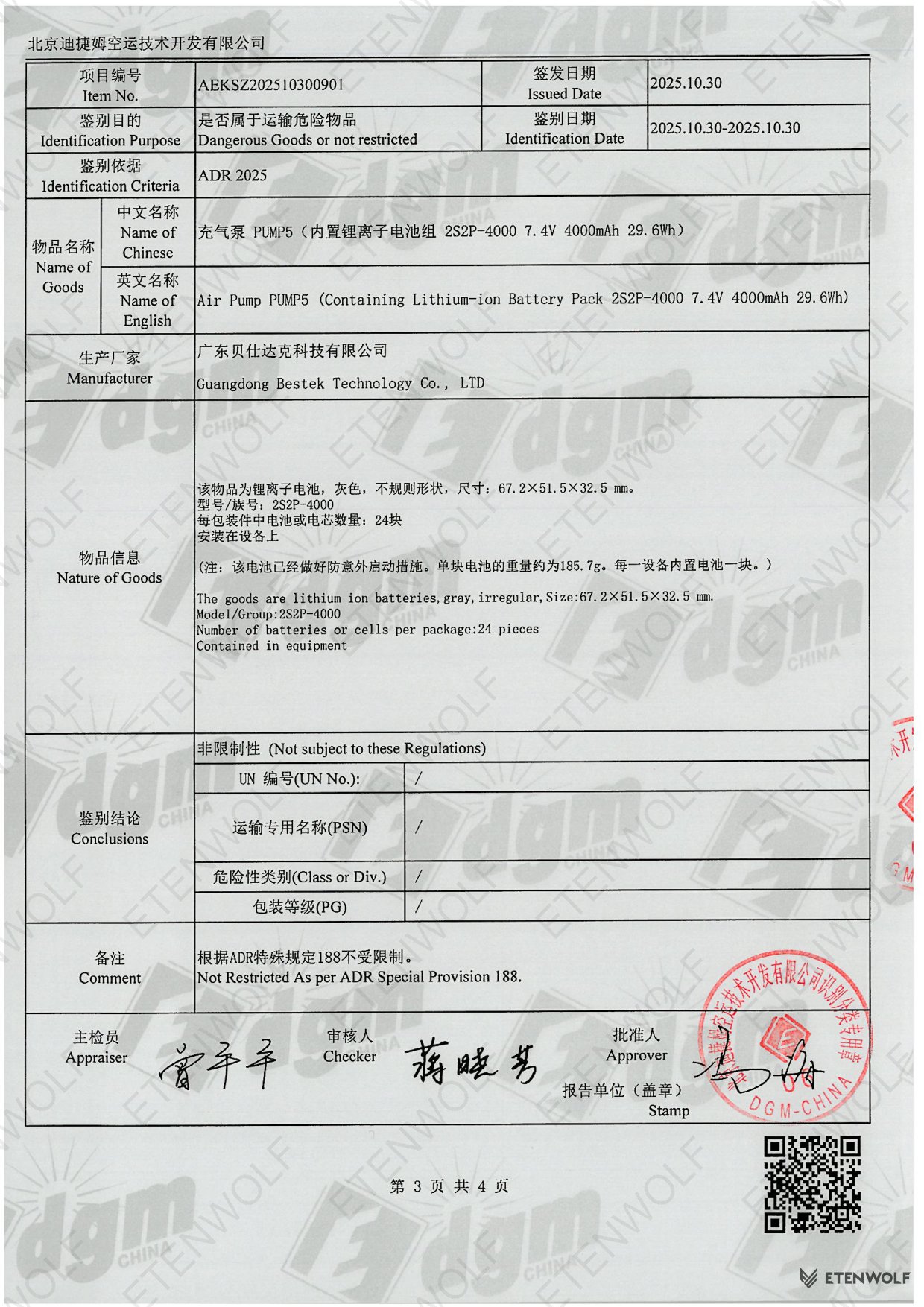

The report confirms that the battery pack contained in the HB3 air pump is Not Restricted as per ADR Special Provision 188, meaning it is not subject to dangerous goods transport regulations when shipped as equipment-contained cells meeting all conditions of that provision.
Product Information

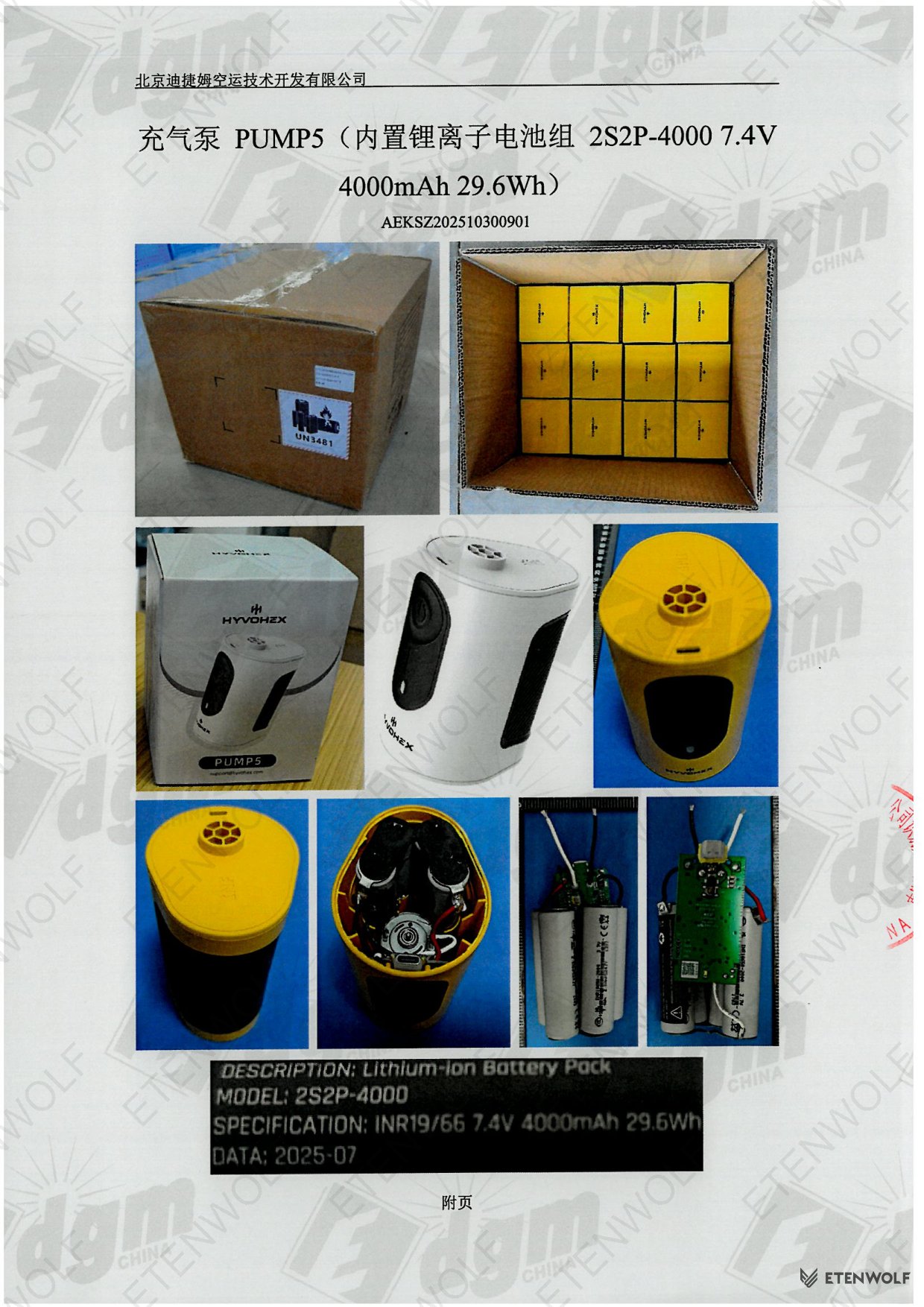

The HB3 is an air pump (designated PUMP5 in this report) manufactured by Guangdong Bestek Technology Co., LTD. It contains a lithium-ion battery pack with the following specifications.
| Attribute | Value |
|---|---|
| Product Name (Chinese) | 气泵 PUMP5 (含磷酸铁锂电池组 2S2P-4000 7.4V 4000mAh 29.6Wh) |
| Product Name (English) | Air Pump PUMP5 (Containing Lithium-ion Battery Pack 2S2P-4000 7.4V 4000mAh 29.6Wh) |
| Manufacturer | Guangdong Bestek Technology Co., LTD |
| Manufacturer Address | No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China |
| Battery Classification | Li-ion Battery |
| Battery Model / Group | 2S2P-4000 |
| Nominal Voltage | 7.4 V |
| Rated Capacity | 4000 mAh |
| Watt-hour Rating | 29.6 Wh |
| Battery Appearance | Gray, Irregular Solid |
| Battery Dimensions | 67.2 × 51.5 × 32.5 mm |
| Mass | 185.7 g |
| Lithium Content | N/A |
| Number of Batteries per Package | 24 pieces |
| Battery Condition | Contained in equipment |
Key Details

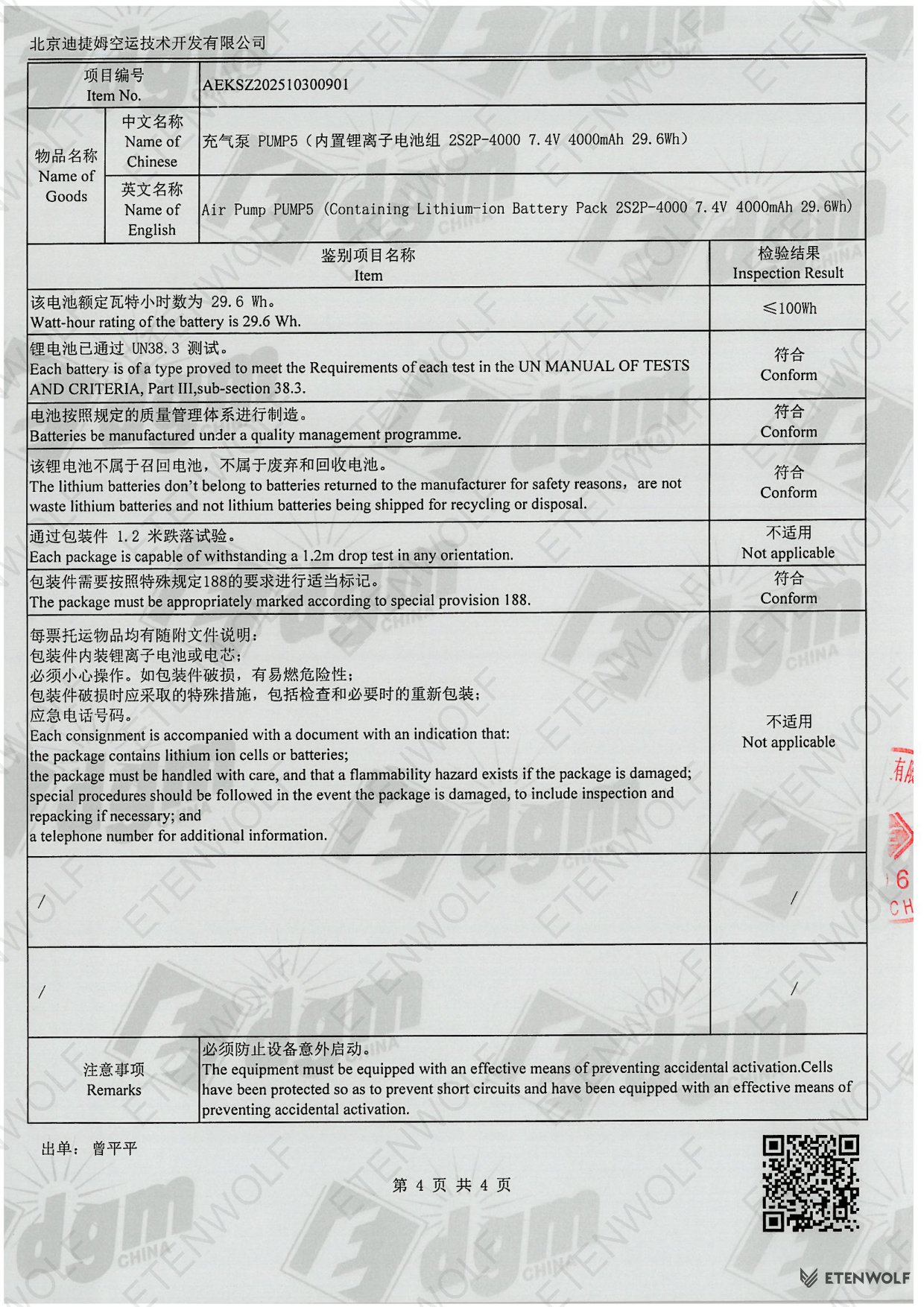

The classification report evaluated several mandatory transport-compliance conditions for the lithium-ion battery pack inside the HB3 air pump. Each condition was assessed and a conformance result was recorded.
| Inspection Item | Requirement | Result |
|---|---|---|
| Watt-hour Rating | Must be ≤ 100 Wh per battery | Conform — 29.6 Wh |
| UN38.3 Type Testing | Each battery type must have passed all UN38.3 tests | Conform |
| Quality Management | Batteries must be manufactured under a quality management programme | Conform |
| Battery Status | Not recalled, not waste, not destined for recycling or disposal | Conform |
| Drop Test | Each package capable of withstanding a 1.2 m drop test in any orientation | Conform |
| Package Marking | Must be appropriately marked according to Special Provision 188 | Conform |
| Accompanying Documentation | Each consignment must include a document stating: package contains lithium-ion cells or batteries; handle with care — flammability hazard if damaged; special procedures for damaged packages including inspection and repacking; telephone number for additional information | Conform |
| Accidental Activation Prevention | Equipment must have an effective means of preventing accidental activation; cells protected against short circuits | Not Applicable |
Overall classification conclusion: Not Restricted — as per ADR Special Provision 188. No UN number applies under these conditions.
Standards & Compliance
The battery pack in the HB3 was tested and classified against the following international standards and regulatory frameworks.
| Standard / Regulation | Description | Result |
|---|---|---|
| UN38.3 | UN Manual of Tests and Criteria ST/SG/AC.10/11/Rev.8, Subsection 38.3 — lithium battery transport testing | All tests passed |
| ADR 2025 | European Agreement concerning the International Carriage of Dangerous Goods by Road, Special Provision 188 | Not Restricted |
| GB/T 8 (Chinese equivalent) | Chinese national standard equivalent to UN Manual of Tests and Criteria, Section 38.3 | Compliant |

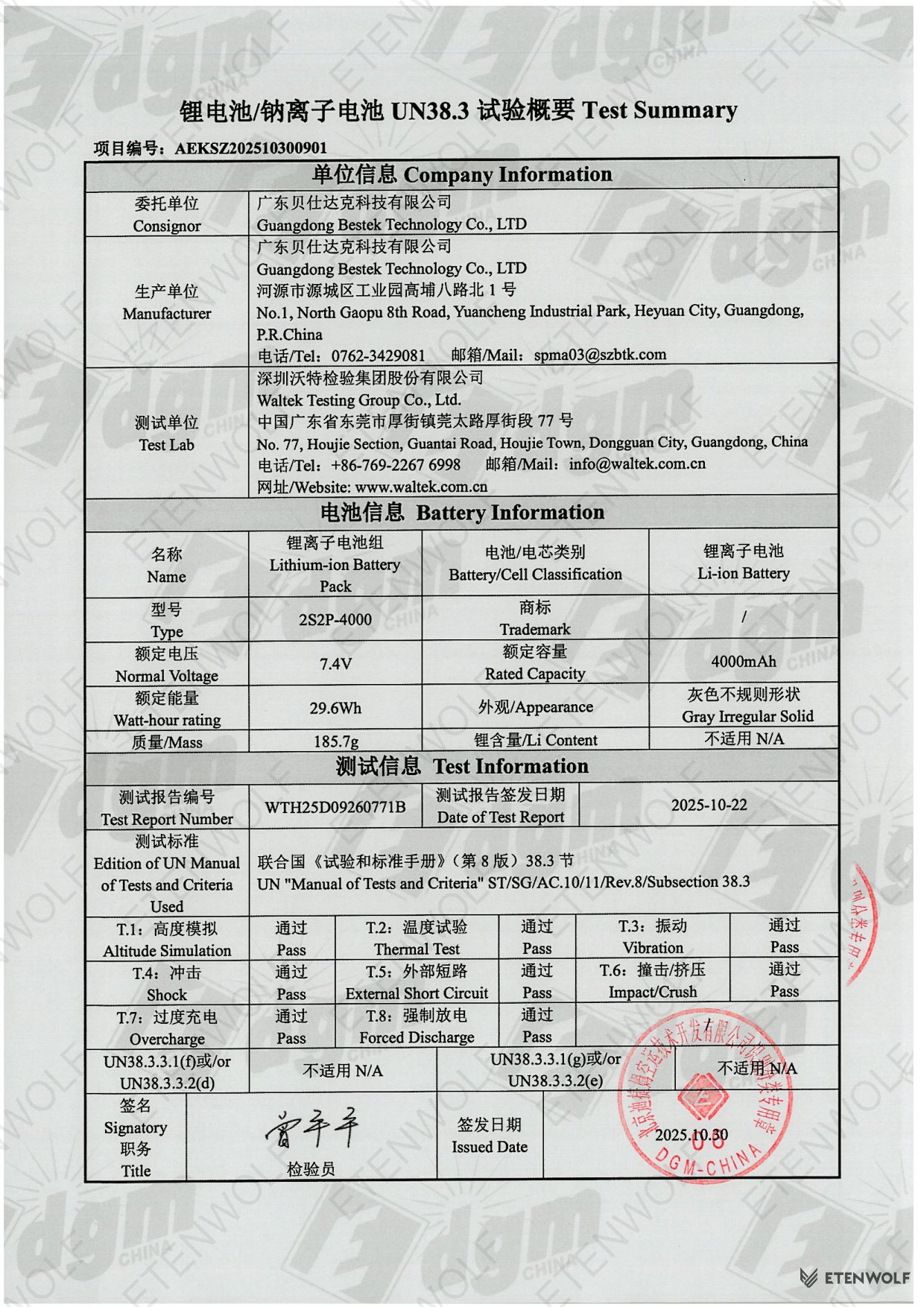

The following individual UN38.3 test results are summarised from the test summary sheet (Report Number: WIH2S DOV).
| Test Code | Test Name | Result |
|---|---|---|
| T1 | Altitude Simulation | Pass |
| T2 | Thermal Test | Pass |
| T3 | Vibration | Pass |
| T4 | Shock | Pass |
| T5 | External Short Circuit | Pass |
| T6 | Impact / Crush | Pass |
| T7 | Overcharge | Pass |
| T8 | Forced Discharge | Pass |
Applicable UN38.3 sub-clauses referenced: UN38.3.3.1(f), UN38.3.3.1(g), UN38.3.3.2(d), UN38.3.3.2(e).
Validity & Certification Body
This identification and classification report was issued by Beijing DGM Air Transport Technology Development Co., Ltd. (DGM China), an authorised dangerous goods identification body. The report is valid for one year from the date of issue: 2025-10-30.
| Field | Detail |
|---|---|
| Issuing Authority | Beijing DGM Air Transport Technology Development Co., Ltd. |
| Address | Beijing, China (Postal Code: 101300) |
| Telephone | 010-69479673 |
| Fax | 010-69479621 |
| Website | www.dgmchina.com.cn |
| [email protected] | |
| Test Laboratory | Waltek Testing Group Co., Ltd. |
| Test Lab Address | No.77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China |
| Test Lab Telephone | +86-769-2267 6998 |
| Test Lab Email | [email protected] |
| Test Lab Website | www.waltek.com.cn |
| Issued Number | AEKSZ202510300901ZP320001 |
| Test Report Number | WIH2S DOV |
| Date of Issue | 2025-10-30 |
| Validity Period | Valid within one year of issue (expires 2026-10-30) |

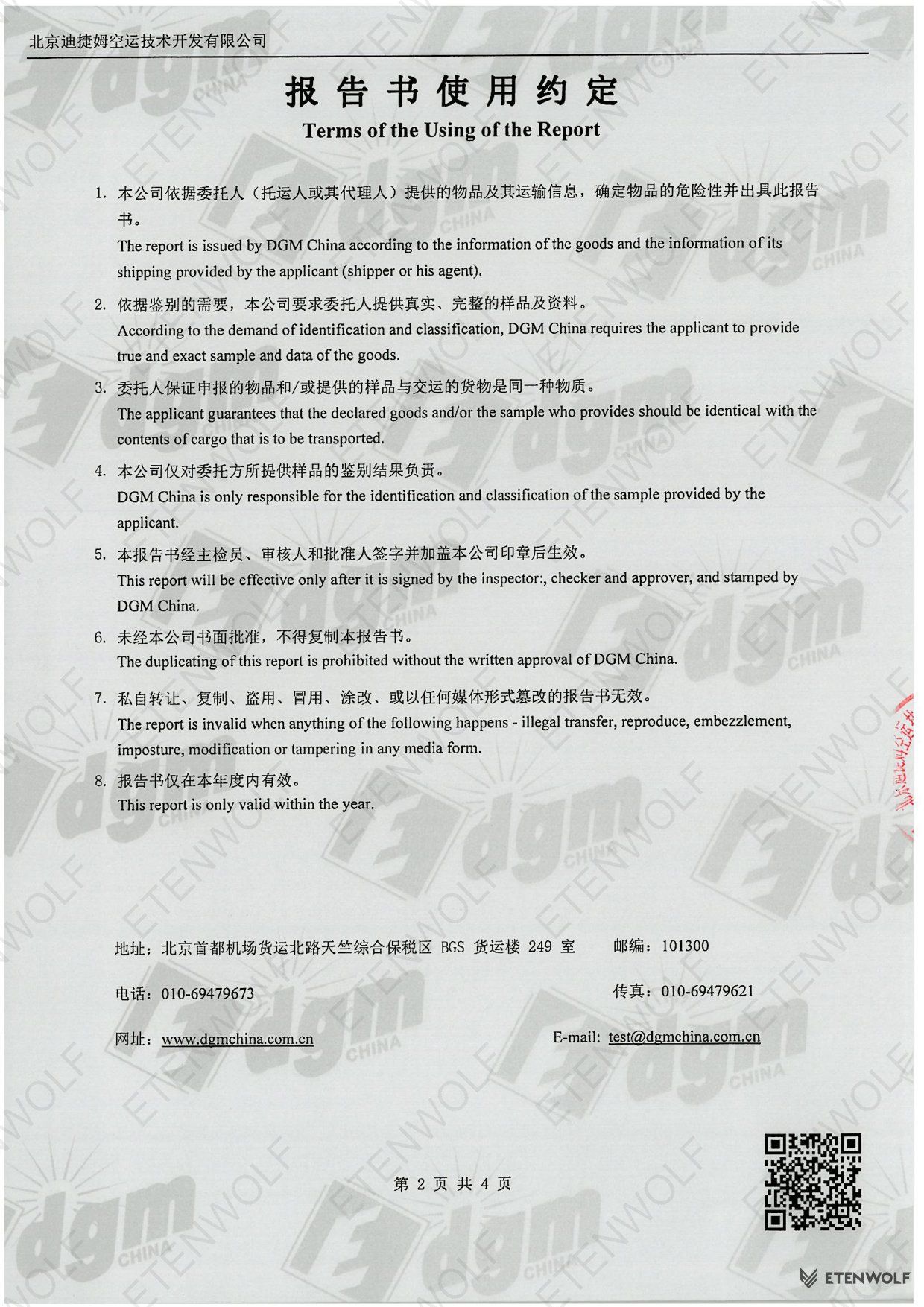

The report is only valid when signed by the Inspector, Checker, and Approver, and stamped with the official DGM China seal. Reproduction, transfer, or modification of this report in any form without written approval from DGM China renders it invalid.
Frequently Asked Questions
- What does the UN38.3 certification mean for the HB3 air pump battery?
-
UN38.3 is the internationally recognised test standard for lithium batteries intended for transport. It requires batteries to pass eight specific tests — including altitude simulation, thermal cycling, vibration, shock, external short circuit, impact or crush, overcharge, and forced discharge. The battery pack inside the HB3 has passed all eight tests, confirming it is safe for transport by air, road, sea, and rail under applicable regulations.
- Is the HB3 battery pack classified as a dangerous good for shipping purposes?
-
No. The classification report (Issued No. AEKSZ202510300901ZP320001) concludes that the battery pack is Not Restricted under ADR Special Provision 188. At 29.6 Wh, the battery is well below the 100 Wh threshold for equipment-contained lithium-ion batteries, allowing it to ship without dangerous goods documentation when all Special Provision 188 conditions are met.
- What packaging and labelling requirements apply when shipping the HB3?
-
Packages containing the HB3 must be marked according to ADR Special Provision 188, must withstand a 1.2 m drop test in any orientation, and must be accompanied by a document stating that the package contains lithium-ion batteries, must be handled with care due to flammability risk if damaged, includes special handling procedures in case of damage, and provides a telephone number for further information.
- How long is this UN38.3 transport classification report valid?
-
The report is valid for one year from its issue date of 2025-10-30, meaning it remains in force until 2026-10-30. After that date, a new identification and classification assessment would be required to continue using this report for transport documentation purposes.
Related Documents
The following certification and compliance documents are typically required or recommended alongside a UN38.3 transport classification report for a lithium-battery-powered product such as the HB3 air pump.
- IEC 62133 Battery Safety Certificate — Covers the safety requirements for portable sealed lithium-ion secondary cells and batteries for use in portable applications. Recommended for retail and B2B market access.
- CE Declaration of Conformity — Required for sale in the European Economic Area. For the HB3, relevant directives include the Low Voltage Directive (LVD) and the Electromagnetic Compatibility Directive (EMC).
- FCC Declaration of Conformity — Required for sale in the United States market, covering electromagnetic interference and radio frequency emissions.
- KC Certification — Required for sale in the Republic of Korea under the Radio Waves Act and Electrical Appliances Safety Management Act.
- RoHS Compliance Report — Confirms restriction of hazardous substances (lead, mercury, cadmium, hexavalent chromium, PBBs, PBDEs) in electrical and electronic equipment sold in the EU and other markets.
- REACH SVHC Declaration — Documents compliance with the EU REACH regulation regarding substances of very high concern in the product’s components and materials.
- MSDS / Safety Data Sheet — Required by many carriers and freight forwarders when shipping lithium-ion battery products, even when classified as not restricted.
