Document Overview

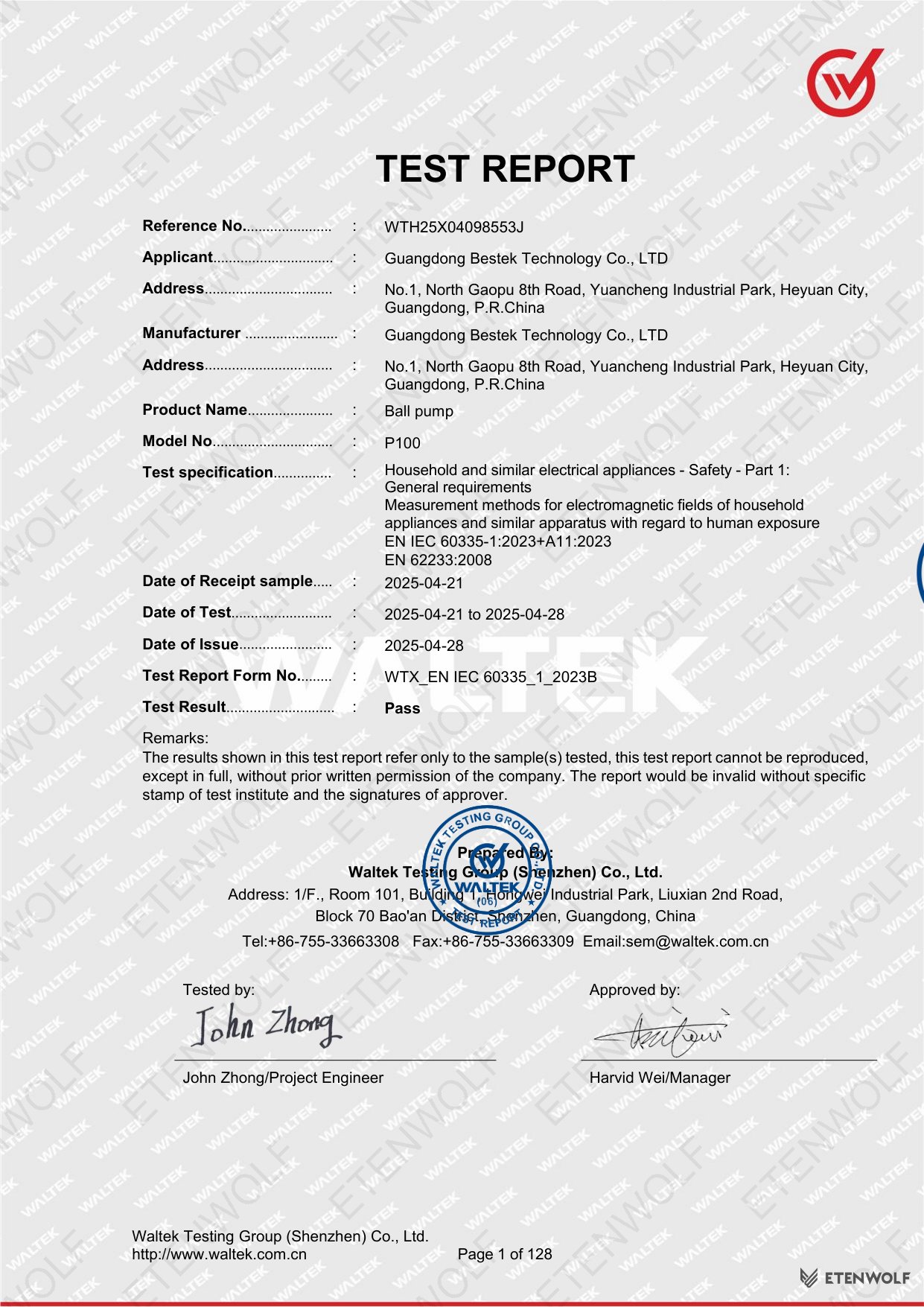

This page presents the structured knowledge base article for the official CE Low Voltage Directive (LVD) Test Report issued for the ETENWOLF P100 Ball Pump. The document is a full safety compliance test report prepared by Waltek Testing Group (Shenzhen) Co., Ltd., an accredited third-party testing laboratory based in Shenzhen, Guangdong, China.
| Field | Detail |
|---|---|
| Document Type | CE-LVD Test Report |
| Reference Number | WTH25X04098553J |
| Test Report Form No. | WTX_EN IEC 60335_1_2023B |
| Date of Receipt of Sample | 2025-04-21 |
| Testing Period | 2025-04-21 to 2025-04-28 |
| Date of Issue | 2025-04-28 |
| Overall Test Result | Pass |
| Issuing Laboratory | Waltek Testing Group (Shenzhen) Co., Ltd. |
| Scope | Household and similar electrical appliances — safety and EMF exposure requirements for CE market placement |
Product Information
The product evaluated in this test report is the ETENWOLF P100 Ball Pump, a portable, battery-powered inflation tool intended for household and indoor use only. It is designed to inflate balls and similar sporting goods efficiently via a DC power supply.
| Specification | Value |
|---|---|
| Product Name | Ball Pump |
| Model Number | P100 |
| Trademark | — |
| Rated Input Voltage | 5 V DC |
| Rated Input Current | 1.5 A |
| Supply Connection | DC Connector |
| Equipment Class | Class III (Safety Extra-Low Voltage) |
| Installation / Use | Portable appliance, indoor use only |
| Intended Application | Household and indoor use only |
| Country of Manufacture | China |

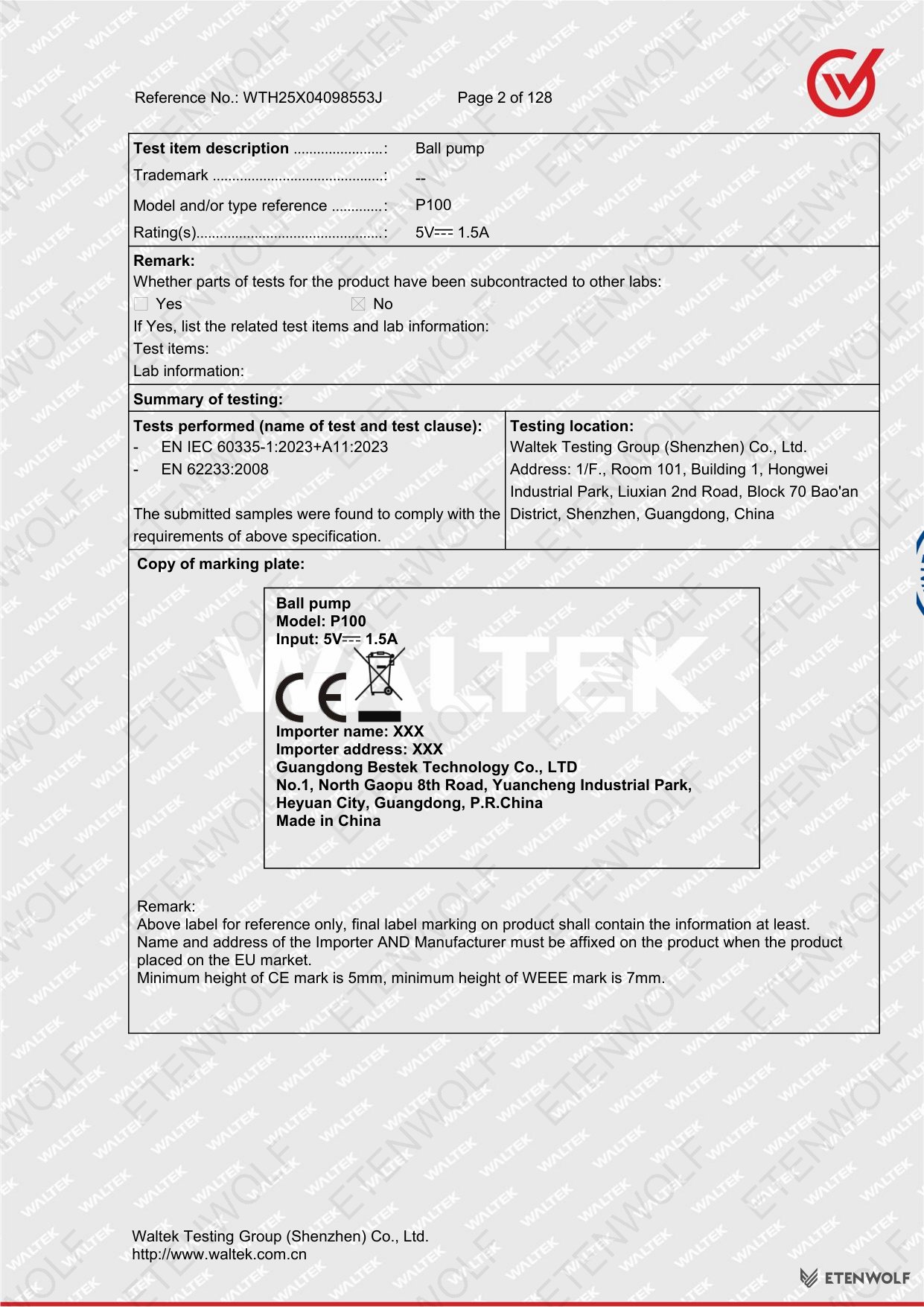

The product label must include the product name, model, input ratings, CE mark (minimum 5 mm height), WEEE mark (minimum 7 mm height), and the name and address of both the manufacturer and EU importer when placed on the EU market.
Applicant & Manufacturer: Guangdong Bestek Technology Co., Ltd., No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China.
Key Details
The test report covers a full evaluation of the P100 Ball Pump against the applicable CE-LVD safety standards. All testing was conducted in-house at the Waltek Testing Group Shenzhen facility. No portions of the testing were subcontracted to external laboratories.
| Test Area | Standard Applied | Result |
|---|---|---|
| General Safety Requirements for Household Appliances | EN IEC 60335-1:2023+A11:2023 | Pass |
| Electromagnetic Field (EMF) Exposure — Human Exposure Measurement | EN 62233:2008 | Pass |
| Test Verdict Key | Meaning |
|---|---|
| P | Pass — test object meets the requirement |
| F | Fail — test object does not meet the requirement |
| N/A | Not Applicable — test case does not apply to the test object |
The general conditions for testing were performed in accordance with Clause 5 of EN IEC 60335-1, covering the nature of supply, sequence of testing, and all applicable sub-clauses. The submitted samples were confirmed to comply with the requirements of all applicable specifications.
The test results presented in this report relate only to the specific sample(s) tested. This report may not be reproduced except in full, and only with written approval from Waltek Testing Group (Shenzhen) Co., Ltd. The report is invalid without the specific stamp of the test institute and the signatures of the approver.
Standards & Compliance
The P100 Ball Pump was tested against the following harmonized European standards as part of its CE-LVD conformity assessment:
| Standard | Title | Relevance |
|---|---|---|
| EN IEC 60335-1:2023+A11:2023 | Household and similar electrical appliances — Safety — Part 1: General requirements | Core safety standard for low-voltage electrical household appliances sold in the EU; covers insulation, temperature limits, mechanical strength, and protective measures |
| EN 62233:2008 | Measurement methods for electromagnetic fields of household appliances and similar apparatus with regard to human exposure | Ensures the product’s electromagnetic field emissions remain within safe limits for human exposure during normal operation |
The product is classified as a Class III appliance, meaning it operates on Safety Extra-Low Voltage (SELV) supplied via a DC connector, which inherently reduces electrical shock risk. This classification is consistent with the 5 V / 1.5 A DC input rating.
The CE Low Voltage Directive (LVD) 2014/35/EU applies to electrical equipment designed for use with a voltage rating of between 50 V and 1000 V AC or between 75 V and 1500 V DC. While Class III SELV products technically fall outside the LVD voltage scope, the harmonized standards tested here confirm the product’s safety compliance for EU market access.
Validity & Certification Body
This test report was issued on 2025-04-28 by Waltek Testing Group (Shenzhen) Co., Ltd., a globally recognized, accredited third-party testing and certification laboratory.
| Detail | Information |
|---|---|
| Issuing Laboratory | Waltek Testing Group (Shenzhen) Co., Ltd. |
| Laboratory Address | 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70, Bao’an District, Shenzhen, Guangdong, China |
| Website | http://www.waltek.com.cn |
| Telephone | +86-755-33663308 |
| Fax | +86-755-33663309 |
| [email protected] | |
| Report Prepared By | John Zhong, Project Engineer |
| Report Approved By | Harvid Wei, Manager |
| Date of Issue | 2025-04-28 |
| Report Reference No. | WTH25X04098553J |
| Total Report Pages | 128 pages |
The validity of this test report is contingent upon the product continuing to be manufactured in compliance with the tested sample. Any design, material, or component changes may require re-testing. The report bears the official stamp of the Waltek Testing Group and the signatures of both the project engineer and the approving manager, as required for validity.
Frequently Asked Questions
- Q: What does the CE-LVD test report for the P100 Ball Pump confirm?
-
The CE-LVD test report (Reference No. WTH25X04098553J) confirms that the P100 Ball Pump has been independently tested by Waltek Testing Group and found to comply with EN IEC 60335-1:2023+A11:2023 (general household appliance safety) and EN 62233:2008 (electromagnetic field human exposure). This is a prerequisite for CE marking and sale in the European Union and European Economic Area.
- Q: What is the power rating of the P100 Ball Pump tested in this report?
-
The P100 Ball Pump operates on a DC input of 5 V at 1.5 A, supplied via a DC connector. It is classified as a Class III appliance (Safety Extra-Low Voltage), making it safe for household and indoor use without the elevated shock risks associated with mains-powered devices.
- Q: Who conducted the CE-LVD safety testing for the P100?
-
All testing was conducted in-house by Waltek Testing Group (Shenzhen) Co., Ltd., located in Bao’an District, Shenzhen, China. The report was prepared by John Zhong (Project Engineer) and approved by Harvid Wei (Manager). No portions of the testing were subcontracted to external laboratories.
- Q: Can this test report be used to verify compliance for other product models?
-
No. The results documented in report WTH25X04098553J apply exclusively to the specific P100 Ball Pump sample submitted and tested between 2025-04-21 and 2025-04-28. The report cannot be applied to other models or variants. Any modifications to design, materials, or components would require a new evaluation.
Related Documents
For a complete compliance portfolio for the P100 Ball Pump and related ETENWOLF inflation tool products, the following related certification and documentation types are recommended:
- CE-EMC Test Report — Electromagnetic Compatibility testing under EN 55014-1 and EN 55014-2 for conducted and radiated emissions and immunity, required alongside LVD for full CE marking of household appliances.
- CE Declaration of Conformity (DoC) — The manufacturer’s formal written declaration that the P100 meets all applicable CE Directives, required to affix the CE mark and place the product on the EU market.
- RoHS Compliance Report — Confirms restriction of hazardous substances (RoHS Directive 2011/65/EU) including lead, mercury, cadmium, and certain flame retardants in the product and its components.
- REACH SVHC Declaration — Documents compliance with the REACH Regulation (EC) No 1907/2006 regarding substances of very high concern in the product materials.
- UN 38.3 Battery Transport Test Report — If the P100 includes or is sold with a lithium-ion battery pack, a UN 38.3 transport test report is required for safe international shipping compliance.
- FCC ID Report — Required for sale in the United States market; covers radio frequency emissions testing under FCC Part 15 regulations.

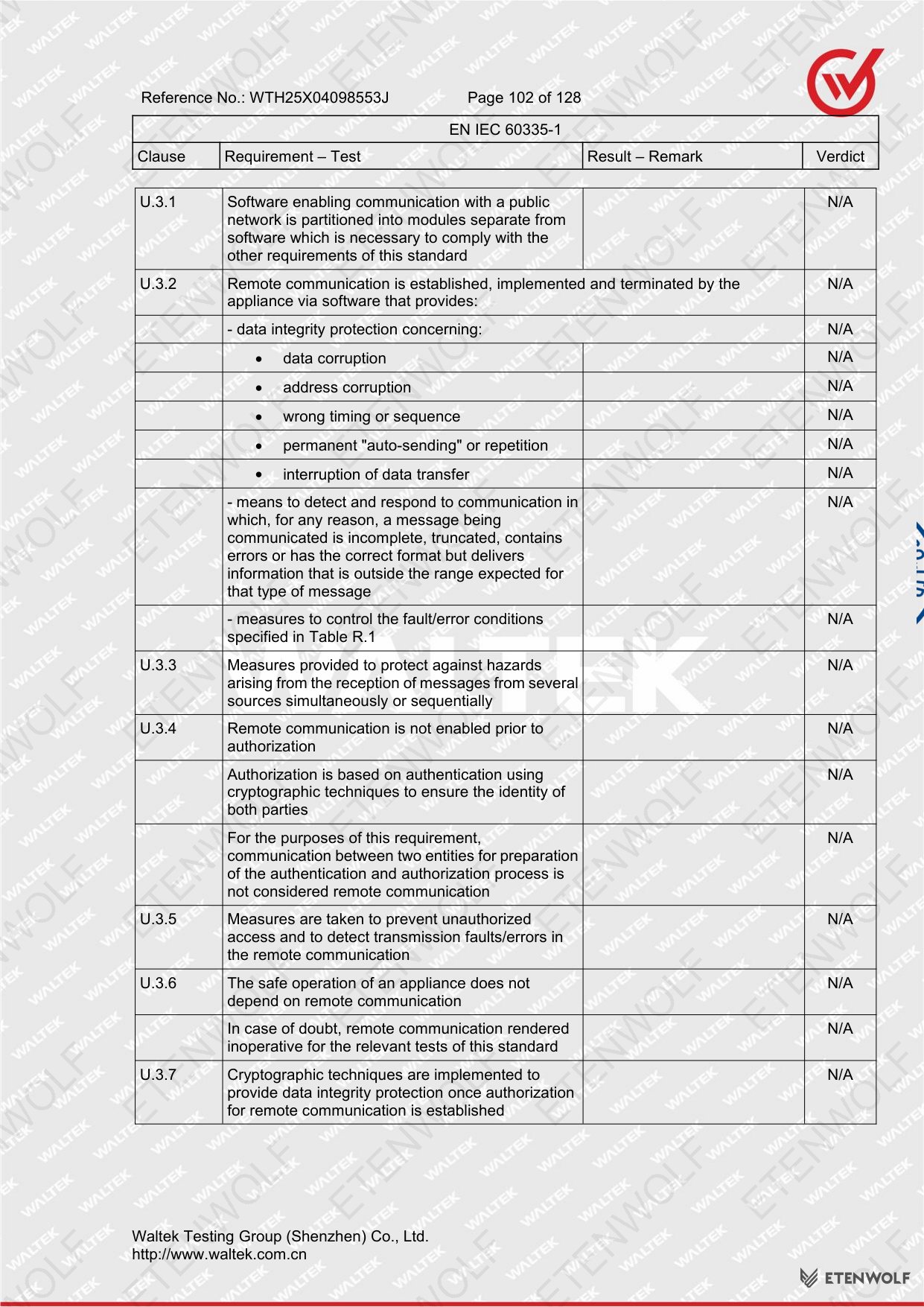

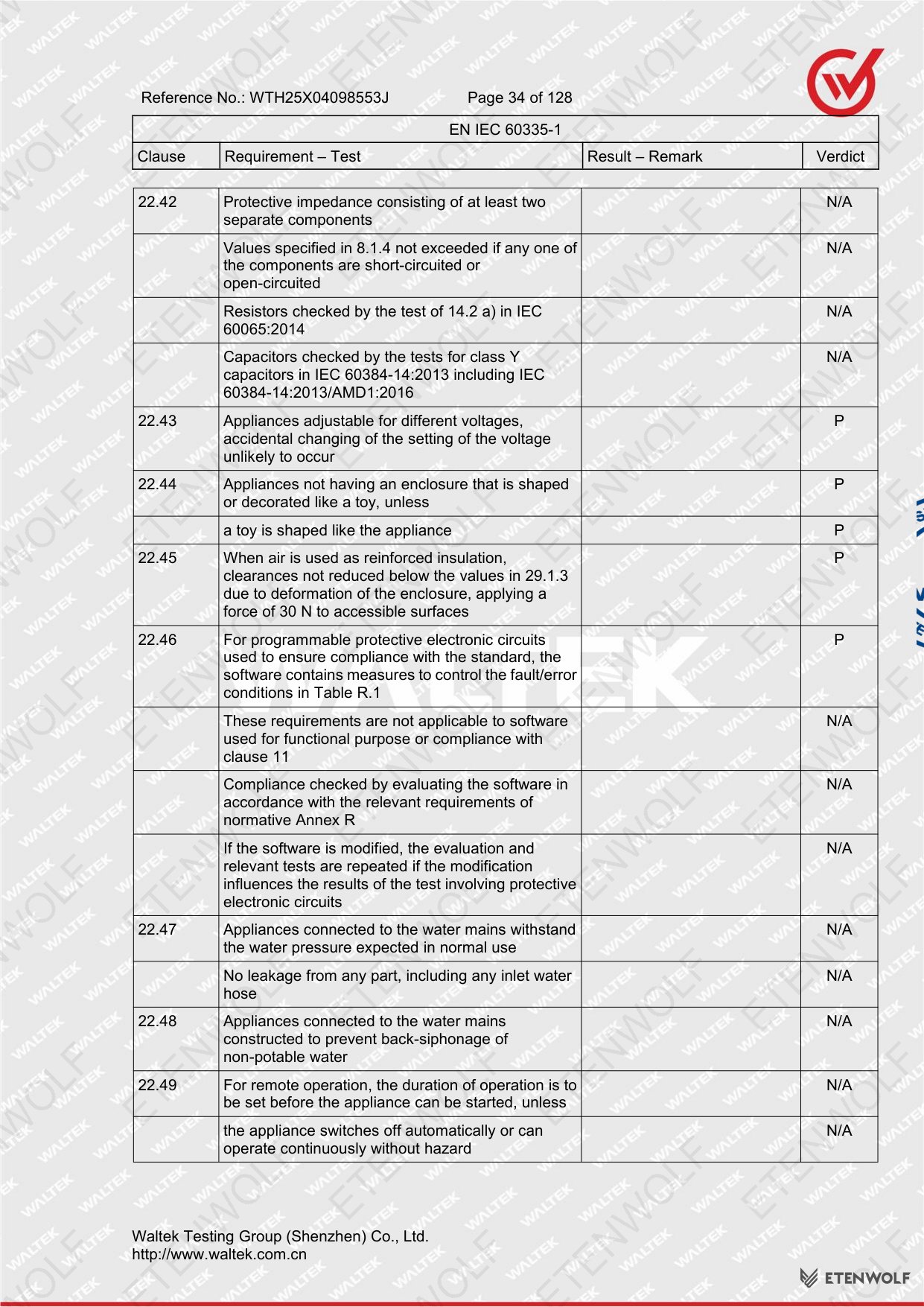

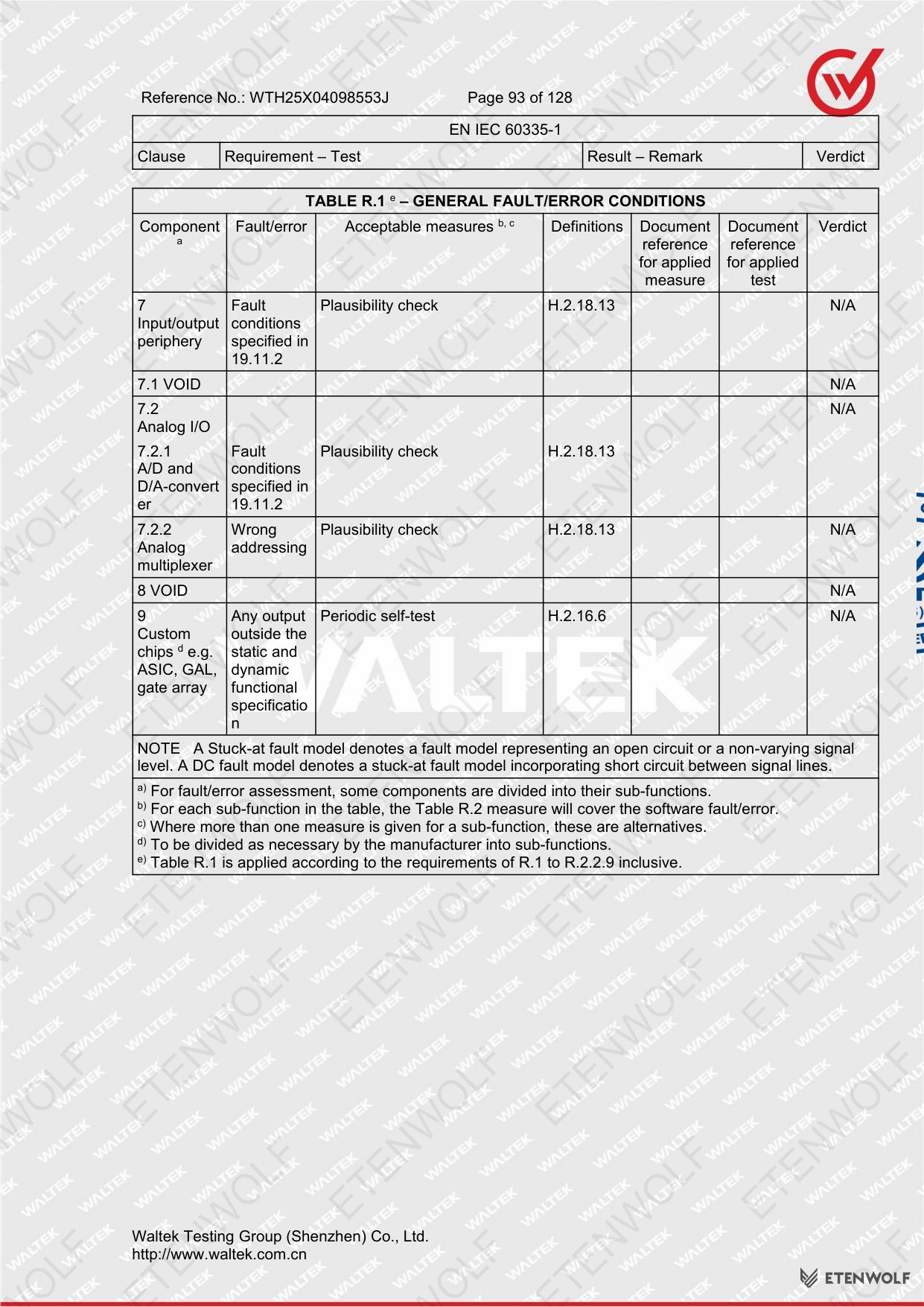

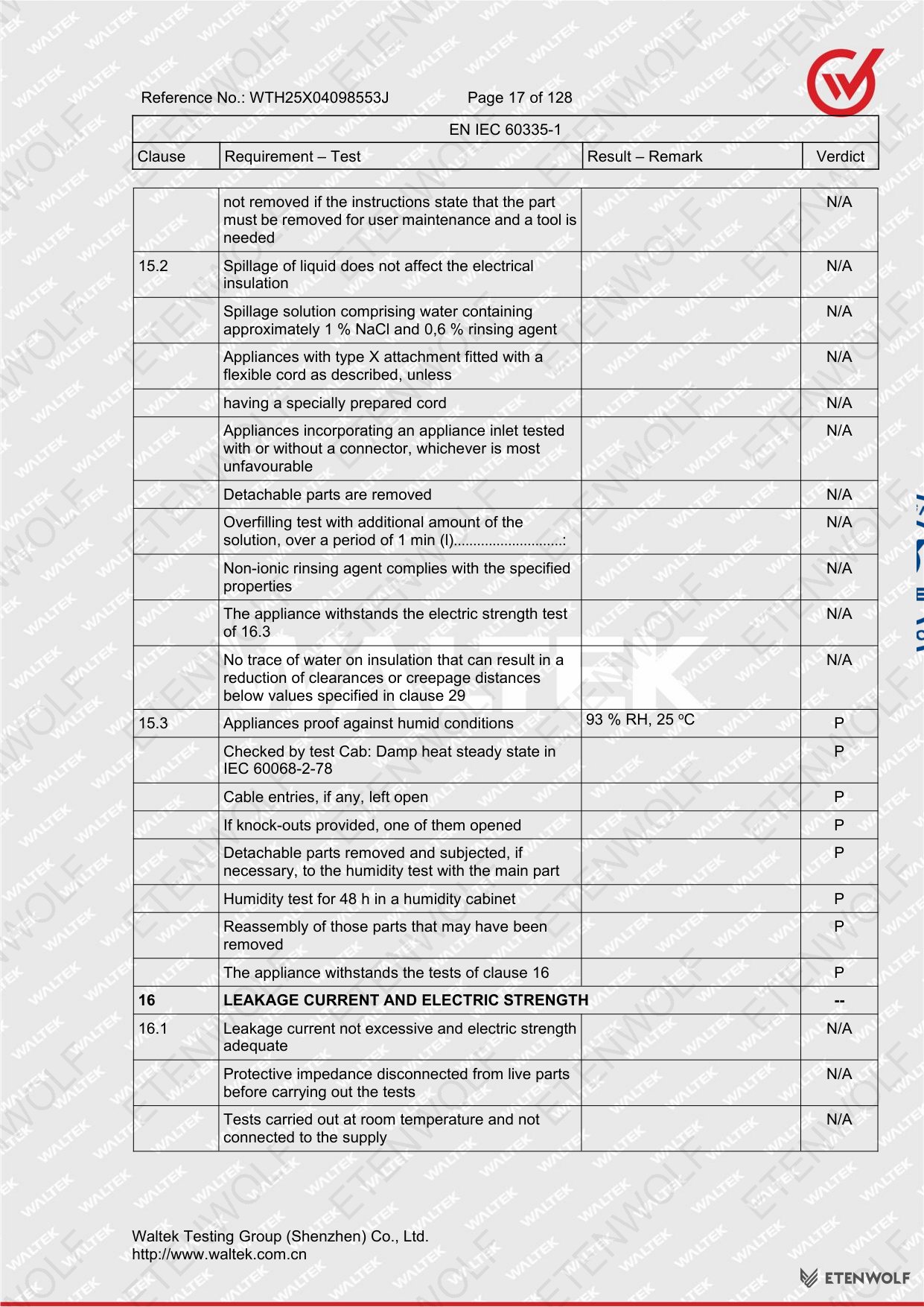

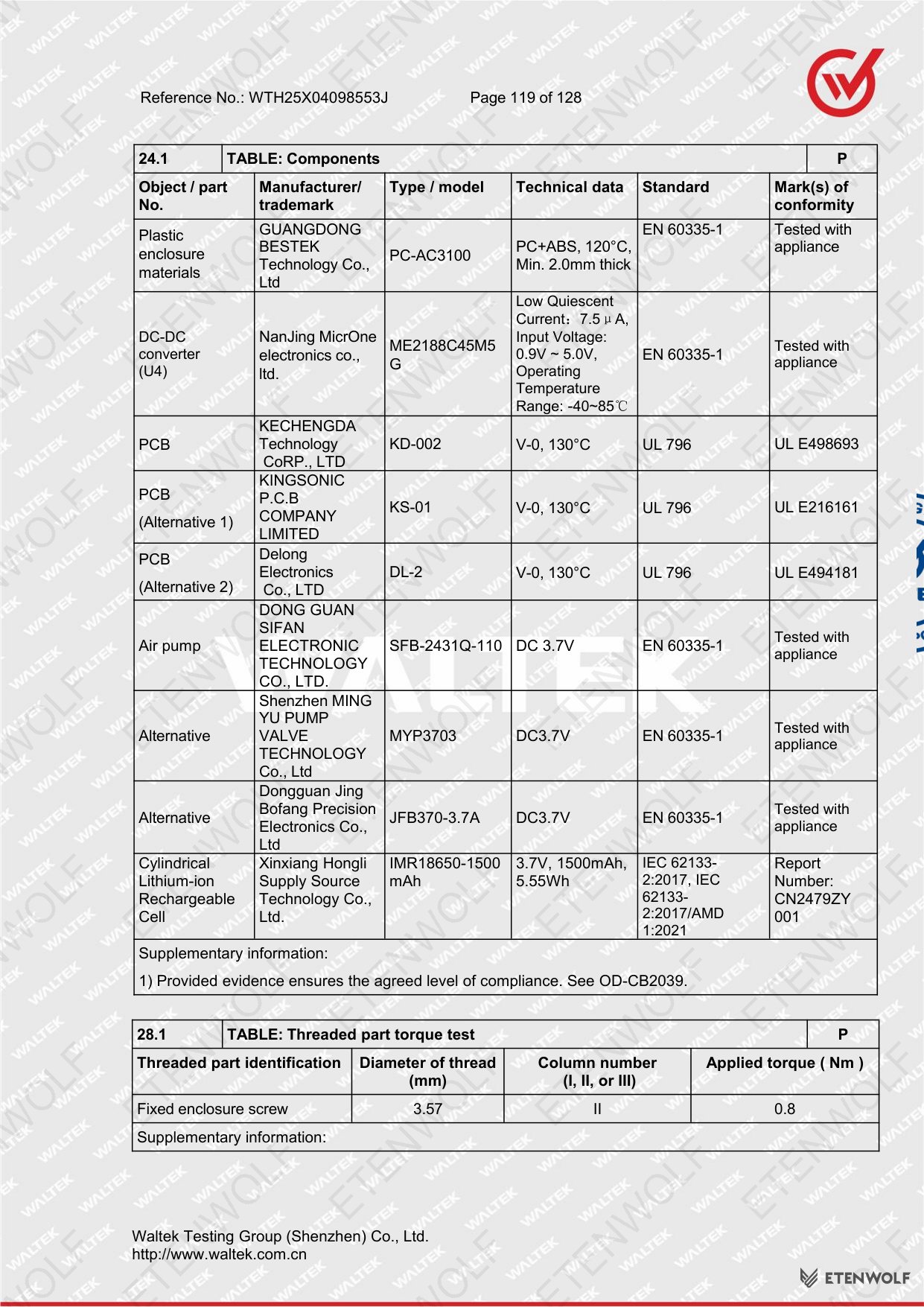

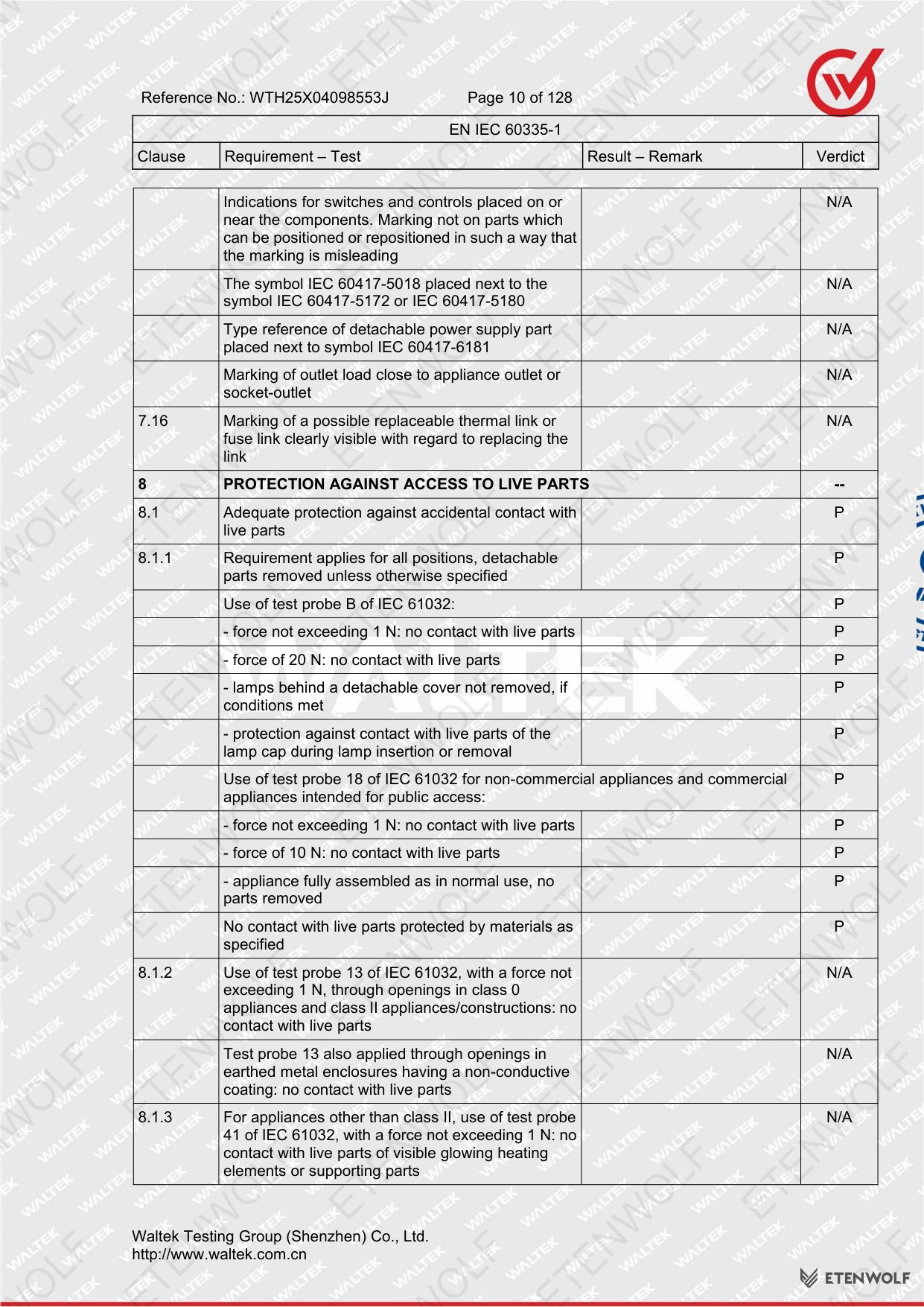

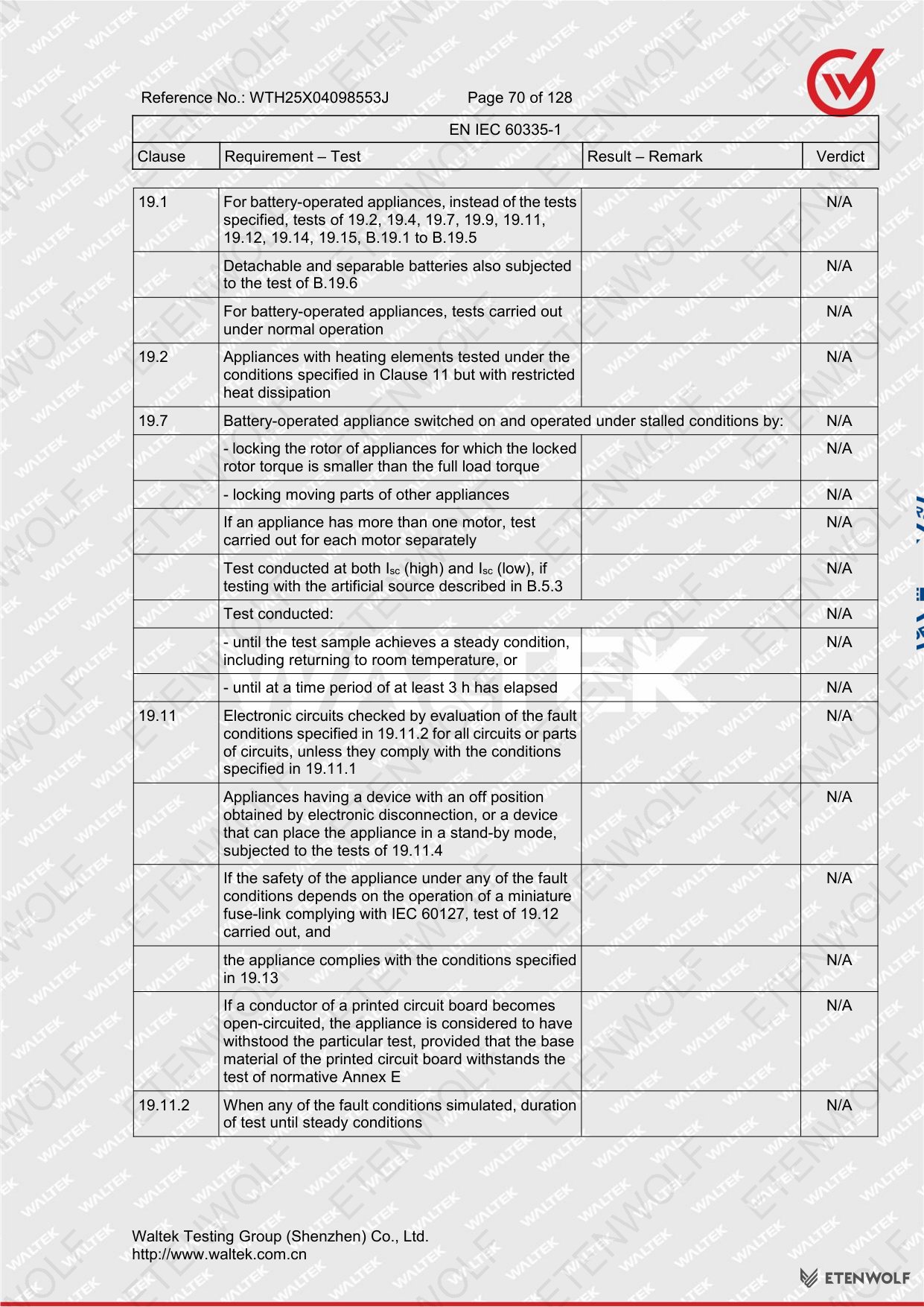

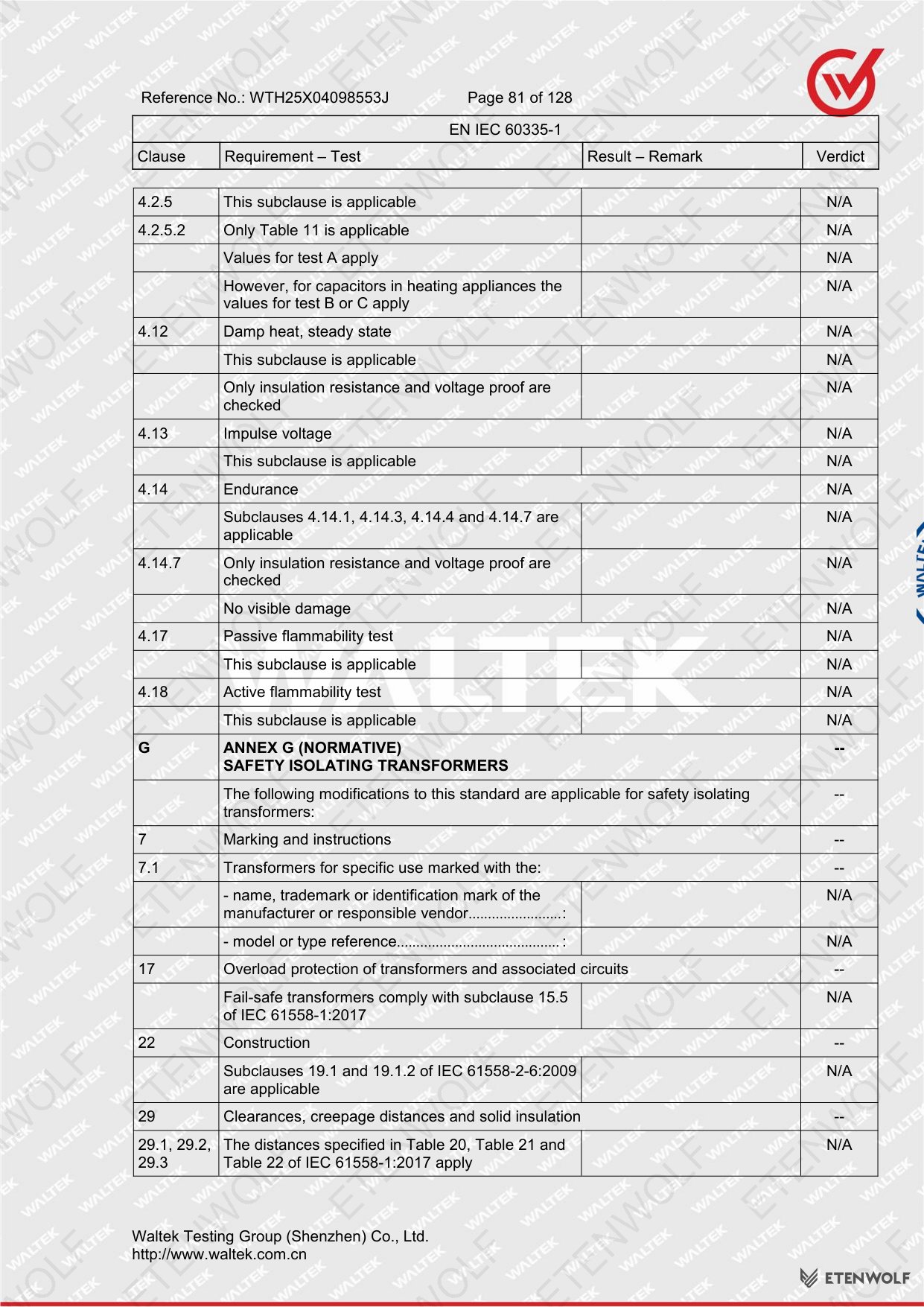

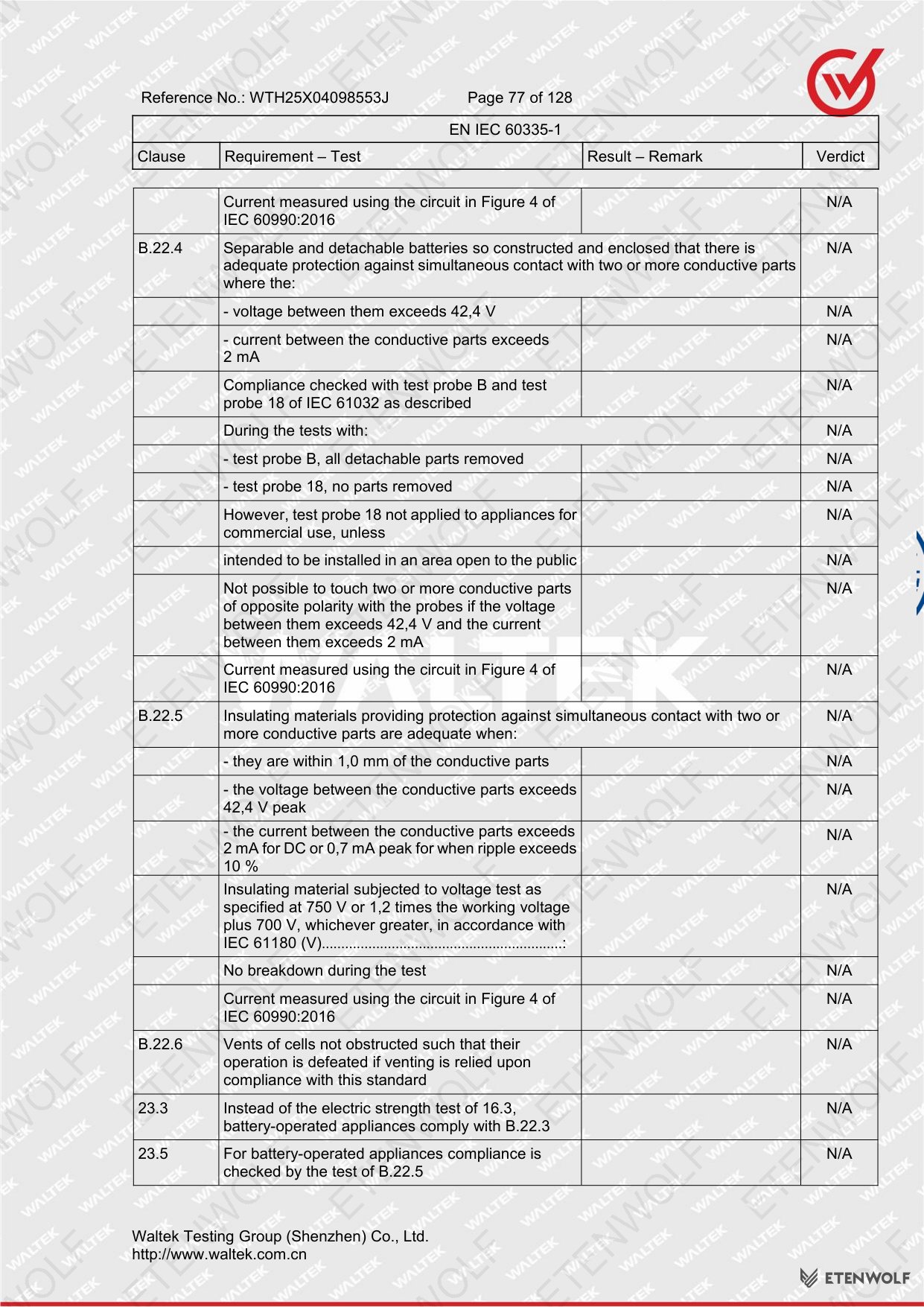

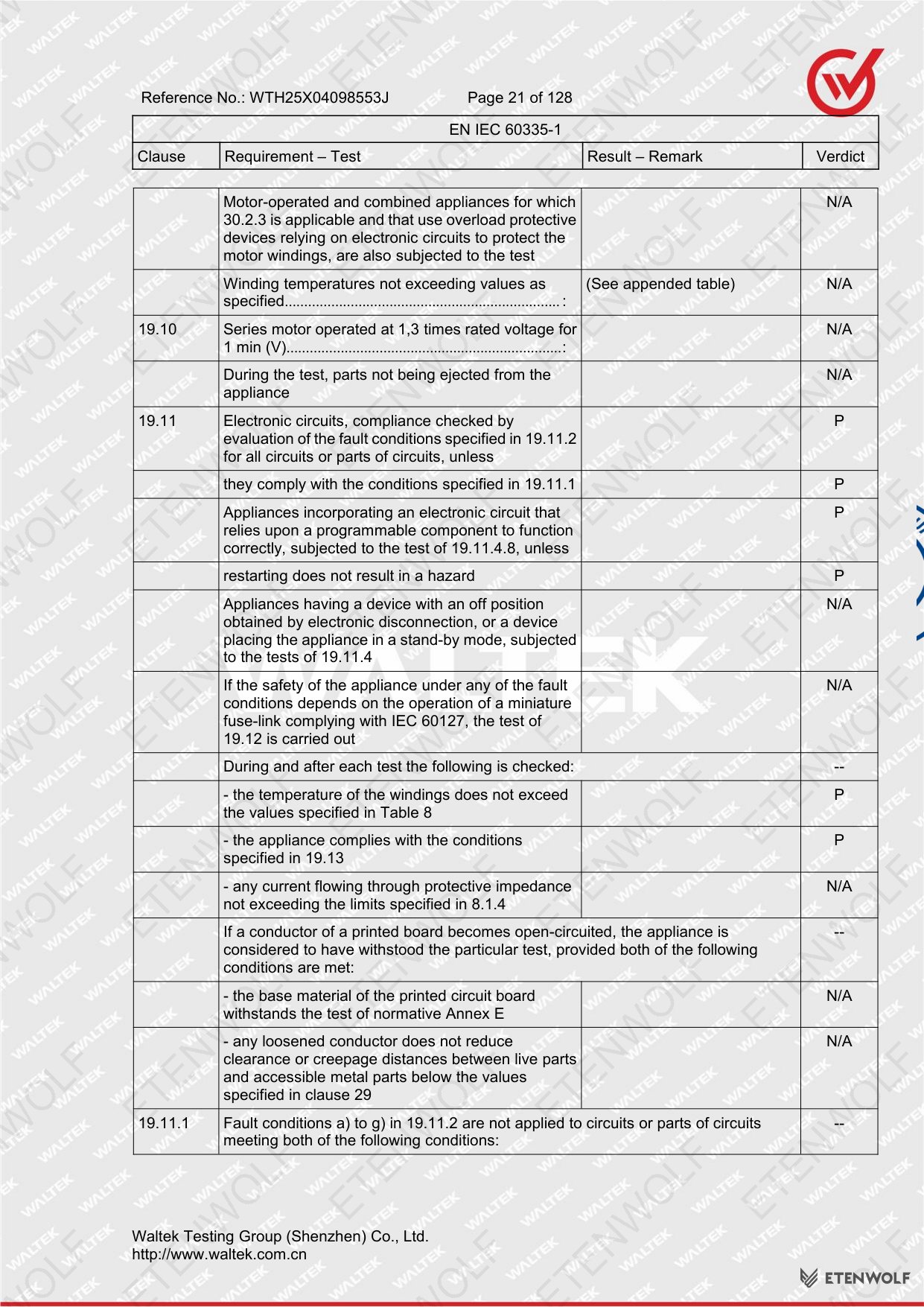

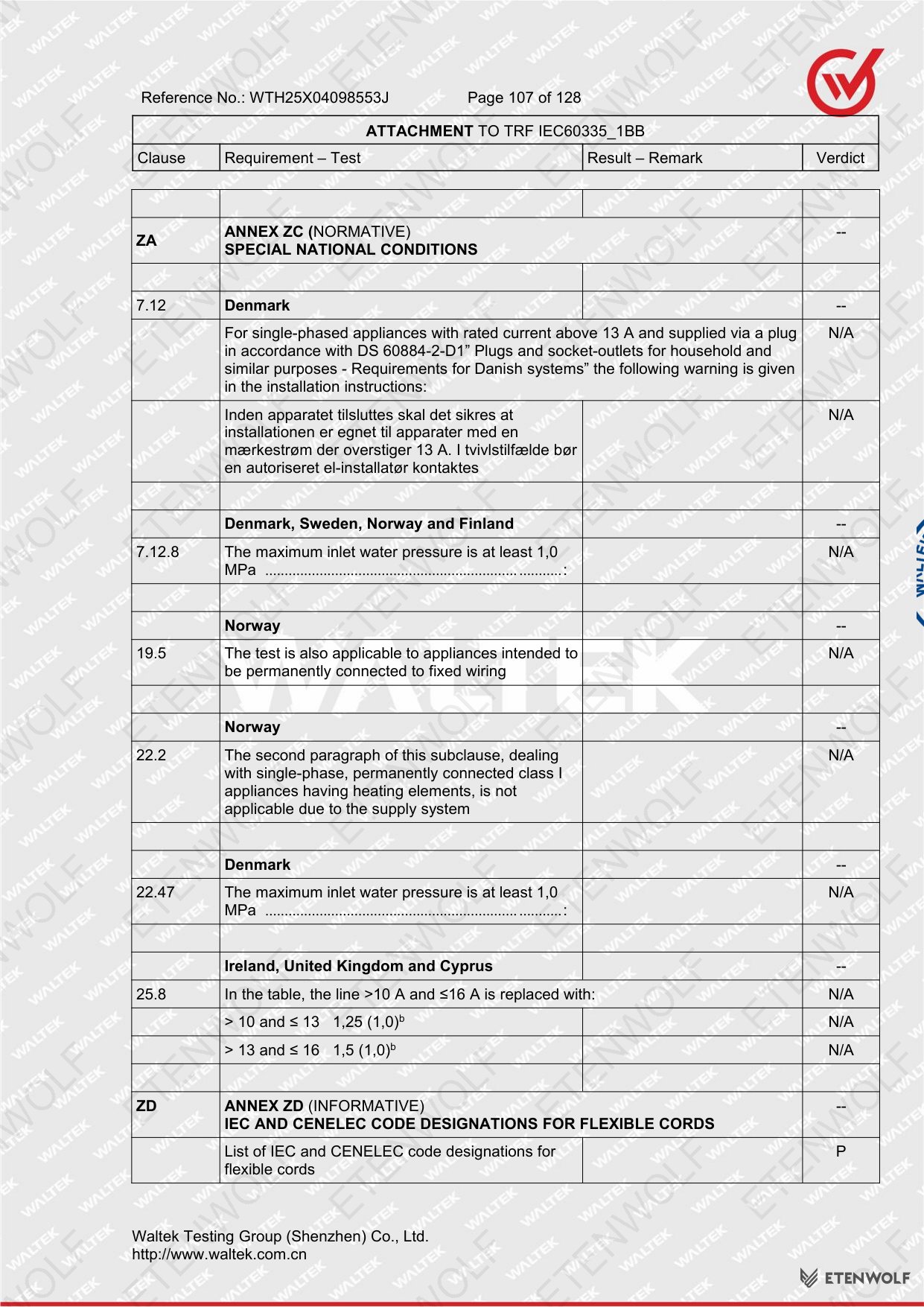

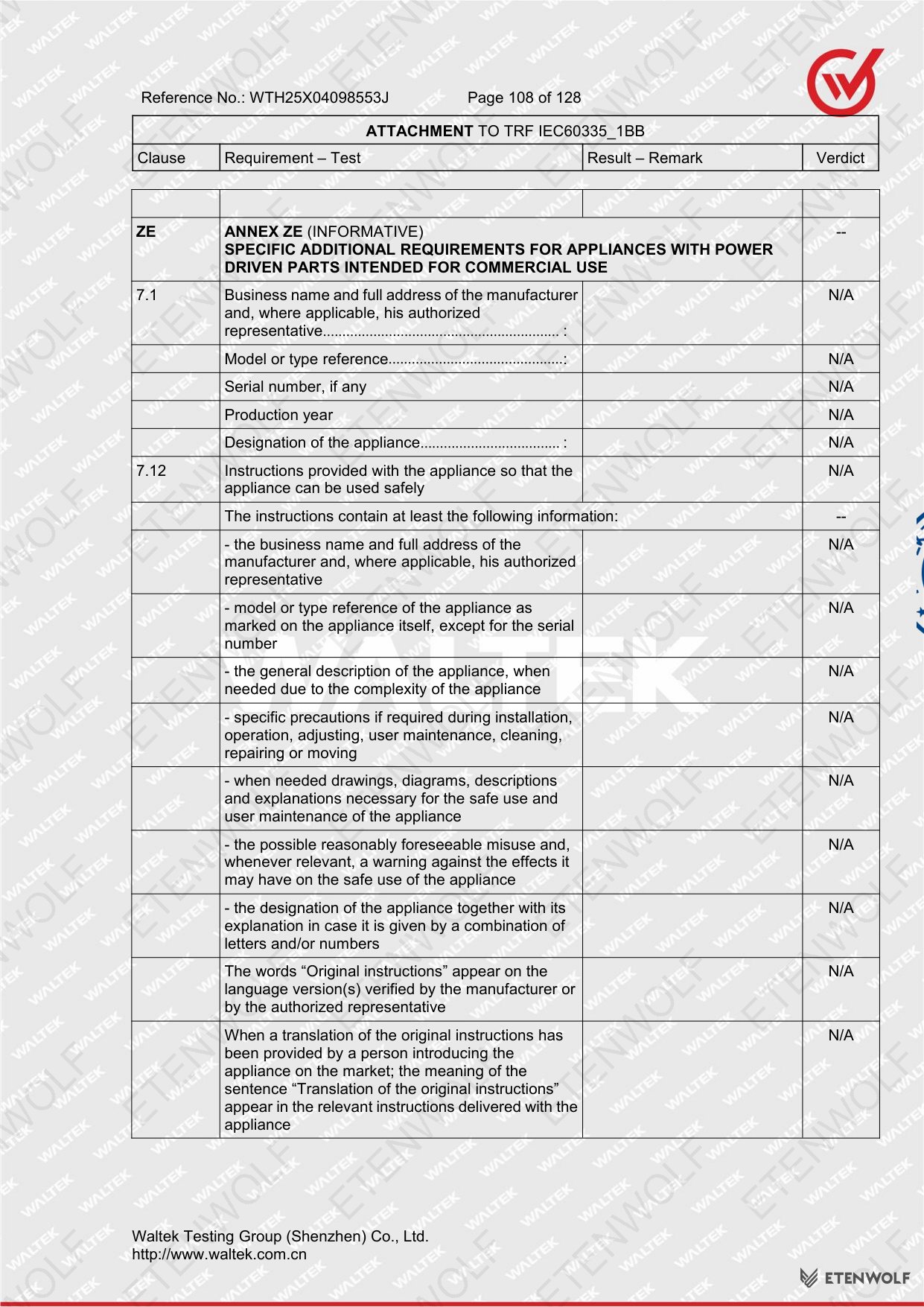

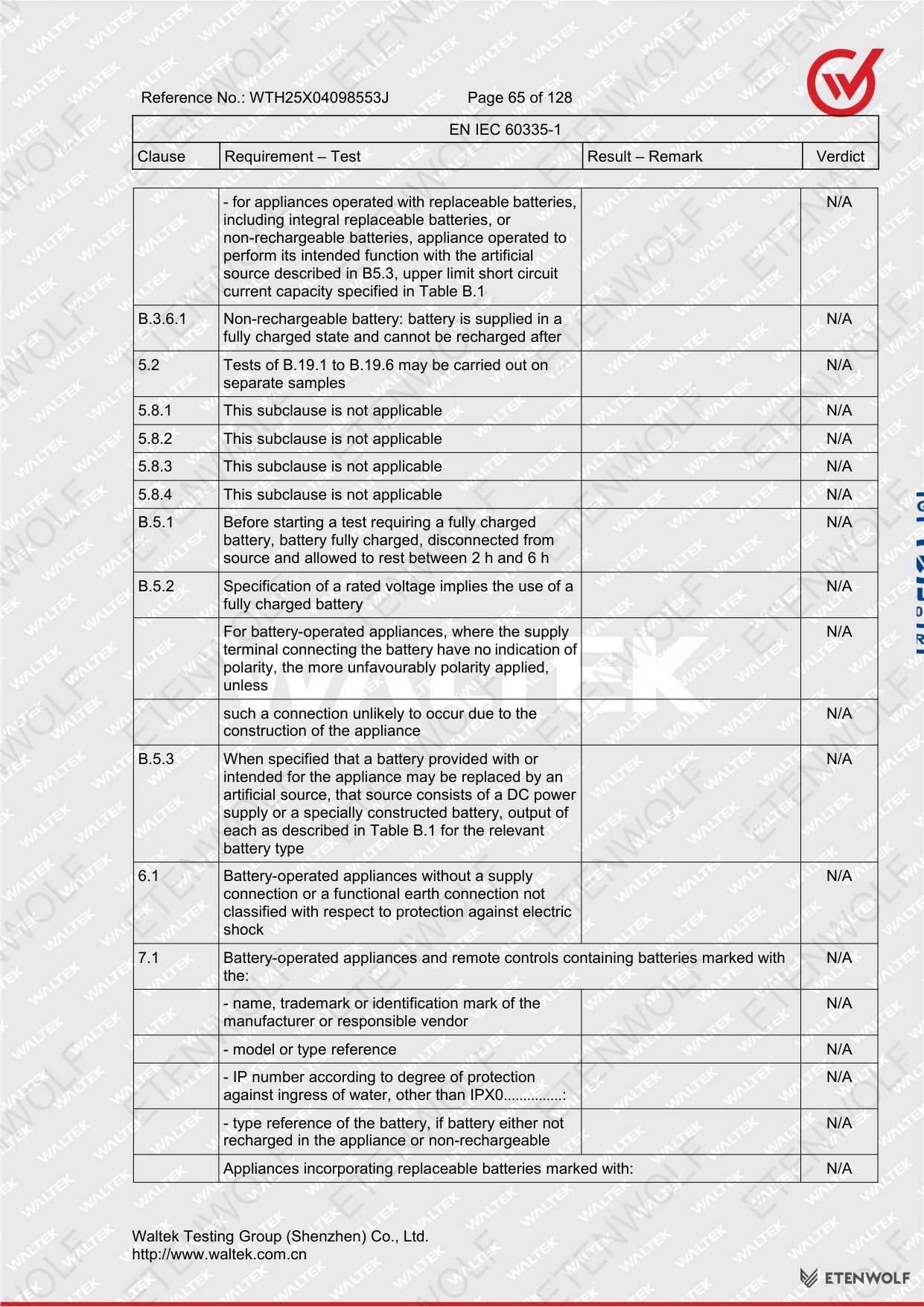

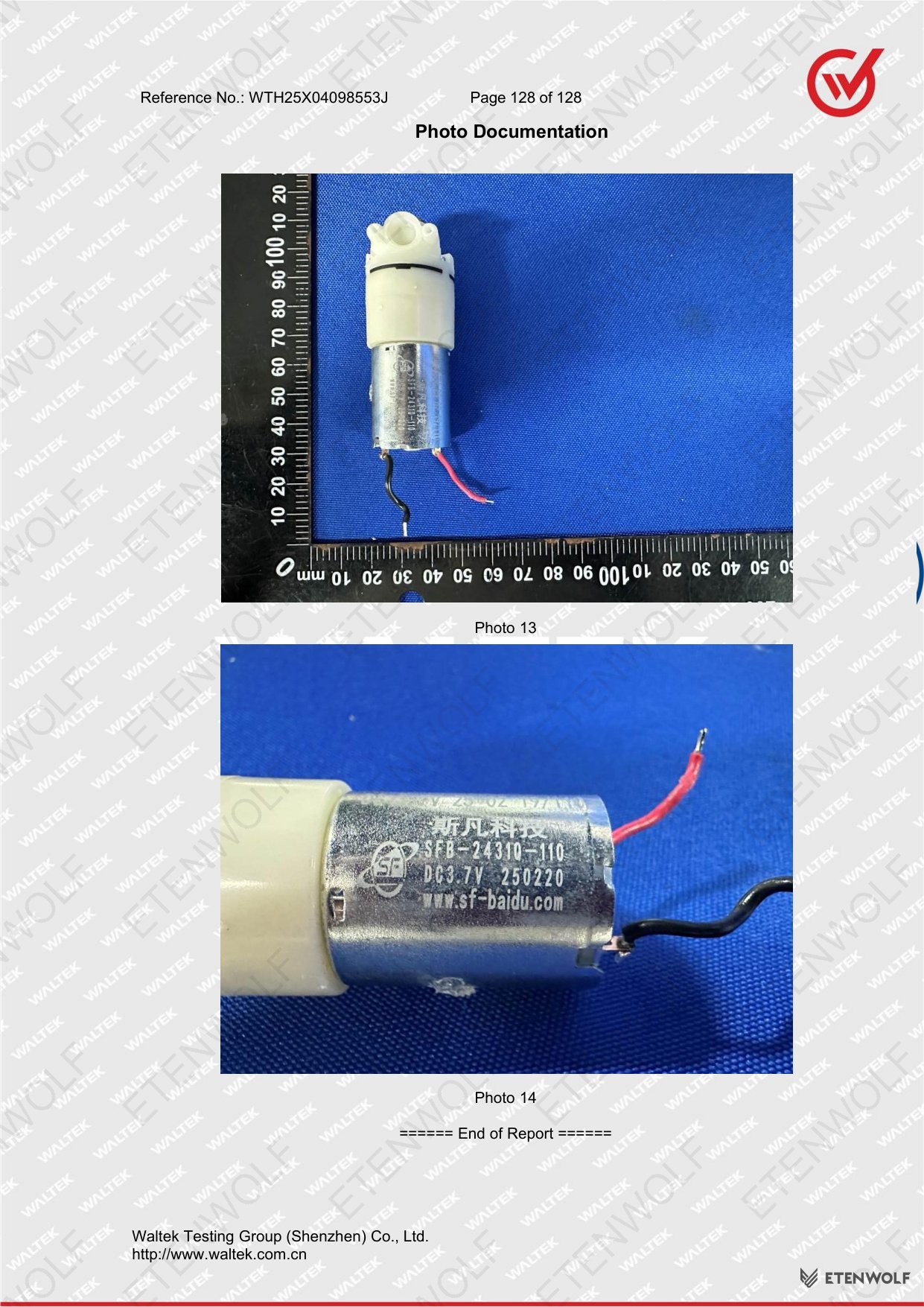

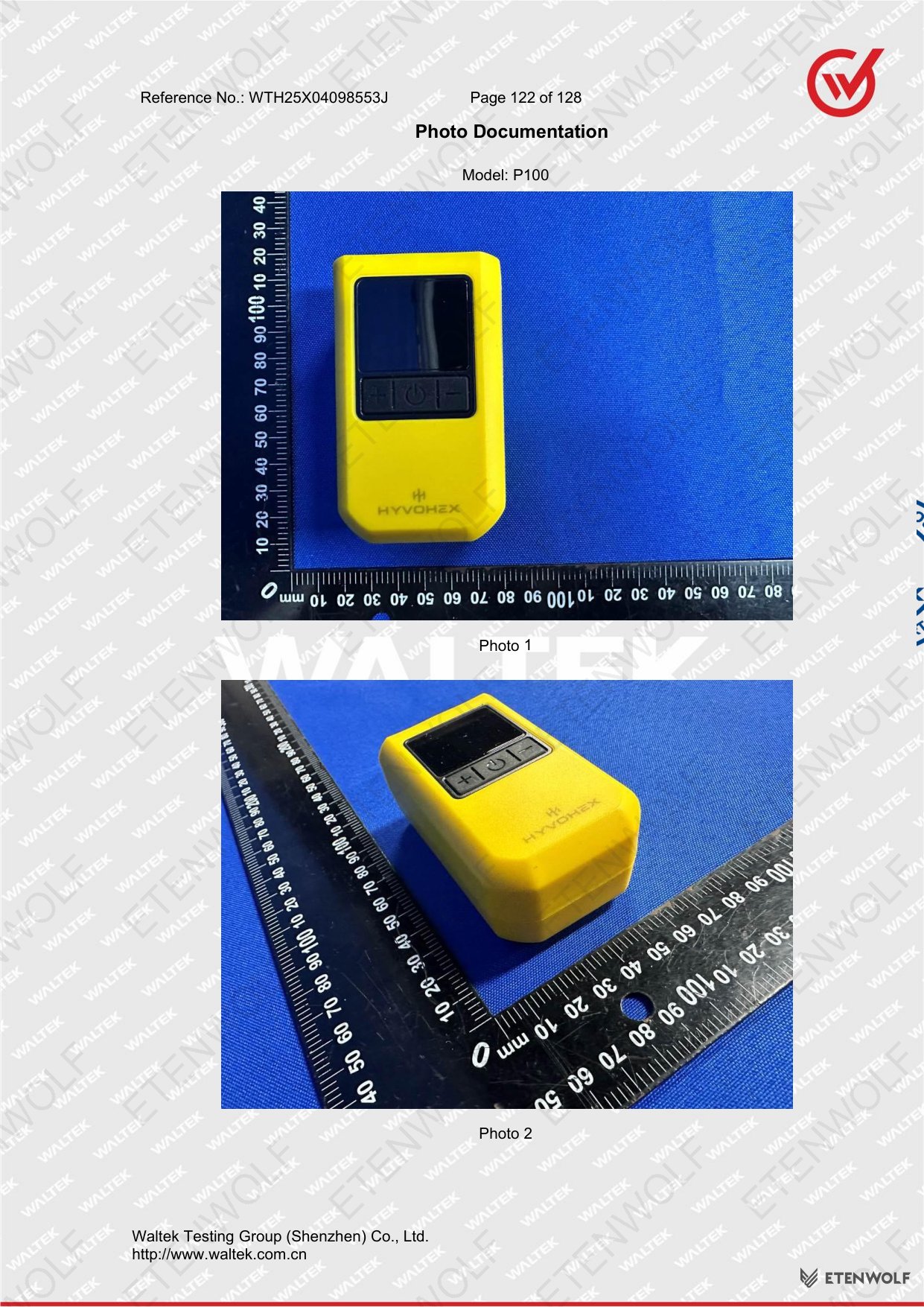

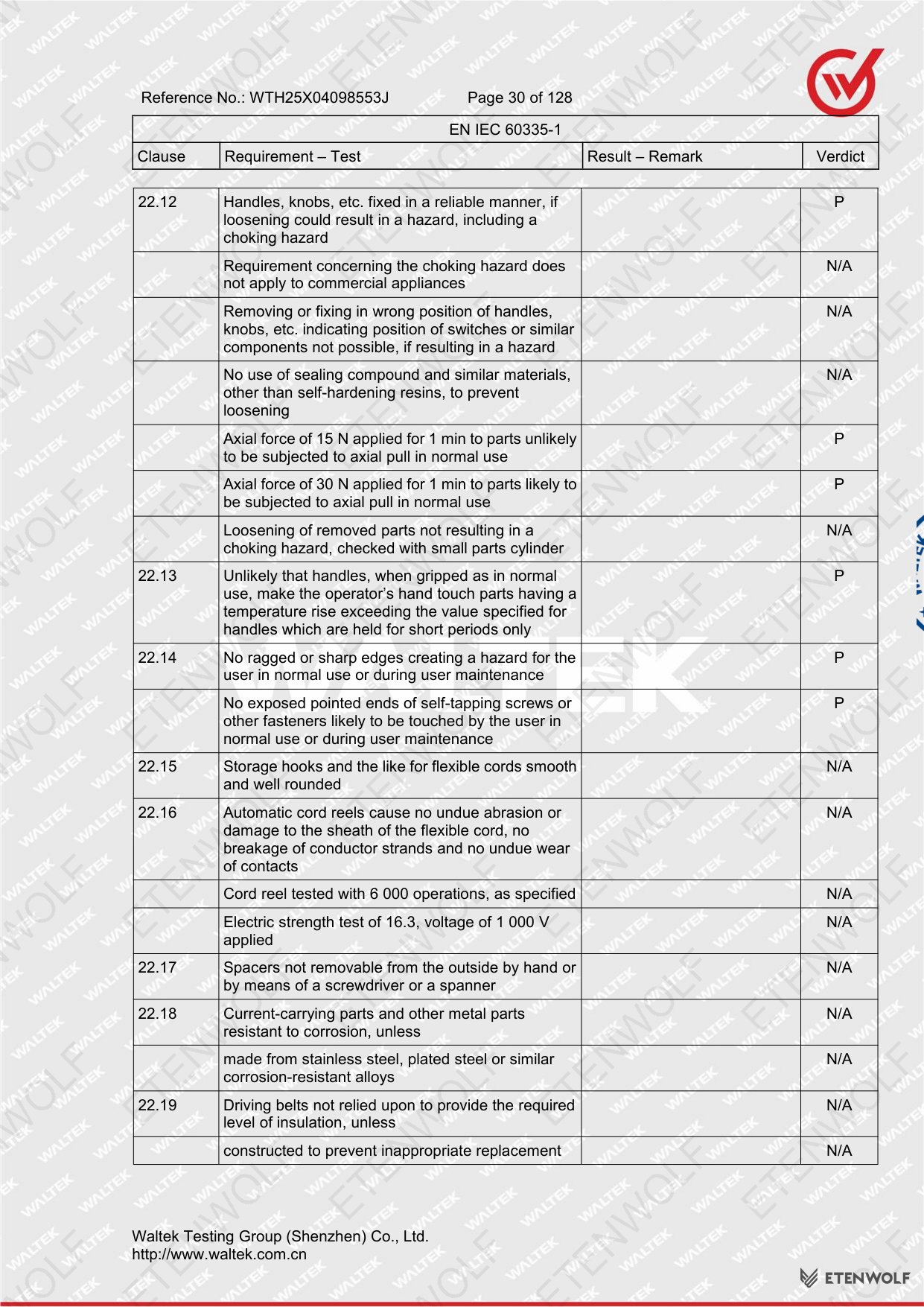

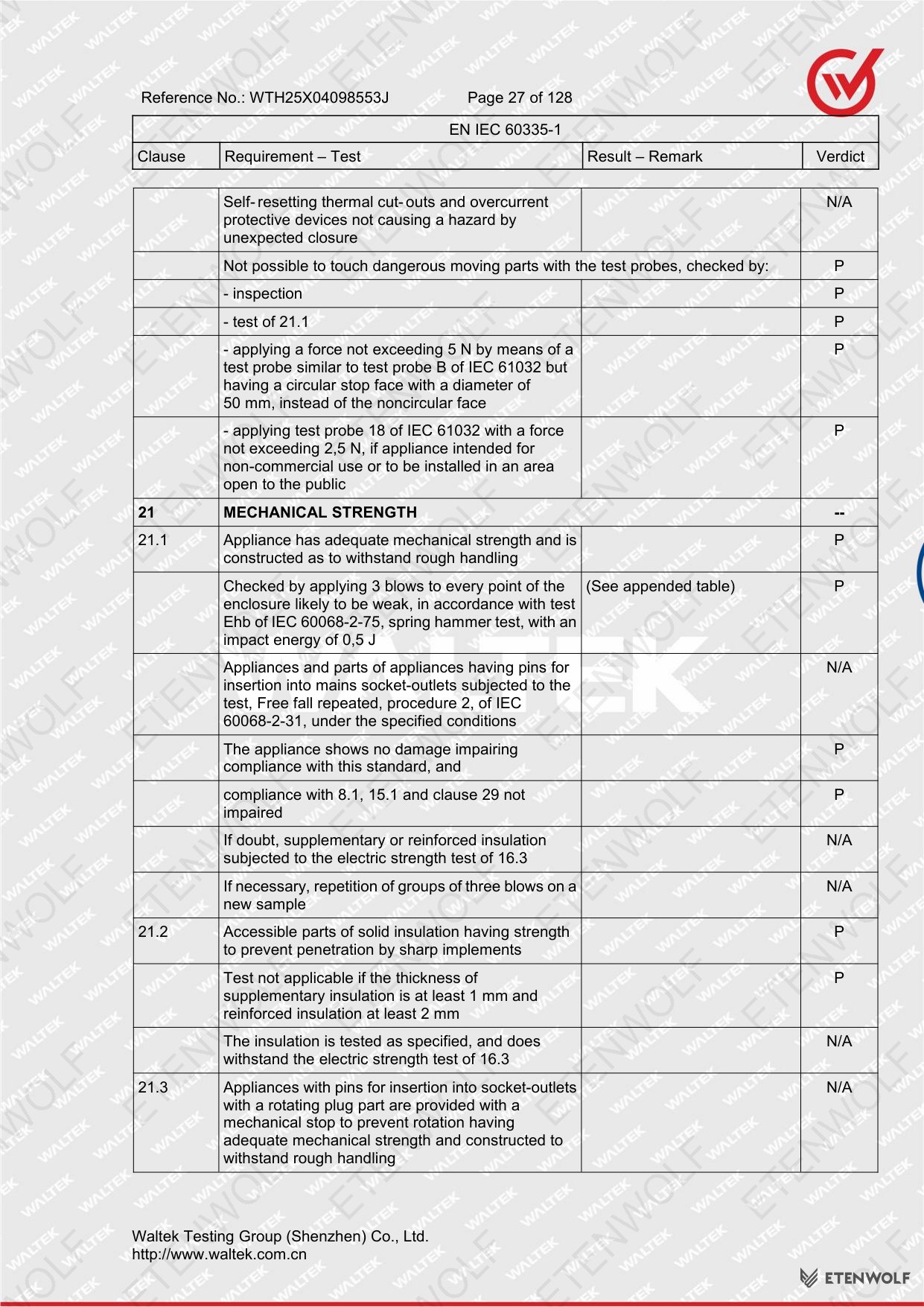

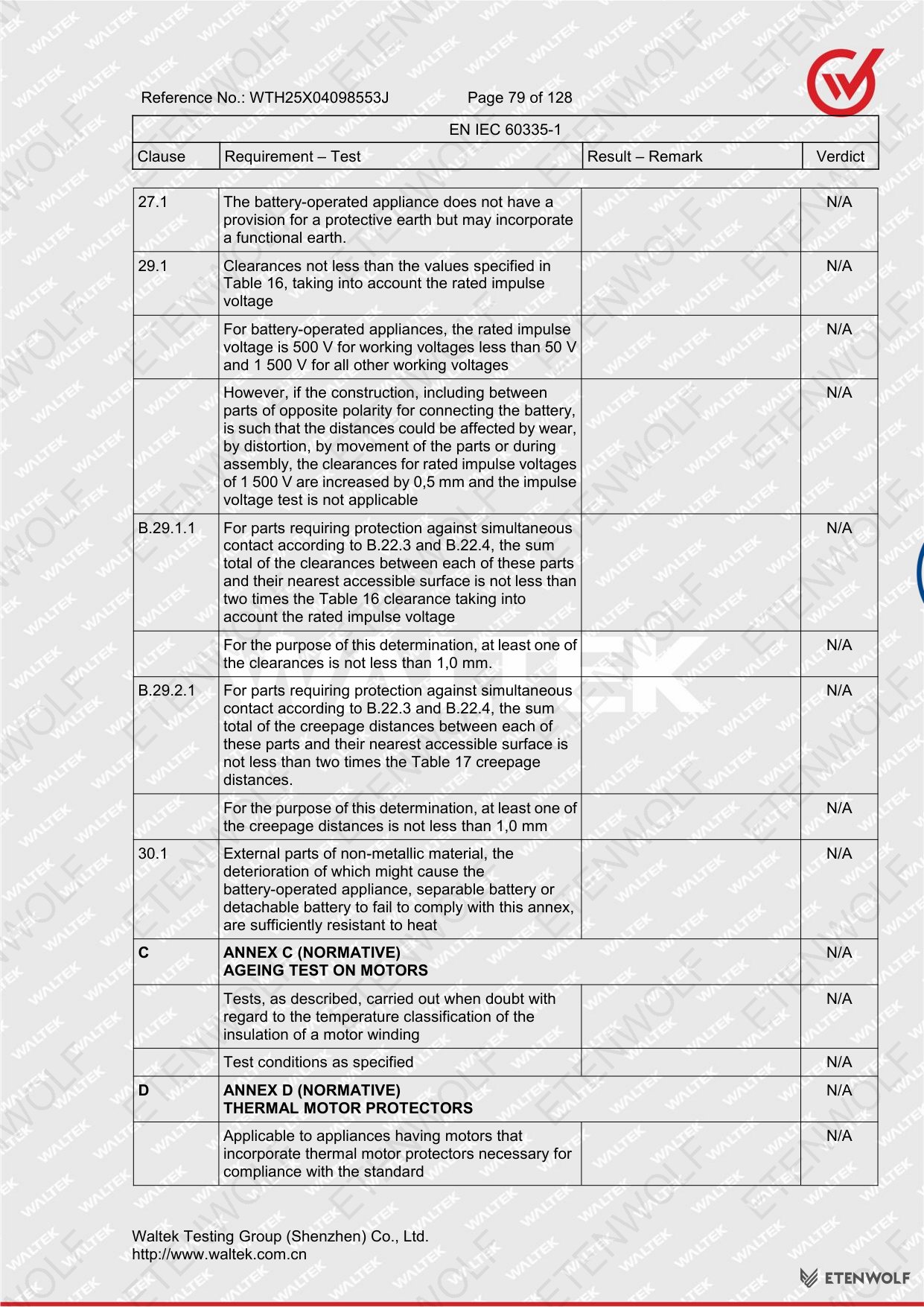

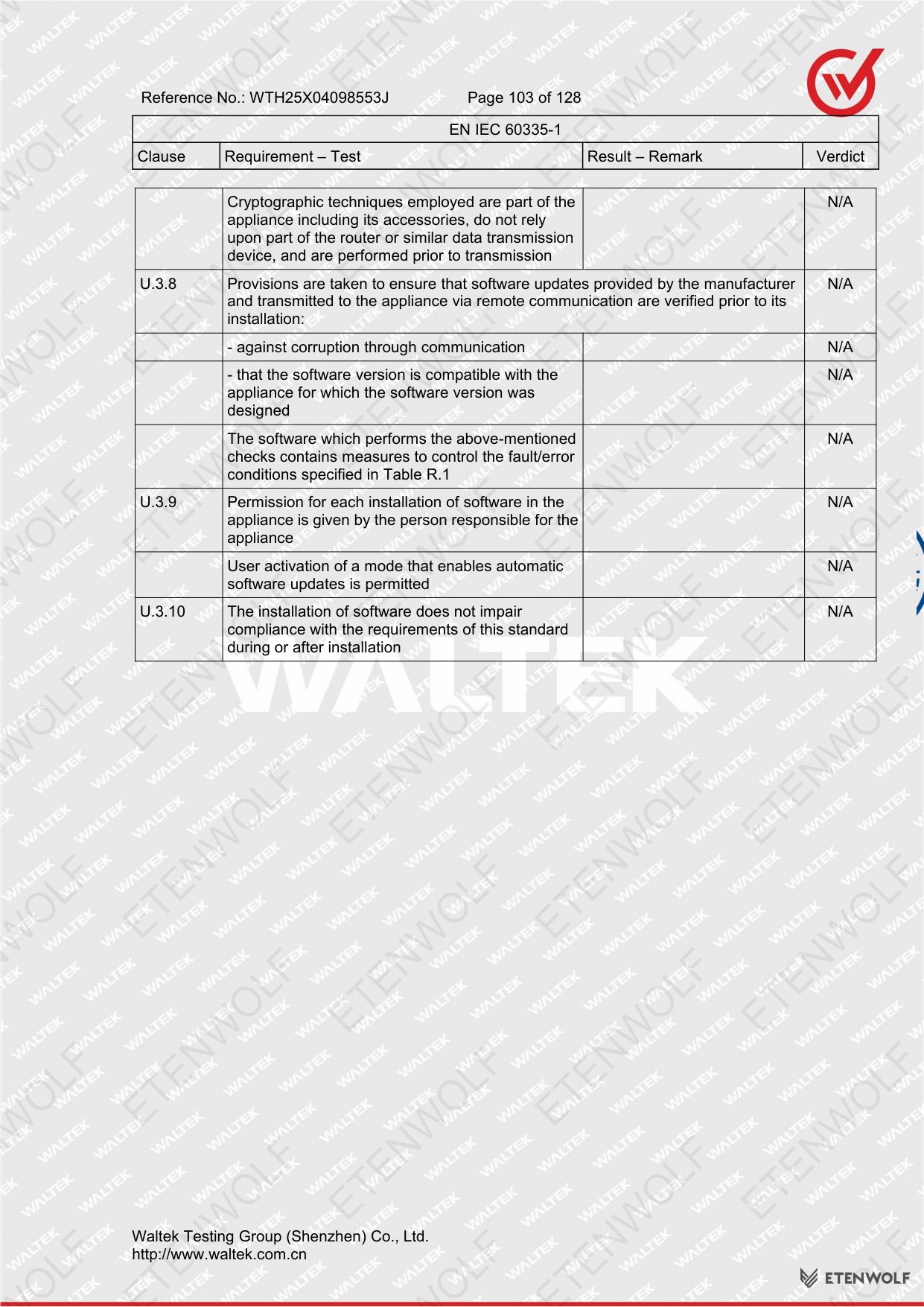

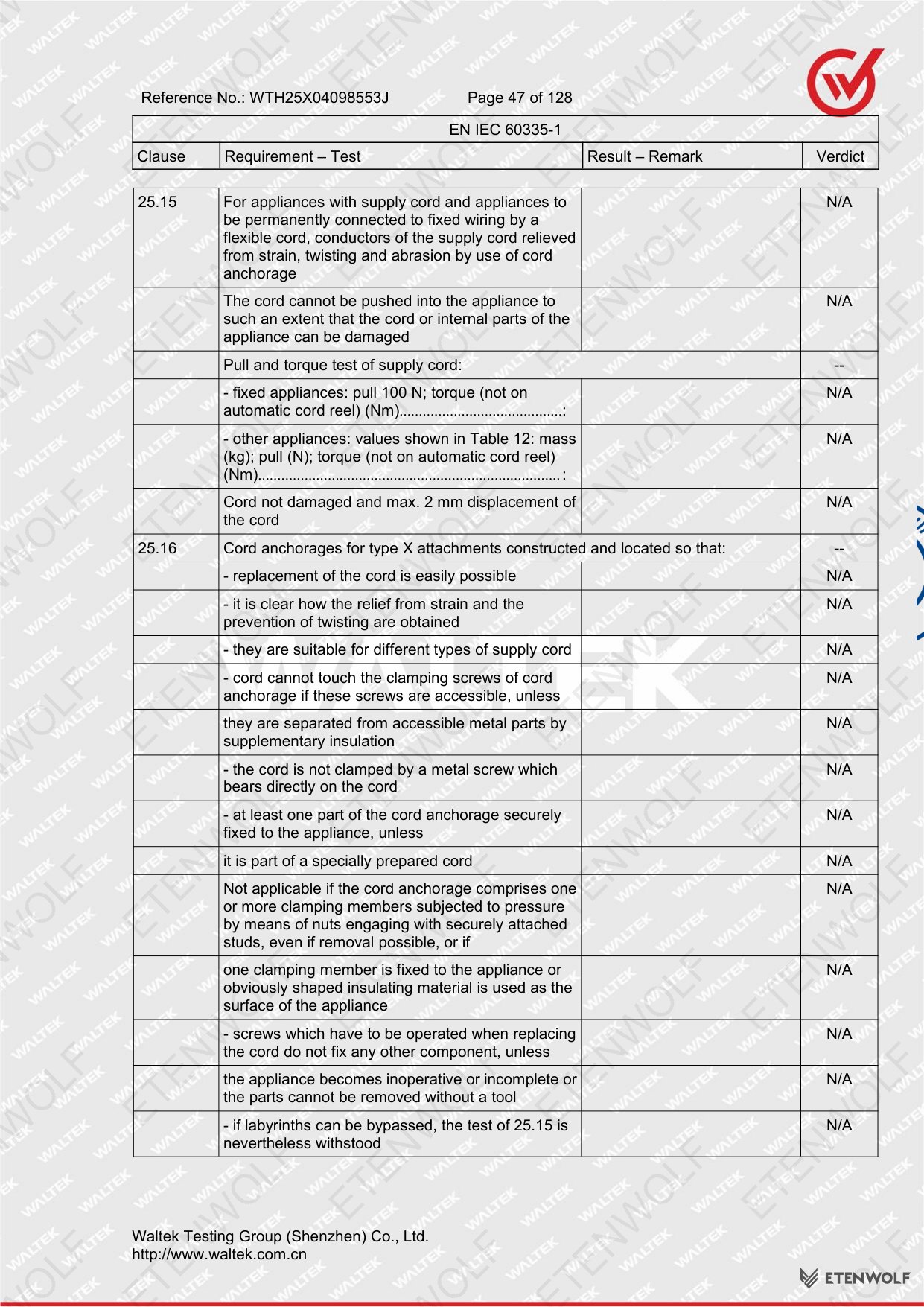

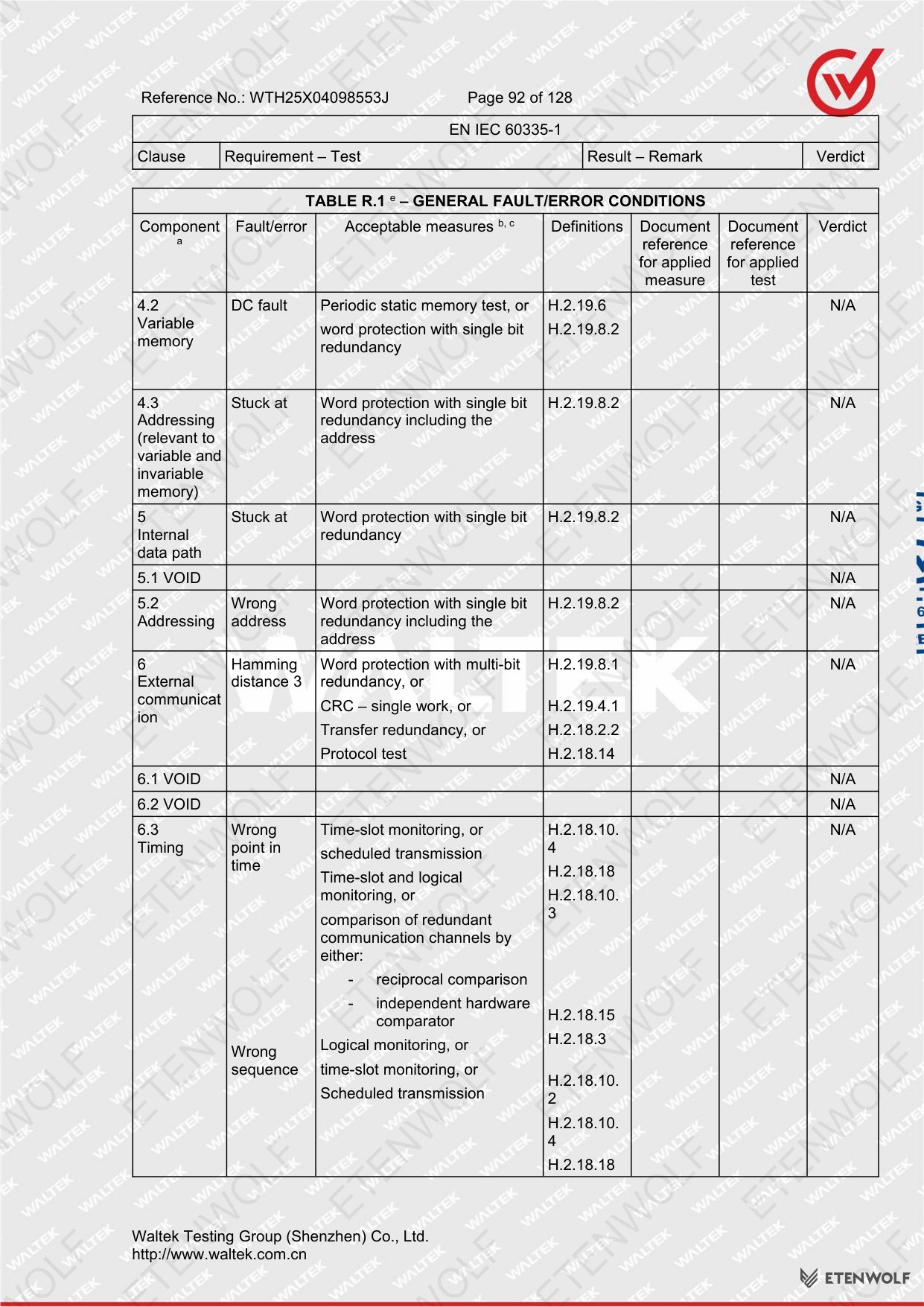

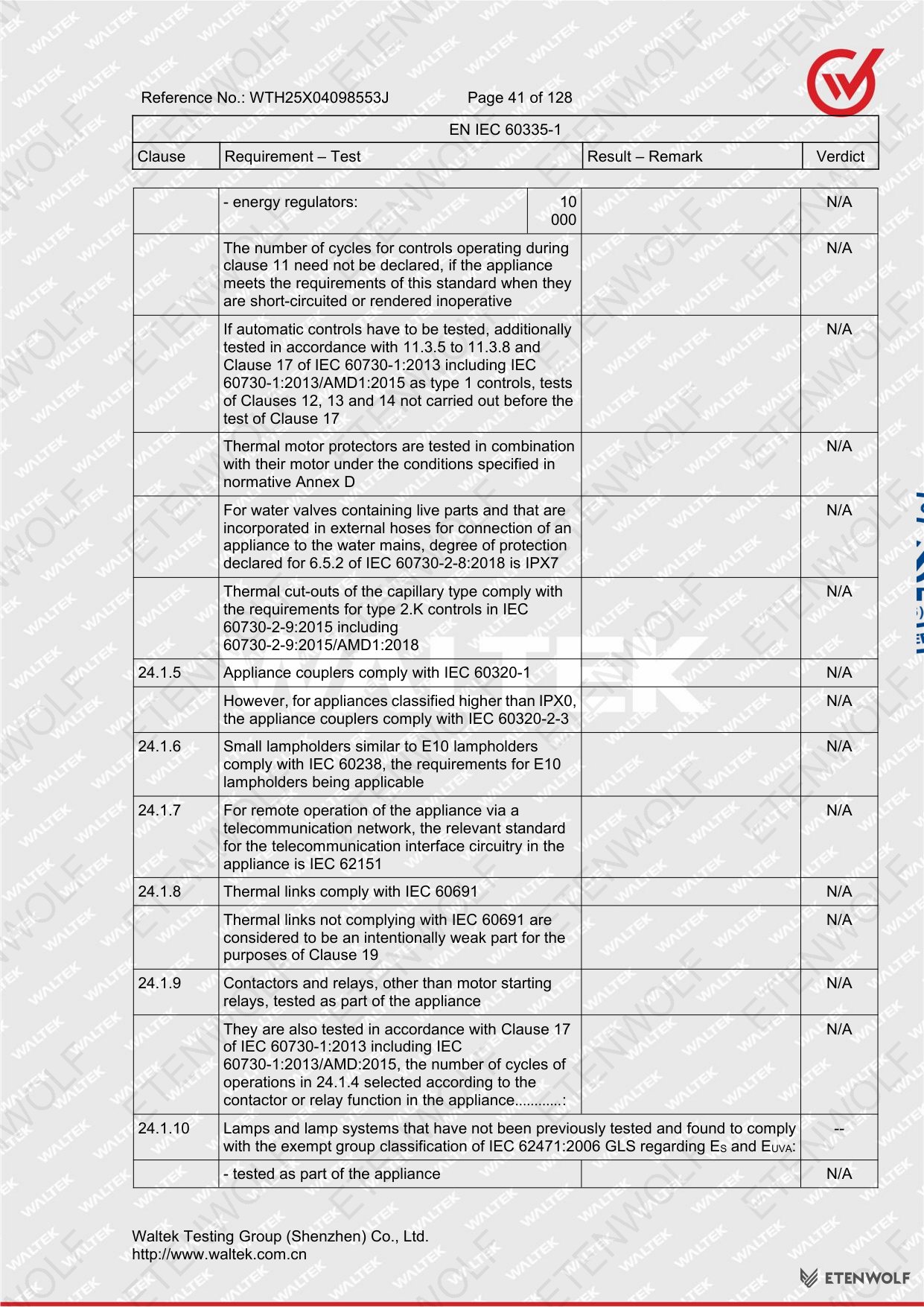

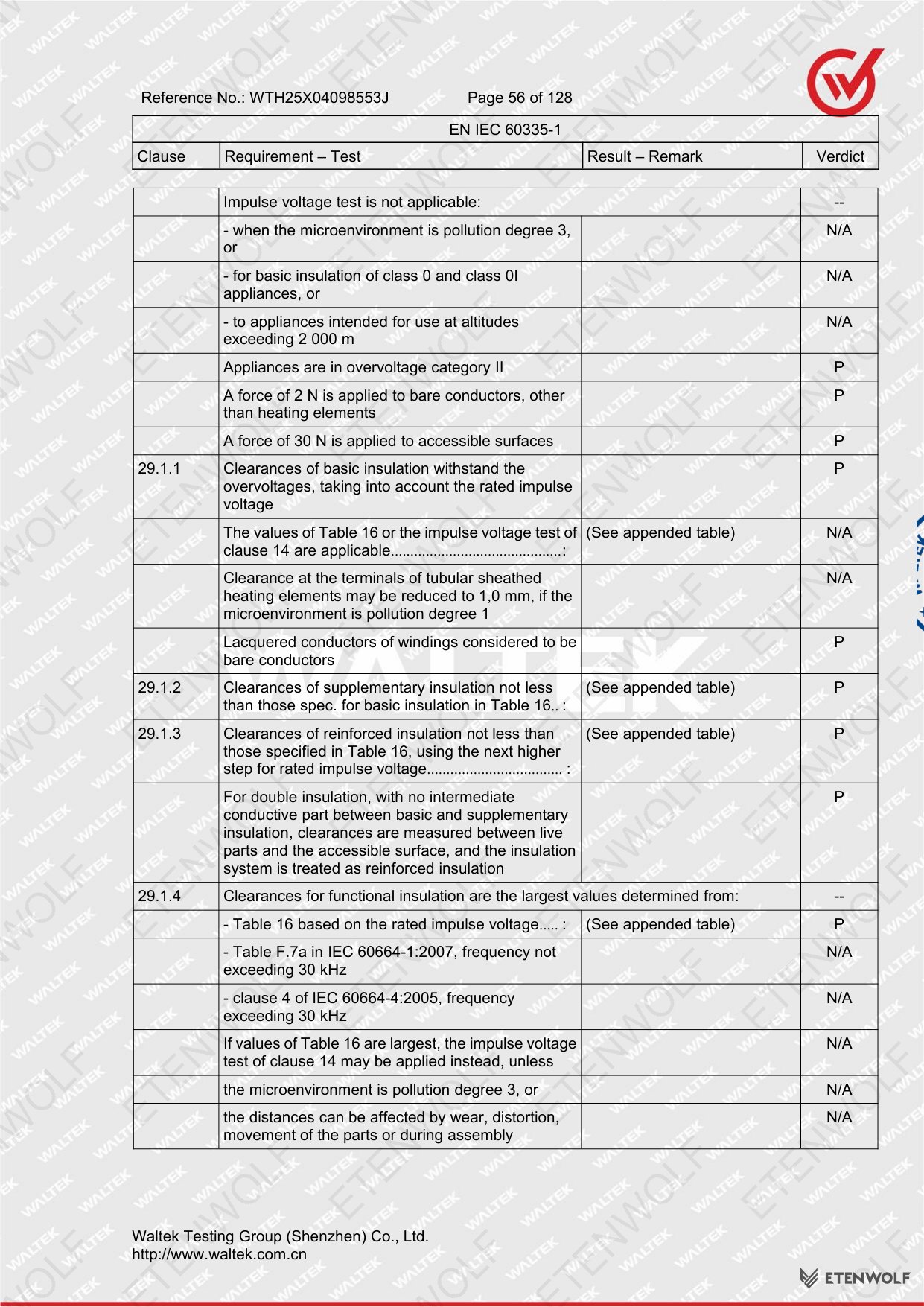

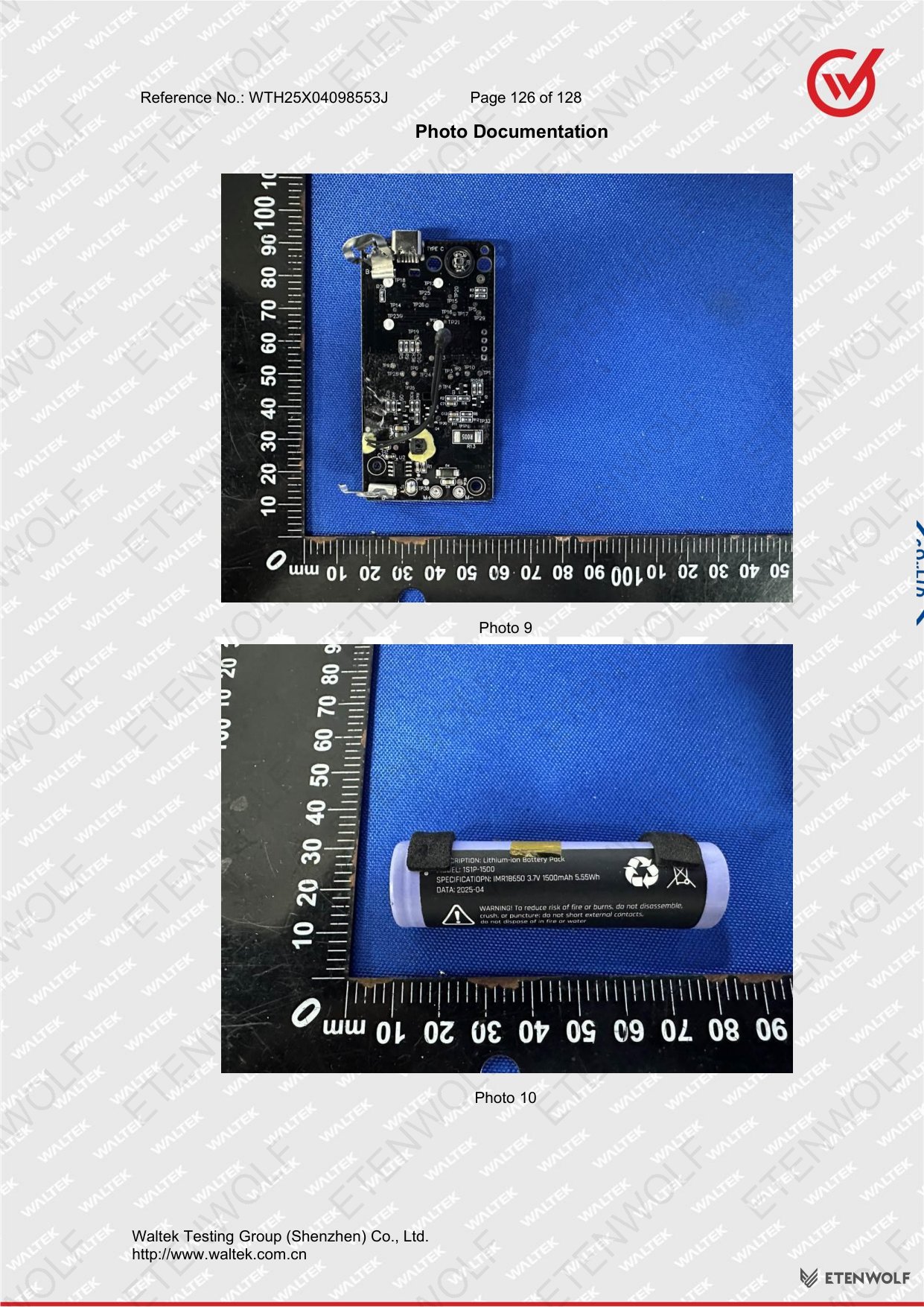

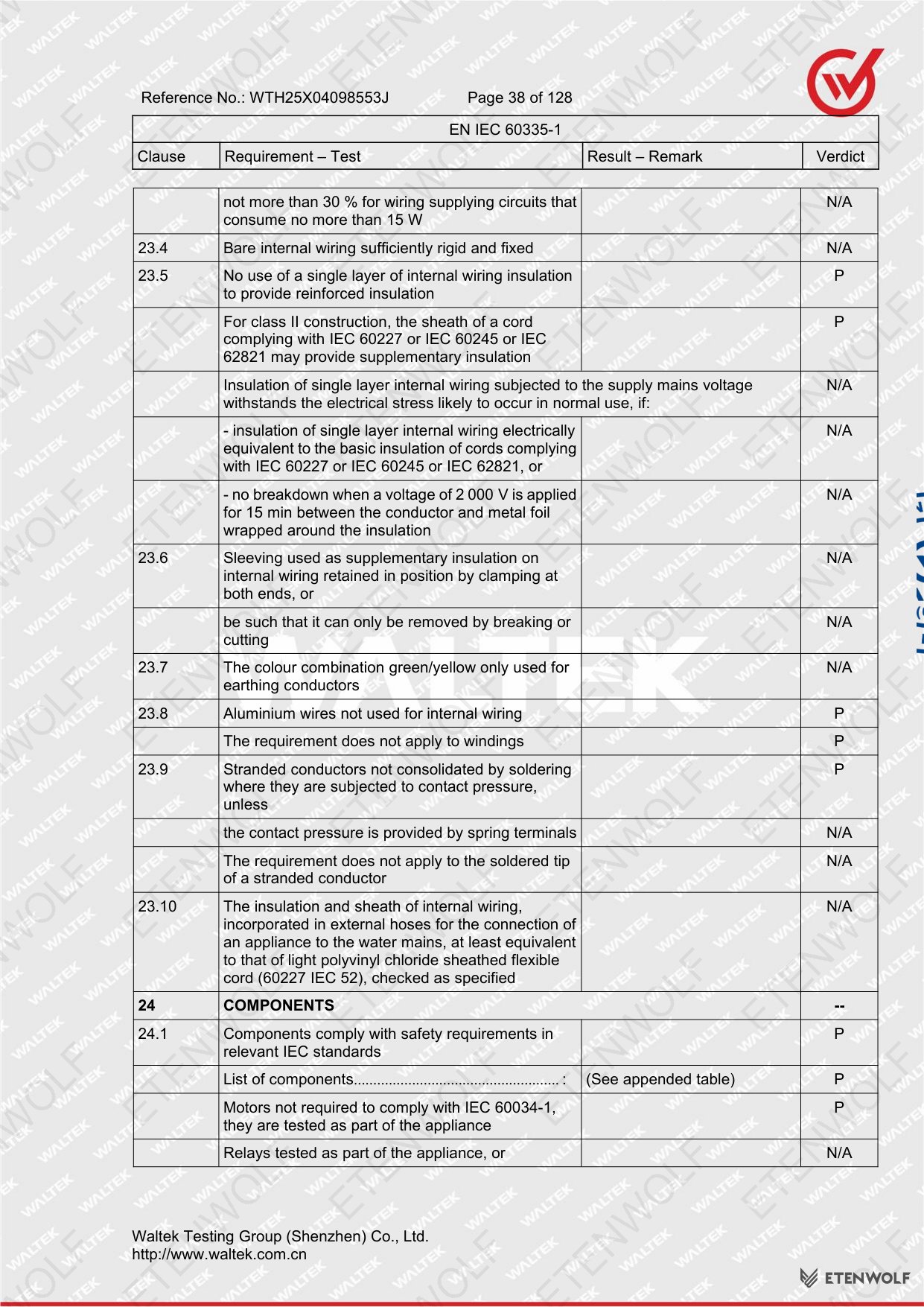

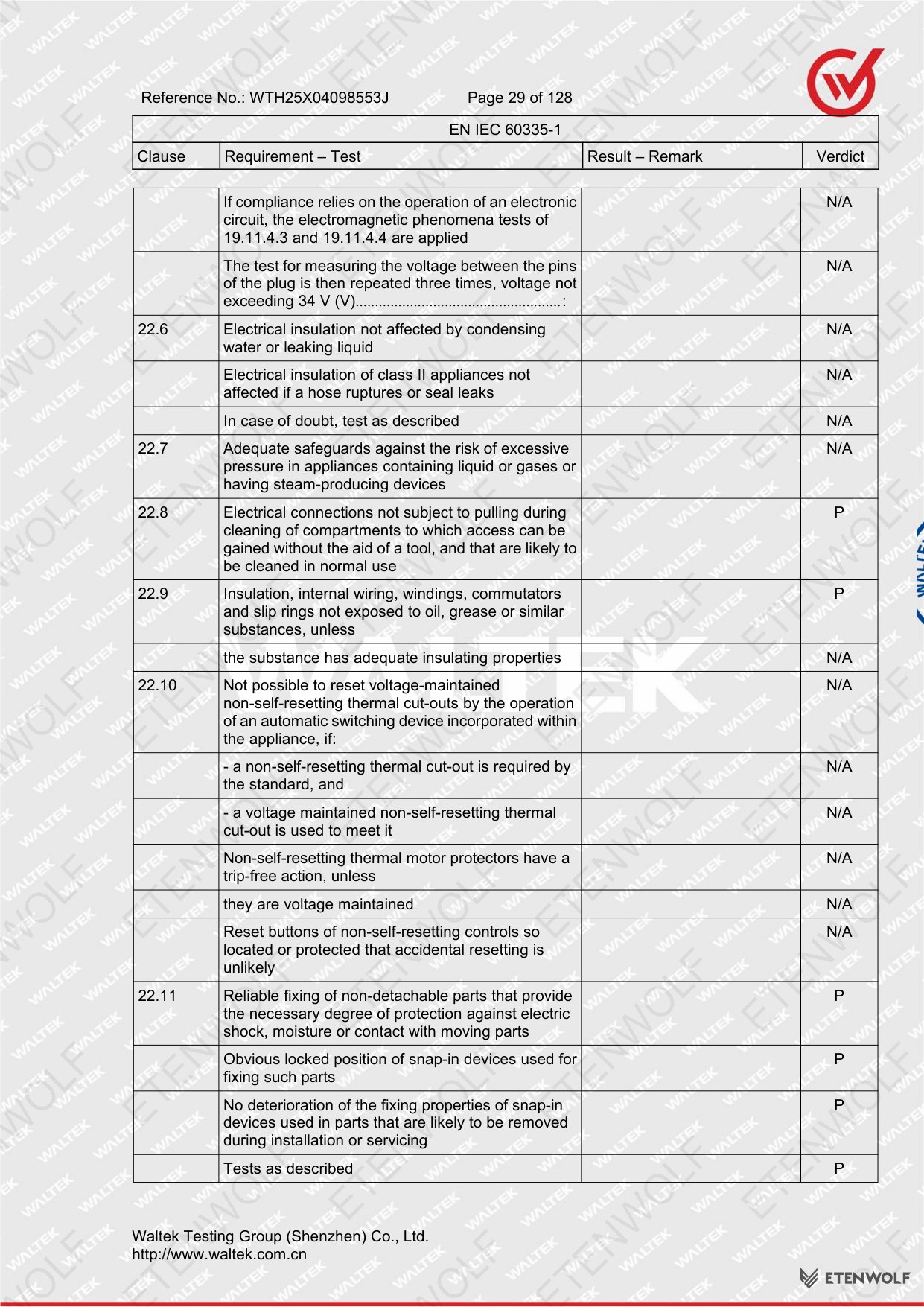

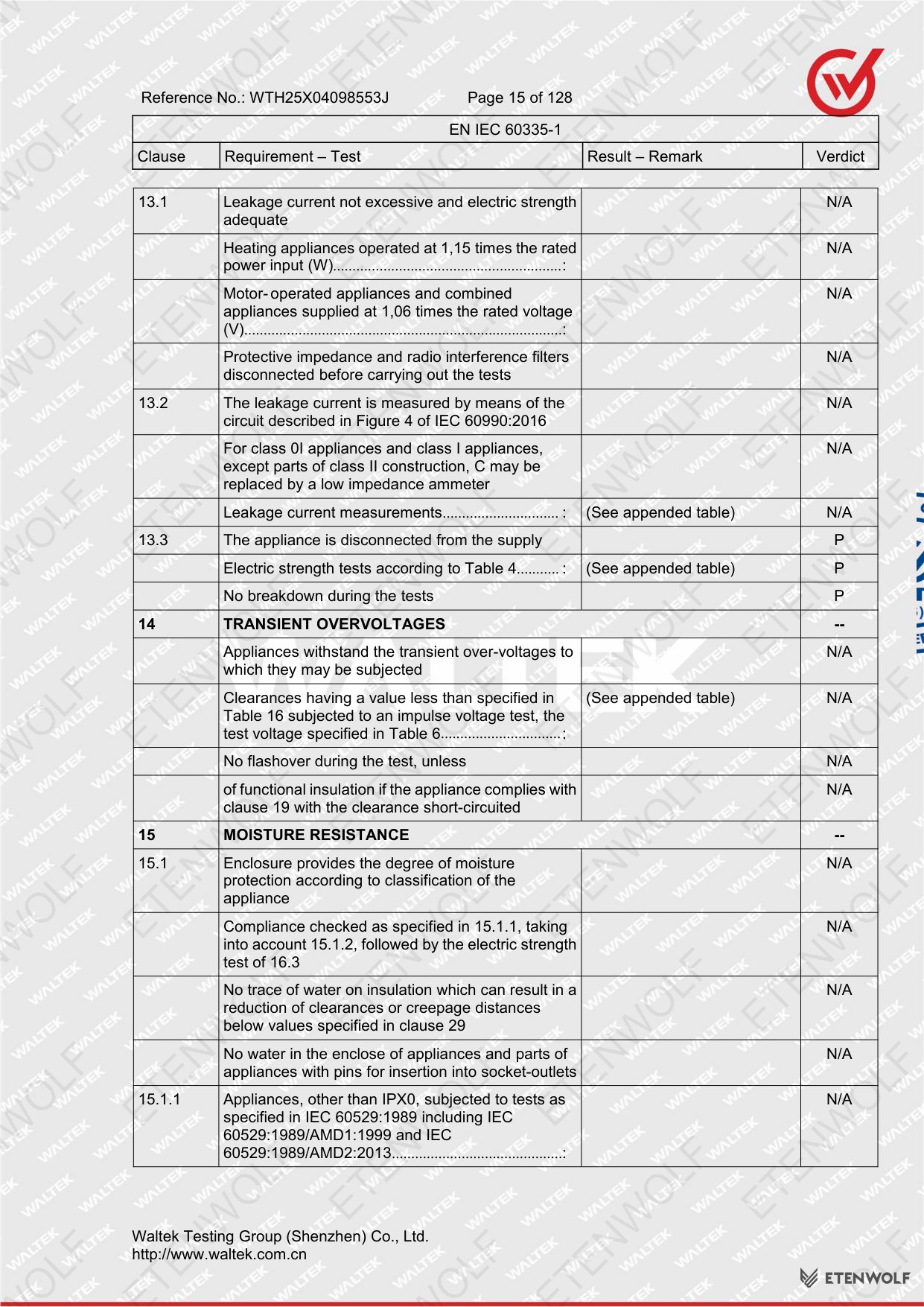

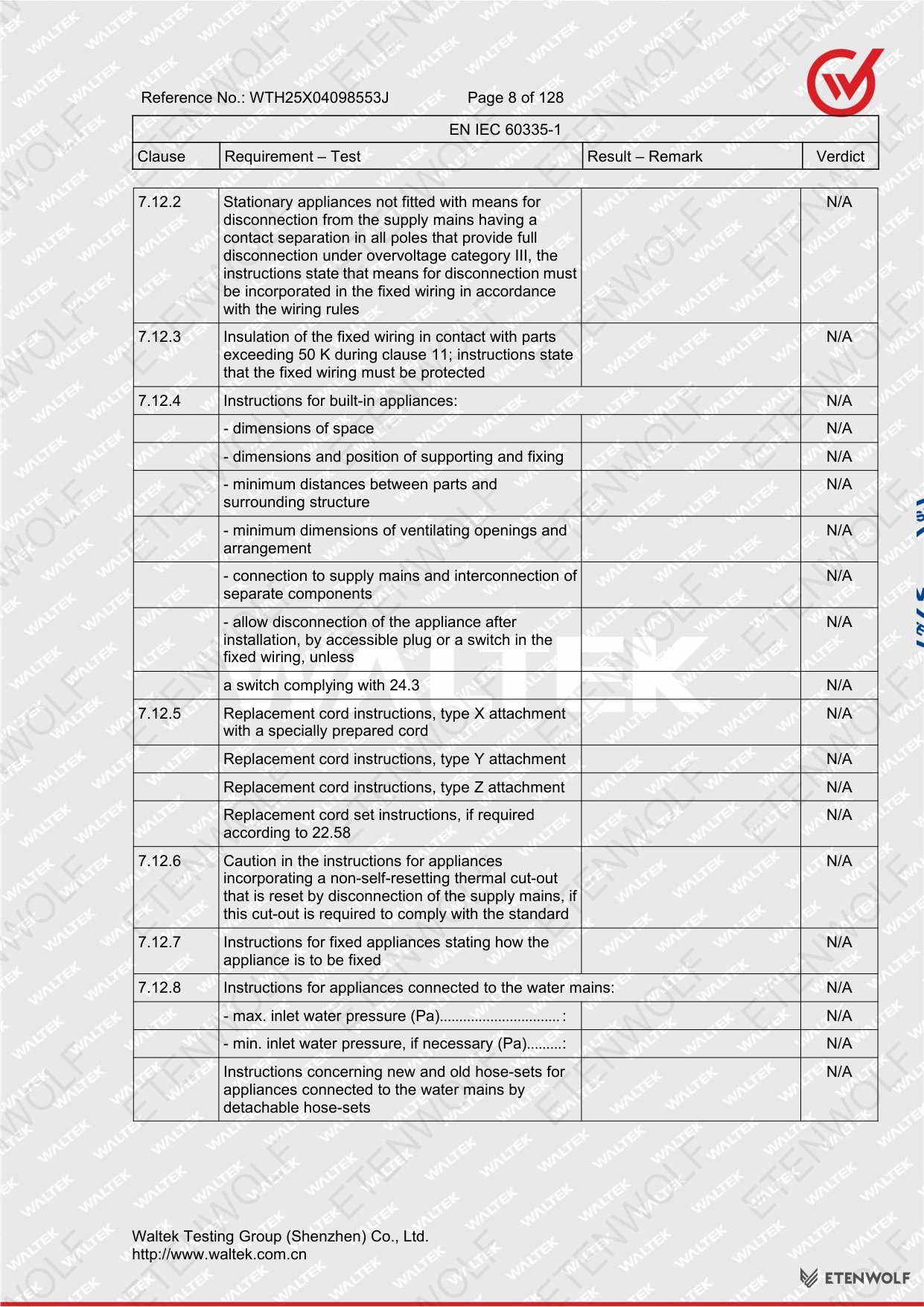

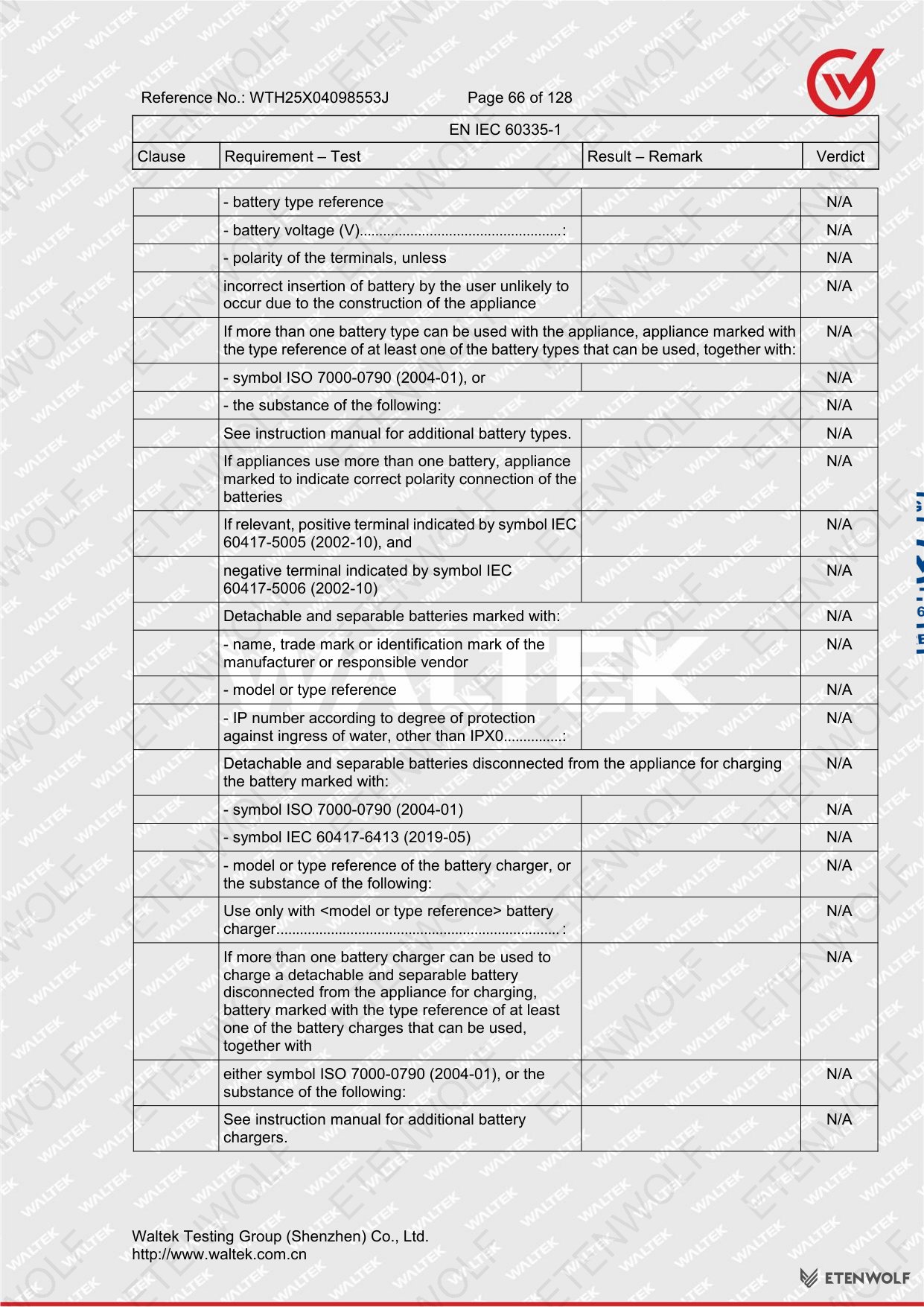

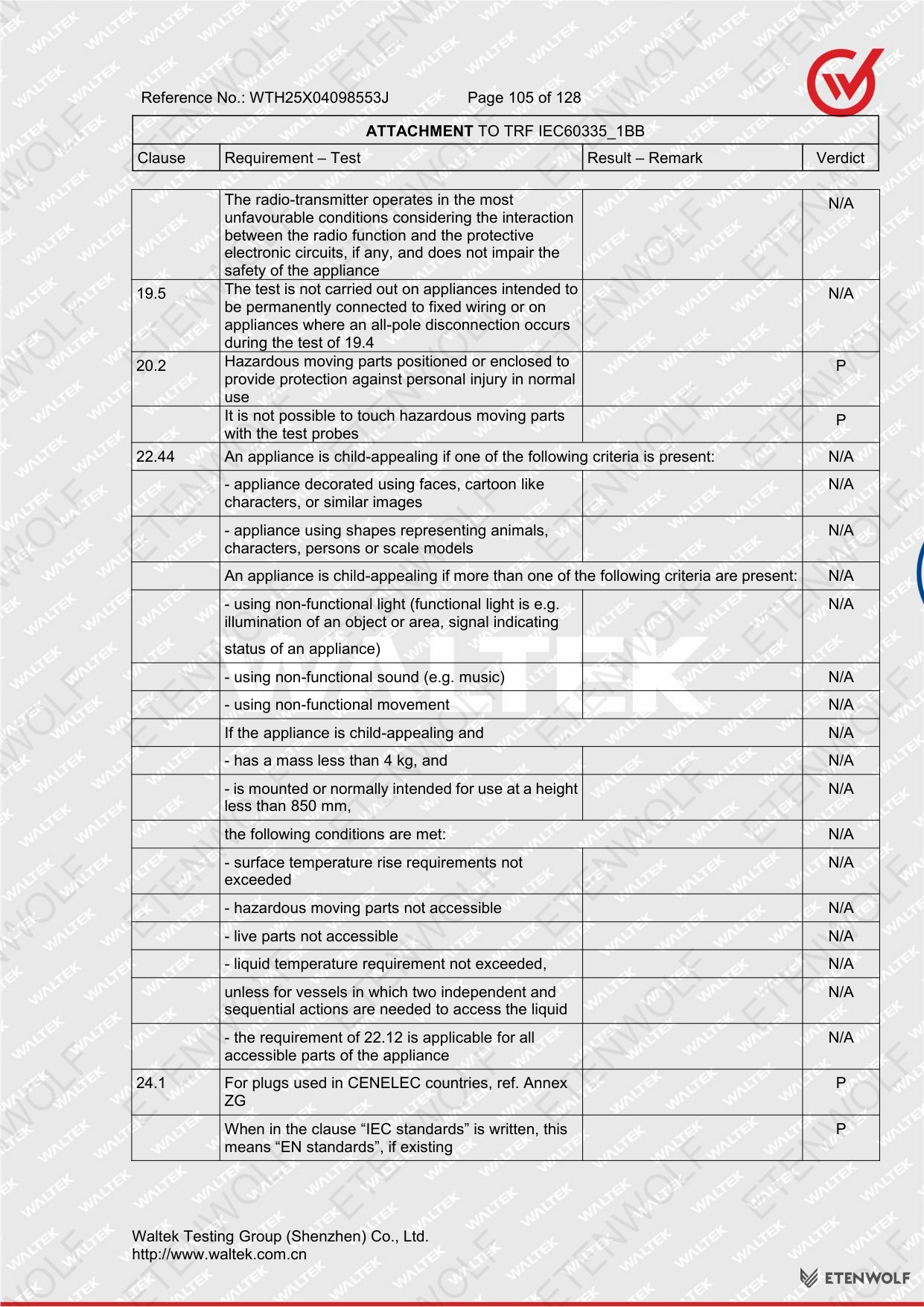

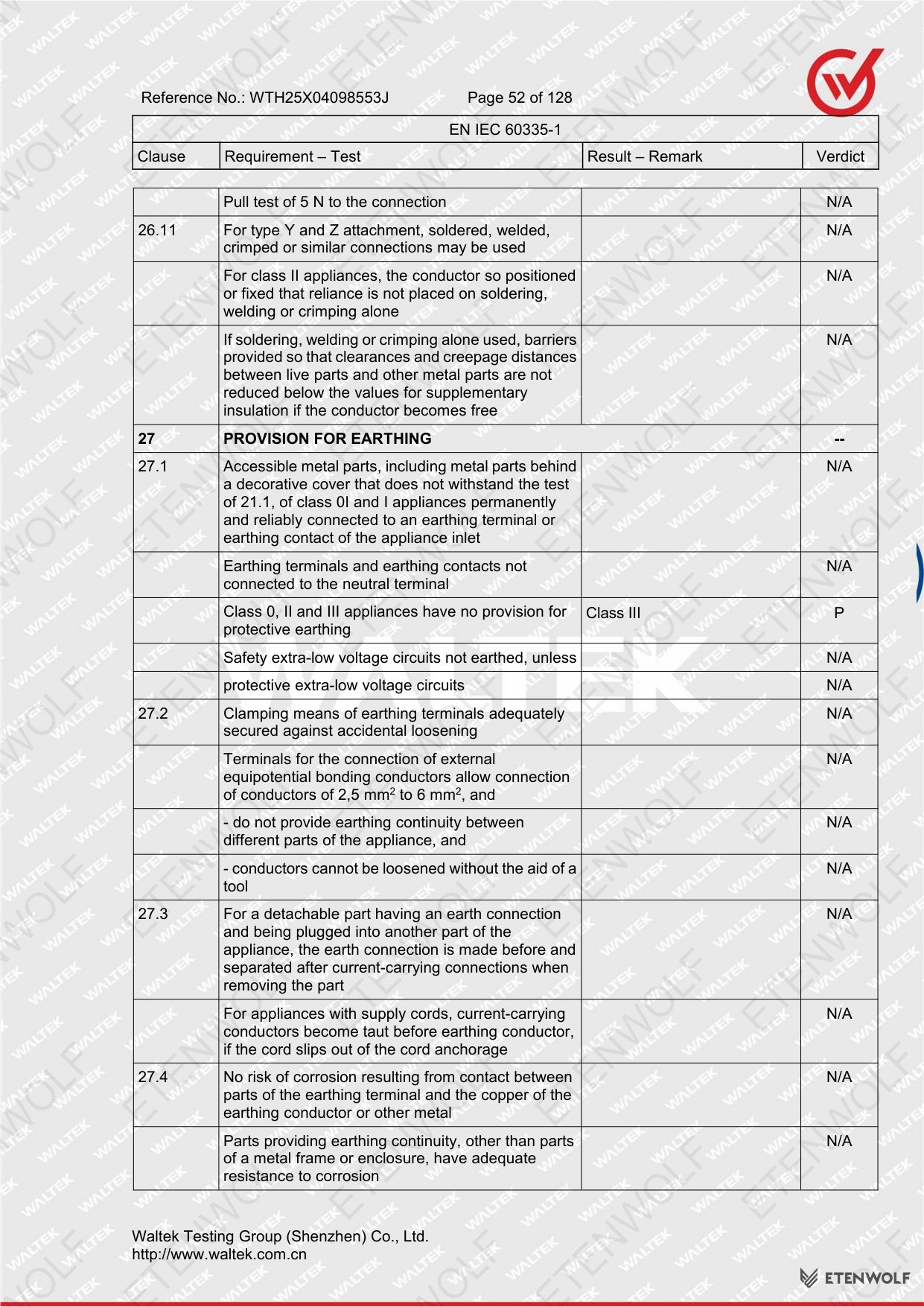

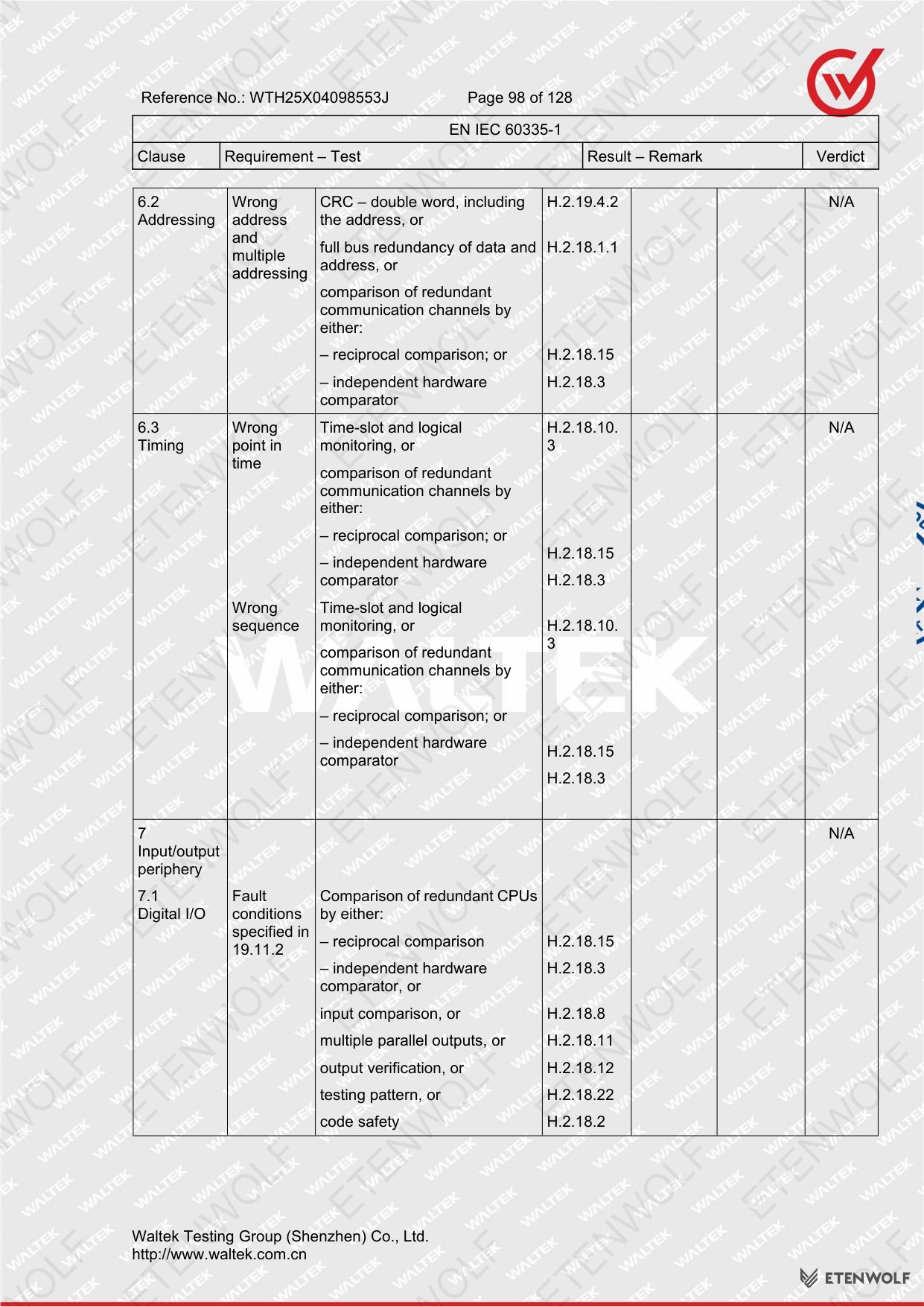

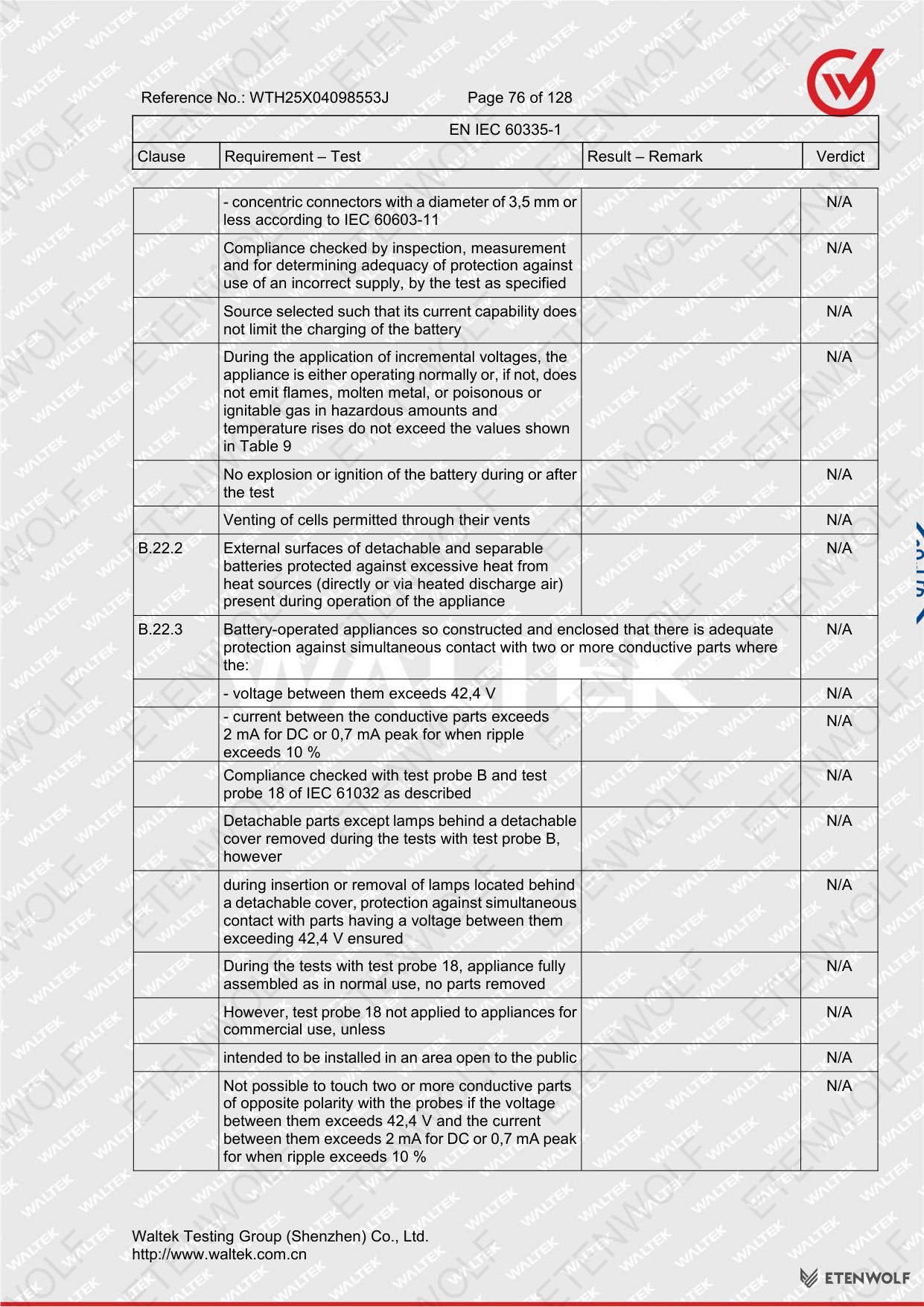

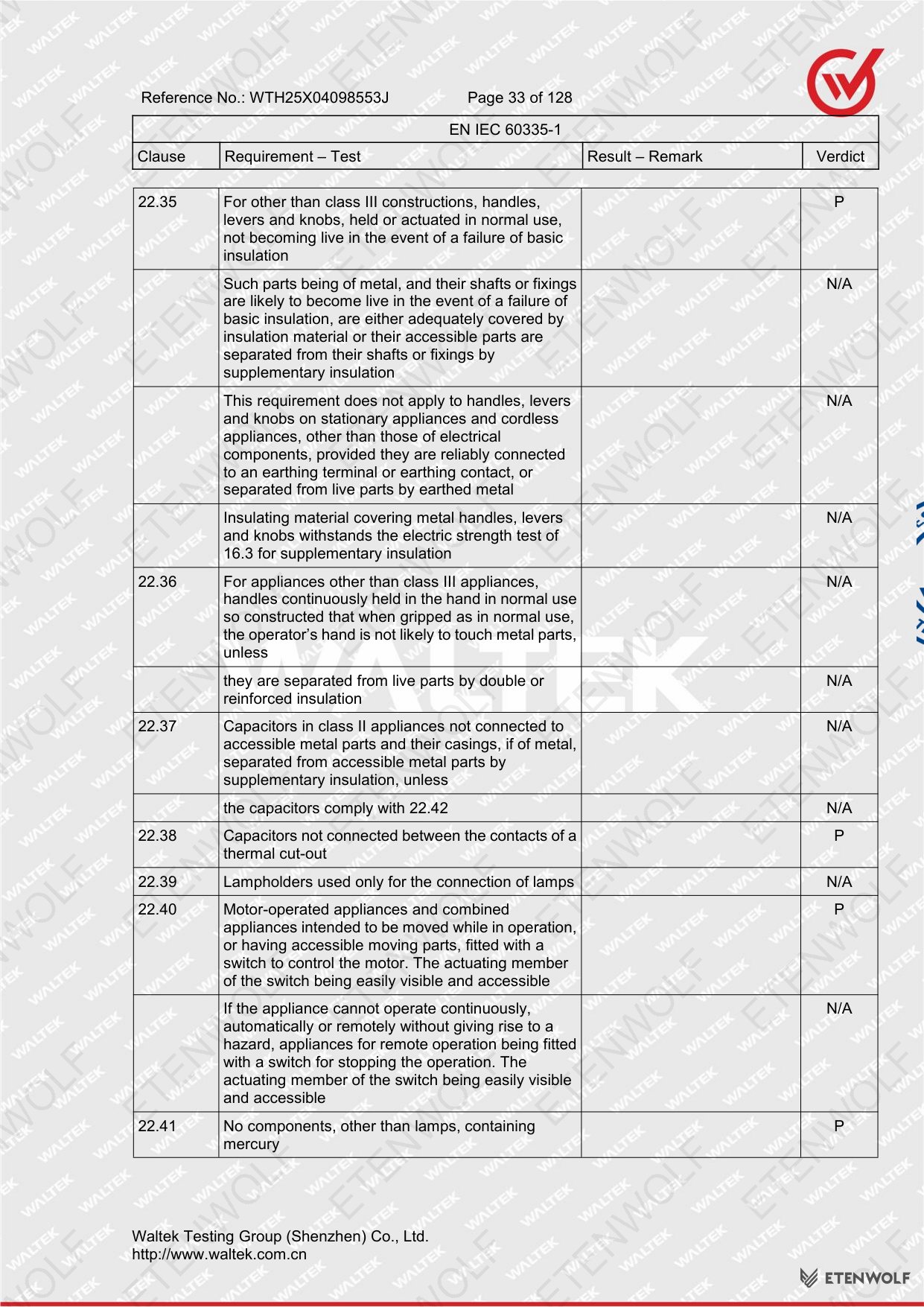

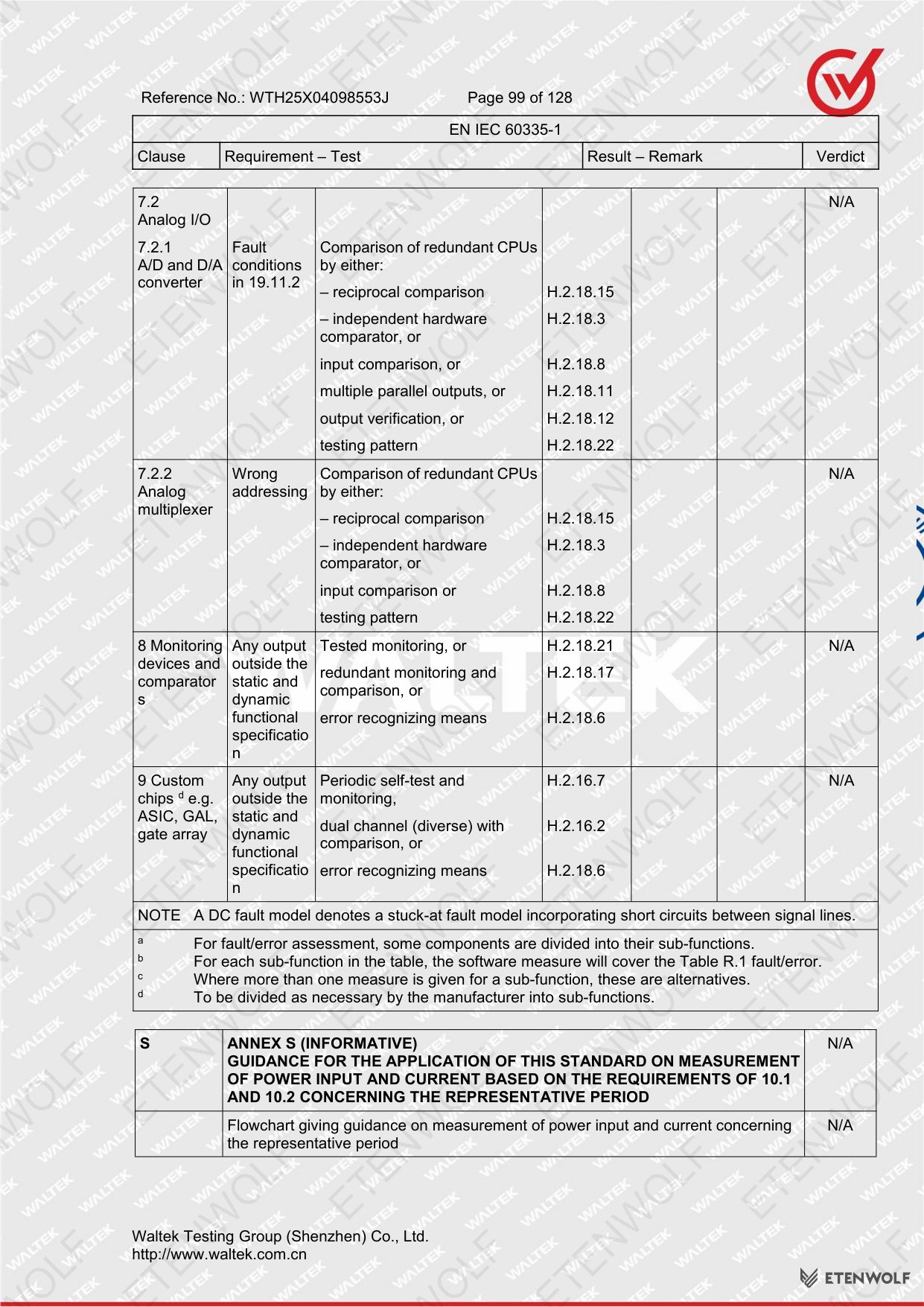

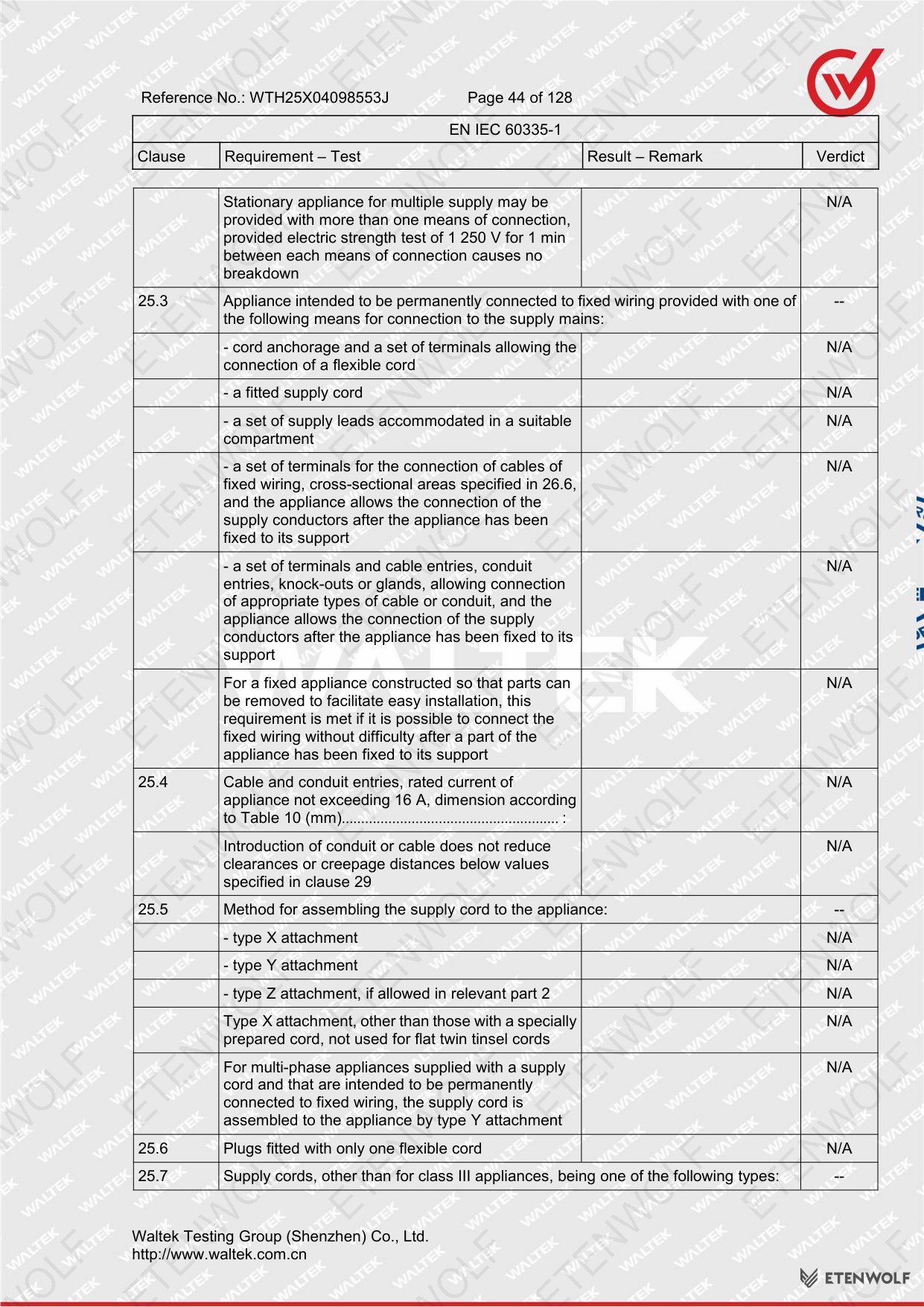

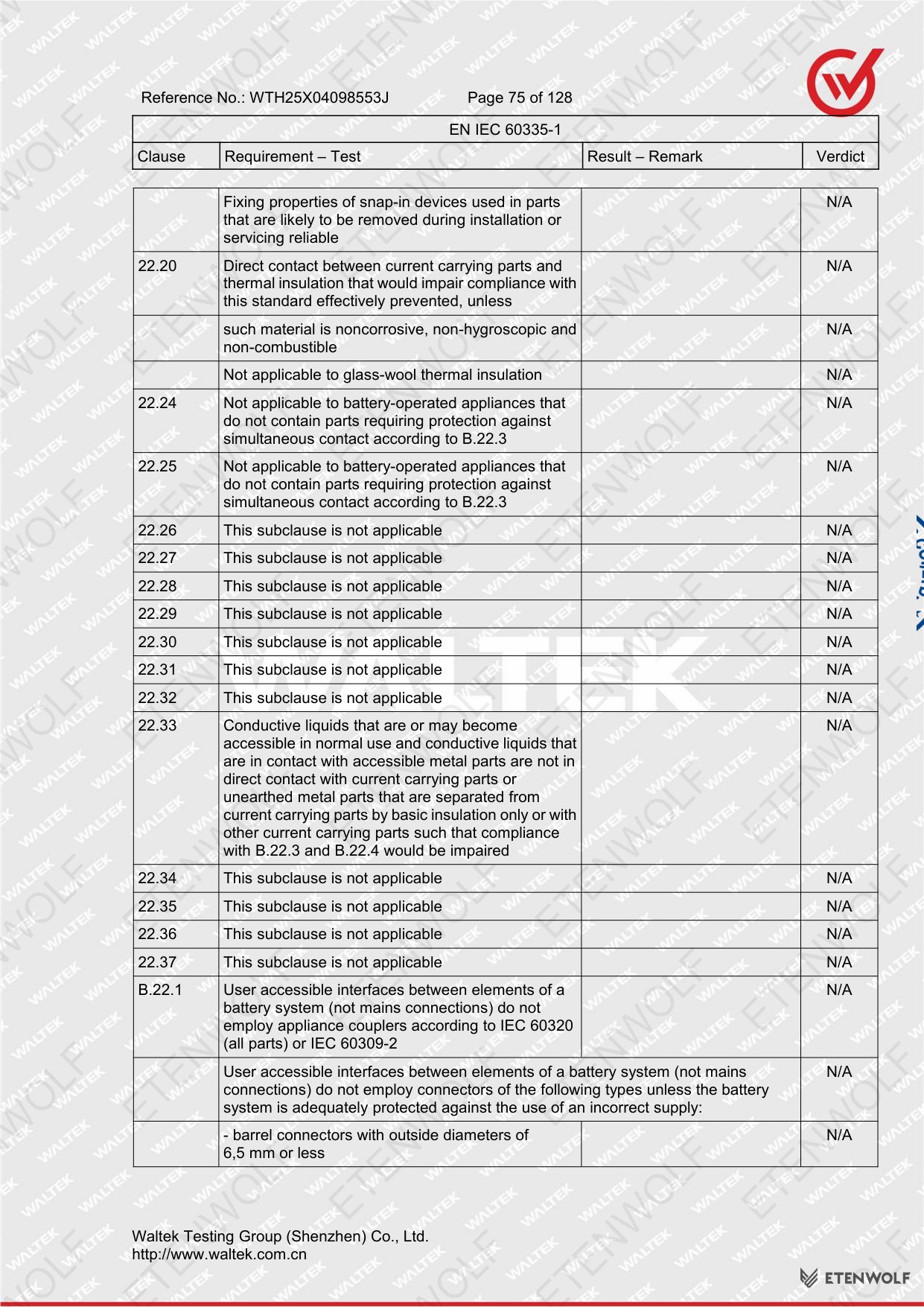

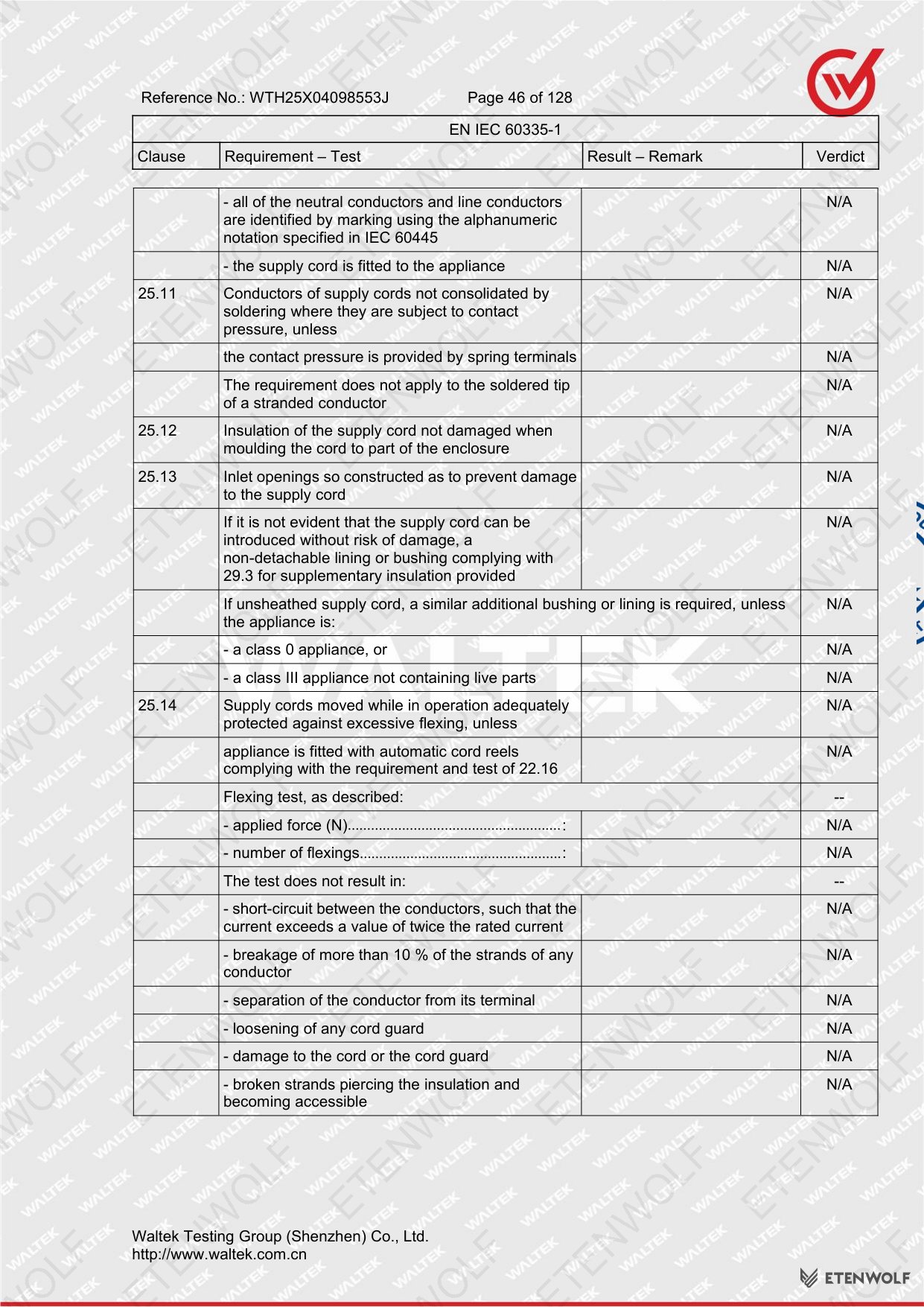

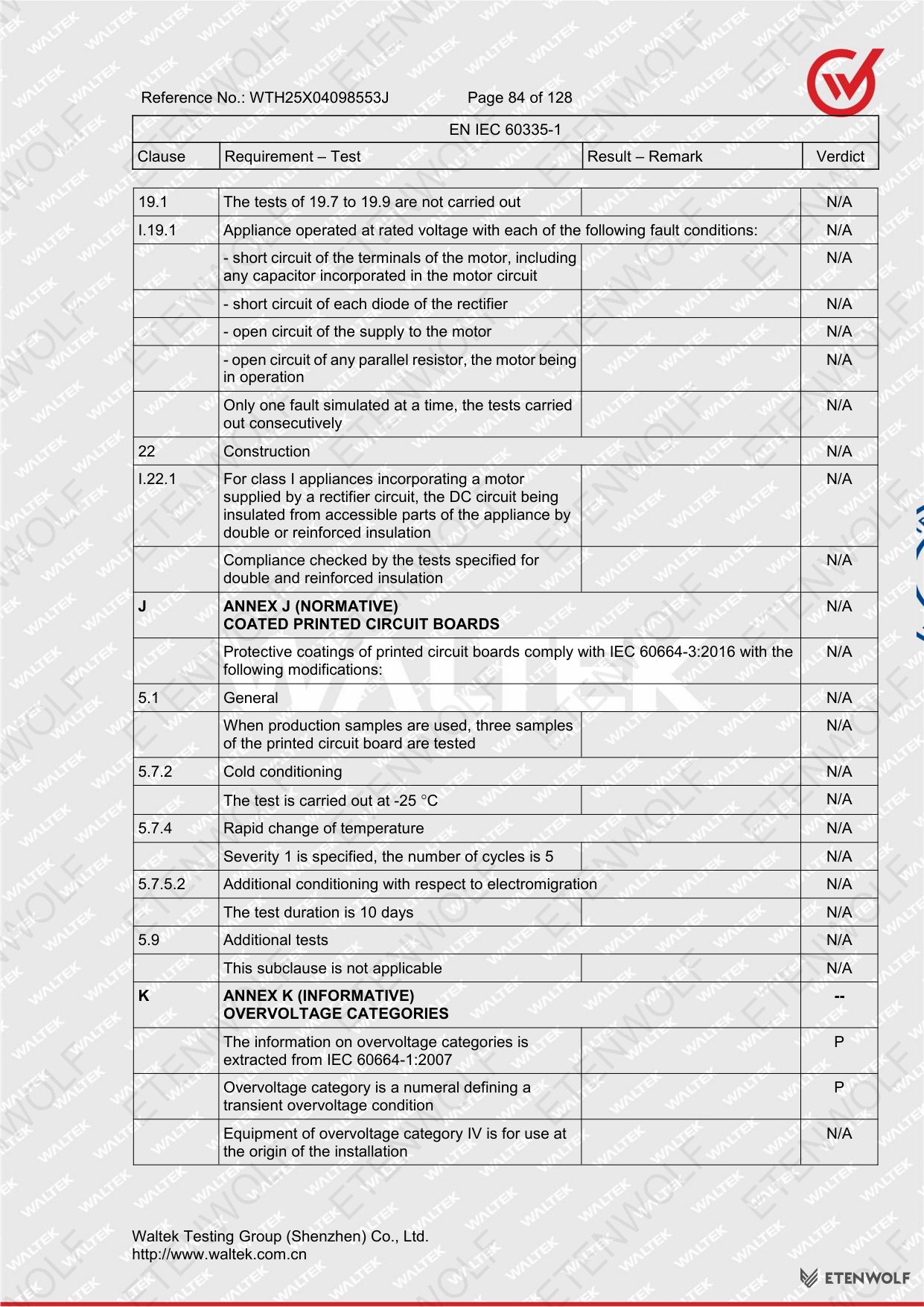

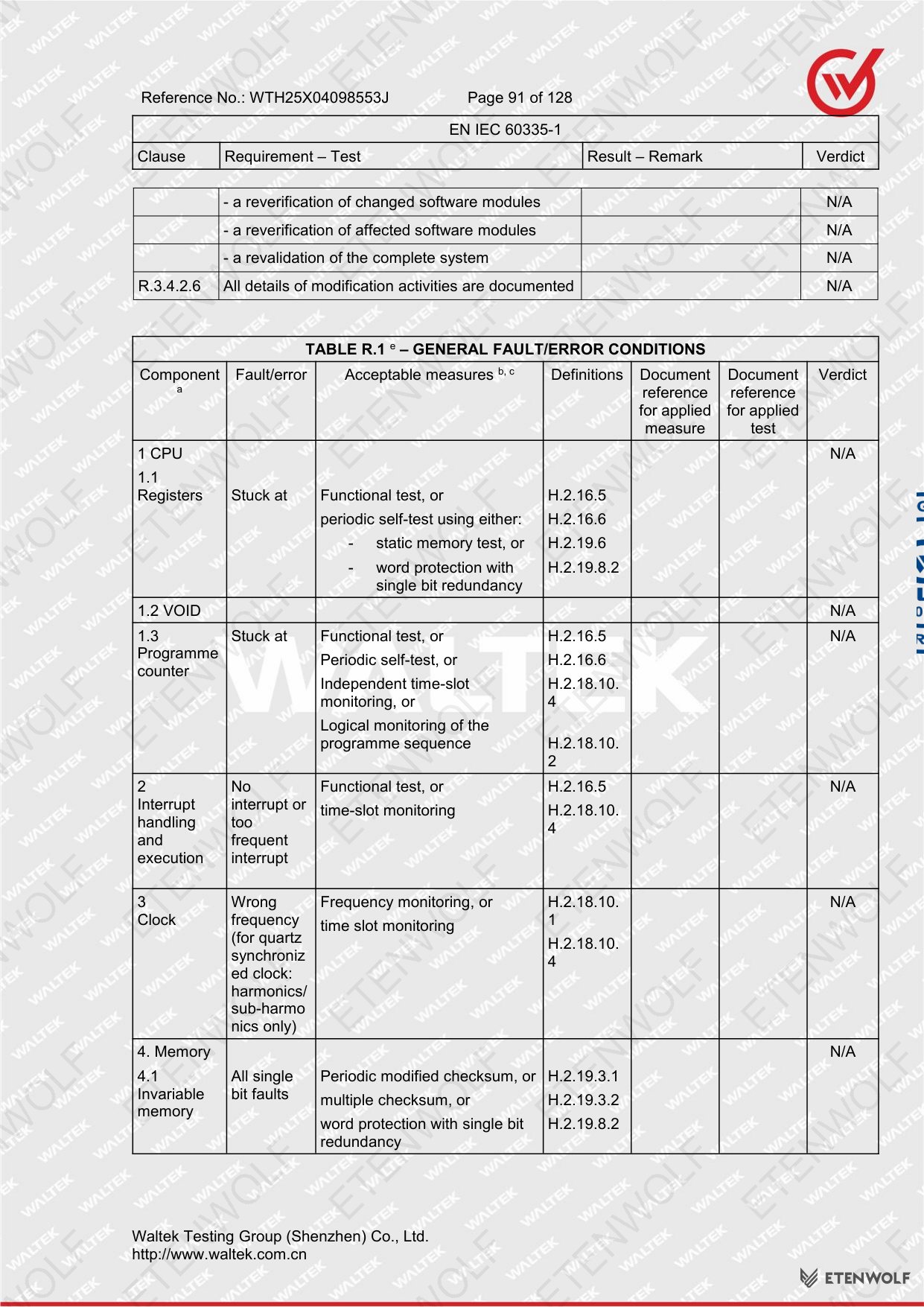

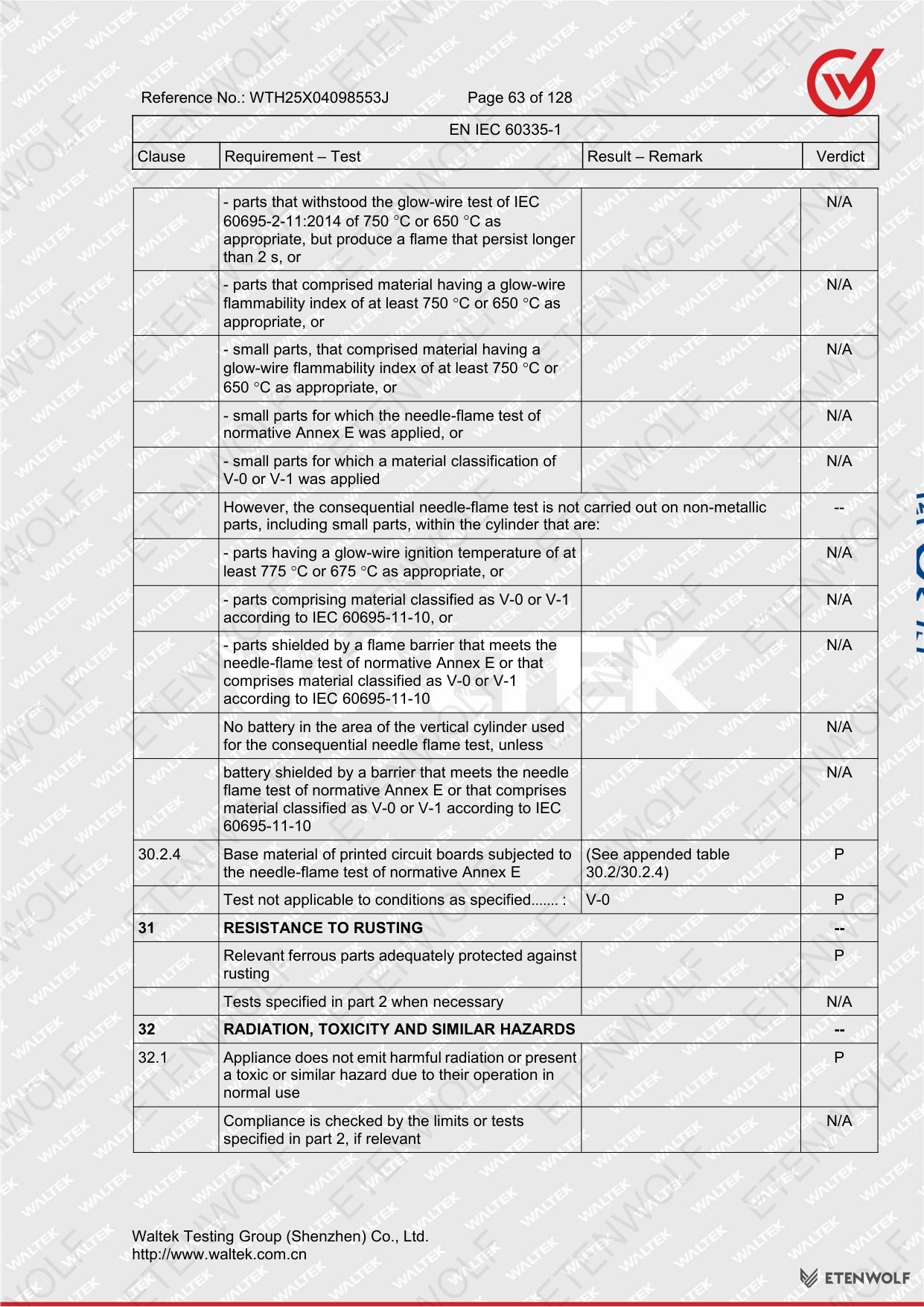

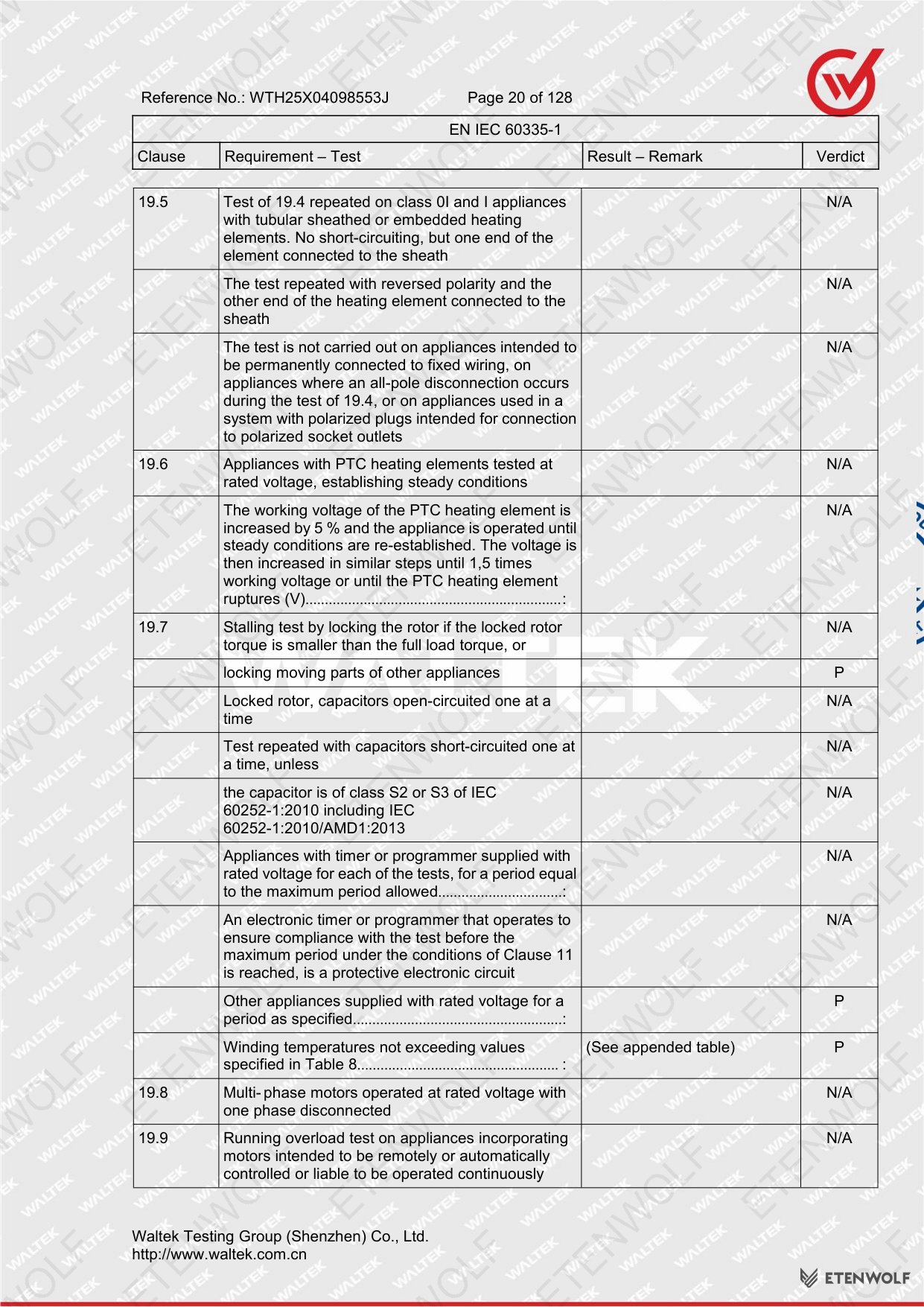

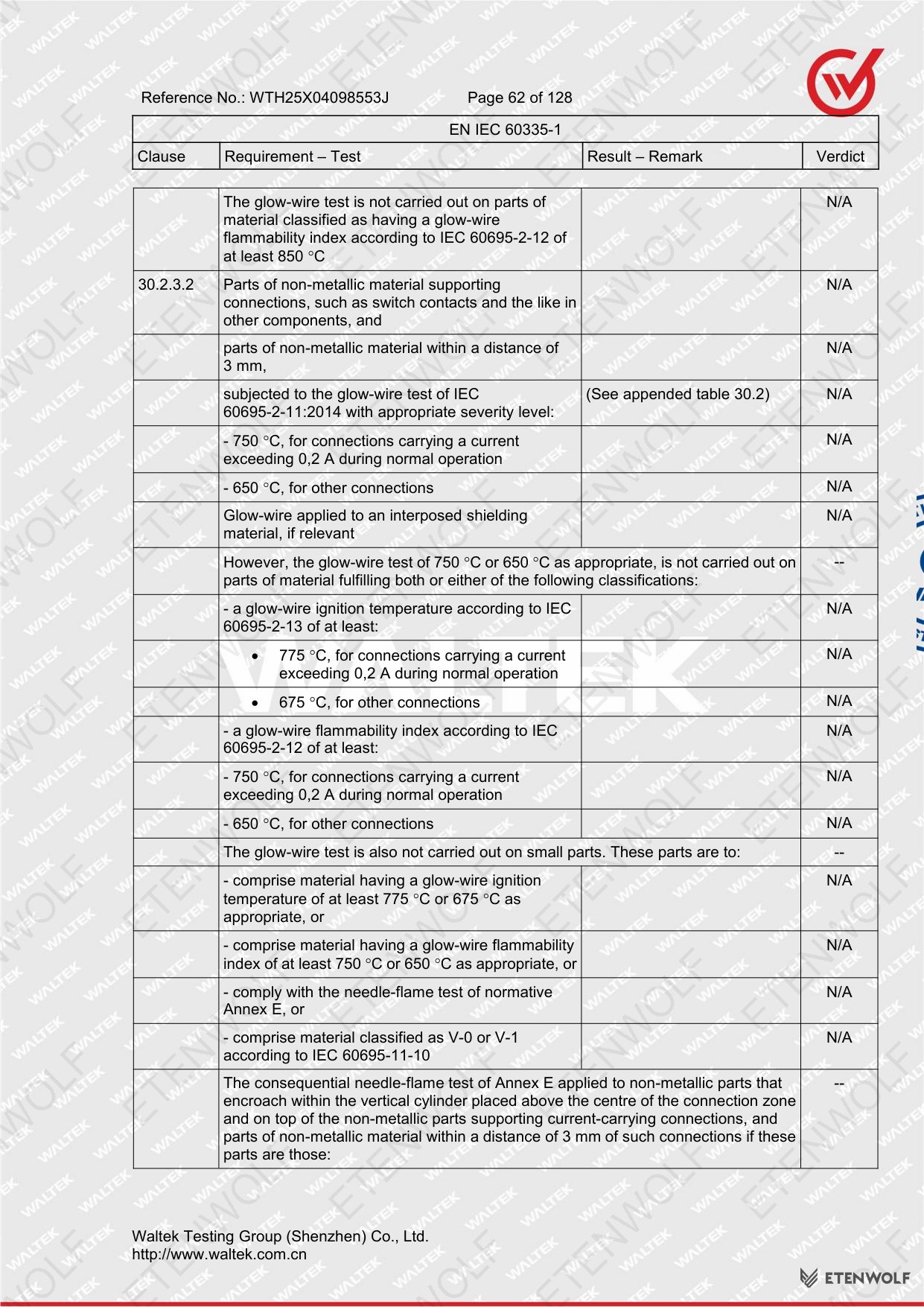

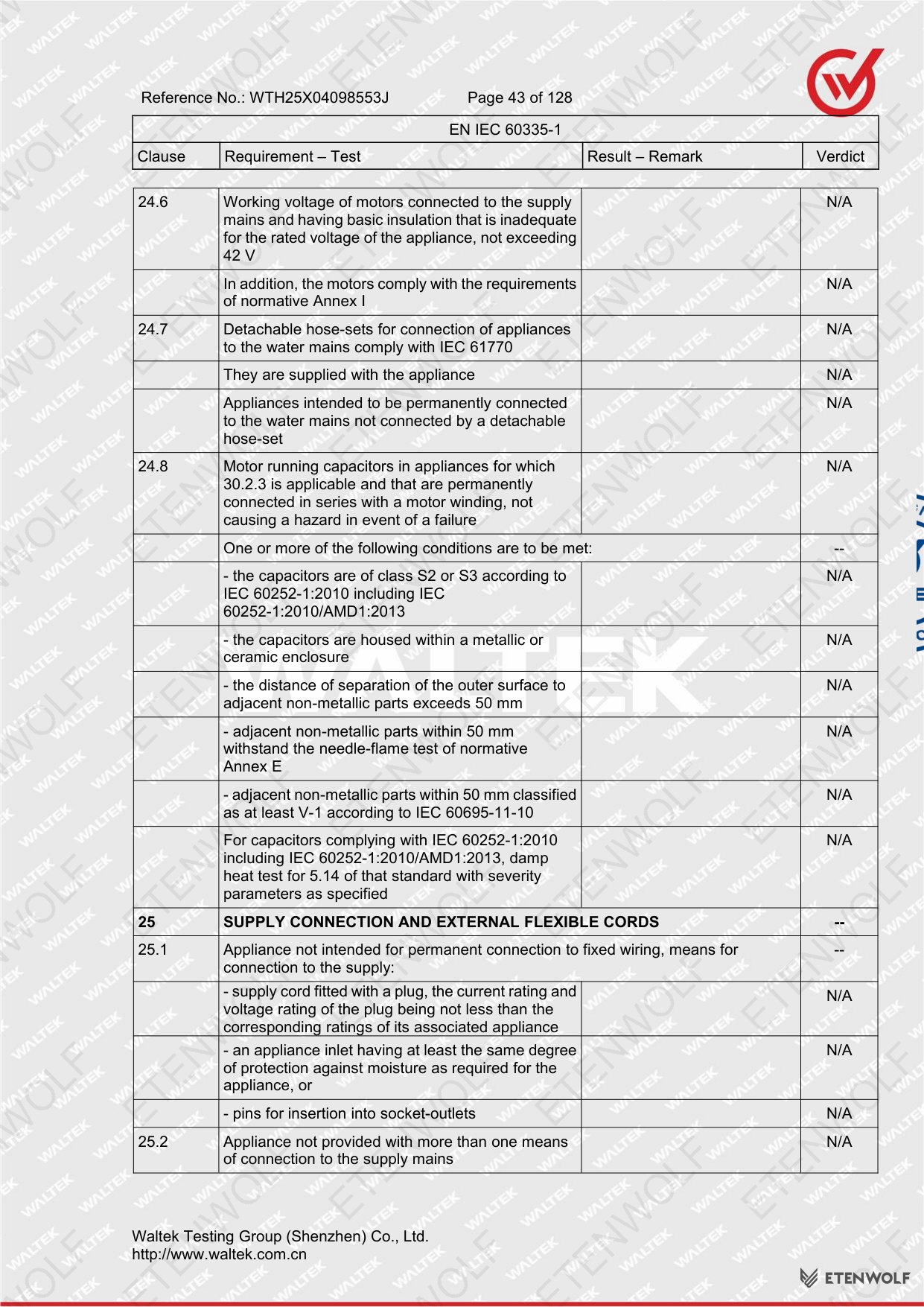

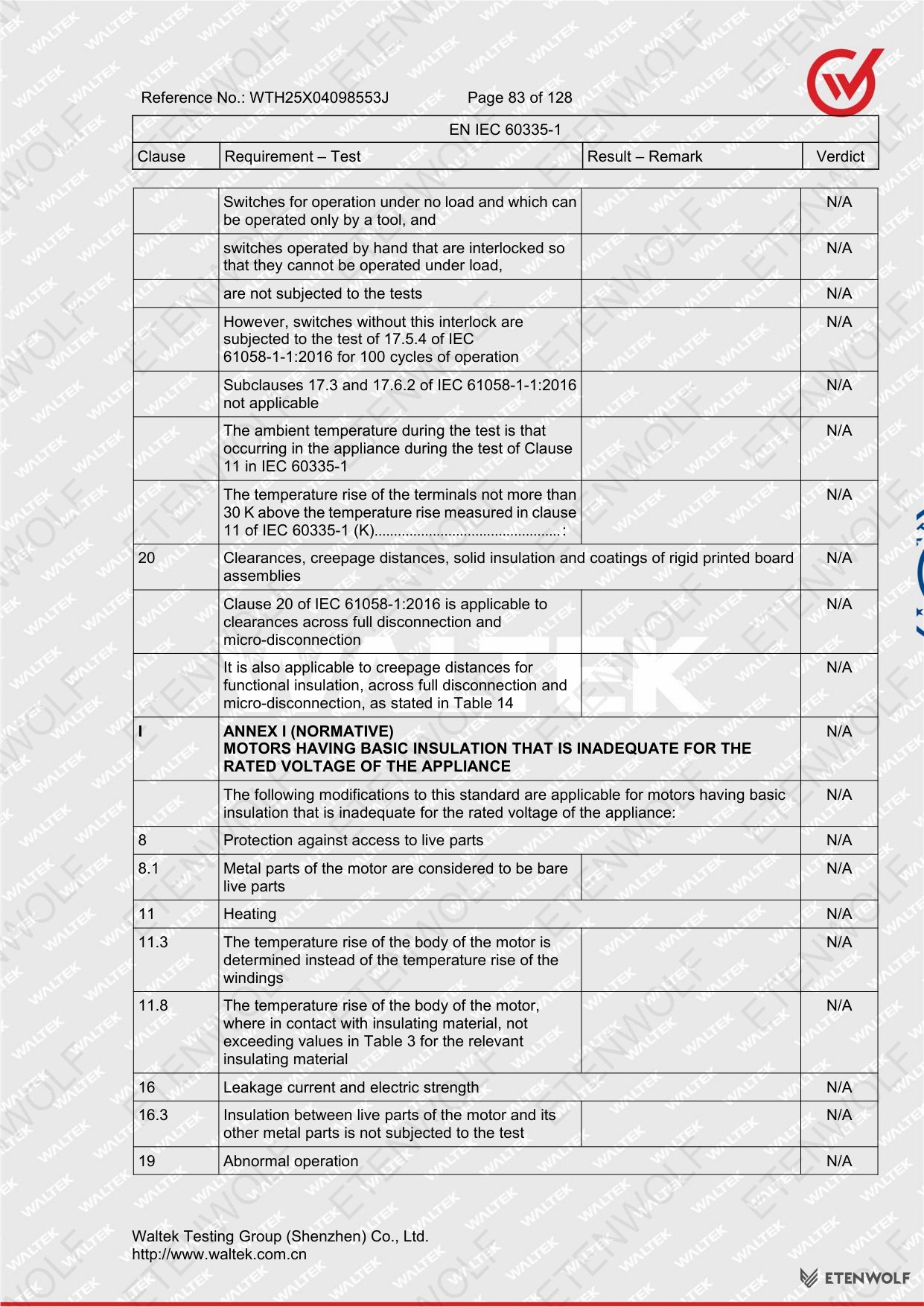

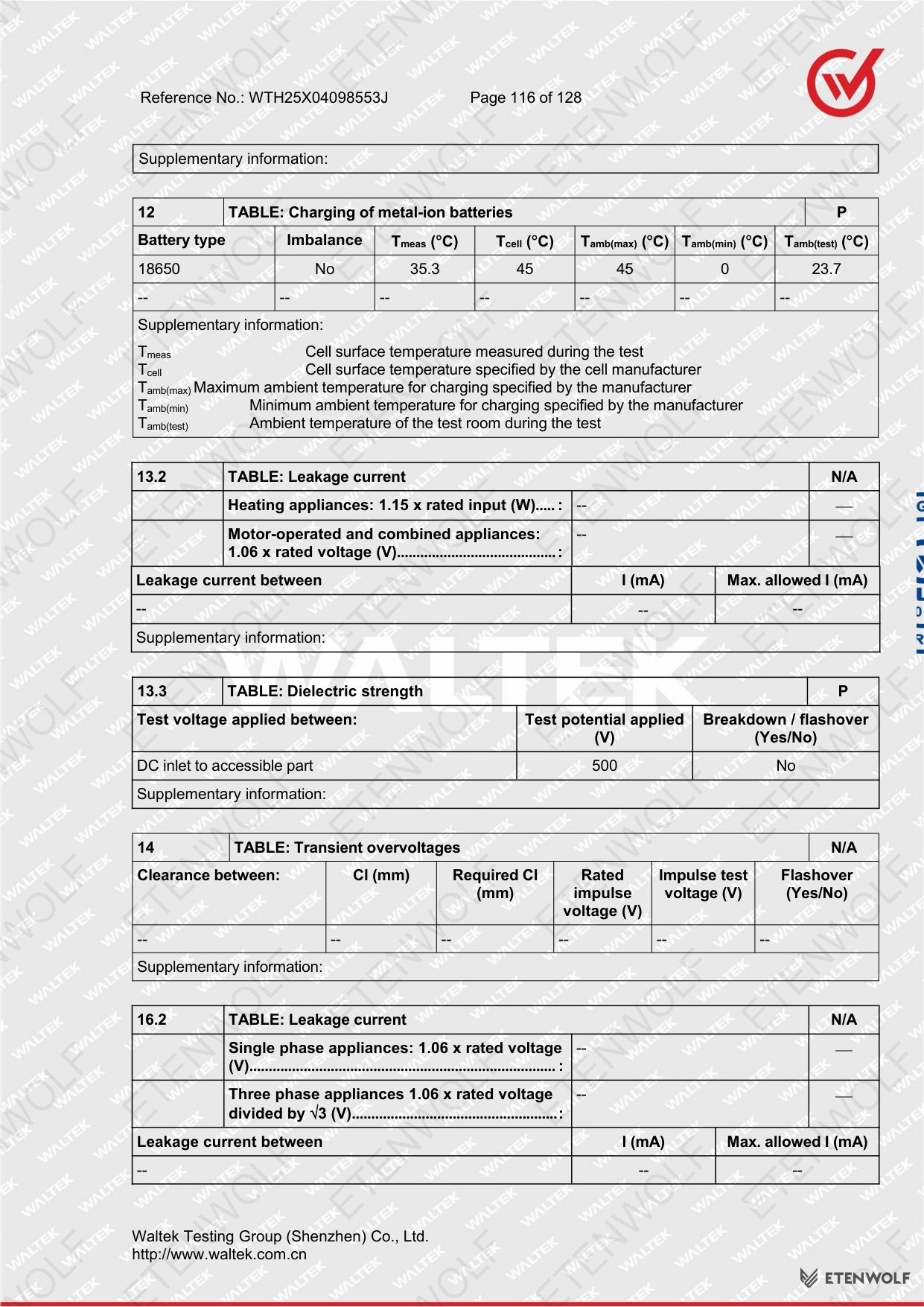

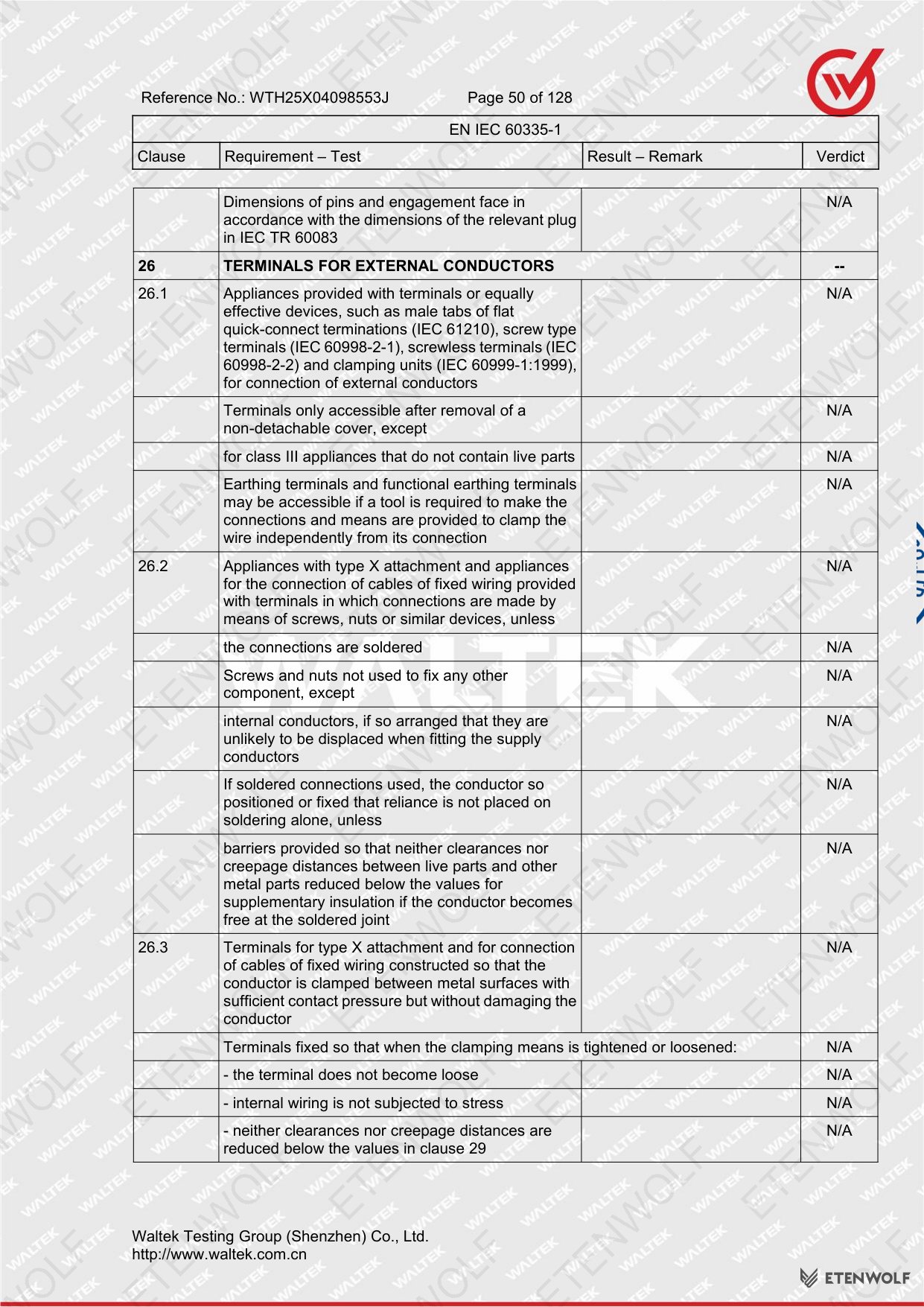

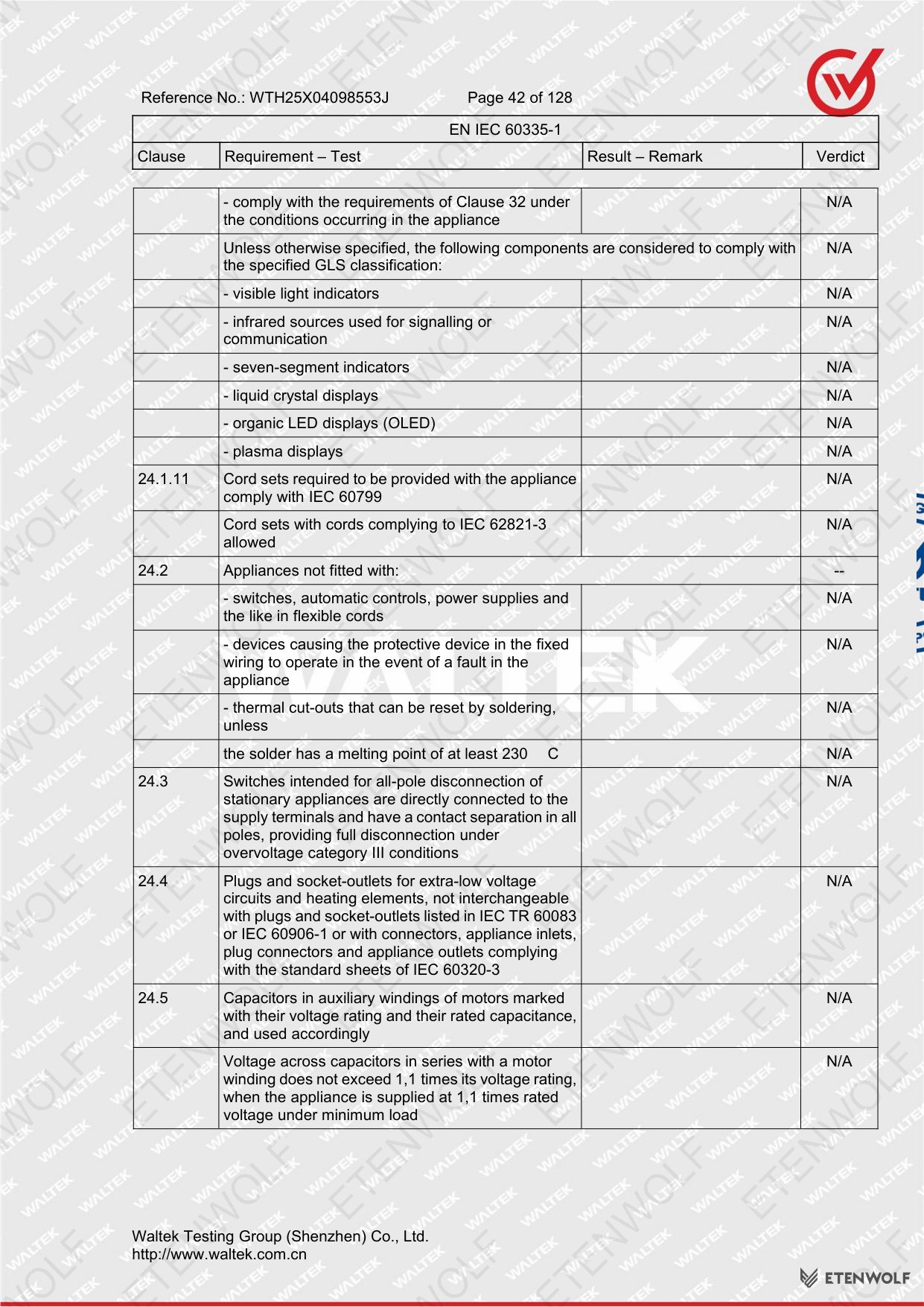

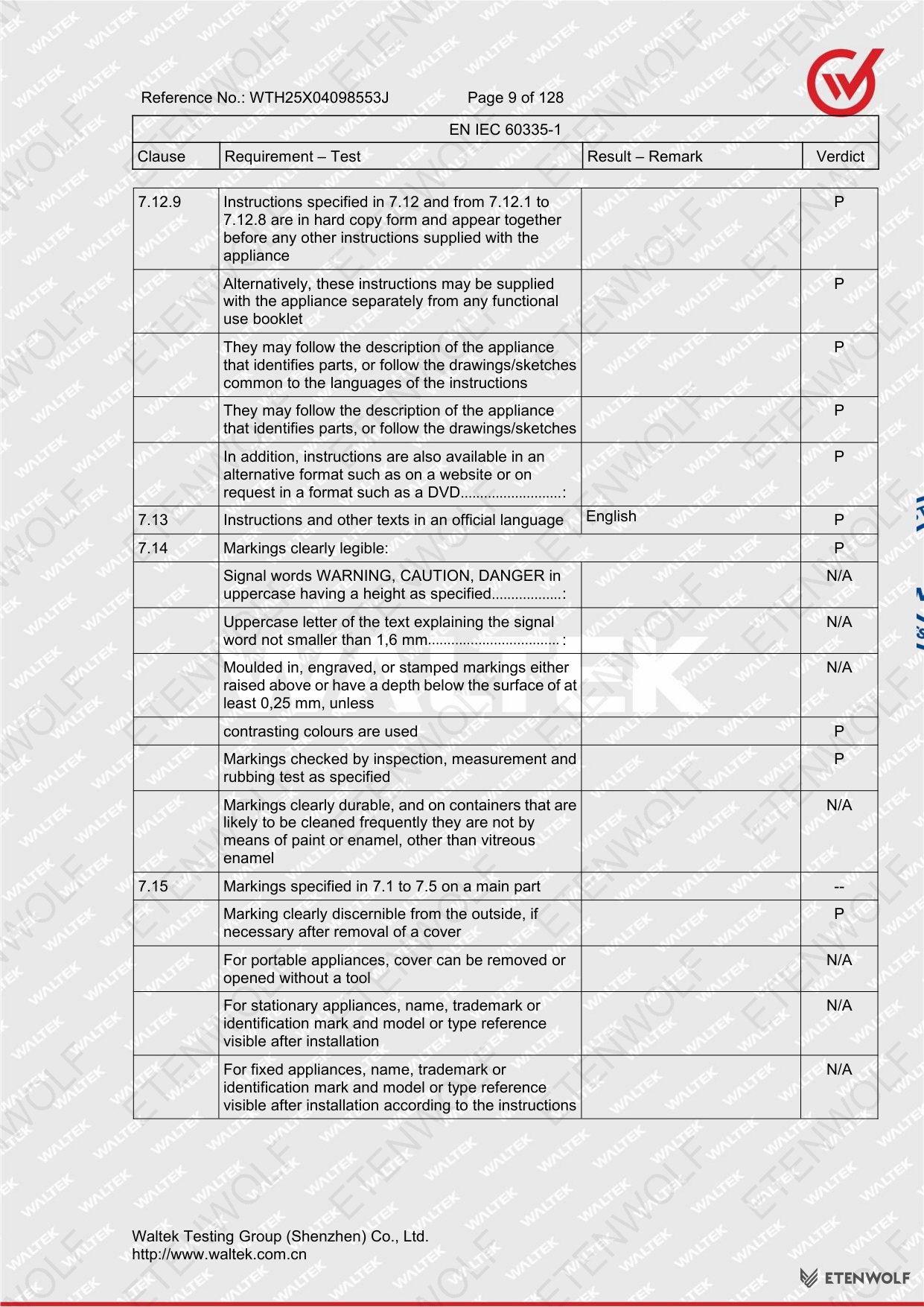

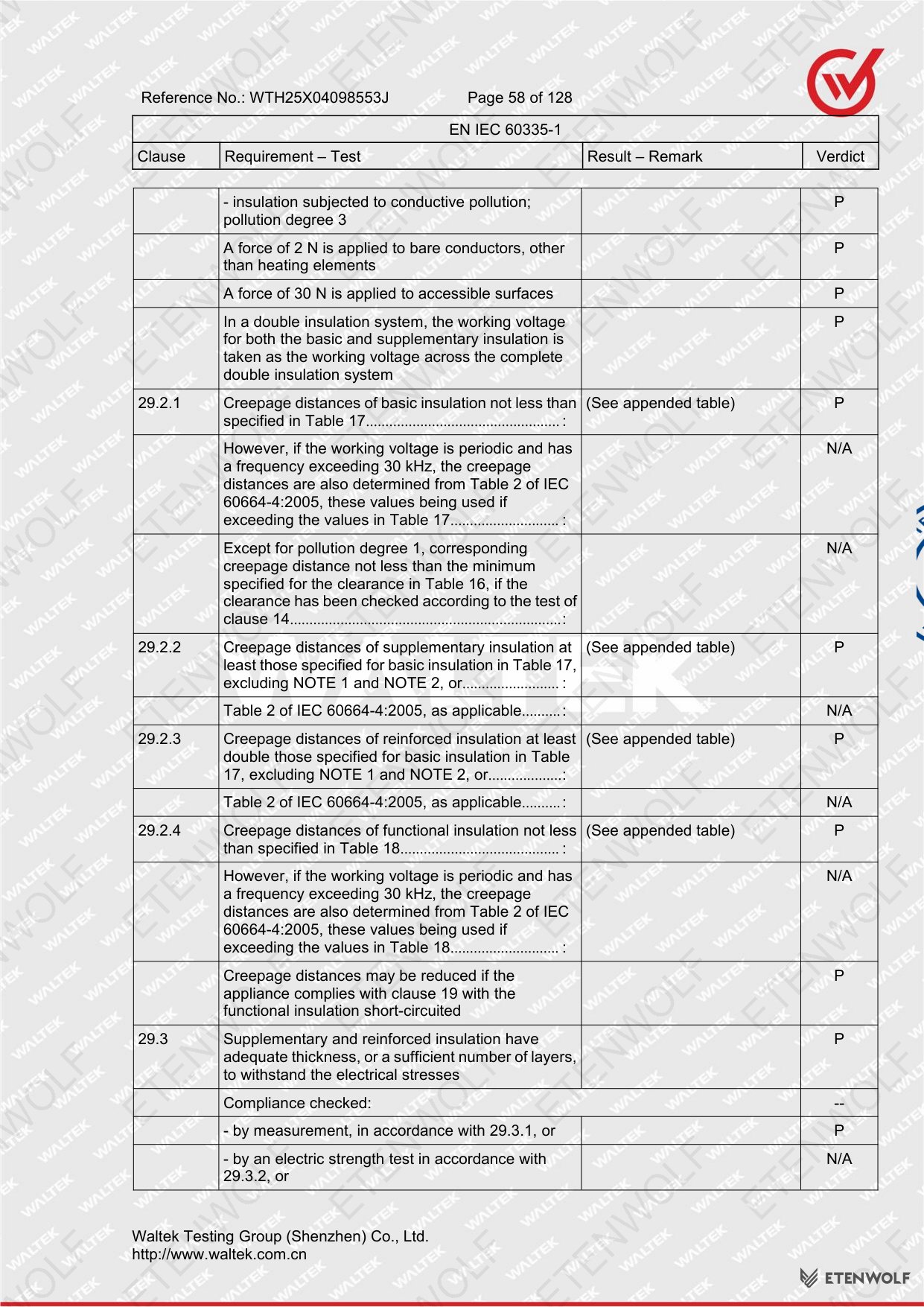

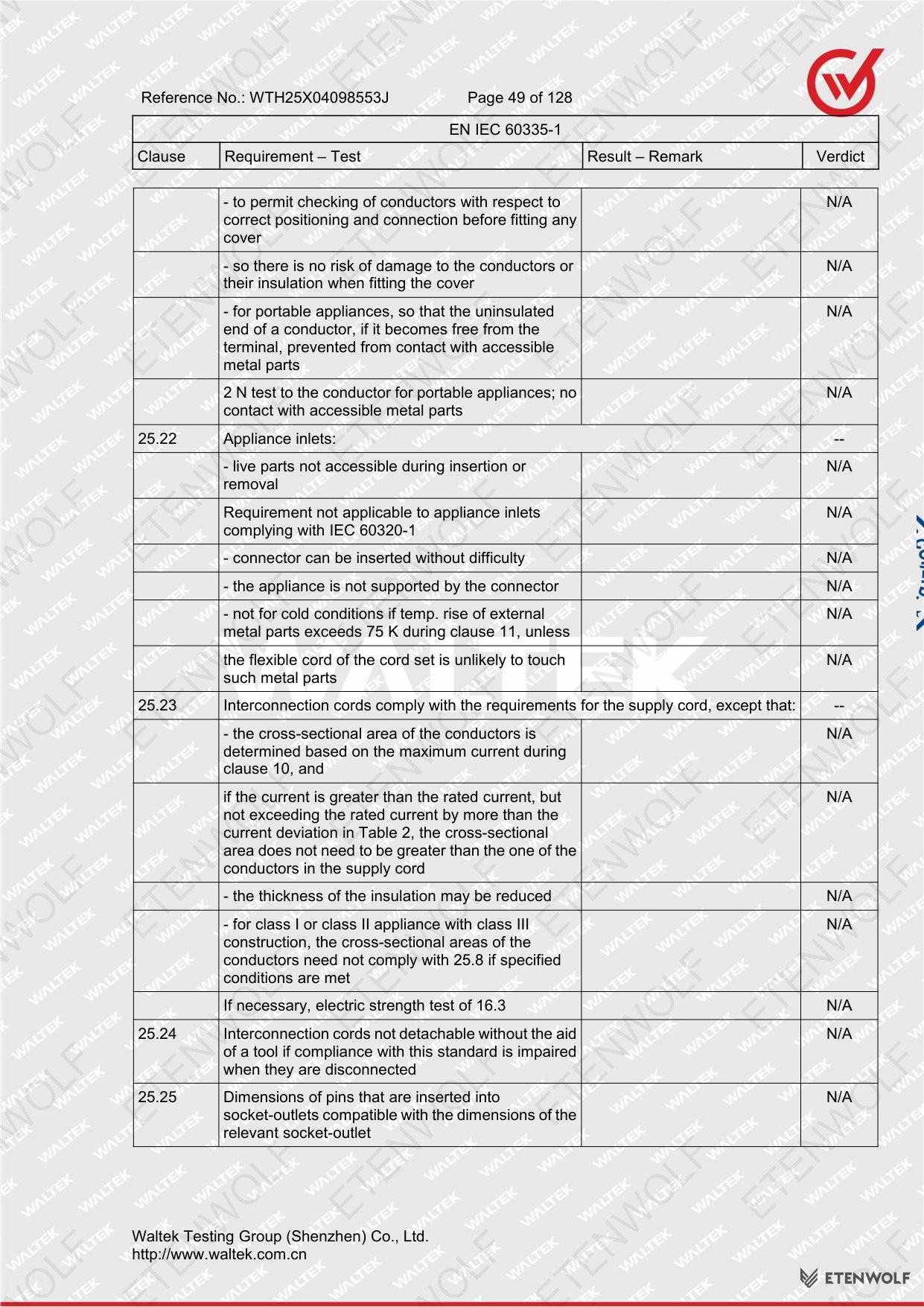

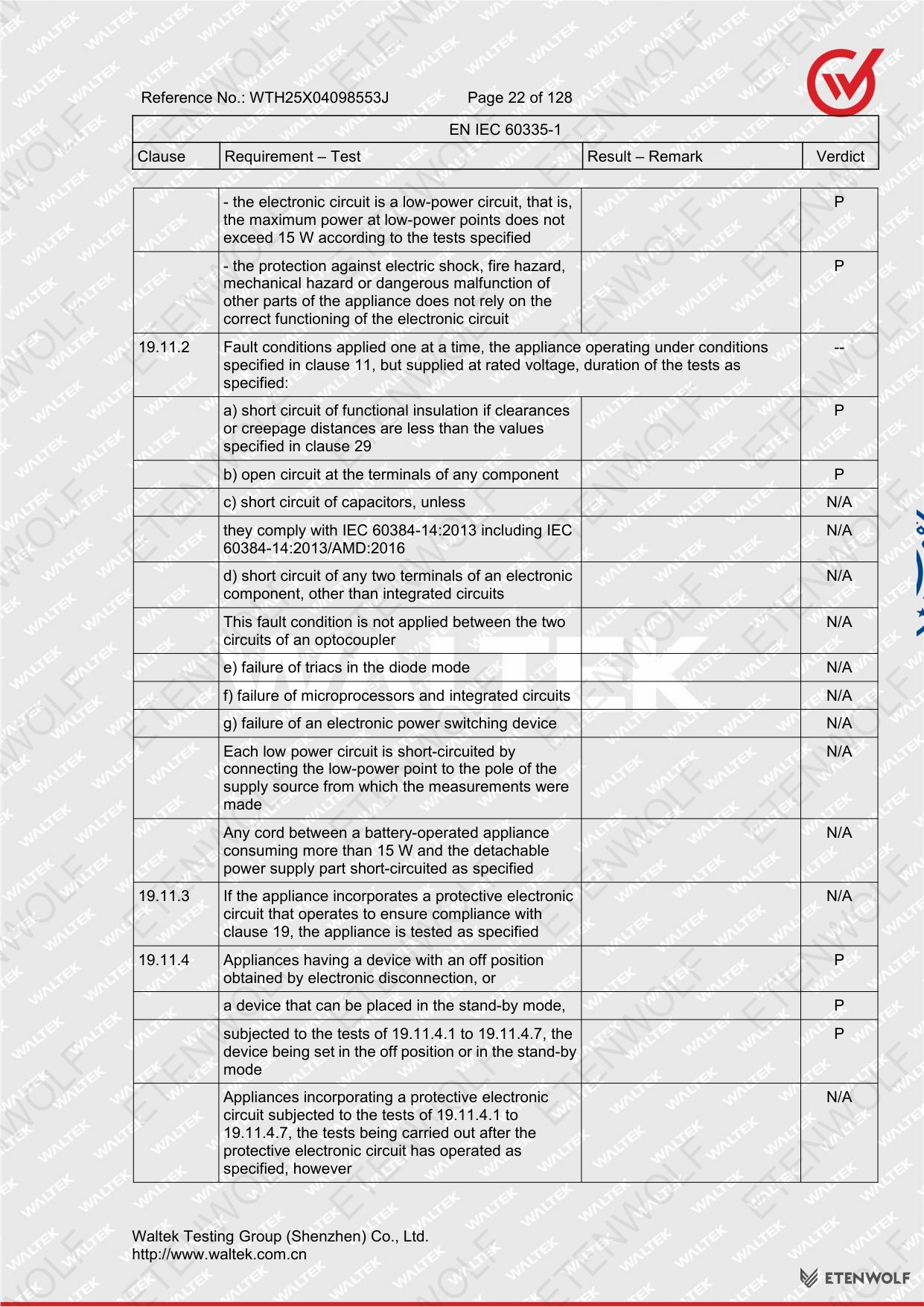

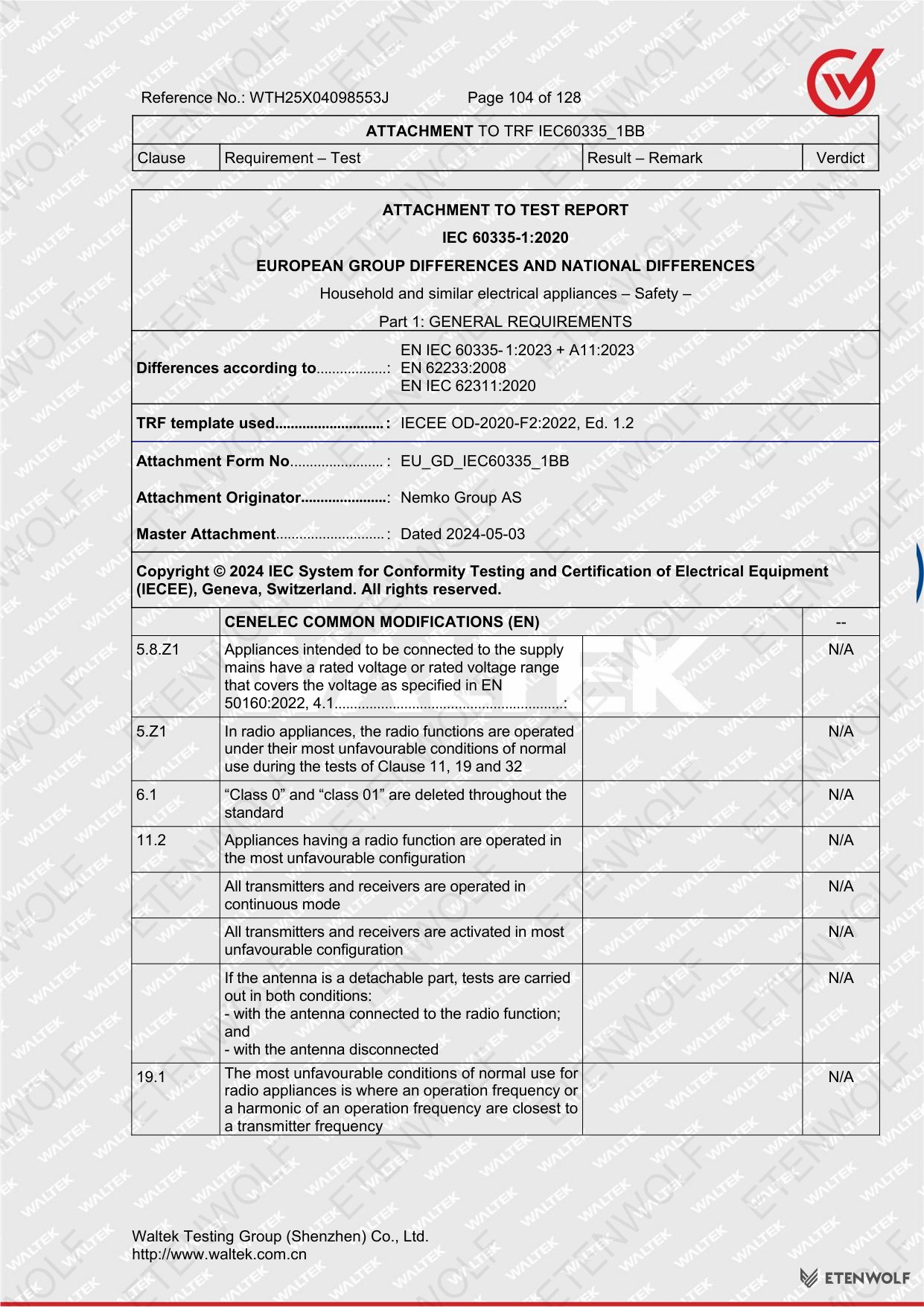

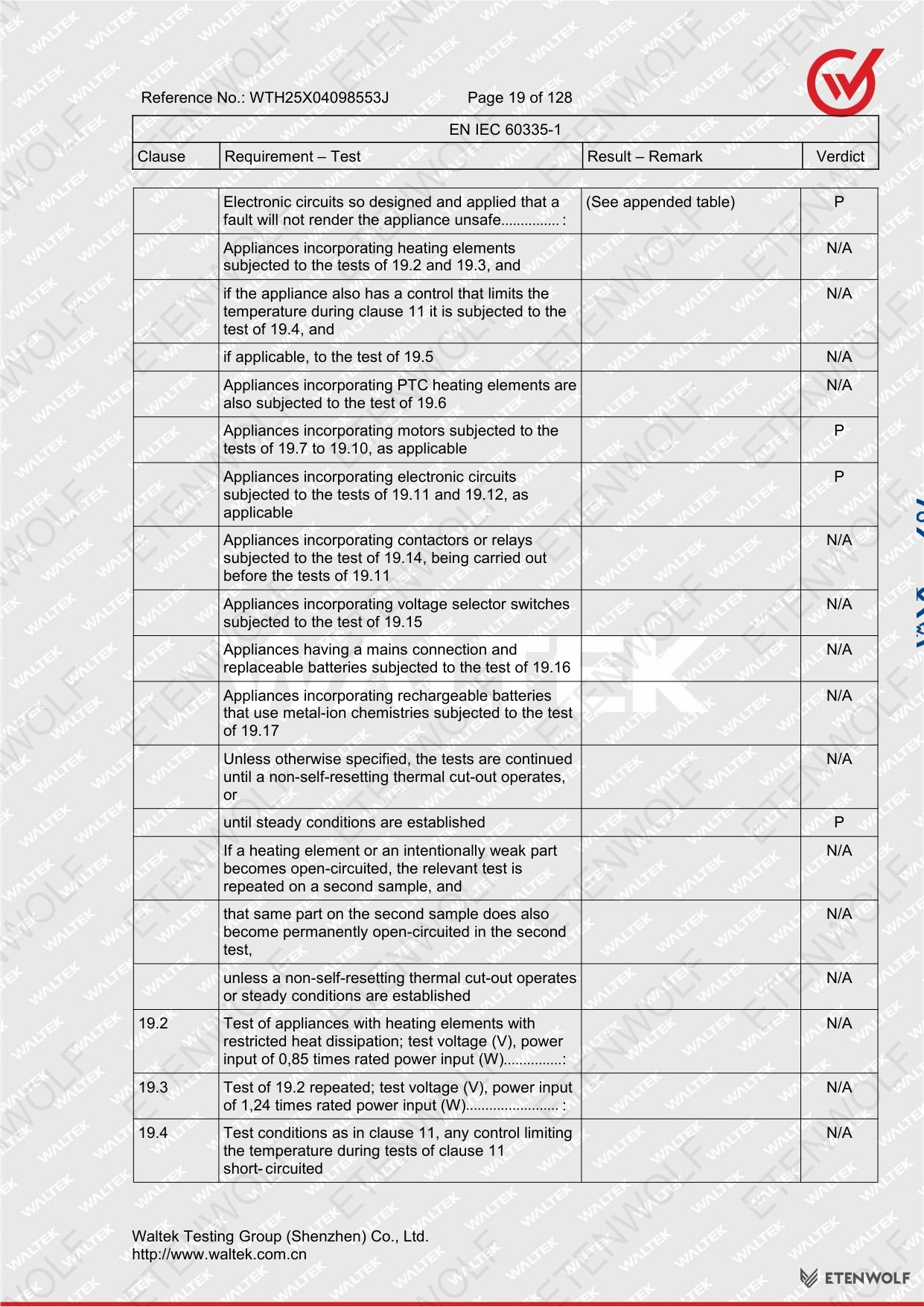

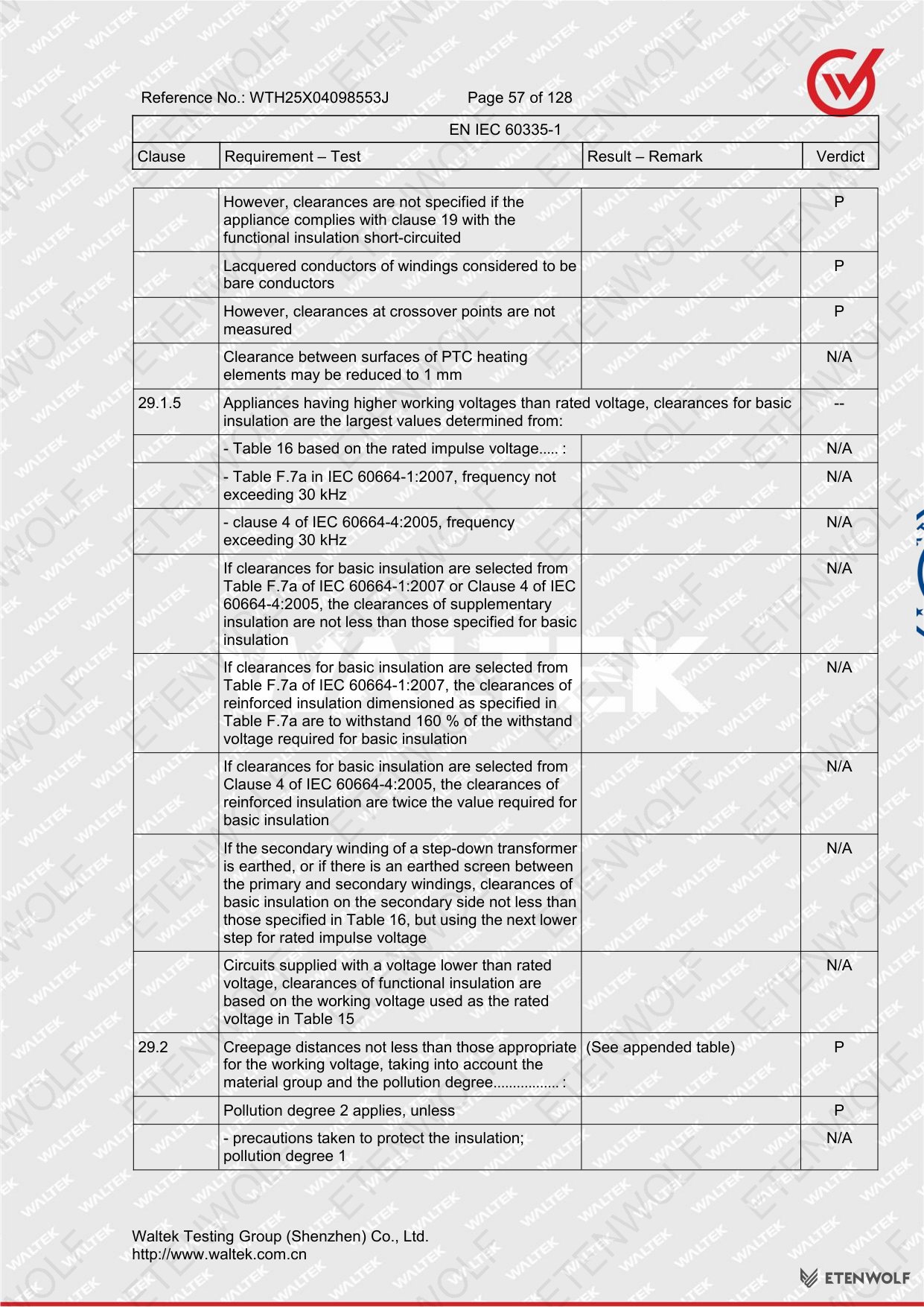

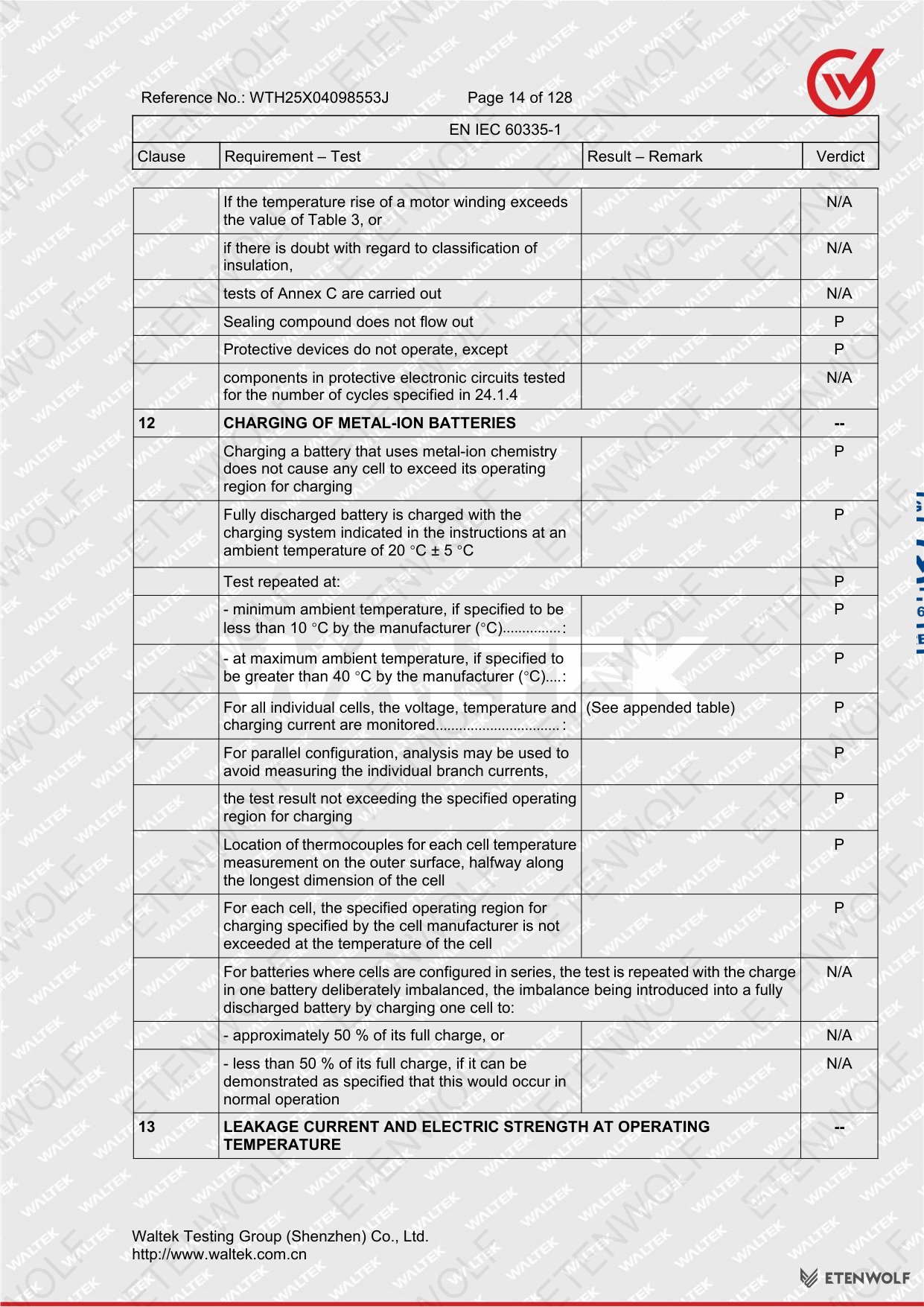

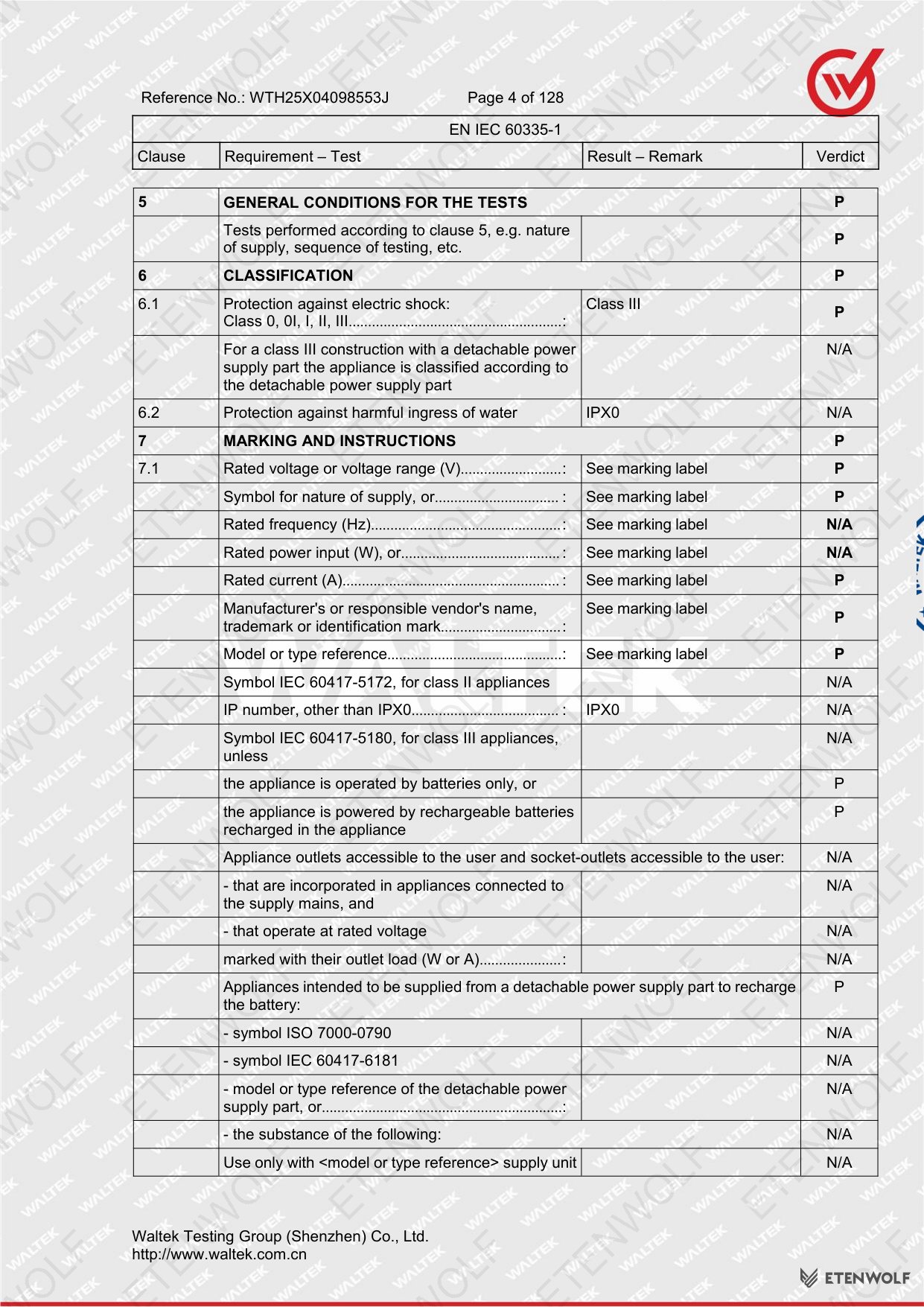

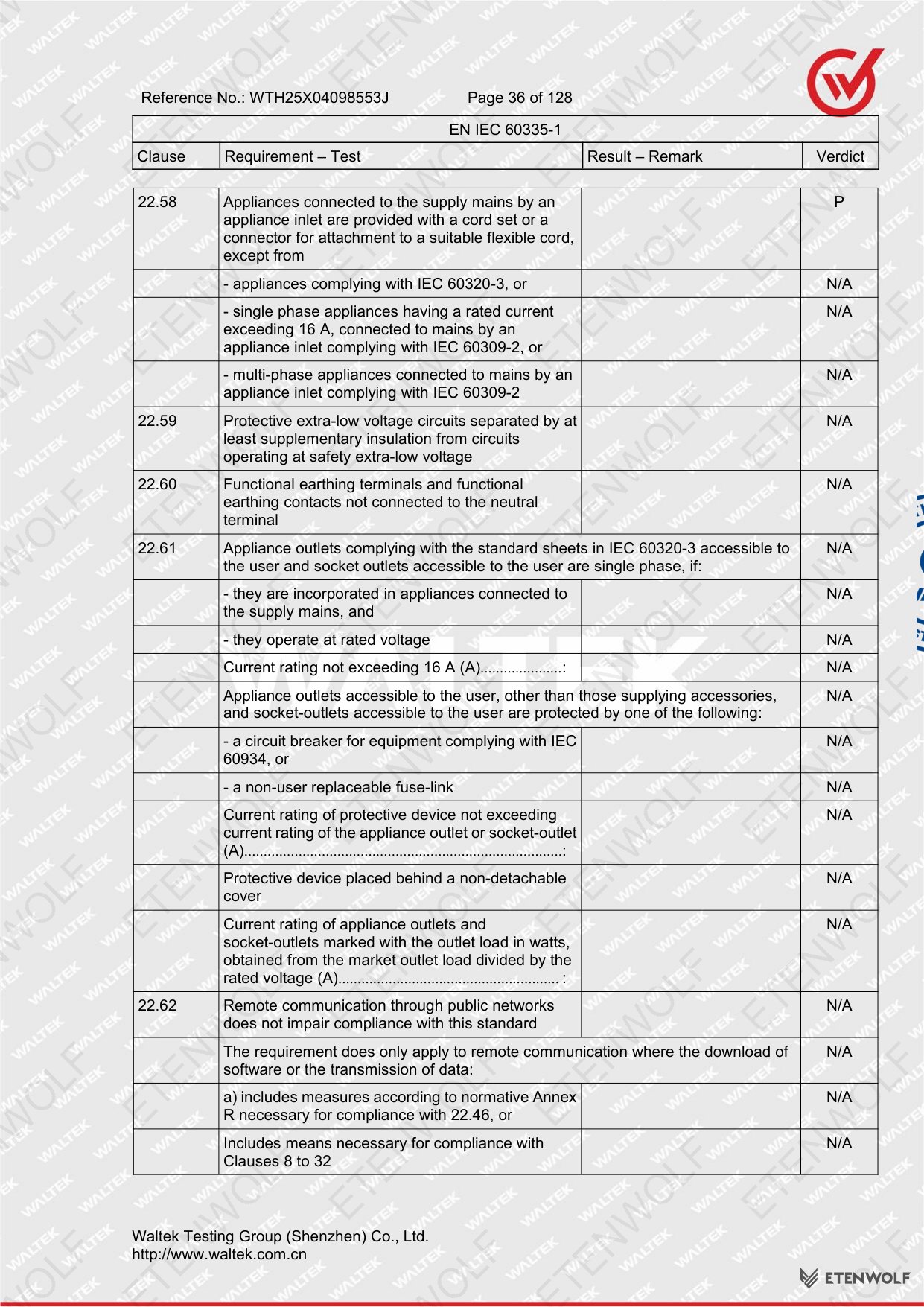

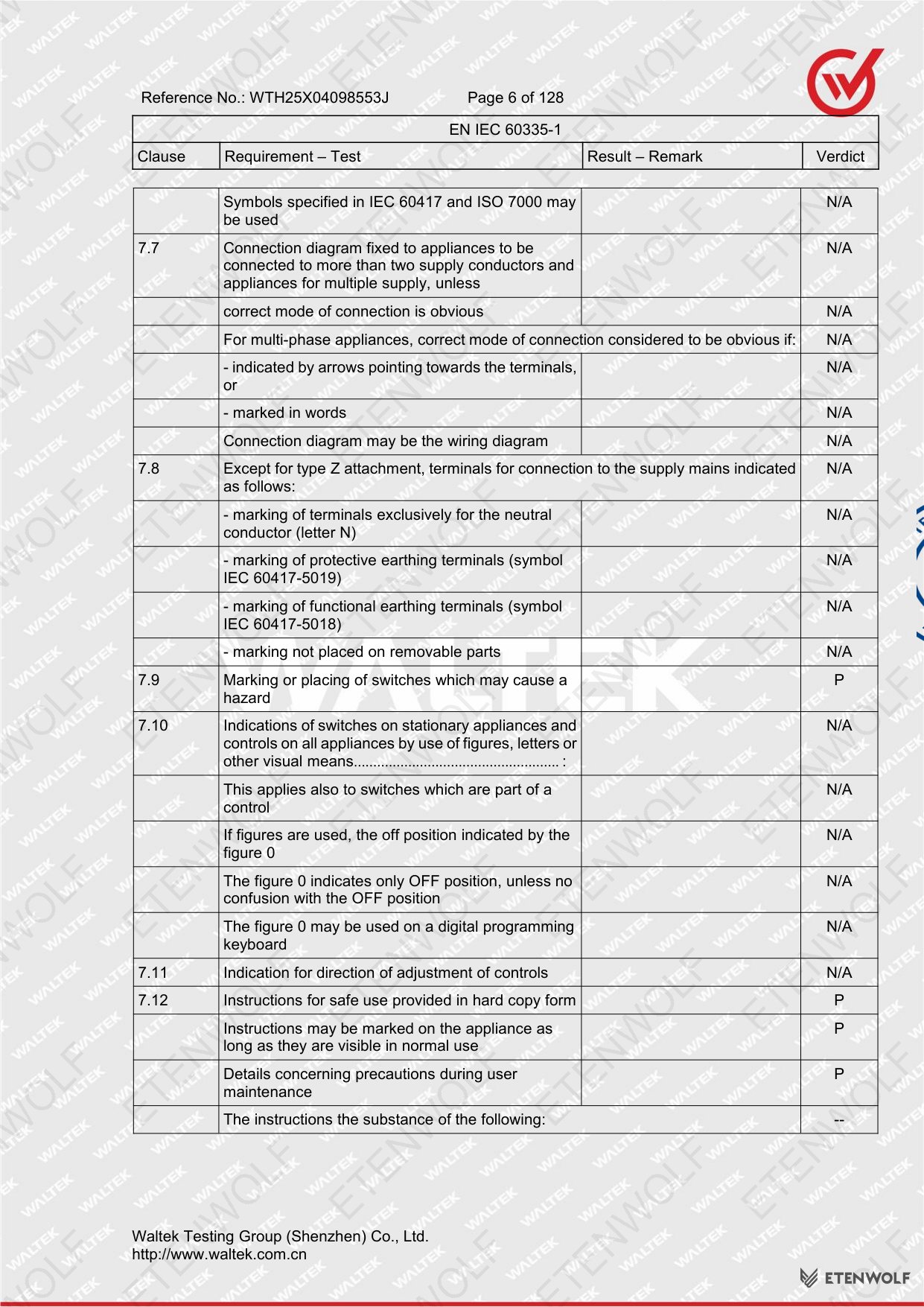

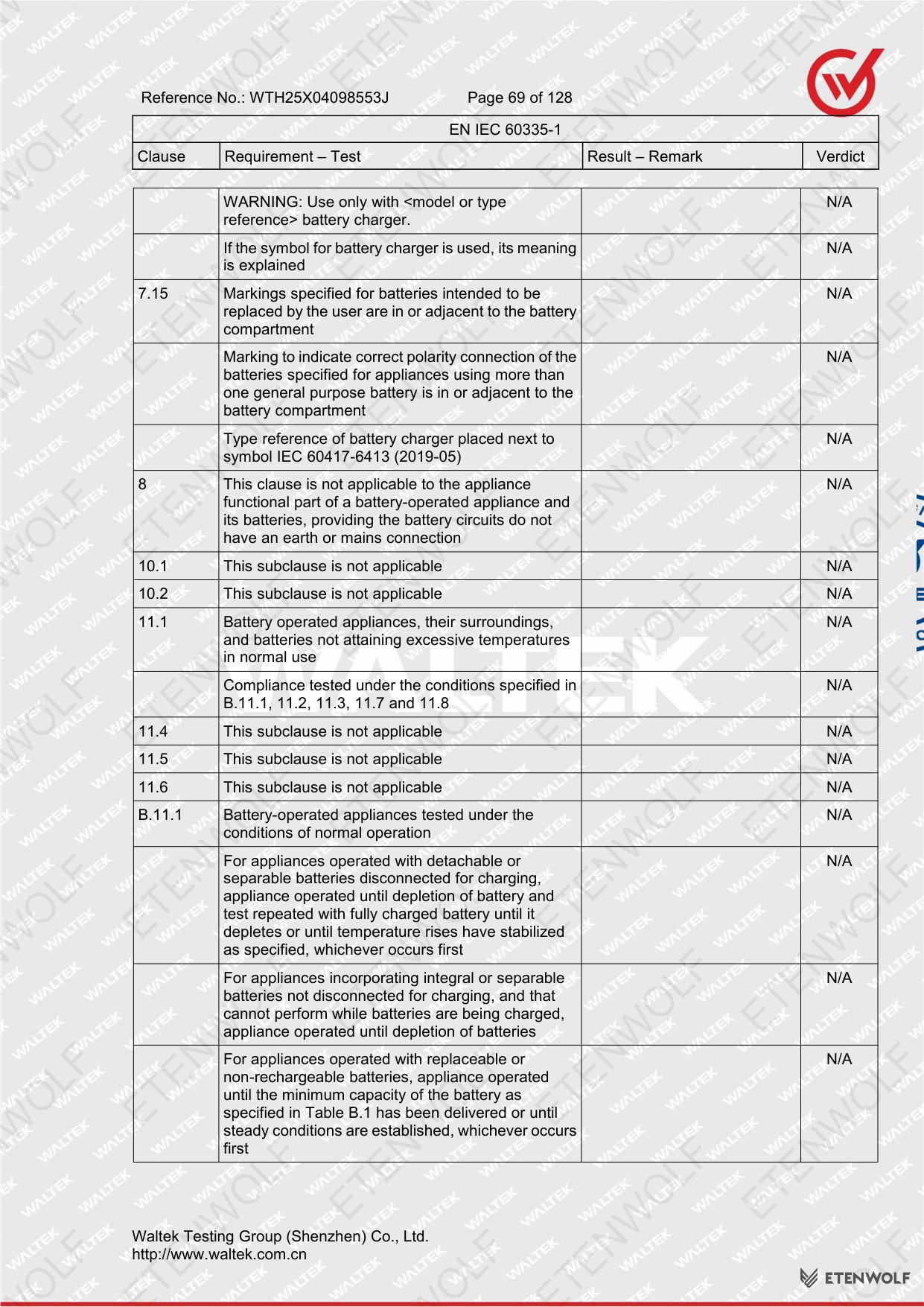

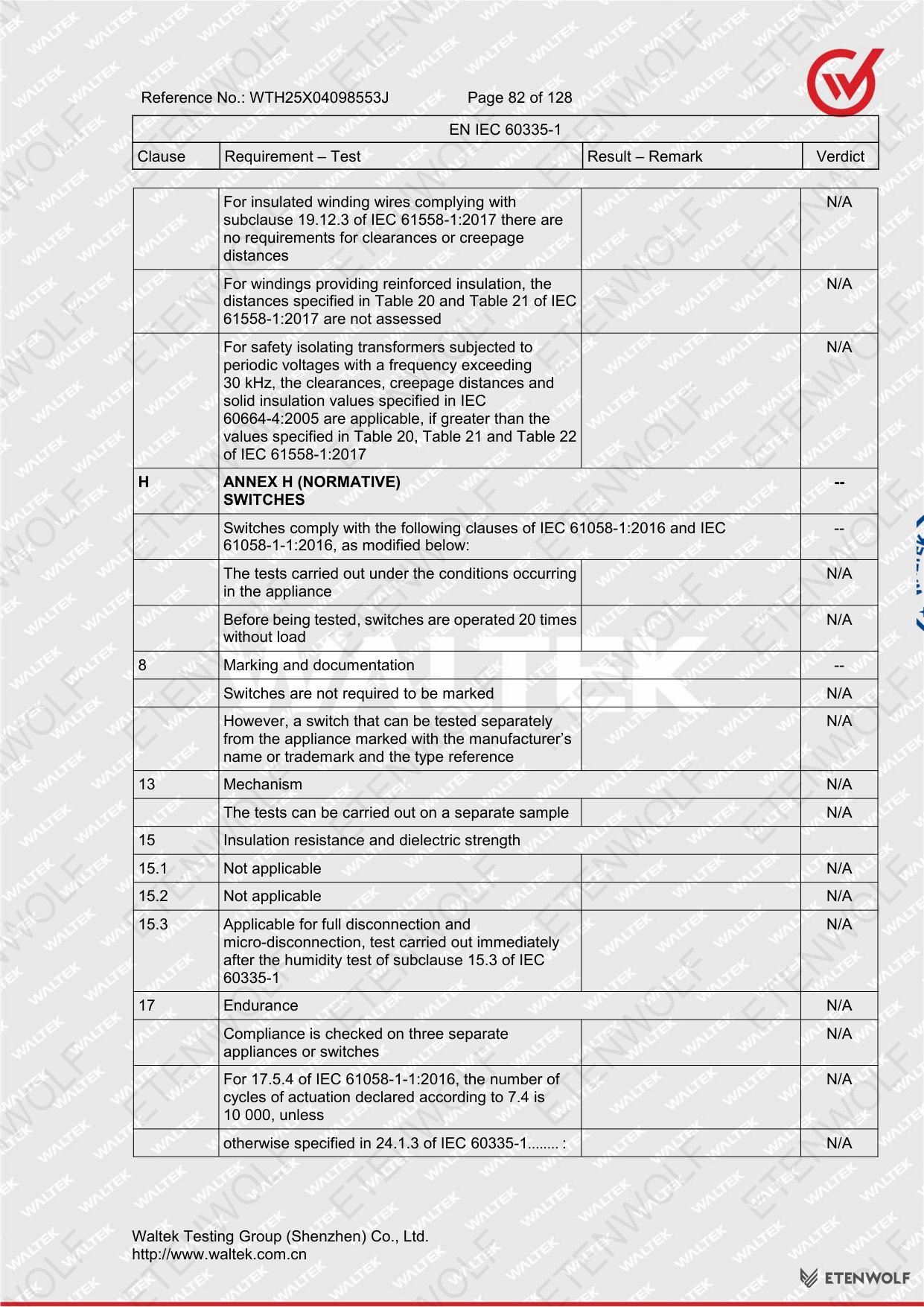

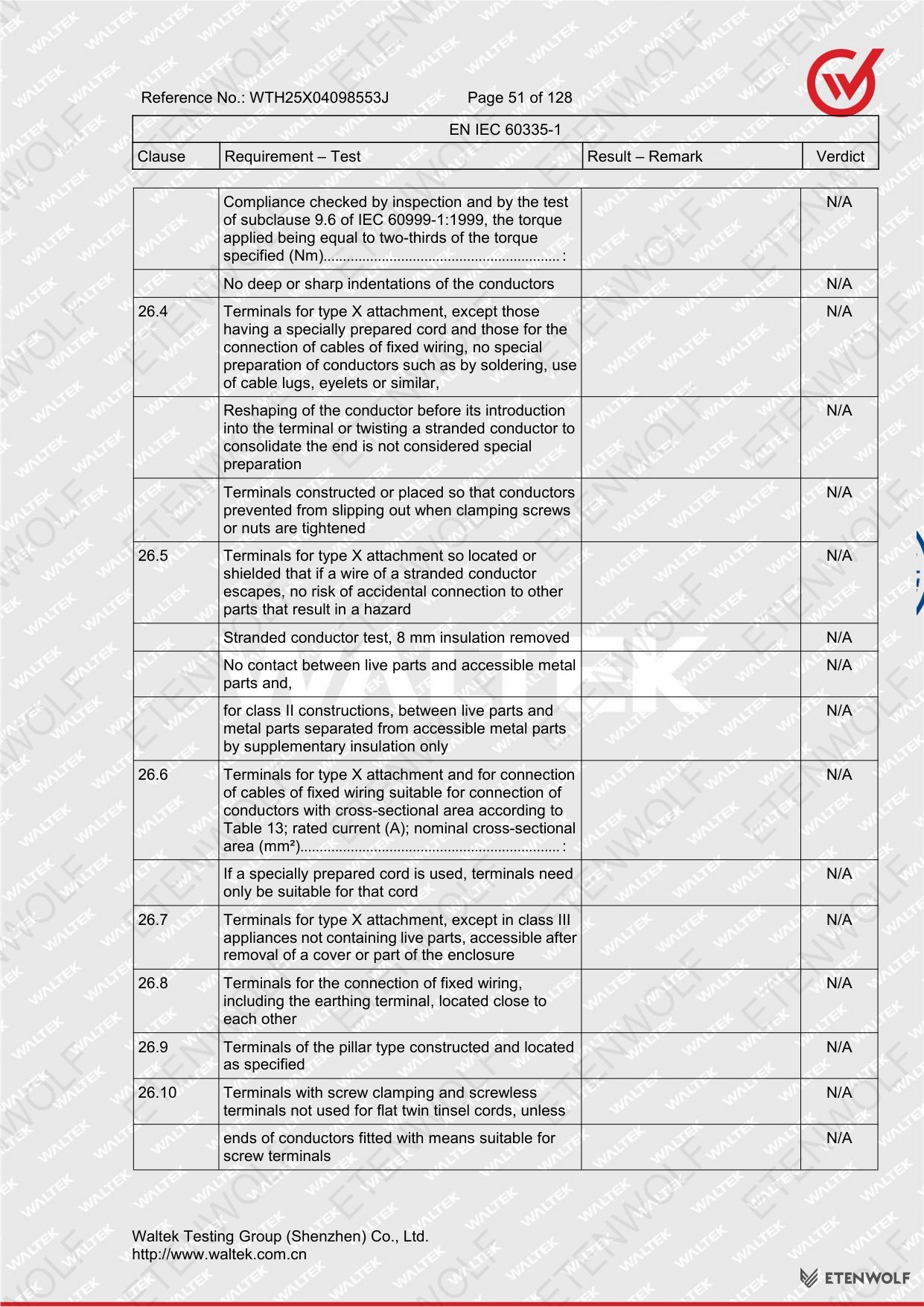

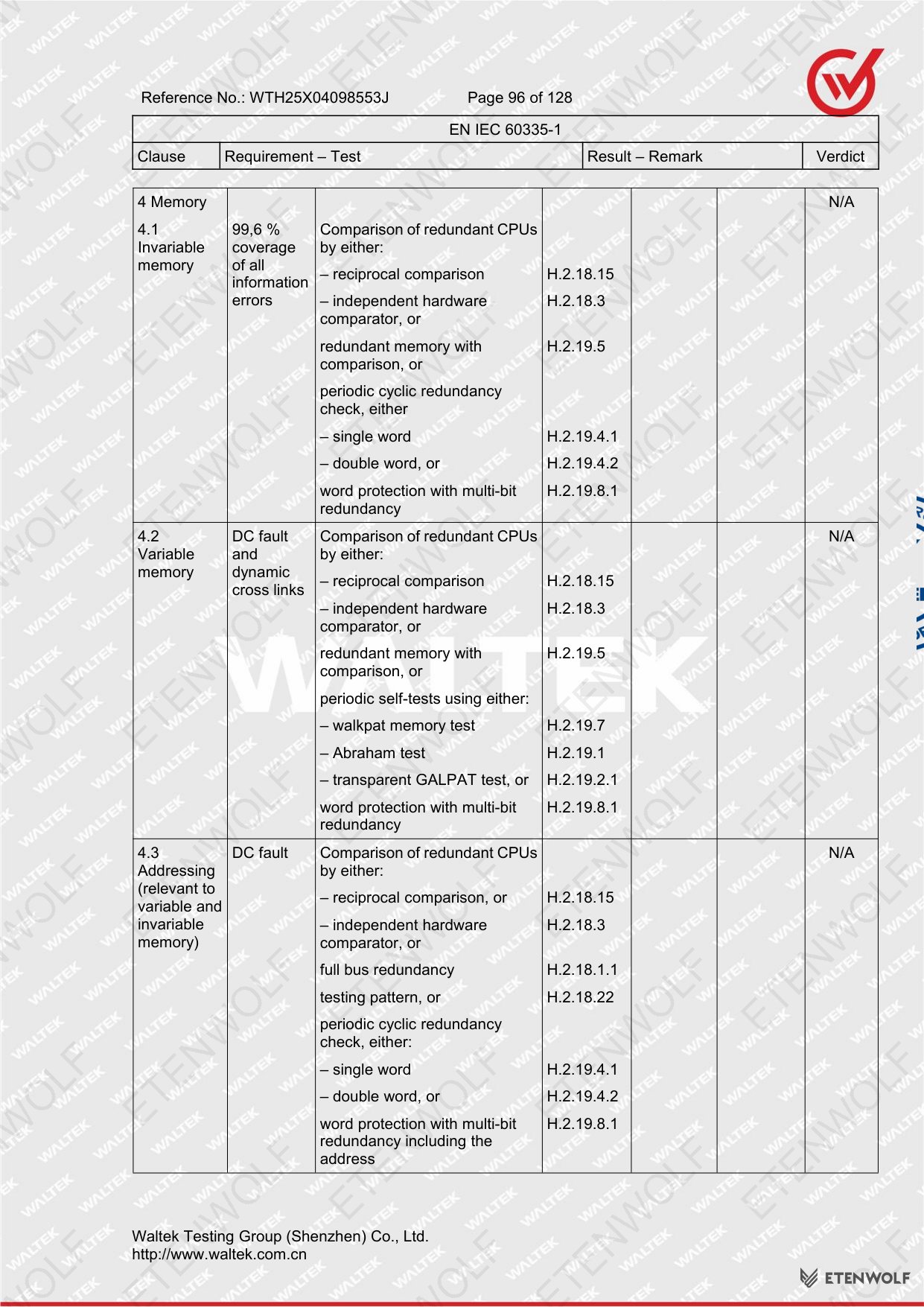

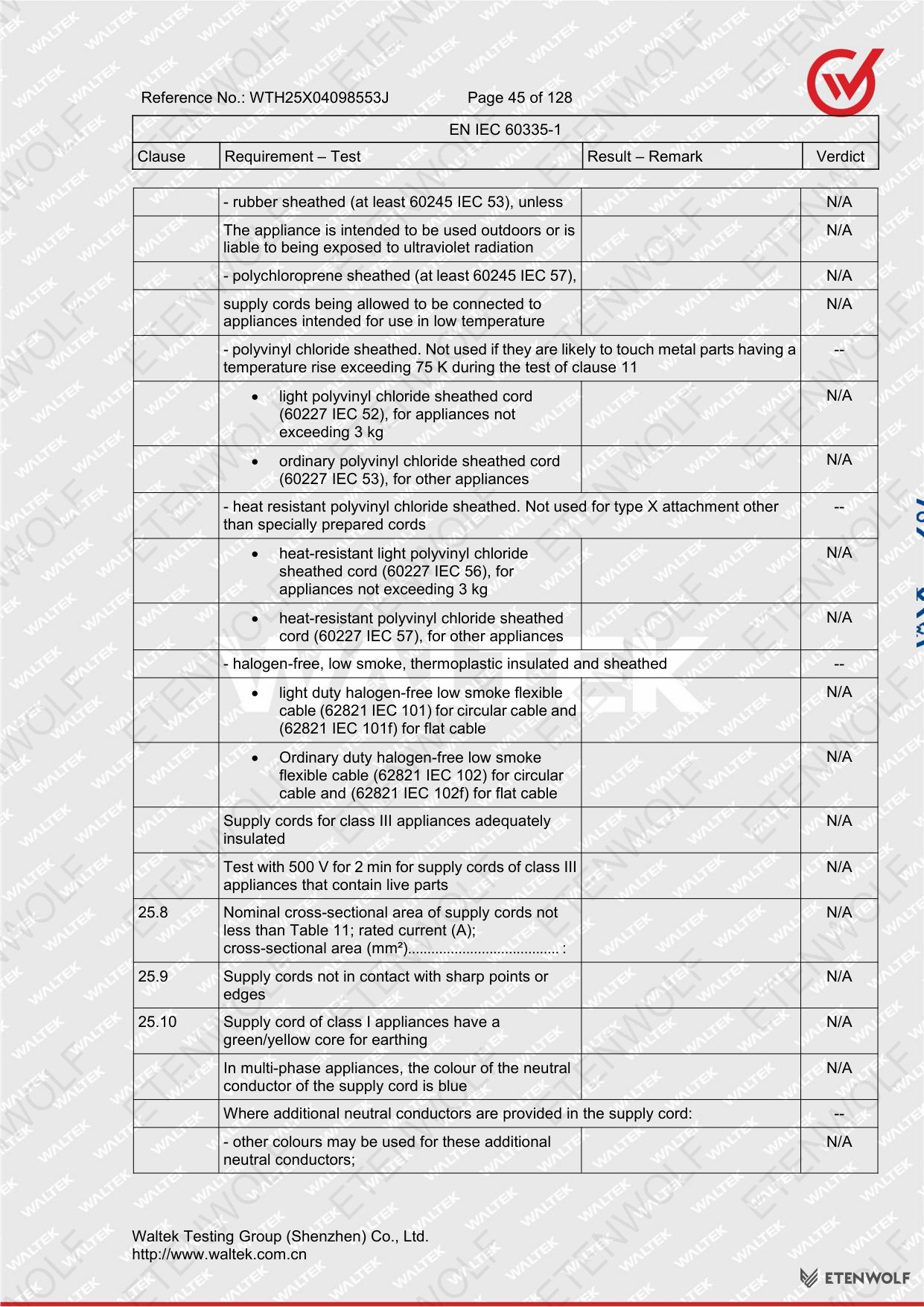

Document Pages
