Document Overview
This page presents the official quality inspection report issued by Shenzhen Waltek Testing Technology Co., Ltd. (深圳沃特检验技术有限公司), a professional third-party testing laboratory located in Bao’an District, Shenzhen, Guangdong, China. The report covers safety testing of the ETENWOLF Vortex S6 cordless inflator in accordance with the Chinese national household appliance safety standard.
| Field | Details |
|---|---|
| Report Number | WTH25X03074453G |
| Document Type | Quality Inspection Report (检测报告) |
| Issuing Body | Shenzhen Waltek Testing Technology Co., Ltd. |
| Sample Received | 2025-04-01 |
| Testing Period | 2025-04-01 to 2025-04-07 |
| Issue Date | 2025-04-08 |
| Template Number | WTX_GB4706_1_2005A |
| Testing Category | Client-commissioned testing (委托检测) |
| Overall Conclusion | All tested items comply with standard requirements |
Product Information

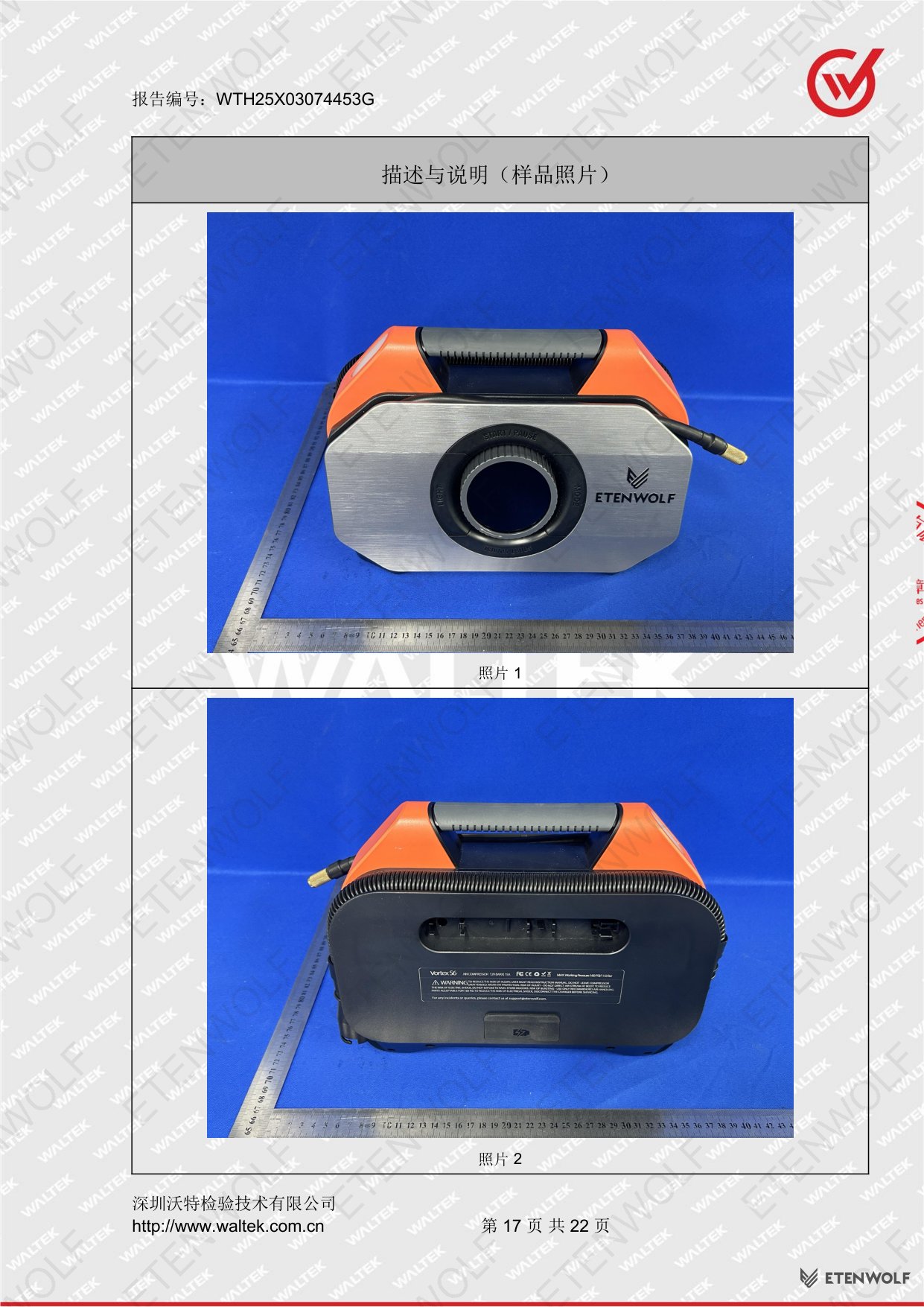

The product under test is the ETENWOLF Vortex S6 heavy-duty cordless inflator, manufactured by Guangdong Bestark Technology Co., Ltd. (广东贝仕达克科技有限公司). The unit was submitted in complete and undamaged condition for evaluation.
| Attribute | Value |
|---|---|
| Product Name | Air Inflator (充气泵) |
| Model | S6 |
| Rated Input Voltage | 5 V DC |
| Rated Input Current | 3 A |
| Rated Power | Not specified |
| Rated Frequency | DC — not applicable |
| Power Supply Type | DC only |
| Protection Class | Class III (Safety Extra-Low Voltage) |
| IP Rating | IPX0 (no ingress protection marking required) |
| Appliance Type | Portable |
| Control Method | Electronic circuit |
| Connection Method | Not intended for permanent fixed-wiring connection |
| Manufacturer | Guangdong Bestark Technology Co., Ltd. |
| Manufacturer Address | No. 1, North Gaopo 8th Road, Industrial Park, Yuancheng District, Heyuan City, Guangdong, China |
| Country of Manufacture | Made in China |
| Sample Quantity | 1 unit |
Key Details
The following clauses of GB4706.1-2005 were evaluated during testing. The test environment was maintained at 20 ± 5 °C ambient temperature and 60 ± 10% relative humidity throughout the testing period.
| Clause | Test Item | Result |
|---|---|---|
| 7 | Marking and Instructions | Pass |
| 7.1 | Rated voltage, power source type, rated input power/current, manufacturer identification, model and specifications — all marked on nameplate | Pass |
| 7.3 | Correct marking of rated value ranges | Pass |
| 7.6 | Correct use of symbols; power source symbol position; SI units and symbols | Pass |
| 7.9 | Switch marking and position clarity | Pass |
| 7.10 | Switch and controller identification by numeral, letter, or other means | Pass |
| 10 | Input Power and Current | Pass |

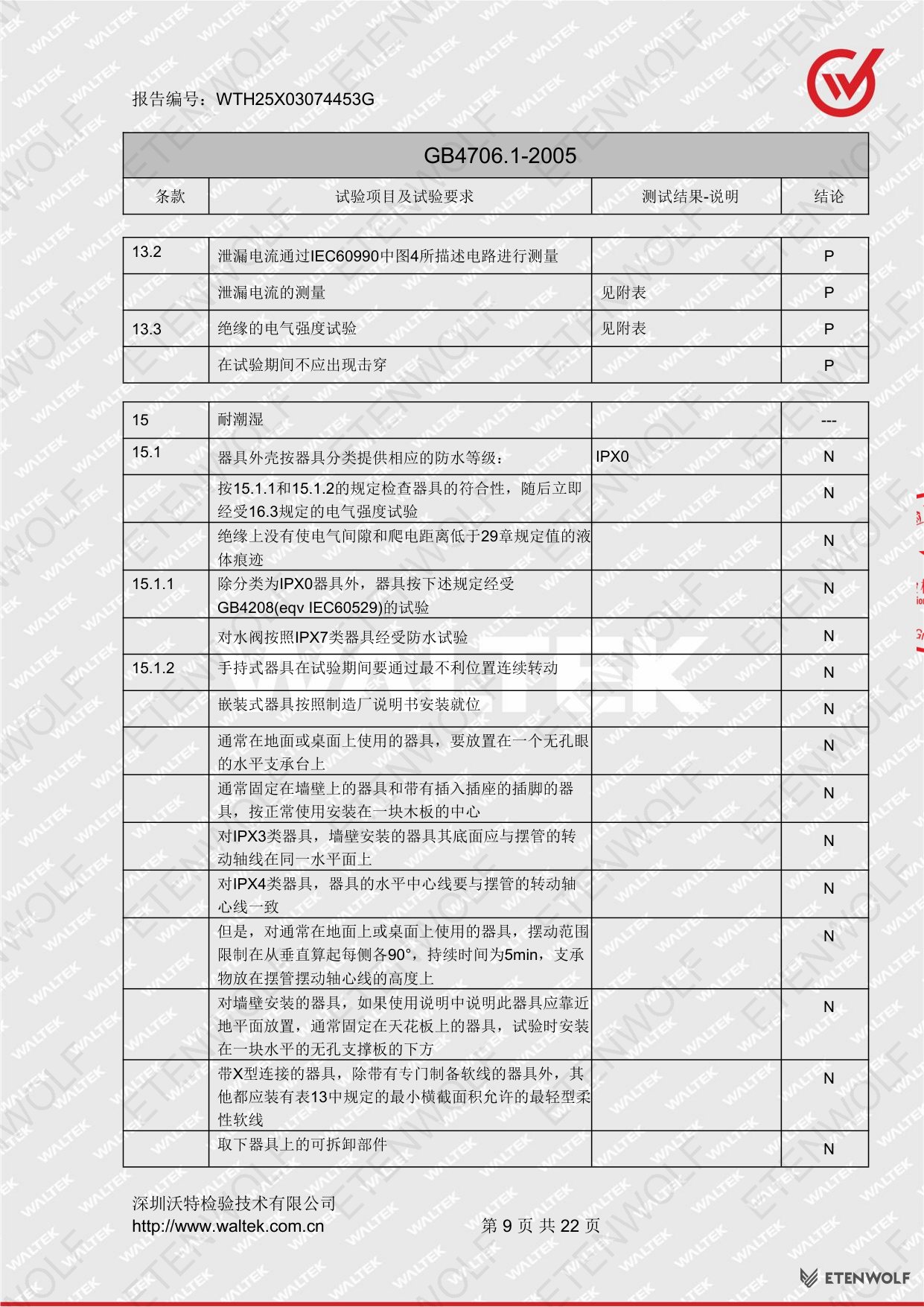

| 13 | Leakage Current and Electric Strength at Operating Temperature | Pass |
| 16 | Leakage Current and Electric Strength | Pass |
| 20 | Stability and Mechanical Hazards | Pass |

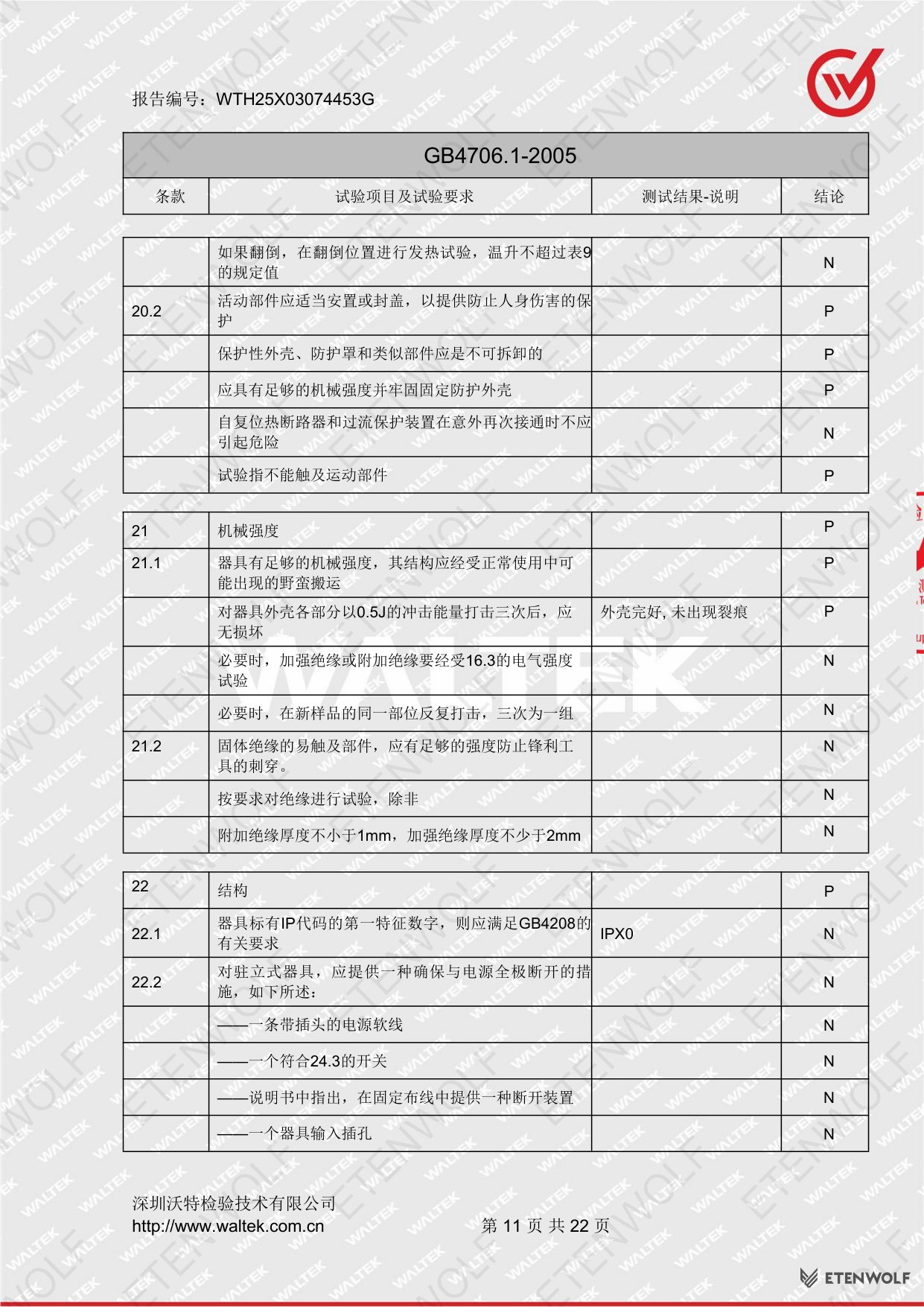

| 21 | Mechanical Strength | Pass |

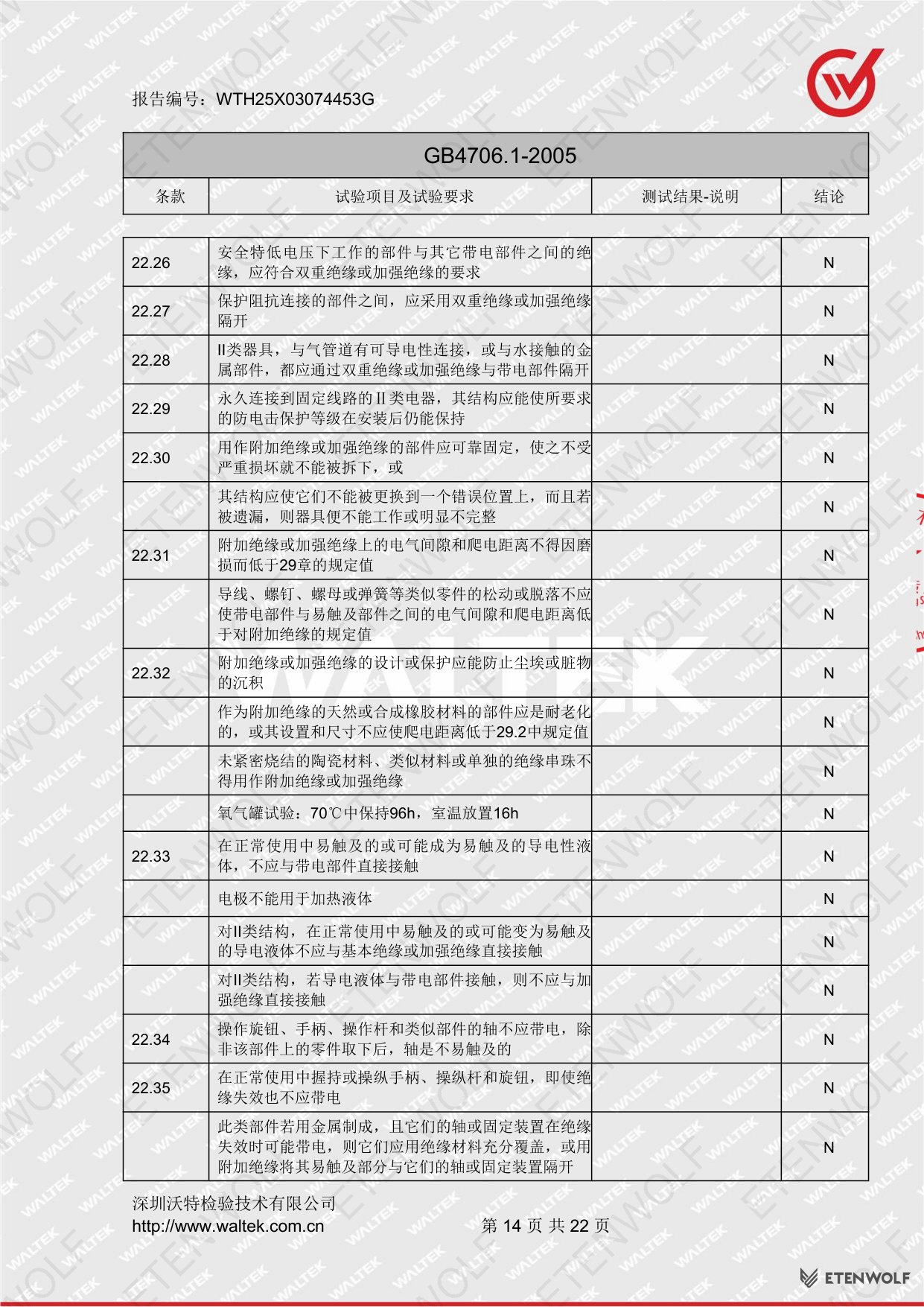

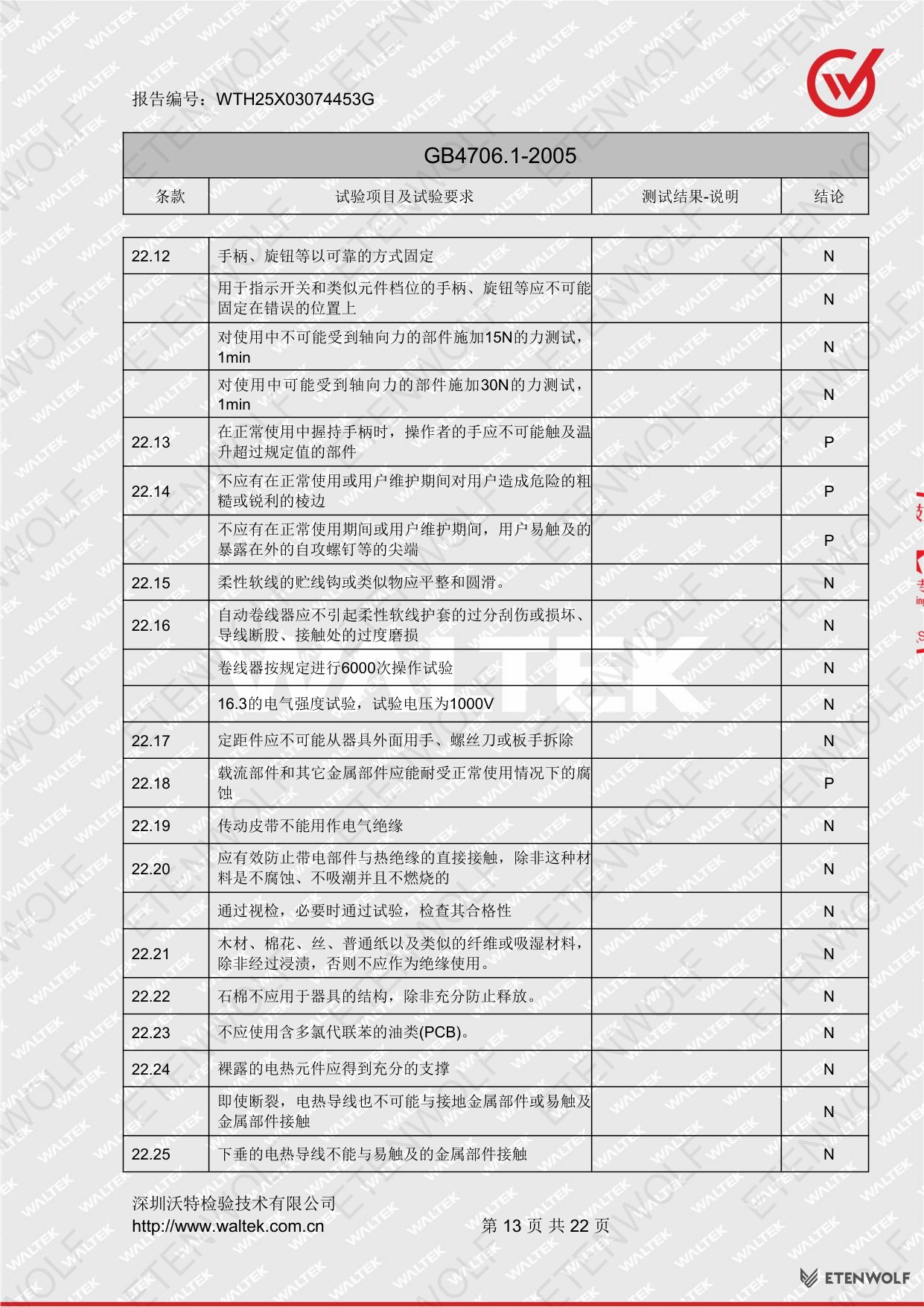

| 22 | Construction | Pass |

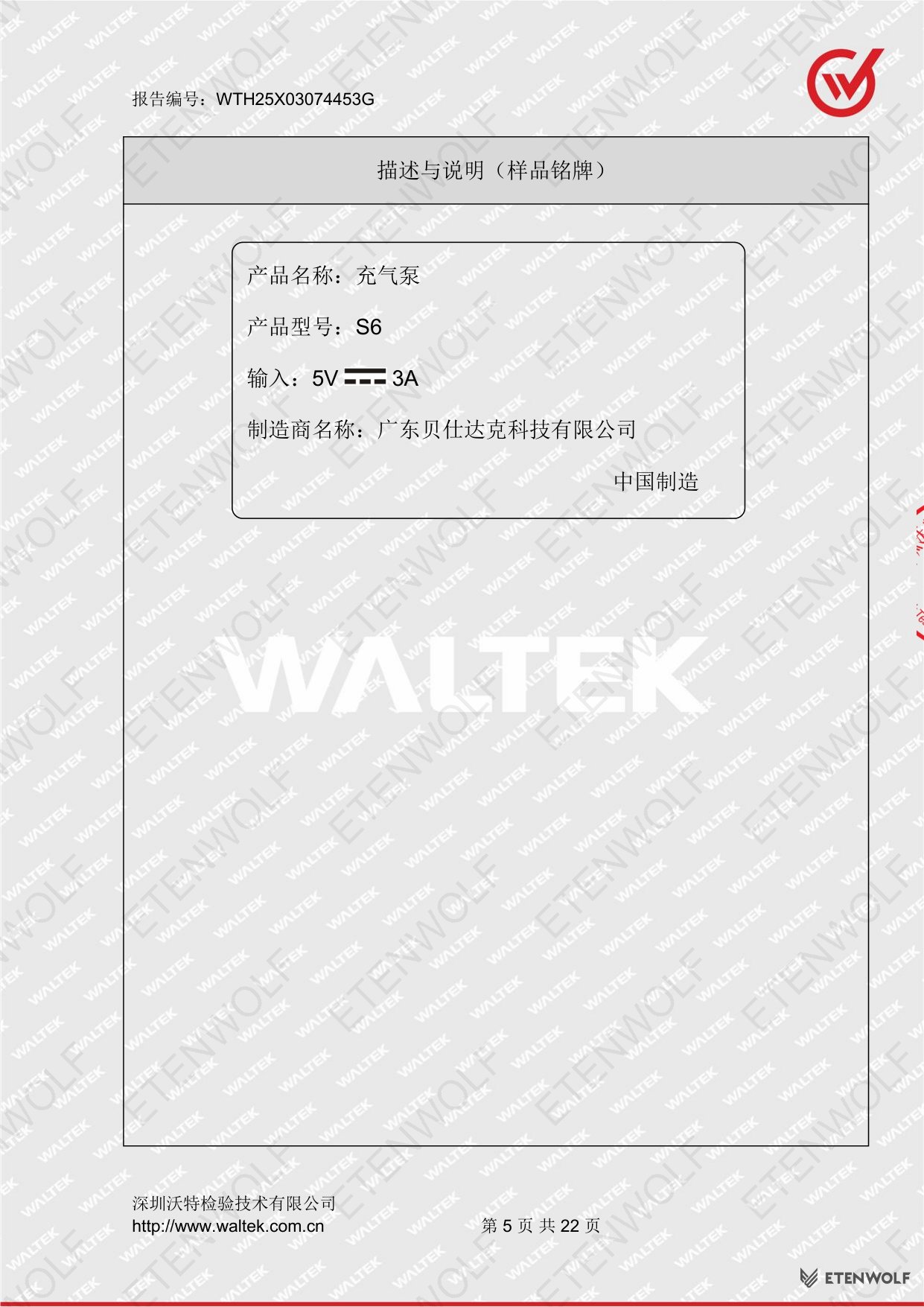

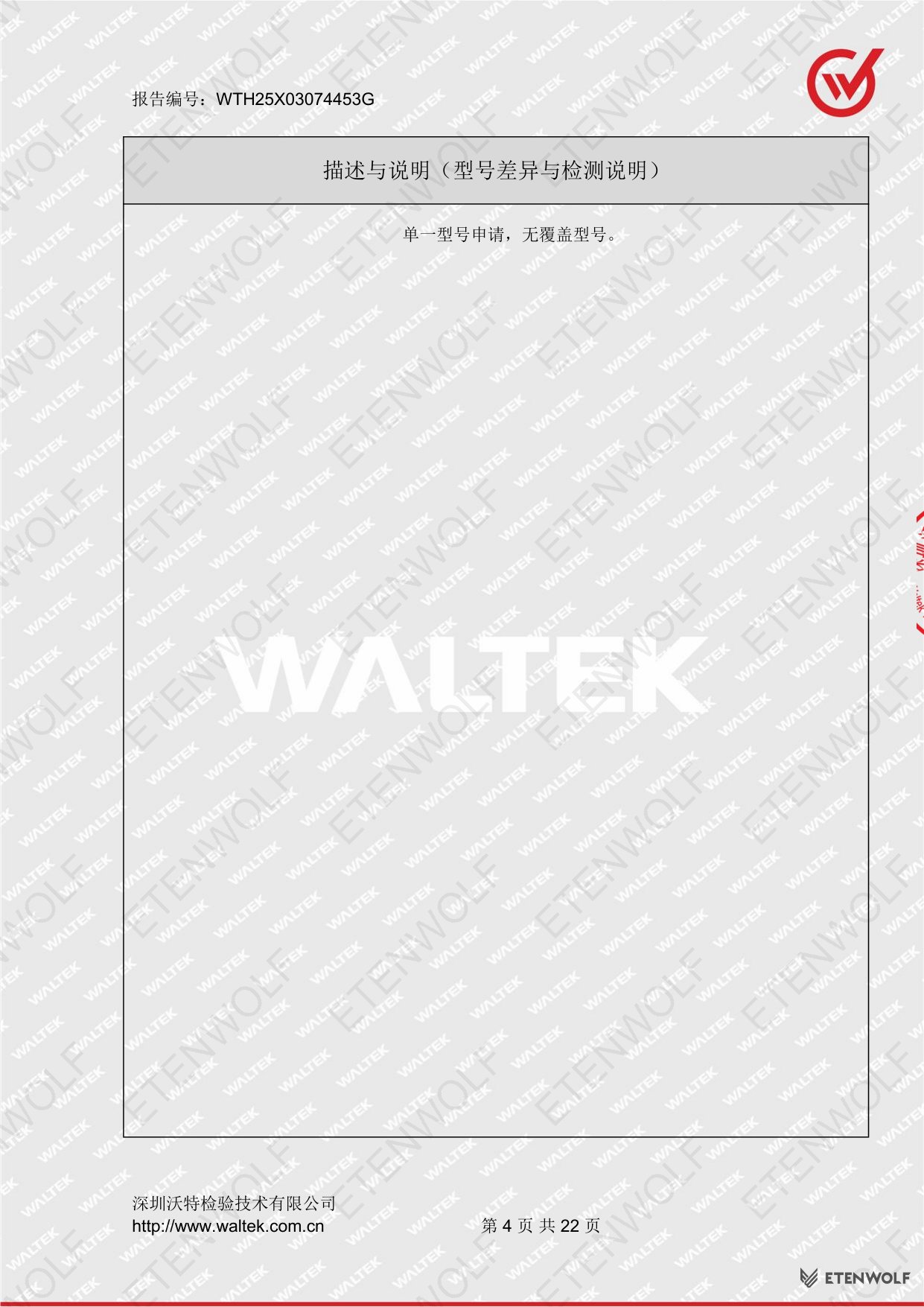

The product is a single-model application with no variant models covered under this report. The nameplate confirms: input 5 V DC, 3 A; manufacturer name; and country of manufacture (China).
Standards & Compliance
The ETENWOLF Vortex S6 was evaluated against the following Chinese national standard:
| Standard | Title | Scope |
|---|---|---|
| GB 4706.1-2005 | Safety of Household and Similar Electrical Appliances — Part 1: General Requirements | General safety requirements applicable to household and similar-use electrical appliances rated up to 250 V |
GB 4706.1-2005 is the Chinese equivalent of the IEC 60335-1 international standard series. It establishes requirements for marking, electrical strength, leakage current, mechanical construction, and stability to ensure user safety during normal and foreseeable abnormal operation.
As a Class III appliance operating on Safety Extra-Low Voltage (SELV) at 5 V DC, the S6 is designed to present minimal electric shock risk. The tested clauses confirm that insulation integrity, mechanical robustness, and all mandatory labeling meet the standard’s requirements in full.
Validity & Certification Body
This report was issued on 2025-04-08 by Shenzhen Waltek Testing Technology Co., Ltd., an established third-party inspection and testing laboratory operating under China’s testing and certification framework.
| Field | Details |
|---|---|
| Laboratory Name | Shenzhen Waltek Testing Technology Co., Ltd. (深圳沃特检验技术有限公司) |
| Laboratory Website | http://www.waltek.com.cn |
| Laboratory Address | 1st Floor, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Zone 70, Bao’an District, Shenzhen, Guangdong, China |
| Phone | +86-755-33663308 |
| Fax | +86-755-33663309 |
| [email protected] | |
| Lead Tester | Ye Jintao (叶锦涛) |
| Reviewer | Gao Guanquan (高官权) |
| Approver | Wei Wenyong (韦文勇) |
| Report Issue Date | 2025-04-08 |
| Report Valid For | The report reflects the condition of the submitted sample; validity is subject to Waltek’s standard report validity policy |
Frequently Asked Questions
- What does report number WTH25X03074453G confirm about the ETENWOLF S6?
- Report WTH25X03074453G, issued on 2025-04-08 by Shenzhen Waltek Testing Technology Co., Ltd., confirms that the ETENWOLF Vortex S6 cordless inflator passed all tested clauses of GB 4706.1-2005, covering marking and instructions, input power and current, leakage current, electric strength, stability, mechanical strength, and construction.
- Which safety standard was used to test the S6 inflator, and what does it cover?
- GB 4706.1-2005 is the Chinese national safety standard for household and similar electrical appliances, aligned with IEC 60335-1. It covers general safety requirements including electrical insulation, leakage current limits, mechanical hazards, and mandatory product labeling.
- What protection class is the ETENWOLF Vortex S6, and why does that matter?
- The S6 is a Class III appliance, meaning it operates on Safety Extra-Low Voltage (SELV) — in this case 5 V DC at 3 A. Class III is the safest protection class for electrical appliances because the operating voltage is inherently too low to cause electric shock under normal conditions, eliminating the need for protective earthing.
- Who manufactured the S6 and where was it made?
- The ETENWOLF Vortex S6 is manufactured by Guangdong Bestark Technology Co., Ltd., located at No. 1, North Gaopo 8th Road, Industrial Park, Yuancheng District, Heyuan City, Guangdong Province, China. The product is made in China.
Related Documents
The following certification and compliance documents are typically relevant for a product like the ETENWOLF Vortex S6 cordless inflator and may complement this GB 4706.1-2005 safety test report:
- UN 38.3 Battery Transport Test Report — required for lithium-ion battery cells used in cordless inflators, certifying safe air and ground transport under UN 38.3 regulations.
- CE Declaration of Conformity — required for sales in the European Economic Area, typically covering Low Voltage Directive (LVD) and EMC Directive compliance.
- FCC Declaration of Conformity — required for sales in the United States, confirming electromagnetic compatibility under FCC rules.
- KC Certification — required for sales in South Korea, covering electrical safety and EMC requirements under Korean standards.
- RoHS Compliance Report — confirms restriction of hazardous substances (lead, mercury, cadmium, etc.) in electrical and electronic equipment per RoHS Directive 2011/65/EU.
- REACH SVHC Declaration — confirms absence of Substances of Very High Concern above threshold limits under REACH Regulation (EC) No 1907/2006.
- IEC 62368-1 or IEC 60335-1 Test Report — international equivalents to GB 4706.1-2005, required for market access in various global regions.

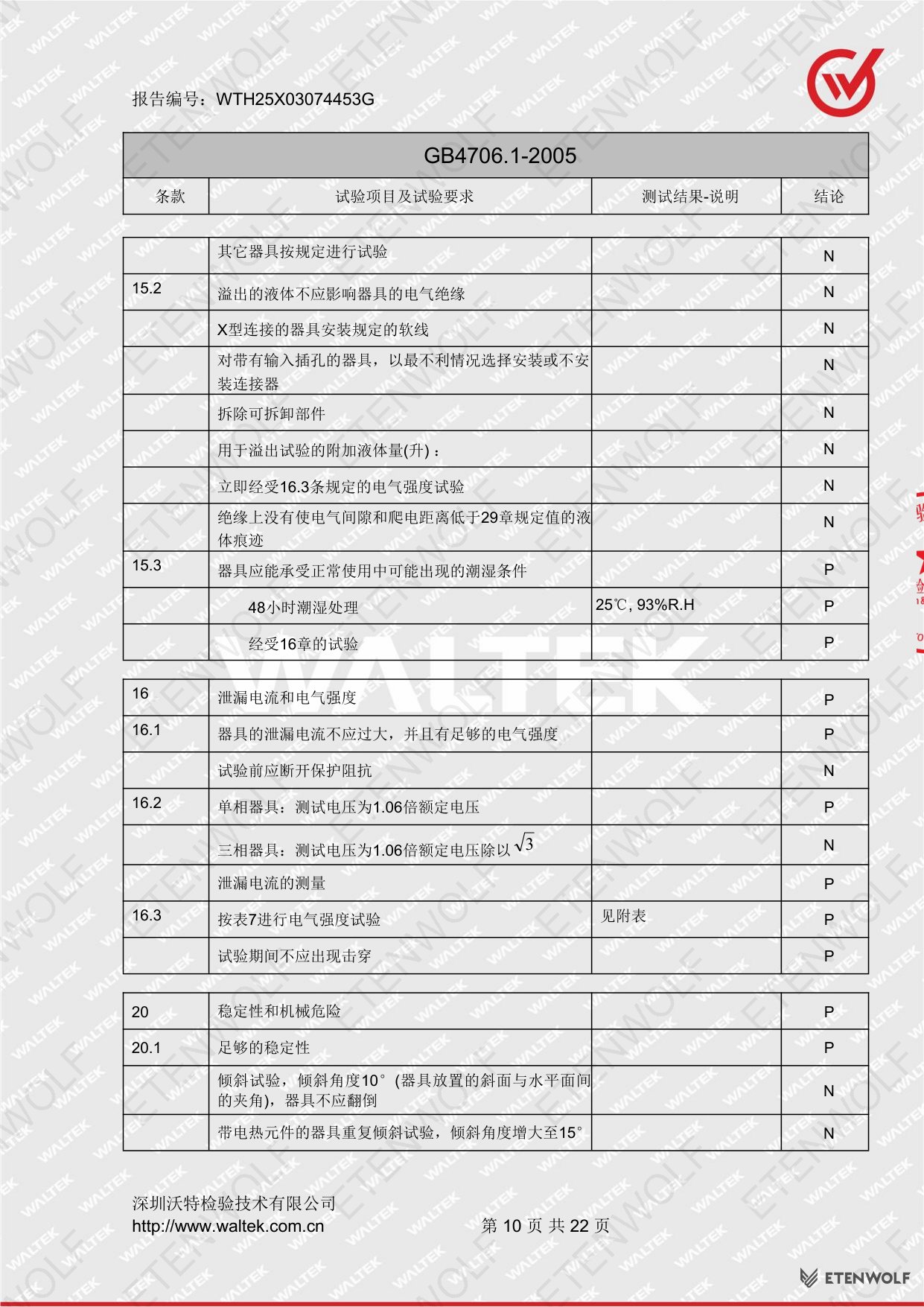

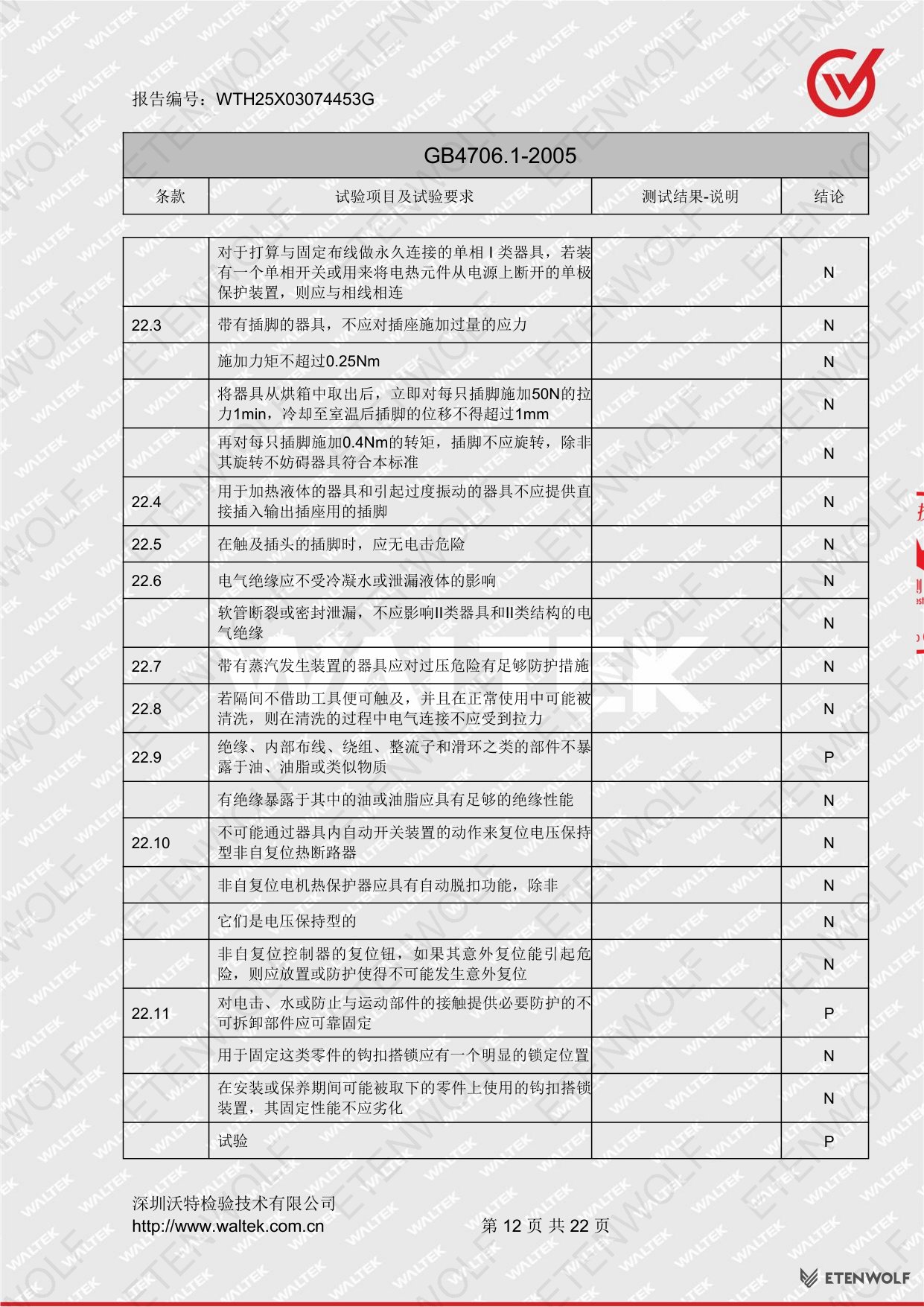

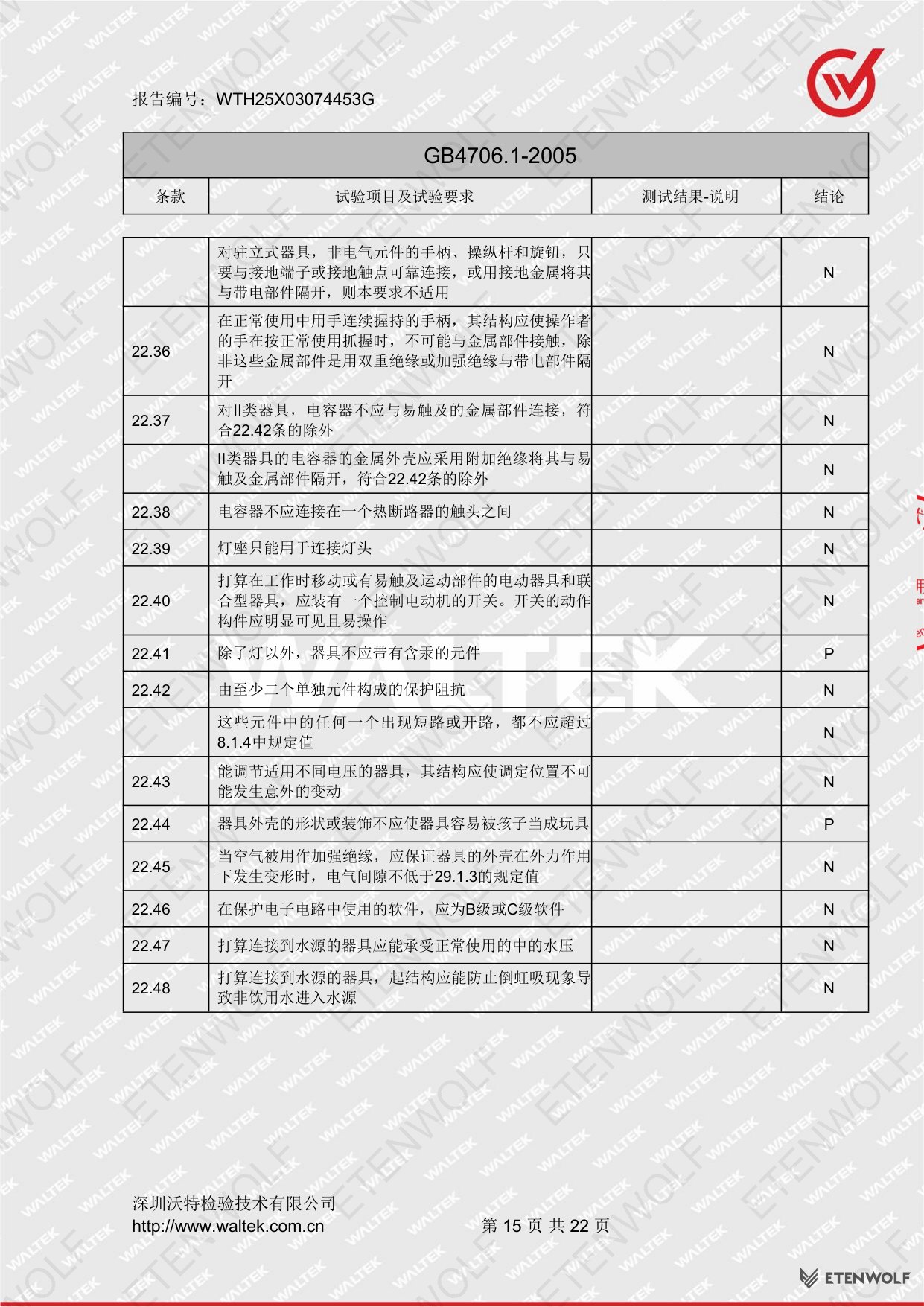

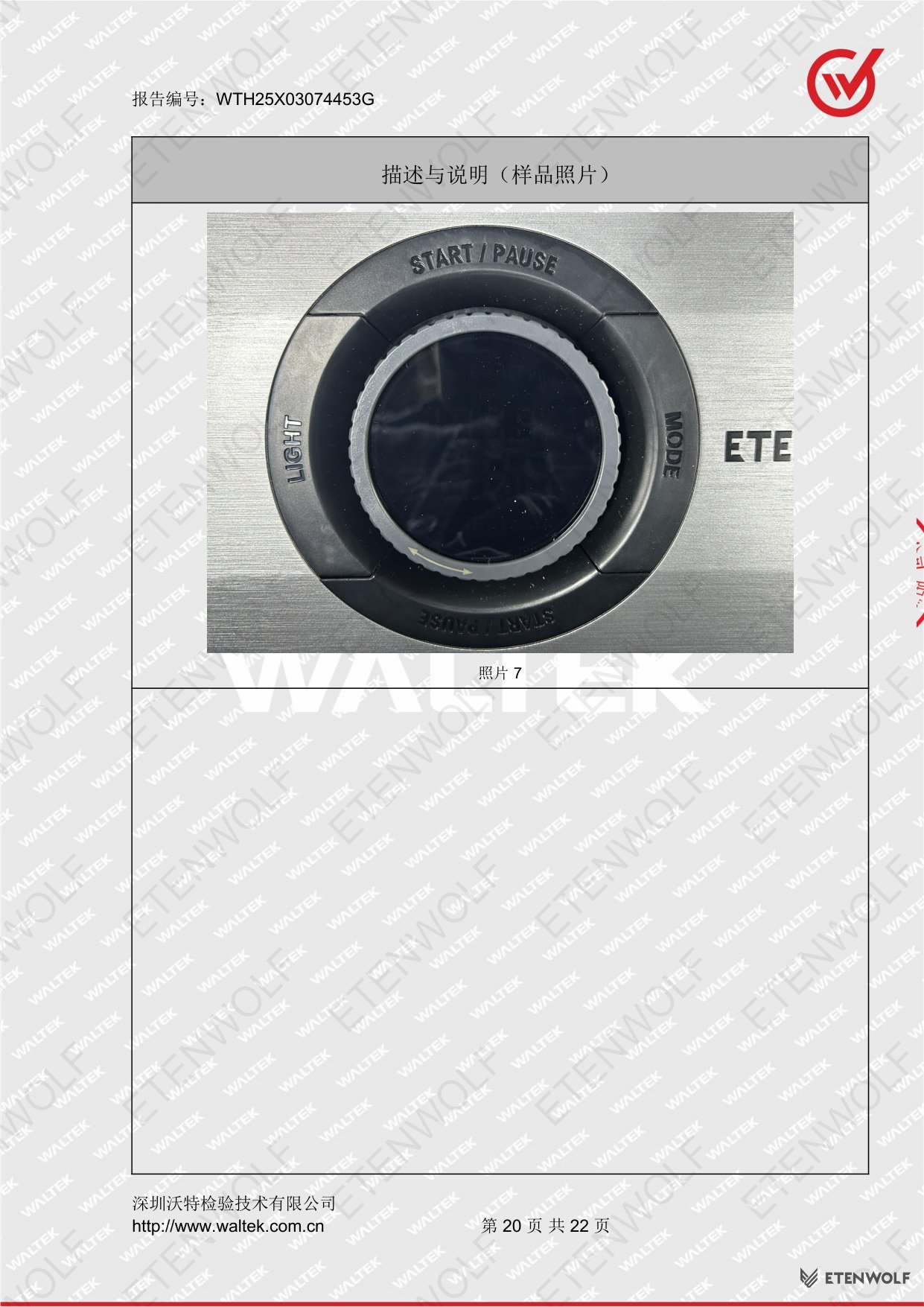

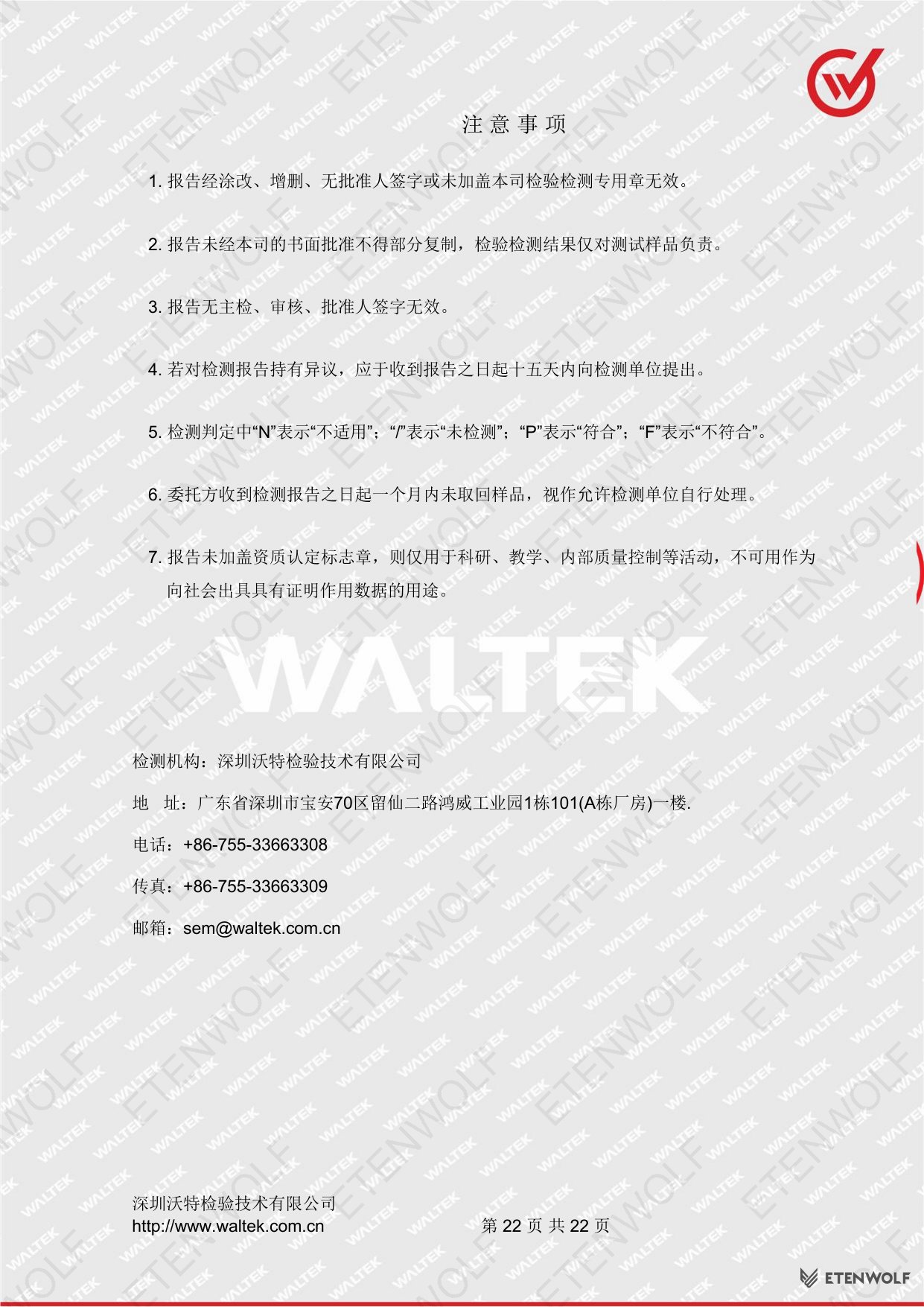

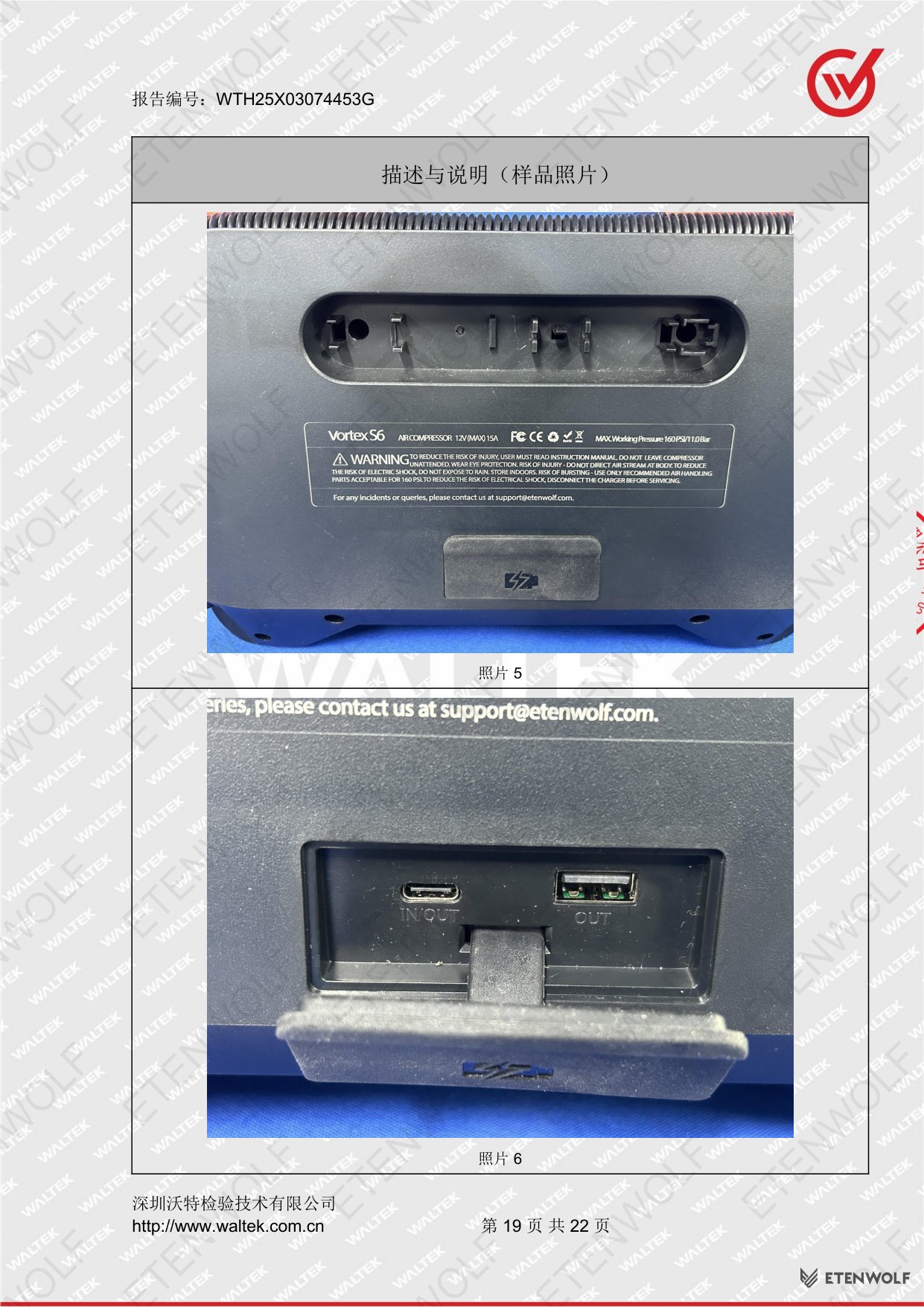

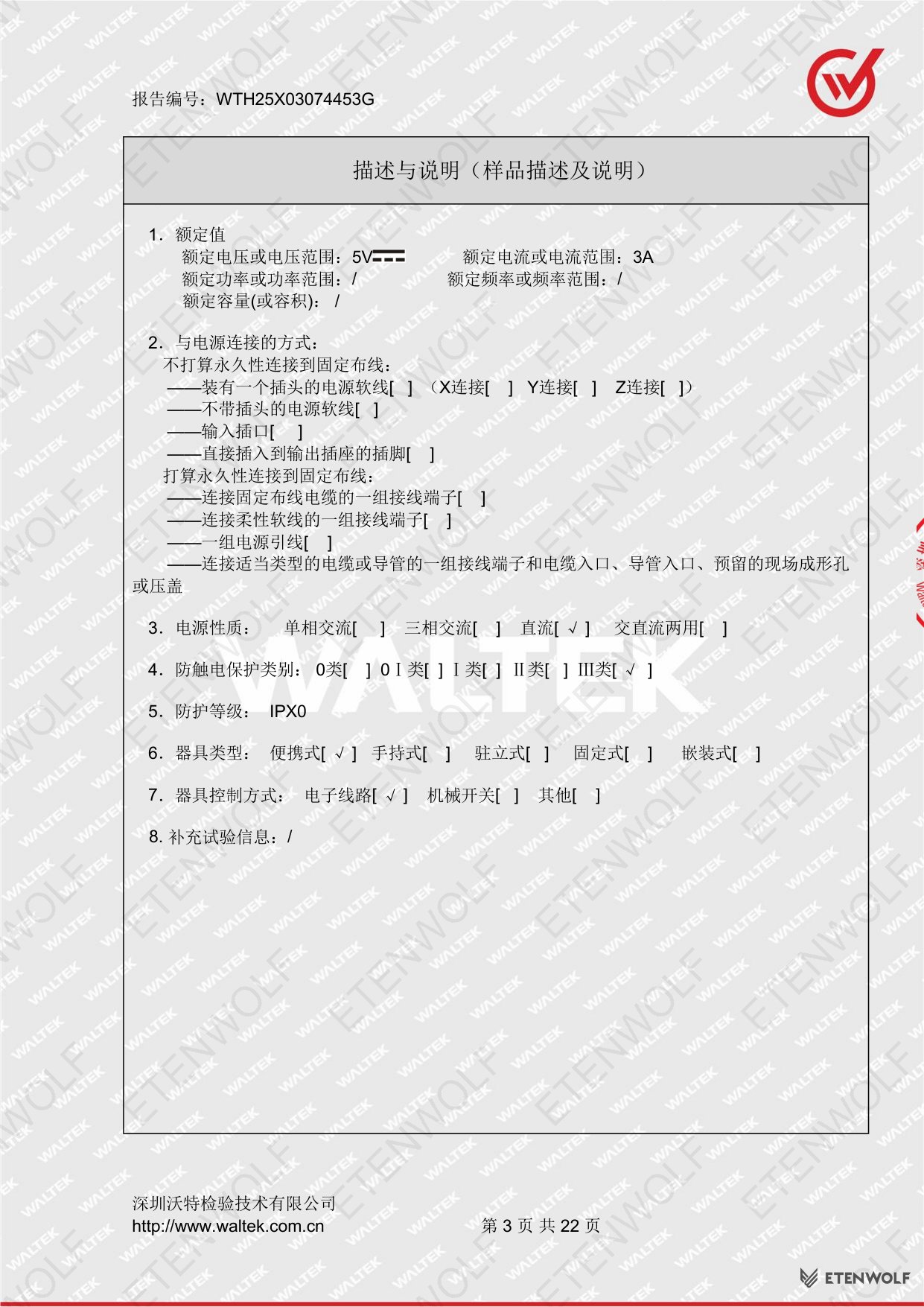

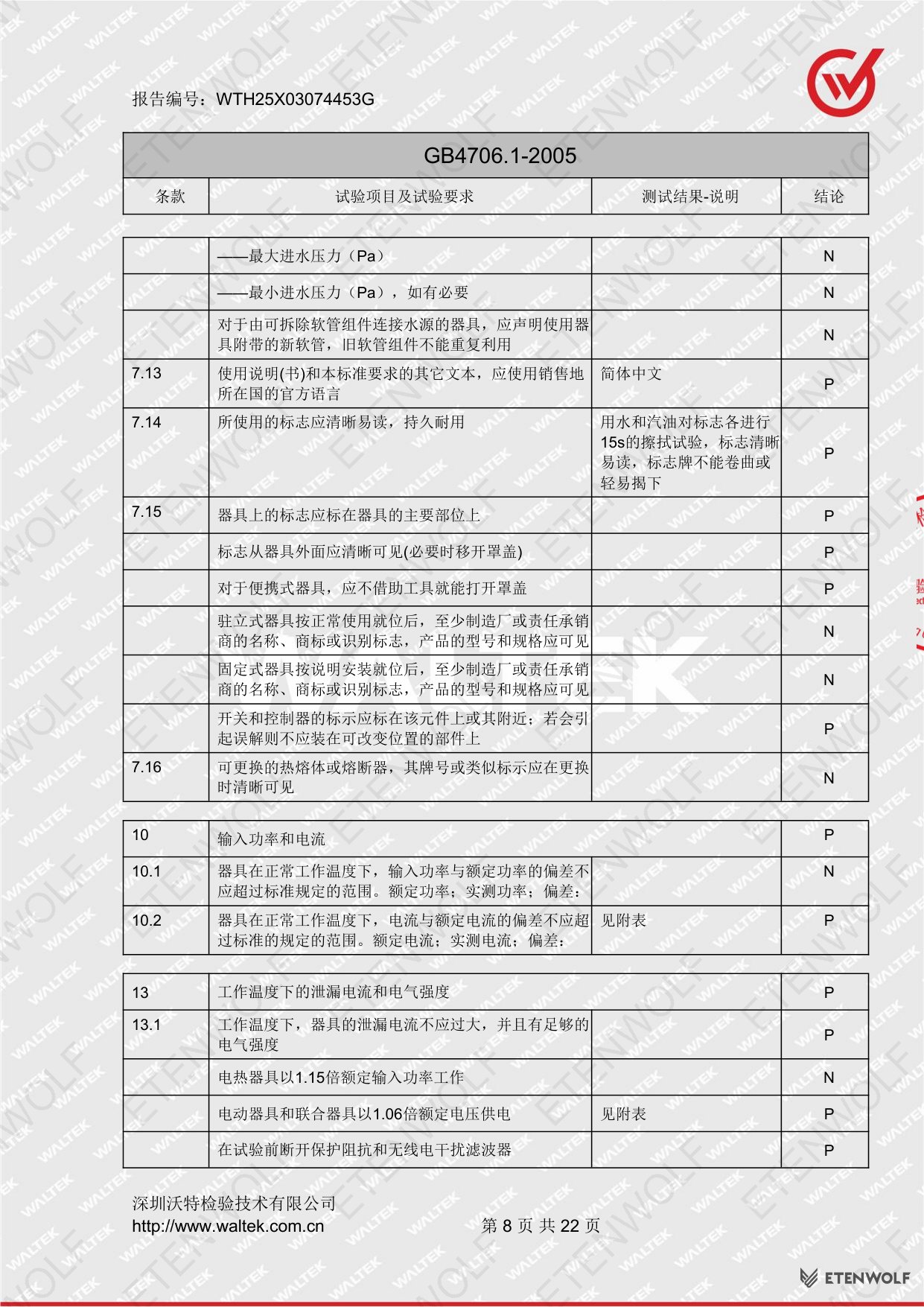

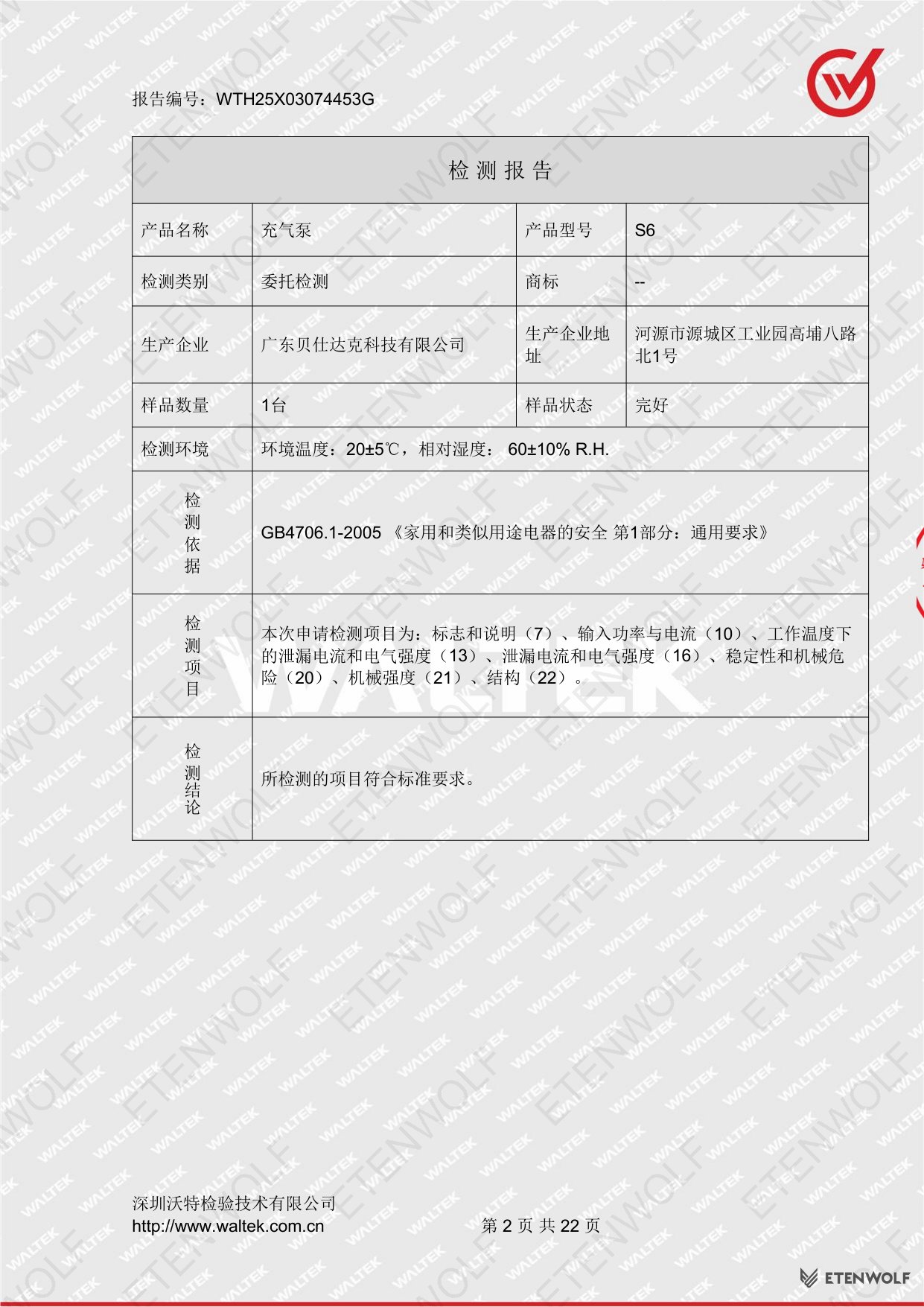

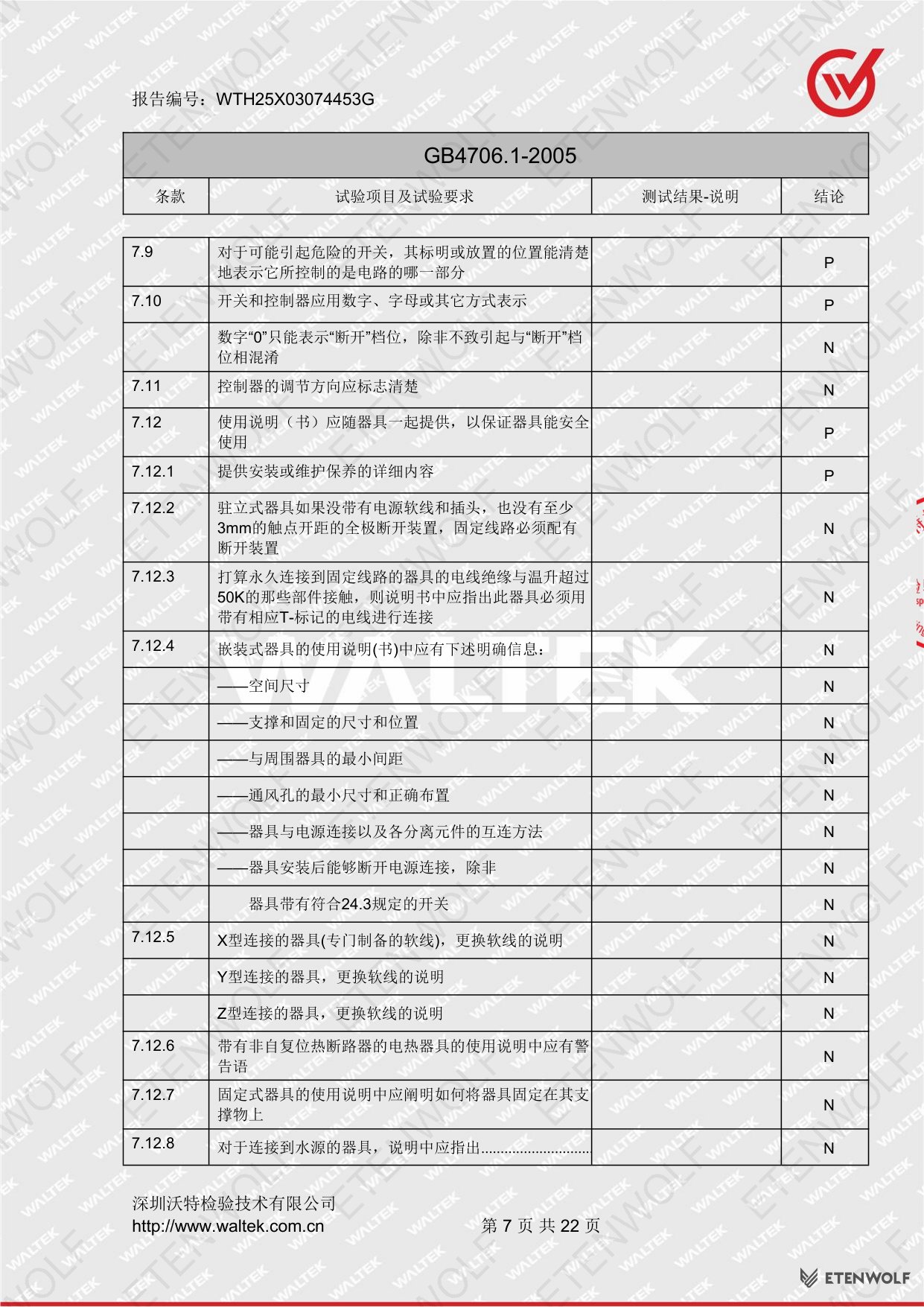

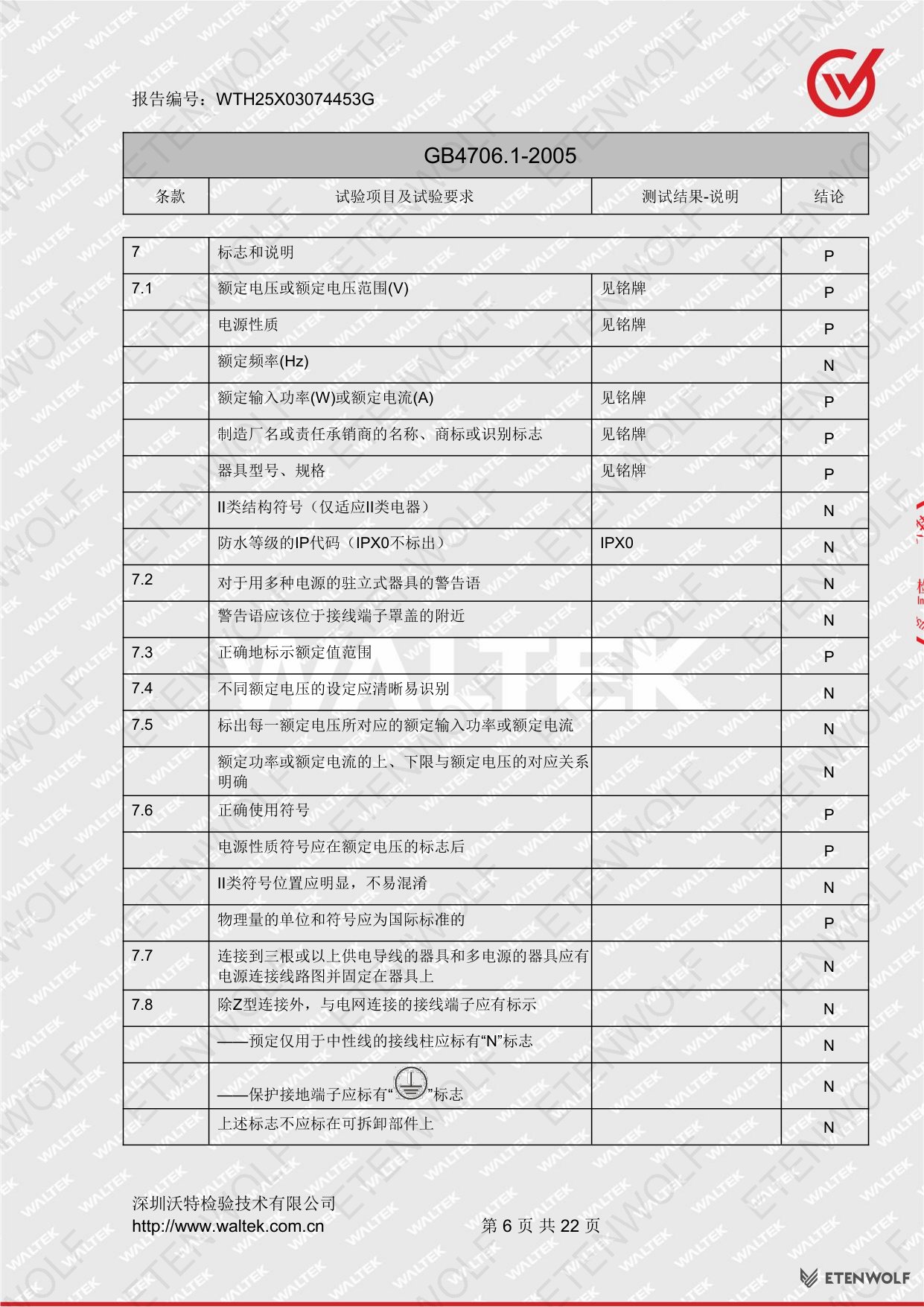

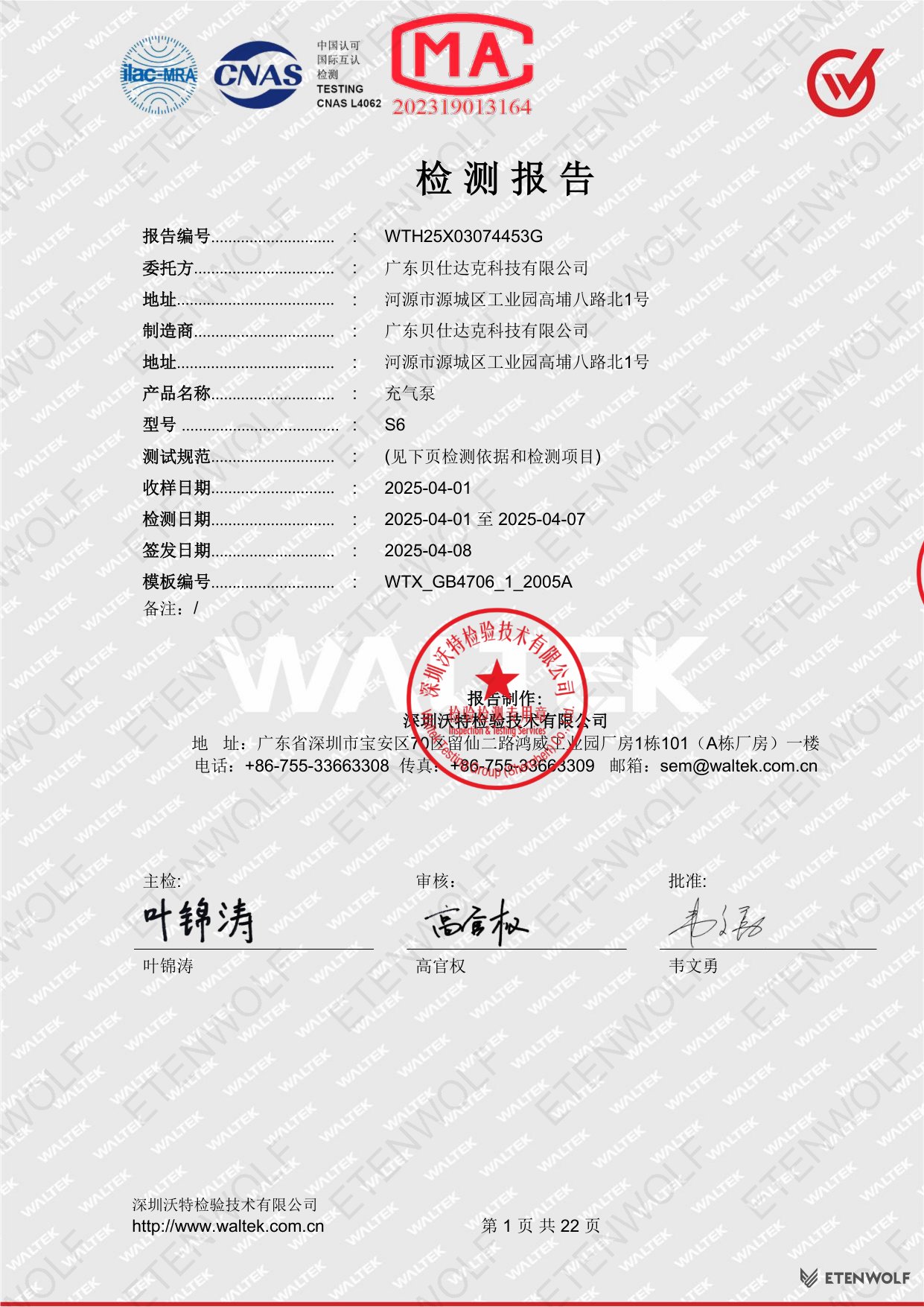

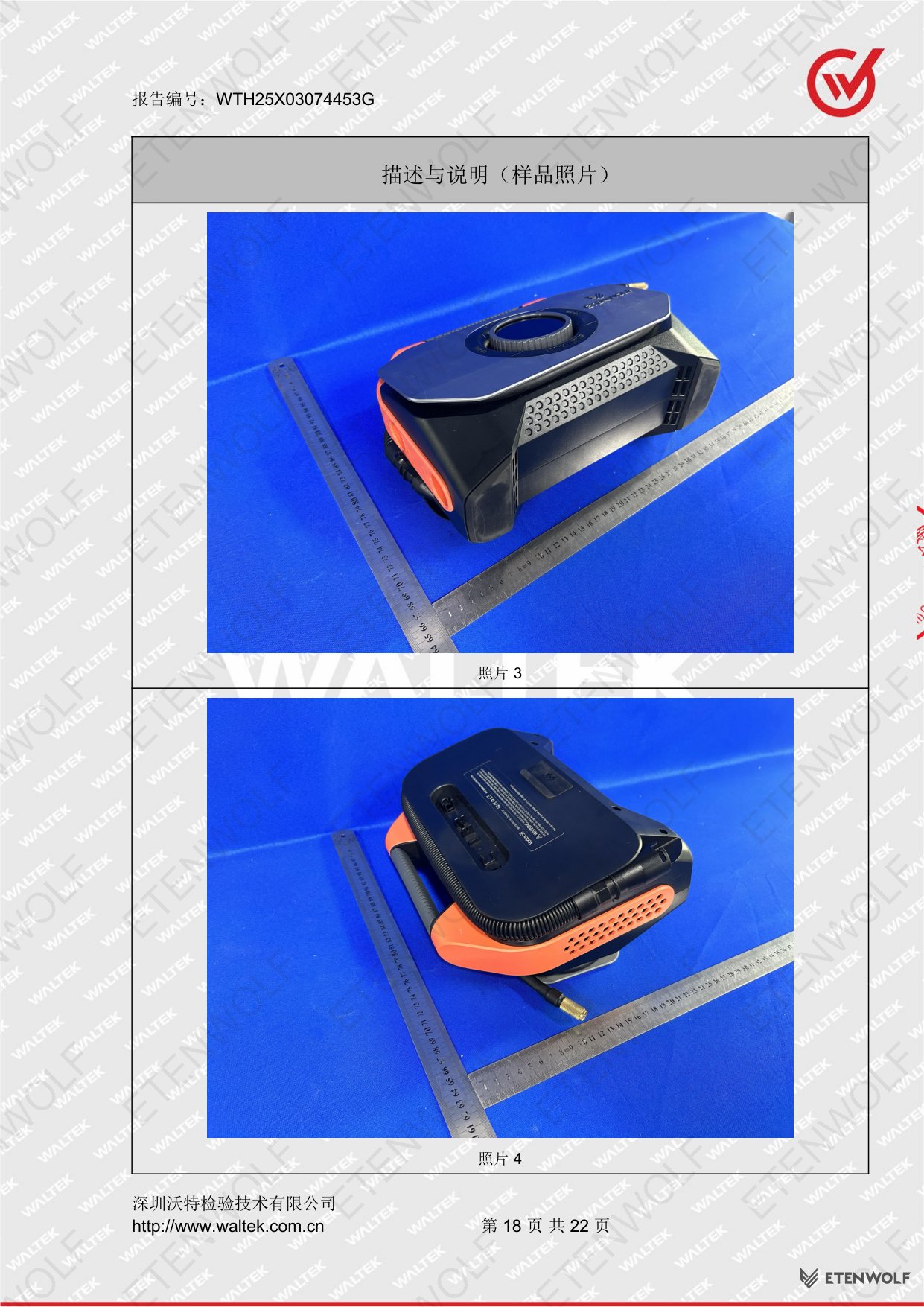

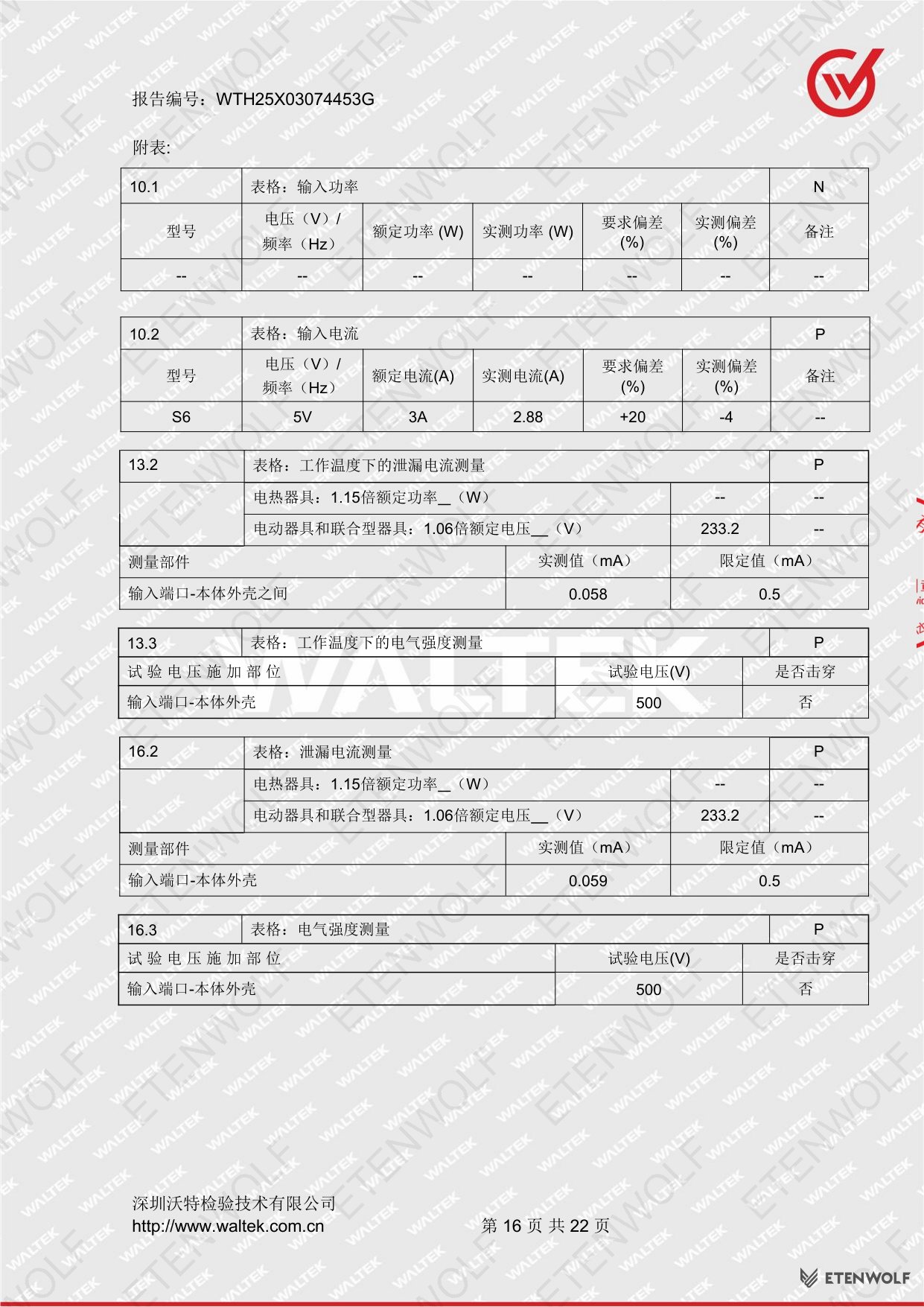

Document Pages
