Document Overview

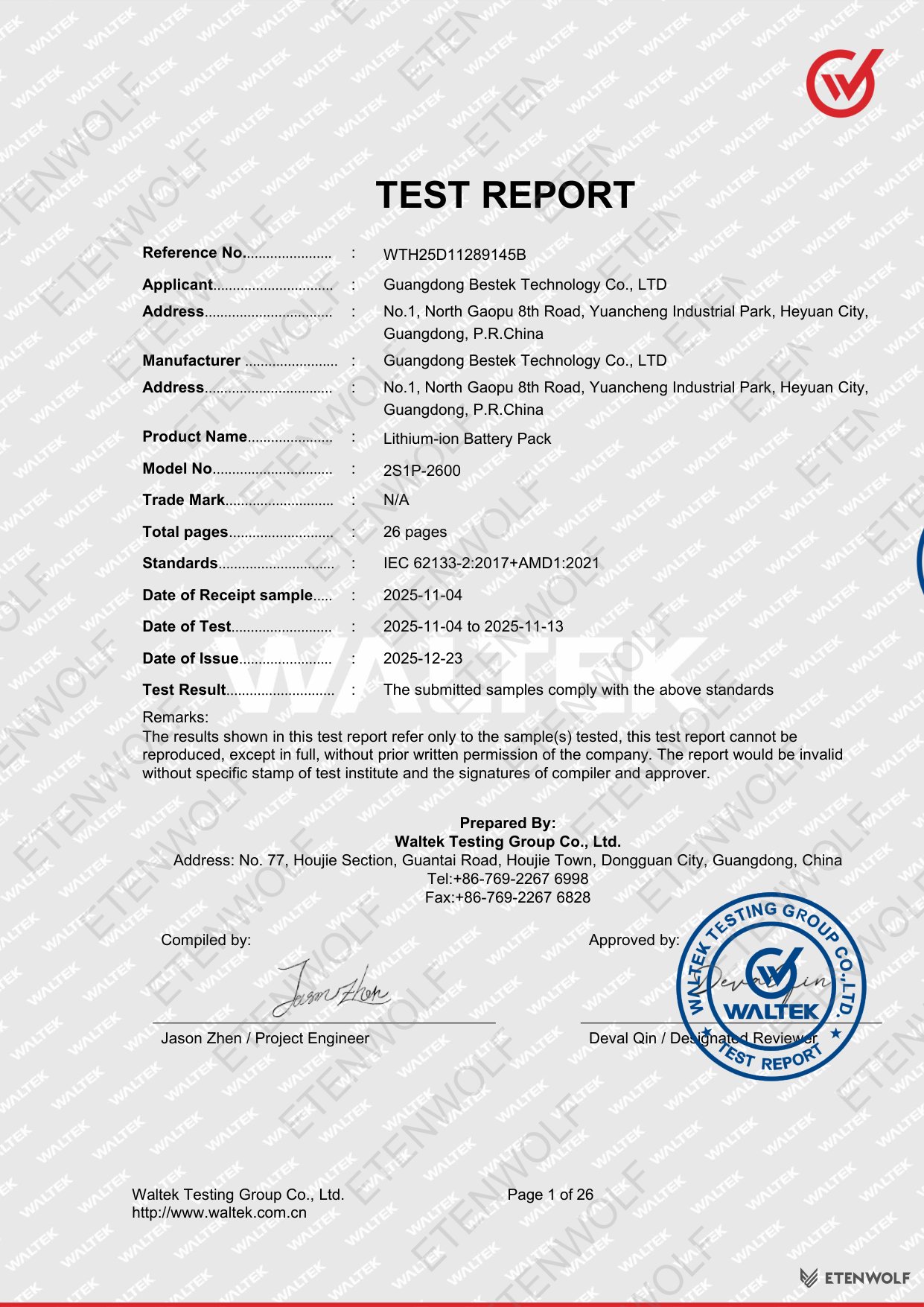

This page presents the official IEC 62133-2 safety test report for the ETENWOLF C2PRO lithium-ion battery pack, issued by Waltek Testing Group Co., Ltd. The report covers comprehensive electrochemical and mechanical safety evaluations performed in accordance with IEC 62133-2:2017+AMD1:2021.
| Field | Detail |
|---|---|
| Reference Number | WTH25D11289145B |
| Document Type | Test Report |
| Issuing Body | Waltek Testing Group Co., Ltd. |
| Applicant | Guangdong Bestek Technology Co., LTD |
| Date of Issue | 2025-12-23 |
| Test Period | 2025-11-04 to 2025-11-13 |
| Date of Sample Receipt | 2025-11-04 |
| Total Report Pages | 26 pages |
| Overall Result | PASS — Complies with IEC 62133-2:2017+AMD1:2021 |

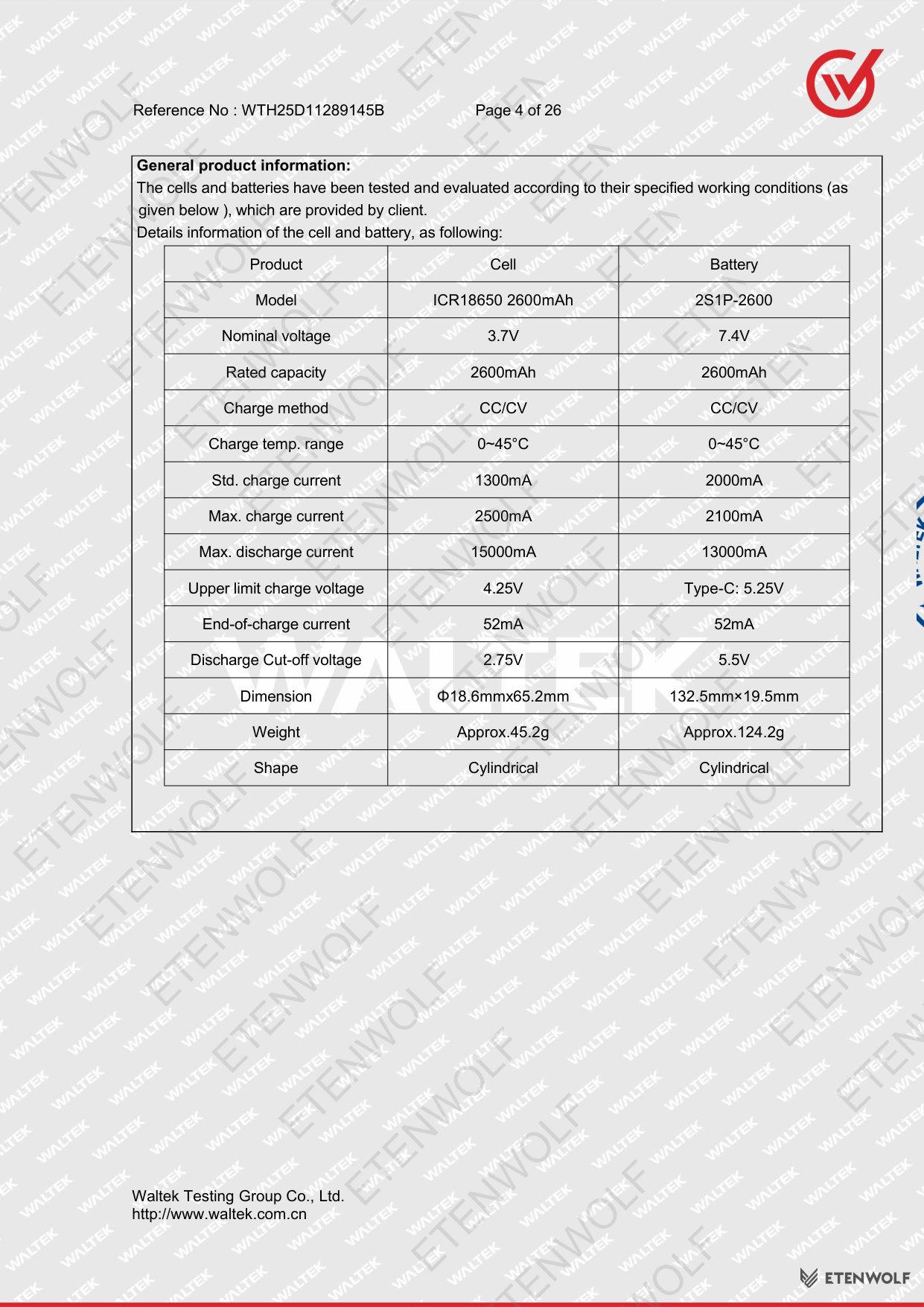

Product Information
The C2PRO is an ETENWOLF inflation tool powered by a lithium-ion battery pack designed for built-in, portable-application use. The battery pack under test carries the model designation 2S1P-2600 and is manufactured by Guangdong Bestek Technology Co., LTD.

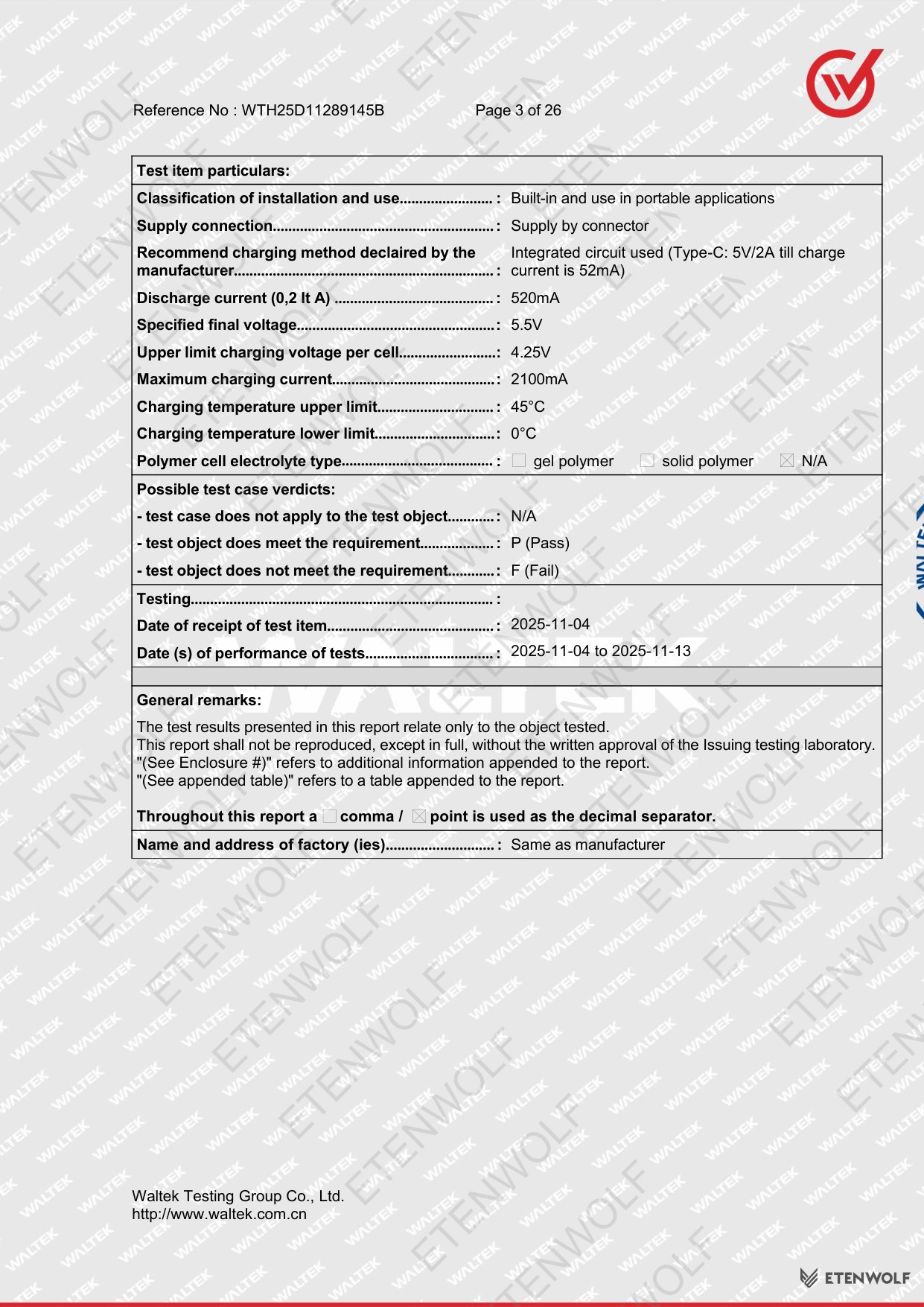

| Parameter | Value |
|---|---|
| Product Name | Lithium-ion Battery Pack |
| Model Number | 2S1P-2600 |
| Trade Mark | N/A |
| Classification | Built-in and use in portable applications |
| Supply Connection | Supply by connector |
| Recommended Charging Method | Integrated circuit (Type-C: 5 V / 2 A until charge current drops to 52 mA) |
| Discharge Current (0.2 It A) | 520 mA |
| Specified Final Voltage | 5.5 V |
| Upper Limit Charging Voltage per Cell | 4.25 V |
| Maximum Charging Current | 2100 mA |
| Charging Temperature — Upper Limit | 45 °C |
| Charging Temperature — Lower Limit | 0 °C |
| Electrolyte Type | Gel Polymer |
| Manufacturer & Address | Guangdong Bestek Technology Co., LTD, No. 1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China |
Key Details

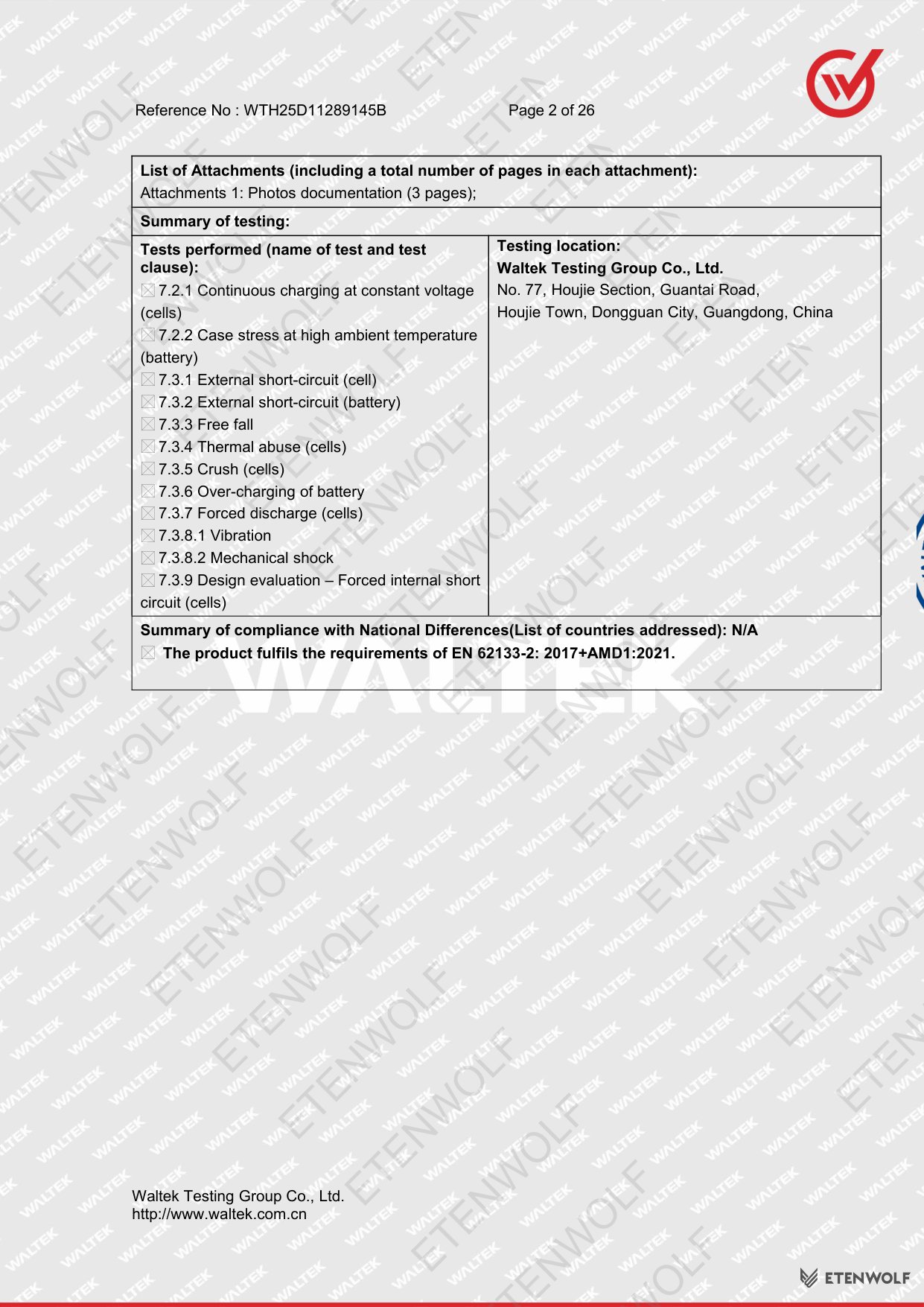

The following table summarises all test clauses performed on the C2PRO battery pack under report WTH25D11289145B. Each test was conducted at Waltek Testing Group Co., Ltd., No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China.

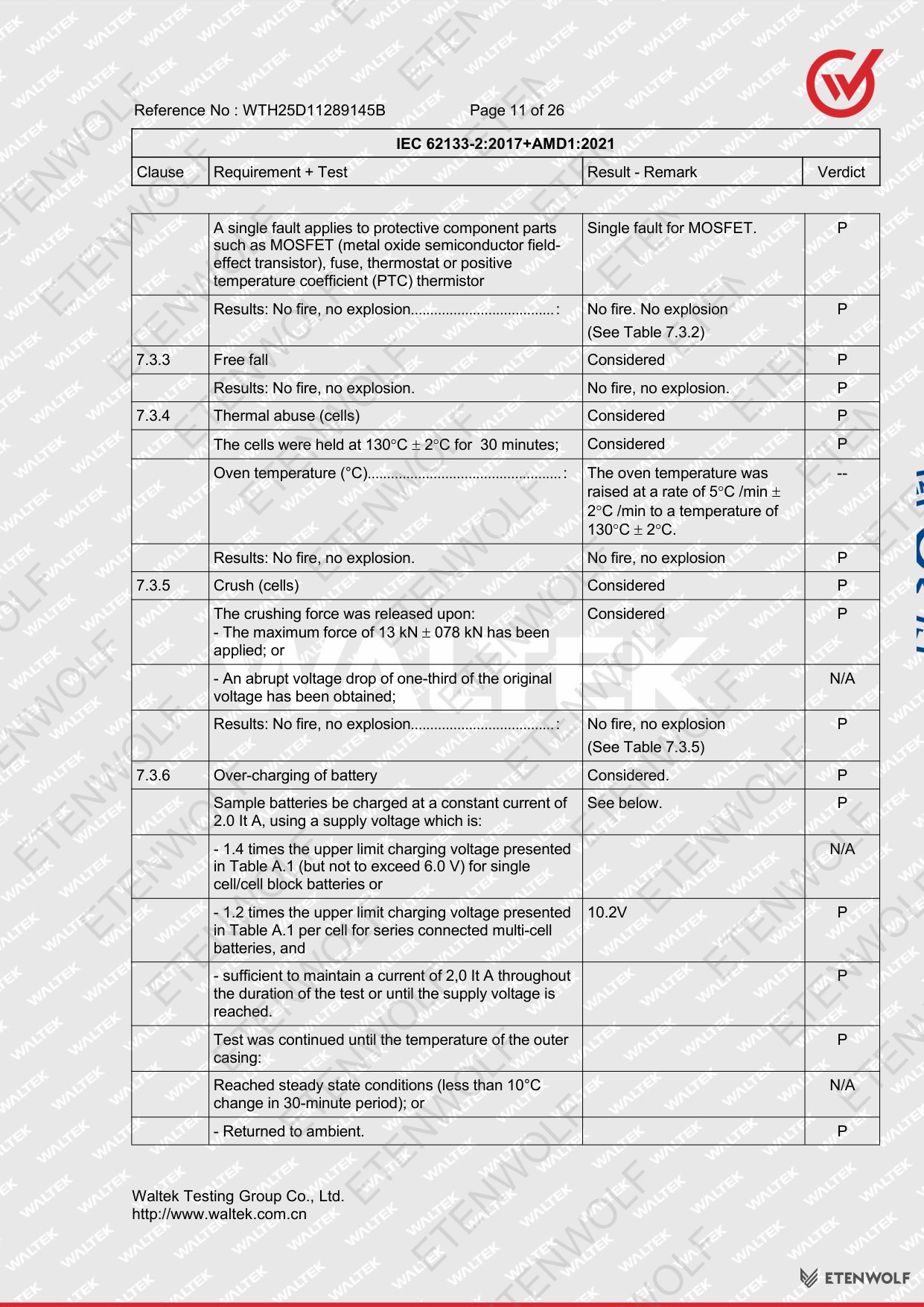

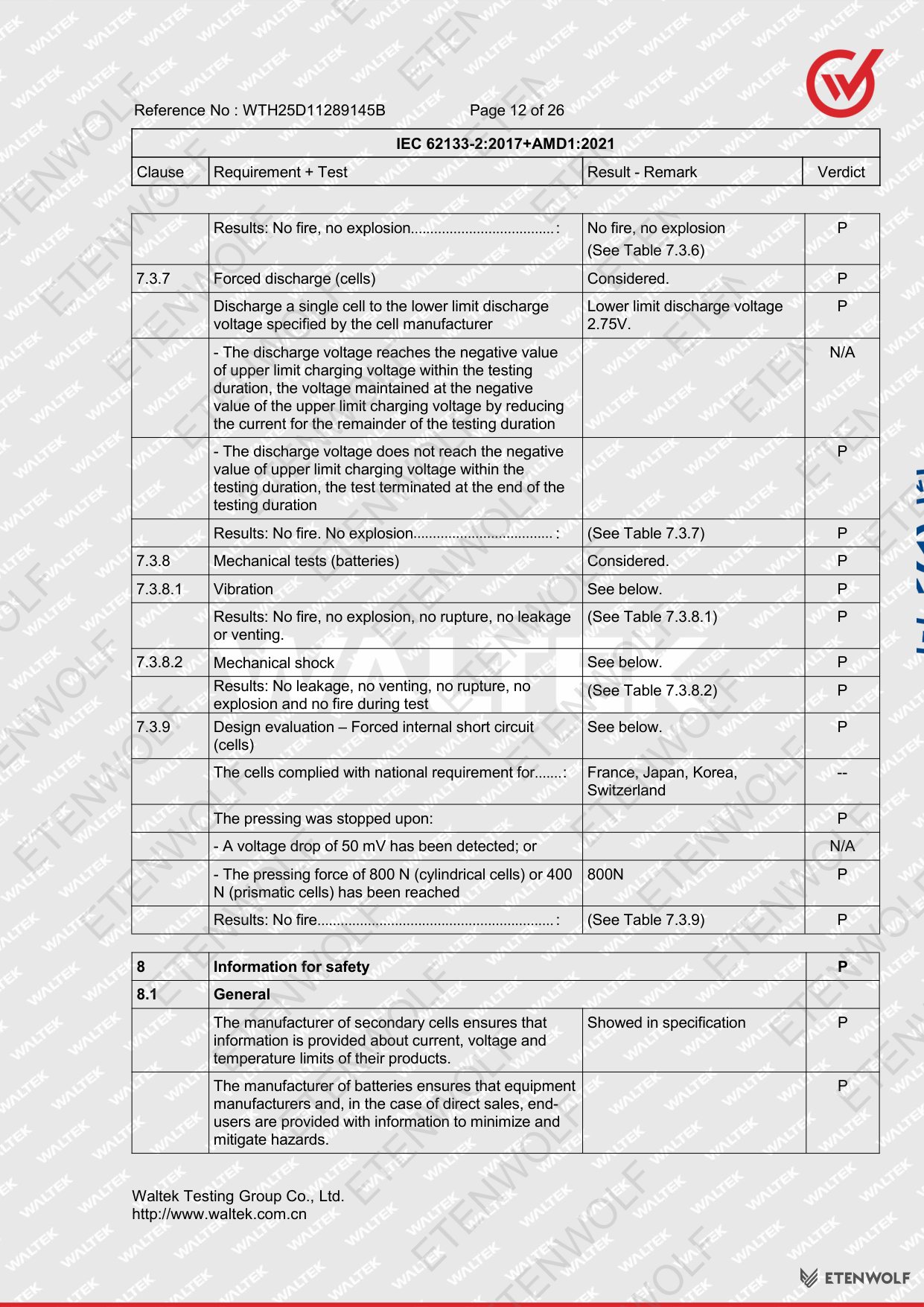

| Clause | Test Name | Scope | Result |
|---|---|---|---|

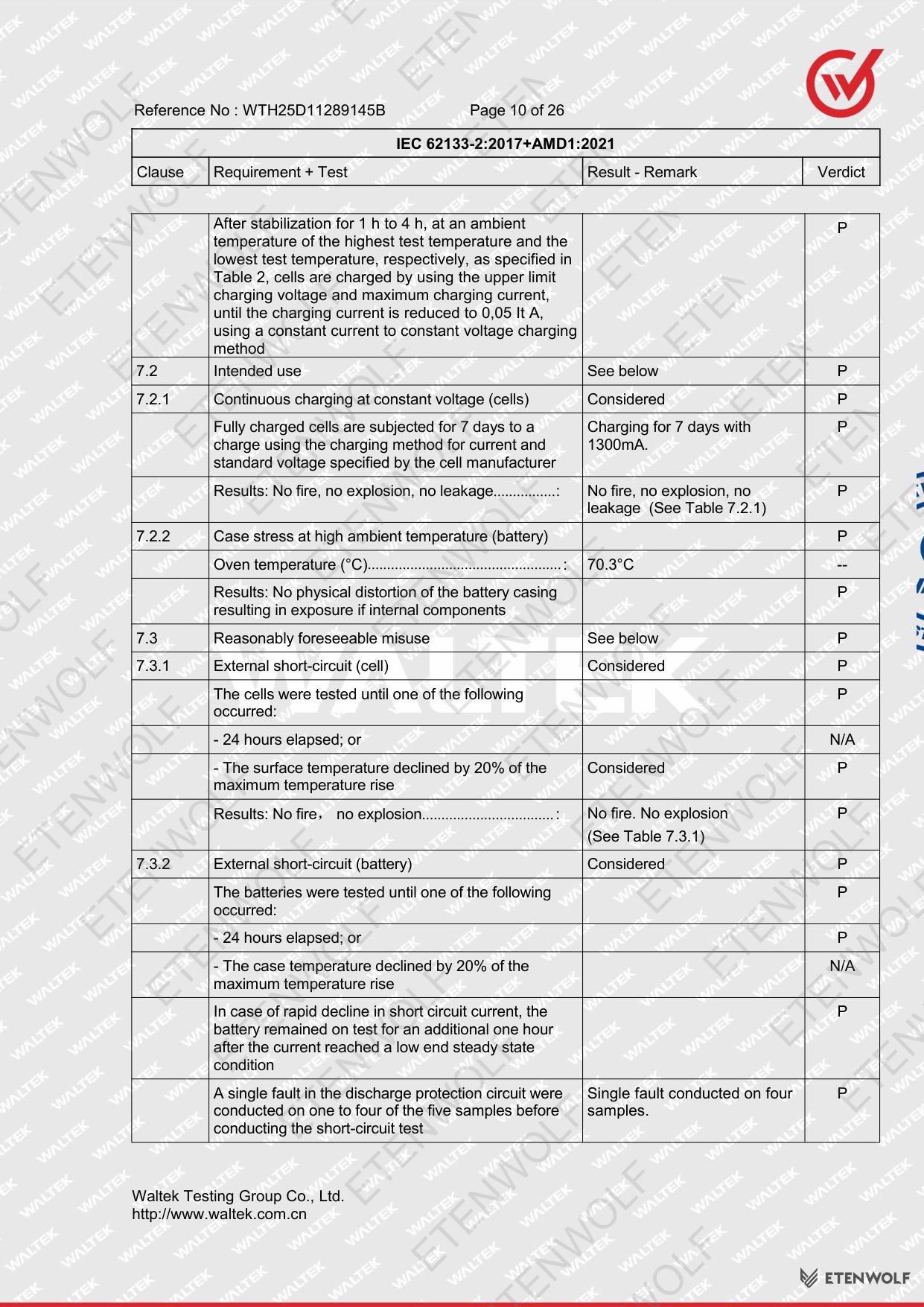

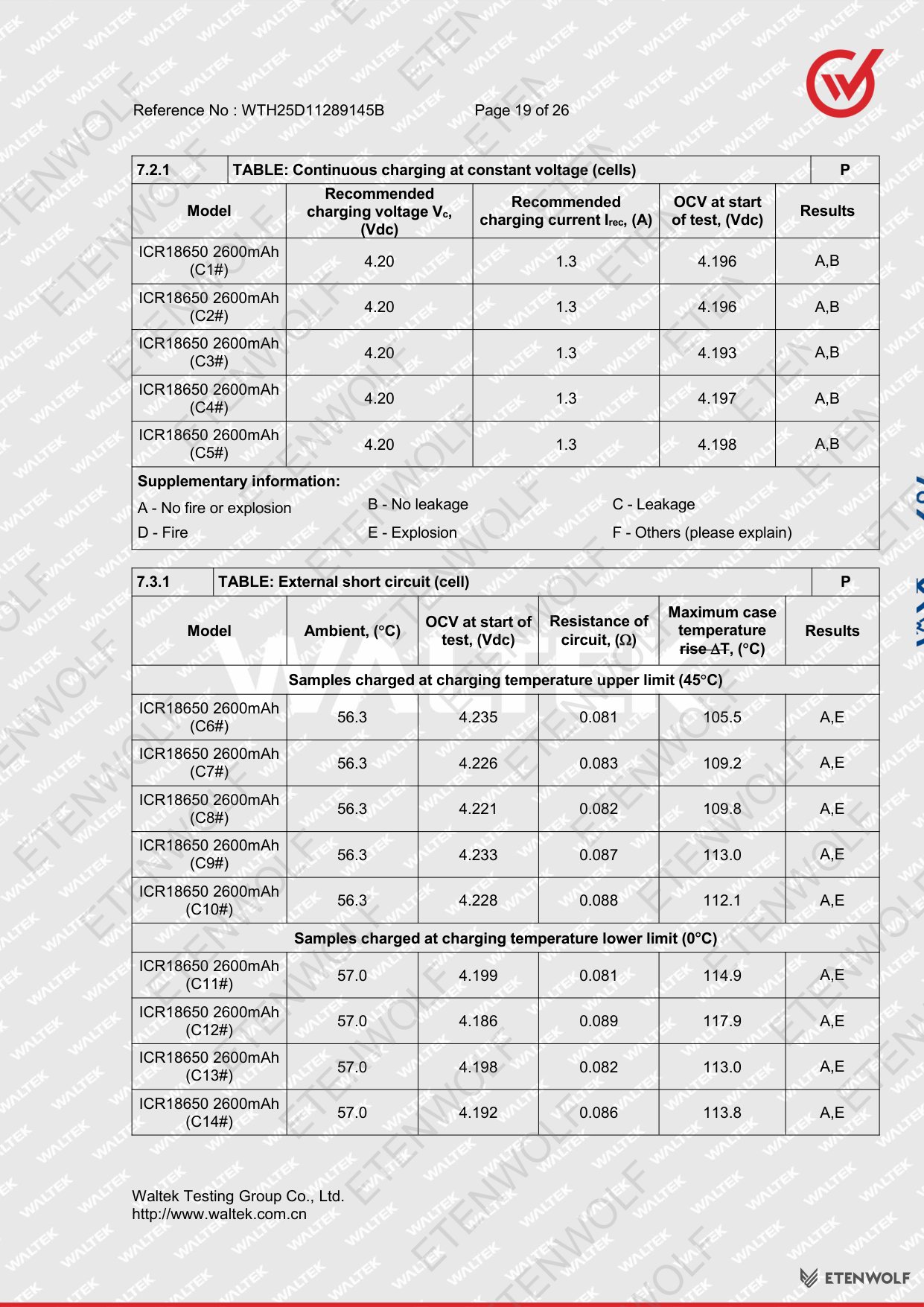

| 7.2.1 | Continuous Charging at Constant Voltage | Cells | P (Pass) |
| 7.2.2 | Case Stress at High Ambient Temperature | Battery | P (Pass) |
| 7.3.1 | External Short-Circuit | Cell | P (Pass) |

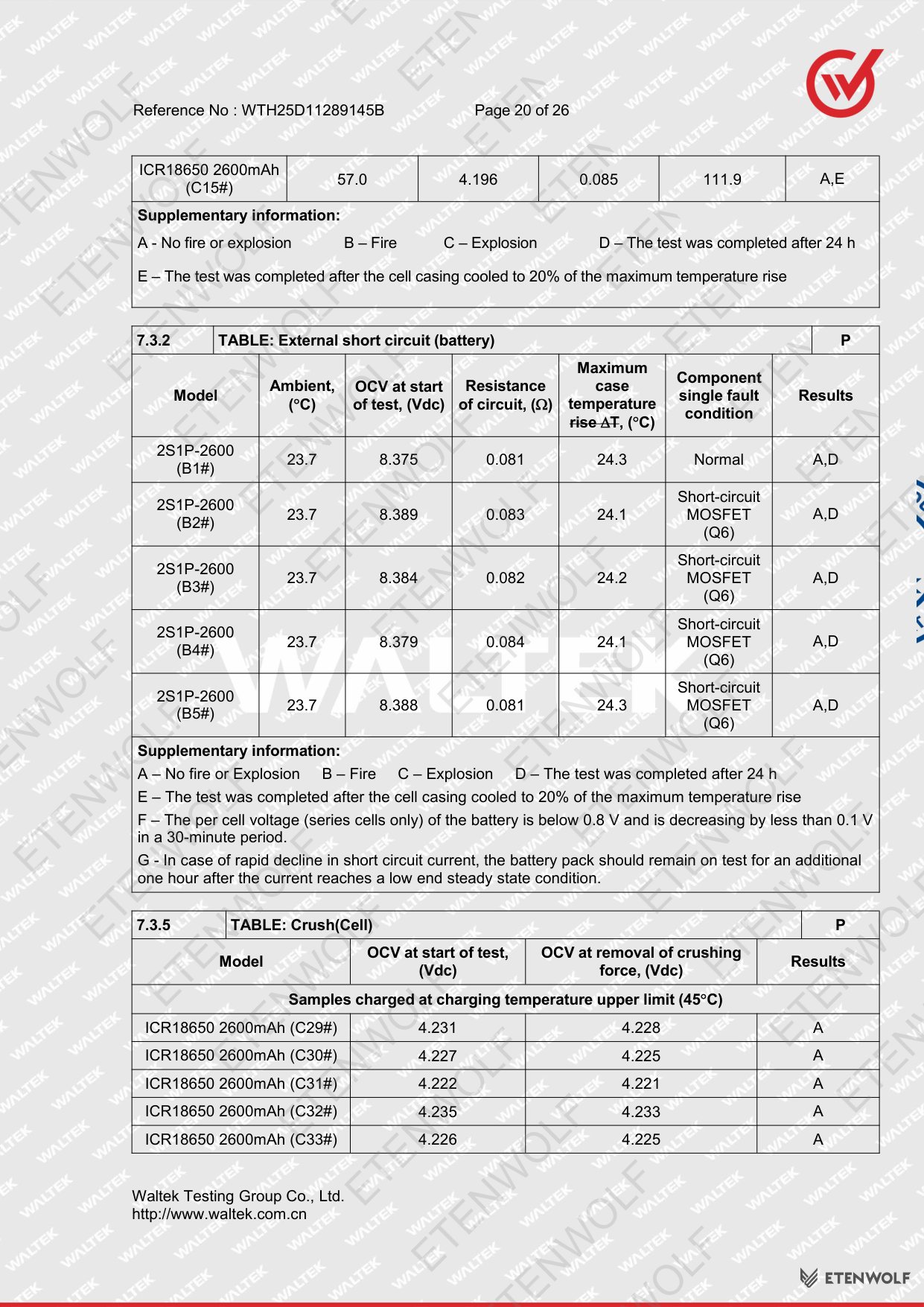

| 7.3.2 | External Short-Circuit | Battery | P (Pass) |
| 7.3.3 | Free Fall | Battery | P (Pass) |
| 7.3.4 | Thermal Abuse | Cells | P (Pass) |
| 7.3.5 | Crush | Cells | P (Pass) |

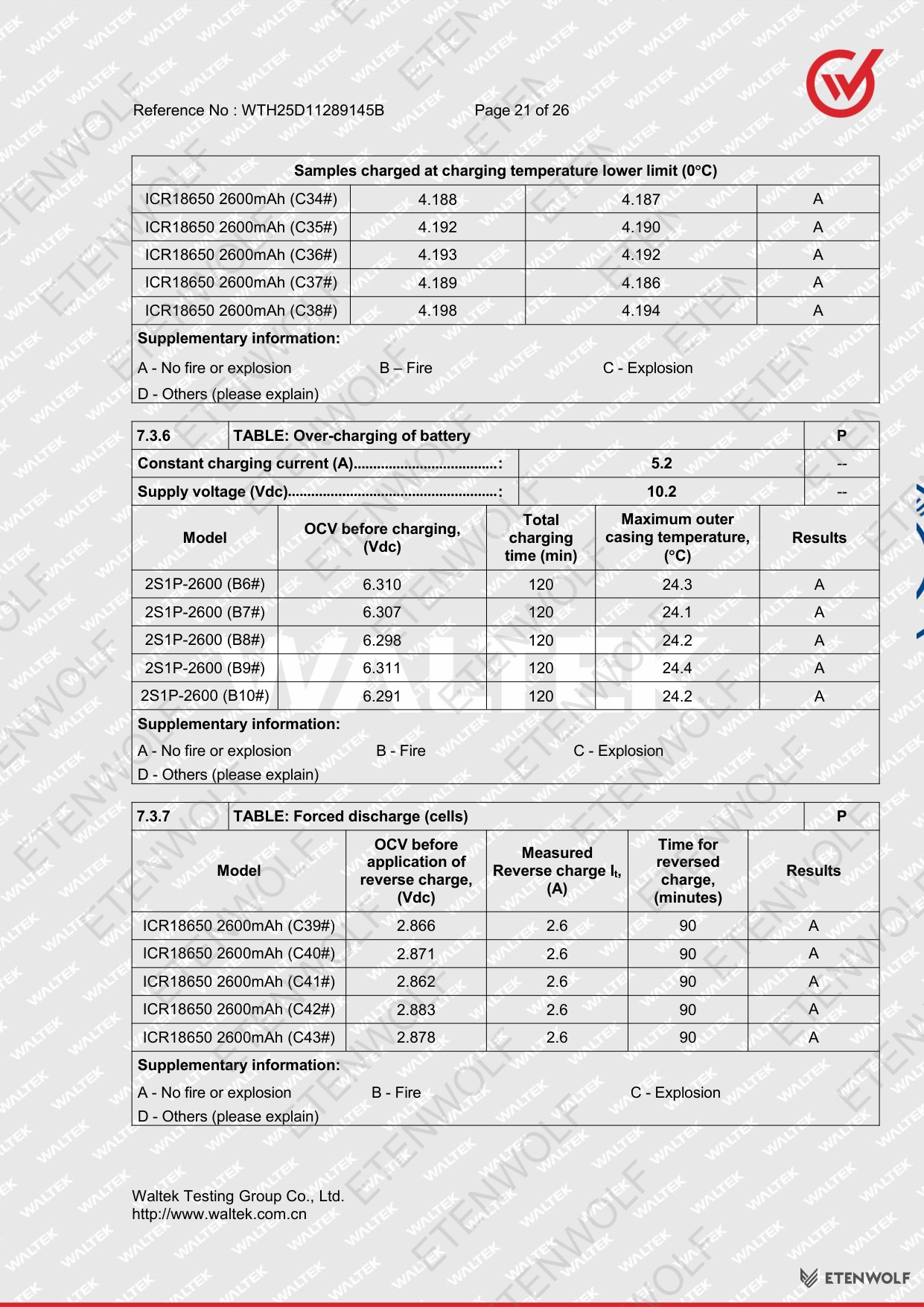

| 7.3.6 | Over-Charging of Battery | Battery | P (Pass) |
| 7.3.7 | Forced Discharge | Cells | P (Pass) |

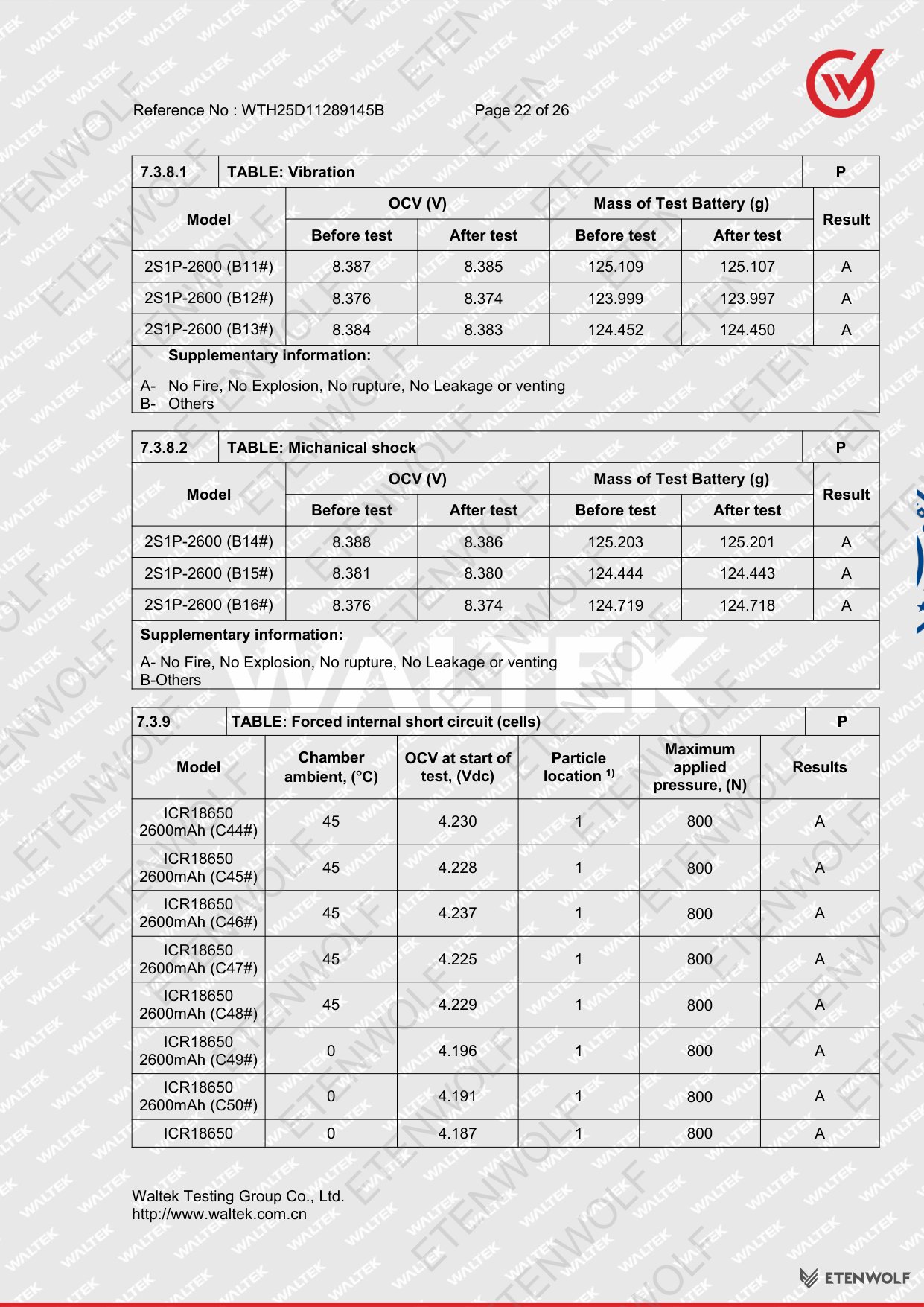

| 7.3.8.1 | Vibration | Battery | P (Pass) |
| 7.3.8.2 | Mechanical Shock | Battery | P (Pass) |
| 7.3.9 | Design Evaluation — Forced Internal Short Circuit | Cells | P (Pass) |
Verdict key: P = Pass, F = Fail, N/A = Test case does not apply to the test object.

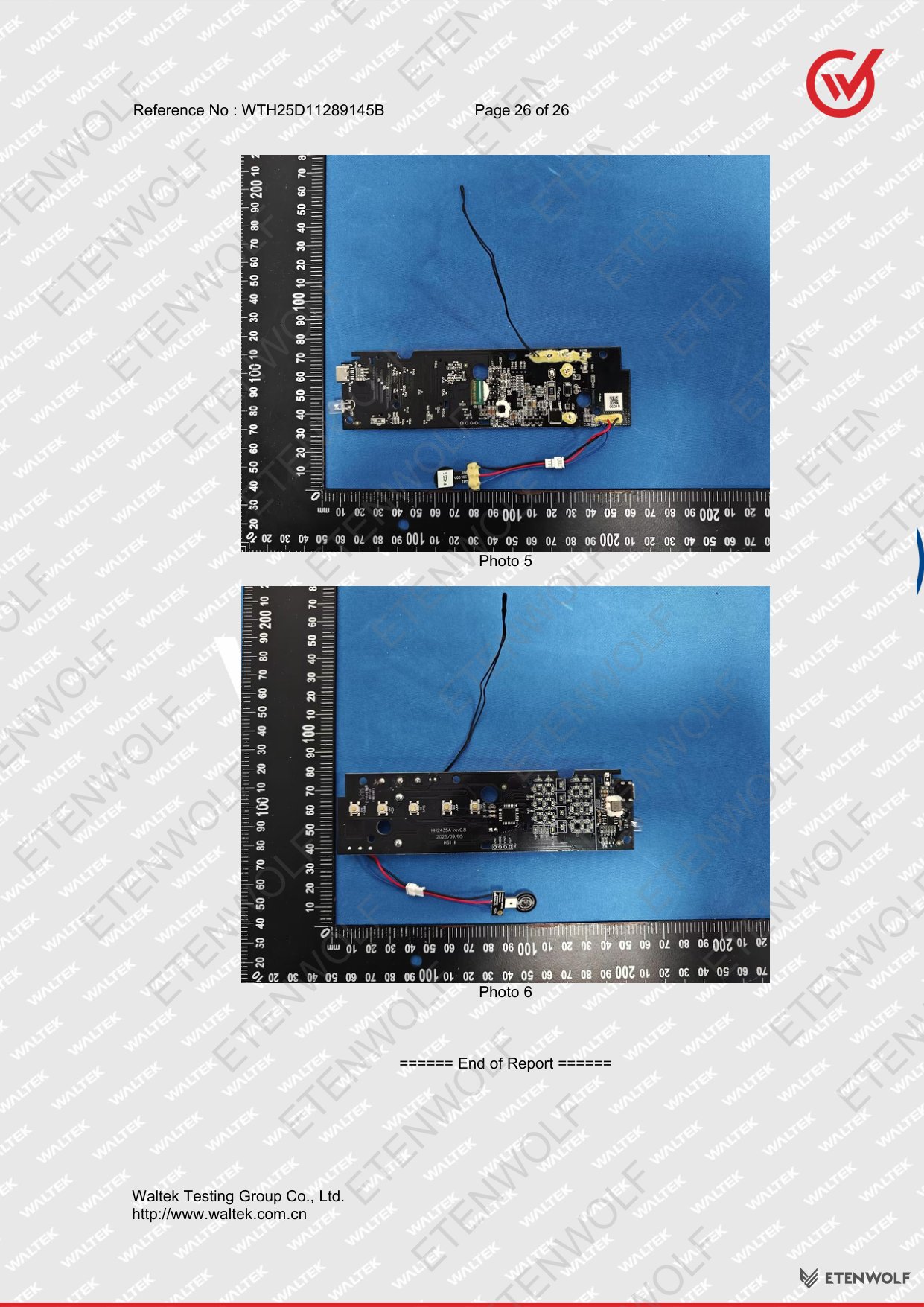

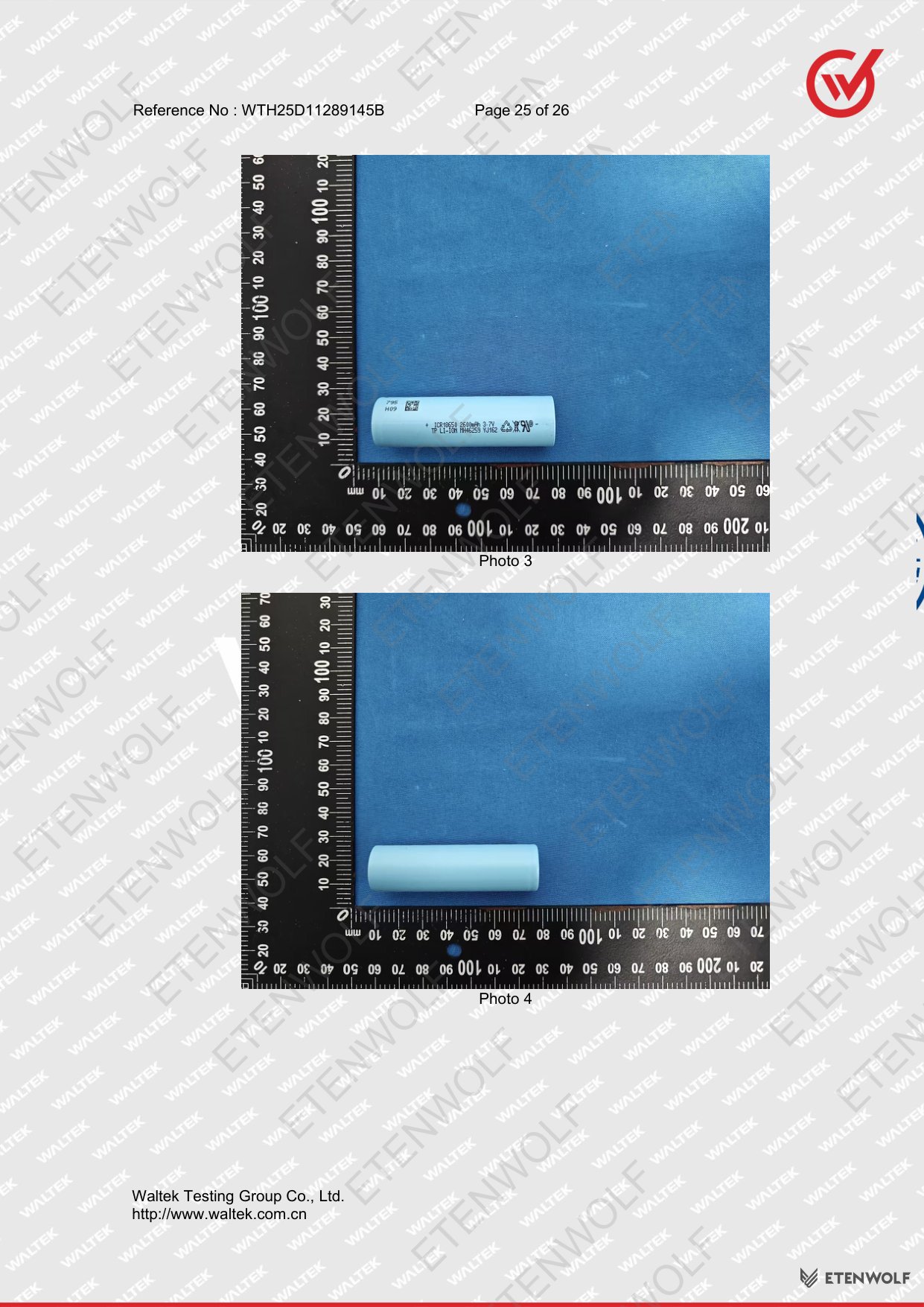

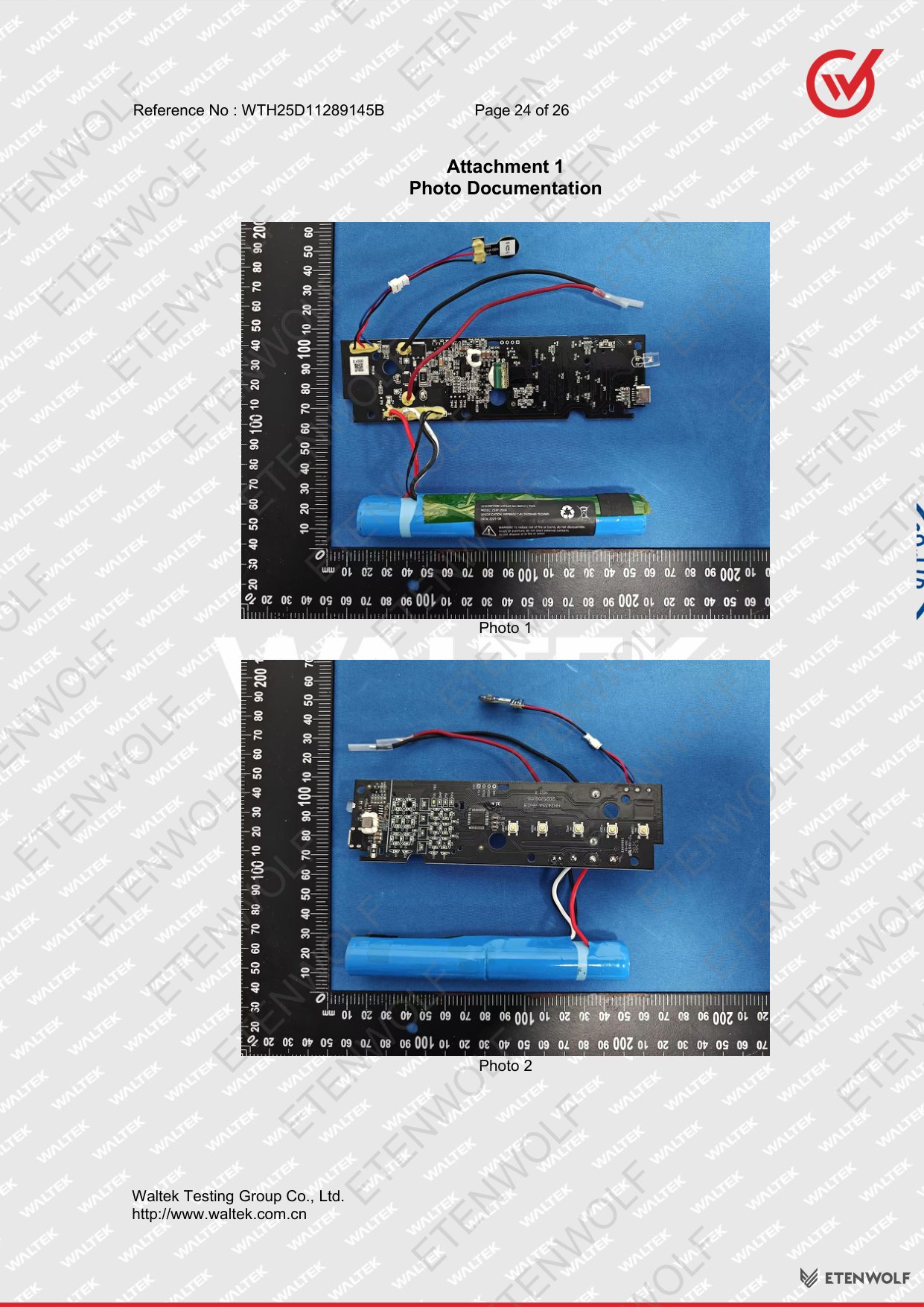

The report includes one attachment: Attachment 1 — Photo Documentation (3 pages).
Standards & Compliance
The C2PRO battery pack was evaluated against the primary standard and its amendment listed below. The product was confirmed to fulfil the requirements of the equivalent European harmonised standard as well.
| Standard | Title | Status |
|---|---|---|
| IEC 62133-2:2017+AMD1:2021 | Secondary cells and batteries containing alkaline or other non-acid electrolytes — Safety requirements for portable sealed secondary lithium cells, and for batteries made from them, for use in portable applications — Part 2: Lithium systems | Compliant |
| EN 62133-2:2017+AMD1:2021 | European harmonised equivalent of IEC 62133-2 (applicable to CE market access) | Compliant |
Test methodology covered both electrical abuse tests (continuous charge, over-charge, forced discharge, short-circuit) and mechanical/environmental stress tests (free fall, crush, thermal abuse, vibration, mechanical shock, and forced internal short-circuit design evaluation), ensuring a comprehensive safety assessment aligned with international portable battery requirements.
Validity & Certification Body
The test report reference WTH25D11289145B was issued on 2025-12-23 and is valid for the specific sample tested. Per standard laboratory practice, results are sample-specific and the report may not be reproduced except in full, with prior written permission from the issuing laboratory.
| Field | Detail |
|---|---|
| Issuing Laboratory | Waltek Testing Group Co., Ltd. |
| Laboratory Address | No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China |
| Laboratory Website | http://www.waltek.com.cn |
| Telephone | +86-769-2267 6998 |
| Fax | +86-769-2267 6828 |
| Compiled By | Jason Zhen / Project Engineer |
| Approved By | Deval Qin / Designated Reviewer |
| Date of Issue | 2025-12-23 |
| Report Scope | Results apply only to the sample(s) tested; report invalid without laboratory stamp and signatures |
Waltek Testing Group Co., Ltd. is a recognised third-party testing and certification body operating in Guangdong, China. The laboratory conducts testing to IEC, EN, and other international standards for consumer electronics and battery products.
Frequently Asked Questions
- What is IEC 62133-2 and why does it matter for the C2PRO?
-
IEC 62133-2:2017+AMD1:2021 is the international safety standard for portable sealed secondary lithium cells and battery packs. For the C2PRO, compliance demonstrates that its 2S1P-2600 lithium-ion battery pack has passed rigorous electrical, thermal, and mechanical abuse tests, confirming it is safe for end consumers in portable use scenarios.
- Which tests did the C2PRO battery pack pass?
-
The battery pack passed all 12 applicable test clauses under report WTH25D11289145B, including external short-circuit (cell and battery level), free fall, thermal abuse, crush, over-charging, forced discharge, vibration, mechanical shock, and forced internal short-circuit design evaluation.
- Who conducted the IEC 62133-2 testing for the C2PRO?
-
Testing was conducted by Waltek Testing Group Co., Ltd., an independent third-party laboratory located at No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China. The report was compiled by Jason Zhen (Project Engineer) and approved by Deval Qin (Designated Reviewer).
- Does IEC 62133-2 compliance cover the European market?
-
Yes. The product was also confirmed to fulfil the requirements of EN 62133-2:2017+AMD1:2021, the harmonised European equivalent, which supports CE marking requirements for portable battery products sold within the European Economic Area.
