Document Overview

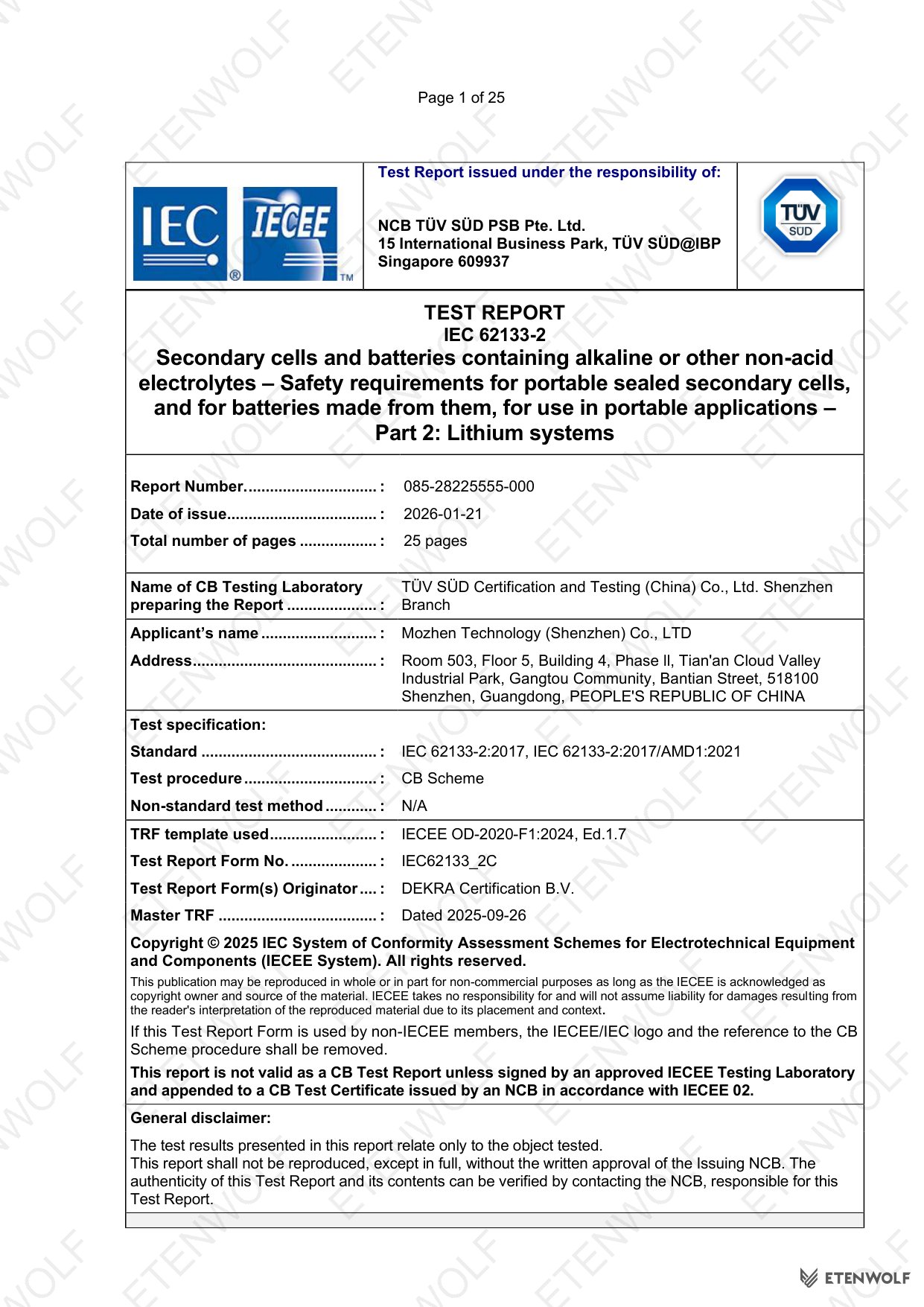

This page presents the CB Test Report issued under the IEC System of Conformity Assessment Schemes for Electrotechnical Equipment and Components (IECEE CB Scheme) for the lithium-ion battery pack used in the ETENWOLF Air3 portable inflation tool.
| Field | Detail |
|---|---|
| Report Number | 085-28225555-000 |
| Date of Issue | 2026-01-21 |
| Total Pages | 25 pages |
| Document Type | CB Test Report |
| Issuing NCB | TÜV SÜD PSB Pte. Ltd., 15 International Business Park, TÜV SÜD@IBP, Singapore 609937 |
| CB Testing Laboratory | TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch |
| Test Specification | IEC 62133-2:2017 and IEC 62133-2:2017/AMD1:2021 |
| Test Procedure | CB Scheme |
| TRF Template | IECEE OD-2020-F1:2024, Ed.1.7 |
| Test Report Form No. | IEC62133_2C |
| TRF Originator | DEKRA Certification B.V. |
| Master TRF Date | 2025-09-26 |
| Test Period | 2025-11-18 to 2026-01-13 |
The report scope covers secondary lithium cells and batteries — specifically sealed lithium-ion battery packs intended for use in portable applications — as defined under IEC 62133-2:2017 Part 2: Lithium Systems.
Product Information
The battery pack certified in this report is the internal power source for the ETENWOLF Air3 portable cordless inflator. The Air3 is a compact inflation tool designed for inflating car tyres, bicycle tyres, sports balls, and other inflatables, powered by a rechargeable lithium-ion battery.
| Attribute | Value |
|---|---|
| Product Description | Lithium-Ion Battery Pack |
| Model / Type Reference | 2S1P-1300 |
| Nominal Voltage | 7.4 V d.c. |
| Nominal Capacity | 1300 mAh |
| Configuration | 2 Series, 1 Parallel (2S1P) |
| Trade Mark | N/A |
| Applicant | Mozhen Technology (Shenzhen) Co., LTD |
| Applicant Address | Room 503, Floor 5, Building 4, Phase II, Tian’an Cloud Valley Industrial Park, Gangtou Community, Bantian Street, 518100 Shenzhen, Guangdong, People’s Republic of China |
| Manufacturer | Same as applicant |
Key Details
The following table summarises every test clause performed, the corresponding requirement, and the outcome. All tests were conducted at TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch in accordance with the sample quantities specified in Table 1 of IEC 62133-2:2017 and its Amendment 1:2021.

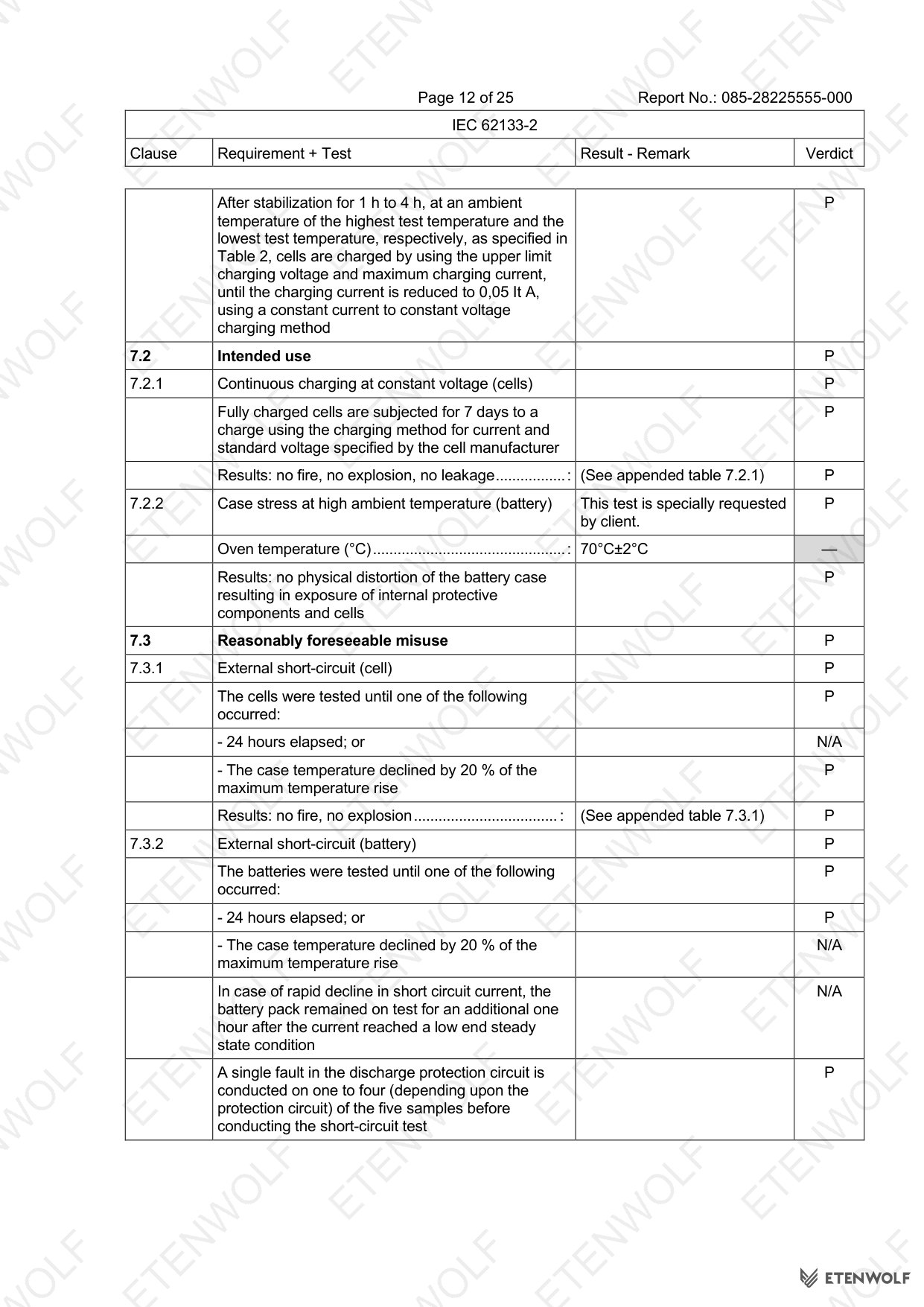

| Clause | Test Name | Scope | Result |
|---|---|---|---|

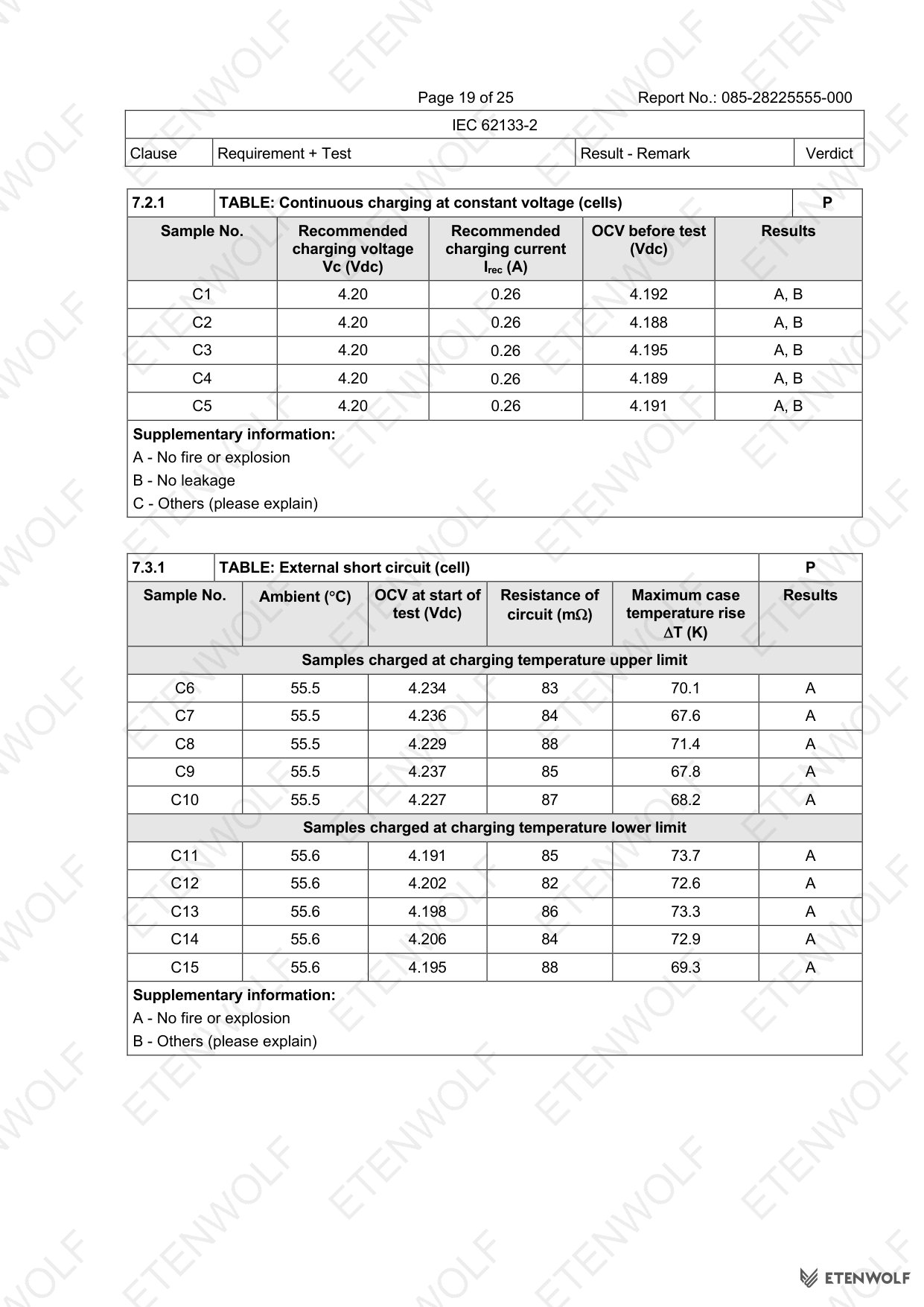

| 7.2.1 | Continuous charging at constant voltage | Cells | Pass |
| 7.2.2 | Case stress at high ambient temperature | Battery | Pass |
| 7.3.1 | External short circuit | Cell | Pass |
| 7.3.2 | External short circuit | Battery | Pass |

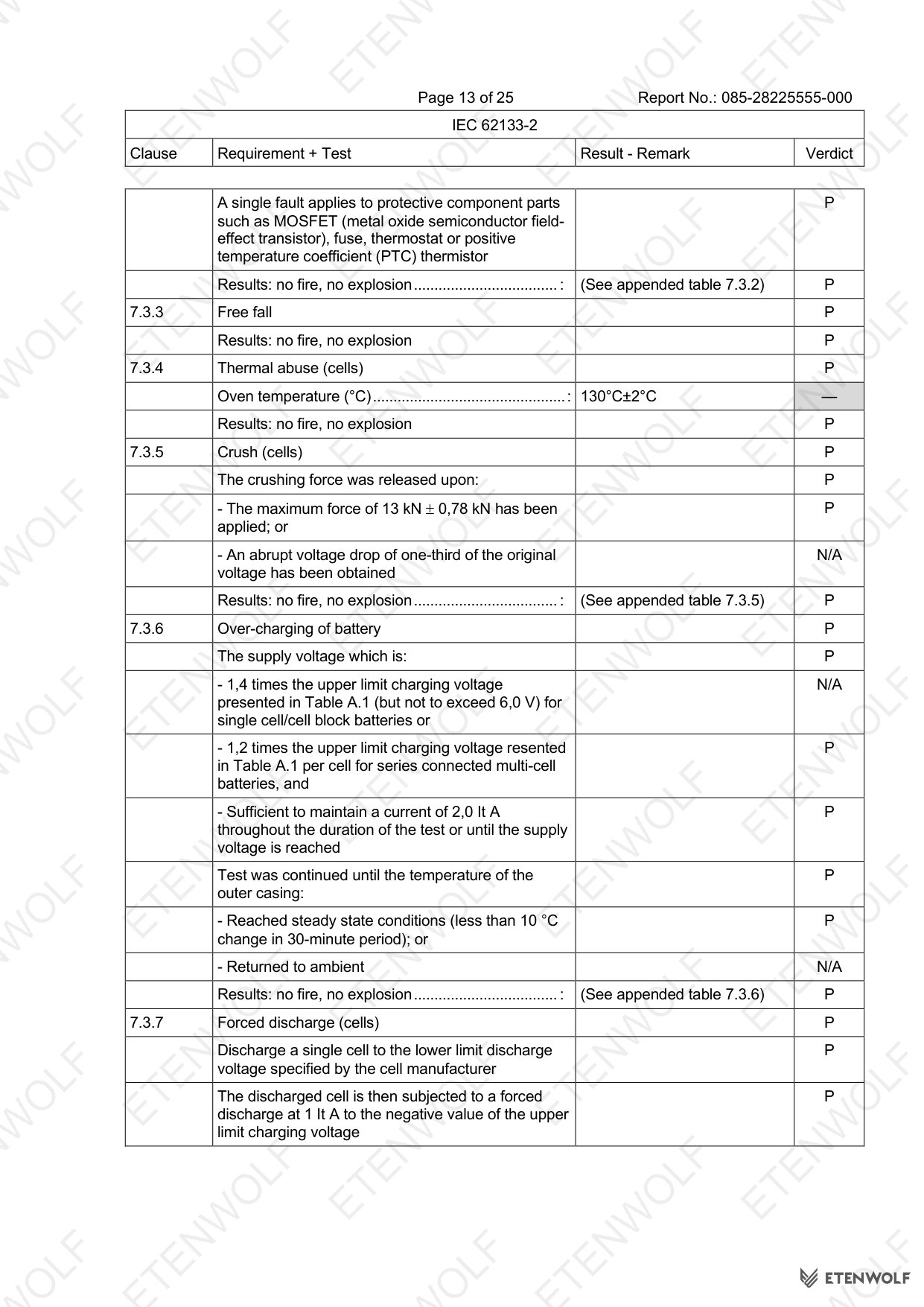

| 7.3.3 | Free fall | Battery | Pass |
| 7.3.4 | Thermal abuse | Cells | Pass |
| 7.3.5 | Crush | Cells | Pass |

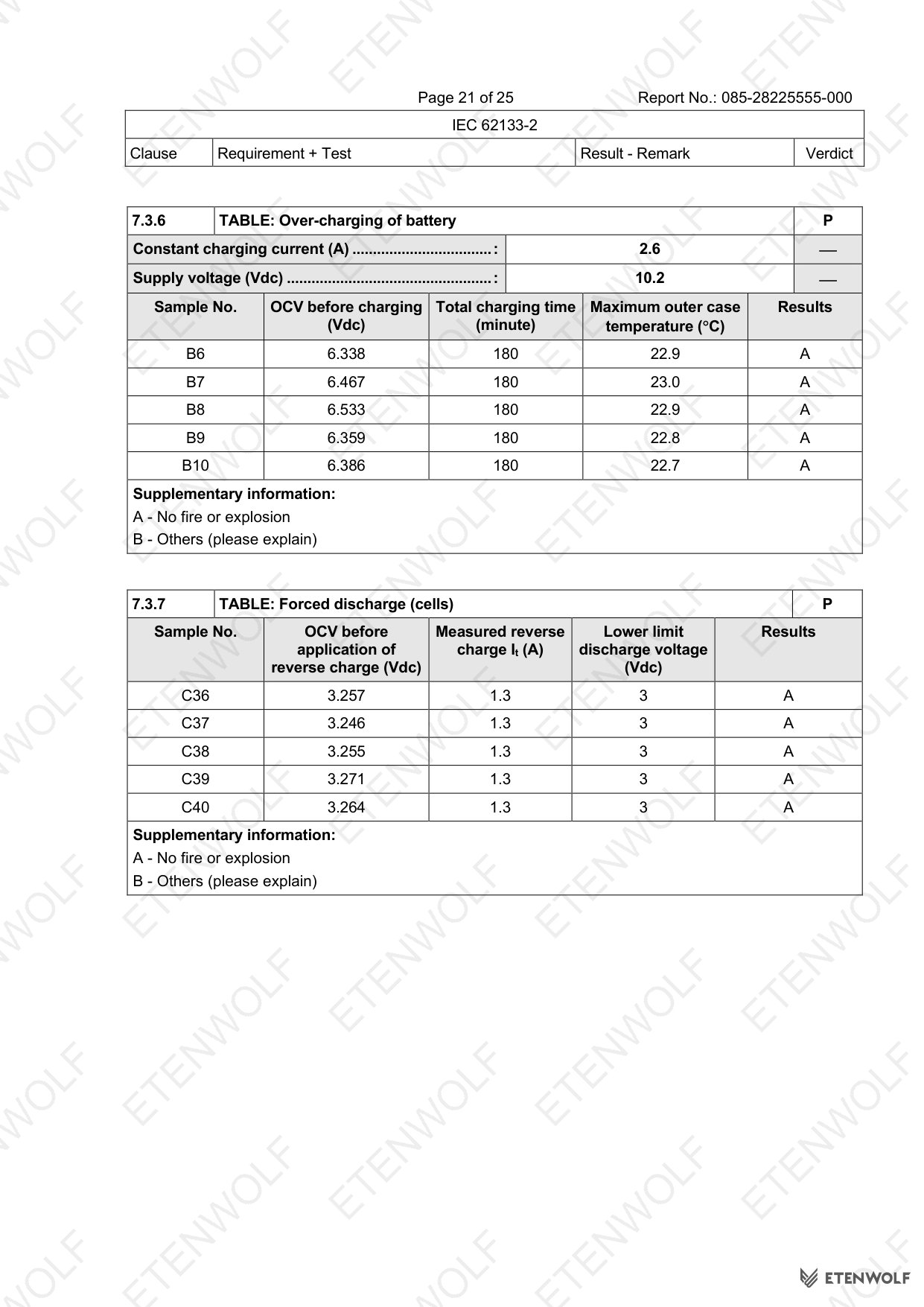

| 7.3.6 | Over-charging of battery | Battery | Pass |
| 7.3.7 | Forced discharge | Cells | Pass |

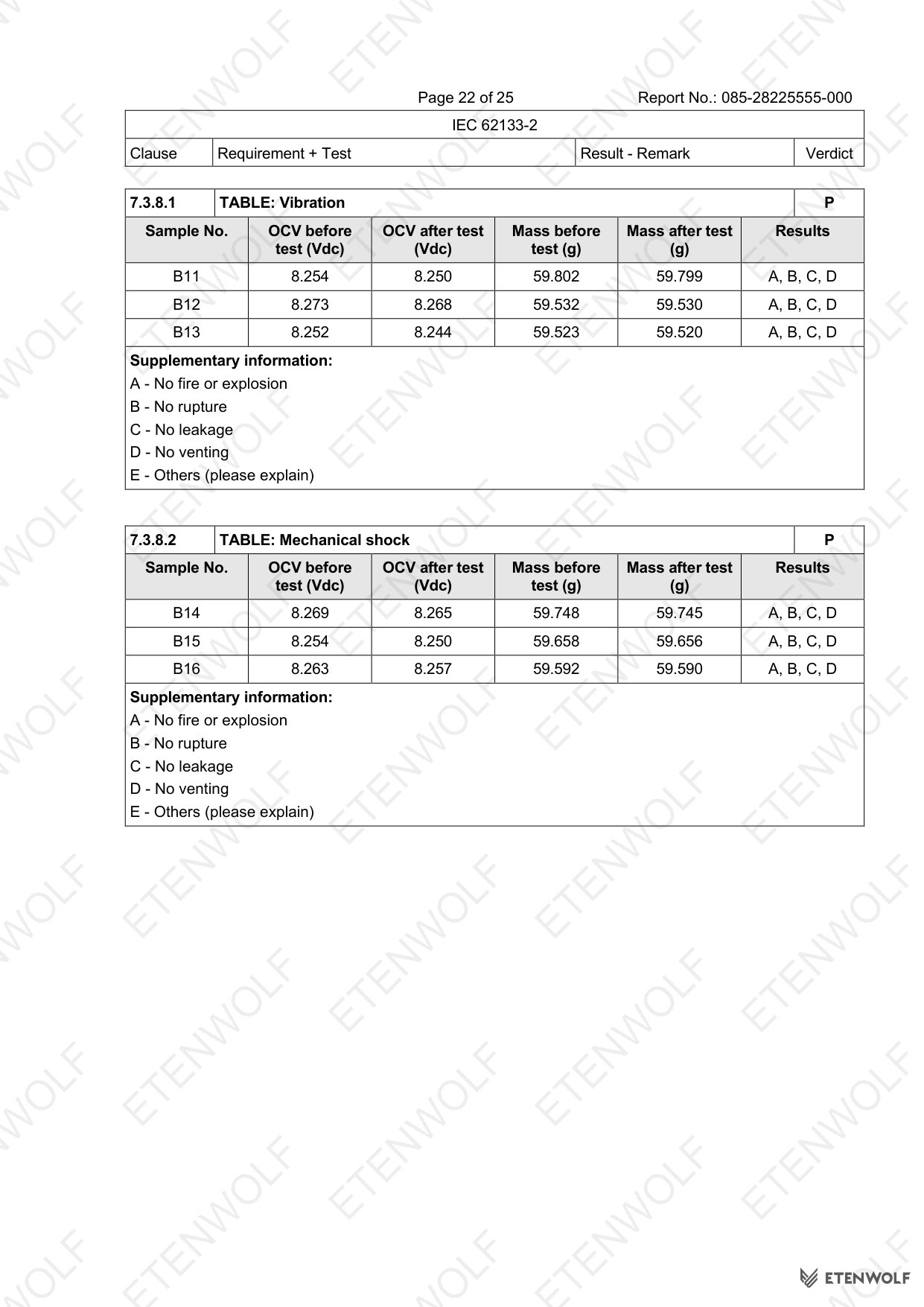

| 7.3.8.1 | Vibration | Battery | Pass |
| 7.3.8.2 | Mechanical shock | Battery | Pass |

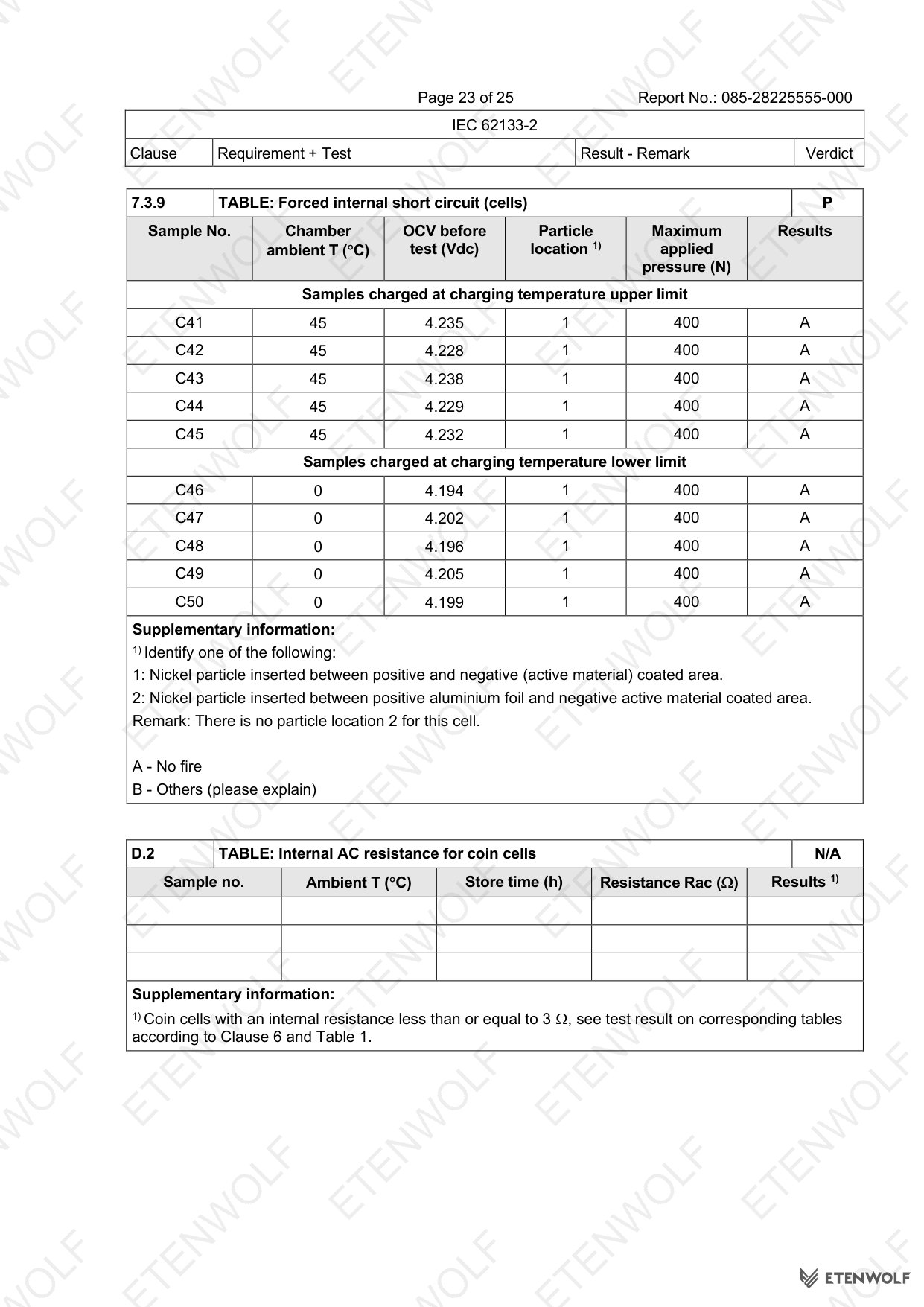

| 7.3.9 | Forced internal short-circuit | Cells | Pass |

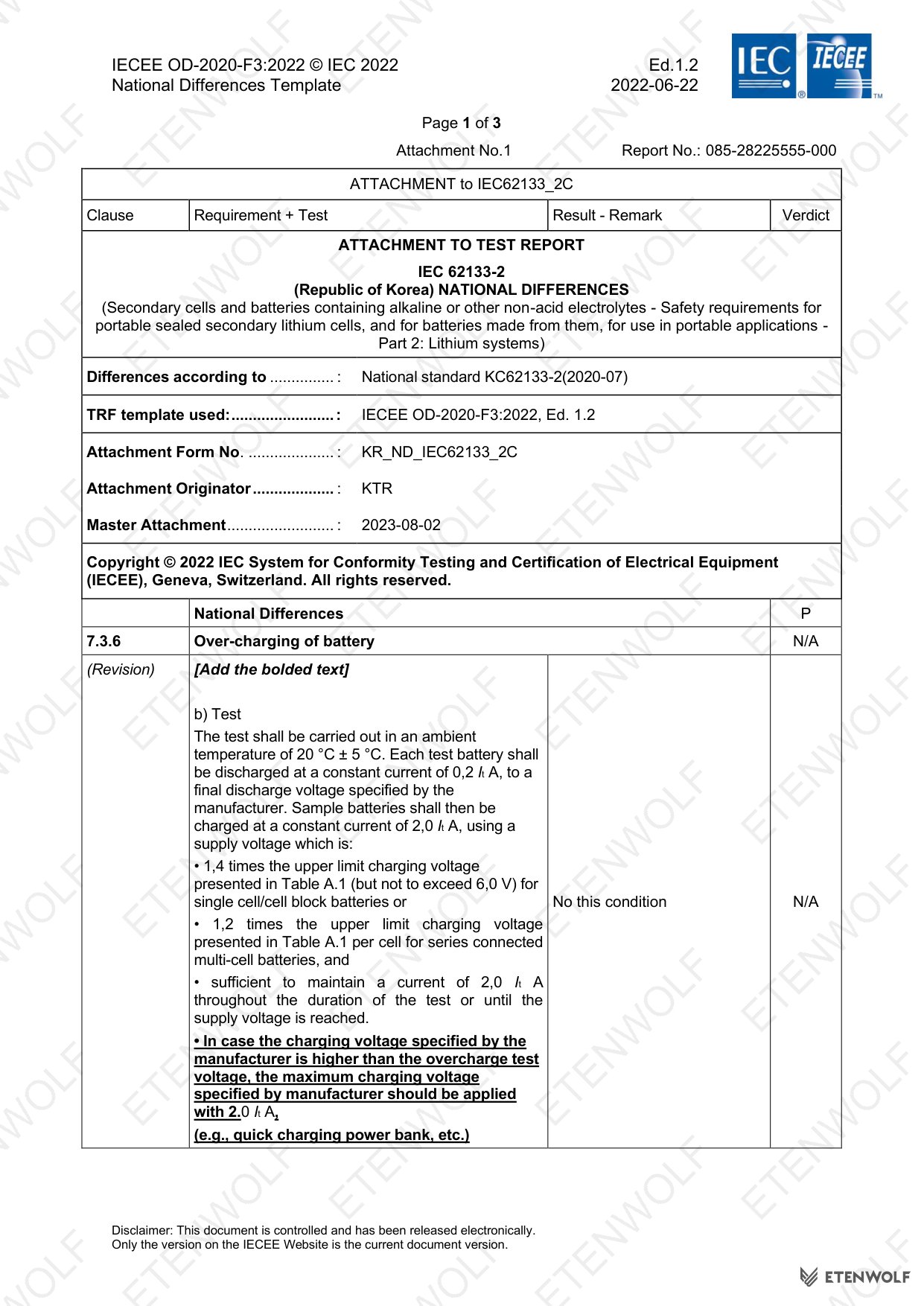

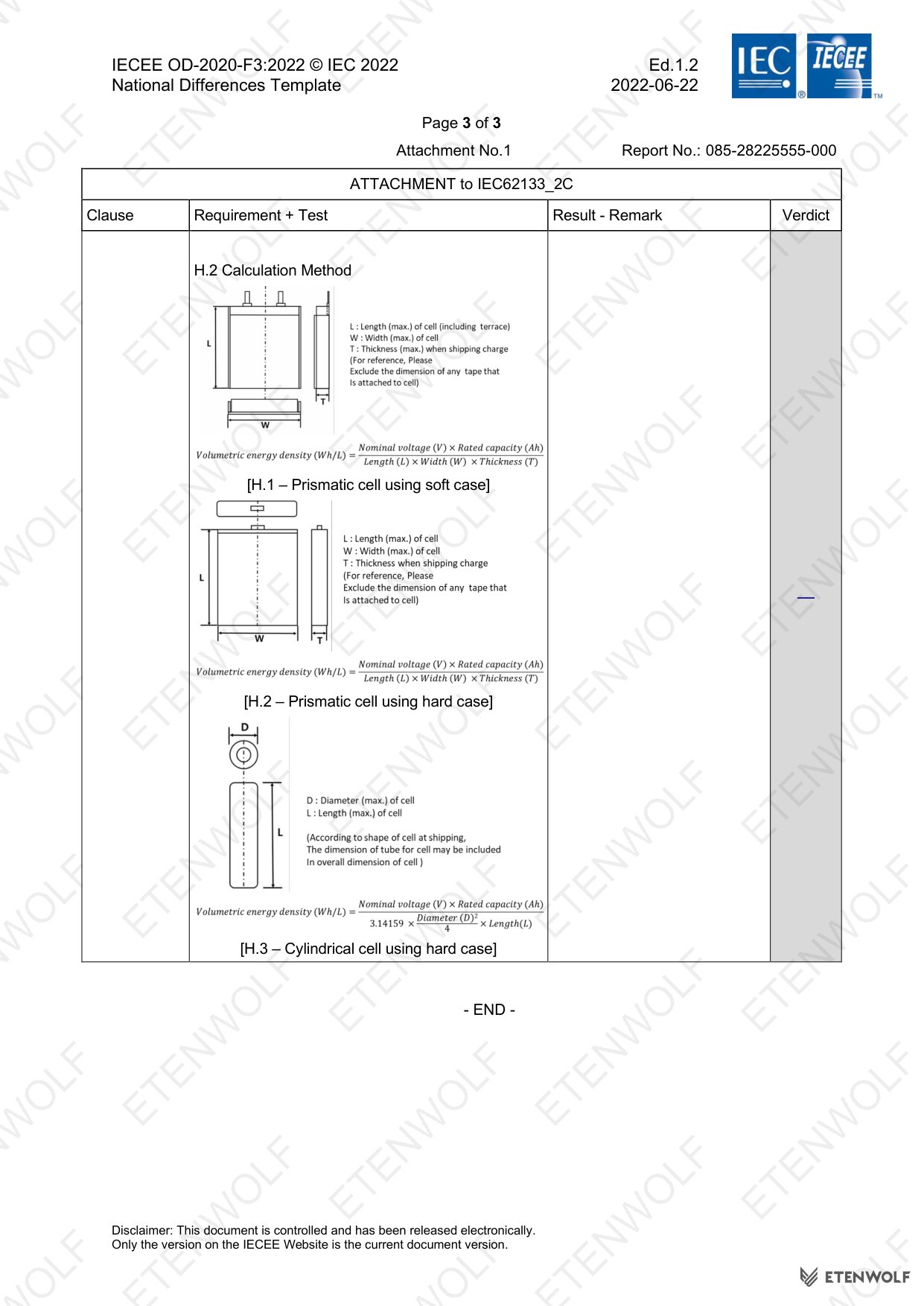

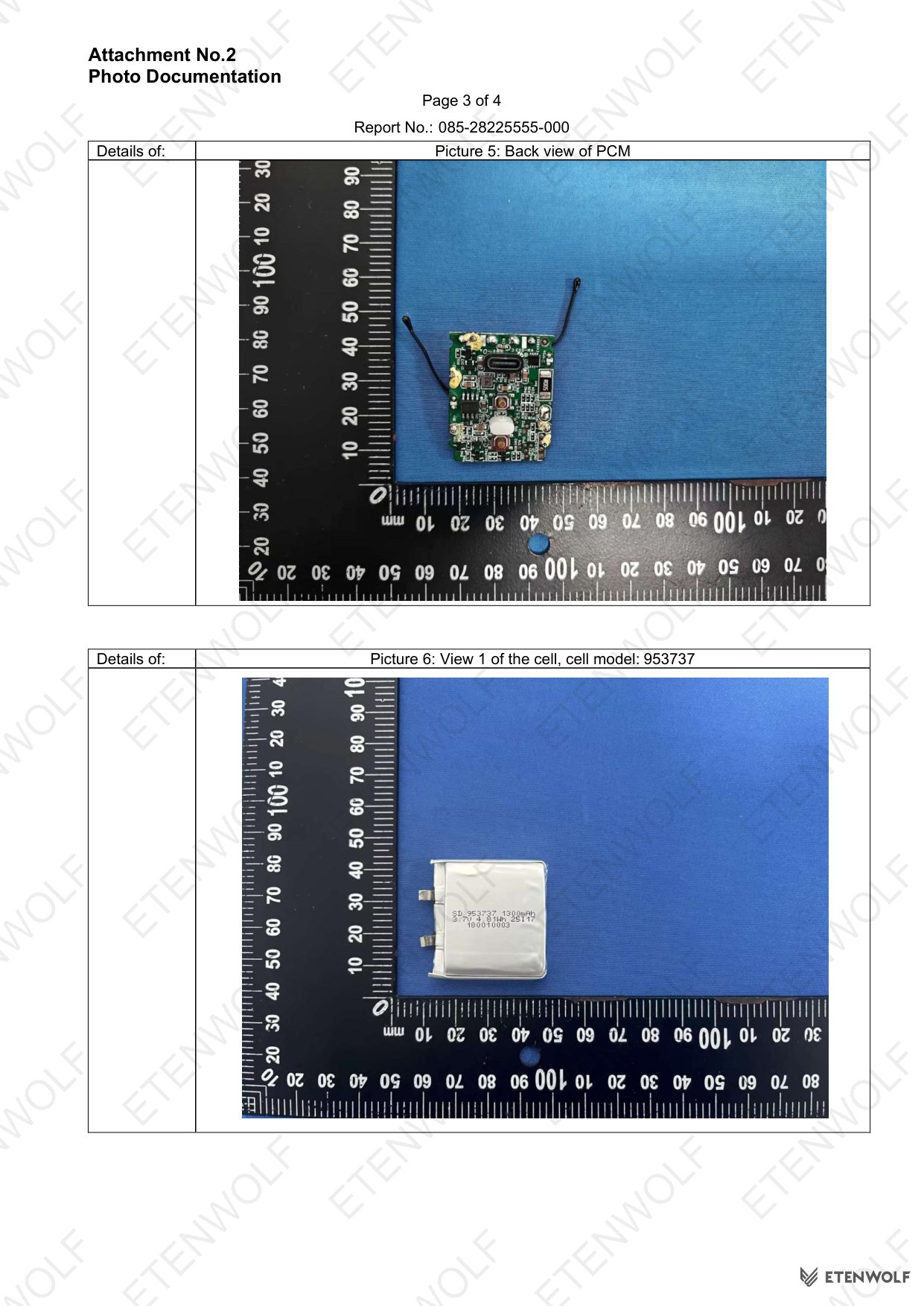

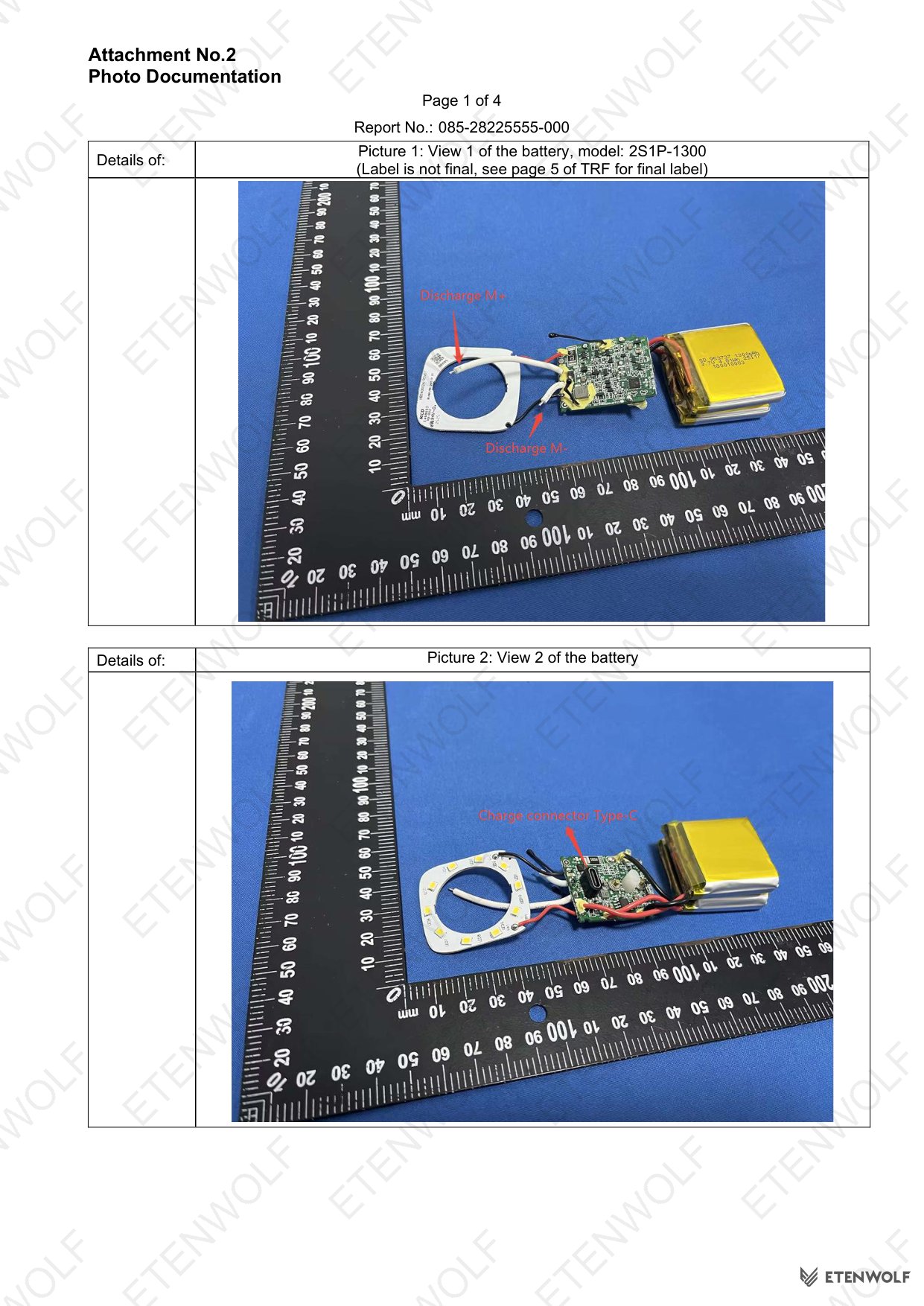

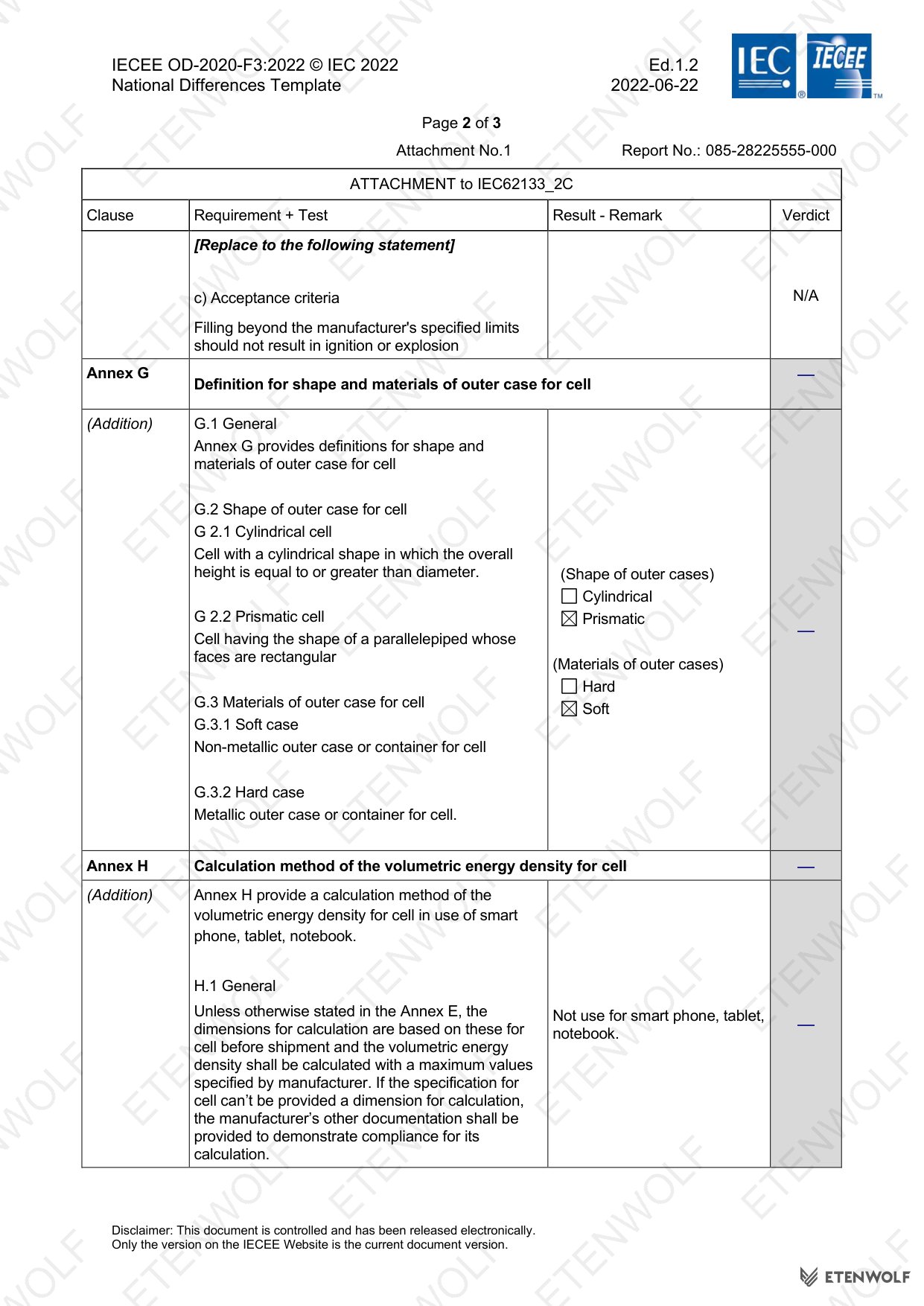

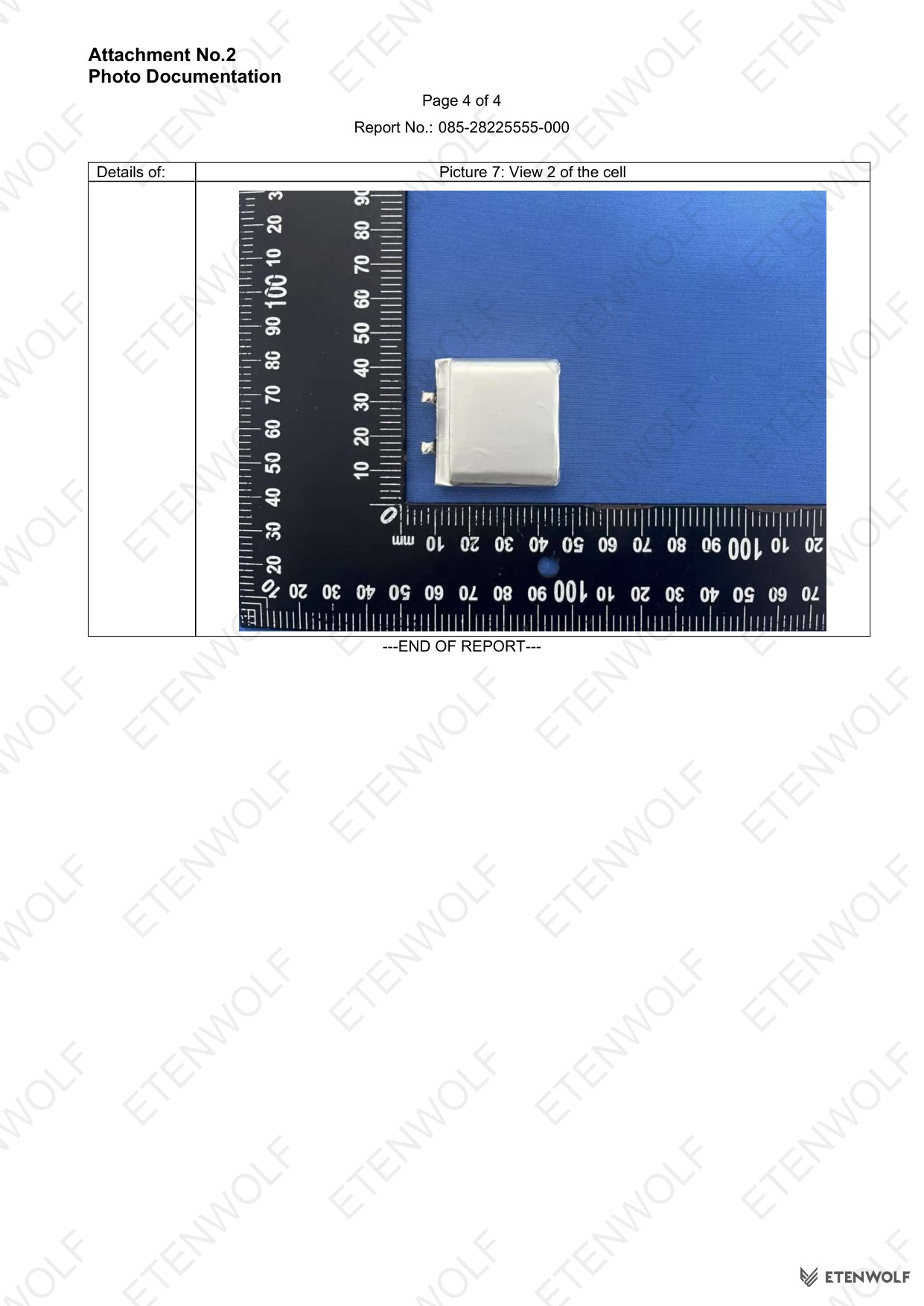

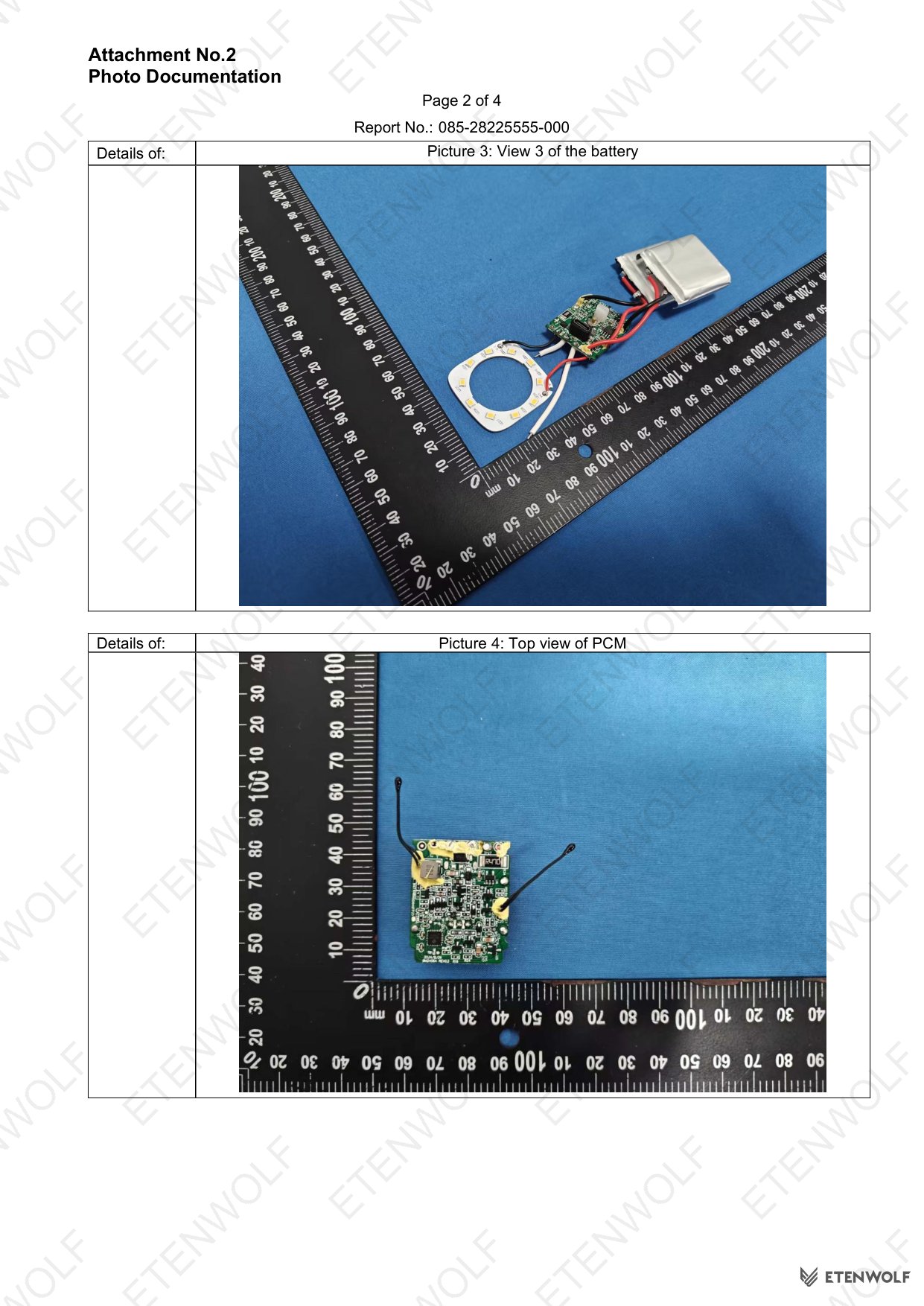

The report also includes two attachments: Attachment No. 1 covers 3 pages of Republic of Korea National Differences, and Attachment No. 2 contains 4 pages of Photo Documentation of the tested samples.

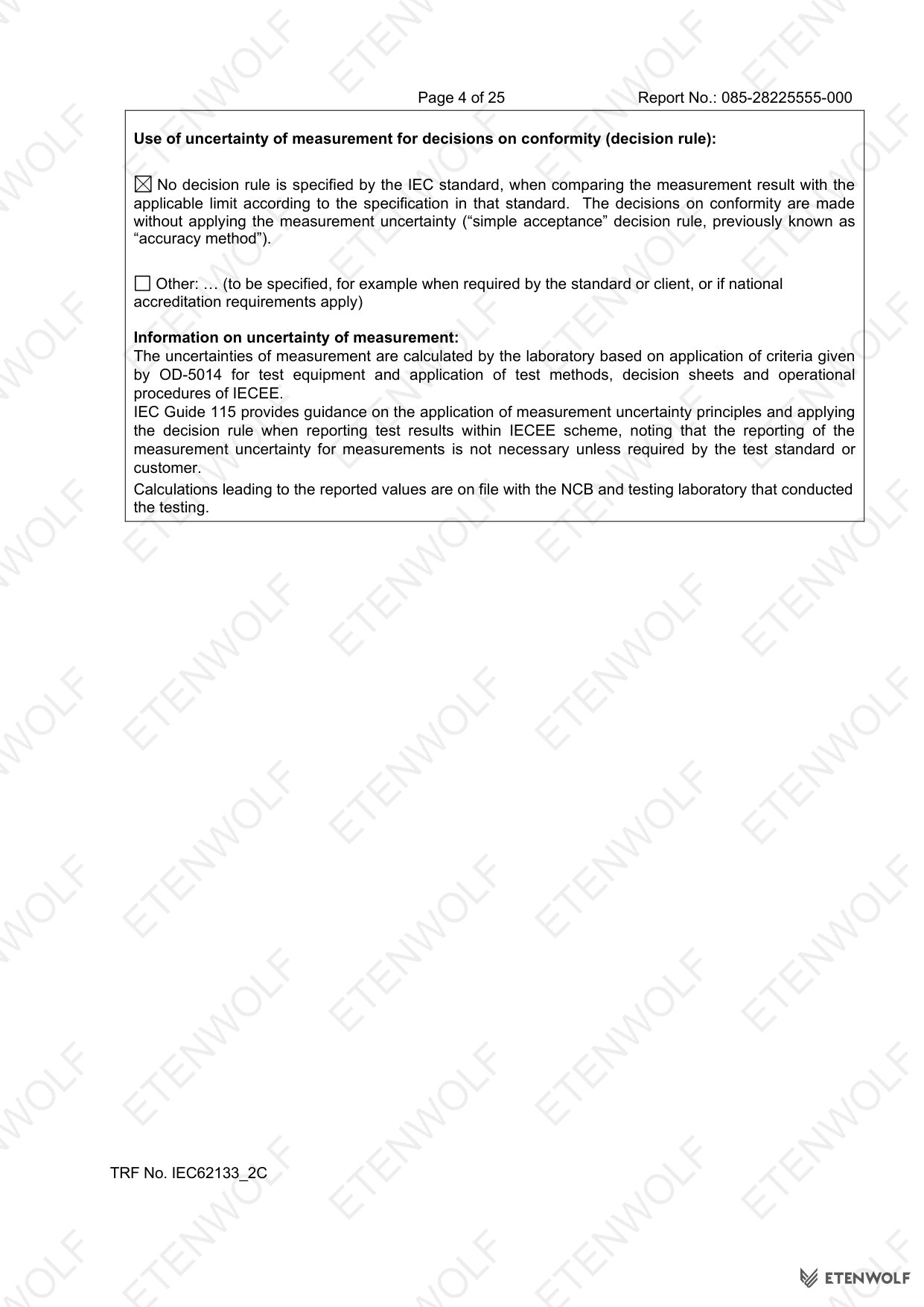

Regarding the decision rule for measurement uncertainty: no specific decision rule is mandated by the IEC standard. Conformity decisions were made using the simple acceptance rule (previously known as the accuracy method), without applying measurement uncertainty offsets. Uncertainties are calculated by the laboratory per IECEE OD-5014 criteria.
Standards & Compliance
The ETENWOLF Air3 battery pack was evaluated against the following standards and national differences:
| Standard / Requirement | Status |
|---|---|
| IEC 62133-2:2017 — Safety requirements for portable sealed secondary lithium cells and batteries | Compliant |
| IEC 62133-2:2017/AMD1:2021 — Amendment 1 | Compliant |
| EN 62133-2:2017/A1:2021 — European (CENELEC) adoption | Compliant |
| BS EN 62133-2:2017+A1:2021 — British Standard adoption | Compliant |
| KR National Differences (Republic of Korea) | Evaluated — see Attachment No. 1 |
CENELEC group differences were evaluated and found compliant. The Republic of Korea (KR) is the only IECEE member country with published national differences evaluated for this report. No additional IECEE member country national differences were applicable.
The CB Scheme is administered by the IEC System (IECEE), providing mutual recognition of test results across participating countries, streamlining market access for certified products.
Validity & Certification Body
The CB Test Report is valid when appended to a CB Test Certificate issued by the responsible National Certification Body (NCB) in accordance with IECEE 02. The report alone does not constitute a standalone CB certificate.
| Field | Detail |
|---|---|
| Issuing NCB | TÜV SÜD PSB Pte. Ltd. |
| NCB Address | 15 International Business Park, TÜV SÜD@IBP, Singapore 609937 |
| CB Testing Laboratory | TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch |
| Testing Locations | Building A2, Jin’ao Industrial Park, No.150, Jingfang Road, Fuhai, Bao’an District, Shenzhen, Guangdong 518103, China; Building 12 & 13, Zhiheng Wisdomland Business Park, Guankou Erlu, Nantou, Nanshan District, Shenzhen, Guangdong 518052, China |
| Tested By | Mona Xie, Project Handler |
| Approved By | West Li, Project Reviewer |
| Report Issue Date | 2026-01-21 |
| Test Period | 2025-11-18 to 2026-01-13 |
| Reproduction | This report shall not be reproduced except in full without written approval of the issuing NCB. Authenticity may be verified by contacting TÜV SÜD PSB Pte. Ltd. |
Frequently Asked Questions
- What is the IEC 62133-2 CB Test Report and why does it matter for the ETENWOLF Air3?
-
The IEC 62133-2 CB Test Report (Report No. 085-28225555-000) is an internationally recognised safety assessment document issued under the IECEE CB Scheme. It confirms that the lithium-ion battery pack (model 2S1P-1300, 7.4 V, 1300 mAh) inside the ETENWOLF Air3 has passed all mandatory safety tests under IEC 62133-2:2017 and its Amendment 1:2021. This facilitates market access in dozens of countries participating in the IECEE mutual recognition arrangement without requiring repeated national testing.
- Which safety tests were conducted on the Air3 battery pack?
-
Twelve test clauses were performed covering both cells and the complete battery pack: continuous charging at constant voltage (7.2.1), case stress at high ambient temperature (7.2.2), external short circuit on cell and battery (7.3.1–7.3.2), free fall (7.3.3), thermal abuse (7.3.4), crush (7.3.5), over-charging (7.3.6), forced discharge (7.3.7), vibration (7.3.8.1), mechanical shock (7.3.8.2), and forced internal short-circuit (7.3.9). All tests returned a passing result.
- Does this CB Test Report cover the Korean market?
-
Yes. Republic of Korea (KR) national differences were specifically evaluated and are documented in Attachment No. 1 (3 pages) of the report. This means the ETENWOLF Air3 battery pack has been assessed against Korean-specific requirements in addition to the core IEC 62133-2 standard.
- Who conducted and approved this test report?
-
Testing was carried out by TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch, with Mona Xie (Project Handler) responsible for testing and West Li (Project Reviewer) providing approval. The report was issued by TÜV SÜD PSB Pte. Ltd. in Singapore as the National Certification Body (NCB) under the IECEE CB Scheme.
Related Documents
The following certification and compliance documents are typically associated with a product in the same category as the ETENWOLF Air3 portable inflator:
- UN 38.3 Test Report — Required for the transport of lithium-ion batteries by air, sea, or road. Verifies the battery pack meets UN 38.3 altitude simulation, thermal, vibration, shock, external short circuit, impact, overcharge, and forced discharge tests.
- CE Declaration of Conformity — Required for placing the product on the European market. References applicable EU directives including the Battery Regulation and Low Voltage Directive, underpinned by EN 62133-2 compliance already evidenced by this CB report.
- FCC Test Report — Required for the US market. Covers electromagnetic compatibility and radio frequency emissions from the IEC-tested battery-powered device.
- KC Certification — Korean Certification mark required for the South Korean market. The KR national differences already evaluated in this CB report support the KC certification process.
- RoHS Compliance Report — Confirms restriction of hazardous substances (lead, mercury, cadmium, etc.) in the product in line with EU RoHS Directive 2011/65/EU.
- REACH SVHC Declaration — Documents the absence or presence of Substances of Very High Concern above 0.1% w/w per article, as required under REACH Regulation (EC) No 1907/2006.

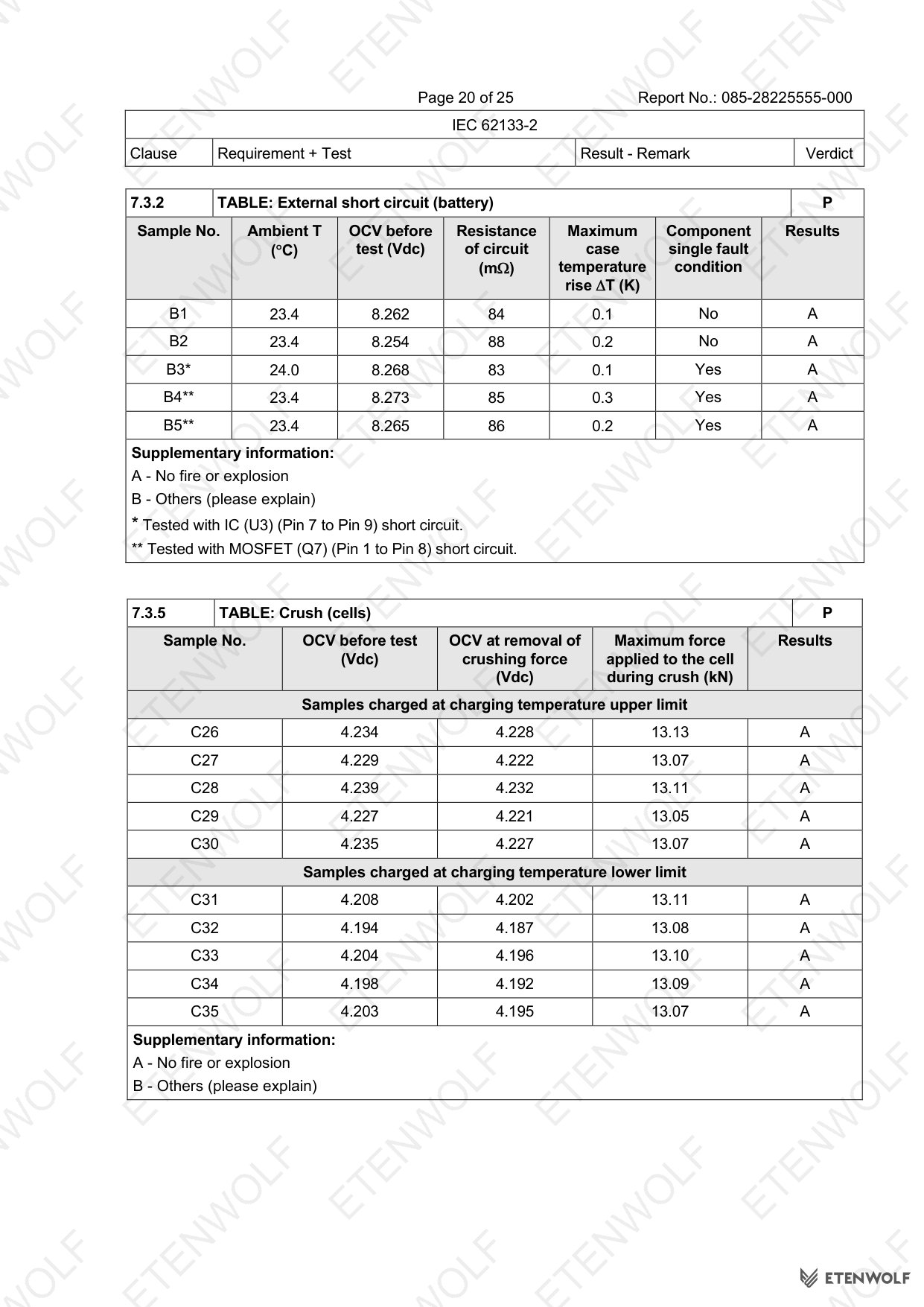

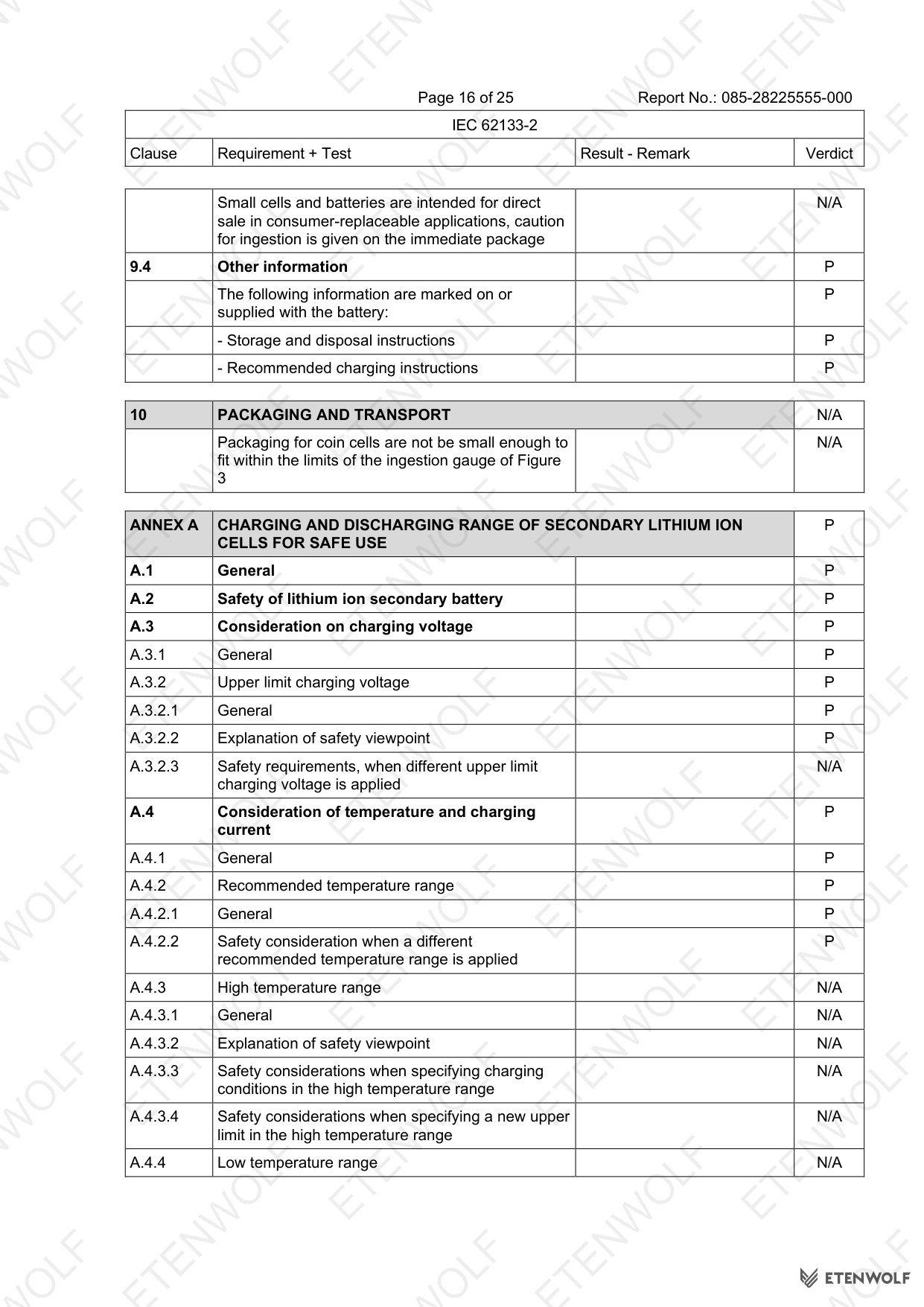

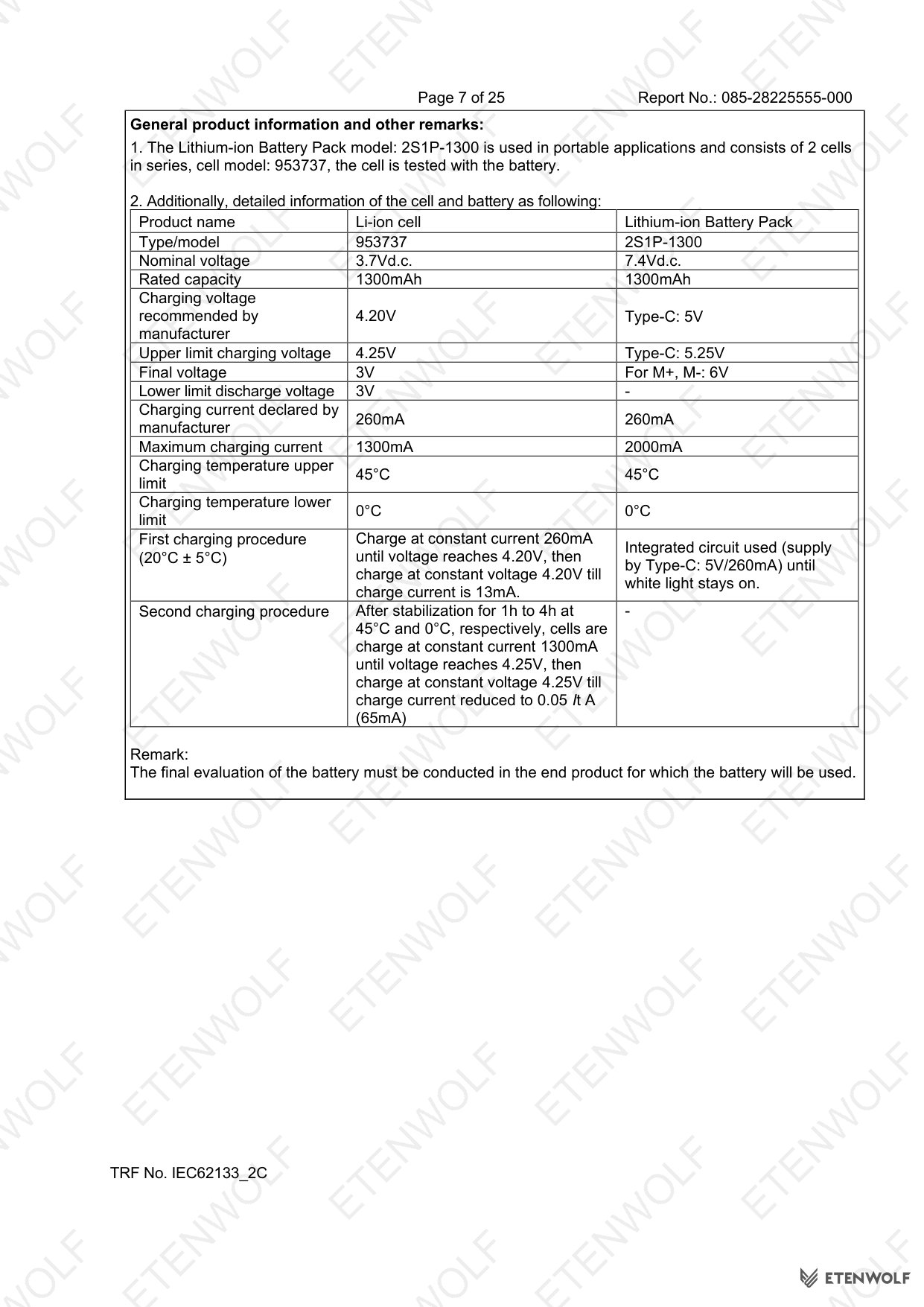

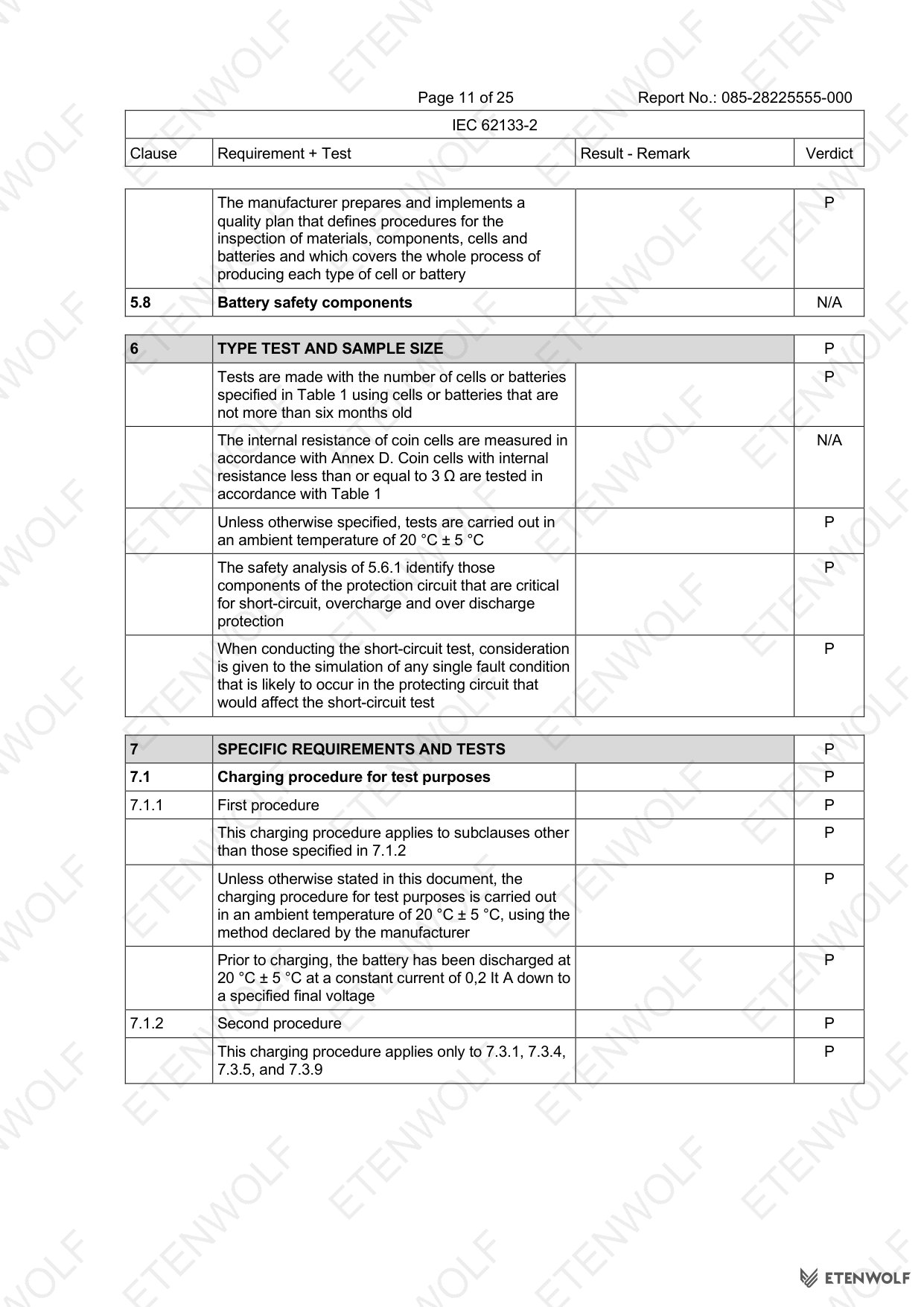

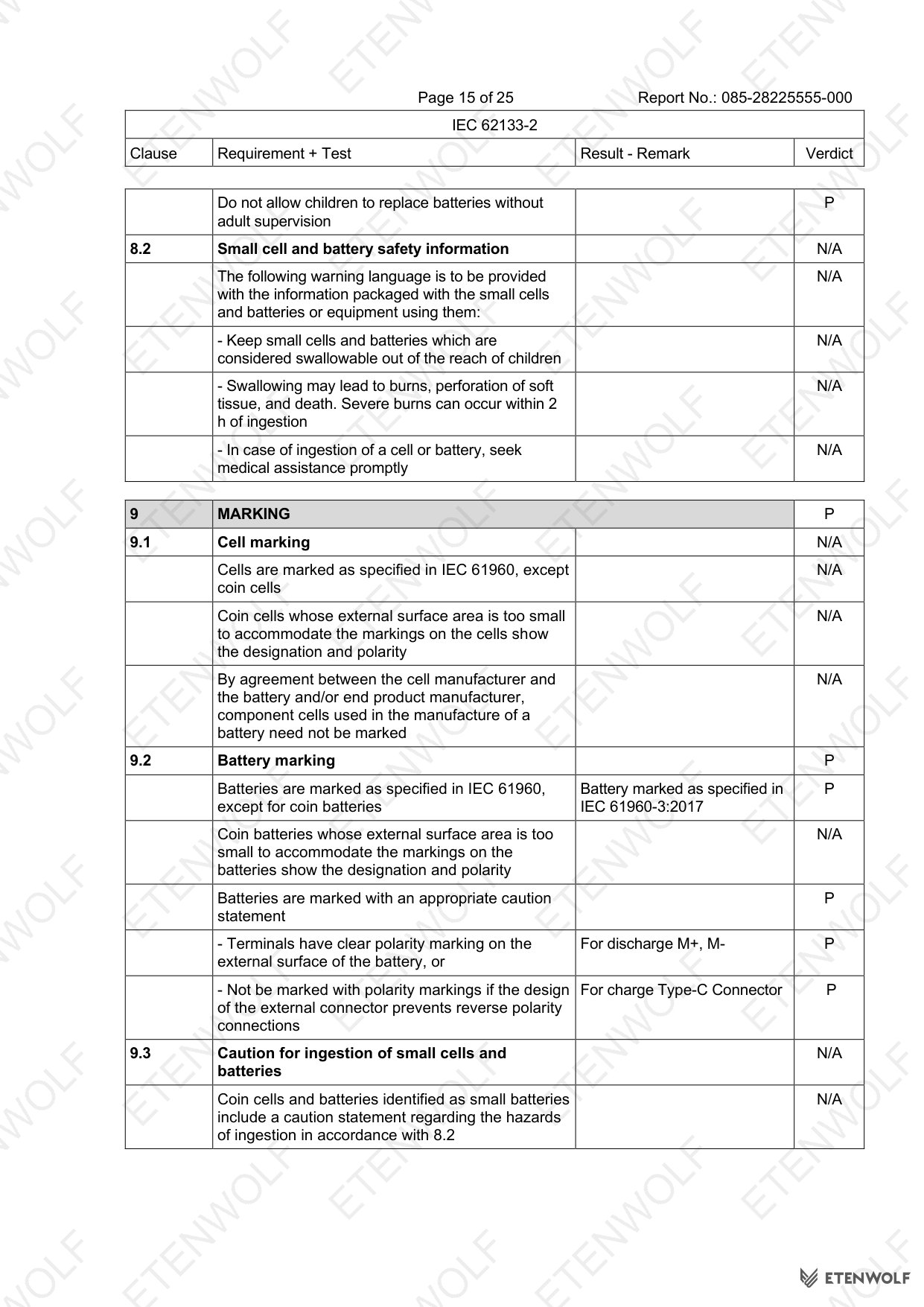

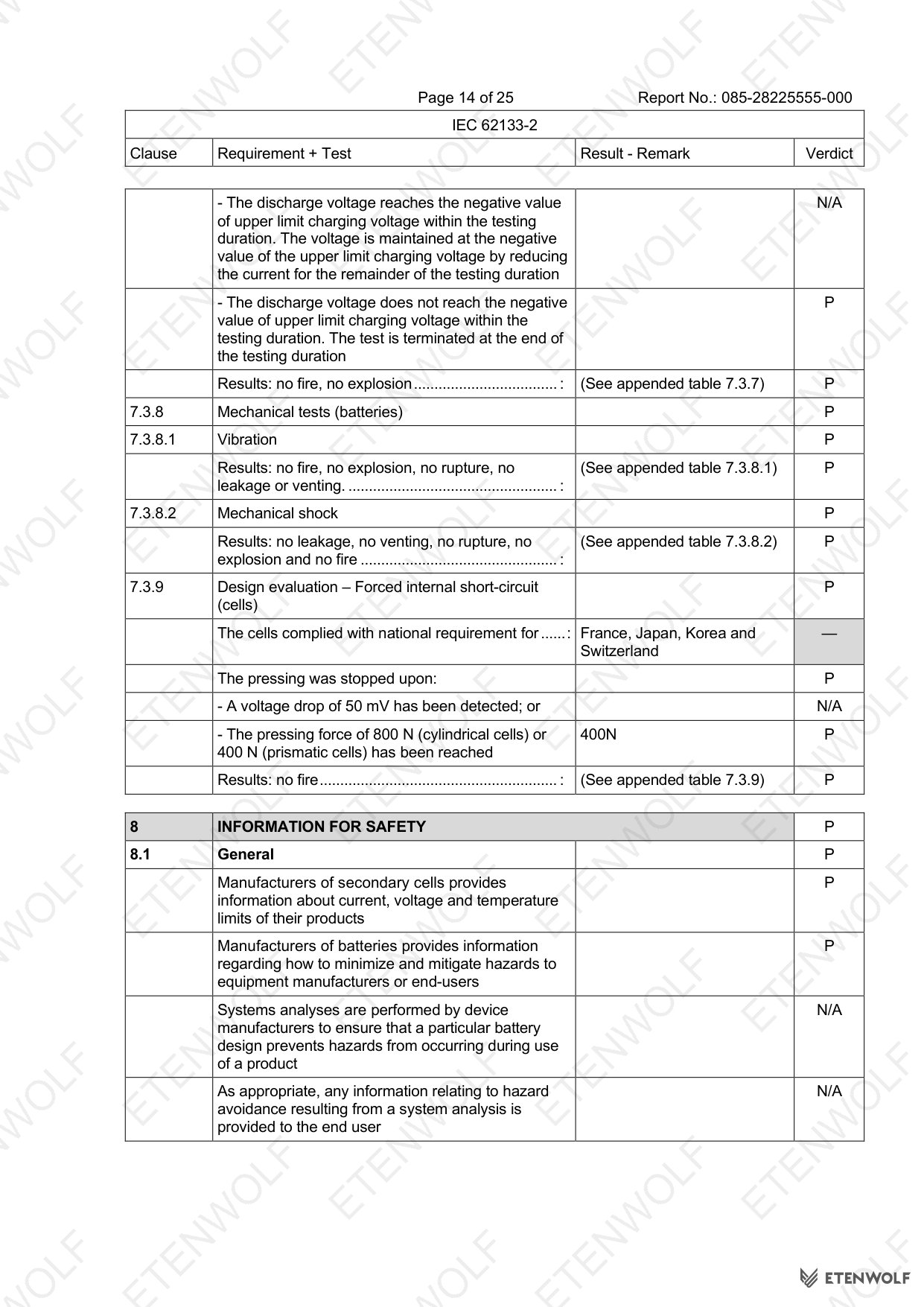

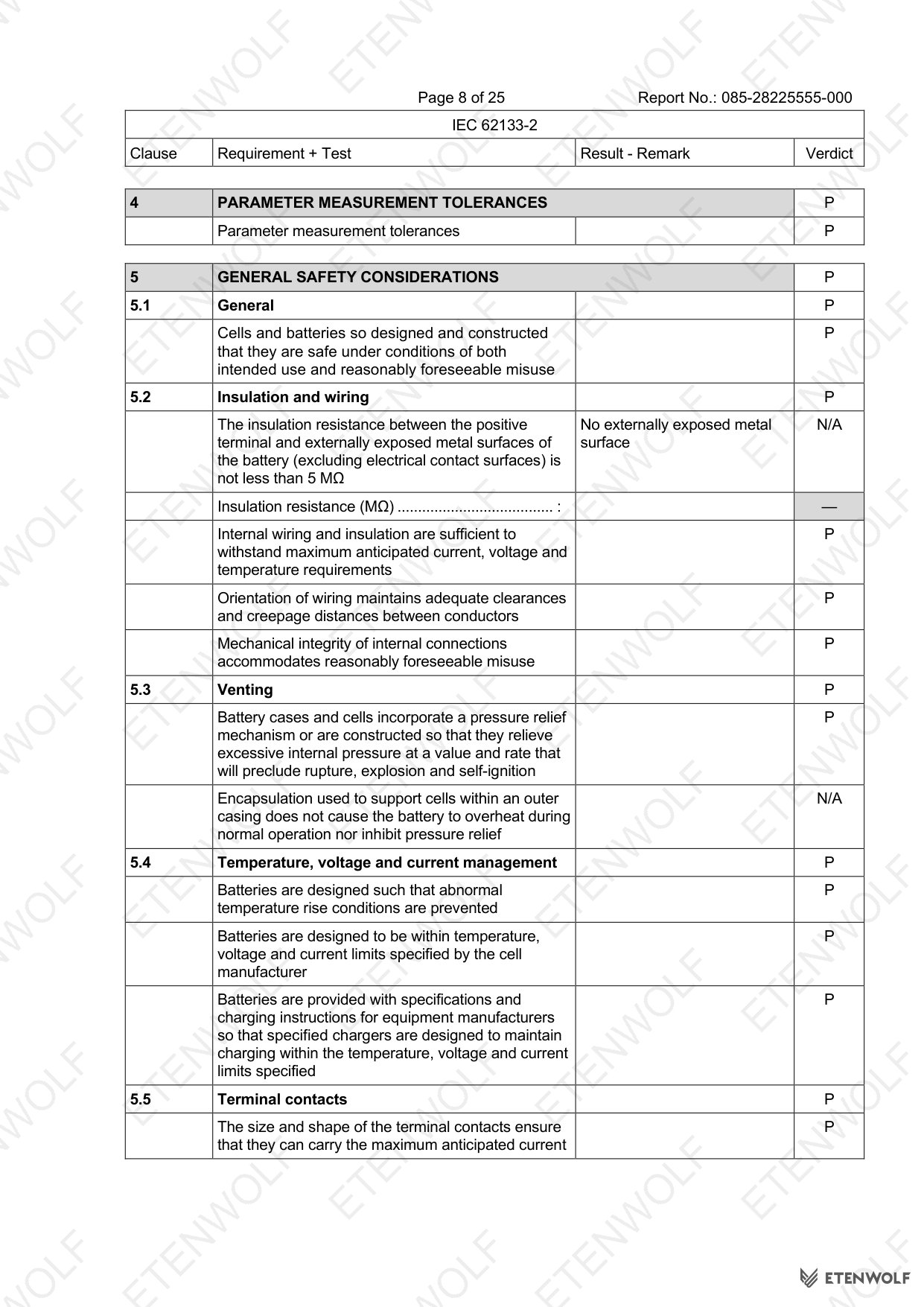

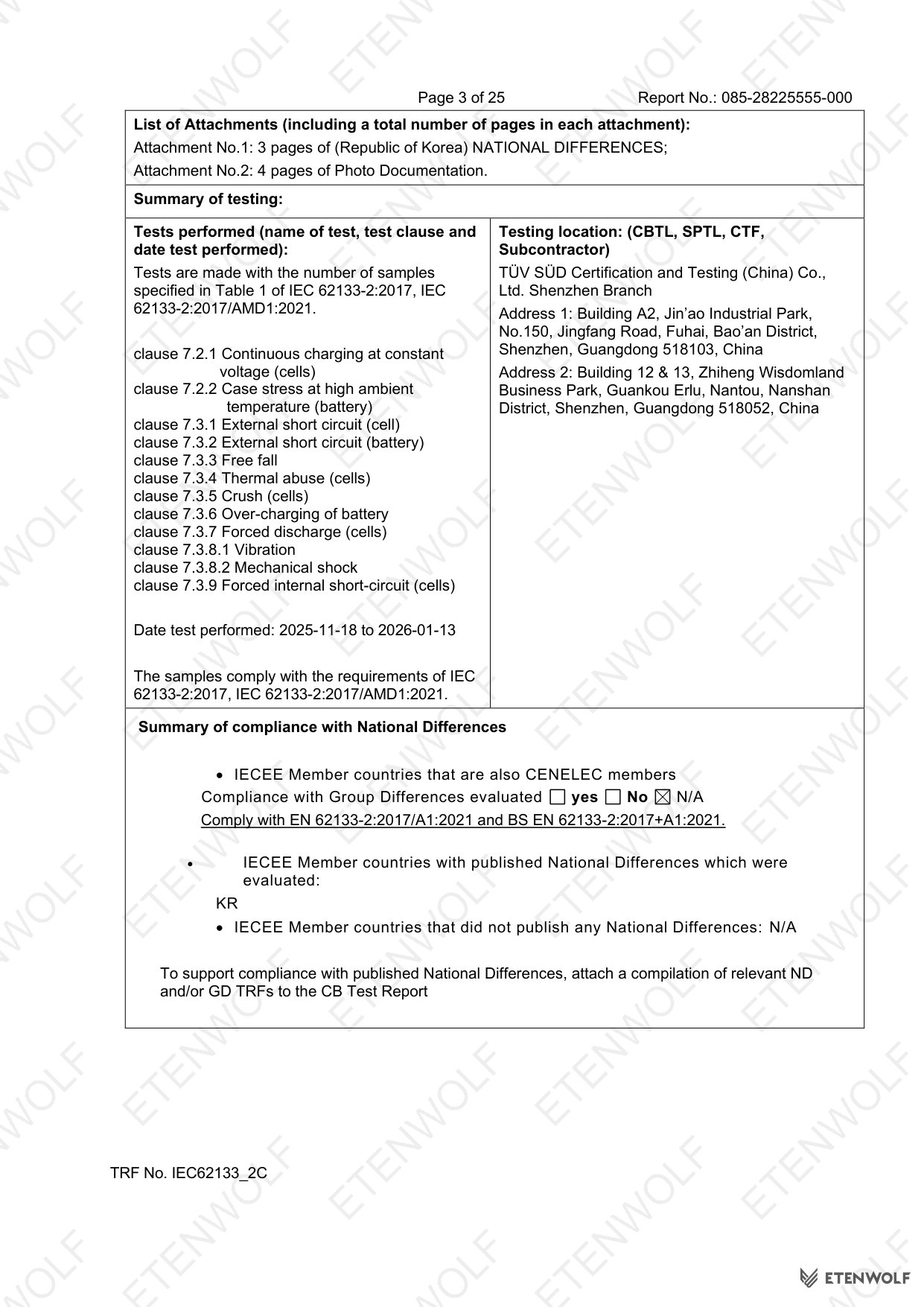

Document Pages
