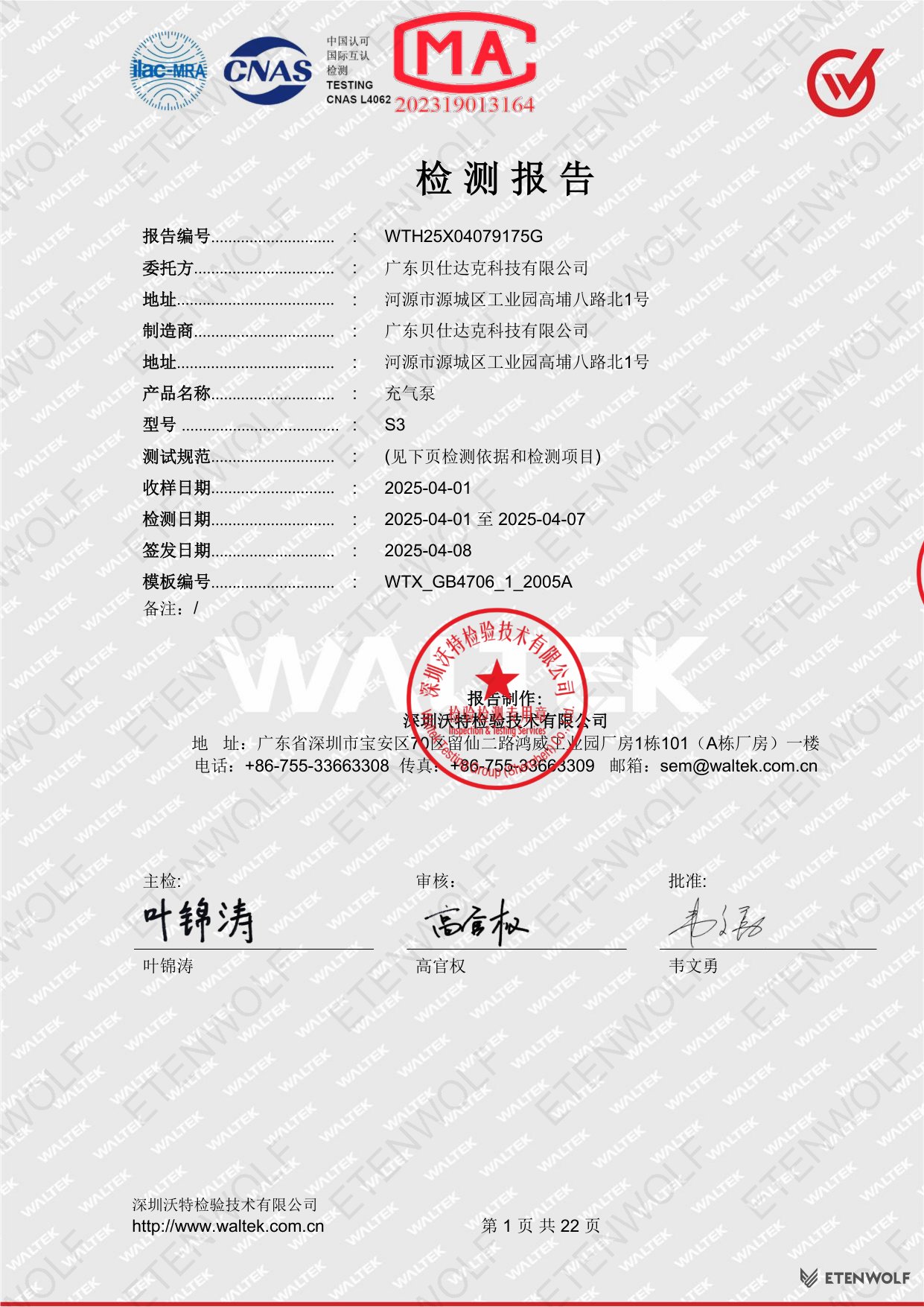

This is an official inspection and testing report (质检报告) issued by Shenzhen Waltek Testing Technology Co., Ltd., a certified testing laboratory located in Shenzhen, Guangdong Province, China. The report number is WTH25X04079175G, issued on April 8, 2025.

The document certifies compliance testing of the ETENWOLF S3 cordless tire inflator against Chinese household appliance safety standards. Testing was conducted from April 1 to April 7, 2025, with samples received on April 1, 2025.

The commissioning party and manufacturer is Guangdong Bestadak Technology Co., Ltd., located at No. 1 North Gaopubalu Road, Industrial Park, Yuancheng District, Heyuan City.

Product Information

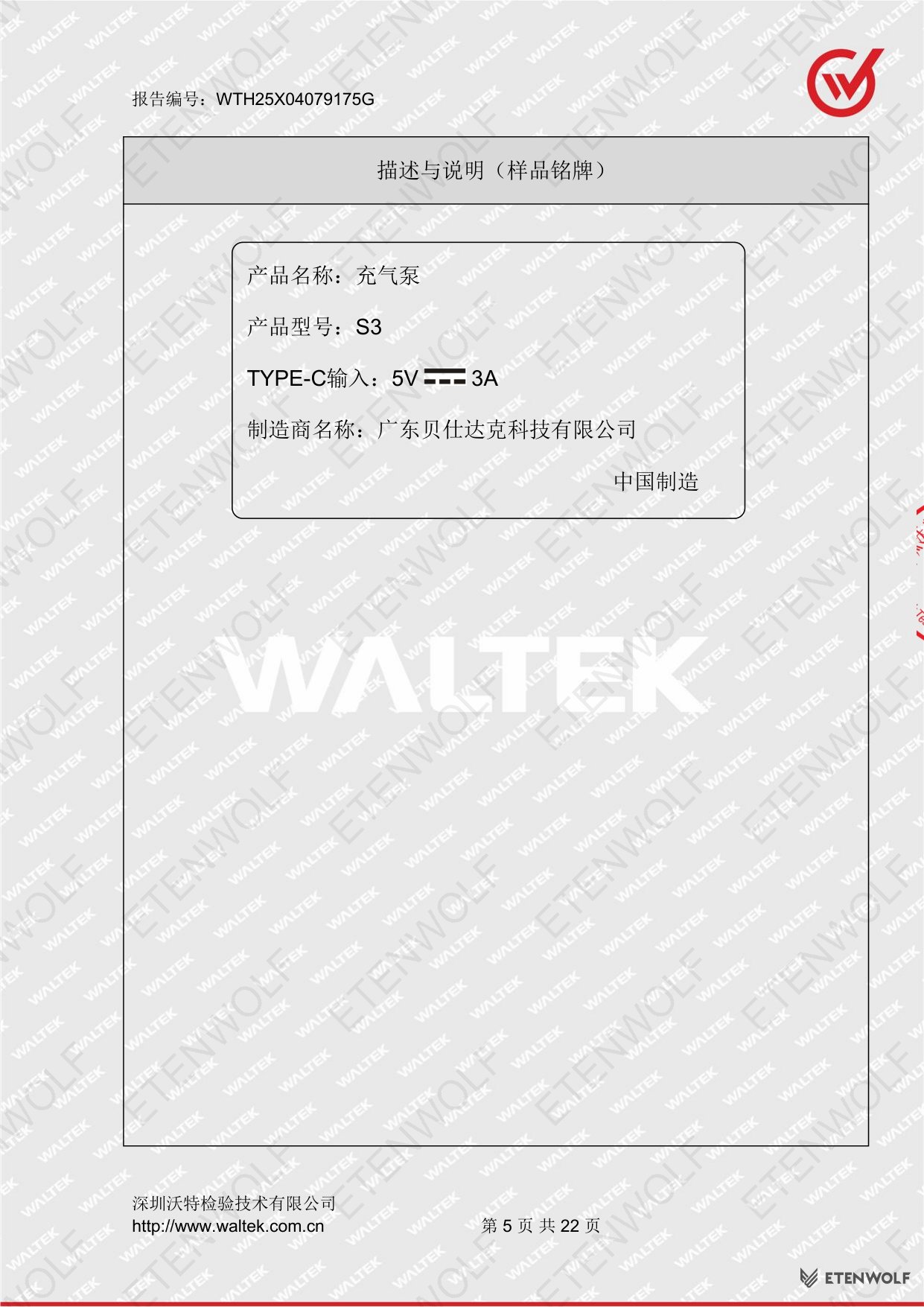

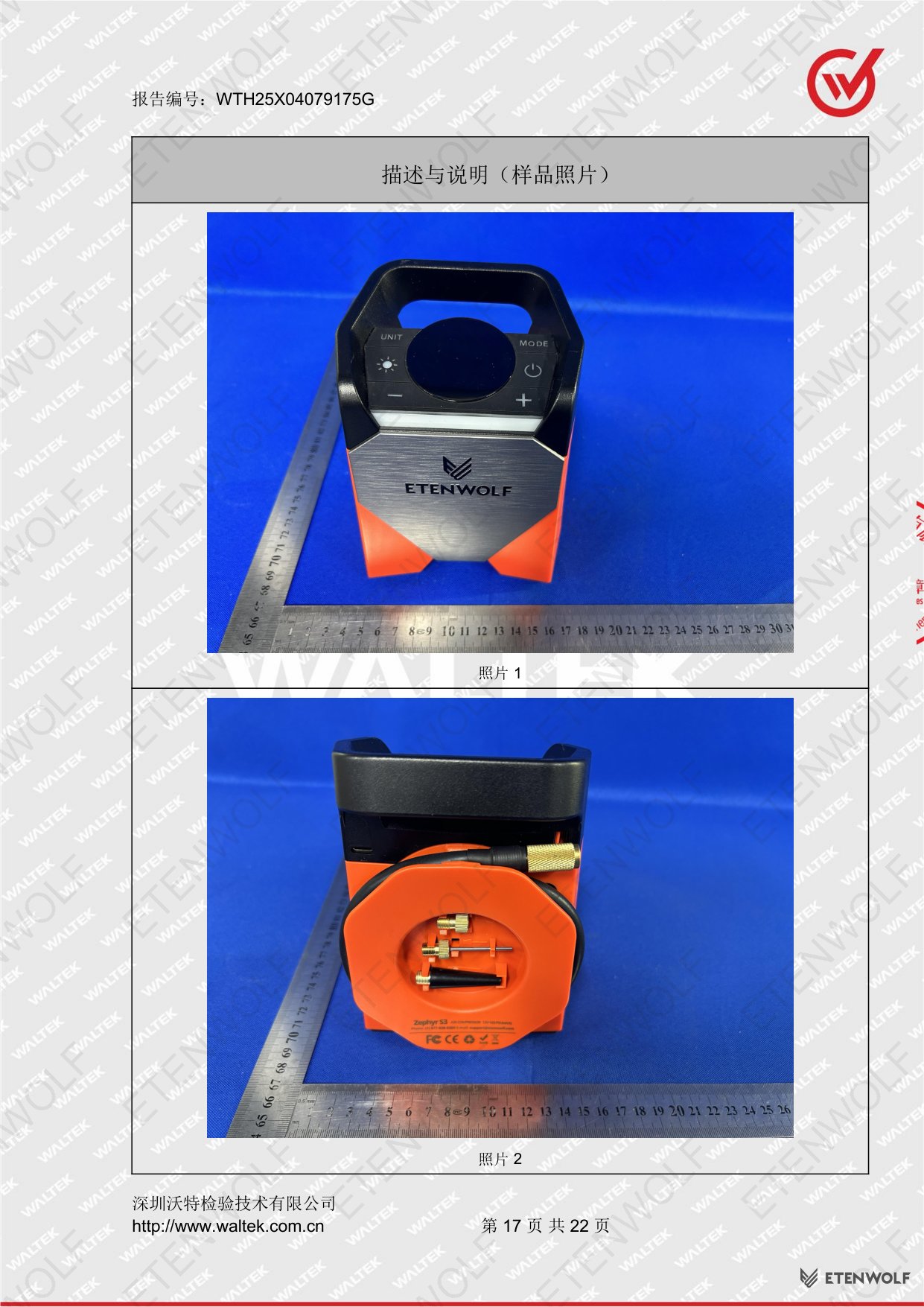

The tested product is a rechargeable tire inflator marketed under the model designation S3. According to the nameplate information extracted from the report:

Product Name: 充气泵 (Tire Inflator/Air Pump)
Model: S3
Input Specification: TYPE-C 5V ⎓ 3A (DC power)
Manufacturer: Guangdong Bestadak Technology Co., Ltd.
Origin: Made in China

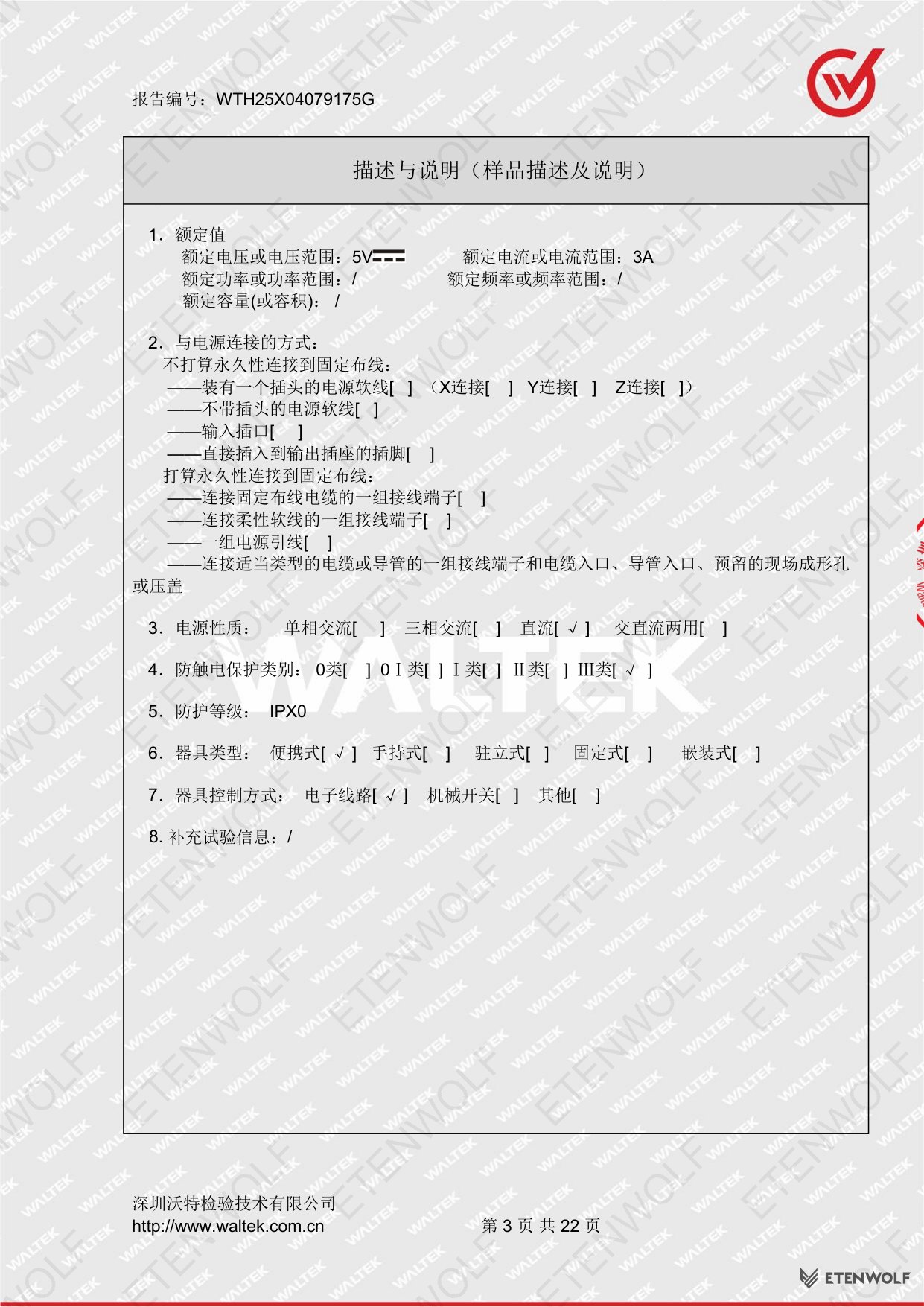

The S3 inflator is classified as:

Class III appliance (extra-low voltage protection)
Portable type device
Electronic circuit control
Protection grade: IPX0 (no special water protection)
DC powered via USB Type-C interface

Key Details

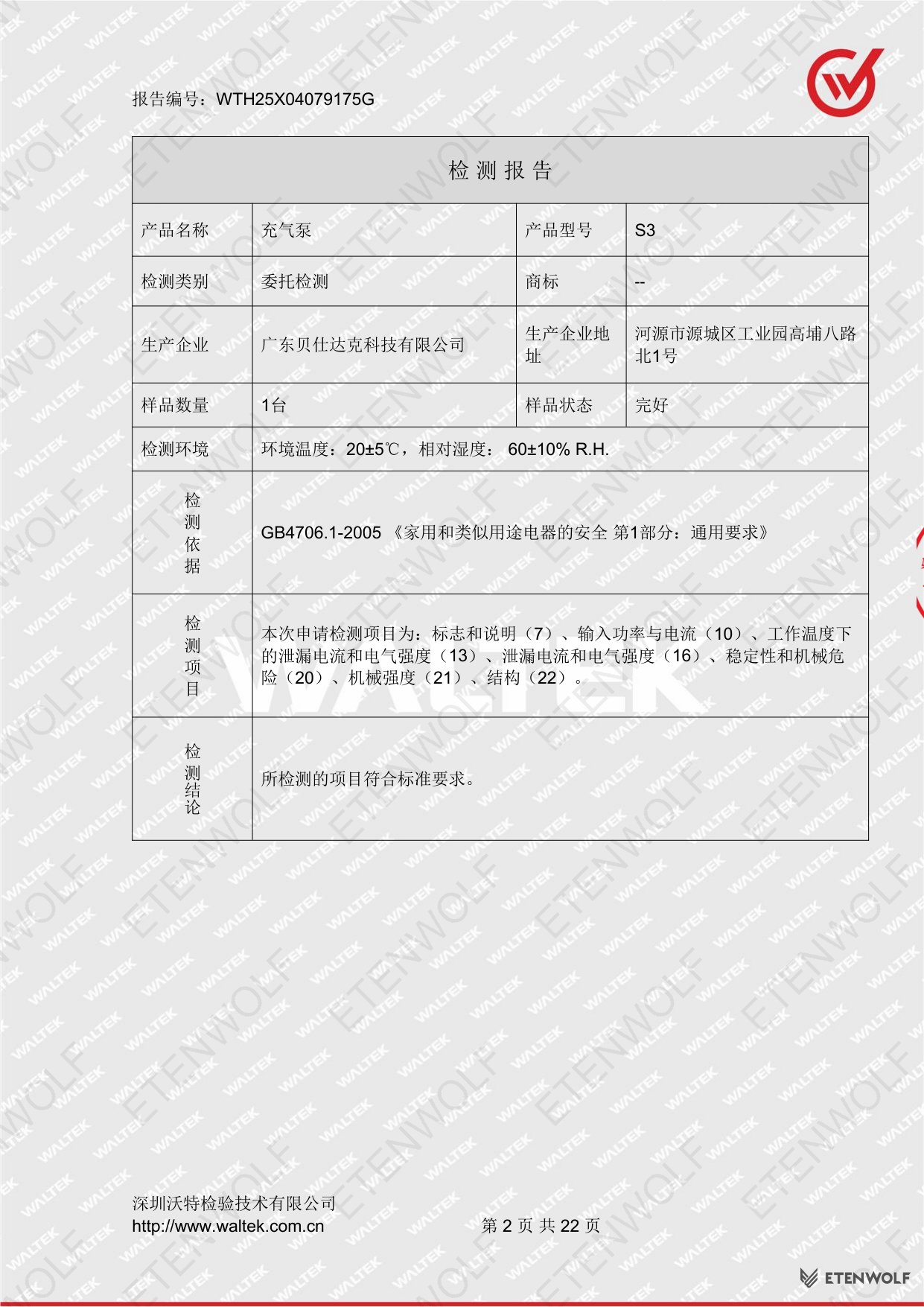

The following table summarizes the comprehensive test results and specifications verified during the inspection:

Test Parameter	Specification/Result	Status
Report Number	WTH25X04079175G	–
Test Category	Commissioned Testing	–
Sample Quantity	1 unit	–
Sample Condition	Good/Intact	–
Test Environment	Temperature: 20±5°C, Humidity: 60±10% RH	–
Rated Voltage	5V DC	Pass
Rated Current	3A	Pass
Protection Class	Class III	Pass
Ingress Protection	IPX0	Pass
Marking and Instructions (Clause 7)	All required markings present and correct	Pass

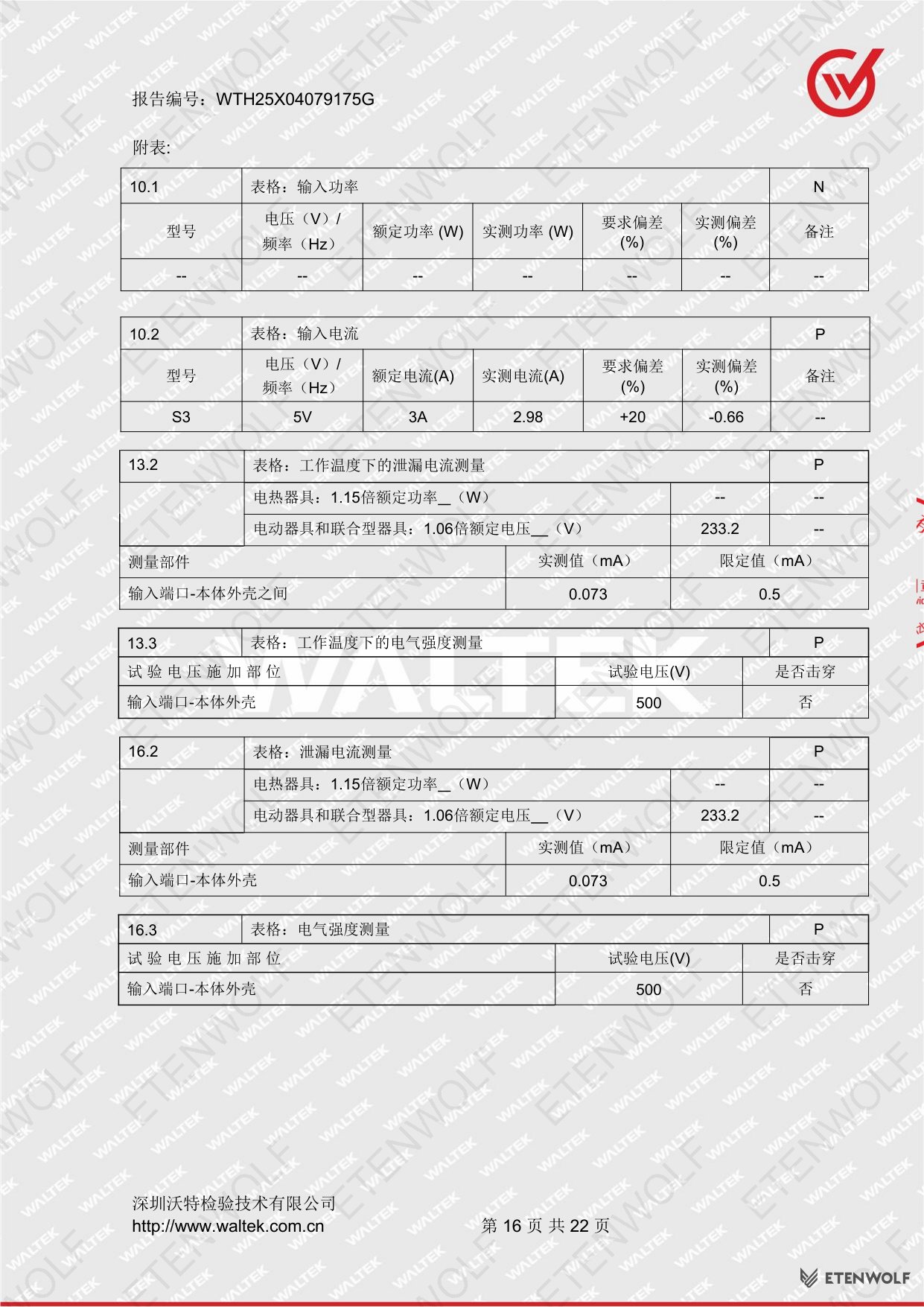

Input Power and Current (Clause 10)	Within specified tolerance	Pass
Leakage Current at Operating Temperature (Clause 13)	Within safe limits	Pass
Leakage Current and Electric Strength (Clause 16)	Meets dielectric requirements	Pass
Stability and Mechanical Hazards (Clause 20)	Stable operation confirmed	Pass
Mechanical Strength (Clause 21)	Adequate structural integrity	Pass
Construction Requirements (Clause 22)	Compliant design and assembly	Pass

Overall Conclusion: All tested items comply with the standard requirements of GB4706.1-2005.

Standards & Compliance

The testing was conducted in accordance with GB4706.1-2005: “Safety of Household and Similar Electrical Appliances – Part 1: General Requirements”.

This is the foundational Chinese national safety standard for household electrical appliances, harmonized with the international IEC 60335 series. The standard covers essential safety aspects including:

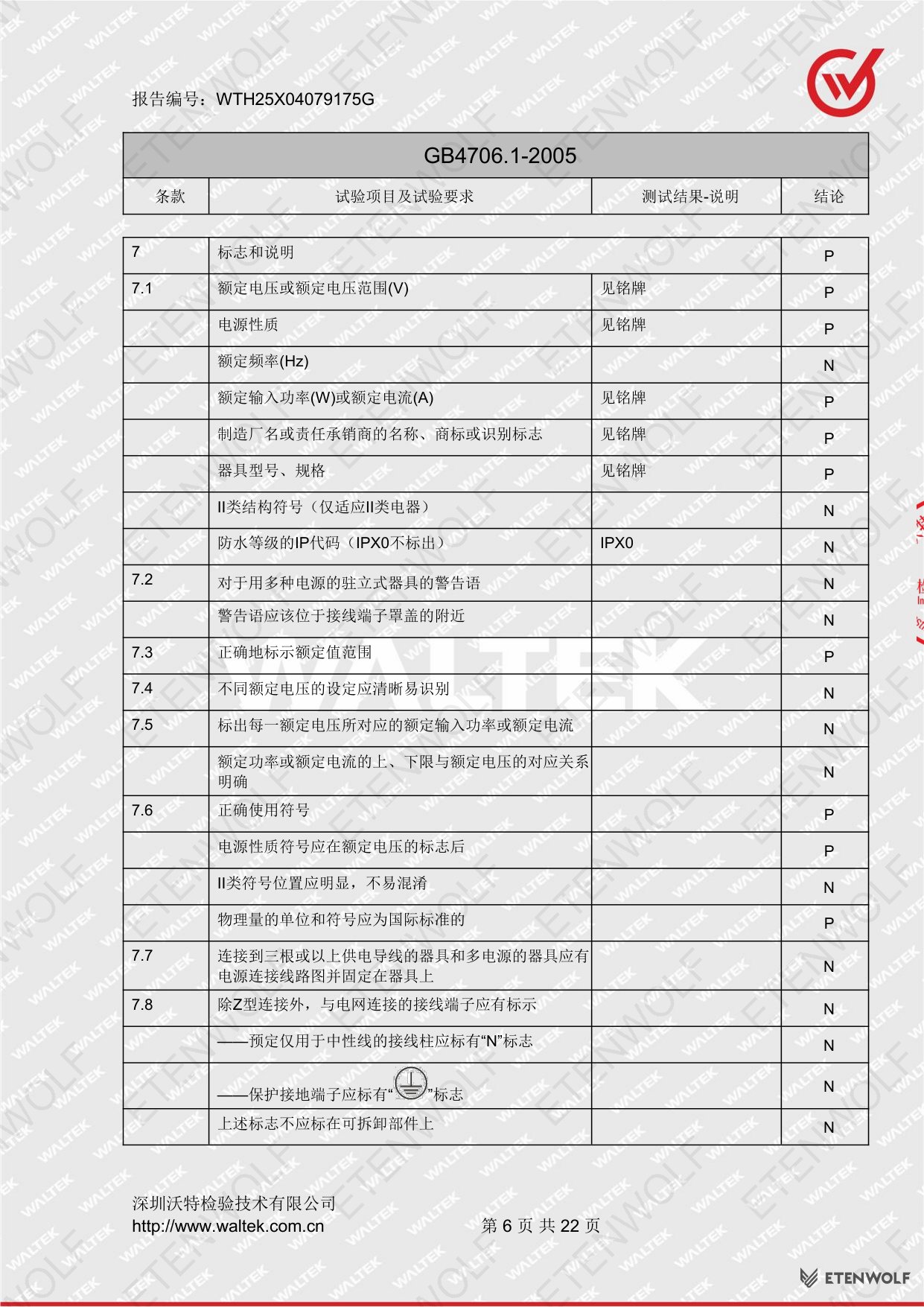

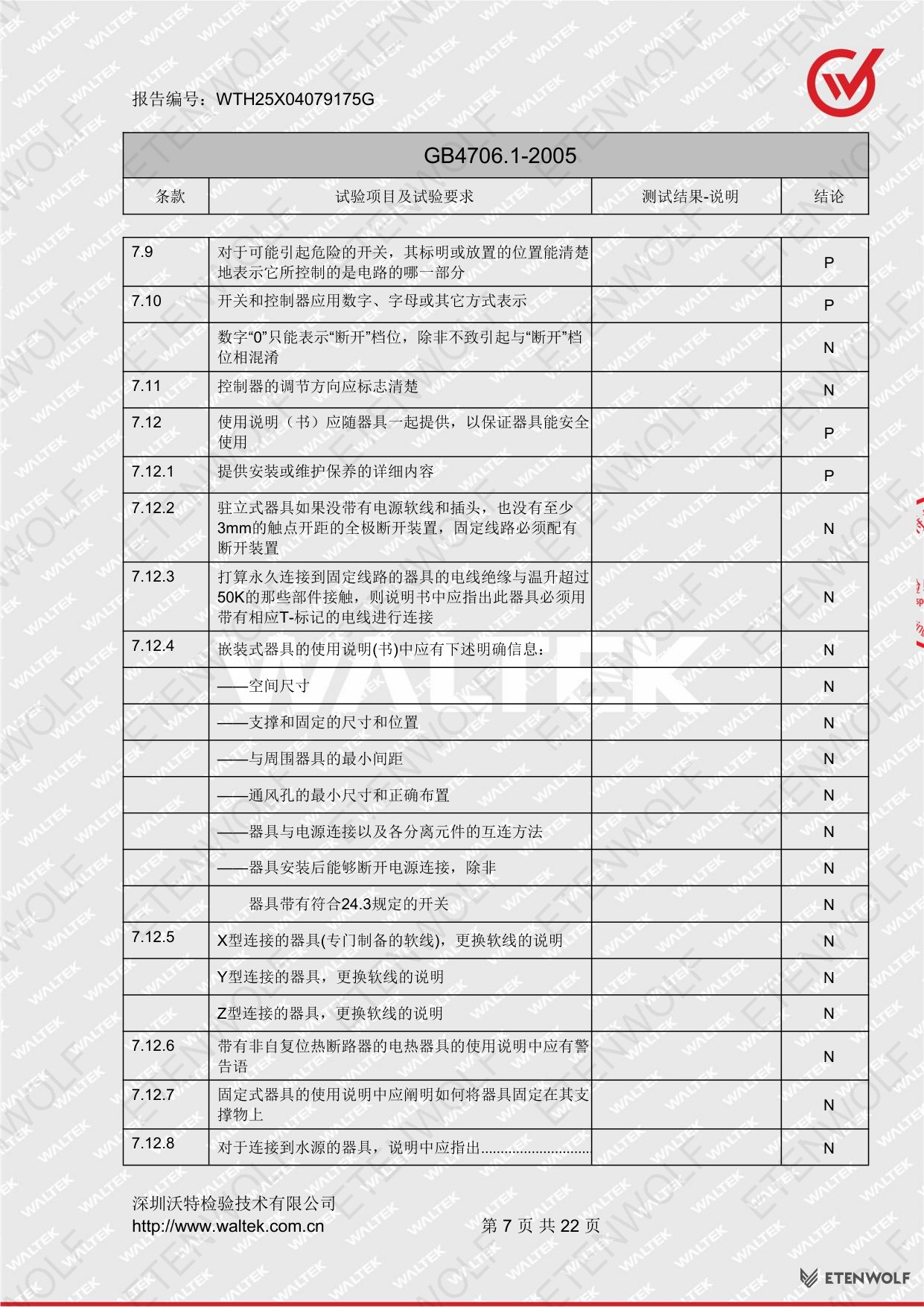

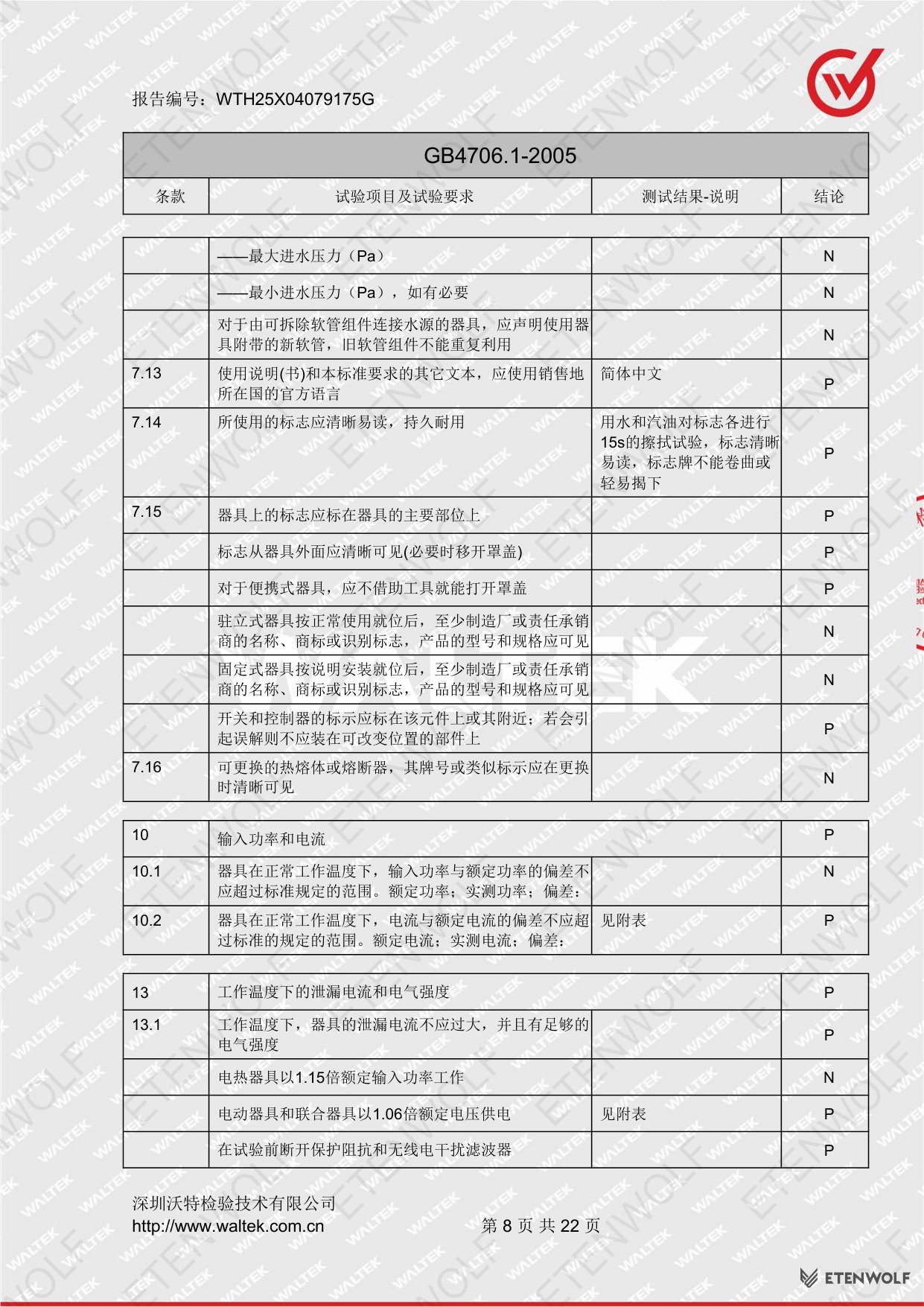

Clause 7: Marking and instructions – verification of proper labeling, rating plates, and user instructions
Clause 10: Input power and current – measurement of actual power consumption versus rated values

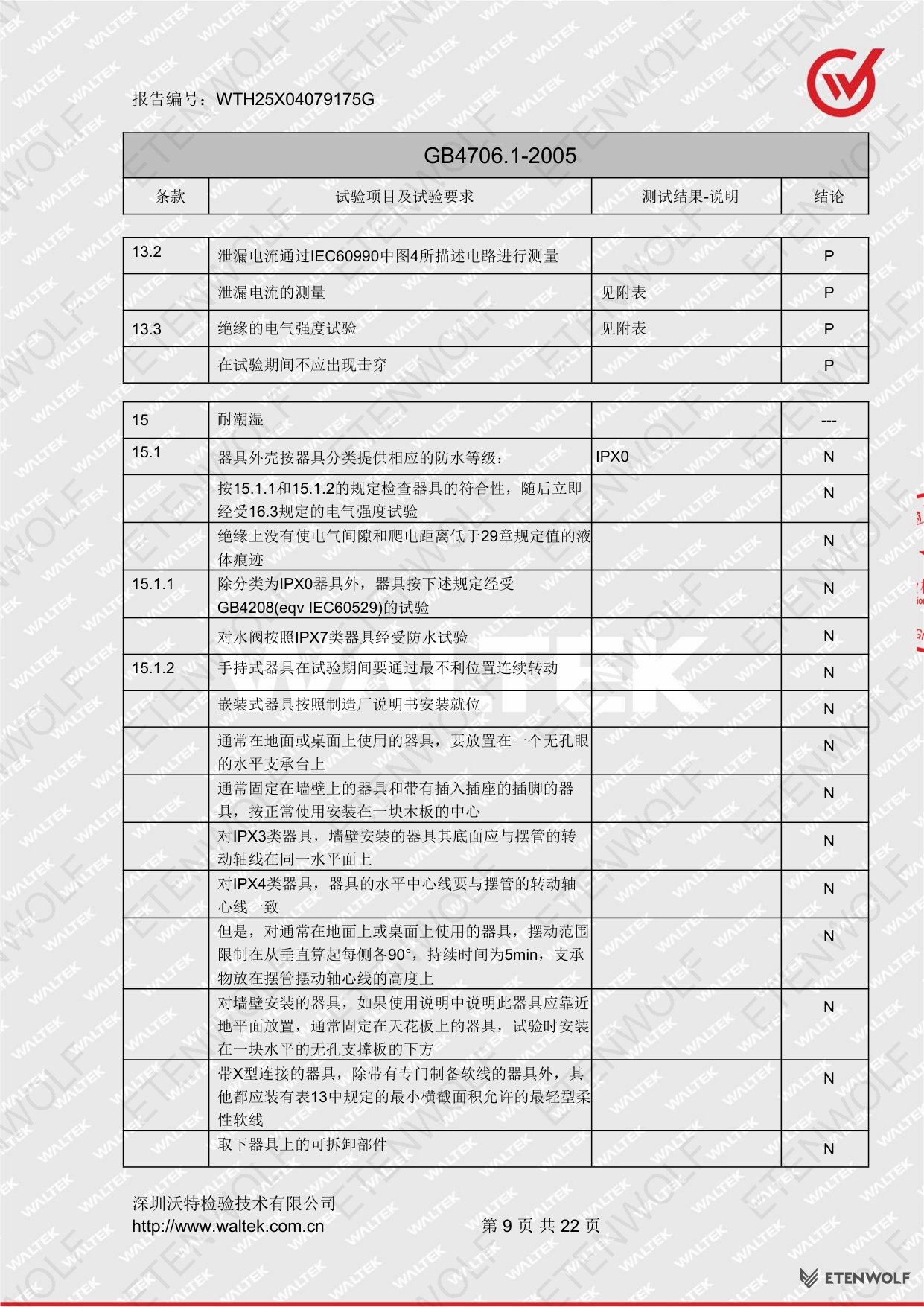

Clause 13: Leakage current and electric strength at operating temperature – safety under normal use conditions

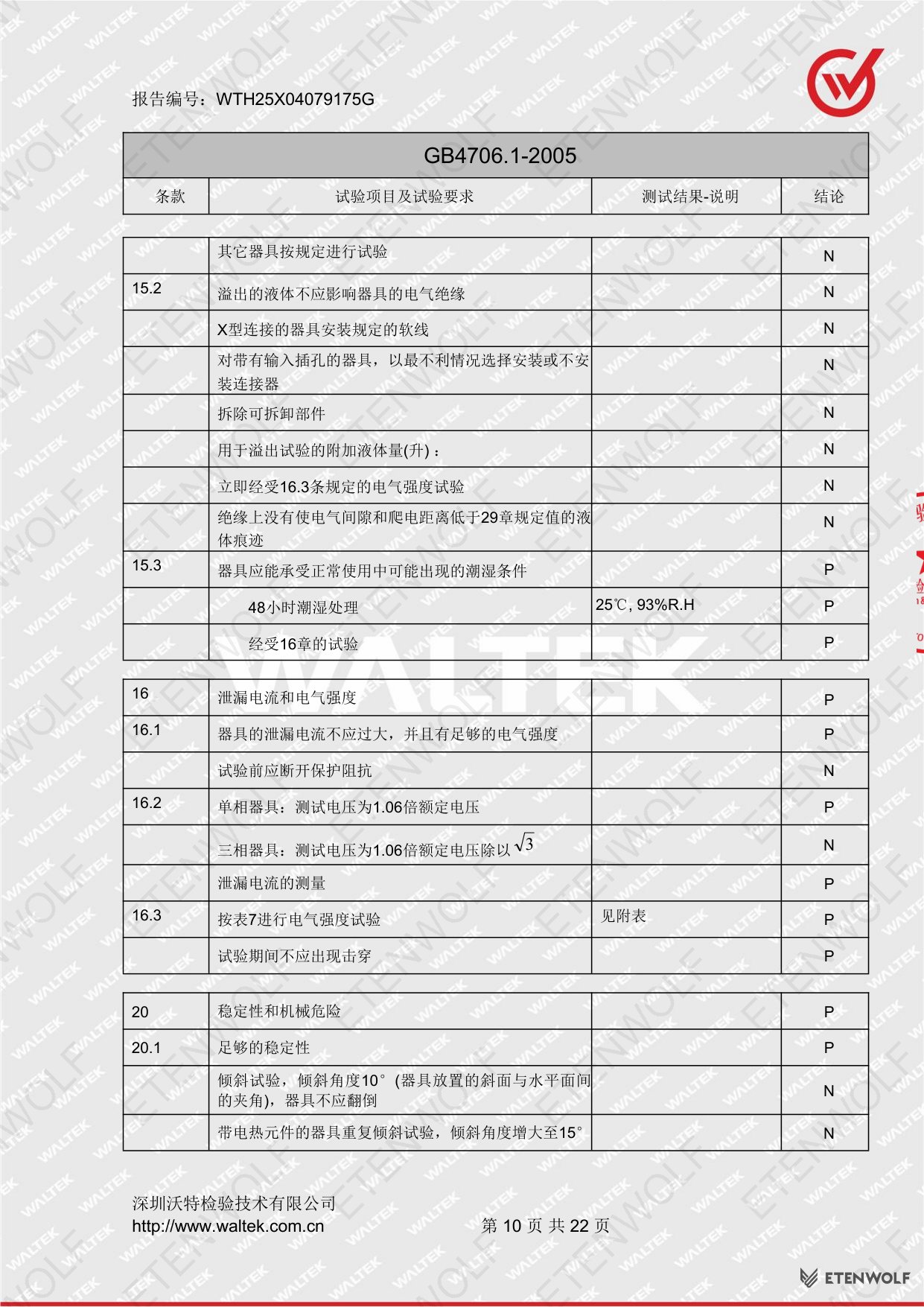

Clause 16: Leakage current and electric strength – dielectric withstand and insulation resistance testing

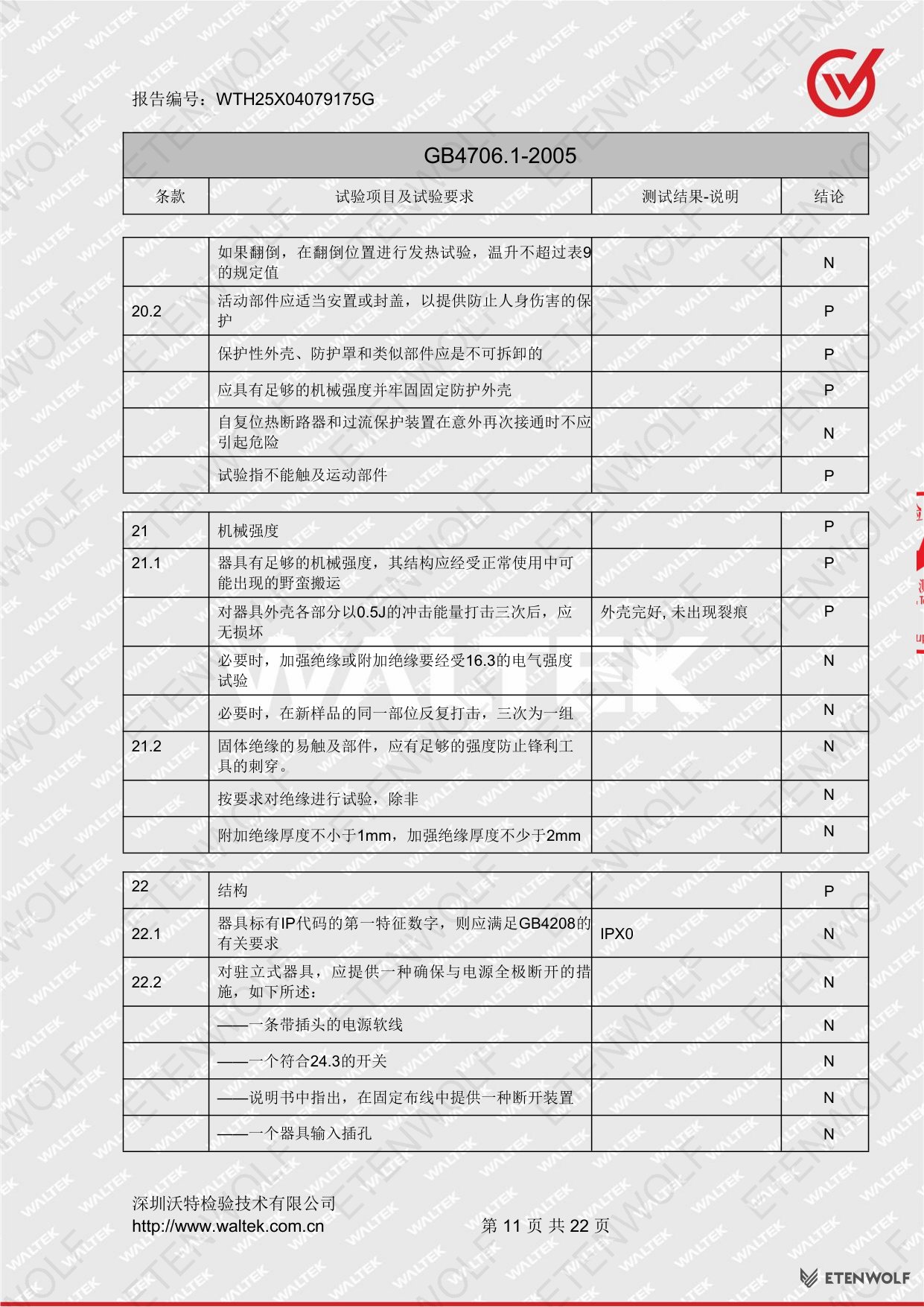

Clause 20: Stability and mechanical hazards – tip-over and physical safety tests
Clause 21: Mechanical strength – impact resistance and durability assessment

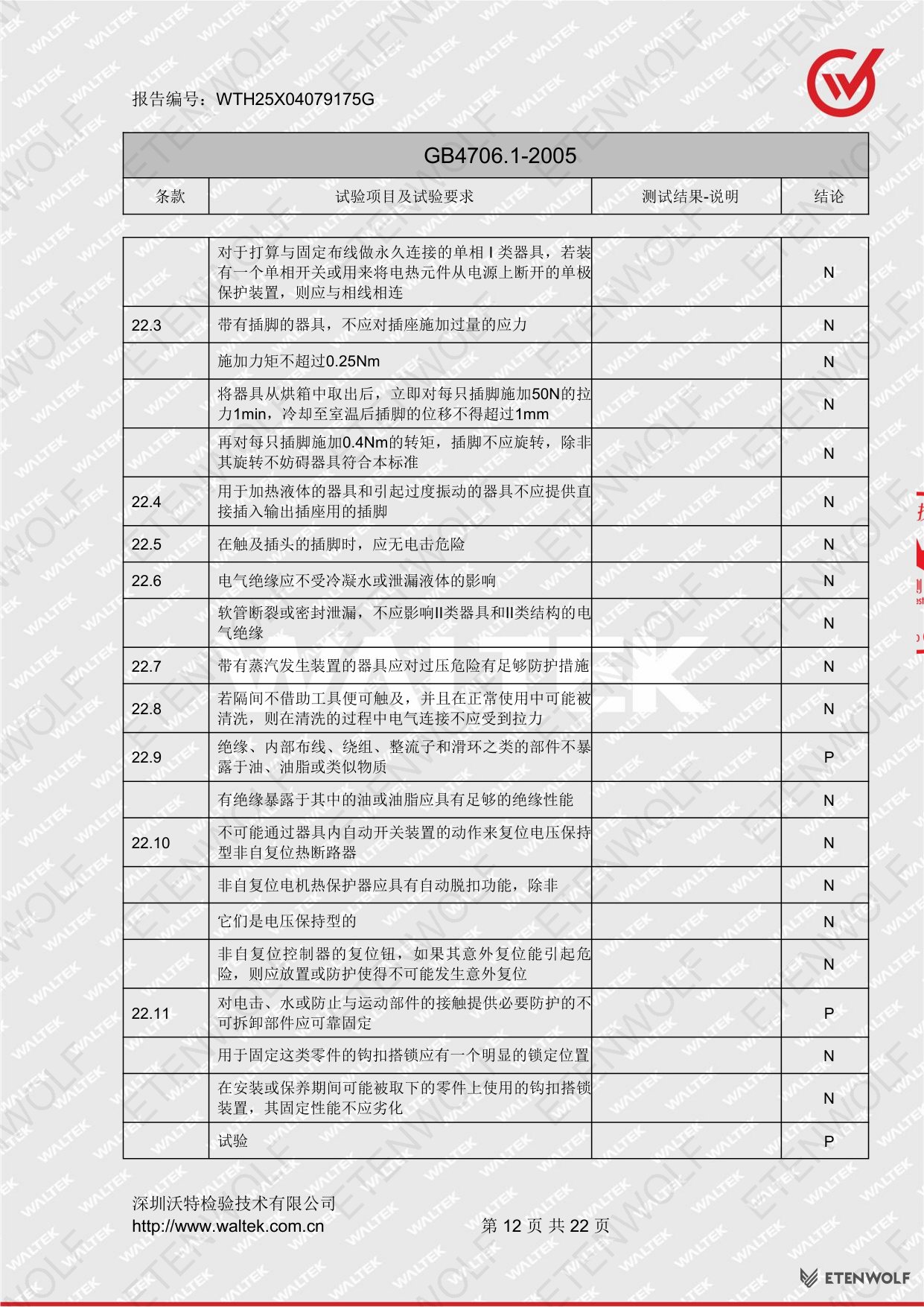

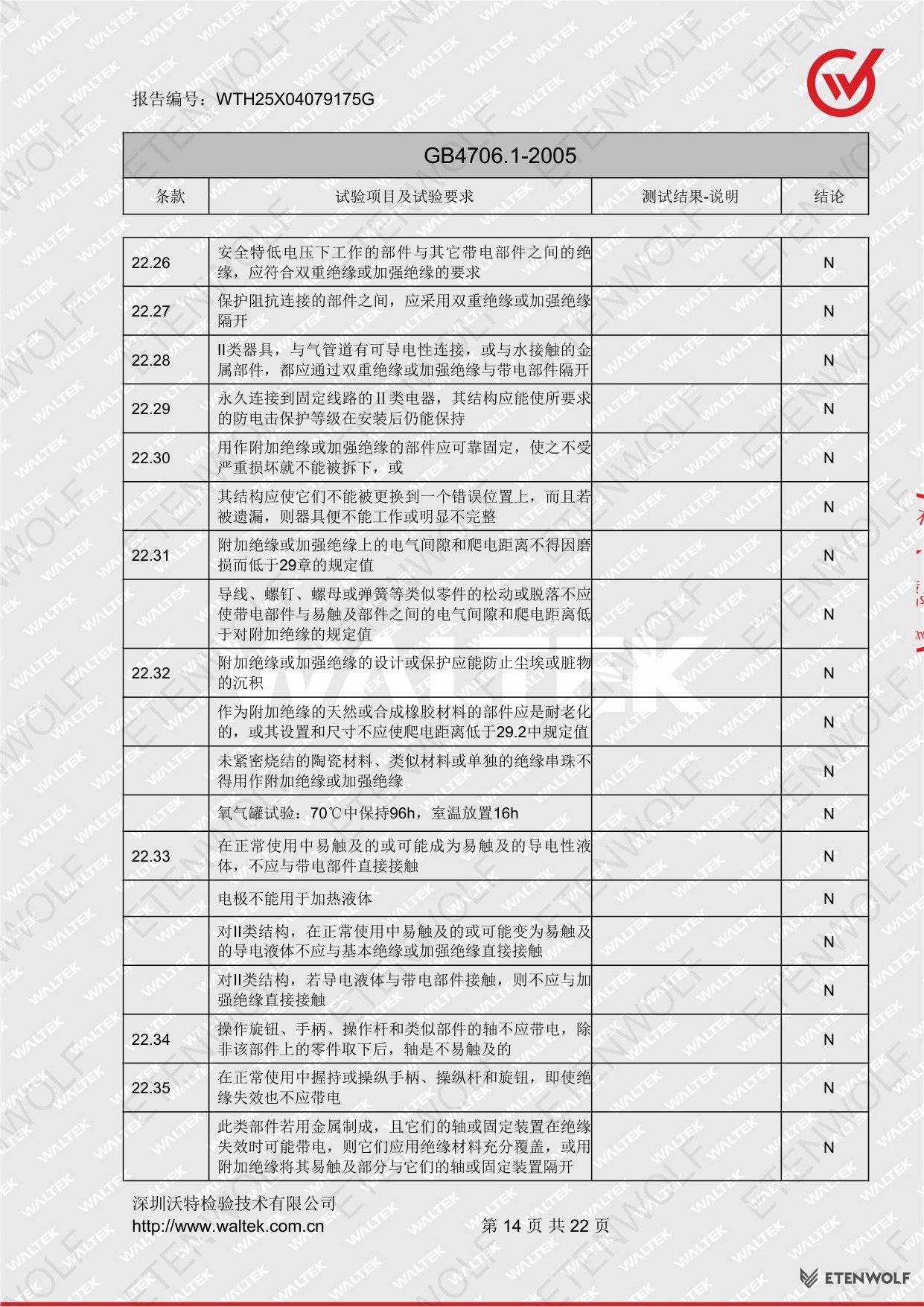

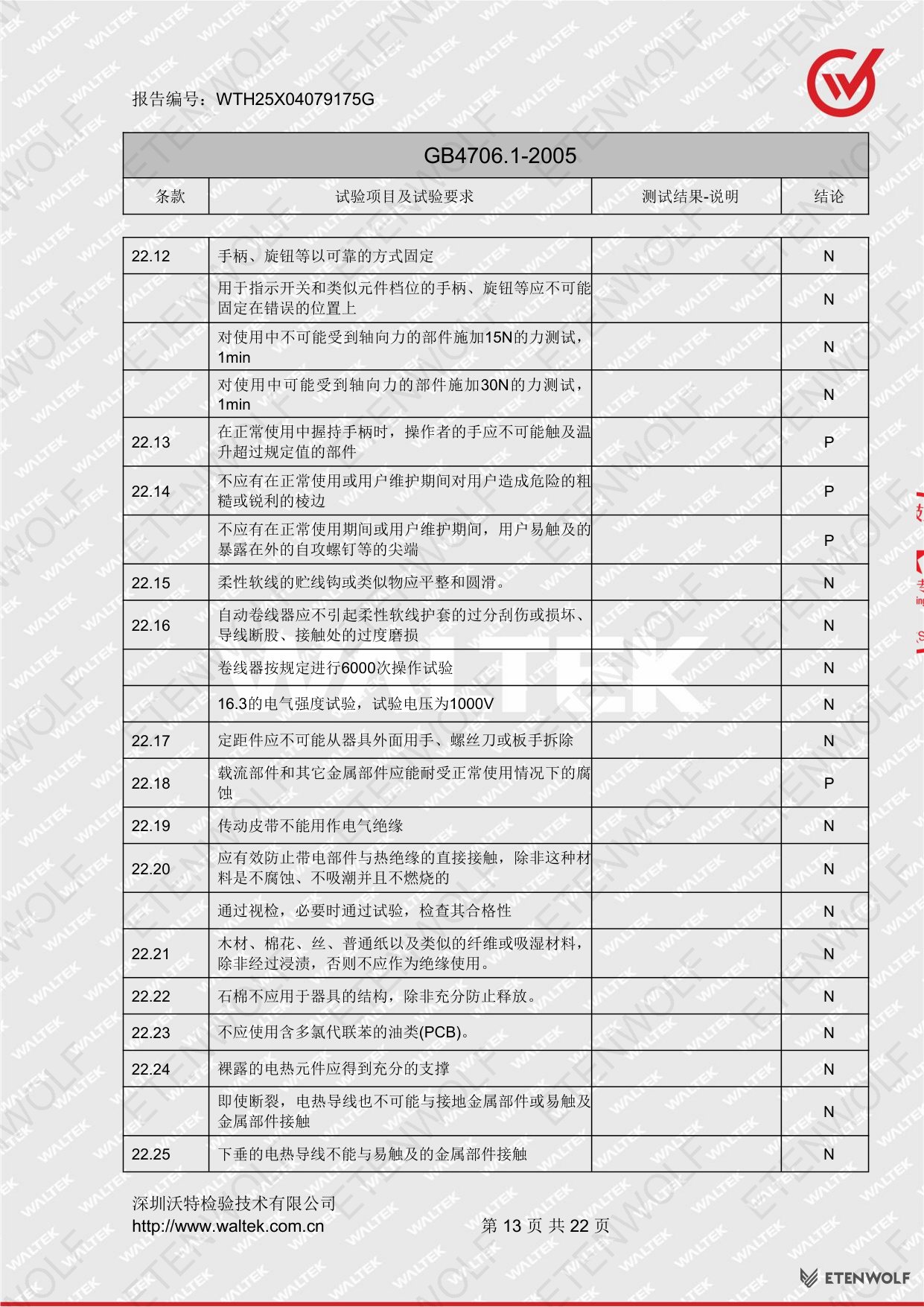

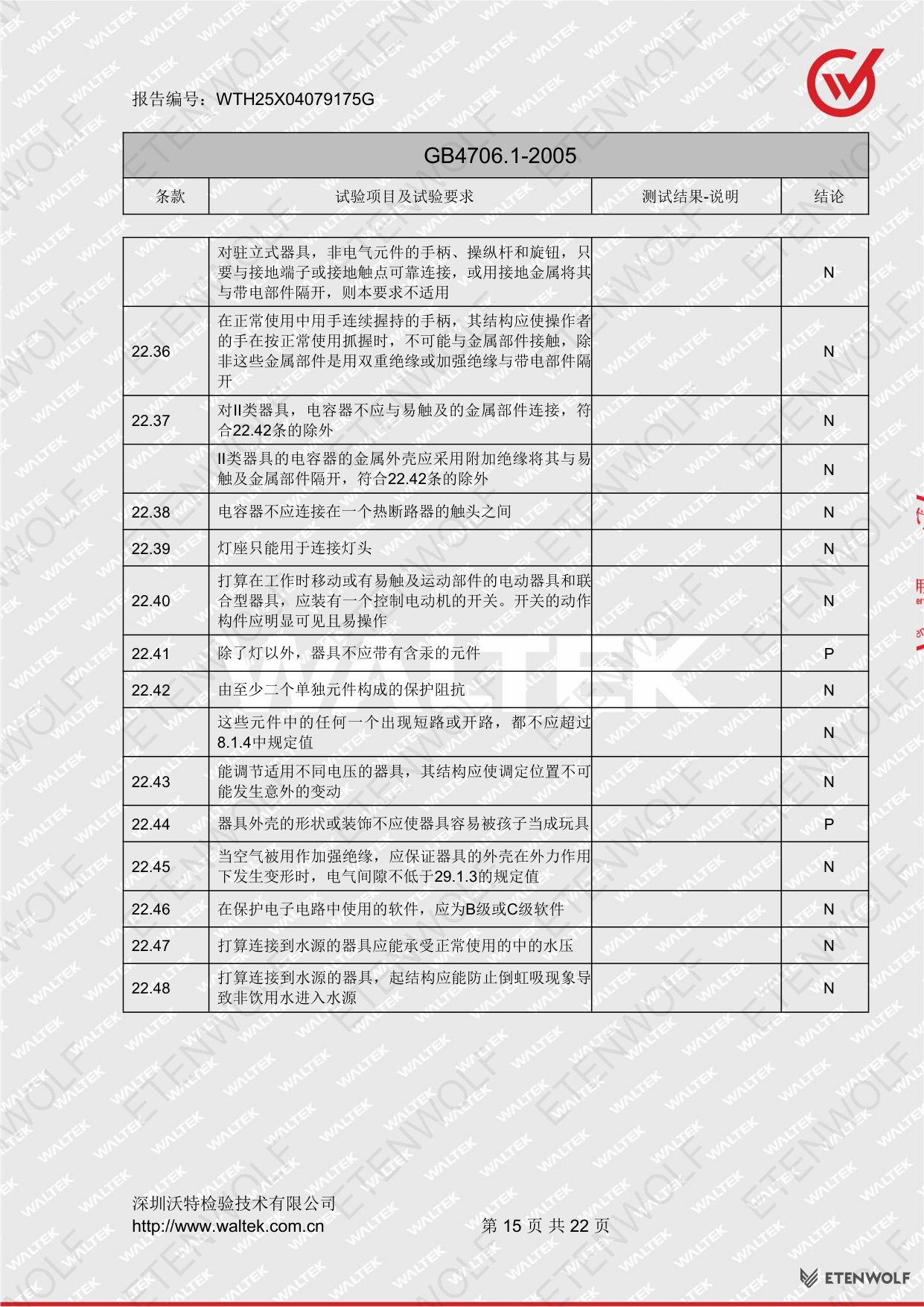

Clause 22: Construction – verification of safe design, spacing, materials, and assembly

The S3 tire inflator successfully passed all seven test categories specified in the commissioned testing scope.

Validity & Certification Body

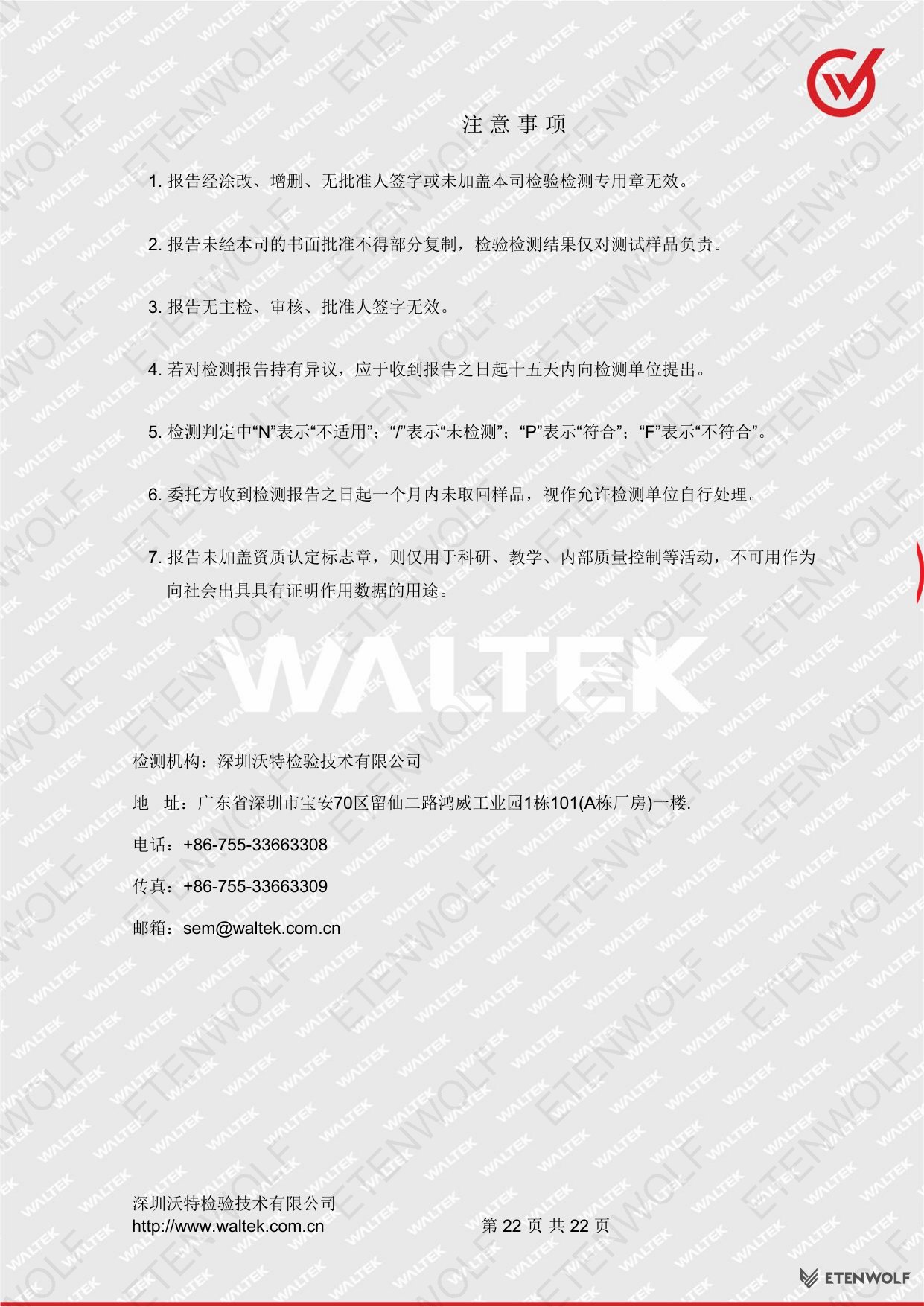

Testing Laboratory: Shenzhen Waltek Testing Technology Co., Ltd.

Laboratory Address: 1st Floor, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Area 70, Bao’an District, Shenzhen, Guangdong Province, China

Contact Information:

Phone: +86-755-33663308
Fax: +86-755-33663309
Email: [email protected]
Website: www.waltek.com.cn

Report Personnel:

Chief Inspector: Ye Jintao (叶锦涛)
Reviewer: Gao Guanquan (高官权)
Approver: Wei Wenyong (韦文勇)

Issue Date: April 8, 2025

Validity Period: This report reflects the test results of the specific sample(s) submitted. Unless otherwise specified by applicable regulations or the commissioning party’s quality system requirements, test reports typically remain valid as supporting documentation for product compliance as long as the product design and manufacturing process remain unchanged.

Template Reference: WTX_GB4706_1_2005A

Frequently Asked Questions

What does GB4706.1-2005 compliance mean for the ETENWOLF S3?

GB4706.1-2005 is China’s mandatory national safety standard for household electrical appliances. Compliance means the S3 inflator has been tested and verified to meet essential safety requirements including proper electrical insulation, protection against electric shock, mechanical safety, thermal safety, and correct product marking. This certification is required for legal sale in the Chinese market.

Why is the S3 classified as a Class III appliance?

Class III appliances operate at safety extra-low voltage (SELV), typically below 50V AC or 120V DC. The S3 operates at 5V DC via USB Type-C, making it inherently safer than mains-voltage products. Class III devices rely on their low voltage as the primary protection against electric shock, rather than insulation or grounding systems required by Class I or II appliances.

What testing scope was covered in this report?

This report covers seven specific test categories from GB4706.1-2005: marking and instructions, input power and current measurement, leakage current and dielectric strength (both at operating temperature and standard conditions), stability and mechanical hazards, mechanical strength, and construction requirements. These represent core safety aspects but may not constitute a complete certification test report which could include additional clauses.

Can this report be used for export or international markets?

This GB4706.1-2005 report is primarily recognized for the Chinese domestic market. For international markets, separate certifications may be required such as CE marking for Europe, FCC for the United States, or other region-specific safety certifications. However, since GB4706 is harmonized with IEC 60335, this test data may support applications for other certifications.
