Document Overview This page presents the CE Low Voltage Directive (CE-LVD) test report for the ETENWOLF S5C inflator pump, issued by Waltek Testing Group (Shenzhen) Co., Ltd. The report covers safety and electromagnetic field evaluation in accordance with applicable EU harmonised standards for household and…

Document type
Certification Report
Prepared by
Michelle Torres
Published
Last reviewed
Topics
European Union: CE / RoHS / REACH / WEEE

Document Overview

This page presents the CE Low Voltage Directive (CE-LVD) test report for the ETENWOLF S5C inflator pump, issued by Waltek Testing Group (Shenzhen) Co., Ltd. The report covers safety and electromagnetic field evaluation in accordance with applicable EU harmonised standards for household and similar electrical appliances.

Field Detail
Document Type CE-LVD Test Report
Reference Number WTH25X07183673J
Test Report Form No. WTX_EN IEC 60335_1_2023B
Issuing Body Waltek Testing Group (Shenzhen) Co., Ltd.
Date of Receipt of Sample 2025-07-14
Date of Test 2025-07-14 to 2025-07-26
Date of Issue 2025-07-27
Overall Test Result Pass

The test report is valid only for the sample(s) tested. It may not be reproduced in part without prior written permission from Waltek Testing Group. The report is invalid without the specific stamp of the test institute and the signatures of the approver.

Product Information

The ETENWOLF S5C inflator pump is a portable inflation tool intended for household and indoor use only. It is classified as a Class III appliance powered via a DC connector, with no mains supply connection.

Attribute Detail
Product Name Inflator Pump
Model Number S5C
Applicant Guangdong Bestek Technology Co., Ltd.
Manufacturer Guangdong Bestek Technology Co., Ltd.
Manufacturer Address No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China
Country of Origin Made in China
Supply Connection DC Connector
Equipment Class Class III
Installation & Use Portable appliance, indoor use only
Water Ingress Protection IPX0 (no special protection)

The rated input covers multiple voltage and current combinations as detailed below:

  • 5 V / 3 A
  • 9 V / 3 A
  • 12 V / 2.5 A
  • 15 V / 2 A
  • 20 V / 1.5 A

Note: LED lights integrated into the product are not evaluated within the scope of this report.

Key Details

The following table summarises the key clause-level test verdicts recorded during the evaluation of the S5C inflator pump against EN IEC 60335-1:2023+A11:2023.

Clause Requirement / Test Area Verdict
5 General Conditions for the Tests Pass
6 Classification Pass
6.1 Protection Against Electric Shock — Class III Pass
6.2 Protection Against Harmful Ingress of Water — IPX0 N/A
7 Marking and Instructions Pass
7.1 Rated Voltage / Current / Manufacturer Identification on Label Pass
7.1 Class III Symbol (battery-powered appliance exemption applies) Pass

Additional label requirements for EU market placement:

  • Minimum CE mark height: 5 mm
  • Minimum WEEE mark height: 7 mm
  • Name and address of the importer must be affixed on the product when placed on the EU market
  • No subcontracting of test items to other laboratories was declared

The test verdicts use the following notation throughout the report: P = Pass, F = Fail, N/A = Not Applicable.

Standards & Compliance

The S5C inflator pump was evaluated against the following harmonised European standards as part of the CE-LVD certification process:

Standard Title Scope
EN IEC 60335-1:2023+A11:2023 Household and Similar Electrical Appliances — Safety — Part 1: General Requirements Primary safety standard covering construction, marking, protection against electric shock, mechanical hazards, and thermal safety for household appliances
EN 62233:2008 Measurement Methods for Electromagnetic Fields of Household Appliances and Similar Apparatus with Regard to Human Exposure Defines measurement methods for electromagnetic fields (EMF) to assess human exposure from household and similar appliances

Both standards are harmonised under the EU Low Voltage Directive (LVD) 2014/35/EU and the EU EMF Directive 2013/35/EU. Compliance with these standards supports the affixing of the CE marking on the product for EU market placement.

Validity & Certification Body

The test report was prepared and issued by Waltek Testing Group (Shenzhen) Co., Ltd., an accredited third-party testing laboratory based in China. Full issuing body details are as follows:

Field Detail
Laboratory Name Waltek Testing Group (Shenzhen) Co., Ltd.
Laboratory Website http://www.waltek.com.cn
Address 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70, Bao’an District, Shenzhen, Guangdong, China
Telephone +86-755-33663308
Fax +86-755-33663309
Email [email protected]
Prepared By John Zhong, Project Engineer
Approved By Harvid Wei, Manager
Report Total Pages 129 pages

The report reference number WTH25X07183673J was issued on 2025-07-27. The test results are valid exclusively for the sample(s) tested during the period 2025-07-14 to 2025-07-26. Any design or manufacturing change to the product may require re-evaluation. The report is invalid without the official stamp of Waltek Testing Group and the authorised signatures of the preparer and approver.

Frequently Asked Questions

What does the CE-LVD certification mean for the S5C inflator pump?

CE-LVD (Low Voltage Directive) certification means the ETENWOLF S5C inflator pump has been independently tested and found to comply with EU safety requirements for electrical appliances, specifically EN IEC 60335-1:2023+A11:2023. It confirms the product meets essential health and safety requirements needed for legal sale in the European Economic Area.

Which test standards were applied to the S5C and why?

Two standards were applied: EN IEC 60335-1:2023+A11:2023 for general electrical safety of household appliances, and EN 62233:2008 for measuring electromagnetic field exposure. Both are required for CE marking under the LVD and EMF Directives for this product category.

What is the equipment class of the S5C and why does it matter?

The S5C is classified as a Class III appliance, meaning it operates on safety extra-low voltage (SELV) supplied via a DC connector. Class III classification eliminates the risk of electric shock from mains voltage contact, making it a safer category of appliance for end users.

Are the LED lights on the S5C covered by this test report?

No. The test report explicitly states that LED lights integrated into the S5C inflator pump are not evaluated within this report’s scope. A separate evaluation may be required for LED-specific compliance depending on the target market requirements.

Related Documents

For a complete compliance picture for the ETENWOLF S5C inflator pump, the following related certification and compliance documents are recommended:

  • CE-EMC Test Report — Electromagnetic Compatibility testing under Directive 2014/30/EU, typically covering EN 55014-1 and EN 55014-2 for household appliances
  • CE Declaration of Conformity (DoC) — The manufacturer’s formal declaration referencing all applicable EU Directives and harmonised standards, required for EU market placement
  • UN 38.3 Battery Safety Report — If the S5C includes an integrated rechargeable battery, UN 38.3 transport testing is required for air and ground shipping compliance
  • RoHS Compliance Report — Restriction of Hazardous Substances testing confirming the product is free from restricted substances under EU Directive 2011/65/EU
  • REACH SVHC Declaration — Confirms the product does not contain Substances of Very High Concern above threshold limits under EU REACH Regulation (EC) No 1907/2006
  • FCC / KC Radio / EMC Certification — If the product is sold in the United States or South Korea, corresponding FCC or KC certification documents will be required

Document Pages

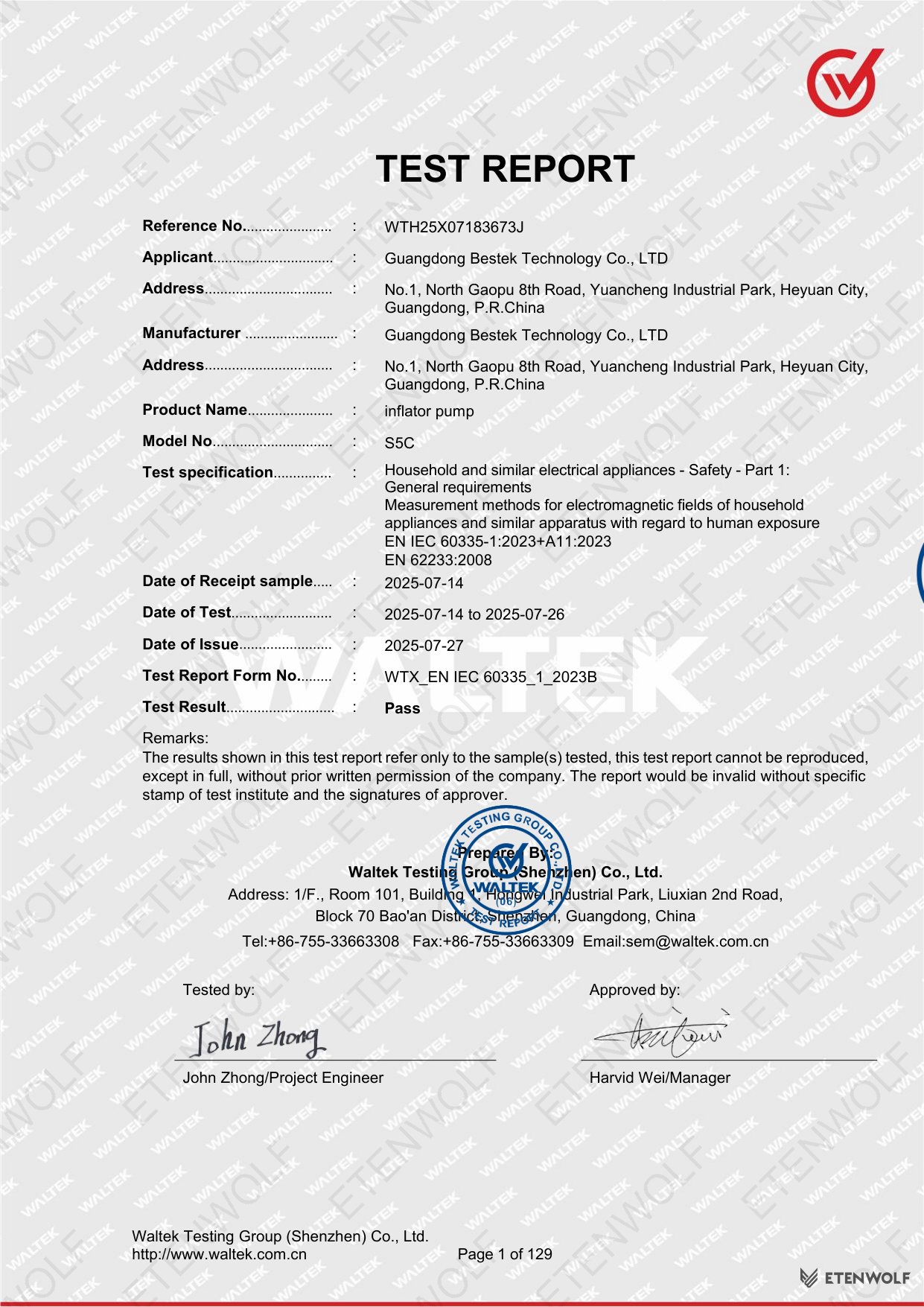

Document Page 1

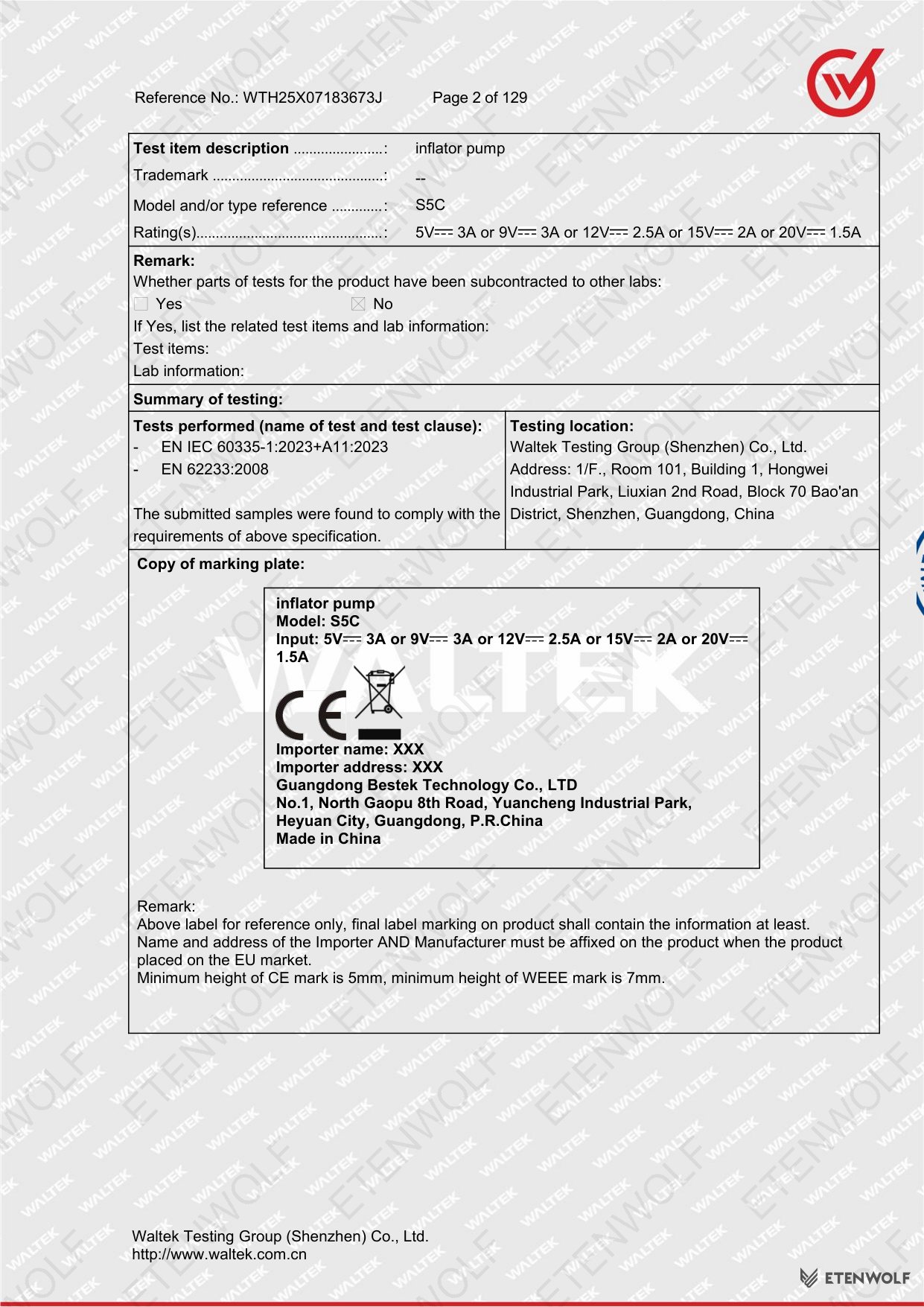

Document Page 2

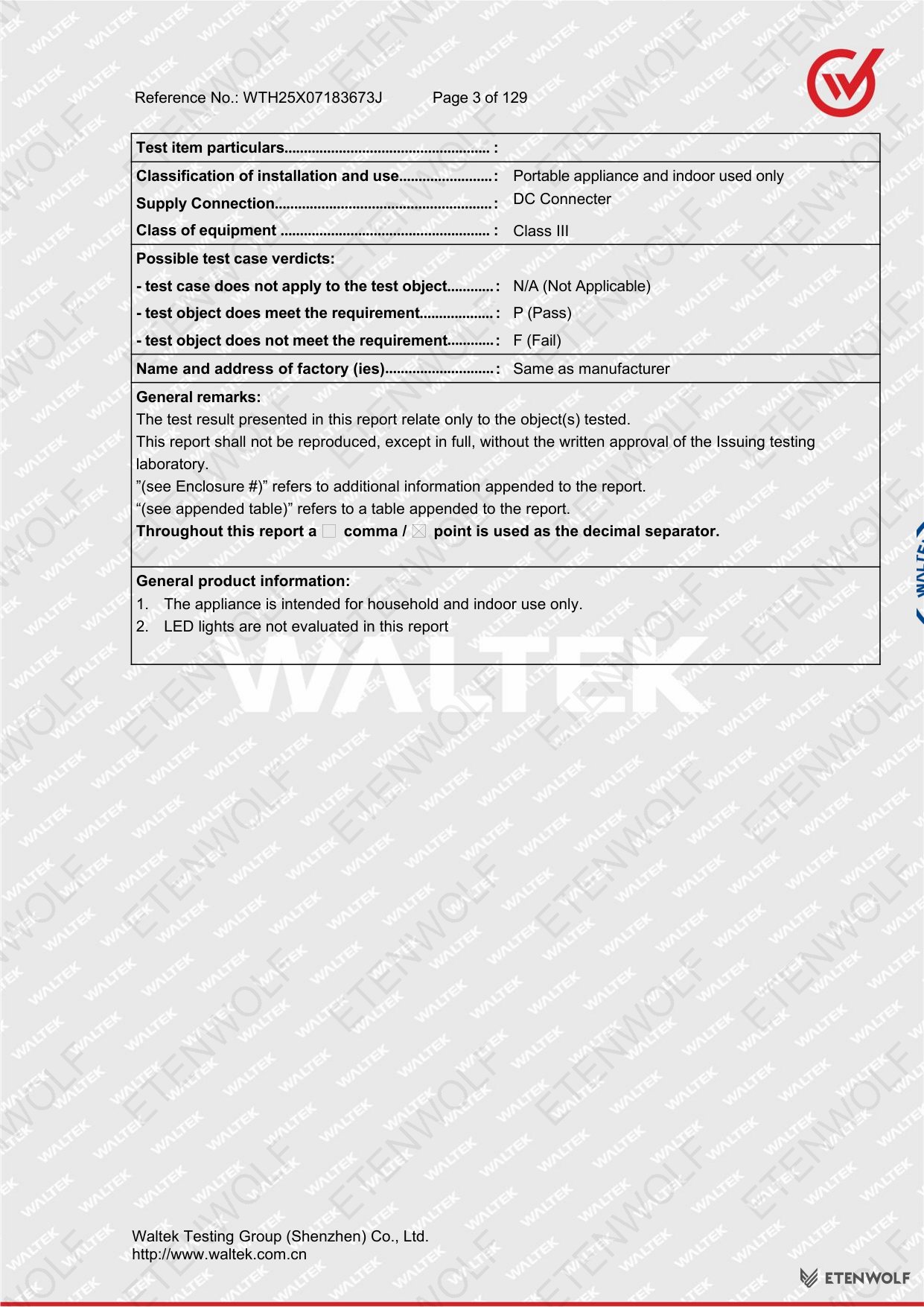

Document Page 3

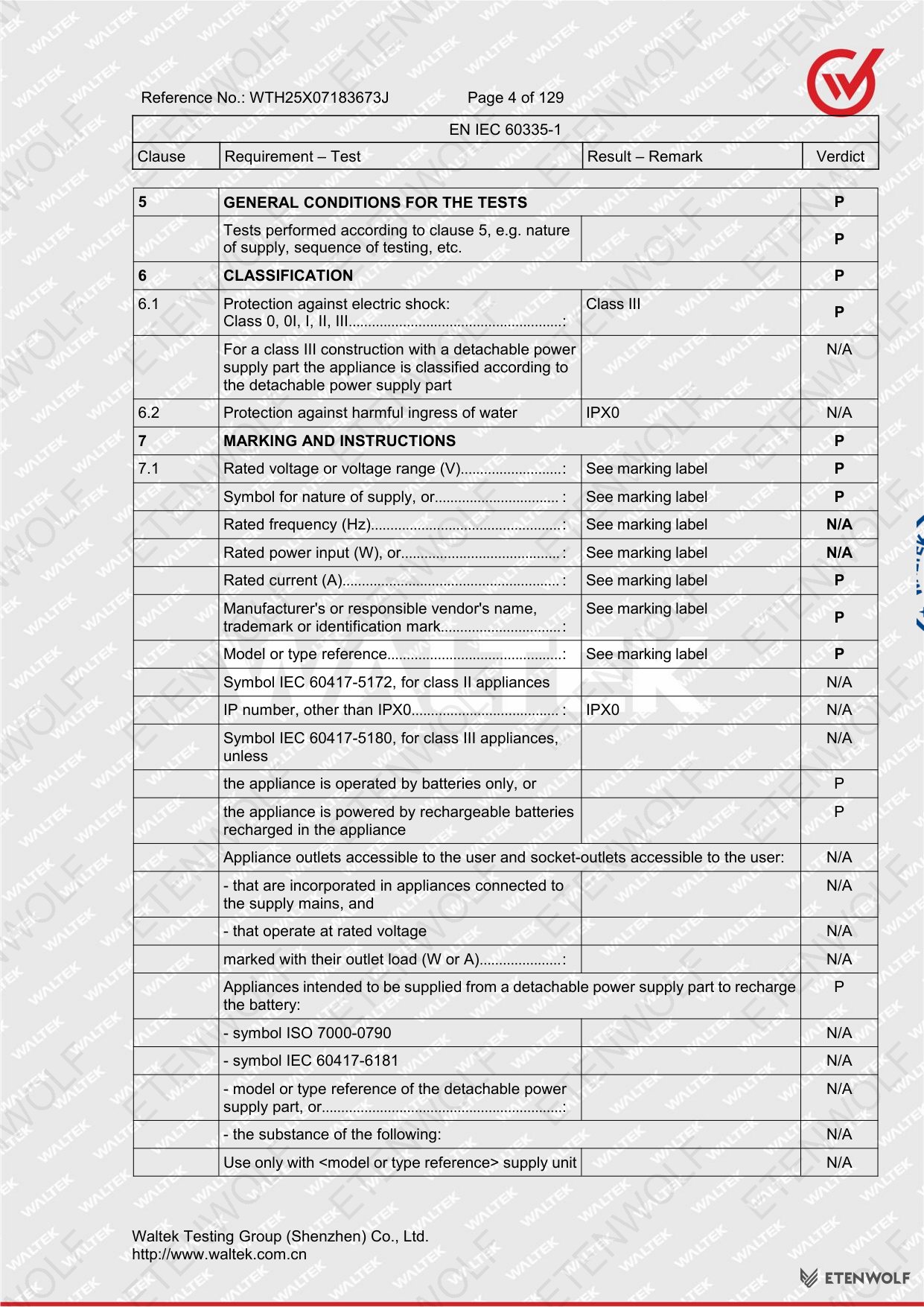

Document Page 4

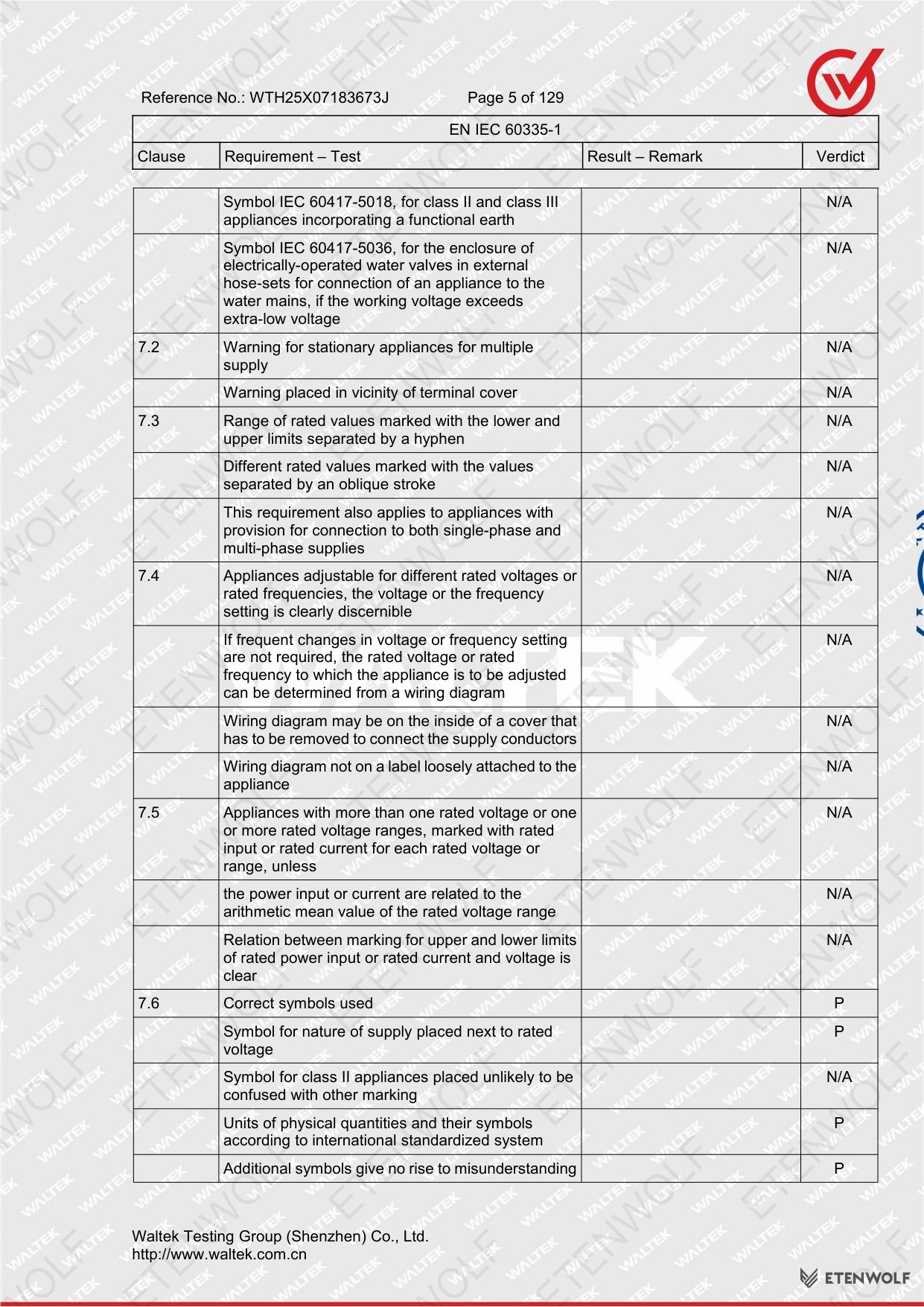

Document Page 5
Document Page 6

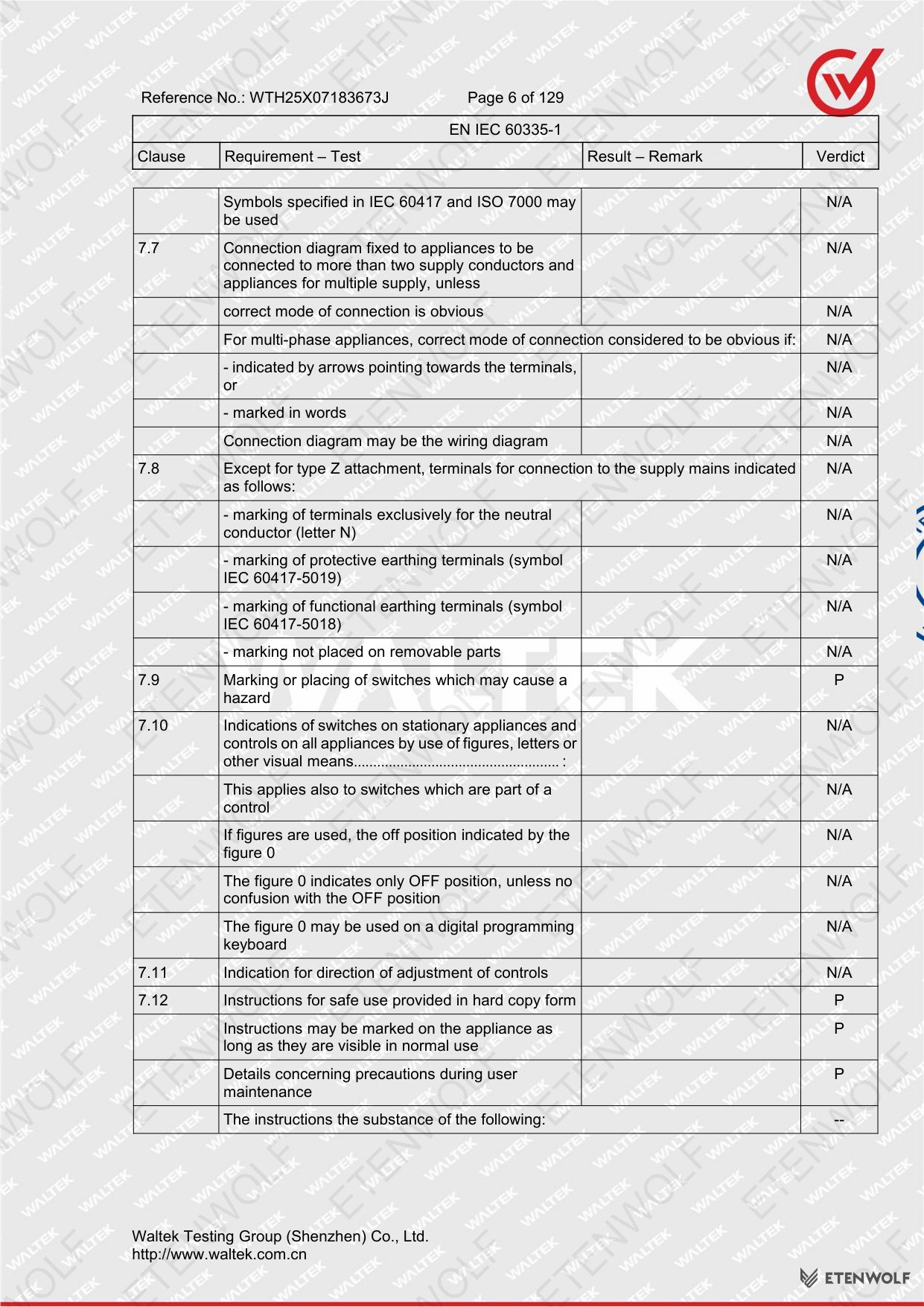

Document Page 7
Document Page 8

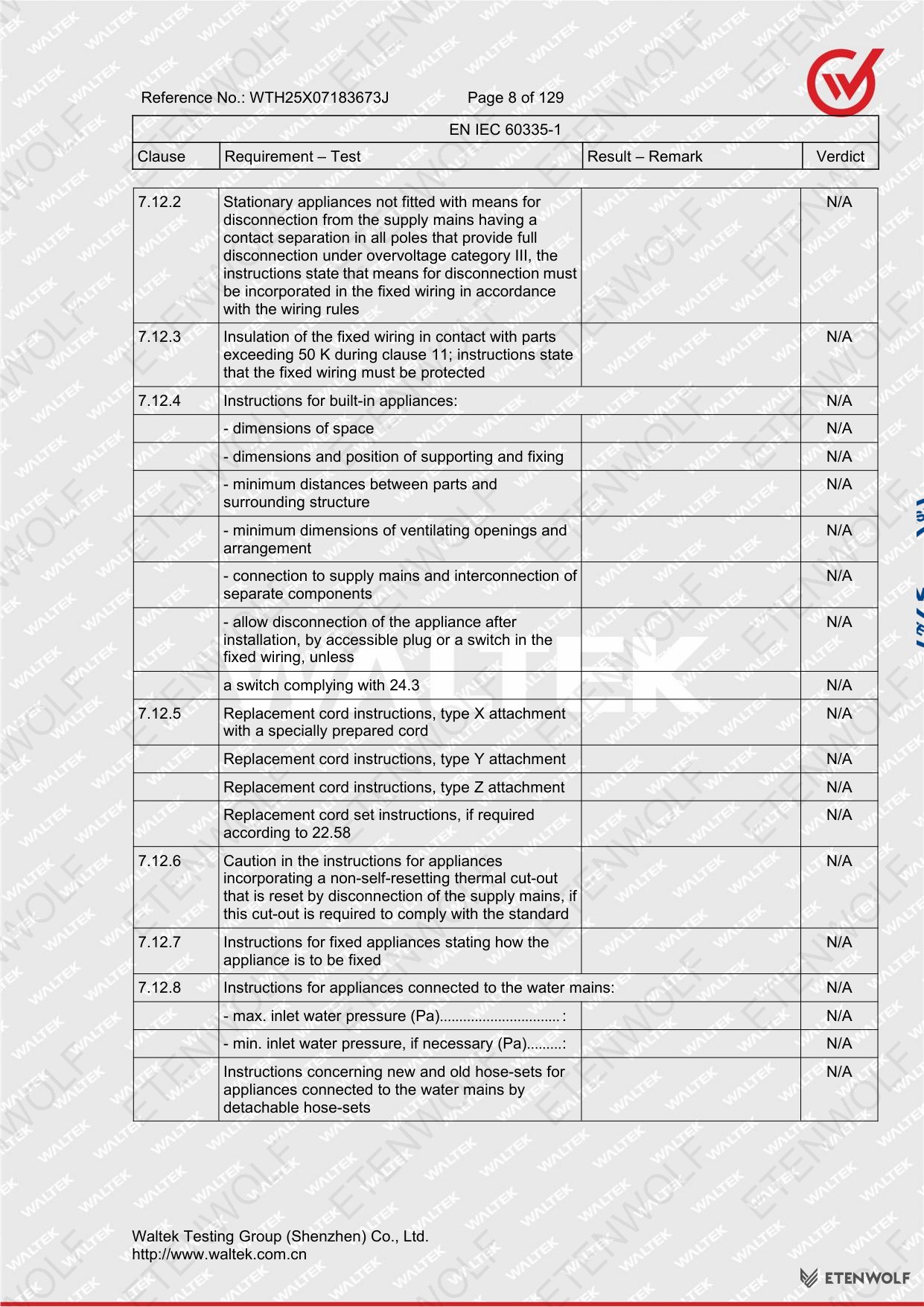

Document Page 9

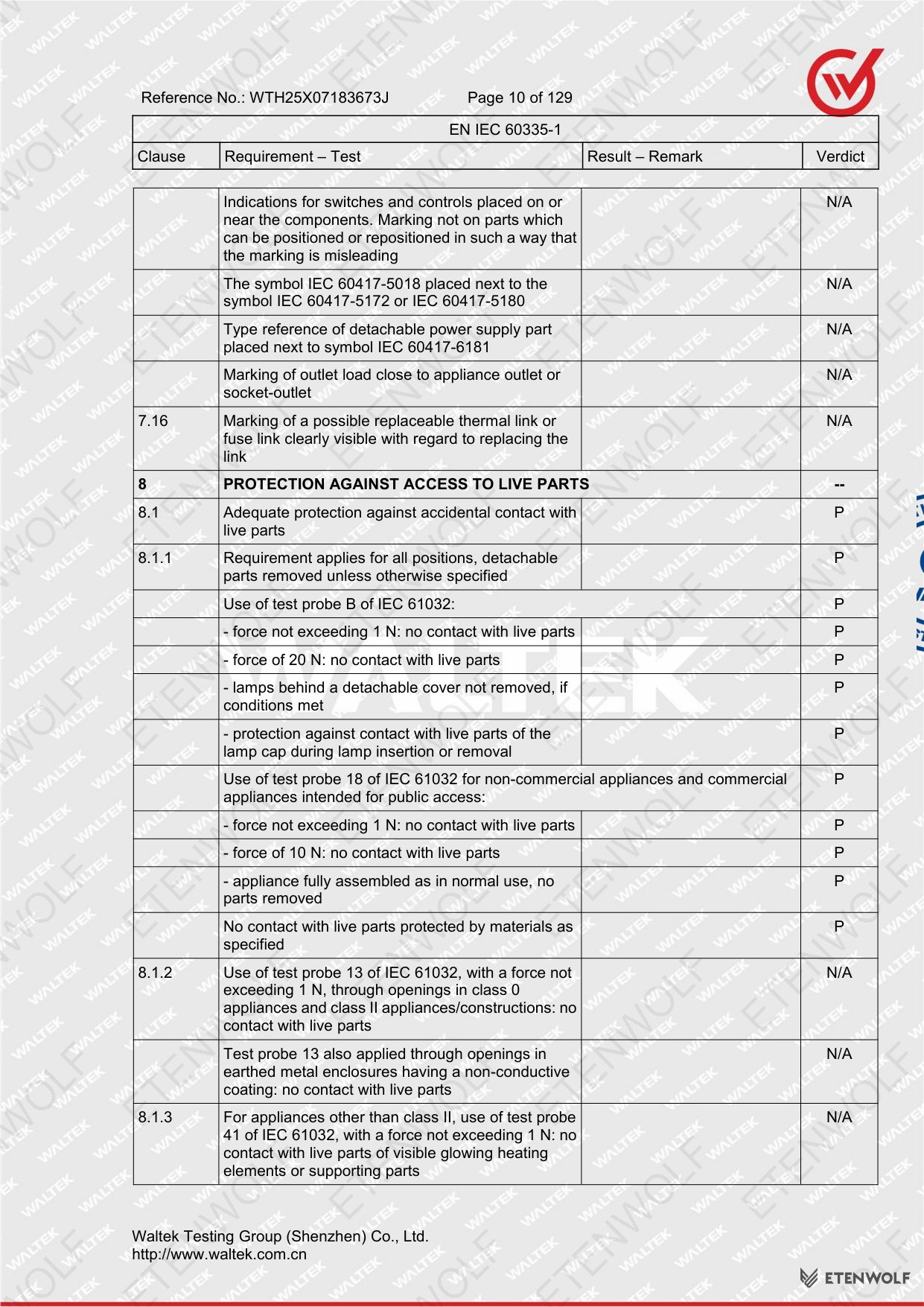

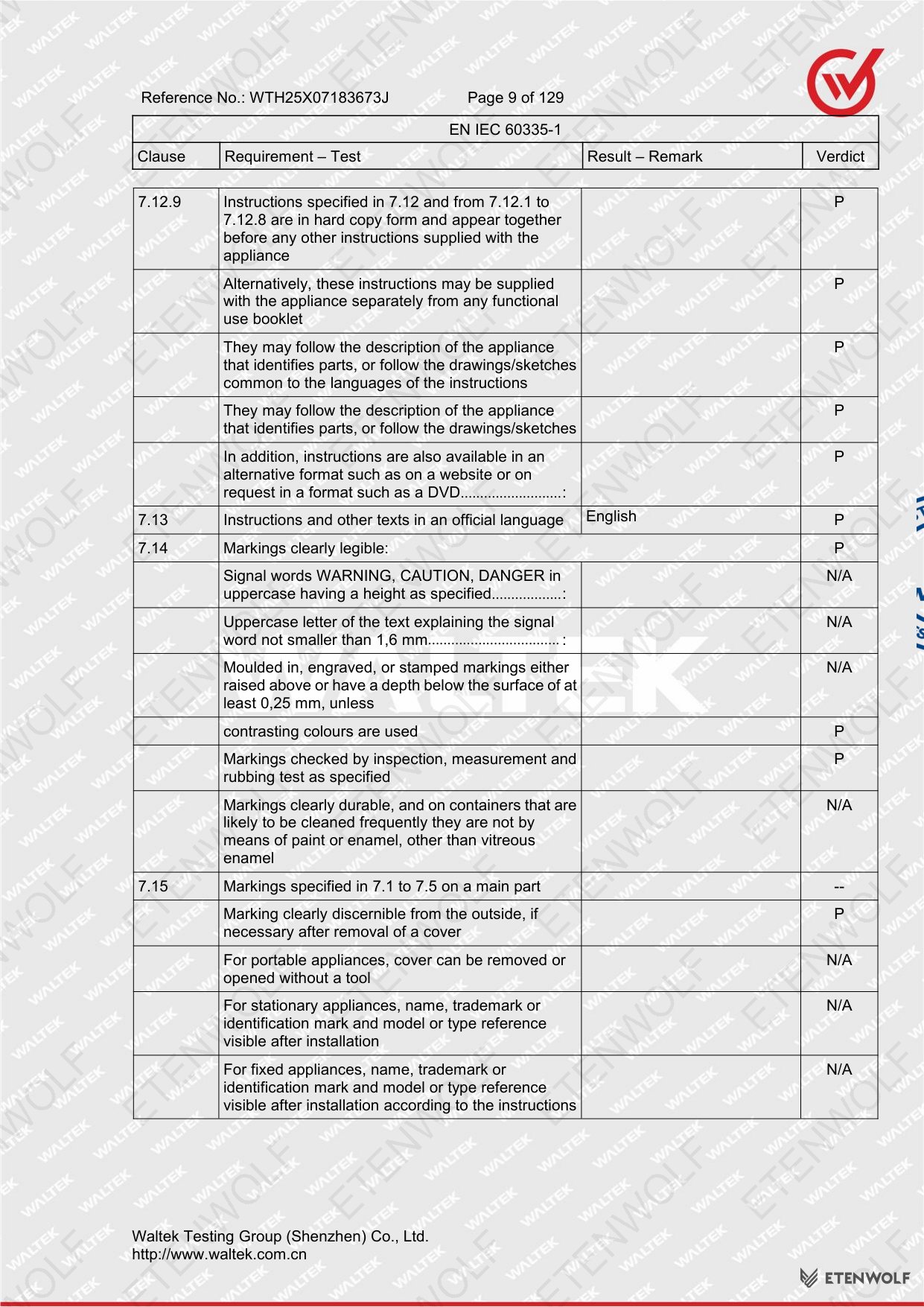

Document Page 10

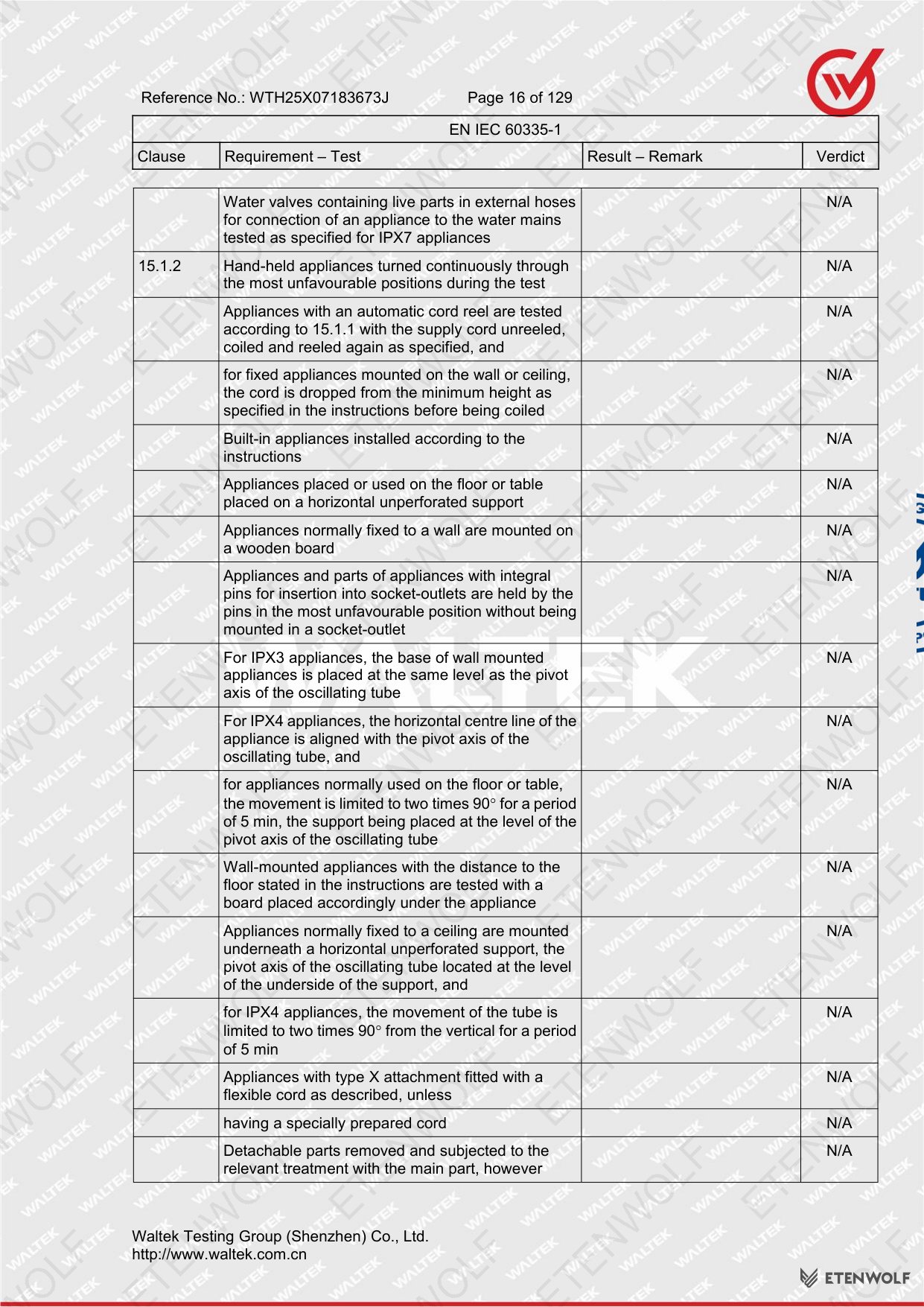

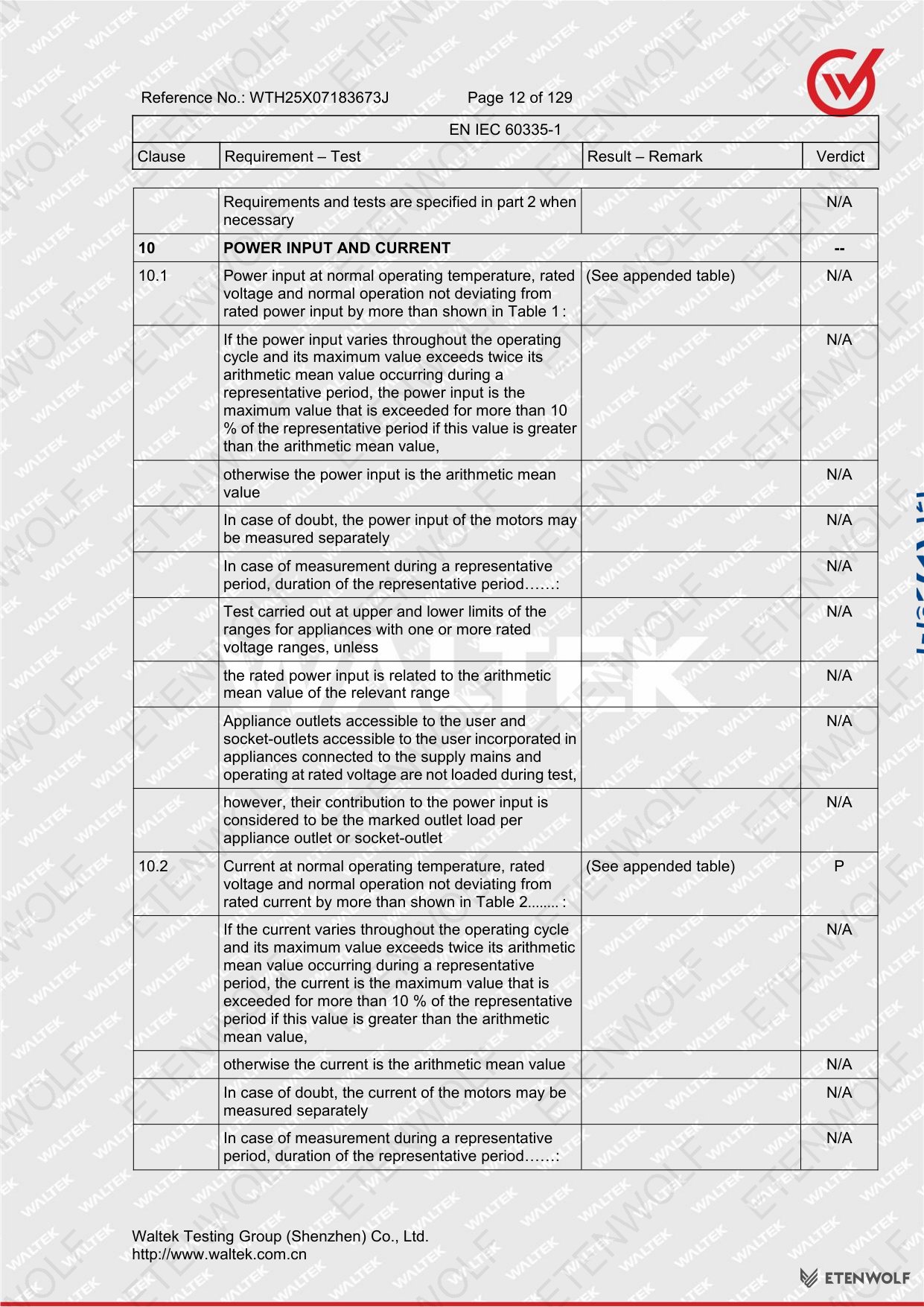

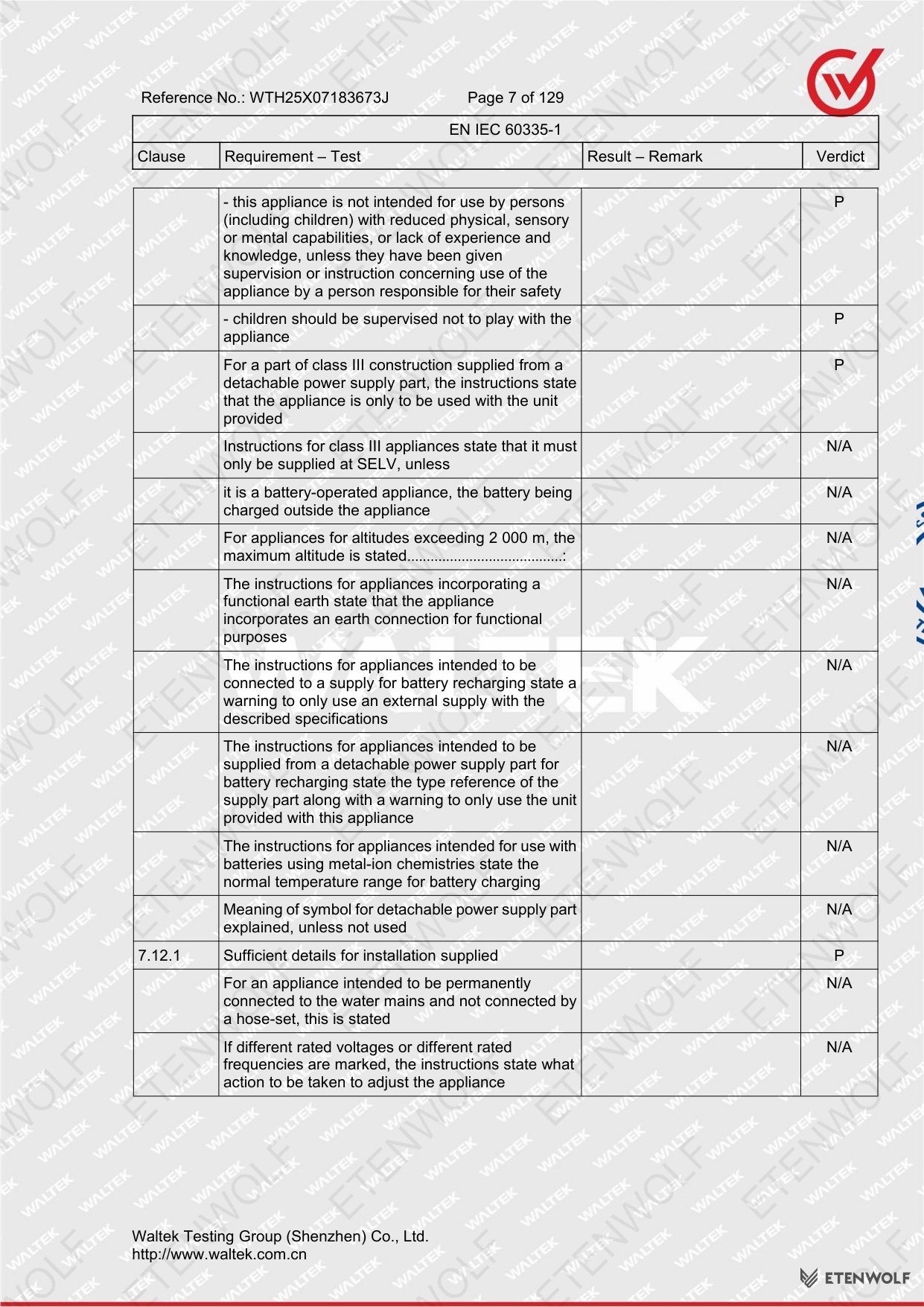

Document Page 11

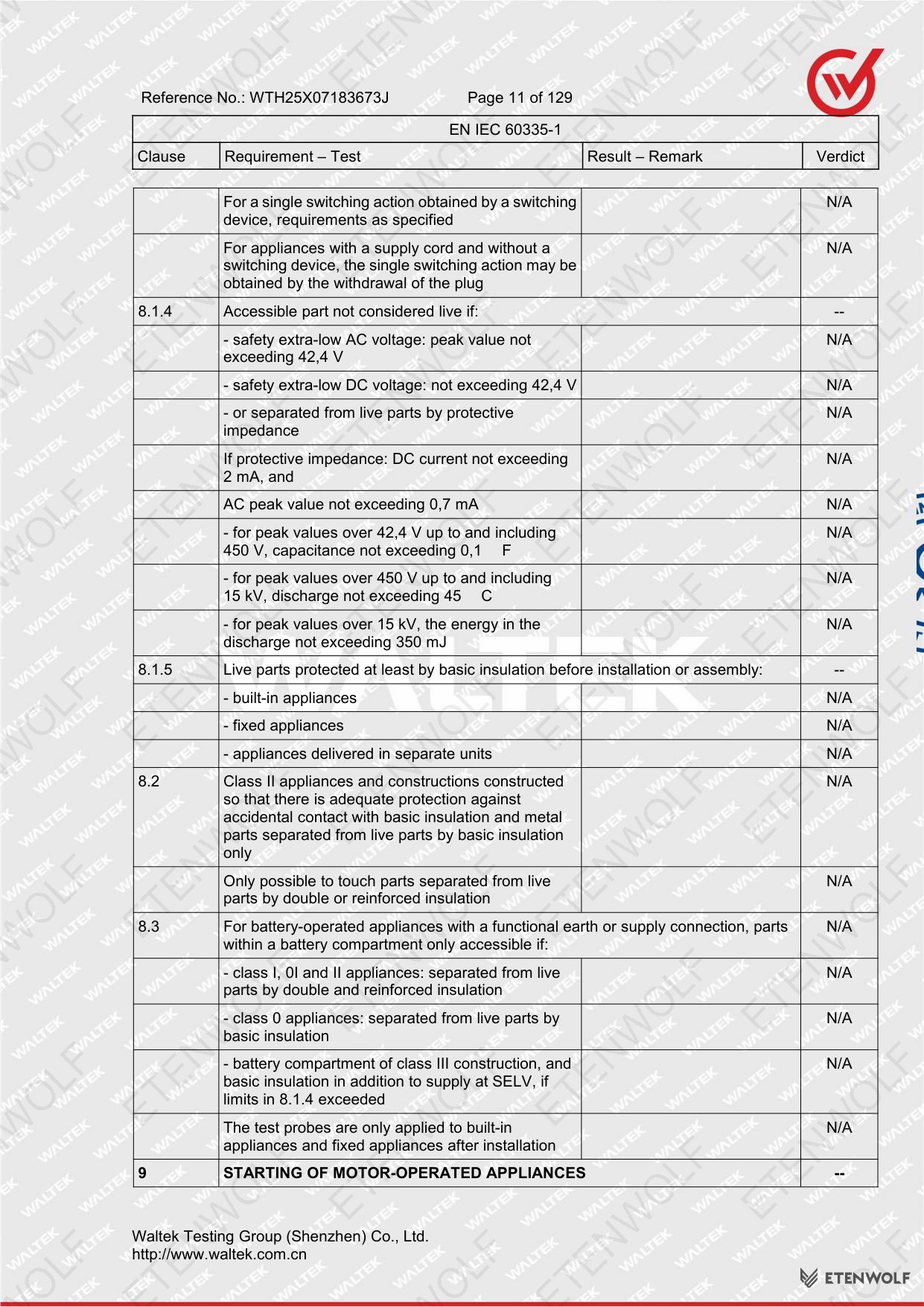

Document Page 12

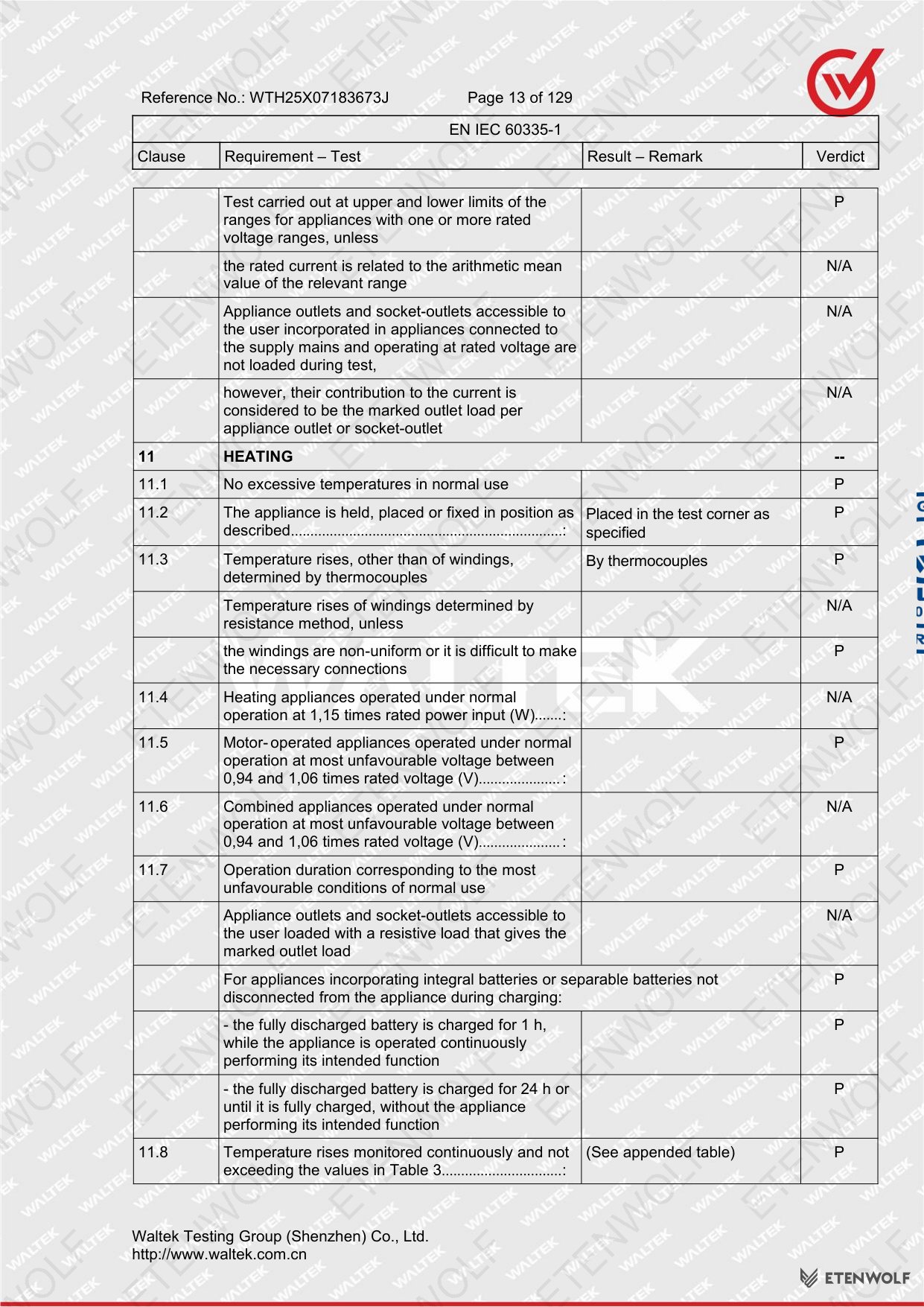

Document Page 13

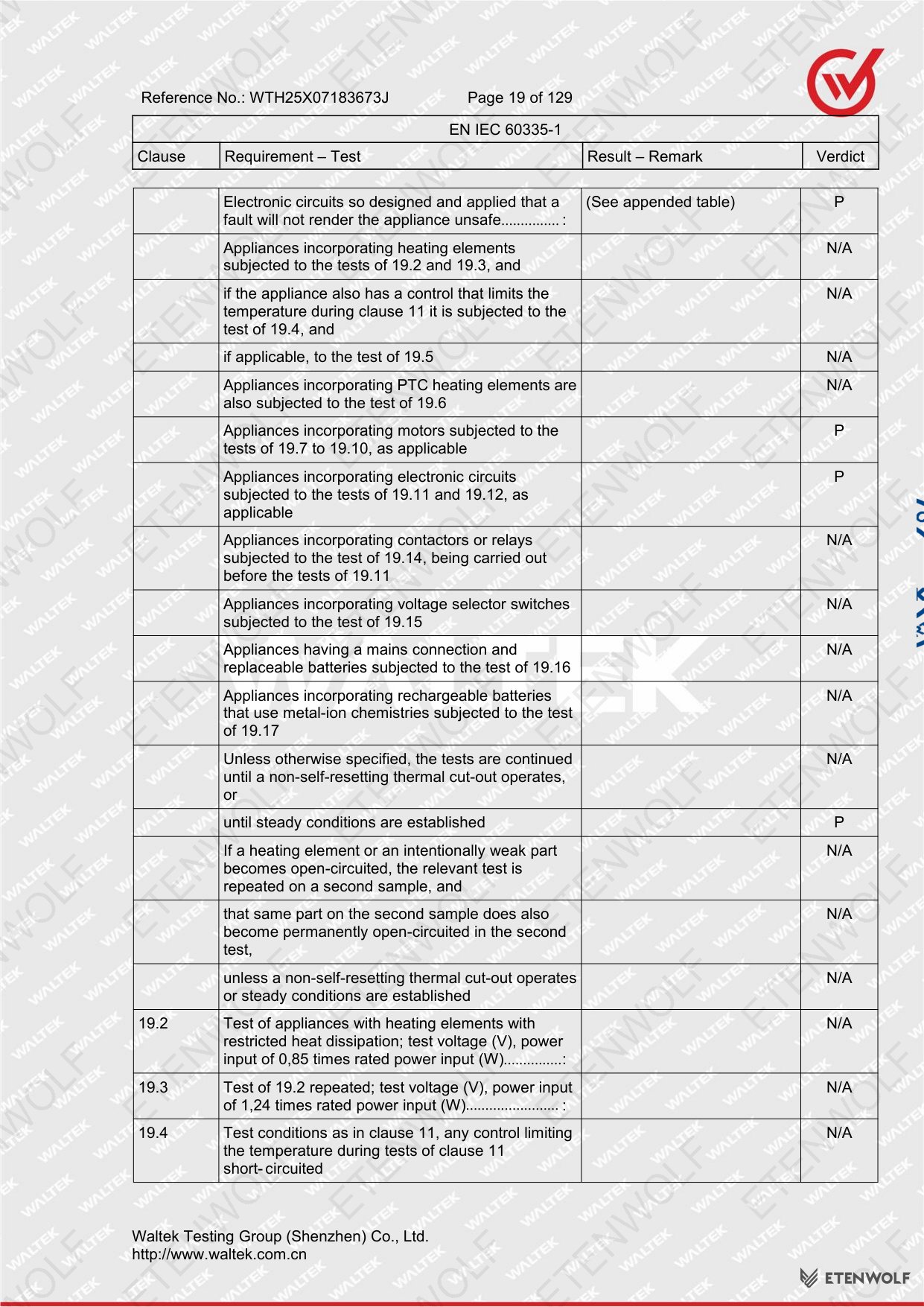

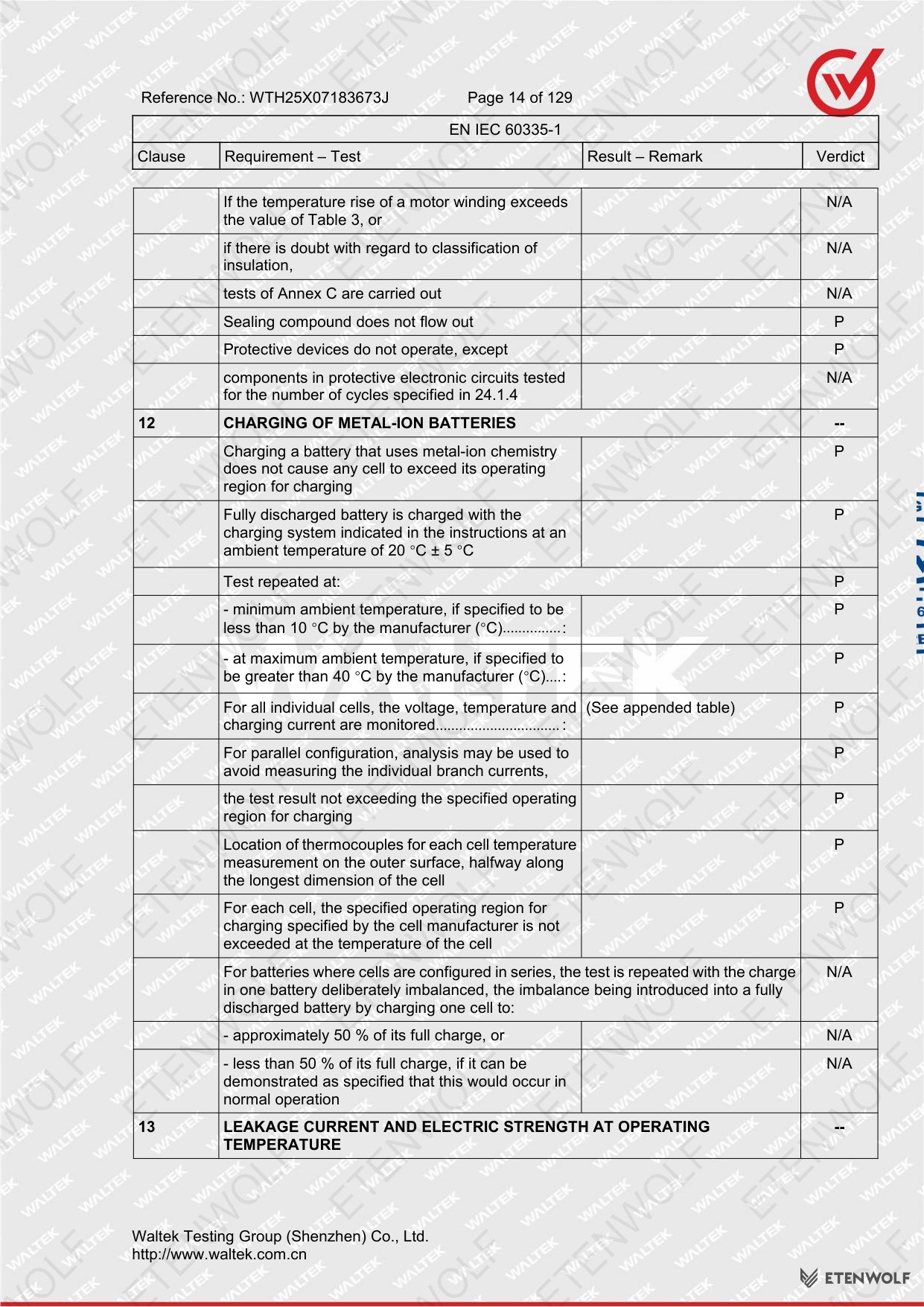

Document Page 14
Document Page 15
Document Page 16
Document Page 17
Document Page 18

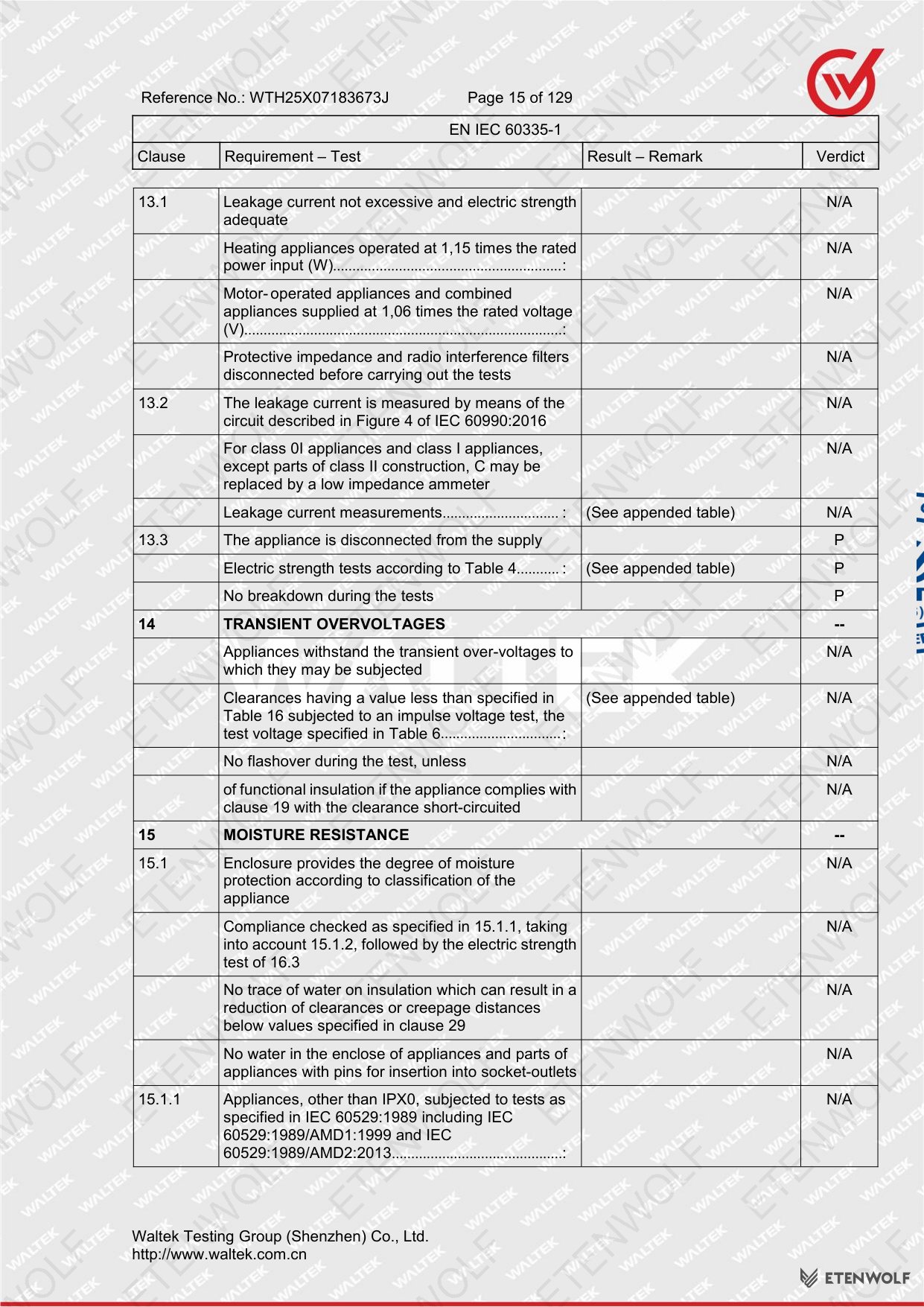

Document Page 19

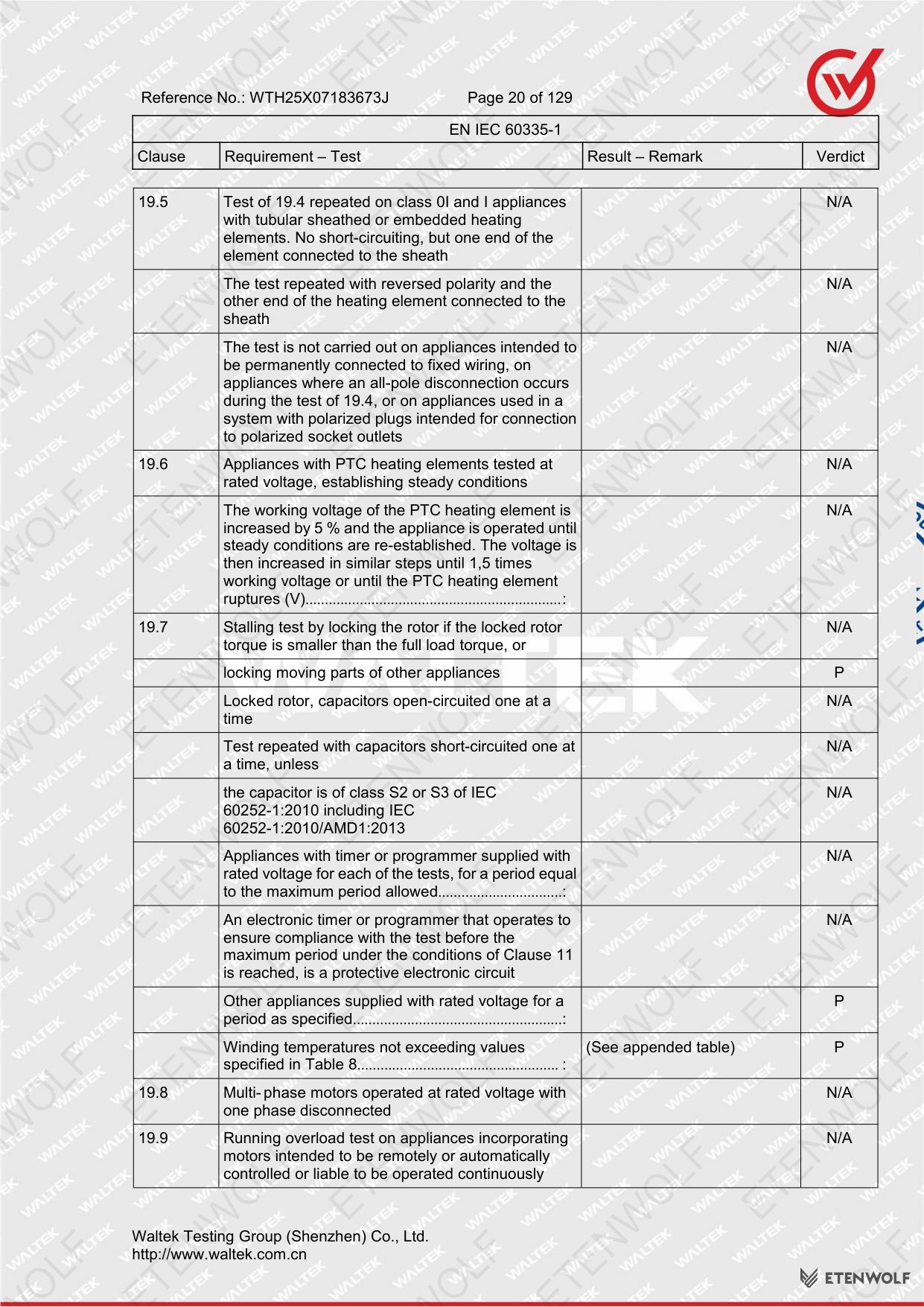

Document Page 20

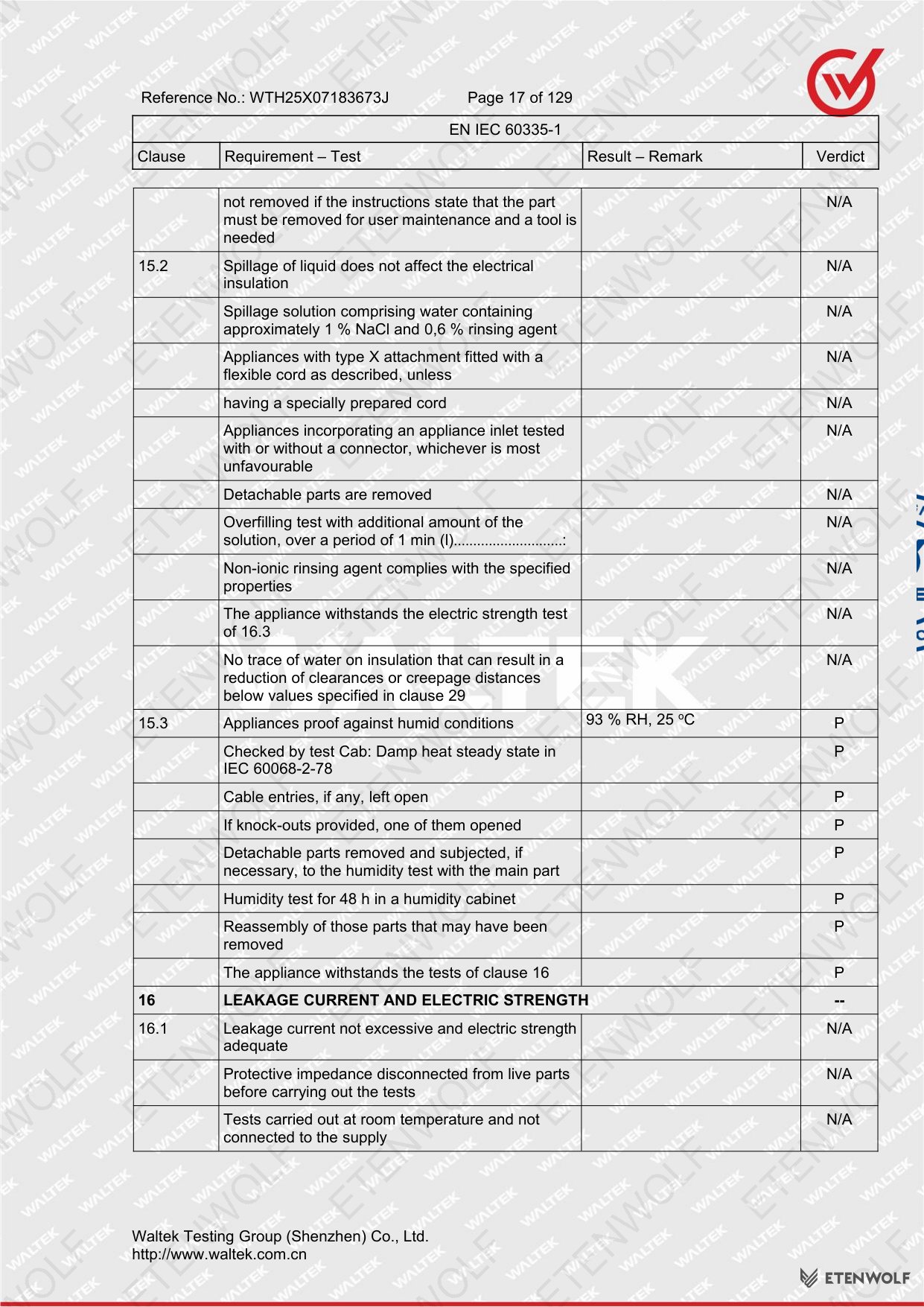

Document Page 21

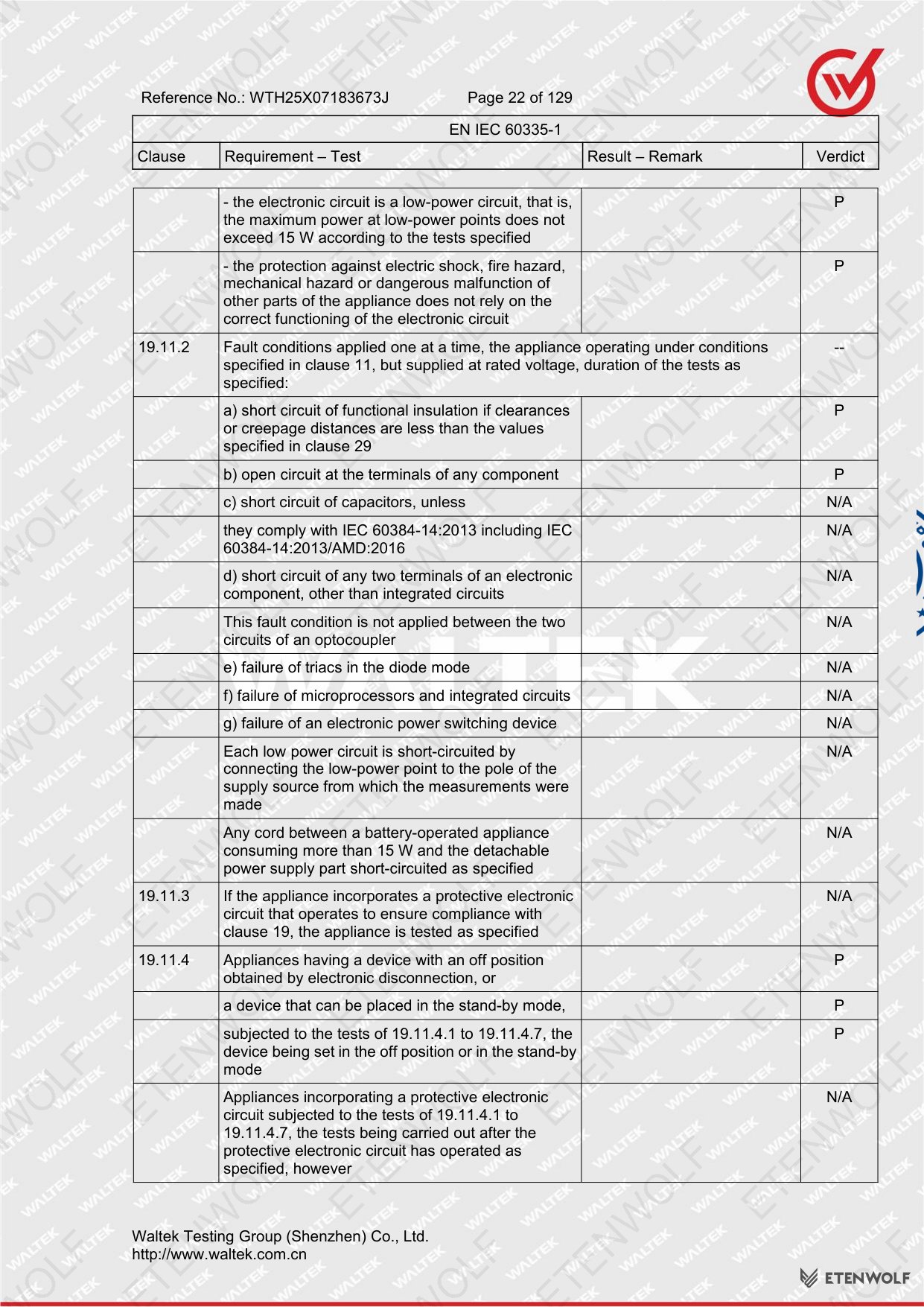

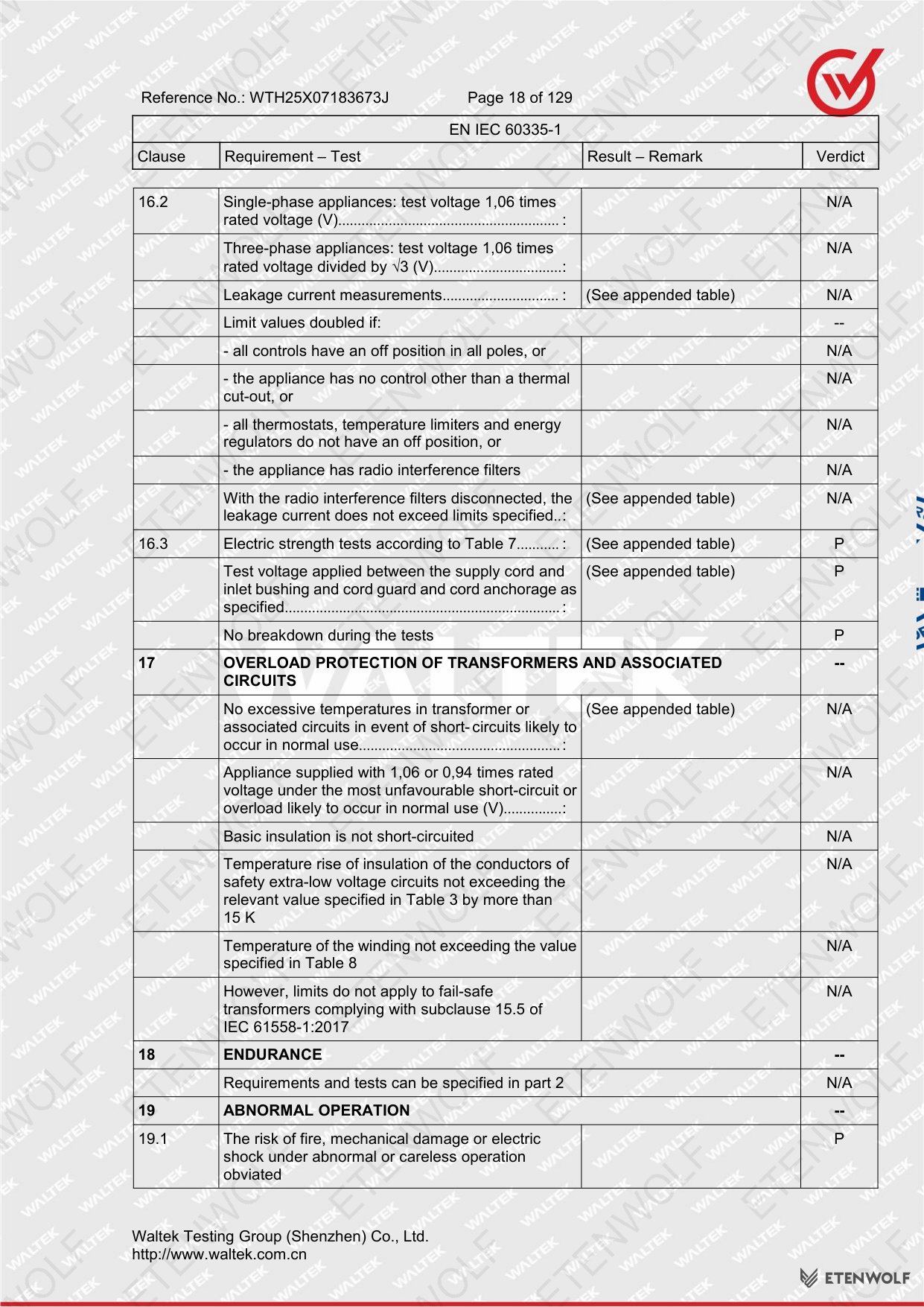

Document Page 22

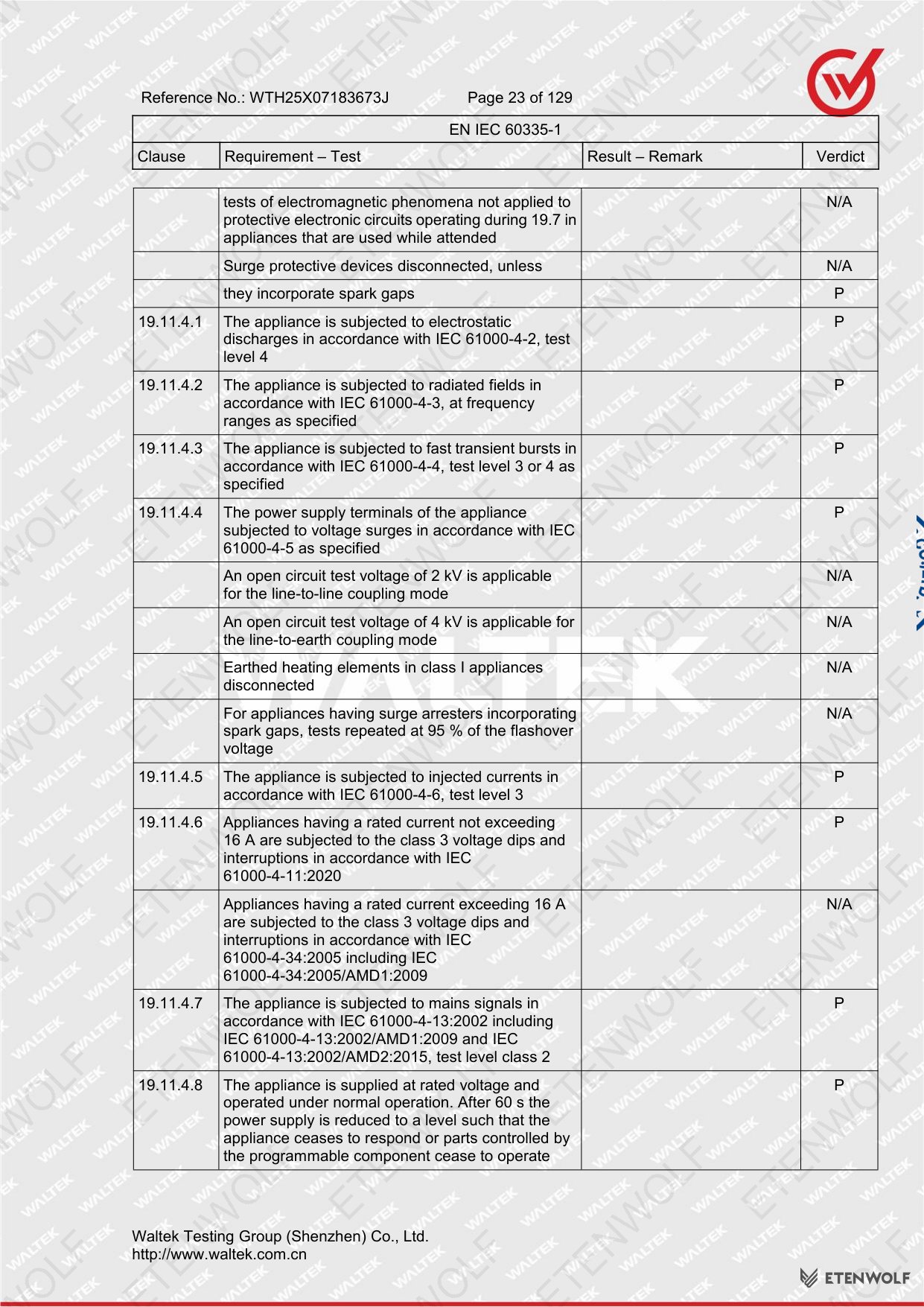

Document Page 23

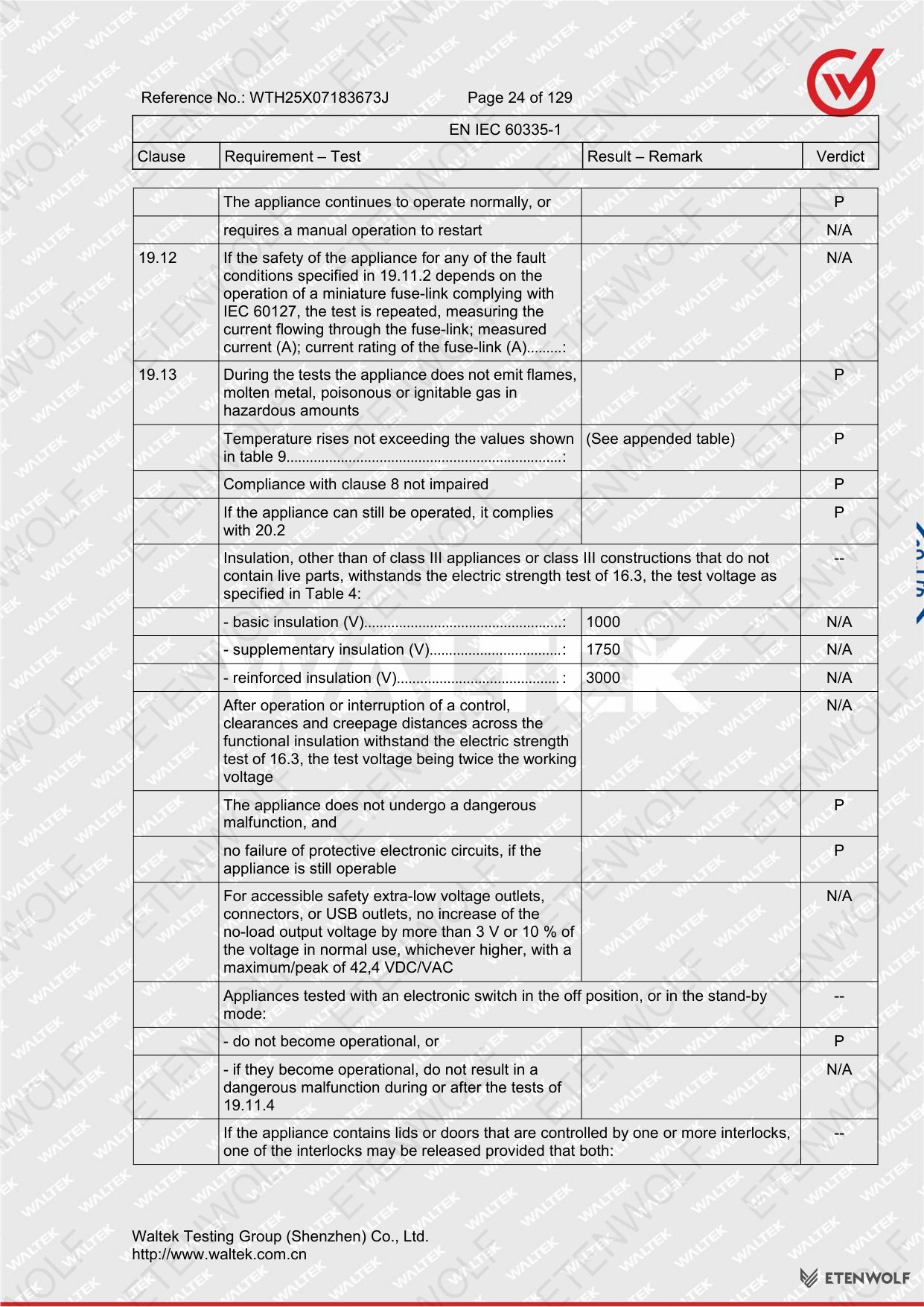

Document Page 24

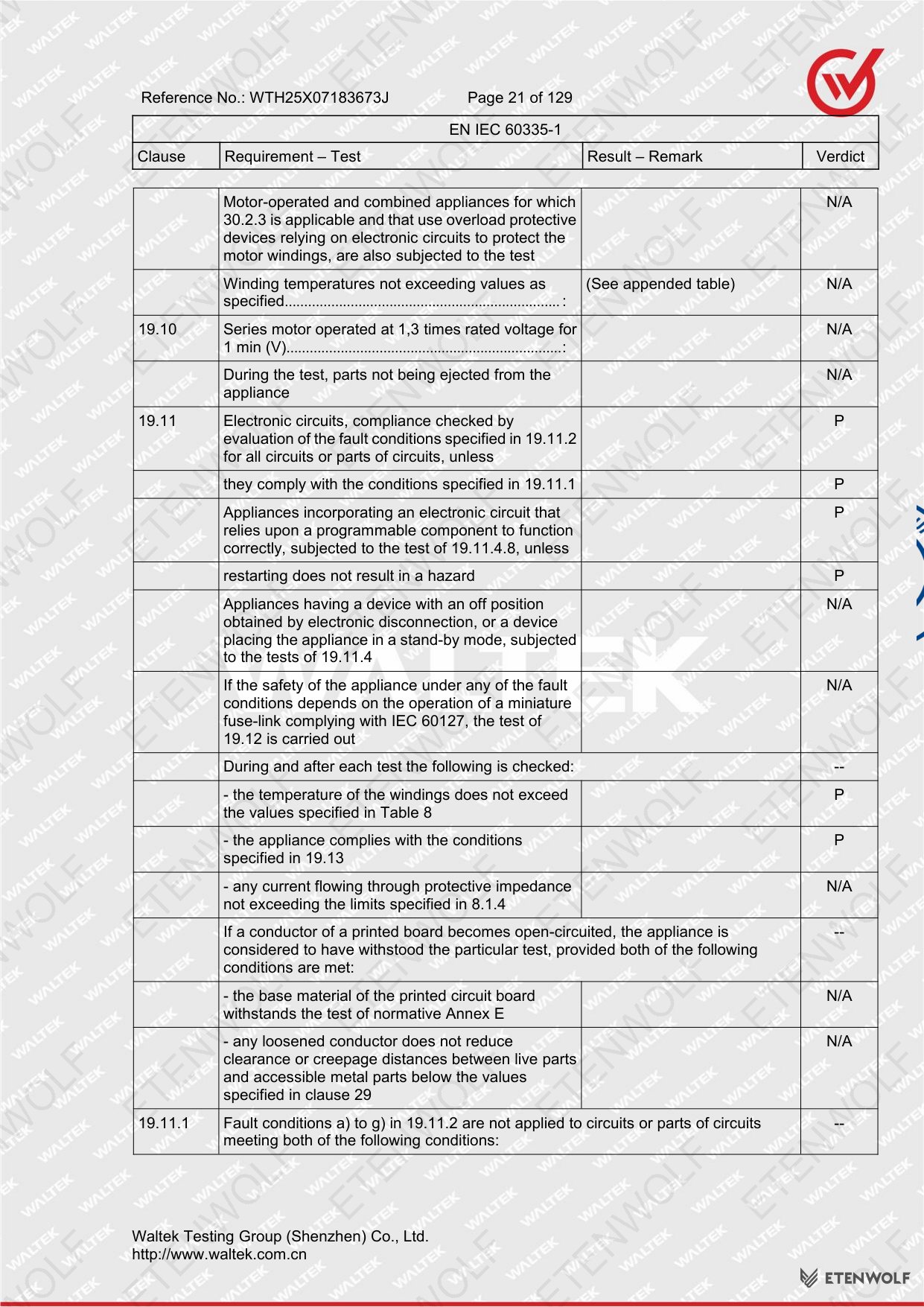

Document Page 25

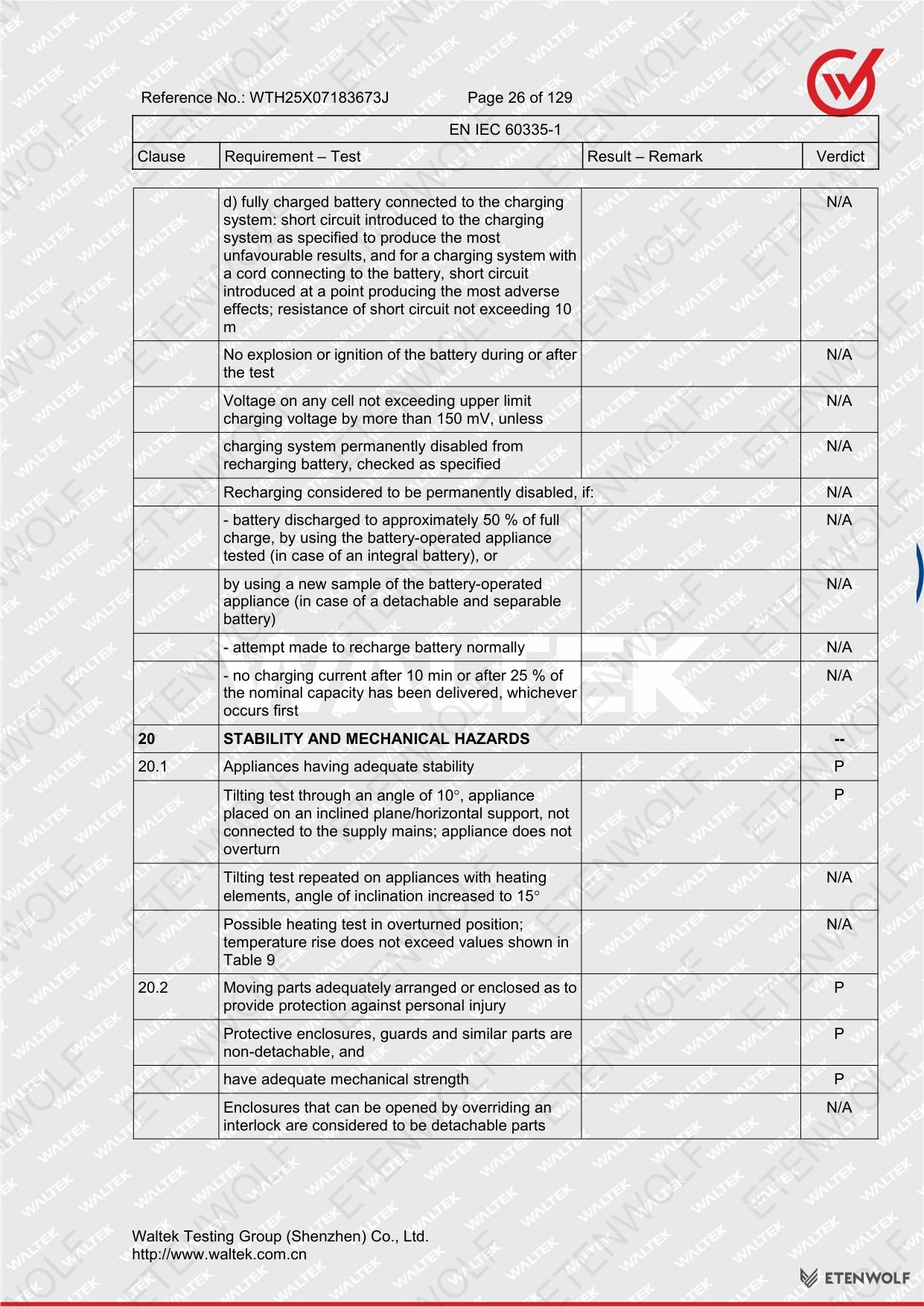

Document Page 26
Document Page 27
Document Page 28

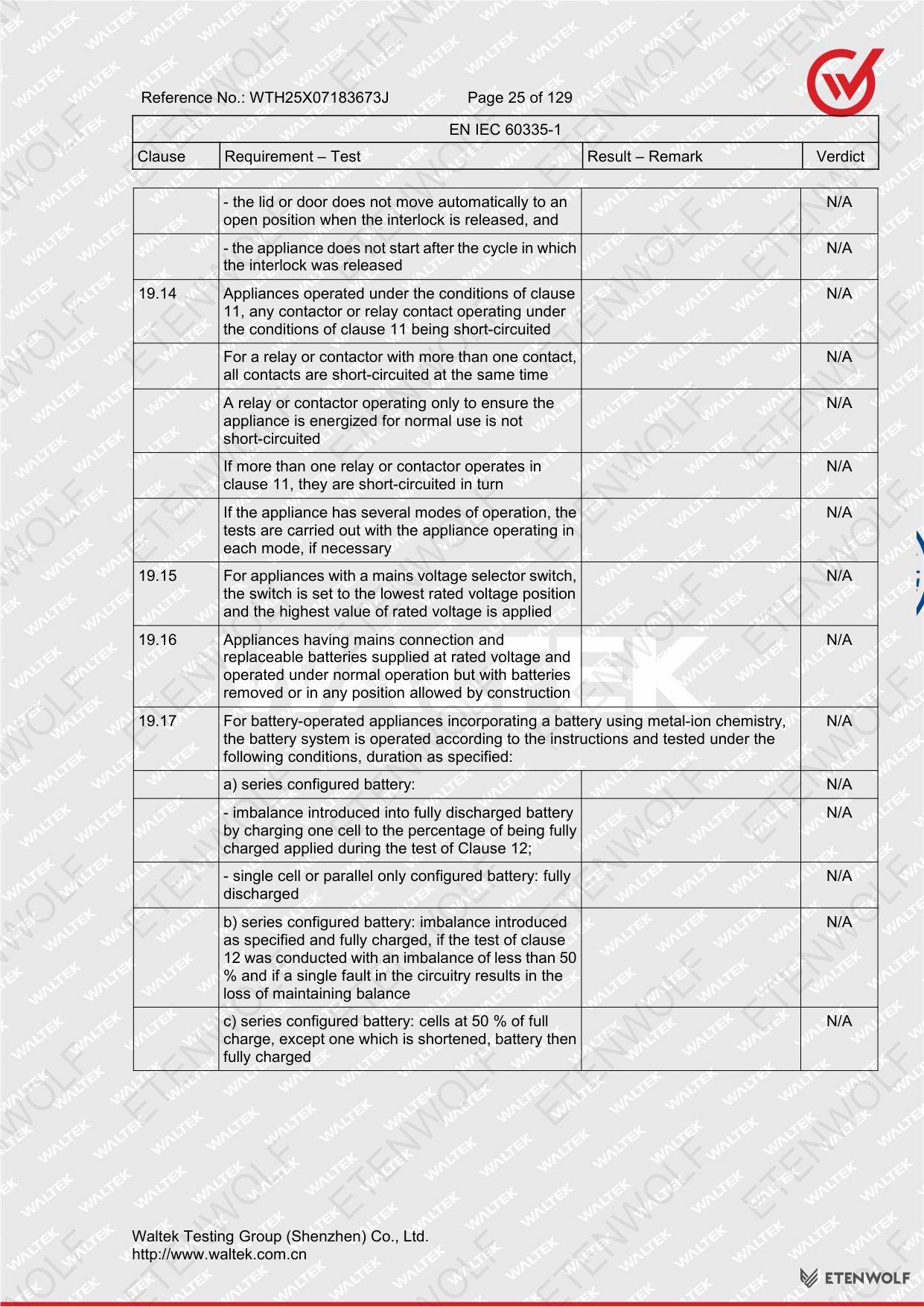

Document Page 29

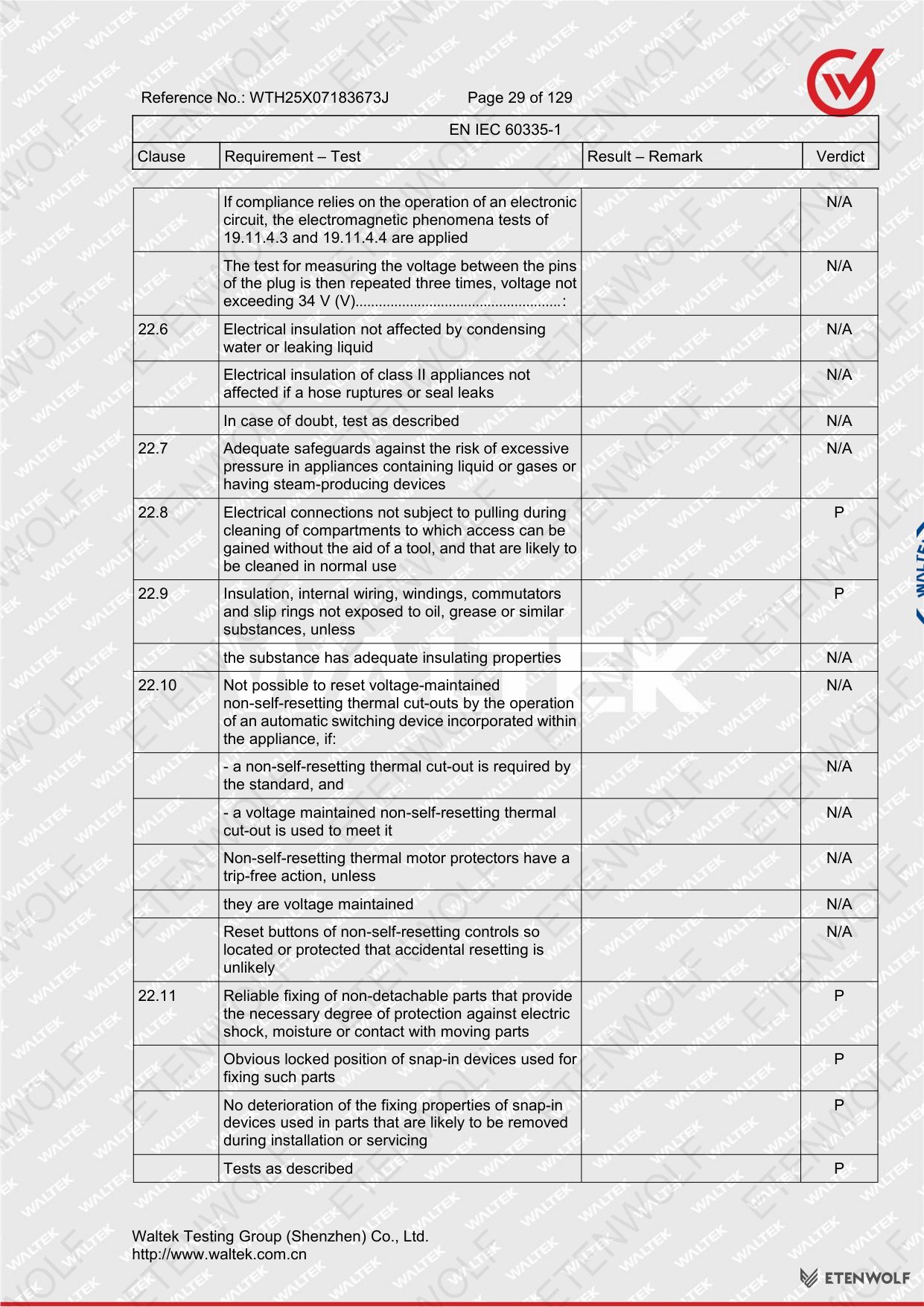

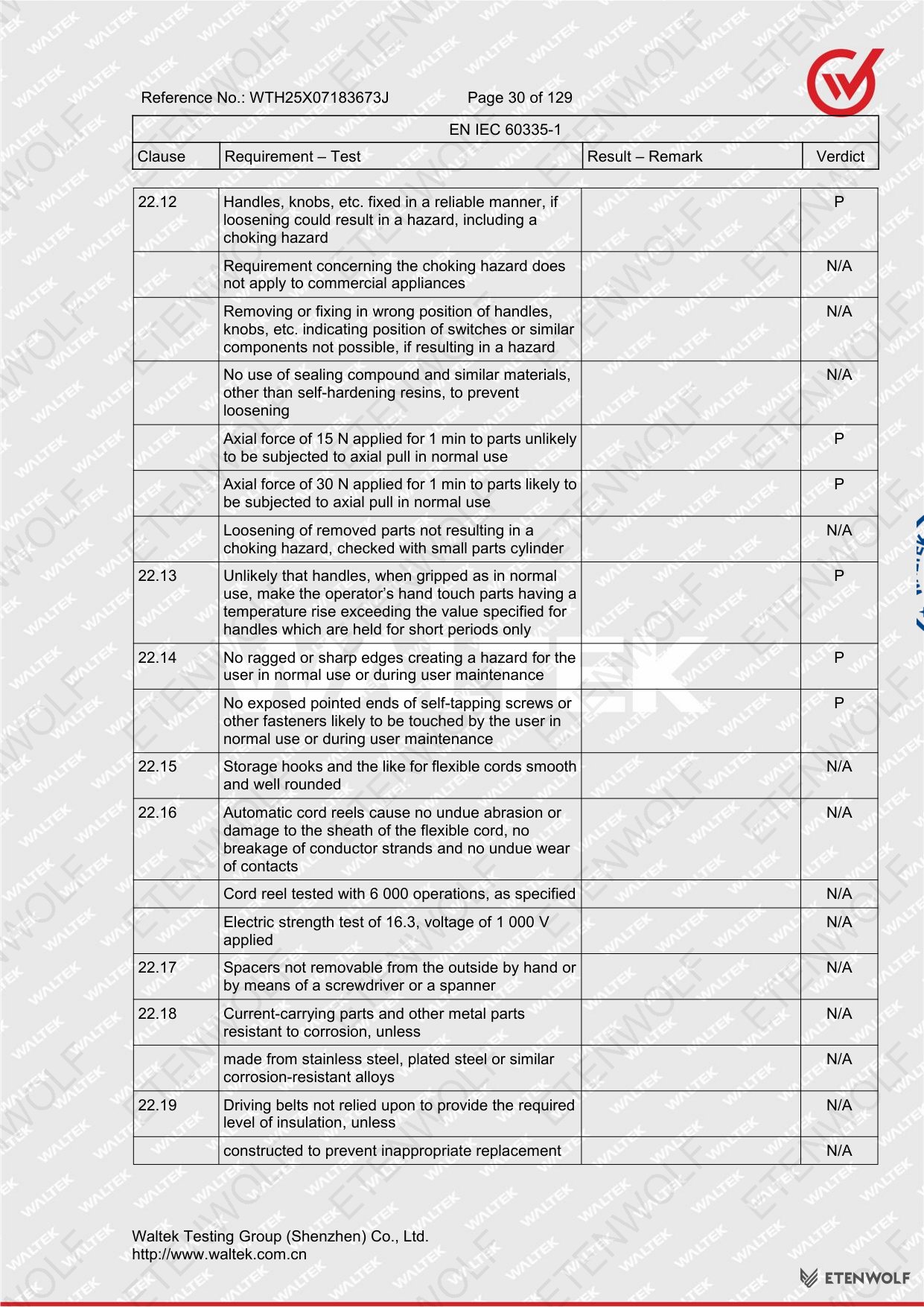

Document Page 30
Document Page 31

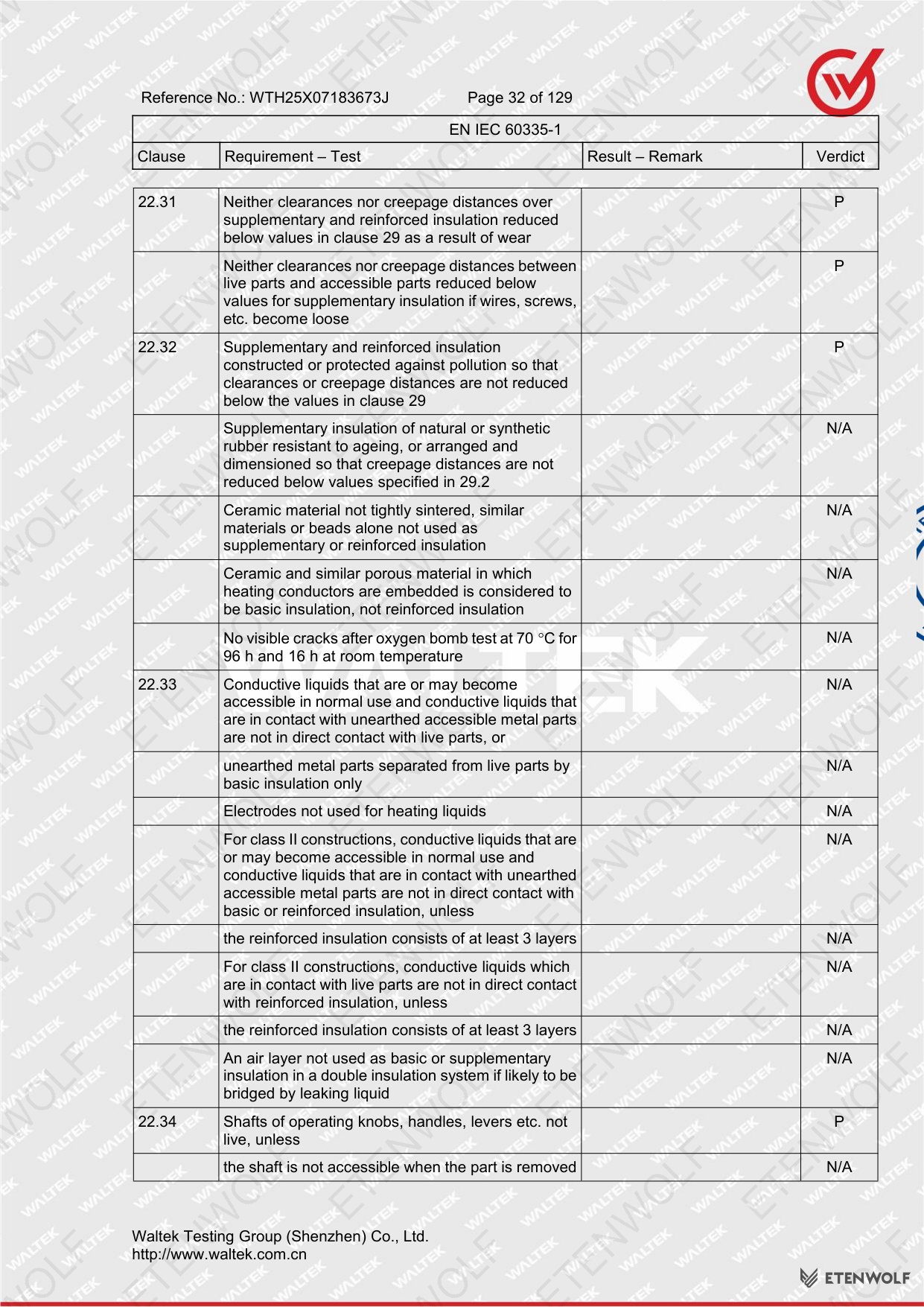

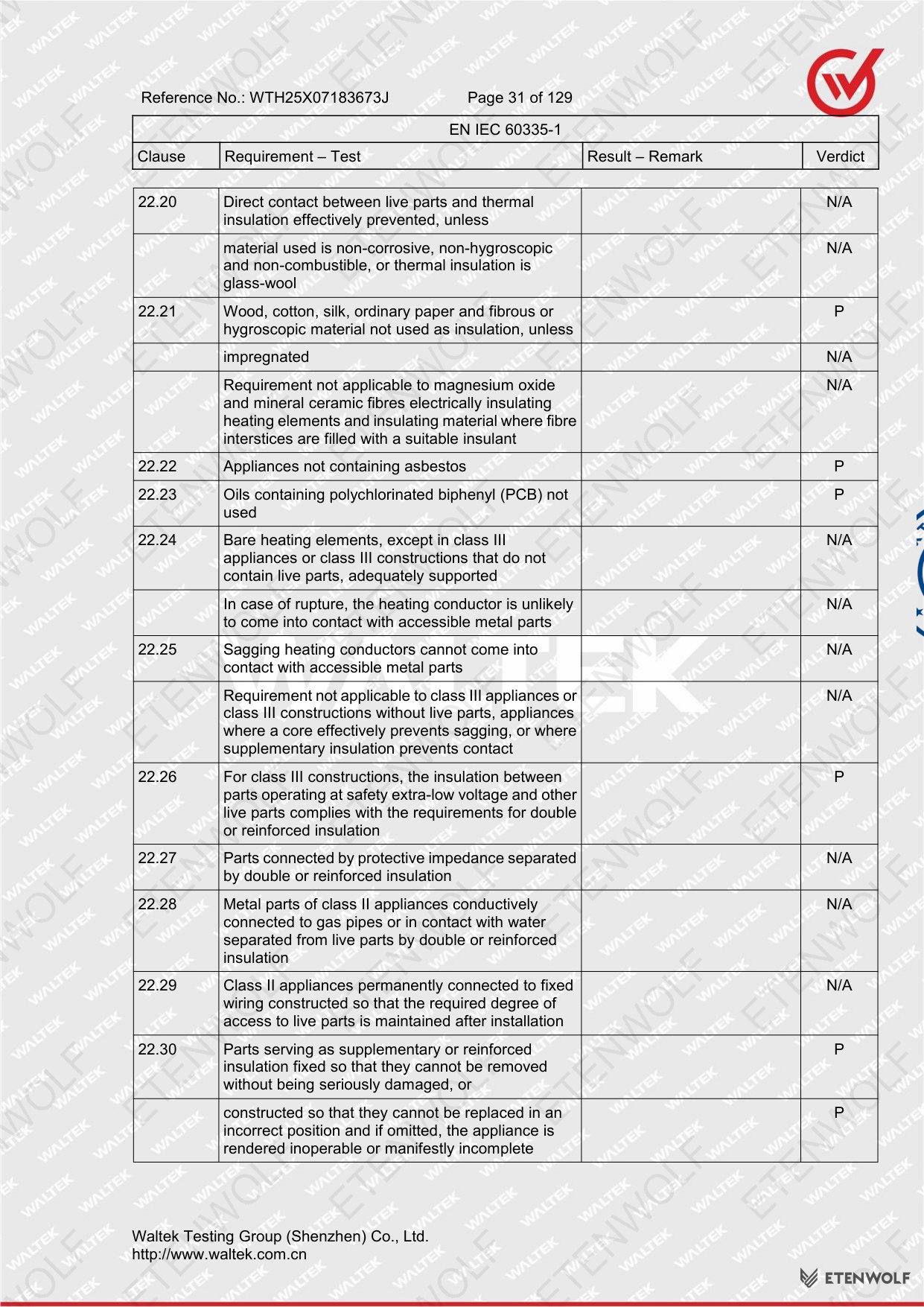

Document Page 32
Document Page 33

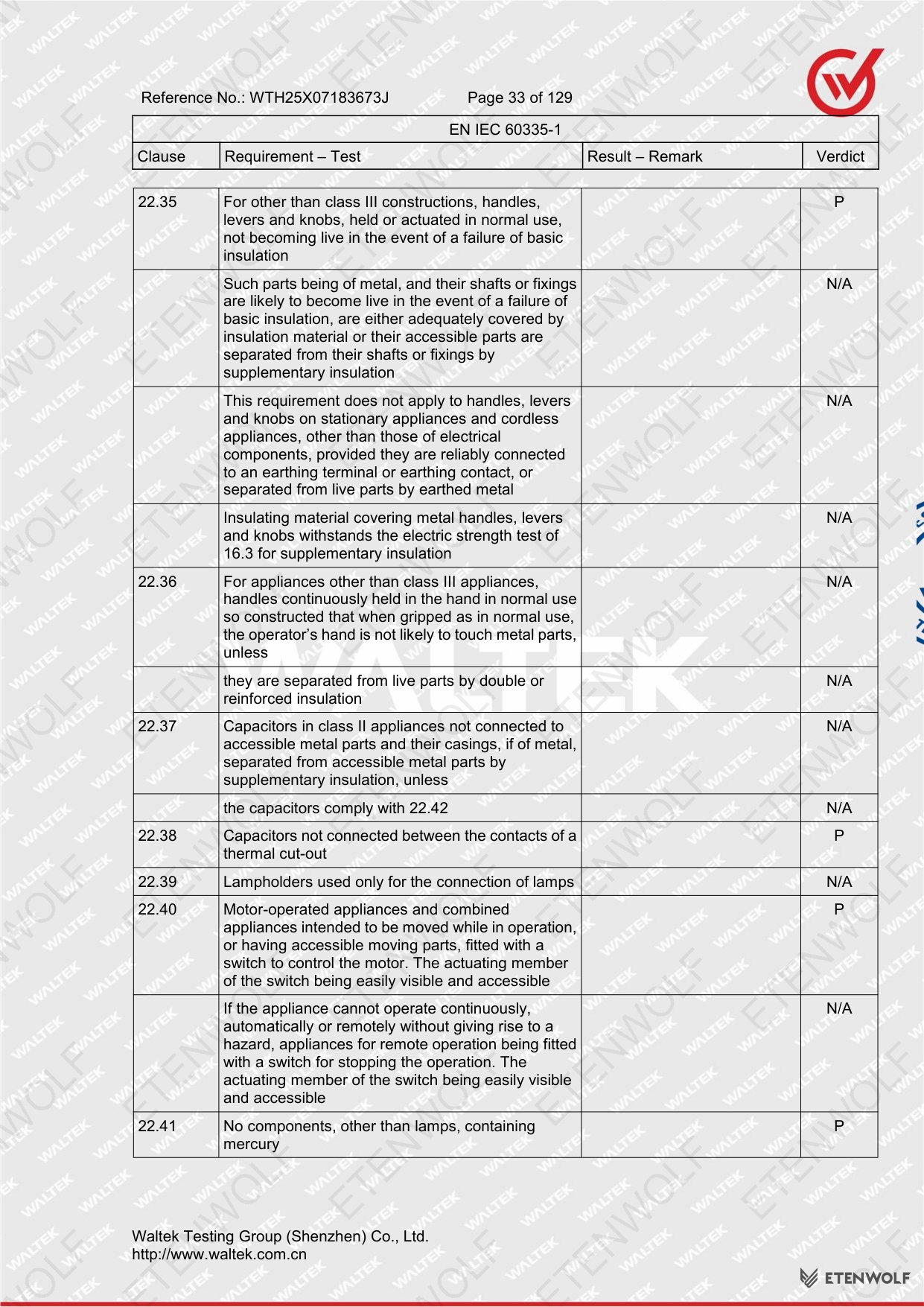

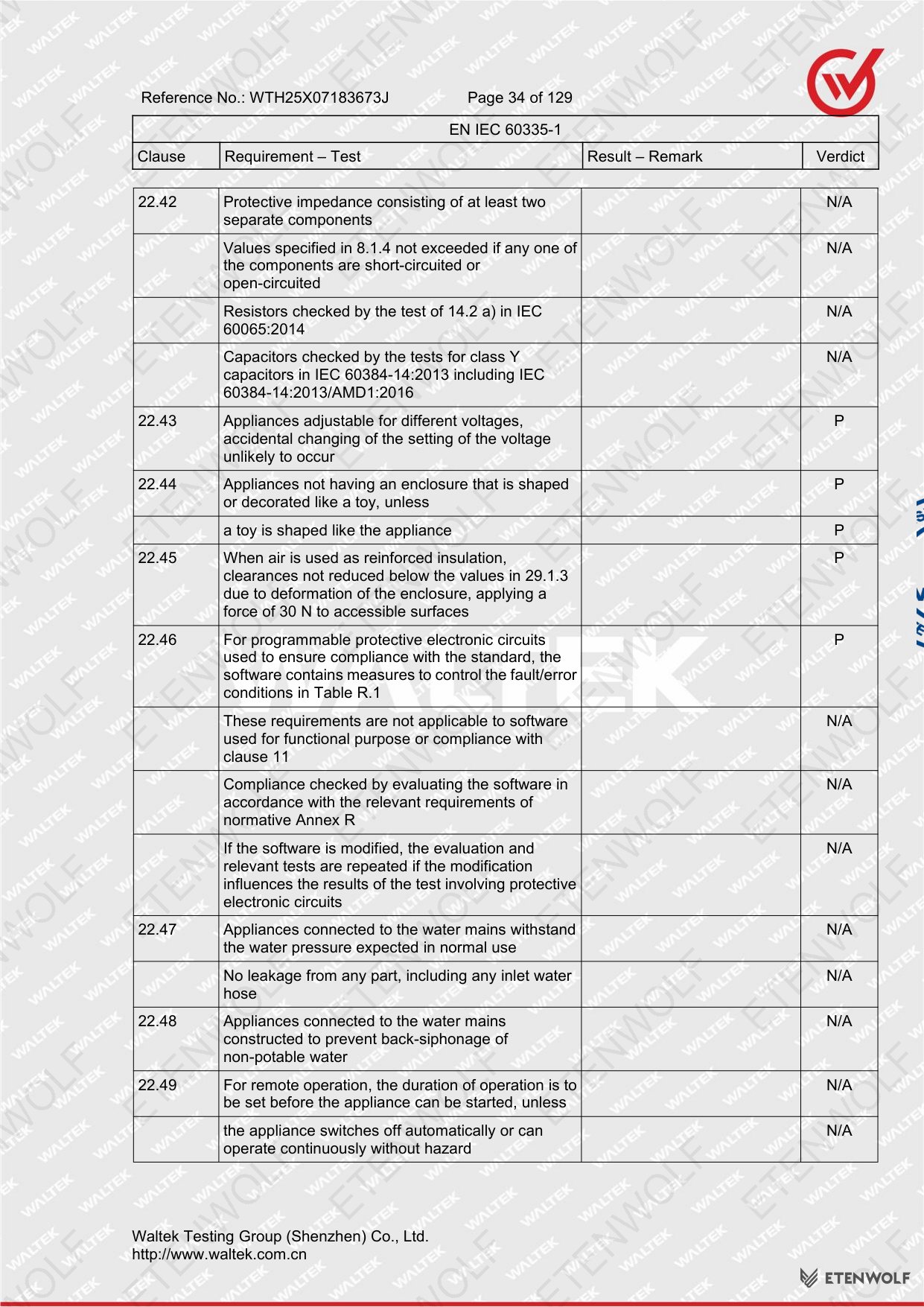

Document Page 34

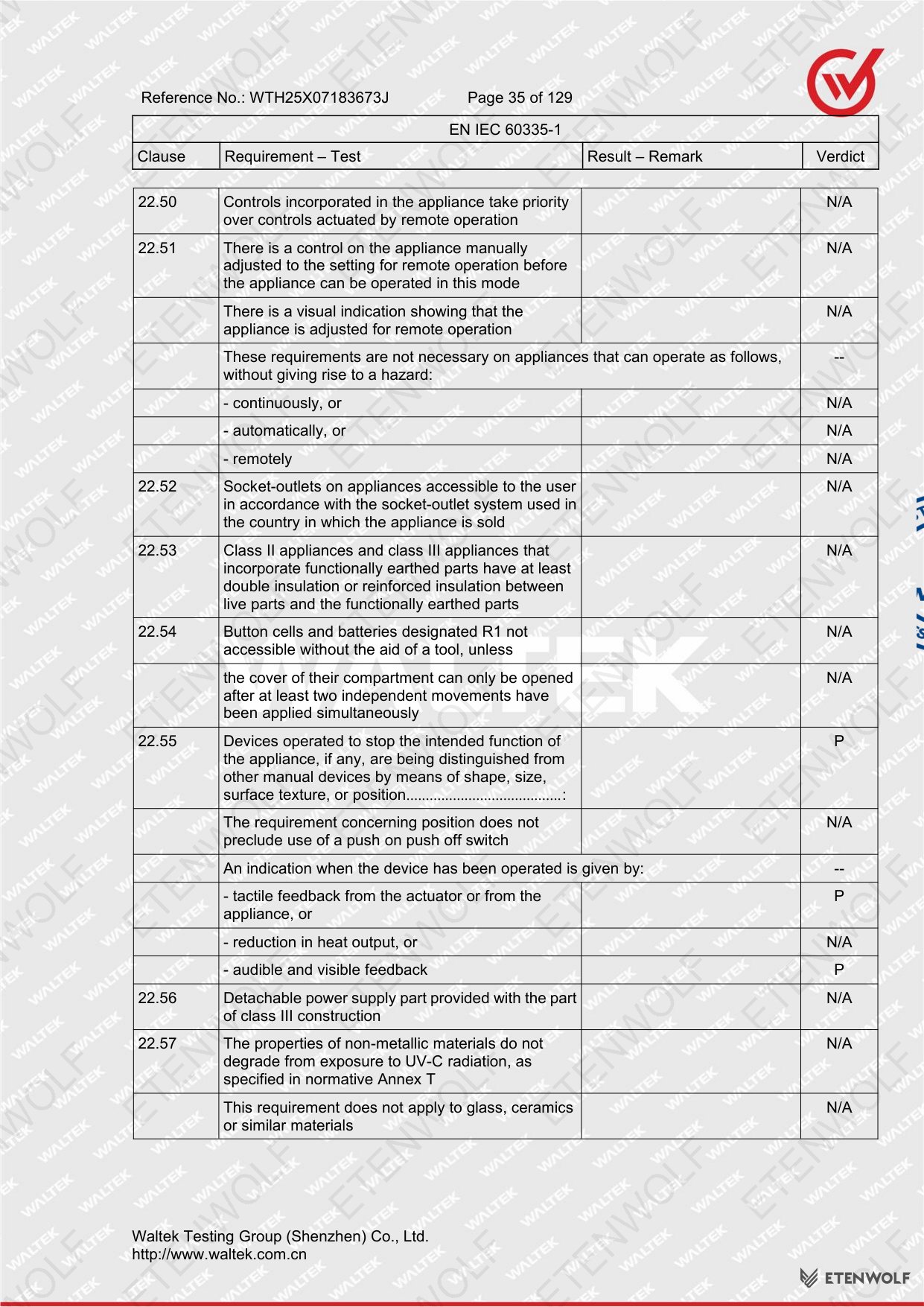

Document Page 35

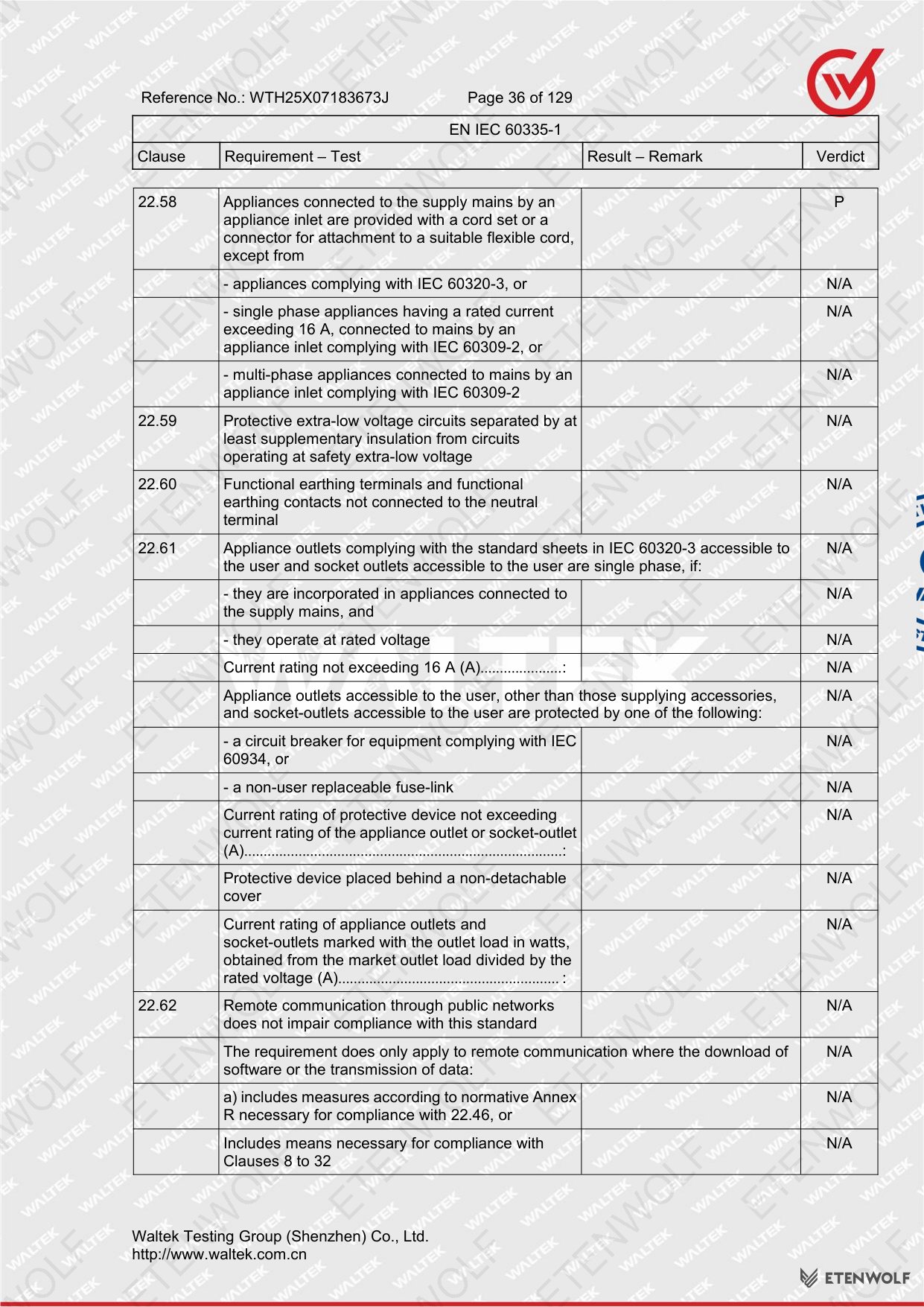

Document Page 36
Document Page 37
Document Page 38
Document Page 39

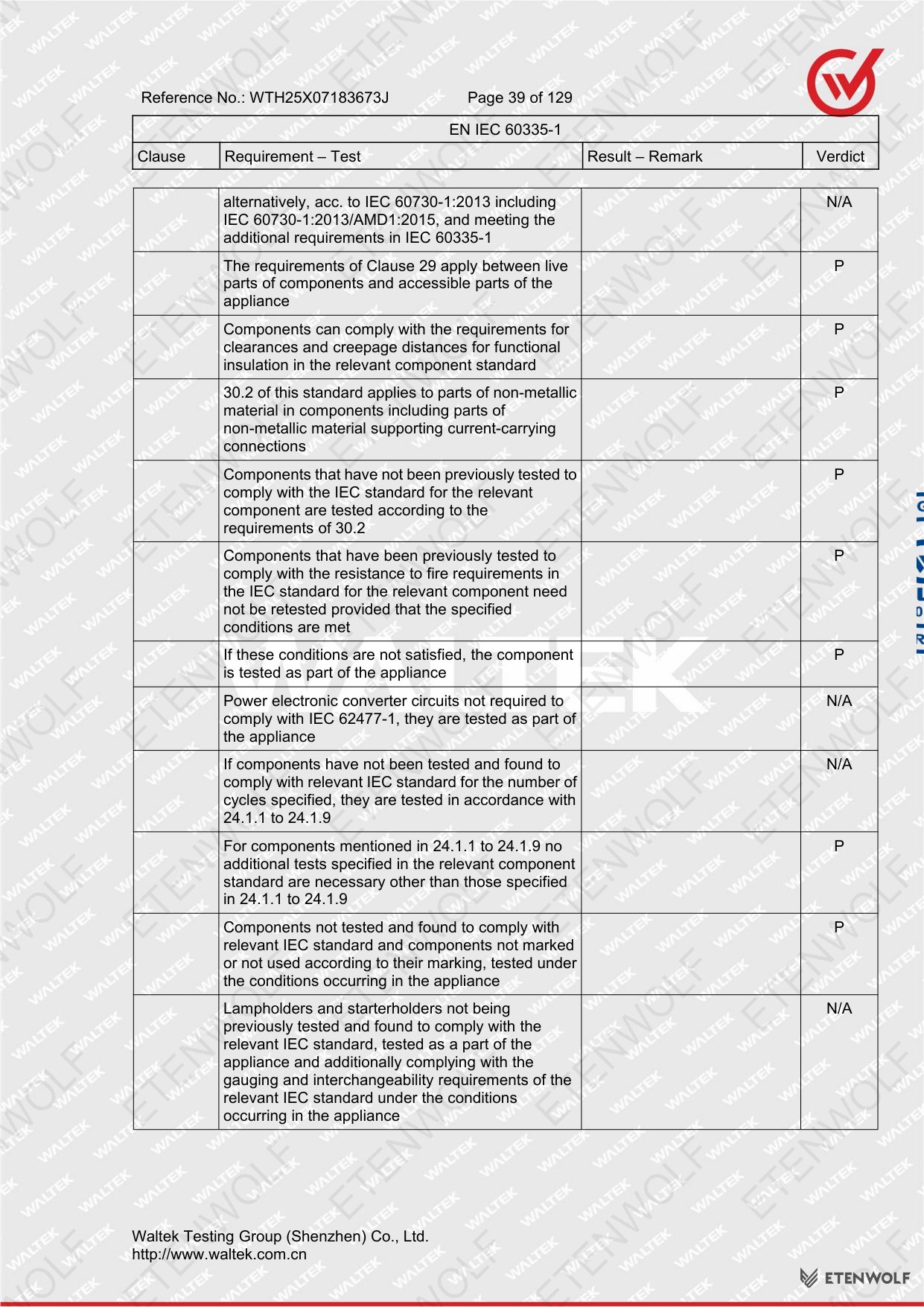

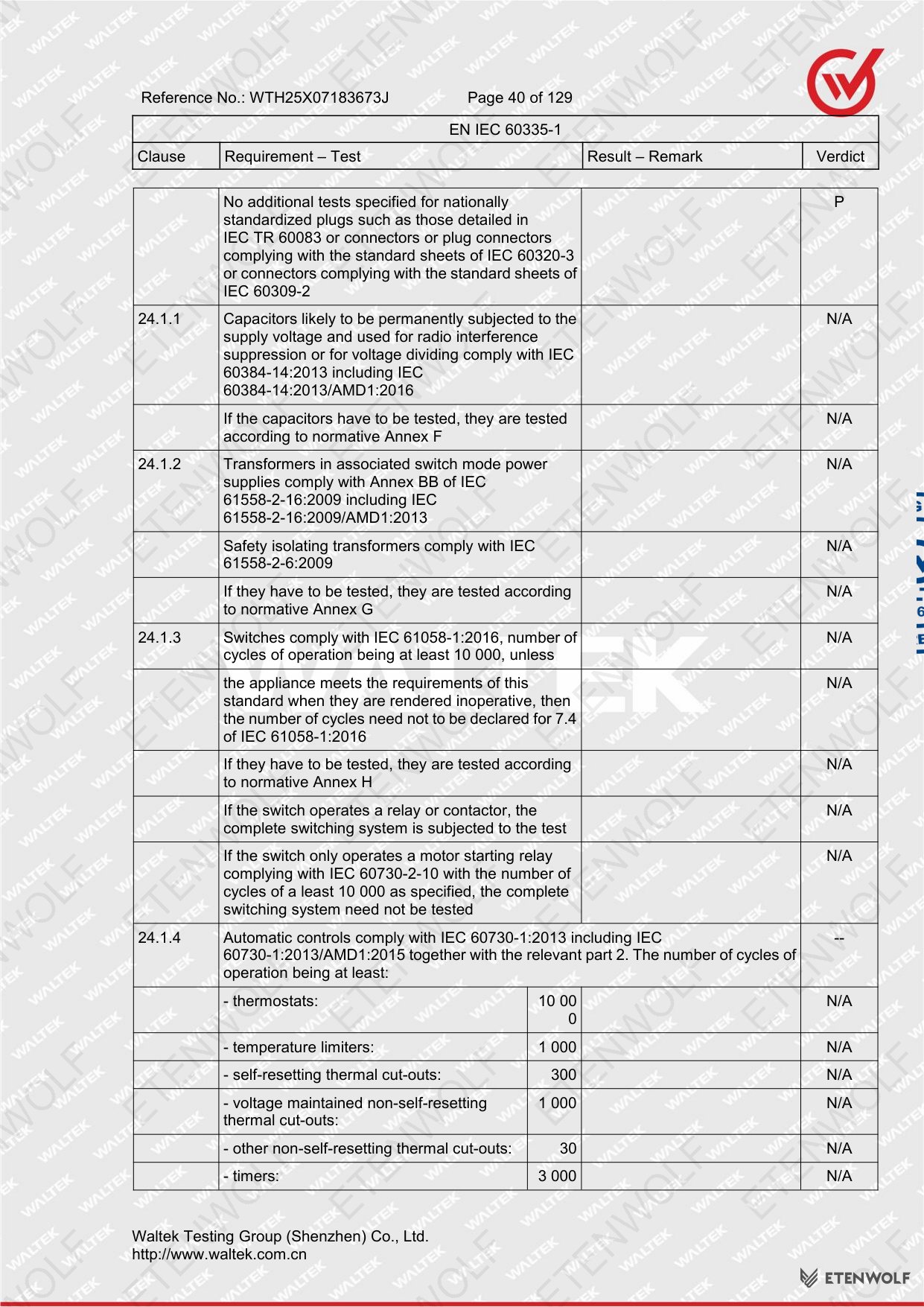

Document Page 40

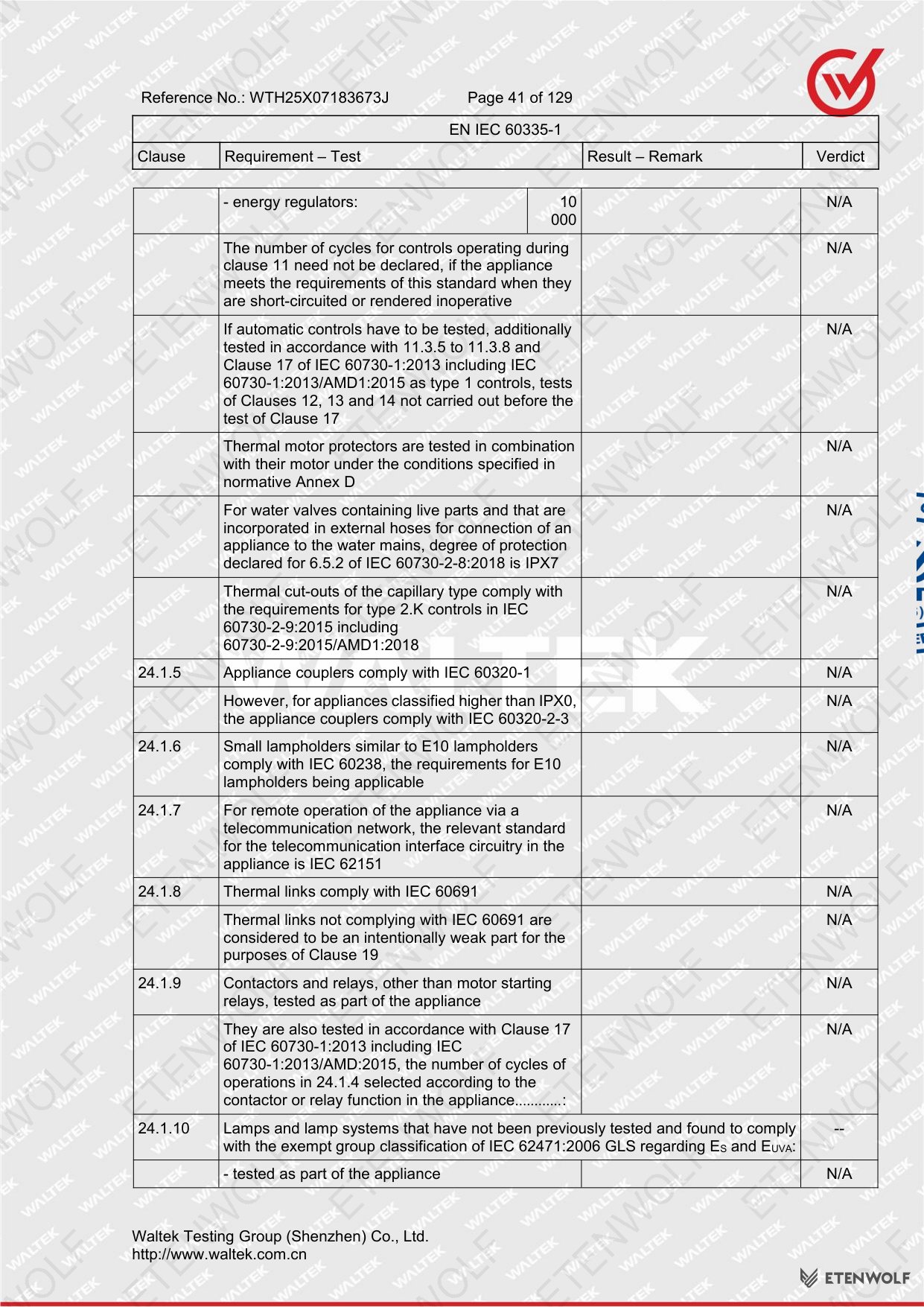

Document Page 41

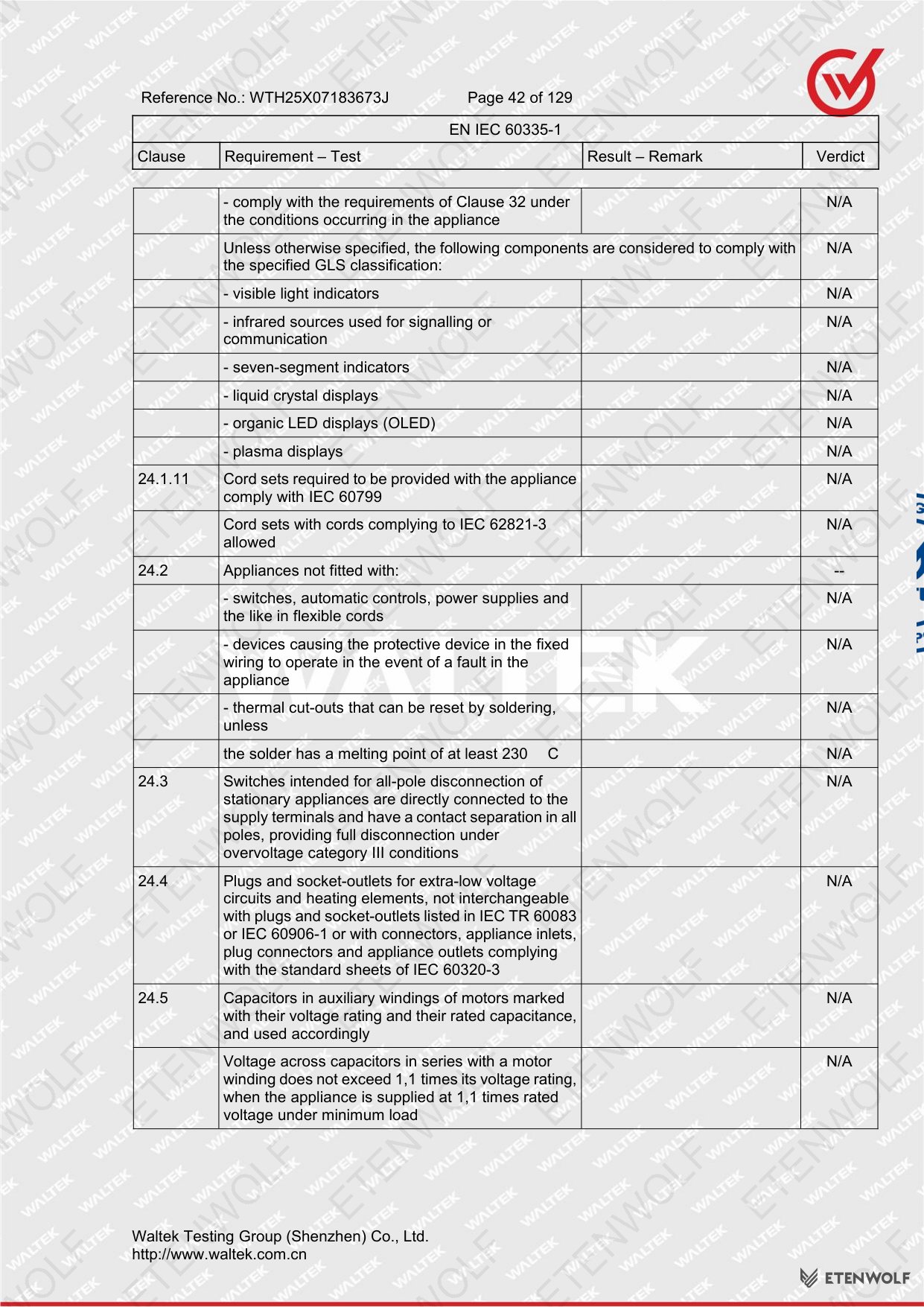

Document Page 42

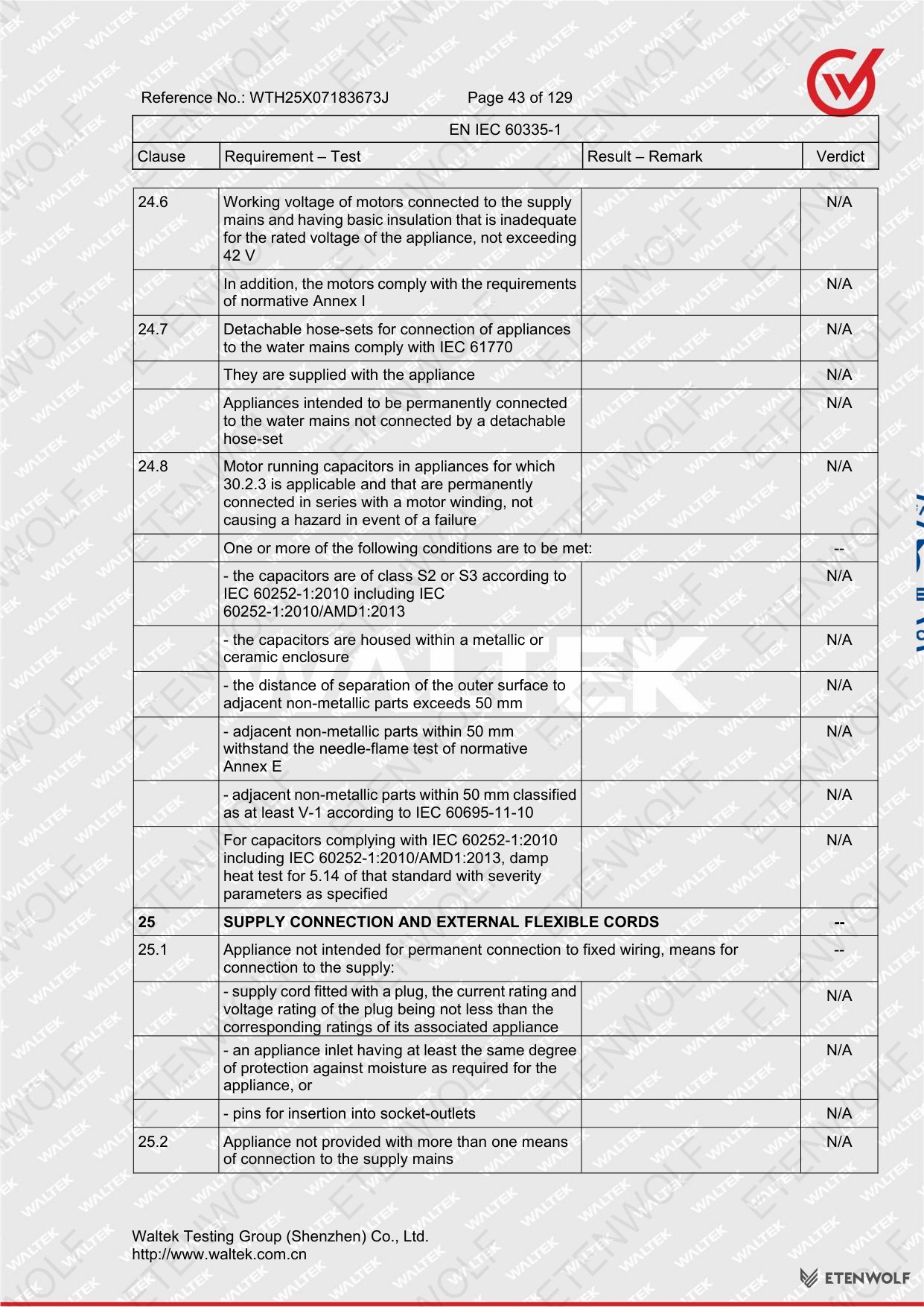

Document Page 43

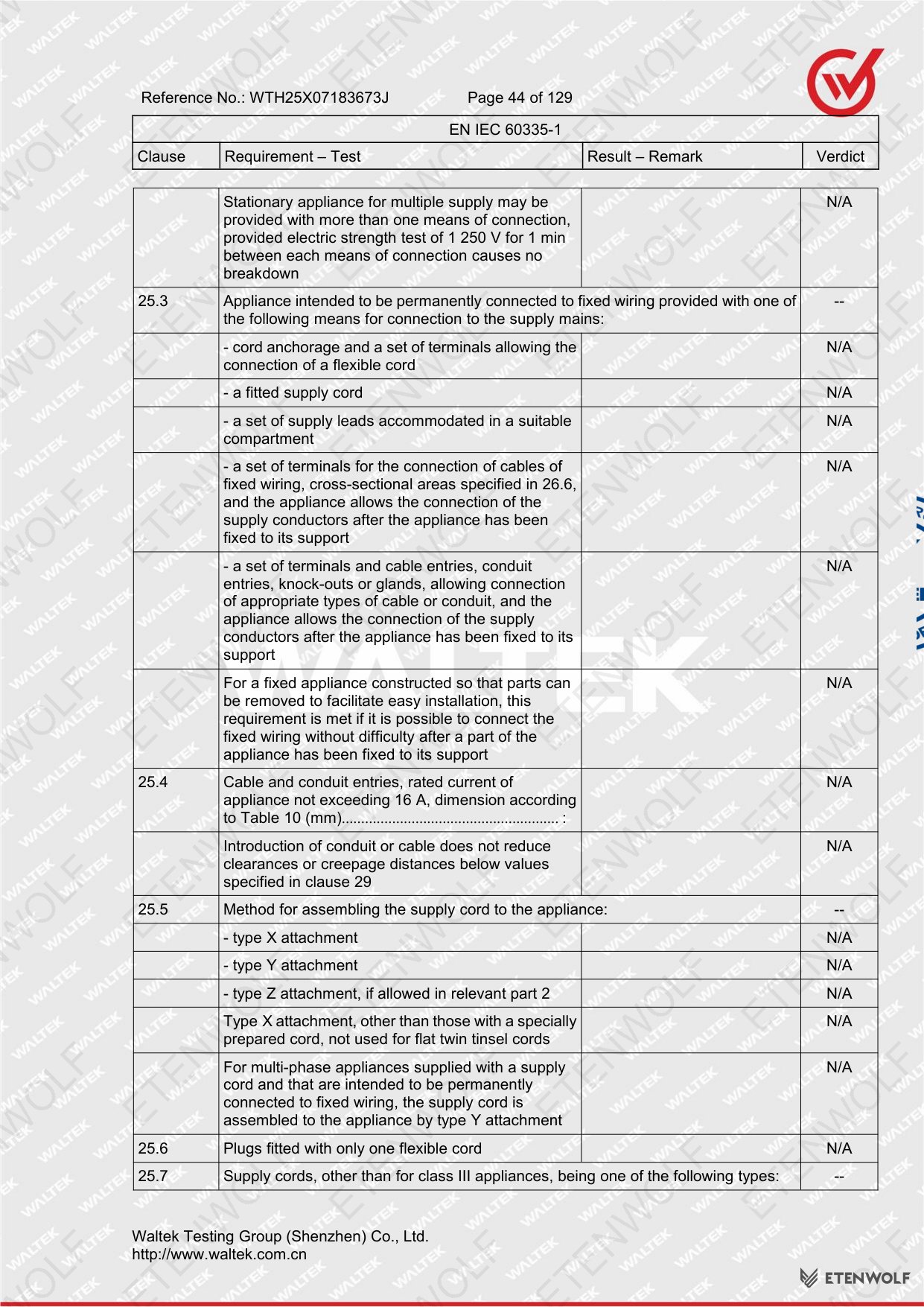

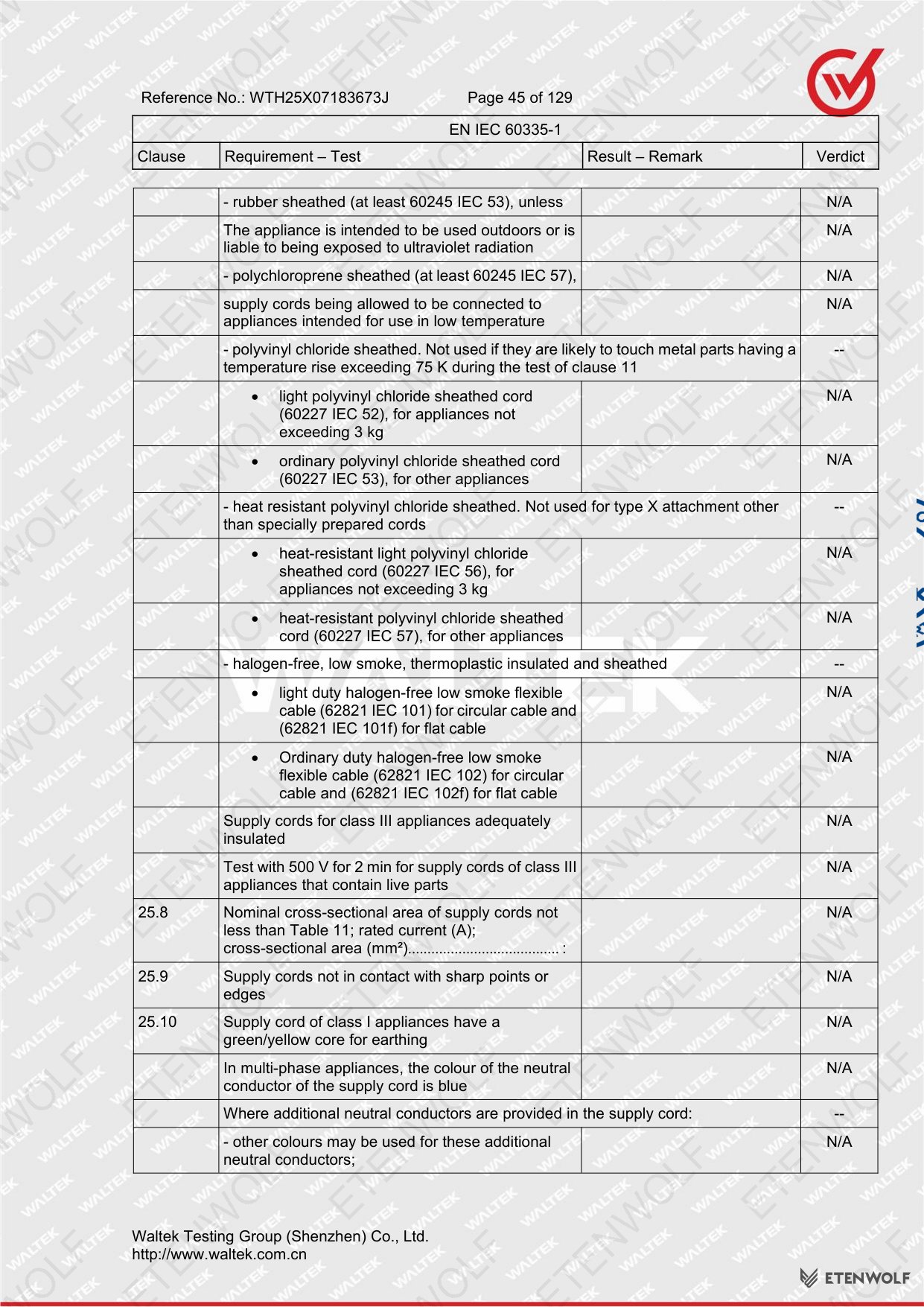

Document Page 44
Document Page 45
Document Page 46

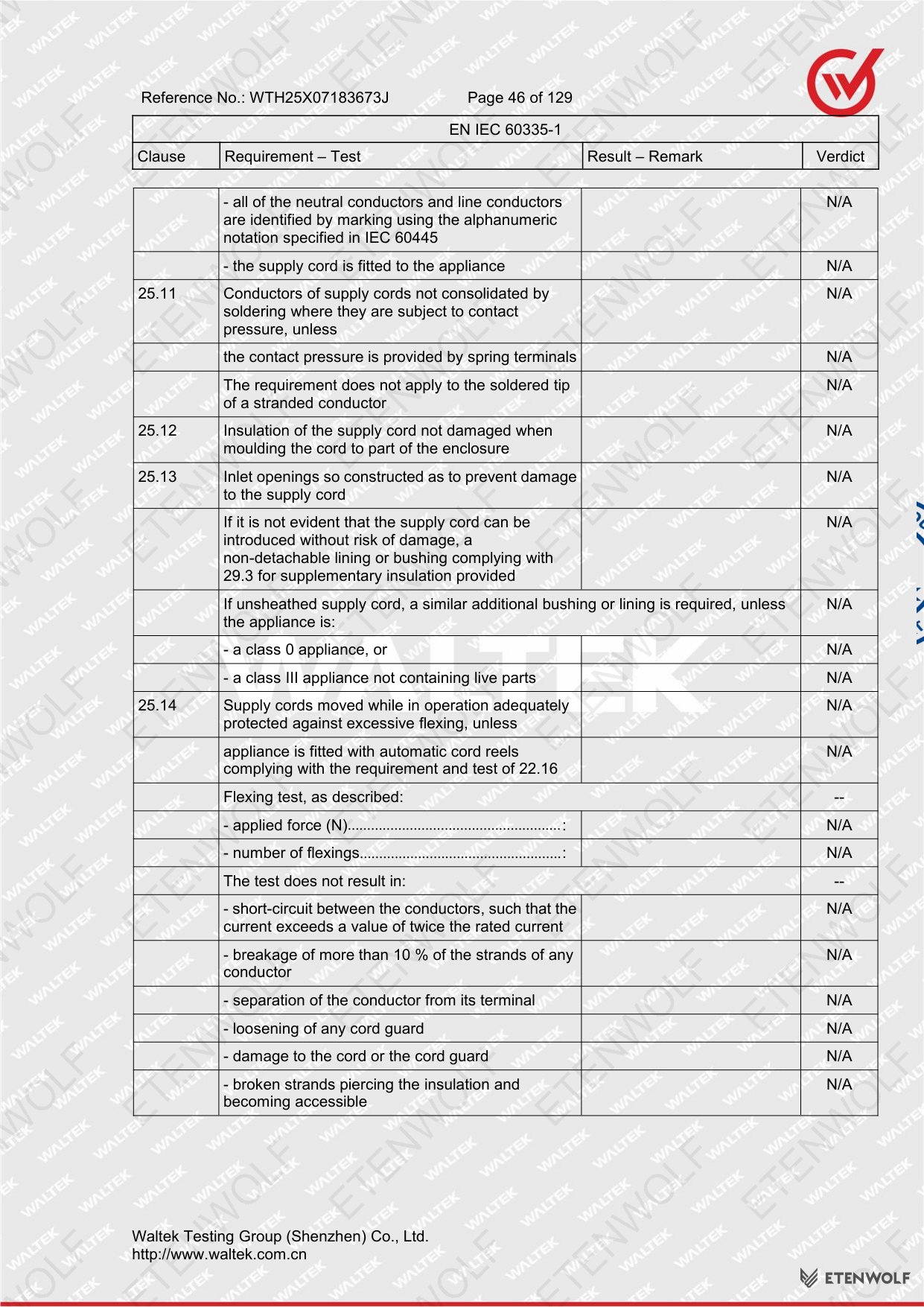

Document Page 47

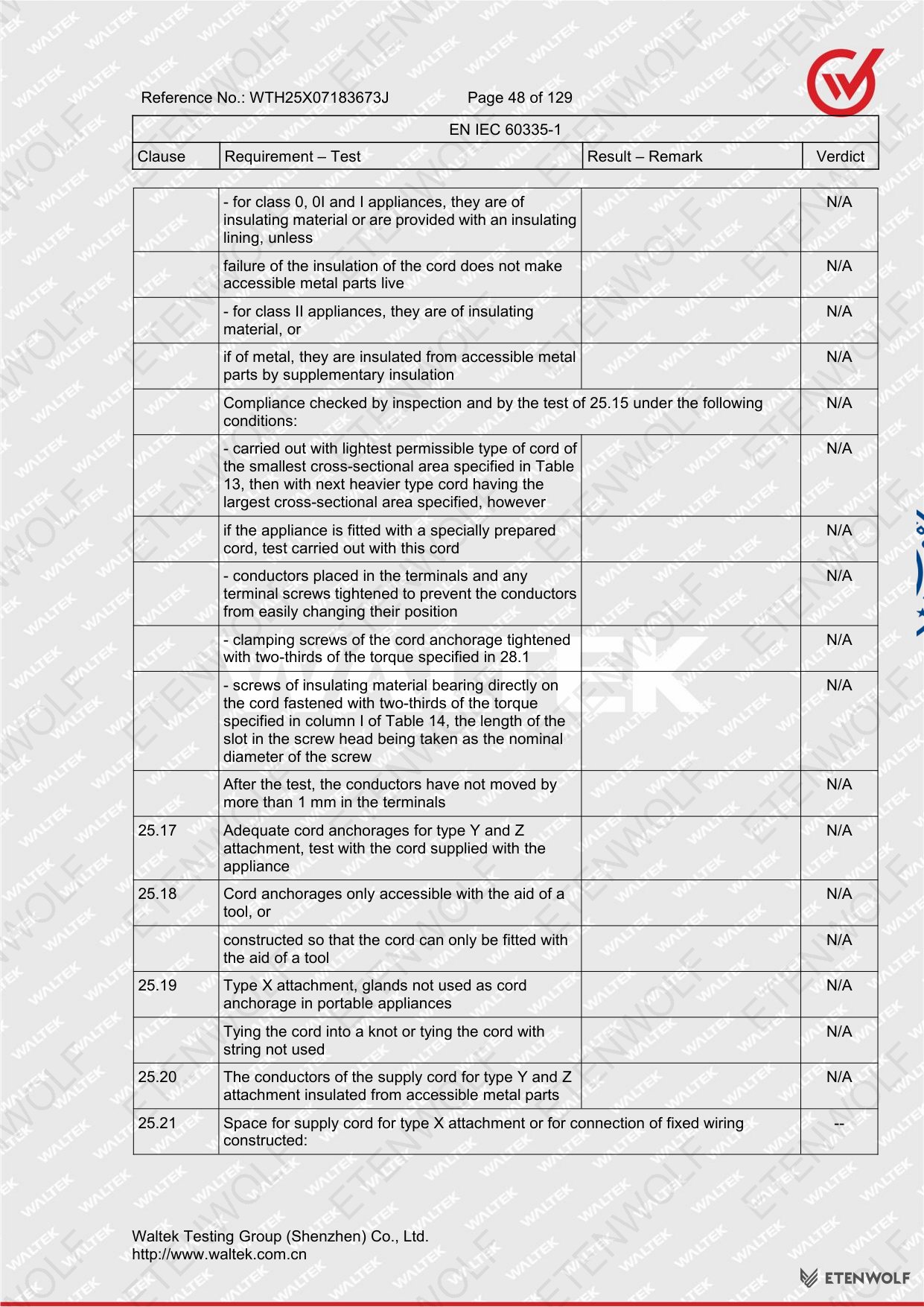

Document Page 48

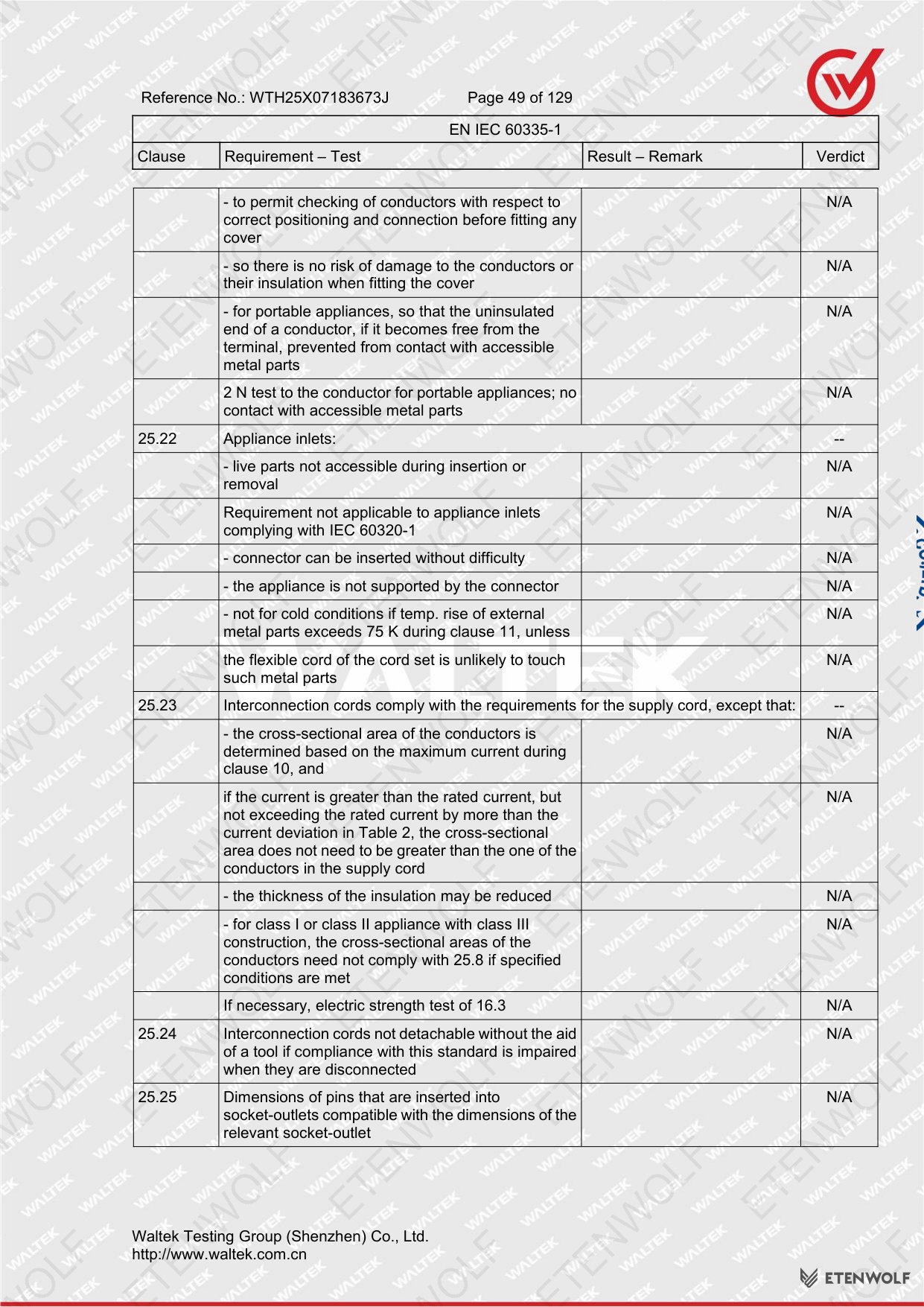

Document Page 49

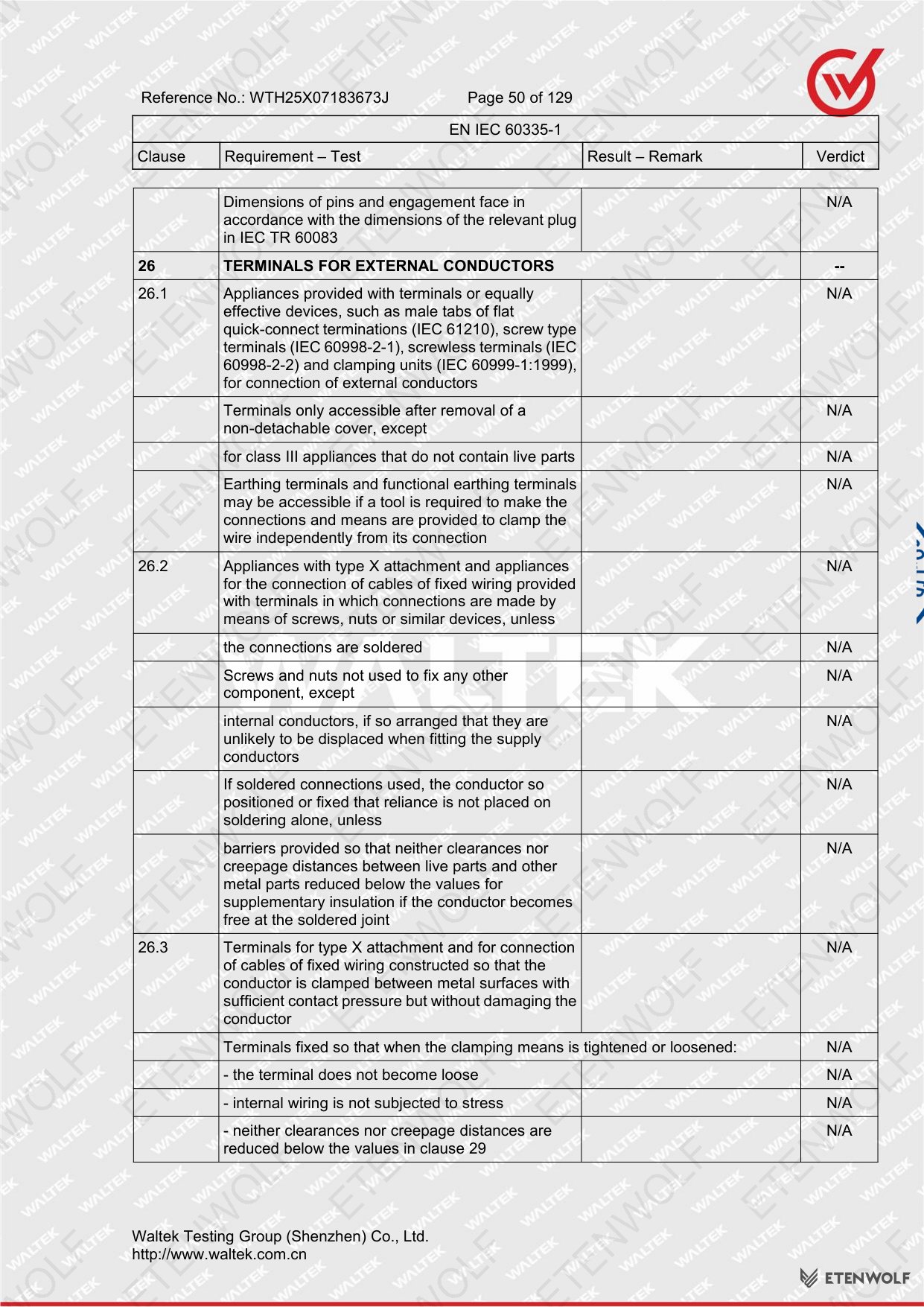

Document Page 50
Document Page 51

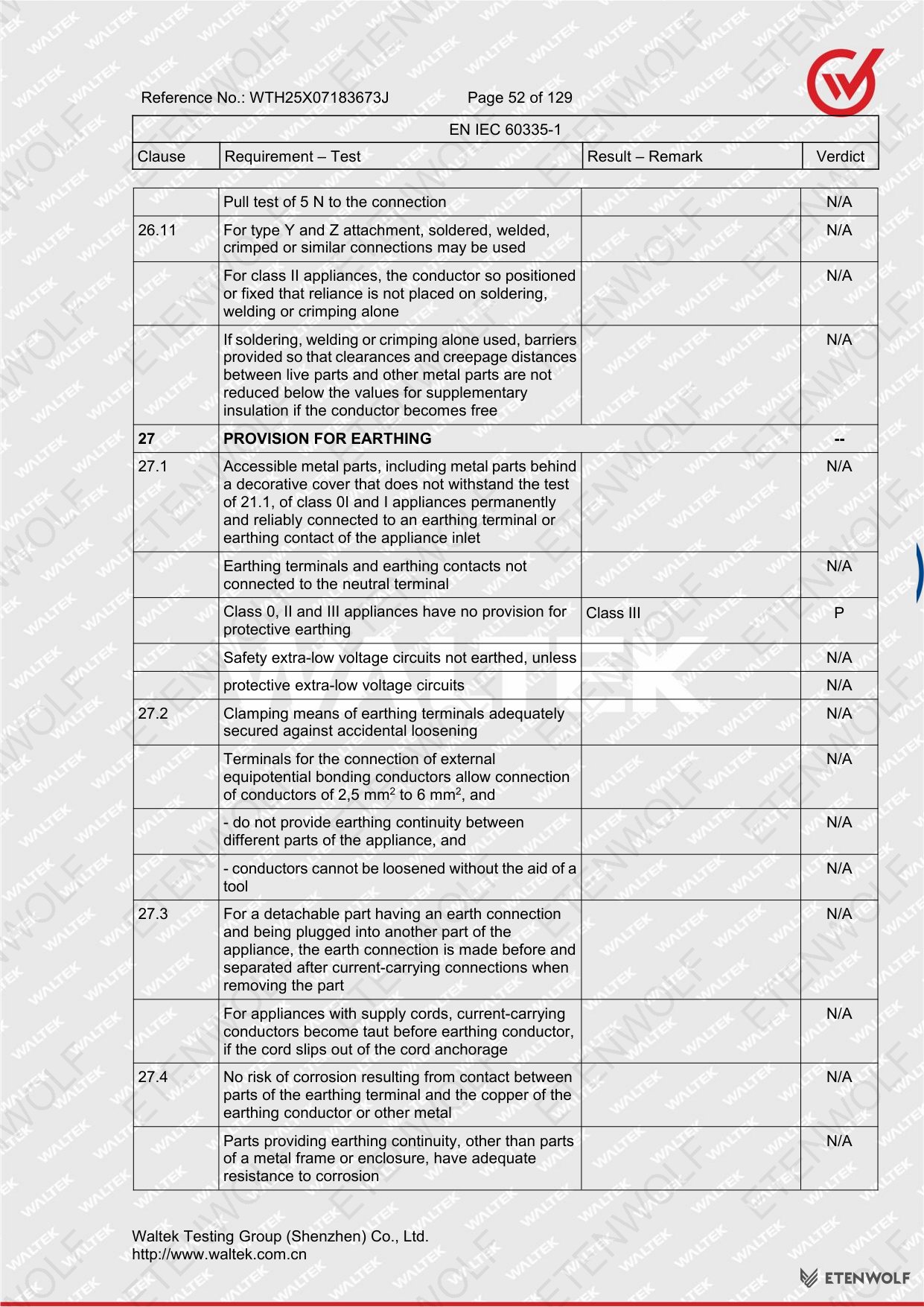

Document Page 52

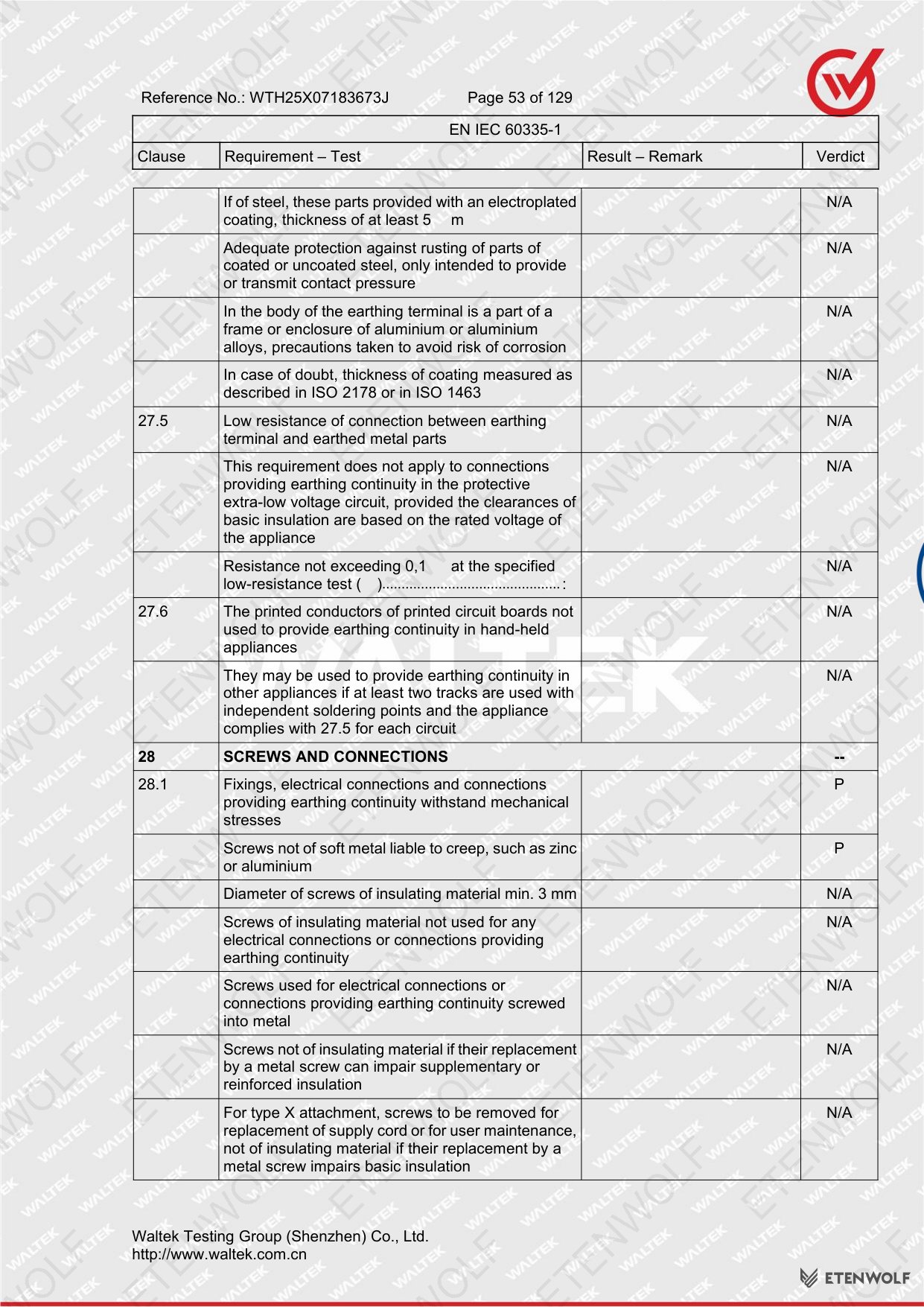

Document Page 53

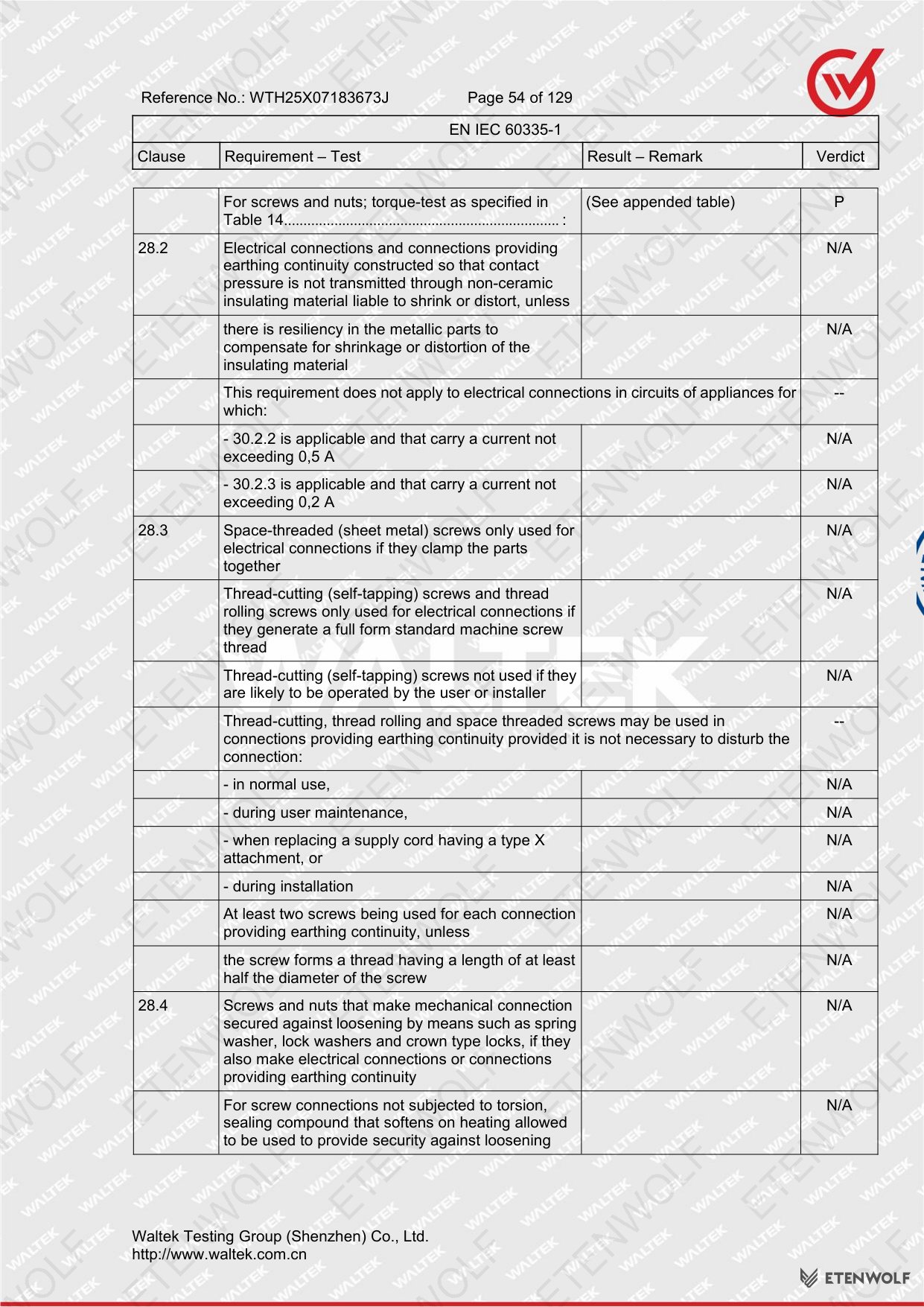

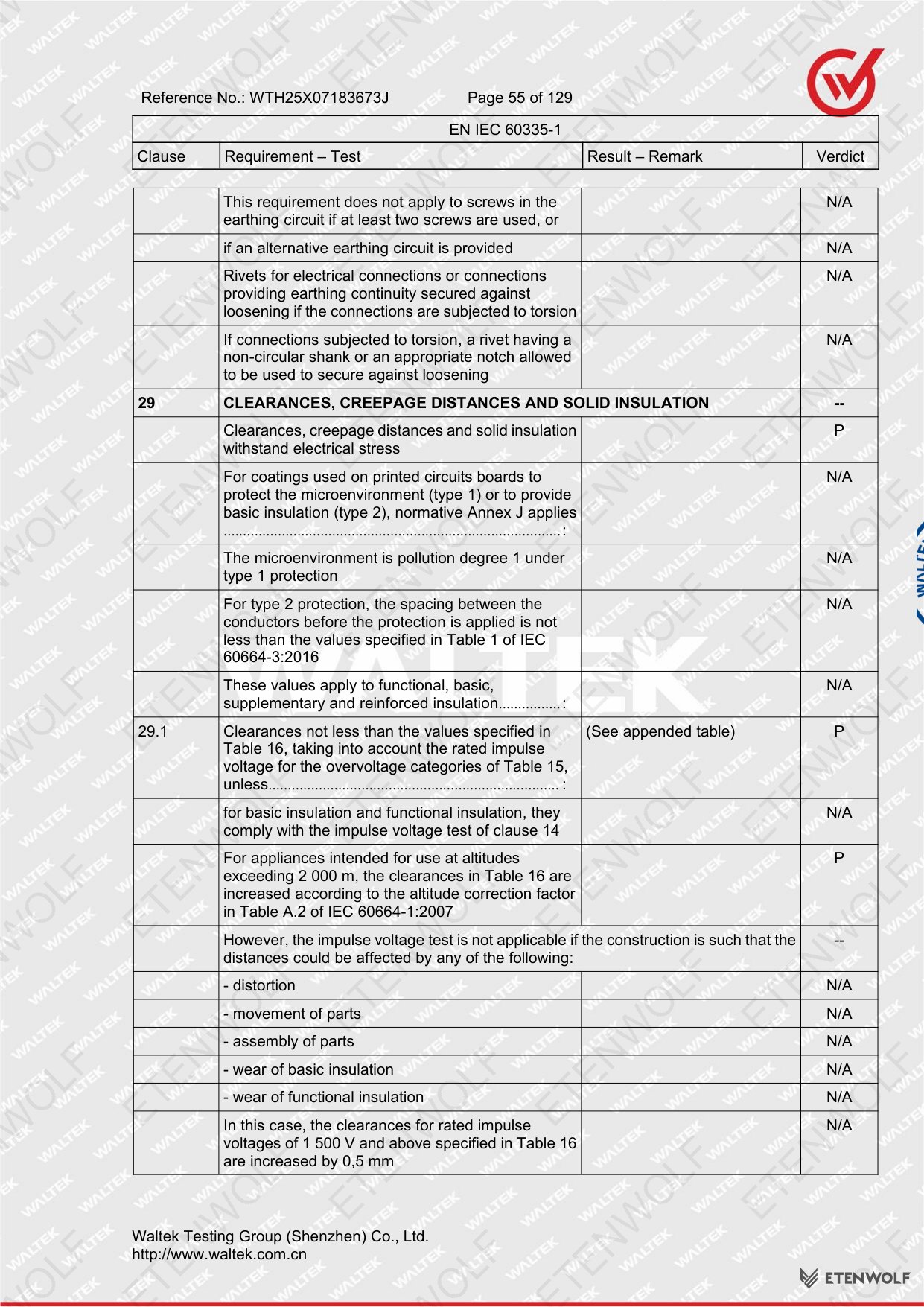

Document Page 54
Document Page 55
Document Page 56

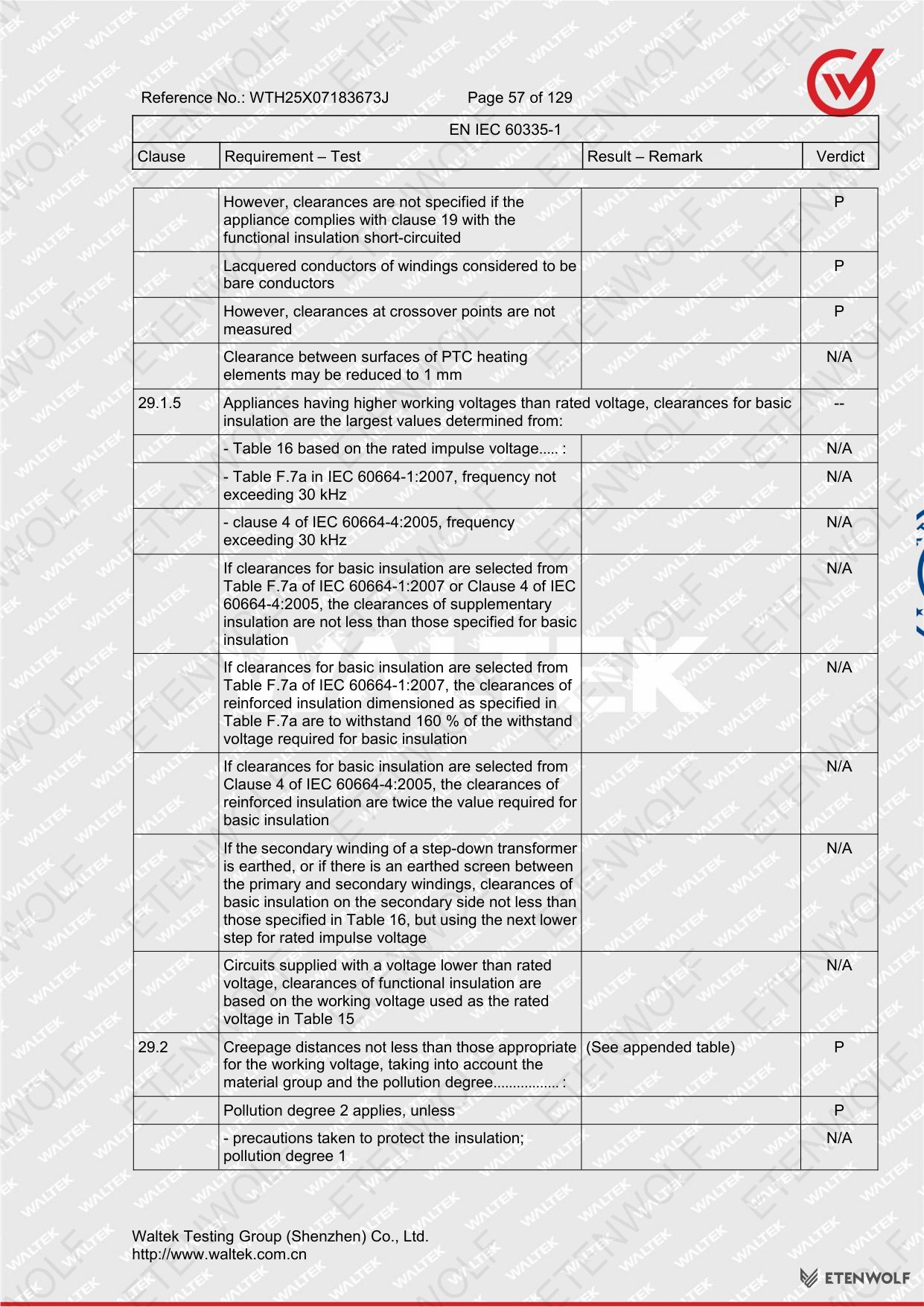

Document Page 57
Document Page 58

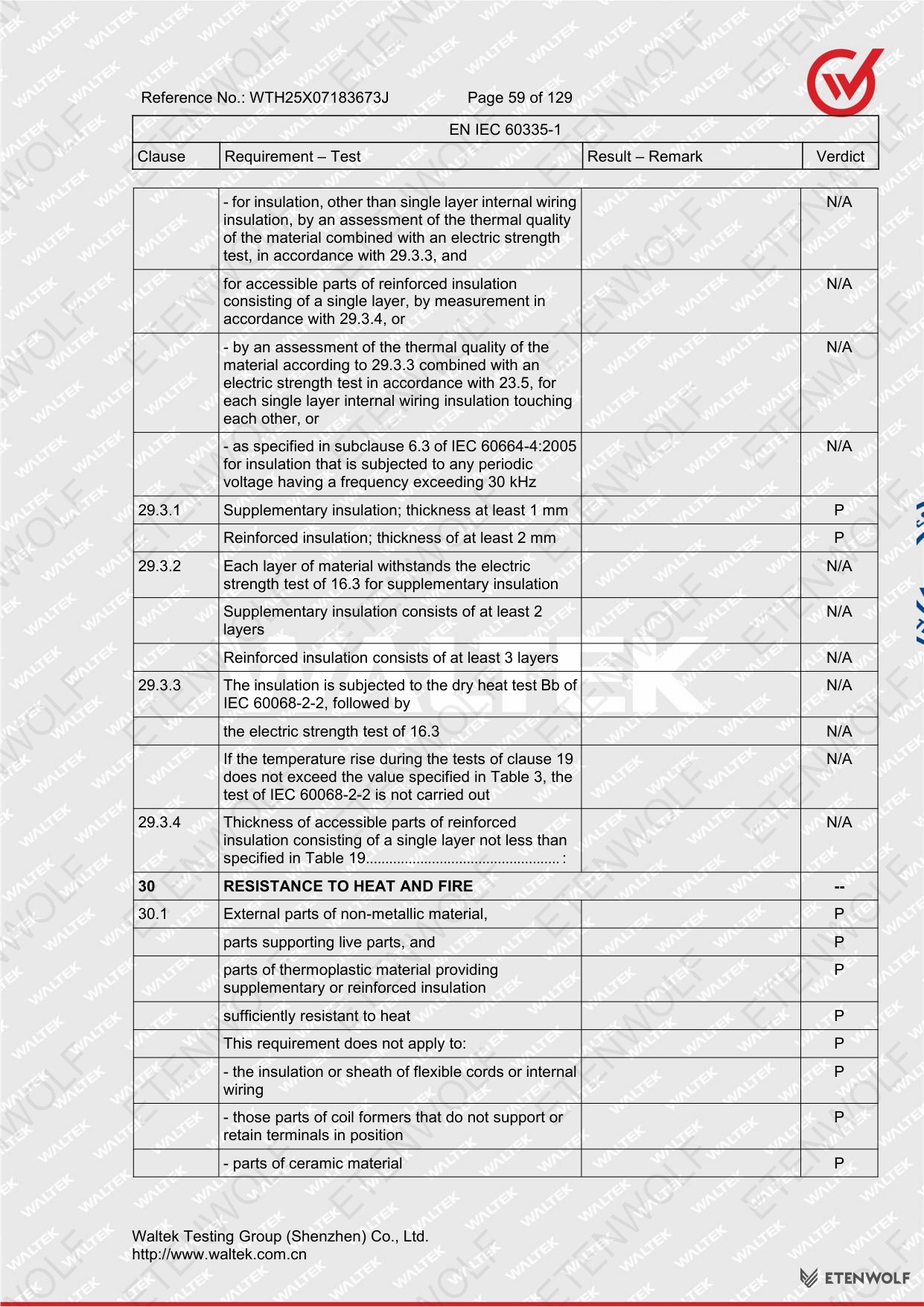

Document Page 59

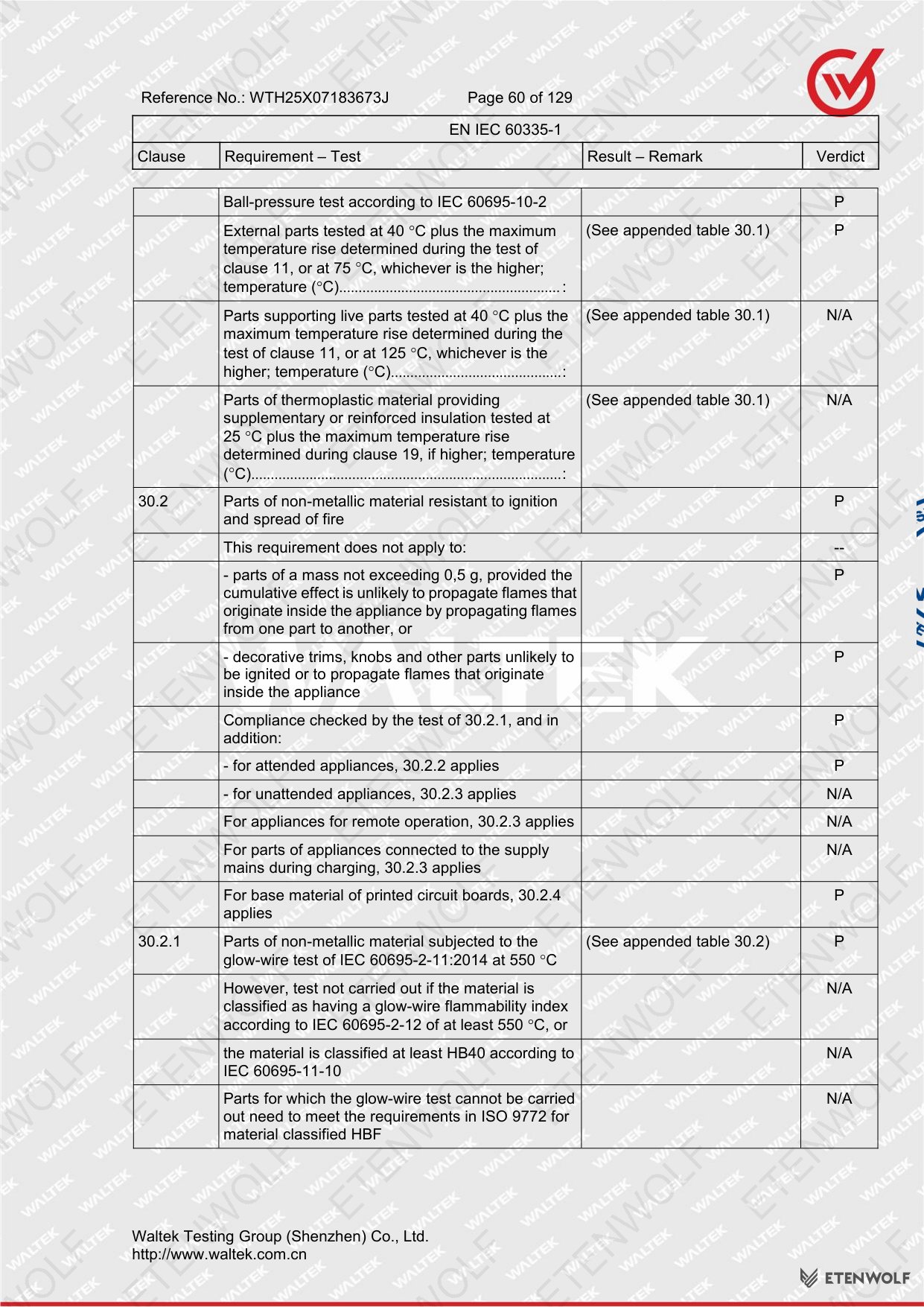

Document Page 60

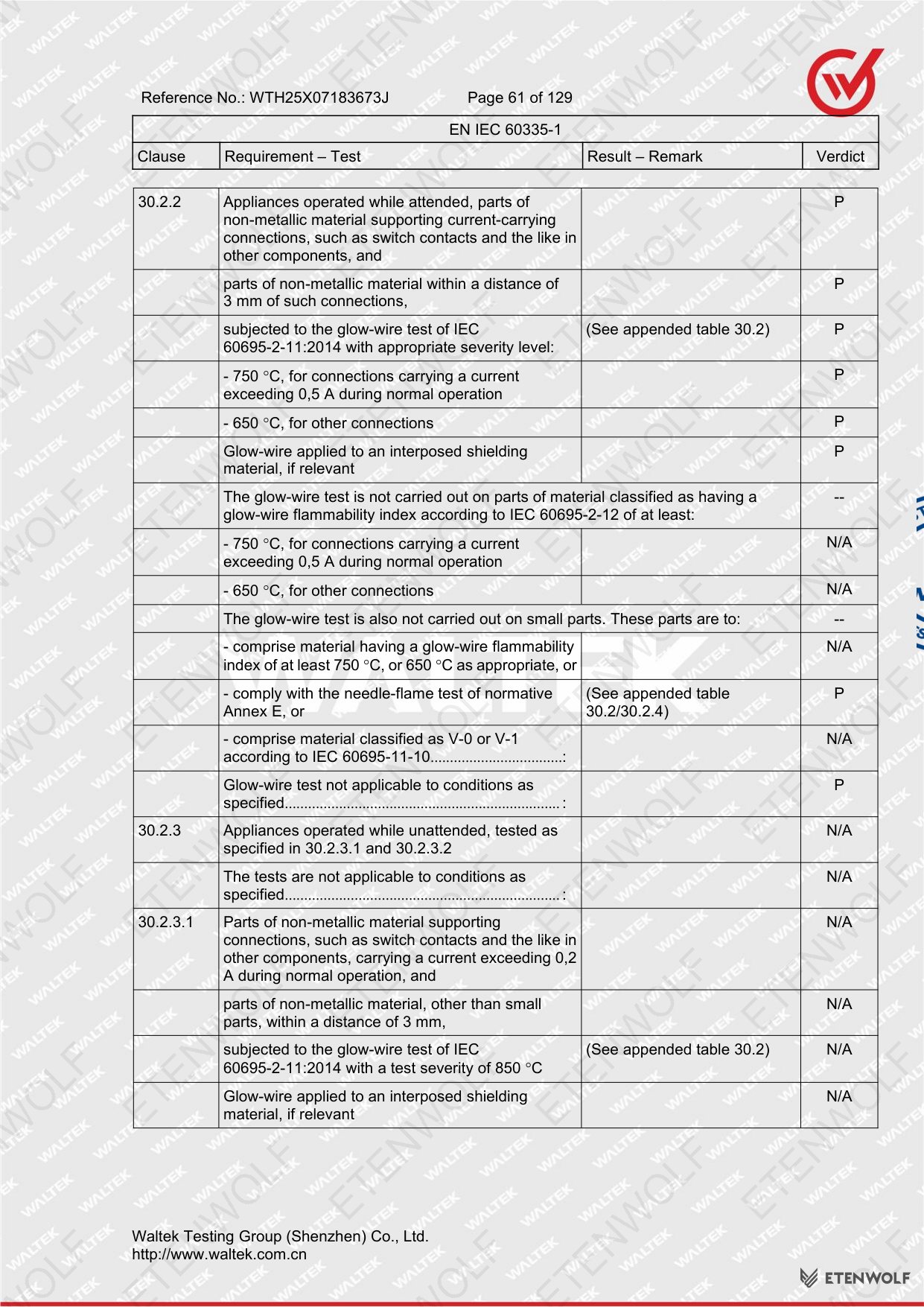

Document Page 61

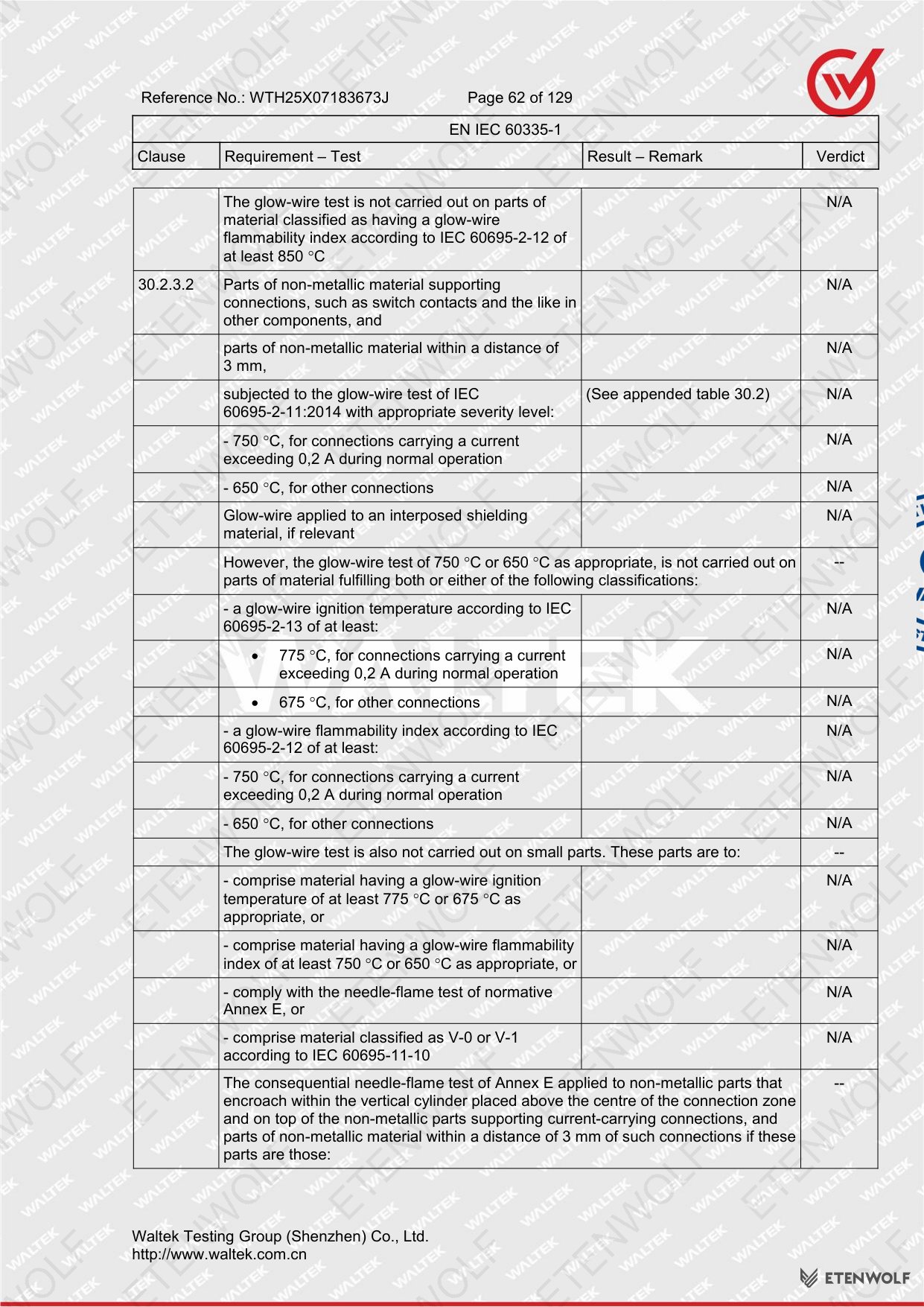

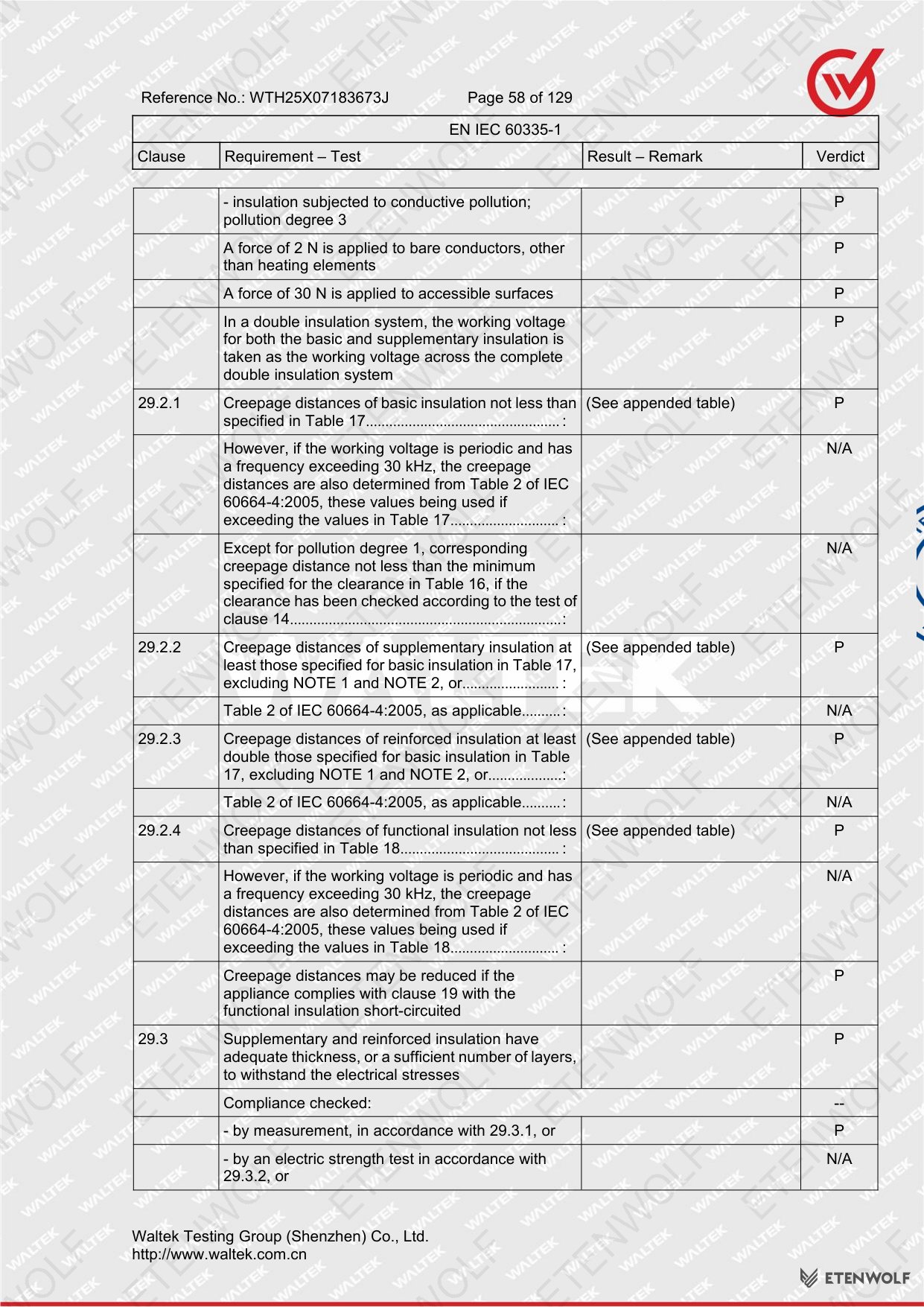

Document Page 62
Document Page 63

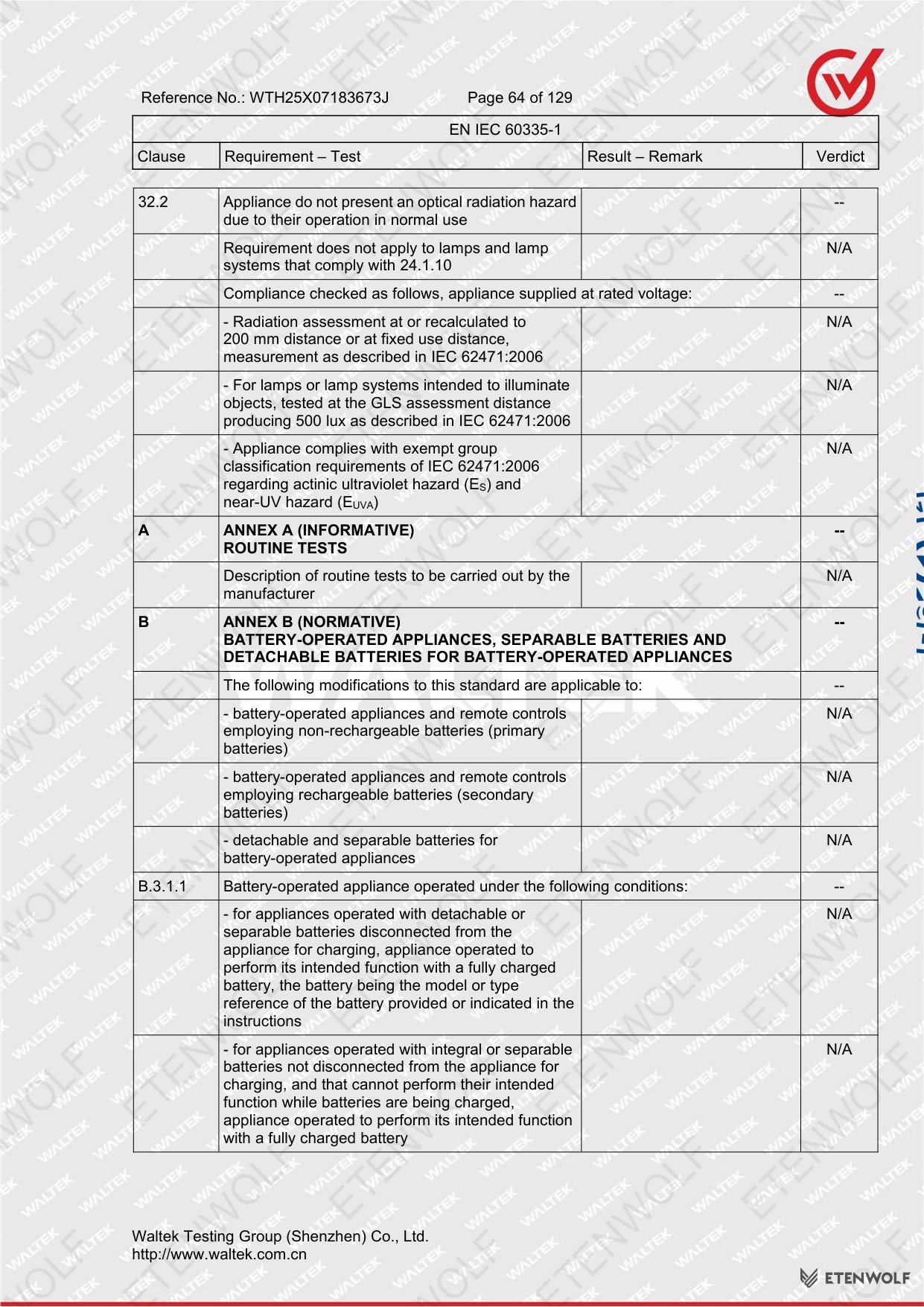

Document Page 64

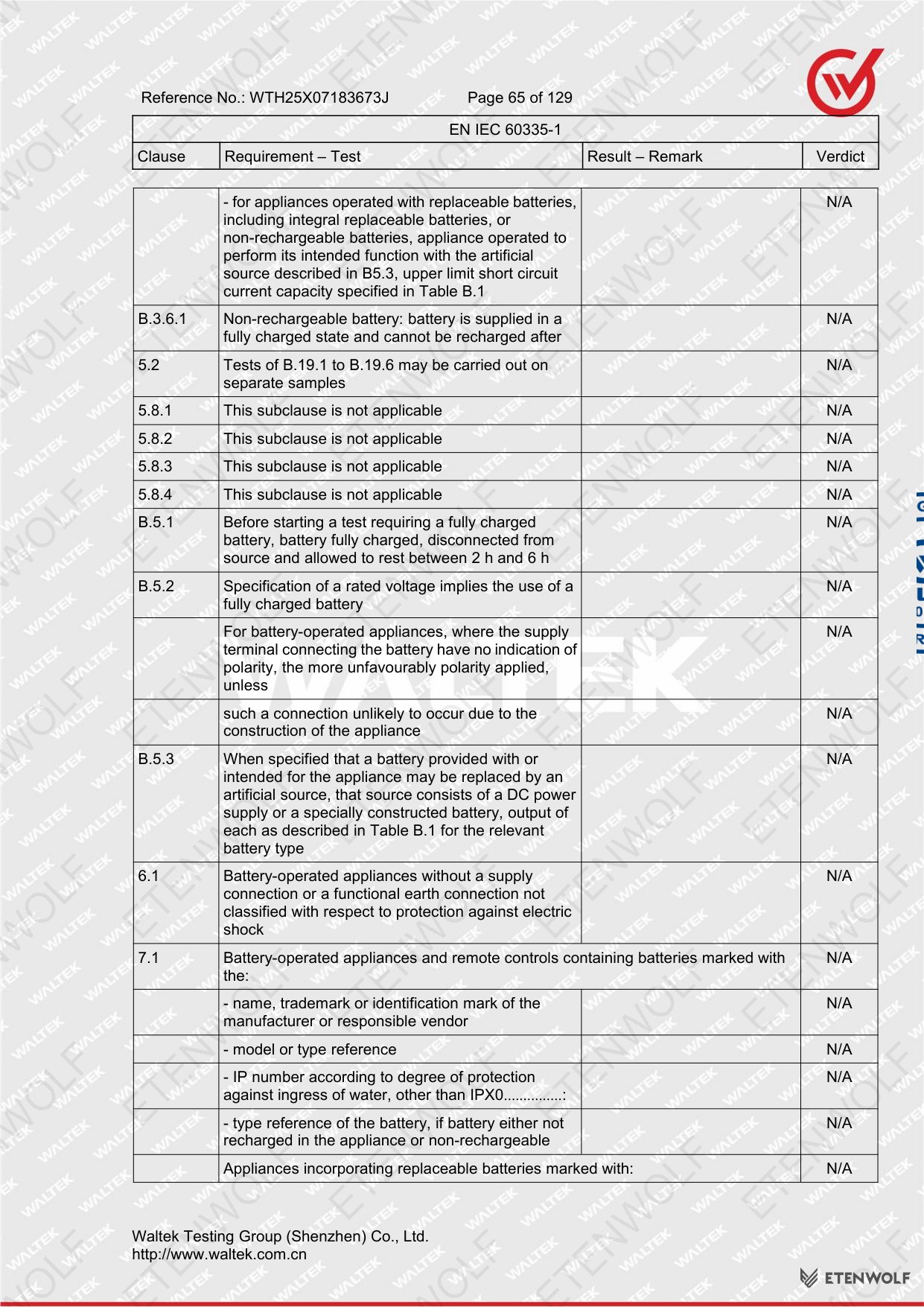

Document Page 65

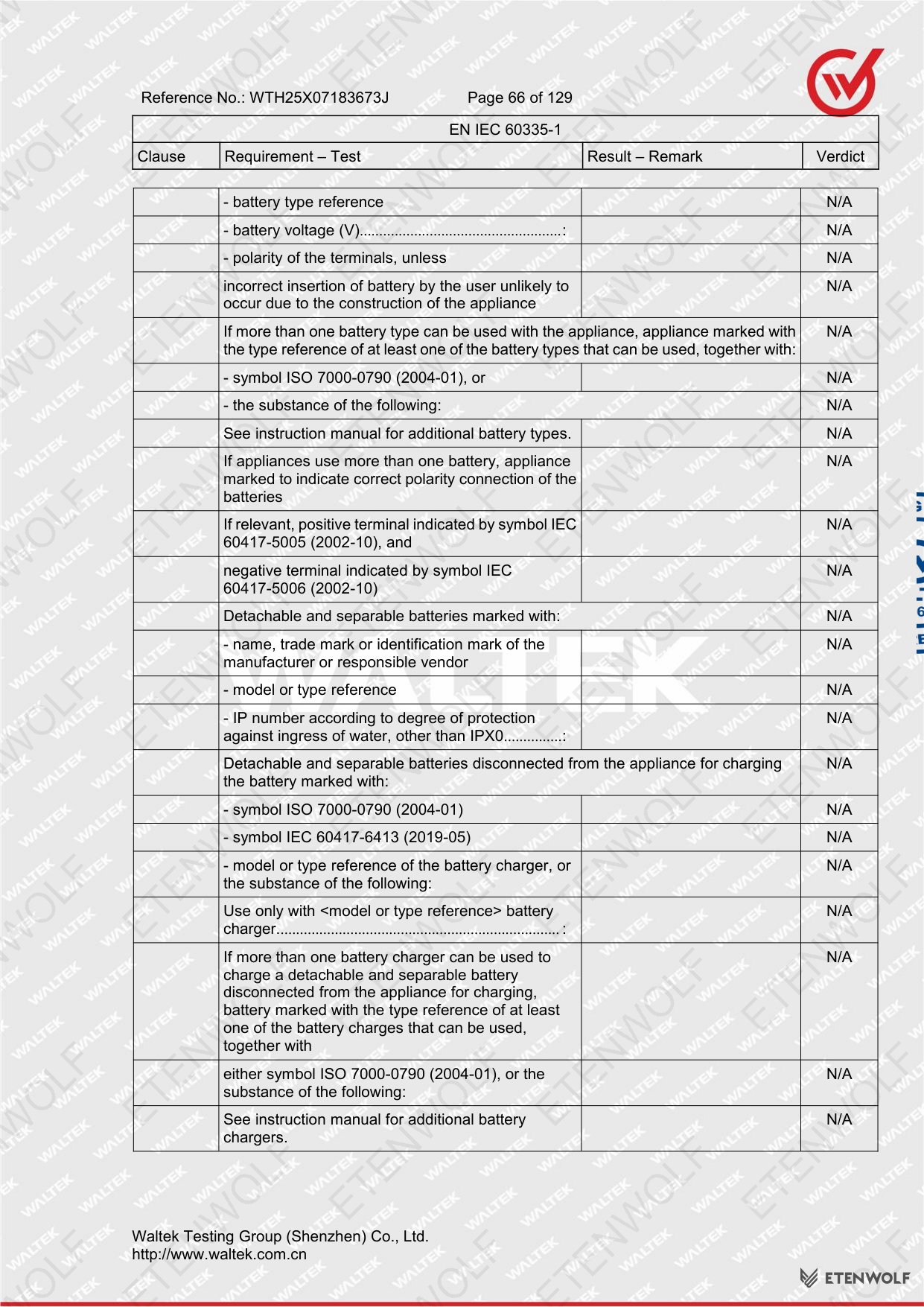

Document Page 66

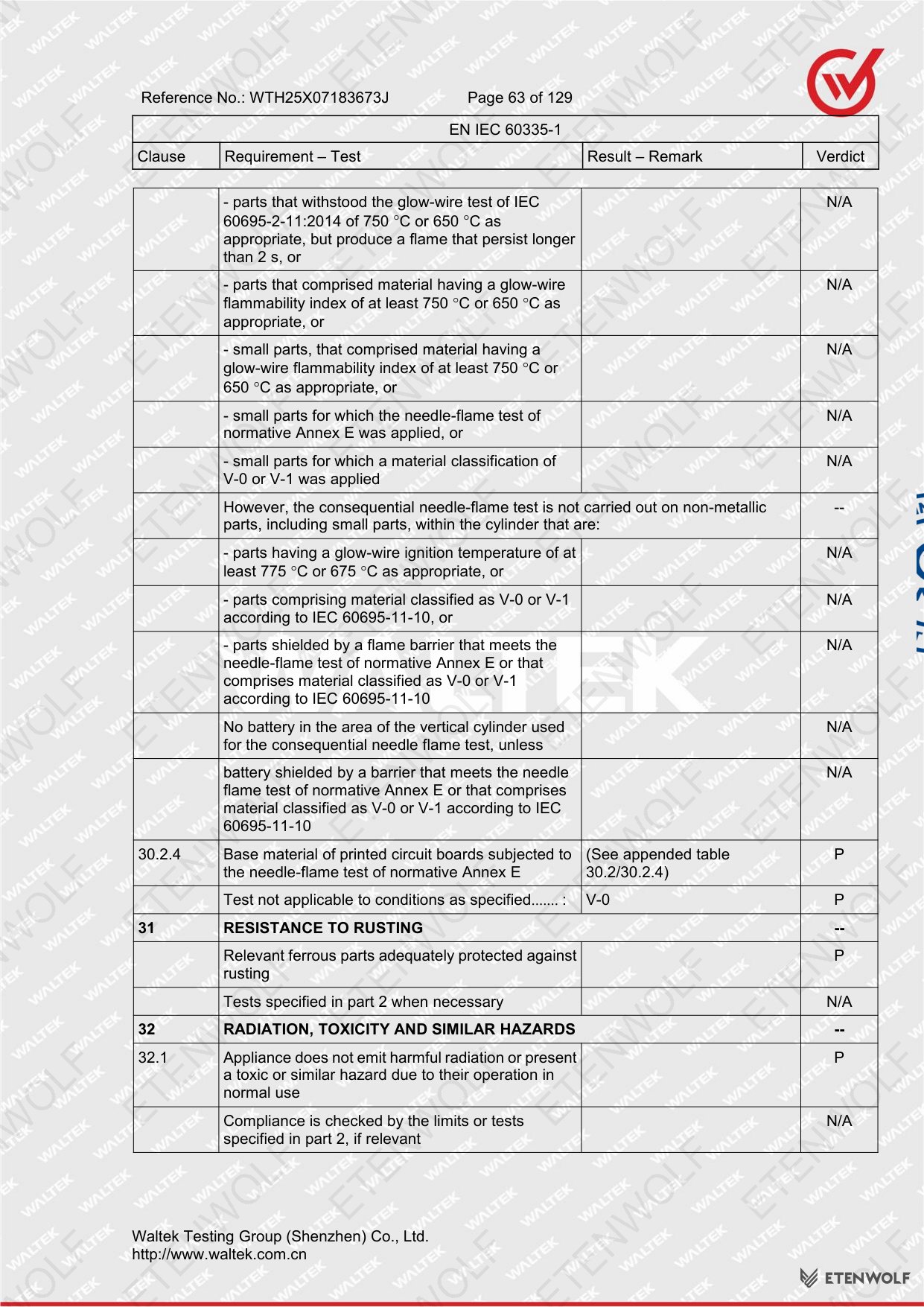

Document Page 67

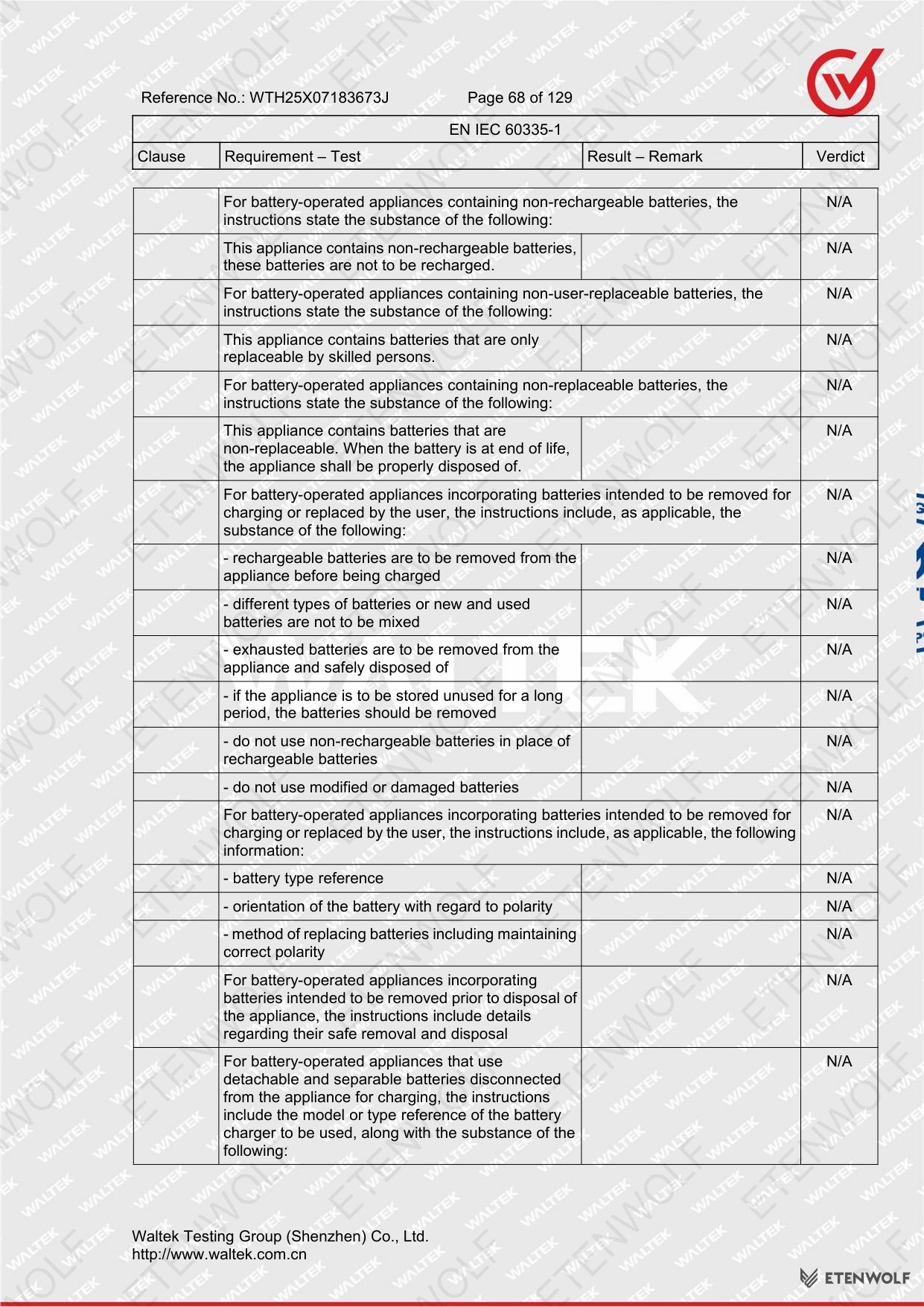

Document Page 68

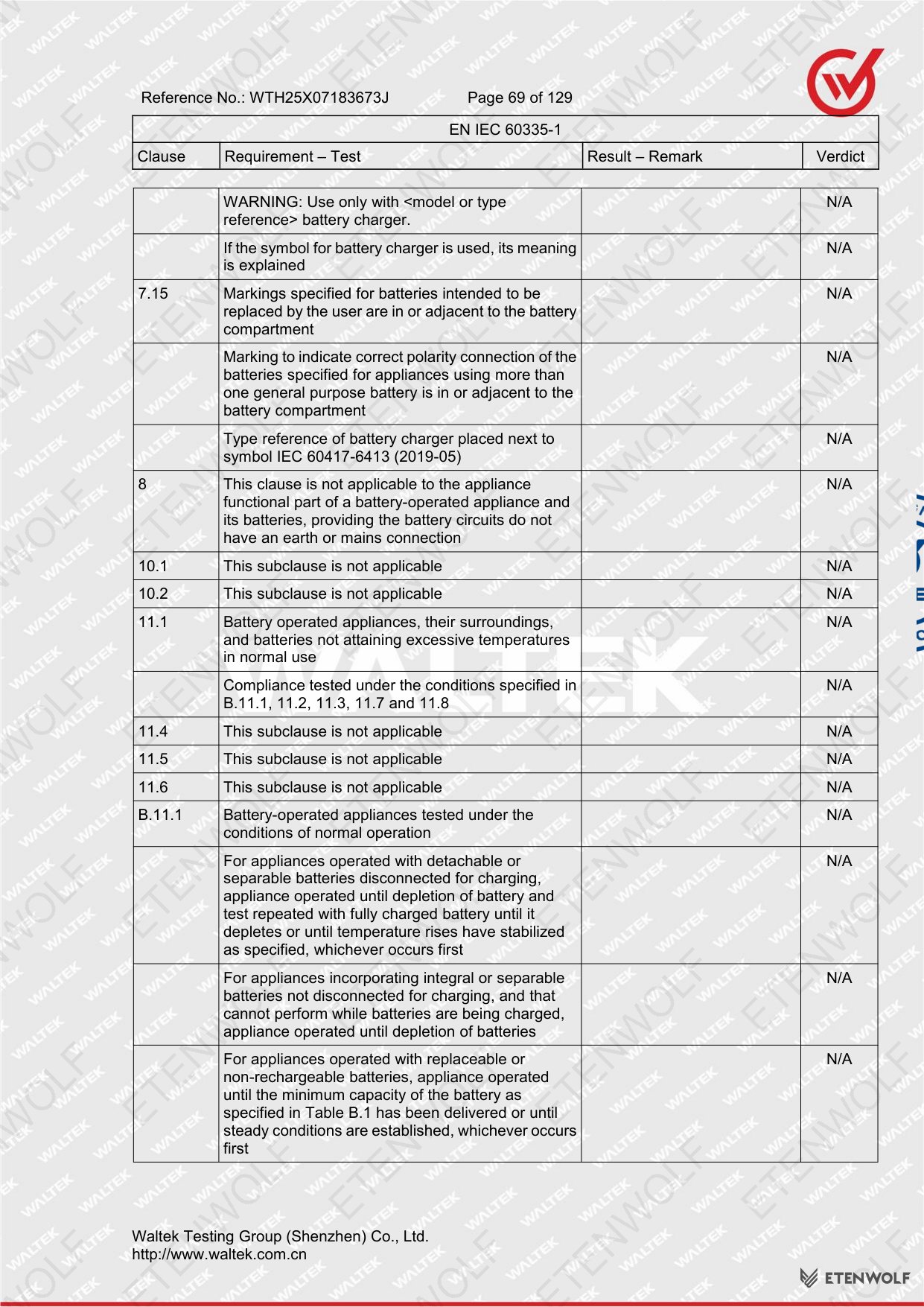

Document Page 69
Document Page 70
Document Page 71

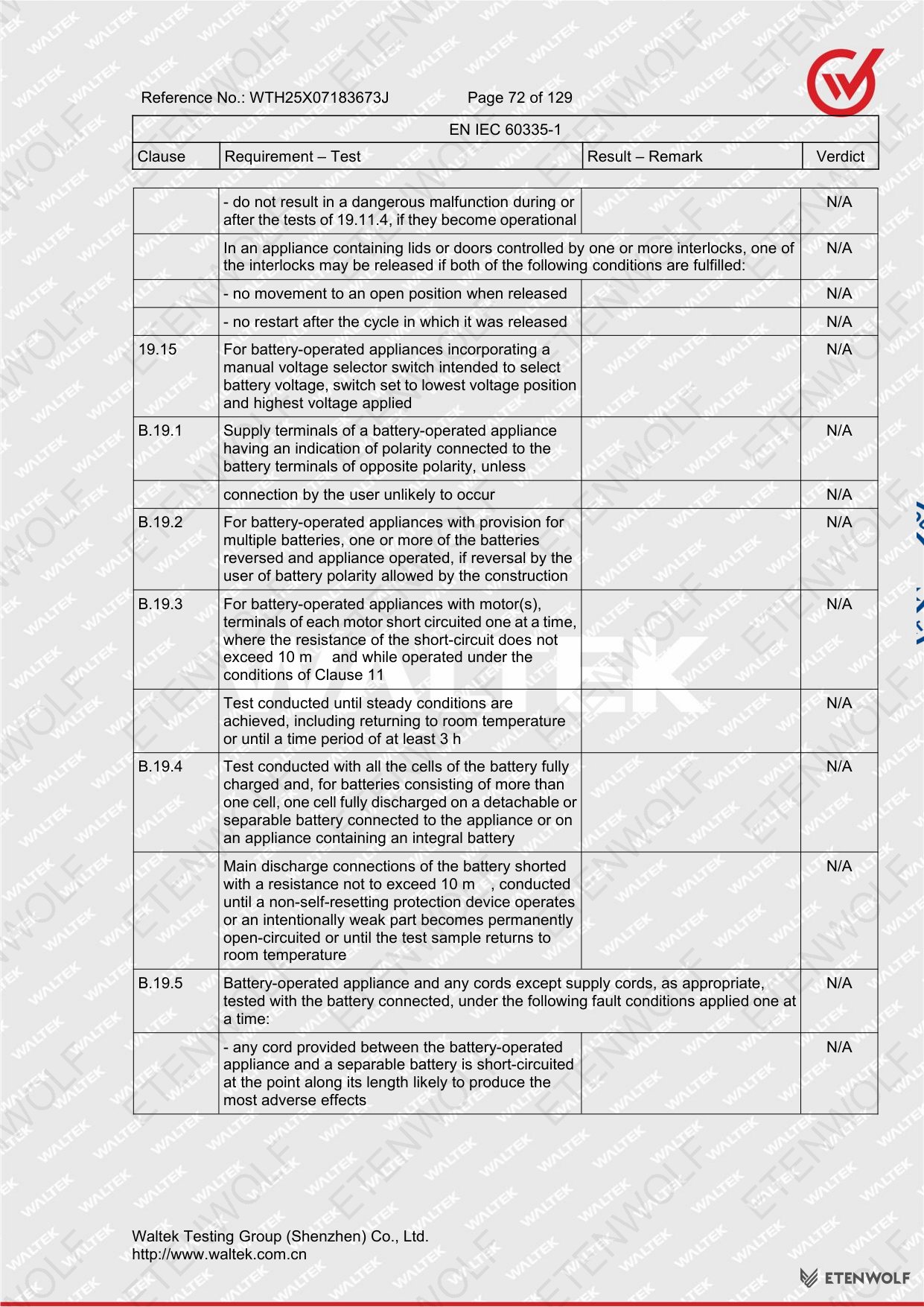

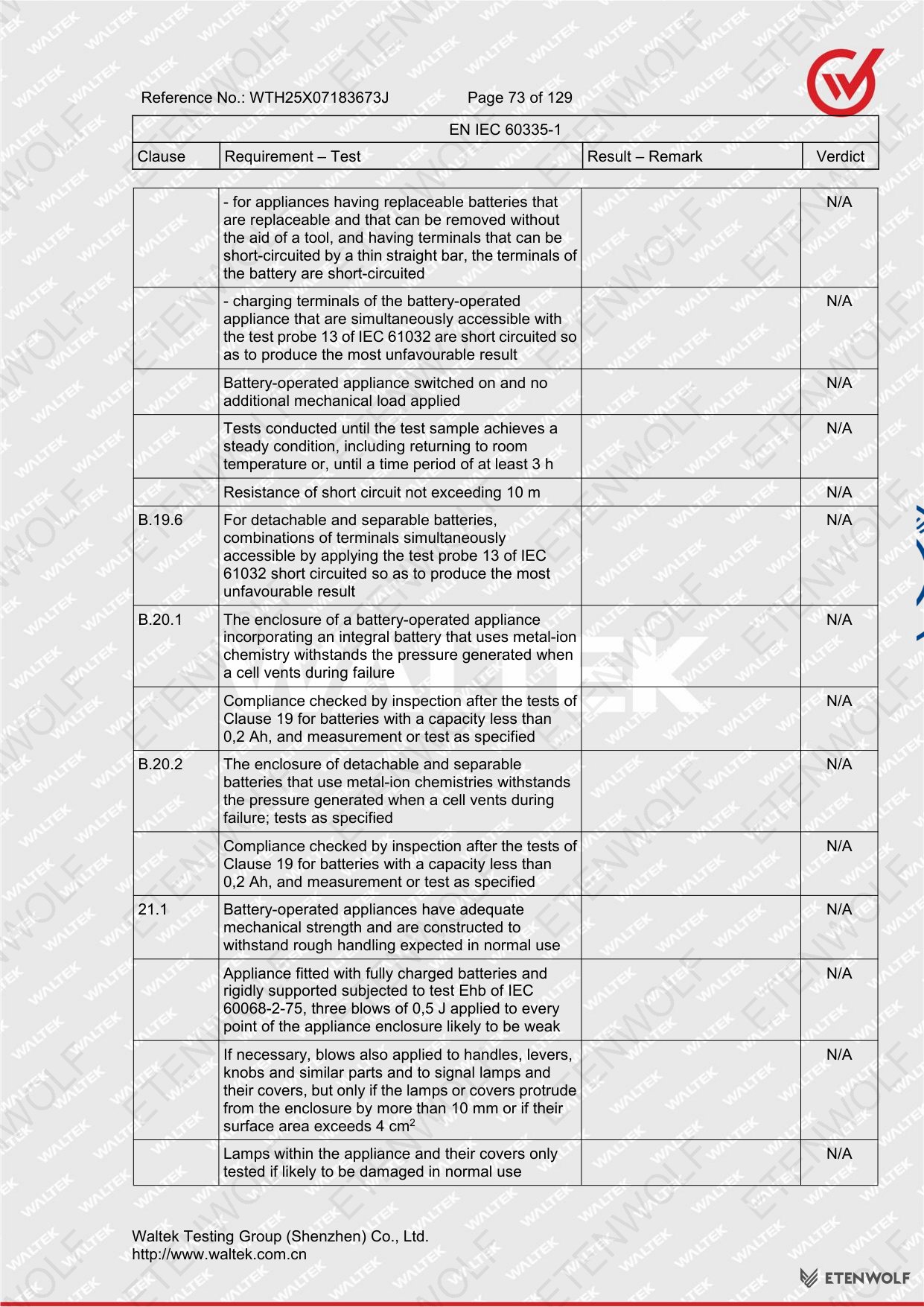

Document Page 72
Document Page 73
Document Page 74

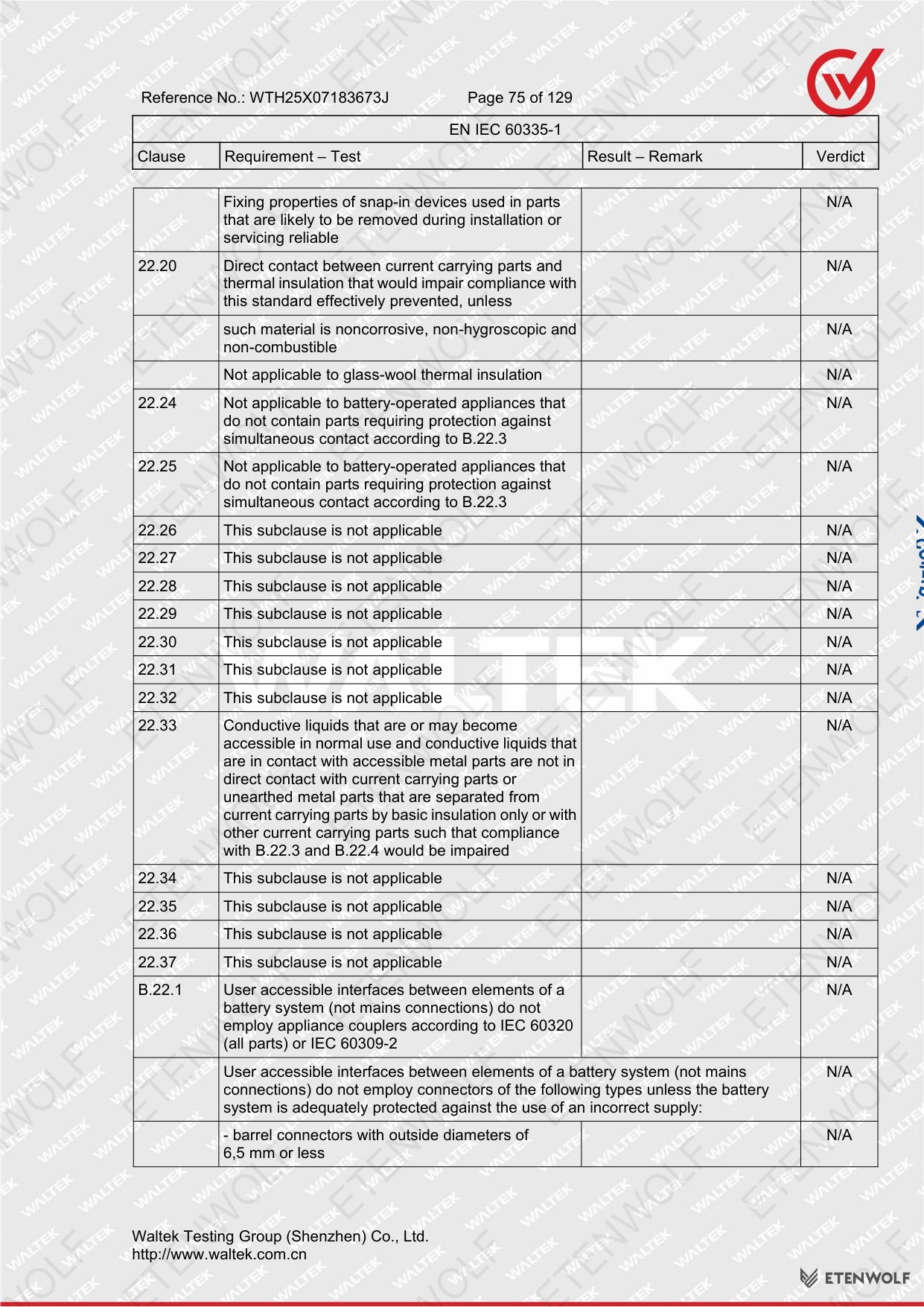

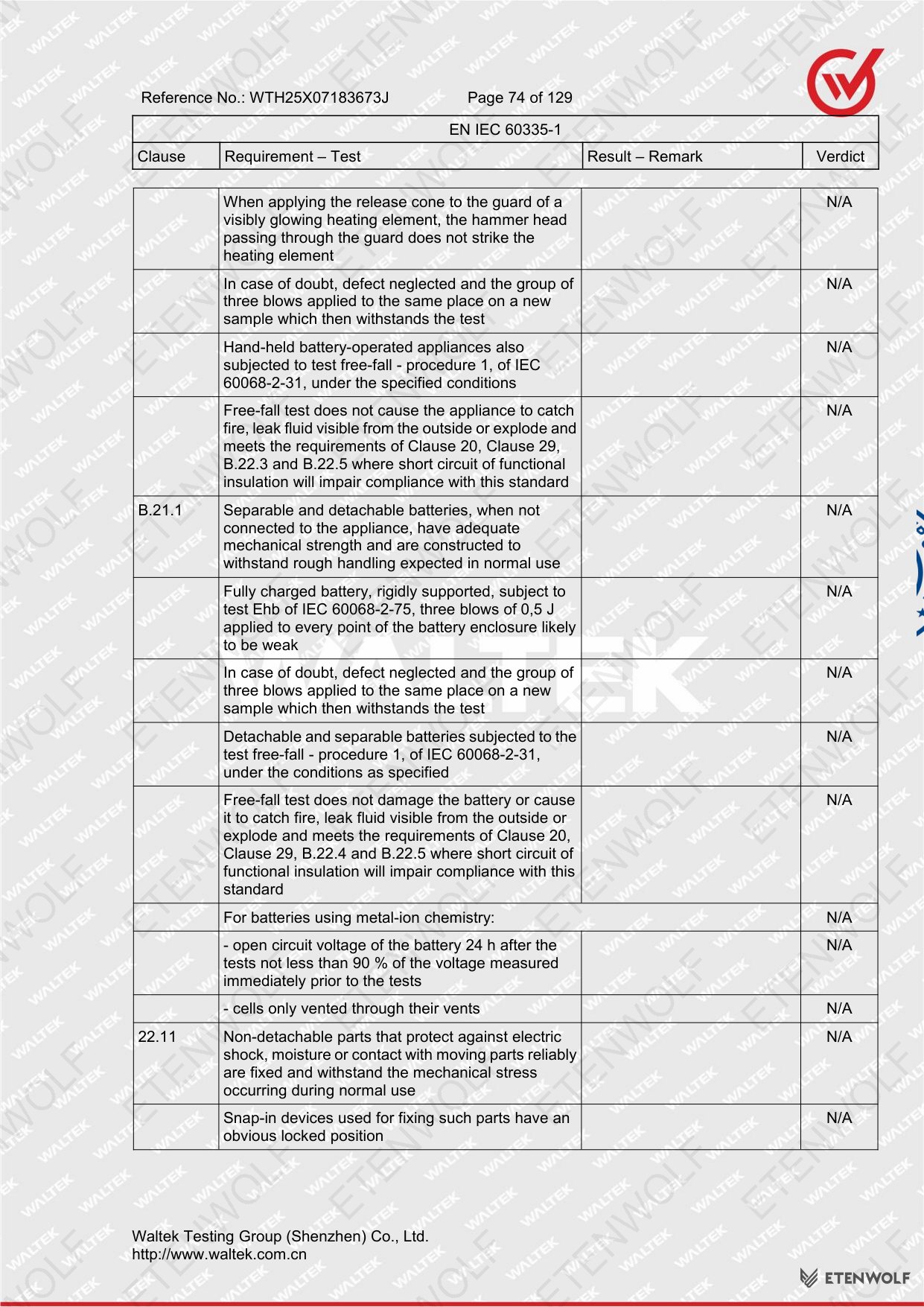

Document Page 75

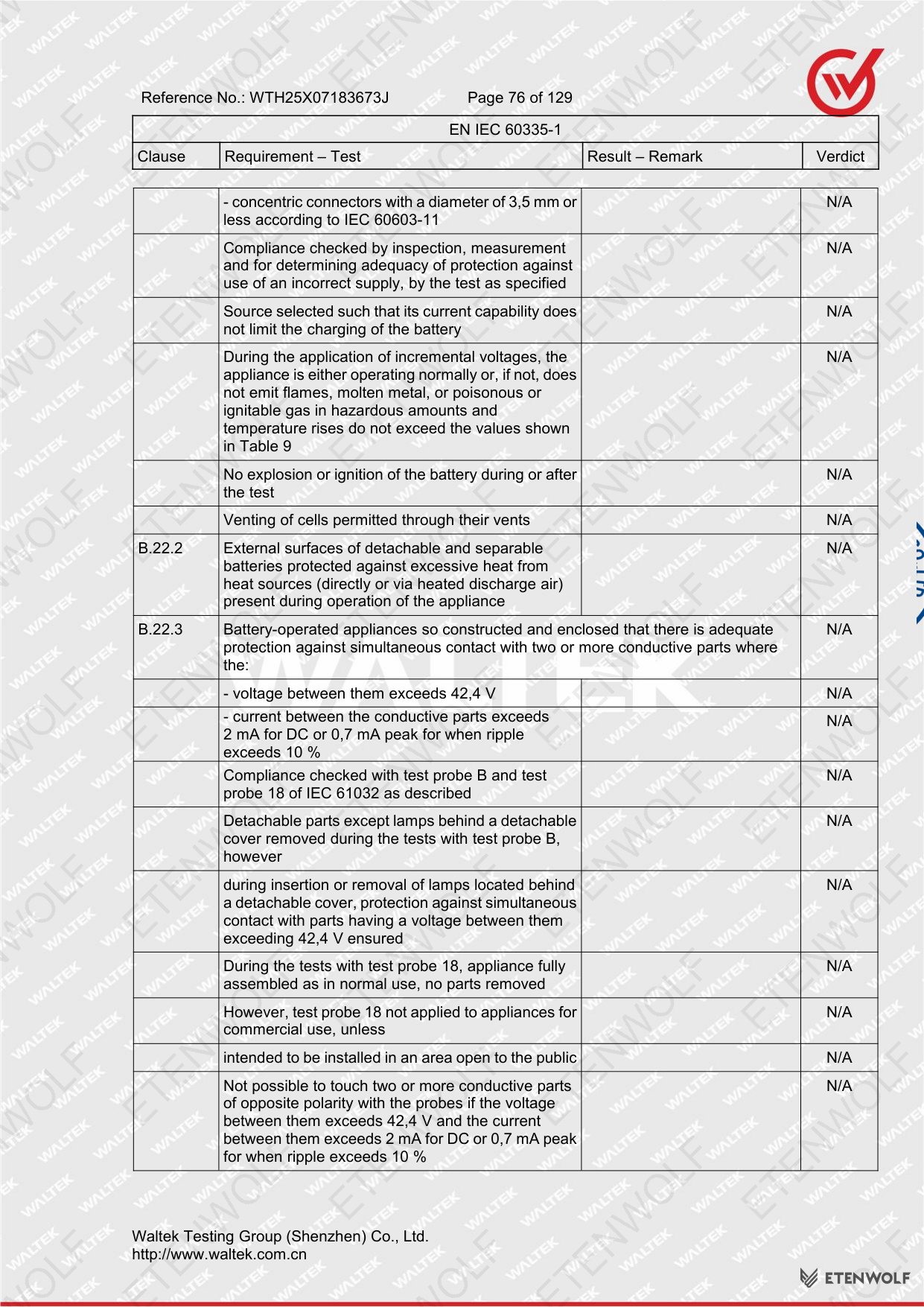

Document Page 76

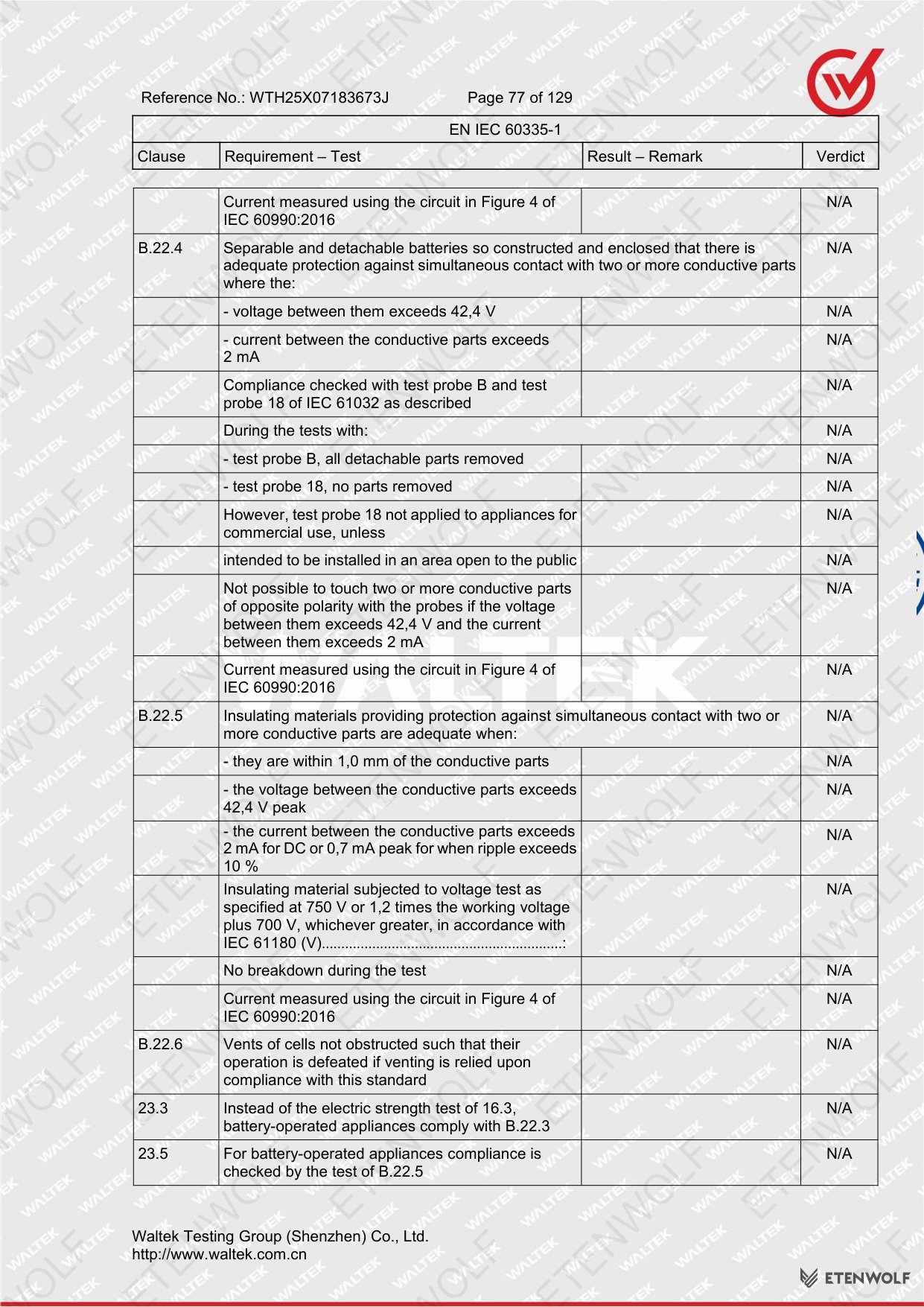

Document Page 77

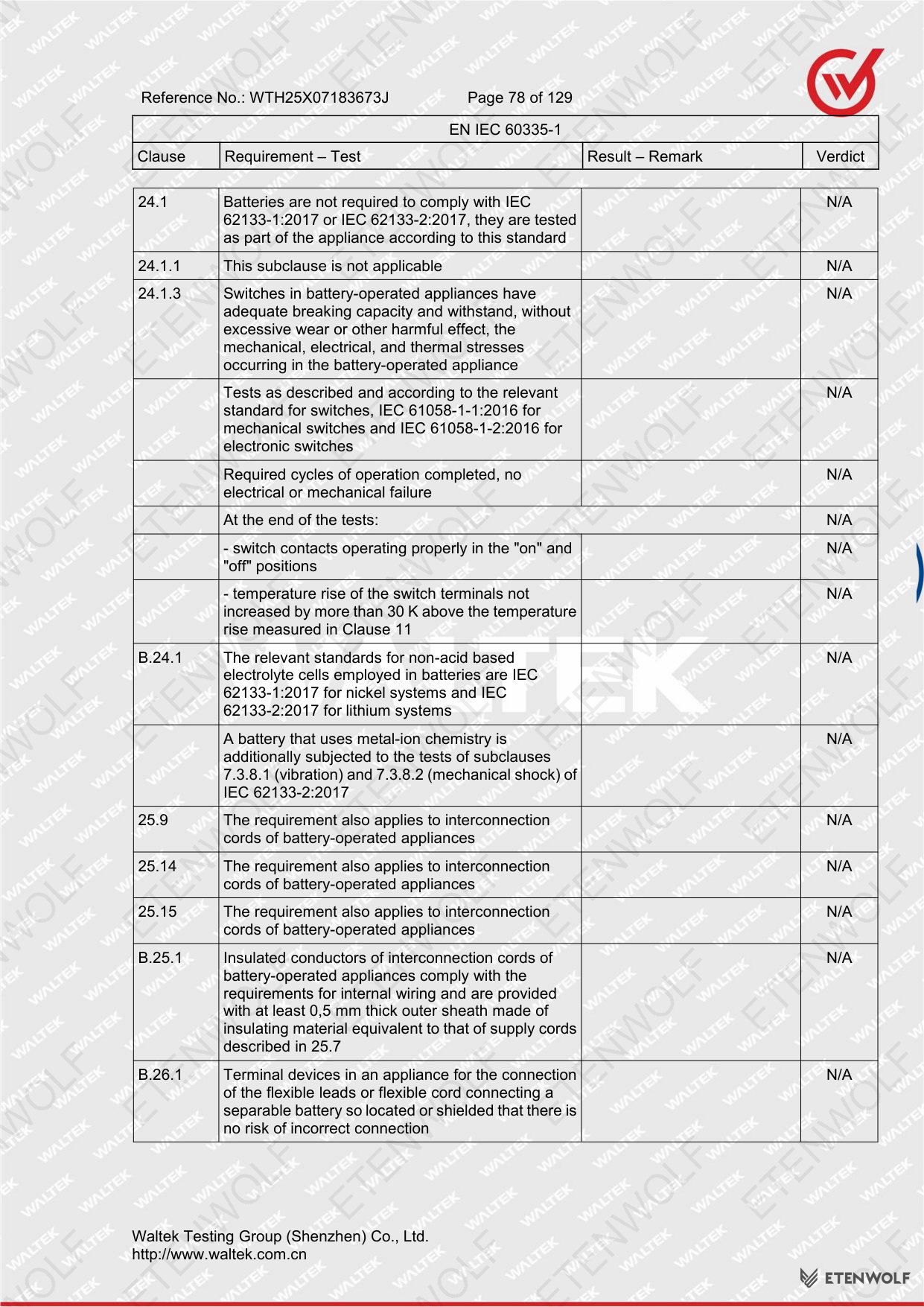

Document Page 78
Document Page 79

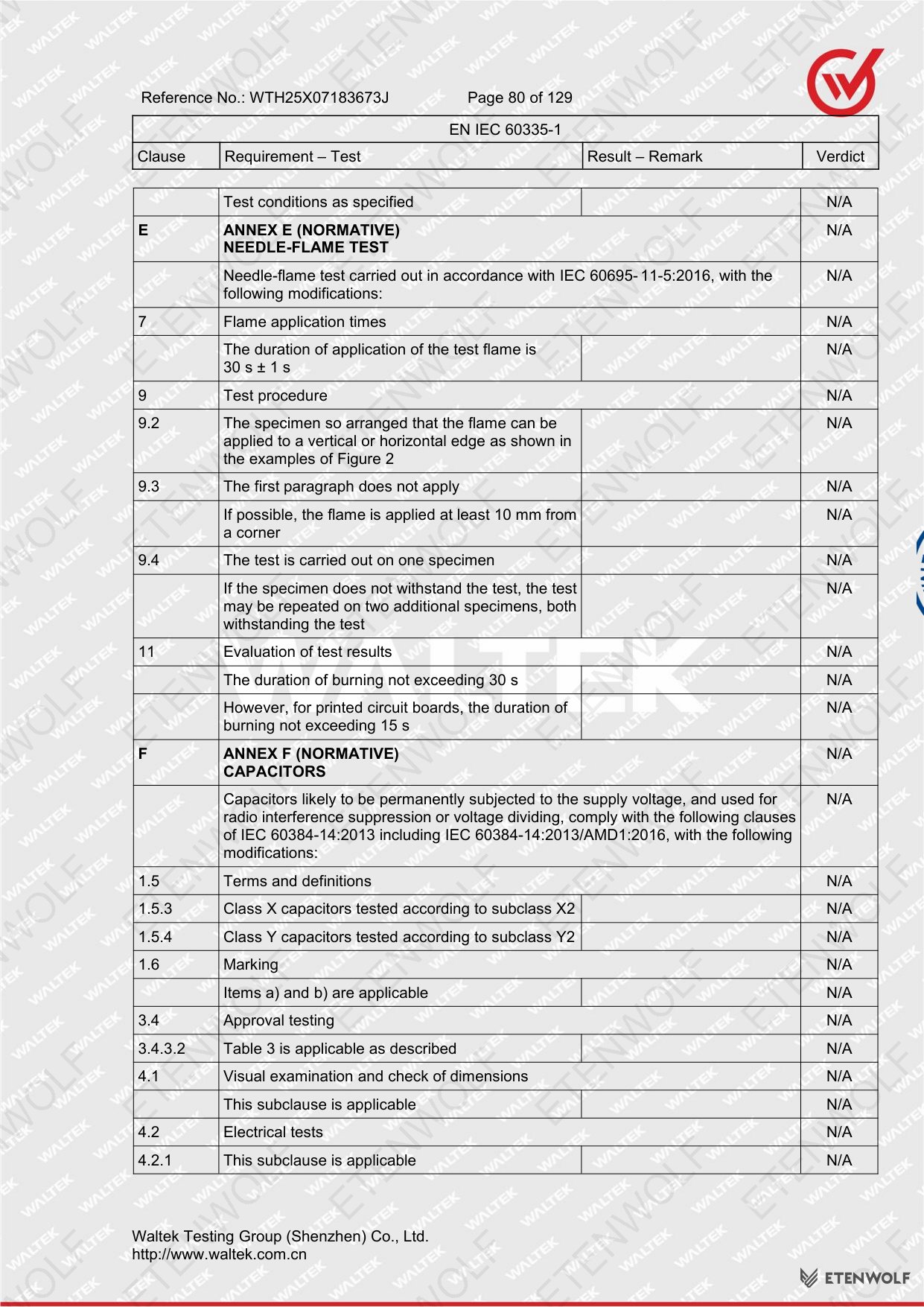

Document Page 80

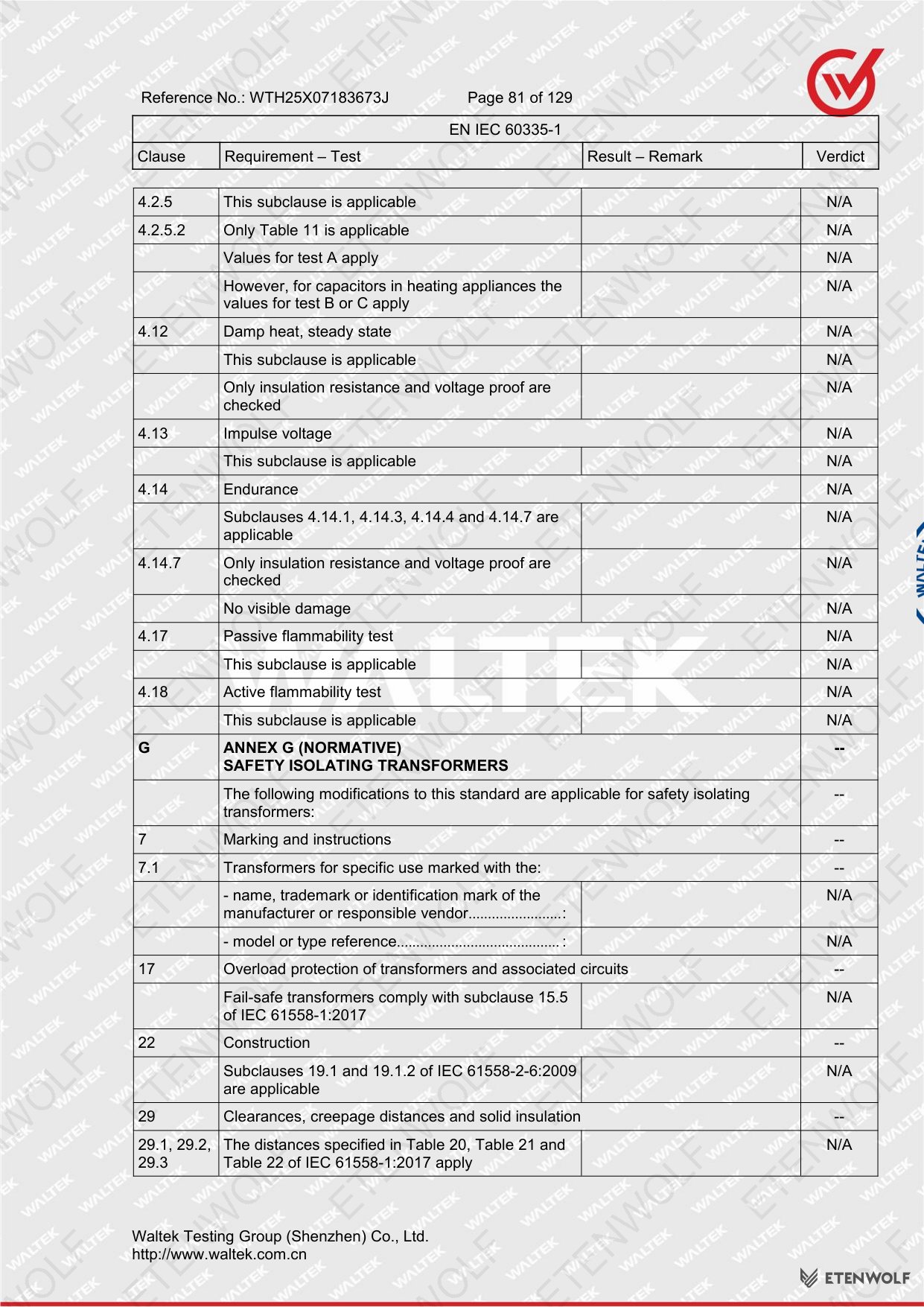

Document Page 81

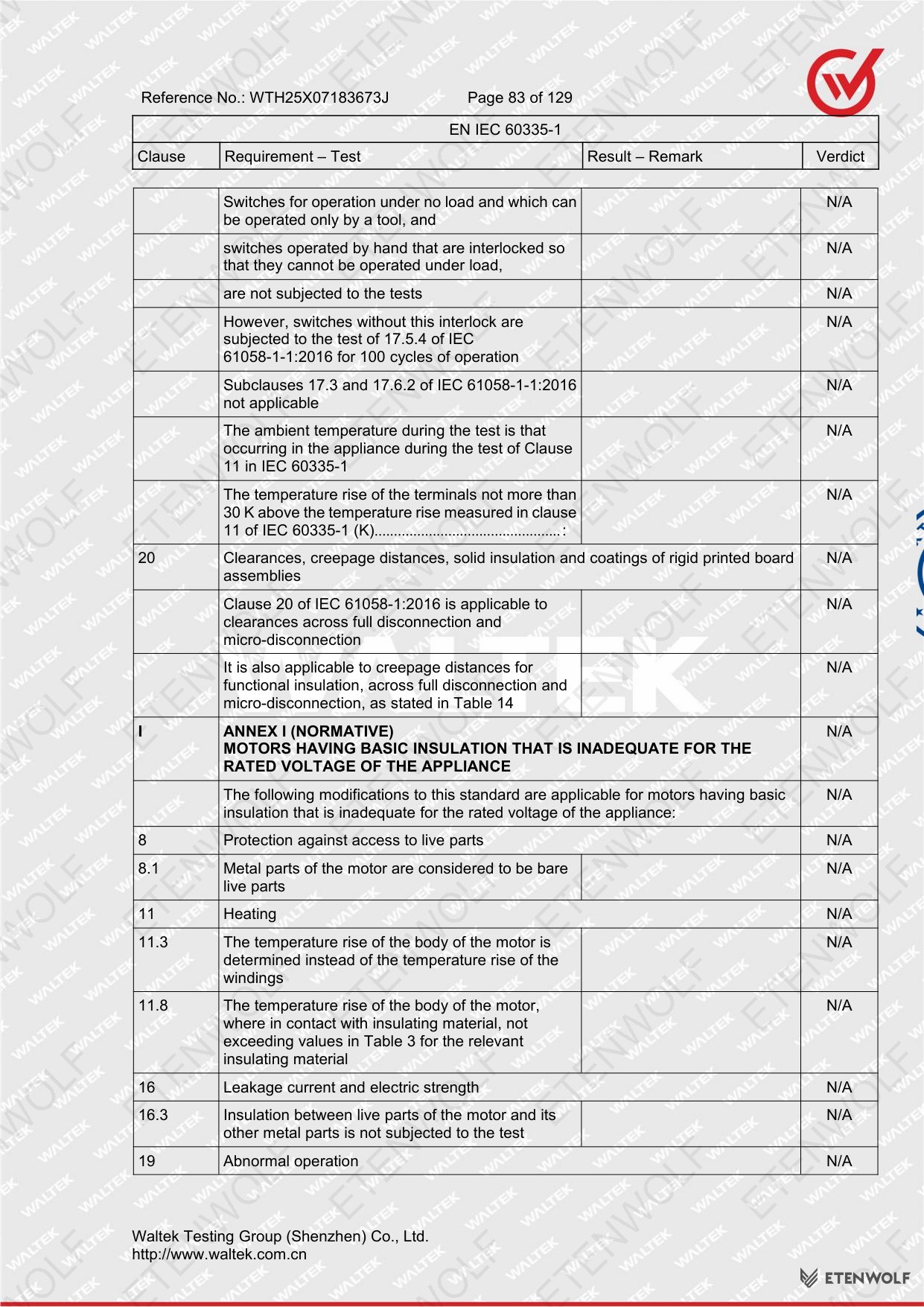

Document Page 82
Document Page 83

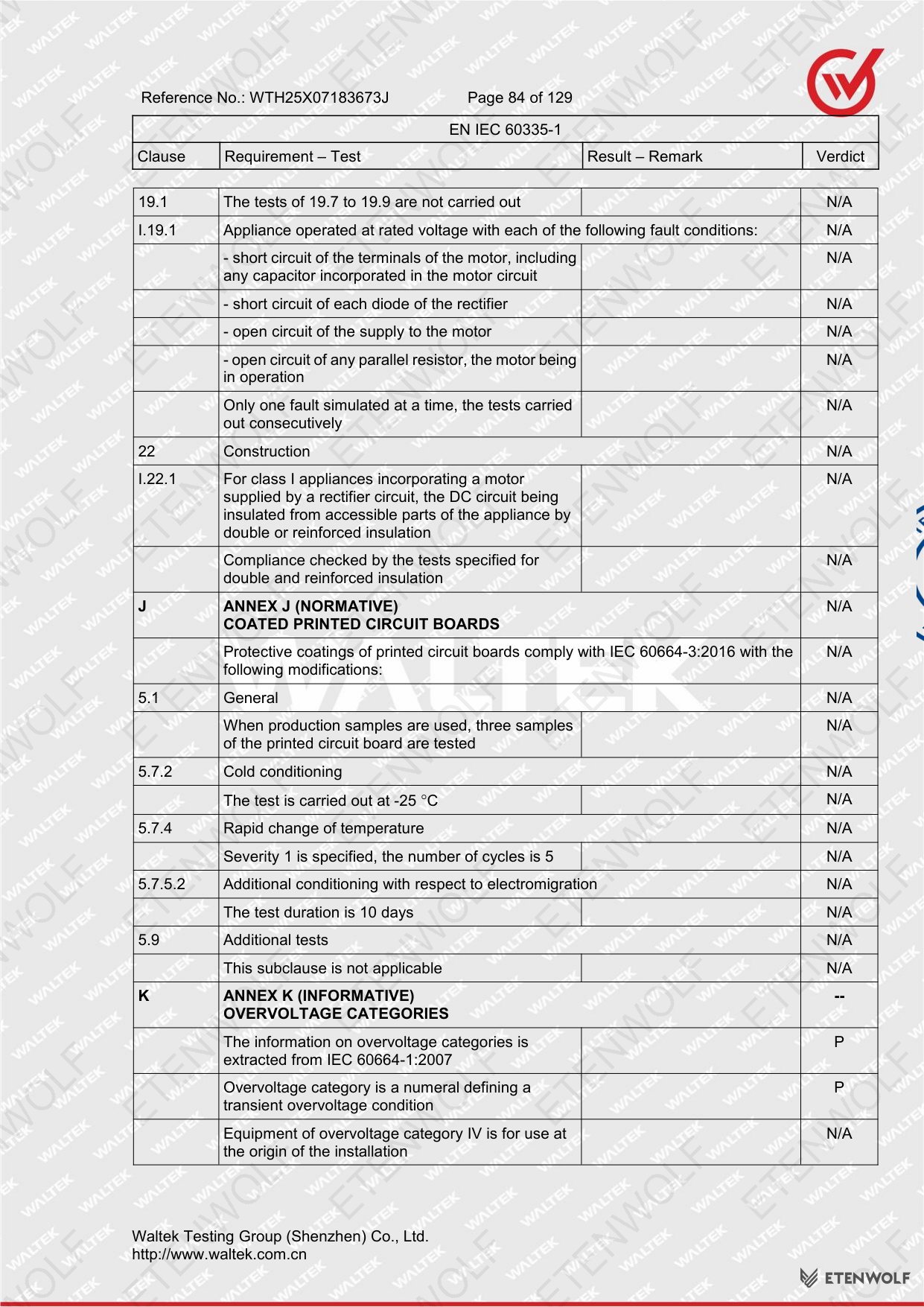

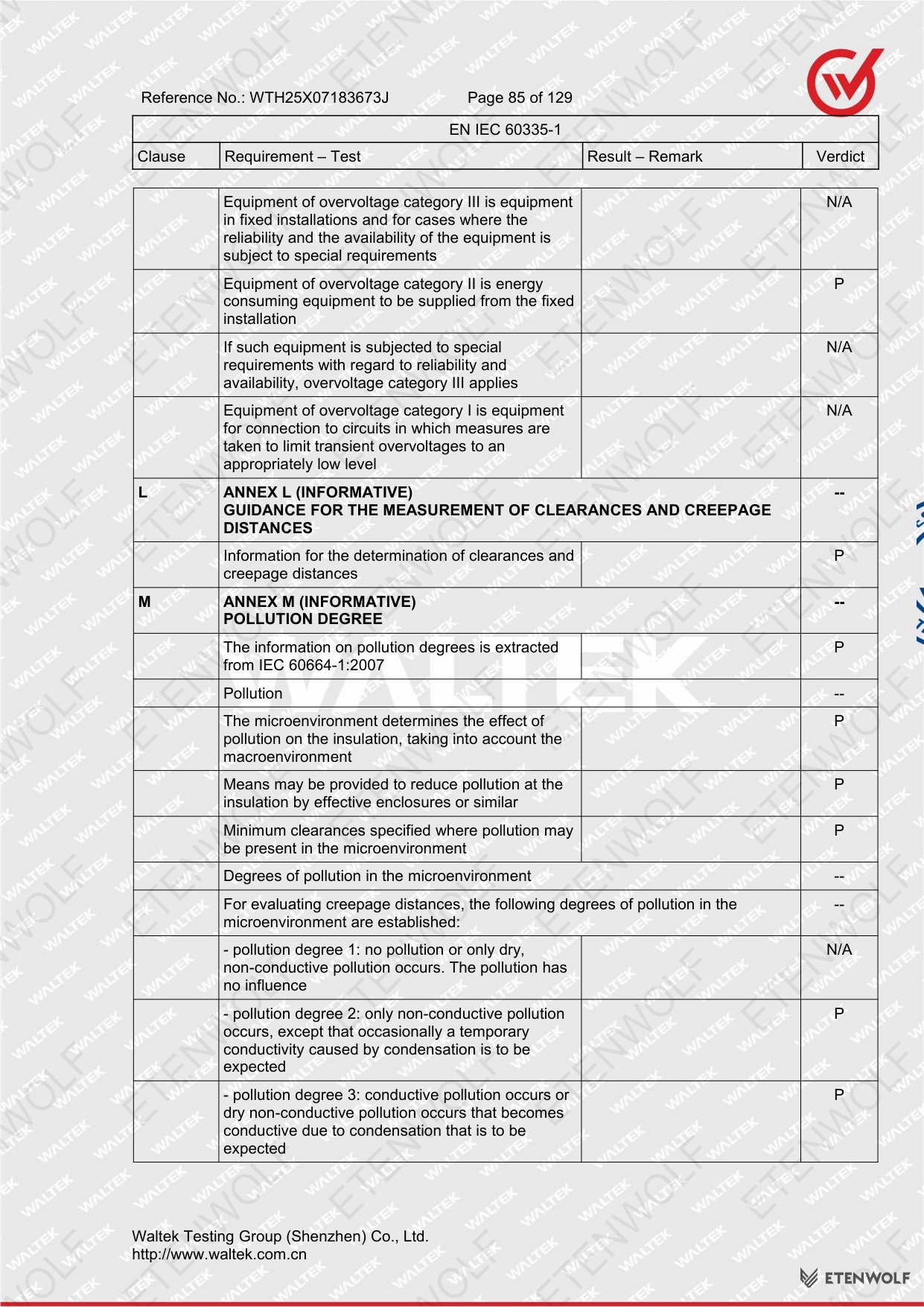

Document Page 84
Document Page 85

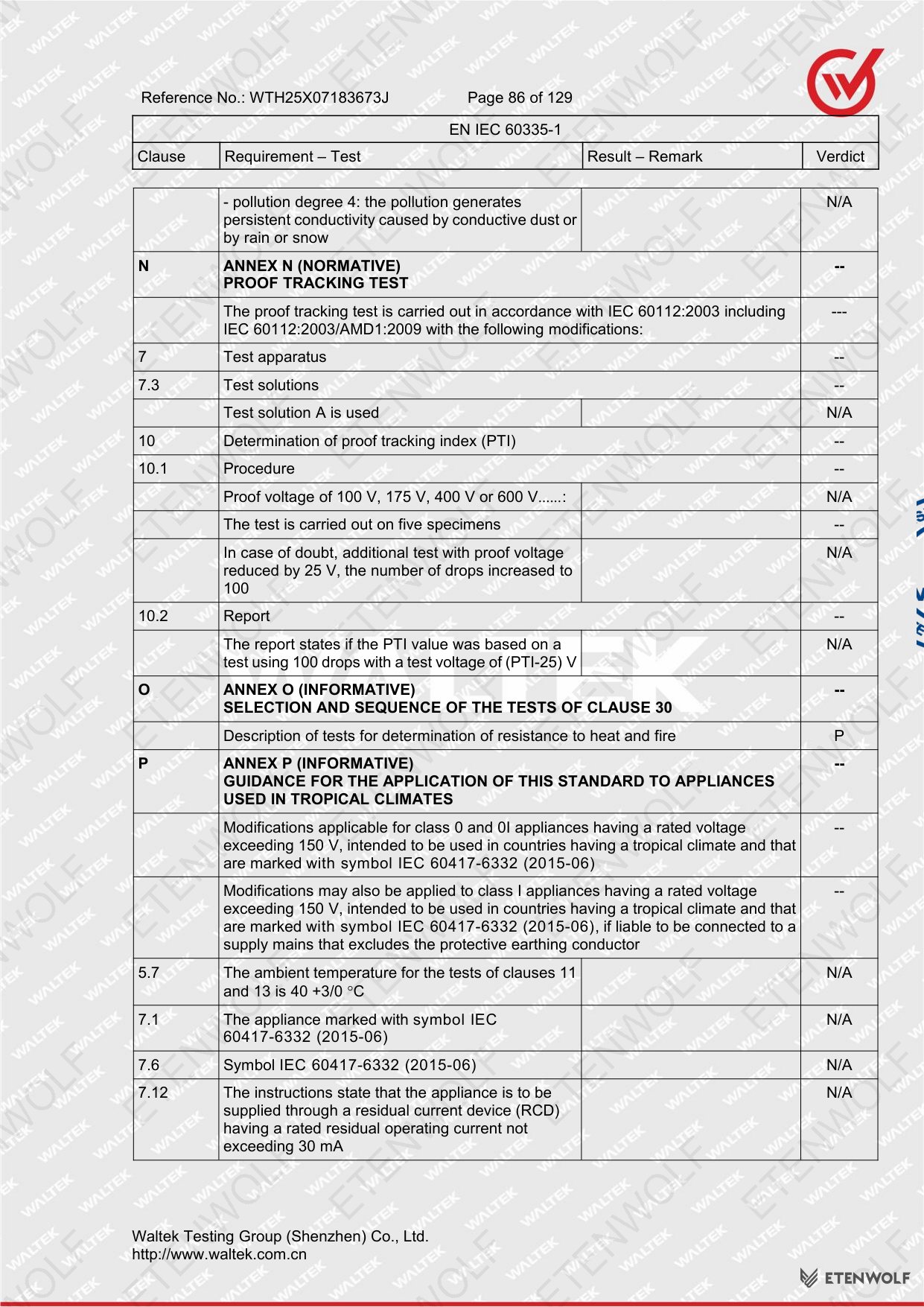

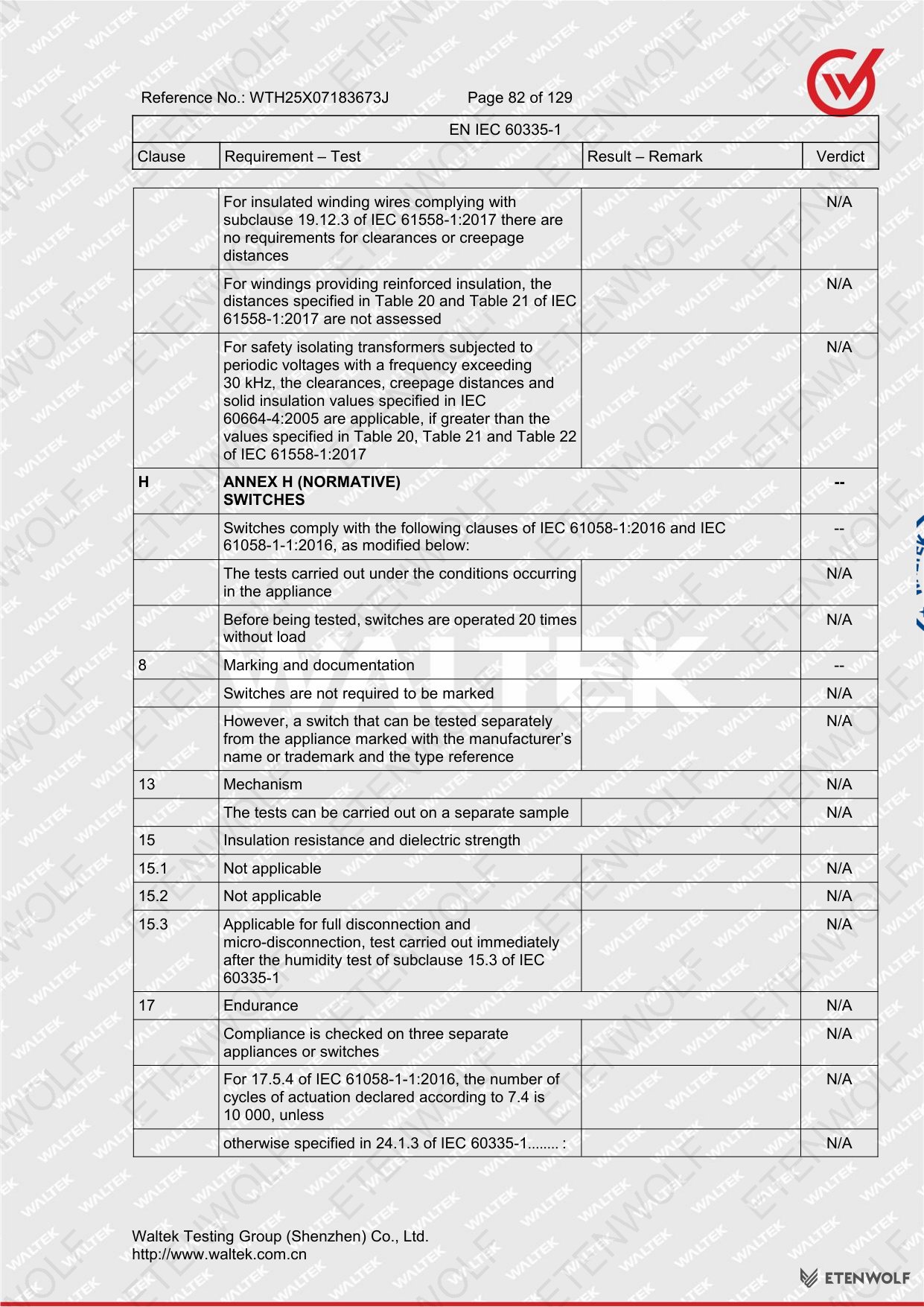

Document Page 86

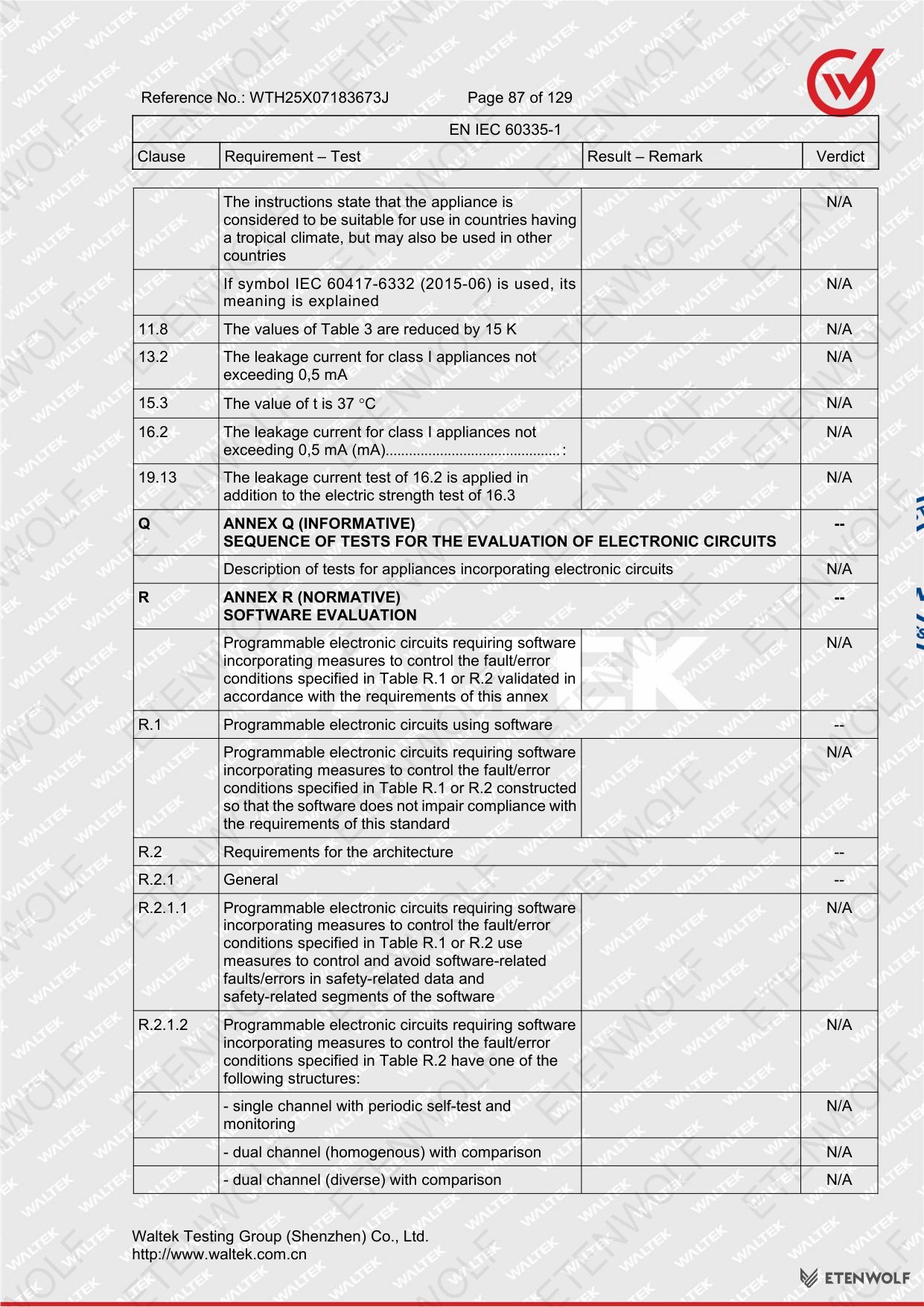

Document Page 87

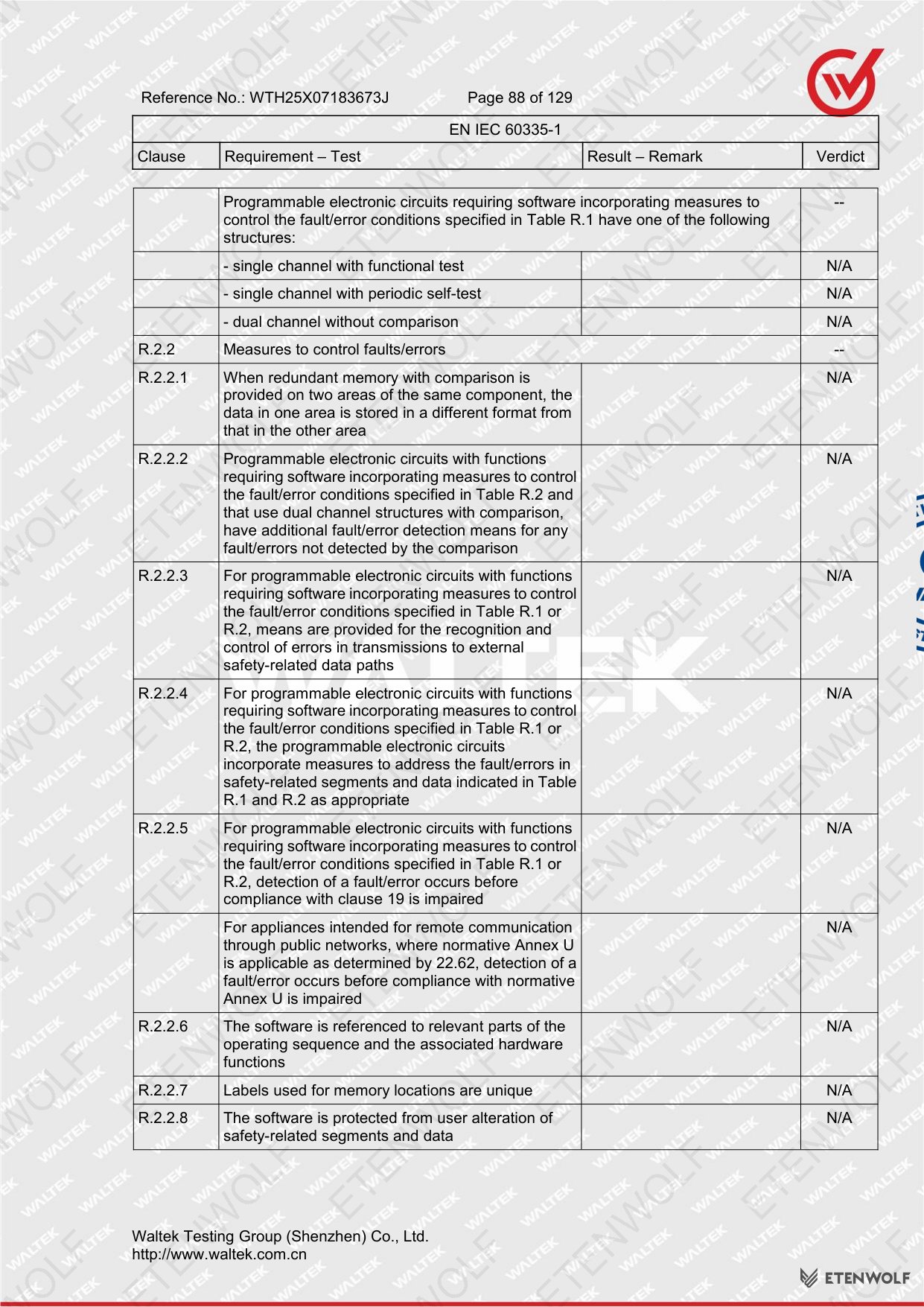

Document Page 88
Document Page 89

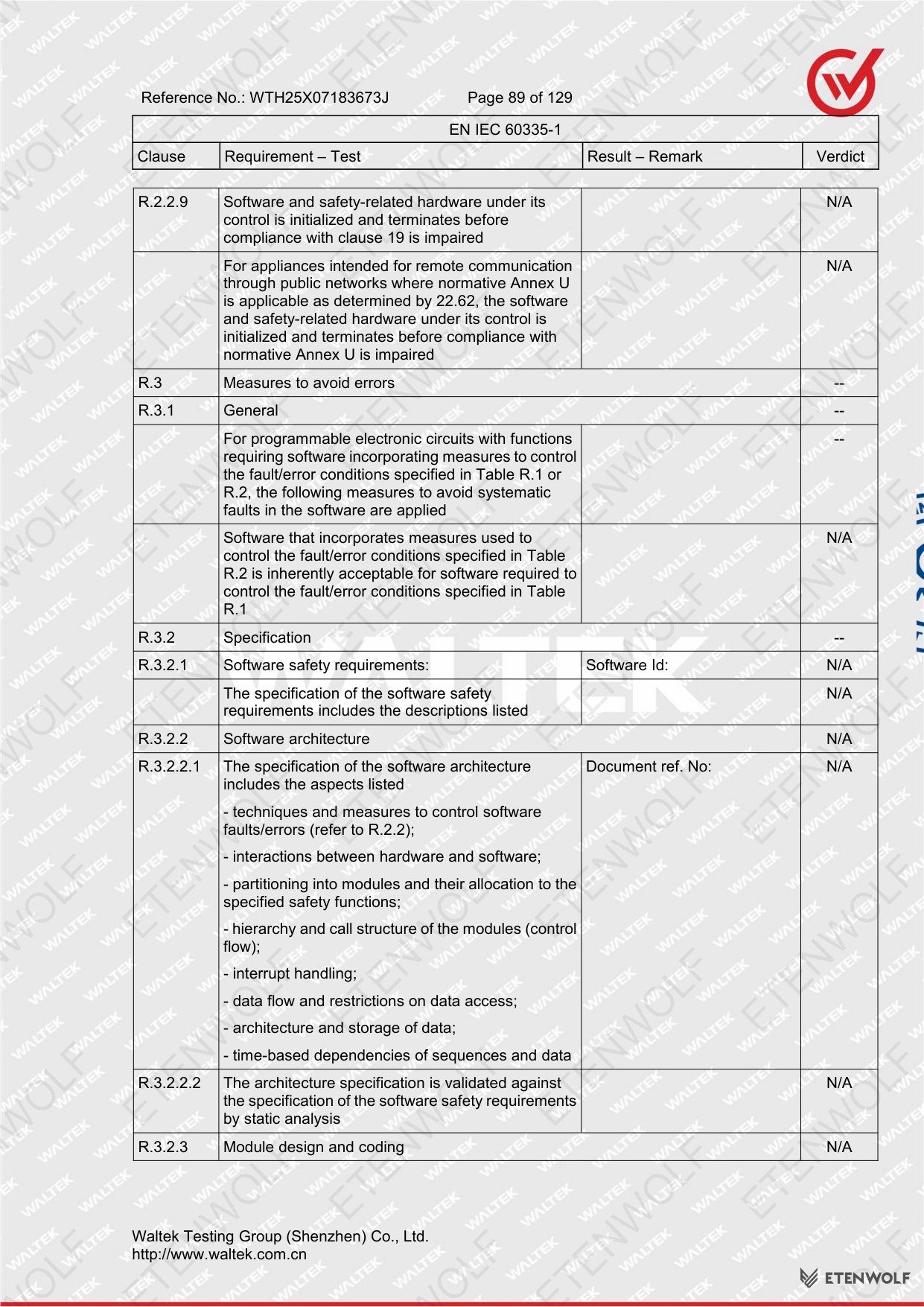

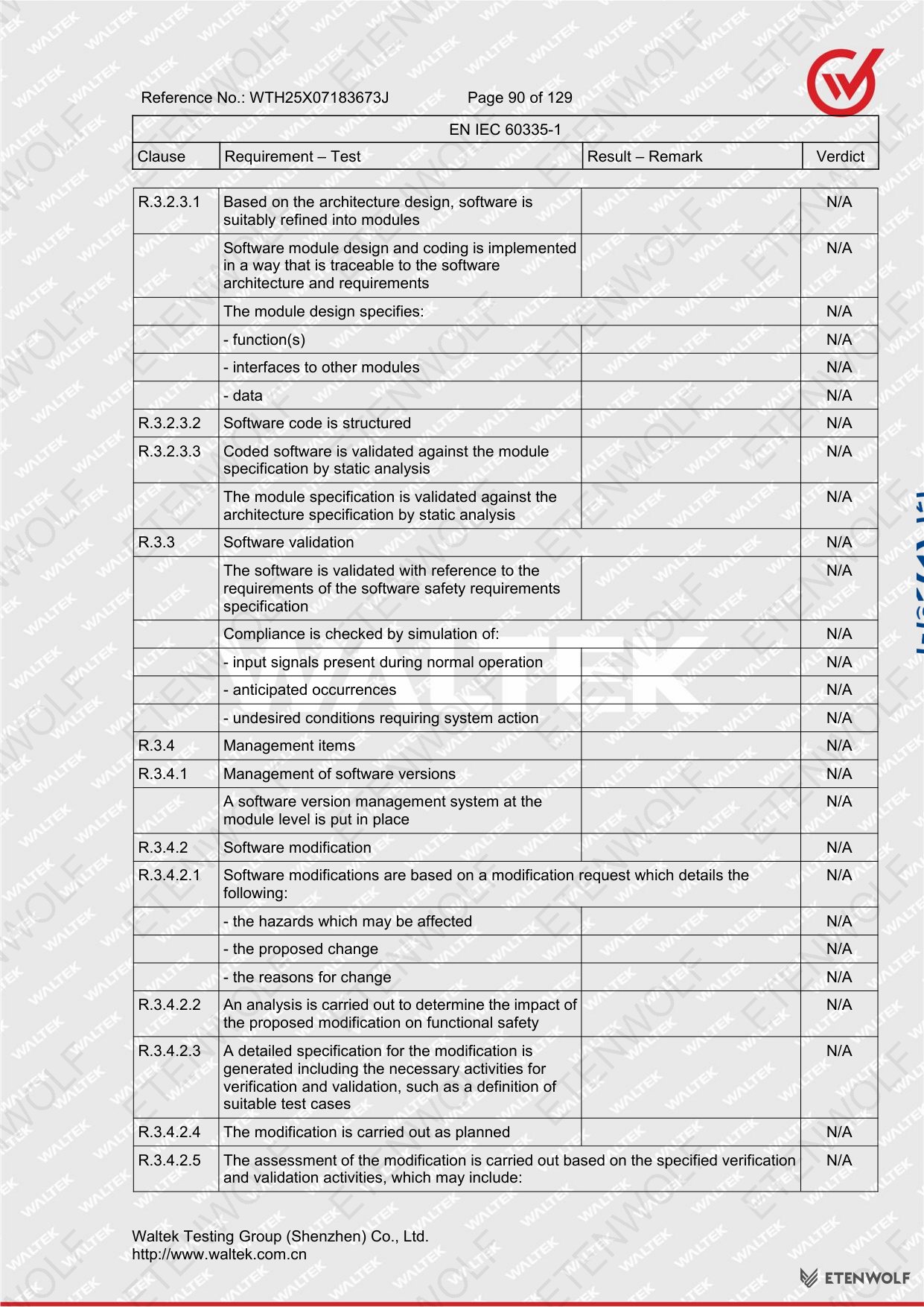

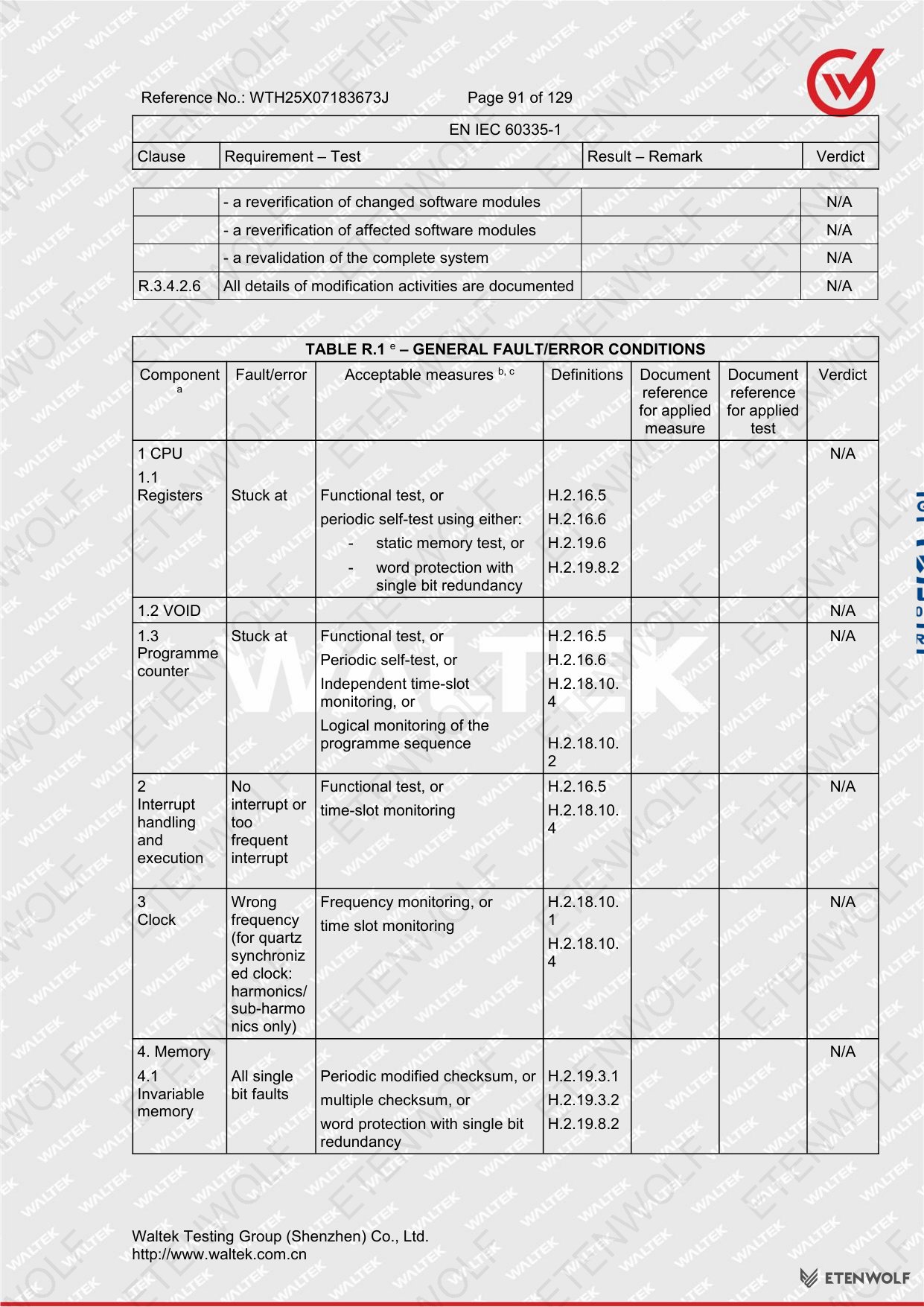

Document Page 90
Document Page 91
Document Page 92

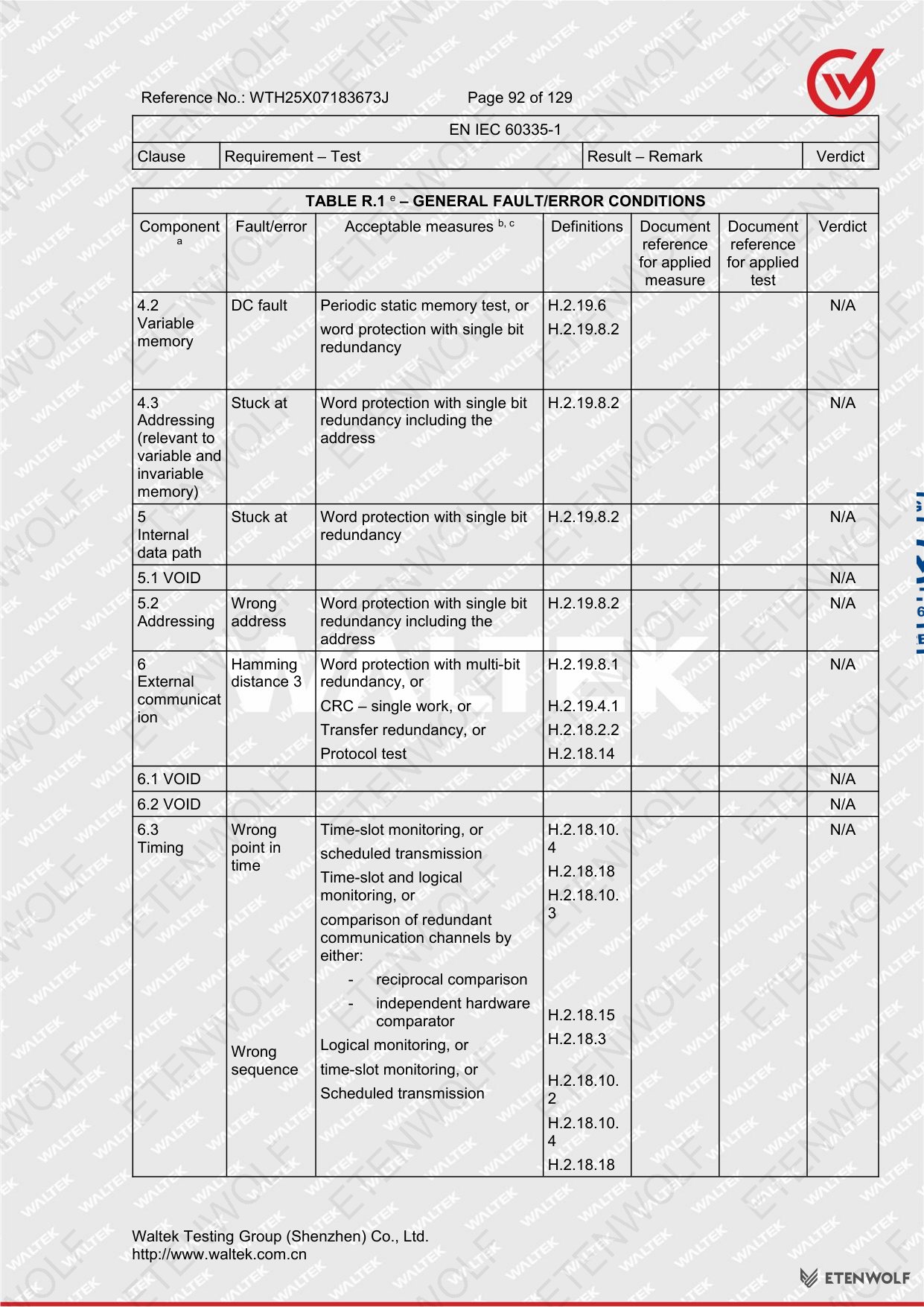

Document Page 93
Document Page 94

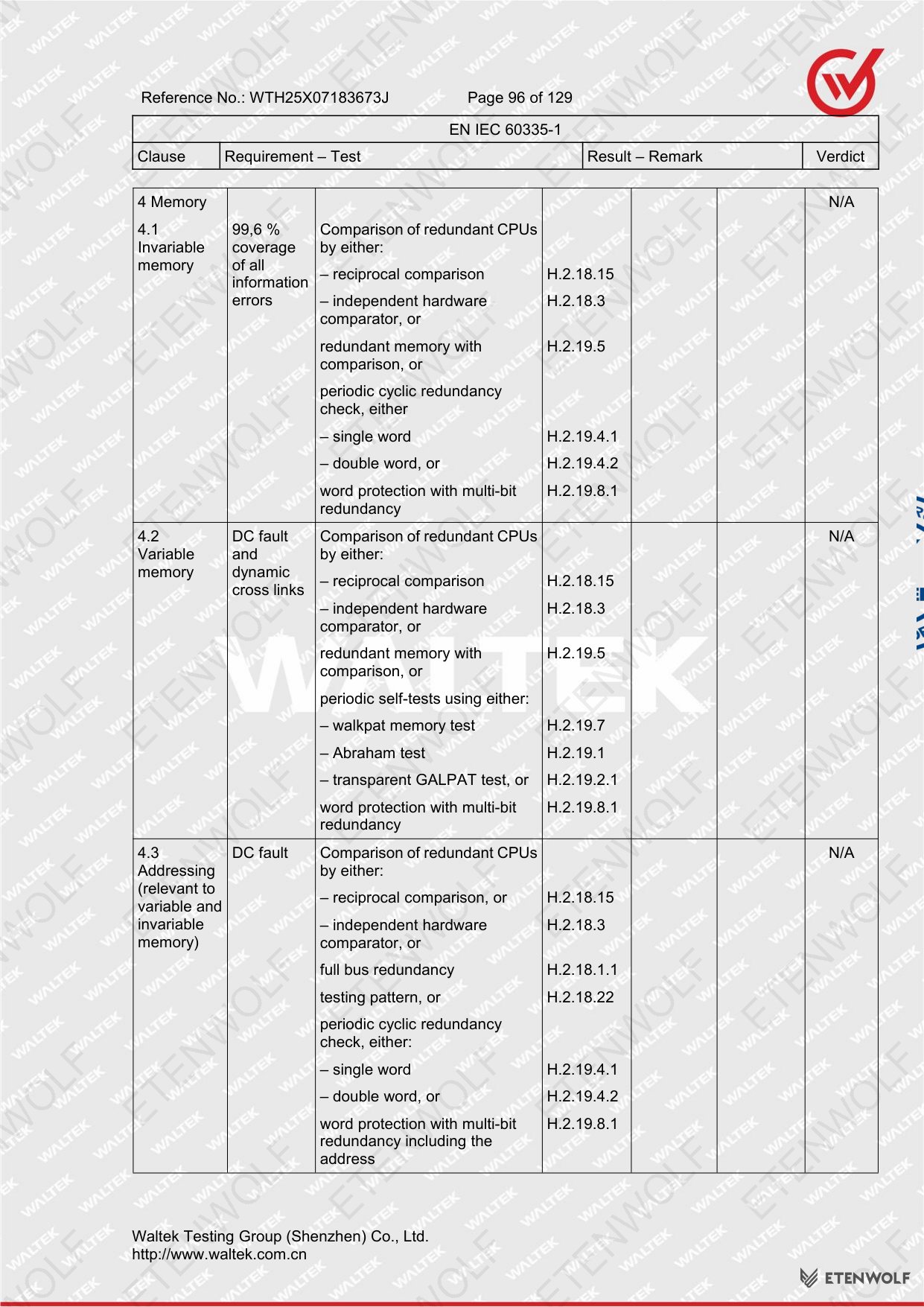

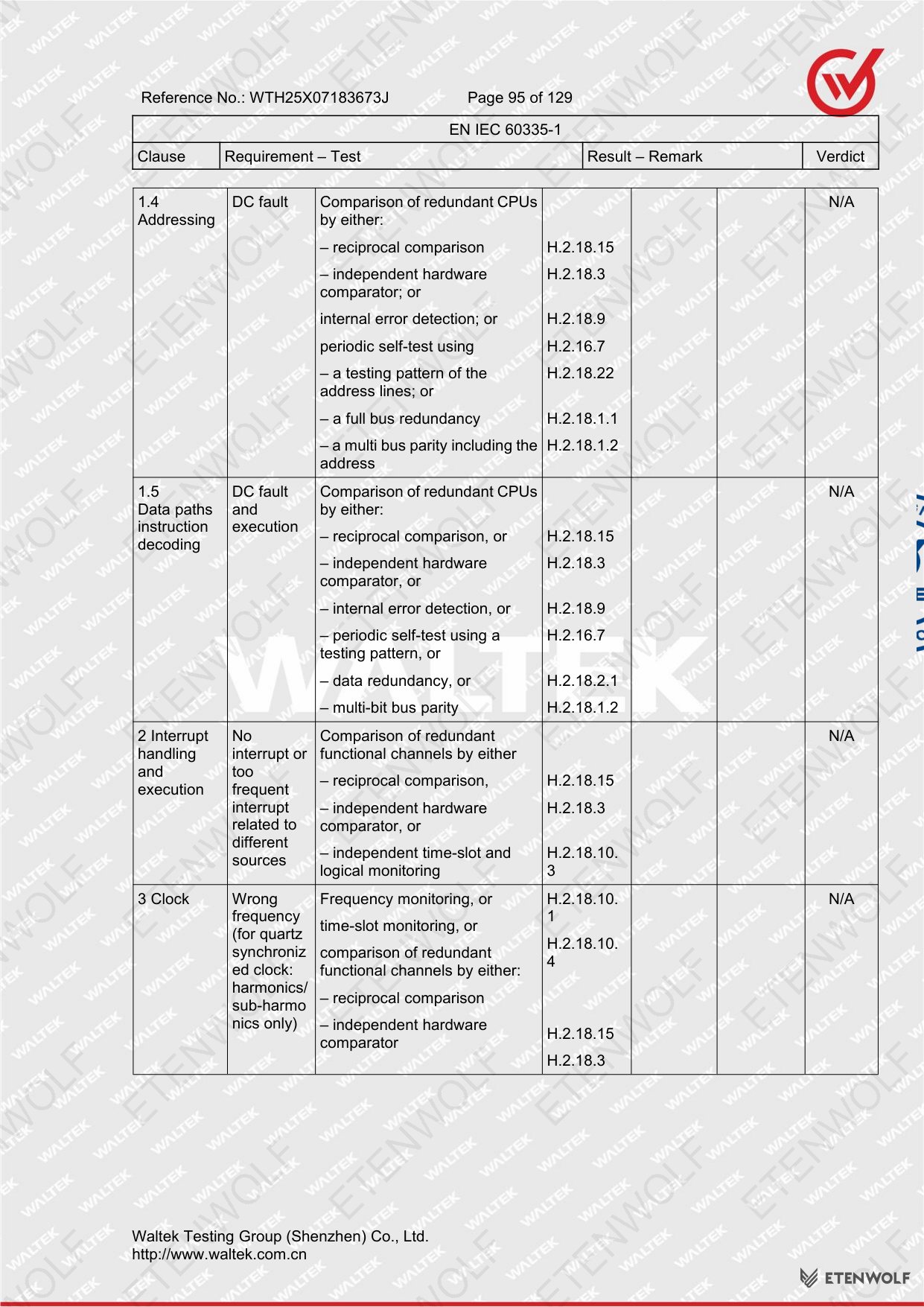

Document Page 95
Document Page 96

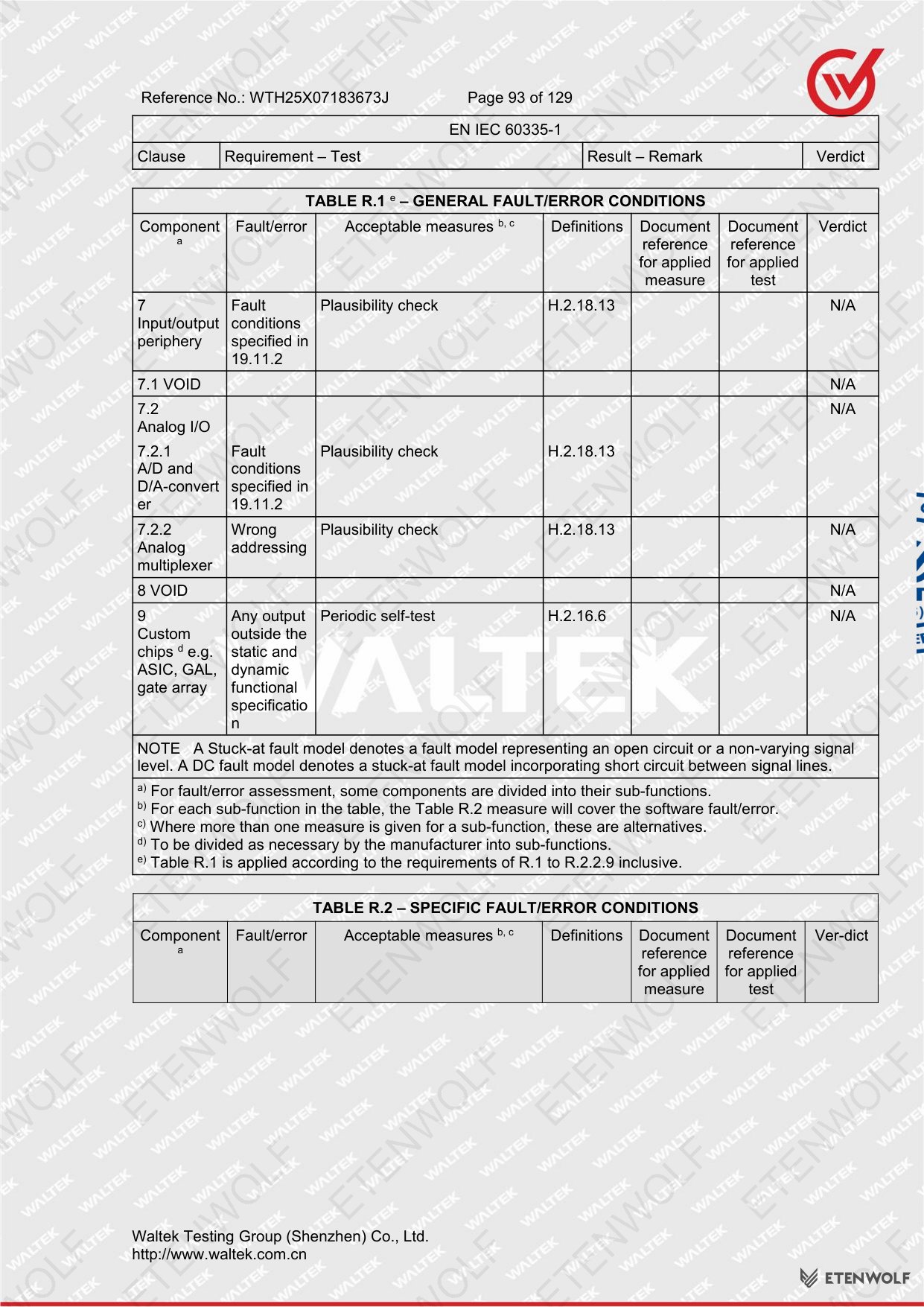

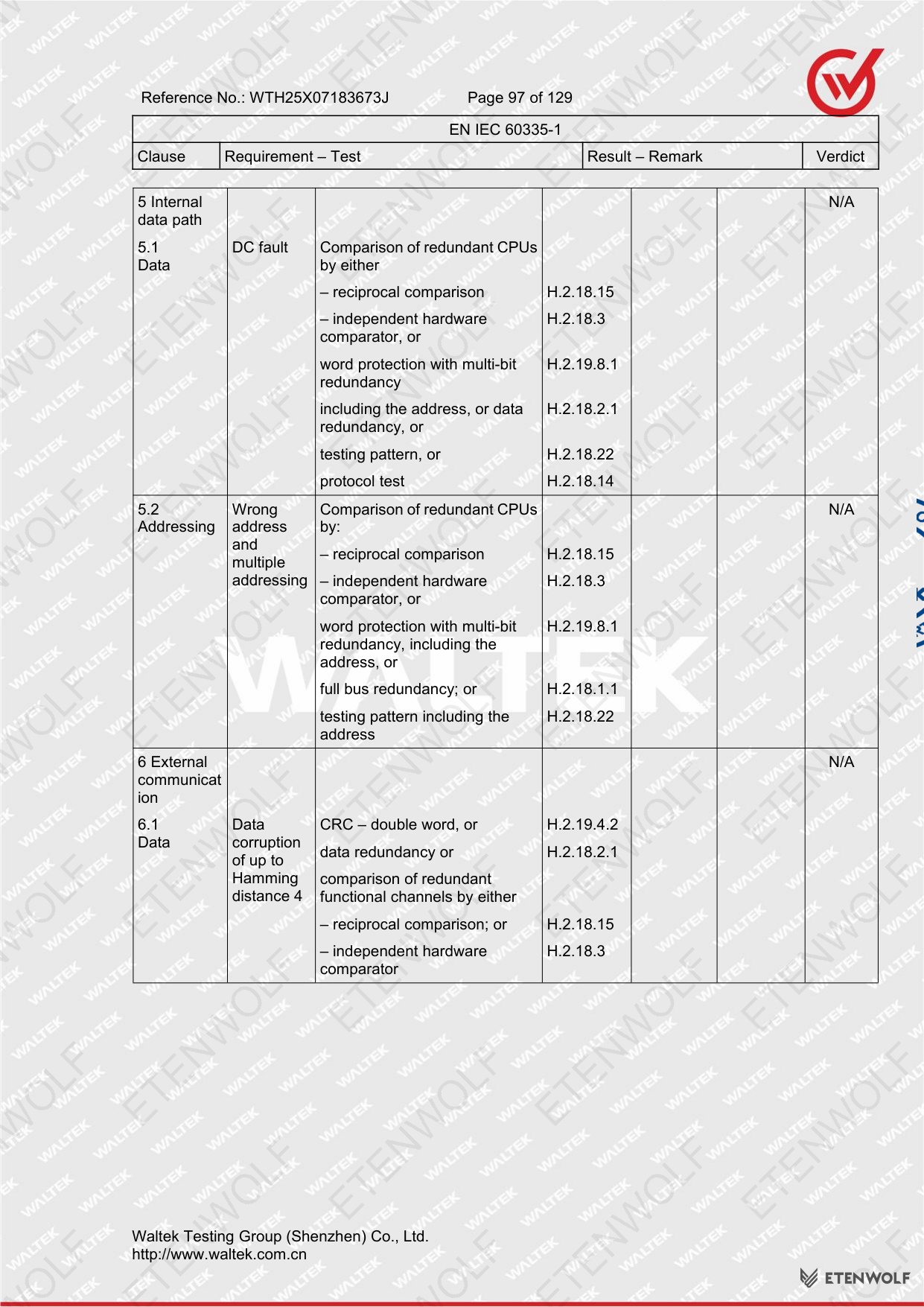

Document Page 97

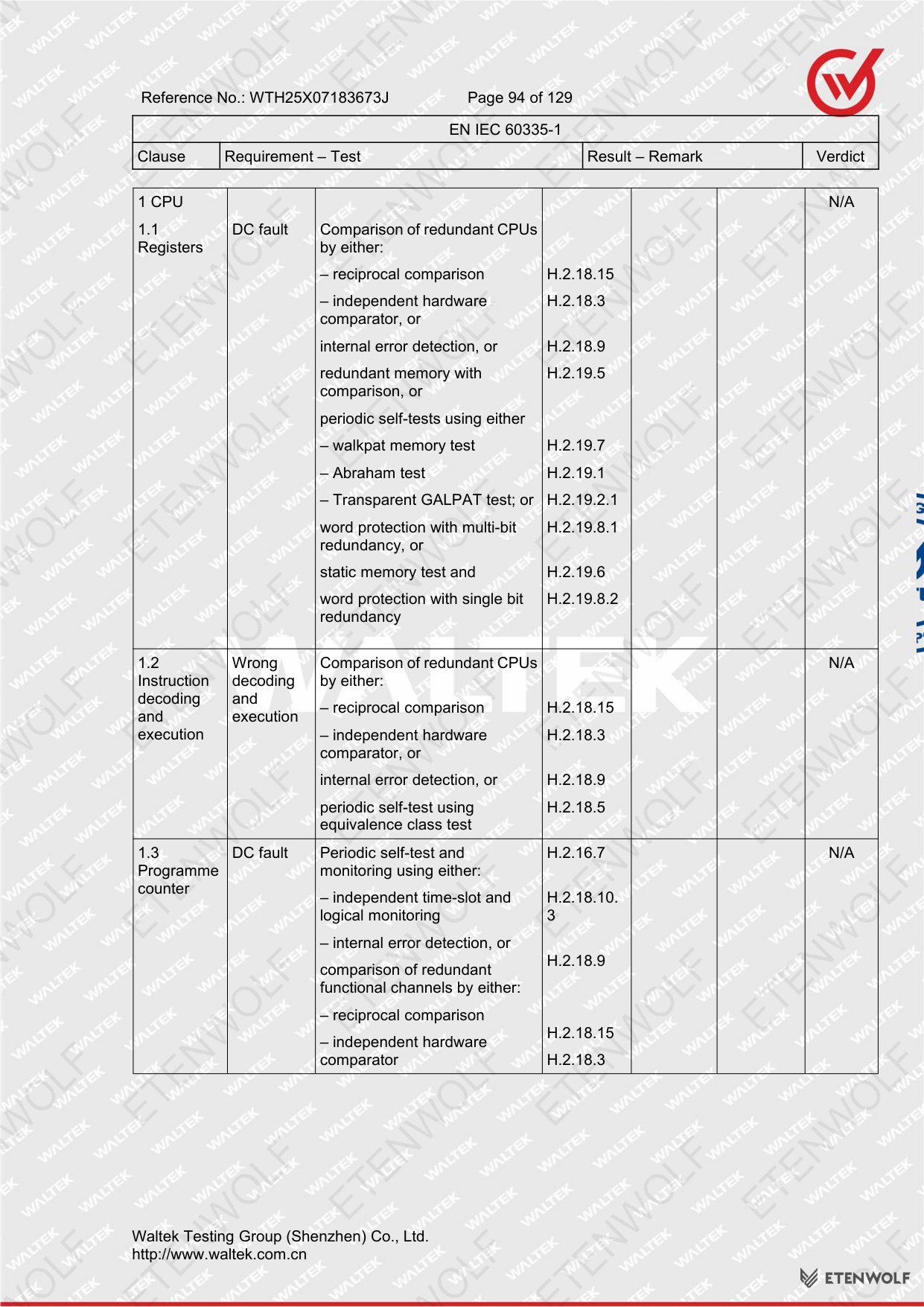

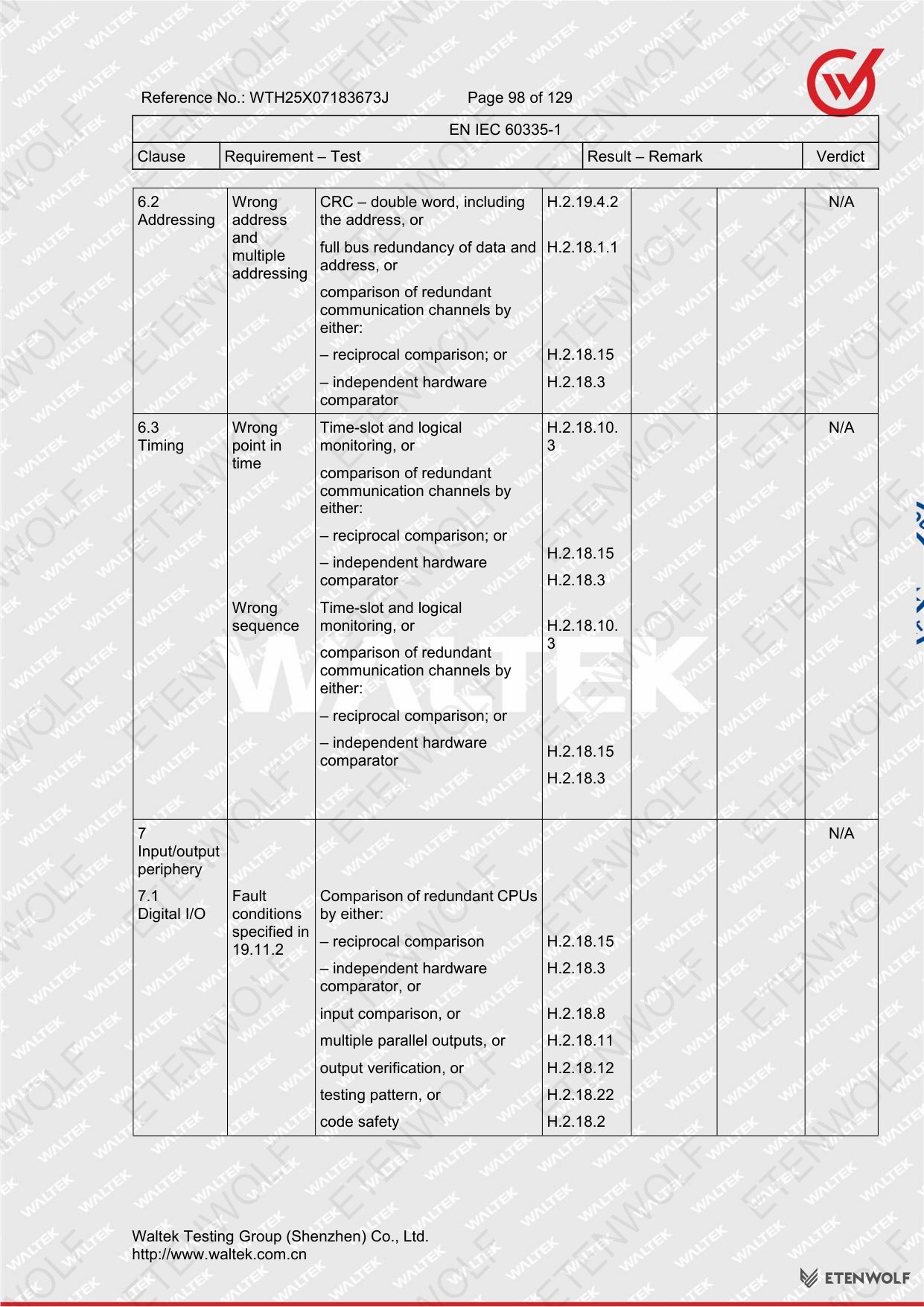

Document Page 98

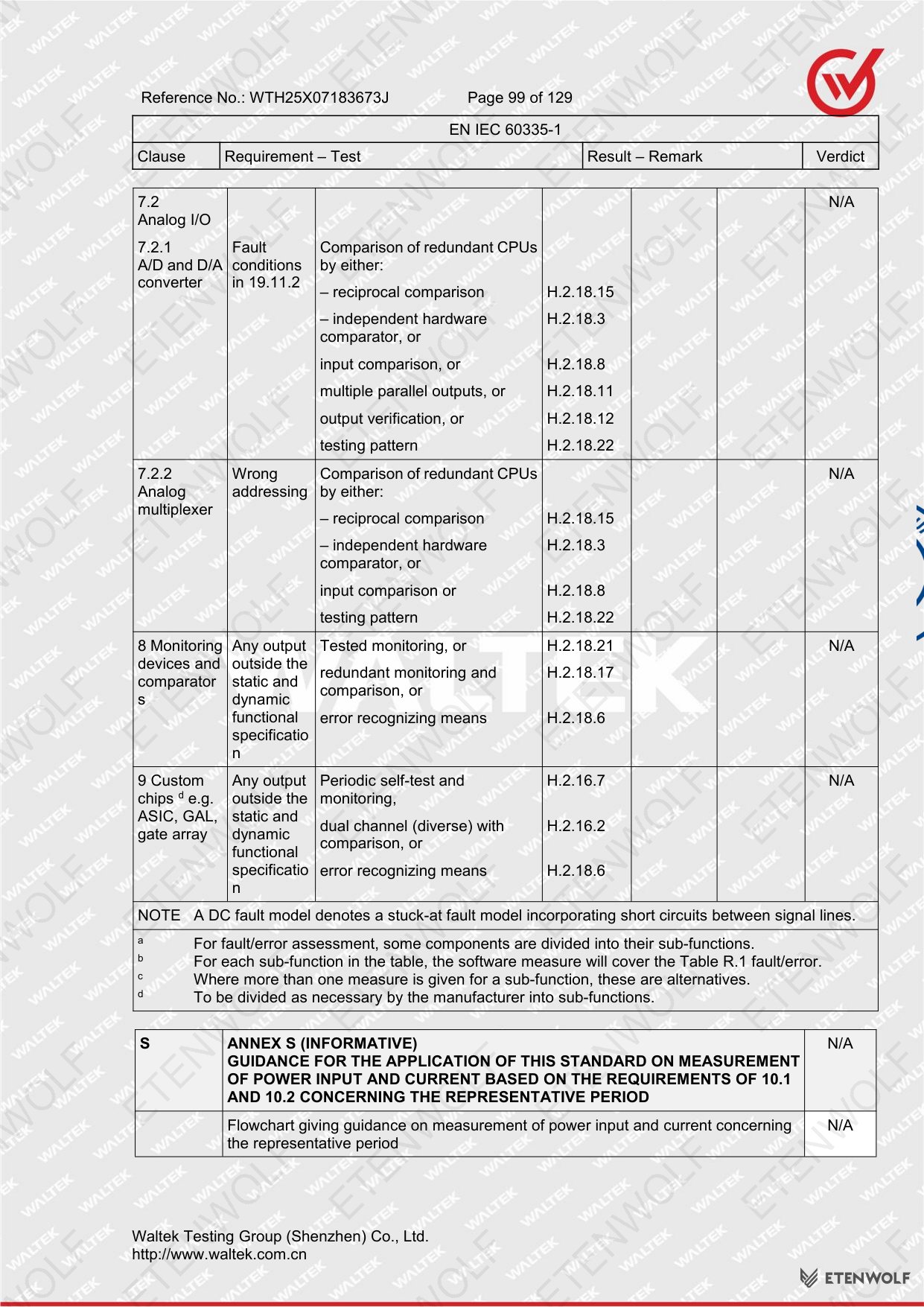

Document Page 99

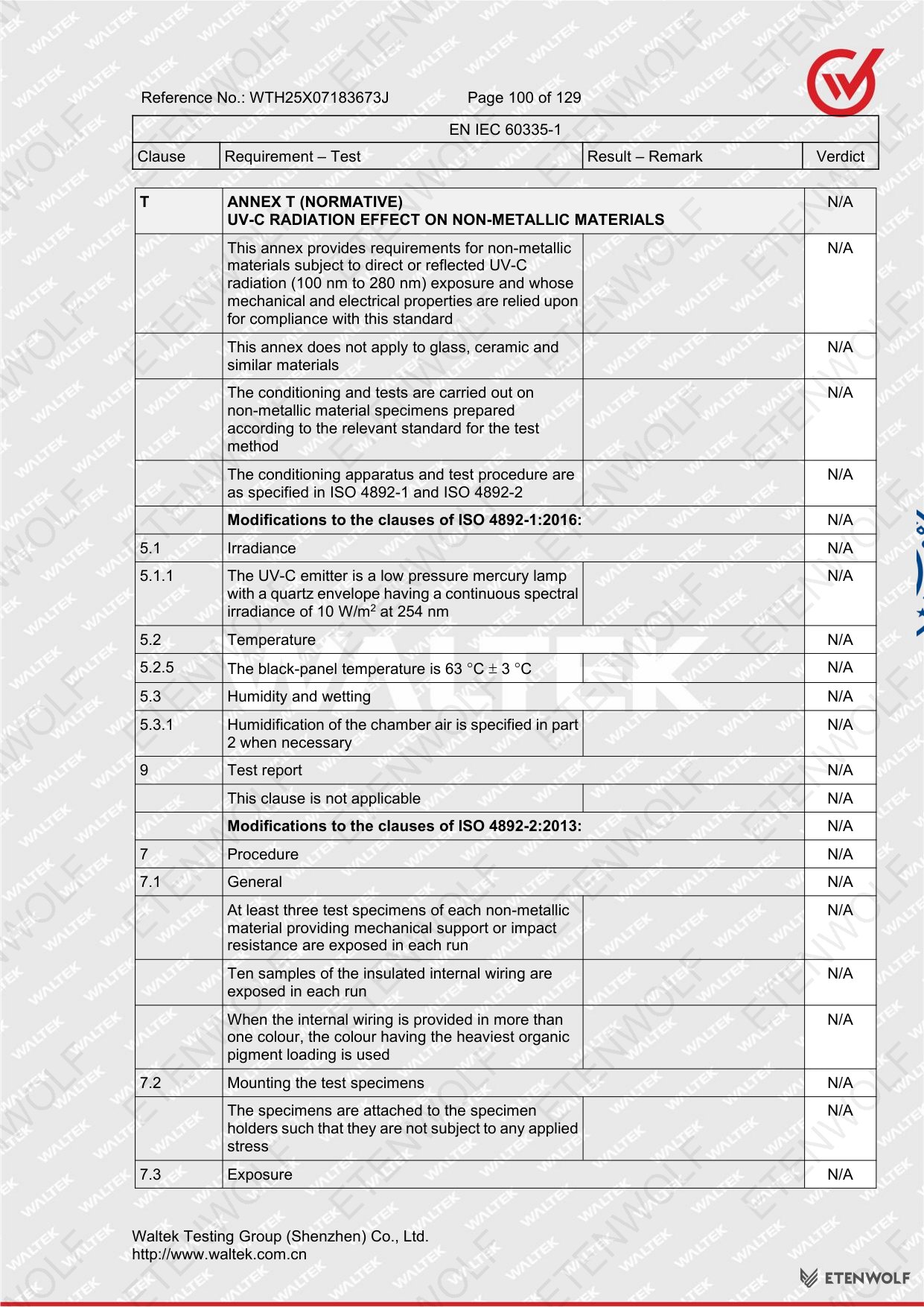

Document Page 100
Document Page 101

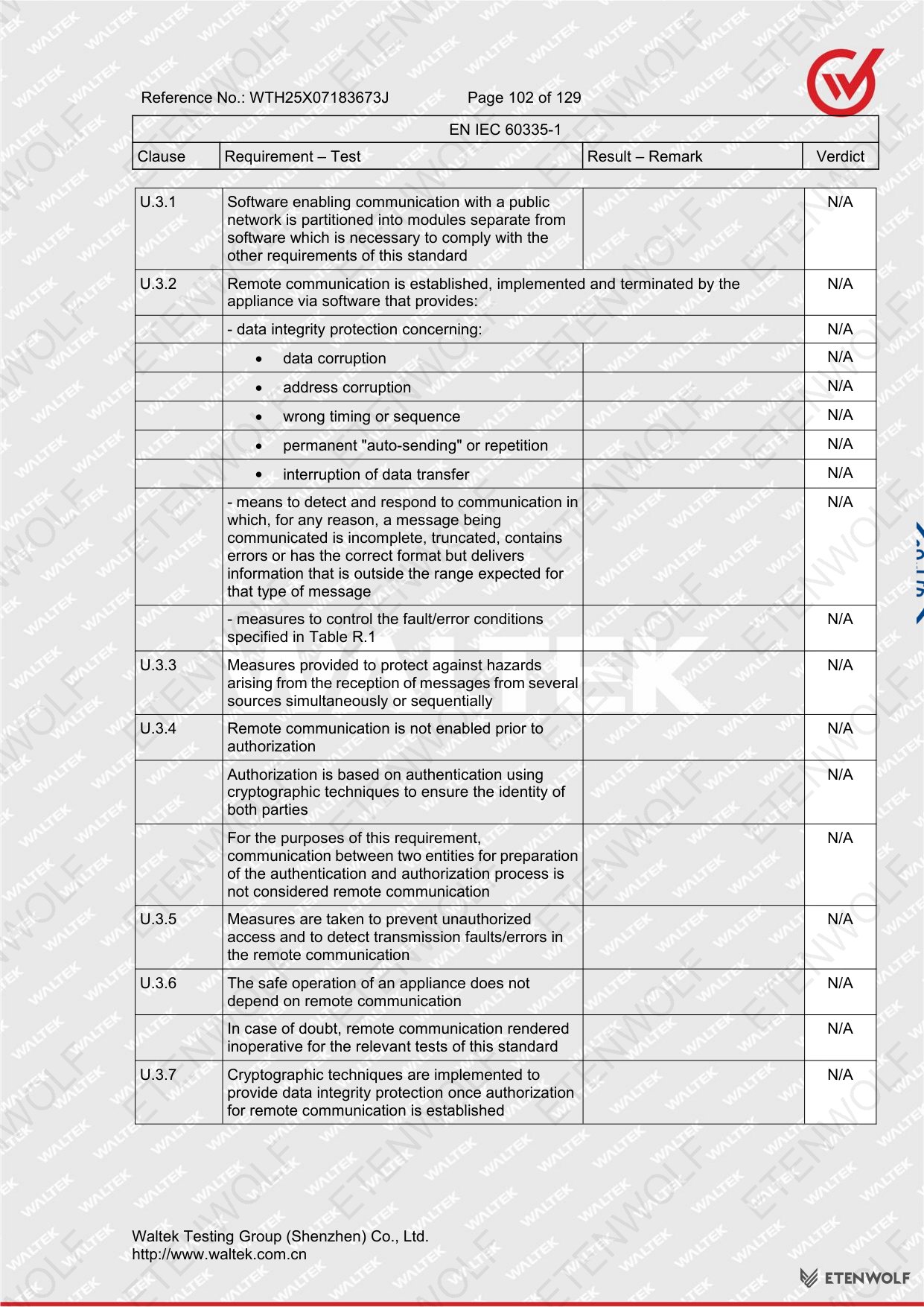

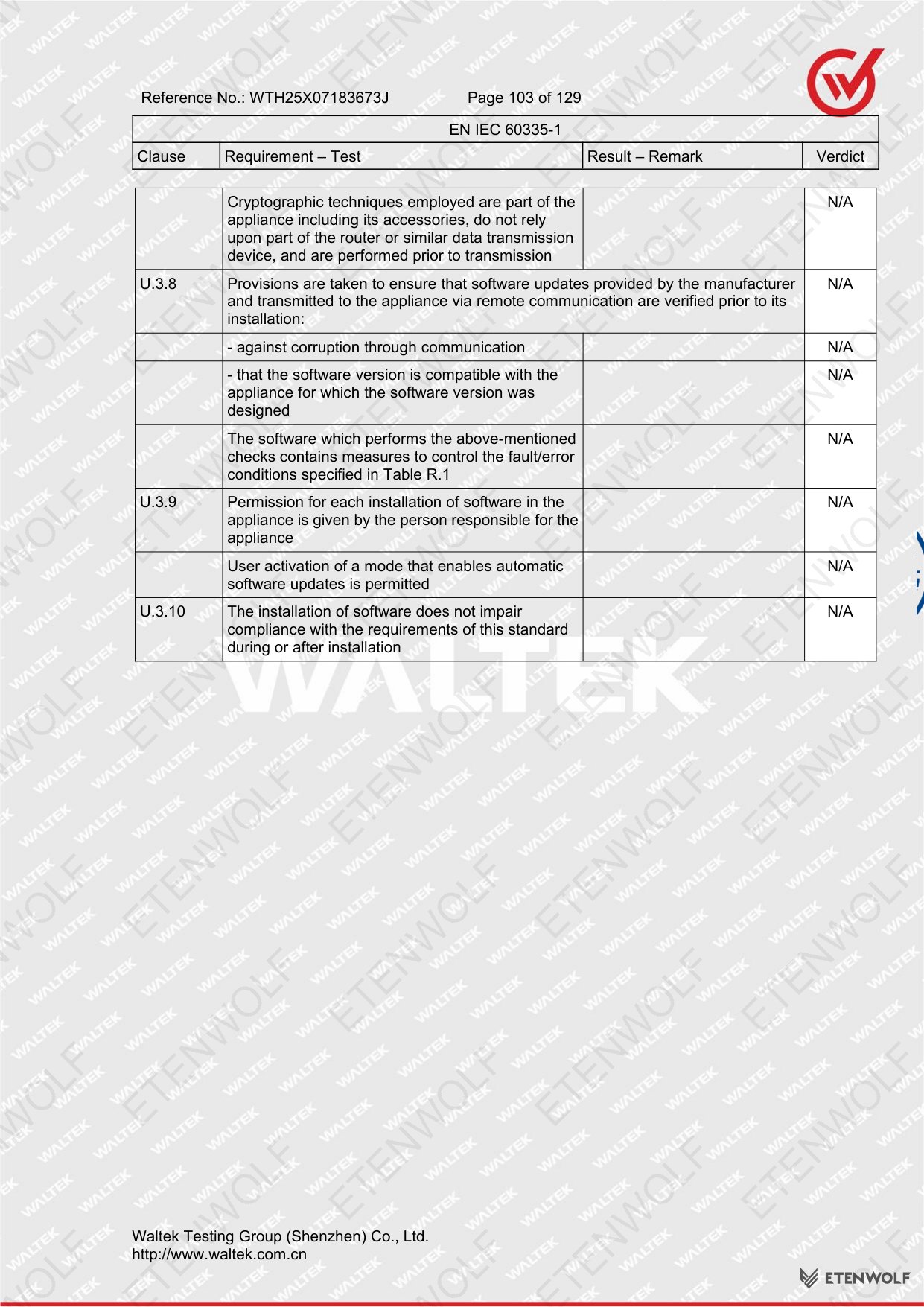

Document Page 102
Document Page 103

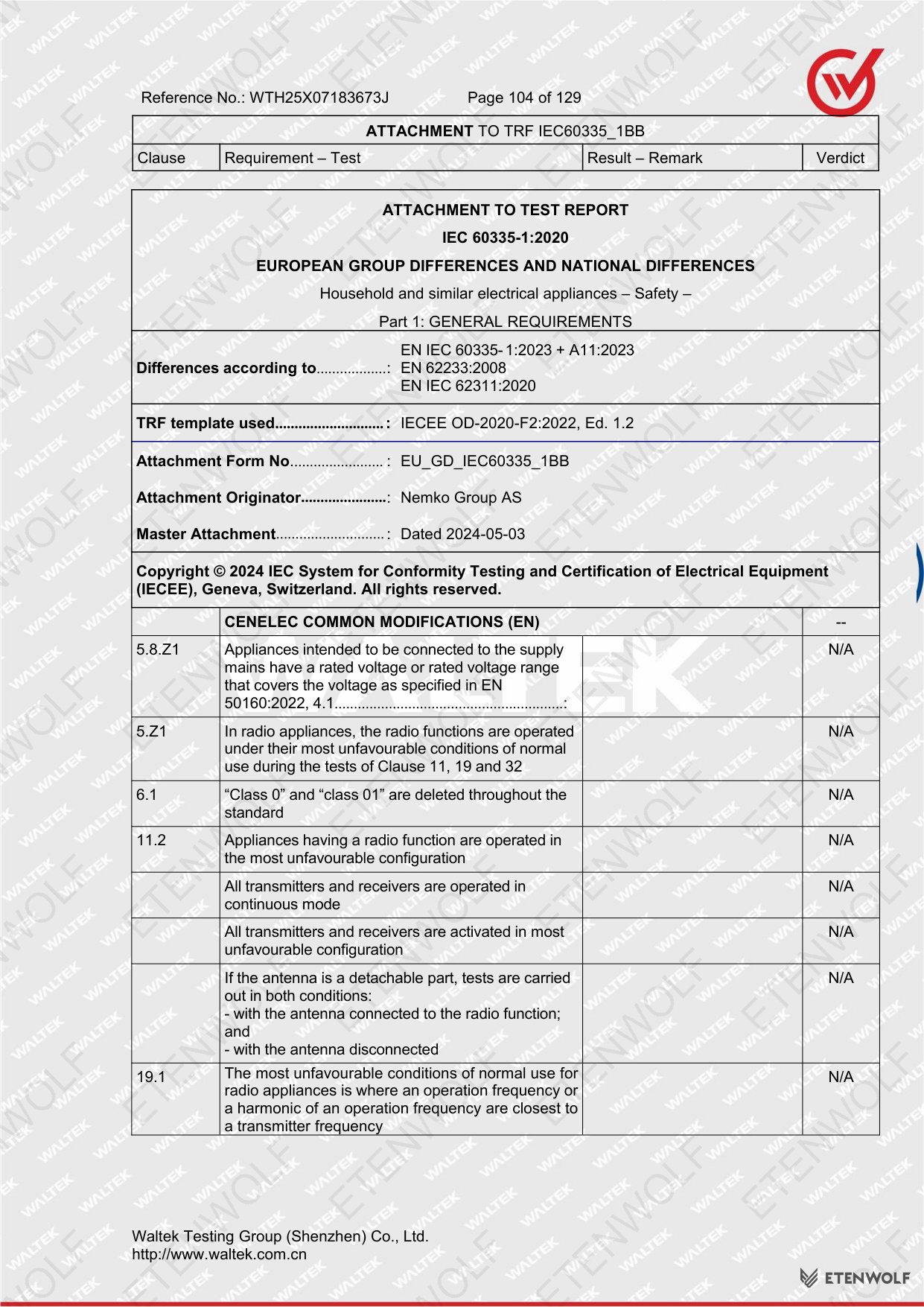

Document Page 104

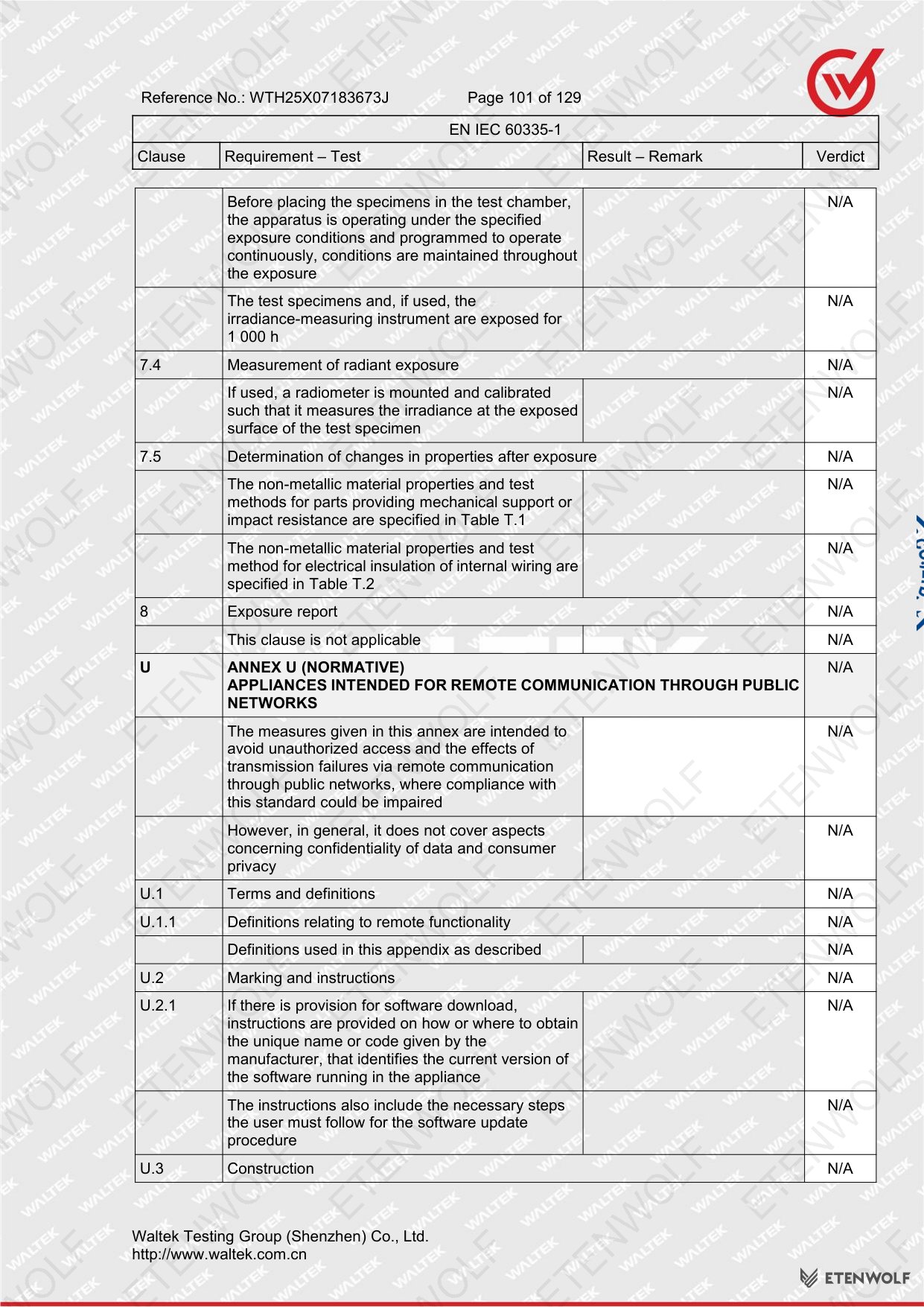

Document Page 105

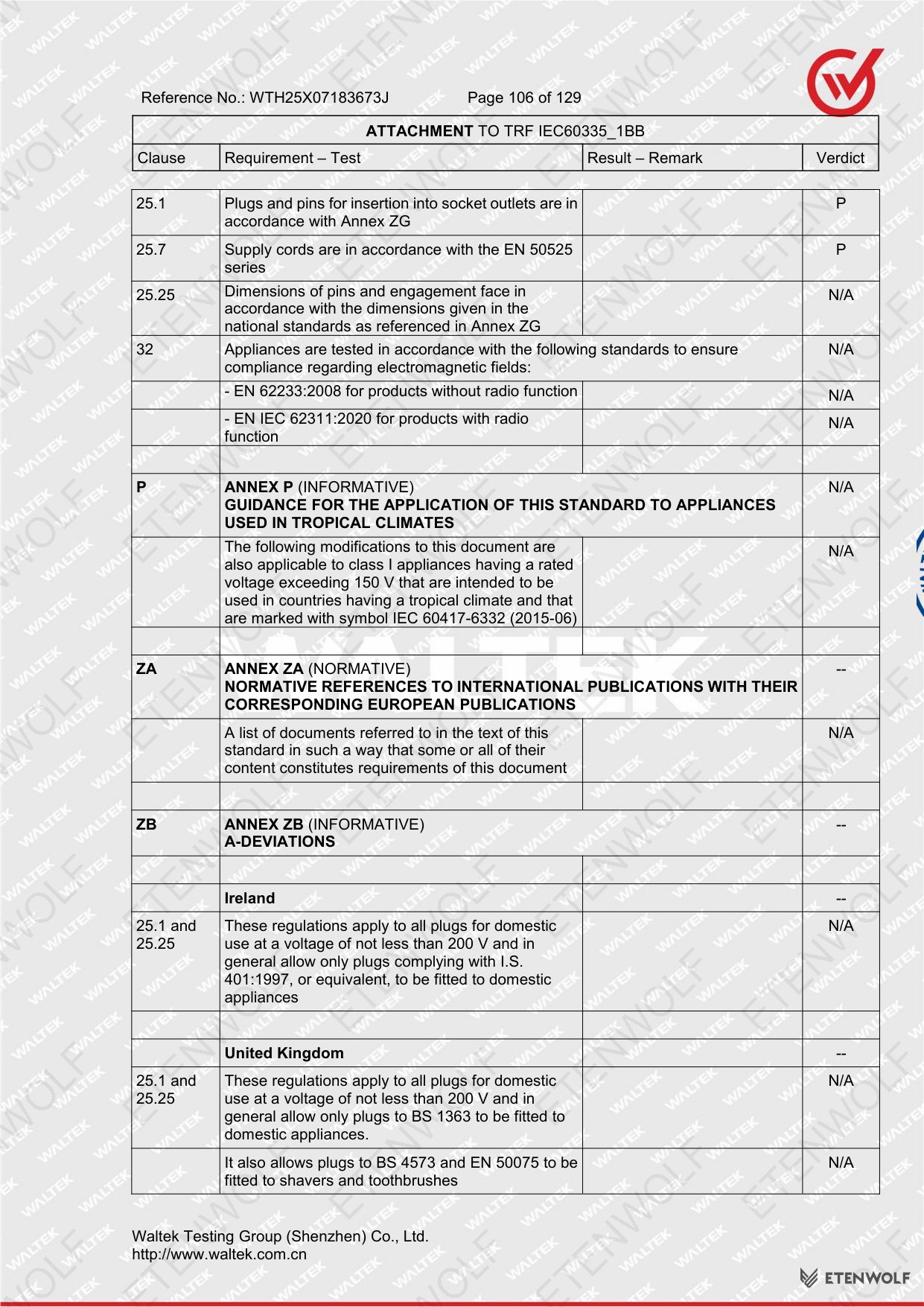

Document Page 106
Document Page 107

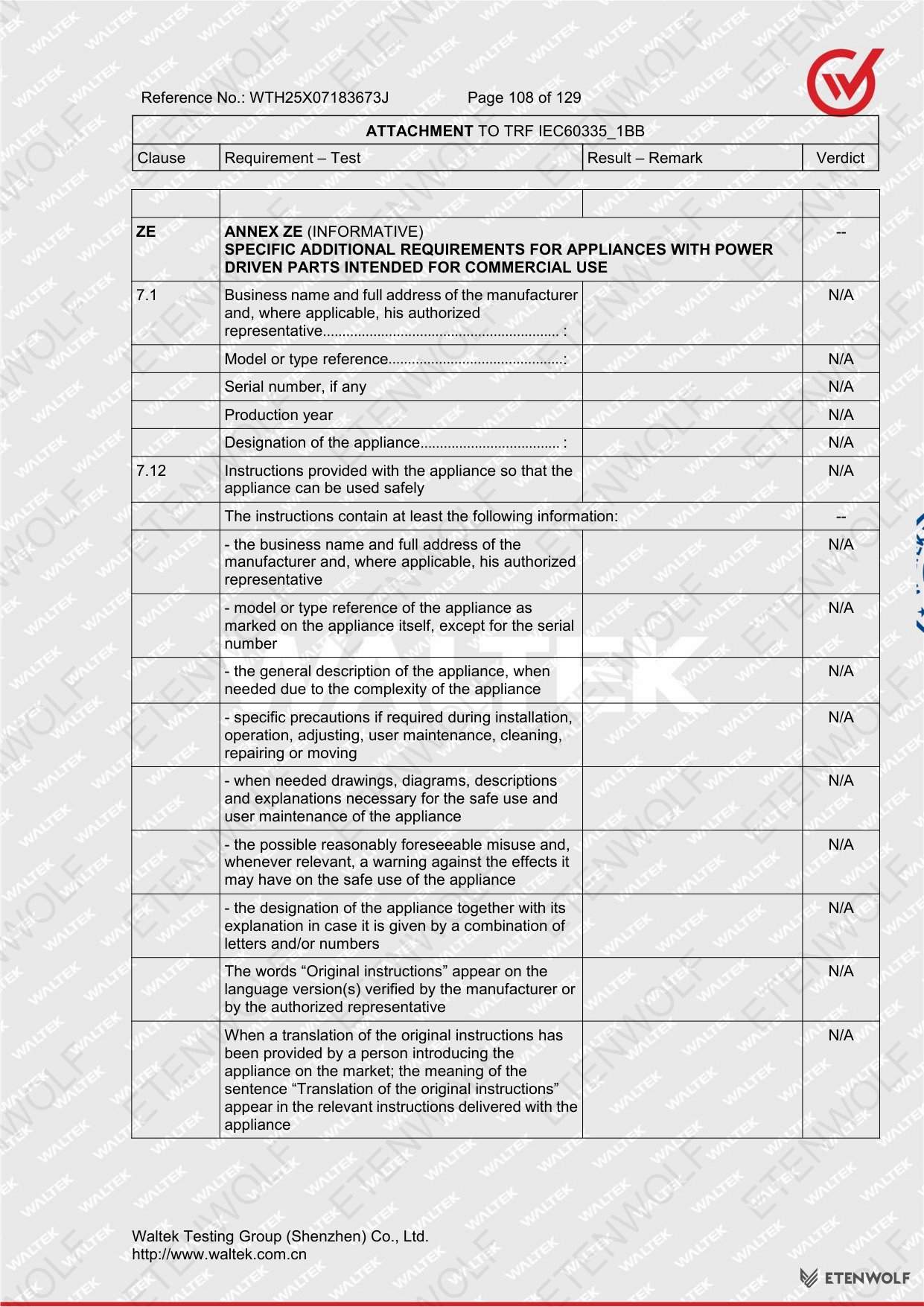

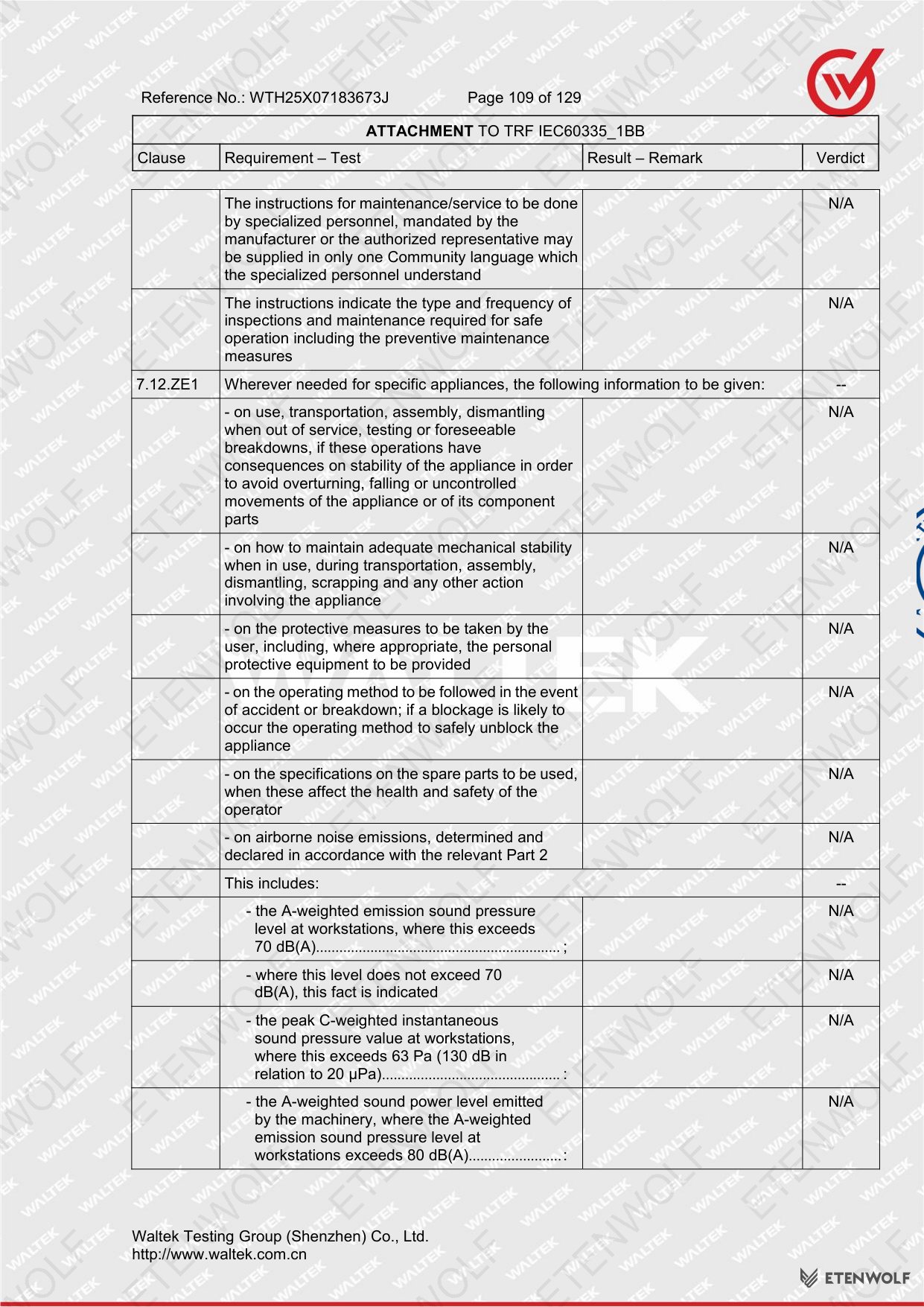

Document Page 108
Document Page 109
Document Page 110
Document Page 111

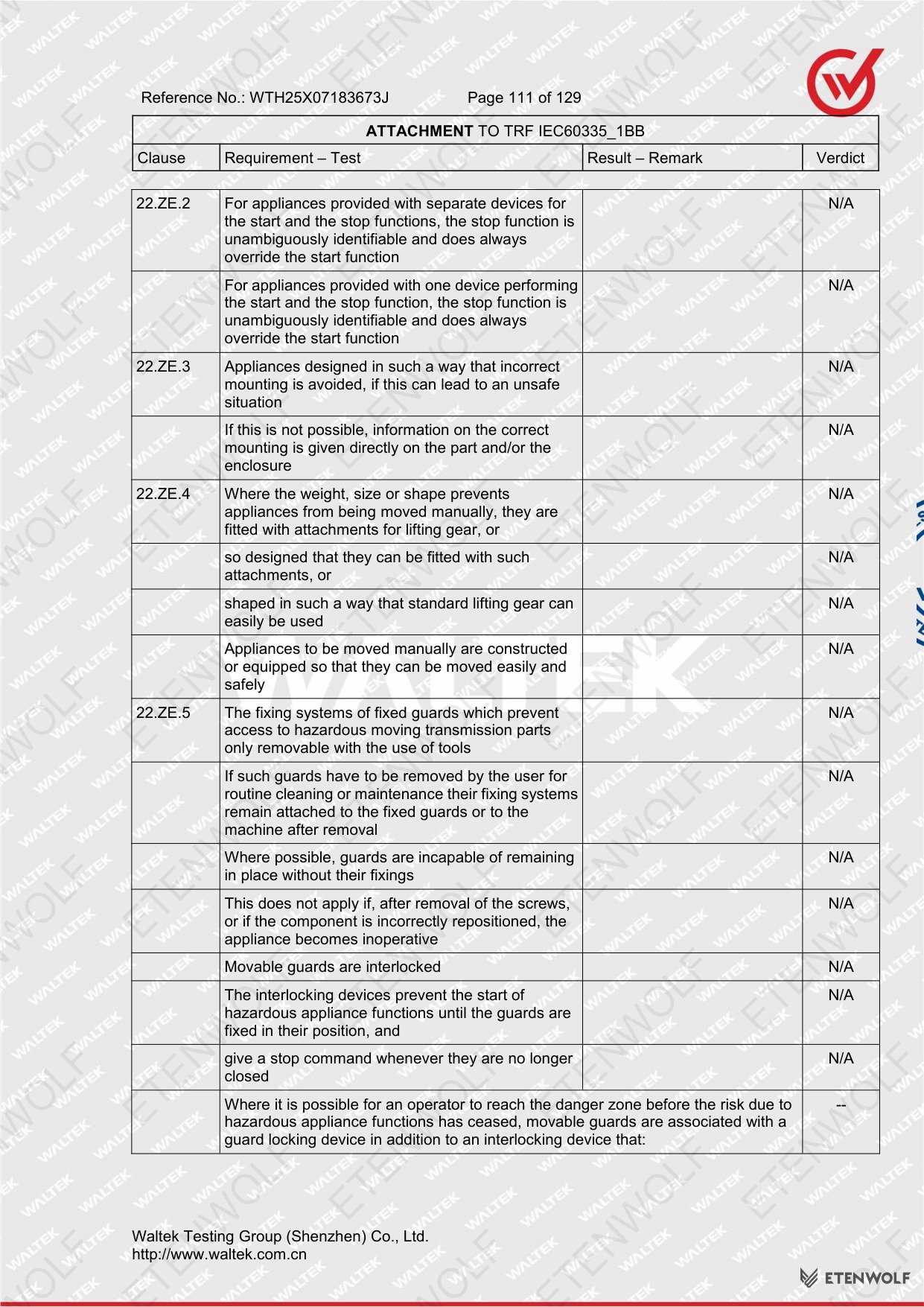

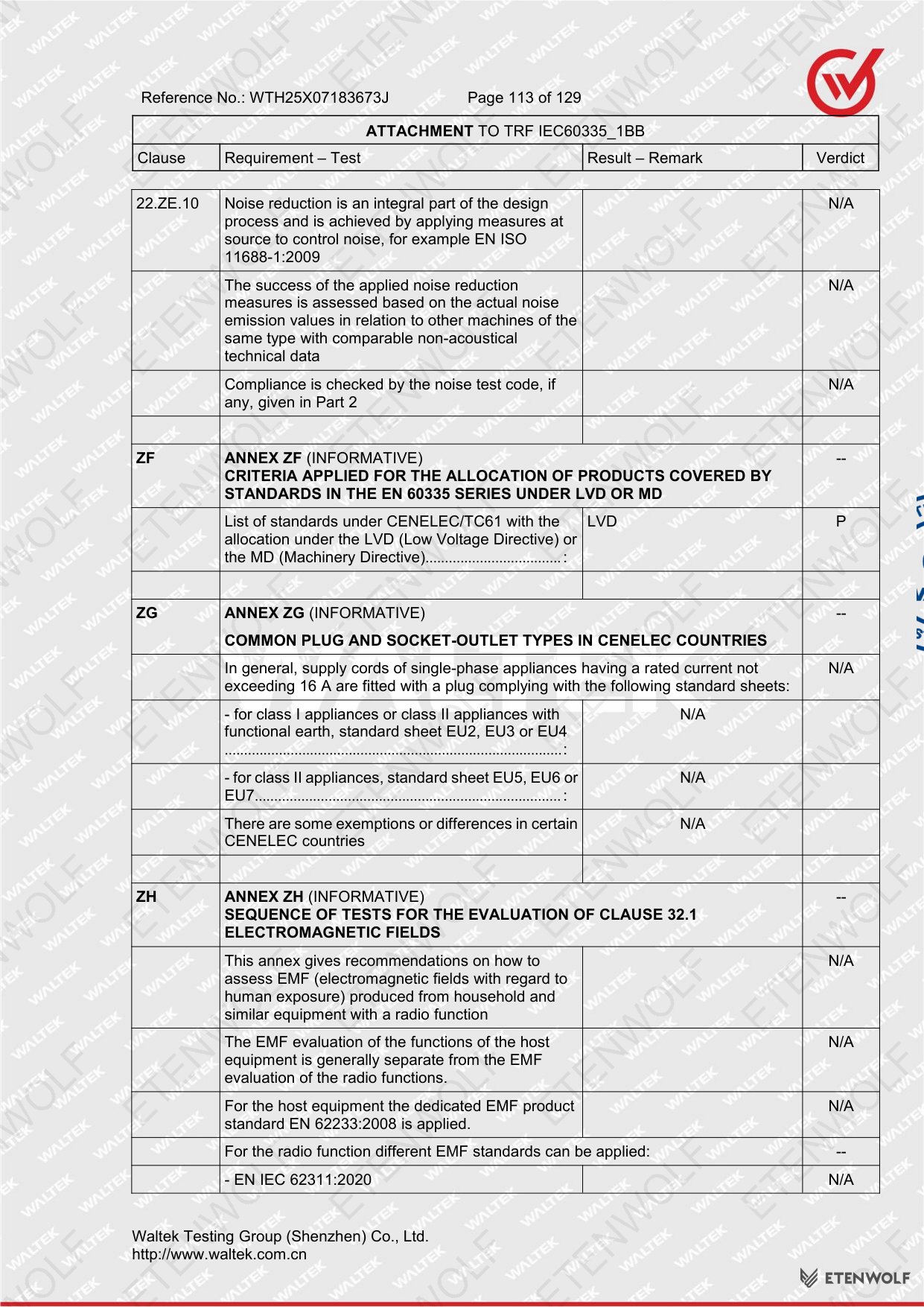

Document Page 112
Document Page 113
Document Page 114

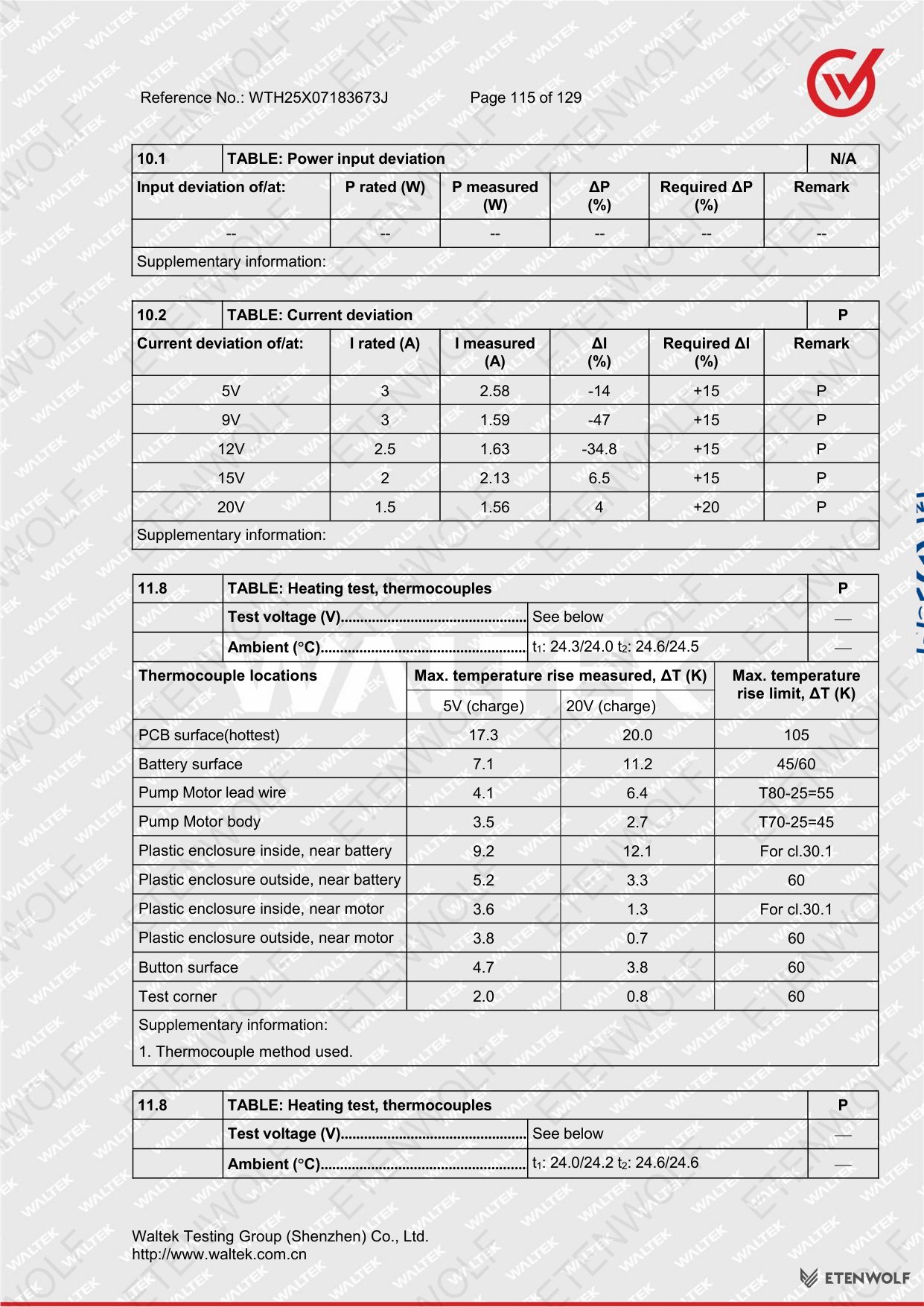

Document Page 115

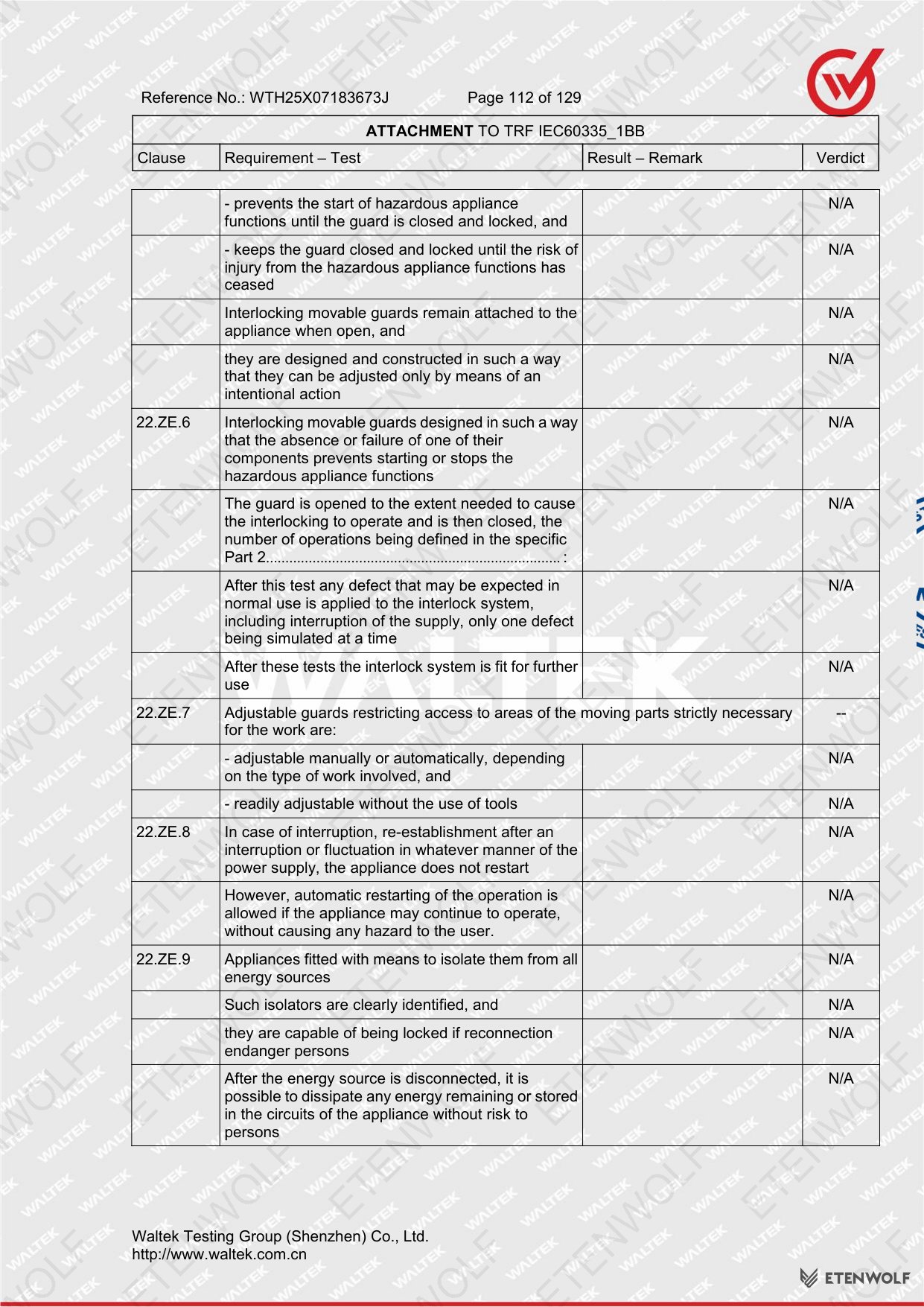

Document Page 116
Document Page 117

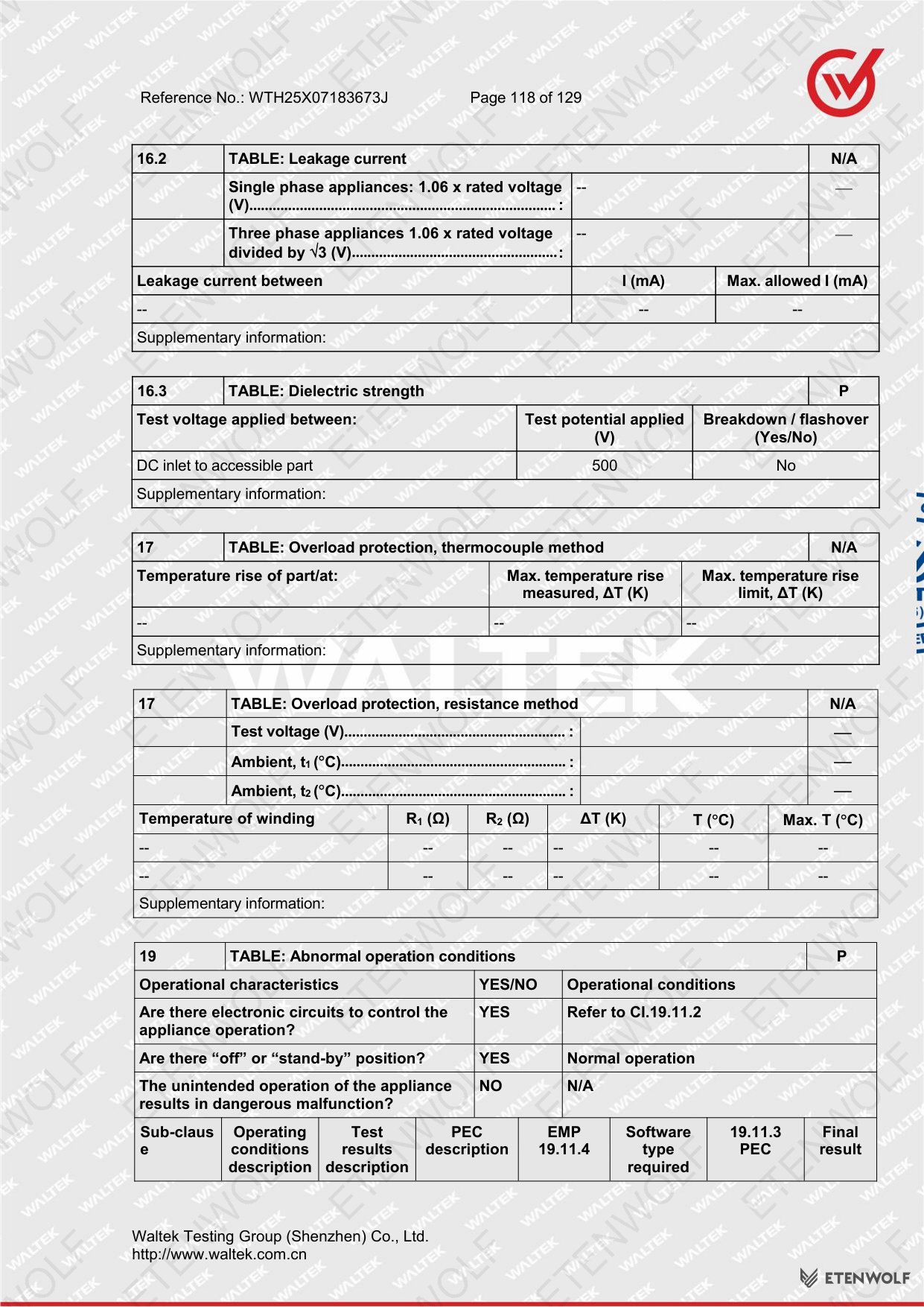

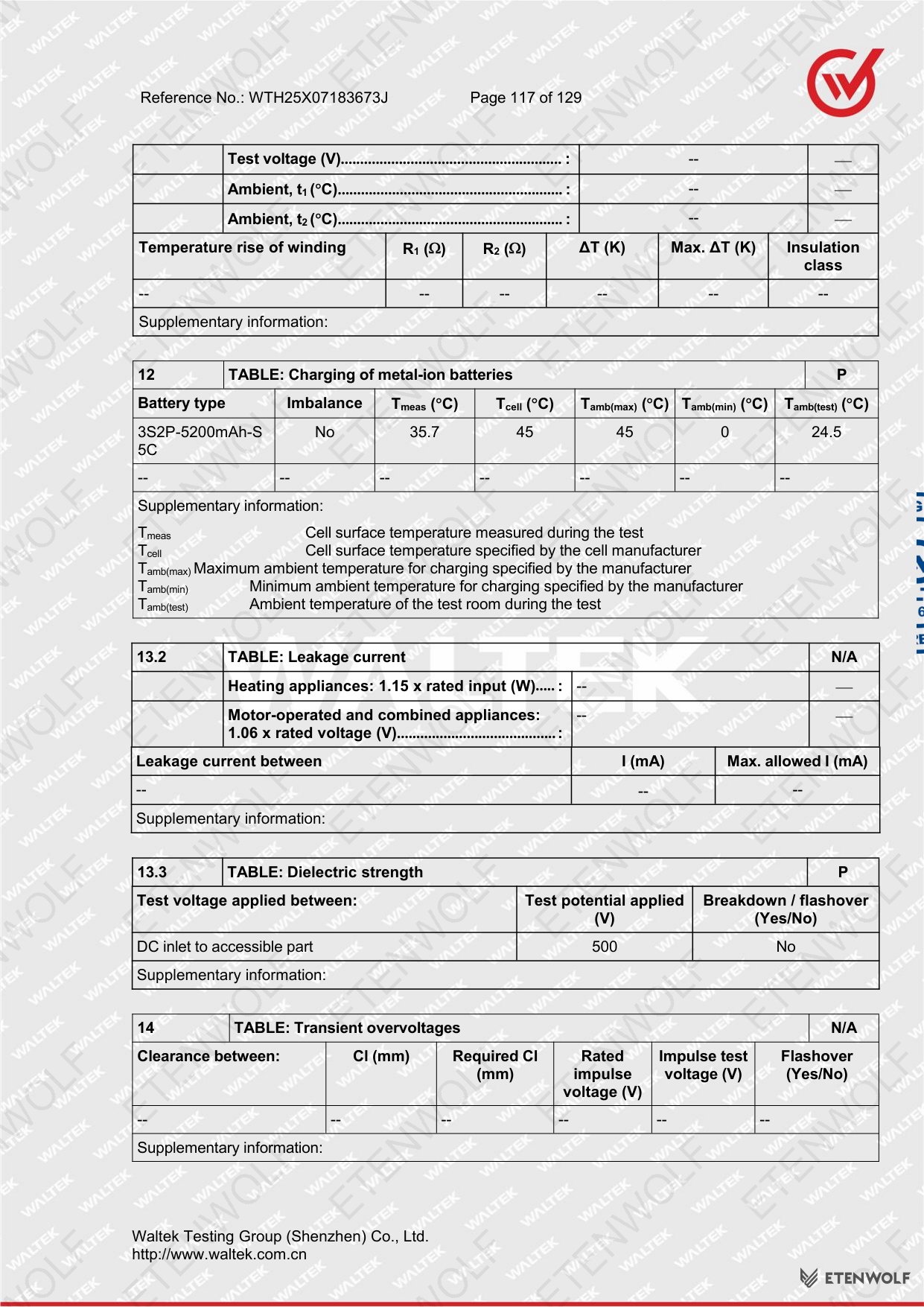

Document Page 118

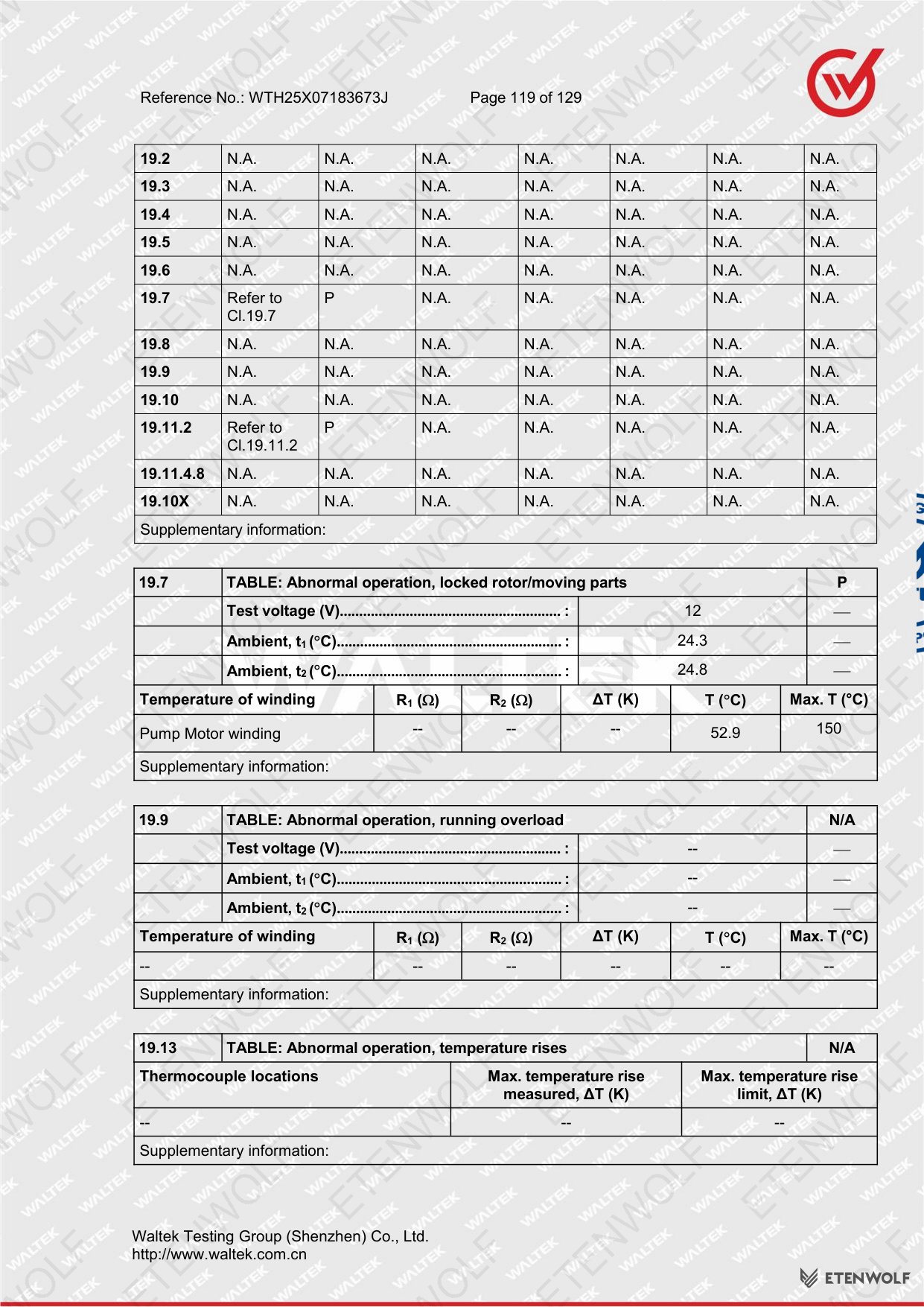

Document Page 119
Document Page 120

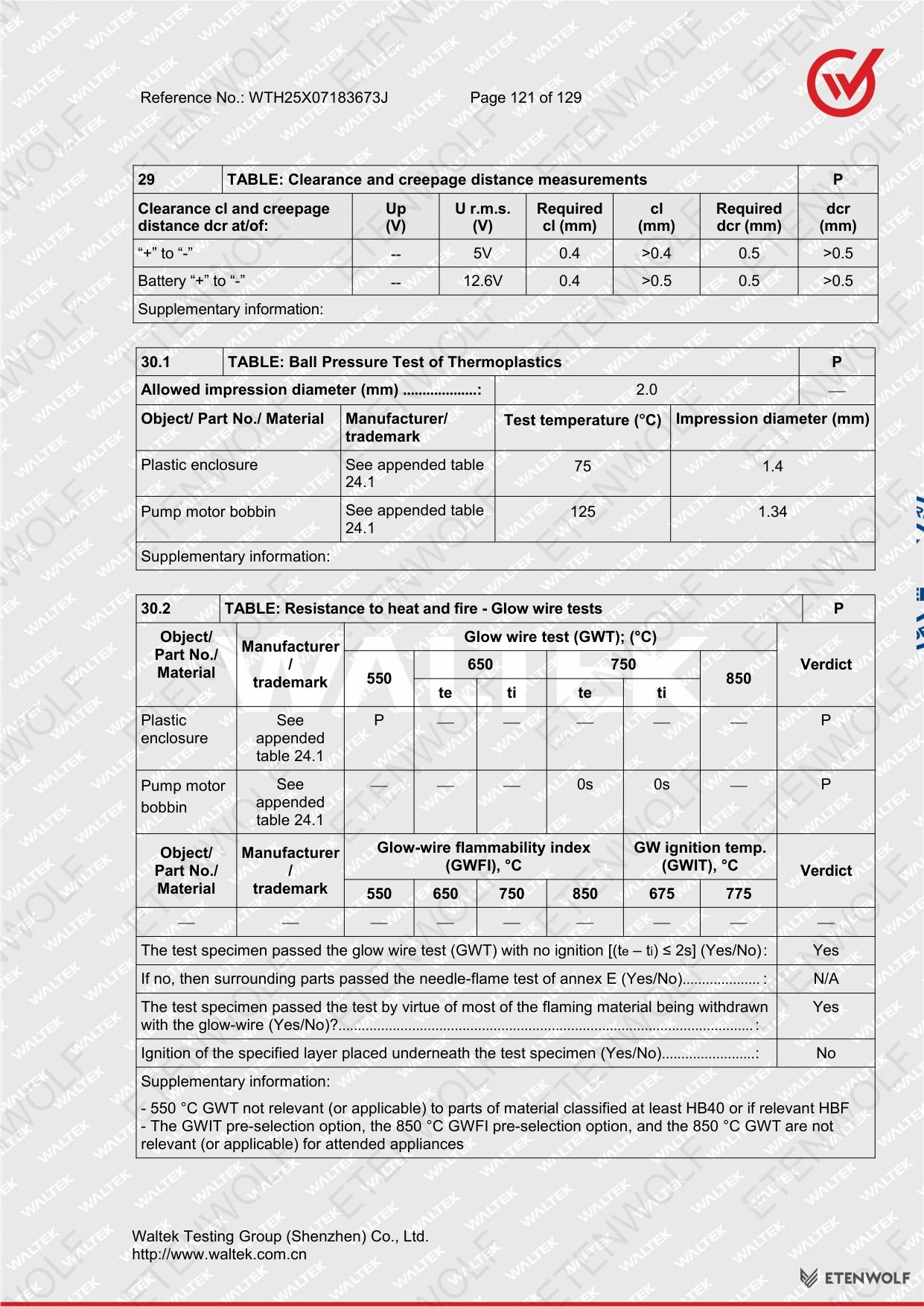

Document Page 121
Document Page 122
Document Page 123

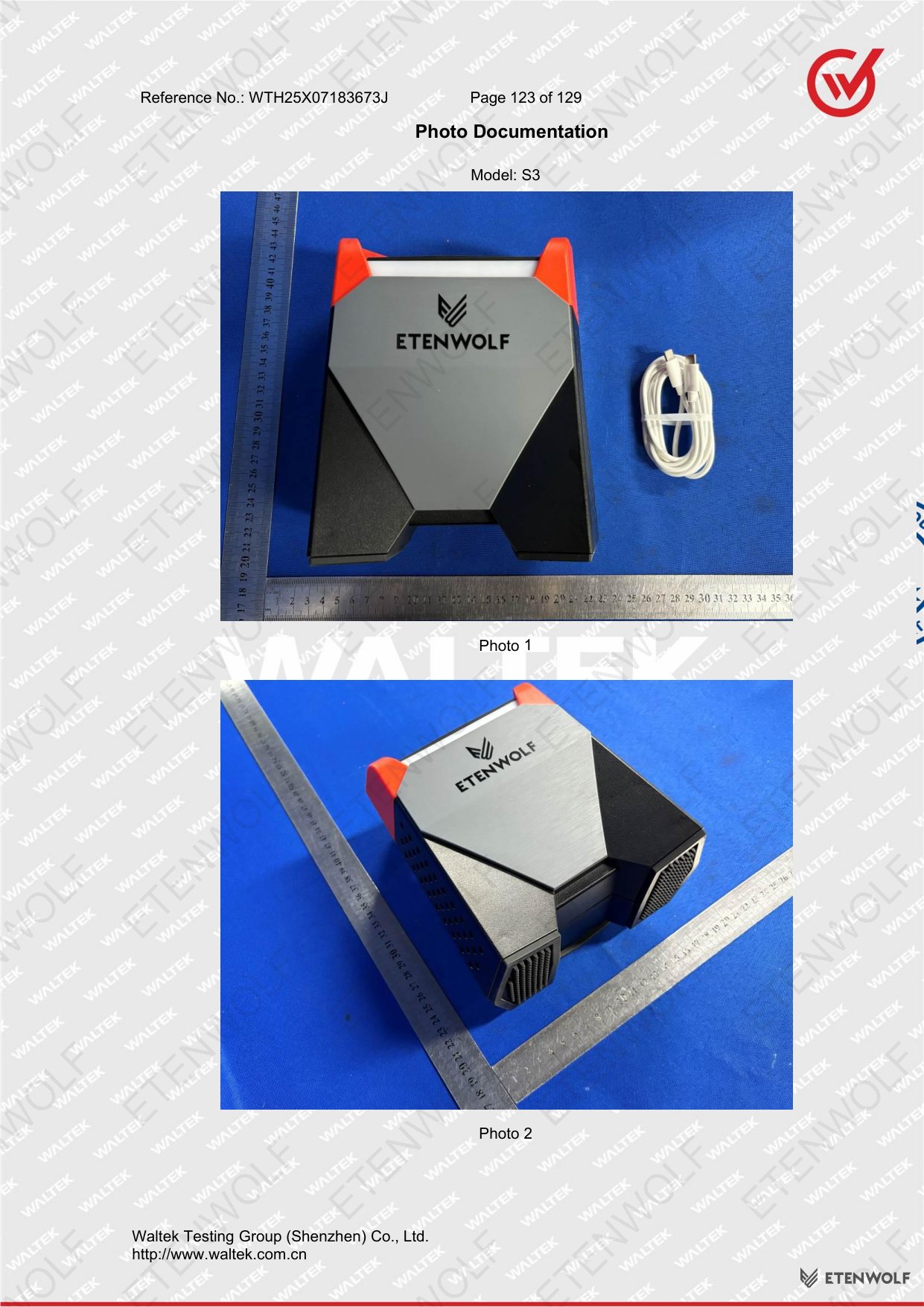

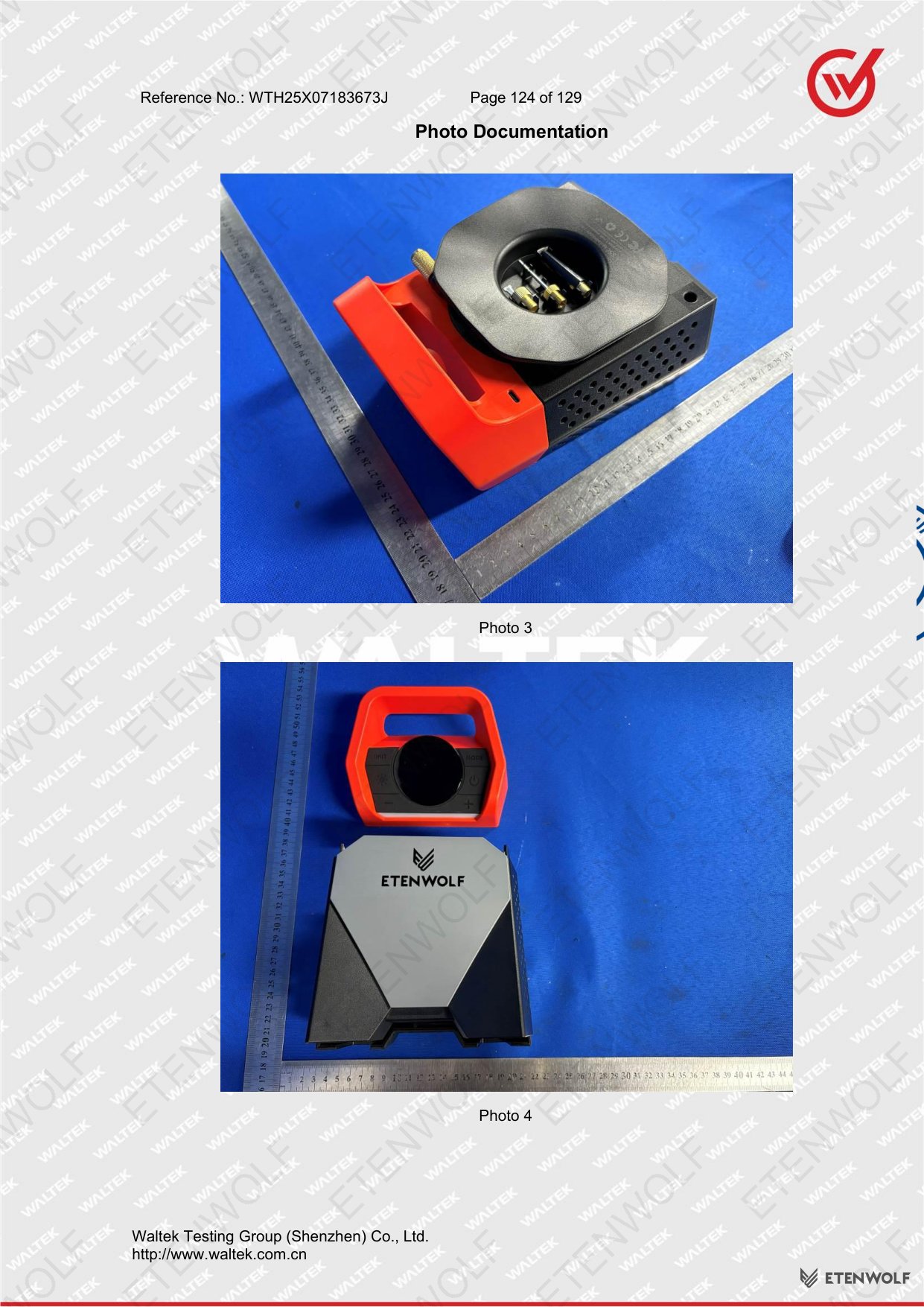

Document Page 124

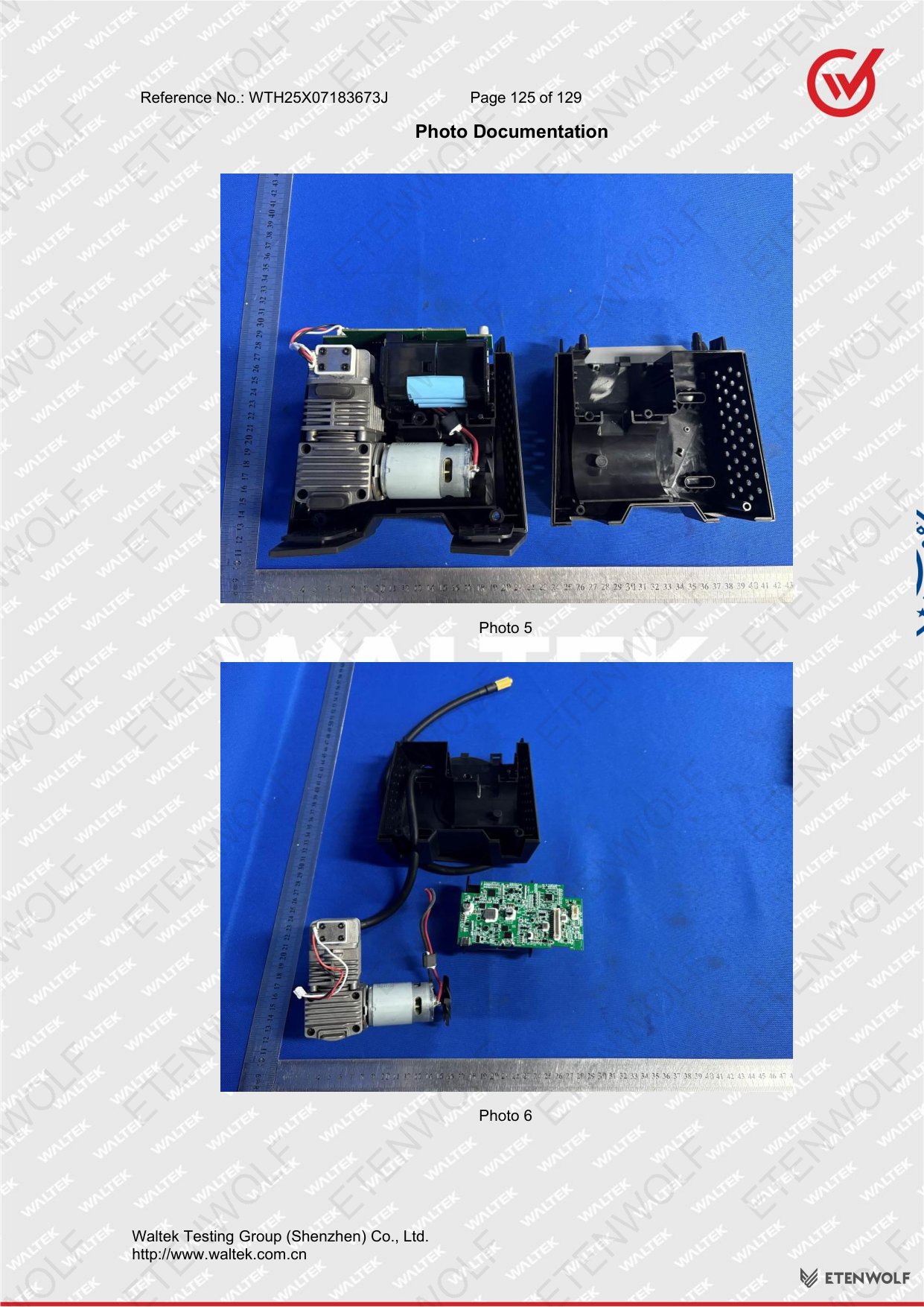

Document Page 125
Document Page 126
Document Page 127

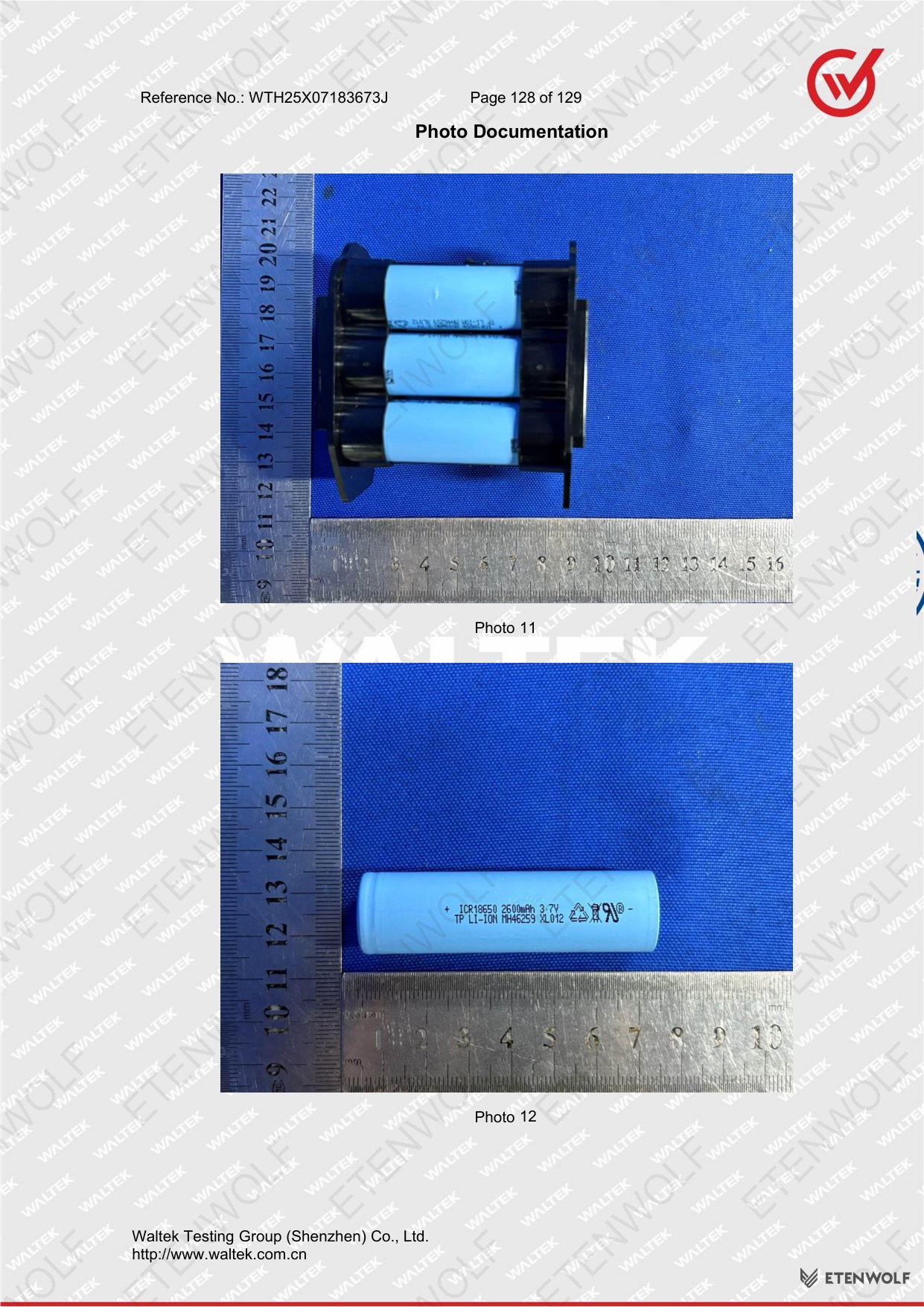

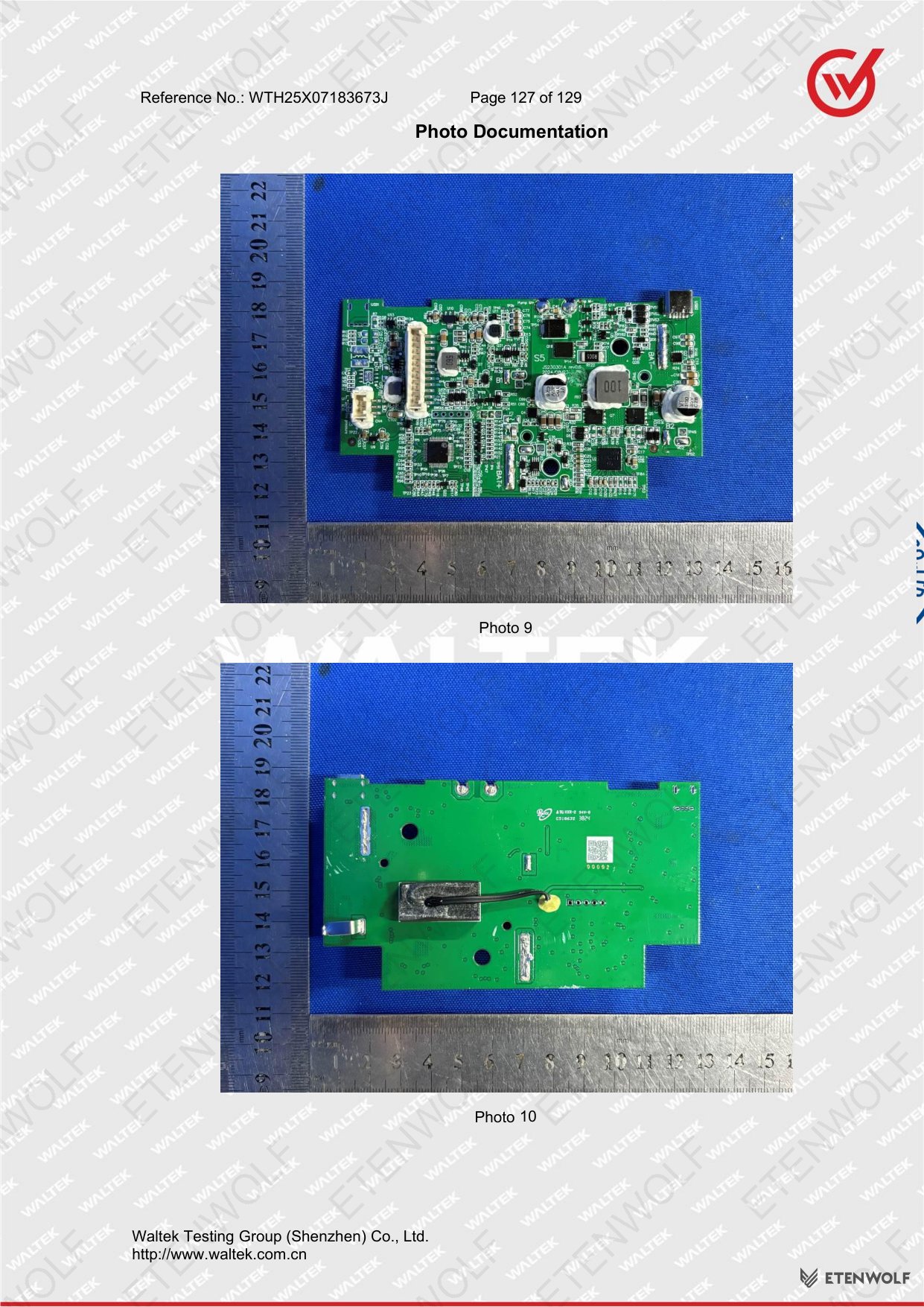

Document Page 128

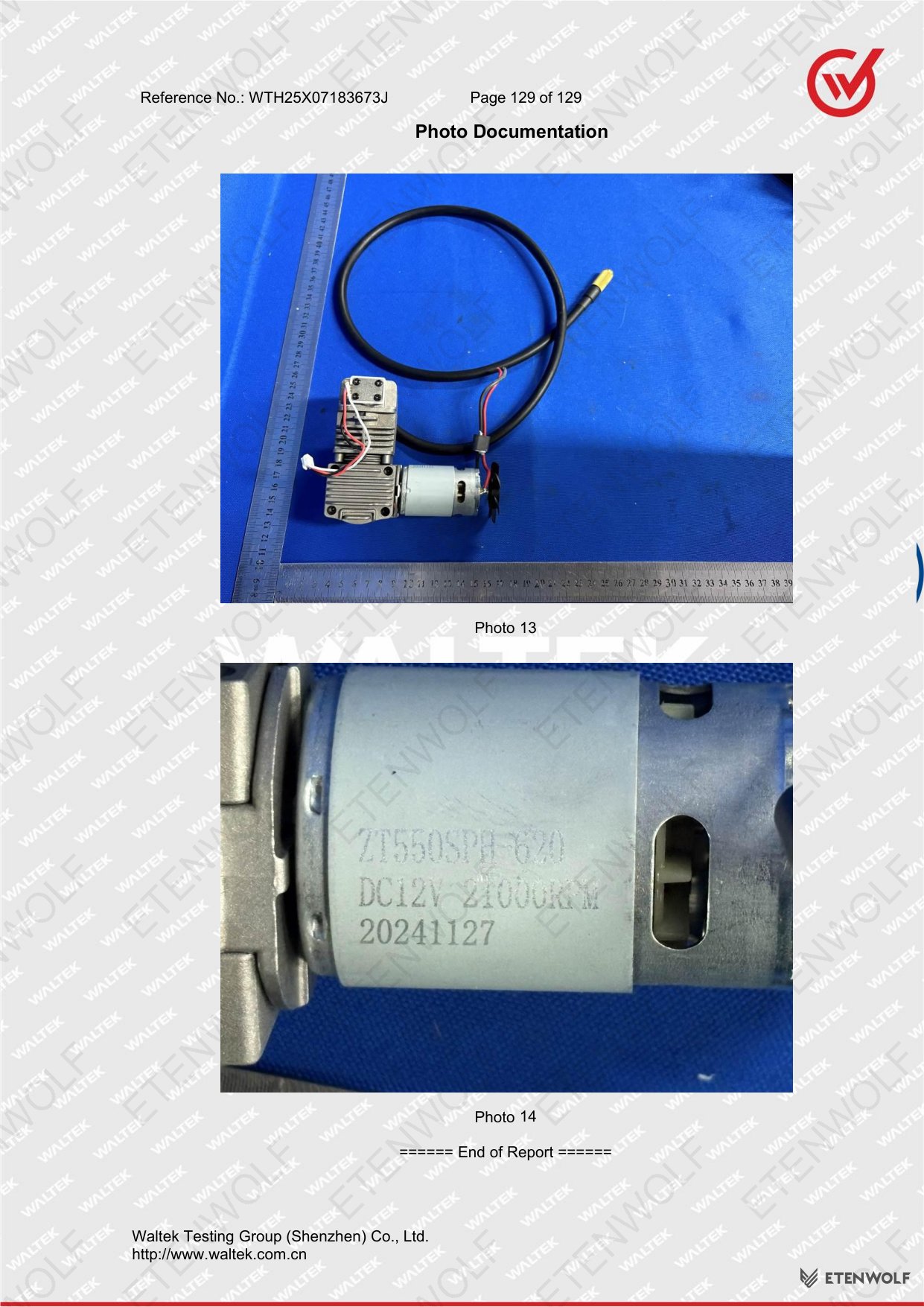

Document Page 129
