Document Overview

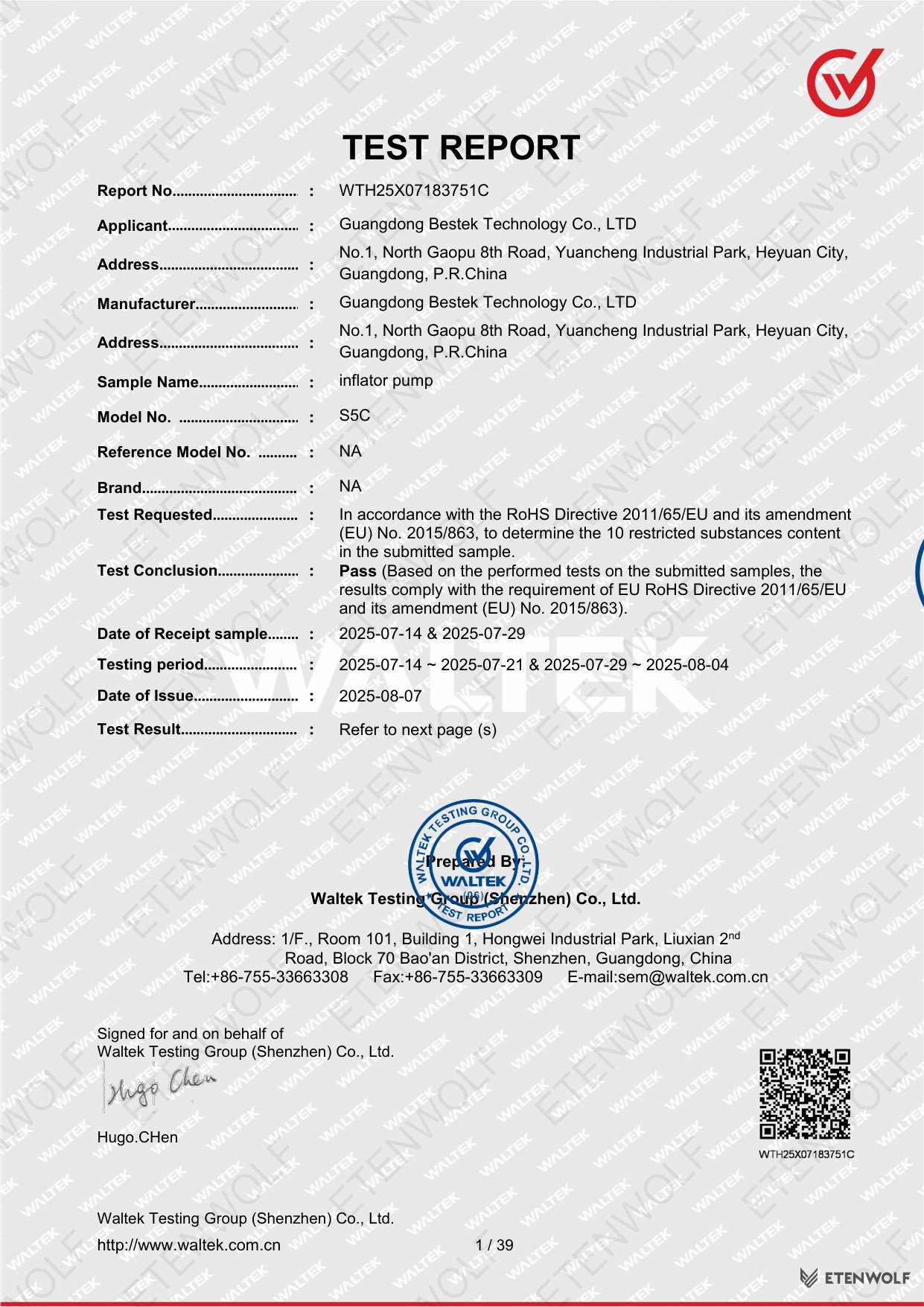

This article covers the RoHS compliance test report issued for the ETENWOLF S5C inflator pump. The document is a formal test report — not a certificate — prepared by Waltek Testing Group (Shenzhen) Co., Ltd., an accredited third-party testing laboratory based in Shenzhen, Guangdong, China.
- Report Number: WTH25X07183751C
- Document Type: RoHS Test Report
- Issuing Laboratory: Waltek Testing Group (Shenzhen) Co., Ltd.
- Date of Issue: 2025-08-07
- Scope: Determination of 10 restricted hazardous substances in the submitted sample, in accordance with EU RoHS Directive 2011/65/EU and its amendment (EU) No. 2015/863.
- Test Conclusion: PASS — all tested substances comply with the requirements of the EU RoHS Directive.
Product Information

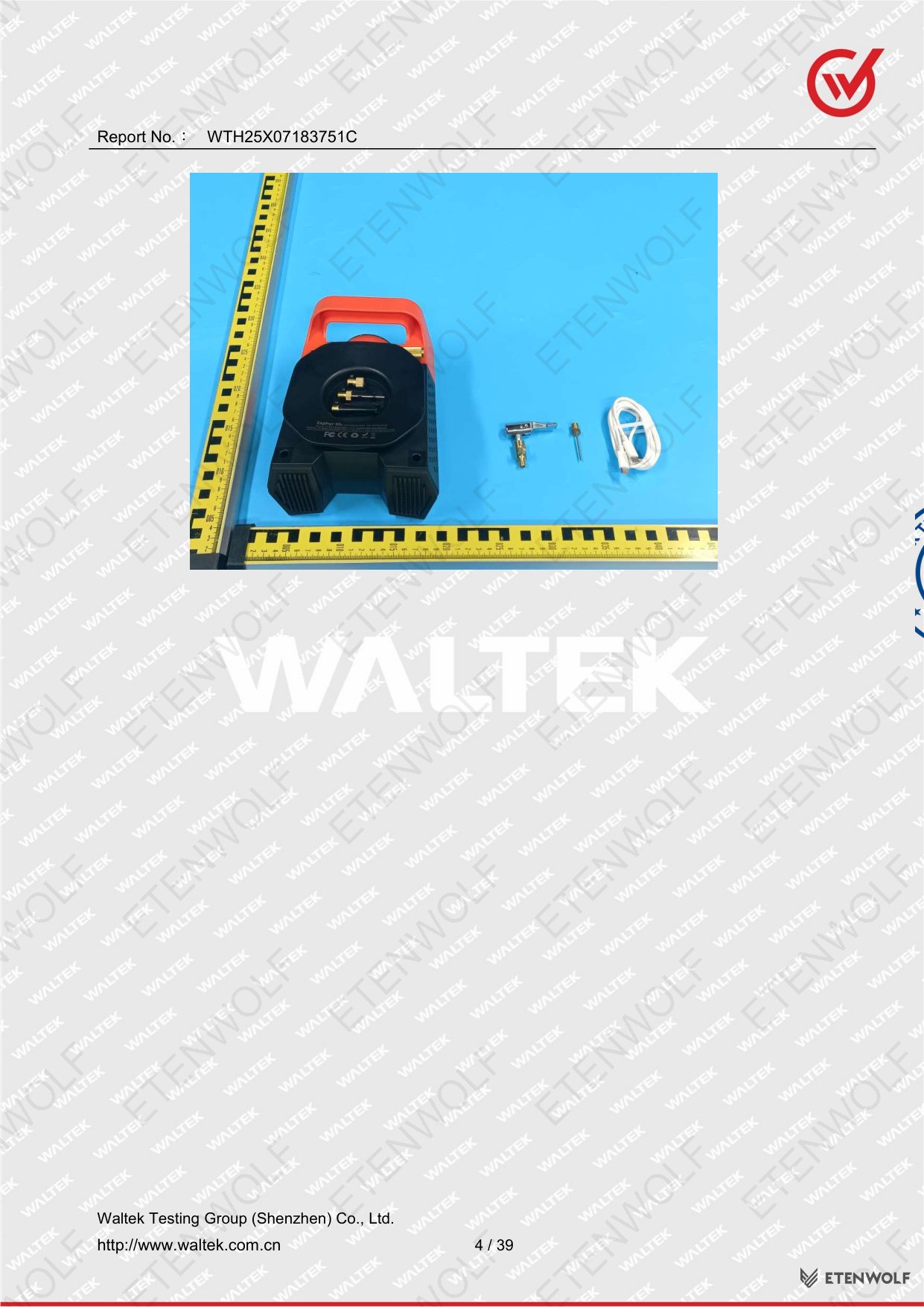

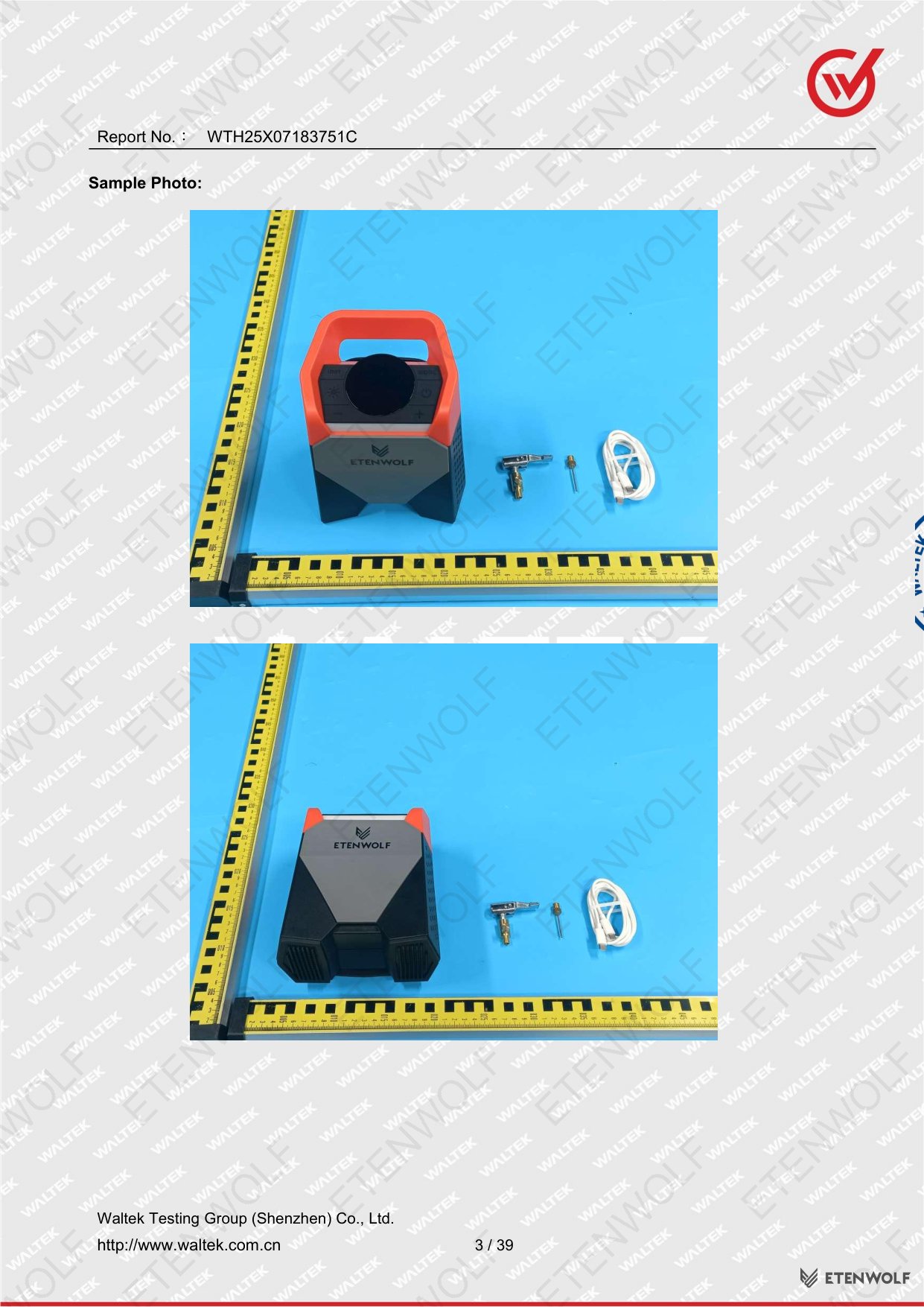

The tested product is the ETENWOLF S5C, a portable inflator pump designed and manufactured by Guangdong Bestek Technology Co., Ltd. Full product details as recorded in the test report are listed below.
| Field | Details |
|---|---|
| Sample Name | Inflator Pump |
| Model Number | S5C |
| Reference Model Number | N/A |
| Brand | N/A (filed under applicant brand) |
| Applicant | Guangdong Bestek Technology Co., Ltd. |
| Manufacturer | Guangdong Bestek Technology Co., Ltd. |
| Manufacturer Address | No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China |
| Date of Sample Receipt | 2025-07-14 & 2025-07-29 |
| Testing Period | 2025-07-14 ~ 2025-07-21 & 2025-07-29 ~ 2025-08-04 |
Key Details
The test report evaluates the S5C inflator pump for the presence of 10 substances restricted under the EU RoHS Directive. These substances are split into two groups as described below.

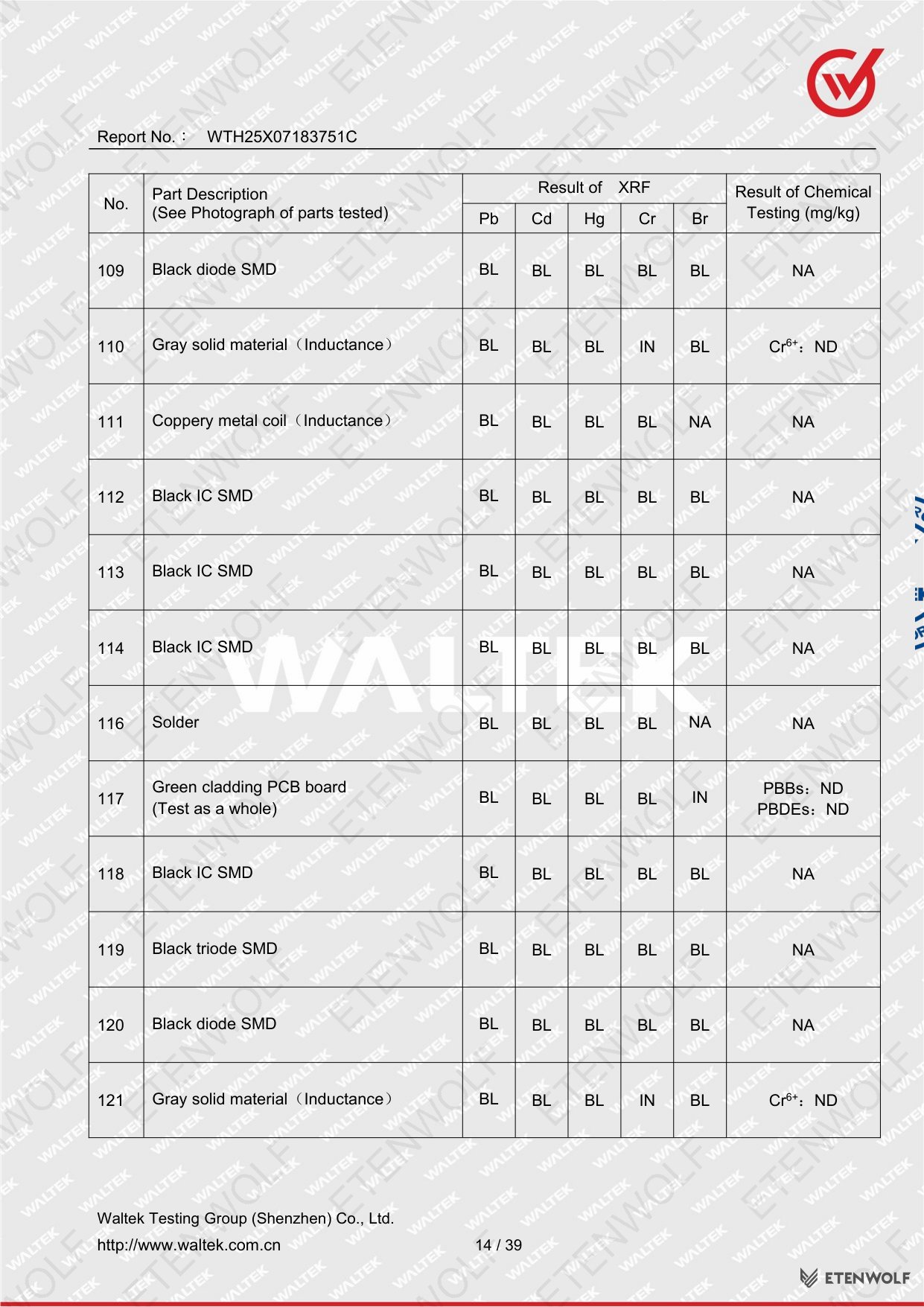

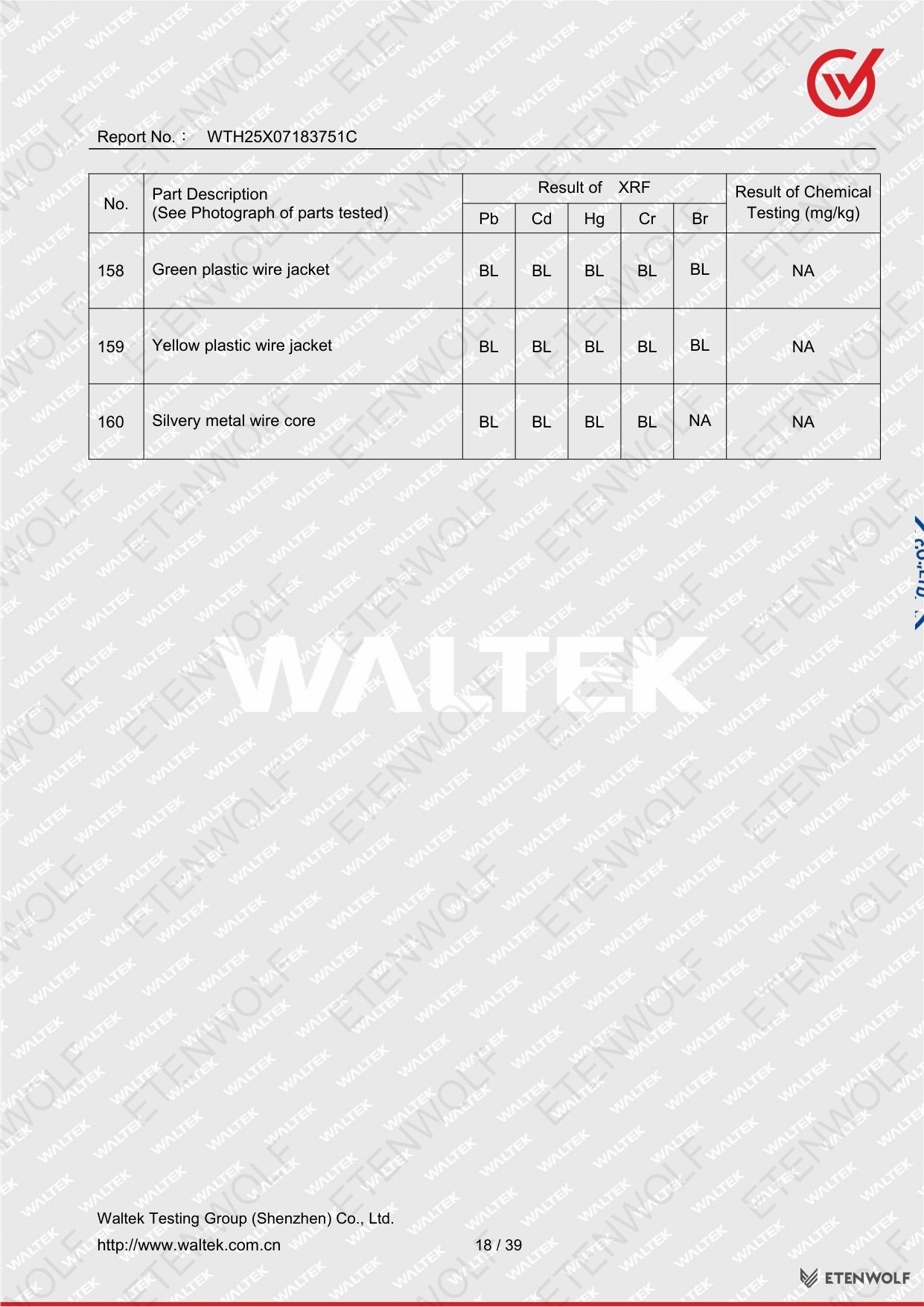

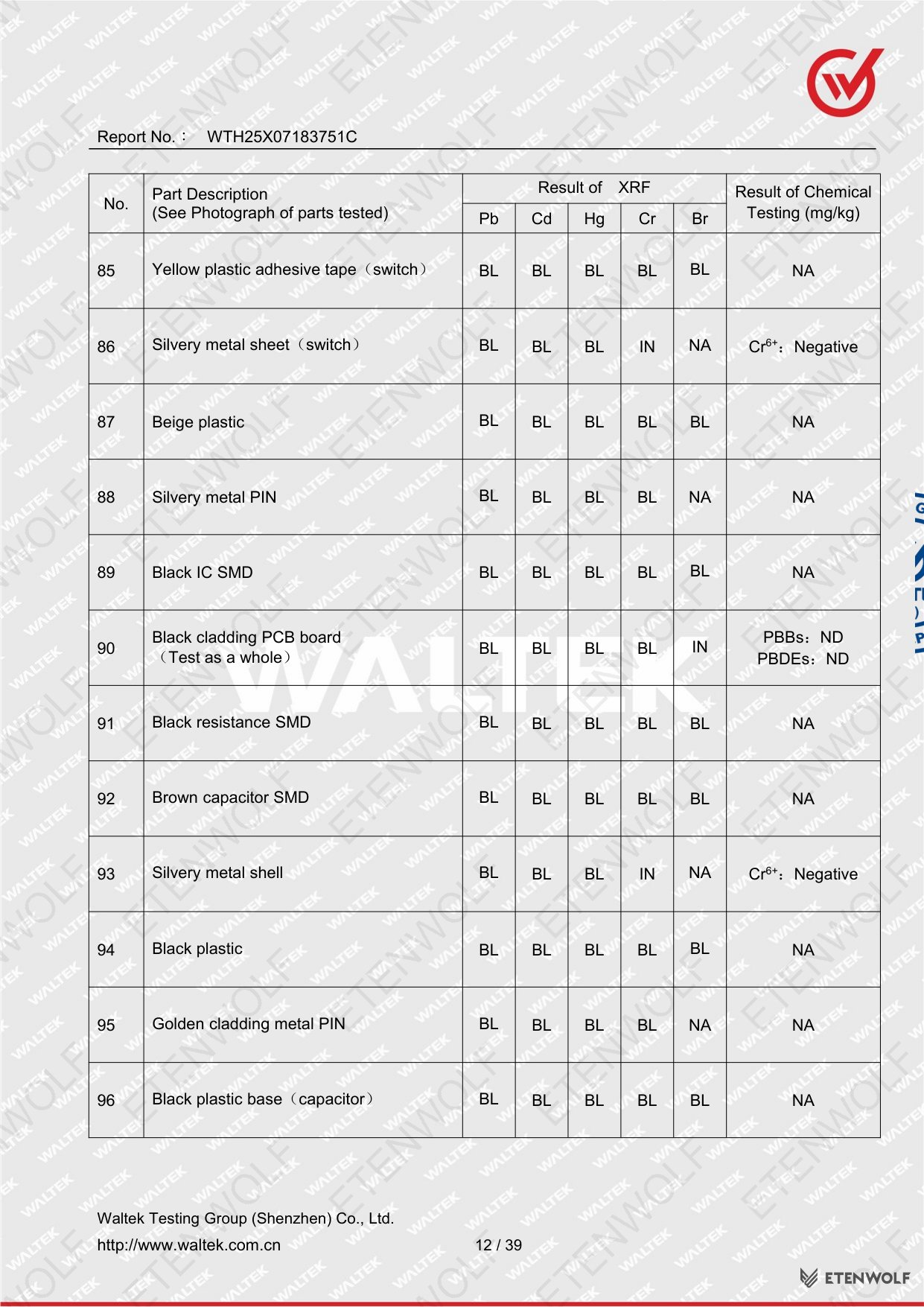

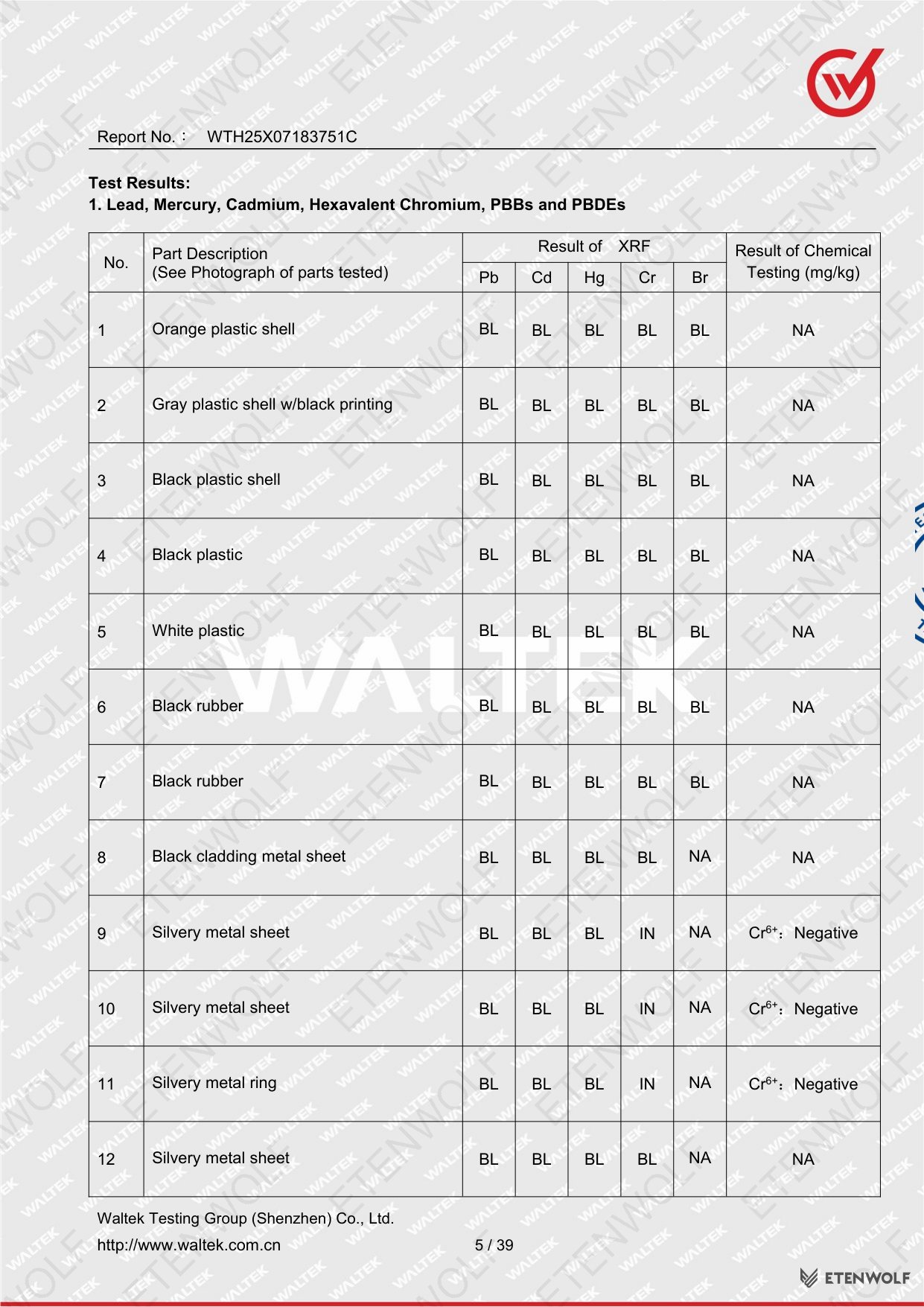

Group 1 — Heavy Metals & Halogenated Compounds
The following six substance categories were assessed via XRF screening followed by chemical confirmation methods where required:

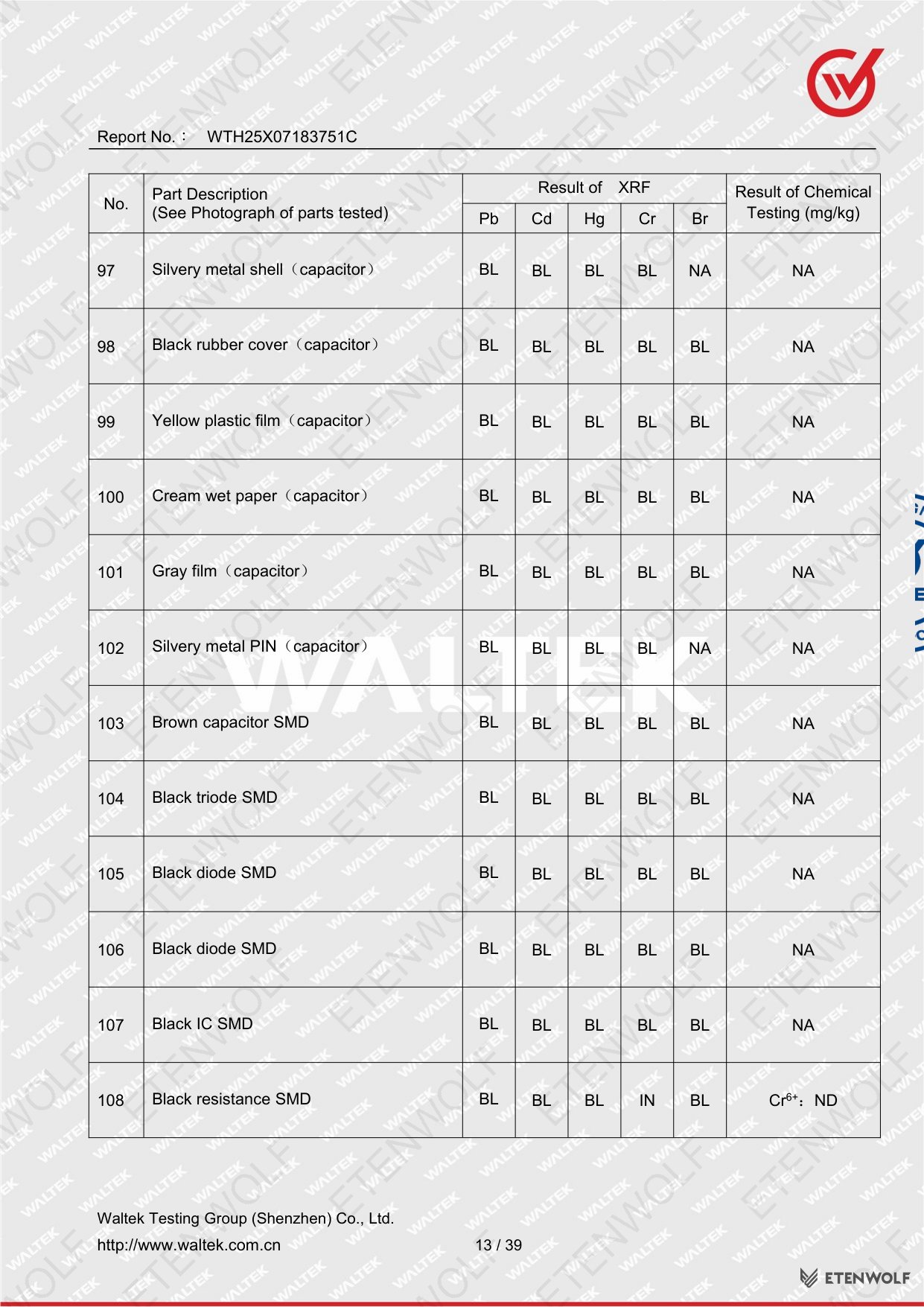

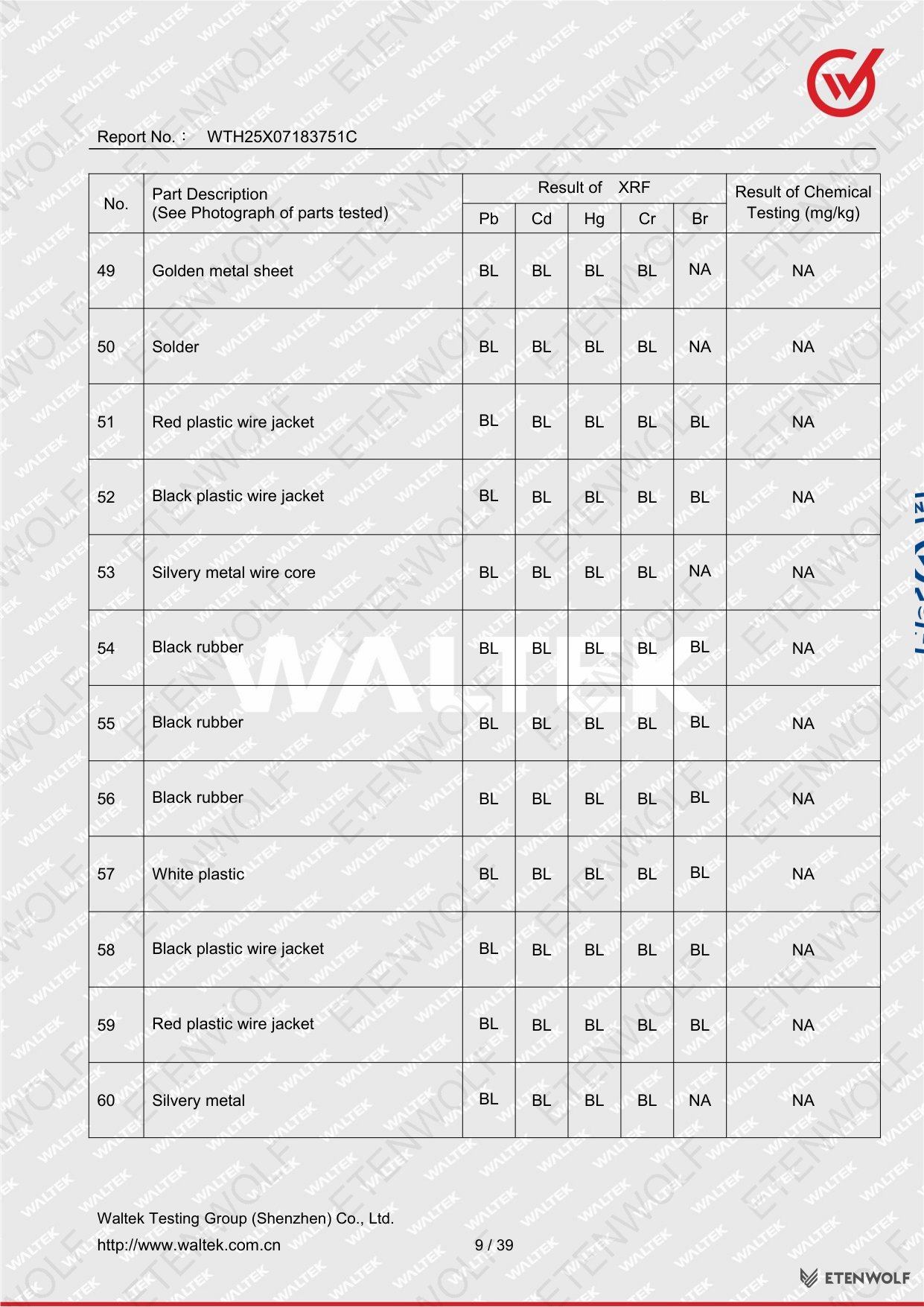

| Restricted Substance | Abbreviation | Maximum Permitted Concentration | Test Result |
|---|---|---|---|
| Lead | Pb | 0.1% by weight per homogeneous material | Pass |
| Mercury | Hg | 0.1% by weight per homogeneous material | Pass |
| Cadmium | Cd | 0.01% by weight per homogeneous material | Pass |
| Hexavalent Chromium | Cr6+ | 0.1% by weight per homogeneous material | Pass |
| Polybrominated Biphenyls | PBBs | 0.1% by weight per homogeneous material | Pass |
| Polybrominated Diphenyl Ethers | PBDEs | 0.1% by weight per homogeneous material | Pass |

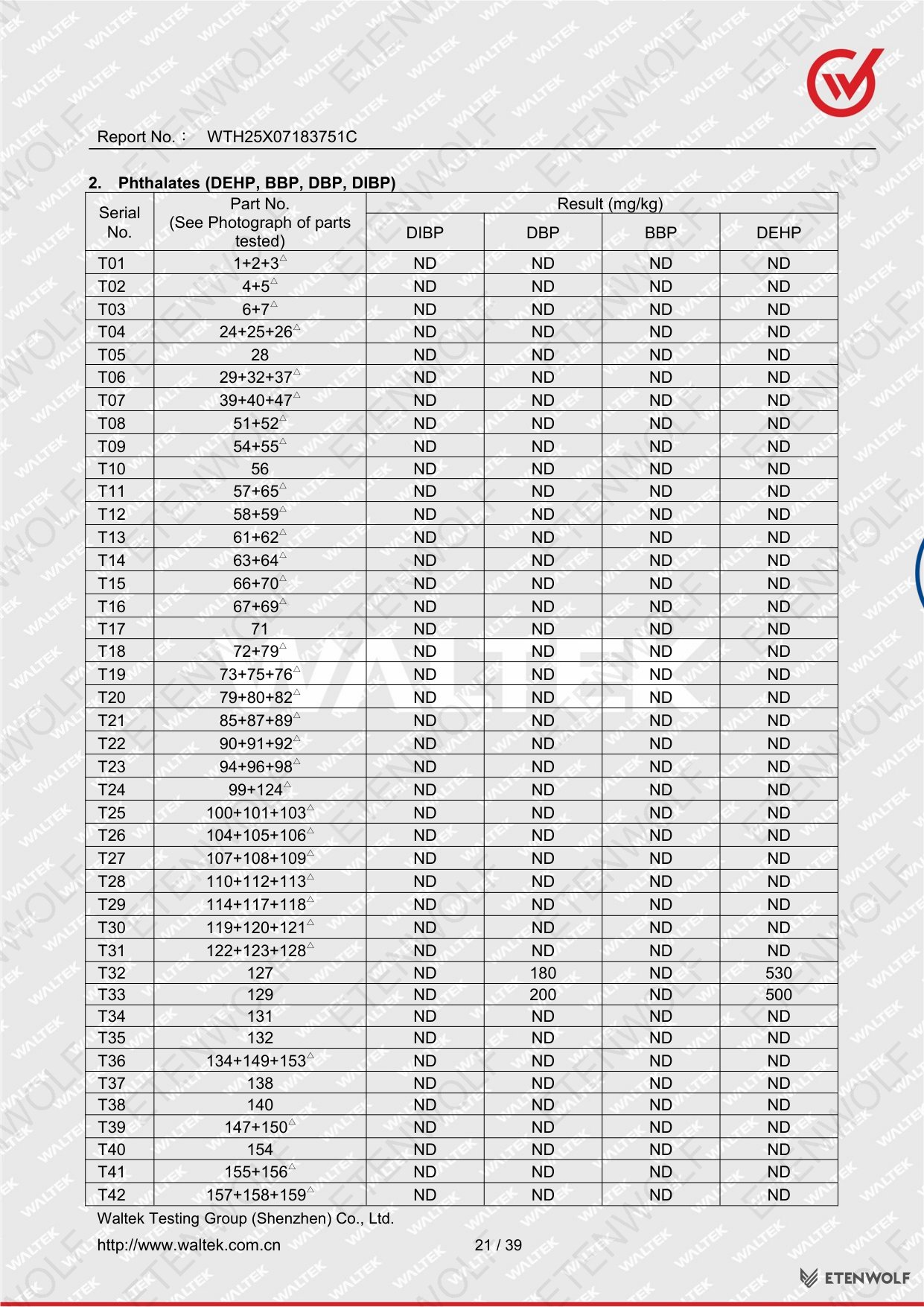

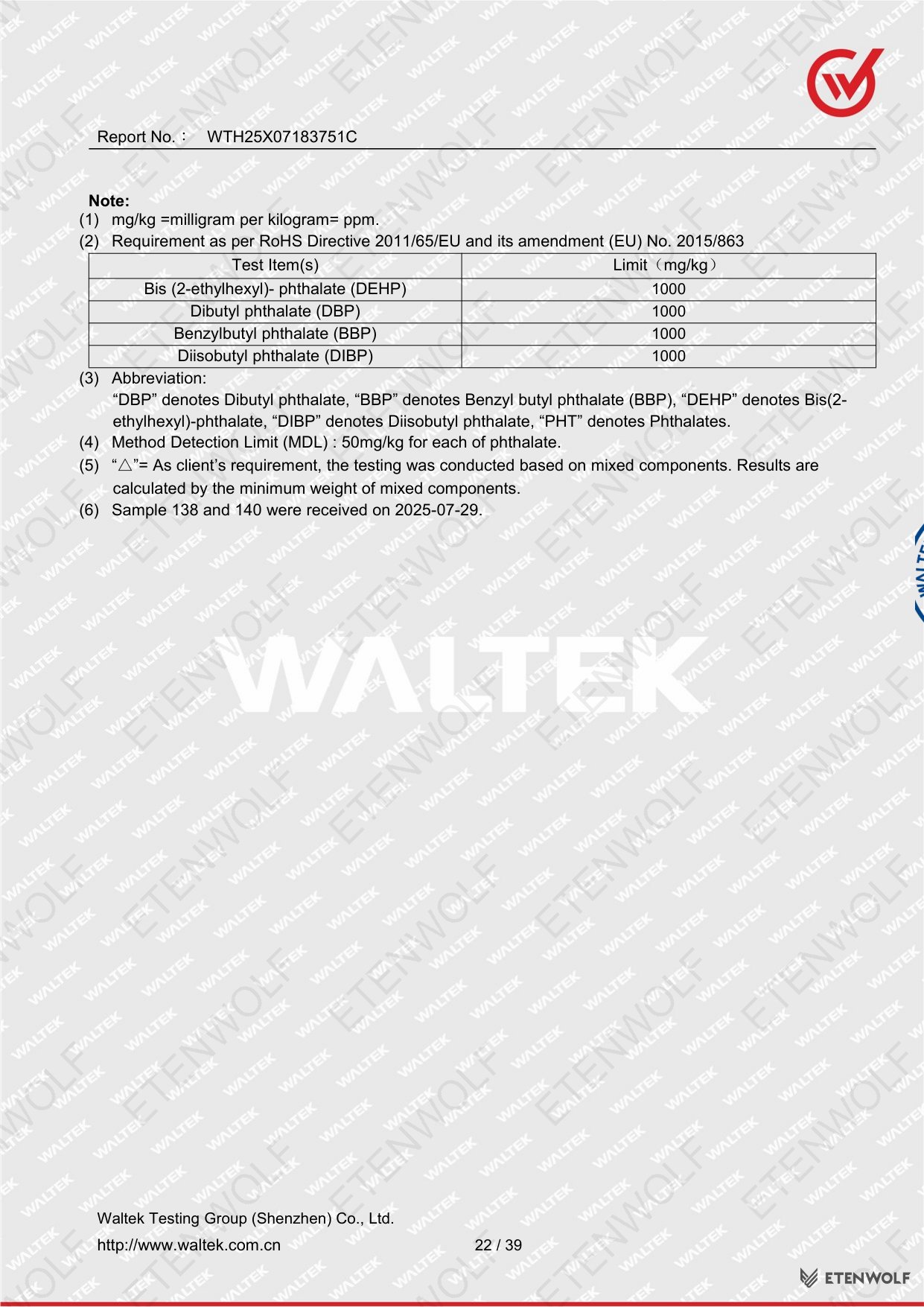

Group 2 — Phthalates (added by amendment (EU) 2015/863)
Four phthalate plasticizers were evaluated under the expanded RoHS scope introduced by the 2015 amendment:
| Restricted Substance | Abbreviation | Maximum Permitted Concentration | Test Result |
|---|---|---|---|
| Bis(2-ethylhexyl) phthalate | DEHP | 0.1% by weight per homogeneous material | Pass |
| Benzyl butyl phthalate | BBP | 0.1% by weight per homogeneous material | Pass |
| Dibutyl phthalate | DBP | 0.1% by weight per homogeneous material | Pass |
| Diisobutyl phthalate | DIBP | 0.1% by weight per homogeneous material | Pass |

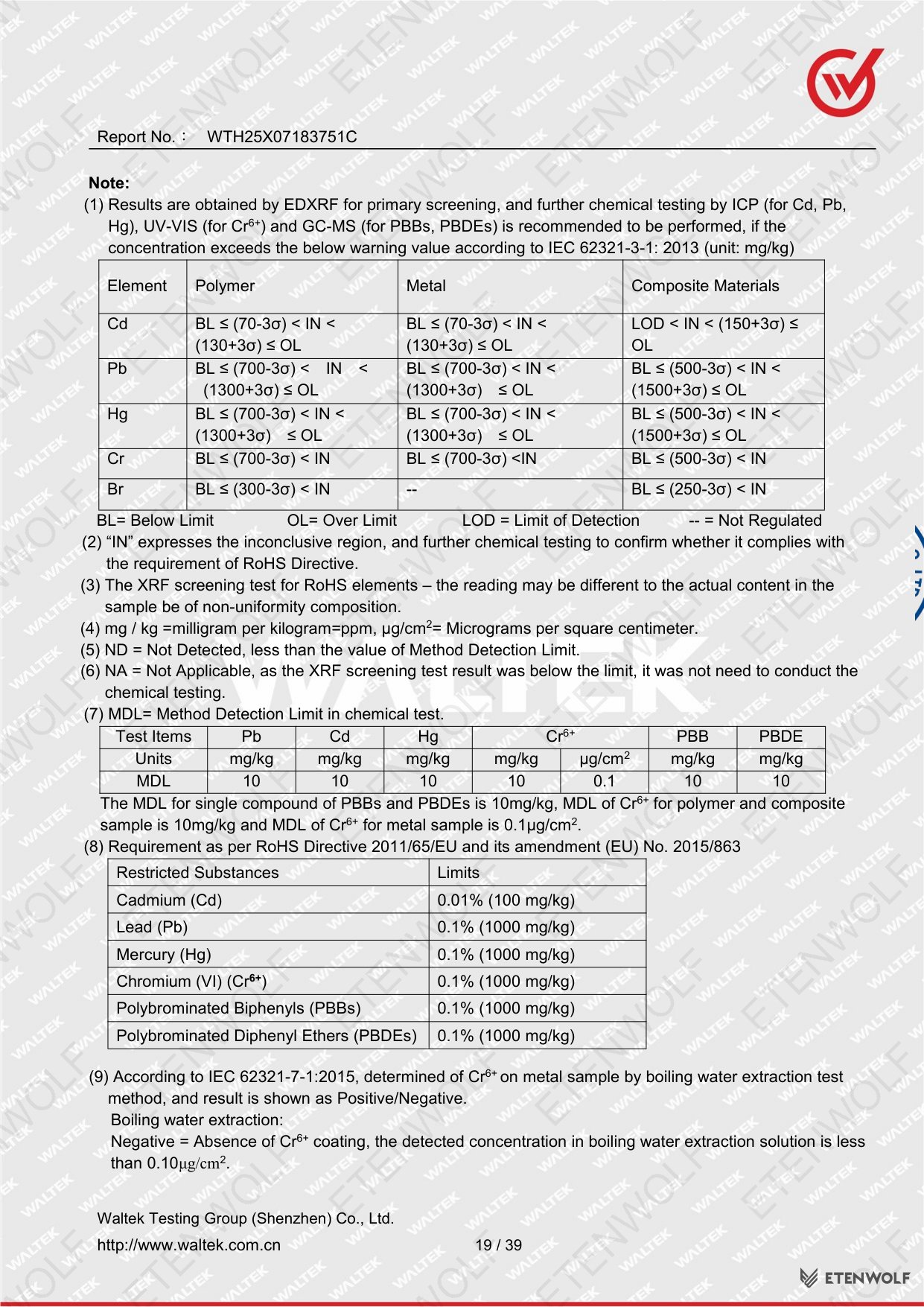

Standards & Compliance

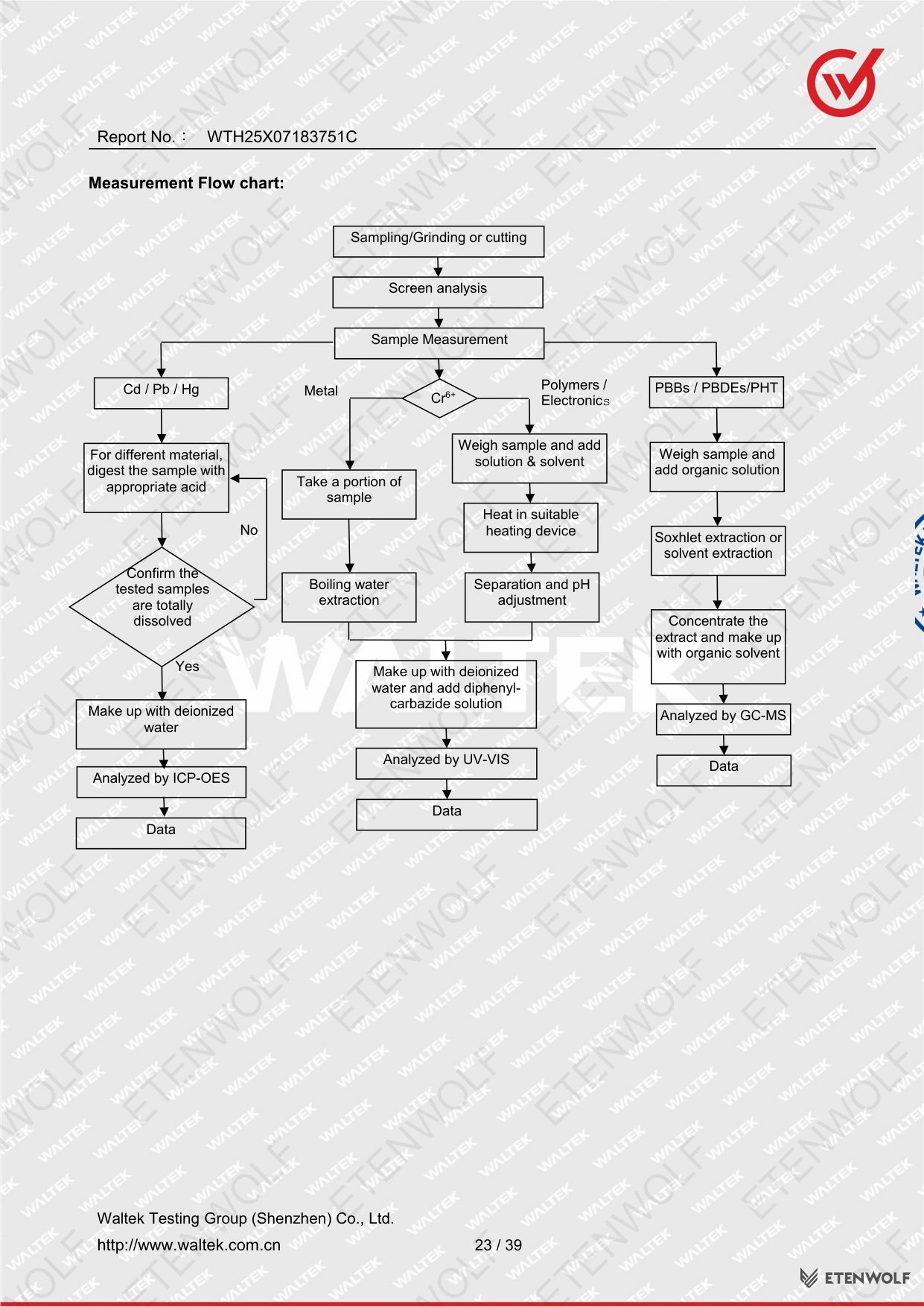

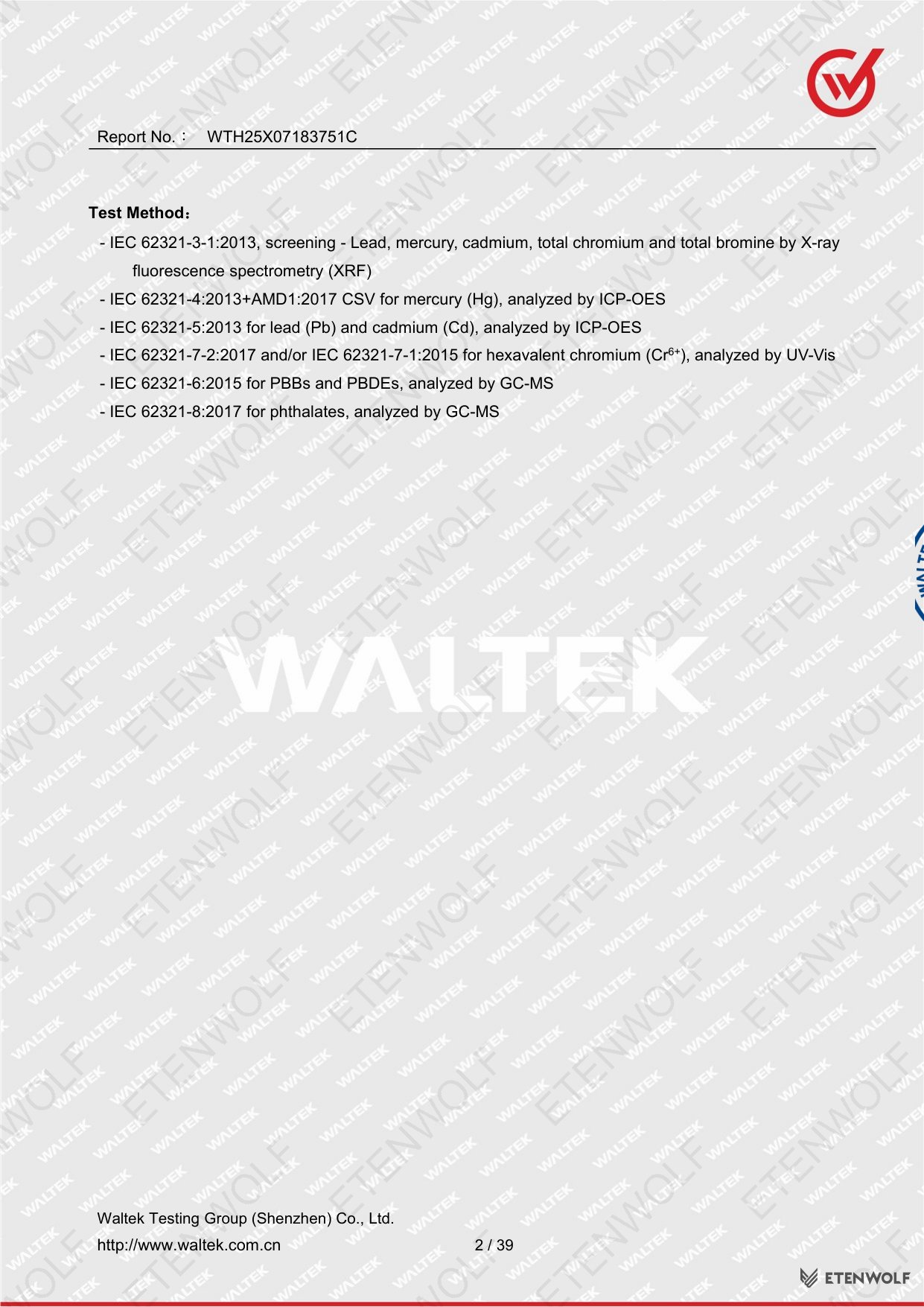

The test report for the ETENWOLF S5C references the following international standards and analytical methods, each applied to specific restricted substances:
- IEC 62321-3-1:2013 — Screening for Lead (Pb), Mercury (Hg), Cadmium (Cd), total Chromium (Cr), and total Bromine (Br) by X-ray Fluorescence Spectrometry (XRF).
- IEC 62321-4:2013+AMD1:2017 CSV — Determination of Mercury (Hg), analyzed by Inductively Coupled Plasma Optical Emission Spectrometry (ICP-OES).
- IEC 62321-5:2013 — Determination of Lead (Pb) and Cadmium (Cd), analyzed by ICP-OES.
- IEC 62321-7-2:2017 and/or IEC 62321-7-1:2015 — Determination of Hexavalent Chromium (Cr6+), analyzed by UV-Vis Spectrophotometry.
- IEC 62321-6:2015 — Determination of Polybrominated Biphenyls (PBBs) and Polybrominated Diphenyl Ethers (PBDEs), analyzed by Gas Chromatography–Mass Spectrometry (GC-MS).
- IEC 62321-8:2017 — Determination of Phthalates (DEHP, BBP, DBP, DIBP), analyzed by GC-MS.
- EU RoHS Directive 2011/65/EU — Restriction of Hazardous Substances in electrical and electronic equipment.
- EU Directive (EU) 2015/863 — Amendment to RoHS 2011/65/EU adding four phthalates to the restricted substances list.
Validity & Certification Body
Details of the issuing laboratory and the validity context for this report are provided below.
| Field | Details |
|---|---|
| Report Number | WTH25X07183751C |
| Issuing Body | Waltek Testing Group (Shenzhen) Co., Ltd. |
| Laboratory Address | 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70, Bao’an District, Shenzhen, Guangdong, China |
| Laboratory Website | http://www.waltek.com.cn |
| Contact Telephone | +86-755-33663308 |
| Contact Fax | +86-755-33663309 |
| Contact Email | [email protected] |
| Report Signed By | Hugo Chen, on behalf of Waltek Testing Group (Shenzhen) Co., Ltd. |
| Date of Issue | 2025-08-07 |
| Validity Note | This test report reflects the composition of the specific sample submitted on 2025-07-14 and 2025-07-29. It remains valid as evidence of compliance for the tested sample batch. Any change in materials, components, or suppliers may require re-testing. |
Frequently Asked Questions
- What does the RoHS test report WTH25X07183751C confirm for the ETENWOLF S5C?
-
Report WTH25X07183751C confirms that the ETENWOLF S5C inflator pump passed all tests for 10 restricted hazardous substances under EU RoHS Directive 2011/65/EU and its amendment (EU) 2015/863. All measured substance concentrations were within the maximum permitted limits set by the directive.
- Which 10 substances are restricted under EU RoHS 2011/65/EU and its amendment?
-
The 10 restricted substances are: Lead (Pb), Mercury (Hg), Cadmium (Cd), Hexavalent Chromium (Cr6+), Polybrominated Biphenyls (PBBs), Polybrominated Diphenyl Ethers (PBDEs), Bis(2-ethylhexyl) phthalate (DEHP), Benzyl butyl phthalate (BBP), Dibutyl phthalate (DBP), and Diisobutyl phthalate (DIBP). The first six were covered under the original 2011 directive; the four phthalates were added by the 2015 amendment.
- Who conducted the RoHS testing for the S5C inflator pump?
-
Testing was conducted by Waltek Testing Group (Shenzhen) Co., Ltd., an accredited third-party laboratory located in Bao’an District, Shenzhen, China. The testing period ran from 2025-07-14 to 2025-07-21 and from 2025-07-29 to 2025-08-04, with the report issued on 2025-08-07.
- Does a RoHS test report expire, and does the S5C need periodic re-testing?
-
A RoHS test report does not carry a fixed expiry date, but it is valid only for the specific sample batch tested. If the product’s materials, component suppliers, or manufacturing processes change, re-testing is required to maintain compliance. Manufacturers are also advised to reassess compliance whenever the EU RoHS directive is updated or amended.
Related Documents
The following certification and compliance document types are commonly required alongside a RoHS test report for a portable inflator pump such as the ETENWOLF S5C:
- REACH SVHC Compliance Report — Tests for Substances of Very High Concern under EU REACH Regulation (EC) No. 1907/2006, complementing the RoHS report for full EU chemical compliance.
- CE Declaration of Conformity — Required for placing electrical and electronic products on the EU market; incorporates RoHS compliance as one of its essential requirements.
- FCC Declaration of Conformity (DoC) or FCC ID Certificate — Required for wireless or electronic devices sold in the United States; confirms electromagnetic compatibility and radio frequency compliance.
- UN 38.3 Test Report — Mandatory for products containing lithium-ion batteries; certifies safe transport by air, sea, and road under UN Manual of Tests and Criteria.
- IEC 62133 Battery Safety Test Report — Covers safety requirements for portable sealed secondary lithium cells and batteries used in portable applications.
- KC Certification — Required for products sold in South Korea; covers electromagnetic compatibility and safety under Korean standards.
- ISO 9001 Quality Management System Certificate — Confirms the manufacturer operates a documented quality management system, supporting overall product compliance credibility.

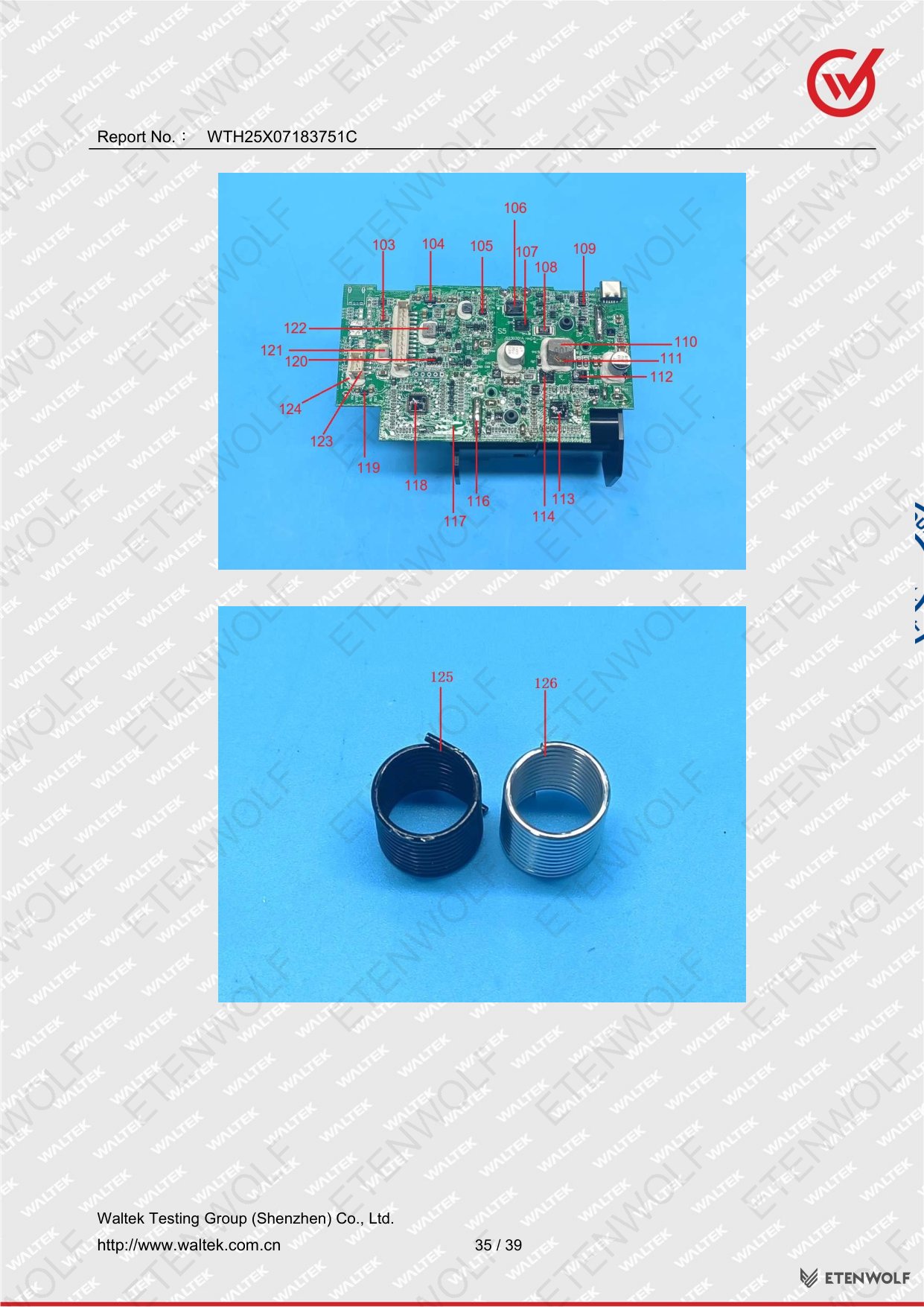

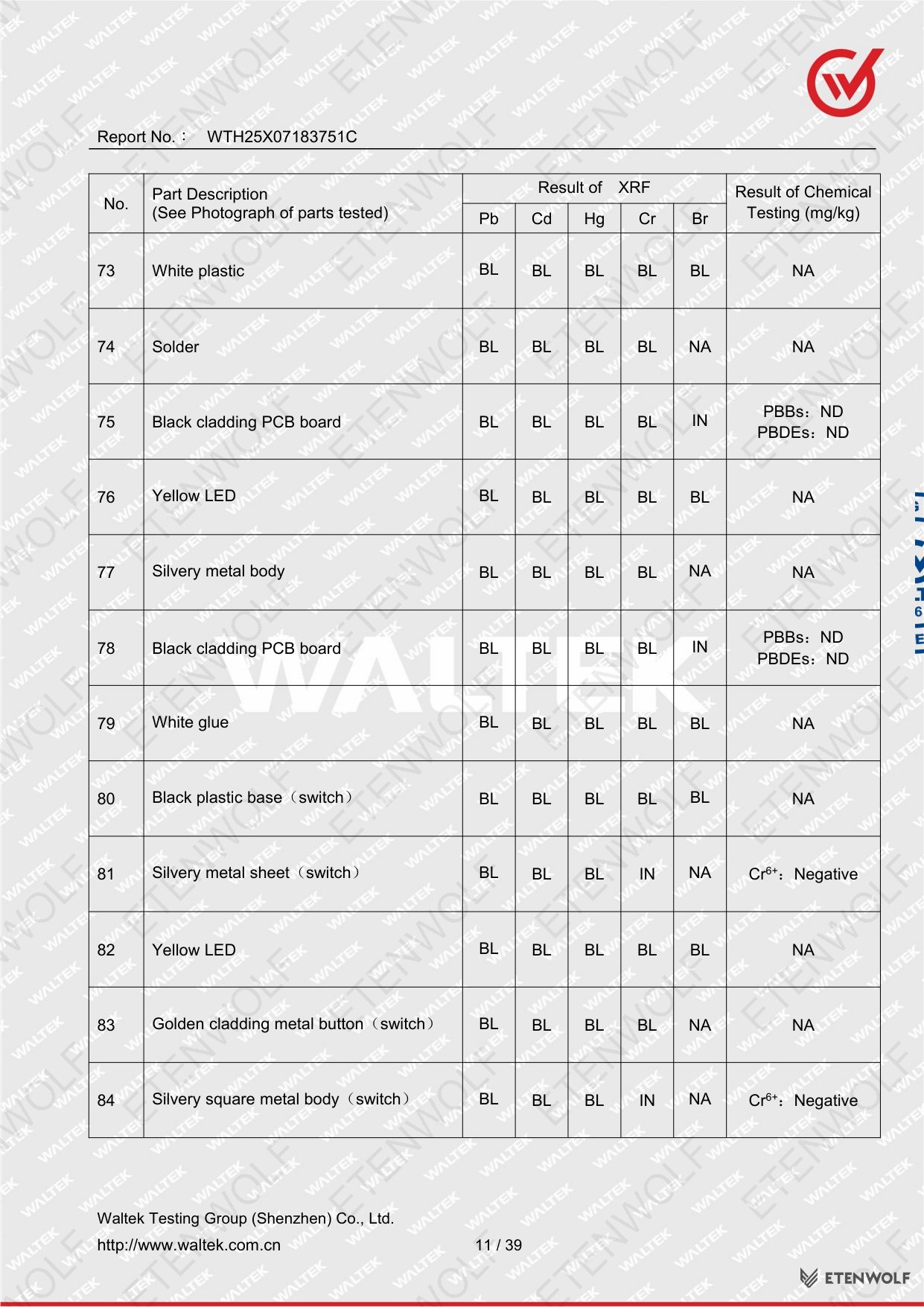

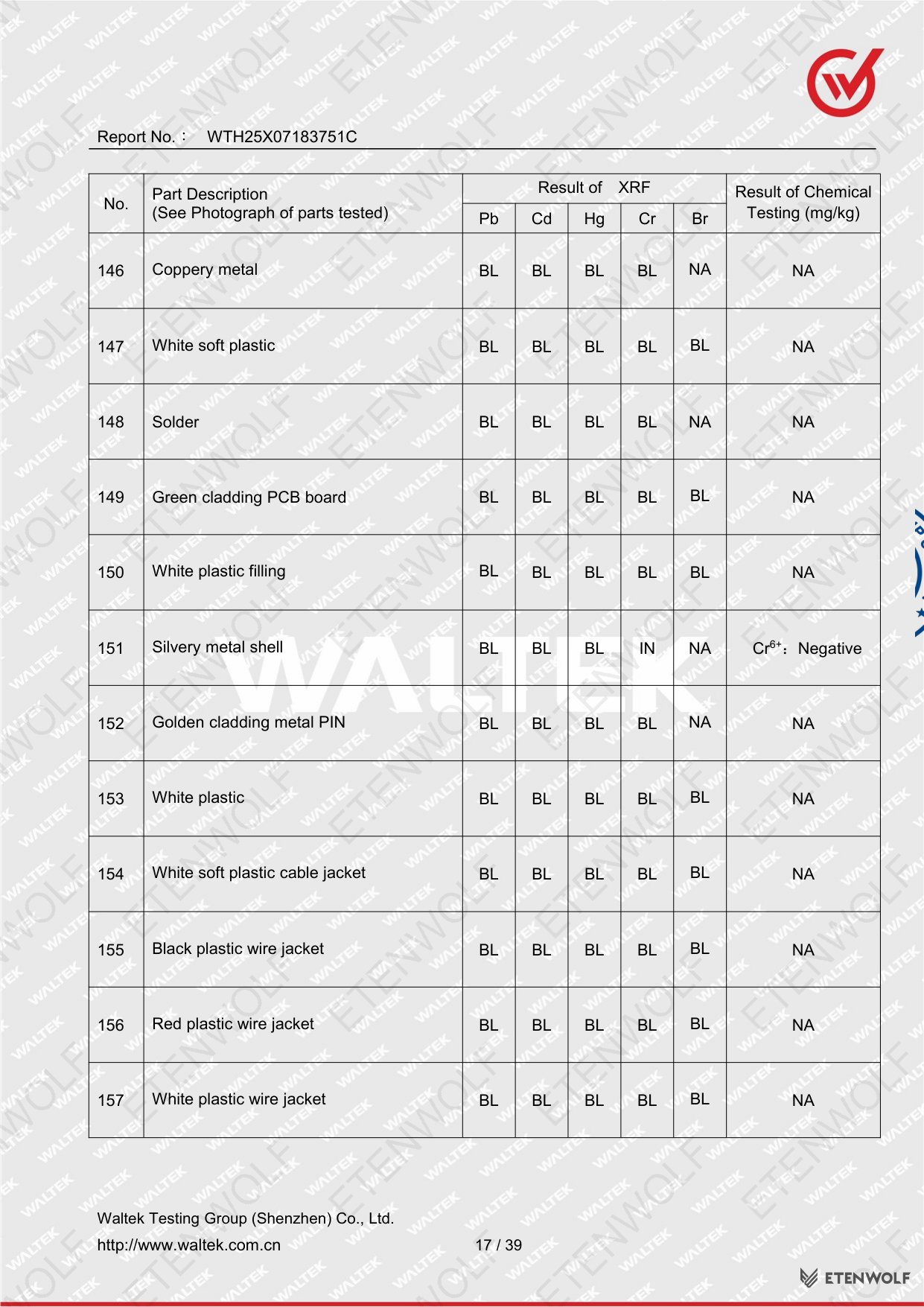

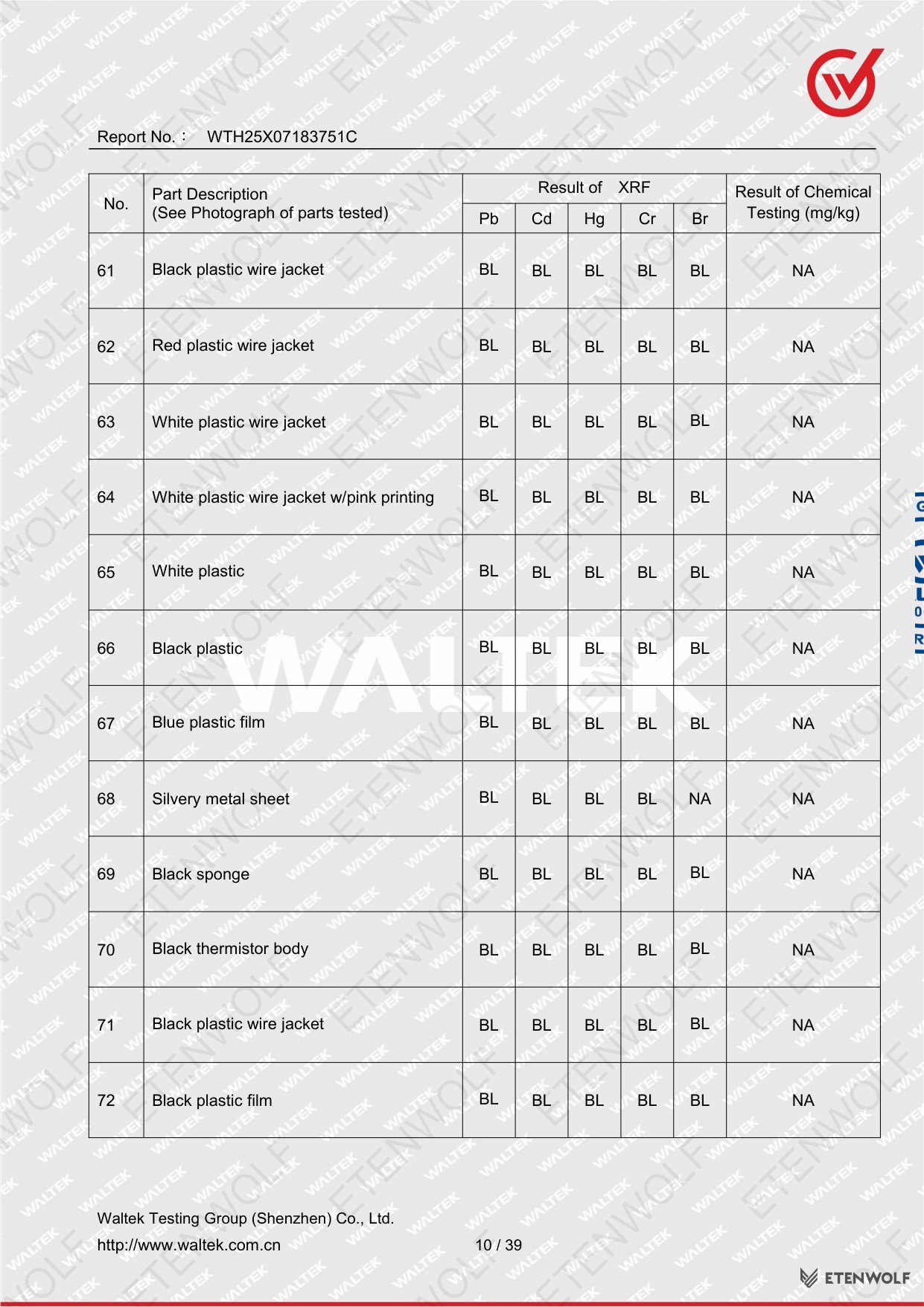

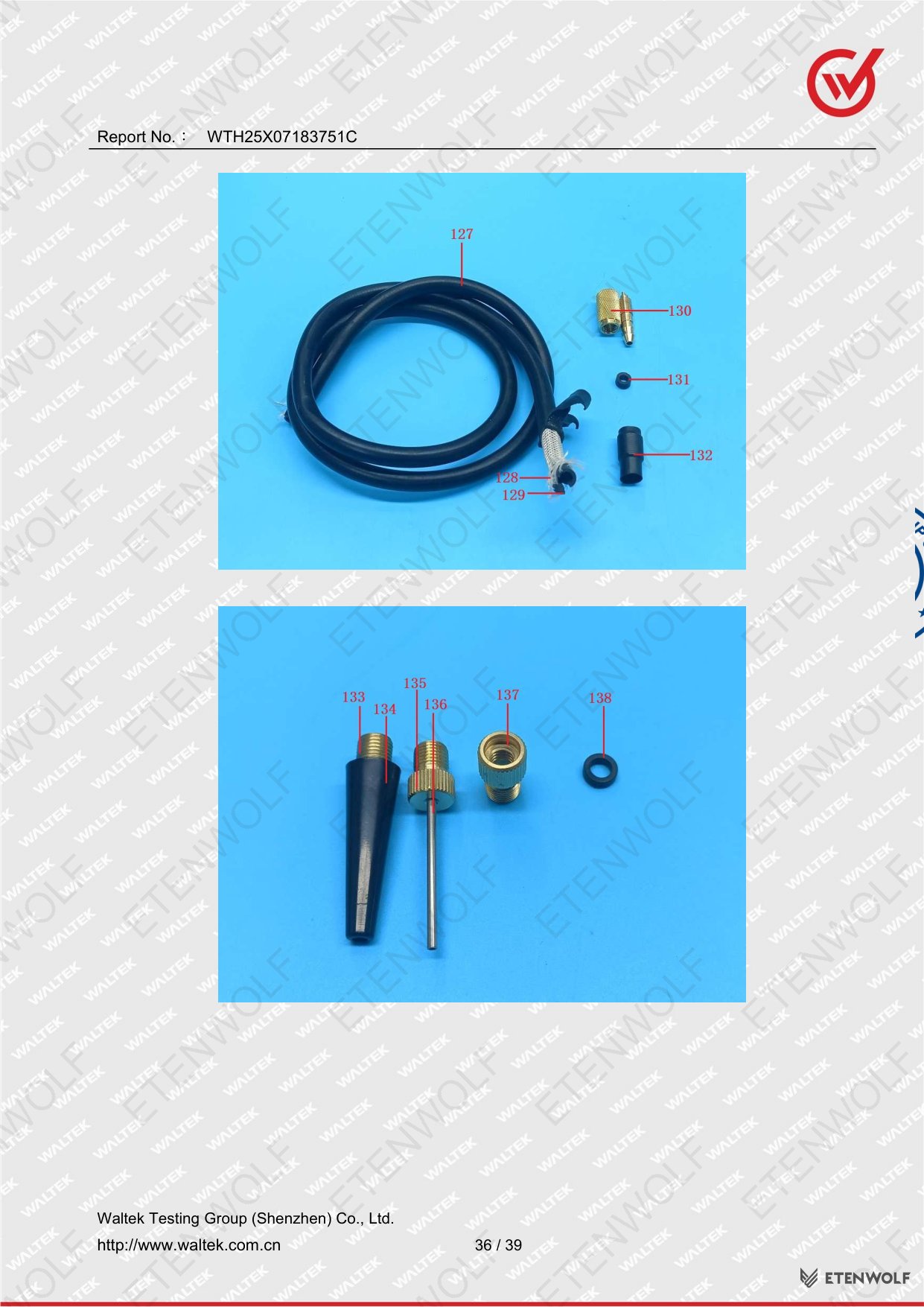

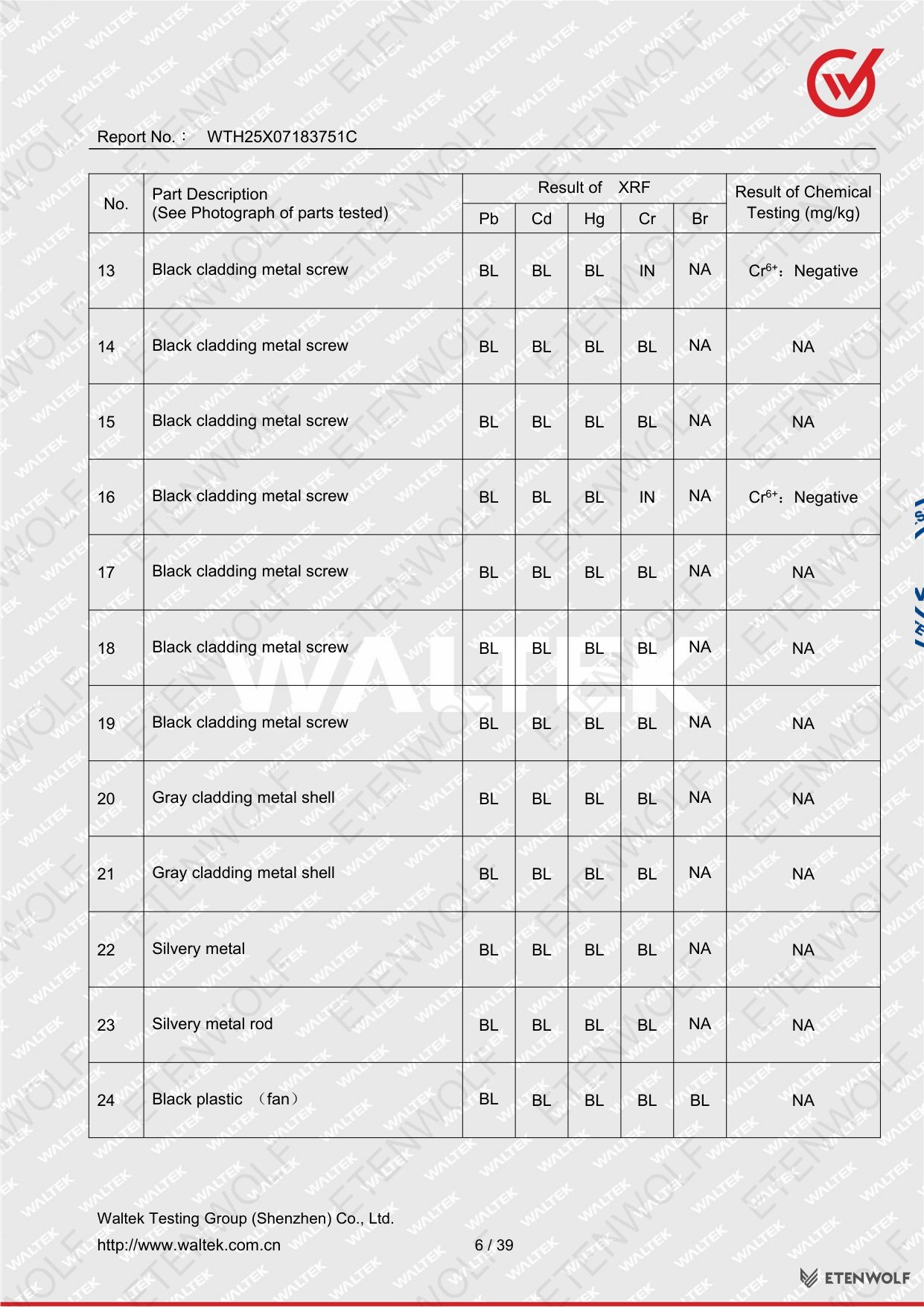

Document Pages
