Document Overview This page presents the CE Low Voltage Directive (CE-LVD) test report issued by Waltek Testing Group (Shenzhen) Co., Ltd. for the ETENWOLF HB1 portable air pump. The report covers safety and electromagnetic field exposure evaluation conducted in accordance with applicable European harmonised standards.…

Document type
Certification Report
Prepared by
Michelle Torres
Published
Last reviewed
Topics
European Union: CE / RoHS / REACH / WEEE

Document Overview

This page presents the CE Low Voltage Directive (CE-LVD) test report issued by Waltek Testing Group (Shenzhen) Co., Ltd. for the ETENWOLF HB1 portable air pump. The report covers safety and electromagnetic field exposure evaluation conducted in accordance with applicable European harmonised standards. The reference number for this report is WTH25X09256002J, and the document spans 126 pages in its complete form.

  • Document Type: CE-LVD Test Report
  • Issuing Body: Waltek Testing Group (Shenzhen) Co., Ltd.
  • Date of Issue: 2025-10-10
  • Test Period: 2025-09-25 to 2025-09-28
  • Date of Sample Receipt: 2025-09-25
  • Overall Test Result: Pass
  • Scope: Household and similar electrical appliances — safety and electromagnetic field exposure for indoor, portable use

Product Information

The product evaluated in this report is the HB1 air pump, marketed and manufactured under the ETENWOLF brand by Guangdong Bestek Technology Co., Ltd. It is a compact, portable inflation tool designed for household and indoor applications.

Attribute Detail
Product Name AIR PUMP
Model No. PUMP MINI / A3 / HiPUMP
Brand Reference HB1
Rated Input Voltage 5 V DC
Rated Input Current 1.0 A
Supply Connection DC Connector
Equipment Class Class III (safety extra-low voltage)
Installation & Use Portable appliance, indoor use only
Applicant / Manufacturer Guangdong Bestek Technology Co., Ltd.
Manufacturer Address No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China
Country of Origin Made in China

The appliance is intended exclusively for household and indoor use. As a Class III device, it operates on safety extra-low voltage (SELV), supplied via a DC connector at 5 V / 1.0 A. When placed on the EU market, the product label must include the name and address of both the importer and the manufacturer. The CE mark minimum height is 5 mm; the WEEE mark minimum height is 7 mm.

Key Details

The following table summarises the principal testing parameters and conditions applied during the evaluation of the HB1 air pump.

Parameter Detail
Reference Number WTH25X09256002J
Test Report Form No. WTX_EN IEC 60335_1_2023B
Standards Tested EN IEC 60335-1:2023+A11:2023 & EN 62233:2008
Verdict Pass
Subcontracting to Other Labs No
Testing Location Waltek Testing Group (Shenzhen) Co., Ltd., 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70, Bao’an District, Shenzhen, Guangdong, China
Prepared By John Zhong / Project Engineer
Approved By Harvid Wei / Manager

Clause 5 of EN IEC 60335-1 (General Conditions for the Tests) was evaluated and returned a Pass verdict. Throughout the report, a comma or point is used as the decimal separator. All test results relate solely to the sample(s) submitted for testing. The report is valid only when accompanied by the specific stamp of the test institute and the signatures of the approver, and may not be reproduced except in full without prior written permission from Waltek Testing Group.

Test case verdict notation used in this report:

  • N/A — Test case does not apply to the test object
  • P — Test object meets the requirement (Pass)
  • F — Test object does not meet the requirement (Fail)

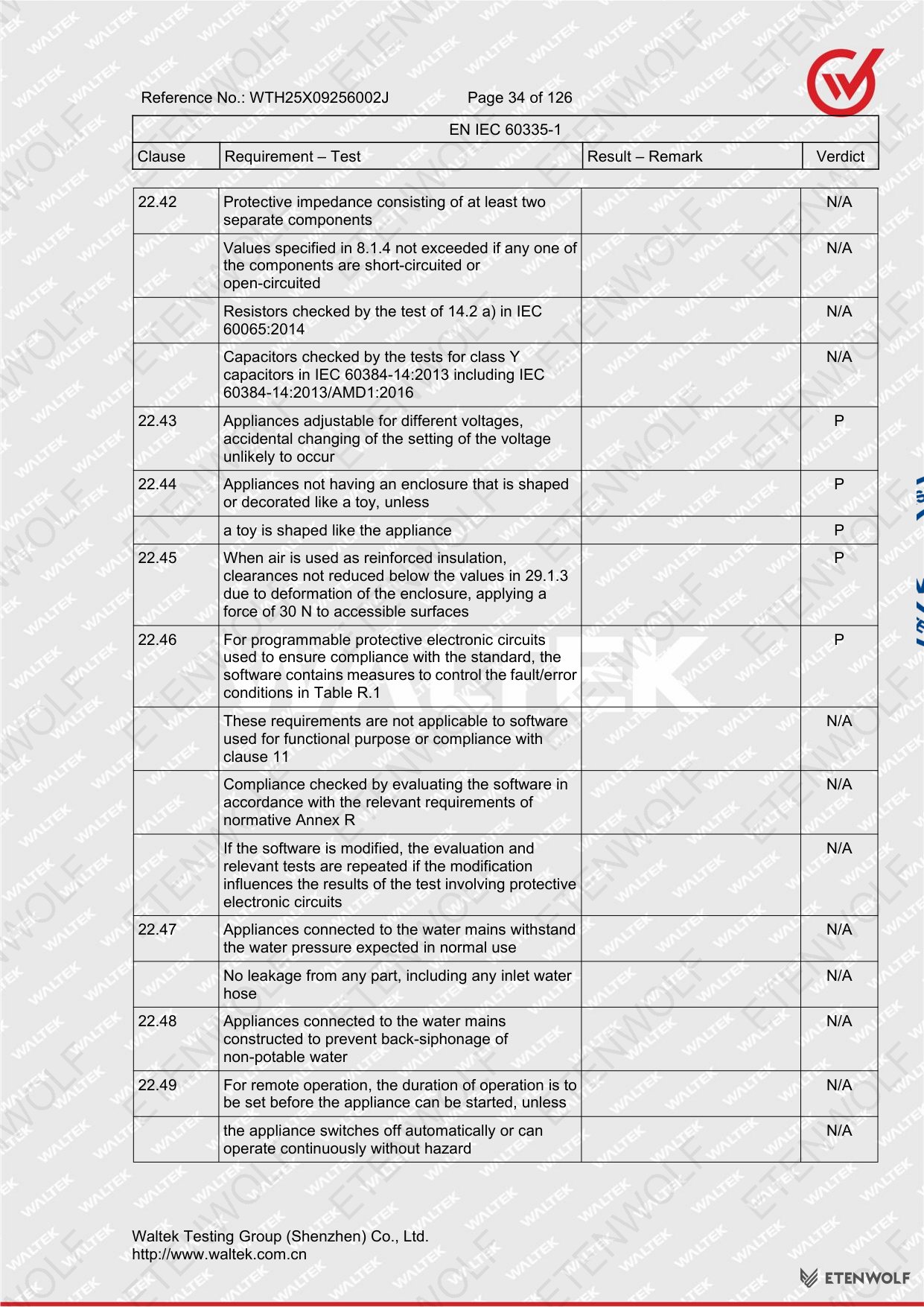

Standards & Compliance

The HB1 air pump was evaluated against the following European harmonised standards as part of its CE-LVD certification process:

Standard Title Scope
EN IEC 60335-1:2023+A11:2023 Household and similar electrical appliances — Safety — Part 1: General requirements Electrical safety requirements applicable to household and similar electrical appliances with rated voltage up to 250 V
EN 62233:2008 Measurement methods for electromagnetic fields of household appliances and similar apparatus with regard to human exposure Defines measurement methods for assessing human exposure to electromagnetic fields emitted by household appliances

Together, these standards satisfy the essential health and safety requirements of the EU Low Voltage Directive (LVD) 2014/35/EU for the product category. Compliance with EN IEC 60335-1:2023+A11:2023 demonstrates that the appliance meets general electrical safety requirements, while EN 62233:2008 confirms that electromagnetic field (EMF) emissions are within acceptable human exposure limits.

Validity & Certification Body

The test report WTH25X09256002J was issued on 2025-10-10 by Waltek Testing Group (Shenzhen) Co., Ltd., an accredited third-party testing laboratory. All testing was conducted in-house at the Shenzhen facility; no test items were subcontracted to external laboratories.

Field Detail
Report Reference WTH25X09256002J
Date of Issue 2025-10-10
Issuing Laboratory Waltek Testing Group (Shenzhen) Co., Ltd.
Laboratory Address 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70, Bao’an District, Shenzhen, Guangdong, China
Laboratory Website http://www.waltek.com.cn
Laboratory Contact Tel: +86-755-33663308 | Fax: +86-755-33663309 | Email: [email protected]
Report Validity Condition Valid only with official stamp and authorised signatures; not to be reproduced except in full

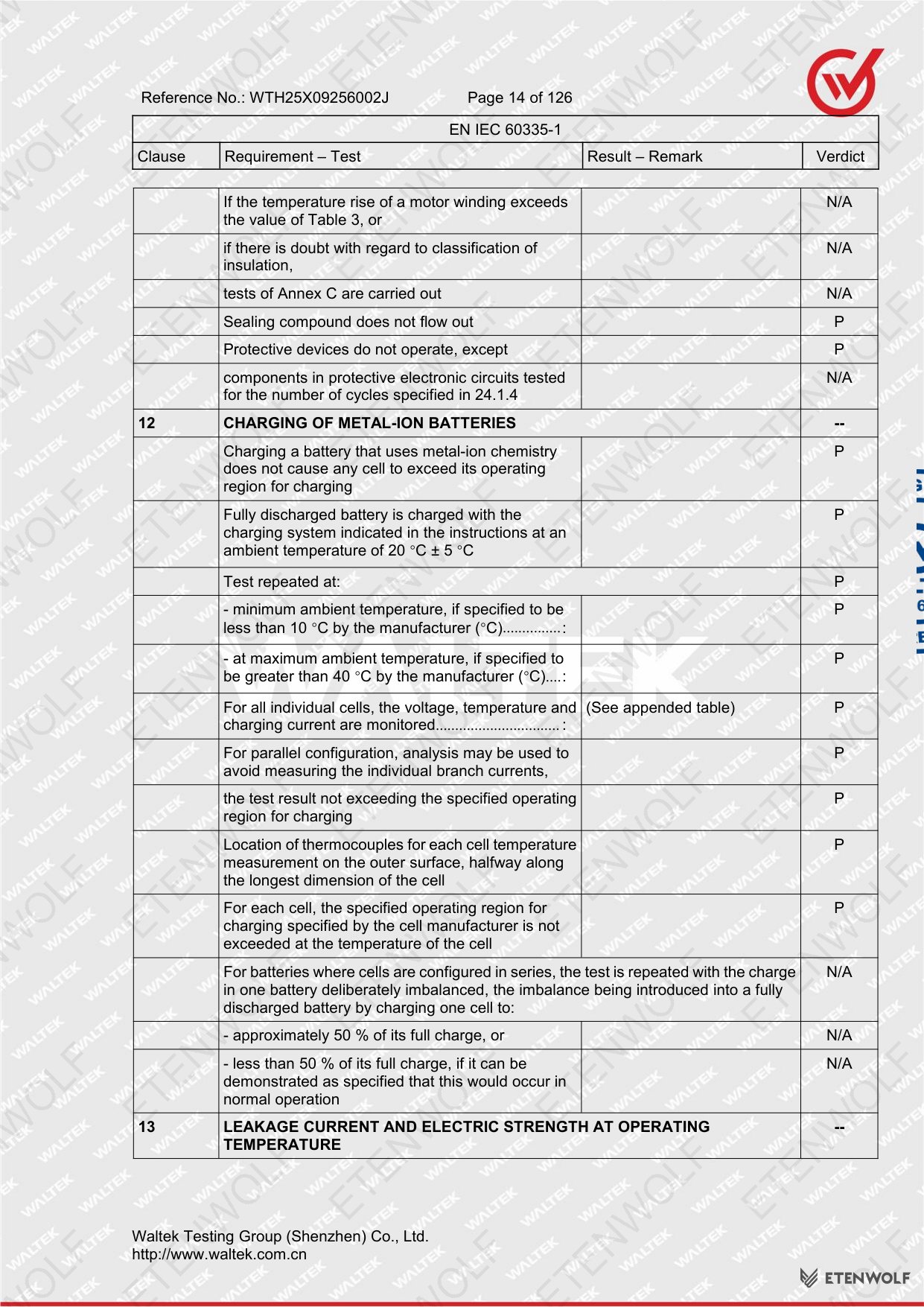

Applicability Results apply only to the specific sample(s) tested

This test report supports the CE Declaration of Conformity and is a mandatory technical file document for EU market access under the Low Voltage Directive 2014/35/EU. For EU market placement, the product label must additionally include the importer’s name and address alongside the manufacturer’s details.

Frequently Asked Questions

What does the CE-LVD test report WTH25X09256002J confirm for the HB1 air pump?

The report confirms that the HB1 air pump (model PUMP MINI/A3/HiPUMP) successfully passed all applicable safety and EMF exposure tests under EN IEC 60335-1:2023+A11:2023 and EN 62233:2008. The overall verdict is Pass, indicating the product meets the essential health and safety requirements of the EU Low Voltage Directive (LVD) 2014/35/EU.

Which standards were used to test the HB1 air pump for CE-LVD compliance?

Two harmonised European standards were applied: EN IEC 60335-1:2023+A11:2023 for general electrical safety of household appliances, and EN 62233:2008 for measurement of electromagnetic fields with regard to human exposure. Both standards were tested and passed at Waltek Testing Group’s Shenzhen facility.

What is the equipment class of the HB1 air pump and why does it matter?

The HB1 is classified as Class III, meaning it operates on safety extra-low voltage (SELV) via a DC connector at 5 V / 1.0 A. Class III classification indicates that the device does not rely on protective earthing for shock protection, instead using an inherently safe supply voltage level, which is appropriate for portable household appliances.

Are there any labelling requirements for selling the HB1 air pump in the EU?

Yes. When the HB1 is placed on the EU market, the product label must display the name and address of both the importer and the manufacturer (Guangdong Bestek Technology Co., Ltd., No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China). The CE mark must be at least 5 mm in height, and the WEEE mark must be at least 7 mm in height.

Related Documents

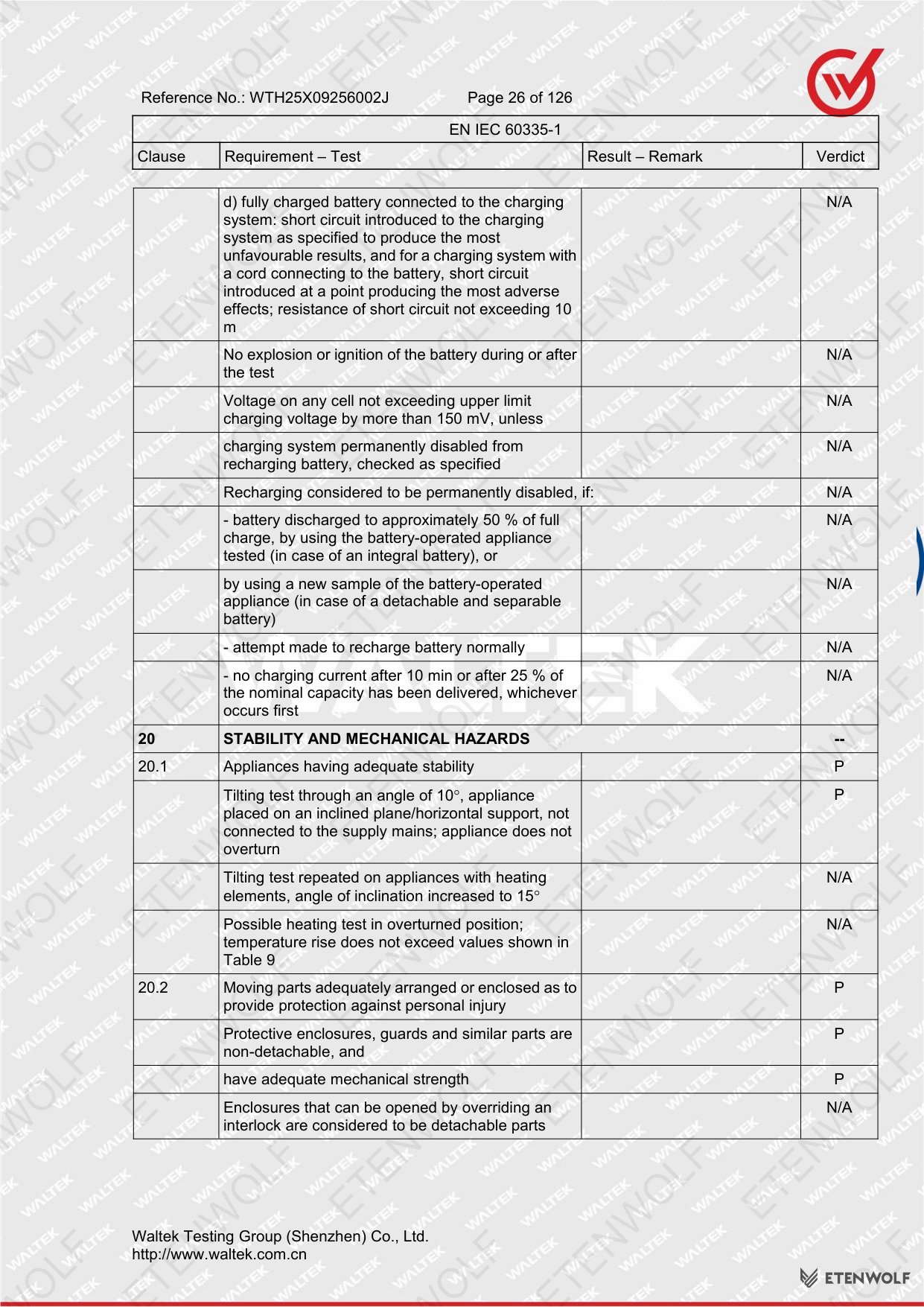

The following certification and compliance documents are typically required or recommended for a portable air pump such as the HB1 when sold in the EU and other major markets:

  • CE Declaration of Conformity (DoC) — Manufacturer’s self-declaration referencing this test report, required for EU market access under LVD 2014/35/EU.
  • CE-EMC Test Report — Electromagnetic compatibility testing under Directive 2014/30/EU (EN 55014-1, EN 55014-2, EN 61000 series), complementary to the LVD report.
  • RoHS Compliance Report — Confirms restriction of hazardous substances (Directive 2011/65/EU) in the electrical and electronic components of the air pump.
  • REACH SVHC Declaration — Substances of Very High Concern declaration required for EU chemical compliance.
  • FCC Test Report — Required for sale in the United States; covers Part 15 unintentional radiator requirements for the DC-powered pump motor.
  • KC Certification — Required for the South Korean market; covers electrical safety and EMC requirements equivalent to the CE-LVD and EMC scope.
  • UN 38.3 Test Report — If the HB1 variant includes an integrated lithium-ion battery, a UN 38.3 transport safety report is mandatory for air and sea freight.
  • WEEE Registration — EU Waste Electrical and Electronic Equipment Directive registration required for importers placing the product on the EU market.

Document Pages

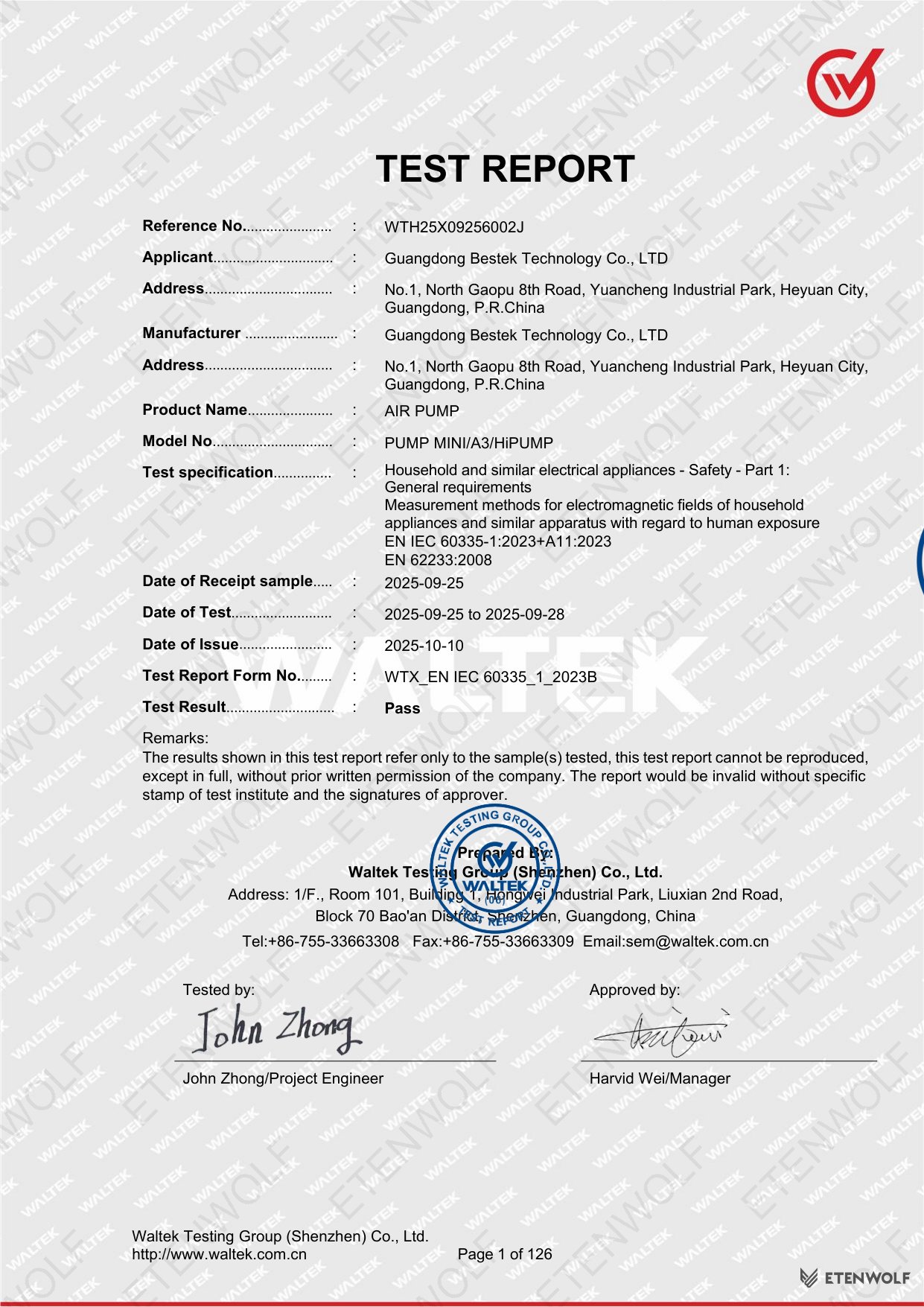

Document Page 1

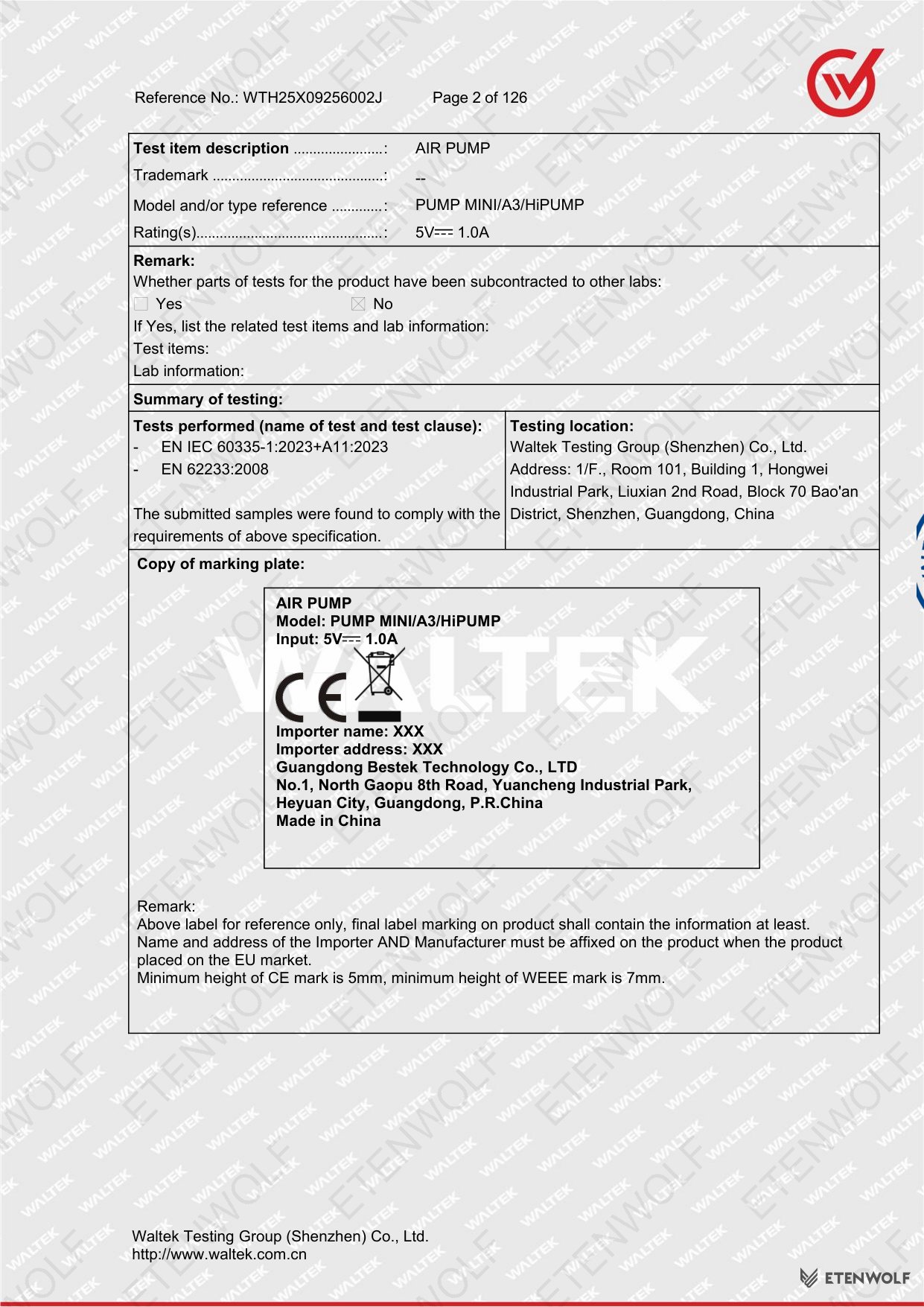

Document Page 2

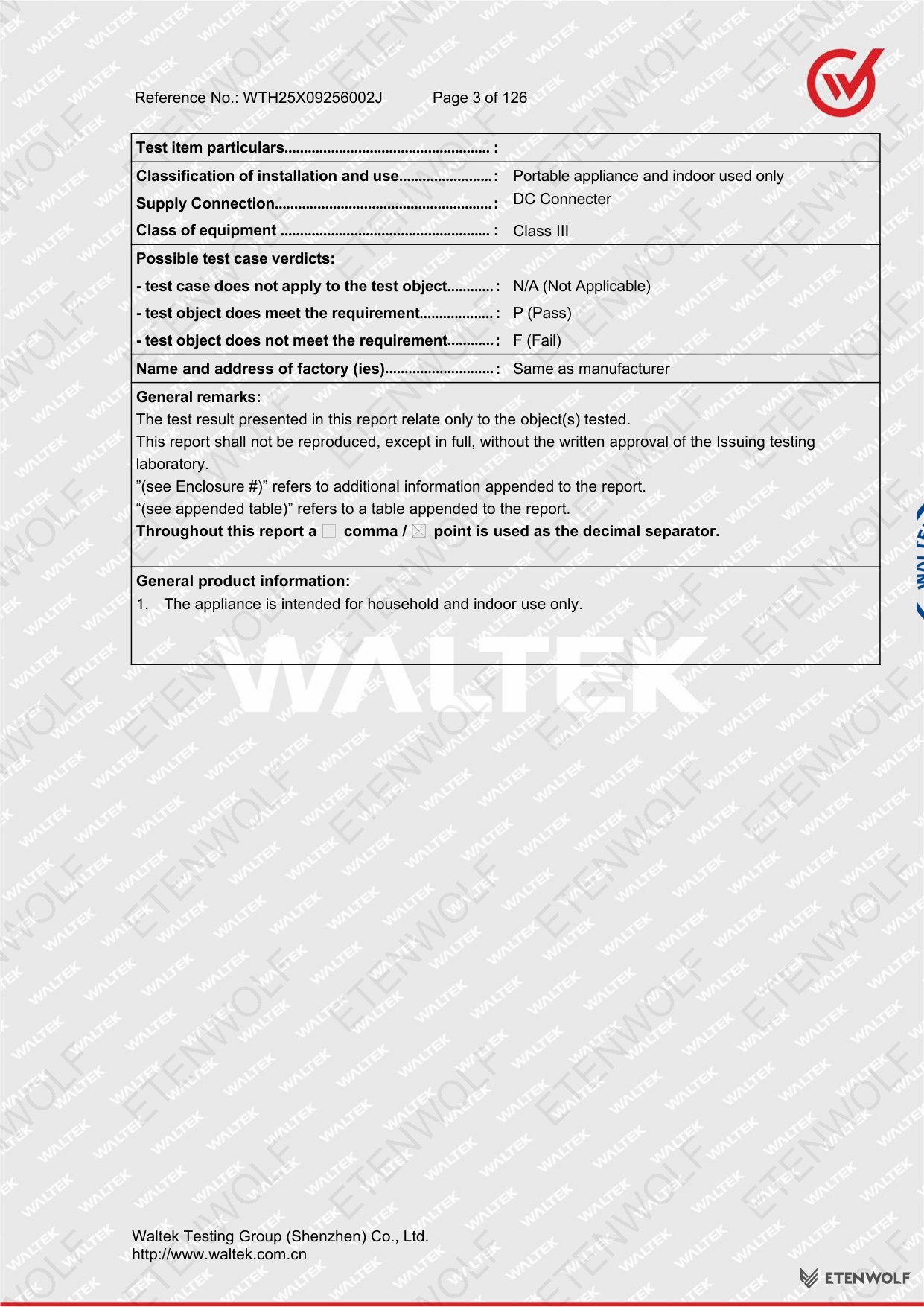

Document Page 3

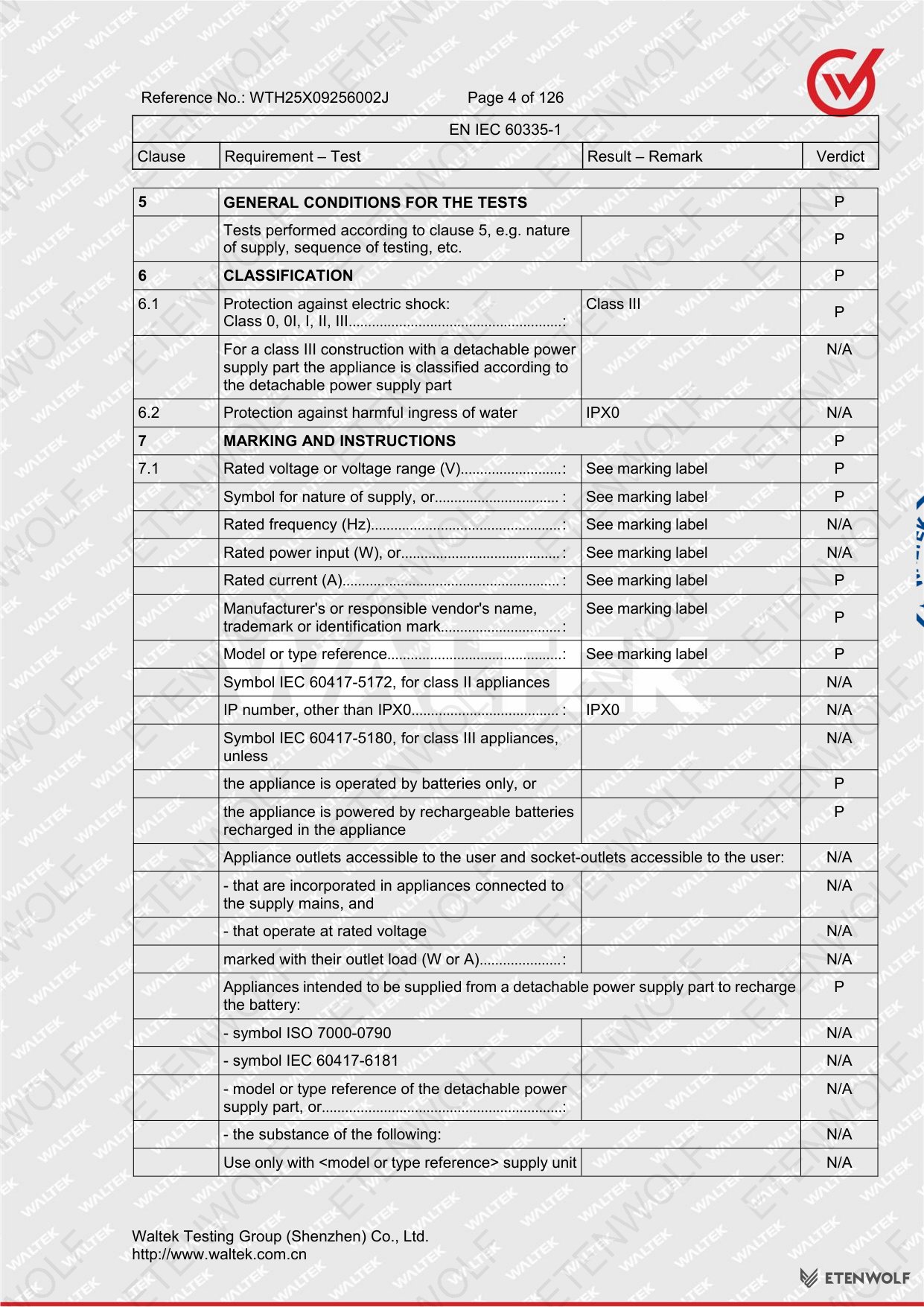

Document Page 4

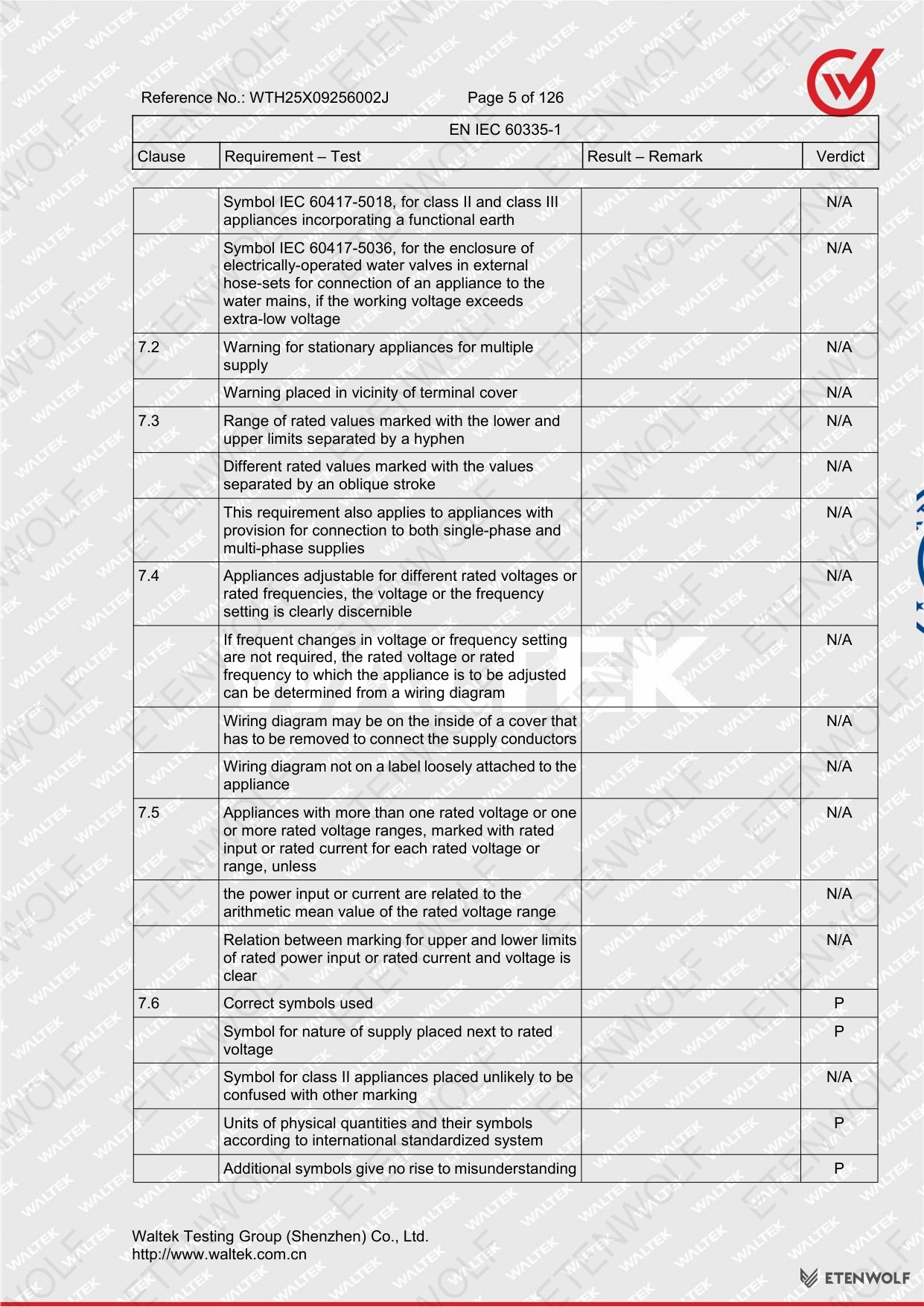

Document Page 5

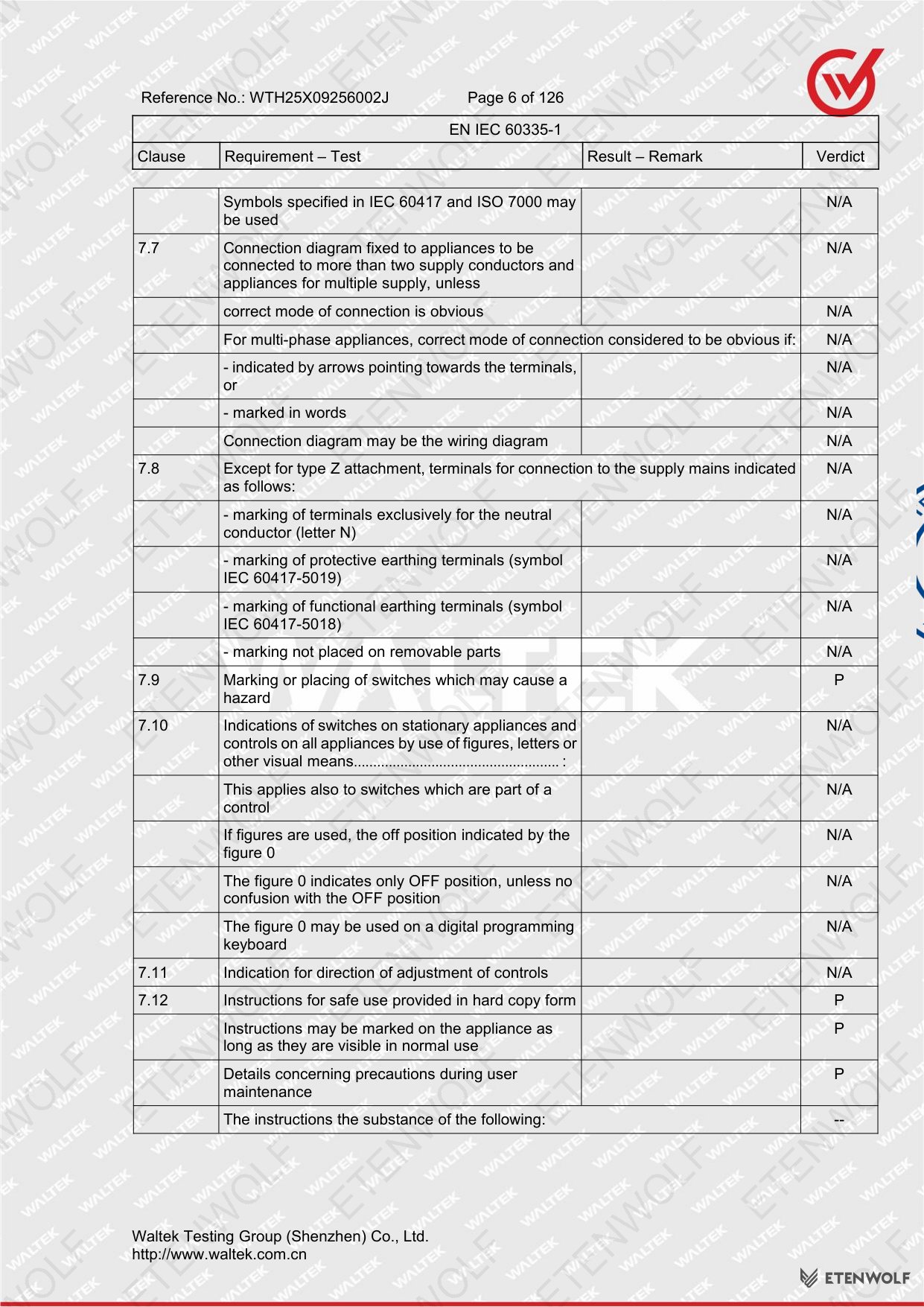

Document Page 6

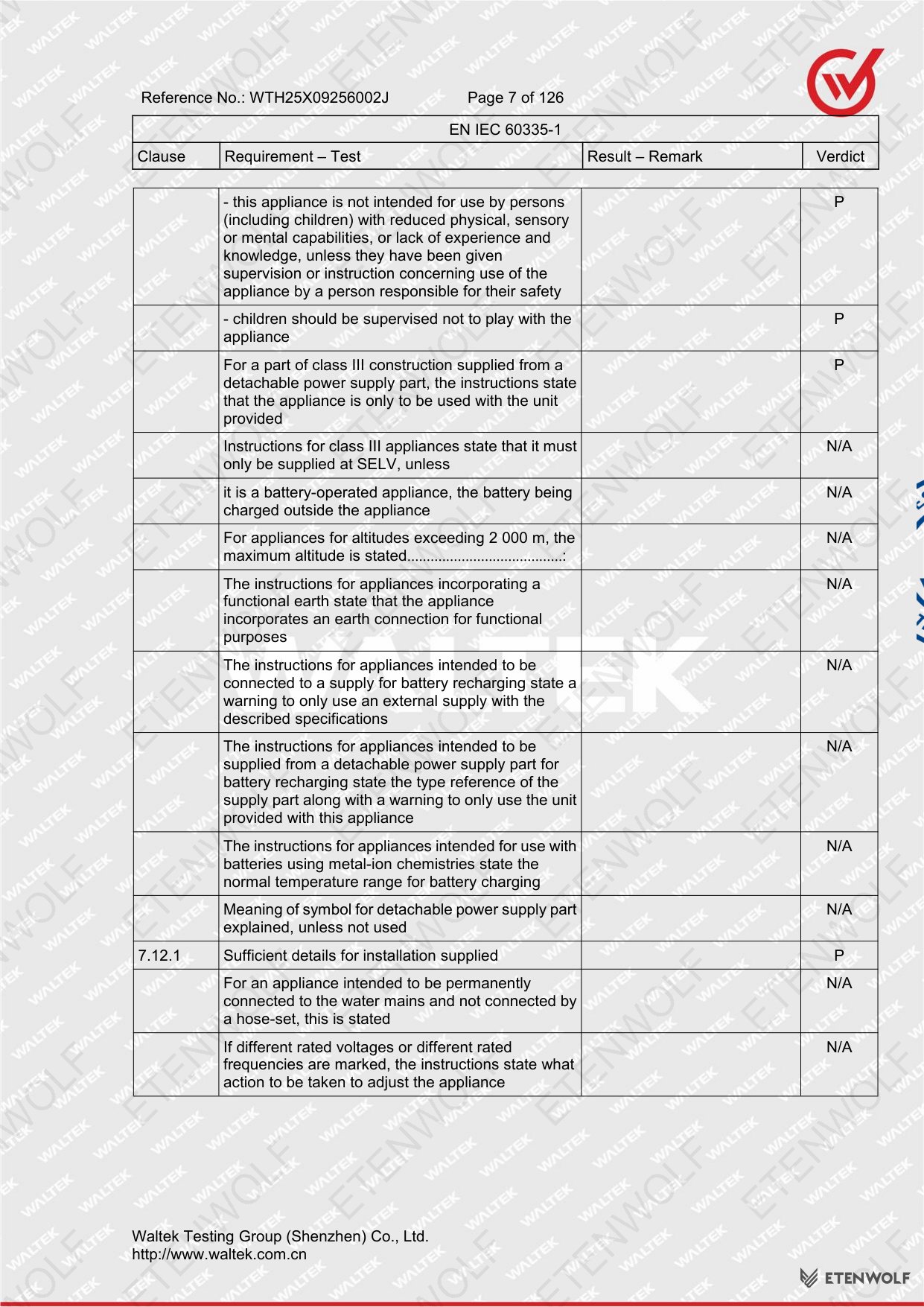

Document Page 7
Document Page 8

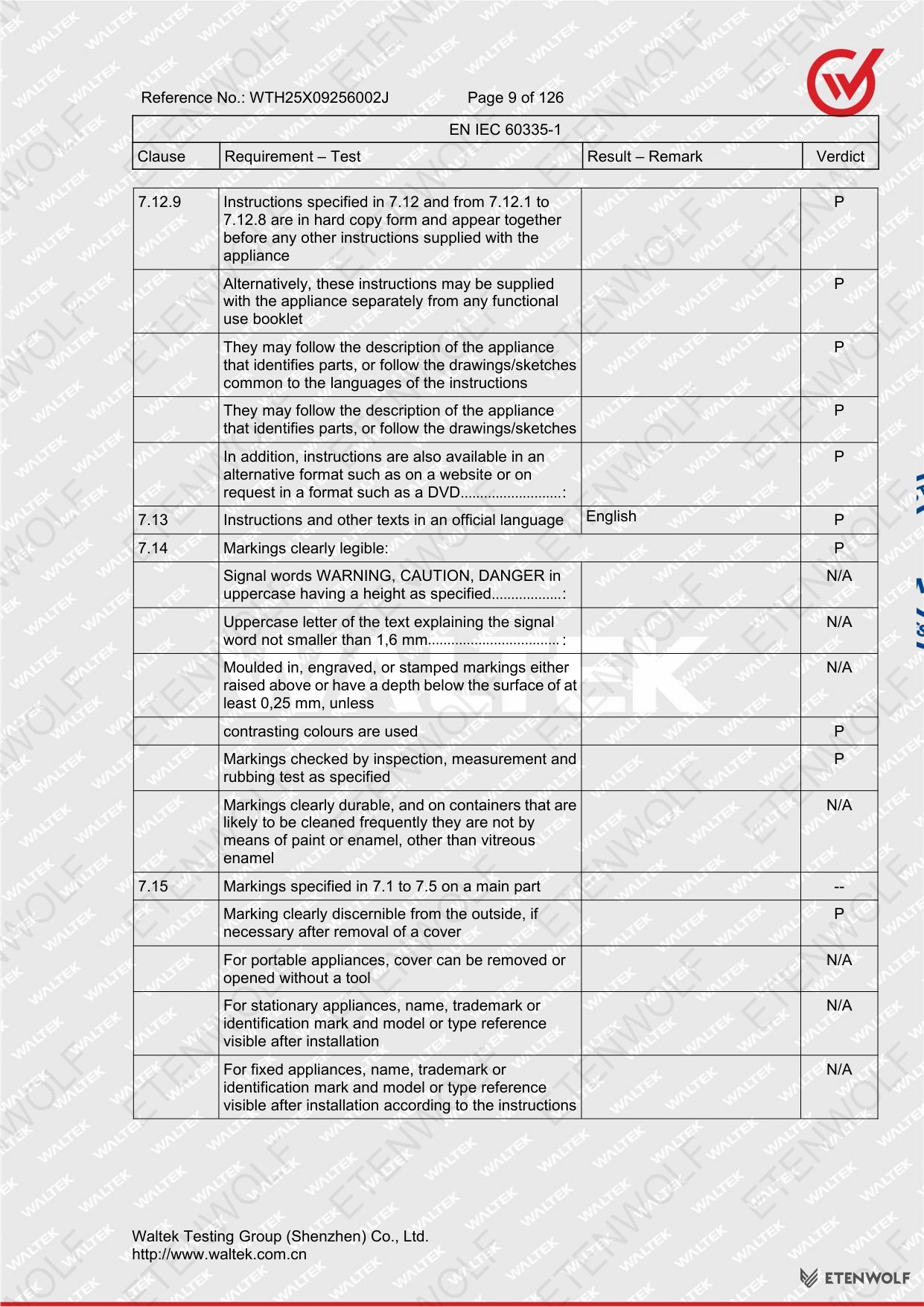

Document Page 9

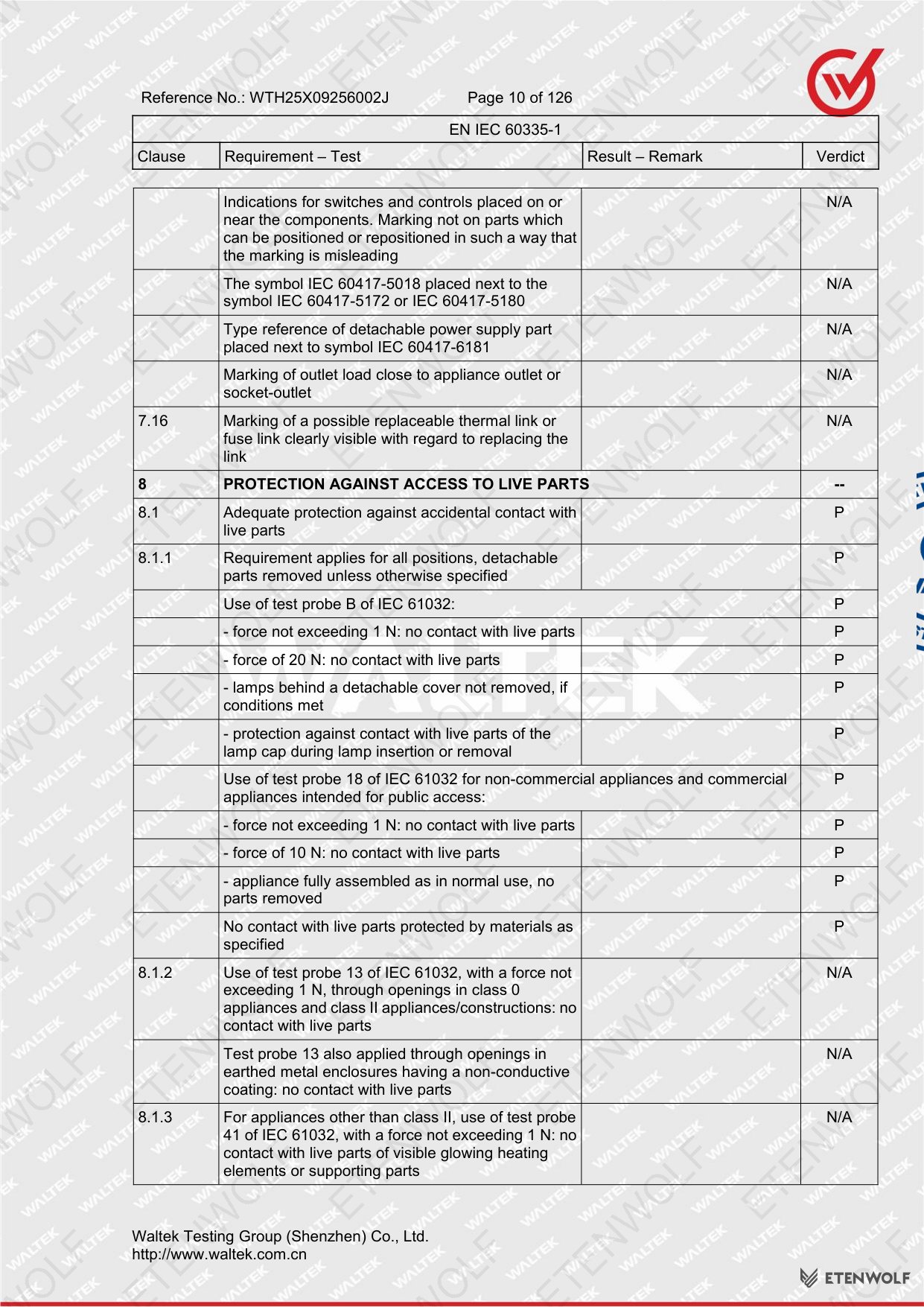

Document Page 10

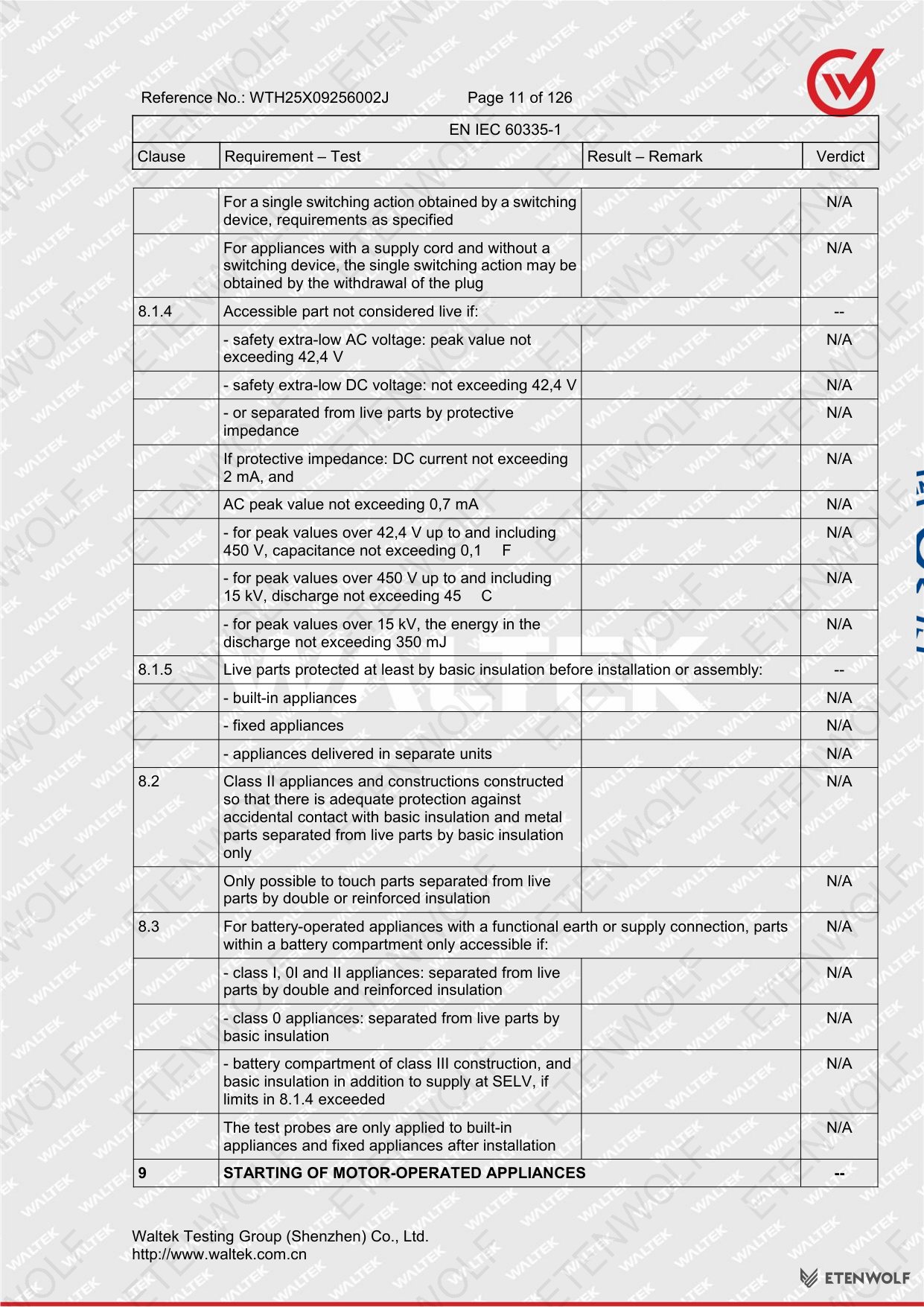

Document Page 11

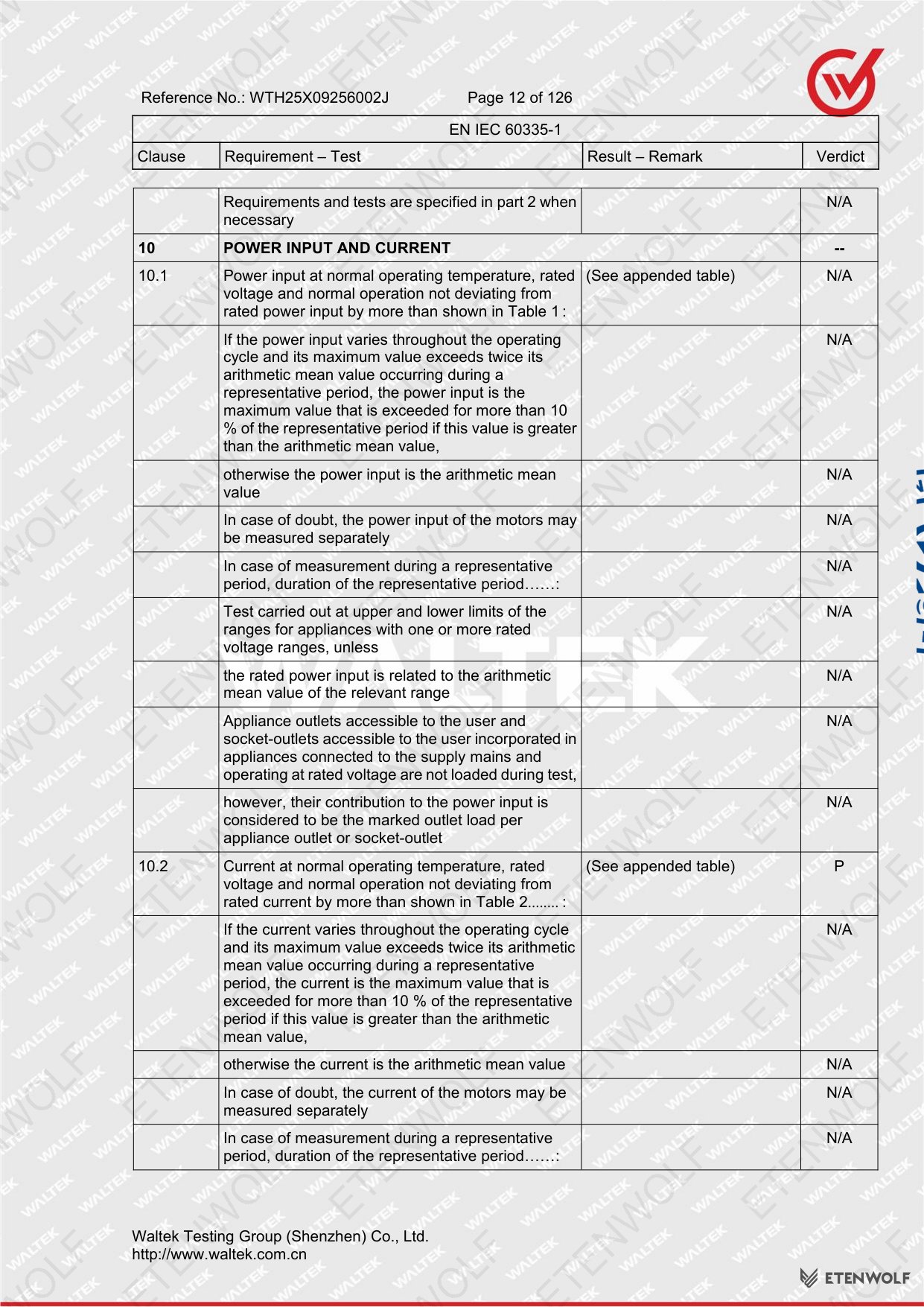

Document Page 12

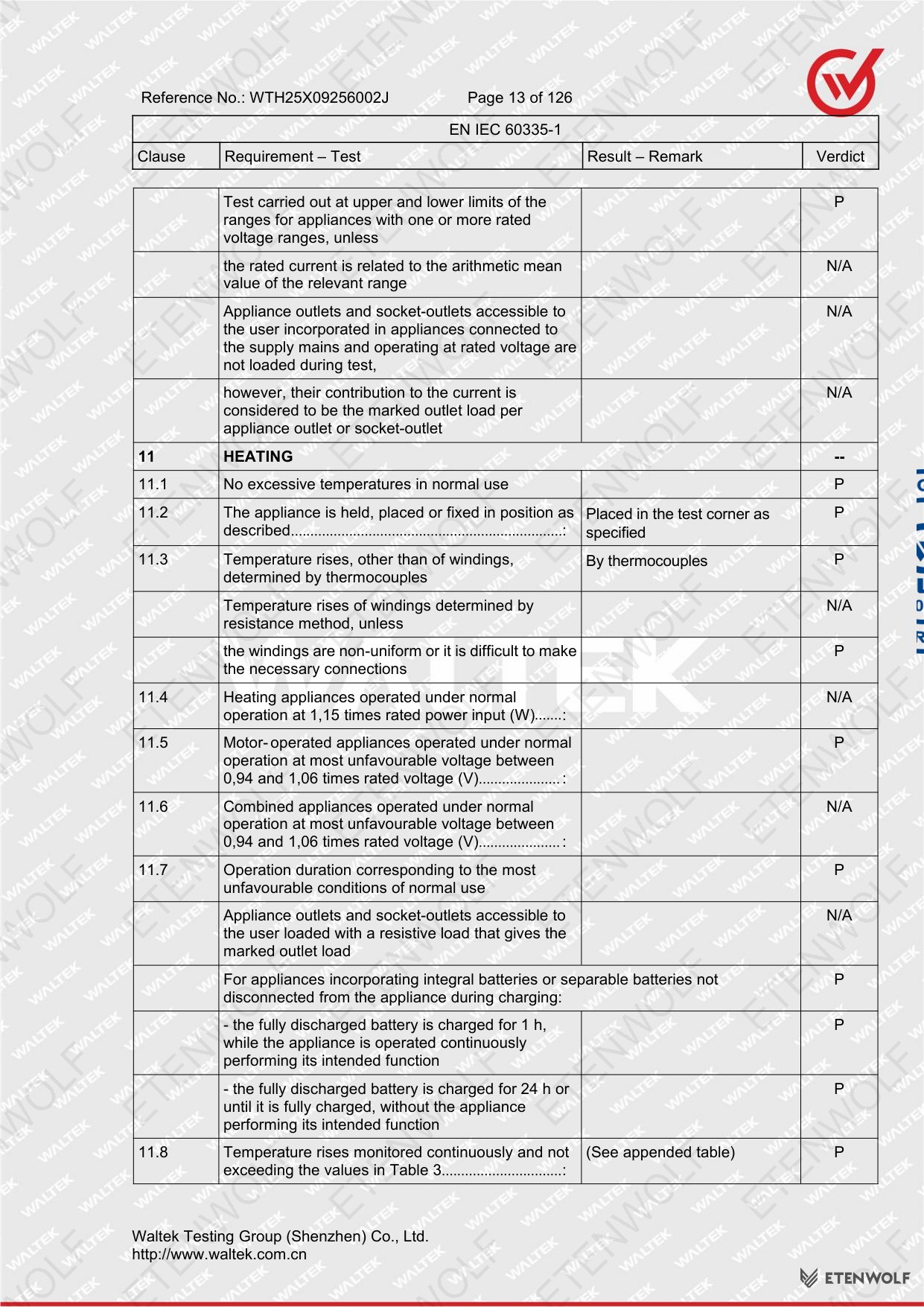

Document Page 13
Document Page 14

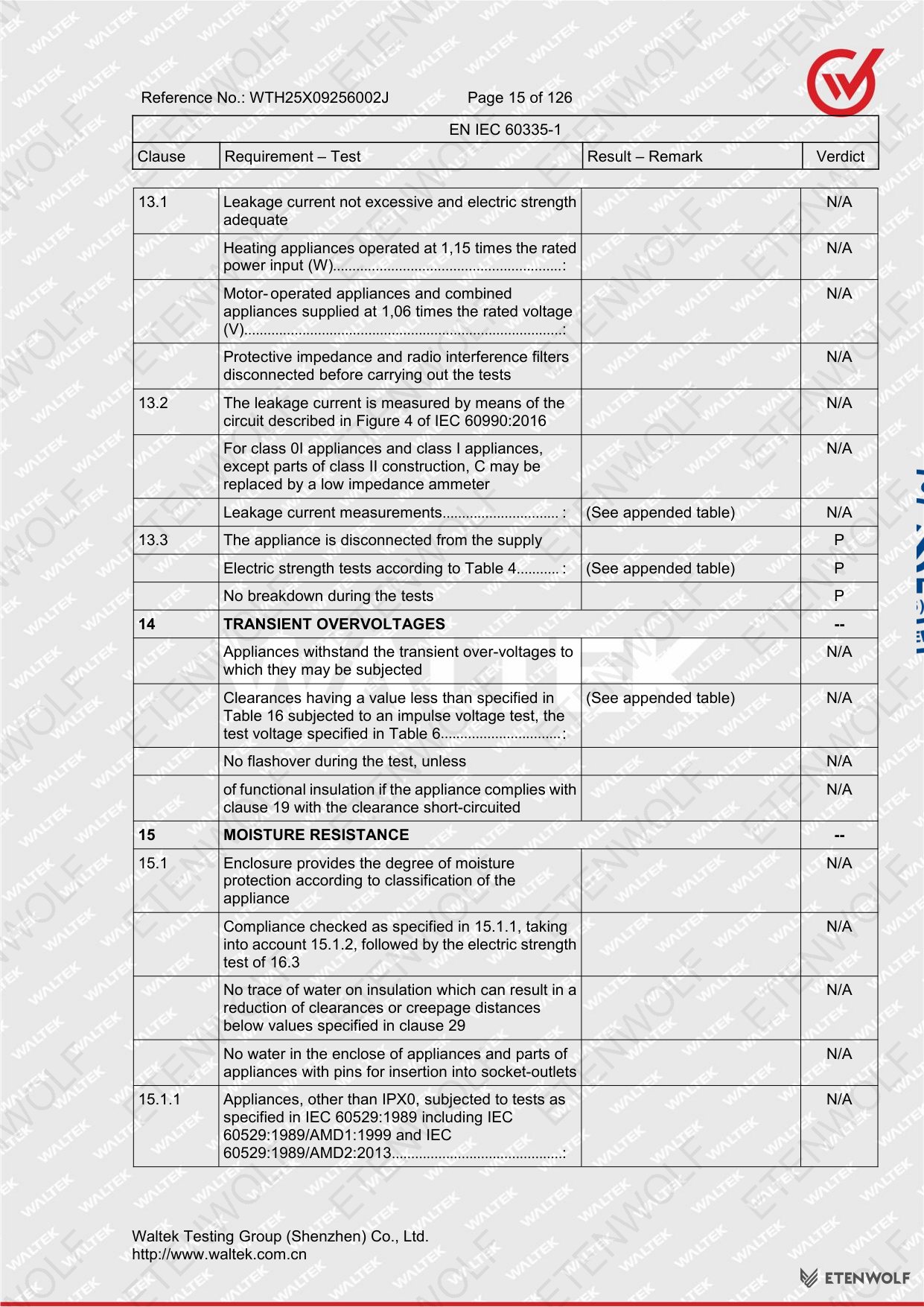

Document Page 15

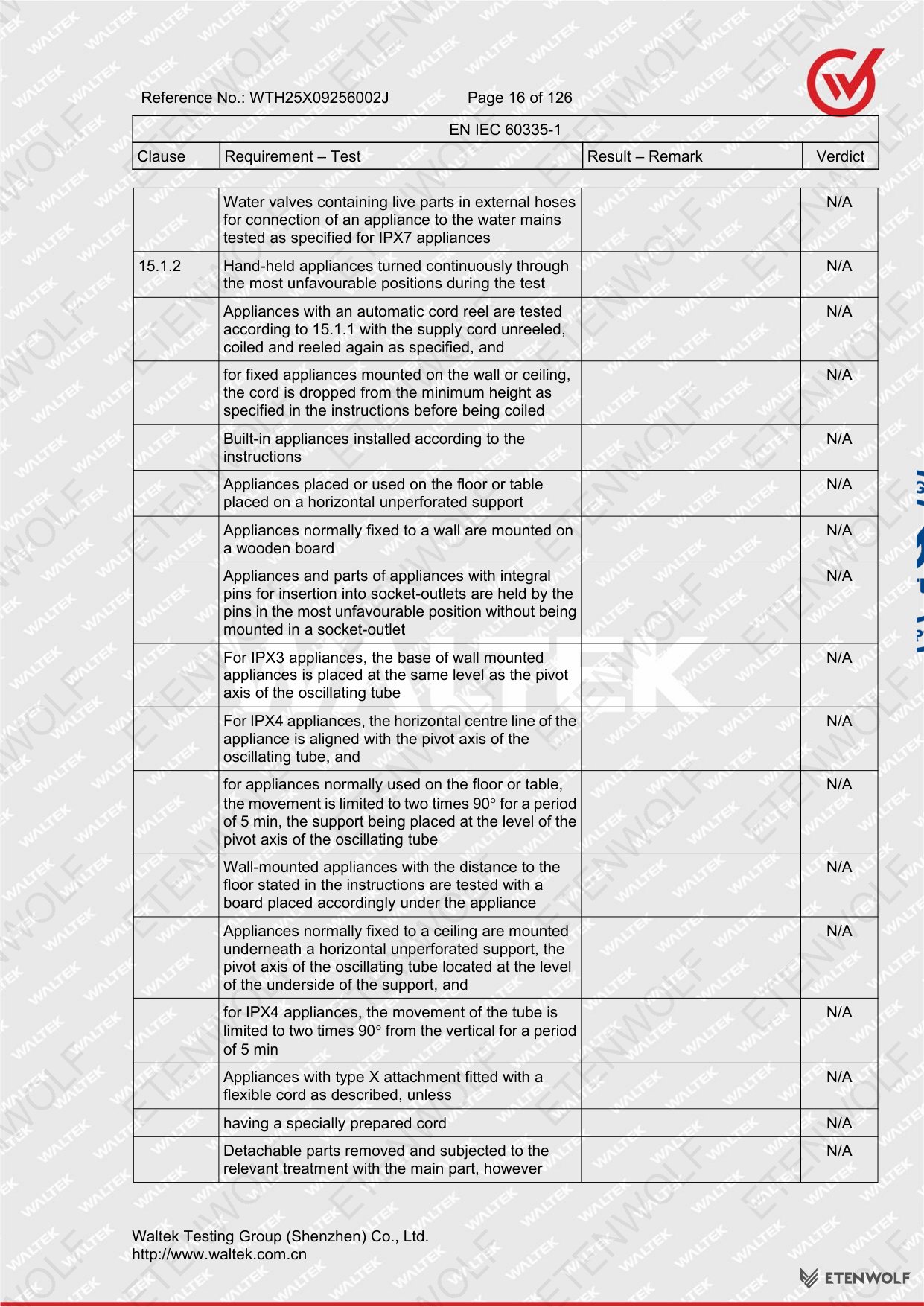

Document Page 16

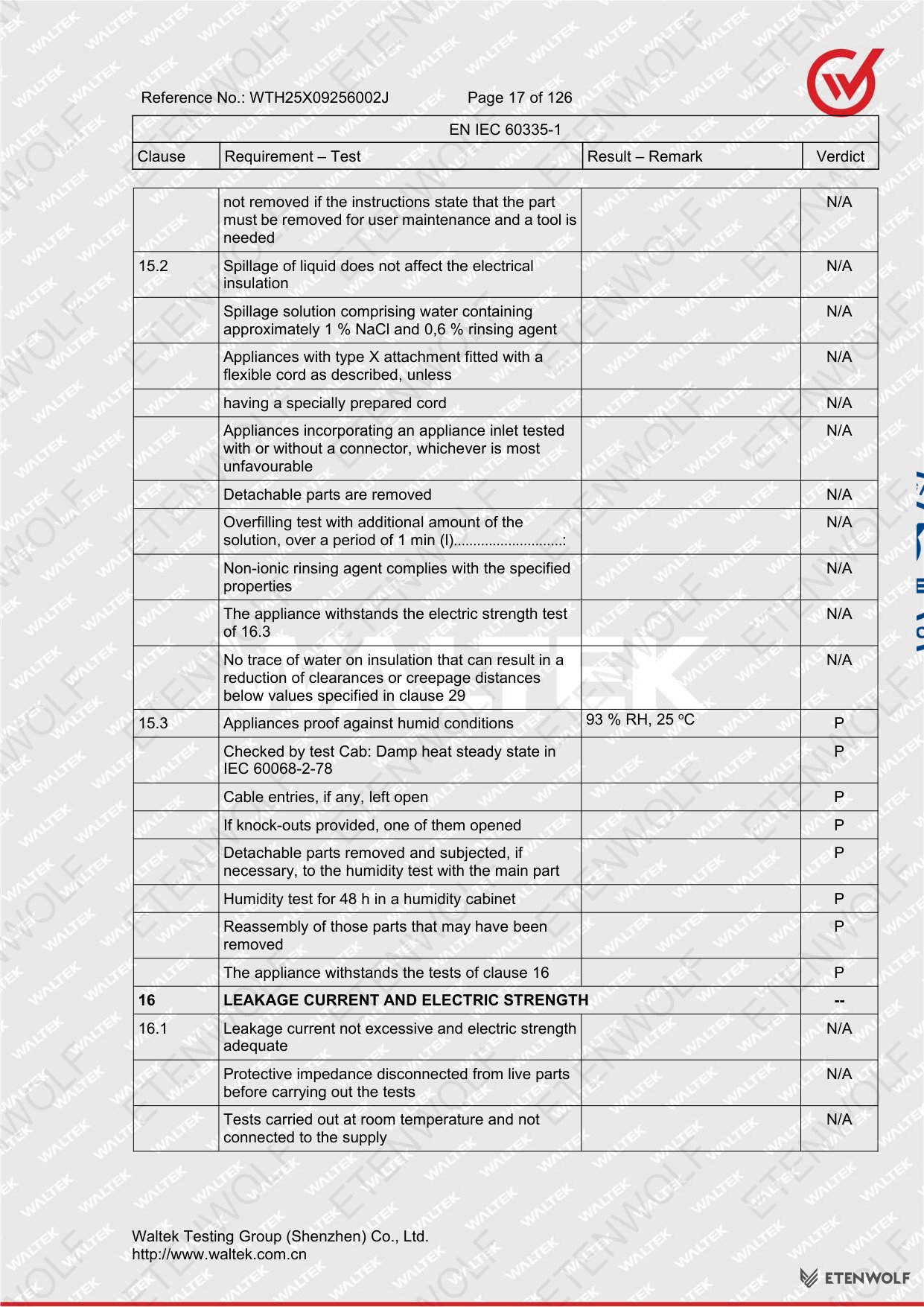

Document Page 17

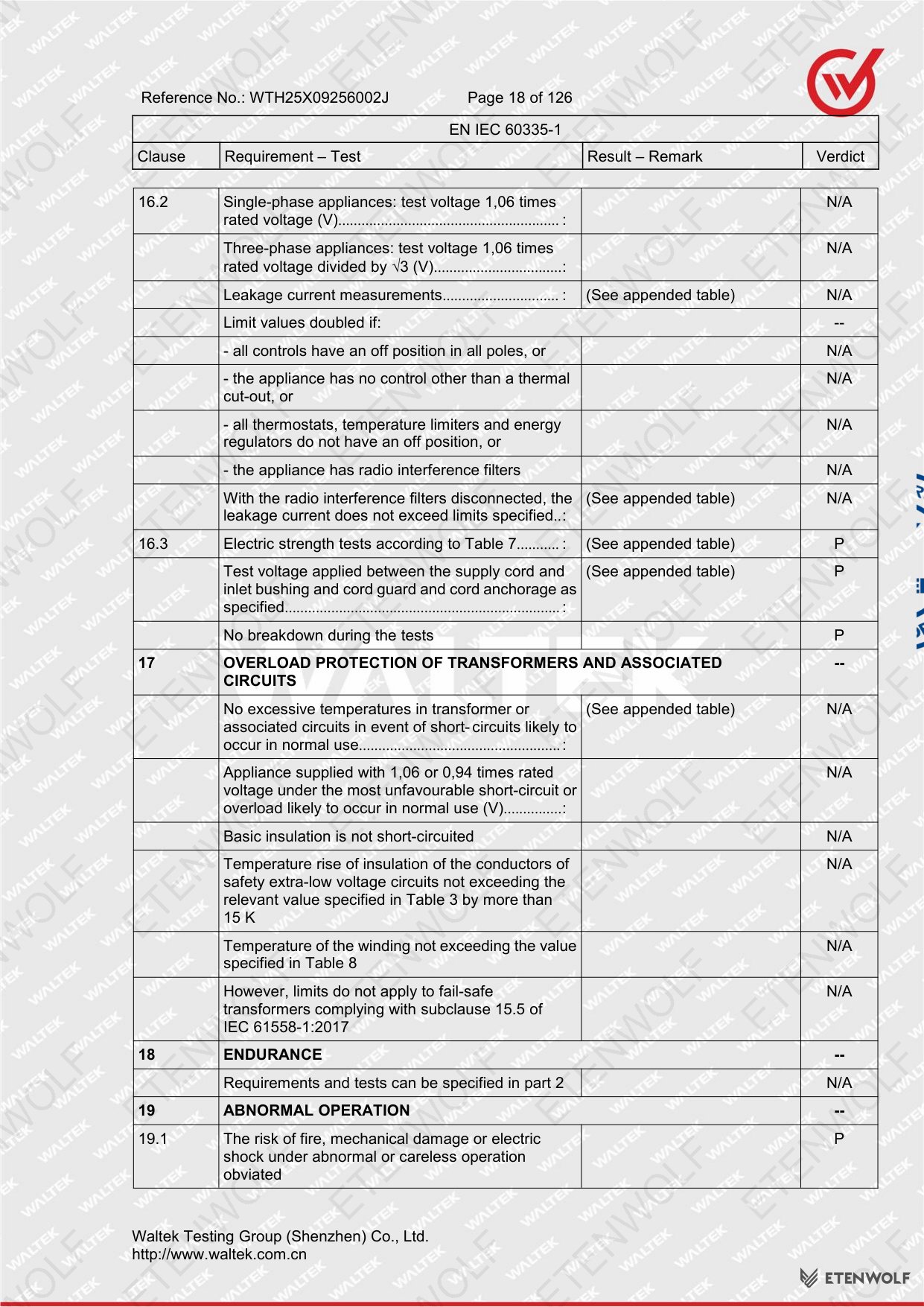

Document Page 18

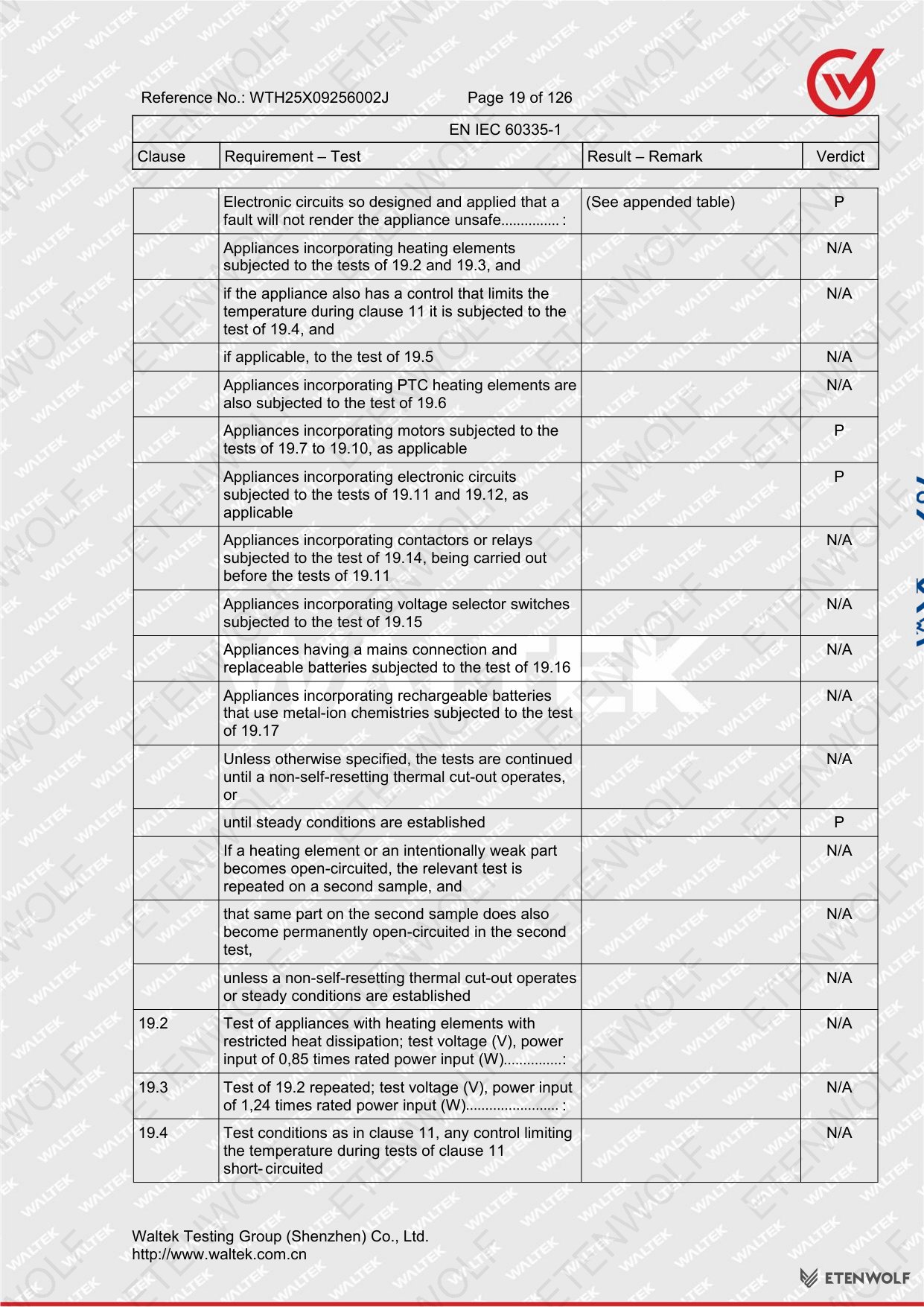

Document Page 19

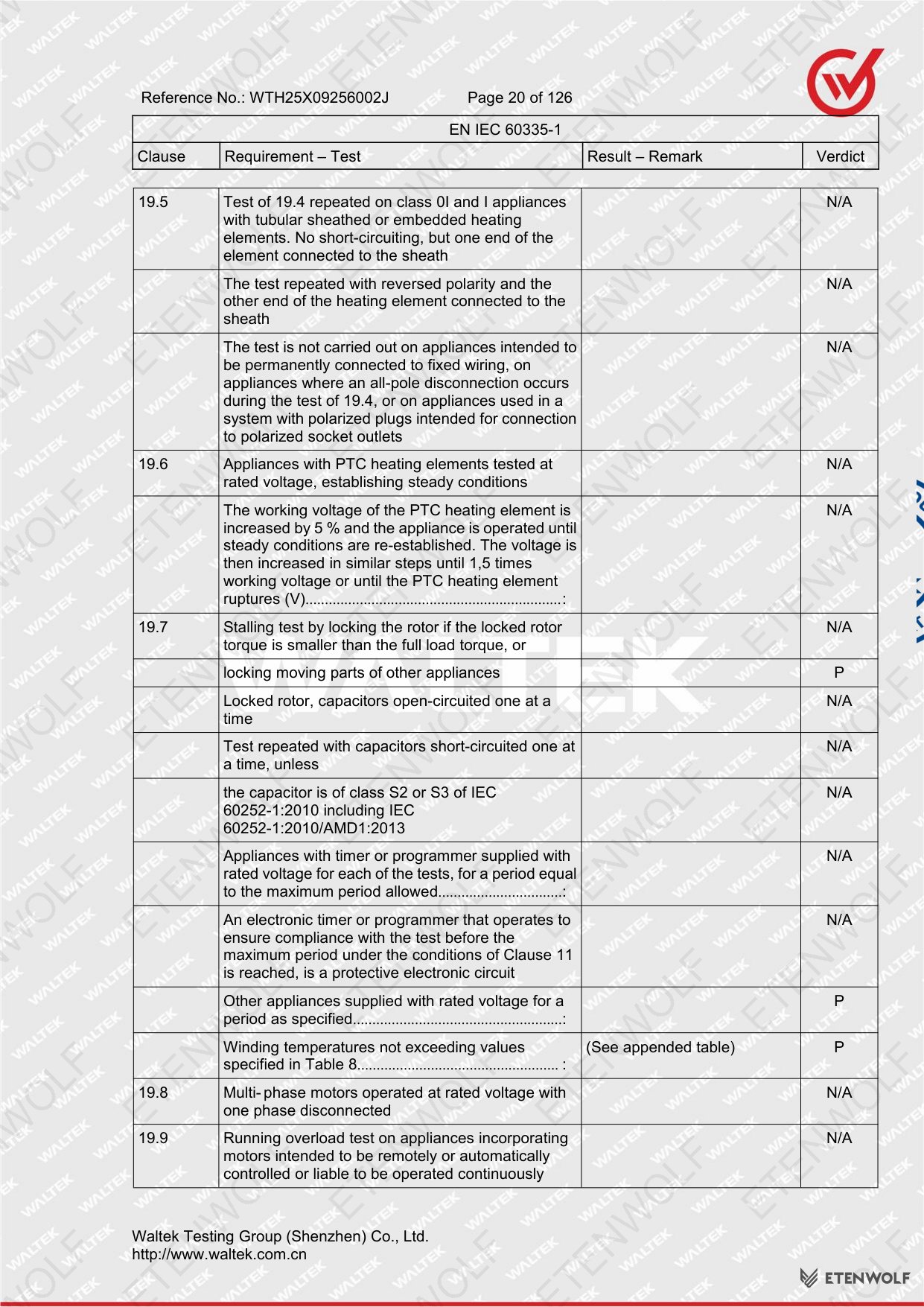

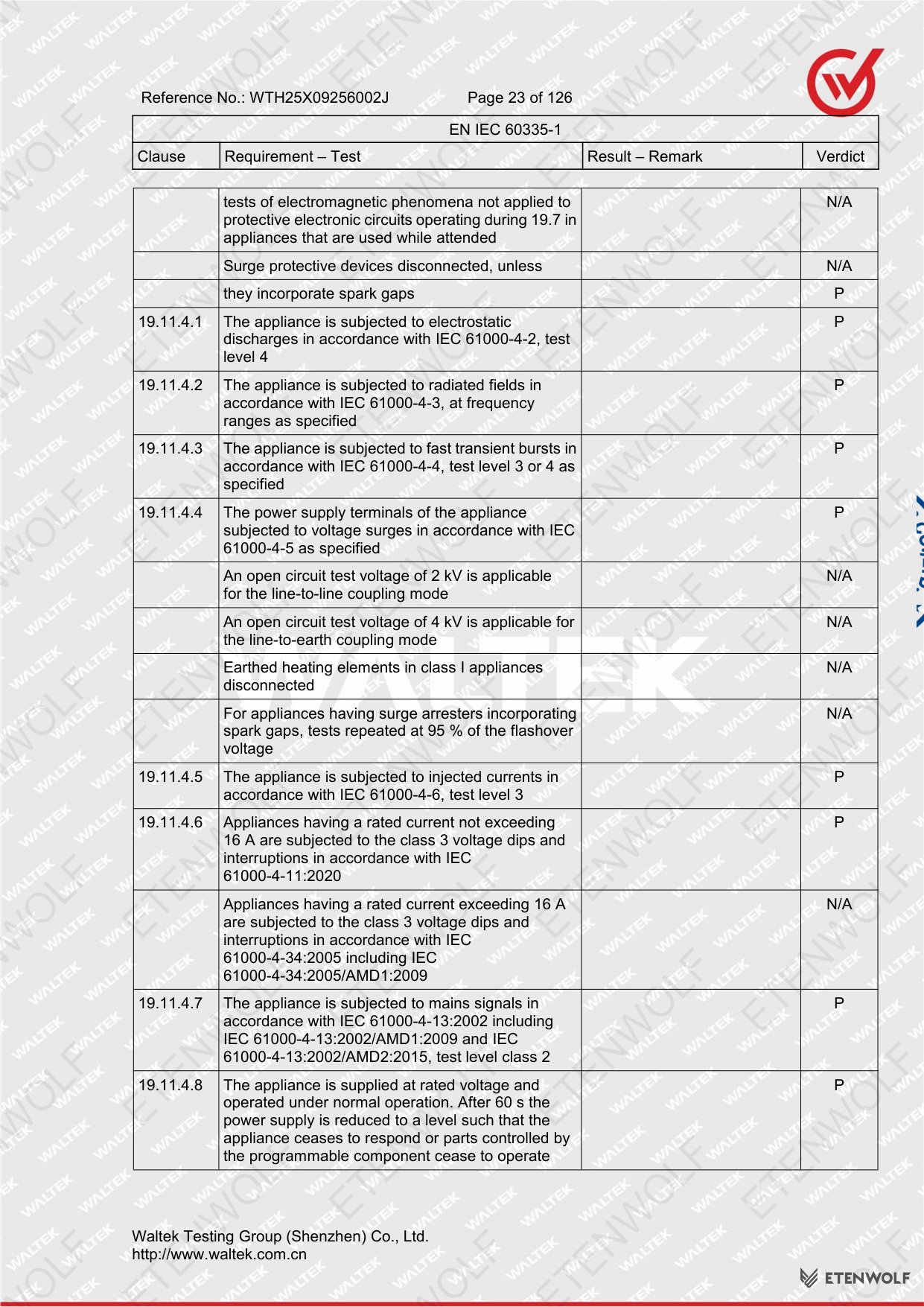

Document Page 20
Document Page 21

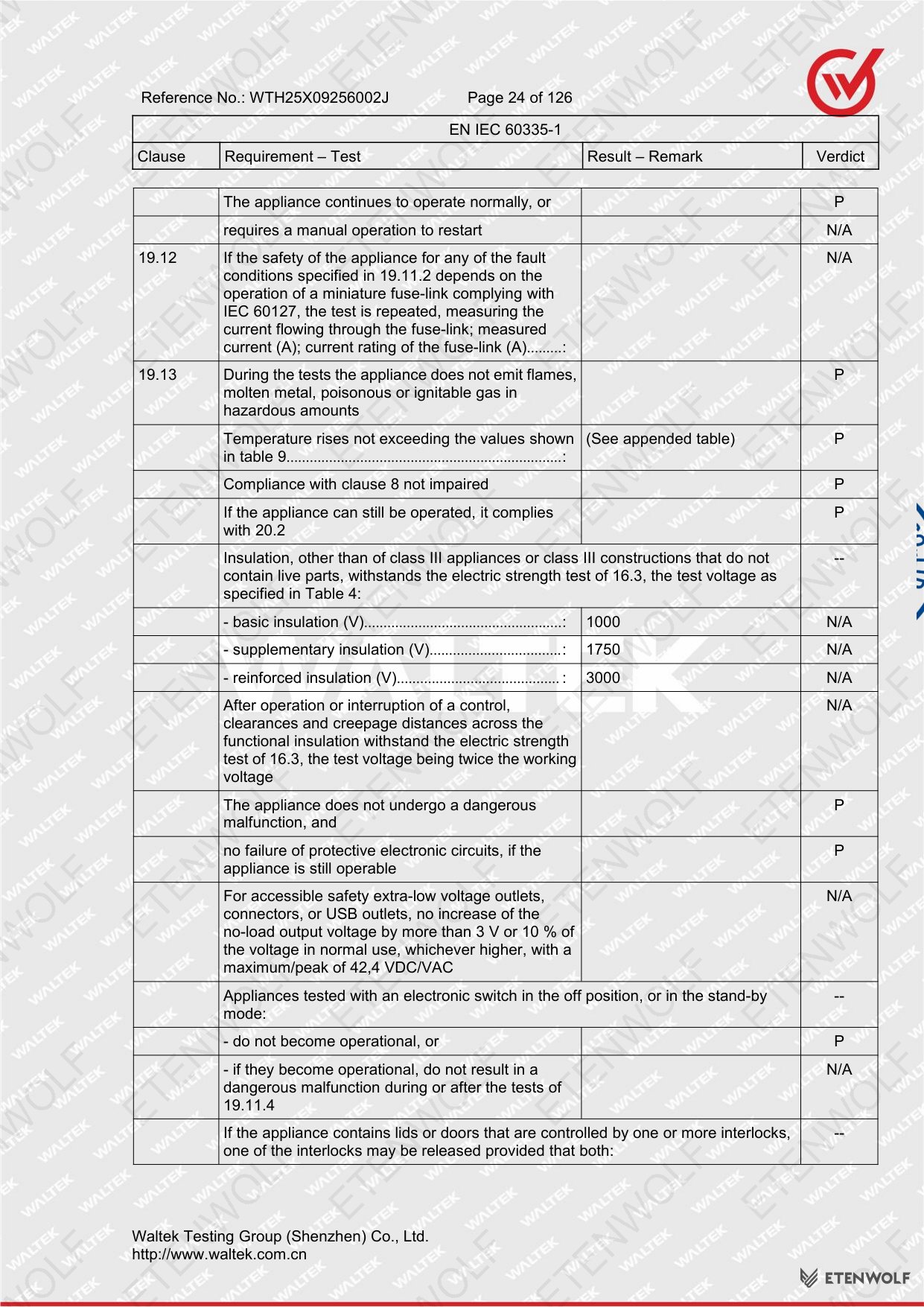

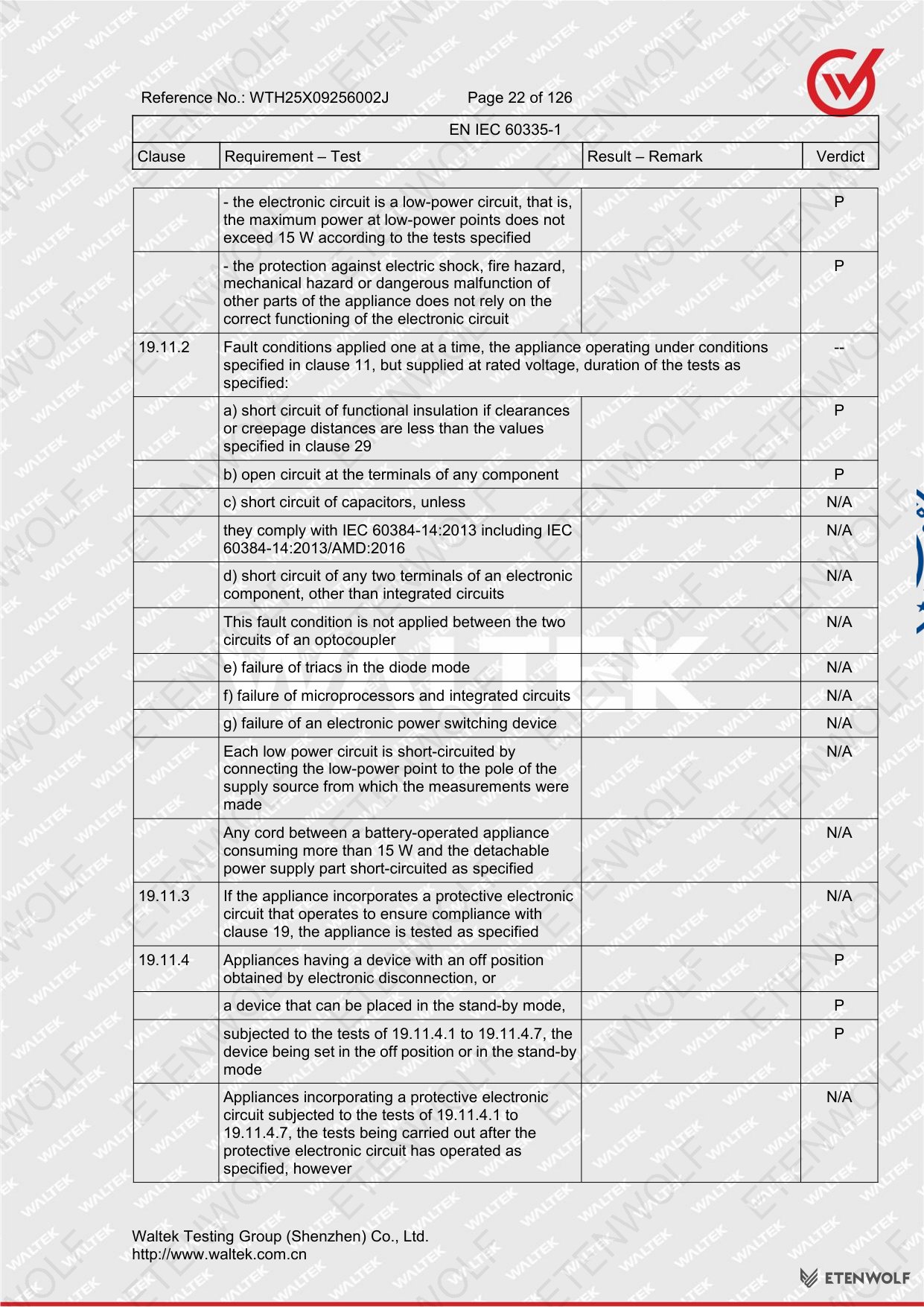

Document Page 22
Document Page 23
Document Page 24

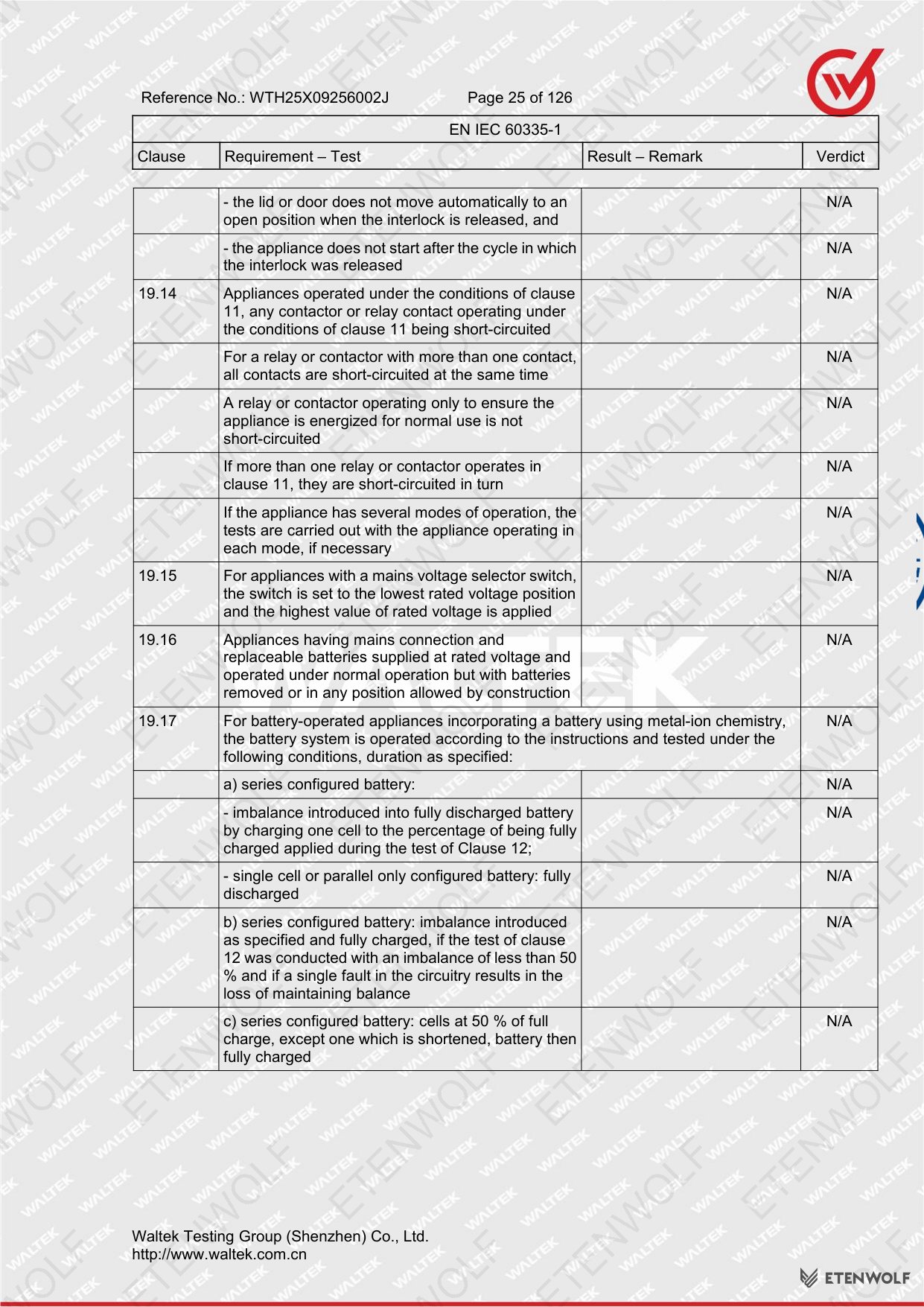

Document Page 25
Document Page 26

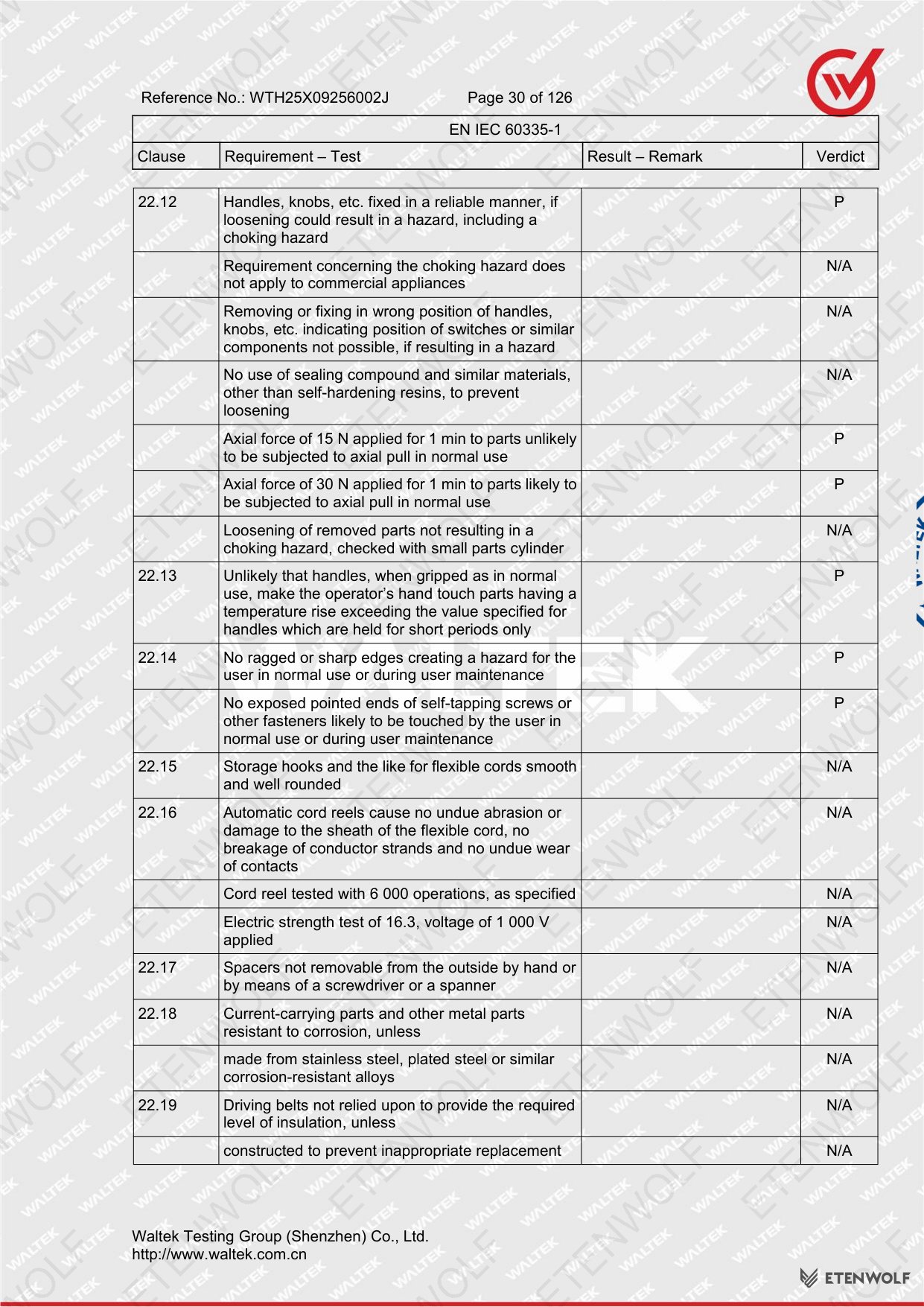

Document Page 27

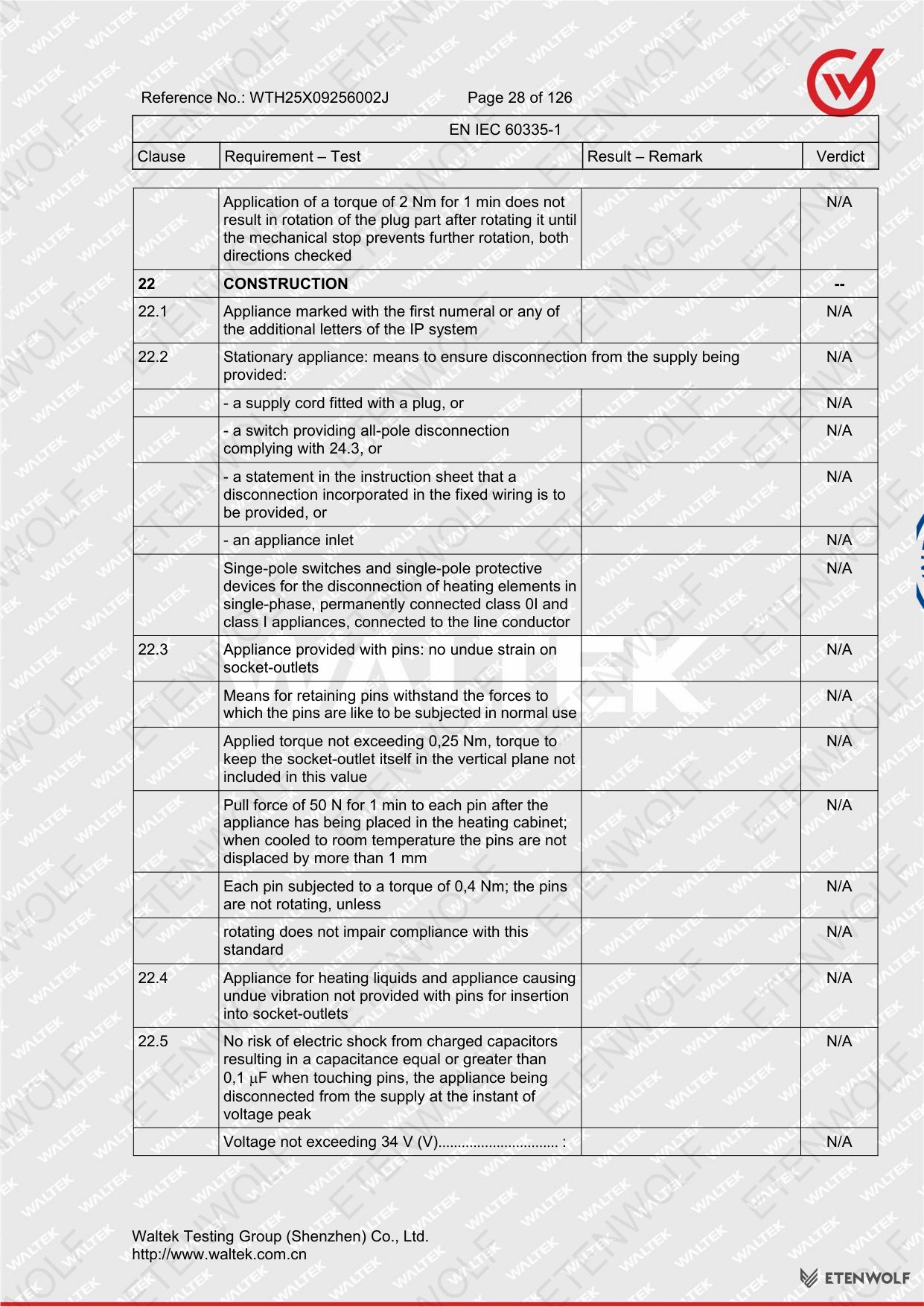

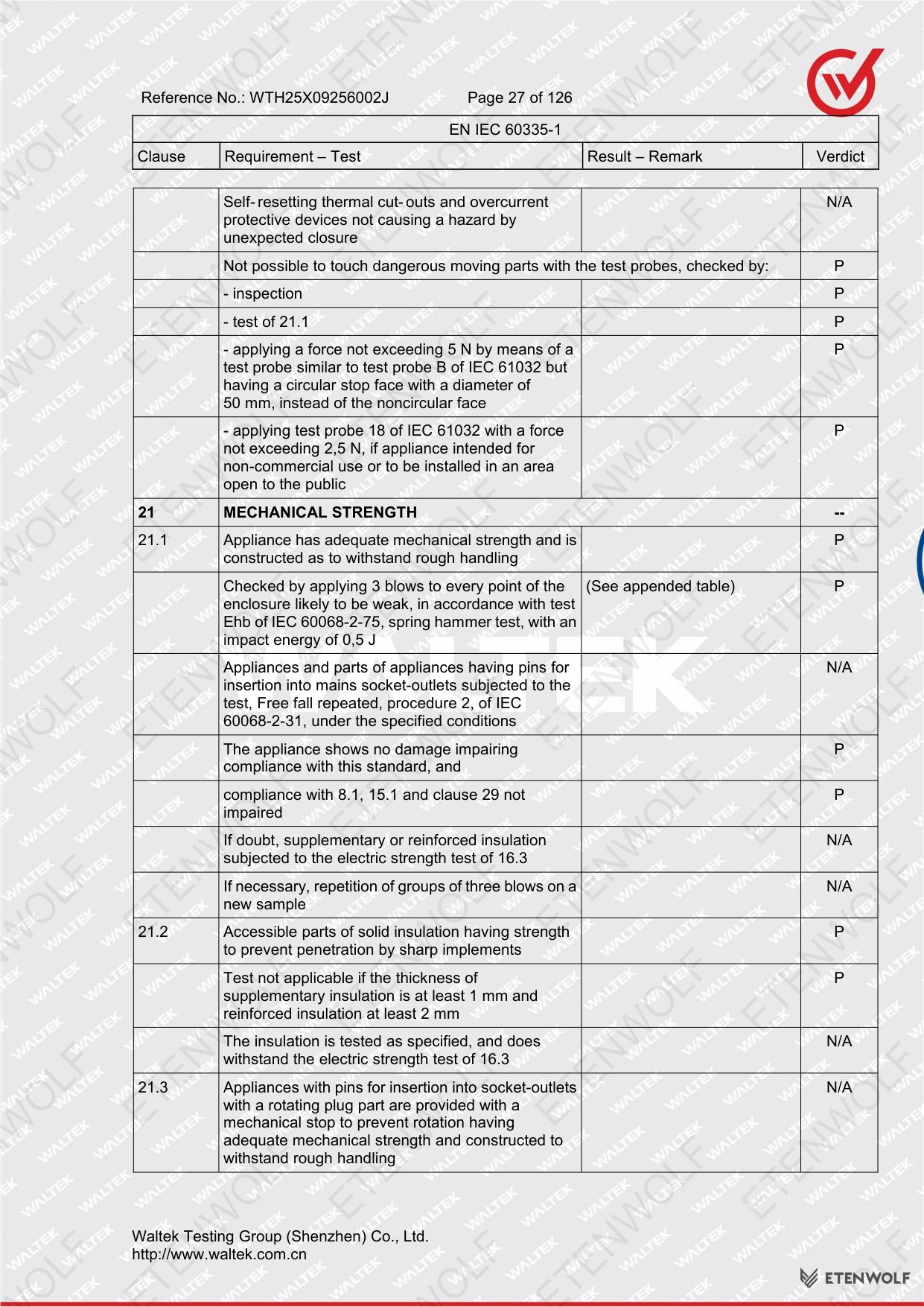

Document Page 28

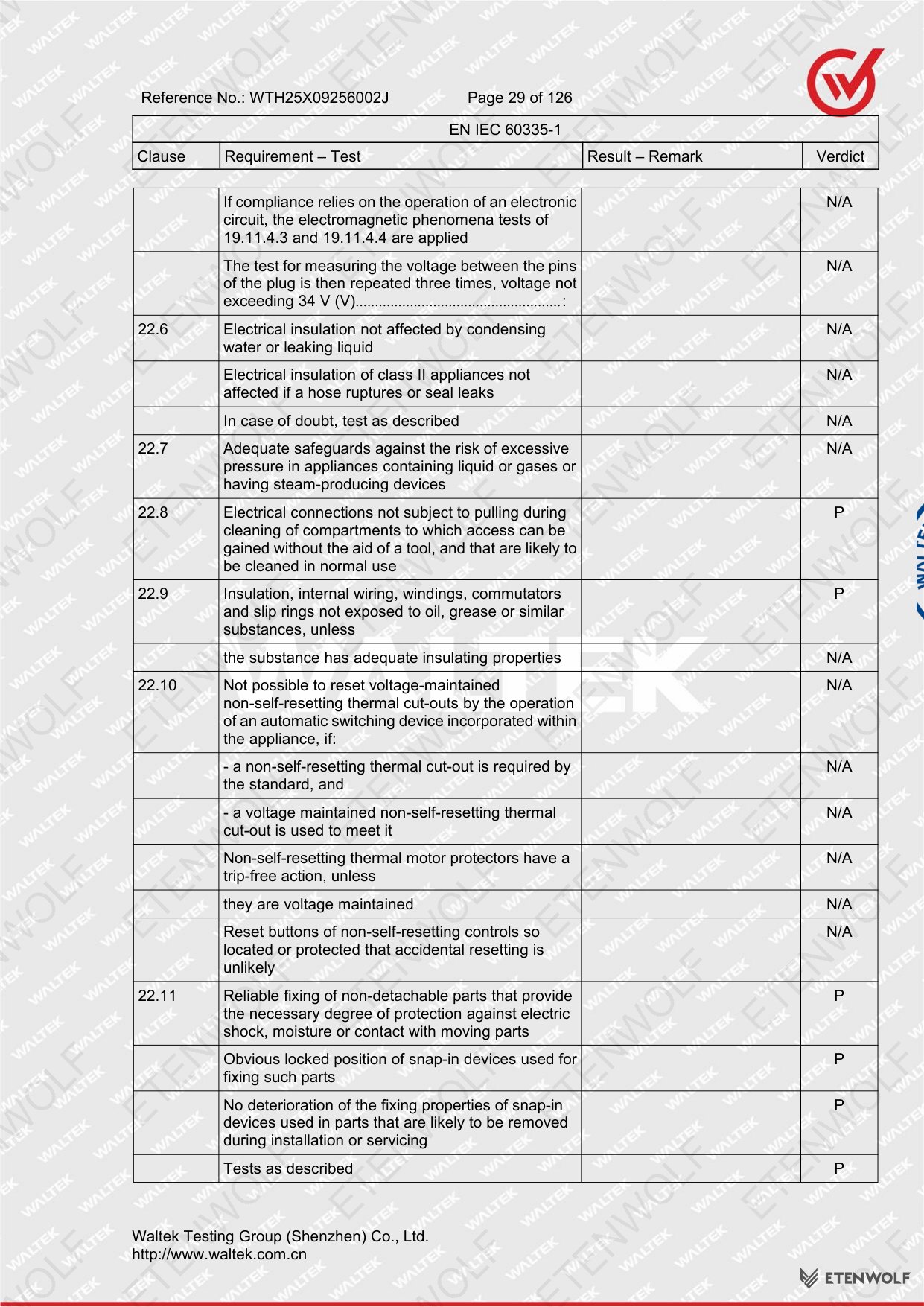

Document Page 29
Document Page 30

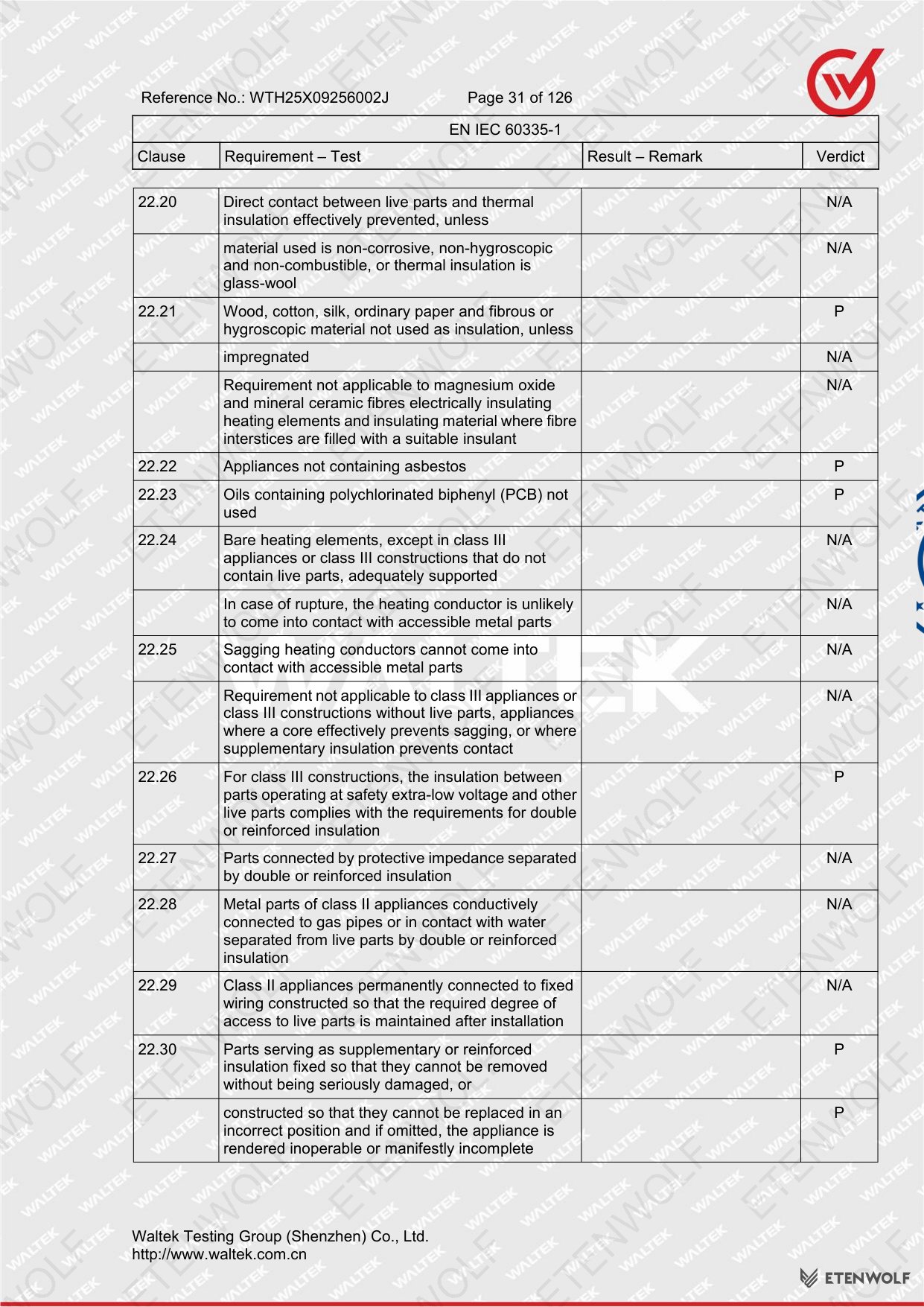

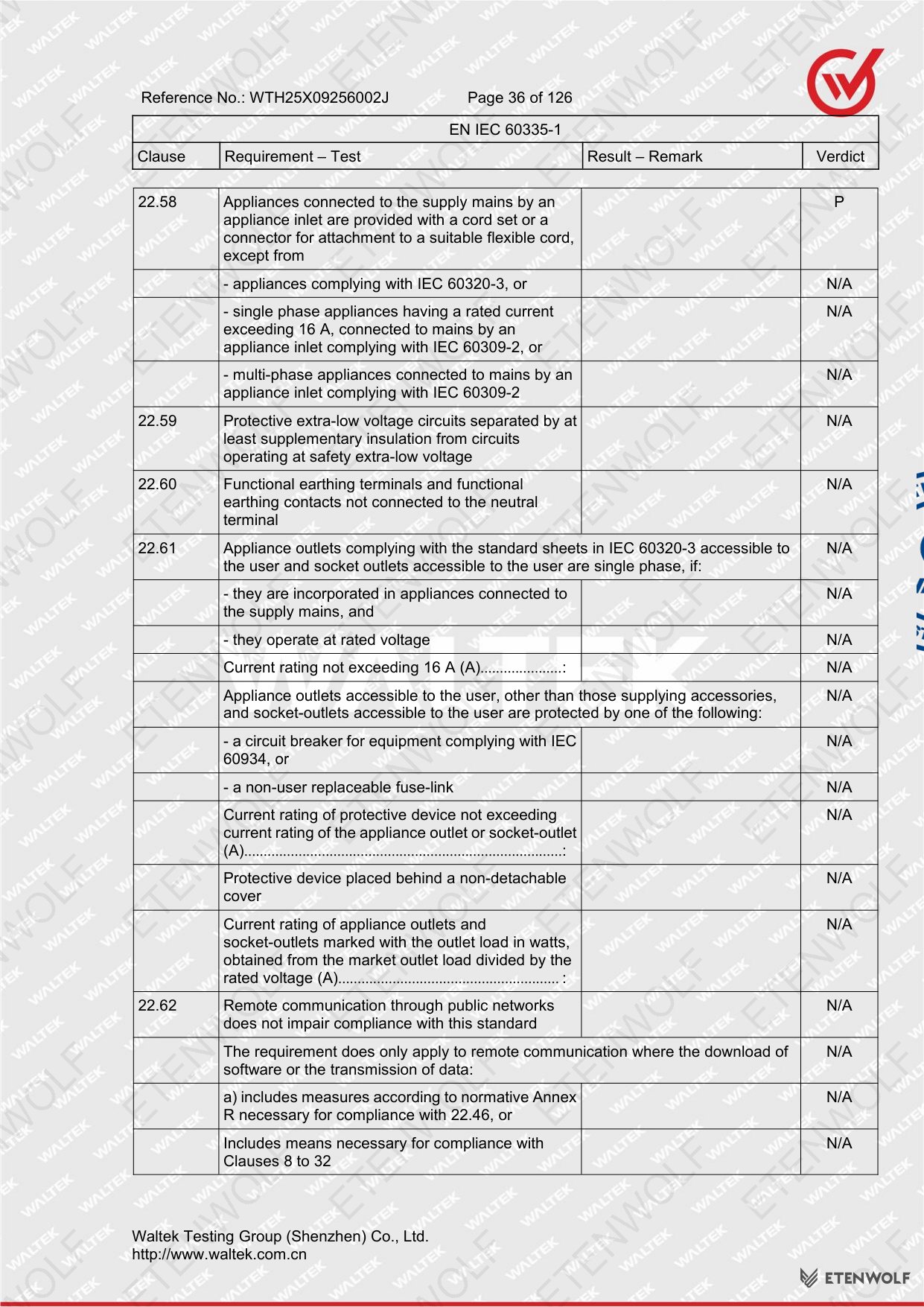

Document Page 31
Document Page 32

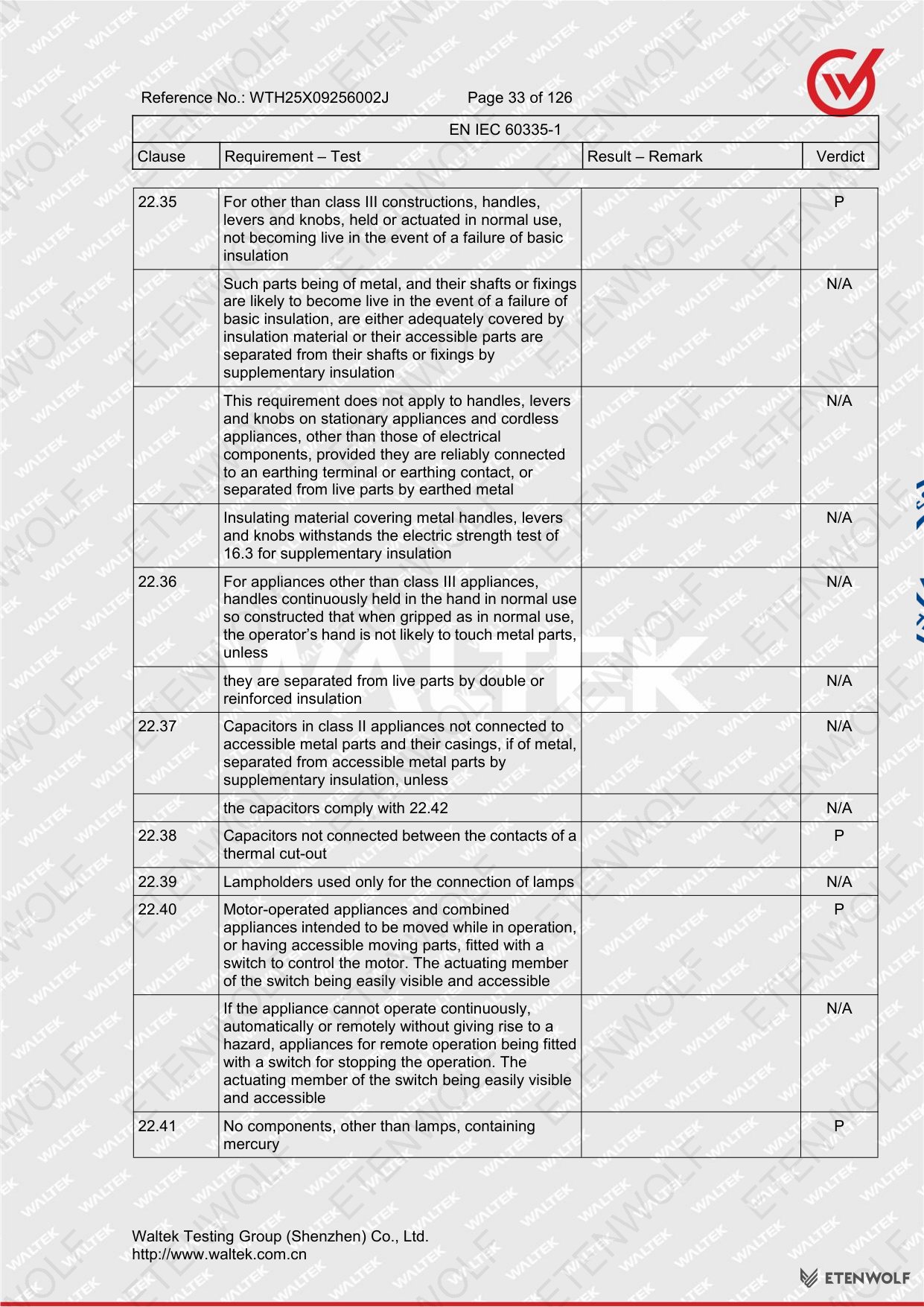

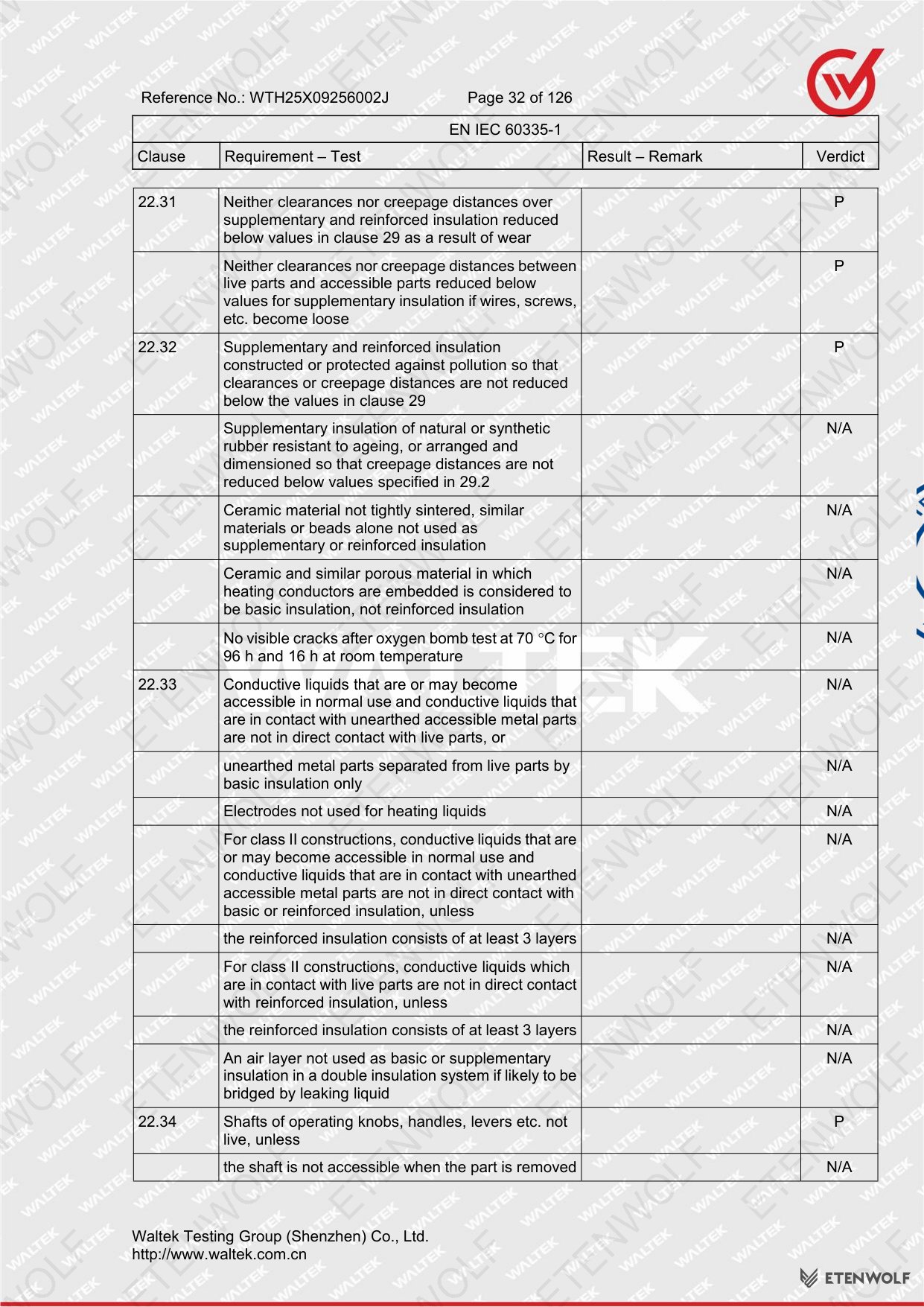

Document Page 33
Document Page 34

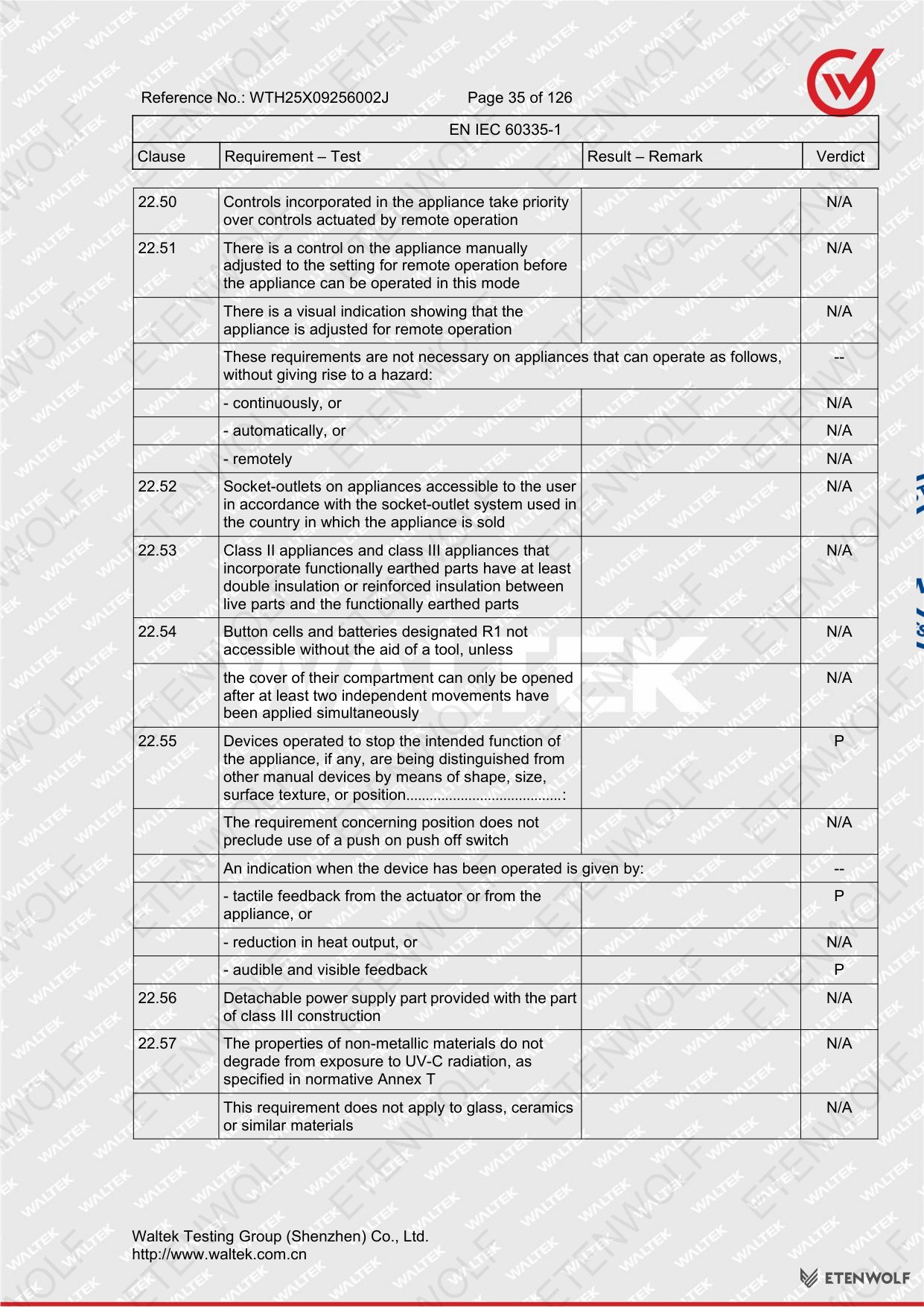

Document Page 35
Document Page 36
Document Page 37

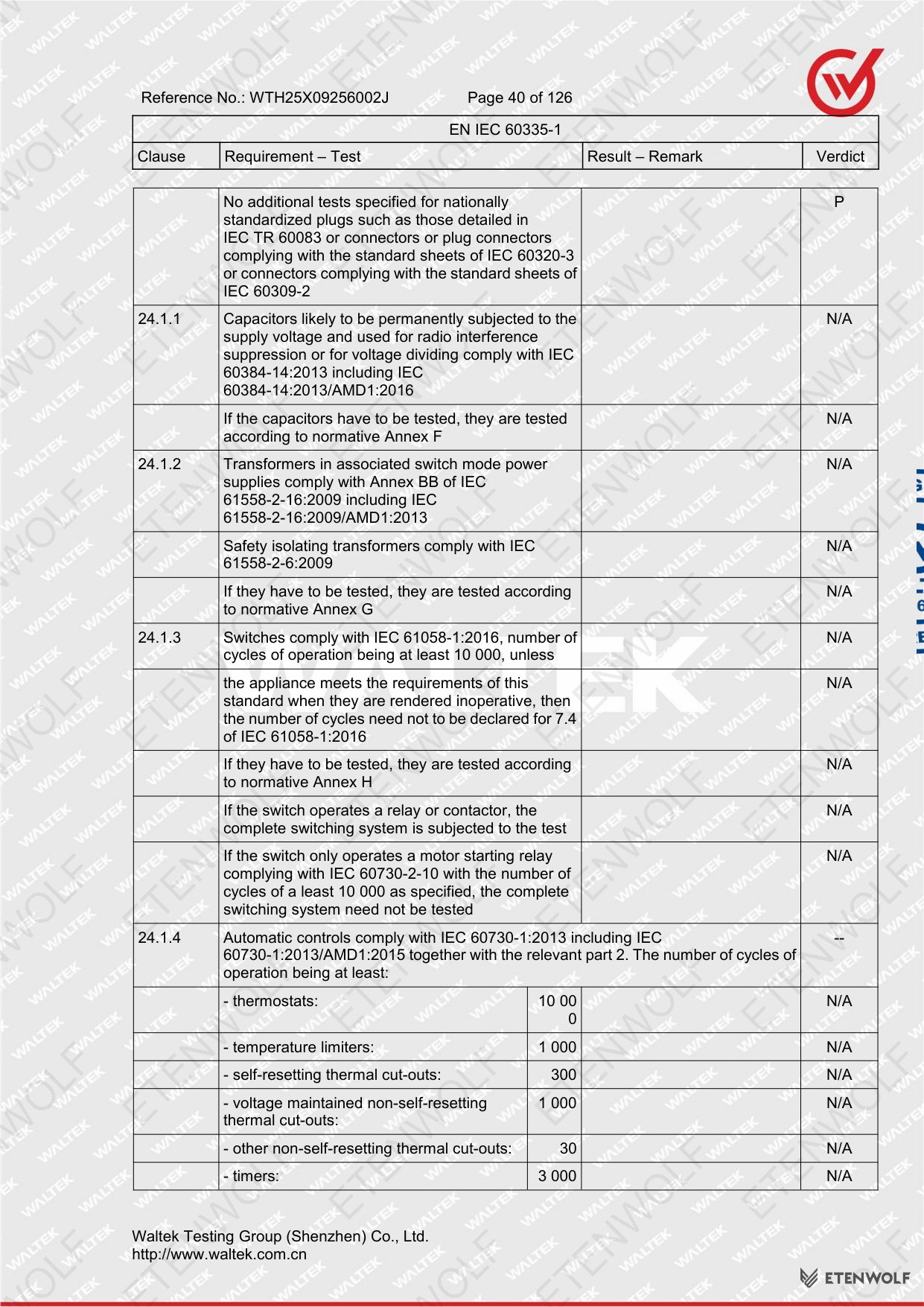

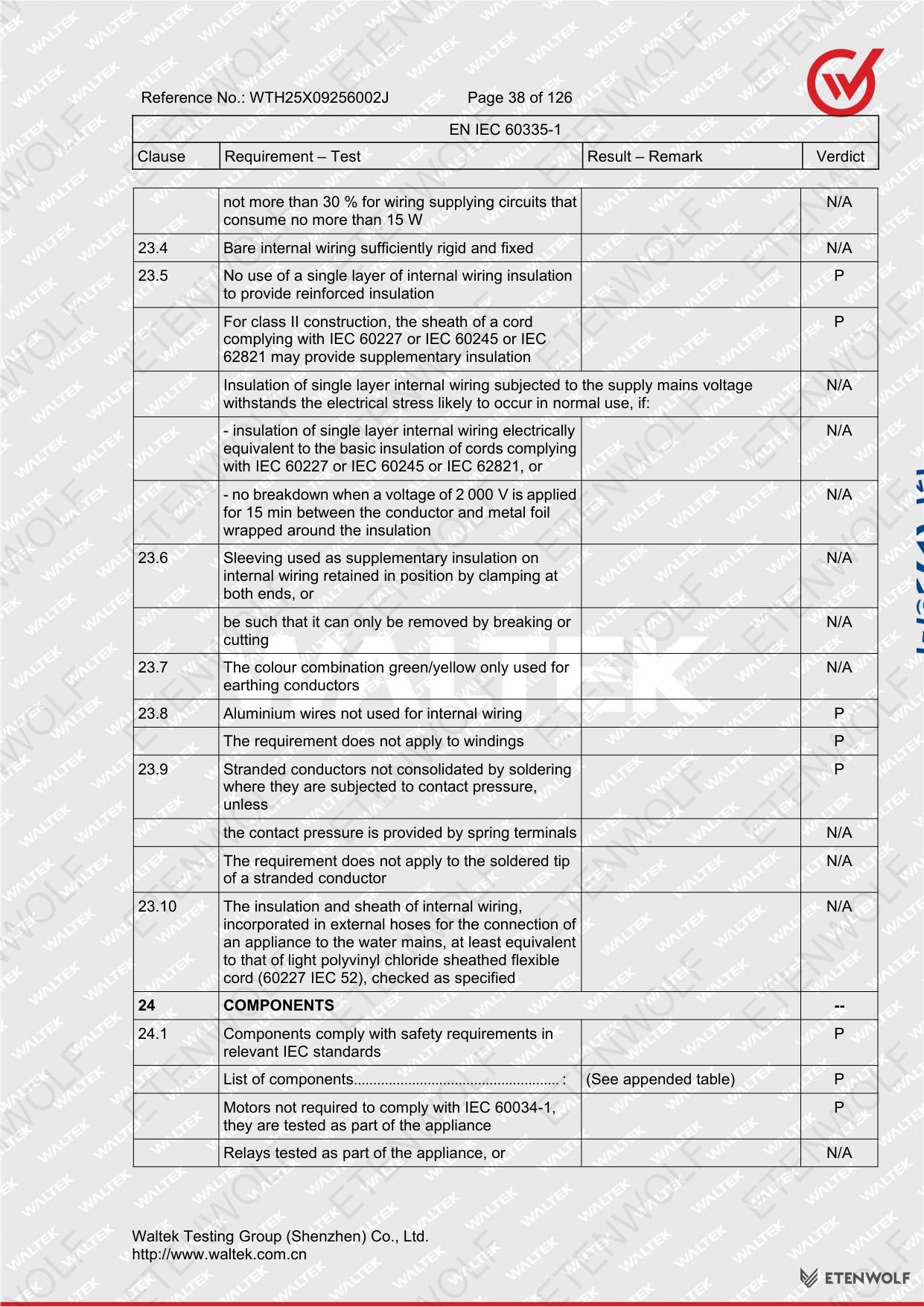

Document Page 38

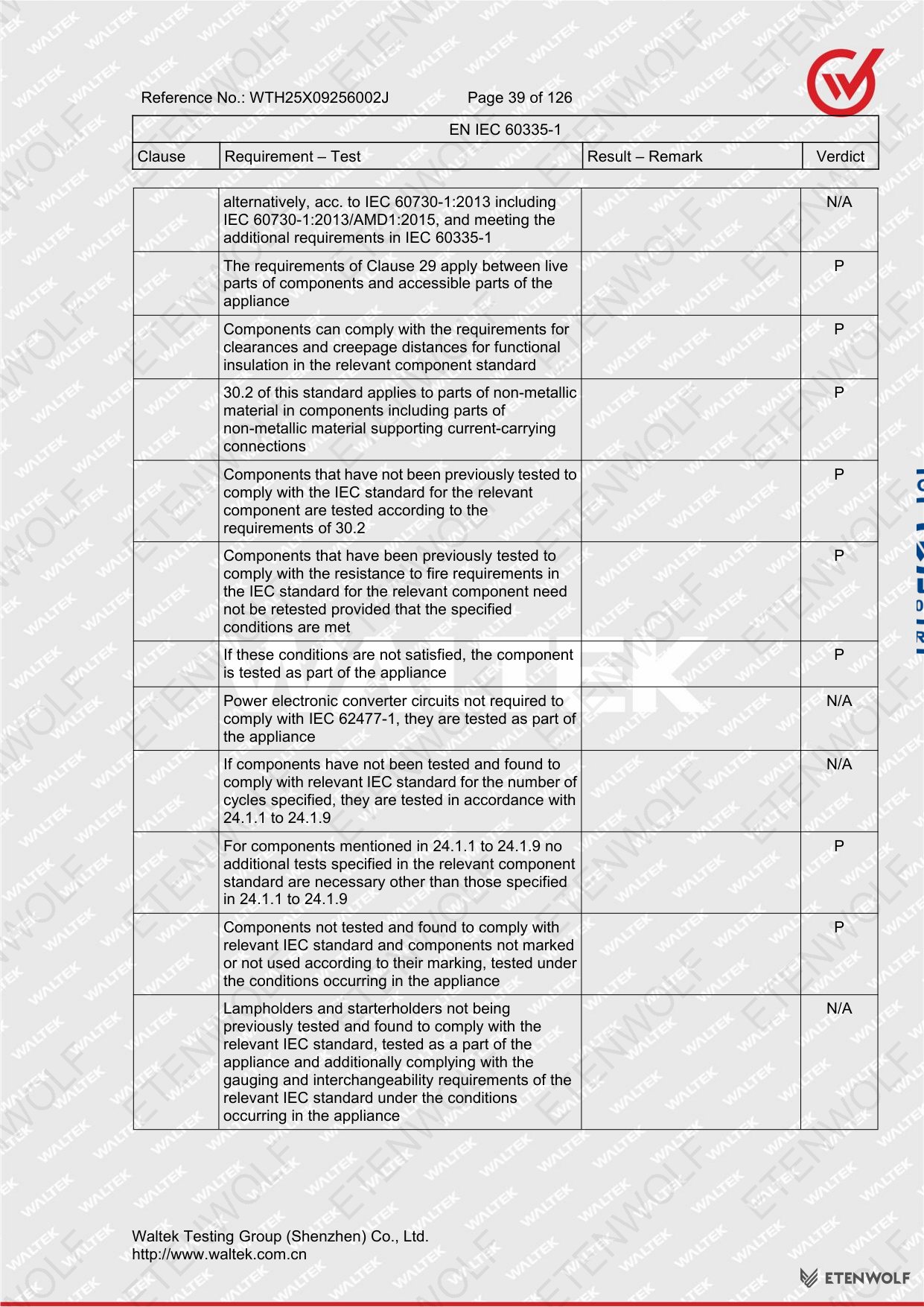

Document Page 39
Document Page 40

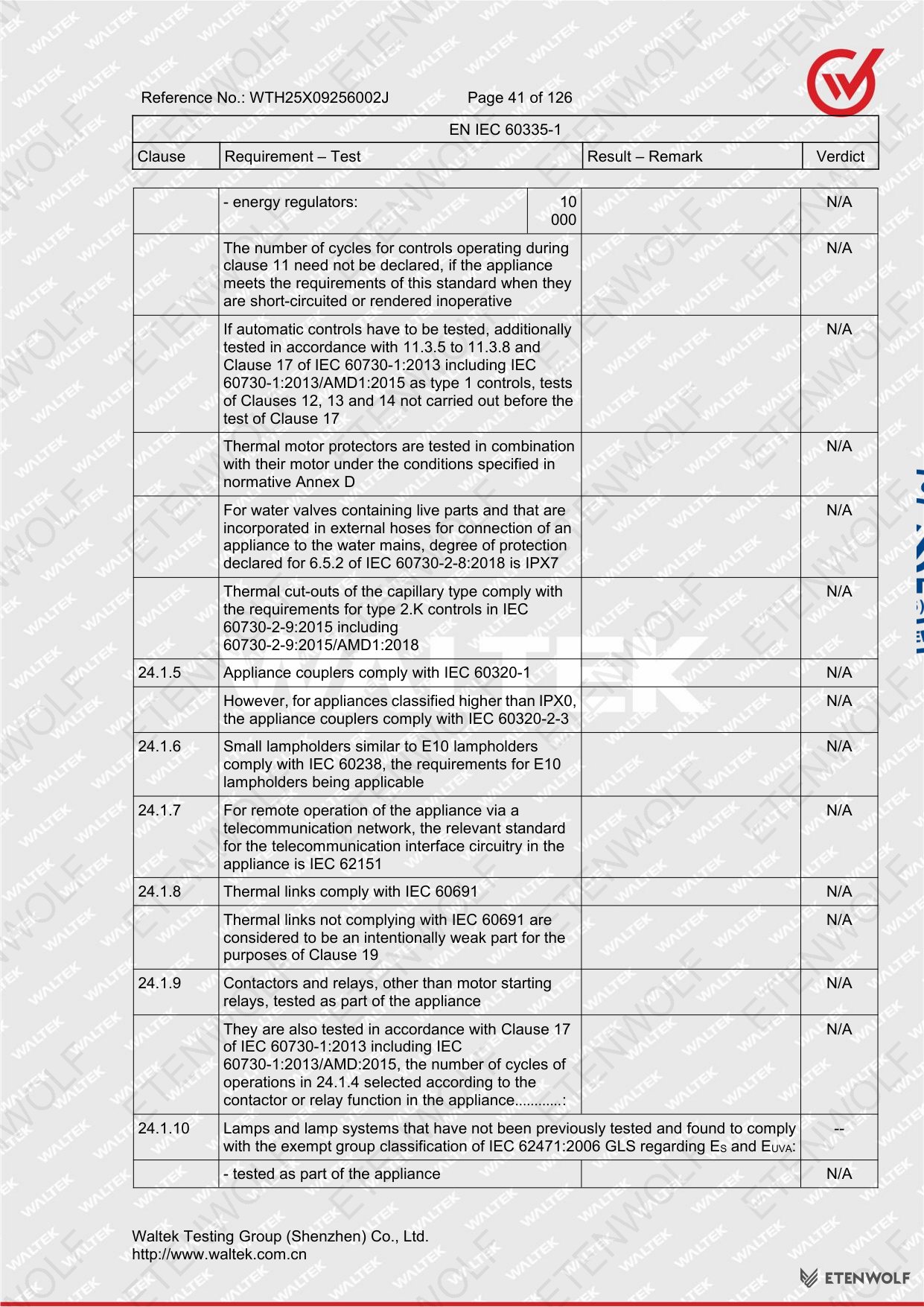

Document Page 41

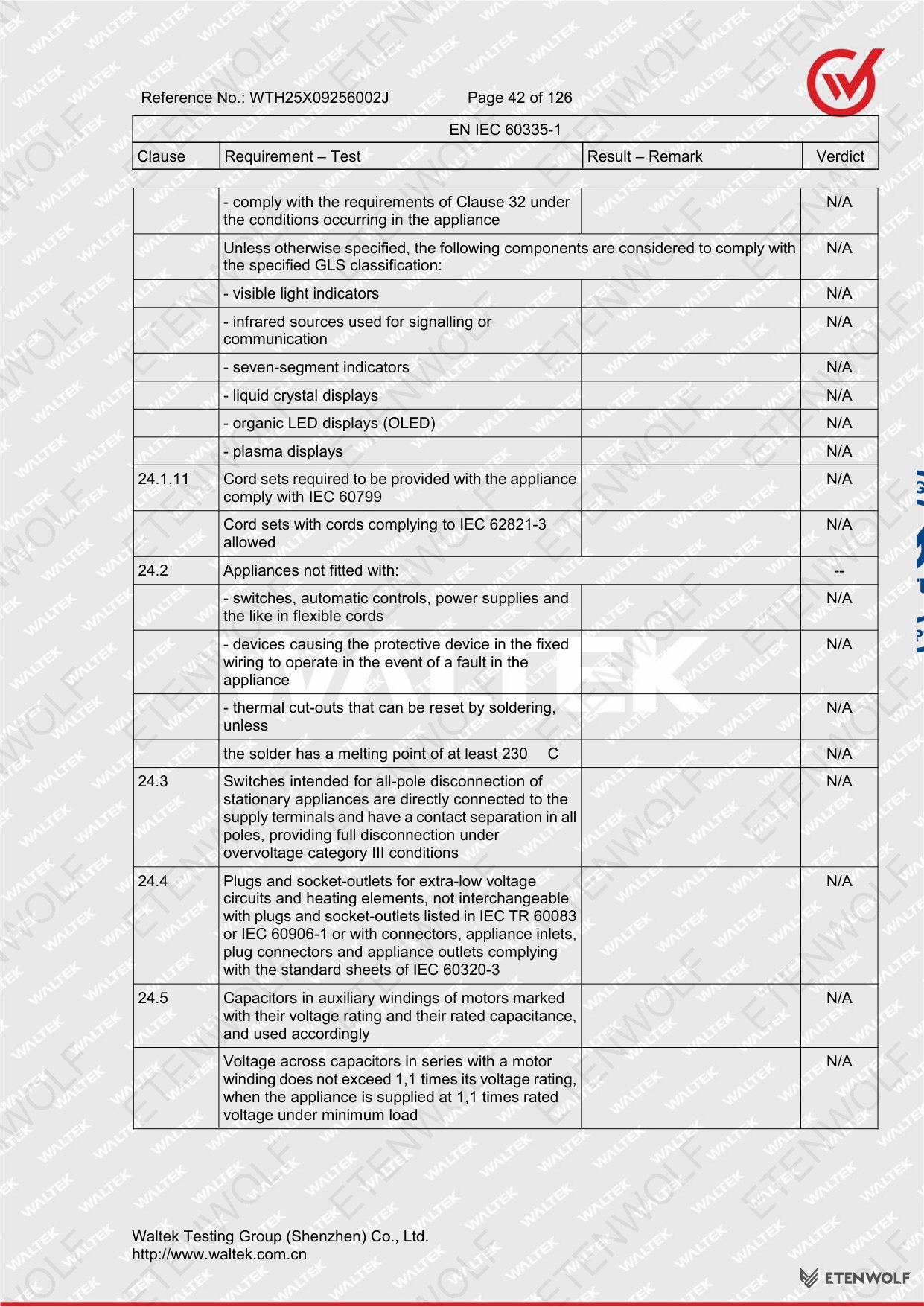

Document Page 42

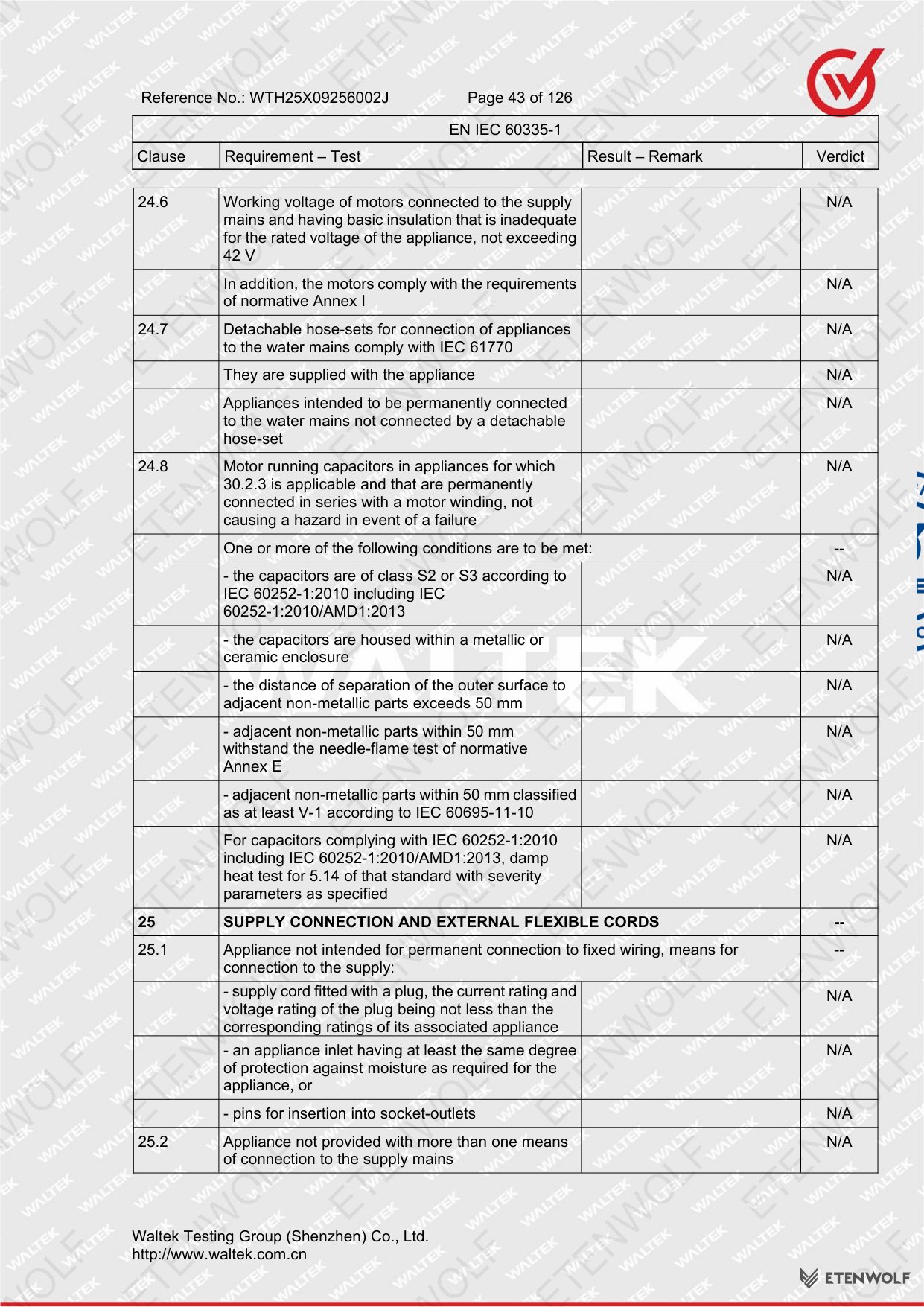

Document Page 43

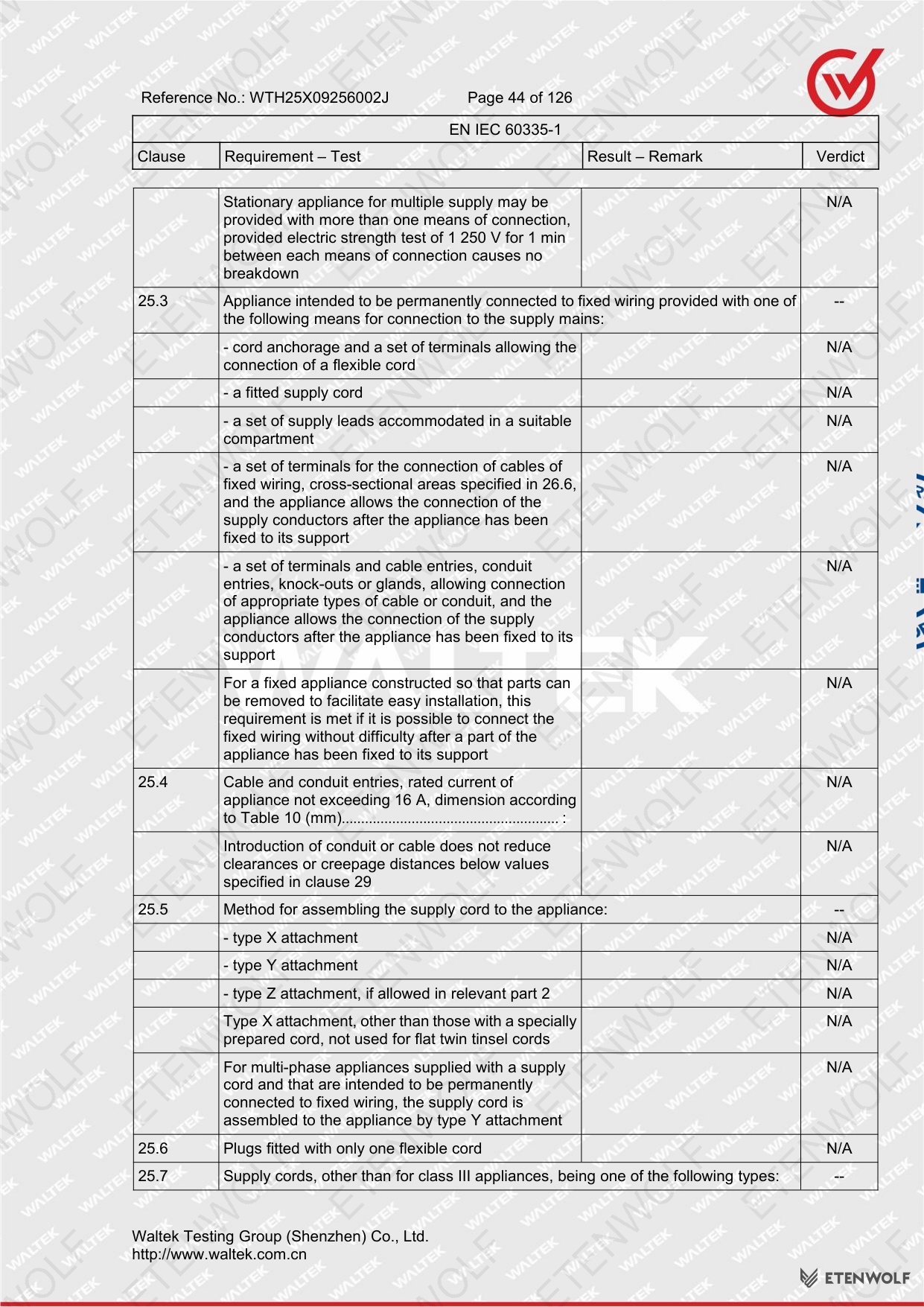

Document Page 44

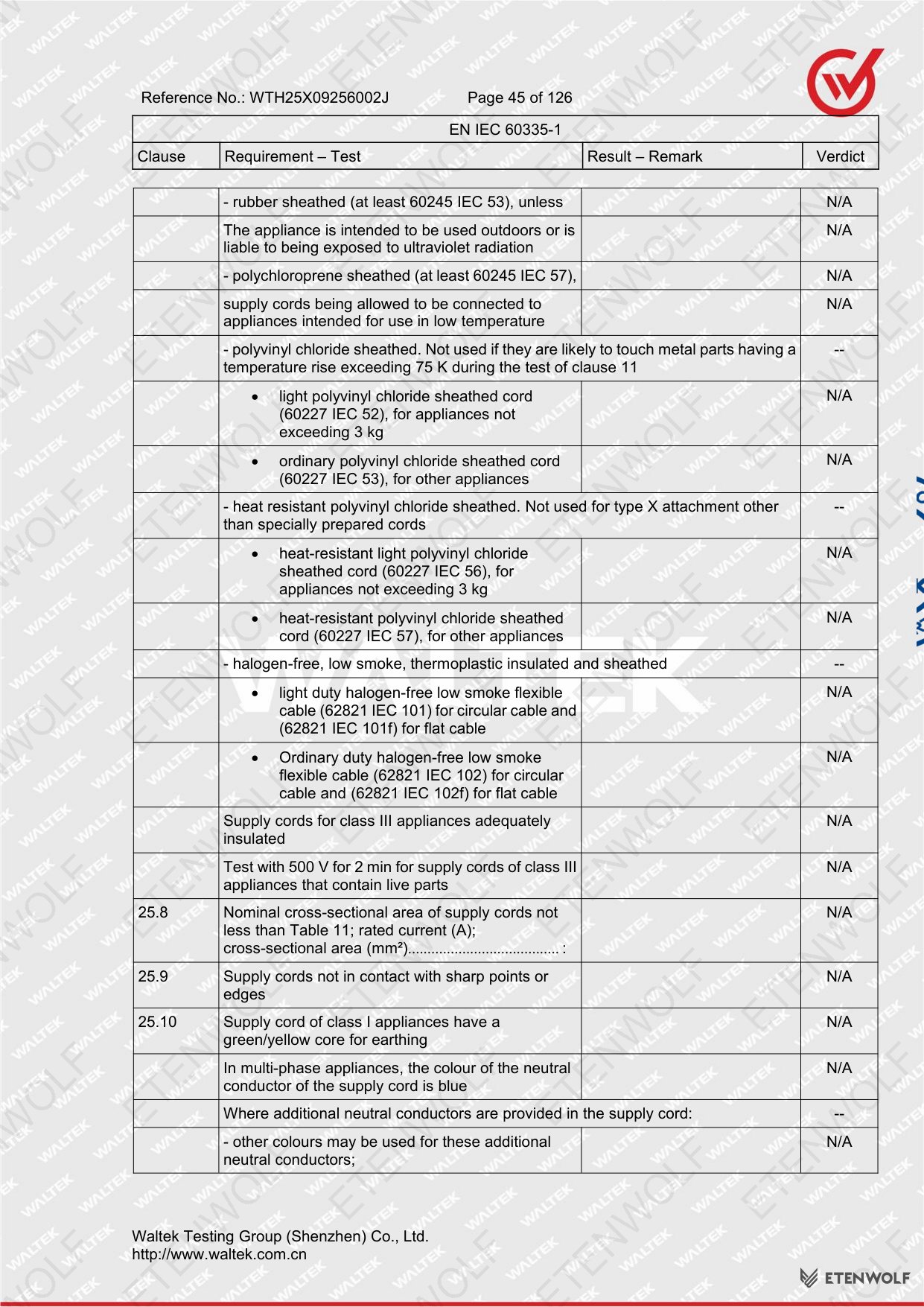

Document Page 45
Document Page 46

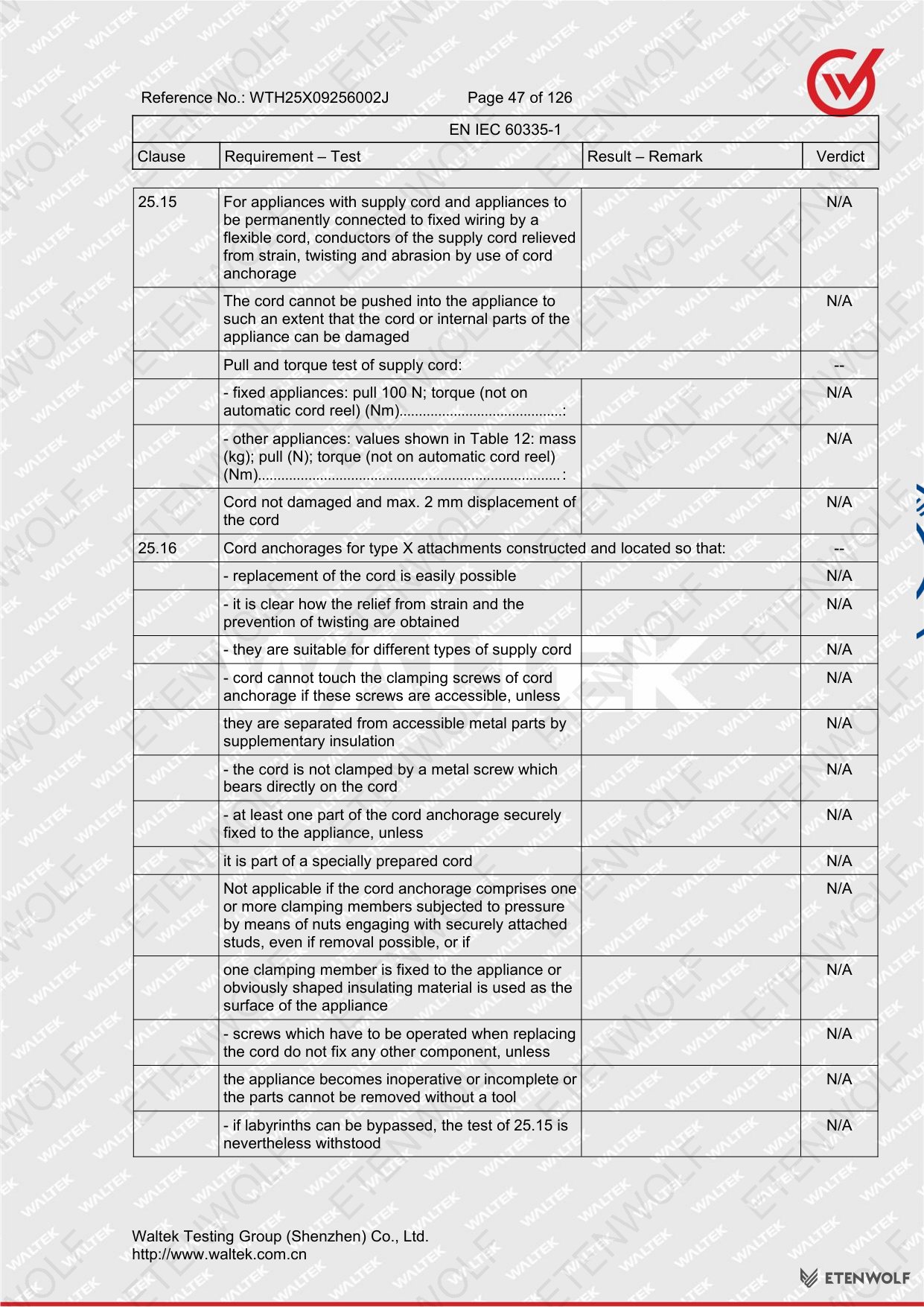

Document Page 47
Document Page 48

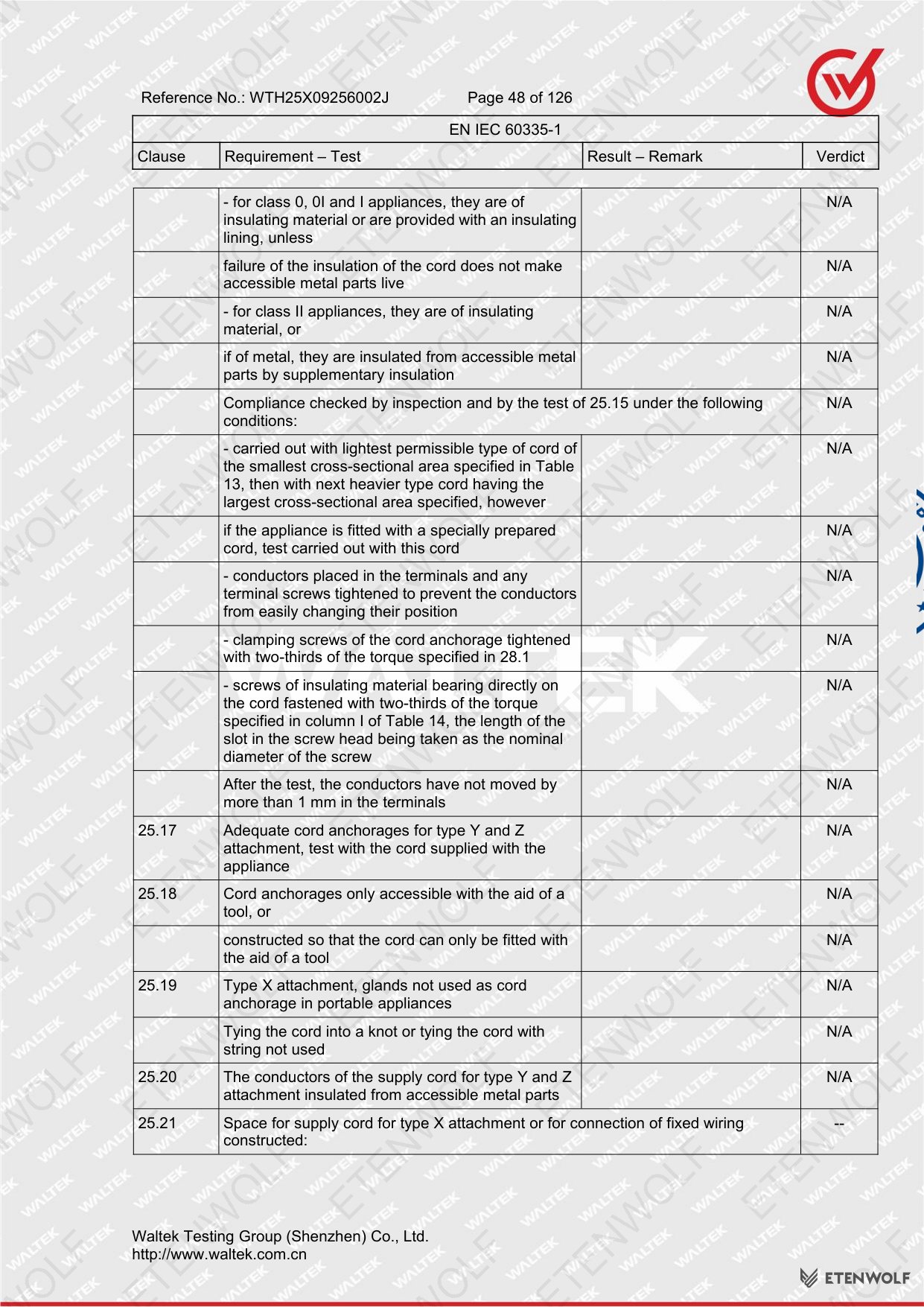

Document Page 49
Document Page 50

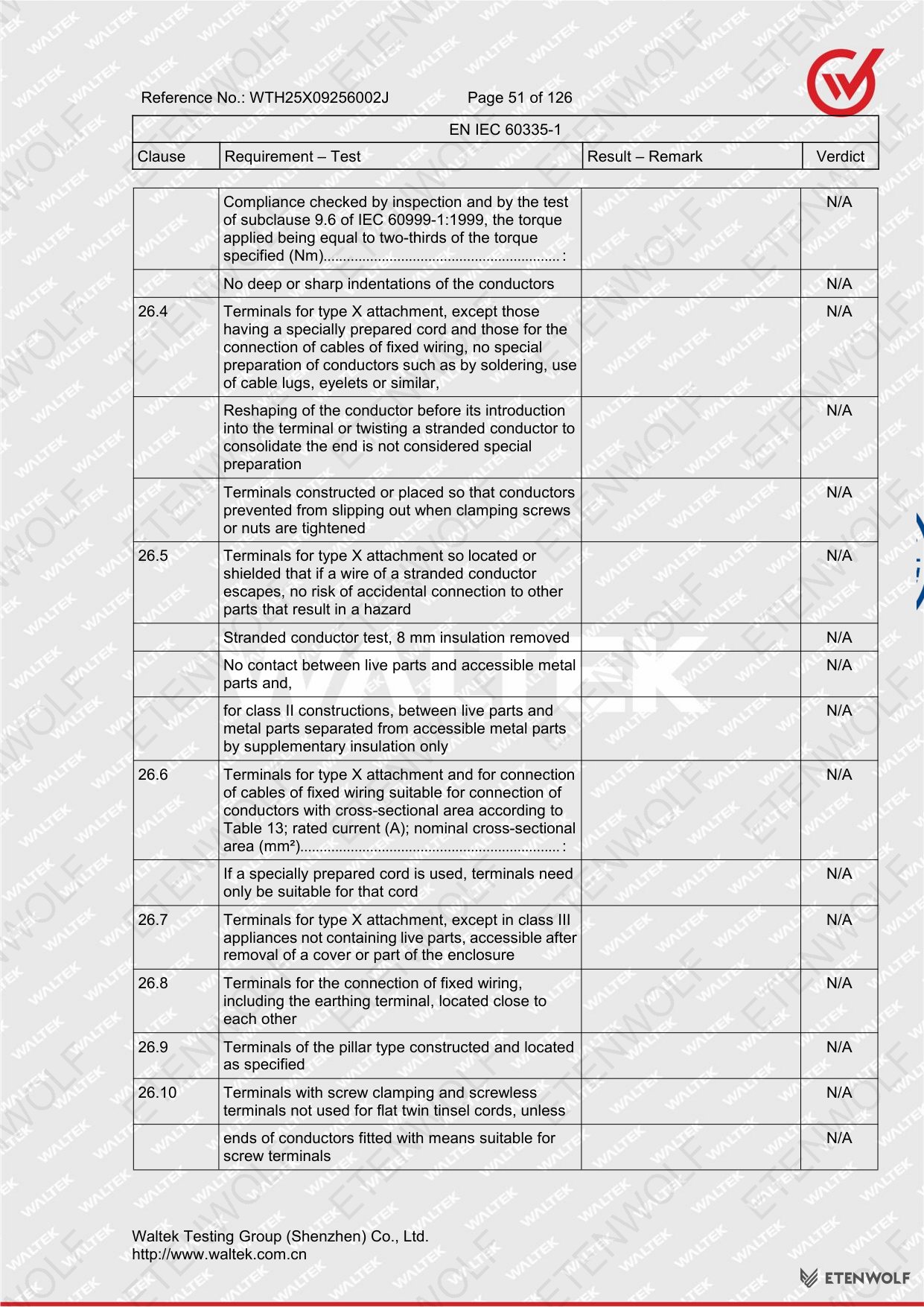

Document Page 51
Document Page 52
Document Page 53

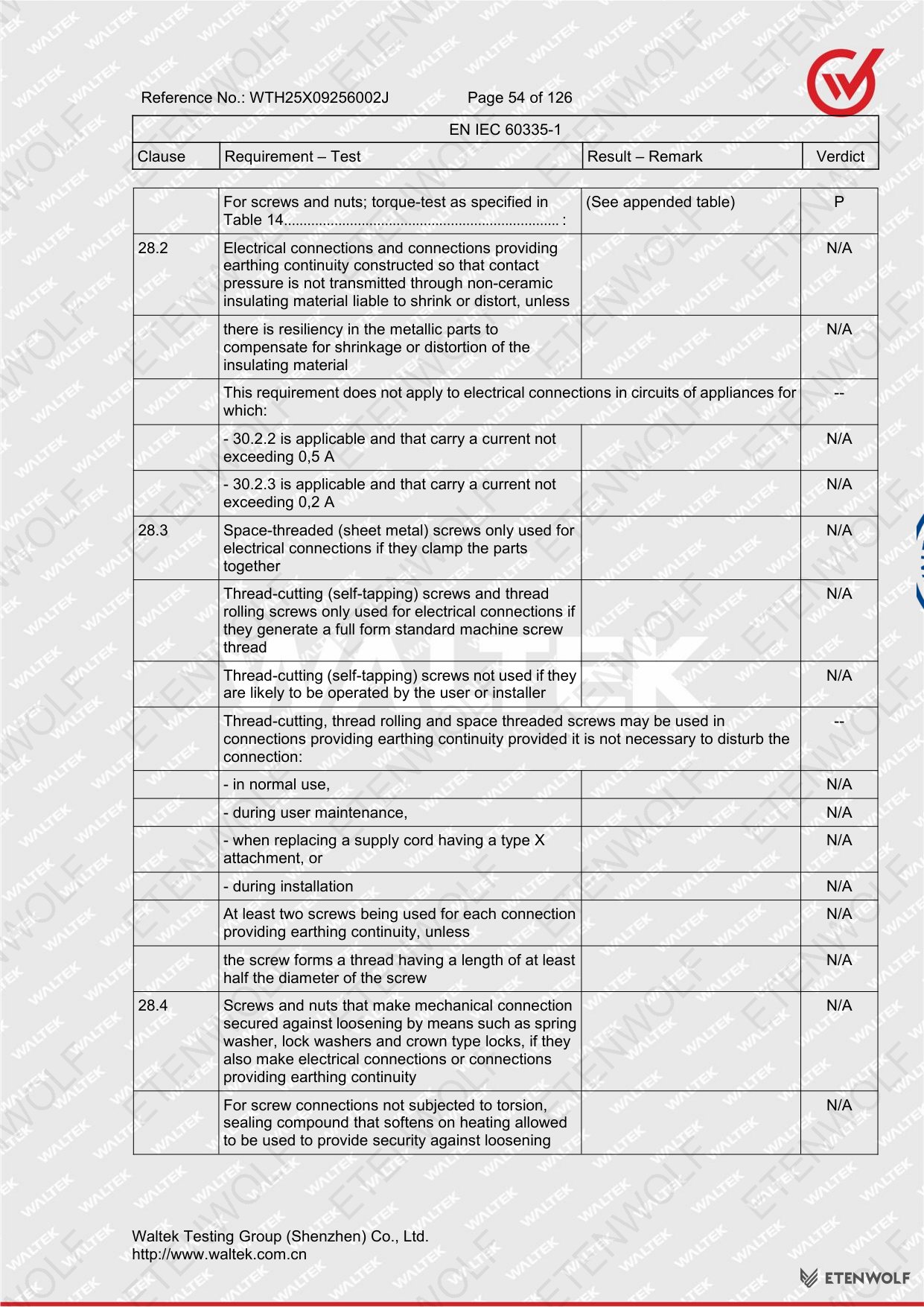

Document Page 54

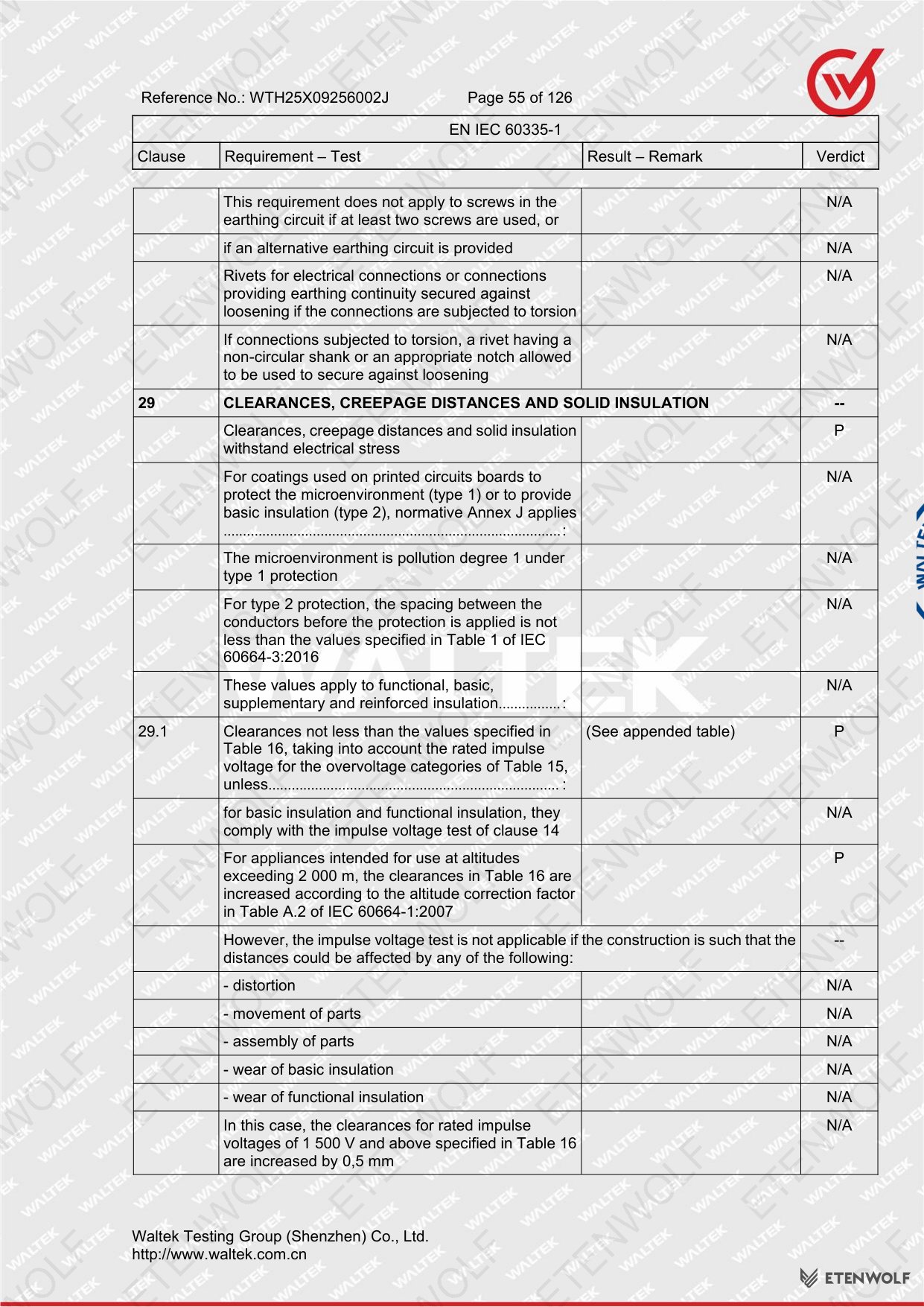

Document Page 55
Document Page 56

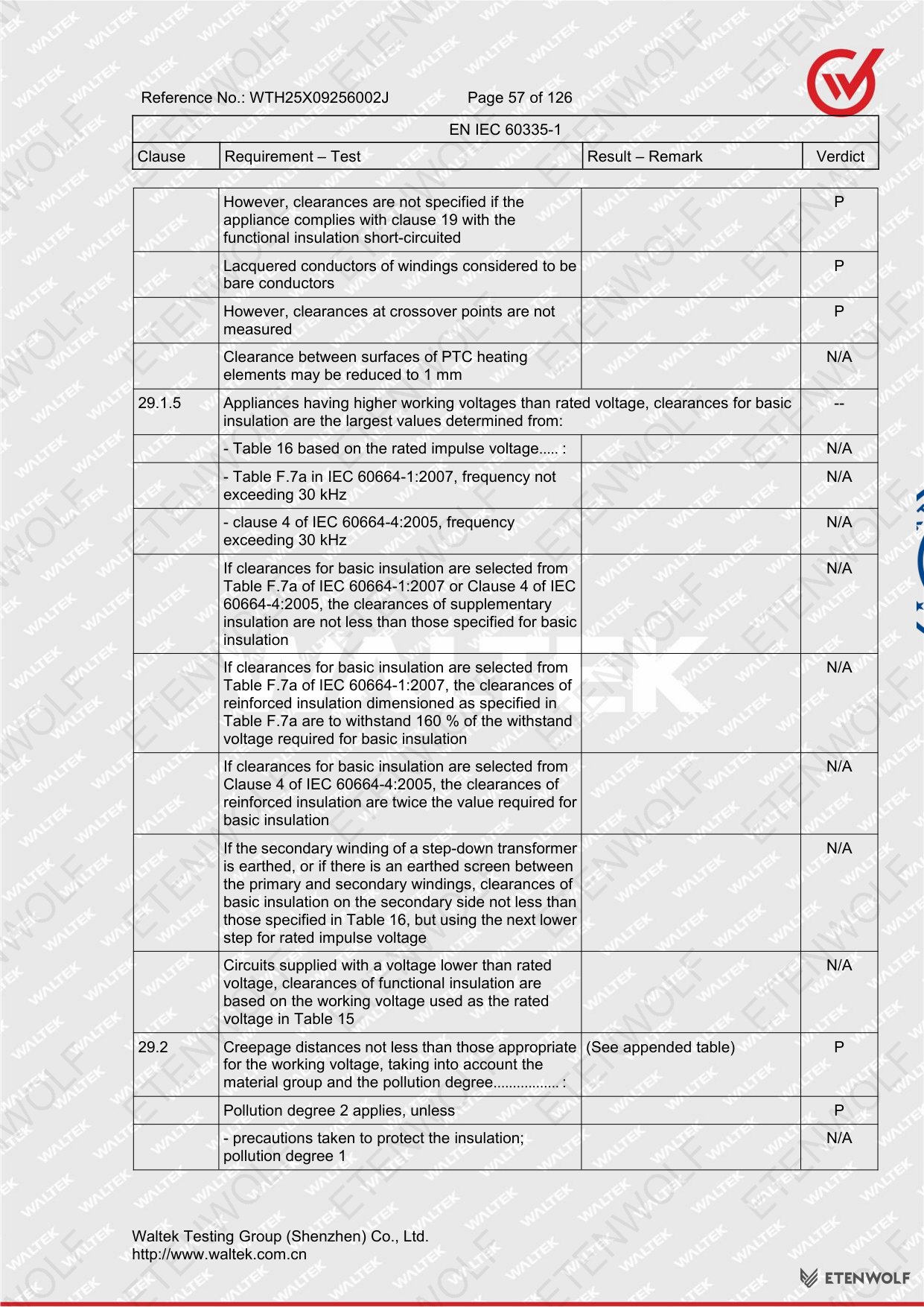

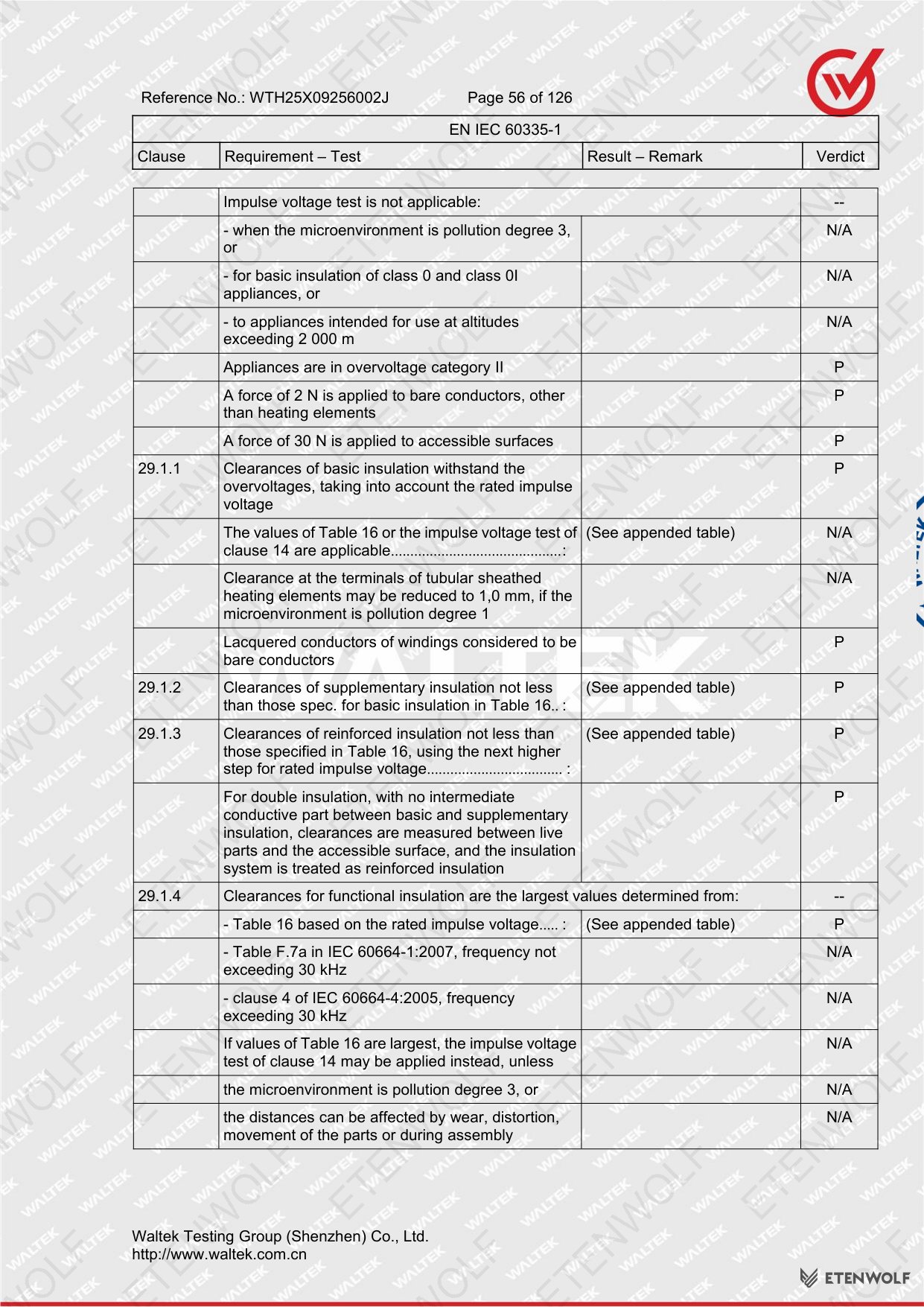

Document Page 57

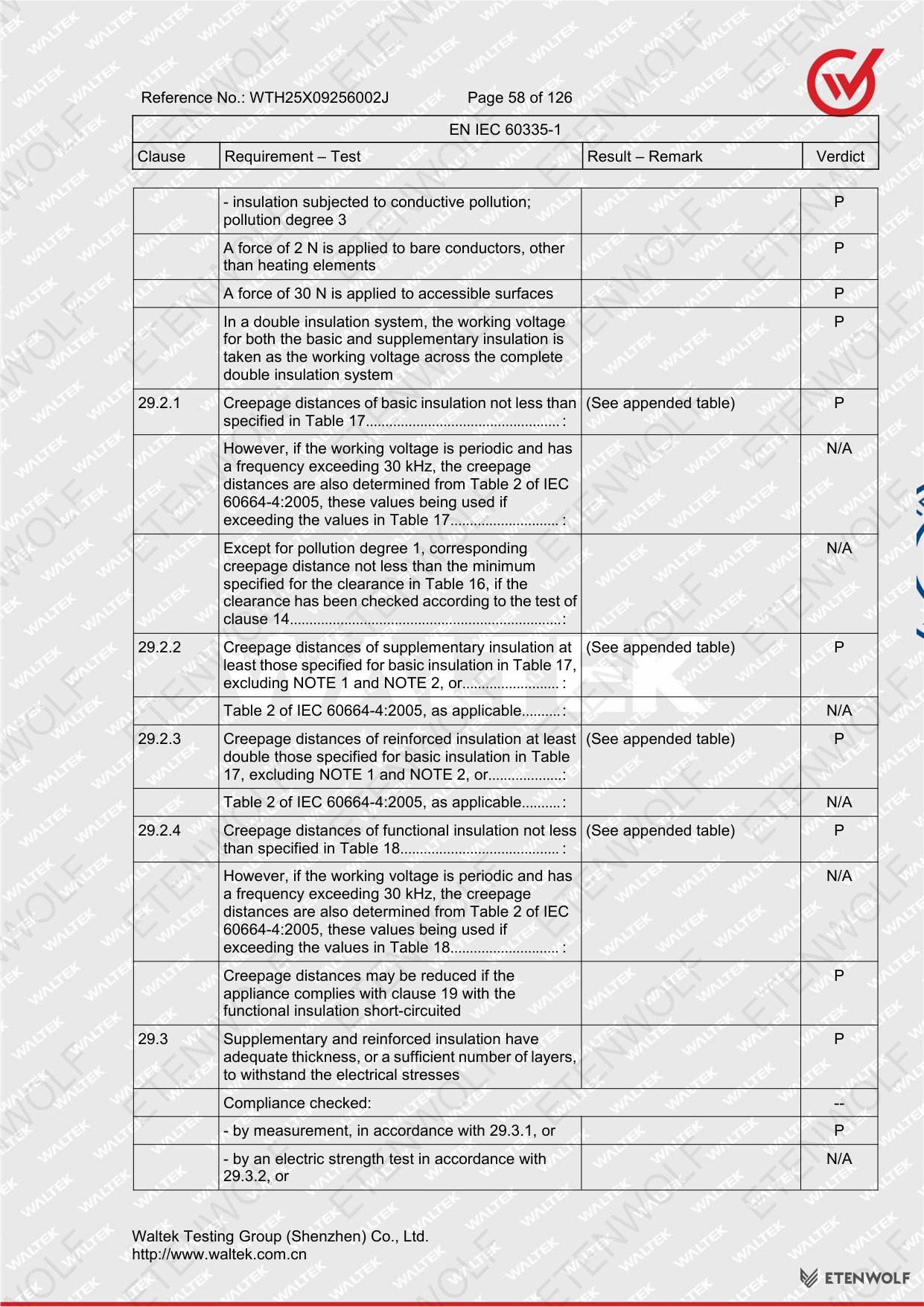

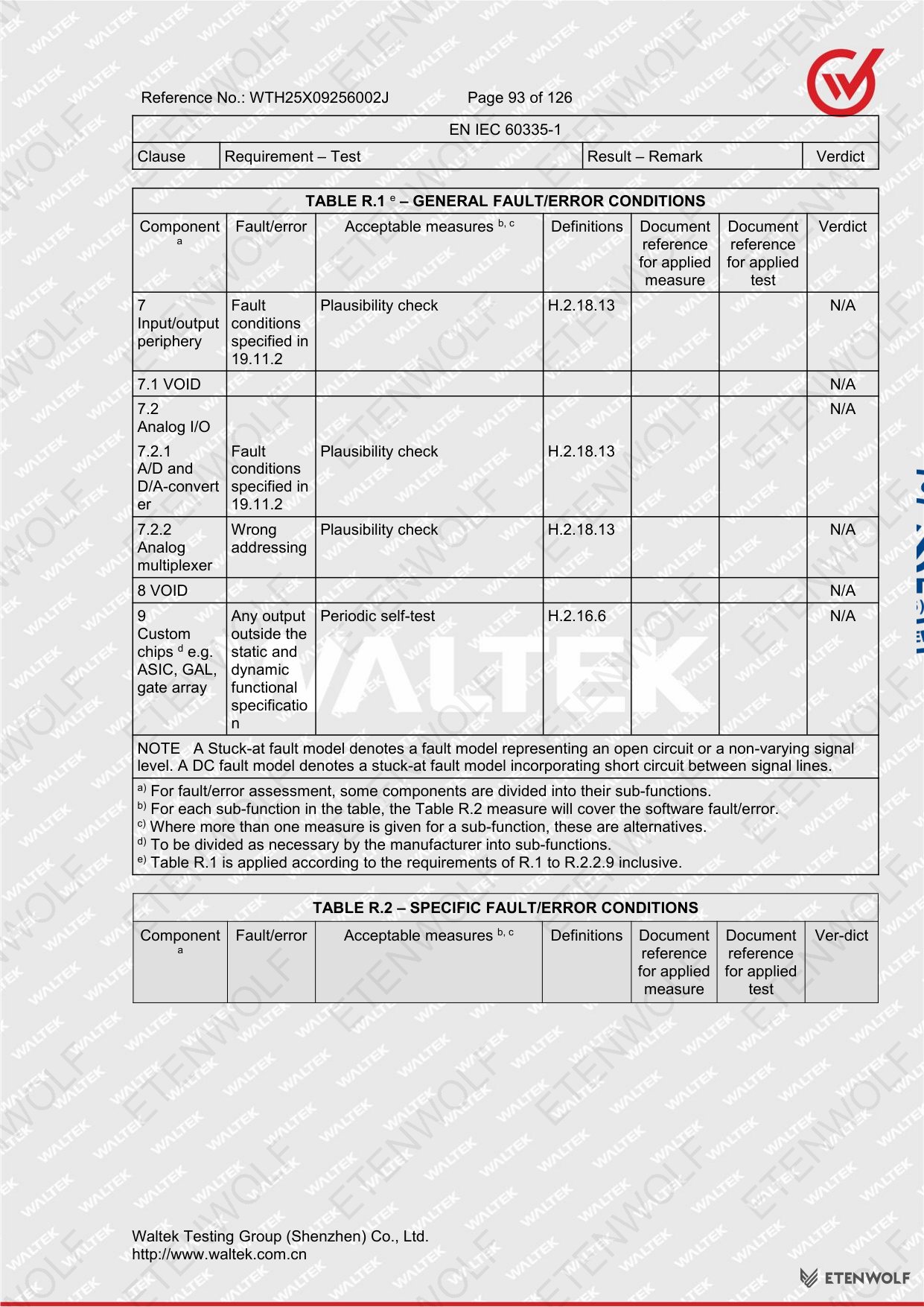

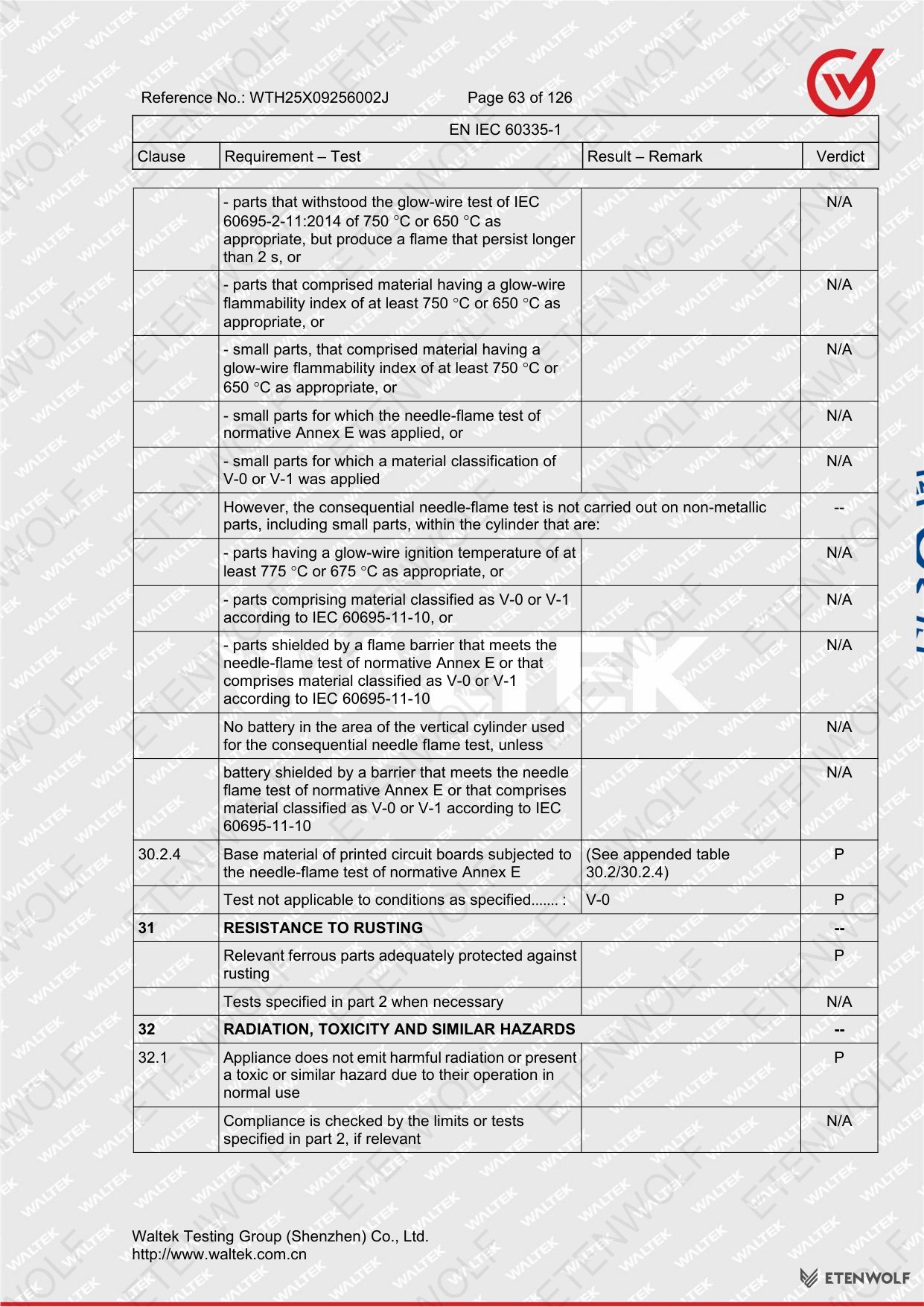

Document Page 58
Document Page 59

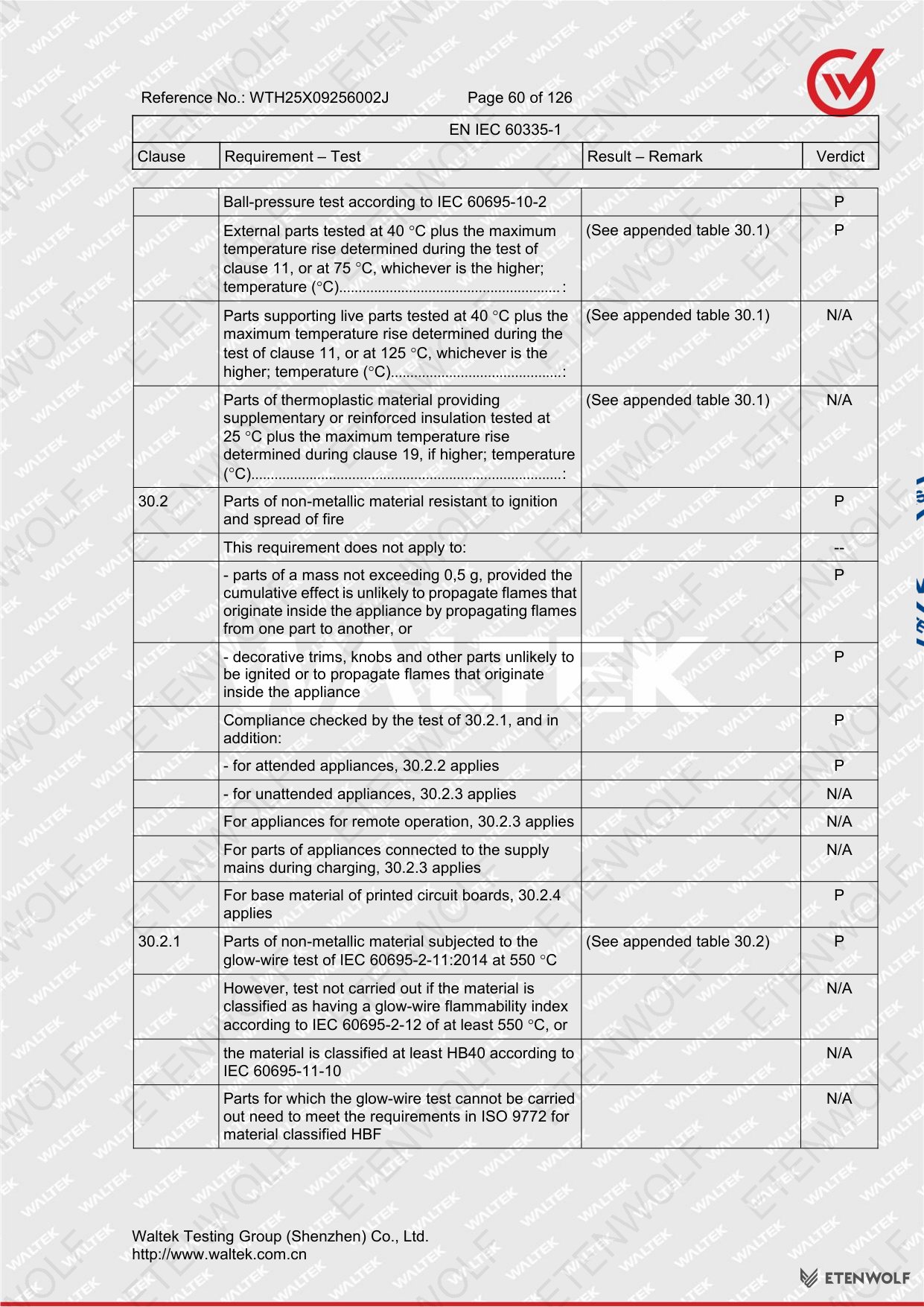

Document Page 60

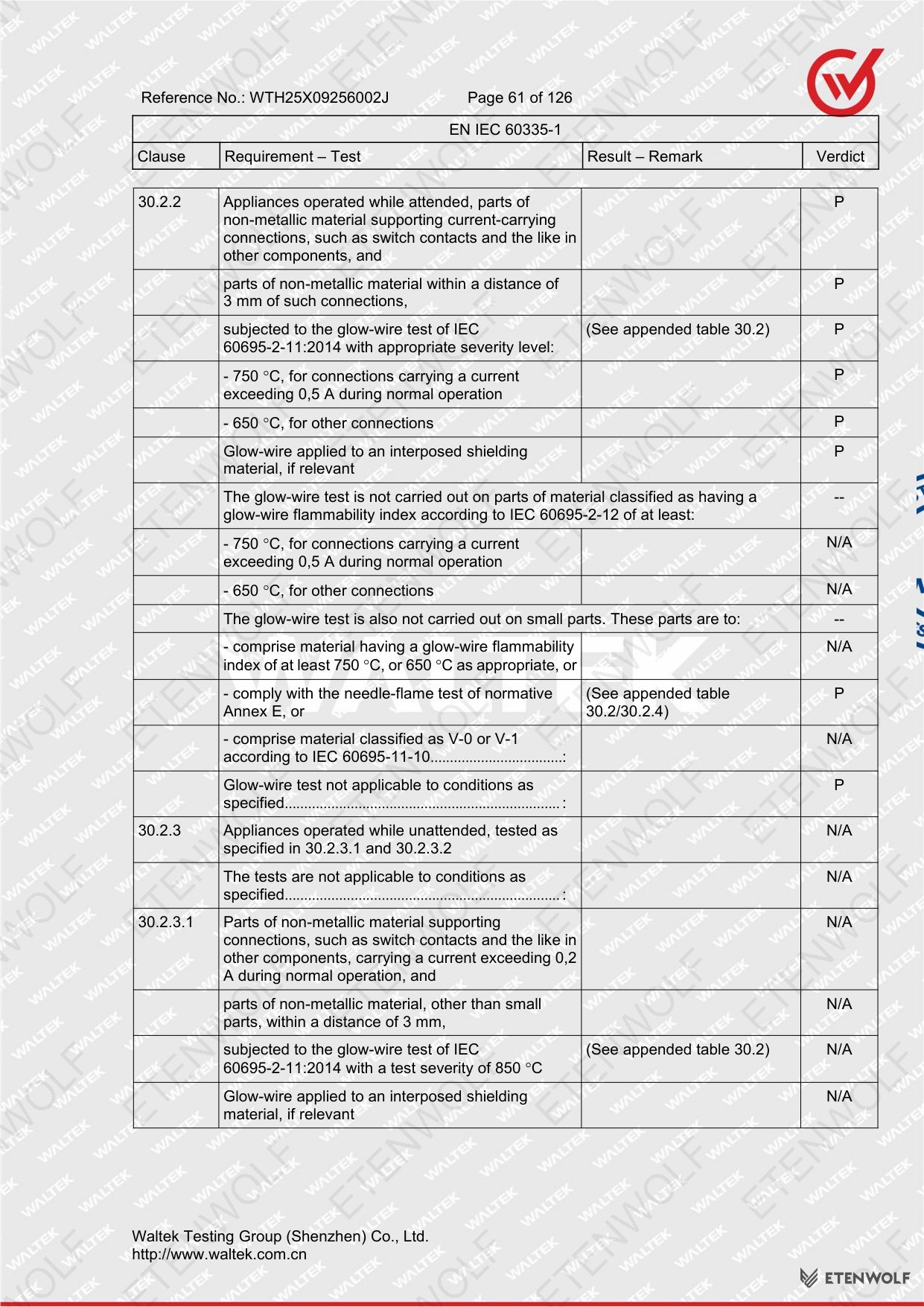

Document Page 61
Document Page 62

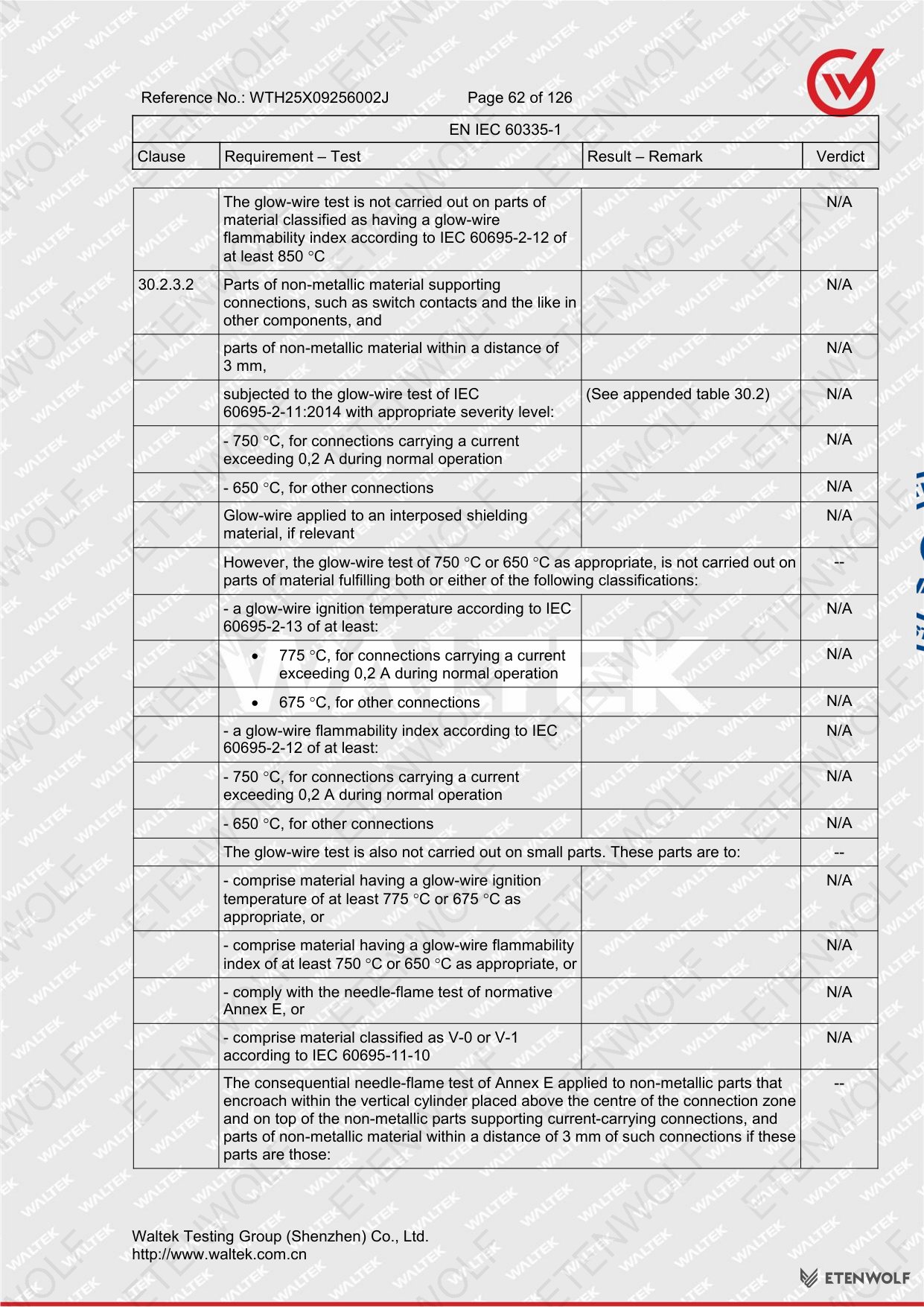

Document Page 63

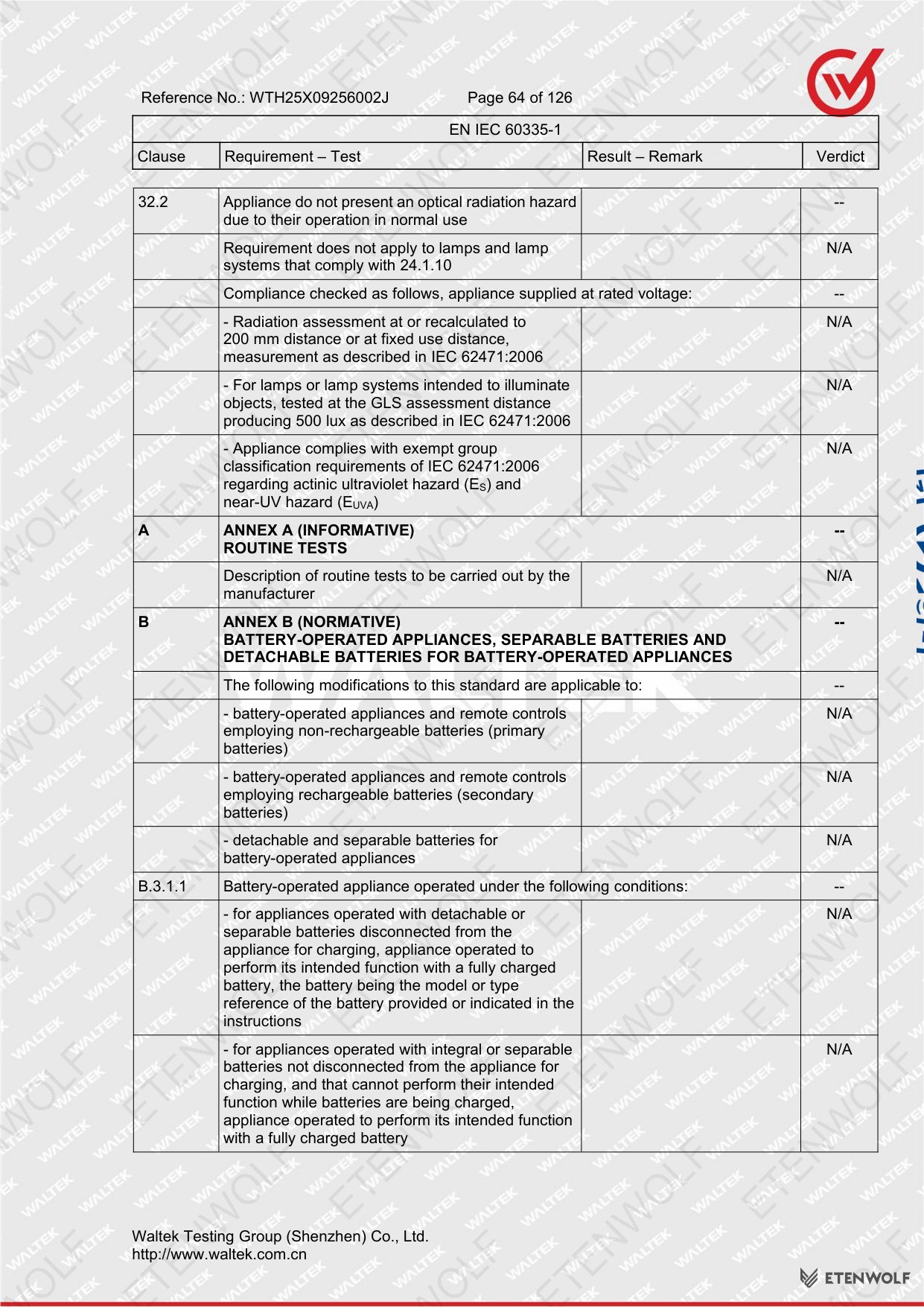

Document Page 64

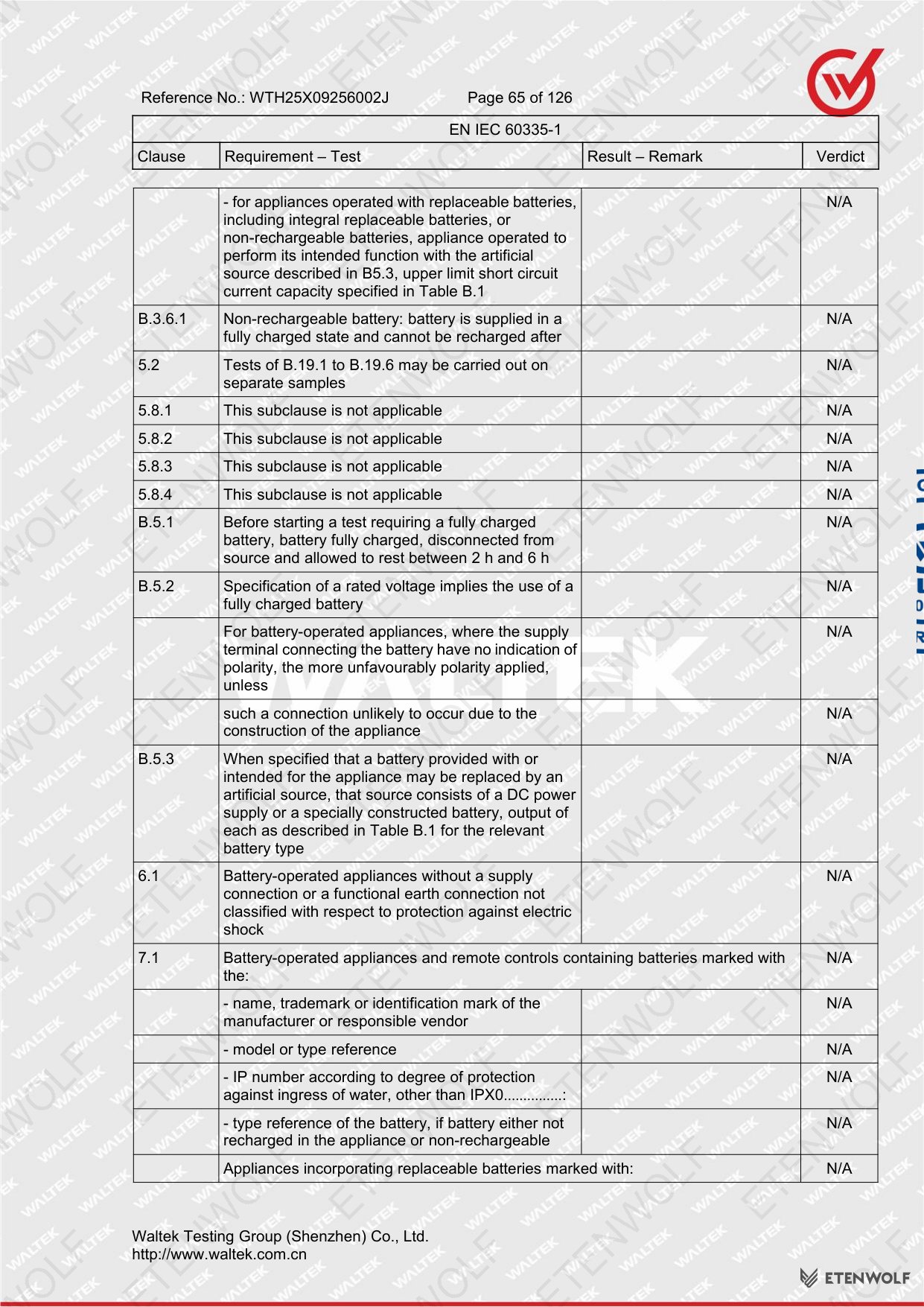

Document Page 65

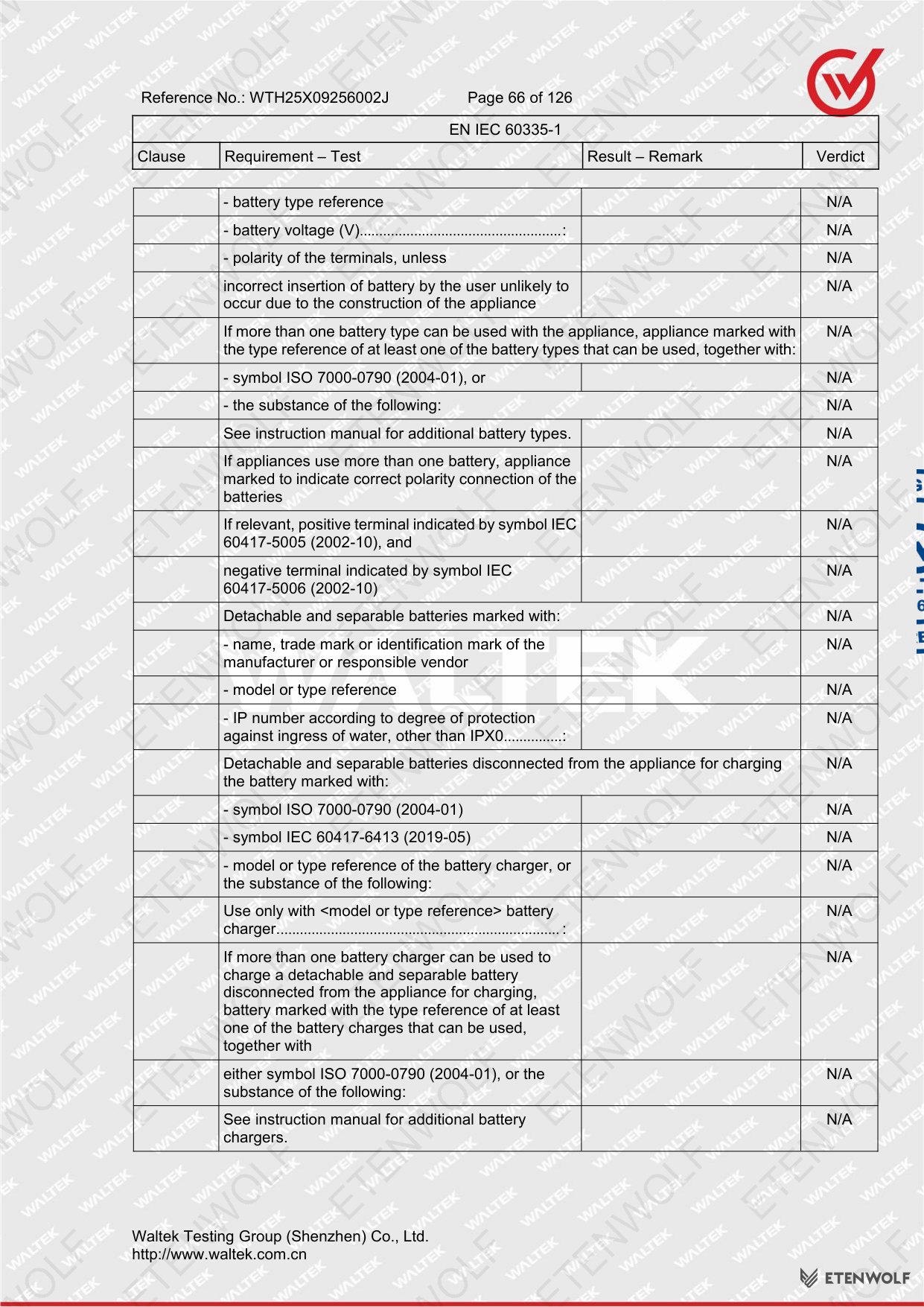

Document Page 66

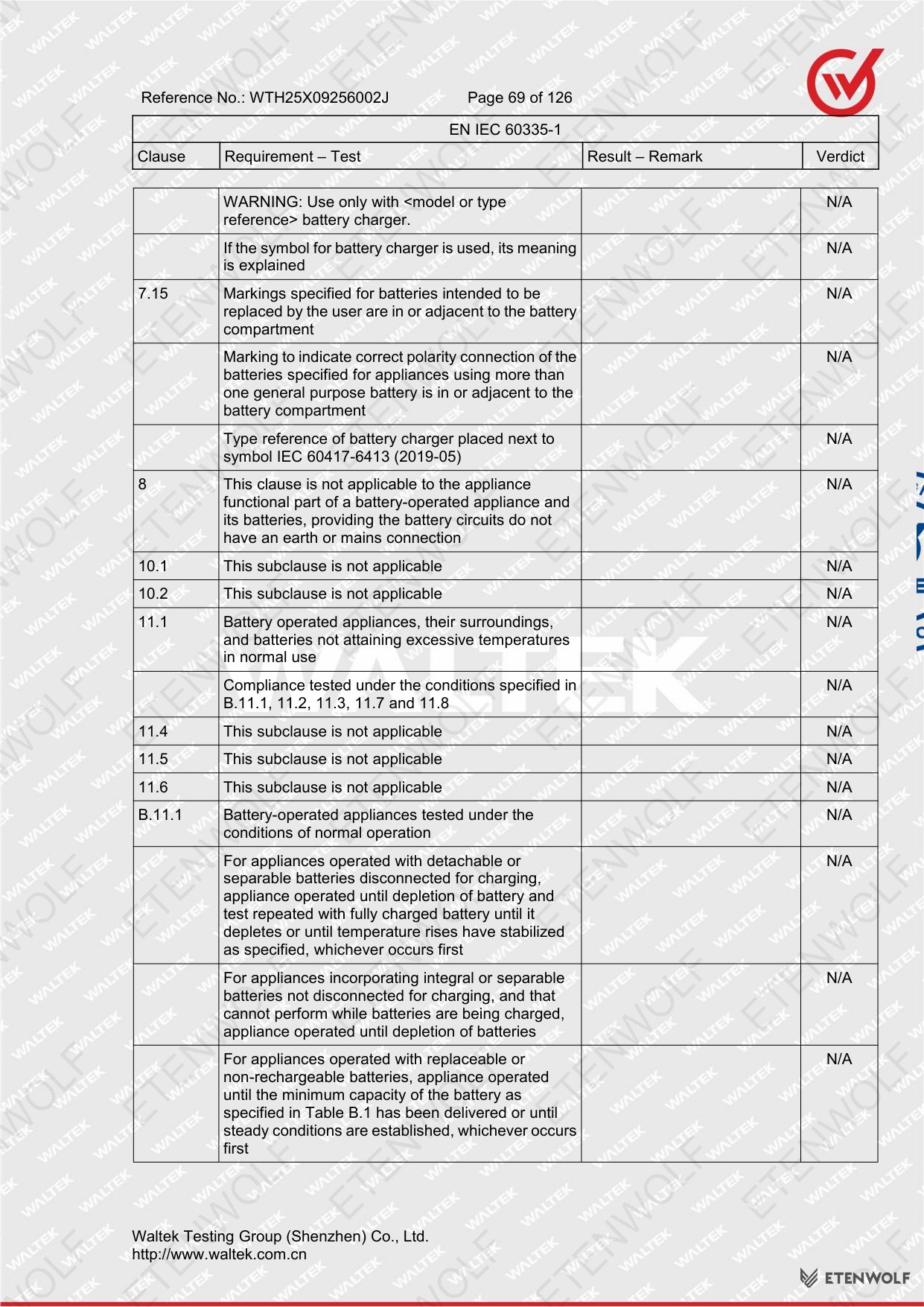

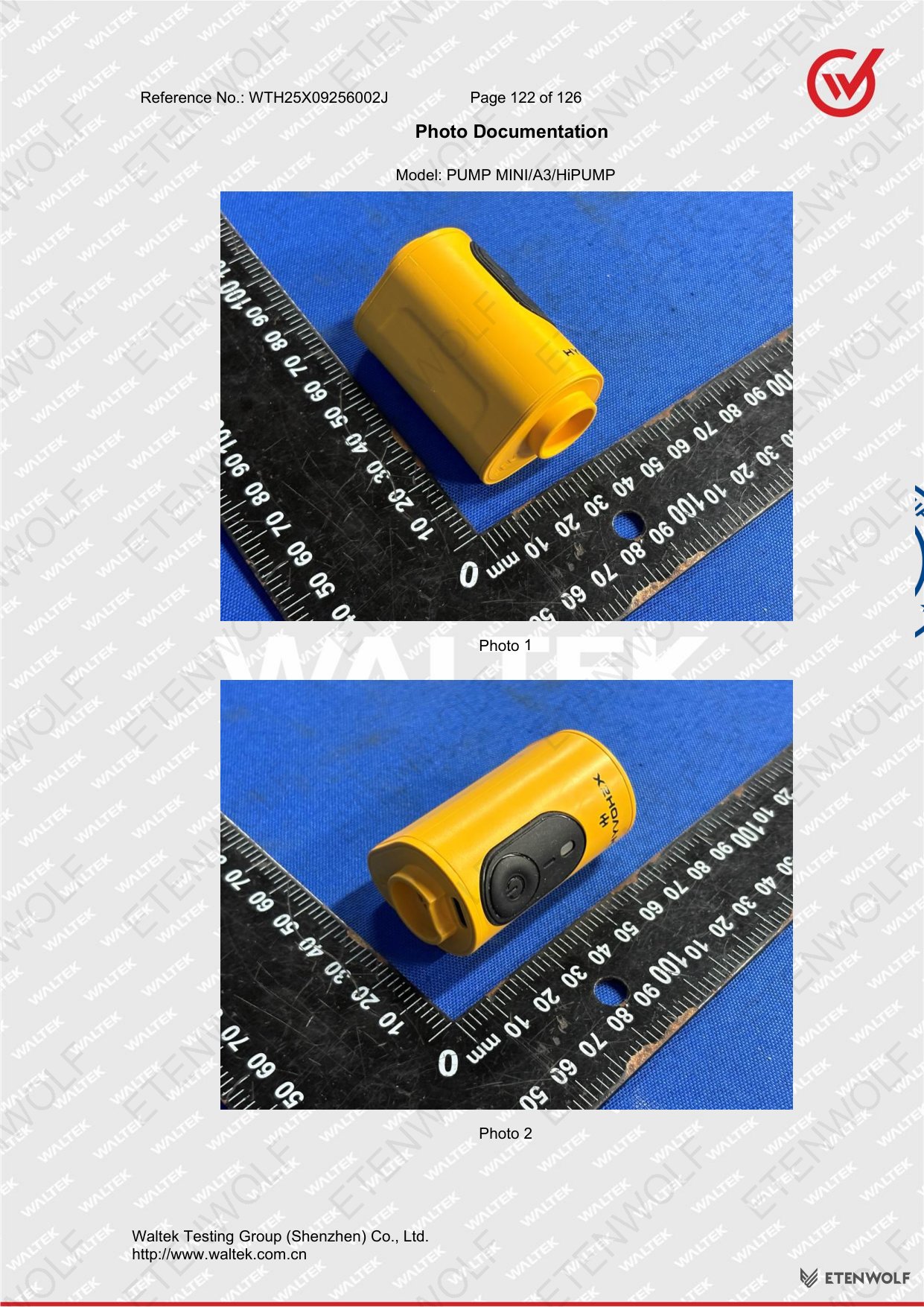

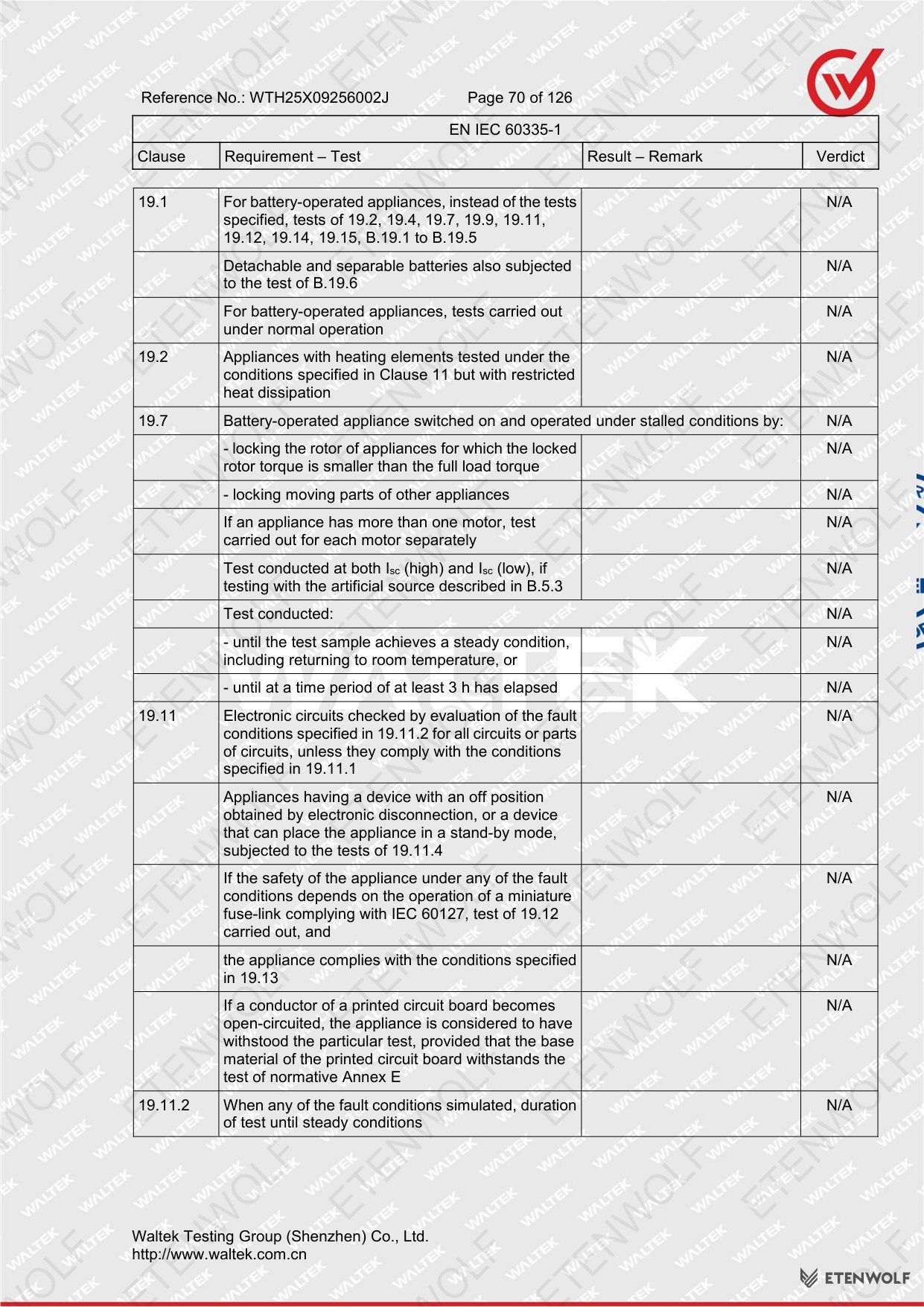

Document Page 67

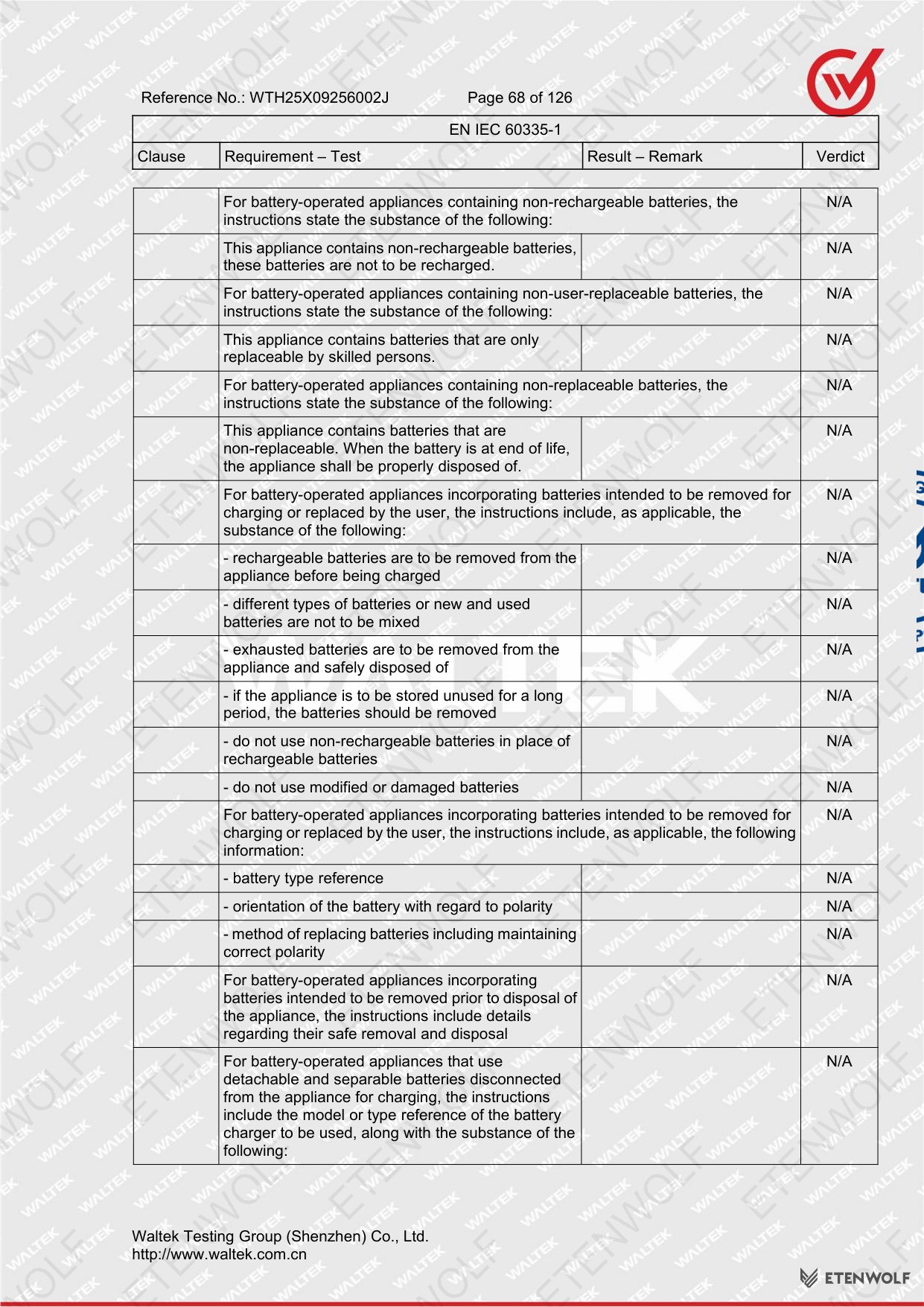

Document Page 68

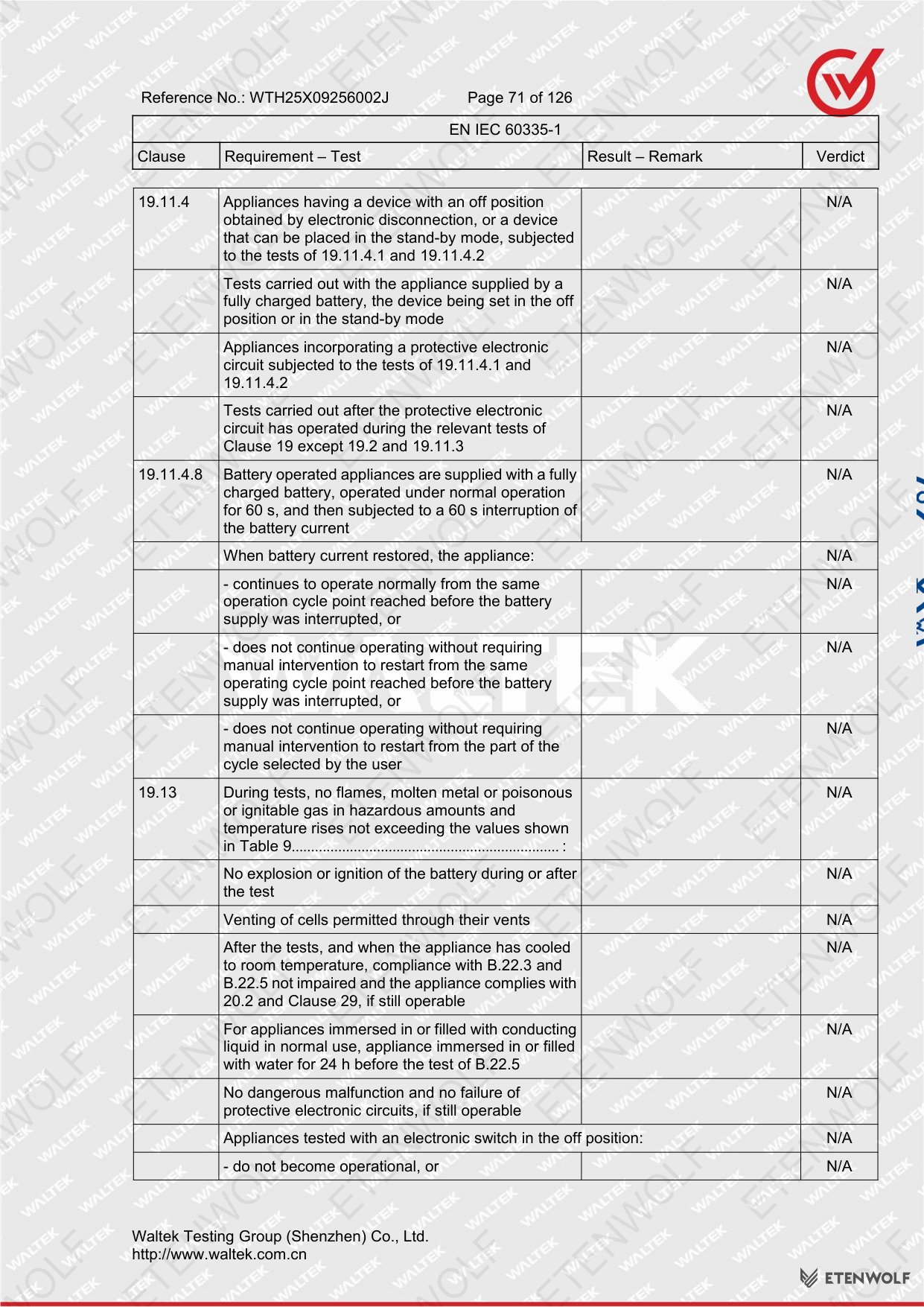

Document Page 69
Document Page 70
Document Page 71

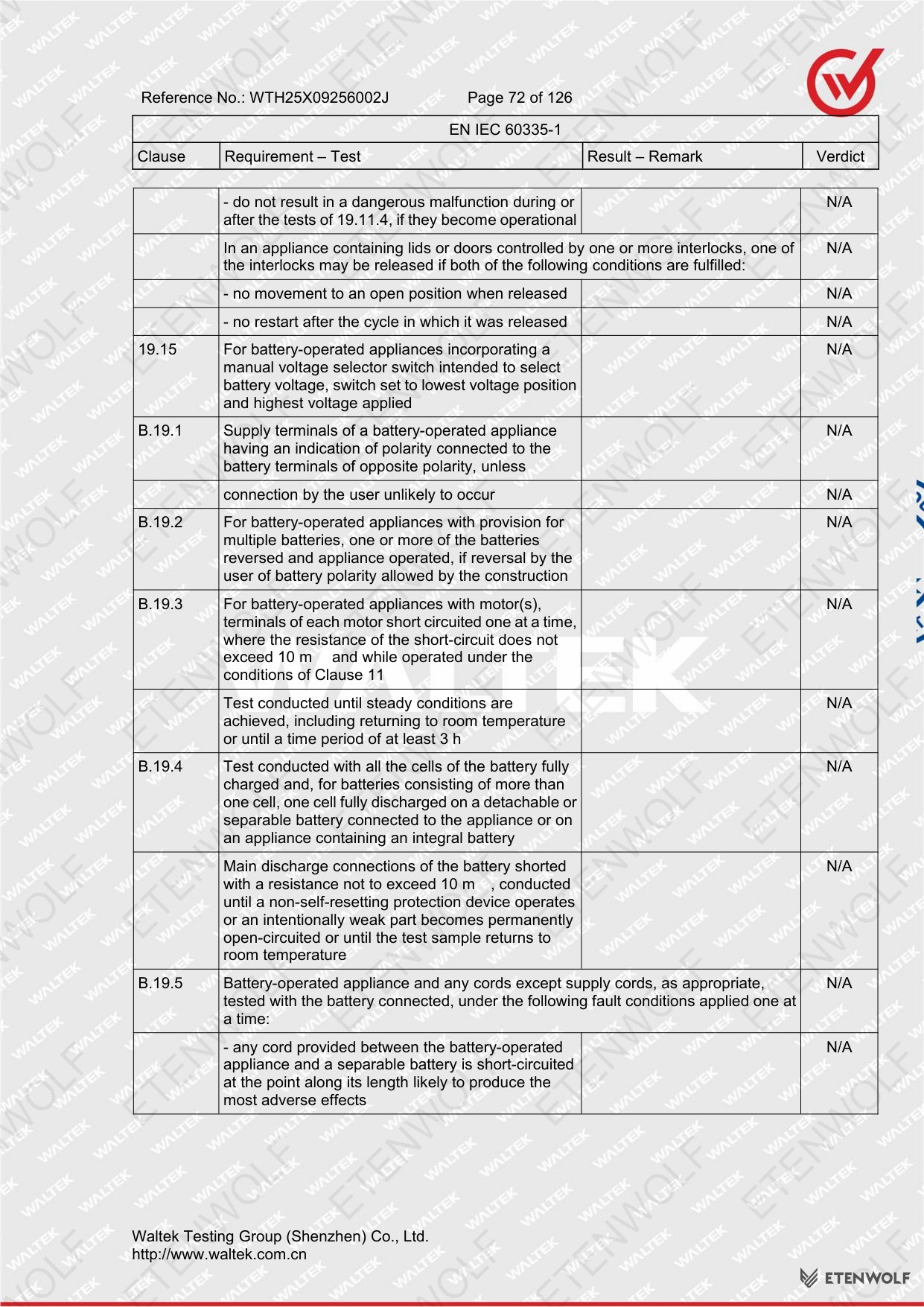

Document Page 72

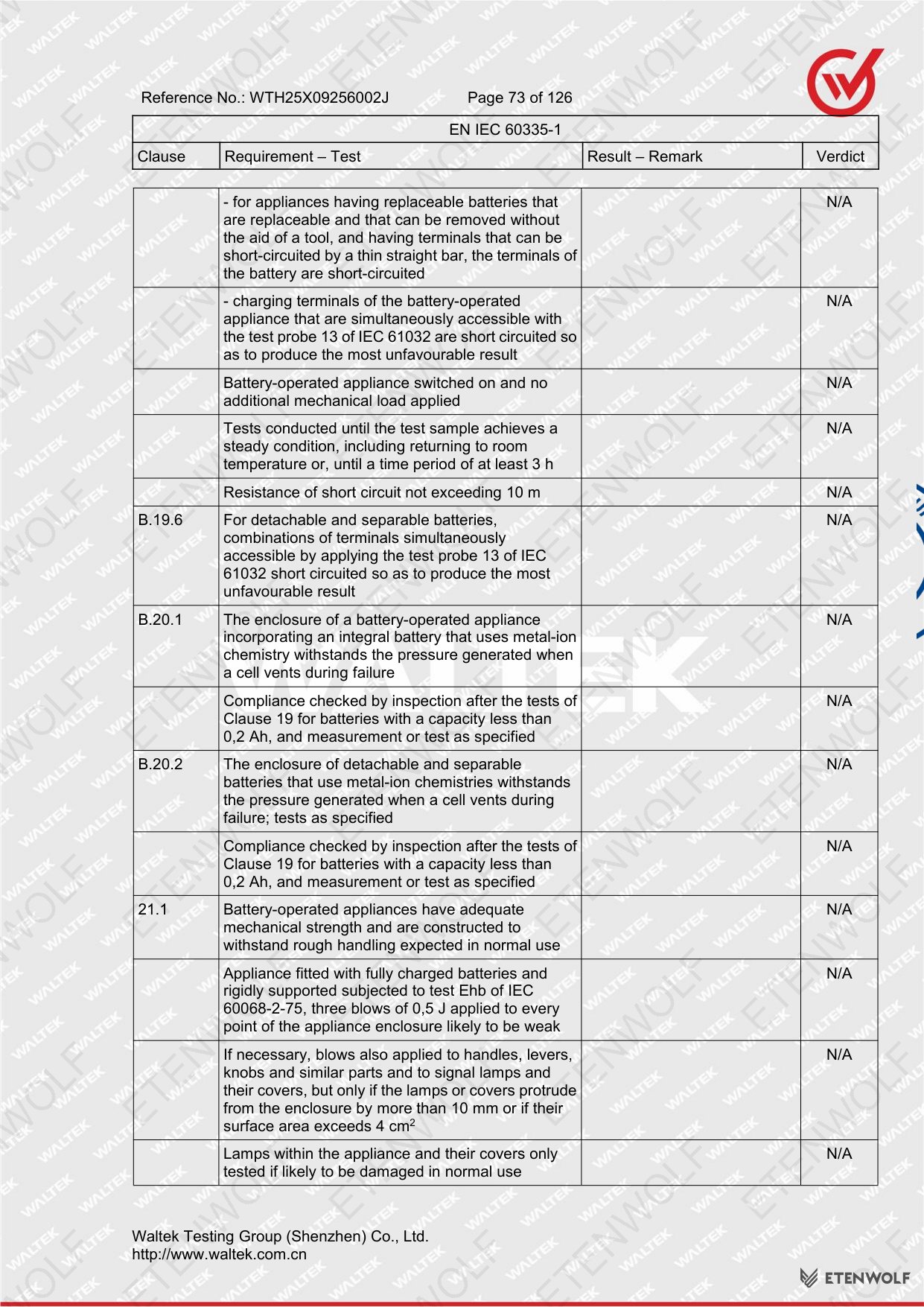

Document Page 73

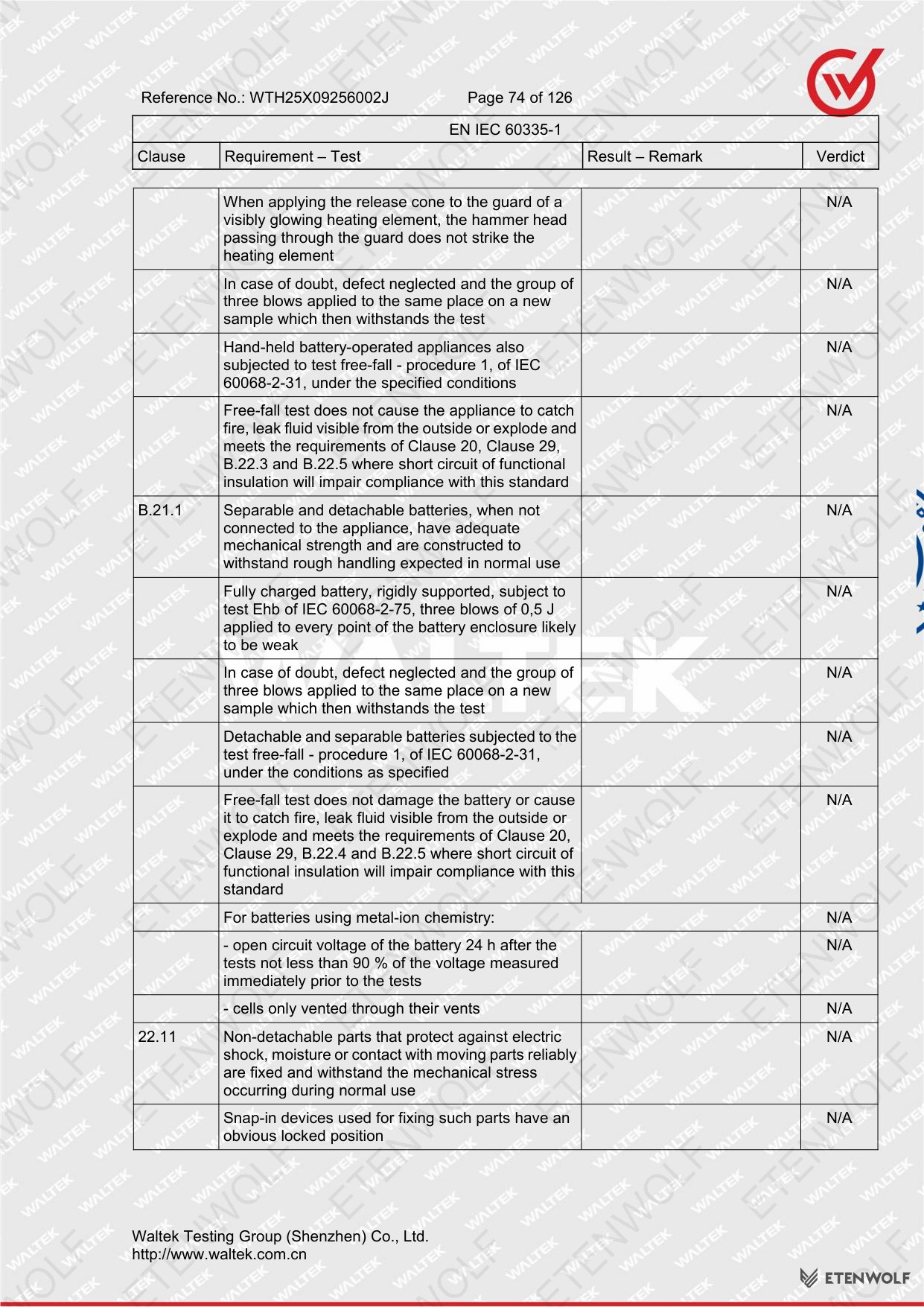

Document Page 74

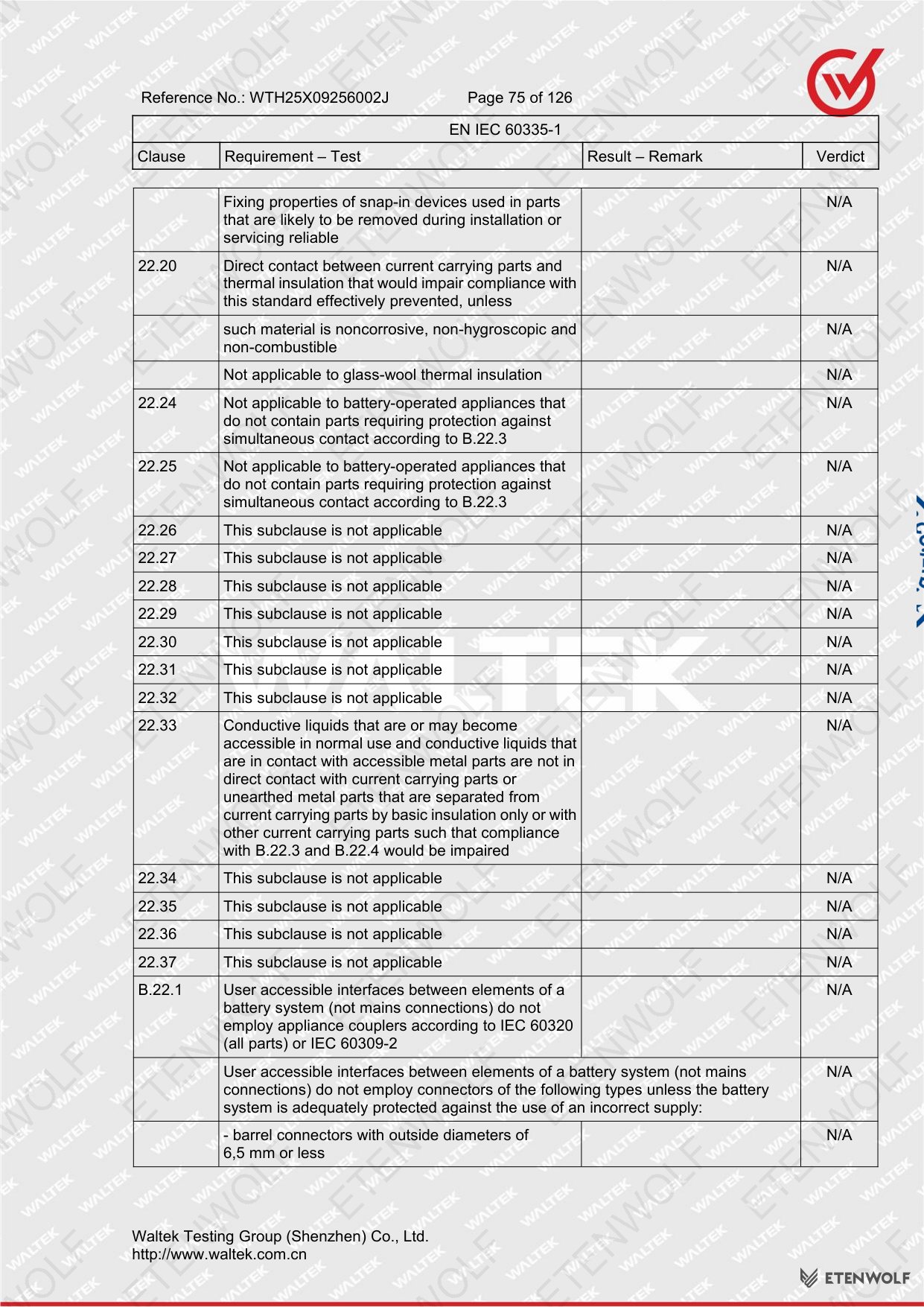

Document Page 75

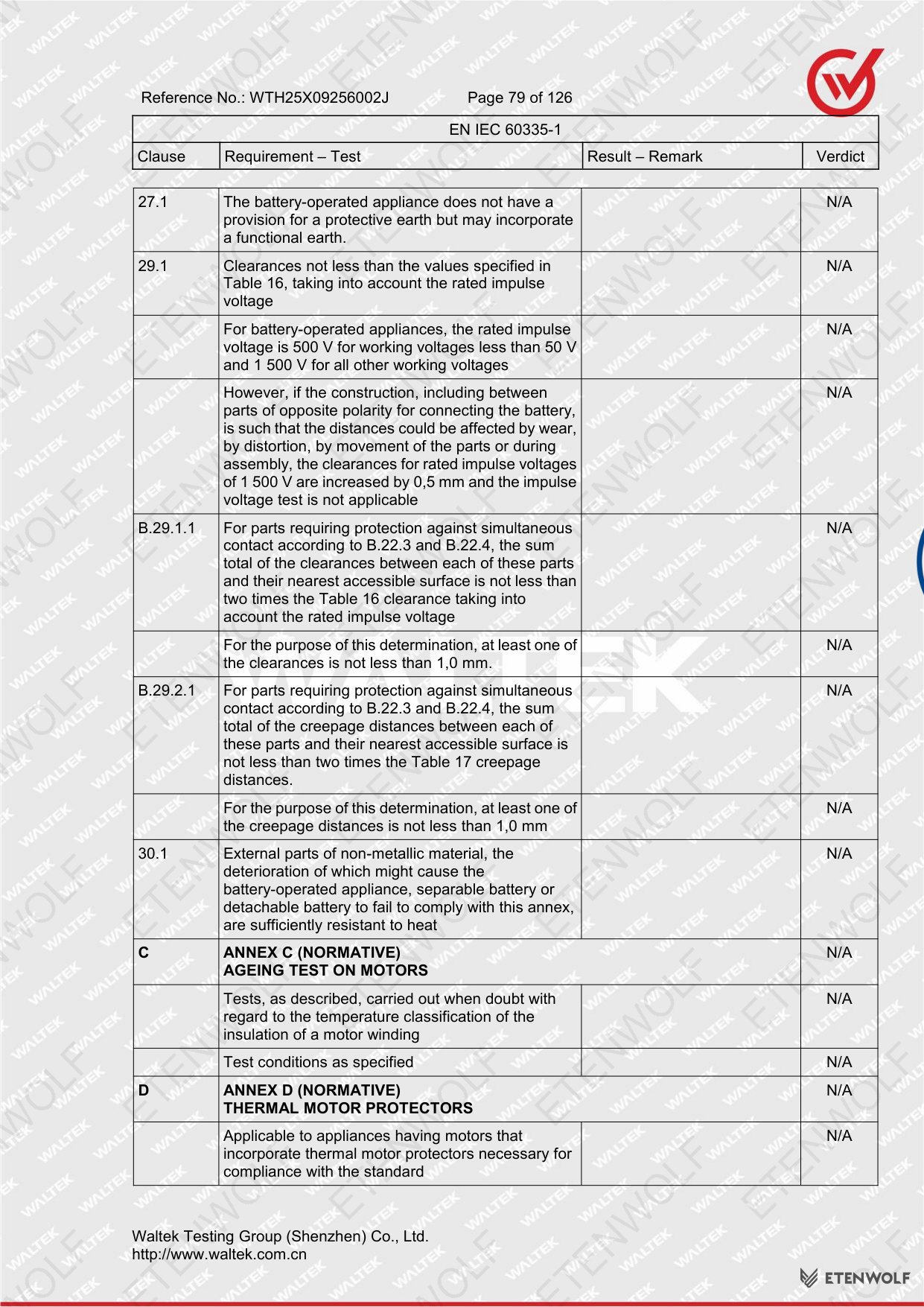

Document Page 76

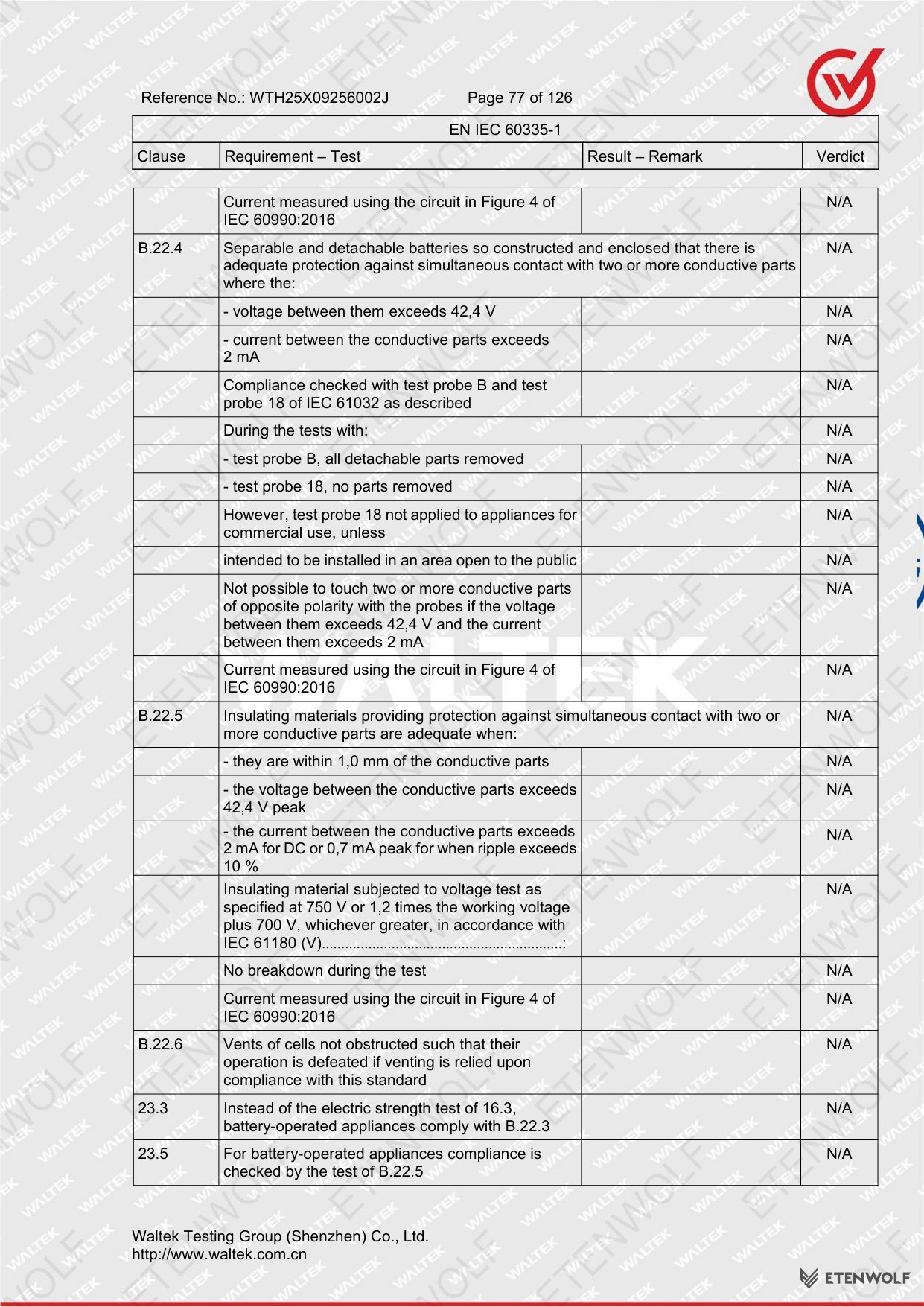

Document Page 77

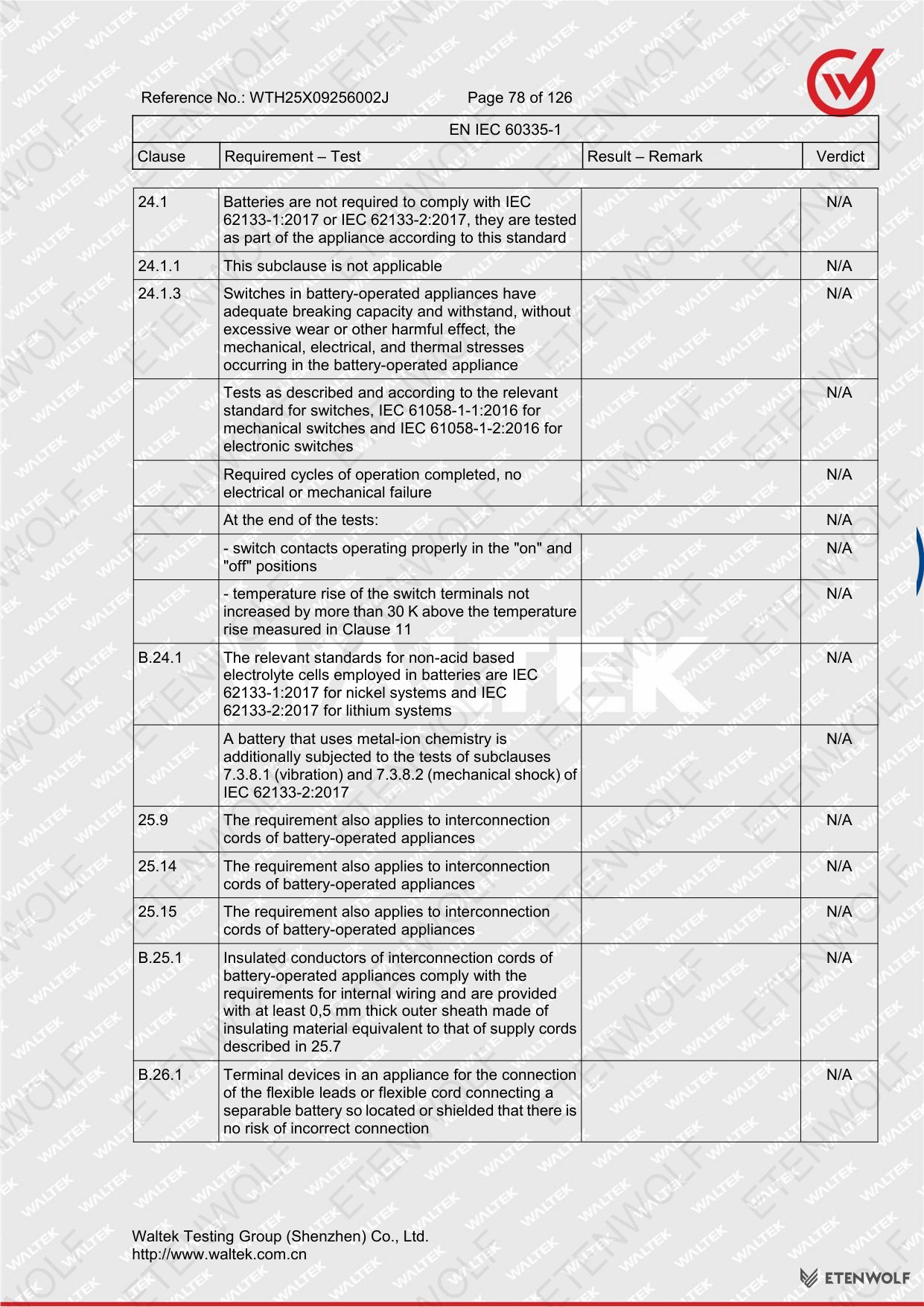

Document Page 78
Document Page 79

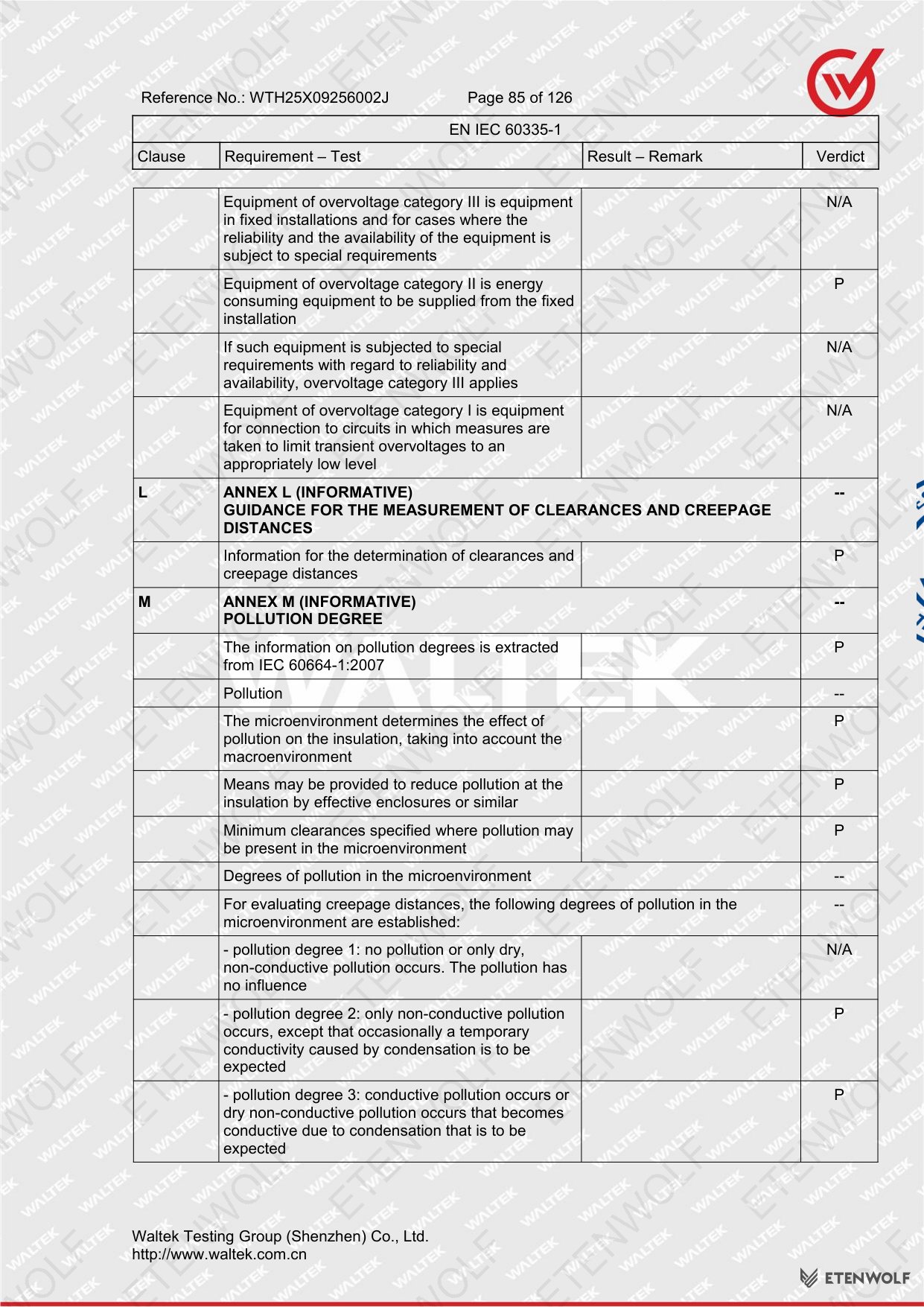

Document Page 80

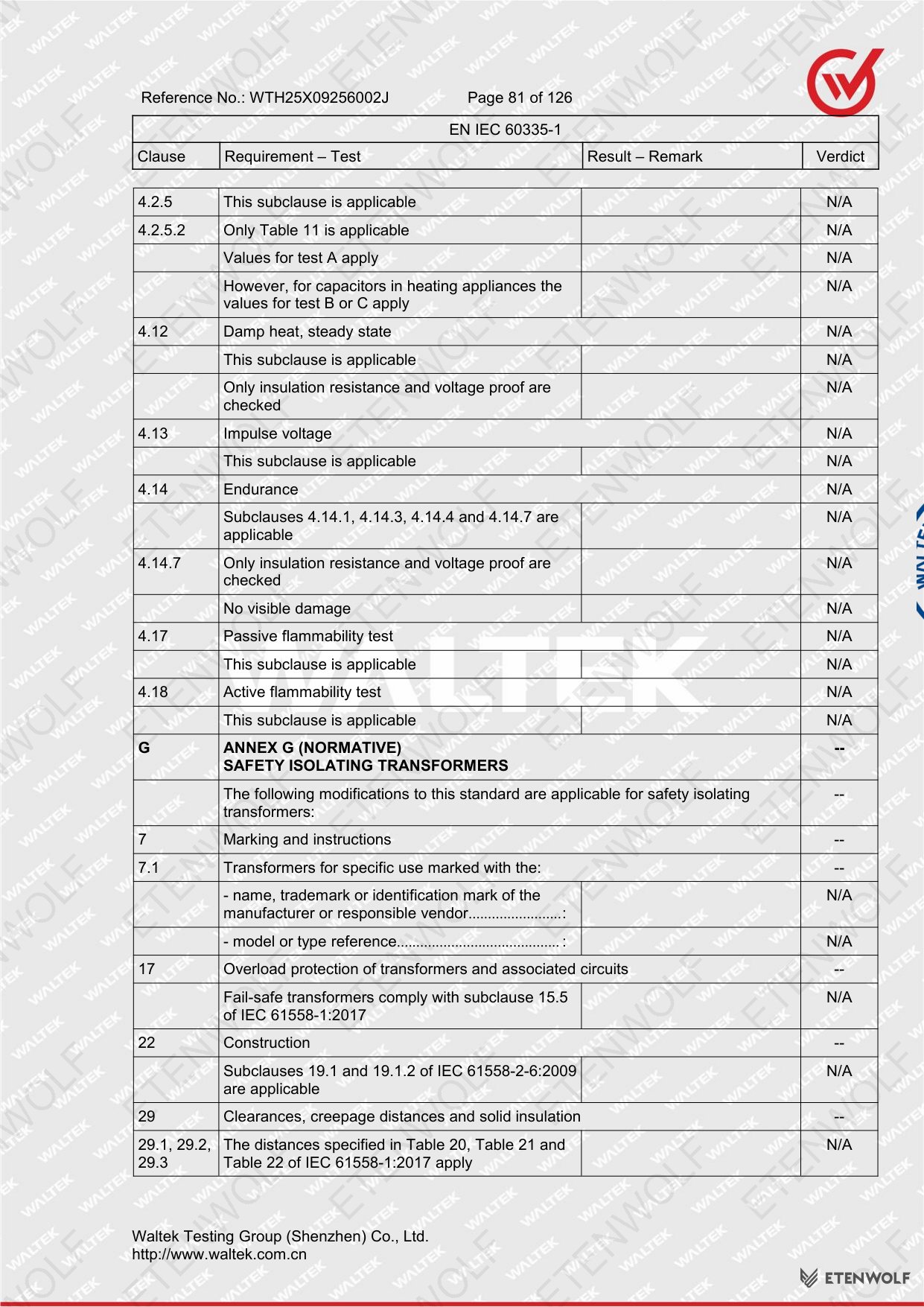

Document Page 81

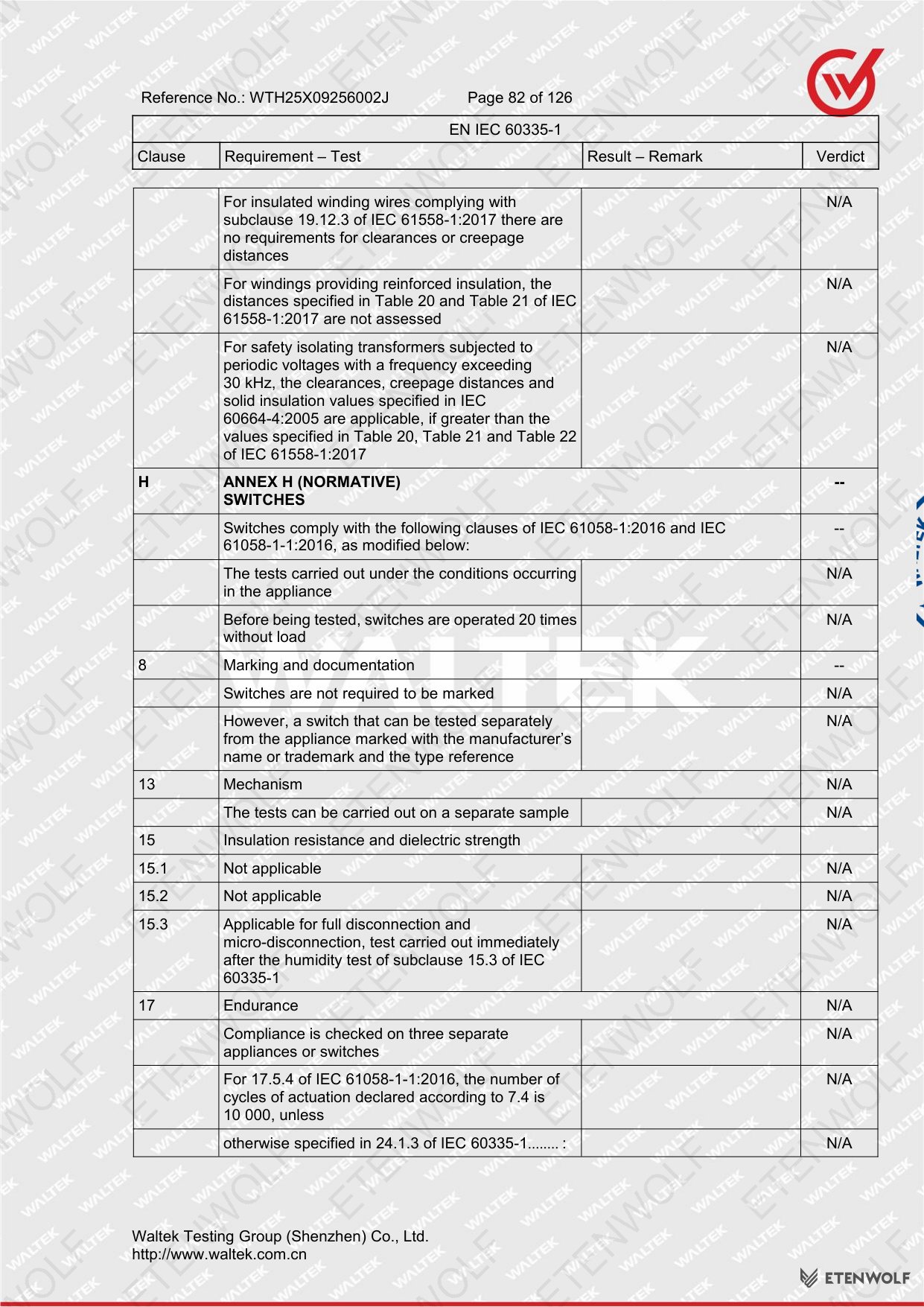

Document Page 82

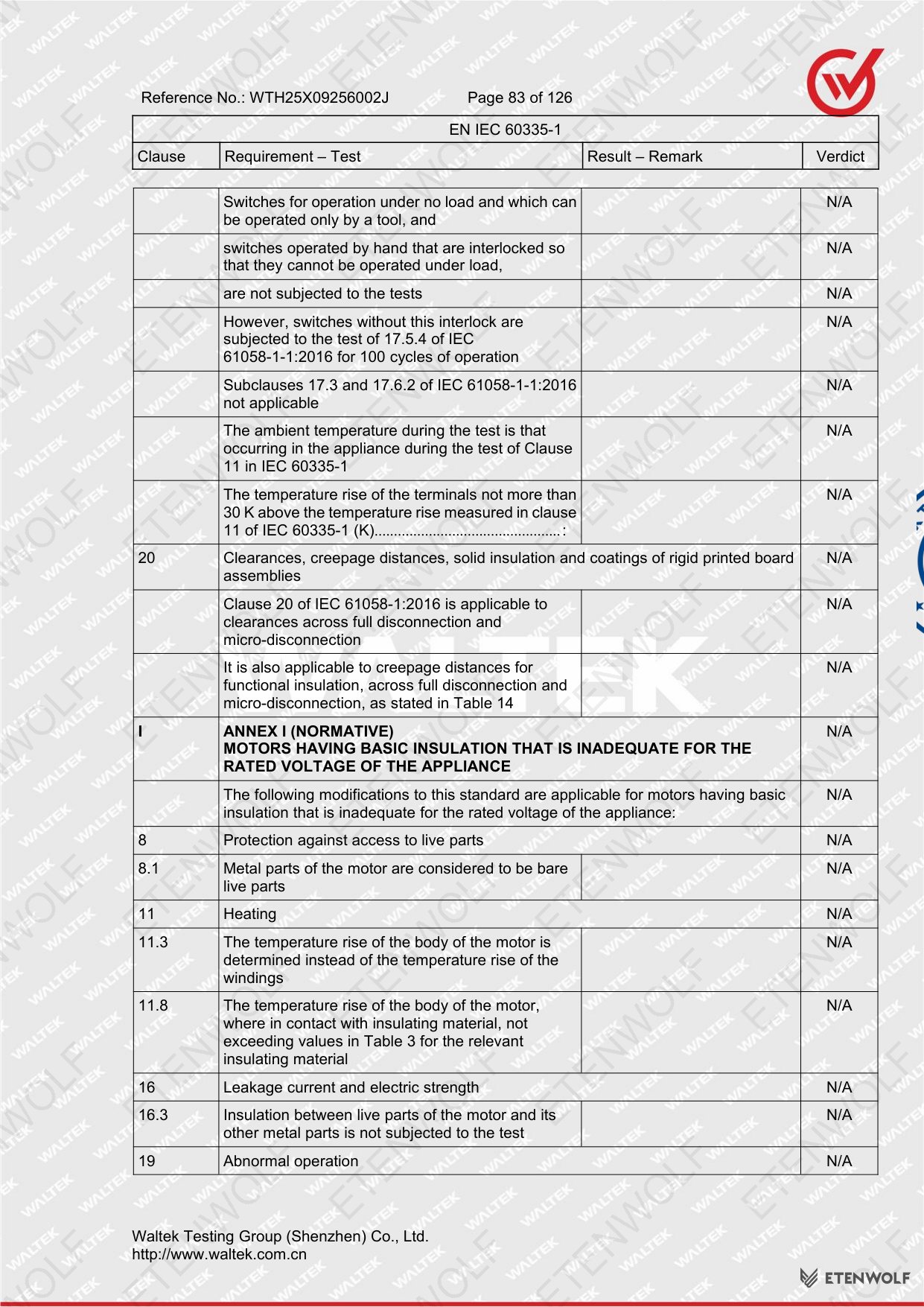

Document Page 83

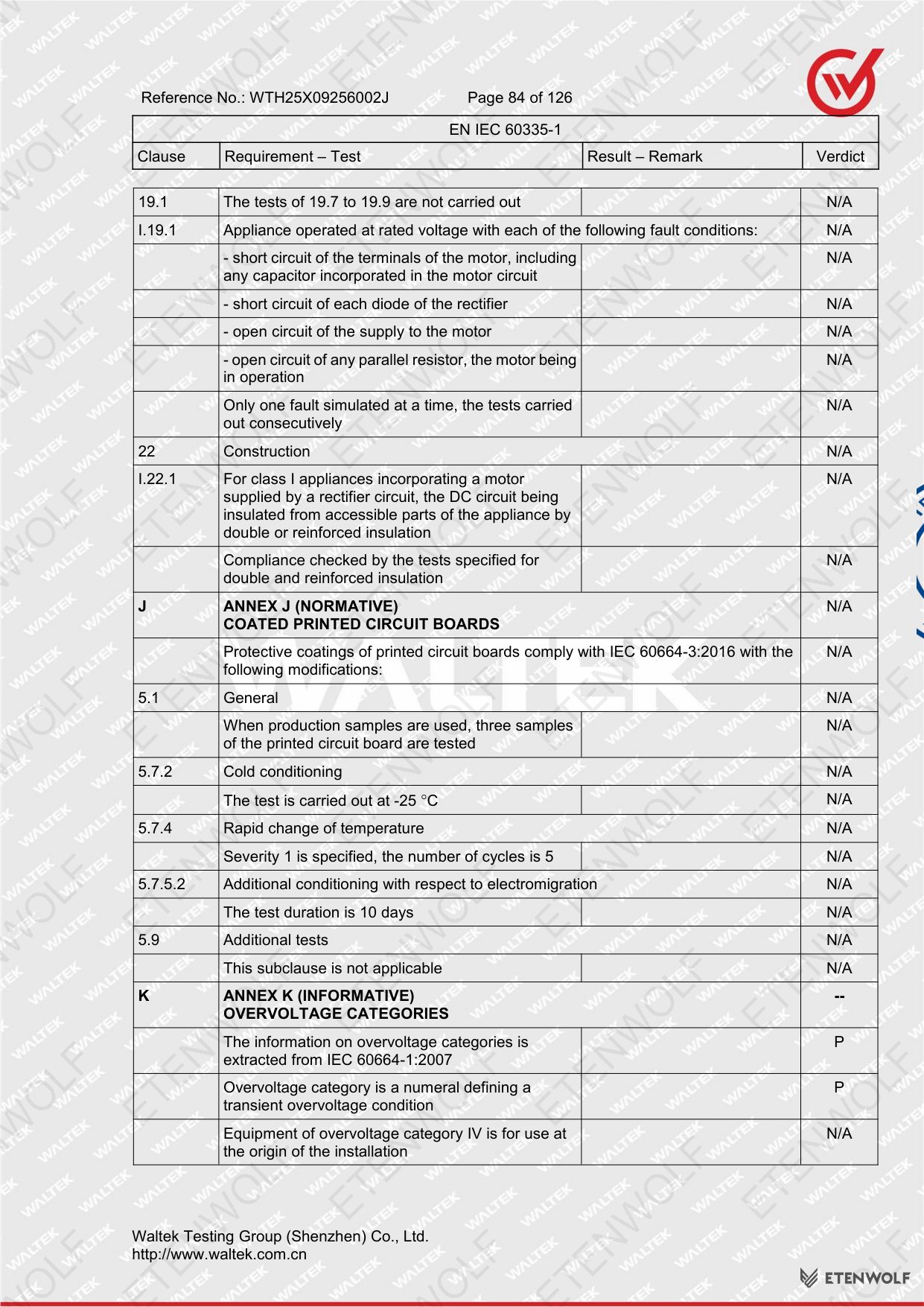

Document Page 84

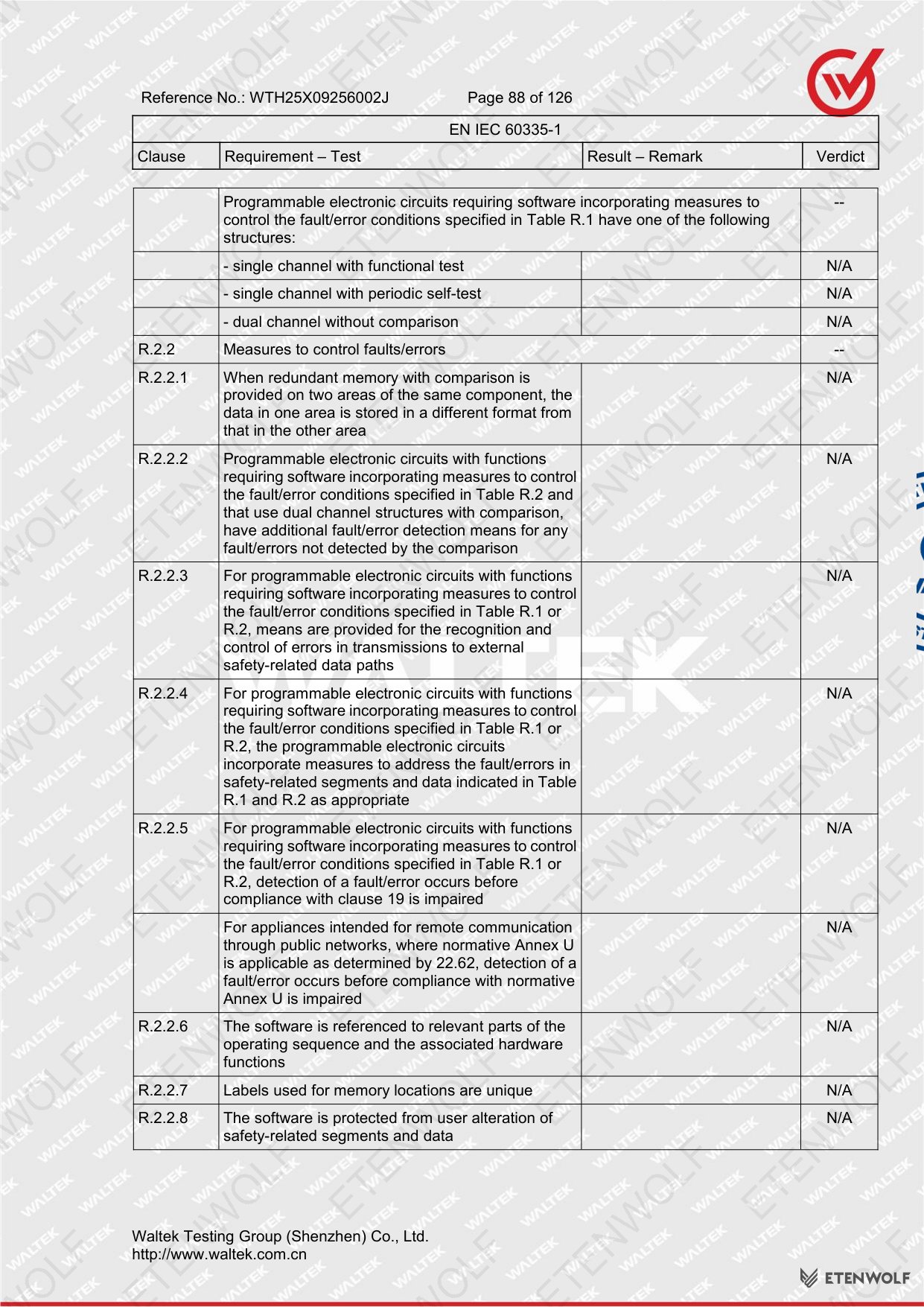

Document Page 85
Document Page 86

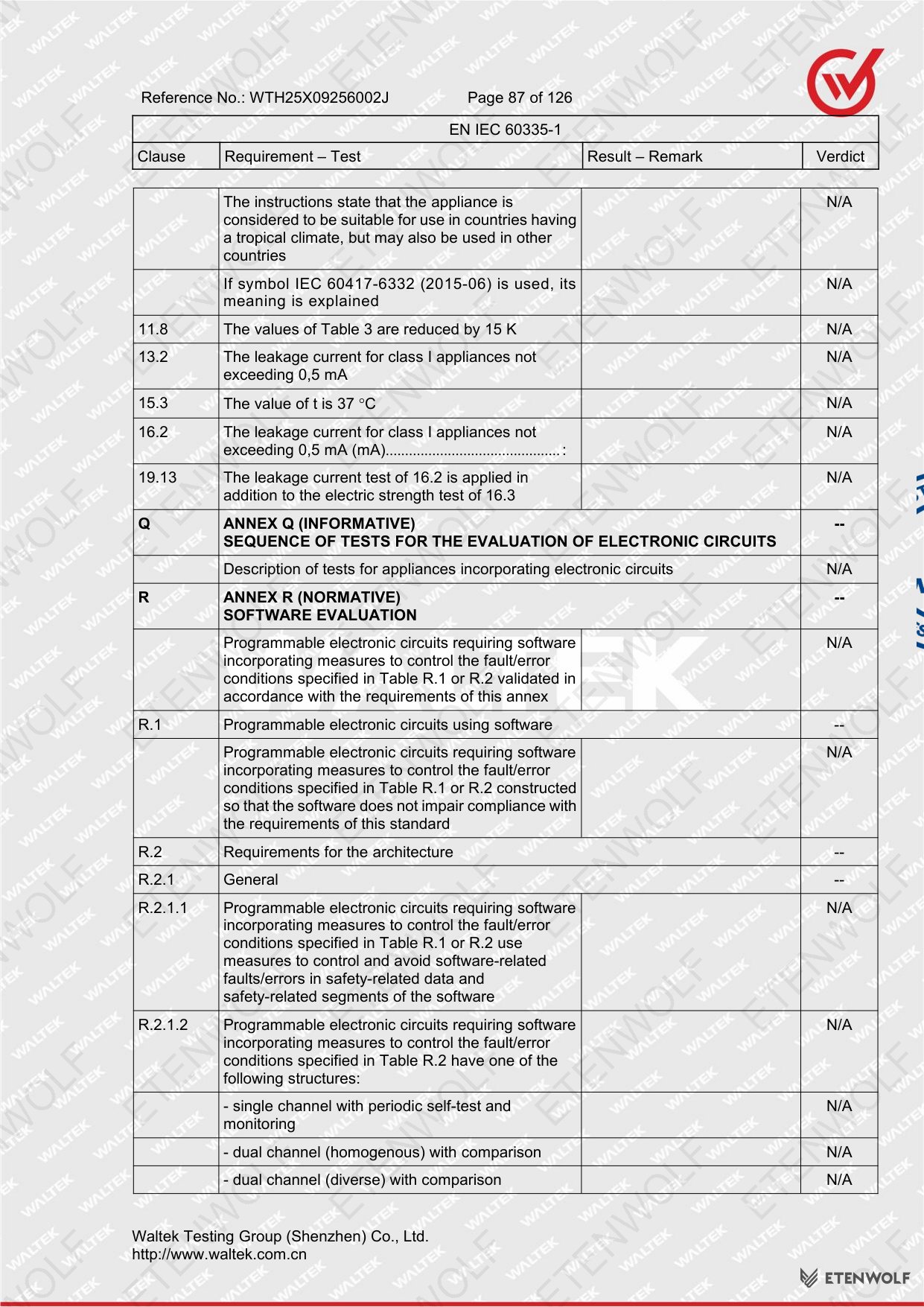

Document Page 87
Document Page 88

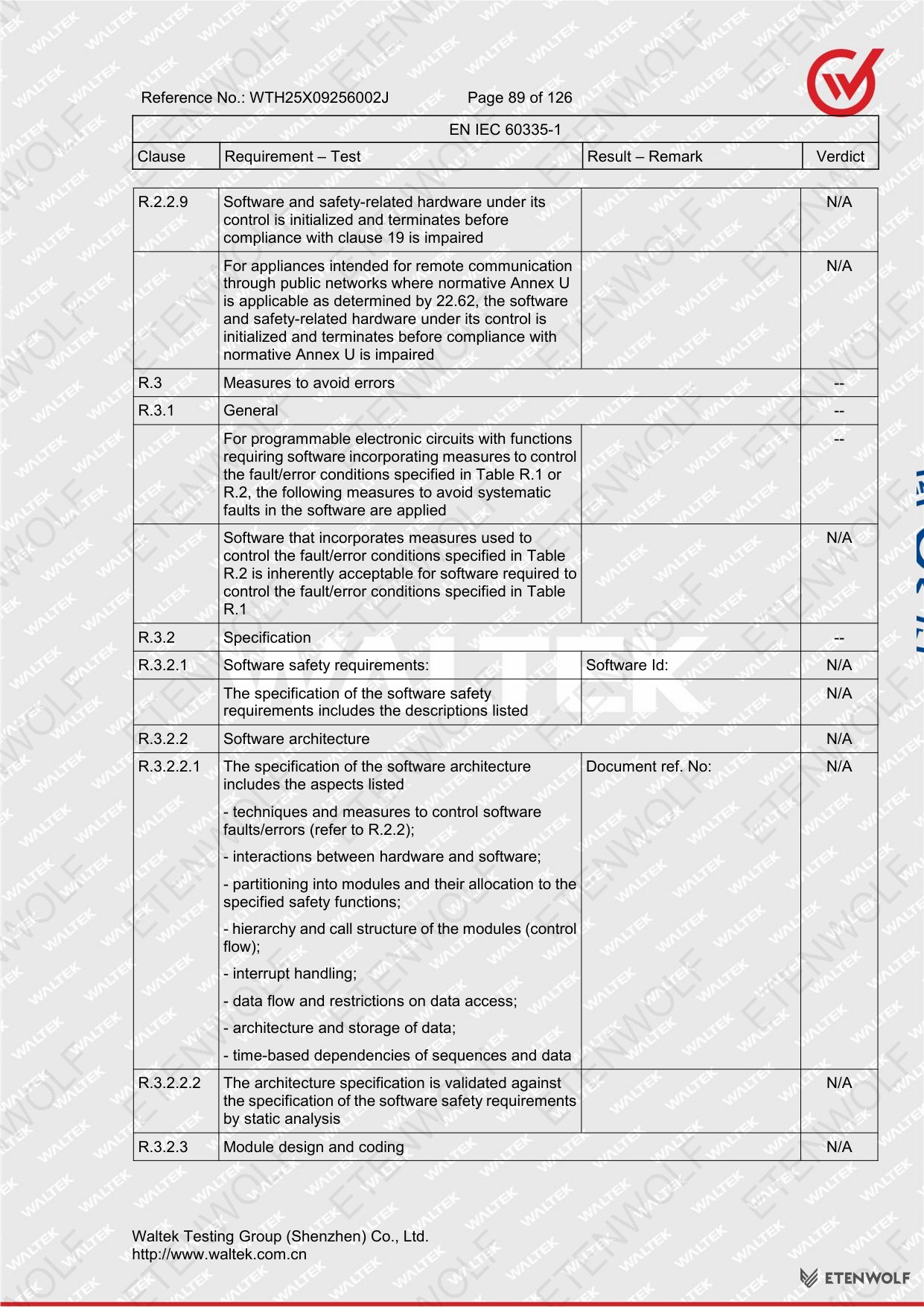

Document Page 89

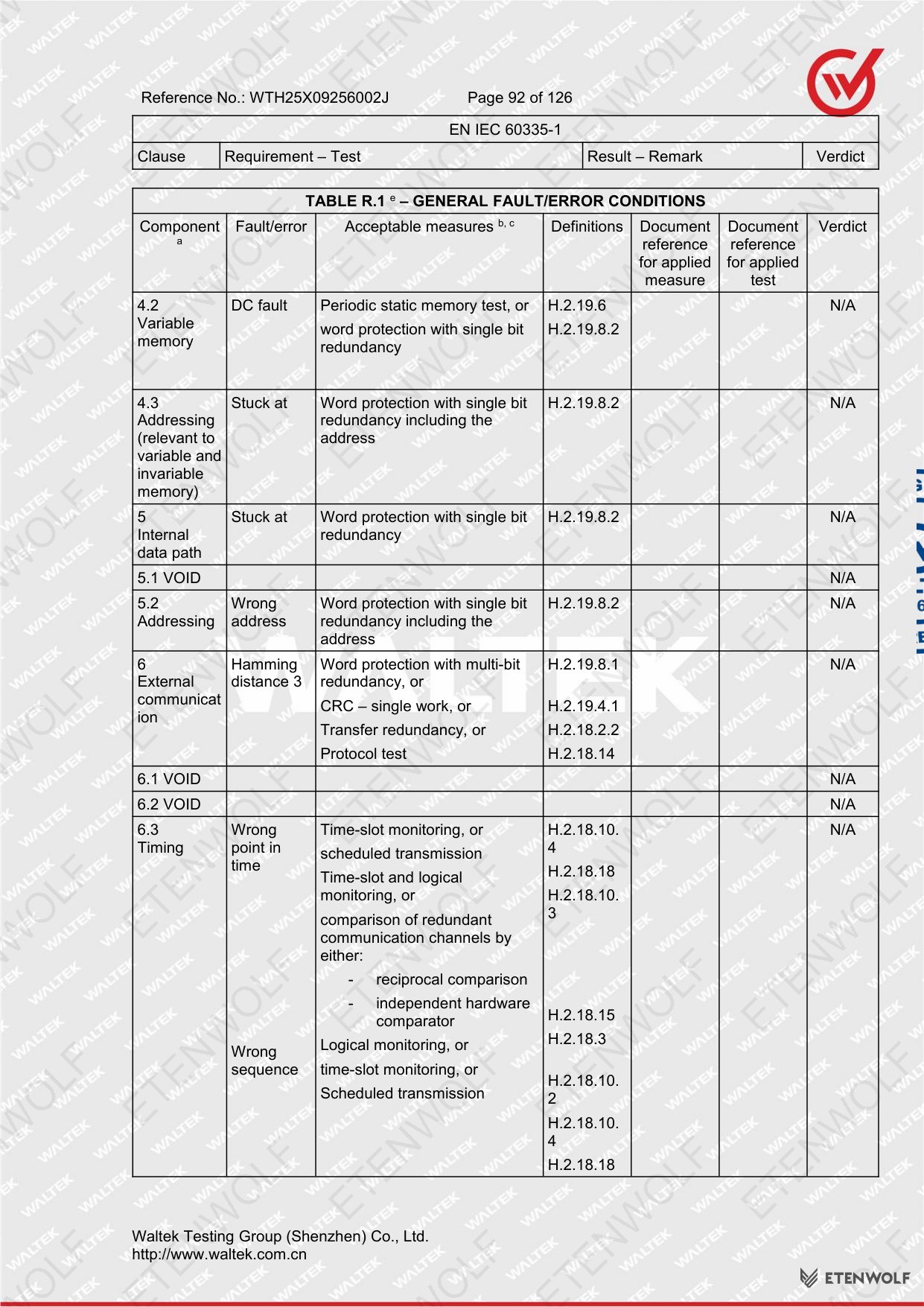

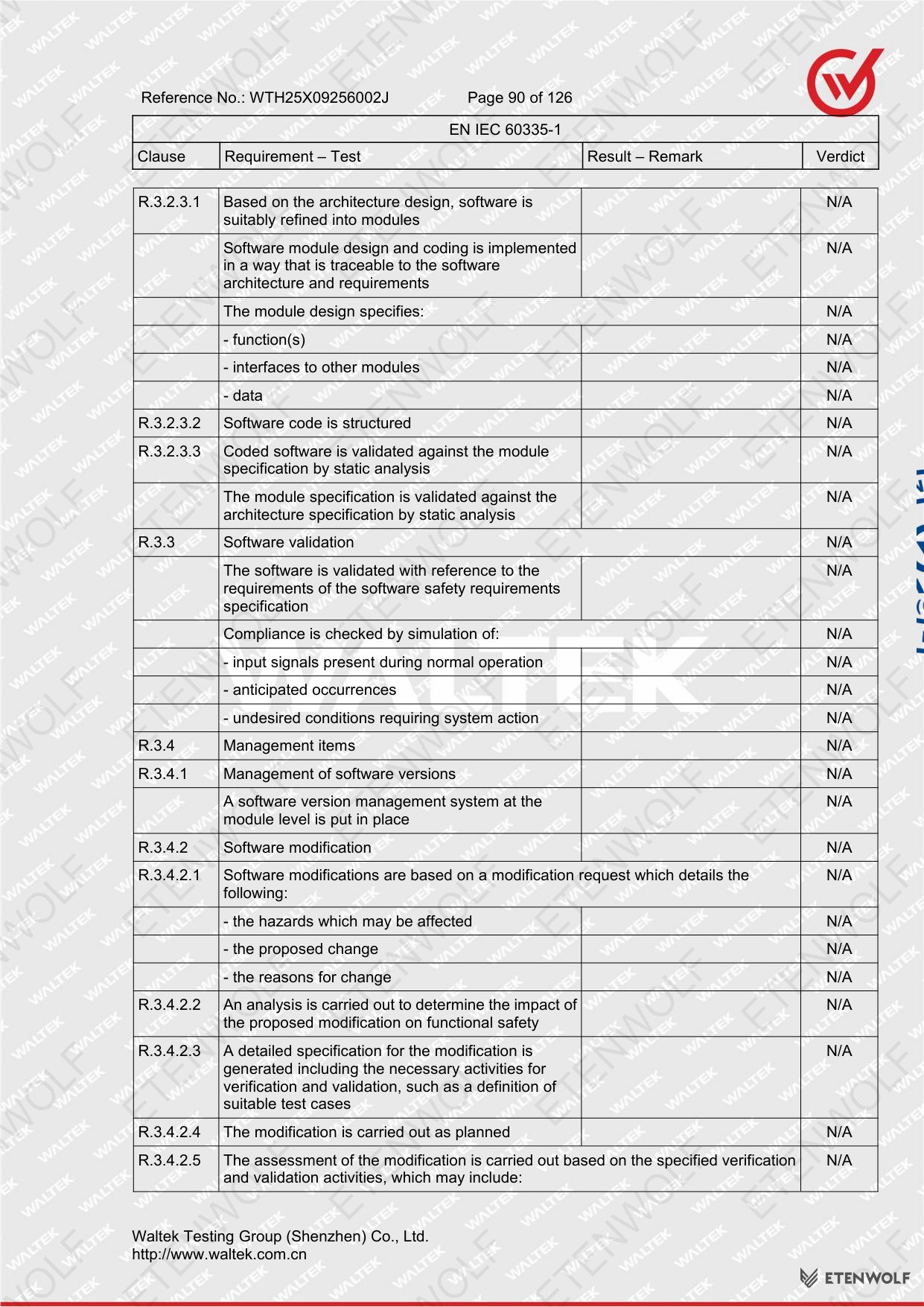

Document Page 90

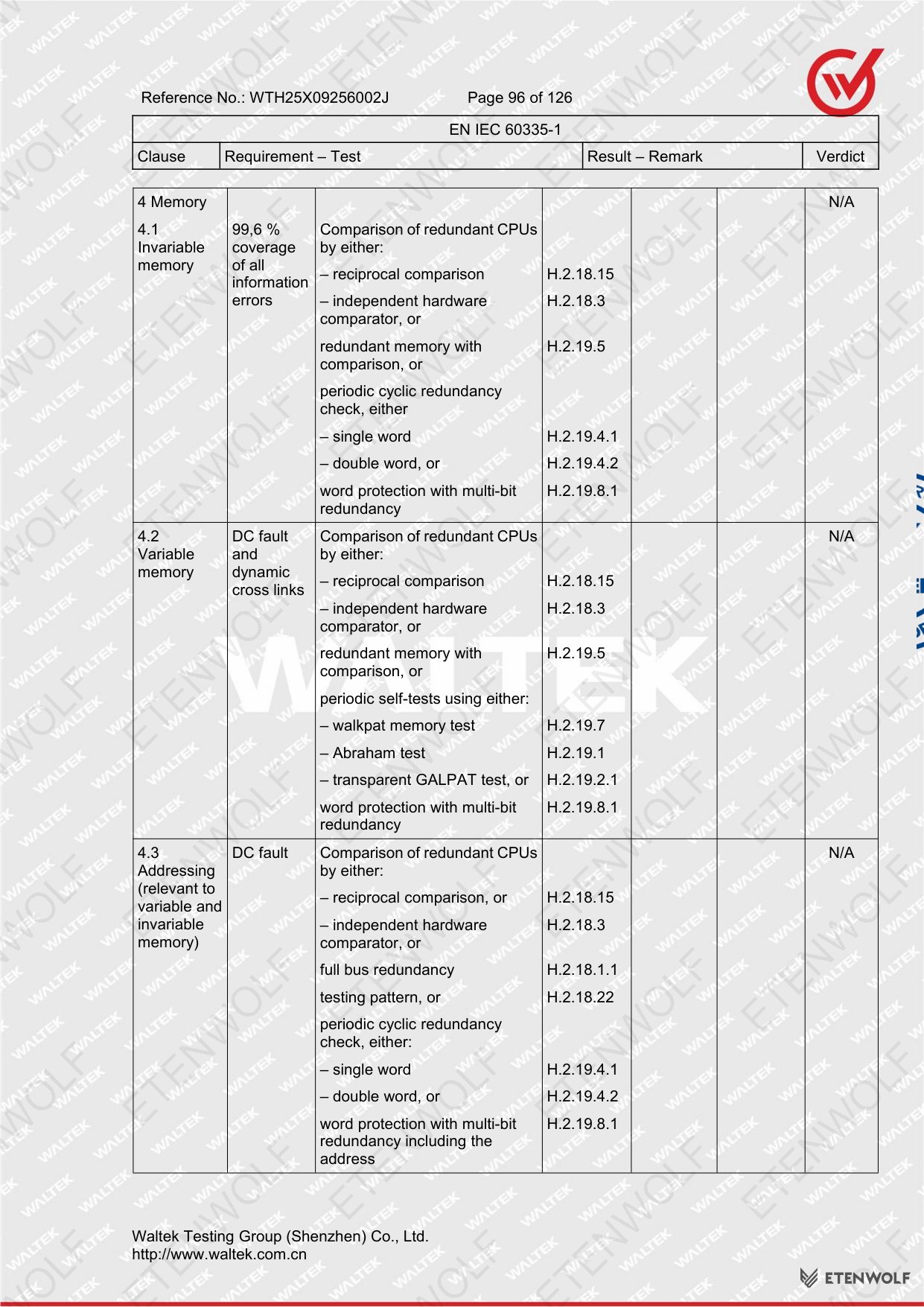

Document Page 91

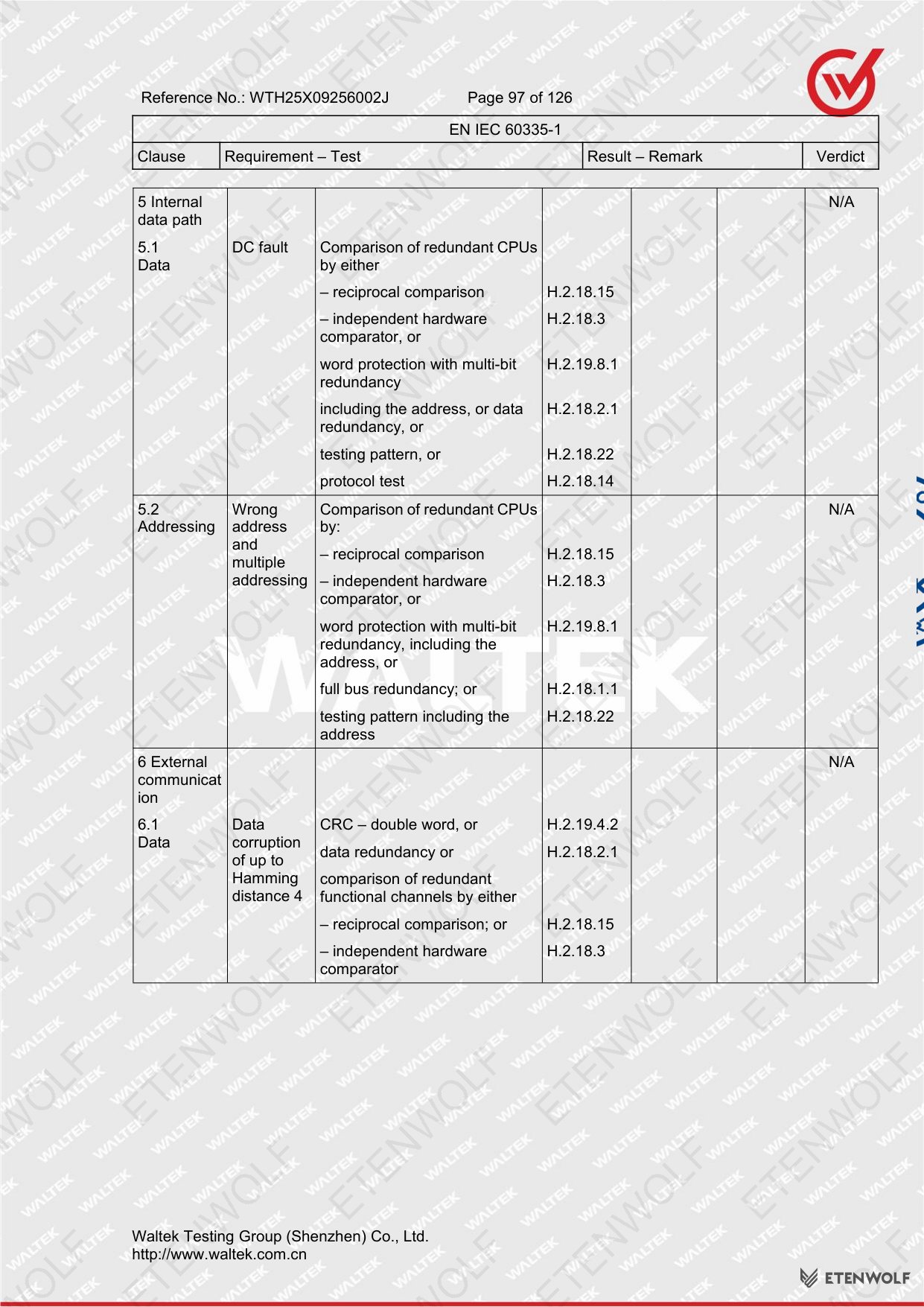

Document Page 92
Document Page 93

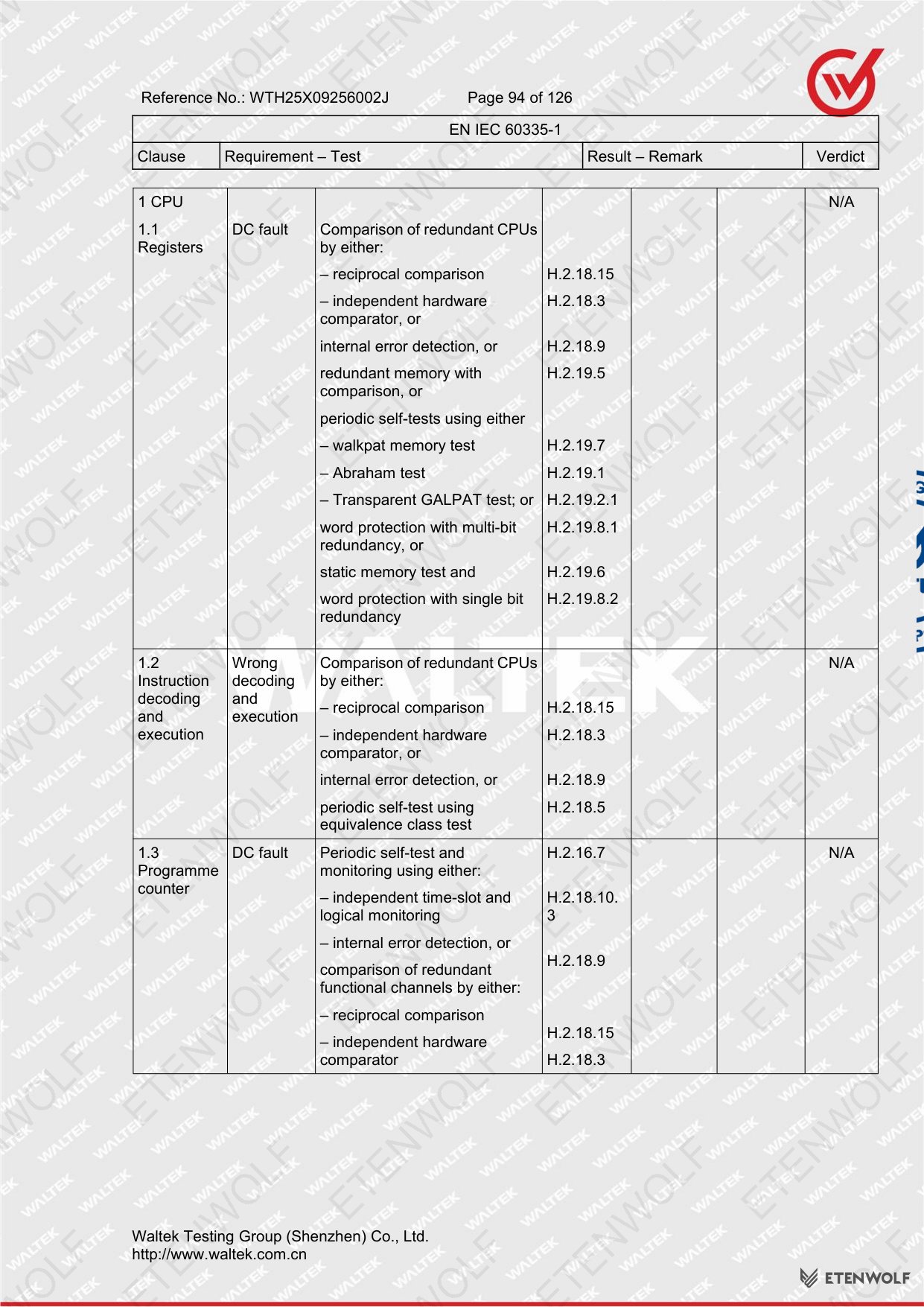

Document Page 94

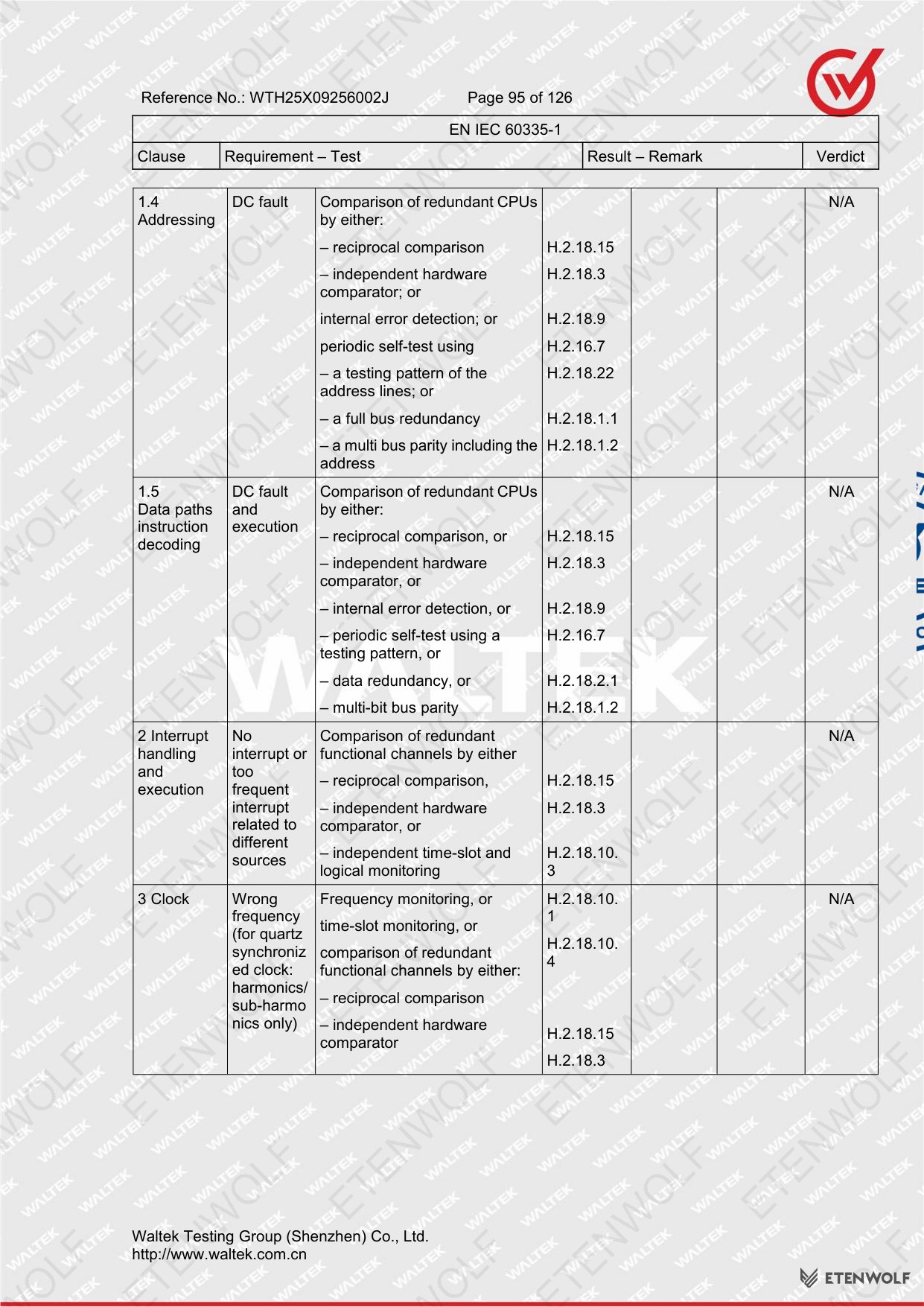

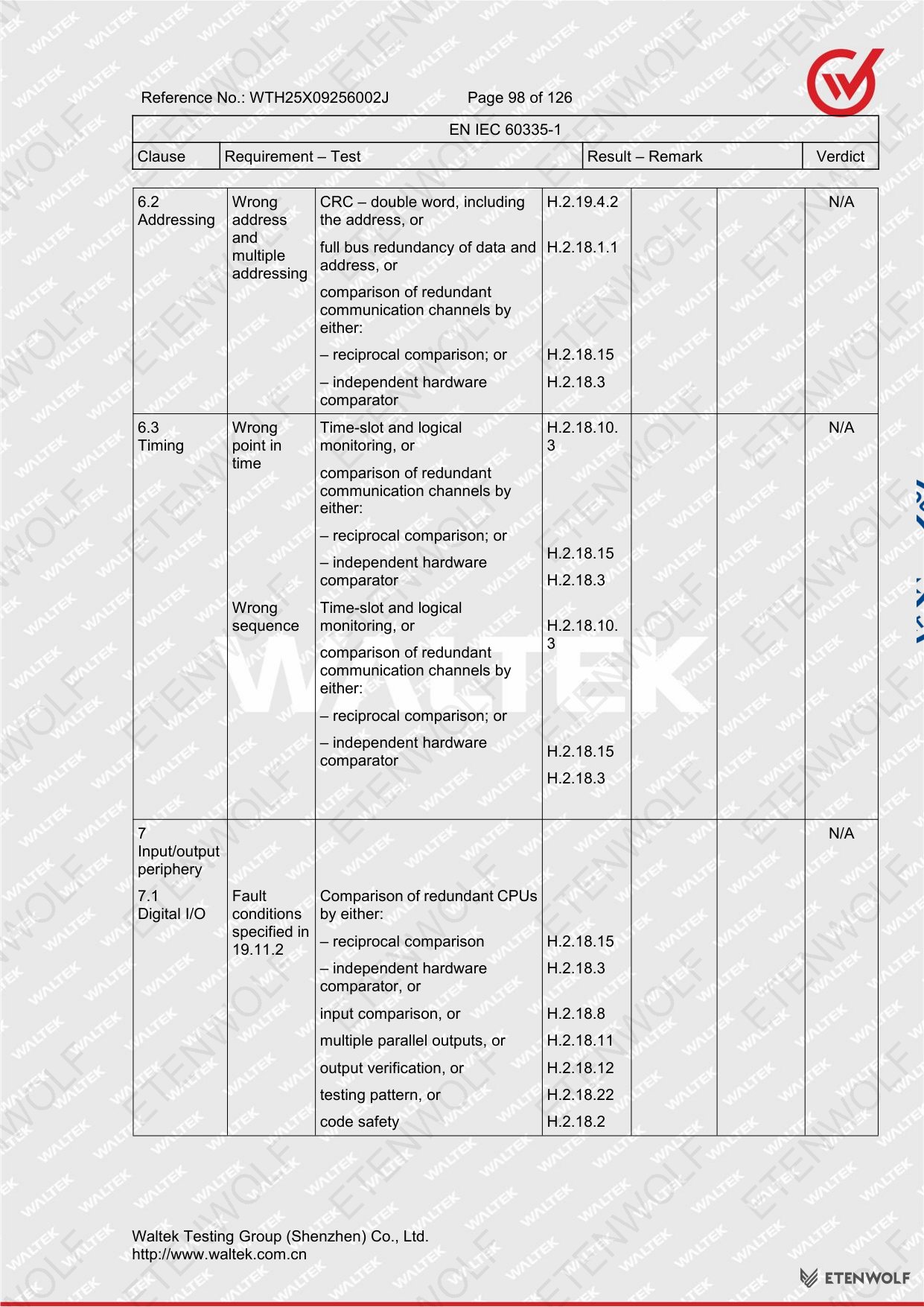

Document Page 95
Document Page 96
Document Page 97
Document Page 98

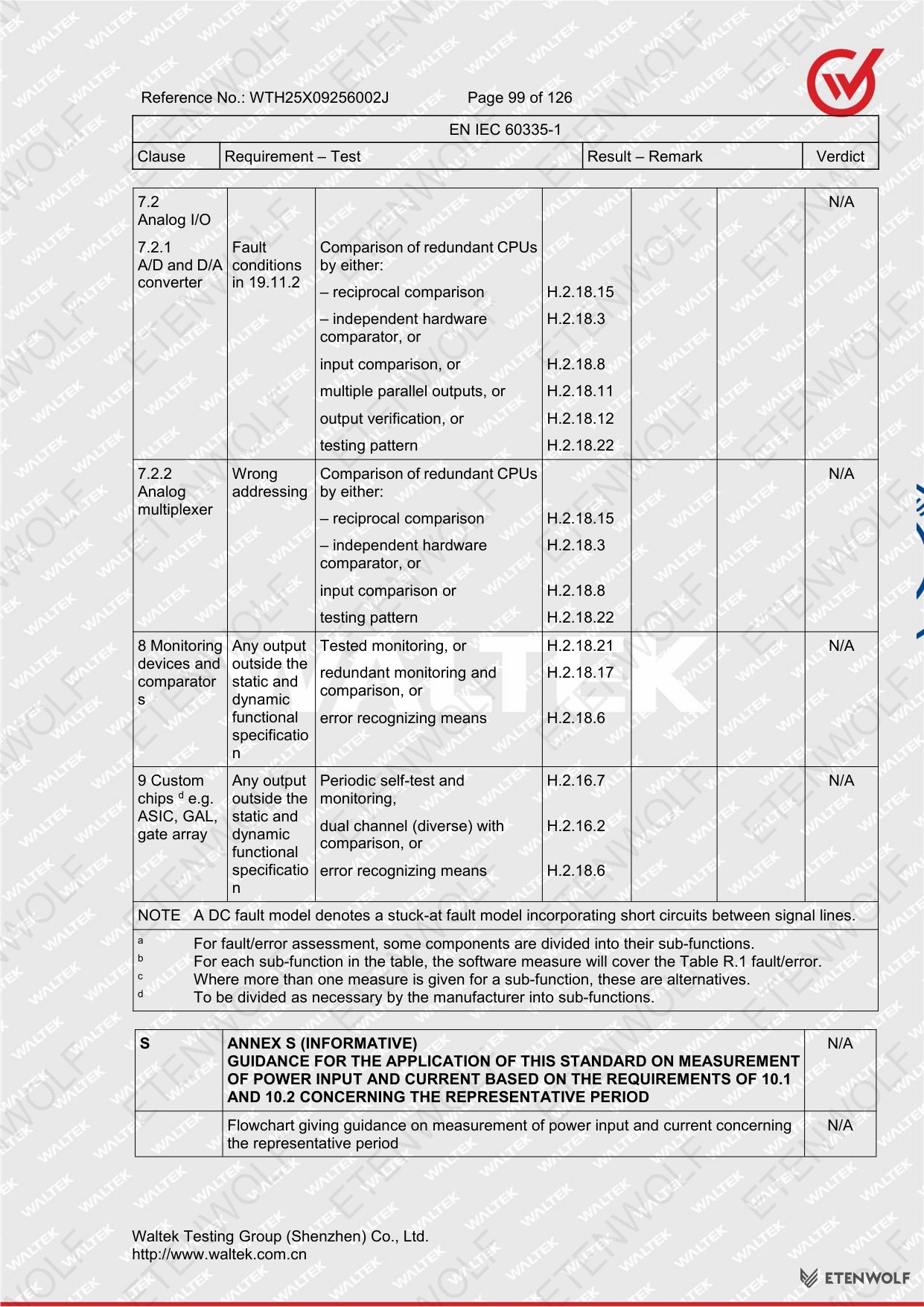

Document Page 99

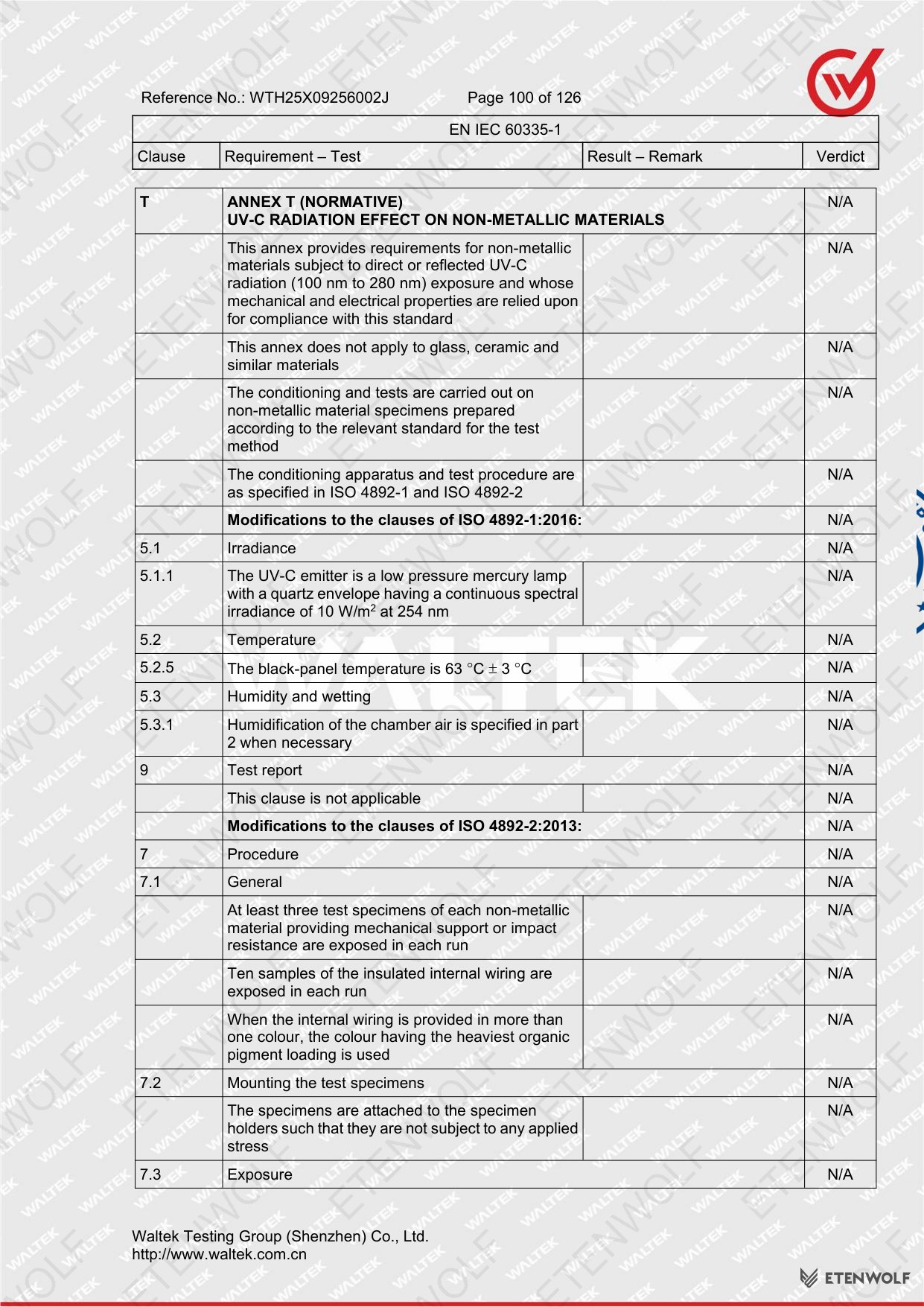

Document Page 100

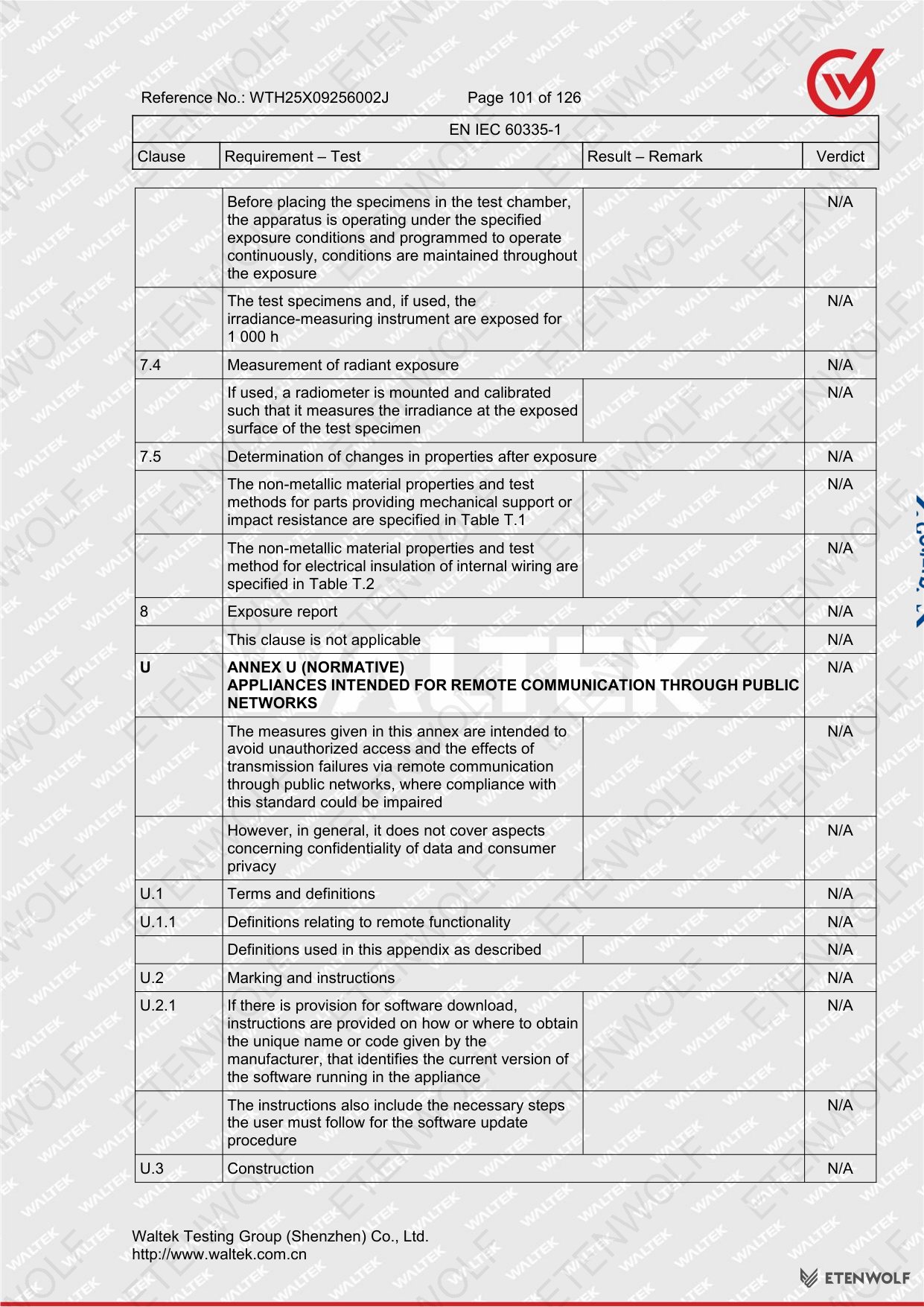

Document Page 101
Document Page 102

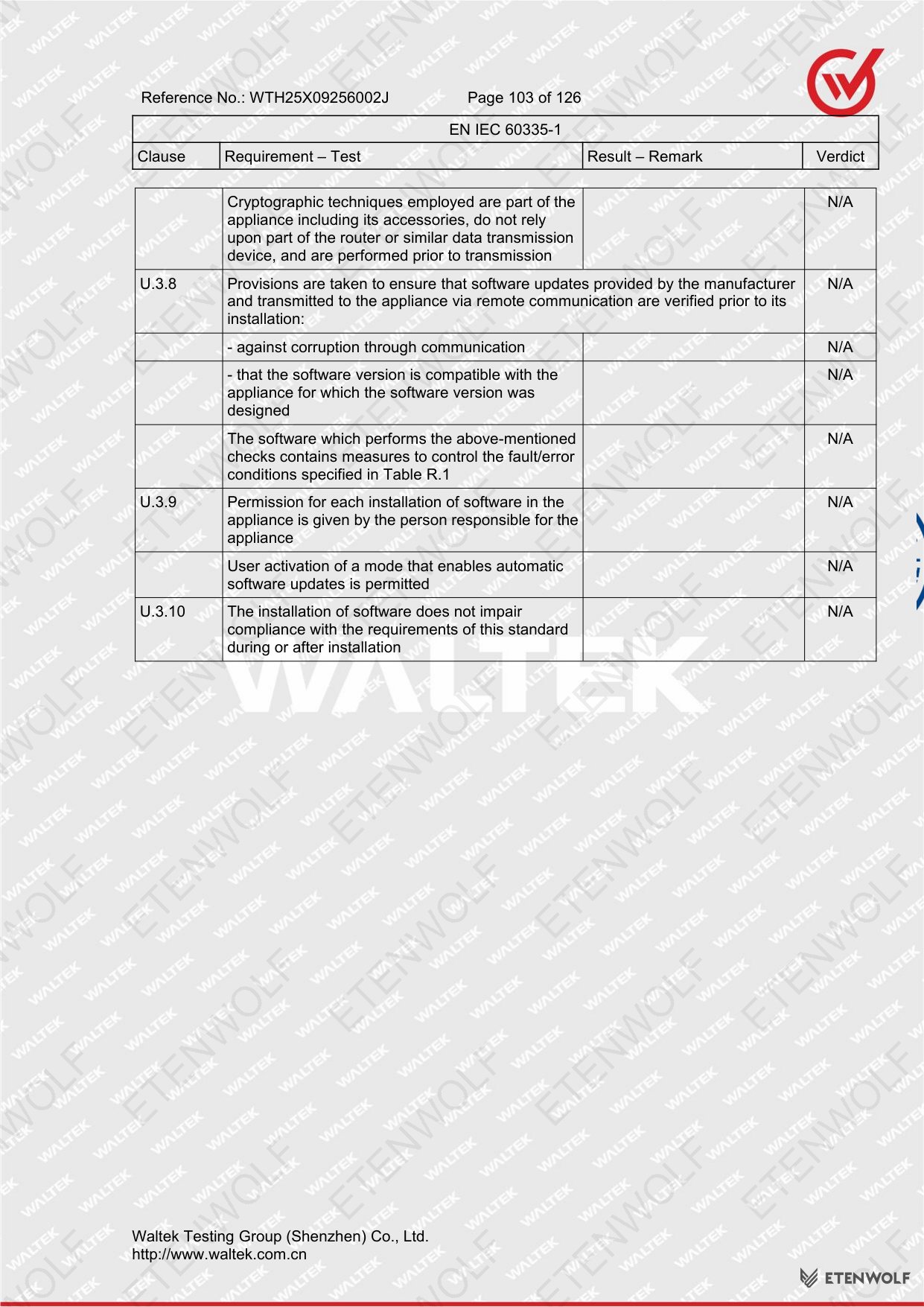

Document Page 103
Document Page 104

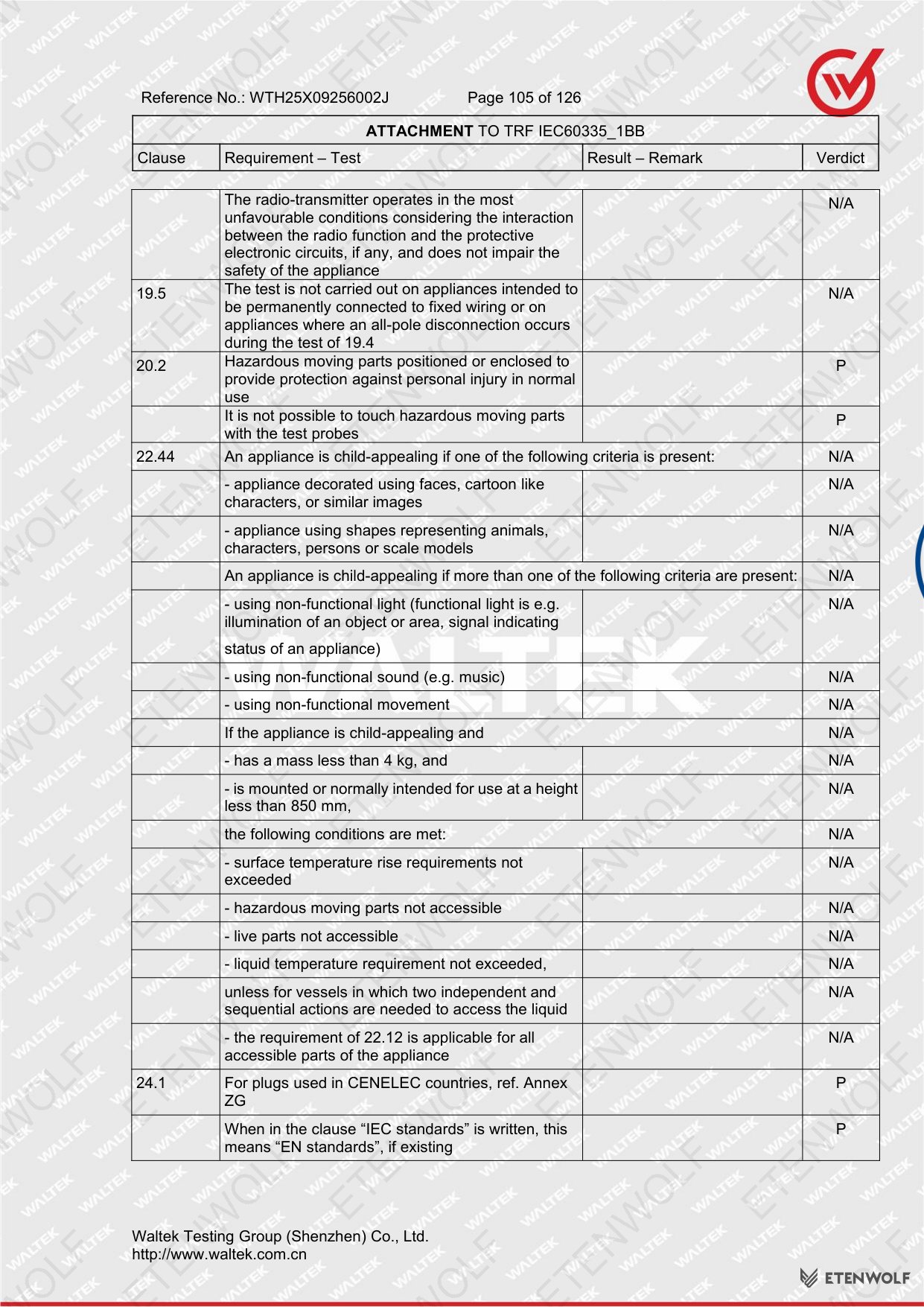

Document Page 105

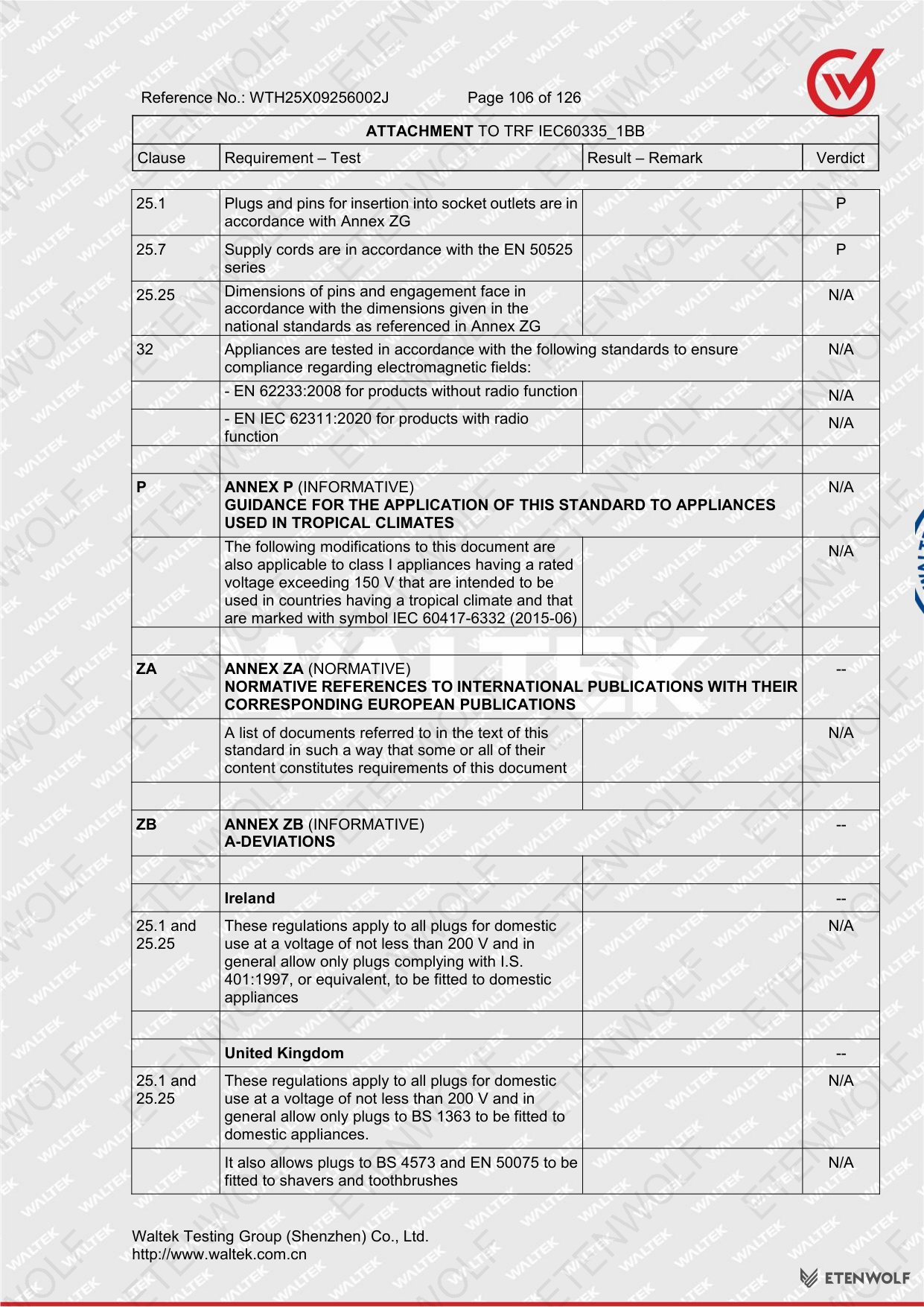

Document Page 106

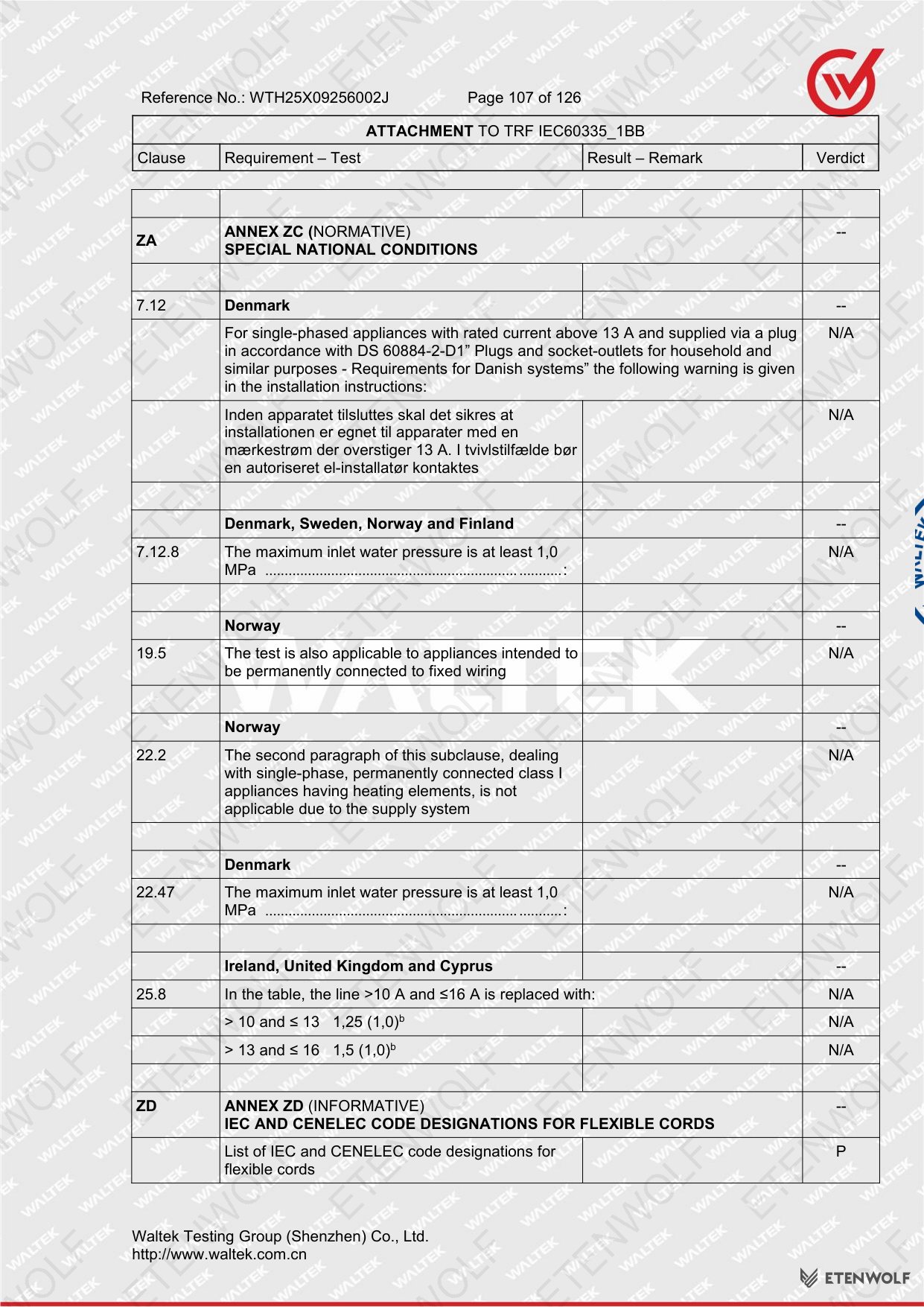

Document Page 107

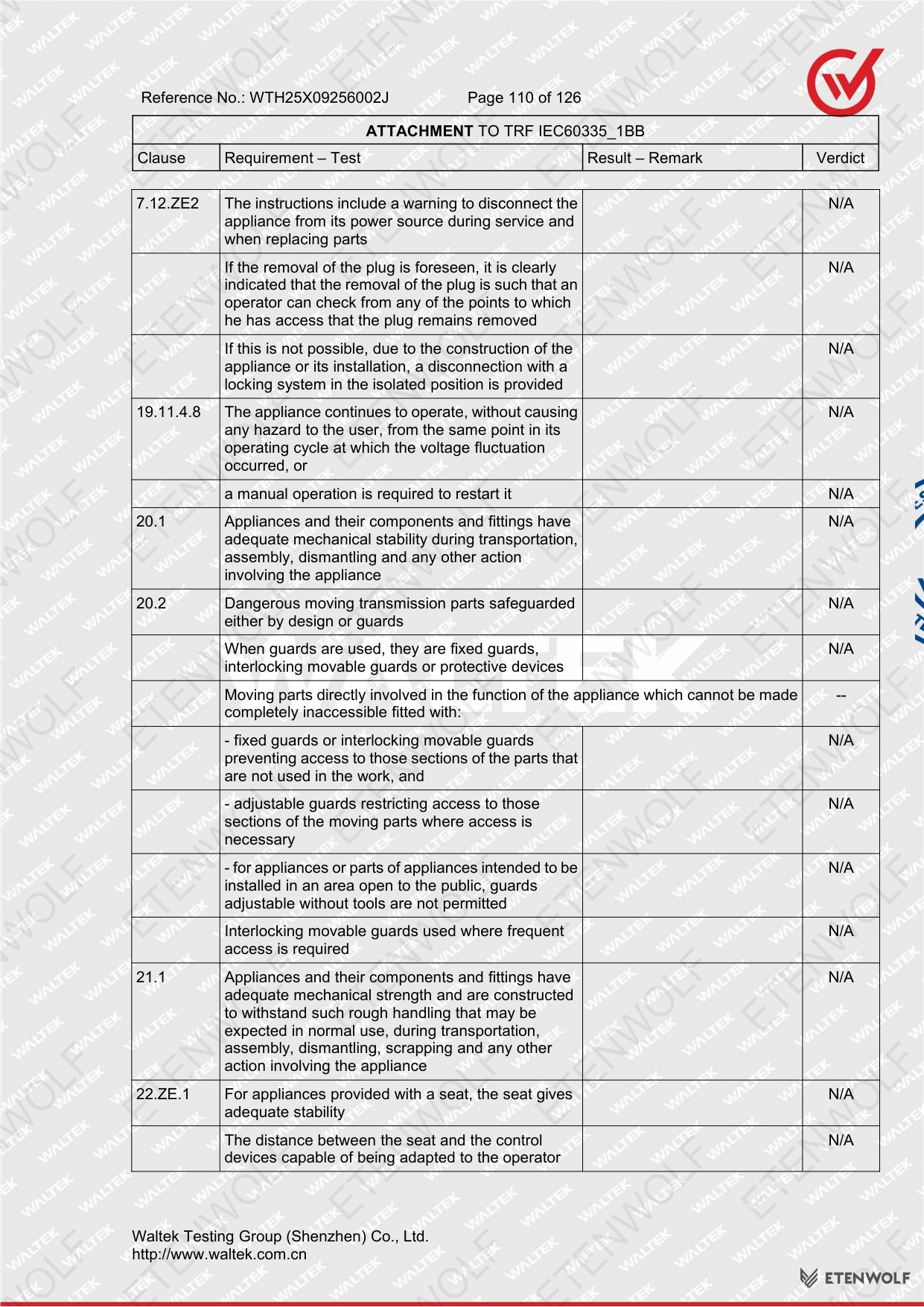

Document Page 108

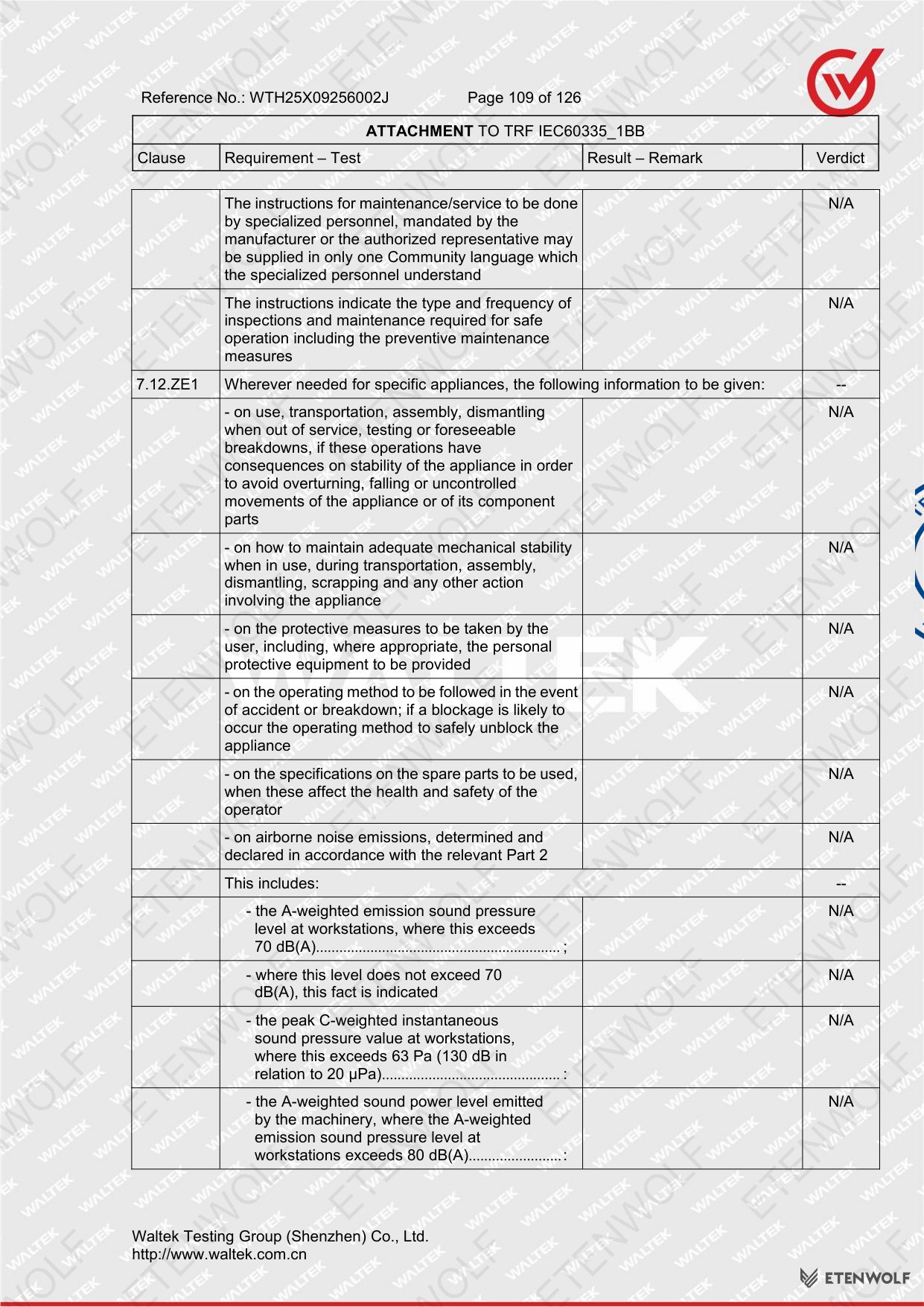

Document Page 109
Document Page 110

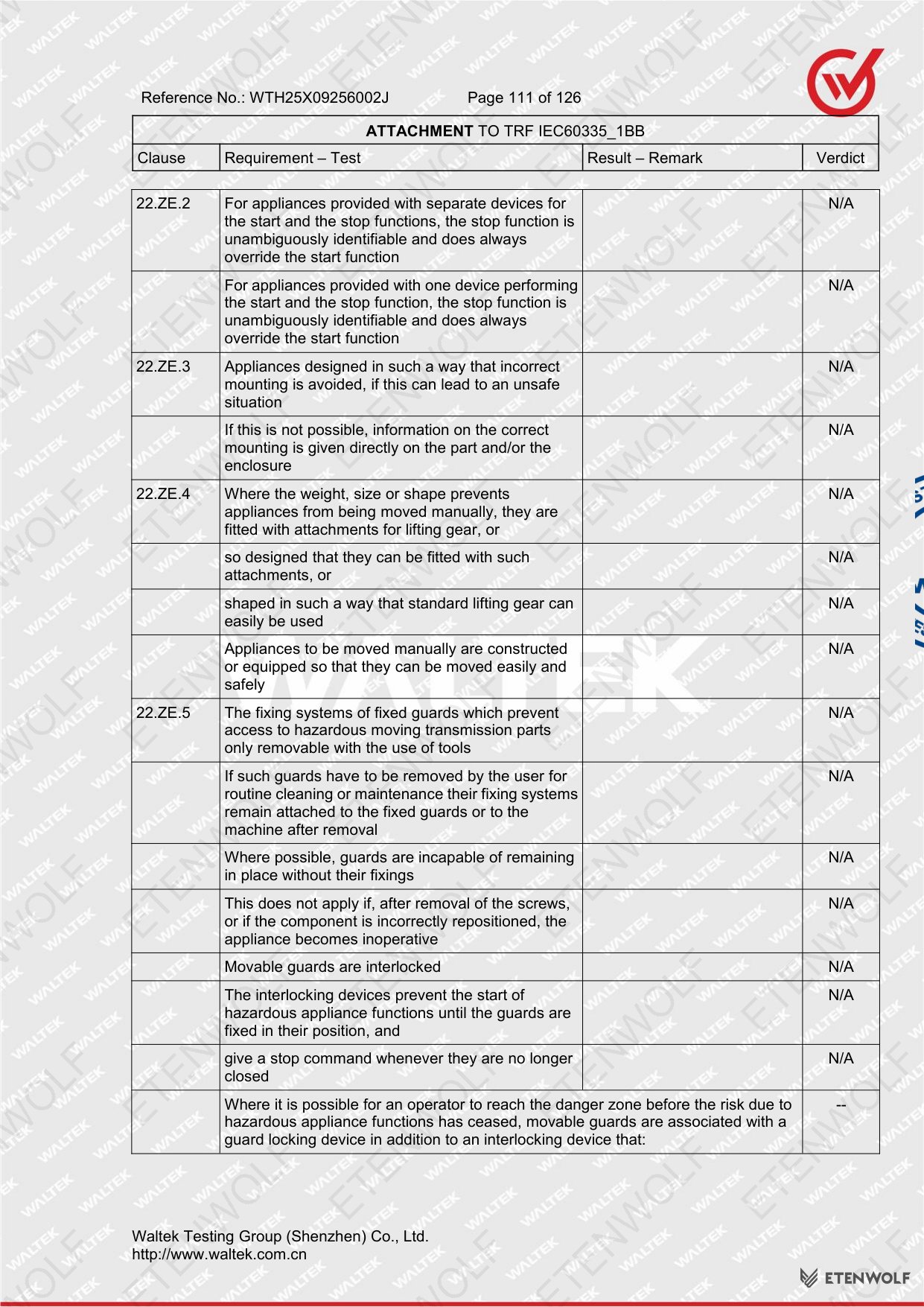

Document Page 111

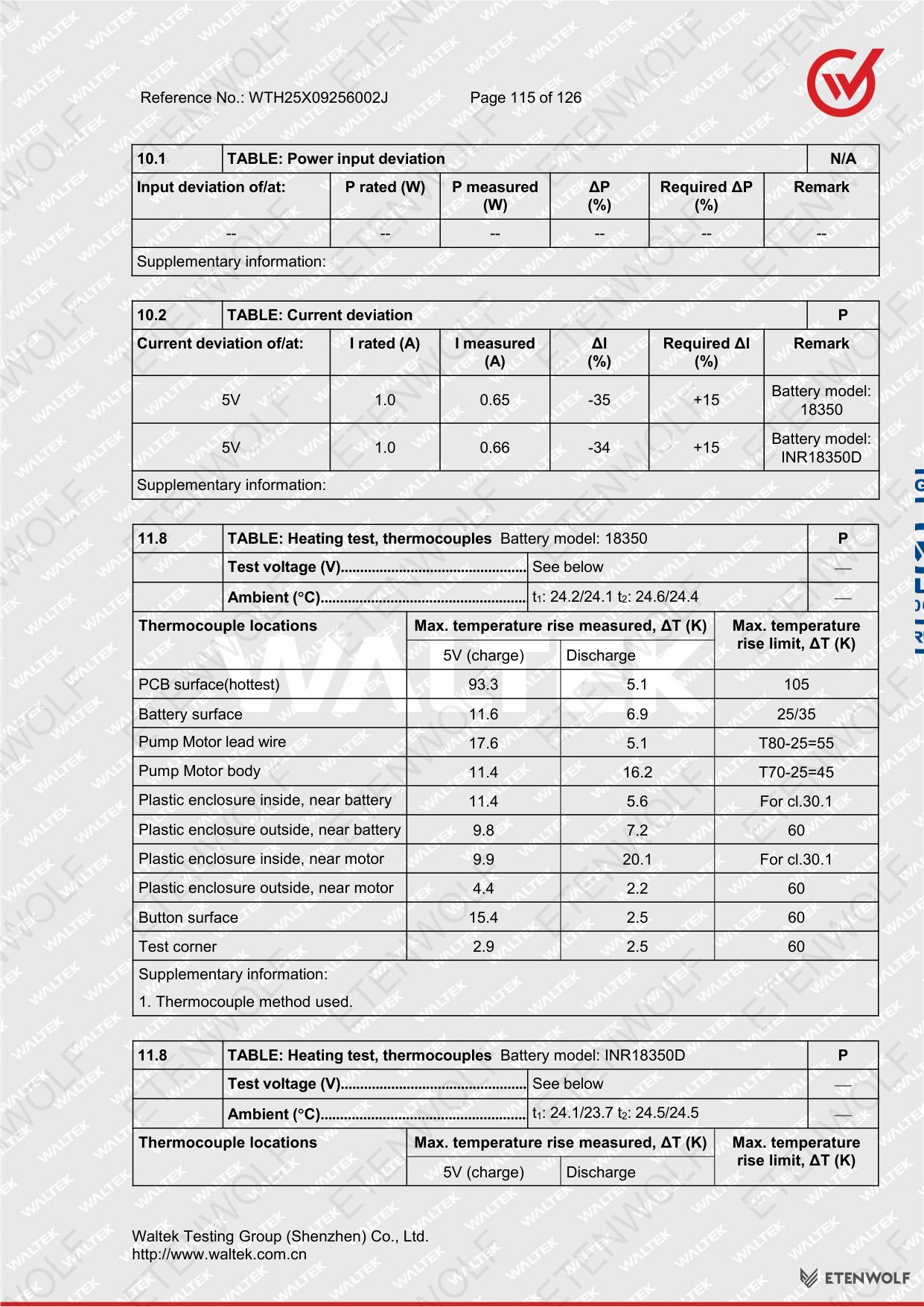

Document Page 112

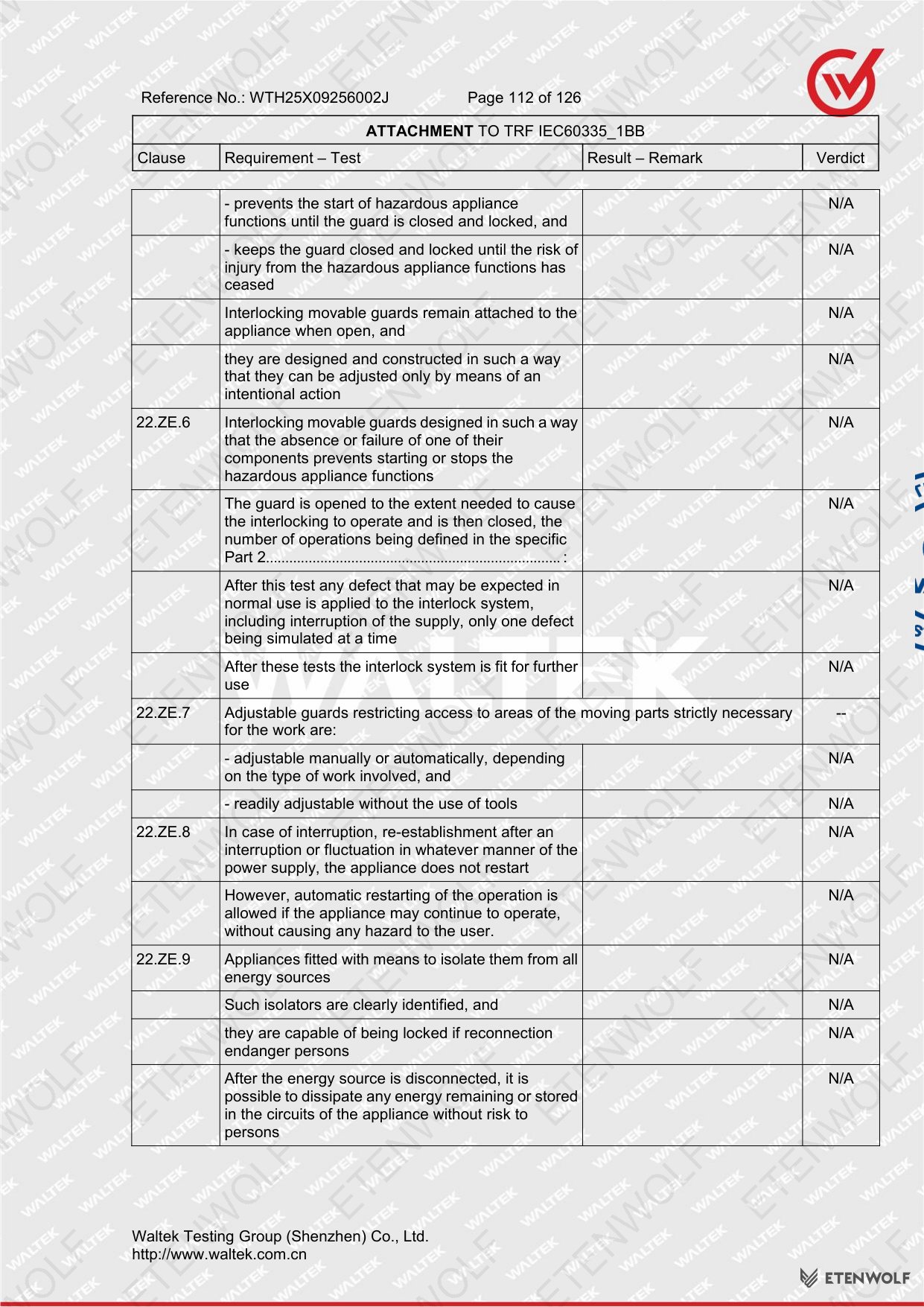

Document Page 113

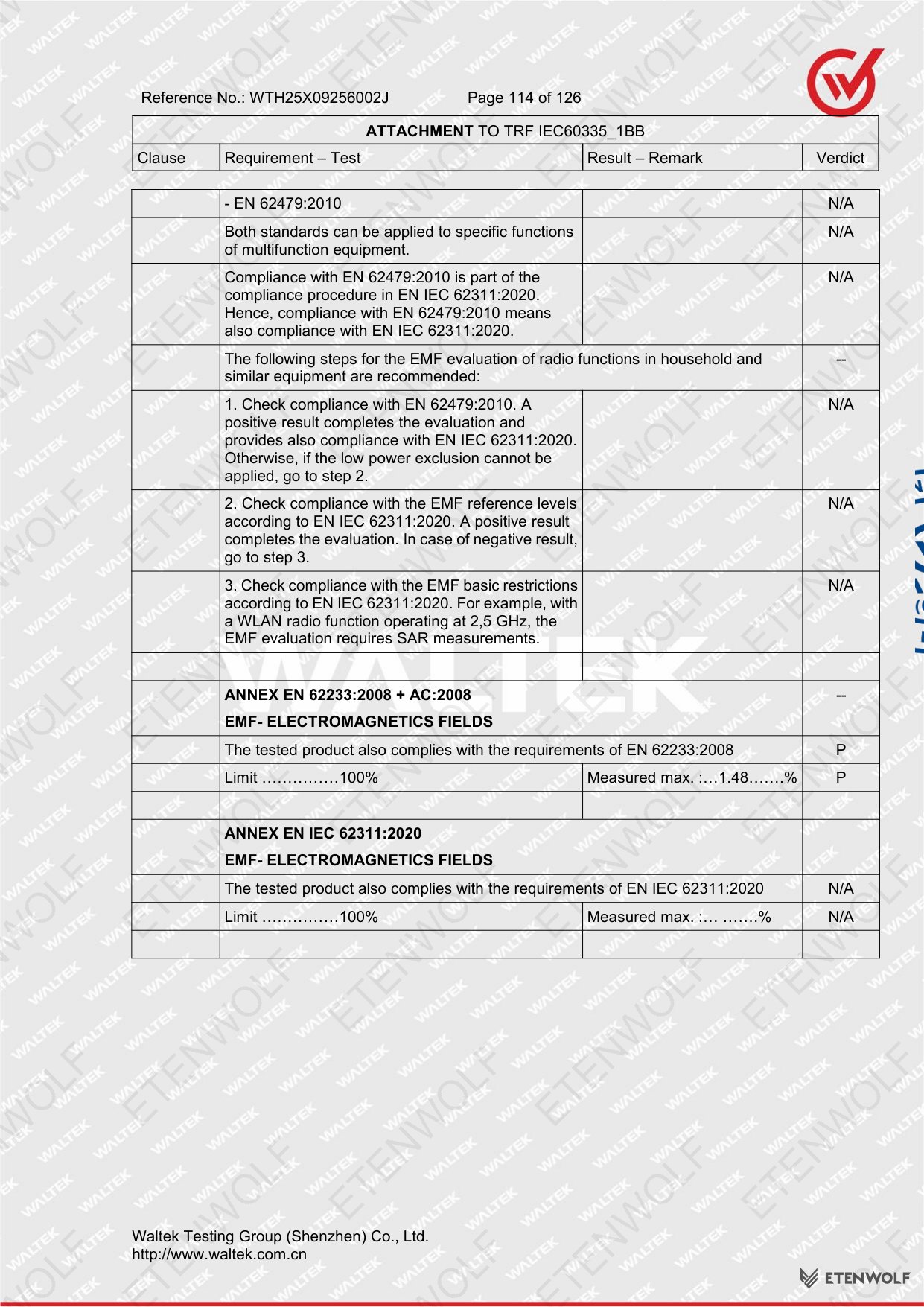

Document Page 114
Document Page 115
Document Page 116

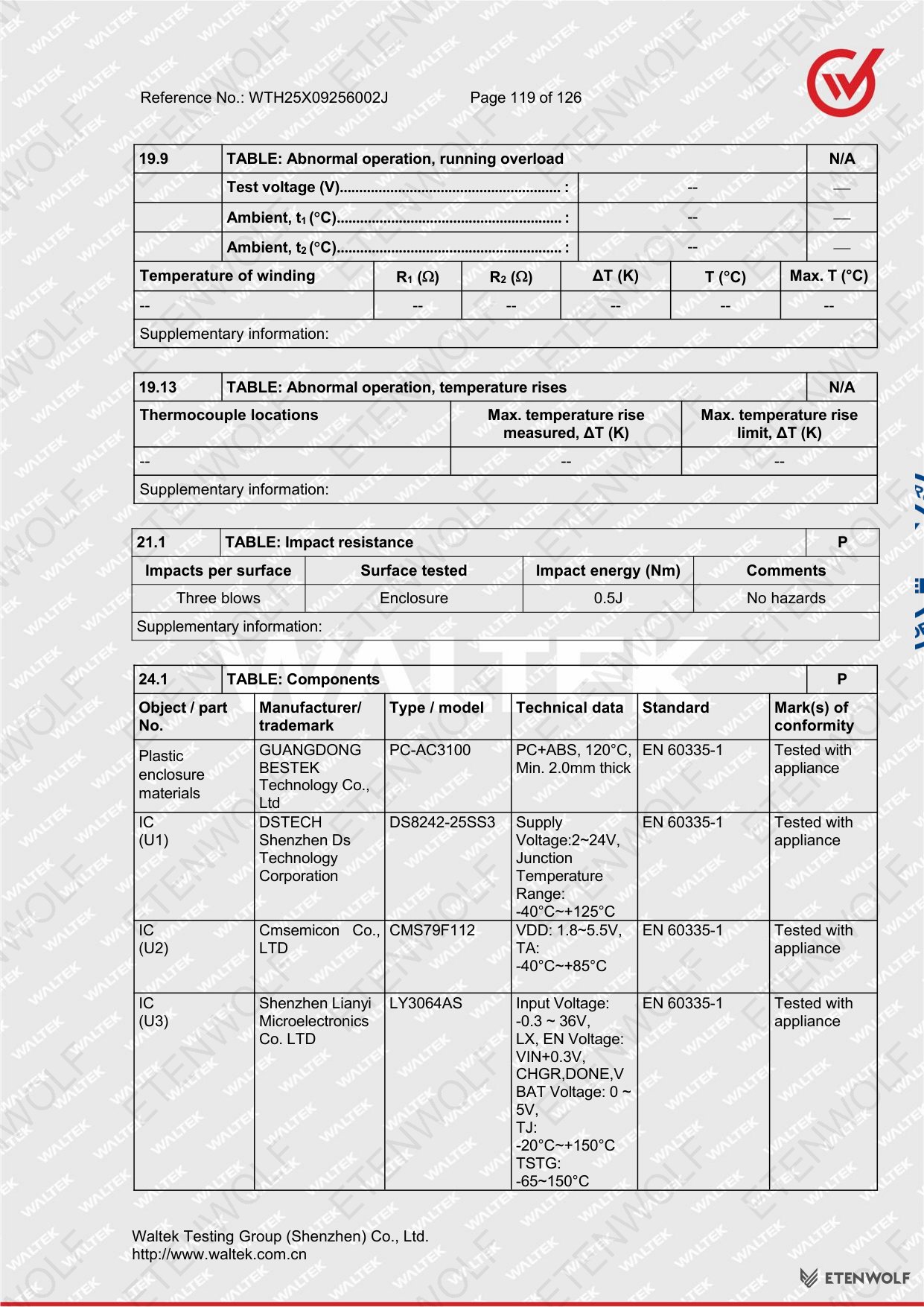

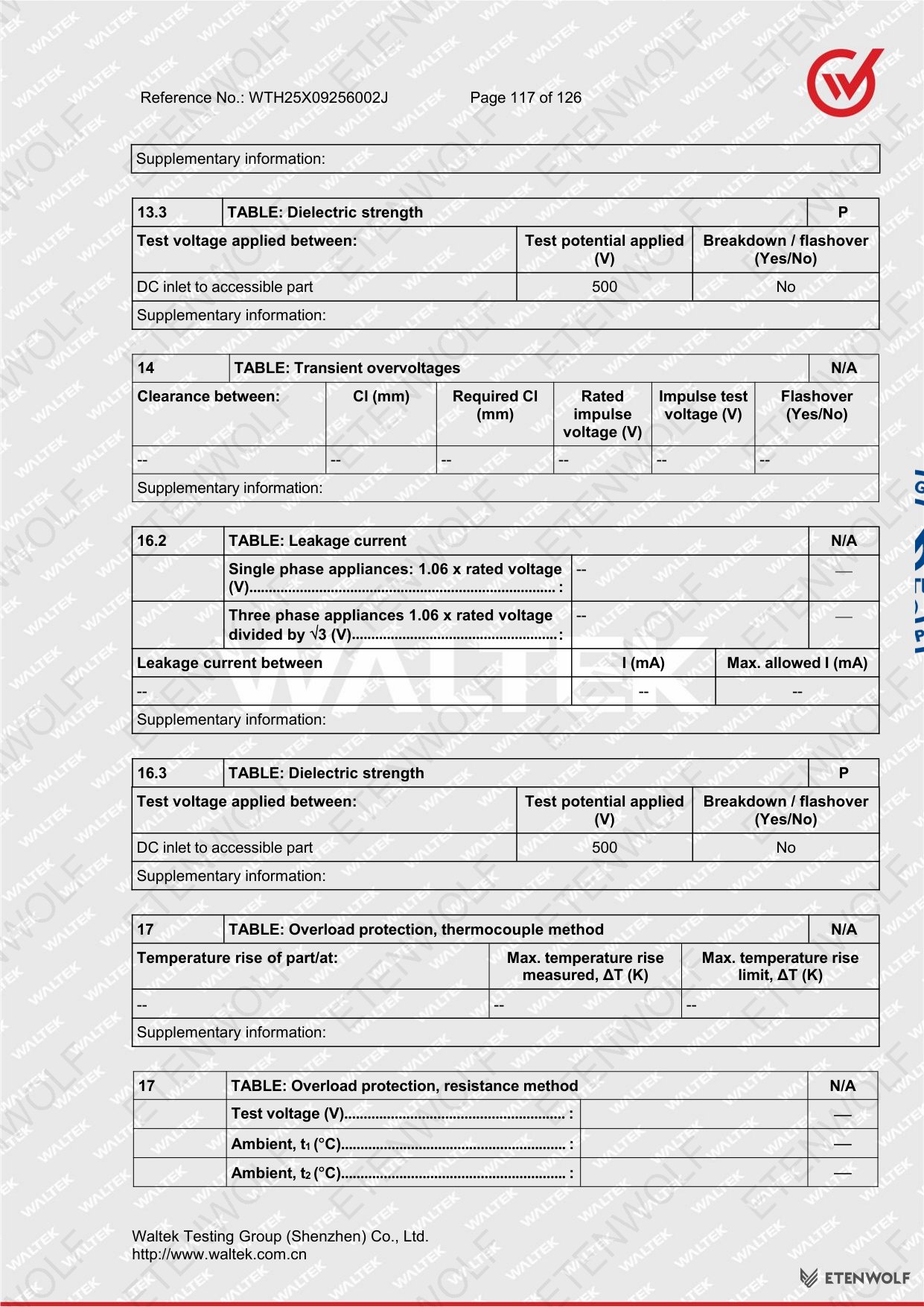

Document Page 117
Document Page 118

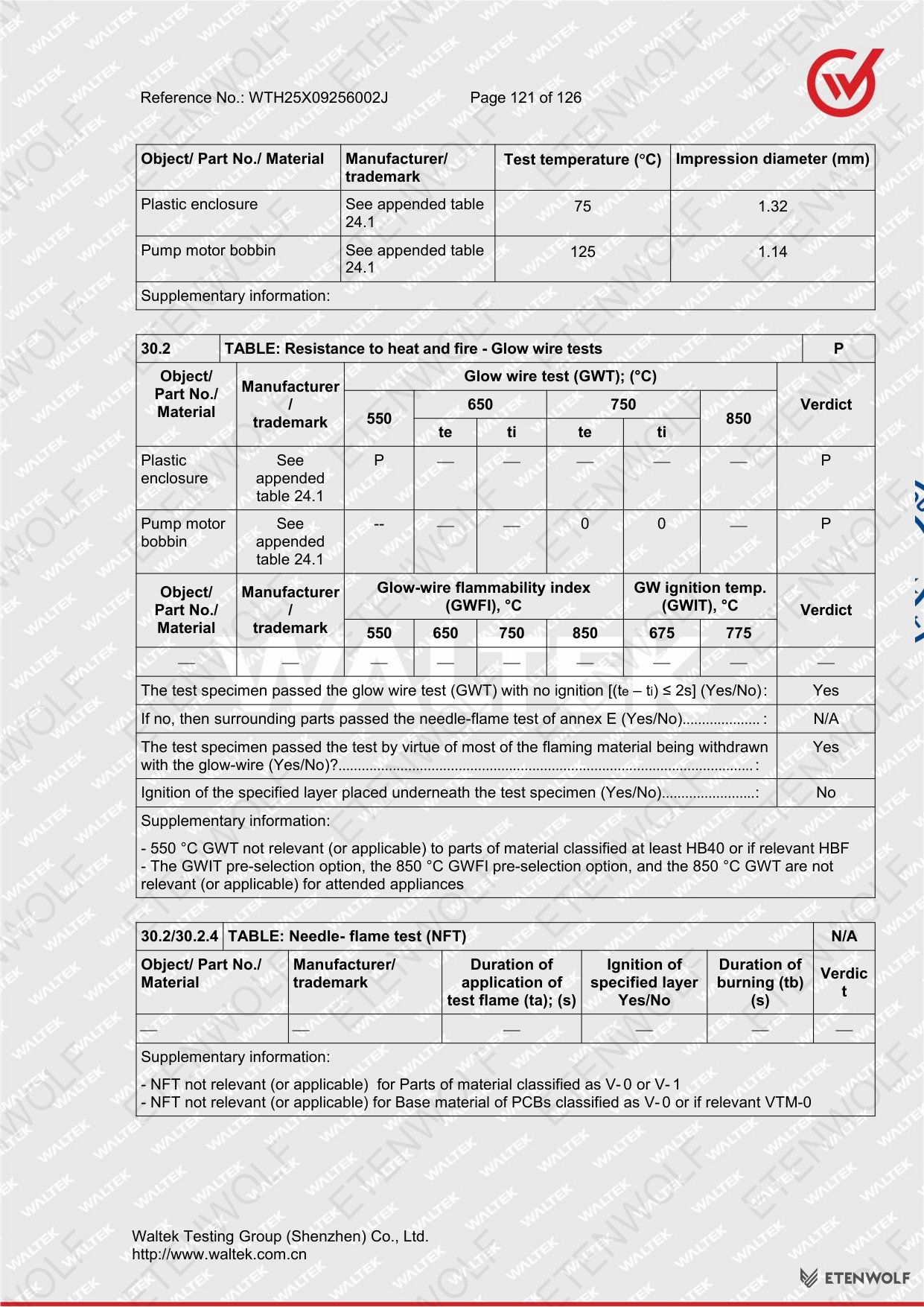

Document Page 119

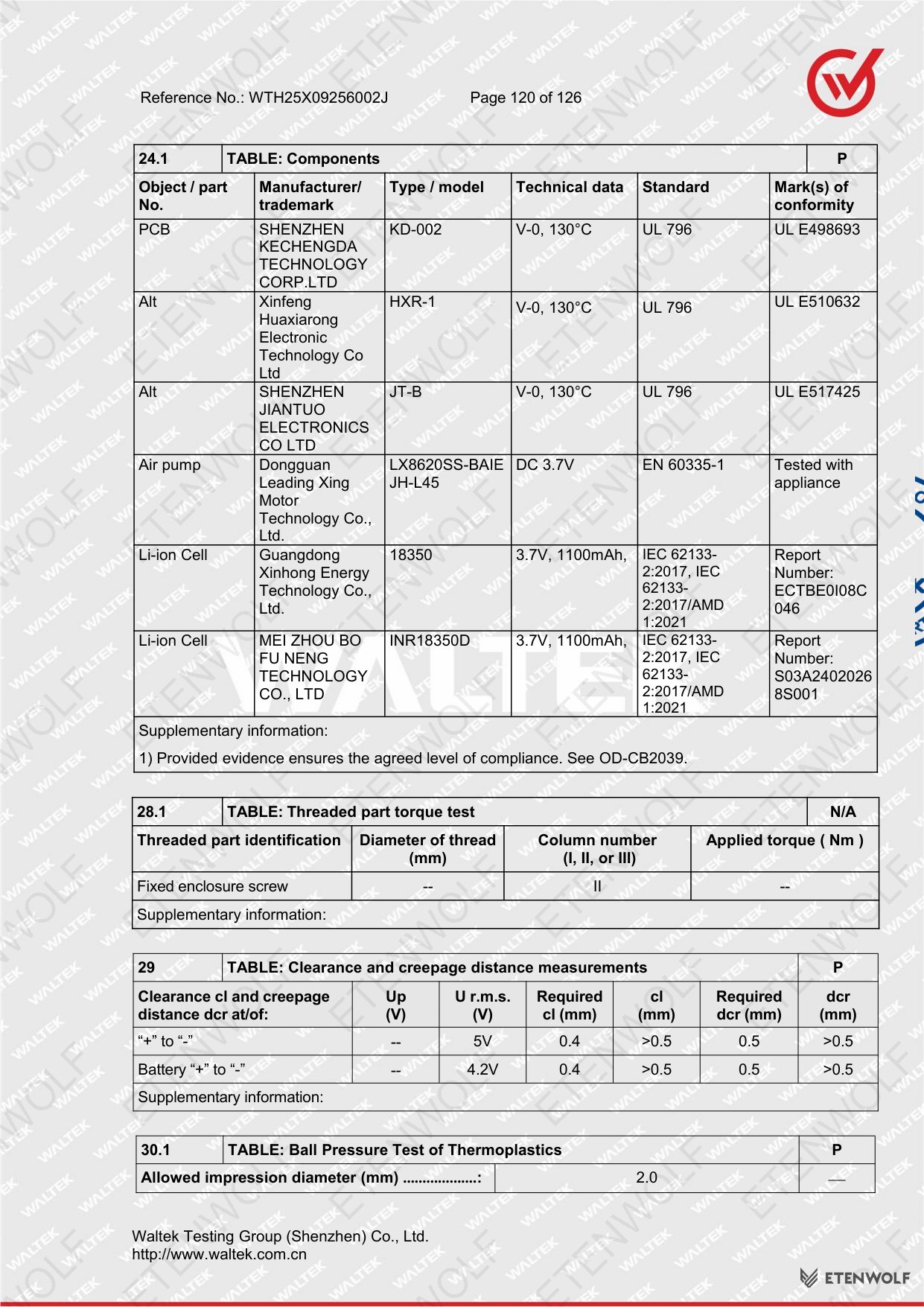

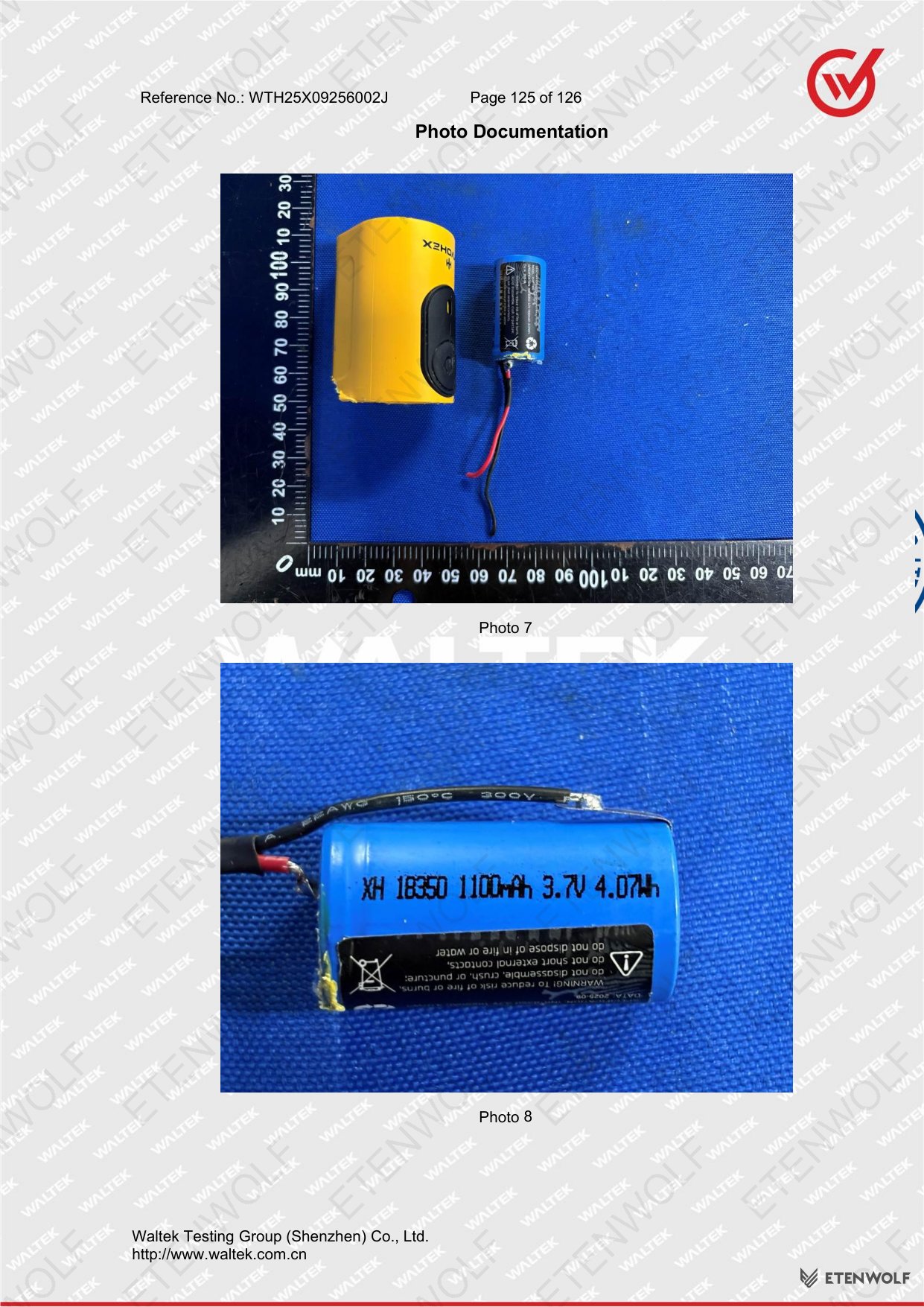

Document Page 120
Document Page 121
Document Page 122

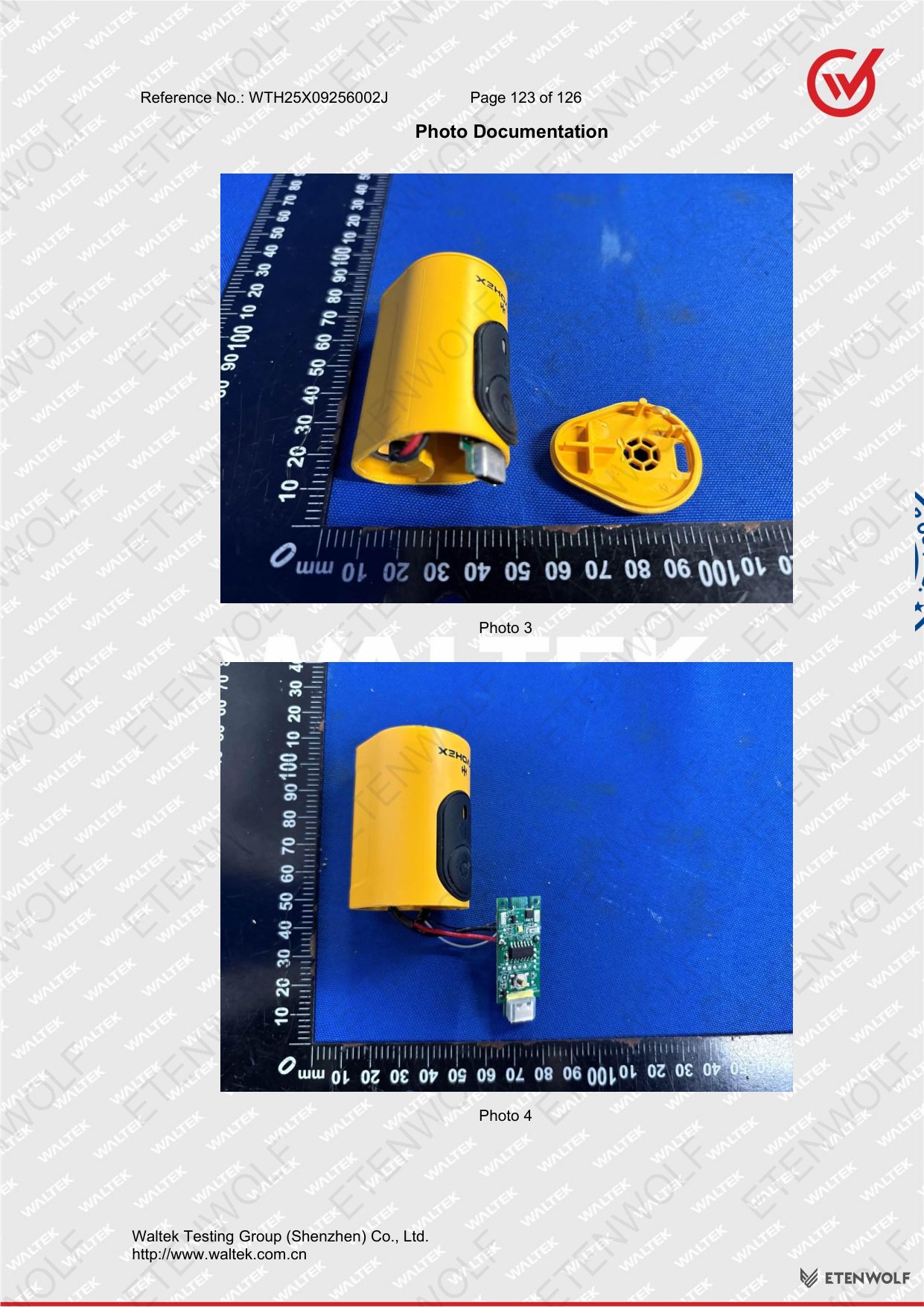

Document Page 123
Document Page 124
Document Page 125

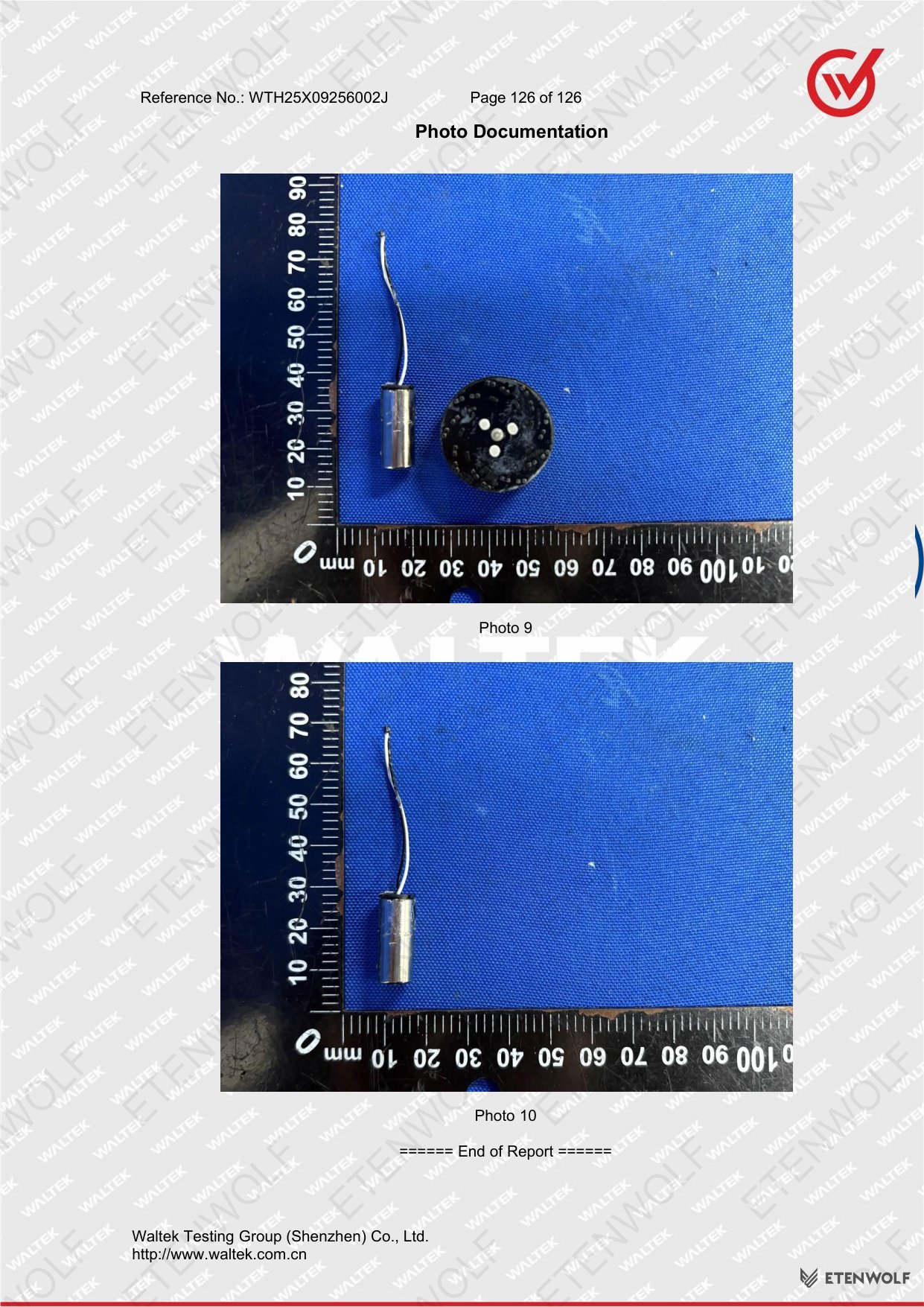

Document Page 126
