Document Overview
Document Overview This page presents the official UN38.3 Test Summary issued by Waltek Testing Group Co., Ltd. (深圳沃特检验集团股份有限公司), a third-party testing laboratory based in Dongguan, Guangdong, China. The document certifies that the lithium-ion battery pack described below has successfully completed all mandatory tests defined in…
- Document type
- Certification Report
- Prepared by
- Michelle Torres
- Published
- Last reviewed
- Topics
- International Transportation: CB / MSDS / UN38.3
Document Overview
This page presents the official UN38.3 Test Summary issued by Waltek Testing Group Co., Ltd. (深圳沃特检验集团股份有限公司), a third-party testing laboratory based in Dongguan, Guangdong, China. The document certifies that the lithium-ion battery pack described below has successfully completed all mandatory tests defined in the UN Manual of Tests and Criteria, Revision 8.
- Document Type: UN38.3 Test Summary (Test Report)
- Unique Test Report ID: WTH25D09239218B
- Issue Date: 2025-09-22
- Applicable Standard: UN38.3, Manual of Tests and Criteria, Rev. 8
- Scope: Transport safety qualification of a lithium-ion battery pack for use in consumer inflation and lighting products
- Signatory: 秦林伟 (Deval Qin), Designated Reviewer
Product Information
The battery pack certified under this report is used in the ETENWOLF C2 inflation tool. Full product and battery specifications are listed below.
| Field | Detail |
|---|---|
| Product Model | C2 |
| Battery Model No. | 2S1P-2000 |
| Battery Name | Lithium-ion Battery Pack (锂离子电池组) |
| Chemistry / Type | Lithium Ion |
| Configuration | Cylindrical (圆柱形) |
| Rated Voltage | 7.4 V |
| Rated Capacity | 2000 mAh |
| Rated Energy | 14.8 Wh |
| Approximate Mass | 117.6 g |
| Manufacturer | Guangdong Bestek Technology Co., Ltd. (广东贝仕达克科技有限公司) |
| Manufacturer Address | No. 1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China |
| Manufacturer Tel | 0762-3429081 |
| Manufacturer Email | [email protected] |
Key Details
The following table lists all eight UN38.3 tests conducted on the ETENWOLF C2 battery pack, along with the result for each. All tests were performed in accordance with UN38.3 Revision 8.
| # | Test Name | Original (Chinese) | Result |
|---|---|---|---|
| T.1 | Altitude Simulation | 高度模拟 | Pass |
| T.2 | Thermal Test | 温度试验 | Pass |
| T.3 | Vibration | 振动 | Pass |
| T.4 | Shock | 冲击 | Pass |
| T.5 | External Short Circuit | 外部短路 | Pass |
| T.6 | Impact / Crush | 撞击 / 挤压 | Pass |
| T.7 | Overcharge | 过充电 | Pass |
| T.8 | Forced Discharge | 强制放电 | Pass |
All 8 required tests returned a Pass result. No failures, exceptions, or conditional results were recorded in the test summary.
Standards & Compliance
The testing was carried out against the transport safety requirements for lithium batteries under the following standard framework:
- UN38.3 — United Nations Recommendations on the Transport of Dangerous Goods, Manual of Tests and Criteria, Revision 8. This standard governs the safe transport of lithium metal and lithium-ion cells and batteries by all modes of transport (air, sea, road, rail).
- The battery pack with a rated energy of 14.8 Wh falls below the 100 Wh threshold applicable to lithium-ion cells and battery packs under IATA Dangerous Goods Regulations and ICAO Technical Instructions, confirming its eligibility for air transport under standard provisions.
- Compliance with UN38.3 is also a prerequisite for CE, FCC, KC, and other regional market access certifications that include battery safety assessments.
Test methods applied correspond to Section 38.3 of the UN Manual, sub-tests T.1 through T.8, as defined in Revision 8 of the standard.
Validity & Certification Body
The test report was issued by Waltek Testing Group Co., Ltd., an accredited third-party testing and certification organization.
| Field | Detail |
|---|---|
| Laboratory Name | Waltek Testing Group Co., Ltd. (深圳沃特检验集团股份有限公司) |
| Laboratory Address | No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China |
| Laboratory Tel | +86-769-2267 6998 |
| Laboratory Email | [email protected] |
| Laboratory Website | www.waltek.com.cn |
| Report Number | WTH25D09239218B |
| Issue Date | 2025-09-22 |
| Standard Revision | UN38.3 Rev. 8 |
| Signatory | Deval Qin (秦林伟), Designated Reviewer |
UN38.3 test summaries do not carry a fixed expiry date under the standard itself; however, re-testing is required if the cell chemistry, construction, or manufacturing process changes materially. Manufacturers and importers are advised to retain this document for supply chain due diligence and customs clearance purposes.
Frequently Asked Questions
- What is UN38.3 and why does the ETENWOLF C2 battery need it?
- UN38.3 is the international standard that lithium-ion batteries must pass before they can be legally transported by air, sea, or road. For the ETENWOLF C2, having this certification means the 7.4V 2000mAh battery pack has been independently verified to be safe under conditions such as low pressure, extreme temperatures, vibration, shock, short circuit, overcharge, and forced discharge.
- Which revision of UN38.3 was used for this test?
- The tests were conducted in accordance with Revision 8 of the UN Manual of Tests and Criteria, which is the most current revision at the time of report issuance on 2025-09-22. Revision 8 introduced updated requirements for larger lithium batteries and tightened altitude simulation conditions.
- Did the C2 battery pack pass all UN38.3 tests?
- Yes. All eight mandatory tests — altitude simulation, thermal test, vibration, shock, external short circuit, impact/crush, overcharge, and forced discharge — returned a Pass result. The unique report number for this certification is WTH25D09239218B, issued by Waltek Testing Group on 2025-09-22.
- Where can I obtain a copy of the UN38.3 test report for the ETENWOLF C2?
- The official test summary document (report no. WTH25D09239218B) is issued by Waltek Testing Group Co., Ltd. For supply chain, customs, or compliance purposes, contact ETENWOLF directly through the ETENWOLF product page or reach Waltek at [email protected].
Related Documents
For a complete compliance picture of the ETENWOLF C2 inflation tool and its battery pack, the following related certification documents are typically required alongside the UN38.3 test summary:
- CE Declaration of Conformity — Required for sale in the European Economic Area. Covers electromagnetic compatibility (EMC), low voltage directive (LVD), and battery directive compliance.
- FCC ID Certification — Required for the US market. Covers radio frequency emissions and electromagnetic interference for battery-powered devices.
- KC Certification — Required for the South Korean market. Includes safety and EMC requirements for lithium battery-powered consumer products.
- RoHS Compliance Report — Confirms restriction of hazardous substances (lead, mercury, cadmium, etc.) in the battery pack and product materials, required for EU market access.
- REACH Declaration — Confirms that no substances of very high concern (SVHC) are present above threshold levels in the product or its components.
- IEC 62133 Battery Safety Test Report — The IEC standard for secondary lithium-ion cell and battery pack safety for portable applications, often required alongside UN38.3 for consumer electronics.
- MSDS / SDS (Material Safety Data Sheet) — Required by logistics providers and customs authorities for shipment of lithium-ion battery packs.

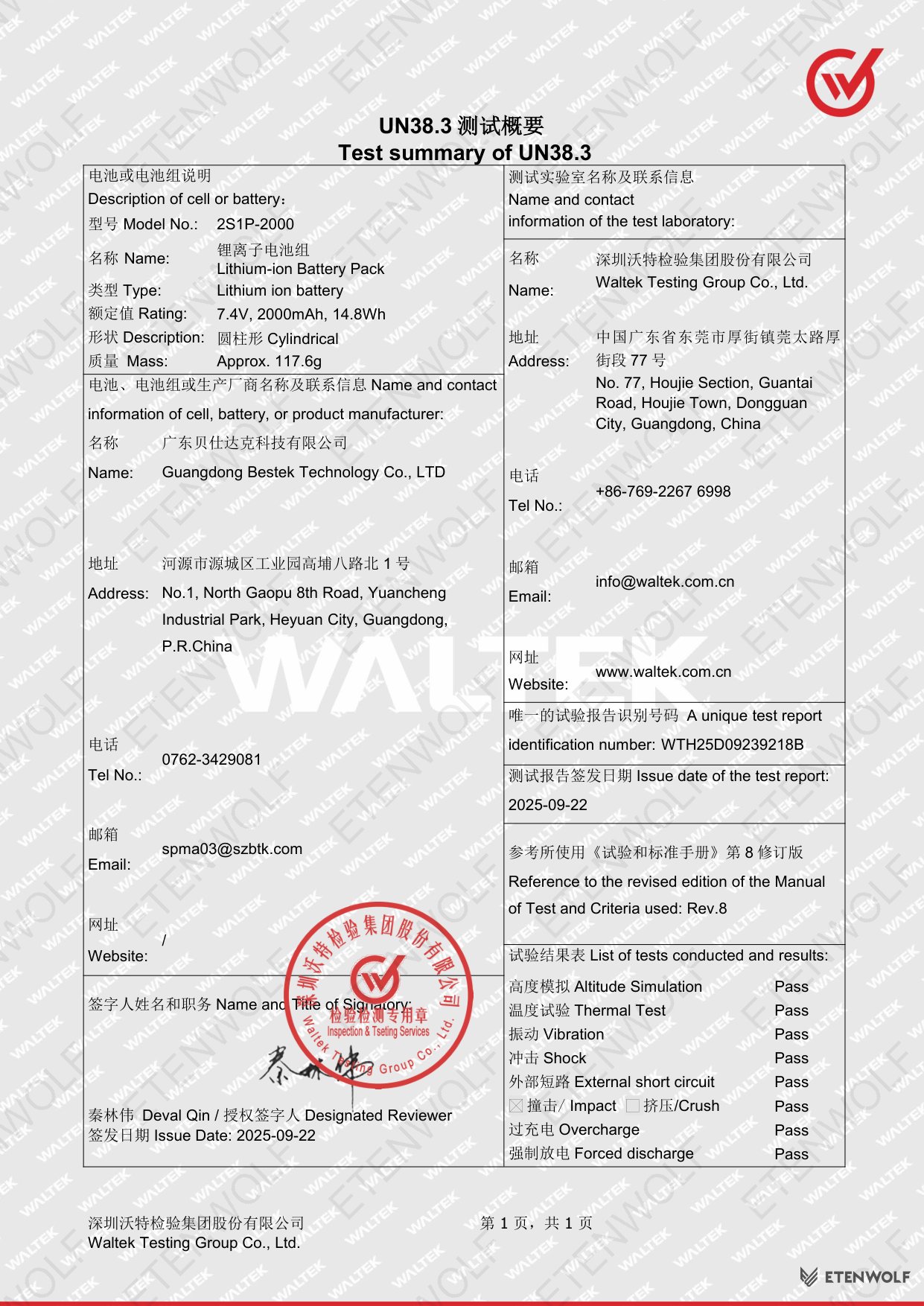

Document Pages
