Document Overview

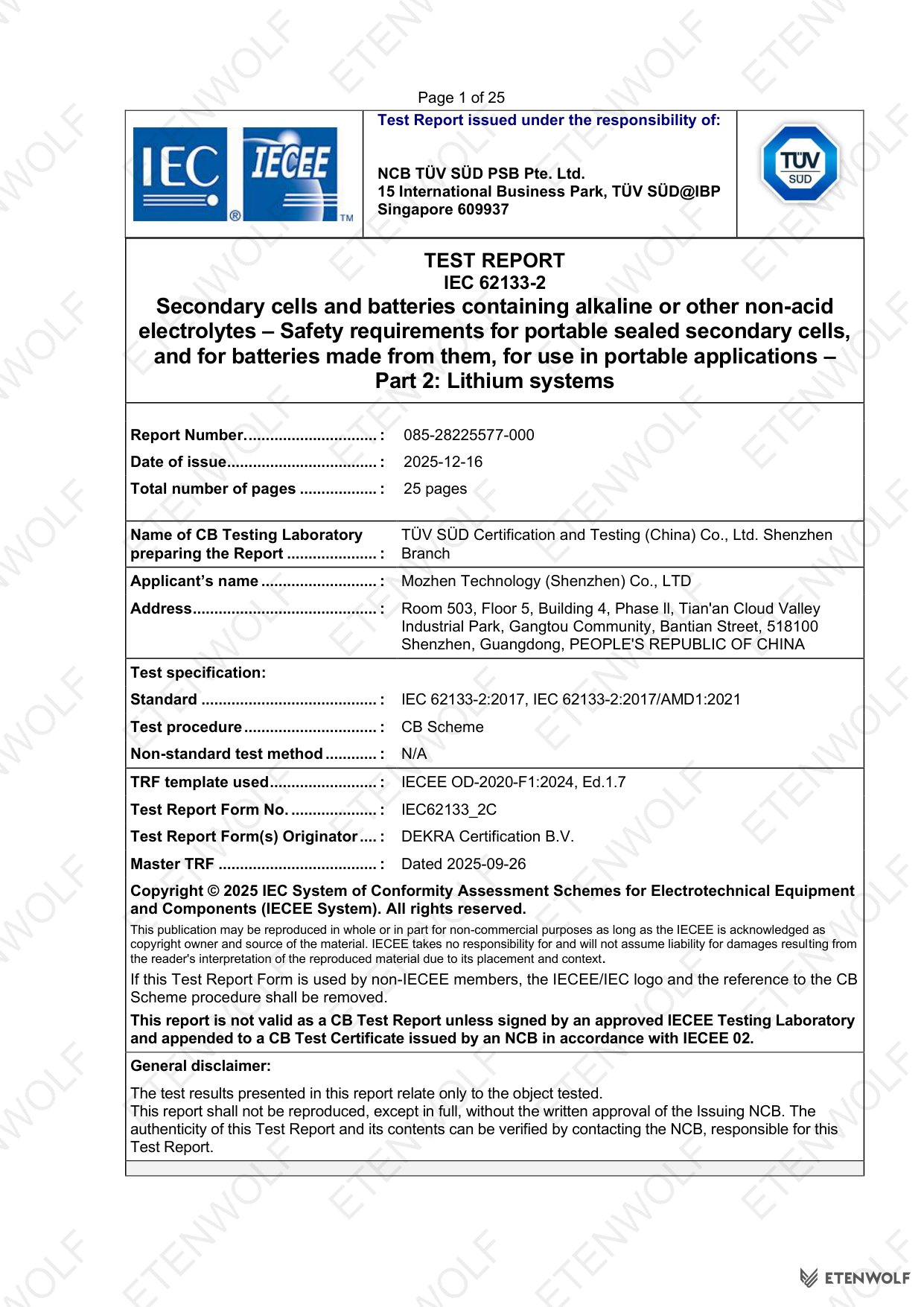

This article covers the official CB Scheme Test Report for the lithium-ion battery pack used in the ETENWOLF S1 portable tire inflator. The report was prepared under the responsibility of NCB TÜV SÜD PSB Pte. Ltd., located at 15 International Business Park, TÜV SÜD@IBP, Singapore 609937.
| Field | Detail |
|---|---|
| Report Number | 085-28225577-000 |
| Date of Issue | 2025-12-16 |
| Total Pages | 25 pages |
| Document Type | CB Test Report |
| Test Scheme | IECEE CB Scheme |
| NCB | TÜV SÜD PSB Pte. Ltd., Singapore |
| CB Testing Laboratory | TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch |
| TRF Template | IECEE OD-2020-F1:2024, Ed.1.7 |
| TRF No. | IEC62133_2C |
| TRF Originator | DEKRA Certification B.V. |
| Master TRF Date | 2025-09-26 |
The applicable standard is IEC 62133-2:2017 and its amendment IEC 62133-2:2017/AMD1:2021, which covers safety requirements for portable sealed secondary lithium cells and batteries for use in portable applications. This report is valid only when appended to a CB Test Certificate issued by an NCB in accordance with IECEE 02.
Product Information
The battery pack evaluated in this report is the internal power source for the ETENWOLF S1 portable tire inflator, manufactured by Mozhen Technology (Shenzhen) Co., Ltd.

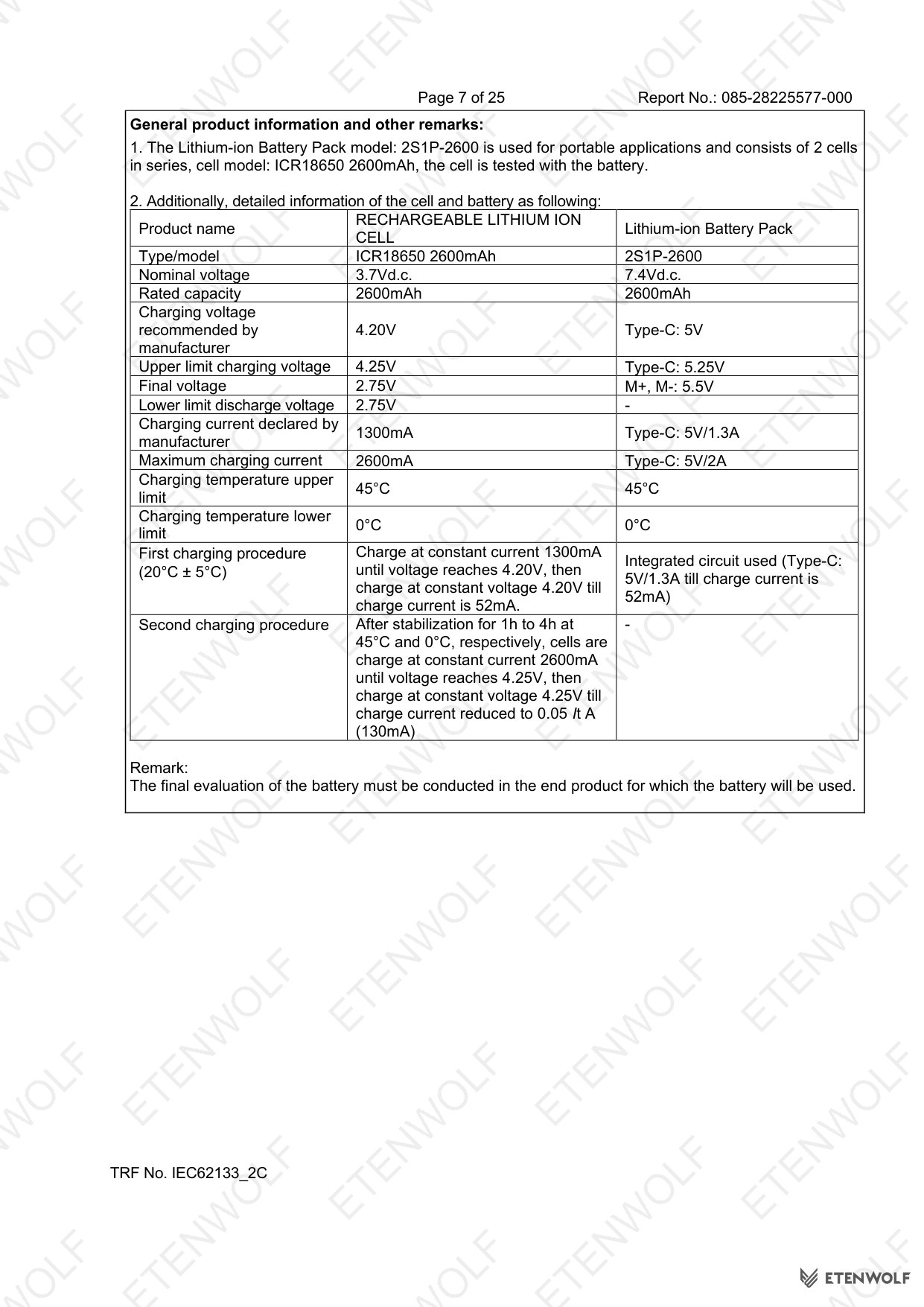

| Field | Detail |
|---|---|
| Test Item Description | Lithium-ion Battery Pack |
| Model / Type Reference | 2S1P-2600 |
| Rated Voltage | 7.4 V d.c. |
| Rated Capacity | 2600 mAh |
| Trade Mark | N/A |
| Manufacturer | Mozhen Technology (Shenzhen) Co., Ltd. |
| Manufacturer Address | Room 503, Floor 5, Building 4, Phase II, Tian’an Cloud Valley Industrial Park, Gangtou Community, Bantian Street, 518100 Shenzhen, Guangdong, China |
| Applicant | Mozhen Technology (Shenzhen) Co., Ltd. |
The 2S1P-2600 configuration refers to a 2-cell series, 1-cell parallel arrangement delivering a nominal 7.4 V with 2600 mAh capacity — a compact, high-energy-density pack suited to the demands of a portable inflation tool like the ETENWOLF S1.
Key Details
Testing was conducted at TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch, Building A2, Jin’ao Industrial Park, No. 150, Jingfang Road, Fuhai, Bao’an District, Shenzhen, Guangdong 518103, China. The test period ran from 2025-11-20 to 2025-12-03.

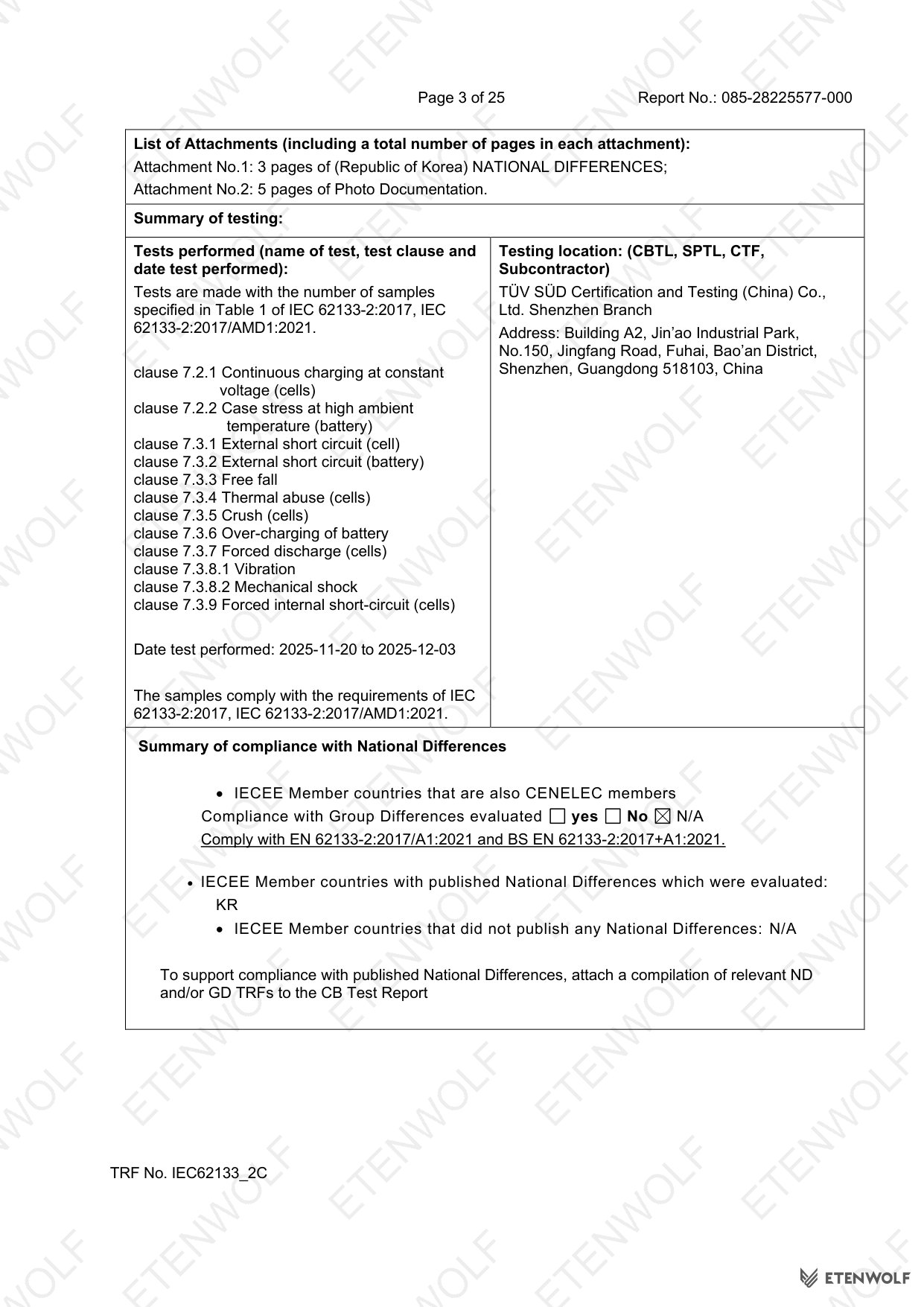

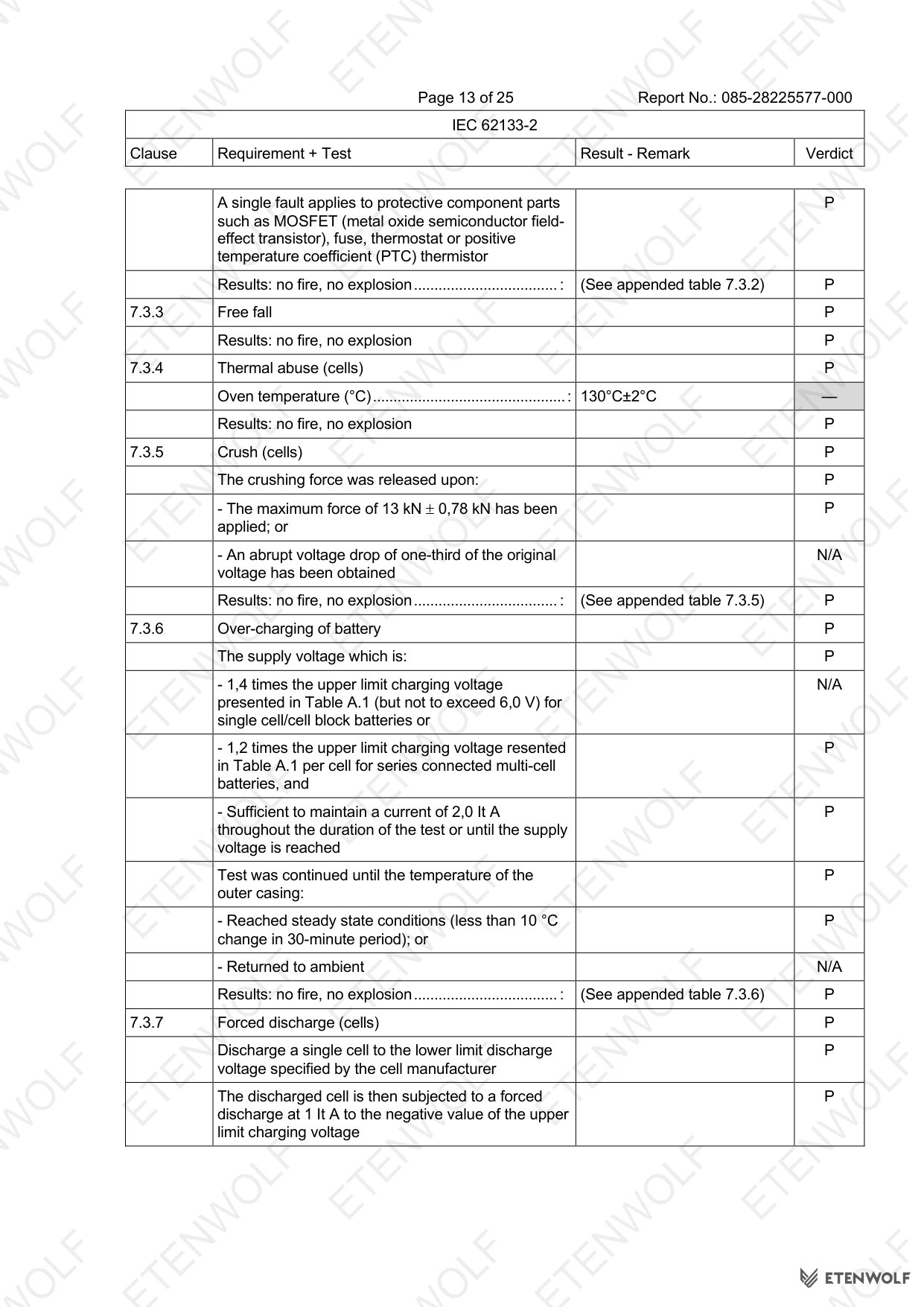

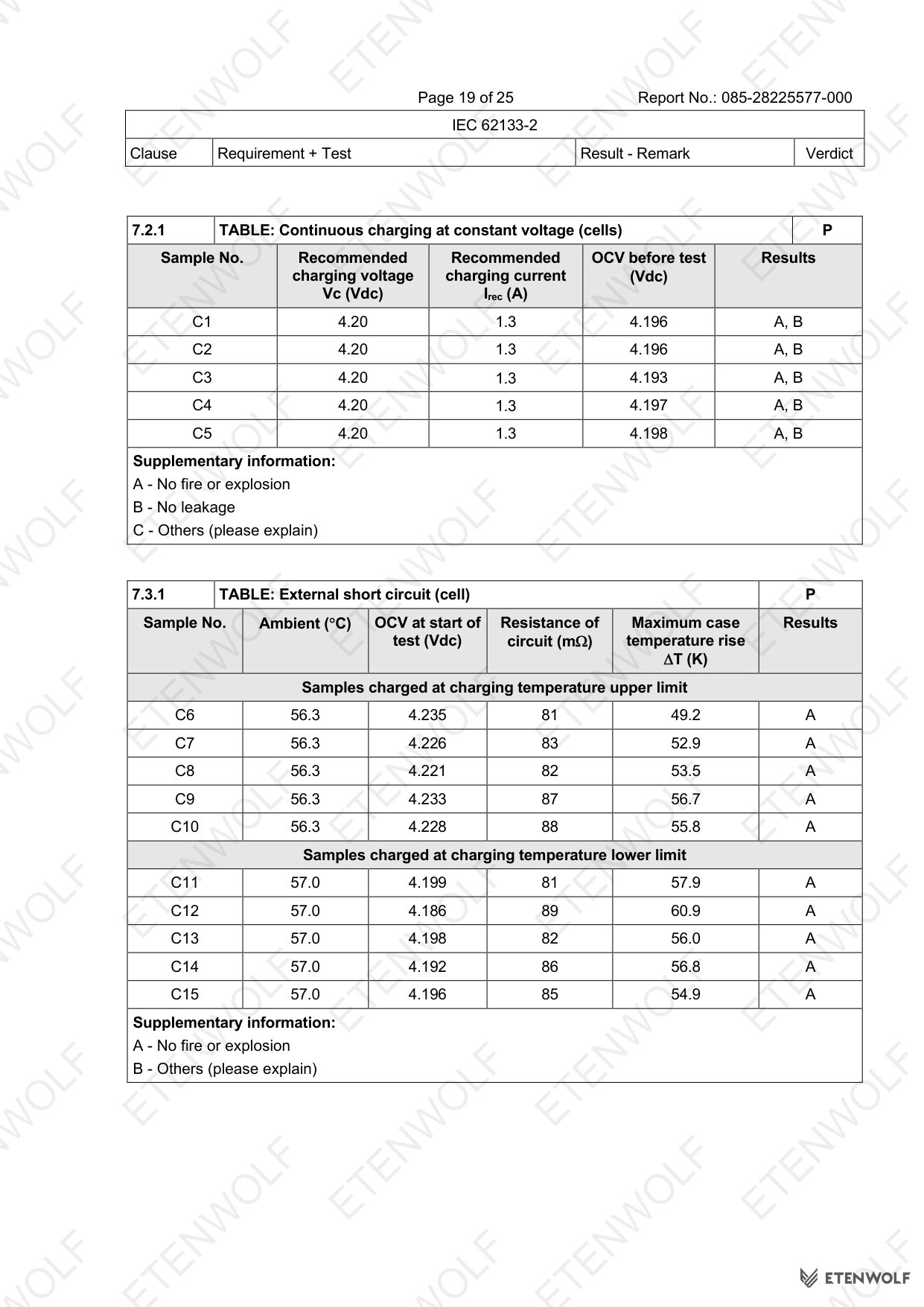

| Test Clause | Test Name | Result |
|---|---|---|

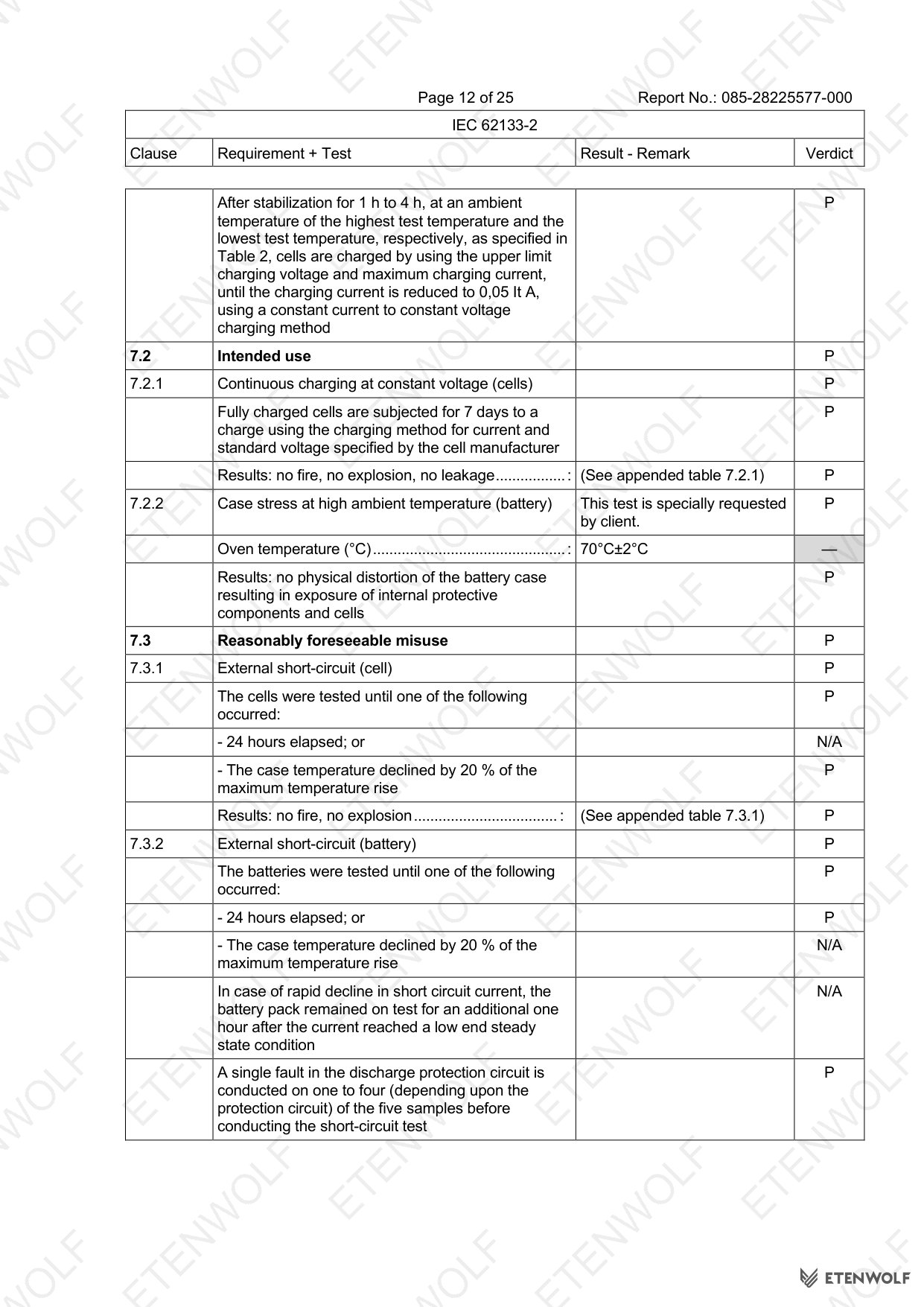

| Clause 7.2.1 | Continuous charging at constant voltage (cells) | Pass |
| Clause 7.2.2 | Case stress at high ambient temperature (battery) | Pass |
| Clause 7.3.1 | External short circuit (cell) | Pass |

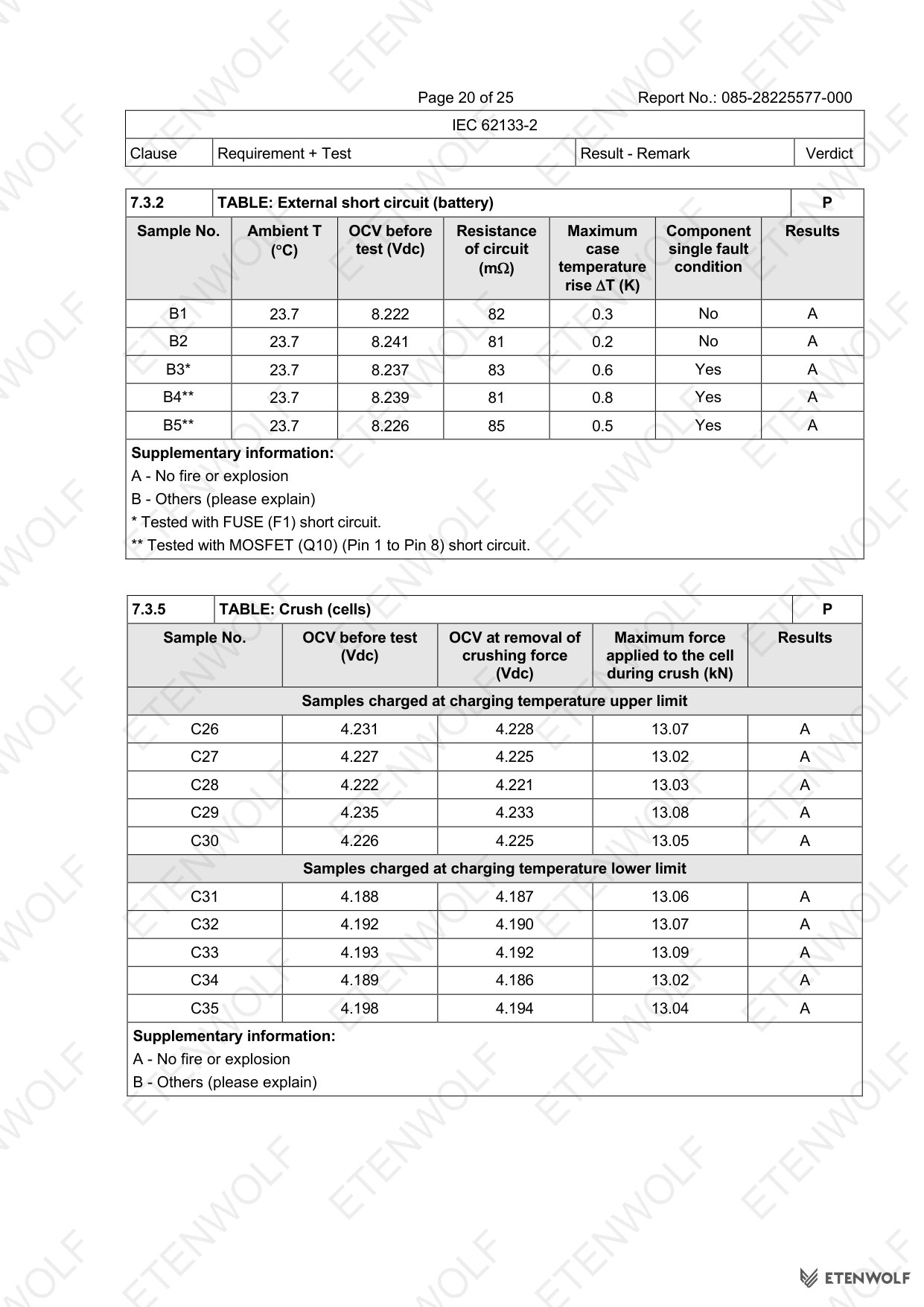

| Clause 7.3.2 | External short circuit (battery) | Pass |
| Clause 7.3.3 | Free fall | Pass |
| Clause 7.3.4 | Thermal abuse (cells) | Pass |
| Clause 7.3.5 | Crush (cells) | Pass |

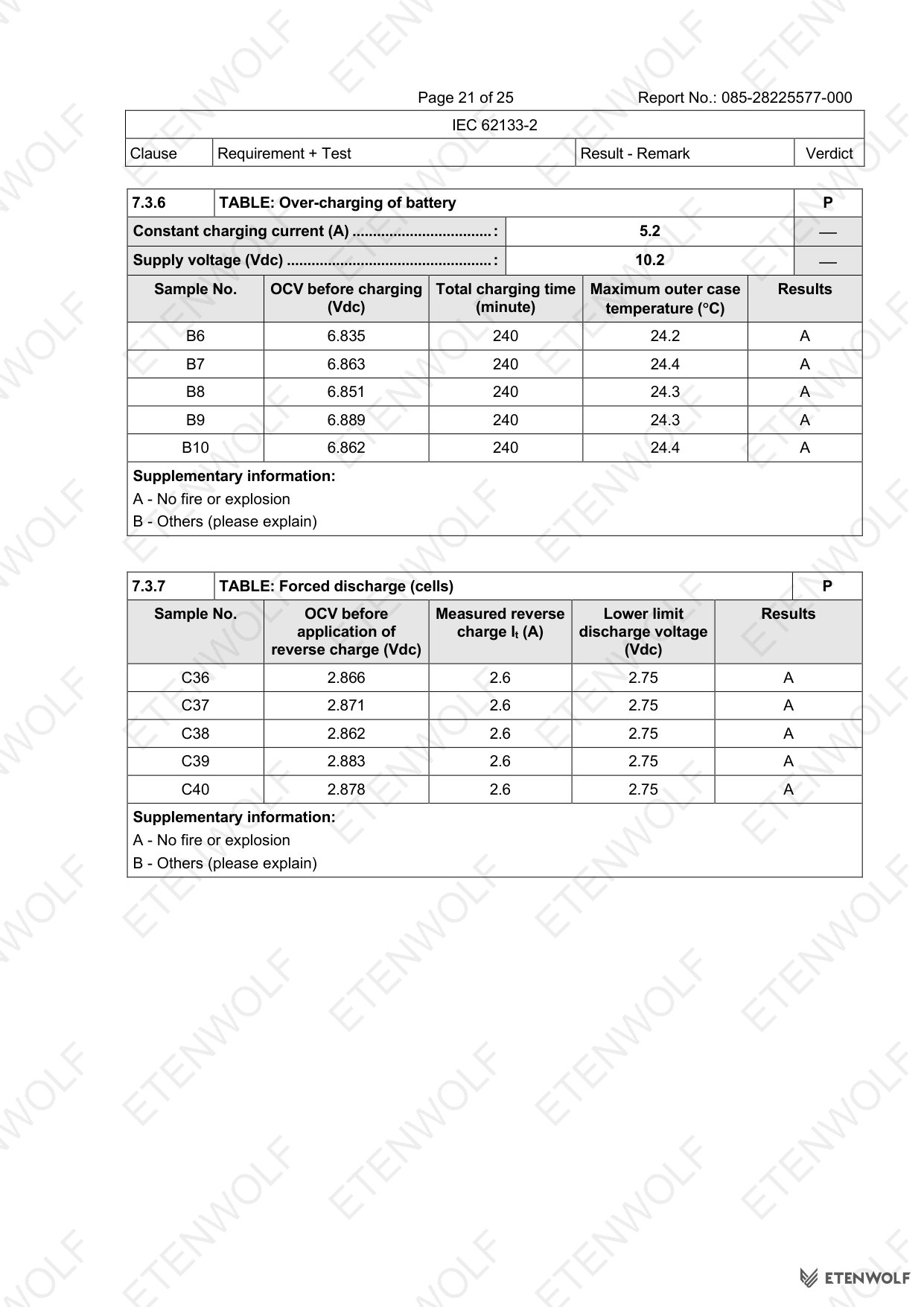

| Clause 7.3.6 | Over-charging of battery | Pass |
| Clause 7.3.7 | Forced discharge (cells) | Pass |

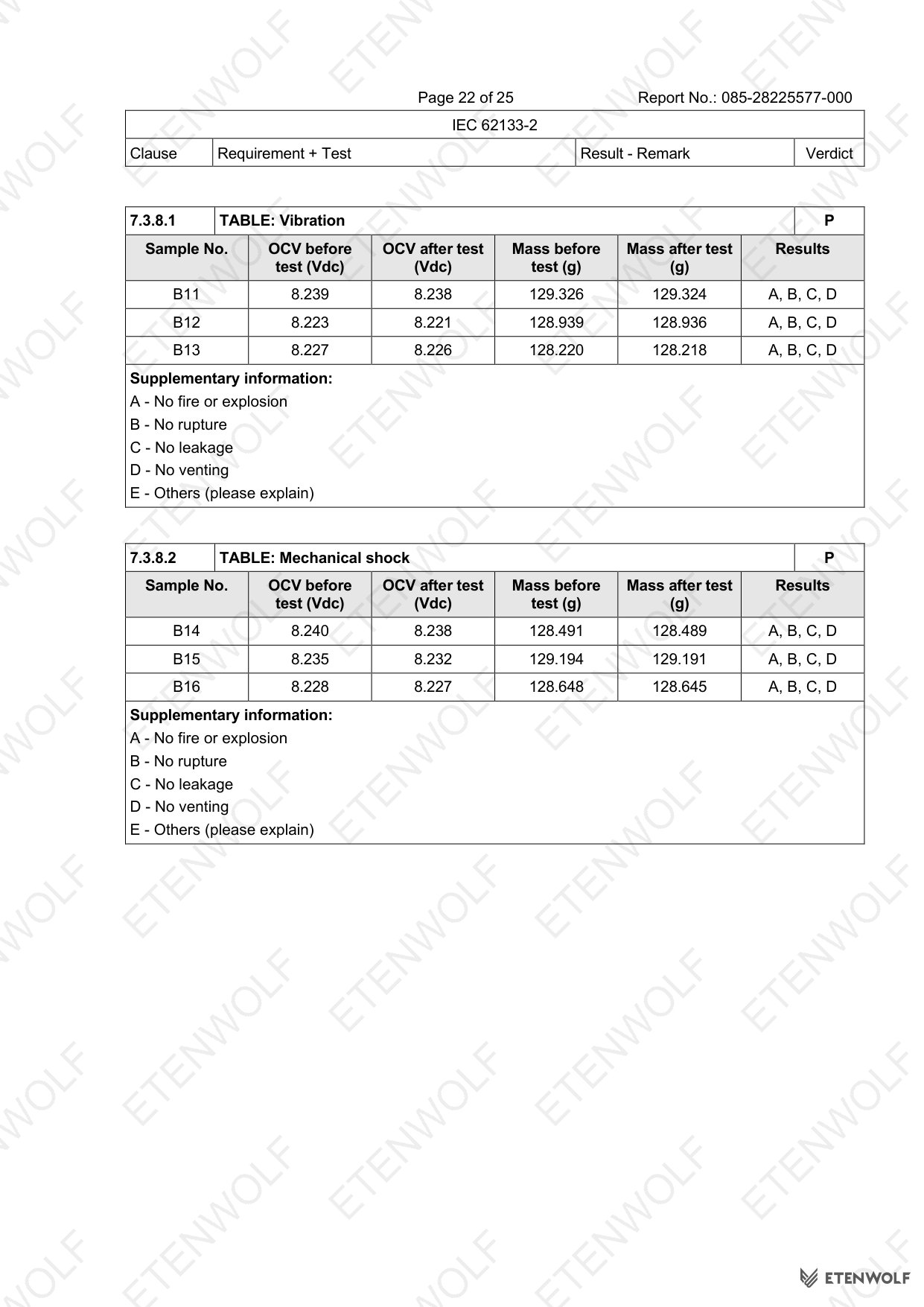

| Clause 7.3.8.1 | Vibration | Pass |
| Clause 7.3.8.2 | Mechanical shock | Pass |

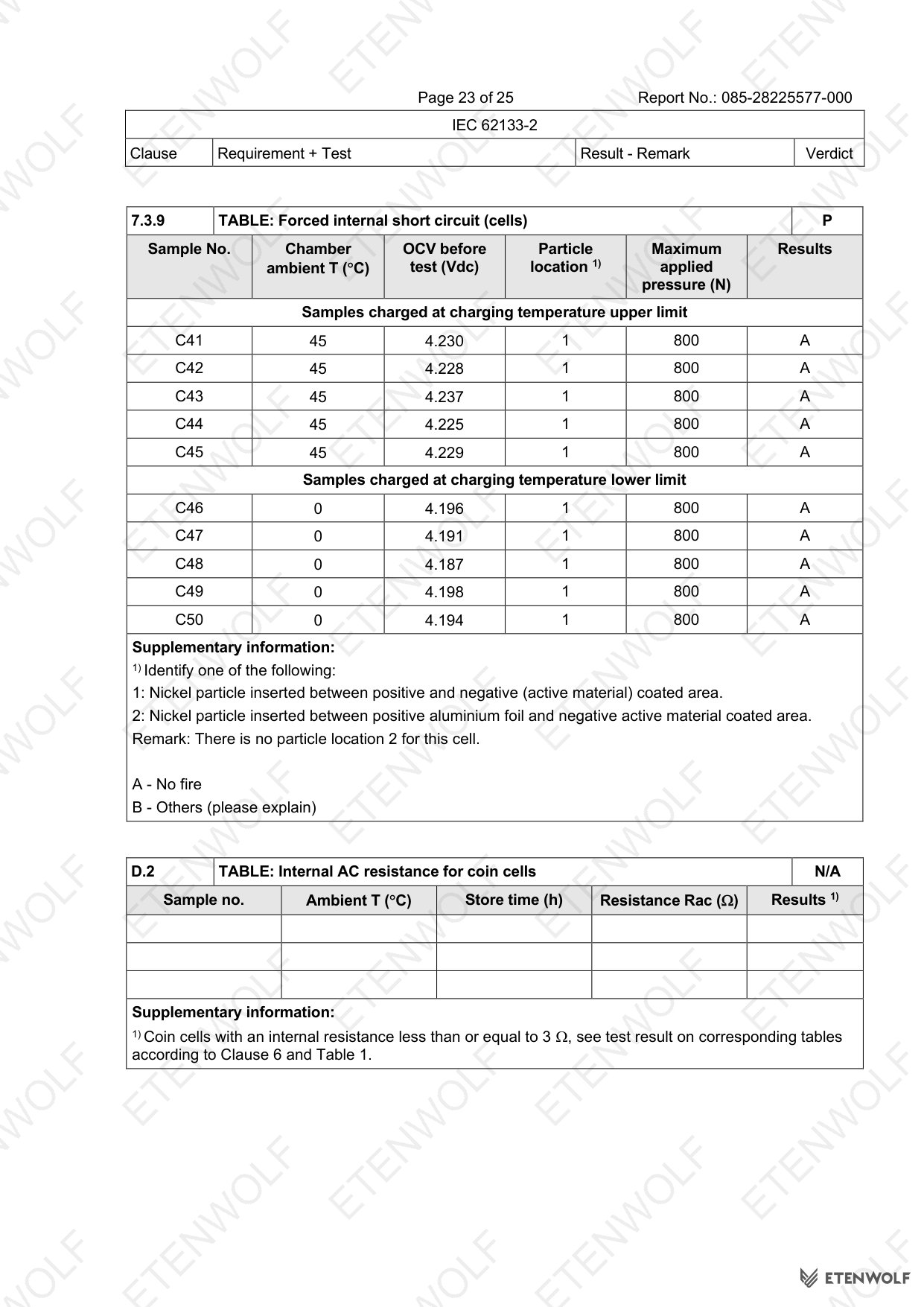

| Clause 7.3.9 | Forced internal short-circuit (cells) | Pass |
Sample quantities were in accordance with Table 1 of IEC 62133-2:2017 and IEC 62133-2:2017/AMD1:2021. The overall conclusion is that the samples comply with the requirements of IEC 62133-2:2017 and IEC 62133-2:2017/AMD1:2021.

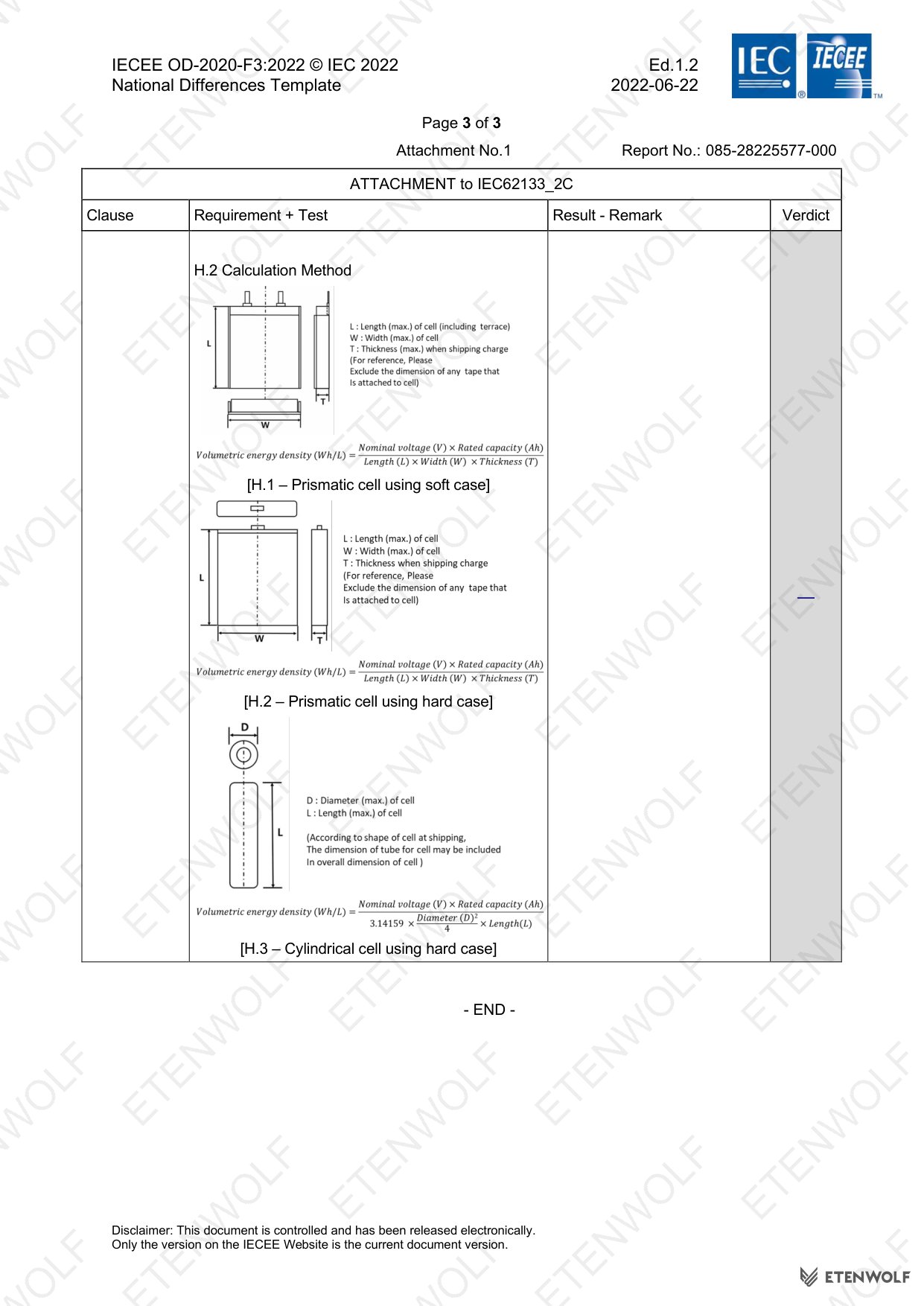

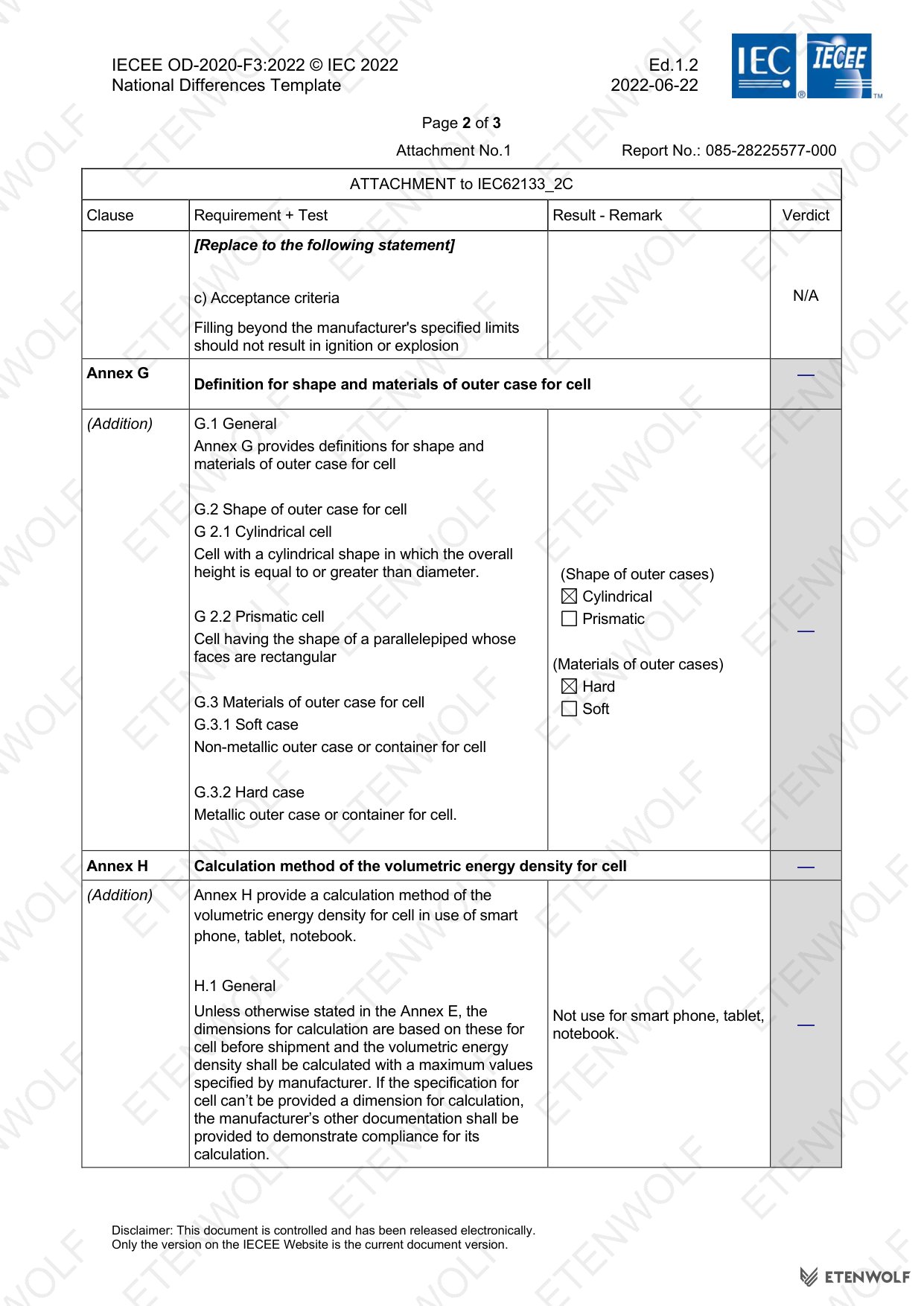

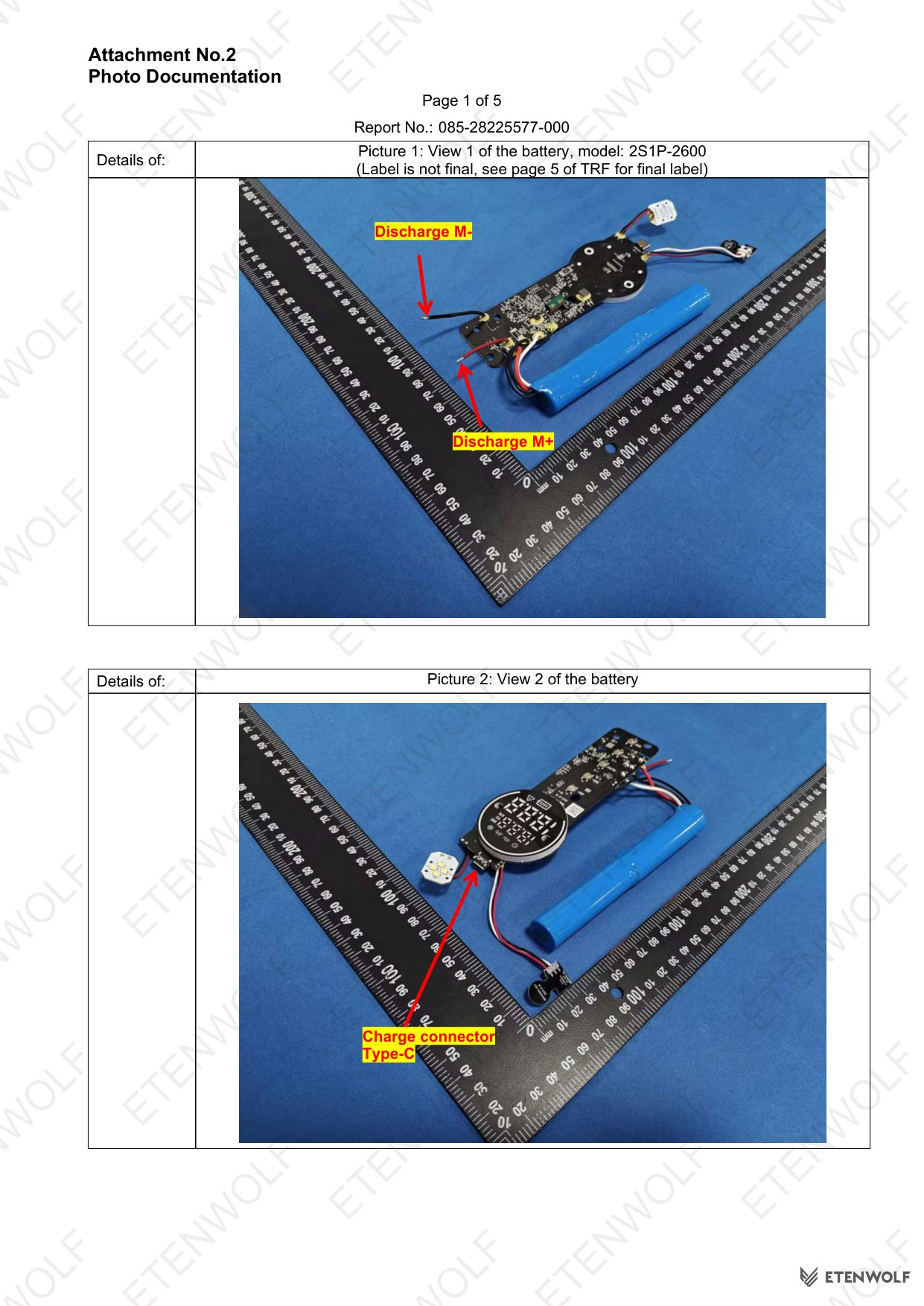

The report includes two attachments: Attachment No. 1 — 3 pages of Republic of Korea National Differences; Attachment No. 2 — 5 pages of Photo Documentation.

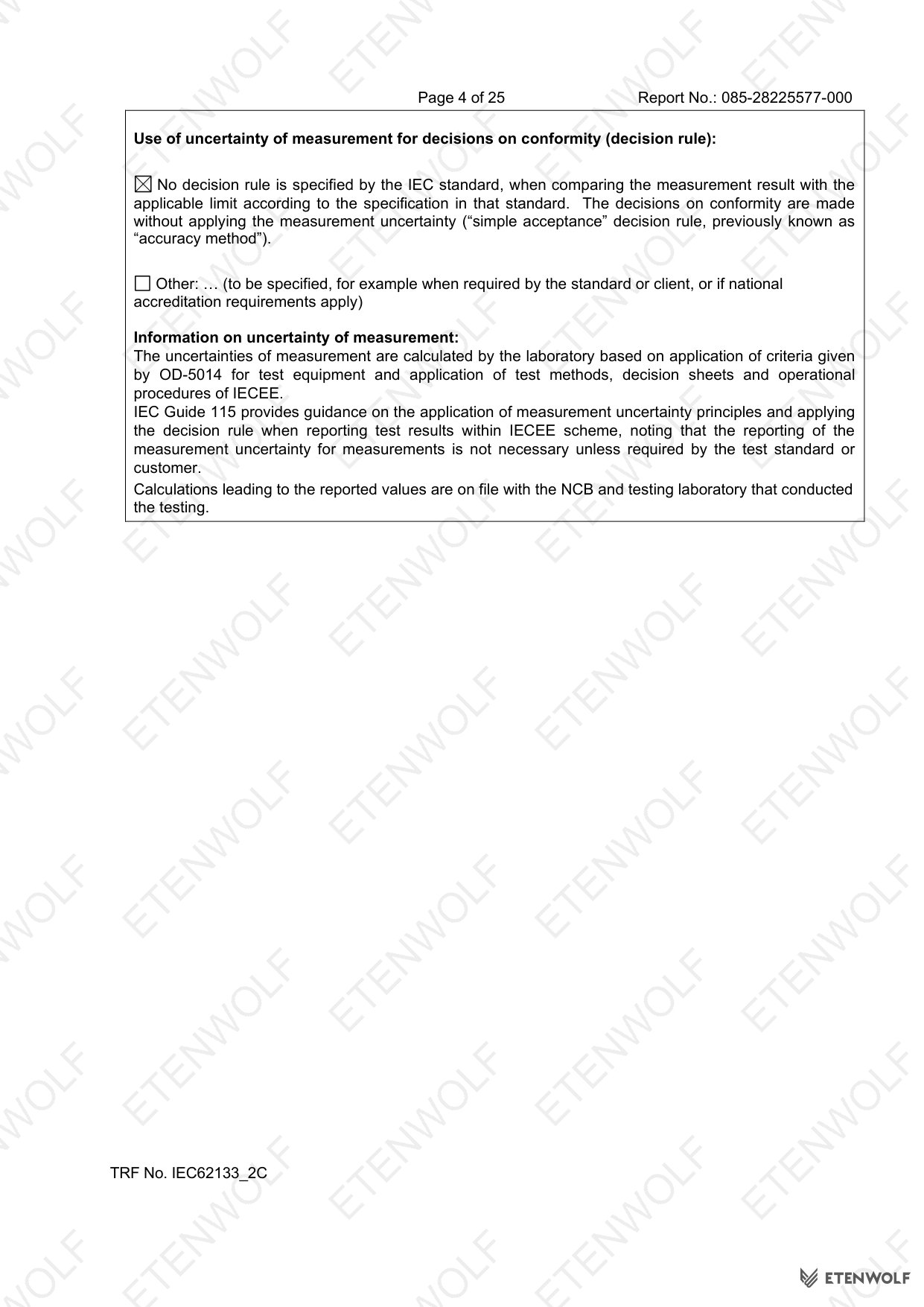

Regarding measurement uncertainty, no decision rule is specified by the IEC standard. Decisions on conformity were made without applying measurement uncertainty, using the simple acceptance (accuracy method) decision rule. Uncertainty calculations are on file with the NCB and testing laboratory.
Standards & Compliance
The ETENWOLF S1 battery pack was evaluated against the following standards and frameworks:
| Standard | Scope |
|---|---|
| IEC 62133-2:2017 | Safety requirements for portable sealed secondary lithium cells and batteries — Part 2: Lithium systems |
| IEC 62133-2:2017/AMD1:2021 | Amendment 1 to IEC 62133-2:2017, updating safety test requirements for lithium systems |
| EN 62133-2:2017/A1:2021 | European harmonized equivalent; compliance confirmed for CENELEC member countries |
| BS EN 62133-2:2017+A1:2021 | British Standard equivalent; compliance confirmed |
| KR National Differences | Republic of Korea national differences evaluated (see Attachment No. 1) |
The test was executed under the IECEE CB Scheme, an international mutual recognition framework that allows a single test report to support certification in multiple member countries. The TRF template used was IECEE OD-2020-F1:2024, Ed.1.7, with the TRF form originated by DEKRA Certification B.V.
National differences were evaluated for CENELEC member countries (EN and BS EN compliance confirmed) and for the Republic of Korea (KR). No additional IECEE member countries with unpublished national differences were identified as not applicable.
Validity & Certification Body

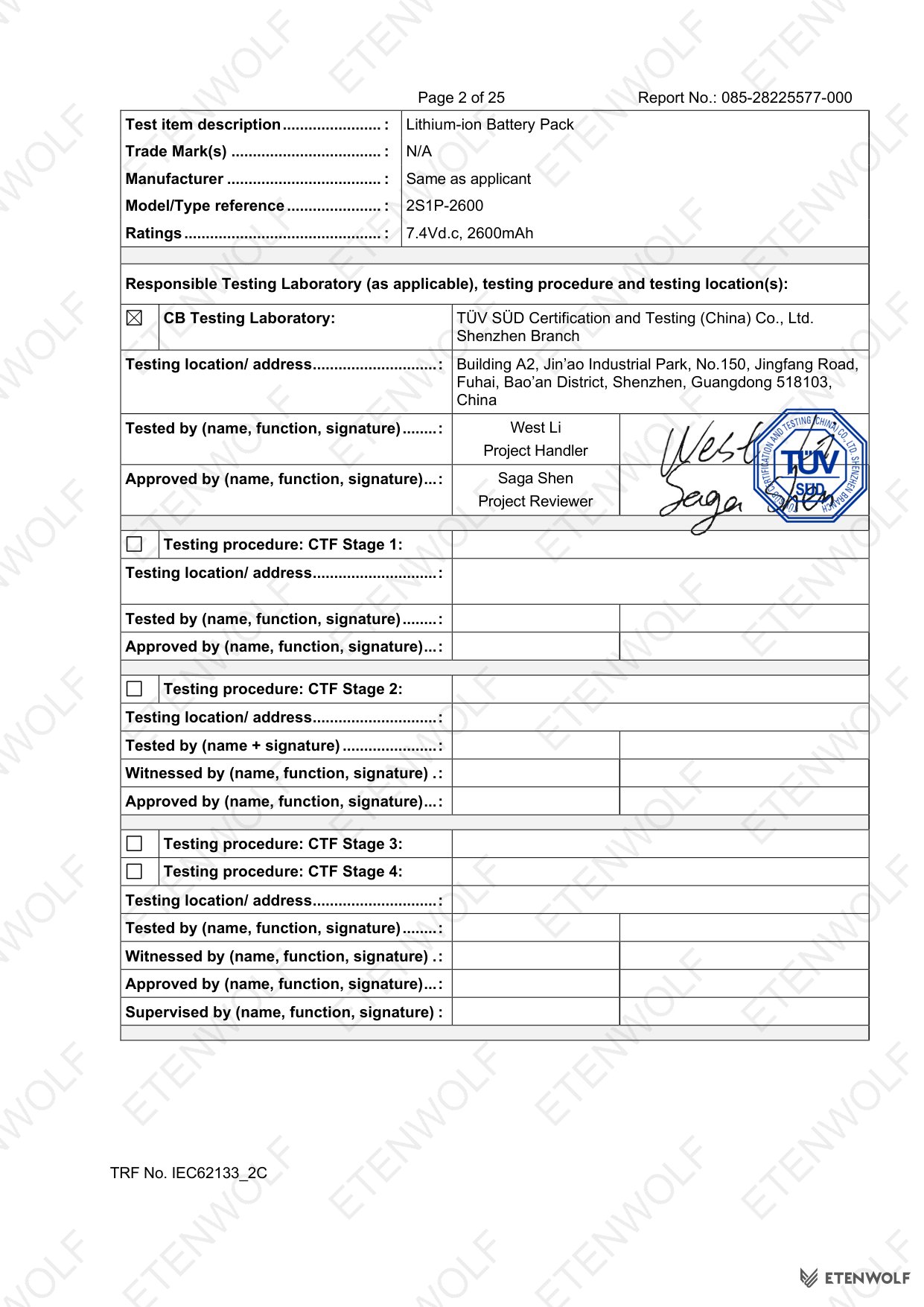

This CB Test Report (No. 085-28225577-000) was issued on 2025-12-16 and is valid only when signed by an approved IECEE CB Testing Laboratory and appended to a CB Test Certificate issued by a National Certification Body (NCB) in accordance with IECEE 02.
| Field | Detail |
|---|---|
| NCB (Responsible) | TÜV SÜD PSB Pte. Ltd. |
| NCB Address | 15 International Business Park, TÜV SÜD@IBP, Singapore 609937 |
| CB Testing Laboratory | TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch |
| Lab Address | Building A2, Jin’ao Industrial Park, No. 150, Jingfang Road, Fuhai, Bao’an District, Shenzhen, Guangdong 518103, China |
| Tested by | West Li, Project Handler |
| Approved by | Saga Shen, Project Reviewer |
| Report Issue Date | 2025-12-16 |
| Test Period | 2025-11-20 to 2025-12-03 |
The report may not be reproduced except in full without the written approval of the issuing NCB. Authenticity of the report and its contents can be verified by contacting TÜV SÜD PSB Pte. Ltd. in Singapore. The test results relate only to the specific object tested and do not constitute a general product certification.
Frequently Asked Questions
- What does the CB Test Report 085-28225577-000 certify for the ETENWOLF S1?
- The report confirms that the lithium-ion battery pack (model 2S1P-2600, rated 7.4 V / 2600 mAh) inside the ETENWOLF S1 portable tire inflator passed all required safety tests under IEC 62133-2:2017 and IEC 62133-2:2017/AMD1:2021. Tests covered short circuit, thermal abuse, crush, overcharge, forced discharge, vibration, mechanical shock, and more.
- Which countries accept this CB Test Report?
- The IECEE CB Scheme is an international mutual recognition arrangement. This report supports certification in all IECEE member countries. Compliance with EN 62133-2:2017/A1:2021 and BS EN 62133-2:2017+A1:2021 was confirmed for CENELEC member countries (covering most of Europe), and Republic of Korea (KR) national differences were also evaluated.
- Who conducted the testing for the ETENWOLF S1 battery pack?
- Testing was performed by TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch, under the oversight of NCB TÜV SÜD PSB Pte. Ltd. in Singapore. The report was tested by West Li (Project Handler) and approved by Saga Shen (Project Reviewer).
- Is the IEC 62133-2 CB certificate the same as a UN38.3 transport certification?
- No. IEC 62133-2 covers electrical safety for portable lithium battery use, while UN 38.3 covers transport safety requirements for lithium batteries (vibration, altitude simulation, thermal, shock, etc.). The ETENWOLF S1 may hold separate UN38.3 certification for shipping compliance.
Related Documents
For a comprehensive compliance picture of the ETENWOLF S1 portable tire inflator, the following related certification documents are relevant:
- UN 38.3 Test Report — Transport safety testing for the lithium-ion battery pack, required for air and ground shipping of lithium battery products.
- CE Declaration of Conformity — Required for the European market, covering Low Voltage Directive (LVD), EMC Directive, and Battery Regulation compliance.
- FCC ID Certification — Required for the US market, covering radio frequency and electromagnetic emissions of the inflator and any wireless features.
- KC Certification (Korea) — Republic of Korea electrical safety certification; national differences for KR were already evaluated within this CB report.
- RoHS / REACH Compliance Report — Confirms the product and its battery pack are free from restricted hazardous substances per RoHS Directive 2011/65/EU and REACH Regulation.
- IEC 62133-1 Test Report — Safety requirements for nickel systems, relevant if any variant of the product uses NiMH cells.
- CB Test Certificate (CBC) — The formal certificate issued by NCB TÜV SÜD PSB Pte. Ltd. that this test report (085-28225577-000) is appended to, completing the CB Scheme certification.

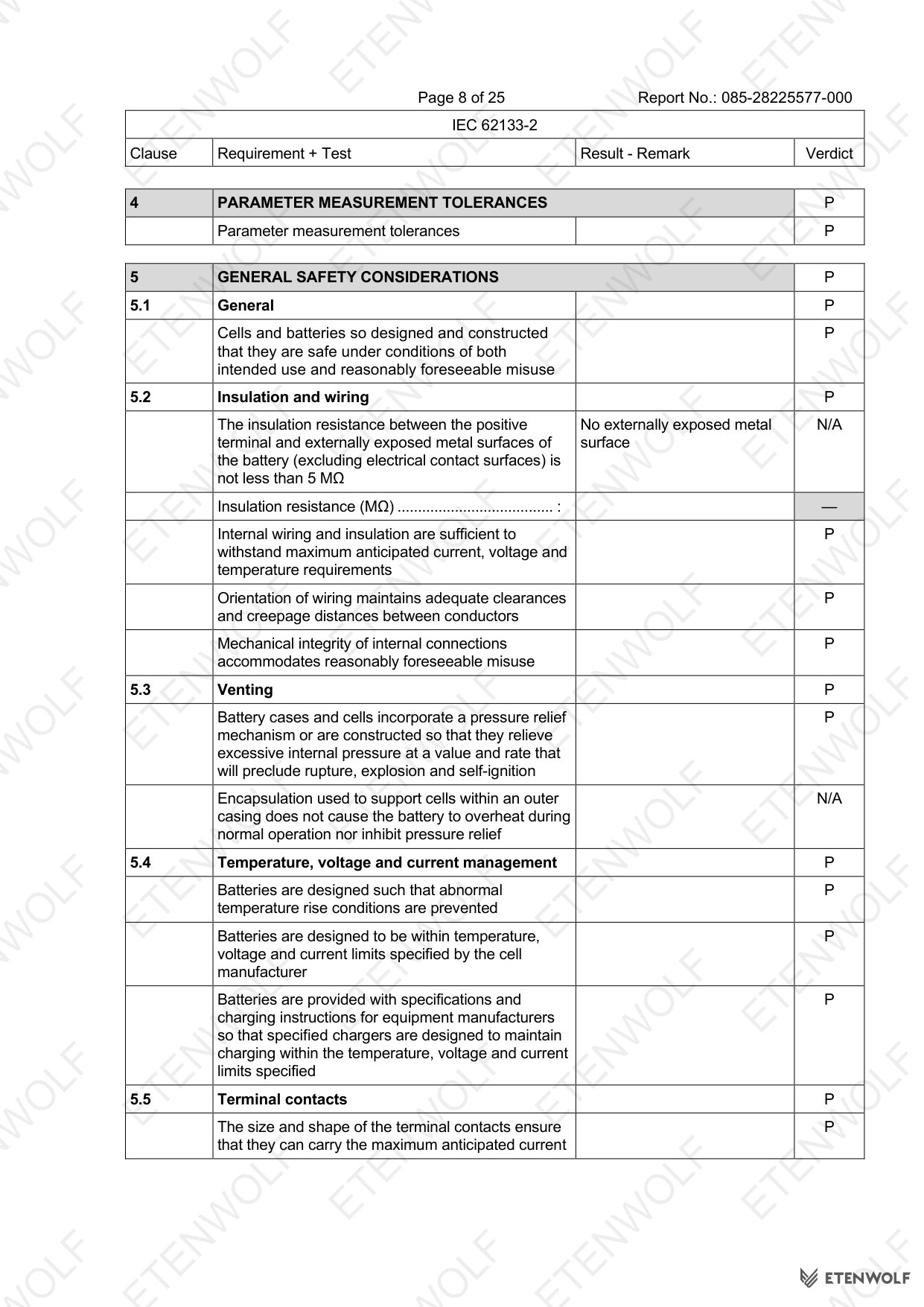

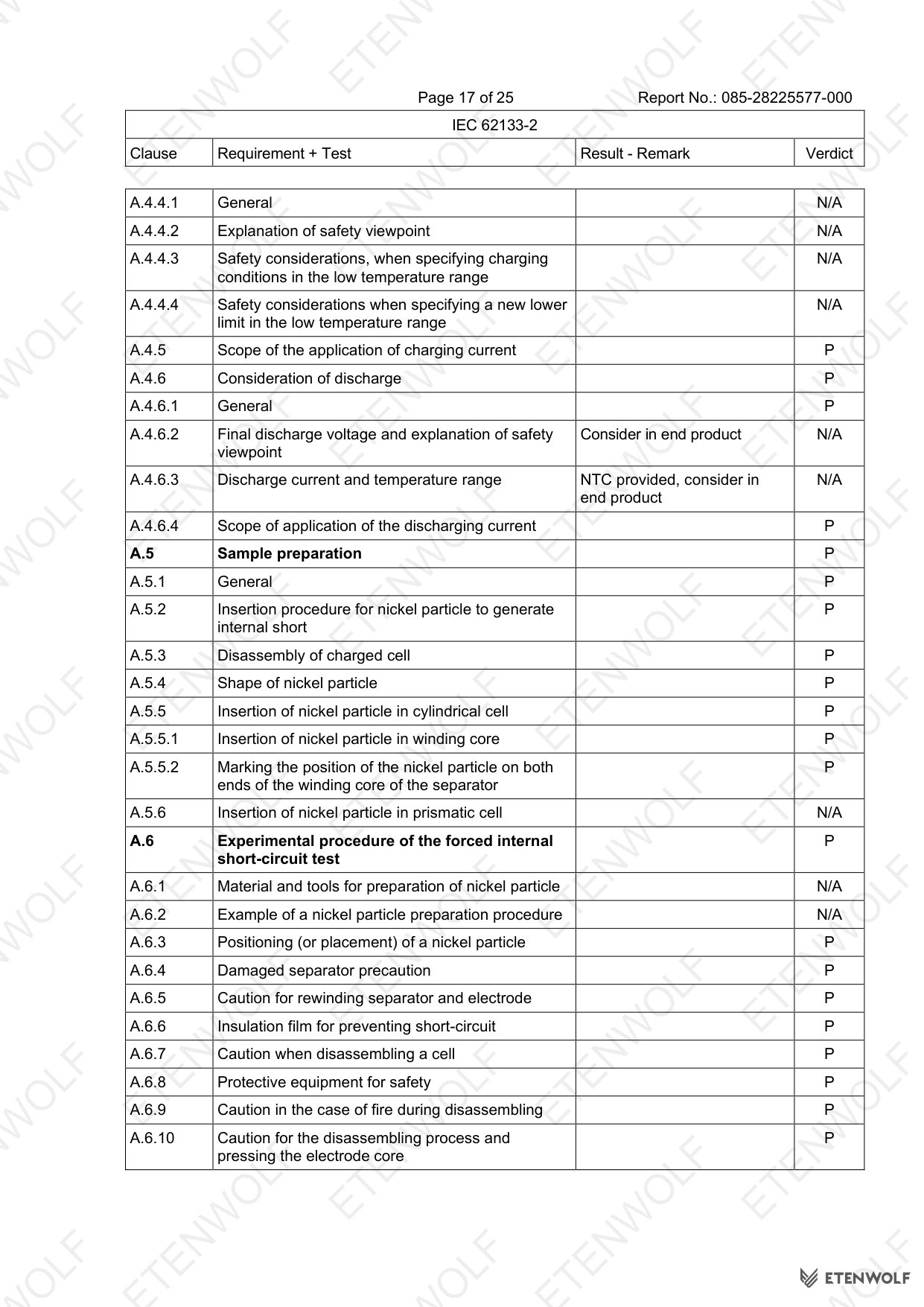

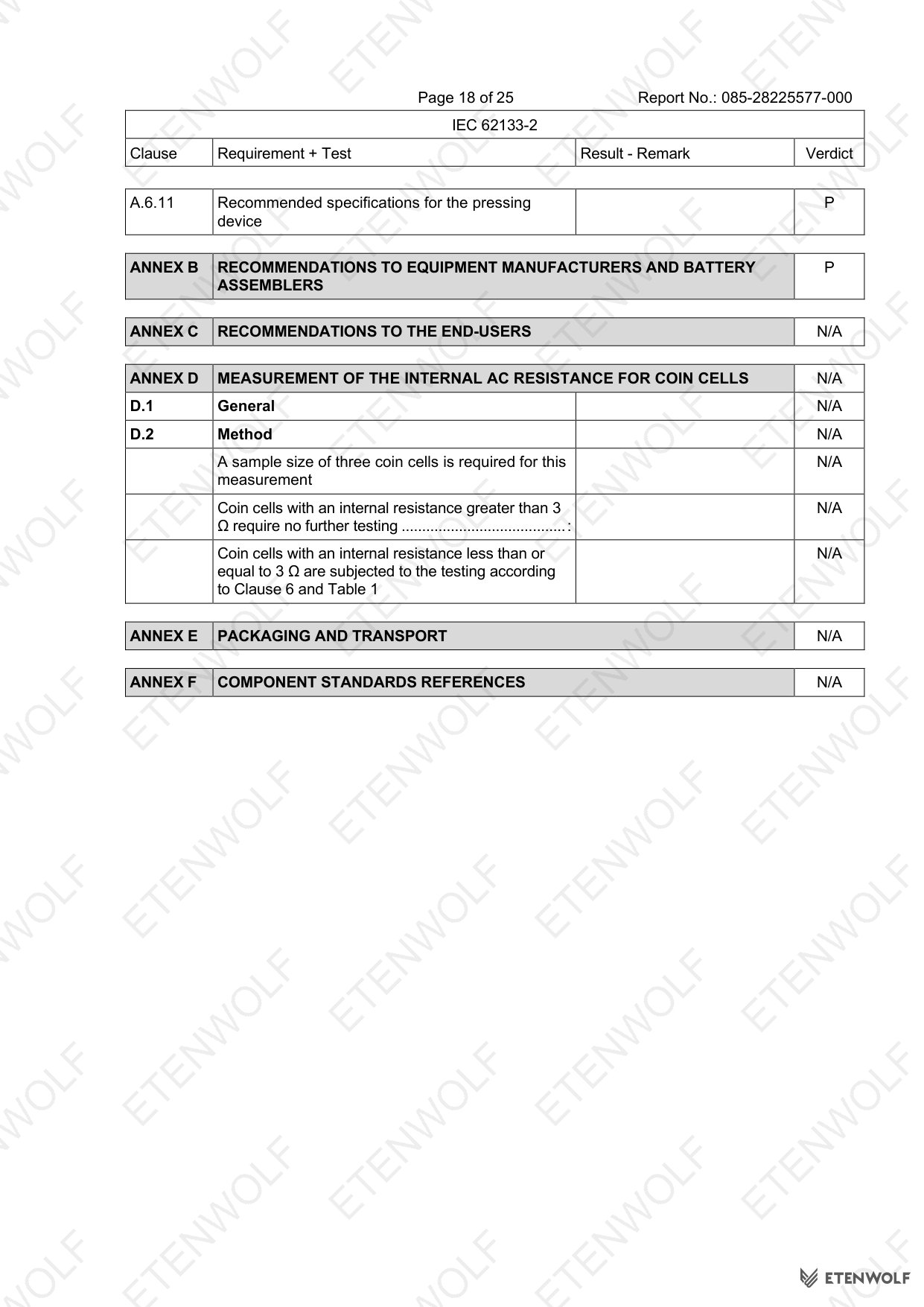

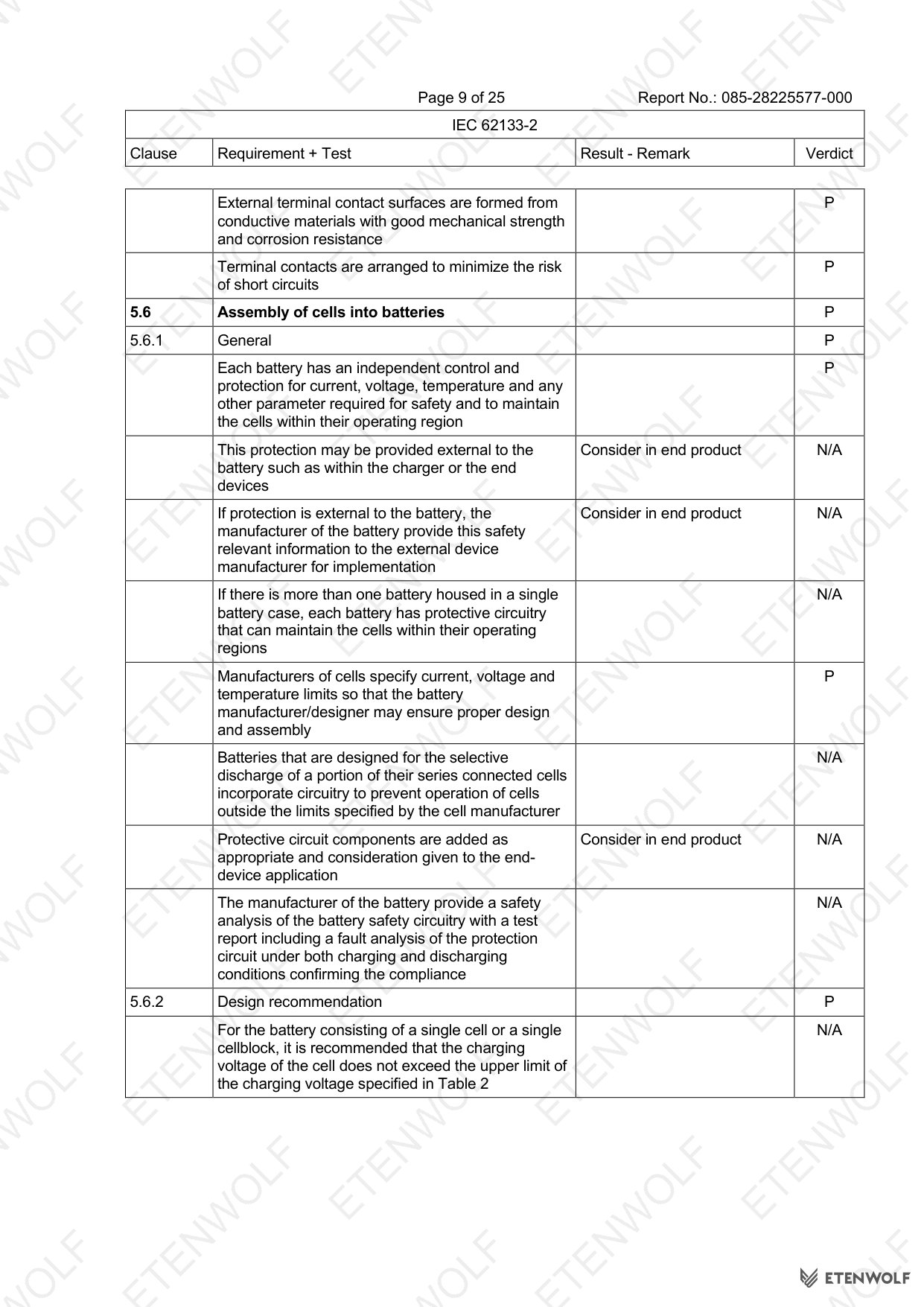

Document Pages
