Document Overview This article summarises Test Report WTH25X07183678J, a CE Low Voltage Directive (CE-LVD) compliance document issued by Waltek Testing Group (Shenzhen) Co., Ltd. on 2025-07-23. The report covers safety and electromagnetic-field measurement testing of the ETENWOLF Vortex S6 heavy-duty cordless inflator pump, and was…
- Document type
- Certification Report
- Prepared by
- Michelle Torres
- Published
- Last reviewed
- Topics
- European Union: CE / RoHS / REACH / WEEE
Document Overview
This article summarises Test Report WTH25X07183678J, a CE Low Voltage Directive (CE-LVD) compliance document issued by Waltek Testing Group (Shenzhen) Co., Ltd. on 2025-07-23. The report covers safety and electromagnetic-field measurement testing of the ETENWOLF Vortex S6 heavy-duty cordless inflator pump, and was prepared in accordance with the applicable EU harmonised standards for household and similar electrical appliances. The test was conducted between 2025-07-14 and 2025-07-22, with the sample received on 2025-07-14. The overall test result is Pass.
The issuing laboratory, Waltek Testing Group (Shenzhen) Co., Ltd., is located at 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70, Bao’an District, Shenzhen, Guangdong, China. The report form number is WTX_EN IEC 60335_1_2023B and it spans 130 pages in full. Results apply solely to the tested sample(s) and the report may not be reproduced in part without prior written permission from Waltek.
Product Information
The ETENWOLF Vortex S6 is a heavy-duty cordless inflator pump manufactured and supplied by Guangdong Bestek Technology Co., Ltd., located at No. 1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China. The following table summarises the key product particulars recorded in the test report.
| Attribute | Detail |
|---|---|
| Product Name | Inflator Pump |
| Model Number | S6 |
| Brand / Trademark | ETENWOLF |
| Applicant | Guangdong Bestek Technology Co., Ltd. |
| Manufacturer | Guangdong Bestek Technology Co., Ltd. |
| Country of Manufacture | China |
| Input Ratings | 5 V 3 A / 9 V 3 A / 12 V 3 A / 15 V 3 A / 20 V 2.25 A |
| Supply Connection | DC Connector |
| Equipment Class | Class III |
| IP Rating | IPX0 |
| Installation & Use | Portable appliance, indoor use only |

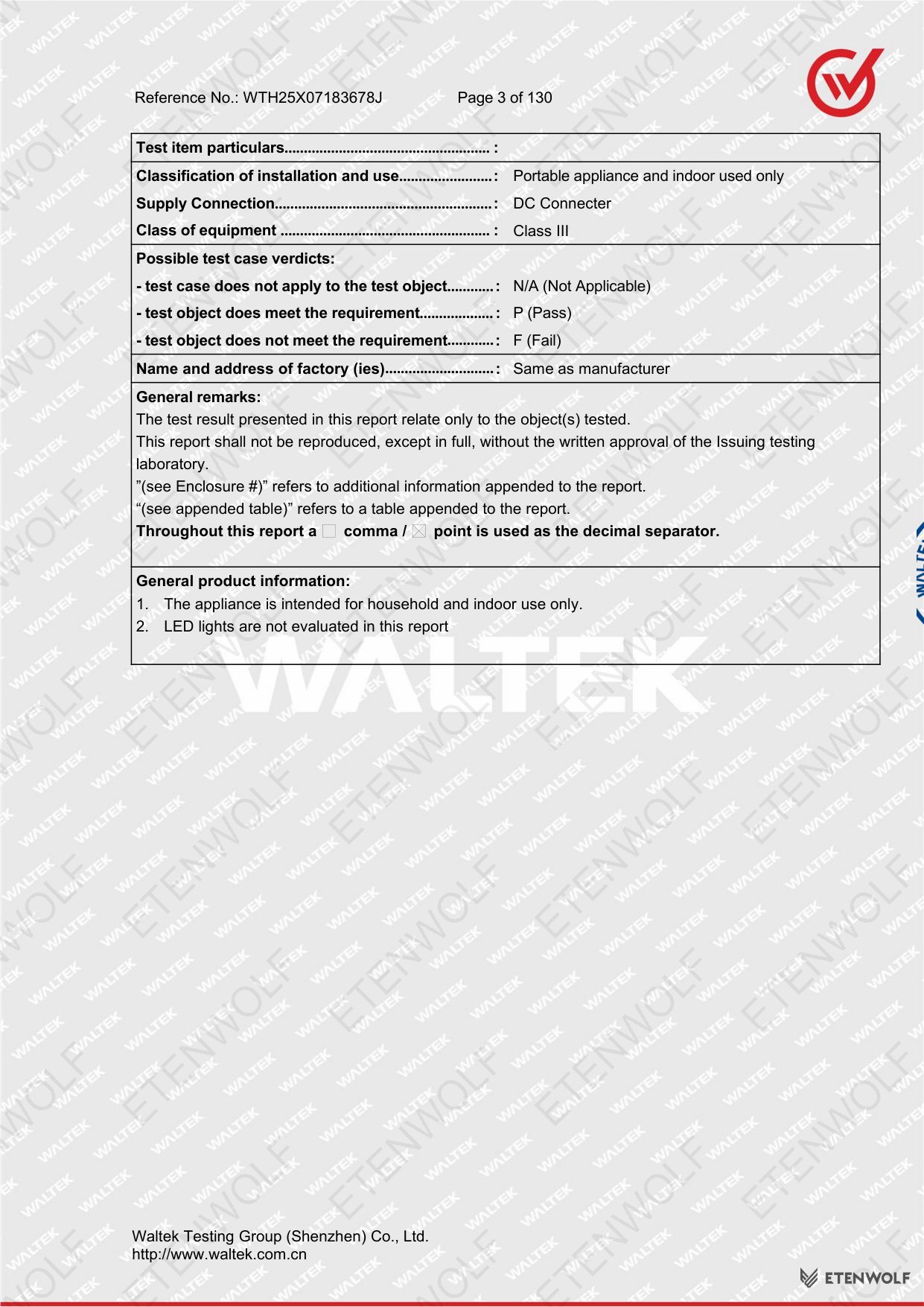

The appliance is intended for household and indoor use only. LED lighting components integrated into the unit were not evaluated within the scope of this report.
Key Details

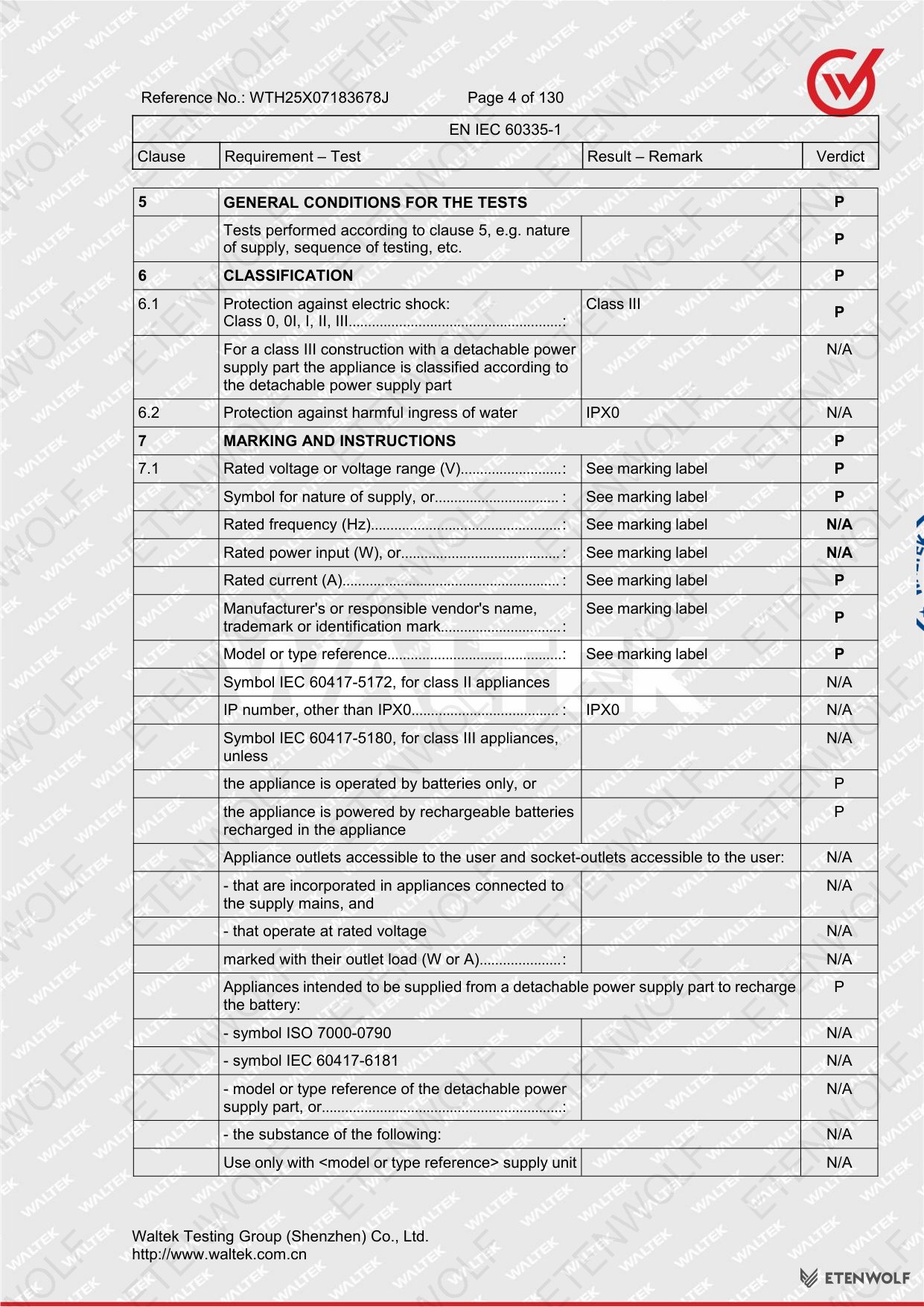

The table below reproduces the principal test clause results from the CE-LVD report for the ETENWOLF Vortex S6, drawn from the EN IEC 60335-1:2023+A11:2023 test schedule.
| Clause | Test Area | Key Finding | Verdict |
|---|---|---|---|
| 5 | General Conditions for the Tests | Nature of supply, sequence of testing confirmed correct | Pass |
| 6 | Classification | Equipment classified as Class III; protection against electric shock confirmed; water ingress protection IPX0 noted as N/A | Pass |
| 6.1 | Protection Against Electric Shock | Class III construction verified | Pass |
| 7 | Marking and Instructions | Rated voltage, current, manufacturer identification, model reference all present on marking label | Pass |
| 7.1 | Label Content | Input ratings (5 V–20 V multi-mode), manufacturer address, importer placeholder, CE mark (min. 5 mm), WEEE mark (min. 7 mm) confirmed | Pass |

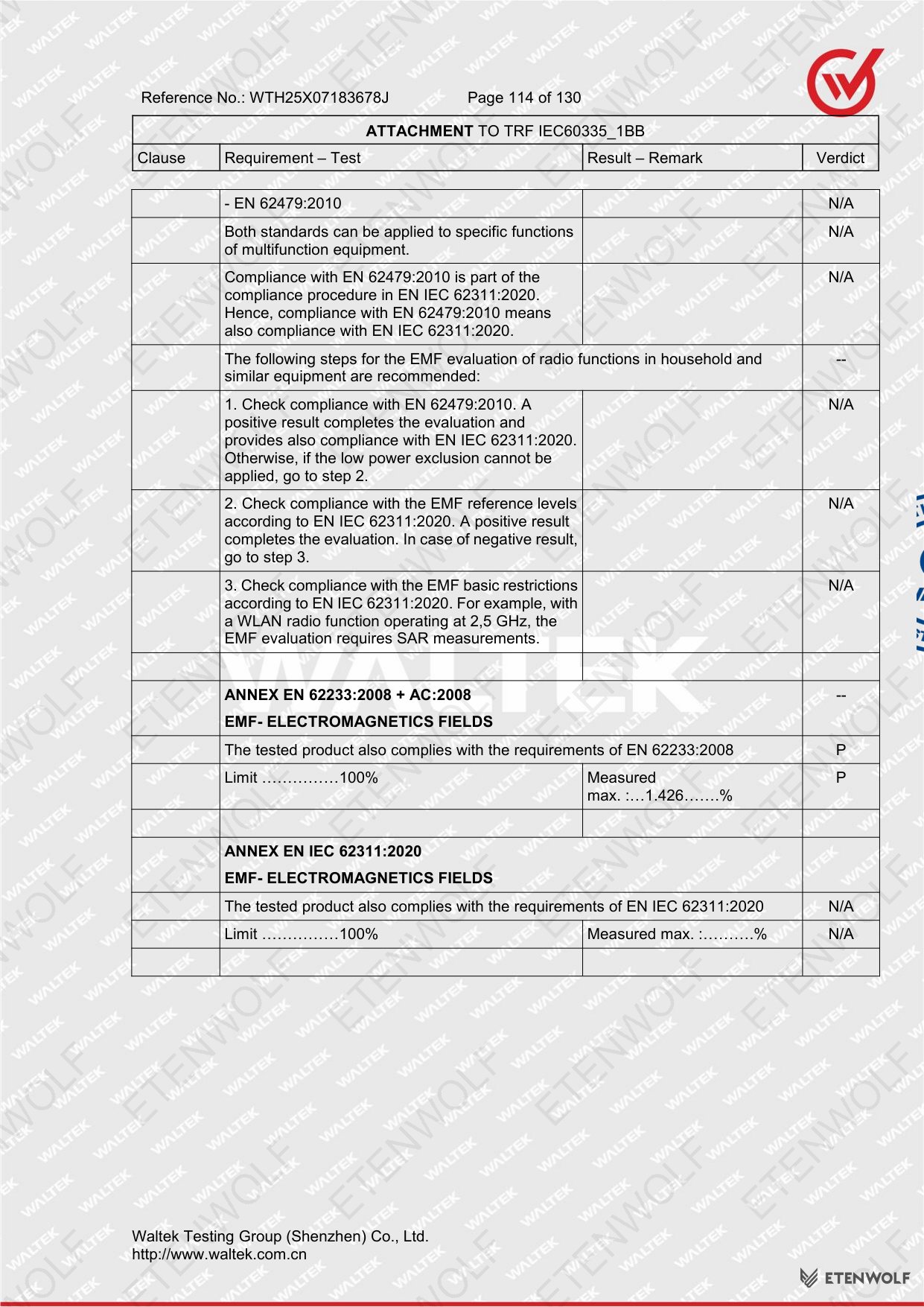

| EN 62233:2008 | Electromagnetic Field Measurement | EMF exposure levels for household appliances assessed relative to human exposure limits | Pass |
Verdict key: P = Pass; F = Fail; N/A = Not Applicable to this product configuration.

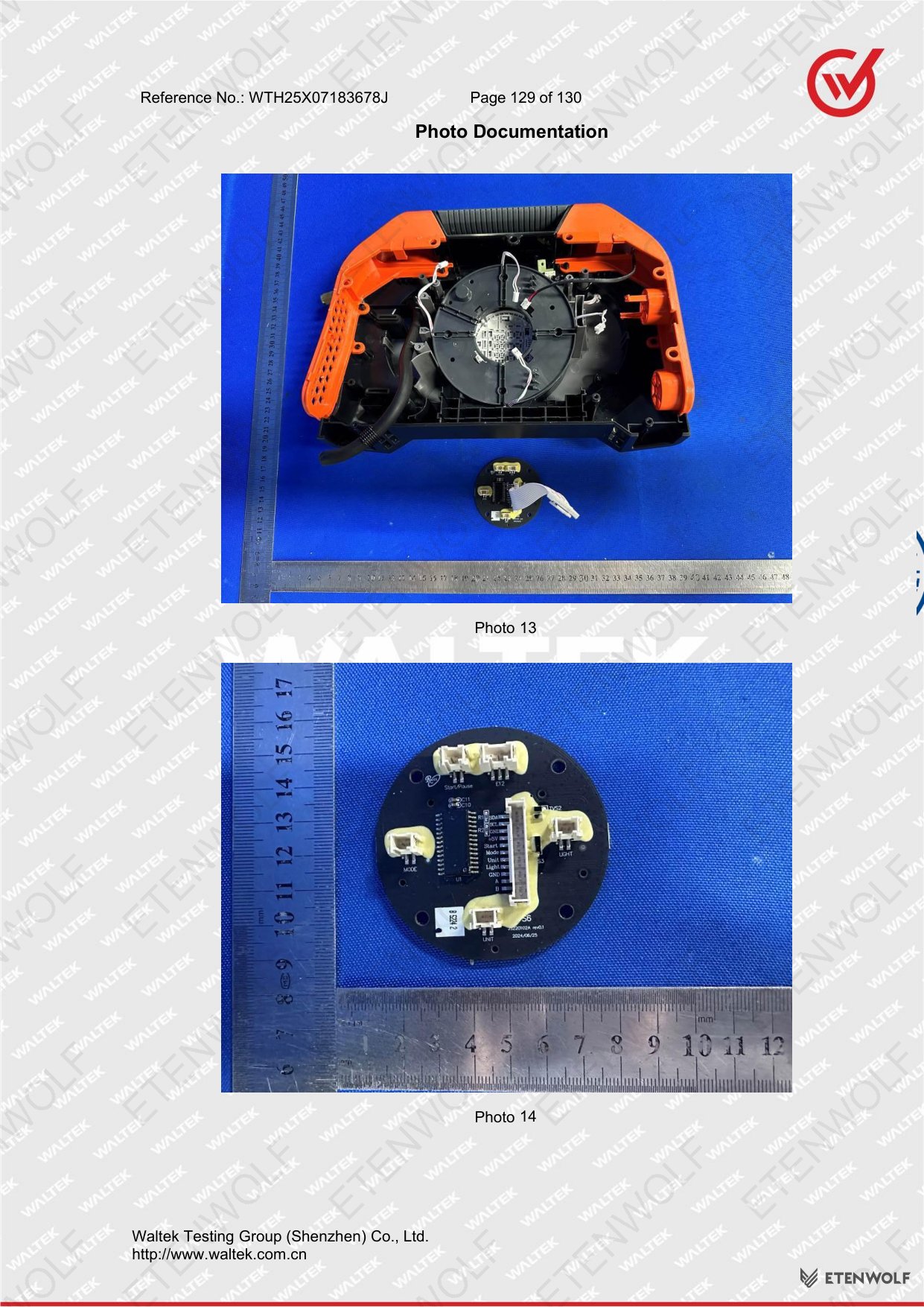

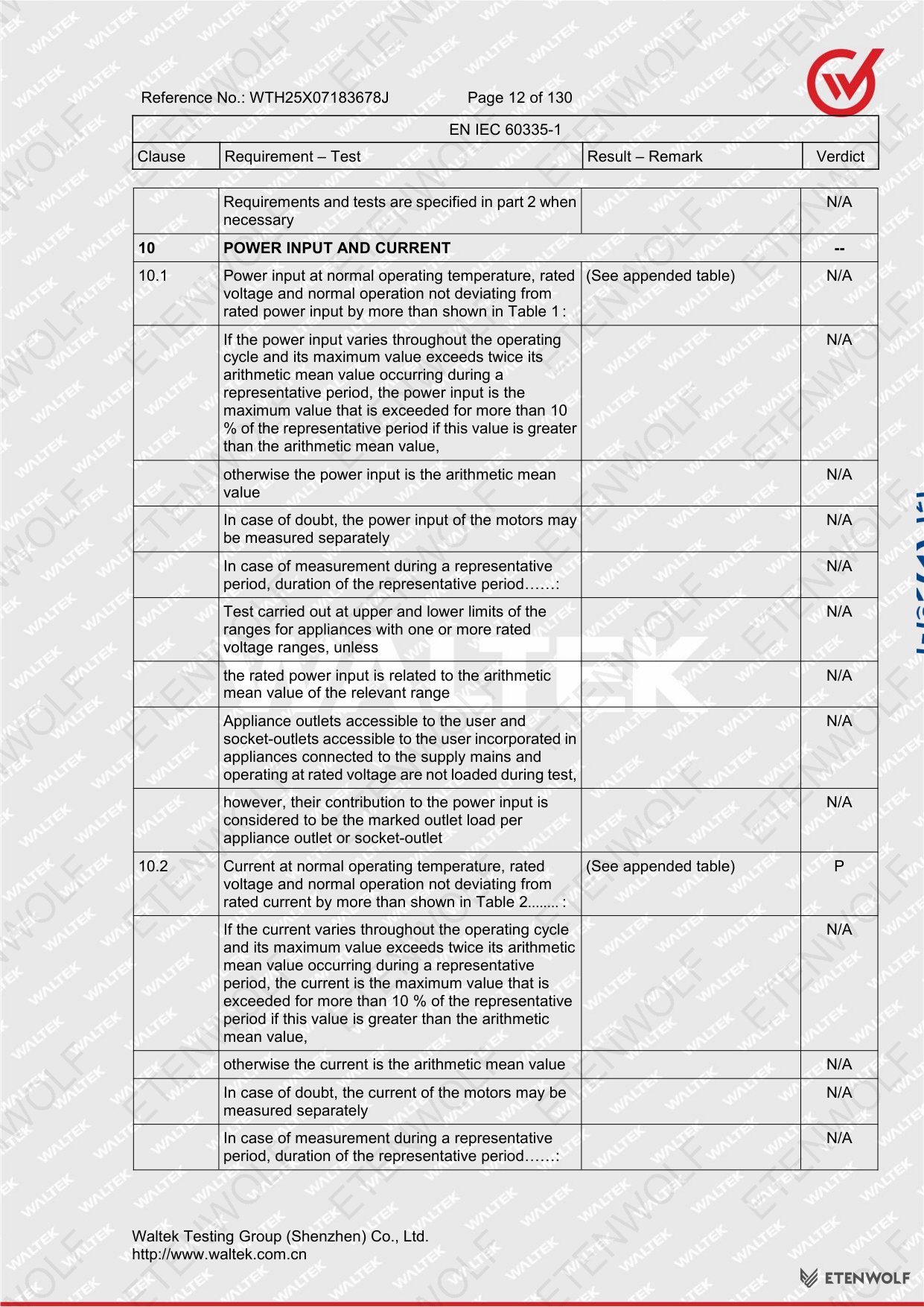

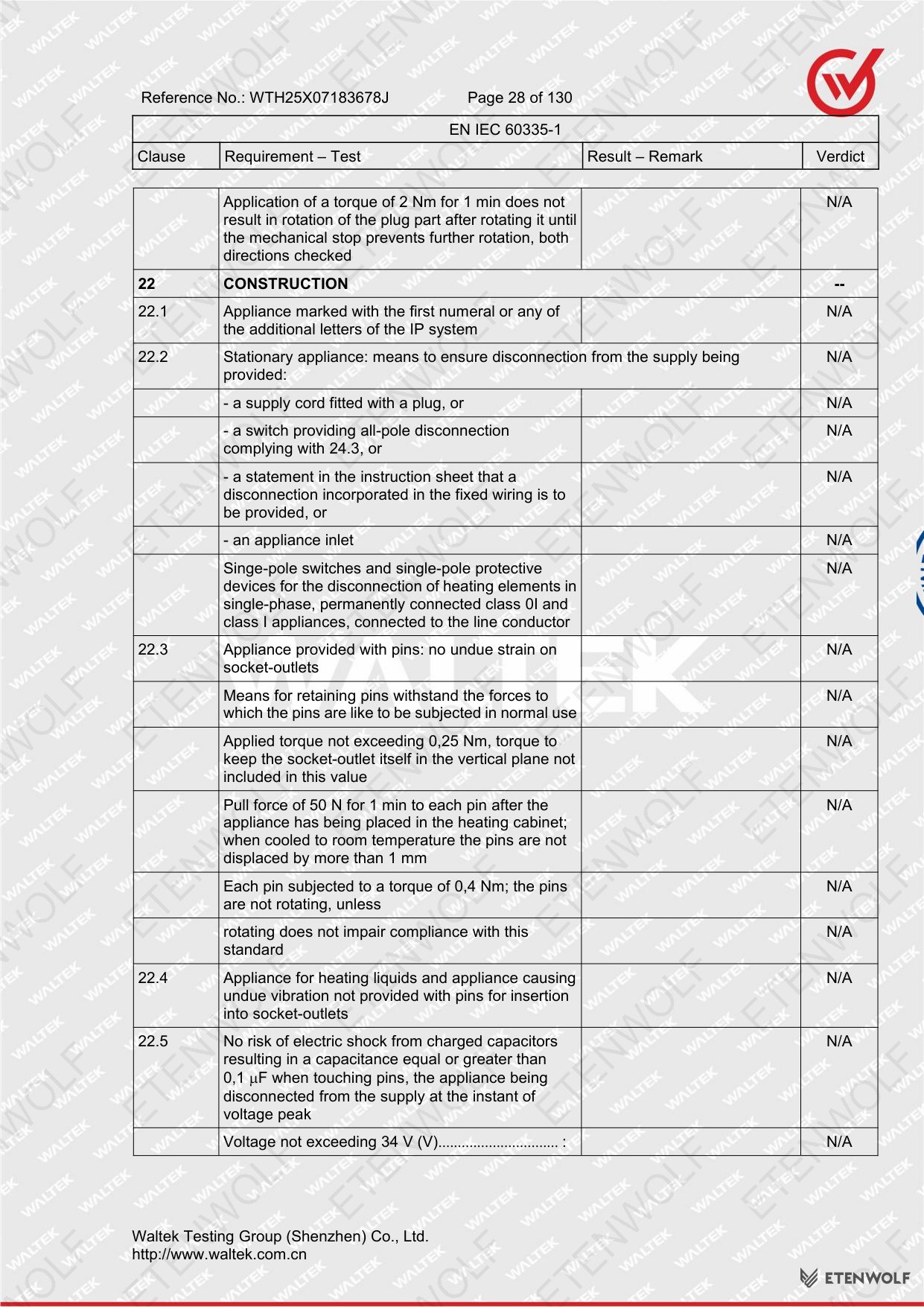

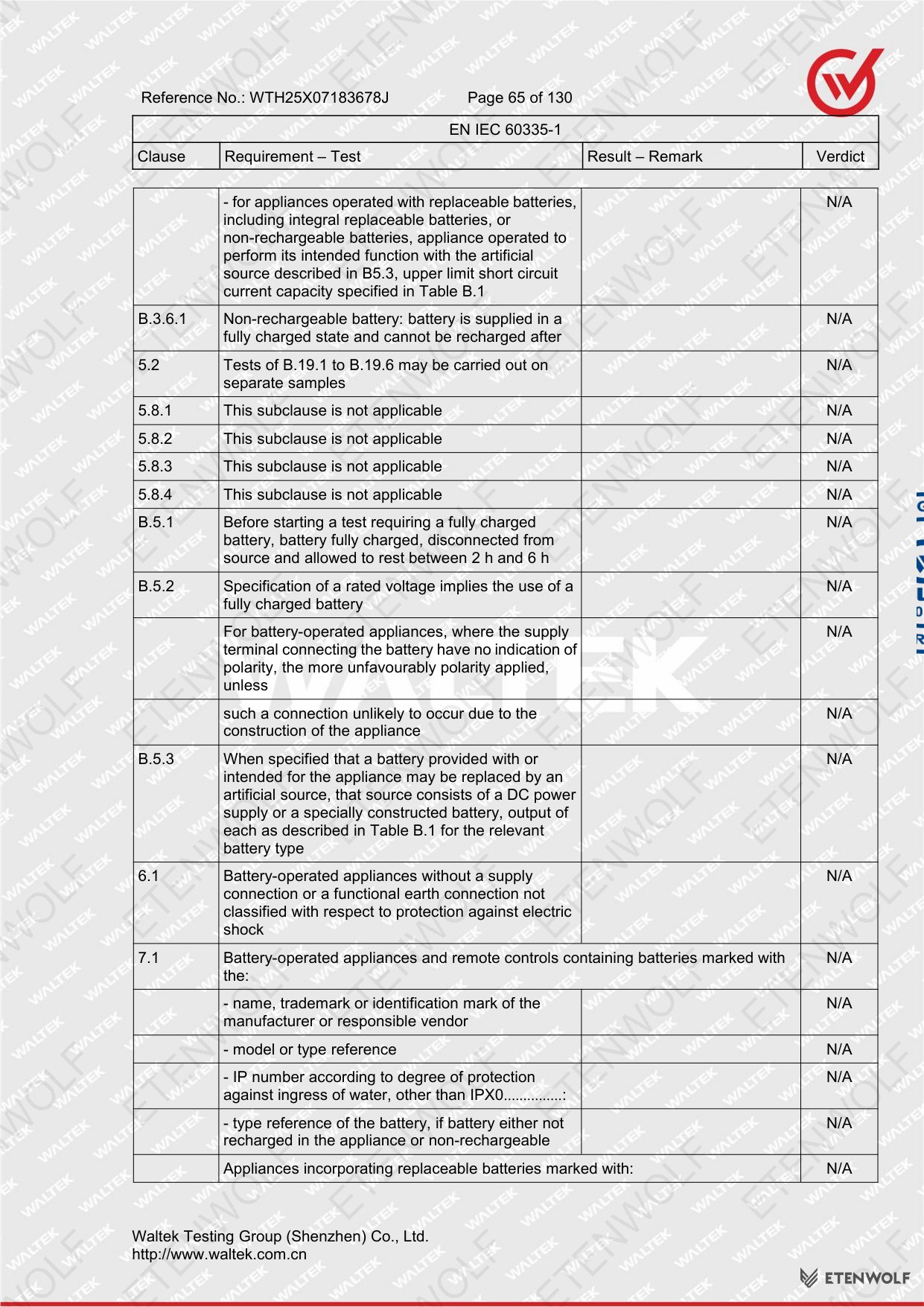

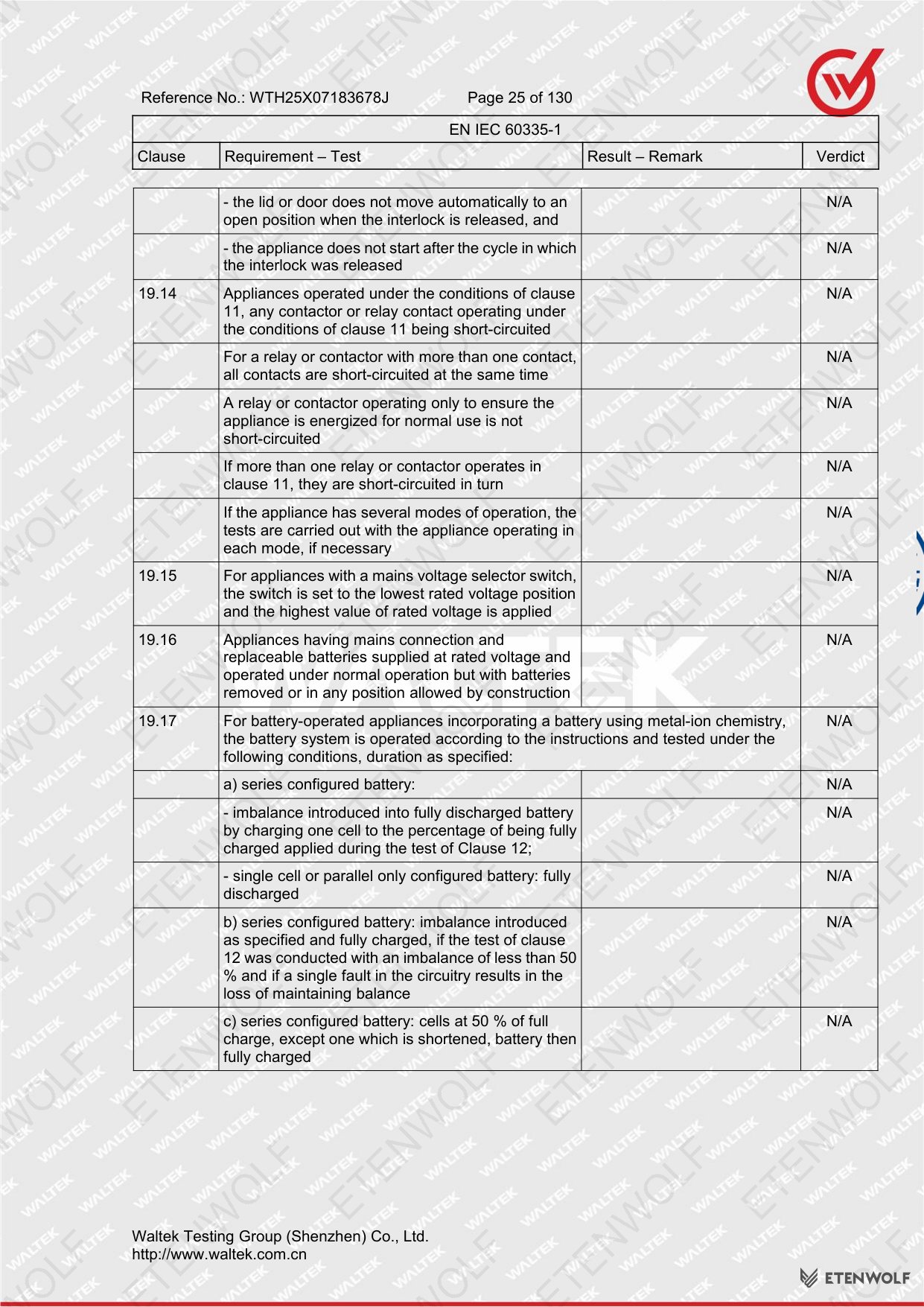

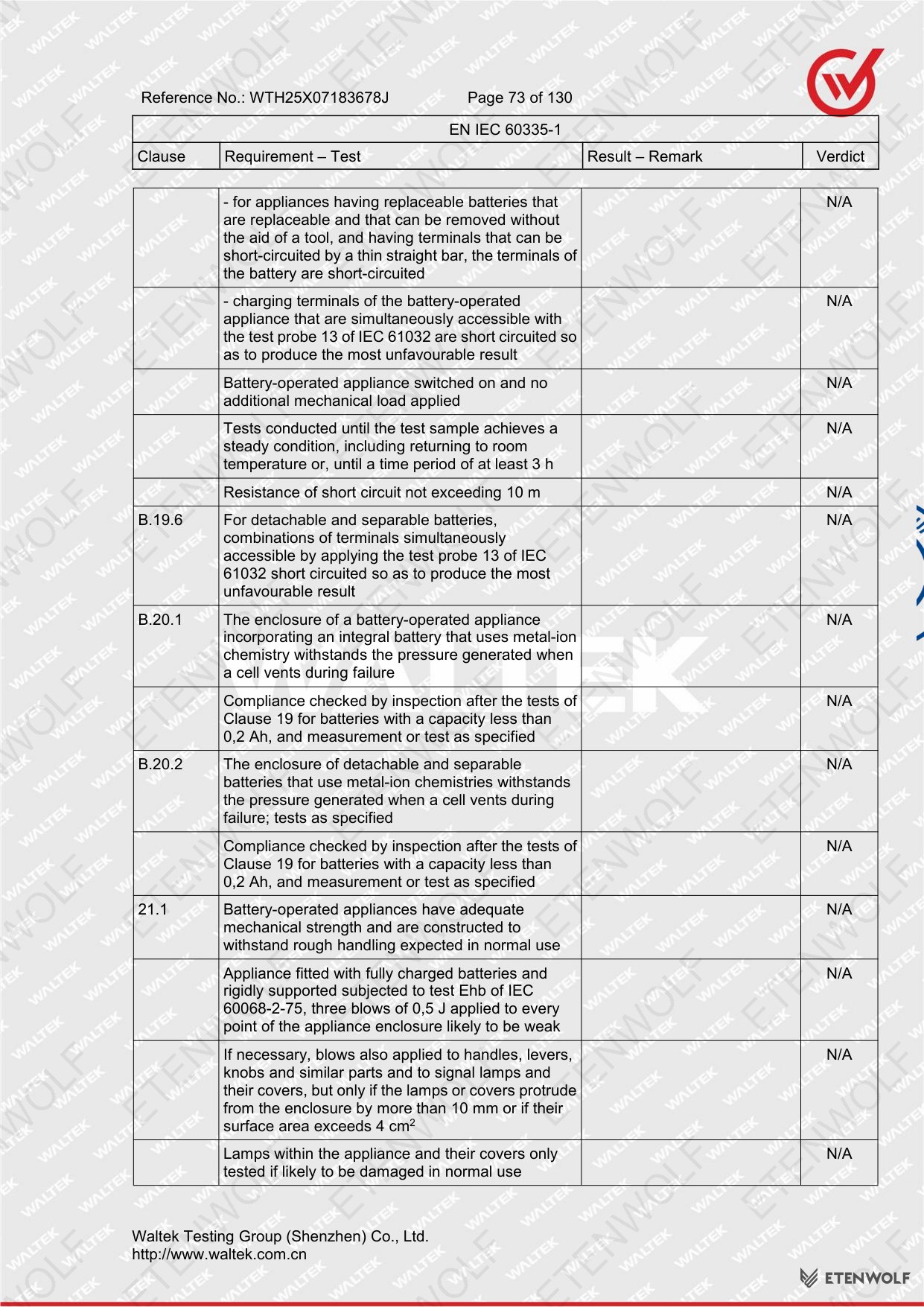

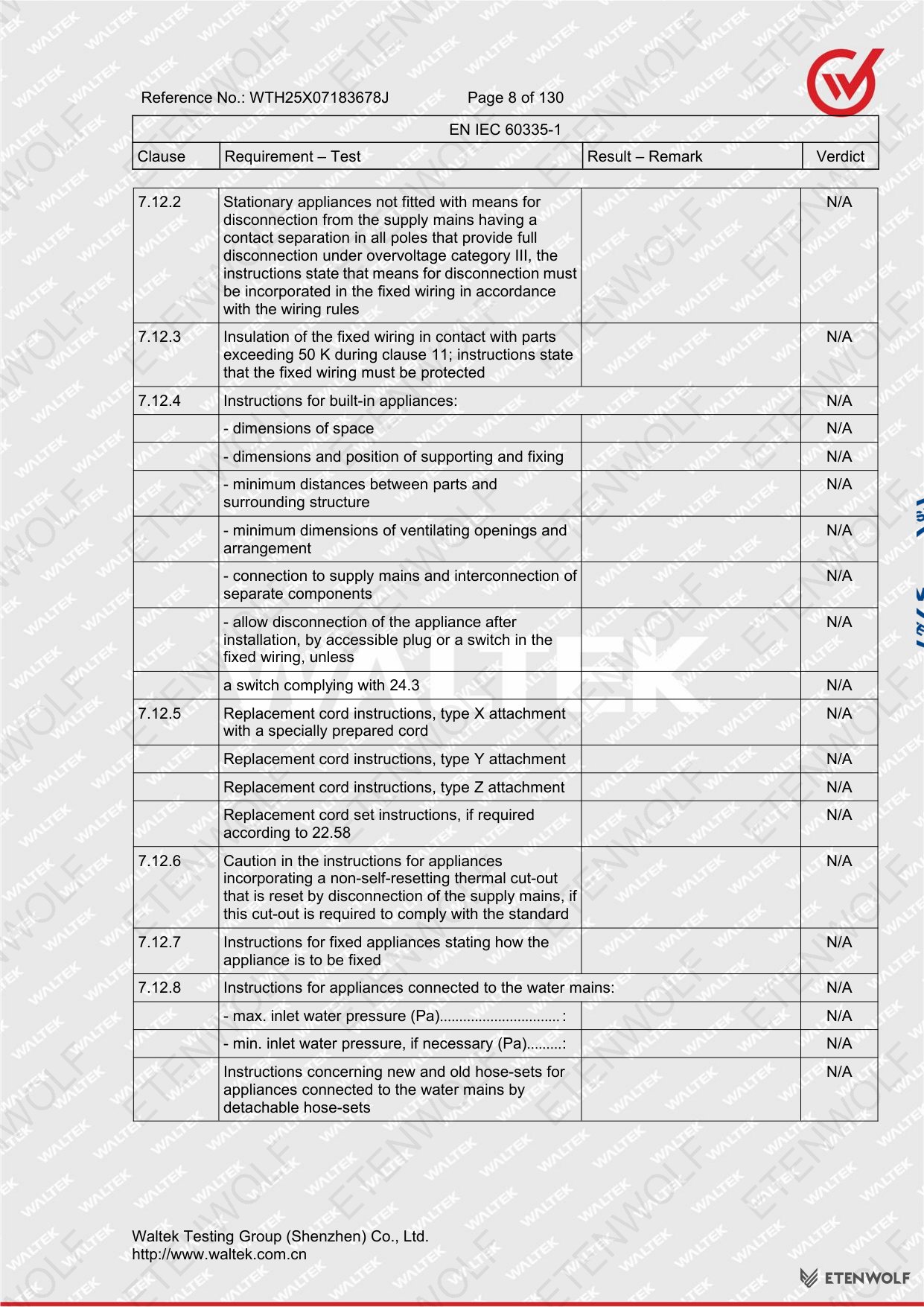

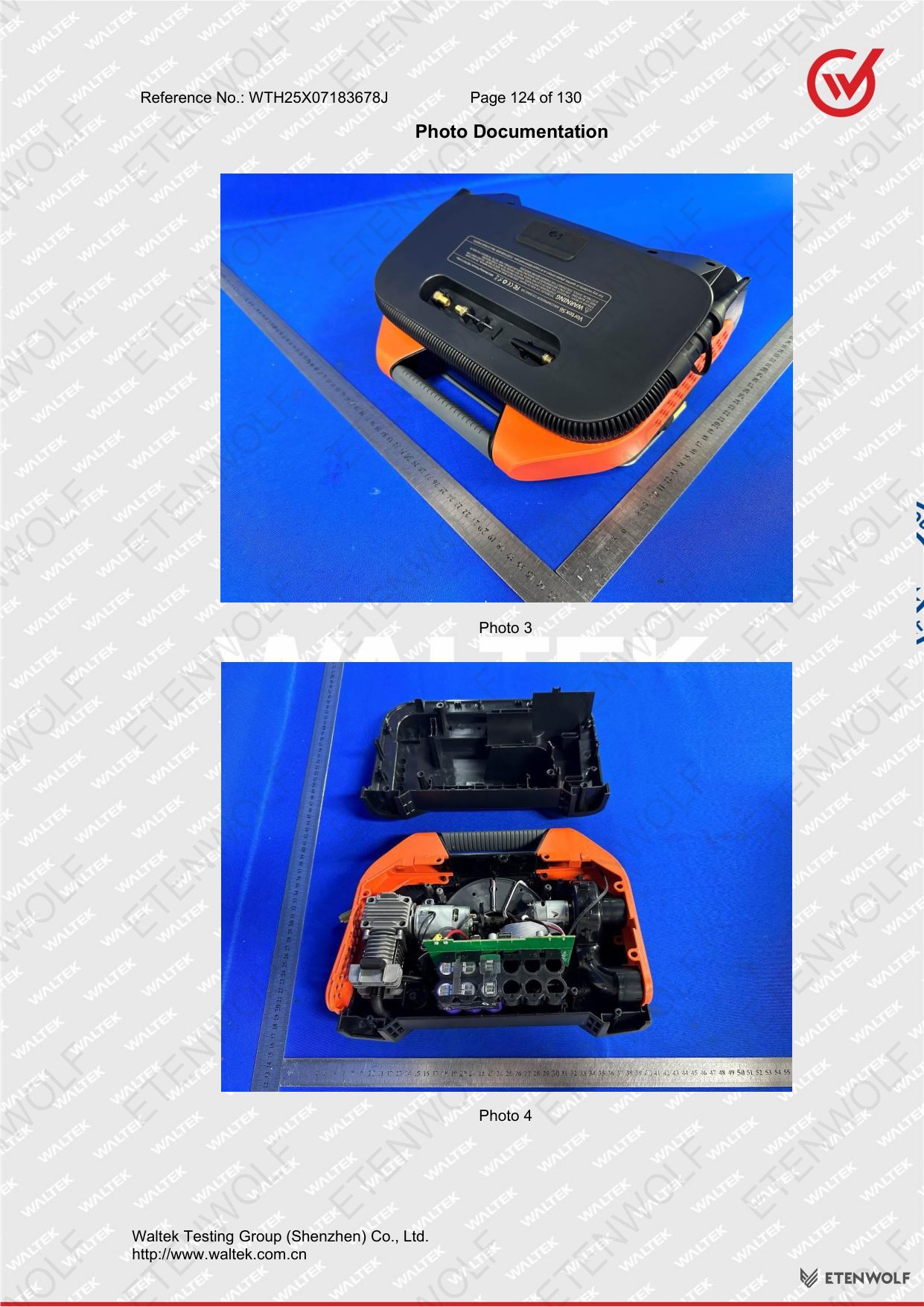

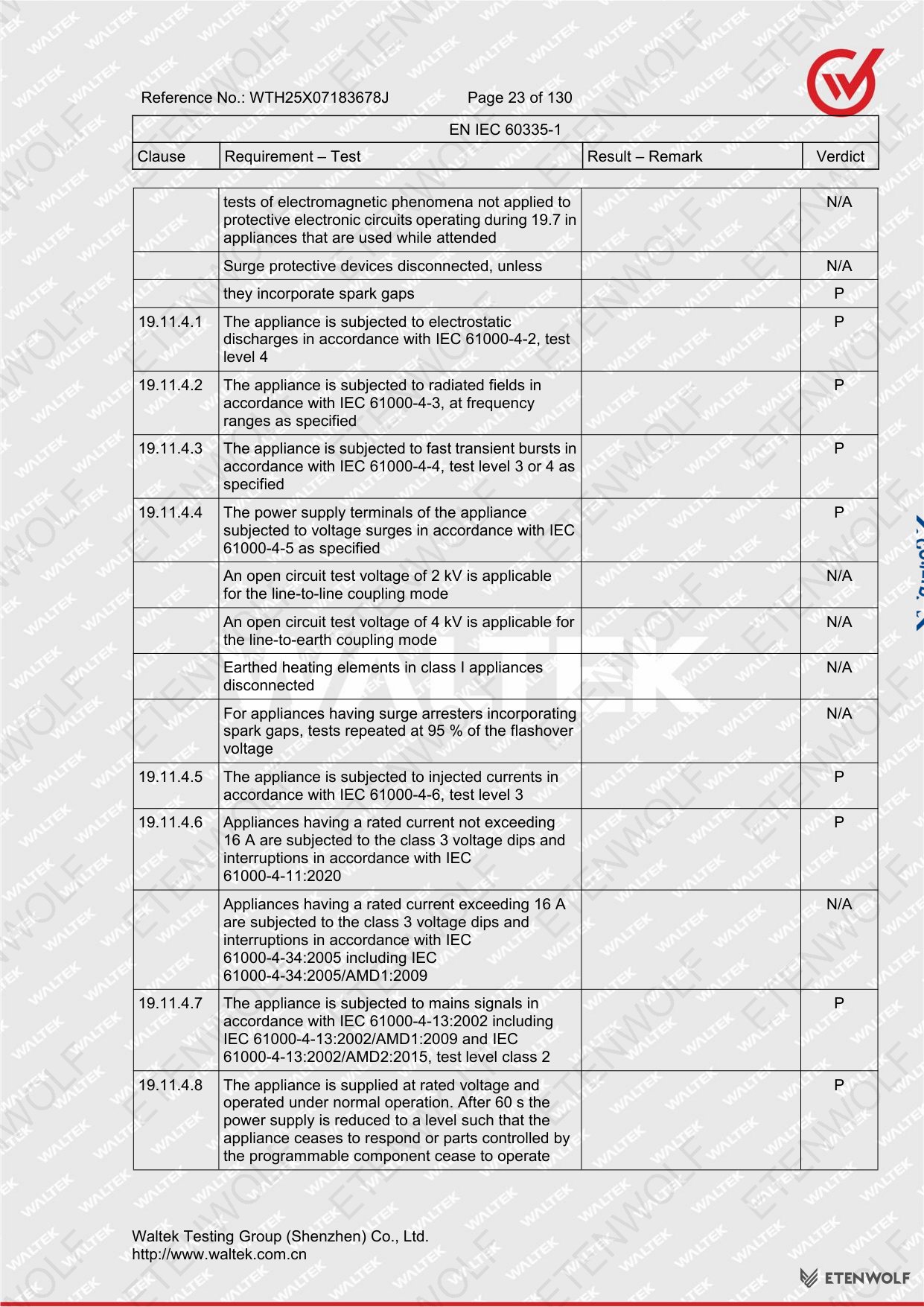

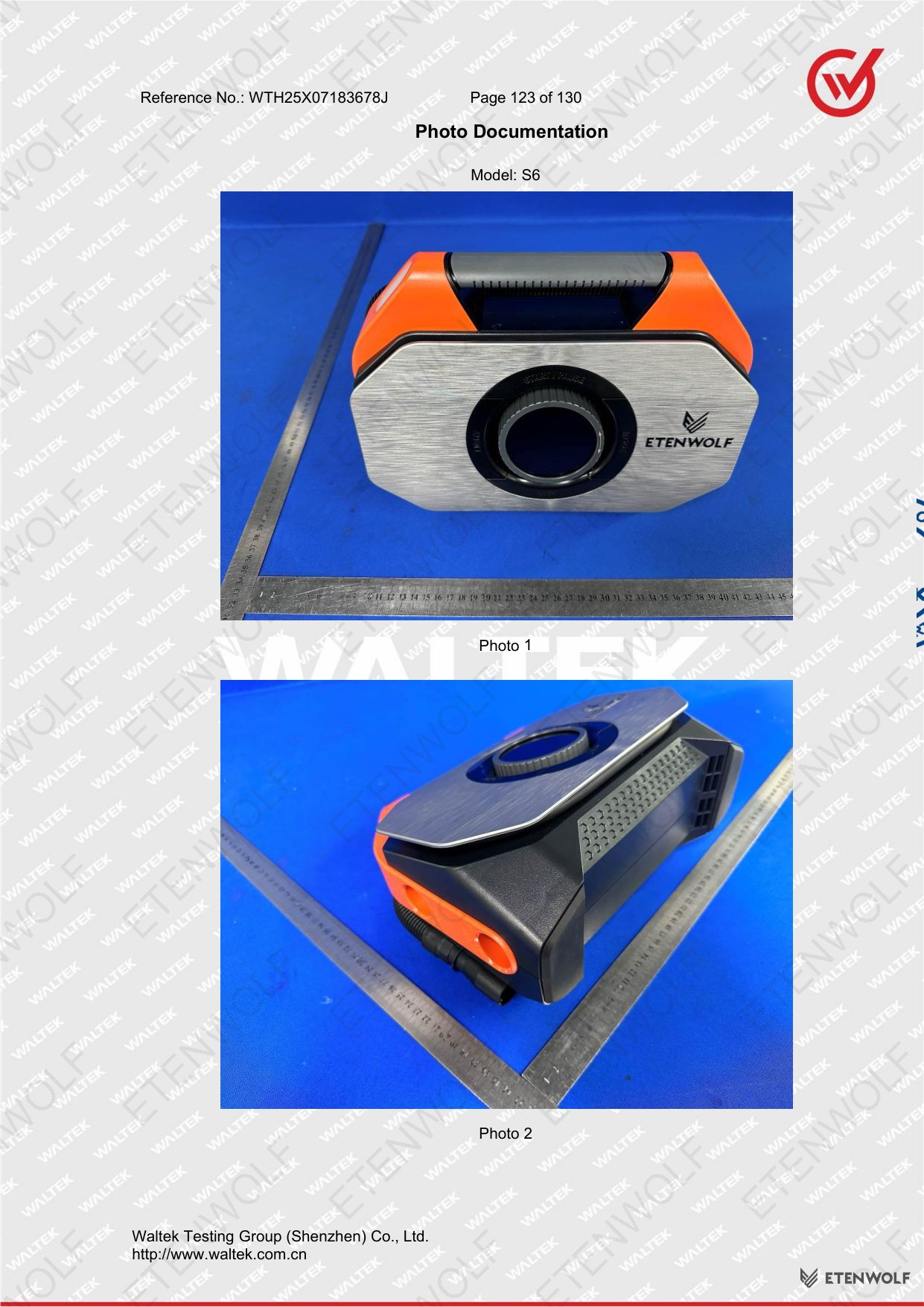

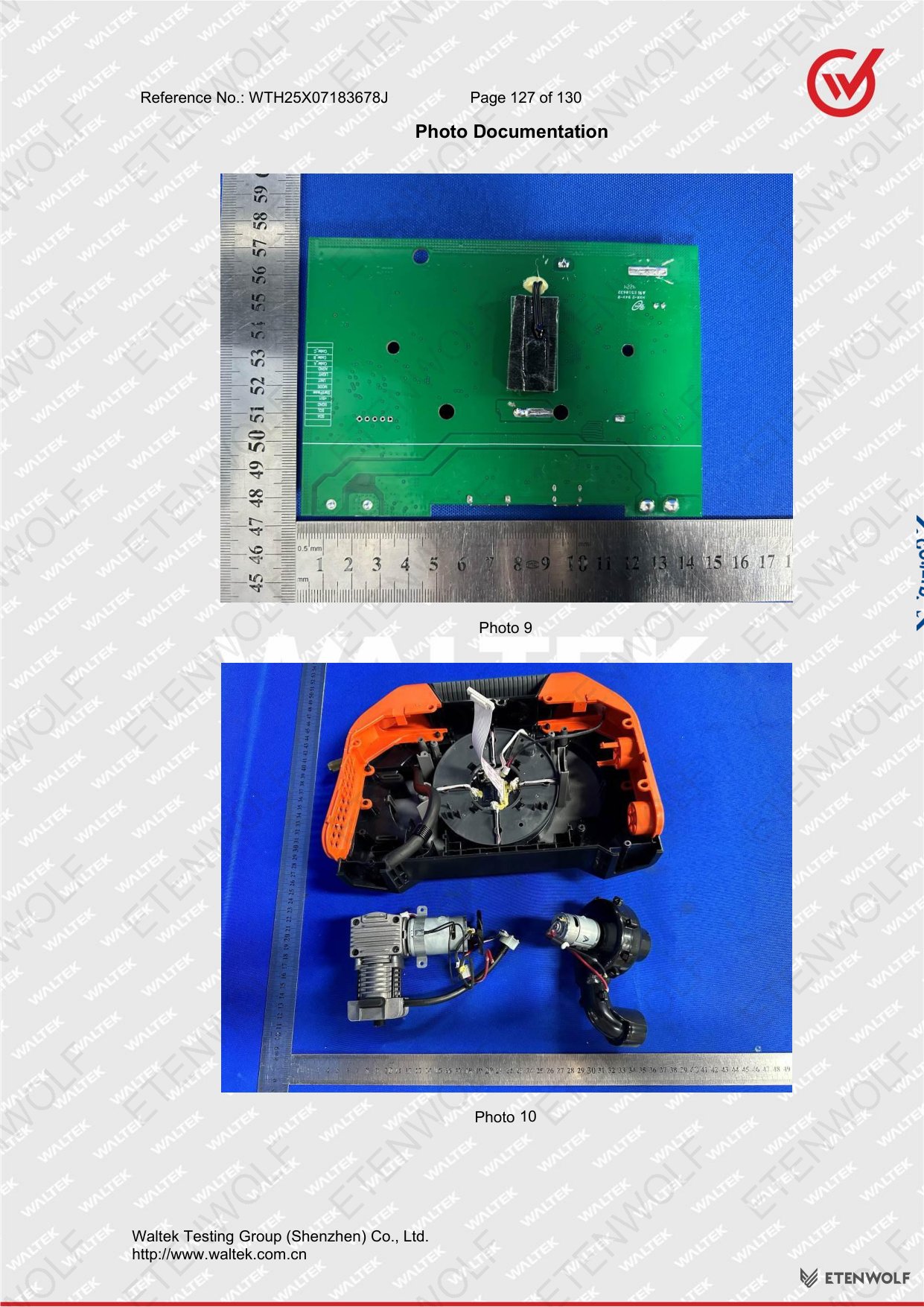

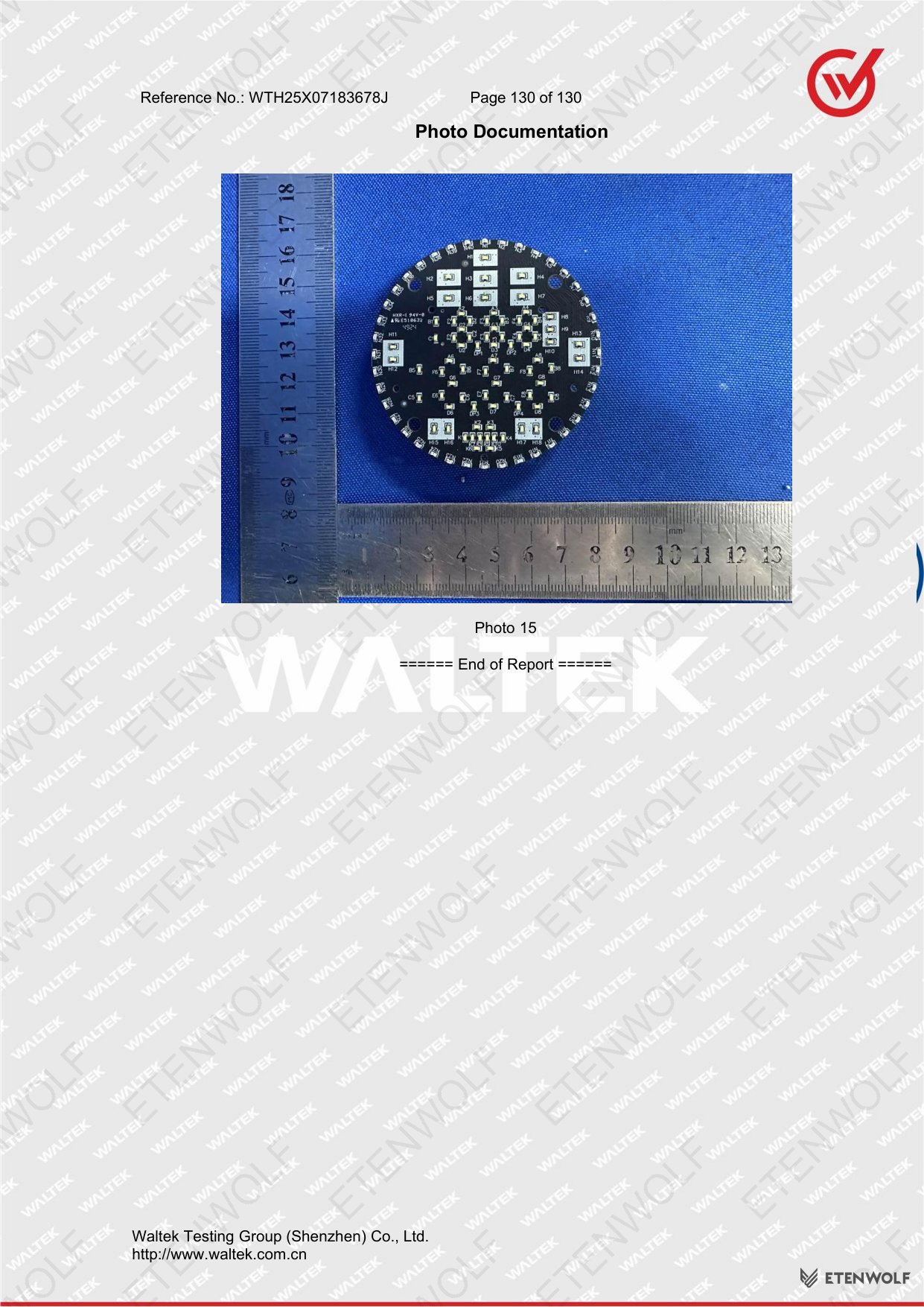

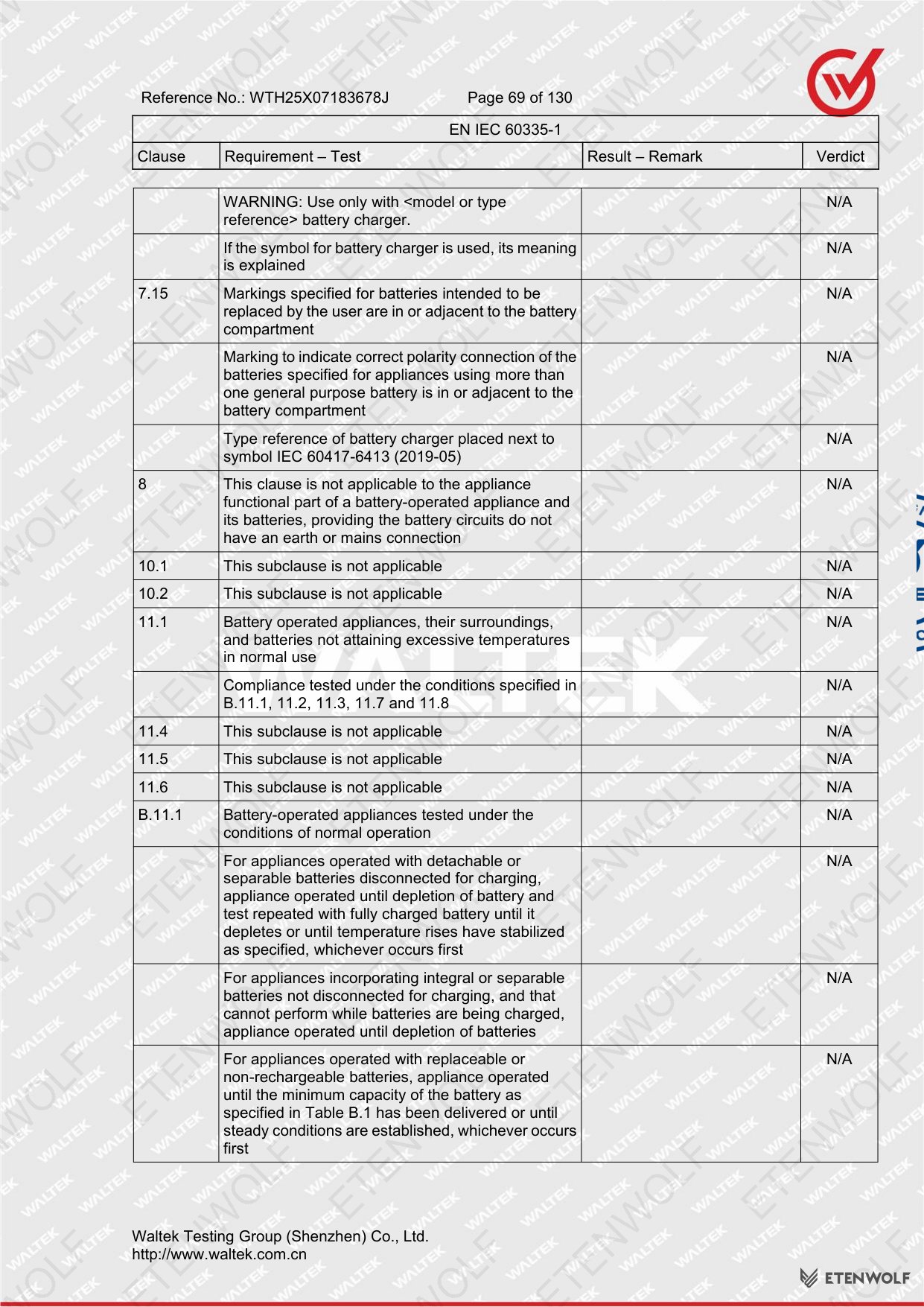

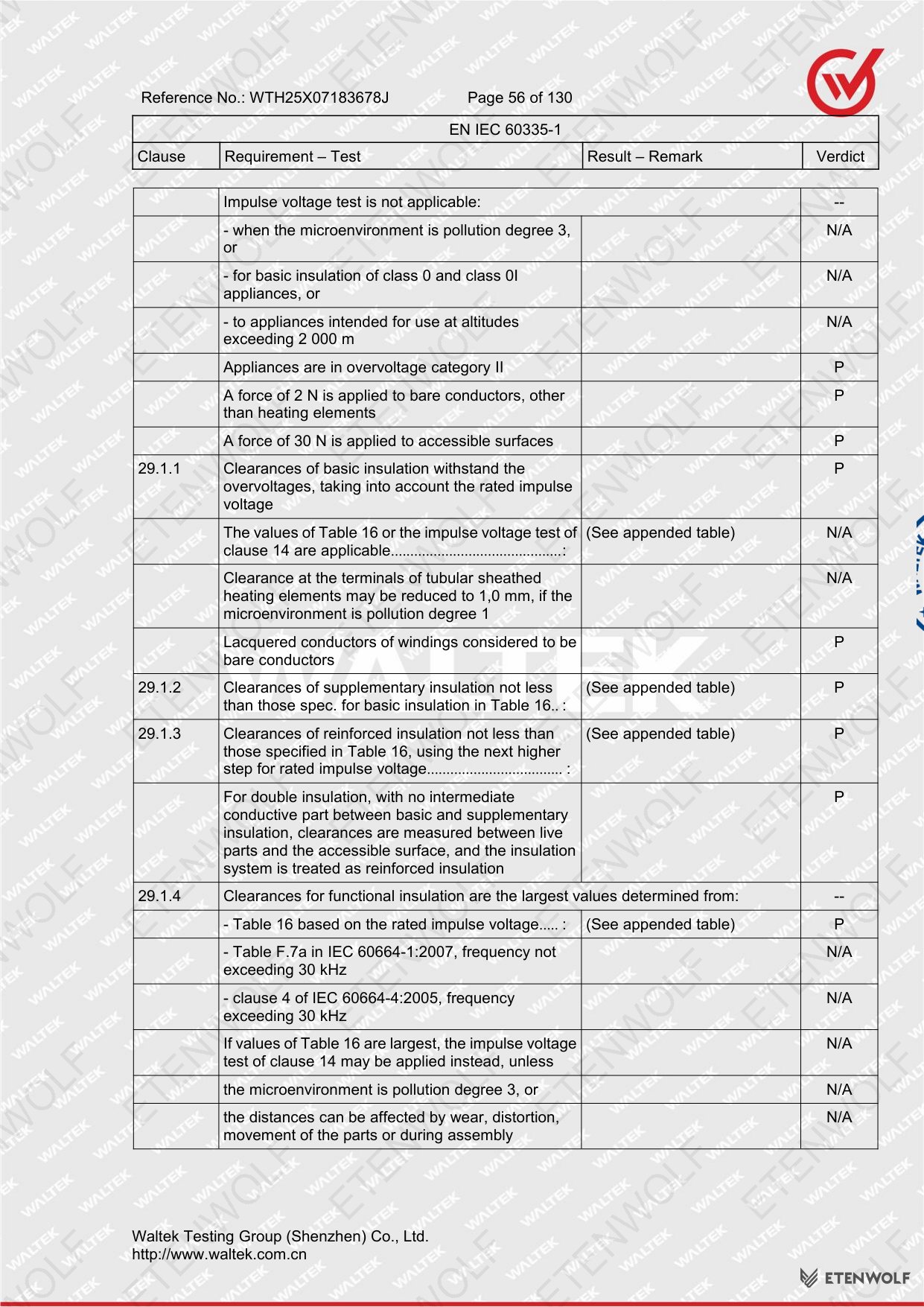

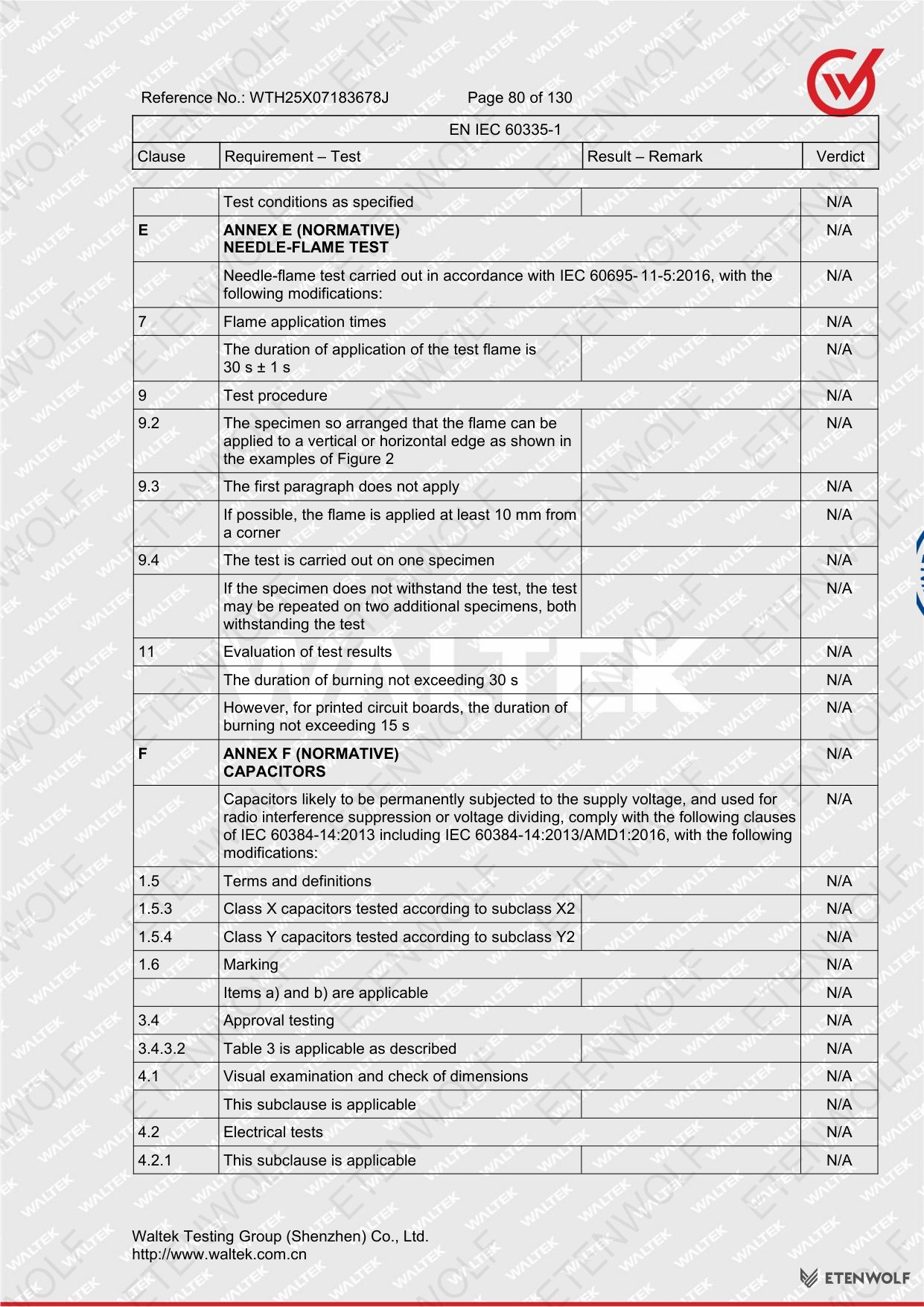

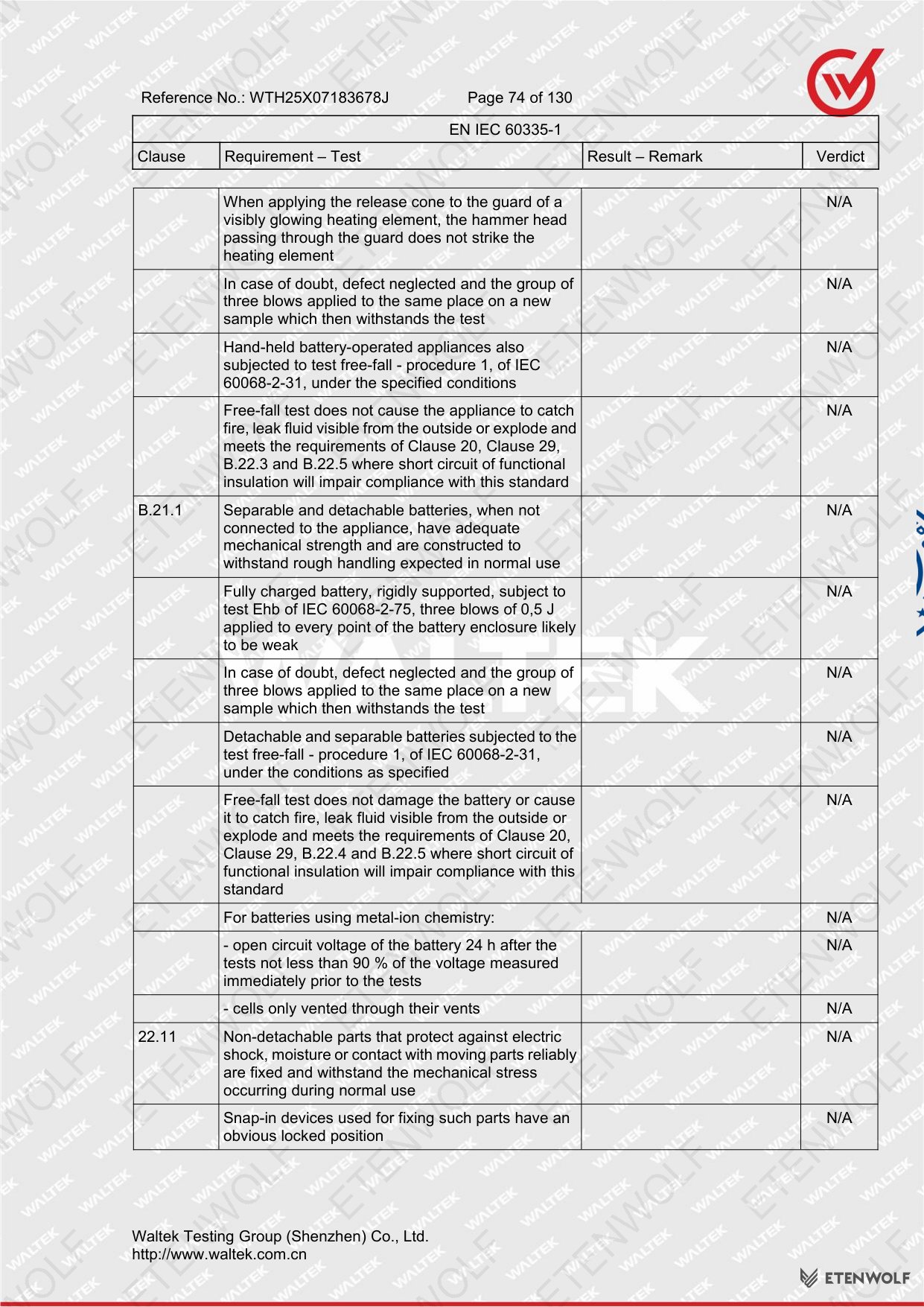

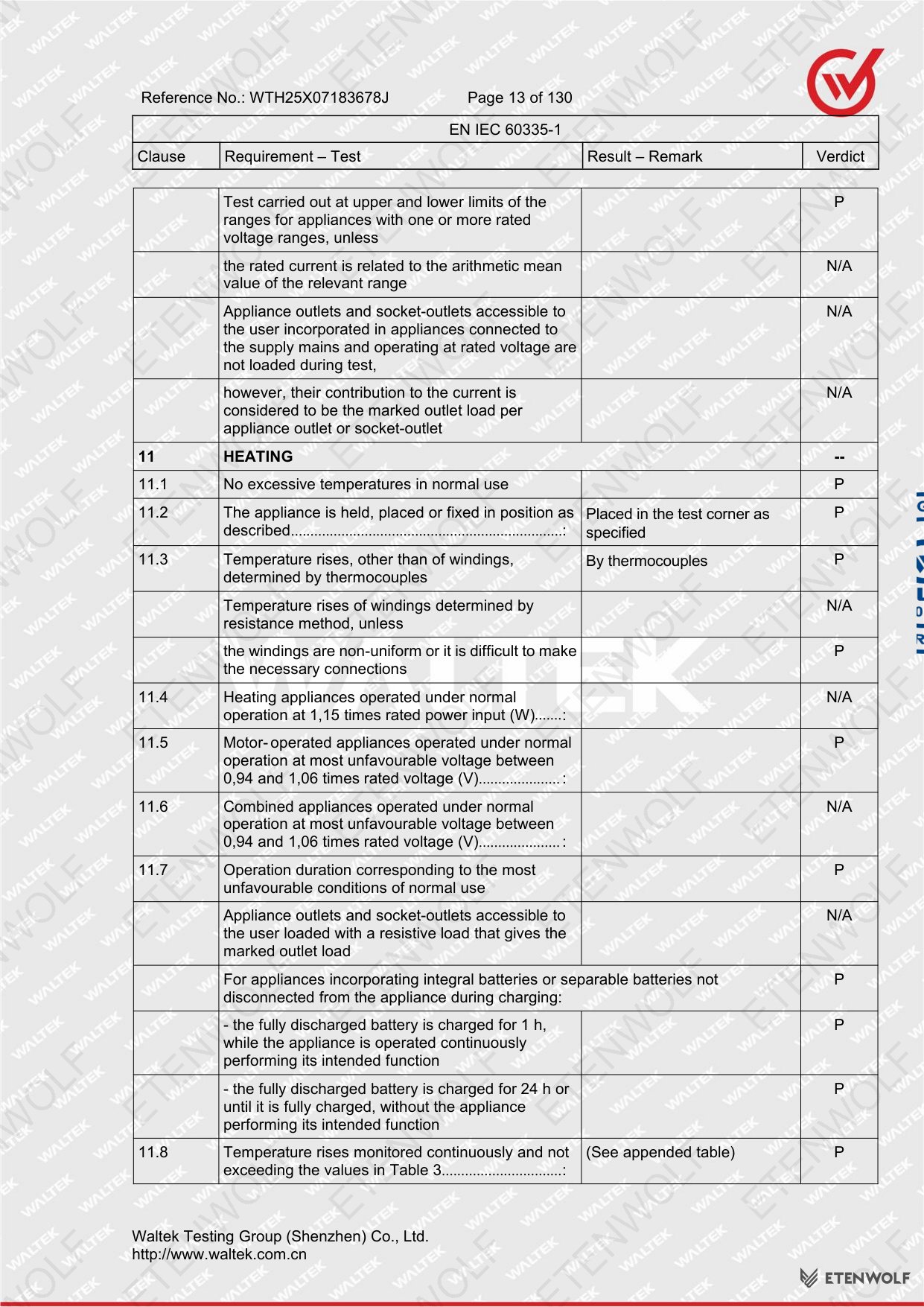

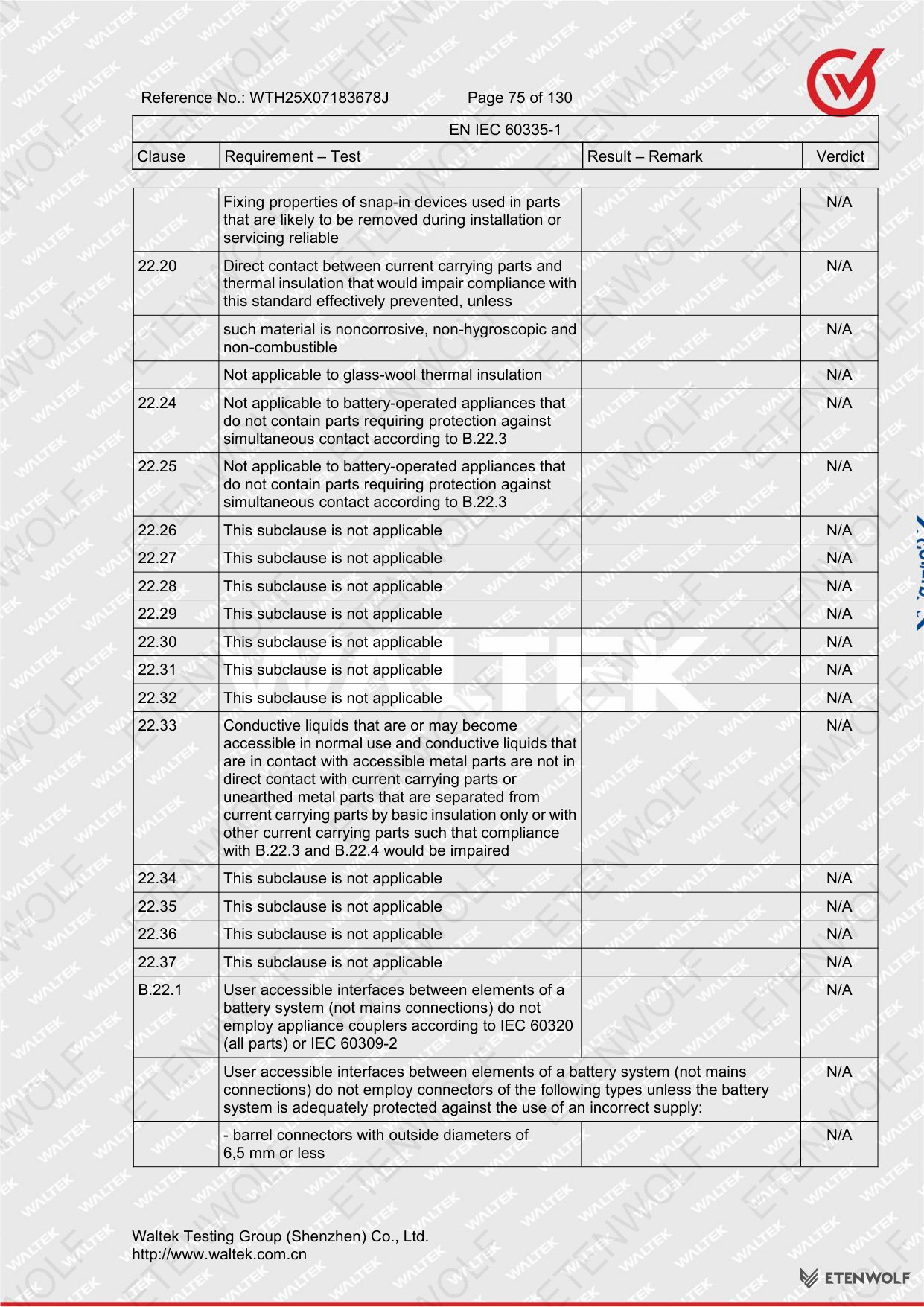

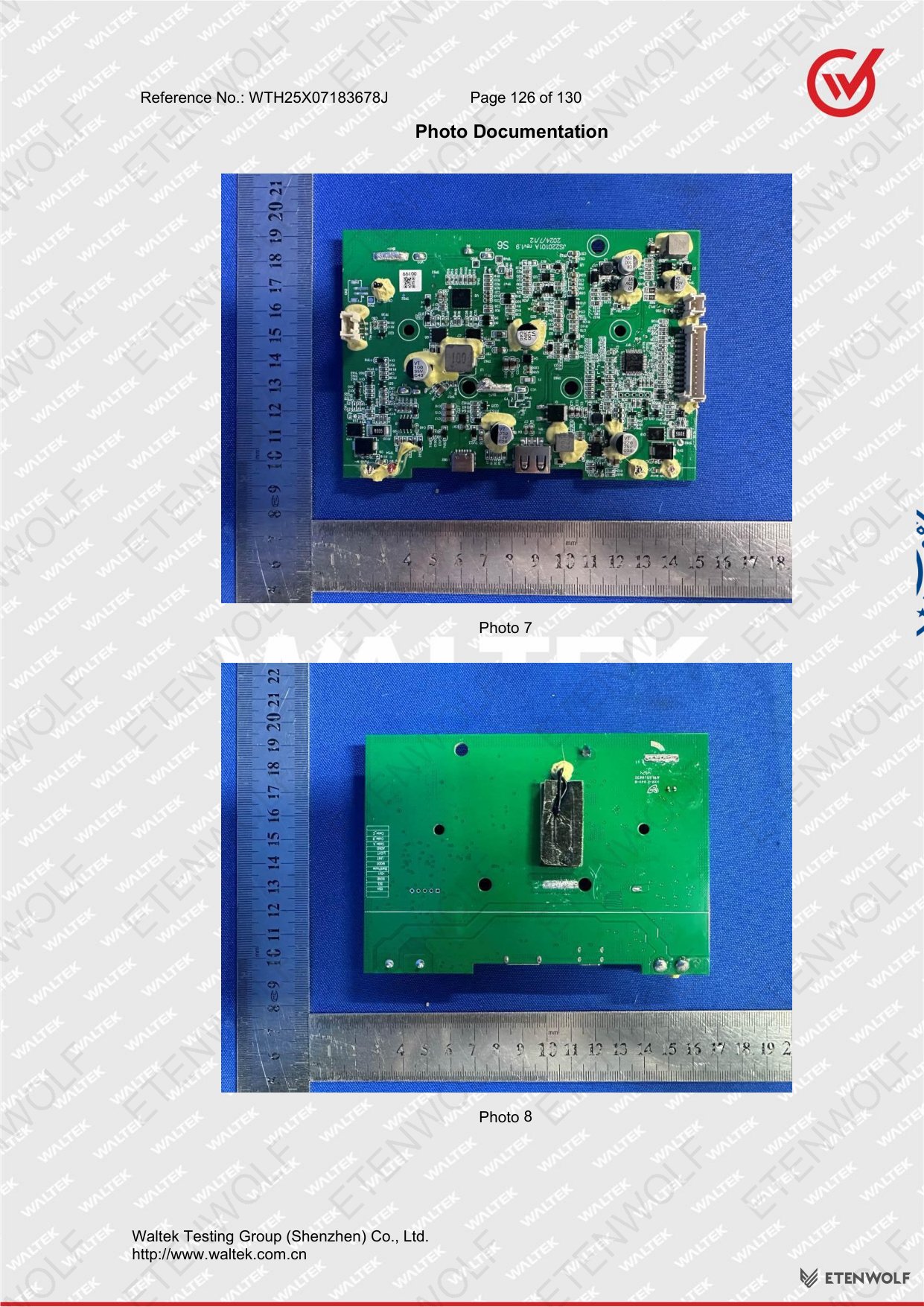

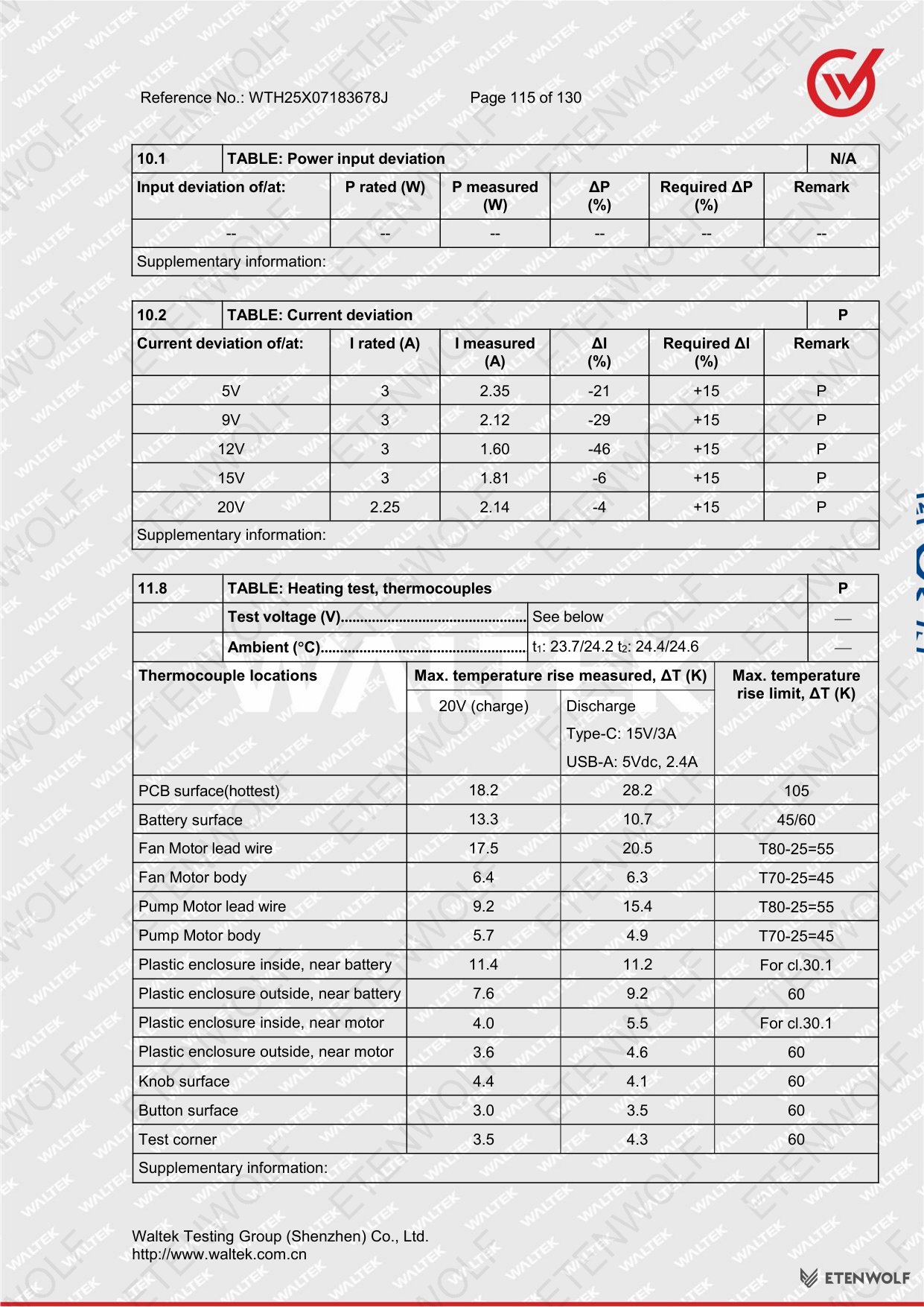

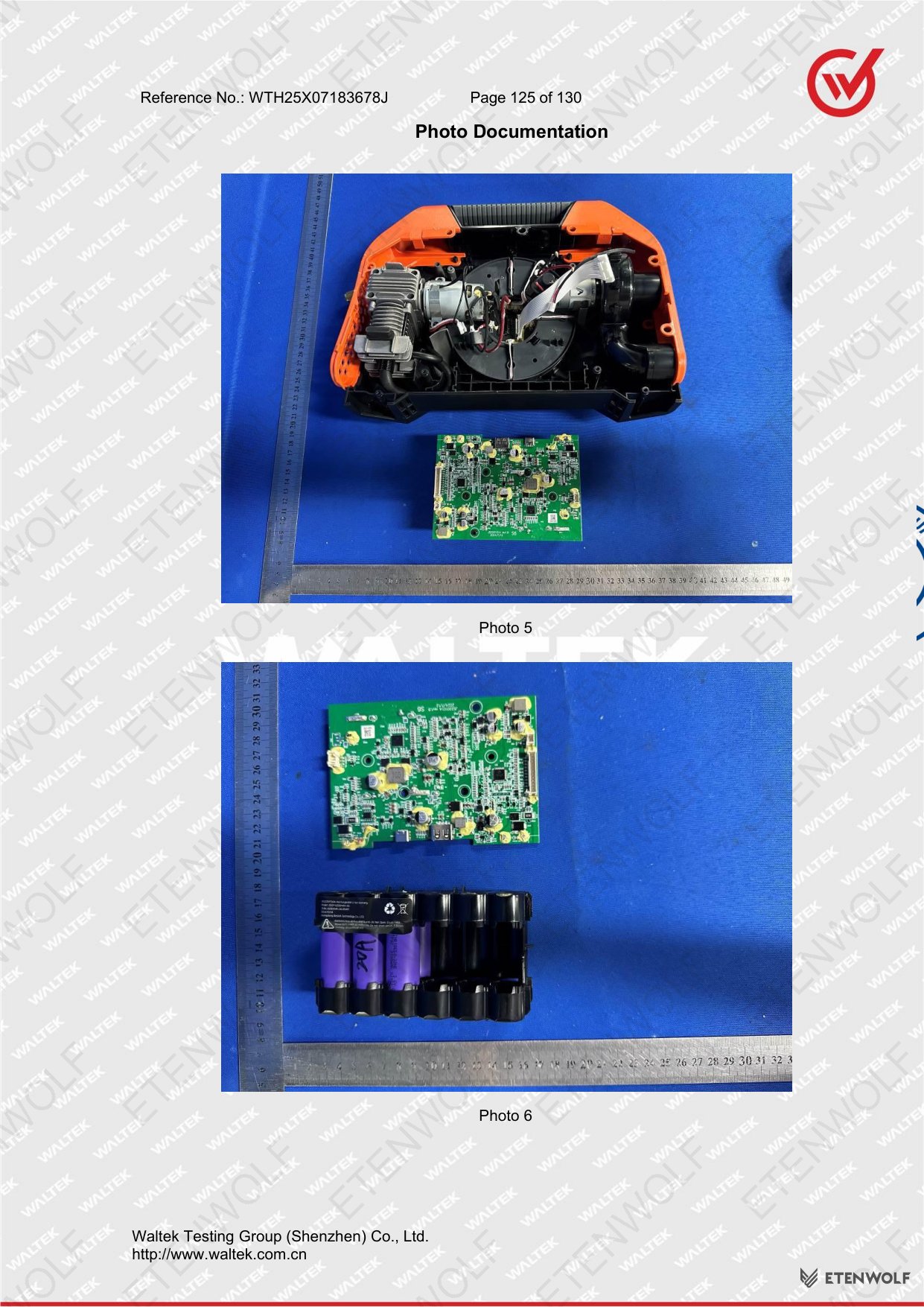

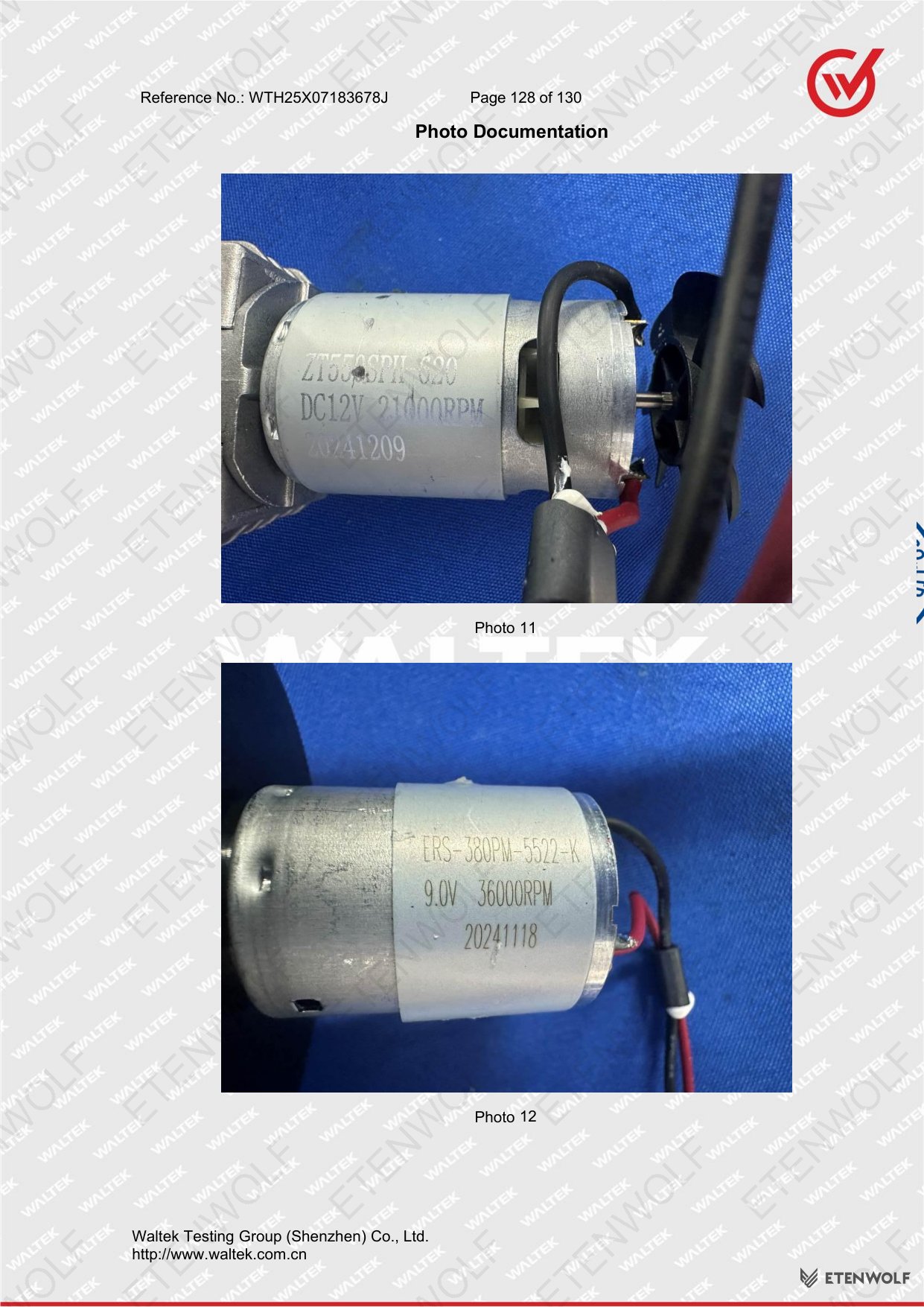

The full 130-page report contains detailed test data, measurement records, and photographic evidence of the sample. All subcontracting fields were marked as not applicable, confirming all testing was performed in-house at the Waltek Shenzhen facility.
Standards & Compliance
The ETENWOLF Vortex S6 was evaluated against the following EU harmonised standards:
| Standard | Title | Scope |
|---|---|---|
| EN IEC 60335-1:2023+A11:2023 | Household and Similar Electrical Appliances – Safety – Part 1: General Requirements | Primary safety standard covering electrical, mechanical, thermal, and marking requirements |
| EN 62233:2008 | Measurement Methods for Electromagnetic Fields of Household Appliances and Similar Apparatus with Regard to Human Exposure | EMF assessment methodology to verify safe exposure levels for end users |
Together, these standards satisfy the essential health and safety requirements of the EU Low Voltage Directive (LVD) 2014/35/EU. Compliance with EN IEC 60335-1:2023 includes verification of correct classification, marking, insulation, mechanical strength, heat resistance, and component reliability. EN 62233:2008 testing ensures that electromagnetic field emissions remain within acceptable limits for household use.

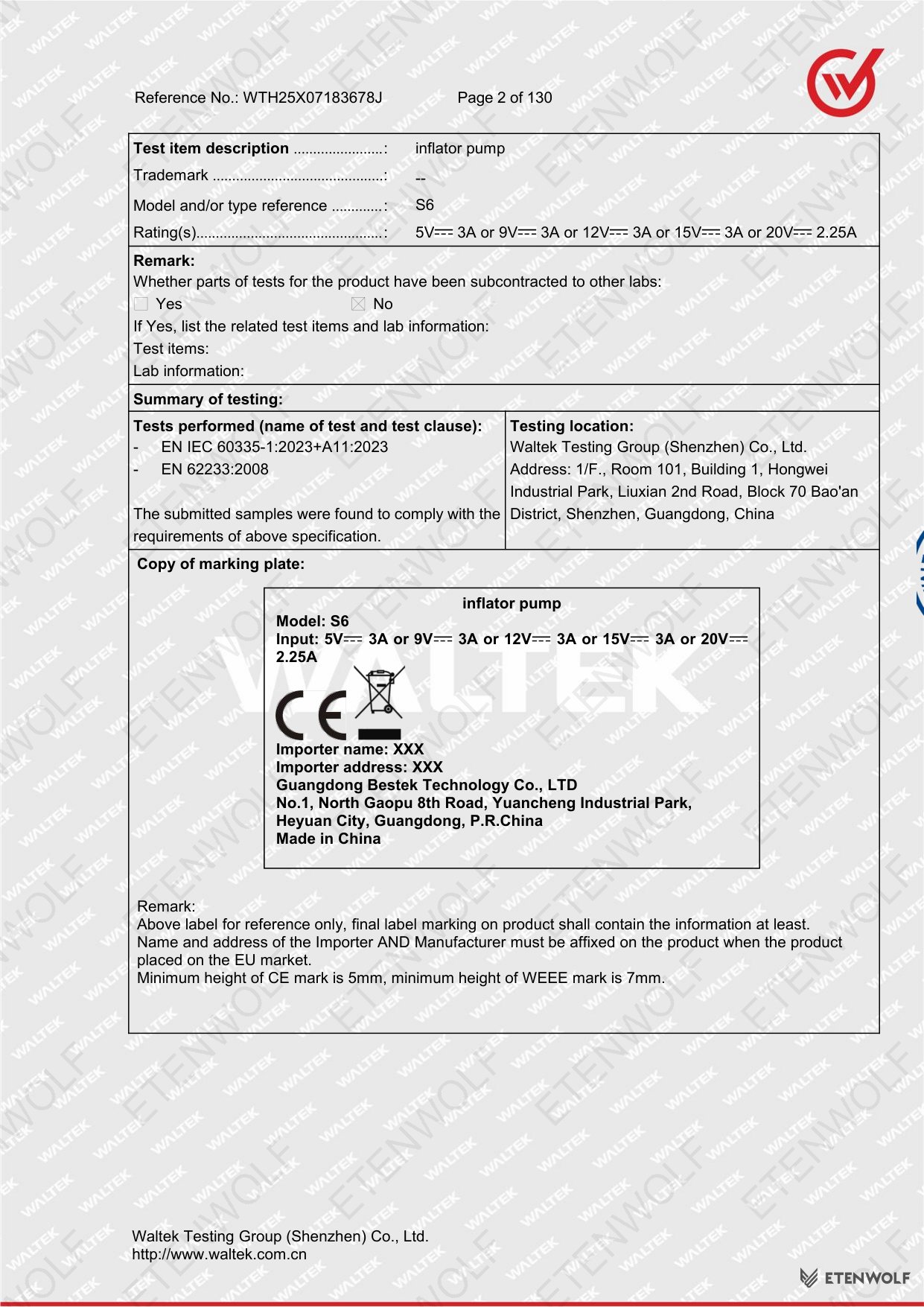

The product label must display the CE mark at a minimum height of 5 mm and the WEEE mark at a minimum height of 7 mm when placed on the EU market. Name and address of both the manufacturer and the EU importer must be affixed to the product.
Validity & Certification Body

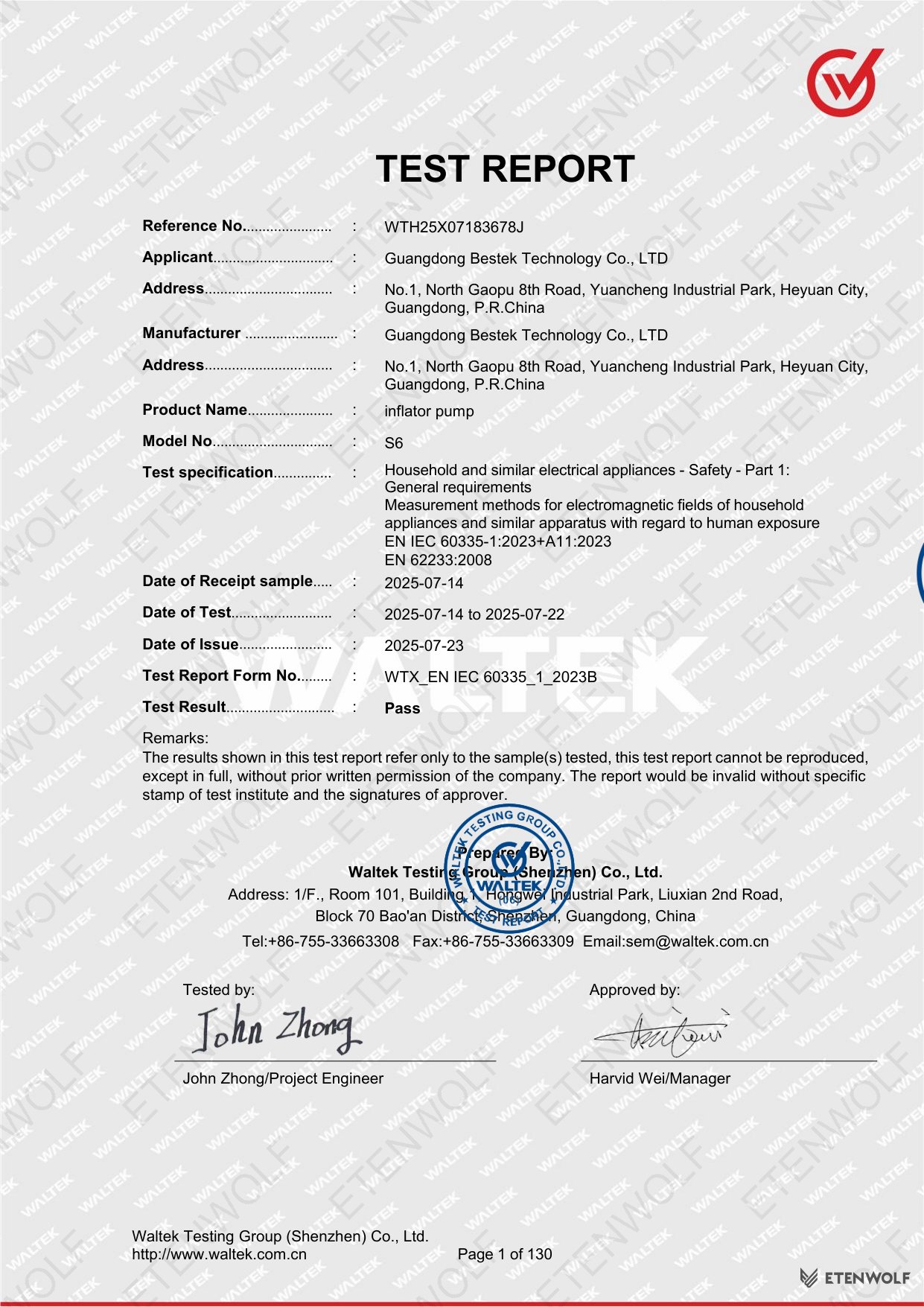

The test report carries reference number WTH25X07183678J and was issued on 2025-07-23. Testing was conducted from 2025-07-14 to 2025-07-22. The report is valid for the specific sample(s) submitted and tested; it does not automatically extend to other batches or revised product versions without re-evaluation.
| Detail | Information |
|---|---|
| Report Reference | WTH25X07183678J |
| Date of Issue | 2025-07-23 |
| Test Period | 2025-07-14 to 2025-07-22 |
| Sample Receipt Date | 2025-07-14 |
| Report Form Number | WTX_EN IEC 60335_1_2023B |
| Testing Laboratory | Waltek Testing Group (Shenzhen) Co., Ltd. |
| Laboratory Address | 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70, Bao’an District, Shenzhen, Guangdong, China |
| Laboratory Contact | Tel: +86-755-33663308 | Fax: +86-755-33663309 | Email: [email protected] |
| Prepared By | John Zhong, Project Engineer |
| Approved By | Harvid Wei, Manager |
| Overall Result | Pass |
The report is authenticated by the specific stamp of the Waltek test institute and the signatures of the approver. Reproduction of the report, even in part, requires prior written permission from Waltek Testing Group (Shenzhen) Co., Ltd.
Frequently Asked Questions
- What does the CE-LVD test report WTH25X07183678J confirm about the ETENWOLF Vortex S6?
-
The report confirms that the ETENWOLF Vortex S6 inflator pump passed all applicable requirements of EN IEC 60335-1:2023+A11:2023 (general electrical safety) and EN 62233:2008 (electromagnetic field exposure). This demonstrates the product meets the essential health and safety requirements of the EU Low Voltage Directive 2014/35/EU, allowing it to bear the CE mark when sold in European markets.
- What equipment class is the ETENWOLF Vortex S6 and why does it matter?
-
The S6 is classified as Class III equipment, meaning it operates on safety extra-low voltage (SELV) supplied via a DC connector. Class III appliances do not rely on protective earthing for shock protection; instead, safety is achieved through the inherently low operating voltages (5 V to 20 V in this product). This classification is relevant for EU importers and retailers who must verify the correct power supply is used with the unit.
- Are the LED lights on the ETENWOLF Vortex S6 covered by this certification?
-
No. The test report explicitly states that LED lights integrated into the ETENWOLF Vortex S6 were not evaluated within the scope of report WTH25X07183678J. Separate testing or documentation may cover the LED lighting functionality.
- What labelling requirements must EU importers meet for the ETENWOLF Vortex S6?
-
When placing the ETENWOLF Vortex S6 on the EU market, importers must ensure the product label includes the name and address of both the manufacturer (Guangdong Bestek Technology Co., Ltd.) and the EU importer. The CE mark must be at least 5 mm in height and the WEEE symbol at least 7 mm. The full input rating range (5 V 3 A through 20 V 2.25 A) and model number S6 must also appear on the label.
Related Documents
The CE-LVD test report is one component of a broader compliance portfolio typically required for the ETENWOLF Vortex S6 to be marketed globally. The following related certification and documentation types are relevant to this product:
- CE-EMC Test Report – Electromagnetic compatibility testing under EU Directive 2014/30/EU, typically covering EN 55014-1 and EN 55014-2 for conducted and radiated emissions and immunity.
- CE Declaration of Conformity (DoC) – The formal manufacturer declaration consolidating LVD, EMC, and any other applicable directives into a single EU compliance statement.
- IEC 62133 Battery Safety Report – Given the cordless nature of the S6, a UN 38.3 or IEC 62133 report covering the integrated battery cells is typically required for air transport and market access.
- RoHS Compliance Report – Confirms restriction of hazardous substances (lead, mercury, cadmium, etc.) in the product, required for EU market access under Directive 2011/65/EU.
- REACH SVHC Declaration – Substances of Very High Concern screening report, confirming compliance with EU REACH Regulation (EC) No. 1907/2006.
- FCC Part 15 Test Report – Required for sale in the United States, covering unintentional radiator emissions from the inflator and any wireless or Bluetooth functionality.
- KC Certification – Korean Certification mark required for the South Korean market, covering electrical safety and EMC for portable electrical appliances.

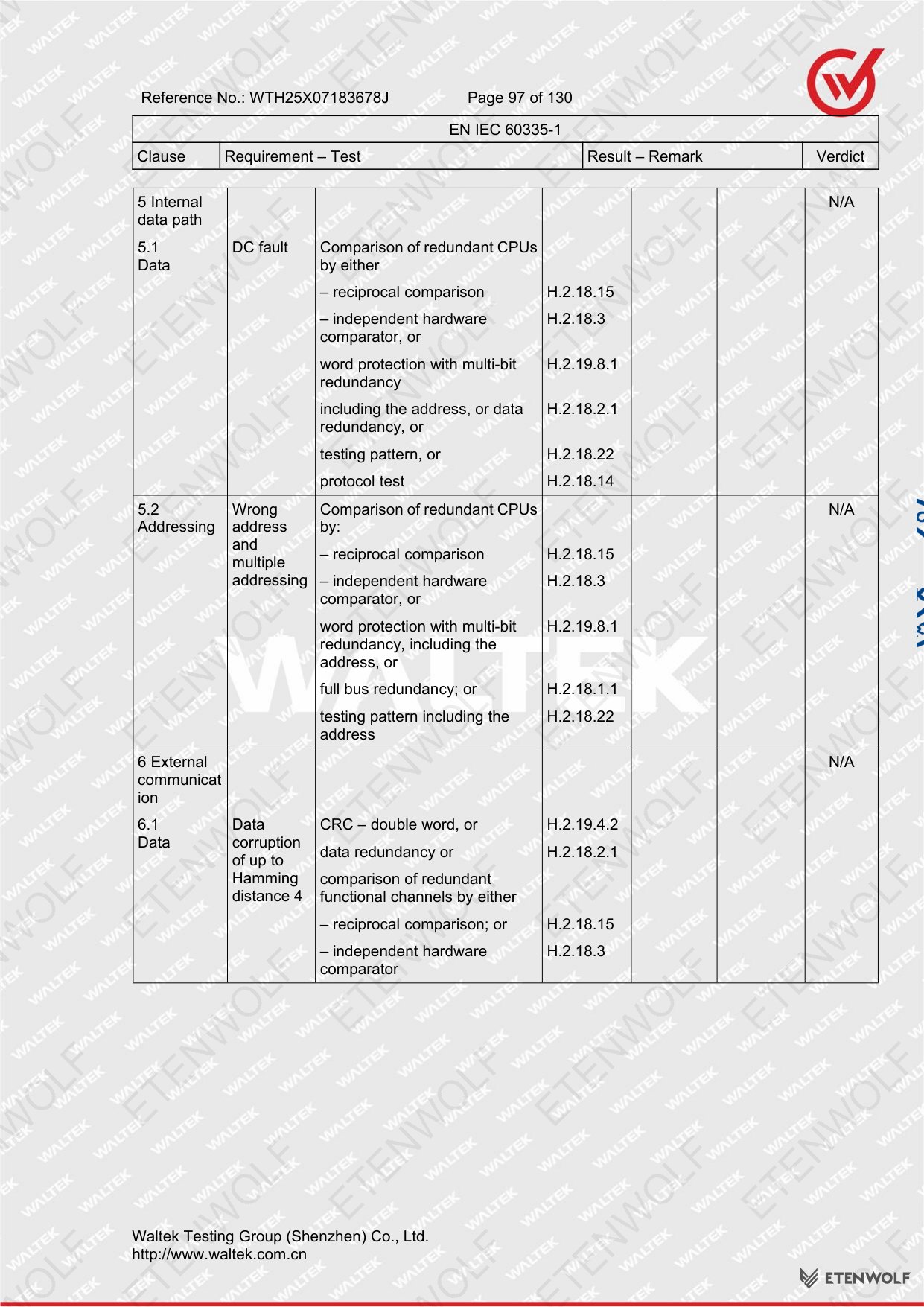

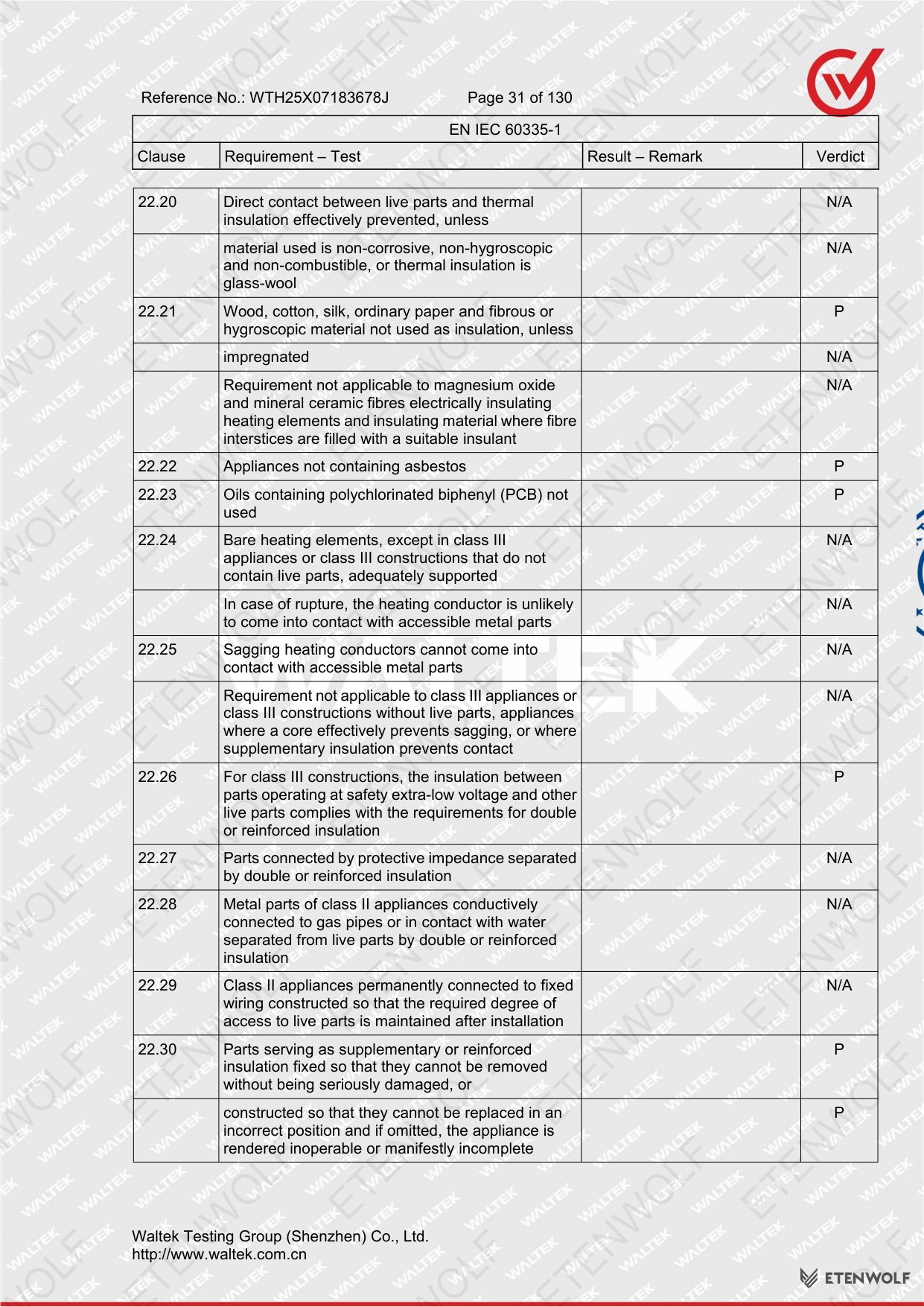

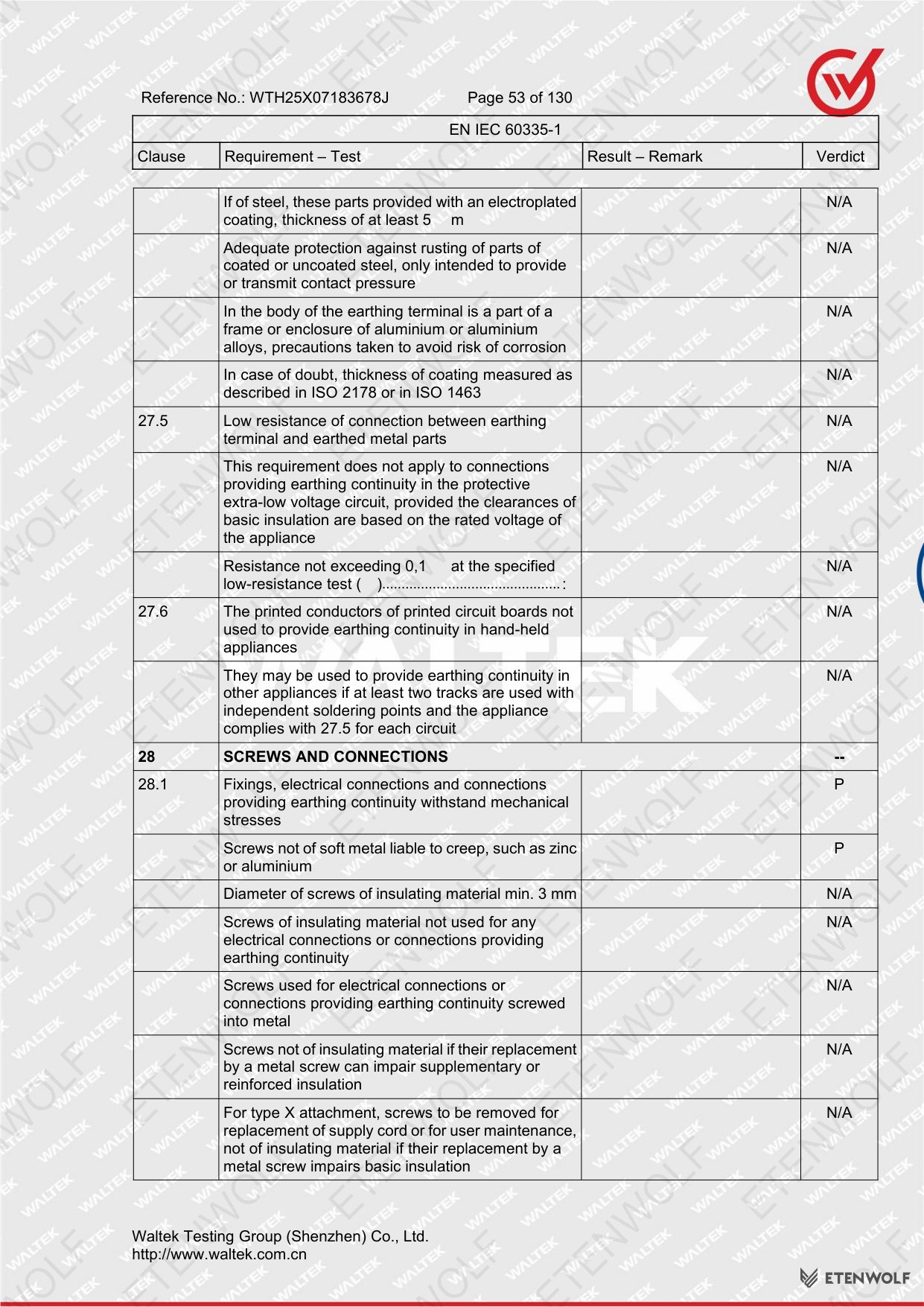

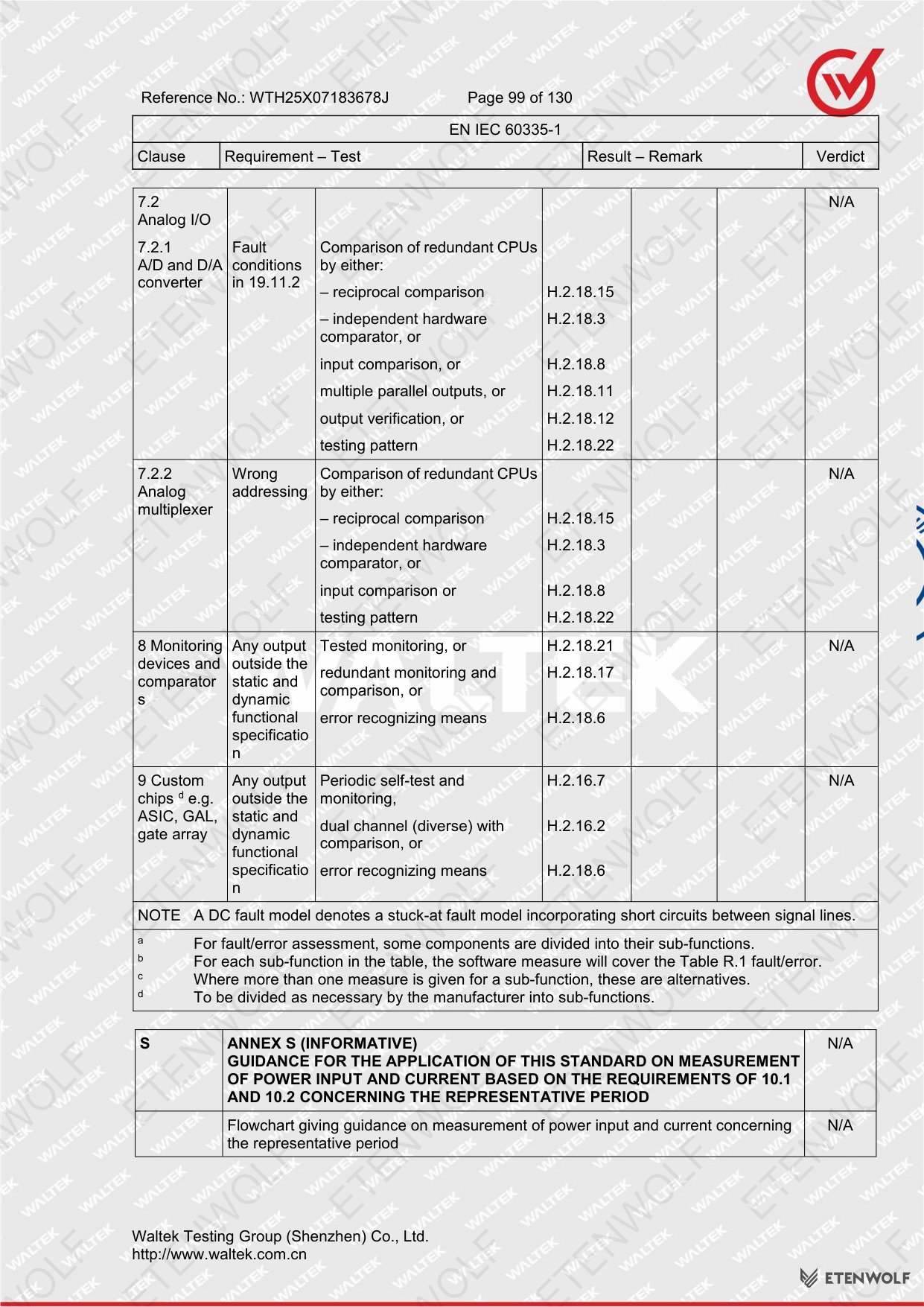

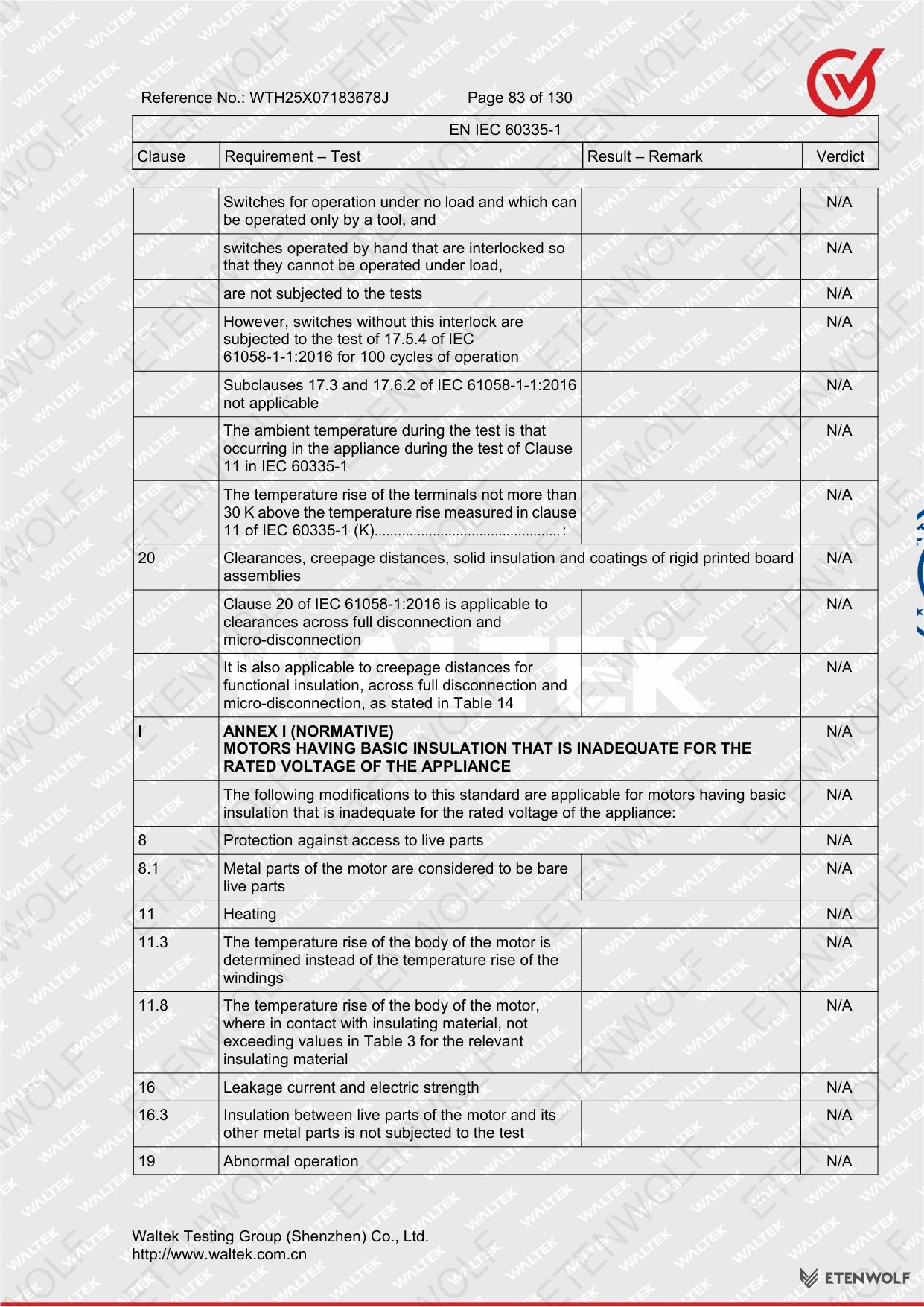

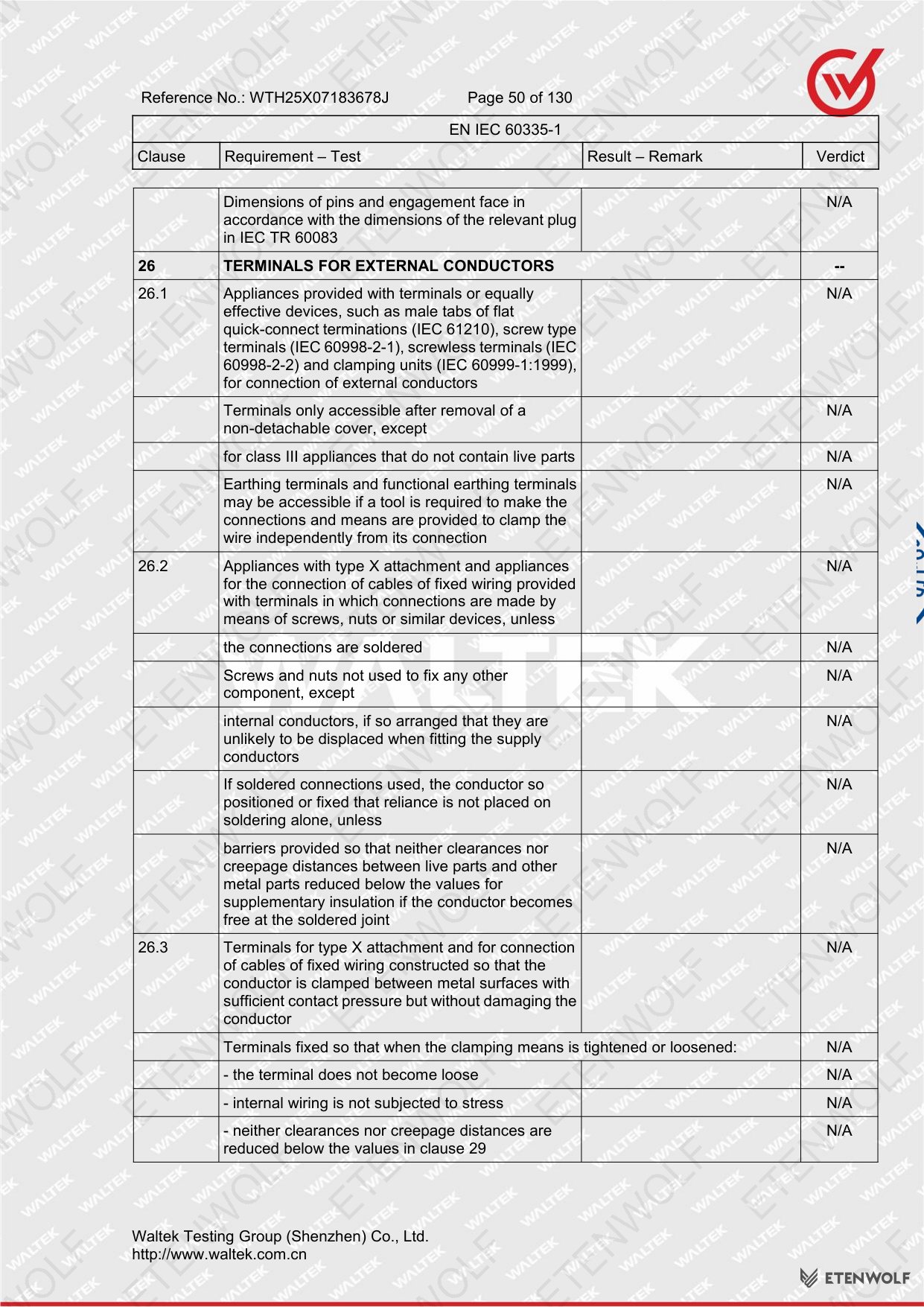

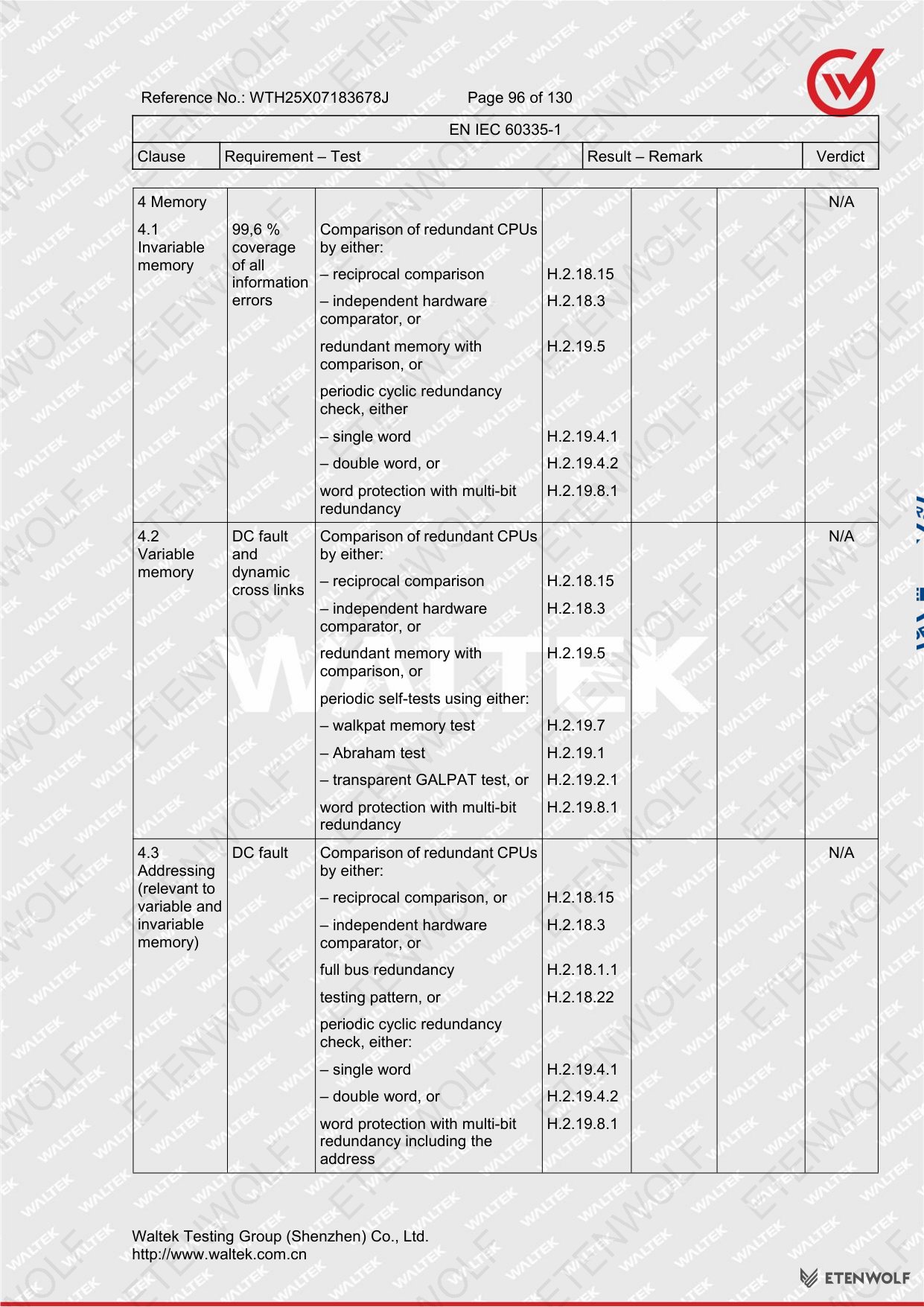

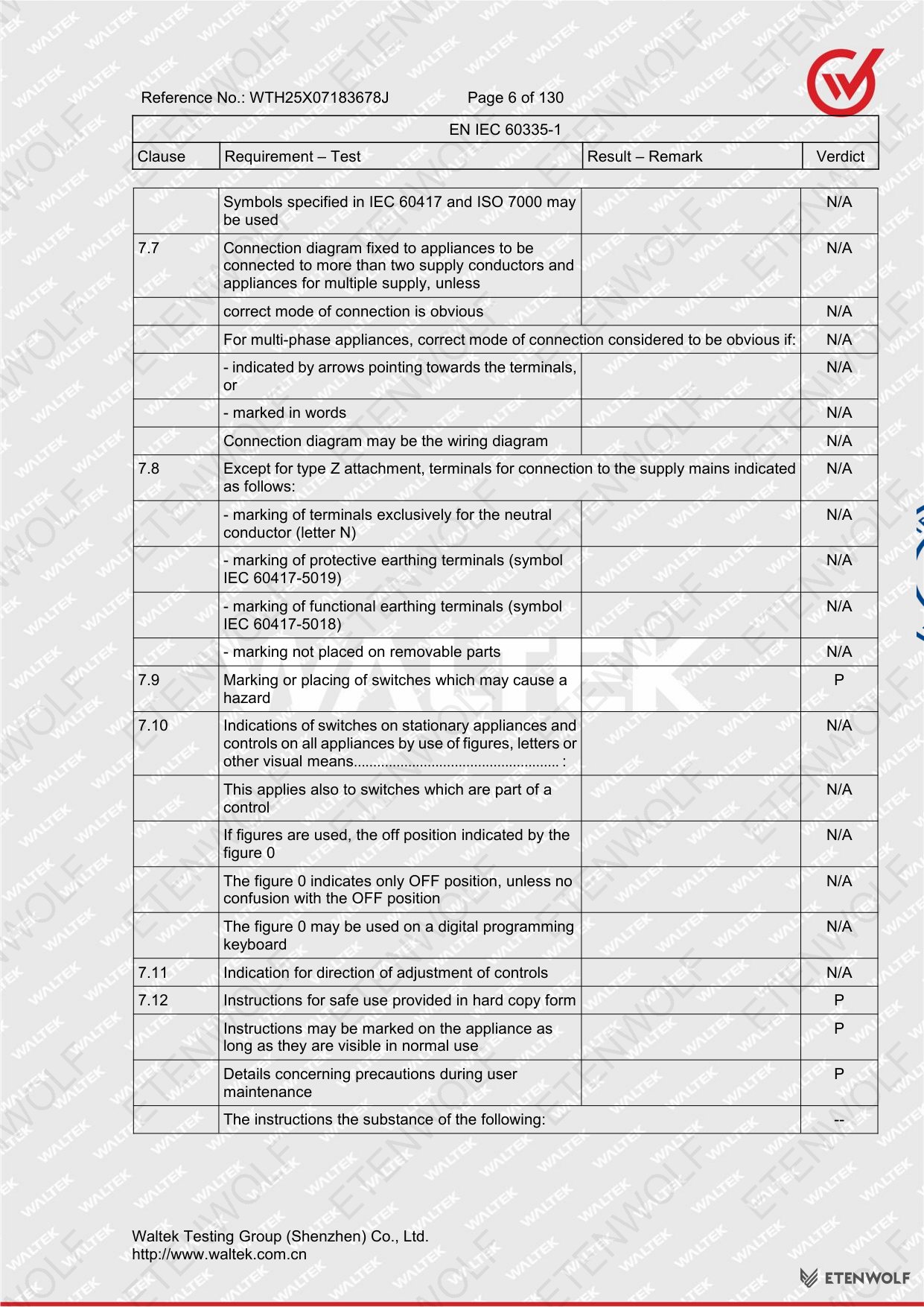

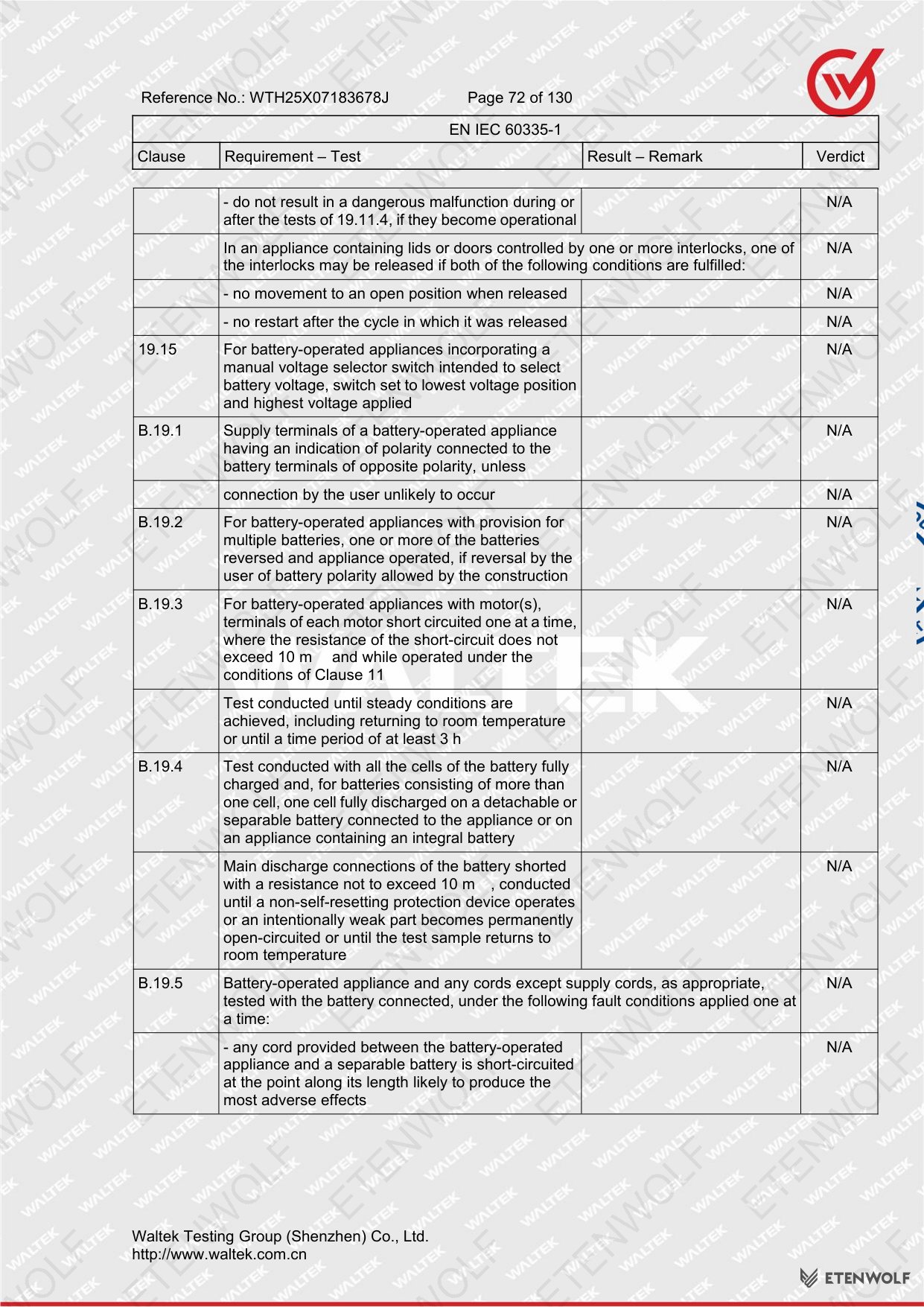

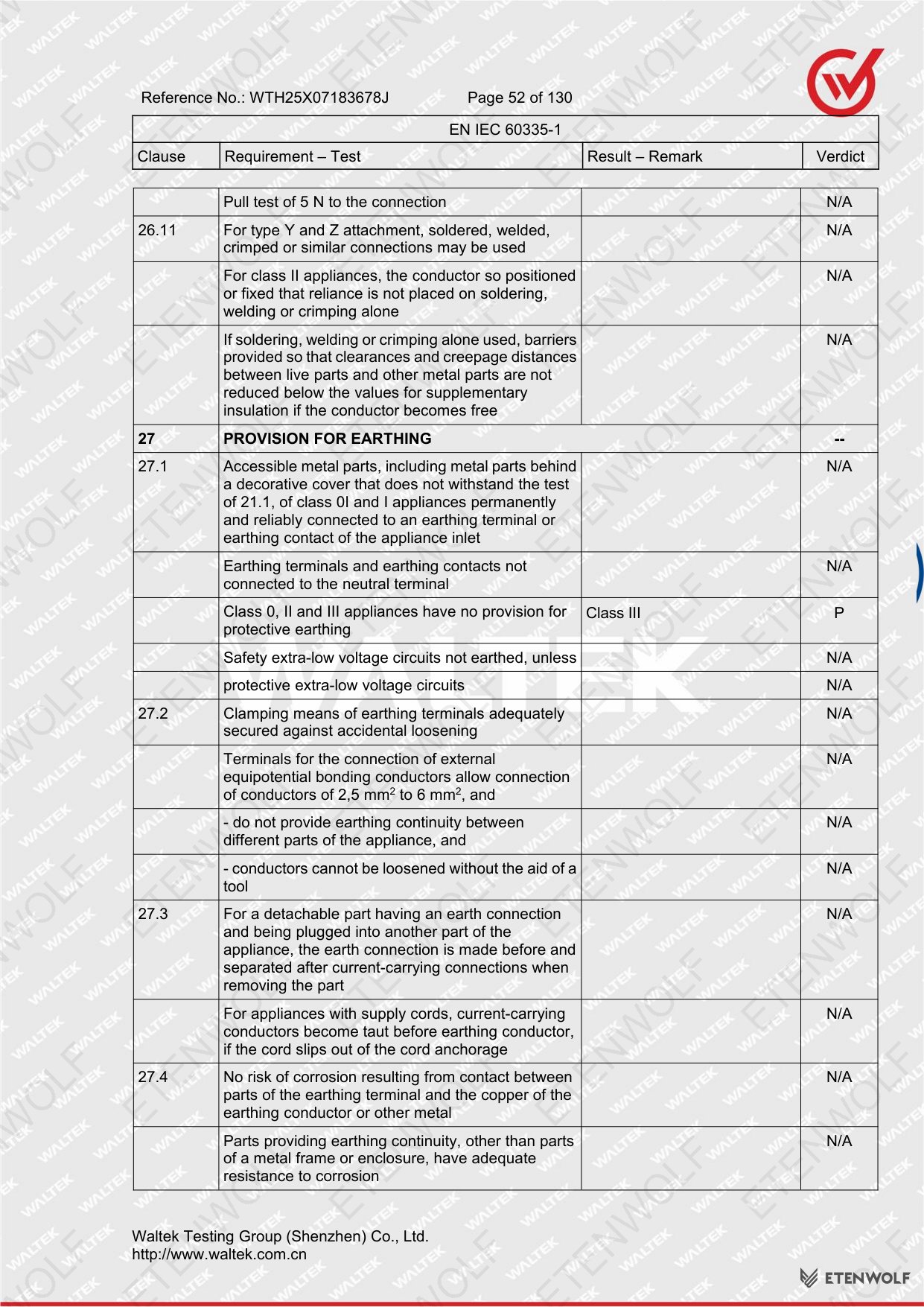

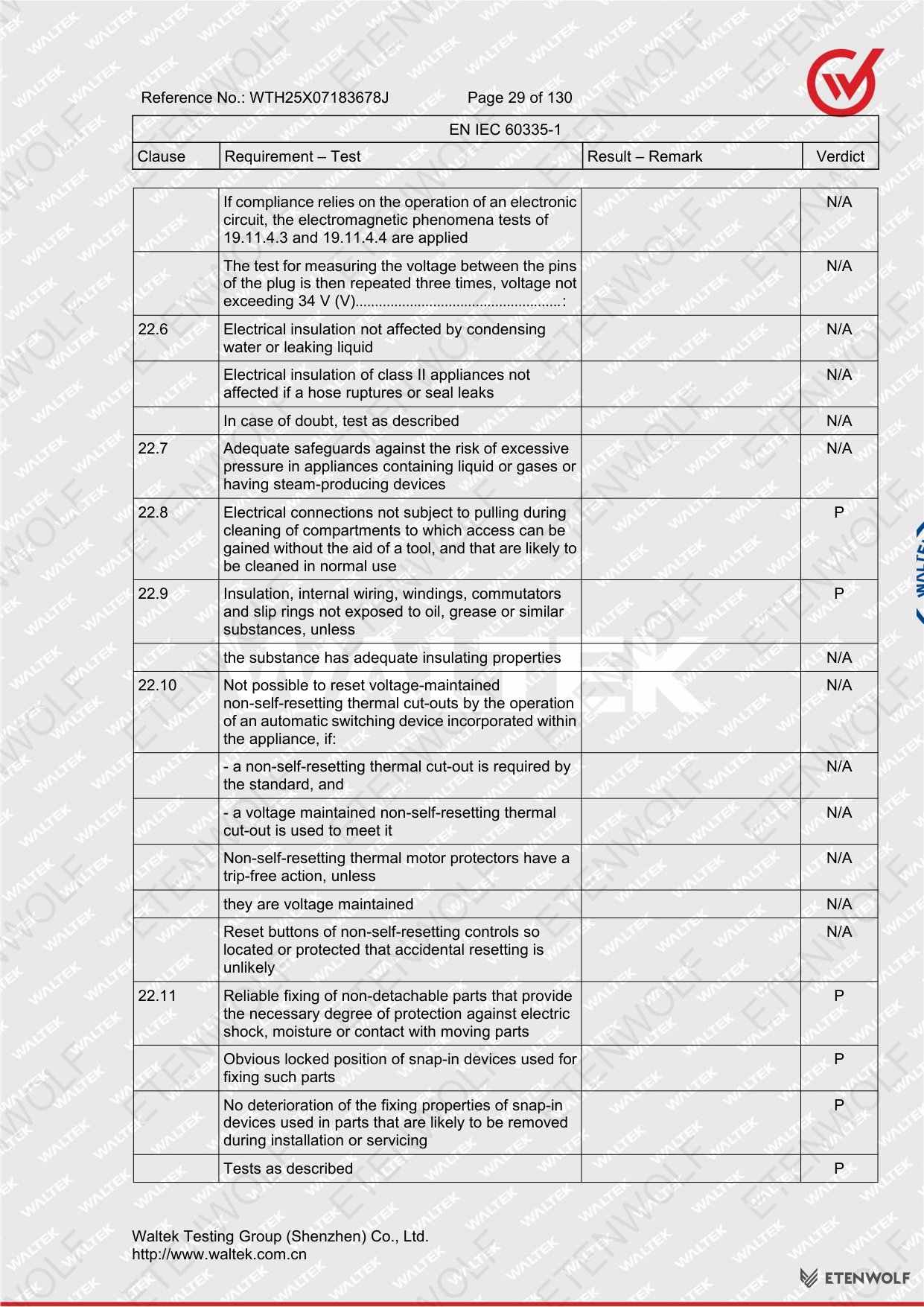

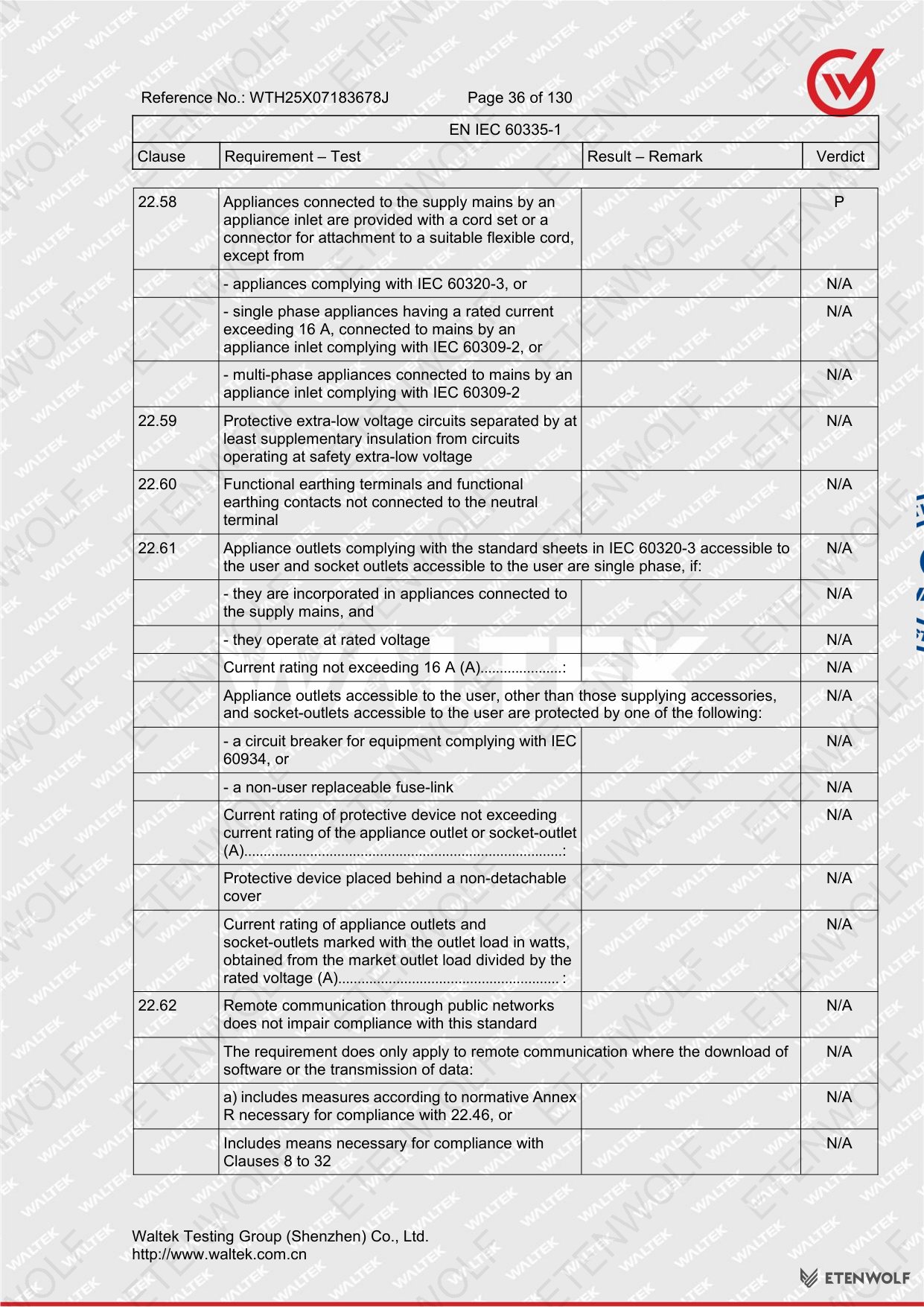

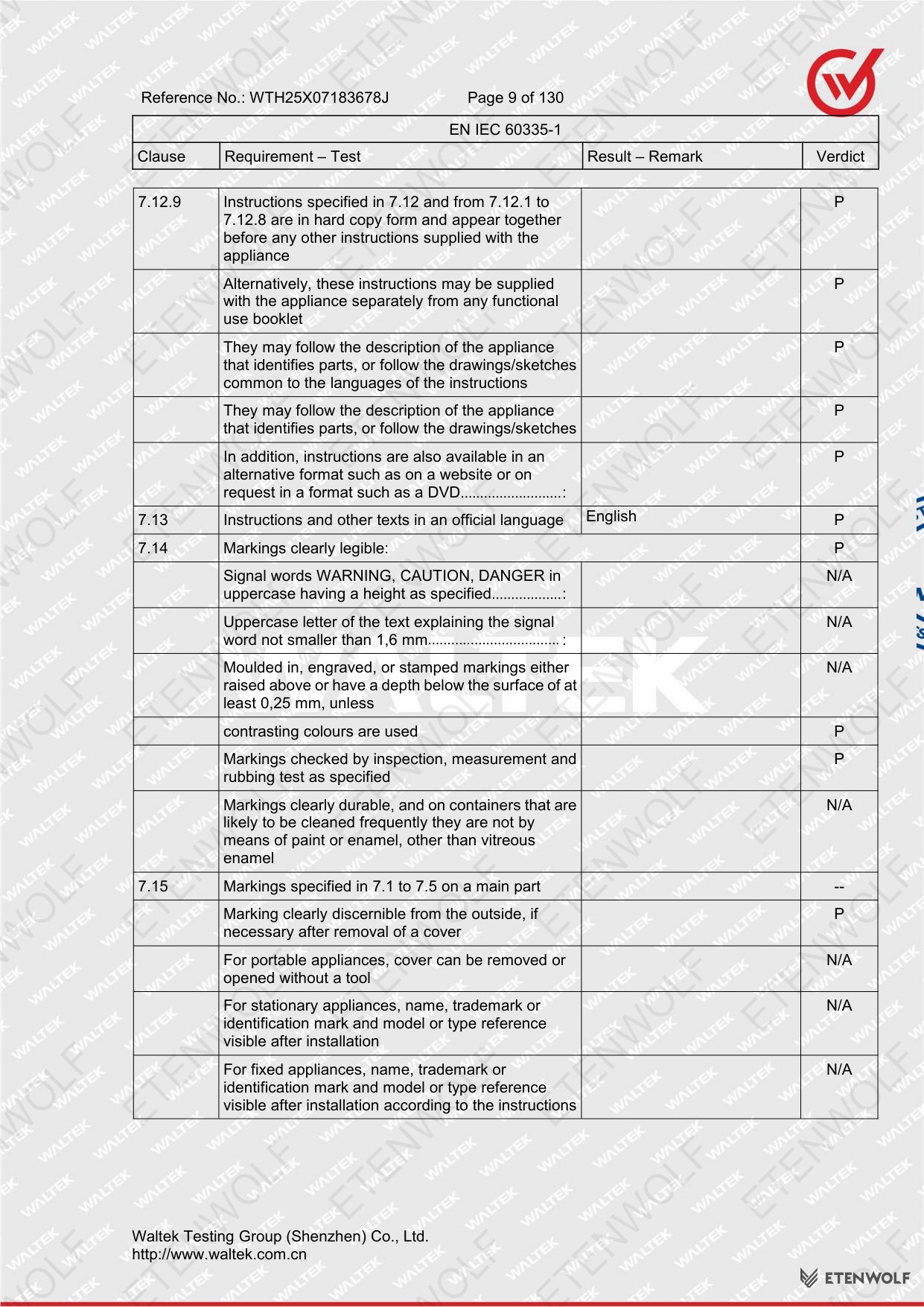

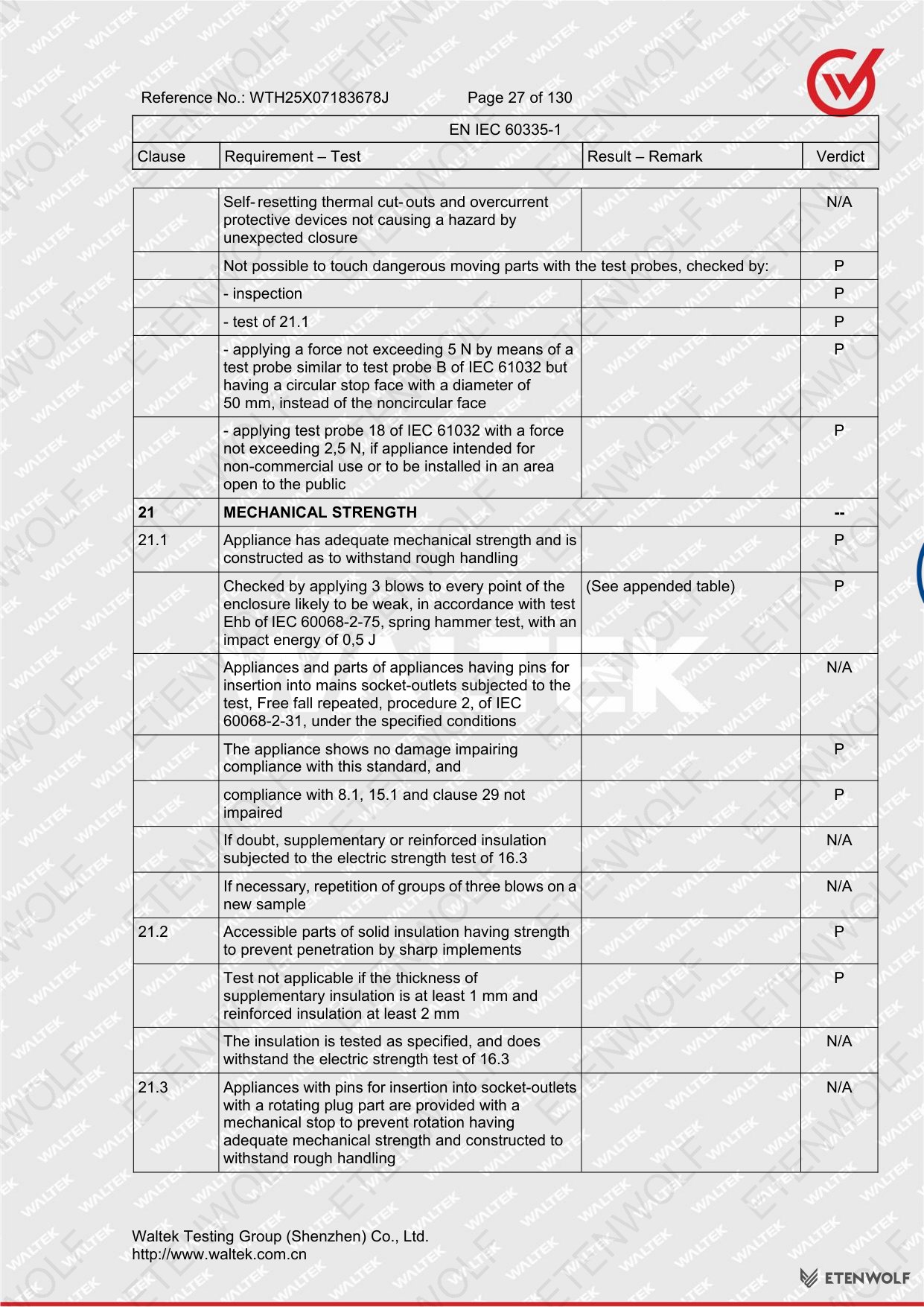

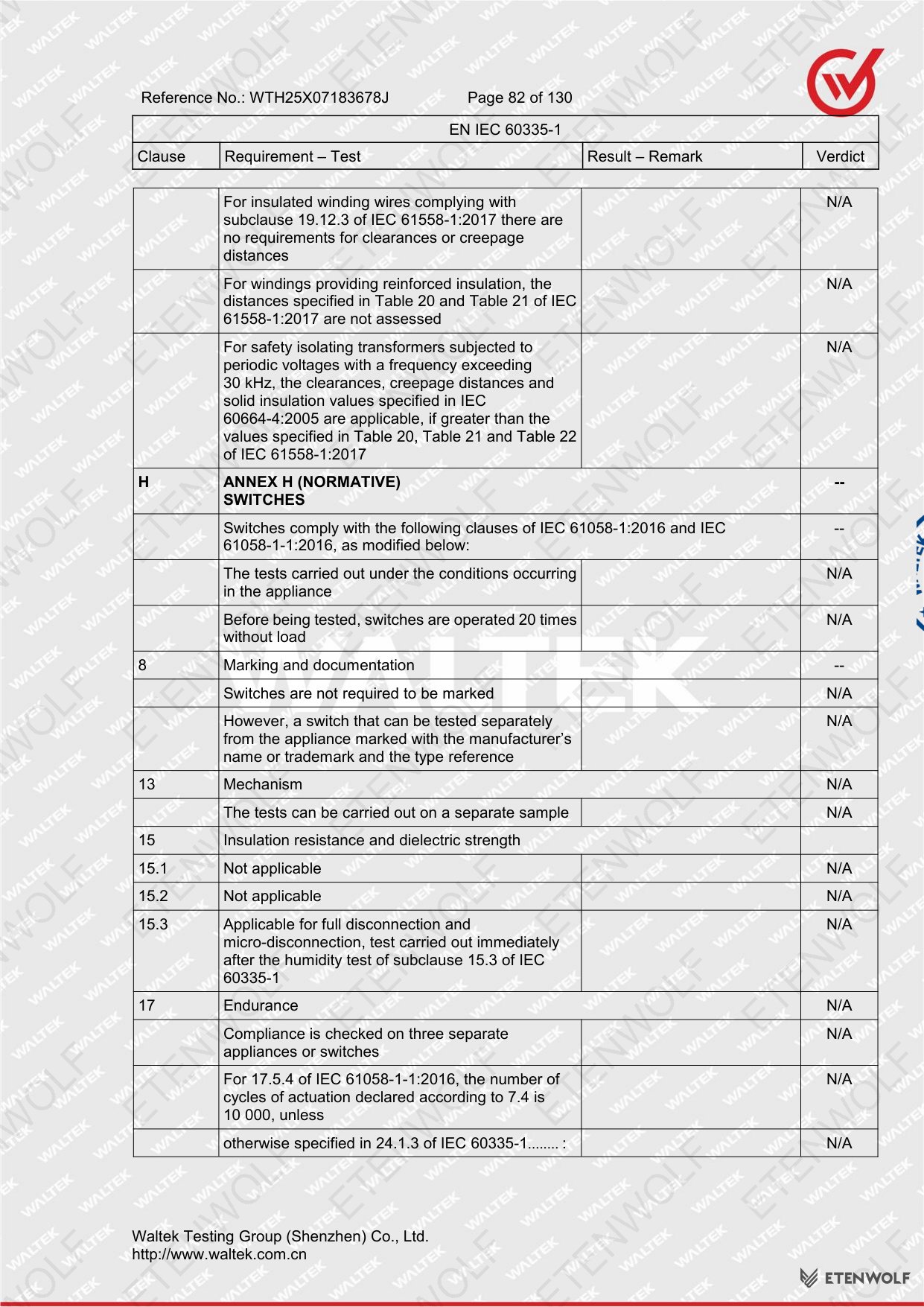

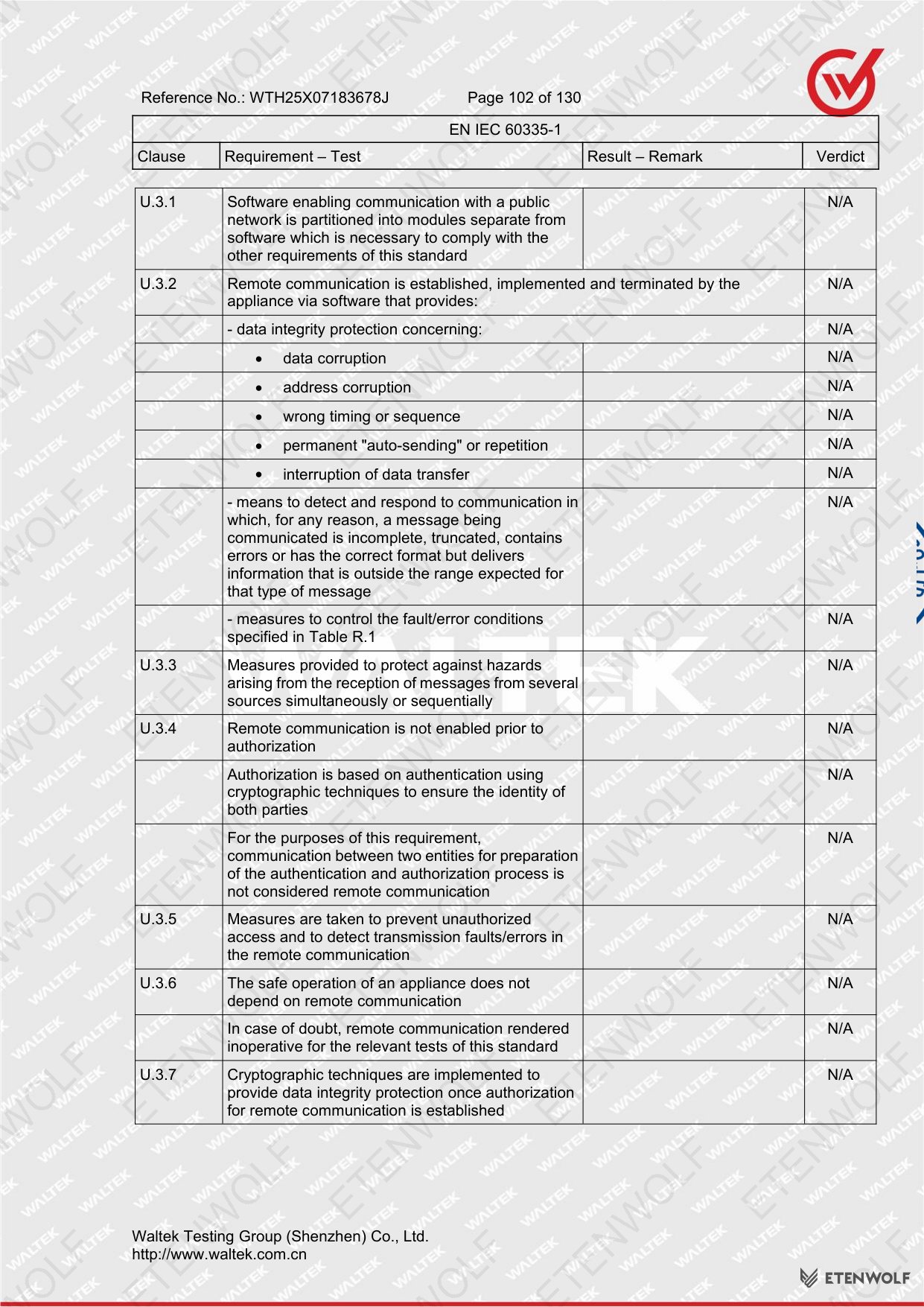

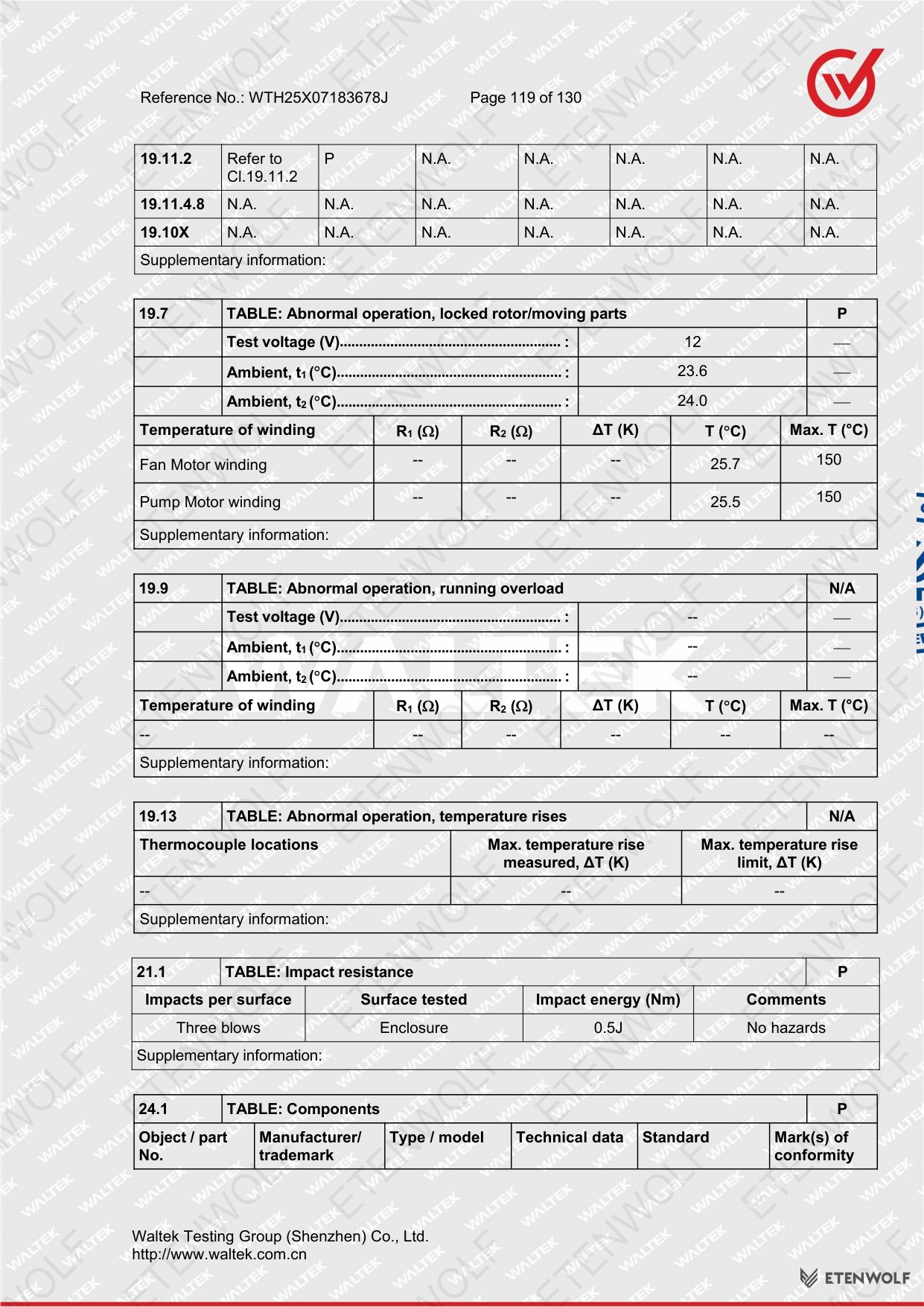

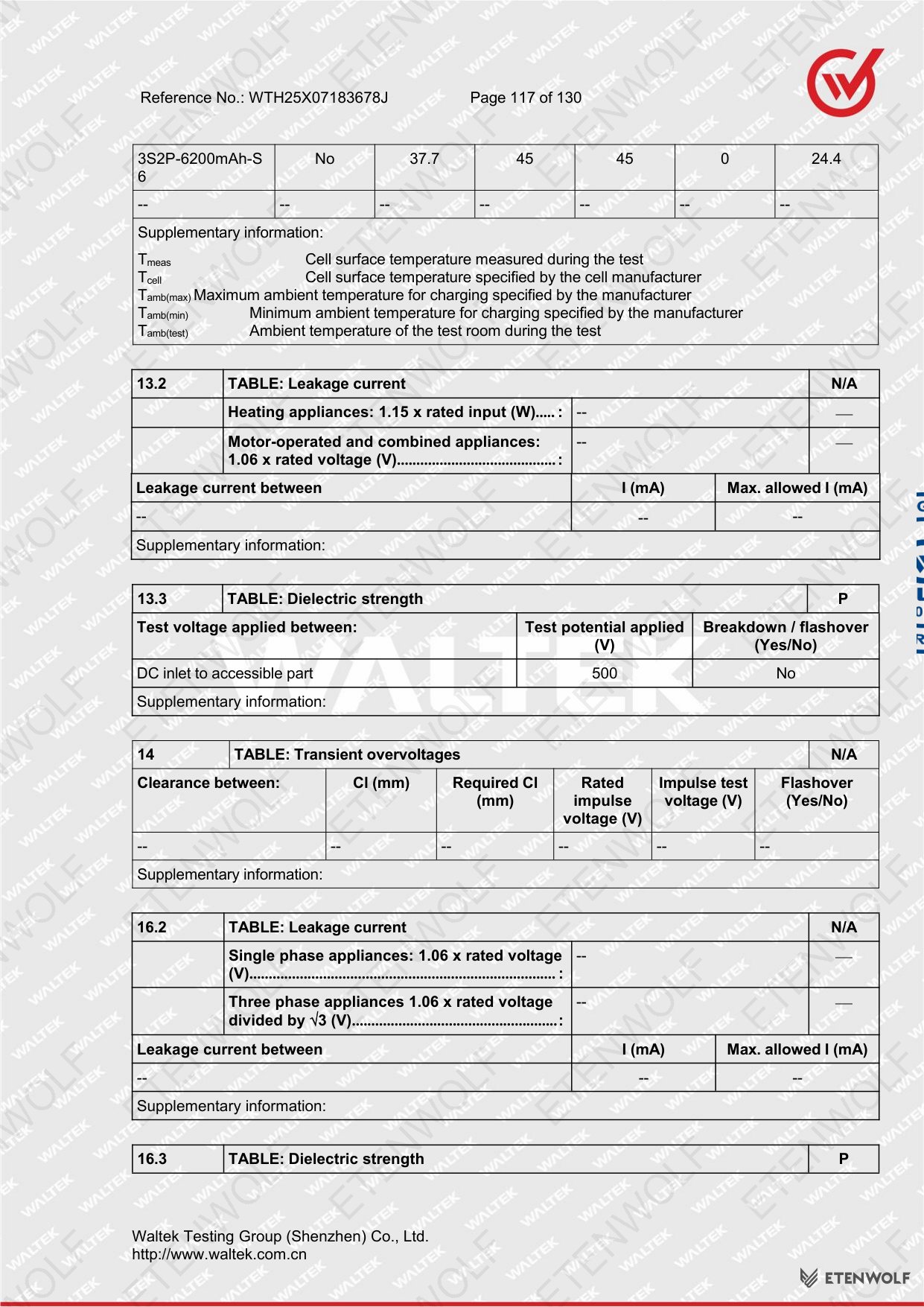

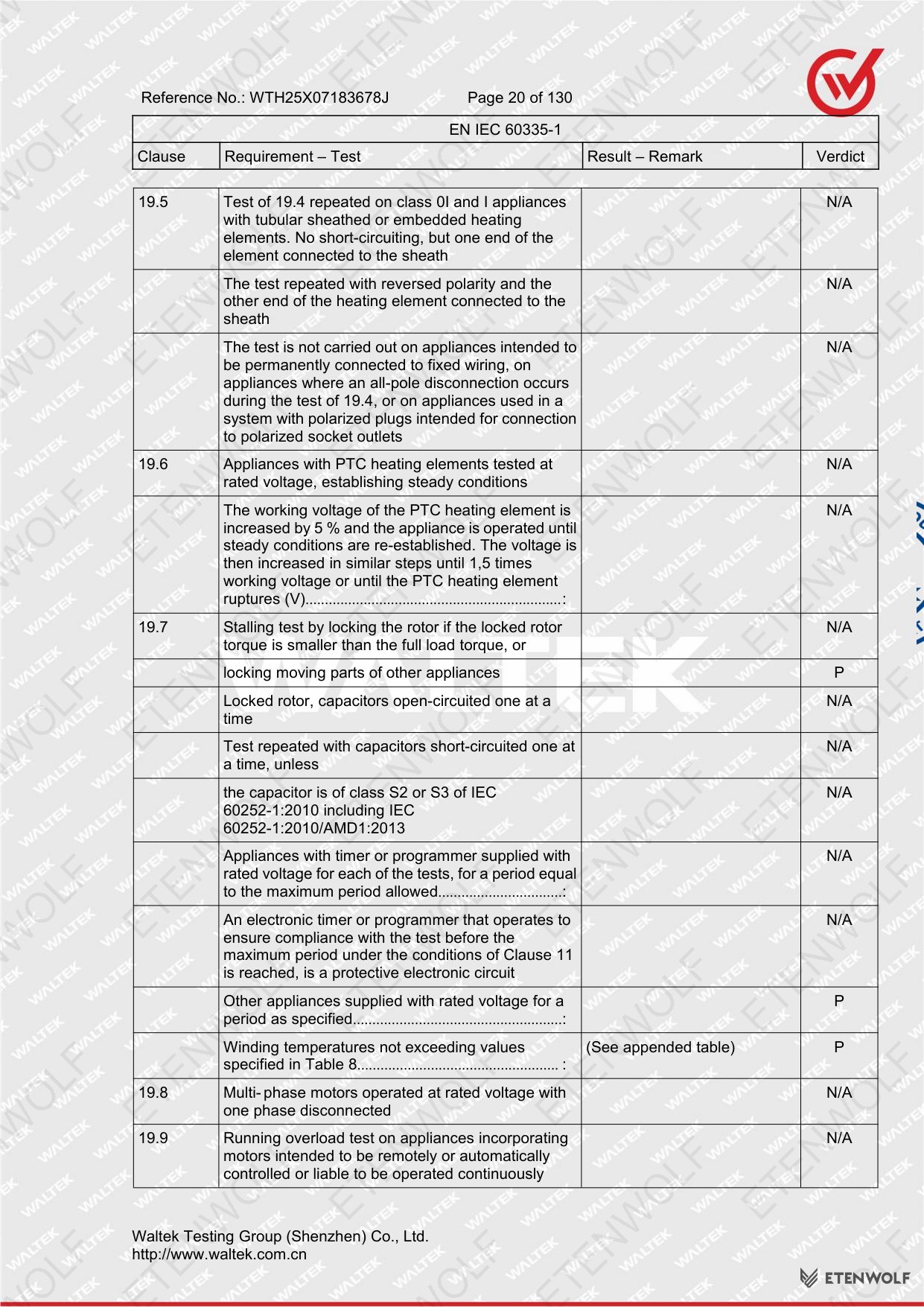

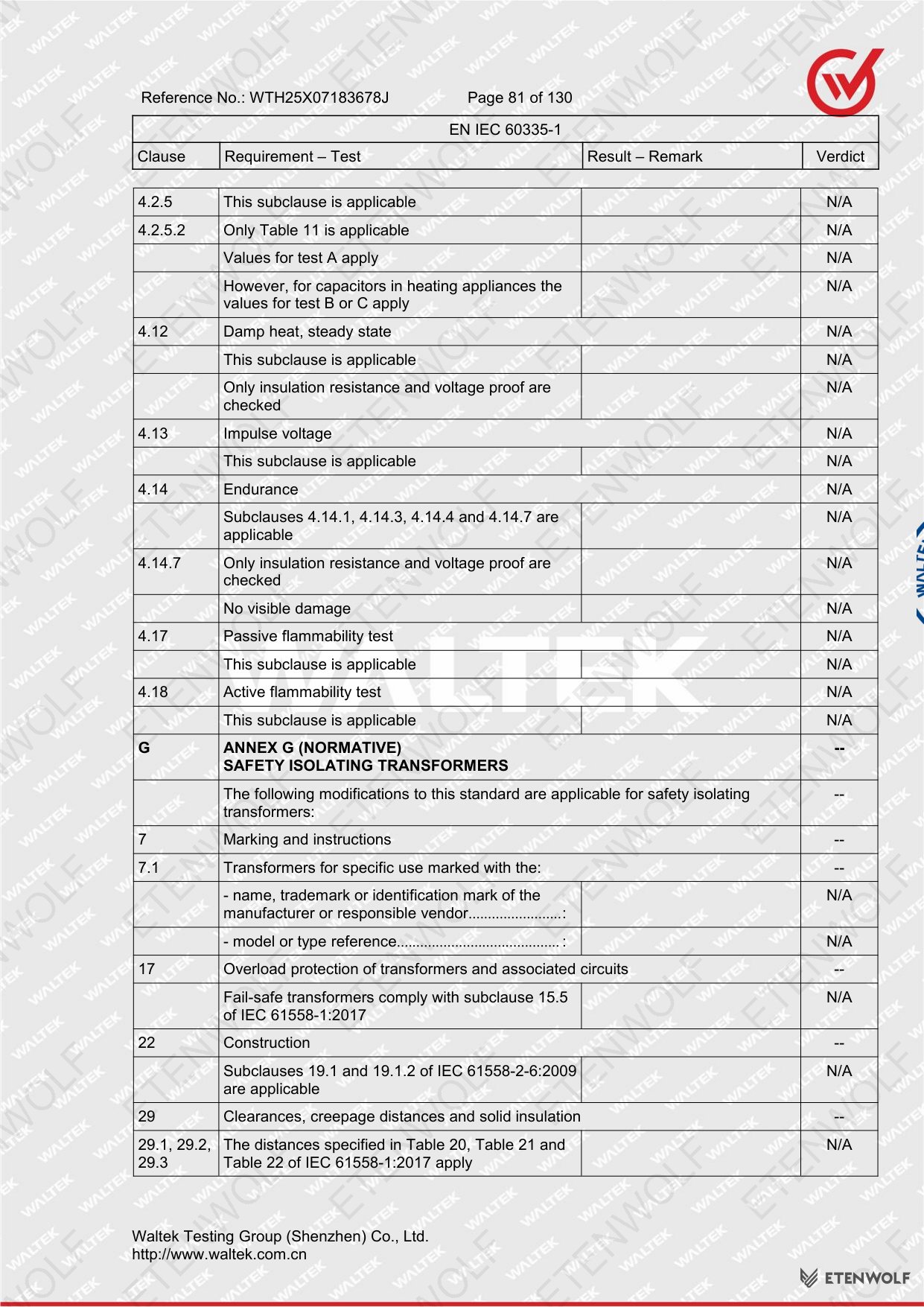

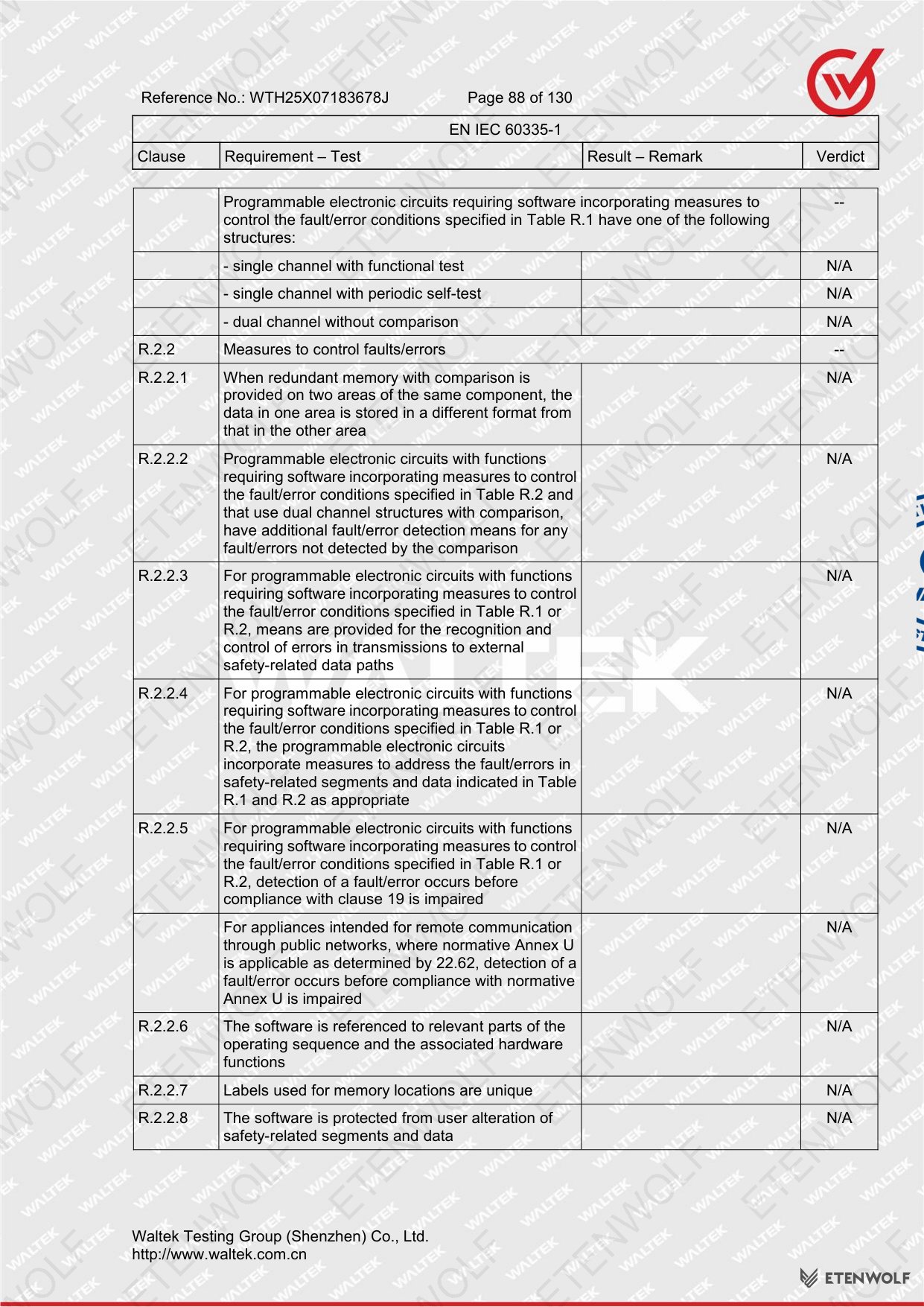

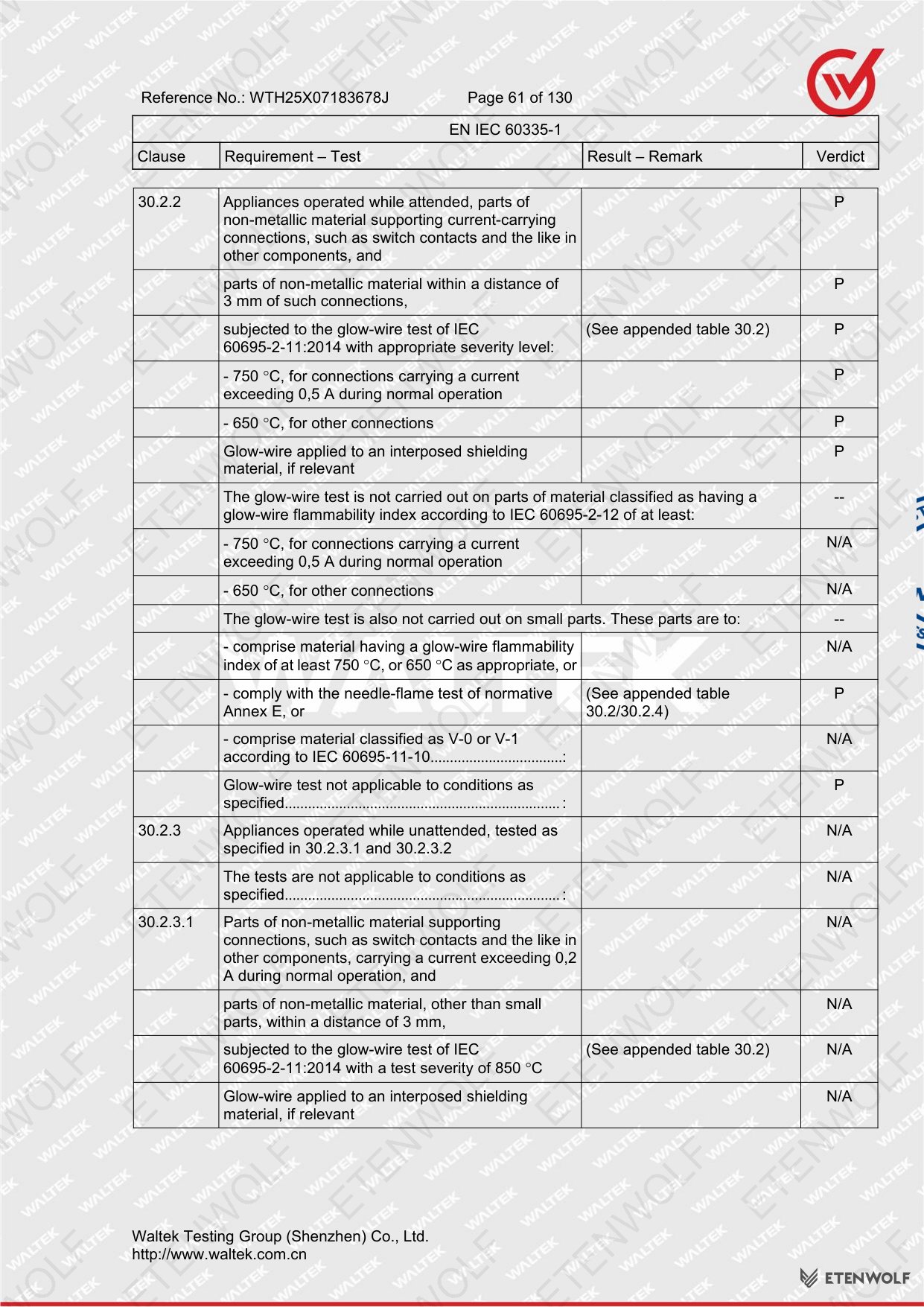

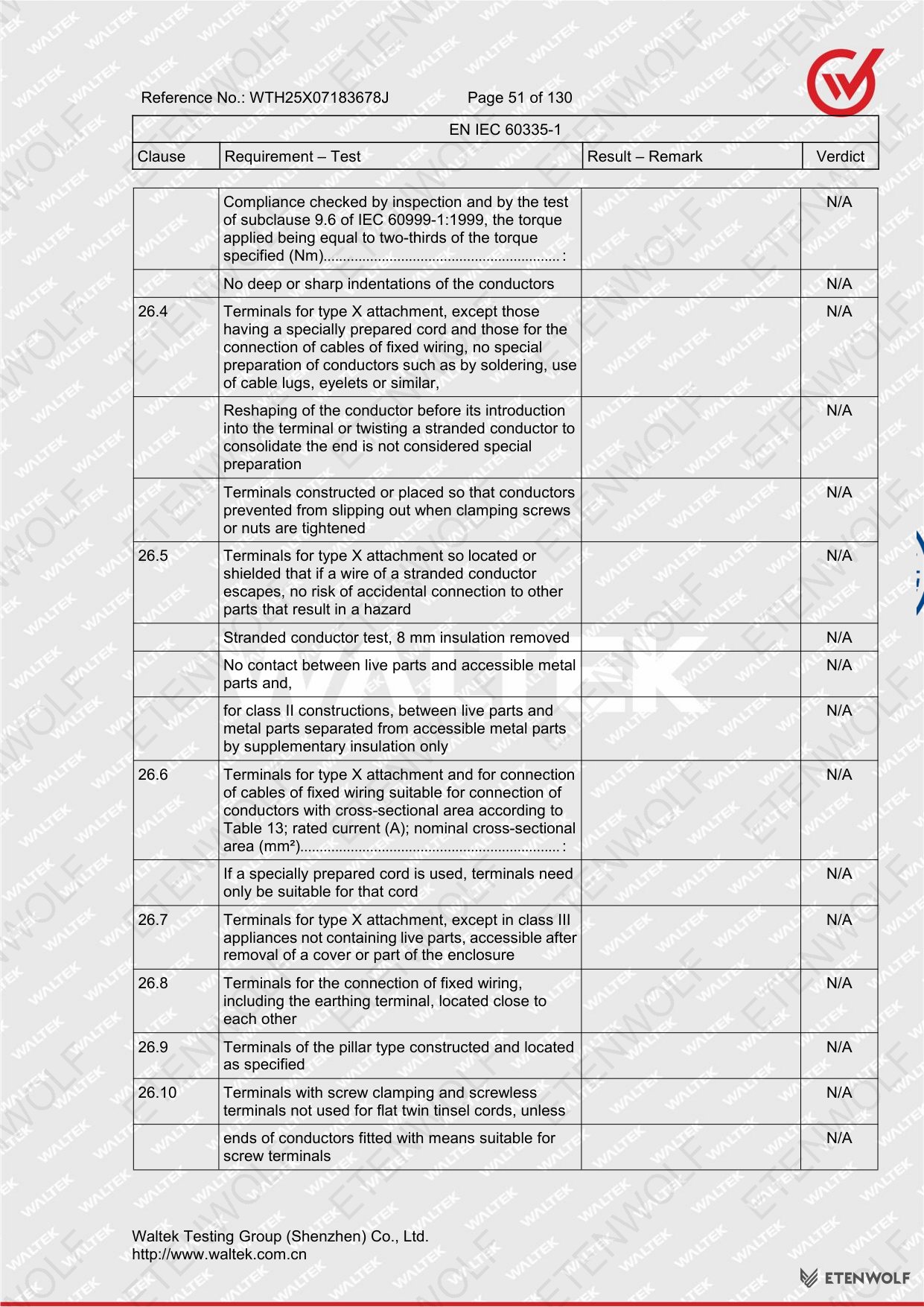

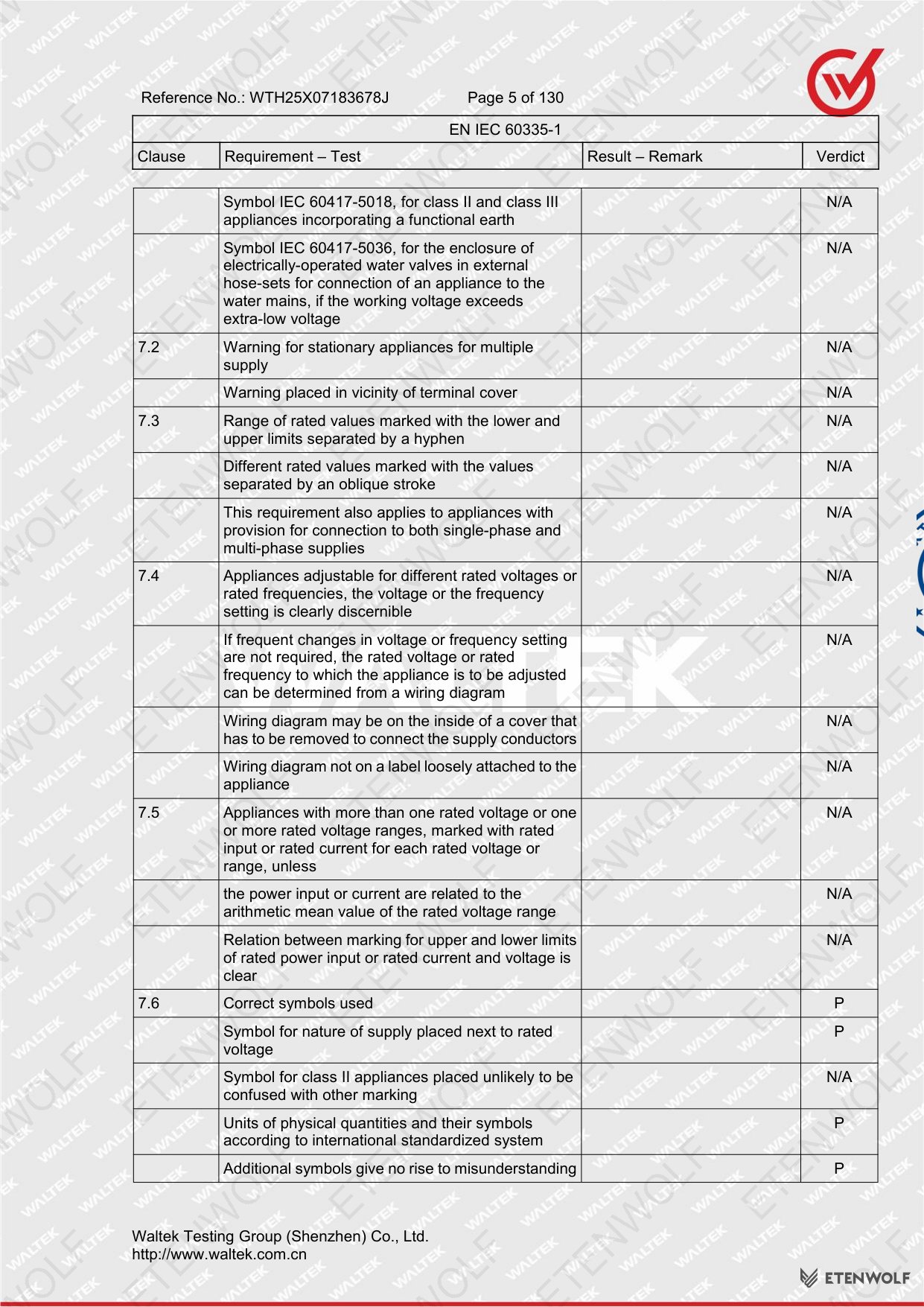

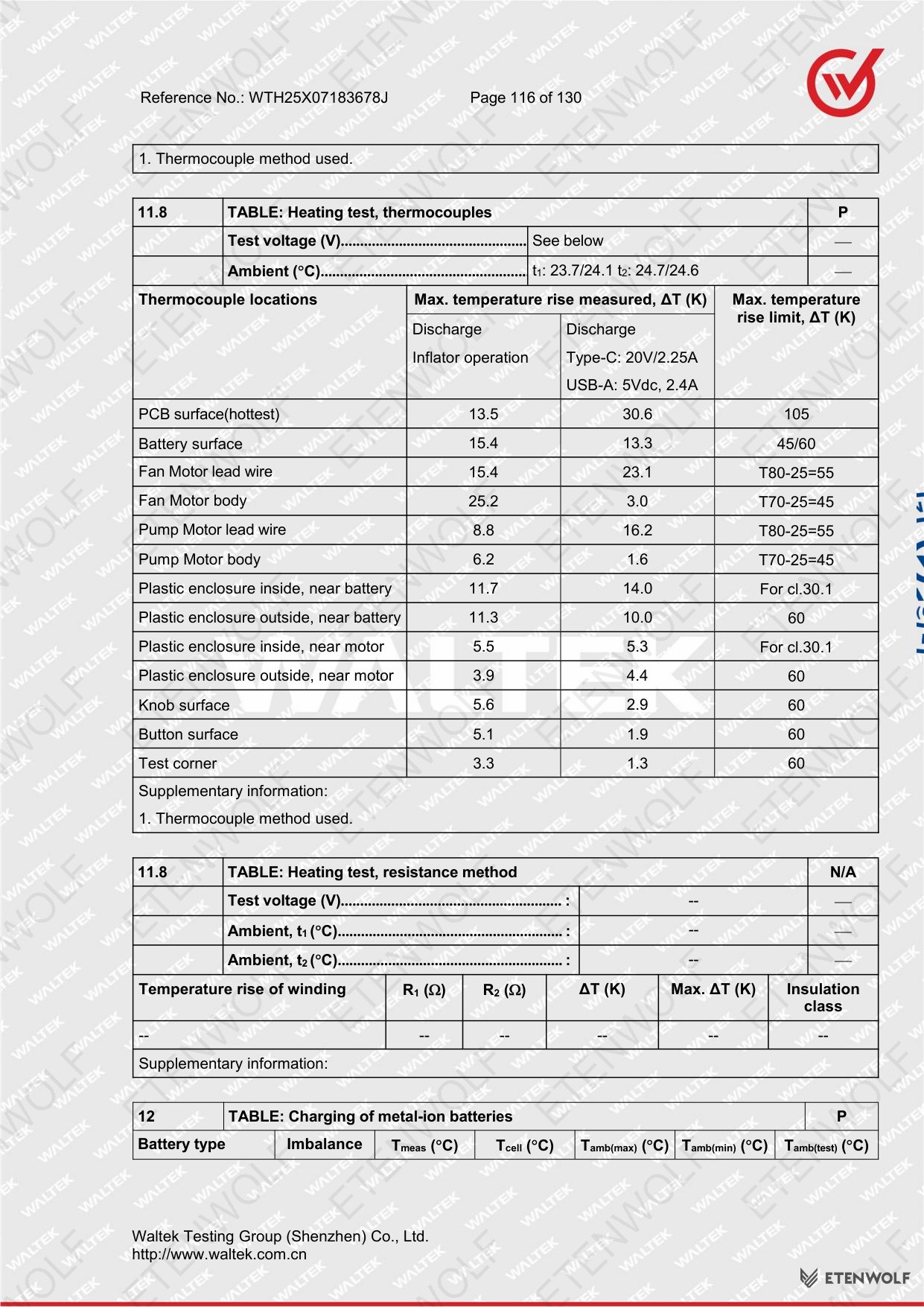

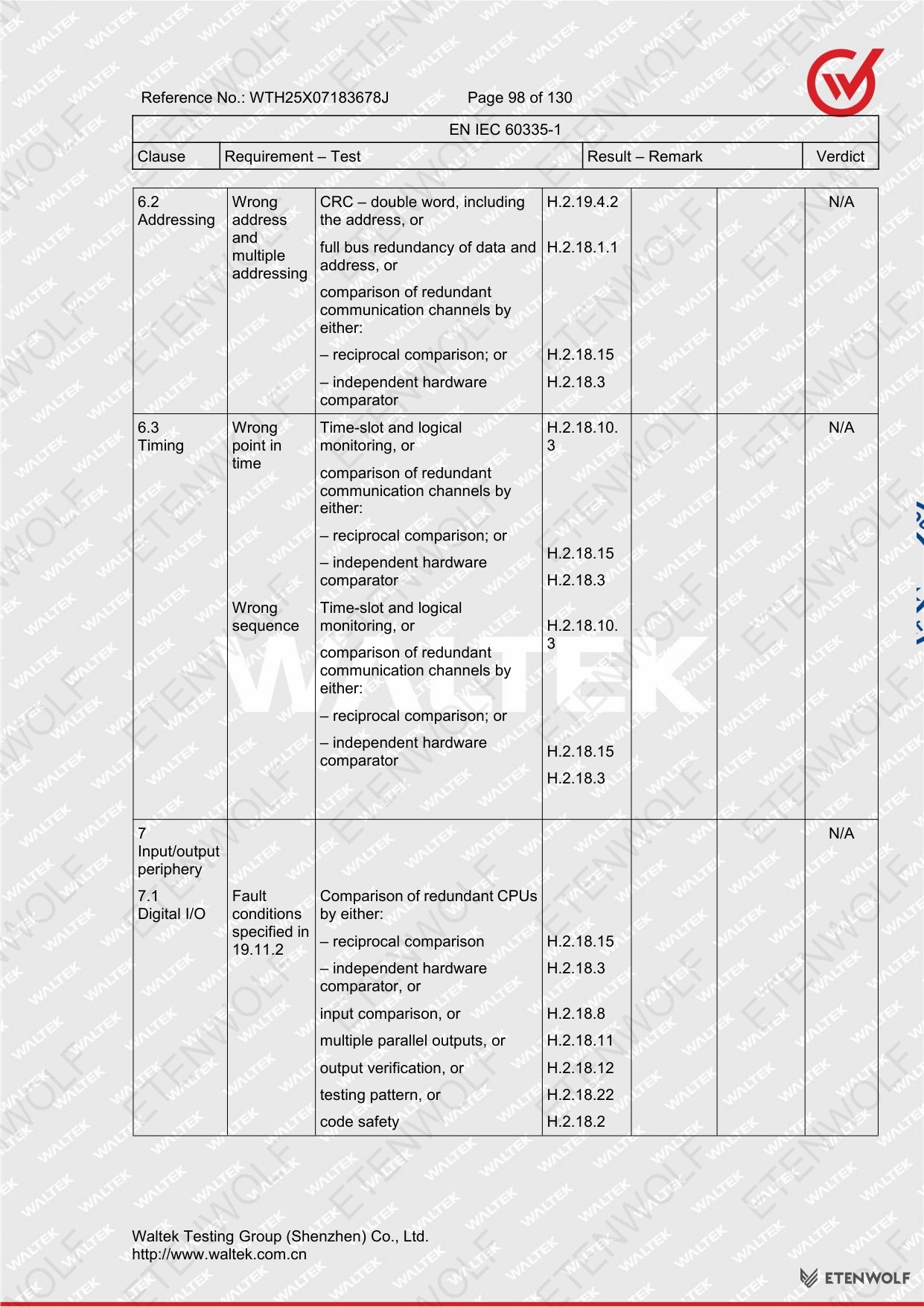

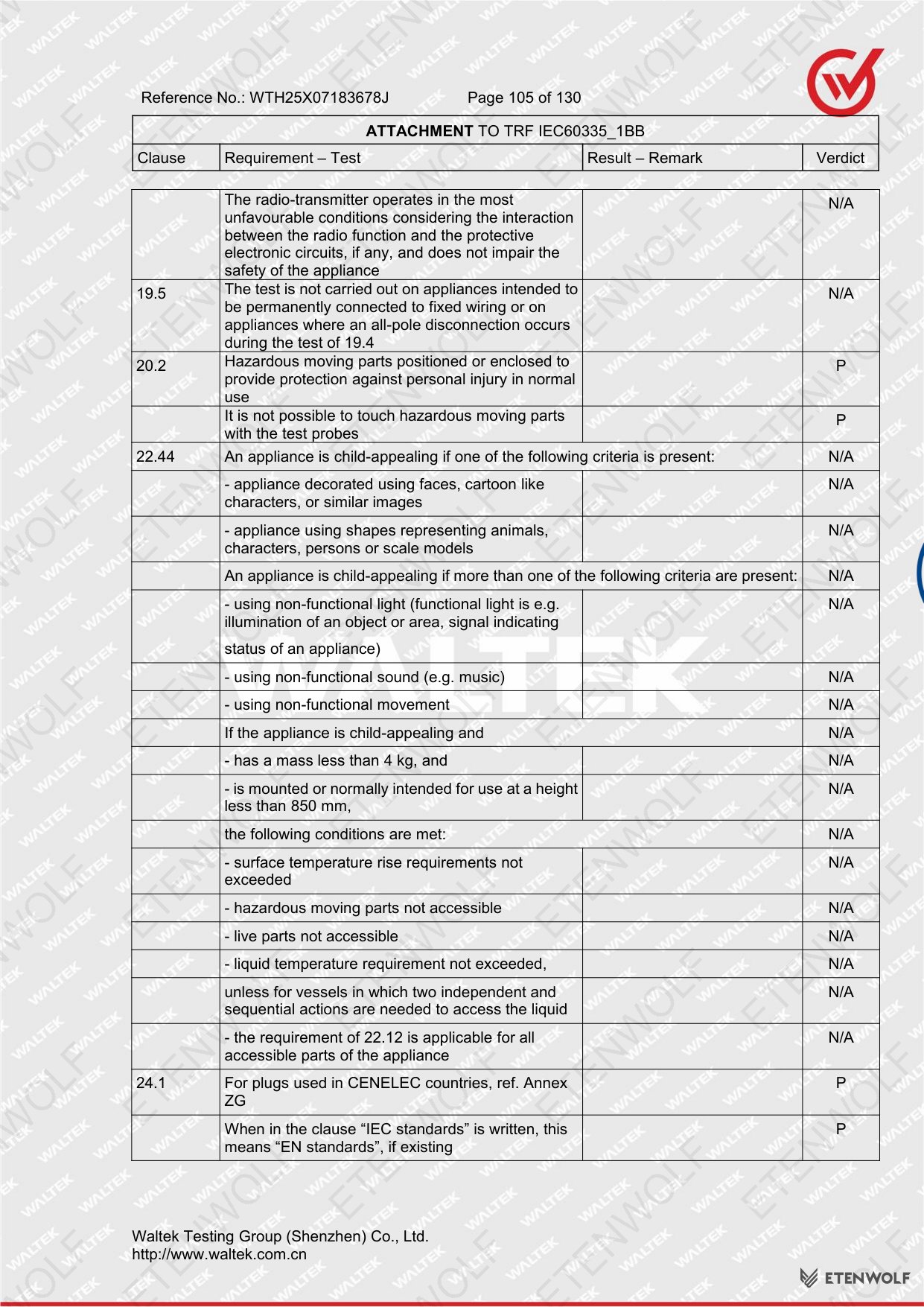

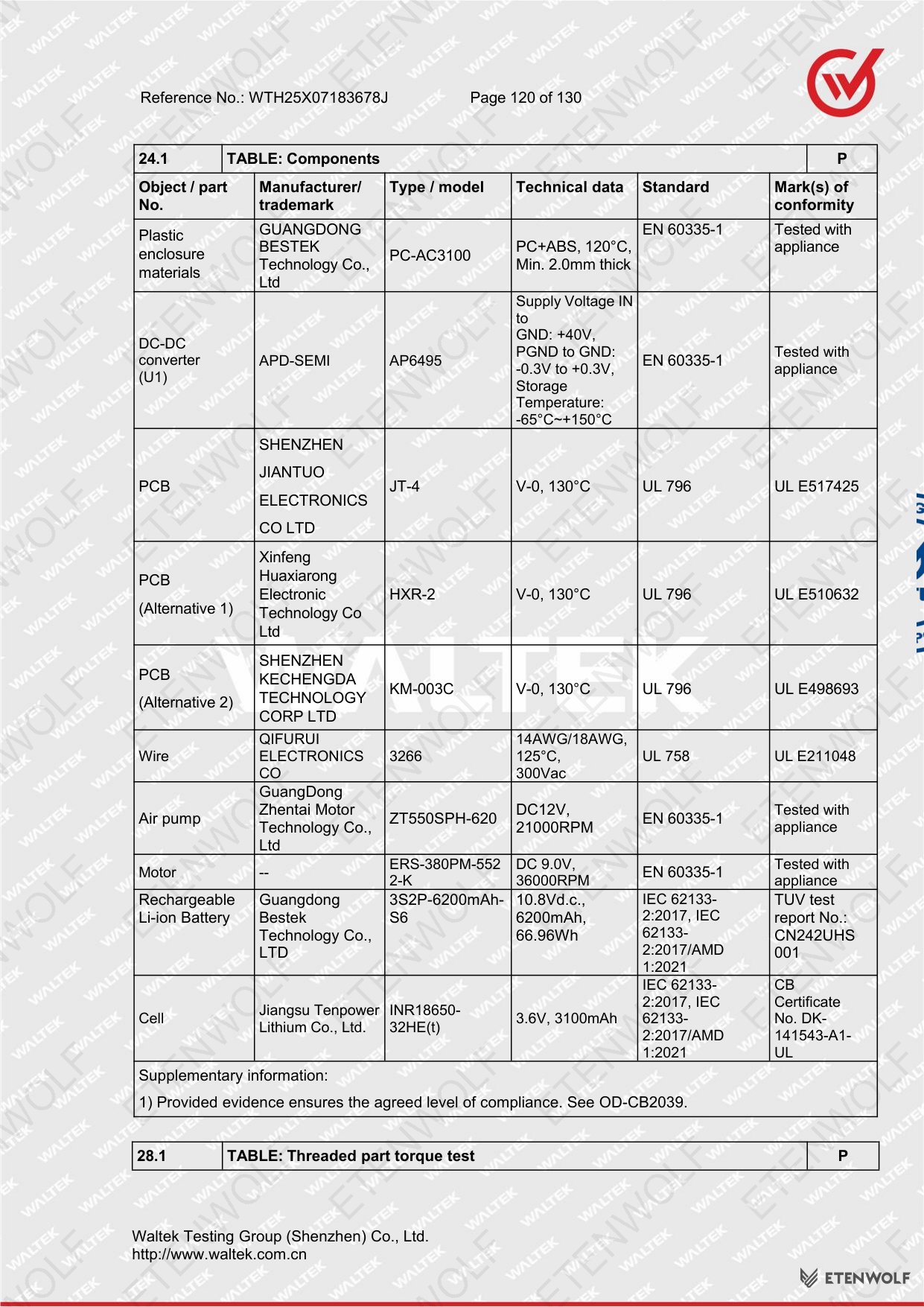

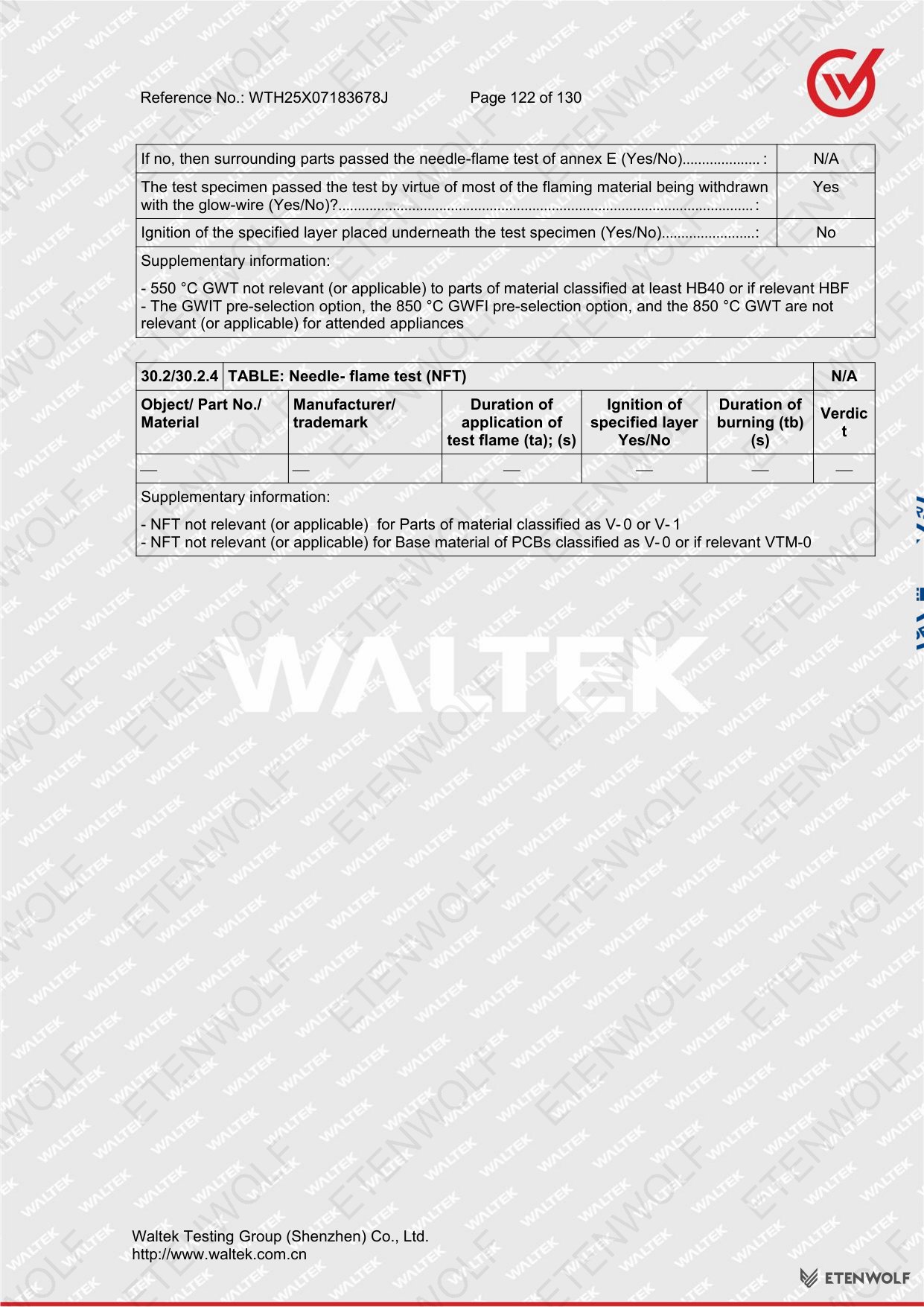

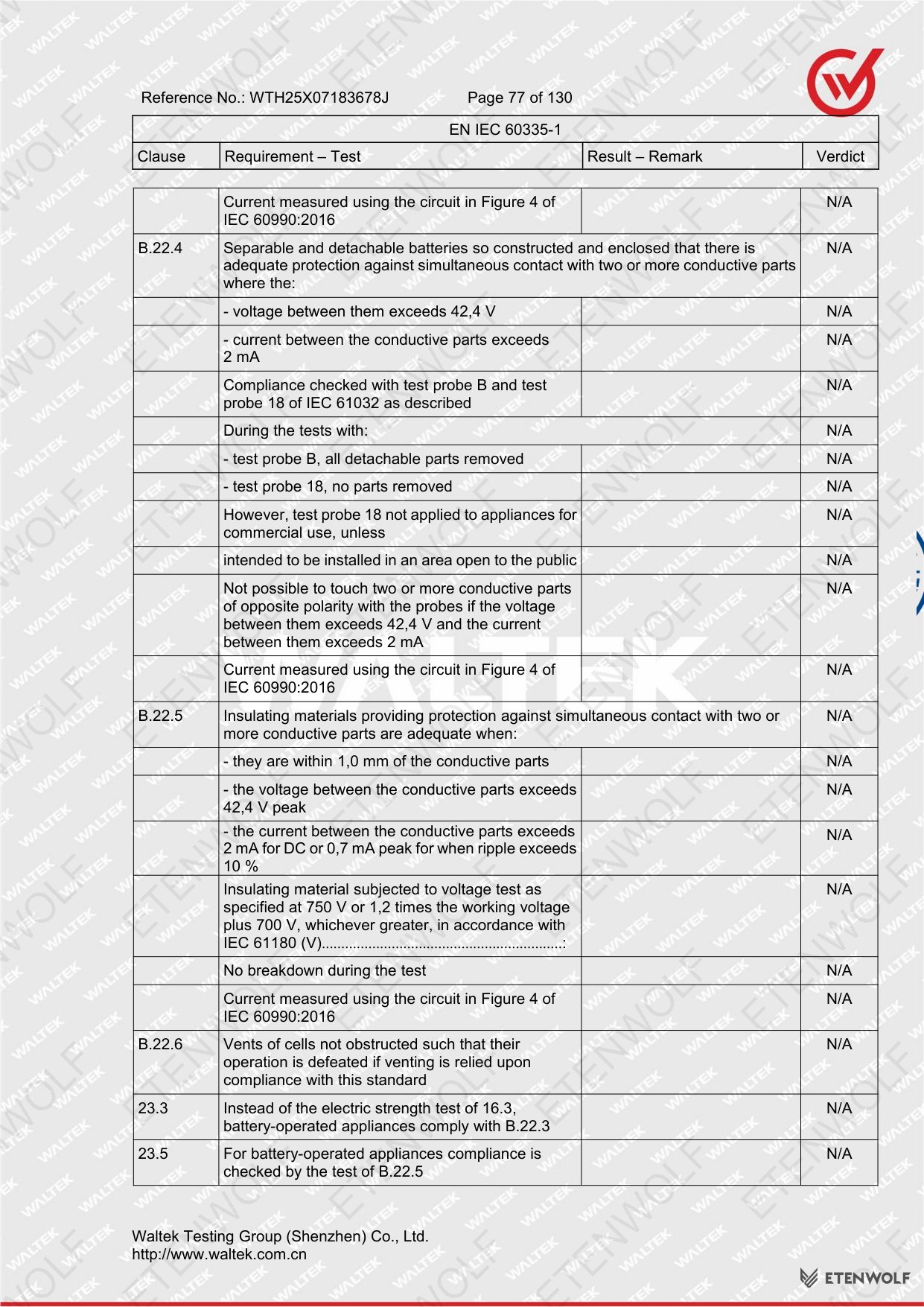

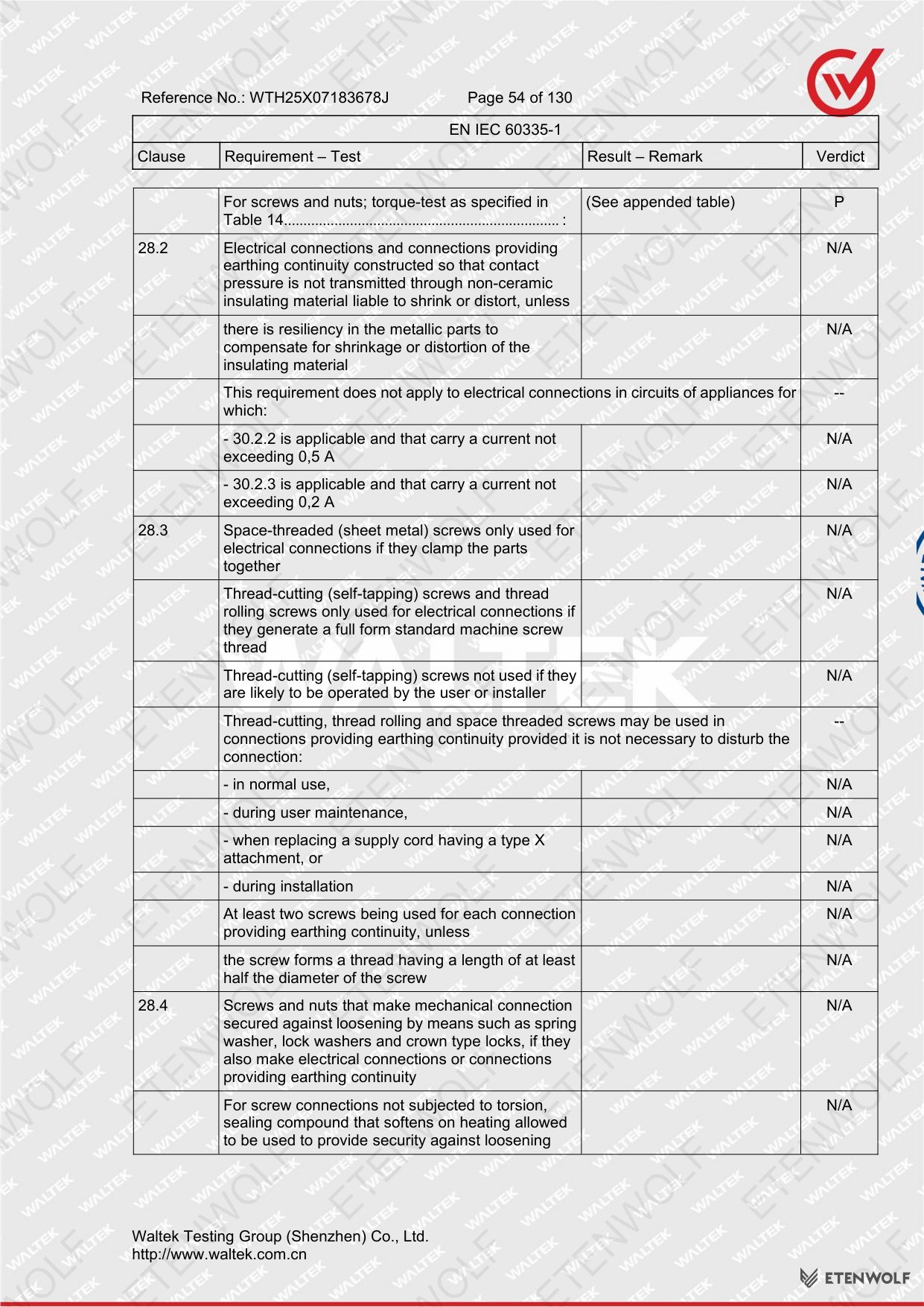

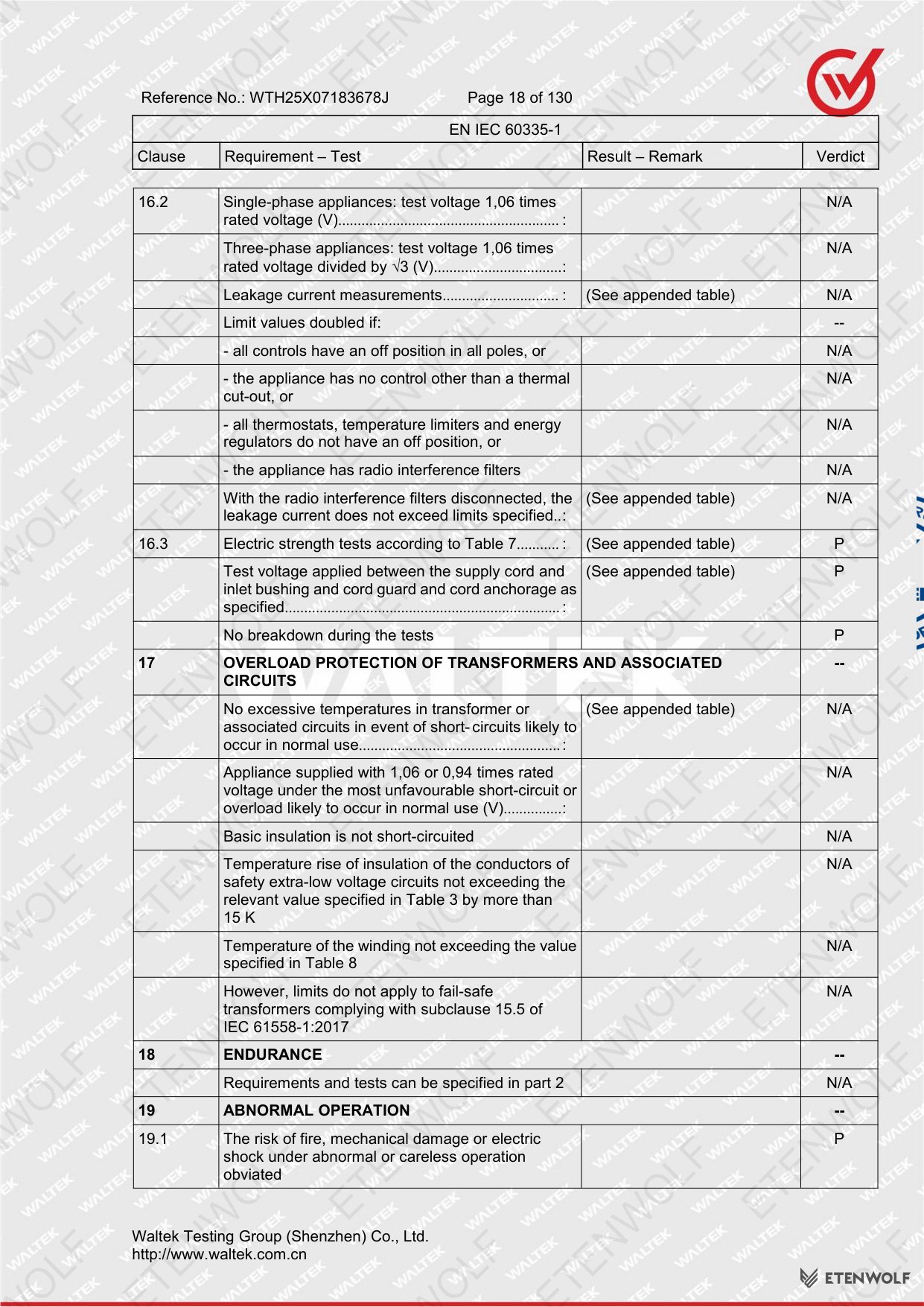

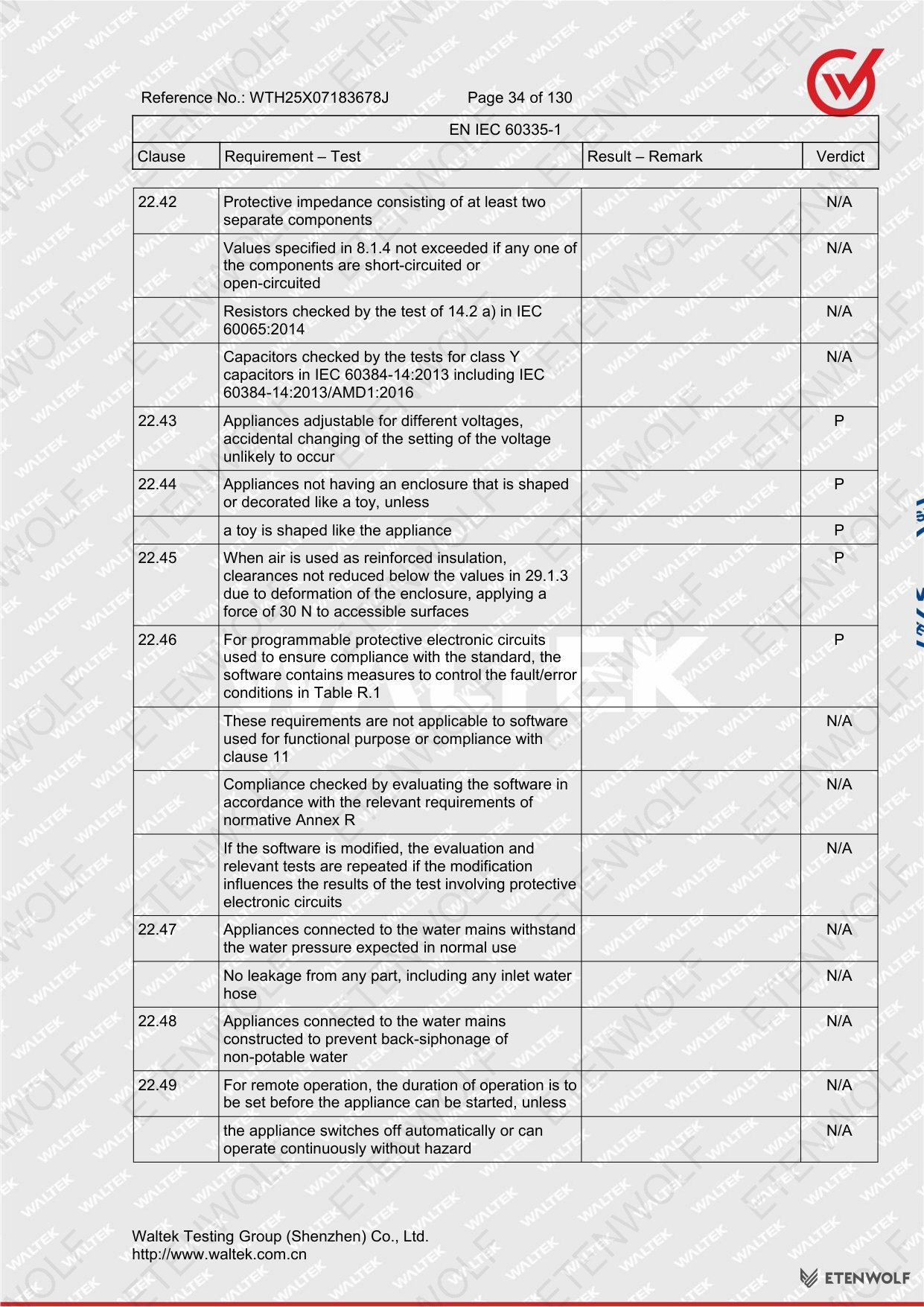

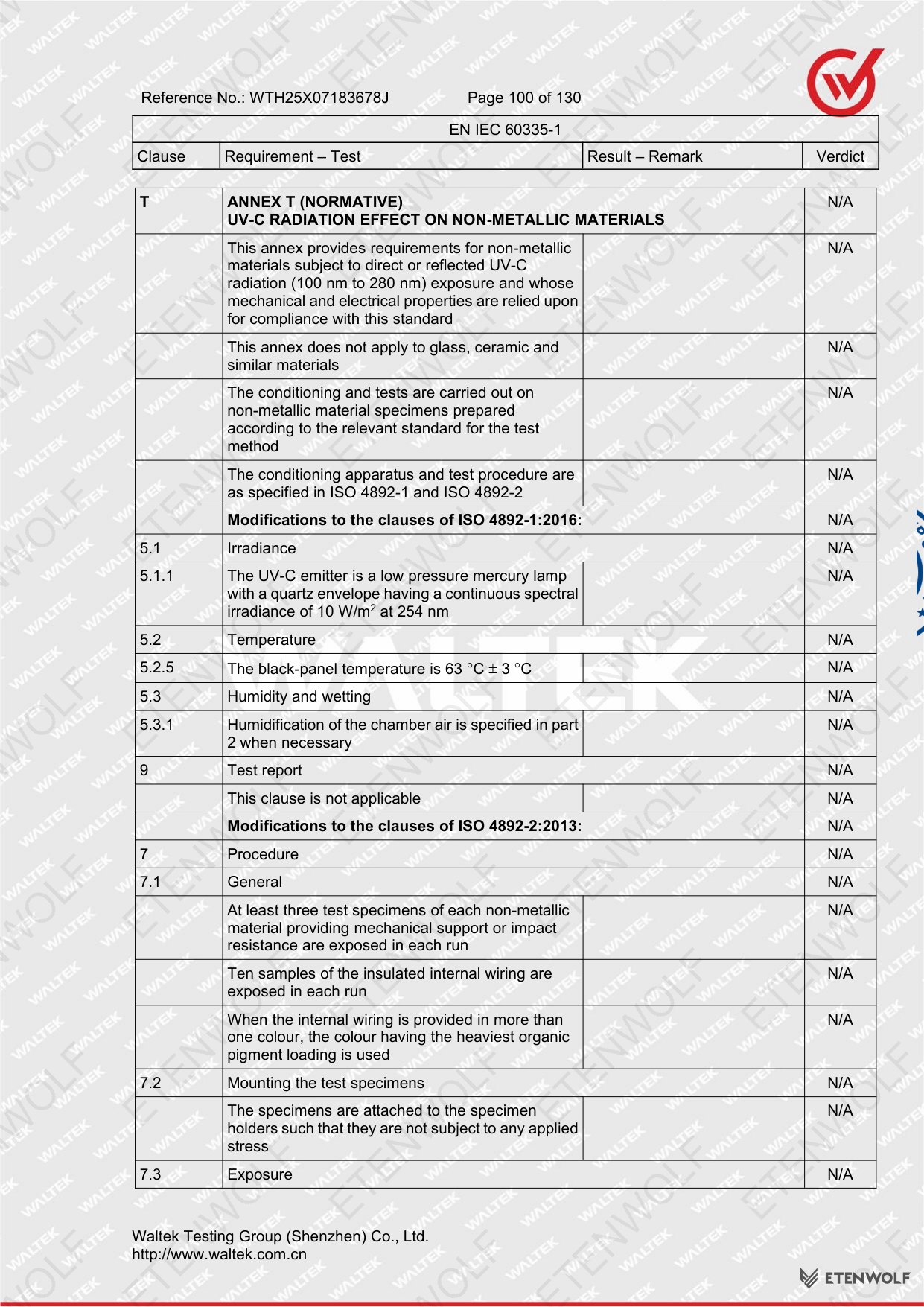

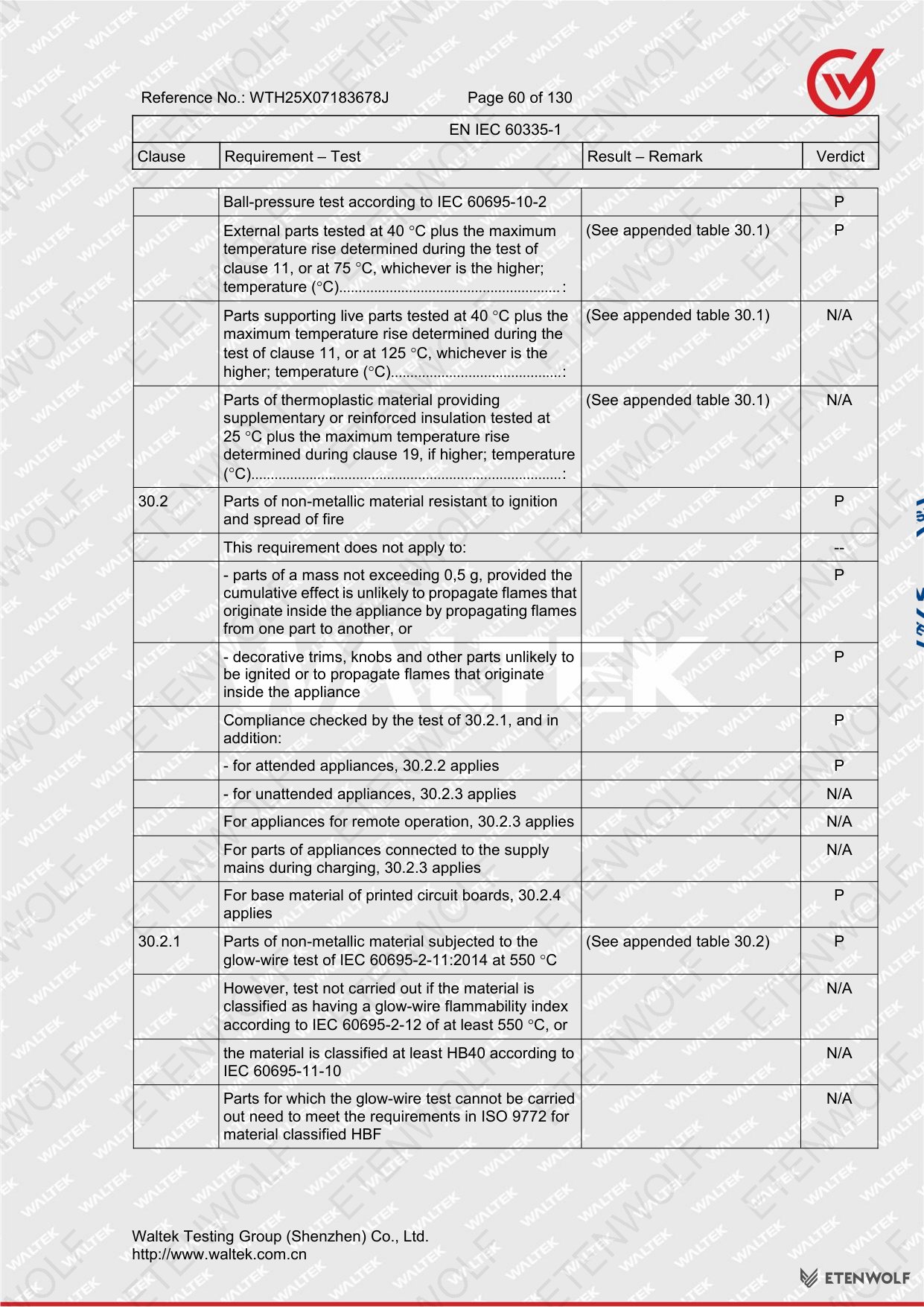

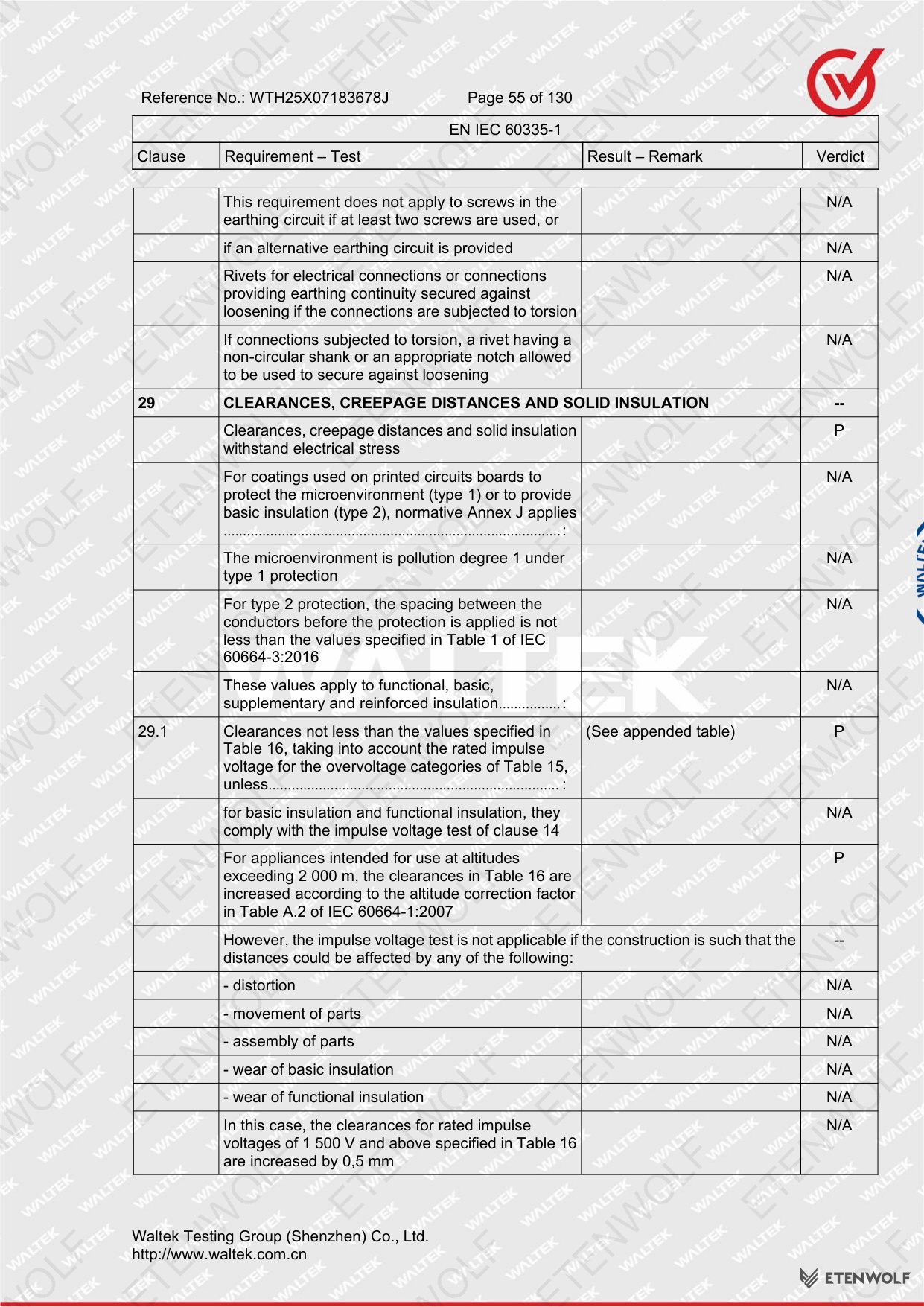

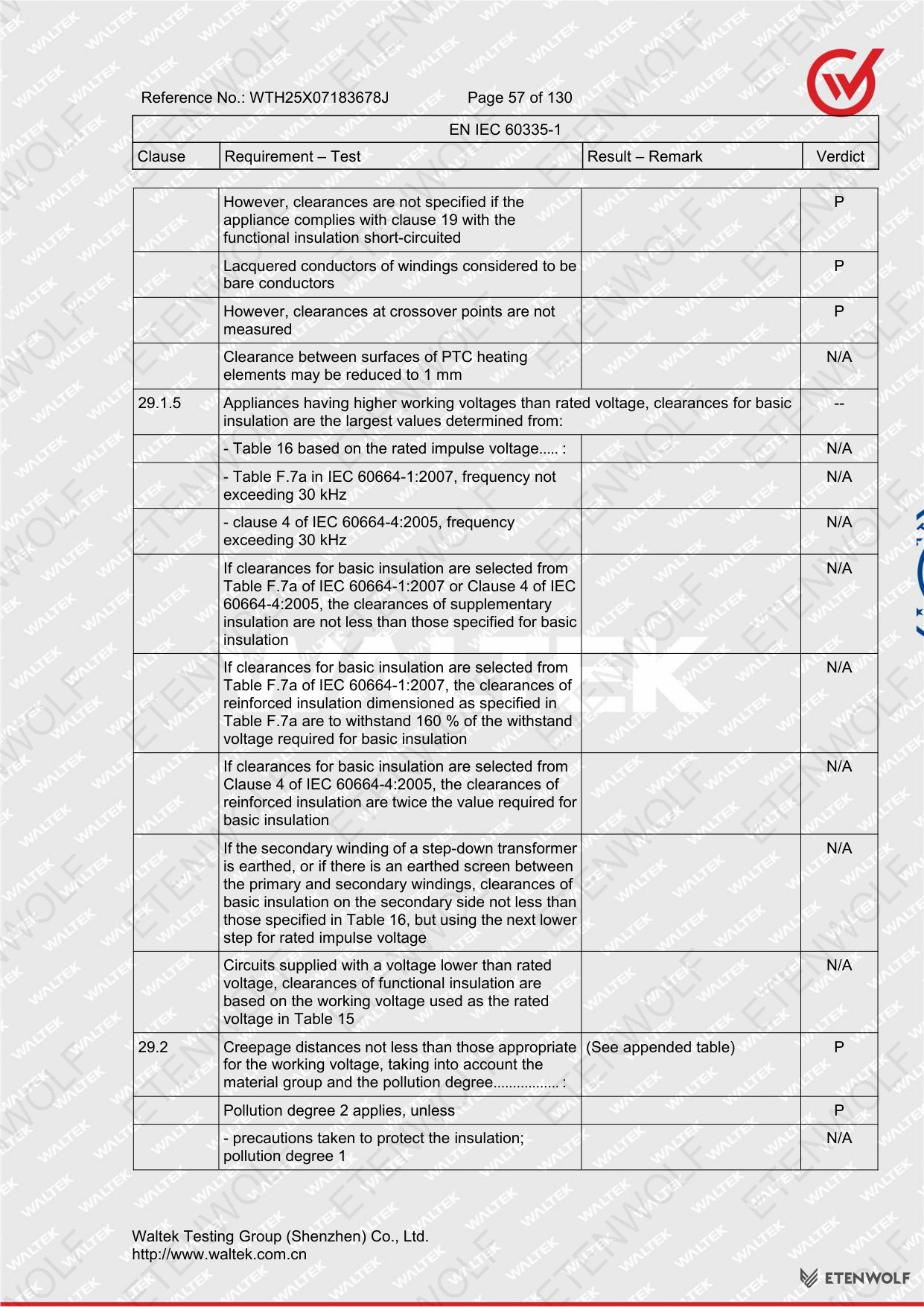

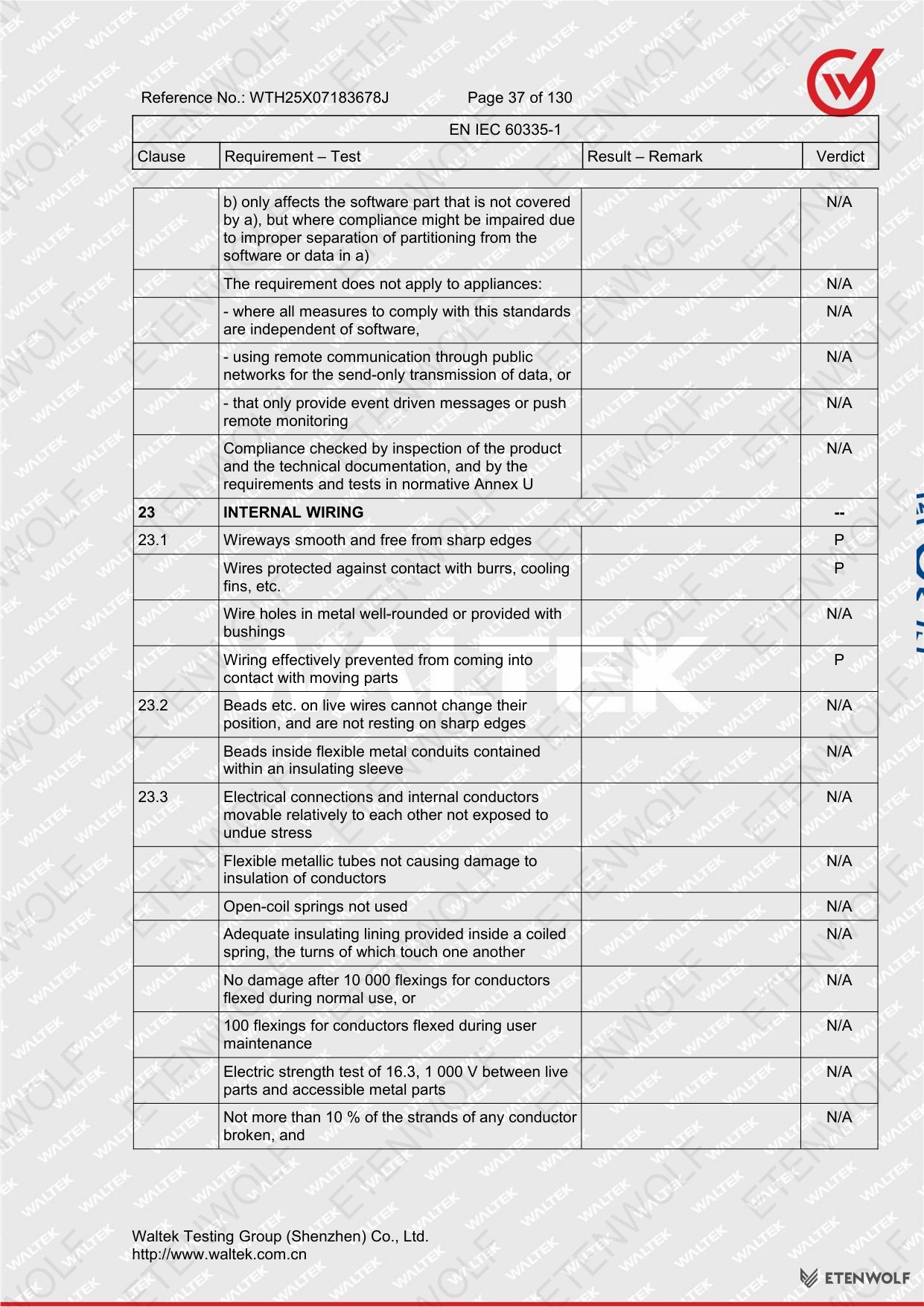

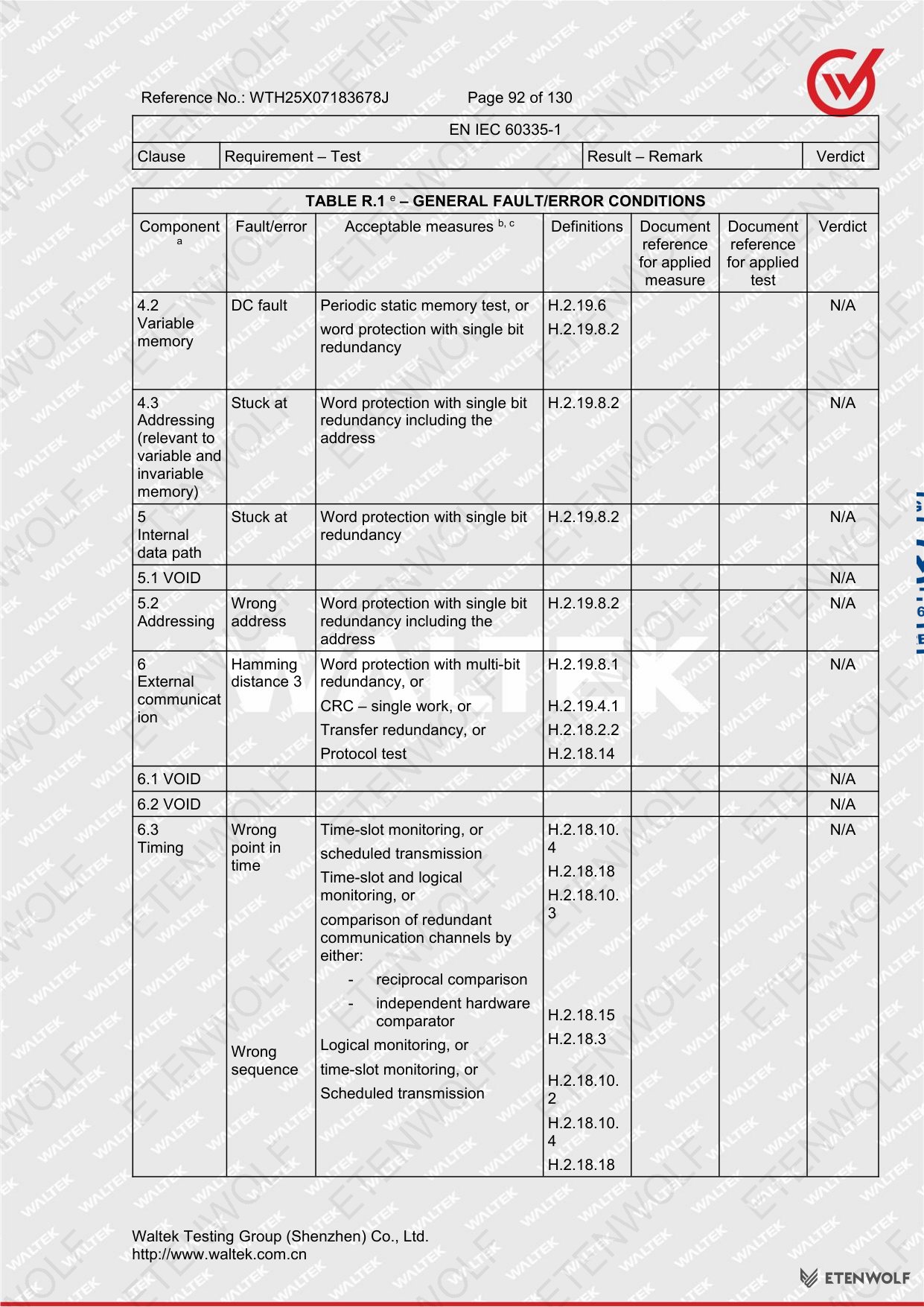

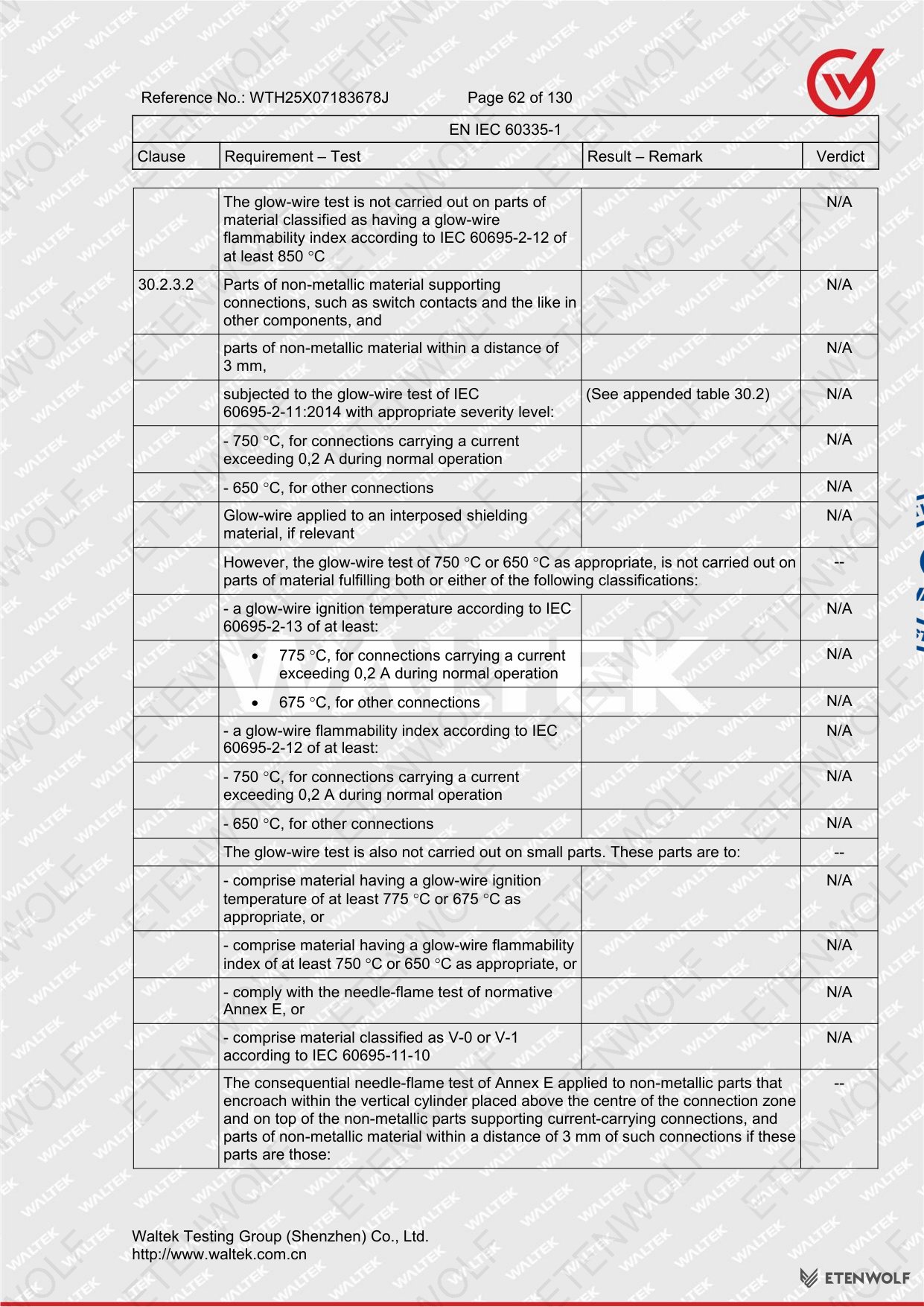

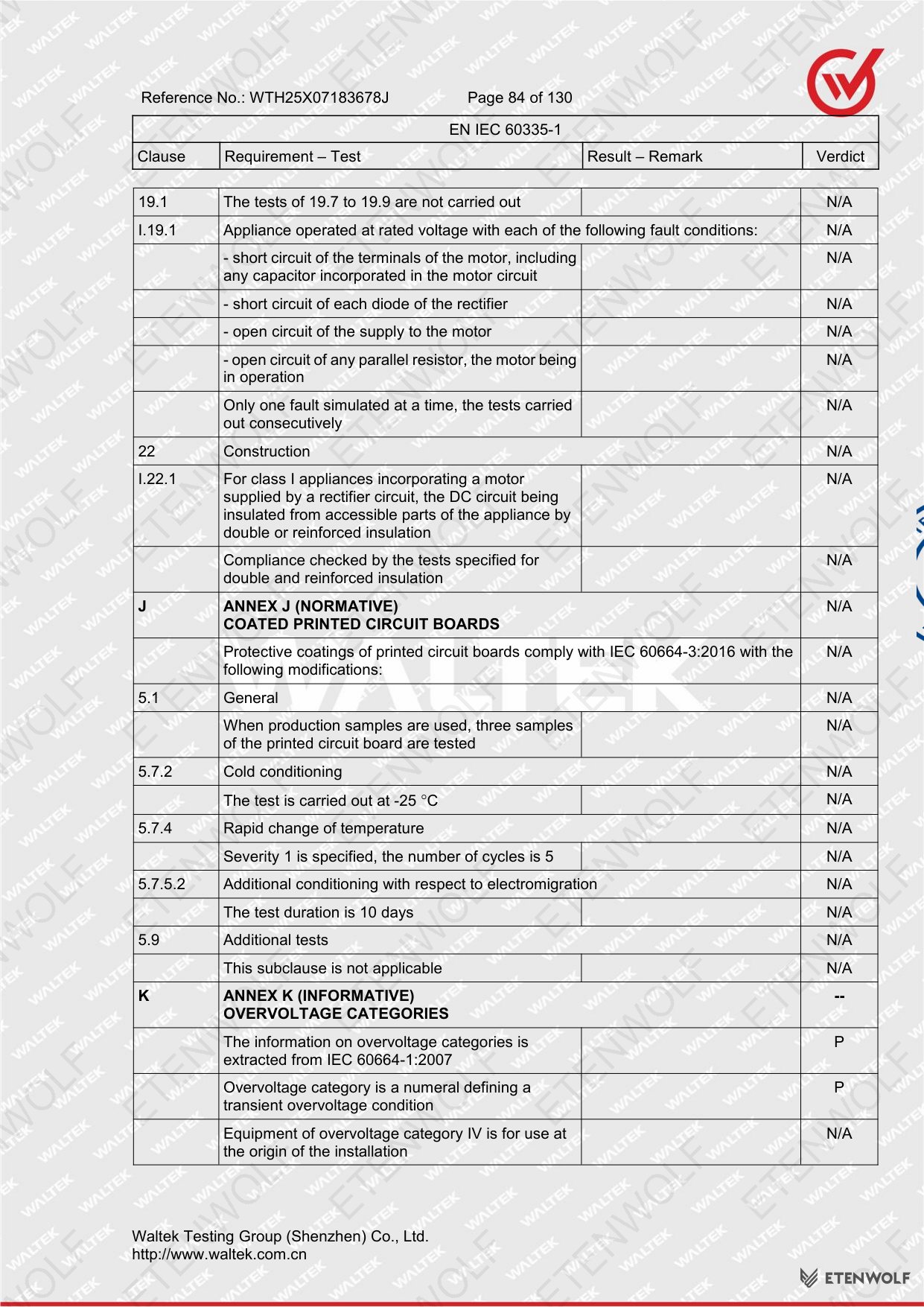

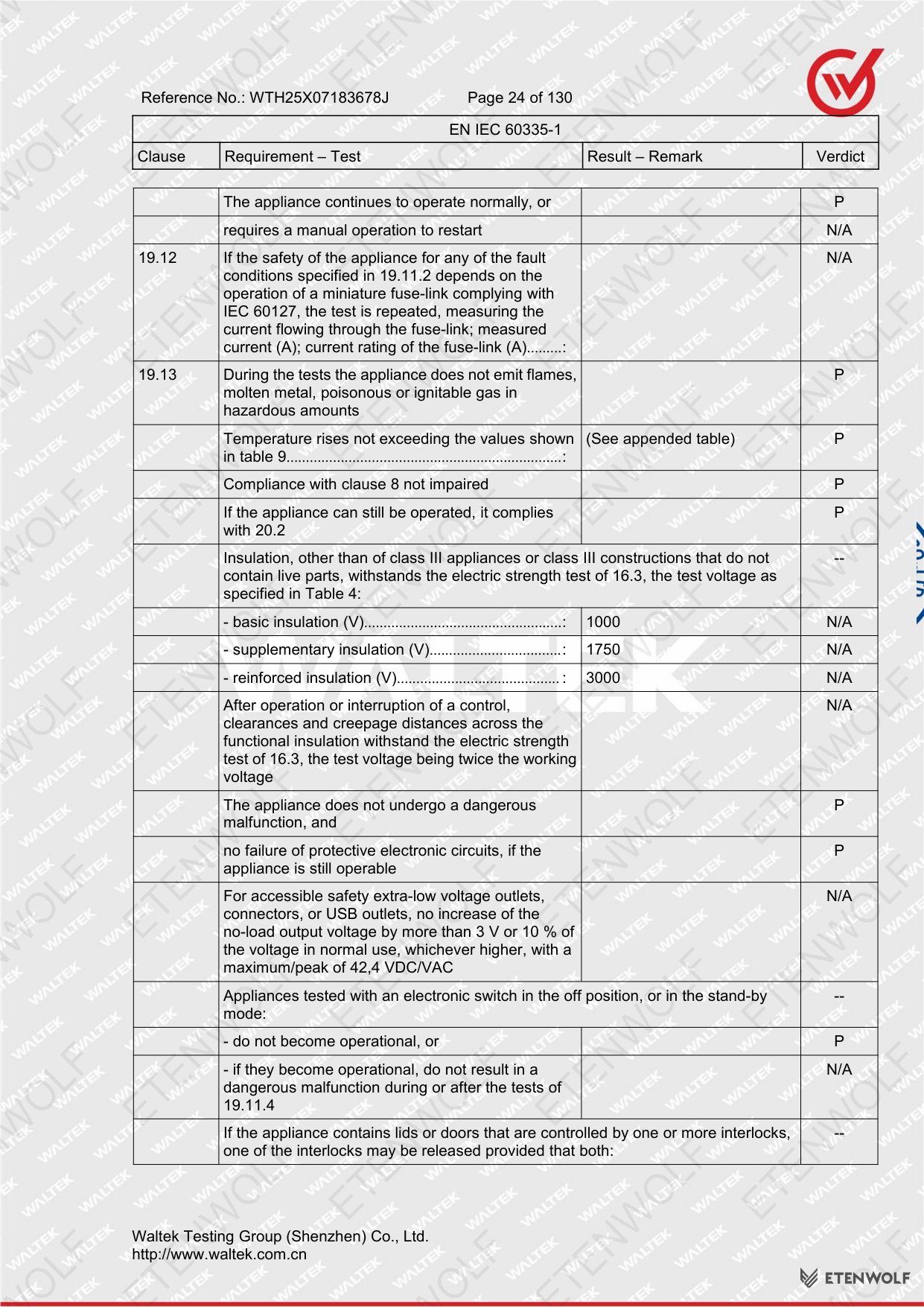

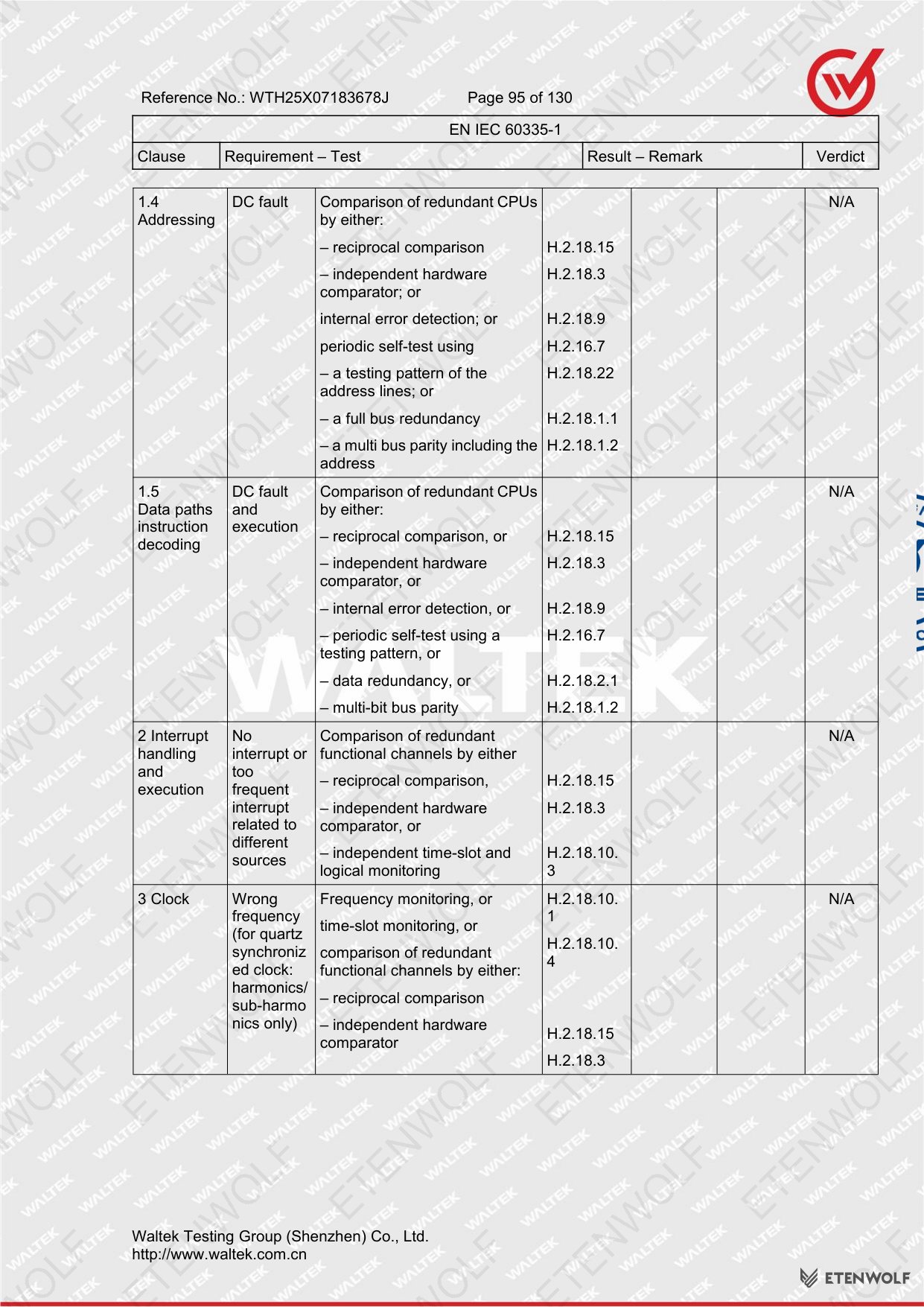

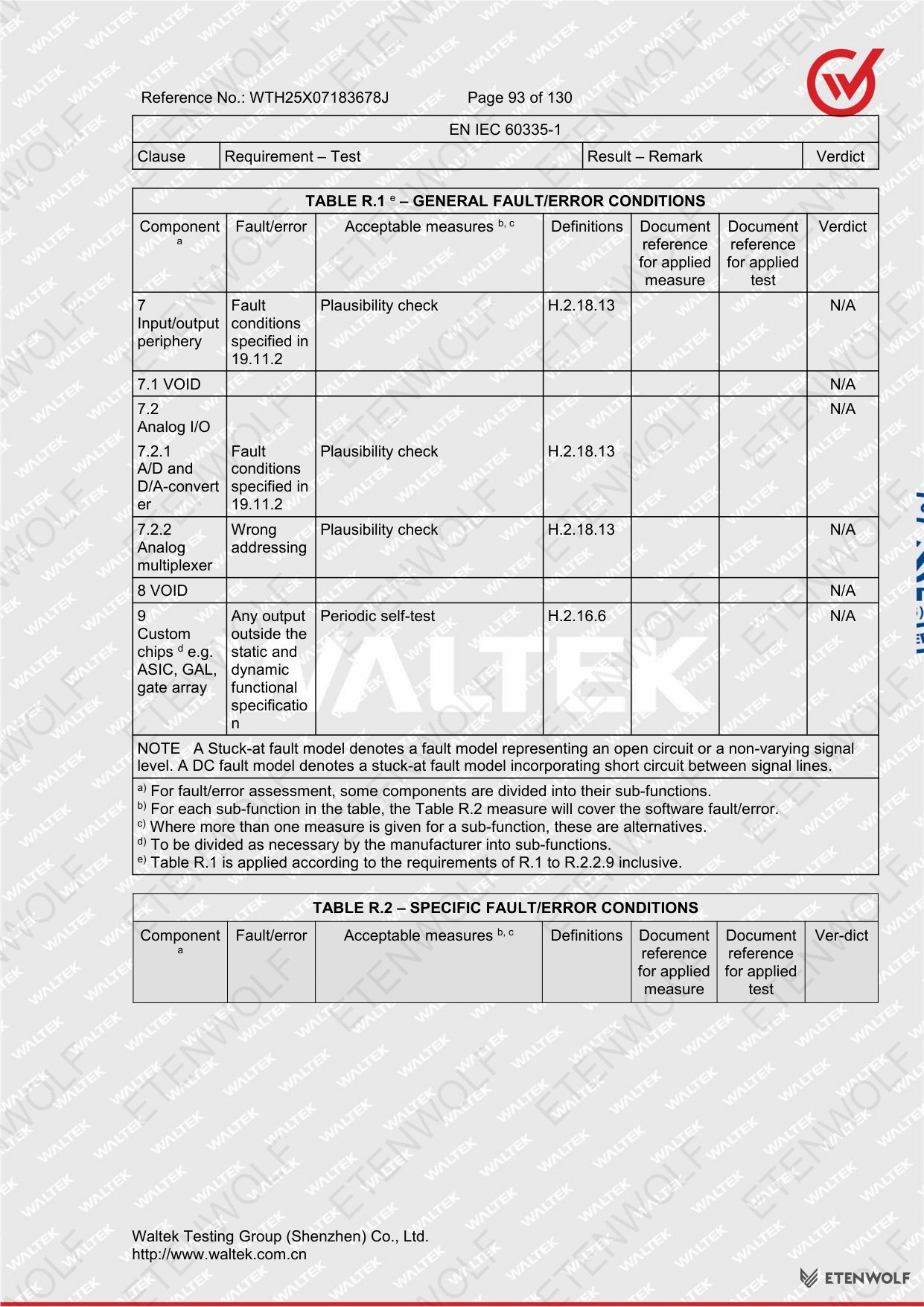

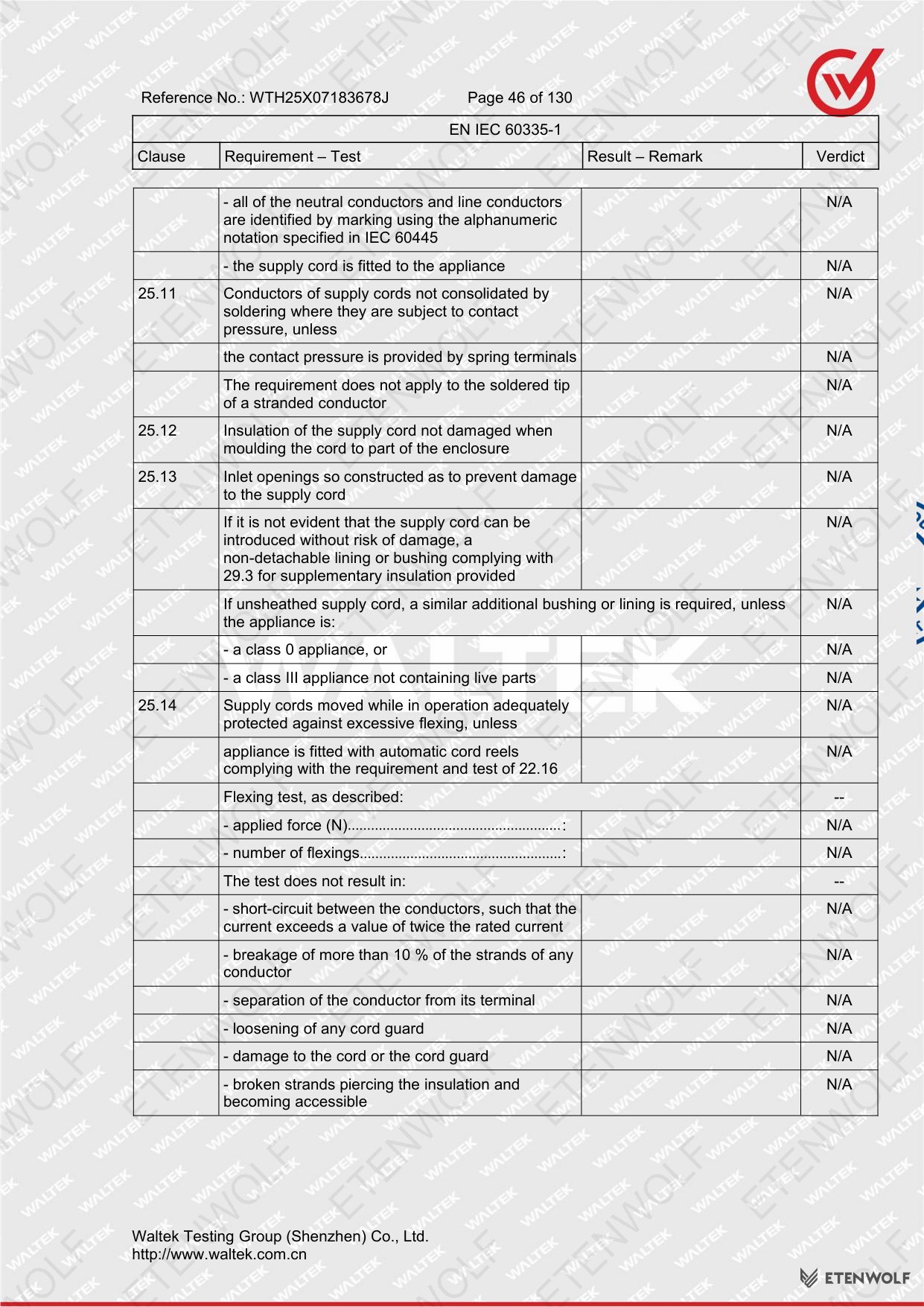

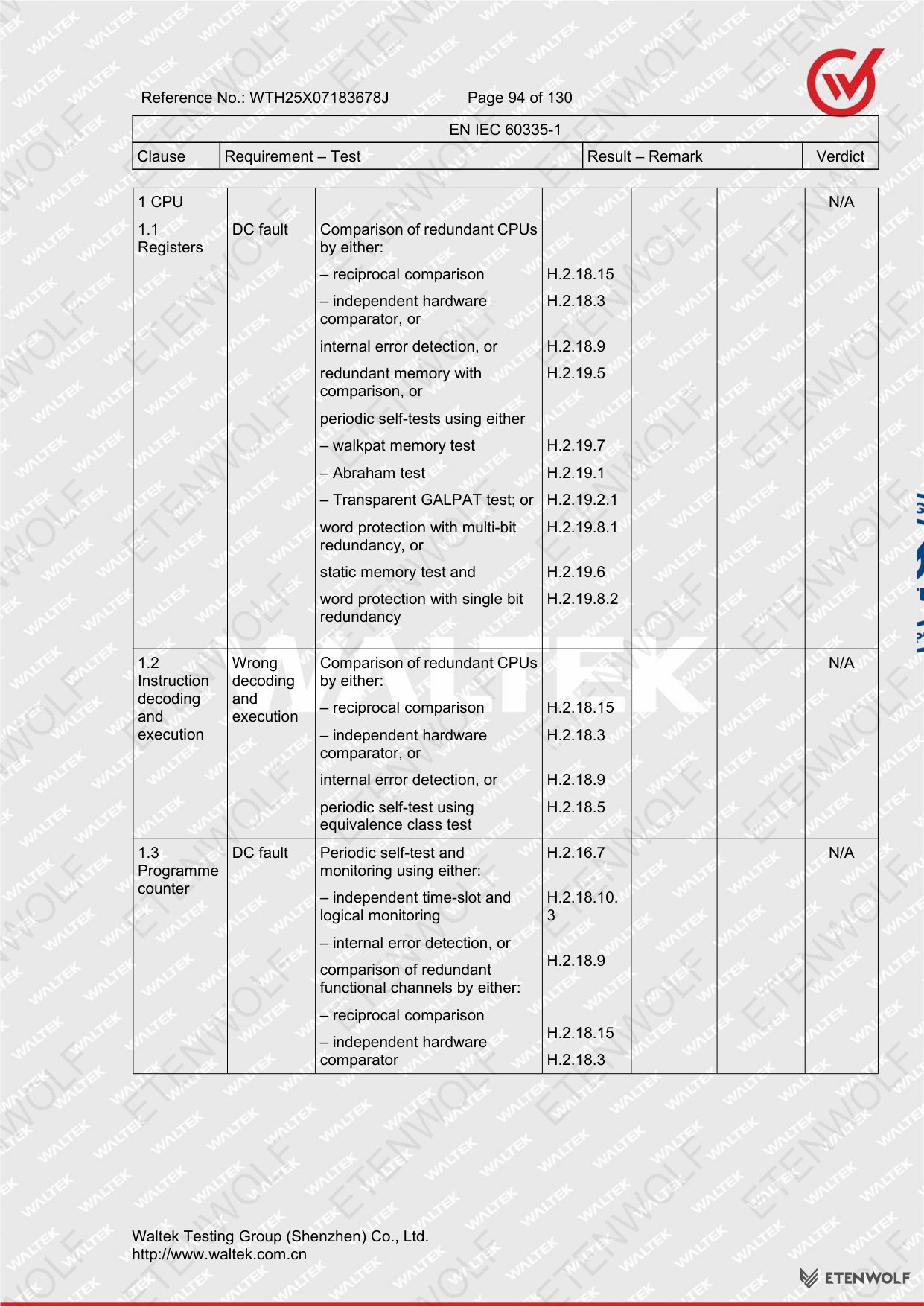

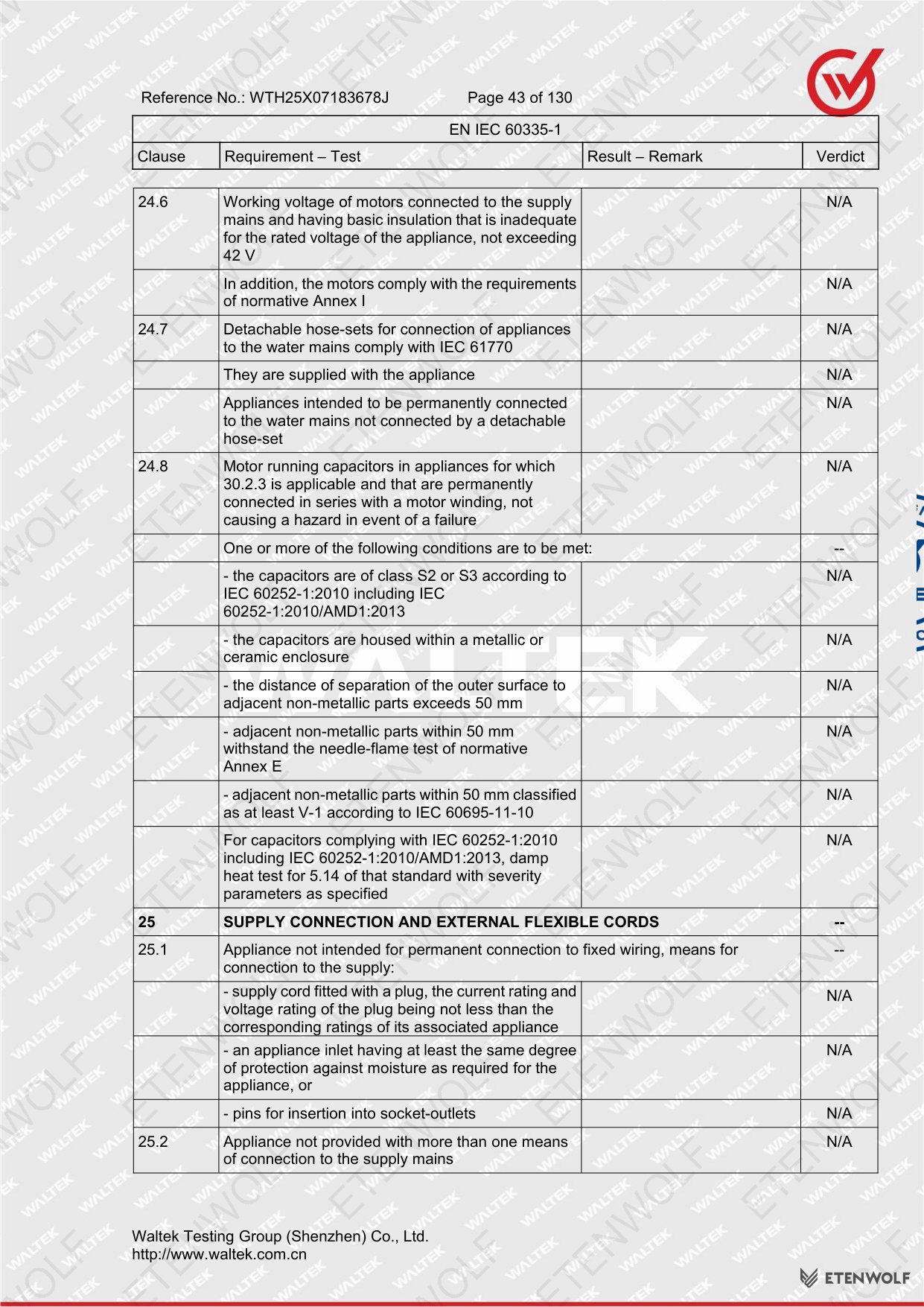

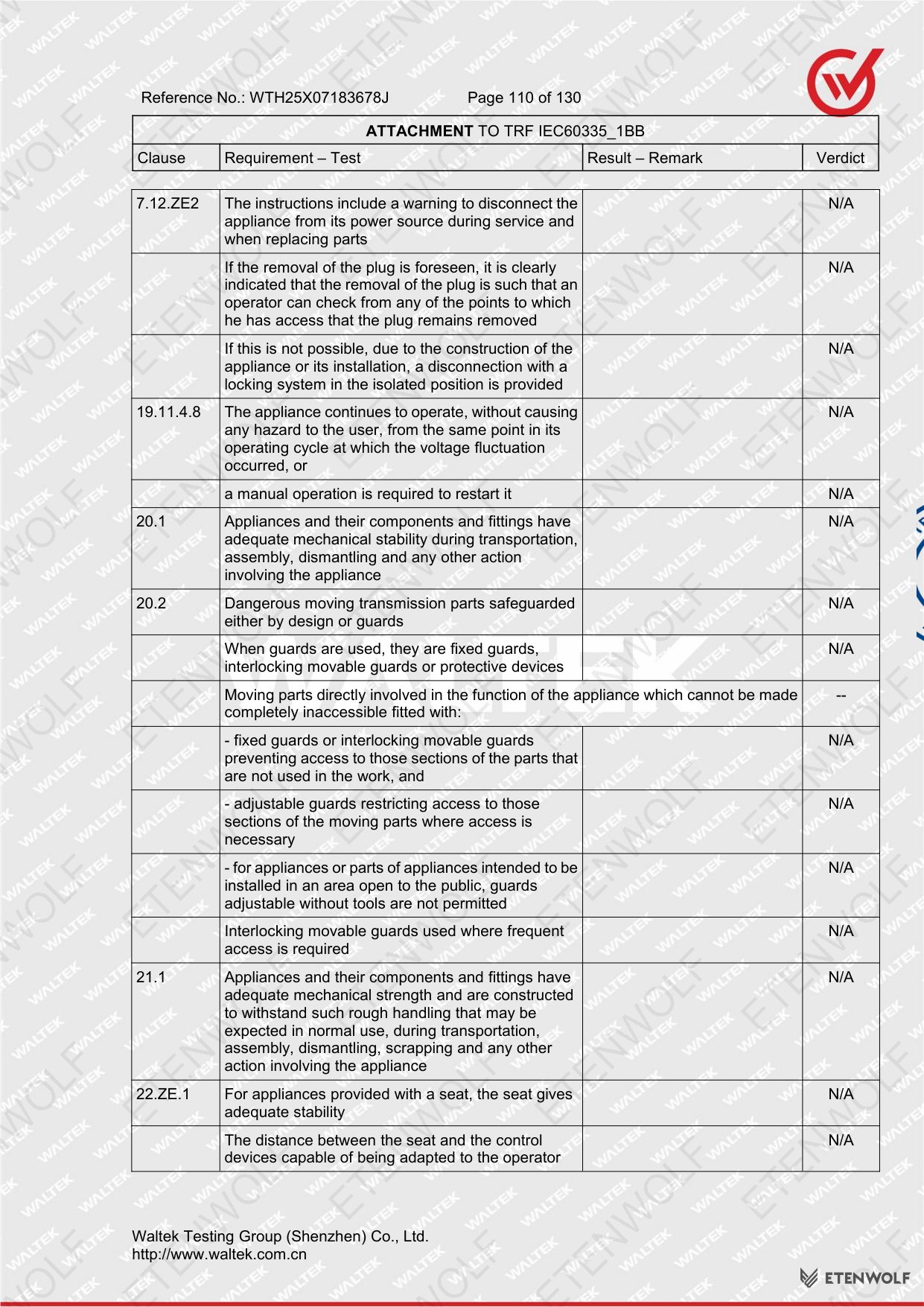

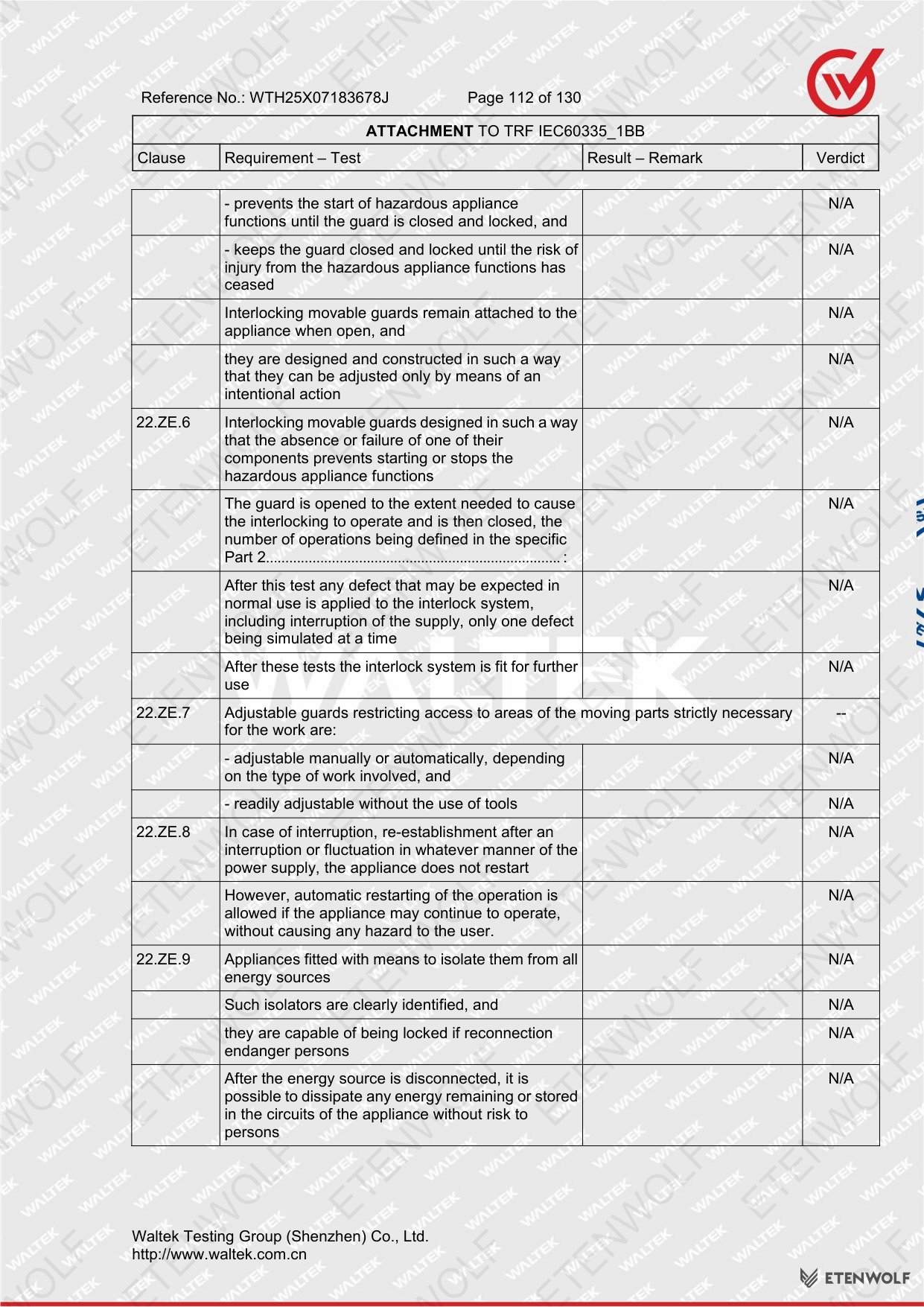

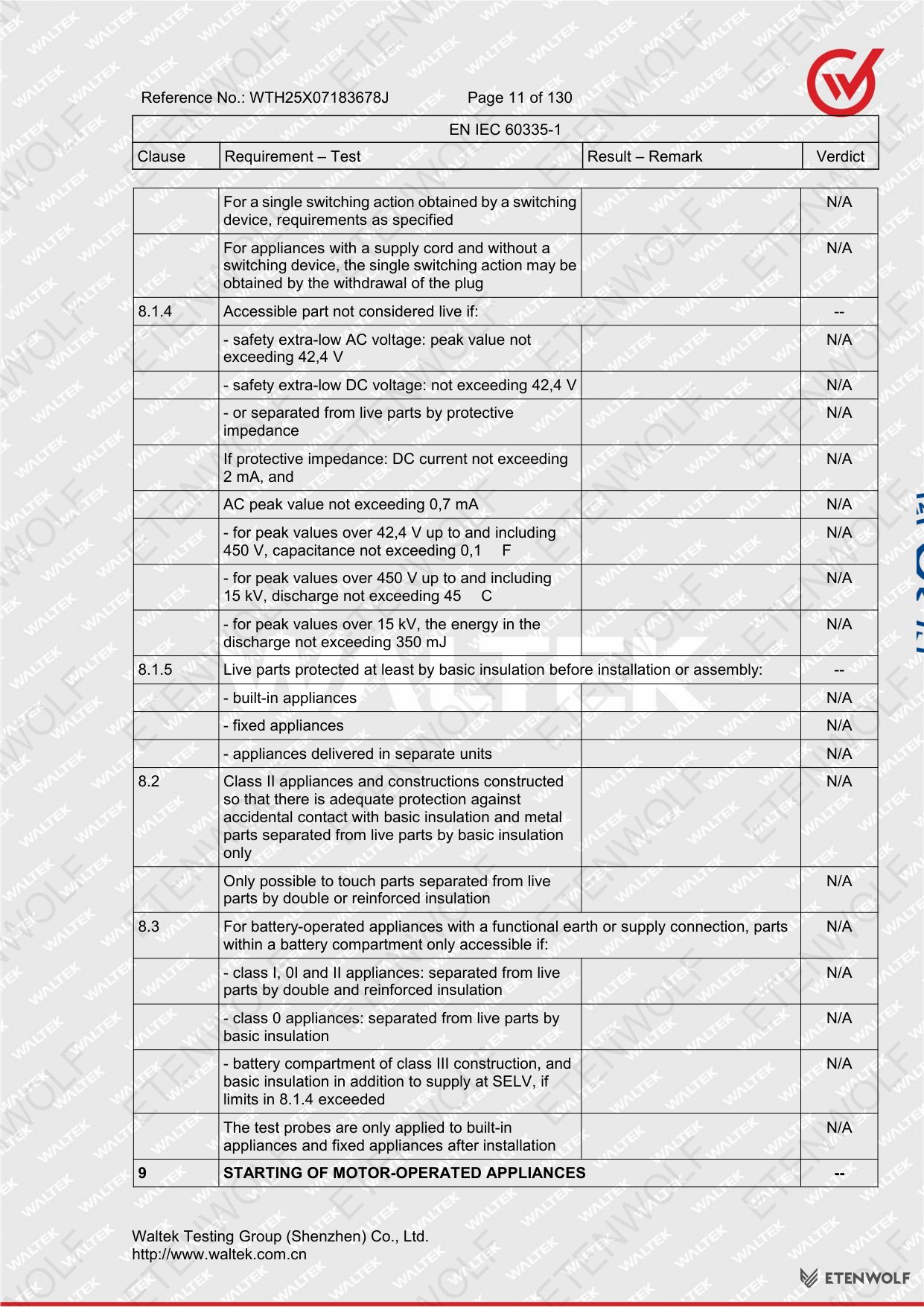

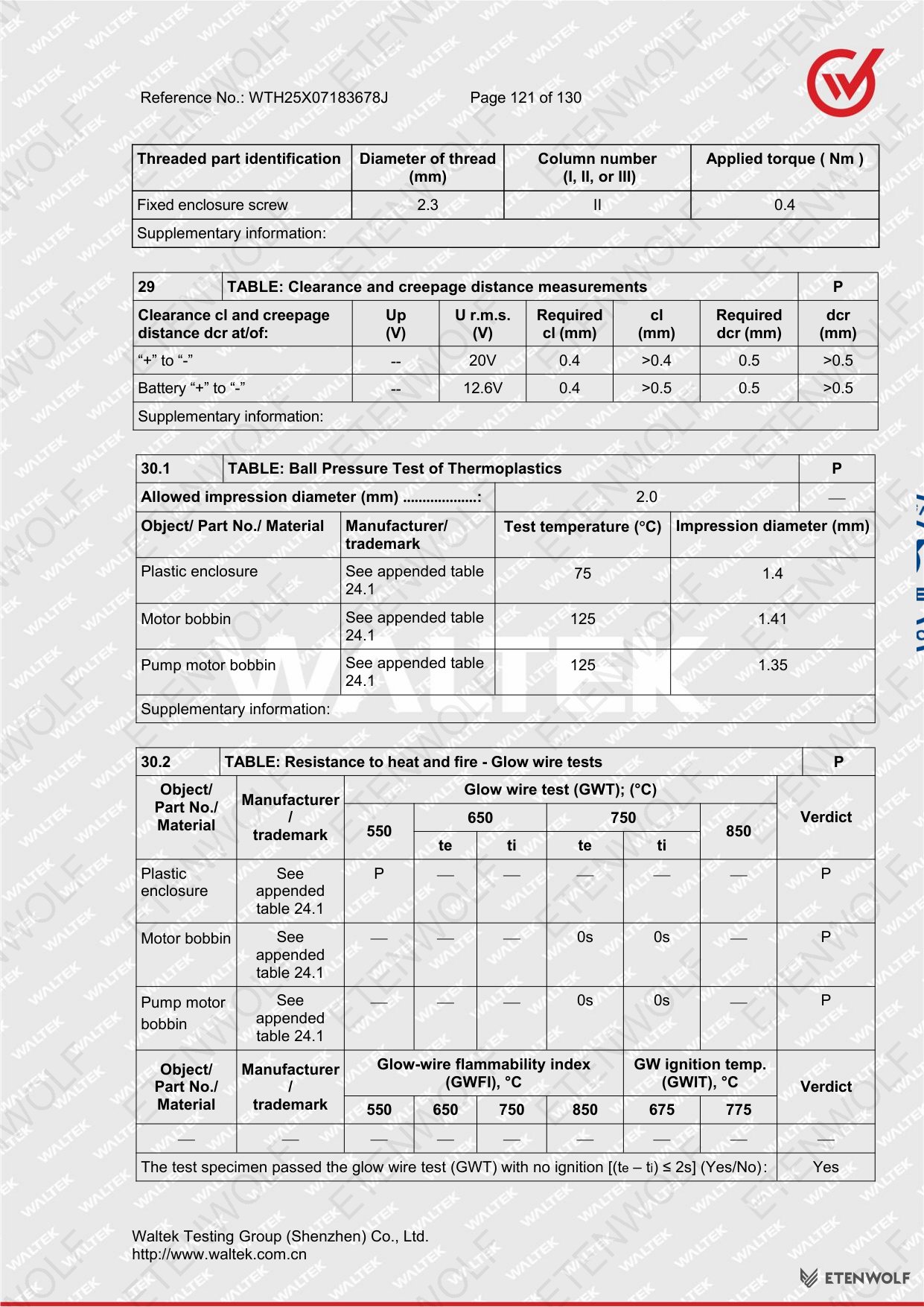

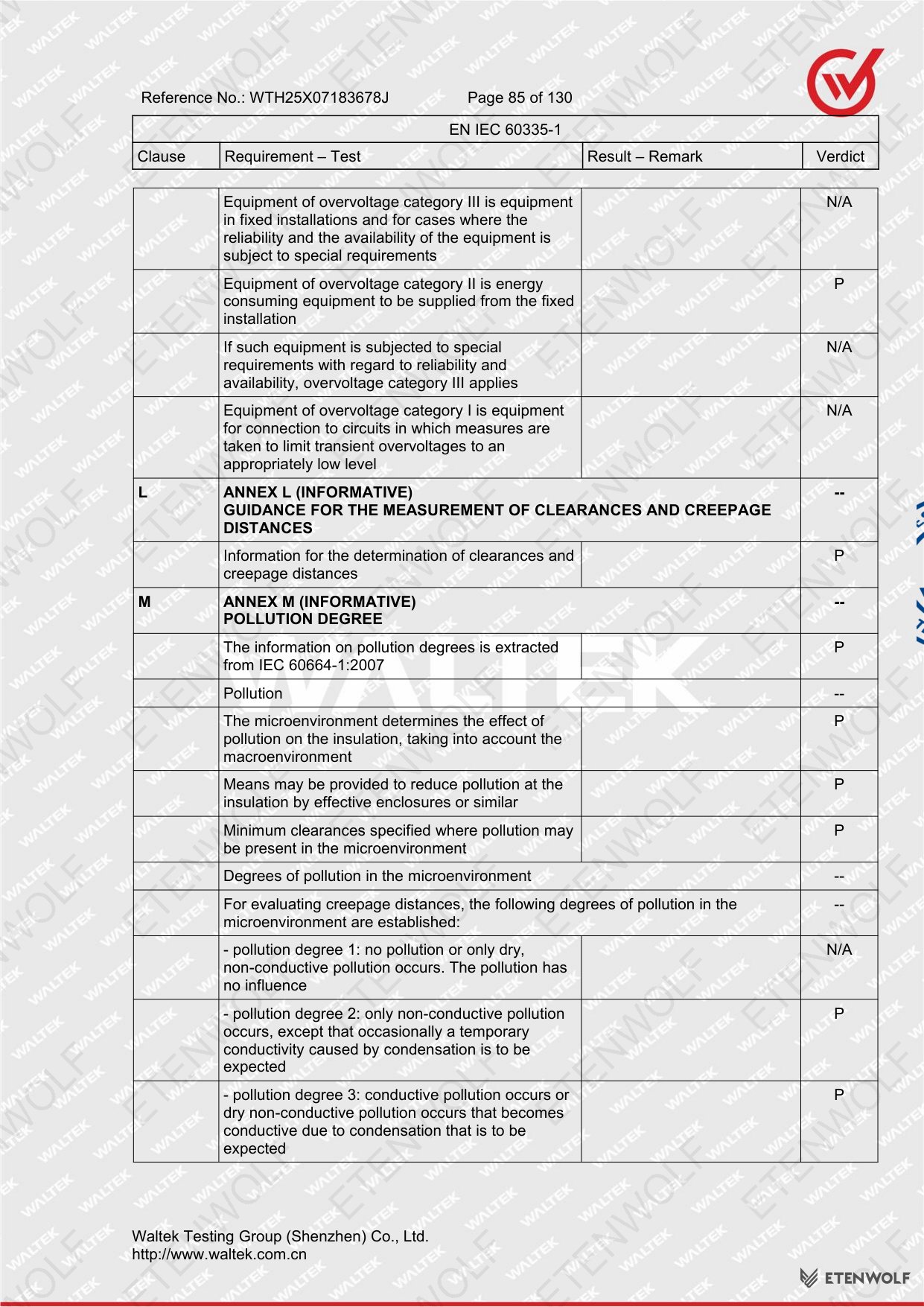

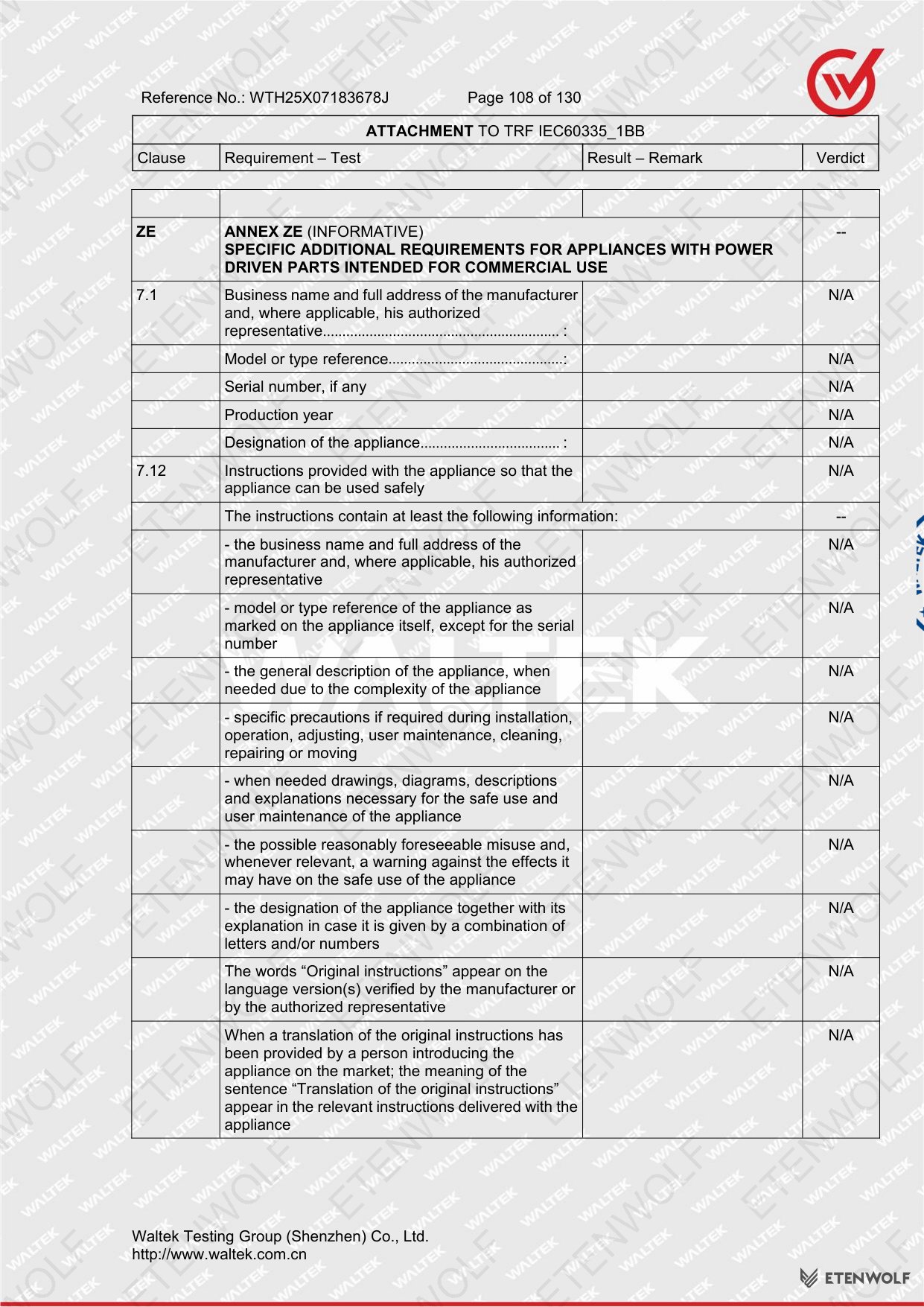

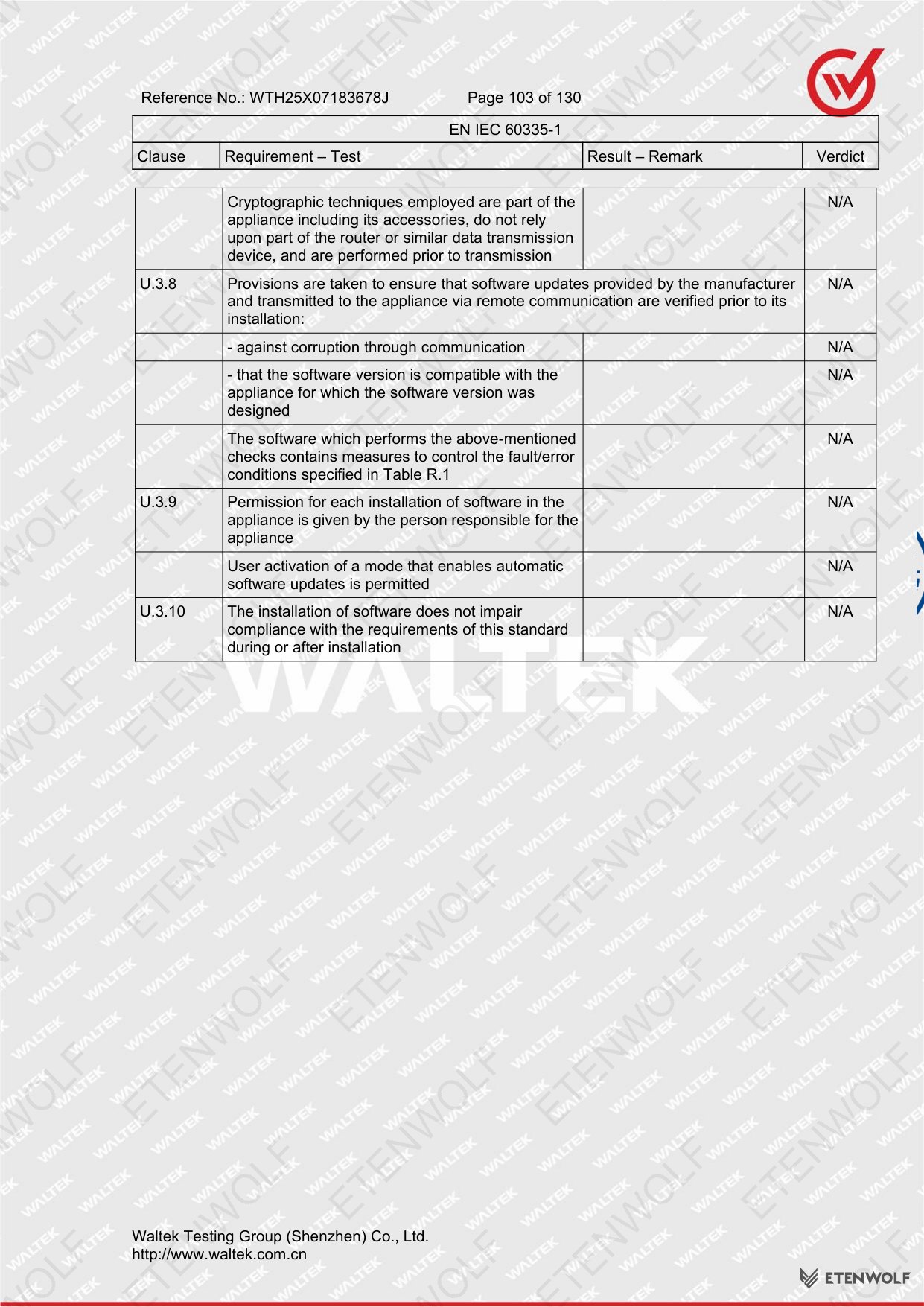

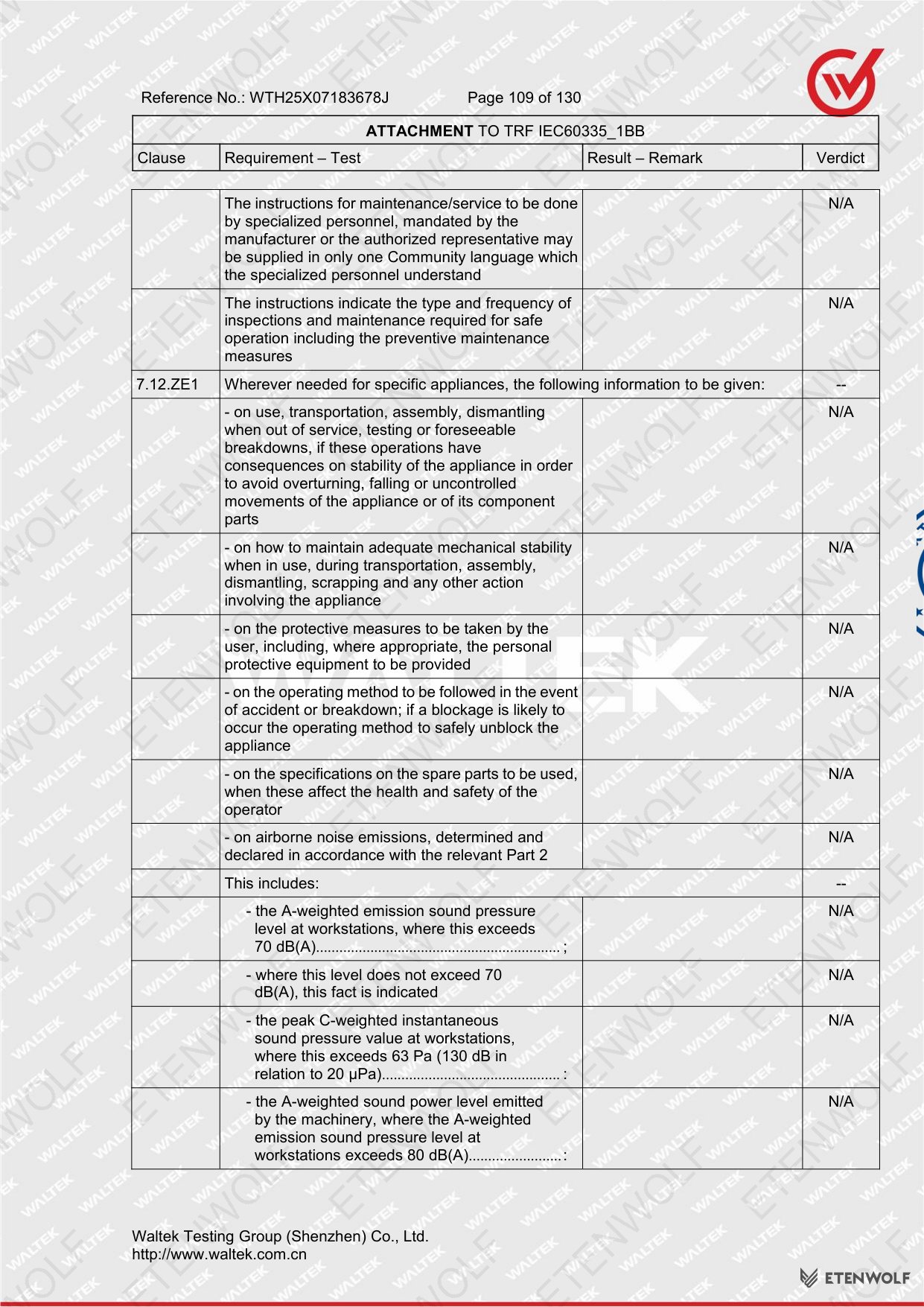

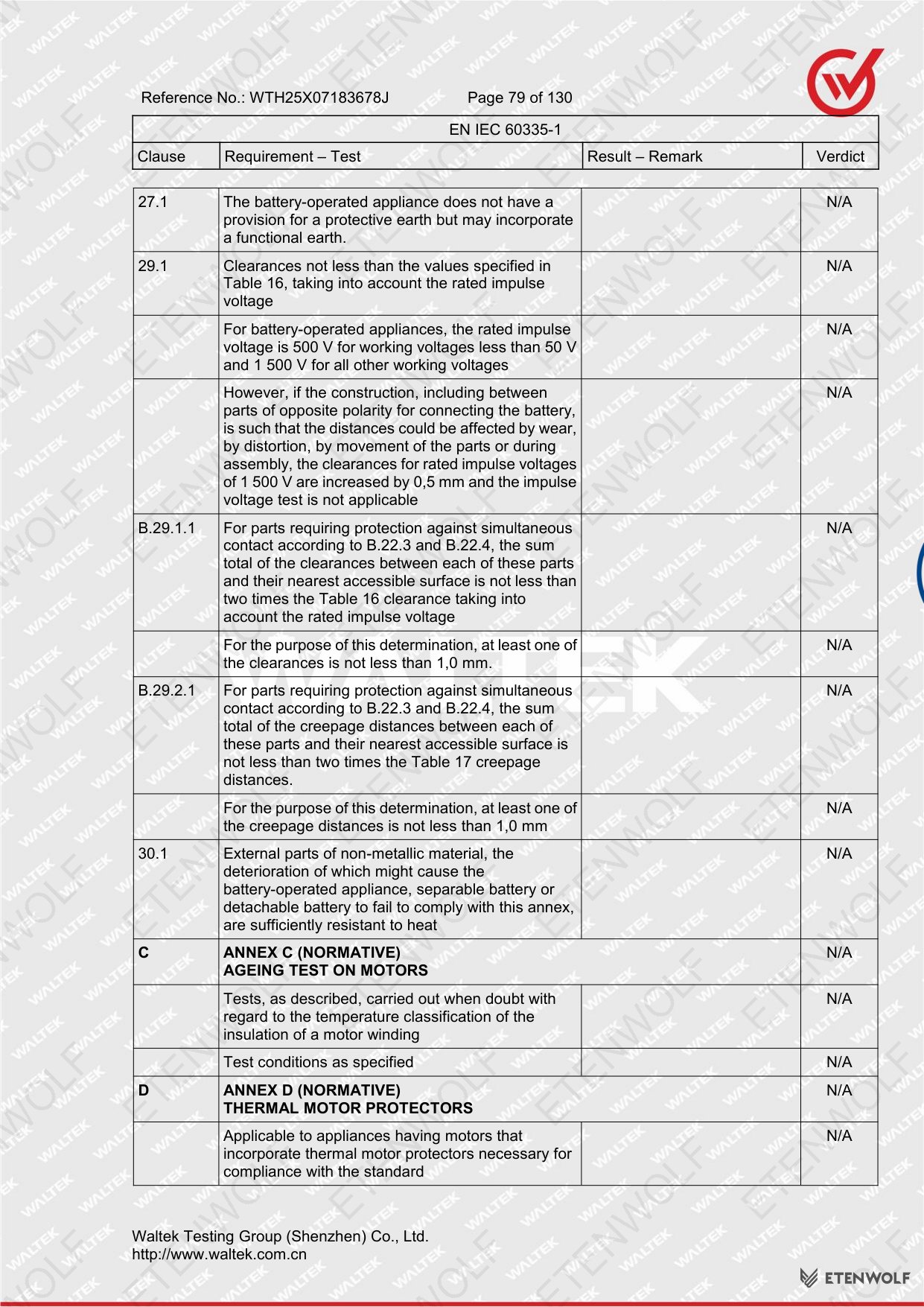

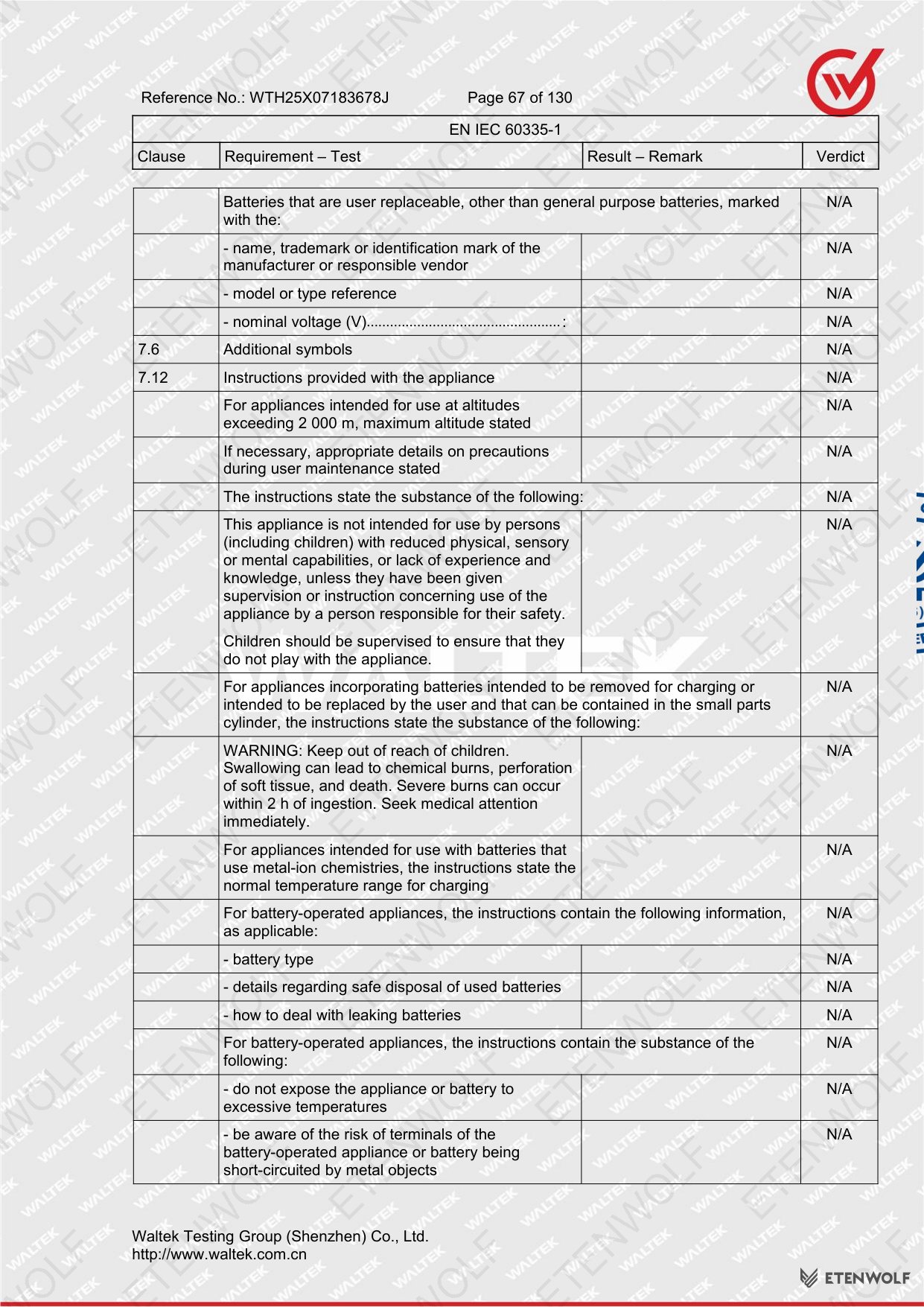

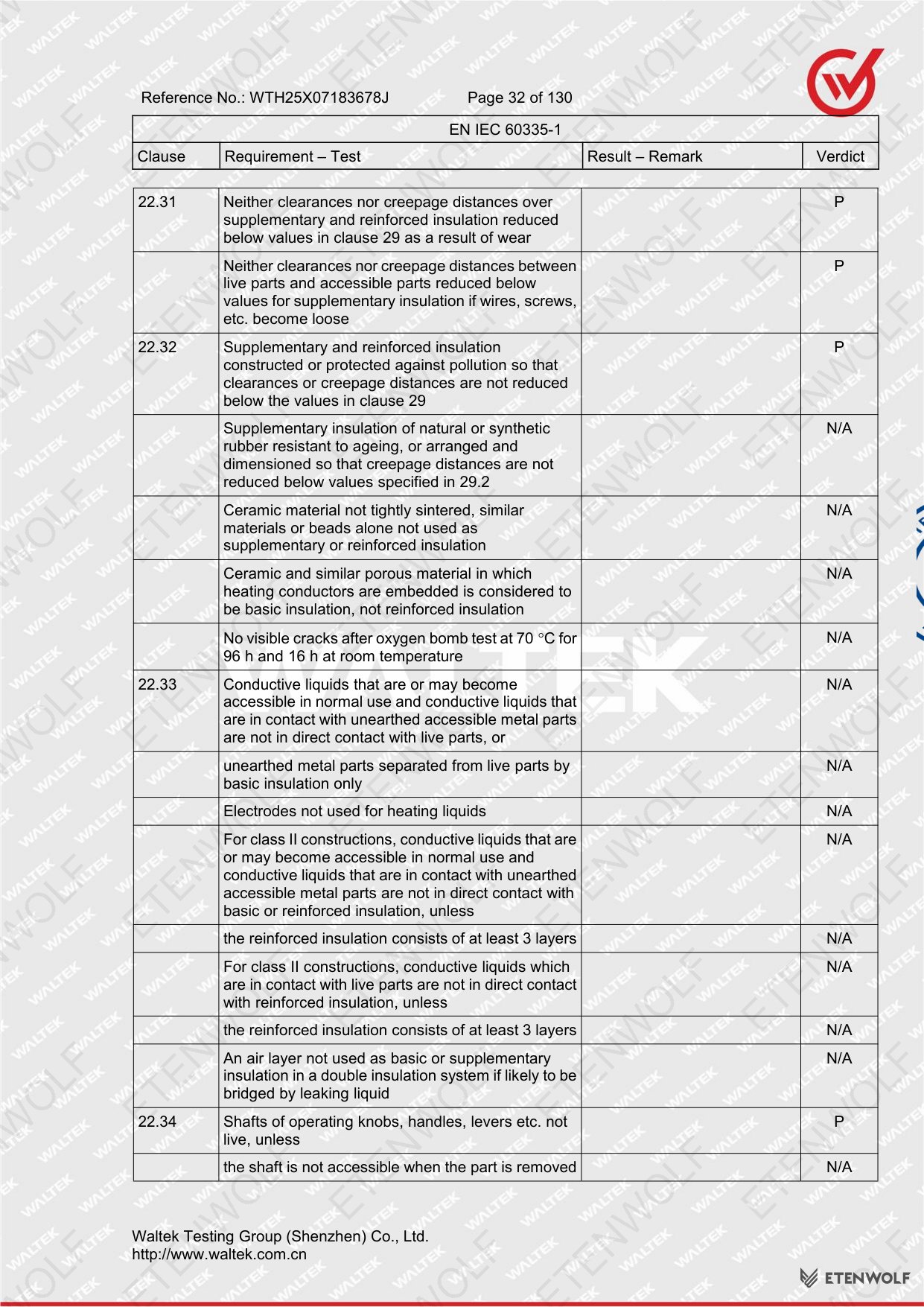

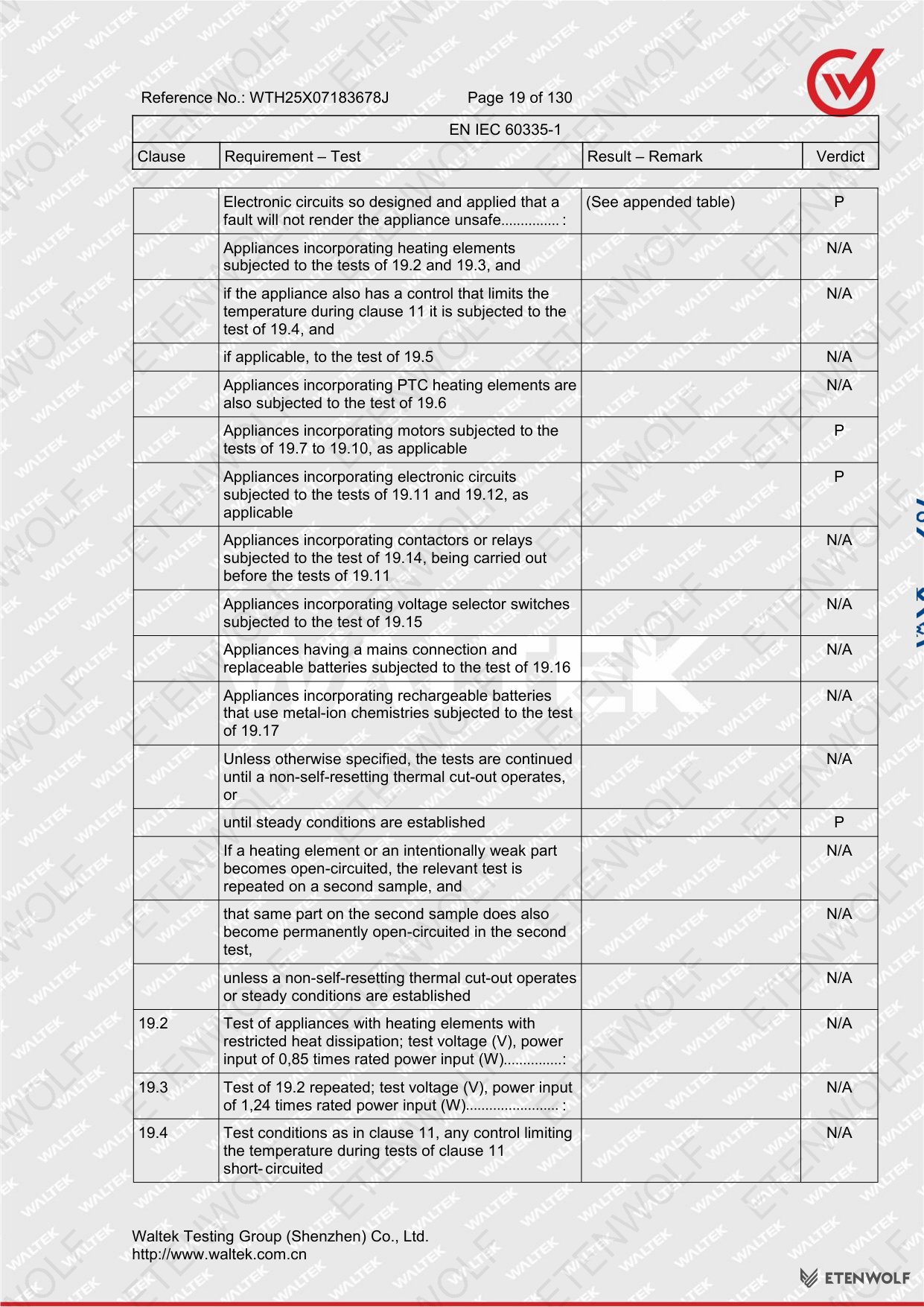

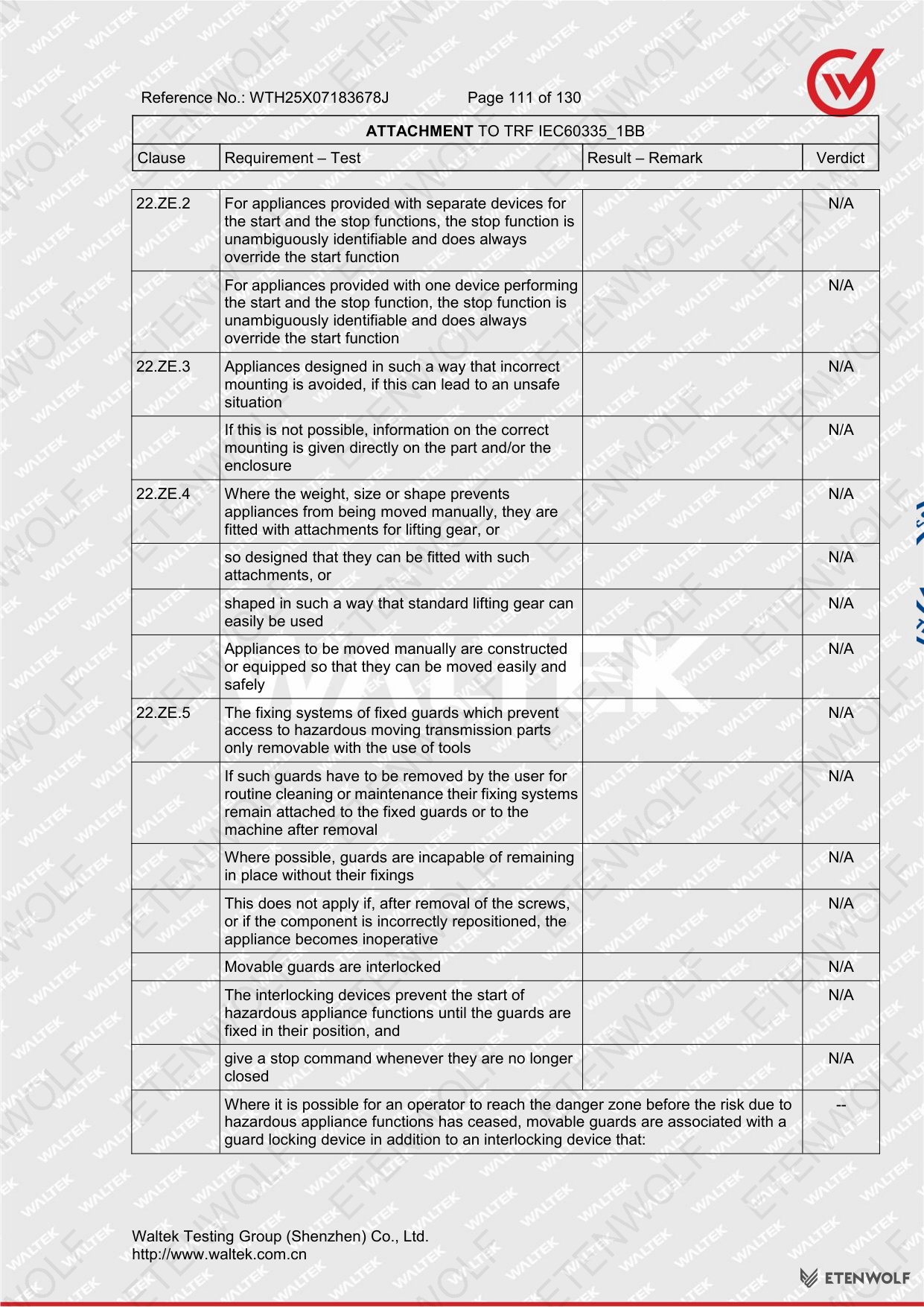

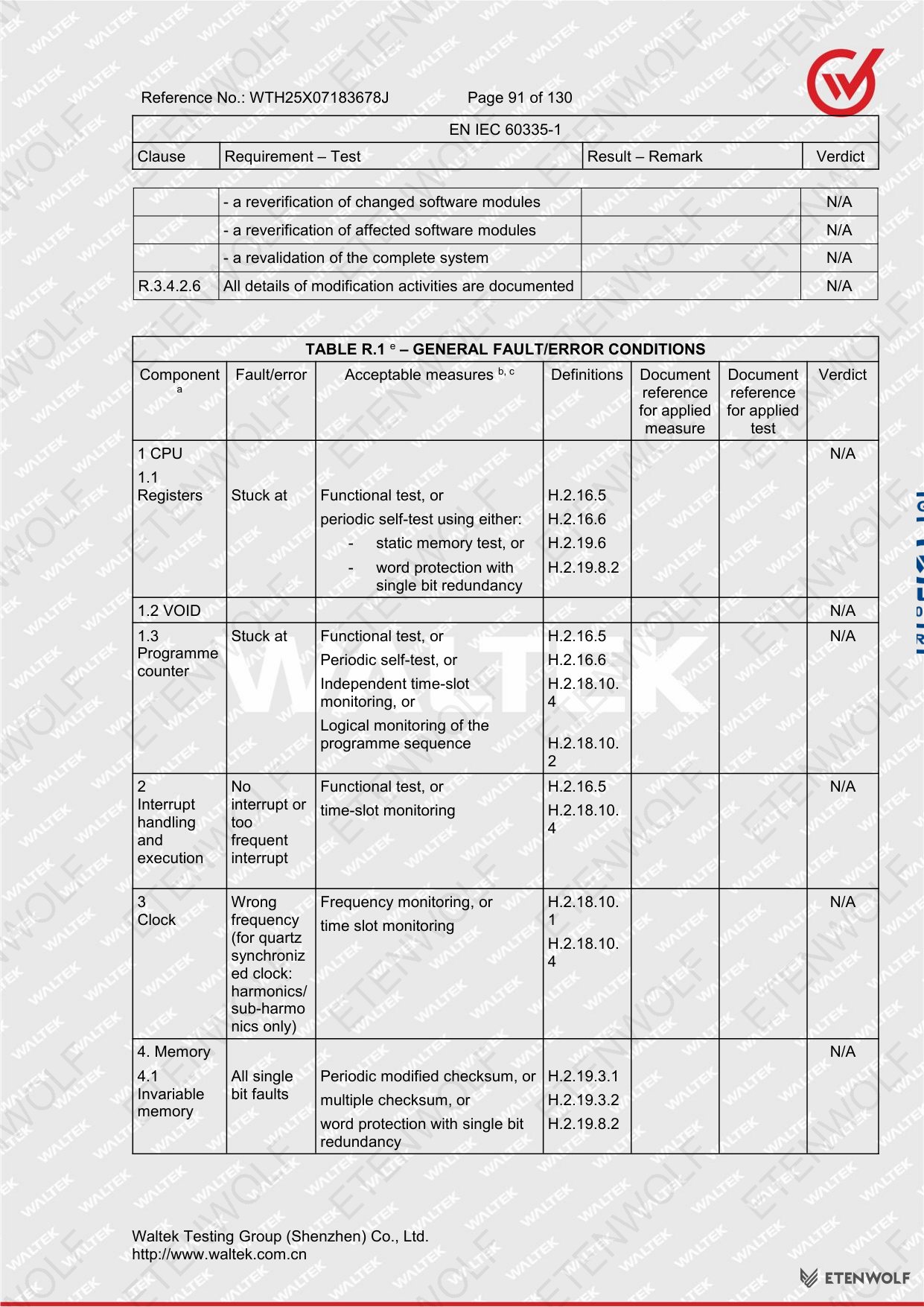

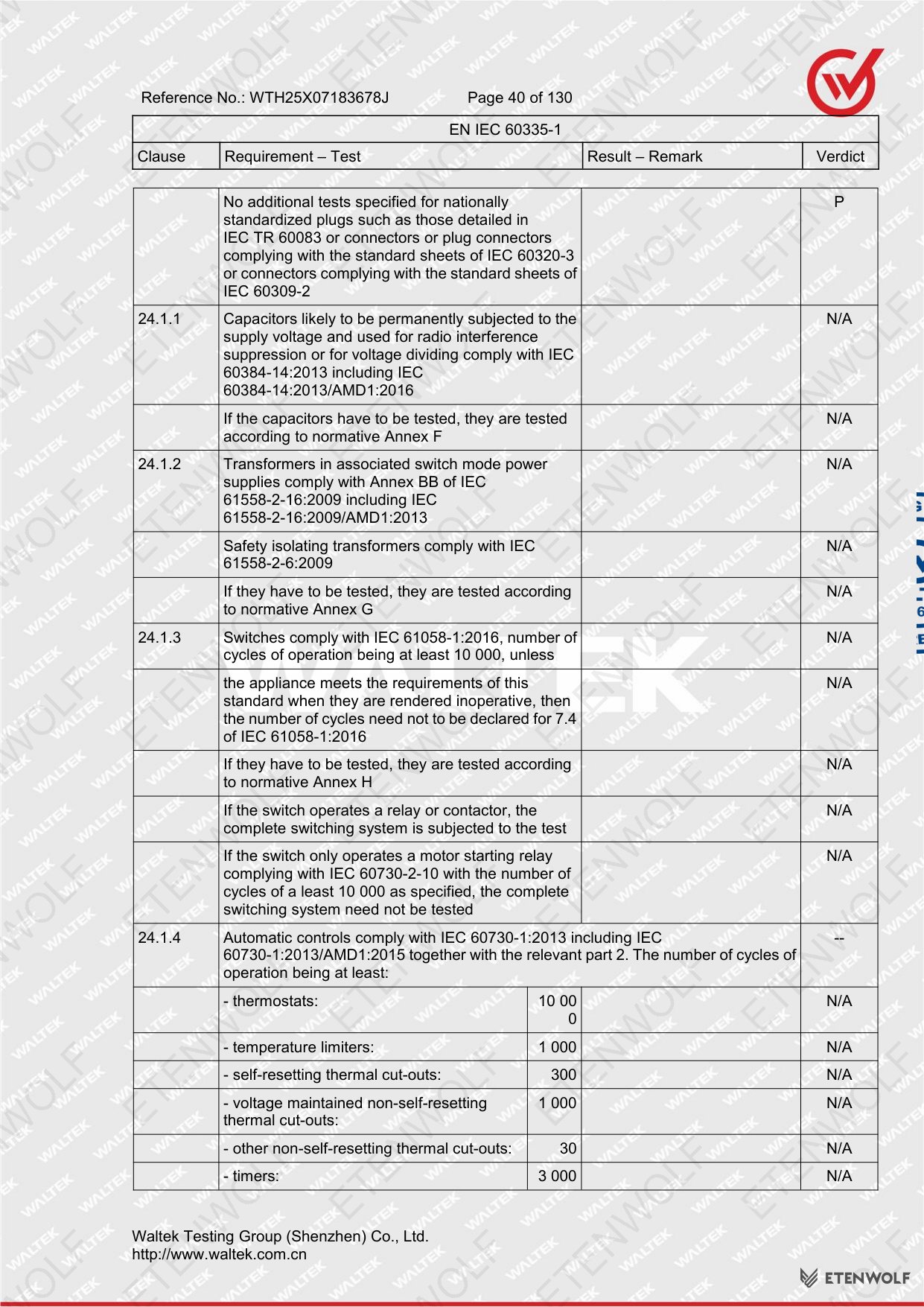

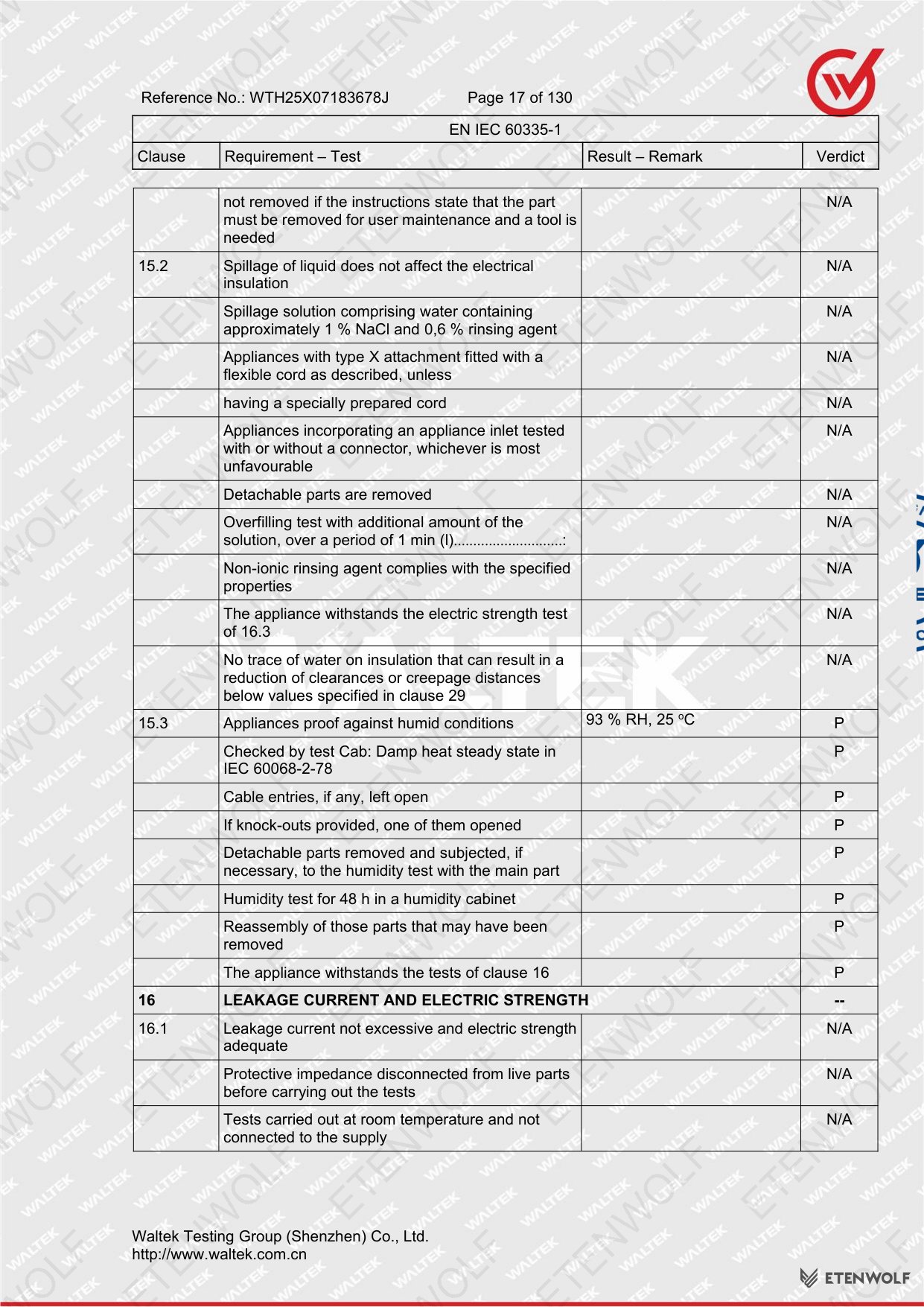

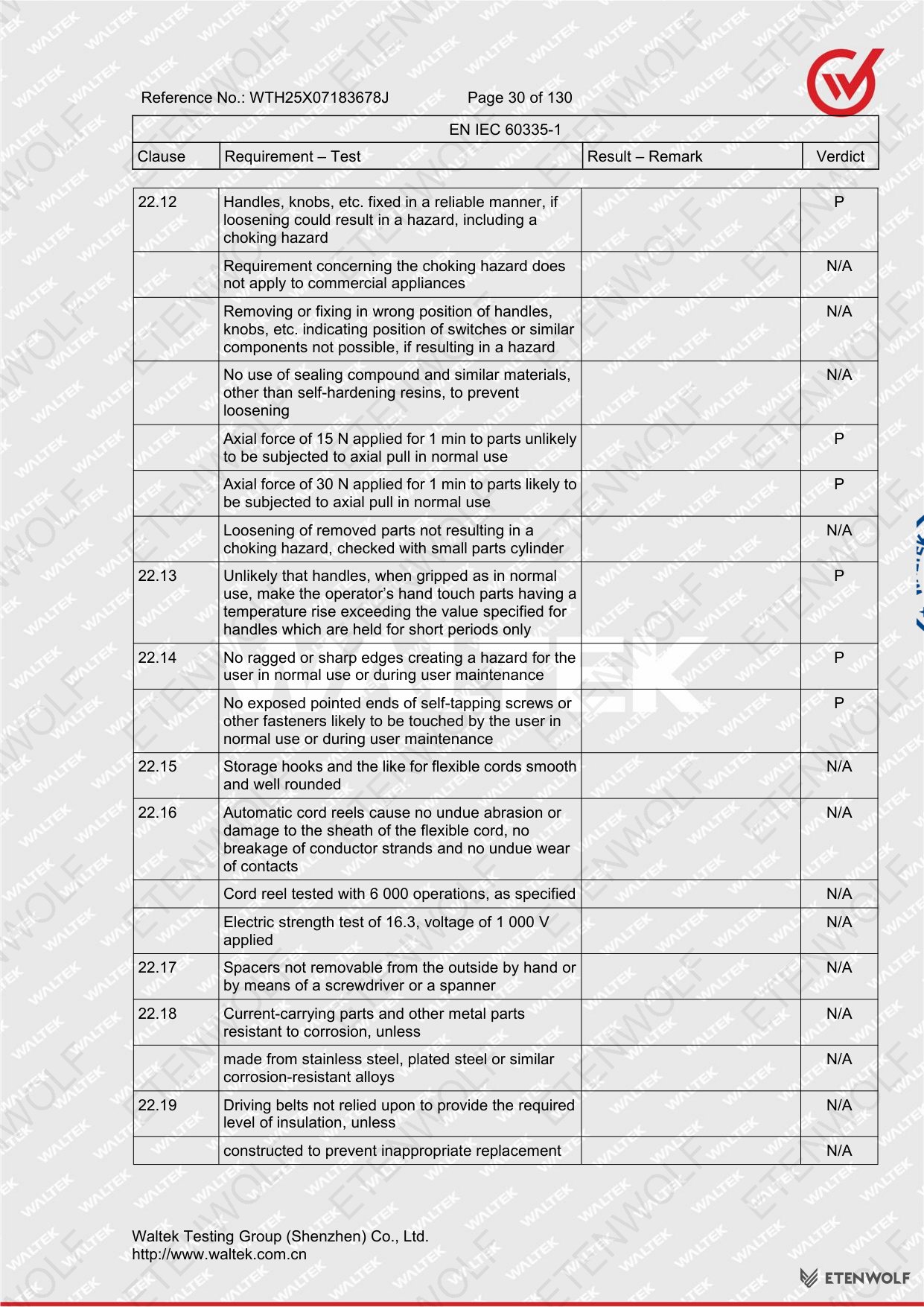

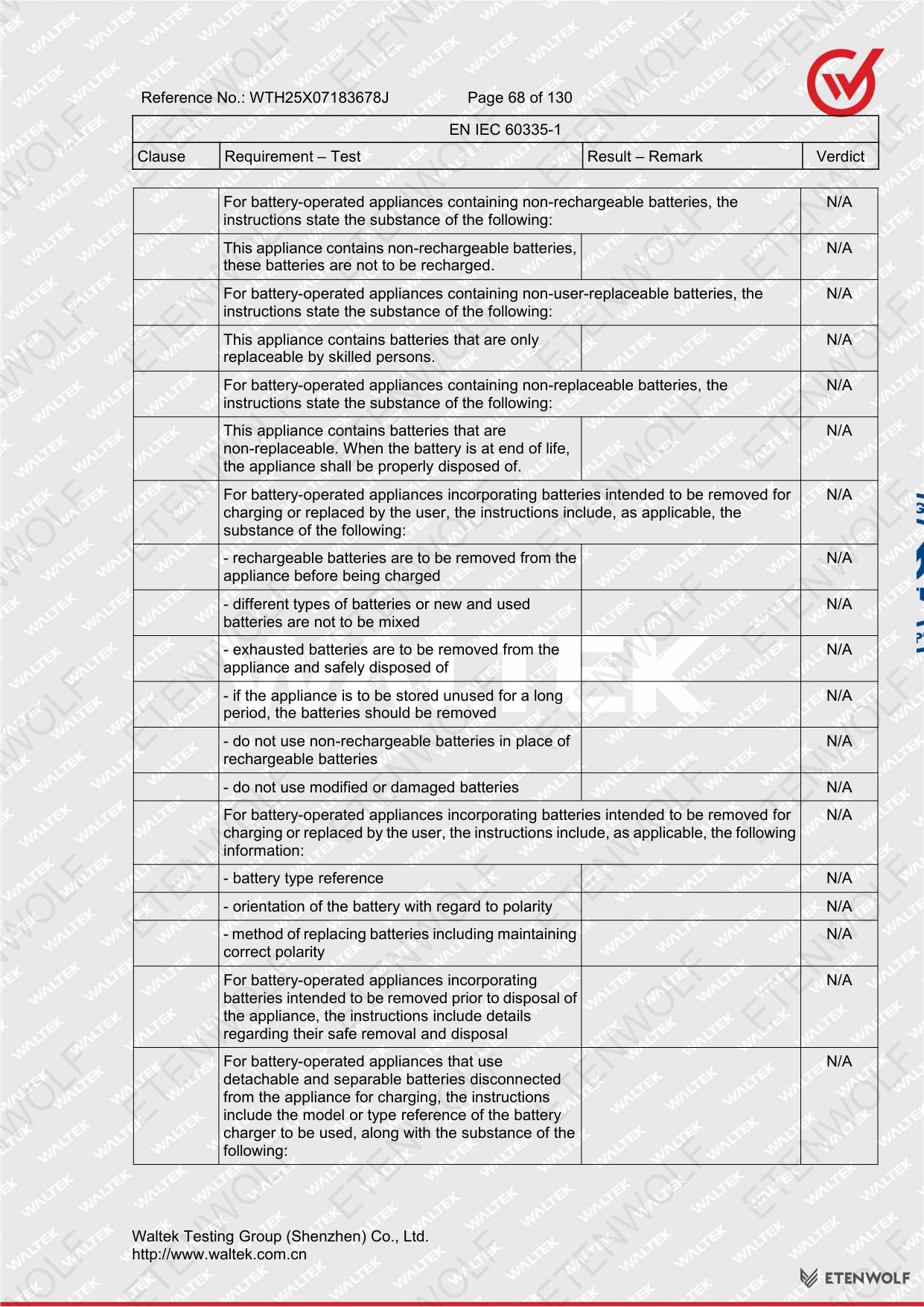

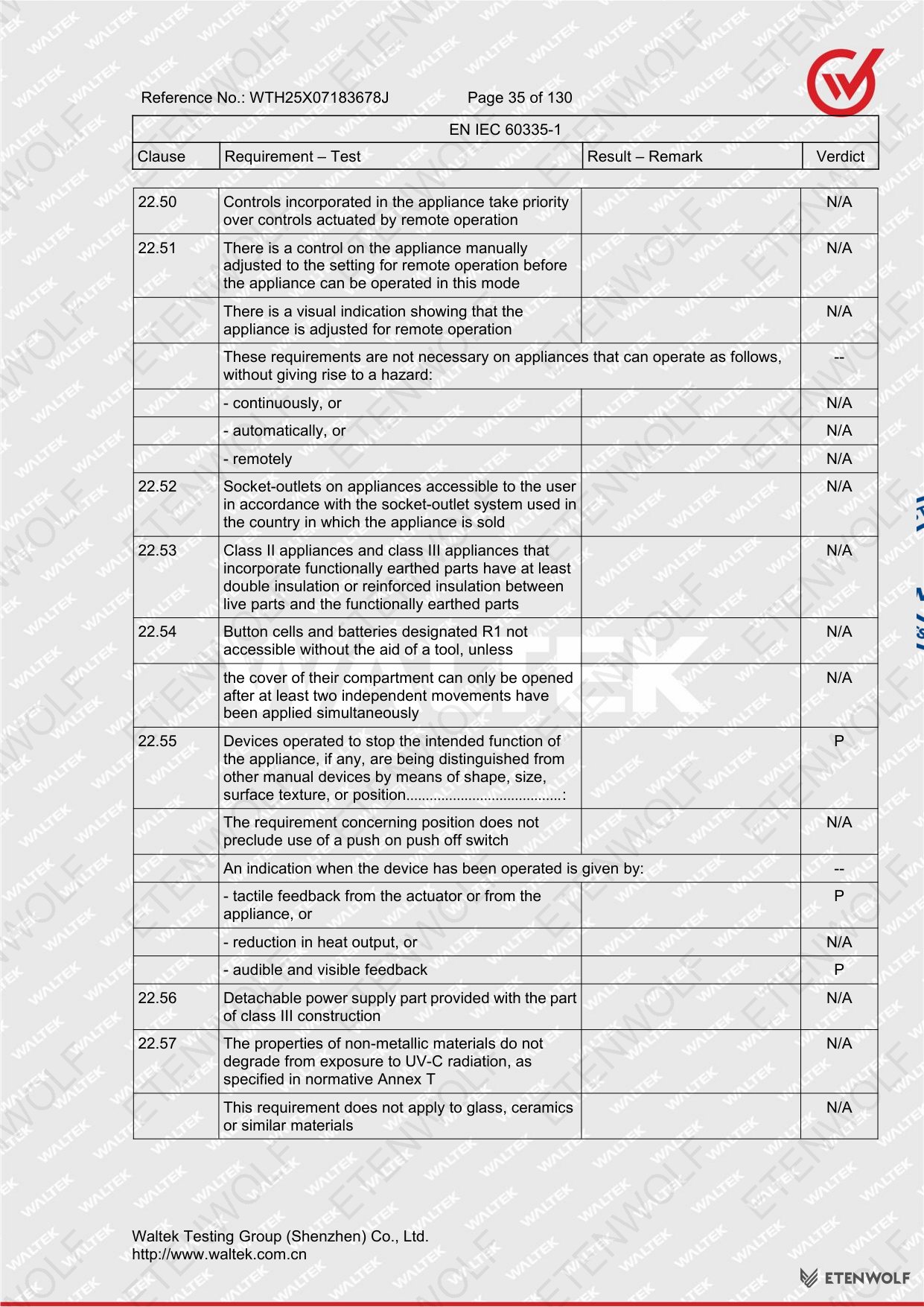

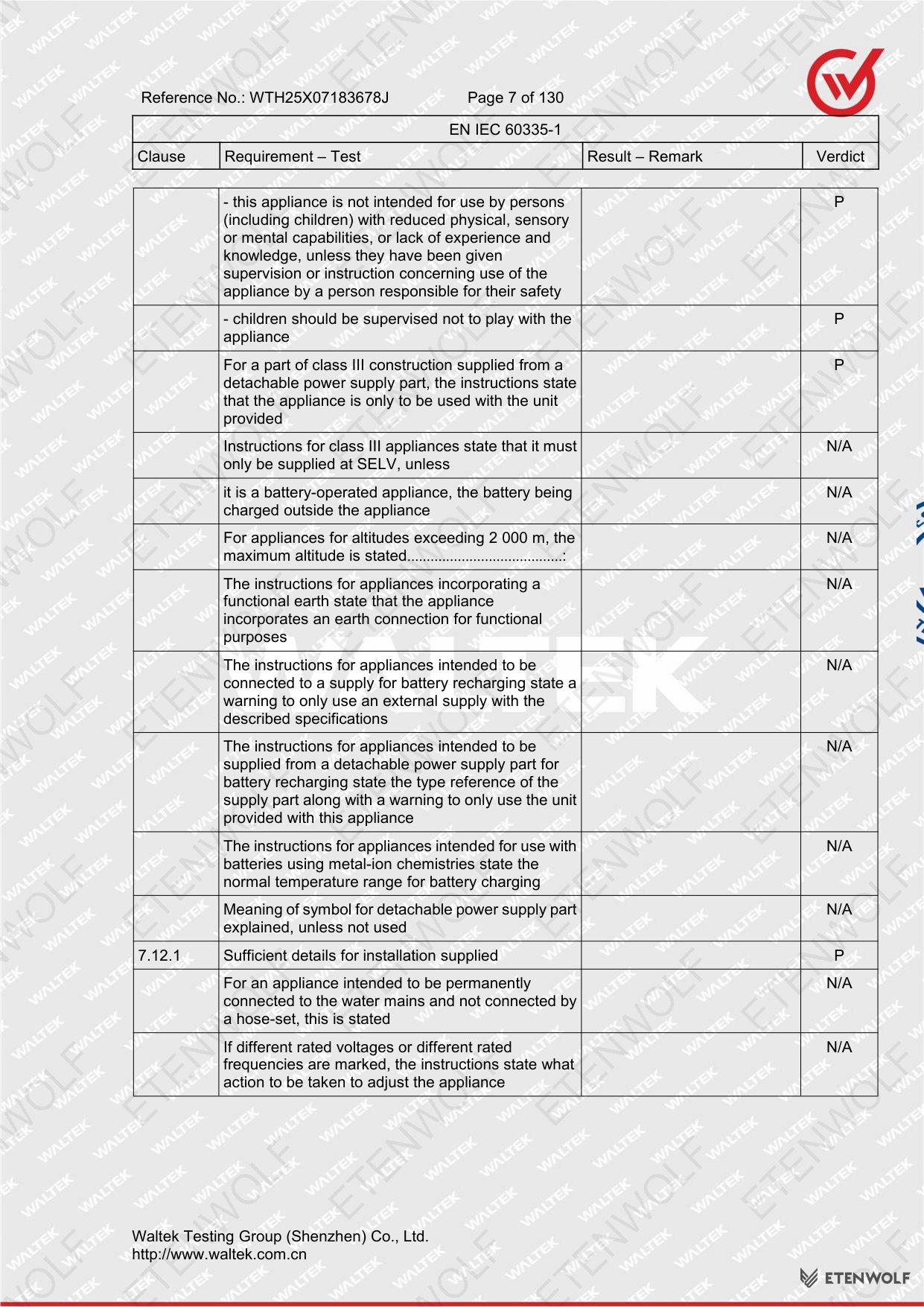

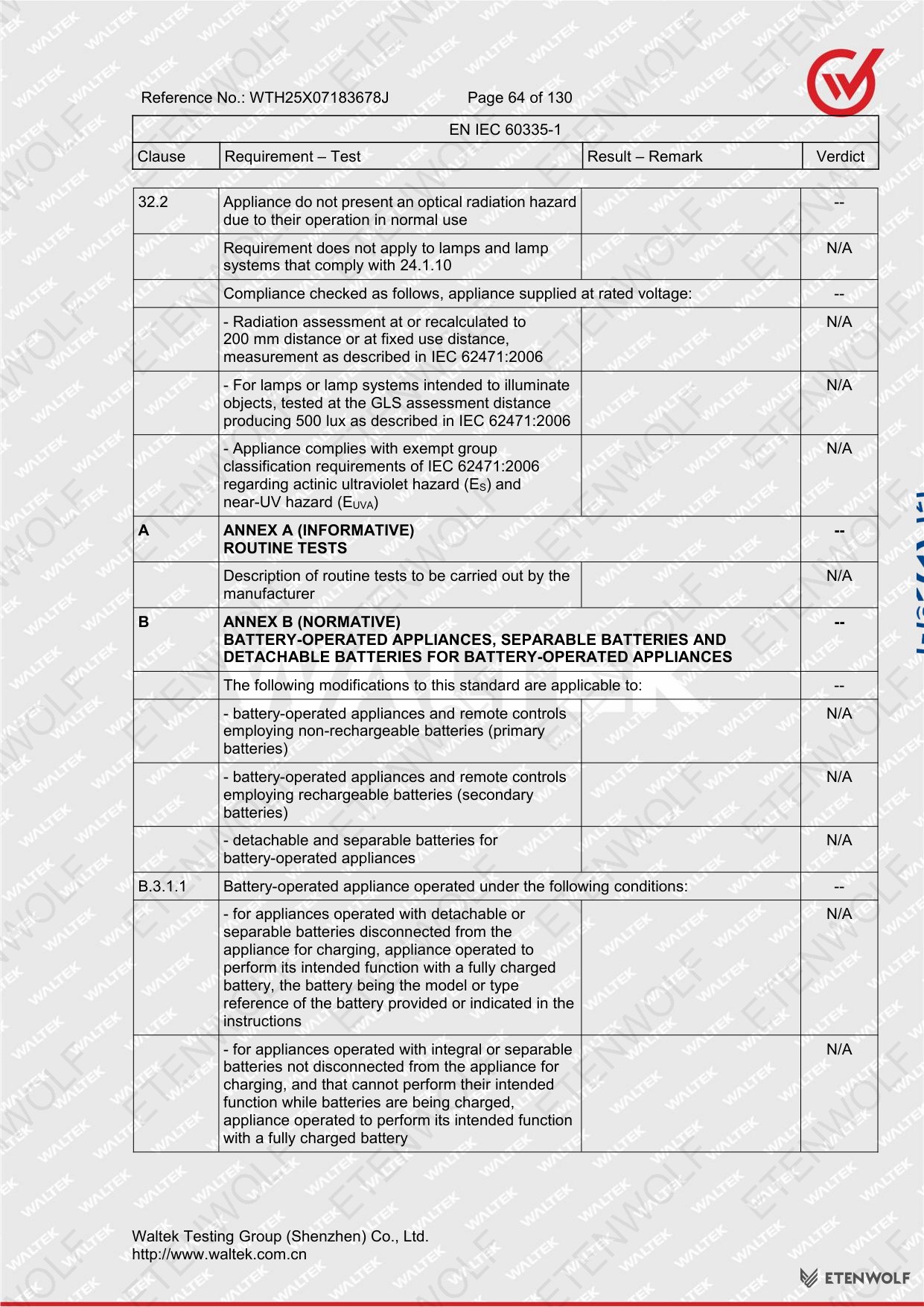

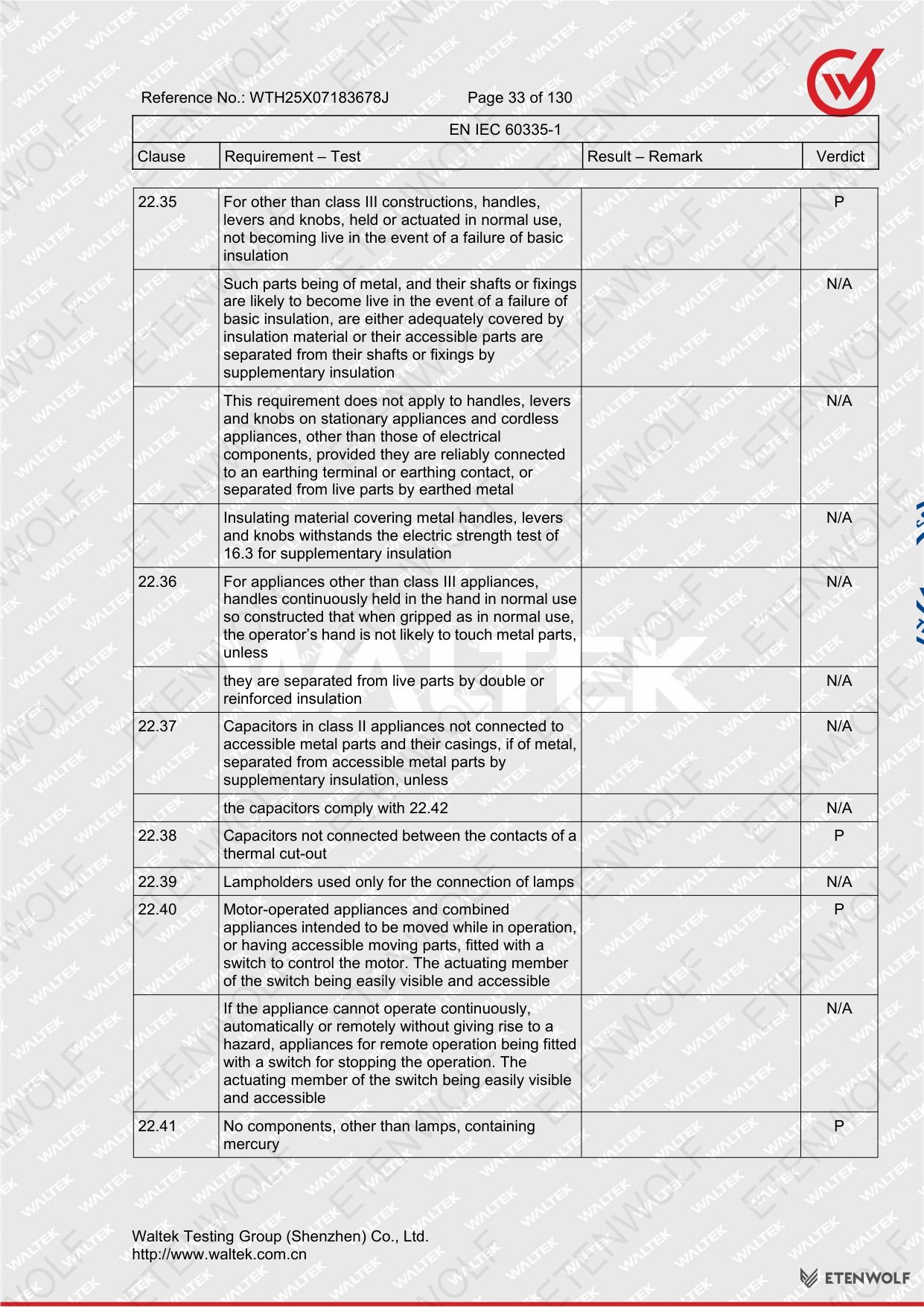

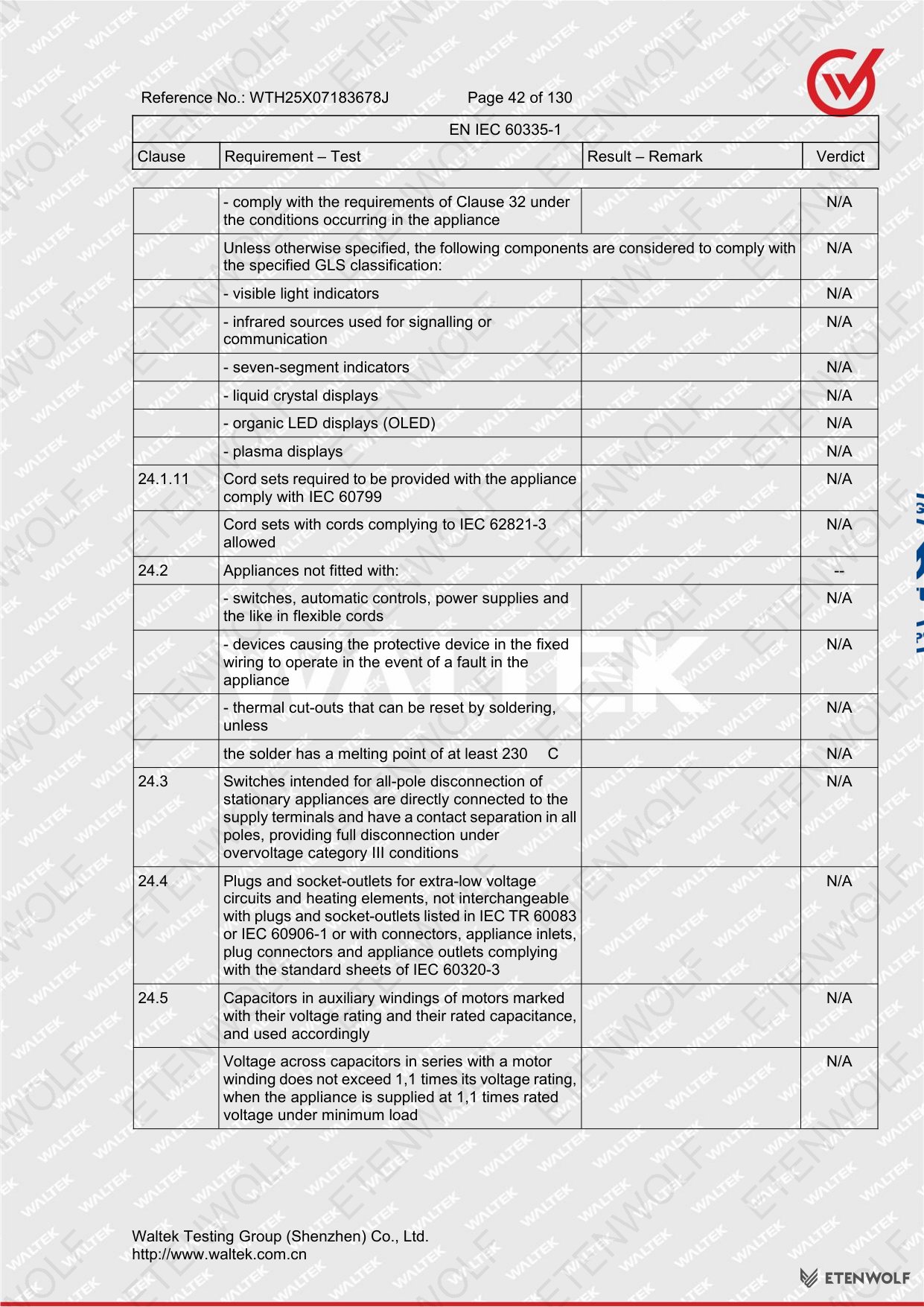

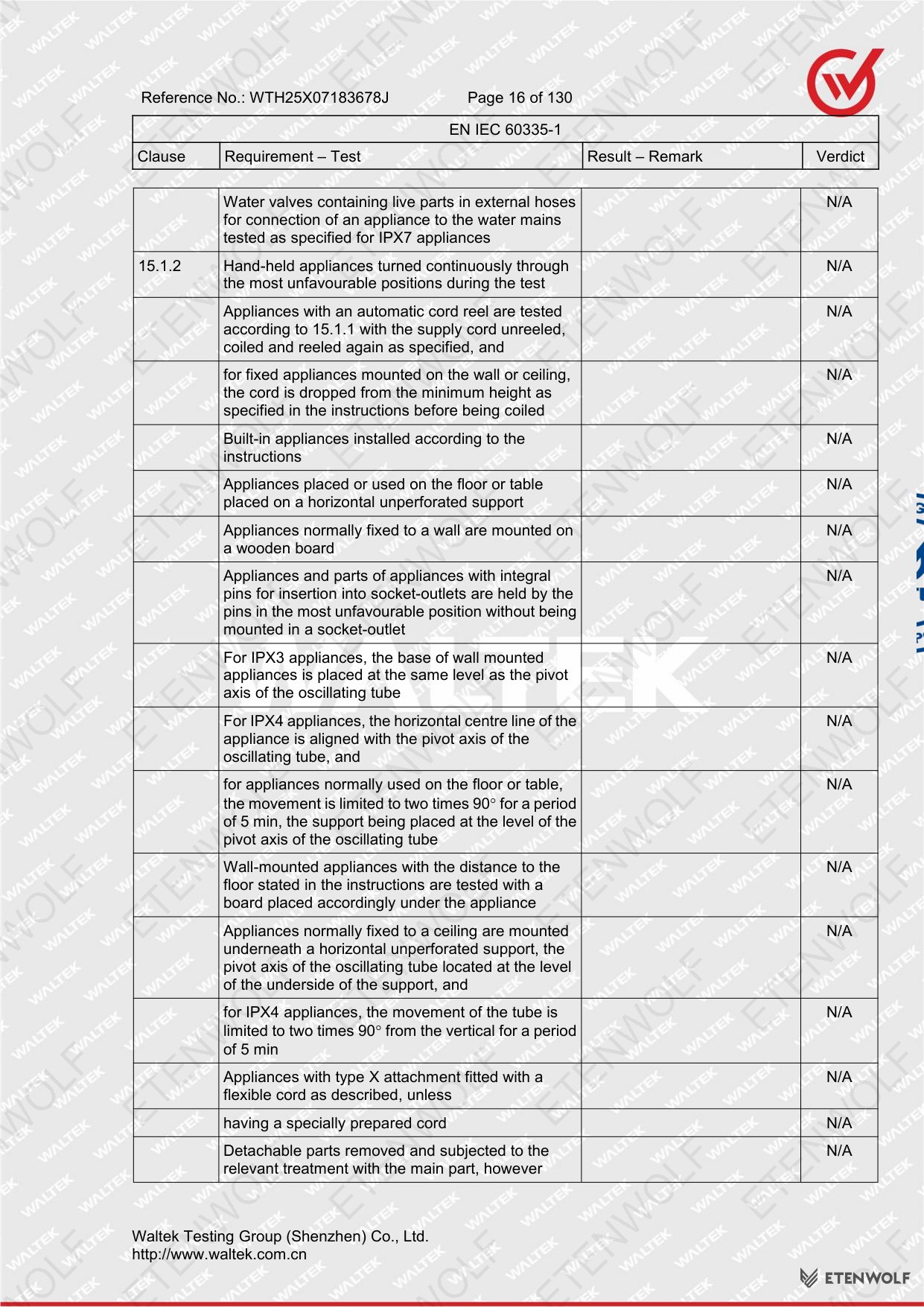

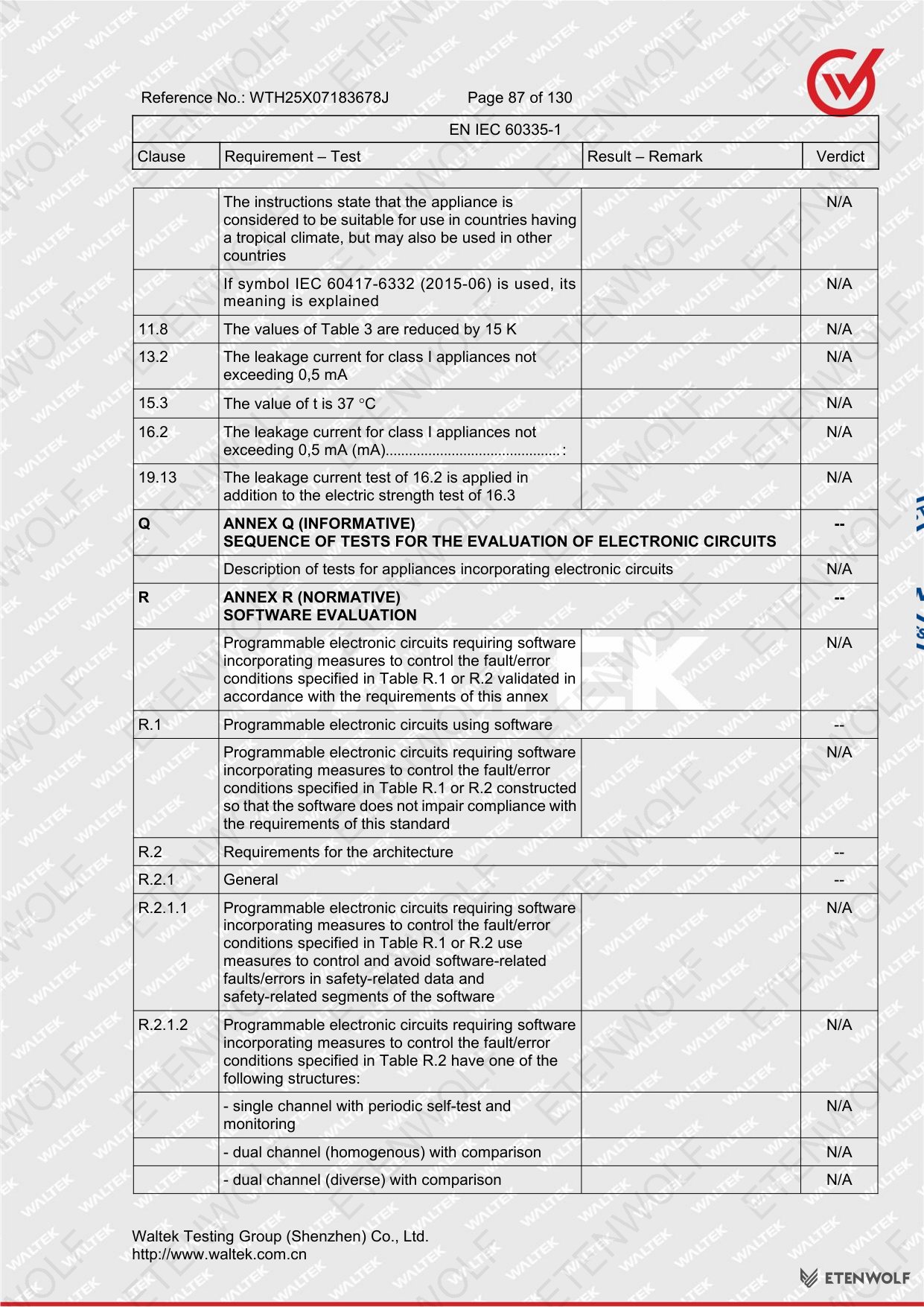

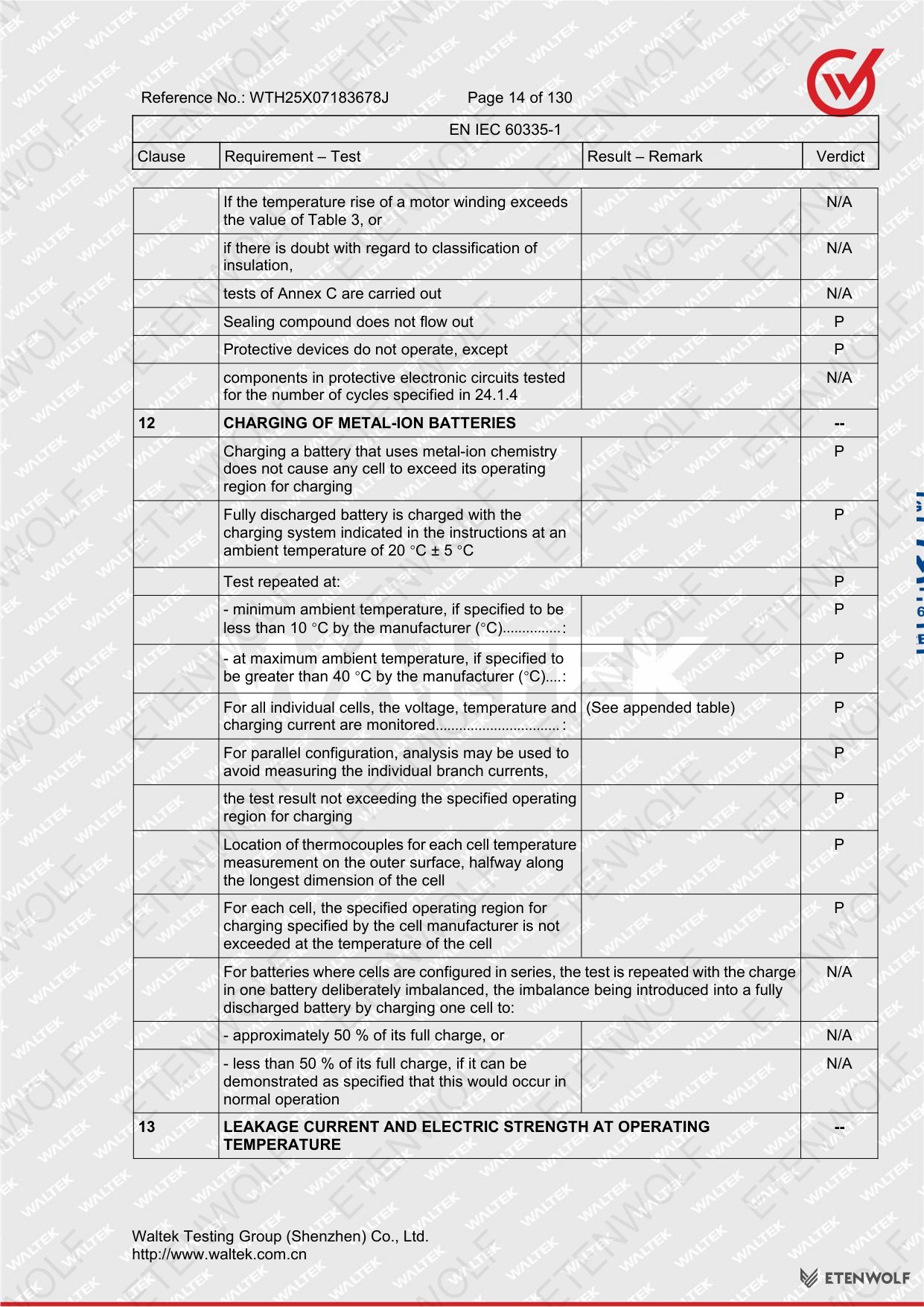

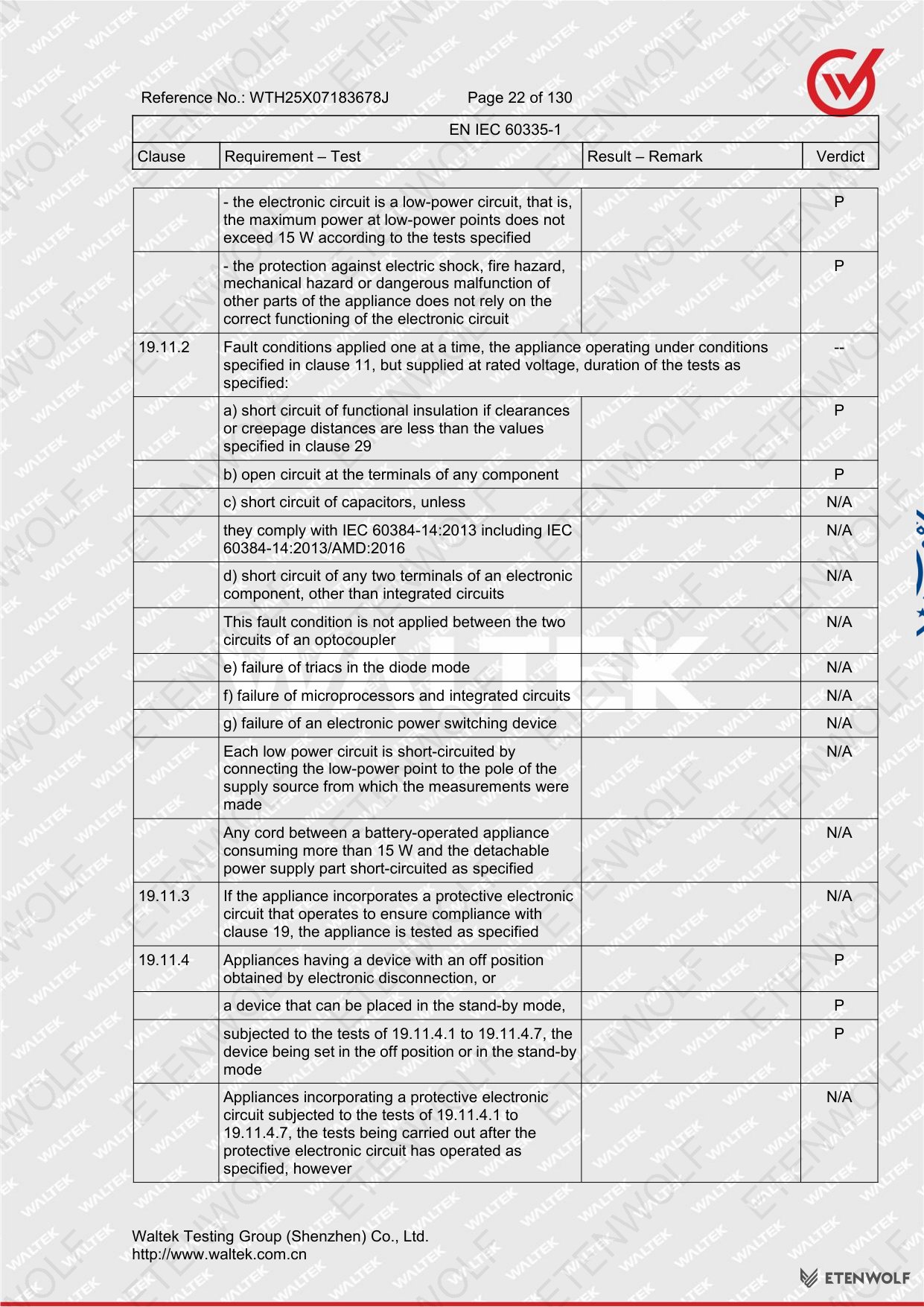

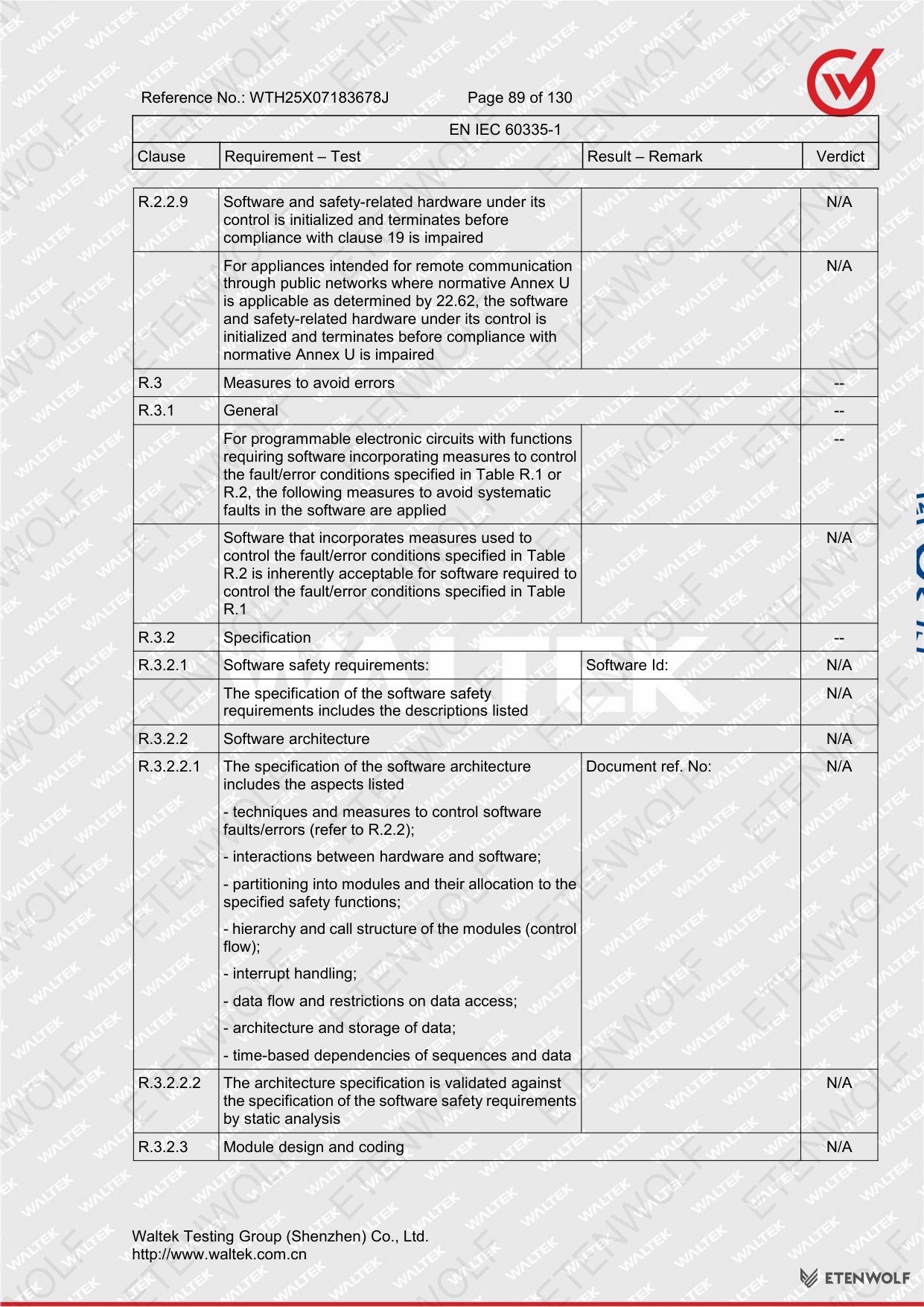

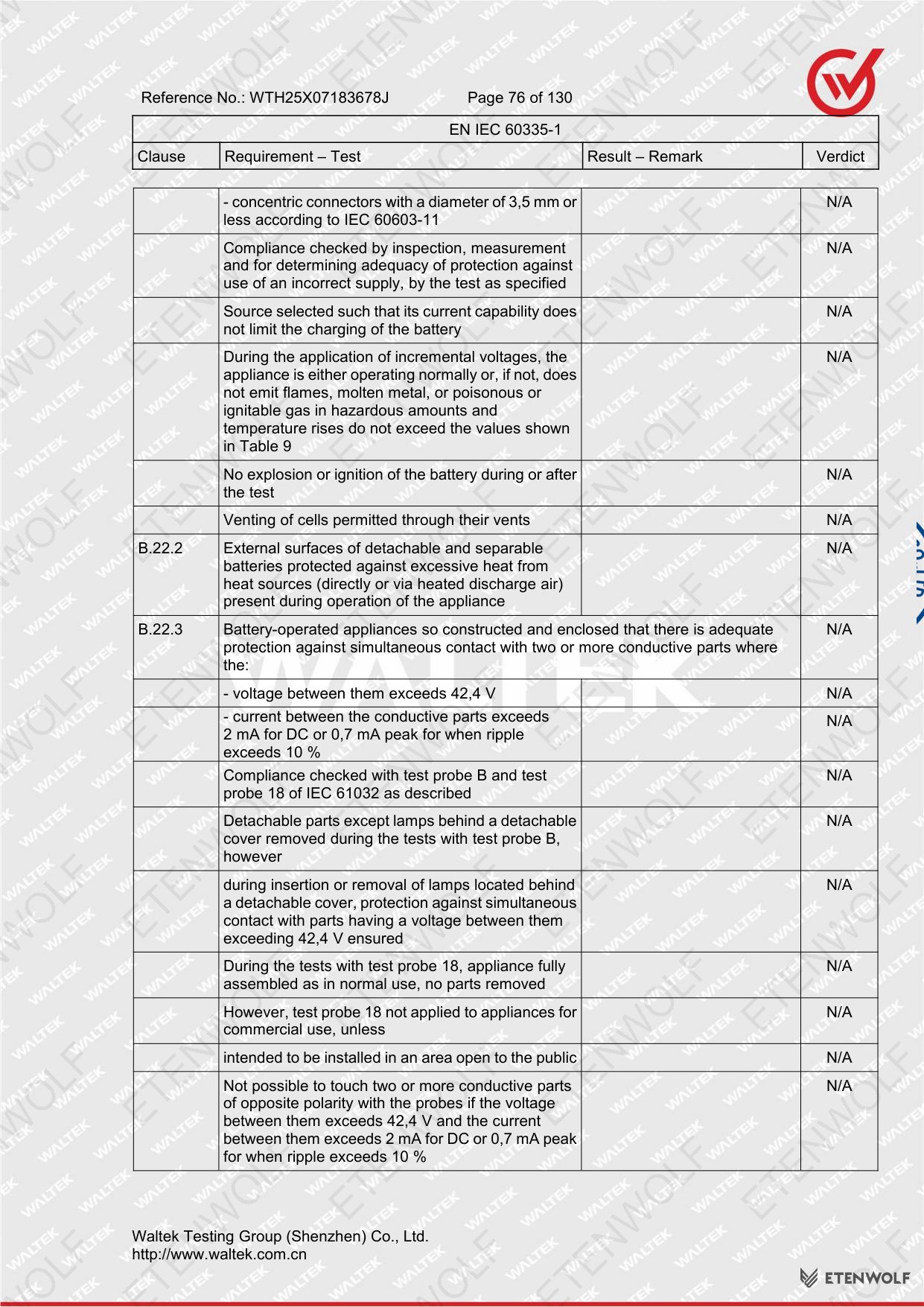

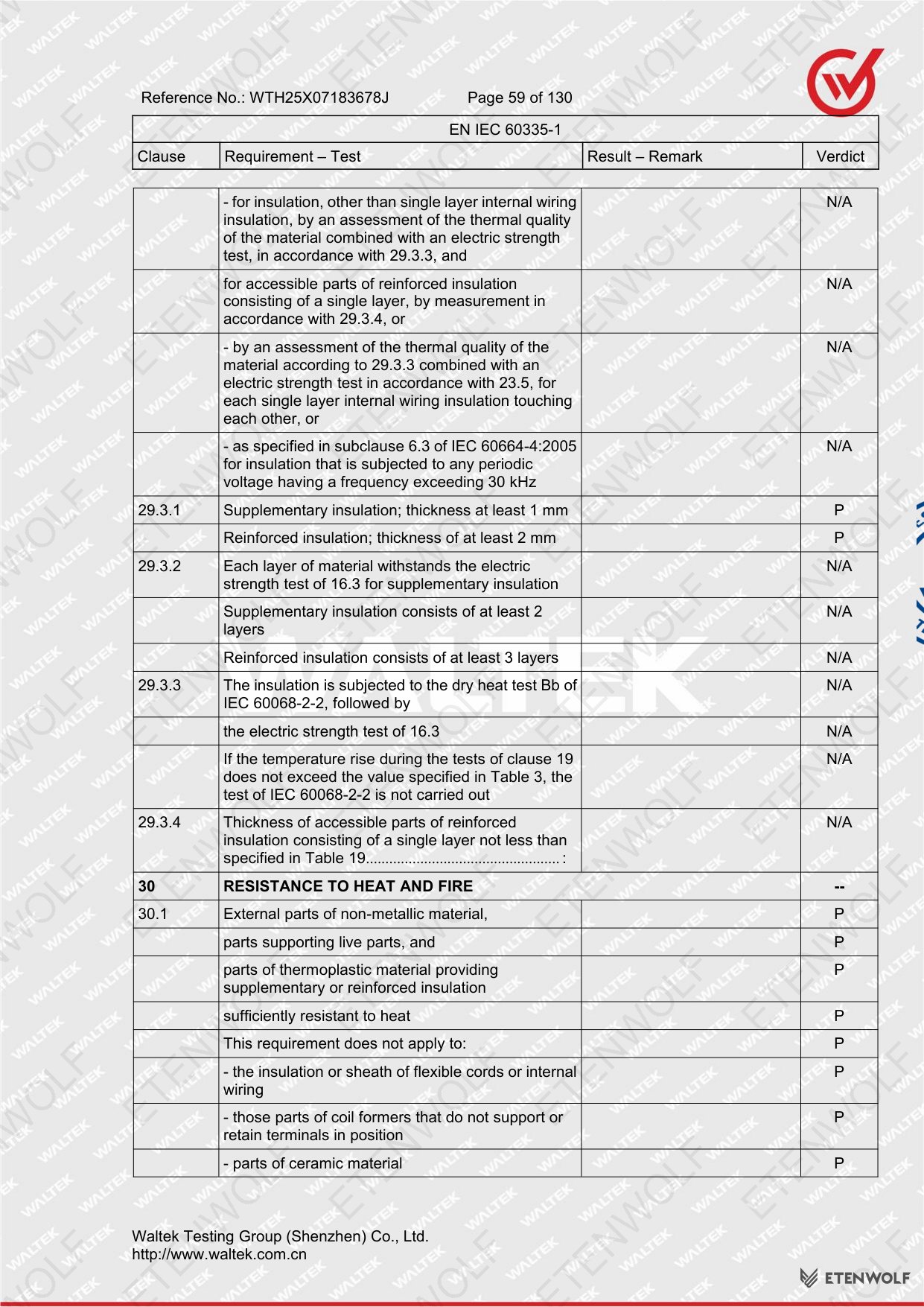

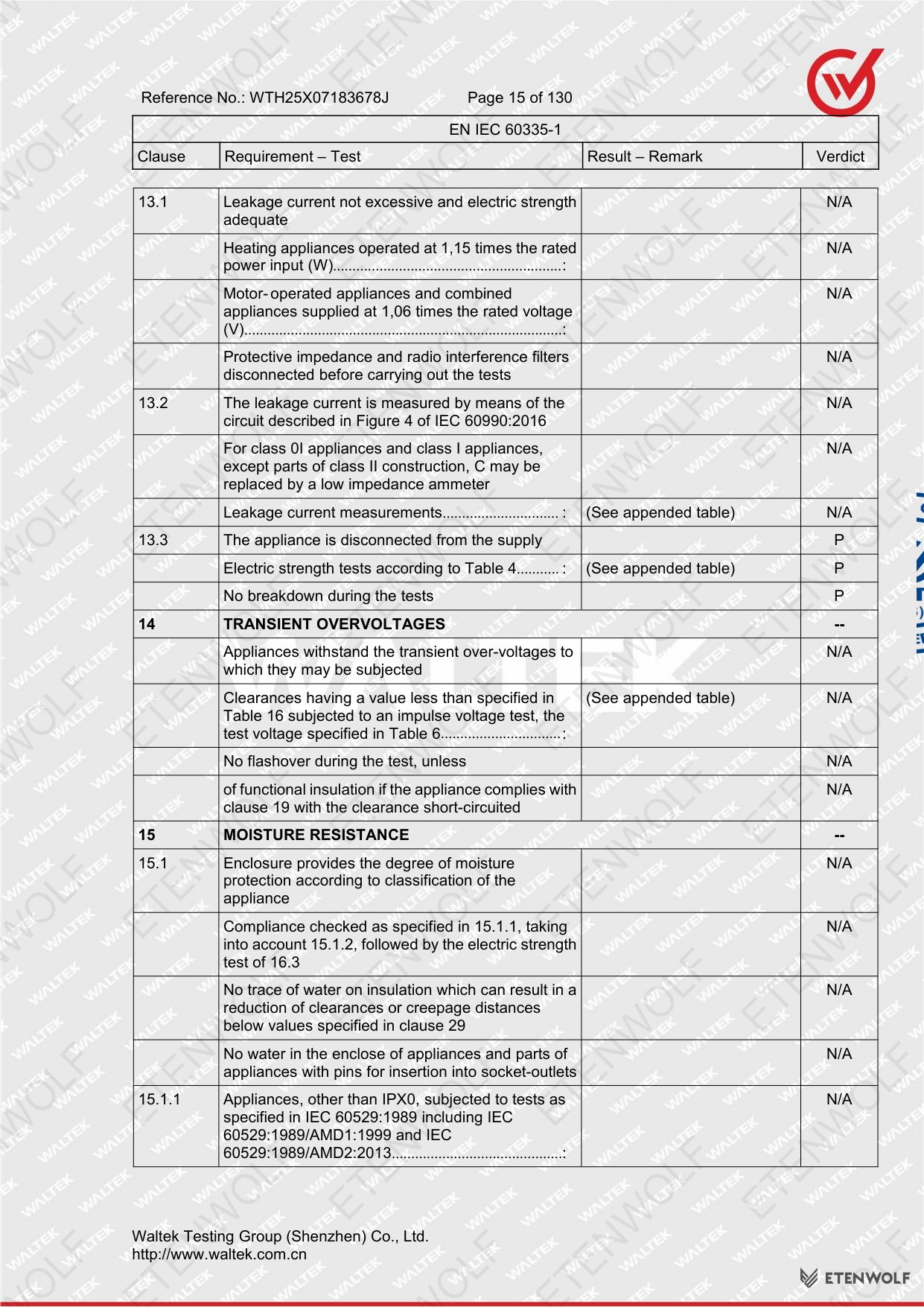

Document Pages
