Document Overview This article presents the Material Safety Data Sheet (MSDS) issued under reference number WTH25D09260771B001 for the lithium-ion battery pack used in the ETENWOLF HB3 inflation tool. The document was prepared by Waltek Testing Group Co., Ltd., an accredited third-party testing laboratory headquartered at…
- Document type
- Certification Report
- Prepared by
- Michelle Torres
- Published
- Last reviewed
- Topics
- International Transportation: CB / MSDS / UN38.3
Document Overview
This article presents the Material Safety Data Sheet (MSDS) issued under reference number WTH25D09260771B001 for the lithium-ion battery pack used in the ETENWOLF HB3 inflation tool. The document was prepared by Waltek Testing Group Co., Ltd., an accredited third-party testing laboratory headquartered at No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China (Tel: +86-769-2267 6998).
The MSDS covers hazard identification, chemical composition, first-aid measures, fire-fighting procedures, accidental release protocols, handling and storage guidelines, and exposure controls — all in compliance with internationally recognised safety data sheet requirements applicable to lithium-ion battery packs transported and used under UN38.3 regulations.
- Document Reference: WTH25D09260771B001
- Document Type: Material Safety Data Sheet (MSDS)
- Issuing Body: Waltek Testing Group Co., Ltd.
- Date of Issue: 2025-10-22
- Compiled By: Jason Zhen, Project Engineer
- Approved By: Deval Qin, Designated Reviewer
- Total Pages: 7
Product Information
The battery pack documented in this MSDS is installed in the ETENWOLF HB3 portable inflation tool. Full product and manufacturer details are listed below.
| Field | Details |
|---|---|
| Product Name | Lithium-ion Battery Pack |
| Model Number | 2S2P-4000 |
| Rated Voltage | 7.4 V |
| Rated Capacity | 4000 mAh |
| Energy | 29.6 Wh |
| Weight | Approx. 185.7 g |
| Appearance | Solid object, no odor, no color |
| Applicant | Guangdong Bestek Technology Co., Ltd. |
| Manufacturer | Guangdong Bestek Technology Co., Ltd. |
| Manufacturer Address | No. 1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China |
| Emergency Telephone | 0762-3429081 |
| [email protected] |
Key Details
Section 2 — Hazards Identification
Under normal conditions of use, the HB3 battery pack is not classified as dangerous. Hazards arise only if the battery is ruptured, dismantled, crushed, or improperly handled. Key hazard information is summarised below.
| Hazard Category | Description |
|---|---|
| Skin Contact | Electrolyte leakage may cause soreness and skin irritation. Remove contaminated clothing and flush with soap and water for at least 15 minutes. |
| Eye Contact | Electrolyte vapour may stimulate eyes and cause inflammation. Rinse immediately with plenty of water and seek medical aid. |
| Inhalation | Vapours or mists from a ruptured battery may cause respiratory irritation. Move to fresh air; administer oxygen or artificial respiration if required. |
| Ingestion | Not anticipated under normal use. If accidental ingestion occurs, dilute with plenty of water and seek medical aid immediately. |
| Environmental Hazard | Electrolyte leakage or container rupture may release inner components into the environment. Prevent entry into soil, subsoil, or drainage systems. |
| Fire / Burst Risk | Do not dispose of battery in fire — risk of explosion. Do not short-circuit — risk of fire. |

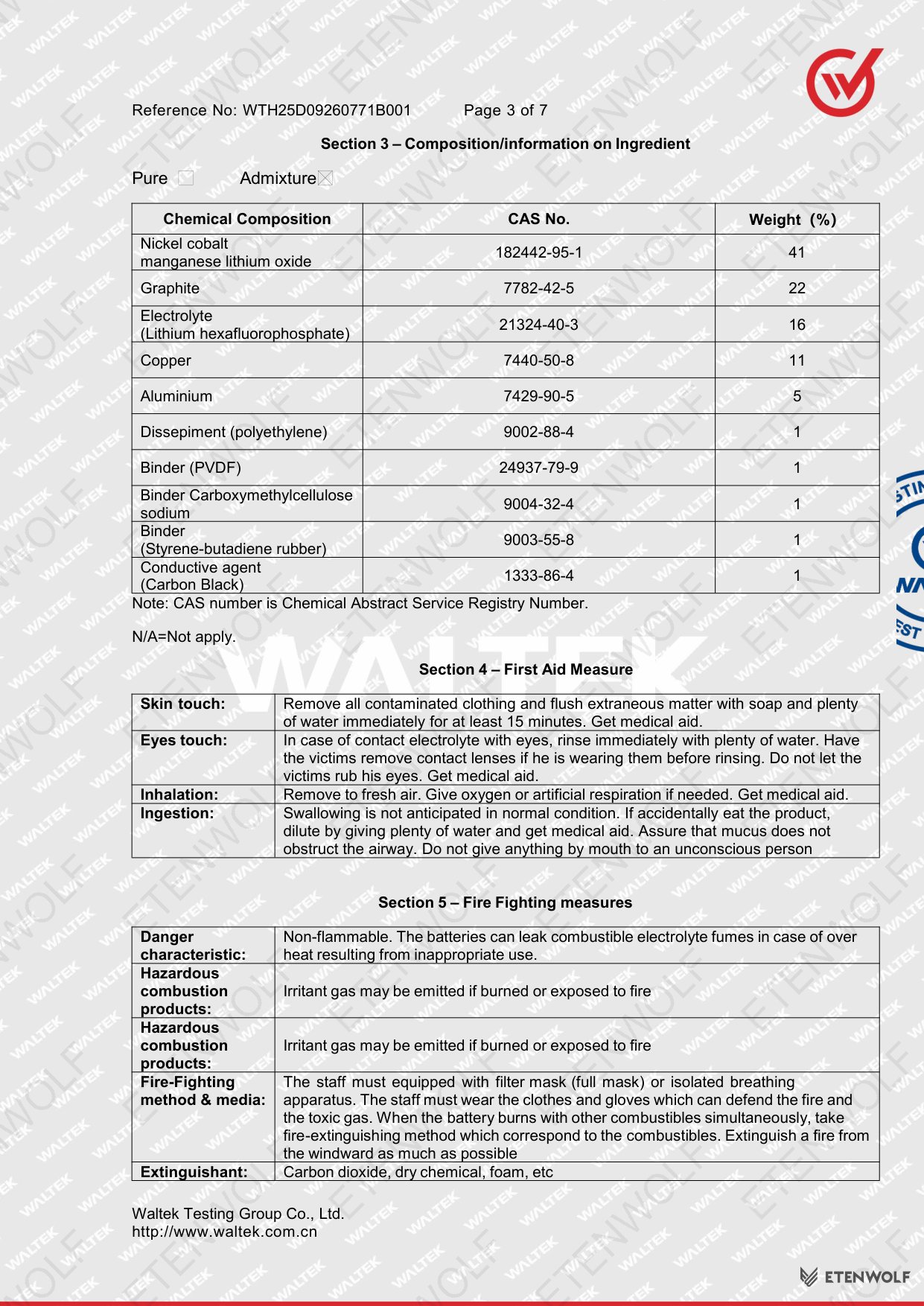

Section 3 — Chemical Composition
The battery pack contains the following chemical constituents:
| Chemical Composition | CAS Number | Weight (%) |
|---|---|---|
| Nickel Cobalt Manganese Lithium Oxide (NMC) | 182442-95-1 | 41 |
| Graphite | 7782-42-5 | 22 |
| Electrolyte (Lithium Hexafluorophosphate) | 21324-40-3 | 16 |
| Copper | 7440-50-8 | 11 |
| Aluminium | 7429-90-5 | 5 |
| Separator (Polyethylene) | 9002-88-4 | 1 |
| Binder (PVDF) | 24937-79-9 | 1 |
| Binder Carboxymethylcellulose Sodium | 9004-32-4 | 1 |
| Binder (Styrene-Butadiene Rubber) | 9003-55-8 | 1 |
| Conductive Agent (Carbon Black) | 1333-86-4 | 1 |
Section 5 — Fire-Fighting Measures
The battery pack is non-flammable under normal conditions. However, overheating from improper use may cause combustible electrolyte fumes to be released. Recommended extinguishing agents include carbon dioxide (CO₂), dry chemical, and foam. Firefighting personnel must wear full-face filter masks or isolated breathing apparatus, along with fire-resistant protective clothing and gloves. Extinguish fires from the windward side wherever possible.
Section 6 — Accidental Release Measures
In the event of accidental release: avoid contact with skin, eyes, or clothing; ensure adequate ventilation; evacuate personnel to safe areas; and keep all persons upwind of any spill or leak. Prevent the product from entering drains, soil, or the broader environment. Collect released material and transfer to properly labelled containers.

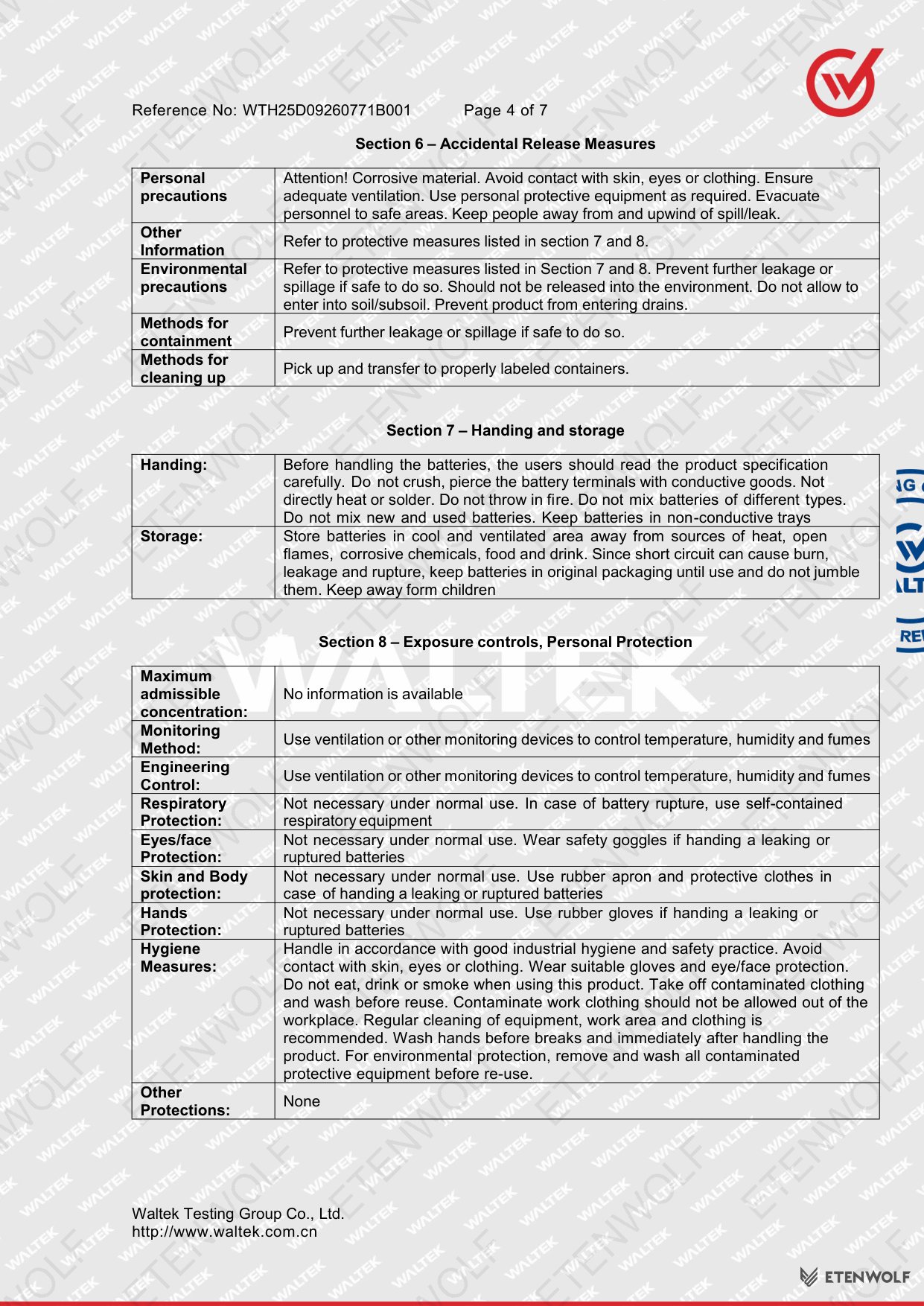

Section 7 — Handling and Storage
- Read the product specification carefully before handling.
- Do not crush or pierce battery terminals with conductive objects.
- Do not directly heat, solder, or throw the battery into fire.
- Do not mix batteries of different types or mix new and used batteries.
- Store in a cool, well-ventilated area, away from heat sources, open flames, corrosive chemicals, food, and drink.
- Keep batteries in original packaging until use to prevent short circuit.
- Keep out of reach of children.
Section 8 — Personal Protection
| Protection Type | Requirement |
|---|---|
| Respiratory Protection | Not required under normal use. Use self-contained respiratory equipment if battery ruptures. |
| Eye / Face Protection | Not required under normal use. Wear safety goggles when handling a leaking or ruptured battery. |
| Skin and Body Protection | Not required under normal use. Use rubber apron and protective clothing when handling a ruptured battery. |
| Hand Protection | Not required under normal use. Use rubber gloves when handling a ruptured battery. |
Standards & Compliance
This Material Safety Data Sheet was prepared in accordance with the requirements applicable to lithium-ion battery packs subject to dangerous goods transport regulations. The document supports compliance with the following standards and frameworks:
- UN38.3 — United Nations Manual of Tests and Criteria, Part III, Section 38.3: Transport Testing of Lithium Metal and Lithium-Ion Batteries
- IEC 62133 — Safety requirements for portable sealed secondary lithium cells and batteries for use in portable applications
- IATA Dangerous Goods Regulations — applicable to air transport of lithium-ion battery packs
- IMDG Code — applicable to sea transport of lithium-ion battery packs
- RoHS Directive 2011/65/EU — Restriction of Hazardous Substances
The MSDS provides full chemical composition data with CAS registry numbers, enabling importers, distributors, and end users to meet their regulatory obligations across key markets including the EU, US, and Asia-Pacific.
Validity & Certification Body
The MSDS bearing reference number WTH25D09260771B001 was issued on 2025-10-22 by Waltek Testing Group Co., Ltd. MSDS documents of this type are typically valid for the product formulation described. Any change in battery chemistry, cell configuration, or material composition would necessitate a revised document.
| Field | Details |
|---|---|
| Reference Number | WTH25D09260771B001 |
| Date of Issue | 2025-10-22 |
| Issuing Laboratory | Waltek Testing Group Co., Ltd. |
| Lab Address | No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China |
| Lab Tel | +86-769-2267 6998 |
| Lab Fax | +86-769-2267 6828 |
| Lab Website | http://www.waltek.com.cn |
| Compiled By | Jason Zhen, Project Engineer |
| Approved By | Deval Qin, Designated Reviewer |
| Applicant | Guangdong Bestek Technology Co., Ltd. |
Frequently Asked Questions
- What is the UN38.3 MSDS reference number for the ETENWOLF HB3 battery pack?
- The Material Safety Data Sheet for the ETENWOLF HB3 lithium-ion battery pack carries reference number WTH25D09260771B001, issued by Waltek Testing Group Co., Ltd. on 2025-10-22.
- What are the electrical specifications of the HB3 battery pack?
- The HB3 uses a 2S2P-4000 lithium-ion battery pack rated at 7.4 V, 4000 mAh, with an energy capacity of 29.6 Wh and a weight of approximately 185.7 g.
- Is the HB3 lithium-ion battery pack safe for air transport?
- The battery pack has been assessed under UN38.3 testing requirements. With a capacity of 29.6 Wh it falls below the 100 Wh threshold, and when properly packaged in compliance with IATA Dangerous Goods Regulations, it can be transported by air. Always verify current IATA rules with your carrier prior to shipment.
- What should I do if the HB3 battery pack leaks or ruptures?
- If the battery leaks, avoid all contact with skin, eyes, and clothing. Ensure adequate ventilation and evacuate the immediate area. Flush any skin or eye contact with plenty of water for at least 15 minutes and seek medical aid. Collect any released material in a properly labelled container and dispose of in accordance with local regulations. Do not allow electrolyte to enter drains or the environment.
Related Documents
The following certification and compliance documents are relevant to the ETENWOLF HB3 and its lithium-ion battery pack. Obtaining the full set ensures comprehensive market access and regulatory compliance.
- UN38.3 Test Report — Formal test report confirming the battery pack passed all eight UN38.3 abuse tests (altitude simulation, thermal test, vibration, shock, external short circuit, impact, overcharge, and forced discharge).
- IEC 62133 Certificate — Safety certification for portable lithium-ion cells and battery packs, required for many retail and e-commerce platforms.
- CE / EMC Declaration of Conformity — Required for sale of the complete HB3 inflation tool in the European Economic Area, covering Low Voltage Directive and EMC Directive compliance.
- FCC Declaration of Conformity — Required for sale in the United States market under FCC Part 15 rules for unintentional radiators.
- RoHS / REACH Compliance Report — Documents that the battery pack and product meet RoHS and REACH substance restrictions for the EU market.
- KC Certification — Required for sale of the HB3 and its battery pack in the South Korean market under KC safety regulations.
- Battery Shipping Declaration (SDS/PDS) — Supplementary transport documentation often required alongside the MSDS by freight forwarders and customs authorities.

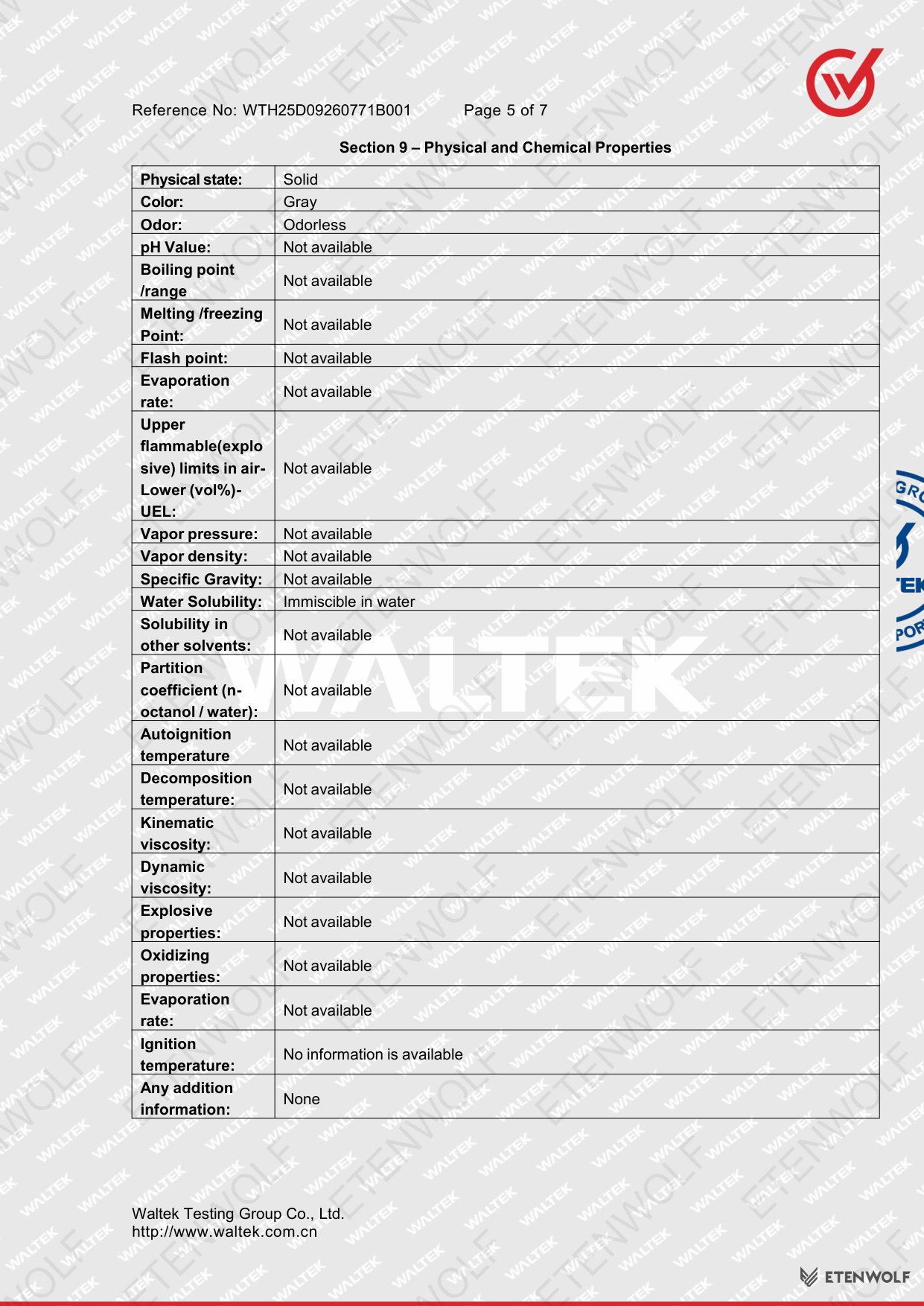

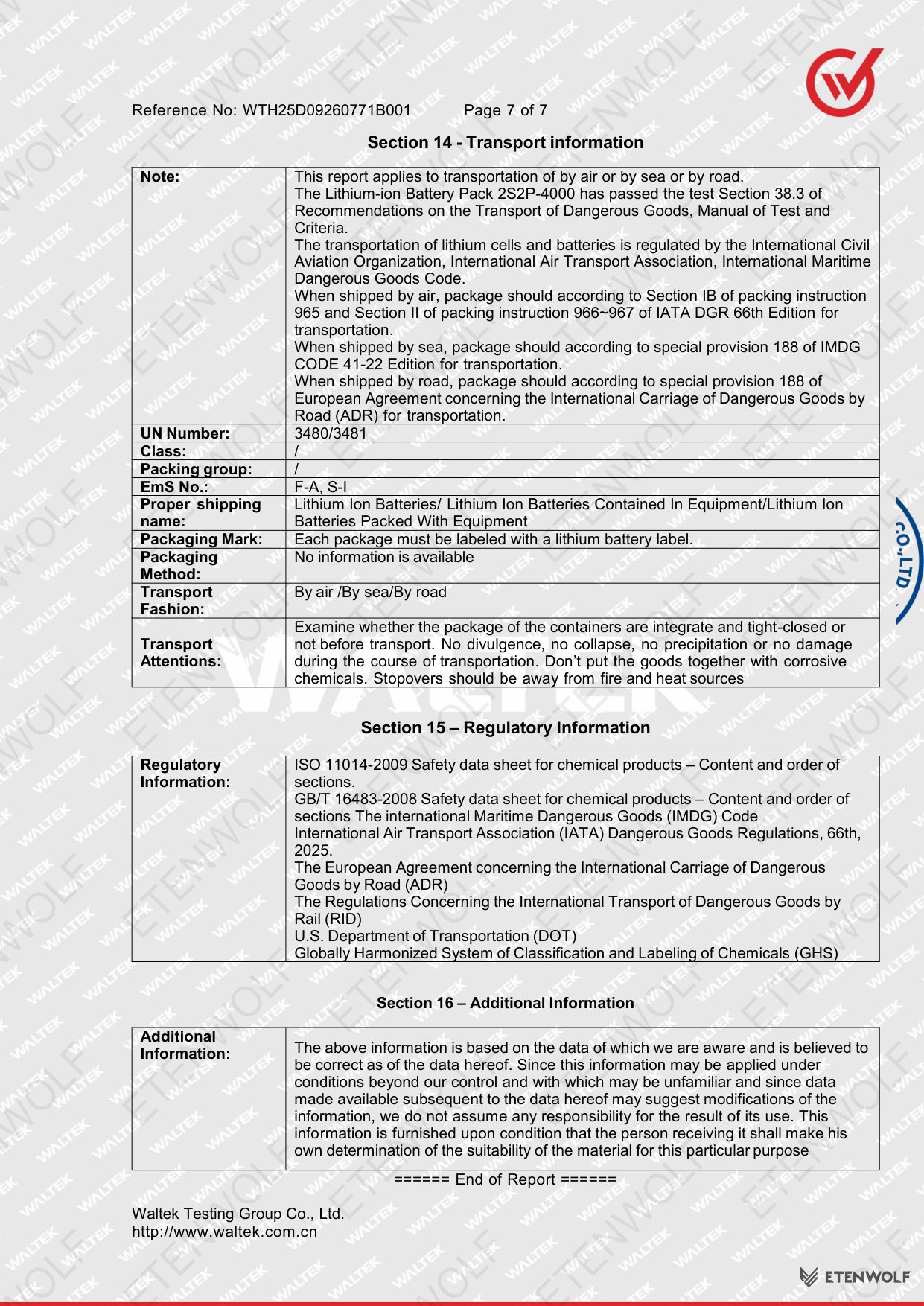

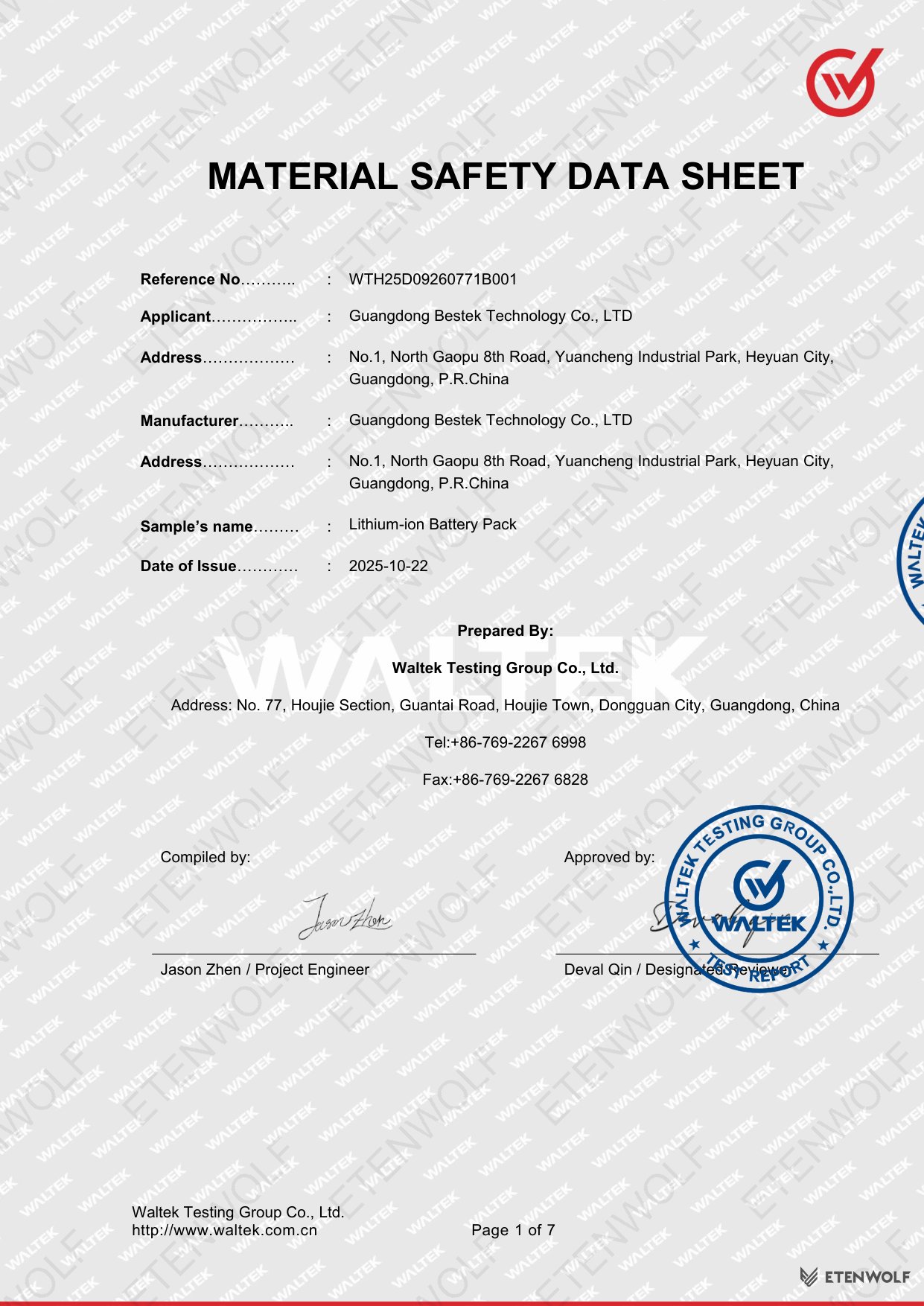

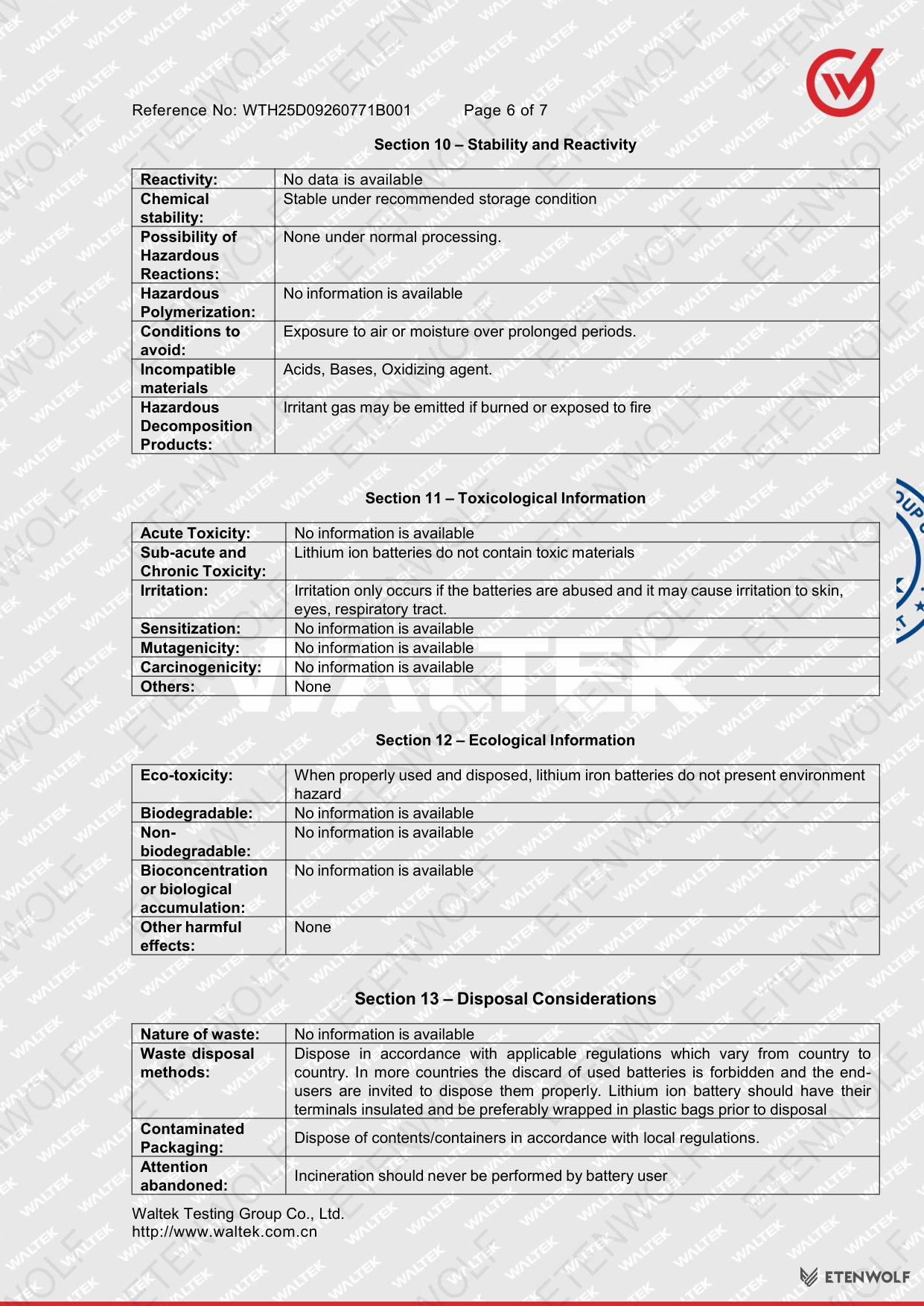

Document Pages
