Document Overview
This article presents the official UN38.3 Test Summary issued by Waltek Testing Group Co., Ltd. (深圳沃特检验集团股份有限公司), covering the rechargeable lithium-ion battery pack used in the ETENWOLF Vortex S7 Tire Inflator. The document is identified by unique test report number WTH25D03074332B and was issued on 2025-04-09.
The certification references the UN Manual of Tests and Criteria, Revision 8, which defines the mandatory safety tests for lithium cells and batteries intended for transport. This document covers a complete battery pack configuration (3S4P) and confirms all required test items were conducted and passed.

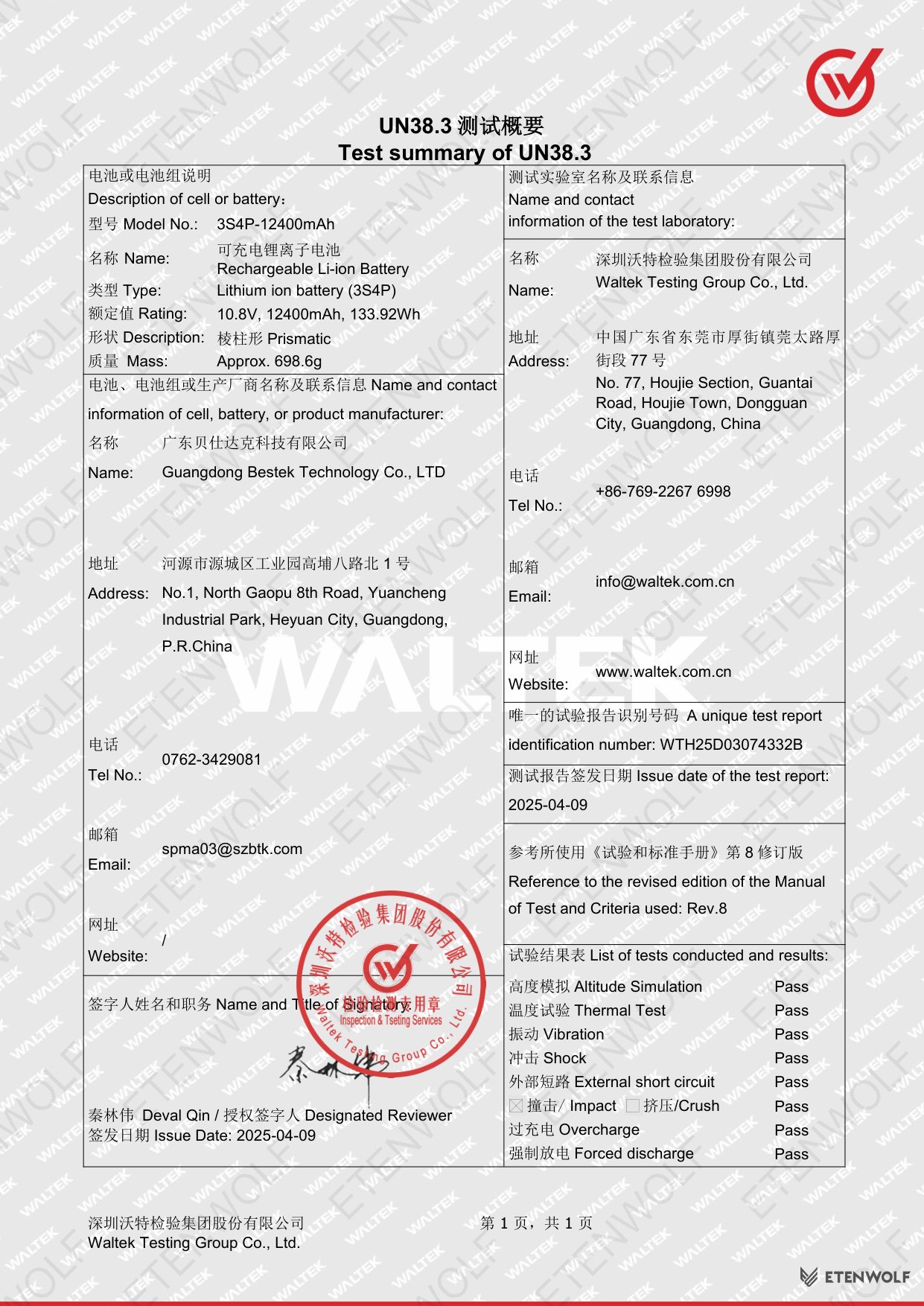

The document spans 1 page (Page 1 of 1) and was reviewed and authorized by Deval Qin (秦林伟), Designated Reviewer at Waltek Testing Group.
Product Information
The battery pack tested is the internal power source of the ETENWOLF Vortex S7 Tire Inflator, a portable cordless inflation tool manufactured by ETENWOLF. The battery specifications are listed below.
| Parameter | Value |
|---|---|
| Model Number | 3S4P-12400mAh |
| Battery Type | Rechargeable Lithium-ion Battery (Li-ion) |
| Configuration | 3S4P (3 cells in series, 4 in parallel) |
| Rated Voltage | 10.8 V |
| Rated Capacity | 12400 mAh |
| Rated Energy | 133.92 Wh |
| Physical Shape | Prismatic (棱柱形) |
| Approximate Mass | 698.6 g |
The battery pack is manufactured by Guangdong Bestek Technology Co., Ltd. (广东贝仕达克科技有限公司), located at No. 1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China. Contact: +86-762-3429081 / [email protected].
Key Details
The following table summarizes all eight UN38.3 tests conducted on the battery pack and their individual results. All tests were performed by Waltek Testing Group Co., Ltd. in accordance with the UN Manual of Tests and Criteria, Revision 8.
| Test Item | UN38.3 Section | Result |
|---|---|---|
| Altitude Simulation (高度模拟) | T.1 | ✔ Pass |
| Thermal Test (温度试验) | T.2 | ✔ Pass |
| Vibration (振动) | T.3 | ✔ Pass |
| Shock (冲击) | T.4 | ✔ Pass |
| External Short Circuit (外部短路) | T.5 | ✔ Pass |
| Impact / Crush (撞击 / 挤压) | T.6 | ✔ Pass |
| Overcharge (过充电) | T.7 | ✔ Pass |
| Forced Discharge (强制放电) | T.8 | ✔ Pass |
All 8 mandatory UN38.3 test items were completed with a Pass result, confirming the battery pack meets international safety requirements for the transport of lithium batteries by air, sea, and land.
Unique Test Report Identification Number: WTH25D03074332B
Issue Date: 2025-04-09
Authorized Signatory: Deval Qin (秦林伟), Designated Reviewer
Manual Reference: UN Manual of Tests and Criteria, Revision 8
Standards & Compliance
The ETENWOLF Vortex S7 battery pack was tested under the following international standard and regulatory framework:
- UN38.3 – United Nations Manual of Tests and Criteria, Part III, Section 38.3: The globally recognized standard governing the transport safety testing of lithium metal and lithium-ion batteries. Compliance is mandatory for air freight (IATA), sea freight (IMDG), and road transport (ADR).
- Revision 8 of the UN Manual of Tests and Criteria was specifically applied for this test, which is the most current revision at the time of testing.
The eight test procedures under UN38.3 Rev.8 are designed to evaluate battery behavior under simulated transport stress conditions including low-pressure altitude, extreme temperature cycling, mechanical vibration, mechanical shock, electrical short circuit, physical impact, overcharge scenarios, and forced discharge. A battery pack must pass all eight to be classified as compliant for transport.
The rated energy of 133.92 Wh places this battery pack in a category that requires documentation and declaration when transported by air under IATA Dangerous Goods Regulations (DGR), as it exceeds 100 Wh but is below 160 Wh per battery.
Validity & Certification Body
The test summary was issued by Waltek Testing Group Co., Ltd. (深圳沃特检验集团股份有限公司), an accredited third-party testing laboratory headquartered in China.
| Field | Details |
|---|---|
| Laboratory Name | Waltek Testing Group Co., Ltd. (深圳沃特检验集团股份有限公司) |
| Laboratory Address | No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China |
| Contact Email | [email protected] |
| Website | www.waltek.com.cn |
| Report Number | WTH25D03074332B |
| Issue Date | 2025-04-09 |
| Authorized Signatory | Deval Qin (秦林伟), Designated Reviewer |
| Standard Reference | UN38.3 Rev.8 |
UN38.3 test summaries do not carry a fixed expiry date in the same manner as CE or FCC certificates. However, compliance documentation must remain current and consistent with the tested product configuration. Any design change to the battery cell chemistry, capacity, configuration, or protective circuitry would require re-testing. The document is valid as long as the battery pack model 3S4P-12400mAh remains unchanged from the tested specimen.
Frequently Asked Questions
- What is UN38.3 and why does the ETENWOLF Vortex S7 need it?
- UN38.3 is the international transport safety standard for lithium batteries, defined in the United Nations Manual of Tests and Criteria, Part III, Section 38.3. It requires batteries to pass eight safety tests simulating transport hazards. The ETENWOLF Vortex S7 contains a 133.92 Wh lithium-ion battery pack, and UN38.3 compliance is mandatory for its legal shipment by air, sea, and road internationally.
- What does report number WTH25D03074332B confirm?
- Report WTH25D03074332B, issued on 2025-04-09 by Waltek Testing Group Co., Ltd., confirms that the 3S4P-12400mAh rechargeable lithium-ion battery pack used in the ETENWOLF Vortex S7 passed all eight mandatory UN38.3 Revision 8 tests, including altitude simulation, thermal test, vibration, shock, external short circuit, impact/crush, overcharge, and forced discharge.
- Does the 133.92 Wh battery in the Vortex S7 have any air transport restrictions?
- Yes. Under IATA Dangerous Goods Regulations, lithium-ion batteries between 100 Wh and 160 Wh per battery (such as the 133.92 Wh pack in the ETENWOLF Vortex S7) may be transported as carry-on baggage with airline approval but are generally restricted in checked baggage. Shippers and carriers must verify current IATA DGR rules. UN38.3 compliance documentation like WTH25D03074332B is required.
- Who manufactured the battery pack and who tested it?
- The battery pack (model 3S4P-12400mAh) was manufactured by Guangdong Bestek Technology Co., Ltd., based in Heyuan City, Guangdong, China. Independent UN38.3 testing was carried out by Waltek Testing Group Co., Ltd., an accredited third-party laboratory located in Dongguan City, Guangdong, China.
Related Documents
For a complete compliance profile of the ETENWOLF Vortex S7 Tire Inflator, the following related certification documents are typically associated with products of this type and are recommended for reference alongside this UN38.3 test summary:
- CE Declaration of Conformity – Required for sale in the European Economic Area, covering Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC) under IEC standards.
- FCC Declaration of Conformity – Required for the United States market, covering radio frequency emissions compliance per FCC regulations.
- RoHS Compliance Certificate – Confirms restriction of hazardous substances in electrical and electronic equipment per RoHS Directive requirements.
- REACH SVHC Declaration – Confirms compliance with REACH regulations regarding substances of very high concern.
- KC Certification – Required for the South Korean market under the KC safety marking scheme.
- IEC 62133 Battery Safety Test Report – Covers electrochemical safety of portable sealed lithium cells and batteries per IEC 62133.
- MSDS / SDS (Material Safety Data Sheet) – Safety data sheet for the lithium-ion battery pack, required for logistics and hazardous goods handling documentation.
