Document Overview
This page presents the official IPX7 waterproof ingress protection test report for the ETENWOLF Helios J1 Portable Automotive Jump Starter. The document is a formal Test Report issued by Waltek Testing Group Co., Ltd., an accredited third-party testing laboratory located in Dongguan City, Guangdong, China.
| Field | Details |
|---|---|
| Report Reference No. | WTH25D05119733R1S002 |
| Document Type | IPX7 Waterproof Test Report |
| Issuing Body | Waltek Testing Group Co., Ltd. |
| Date of Issue | 2025-06-25 |
| Applicable Standard | IEC 60529:1989+A1:1999+A2:2013 |
| Test Scope | Protection against ingress of water — IPX7 immersion test |
| Overall Result | PASS |
The report was originally issued as WTH25D05119733S002 on 2025-05-30 and subsequently revised to WTH25D05119733R1S002 on 2025-06-25 to reflect an updated product name and model designation. No further testing was required following the revision review.
Product Information

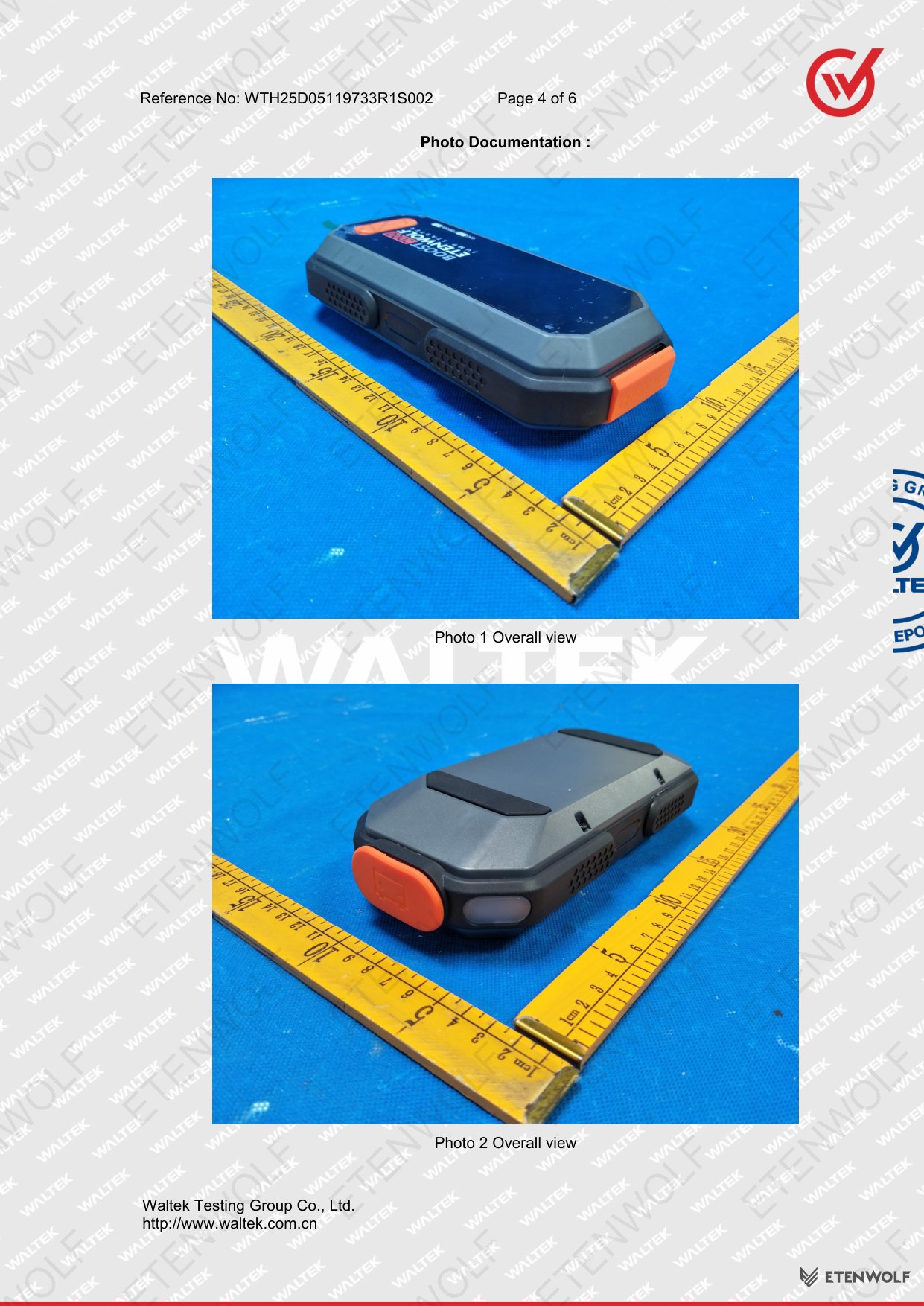

The tested product is the ETENWOLF Helios J1, a compact and portable automotive jump starter designed for consumer and professional roadside use. The device is manufactured and supplied by Guangdong Bestek Technology Co., Ltd.
| Attribute | Details |
|---|---|
| Product Name | Portable Automotive Jump Starter |
| Brand / Series | ETENWOLF — Helios J1 |
| Model No. | Helios J1 |
| Rated Specifications | Not specified in report (—) |
| Applicant | Guangdong Bestek Technology Co., Ltd. |
| Applicant Address | No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China |
| Manufacturer | Guangdong Bestek Technology Co., Ltd. |
| Manufacturer Address | No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China |
| Date Sample Received | 2025-05-28 |
| Date of Test | 2025-05-28 |
IPX7 compliance is confirmed with the waterproof cover closed, meaning the device is rated to withstand temporary immersion in water up to 1 metre depth for 30 minutes under standard conditions.
Key Details

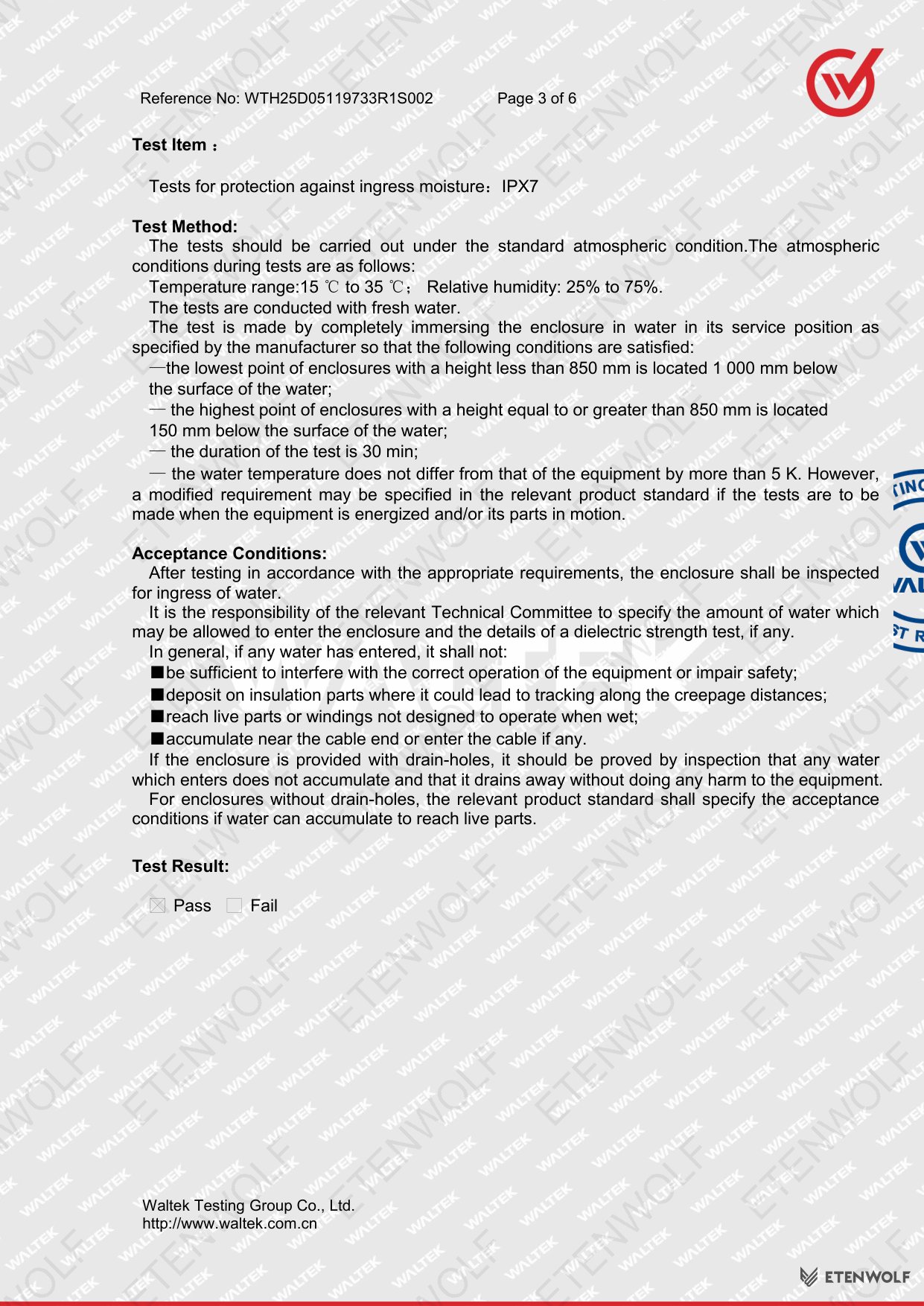

The IPX7 test was conducted in accordance with the immersion procedure defined in IEC 60529:1989+A1:1999+A2:2013. The following summarises the test method, environmental conditions, and acceptance criteria applied during evaluation of the Helios J1.
Test Environmental Conditions
| Parameter | Requirement |
|---|---|
| Temperature Range | 15 °C to 35 °C |
| Relative Humidity | 25% to 75% |
| Test Medium | Fresh water |
IPX7 Immersion Conditions
| Parameter | Specification |
|---|---|
| Immersion depth (enclosure height < 850 mm) | Lowest point 1,000 mm below water surface |
| Immersion depth (enclosure height ≥ 850 mm) | Highest point 150 mm below water surface |
| Test Duration | 30 minutes |
| Water Temperature Differential | Must not differ from equipment temperature by more than 5 K |
Acceptance Criteria

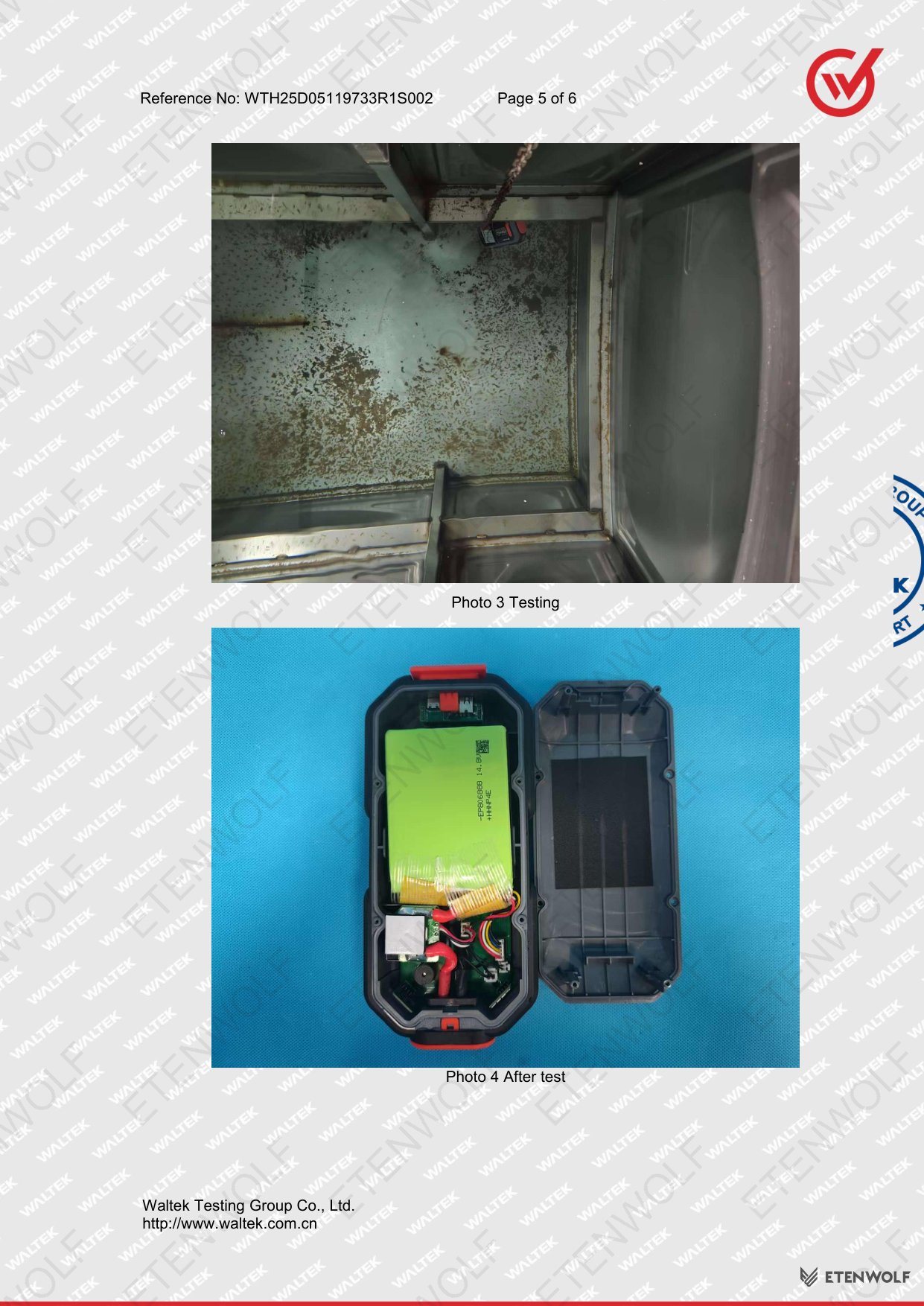

After immersion, the enclosure was inspected for water ingress. Any water that entered must not: interfere with correct operation or safety; deposit on insulation parts causing tracking along creepage distances; reach live parts or windings not designed to operate when wet; or accumulate near the cable entry or enter the cable.

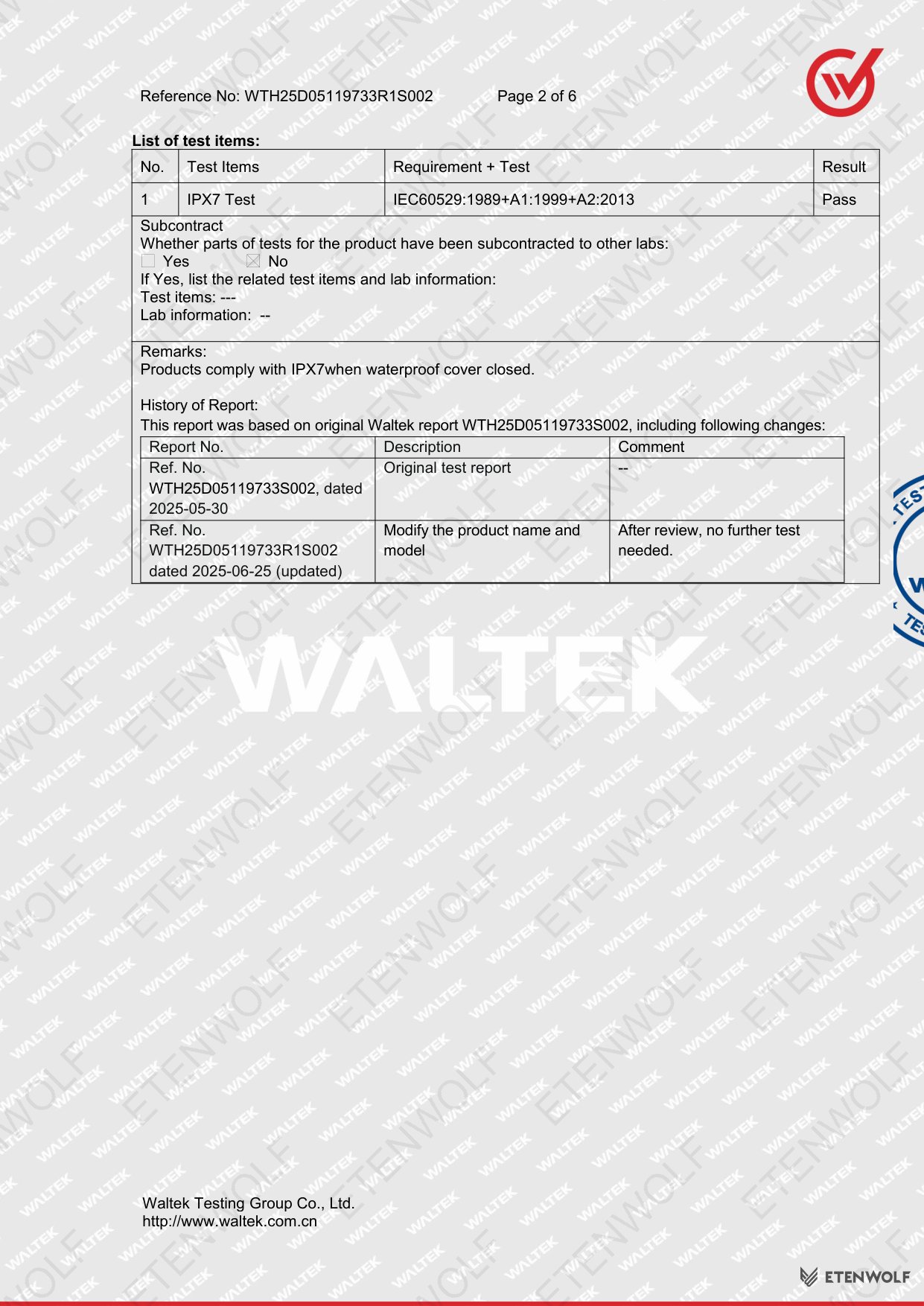

Test Result Summary
| Test Item | Standard | Result |
|---|---|---|
| IPX7 Immersion Test | IEC 60529:1989+A1:1999+A2:2013 | PASS |
Test Equipment Used
| Equipment | Model / Type | Calibration Validity |
|---|---|---|
| Timer | PC396 | 2025-05-06 to 2026-05-05 |
Report Revision History
| Report No. | Date | Description | Comment |
|---|---|---|---|
| WTH25D05119733S002 | 2025-05-30 | Original test report | — |
| WTH25D05119733R1S002 | 2025-06-25 | Product name and model updated | After review, no further test needed |
Standards & Compliance
The ETENWOLF Helios J1 was evaluated against the following international standard governing degrees of protection provided by enclosures:
| Standard | Full Title | Scope |
|---|---|---|
| IEC 60529:1989+A1:1999+A2:2013 | Degrees of Protection Provided by Enclosures (IP Code) | Defines IPX7 immersion test method and acceptance criteria for protection against water ingress |
The IP (Ingress Protection) rating system classifies the degree of protection provided by the mechanical casing and electrical enclosures of devices. The second digit in the IPX7 rating specifically addresses liquid ingress:
- IPX7 — Complete, temporary immersion in water: the device can be immersed at a depth of up to 1 metre for up to 30 minutes without harmful water ingress.
The test category for this evaluation was an Entrusted Test, conducted entirely in-house by Waltek Testing Group. No subcontracting to external laboratories was involved.
Compliance with IPX7 is confirmed only when the waterproof cover is properly closed. Users should ensure all port covers and seals are securely fastened before any exposure to water.
Validity & Certification Body
This test report was issued by Waltek Testing Group Co., Ltd., an accredited independent testing and certification body operating from Dongguan City, Guangdong, China. The report is valid as a formal declaration of conformity to the stated standard for the specific sample tested.
| Field | Details |
|---|---|
| Laboratory Name | Waltek Testing Group Co., Ltd. |
| Laboratory Address | No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China |
| Laboratory Website | http://www.waltek.com.cn |
| Telephone | +86-769-2267 6998 |
| Fax | +86-769-2267 6828 |
| Compiled By | Lucas Cao — Project Engineer |
| Approved By | Sam Qi — Designated Reviewer |
| Date of Issue | 2025-06-25 |
| Report Reference No. | WTH25D05119733R1S002 |
The report results apply exclusively to the specific sample(s) submitted for testing. The report may not be reproduced except in full, and only with prior written permission from Waltek Testing Group. The report is invalid without the official test institute stamp and the signatures of the compiler and approver.
The calibration certificate for the Timer (PC396) used during testing is valid from 2025-05-06 to 2026-05-05, confirming measurement traceability at the time of testing.
Frequently Asked Questions
- What does IPX7 mean for the ETENWOLF Helios J1?
- IPX7 means the Helios J1 has been tested and verified to withstand temporary immersion in fresh water up to 1 metre deep for a continuous period of 30 minutes without harmful water ingress, in accordance with IEC 60529:1989+A1:1999+A2:2013.
- Is the Helios J1 waterproof under all conditions?
- IPX7 compliance is confirmed only when the waterproof cover is properly closed. The rating covers temporary immersion; the device is not rated for continuous or high-pressure water exposure. Always ensure all port covers and seals are fully secured before any contact with water.
- Who conducted the IPX7 test and is the lab accredited?
- The test was conducted by Waltek Testing Group Co., Ltd., an independent third-party testing laboratory based in Dongguan, Guangdong, China. The report was compiled by Lucas Cao (Project Engineer) and approved by Sam Qi (Designated Reviewer), under report reference WTH25D05119733R1S002.
- Why does the report have a revision number (R1)?
- The original report WTH25D05119733S002, dated 2025-05-30, was revised to WTH25D05119733R1S002 on 2025-06-25 solely to update the product name and model designation to Helios J1. Following a review, no additional testing was required, and the Pass result remains unchanged.
Related Documents
The following certification and compliance documents are relevant to the ETENWOLF Helios J1 Portable Automotive Jump Starter and complement this IPX7 test report:
- UN 38.3 Battery Transport Test Report — Required for lithium battery safety in air and ground transport; confirms the internal battery cells meet international dangerous goods transport regulations.
- CE Declaration of Conformity — Mandatory for sale in the European Economic Area; covers applicable EU directives including the Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC) Directive.
- FCC Declaration of Conformity — Required for the US market; confirms the device does not cause harmful radio frequency interference in accordance with FCC Part 15 rules.
- KC Certification — Required for the South Korean market; verifies product safety under Korean Standards administered by the National Radio Research Agency (RRA).
- RoHS Compliance Report — Confirms the product does not contain restricted hazardous substances (lead, mercury, cadmium, etc.) per EU RoHS Directive 2011/65/EU.
- REACH SVHC Declaration — Confirms compliance with EU REACH Regulation (EC) No 1907/2006 regarding Substances of Very High Concern.
- IEC 62133 Battery Safety Test Report — Covers electrochemical safety of portable sealed secondary lithium cells and batteries used in portable applications.
