Document Overview This page presents the official REACH SVHC test report issued for the ETENWOLF Vortex S7 Tire Inflator. The report was prepared by Waltek Testing Group (Shenzhen) Co., Ltd., an accredited third-party testing laboratory, and issued on 2025-04-23. The test was commissioned to verify…
- Document type
- Certification Report
- Prepared by
- Michelle Torres
- Published
- Last reviewed
- Topics
- European Union: CE / RoHS / REACH / WEEE
Document Overview

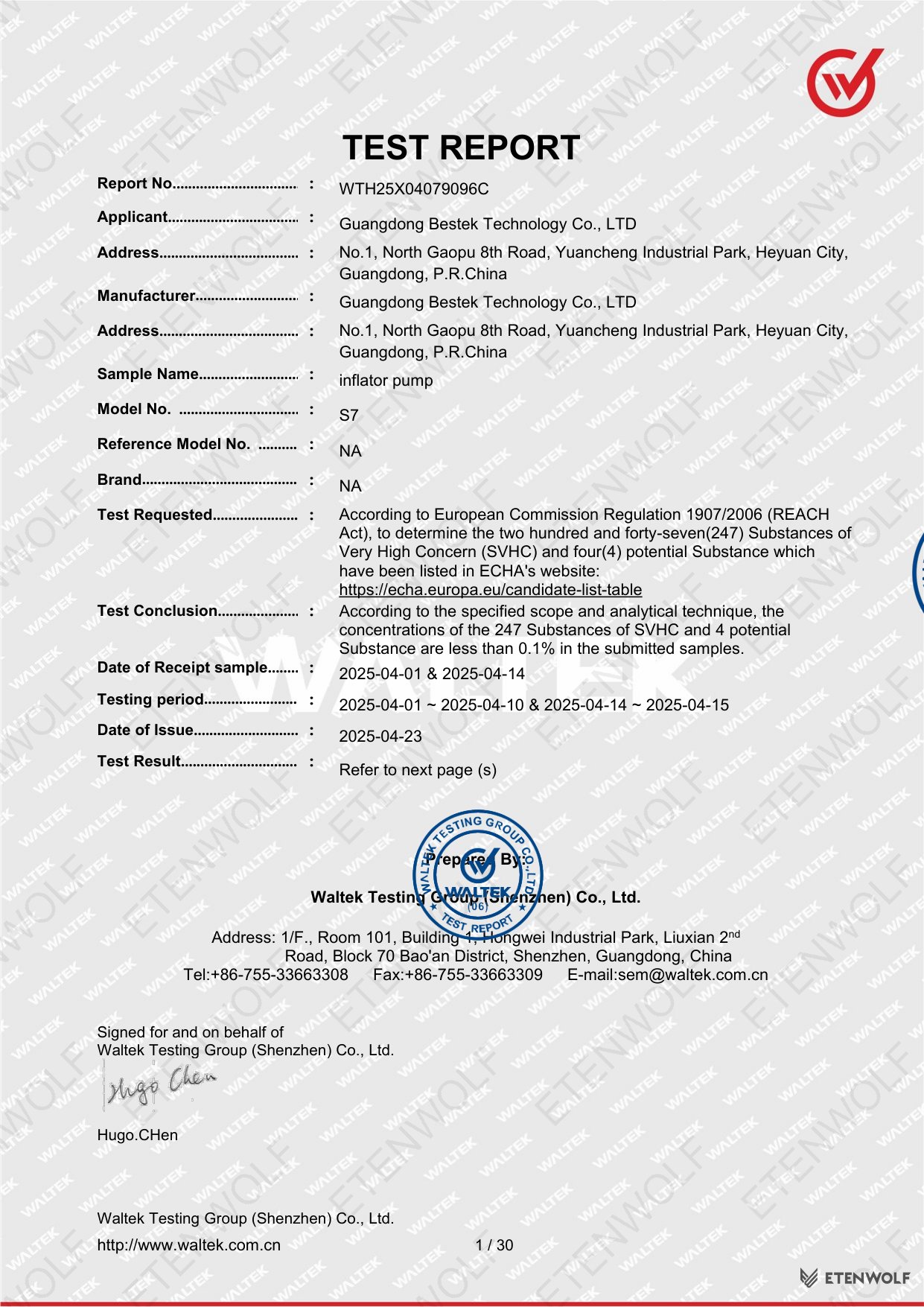

This page presents the official REACH SVHC test report issued for the ETENWOLF Vortex S7 Tire Inflator. The report was prepared by Waltek Testing Group (Shenzhen) Co., Ltd., an accredited third-party testing laboratory, and issued on 2025-04-23.

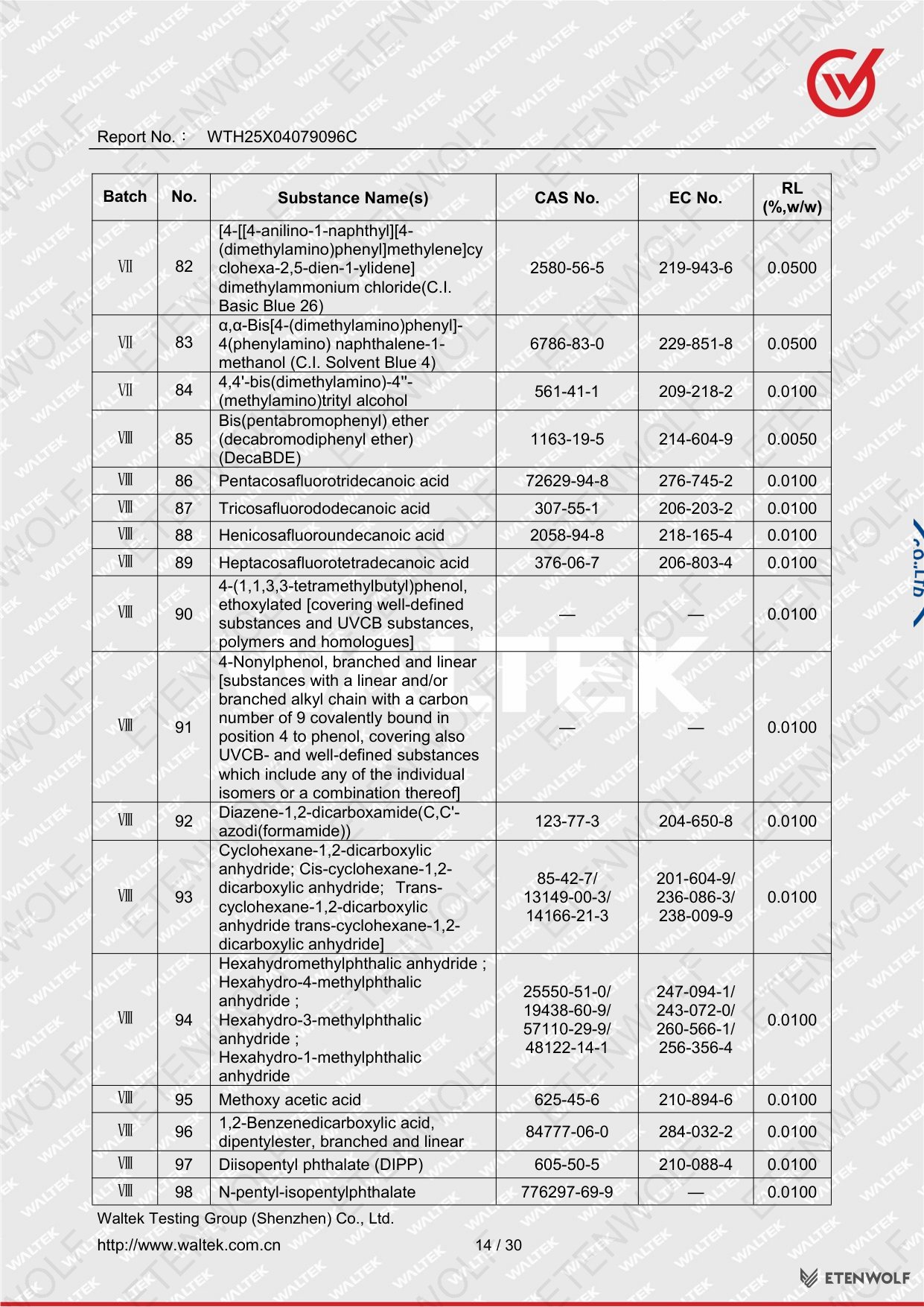

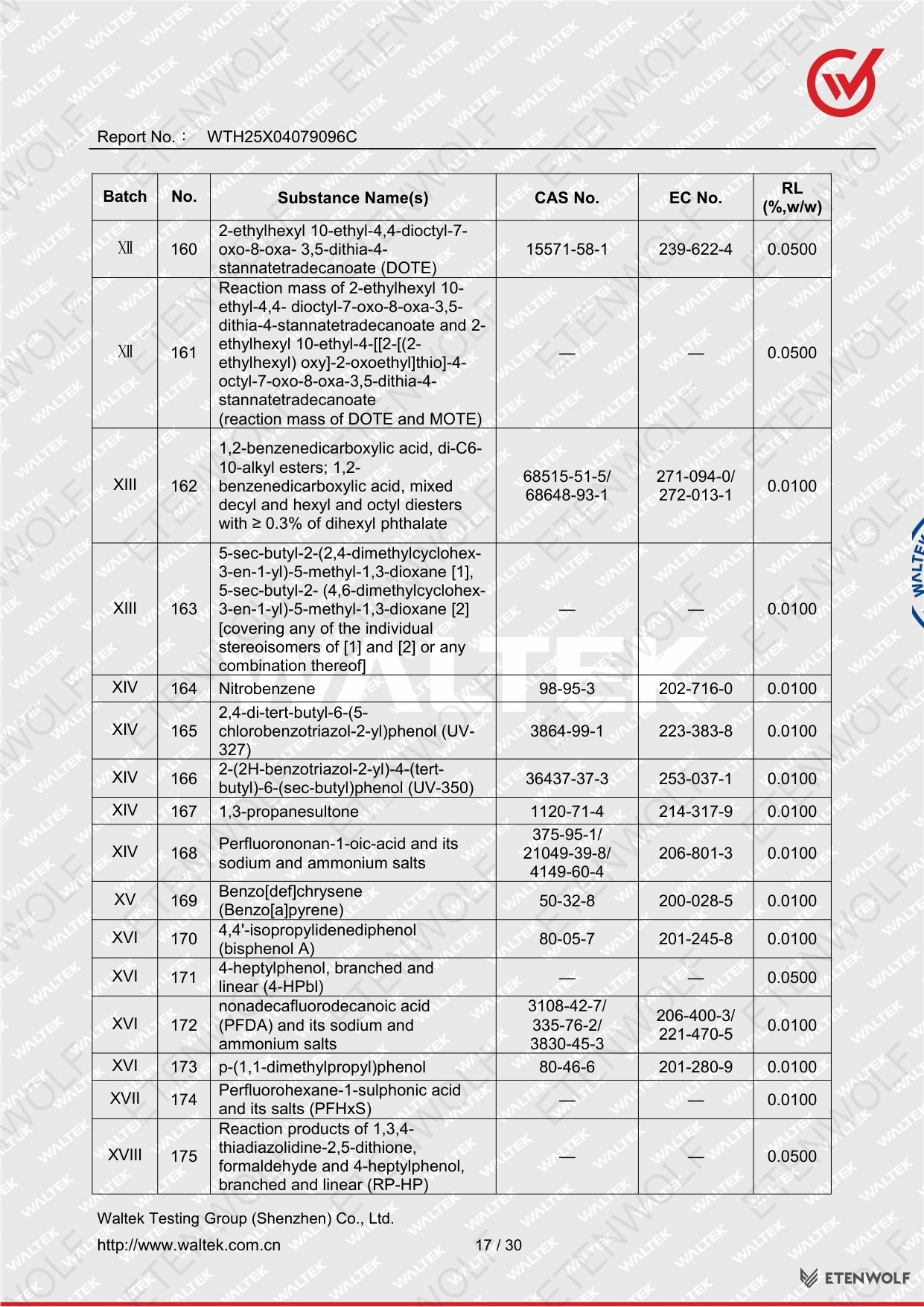

The test was commissioned to verify compliance with European Commission Regulation (EC) No. 1907/2006 (REACH), specifically to screen for all 247 Substances of Very High Concern (SVHC) and 4 additional potential substances listed on the ECHA Candidate List. The scope covers the complete product — all metal and nonmetal component groups disassembled and tested individually across eight sample groups (T01–T08).
| Field | Details |
|---|---|
| Report Number | WTH25X04079096C |
| Document Type | REACH SVHC Test Report |
| Issuing Laboratory | Waltek Testing Group (Shenzhen) Co., Ltd. |
| Date of Issue | 2025-04-23 |
| Regulation | EC No. 1907/2006 (REACH) |
| SVHC List Version | 247 SVHC + 4 potential substances |
| Overall Conclusion | All tested substances: Not Detected (ND), below 0.1% w/w |
Product Information

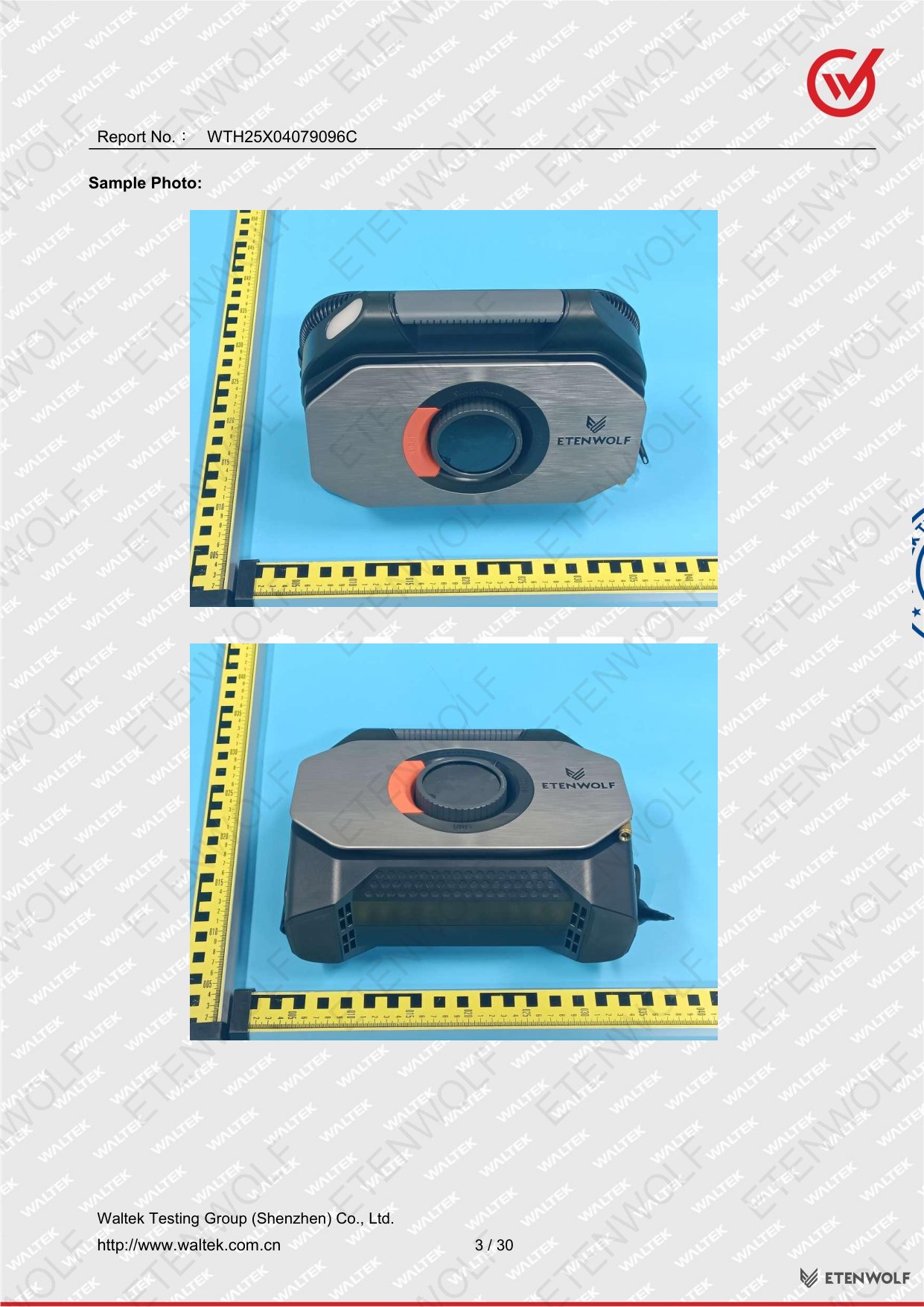

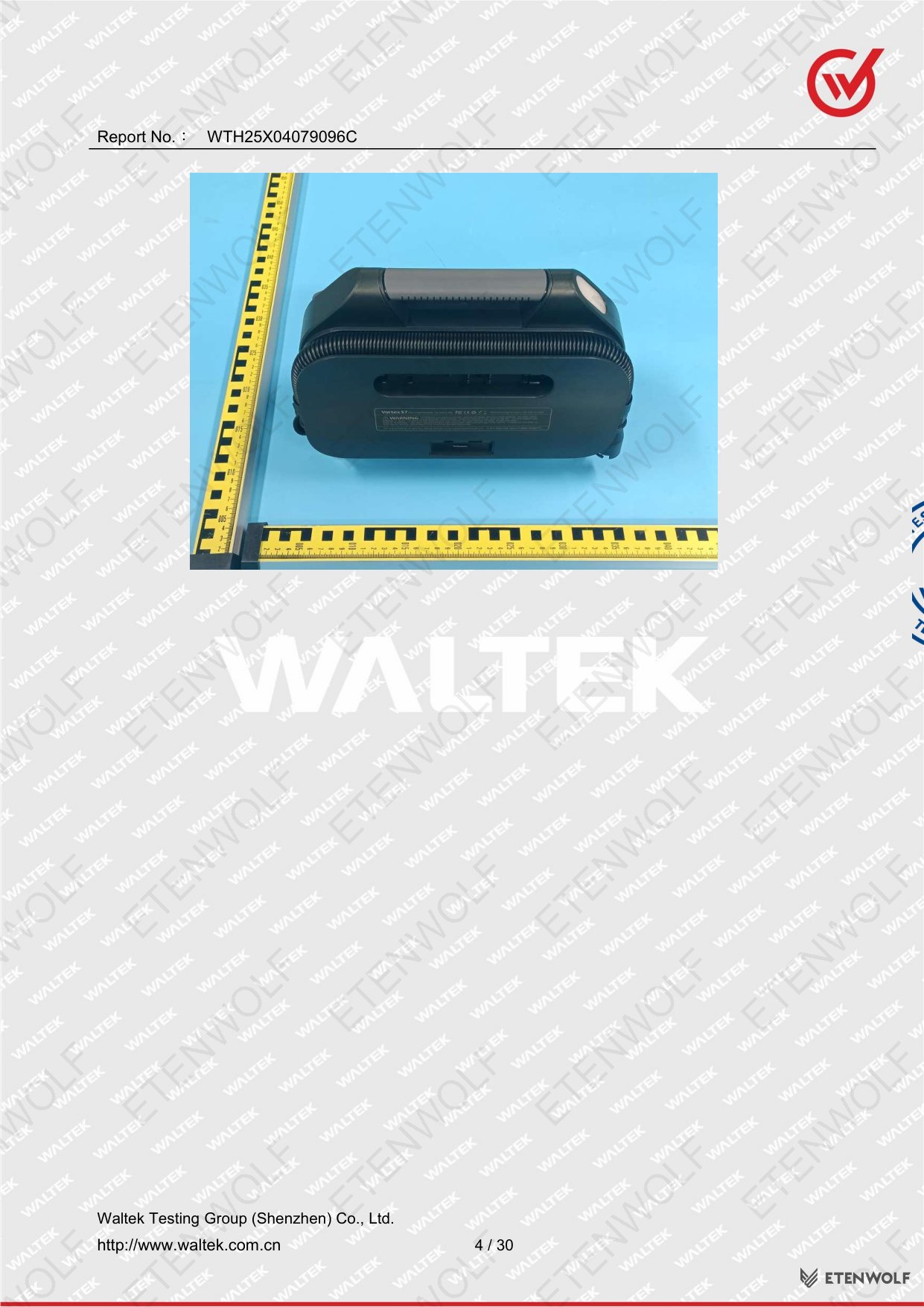

The tested product is the ETENWOLF Vortex S7 Tire Inflator, a portable cordless inflator pump designed for automotive tire inflation and other inflatable applications. It is manufactured and supplied by Guangdong Bestek Technology Co., Ltd., the applicant of record for this test.
| Field | Details |
|---|---|
| Product / Sample Name | Inflator Pump |
| Model Number | S7 |
| Reference Model | NA |
| Brand | NA (marketed as ETENWOLF Vortex S7) |
| Applicant | Guangdong Bestek Technology Co., Ltd. |
| Applicant Address | No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China |
| Manufacturer | Guangdong Bestek Technology Co., Ltd. |
| Manufacturer Address | No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China |
| Date of Sample Receipt | 2025-04-01 & 2025-04-14 |
| Testing Period | 2025-04-01 to 2025-04-10 & 2025-04-14 to 2025-04-15 |

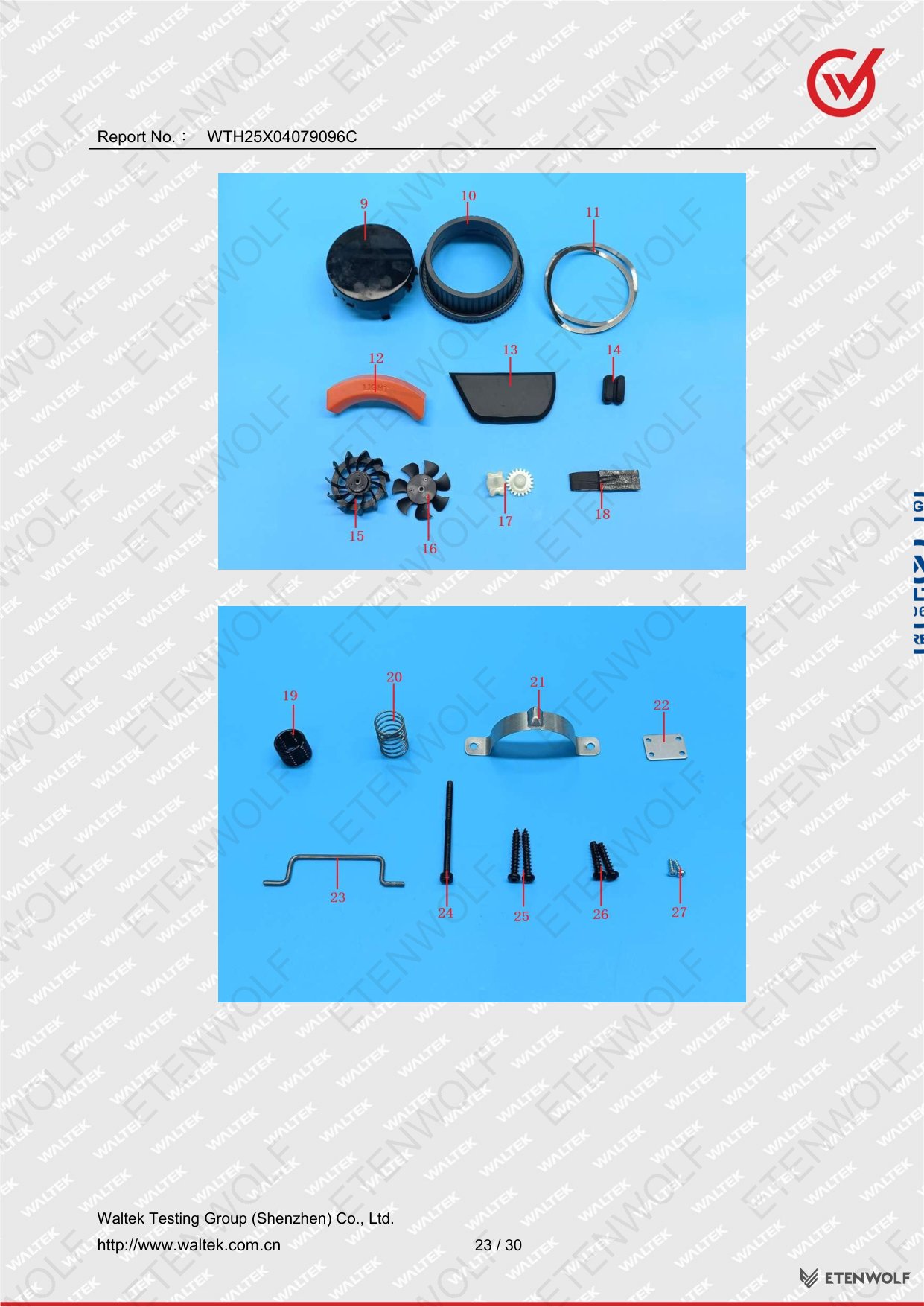

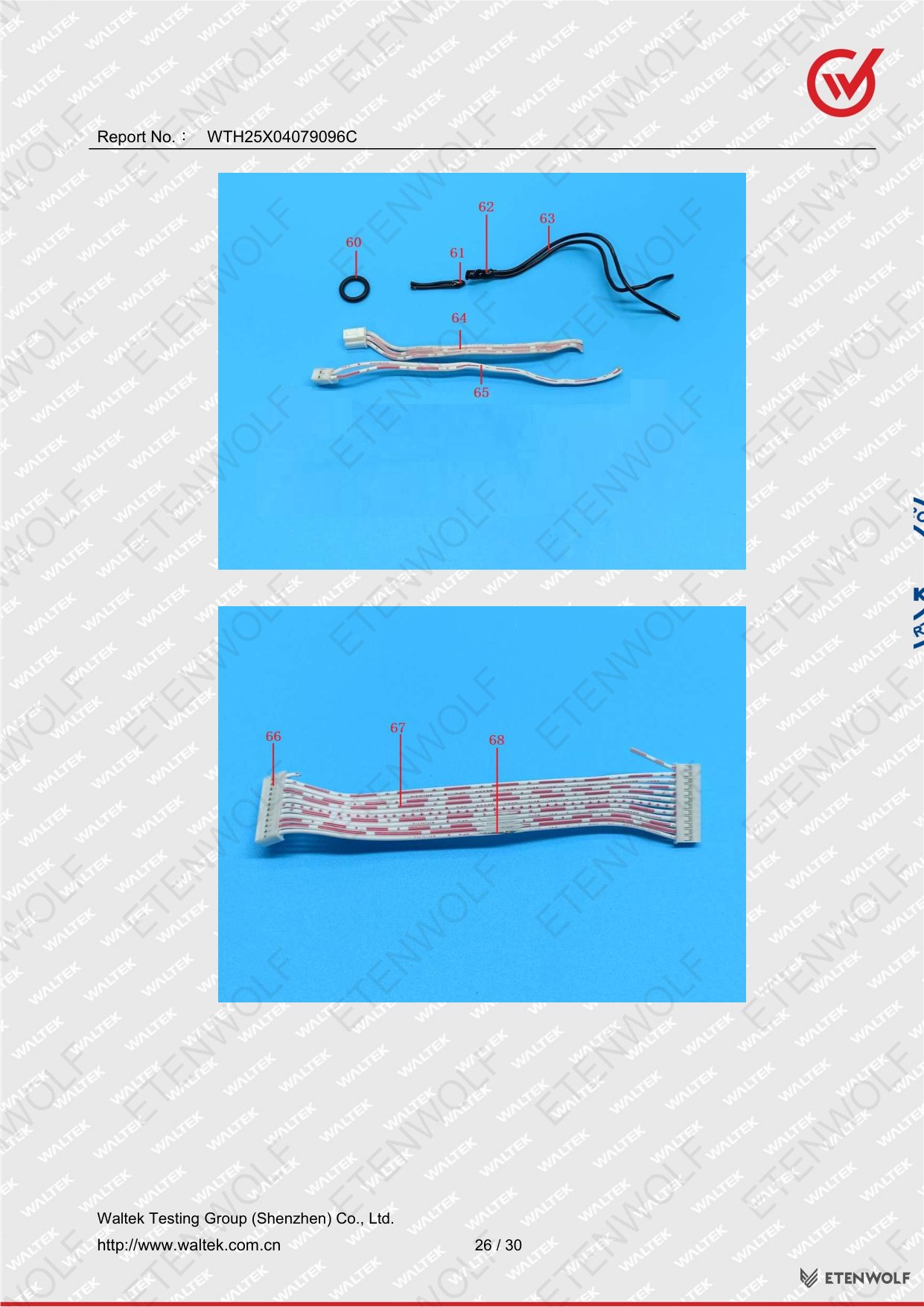

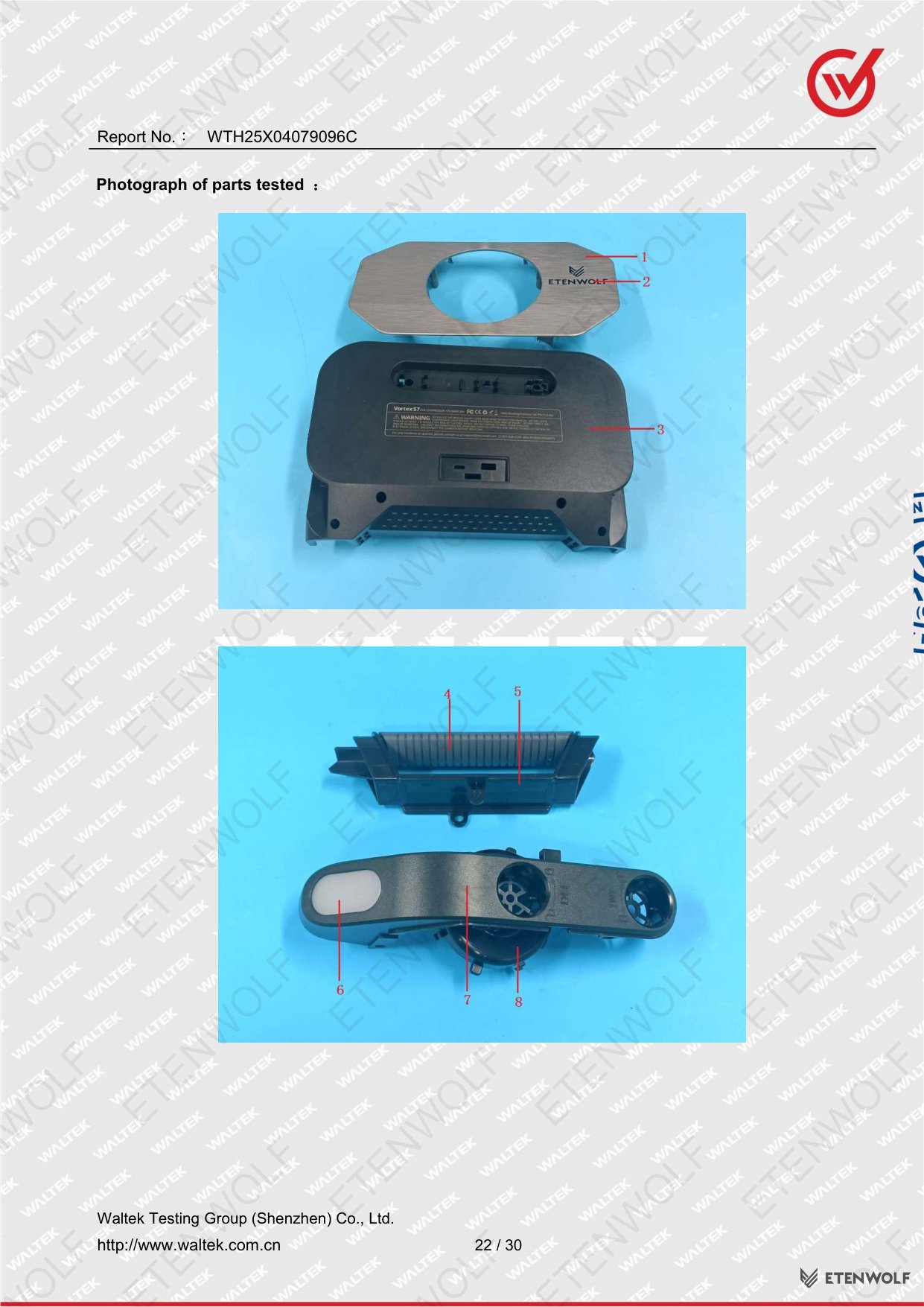

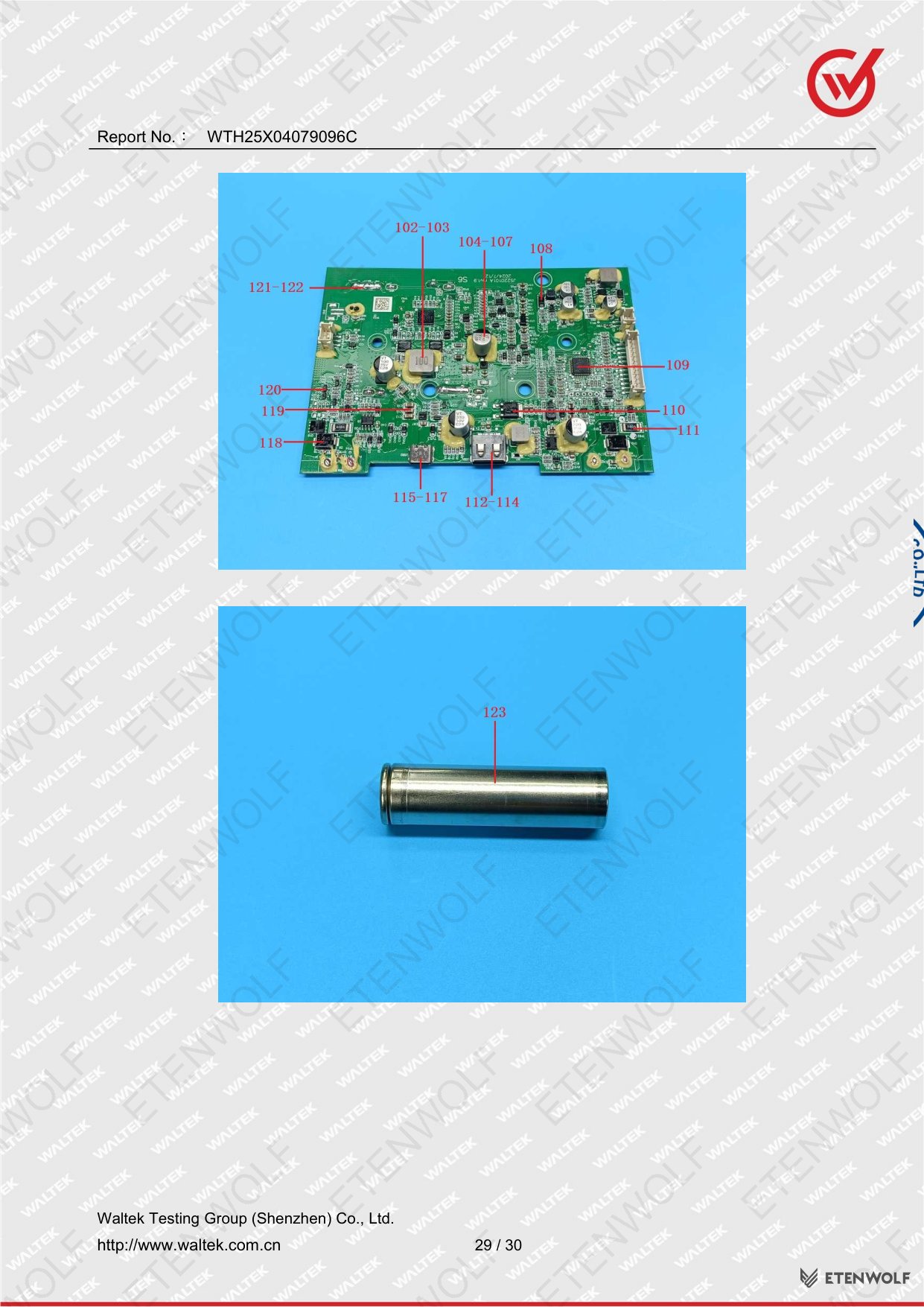

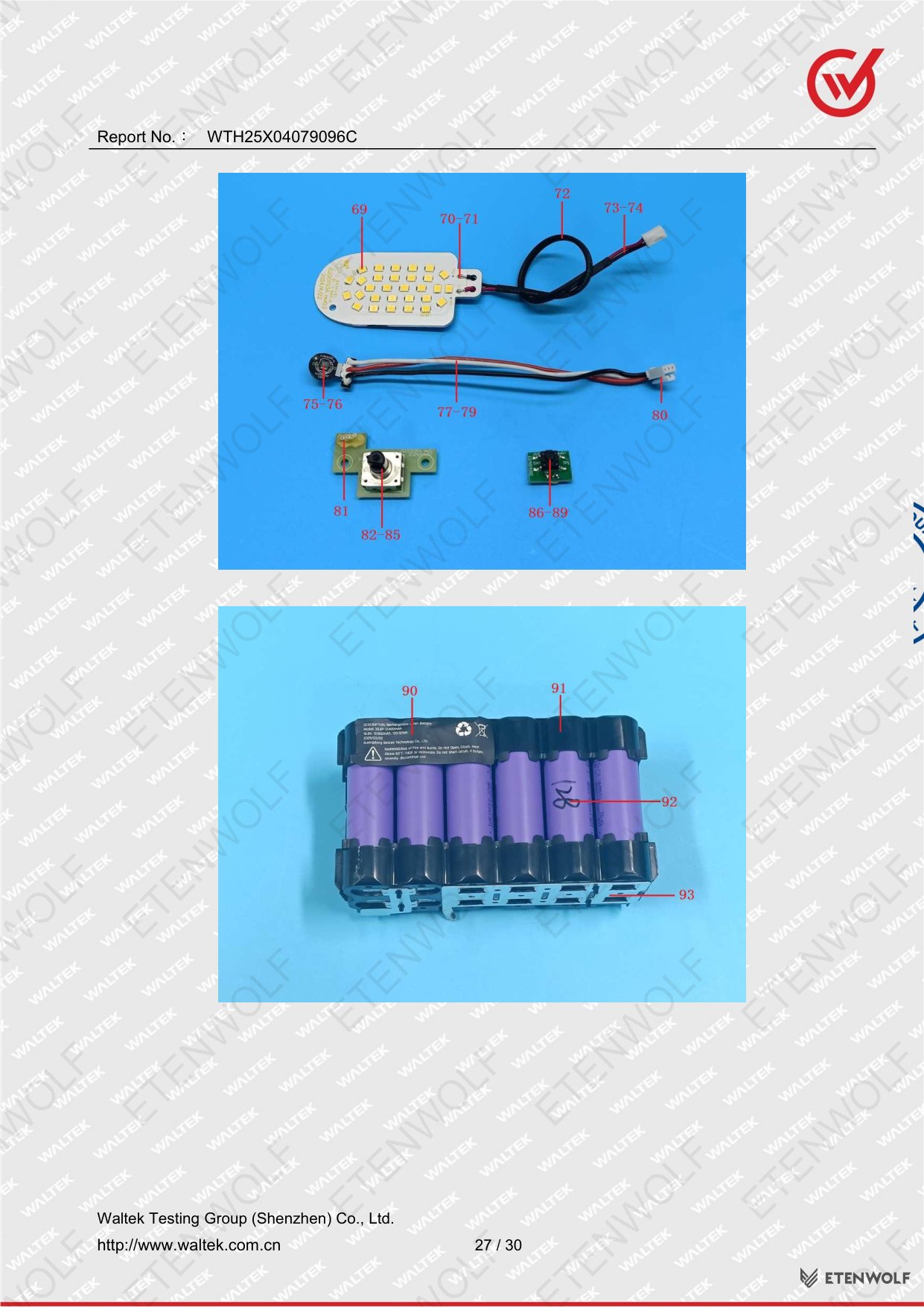

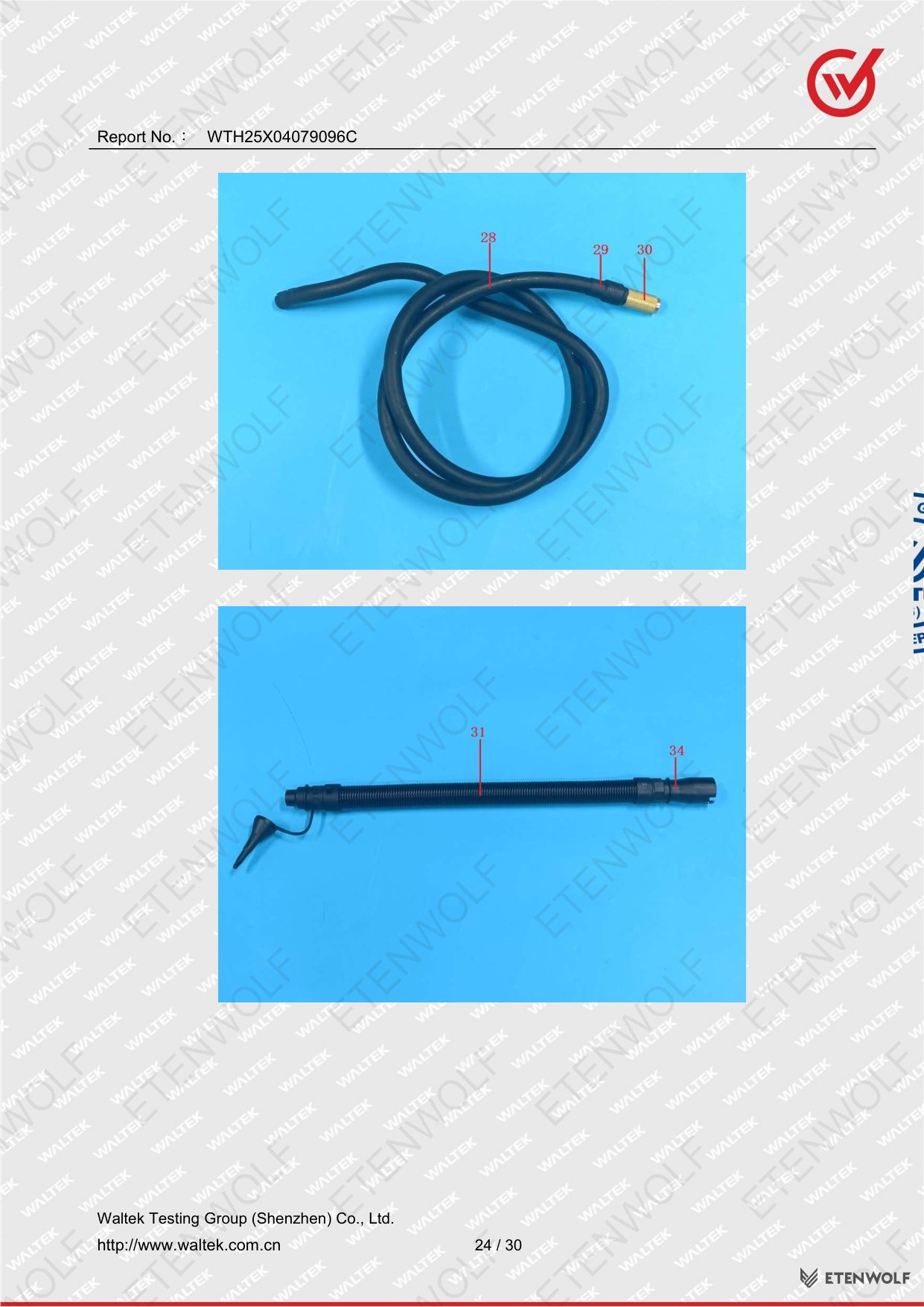

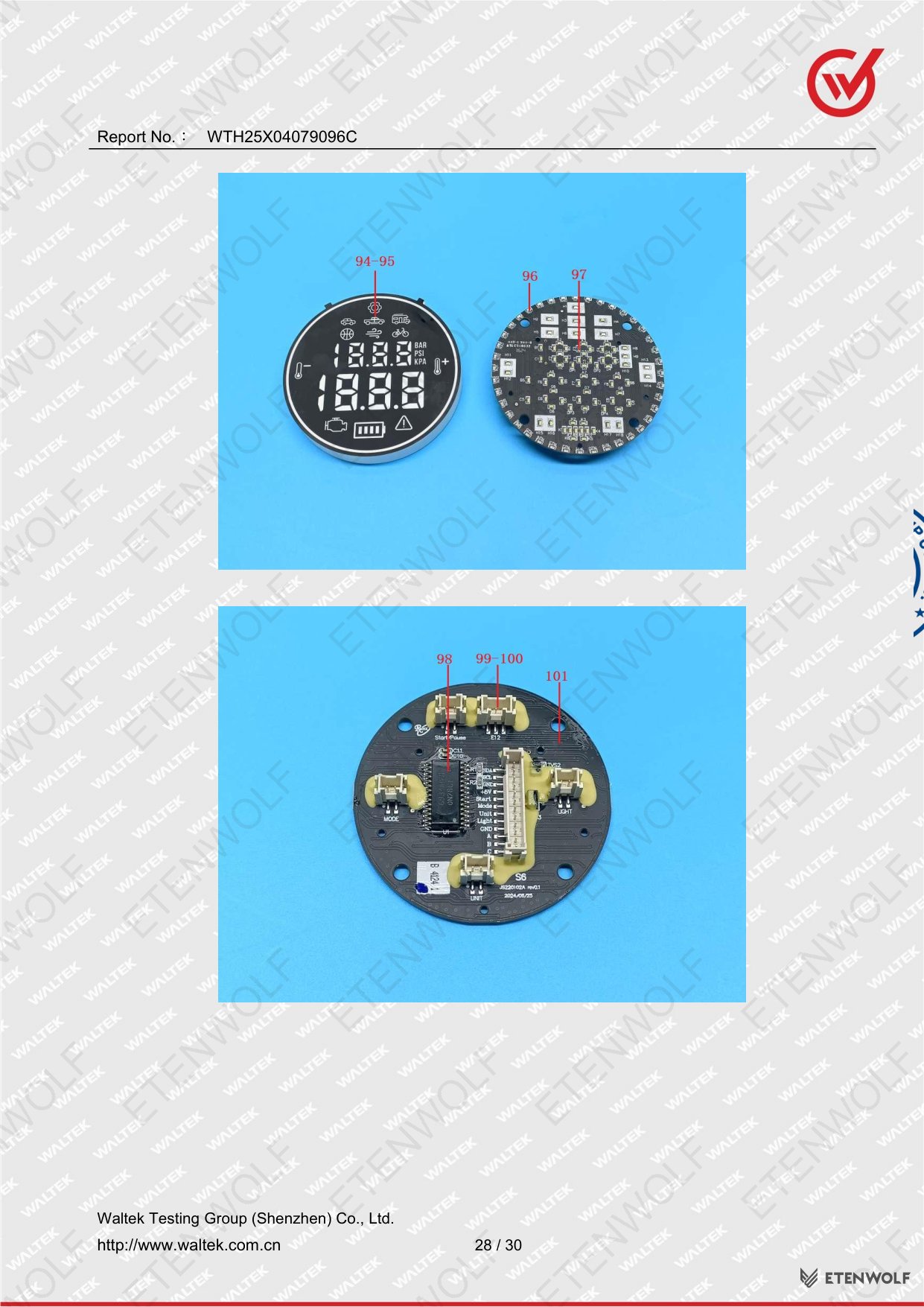

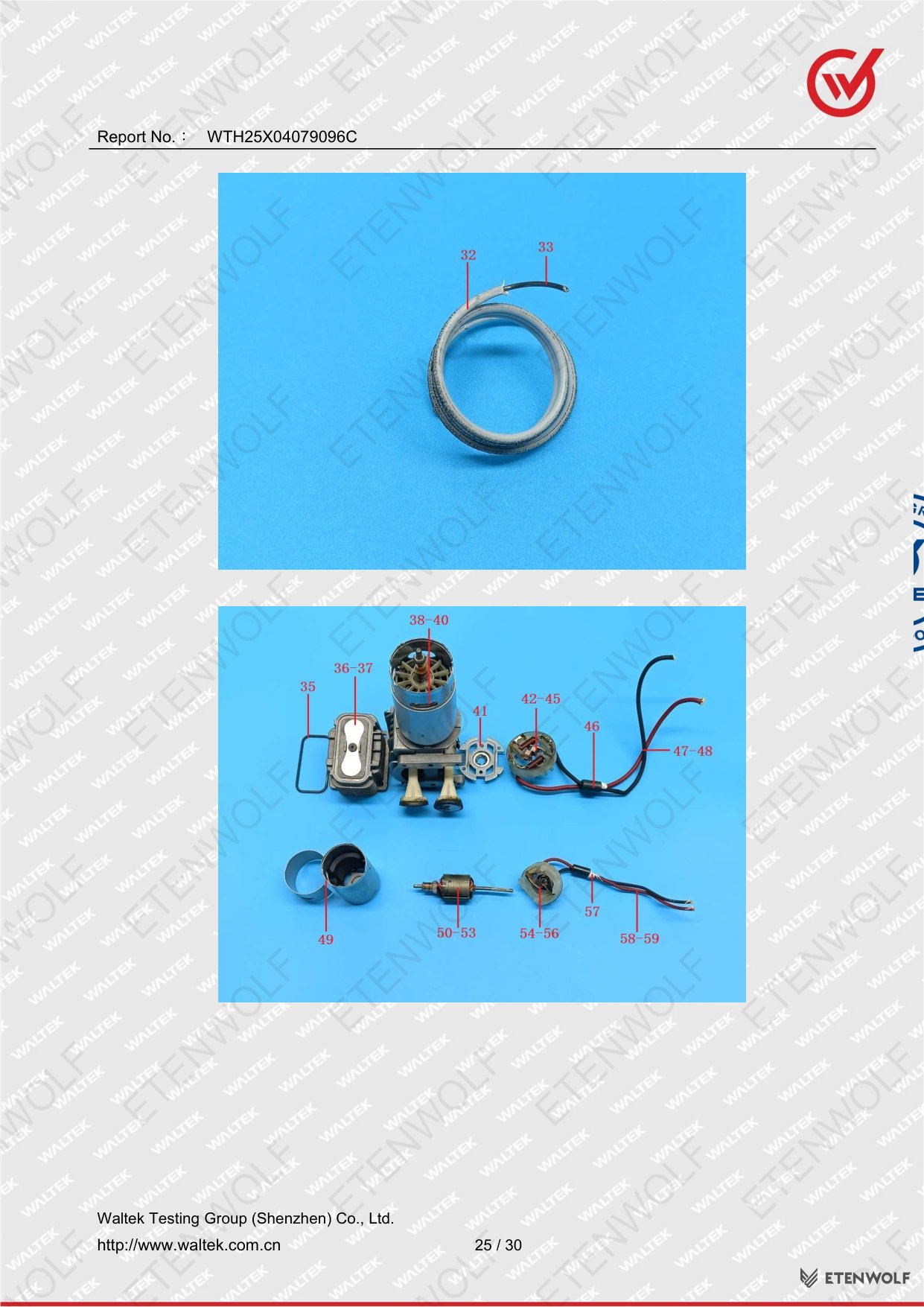

The product was fully disassembled into individual material components. A total of 122+ samples were catalogued and assigned to eight test groups, covering both metallic and nonmetallic materials found throughout the device.
Key Details
The laboratory divided all extracted material samples into eight test groups (T01–T08) based on material type and component category. Each group was screened for all 247 SVHC substances plus 4 potential substances from the ECHA Candidate List. All groups returned a result of ND (Not Detected), meaning no substance exceeded — or was even detected near — the 0.1% w/w threshold.

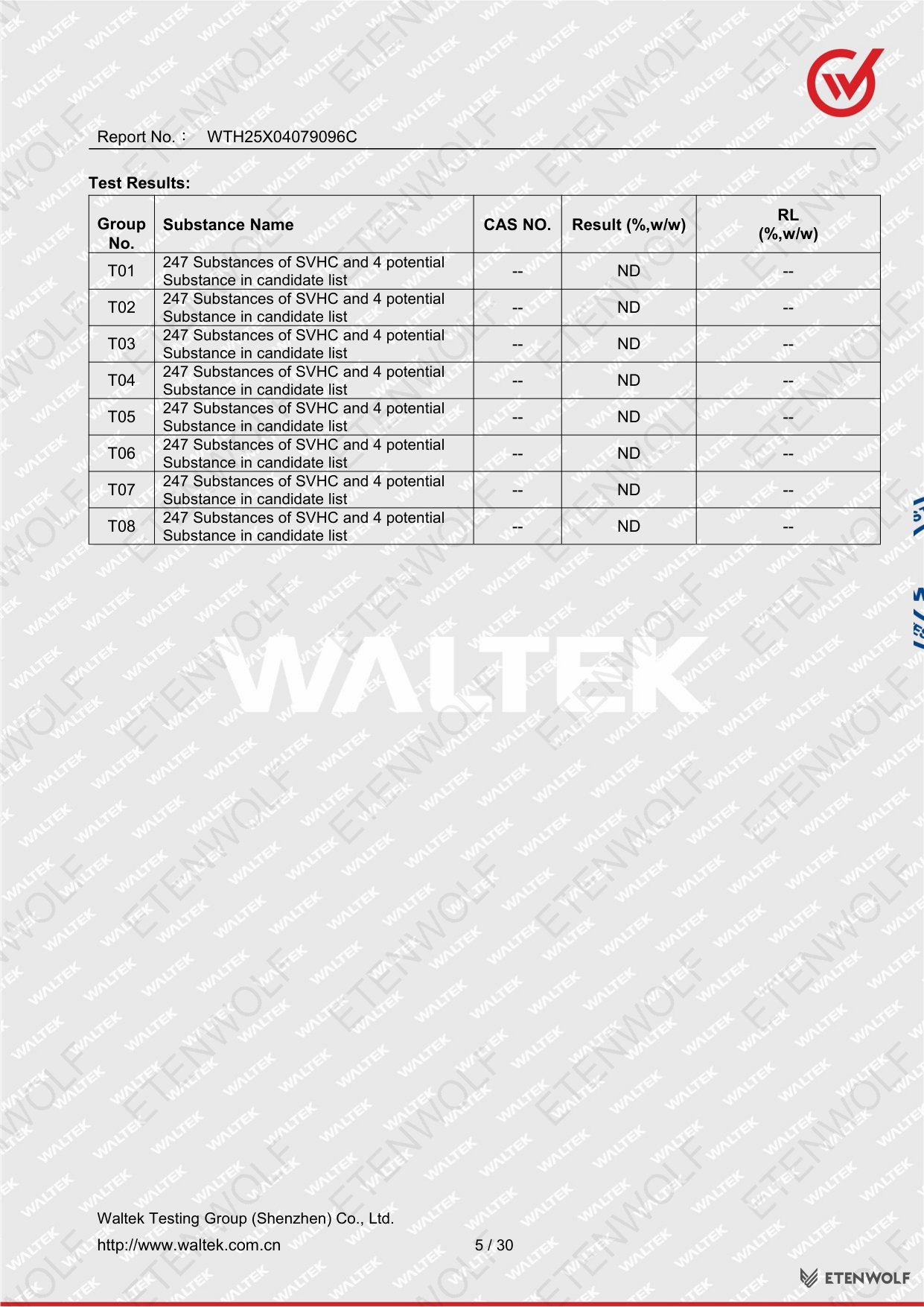

Summary Test Results by Group
| Group | Substance Scope | Result (%, w/w) | Reporting Limit (%, w/w) |
|---|---|---|---|
| T01 | 247 SVHC + 4 potential substances | ND | <0.1 |
| T02 | 247 SVHC + 4 potential substances | ND | <0.1 |
| T03 | 247 SVHC + 4 potential substances | ND | <0.1 |
| T04 | 247 SVHC + 4 potential substances | ND | <0.1 |
| T05 | 247 SVHC + 4 potential substances | ND | <0.1 |
| T06 | 247 SVHC + 4 potential substances | ND | <0.1 |
| T07 | 247 SVHC + 4 potential substances | ND | <0.1 |
| T08 | 247 SVHC + 4 potential substances | ND | <0.1 |

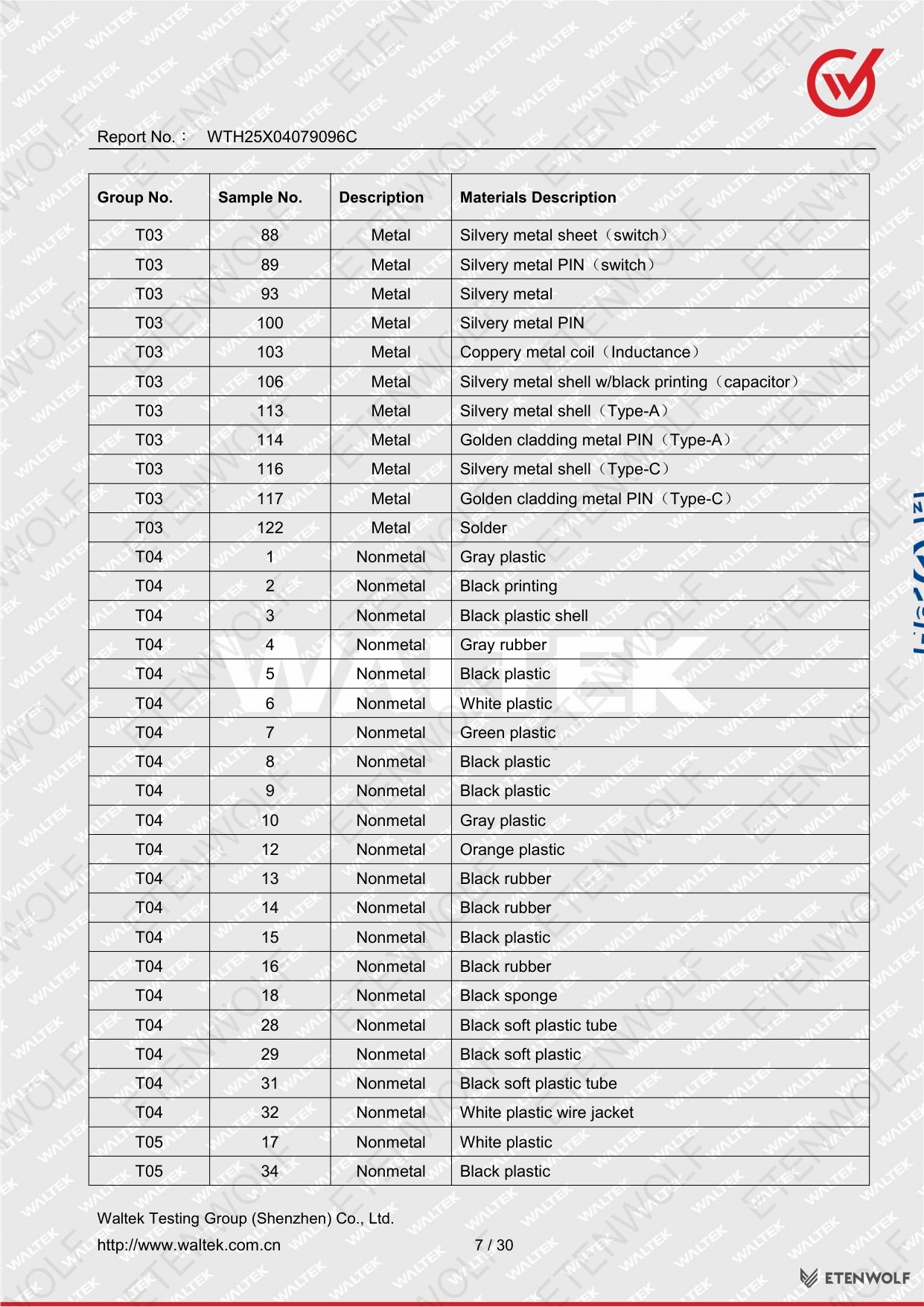

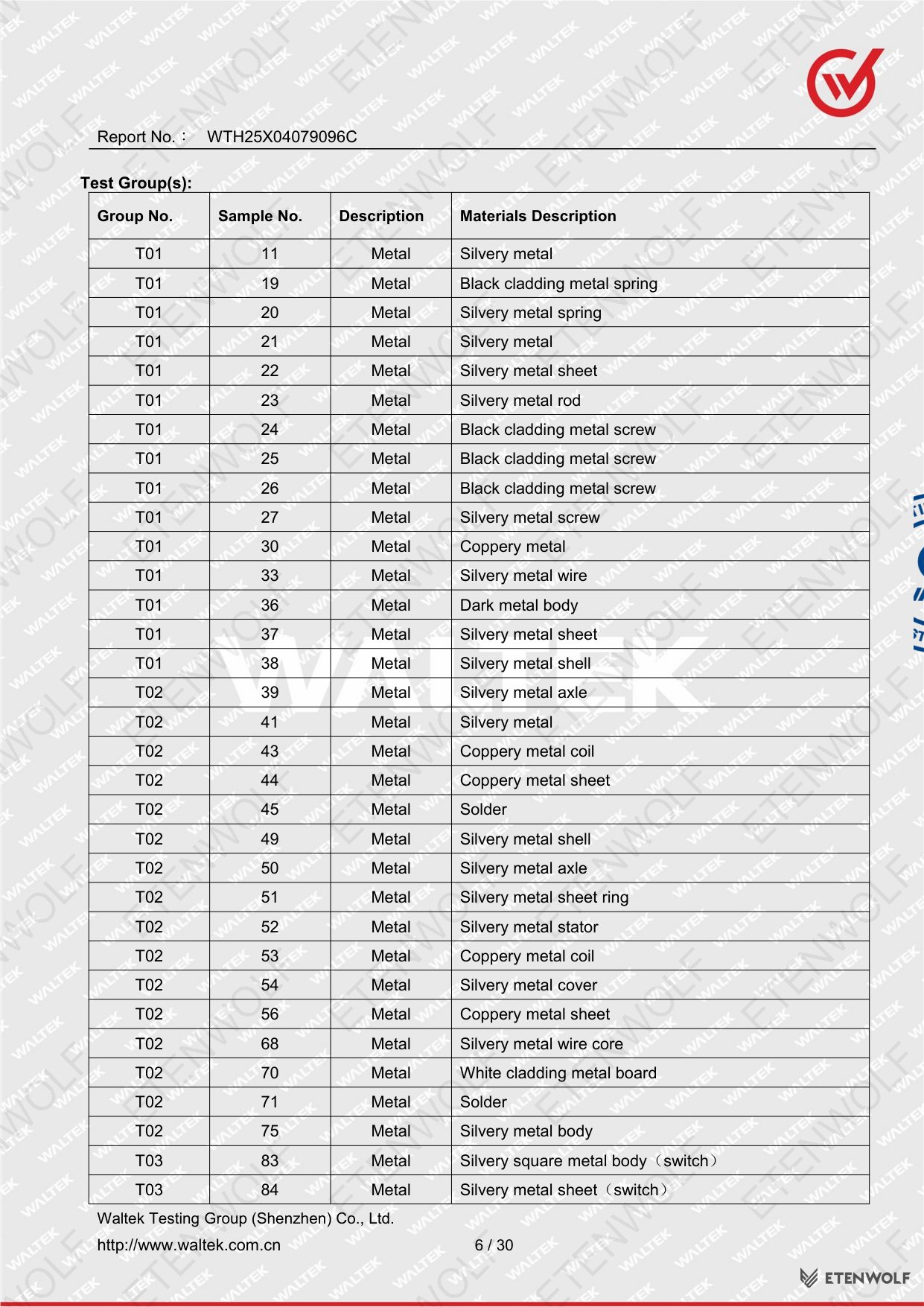

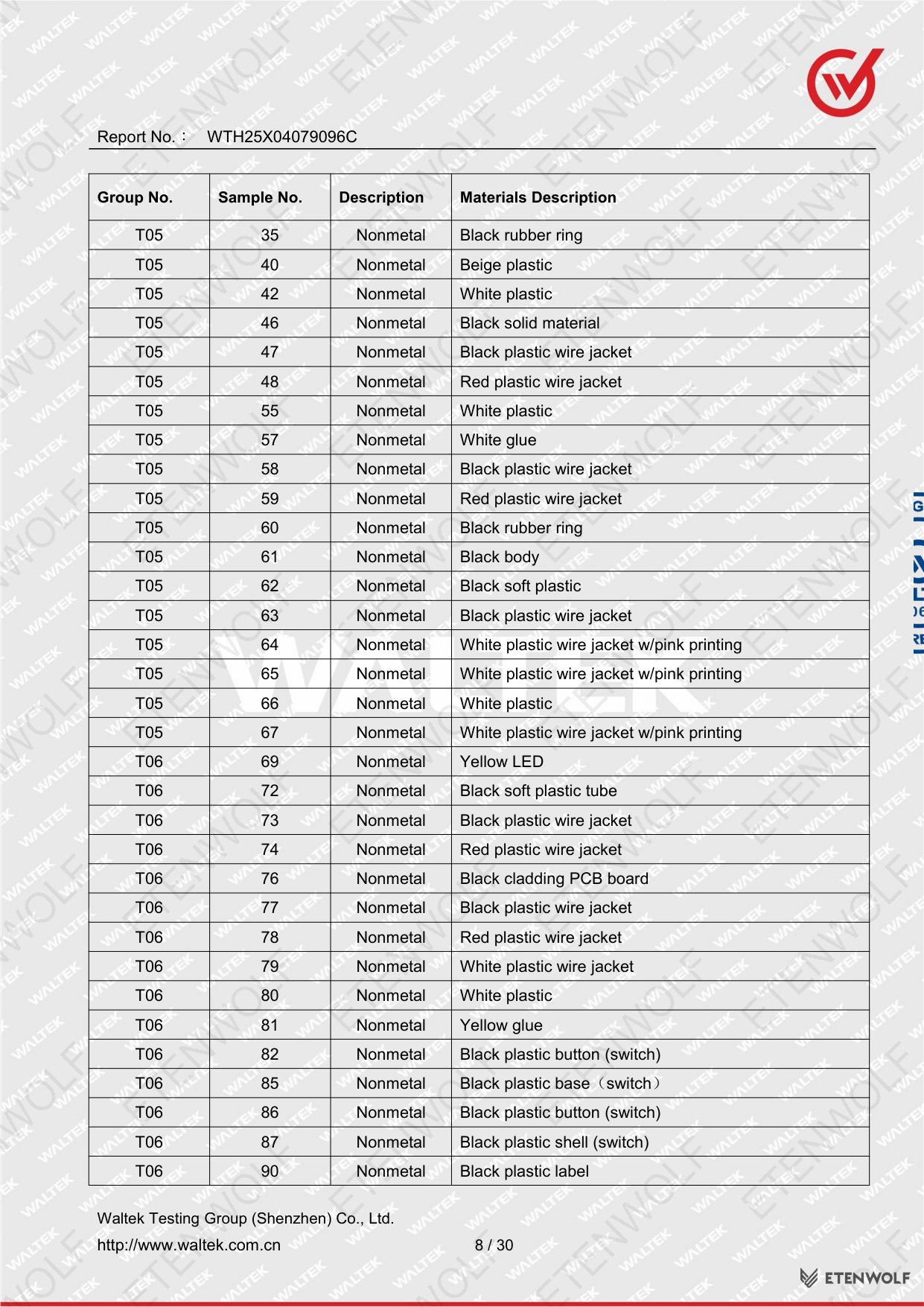

Sample Group Breakdown

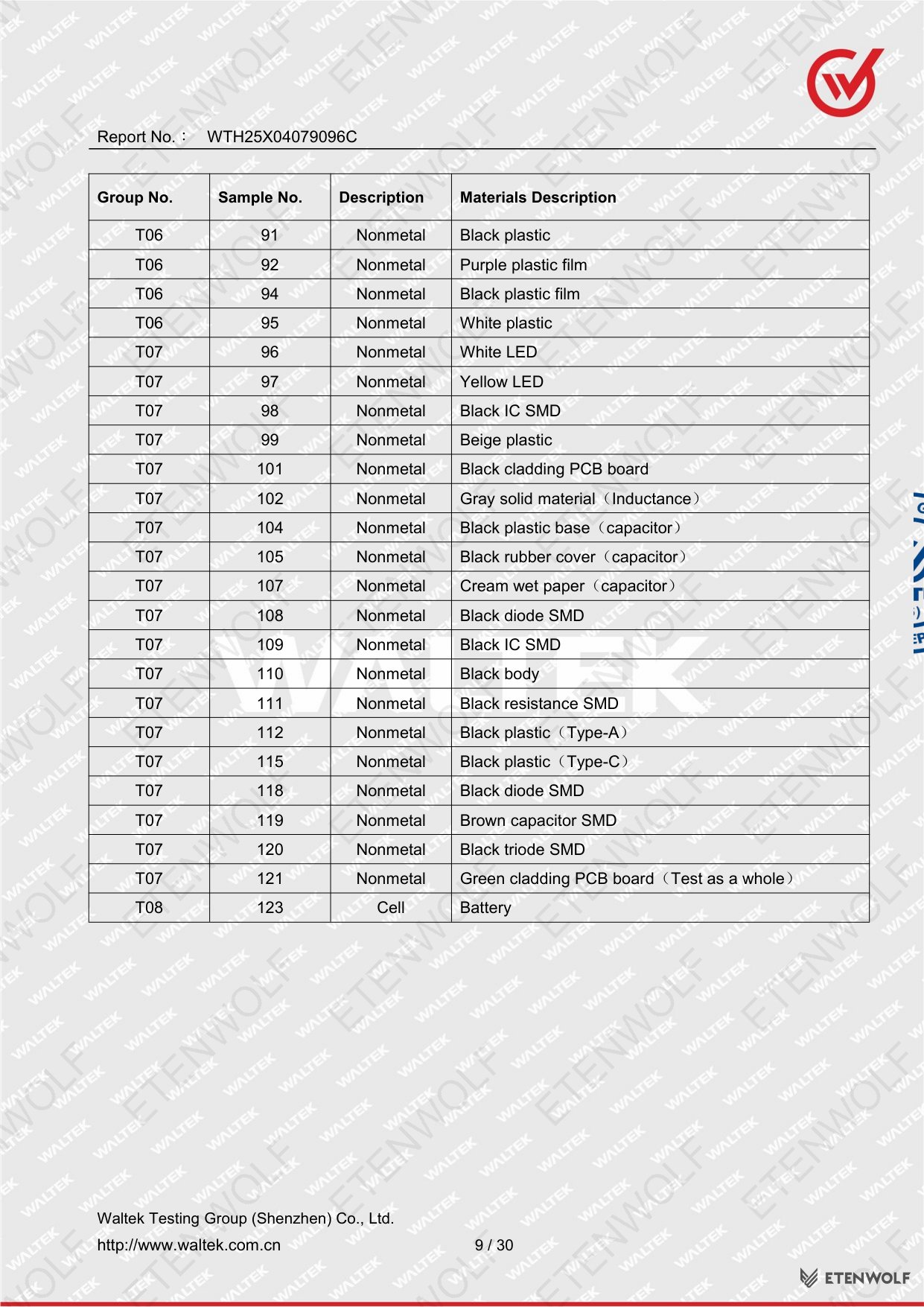

The following table shows a representative selection of the material samples tested across the major groups. Metal components (T01–T03) and nonmetal components (T04–T07) were tested separately using group-appropriate analytical methods.
| Group | Material Class | Representative Components |
|---|---|---|
| T01 | Metal | Silvery metal body, black-clad metal spring, copper metal, metal screws, metal wire, metal shell |
| T02 | Metal | Silvery metal axle, copper coil, solder, metal stator, metal cover, PCB board core |
| T03 | Metal | Switch metal sheets and PINs, inductance coil, capacitor shell, USB Type-A and Type-C connector shells and PINs, solder |
| T04 | Nonmetal | Gray and black plastic shells, rubber seals, sponge, soft plastic tubes, wire jackets, orange and green plastic components |
| T05 | Nonmetal | Rubber rings, plastic wire jackets (black, red, white), white glue, LED body, beige and white plastics |
| T06 | Nonmetal | Yellow LED, PCB board (black cladding), plastic buttons and switch parts, plastic labels, purple and black plastic films |
| T07 | Nonmetal | White LED, yellow LED, black IC SMD, beige plastic, additional nonmetal components |
| T08 | Nonmetal | Remaining nonmetal materials as identified in full report |
Standards & Compliance

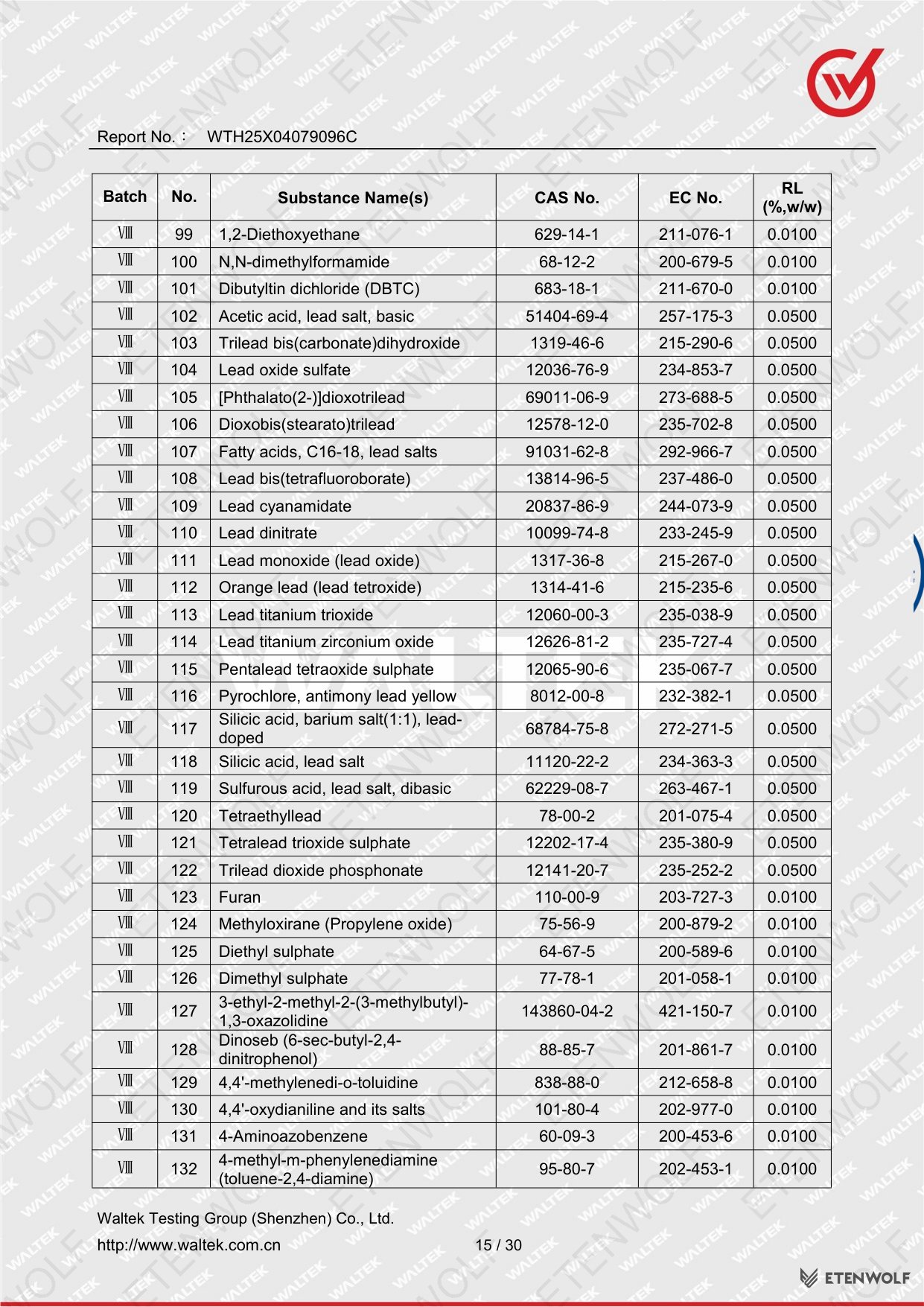

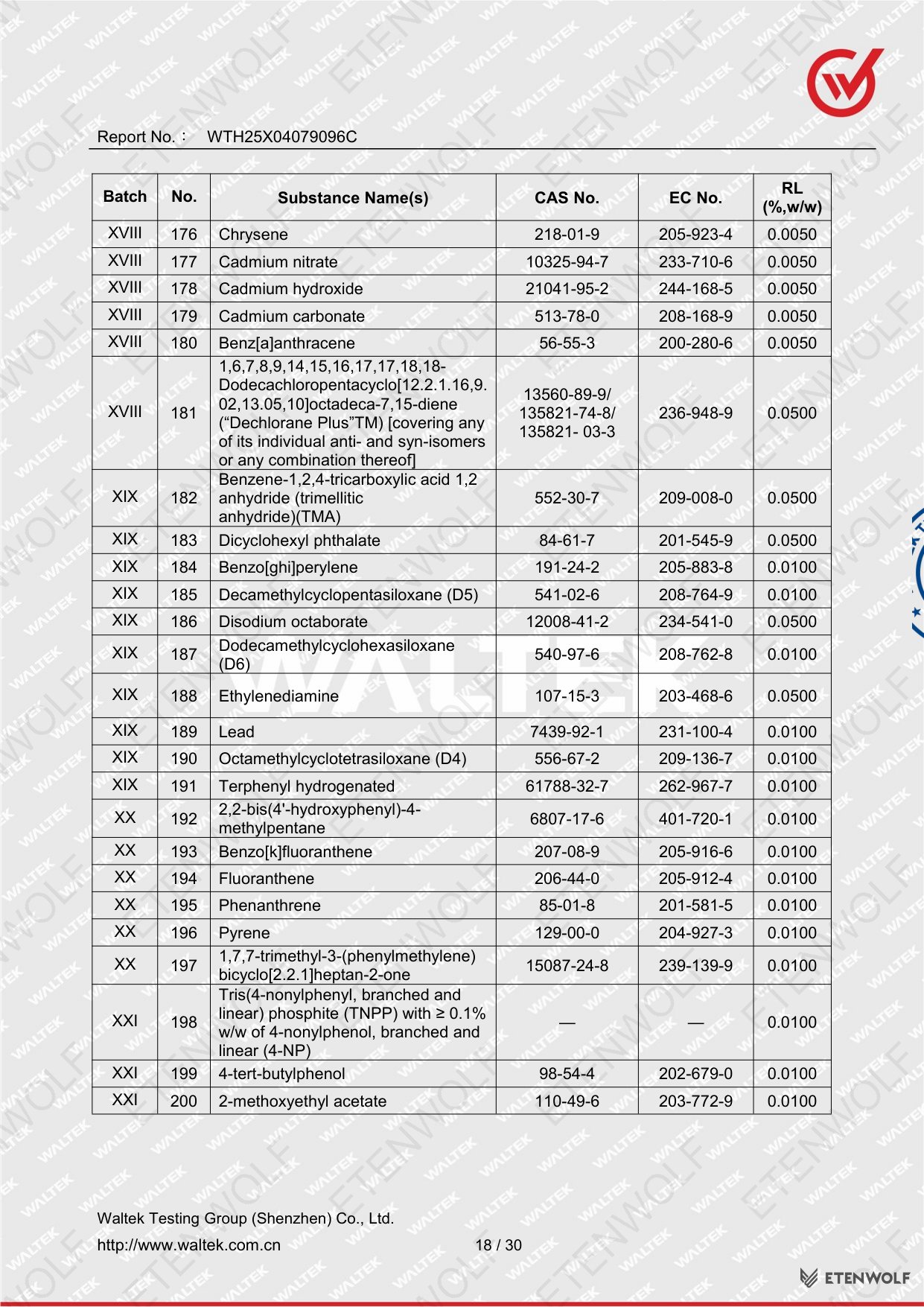

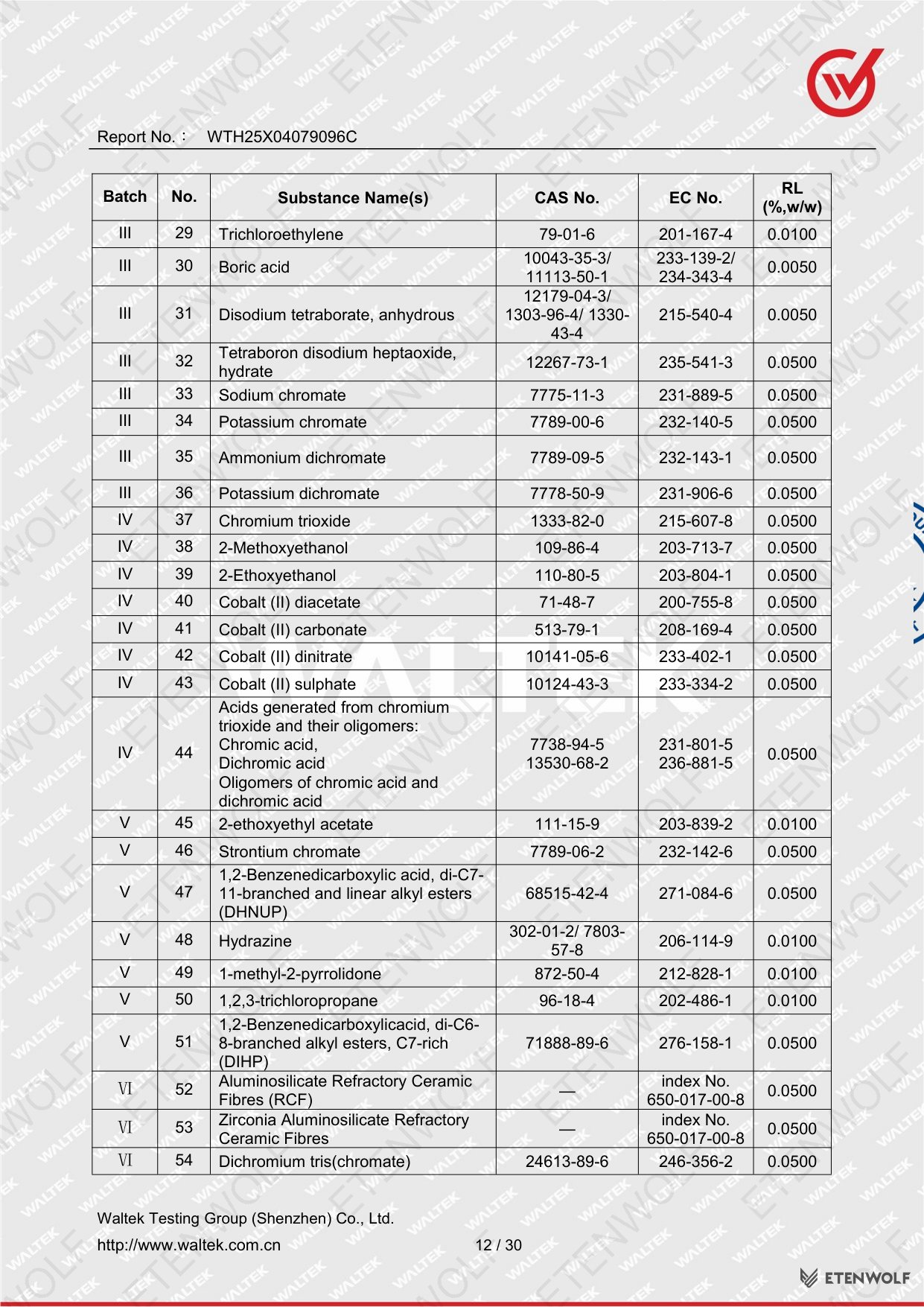

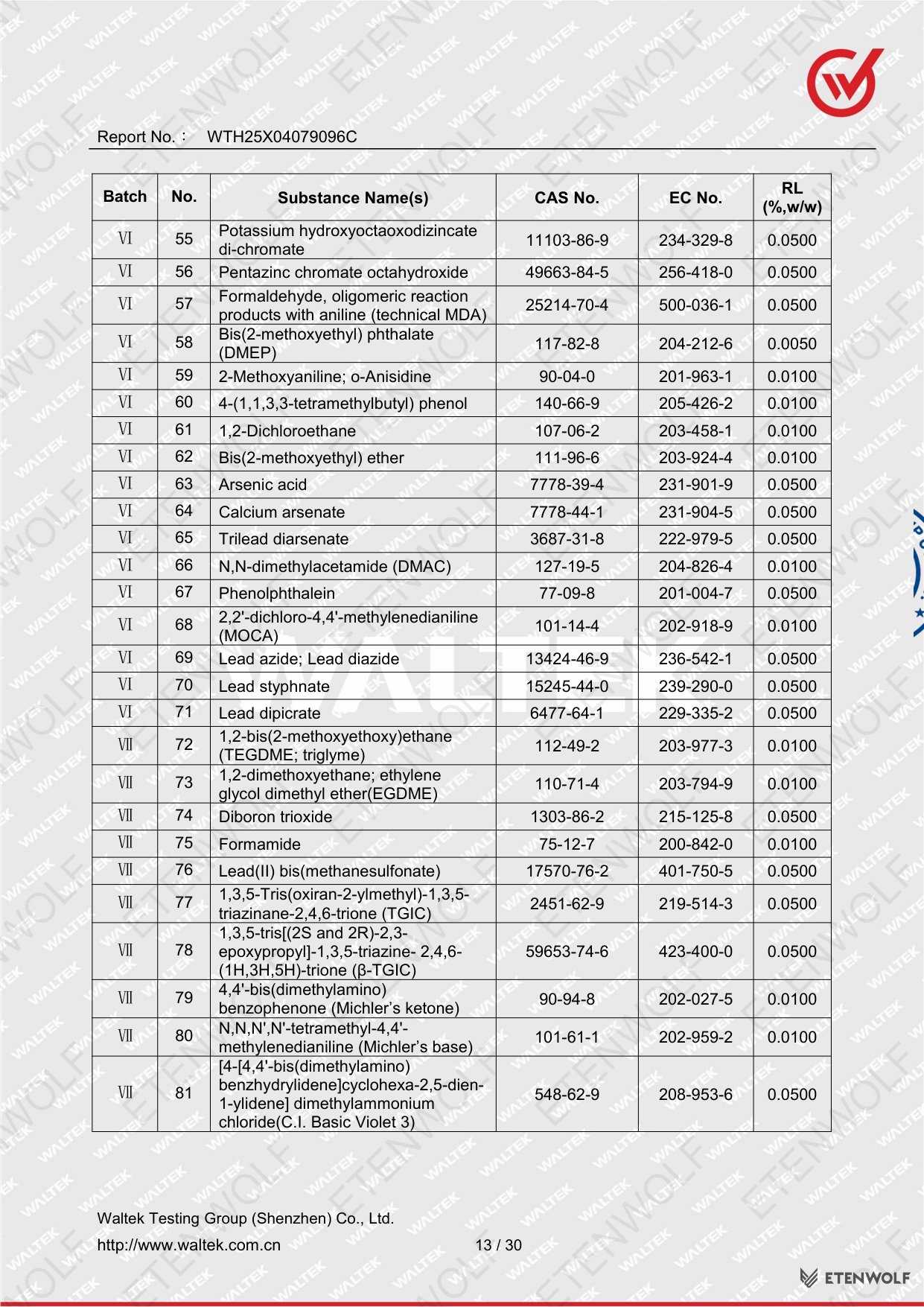

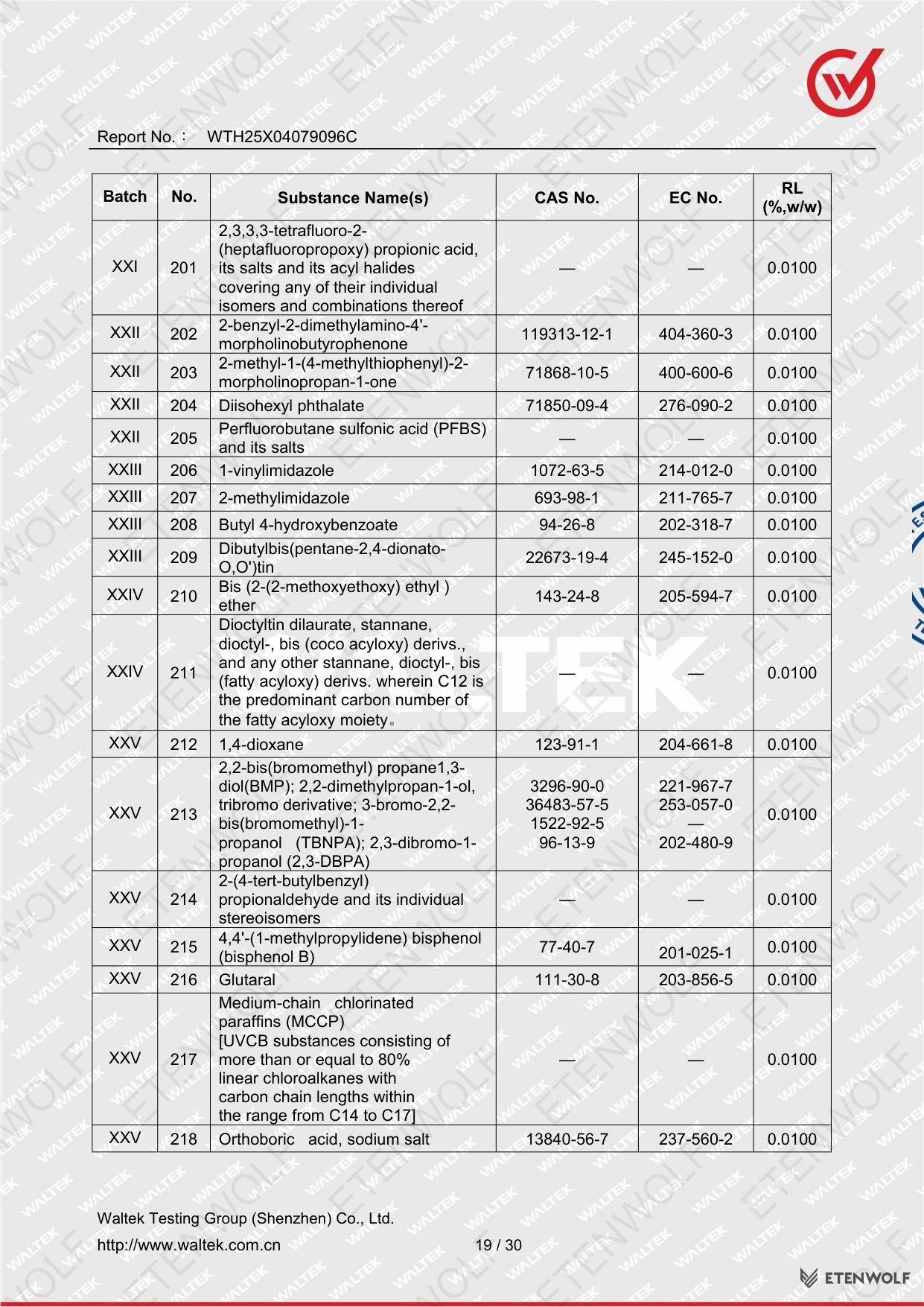

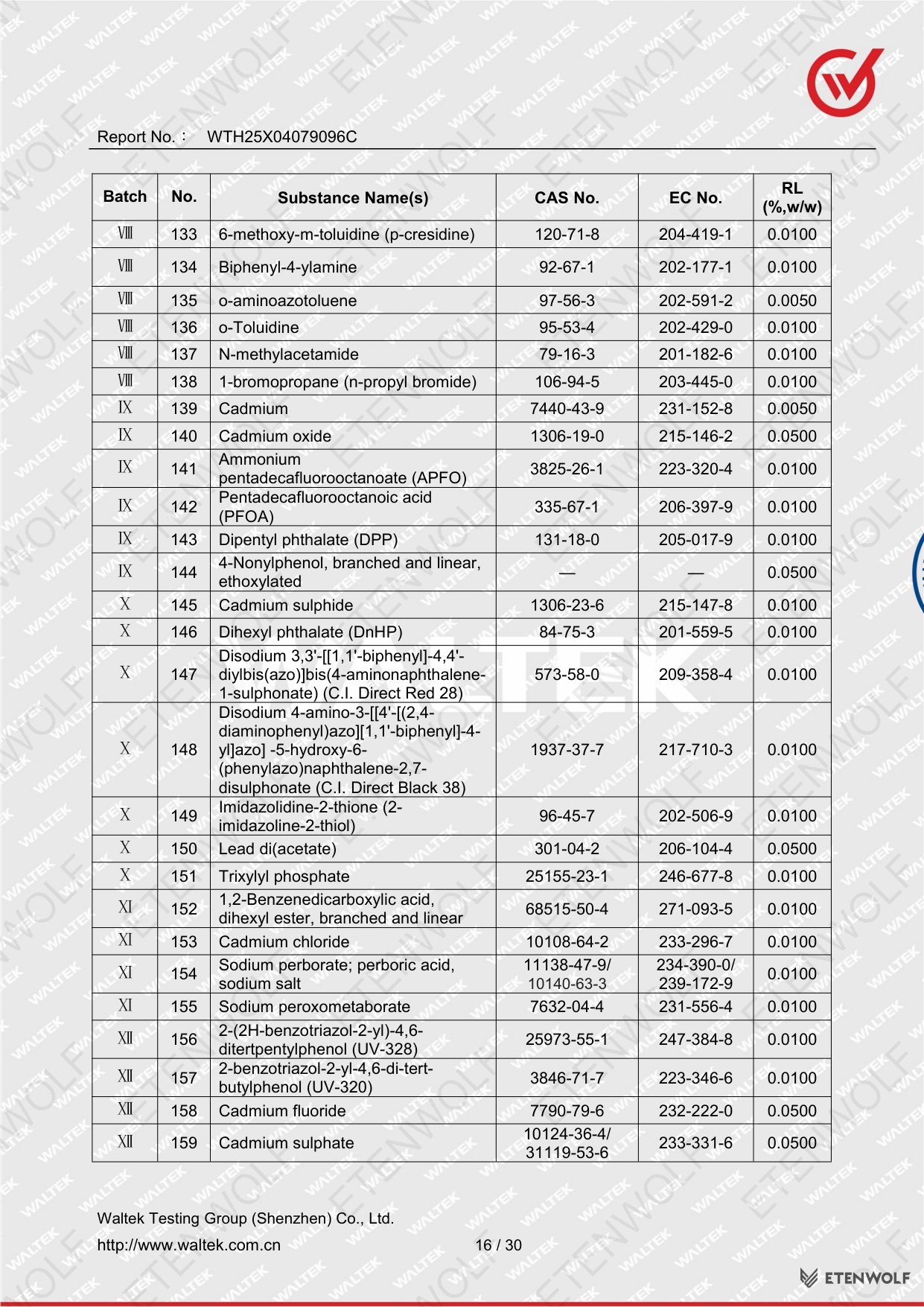

The testing was conducted under European Commission Regulation (EC) No. 1907/2006 (REACH), Article 59 — the Candidate List of Substances of Very High Concern (SVHC). The applicable SVHC list referenced is the version published on ECHA’s Candidate List containing 247 confirmed SVHC substances and 4 potential substances at the time of testing.

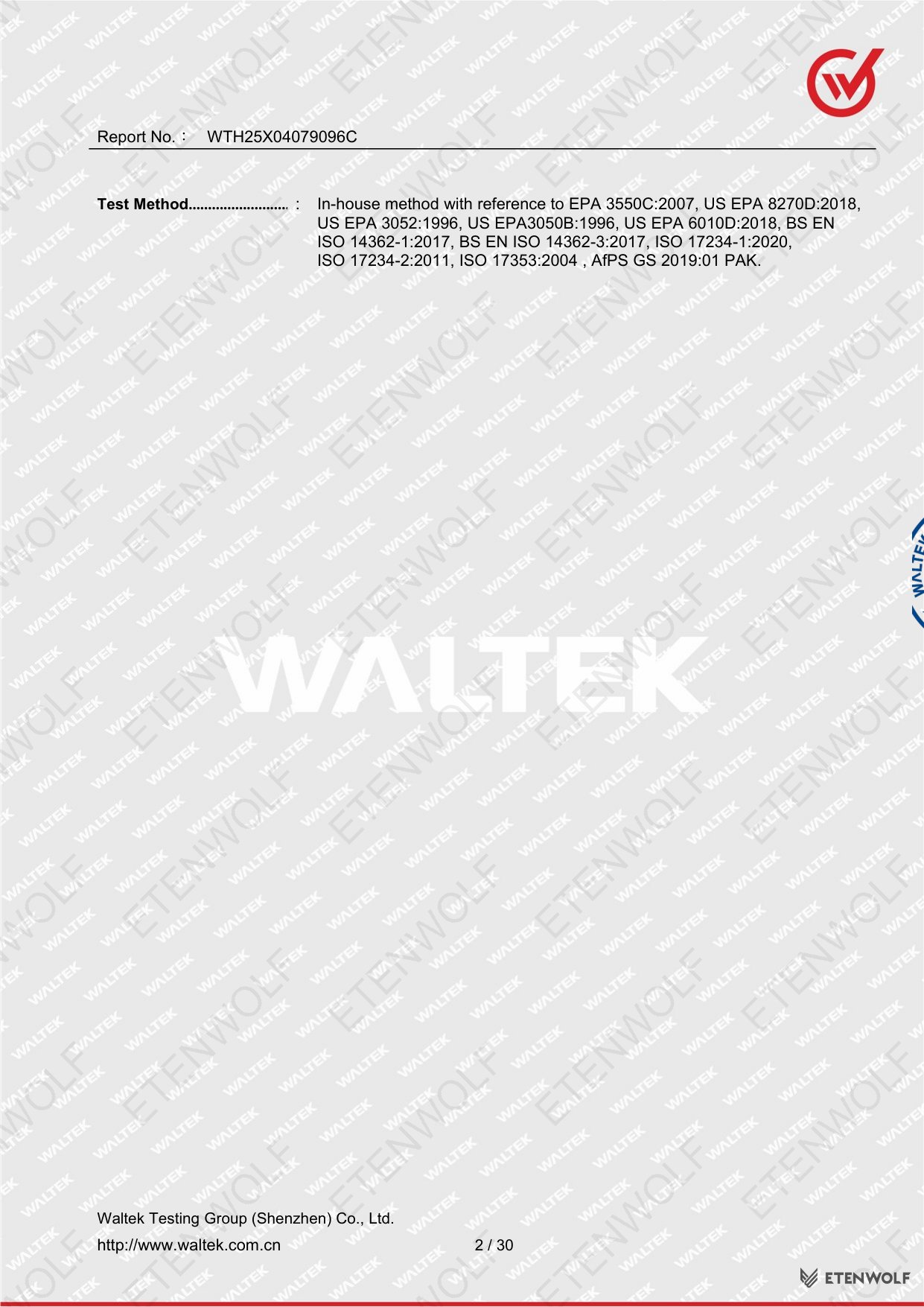

Multiple internationally recognised analytical test methods were applied by the laboratory to ensure comprehensive detection across all substance categories:
| Method Reference | Scope |
|---|---|
| EPA 3550C:2007 | Ultrasonic extraction of nonvolatile and semivolatile organics from solids |
| US EPA 8270D:2018 | GC/MS determination of semivolatile organic compounds |
| US EPA 3052:1996 | Microwave-assisted acid digestion of siliceous and organically based matrices |
| US EPA 3050B:1996 | Acid digestion of sediments, sludges, and soils |
| US EPA 6010D:2018 | Inductively coupled plasma — optical emission spectrometry (ICP-OES) for metals |
| BS EN ISO 14362-1:2017 | Determination of aromatic amines derived from azo colorants — Part 1 |
| BS EN ISO 14362-3:2017 | Determination of aromatic amines derived from azo colorants — Part 3 |
| ISO 17234-1:2020 | Chemical tests for leather — determination of certain azo colorants |
| ISO 17234-2:2011 | Chemical tests for leather — determination of 4-aminoazobenzene |
| ISO 17353:2004 | Water quality — determination of selected organotin compounds |
| AfPS GS 2019:01 PAK | Testing for polycyclic aromatic hydrocarbons (PAH) in consumer goods |

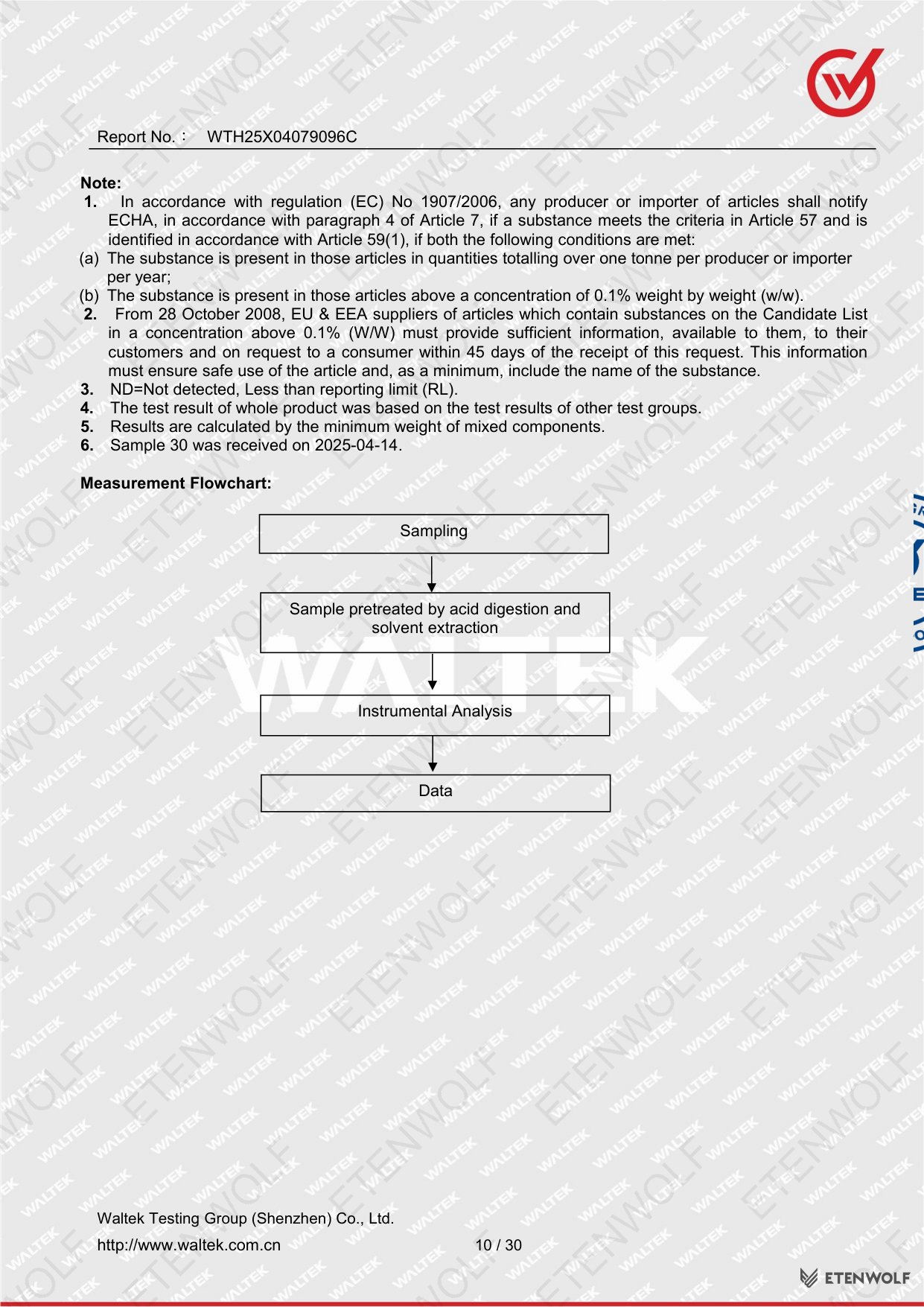

The reporting limit (RL) applied throughout the testing is 0.1% w/w, in alignment with the REACH SVHC disclosure threshold defined under Article 59 of the regulation. All results were below this threshold and returned as Not Detected.
Validity & Certification Body
This test report was issued by Waltek Testing Group (Shenzhen) Co., Ltd., a professional third-party testing and certification laboratory operating in China. The report was signed and authorised by Hugo Chen on behalf of the laboratory.
| Field | Details |
|---|---|
| Report Number | WTH25X04079096C |
| Date of Issue | 2025-04-23 |
| Testing Period | 2025-04-01 to 2025-04-10 & 2025-04-14 to 2025-04-15 |
| Sample Receipt Dates | 2025-04-01 & 2025-04-14 |
| Issuing Laboratory | Waltek Testing Group (Shenzhen) Co., Ltd. |
| Laboratory Address | 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70, Bao’an District, Shenzhen, Guangdong, China |
| Laboratory Website | http://www.waltek.com.cn |
| Contact Tel | +86-755-33663308 |
| Contact Fax | +86-755-33663309 |
| Contact Email | [email protected] |
| Authorised Signatory | Hugo Chen |
| Report Total Pages | 30 |
REACH SVHC test reports of this type do not carry a fixed expiry date, but they are considered valid against the SVHC Candidate List version current at the time of testing. As the ECHA Candidate List is updated periodically, it is recommended to retest when a new update to the list occurs and new substances are added that may be relevant to the product’s material composition.
Frequently Asked Questions
- What does REACH SVHC compliance mean for the ETENWOLF S7?
-
REACH is the European Union regulation on the Registration, Evaluation, Authorisation and Restriction of Chemicals (EC No. 1907/2006). The SVHC Candidate List identifies substances that may have serious effects on human health or the environment. Compliance means that none of the 247 SVHC substances — or 4 additional potential substances — were detected above 0.1% w/w in any component of the ETENWOLF Vortex S7 Tire Inflator. This confirms the product can be legally placed on the EU market without triggering SVHC disclosure obligations under Article 59.
- How many material samples were tested in this report?
-
The S7 was fully disassembled and its components catalogued into over 120 individual material samples. These were consolidated into eight test groups (T01–T08), covering both metal components (silvery metals, copper alloys, solders, springs, connectors) and nonmetal components (plastics, rubber, wire jackets, PCB materials, LEDs, adhesives, and more). Every group returned a Not Detected result.
- What test methods were used to screen for SVHC substances?
-
The laboratory applied a range of internationally recognised analytical methods including US EPA extraction and digestion protocols (3550C, 3052, 3050B), ICP-OES for metals (US EPA 6010D), GC/MS for organics (US EPA 8270D), ISO methods for azo colorants and organotin compounds, and AfPS GS 2019:01 PAK for polycyclic aromatic hydrocarbons. This multi-method approach ensures comprehensive coverage across all substance classes in the SVHC list.
- Is this REACH report still valid, and when should it be renewed?
-
The report (WTH25X04079096C, issued 2025-04-23) was tested against the ECHA Candidate List containing 247 SVHC and 4 potential substances at the time of testing. REACH SVHC reports do not have a fixed expiry date, but the ECHA Candidate List is updated regularly. It is best practice to reassess compliance whenever new substances are added to the list that could be present in the product’s materials, or whenever the product undergoes a significant design or material change.
Related Documents
The REACH SVHC test report is one part of a broader compliance documentation set maintained for the ETENWOLF Vortex S7 Tire Inflator. The following related certifications and reports are typically required or recommended for a product of this type sold in global markets:
| Document Type | Relevance |
|---|---|
| RoHS Compliance Report | Restricts hazardous substances (lead, mercury, cadmium, etc.) in electrical and electronic equipment for EU market access — closely related to REACH |
| CE Declaration of Conformity | Mandatory self-declaration for the EU market covering applicable directives such as LVD, EMC, and RoHS |
| FCC ID Certificate | Required for wireless or electronic devices sold in the United States |
| UN 38.3 Test Report | Mandatory transport safety test for lithium battery cells used in portable inflators |
| KC Certification | Required for electrical products entering the South Korean market |
| IEC 62133 Battery Safety Report | Covers safety requirements for portable sealed secondary lithium cells and batteries |
| MSDS / Safety Data Sheet | Material Safety Data Sheet documenting chemical composition and handling information for the product and its battery |
