Document Overview
This article summarizes the CE Low Voltage Directive (CE-LVD) test report issued by Waltek Testing Group (Shenzhen) Co., Ltd. for the X5 PRO Jump Starter with Air Compressor. The report covers safety and electromagnetic field compliance evaluations conducted in accordance with applicable European harmonized standards.

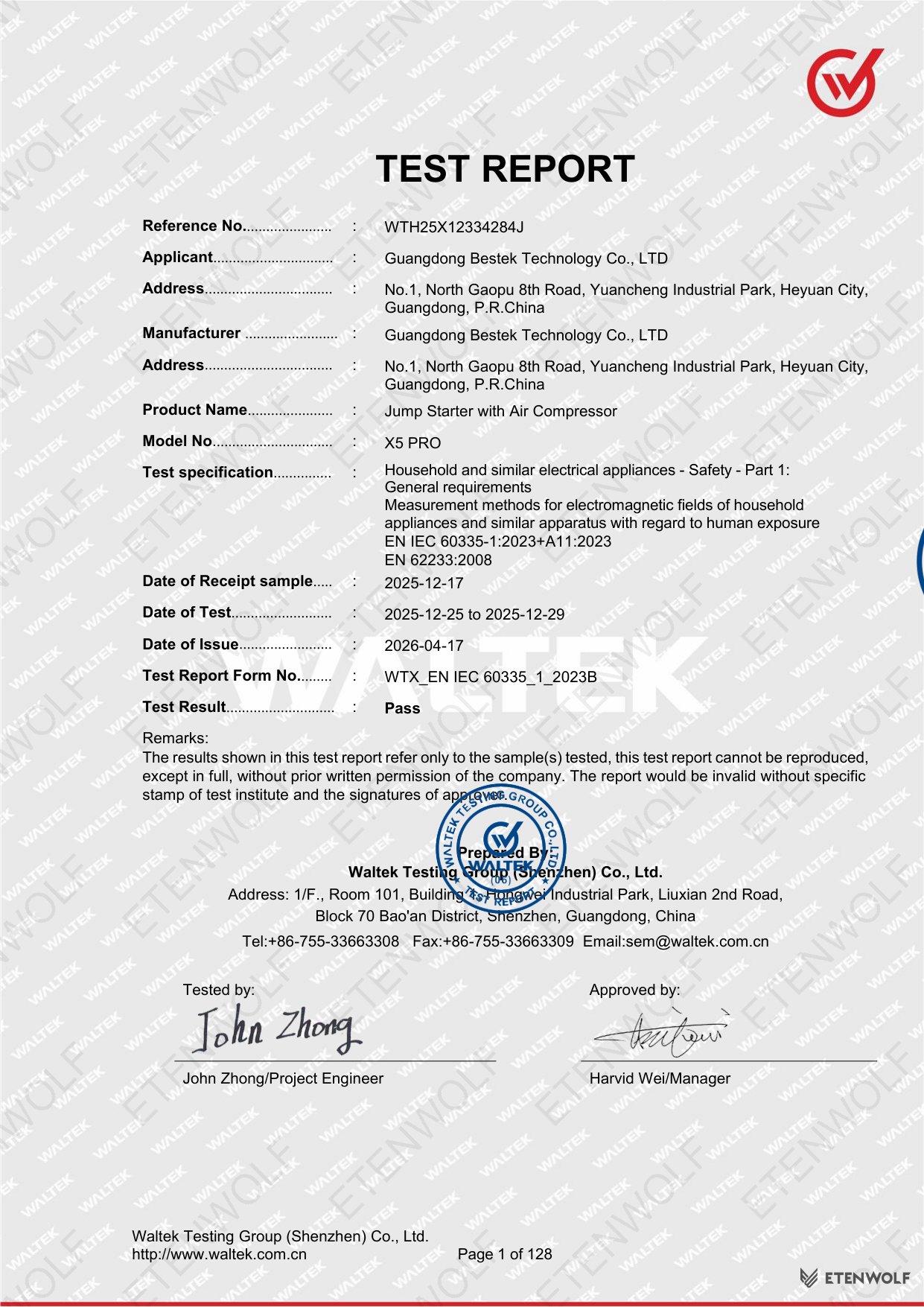

| Field | Detail |
|---|---|
| Reference No. | WTH25X12334284J |
| Document Type | CE-LVD Test Report |
| Issuing Body | Waltek Testing Group (Shenzhen) Co., Ltd. |
| Date of Issue | 2026-04-17 |
| Date of Sample Receipt | 2025-12-17 |
| Test Period | 2025-12-25 to 2025-12-29 |
| Test Report Form No. | WTX_EN IEC 60335_1_2023B |
| Overall Test Result | Pass |
Product Information
The product evaluated in this report is the X5 PRO, a Jump Starter with Air Compressor designed for household and indoor use. It is manufactured and supplied by Guangdong Bestek Technology Co., Ltd., based in Heyuan City, Guangdong, China.
| Field | Detail |
|---|---|
| Product Name | Jump Starter with Air Compressor |
| Model No. | X5 PRO |
| Rated Input | 5V DC, 2.0A |
| Equipment Class | Class III |
| Supply Connection | DC Connector |
| Installation Type | Hand-held appliance, indoor use only |
| Ingress Protection | IPX0 |
| Trademark | — |
| Manufacturer | Guangdong Bestek Technology Co., Ltd. |
| Manufacturer Address | No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China |
| Country of Origin | Made in China |

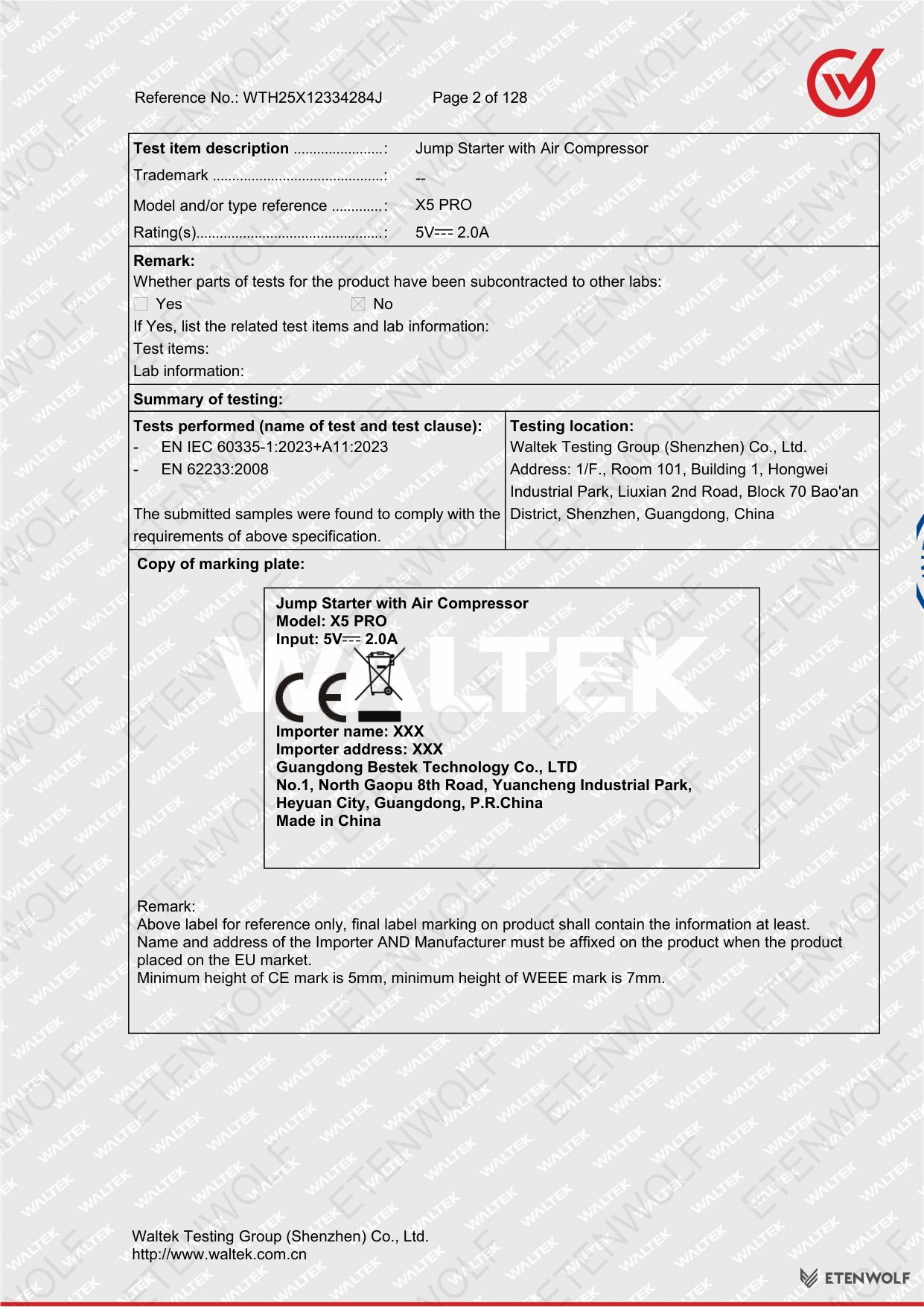

The appliance is intended exclusively for household and indoor use. As a Class III device, it operates on safety extra-low voltage (SELV) supplied via a DC connector. The product must carry the CE mark (minimum height 5 mm) and the WEEE mark (minimum height 7 mm) when placed on the EU market. The name and address of the EU importer must also be affixed to the product label.
Key Details

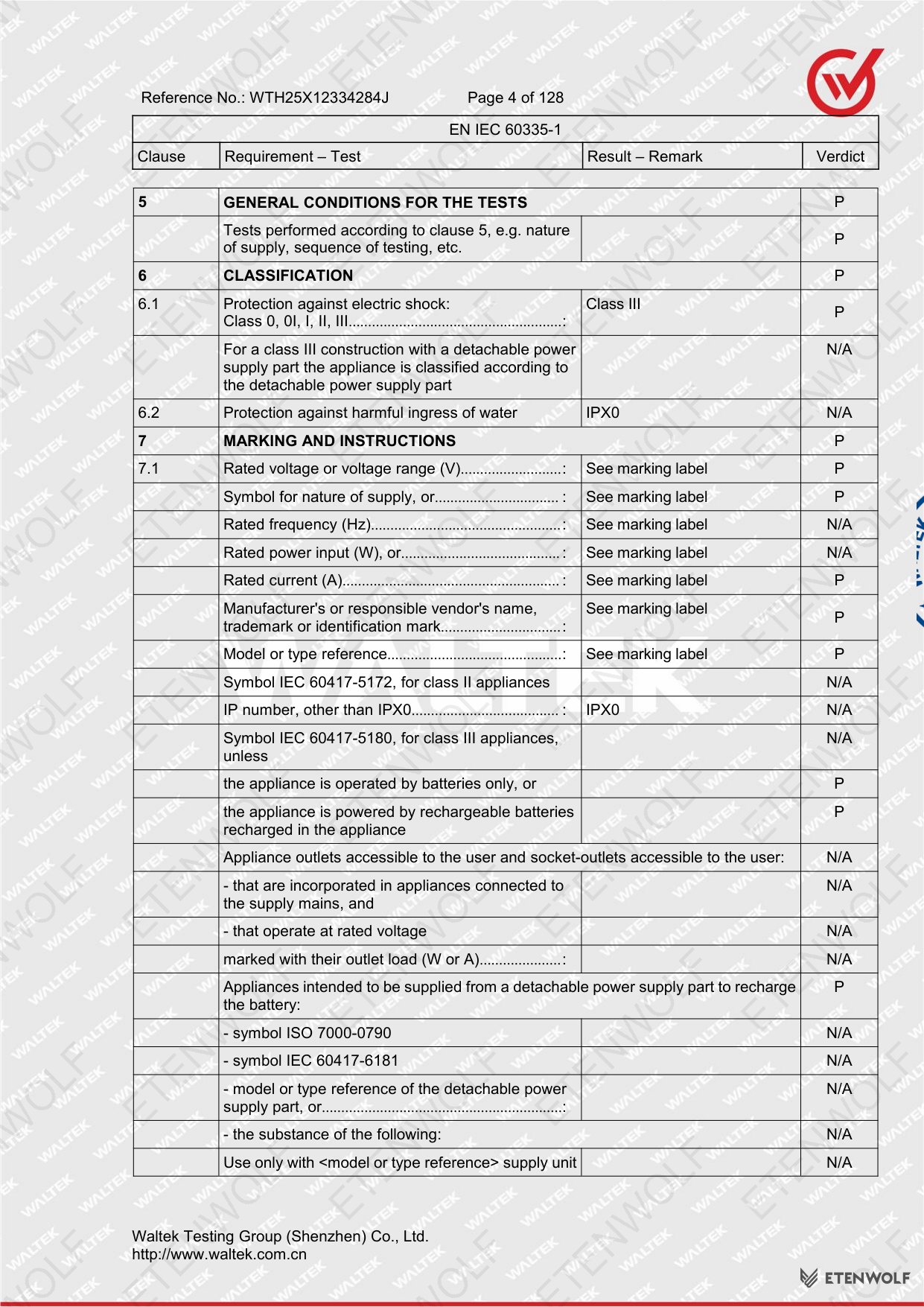

The following table presents the clause-by-clause compliance results from the EN IEC 60335-1:2023+A11:2023 evaluation for the X5 PRO. Verdicts are recorded as P (Pass) or N/A (Not Applicable).
| Clause | Requirement / Test | Verdict |
|---|---|---|
| 5 | General Conditions for Tests (nature of supply, sequence of testing) | P |
| 6 | Classification | P |
| 6.1 | Protection against electric shock — Class III | P |
| 6.2 | Protection against harmful ingress of water — IPX0 | N/A |
| 7 | Marking and Instructions | P |
| 7.1 | Rated voltage, current, manufacturer identification, model reference on marking label | P |
| 7.1 | Class III symbol (battery-operated / rechargeable battery in appliance) | P |
| 7.1 | Class II symbol IEC 60417-5172 | N/A |
| 7.1 | IP number other than IPX0 | N/A |
| 7.2 | Warning for stationary appliances for multiple supply | N/A |
| 7.3 | Range of rated values marking | N/A |
Verdict legend: P = Pass | N/A = Not Applicable | F = Fail (none recorded)
All subcontracting status: No test items were subcontracted to external laboratories. All testing was performed at the Waltek Shenzhen facility.
Standards & Compliance
The X5 PRO was evaluated against the following European harmonized standards as part of the CE-LVD conformity assessment process:
| Standard | Title | Result |
|---|---|---|
| EN IEC 60335-1:2023+A11:2023 | Household and similar electrical appliances — Safety — Part 1: General requirements | Pass |

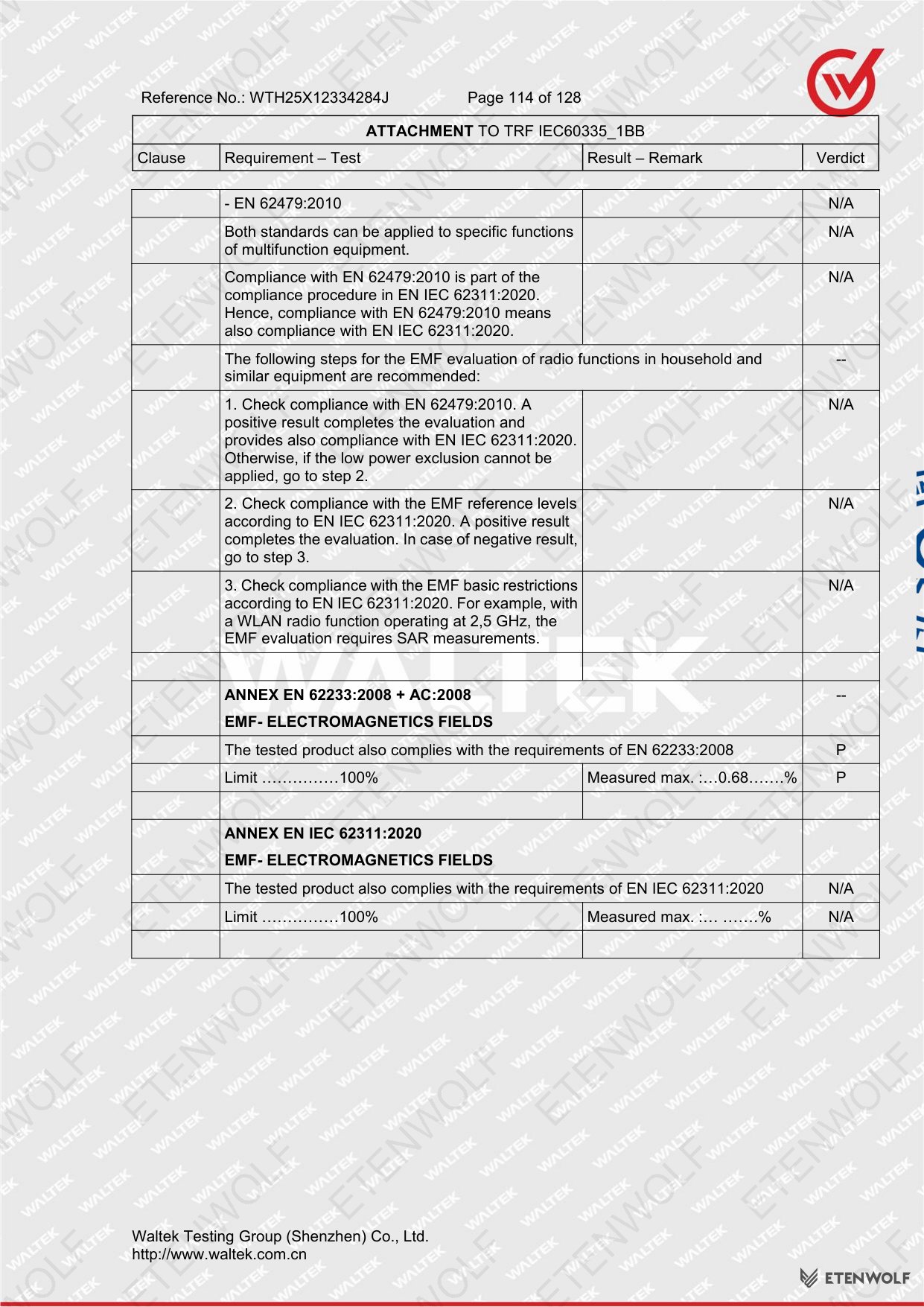

| EN 62233:2008 | Measurement methods for electromagnetic fields of household appliances and similar apparatus with regard to human exposure | Pass |
EN IEC 60335-1:2023+A11:2023 establishes the core safety requirements for household and similar electrical appliances, covering aspects such as classification, marking, protection against electric shock, mechanical strength, and thermal stability. EN 62233:2008 addresses the measurement methodology for human exposure to electromagnetic fields emitted by household appliances, ensuring the product does not pose an electromagnetic exposure risk to end users.
Both standards are harmonized under the CE Low Voltage Directive (LVD) 2014/35/EU, and compliance with them provides a presumption of conformity for the CE marking obligation in the European Union and European Economic Area markets.
Validity & Certification Body
The test report was prepared and issued by Waltek Testing Group (Shenzhen) Co., Ltd., an accredited third-party testing laboratory. The report is valid only when accompanied by the specific stamp of the test institute and the authorized signatures of both the project engineer and the approving manager.
| Field | Detail |
|---|---|
| Laboratory | Waltek Testing Group (Shenzhen) Co., Ltd. |
| Laboratory Address | 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70, Bao’an District, Shenzhen, Guangdong, China |
| Website | http://www.waltek.com.cn |
| Tel | +86-755-33663308 |
| Fax | +86-755-33663309 |
| [email protected] | |
| Tested By | John Zhong / Project Engineer |
| Approved By | Harvid Wei / Manager |
| Date of Issue | 2026-04-17 |
| Report Total Pages | 128 |
The results documented in report WTH25X12334284J relate exclusively to the sample(s) submitted for testing. This report may not be reproduced except in full, and only with prior written permission from Waltek Testing Group. Any partial reproduction renders the report invalid. The applicant and manufacturer of record is Guangdong Bestek Technology Co., Ltd.
Frequently Asked Questions
- What does the CE-LVD test report WTH25X12334284J certify for the X5 PRO?
- Report WTH25X12334284J certifies that the X5 PRO Jump Starter with Air Compressor passed safety and electromagnetic field evaluations conducted by Waltek Testing Group under EN IEC 60335-1:2023+A11:2023 and EN 62233:2008, supporting CE marking under the Low Voltage Directive 2014/35/EU for the European market.
- What equipment class is the X5 PRO, and what does that mean?
- The X5 PRO is classified as a Class III appliance, meaning it operates exclusively on safety extra-low voltage (SELV) supplied via a DC connector. Class III devices do not rely on protective earthing for safety against electric shock, making them inherently safer for handheld and portable applications.
- Are there any labeling requirements for the X5 PRO when sold in the EU?
- Yes. When placed on the EU market, the product label must include the CE mark (minimum height 5 mm), the WEEE symbol (minimum height 7 mm), the rated input (5V, 2.0A), the model number (X5 PRO), and the name and address of both the manufacturer and the EU importer. The importer details shown in the test report are placeholder values (XXX) and must be completed with actual EU importer information before market entry.
- Was any part of the testing subcontracted to another laboratory?
- No. According to the test report, all testing for the X5 PRO was performed entirely at the Waltek Testing Group (Shenzhen) facility. No test items were subcontracted to external laboratories.
Related Documents
The CE-LVD test report is one component of a complete compliance documentation package. For the X5 PRO Jump Starter with Air Compressor, the following related certification and compliance documents are typically required or recommended:
- CE-EMC Test Report — Electromagnetic compatibility evaluation under Directive 2014/30/EU, covering radiated and conducted emissions as well as immunity testing.
- CE Declaration of Conformity (DoC) — The manufacturer’s formal declaration confirming compliance with all applicable EU directives, required before affixing the CE mark.
- UN 38.3 Battery Transport Test Report — Required for the lithium battery cells within the jump starter for safe international air and sea freight.
- RoHS Compliance Report — Confirms restriction of hazardous substances (lead, mercury, cadmium, etc.) in accordance with EU RoHS Directive 2011/65/EU.
- REACH SVHC Declaration — Substance of Very High Concern screening under REACH Regulation (EC) No 1907/2006.
- FCC ID / IC Certification — Required if the X5 PRO is distributed in the United States or Canada, covering intentional and unintentional radio frequency emissions.

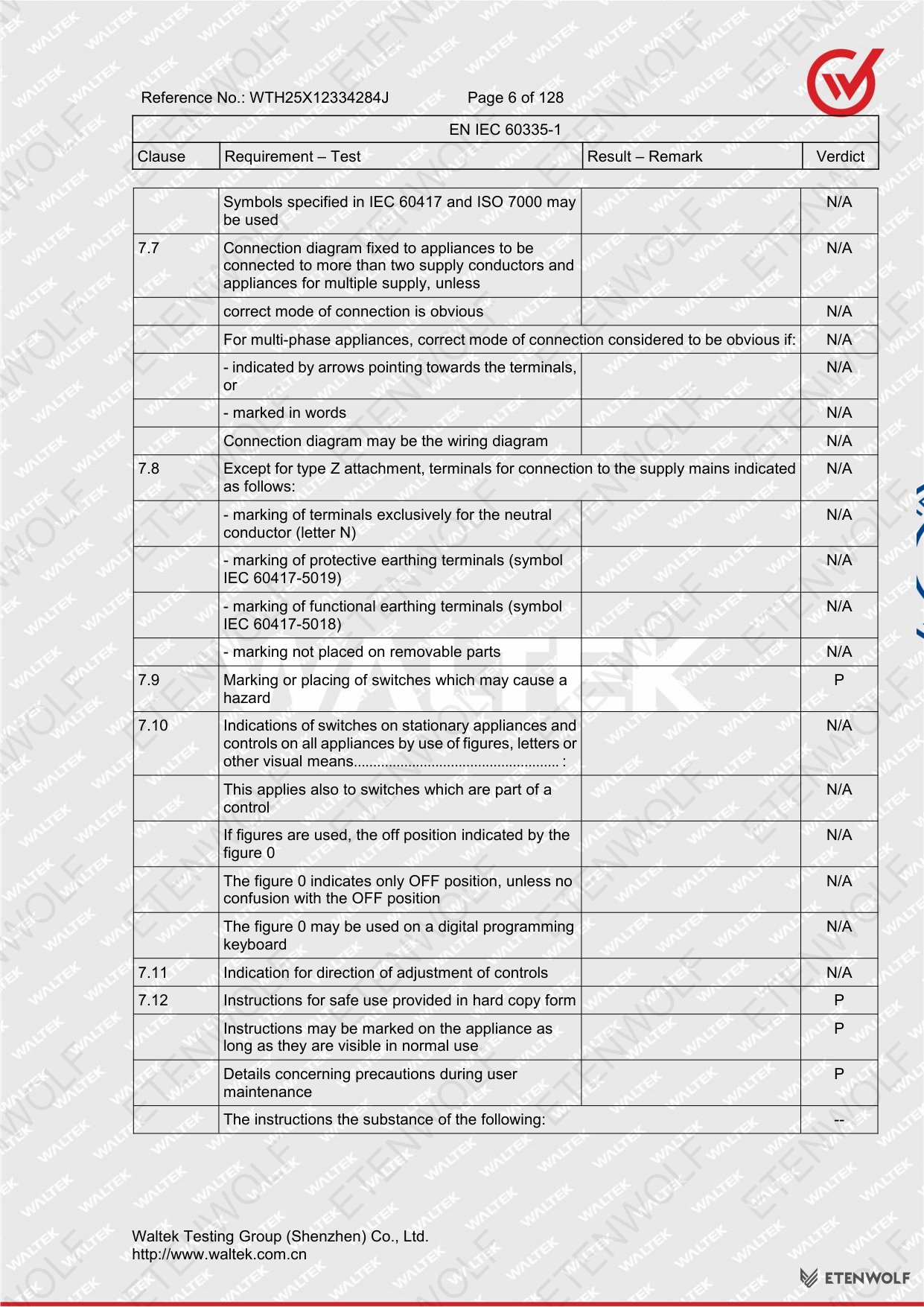

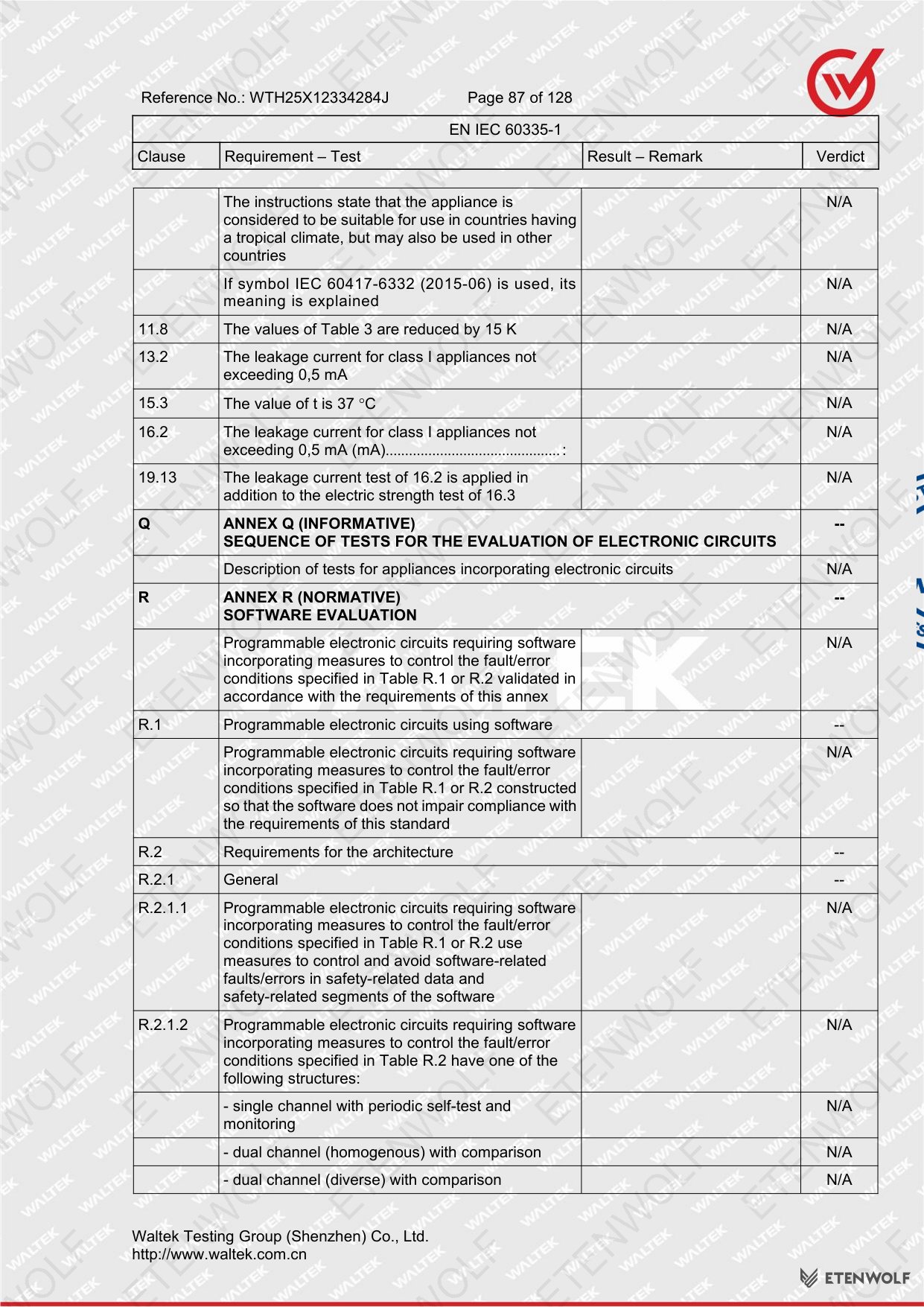

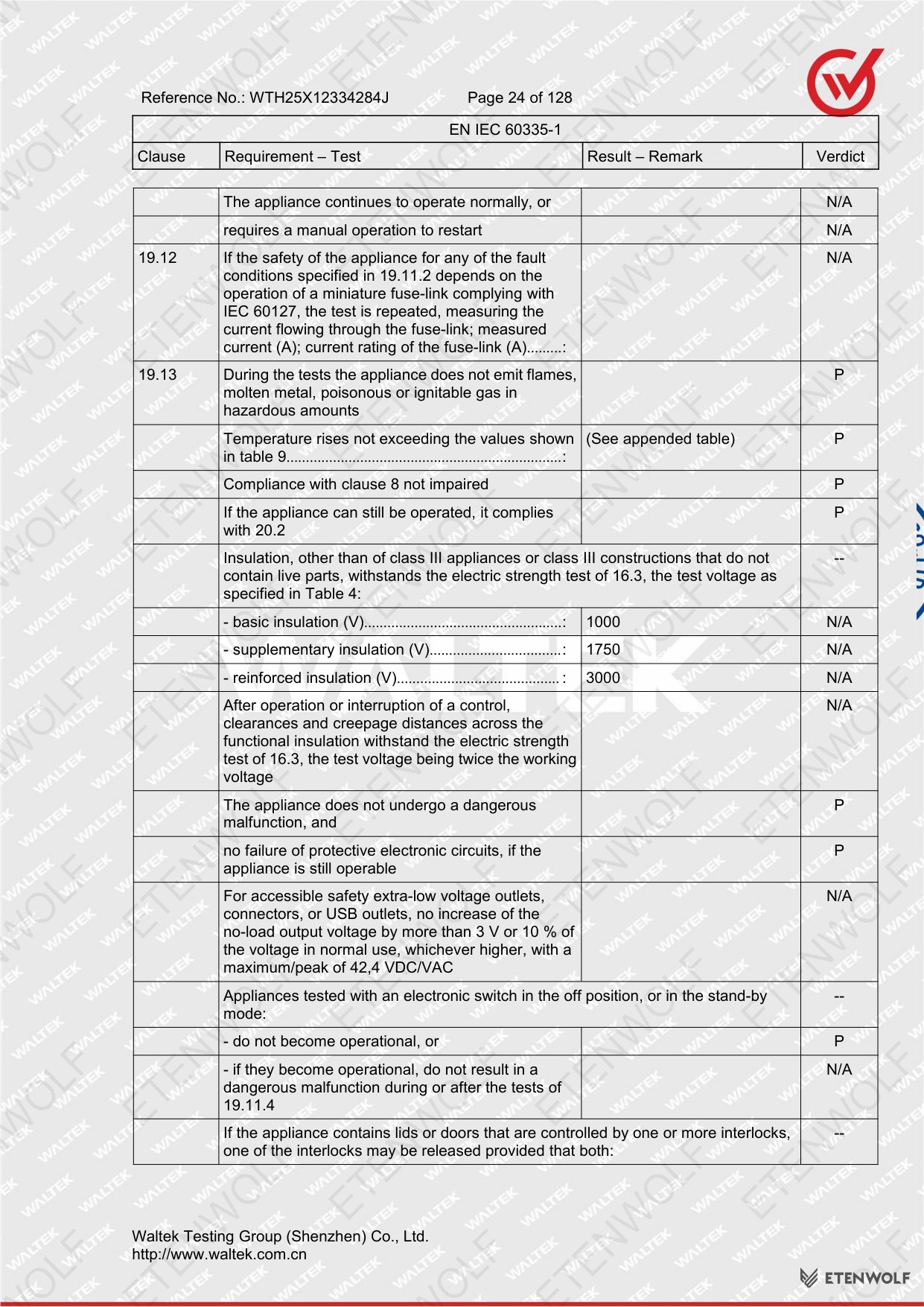

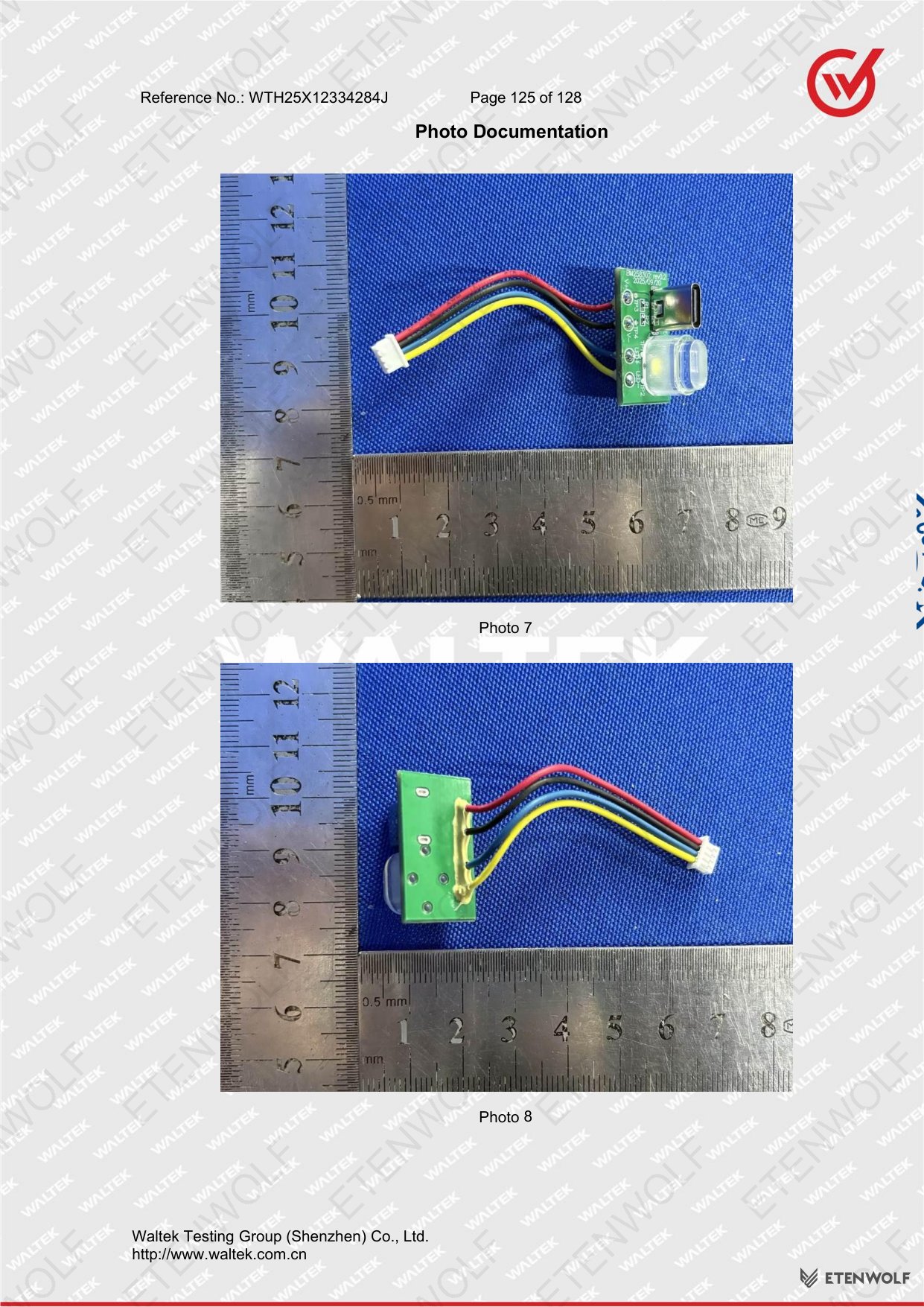

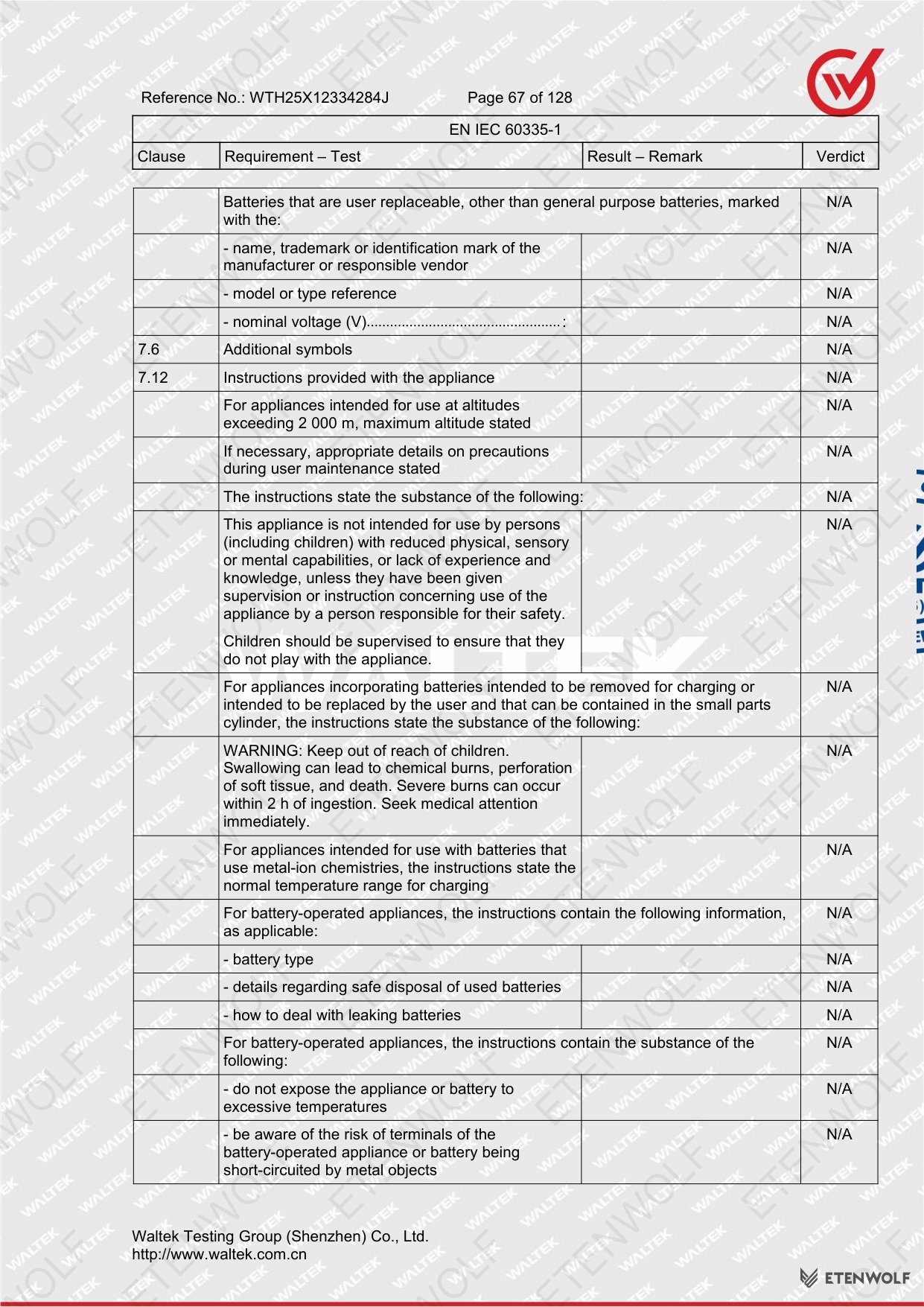

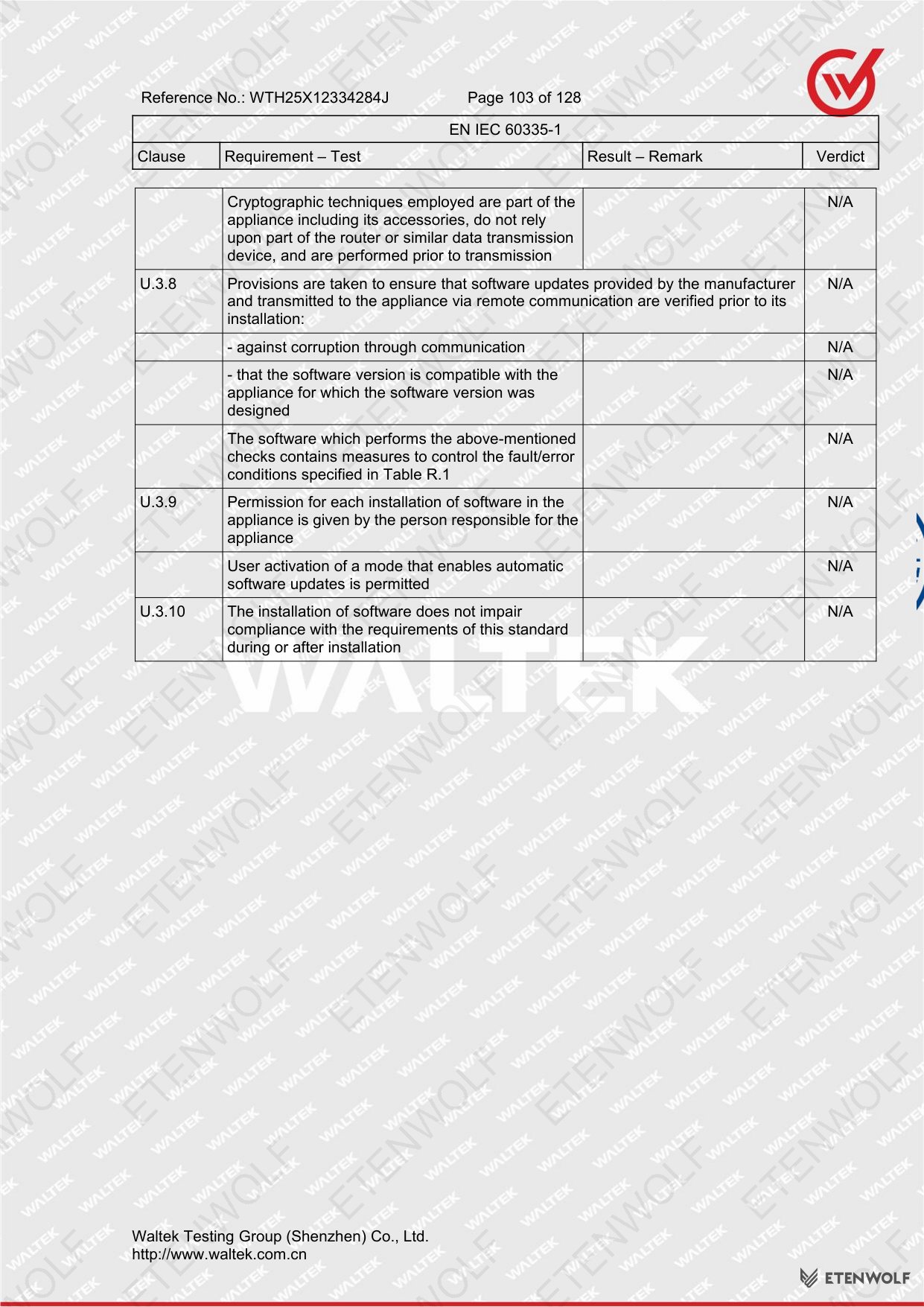

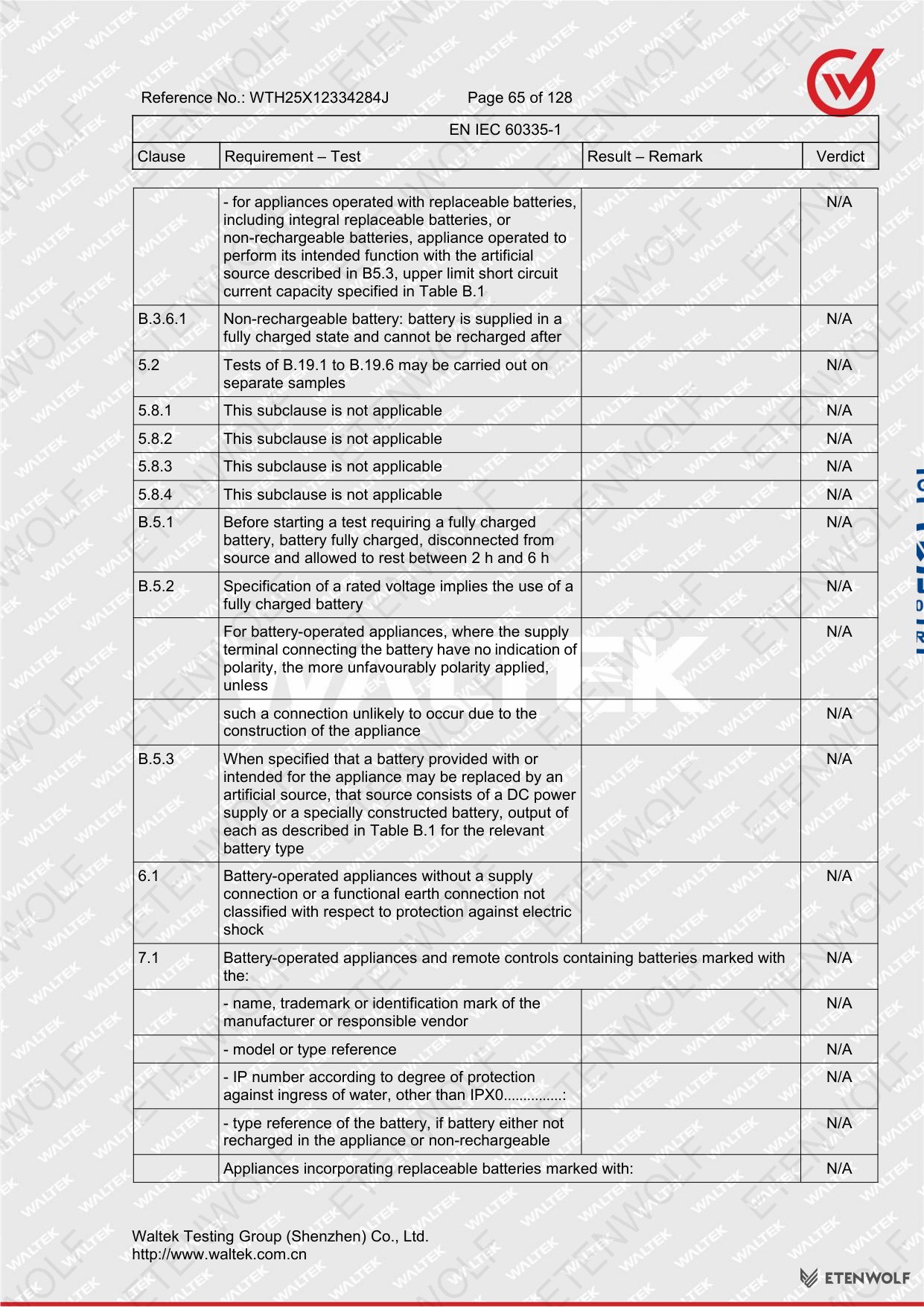

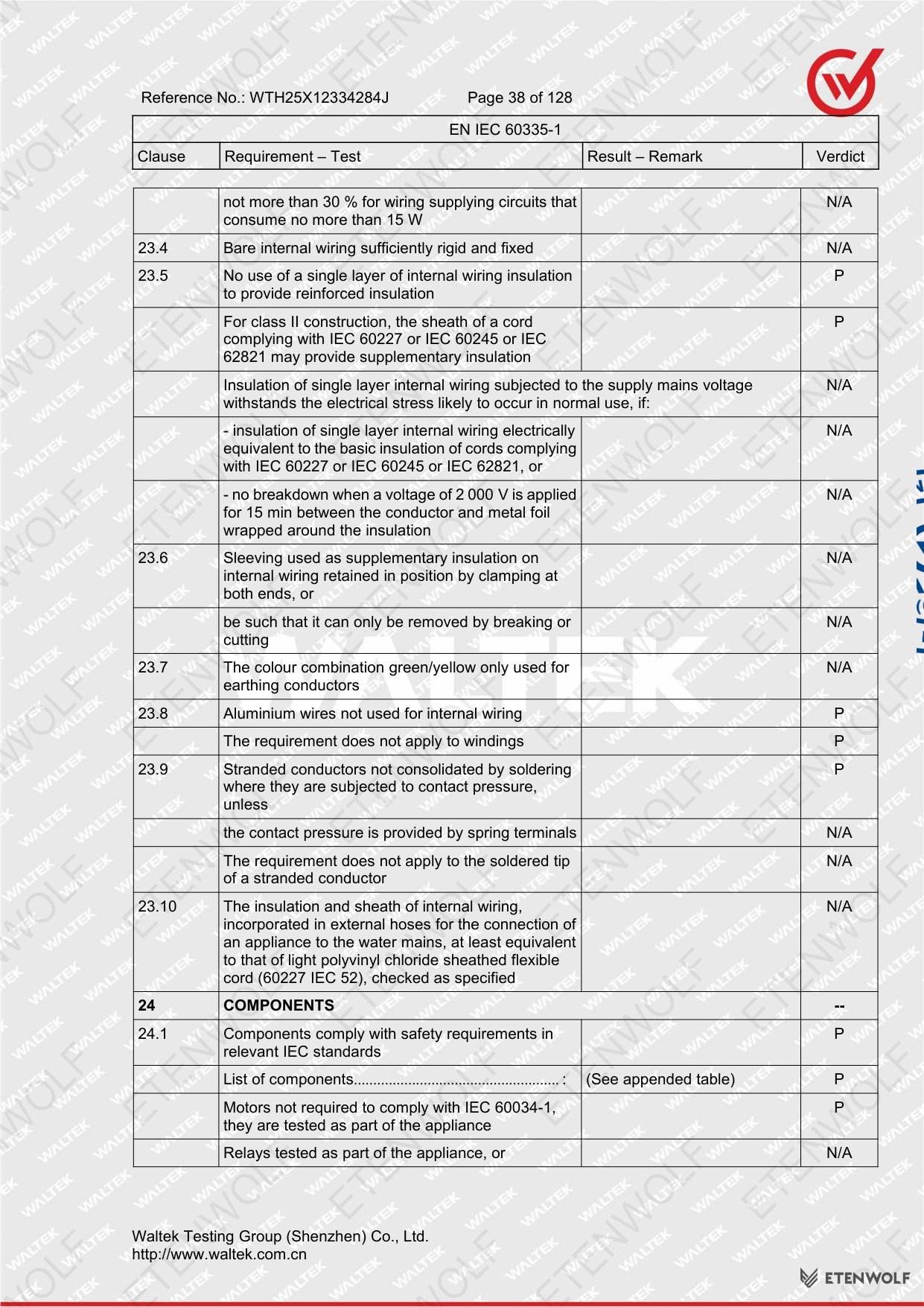

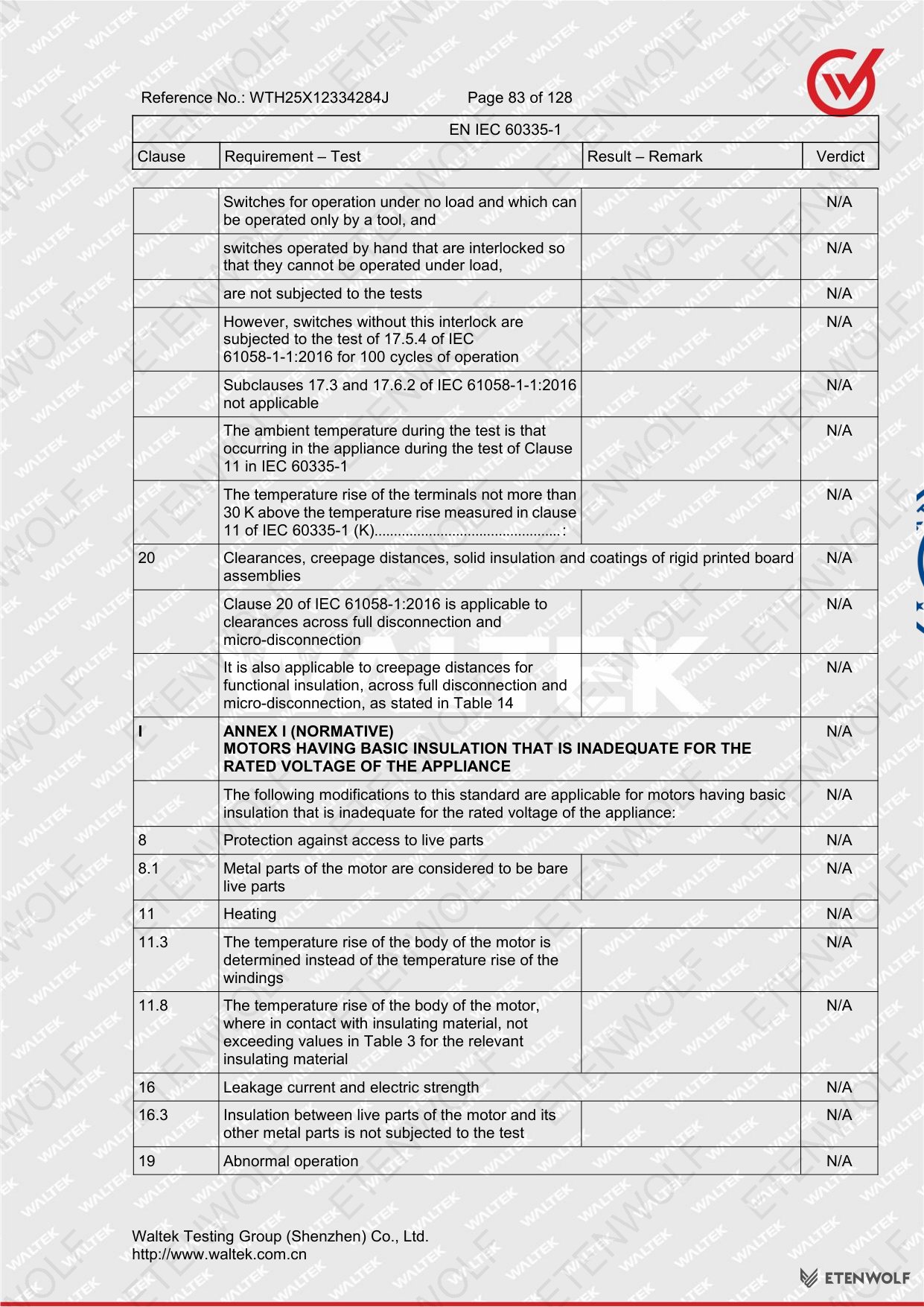

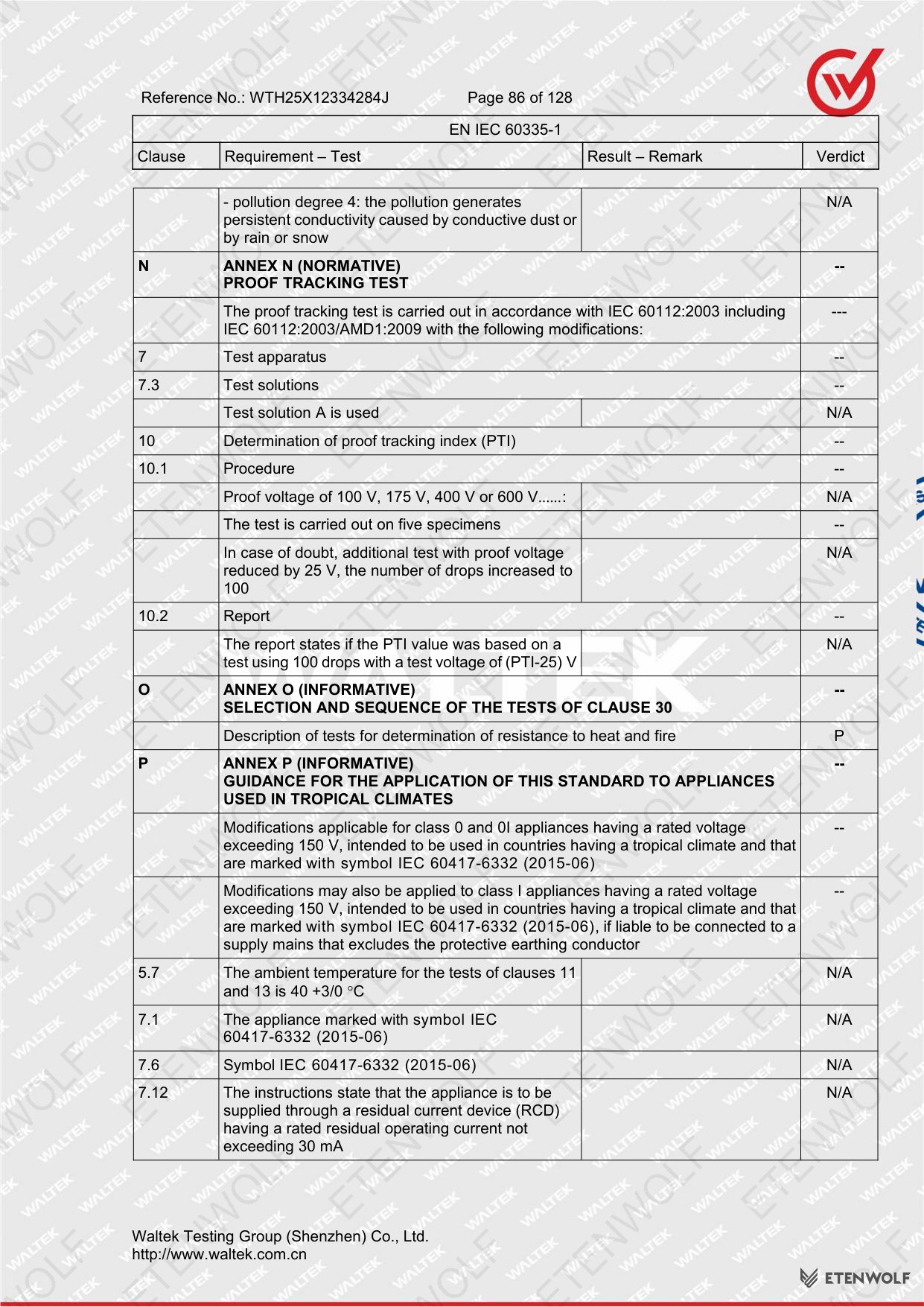

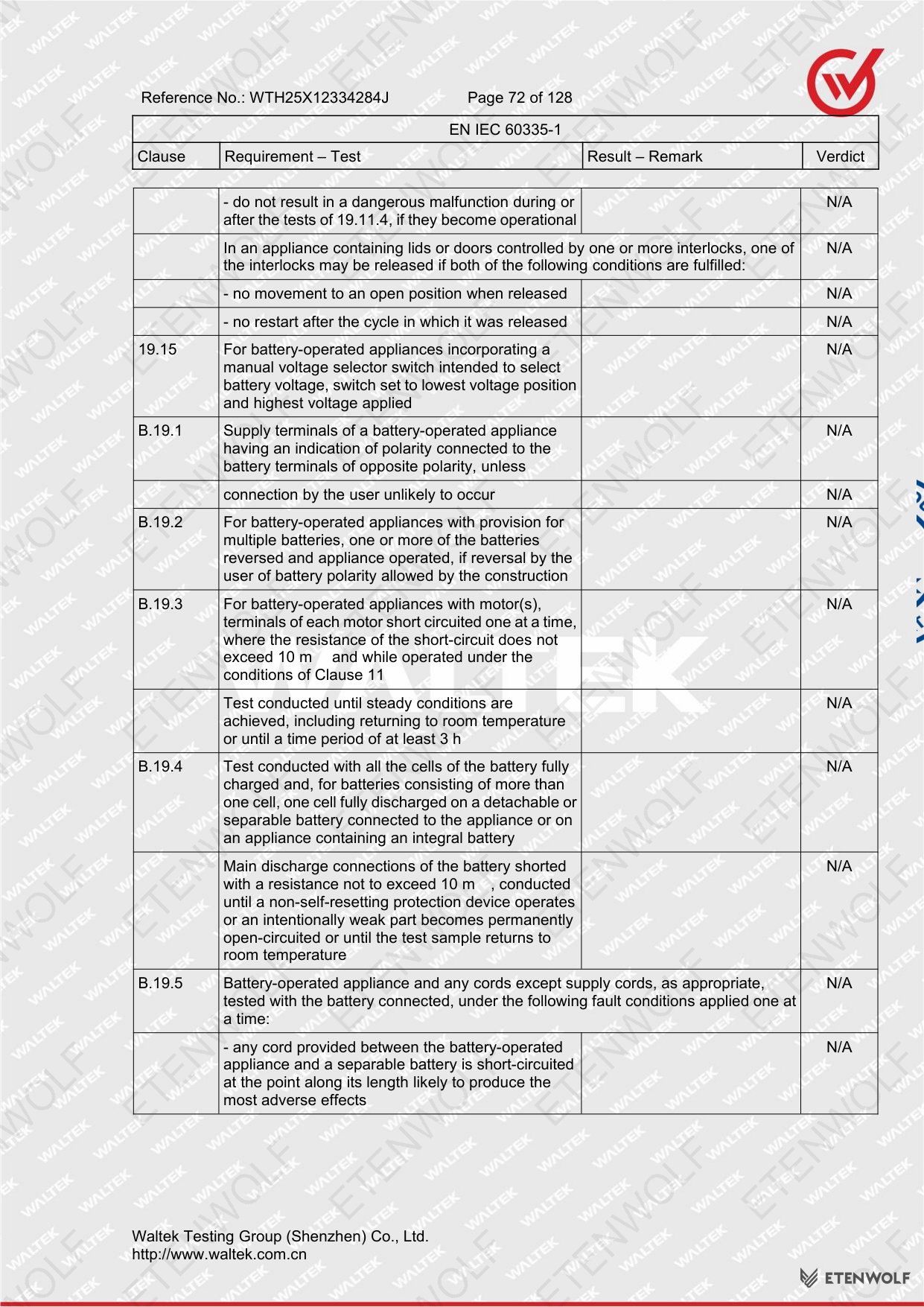

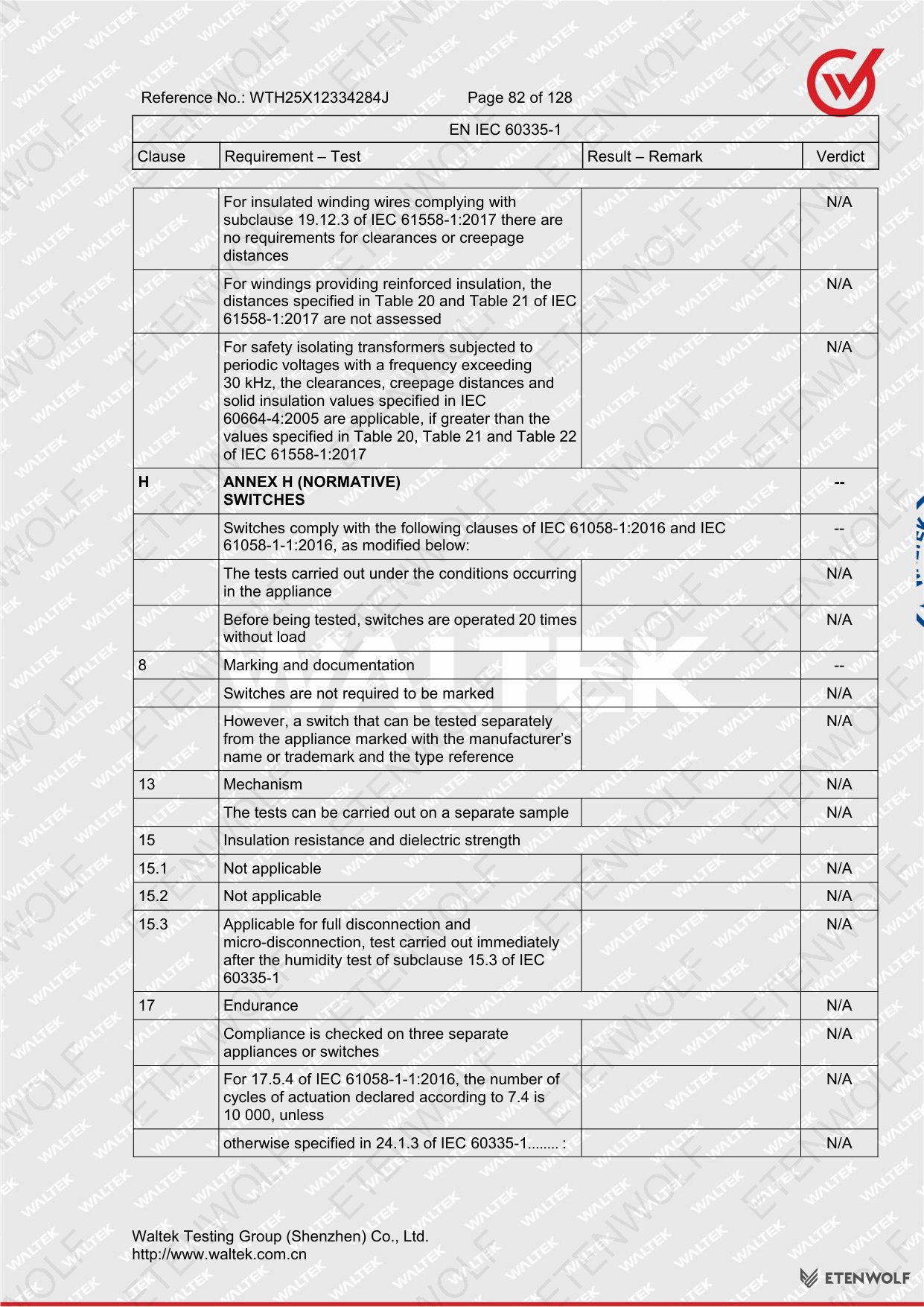

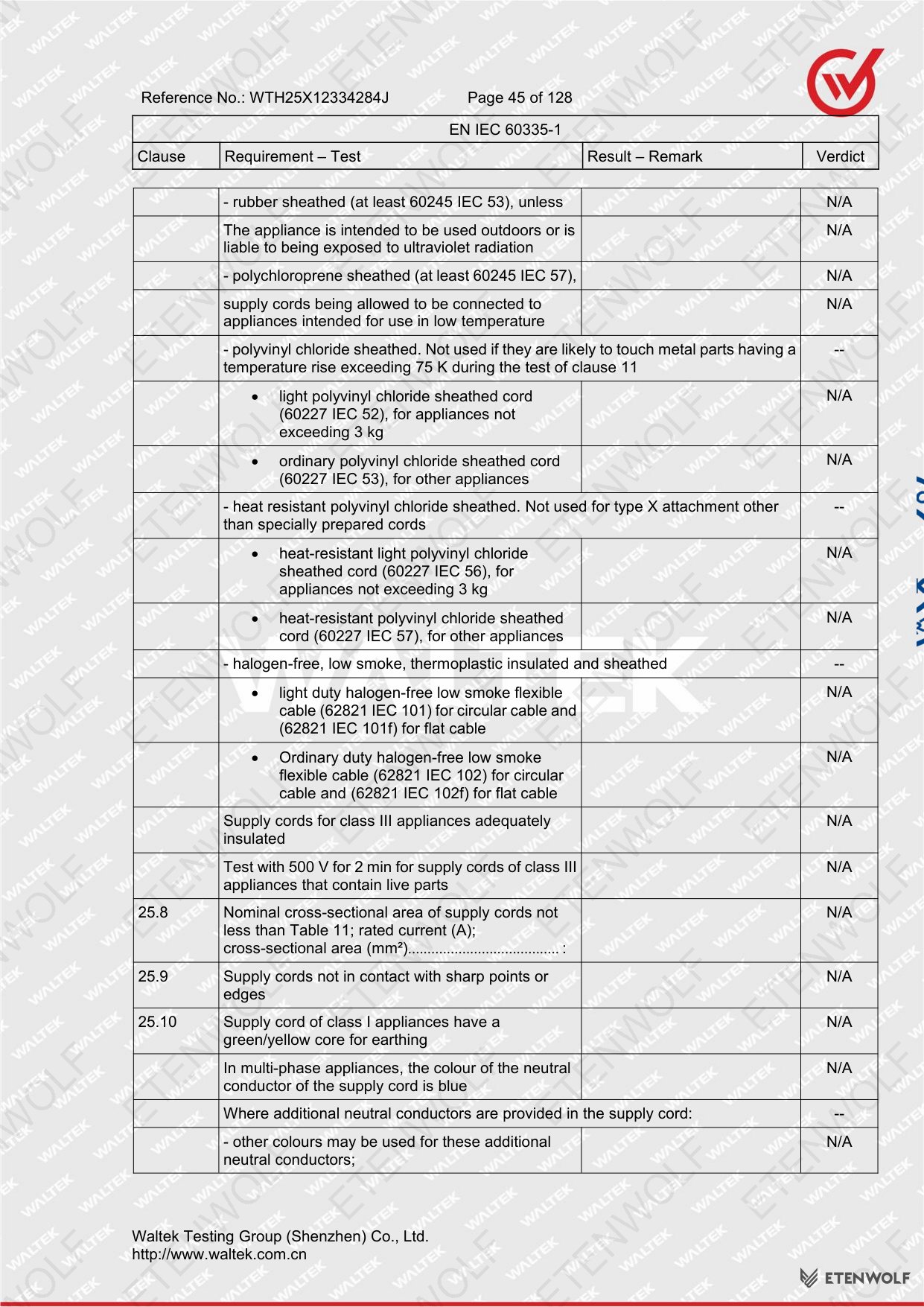

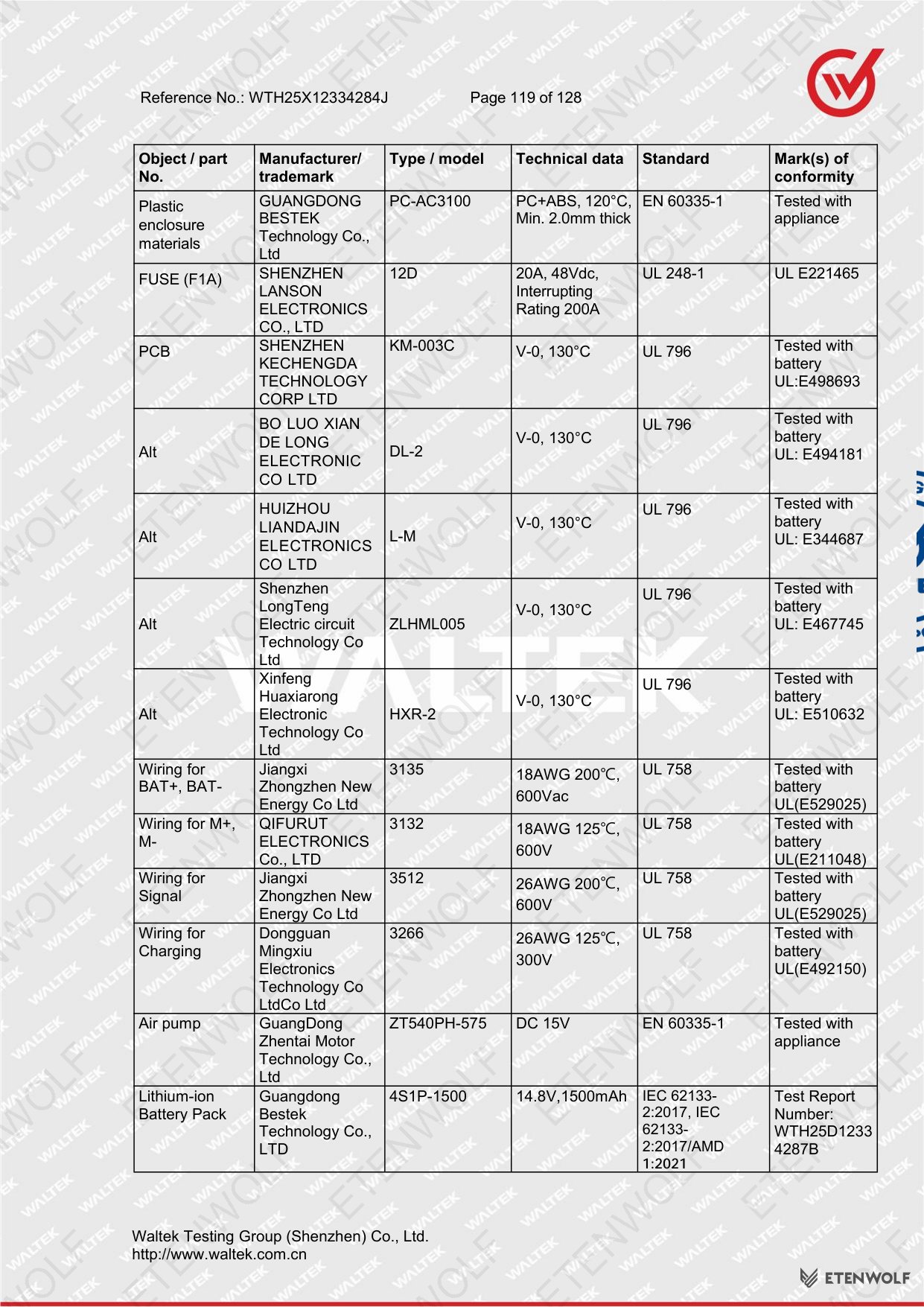

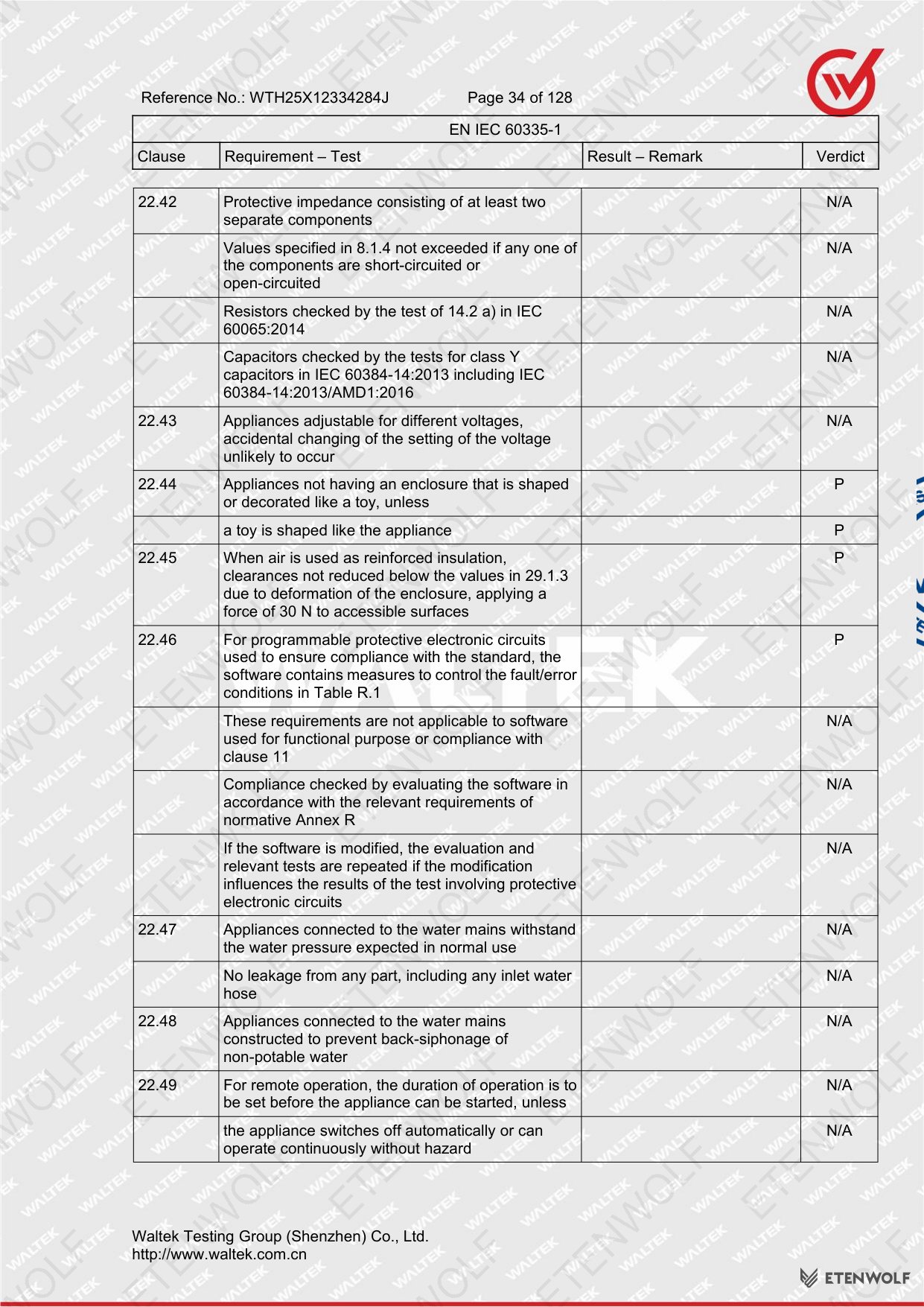

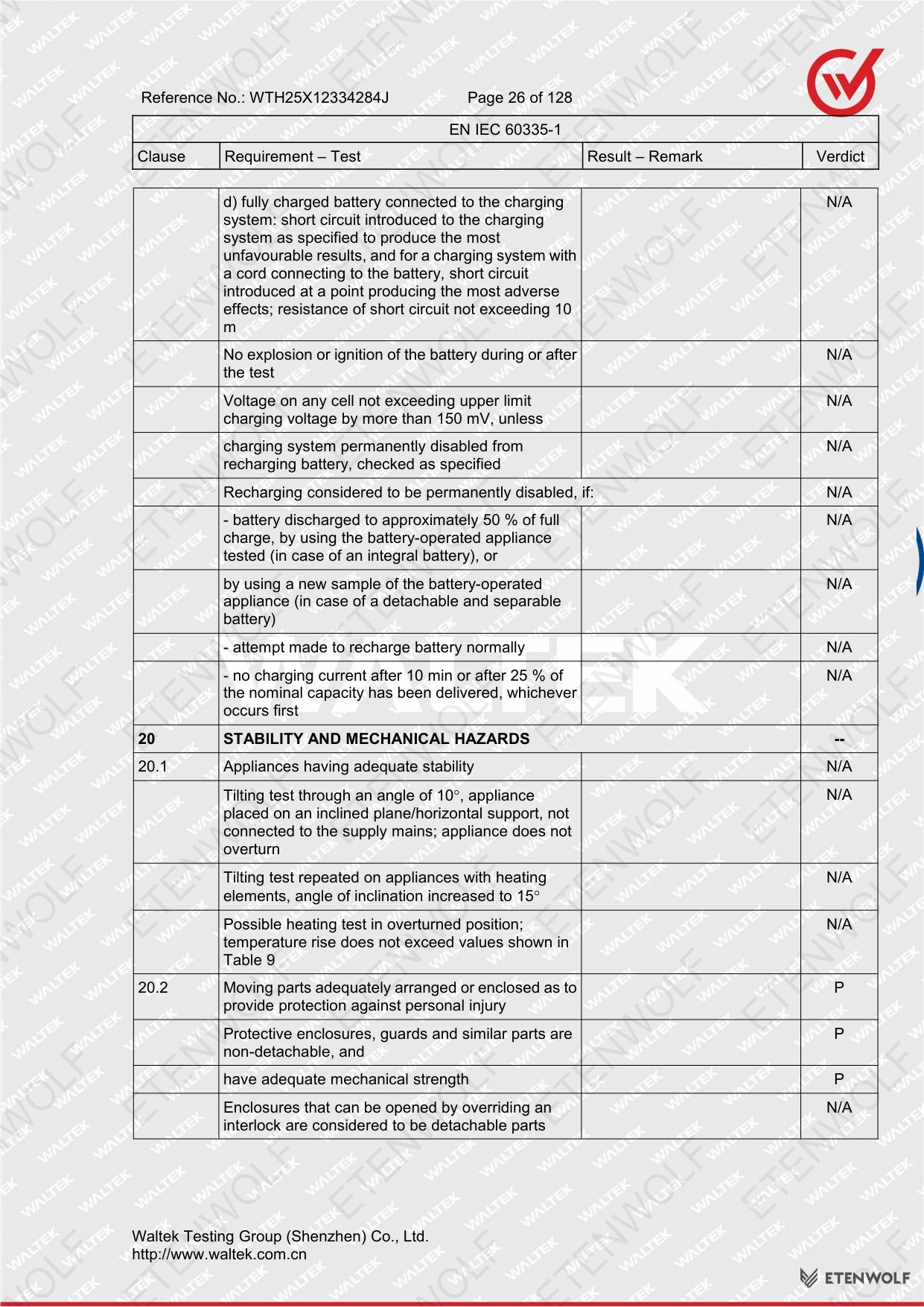

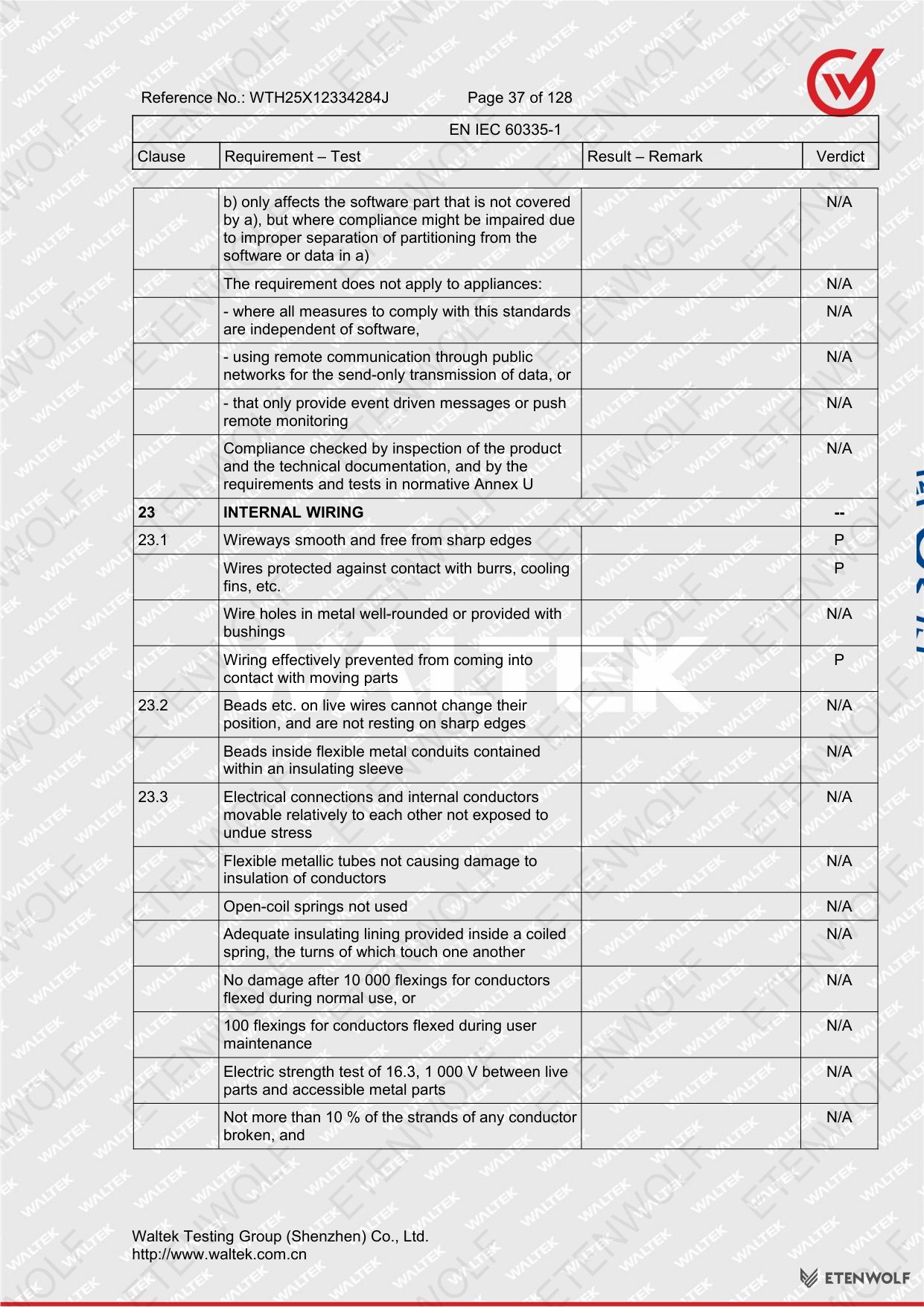

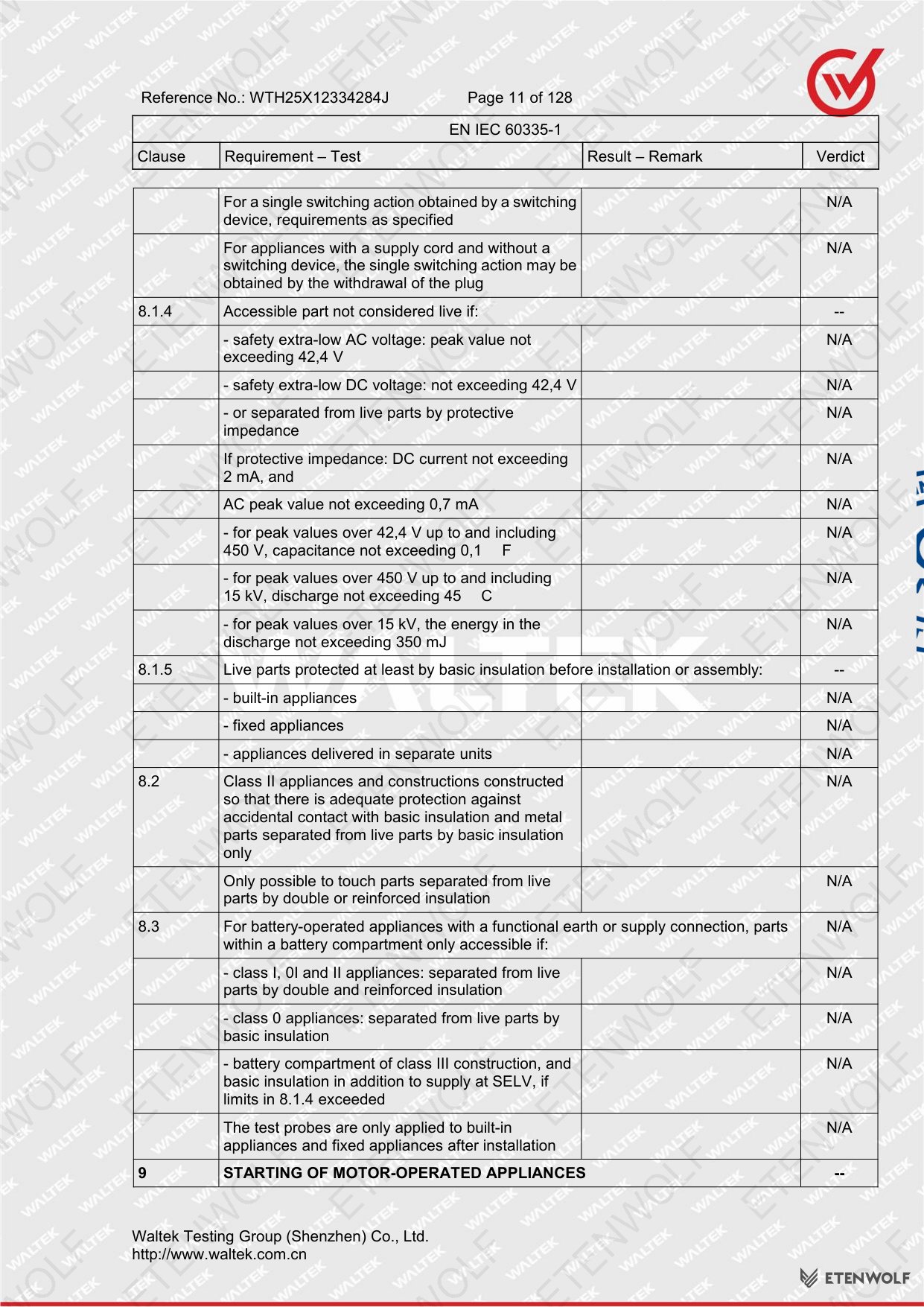

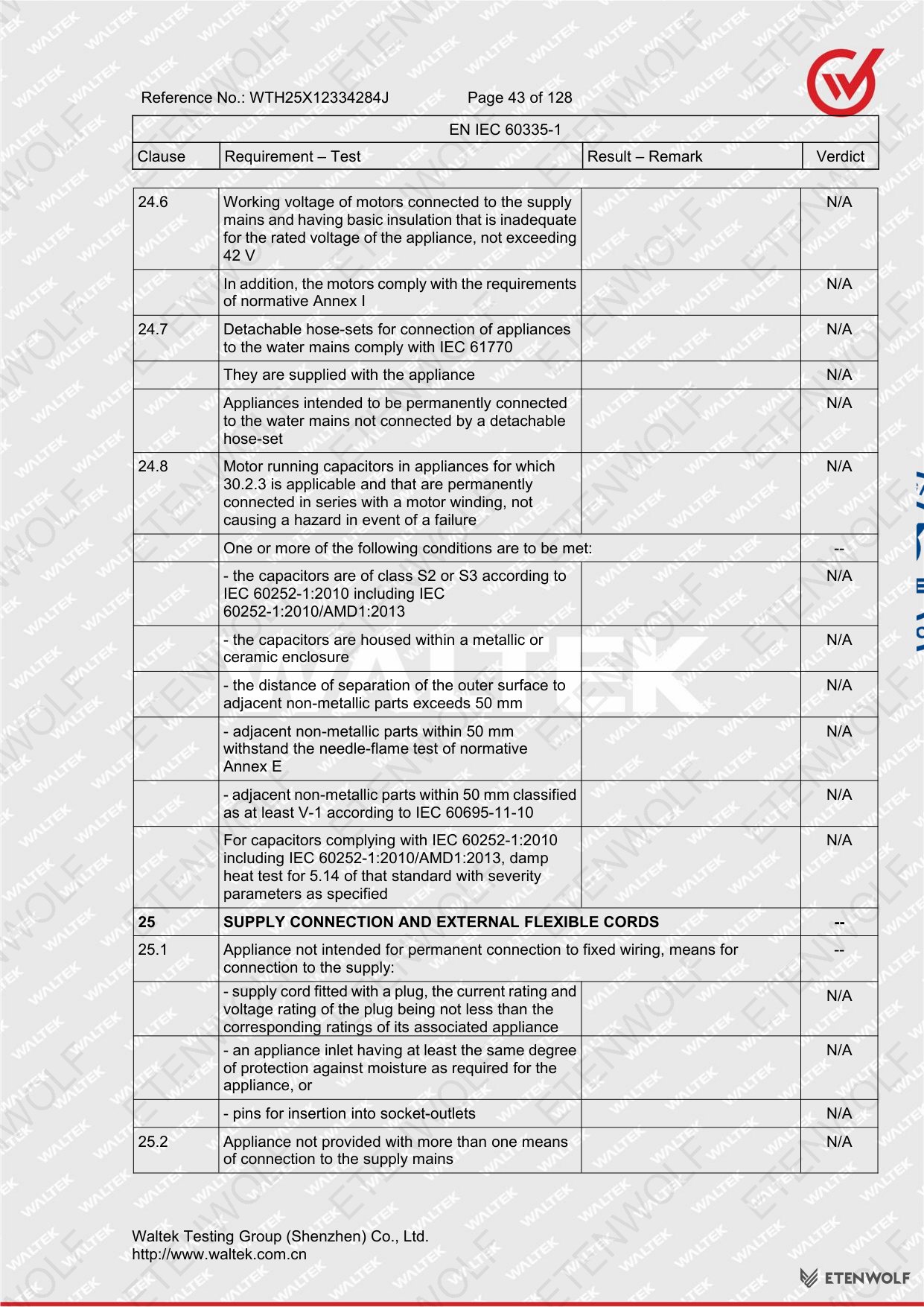

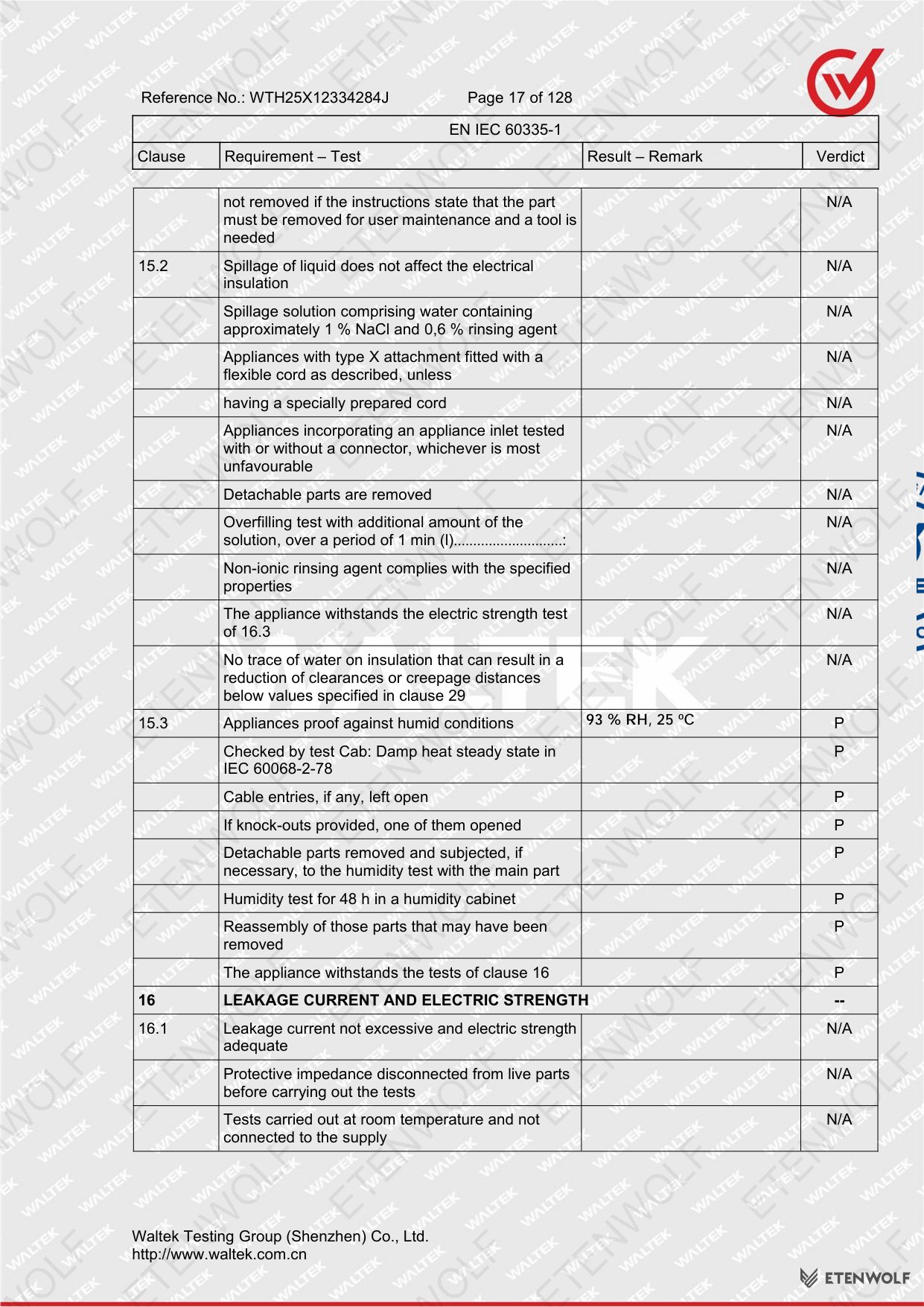

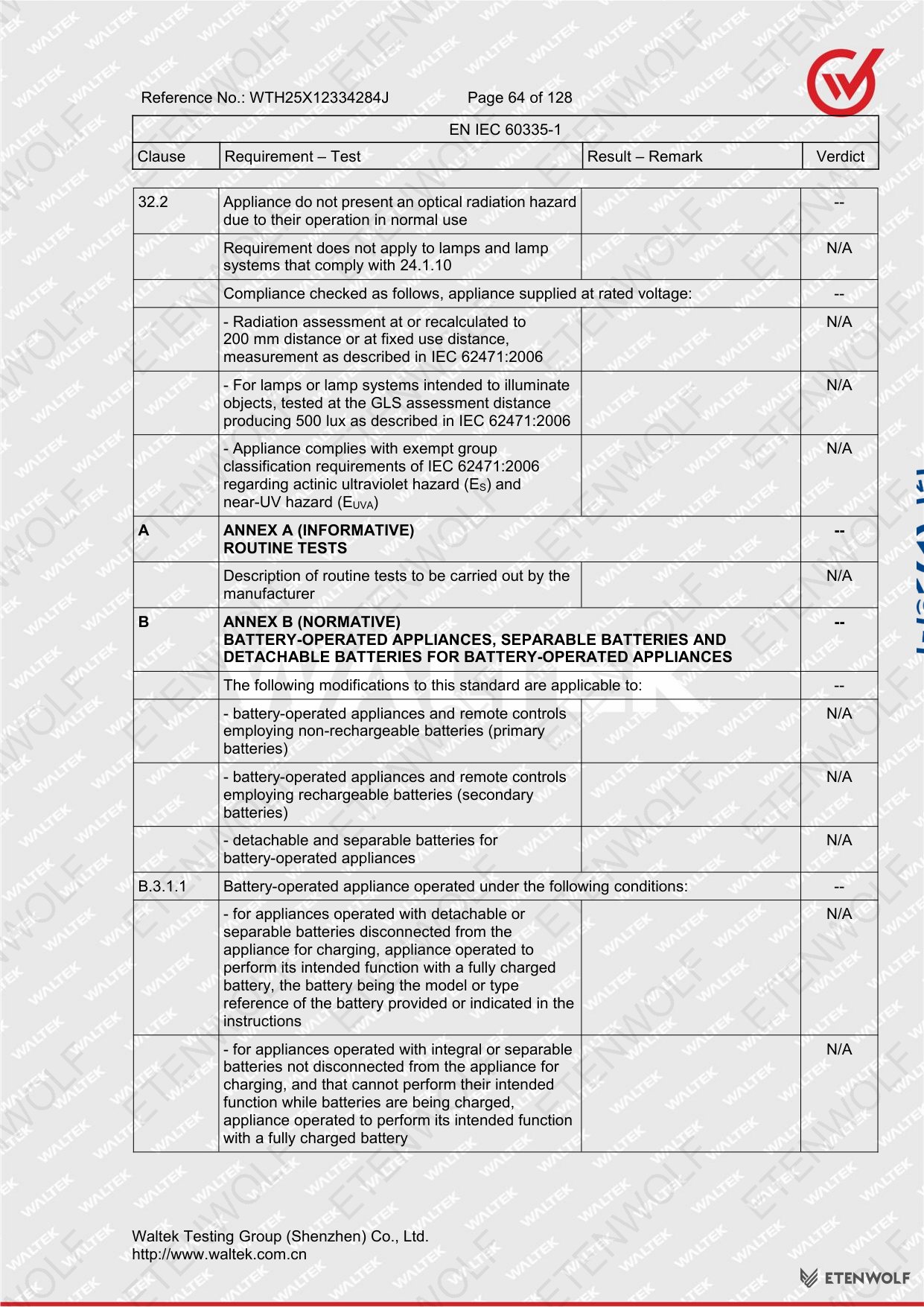

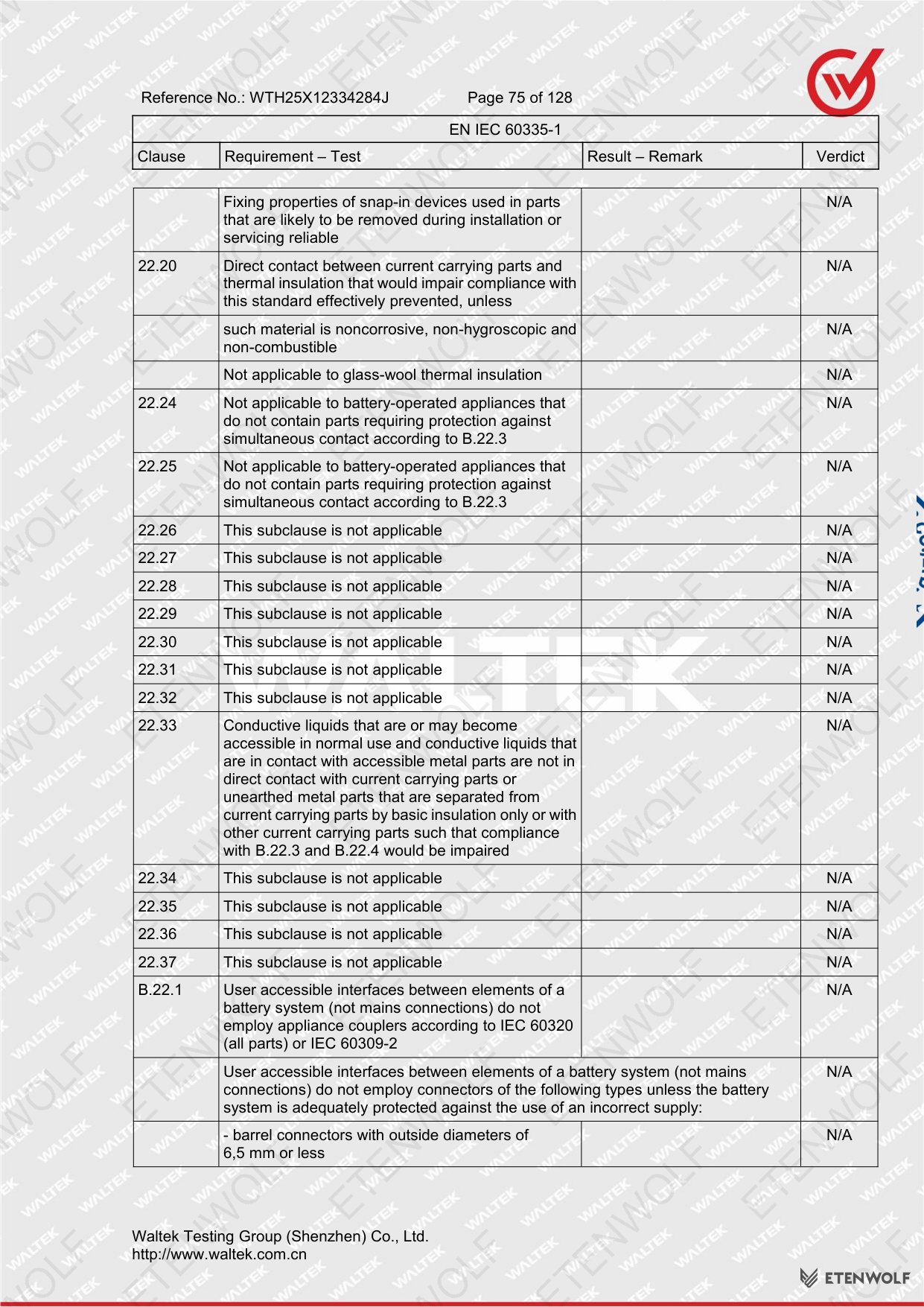

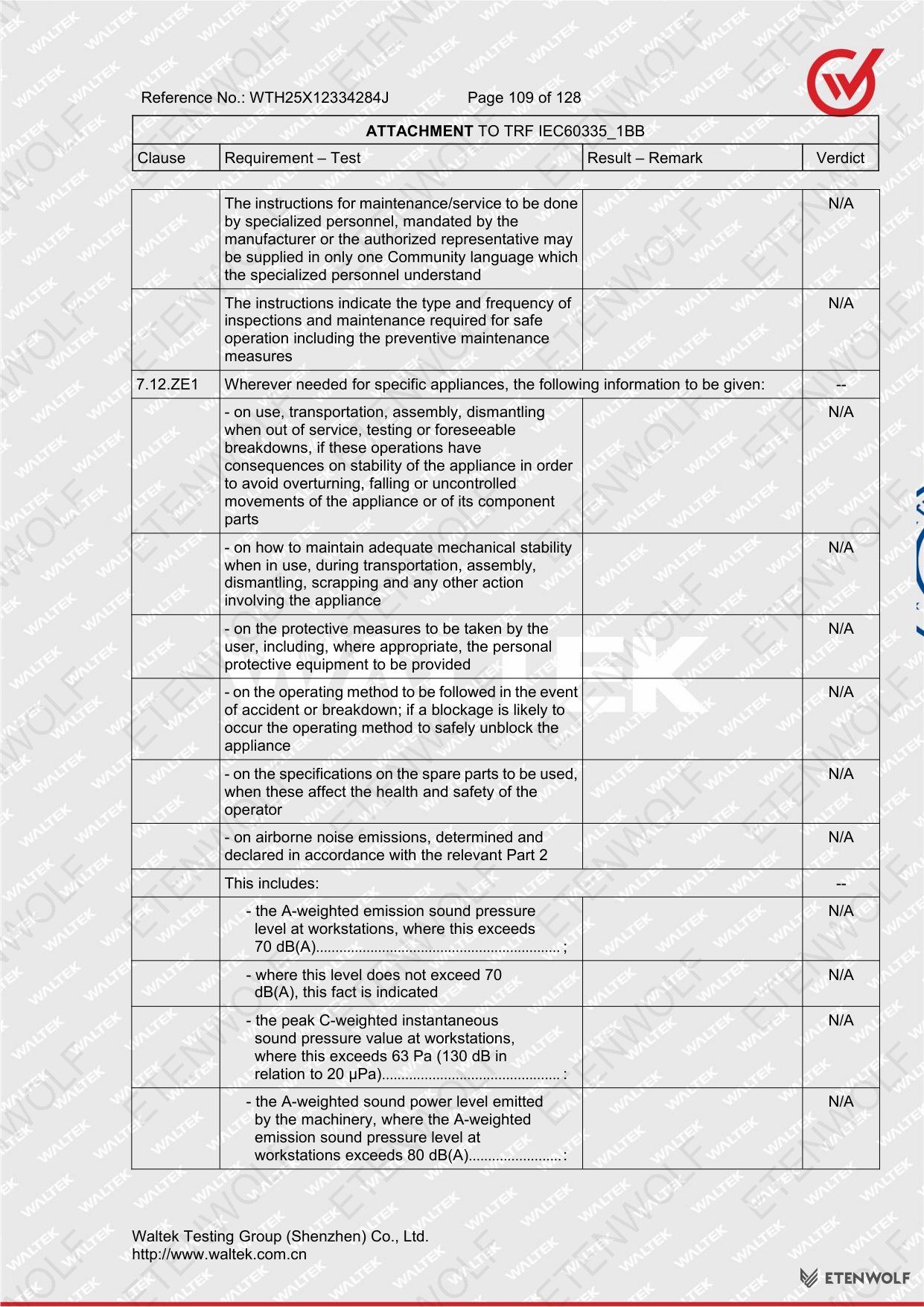

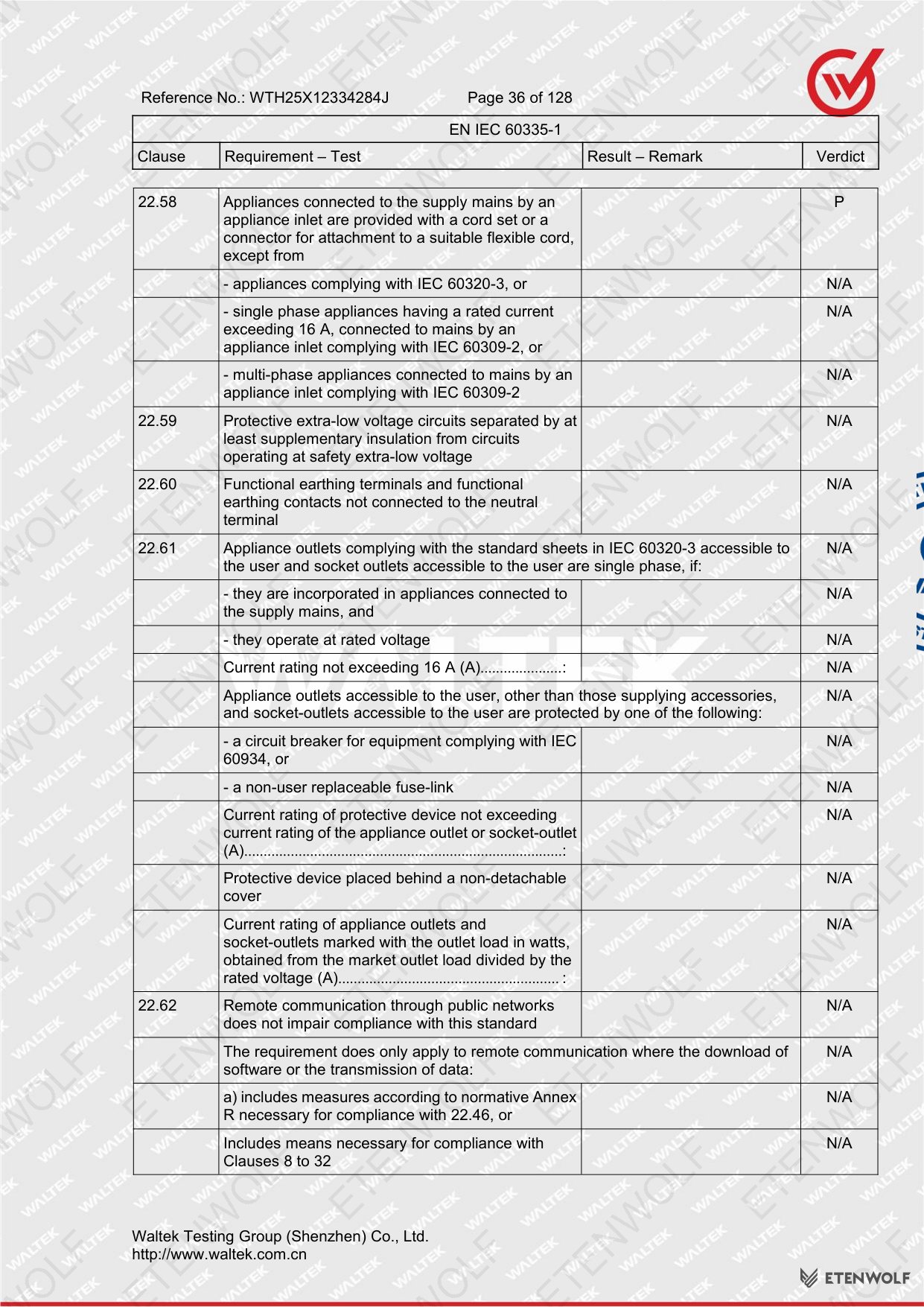

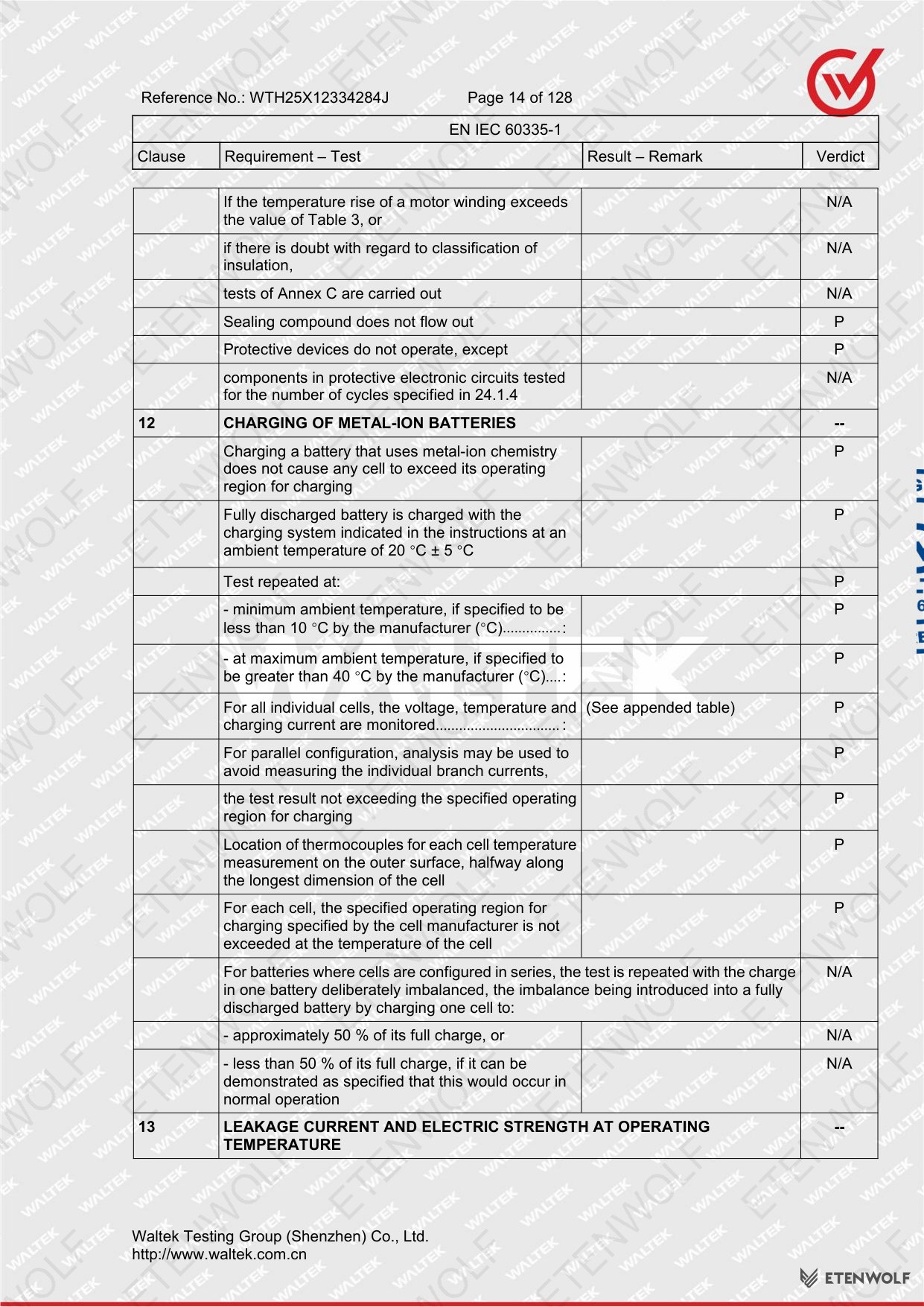

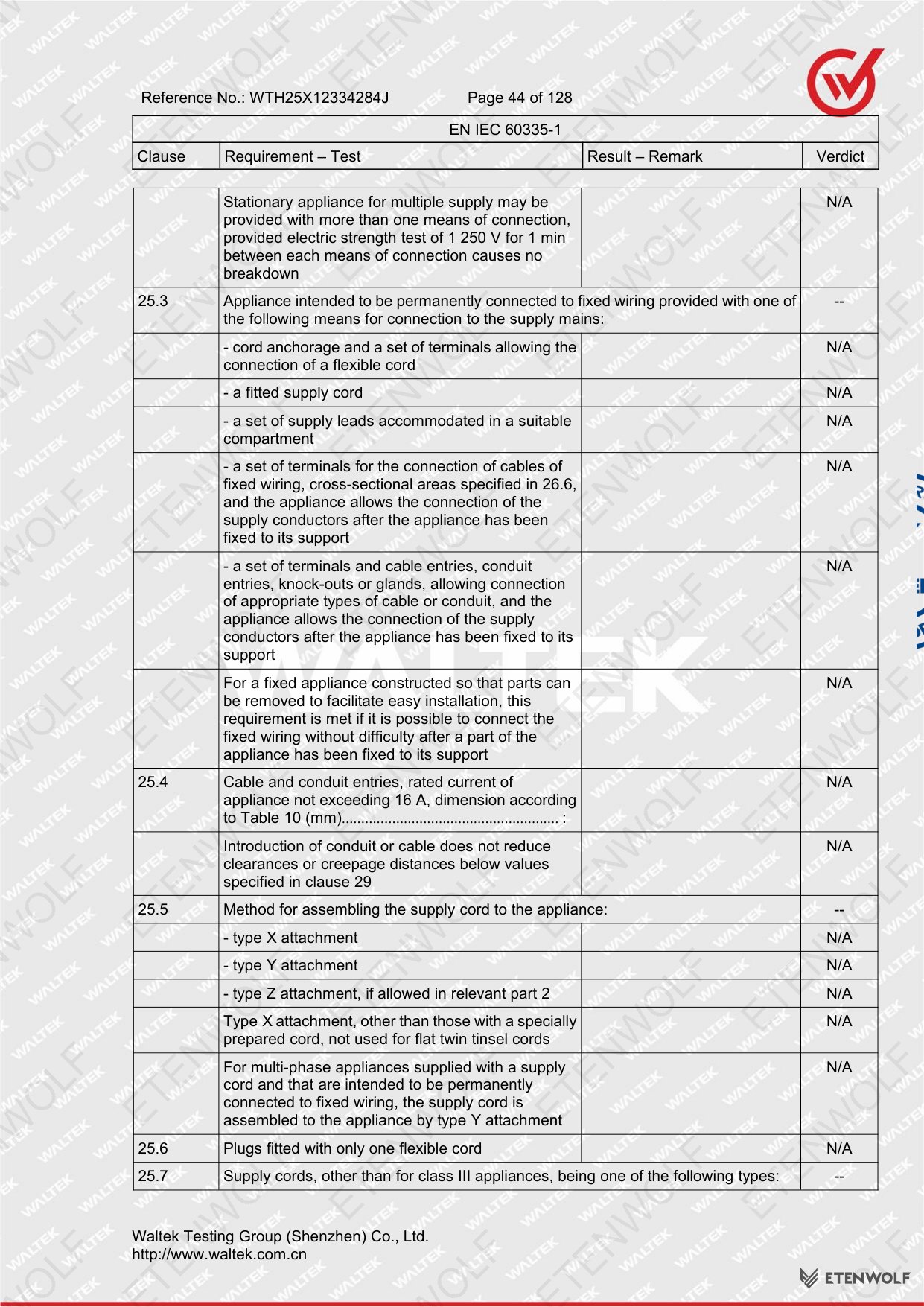

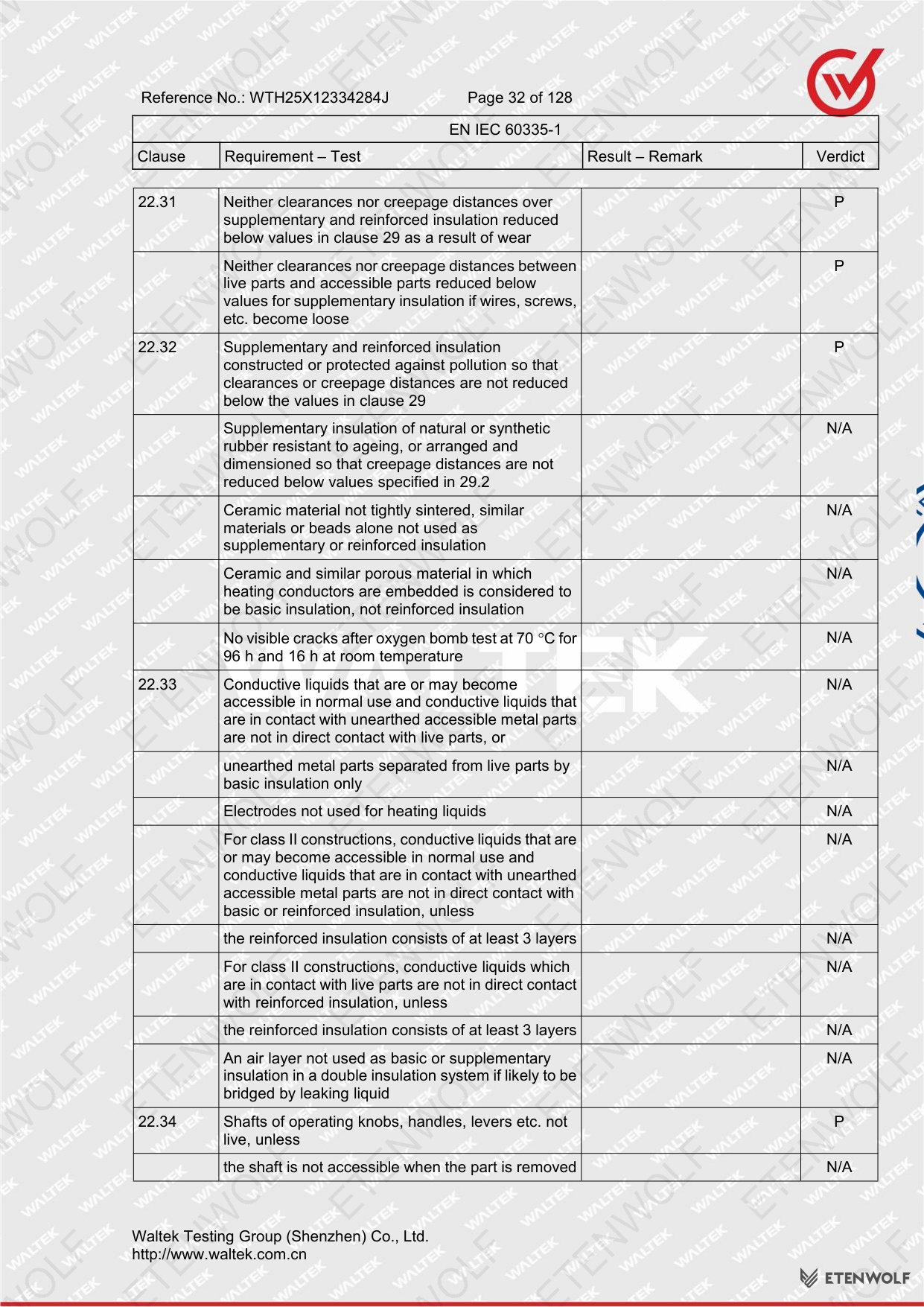

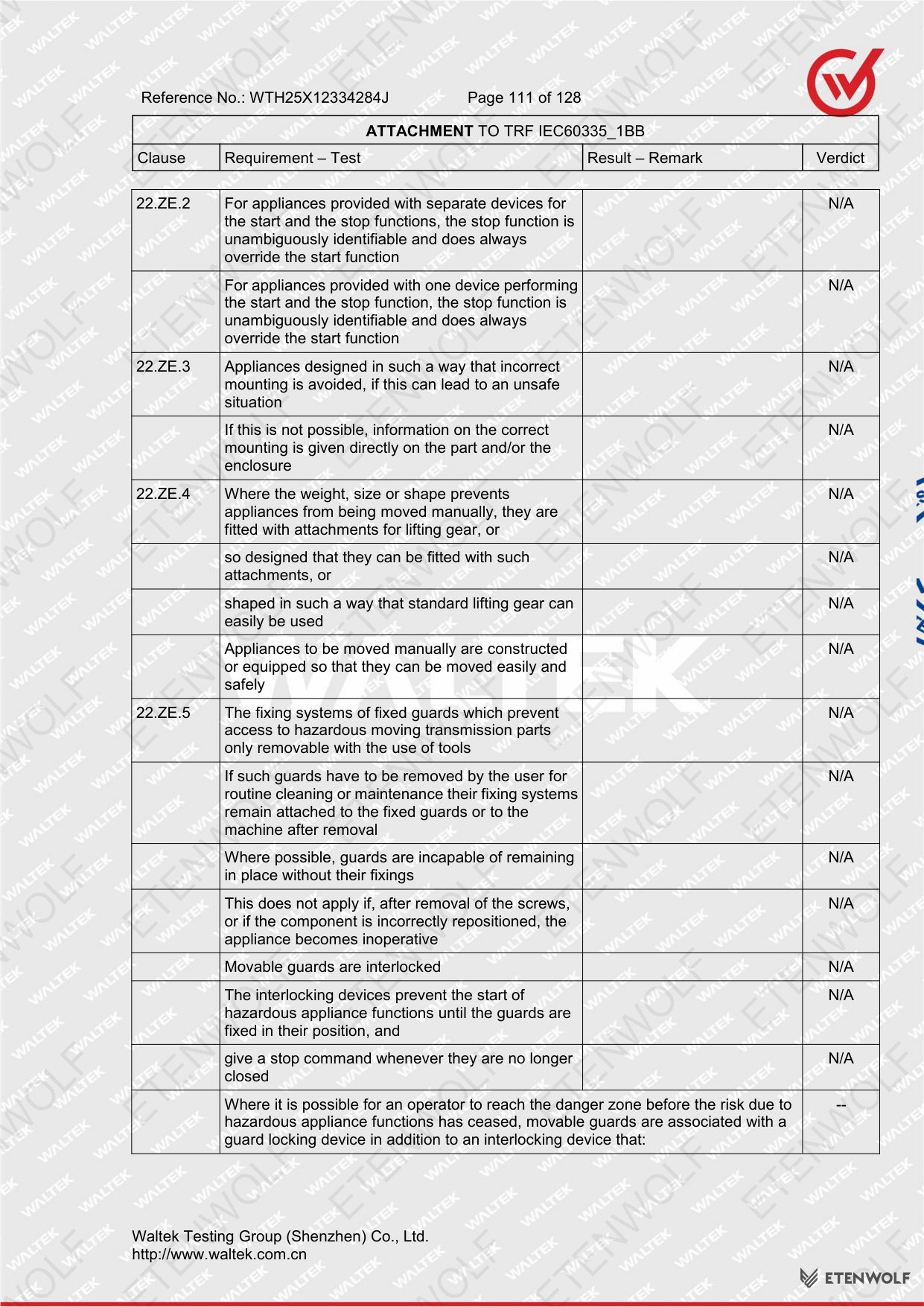

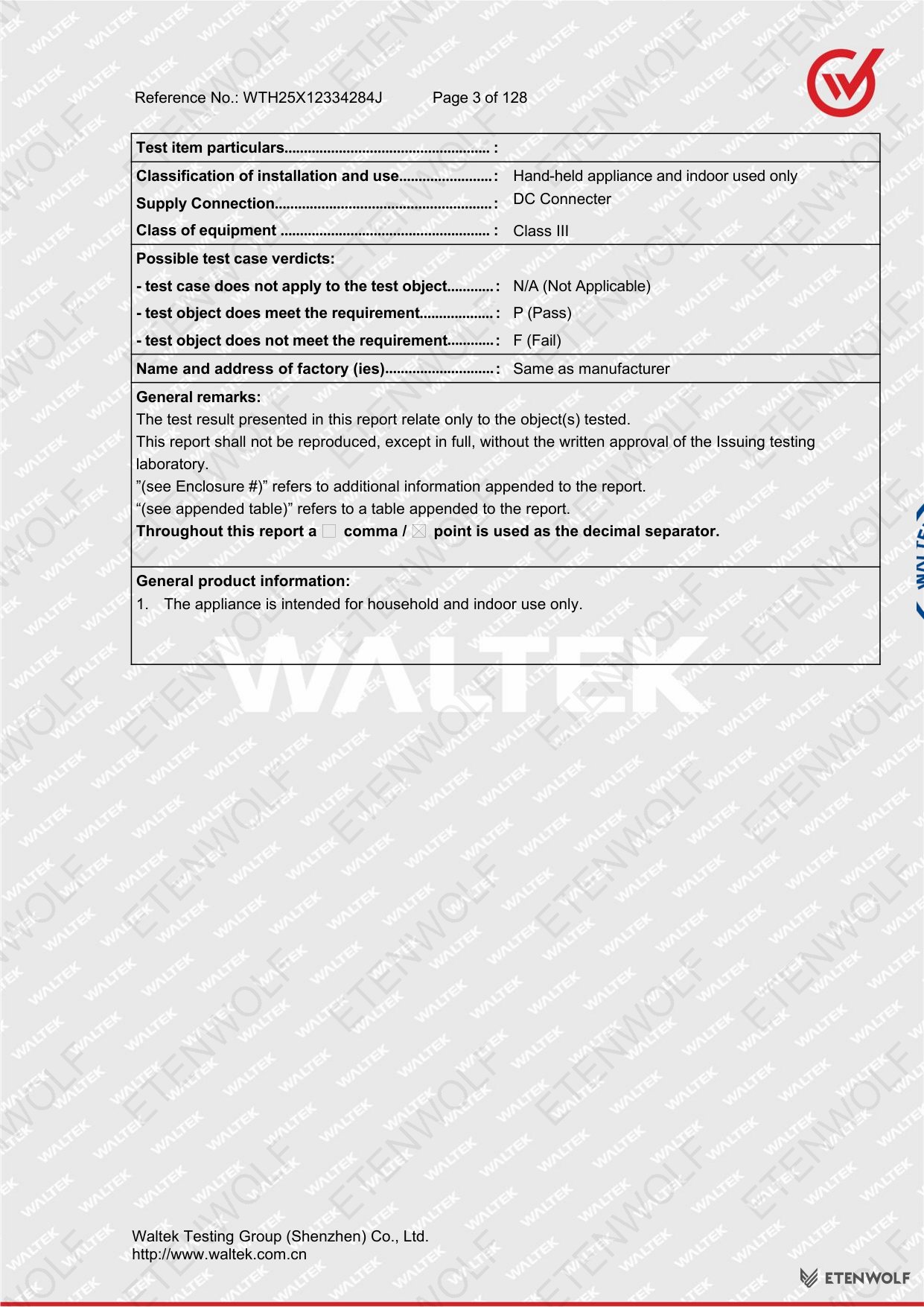

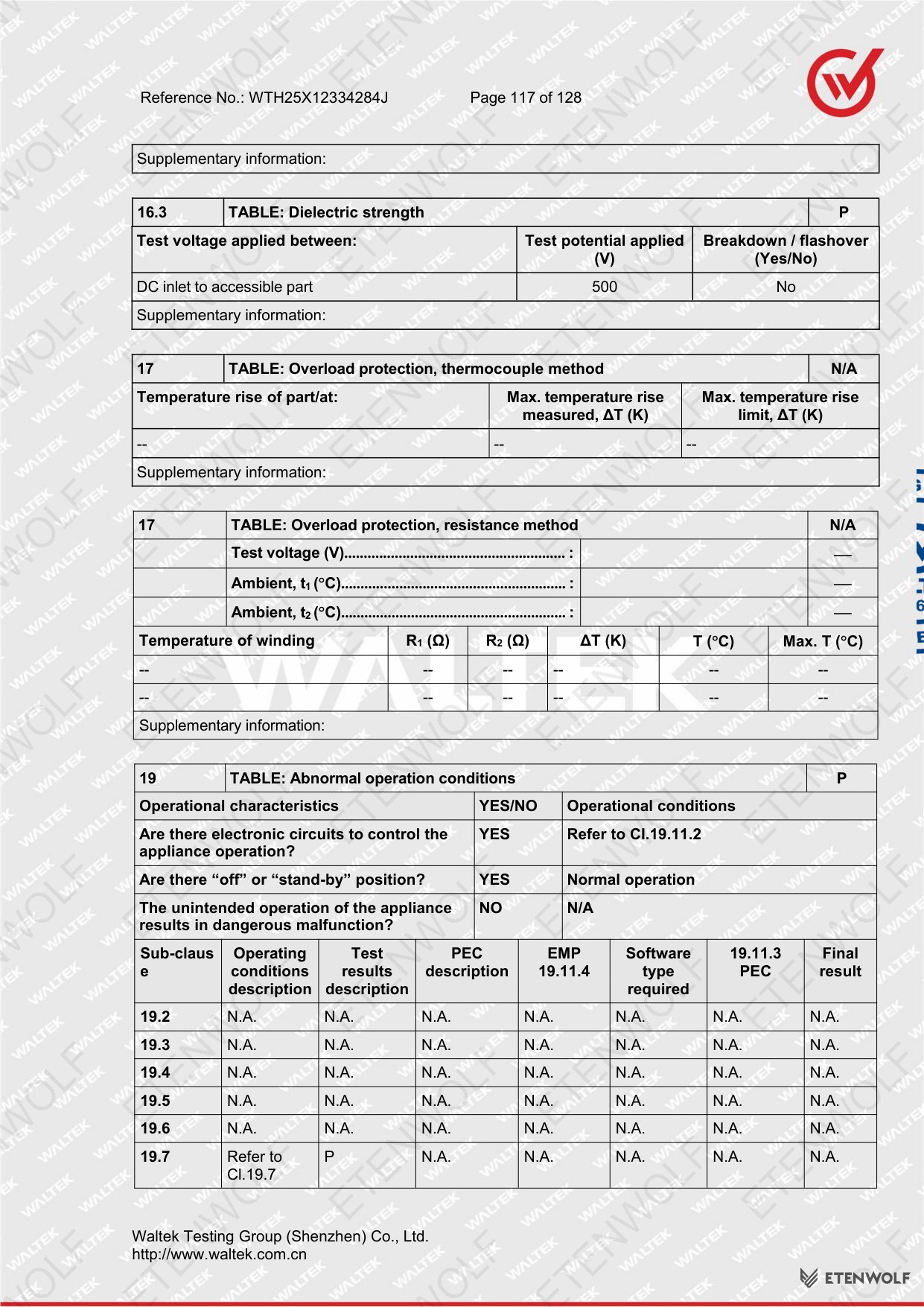

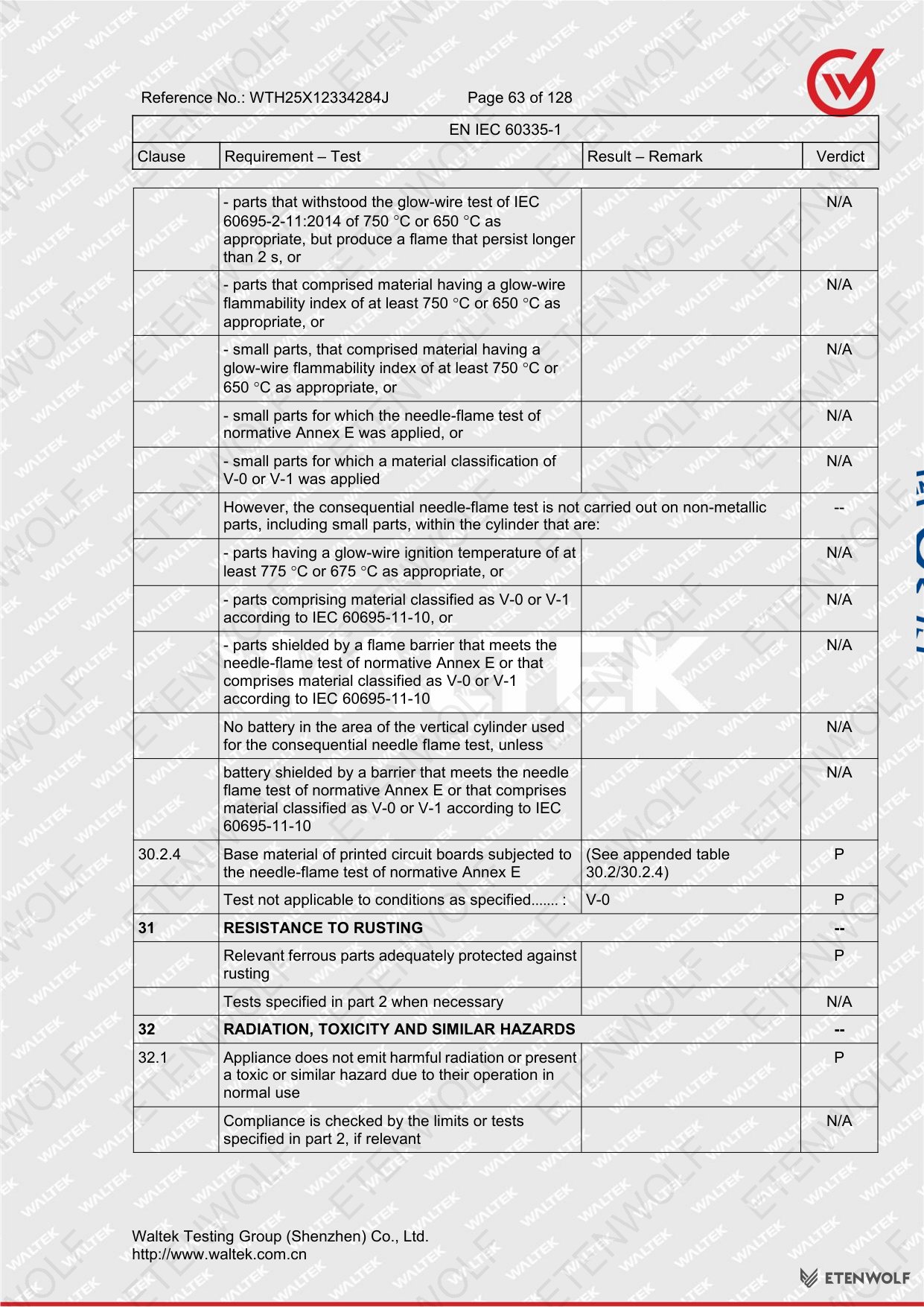

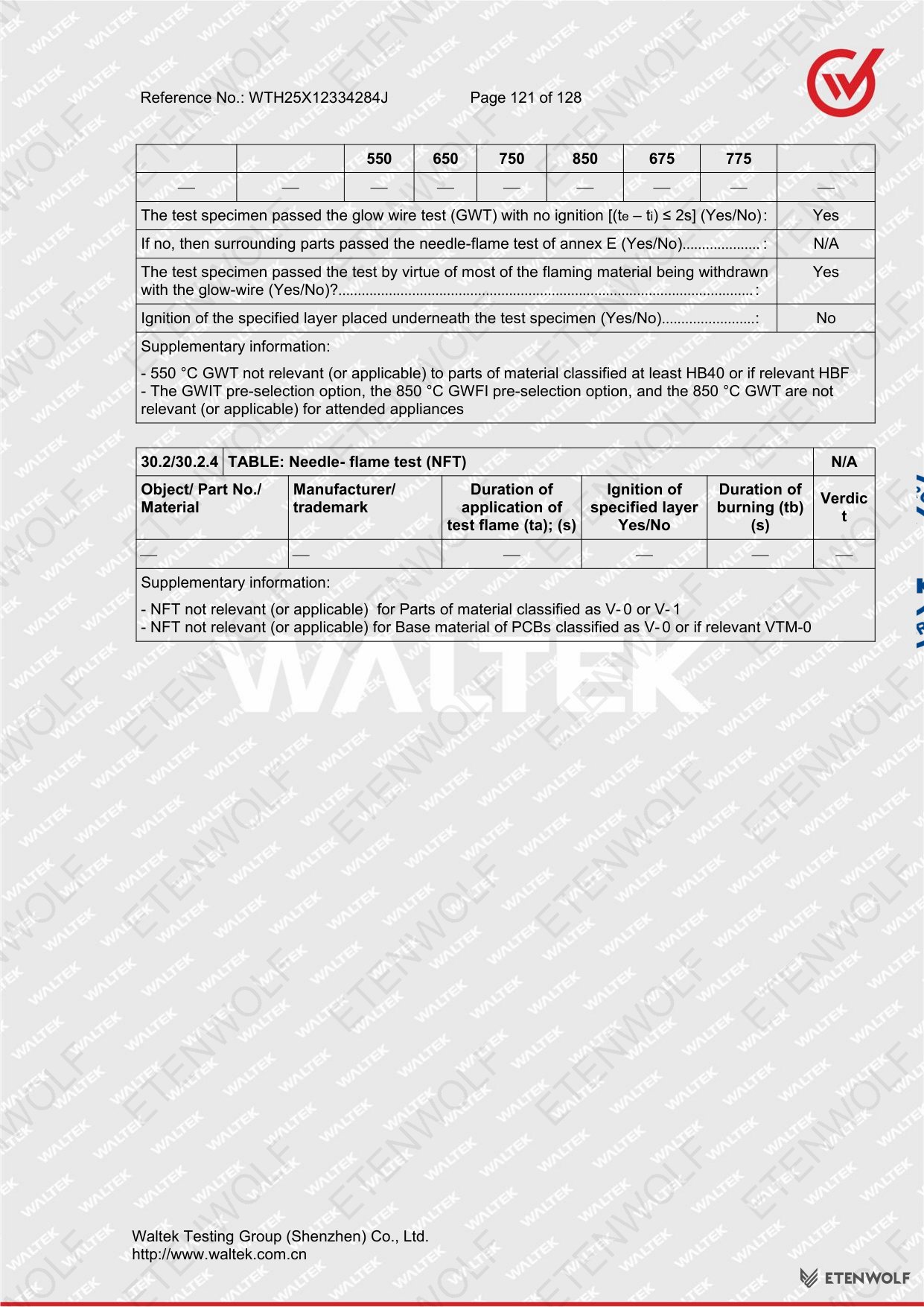

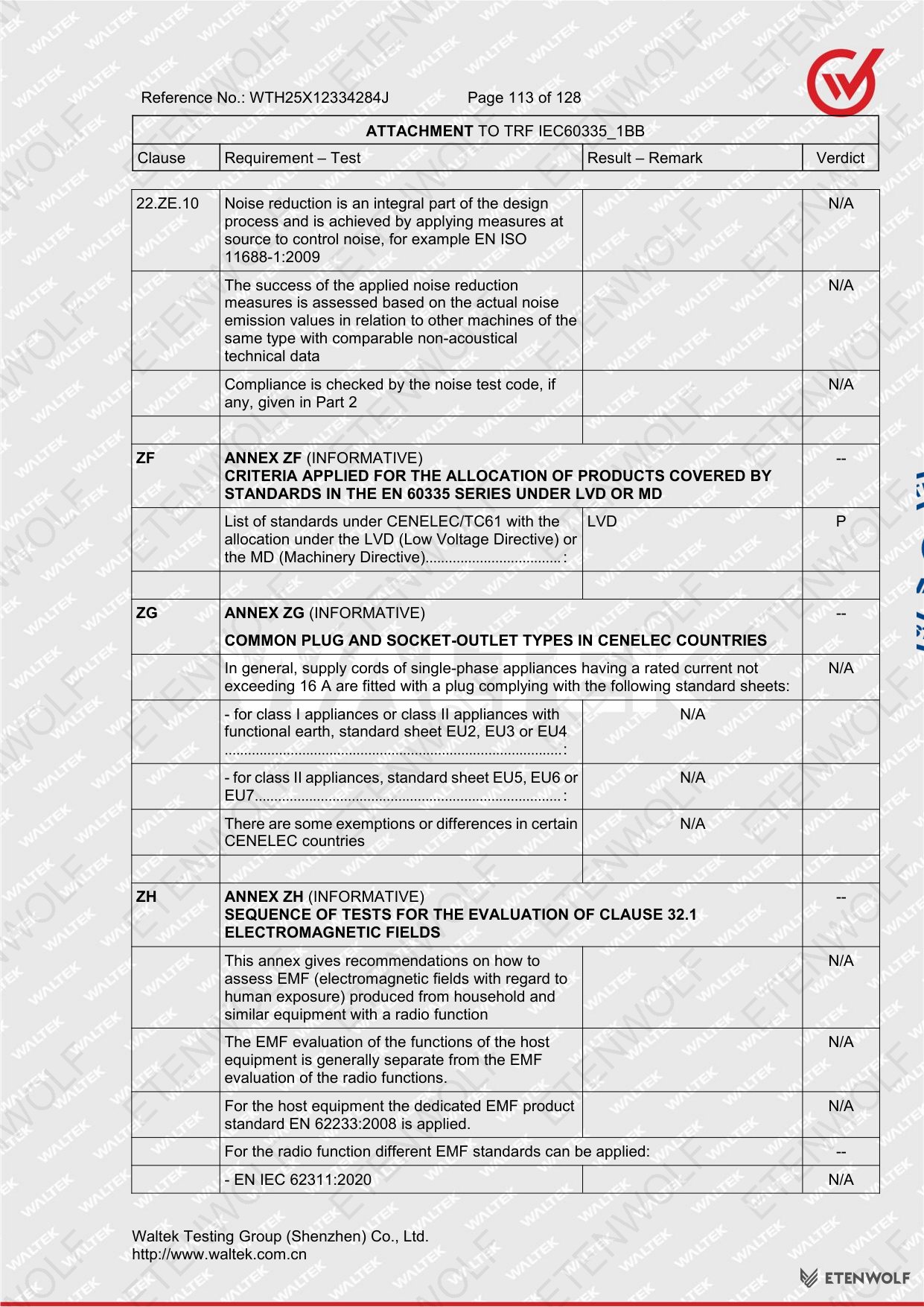

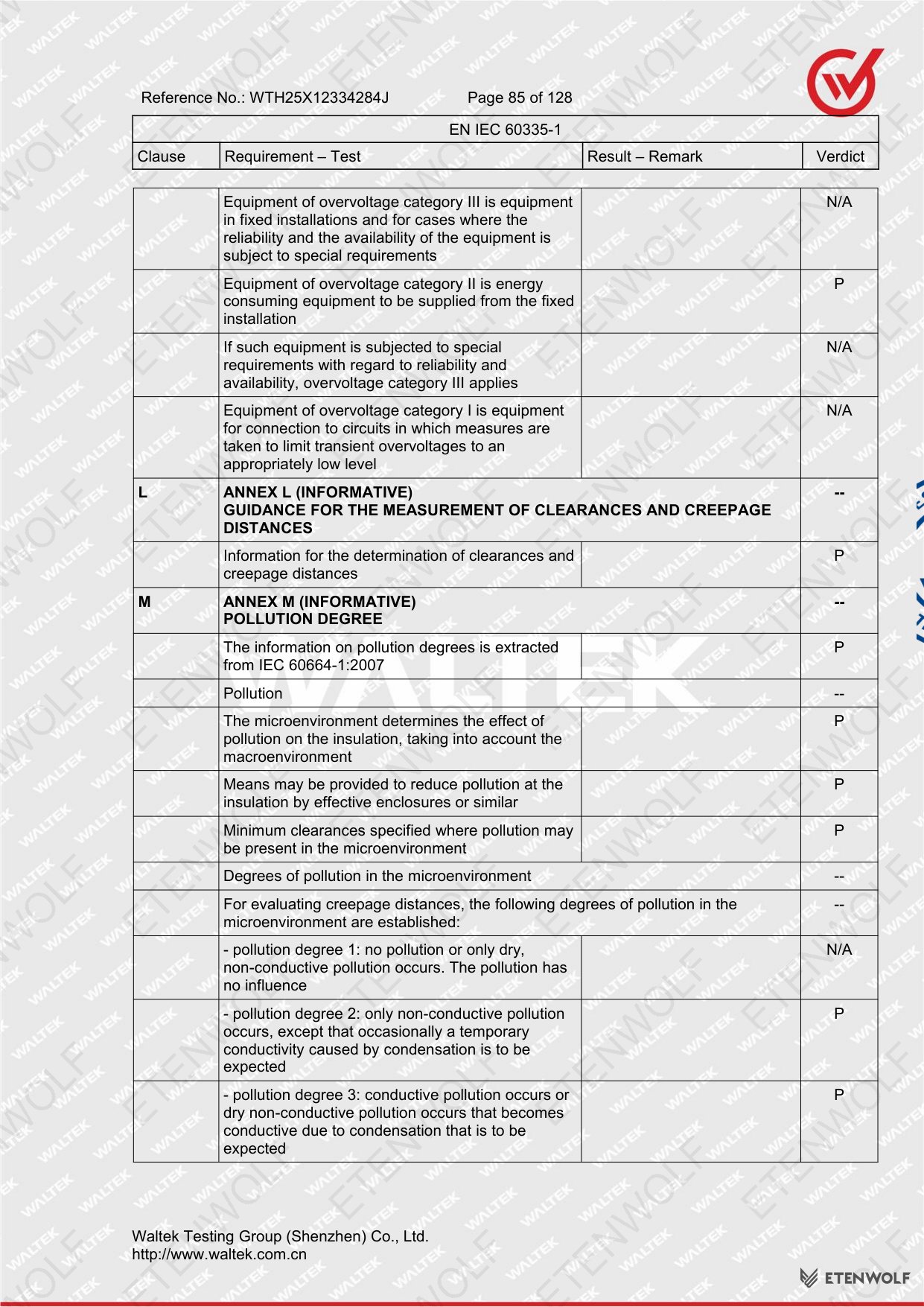

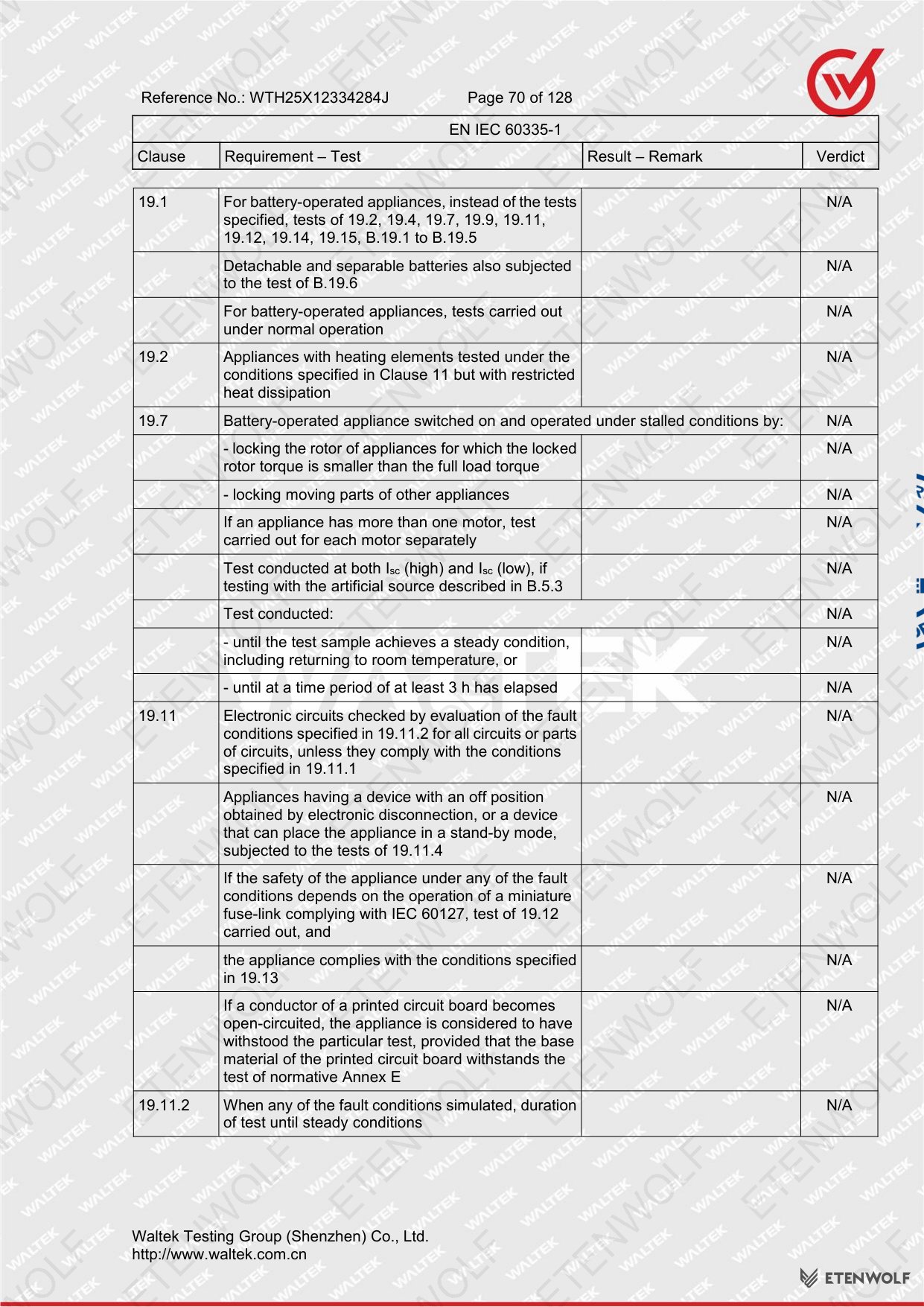

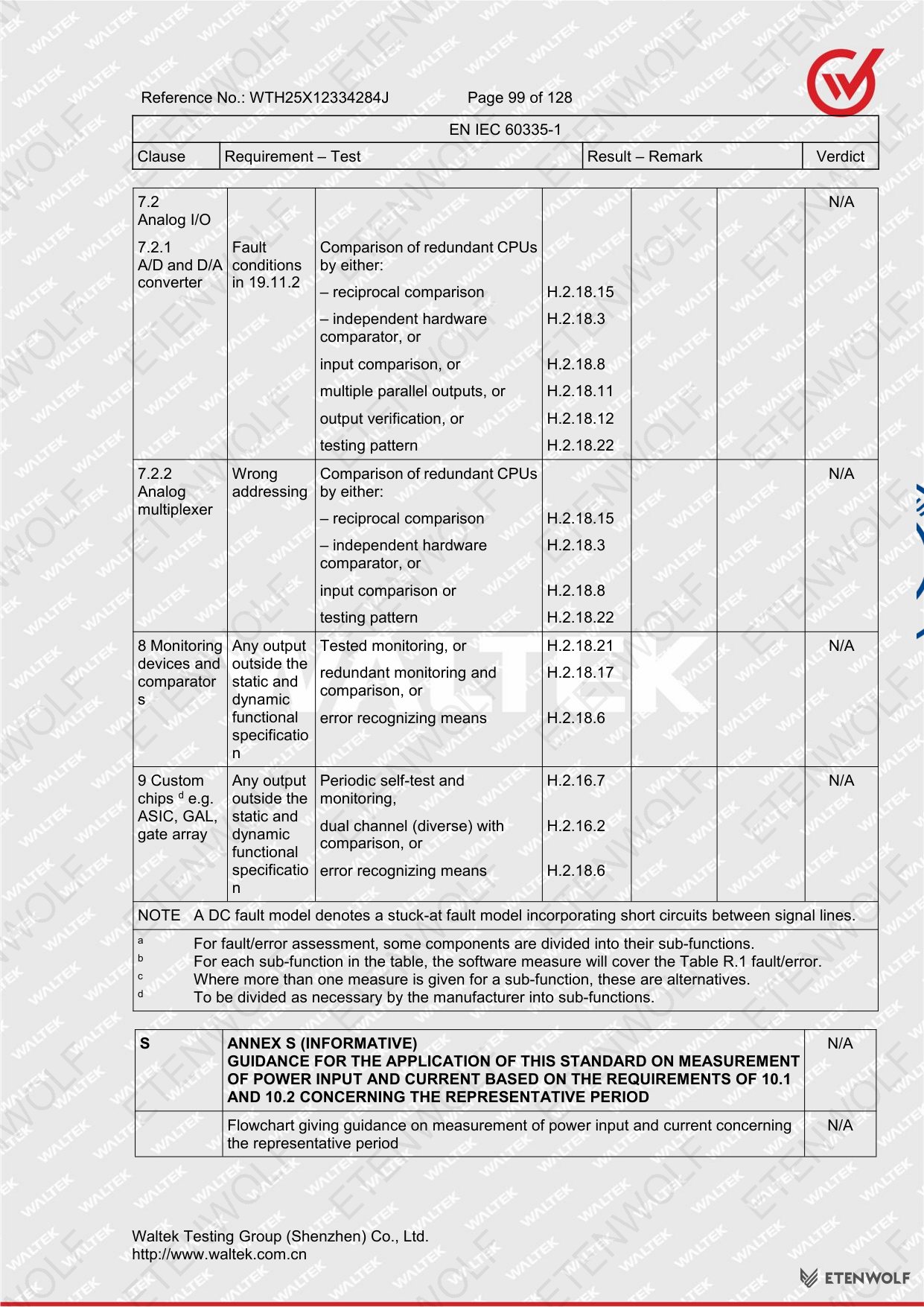

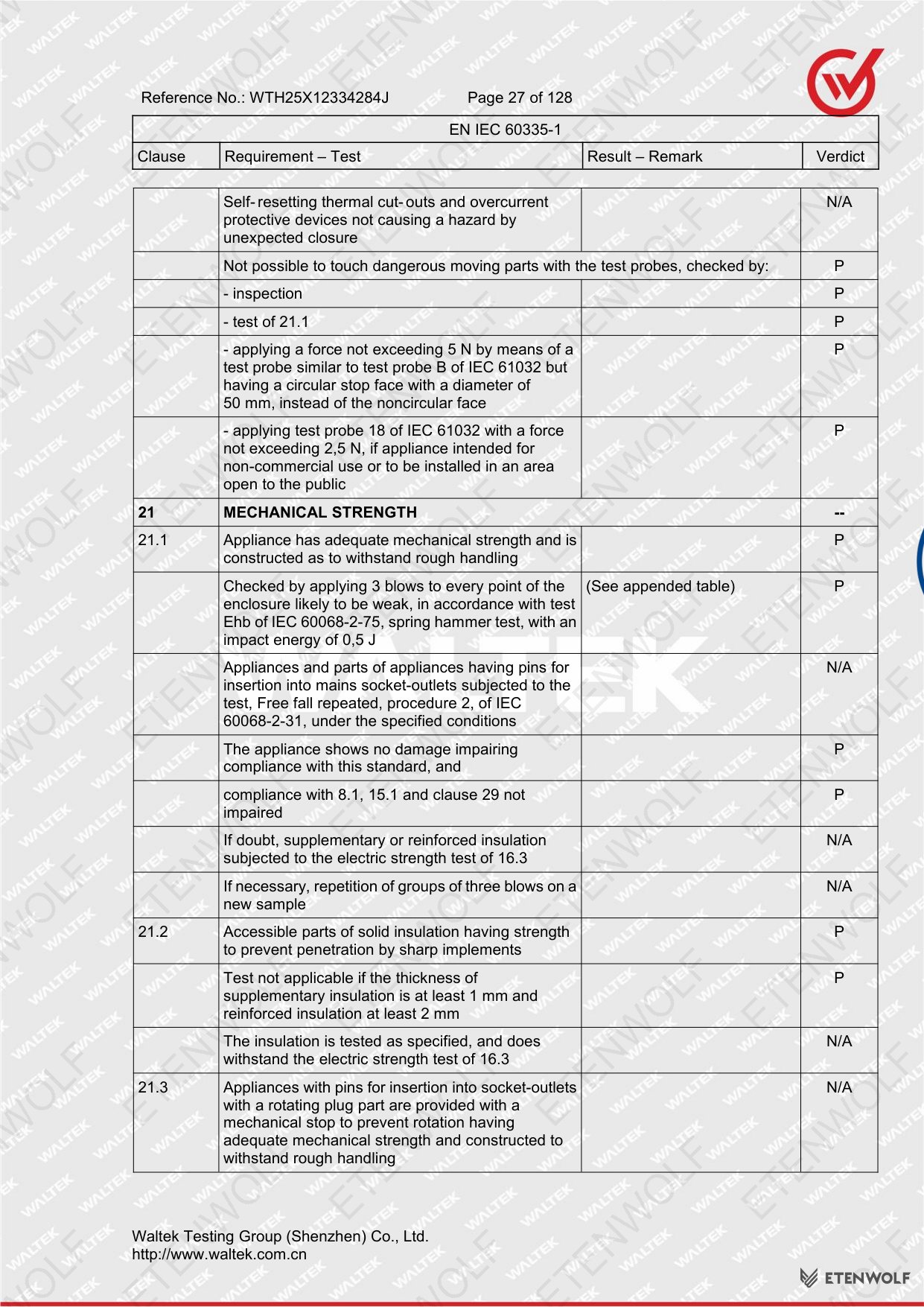

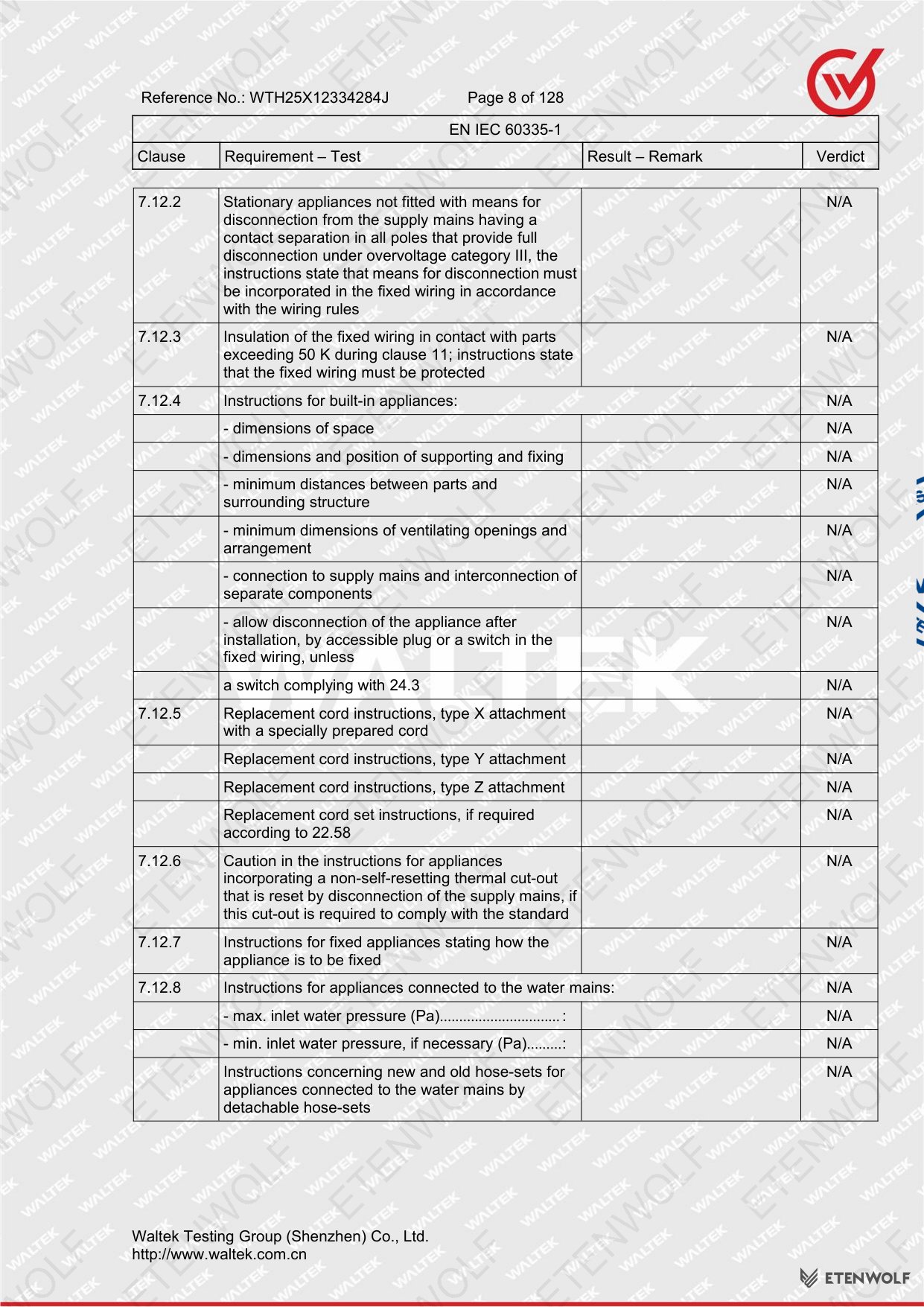

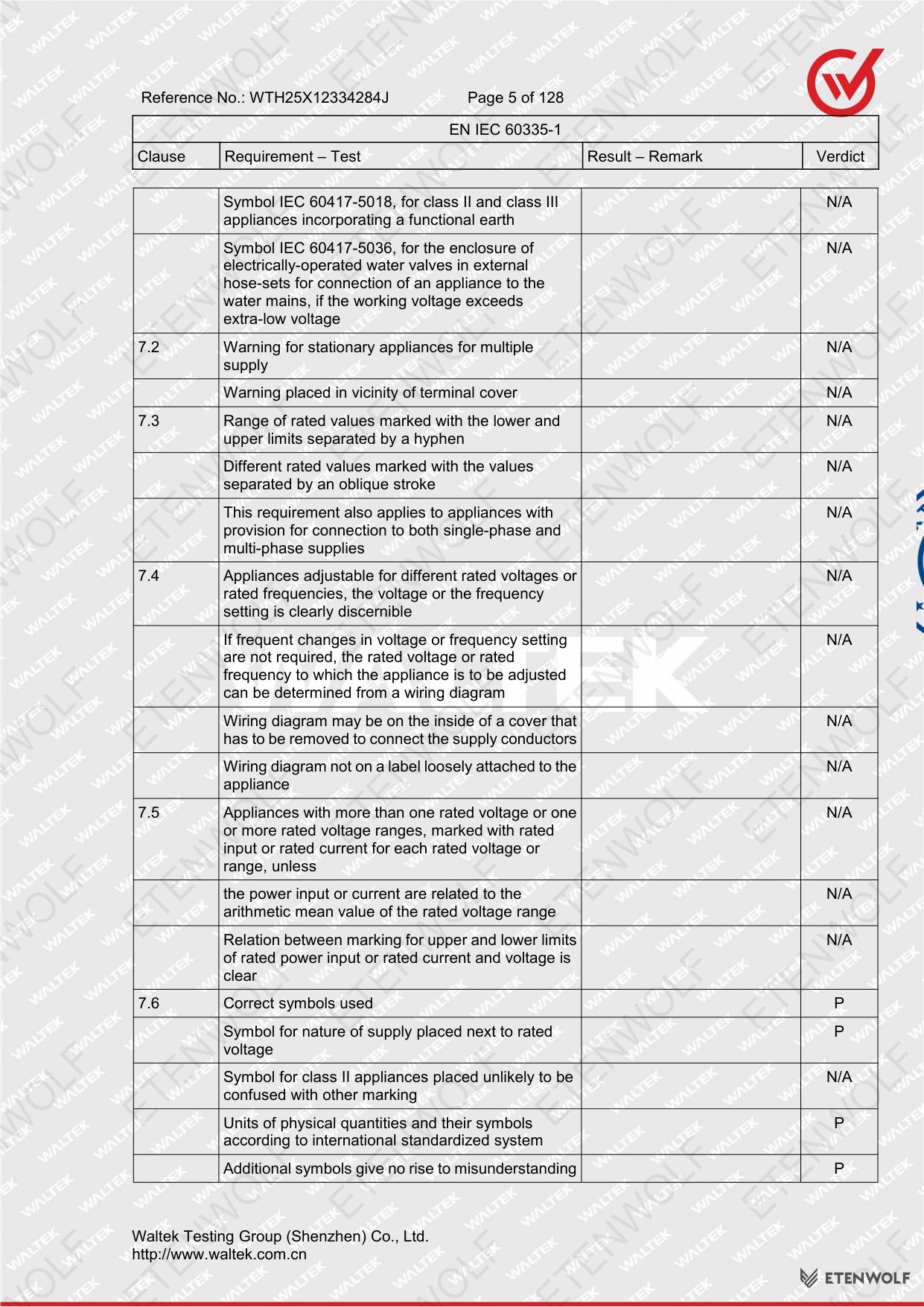

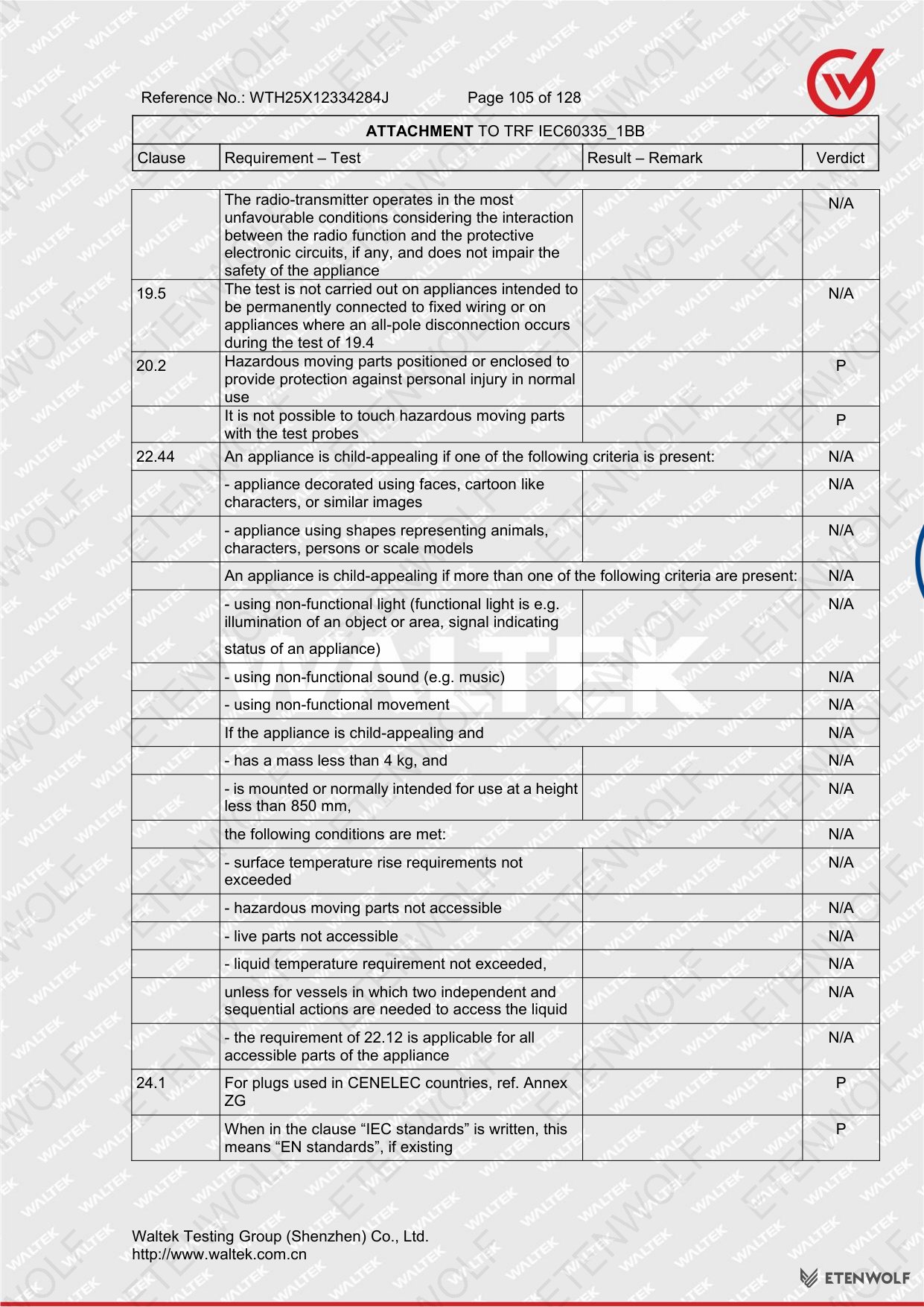

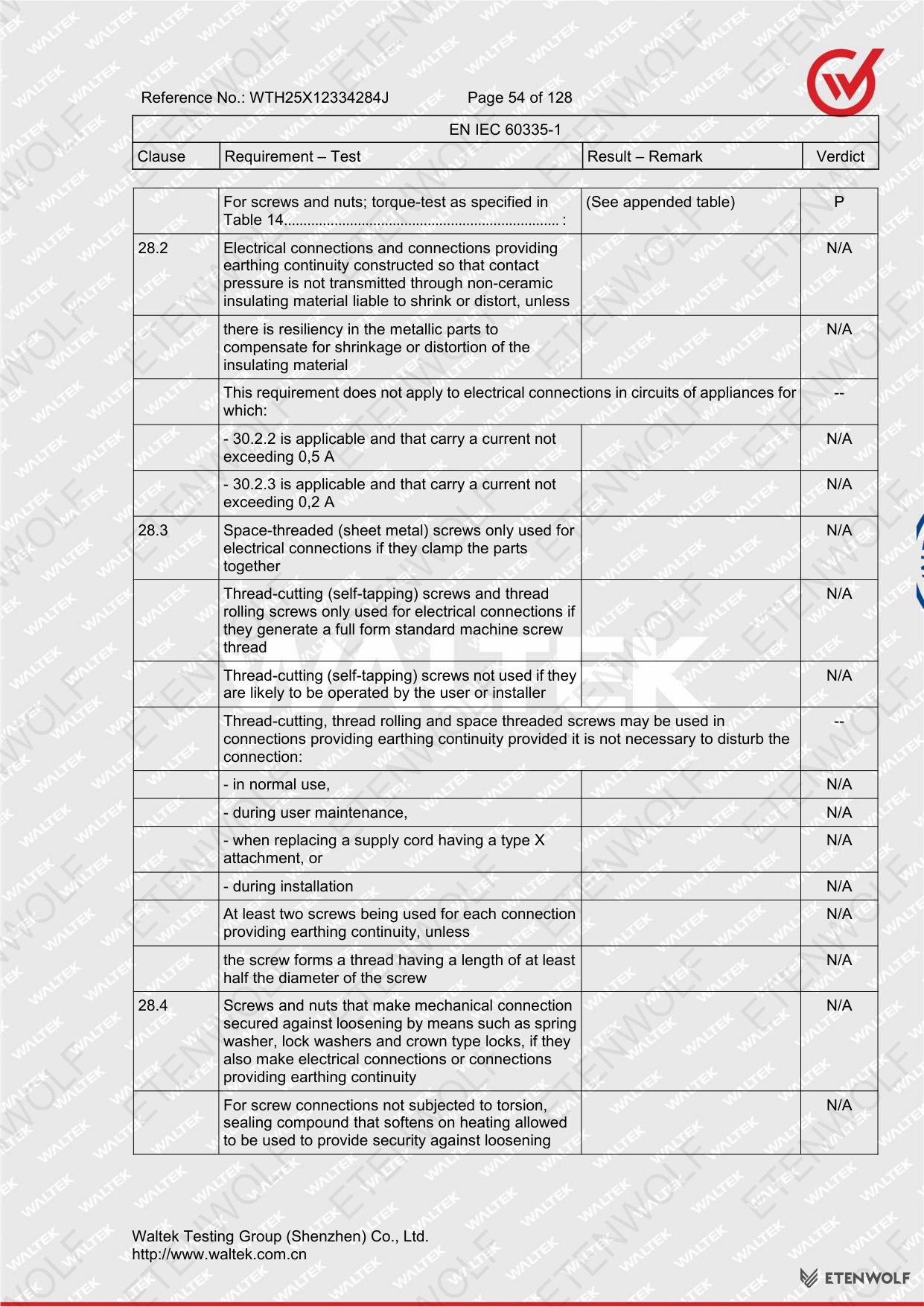

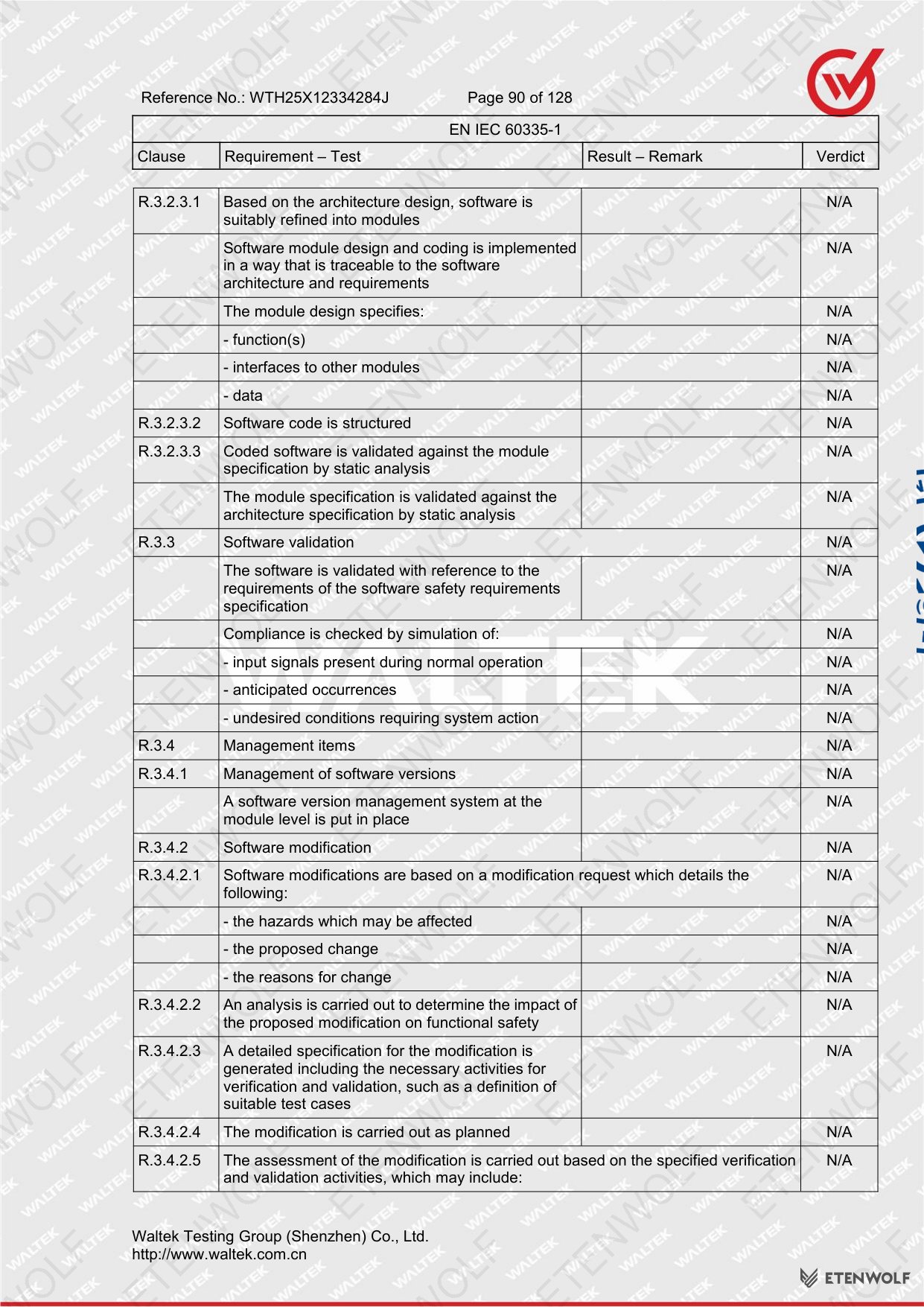

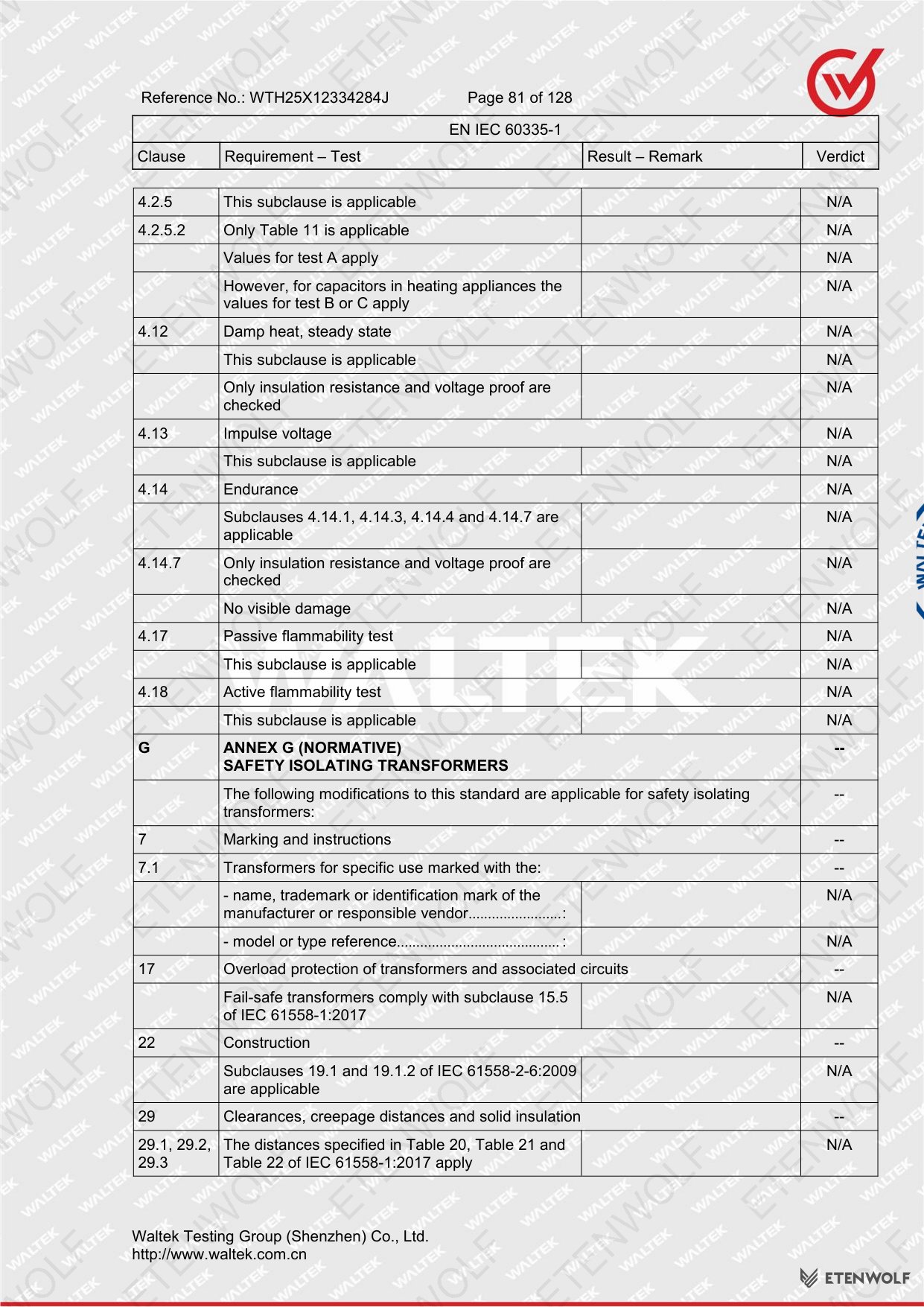

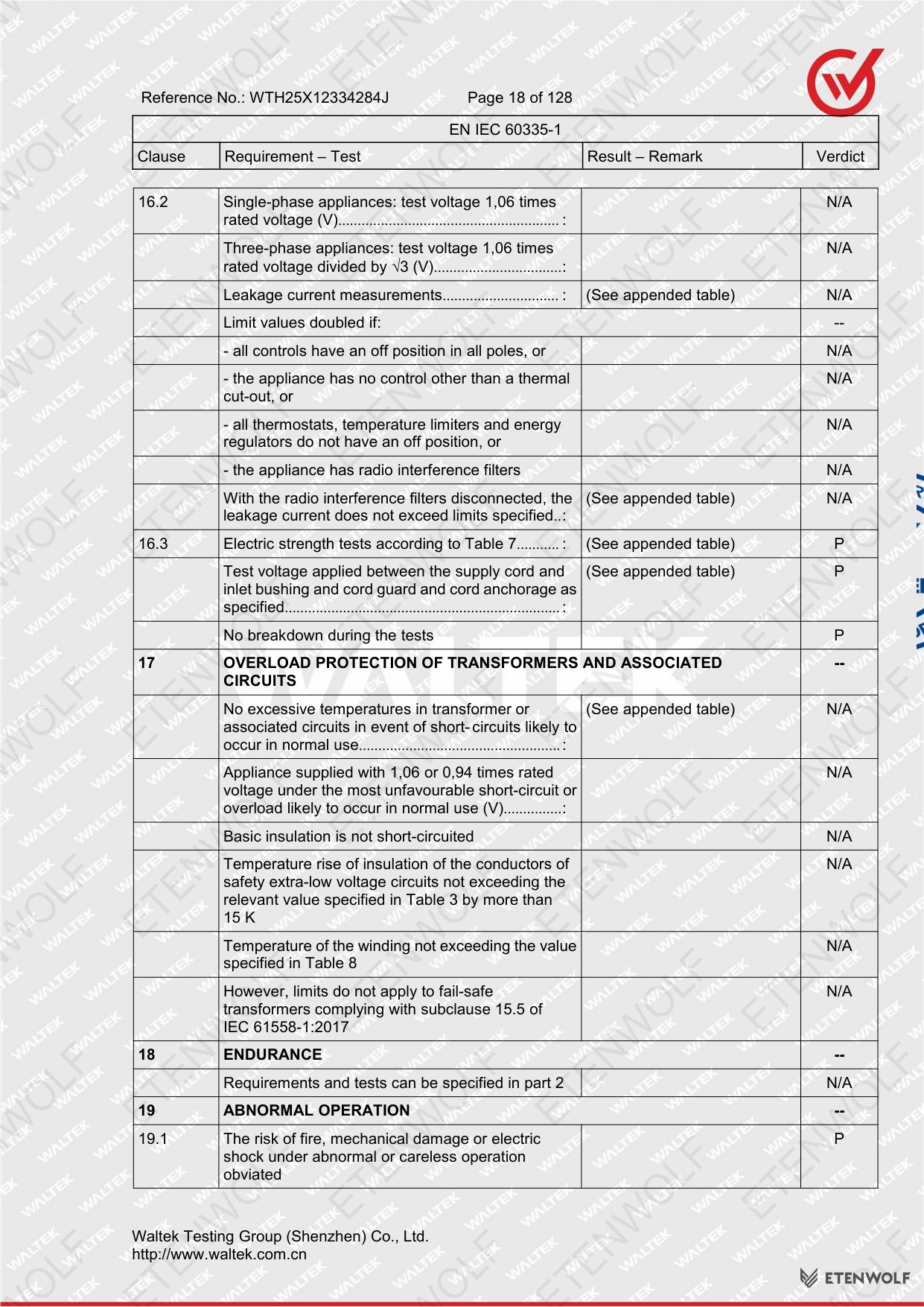

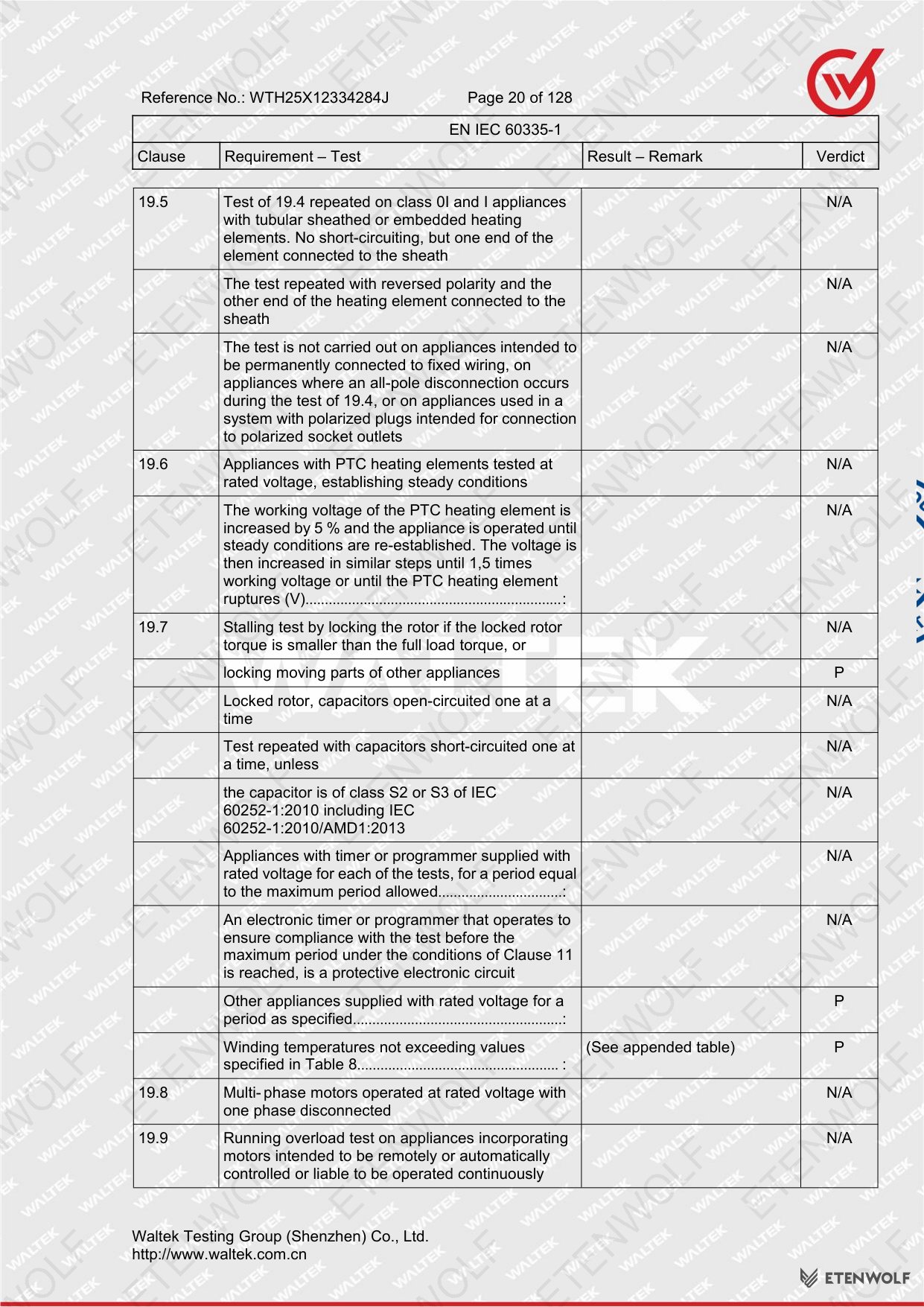

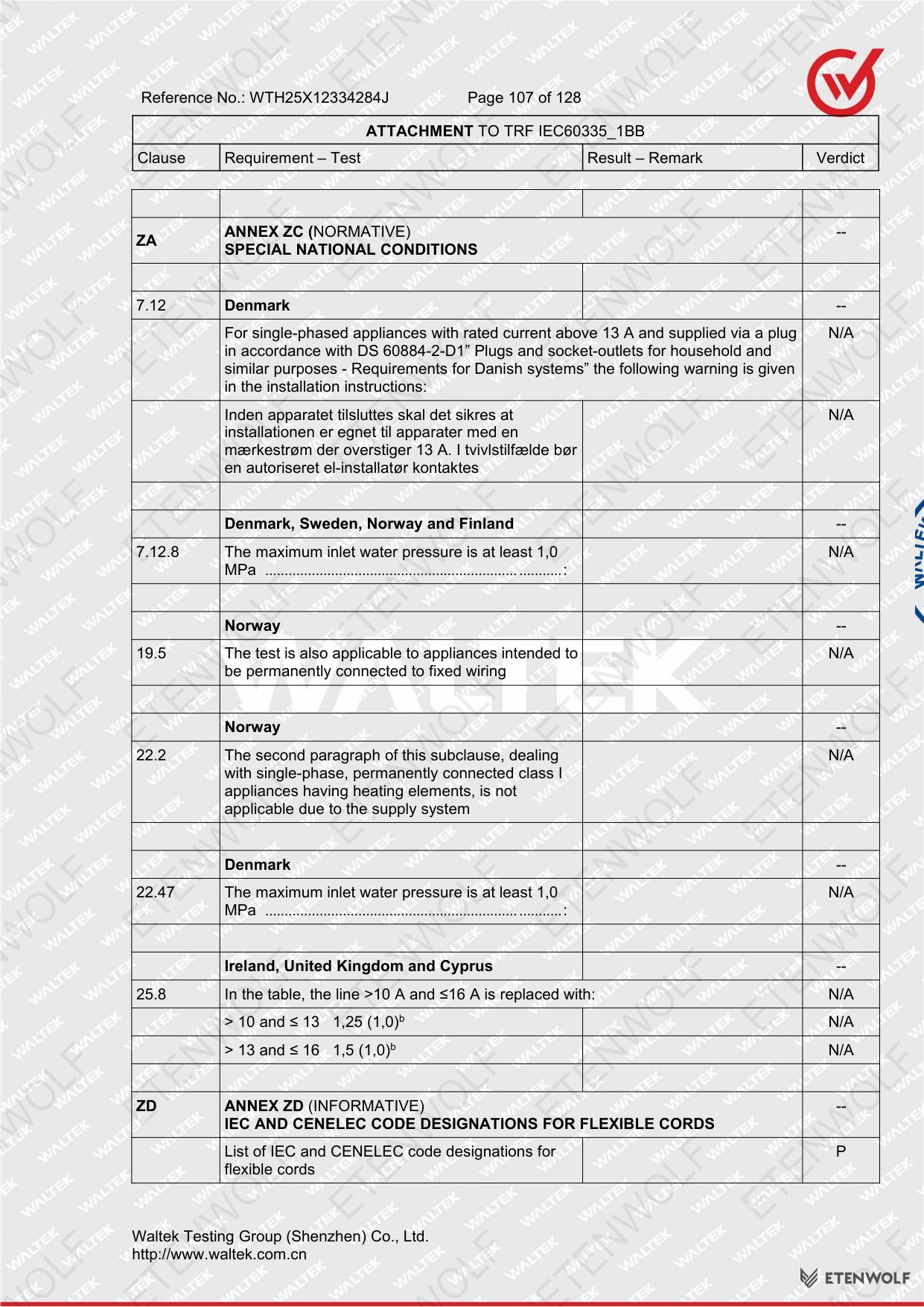

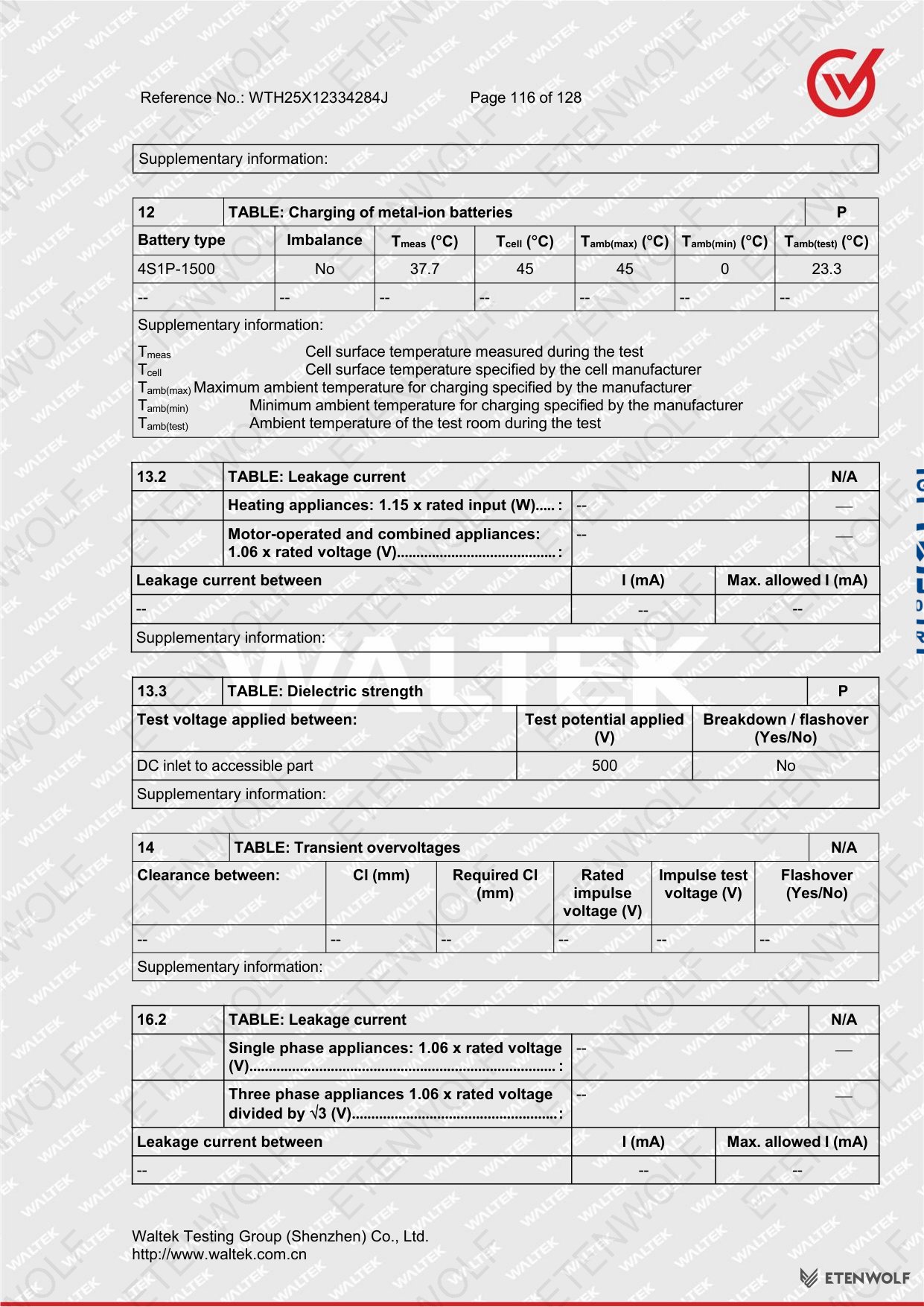

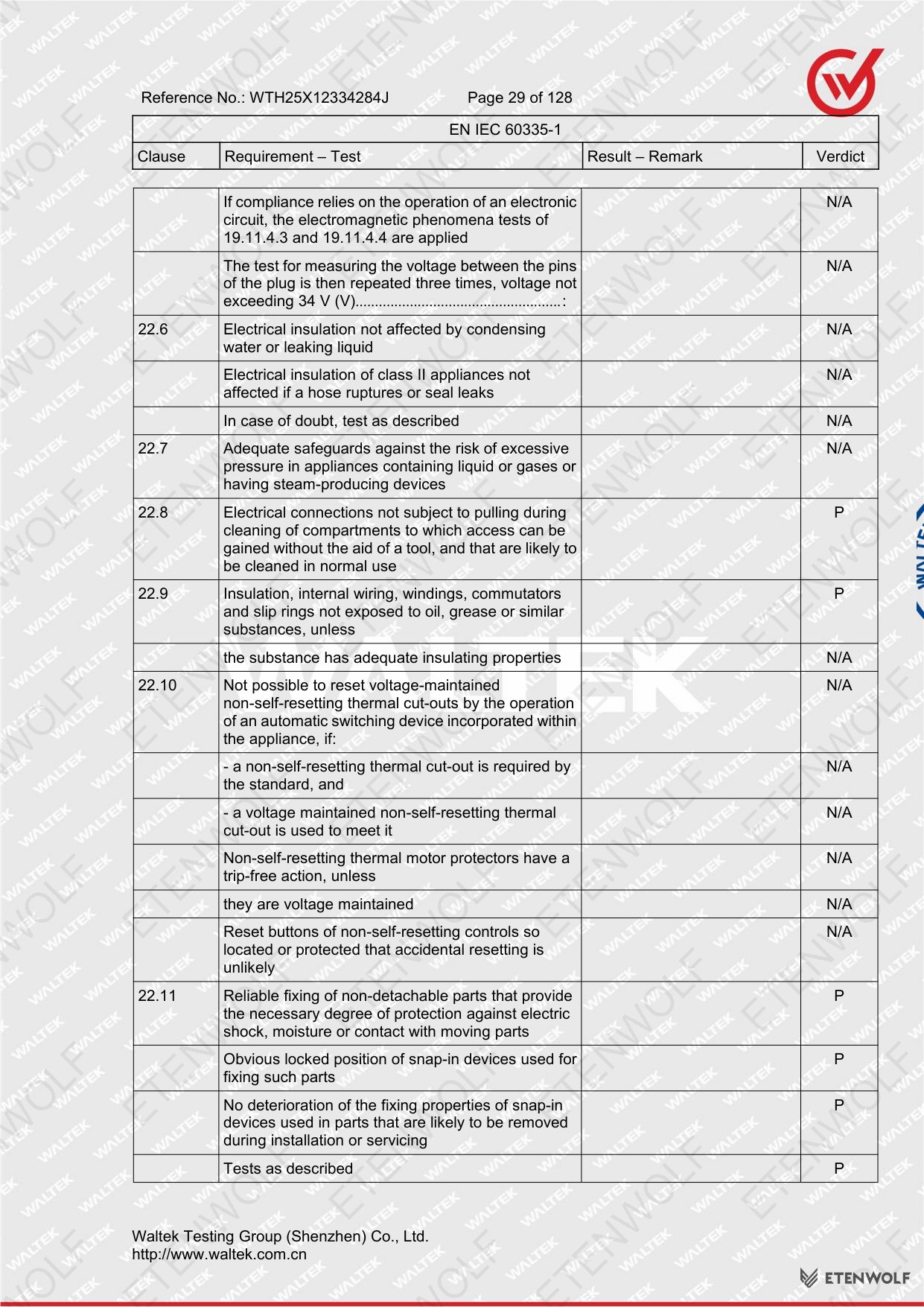

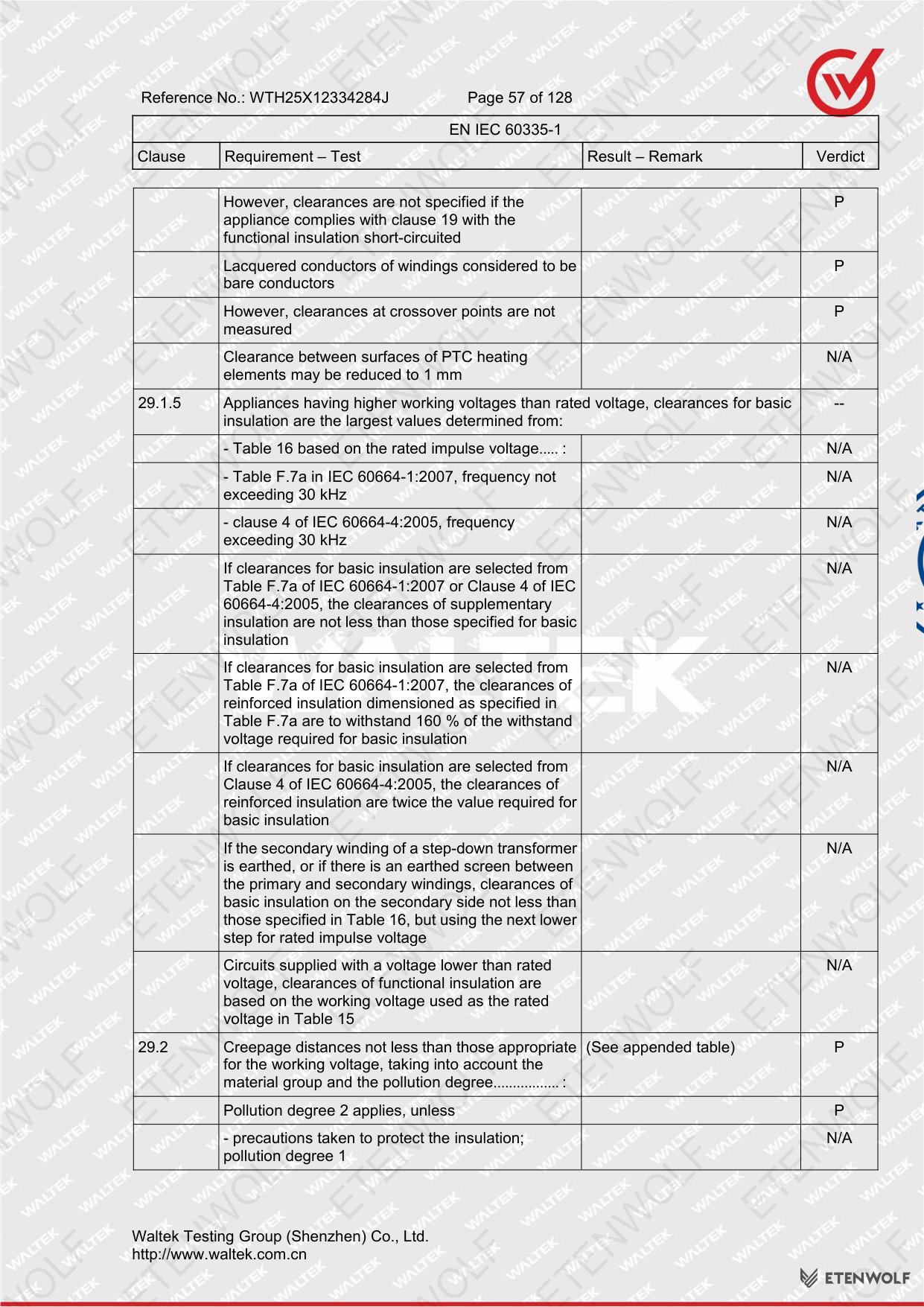

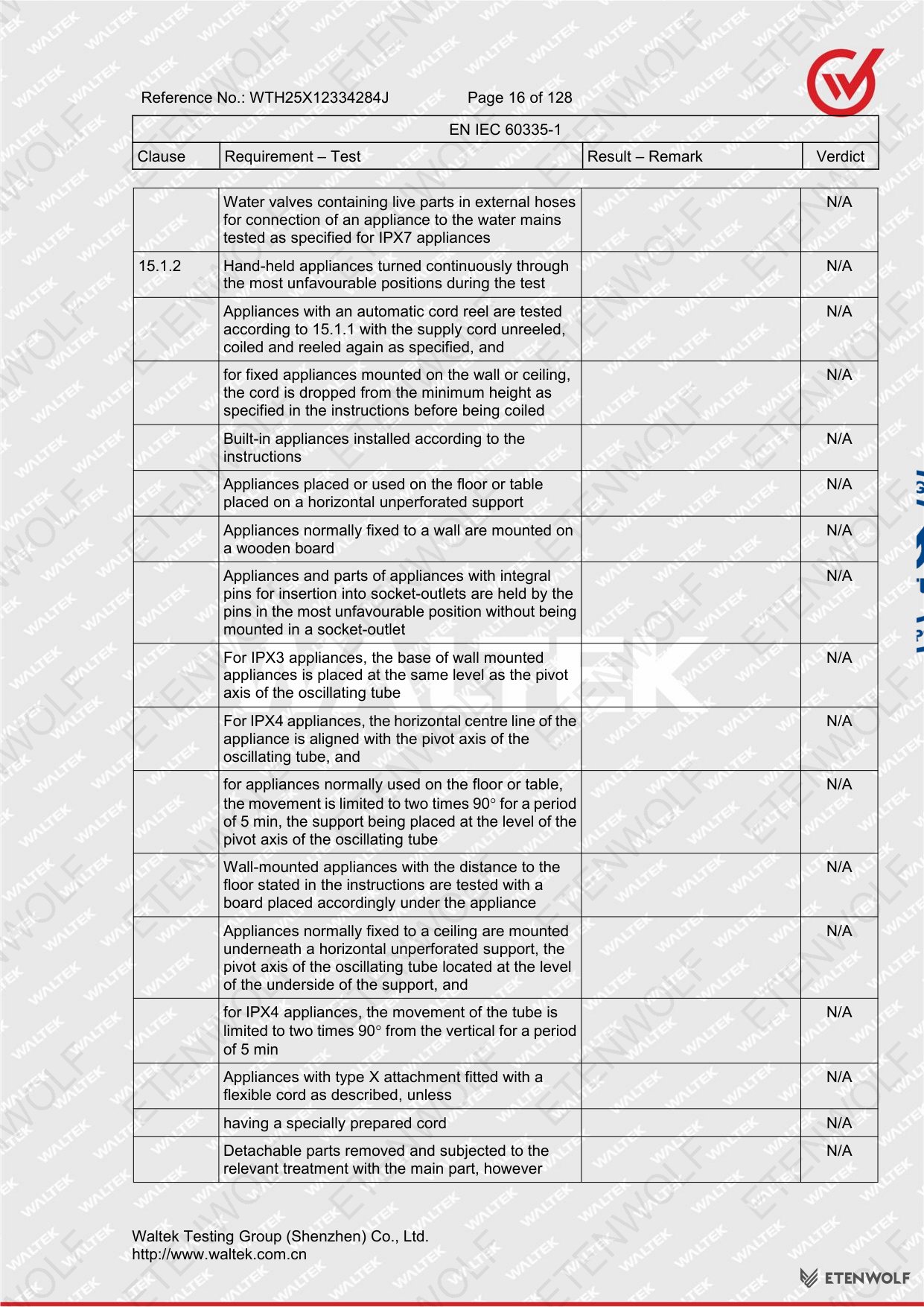

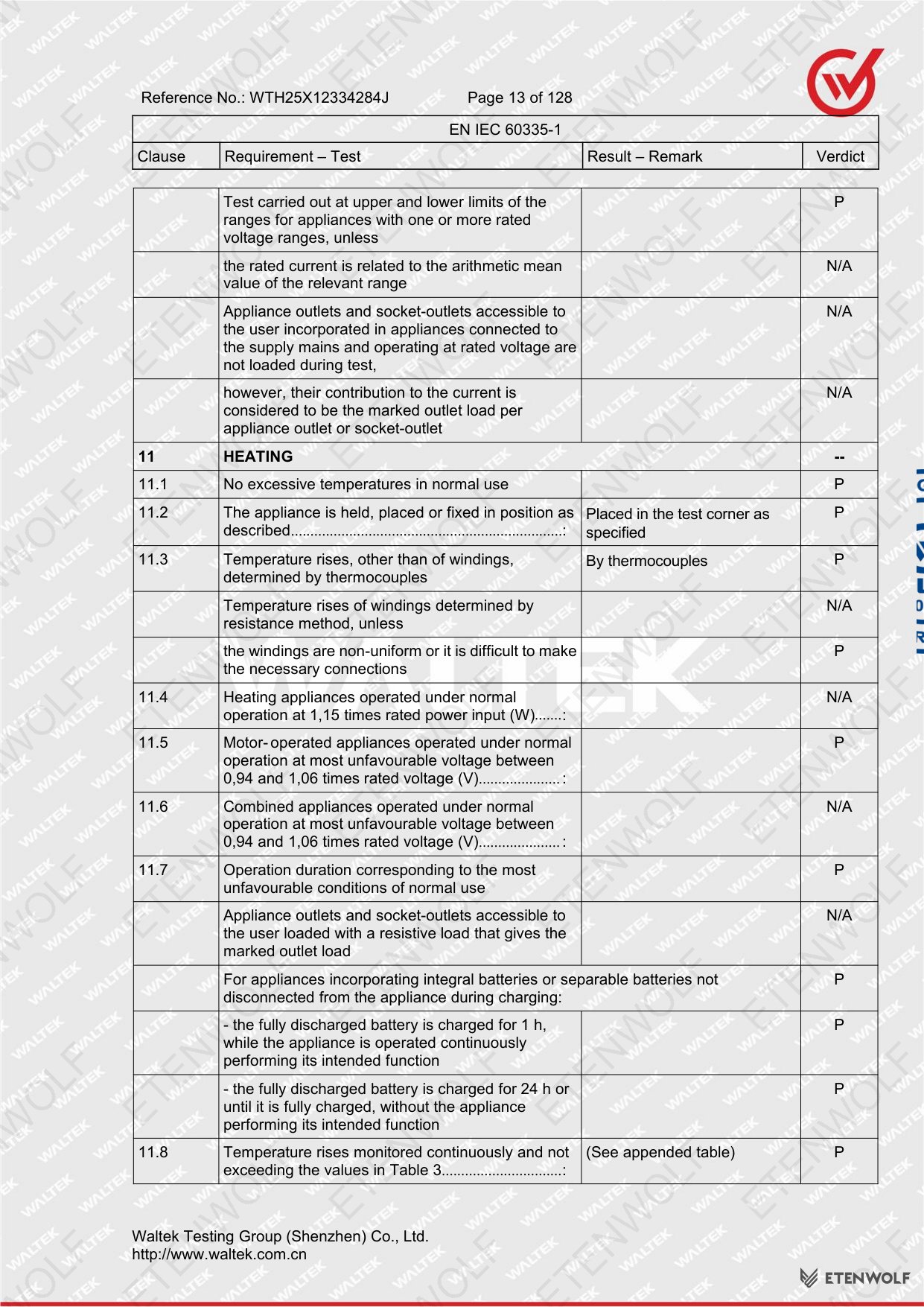

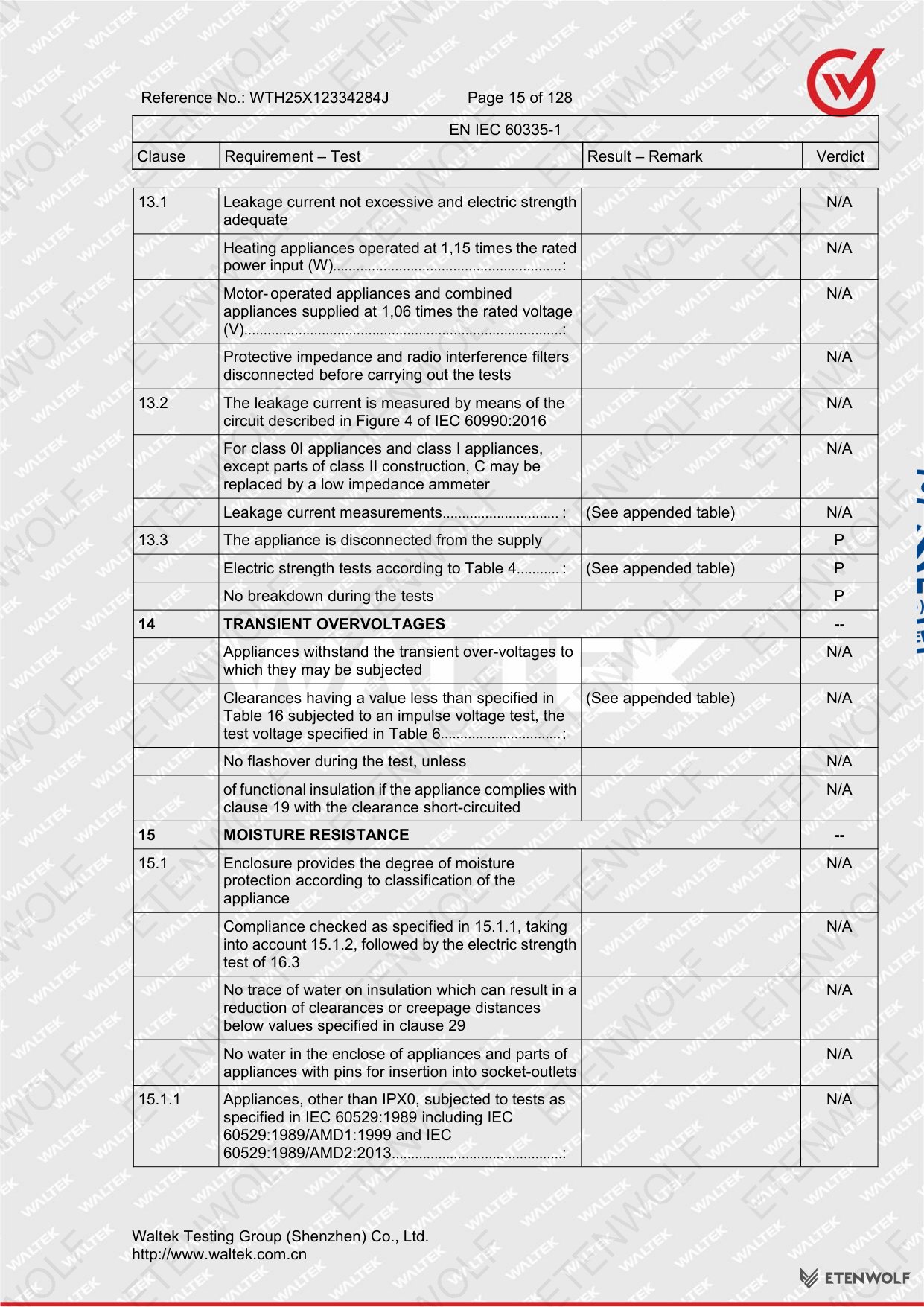

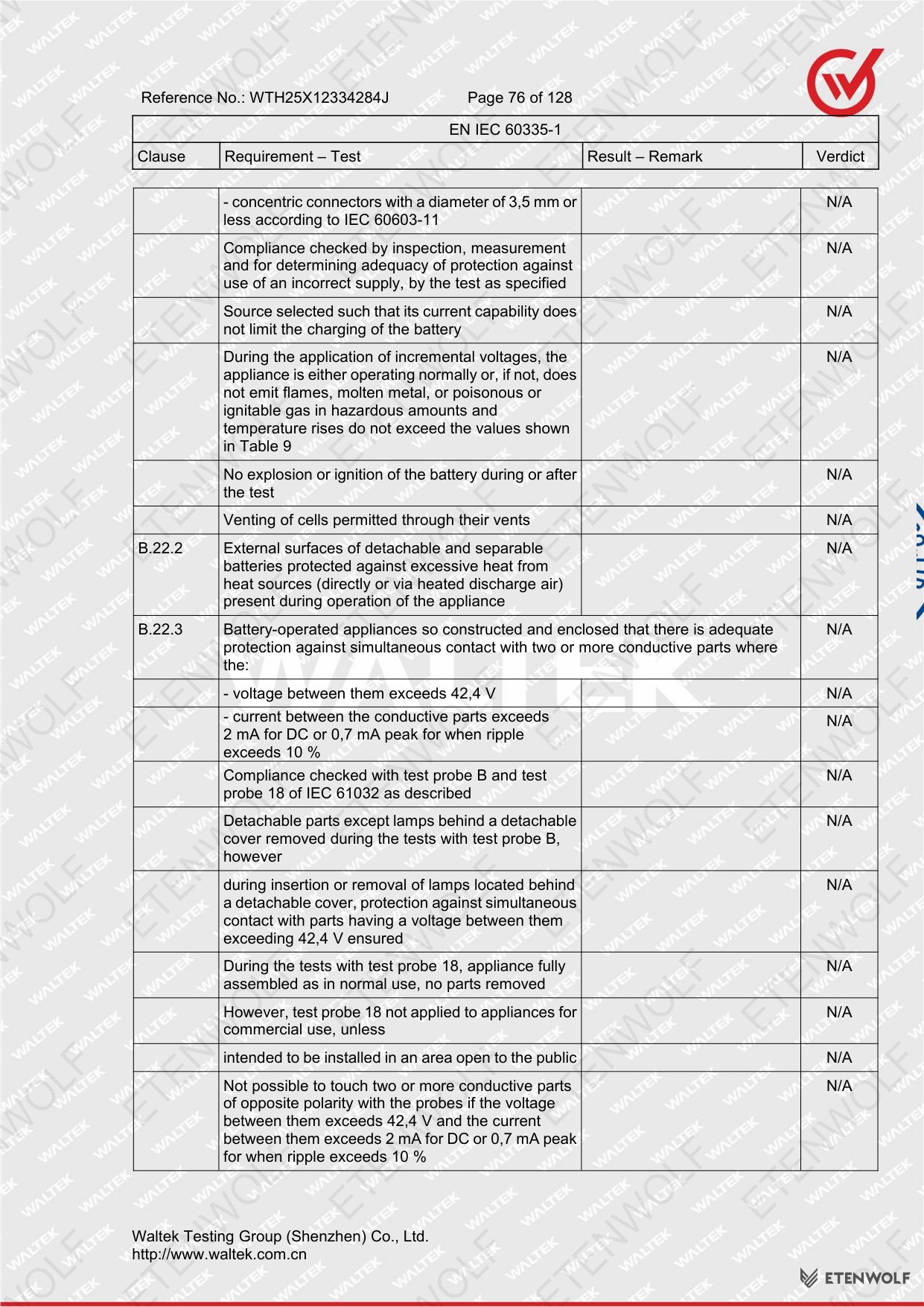

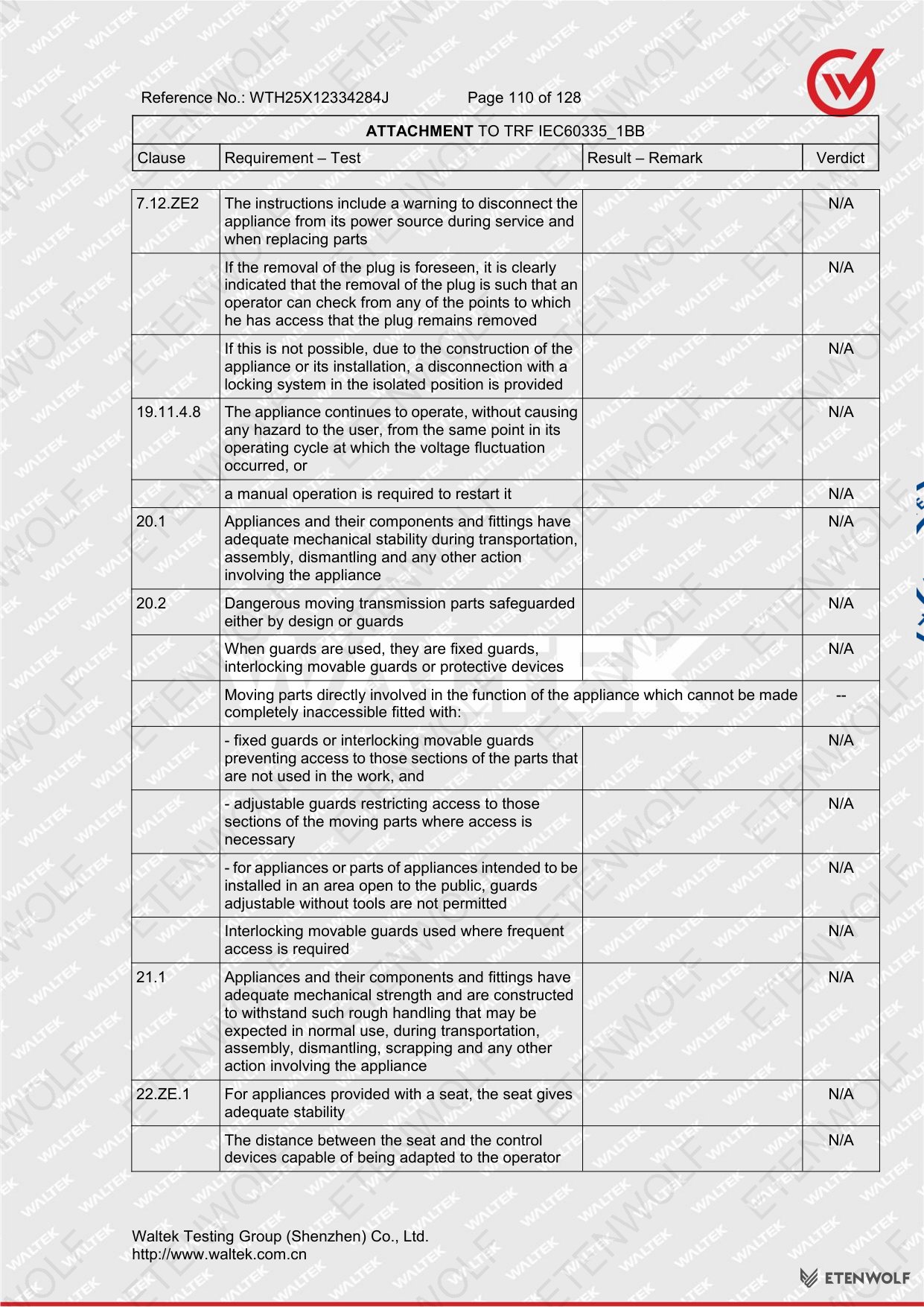

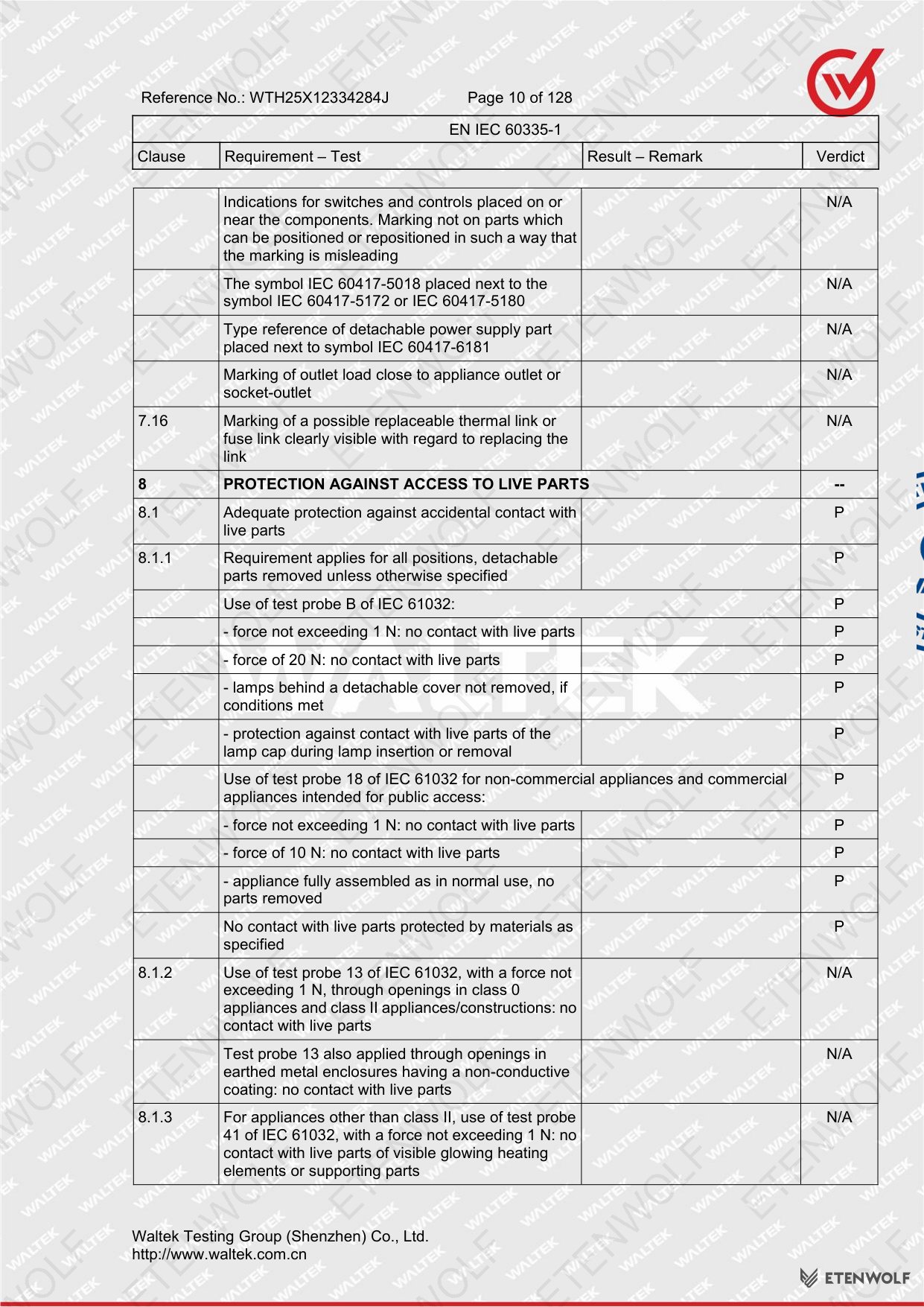

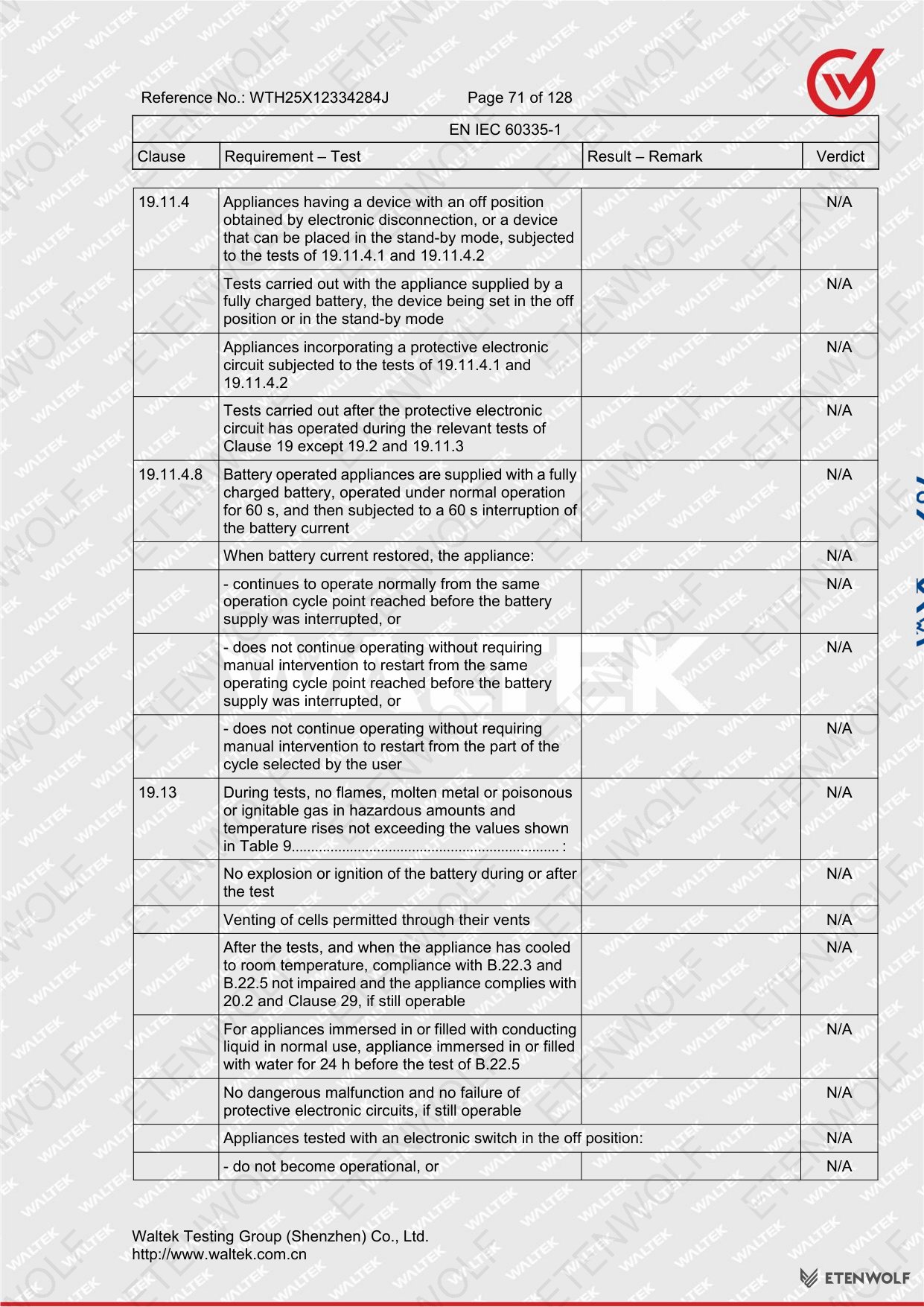

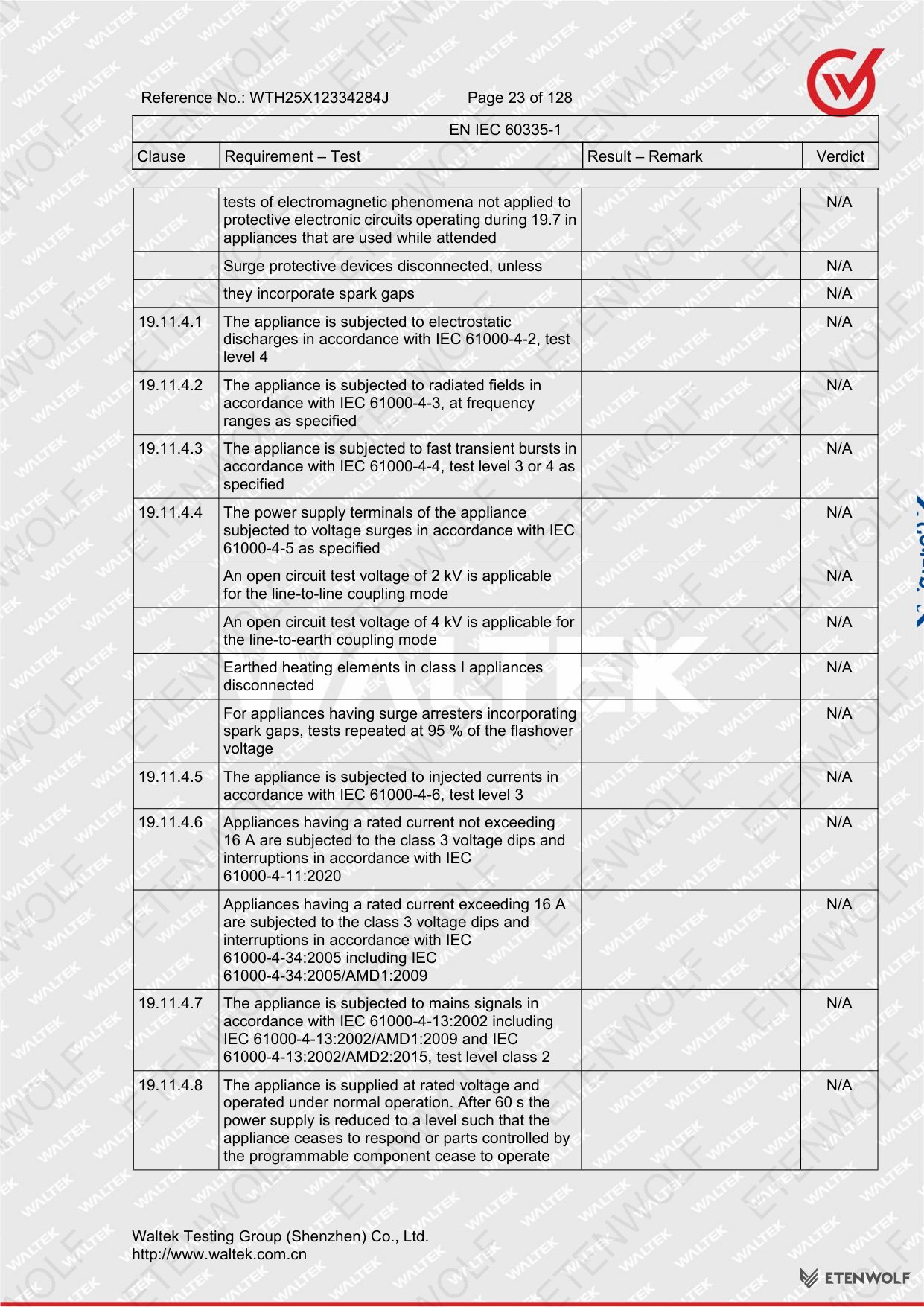

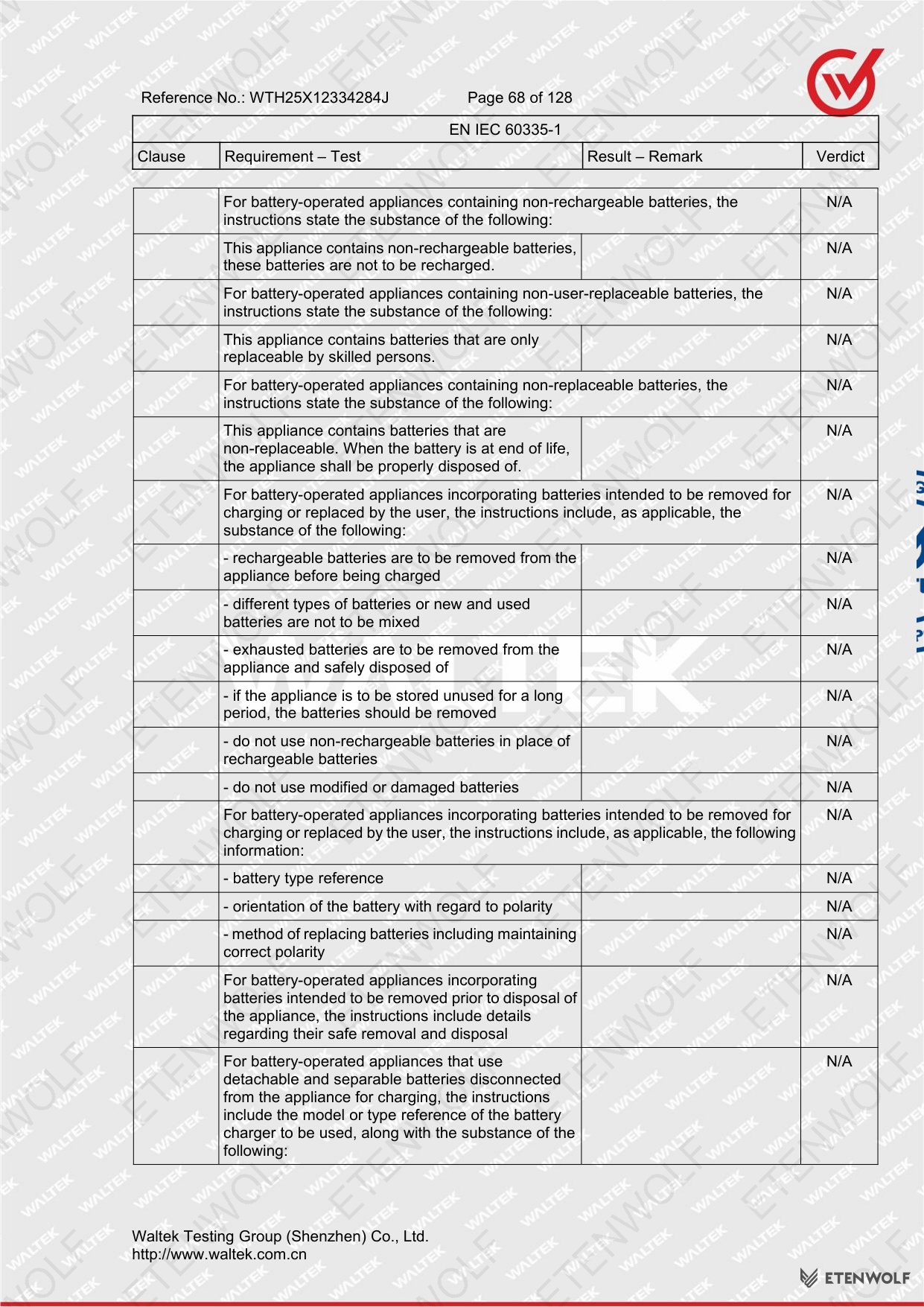

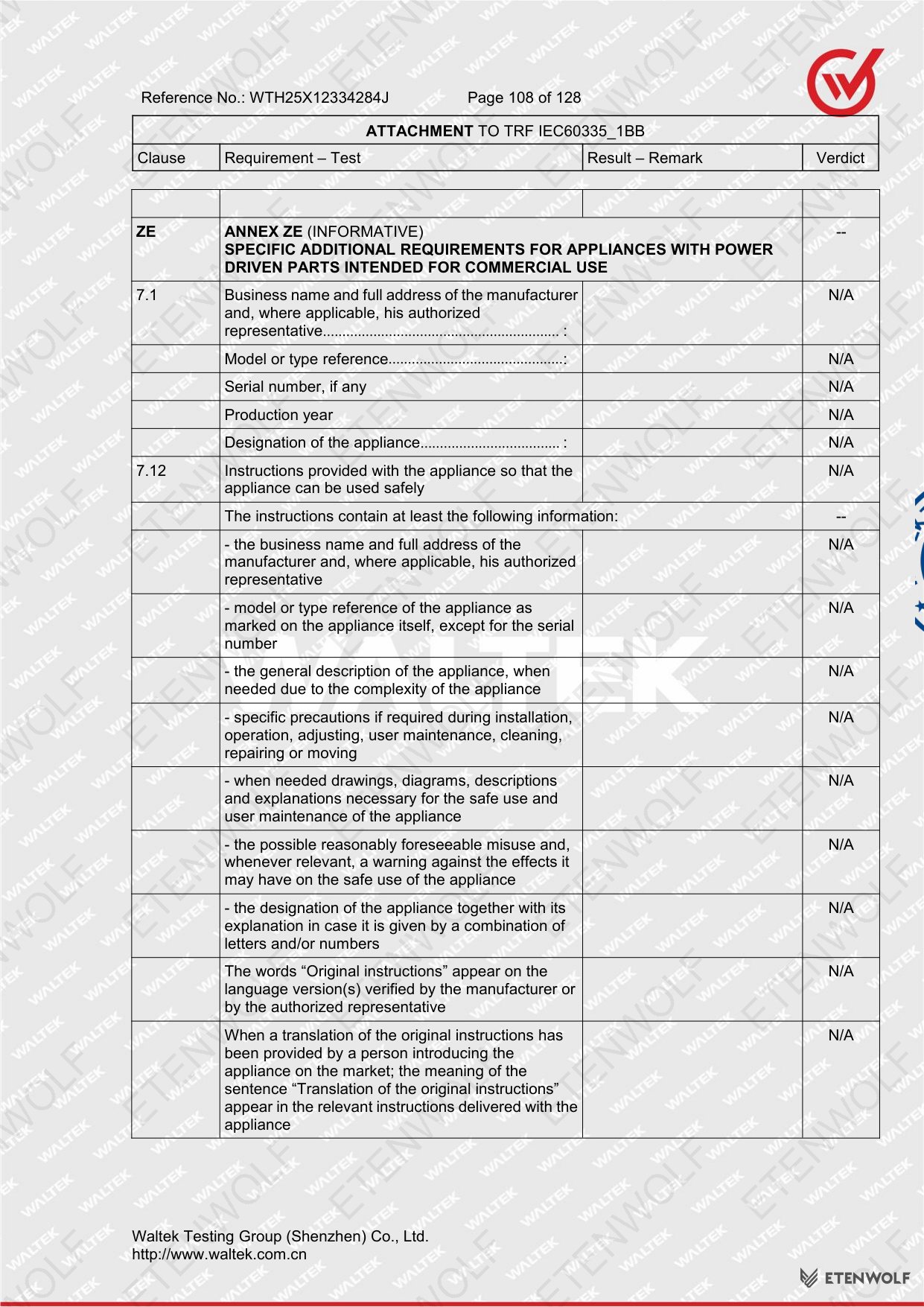

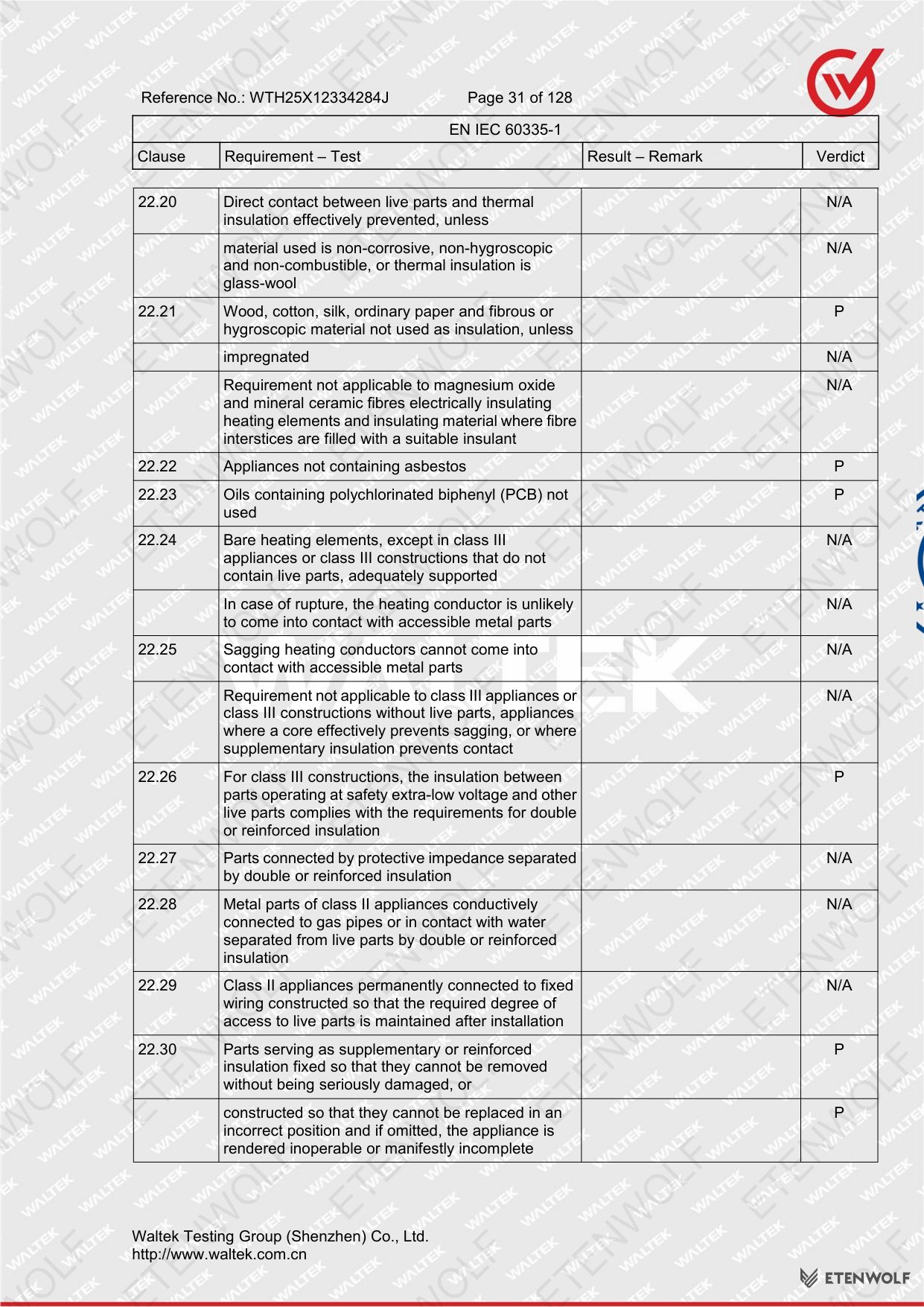

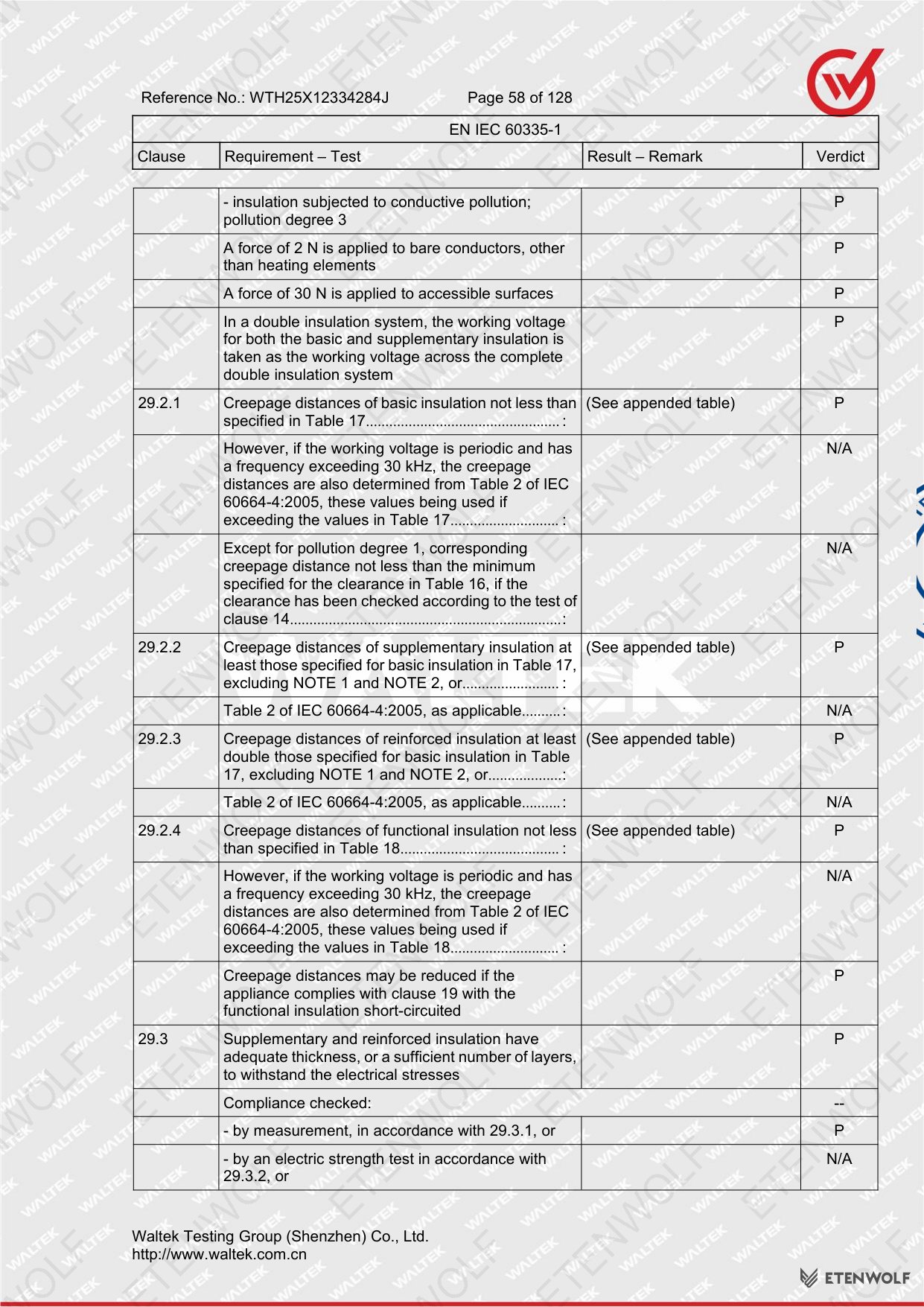

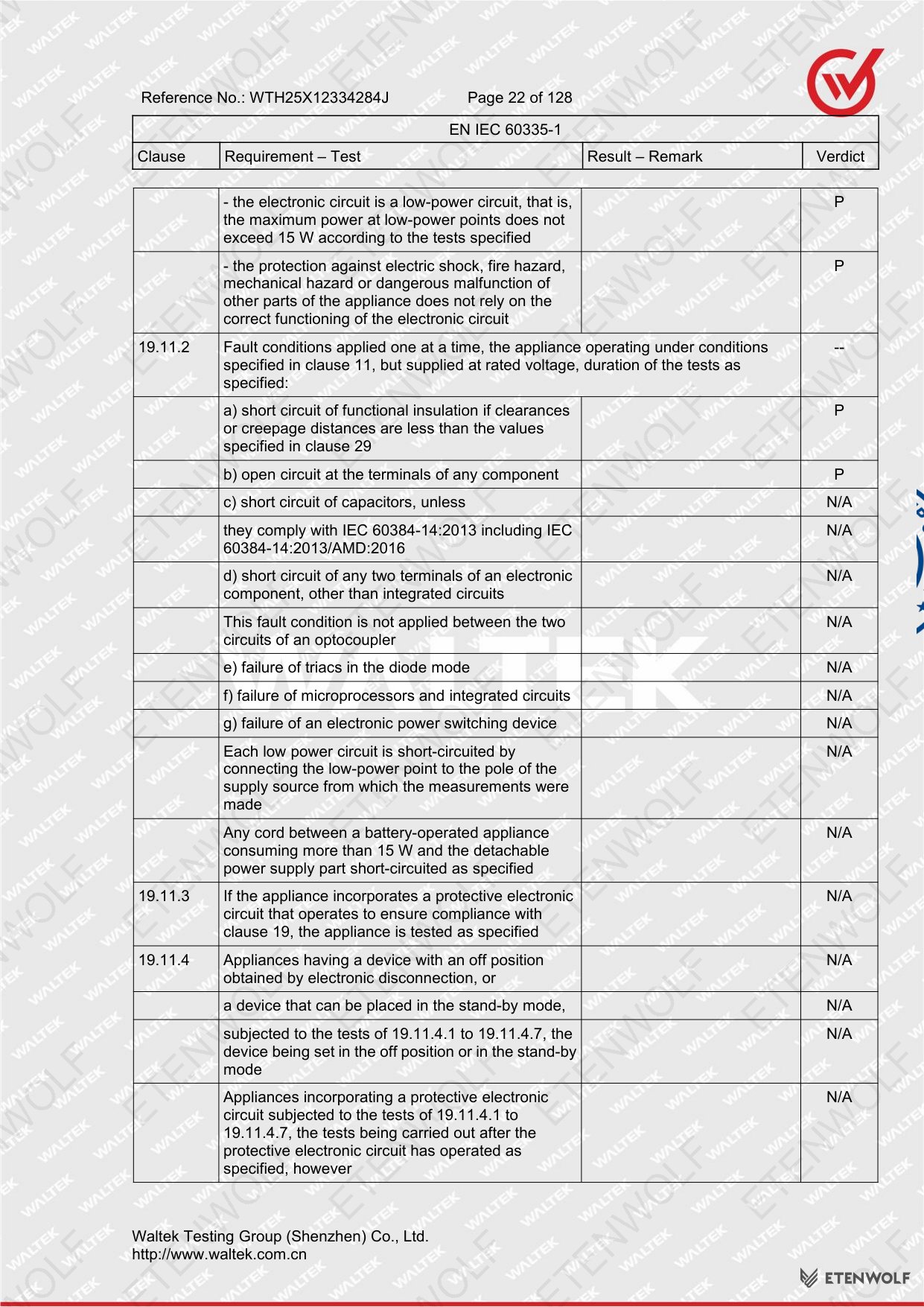

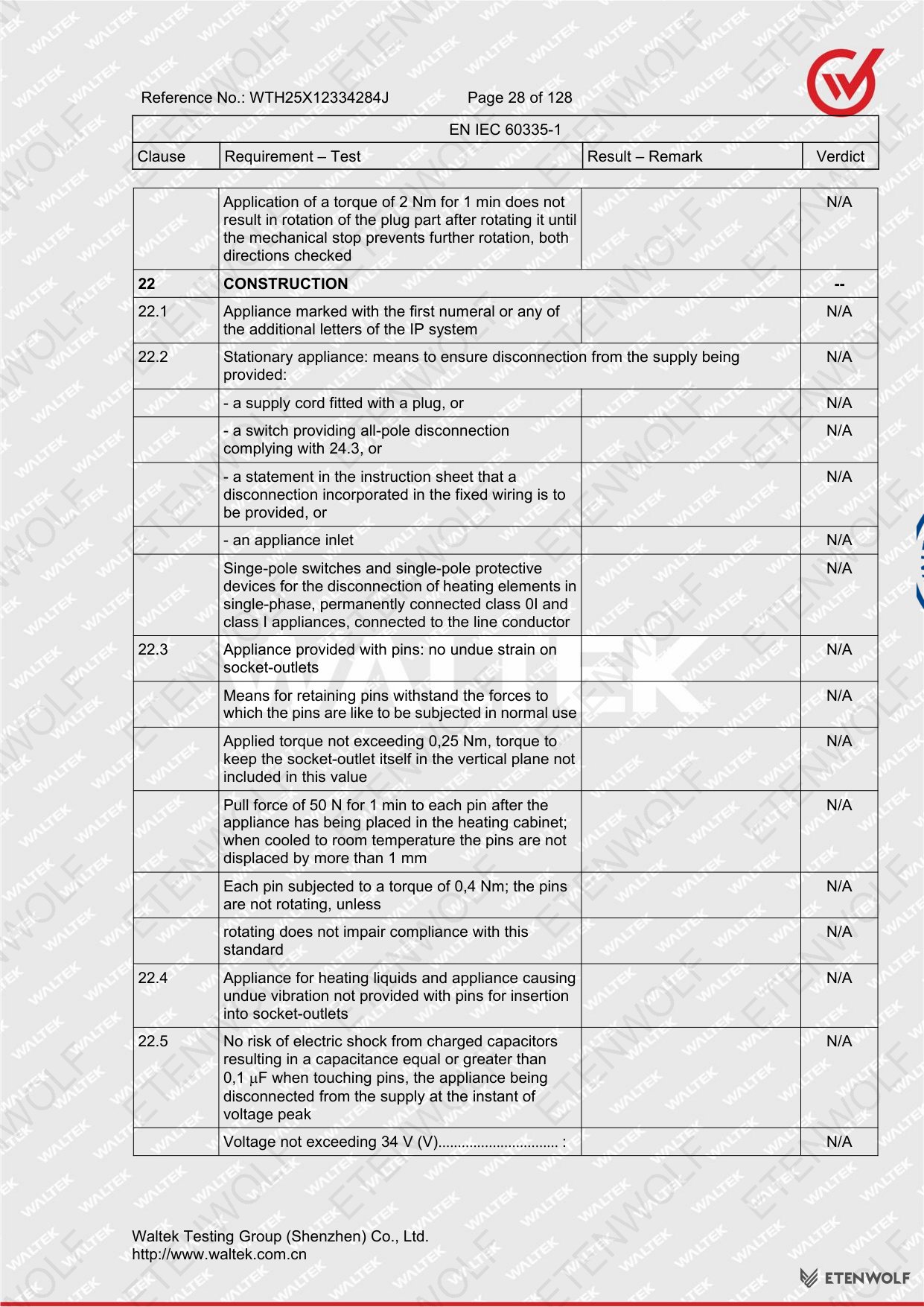

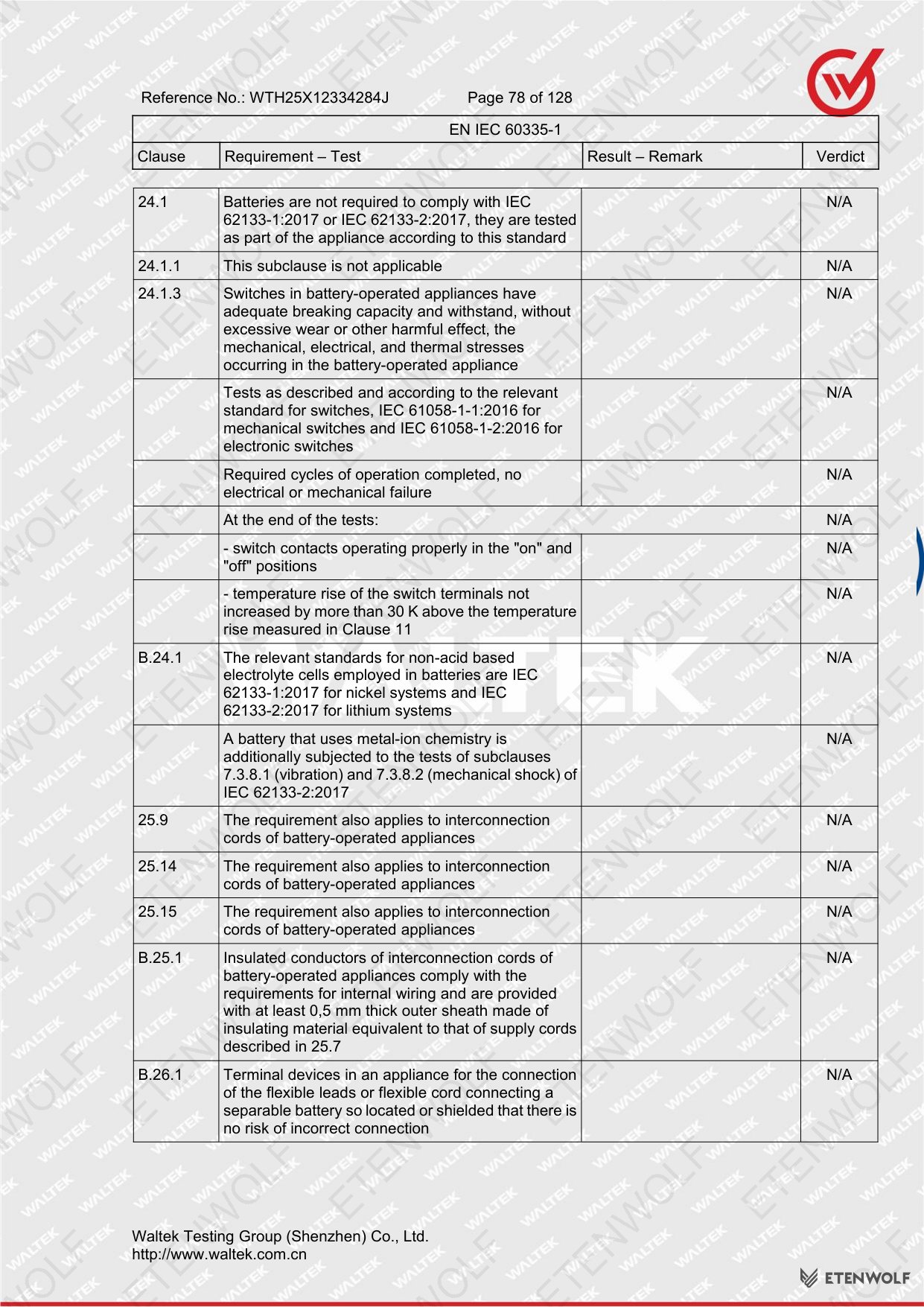

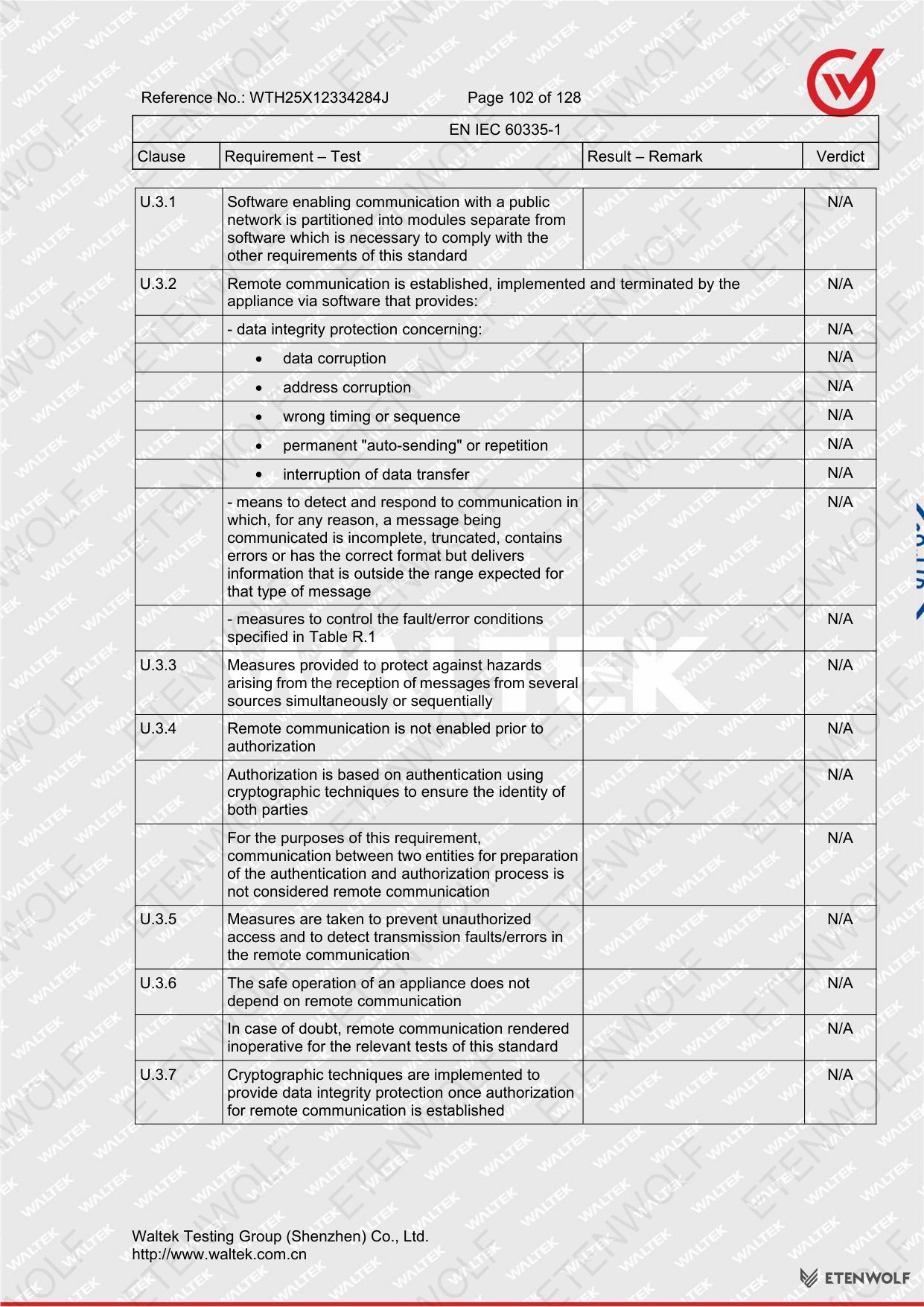

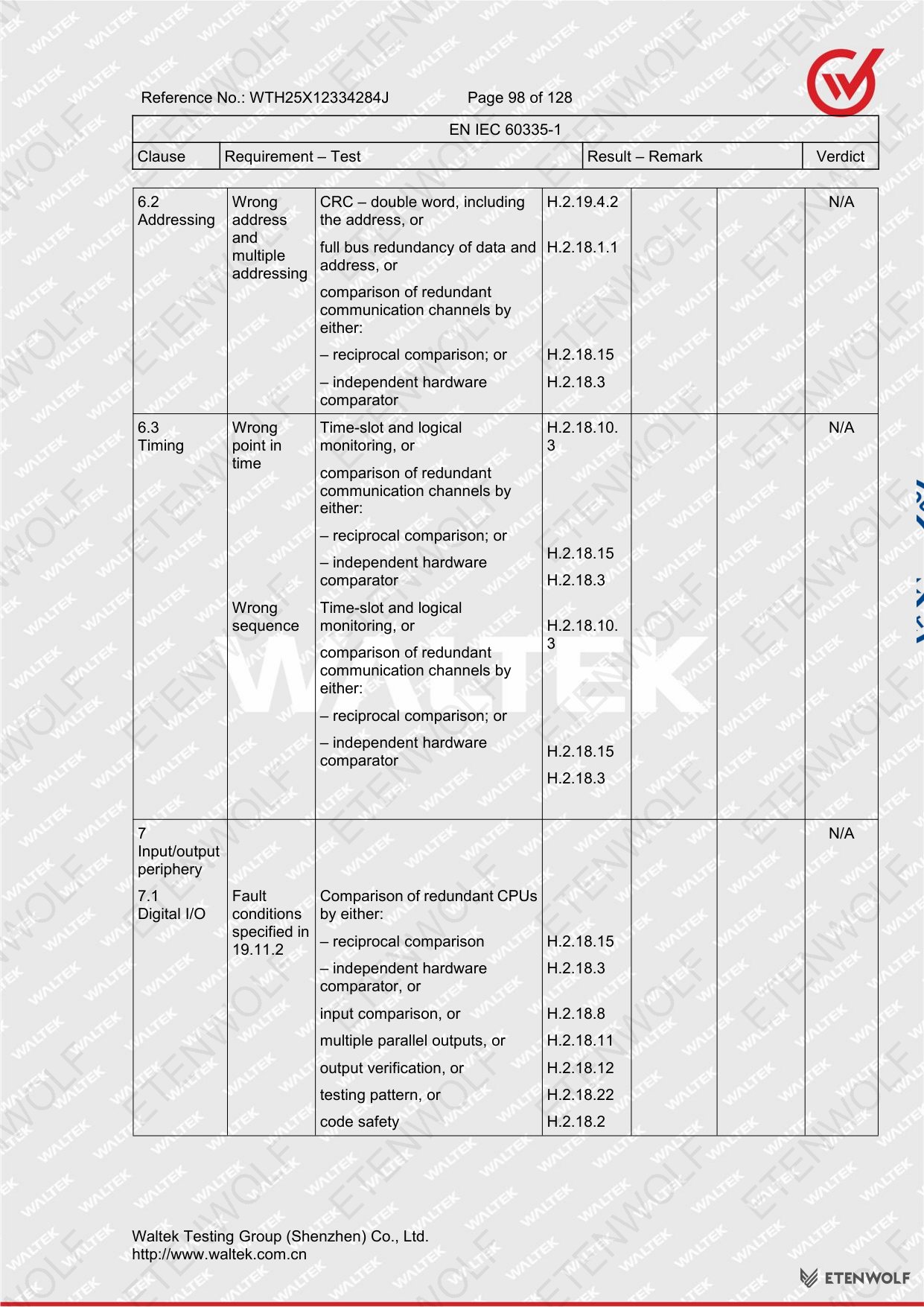

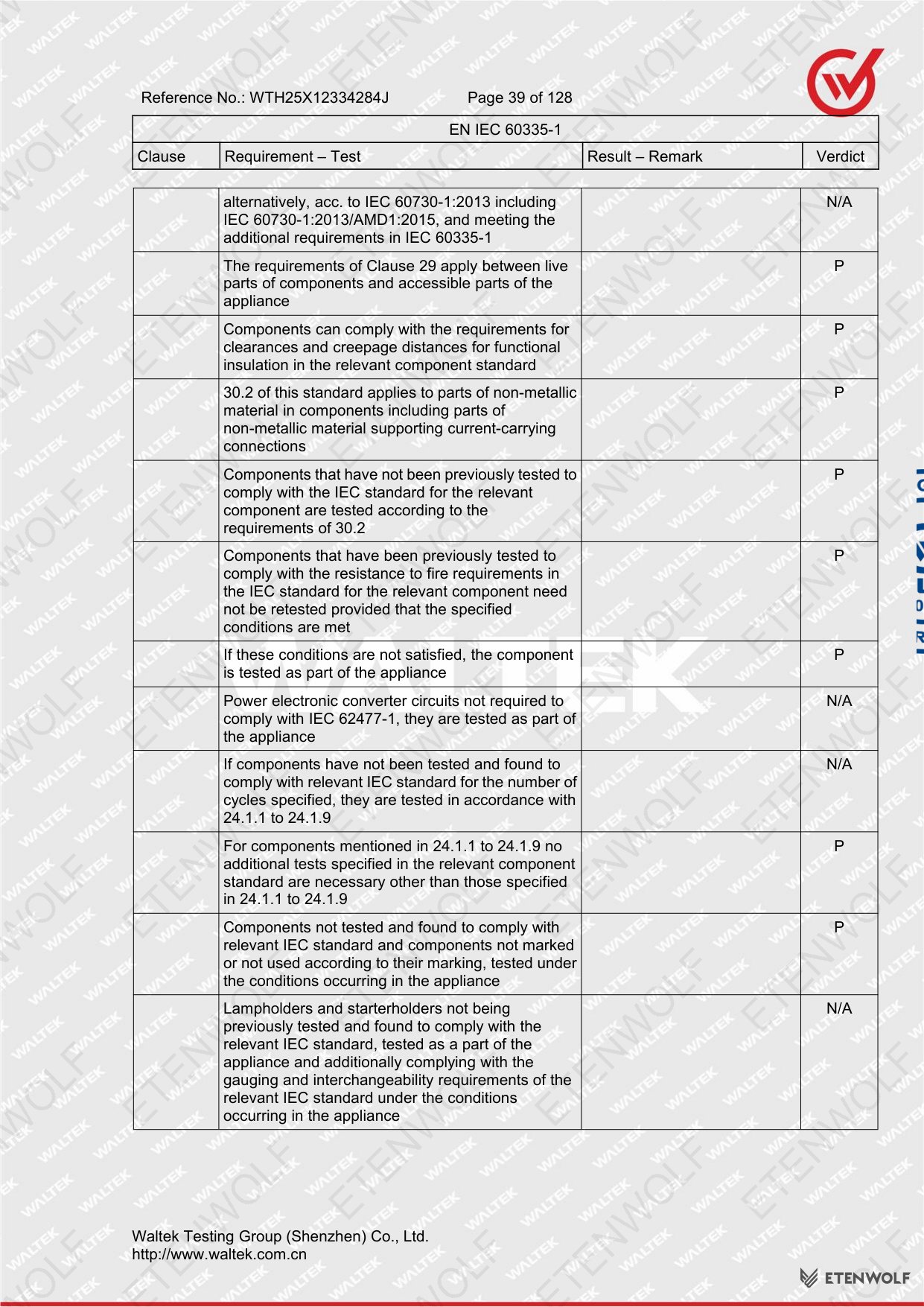

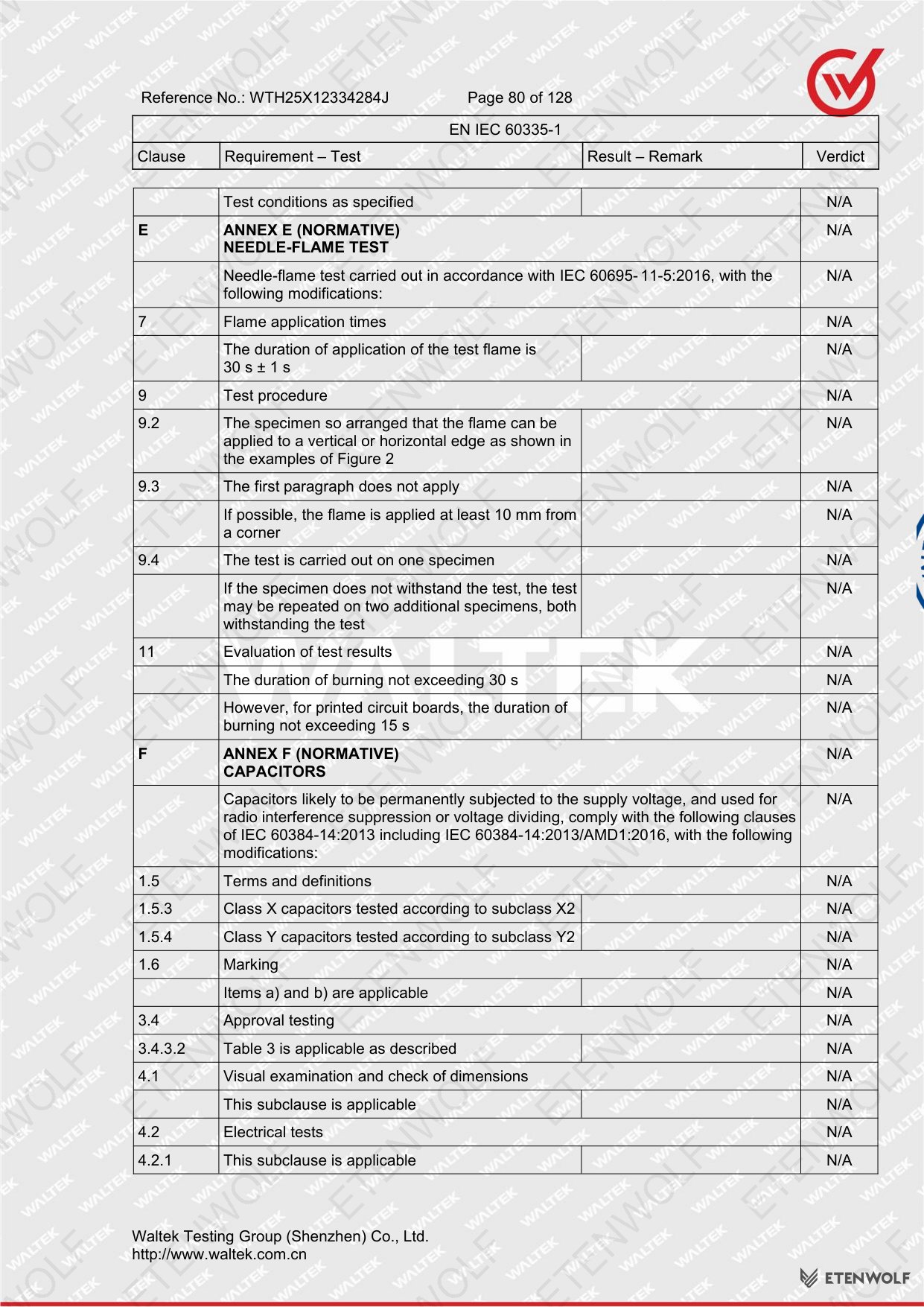

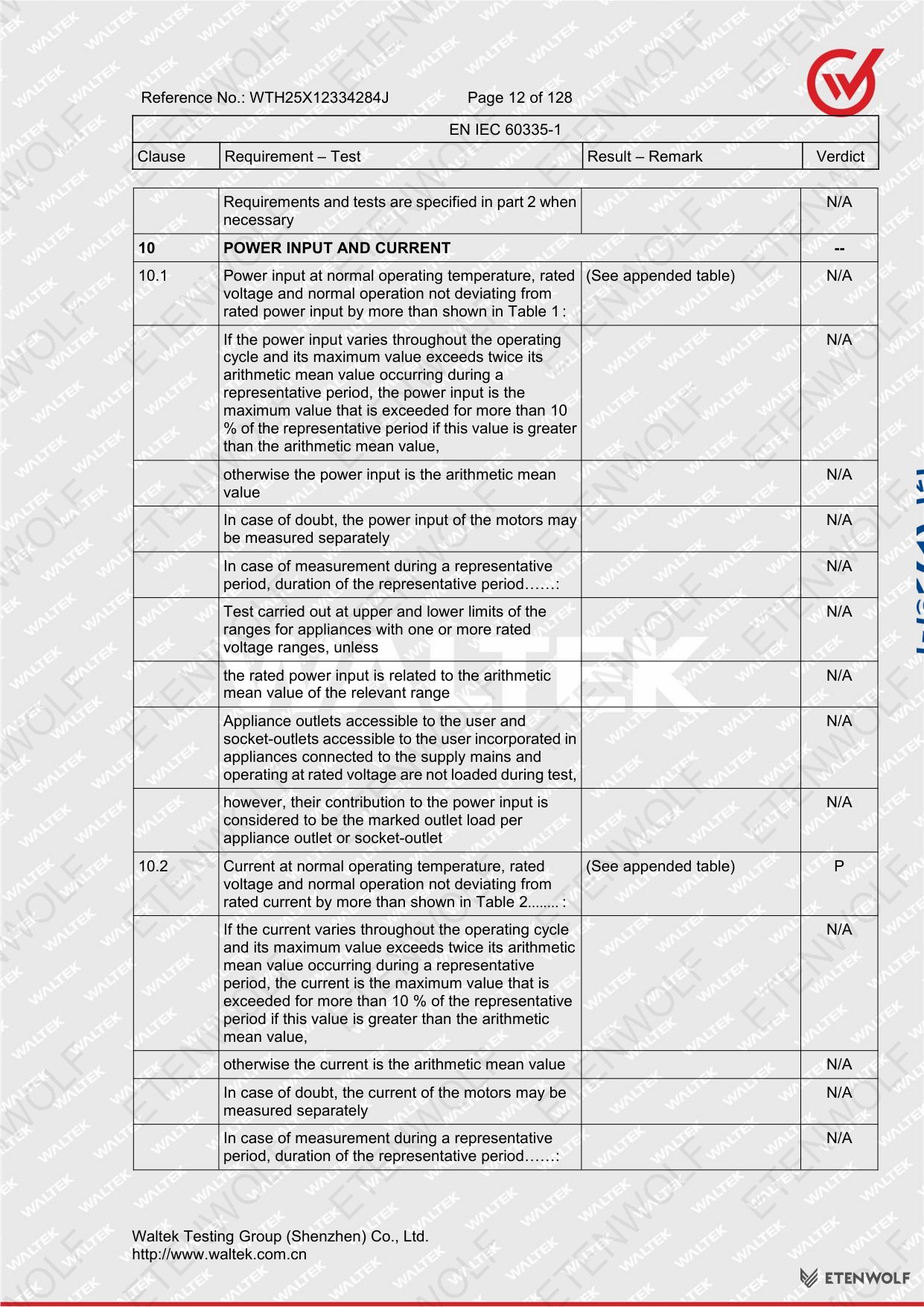

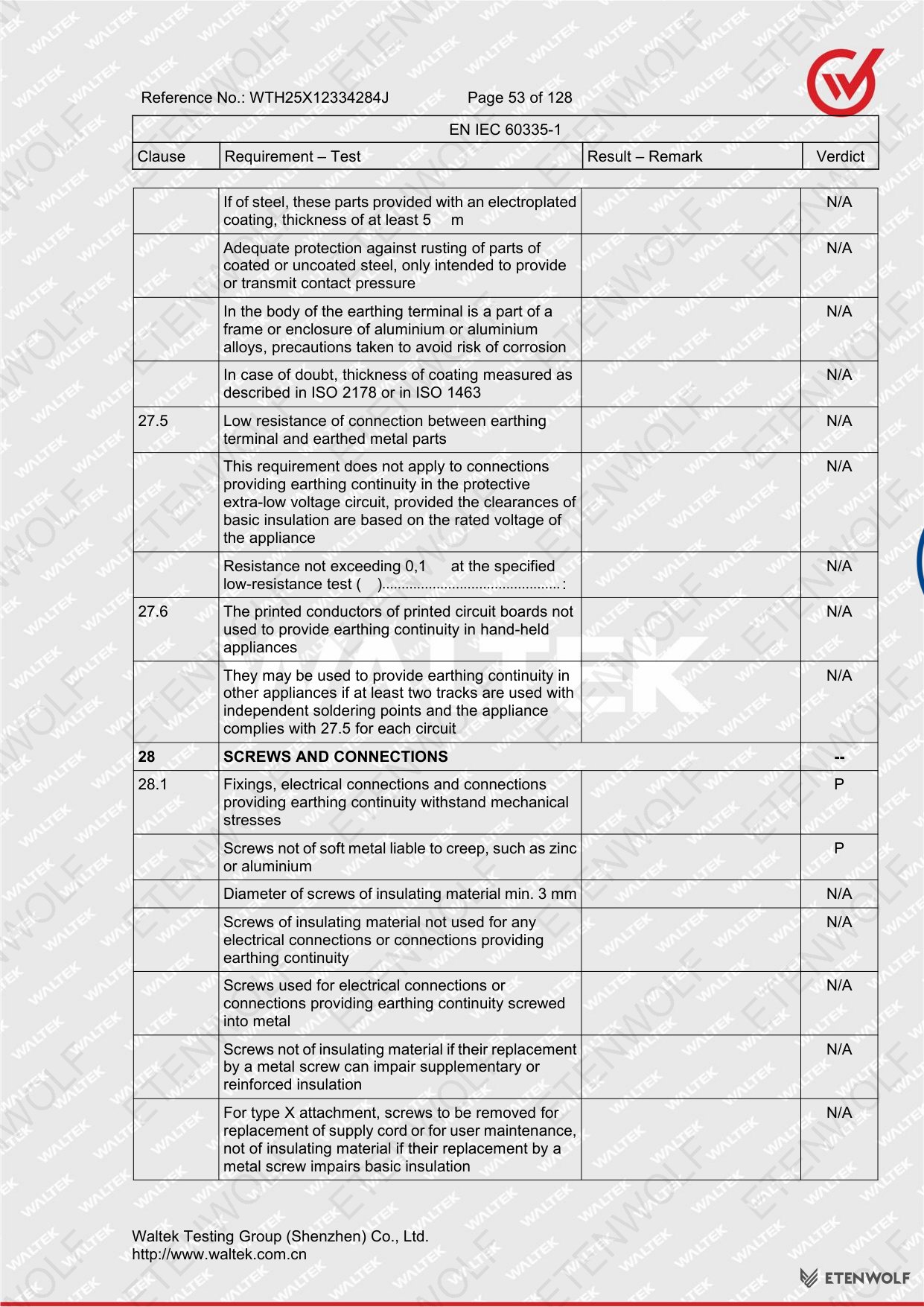

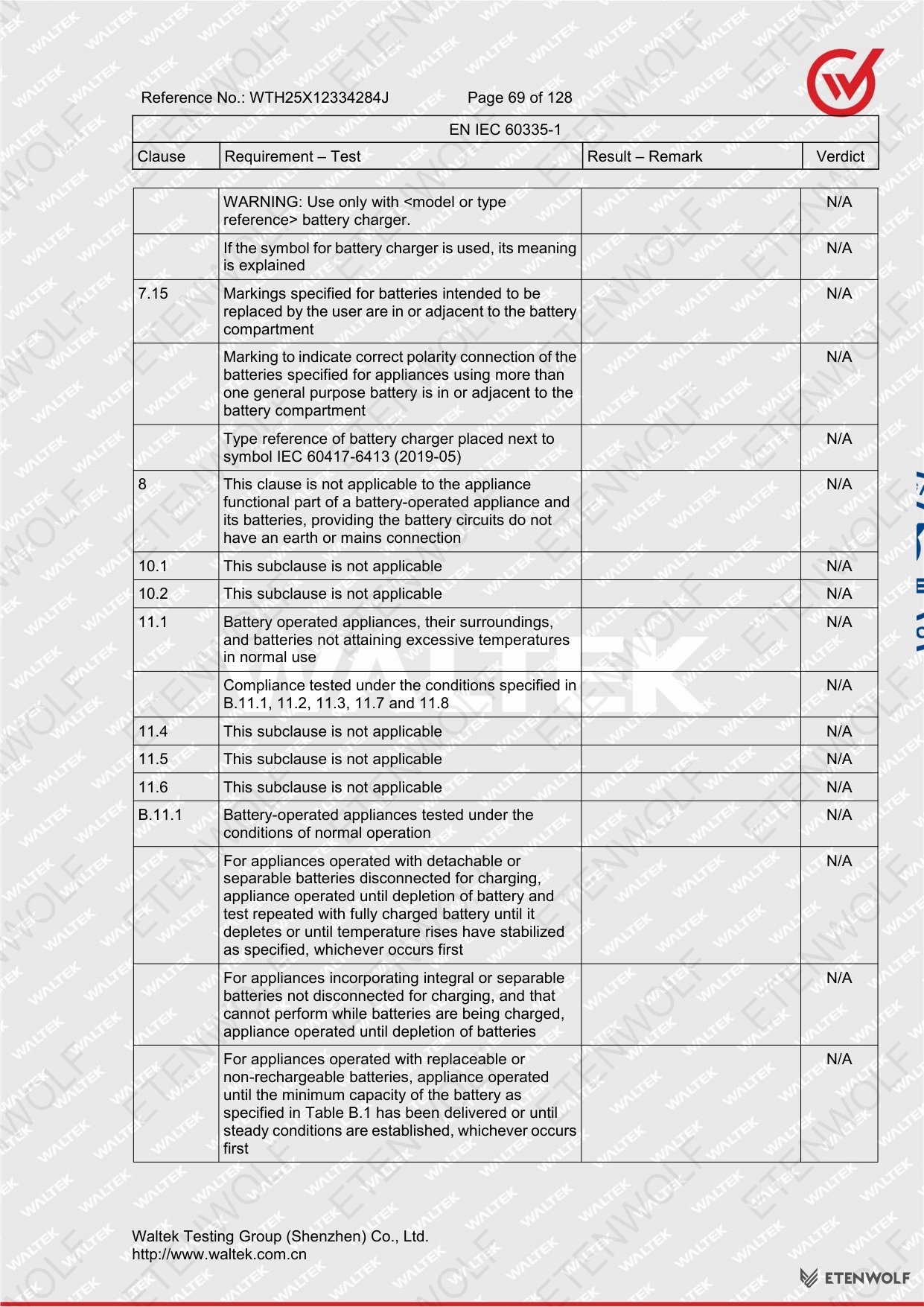

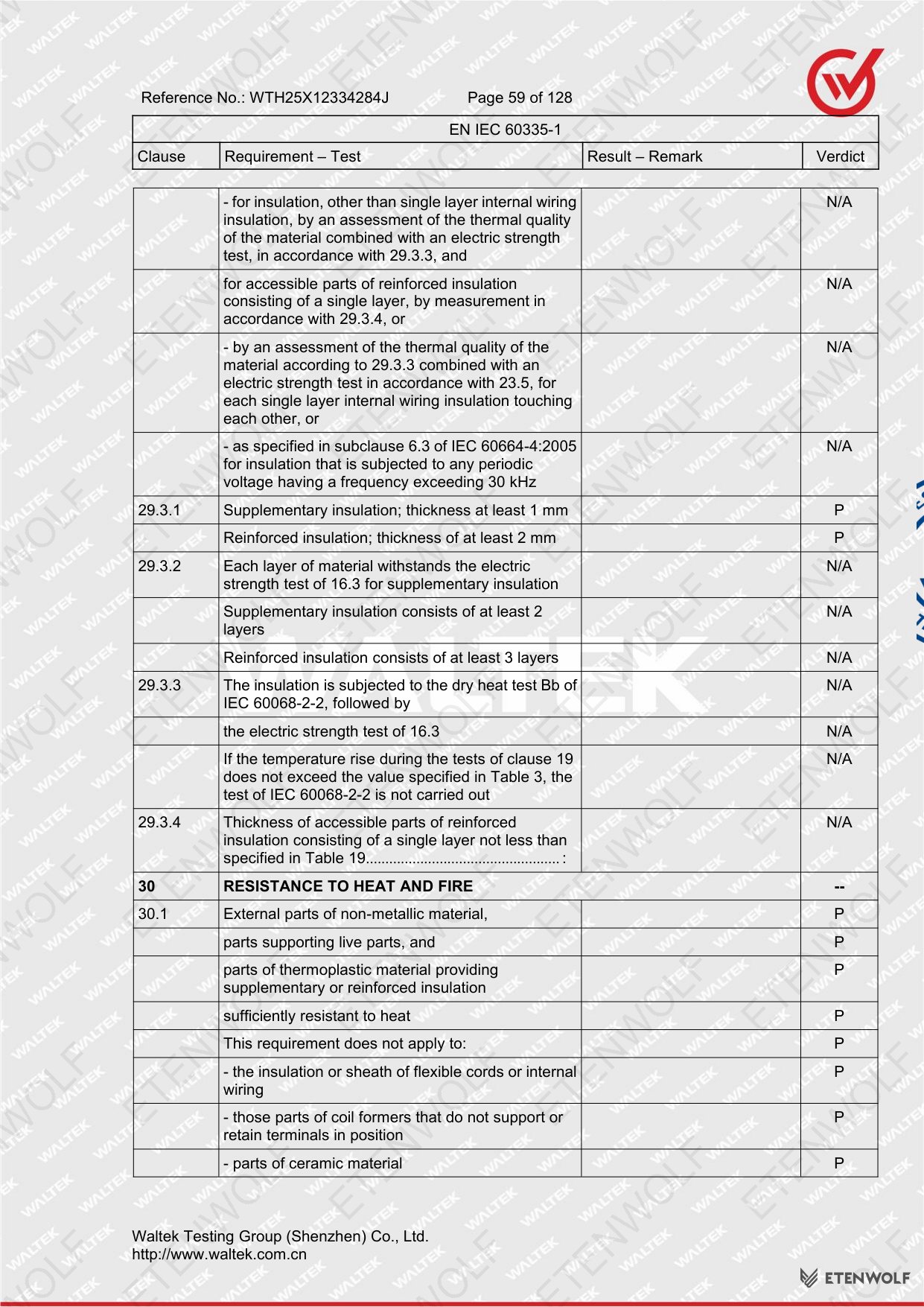

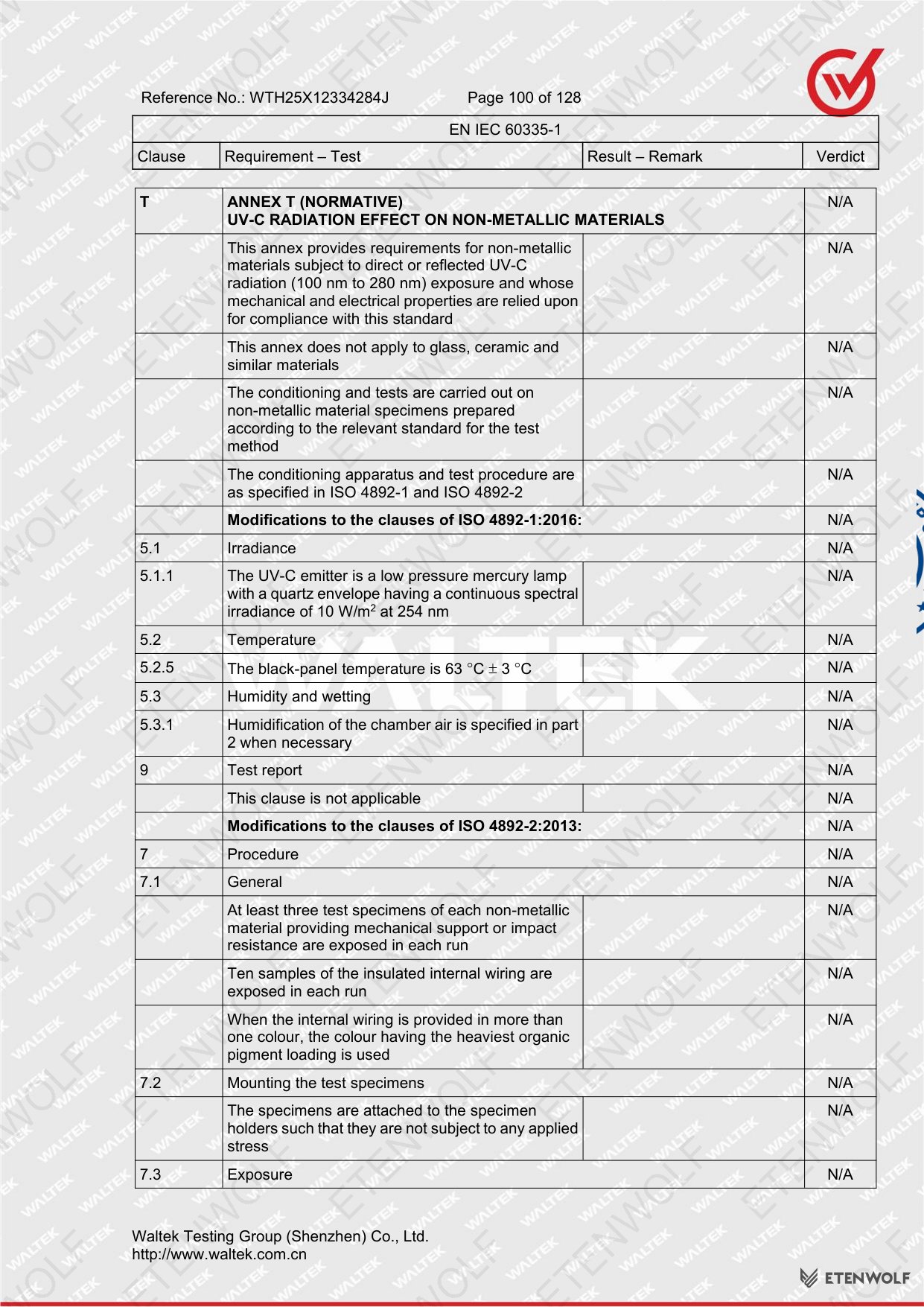

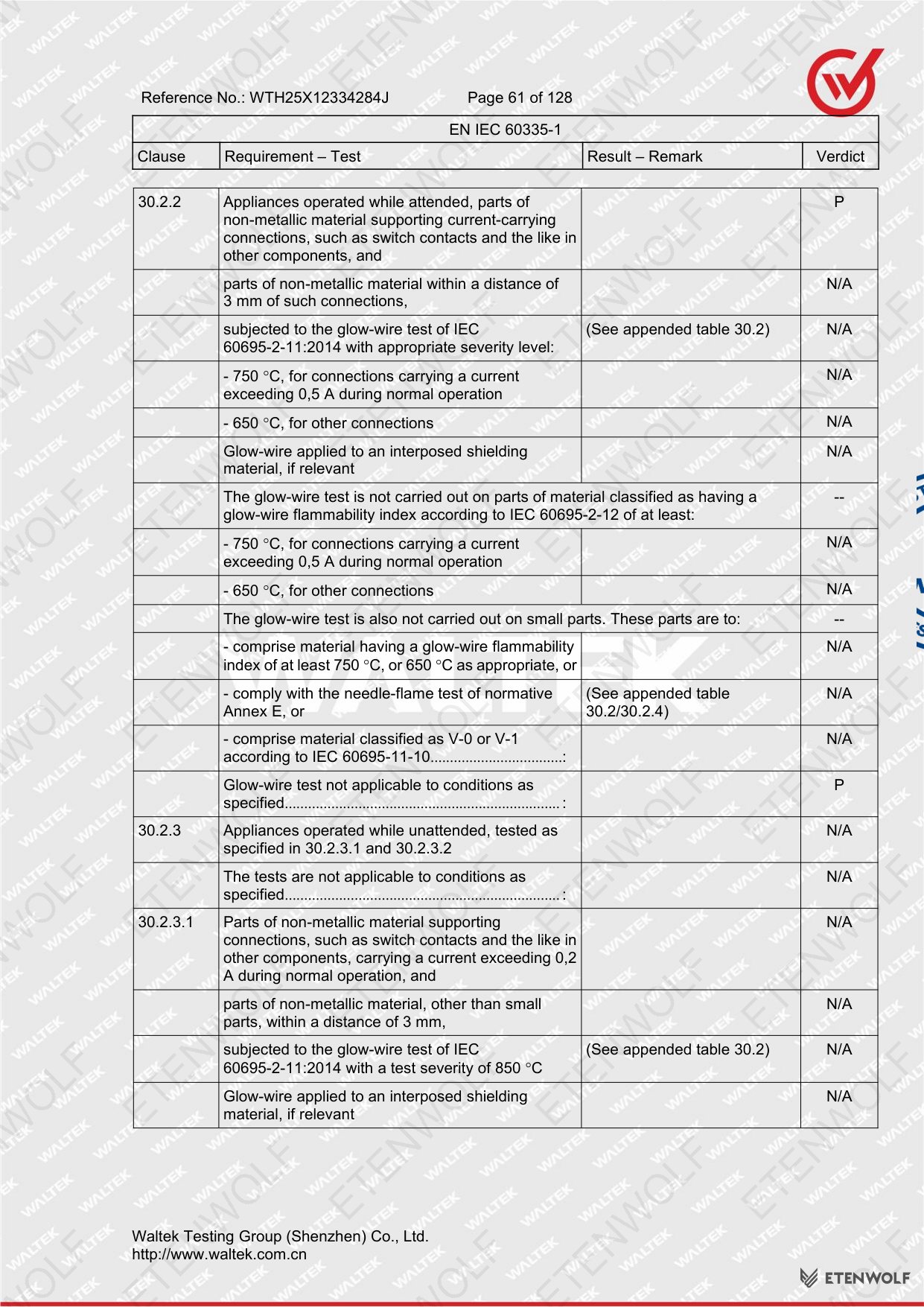

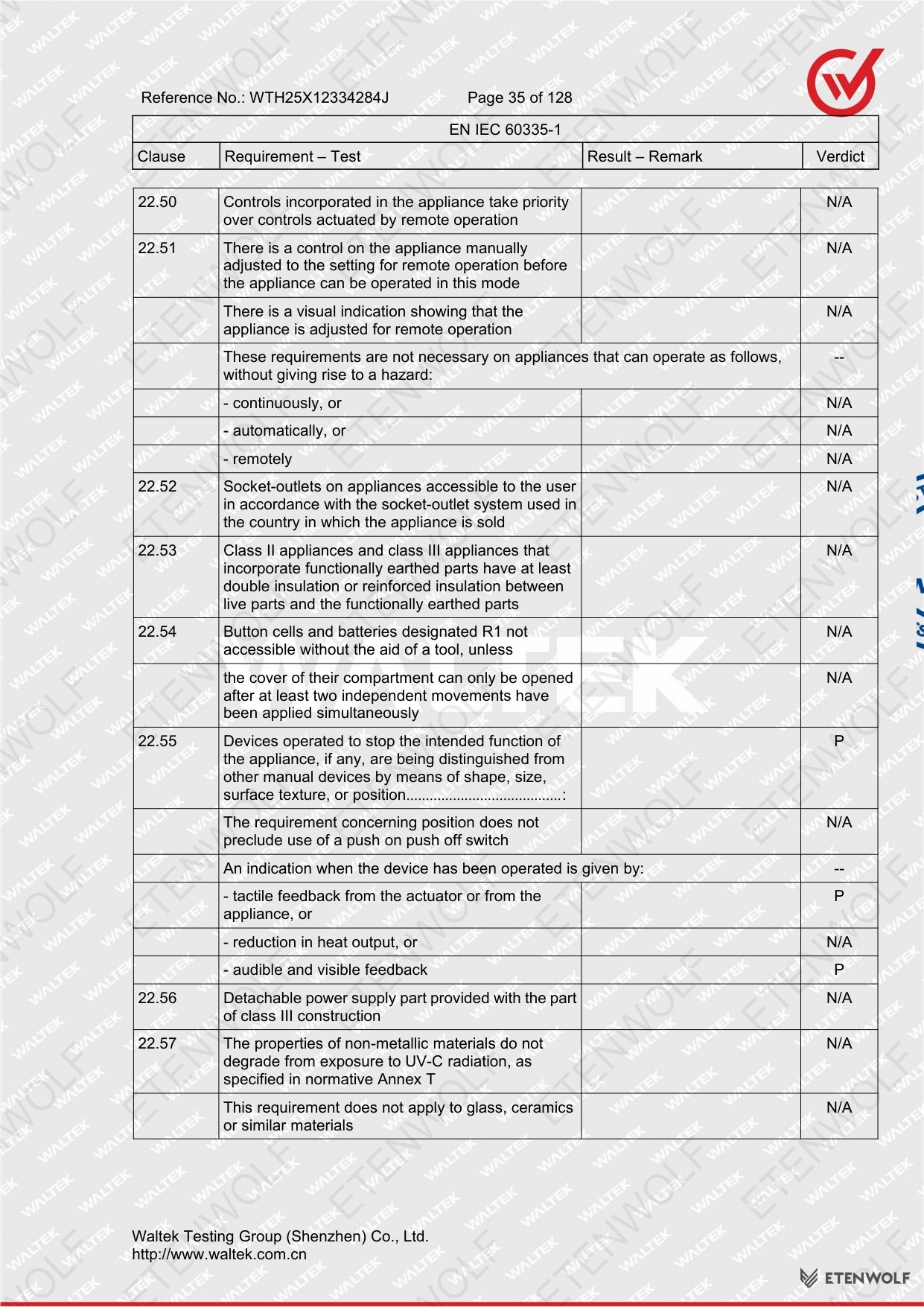

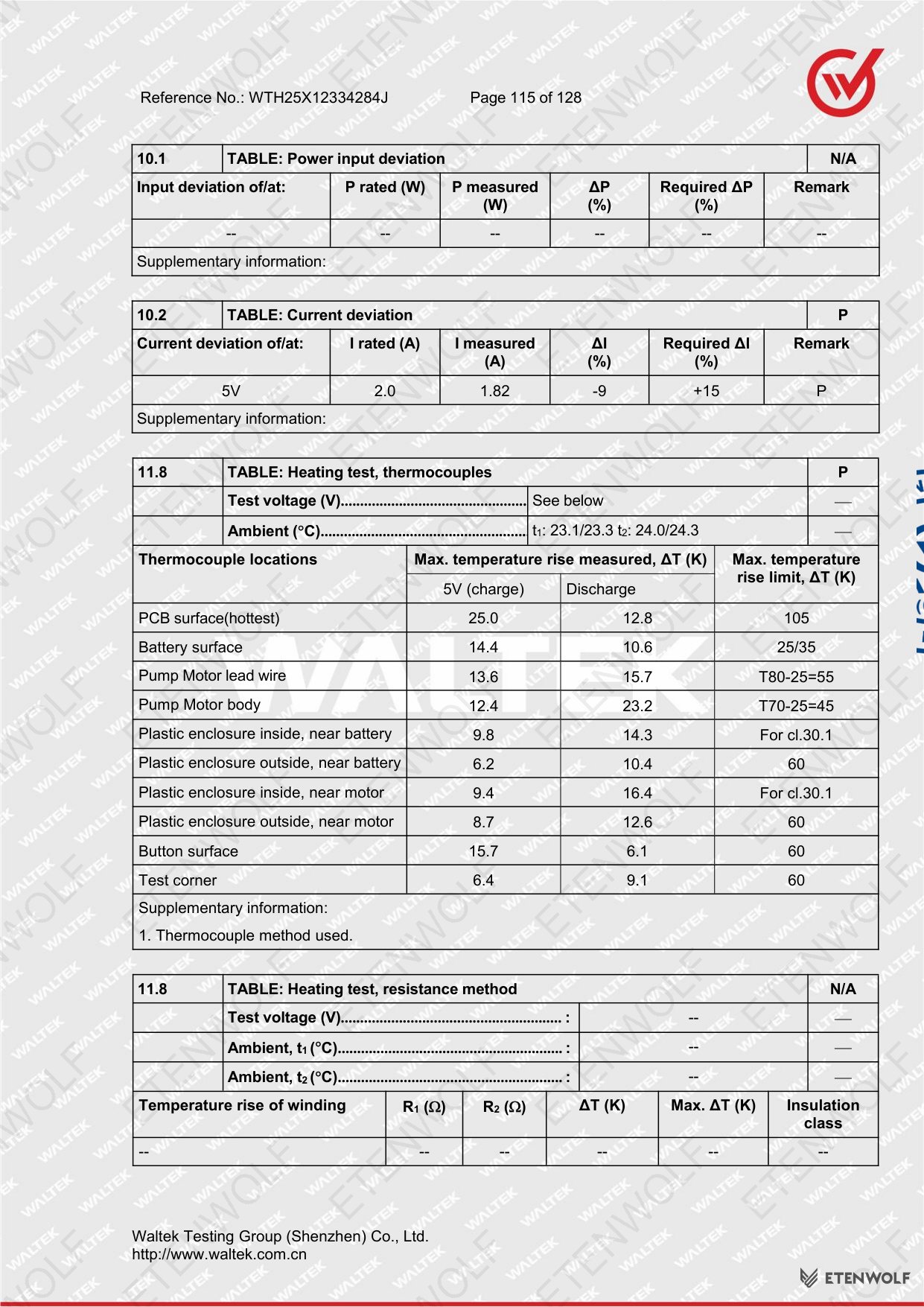

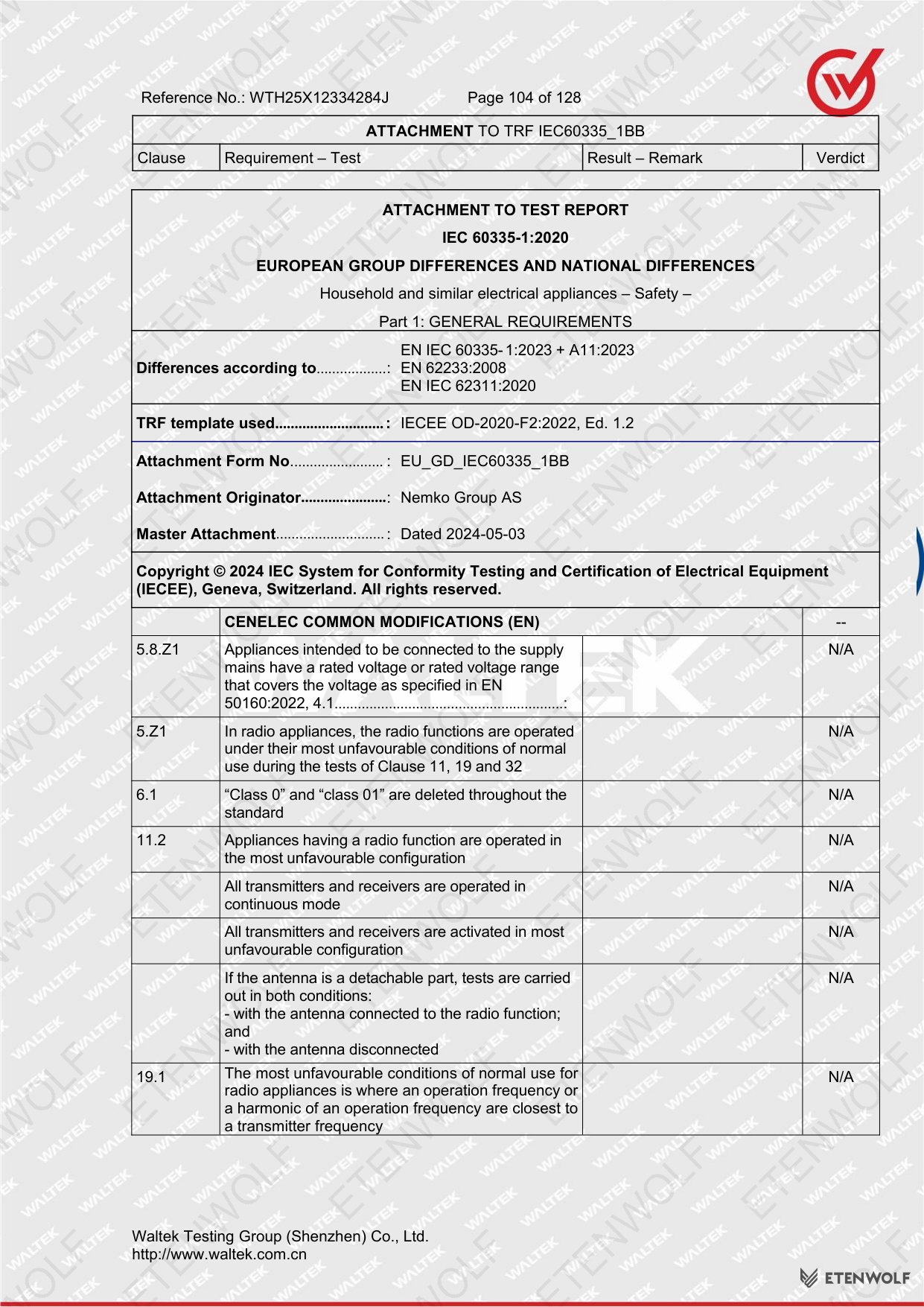

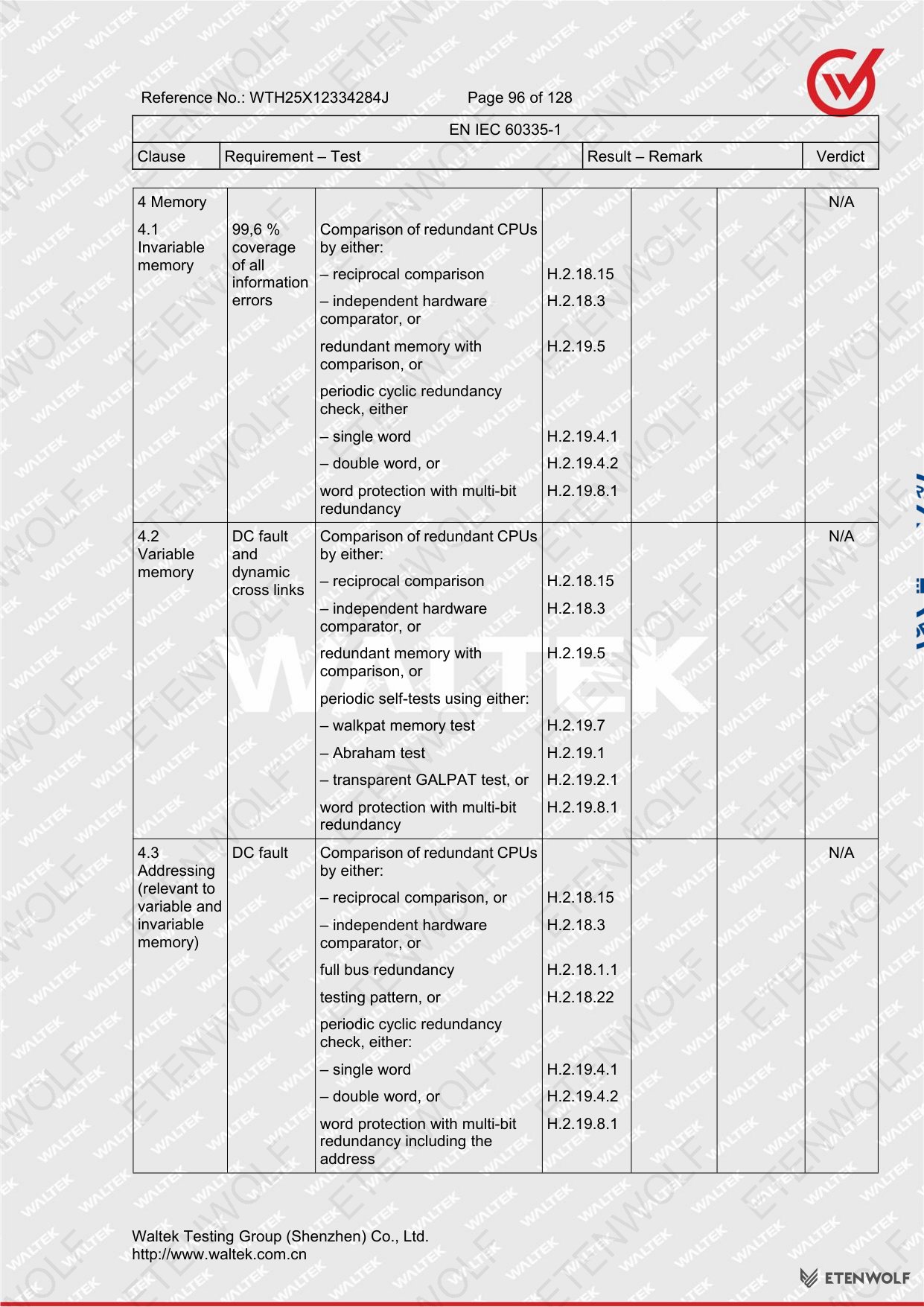

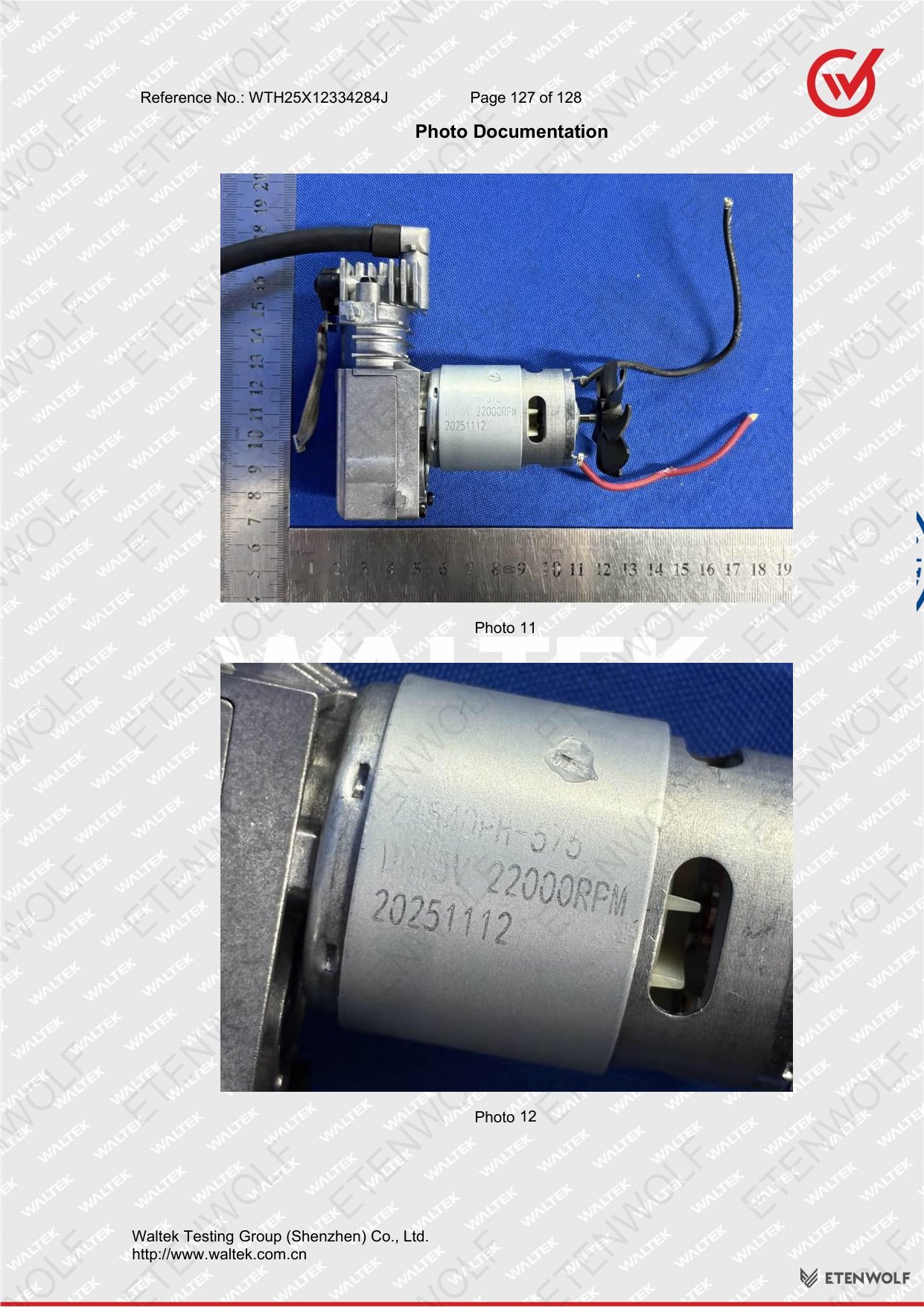

Document Pages
