Document Overview
This article presents the PSE certification test report for the ETENWOLF V3 Air Inflator (Lithium-ion Battery Pack). The report was issued by Waltek Testing Group Co., Ltd., an accredited third-party testing laboratory located at No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China.

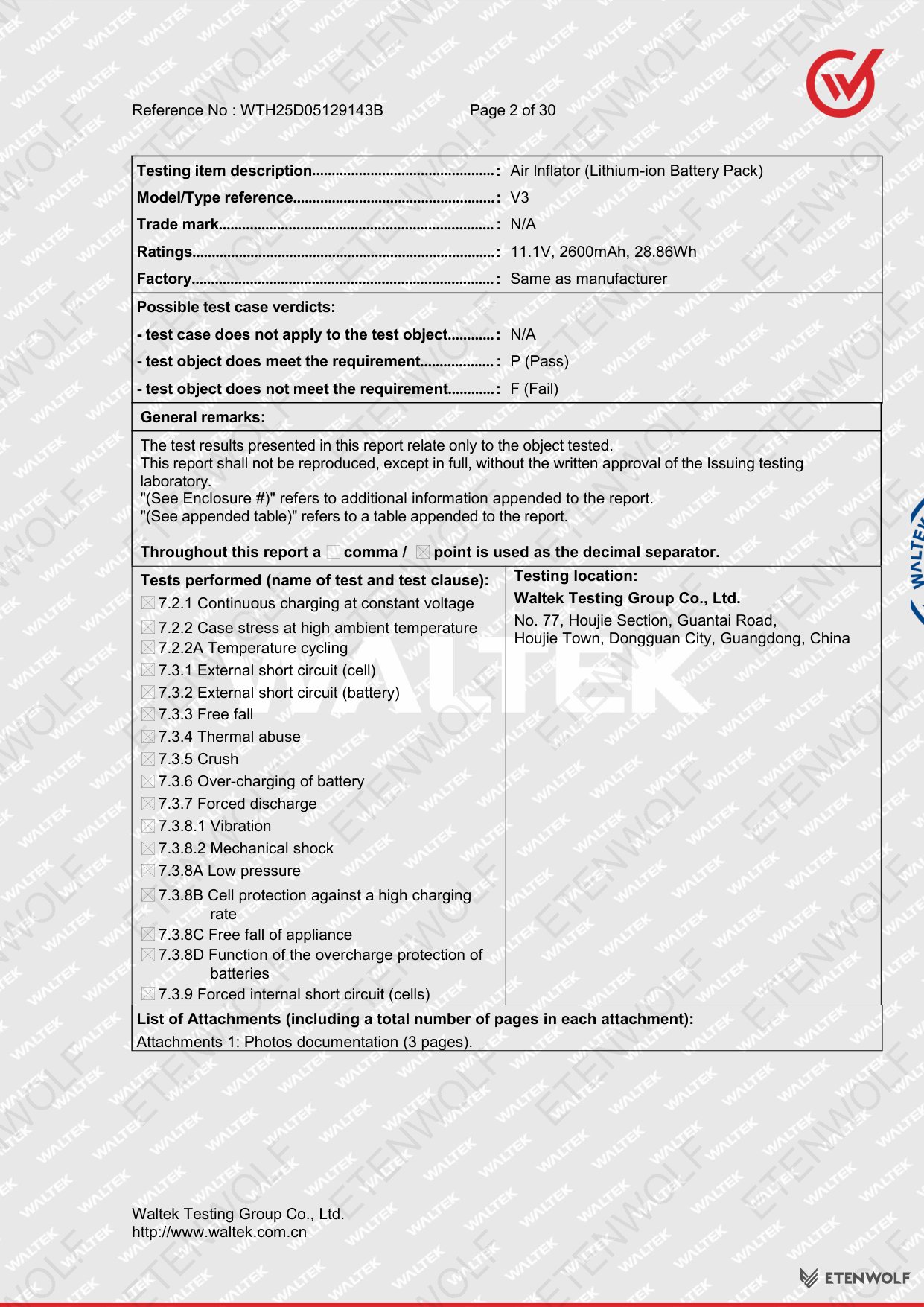

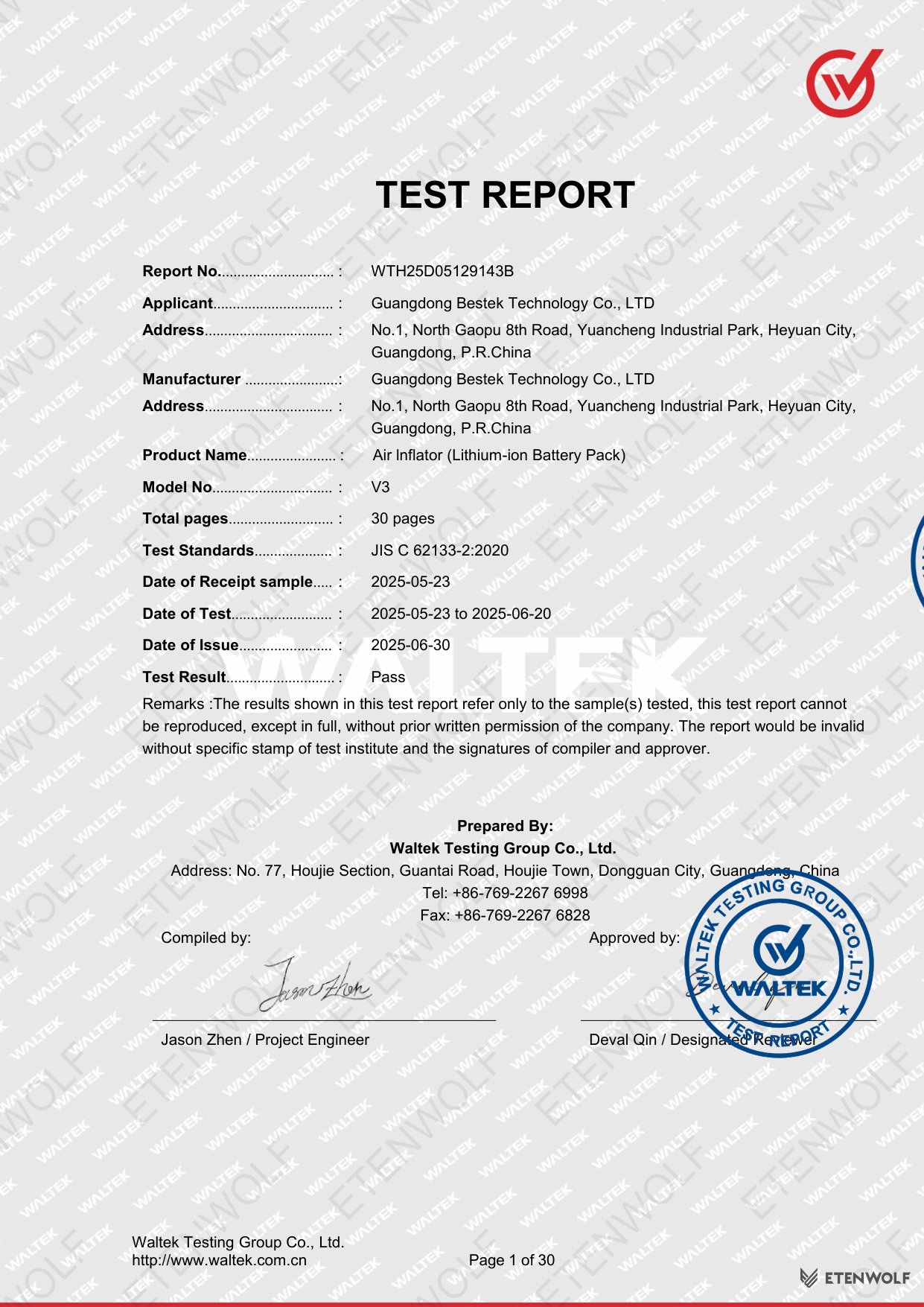

| Field | Detail |
|---|---|
| Report Number | WTH25D05129143B |
| Document Type | PSE Test Report |
| Issuing Laboratory | Waltek Testing Group Co., Ltd. |
| Test Standard | JIS C 62133-2:2020 |
| Date of Sample Receipt | 2025-05-23 |
| Test Period | 2025-05-23 to 2025-06-20 |
| Date of Issue | 2025-06-30 |
| Overall Test Result | Pass |
| Total Pages | 30 pages |
The PSE (Product Safety Electrical Appliance and Material) mark is a mandatory Japanese safety certification for lithium-ion battery products. Compliance with JIS C 62133-2:2020 demonstrates that the product meets Japan’s safety requirements for portable sealed secondary lithium cells and batteries used in portable applications.
Product Information
The V3 is a portable air inflator incorporating a built-in lithium-ion battery pack. It is designed and manufactured by Guangdong Bestek Technology Co., LTD, and is submitted for certification under the ETENWOLF brand.

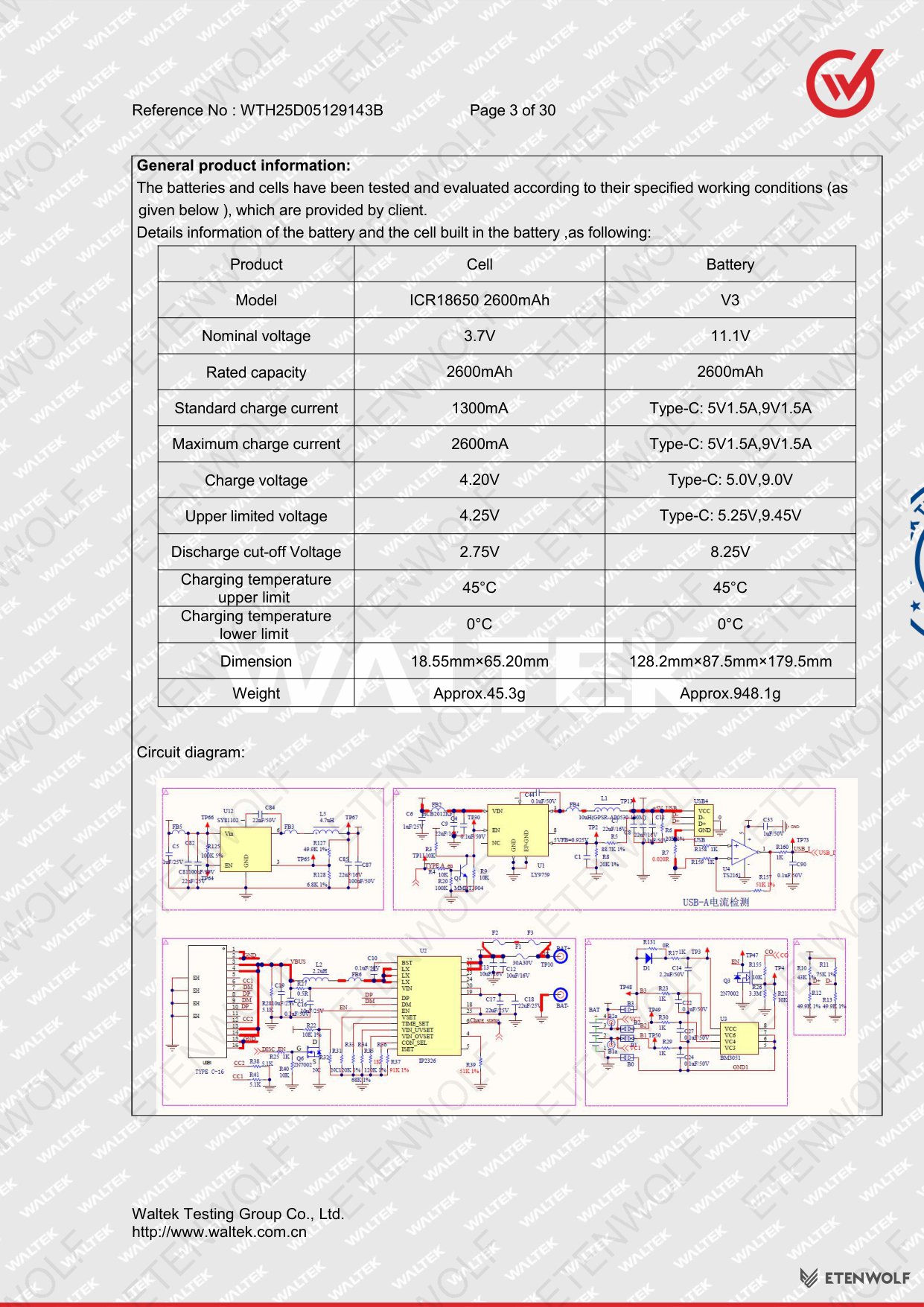

| Parameter | Cell (ICR18650 2600mAh) | Battery Pack (V3) |
|---|---|---|
| Model | ICR18650 2600mAh | V3 |
| Nominal Voltage | 3.7V | 11.1V |
| Rated Capacity | 2600mAh | 2600mAh |
| Energy | — | 28.86Wh |
| Standard Charge Current | 1300mA | Type-C: 5V/1.5A, 9V/1.5A |
| Maximum Charge Current | 2600mA | Type-C: 5V/1.5A, 9V/1.5A |
| Charge Voltage | 4.20V | Type-C: 5.0V, 9.0V |
| Upper Limited Voltage | 4.25V | Type-C: 5.25V, 9.45V |
| Discharge Cut-off Voltage | 2.75V | 8.25V |
| Charging Temperature (Upper) | 45°C | 45°C |
| Charging Temperature (Lower) | 0°C | 0°C |
| Dimensions | 18.55mm × 65.20mm | 128.2mm × 87.5mm × 179.5mm |
| Weight | Approx. 45.3g | Approx. 948.1g |
Applicant and manufacturer: Guangdong Bestek Technology Co., LTD, No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R.China.
Key Details

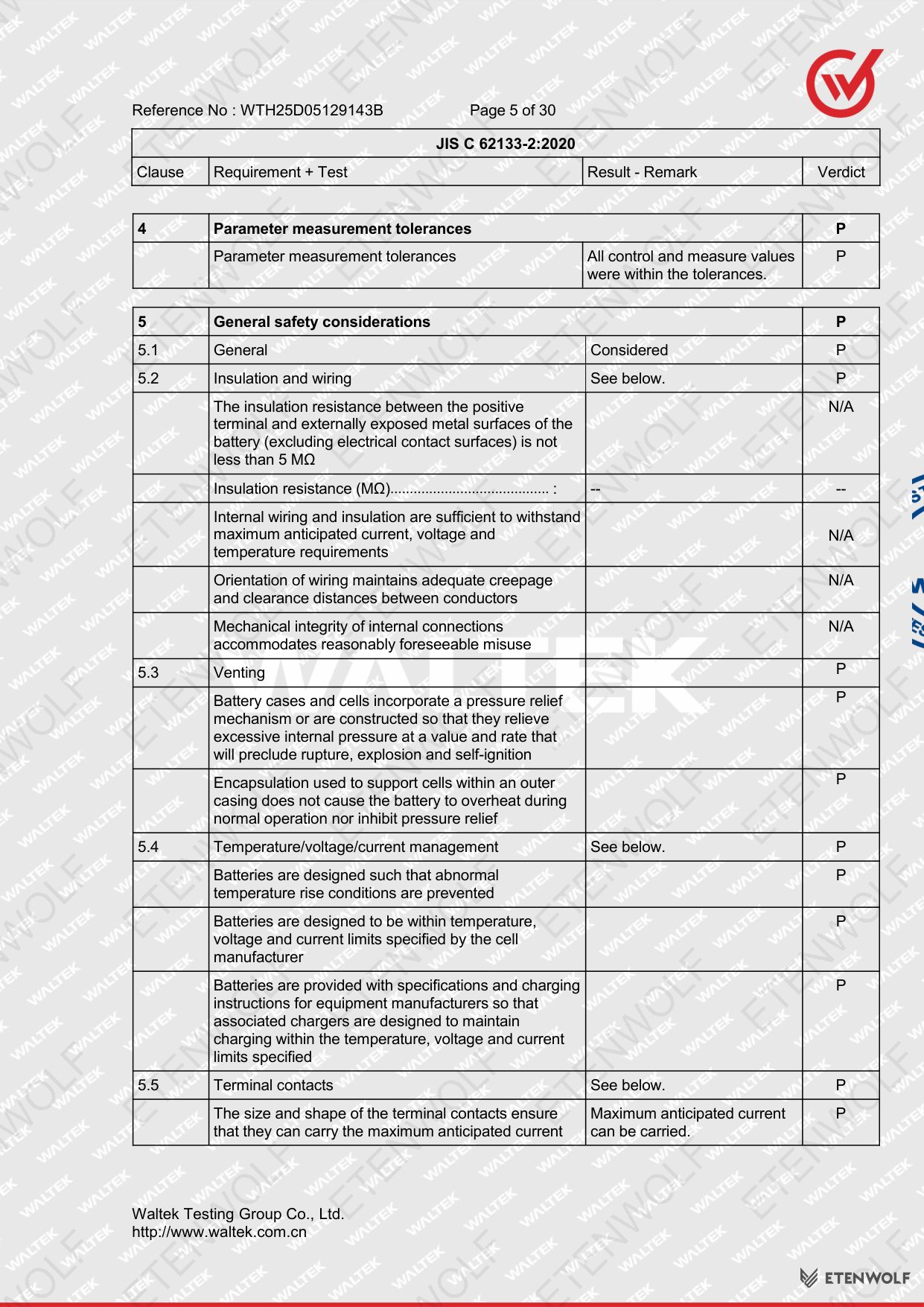

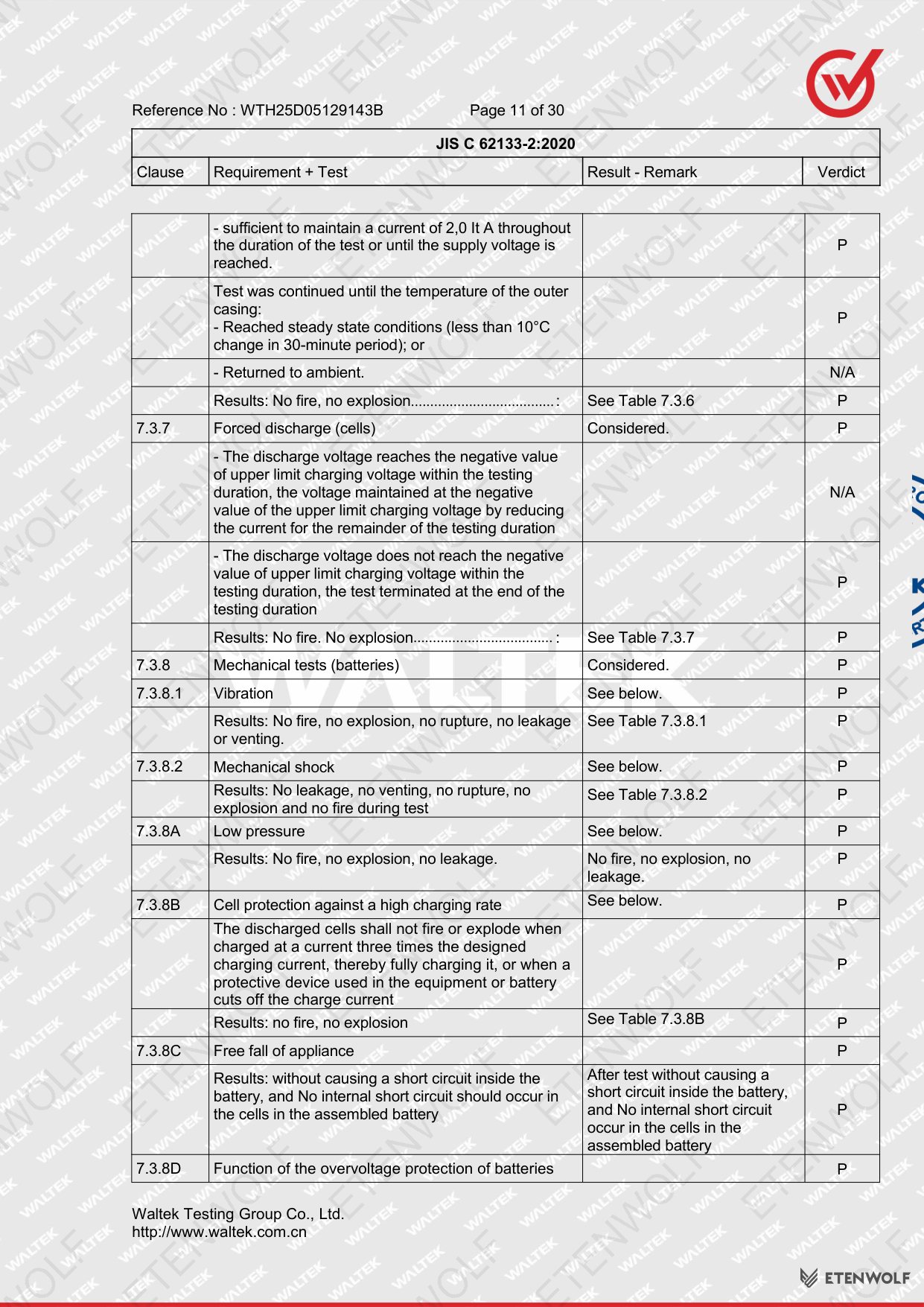

The following table summarises all test clauses conducted under JIS C 62133-2:2020 and their individual verdicts for the V3.
| Clause | Test Name | Verdict |
|---|---|---|
| 4 | Parameter measurement tolerances | Pass |
| 5 | General safety considerations | Pass |
| 5.1 | General | Pass |
| 5.2 | Insulation and wiring | Pass |
| 5.3 | Venting | Pass |
| 5.4 | Temperature / voltage / current management | Pass |
| 5.5 | Terminal contacts | Pass |

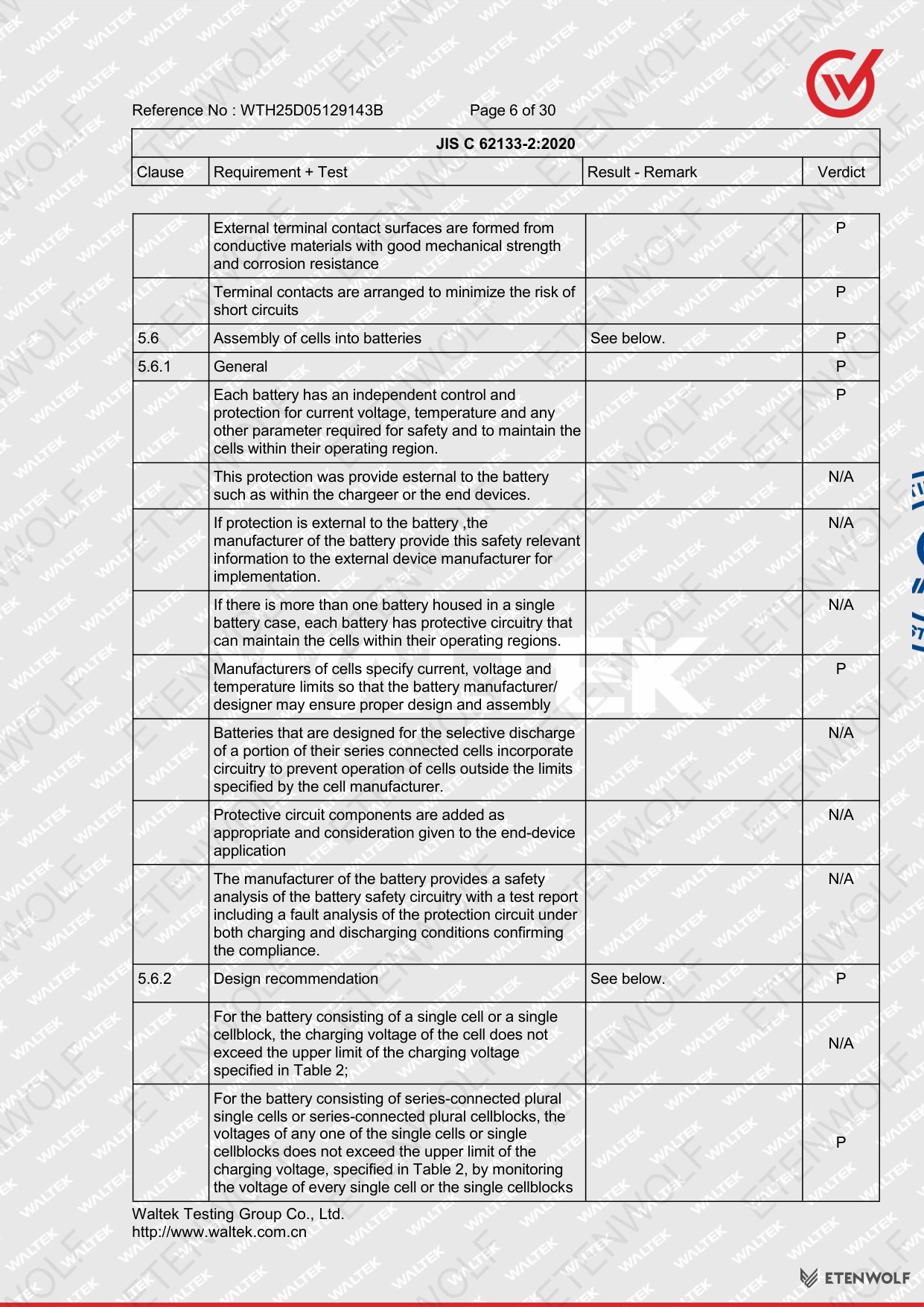

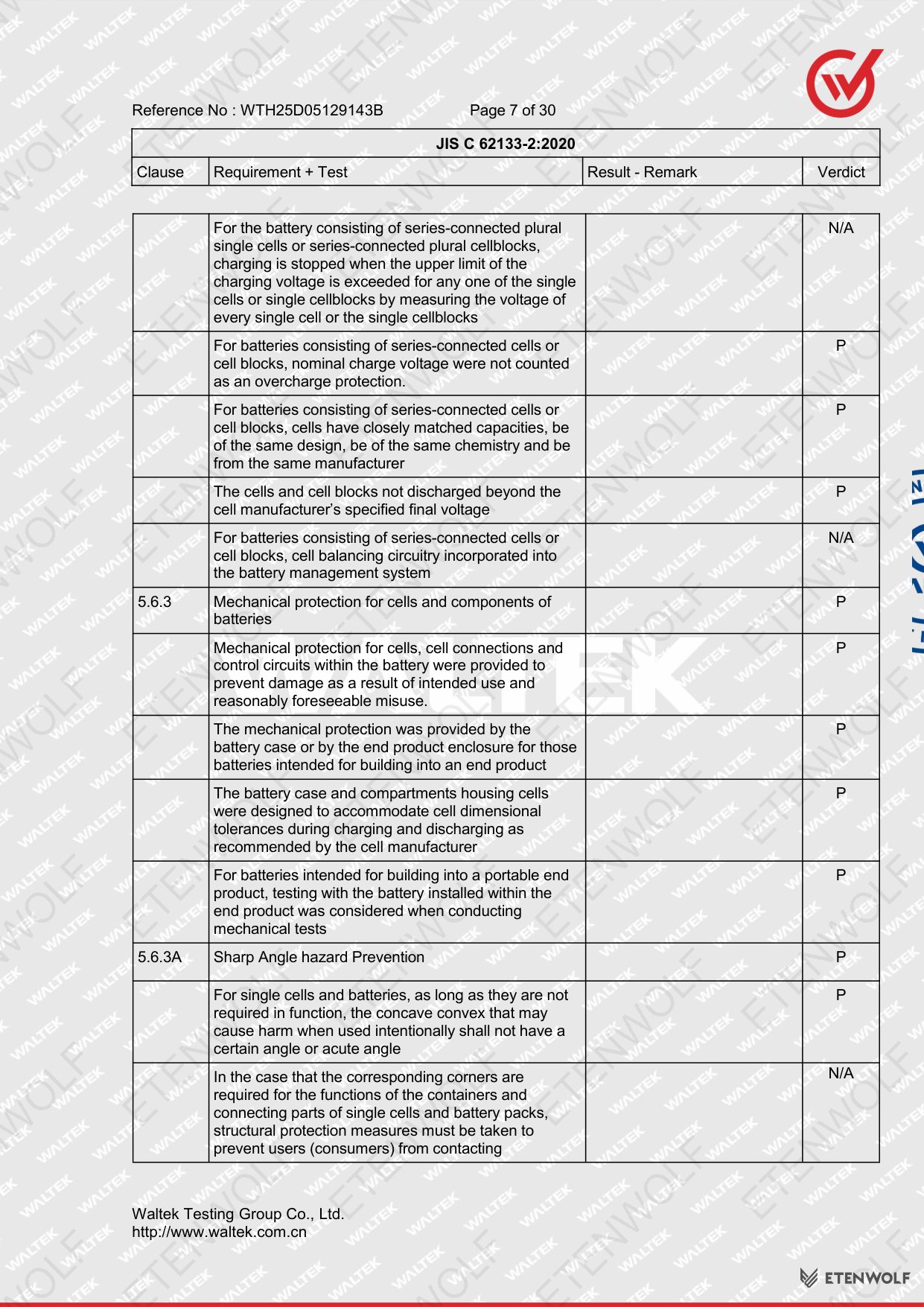

| 5.6 | Assembly of cells into batteries | Pass |

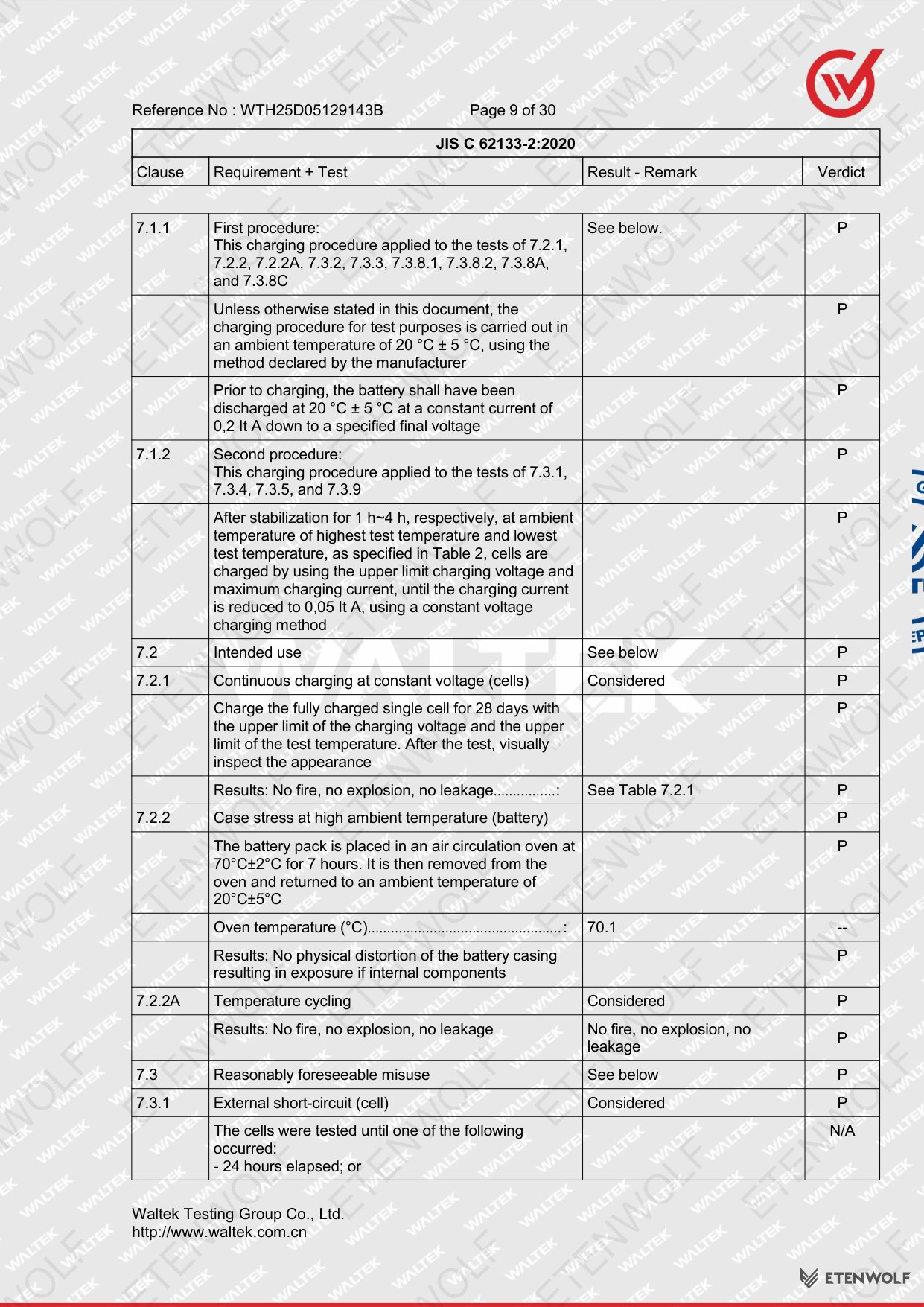

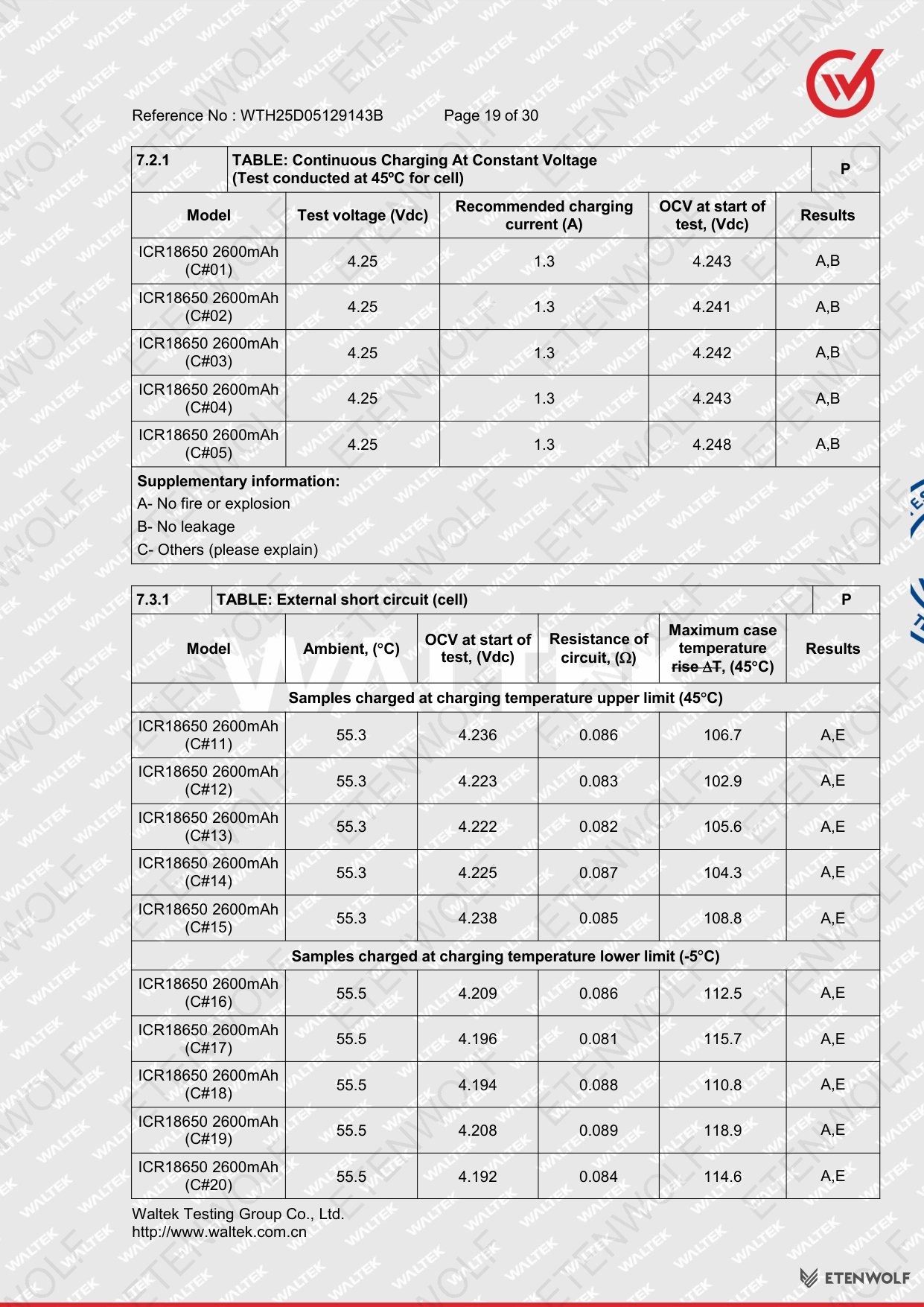

| 7.2.1 | Continuous charging at constant voltage | Pass |
| 7.2.2 | Case stress at high ambient temperature | Pass |
| 7.2.2A | Temperature cycling | Pass |
| 7.3.1 | External short circuit (cell) | Pass |

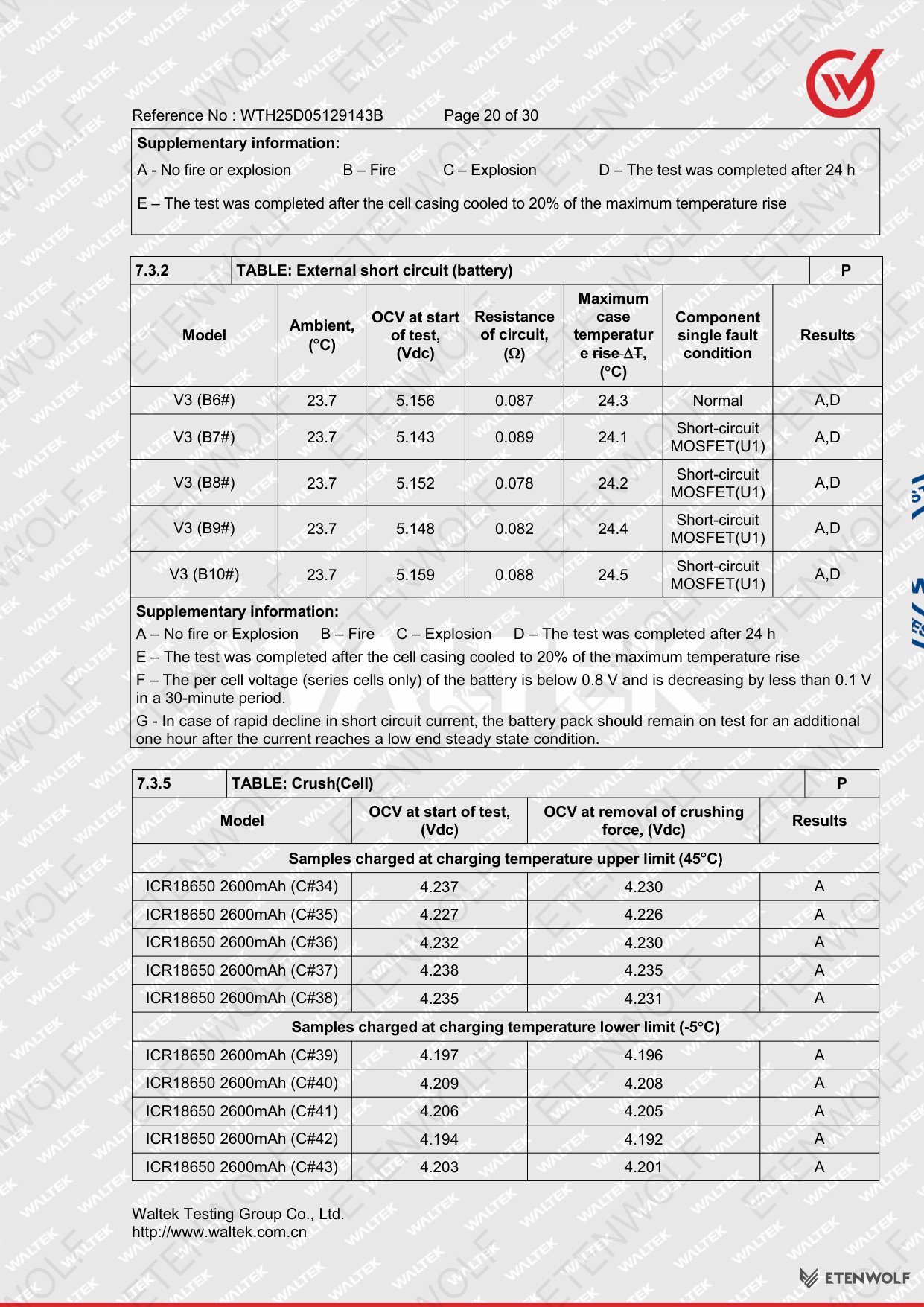

| 7.3.2 | External short circuit (battery) | Pass |
| 7.3.3 | Free fall | Pass |
| 7.3.4 | Thermal abuse | Pass |
| 7.3.5 | Crush | Pass |

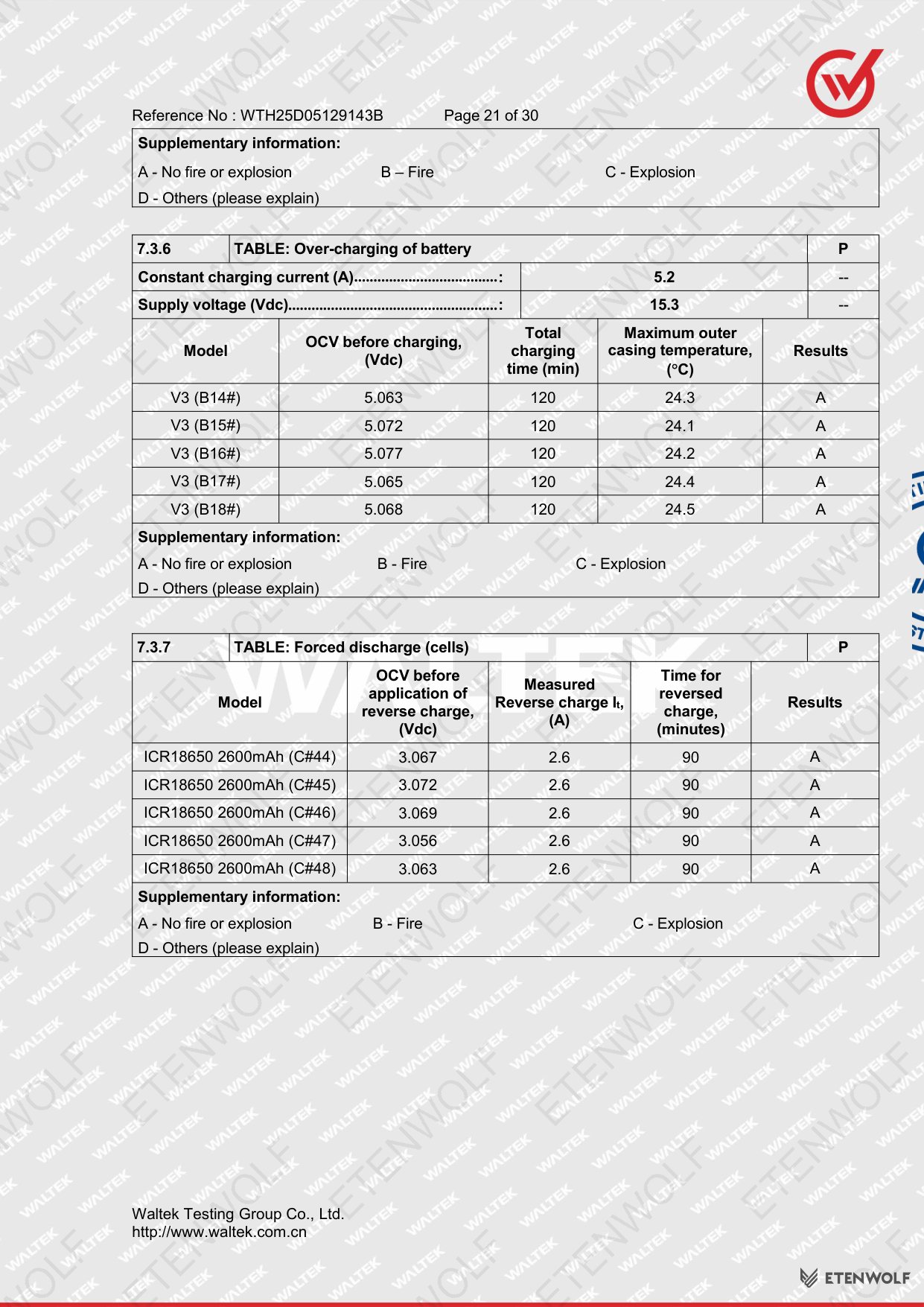

| 7.3.6 | Over-charging of battery | Pass |
| 7.3.7 | Forced discharge | Pass |

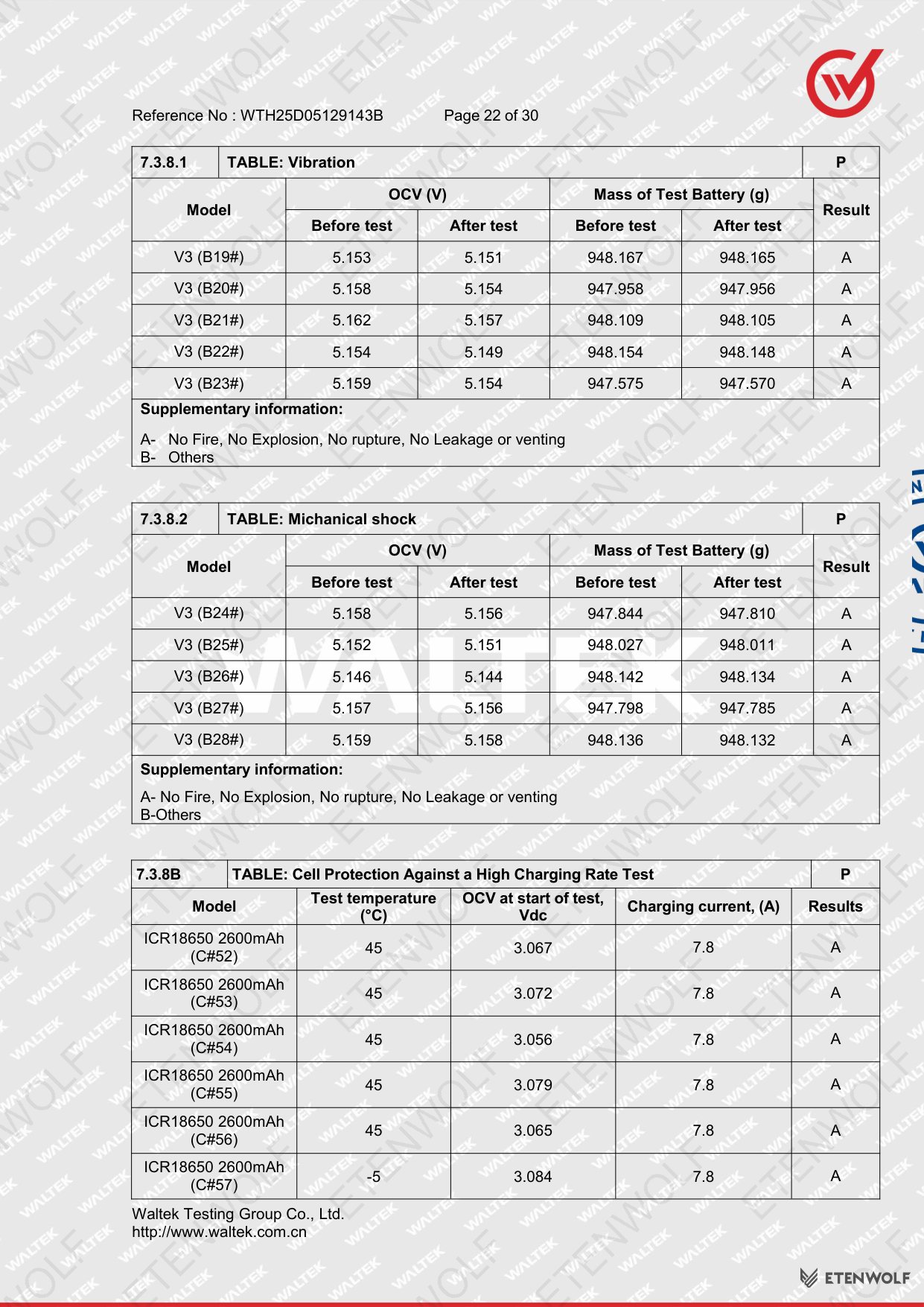

| 7.3.8.1 | Vibration | Pass |
| 7.3.8.2 | Mechanical shock | Pass |
| 7.3.8A | Low pressure | Pass |
| 7.3.8B | Cell protection against a high charging rate | Pass |
| 7.3.8C | Free fall of appliance | Pass |

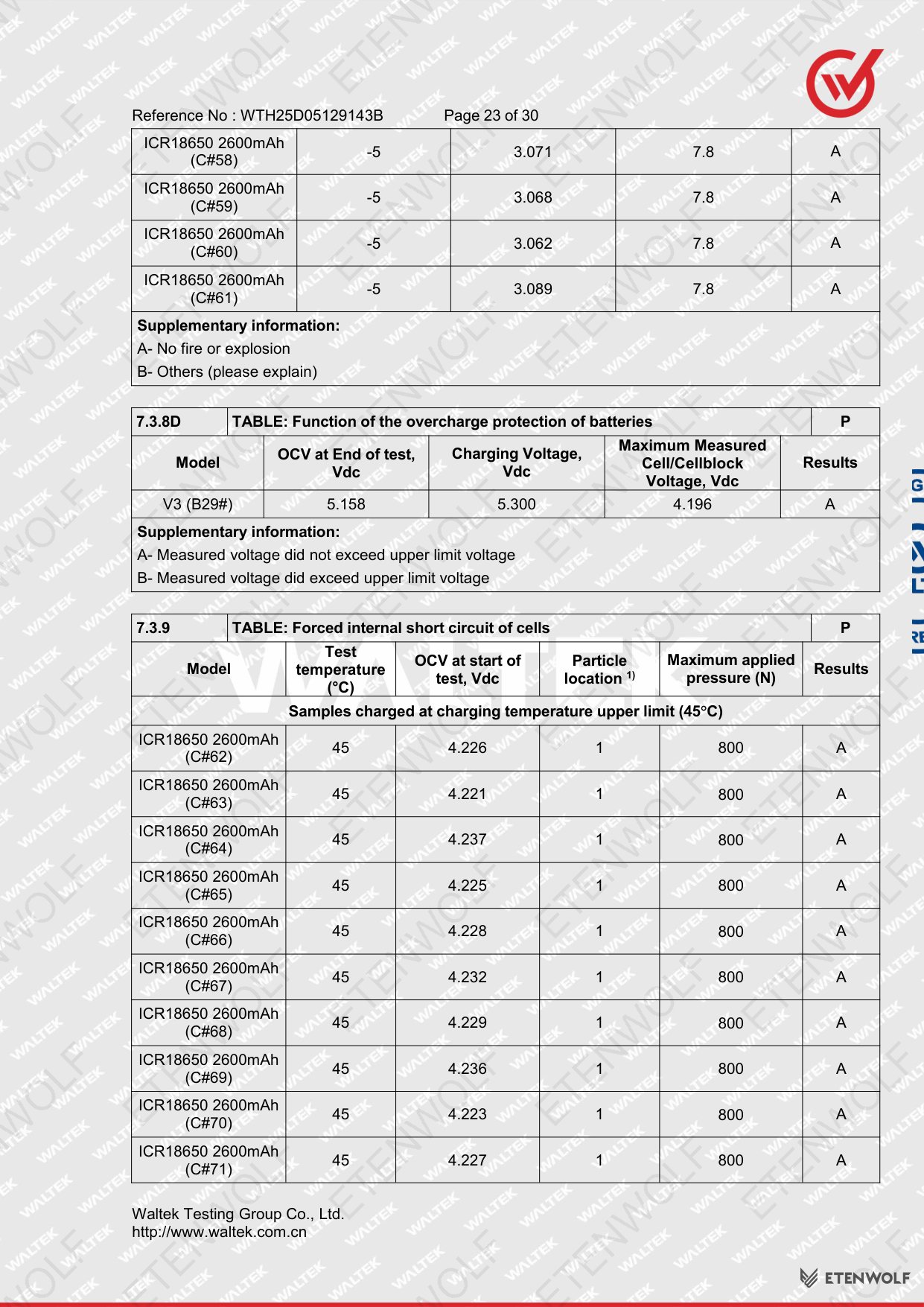

| 7.3.8D | Function of the overcharge protection of batteries | Pass |

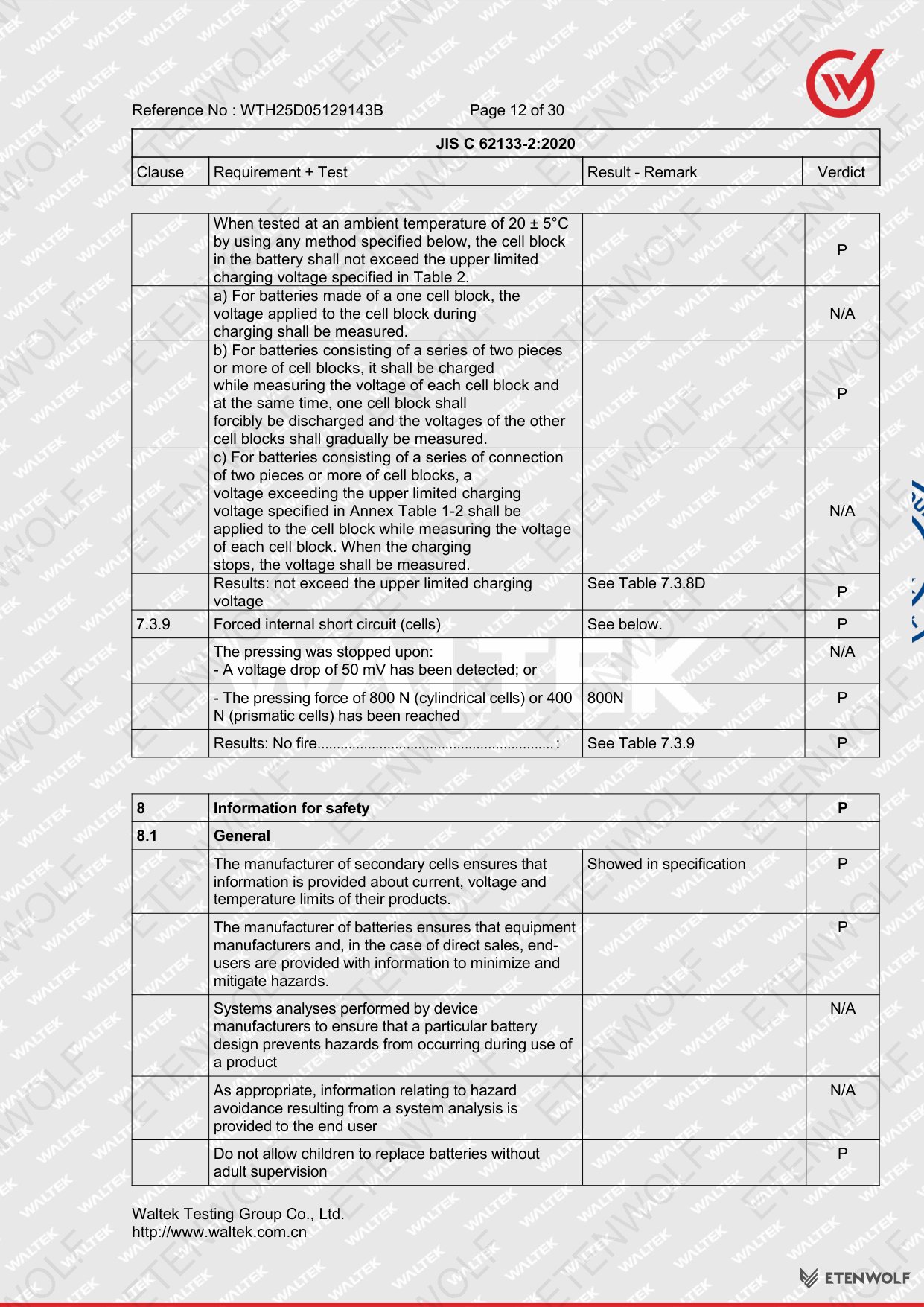

| 7.3.9 | Forced internal short circuit (cells) | Pass |
Key safety findings include: insulation resistance between positive terminal and exposed metal surfaces meets the minimum 5 MΩ threshold; venting mechanisms prevent rupture or explosion under abnormal pressure; battery management circuits maintain voltage, current, and temperature within cell manufacturer specifications throughout all test scenarios.
Standards & Compliance
The V3 was evaluated against the following standard:
- JIS C 62133-2:2020 — Safety requirements for portable sealed secondary lithium cells, and for batteries made from them, for use in portable applications — Part 2: Lithium systems. This is the Japanese Industrial Standard aligned with IEC 62133-2 and is a recognised basis for PSE certification under Japan’s Electrical Appliance and Material Safety Act.
The test scope covers the full battery-level and cell-level safety test matrix, including electrical abuse tests (overcharge, forced discharge, external short circuit), mechanical abuse tests (free fall, crush, vibration, mechanical shock), thermal abuse tests (thermal abuse, temperature cycling, high ambient temperature), and environmental tests (low pressure). All 25 test clauses with applicable status returned a Pass verdict.
Verdicts used in the report:
- P (Pass) — test object meets the requirement
- F (Fail) — test object does not meet the requirement
- N/A — test case does not apply to the test object
Validity & Certification Body
The test report bears Report No. WTH25D05129143B and was issued on 2025-06-30. The report is valid only for the specific sample(s) tested and may not be reproduced in part without prior written permission from the issuing laboratory.
| Field | Detail |
|---|---|
| Issuing Laboratory | Waltek Testing Group Co., Ltd. |
| Laboratory Address | No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China |
| Laboratory Website | http://www.waltek.com.cn |
| Telephone | +86-769-2267 6998 |
| Fax | +86-769-2267 6828 |
| Compiled By | Jason Zhen / Project Engineer |
| Approved By | Deval Qin / Designated Reviewer |
| Report Issue Date | 2025-06-30 |
| Validity Note | Results apply only to the tested sample; report invalid without laboratory stamp and signatures |
Waltek Testing Group Co., Ltd. is a recognised third-party testing and certification body operating in accordance with applicable laboratory accreditation requirements. The report’s authenticity is confirmed by the specific stamp of the test institute along with the signatures of the compiler and the designated reviewer.
Frequently Asked Questions
- What does the PSE certification mean for the ETENWOLF V3?
- PSE (Product Safety Electrical Appliance and Material) is a mandatory safety mark required in Japan for lithium-ion battery products. The V3 achieving PSE certification under JIS C 62133-2:2020 means it has passed all required safety tests — including overcharge, short circuit, crush, thermal abuse, and vibration — and is legally permitted for sale in the Japanese market.
- Which test standard was used and why is it relevant?
- JIS C 62133-2:2020 is the Japanese Industrial Standard for the safety of portable sealed secondary lithium cells and batteries. It is technically aligned with the international standard IEC 62133-2 and is the primary standard referenced by Japan’s Electrical Appliance and Material Safety Act for lithium-ion battery packs used in portable devices such as the V3 air inflator.
- What are the key electrical specifications of the V3 battery pack?
- The V3 battery pack operates at a nominal voltage of 11.1V with a rated capacity of 2600mAh and a total energy of 28.86Wh. It charges via a Type-C port at 5V/1.5A or 9V/1.5A and incorporates a discharge cut-off voltage of 8.25V. The safe charging temperature range is 0°C to 45°C.
- Who conducted the testing and how can the report be verified?
- Testing was conducted by Waltek Testing Group Co., Ltd. at their facility in Dongguan, Guangdong, China. The report number is WTH25D05129143B, issued on 2025-06-30. It was compiled by Jason Zhen (Project Engineer) and approved by Deval Qin (Designated Reviewer). The report is only valid when accompanied by the official laboratory stamp and both signatures. For verification, contact Waltek at +86-769-2267 6998 or visit http://www.waltek.com.cn.
Related Documents
The following certification and compliance documents are recommended for the V3 air inflator to support comprehensive market access and product safety documentation:
- UN 38.3 Transport Test Report — Required for the international air and sea transport of lithium-ion battery products. Certifies the battery pack is safe for shipping under UN38.3 conditions.
- CE Declaration of Conformity (LVD / Battery Directive) — Required for sale in the European Economic Area. Demonstrates conformity with the EU Low Voltage Directive and applicable battery regulations under the CE marking framework.
- FCC Part 15 / Part 18 Test Report — Required for the US market. Confirms the V3 meets FCC electromagnetic compatibility requirements.
- KC Certification (Korea) — Mandatory safety certification for the South Korean market, assessed against KC standards for lithium-ion battery safety, aligned with KC regulatory requirements.
- RoHS / REACH Compliance Report — Documents restriction of hazardous substances and registration of chemicals in the product, required for EU market access under RoHS and REACH regulations.
- IEC 62133-2 International Test Report — The international equivalent of the JIS C 62133-2 standard, supporting certification in multiple markets outside Japan through a single harmonised test programme under IEC.

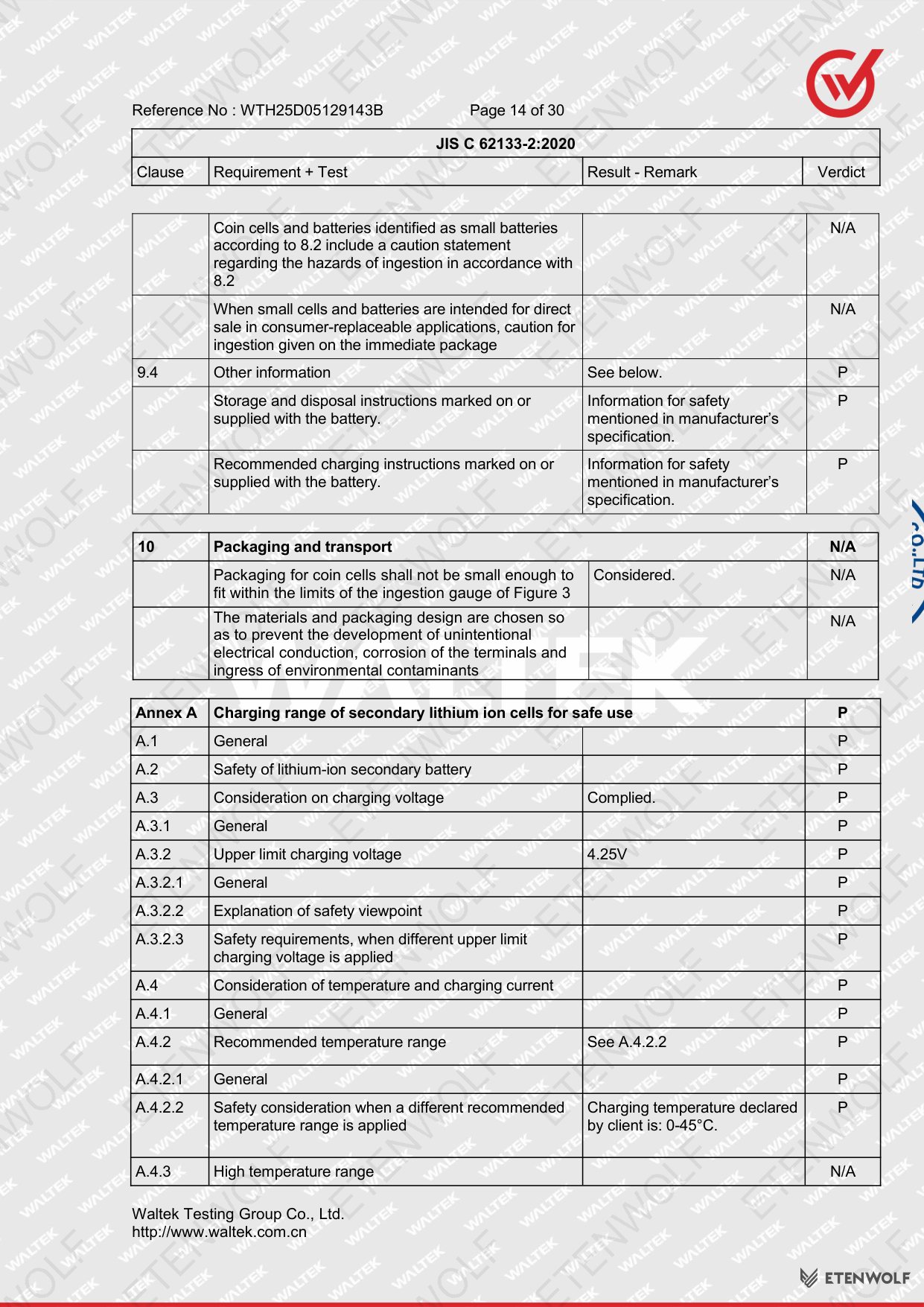

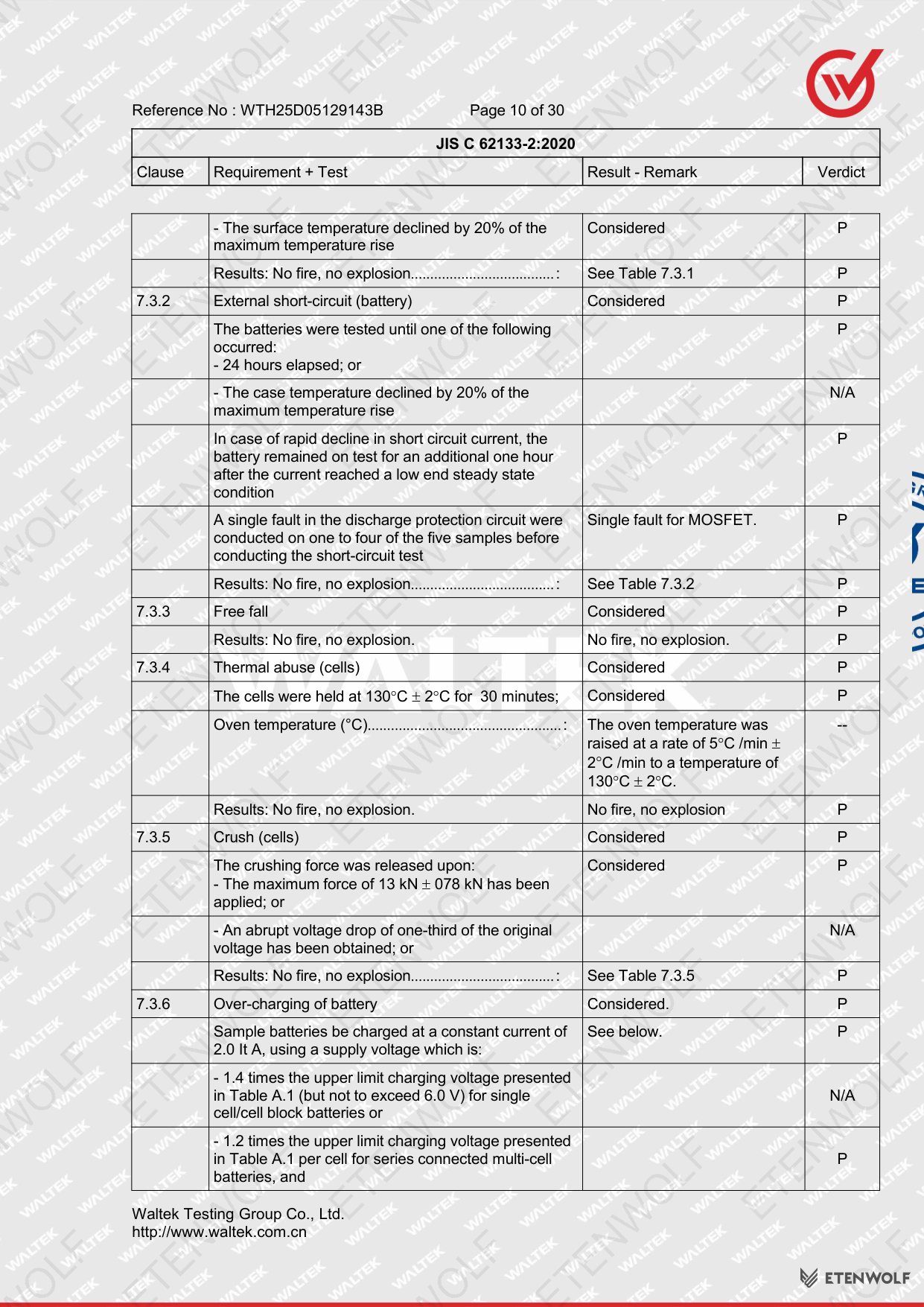

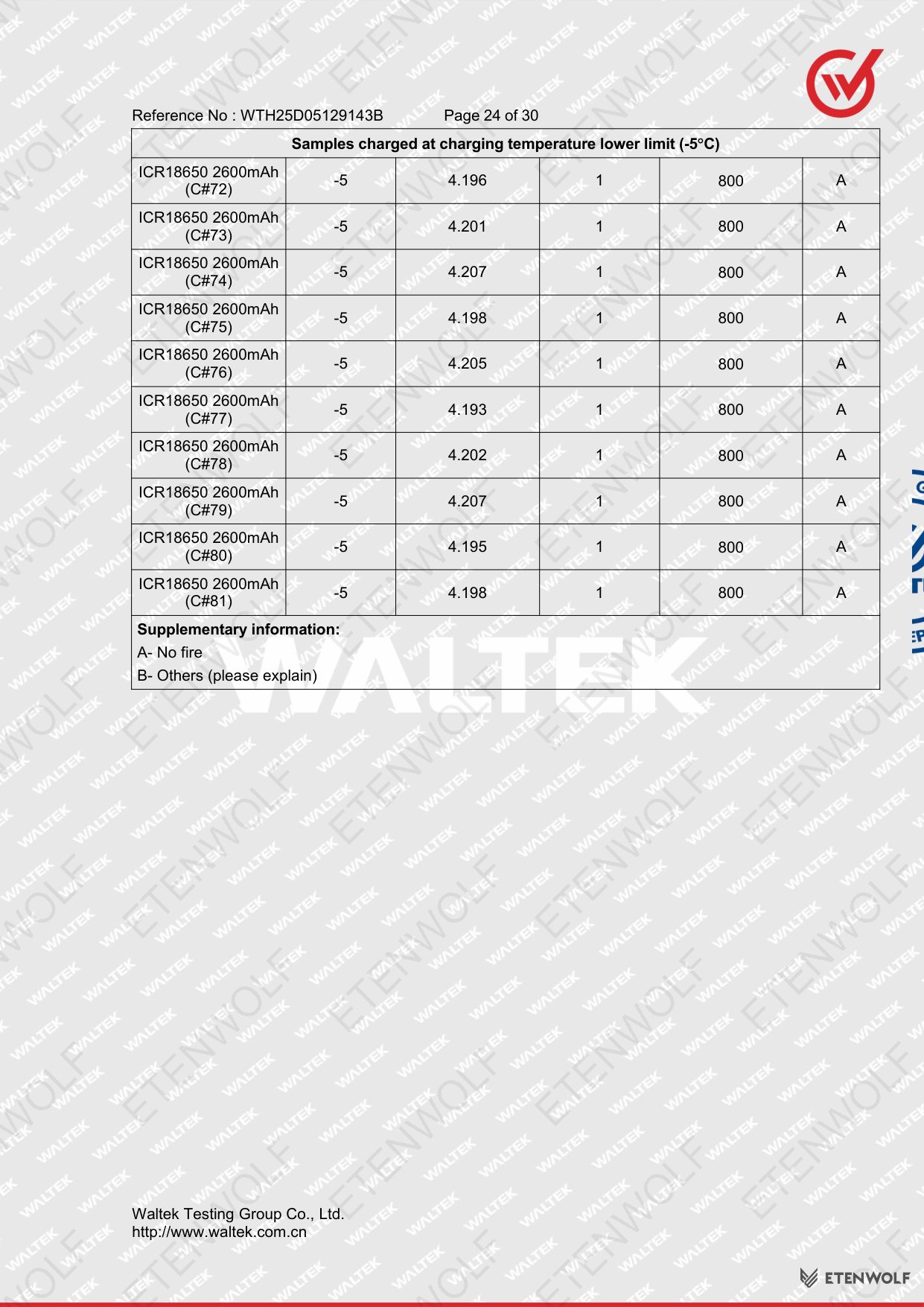

Document Pages
