Document Overview
This article presents the structured knowledge base entry for CE Electromagnetic Compatibility (EMC) Test Report reference number WTH25H11289147E, issued by Waltek Testing Group HCT (Shenzhen) Co., Ltd. The report covers conducted disturbances, disturbance power, and radiated disturbances testing performed against applicable European harmonised EMC standards. The scope of the report encompasses the full EMC emissions evaluation required for CE marking under the EMC Directive, confirming the product’s compliance with EU market access requirements.
- Document Type: CE-EMC Test Report
- Reference Number: WTH25H11289147E
- Test Report Form Number: TRF EN IEC 55014-1: 2021-EMC-001-V01
- Internal Form Code: HCT/RF-23-21
- Issuing Body: Waltek Testing Group HCT (Shenzhen) Co., Ltd.
- Date of Issue: 2025-11-11
- Date of Test: 2025-11-04 to 2025-11-06
- Date of Sample Receipt: 2025-11-03
- Overall Test Result: Pass

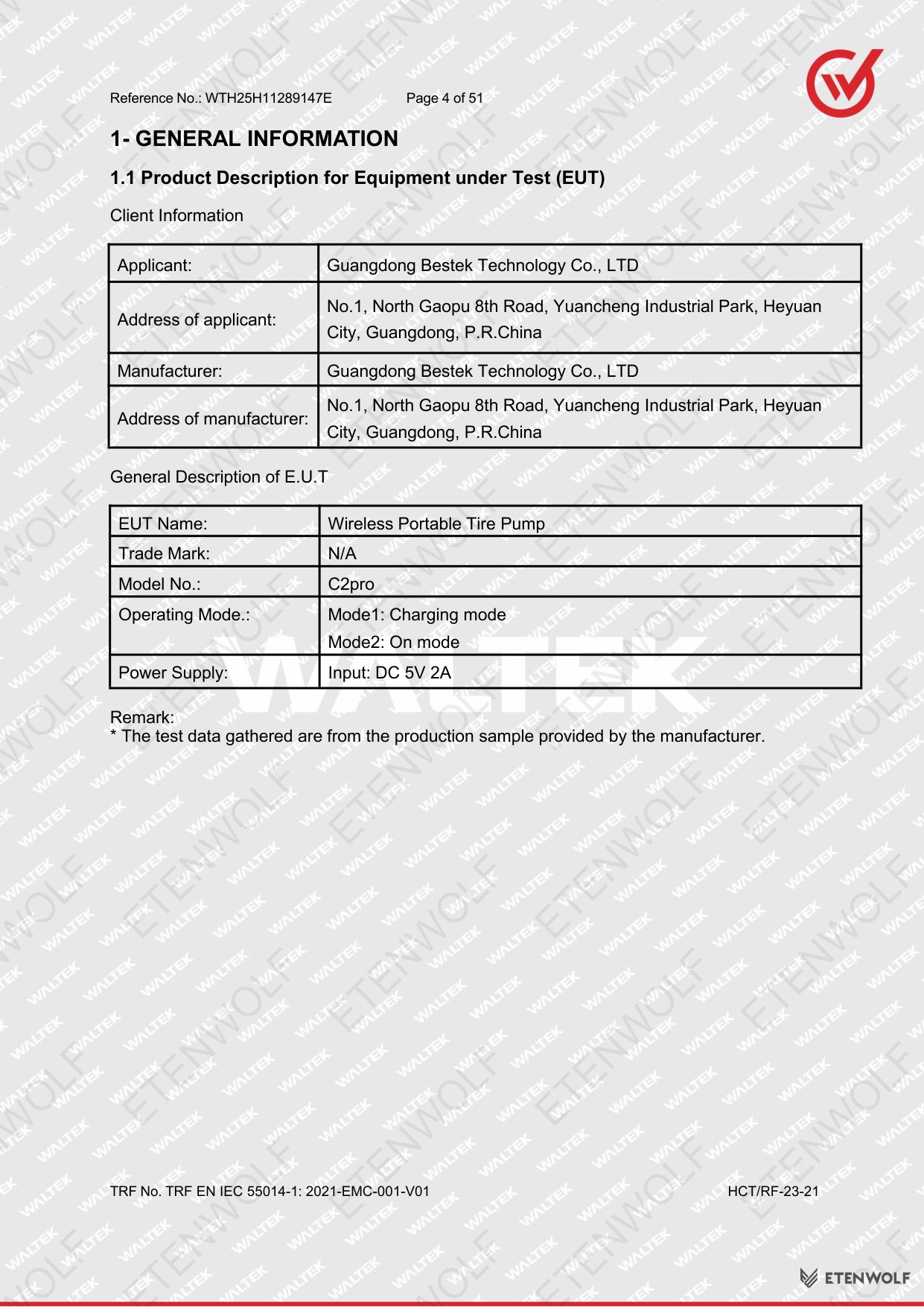

Product Information
The Equipment Under Test (EUT) evaluated in this report is the C2PRO Wireless Portable Tire Pump, marketed under the ETENWOLF brand. This product is a battery-powered cordless inflation tool designed for inflating car tires, bicycle tires, motorcycle tires, and other inflatables without requiring a fixed power source. The wireless design and integrated motor circuit make EMC compliance evaluation essential before CE-marked sale in the European Economic Area.
- Product Name: Wireless Portable Tire Pump
- Model Number: C2PRO (C2pro)
- Applicant: Guangdong Bestek Technology Co., Ltd.
- Applicant Address: No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China
- Manufacturer: Guangdong Bestek Technology Co., Ltd.
- Manufacturer Address: No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China
- Product Category: Cordless/battery-operated motor-driven portable hand tool (household and similar use)
Key Details

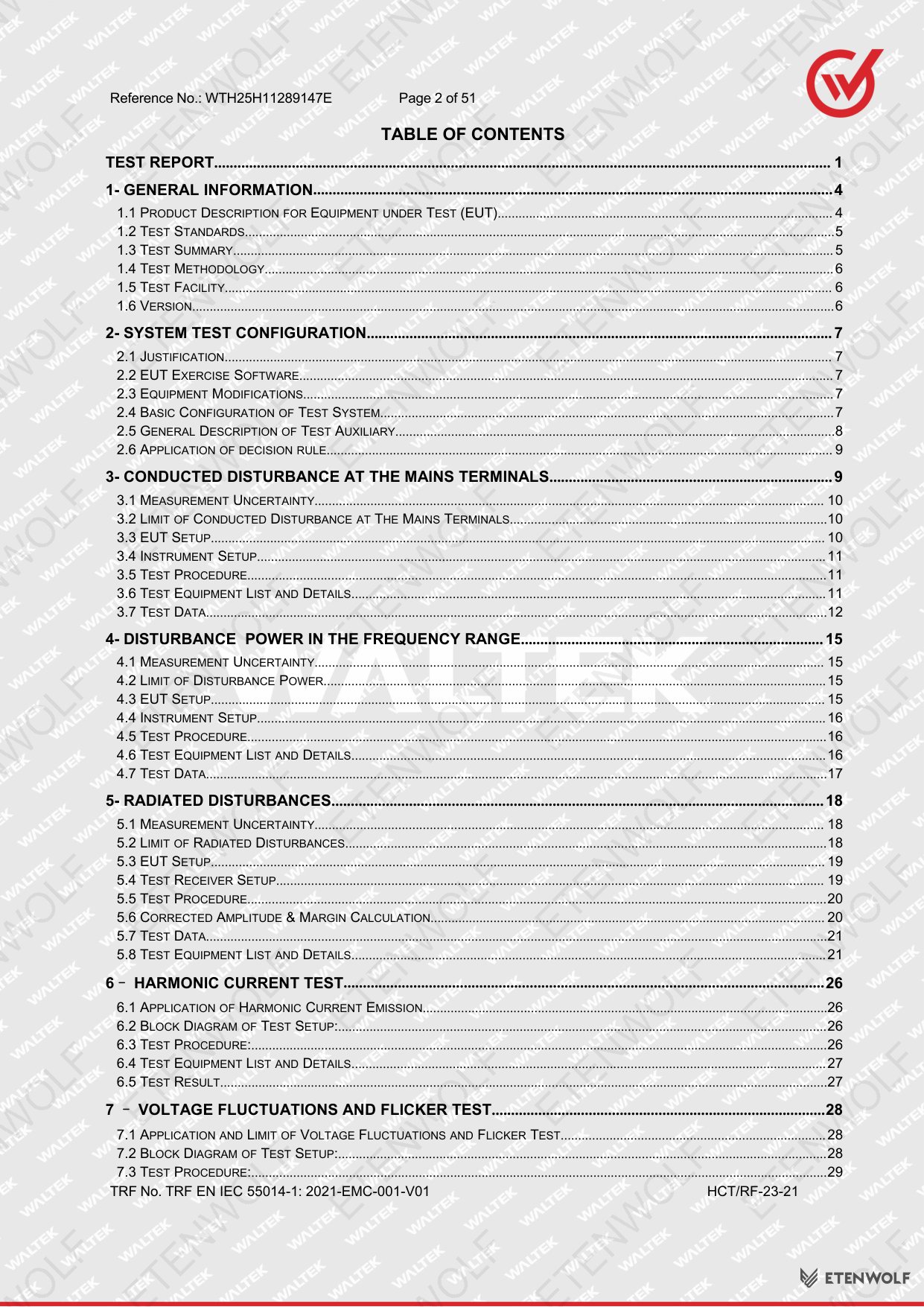

The report is structured across five main test categories, each verified against defined limits under the applicable standards. The table below summarises the key test sections, the methodology applied, and the result for each.
| Section | Test Category | Applicable Standard | Result |
|---|---|---|---|

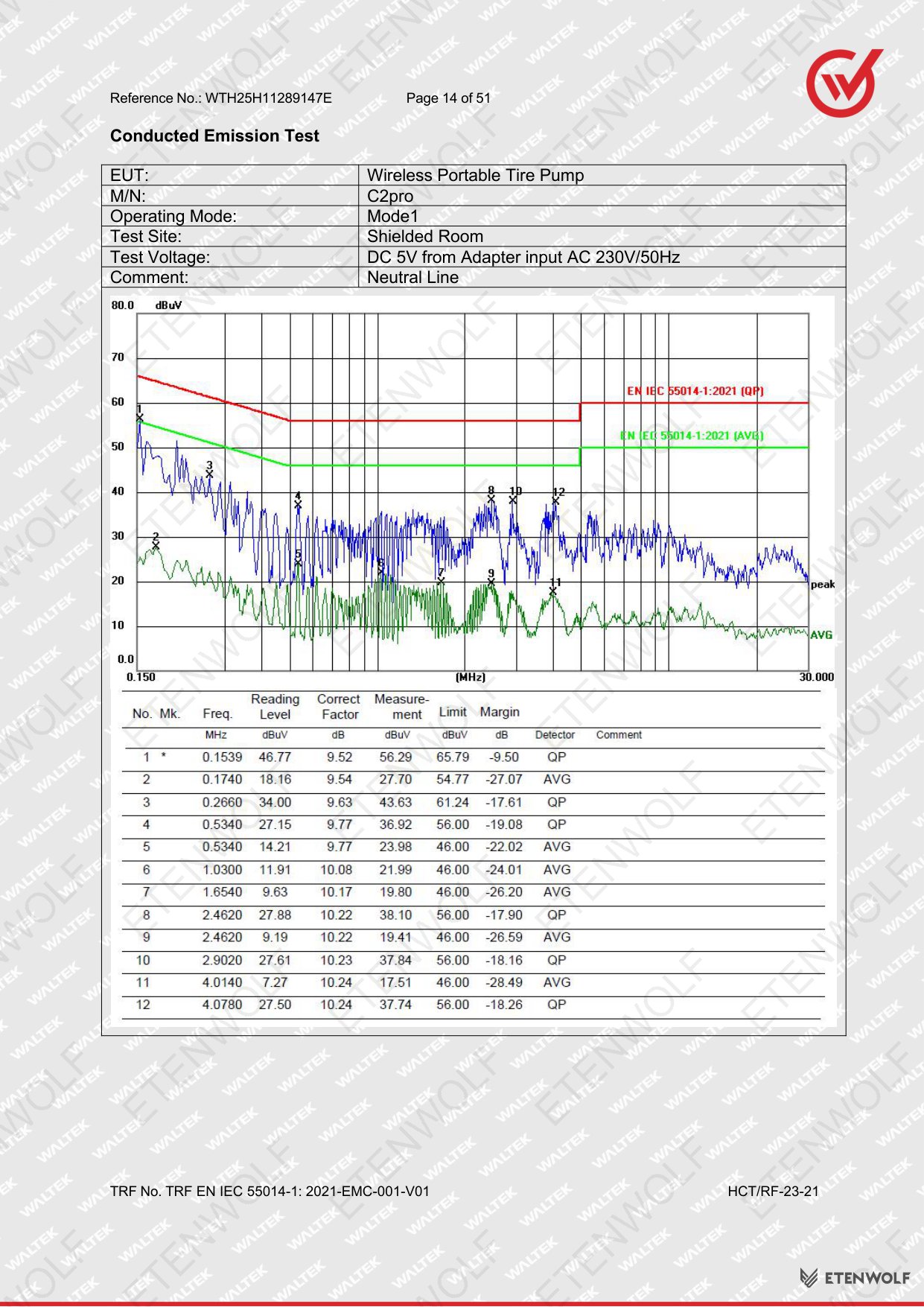

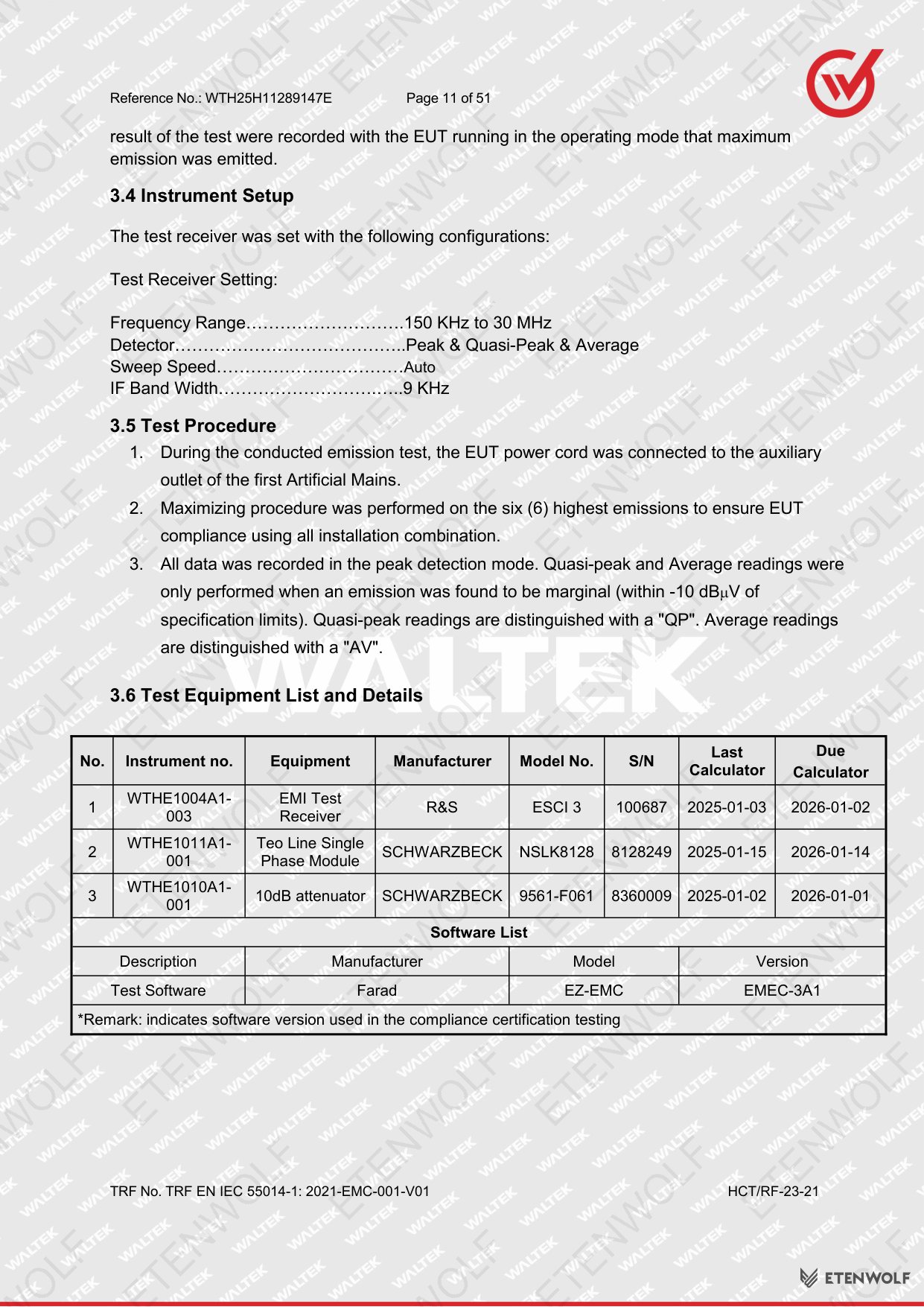

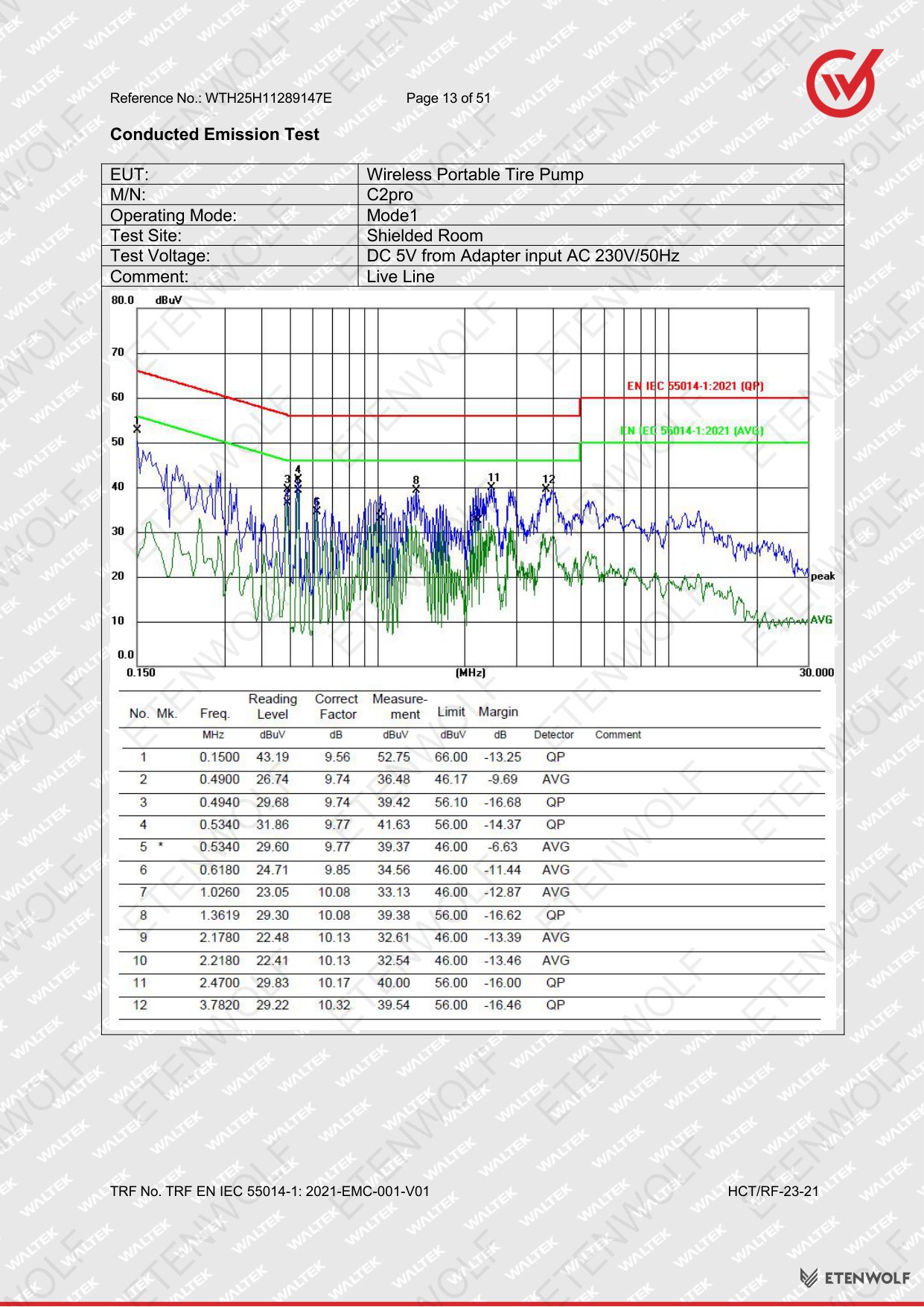

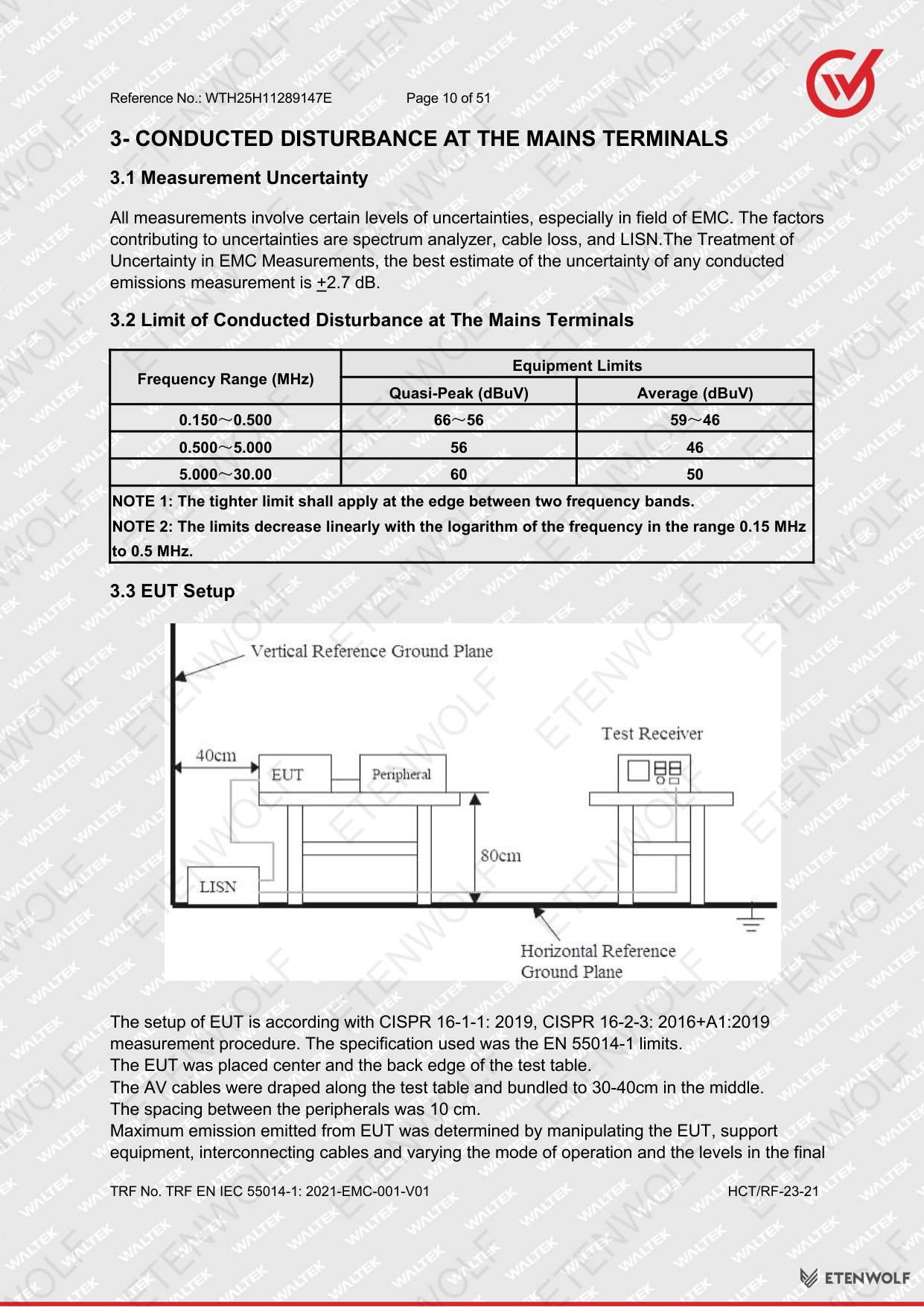

| Section 3 | Conducted Disturbance at Mains Terminals | EN IEC 55014-1: 2021 | Pass |
| Section 4 | Disturbance Power in the Frequency Range | EN IEC 55014-1: 2021 | Pass |

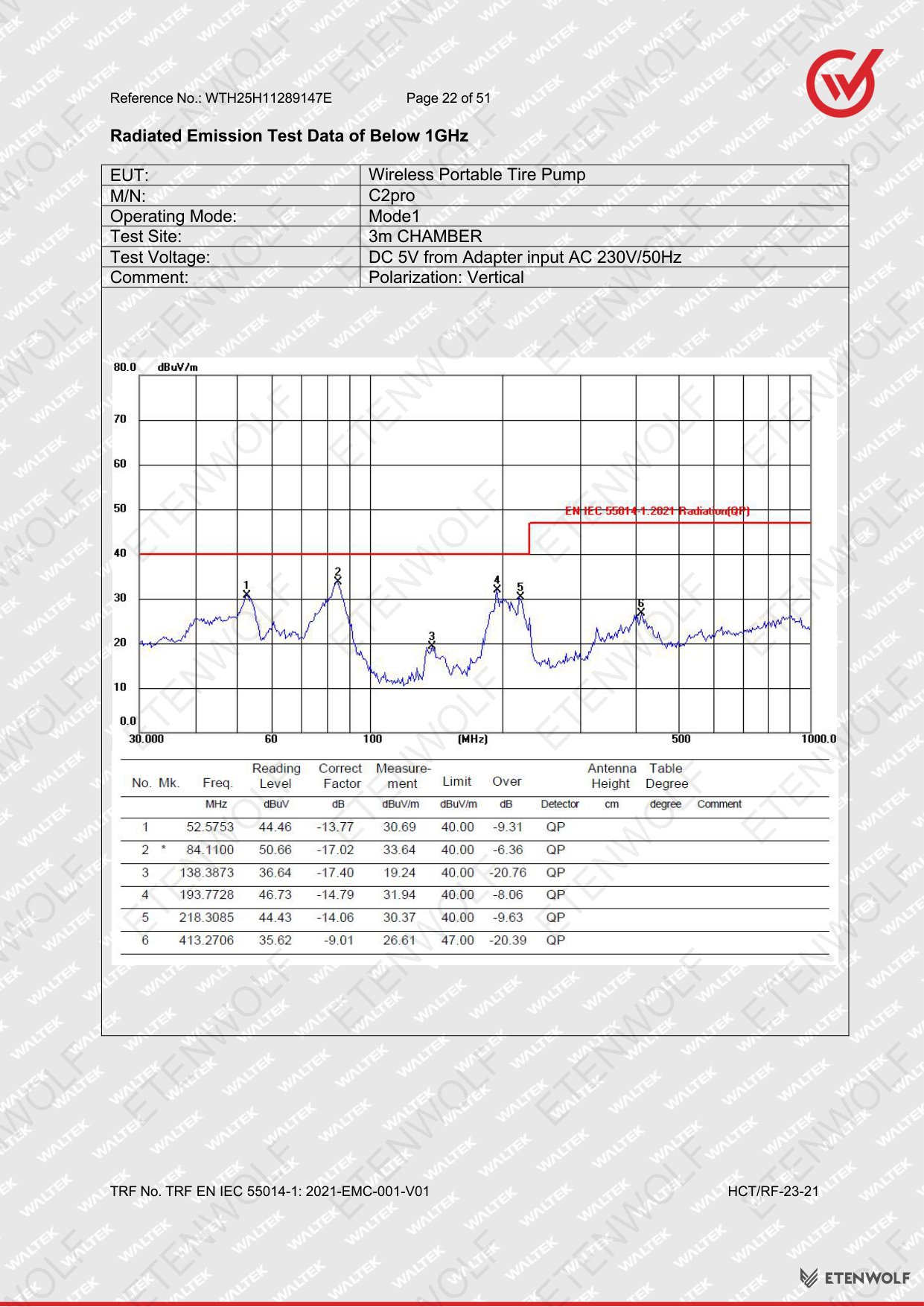

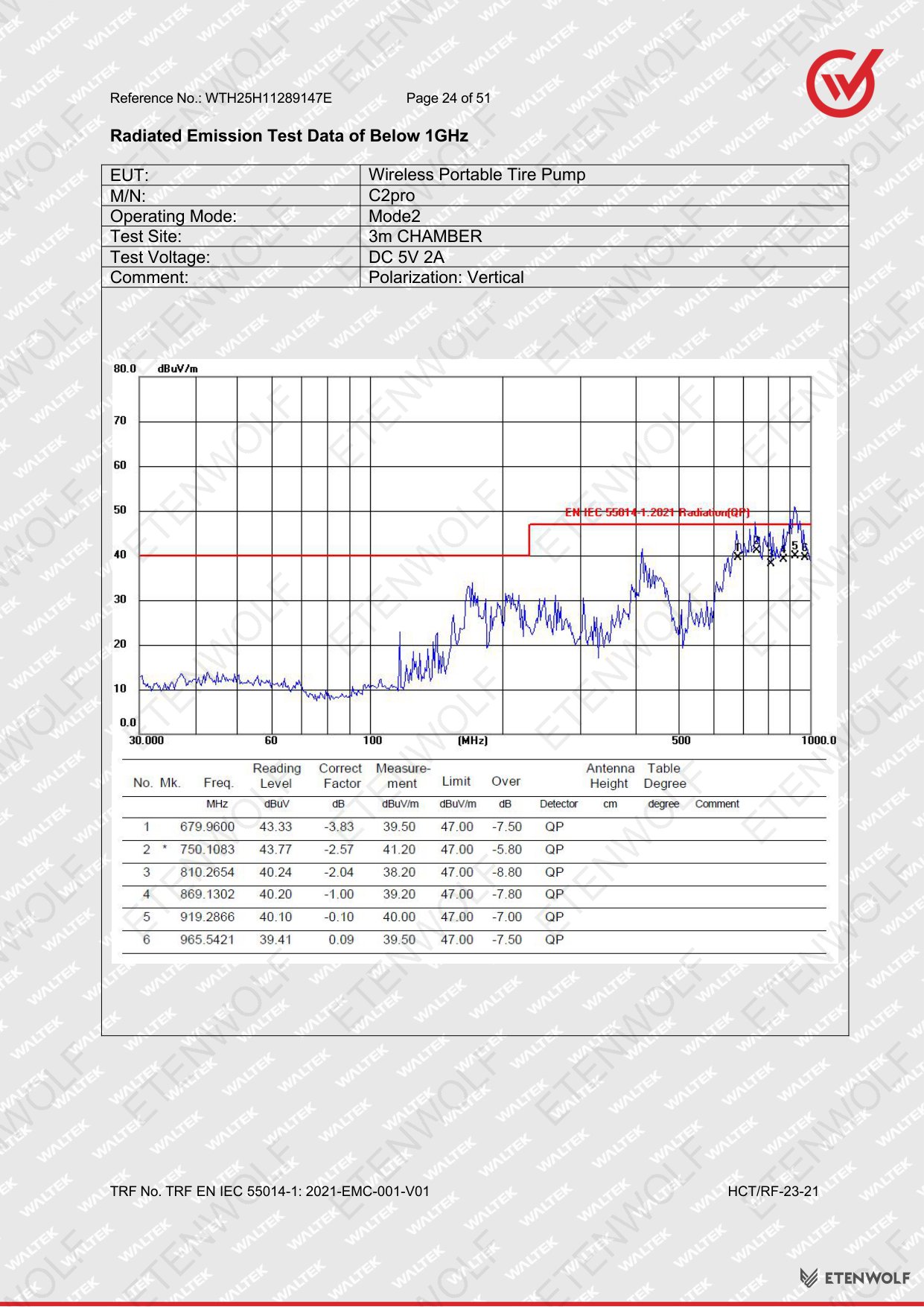

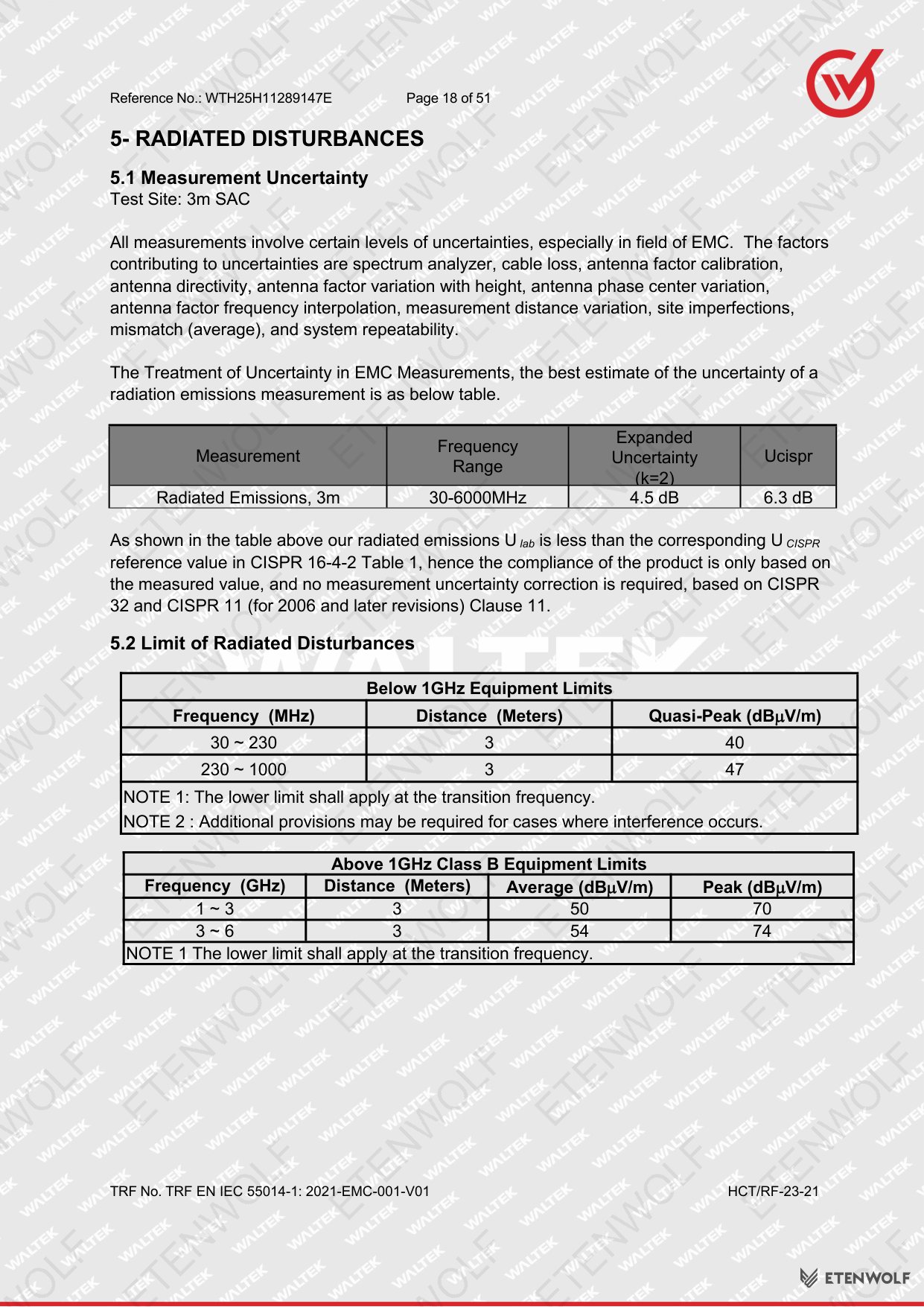

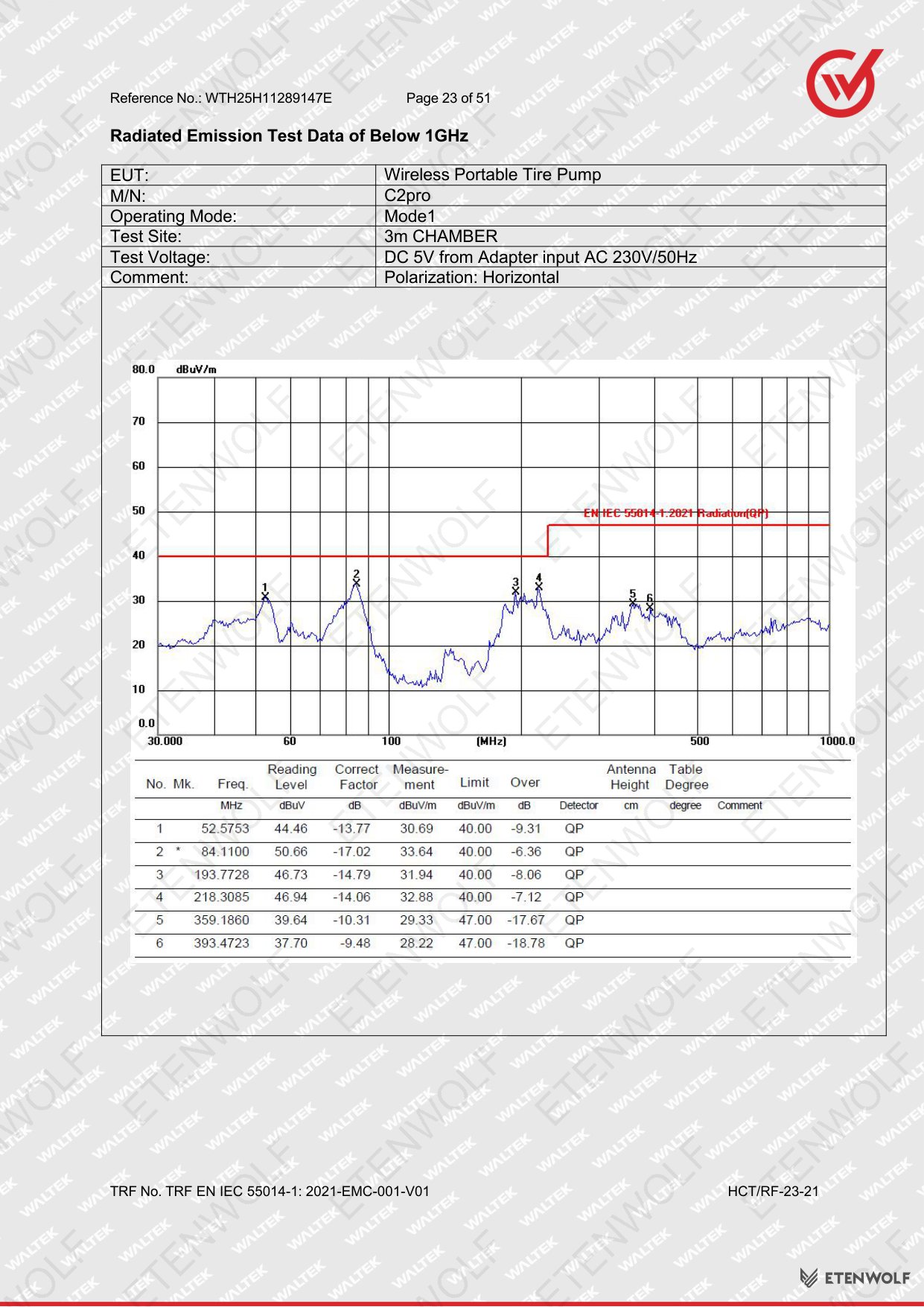

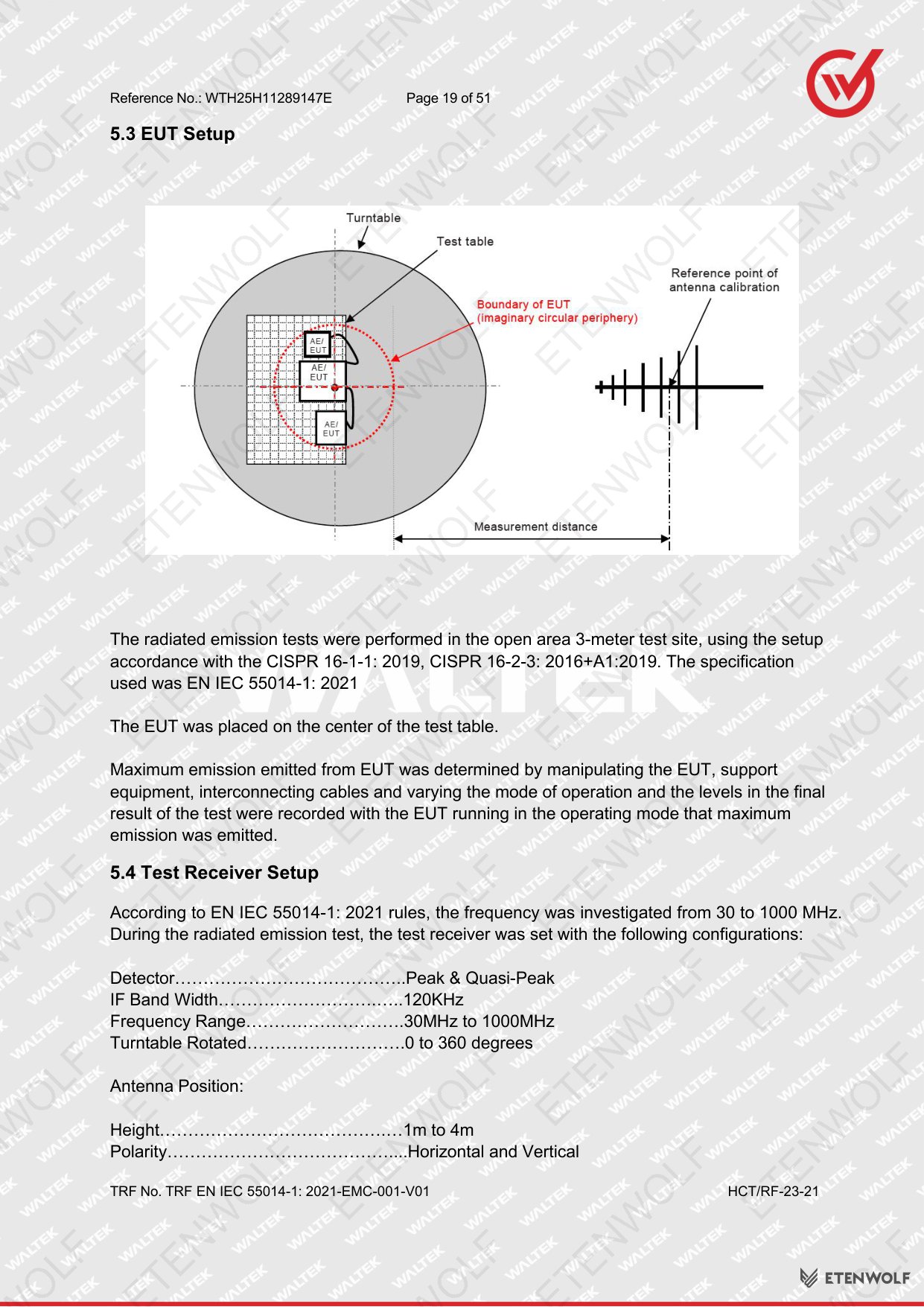

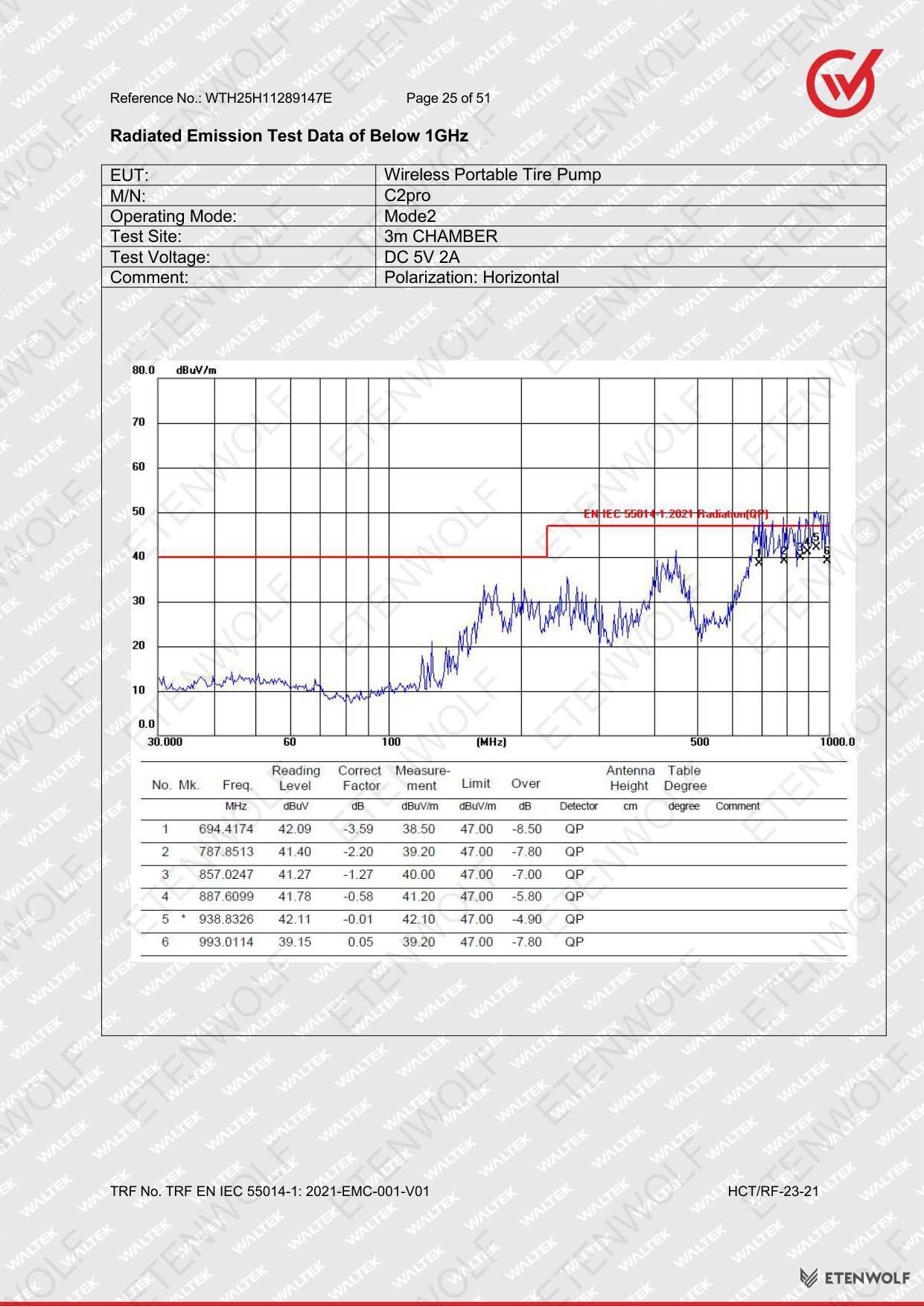

| Section 5 | Radiated Disturbances | EN IEC 55014-1: 2021 | Pass |

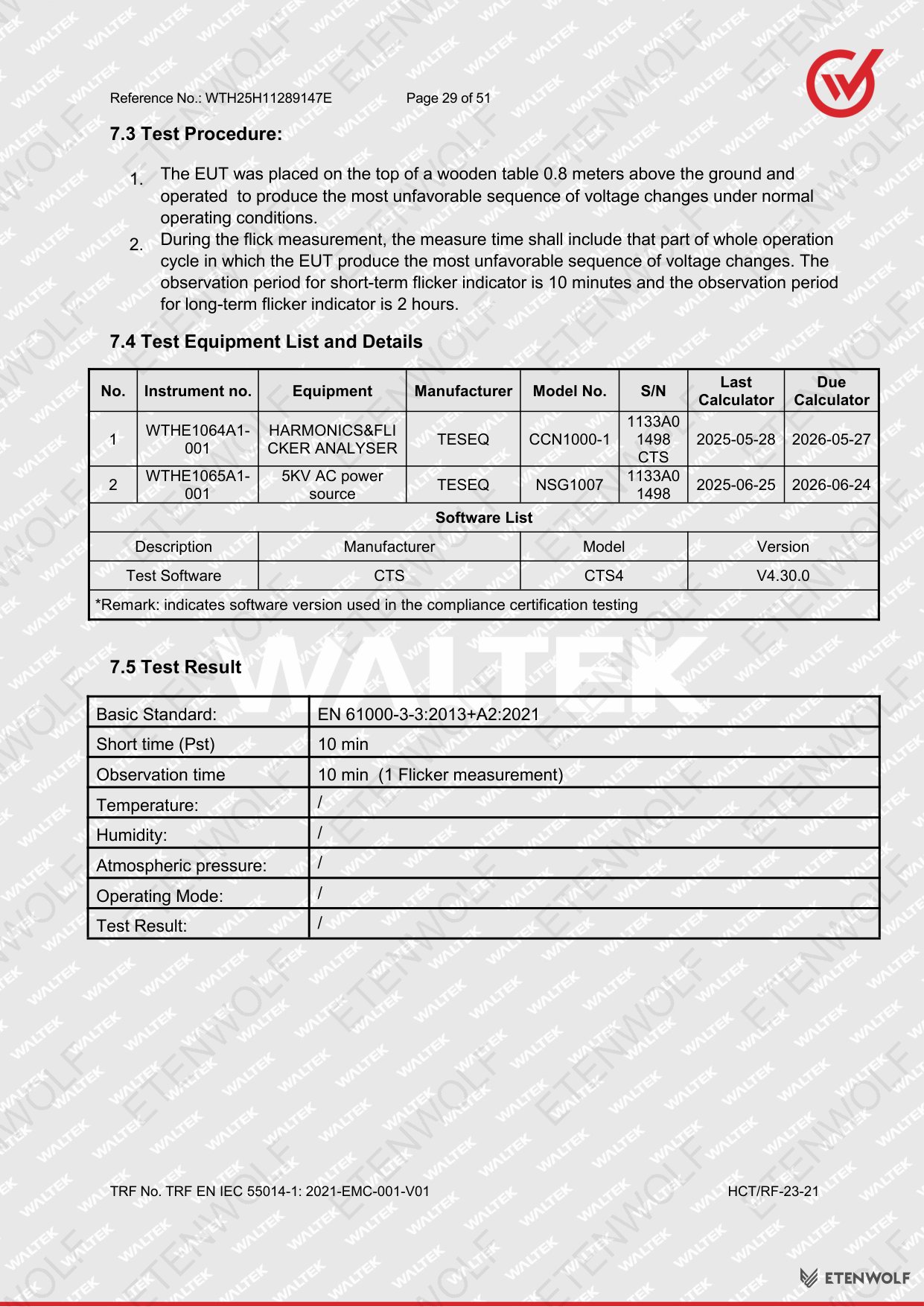

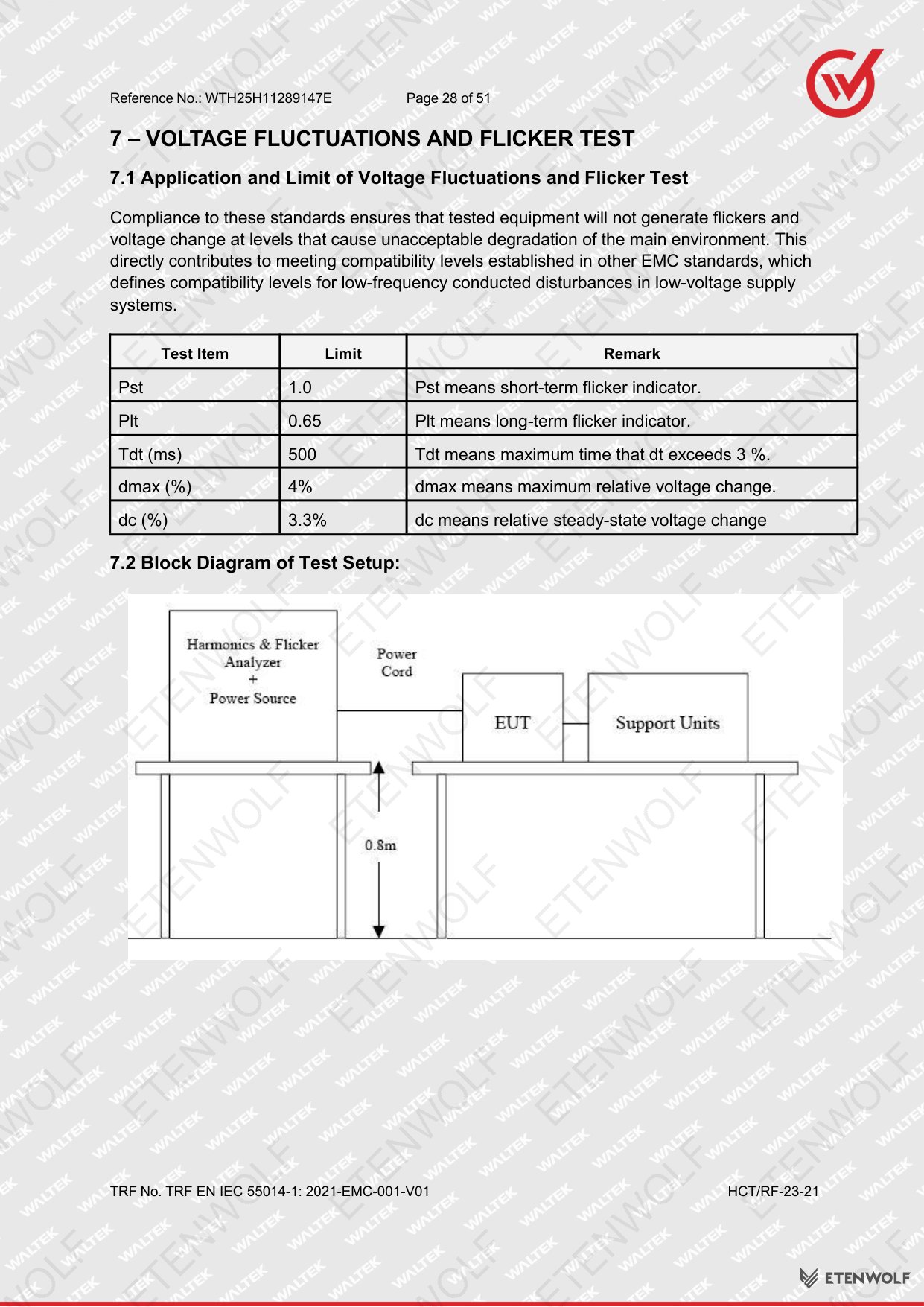

| Section 6 | Immunity — Voltage Fluctuations & Flicker | EN 61000-3-3: 2013+A2:2021 | Pass |

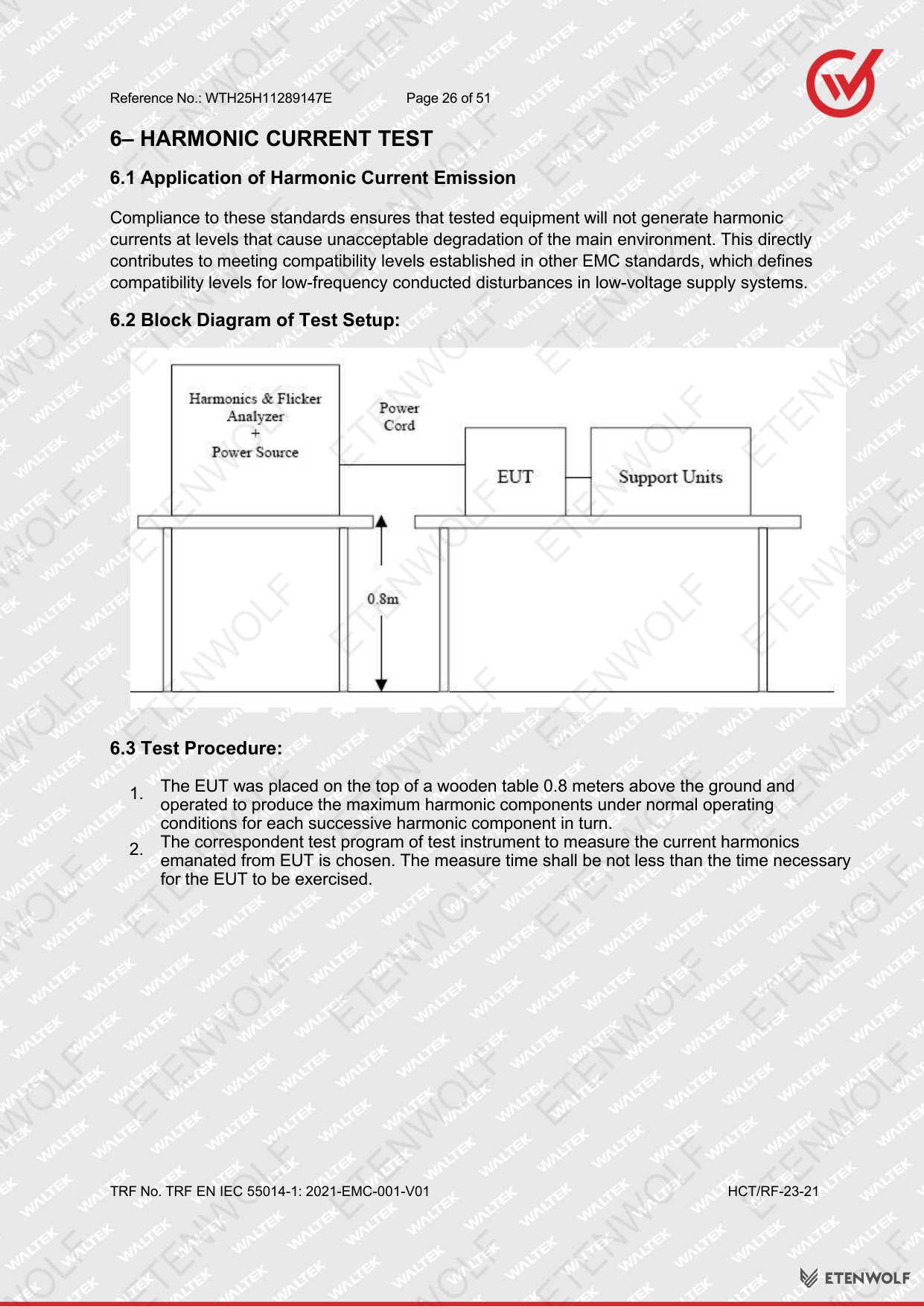

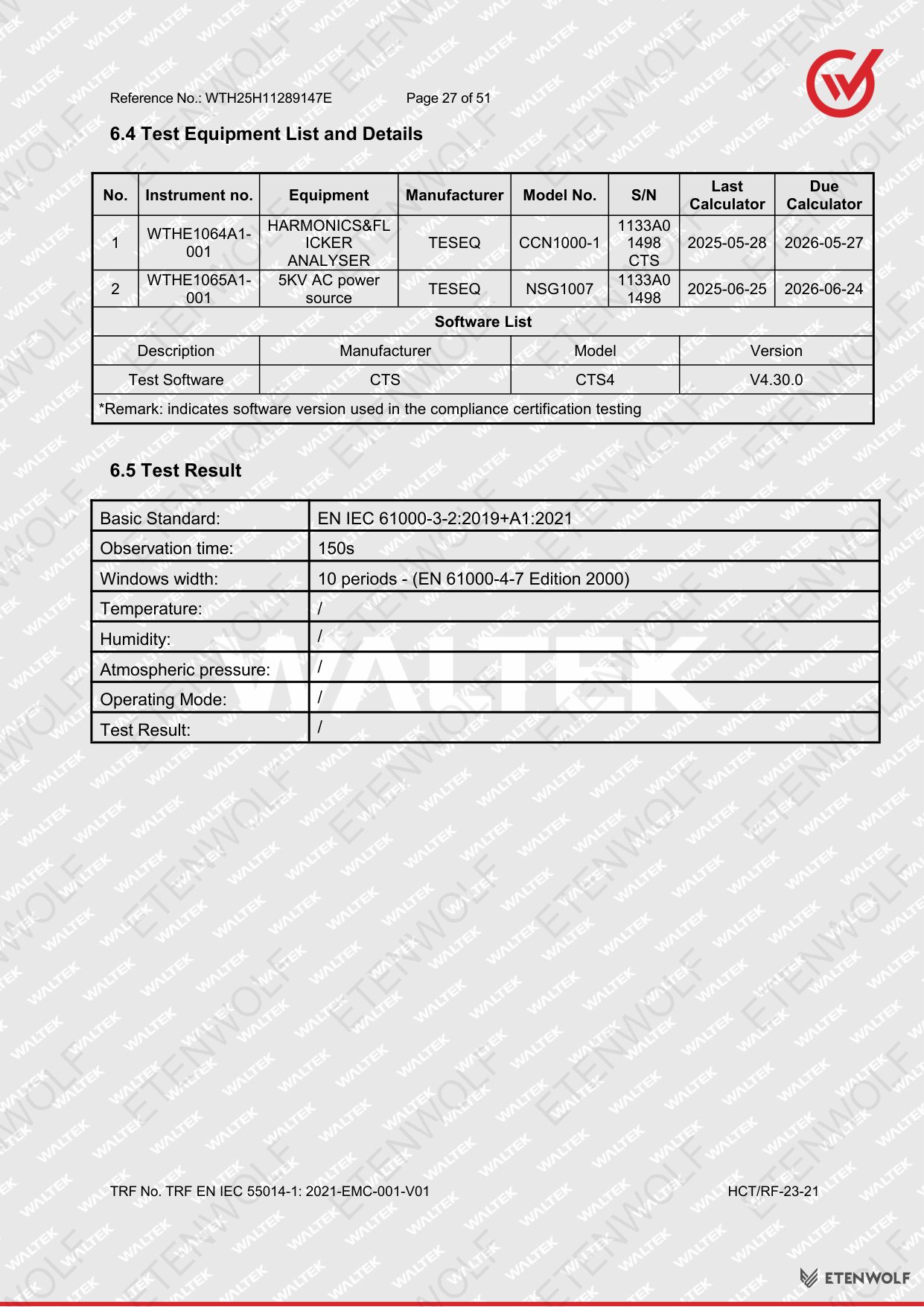

| Section 7 | Harmonics Current Emissions | EN IEC 61000-3-2: 2019+A1:2021 | Pass |
Key procedural details recorded in the report include:
- Measurement uncertainty values were documented for each test section in accordance with standard requirements.

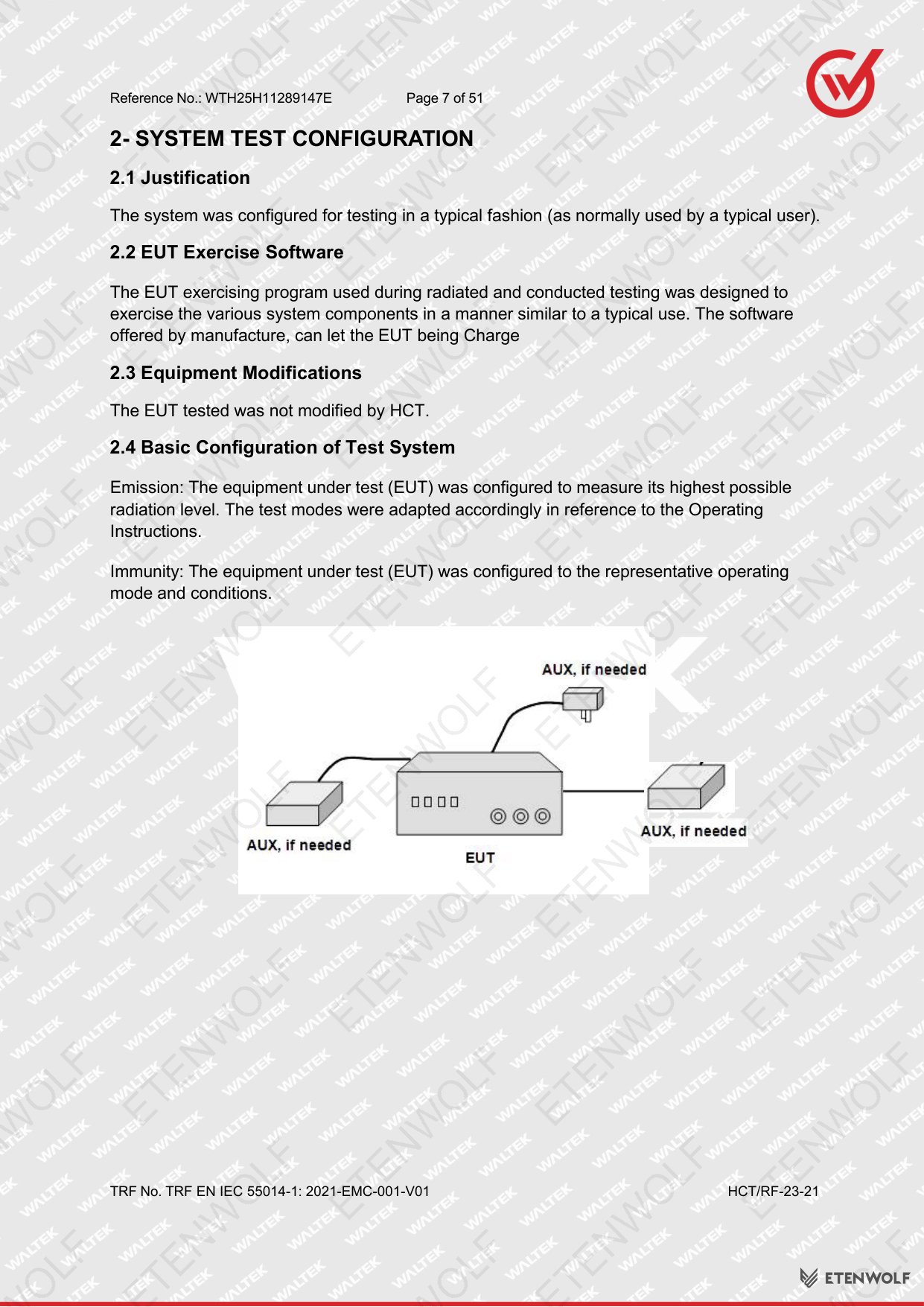

- EUT exercise software and equipment configurations were recorded to ensure test reproducibility.

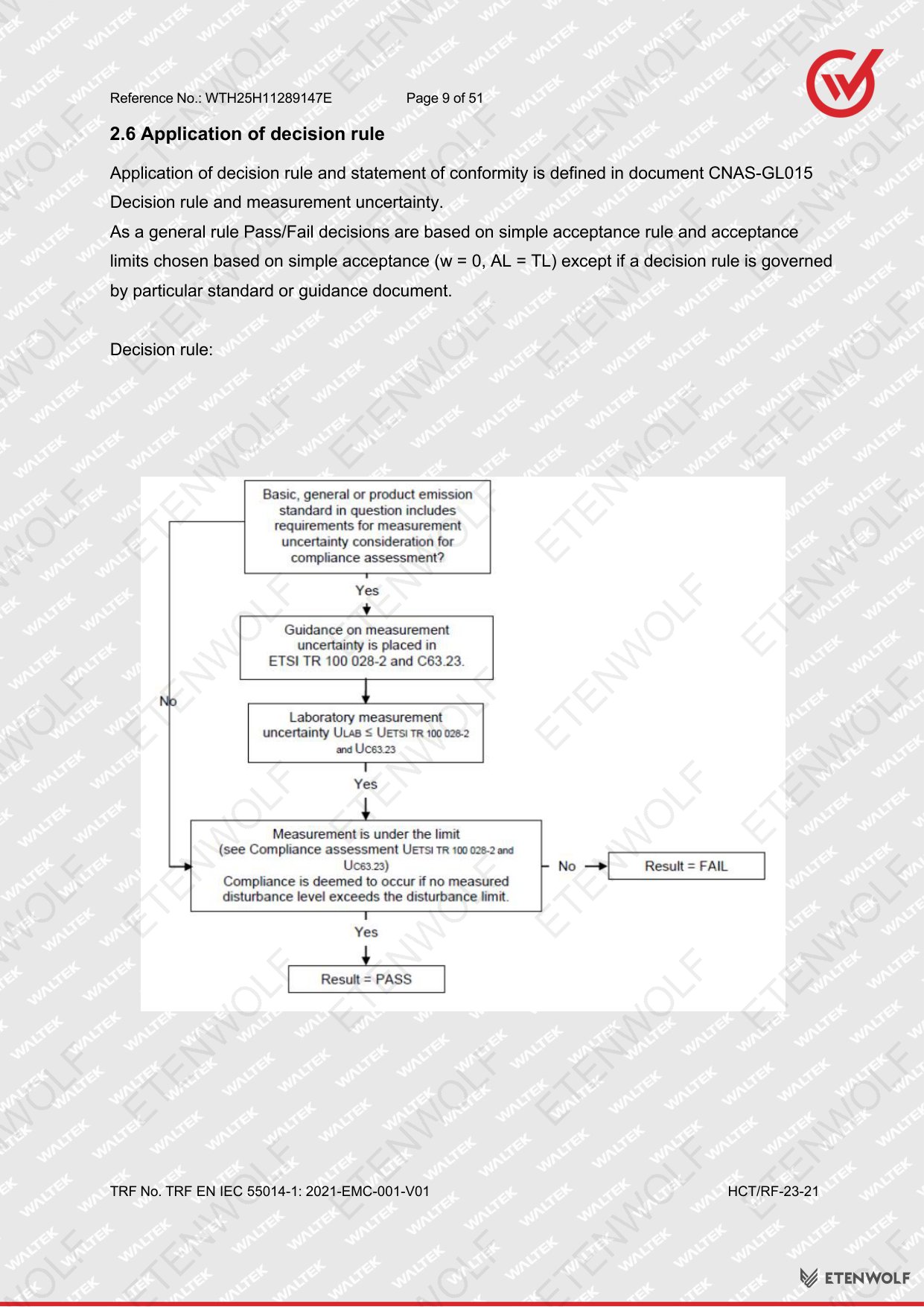

- A decision rule was formally applied when evaluating pass/fail outcomes relative to limits and measurement uncertainty.

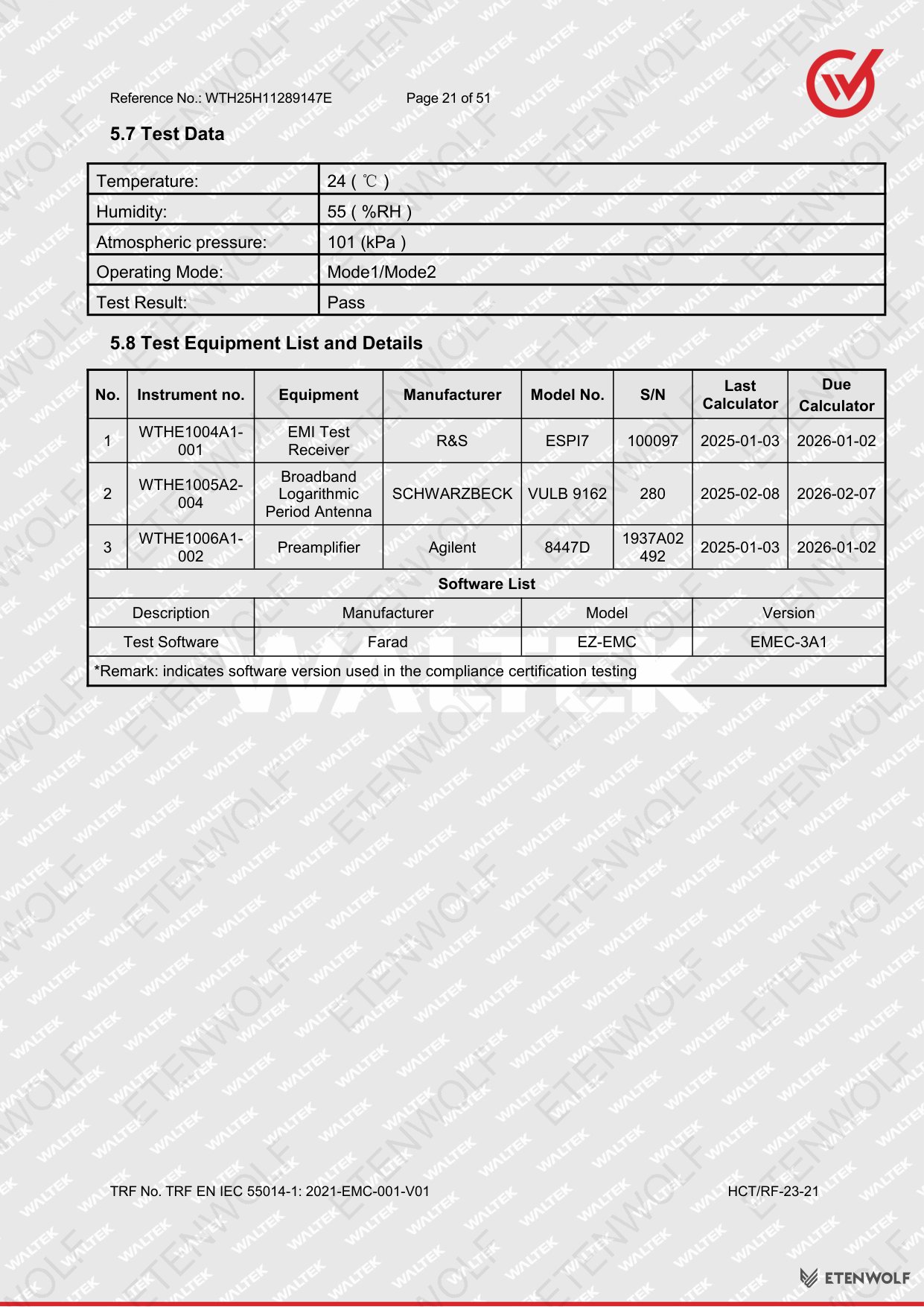

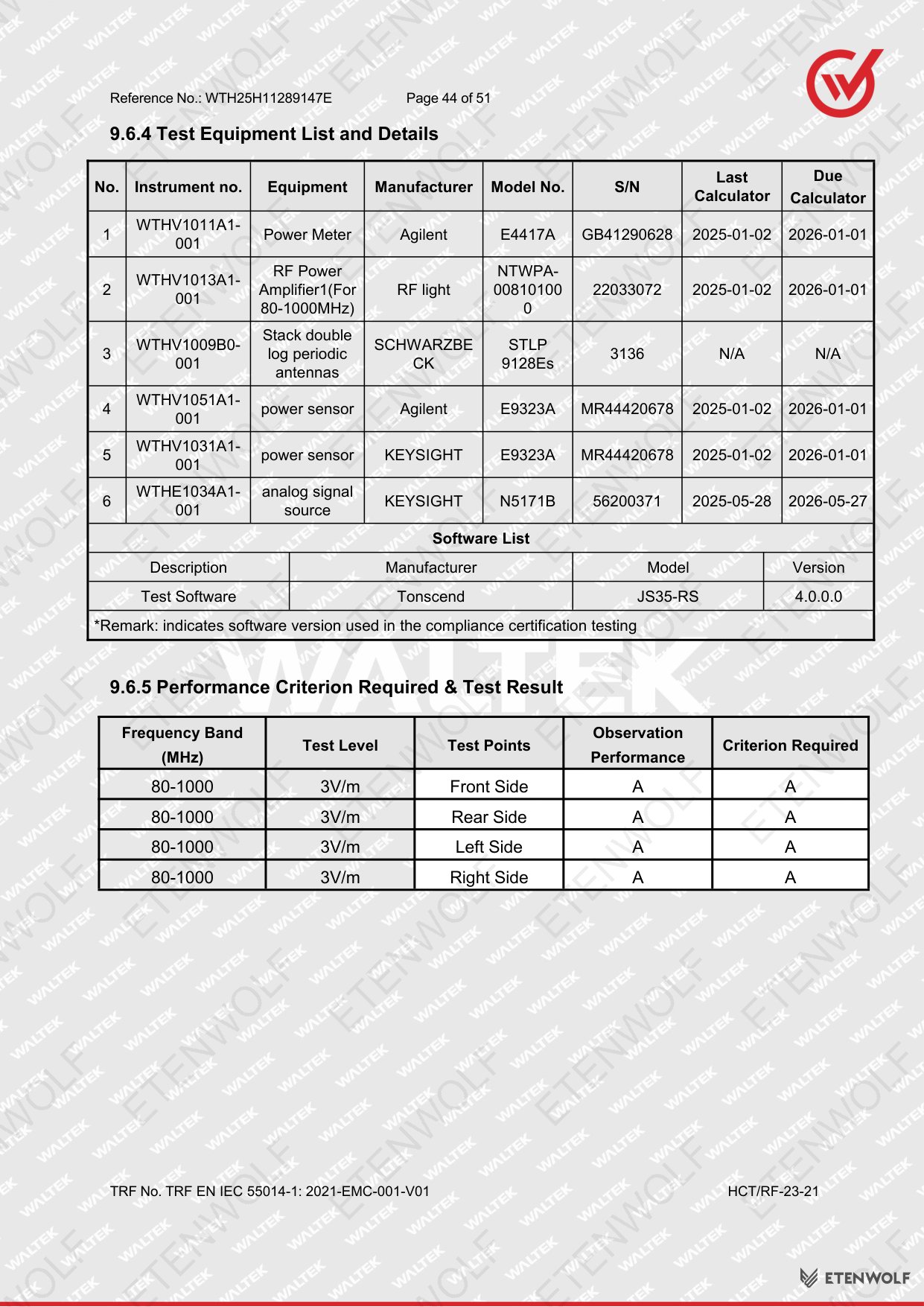

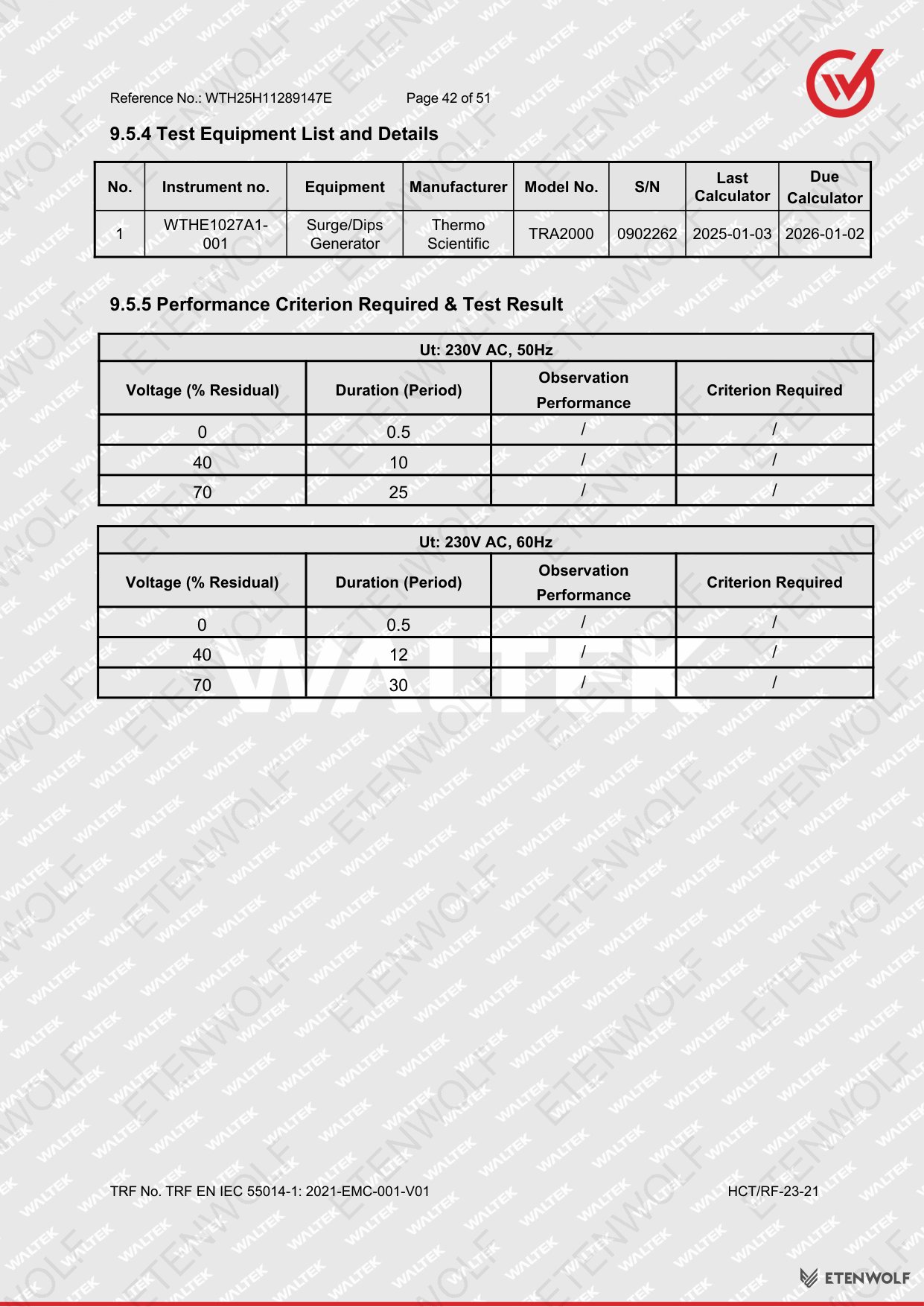

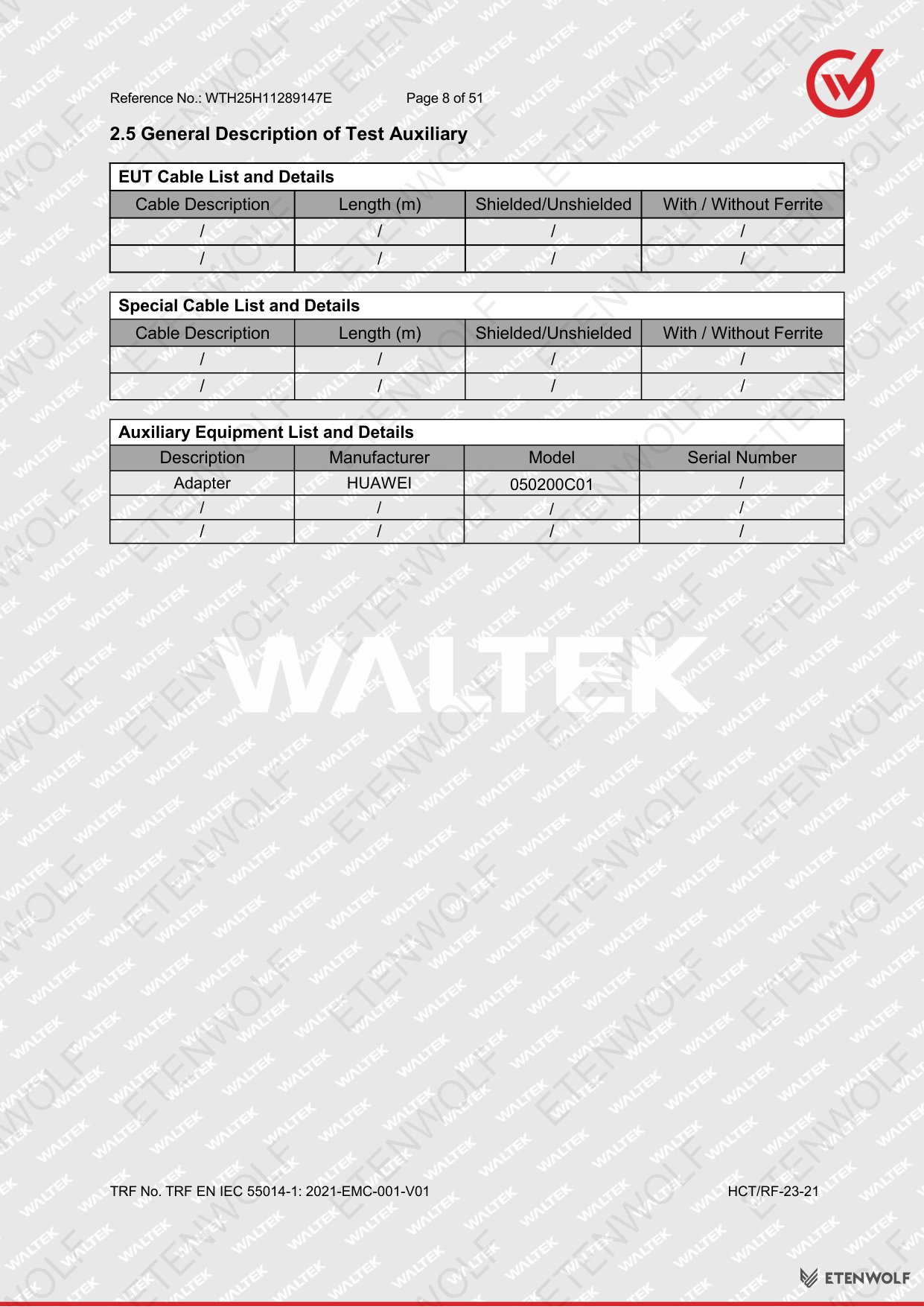

- Test equipment lists and instrument calibration details were included for each section.
- Total report length: 51 pages.

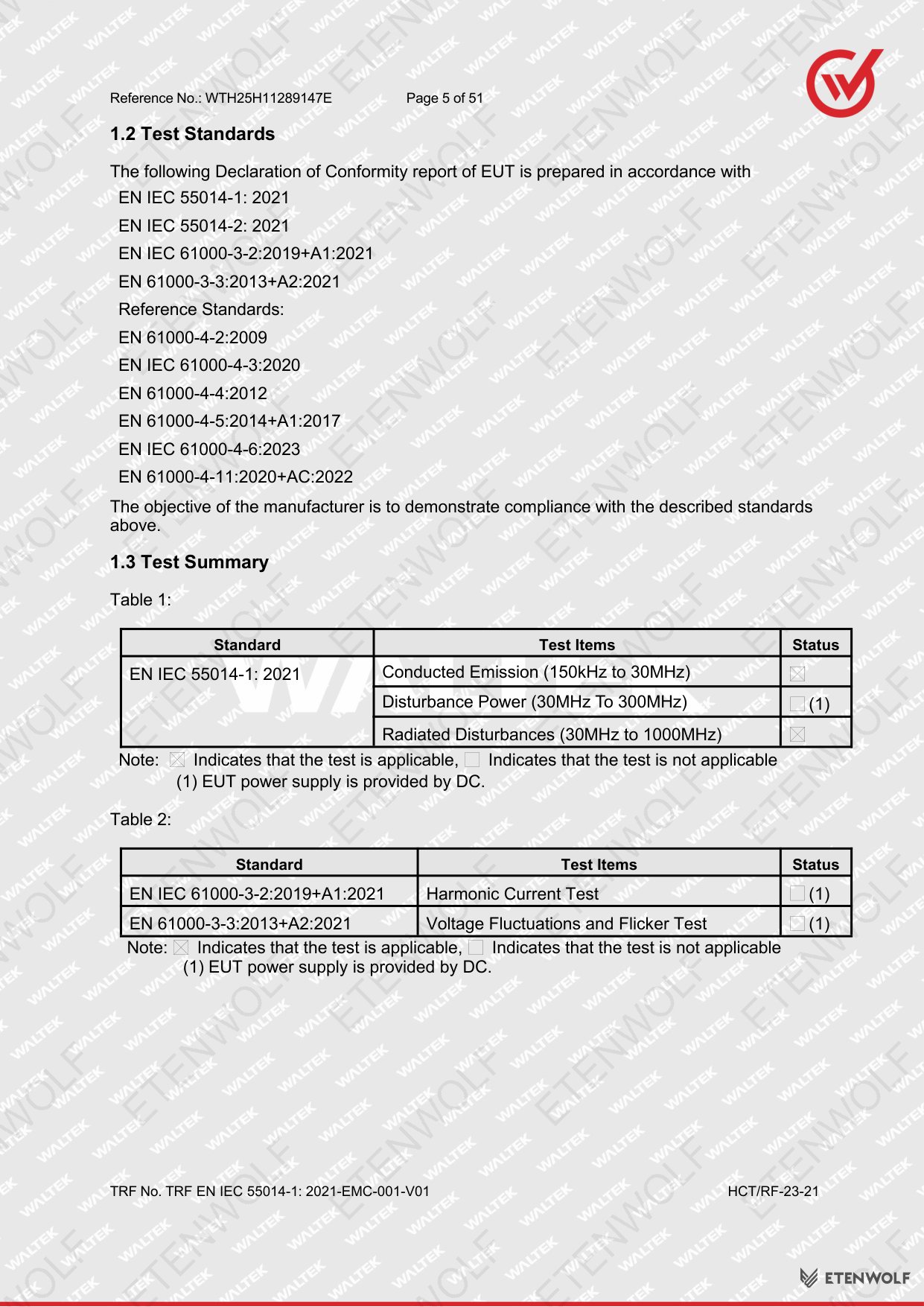

Standards & Compliance
The C2PRO was evaluated against the following European harmonised standards, which satisfy the essential requirements of the EU EMC Directive 2014/30/EU:
| Standard | Title | Scope |
|---|---|---|
| EN IEC 55014-1: 2021 | Requirements for Household Appliances, Electric Tools and Similar Apparatus — Part 1: Emission | Conducted and radiated emissions; disturbance power |

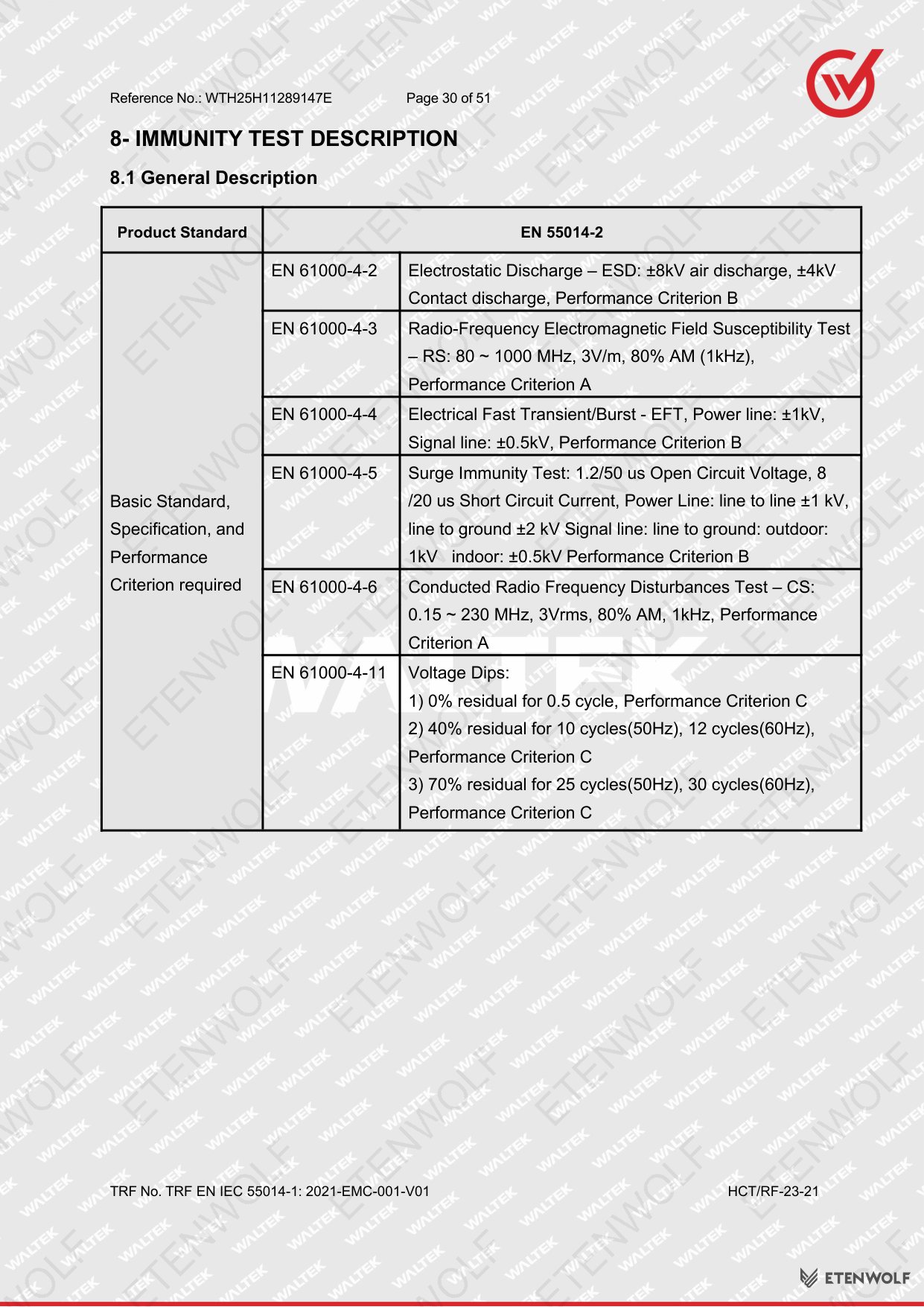

| EN IEC 55014-2: 2021 | Requirements for Household Appliances, Electric Tools and Similar Apparatus — Part 2: Immunity | Immunity requirements for motor-driven and similar devices |
| EN IEC 61000-3-2: 2019+A1:2021 | Electromagnetic Compatibility — Limits for Harmonic Current Emissions | Harmonic current emissions into the public supply network |
| EN 61000-3-3: 2013+A2:2021 | Electromagnetic Compatibility — Limitation of Voltage Changes and Flicker | Voltage fluctuations and flicker in low-voltage supply systems |
These standards collectively address the primary EMC emissions and immunity concerns for battery-powered motor-driven tools sold in EU member states. Compliance with EN IEC 55014-1 and EN IEC 55014-2 is the standard route for CE marking of household and similar motor-operated appliances.
Validity & Certification Body
The test report was prepared and approved by qualified personnel at the issuing laboratory. Report validity is contingent on the product remaining unchanged from the tested configuration. Any modification to the hardware, firmware, or motor drive circuitry of the C2PRO may require re-evaluation.
- Report Reference Number: WTH25H11289147E
- Date of Issue: 2025-11-11
- Valid For: The specific model and configuration described in the report; changes to the EUT may invalidate these results
- Prepared By: Snow Zeng, Waltek Testing Group HCT (Shenzhen) Co., Ltd.
- Approved By: Tony Wu, Waltek Testing Group HCT (Shenzhen) Co., Ltd.
- Laboratory Name: Waltek Testing Group HCT (Shenzhen) Co., Ltd.
- Laboratory Address: Building B, Tianji Industrial Park, 1/F. & 2/F. & 3/F., No.30-9, Laiyin Road, Xinsheng Community, Longgang Subdistrict, Longgang District, Shenzhen, Guangdong, China
- Laboratory Contact: Tel: 0755-84616666 | Service Tel: 400-0066-989 | Email: [email protected]
- Laboratory Website: http://www.hct-test.com
Frequently Asked Questions
- What does the CE-EMC test report WTH25H11289147E confirm for the C2PRO?
- Report WTH25H11289147E confirms that the C2PRO Wireless Portable Tire Pump passed all required electromagnetic compatibility emissions and immunity tests under EN IEC 55014-1: 2021, EN IEC 55014-2: 2021, EN IEC 61000-3-2: 2019+A1:2021, and EN 61000-3-3: 2013+A2:2021. This supports the product’s CE marking and confirms it meets EU EMC Directive 2014/30/EU essential requirements.
- Which specific EMC tests were conducted on the C2PRO?
- The testing covered five main areas: conducted disturbance at mains terminals, disturbance power in the frequency range, radiated disturbances, harmonic current emissions, and voltage fluctuations and flicker. All five test categories returned a Pass result. Tests were carried out between 2025-11-04 and 2025-11-06 at the Waltek HCT laboratory in Shenzhen.
- Does passing this EMC report mean the C2PRO is fully CE certified?
- This report addresses the EMC component of CE compliance. Full CE marking for a wireless portable tire pump typically also requires assessment under relevant safety directives (such as the Low Voltage Directive or Machinery Directive, depending on classification) and may involve additional documentation. This EMC test report is one essential element of the complete CE technical file.
- Will the CE-EMC certification remain valid if the C2PRO design changes?
- No. The report is valid only for the exact hardware and firmware configuration that was submitted and tested. Any significant change to the motor drive circuit, enclosure, or electronic components of the C2PRO may require a new EMC evaluation to maintain CE compliance.
Related Documents
For a complete compliance and technical file for the C2PRO Wireless Portable Tire Pump, the following related certification and test documents are typically required alongside this CE-EMC report:
- CE-LVD Test Report — Low Voltage Directive safety evaluation (EN 62368-1 or EN 60335 series, as applicable)
- CE-RED Test Report — Radio Equipment Directive compliance, if the product includes any wireless communication module
- UN 38.3 Battery Transport Test Report — Required for lithium-ion battery cells used in the integrated battery pack, covering transport safety per UN 38.3 regulations
- RoHS Compliance Report / Declaration — Restriction of hazardous substances per EU RoHS Directive 2011/65/EU
- REACH SVHC Declaration — Confirming no substances of very high concern above threshold levels per REACH Regulation (EC) No 1907/2006
- Declaration of Conformity (DoC) — The manufacturer’s formal EU Declaration of Conformity referencing all applicable directives and standards
- KC Certification (for South Korea market) — If the product is distributed in South Korea, a KC Mark certificate under the Radio Waves Act or Electrical Appliances Safety Act may be required

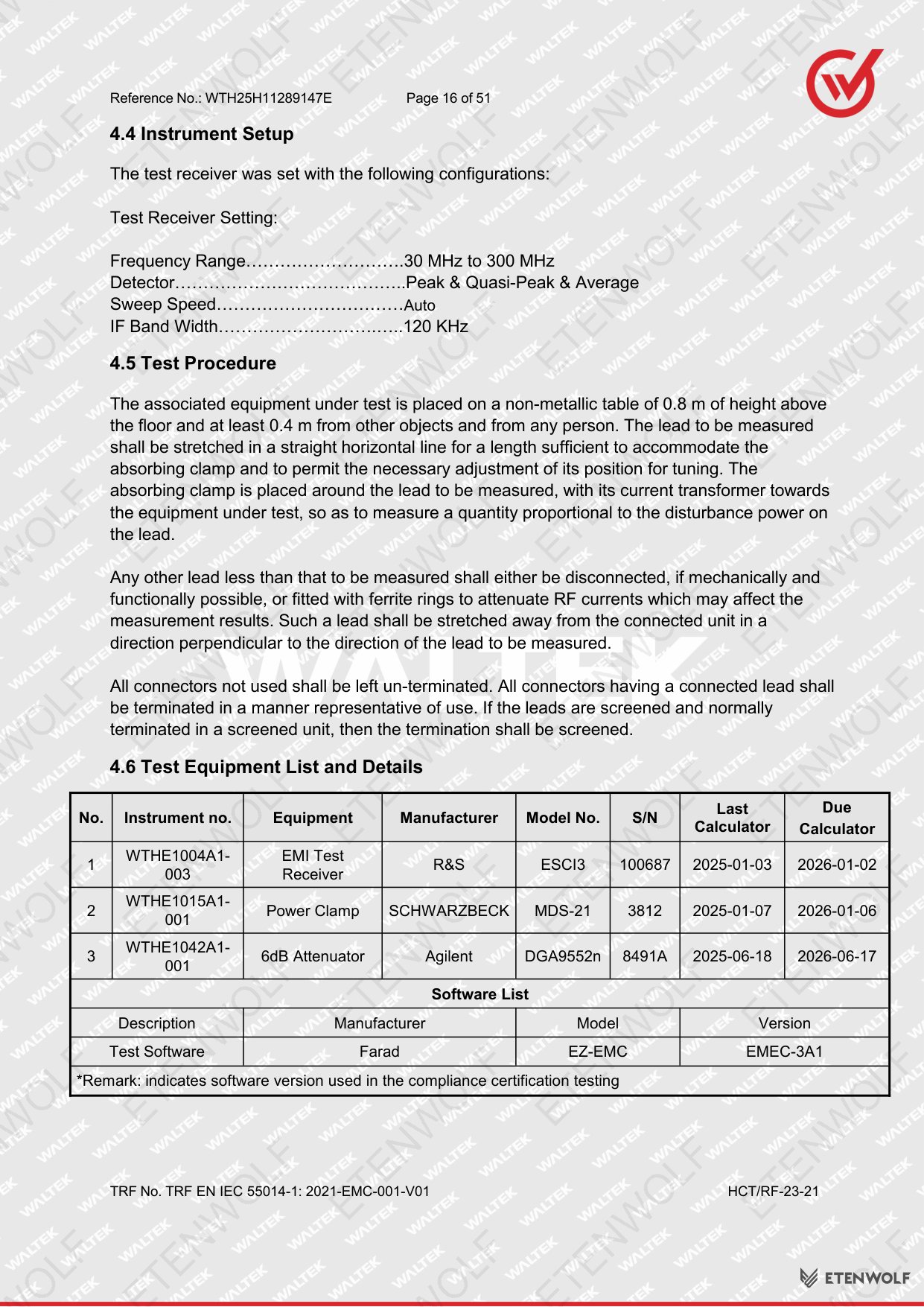

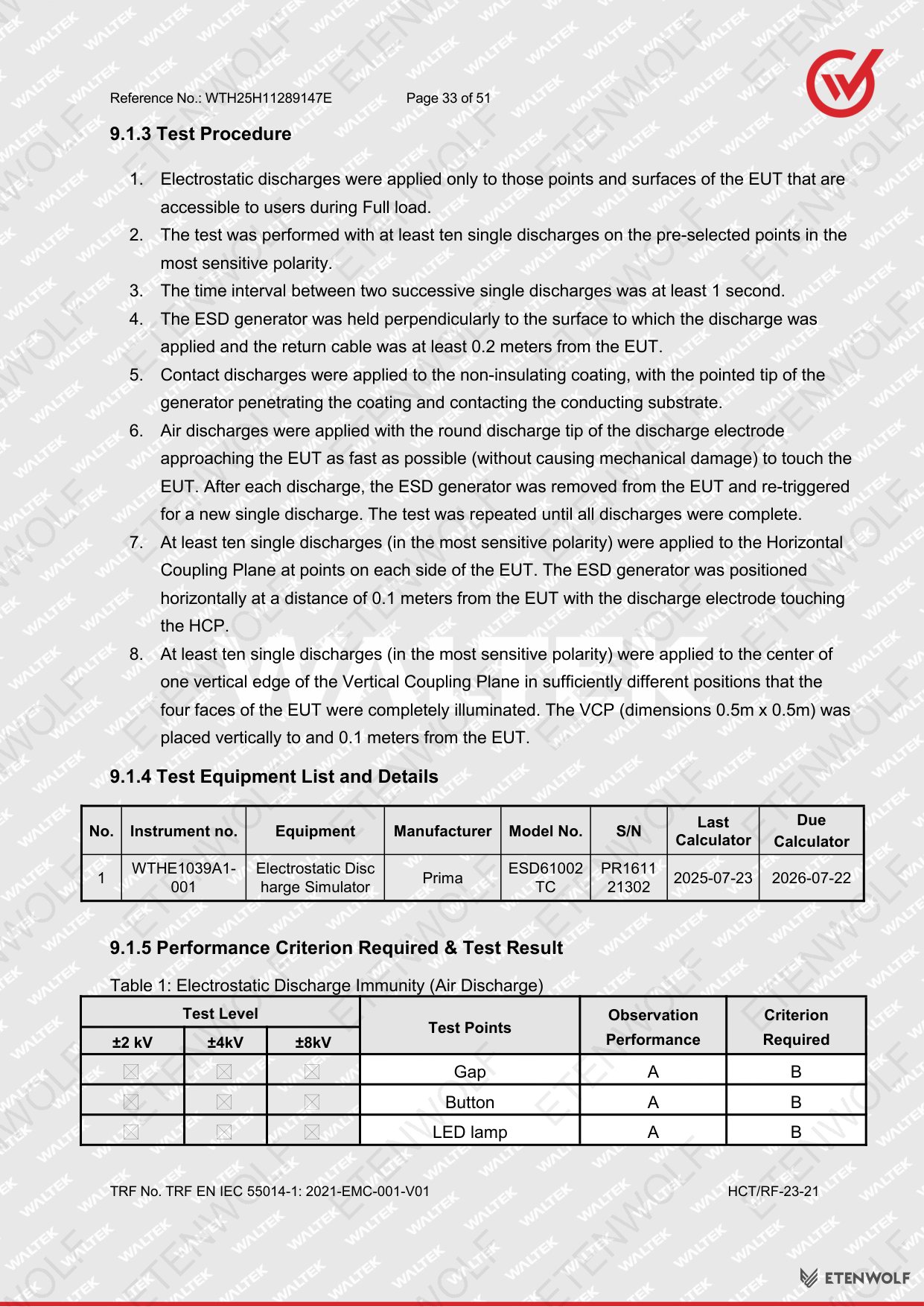

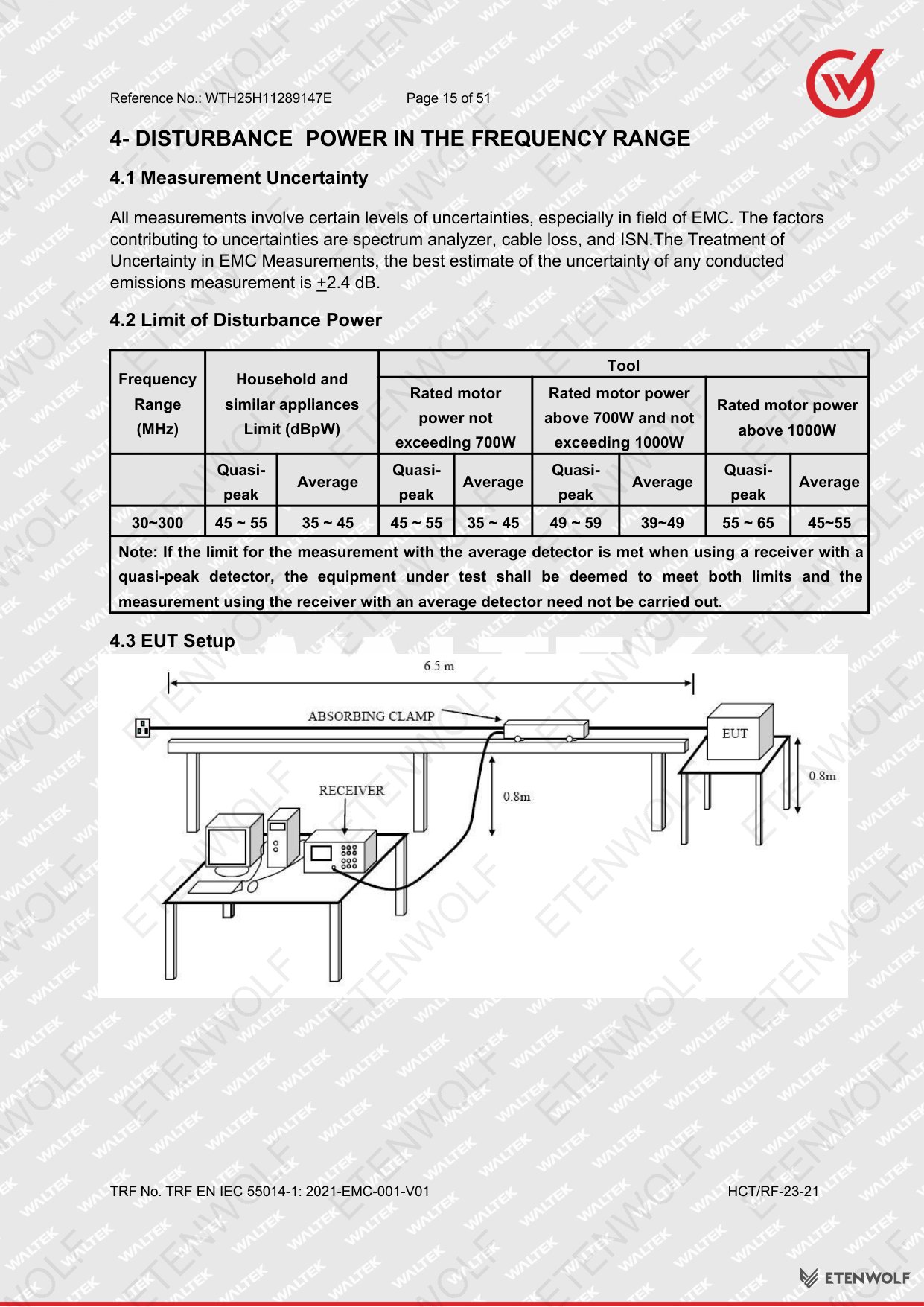

Document Pages
