Document Overview
This article presents the CE Low Voltage Directive (CE-LVD) test report for the ETENWOLF S0 Mini Bicycle Pump, issued by Waltek Testing Group (Shenzhen) Co., Ltd. The document is a full compliance test report, not a certificate, and it demonstrates that the product meets the essential safety requirements necessary for CE marking and access to the European market.

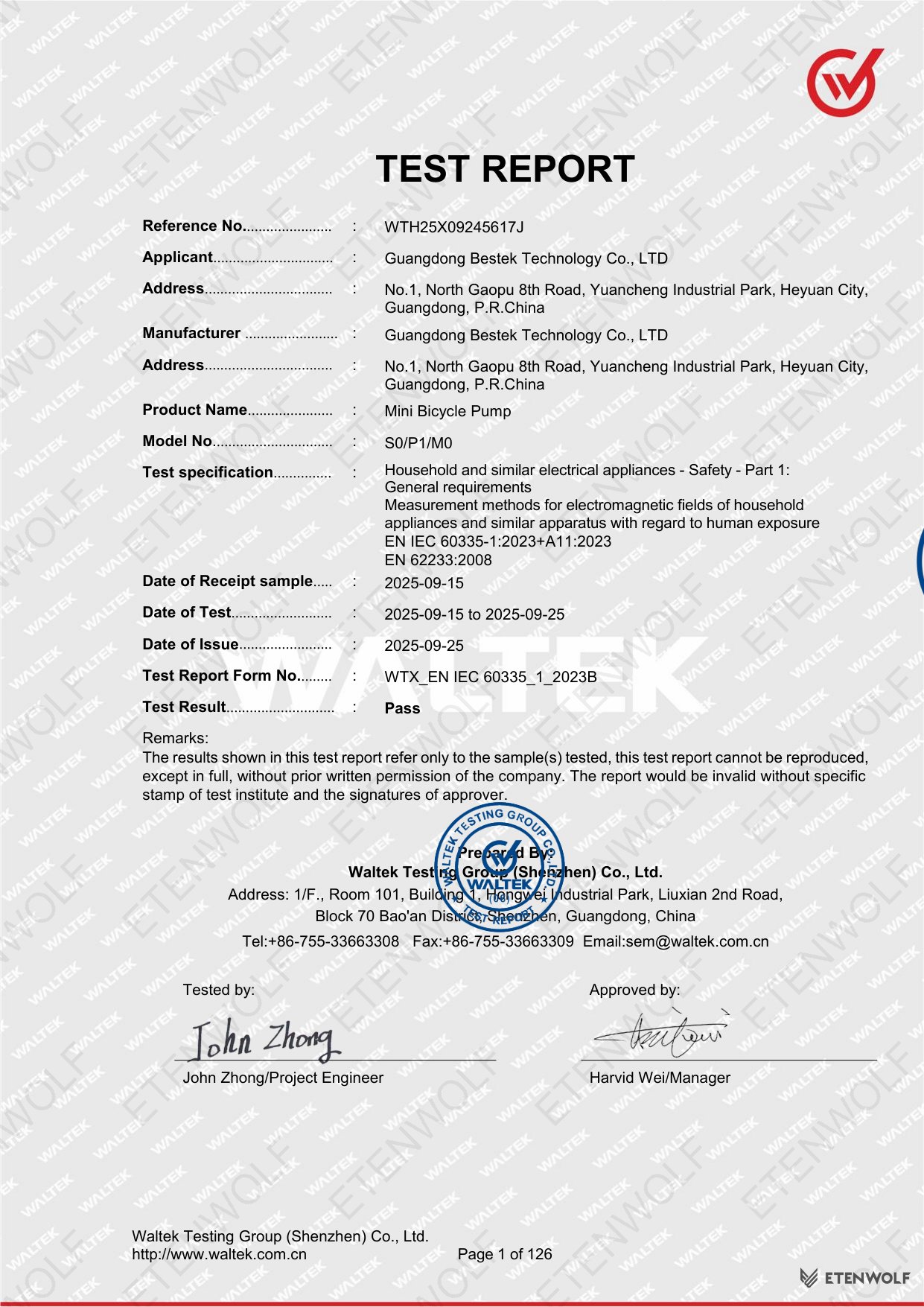

| Field | Detail |
|---|---|
| Document Type | CE-LVD Test Report |
| Reference Number | WTH25X09245617J |
| Test Report Form No. | WTX_EN IEC 60335_1_2023B |
| Issuing Laboratory | Waltek Testing Group (Shenzhen) Co., Ltd. |
| Date of Issue | 2025-09-25 |
| Test Period | 2025-09-15 to 2025-09-25 |
| Sample Receipt Date | 2025-09-15 |
| Overall Test Result | Pass |
The report covers household and similar electrical appliance safety requirements, including general electrical safety under IEC standards and electromagnetic field measurement with regard to human exposure. The scope is limited to the sample(s) tested and cannot be partially reproduced without prior written permission from Waltek Testing Group.
Product Information
The ETENWOLF S0 is a compact, portable Mini Bicycle Pump designed for household and indoor use. It is powered via a DC connector and classified as a Class III appliance, meaning it operates on safety extra-low voltage (SELV) and carries no risk of electric shock under normal operating conditions.
| Attribute | Value |
|---|---|
| Product Name | Mini Bicycle Pump |
| Model Number(s) | S0 / P1 / M0 |
| Rated Input Voltage | 5 V DC |
| Rated Input Current | 2.0 A |
| Equipment Class | Class III |
| Supply Connection | DC Connector |
| Installation / Use | Portable appliance, indoor use only |
| IP Rating | IPX0 (no water ingress protection) |
| Trademark | — |
| Manufacturer | Guangdong Bestek Technology Co., Ltd. |
| Manufacturer Address | No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R.China |
| Country of Origin | Made in China |
The product label must include at minimum the model reference, input rating, CE and WEEE marks (CE mark minimum height 5 mm; WEEE mark minimum height 7 mm), and the name and address of both the manufacturer and the EU importer when placed on the EU market.
Key Details

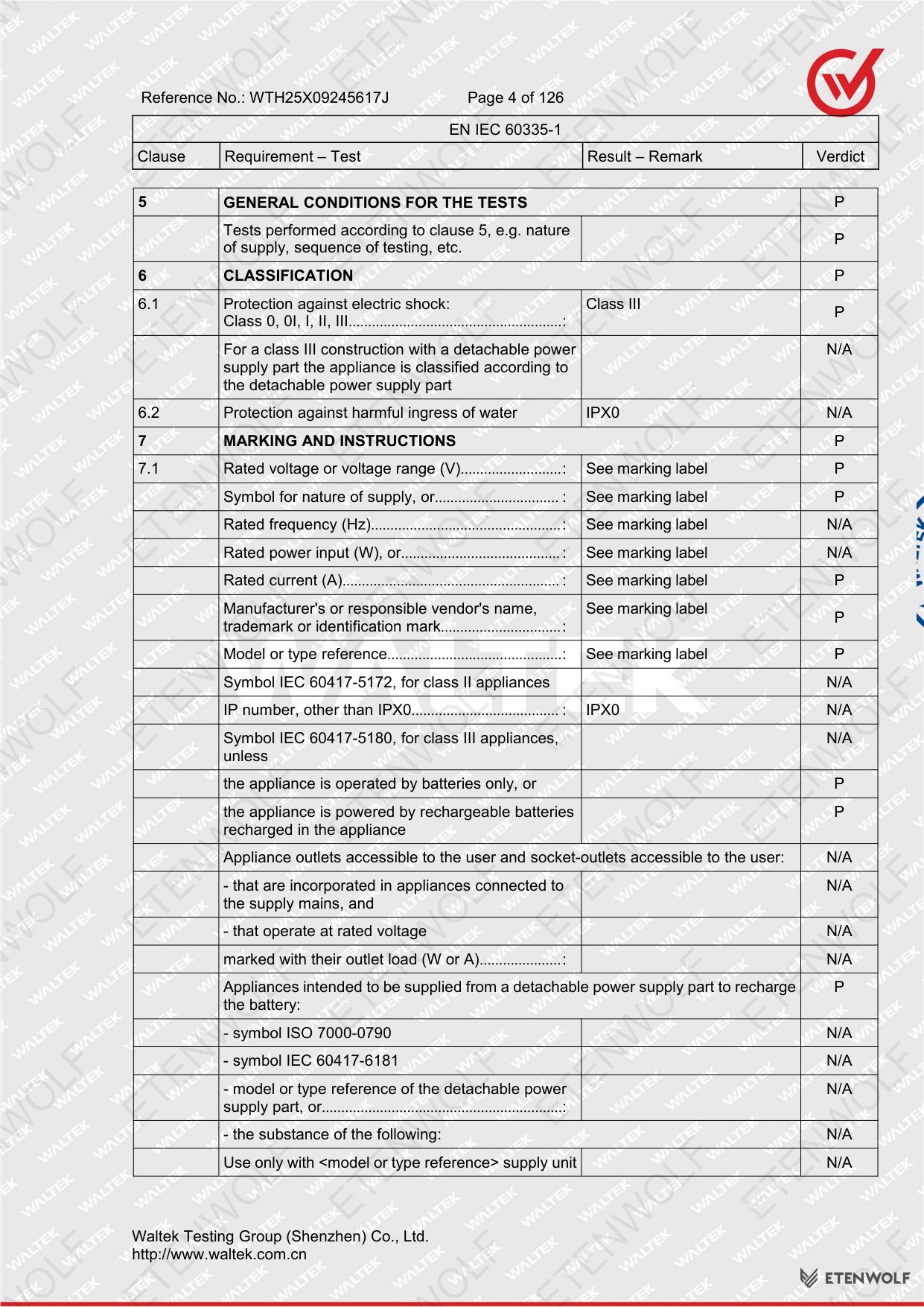

The test report evaluated the ETENWOLF S0 against the clauses of EN IEC 60335-1:2023+A11:2023. The table below summarises the key clause verdicts recorded during testing.
| Clause | Requirement / Test Area | Verdict |
|---|---|---|
| 5 | General Conditions for the Tests (supply nature, test sequence) | Pass |
| 6 | Classification | Pass |
| 6.1 | Protection against electric shock — Class III | Pass |
| 6.2 | Protection against harmful ingress of water — IPX0 | N/A |
| 7 | Marking and Instructions | Pass |
| 7.1 | Rated voltage, current, manufacturer identification, model reference on marking label | Pass |
| 7.1 | Class III symbol (battery-operated / rechargeable battery appliance) | Pass |
| 7.1 | Appliance supplied from detachable power supply part | Pass |
All applicable clauses returned a Pass verdict. Clauses marked N/A were not applicable to the product’s design or intended use category. No subcontracting of test items to other laboratories was required; all testing was conducted at the Waltek Shenzhen facility.

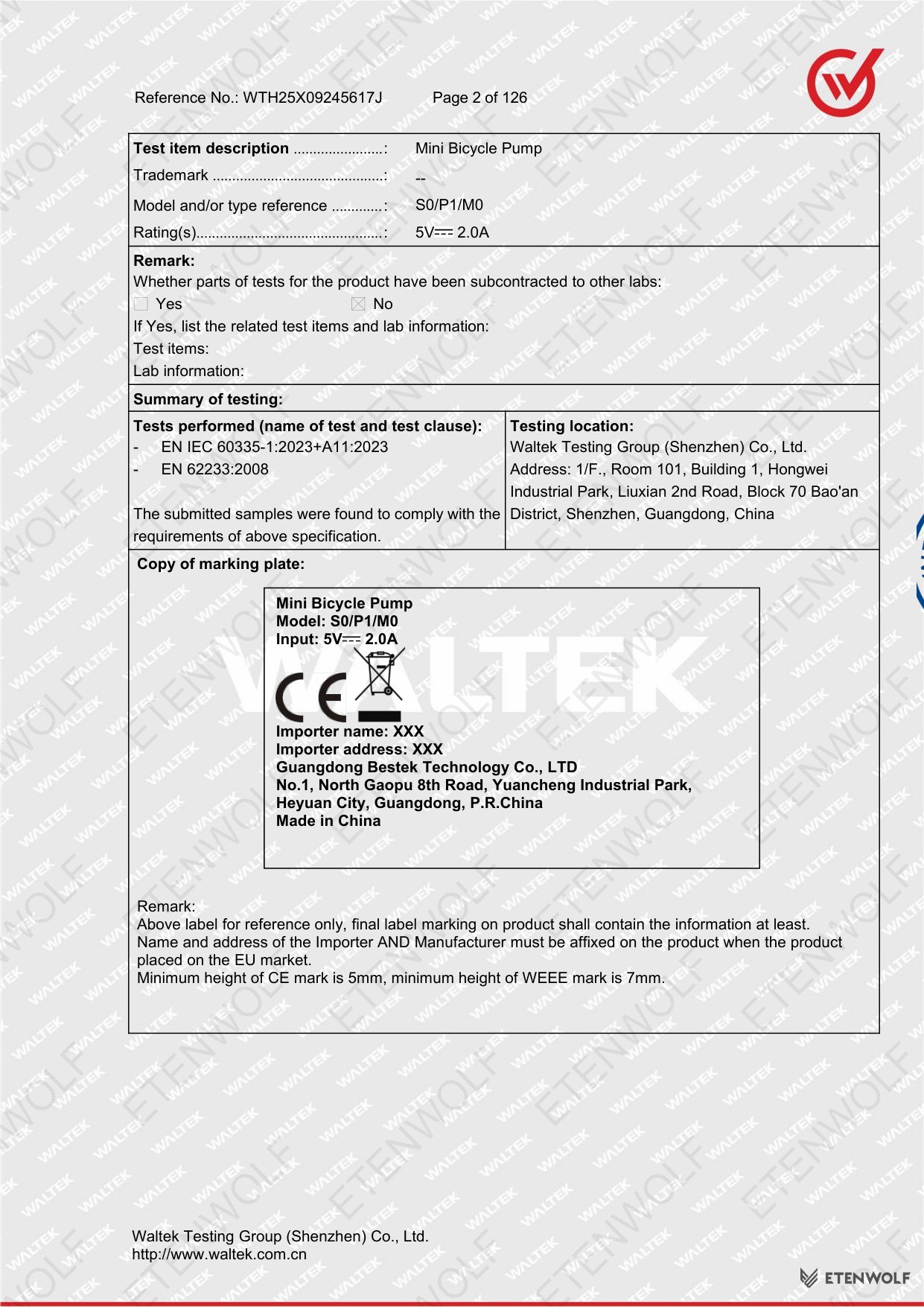

The product label reviewed during testing references:
- Product name: Mini Bicycle Pump
- Model: S0 / P1 / M0
- Input: 5 V, 2.0 A
- Manufacturer: Guangdong Bestek Technology Co., Ltd., Heyuan City, Guangdong, China
- EU Importer fields (name and address) — to be completed by the EU importer before market placement
Standards & Compliance
The ETENWOLF S0 was tested against the following harmonised European standards, which support compliance with the CE Low Voltage Directive (LVD 2014/35/EU):
| Standard | Title | Scope |
|---|---|---|
| EN IEC 60335-1:2023+A11:2023 | Household and similar electrical appliances — Safety — Part 1: General requirements | Core electrical safety requirements including insulation, temperature limits, mechanical strength, and marking |
| EN 62233:2008 | Measurement methods for electromagnetic fields of household appliances and similar apparatus with regard to human exposure | EMF measurement and human exposure limits for household electrical appliances |
The product is classified as a Class III appliance under EN IEC 60335-1, meaning it operates at safety extra-low voltage and is not subject to the same insulation requirements as Class I or Class II appliances. The CE marking requirements applicable include:
- CE Marking Regulation: LVD Directive 2014/35/EU
- WEEE Directive: 2012/19/EU (symbol required on product)
- RoHS Directive: 2011/65/EU — restriction of hazardous substances in electrical equipment
Testing was conducted in full at the Waltek Shenzhen laboratory with no subcontracting. The test report form used was WTX_EN IEC 60335_1_2023B.
Validity & Certification Body
The test report WTH25X09245617J was issued on 2025-09-25 and is valid as documentary evidence of compliance for the samples tested on that date. As is standard practice for test reports, validity is tied to the product design remaining unchanged; any modifications to the product construction, materials, or electrical ratings would require re-testing.
| Field | Detail |
|---|---|
| Report Reference No. | WTH25X09245617J |
| Date of Issue | 2025-09-25 |
| Test Period | 2025-09-15 to 2025-09-25 |
| Laboratory | Waltek Testing Group (Shenzhen) Co., Ltd. |
| Laboratory Address | 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70, Bao’an District, Shenzhen, Guangdong, China |
| Laboratory Website | http://www.waltek.com.cn |
| Laboratory Tel | +86-755-33663308 |
| Laboratory Fax | +86-755-33663309 |
| Laboratory Email | [email protected] |
| Tested By | John Zhong, Project Engineer |
| Approved By | Harvid Wei, Manager |
| Applicant | Guangdong Bestek Technology Co., Ltd. |
The report is authenticated by the specific stamp of the Waltek test institute and the signatures of the approver. Partial reproduction is prohibited without prior written permission. Waltek Testing Group is an accredited third-party laboratory providing testing and certification services for consumer electronics and electrical appliances exported to the EU and global markets.
Frequently Asked Questions
- What does the CE-LVD test report WTH25X09245617J confirm about the ETENWOLF S0?
- It confirms that the ETENWOLF S0 Mini Bicycle Pump was tested by Waltek Testing Group (Shenzhen) and passed all applicable requirements of EN IEC 60335-1:2023+A11:2023 and EN 62233:2008. This supports the product’s CE marking under the EU Low Voltage Directive 2014/35/EU.
- Why is the ETENWOLF S0 classified as Class III?
- Class III classification means the appliance operates at safety extra-low voltage (SELV), supplied via a DC connector rated at 5 V / 2.0 A. Class III appliances present no risk of electric shock under normal use conditions, making them among the safest category of household electrical appliances.
- Does the ETENWOLF S0 have any water ingress protection?
- No. The ETENWOLF S0 carries an IPX0 rating, meaning it has no specific protection against water ingress. It is intended for indoor use only and should not be exposed to rain, moisture, or wet environments.
- Is this test report sufficient for placing the ETENWOLF S0 on the EU market?
- A test report is one key element of the technical file required for CE marking. In addition to this report, the EU importer must ensure a Declaration of Conformity (DoC) is prepared, the product label includes the EU importer’s name and address, and the CE and WEEE marks are correctly applied with minimum required heights (CE: 5 mm, WEEE: 7 mm).
Related Documents
The following certification and compliance documents are relevant to the ETENWOLF S0 Mini Bicycle Pump and are typically required or recommended for a complete compliance technical file:
- CE-EMC Test Report — Electromagnetic Compatibility testing under EN 55014-1 and EN 55014-2, required alongside LVD for full CE marking of household appliances.
- EU Declaration of Conformity (DoC) — Manufacturer’s self-declaration referencing all applicable directives and harmonised standards; mandatory for EU market placement.
- RoHS Compliance Report — Evidence of compliance with EU RoHS Directive 2011/65/EU restricting hazardous substances such as lead, mercury, cadmium, and certain flame retardants.
- UN 38.3 Battery Test Report — If the product contains a lithium battery, UN 38.3 transport testing is required for safe shipping classification.
- FCC / IC Test Report — Required for sale in the United States and Canada; covers radio frequency emissions and electromagnetic interference.
- KC Certification — Required for the South Korean market under KC safety regulations for electrical appliances.
- REACH SVHC Declaration — Declaration confirming compliance with REACH Regulation (EC) No 1907/2006 regarding substances of very high concern.

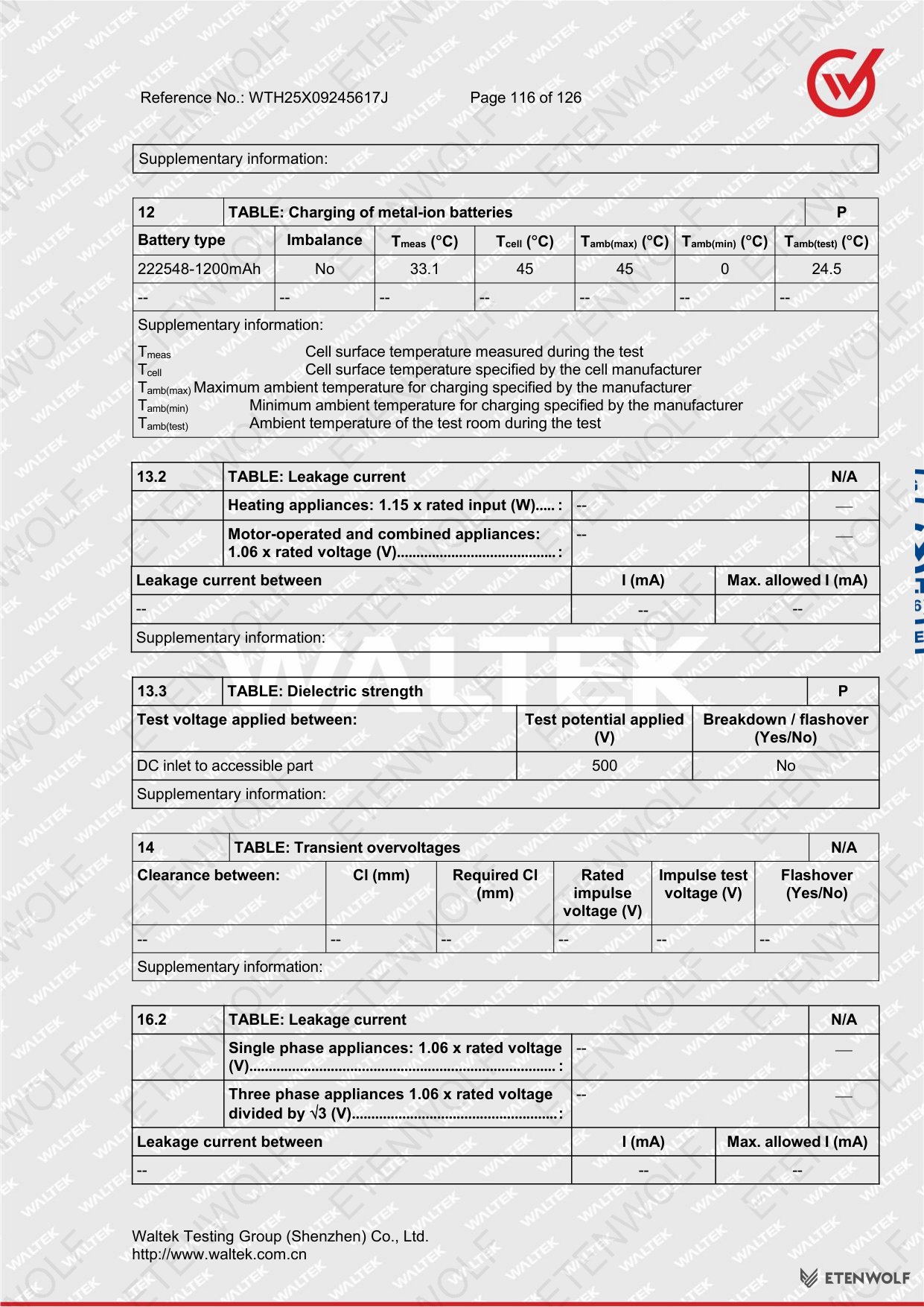

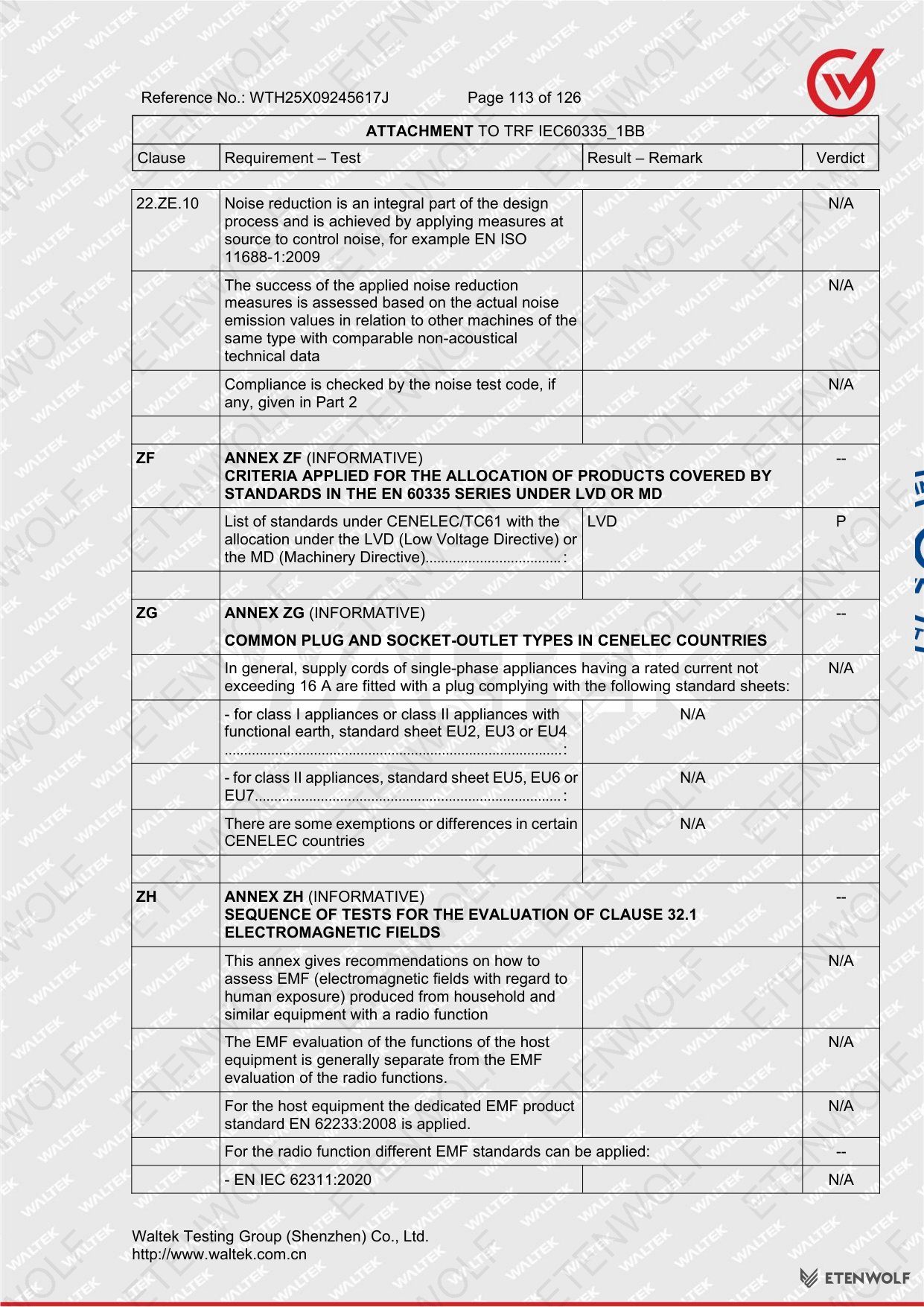

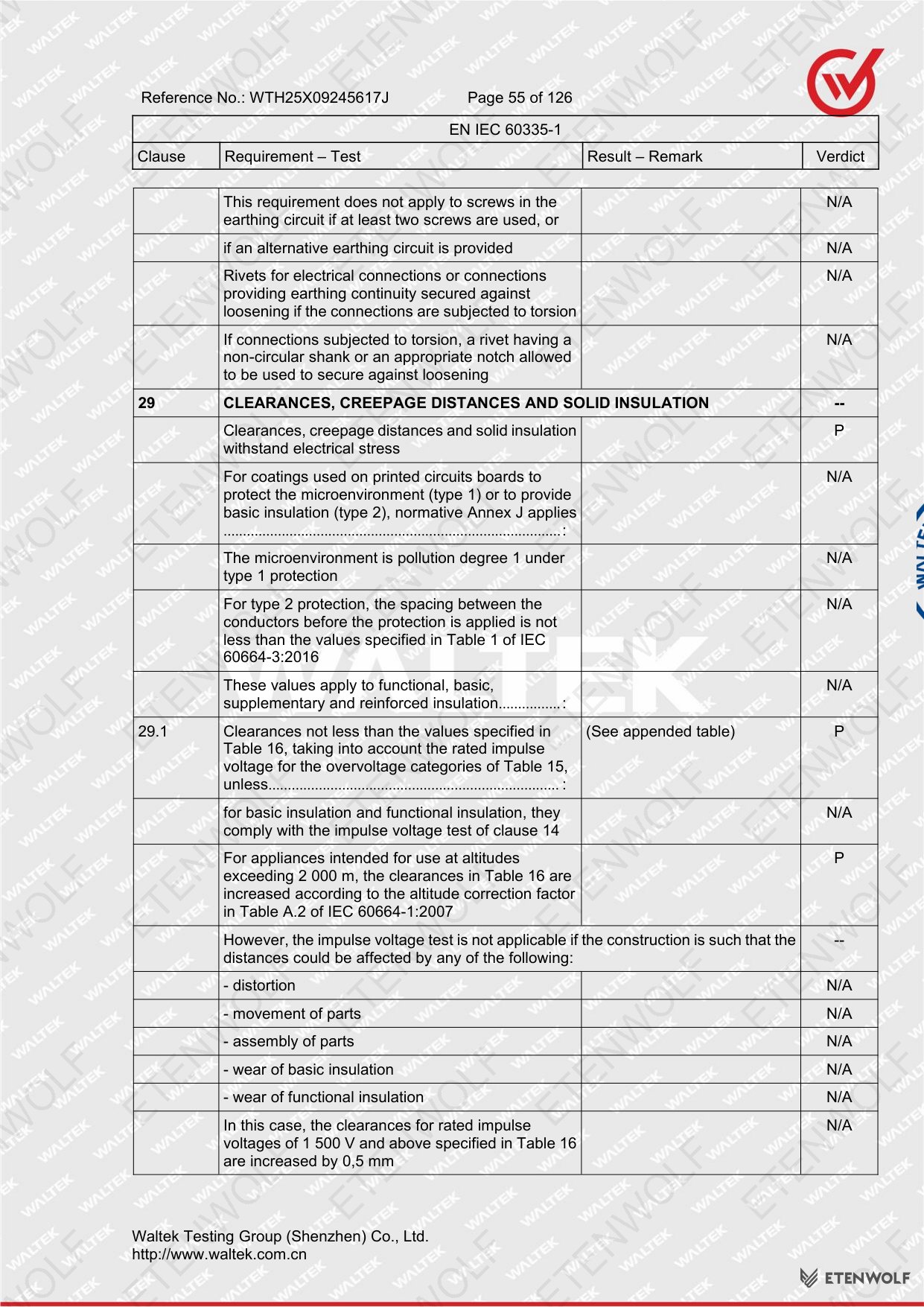

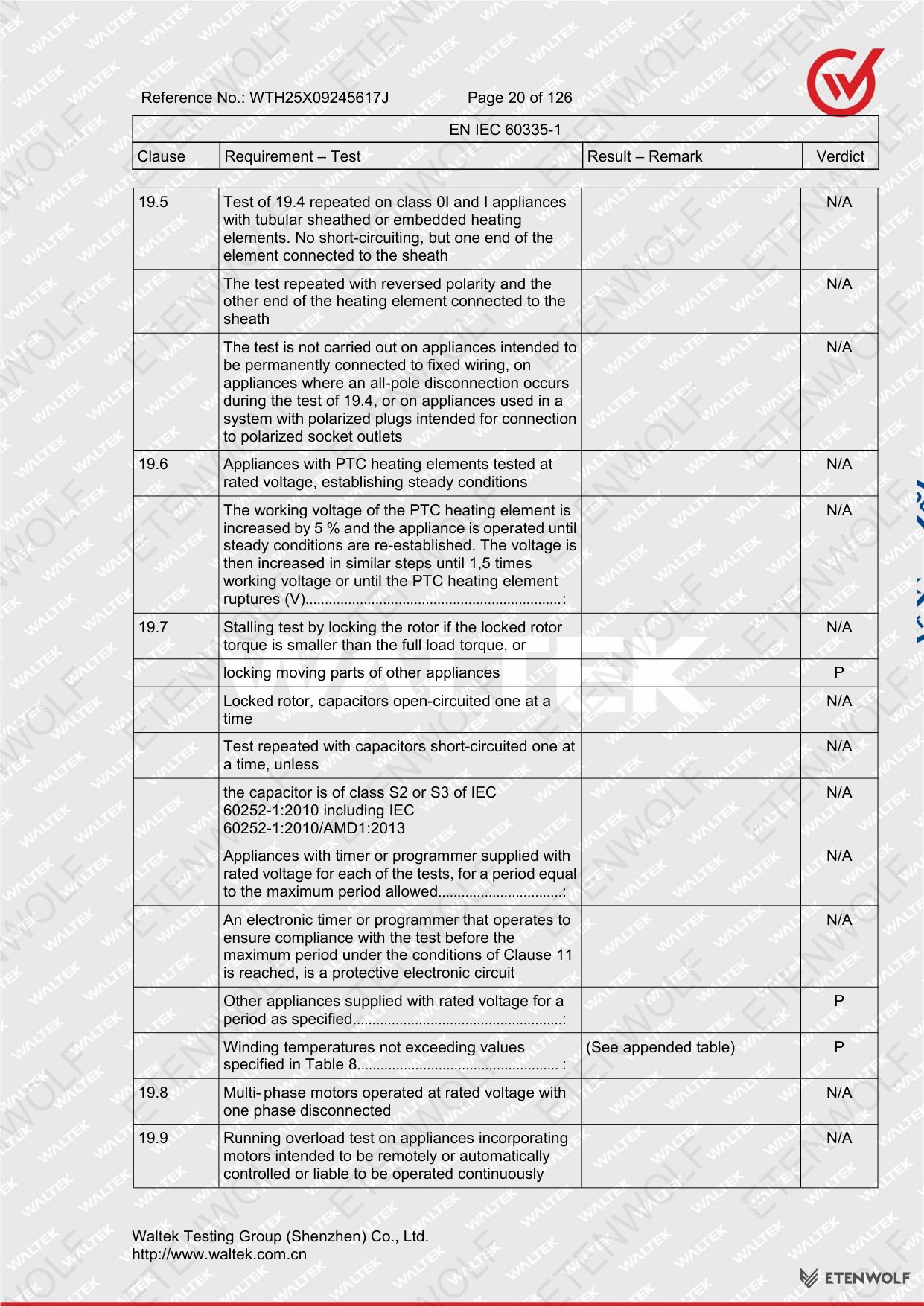

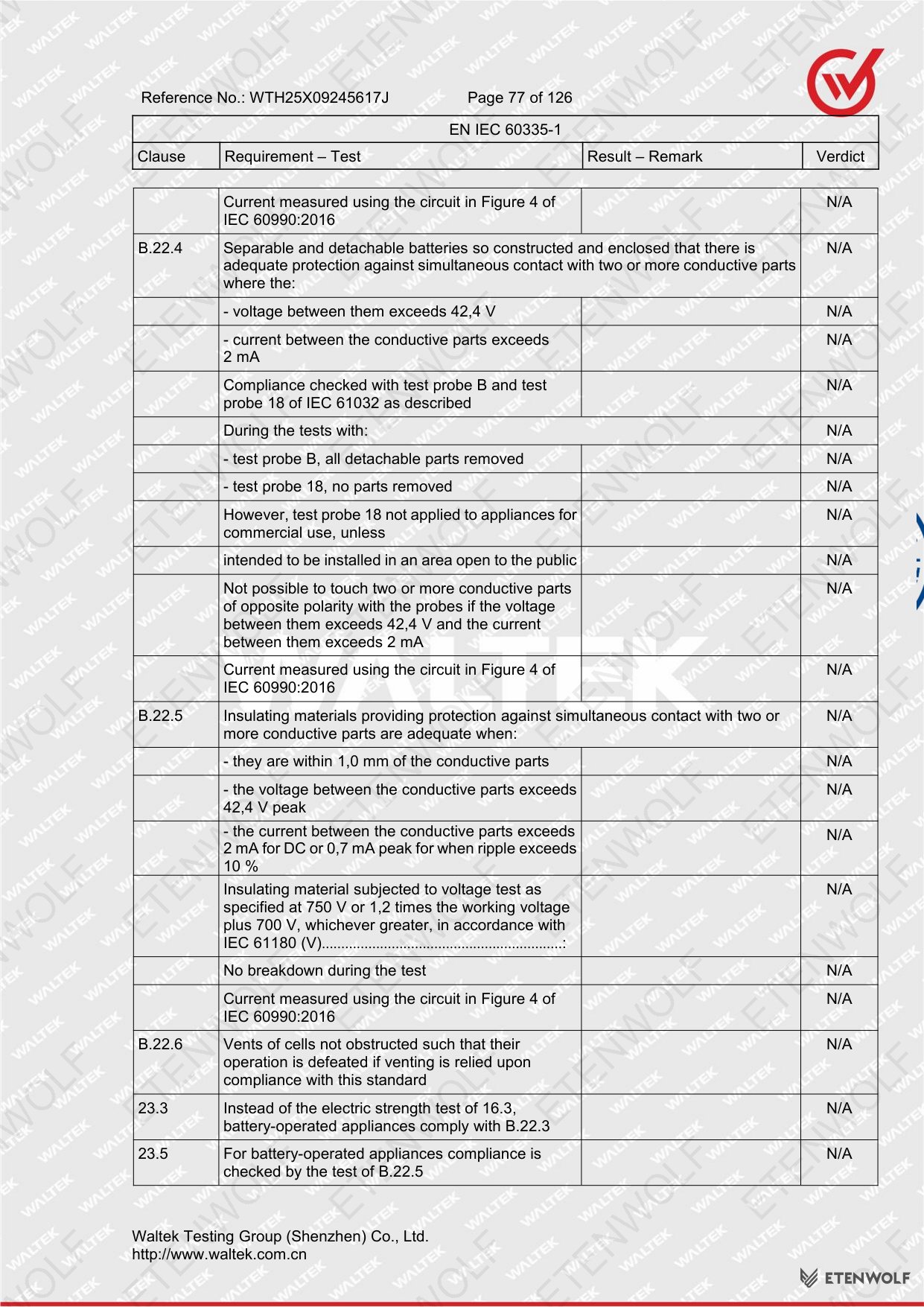

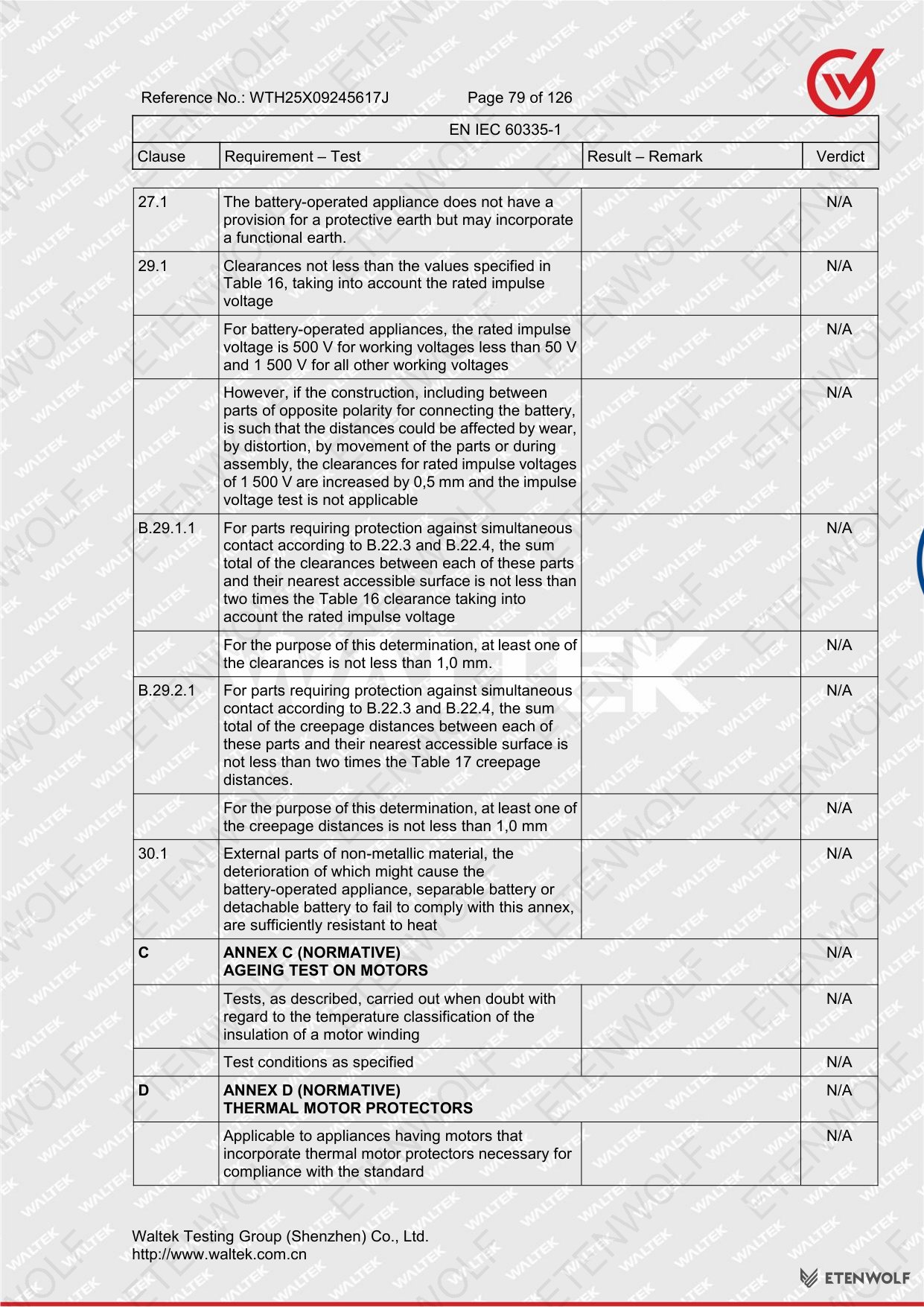

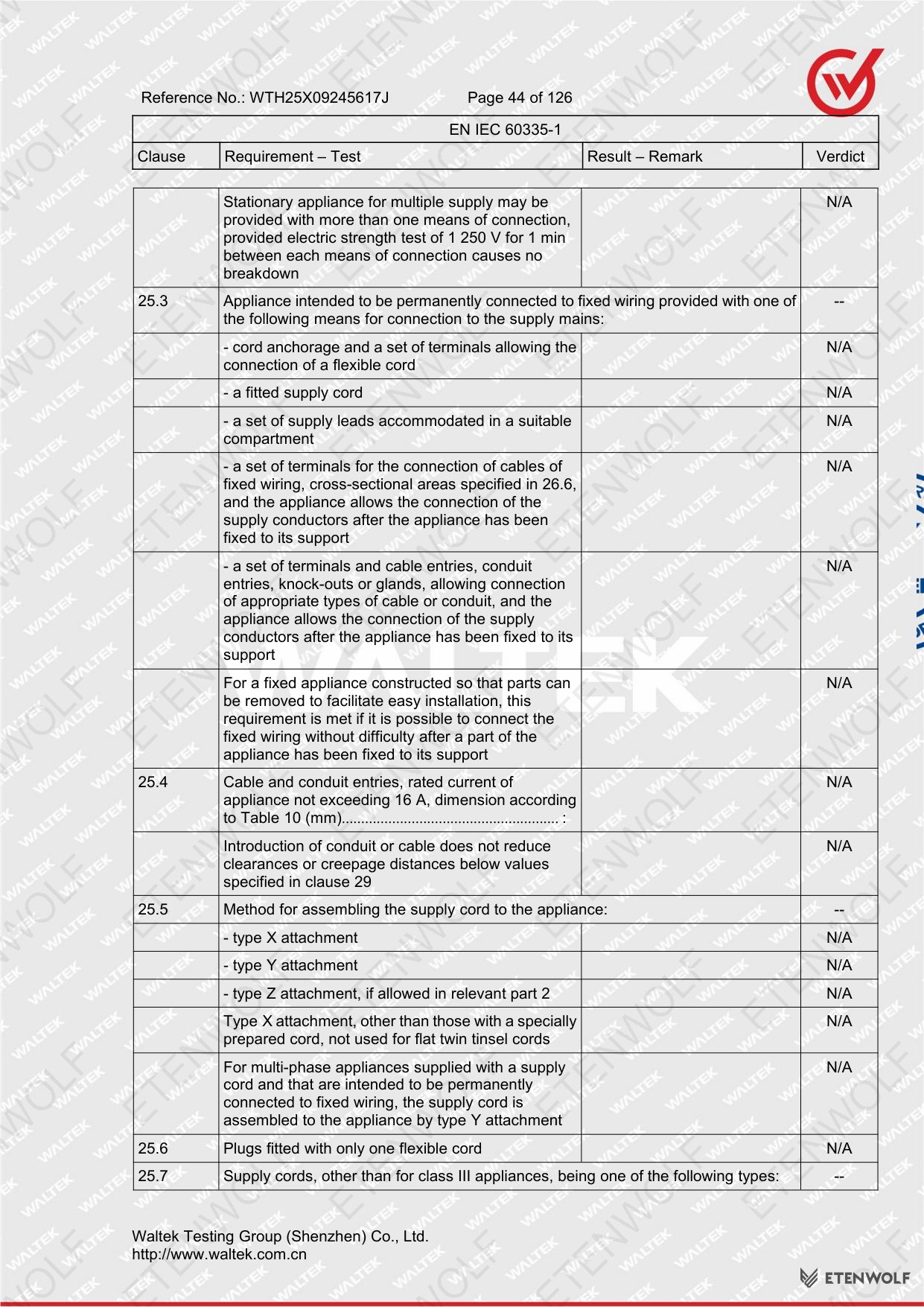

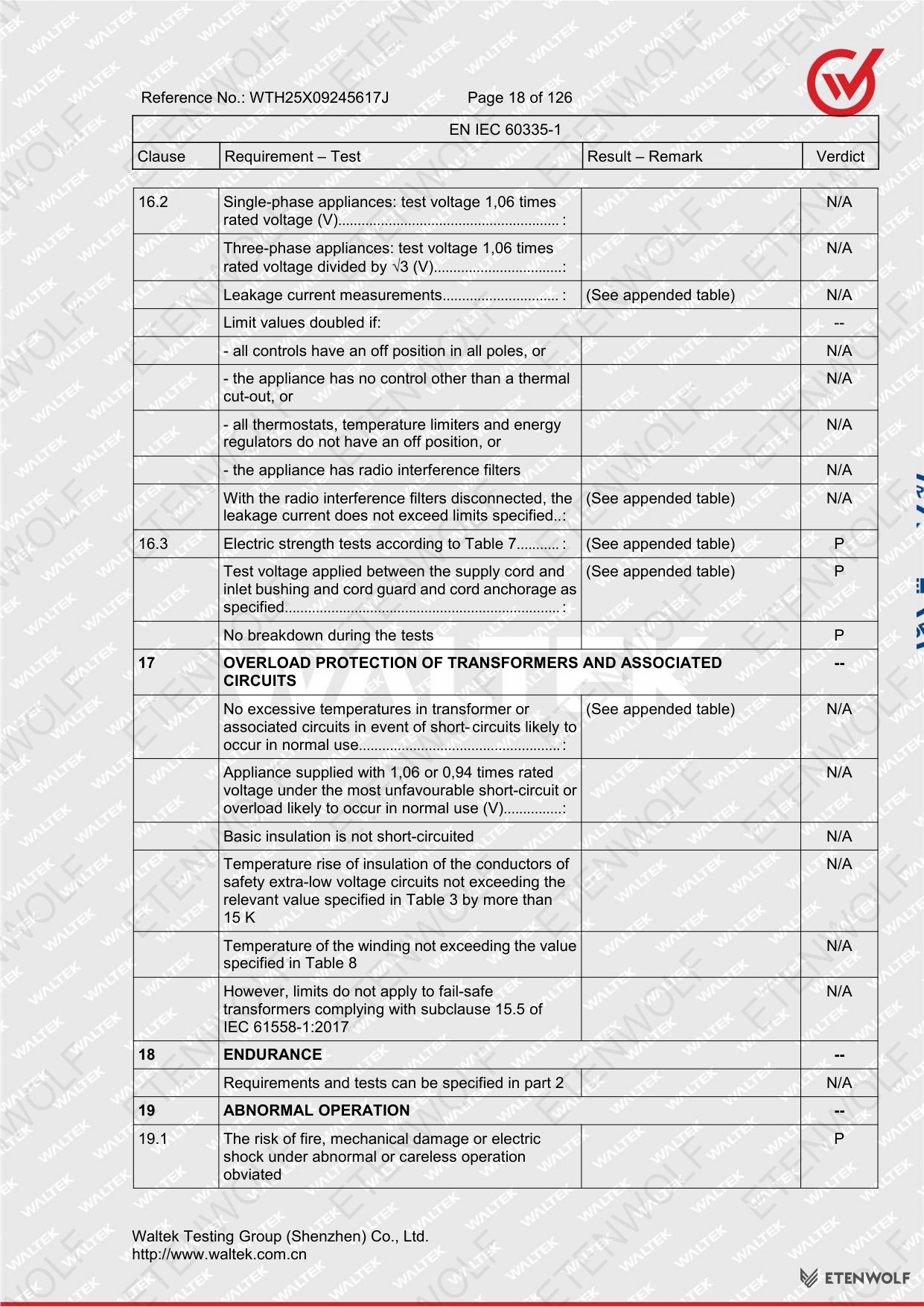

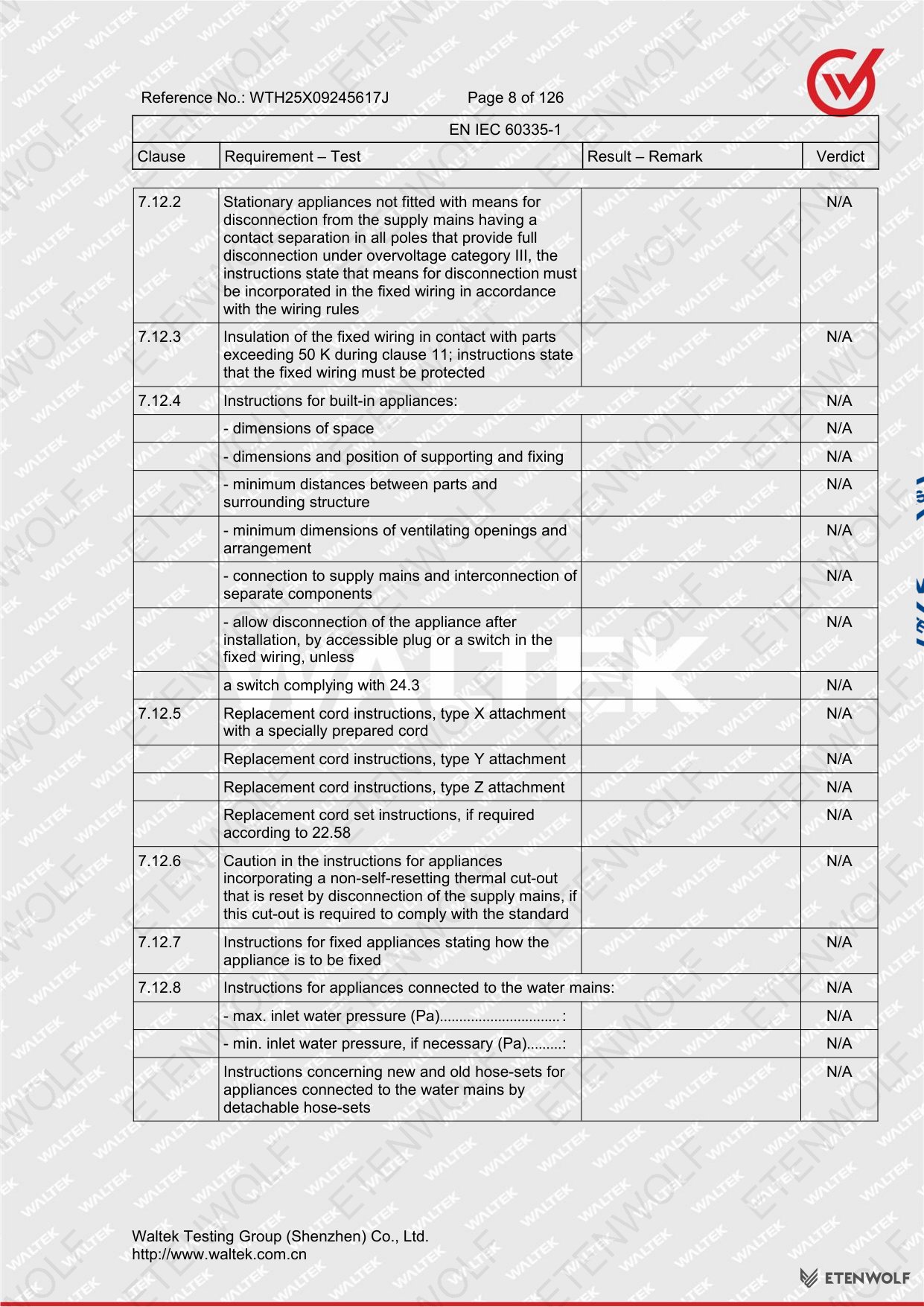

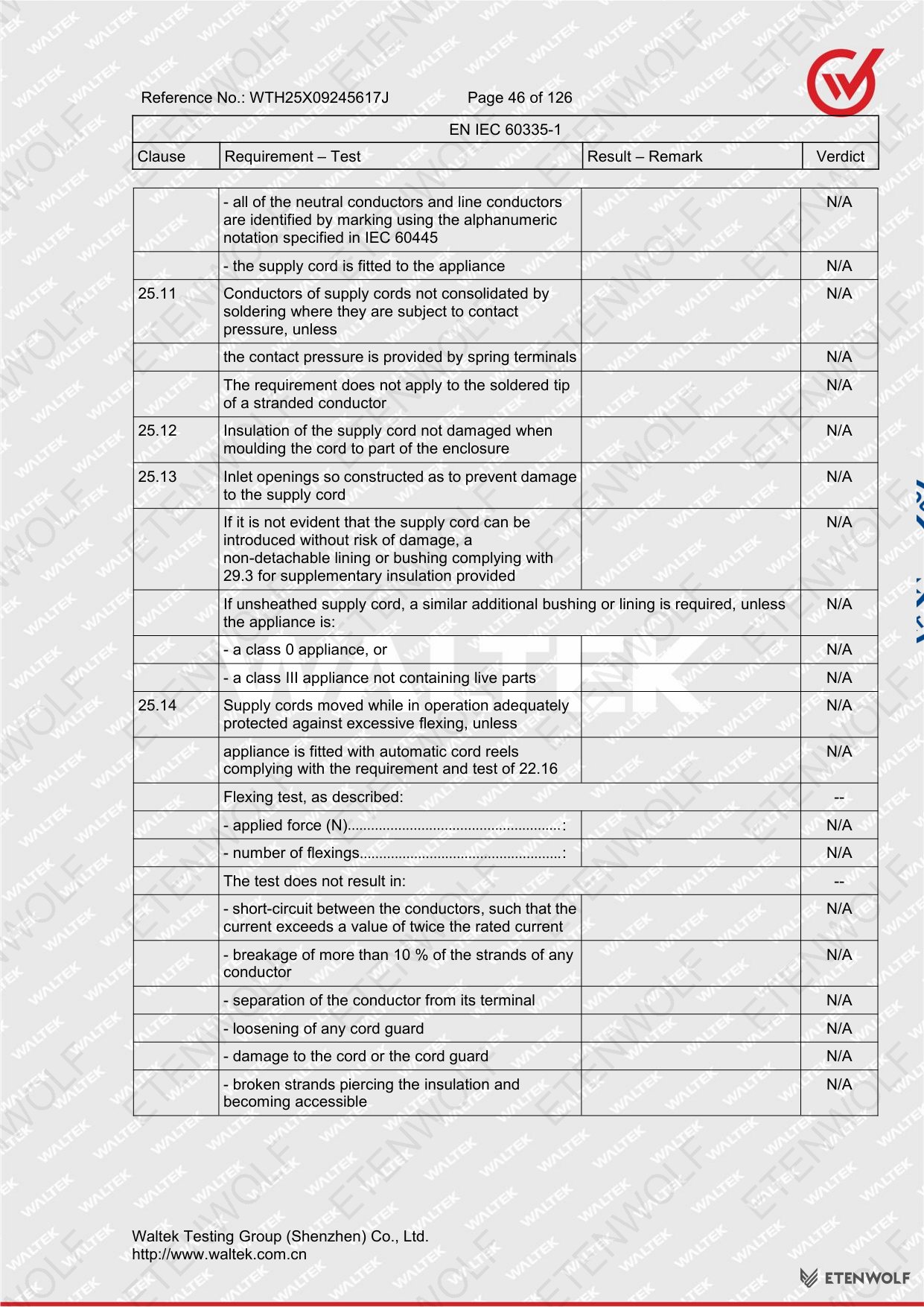

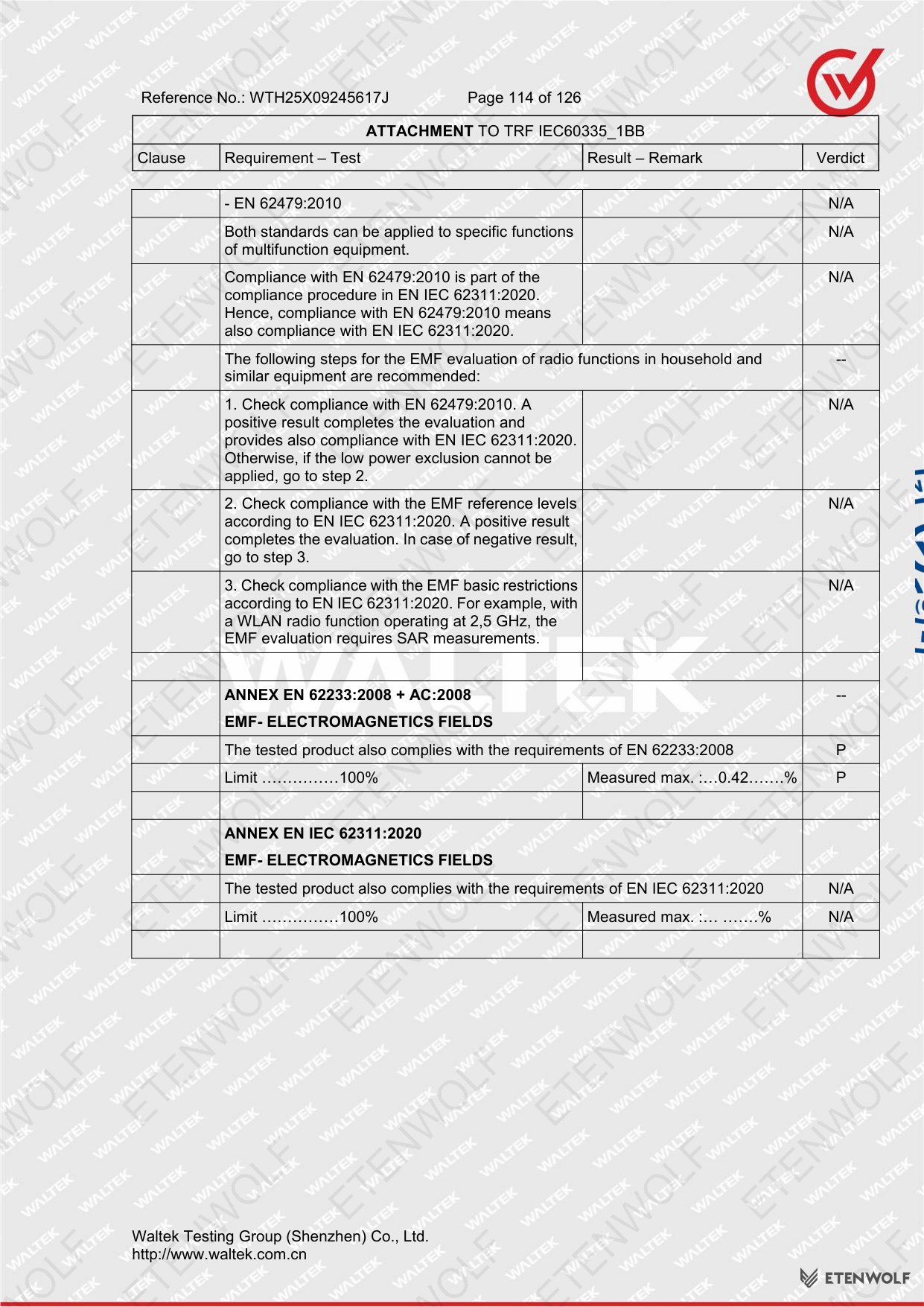

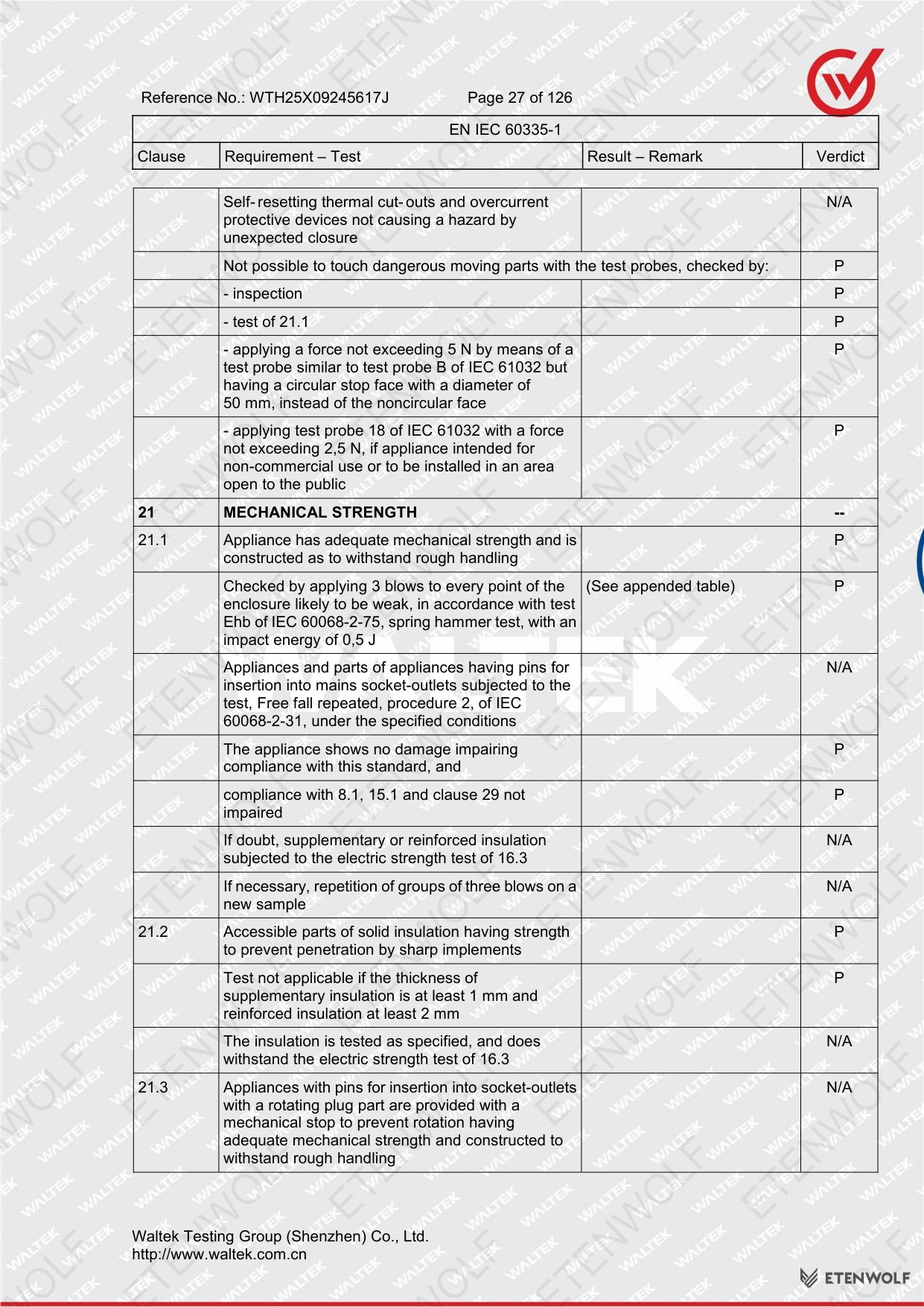

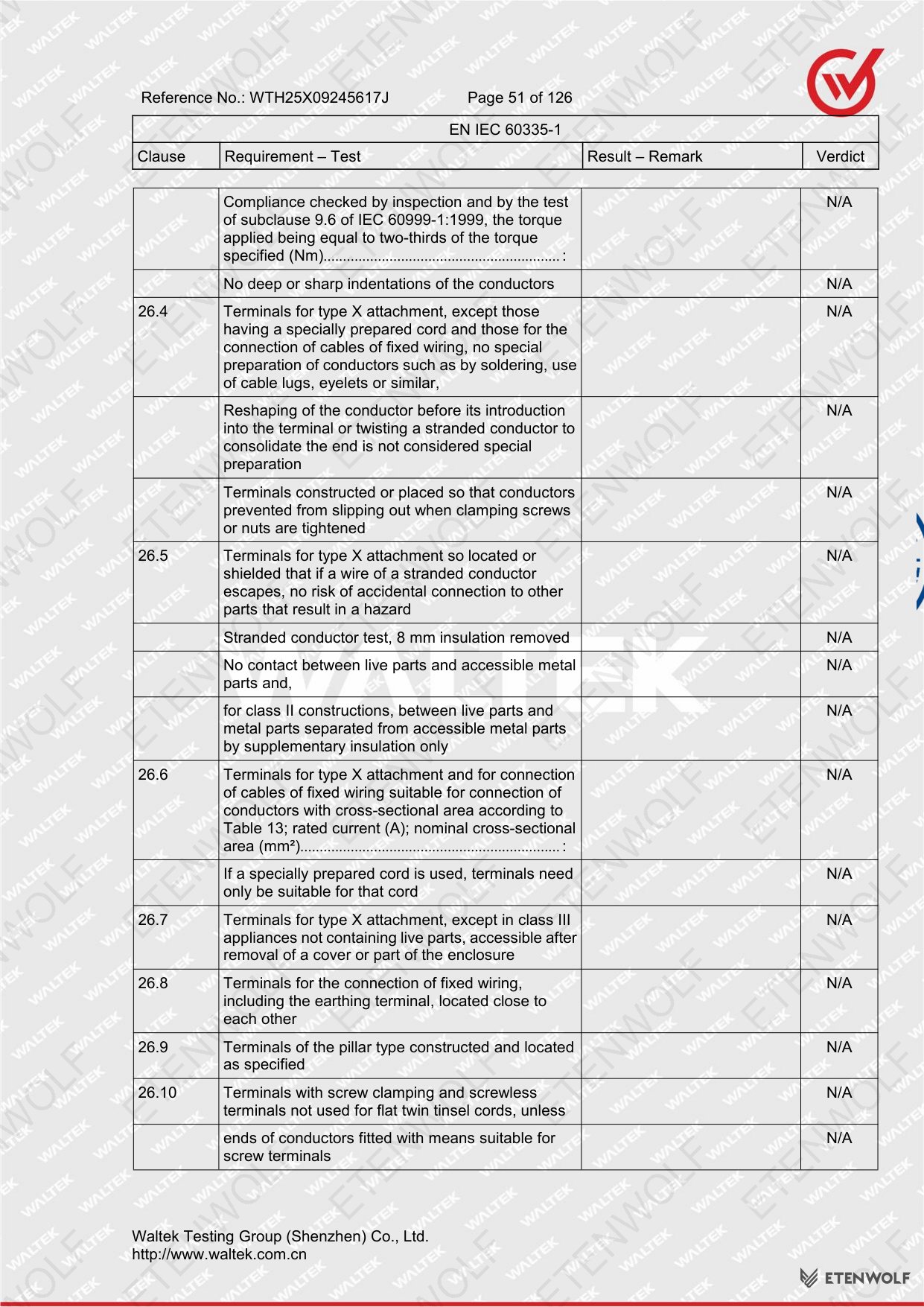

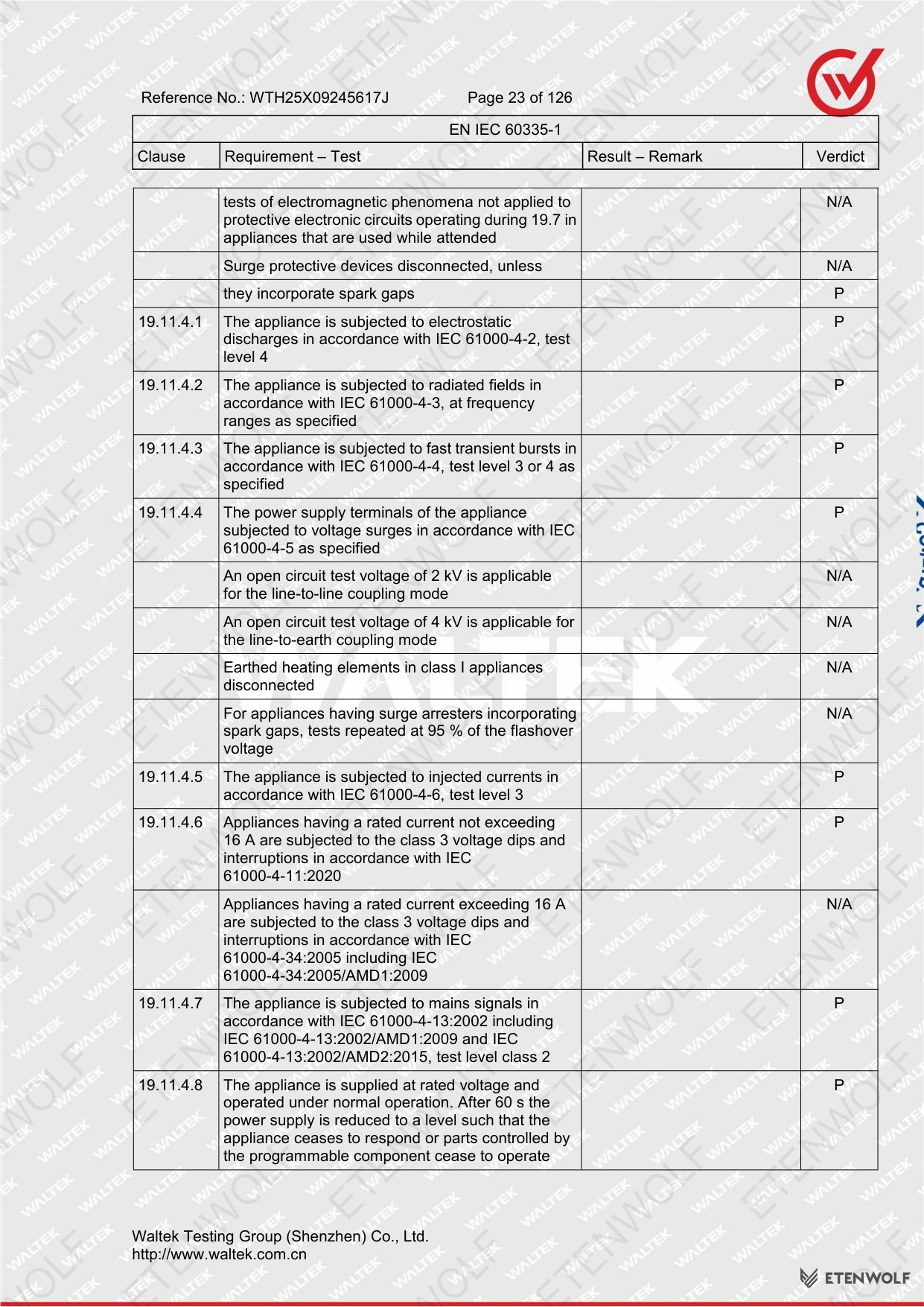

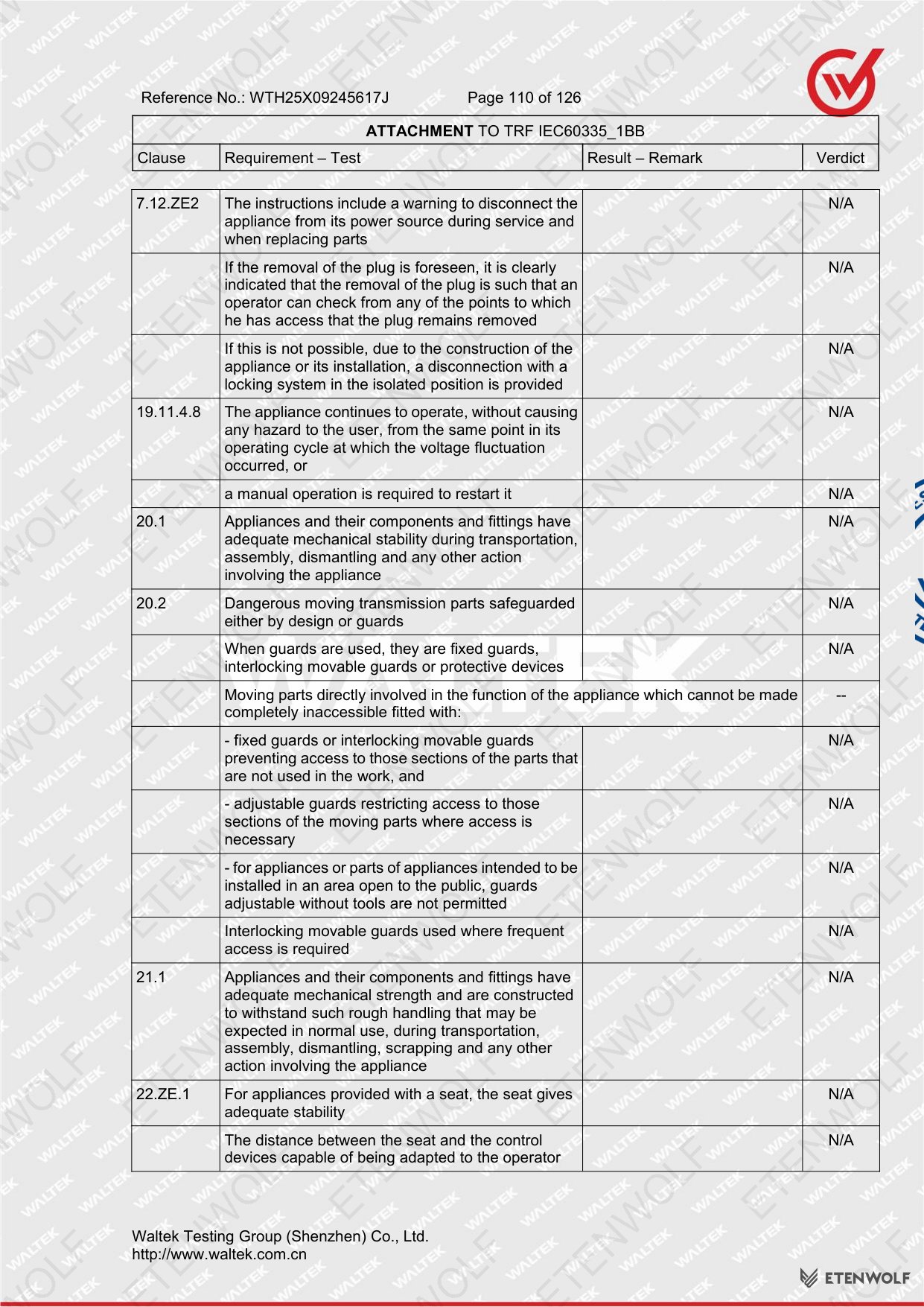

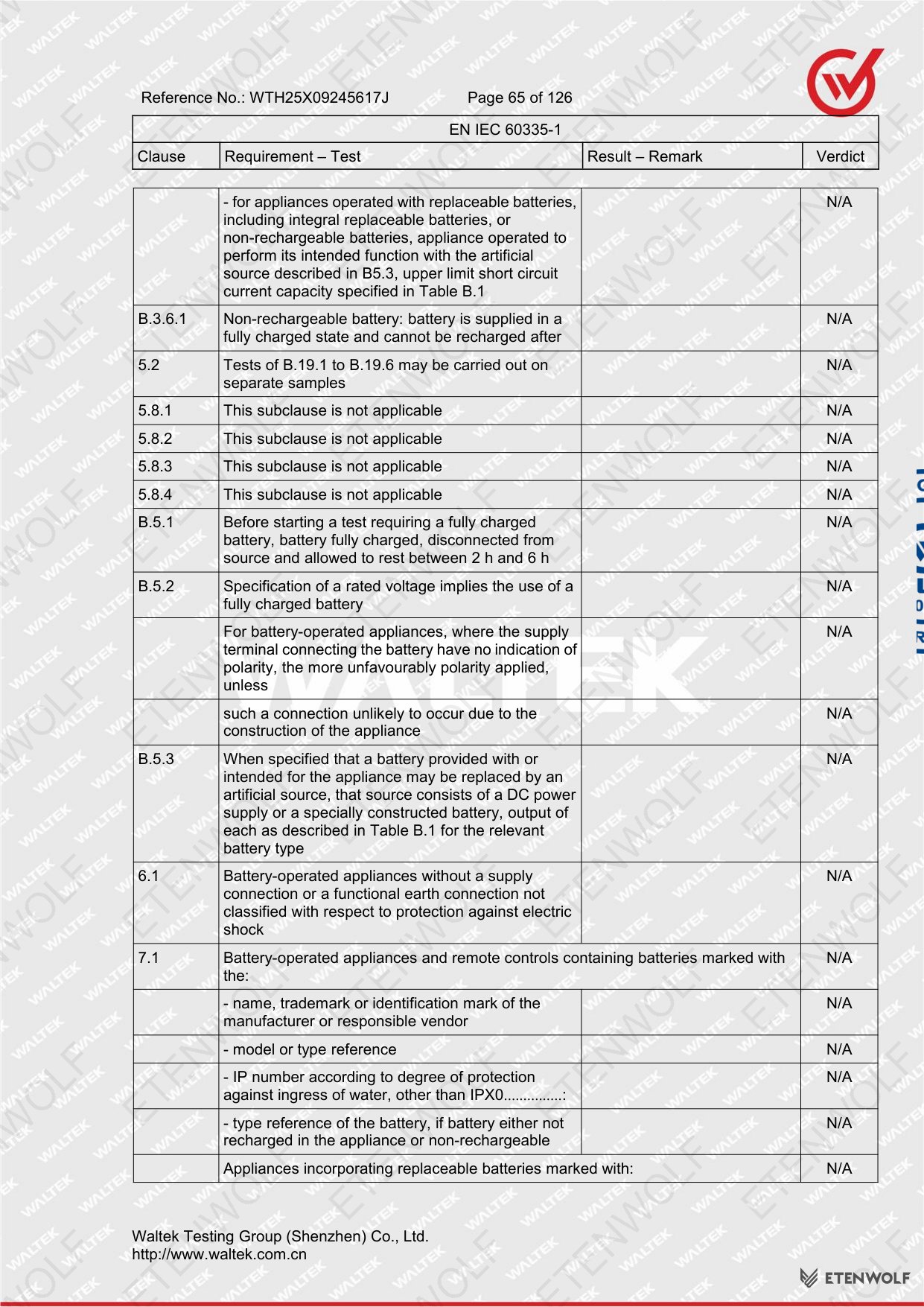

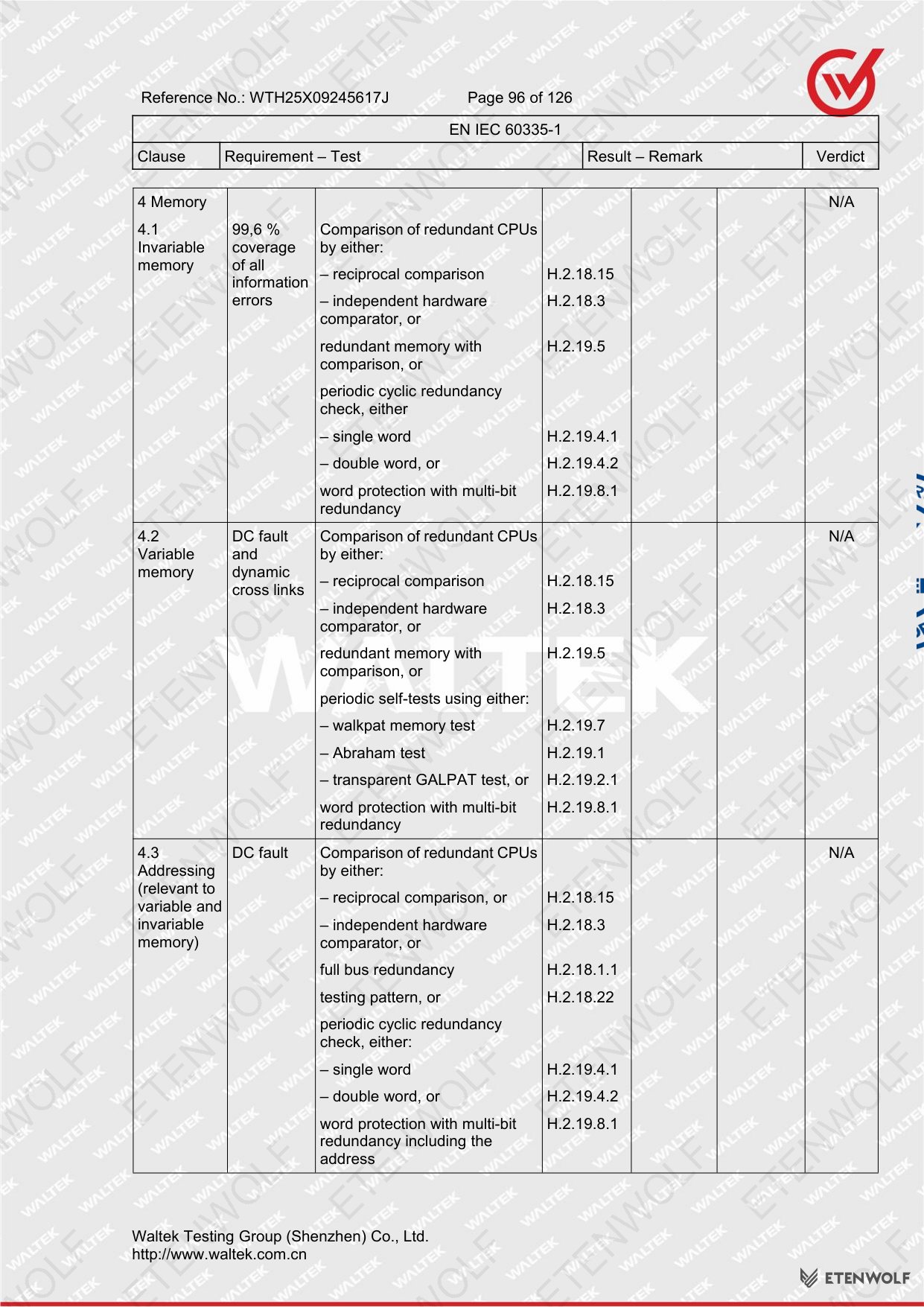

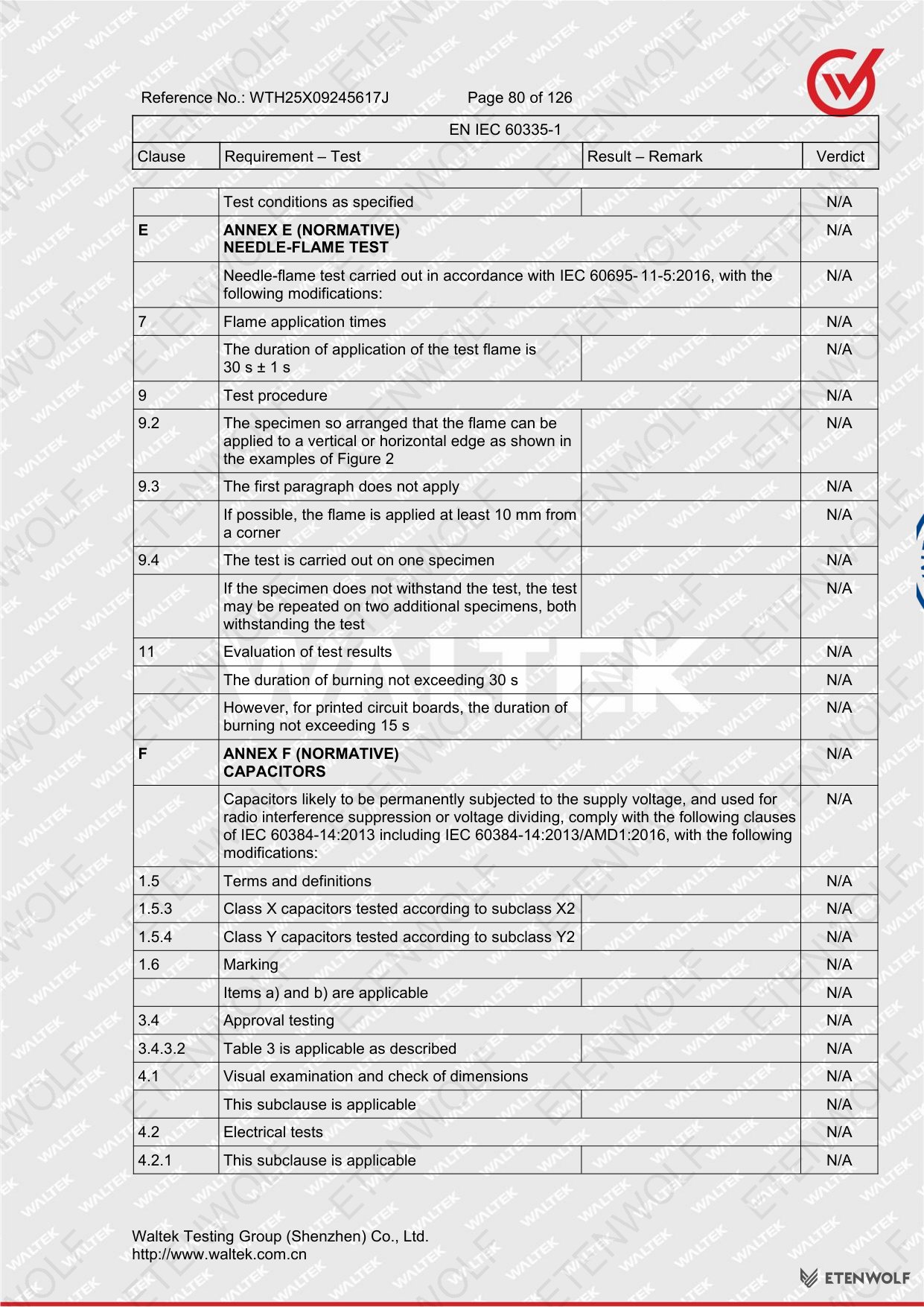

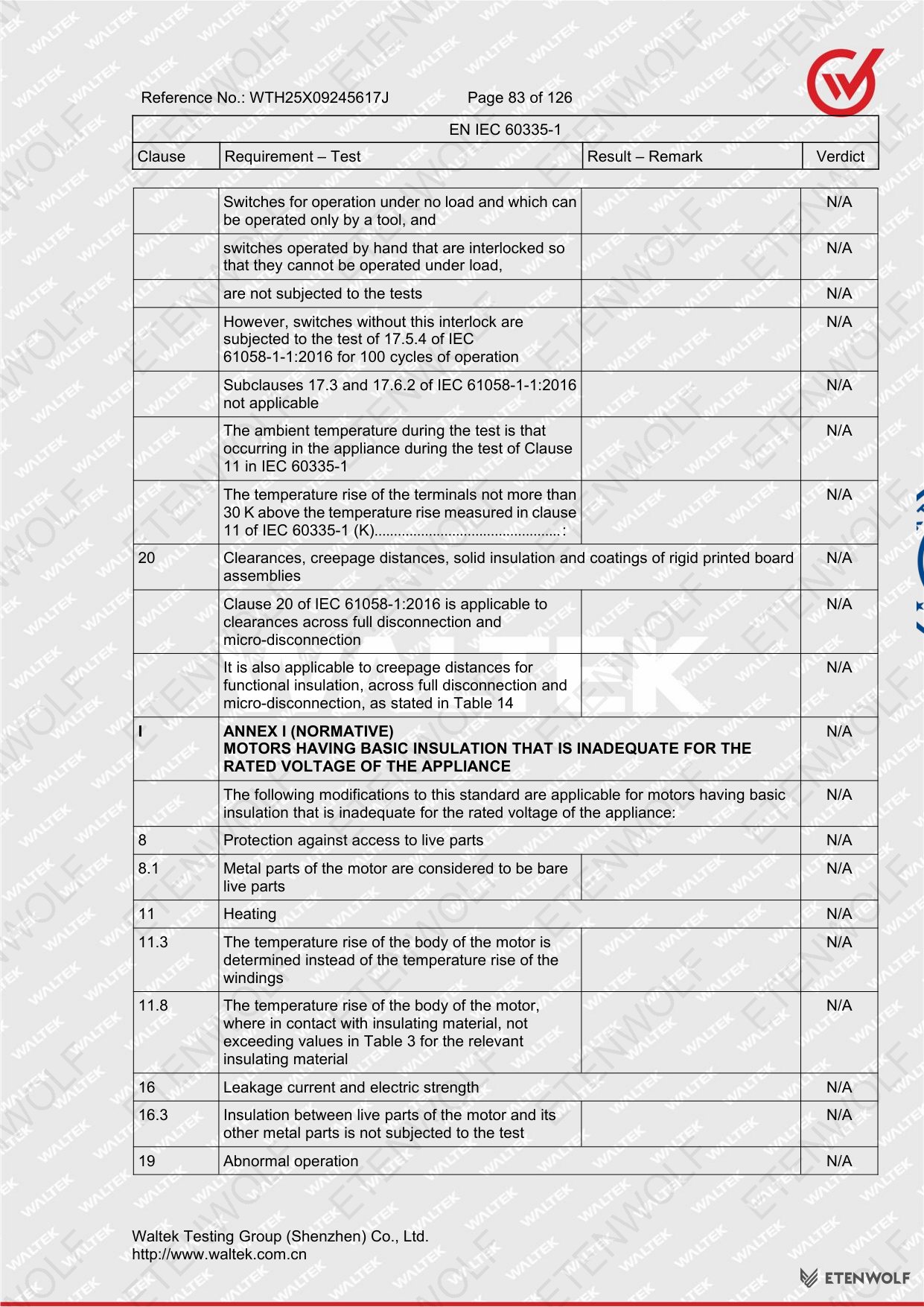

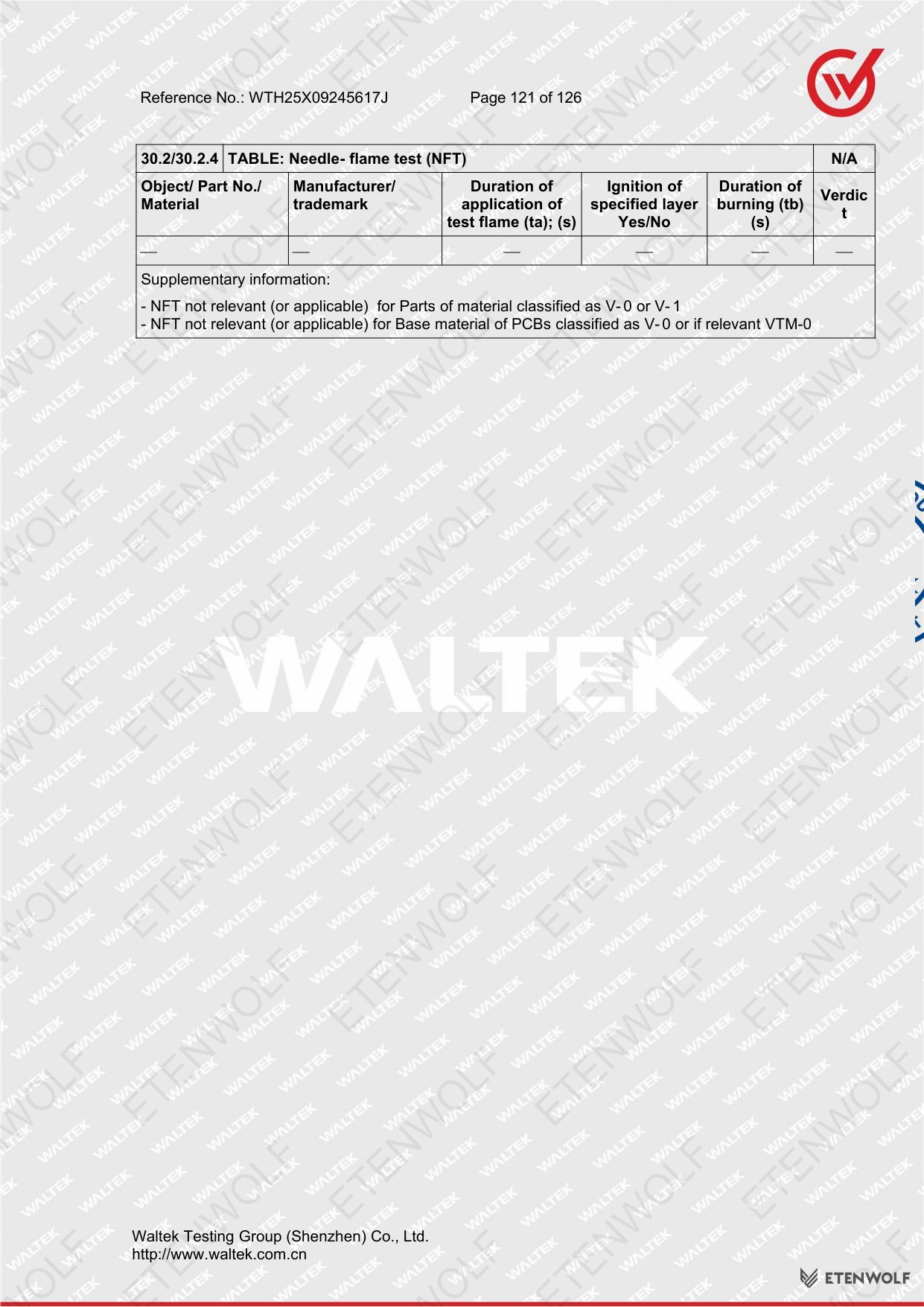

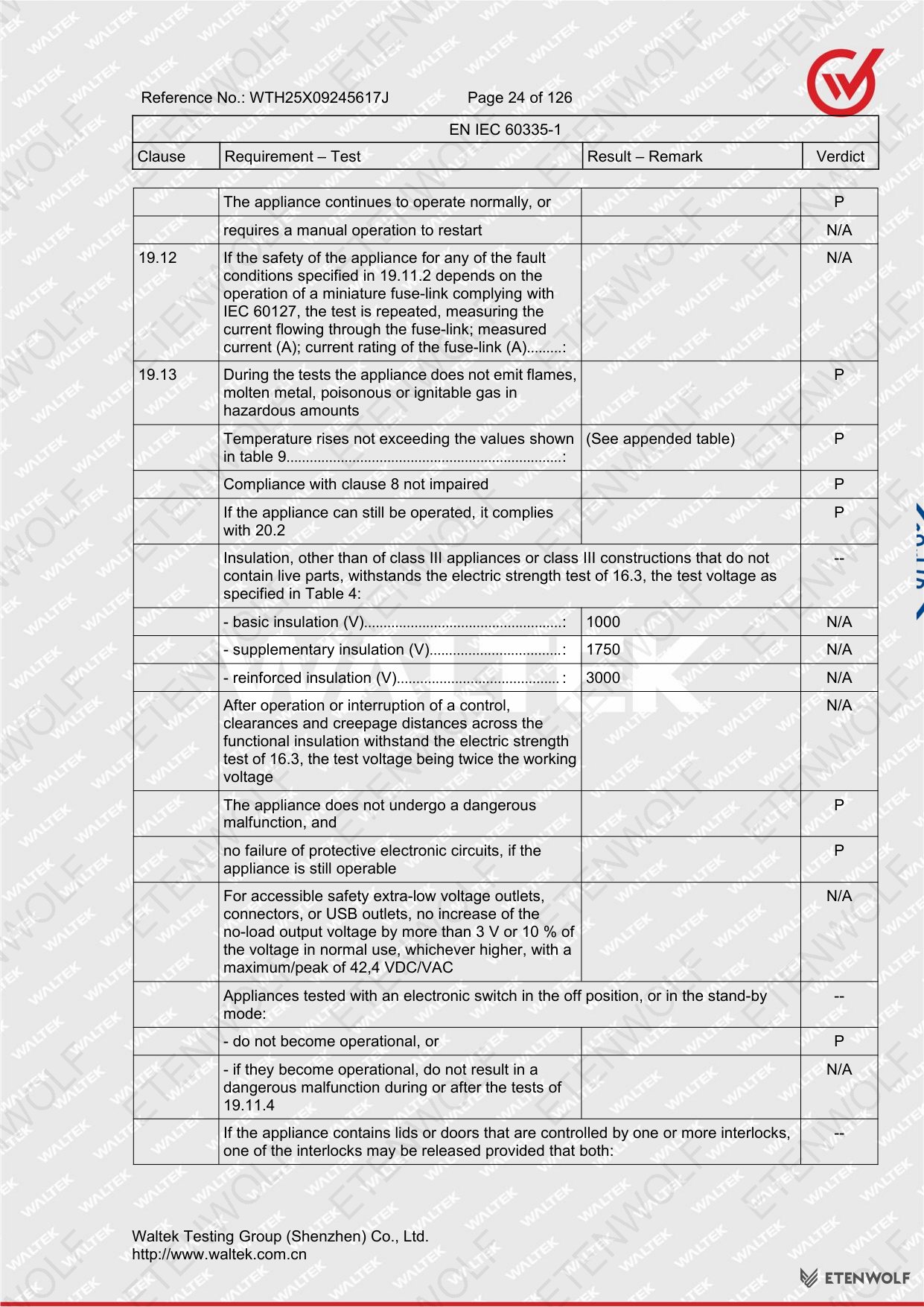

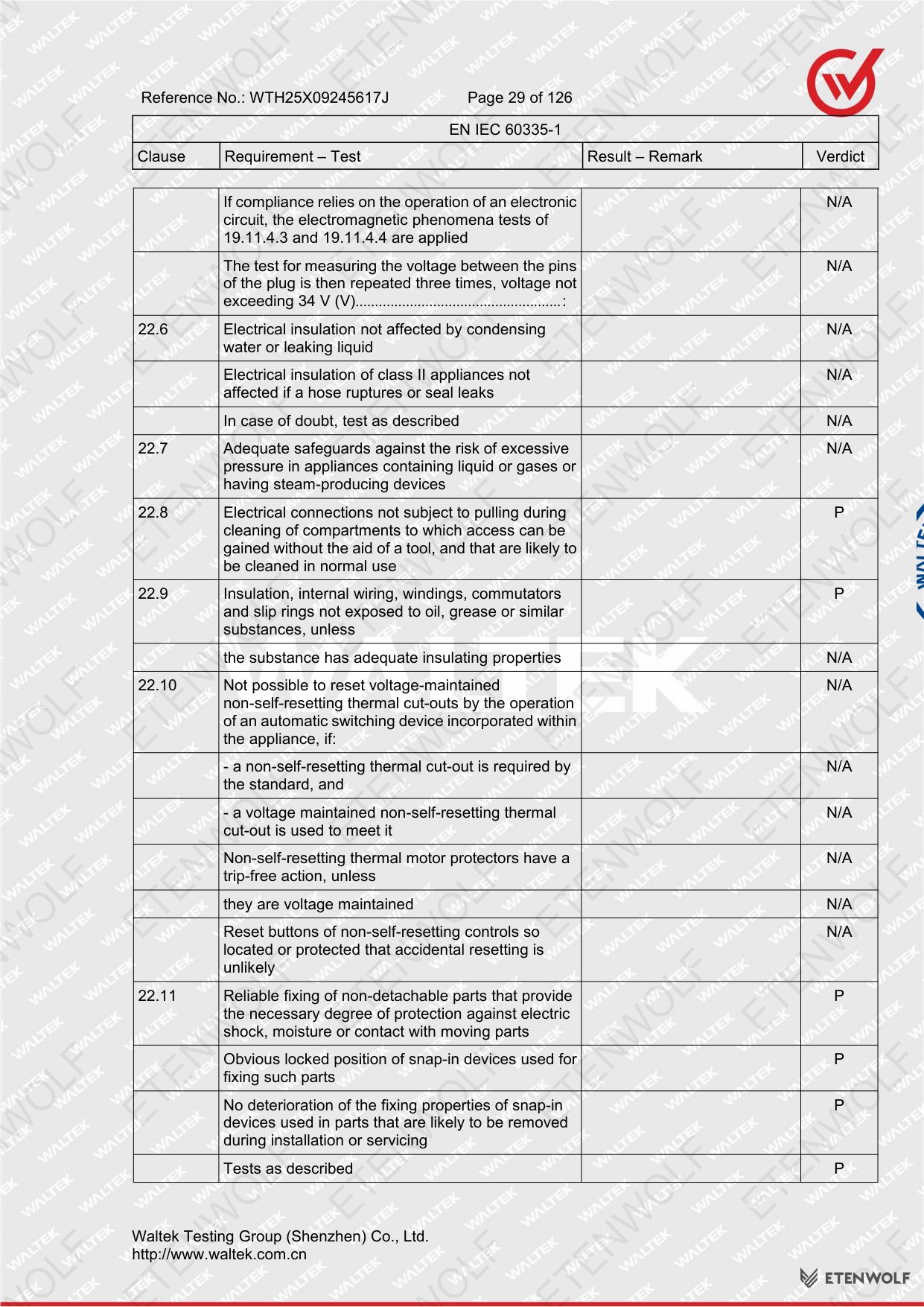

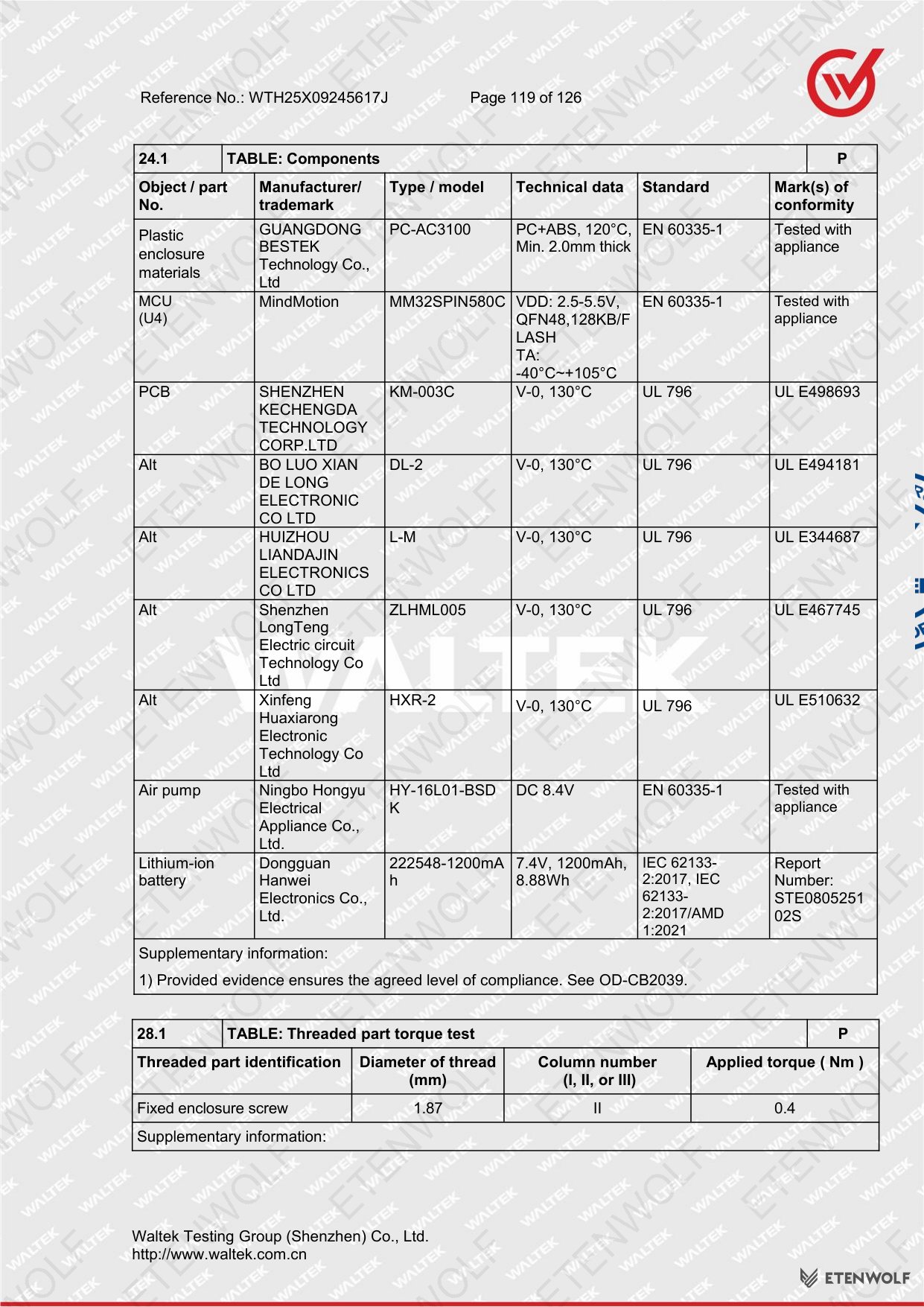

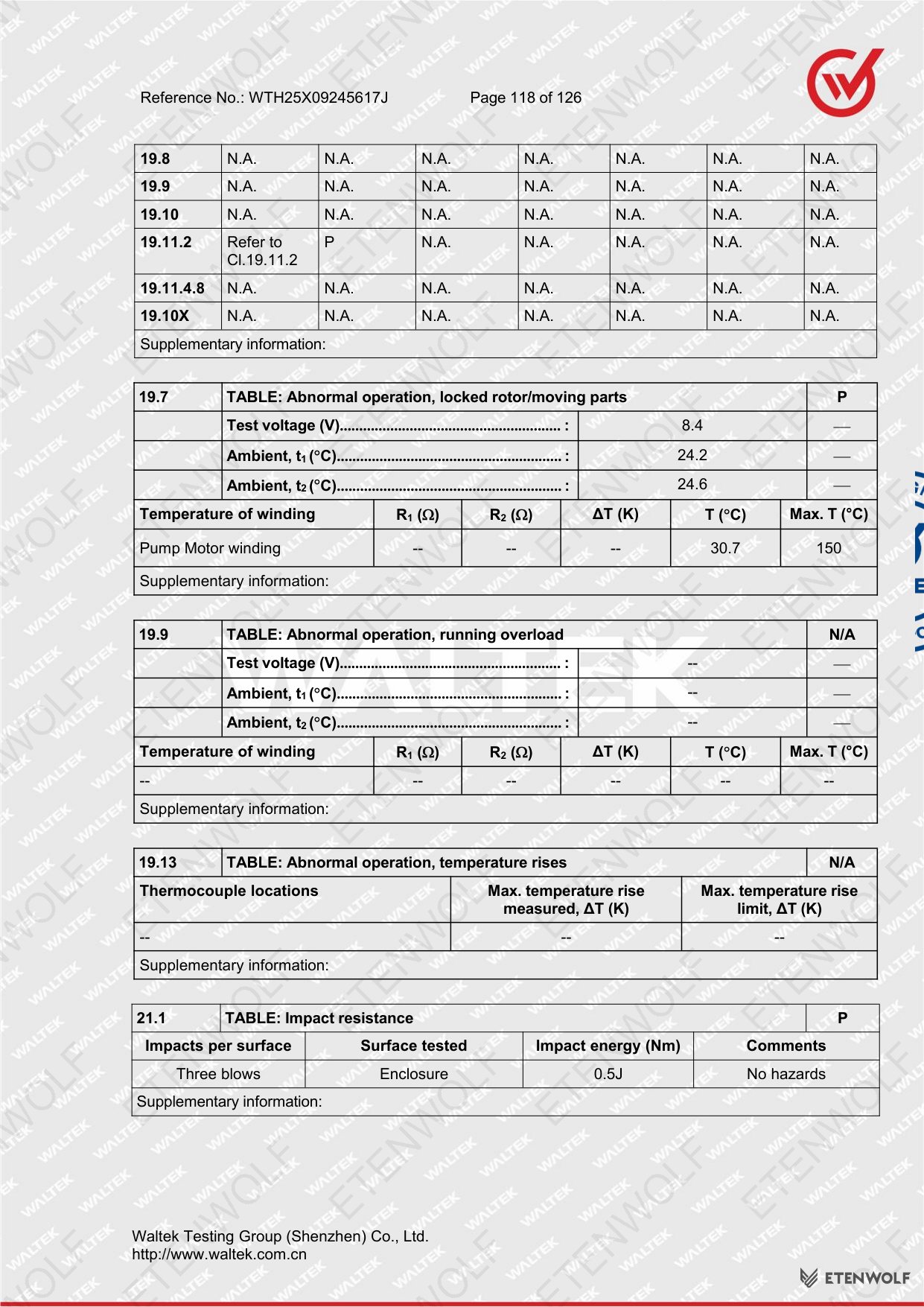

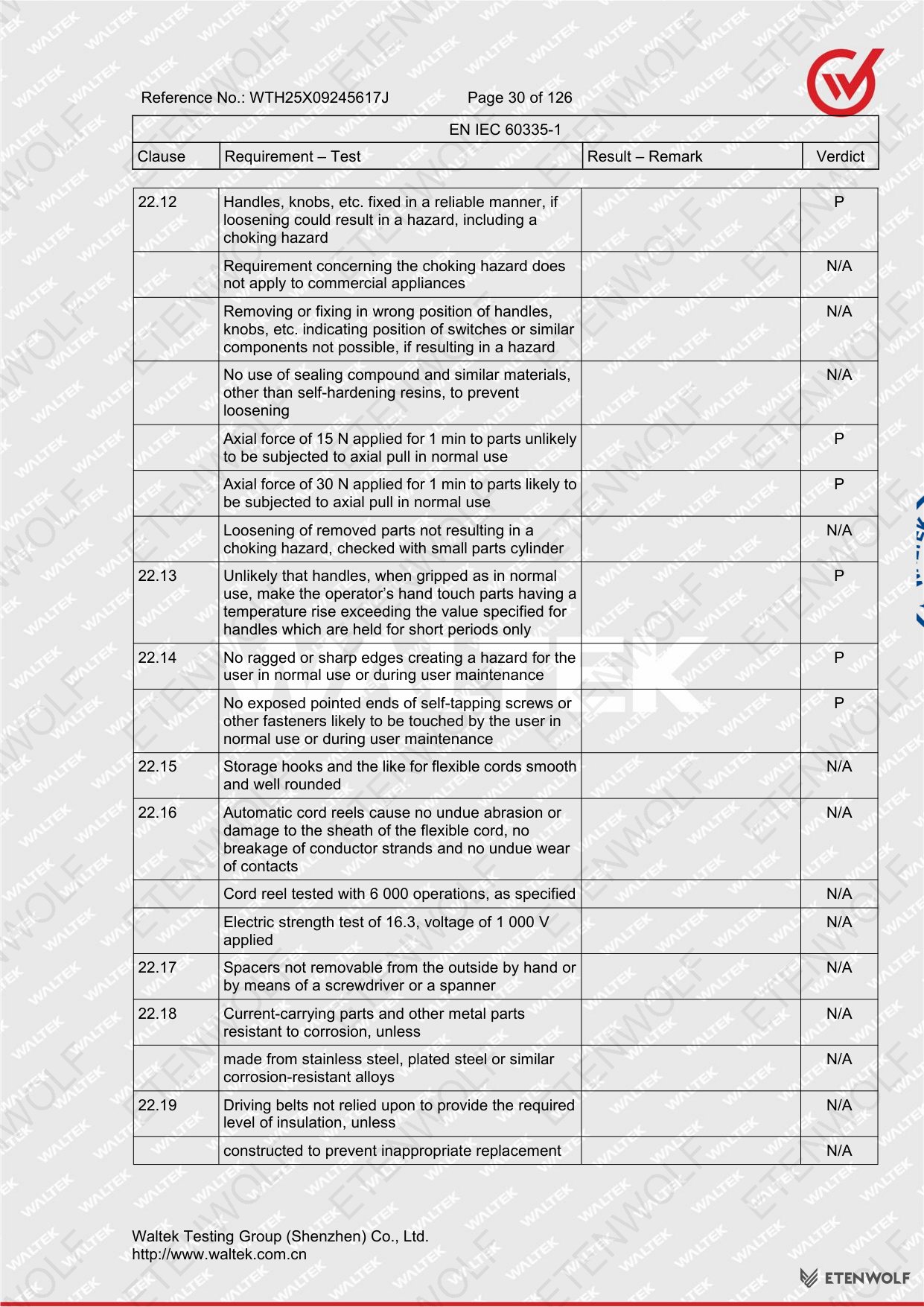

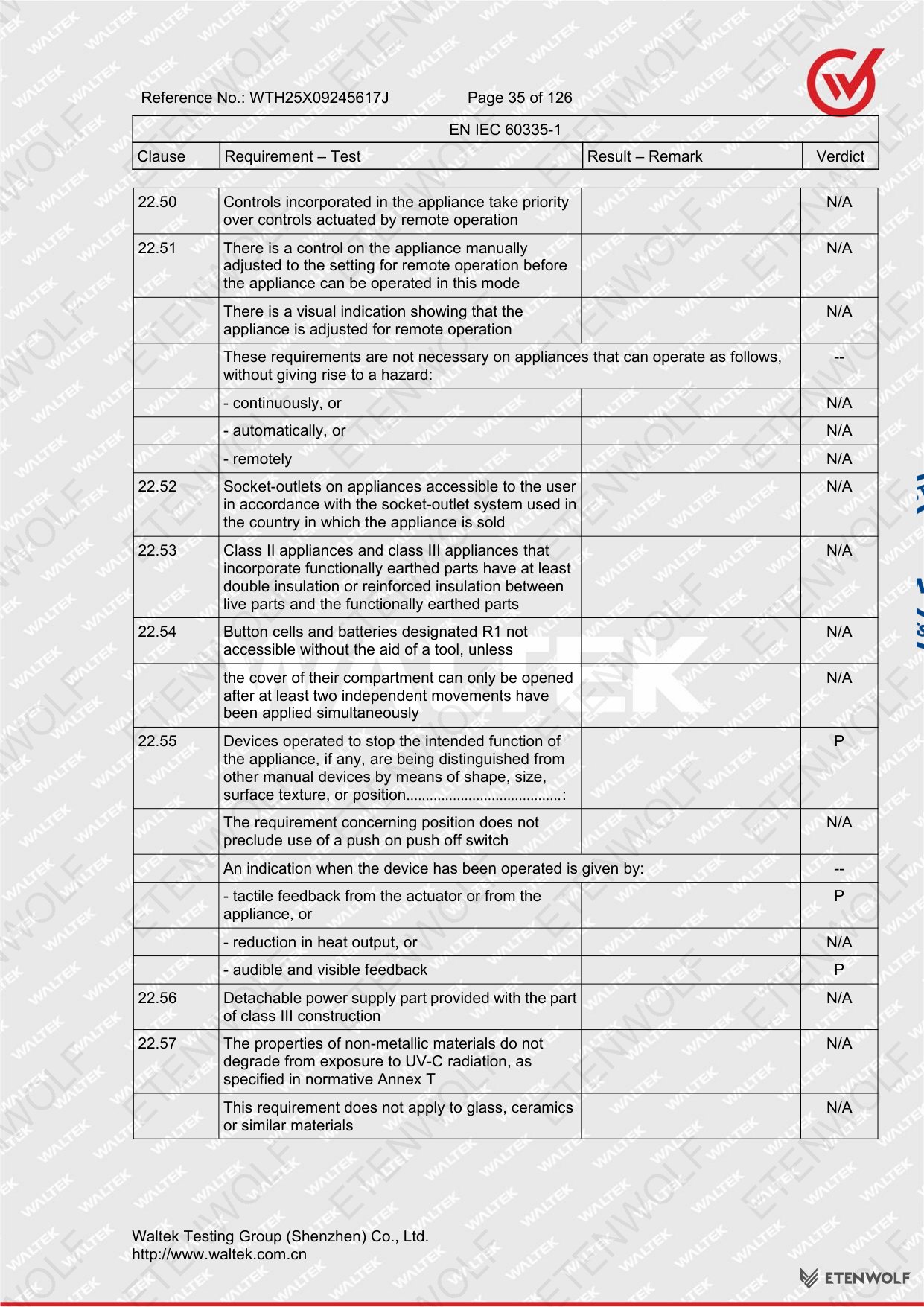

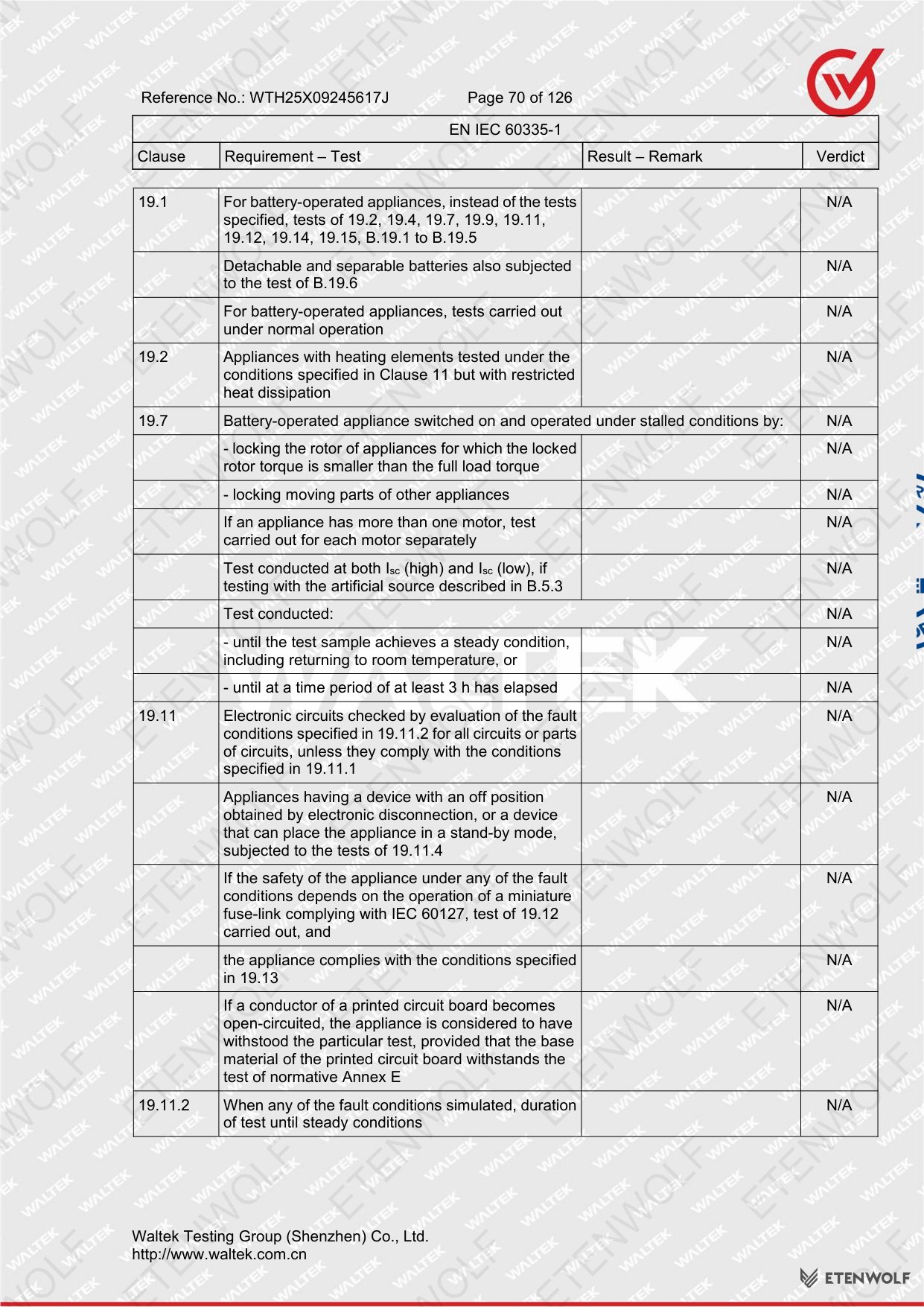

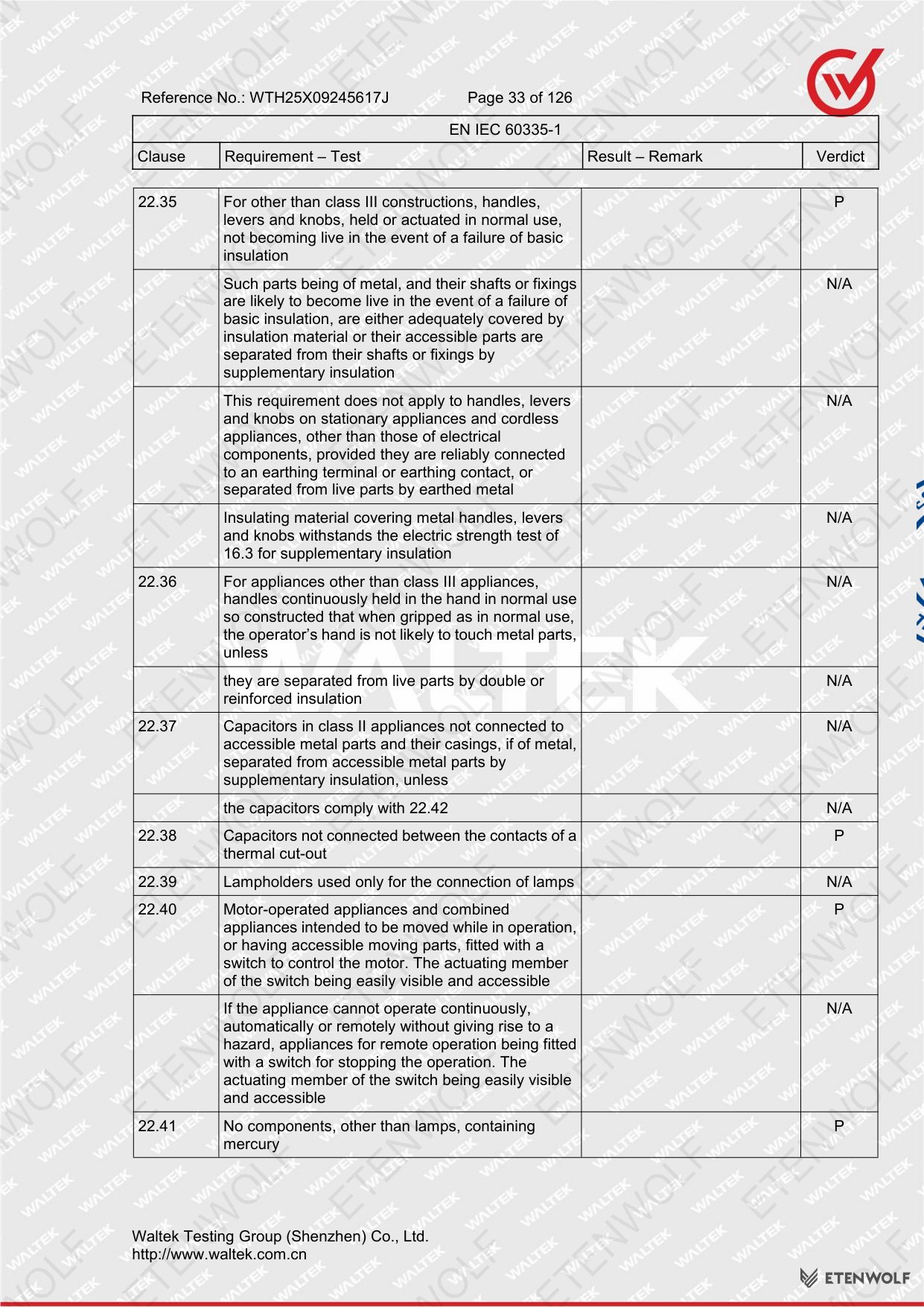

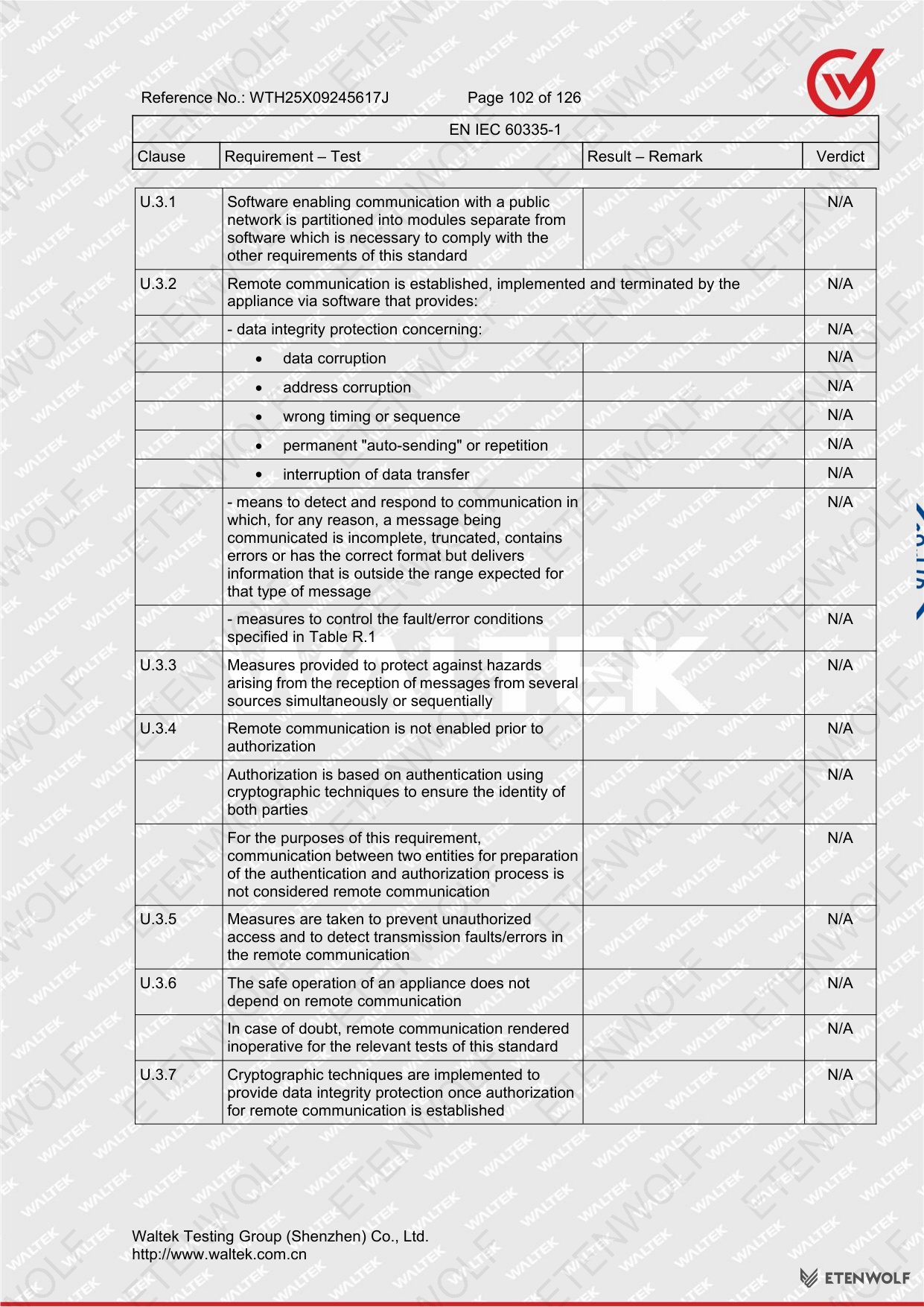

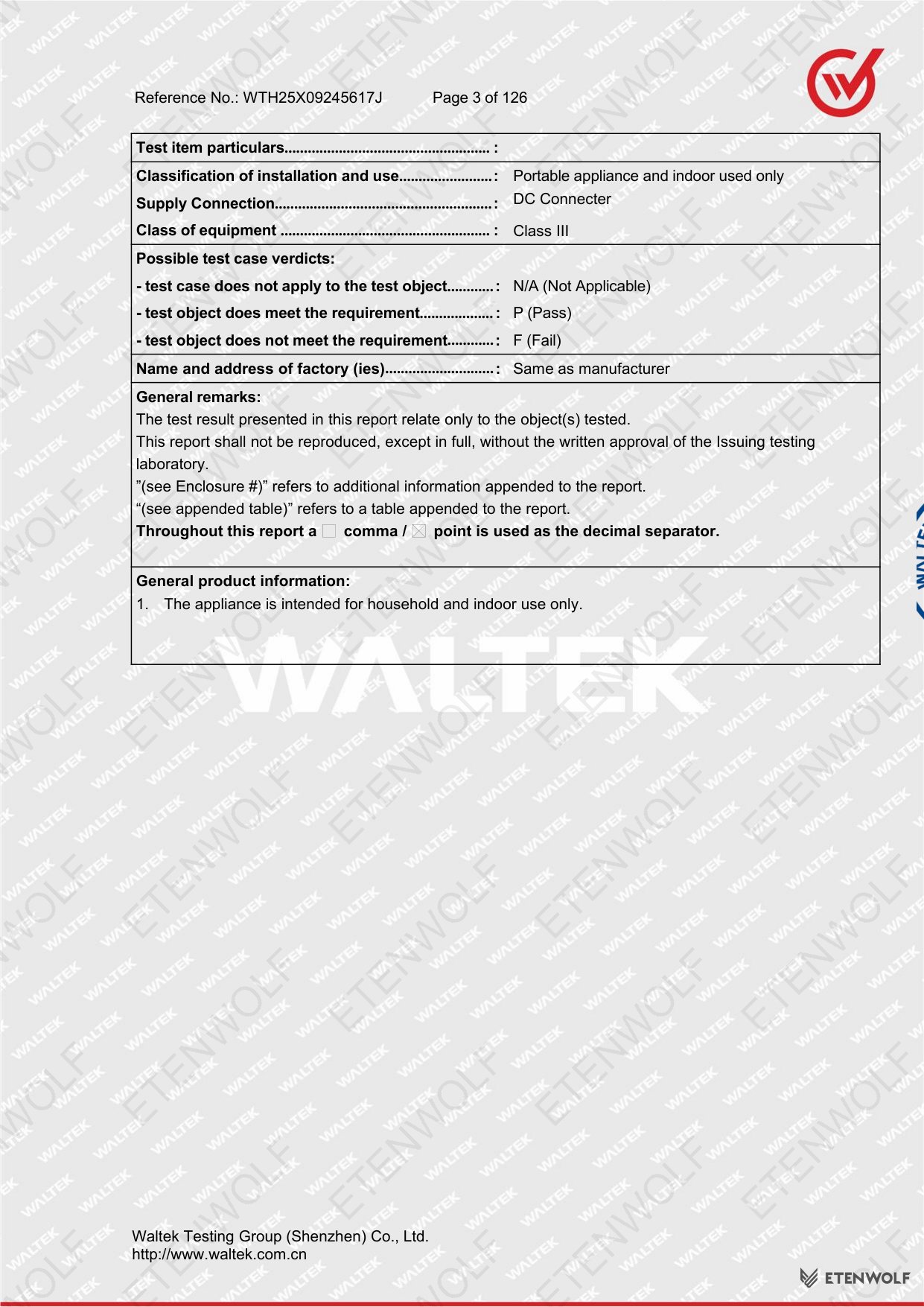

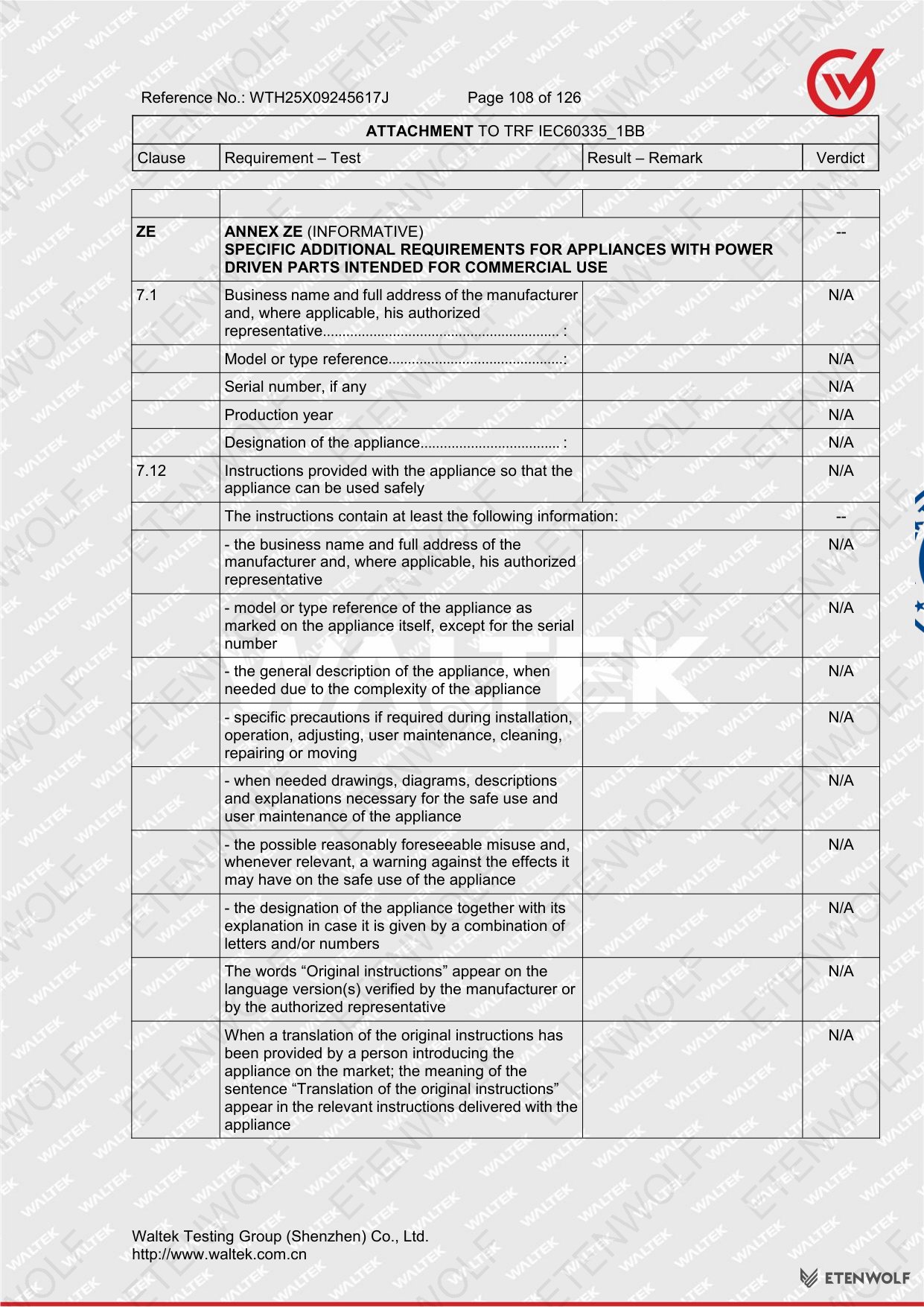

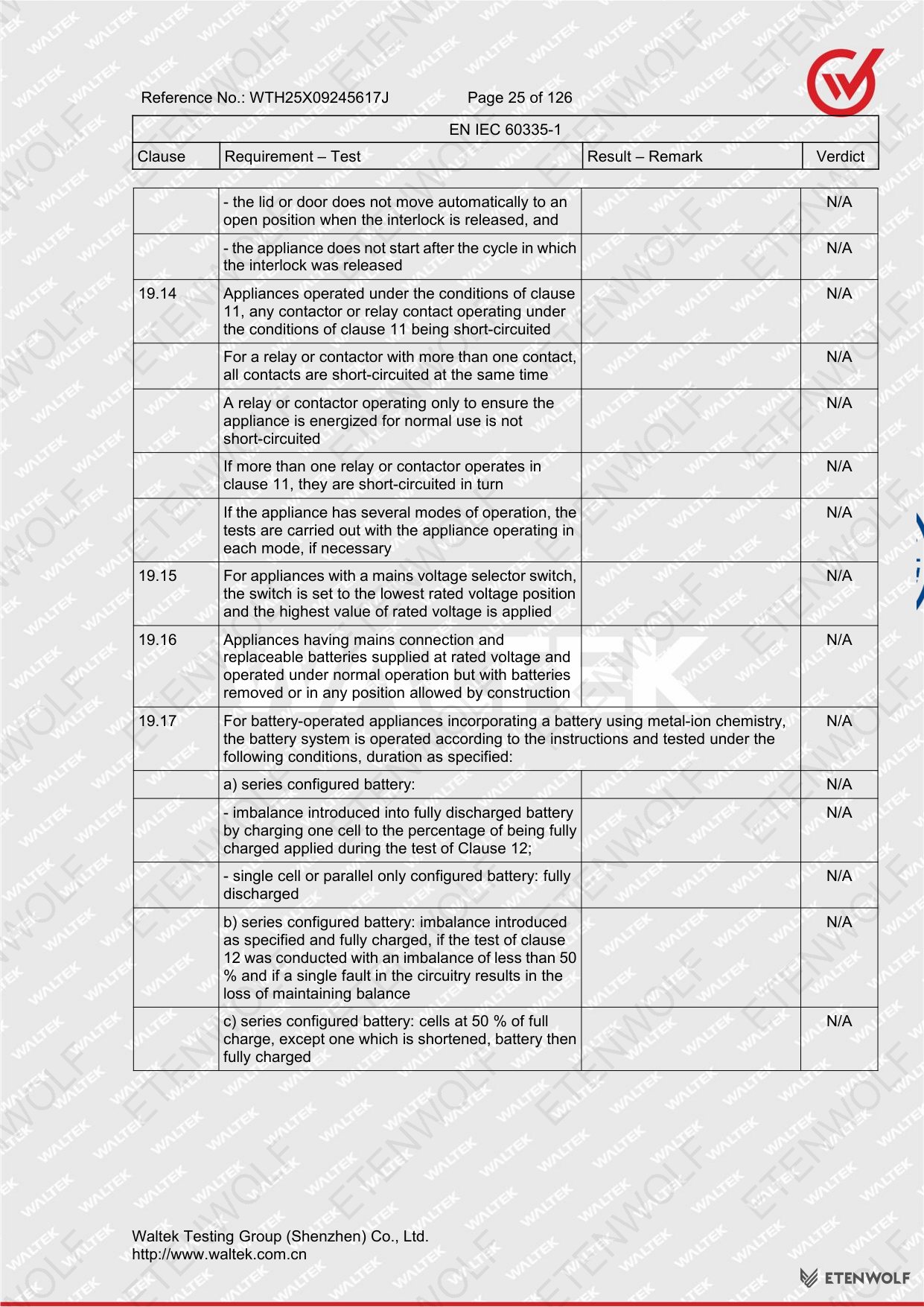

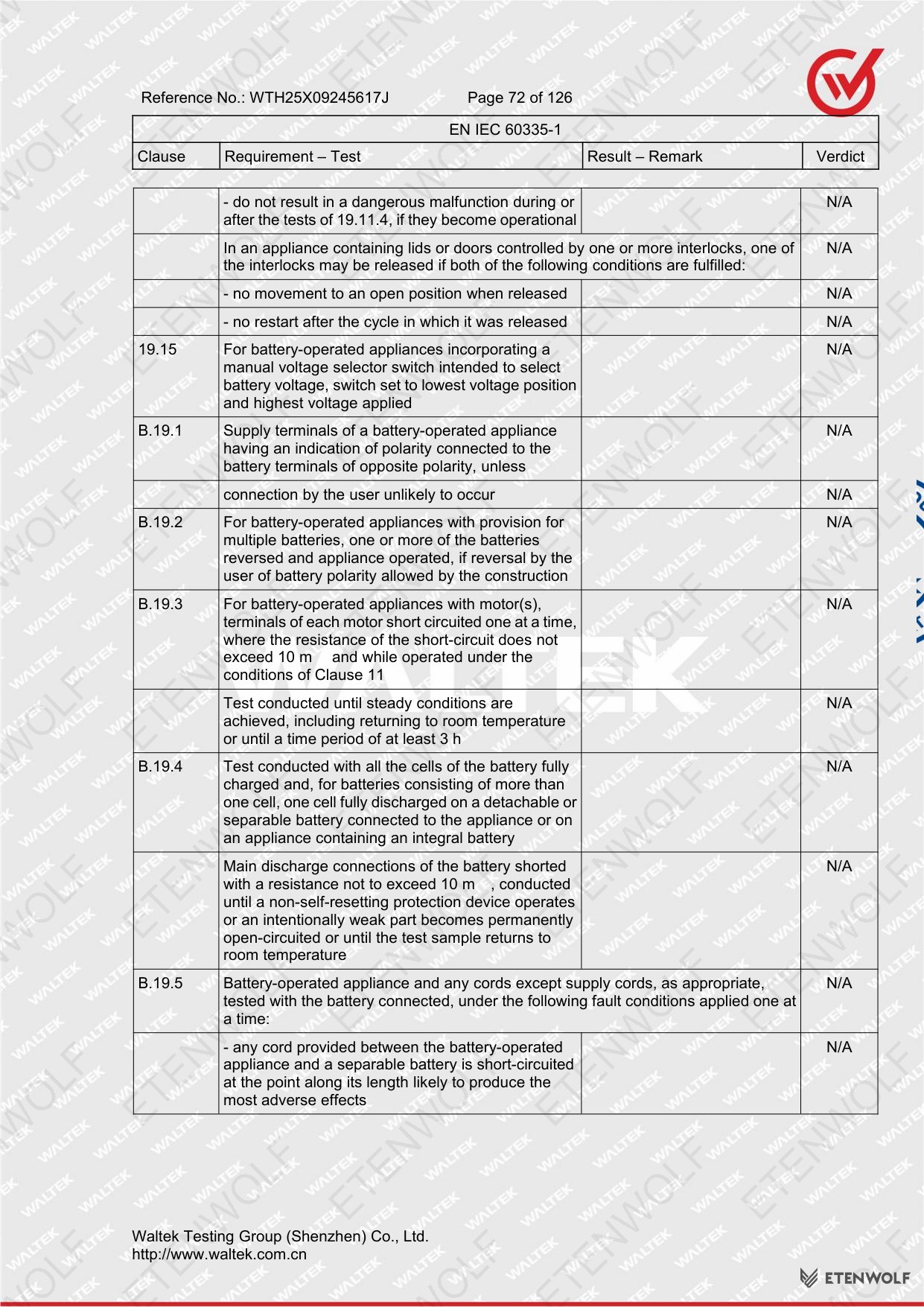

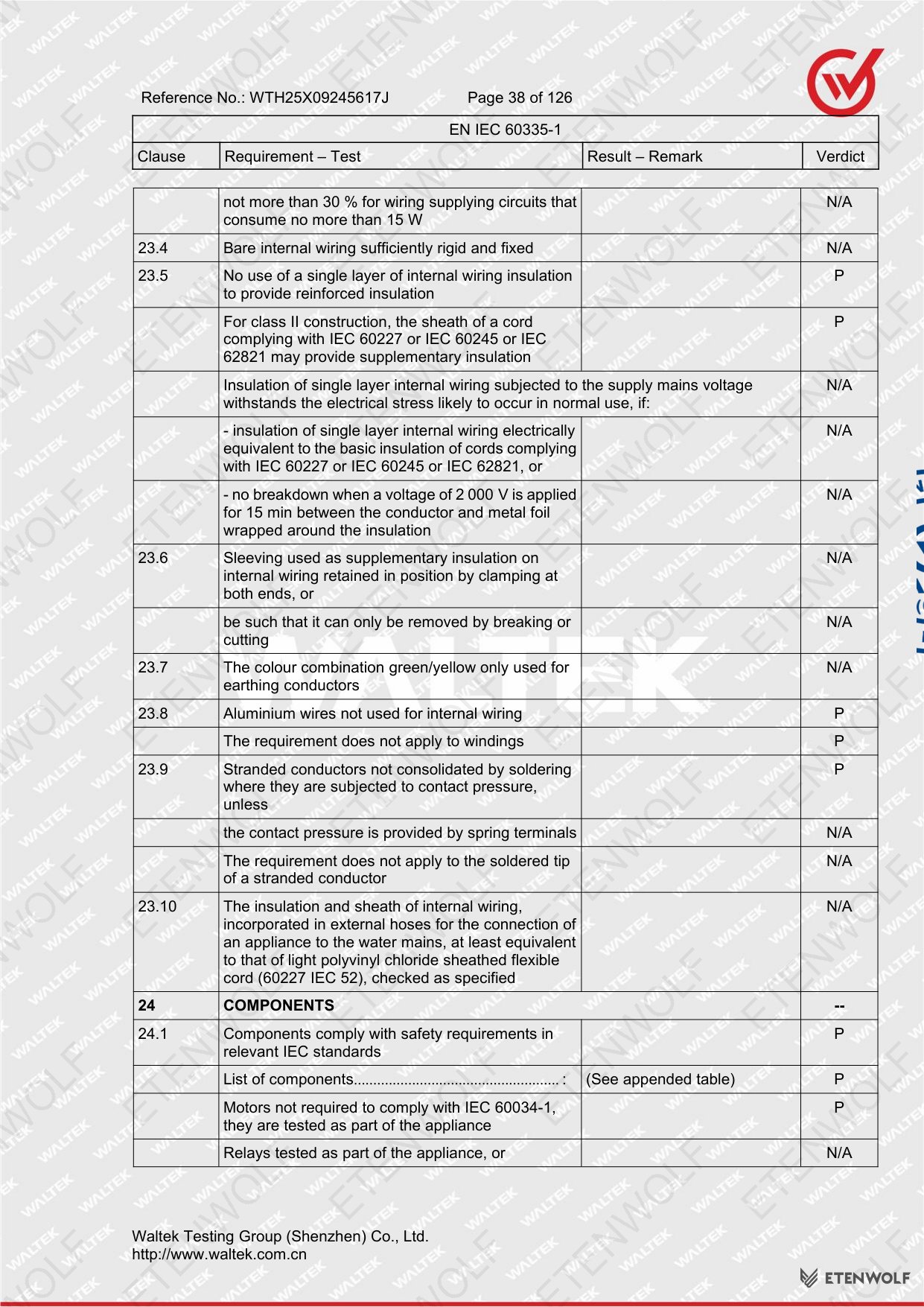

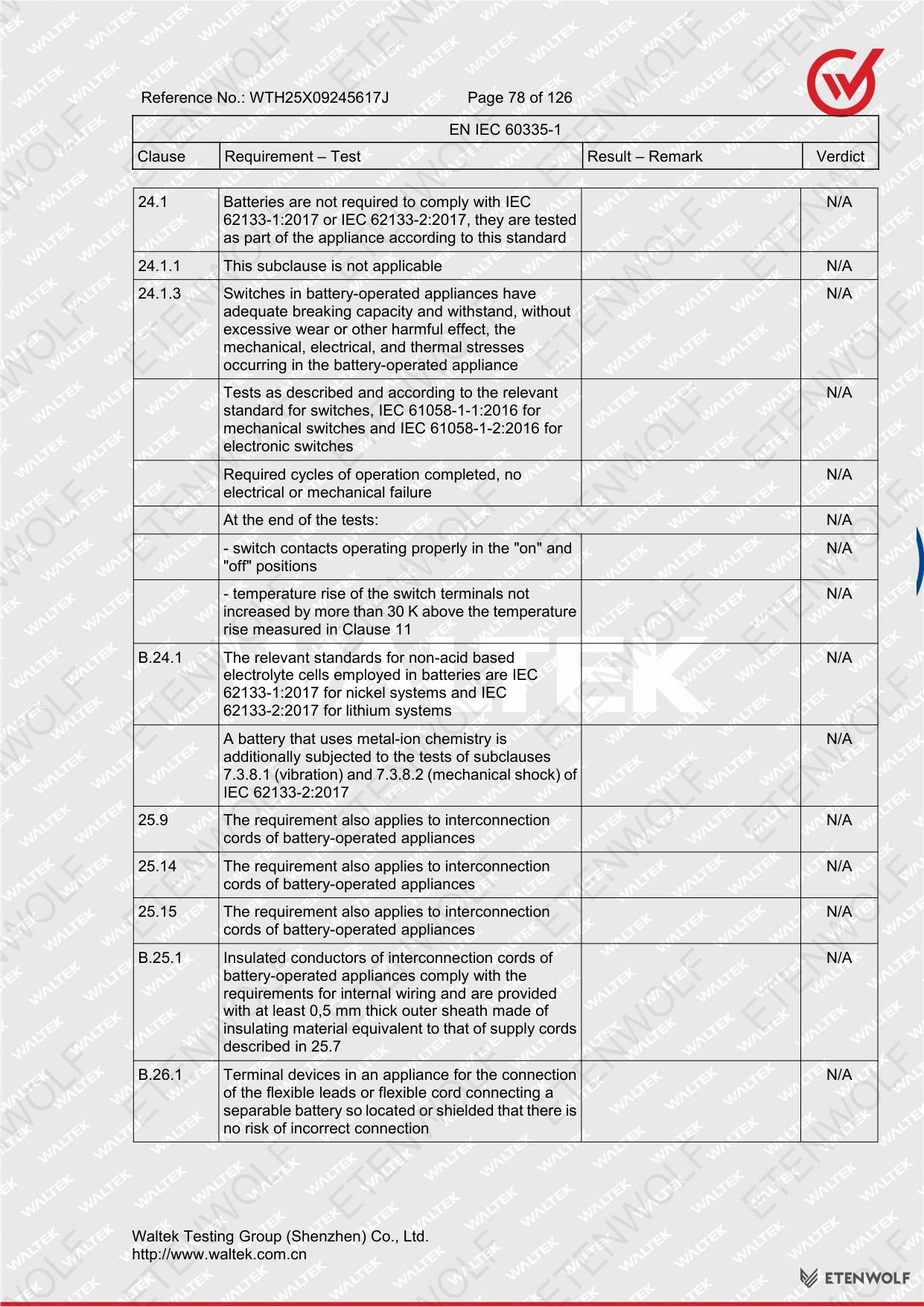

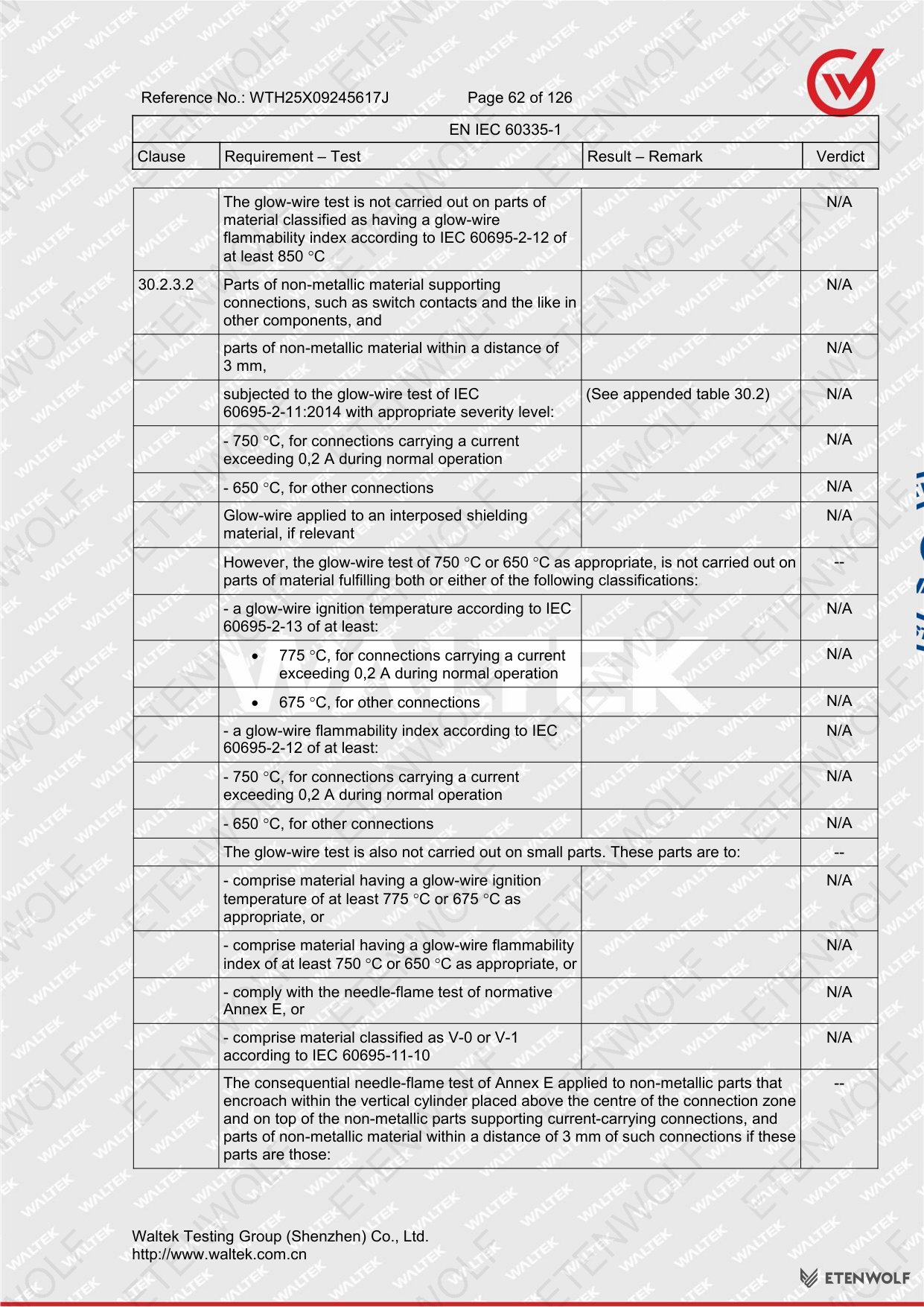

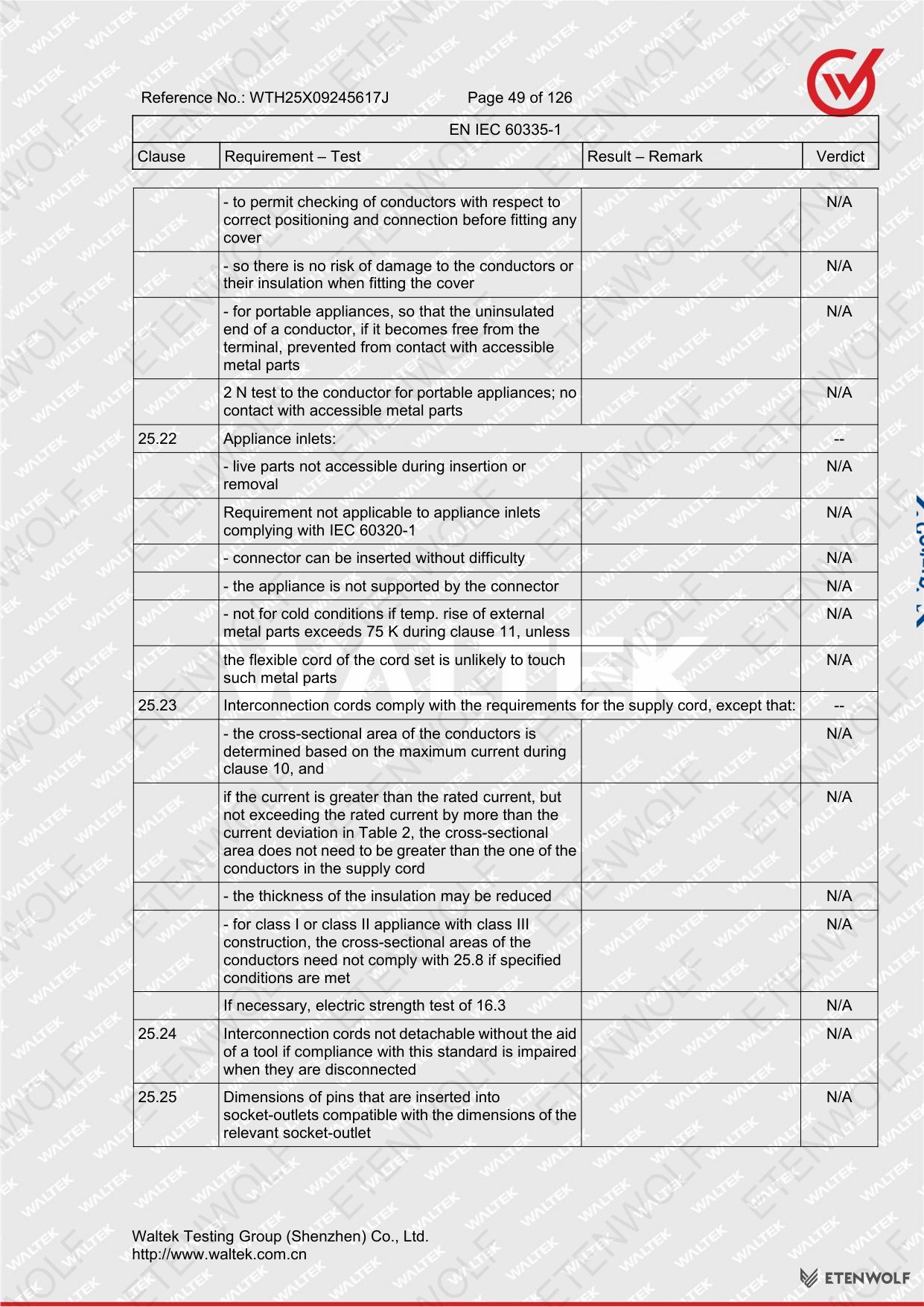

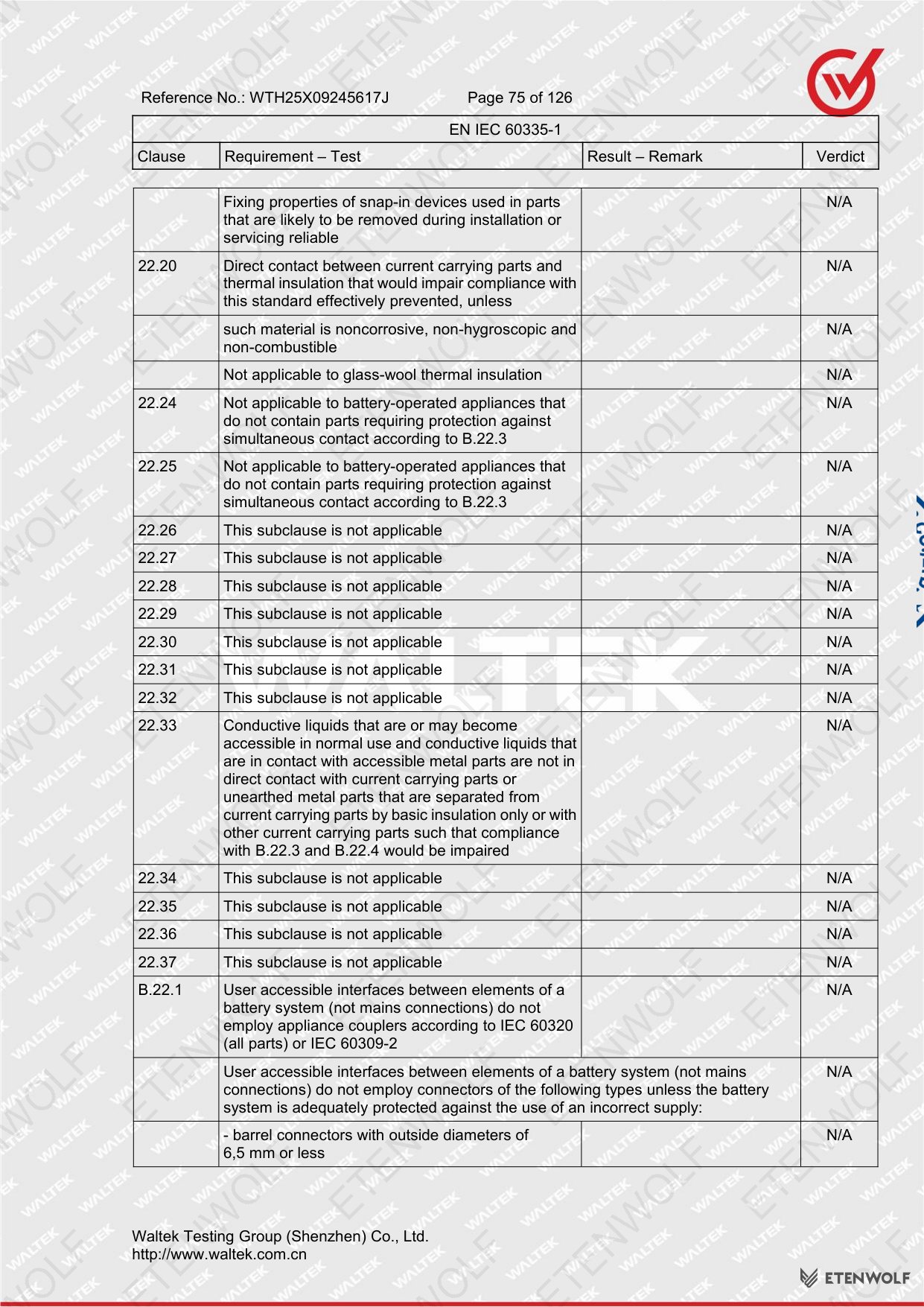

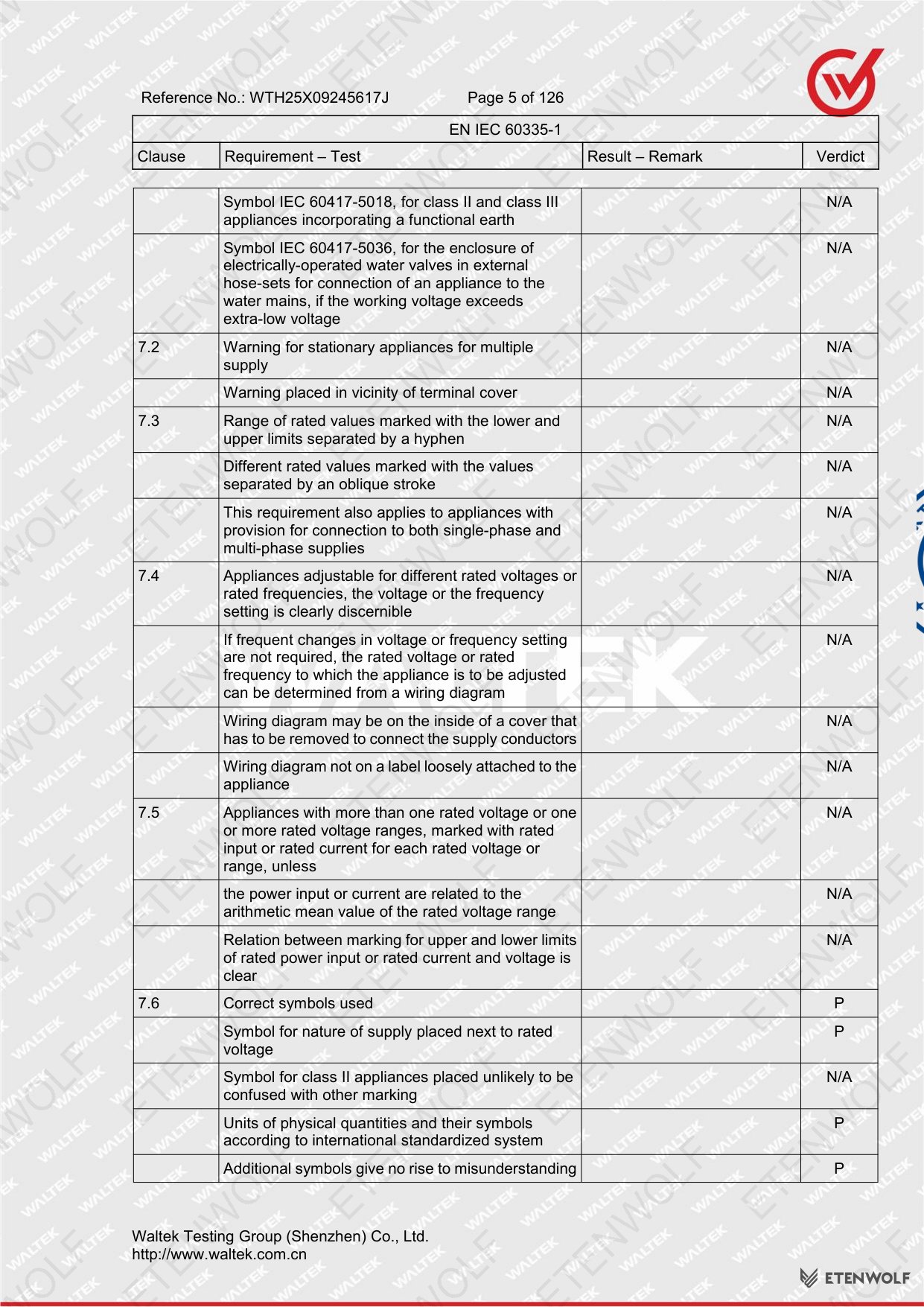

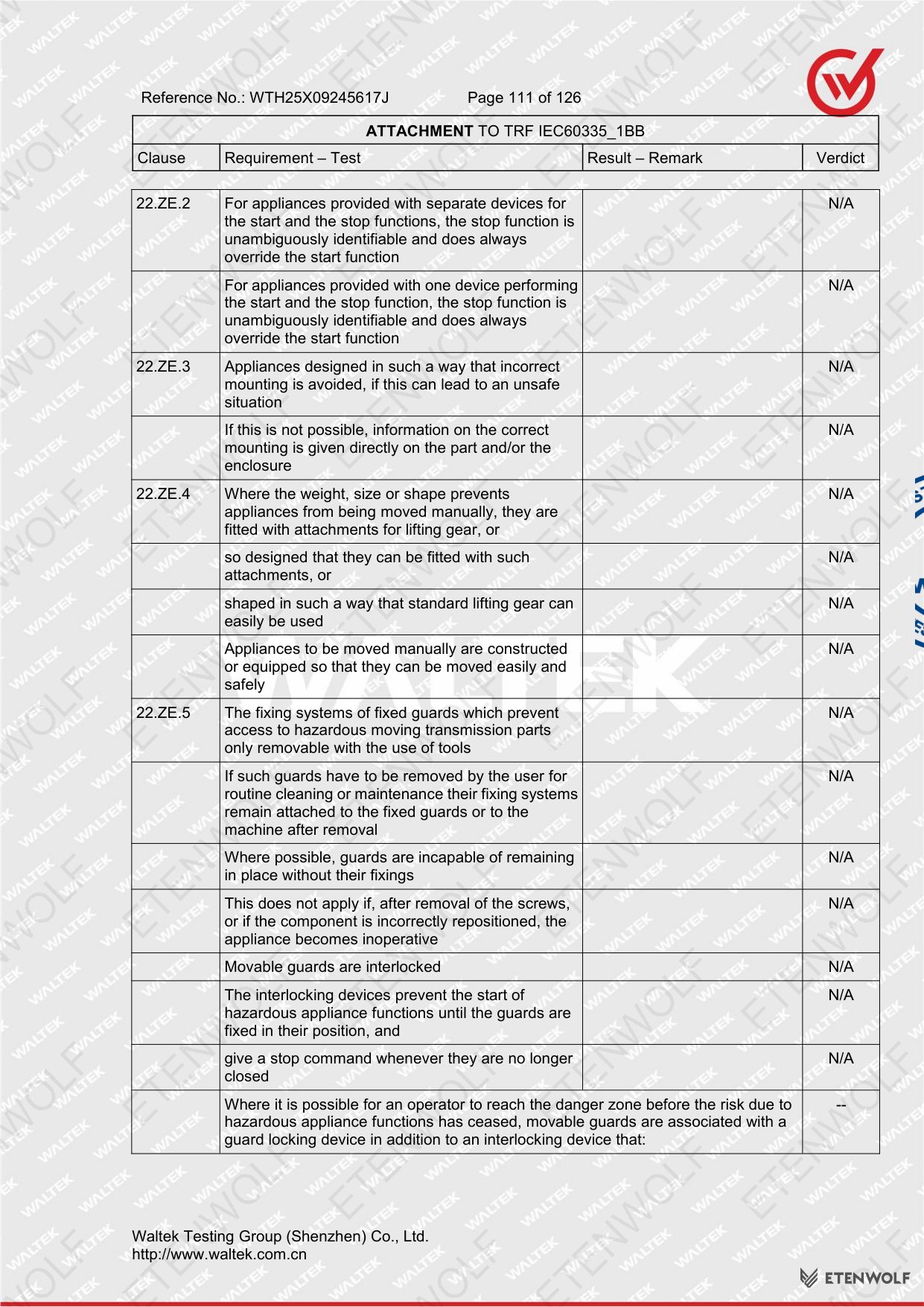

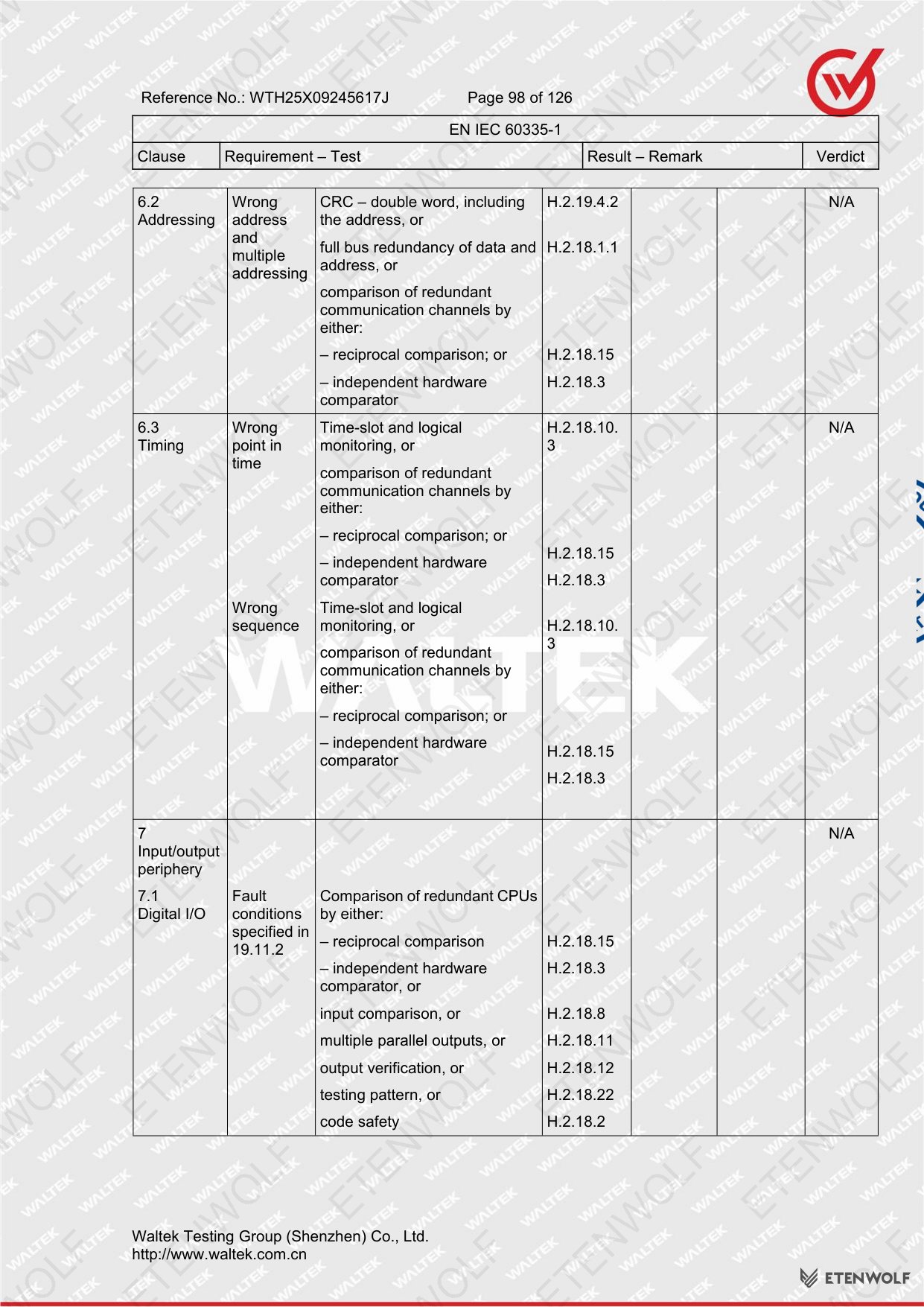

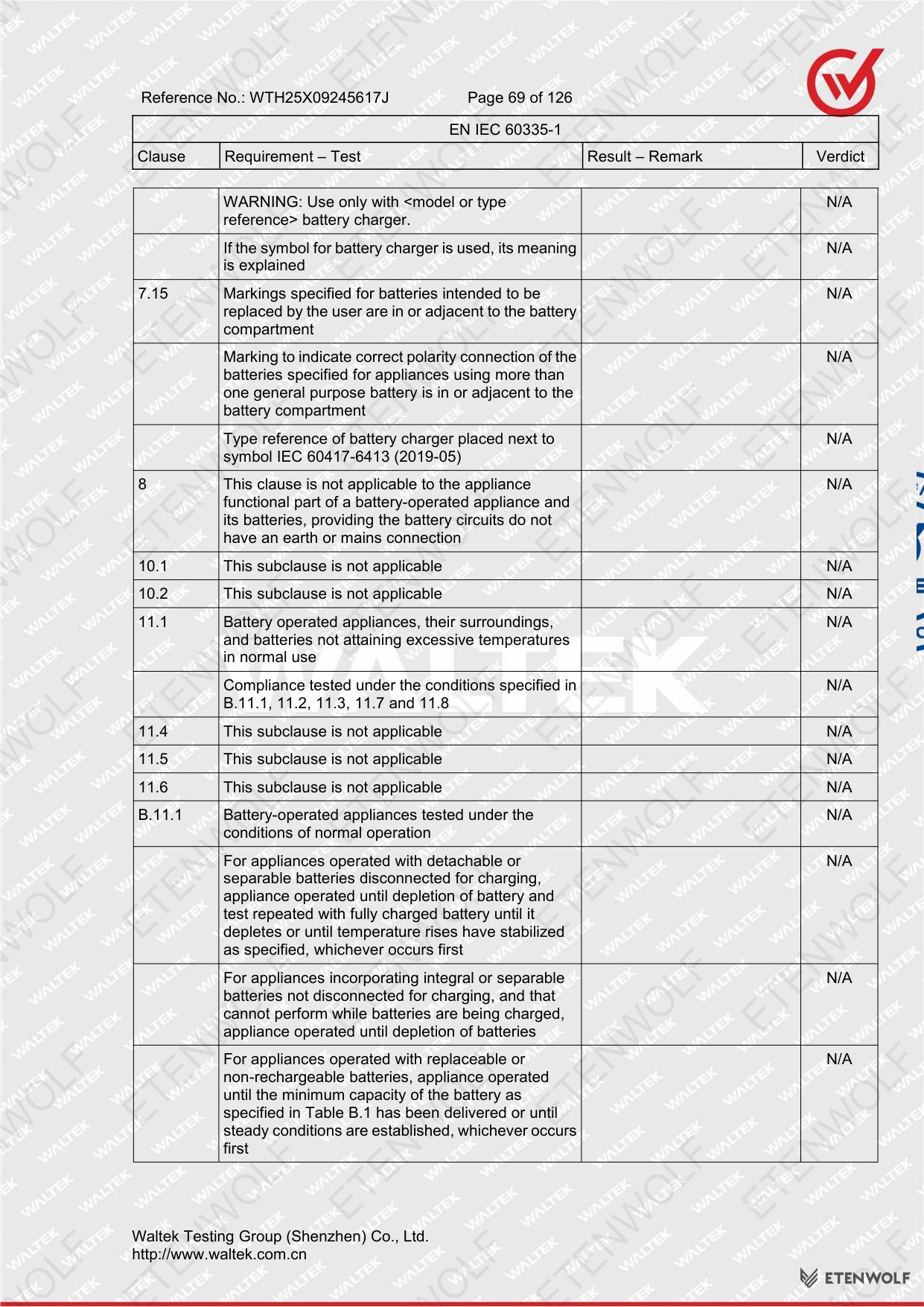

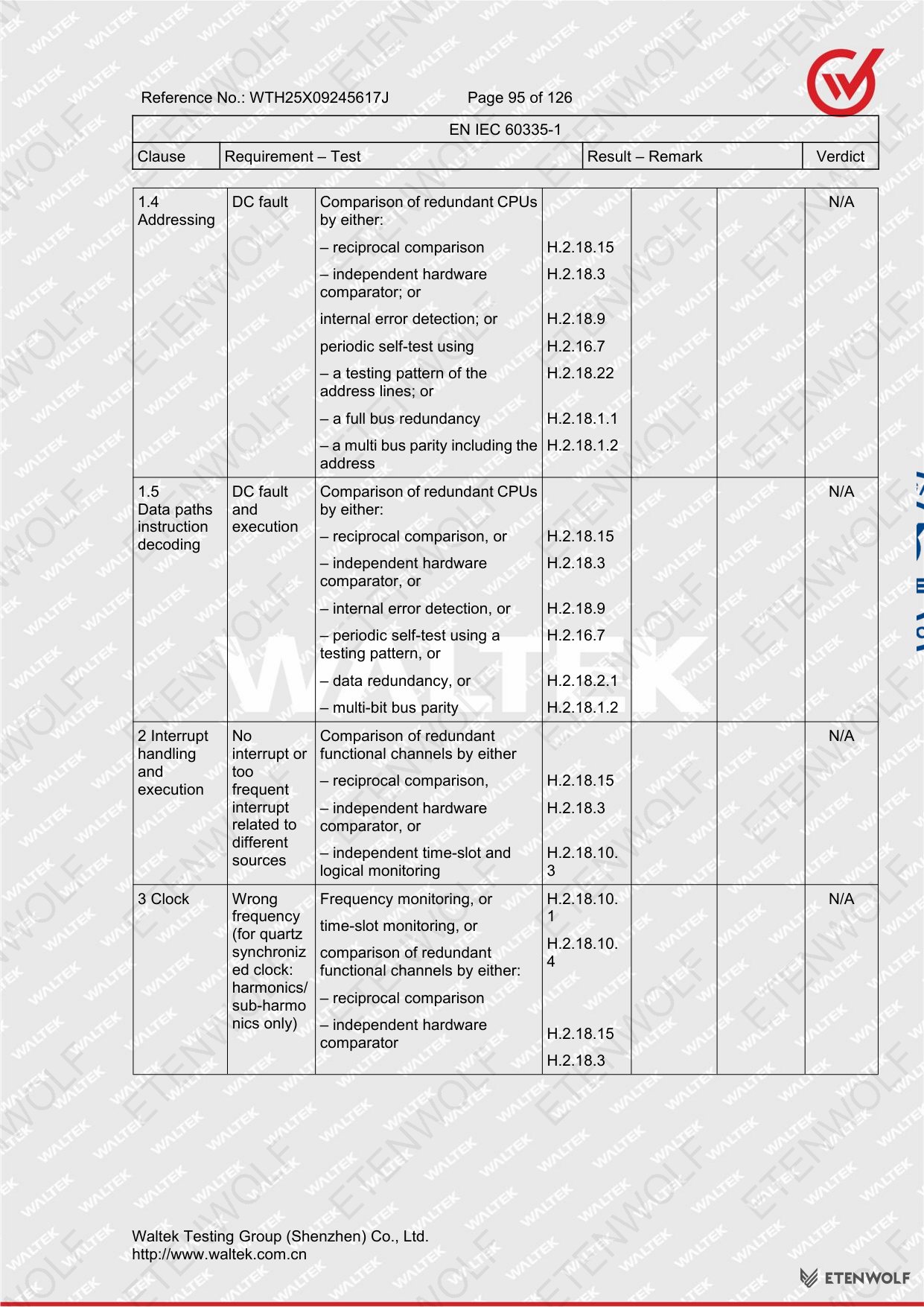

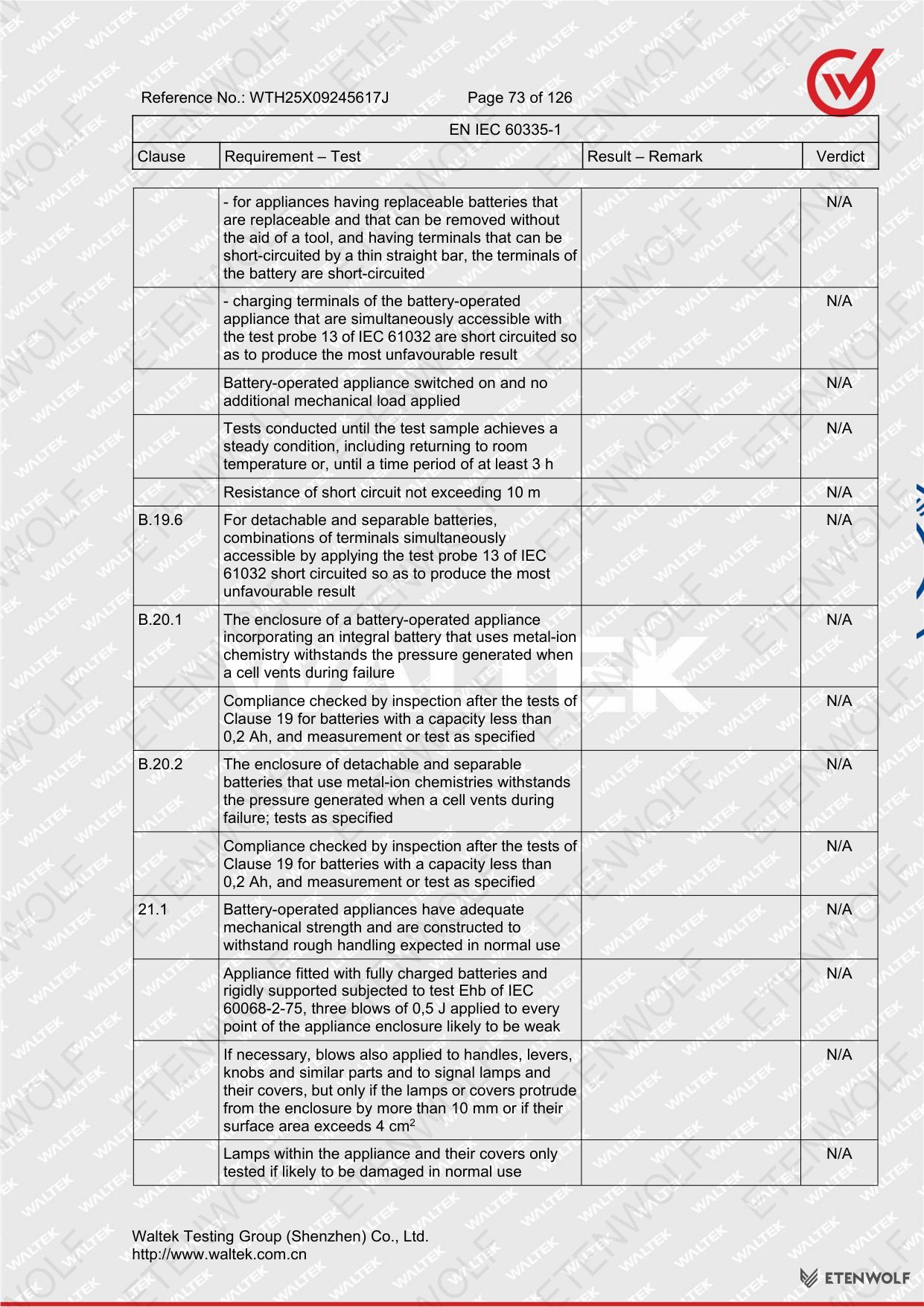

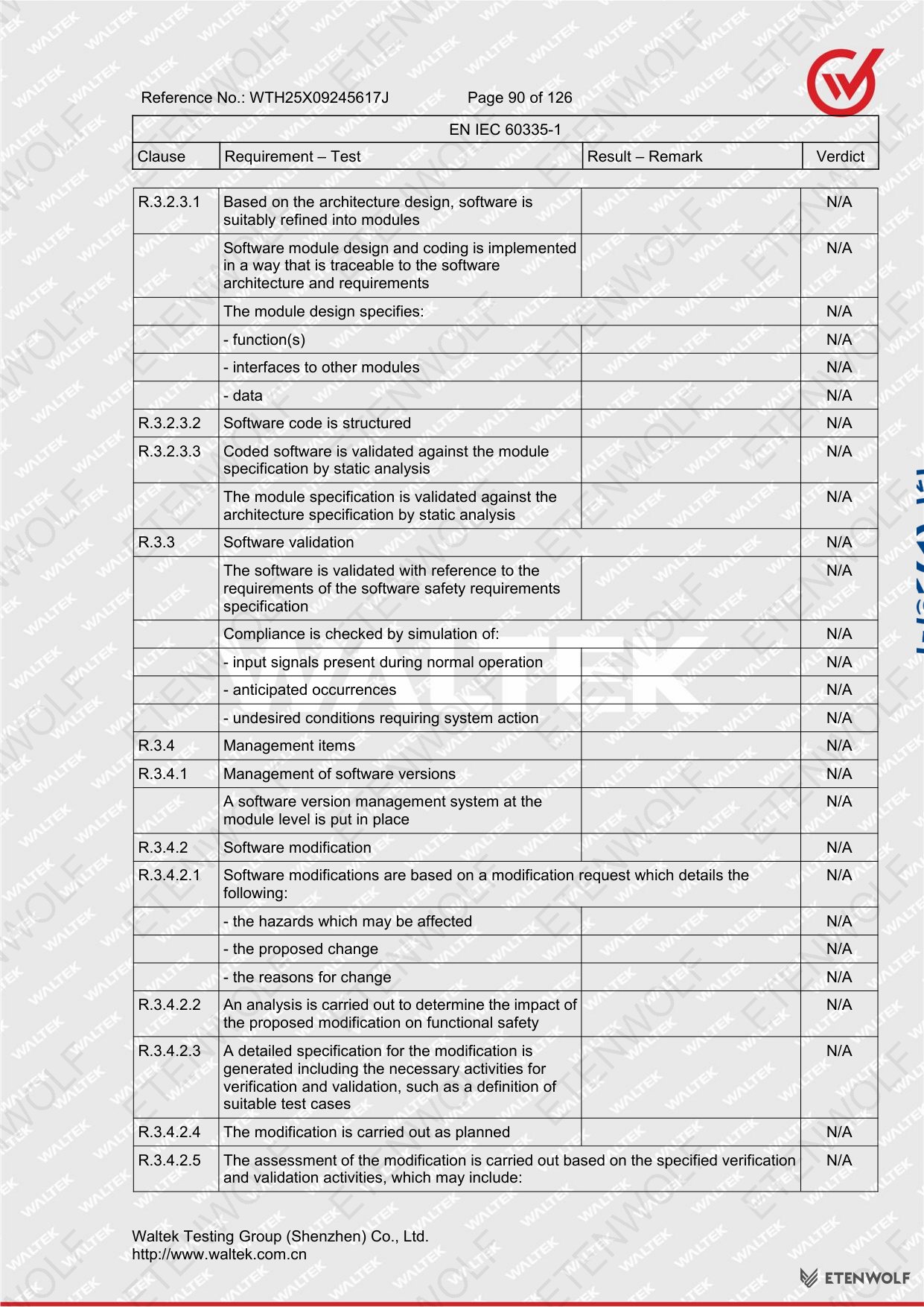

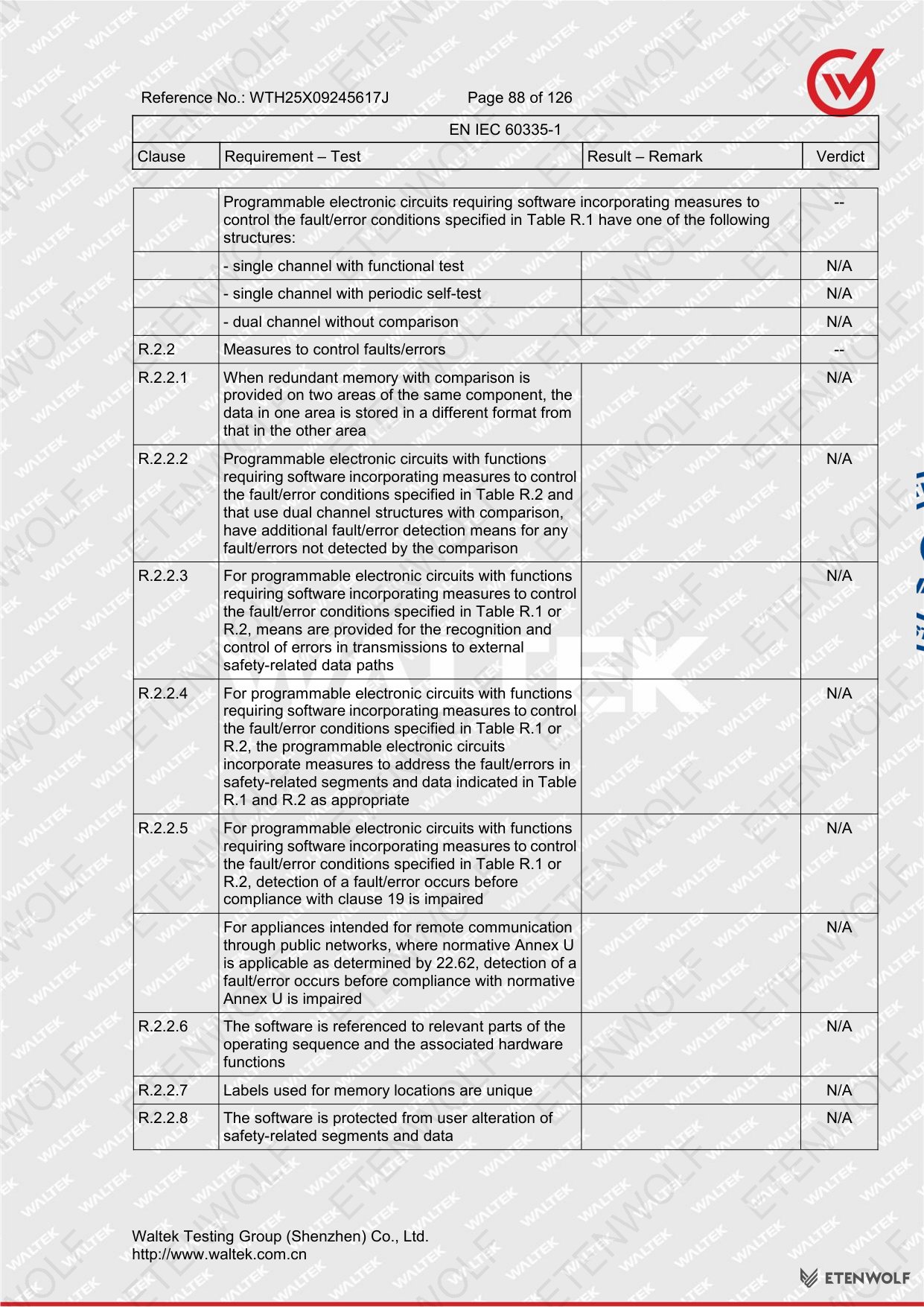

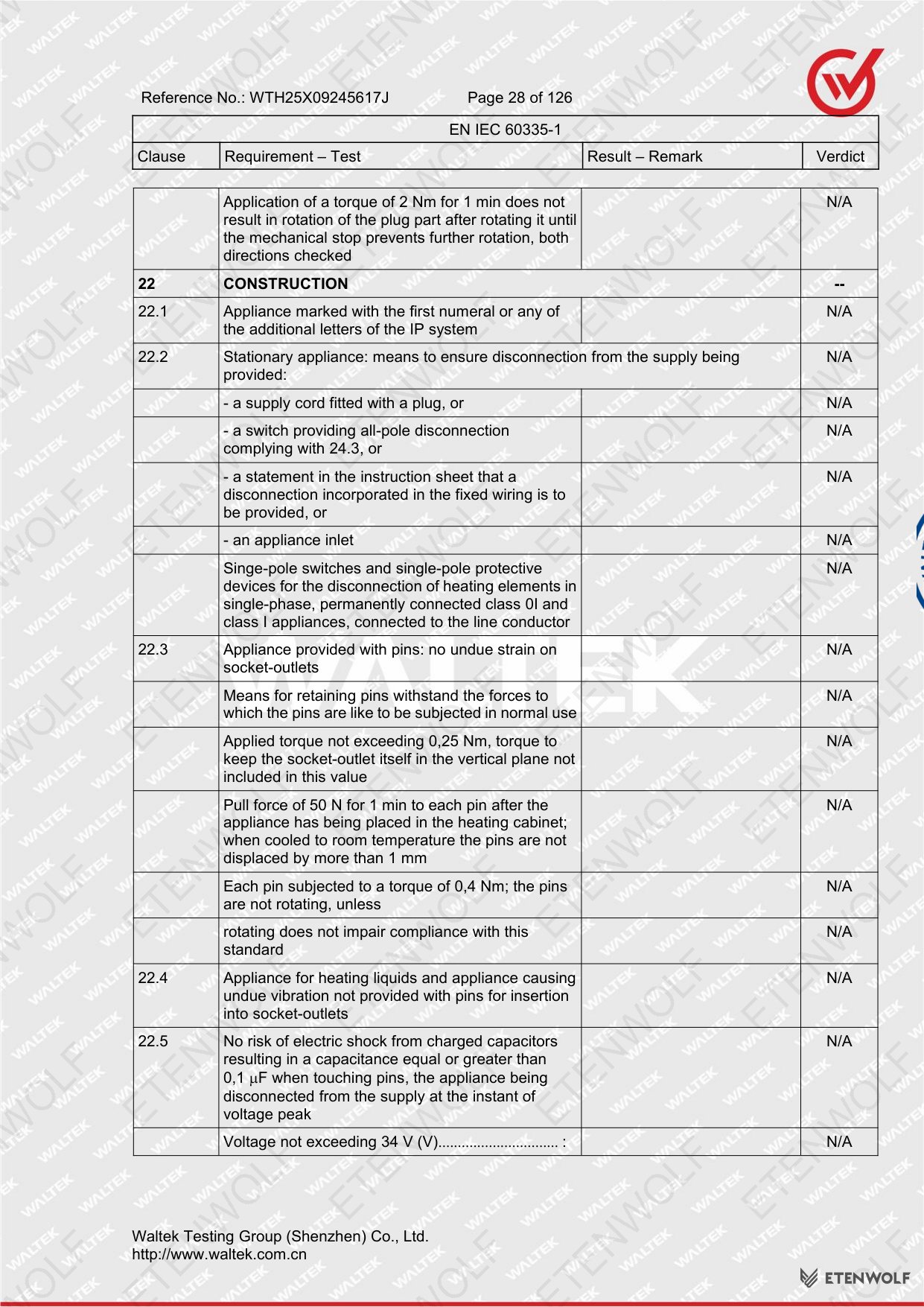

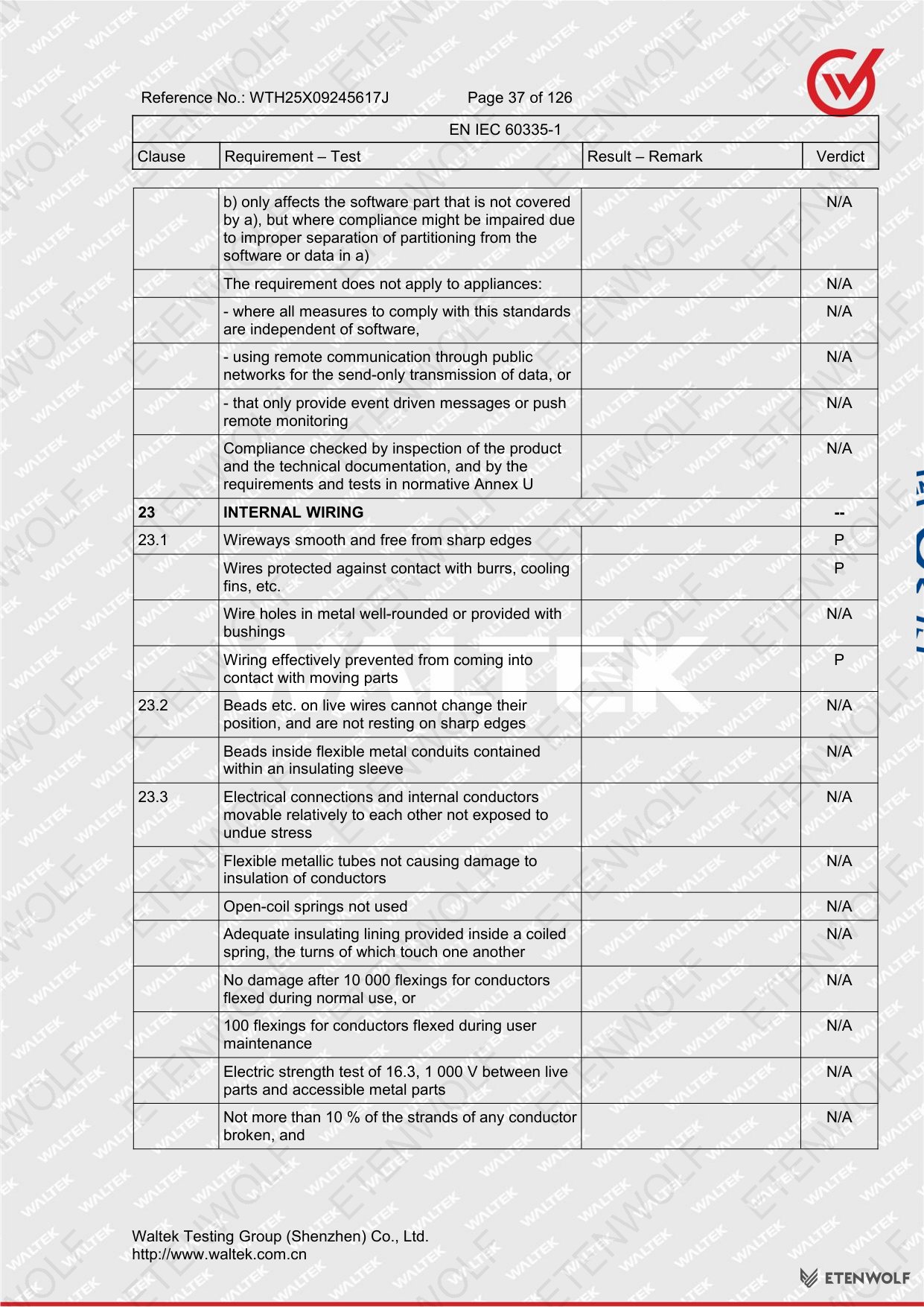

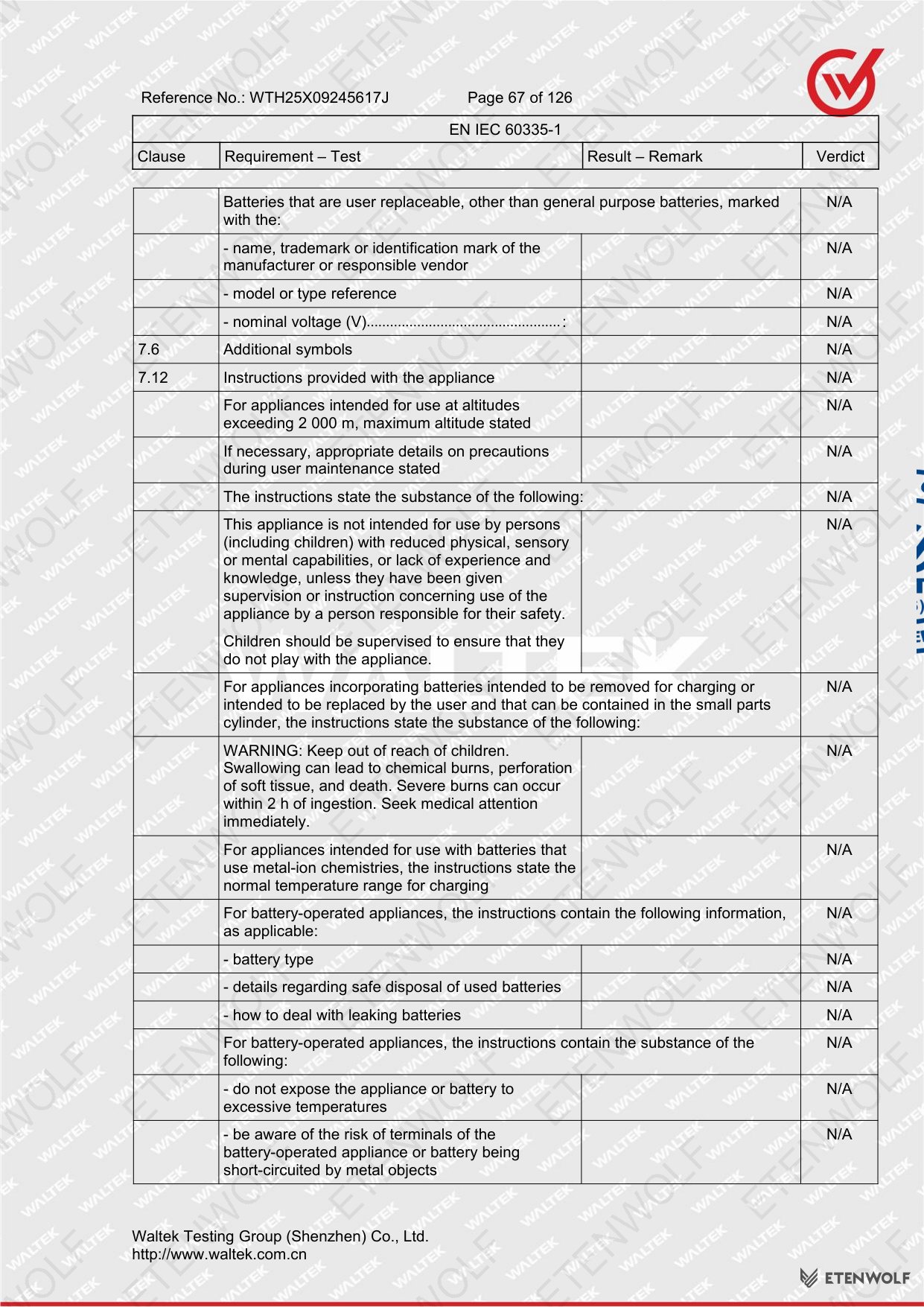

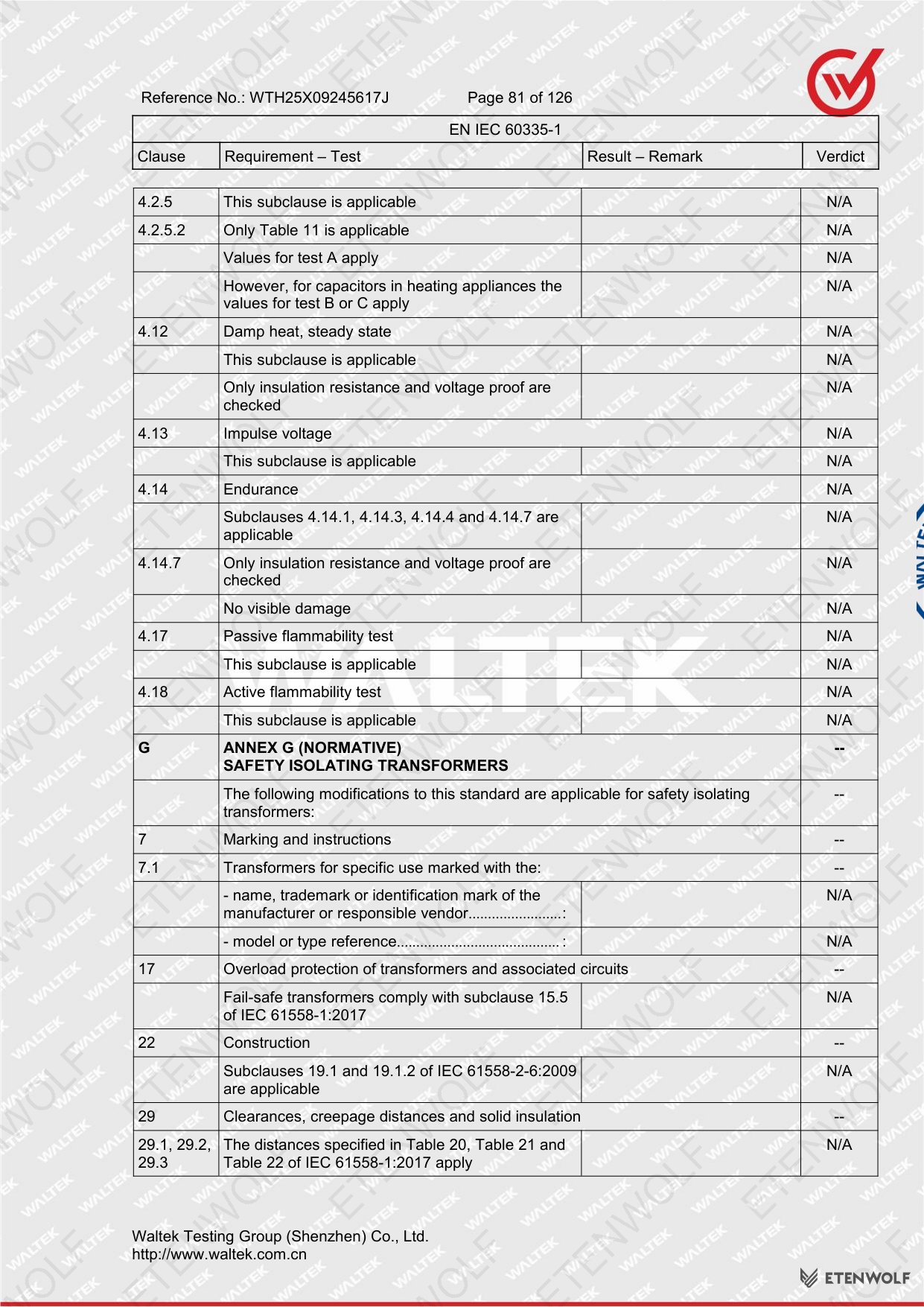

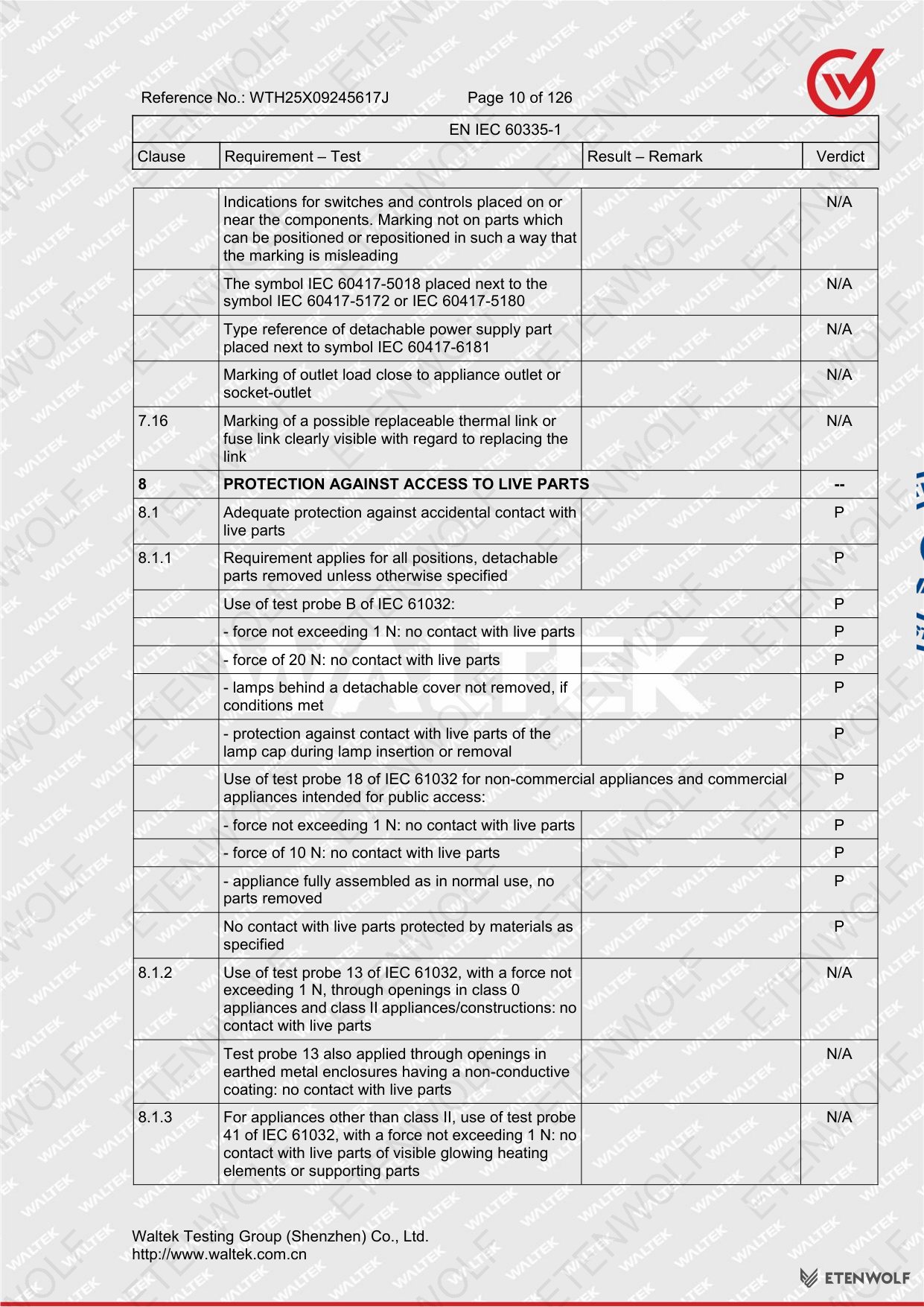

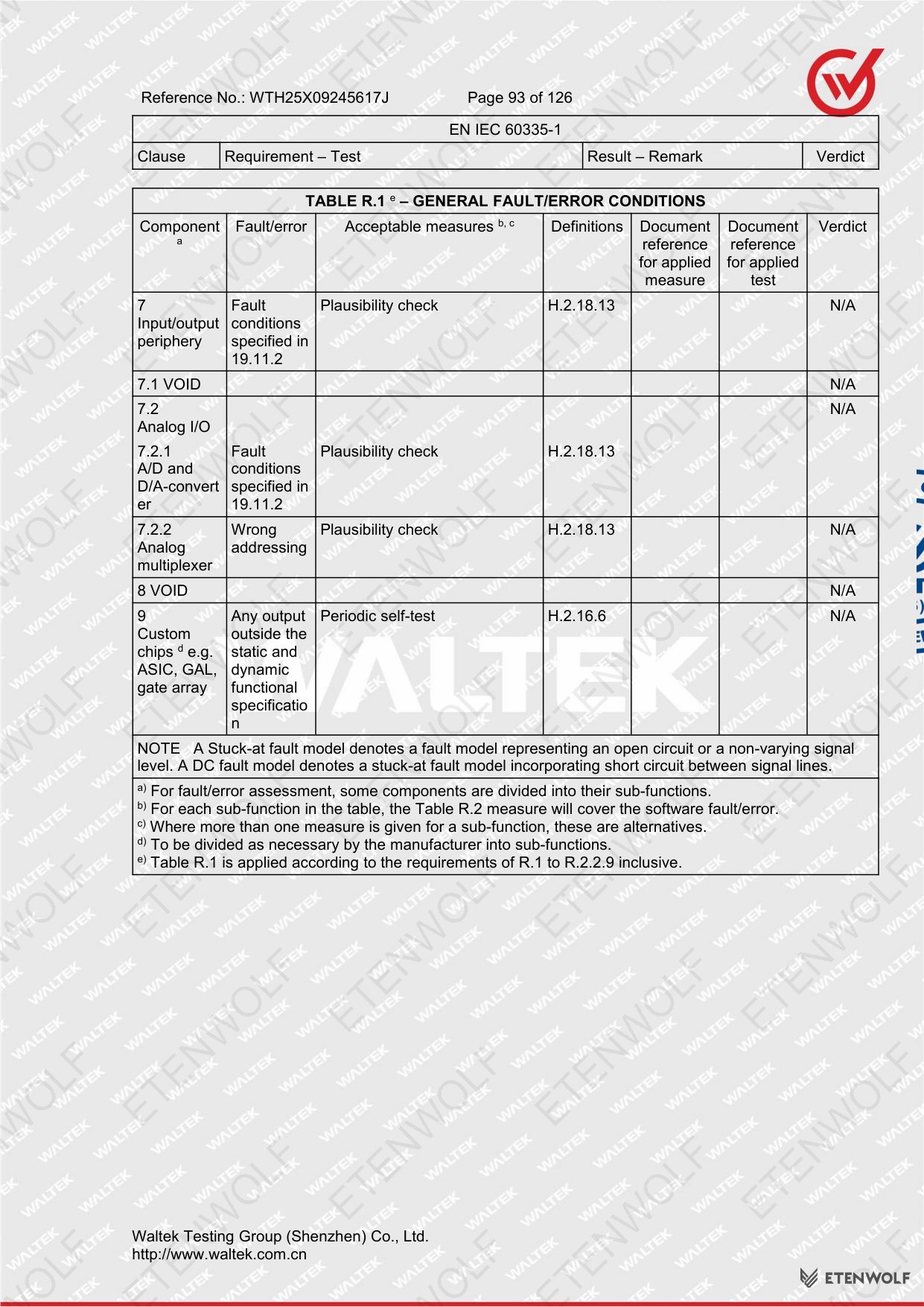

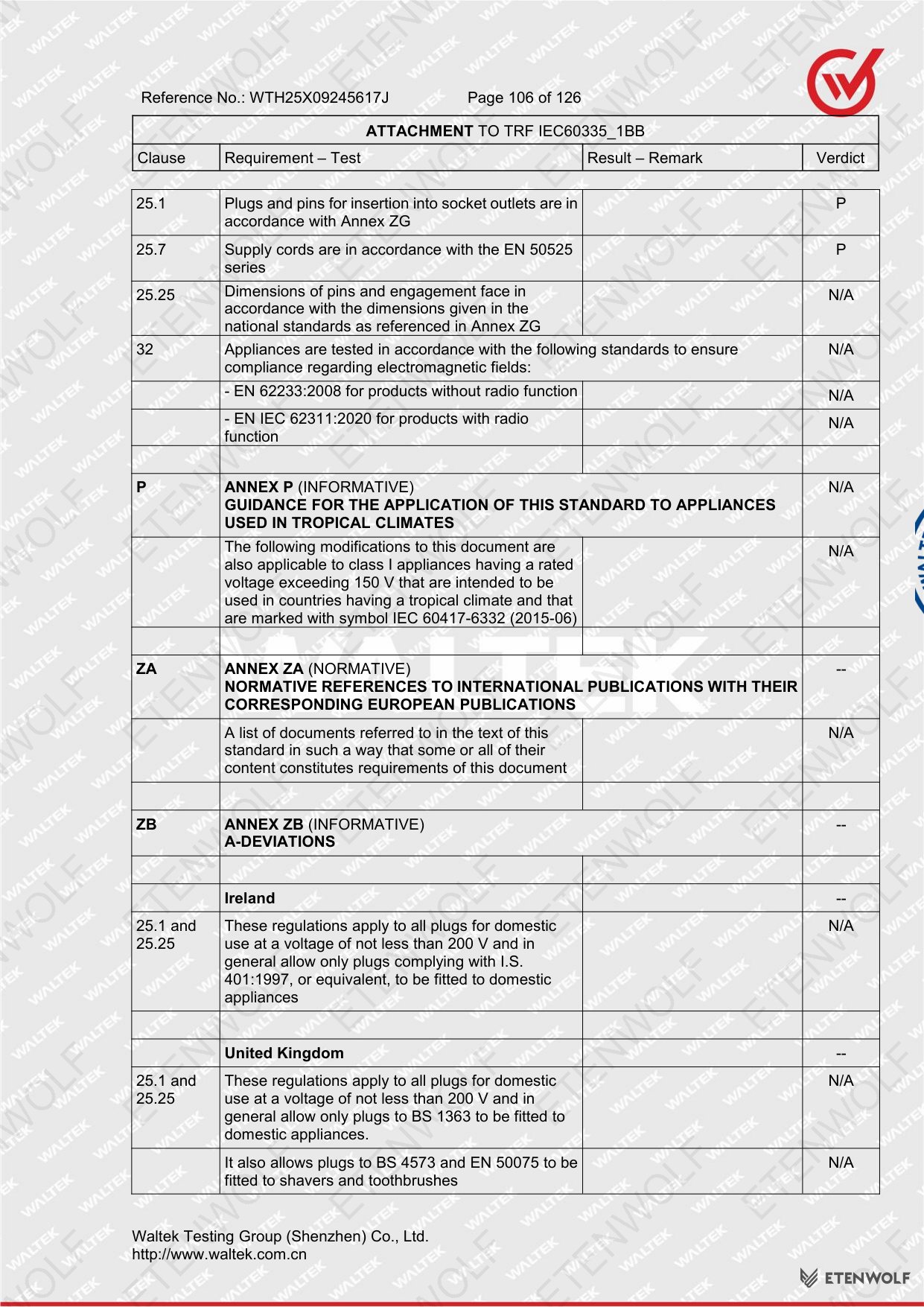

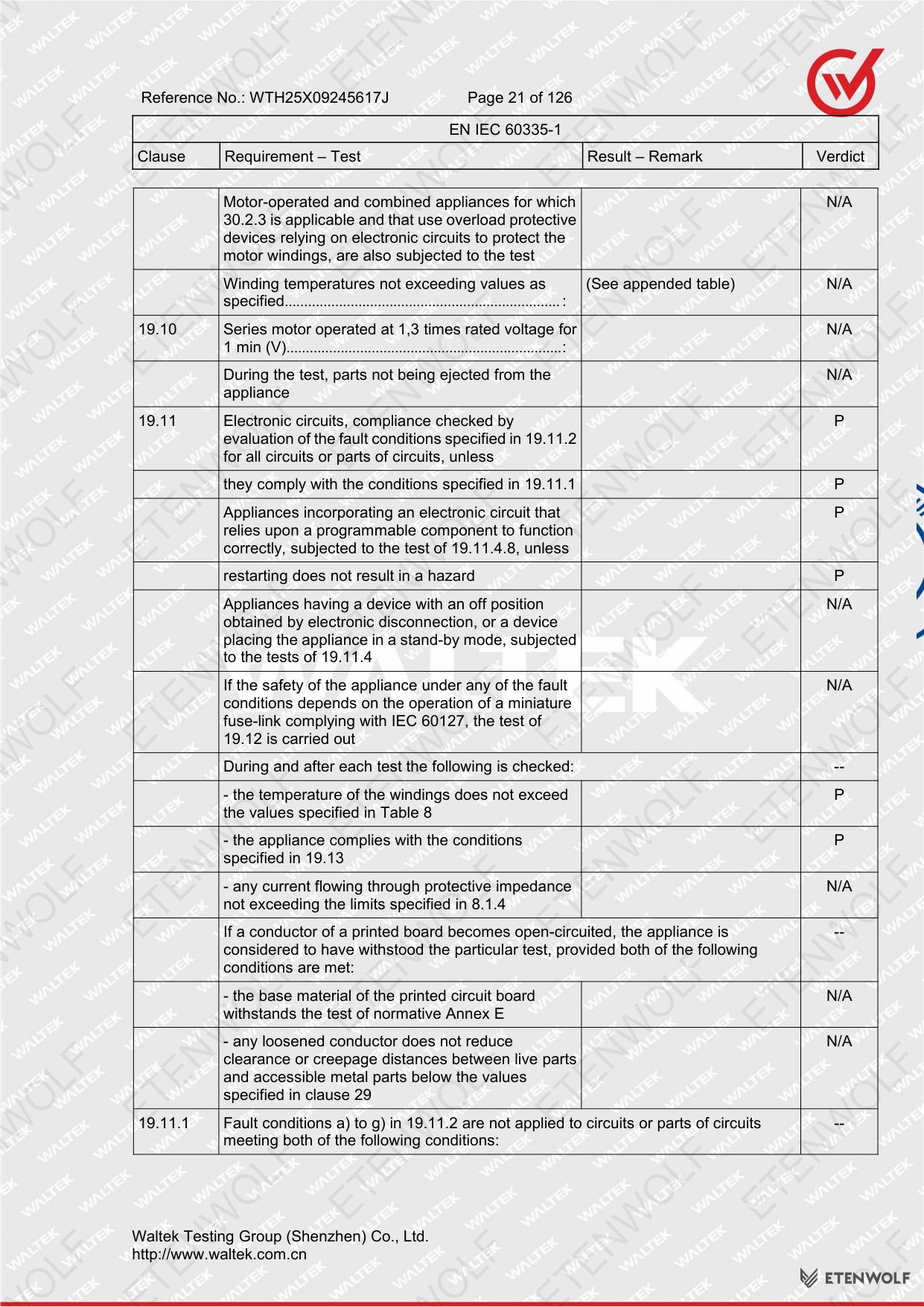

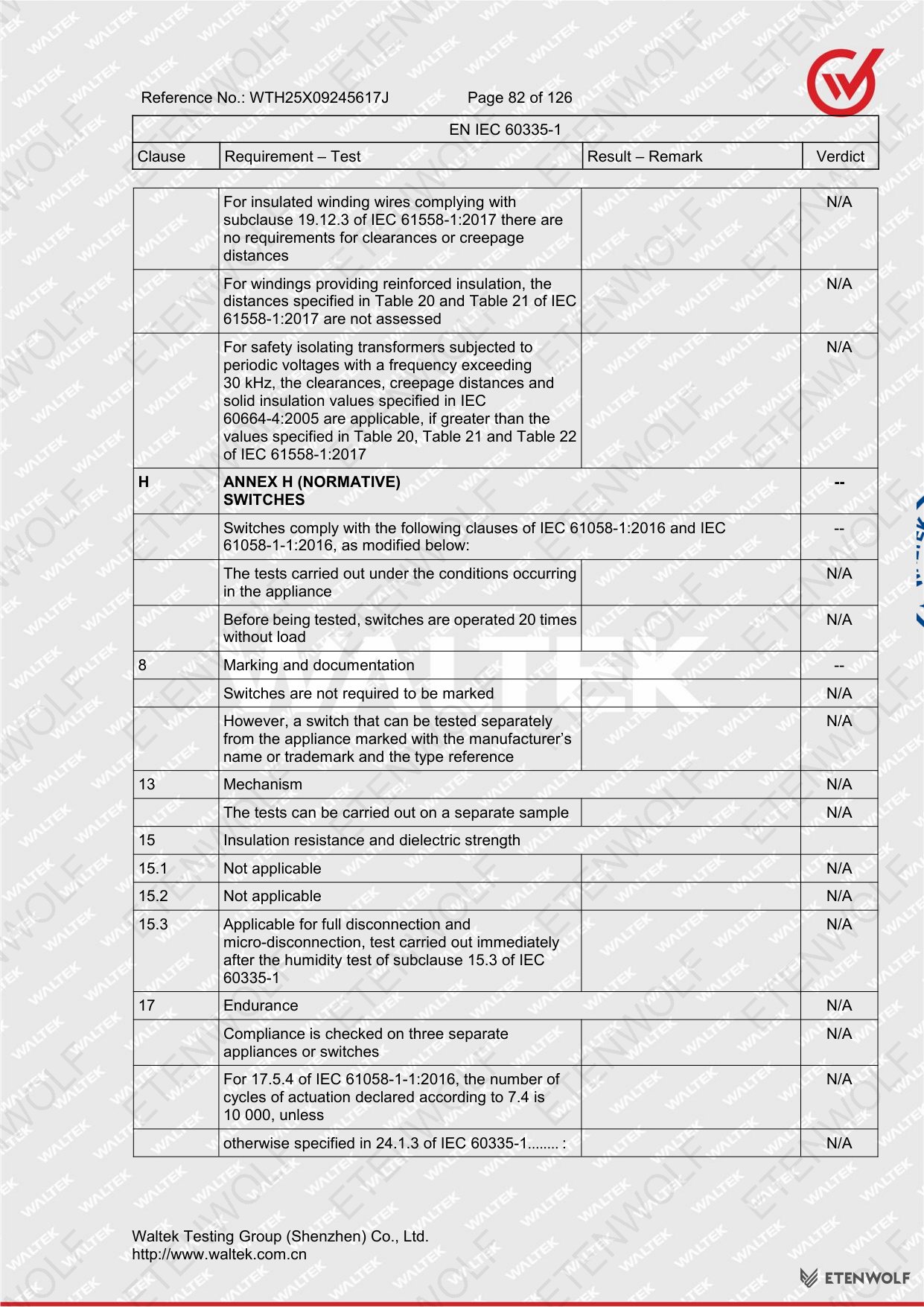

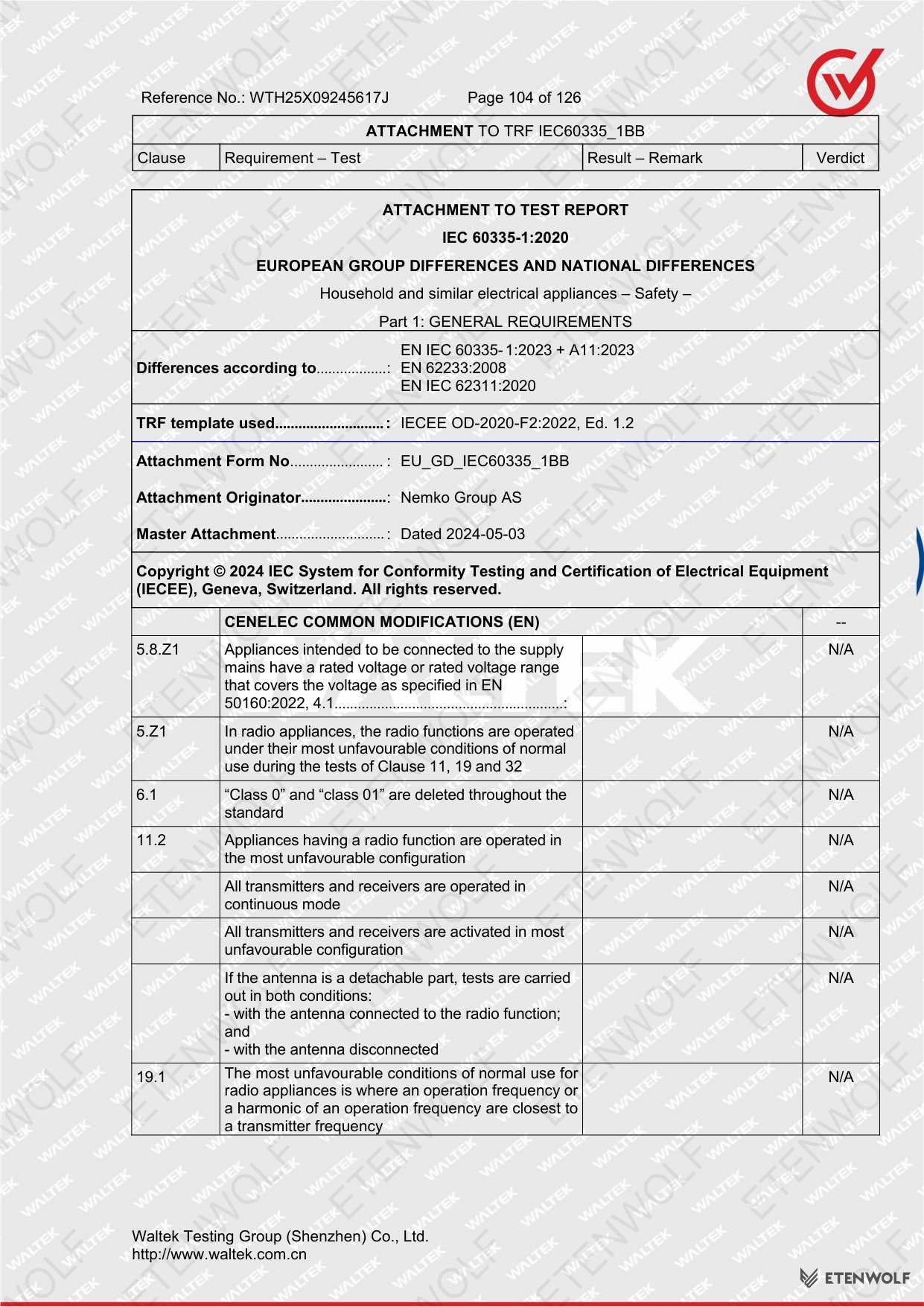

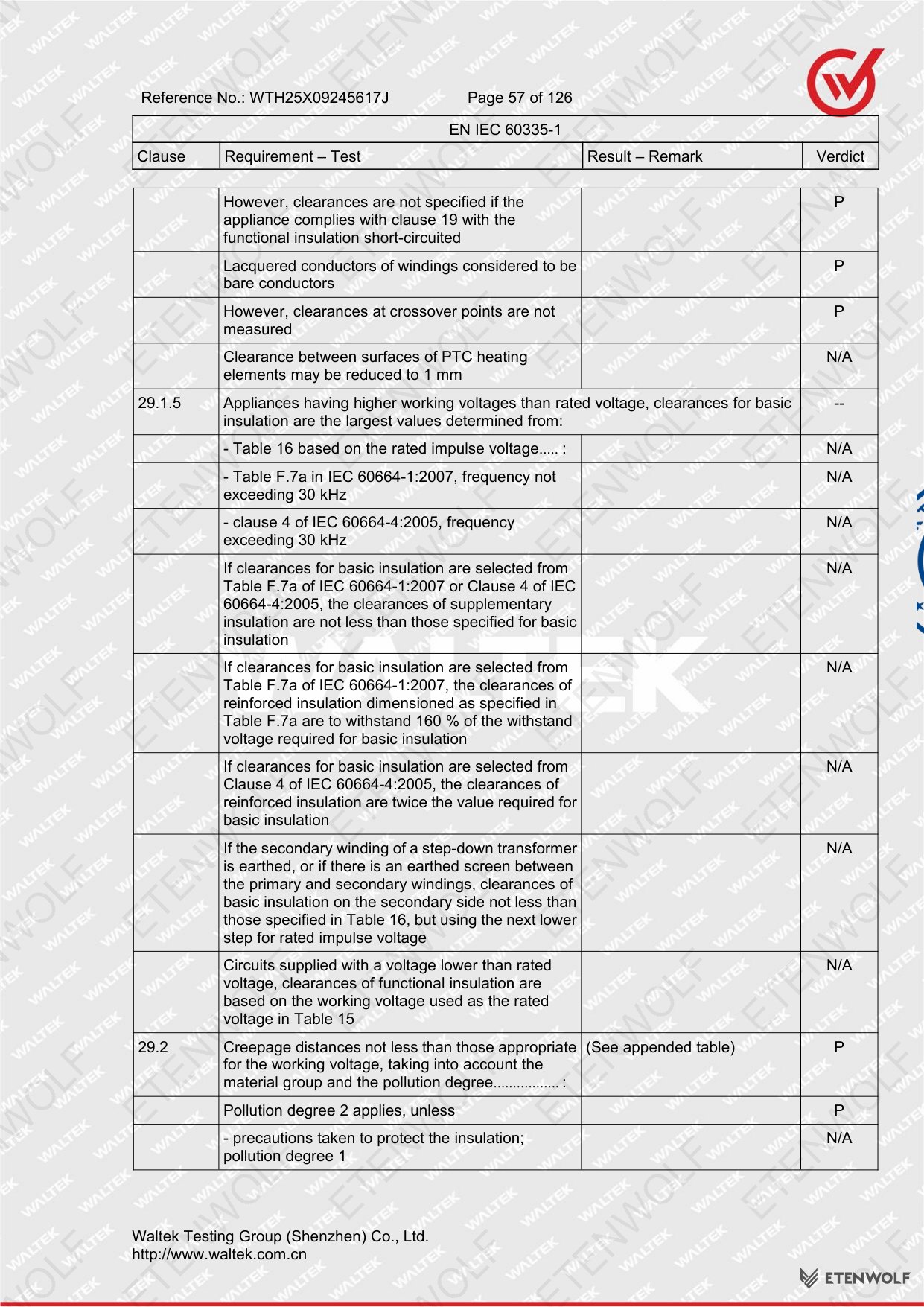

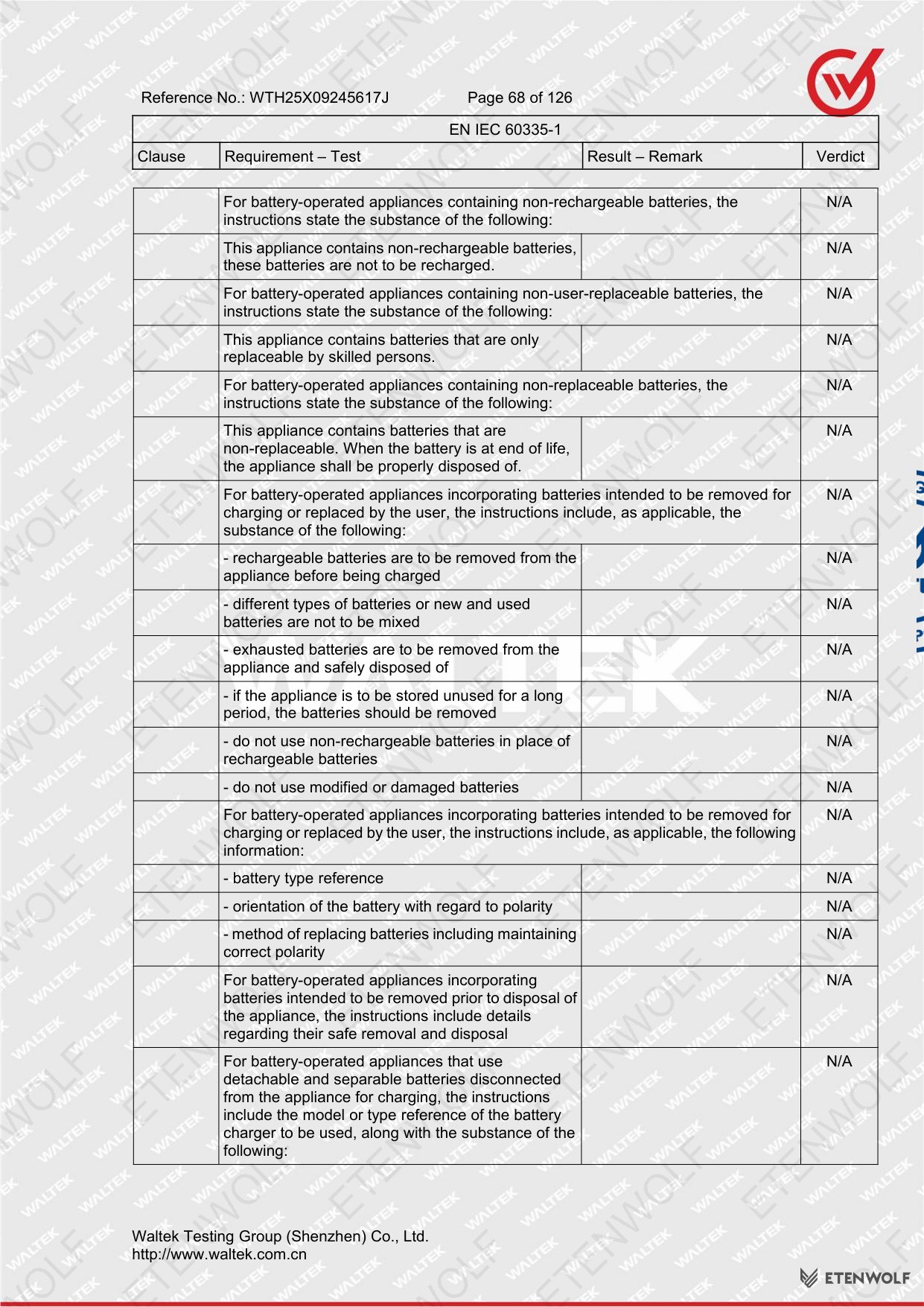

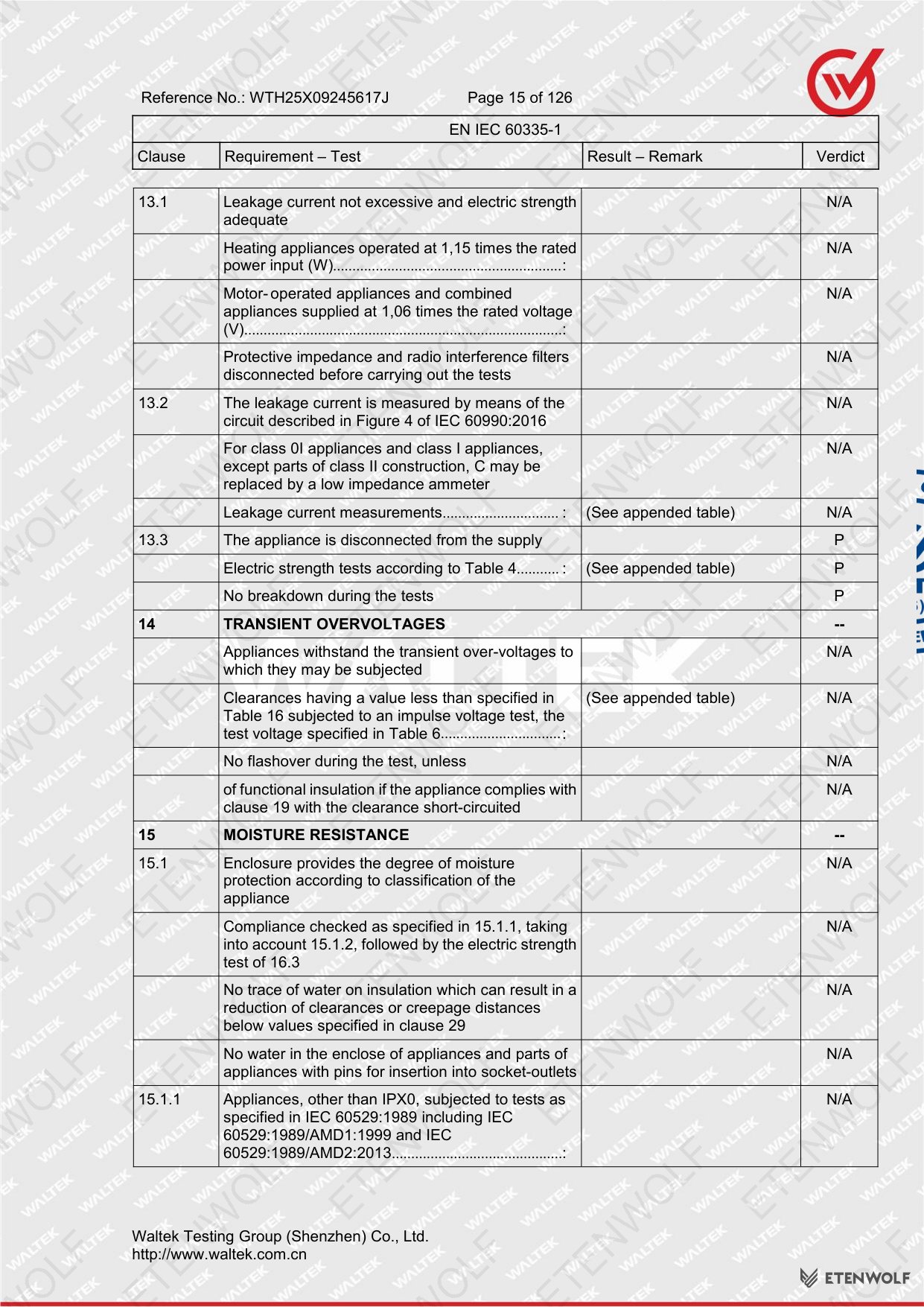

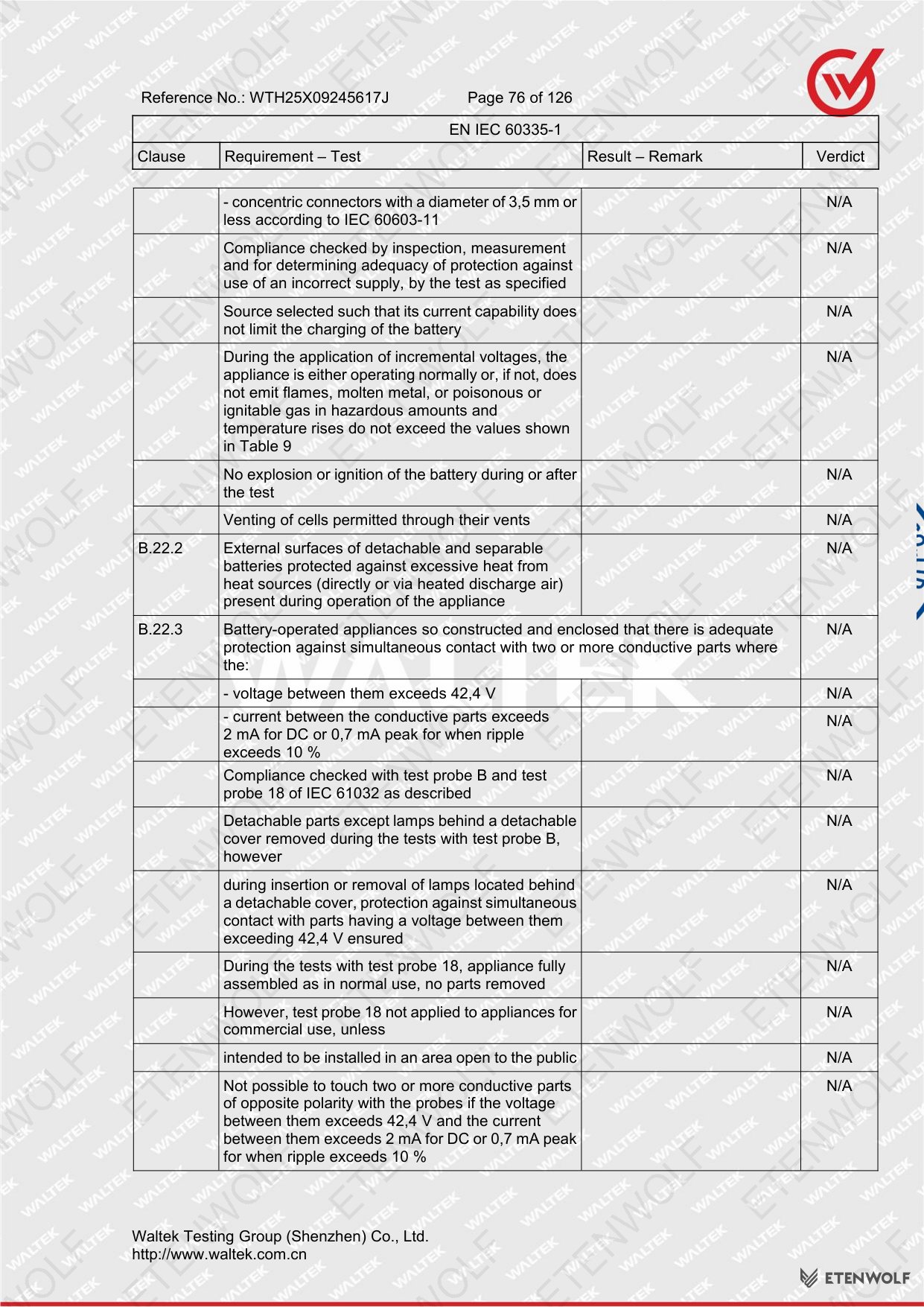

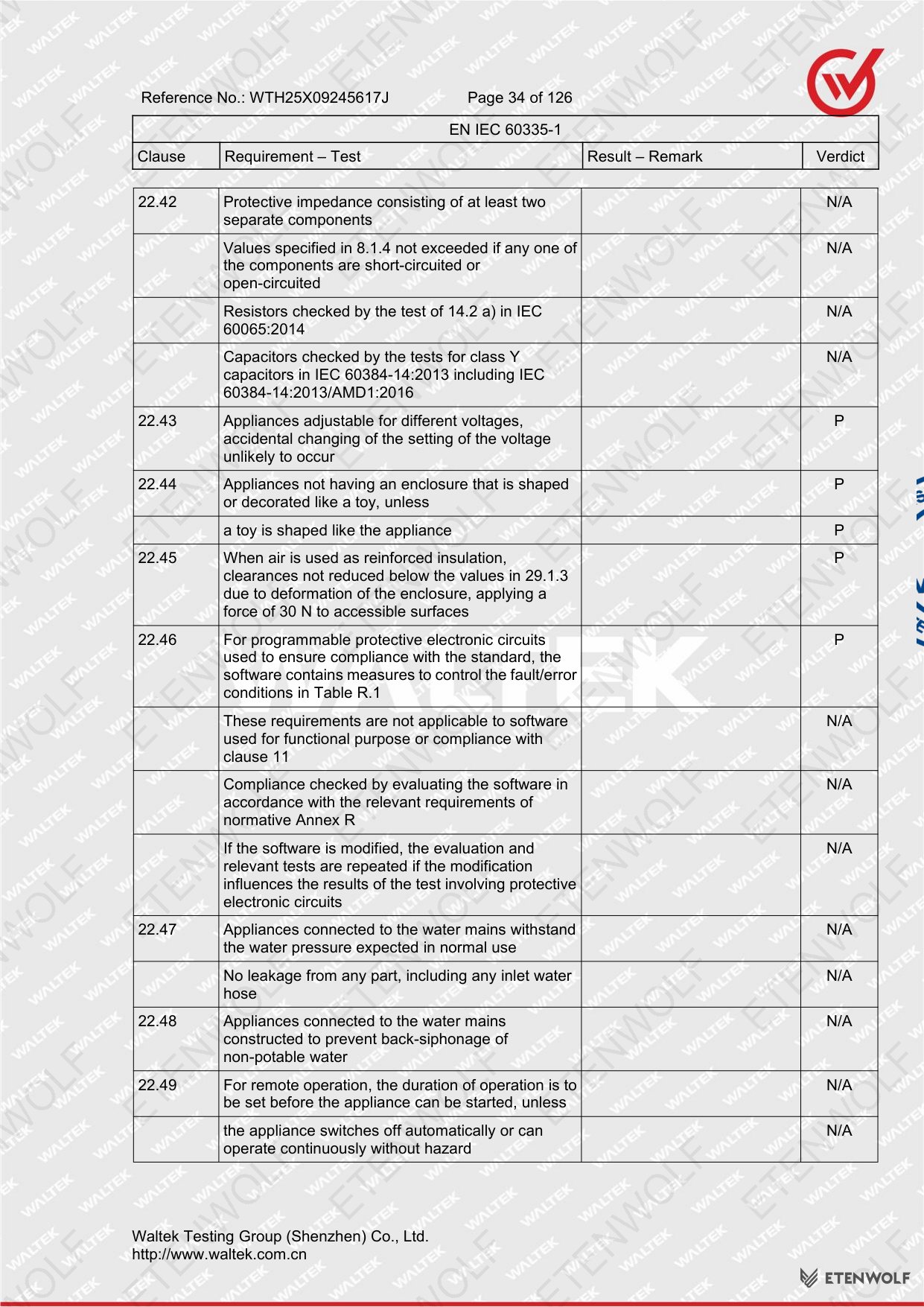

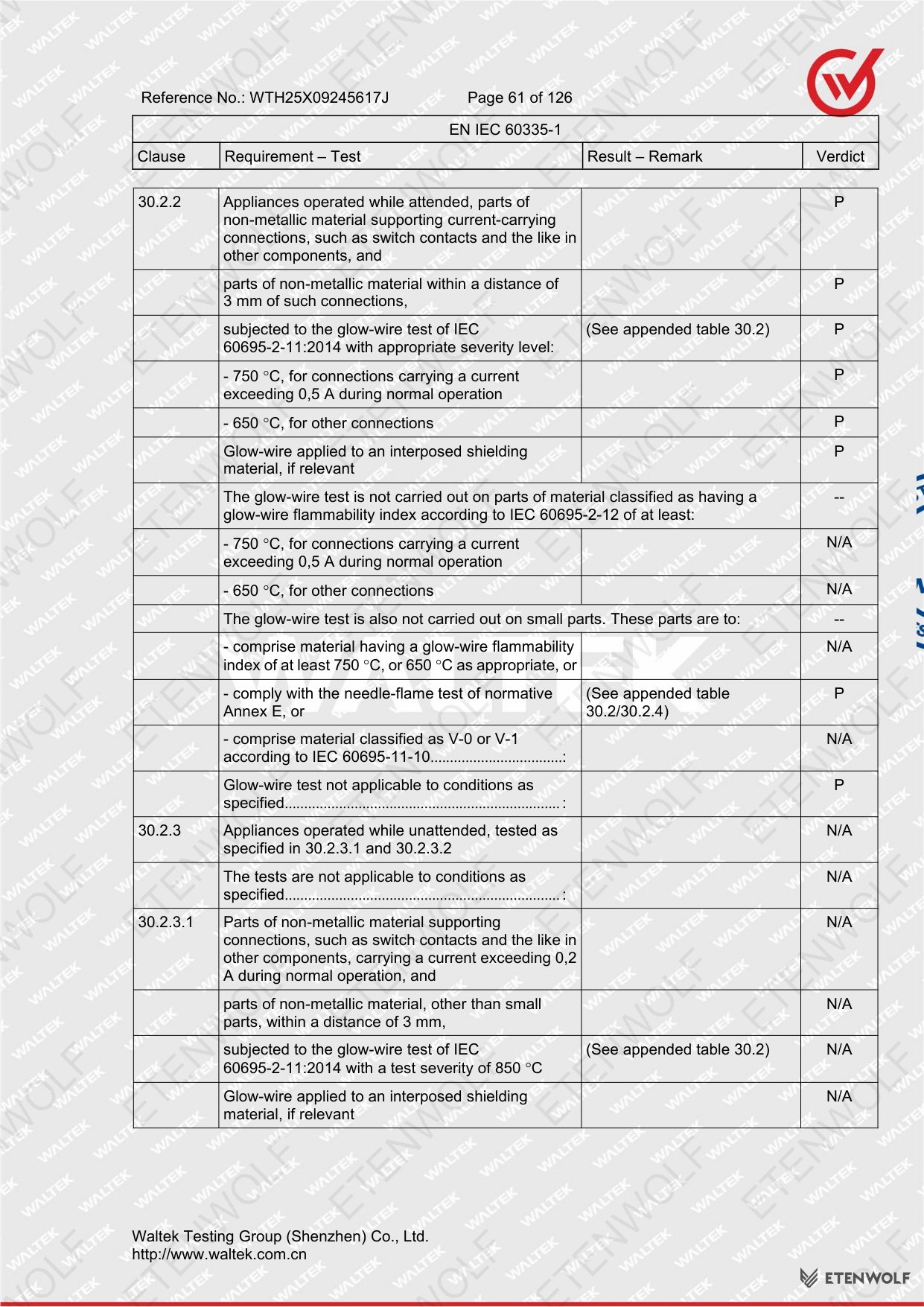

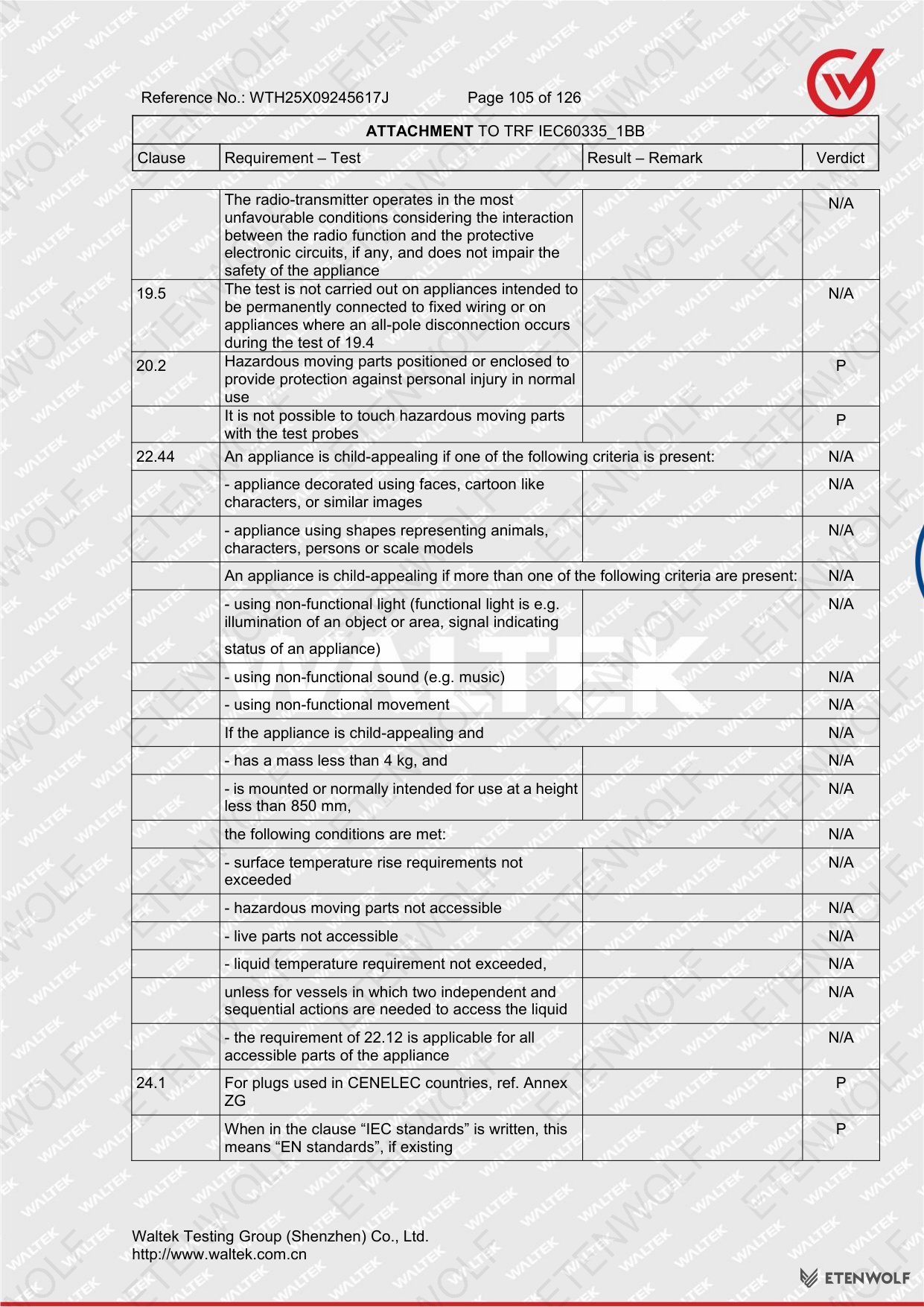

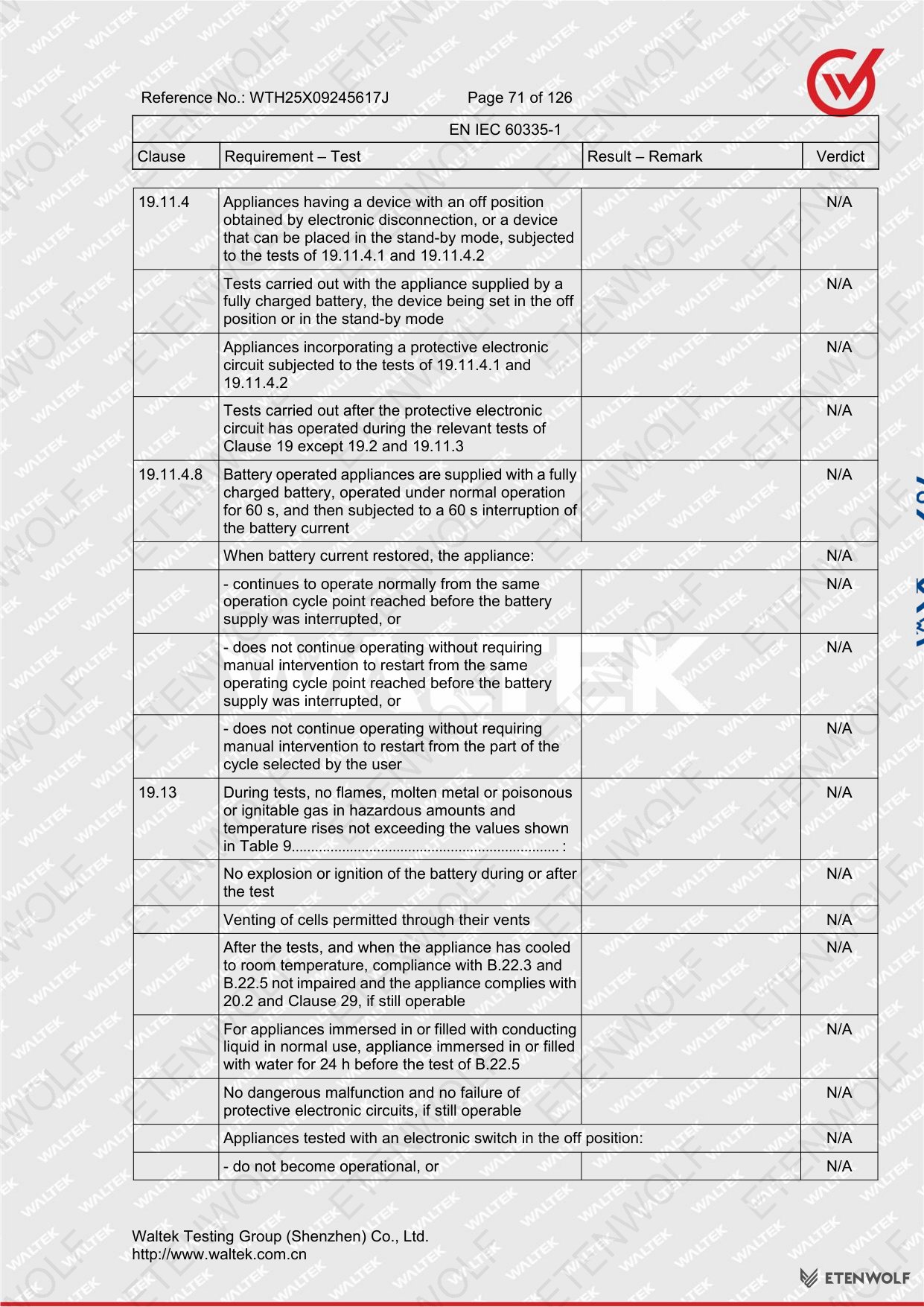

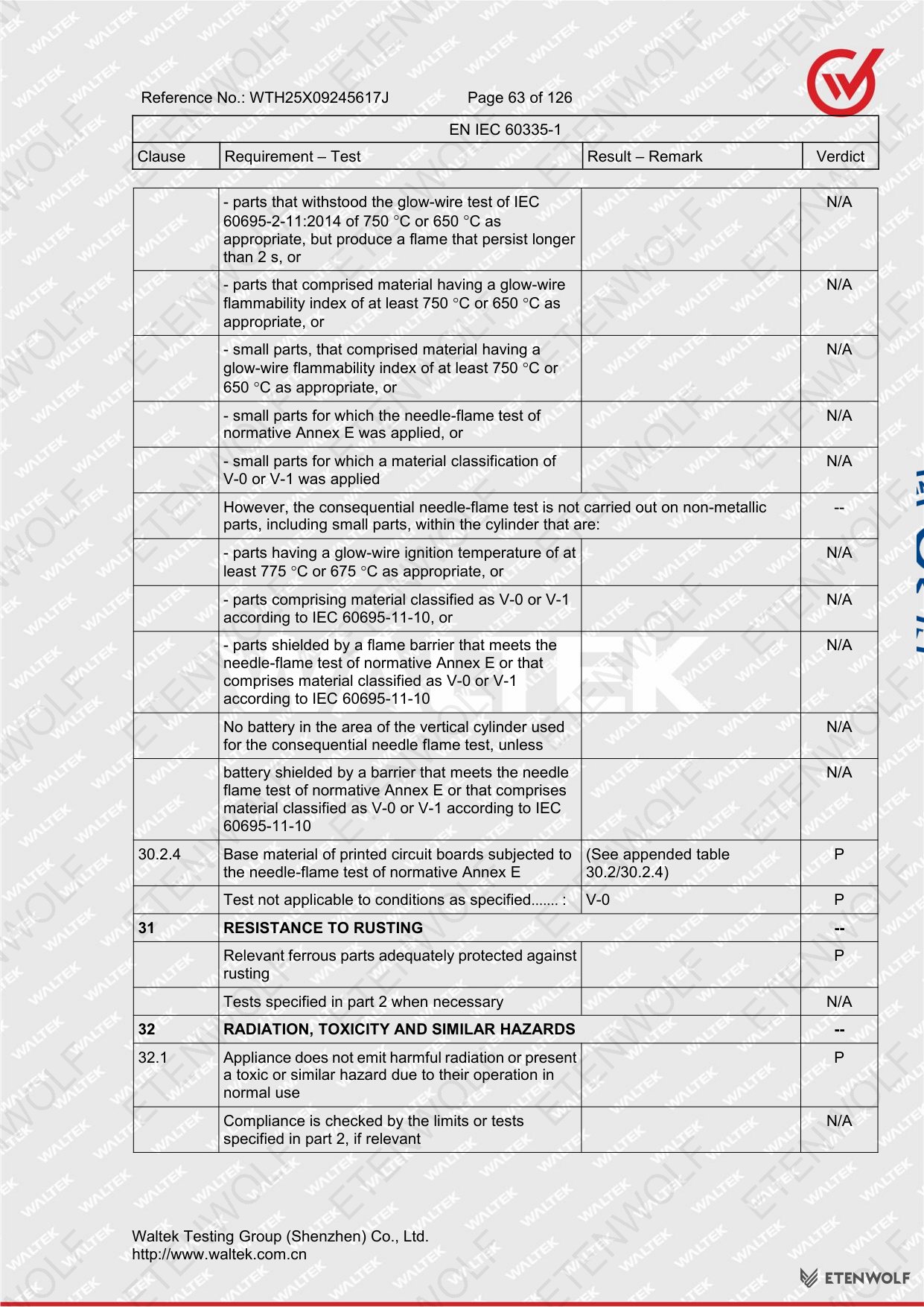

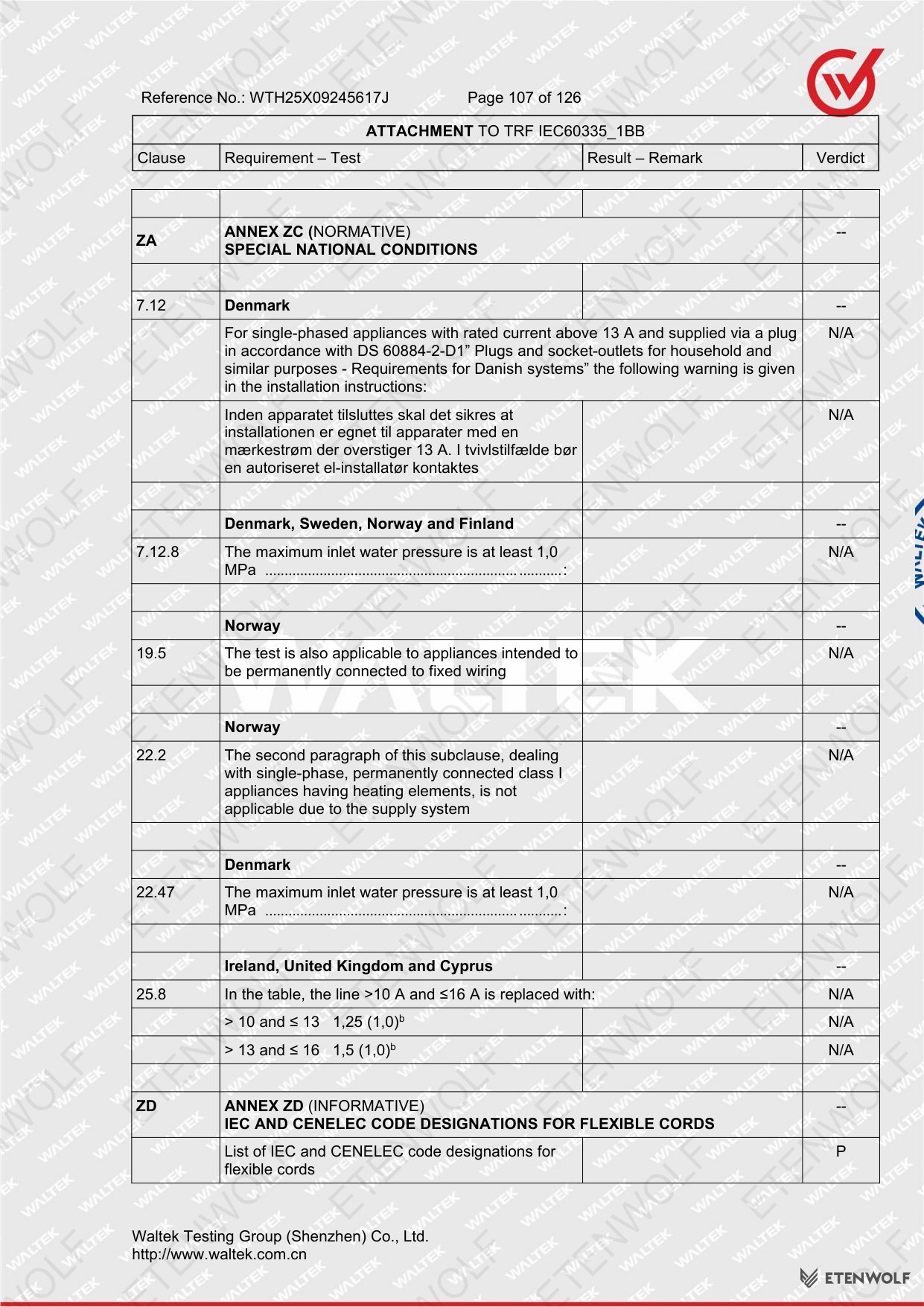

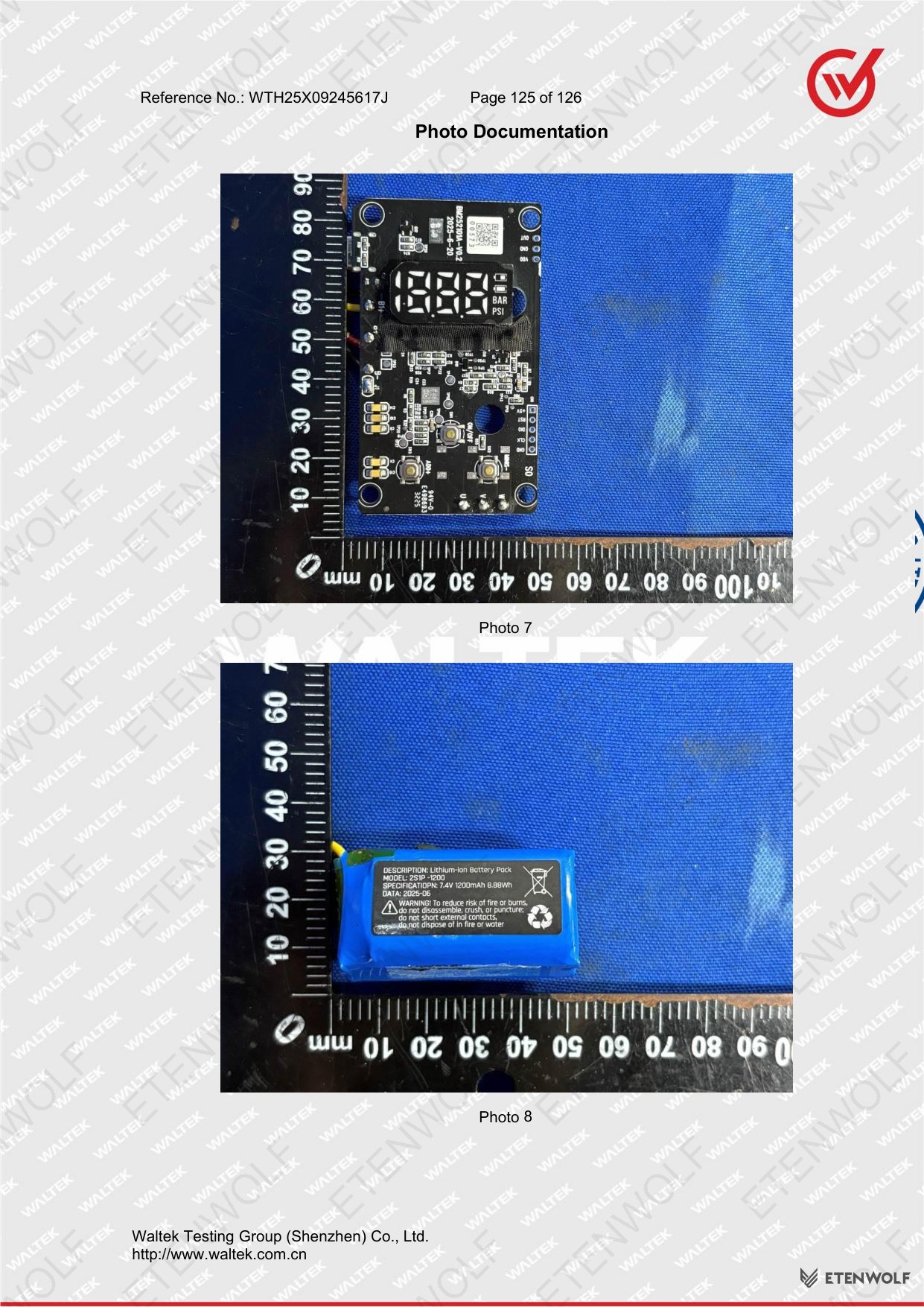

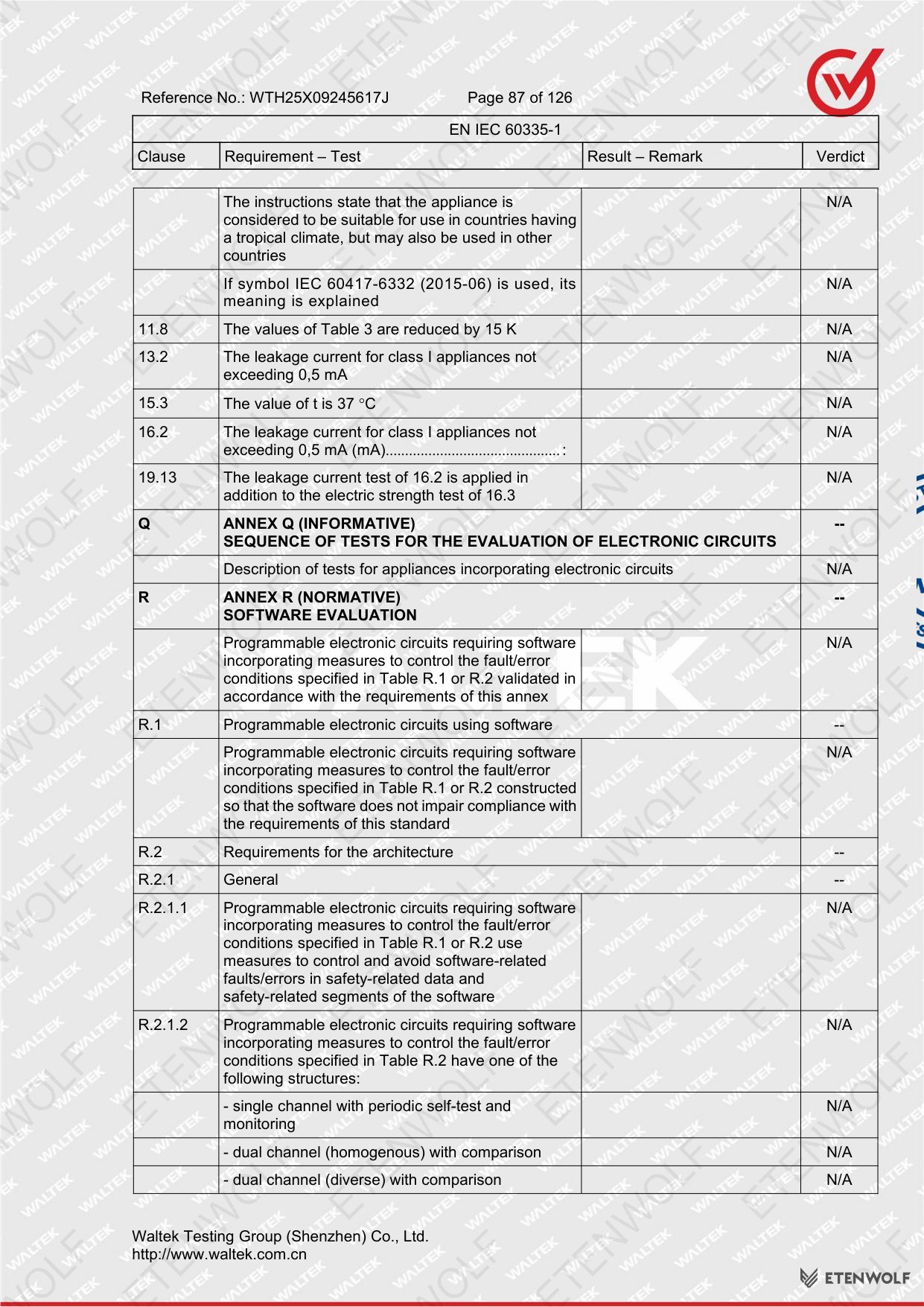

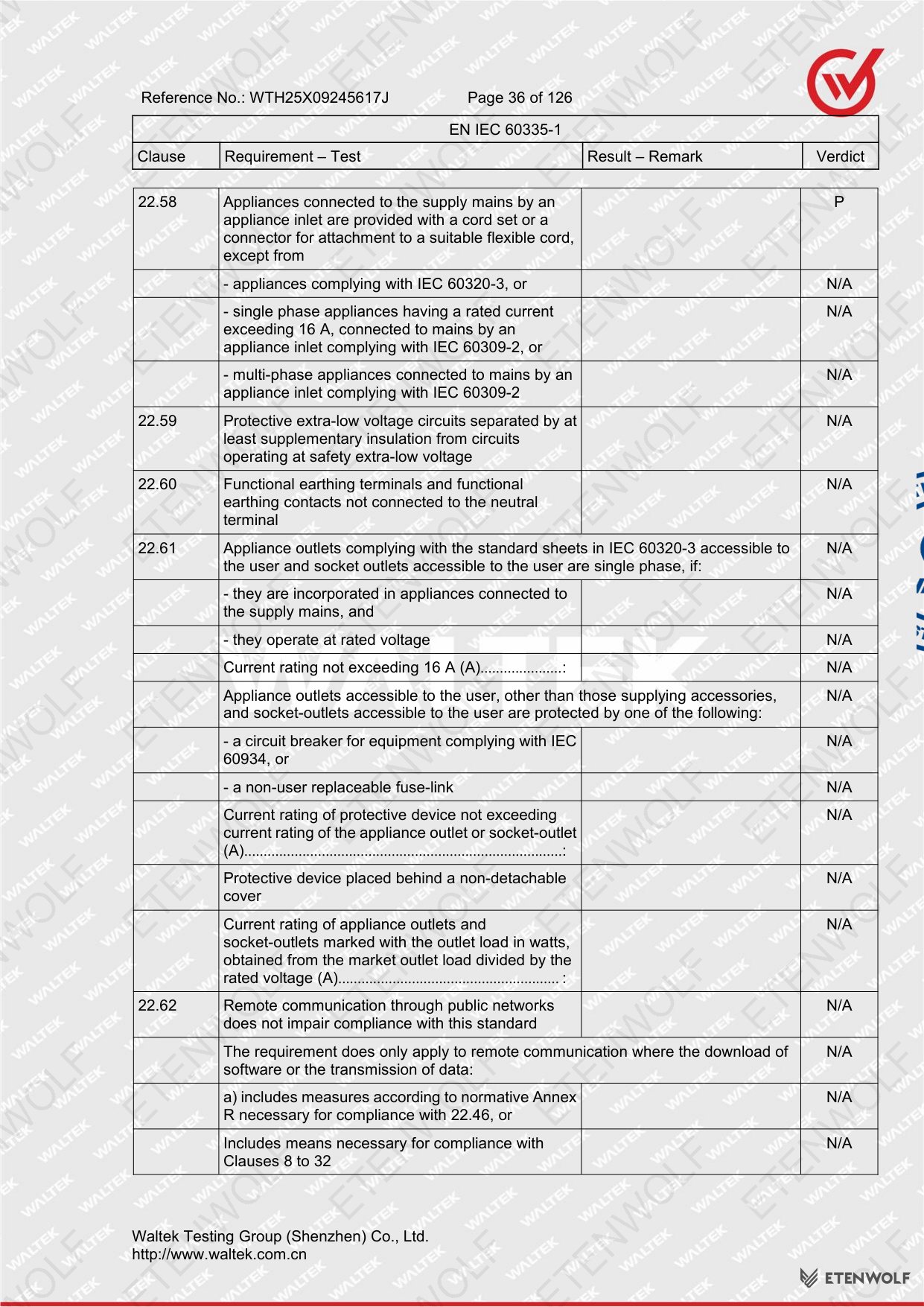

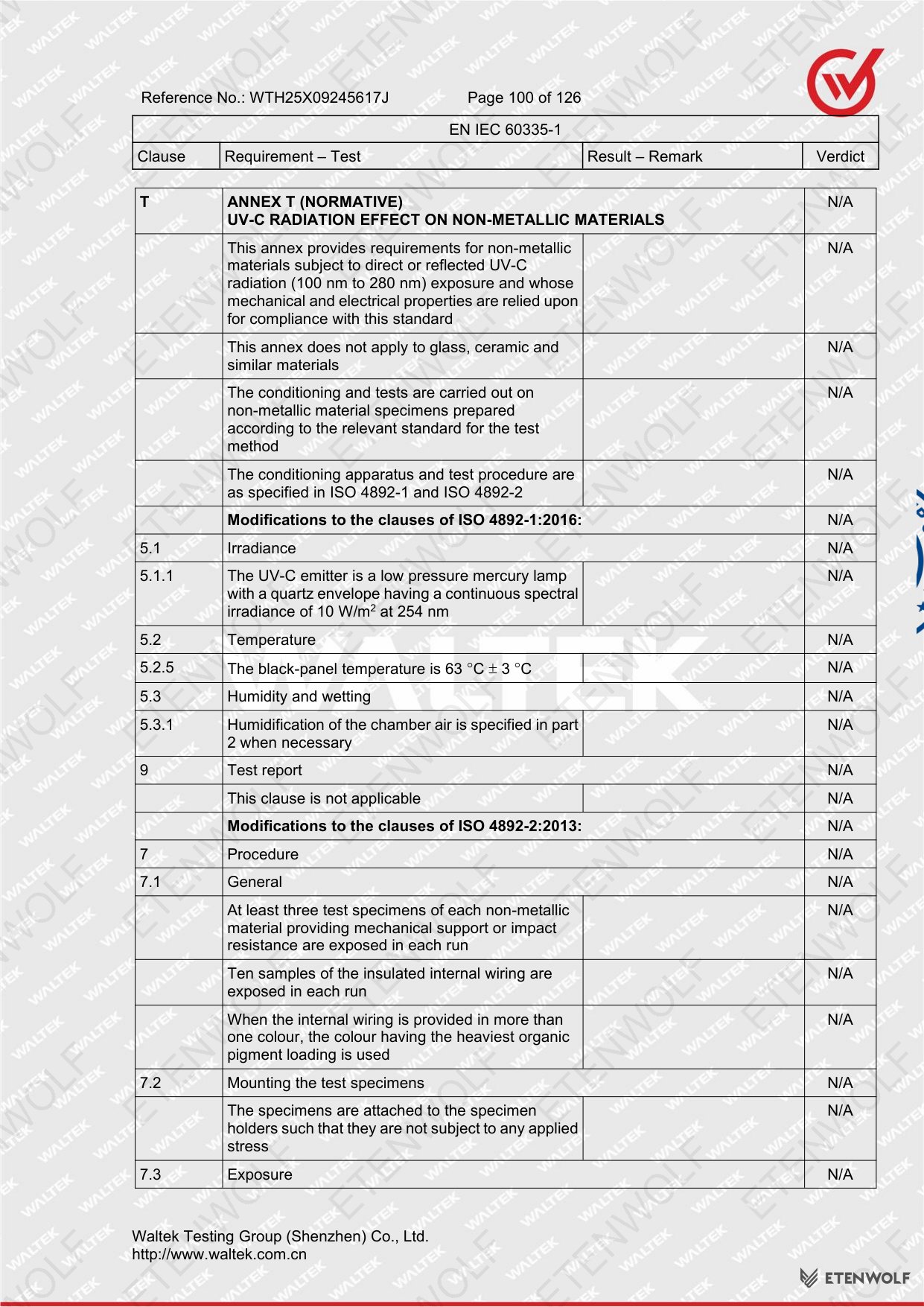

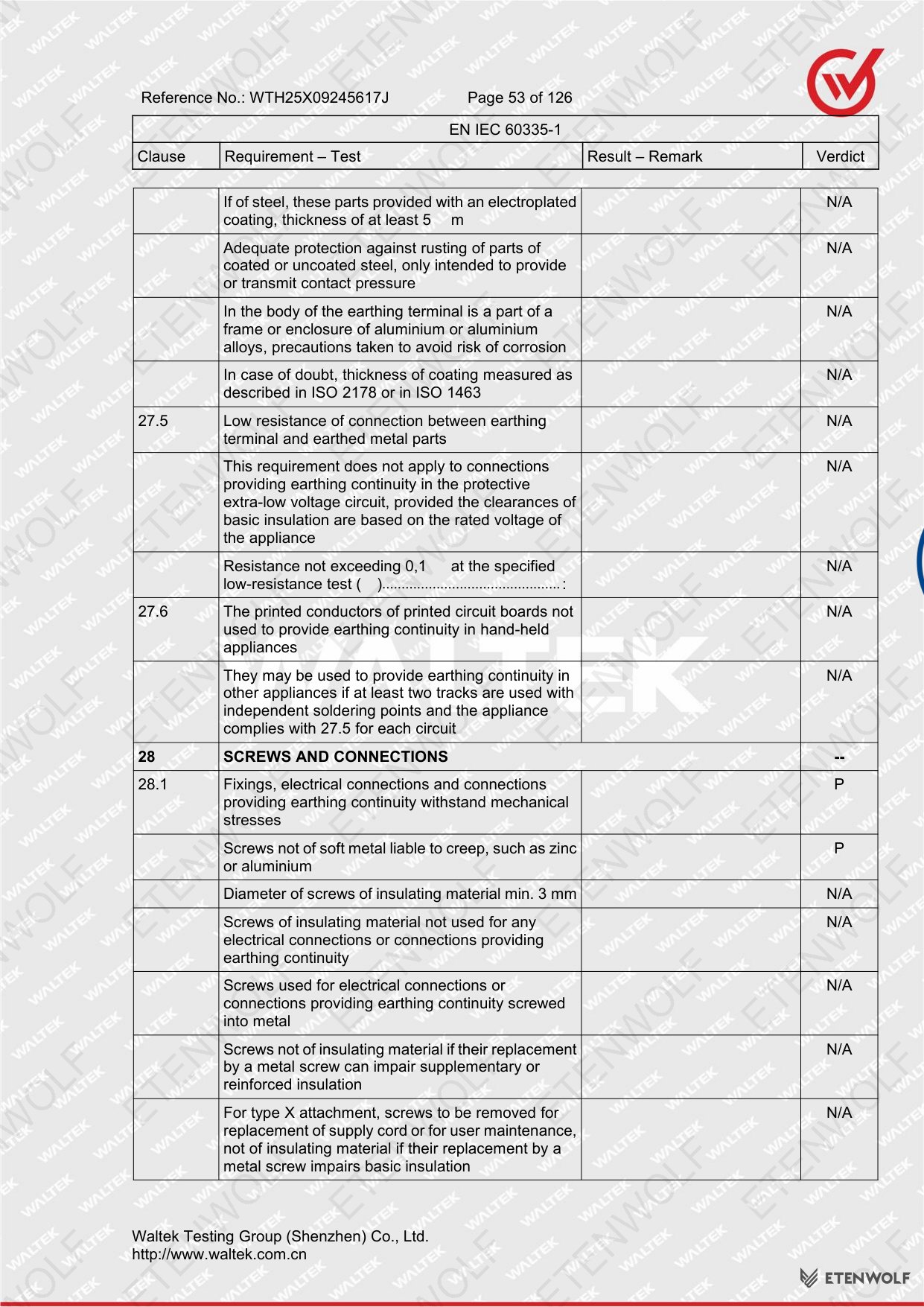

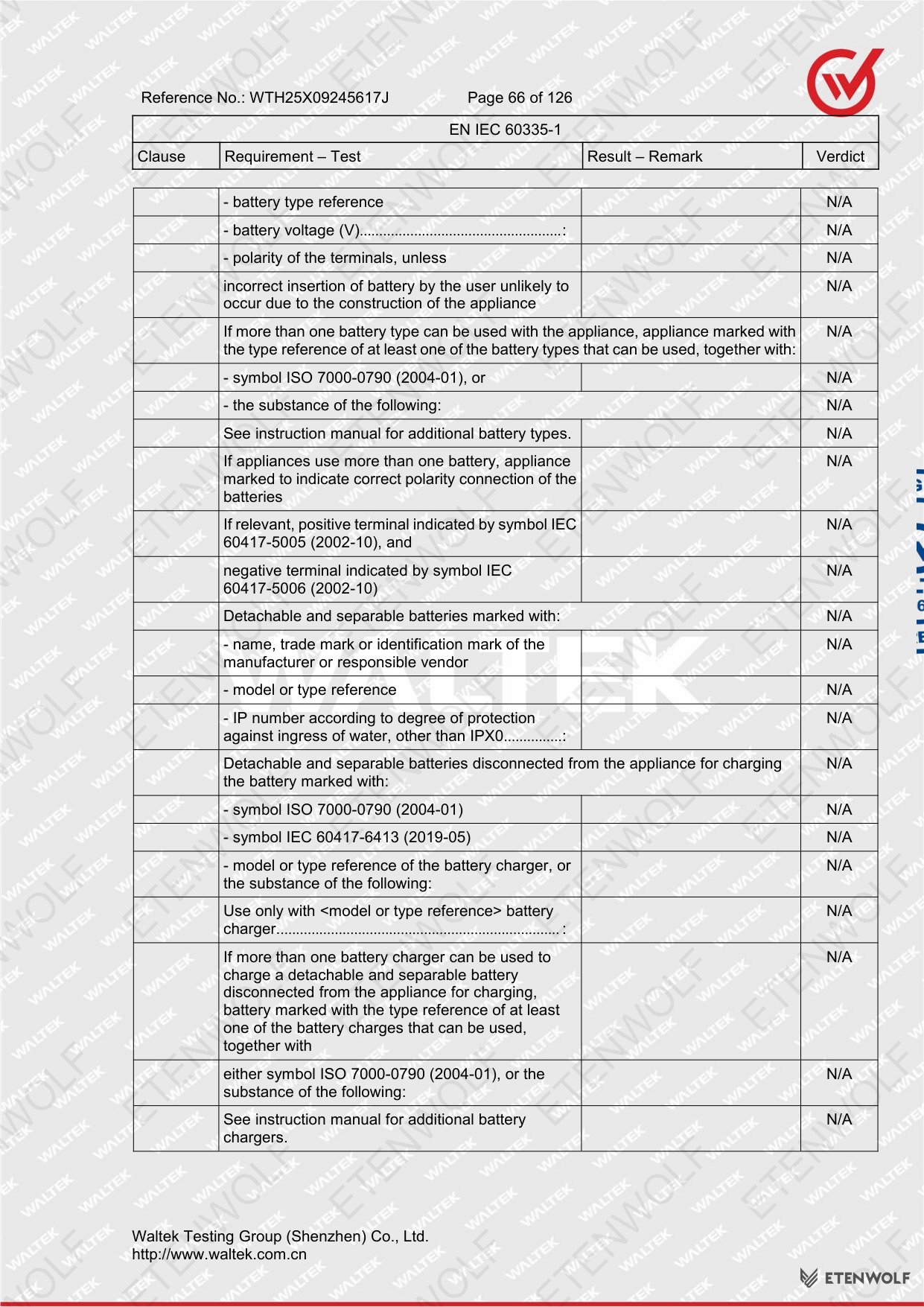

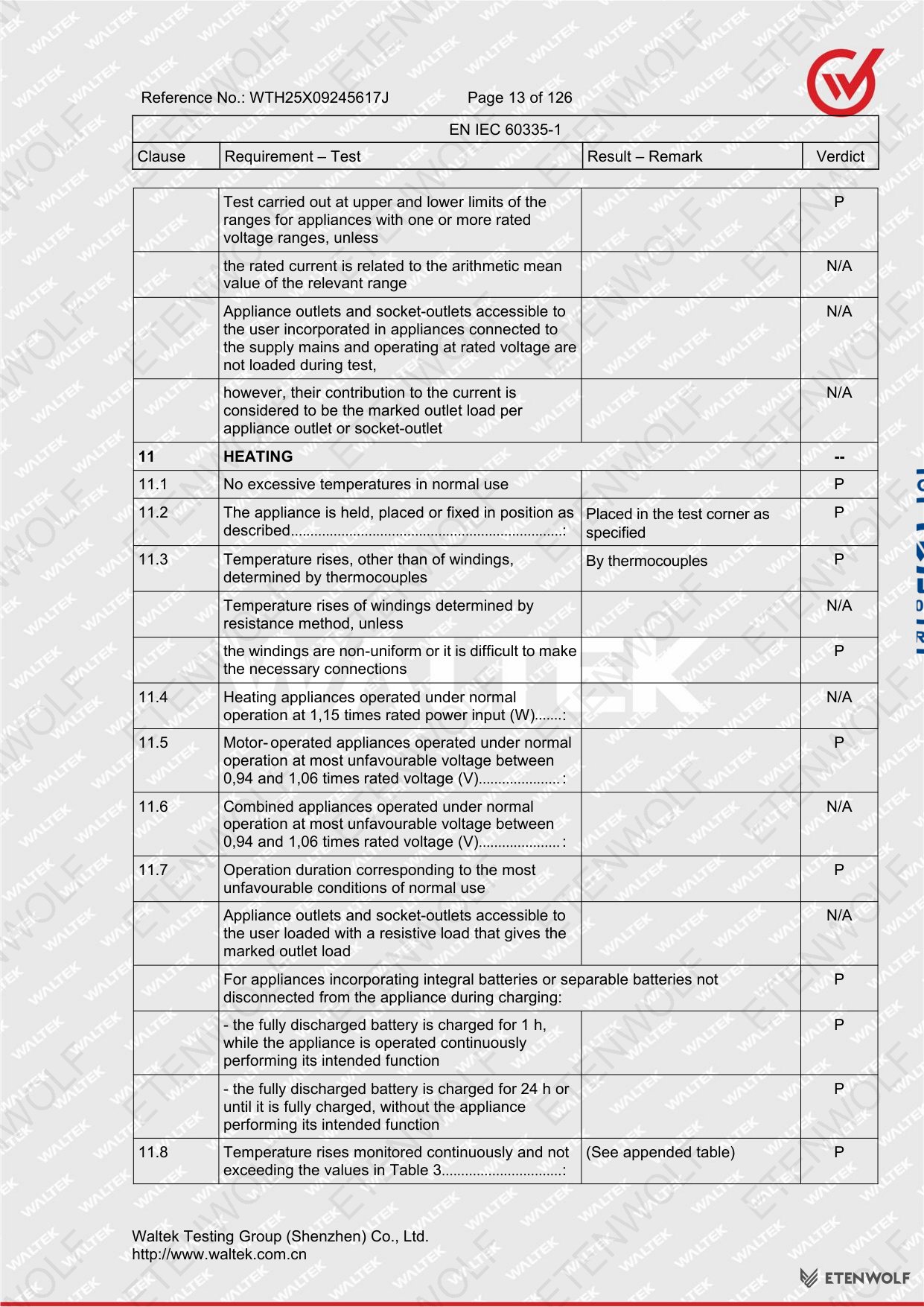

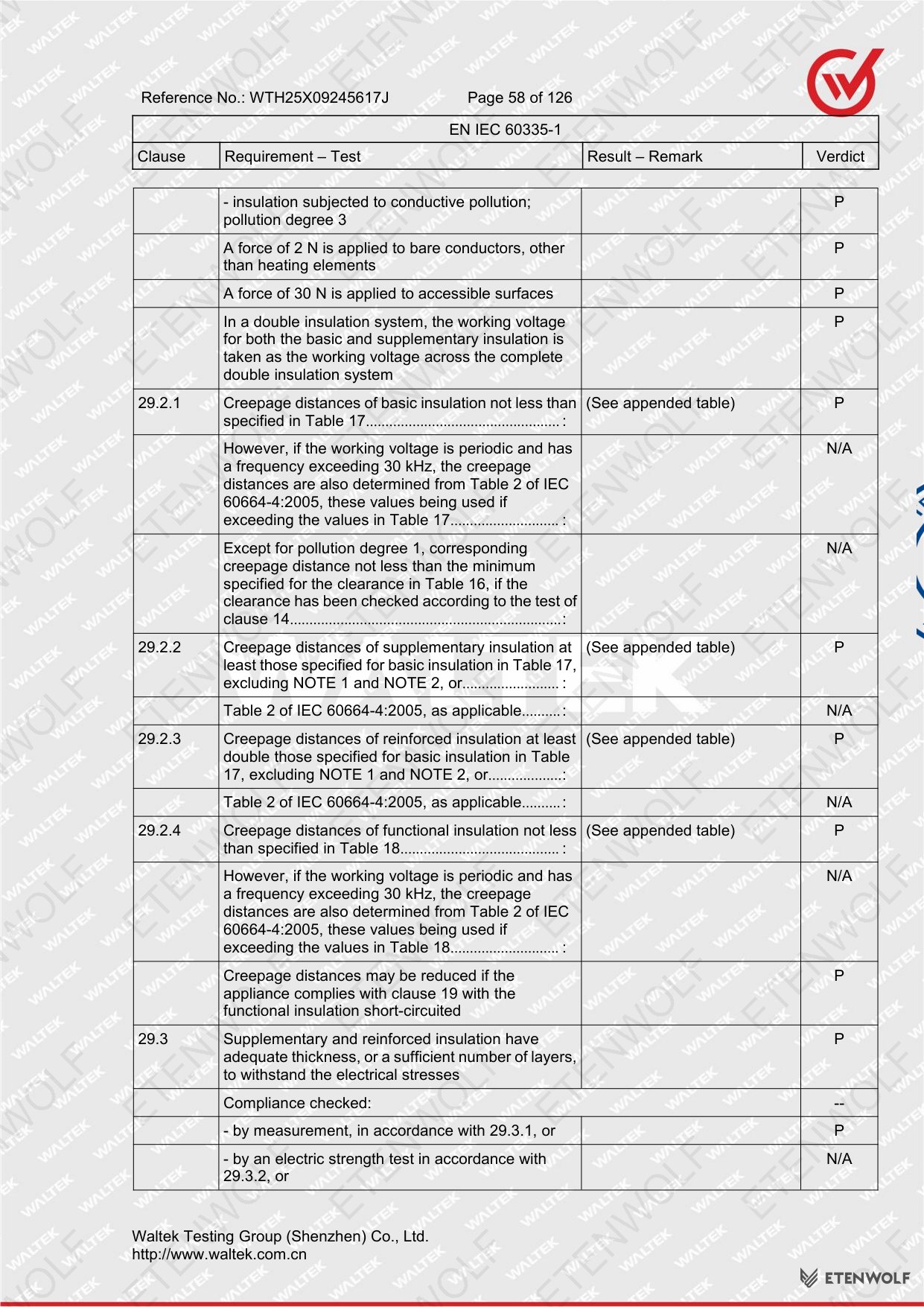

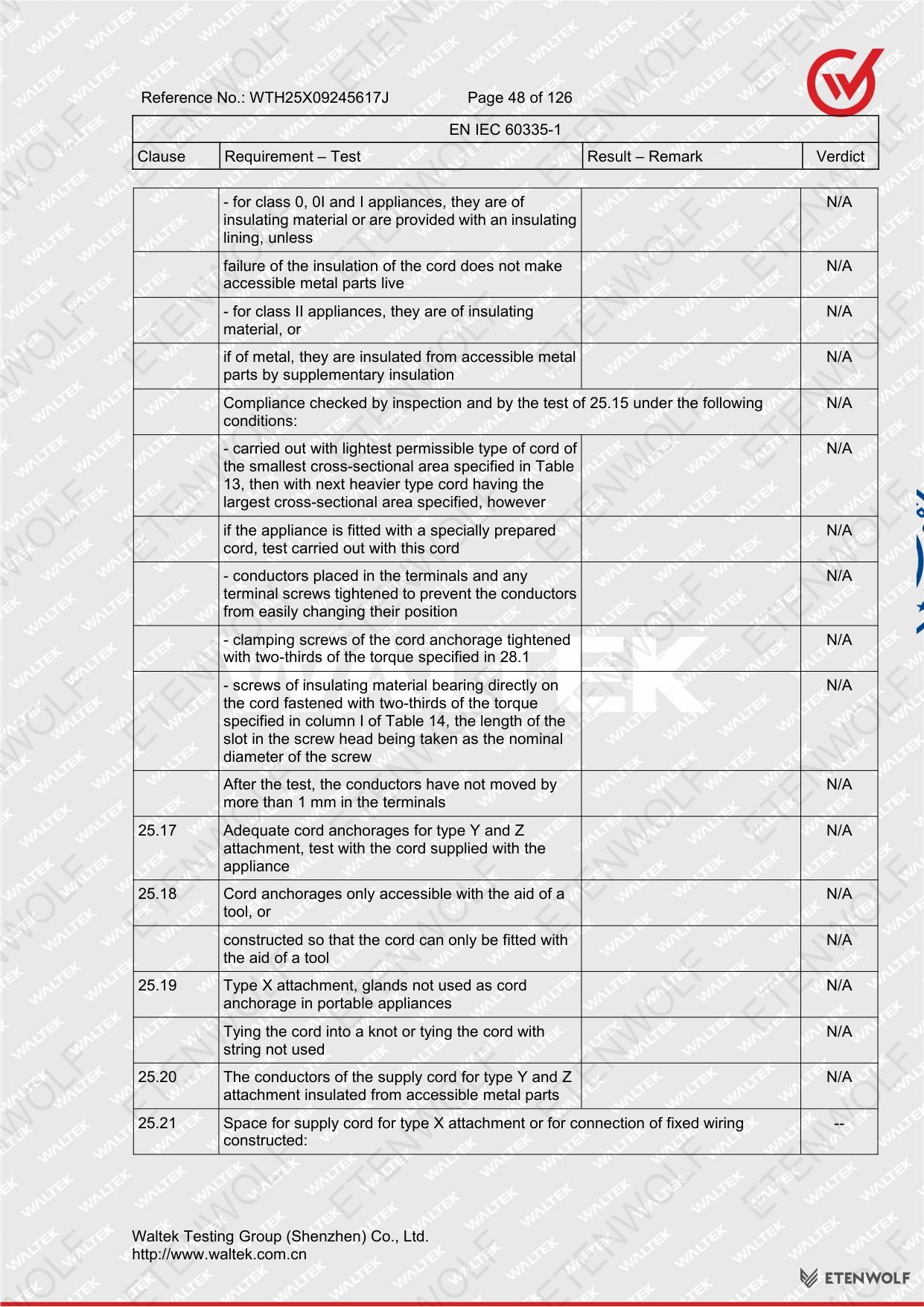

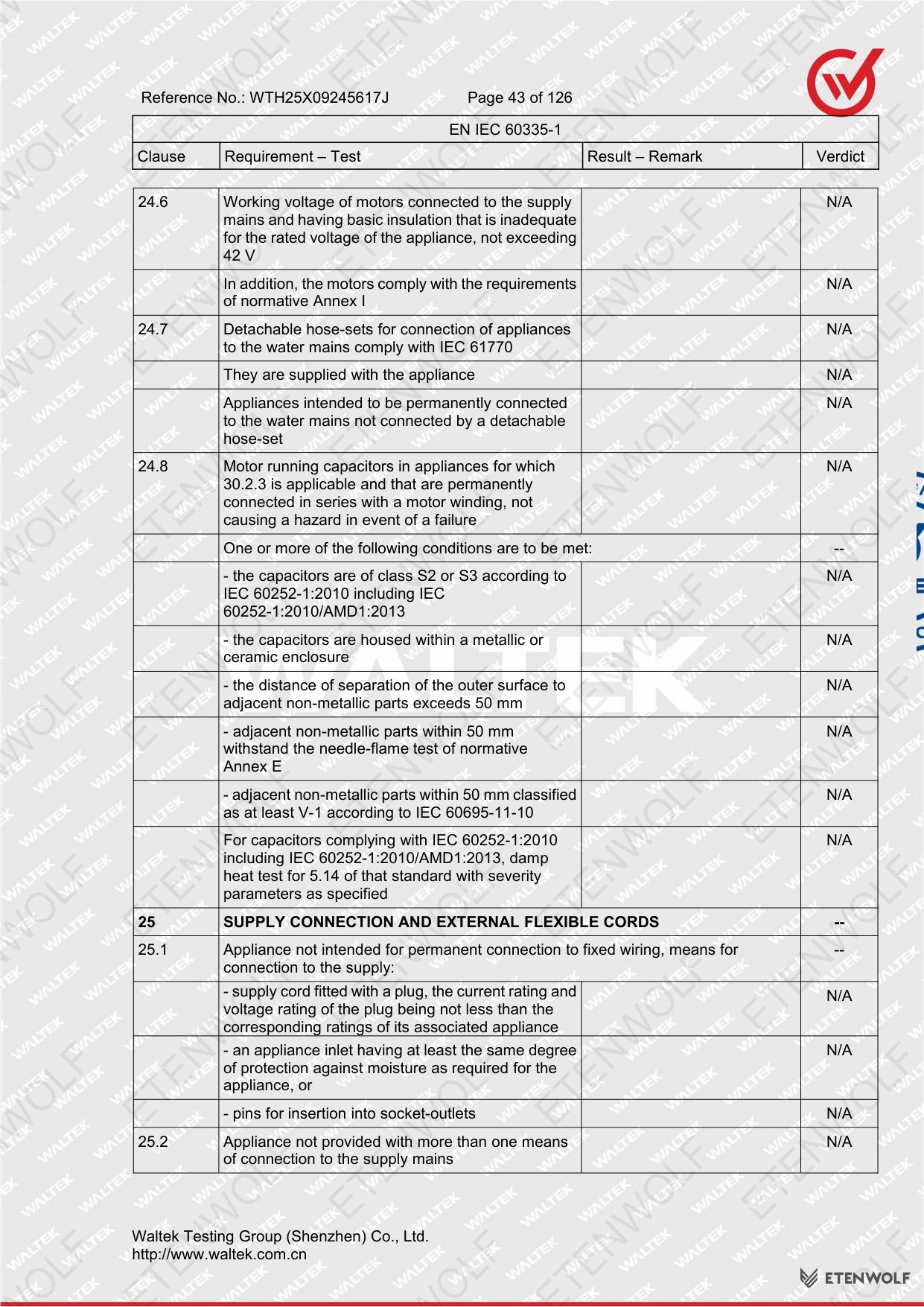

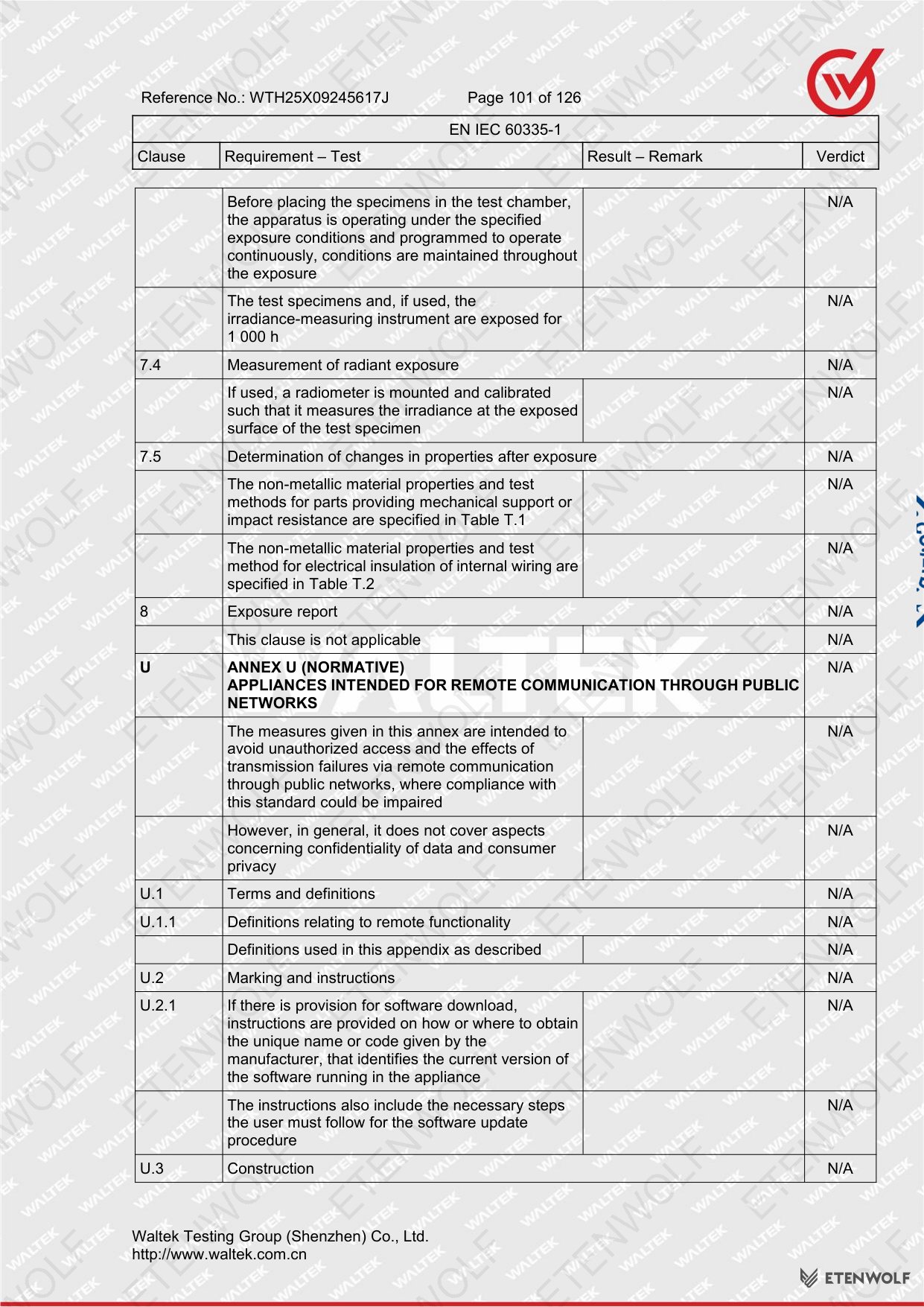

Document Pages
