Document Overview This article covers the official CE Low Voltage Directive (CE-LVD) test report issued for the ETENWOLF C2 Wireless Portable Tire Pump. The report was prepared and issued by Waltek Testing Group (Shenzhen) Co., Ltd., an accredited third-party testing laboratory based in Shenzhen, Guangdong,…
- Document type
- Certification Report
- Prepared by
- Michelle Torres
- Published
- Last reviewed
- Topics
- European Union: CE / RoHS / REACH / WEEE
Document Overview

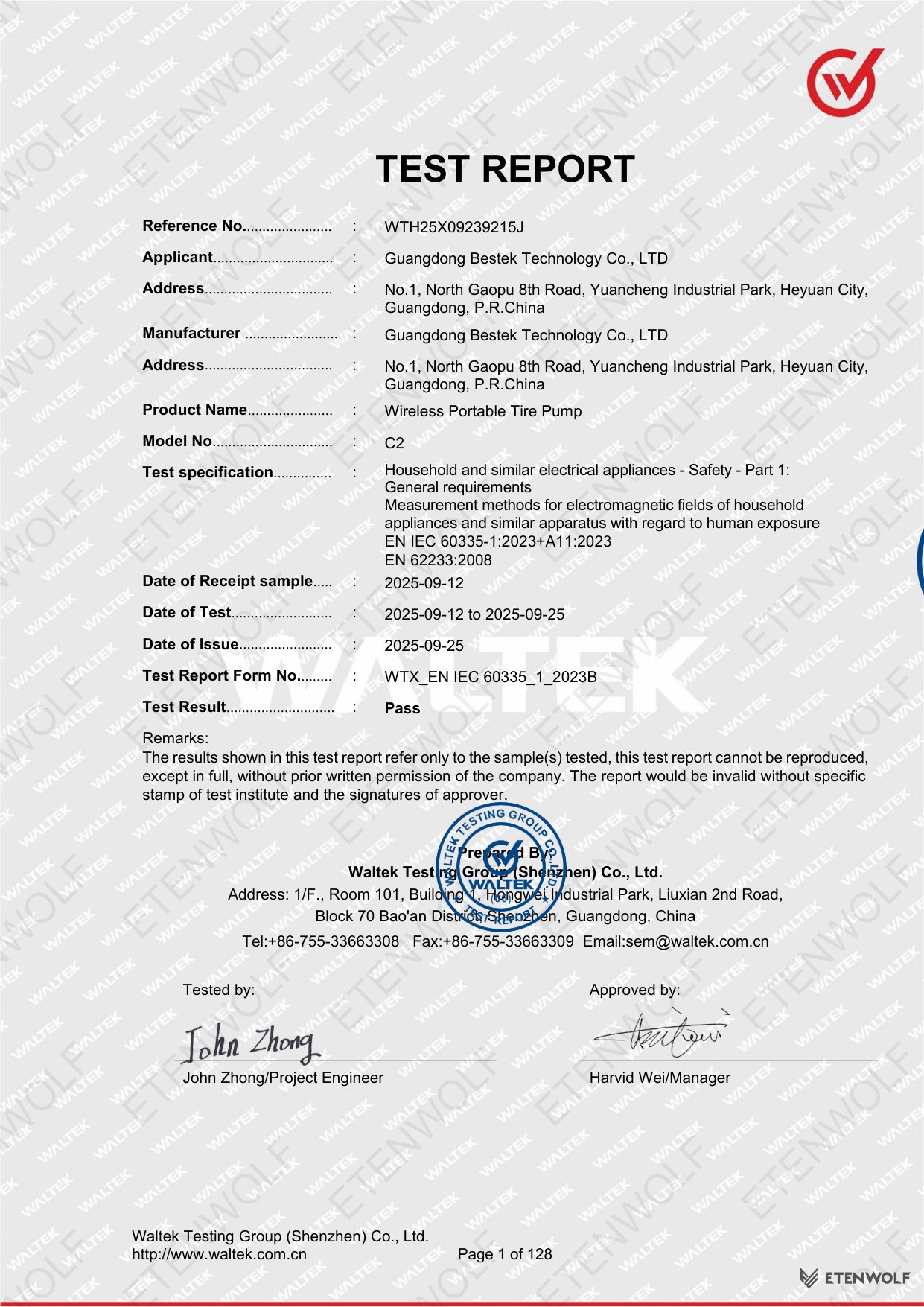

This article covers the official CE Low Voltage Directive (CE-LVD) test report issued for the ETENWOLF C2 Wireless Portable Tire Pump. The report was prepared and issued by Waltek Testing Group (Shenzhen) Co., Ltd., an accredited third-party testing laboratory based in Shenzhen, Guangdong, China.
| Field | Details |
|---|---|
| Document Type | CE-LVD Test Report |
| Reference Number | WTH25X09239215J |
| Test Report Form No. | WTX_EN IEC 60335_1_2023B |
| Issuing Body | Waltek Testing Group (Shenzhen) Co., Ltd. |
| Date of Issue | 2025-09-25 |
| Test Period | 2025-09-12 to 2025-09-25 |
| Date Sample Received | 2025-09-12 |
| Overall Test Result | Pass |
The scope of this report covers electrical safety and electromagnetic field (EMF) compliance testing applicable to household and similar electrical appliances intended for the European Union market under the Low Voltage Directive (LVD) 2014/35/EU.
Product Information
The product evaluated in this report is the ETENWOLF C2 Wireless Portable Tire Pump, designed for household and indoor inflation use. Below are the key product identifiers and electrical ratings recorded during testing.
| Attribute | Details |
|---|---|
| Product Name | Wireless Portable Tire Pump |
| Model Number | C2 |
| Brand / Trademark | — |
| Rated Input Voltage | 5 V DC |
| Rated Input Current | 2.0 A |
| Supply Connection | DC Connector |
| Equipment Class | Class III |
| IP Rating | IPX0 |
| Installation & Use | Portable appliance, indoor use only |
| Country of Manufacture | China |
As a Class III appliance, the ETENWOLF C2 operates on safety extra-low voltage (SELV), powered via a DC connector with a rated input of 5 V / 2.0 A. It is intended for household and indoor use only and is not designed for connection to the AC supply mains directly.
The applicant and manufacturer on record is Guangdong Bestek Technology Co., Ltd., located at No. 1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China. The manufacturing site is the same address as the registered manufacturer.
Key Details

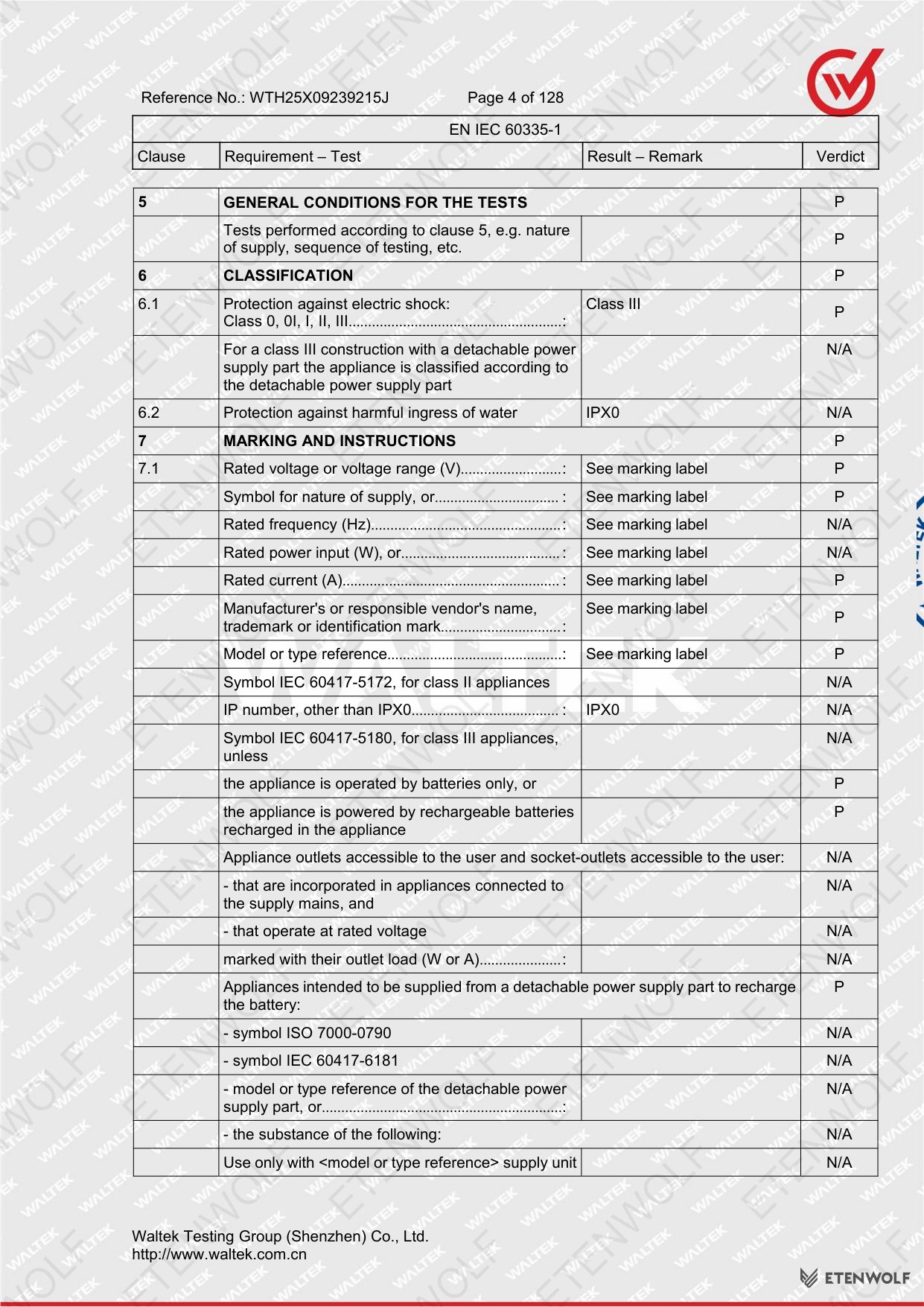

The following table summarises the key test clause verdicts recorded during evaluation of the ETENWOLF C2 against EN IEC 60335-1:2023+A11:2023. Verdicts are assigned as P (Pass), F (Fail), or N/A (Not Applicable).
| Clause | Requirement / Test Area | Verdict |
|---|---|---|
| Clause 5 | General Conditions for the Tests (nature of supply, sequence of testing) | P |
| Clause 6 | Classification | P |
| 6.1 | Protection against electric shock — Class III | P |
| 6.2 | Protection against harmful ingress of water — IPX0 | N/A |
| Clause 7 | Marking and Instructions | P |
| 7.1 | Rated voltage, current, manufacturer identification, model reference on marking label | P |
| 7.1 | Symbol IEC 60417-5180 (Class III) — appliance powered by rechargeable batteries recharged in the appliance | P |
| 7.1 | Appliances intended to be supplied from a detachable power supply part to recharge the battery | P |

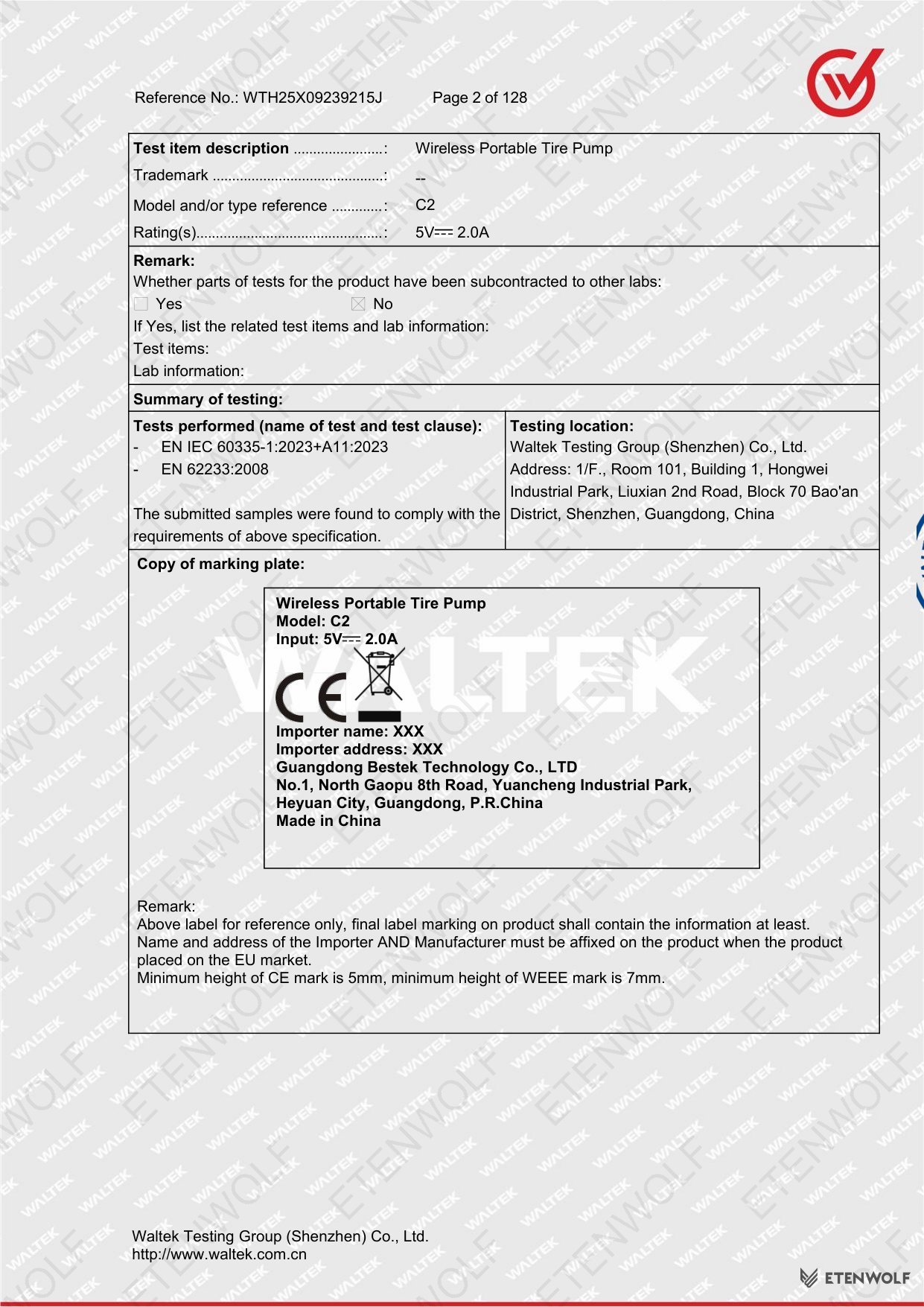

Marking label requirements confirmed on the product include: rated voltage (5 V DC), rated current (2.0 A), manufacturer name and address (Guangdong Bestek Technology Co., Ltd.), and model reference (C2). The label note specifies that importer name and address must be affixed before placing the product on the EU market. The minimum CE mark height is 5 mm and the minimum WEEE mark height is 7 mm.
No tests within scope were subcontracted to external laboratories. All testing was conducted at the Waltek Testing Group (Shenzhen) facility at 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70, Bao’an District, Shenzhen, Guangdong, China.
Standards & Compliance
The ETENWOLF C2 Wireless Portable Tire Pump was evaluated against the following harmonised European standards, which support compliance with the EU Low Voltage Directive 2014/35/EU.
| Standard | Title | Result |
|---|---|---|
| EN IEC 60335-1:2023+A11:2023 | Household and similar electrical appliances — Safety — Part 1: General requirements | Pass |
| EN 62233:2008 | Measurement methods for electromagnetic fields of household appliances and similar apparatus with regard to human exposure | Pass |
EN IEC 60335-1:2023+A11:2023 is the primary safety standard for household electrical appliances in the EU. It covers general construction, protection against electric shock, thermal cutouts, mechanical strength, and marking requirements. As a Class III SELV appliance, the C2 is evaluated under the relevant sub-clauses applicable to battery-powered and DC-supplied portable devices.

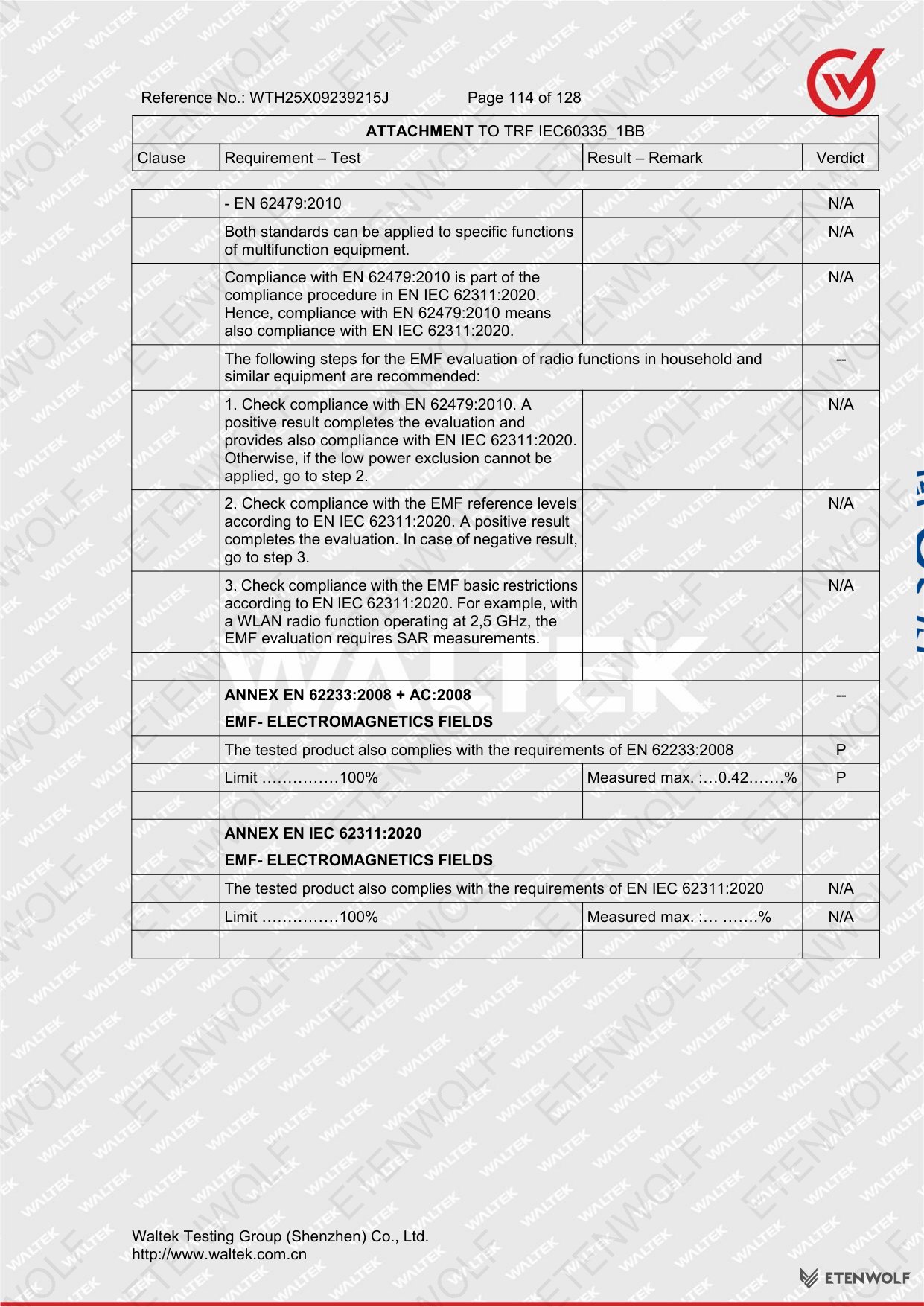

EN 62233:2008 addresses the measurement of electromagnetic fields produced by household appliances relative to limits for human exposure, ensuring the product does not emit EMF at levels harmful to users under normal operating conditions.
Both standards are published by the International Electrotechnical Commission (IEC) and adopted as harmonised European Norms (EN) by CENELEC, supporting the presumption of conformity with the LVD.
Validity & Certification Body
The test report WTH25X09239215J was issued on 2025-09-25 by Waltek Testing Group (Shenzhen) Co., Ltd. The report is valid for the specific sample(s) tested and may not be reproduced in part without prior written permission from the issuing laboratory.
| Field | Details |
|---|---|
| Report Reference No. | WTH25X09239215J |
| Date of Issue | 2025-09-25 |
| Issuing Laboratory | Waltek Testing Group (Shenzhen) Co., Ltd. |
| Laboratory Address | 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70, Bao’an District, Shenzhen, Guangdong, China |
| Laboratory Website | http://www.waltek.com.cn |
| Telephone | +86-755-33663308 |
| Fax | +86-755-33663309 |
| [email protected] | |
| Tested By | John Zhong, Project Engineer |
| Approved By | Harvid Wei, Manager |
The report validity is tied to the specific sample(s) submitted. The test institute’s official stamp and the signatures of both the project engineer and approving manager are required for the report to be considered valid. Any reproduction must be in full and requires written approval from Waltek Testing Group.
For EU market placement, the product’s labelling must include importer name and address in addition to the manufacturer details already verified in this report. This is a regulatory requirement under EU product safety legislation and does not affect the technical test result recorded here.
Frequently Asked Questions
- What does the CE-LVD test report WTH25X09239215J confirm for the ETENWOLF C2?
-
Report WTH25X09239215J confirms that the ETENWOLF C2 Wireless Portable Tire Pump passed electrical safety testing against EN IEC 60335-1:2023+A11:2023 and electromagnetic field measurement testing against EN 62233:2008. The overall verdict is Pass, supporting CE marking under the EU Low Voltage Directive 2014/35/EU.
- What equipment class is the ETENWOLF C2 and why does it matter?
-
The ETENWOLF C2 is classified as Class III, meaning it operates on safety extra-low voltage (SELV) at 5 V DC / 2.0 A via a DC connector. Class III appliances do not rely on protective earthing for safety, which is appropriate for portable, battery-powered devices. This classification was verified during testing under Clause 6.1 of EN IEC 60335-1.
- Which laboratory conducted the CE-LVD testing for the C2, and is it accredited?
-
All testing was conducted by Waltek Testing Group (Shenzhen) Co., Ltd., located in Bao’an District, Shenzhen, China. Waltek is a recognised third-party testing organisation. The report carries the signatures of the project engineer (John Zhong) and approving manager (Harvid Wei), along with the laboratory’s official stamp, as required for report validity.
- Does the ETENWOLF C2 need additional labelling before being sold in the EU?
-
Yes. While the technical marking requirements verified in this report are satisfied, EU regulations require the importer’s name and address to be affixed to the product before it is placed on the EU market. The report notes that importer details were listed as placeholder (XXX) at the time of testing and must be completed with actual EU importer information prior to market placement.
Related Documents
The CE-LVD test report is one component of a broader compliance documentation package typically required for the ETENWOLF C2 Wireless Portable Tire Pump. The following related certification and compliance documents are relevant to this product category.
- CE-EMC Test Report — Electromagnetic compatibility testing under Directive 2014/30/EU, covering radiated and conducted emissions and immunity per EN 55014 series standards.
- CE-RED Test Report — If the C2 incorporates Bluetooth or wireless charging, Radio Equipment Directive 2014/53/EU compliance testing would be required.
- UN 38.3 Battery Test Report — Transportation safety testing for the lithium battery pack integrated into the portable pump, required for air and ground freight compliance.
- RoHS Compliance Report — Restriction of Hazardous Substances Directive 2011/65/EU compliance documentation confirming limits on lead, mercury, cadmium, and other restricted substances in the product and its components.
- REACH SVHC Declaration — Substance of Very High Concern declaration under REACH Regulation (EC) No 1907/2006.
- EU Declaration of Conformity (DoC) — The manufacturer’s formal self-declaration citing all applicable directives and harmonised standards, required to accompany CE-marked products on the EU market.
- FCC ID / IC Certification — If the C2 is distributed in North American markets, FCC equipment authorisation and Industry Canada (IC) certification would apply.

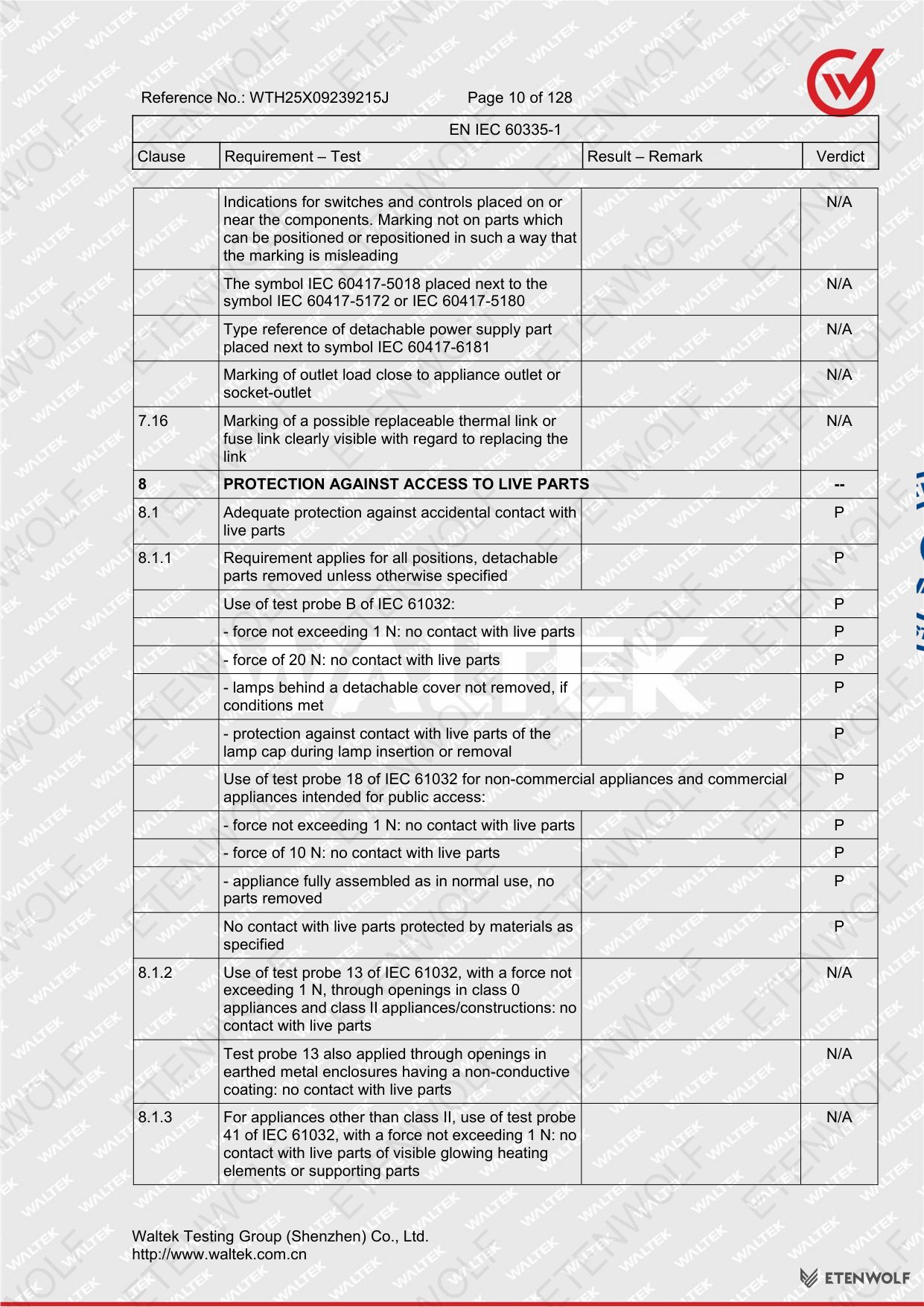

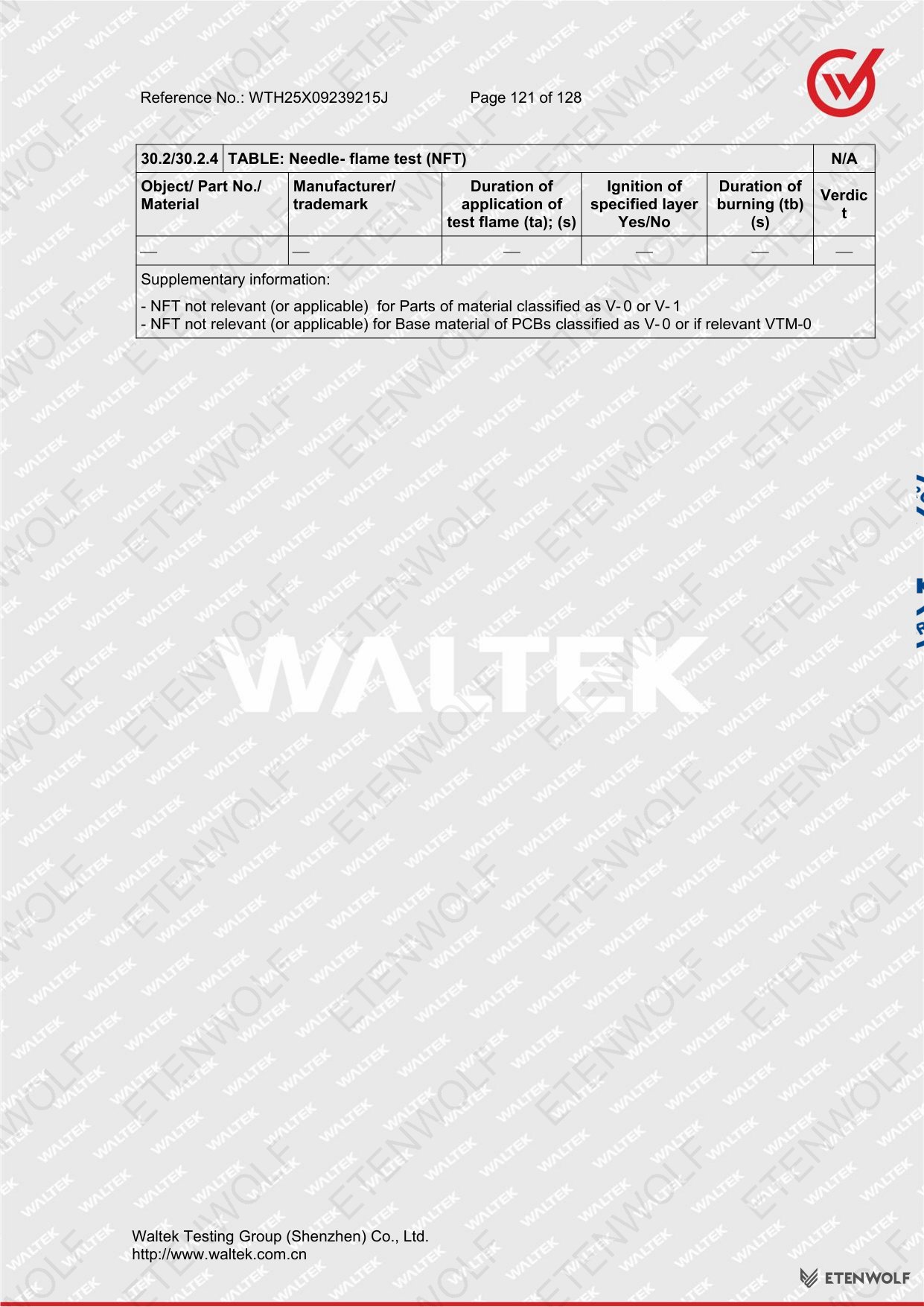

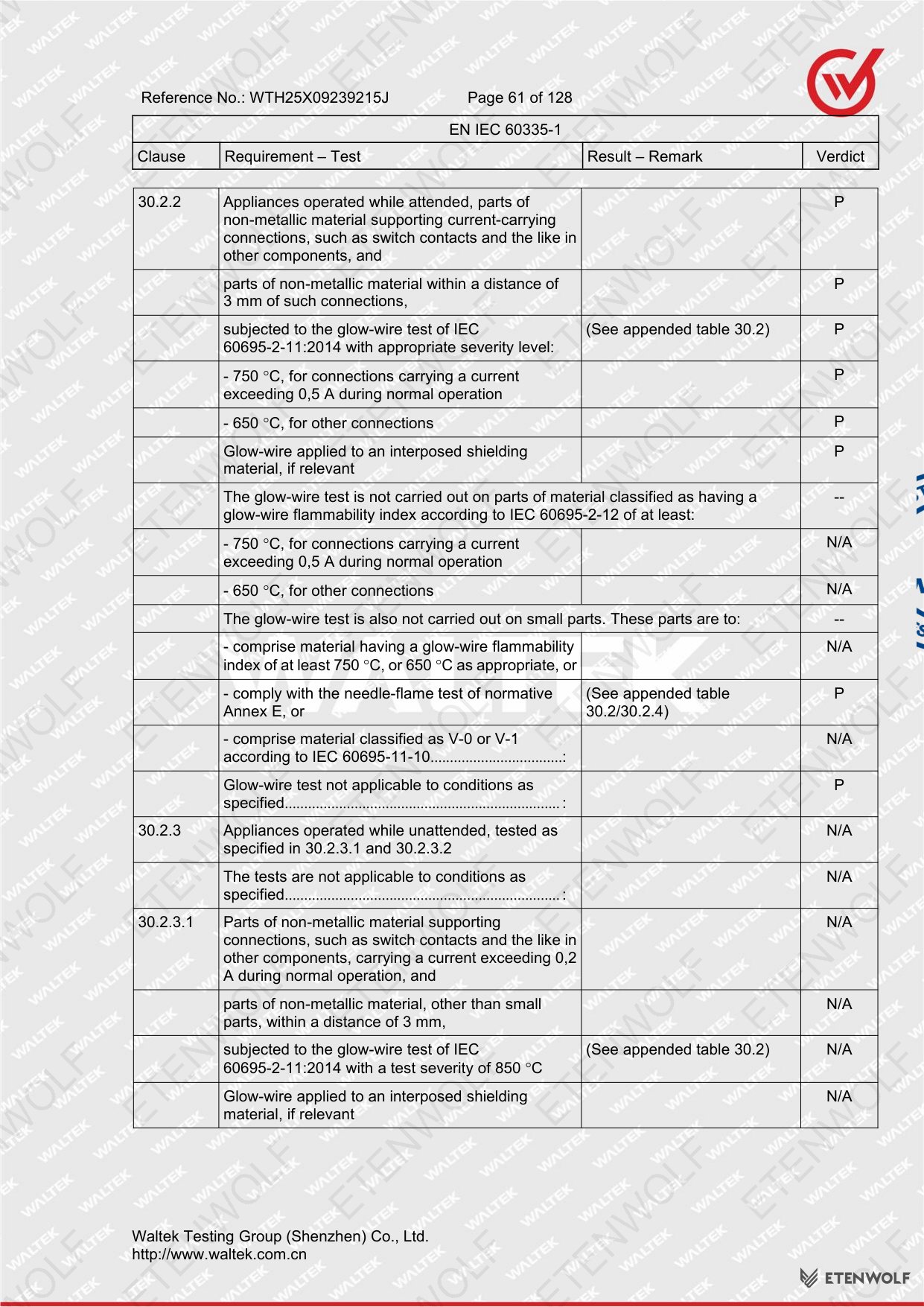

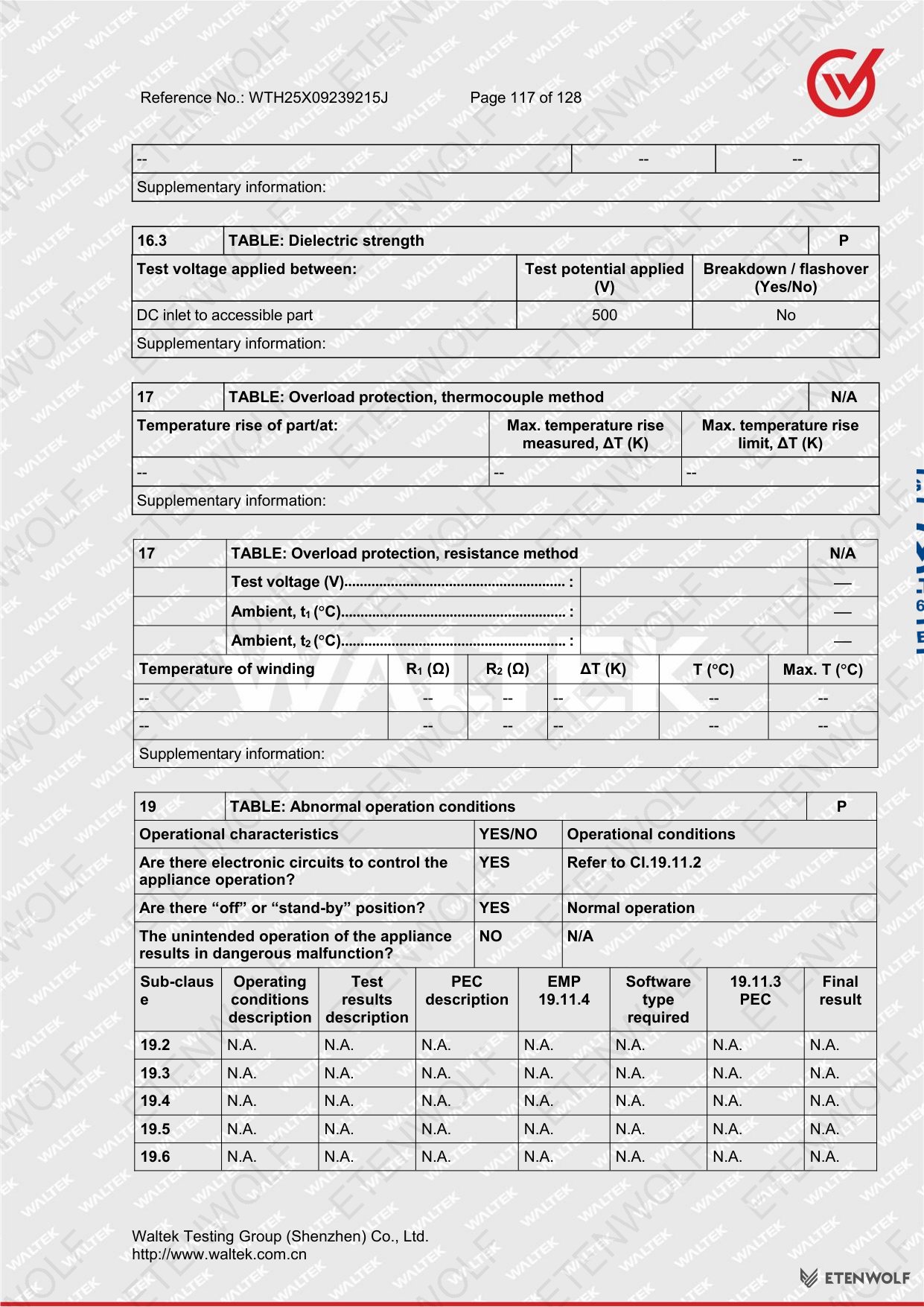

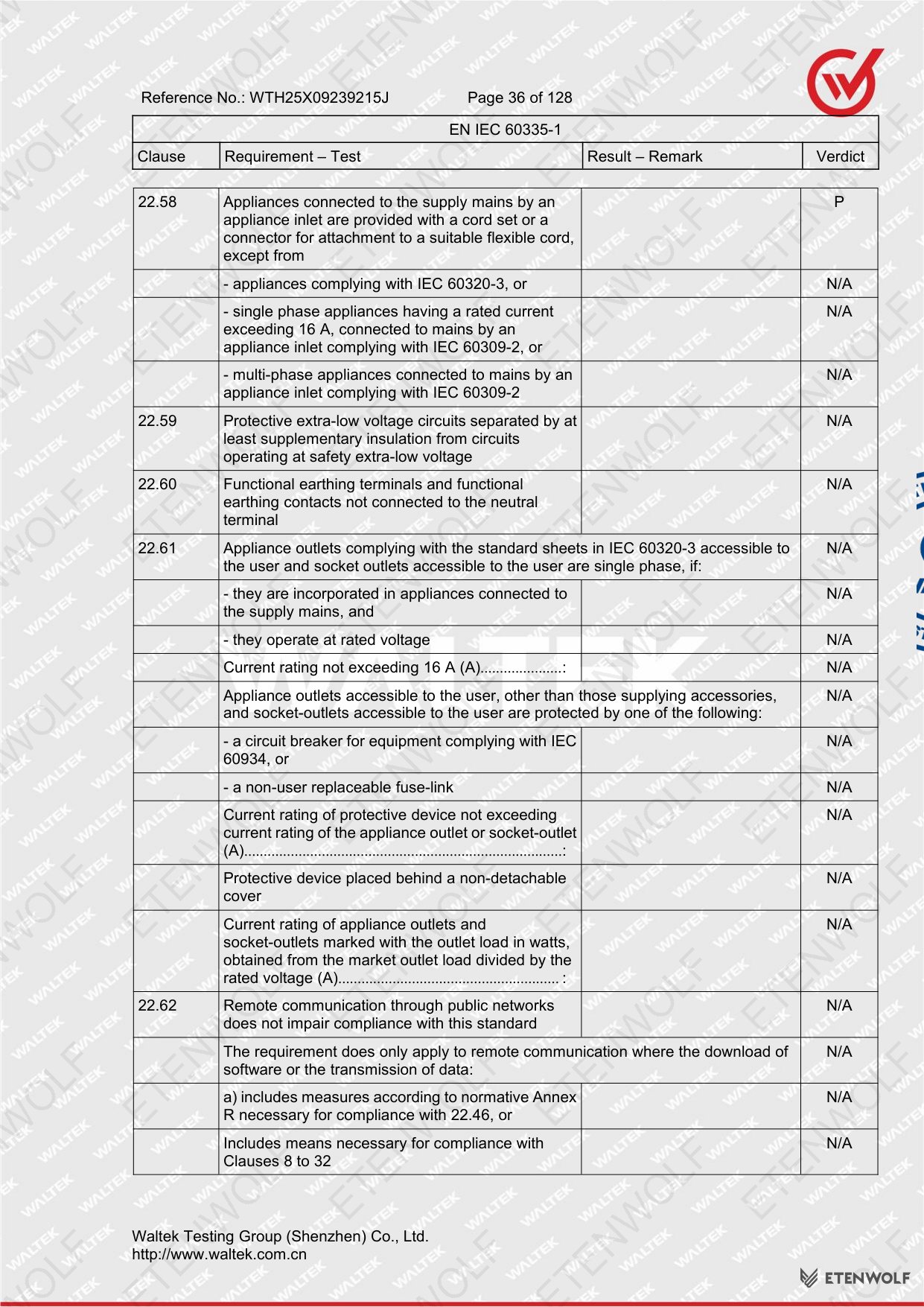

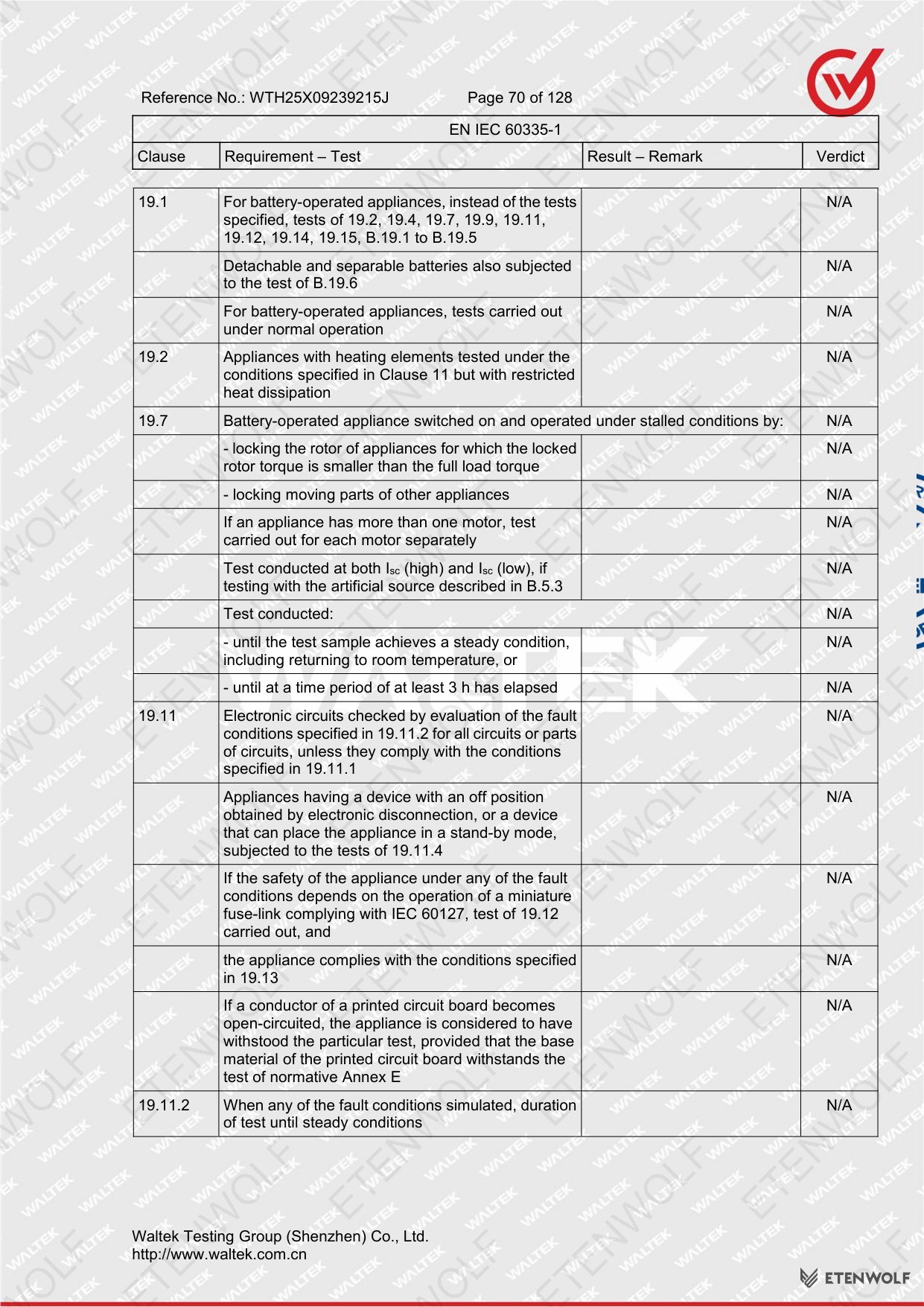

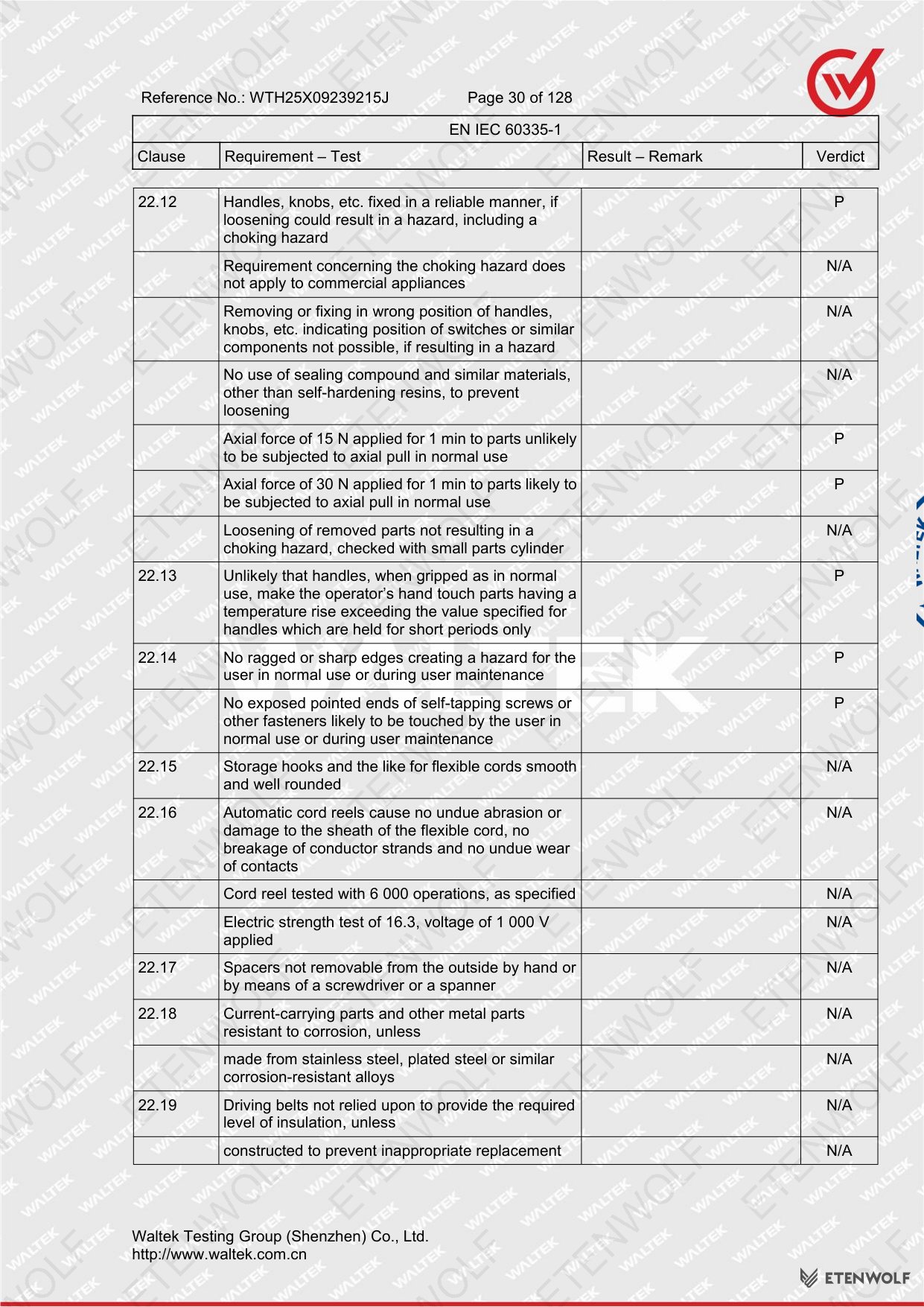

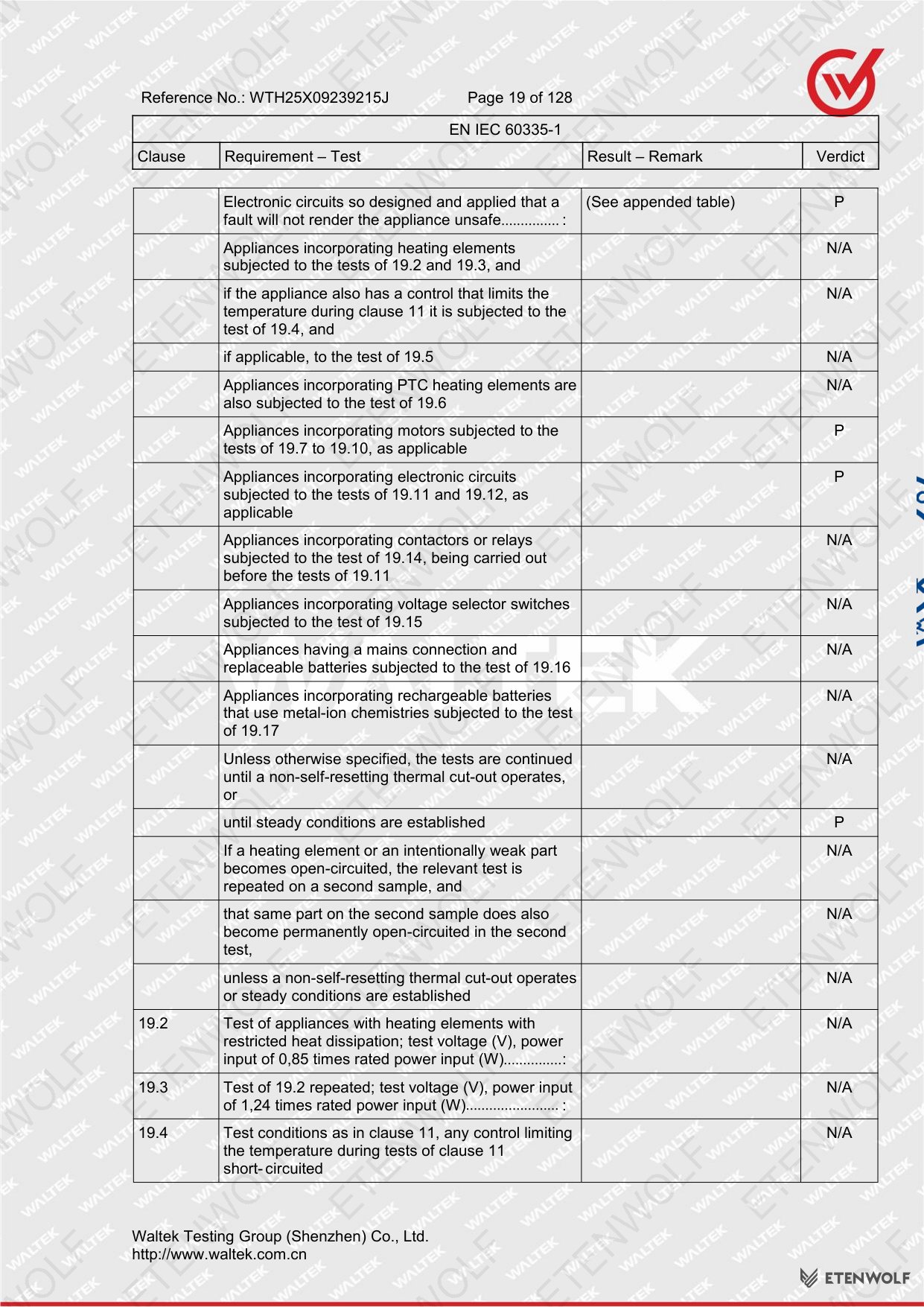

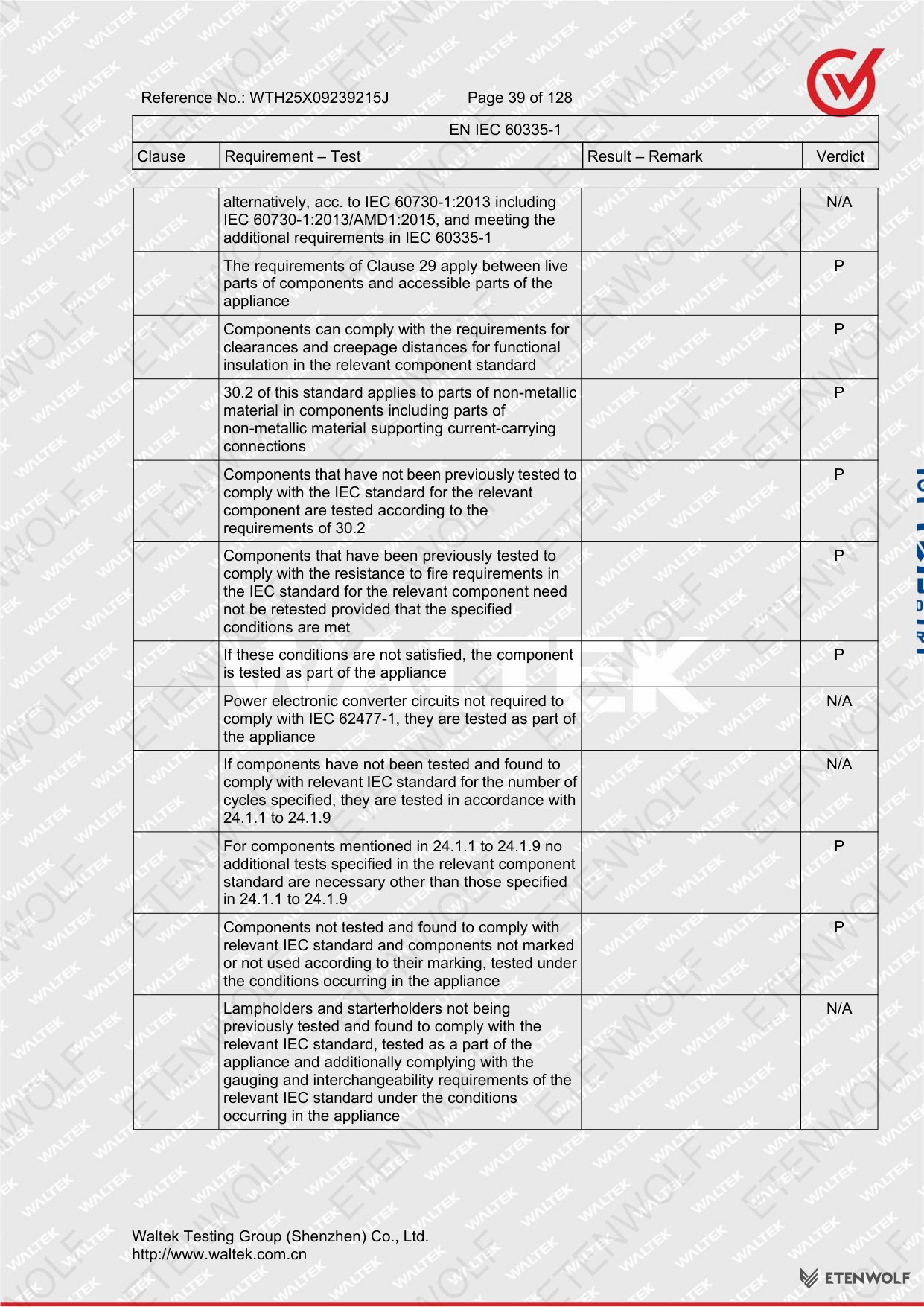

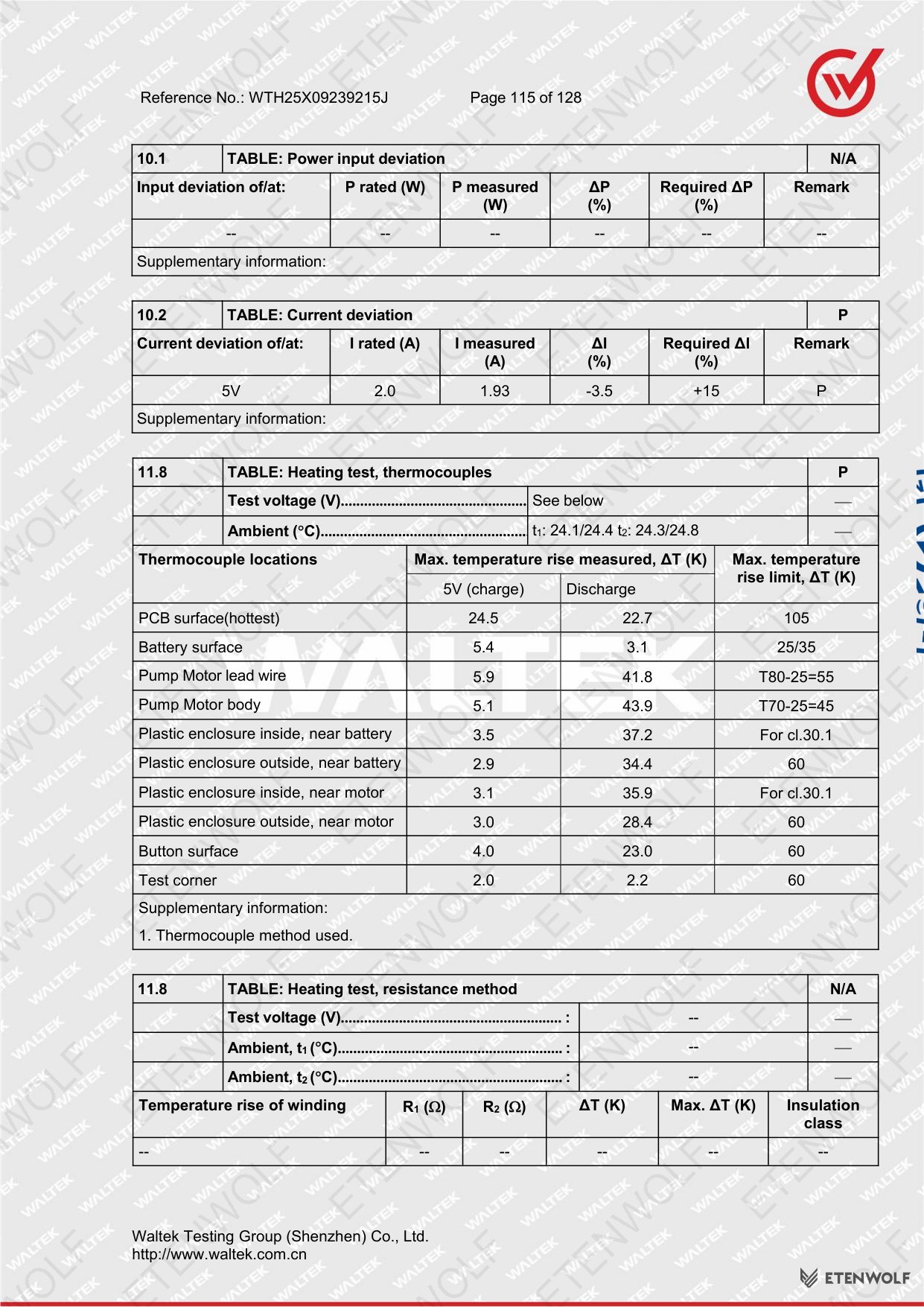

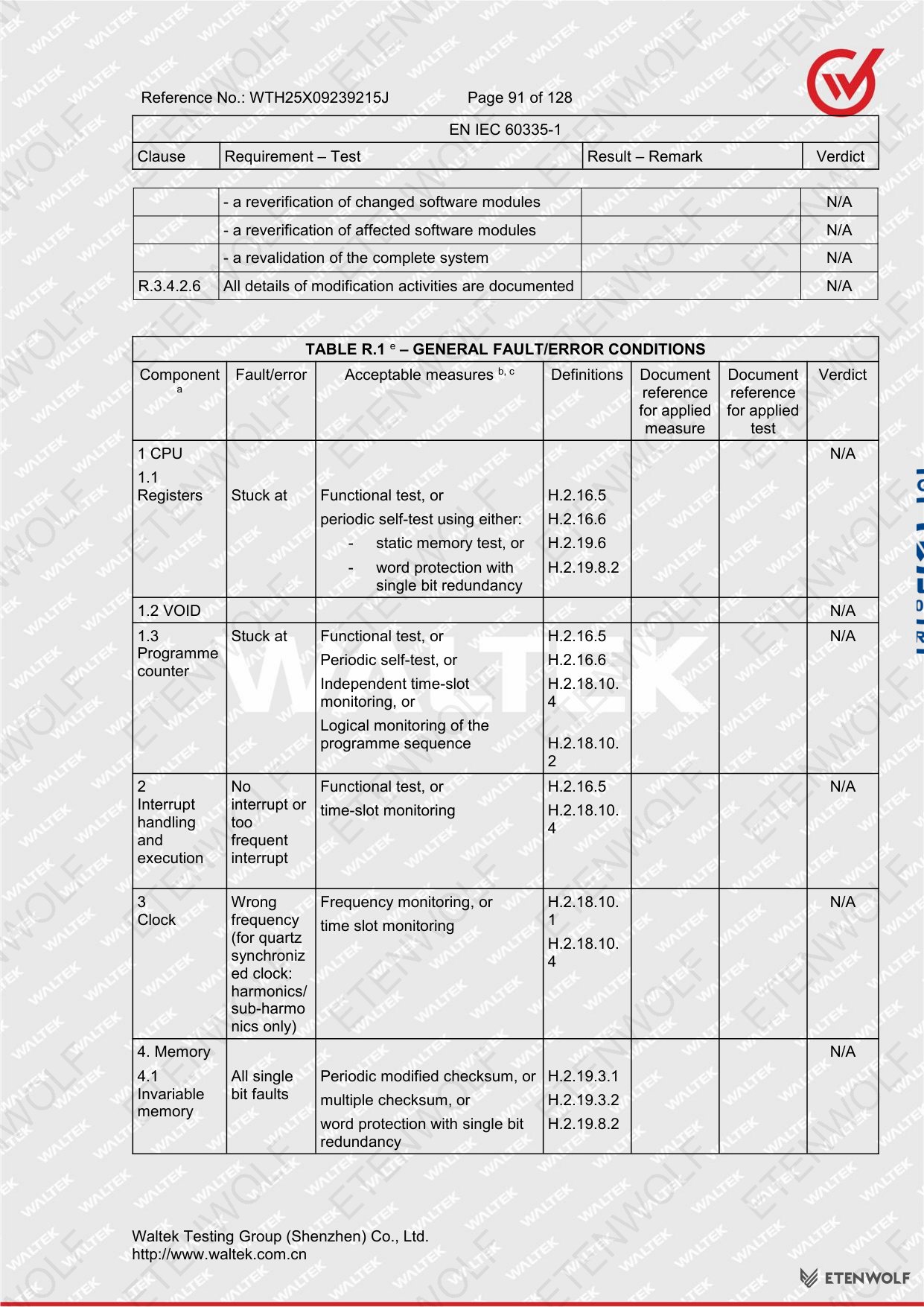

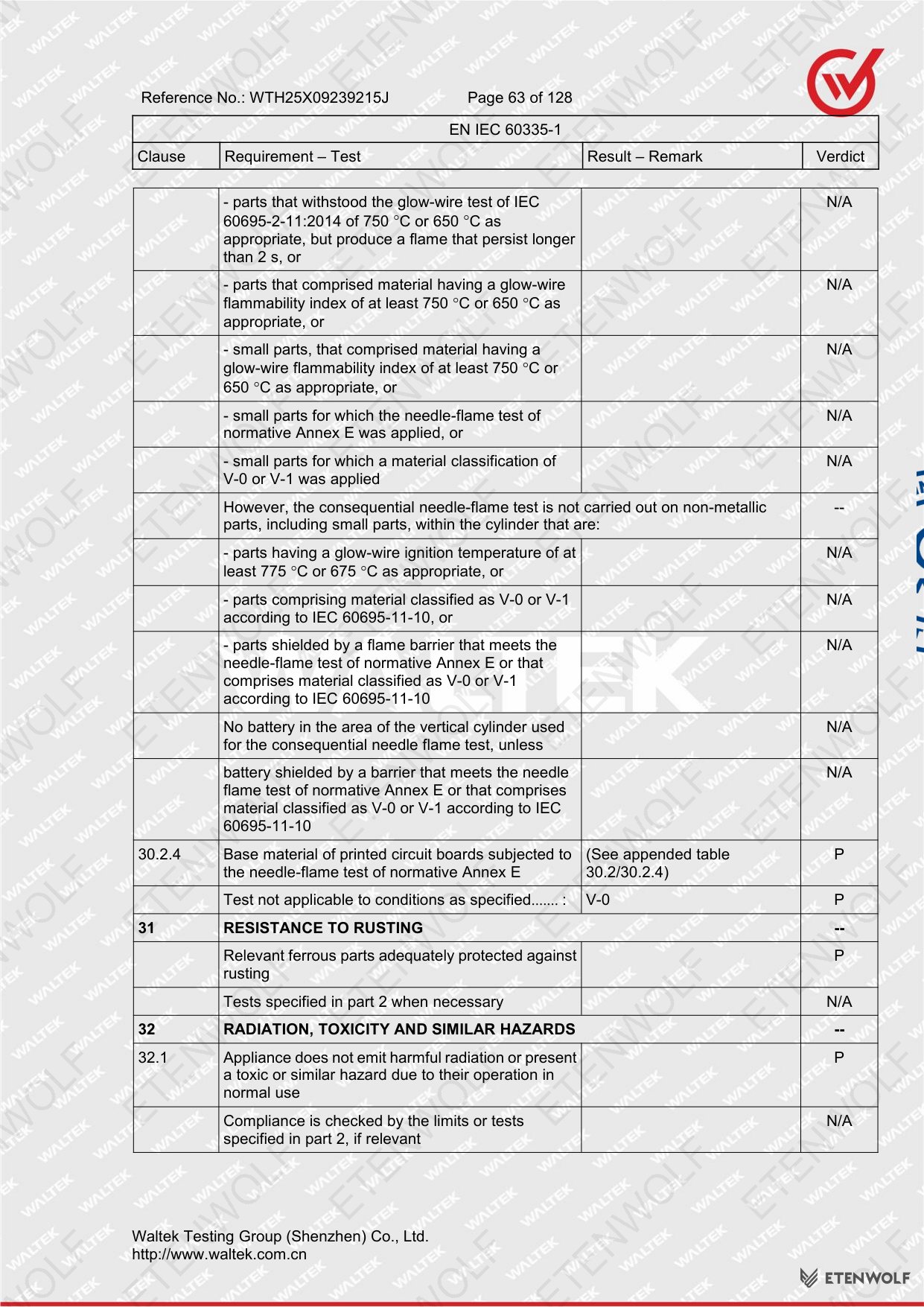

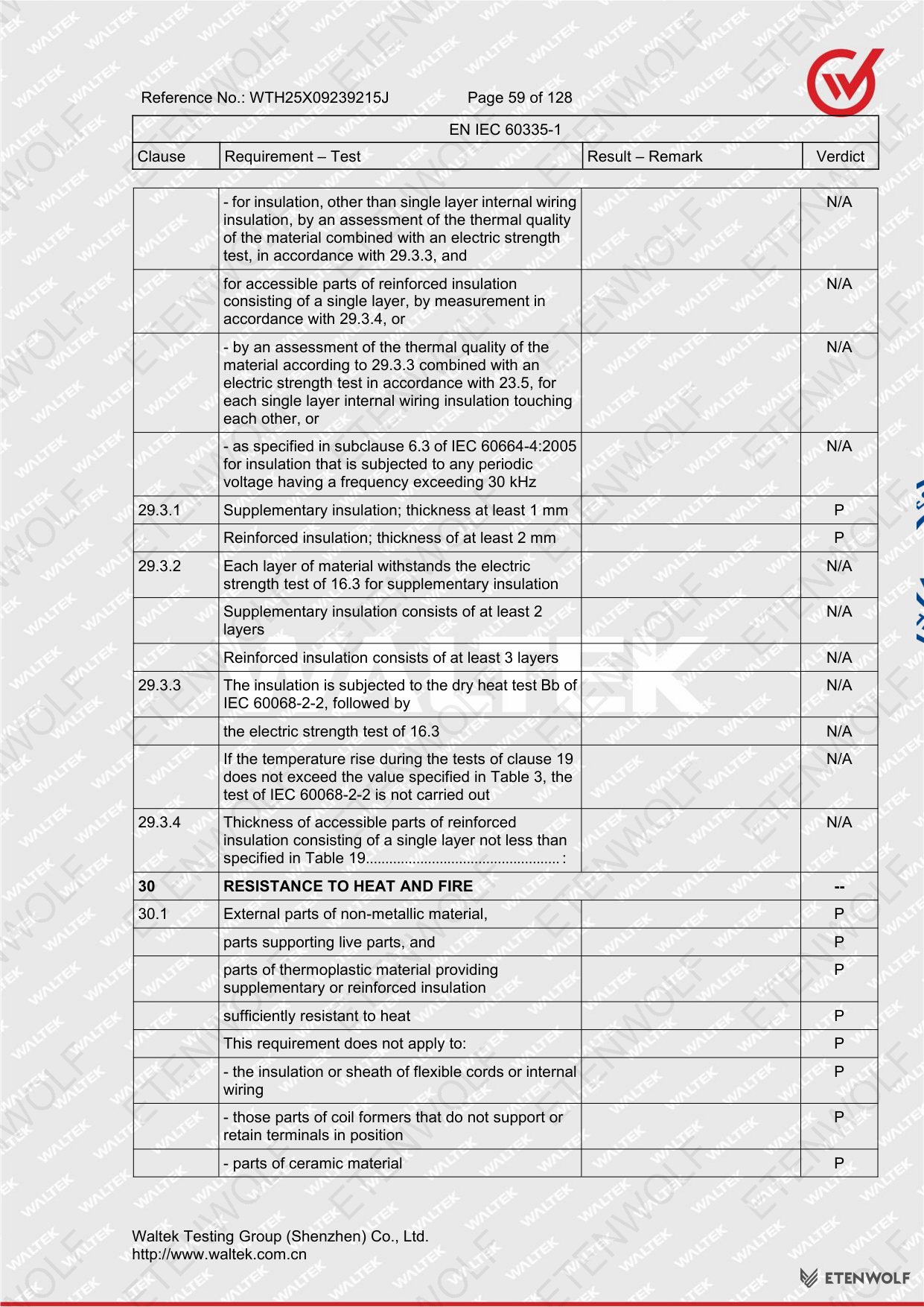

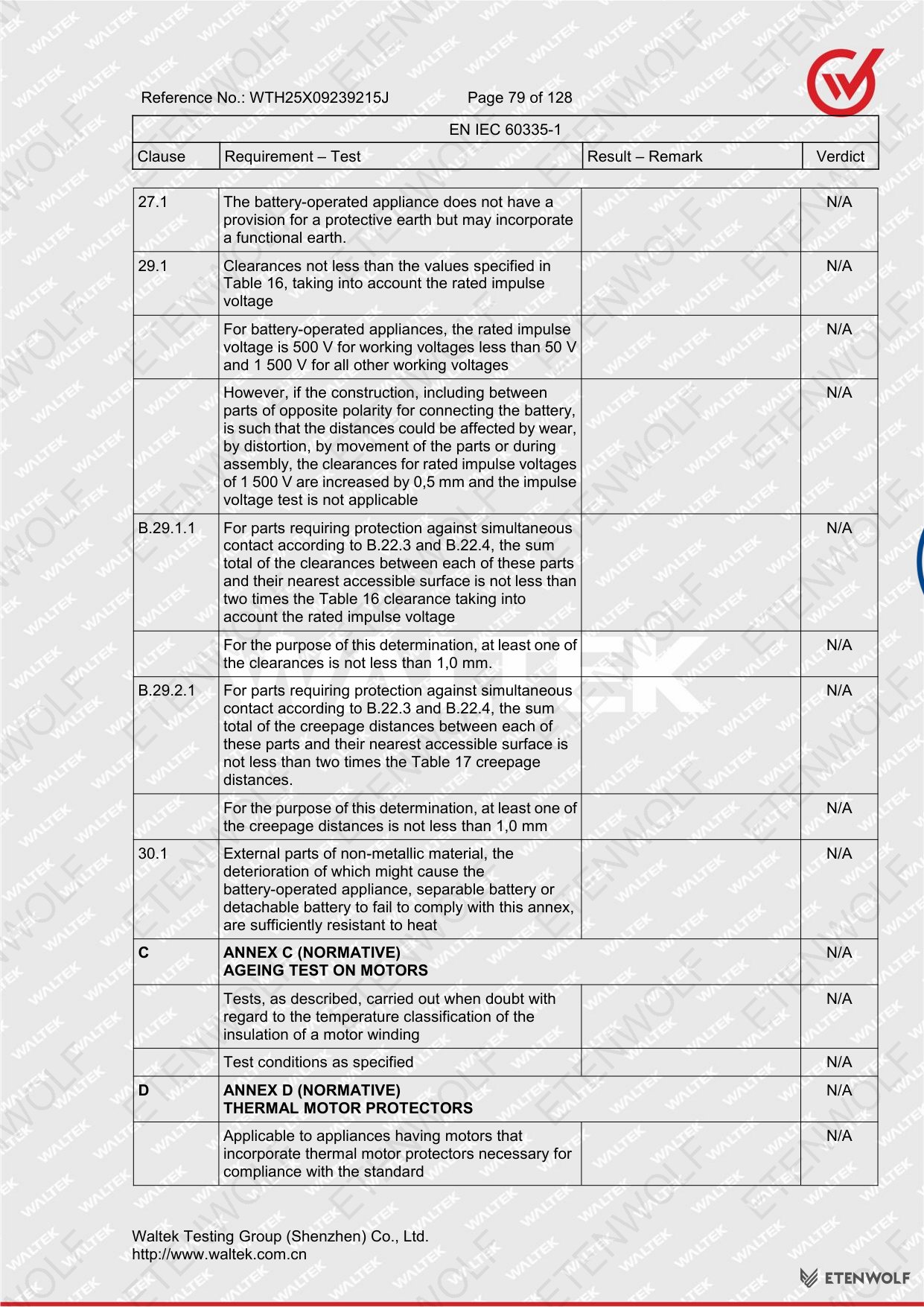

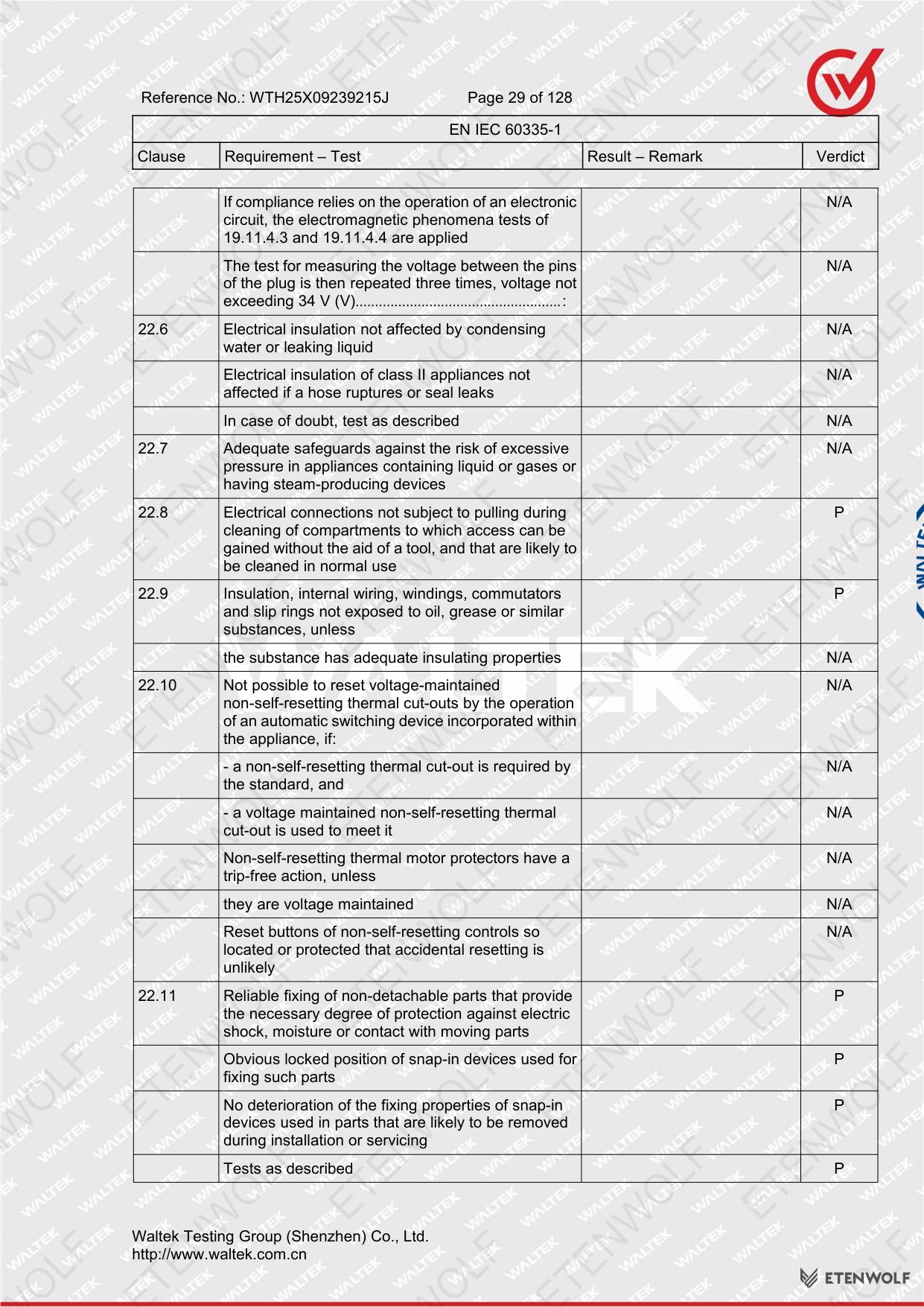

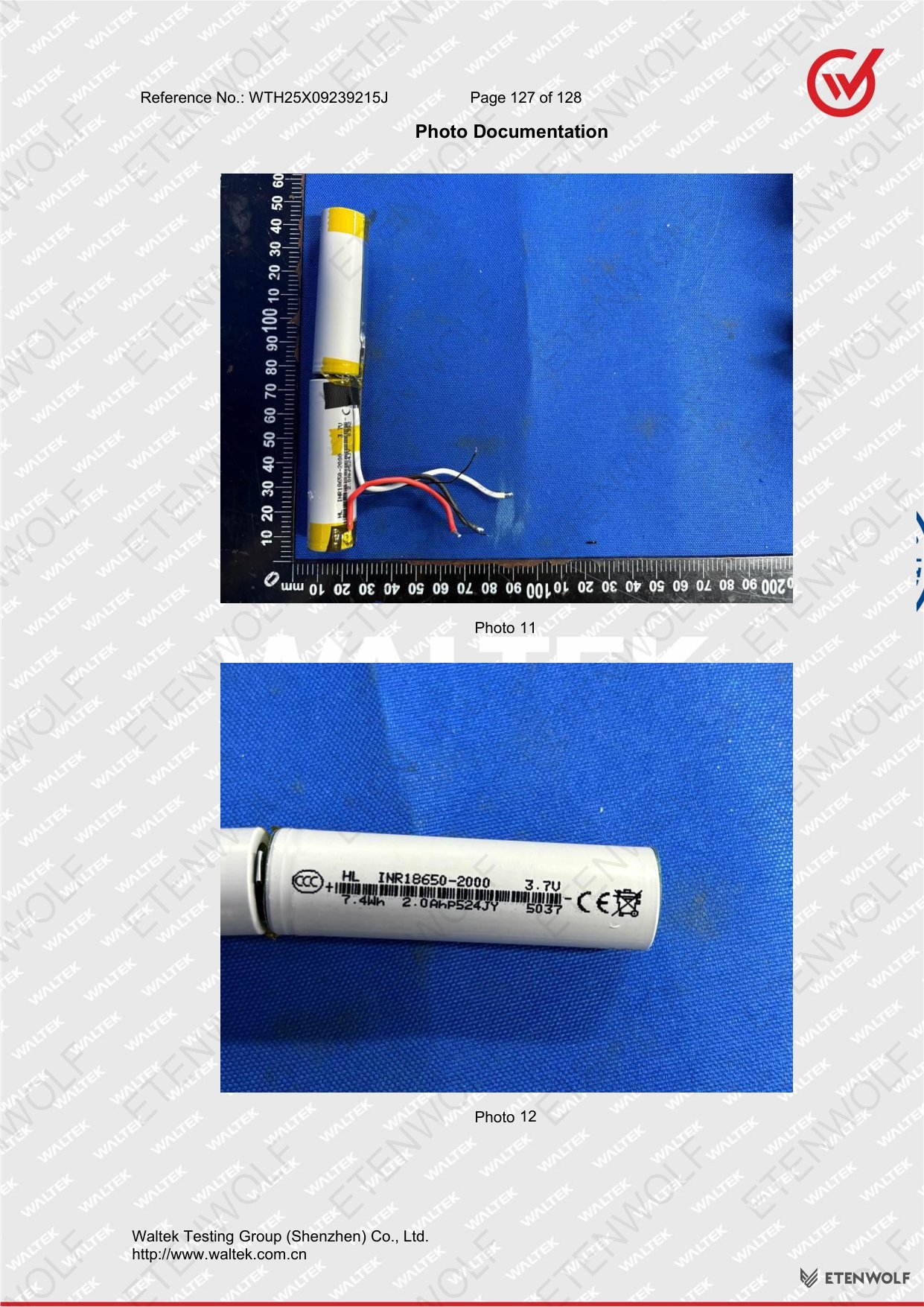

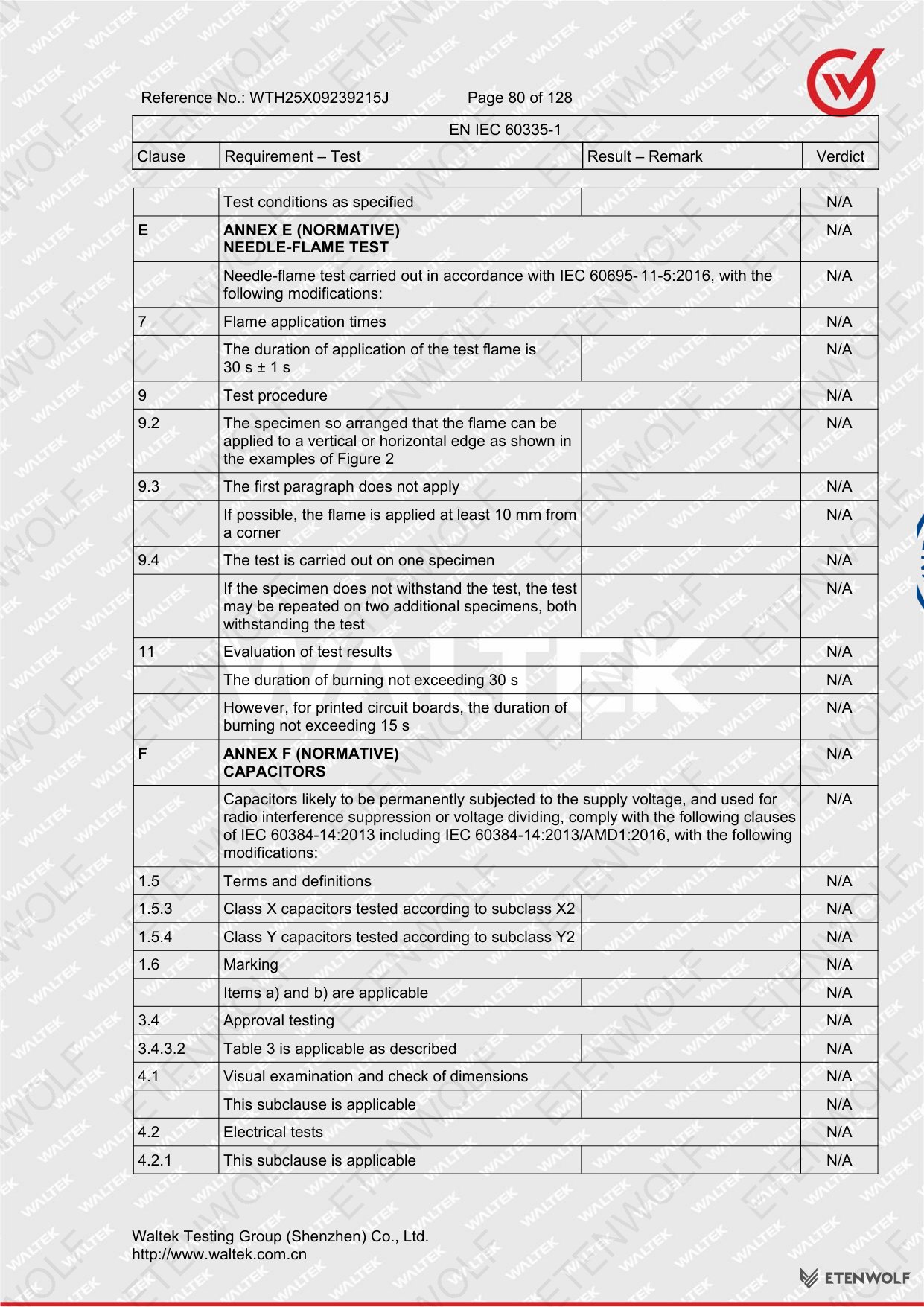

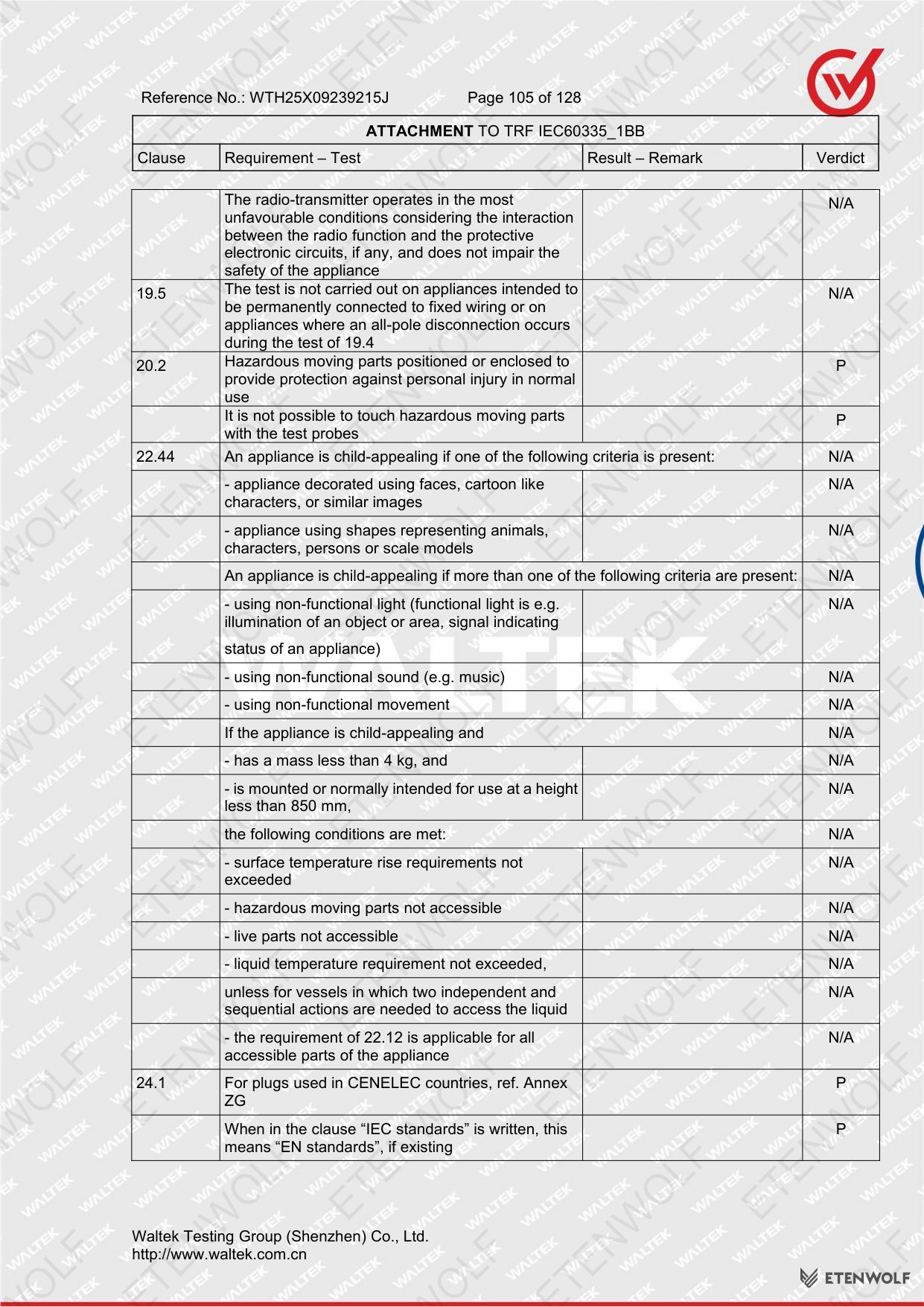

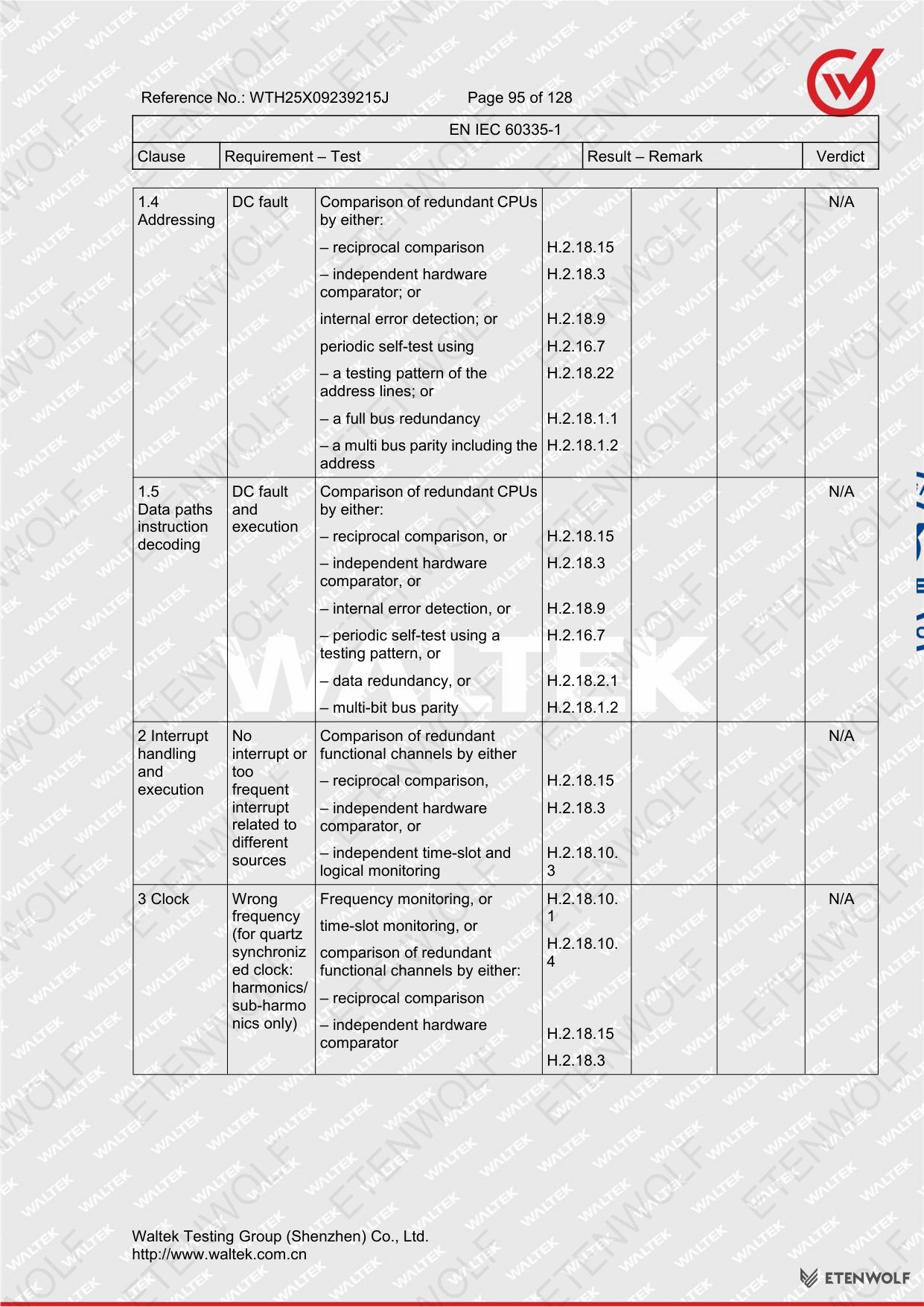

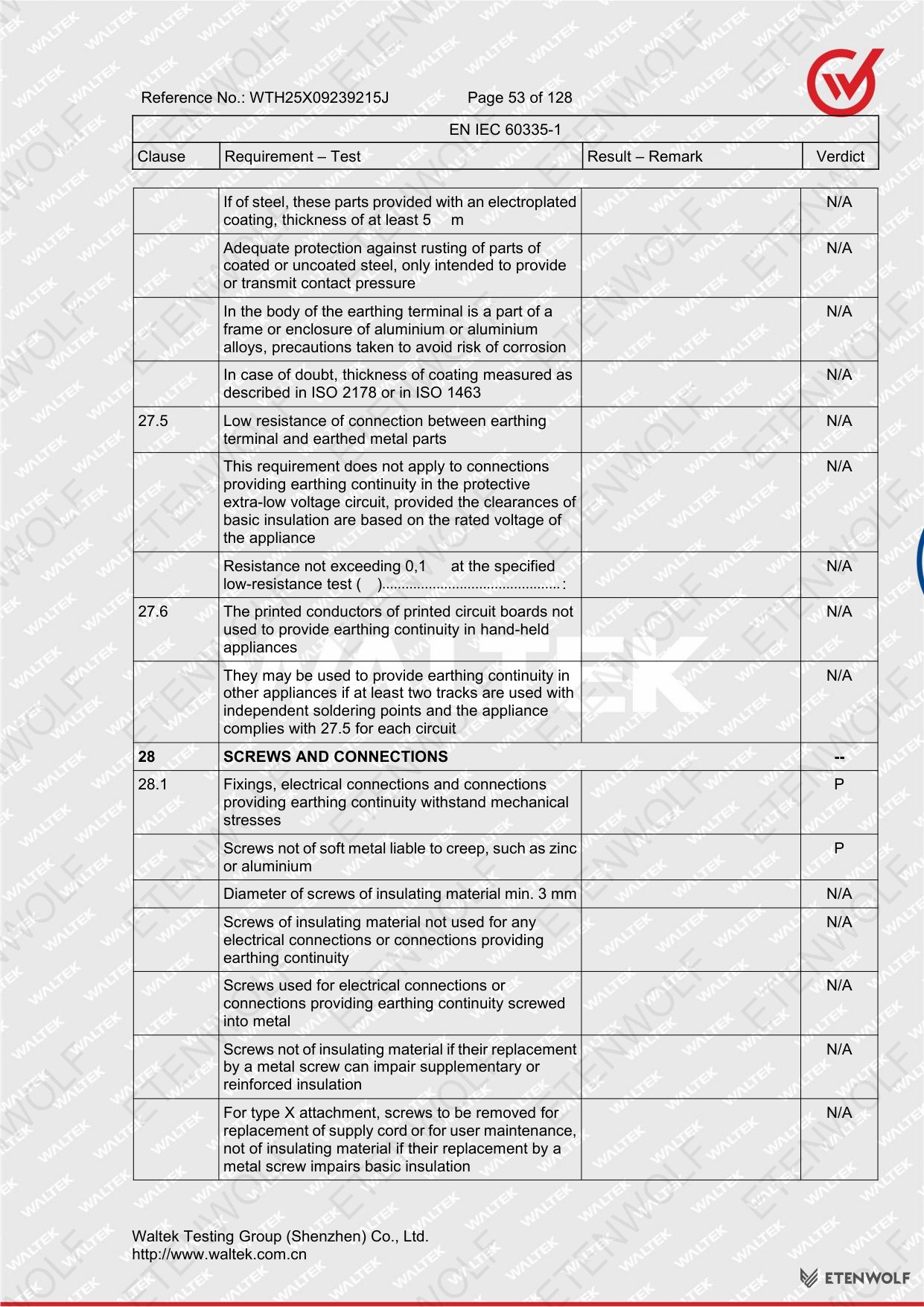

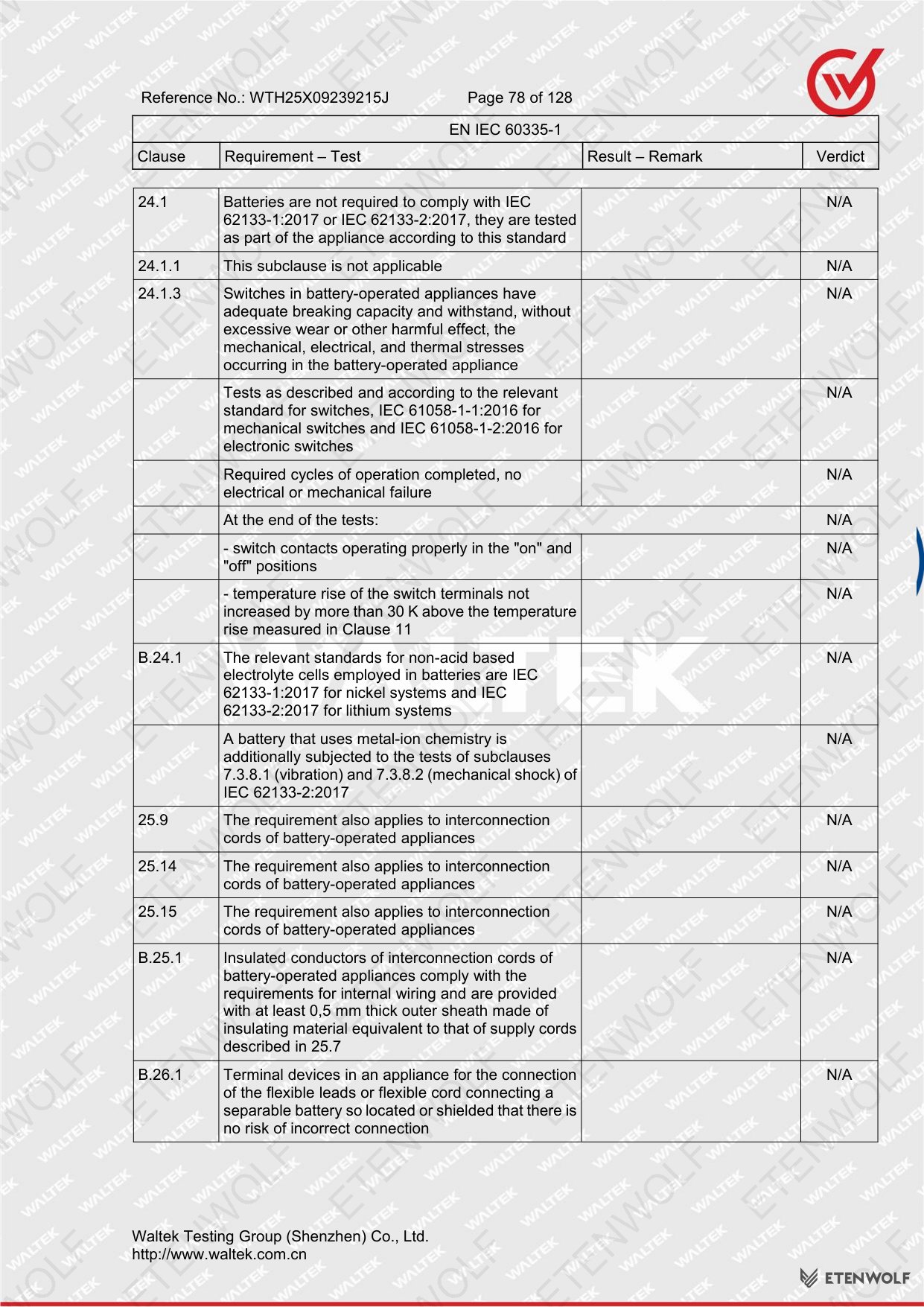

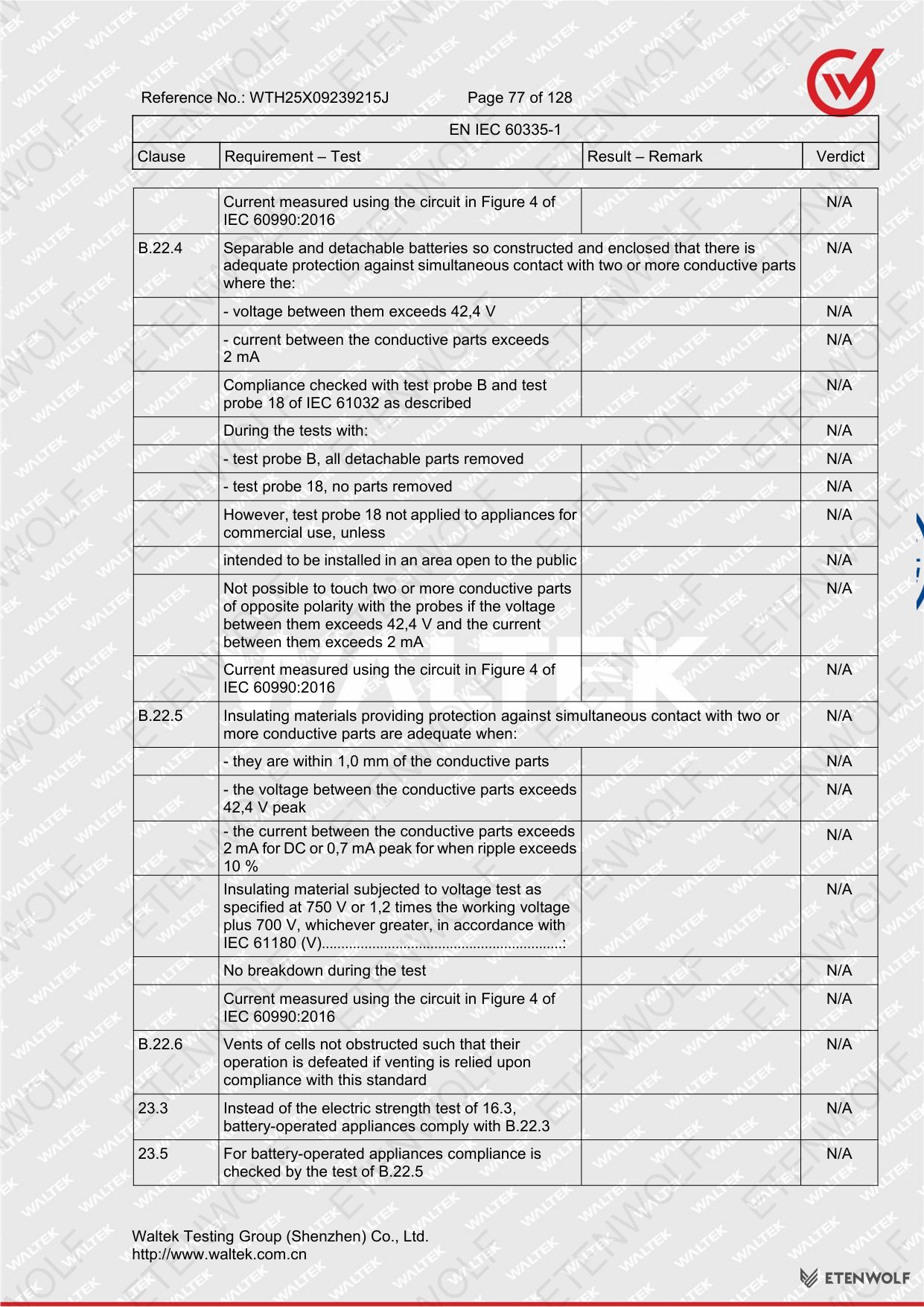

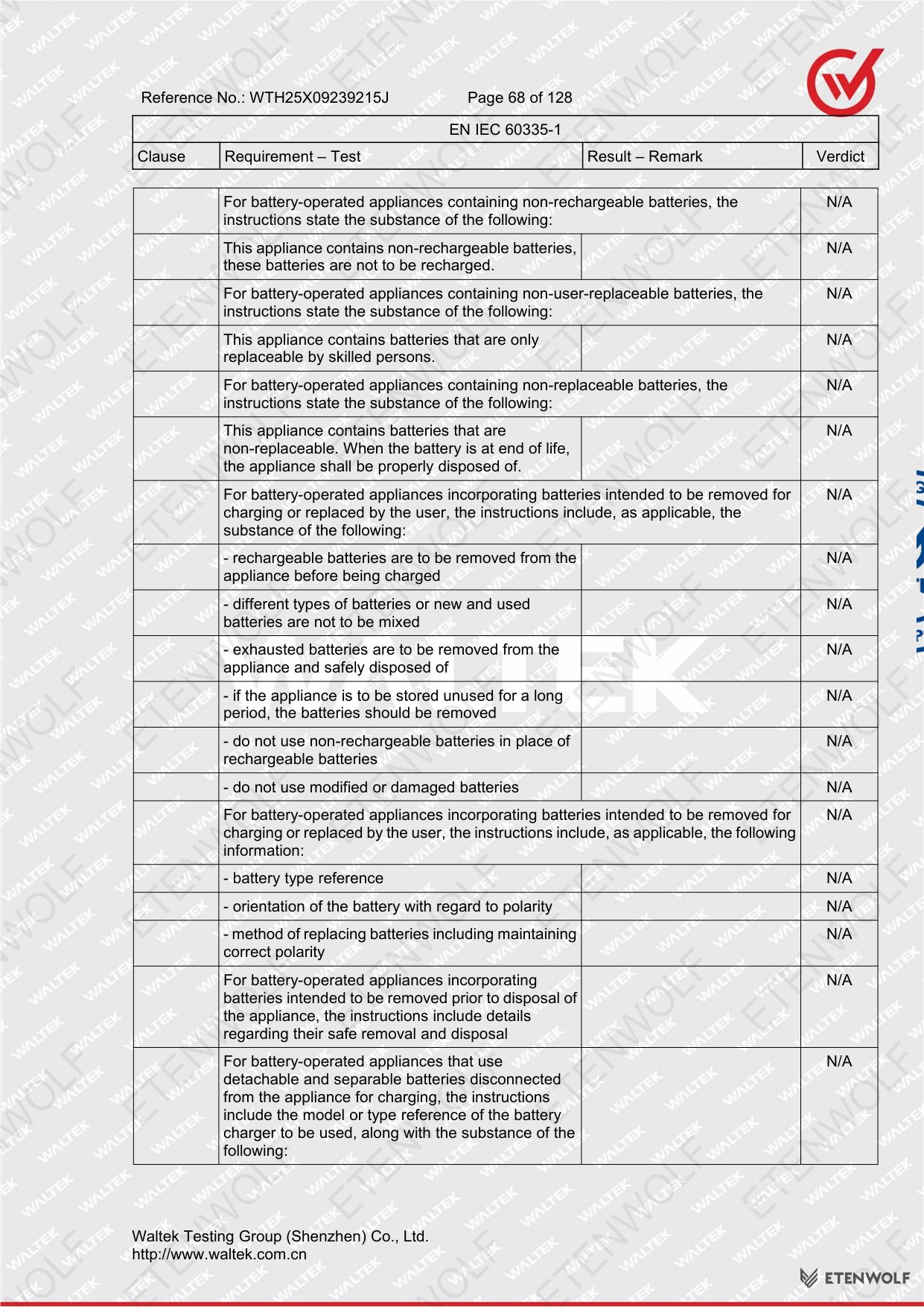

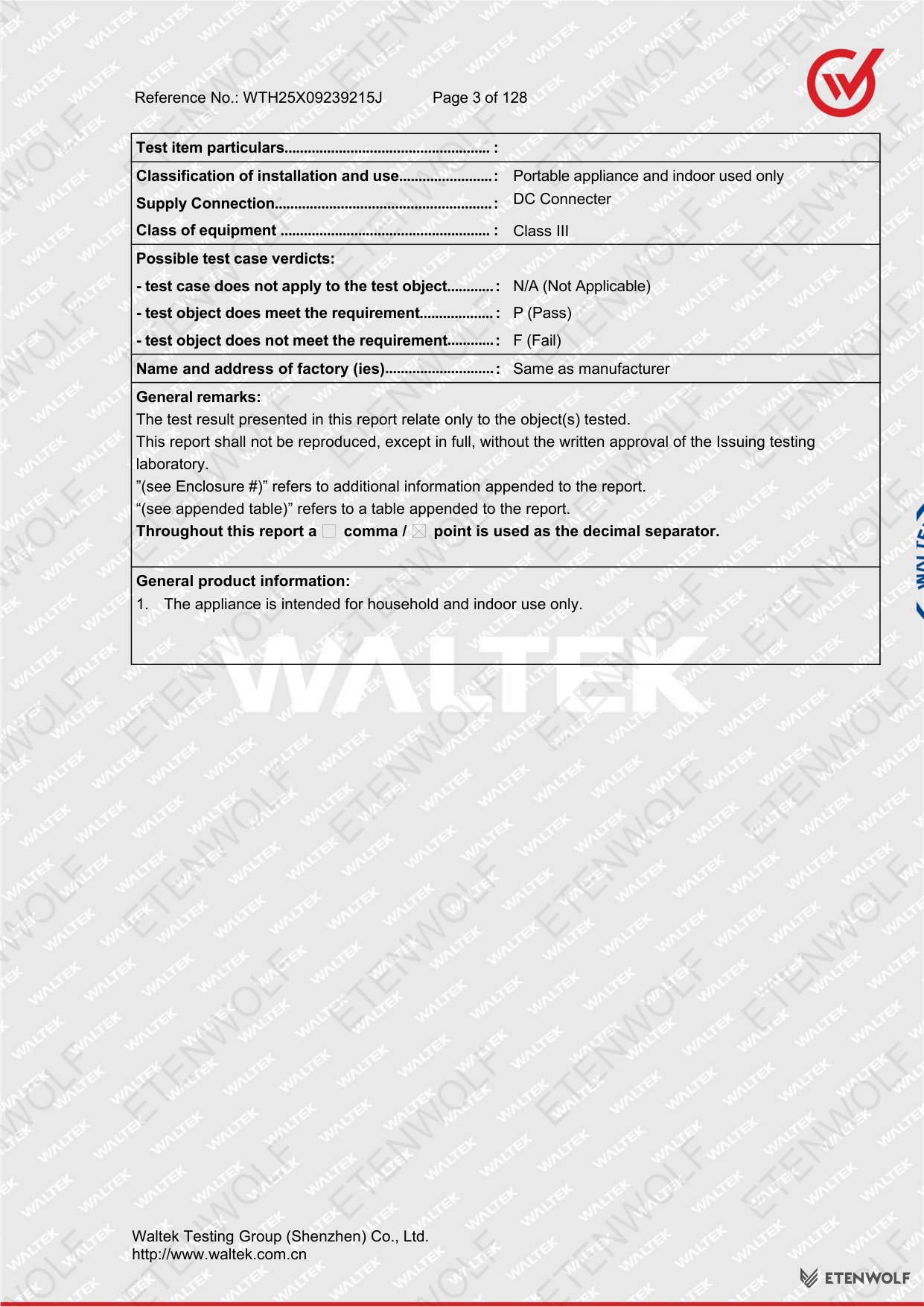

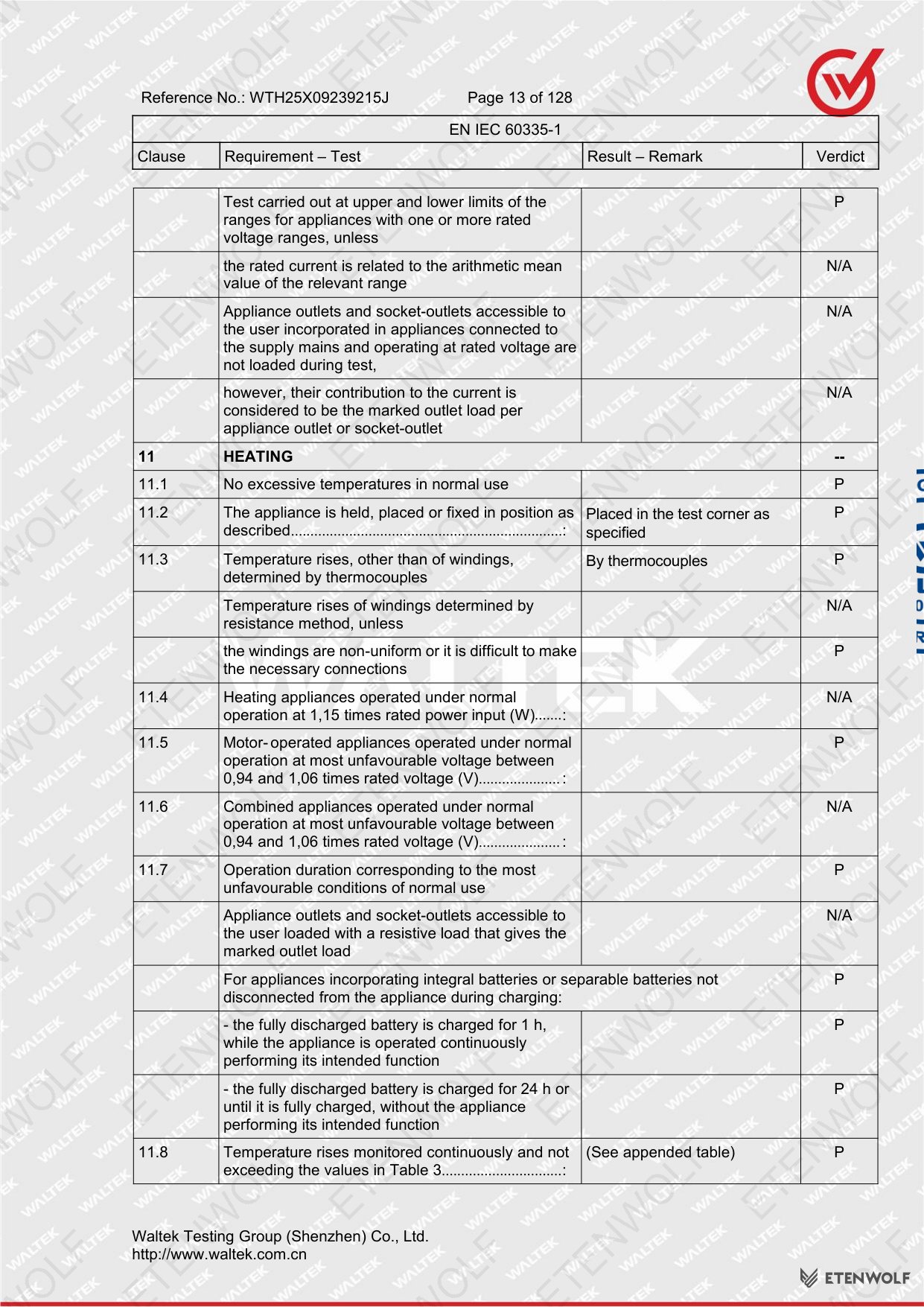

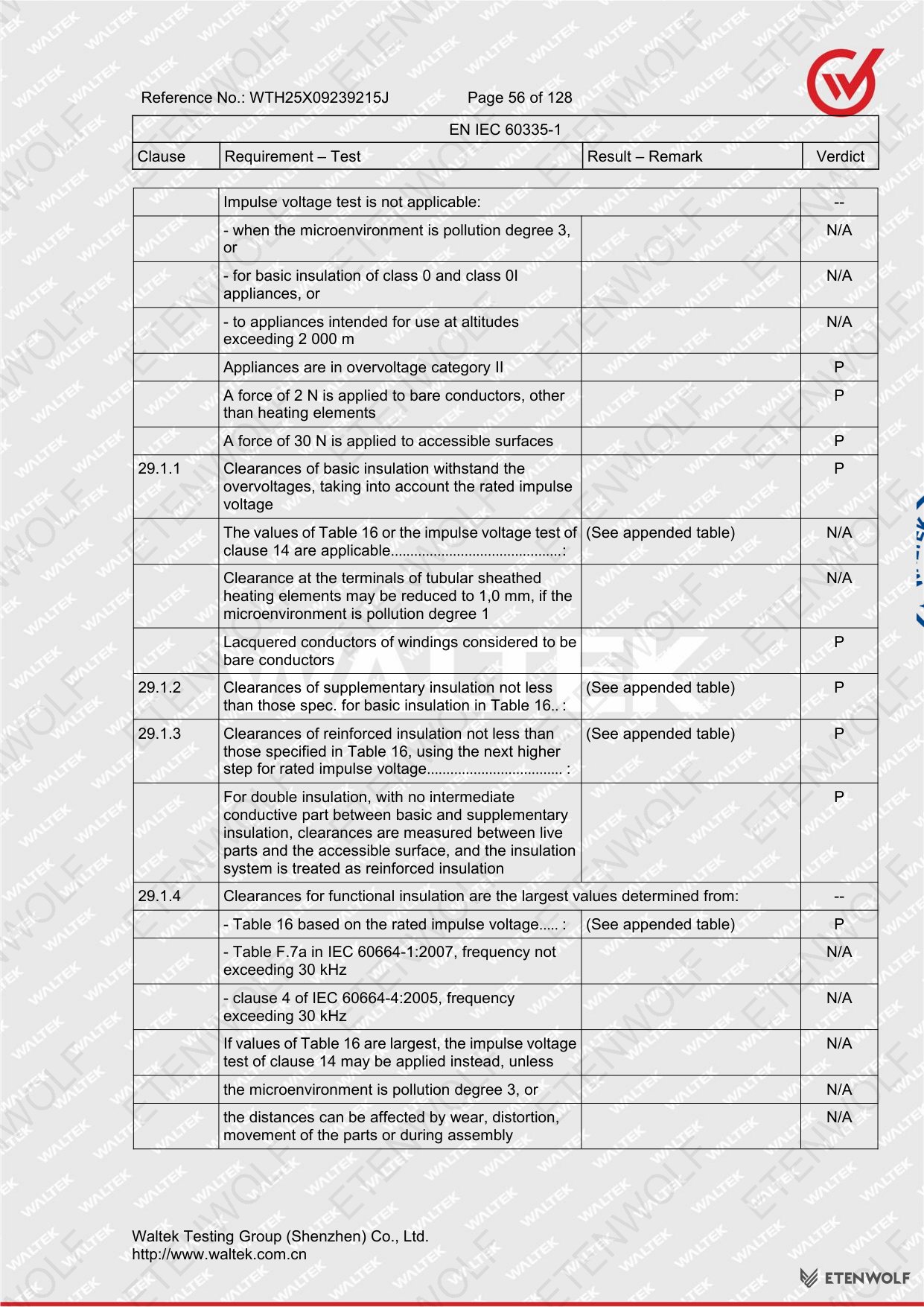

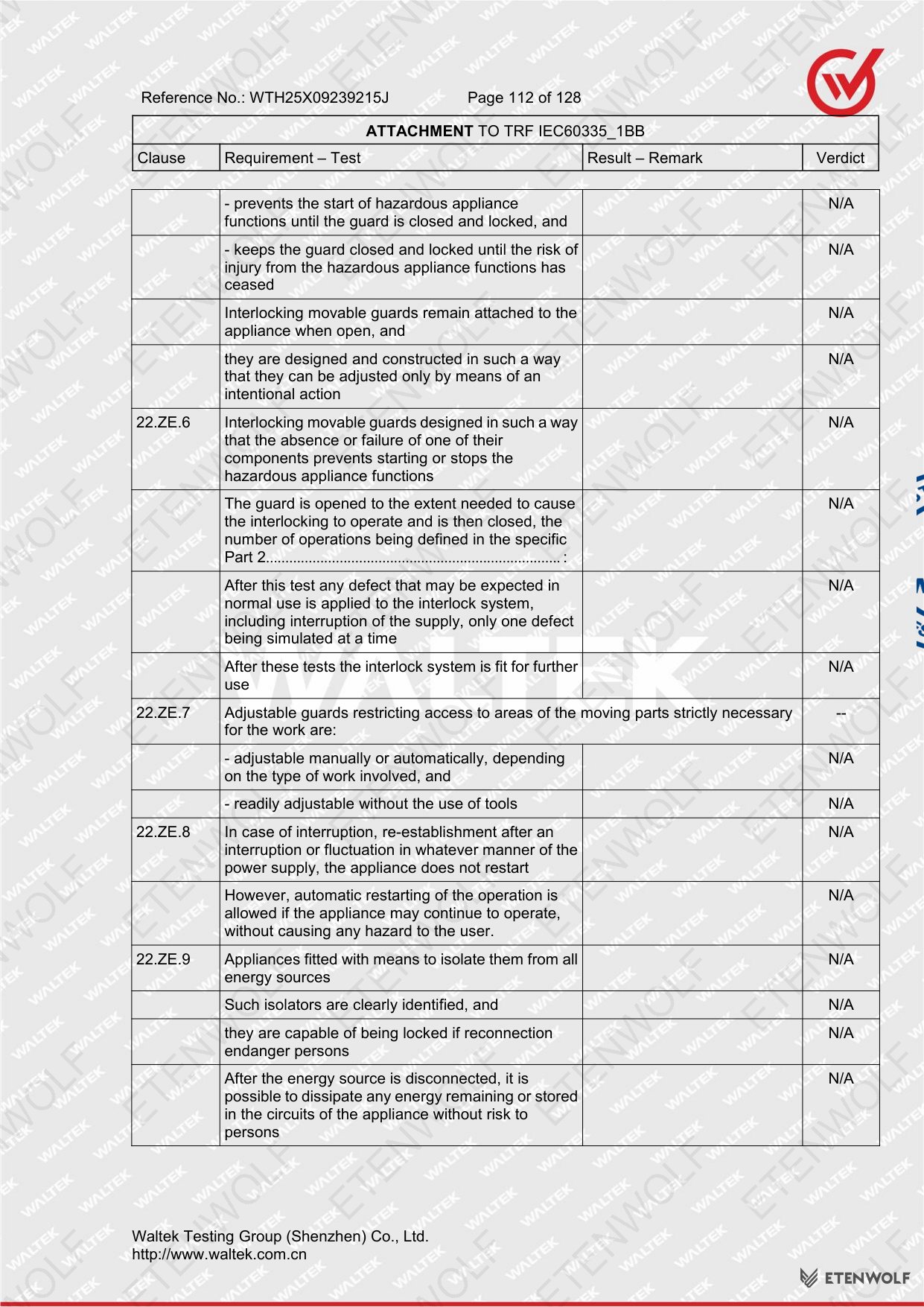

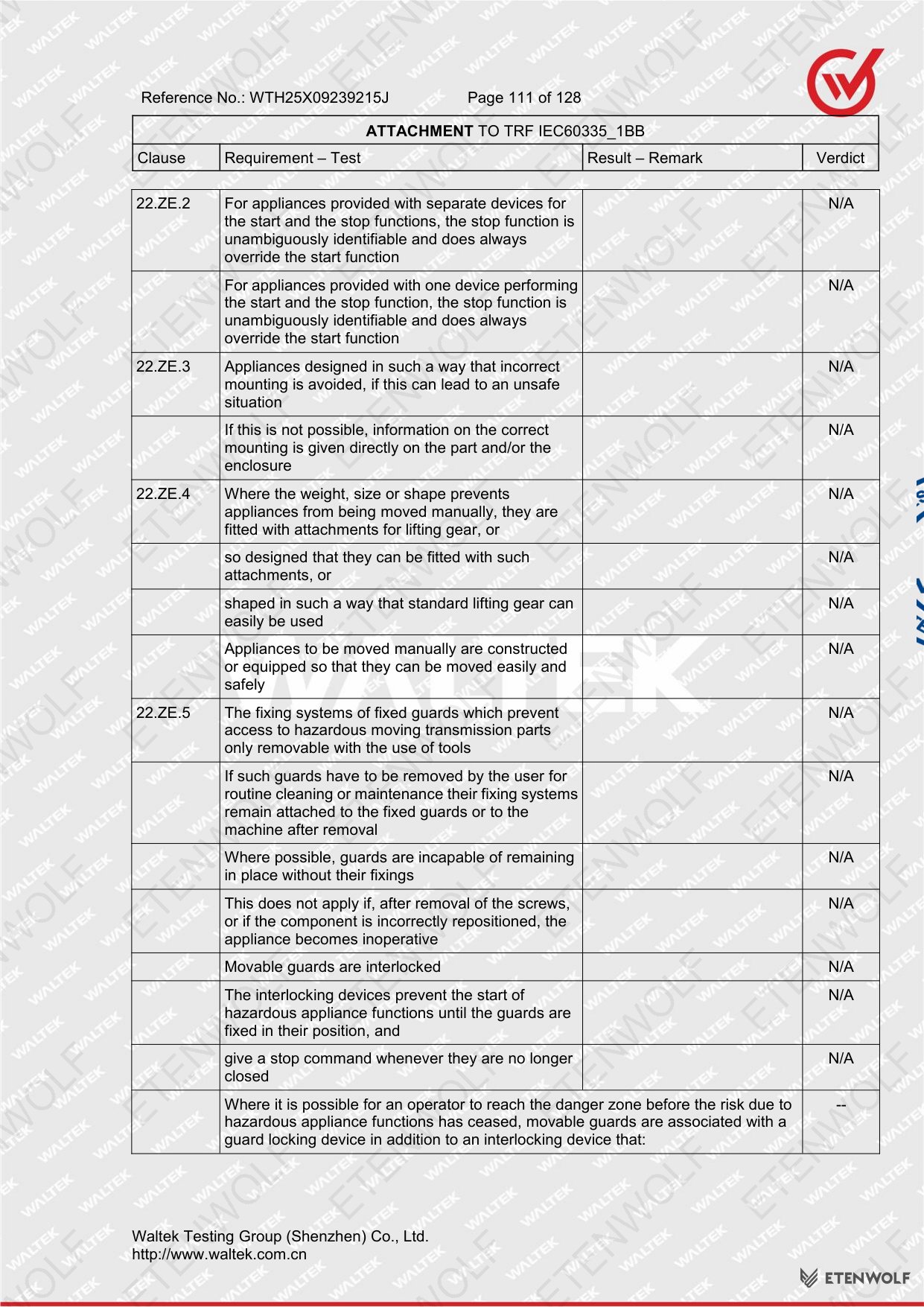

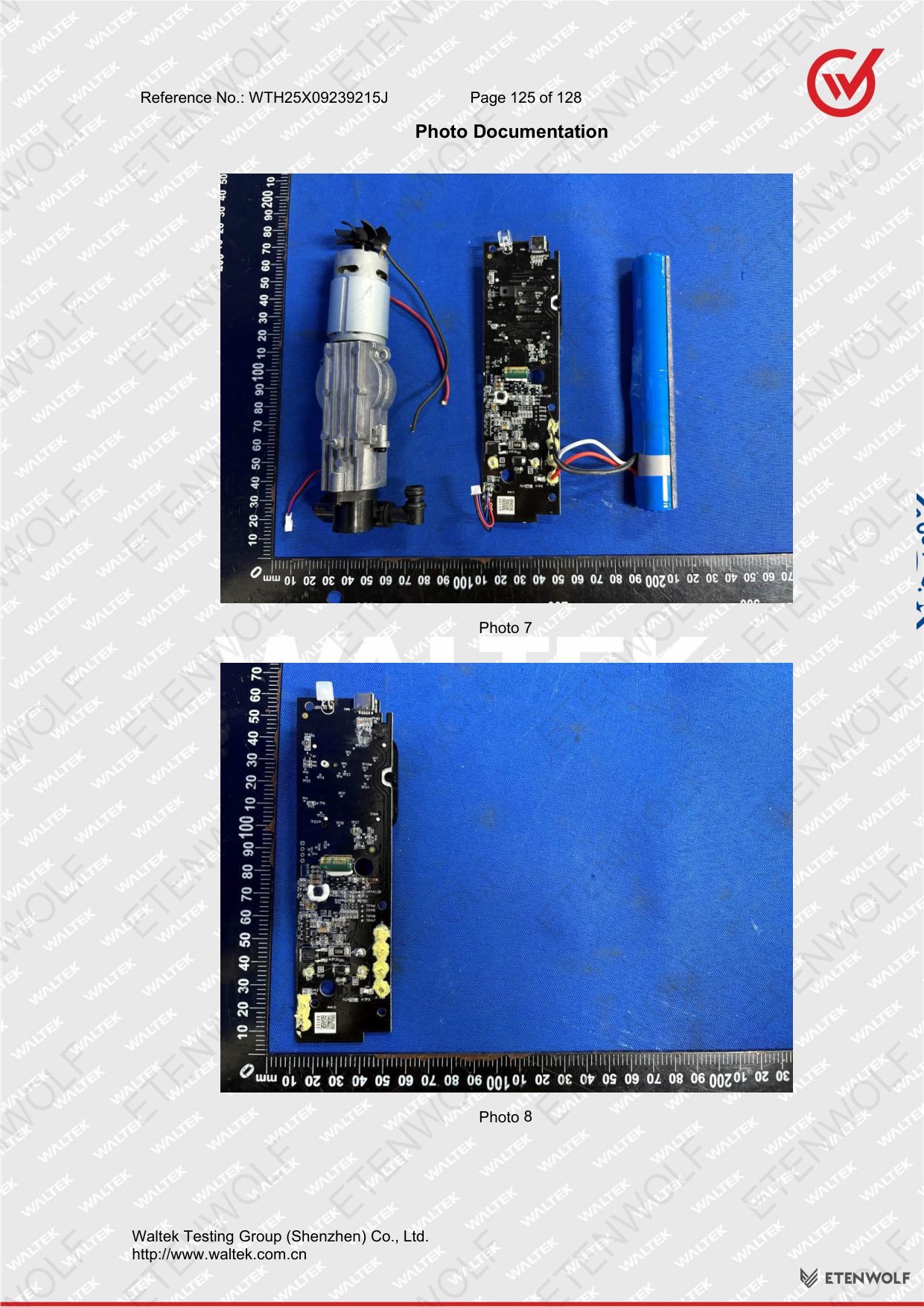

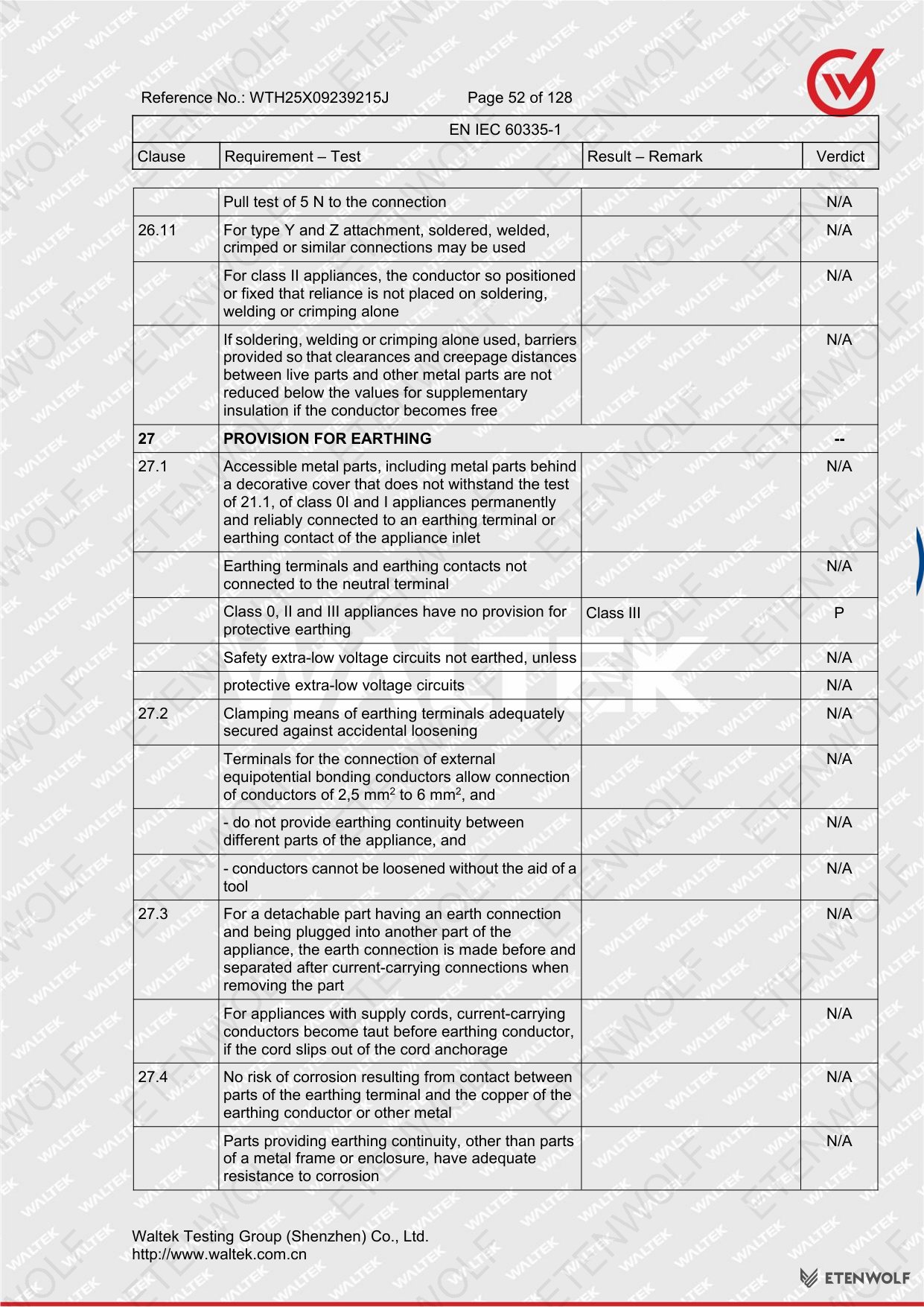

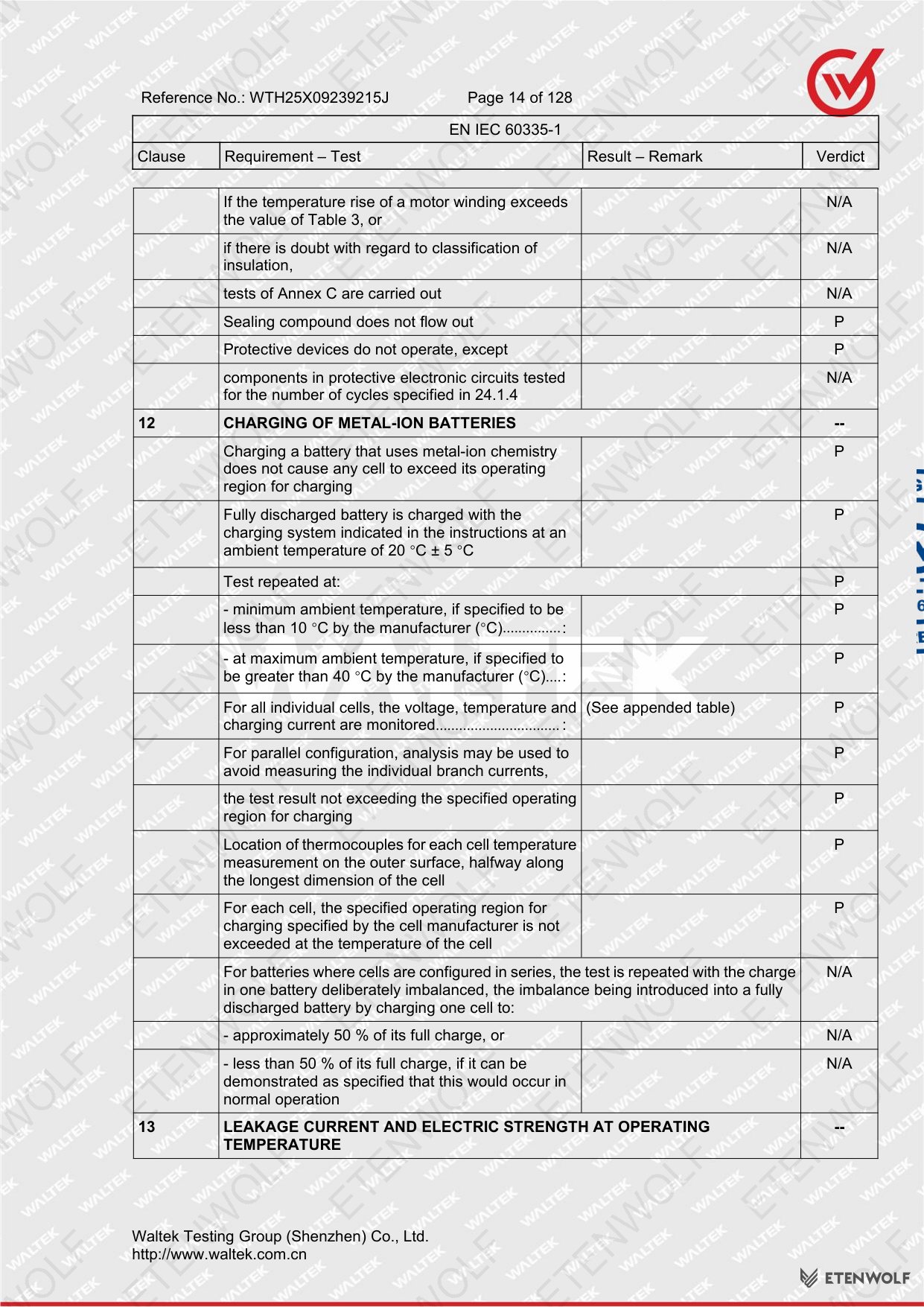

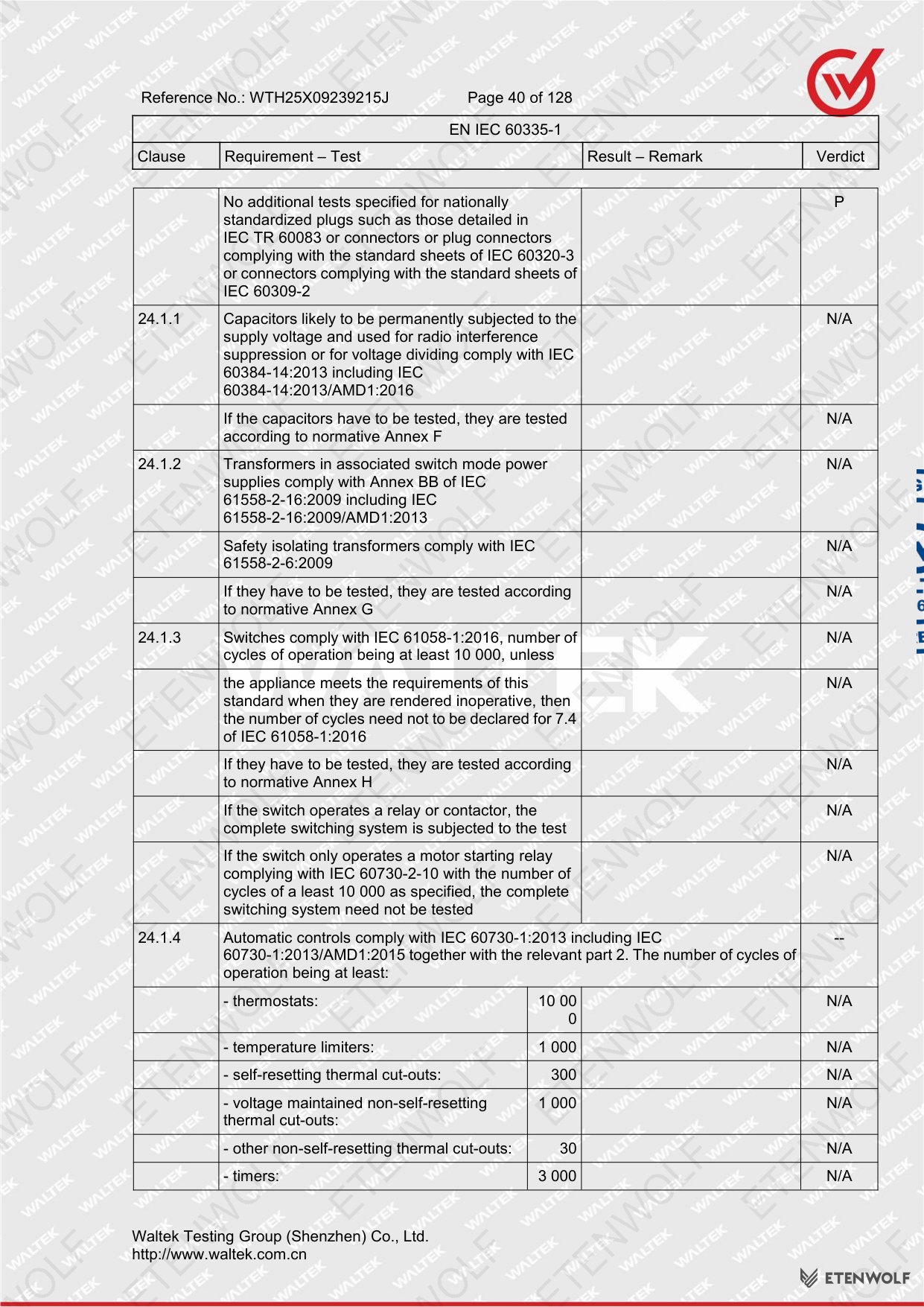

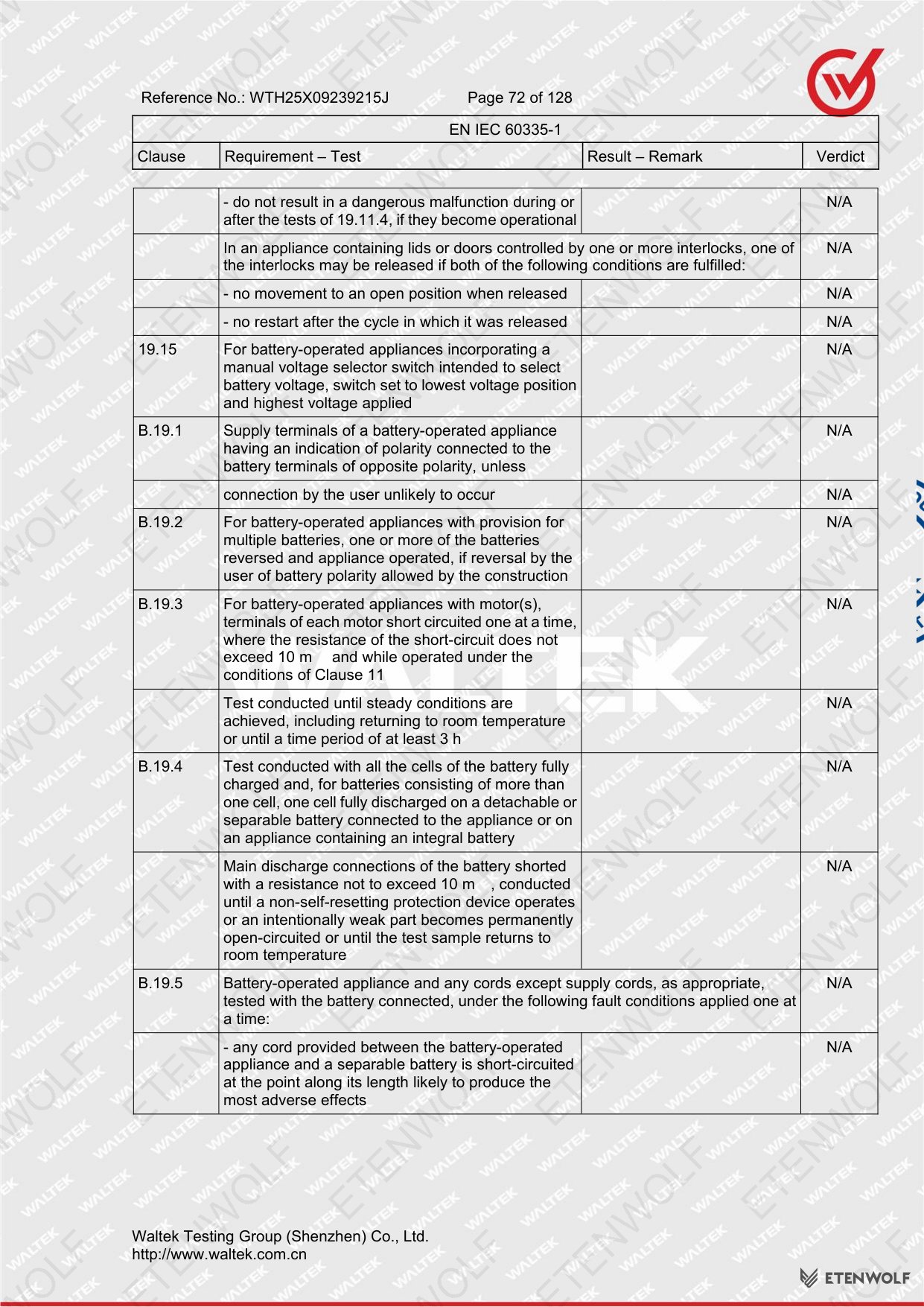

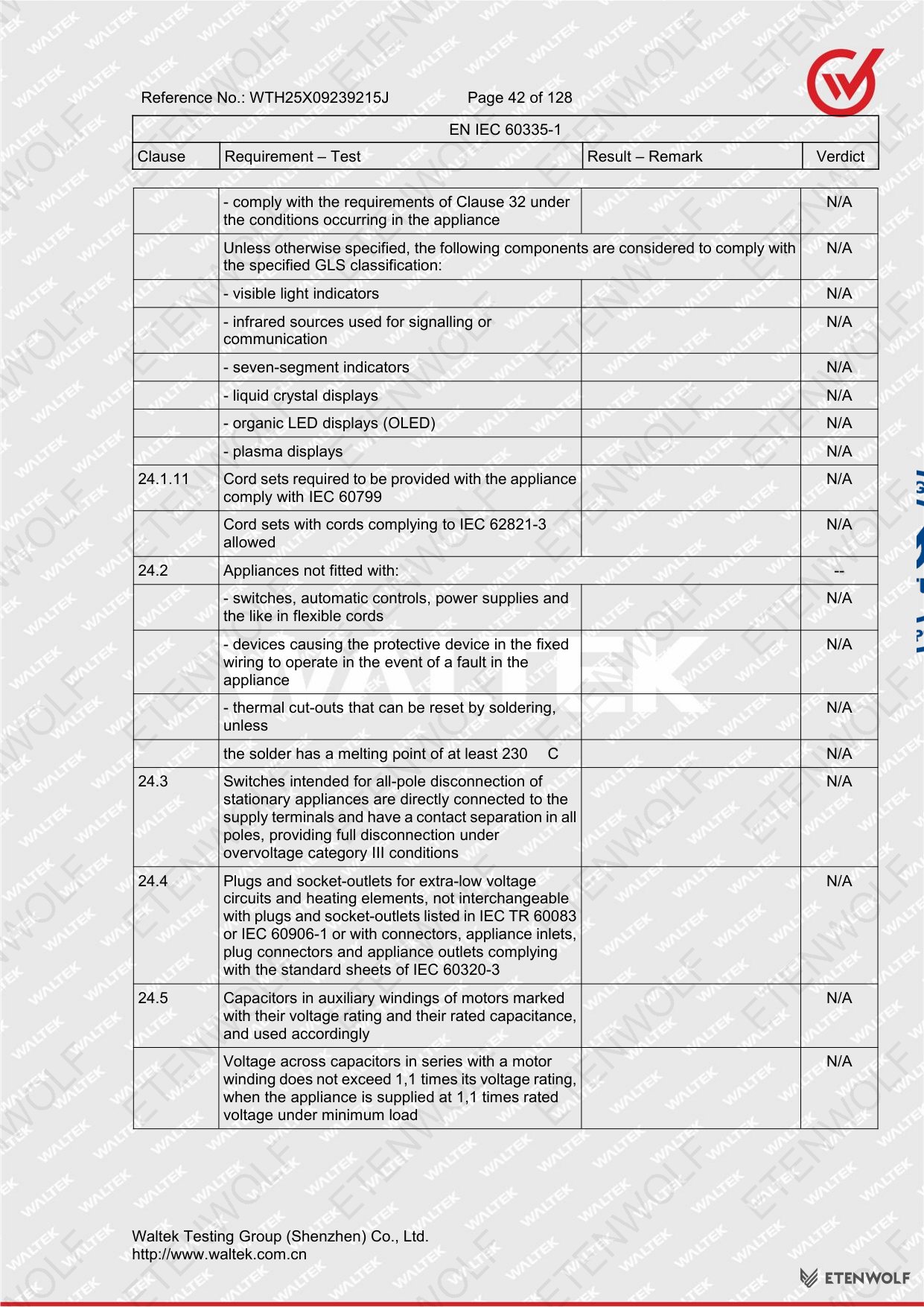

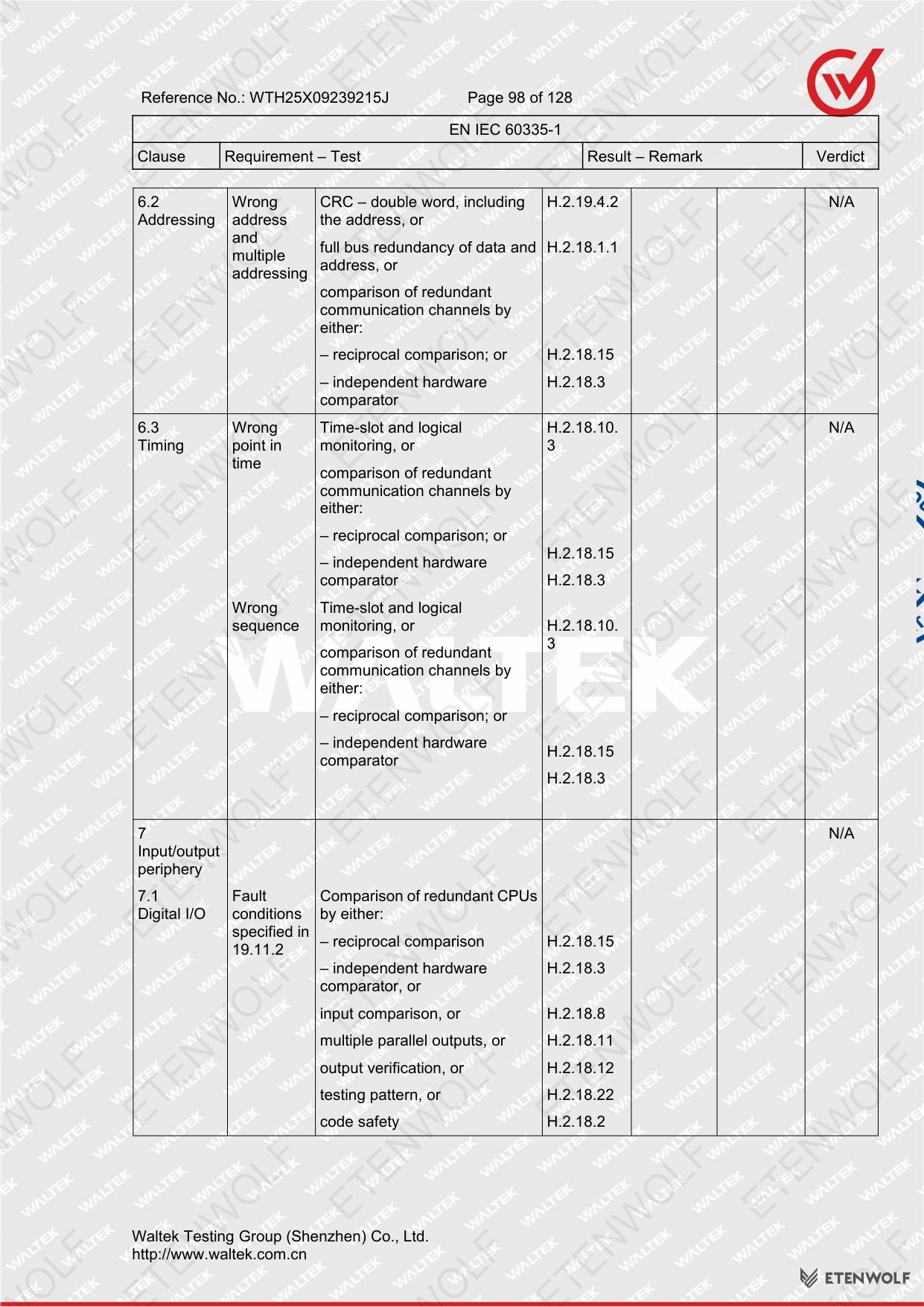

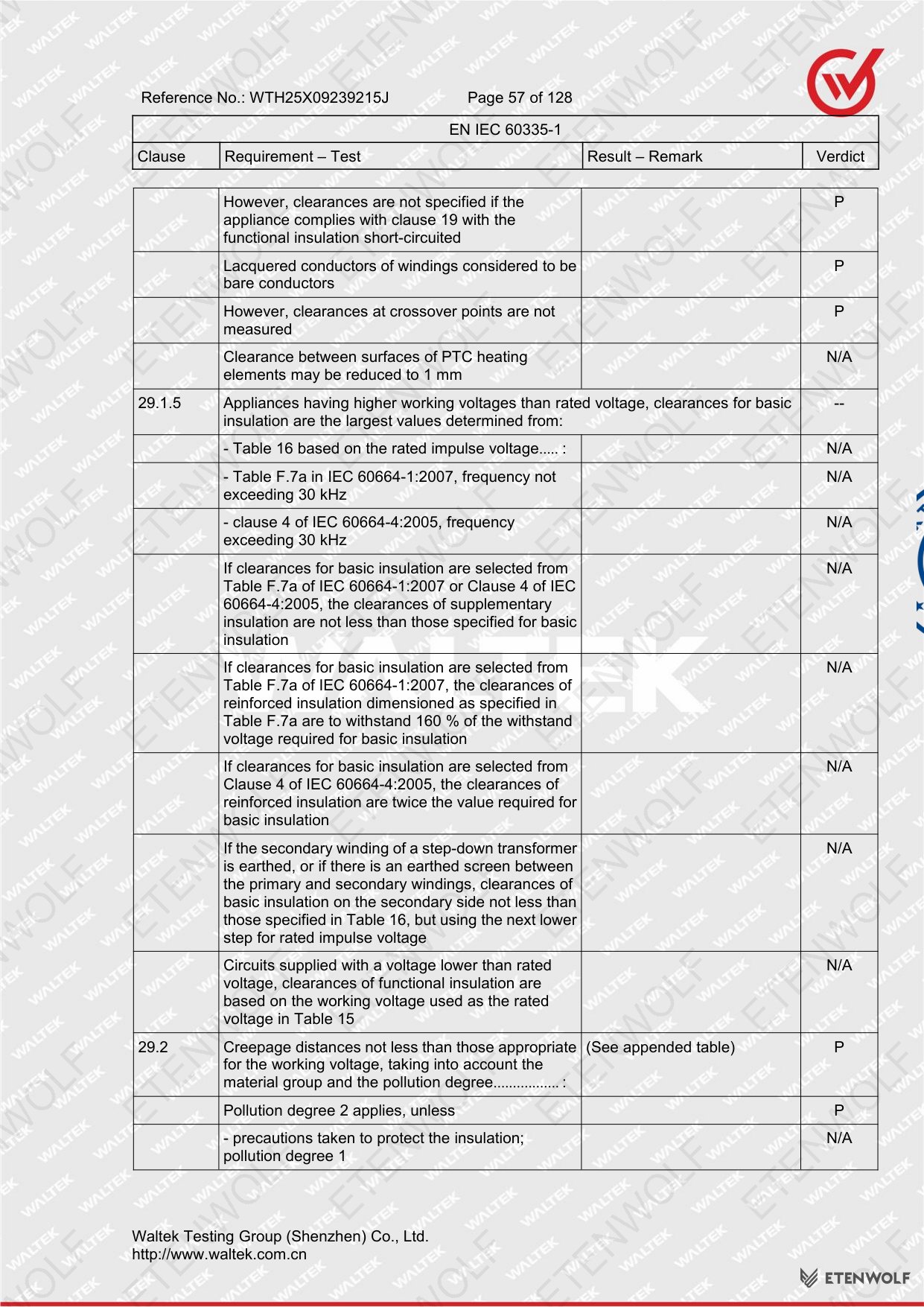

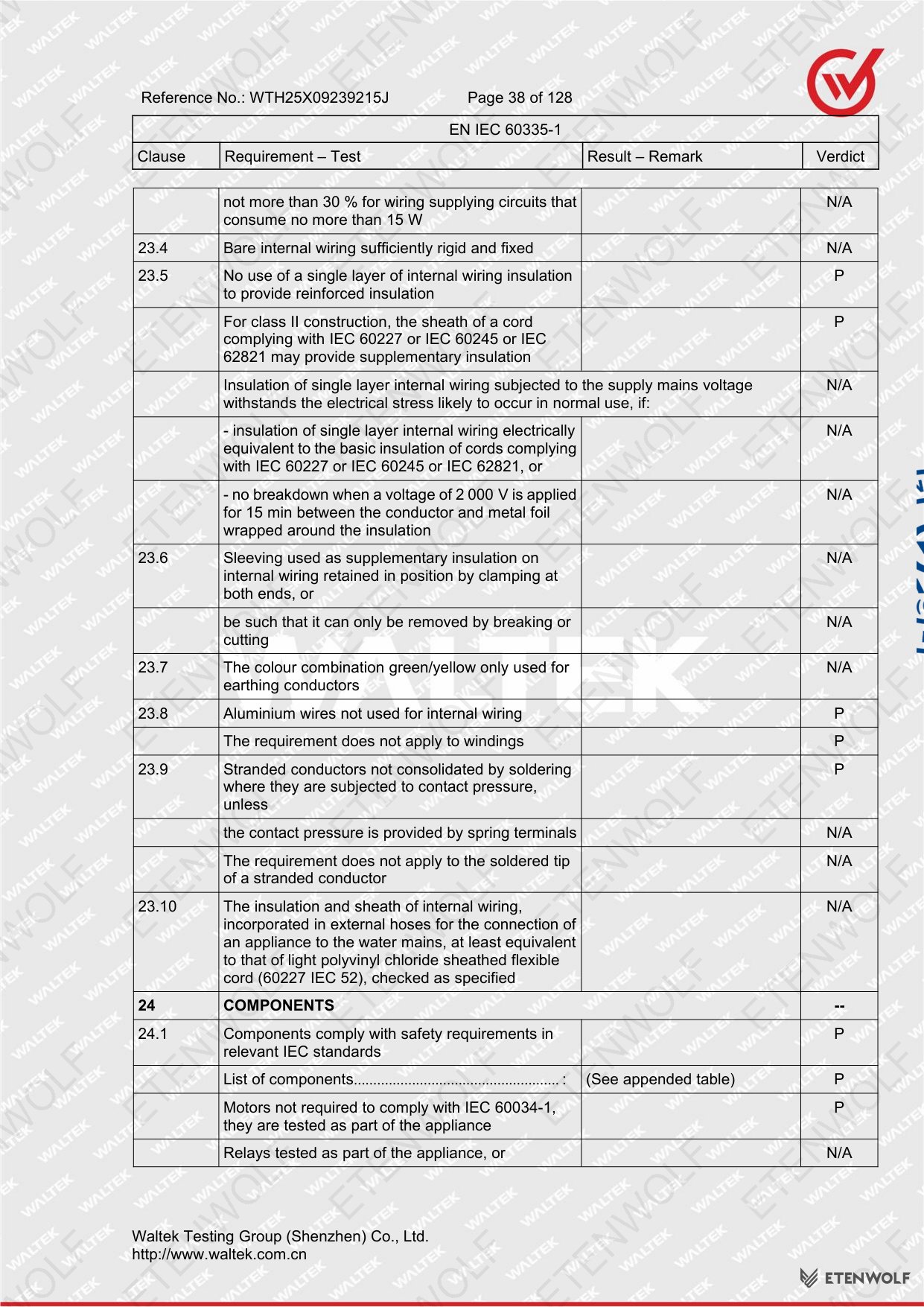

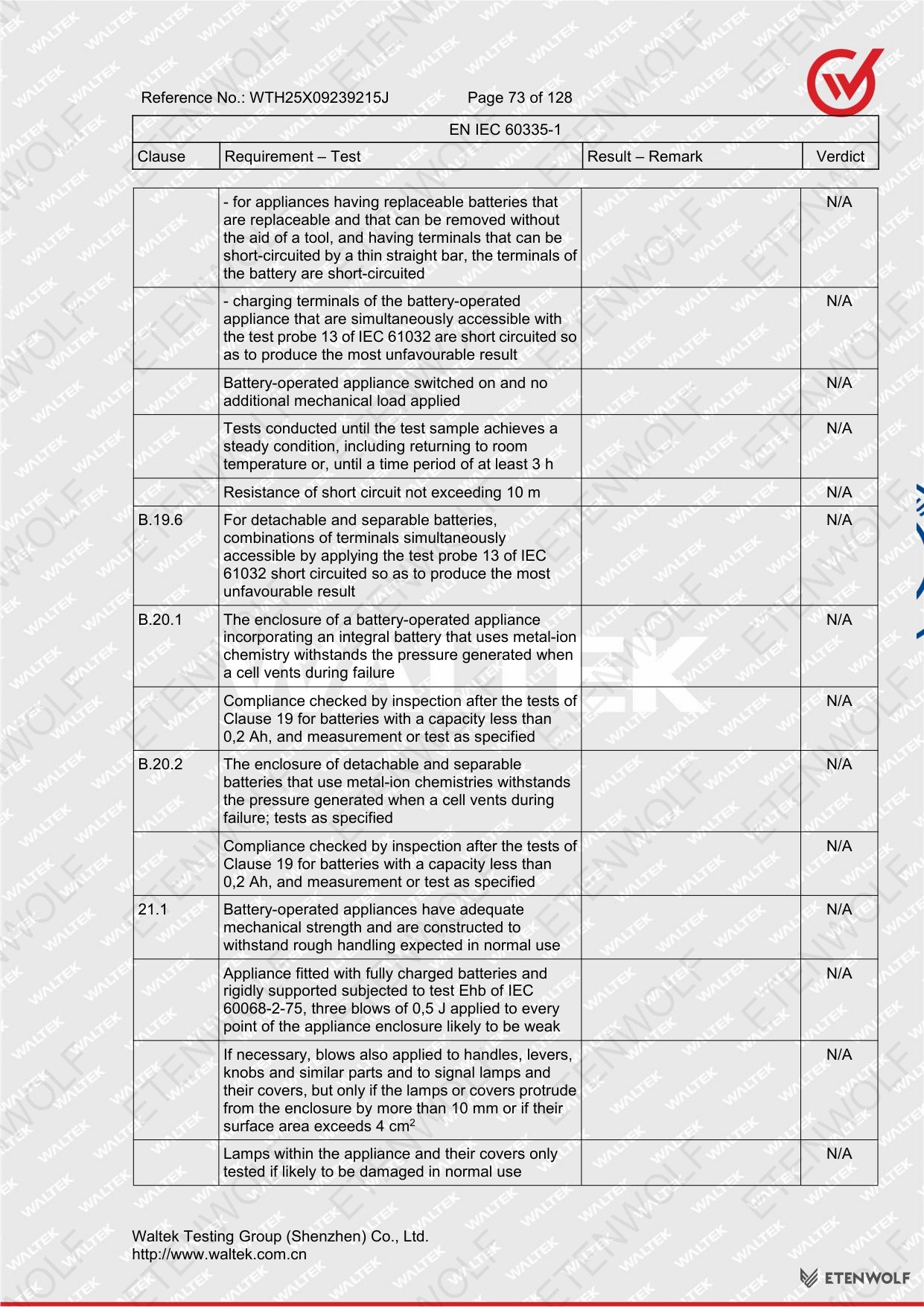

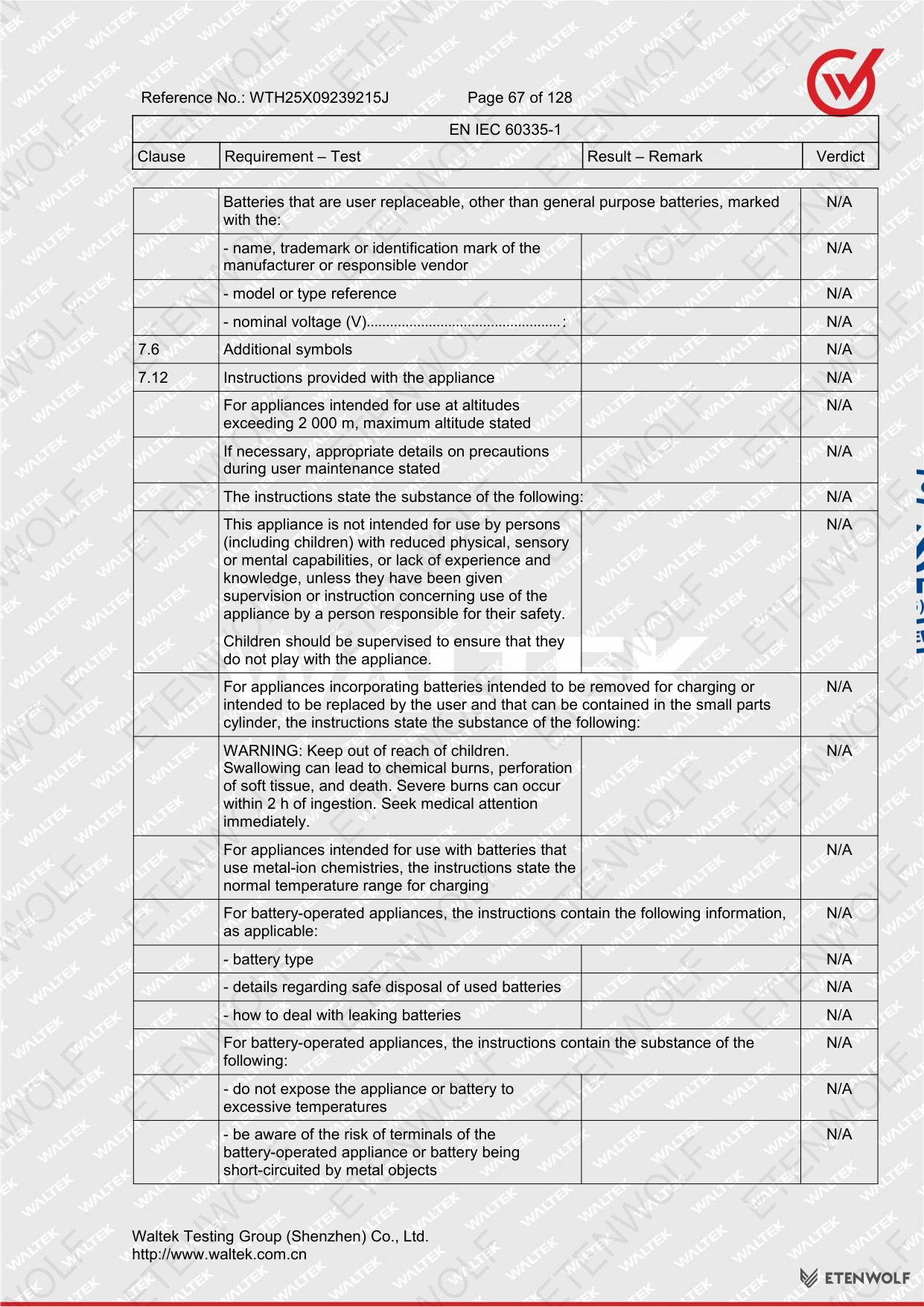

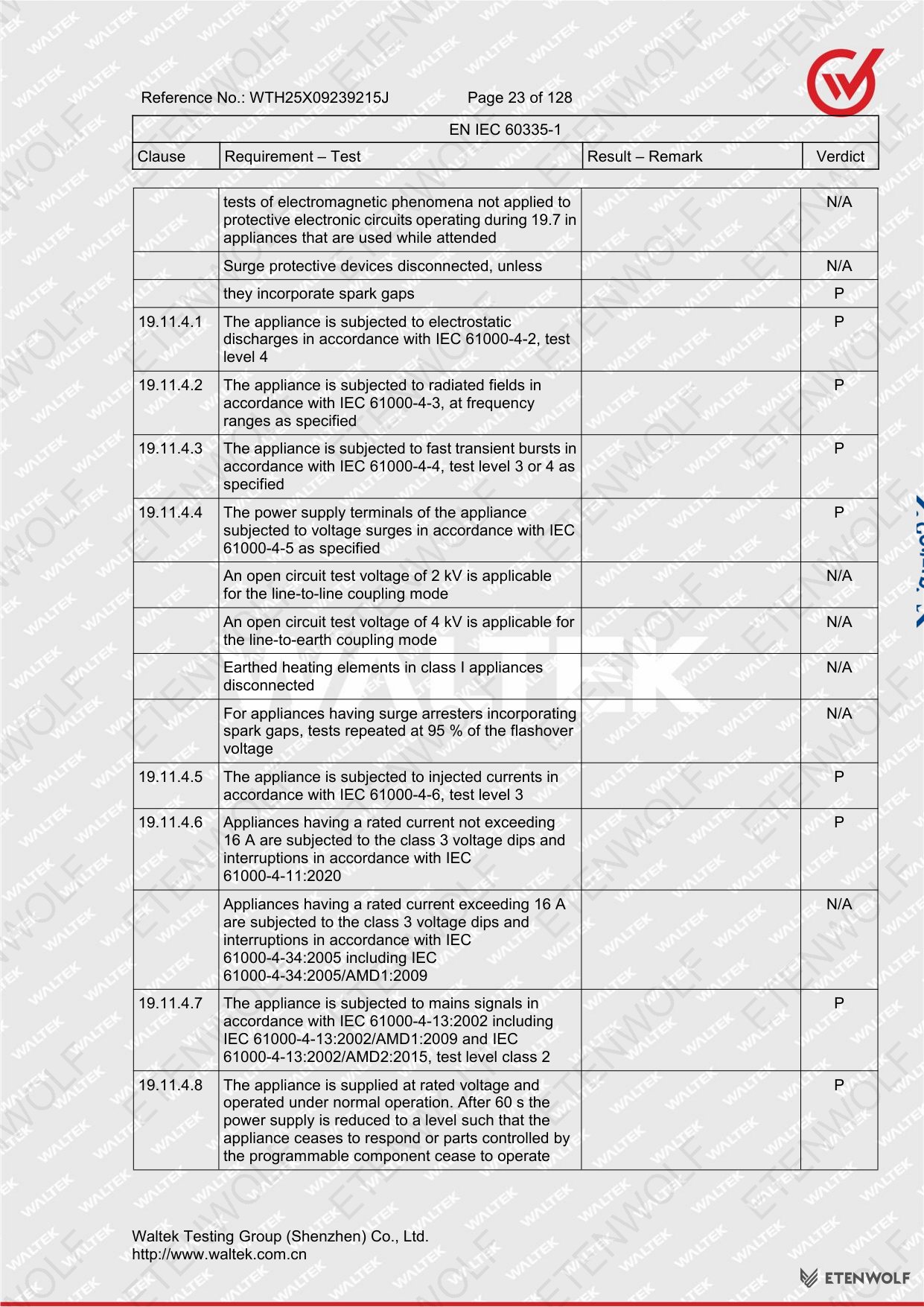

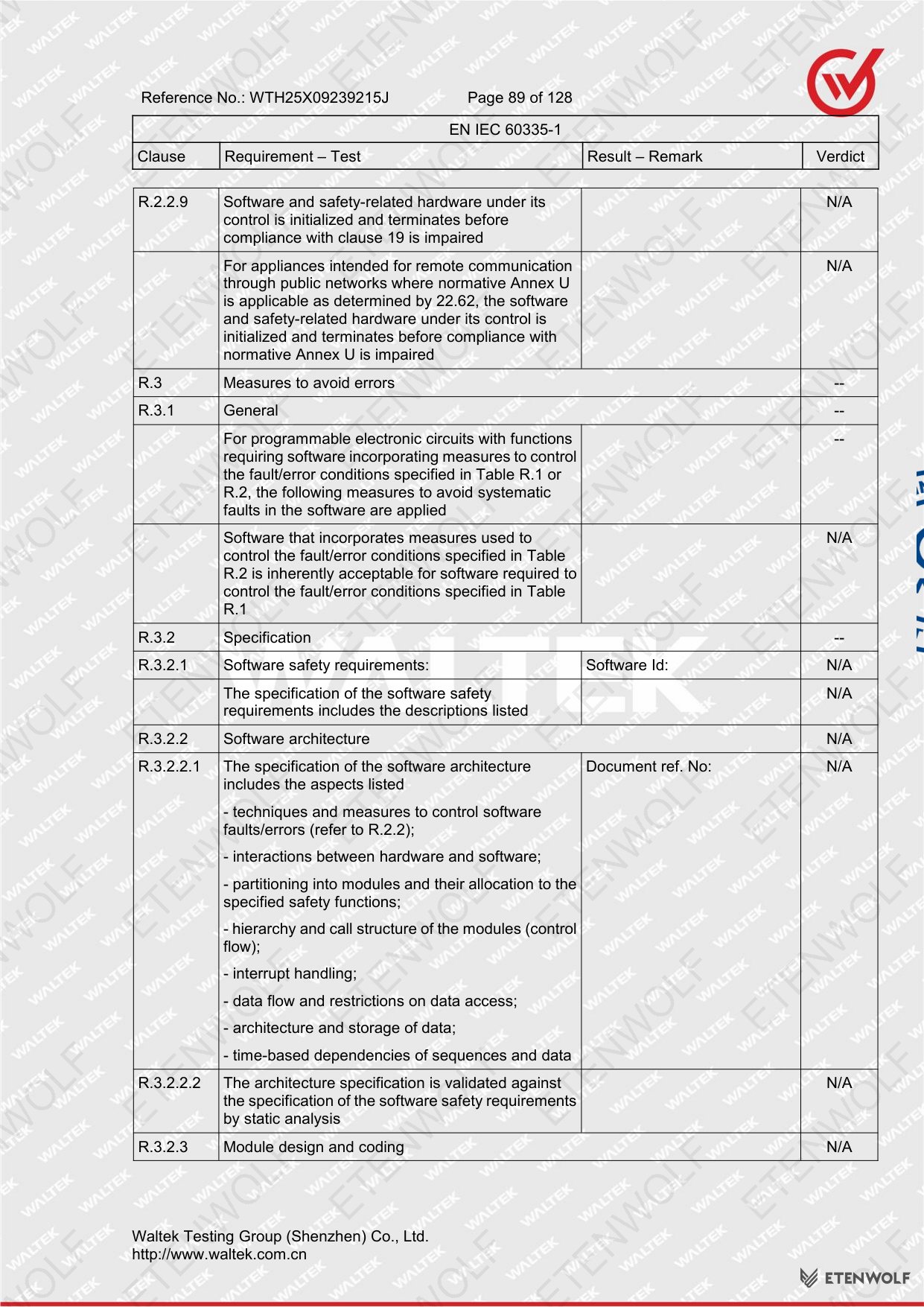

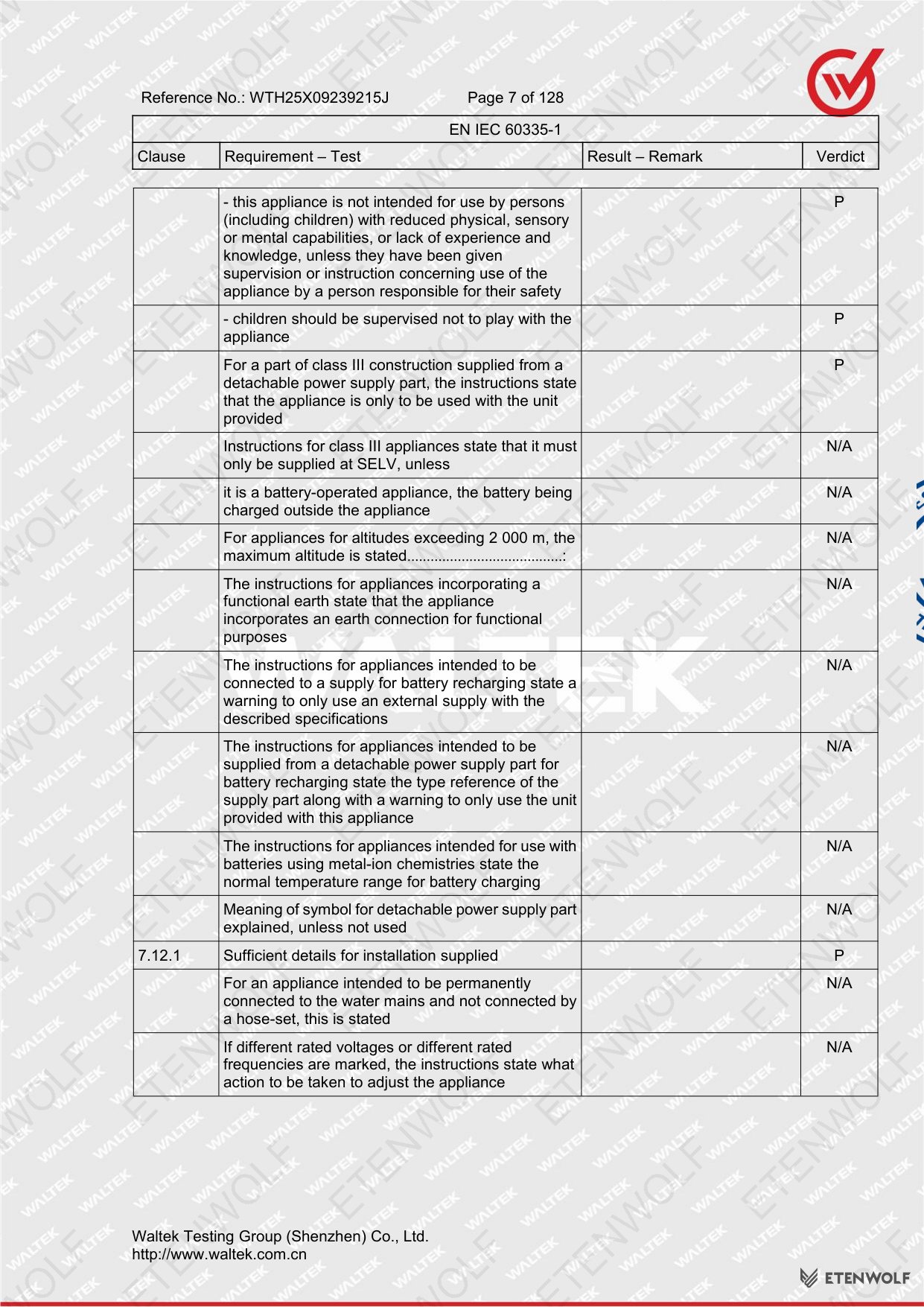

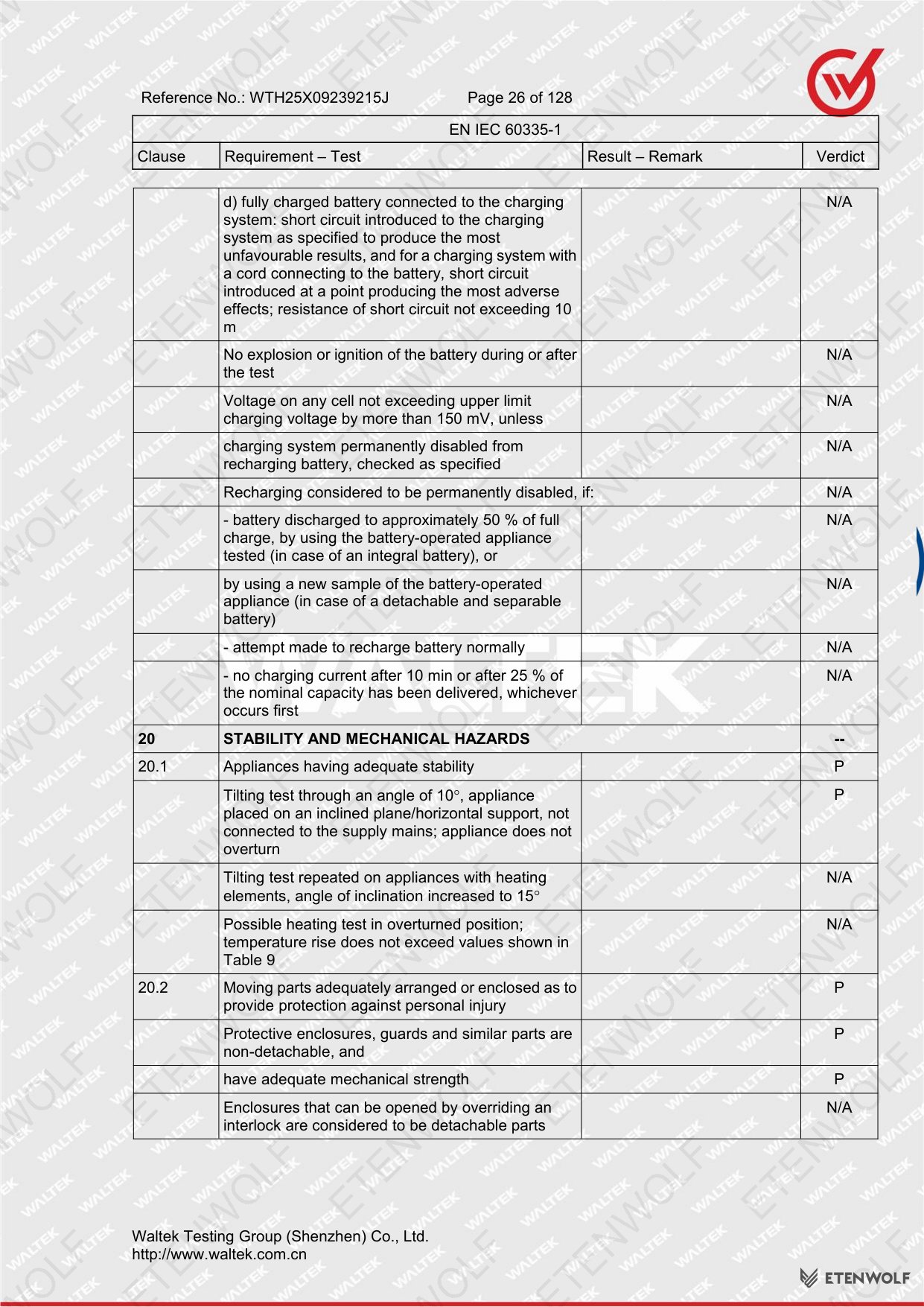

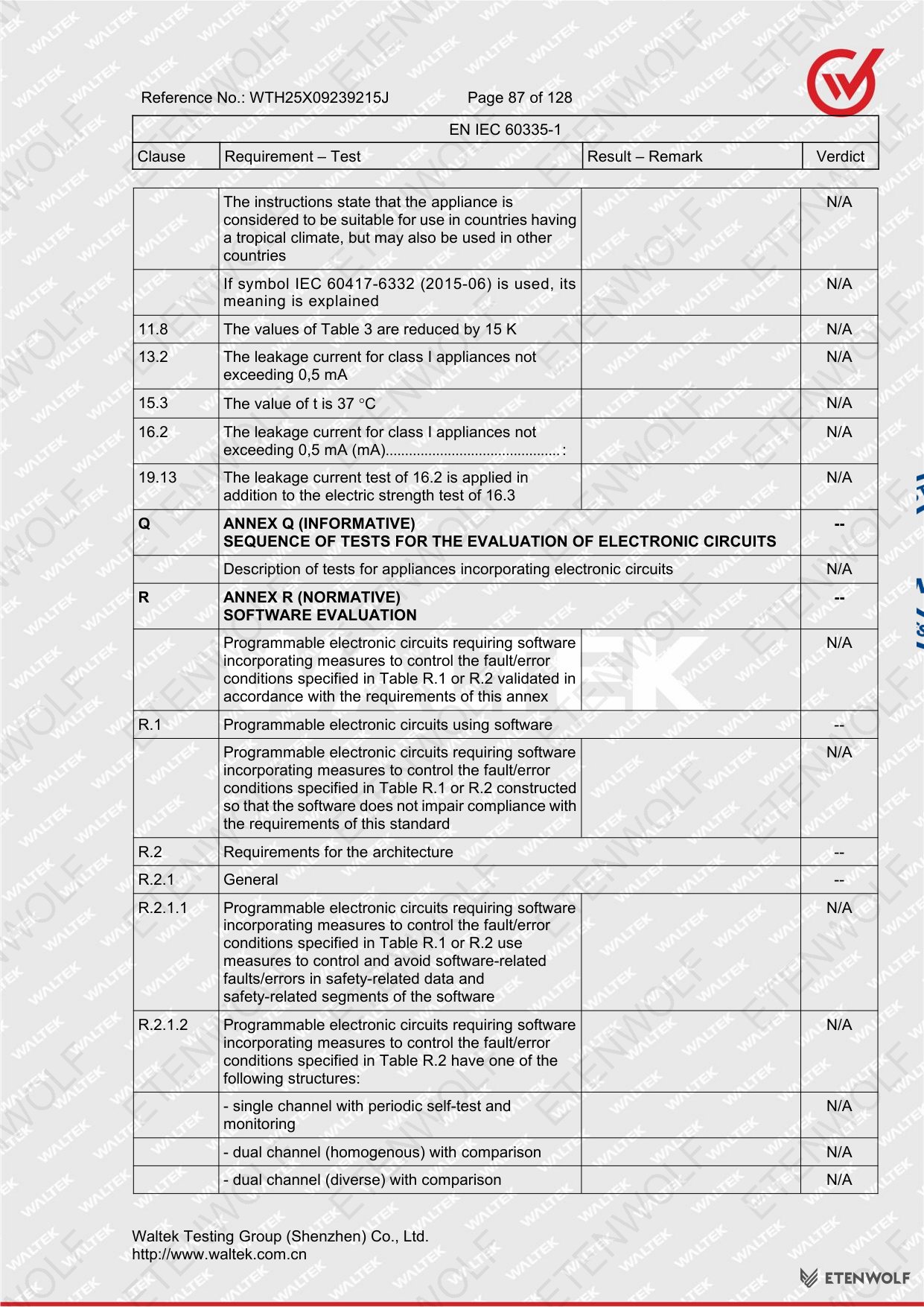

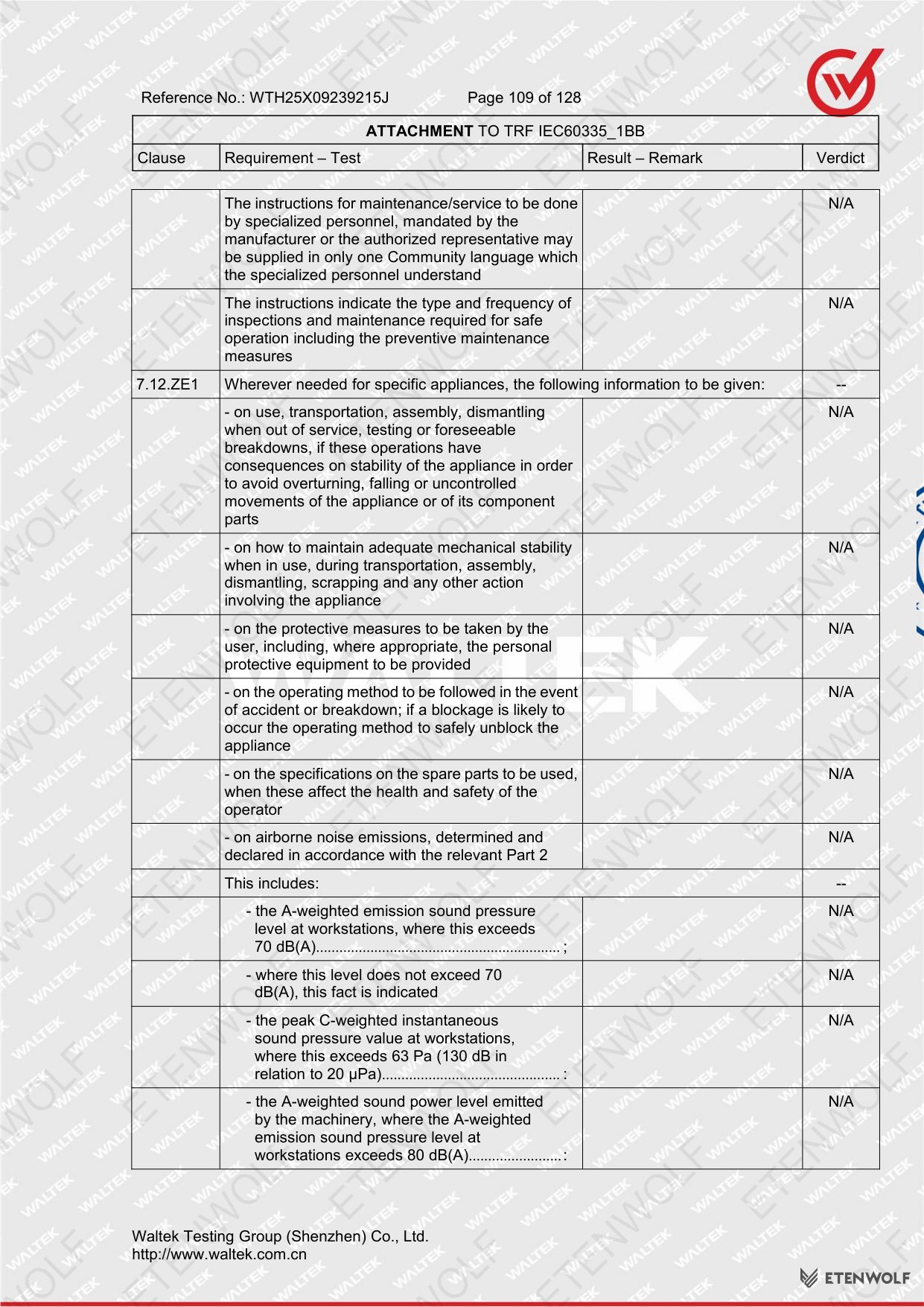

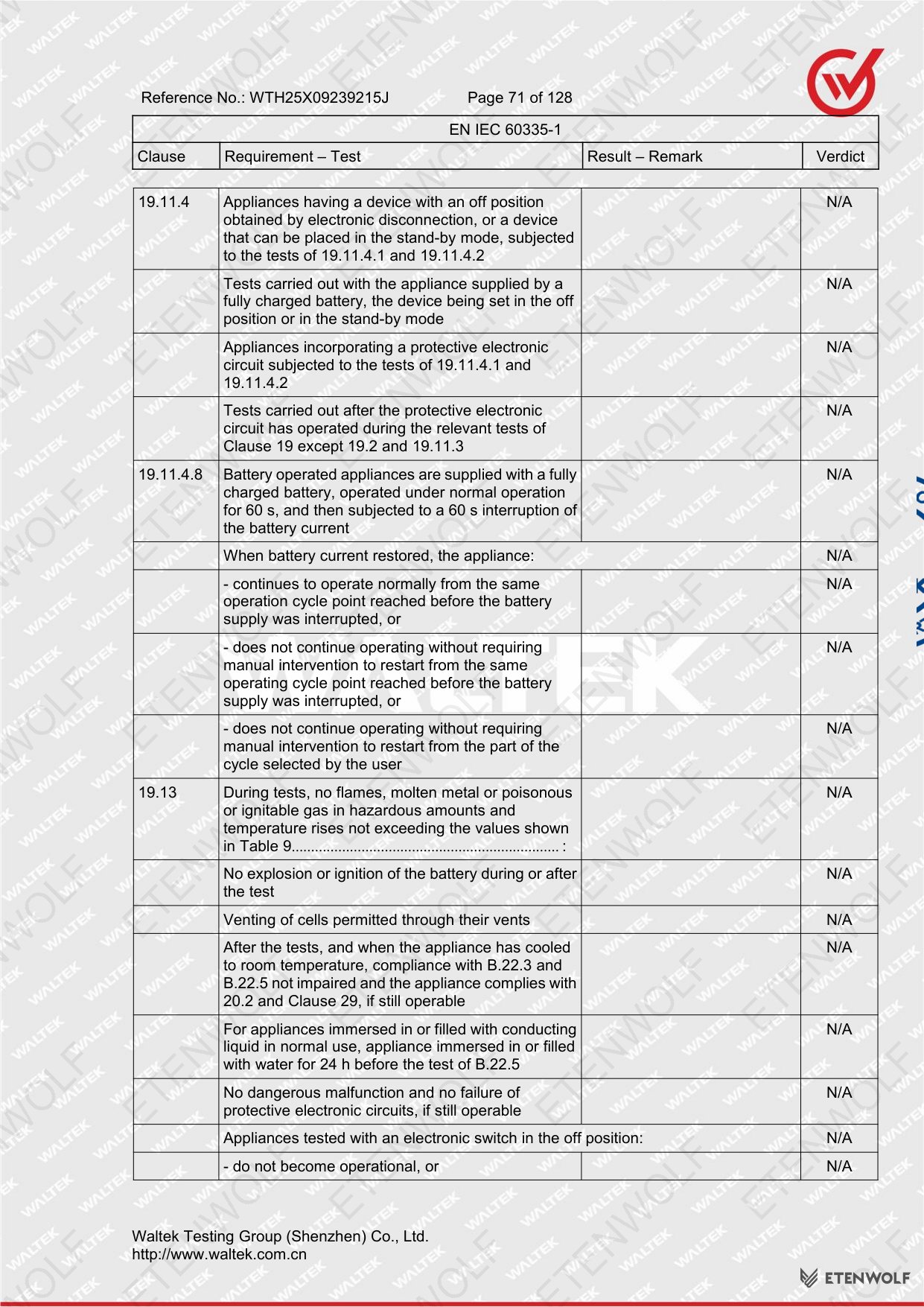

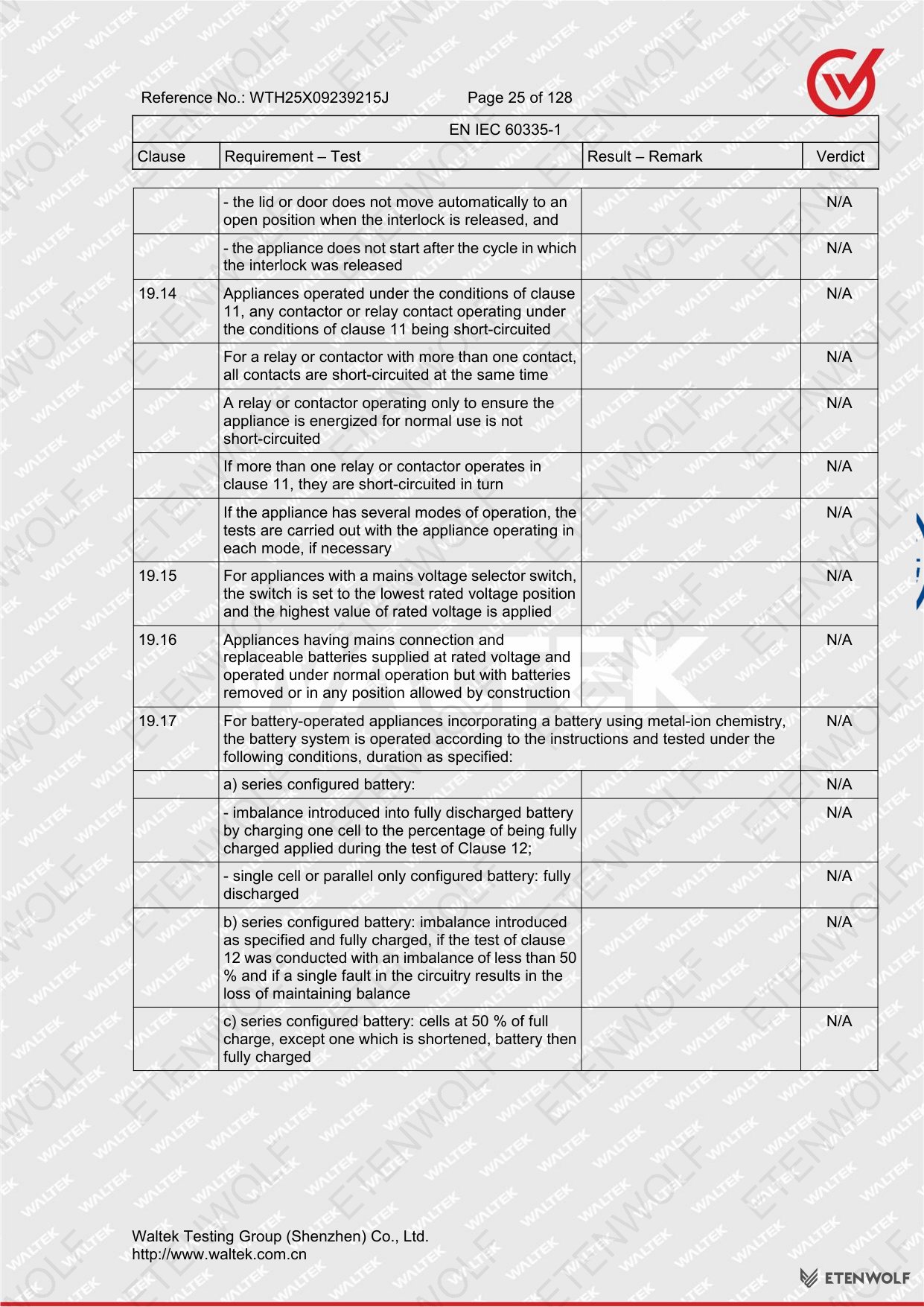

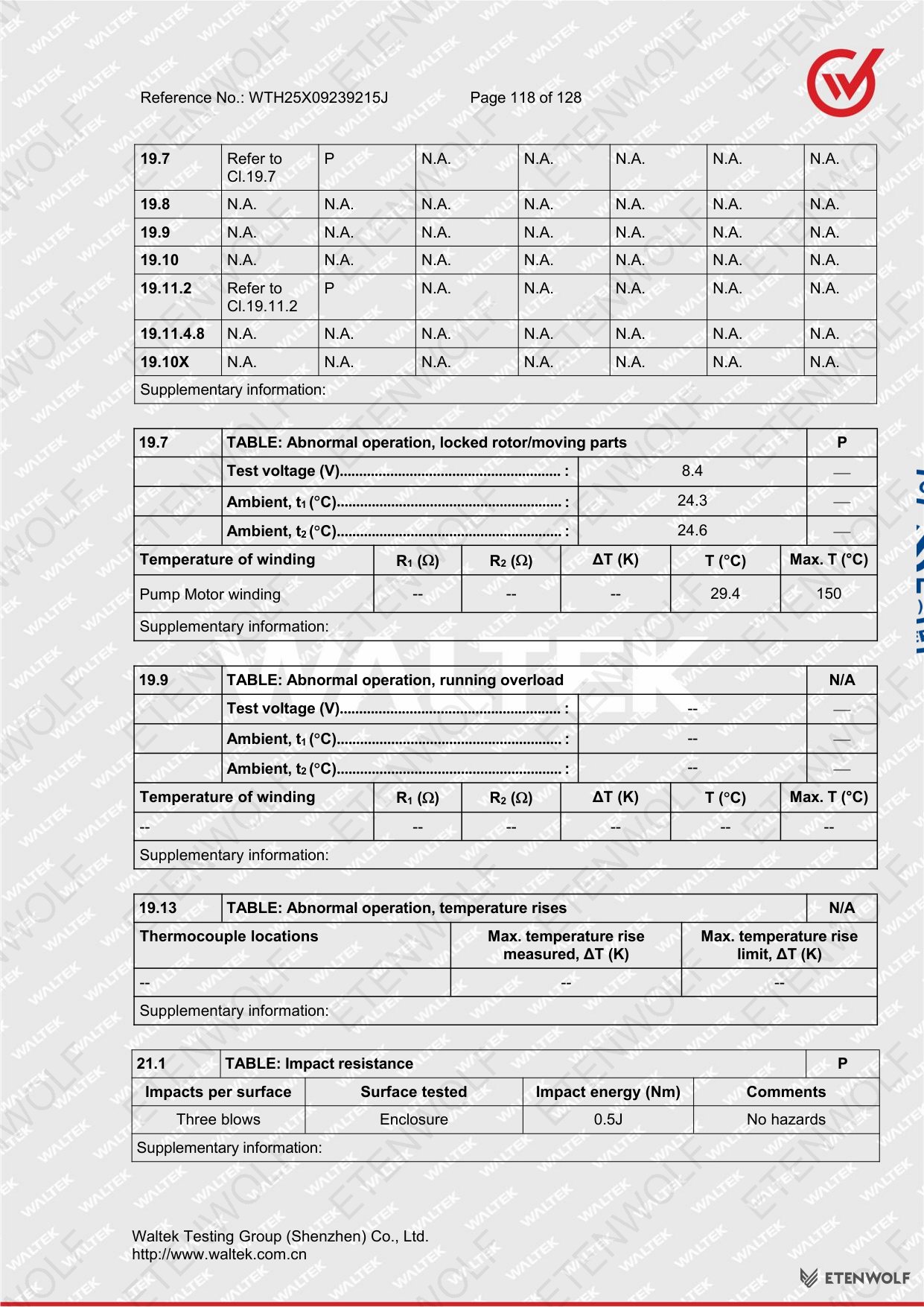

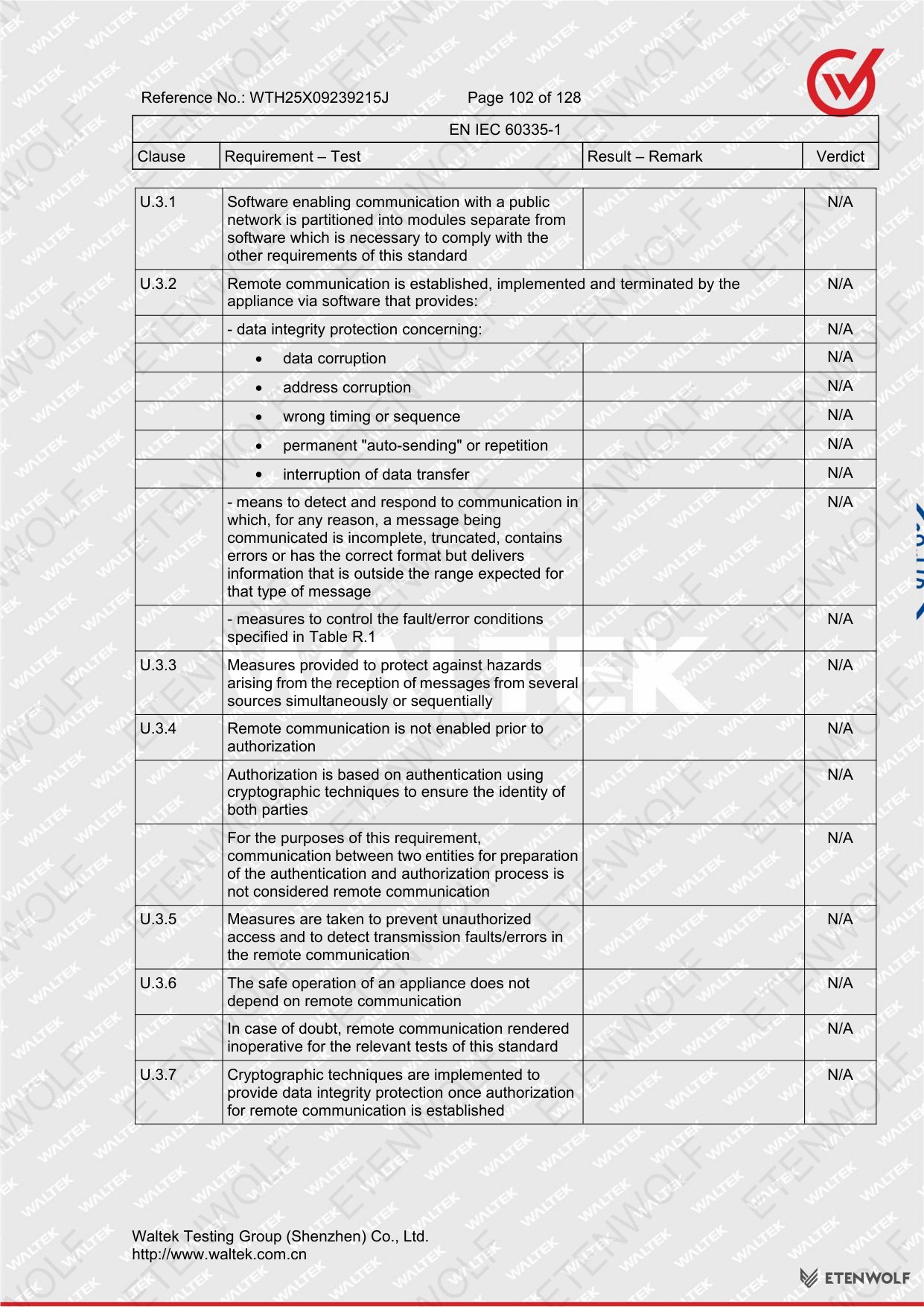

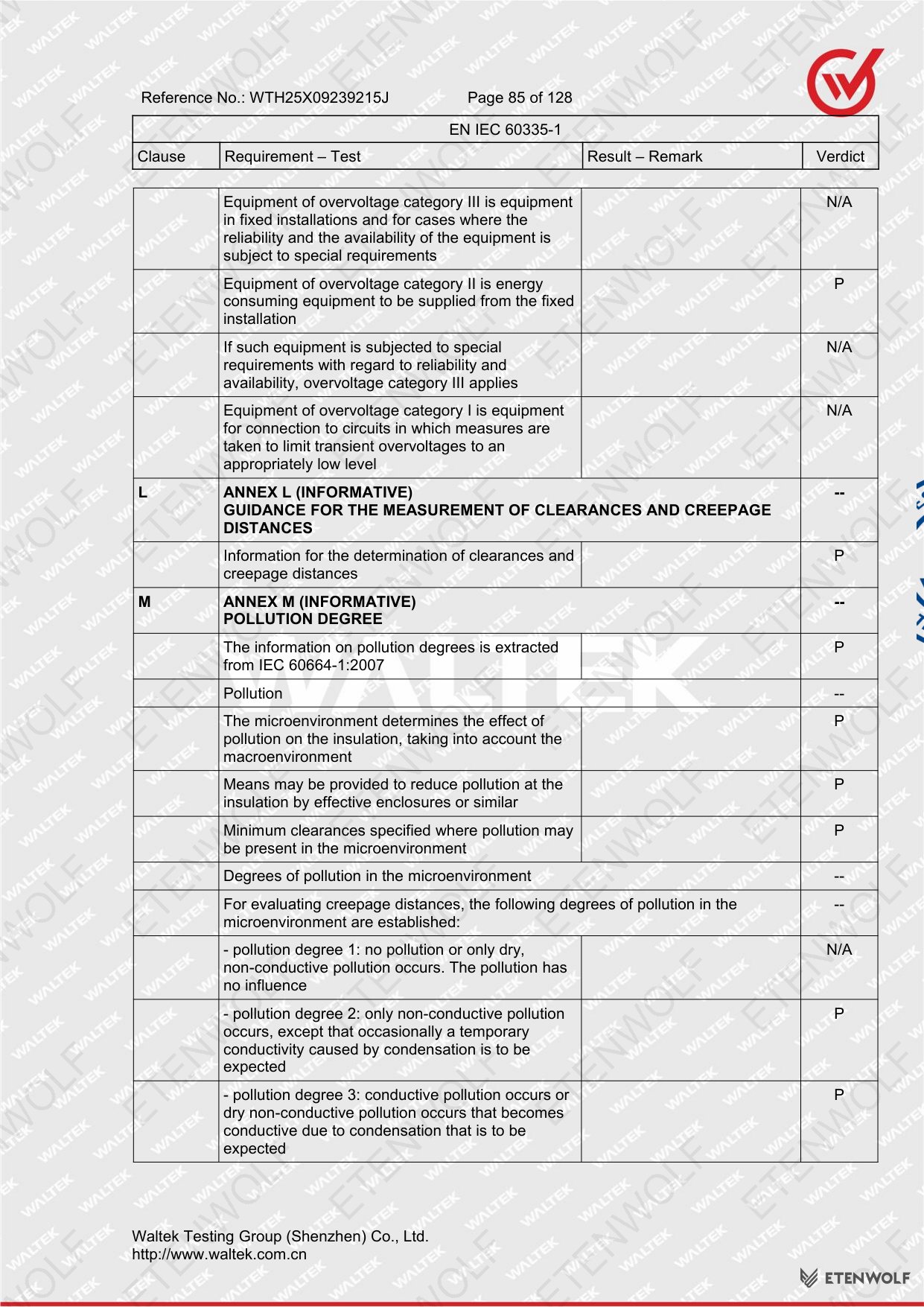

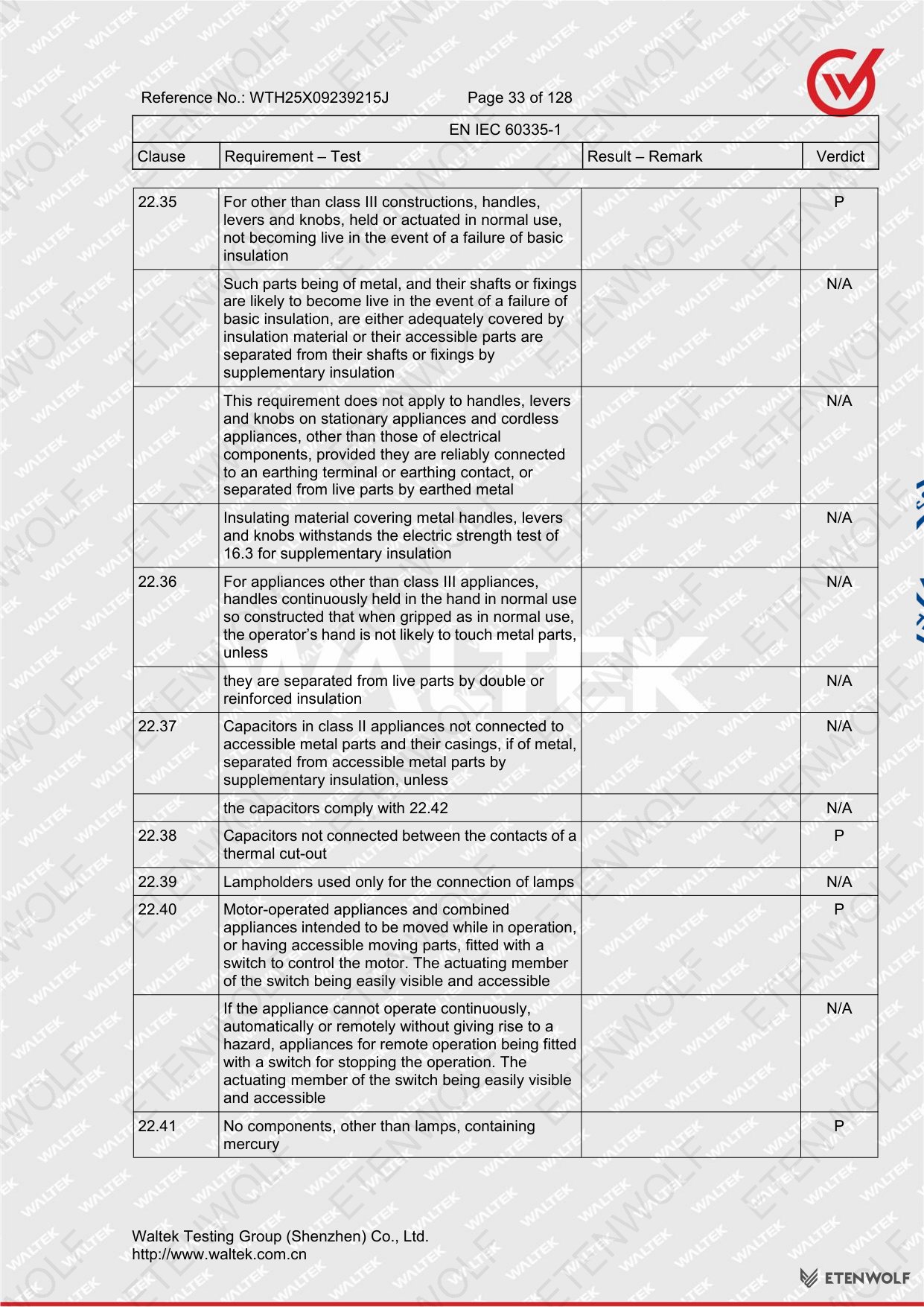

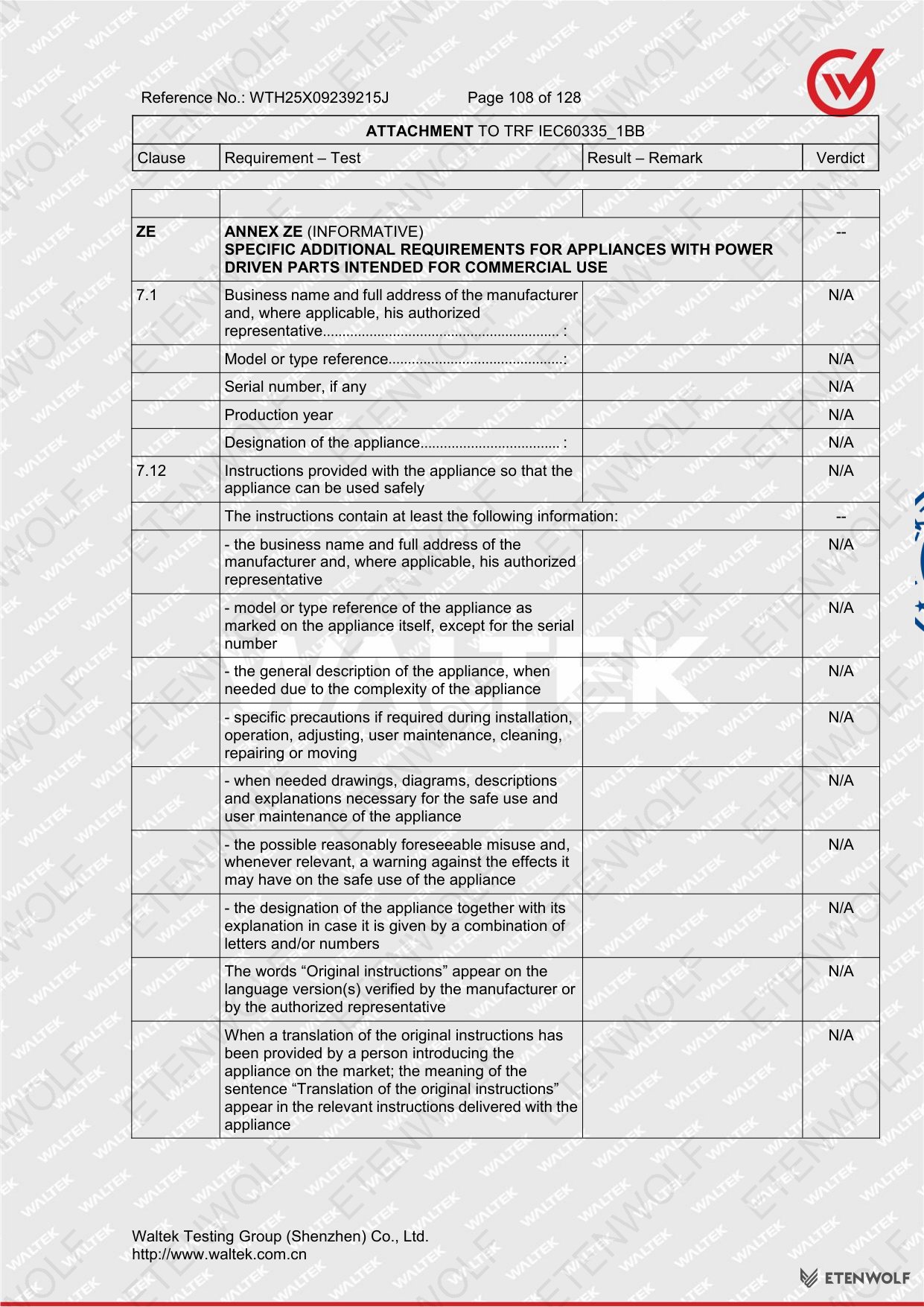

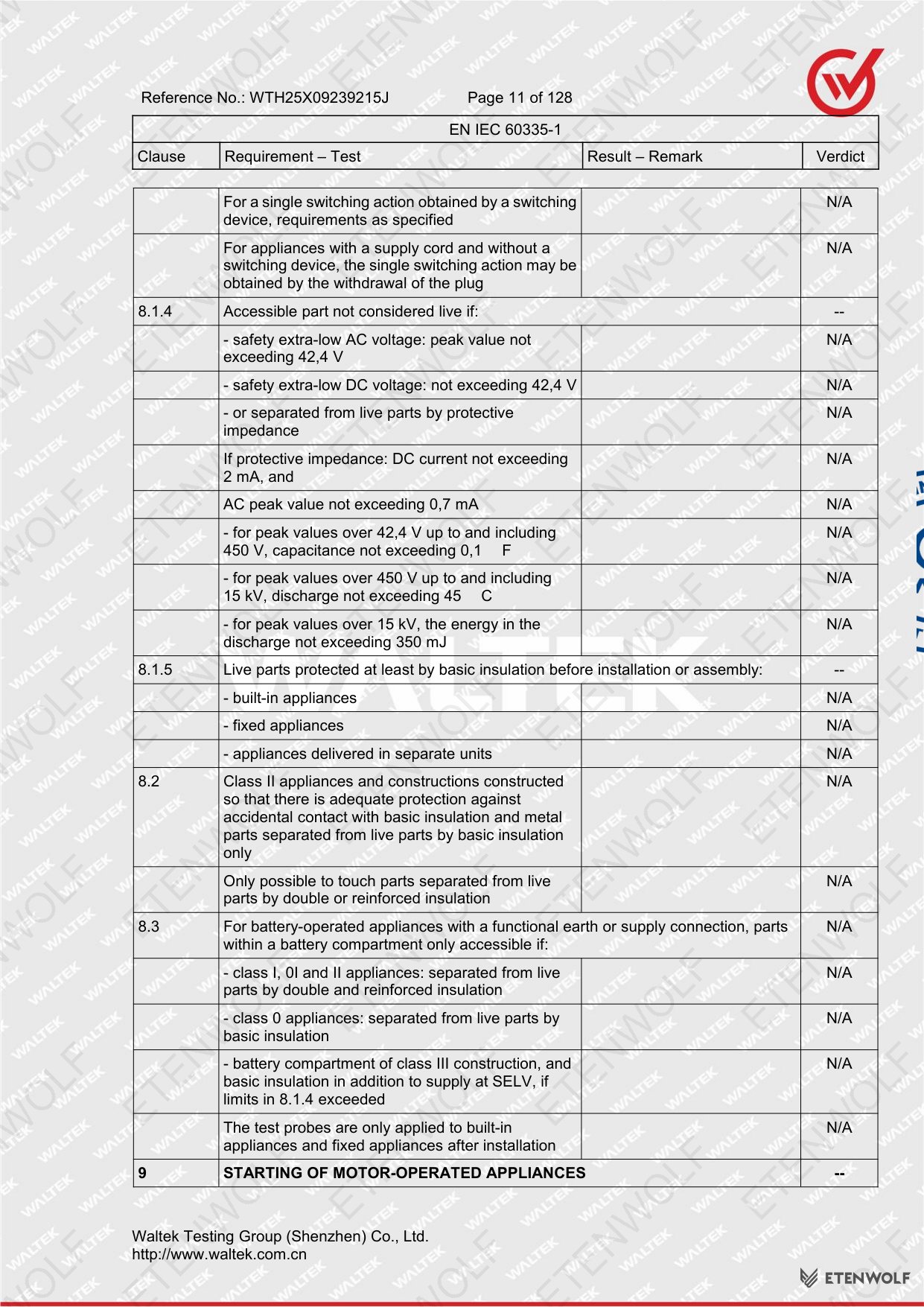

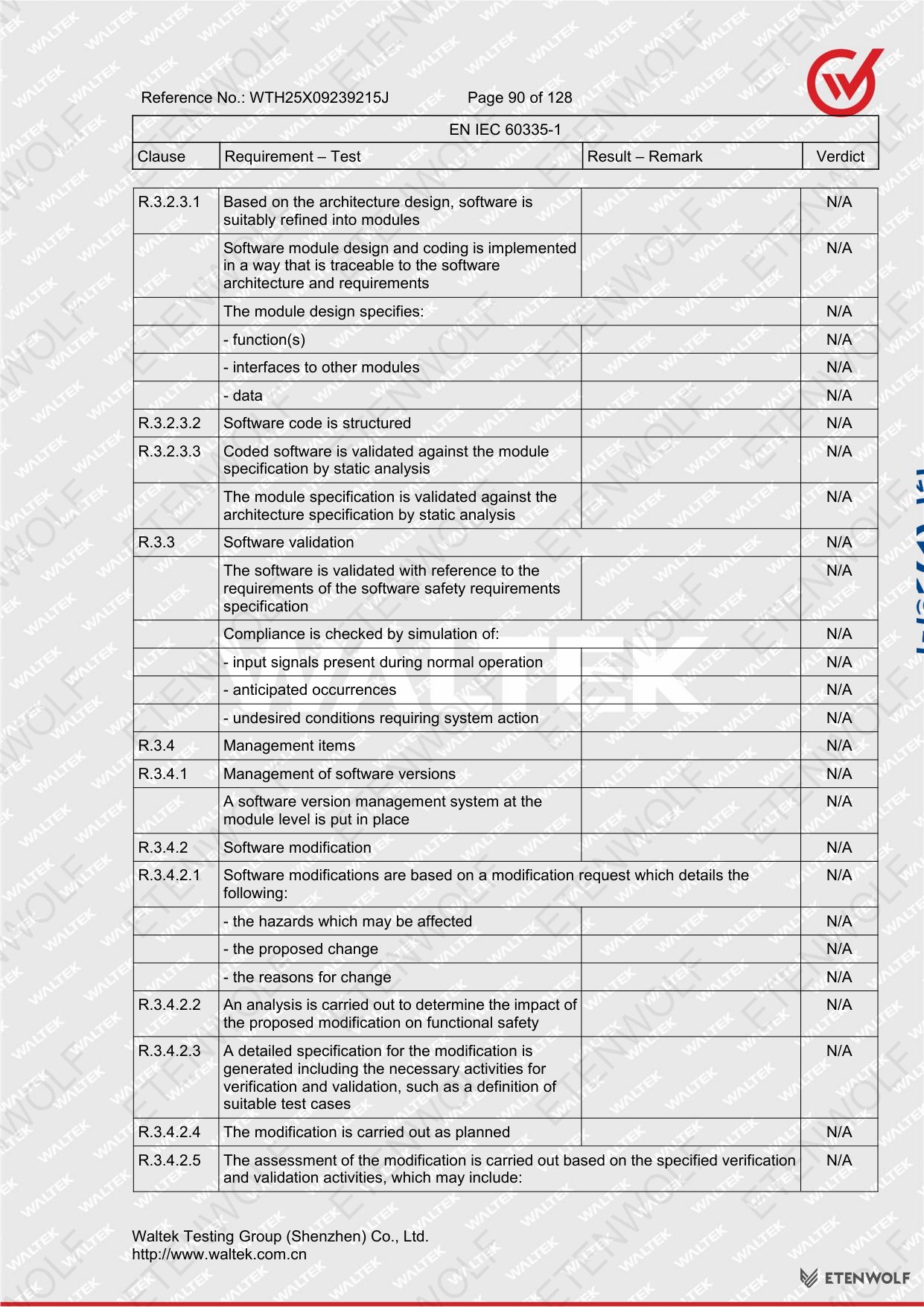

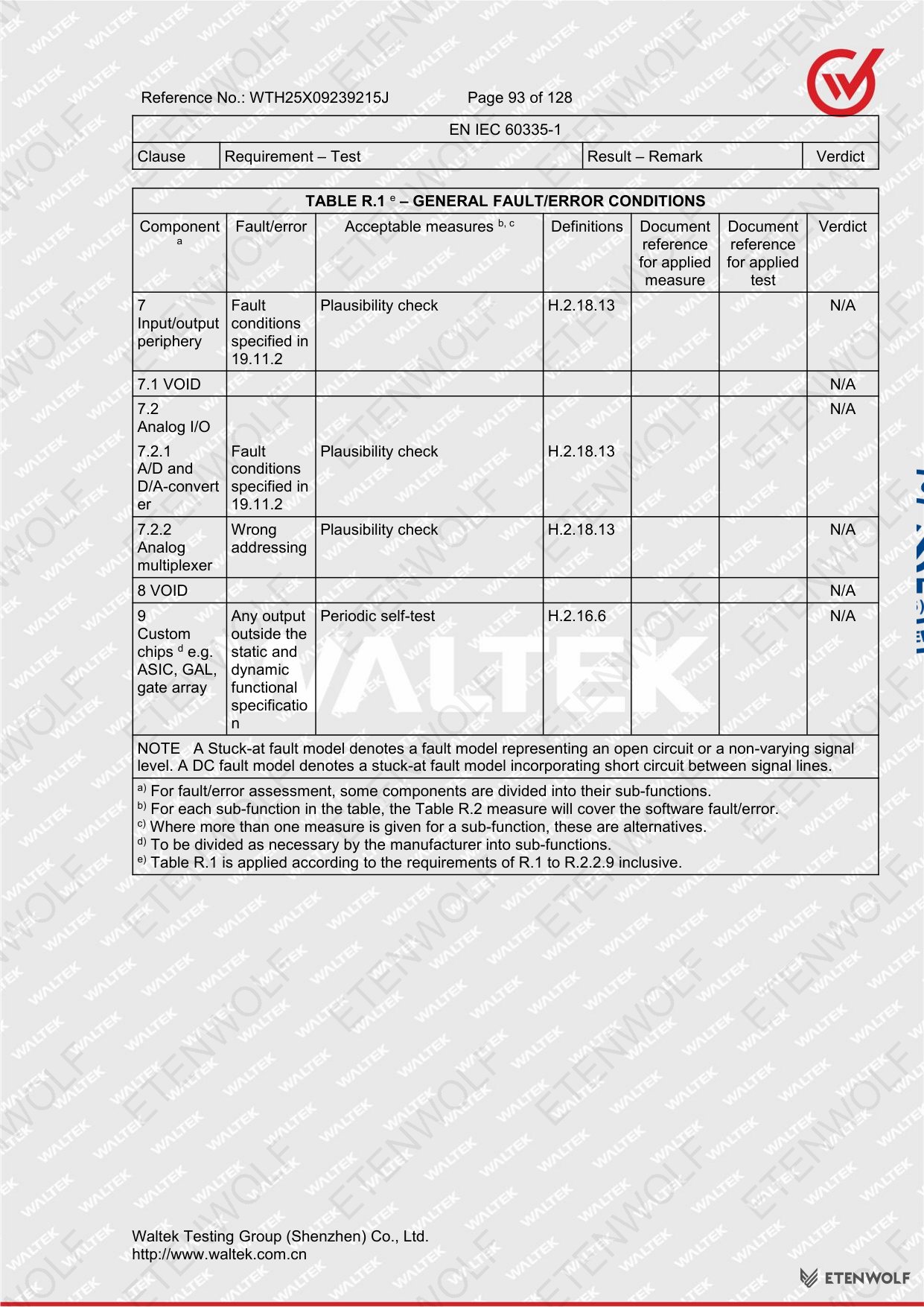

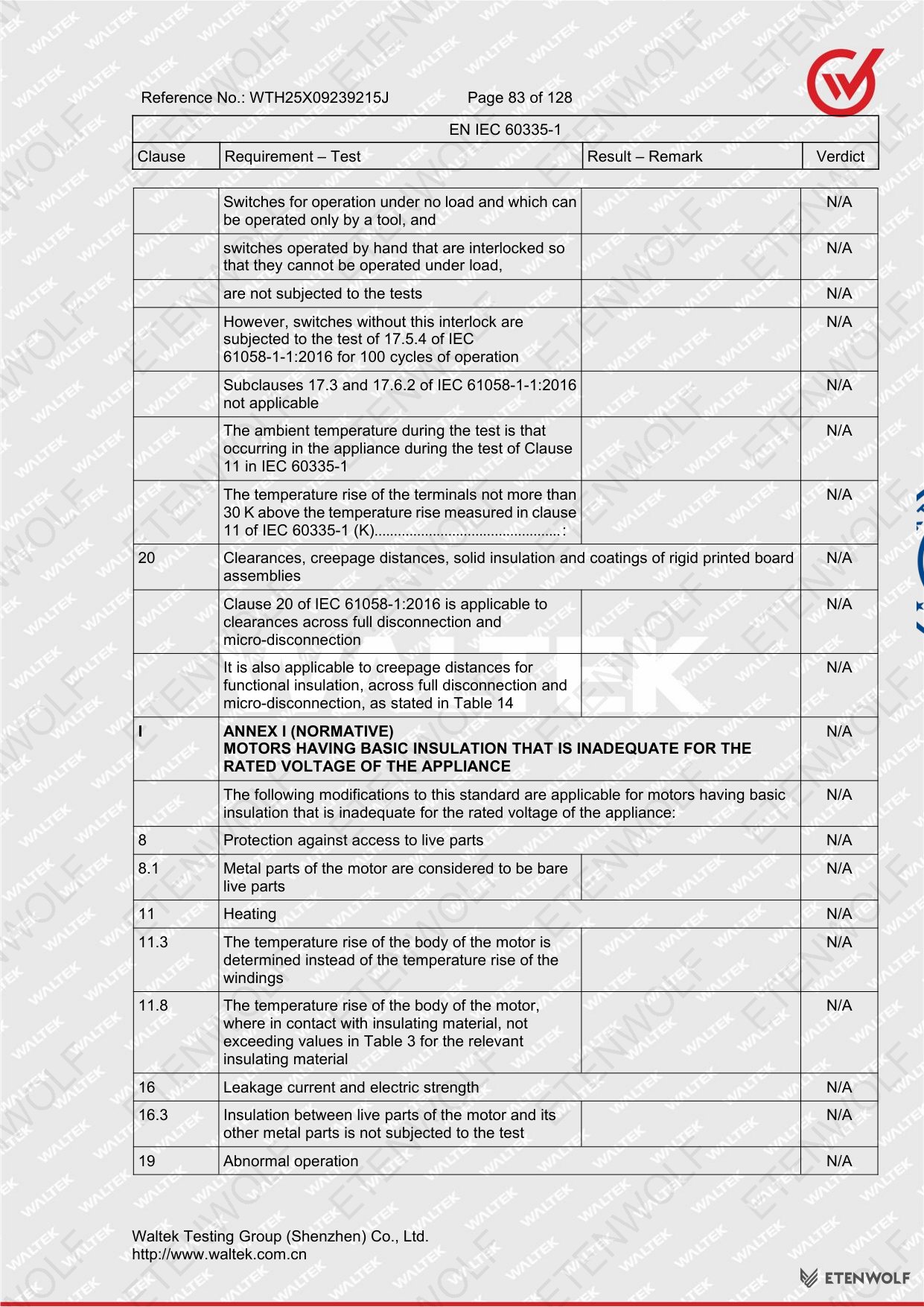

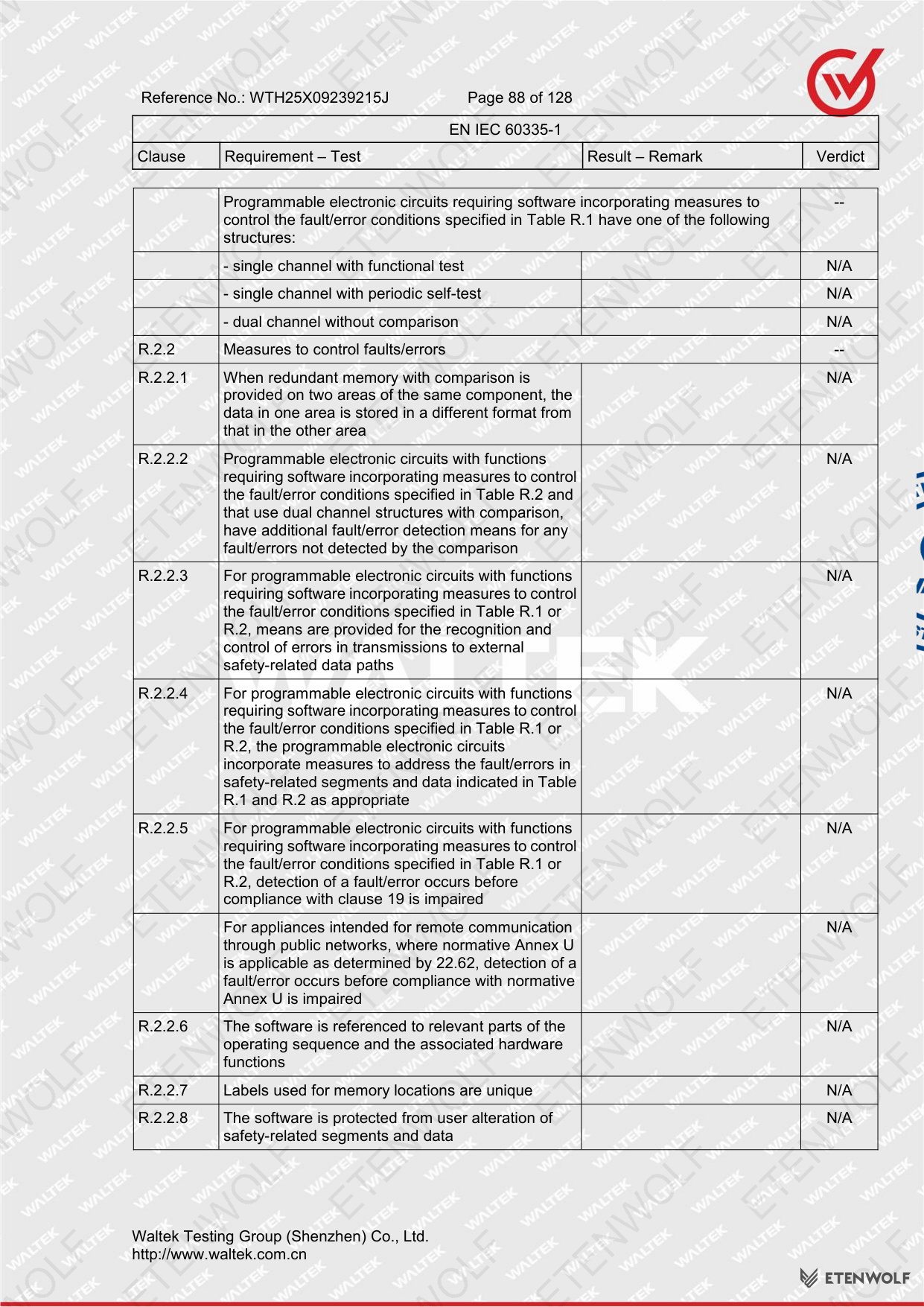

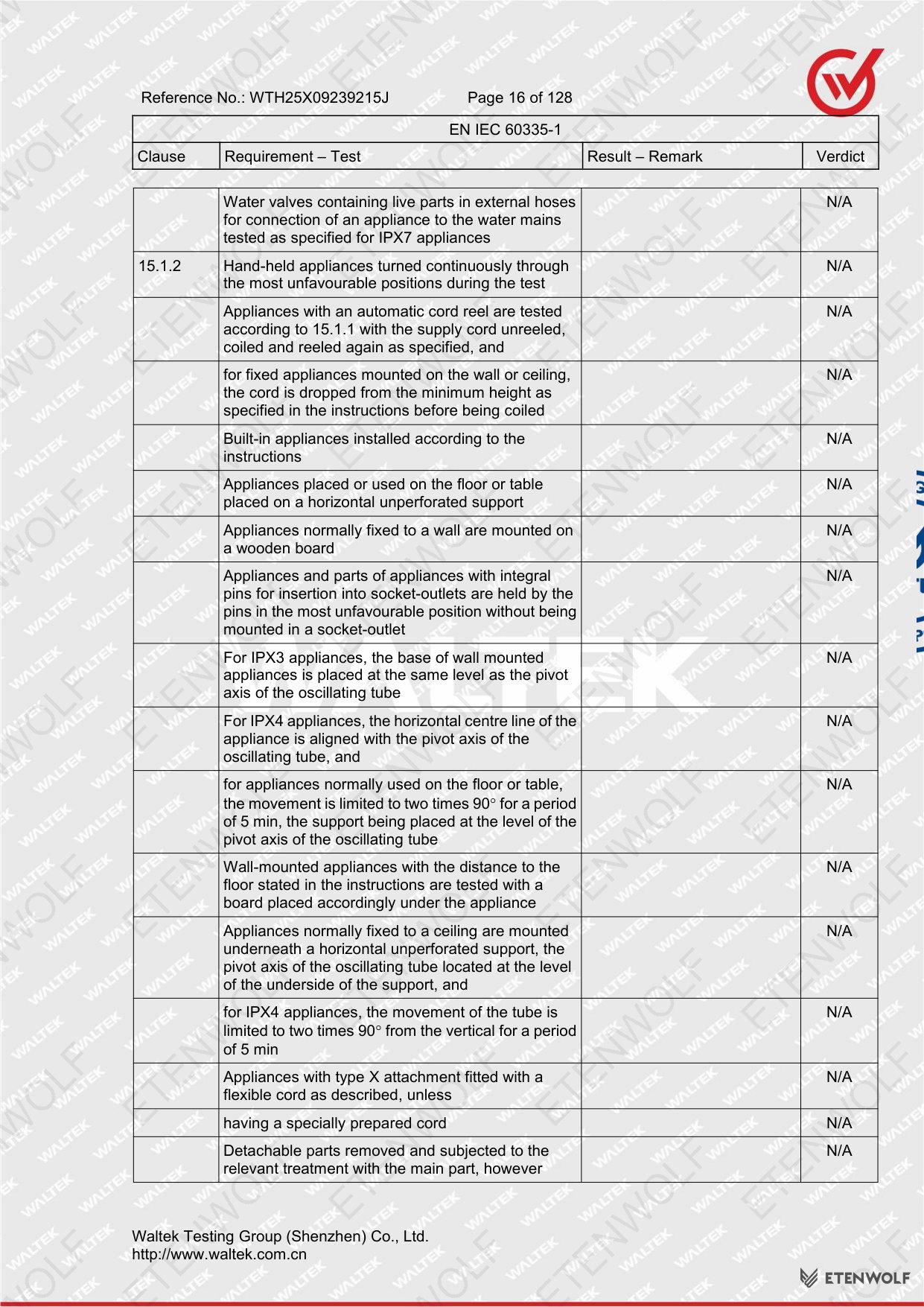

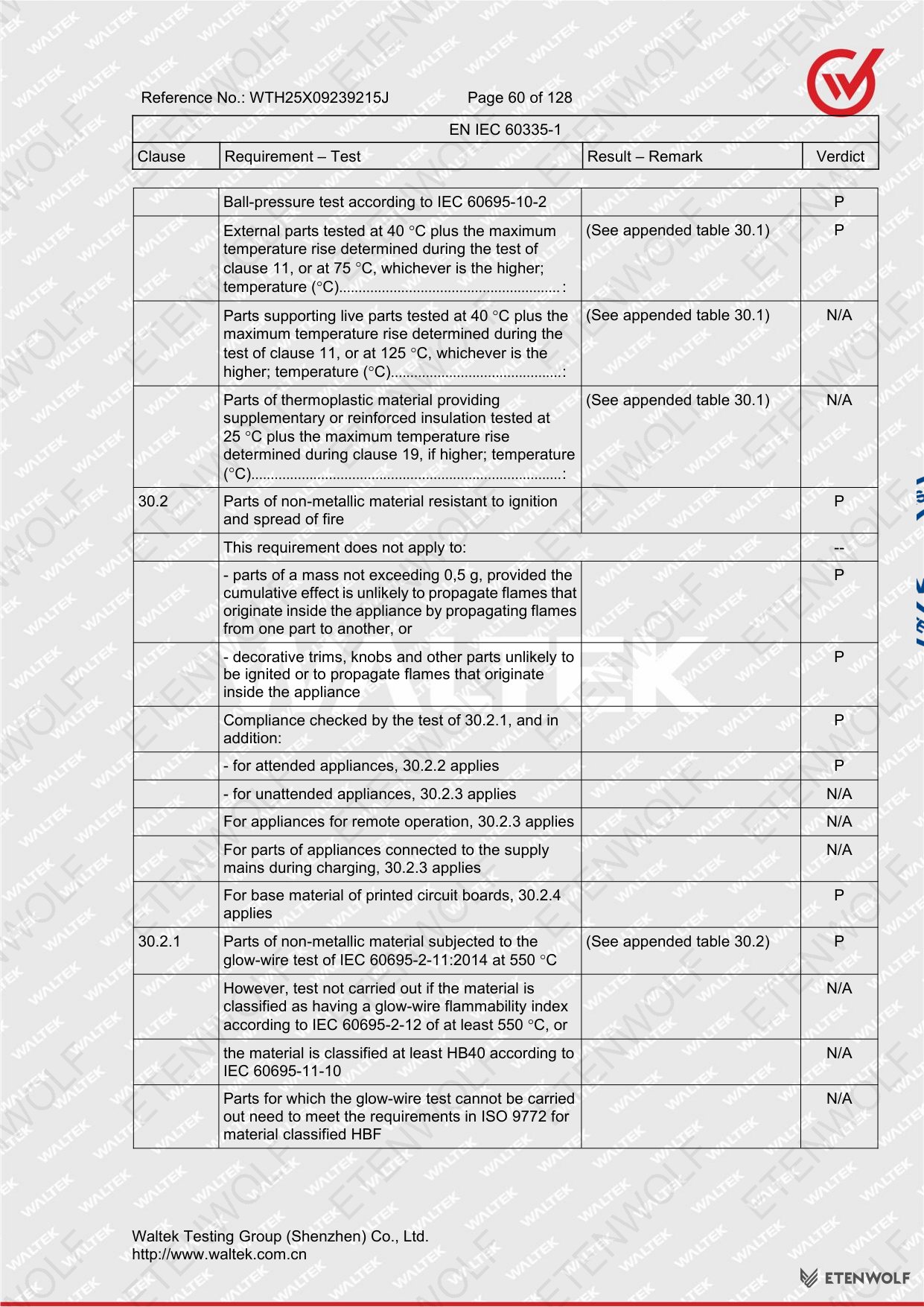

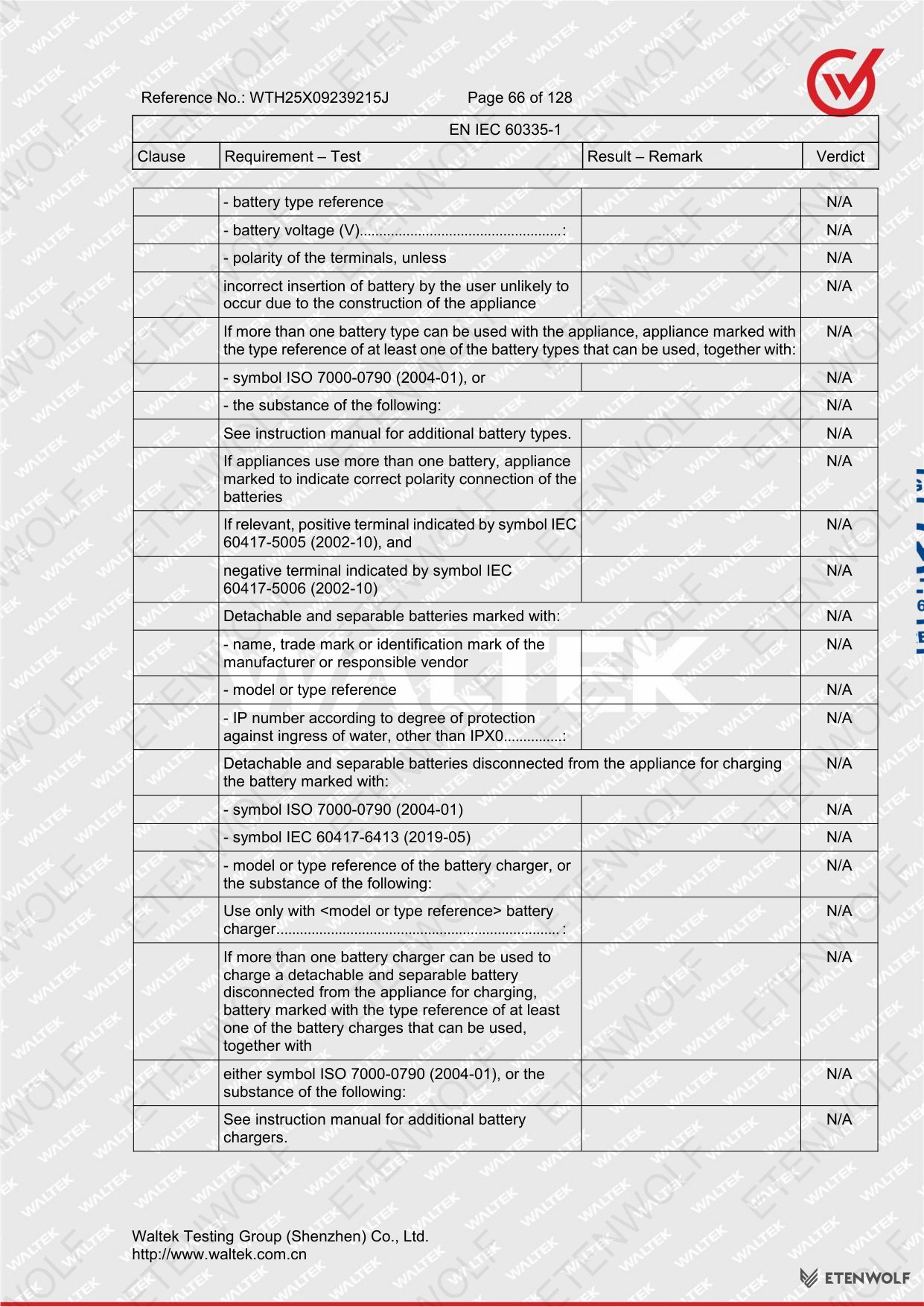

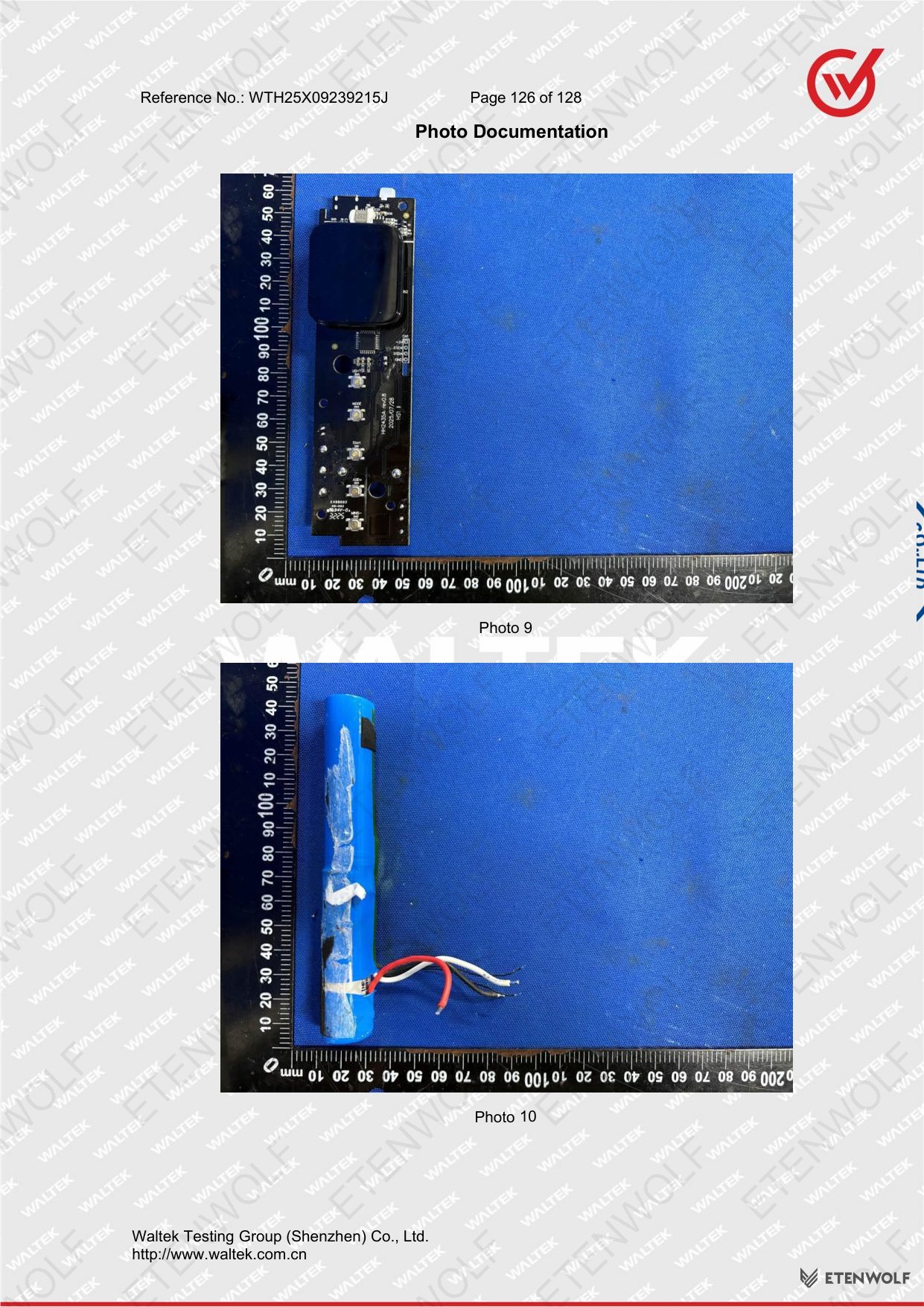

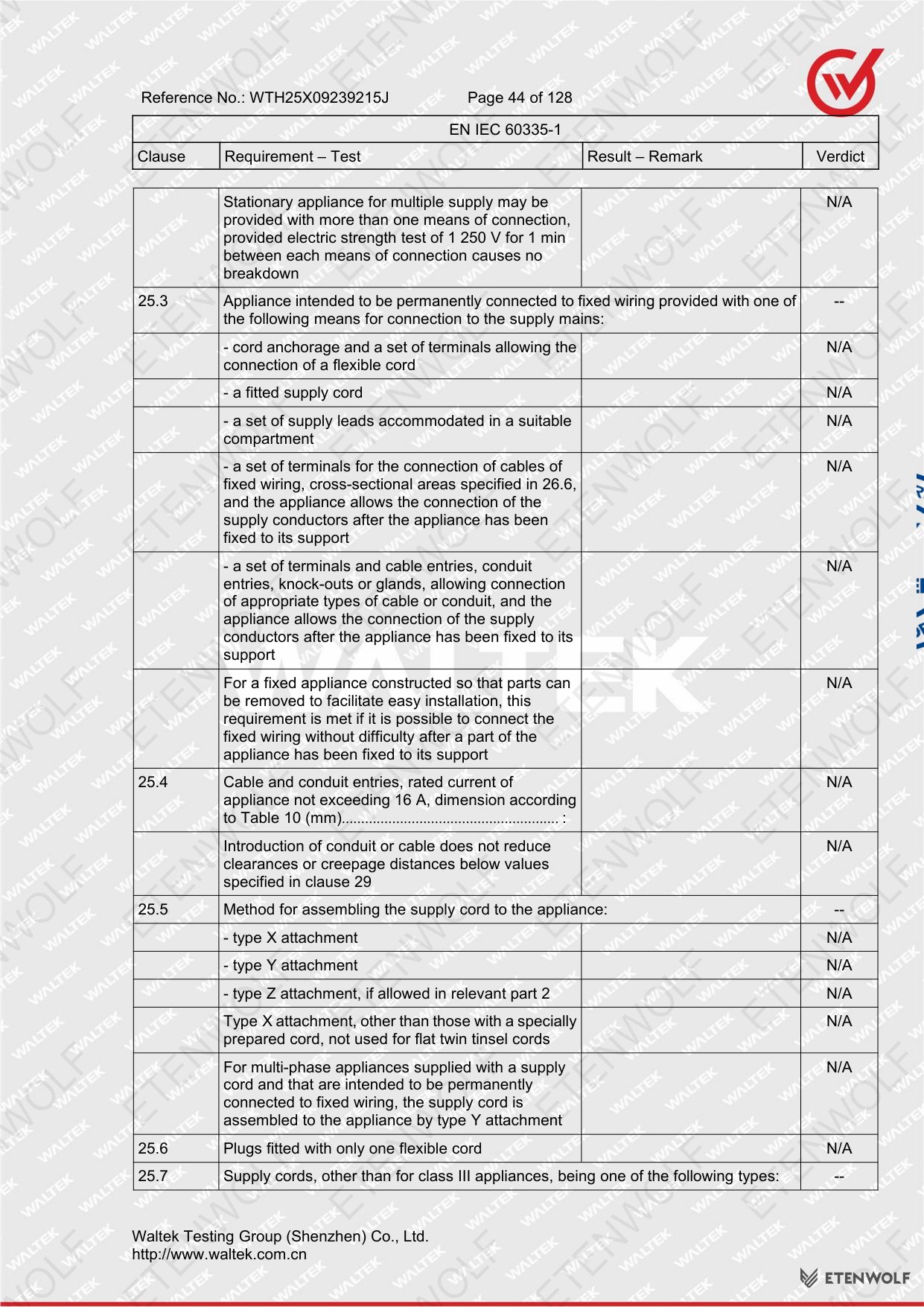

Document Pages
