Document Overview
This article covers the official CE Low Voltage Directive (LVD) test report issued by Waltek Testing Group (Shenzhen) Co., Ltd. for the ETENWOLF Air3 portable blowing pump. The document is a full safety evaluation report compiled in accordance with the EU LVD framework, verifying that the product meets the essential safety requirements for household and similar electrical appliances before placement on the EU market.

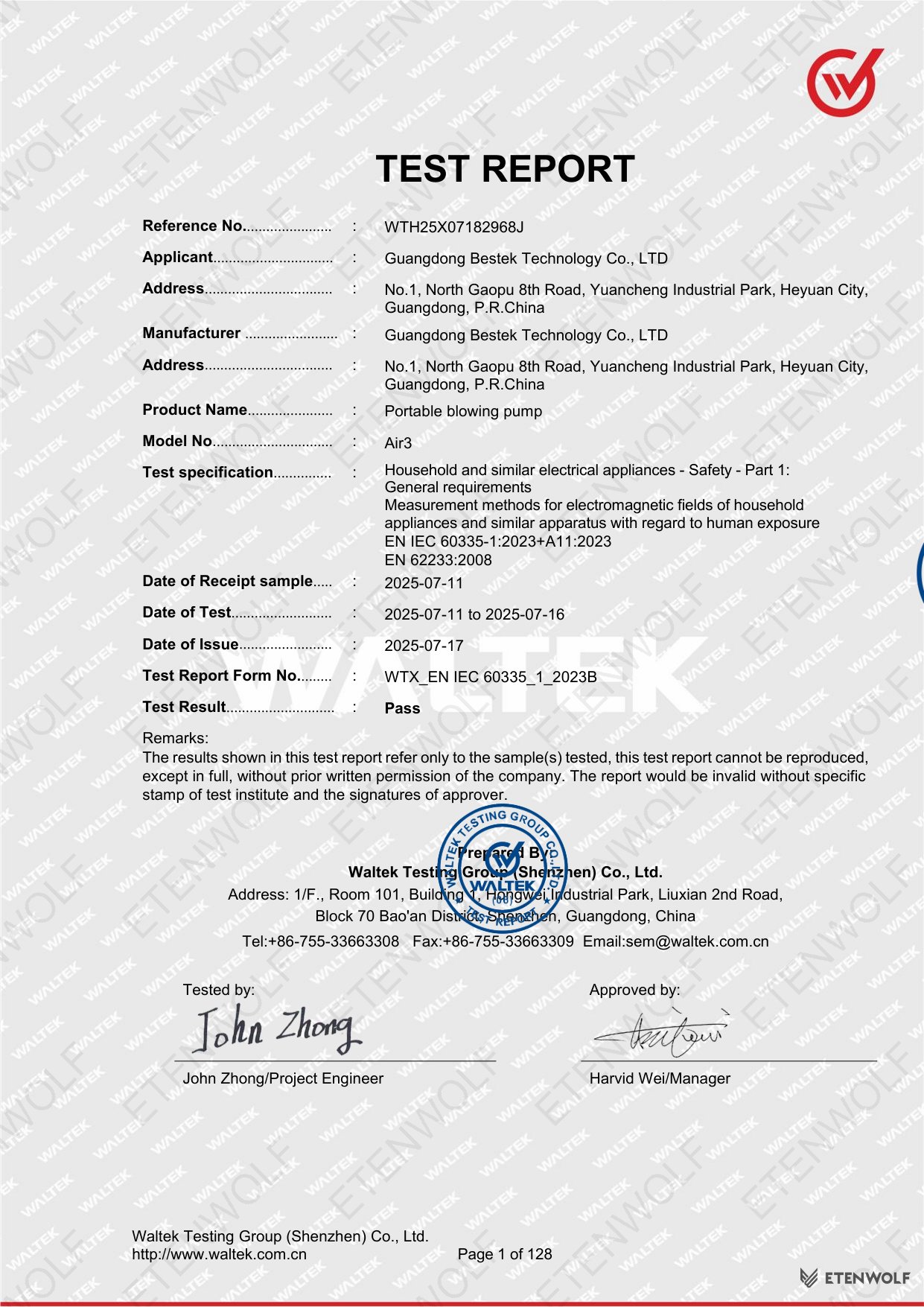

- Document Type: CE-LVD Test Report
- Reference Number: WTH25X07182968J
- Test Report Form No.: WTX_EN IEC 60335_1_2023B
- Issuing Body: Waltek Testing Group (Shenzhen) Co., Ltd., 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao’an District, Shenzhen, Guangdong, China
- Date of Receipt of Sample: 2025-07-11
- Date of Testing: 2025-07-11 to 2025-07-16
- Date of Issue: 2025-07-17
- Overall Test Result: Pass
The report was prepared by John Zhong (Project Engineer) and approved by Harvid Wei (Manager) at Waltek Testing Group. The results apply exclusively to the sample(s) submitted for testing and may not be reproduced in part without prior written permission from the issuing laboratory.
Product Information
The tested product is the Air3, a portable blowing pump designed and manufactured by Guangdong Bestek Technology Co., Ltd. for household and indoor use. Below are the key product details documented in the test report.
| Field | Detail |
|---|---|
| Product Name | Portable Blowing Pump |
| Model Number | Air3 |
| Trademark | — |
| Rated Input Voltage | 5 V DC |
| Rated Input Current | 2.0 A |
| Supply Connection | DC Connector |
| Equipment Class | Class III |
| Installation / Use | Portable appliance, indoor use only |
| Ingress Protection | IPX0 |
| Applicant | Guangdong Bestek Technology Co., Ltd. |
| Manufacturer | Guangdong Bestek Technology Co., Ltd. |
| Manufacturer Address | No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China |
| Country of Manufacture | China |

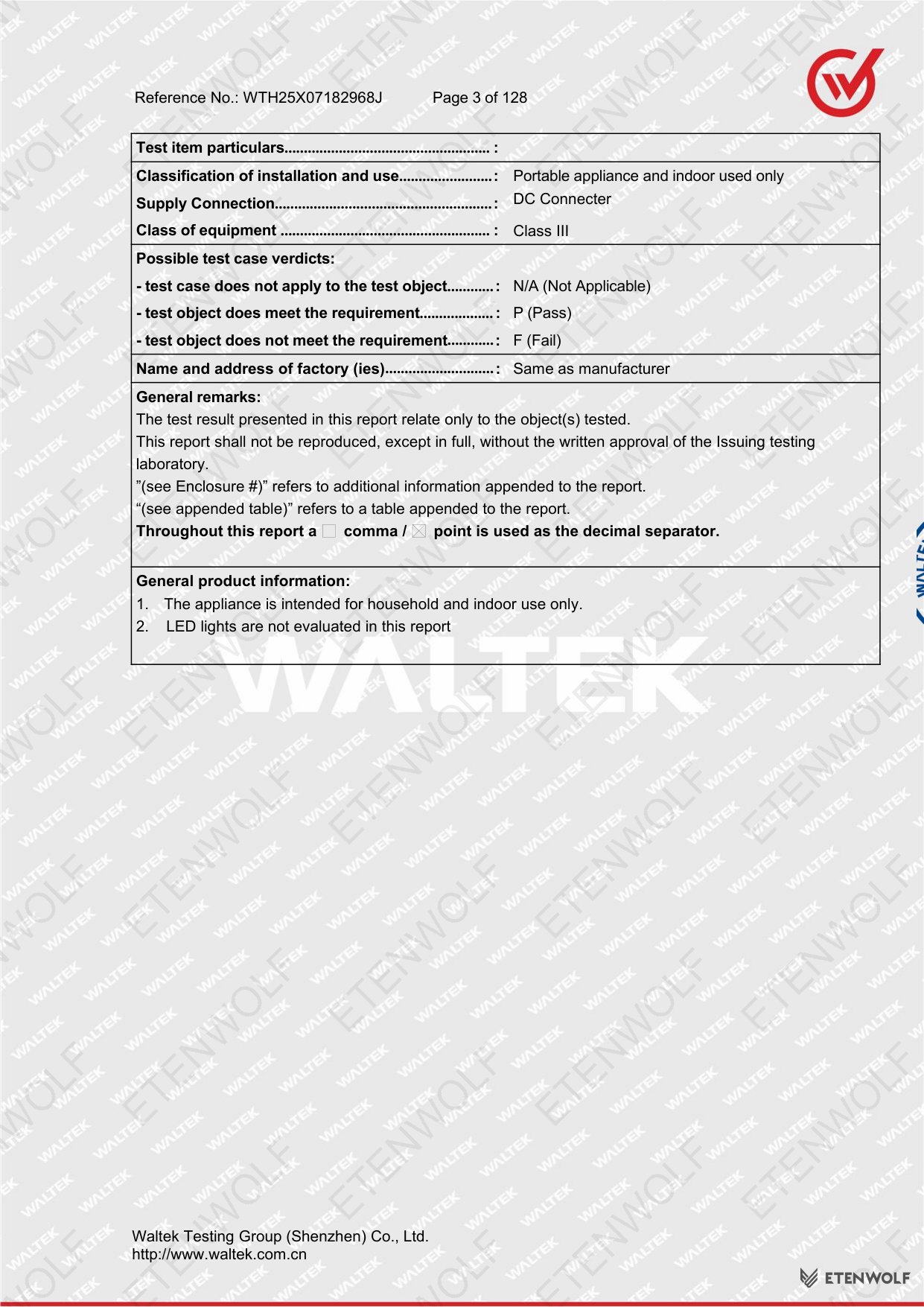

The Air3 operates on extra-low voltage (Class III), drawing power via a DC connector at 5 V / 2.0 A. It is intended for household and similar indoor environments only. Note that the LED lighting components of the unit were not evaluated within the scope of this report.
Key Details
The following table summarises the key test clauses evaluated under EN IEC 60335-1:2023+A11:2023 for the Air3, along with their verdicts as documented in test report WTH25X07182968J.

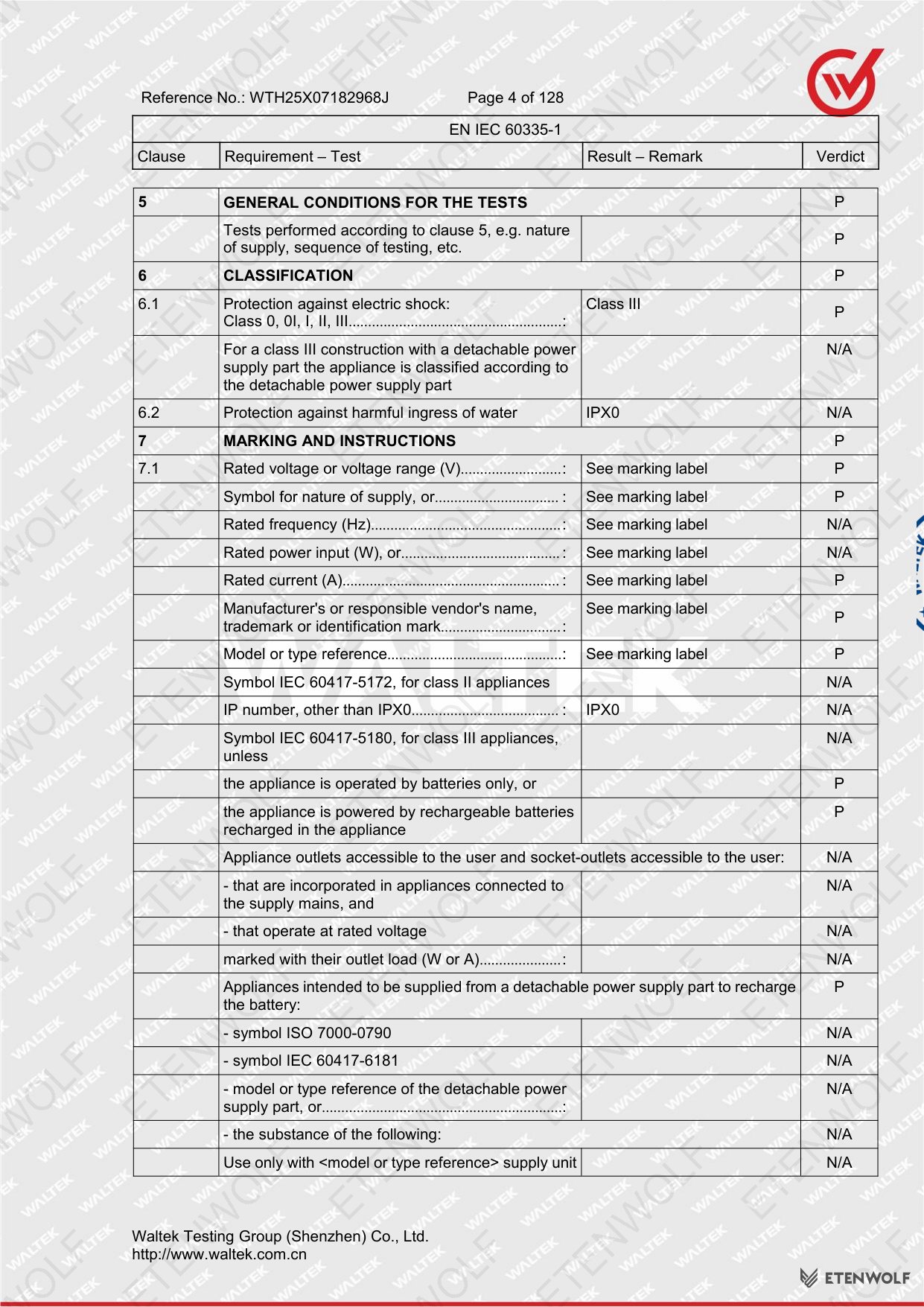

| Clause | Requirement / Test Area | Verdict |
|---|---|---|
| Clause 5 | General Conditions for the Tests (nature of supply, sequence of testing) | Pass |
| Clause 6 | Classification | Pass |
| 6.1 | Protection against electric shock — Class III | Pass |
| 6.2 | Protection against harmful ingress of water — IPX0 | N/A |
| Clause 7 | Marking and Instructions | Pass |
| 7.1 | Rated voltage, current, manufacturer identification, model reference on marking label | Pass |
| 7.1 | Symbol IEC 60417-5180 for Class III appliances (battery-operated / rechargeable) | Pass |
| 7.1 | Appliances supplied from a detachable power supply part | Pass |
| 7.2 | Warning for stationary appliances for multiple supply | N/A |
| 7.3 | Range of rated values marking | N/A |

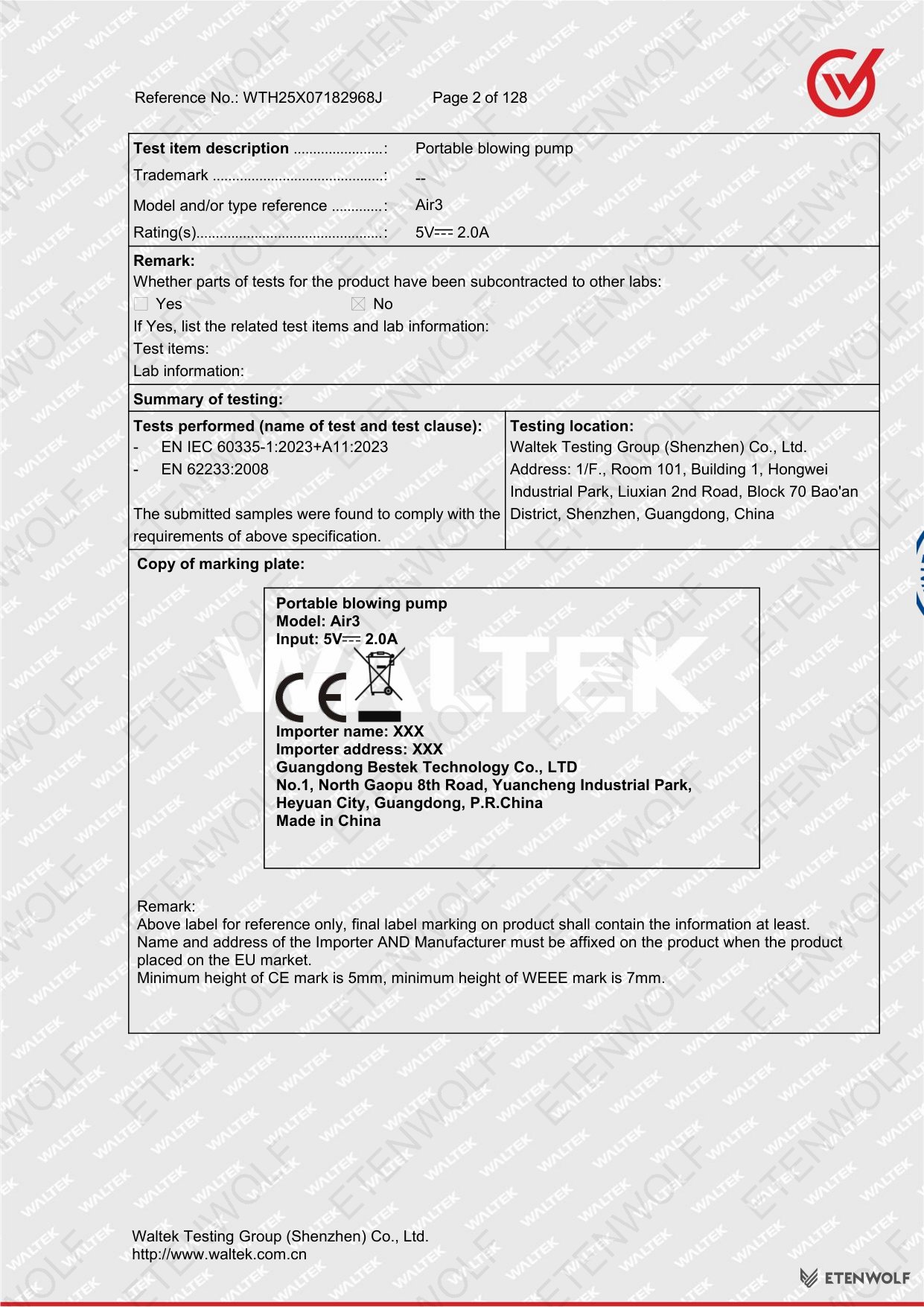

Additional marking requirements confirmed in the report include: the CE mark must have a minimum height of 5 mm, the WEEE mark a minimum height of 7 mm, and both the name and address of the EU importer and manufacturer must be affixed to the product when placed on the EU market. The importer name and address fields on the sample label were listed as placeholders (XXX) at the time of testing, pending assignment of an EU-based importer.
All testing was conducted at Waltek Testing Group (Shenzhen) Co., Ltd. No test items were subcontracted to other laboratories.
Standards & Compliance
The Air3 was evaluated against the following harmonised European standards as part of the CE-LVD assessment:
| Standard | Title | Scope |
|---|---|---|
| EN IEC 60335-1:2023+A11:2023 | Household and Similar Electrical Appliances — Safety — Part 1: General Requirements | Primary safety standard covering construction, testing, and performance requirements for household electrical appliances |
| EN 62233:2008 | Measurement Methods for Electromagnetic Fields of Household Appliances and Similar Apparatus with Regard to Human Exposure | Defines measurement methods to assess electromagnetic field (EMF) exposure levels relative to human safety limits |
The product is classified as a Class III appliance, meaning it operates at safety extra-low voltage (SELV) and relies on the supply voltage itself as its primary protection against electric shock — no protective earthing is required. The ingress protection rating is IPX0, indicating no specific protection against water ingress, consistent with its indoor-only use classification.
Both standards applied are harmonised under the EU Low Voltage Directive (LVD) 2014/35/EU, which governs the safety of electrical equipment designed for use within certain voltage limits. Compliance with these standards supports the product’s CE marking obligations.
Validity & Certification Body
The following details govern the validity and authority of test report WTH25X07182968J:
| Field | Detail |
|---|---|
| Report Reference Number | WTH25X07182968J |
| Date of Issue | 2025-07-17 |
| Testing Period | 2025-07-11 to 2025-07-16 |
| Sample Receipt Date | 2025-07-11 |
| Issuing Laboratory | Waltek Testing Group (Shenzhen) Co., Ltd. |
| Laboratory Address | 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao’an District, Shenzhen, Guangdong, China |
| Laboratory Website | http://www.waltek.com.cn |
| Laboratory Contact | Tel: +86-755-33663308 | Fax: +86-755-33663309 | Email: [email protected] |
| Prepared By | John Zhong, Project Engineer |
| Approved By | Harvid Wei, Manager |
| Report Validity | Valid for the tested sample(s) only; report is invalid without the specific stamp of the test institute and signatures of the approver |
| Reproduction Policy | Report may not be reproduced except in full, with prior written permission from Waltek Testing Group |
Waltek Testing Group (Shenzhen) Co., Ltd. is an accredited third-party testing laboratory providing certification and compliance testing services for global markets. The validity of this report is tied to the specific sample(s) tested; results are not transferable to other units or production batches without separate evaluation.
Frequently Asked Questions
- What does the CE-LVD test report for the Air3 confirm?
-
The CE-LVD test report (Reference No. WTH25X07182968J) confirms that the Air3 portable blowing pump passed all applicable safety requirements under EN IEC 60335-1:2023+A11:2023 and EN 62233:2008. This means the product meets the essential safety requirements of the EU Low Voltage Directive (2014/35/EU) and is eligible to carry the CE mark for placement on the European market.
- What equipment class is the Air3, and why does it matter?
-
The Air3 is a Class III appliance, which means it operates at safety extra-low voltage (SELV) — in this case 5 V DC at 2.0 A. Class III classification indicates the product relies on the low supply voltage as its primary protection against electric shock, rather than insulation or earthing. This makes it inherently safer for household use and aligns with its portable, indoor-only design.
- Were all tests conducted at Waltek’s own laboratory?
-
Yes. According to the test report, all testing for report WTH25X07182968J was conducted entirely at Waltek Testing Group (Shenzhen) Co., Ltd.’s facility in Bao’an District, Shenzhen. No test items were subcontracted to any other laboratory.
- Does this report cover the LED lighting function of the Air3?
-

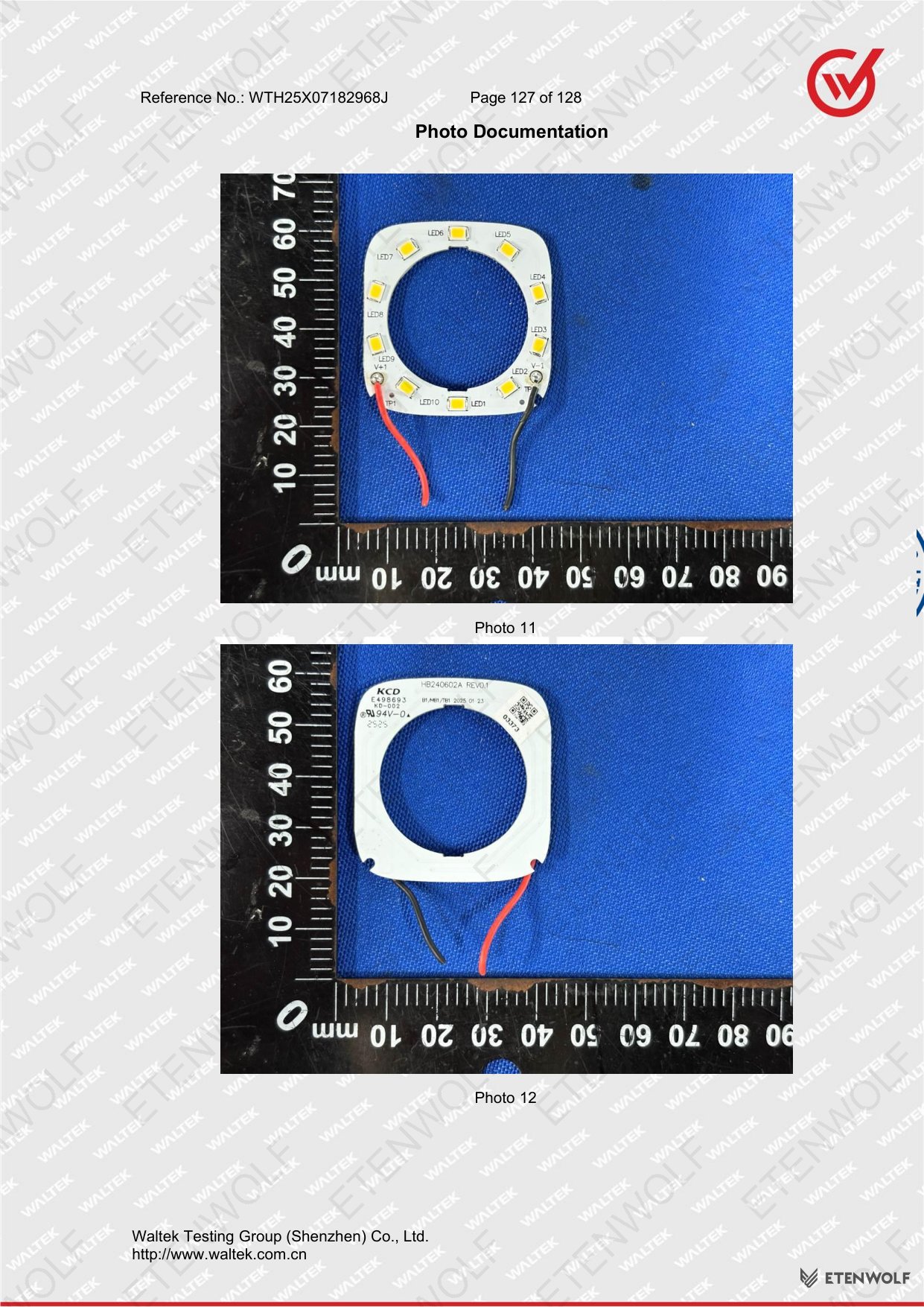

No. The test report explicitly states that the LED lights incorporated in the Air3 were not evaluated within the scope of this report. The CE-LVD assessment covers the core electrical safety and EMF exposure aspects of the pump function only. LED-related compliance may be addressed under separate documentation.
Related Documents
The CE-LVD test report is one component of a broader compliance documentation package typically required for the Air3 portable blowing pump. The following related certification and documentation types are relevant for a complete market access and compliance profile:
- CE-EMC Test Report — Electromagnetic compatibility testing under the EU EMC Directive (2014/30/EU), typically covering EN 55014-1 (emissions) and EN 55014-2 (immunity) for household appliances.
- CE Declaration of Conformity (DoC) — The manufacturer’s formal declaration that the Air3 meets all applicable EU directives, required to affix the CE mark and place the product on the EU market.
- CE-RED Test Report — If the Air3 incorporates any wireless or radio frequency functionality (e.g., Bluetooth), a Radio Equipment Directive (2014/53/EU) test report would be required.
- UN 38.3 Battery Safety Test Report — If the Air3 is powered by a lithium-ion or lithium-polymer rechargeable battery, UN 38.3 certification is required for safe transport of lithium batteries by air, sea, and road.
- RoHS Compliance Report / Test Report — Confirms restriction of hazardous substances (lead, mercury, cadmium, etc.) under EU RoHS Directive 2011/65/EU, required for all electrical and electronic equipment placed on the EU market.
- REACH SVHC Declaration — Documents compliance with REACH Regulation (EC) No 1907/2006 regarding substances of very high concern in the product’s materials.
- FCC / IC Certification — Required for sale in the United States and Canada respectively, covering radio frequency emissions and interference standards.
- KC Certification — Required for sale in South Korea under the KC safety mark framework covering electrical safety and EMC.

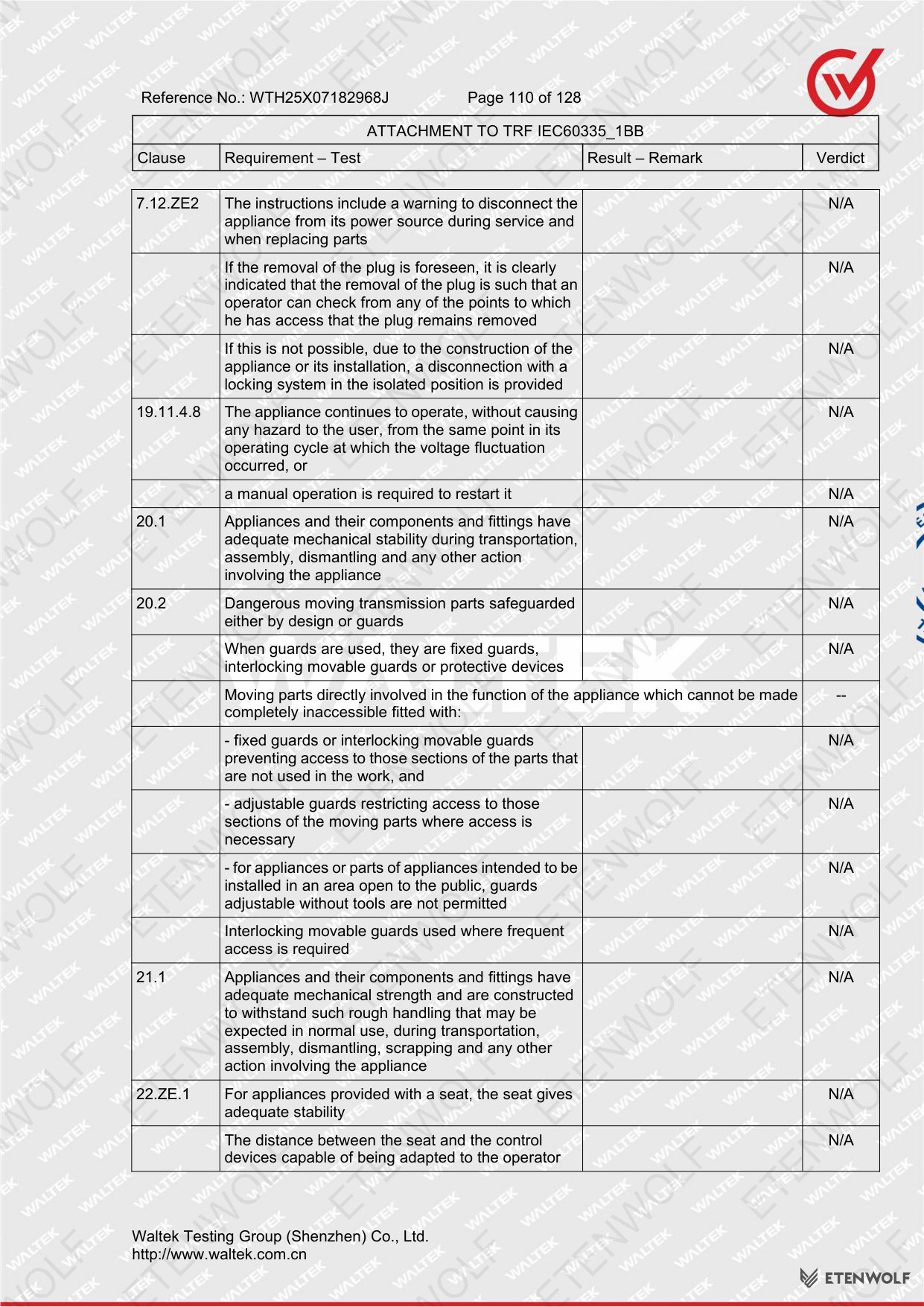

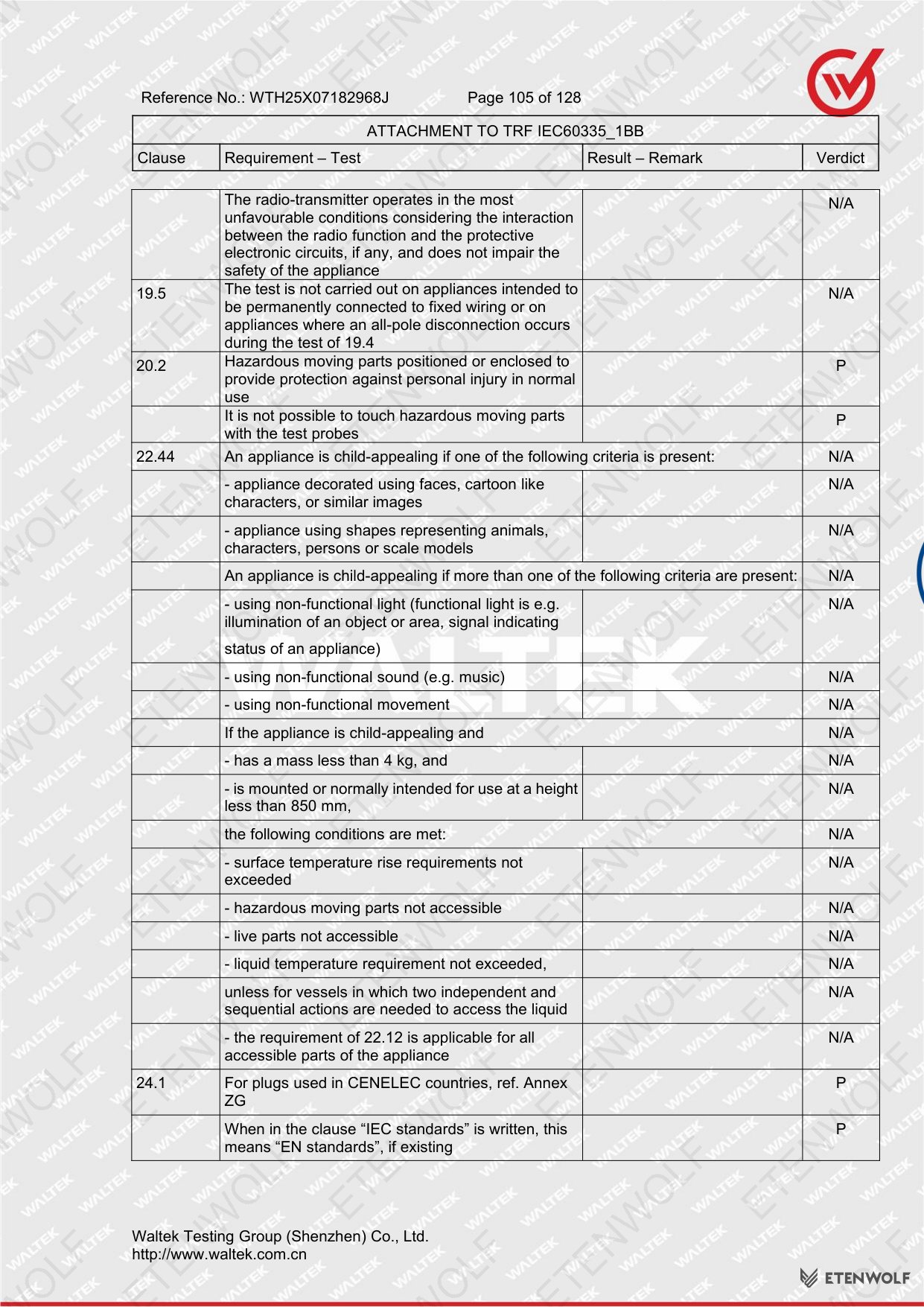

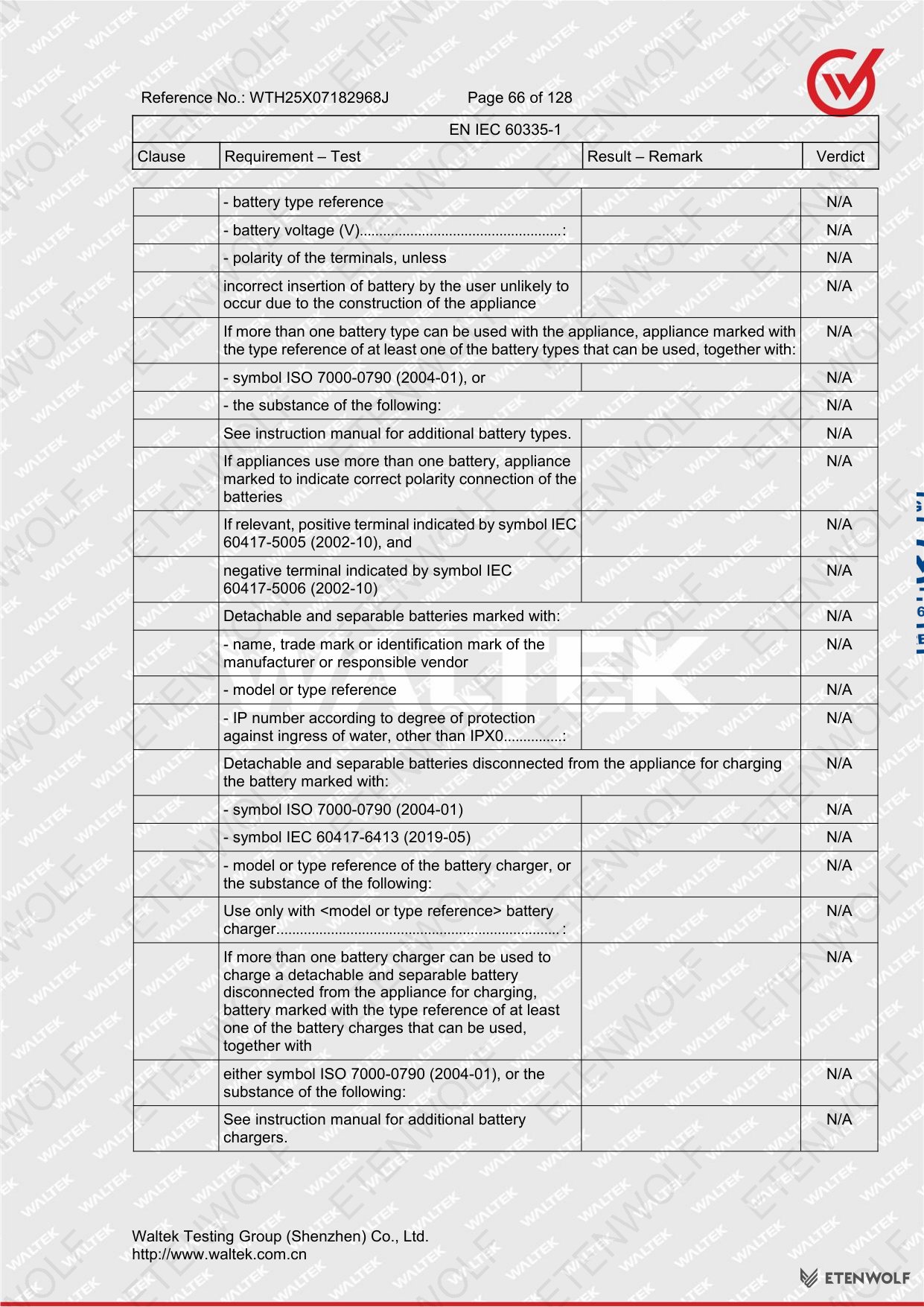

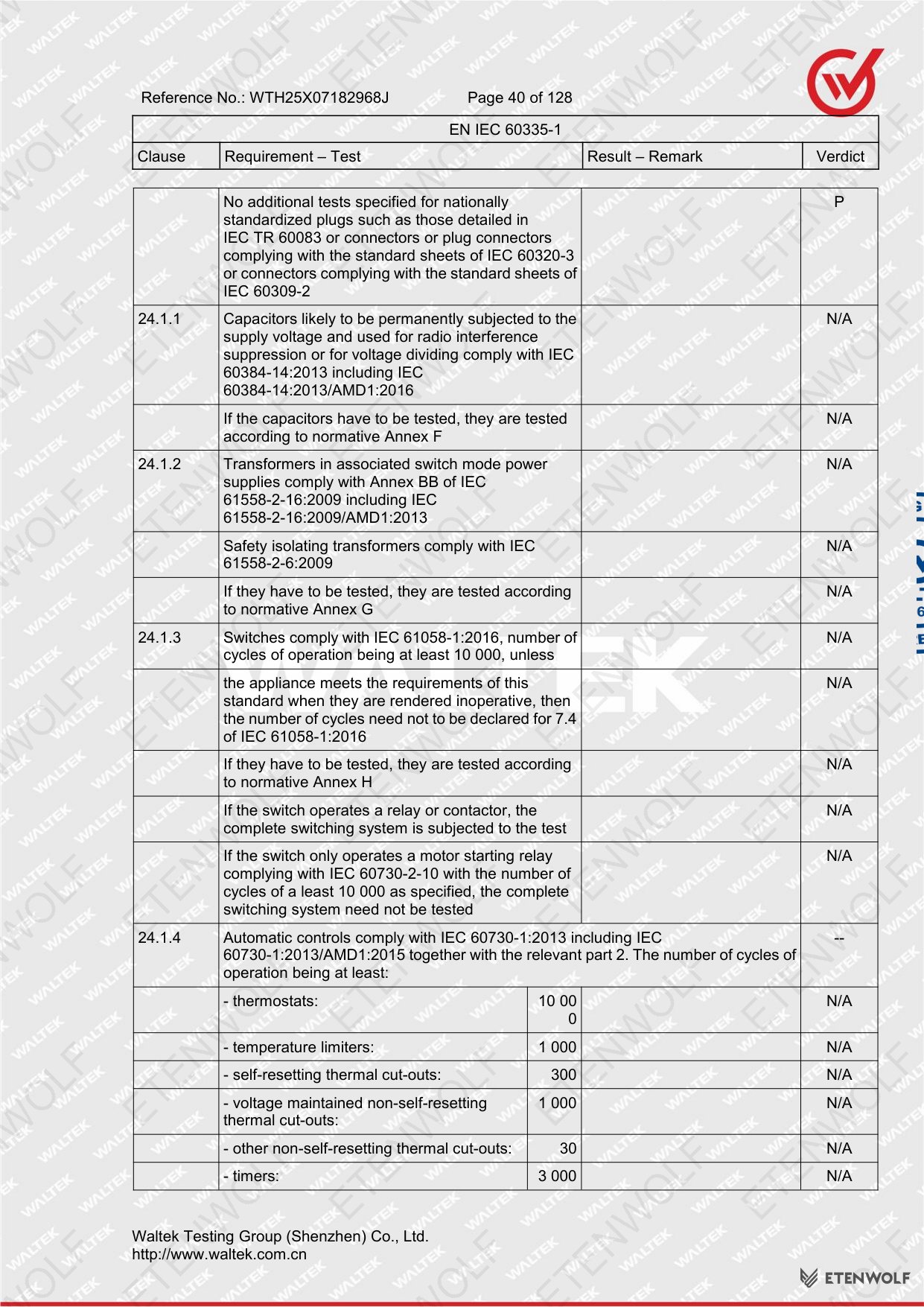

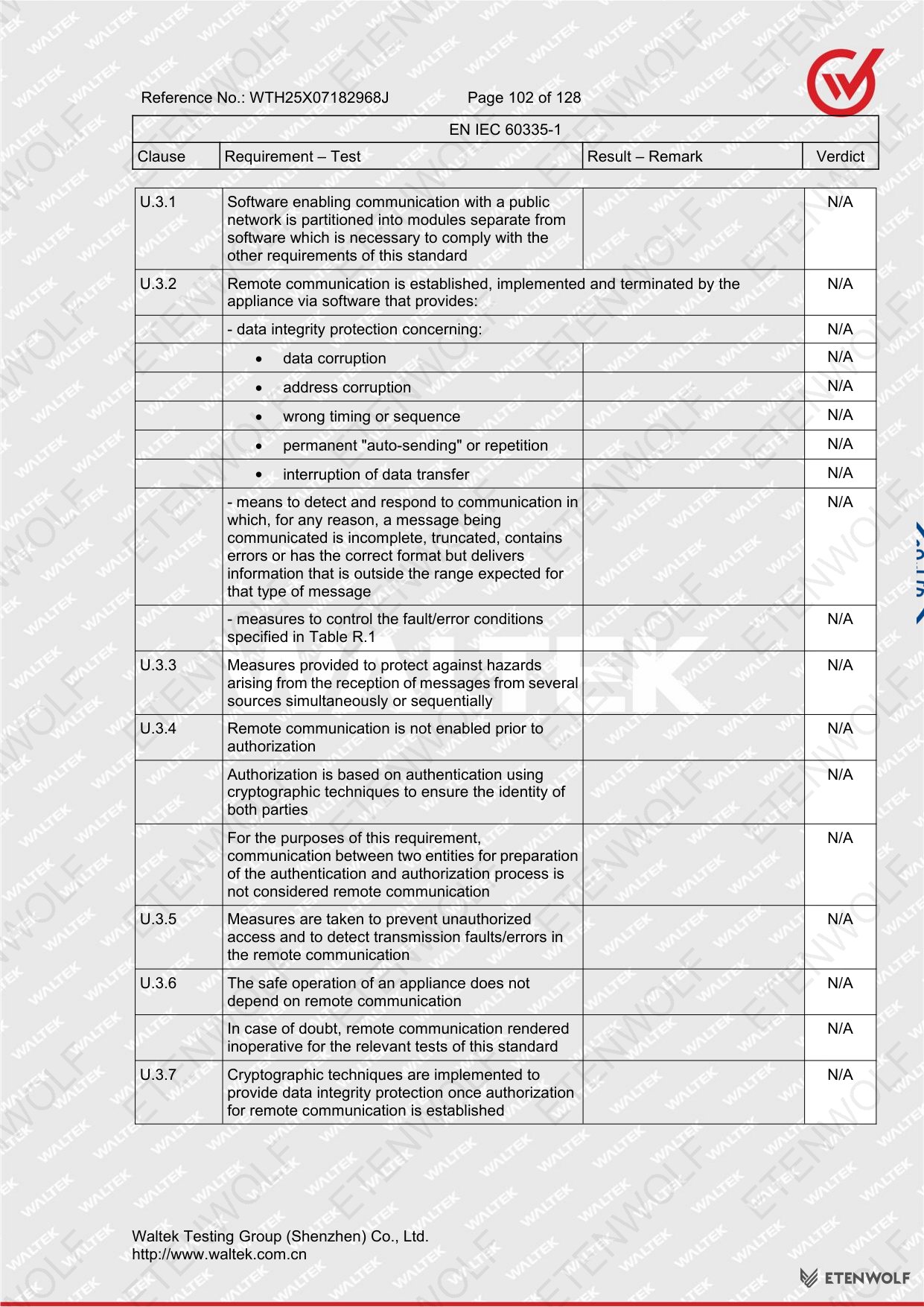

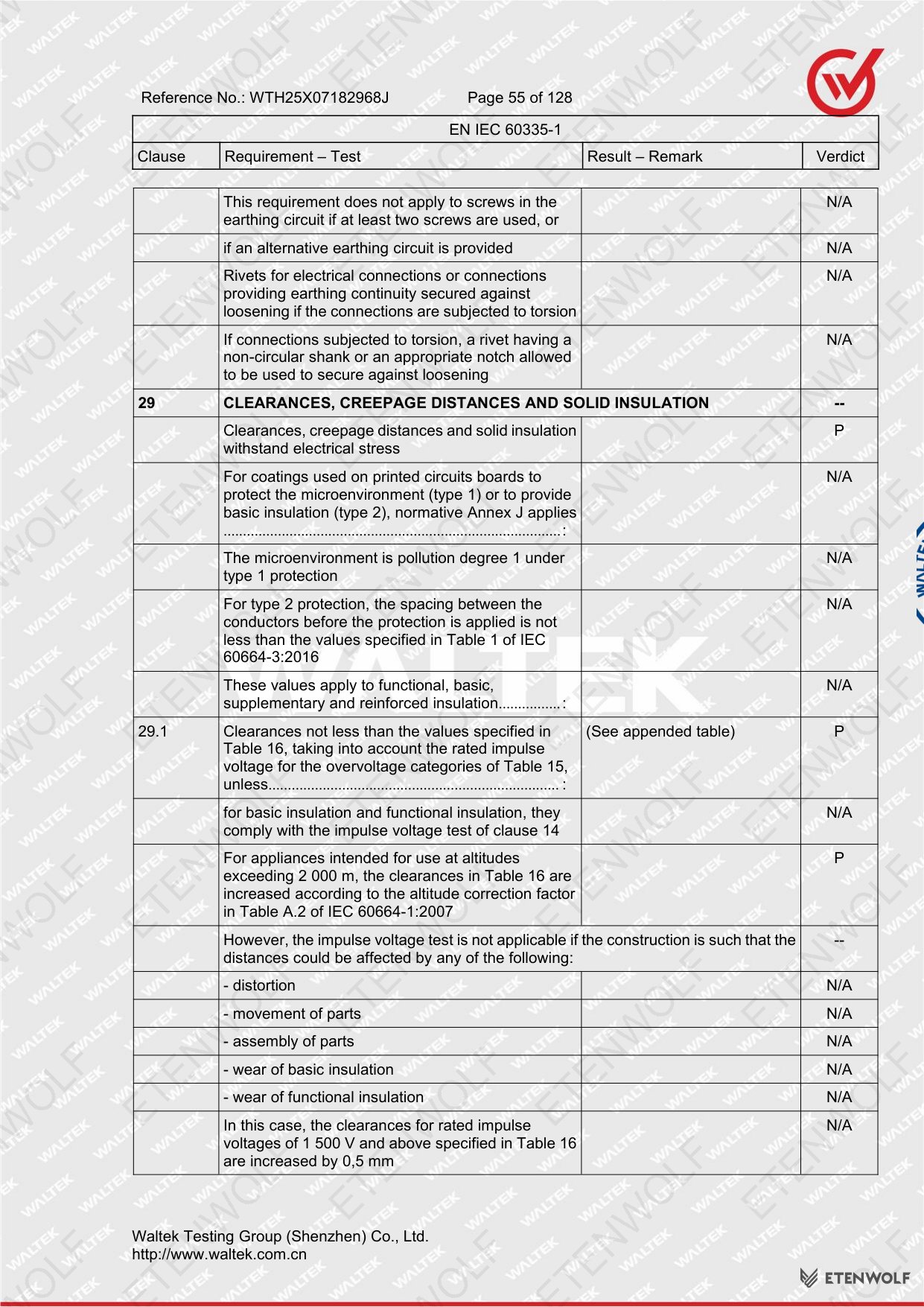

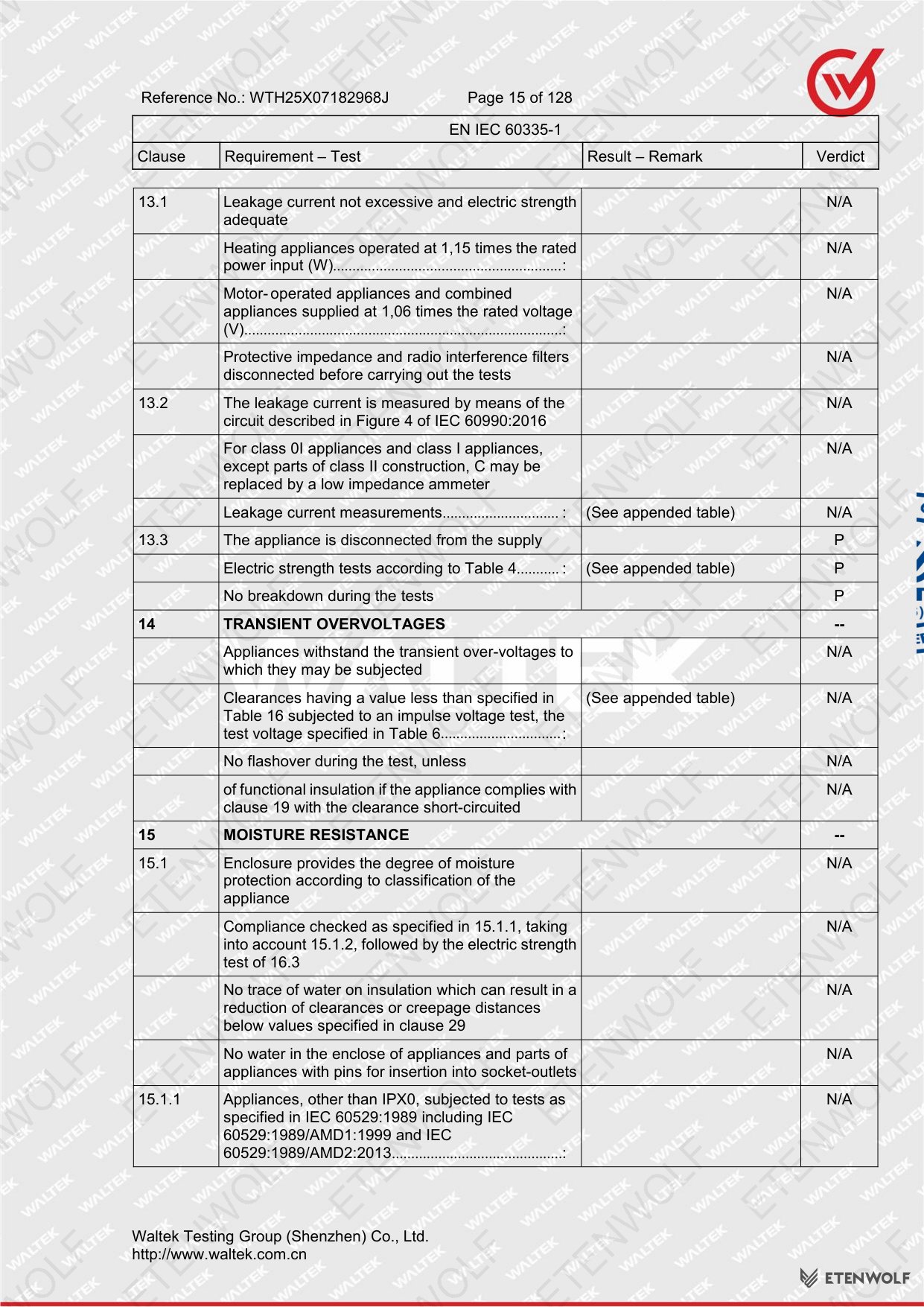

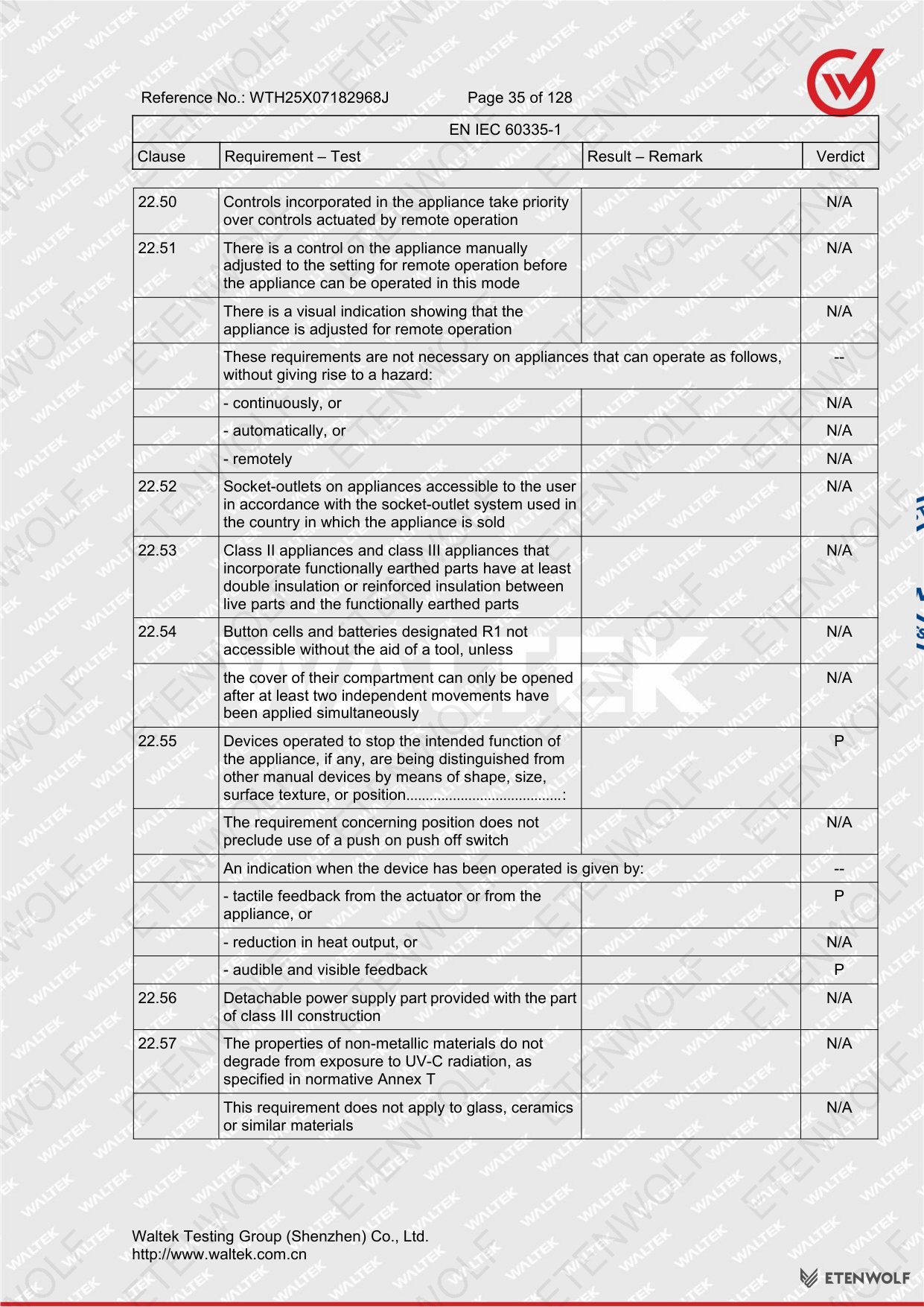

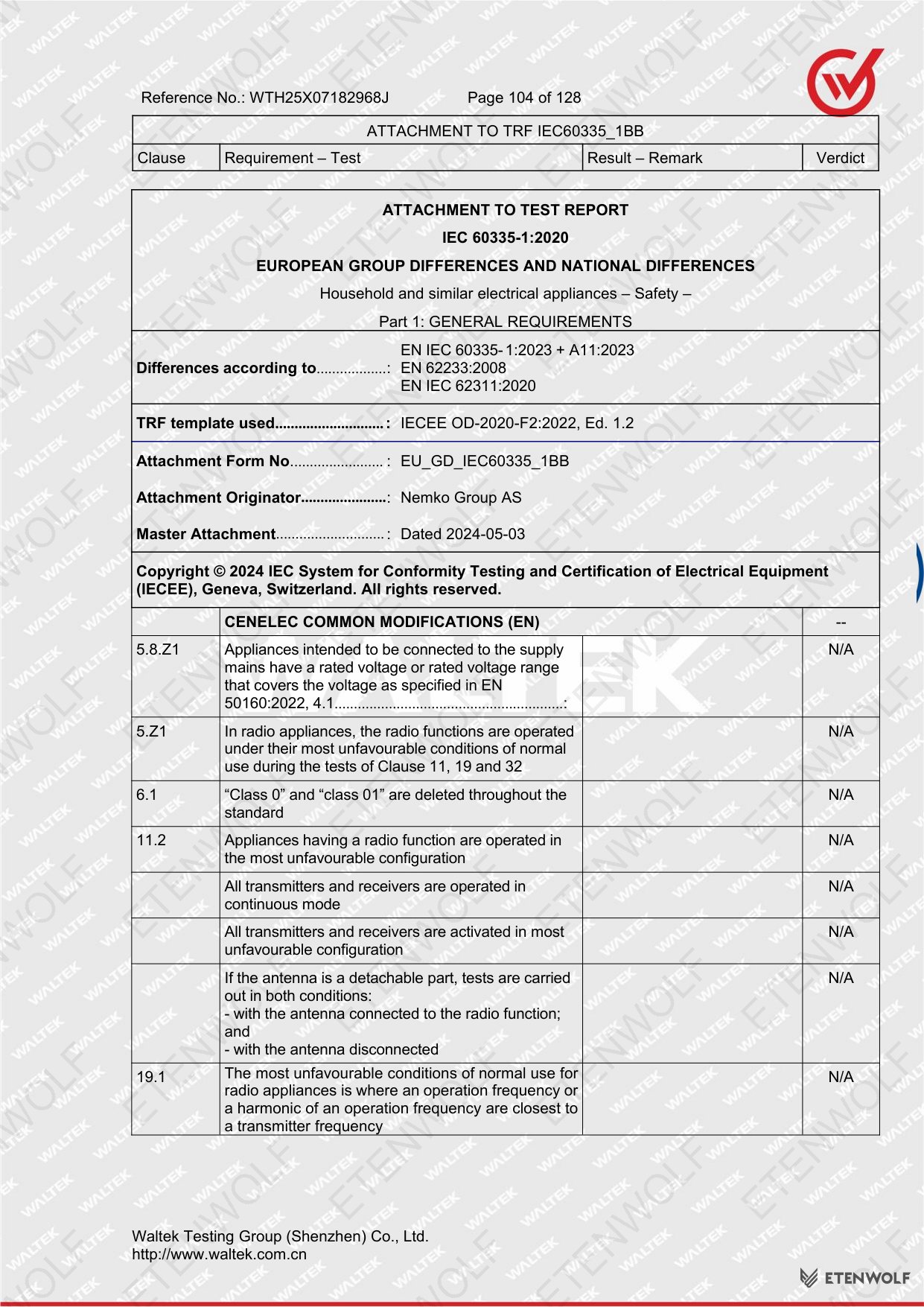

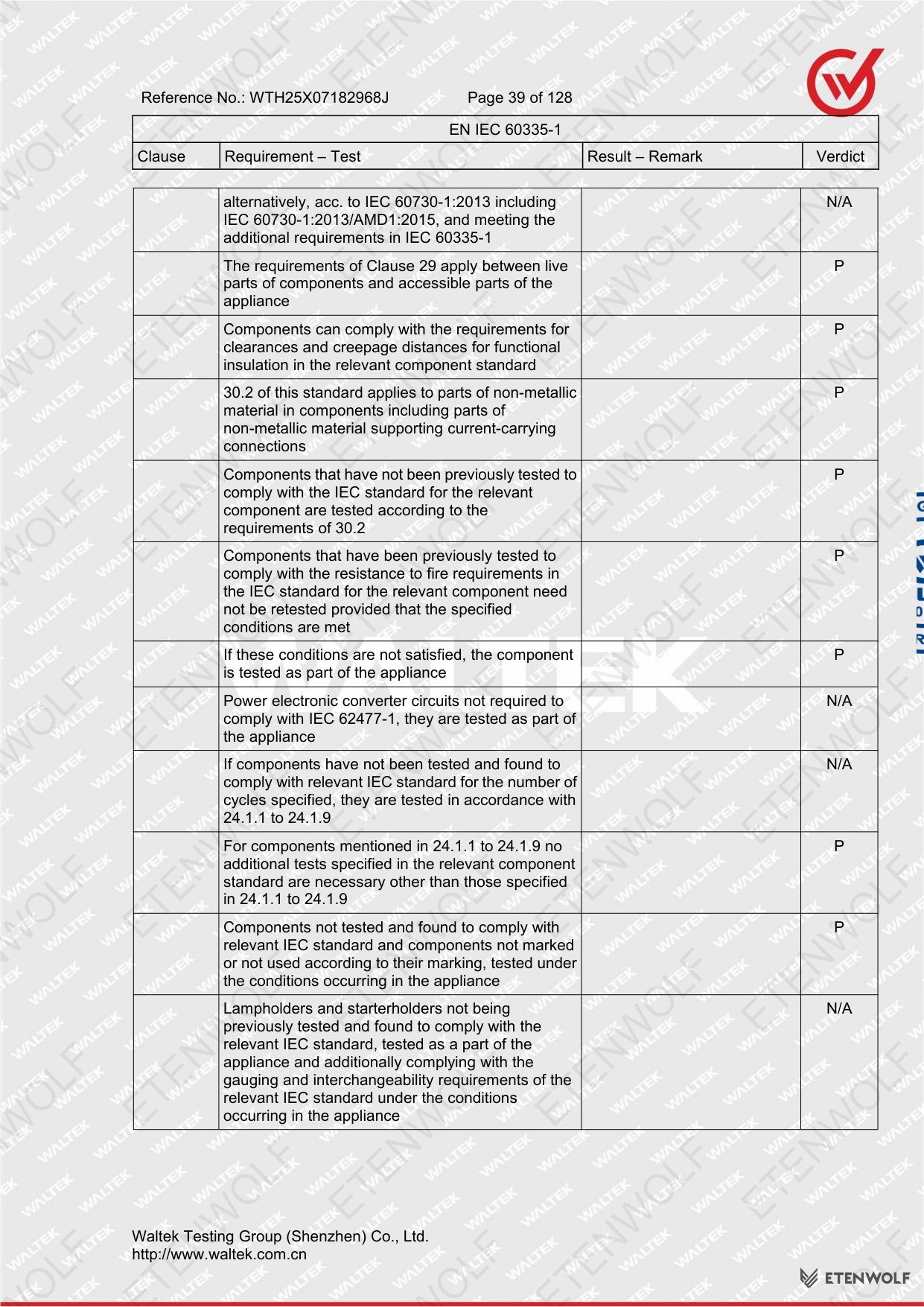

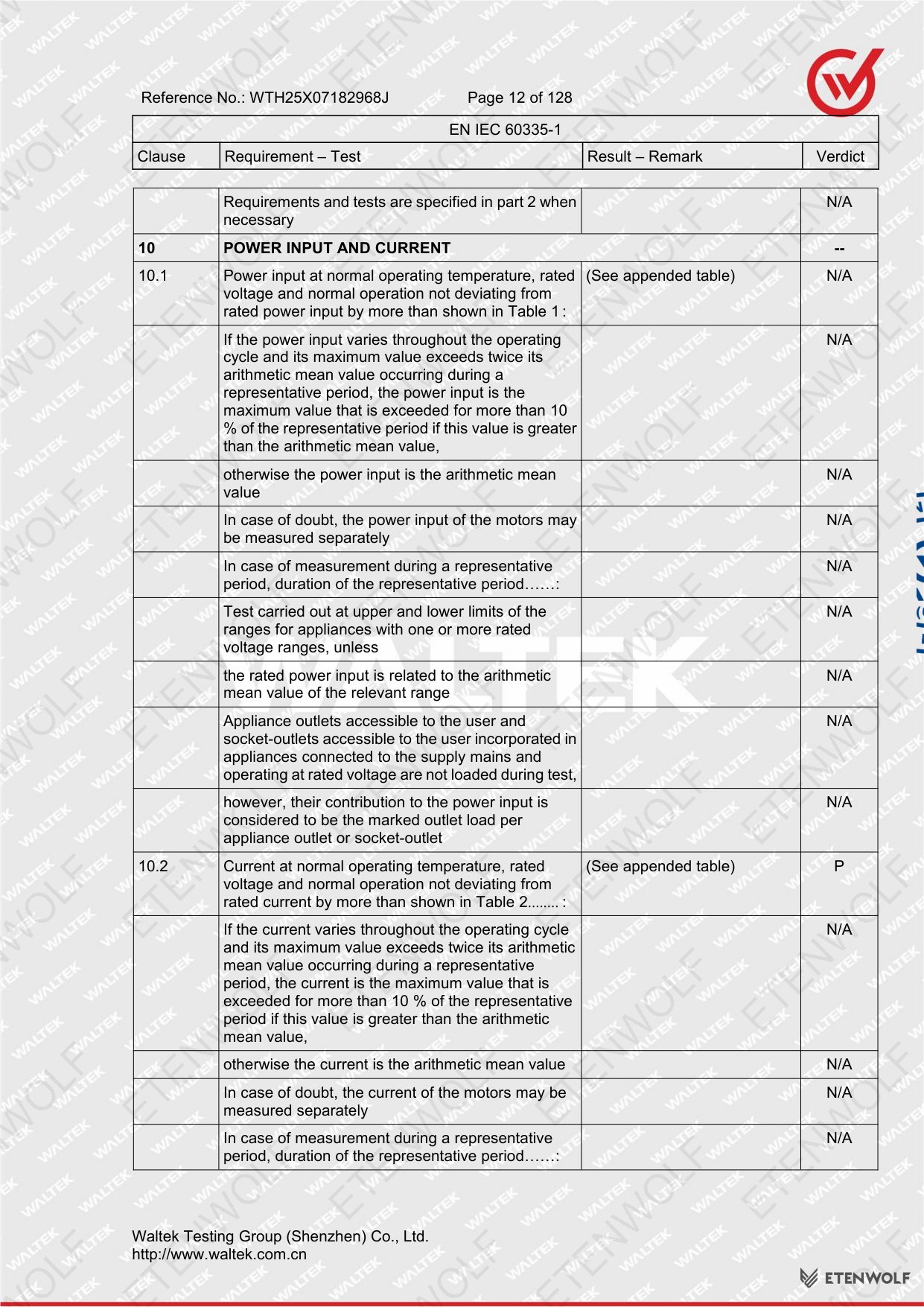

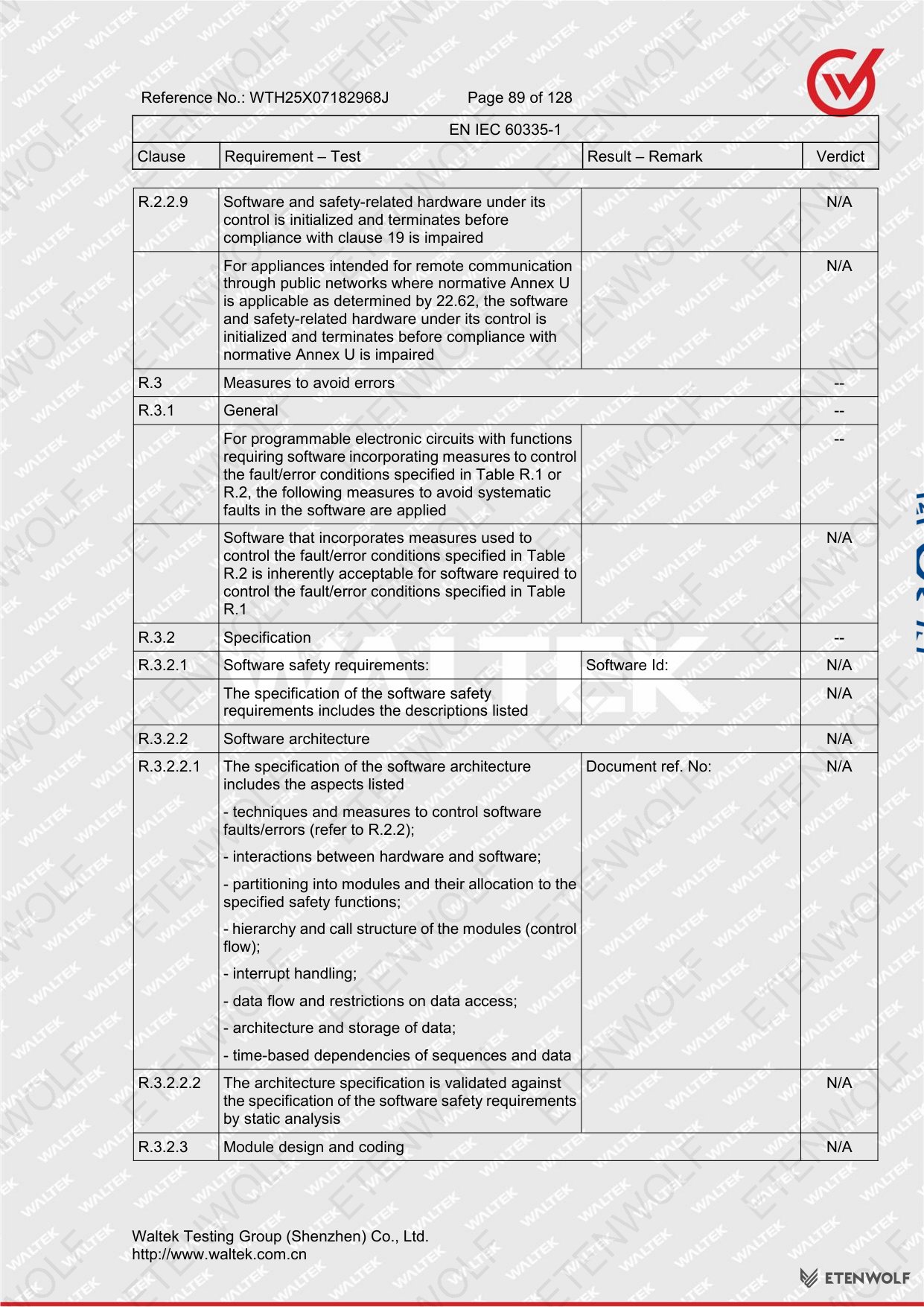

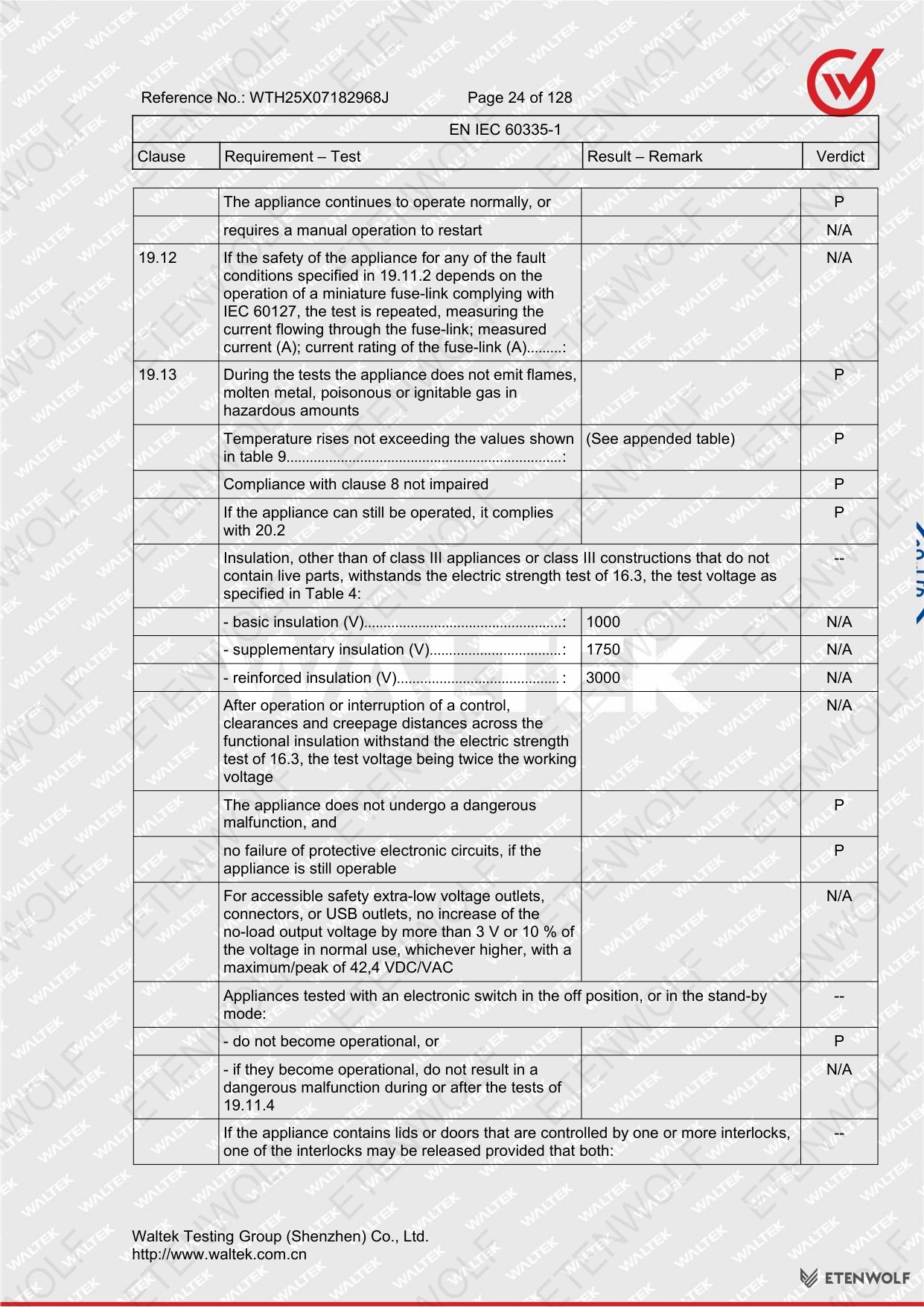

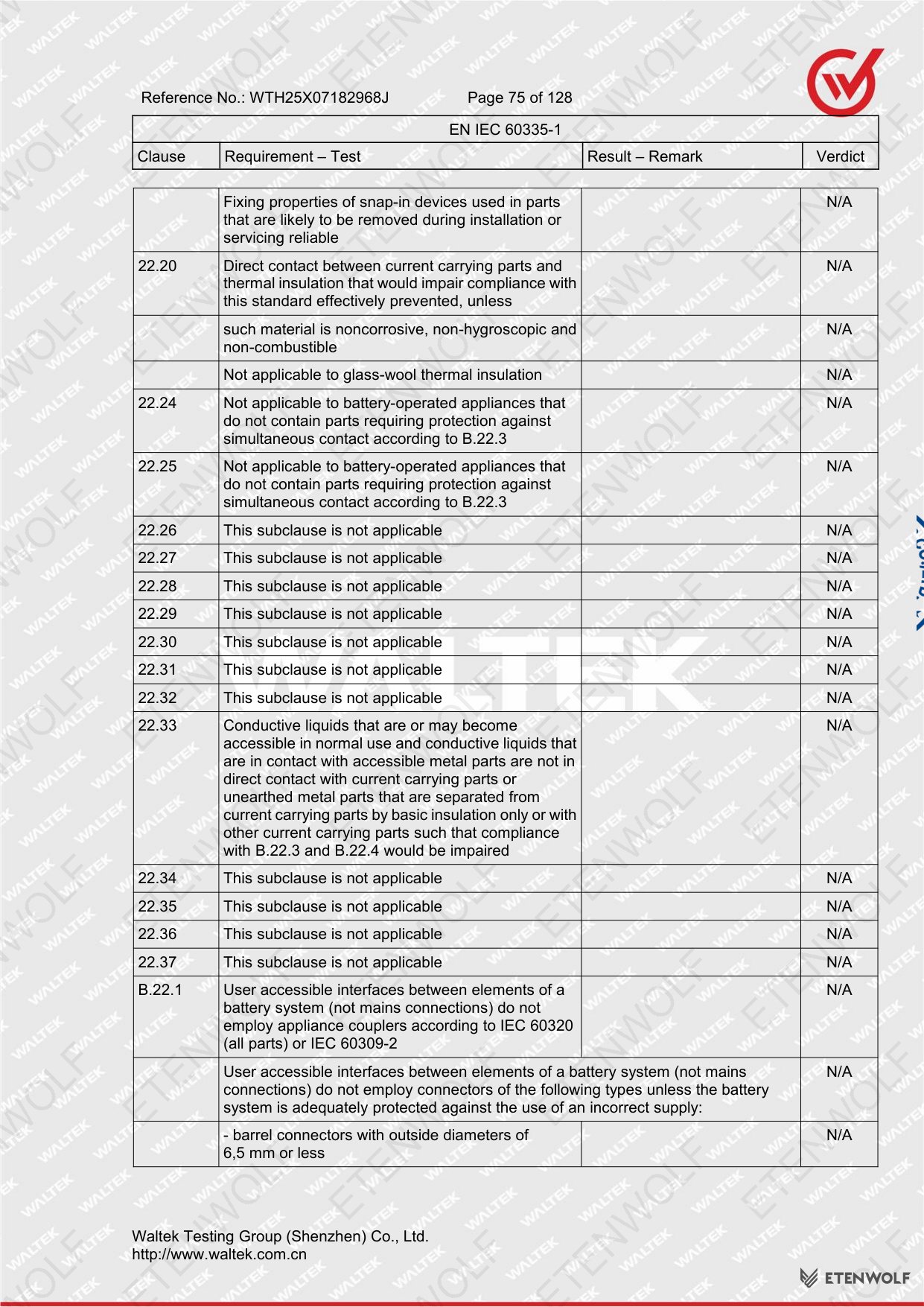

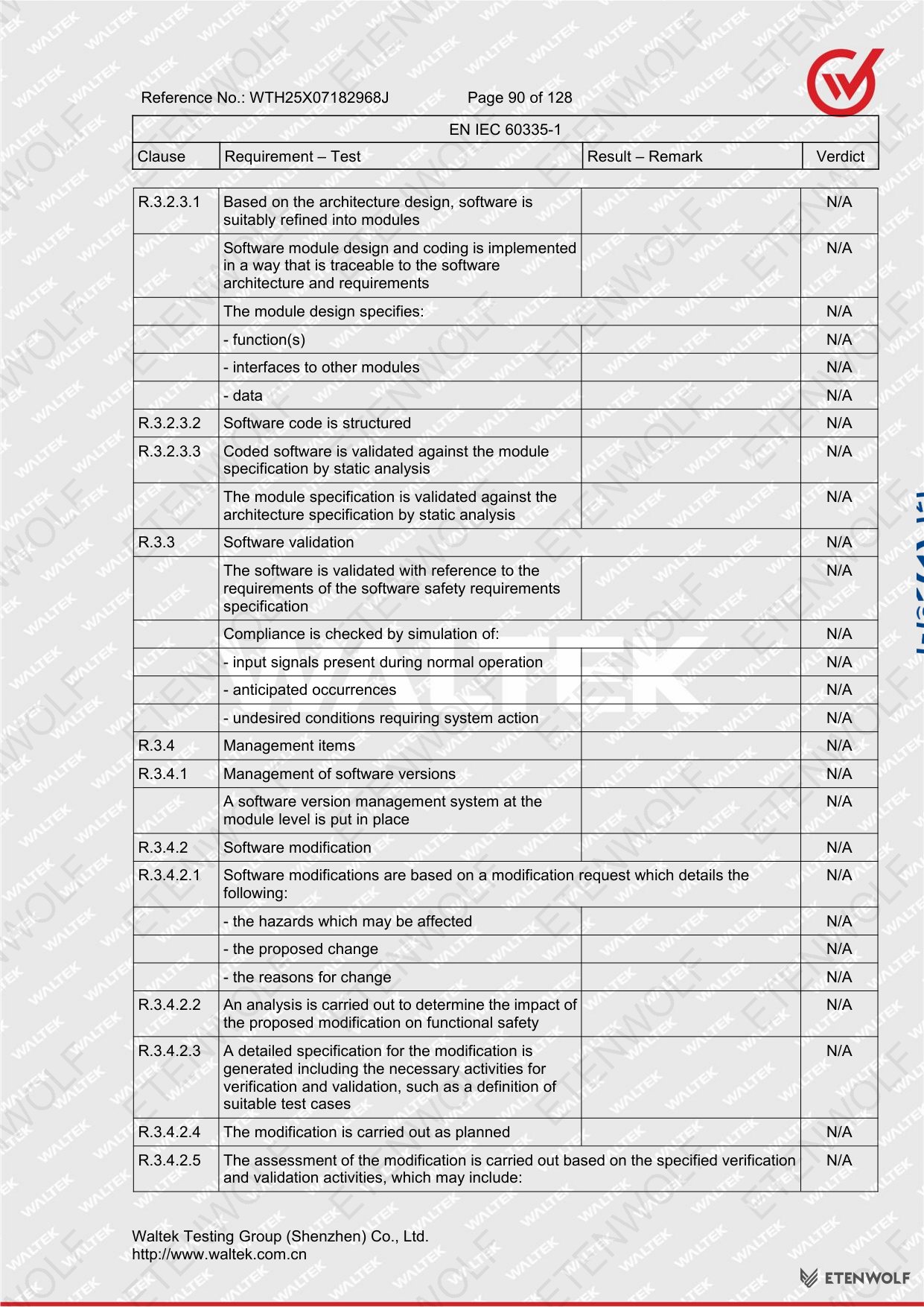

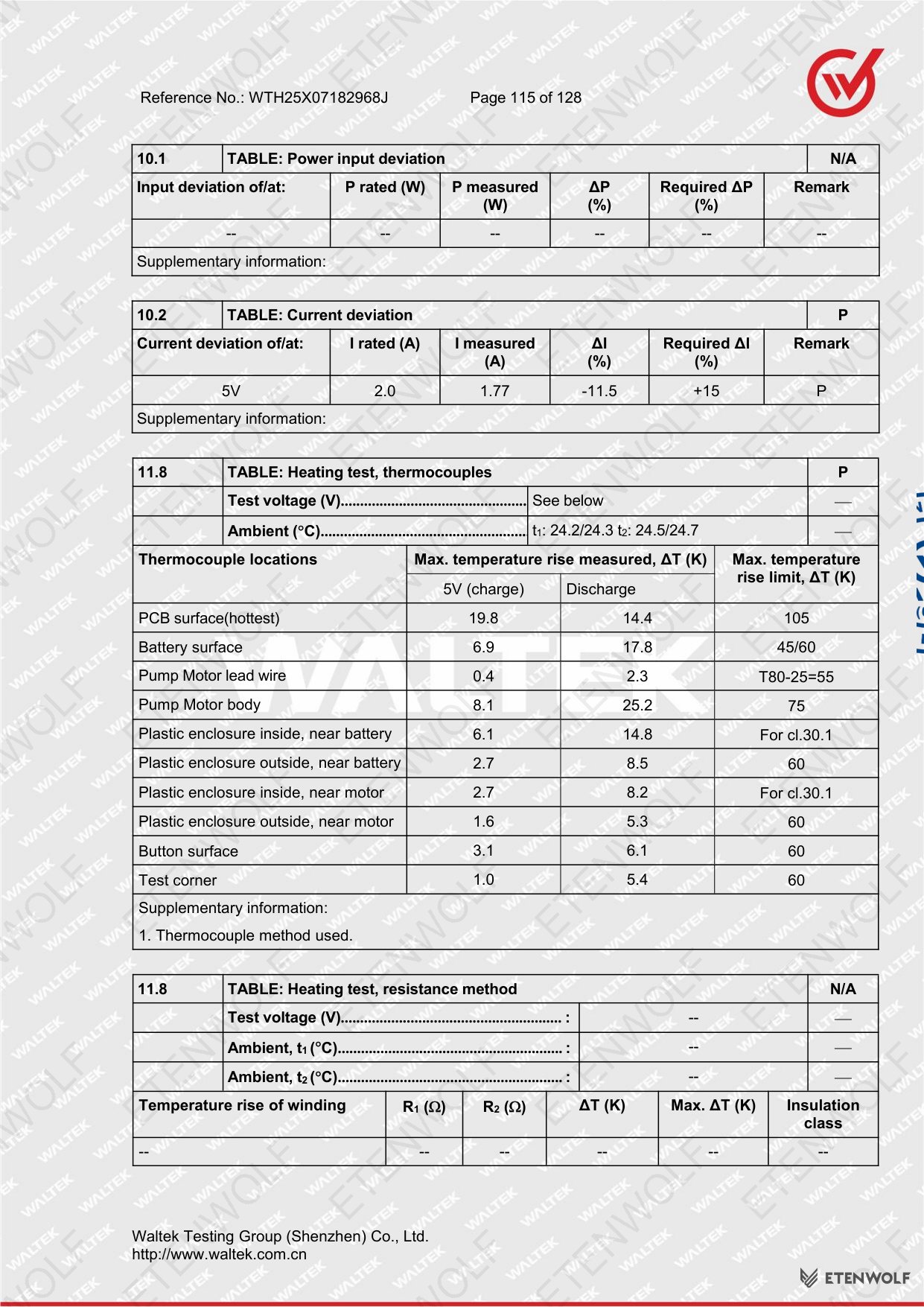

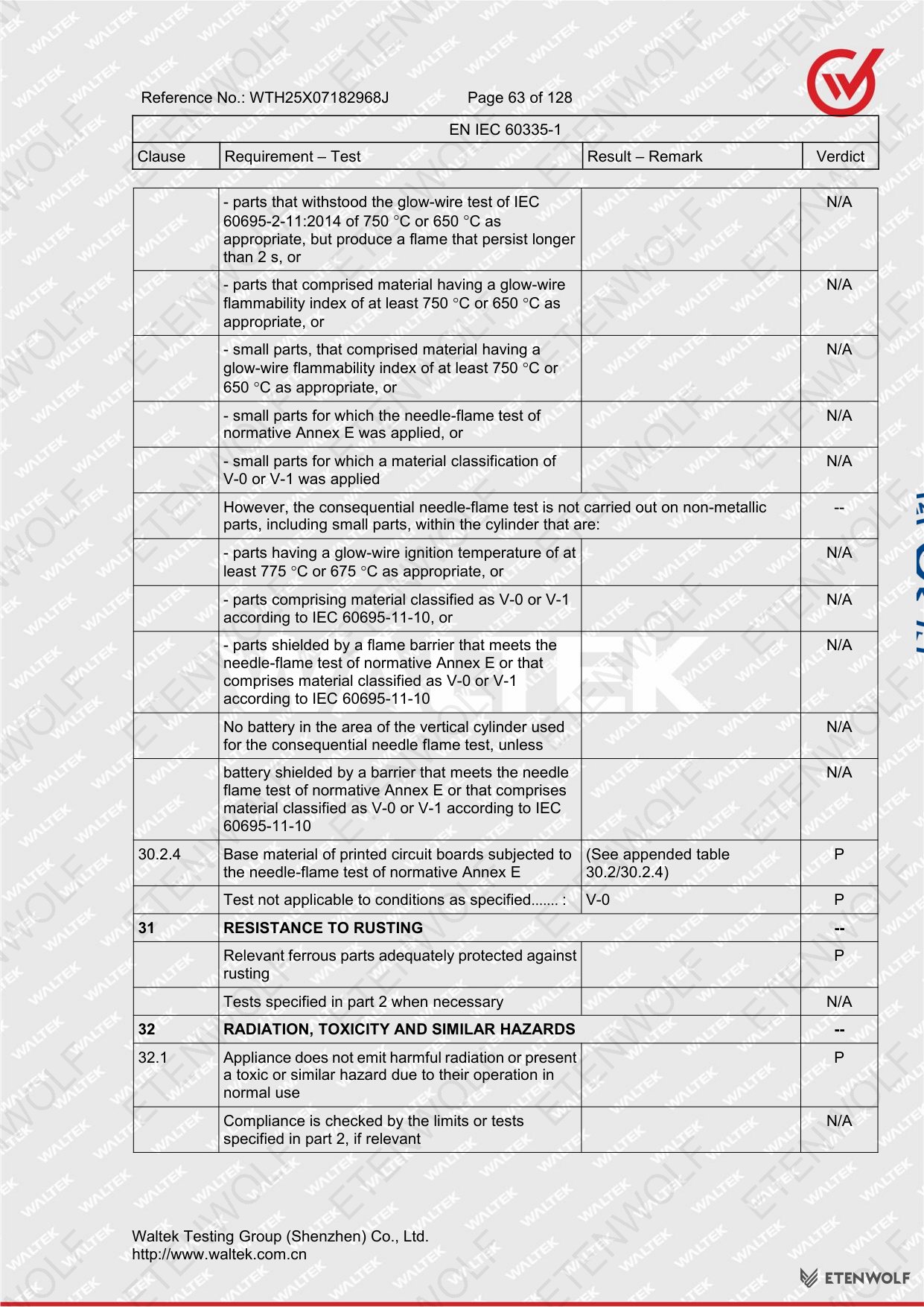

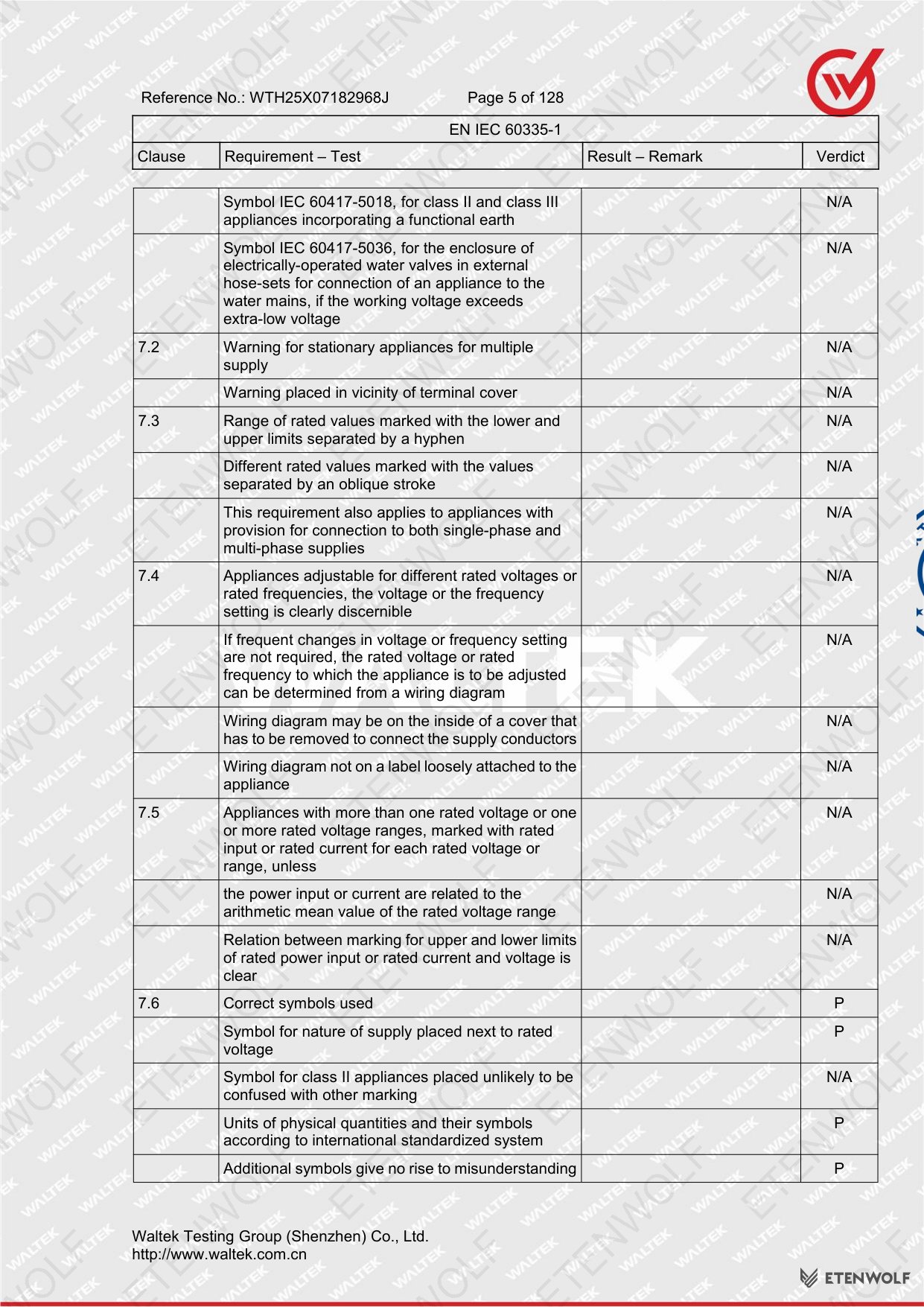

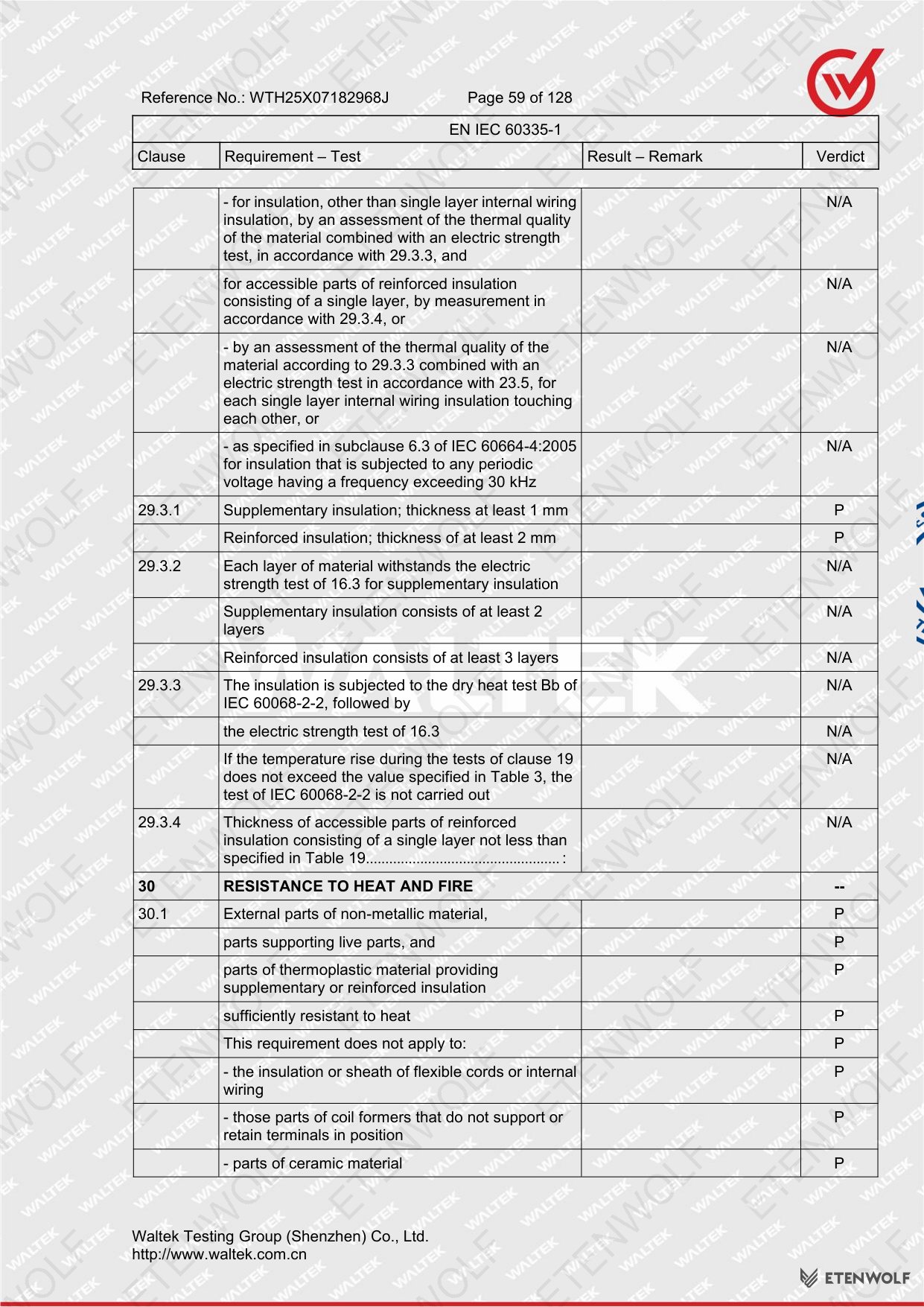

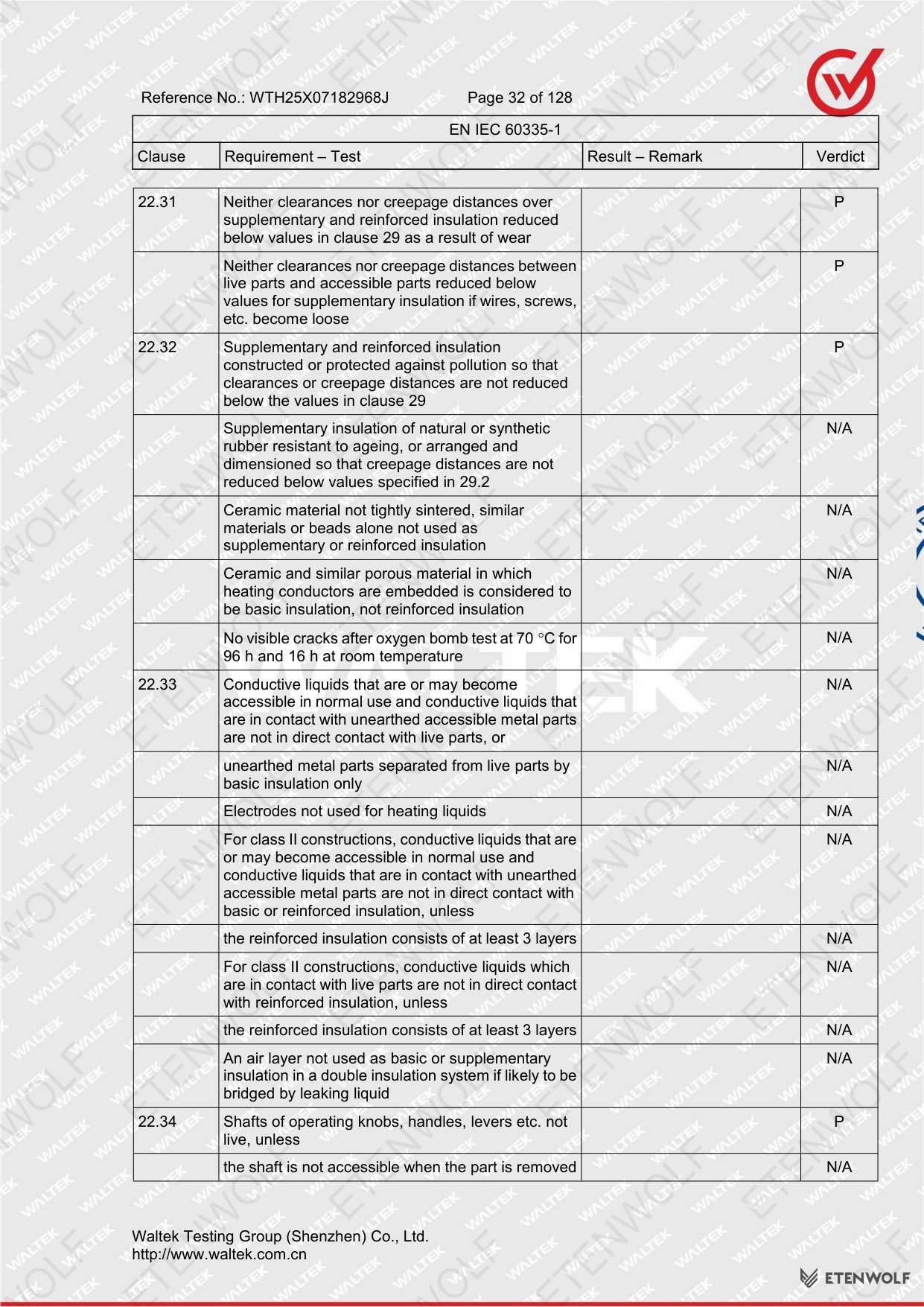

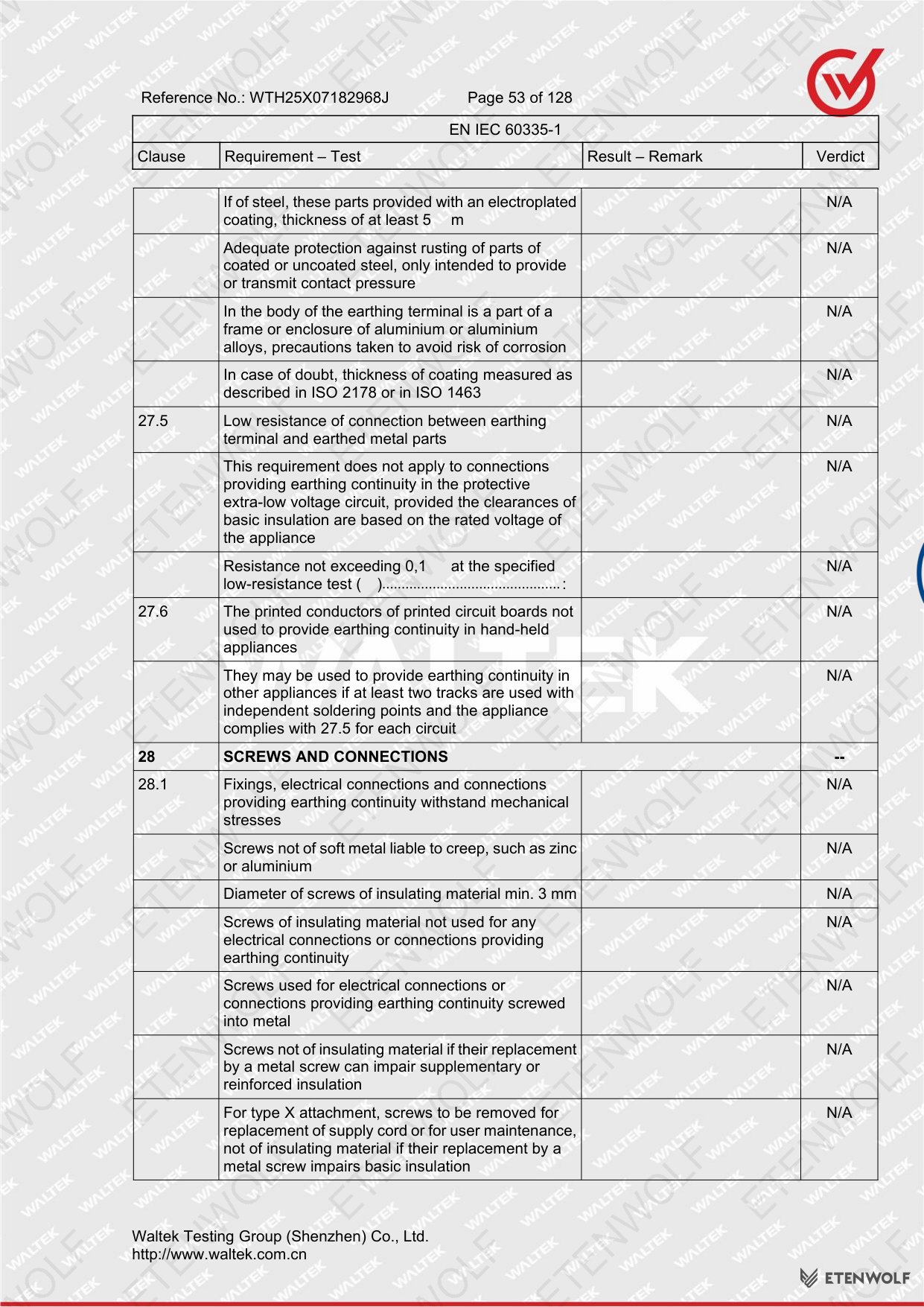

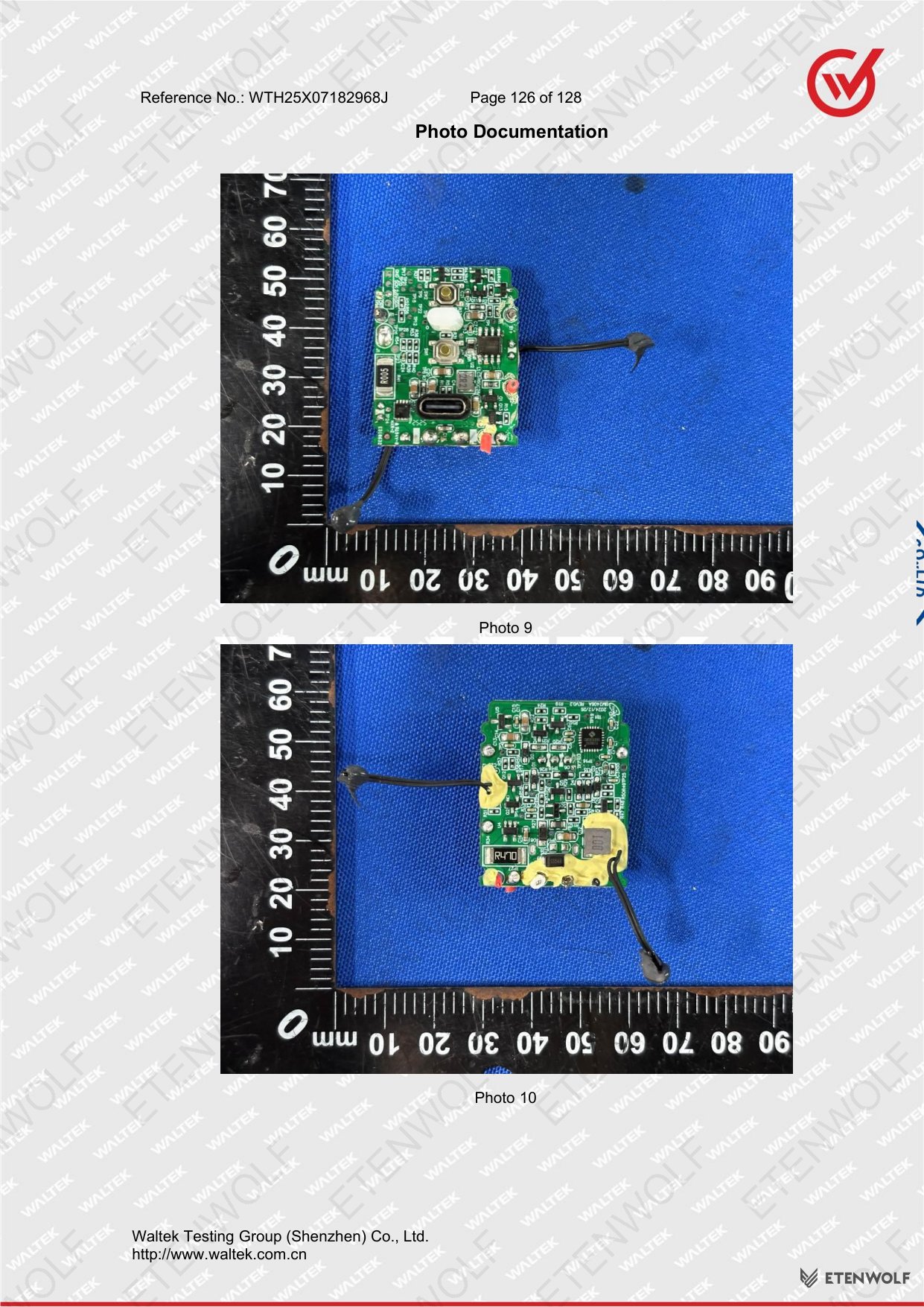

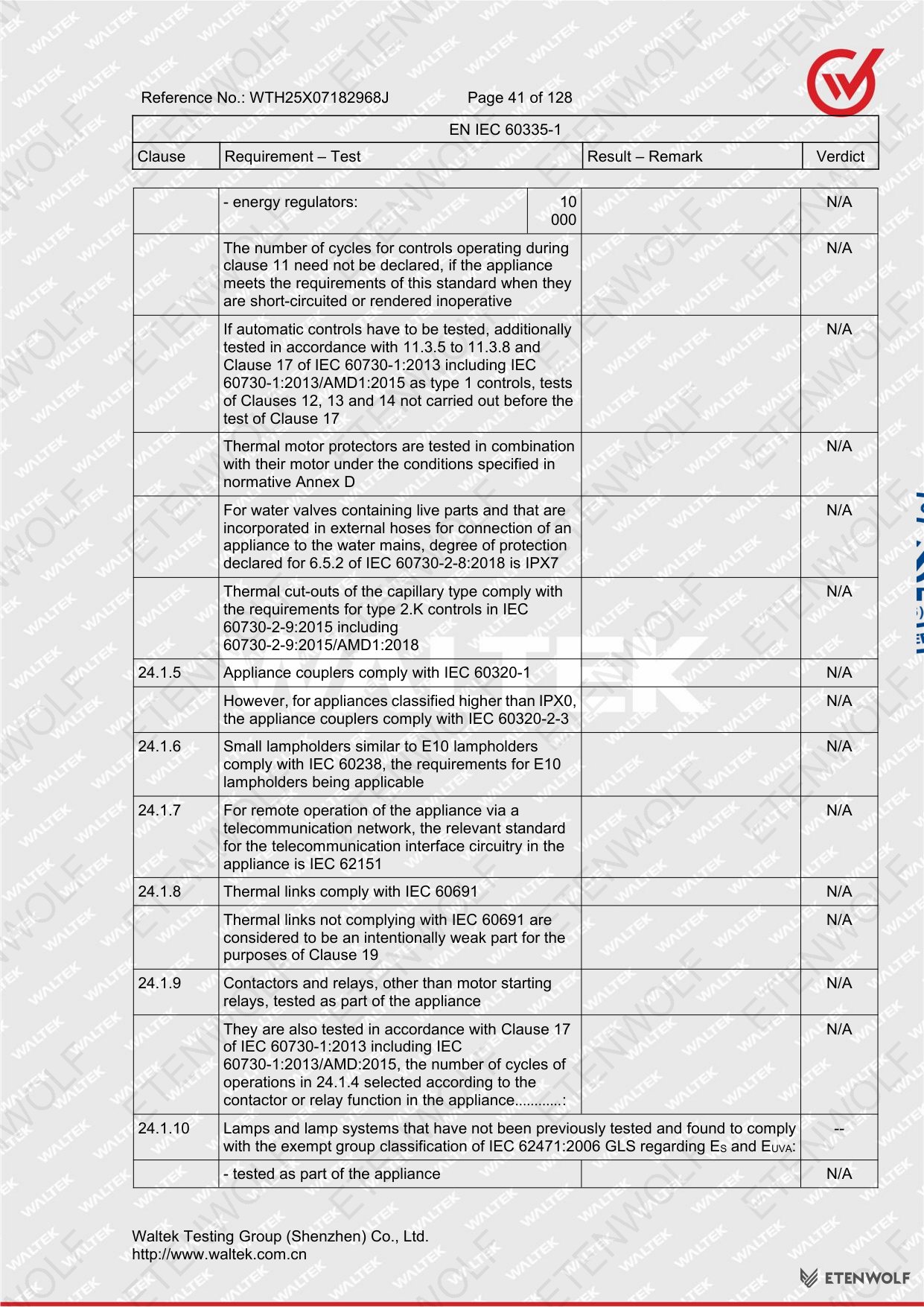

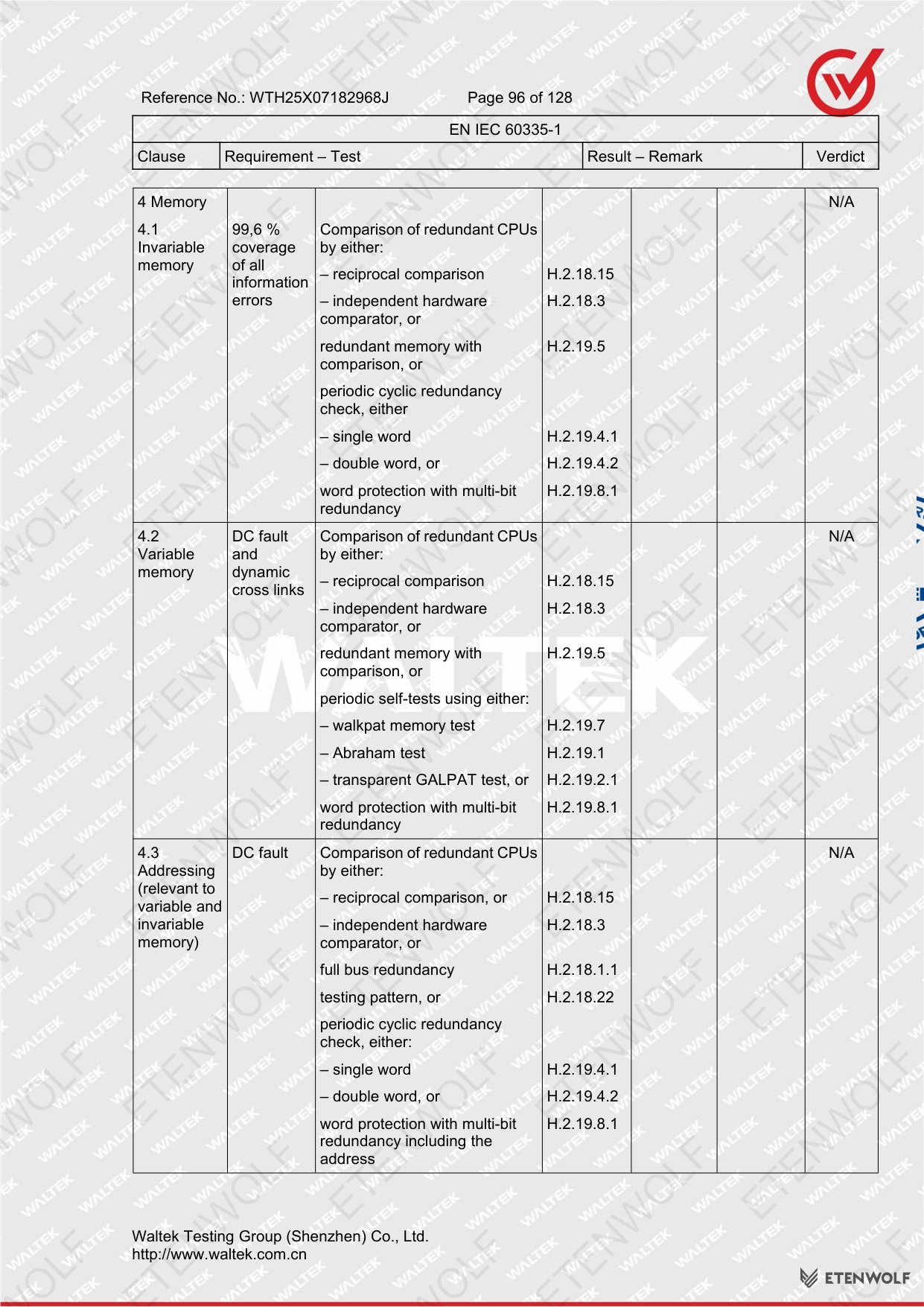

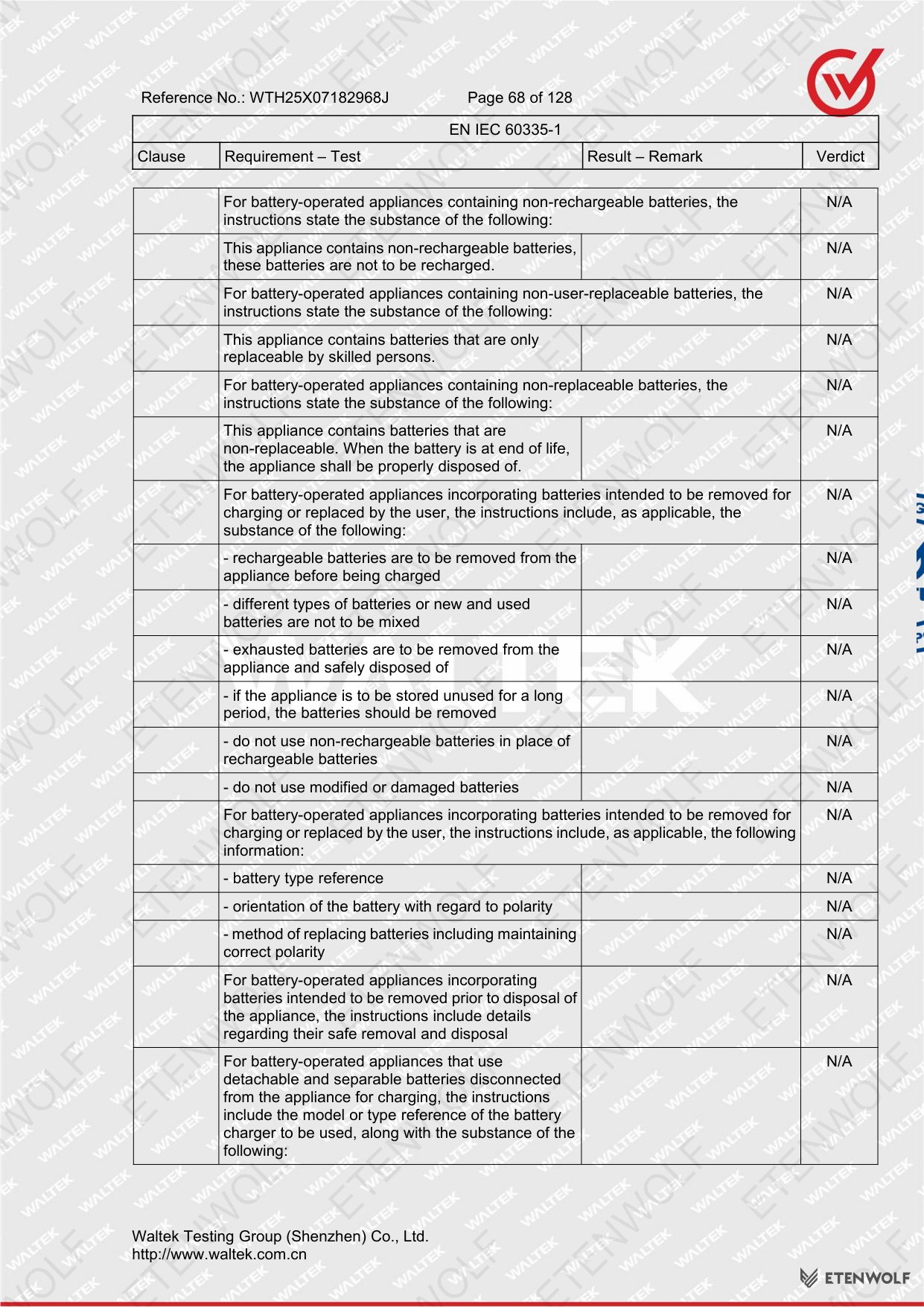

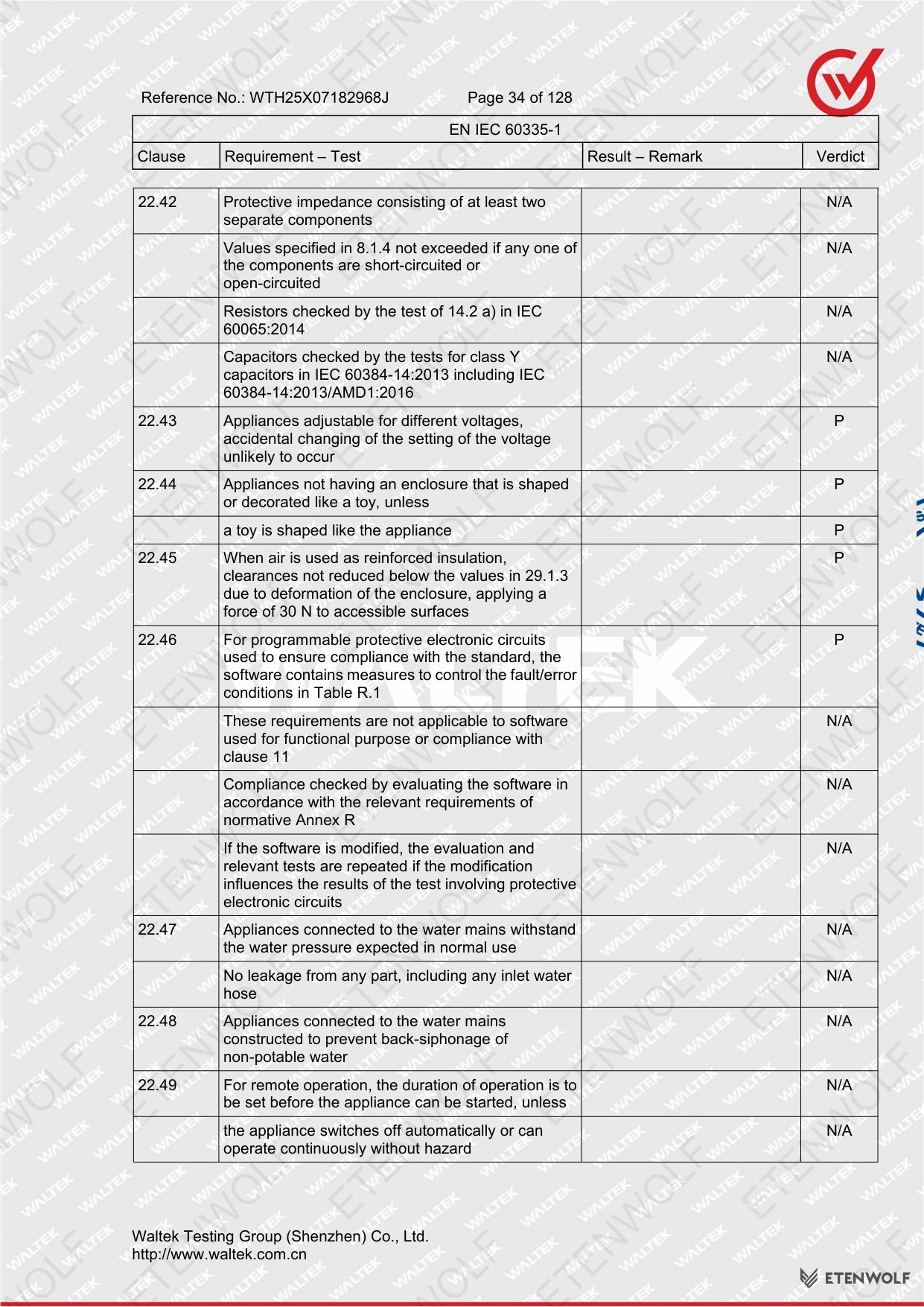

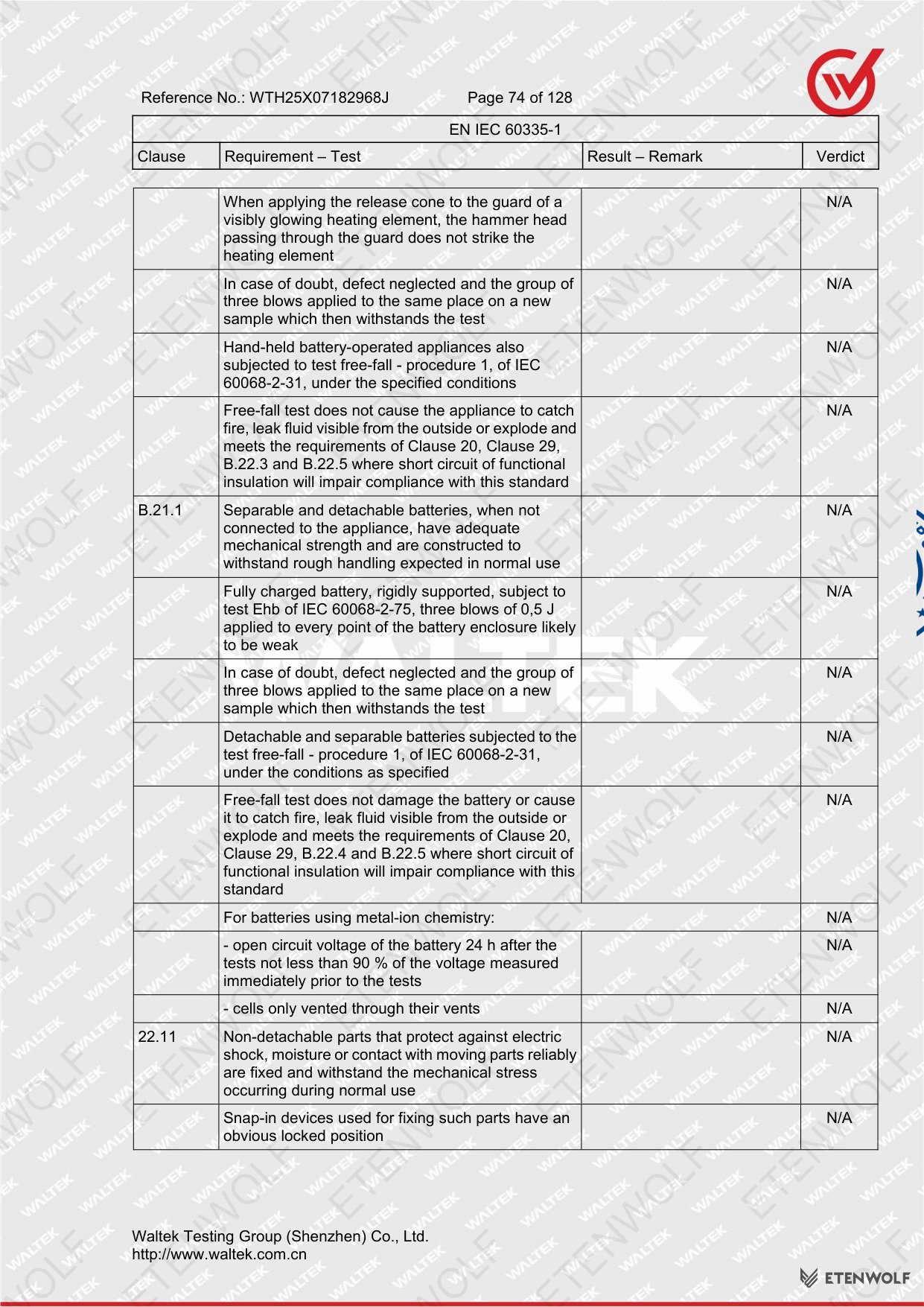

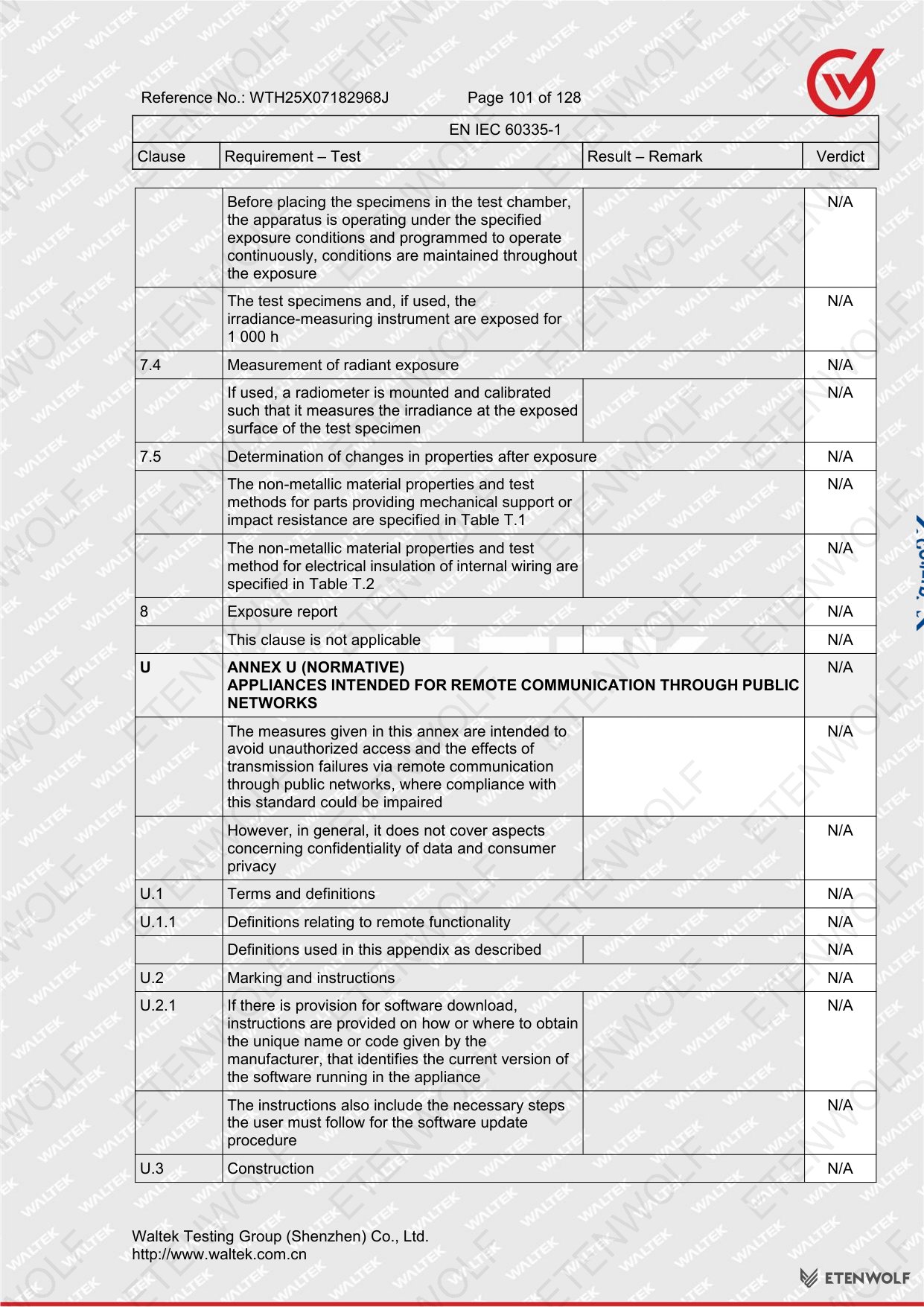

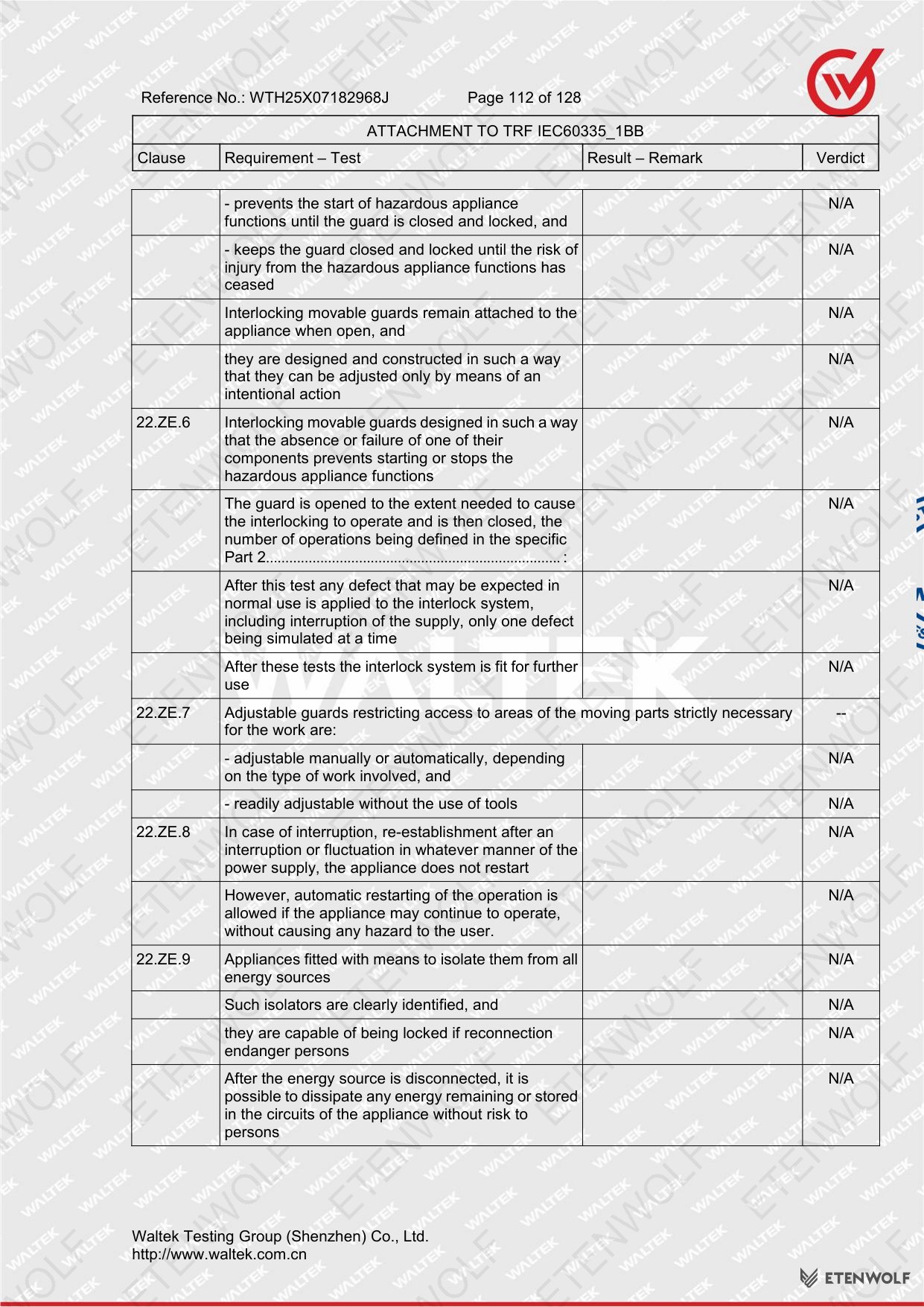

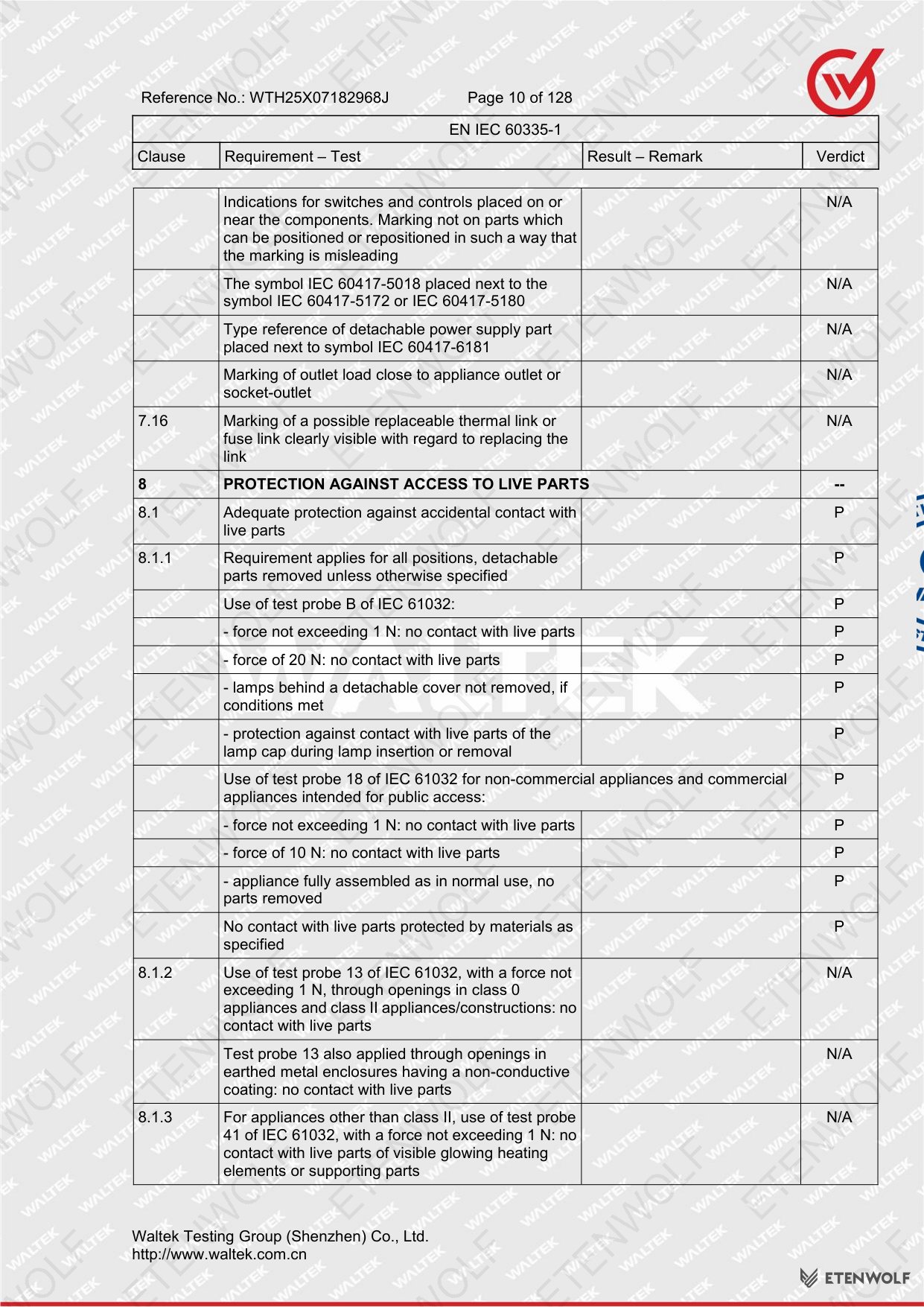

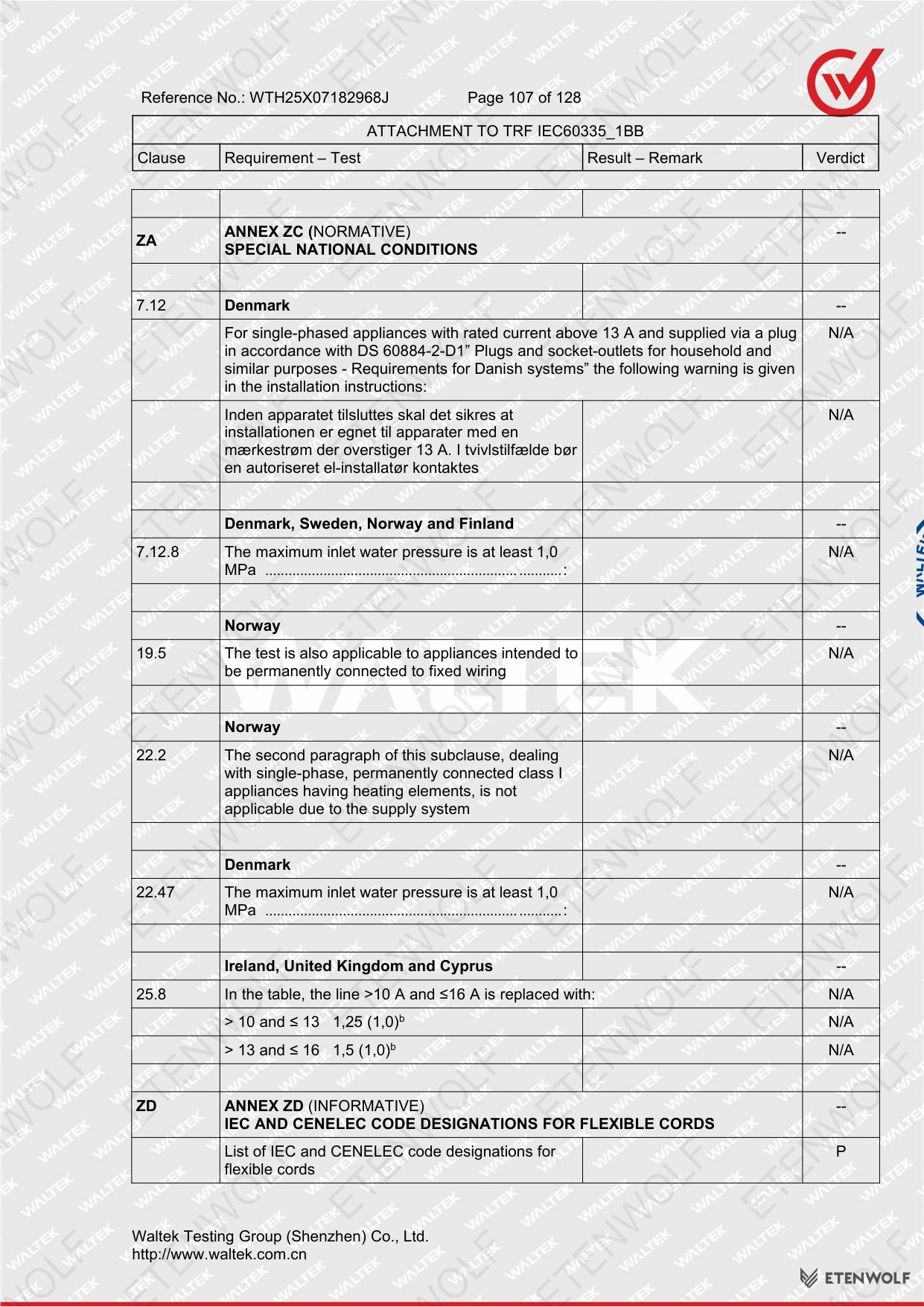

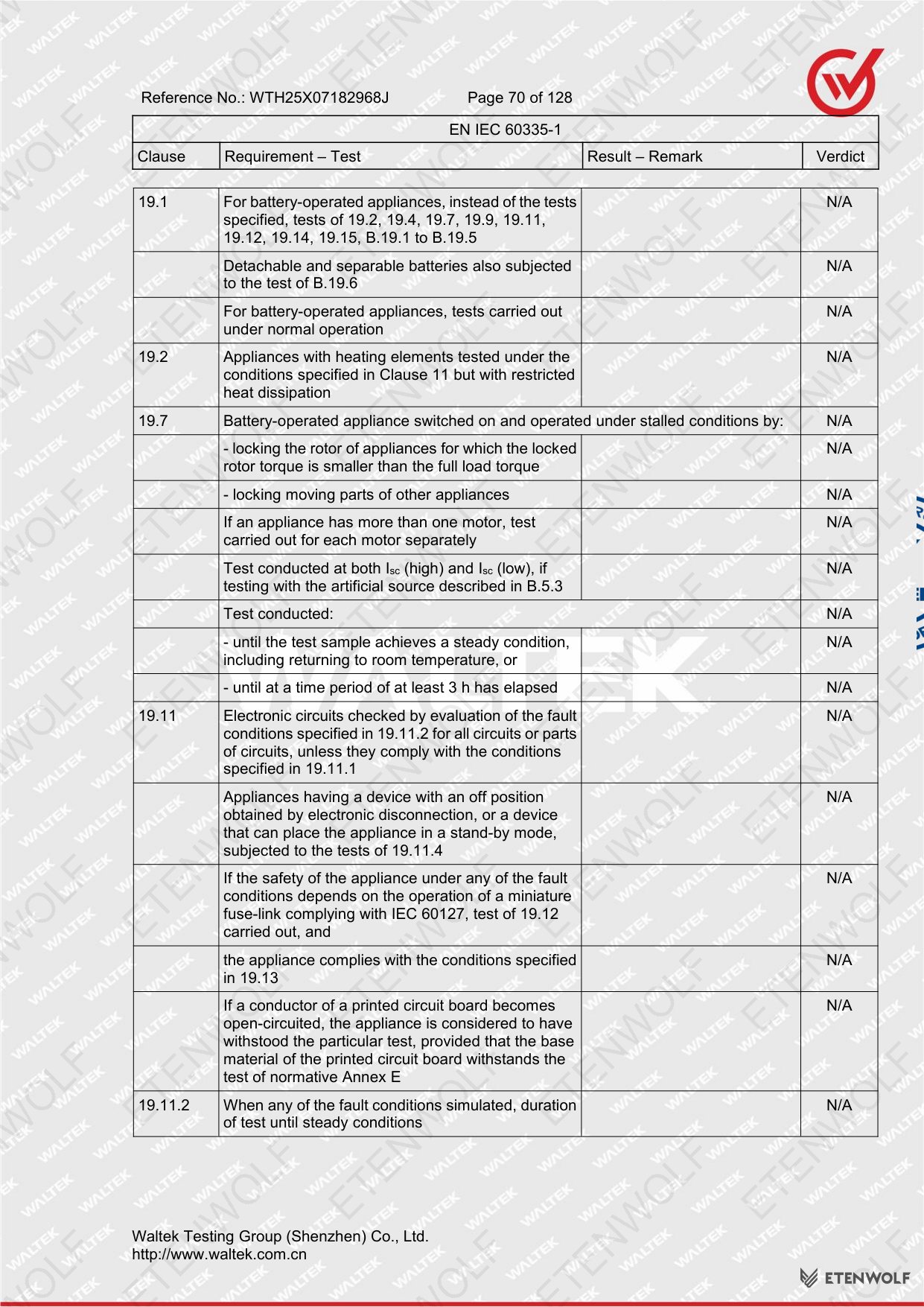

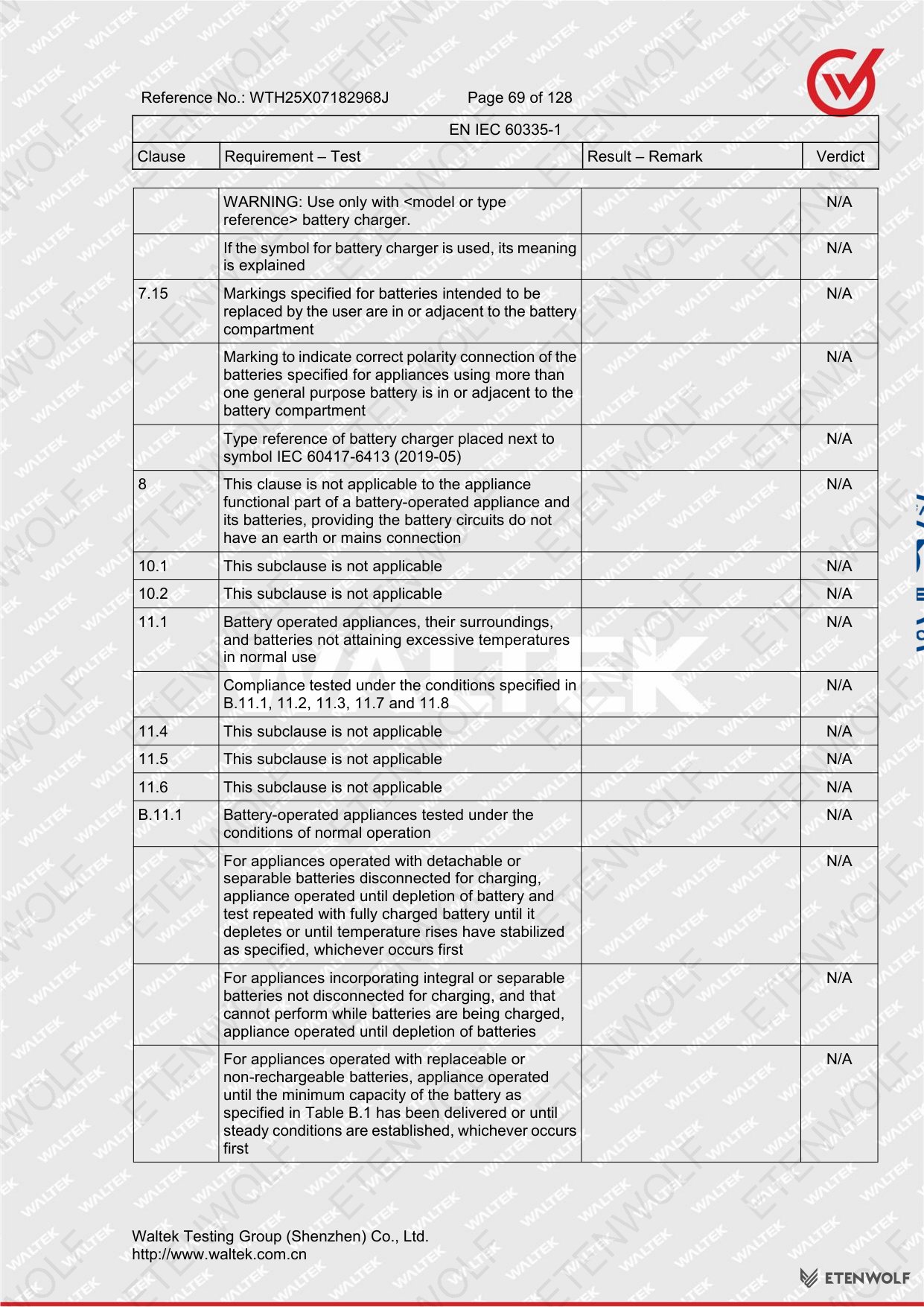

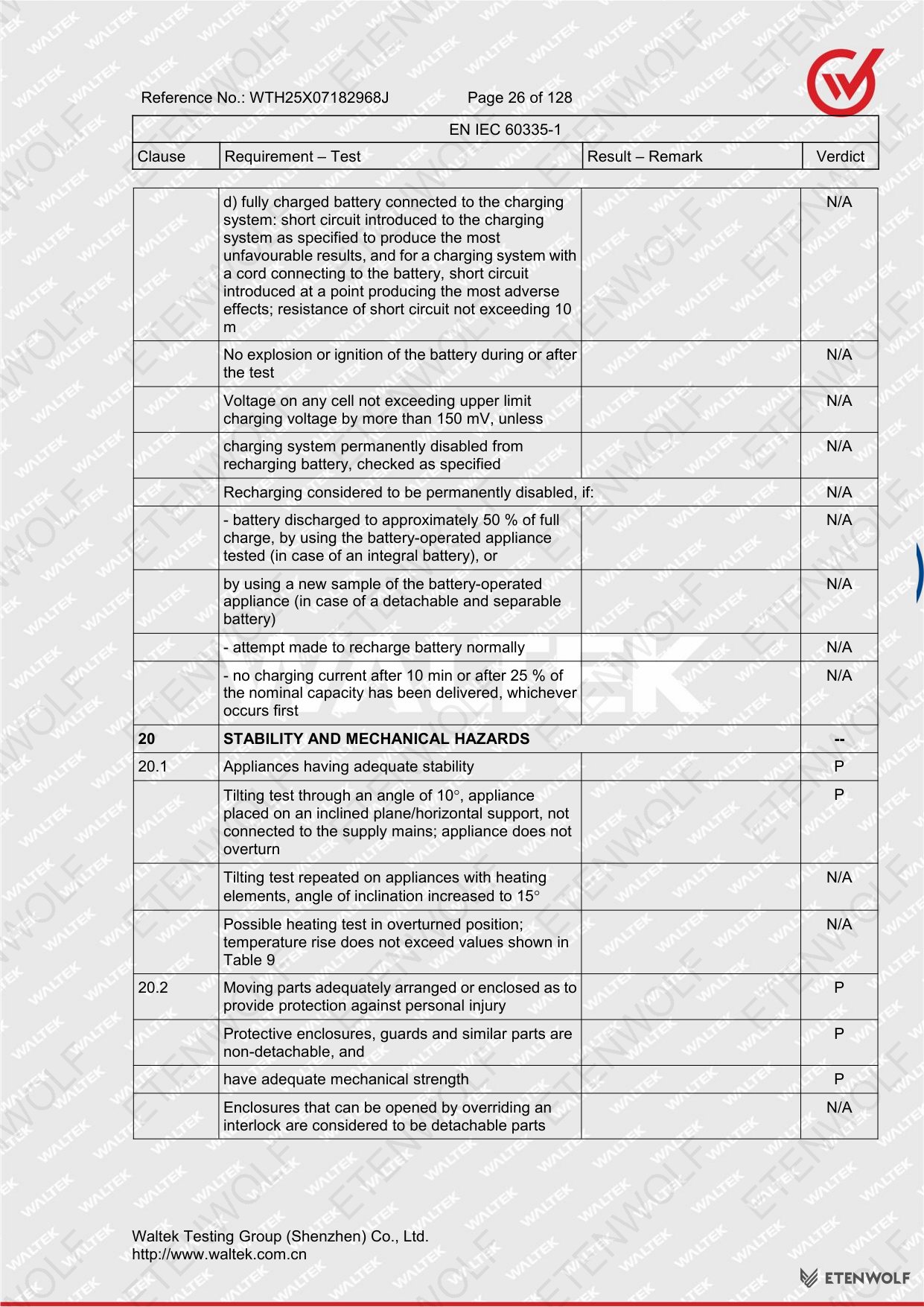

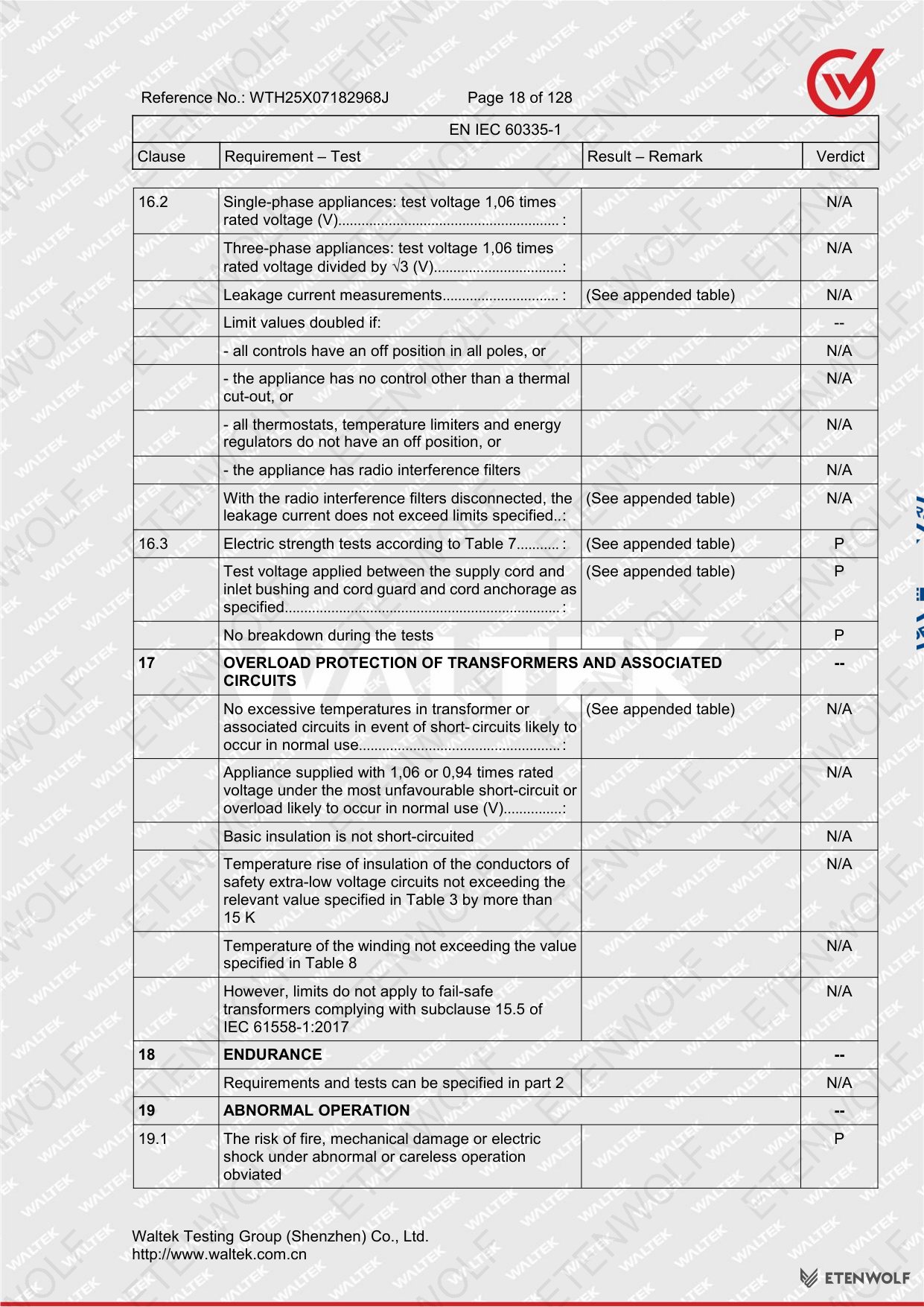

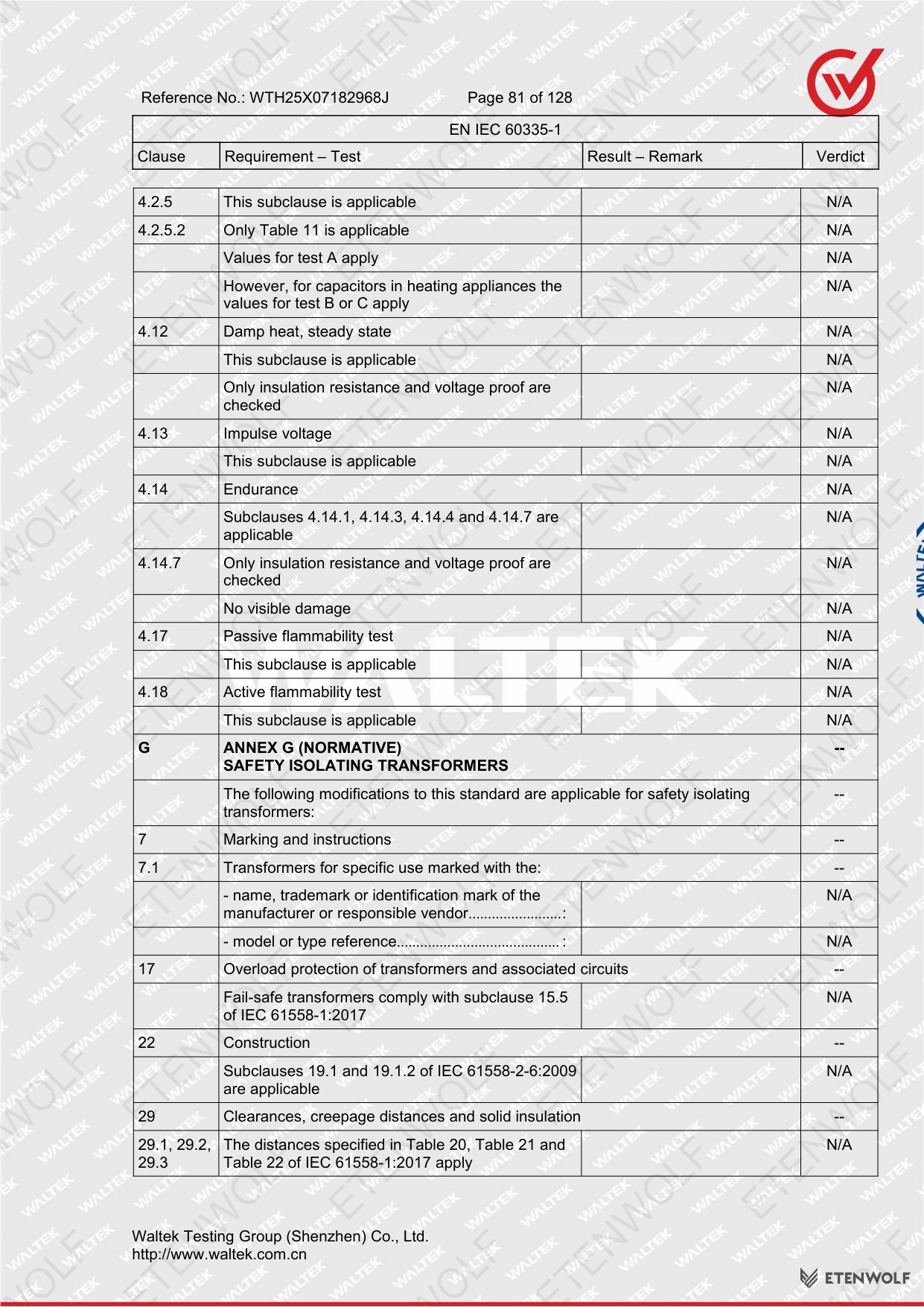

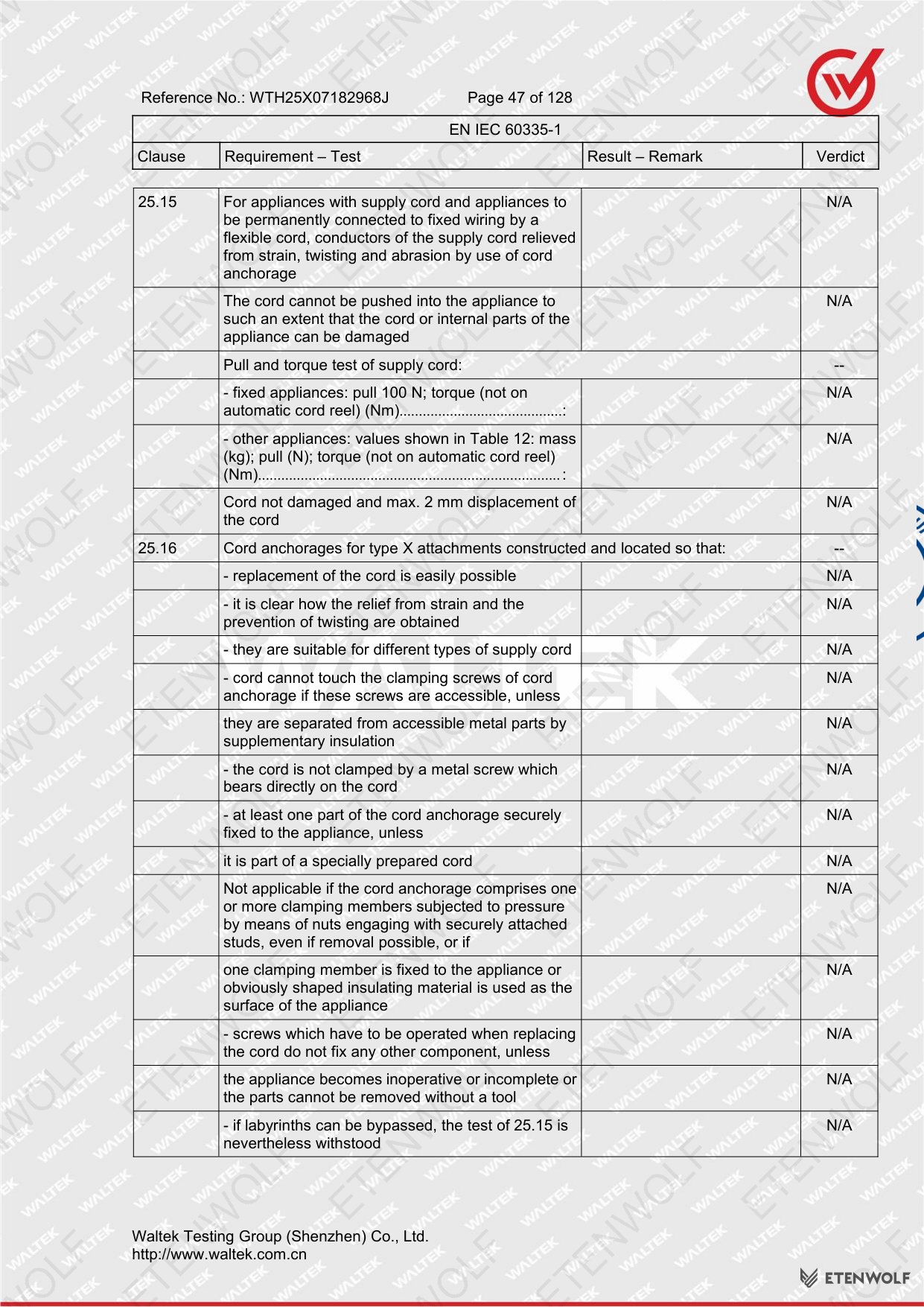

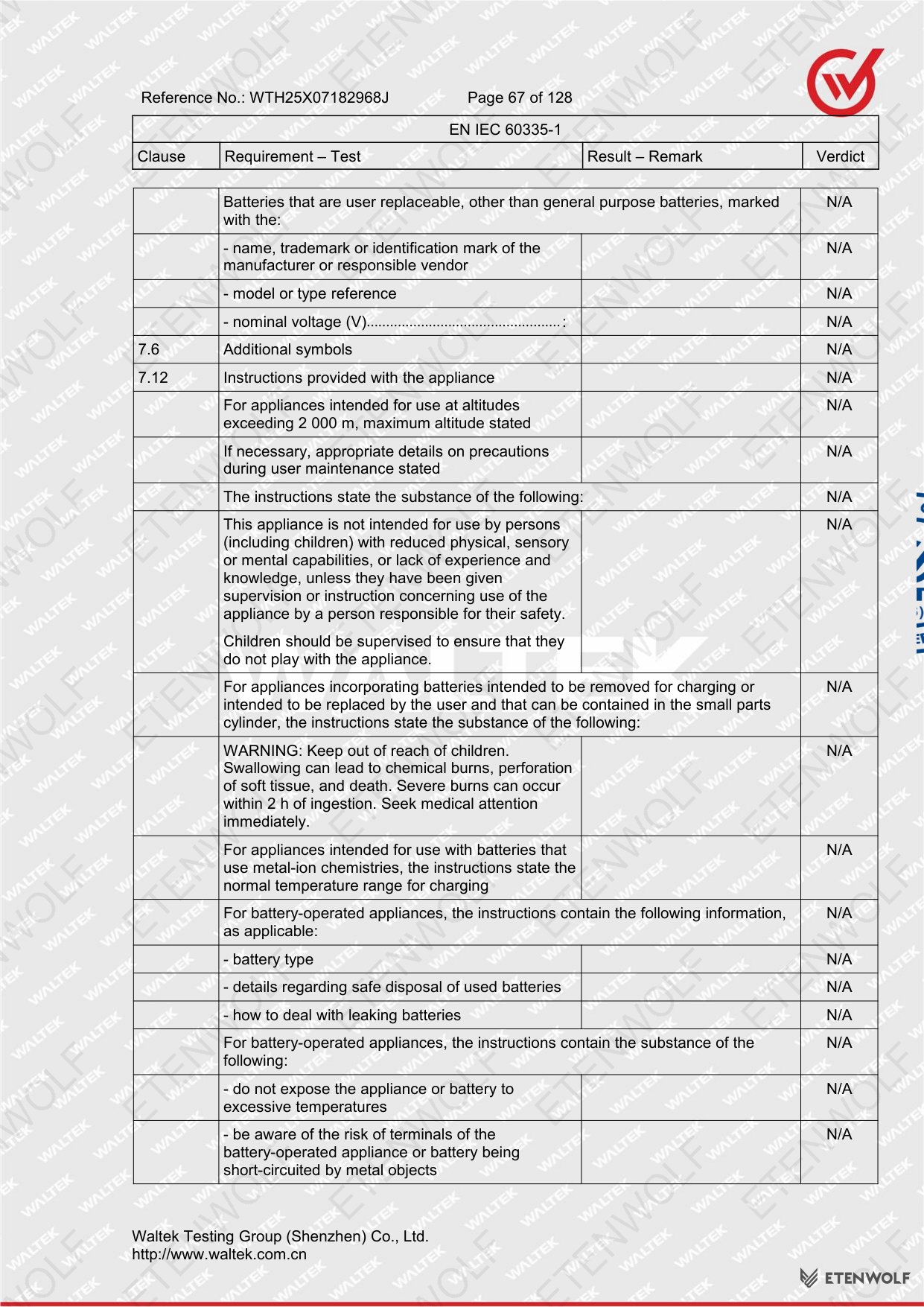

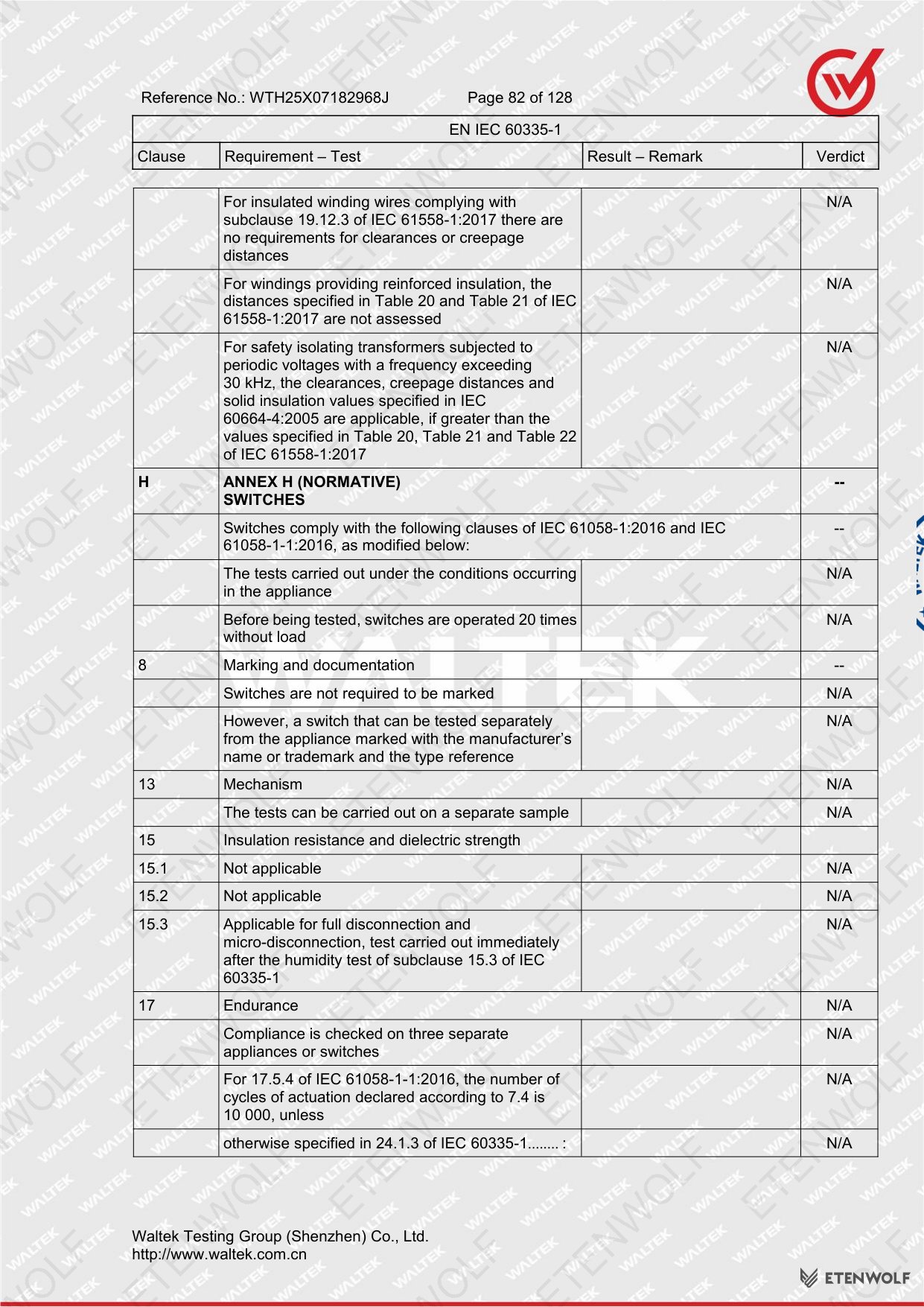

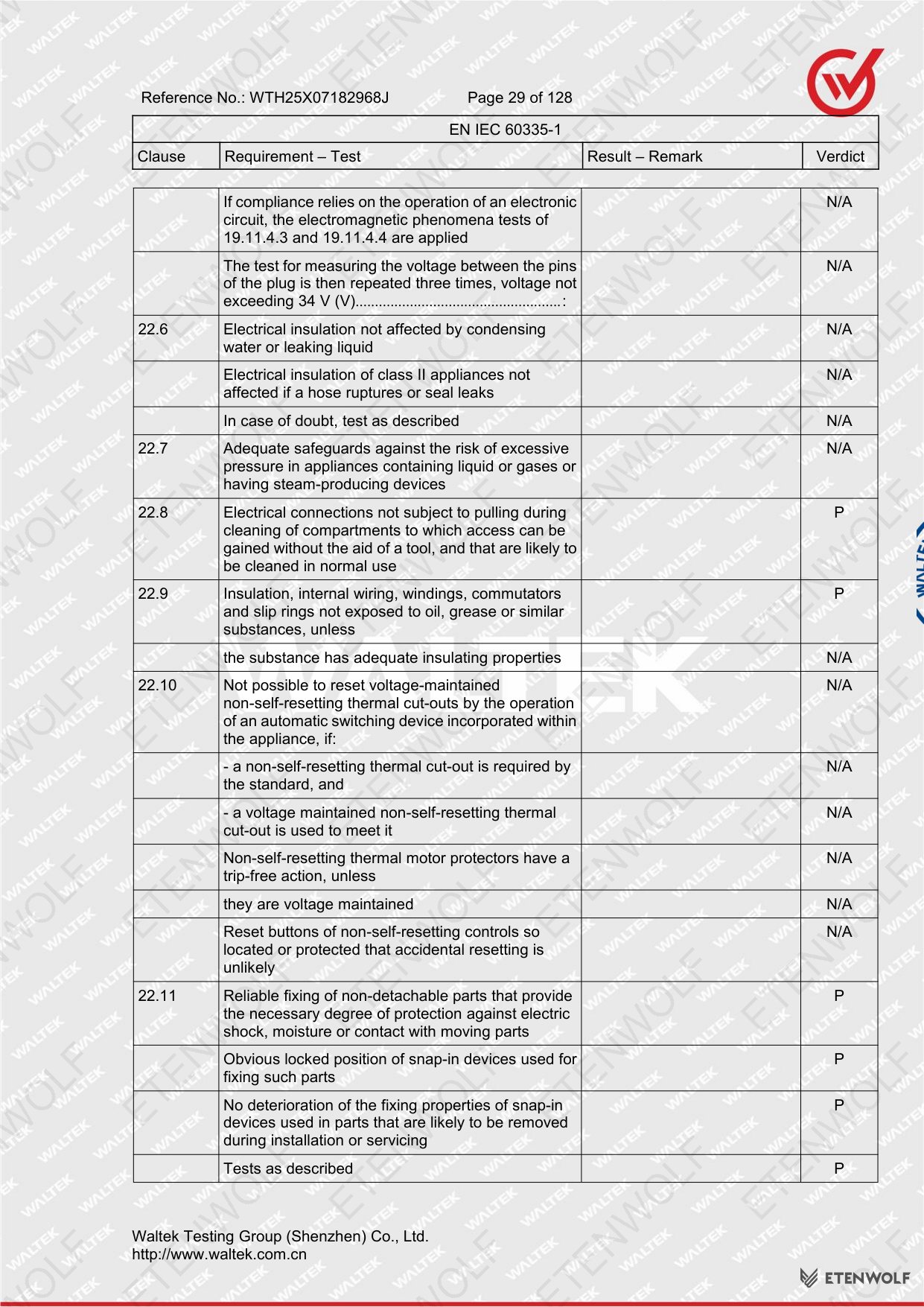

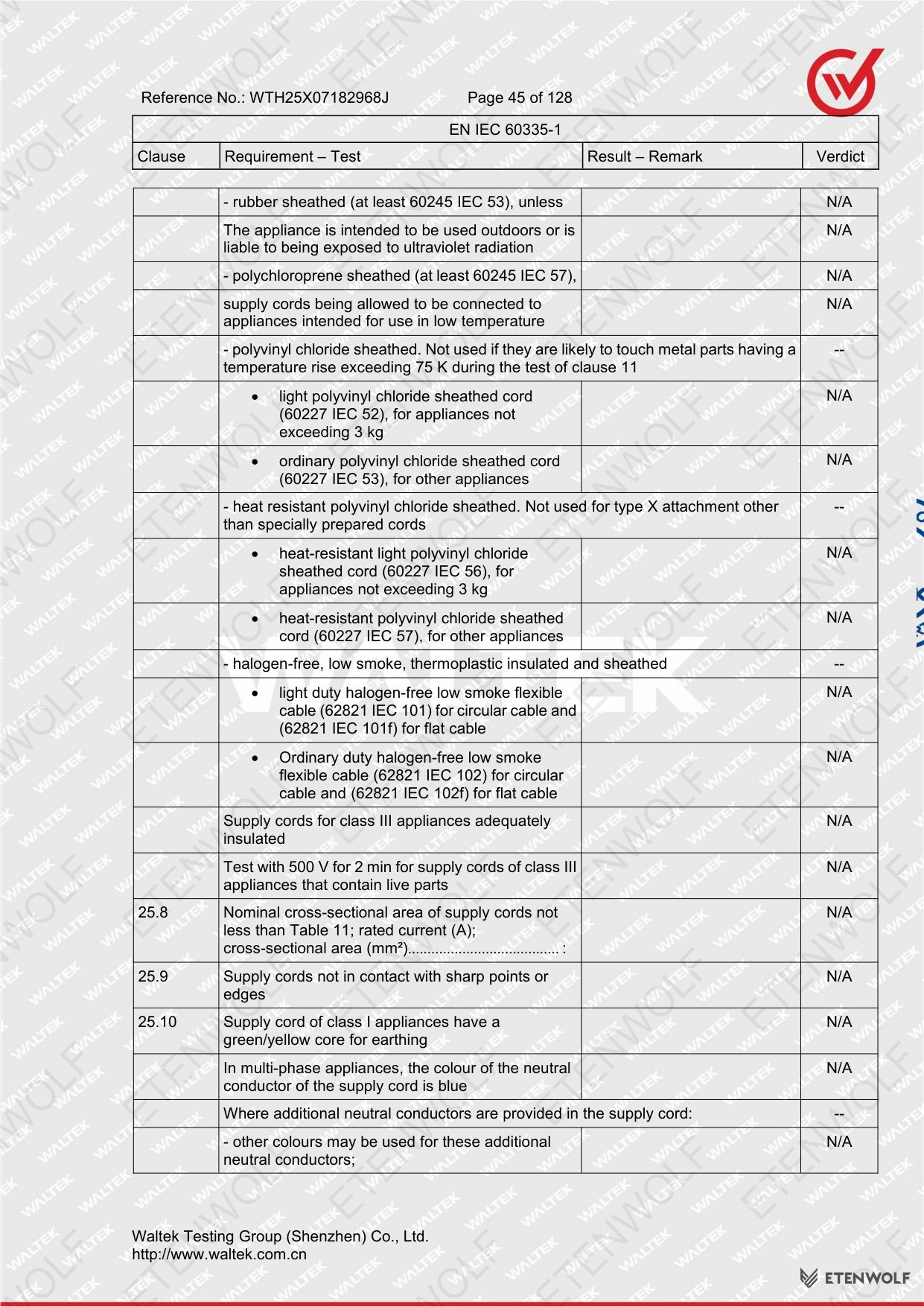

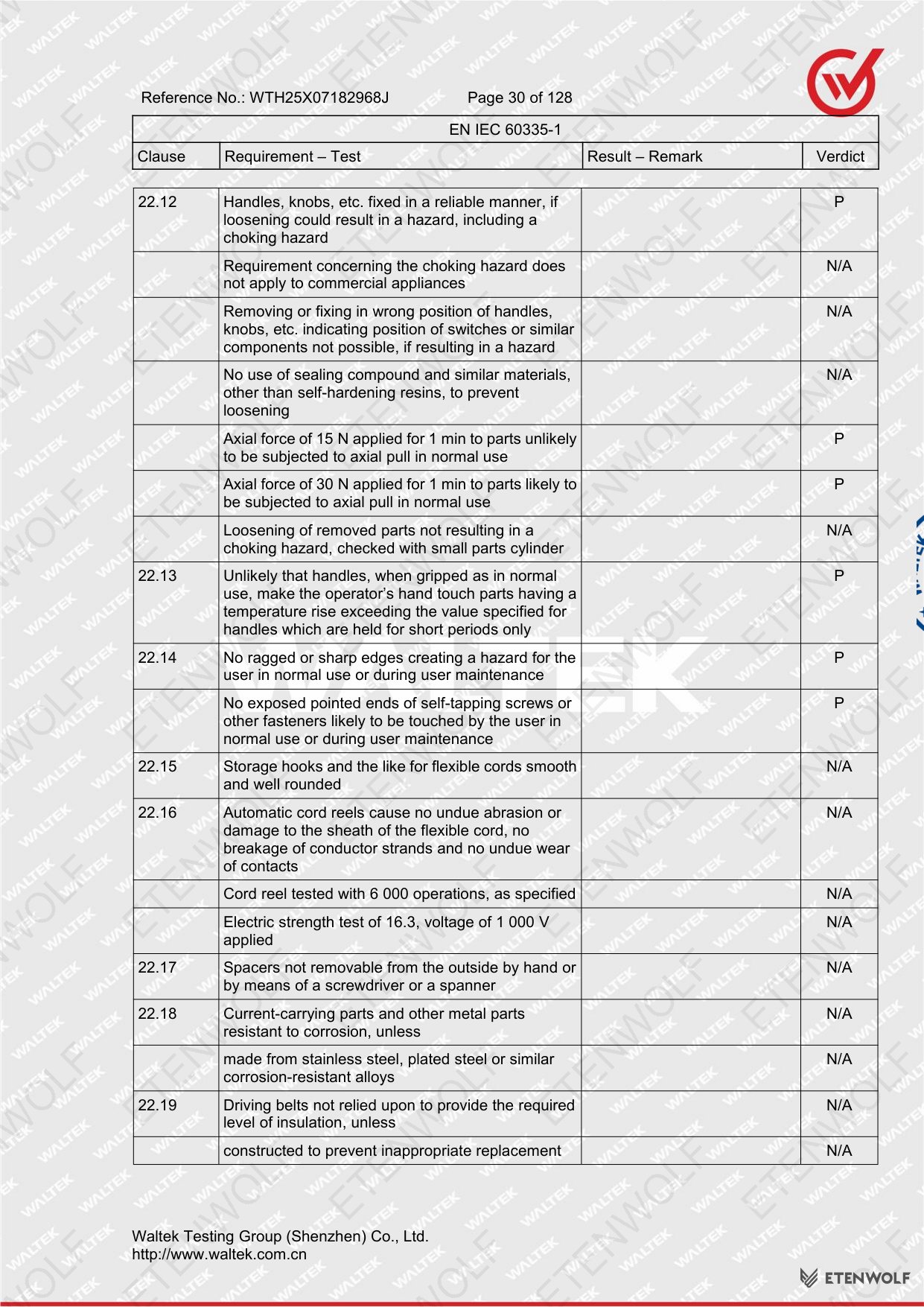

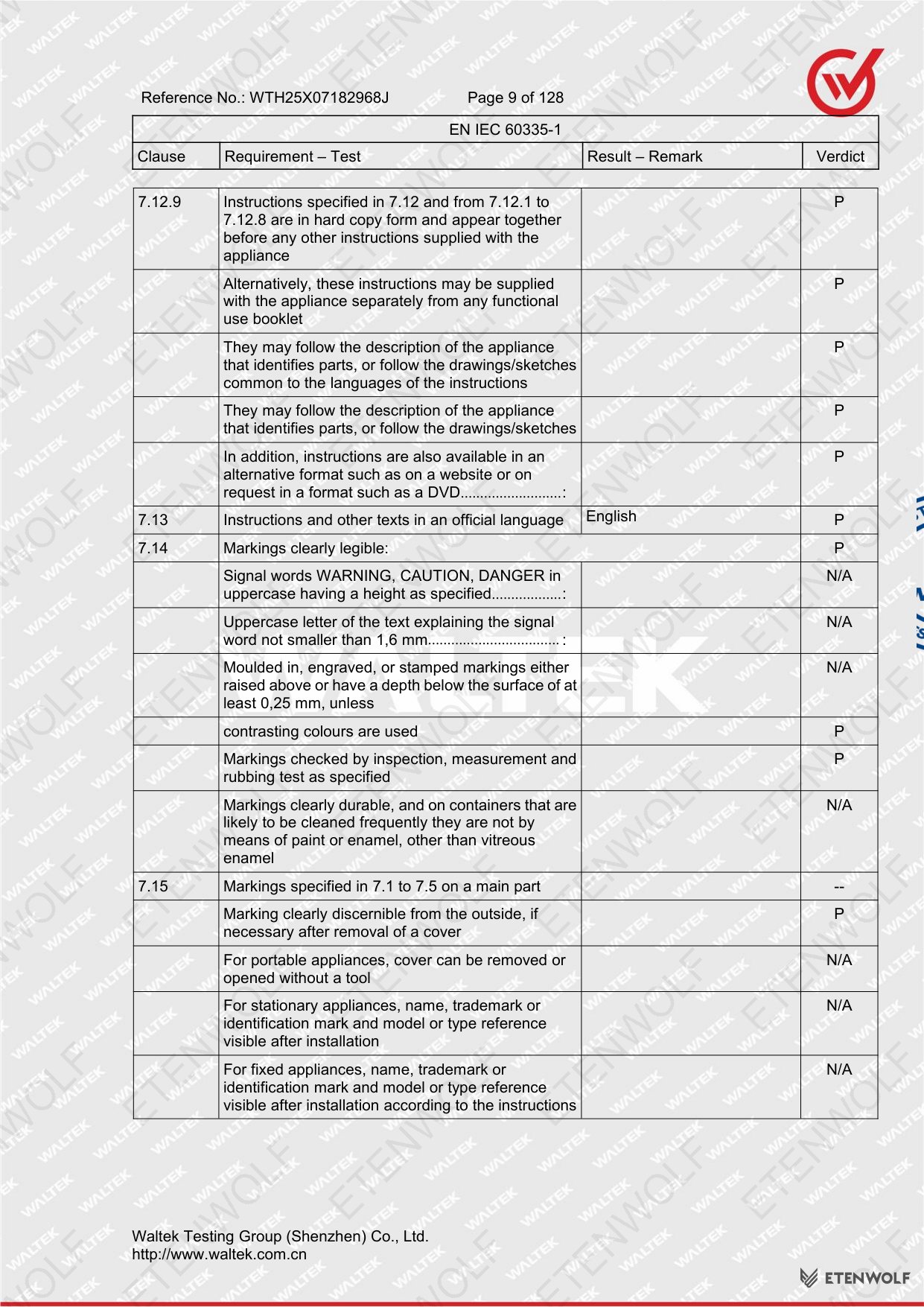

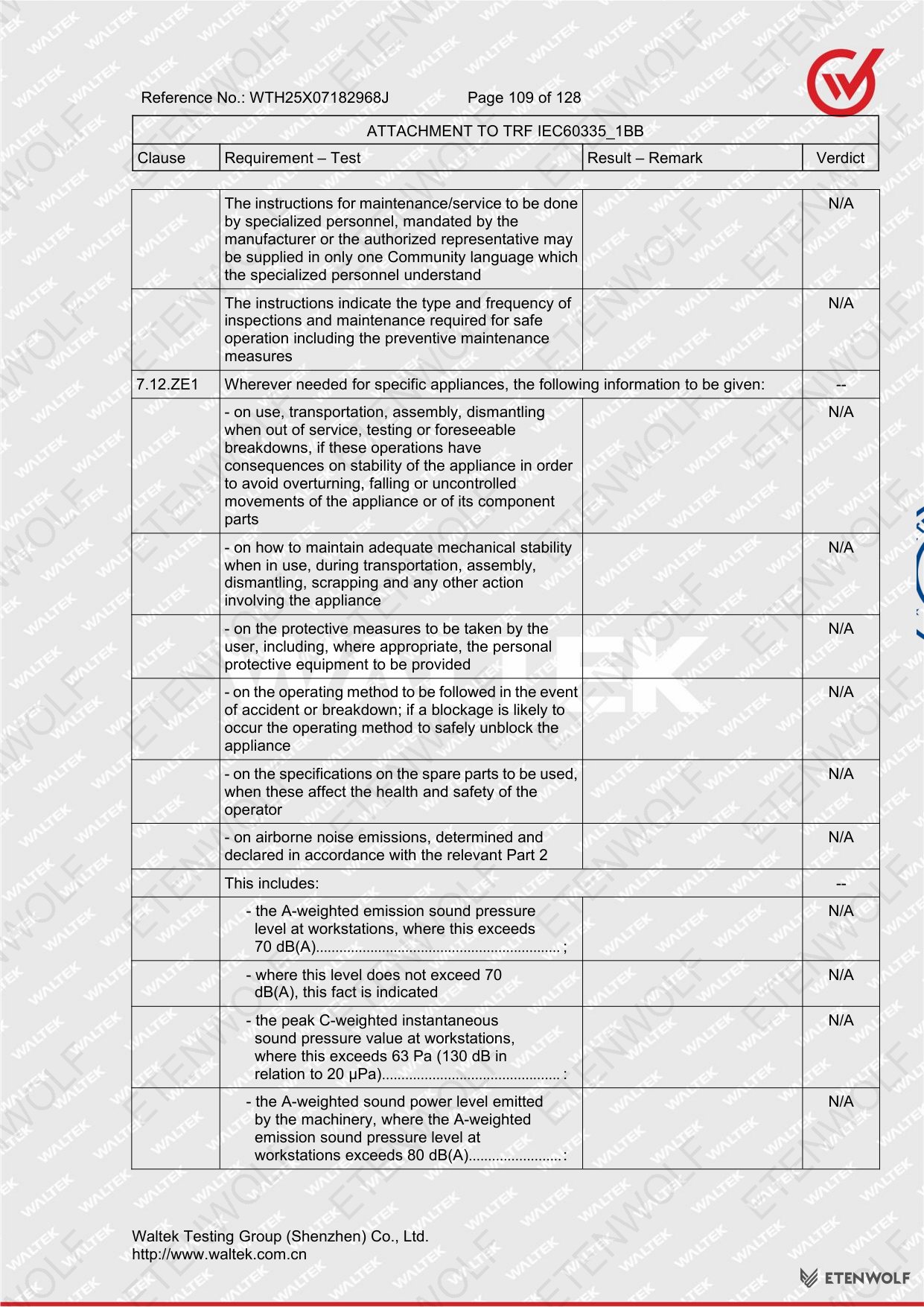

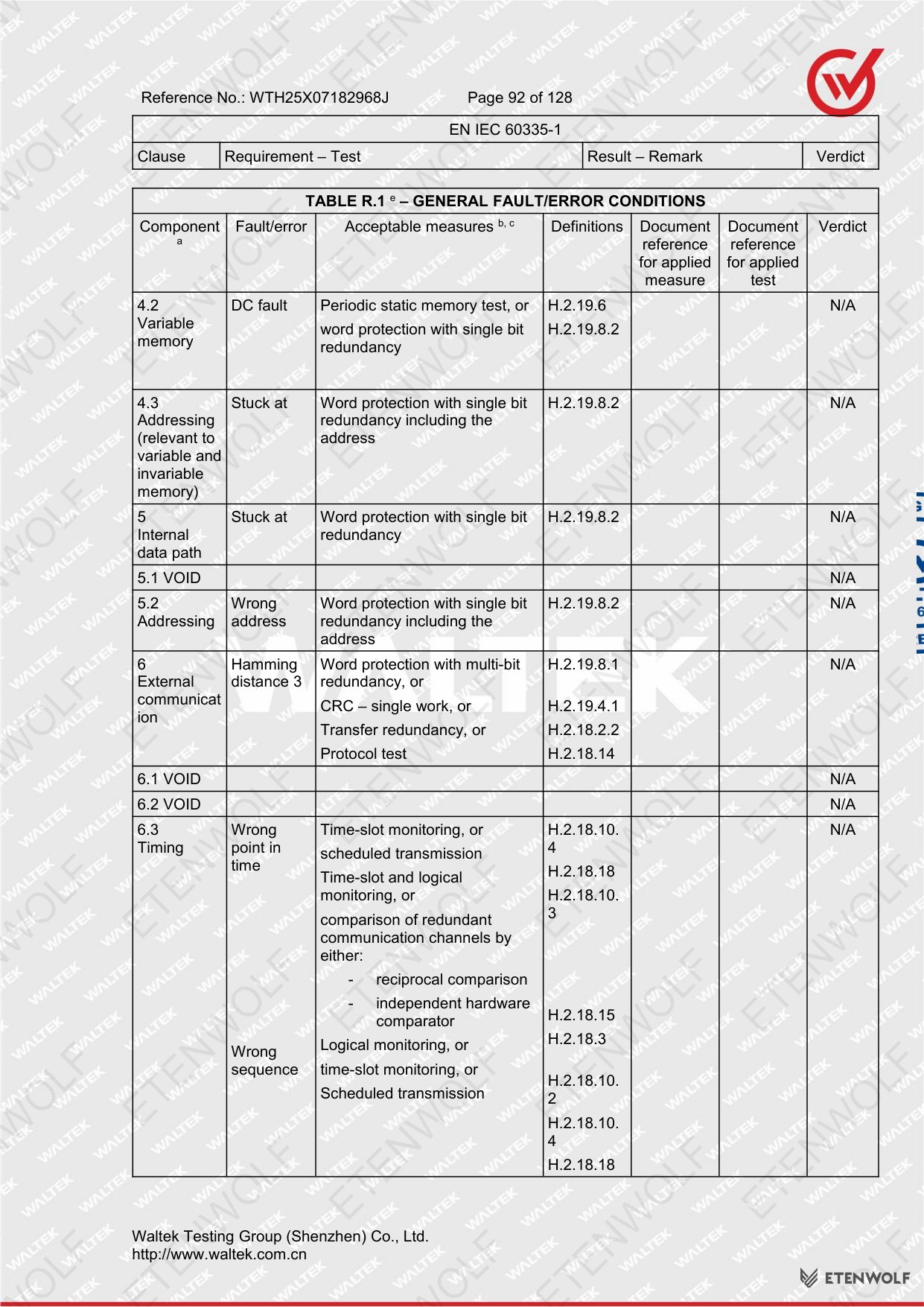

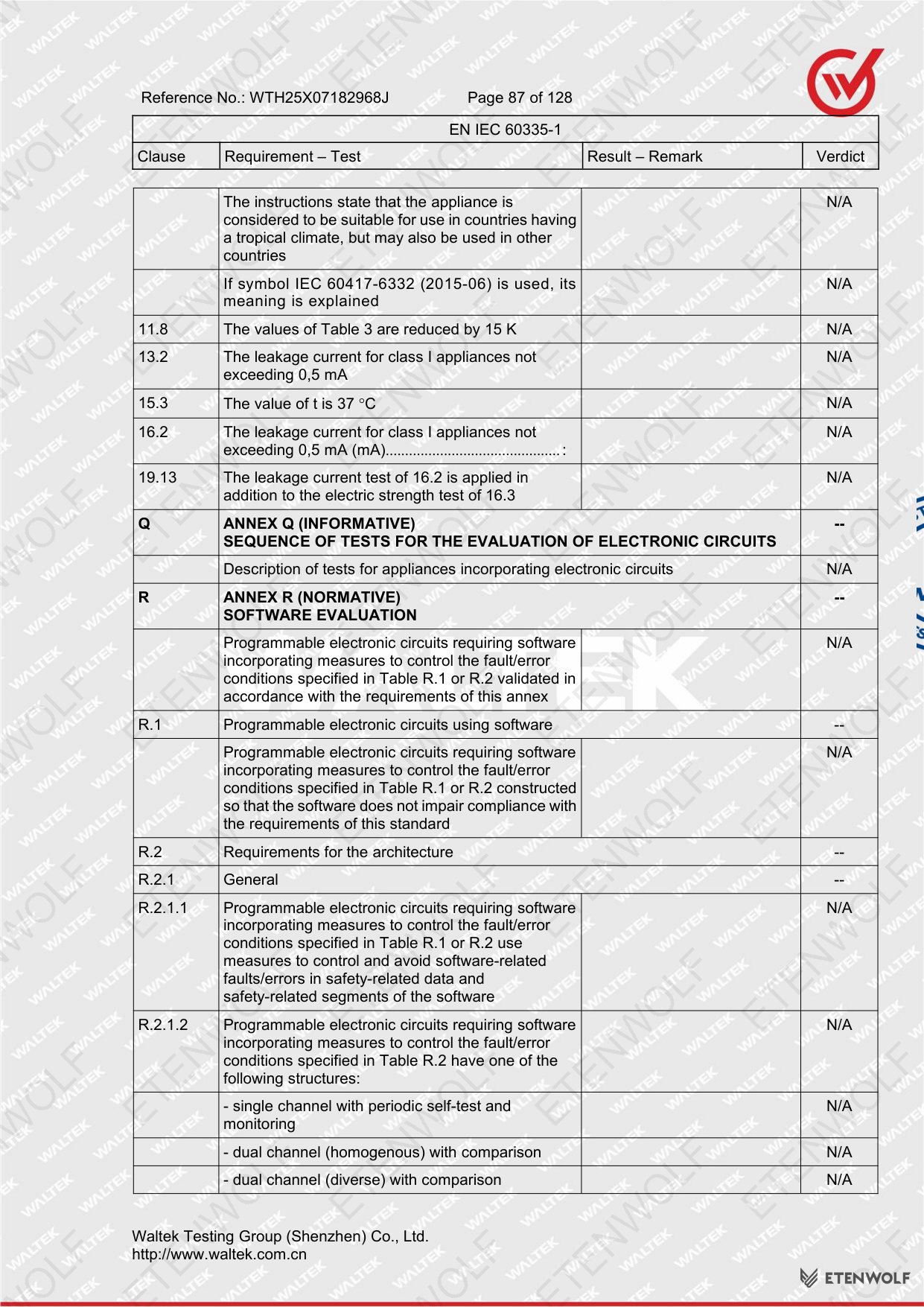

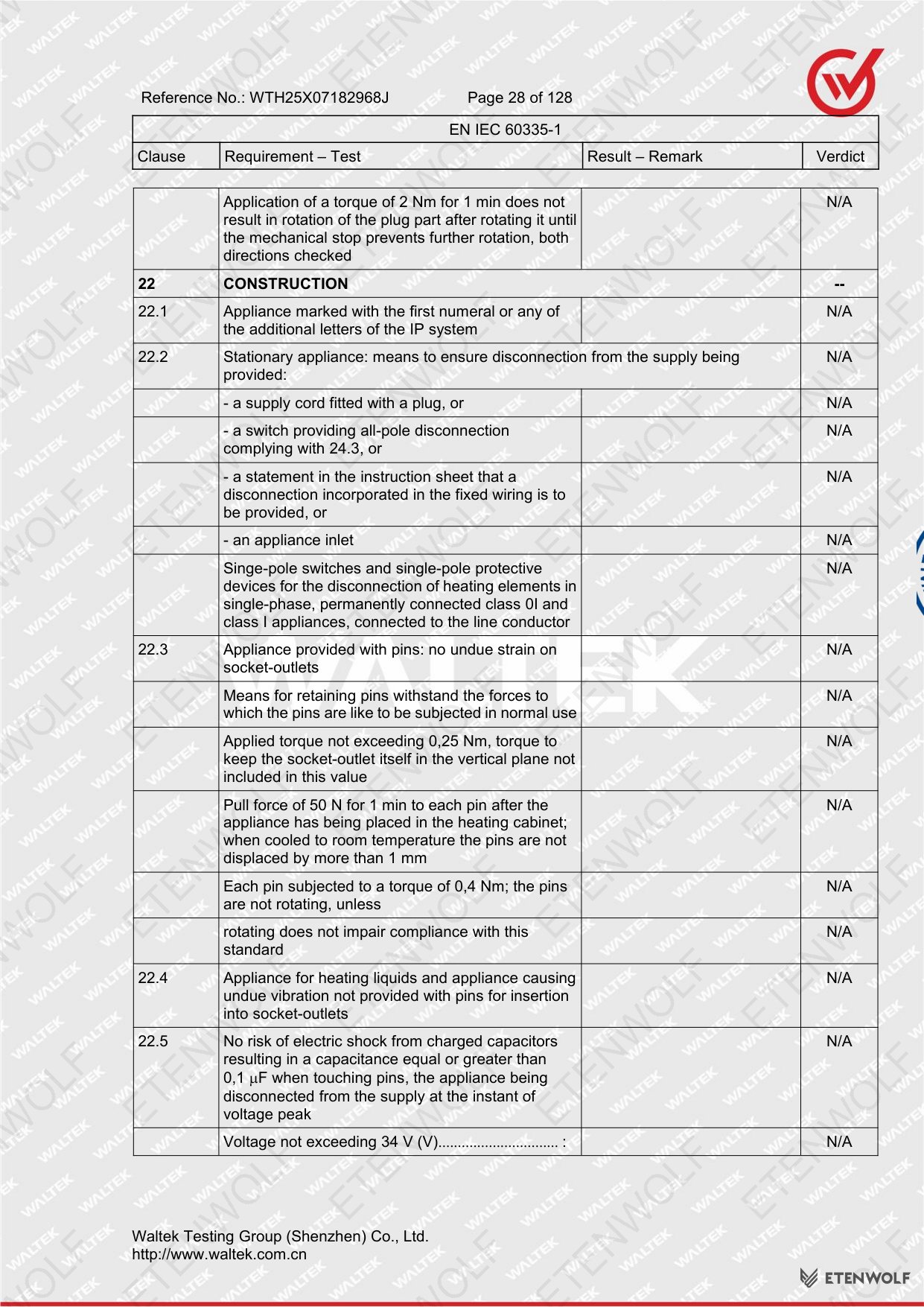

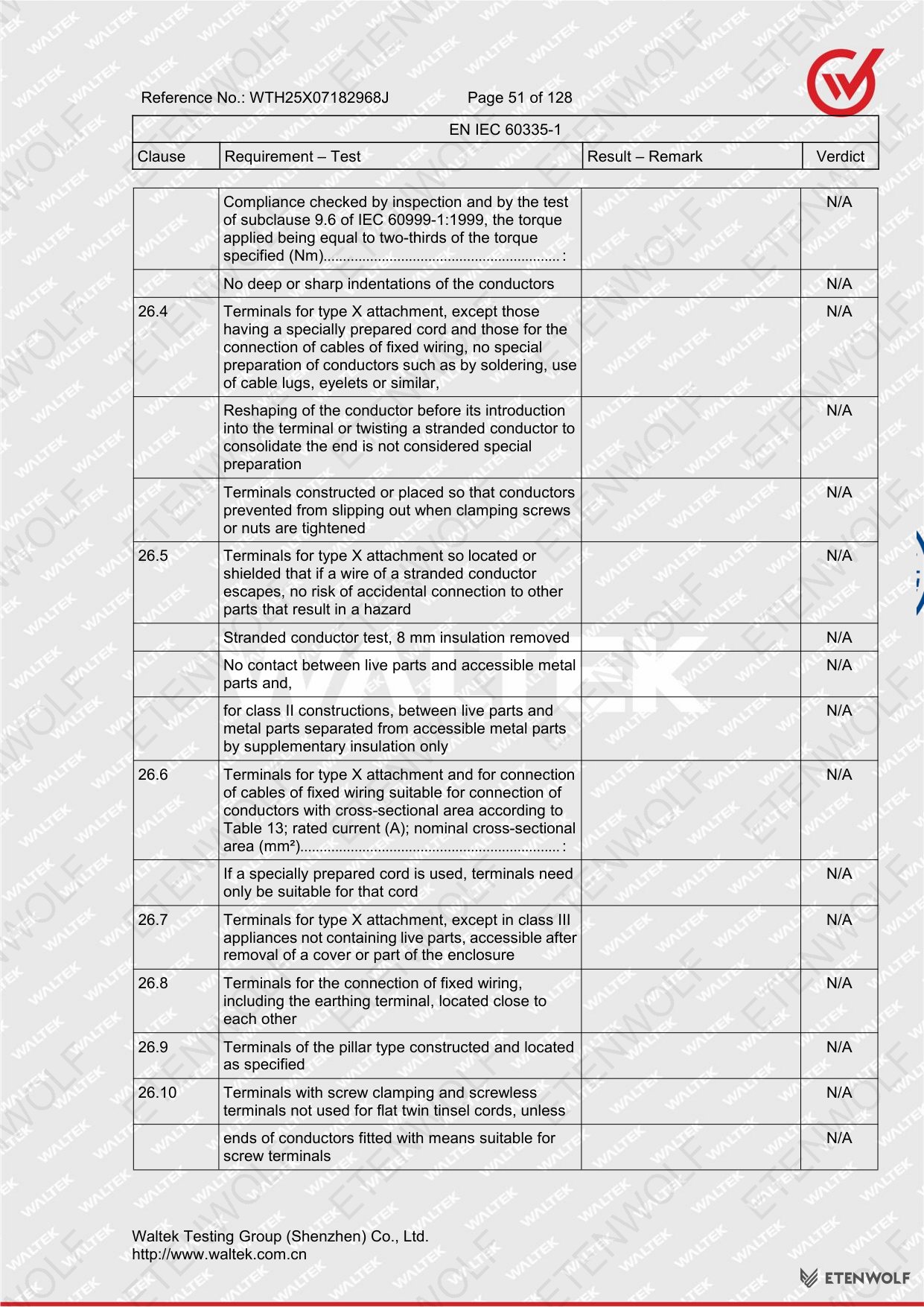

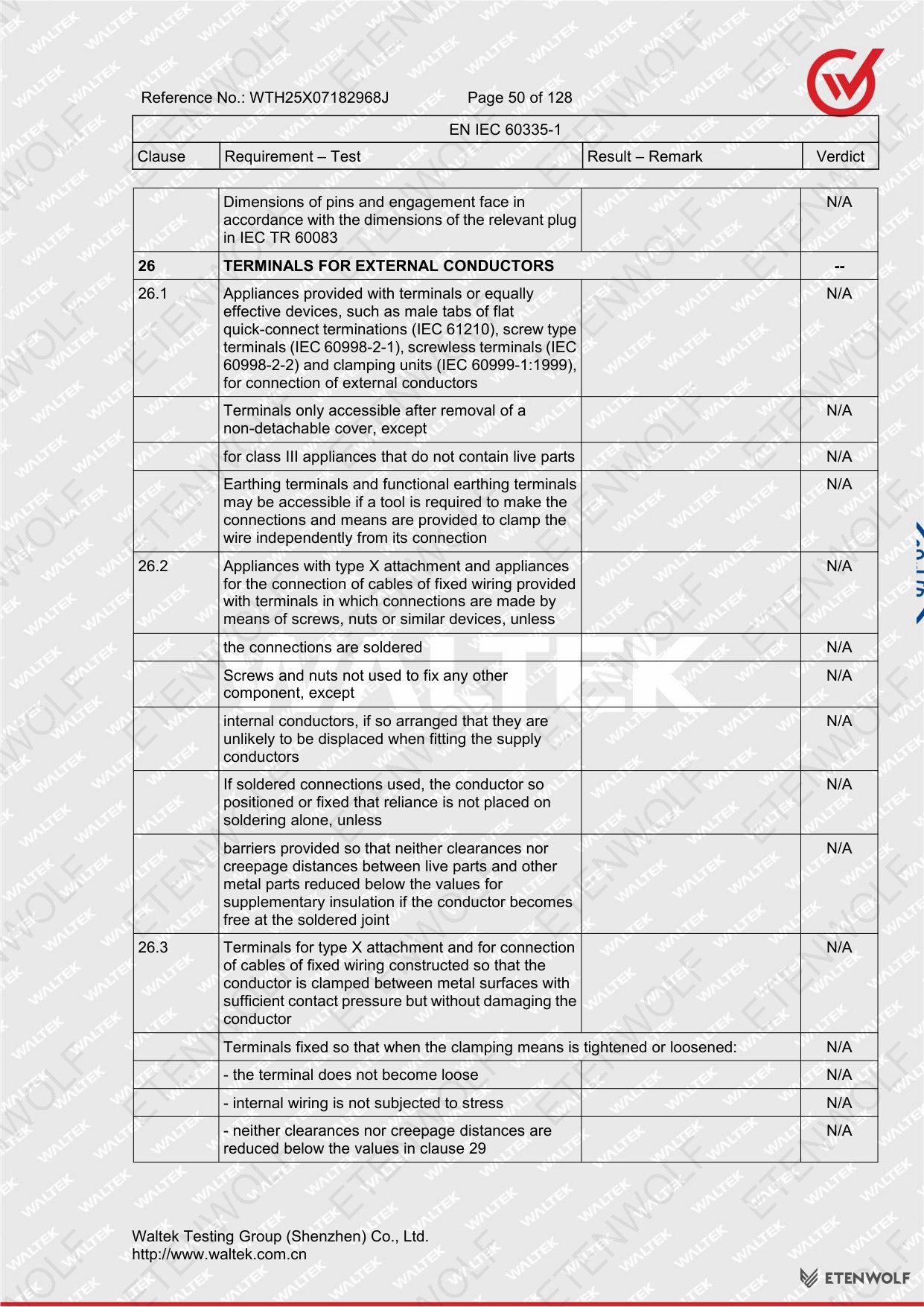

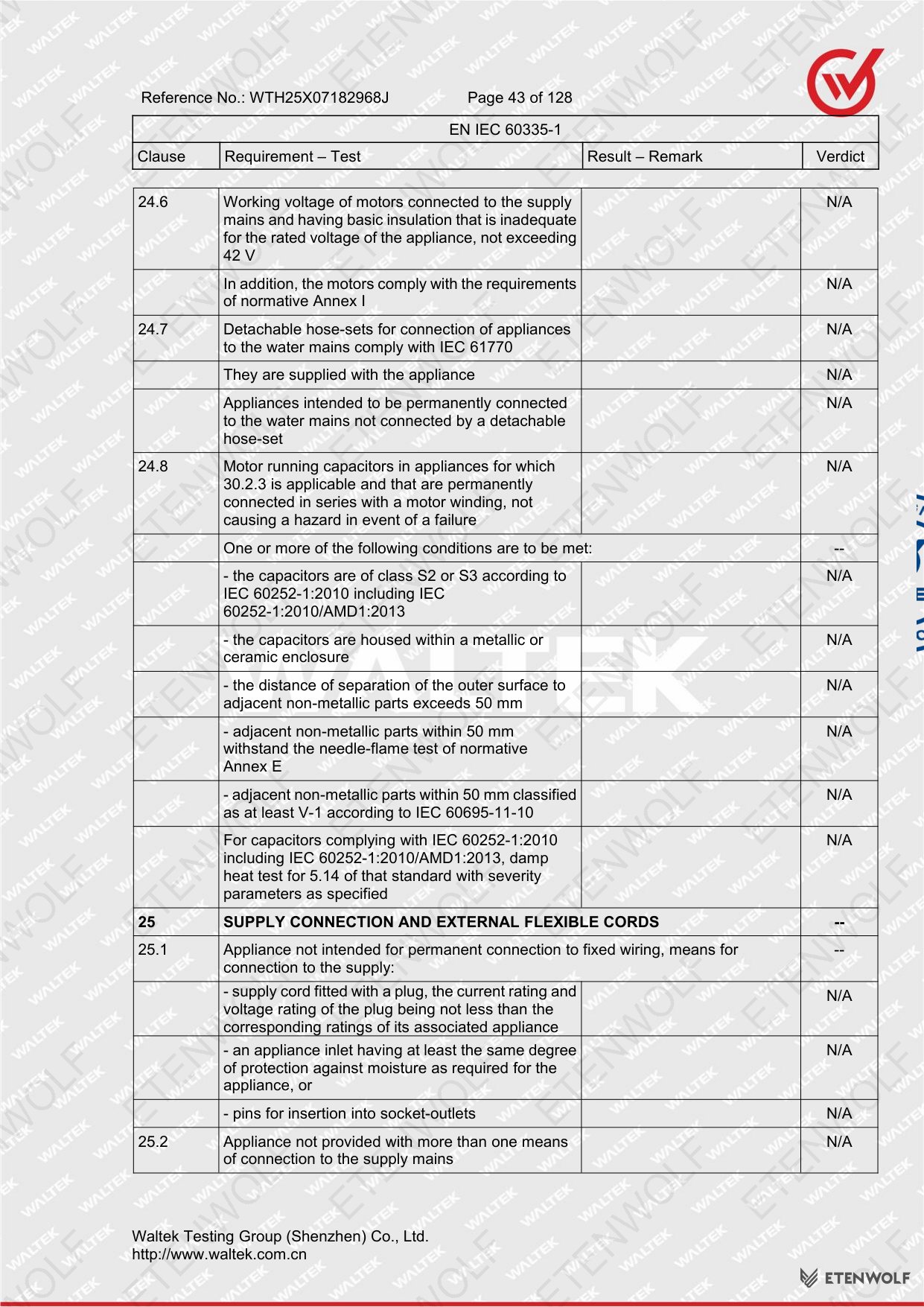

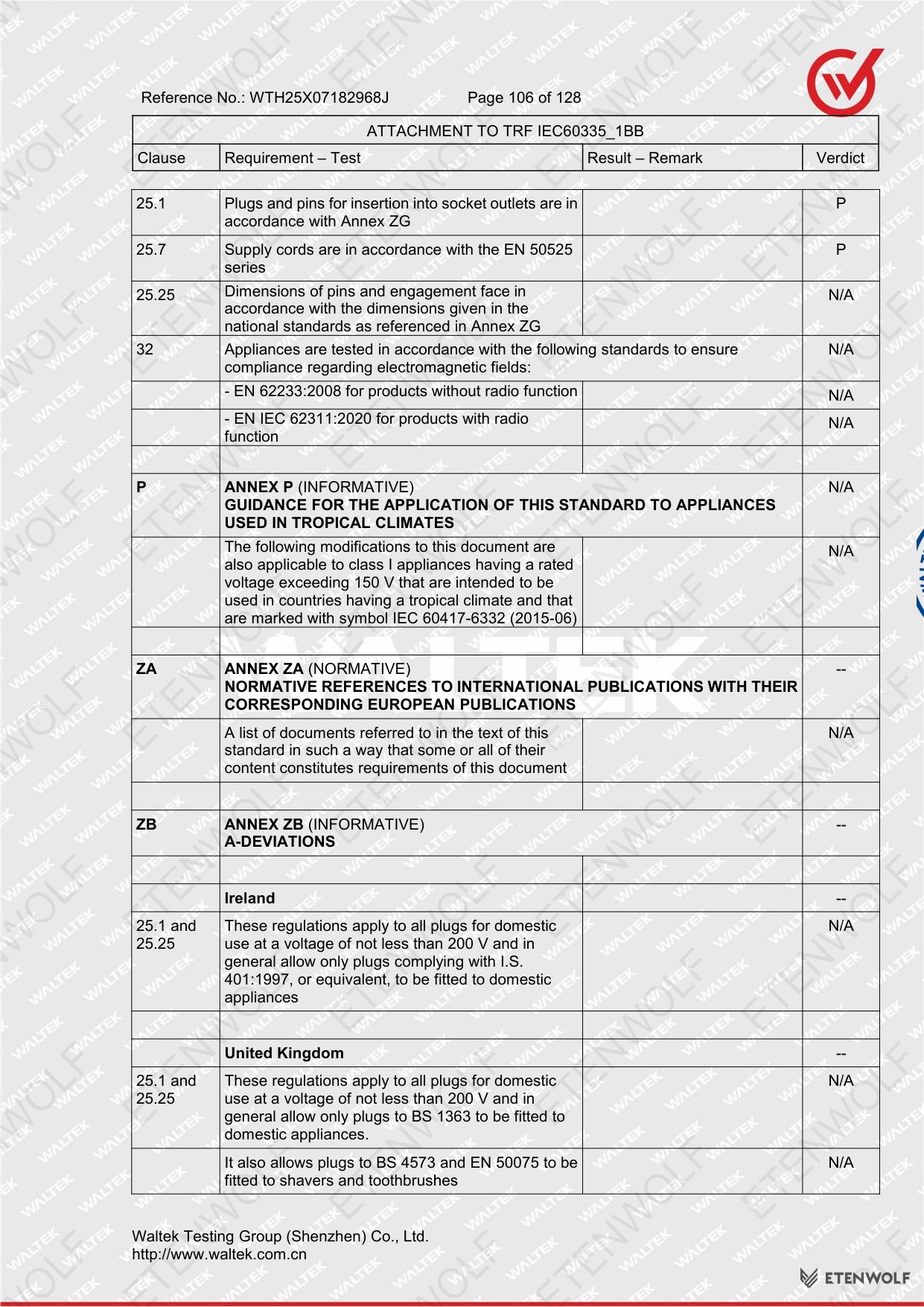

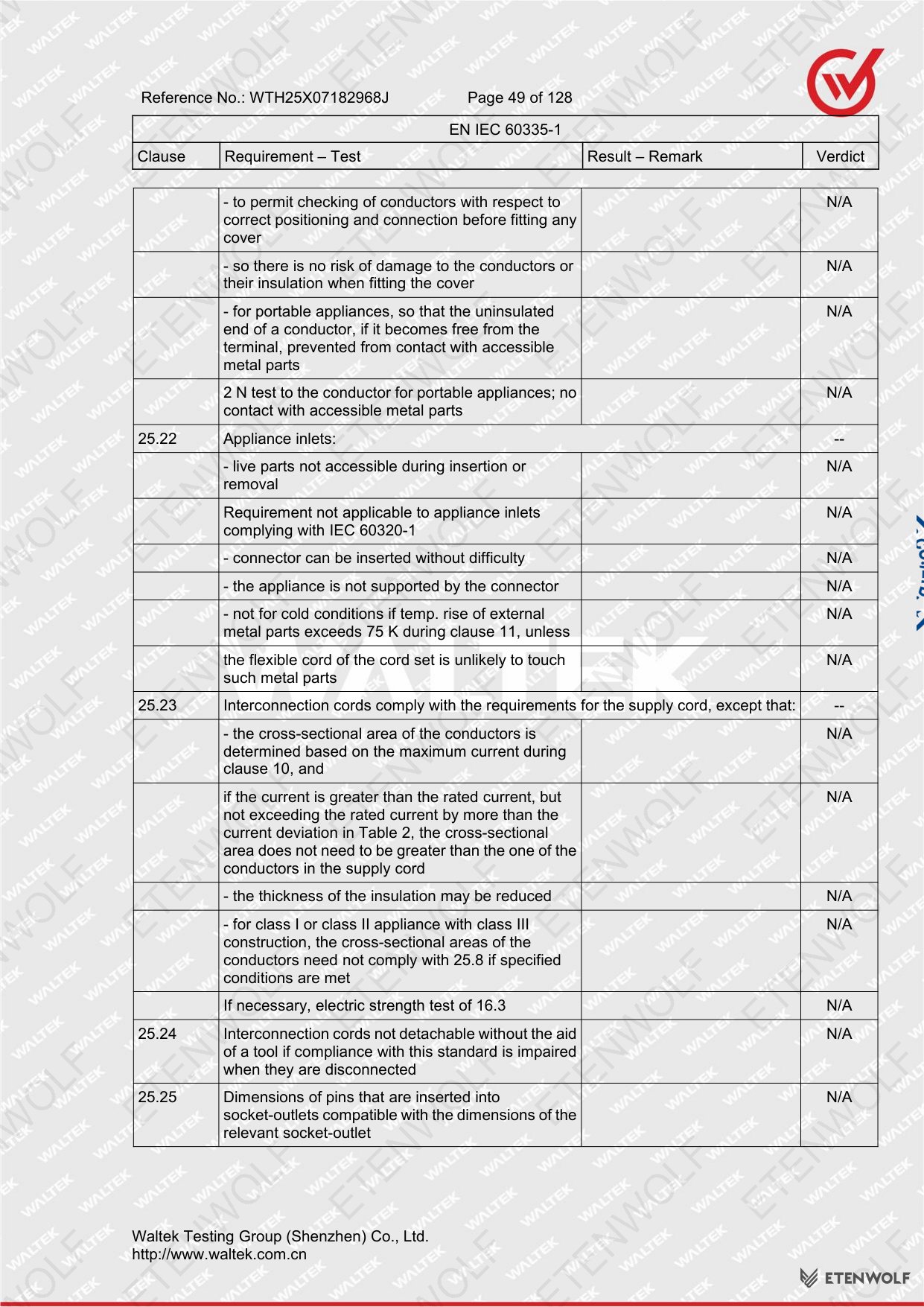

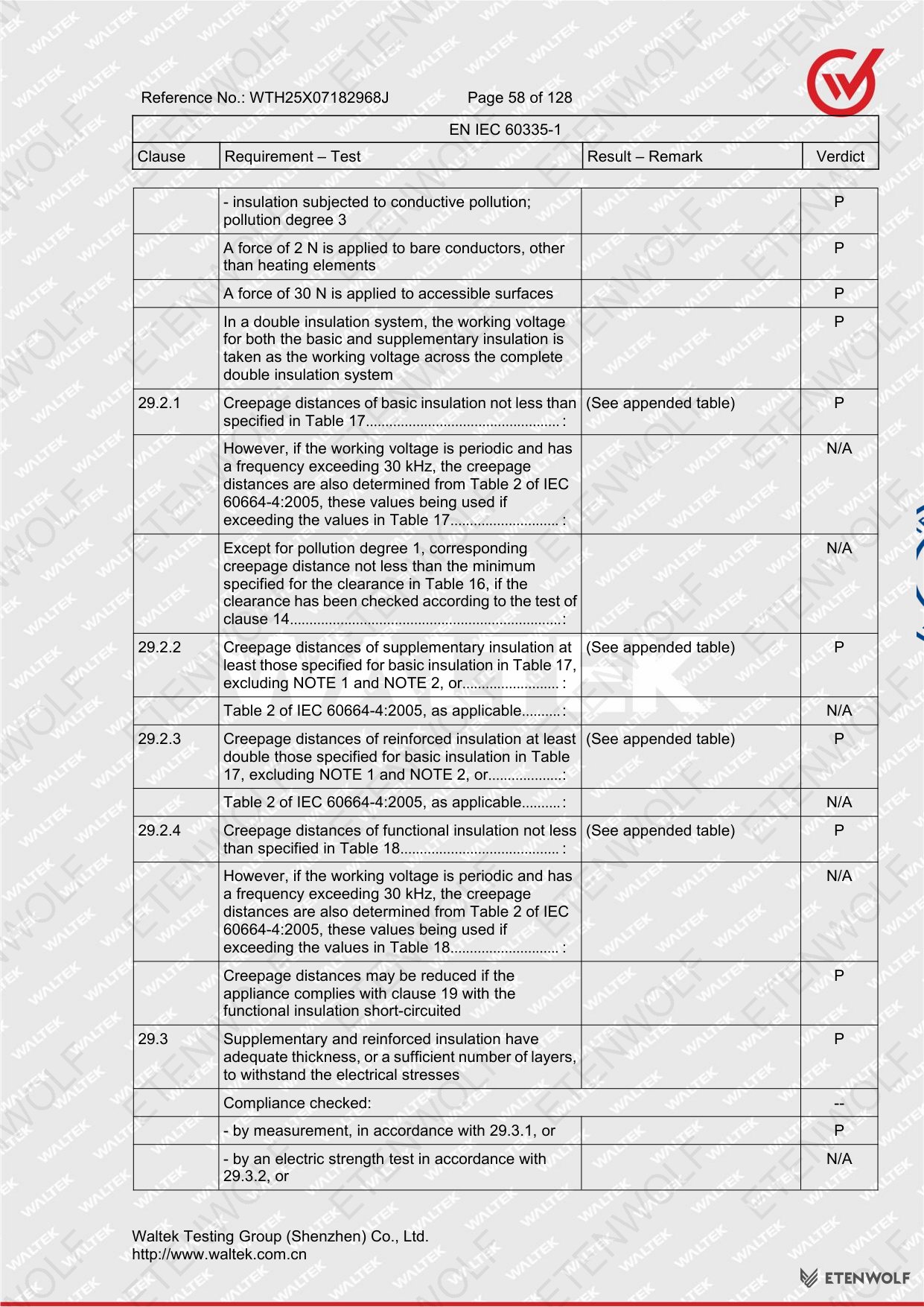

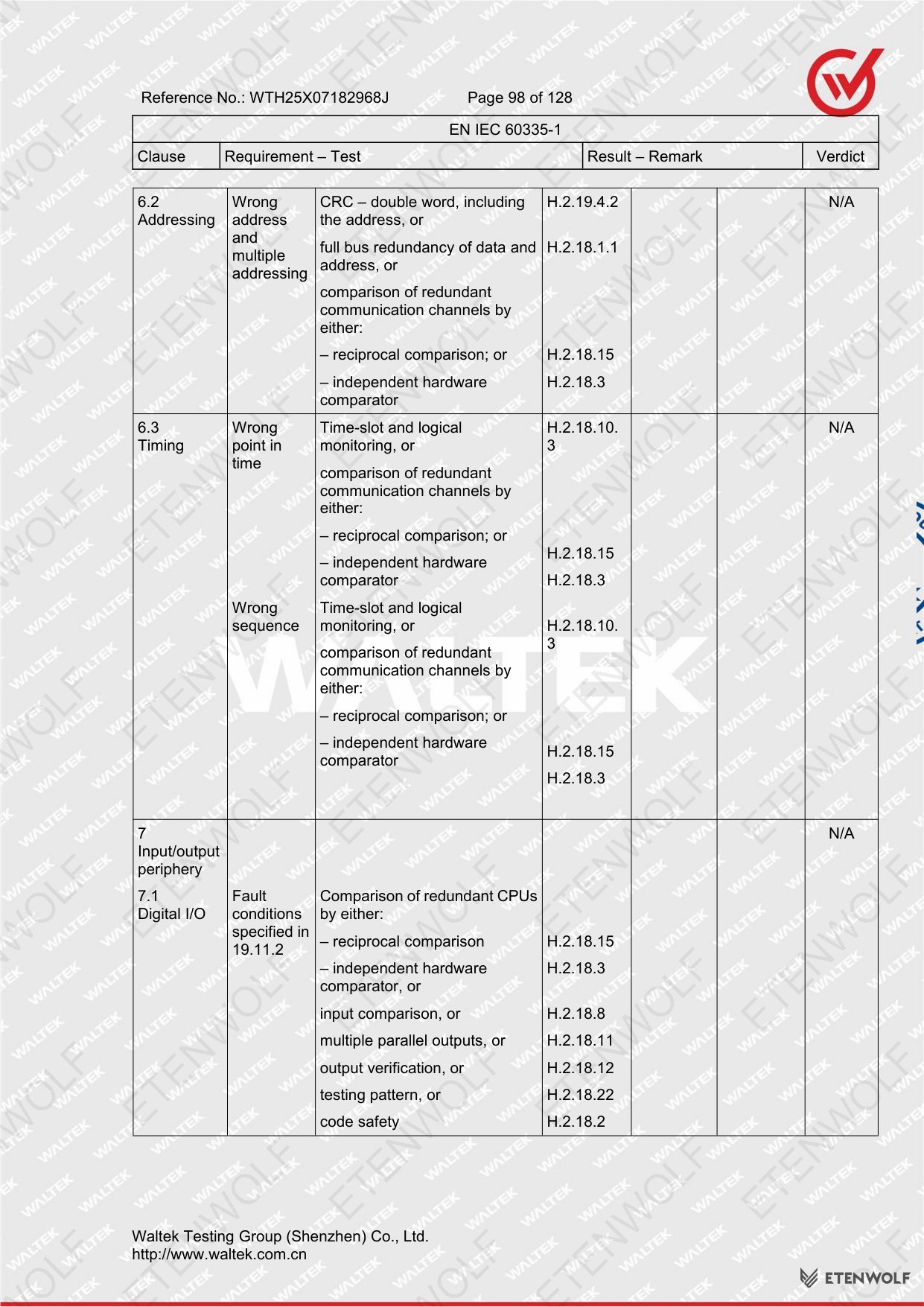

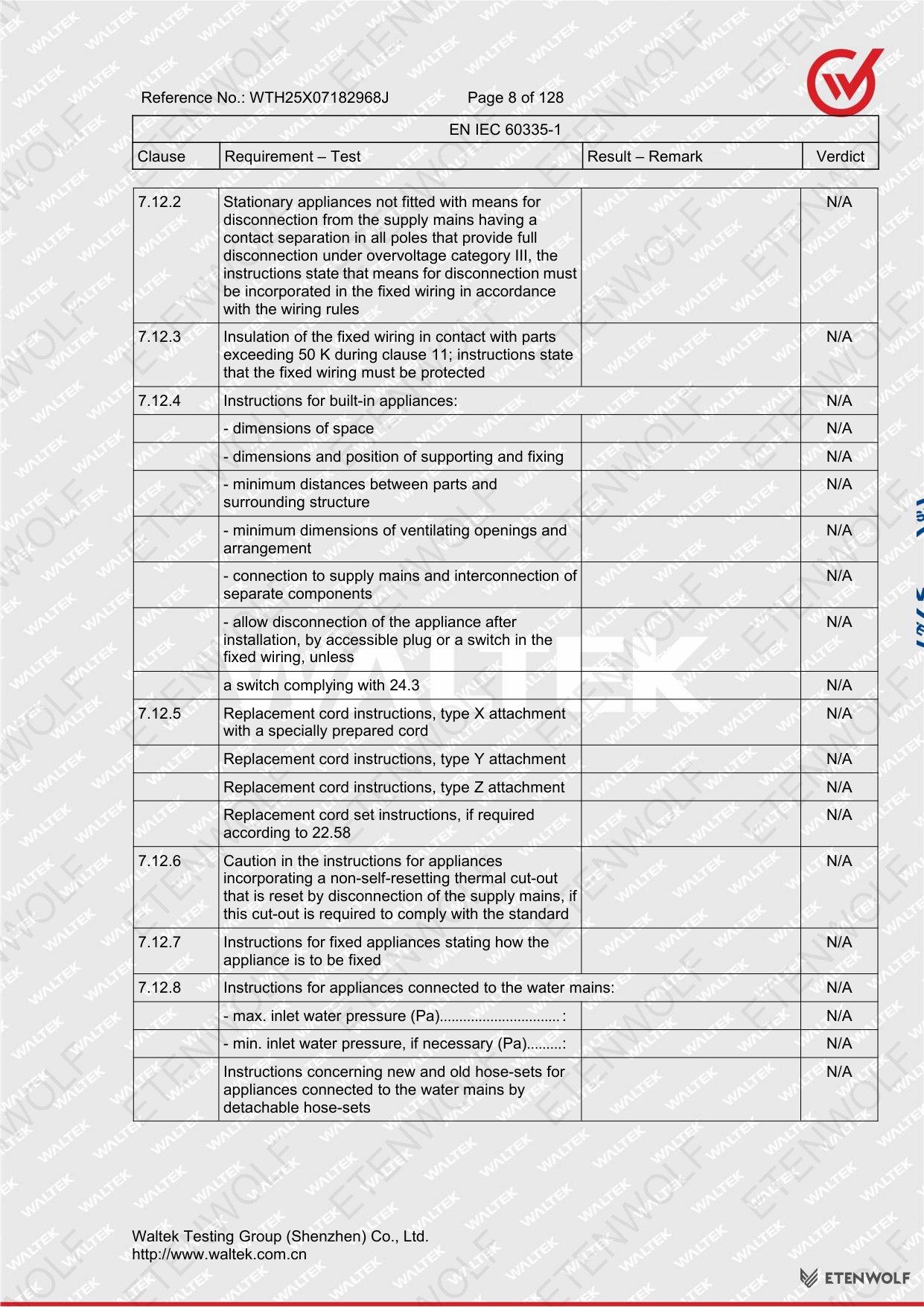

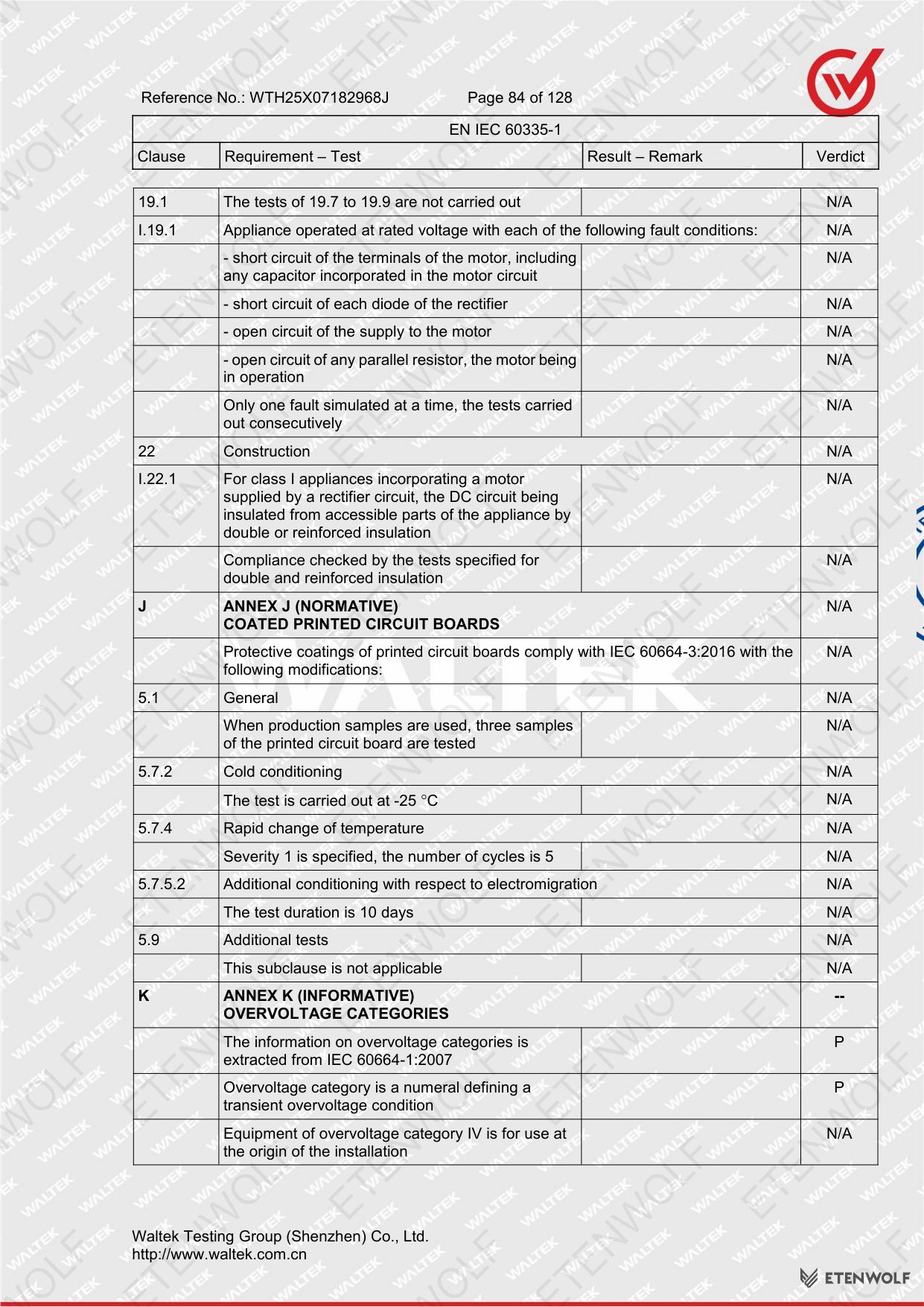

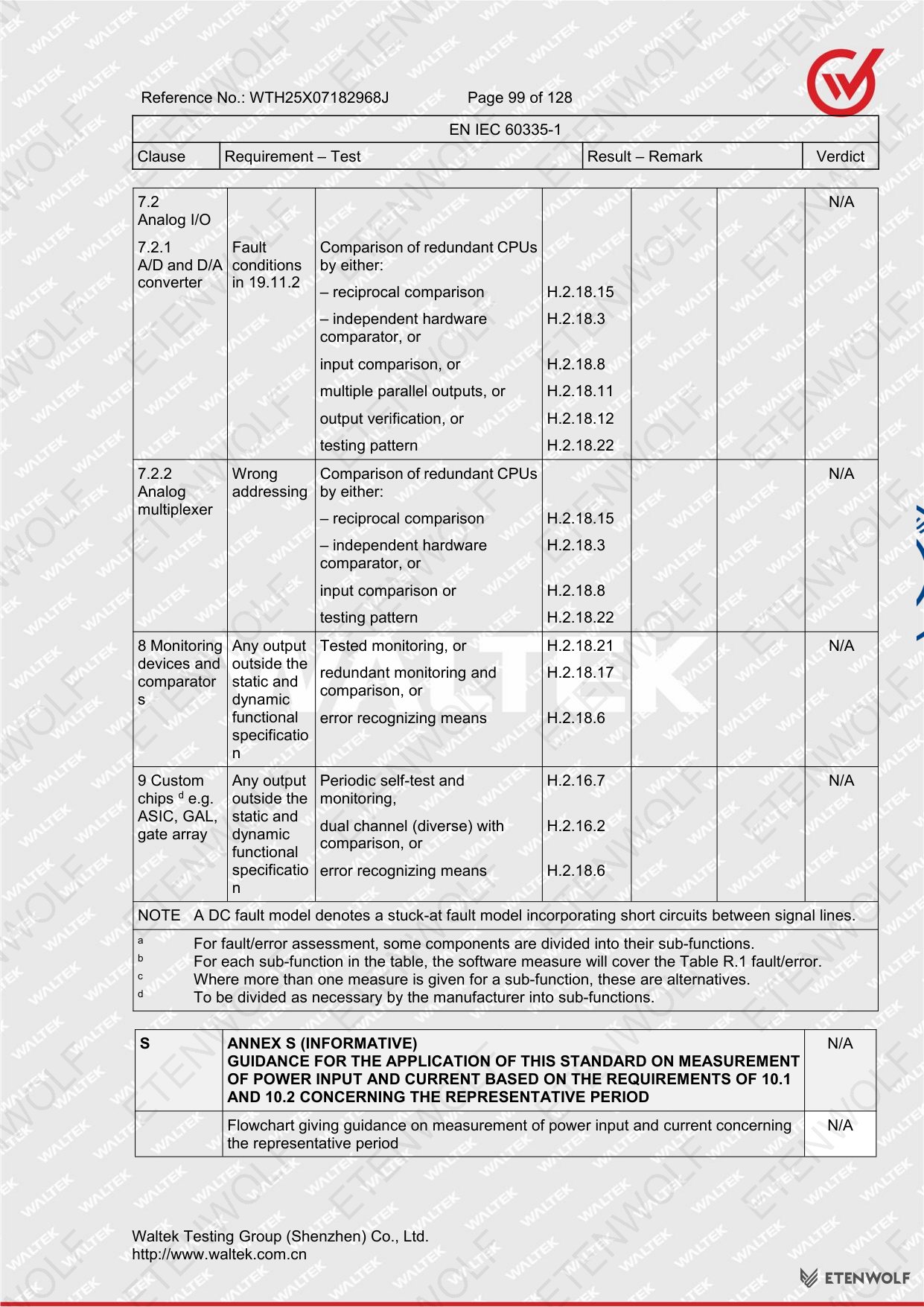

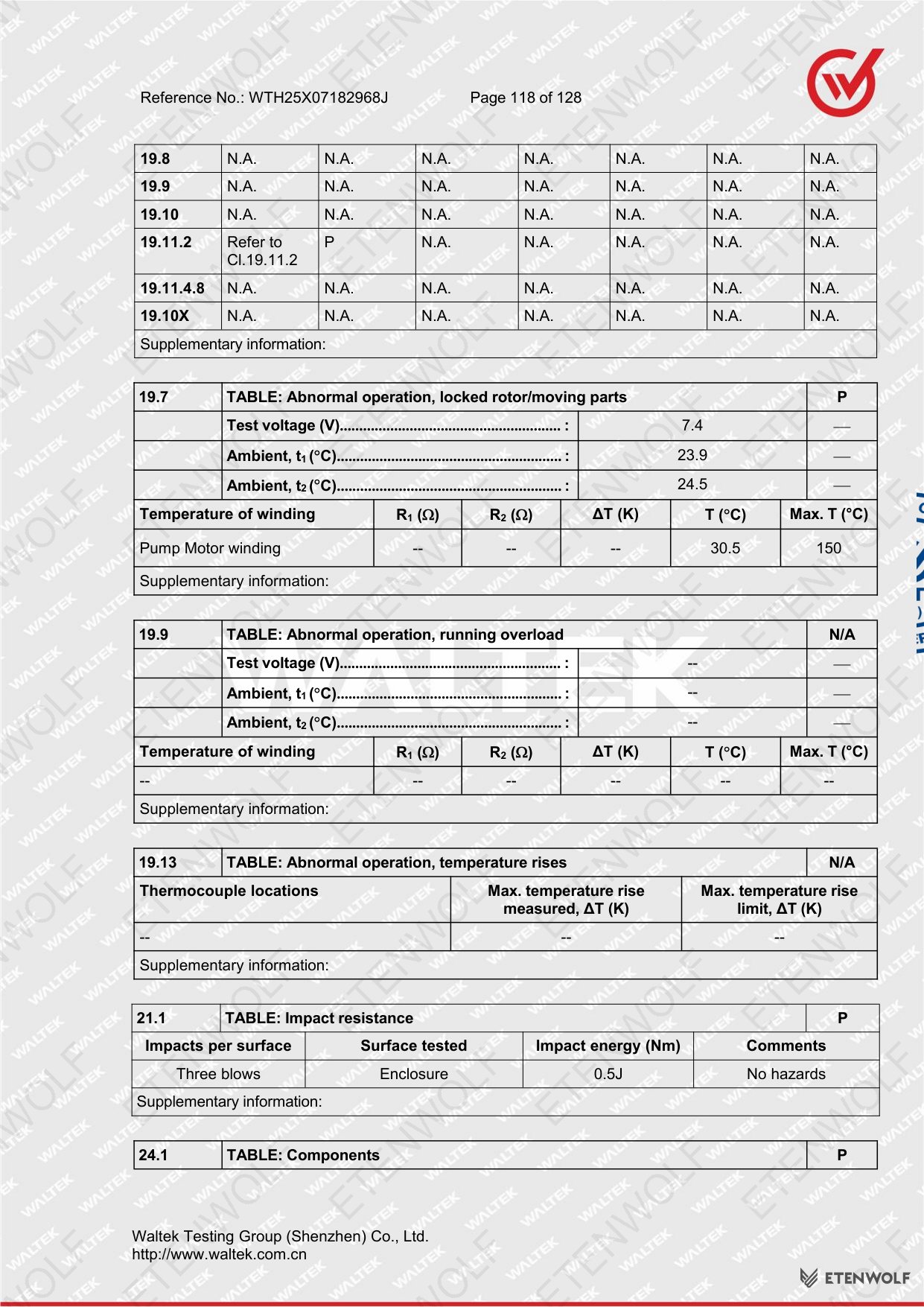

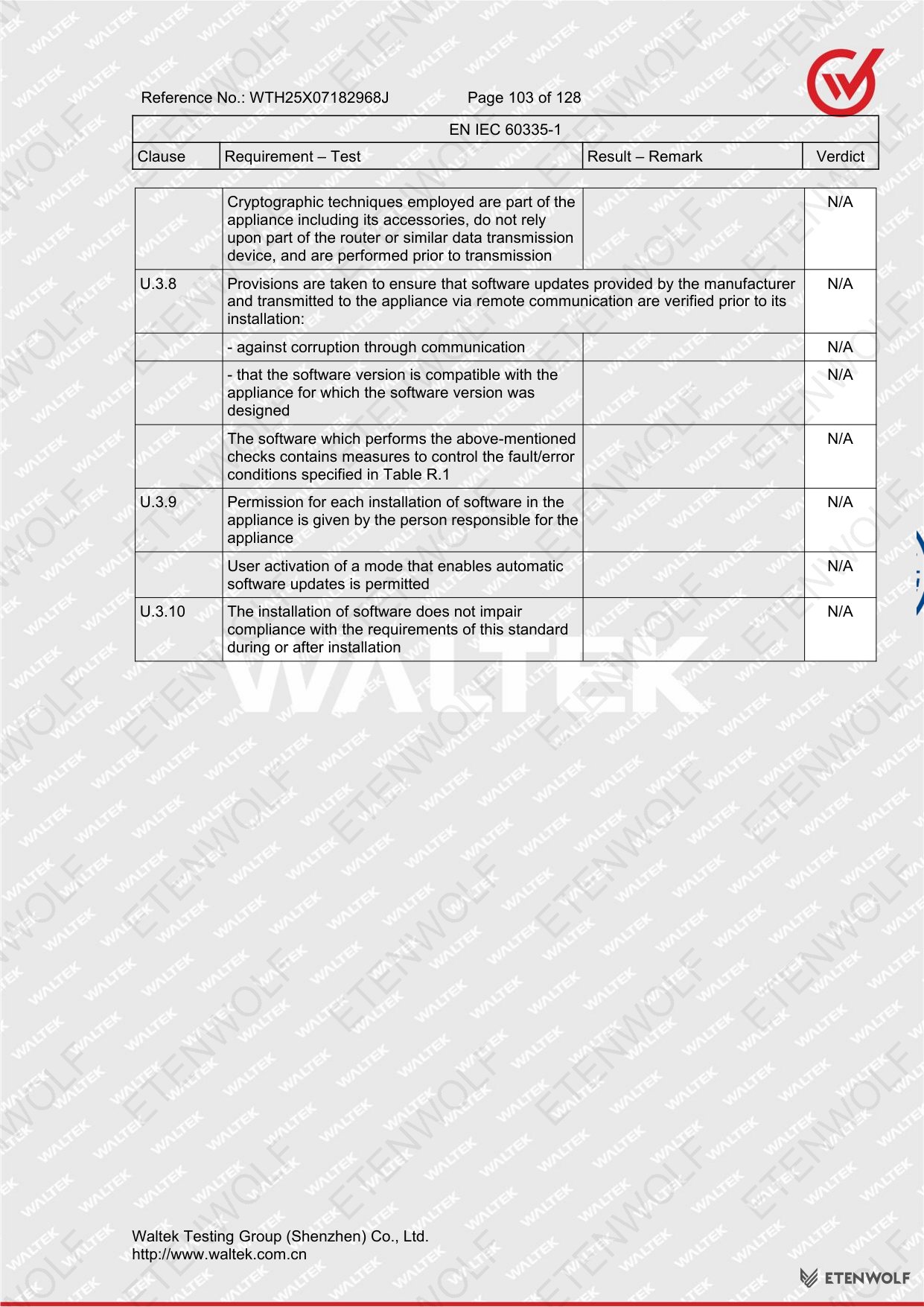

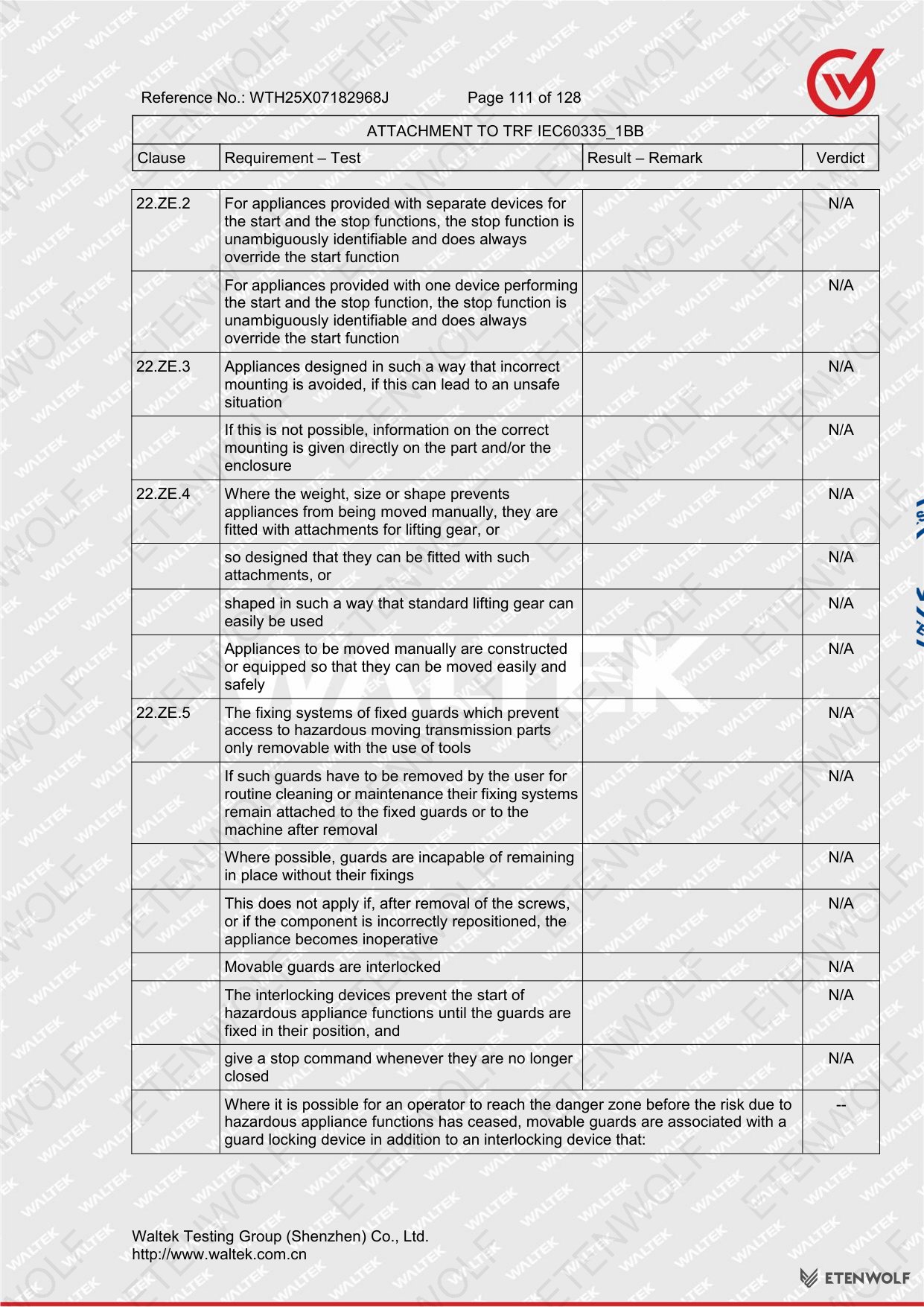

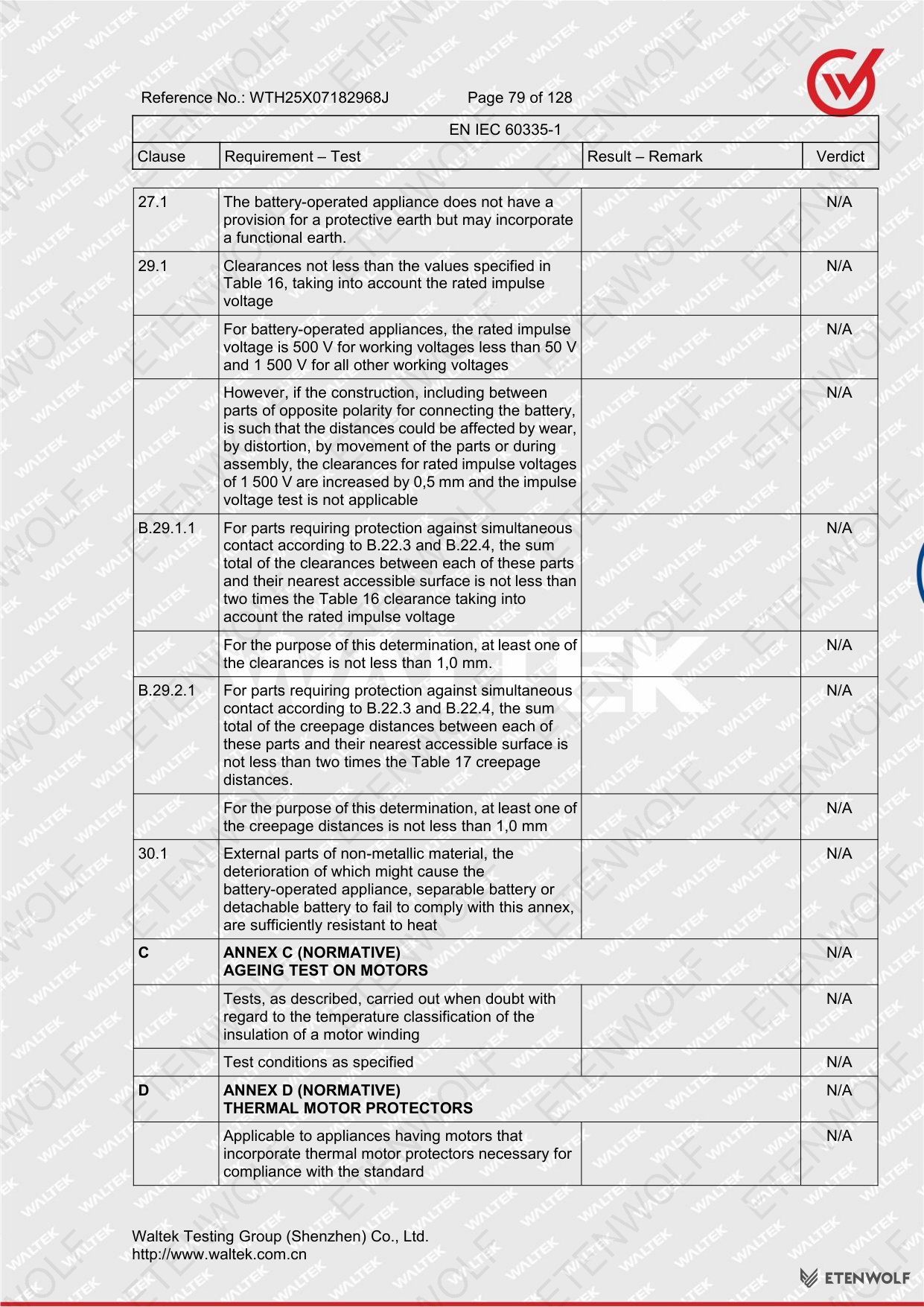

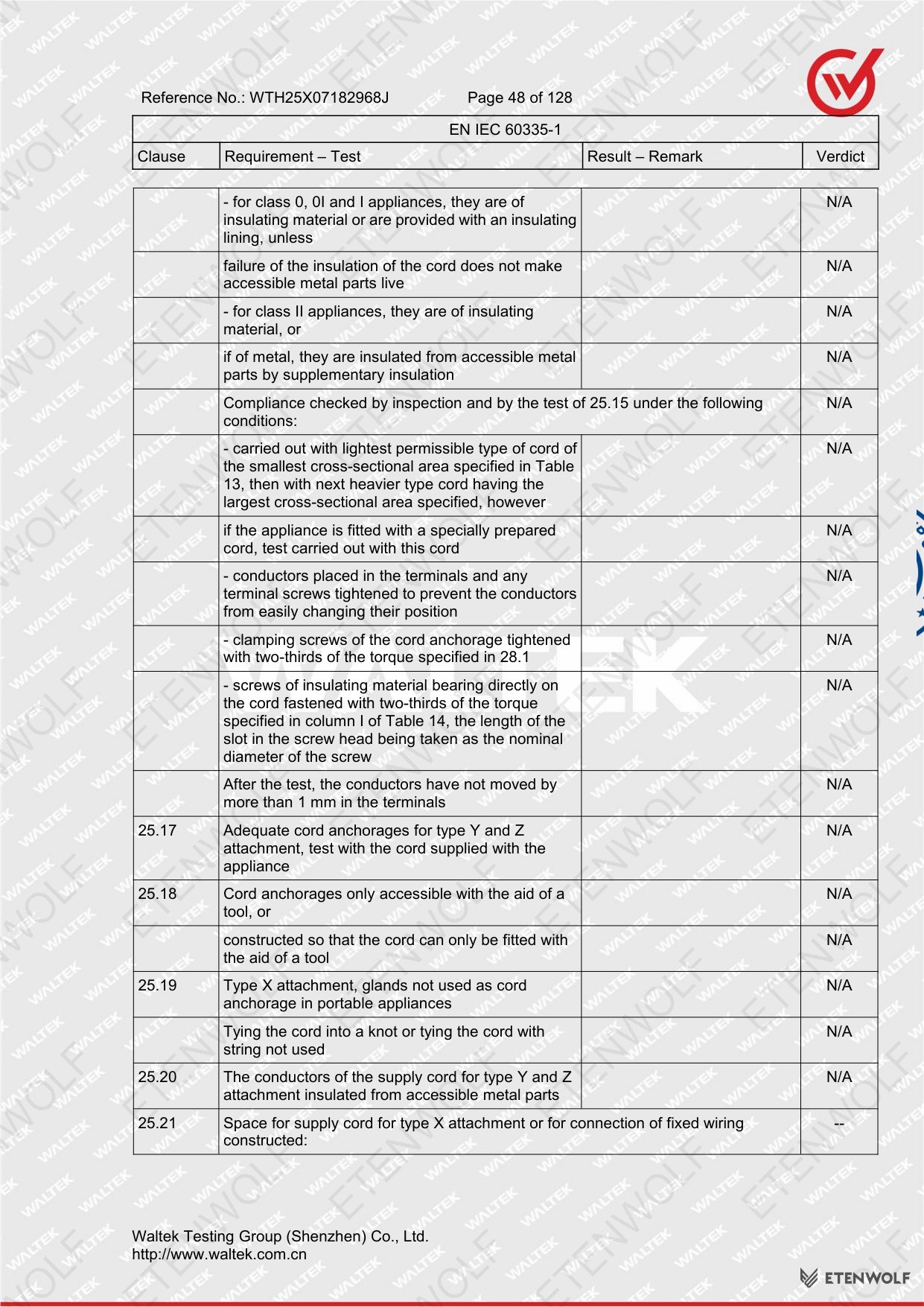

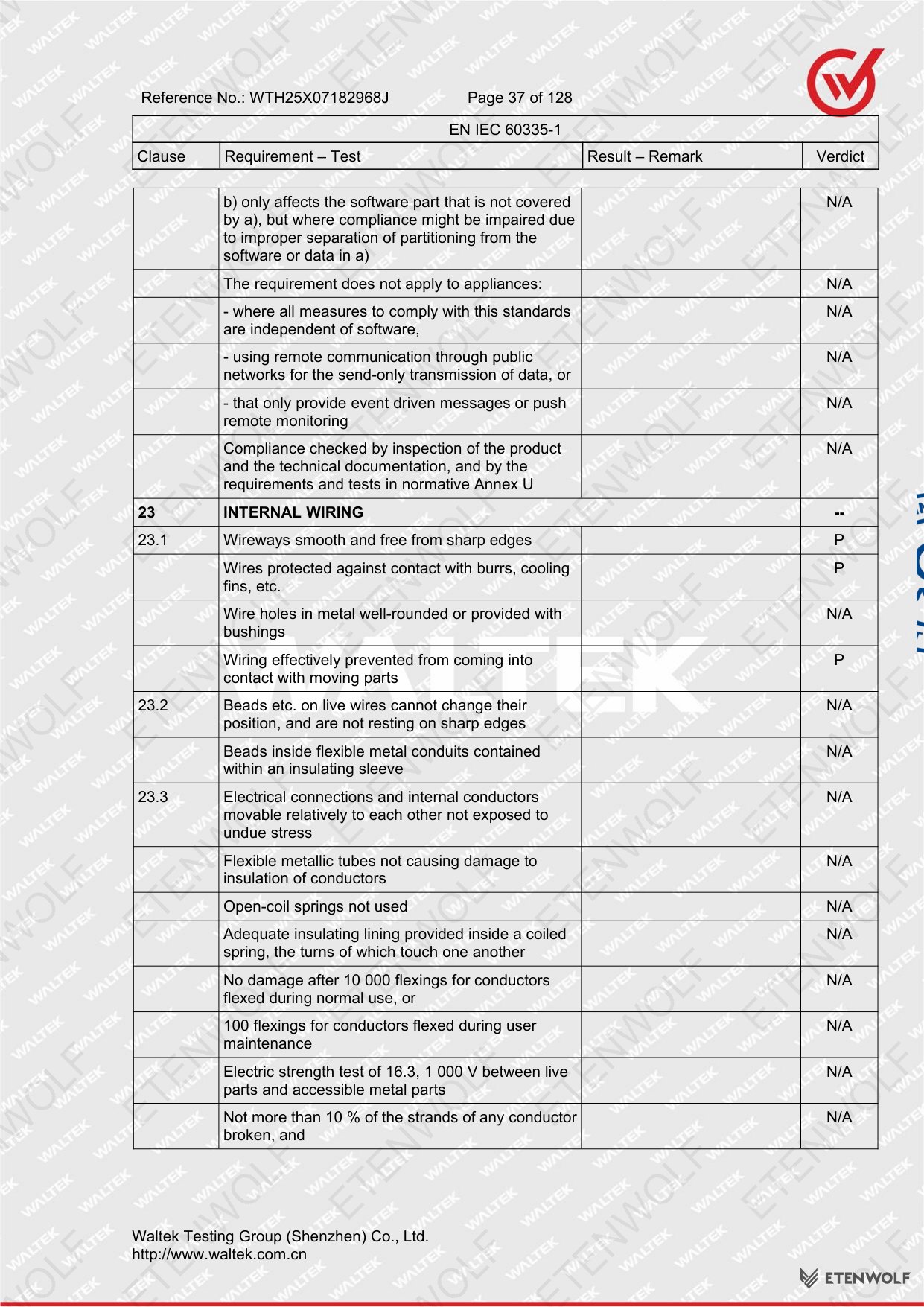

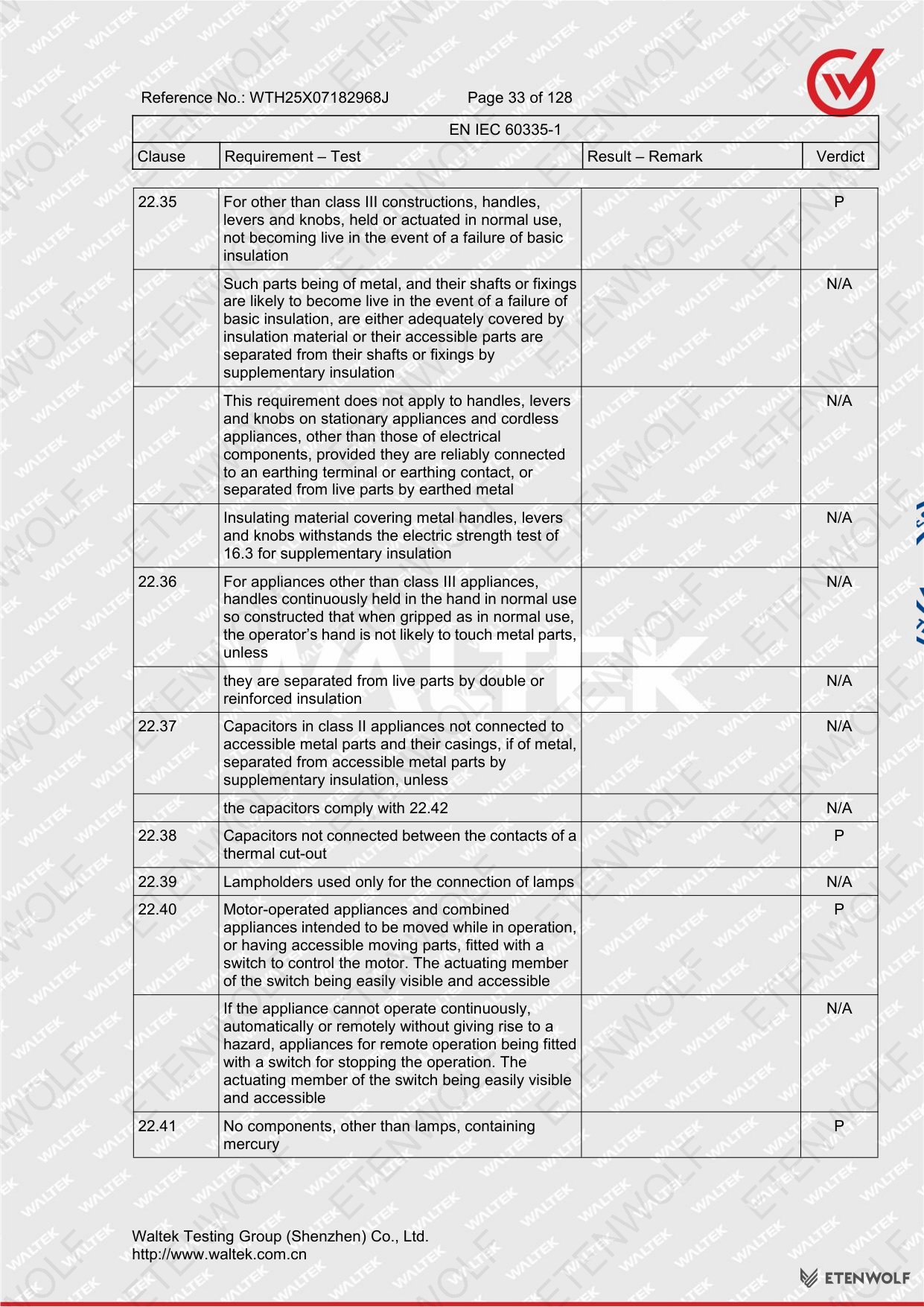

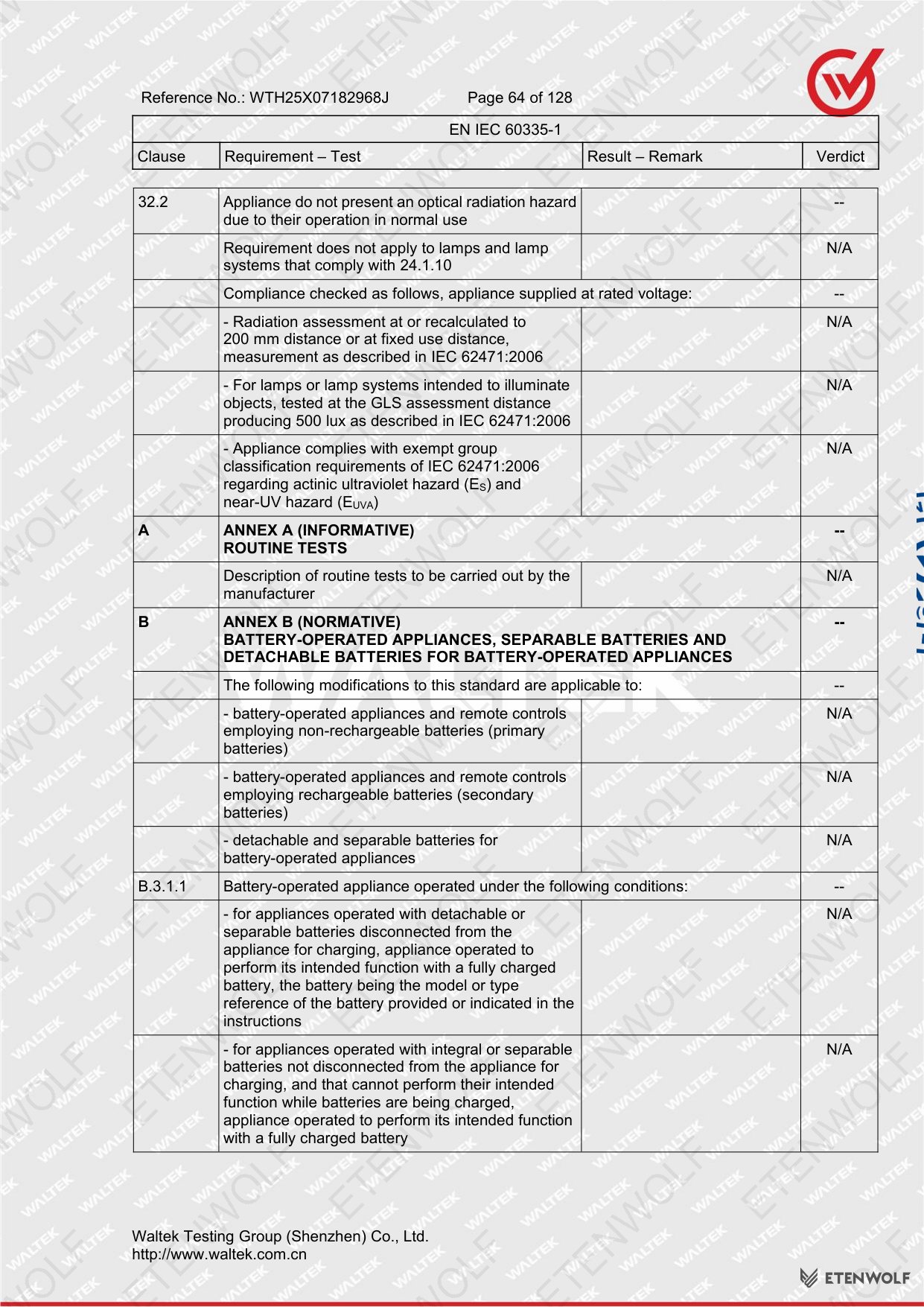

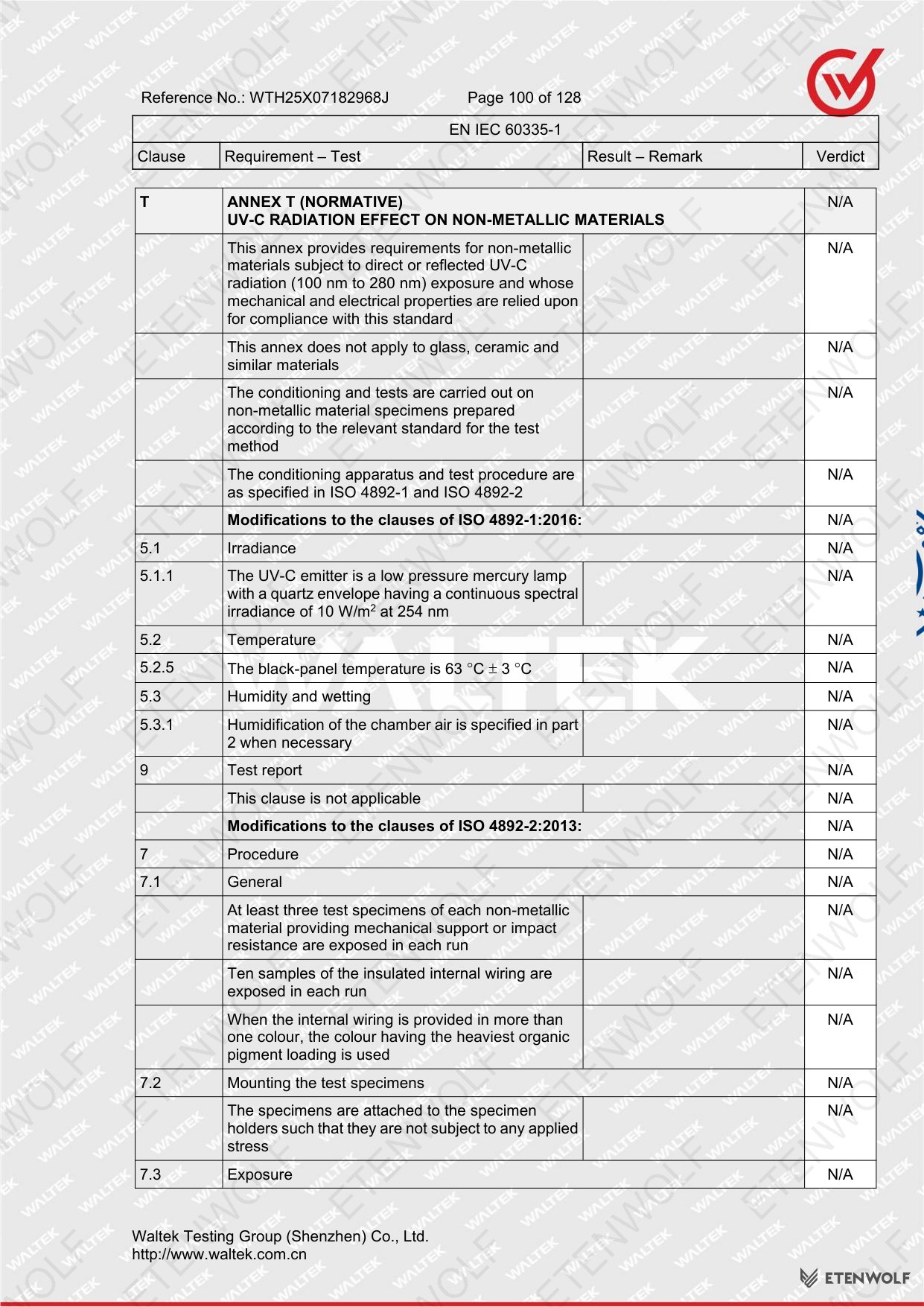

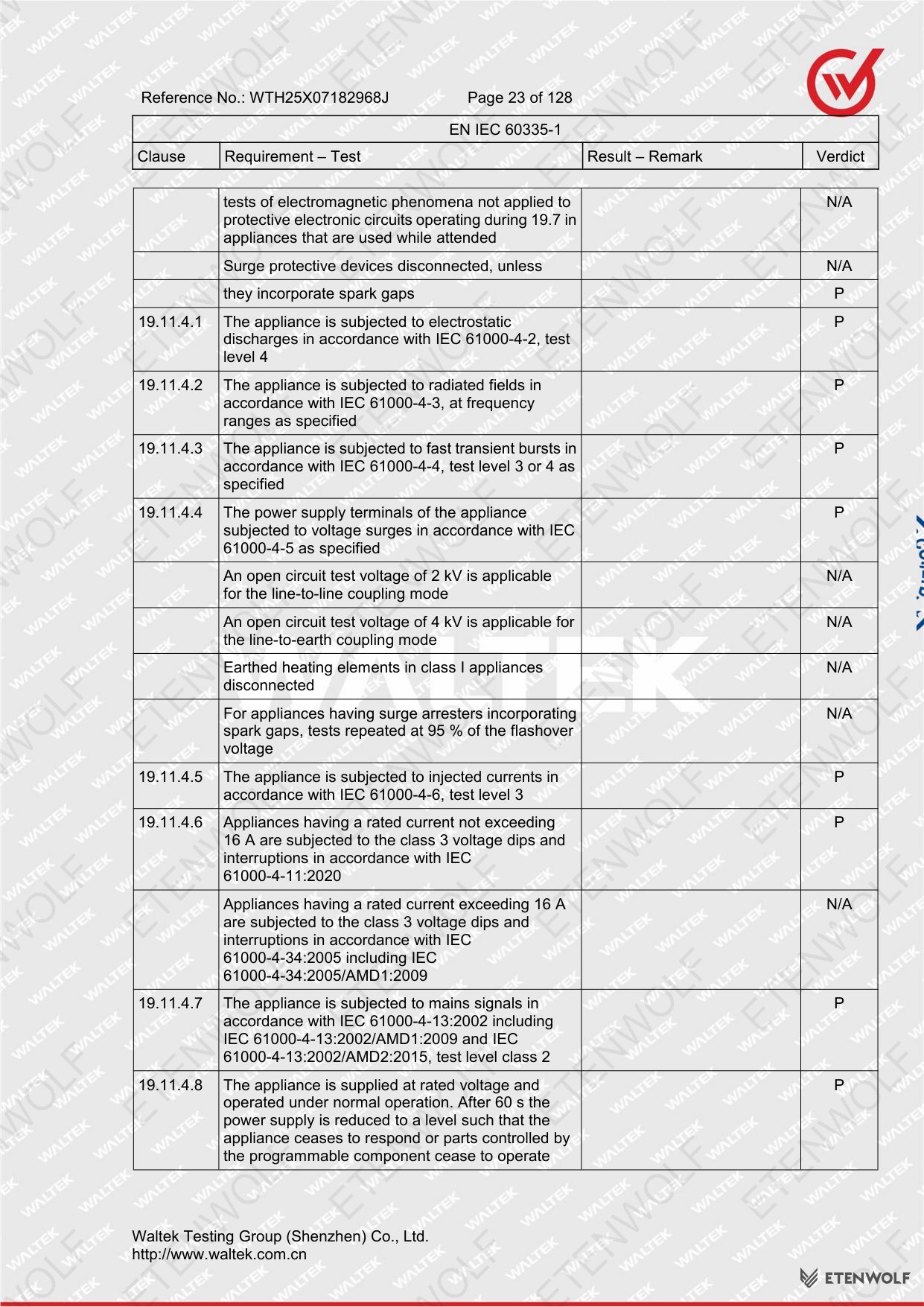

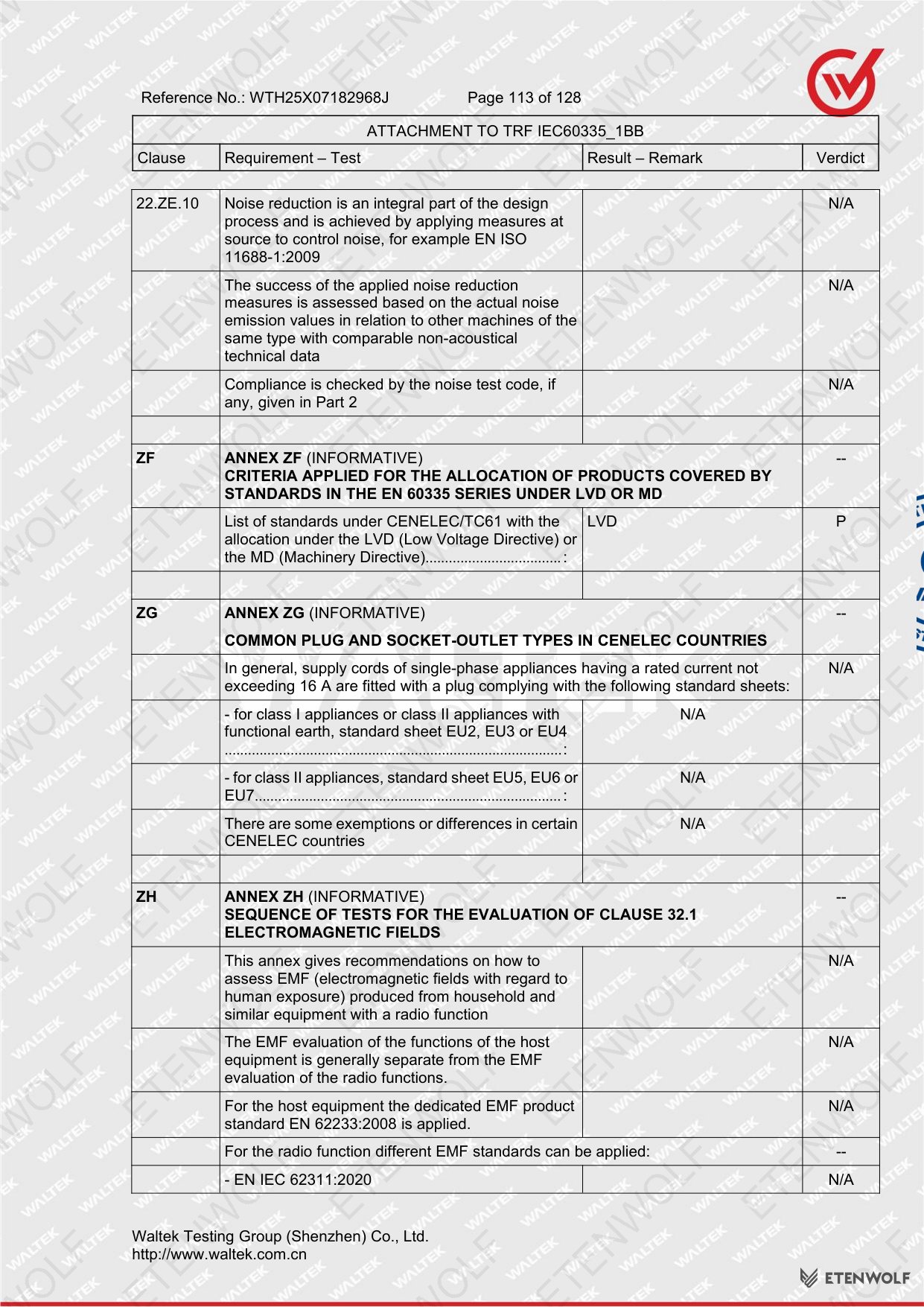

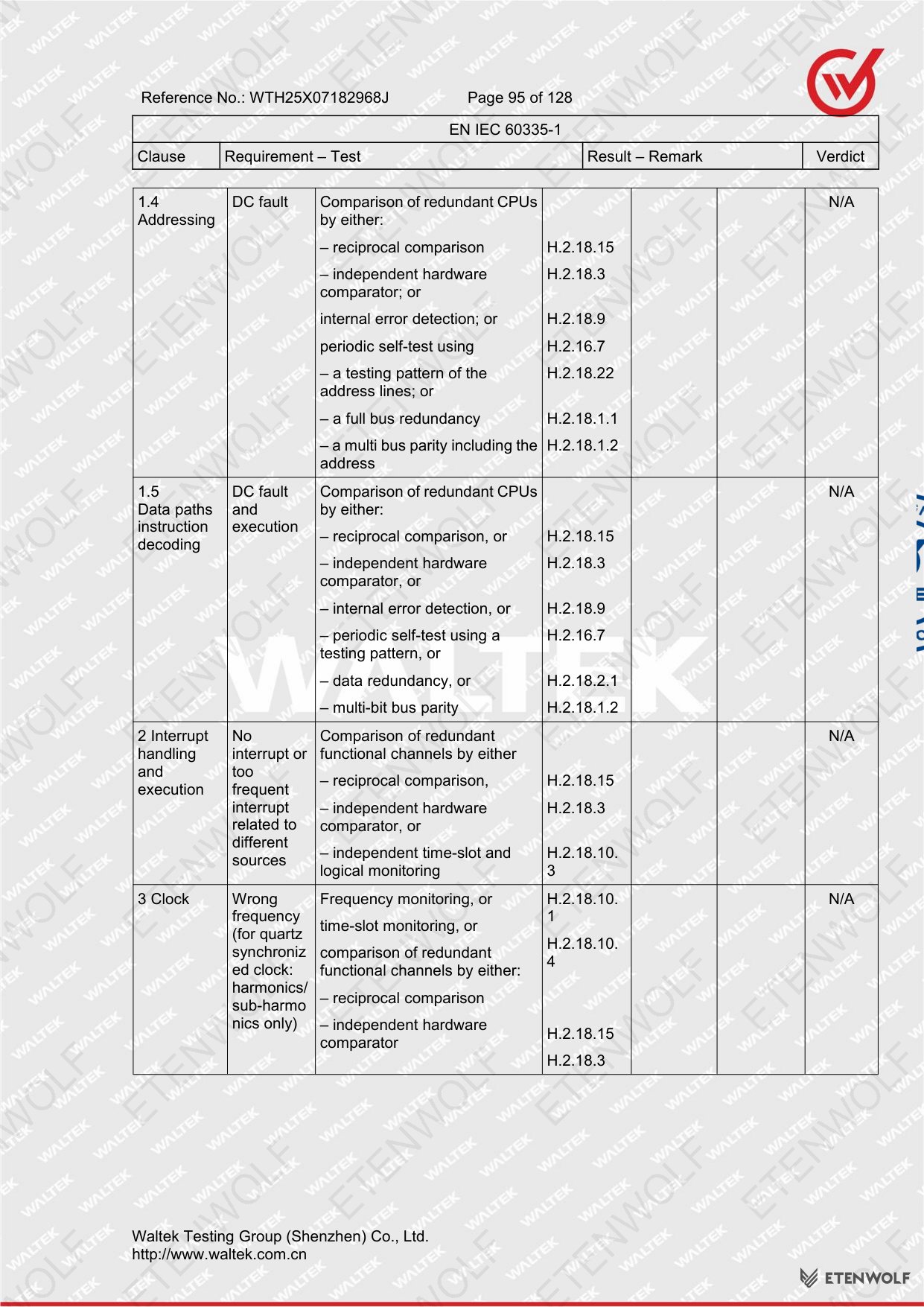

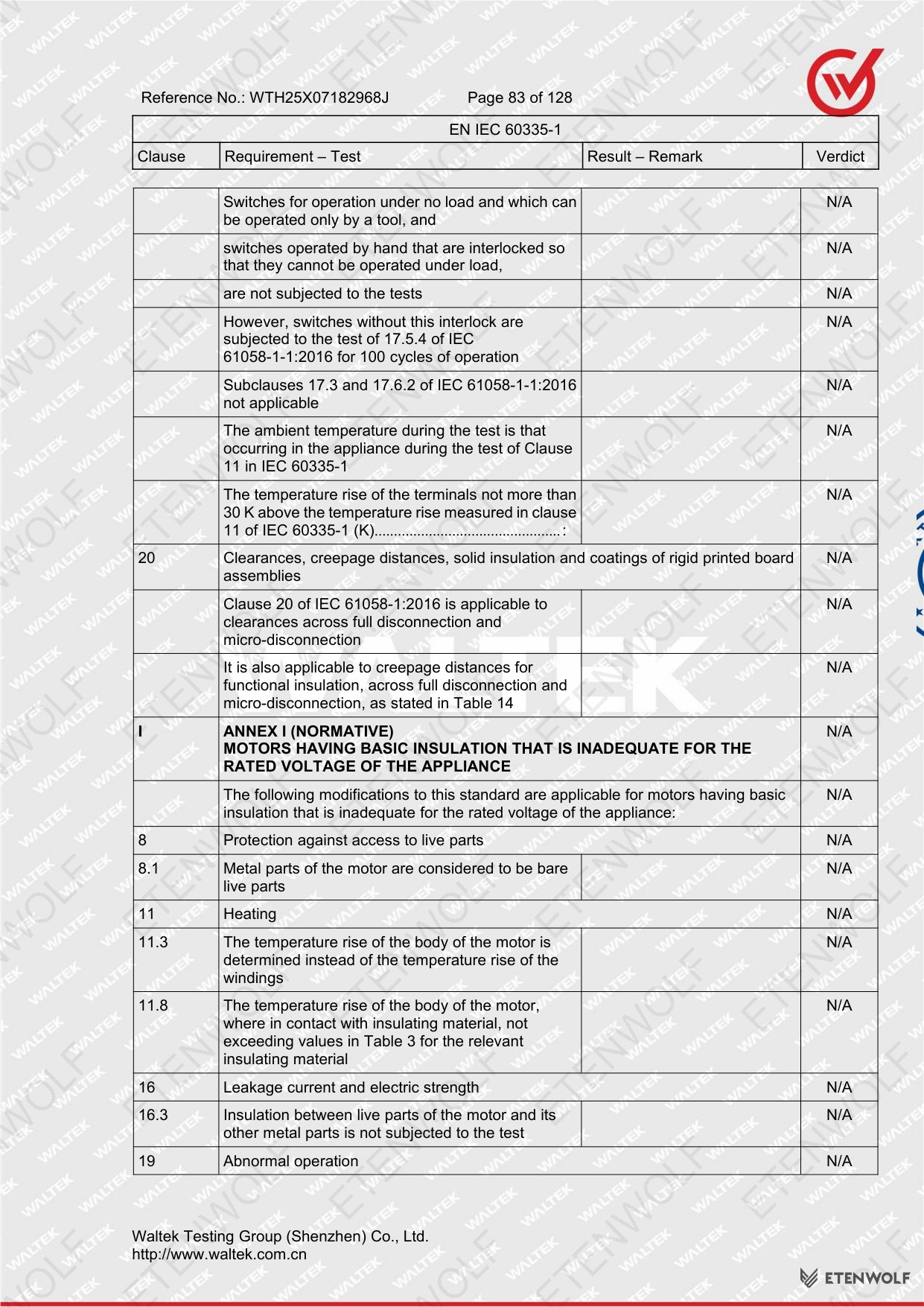

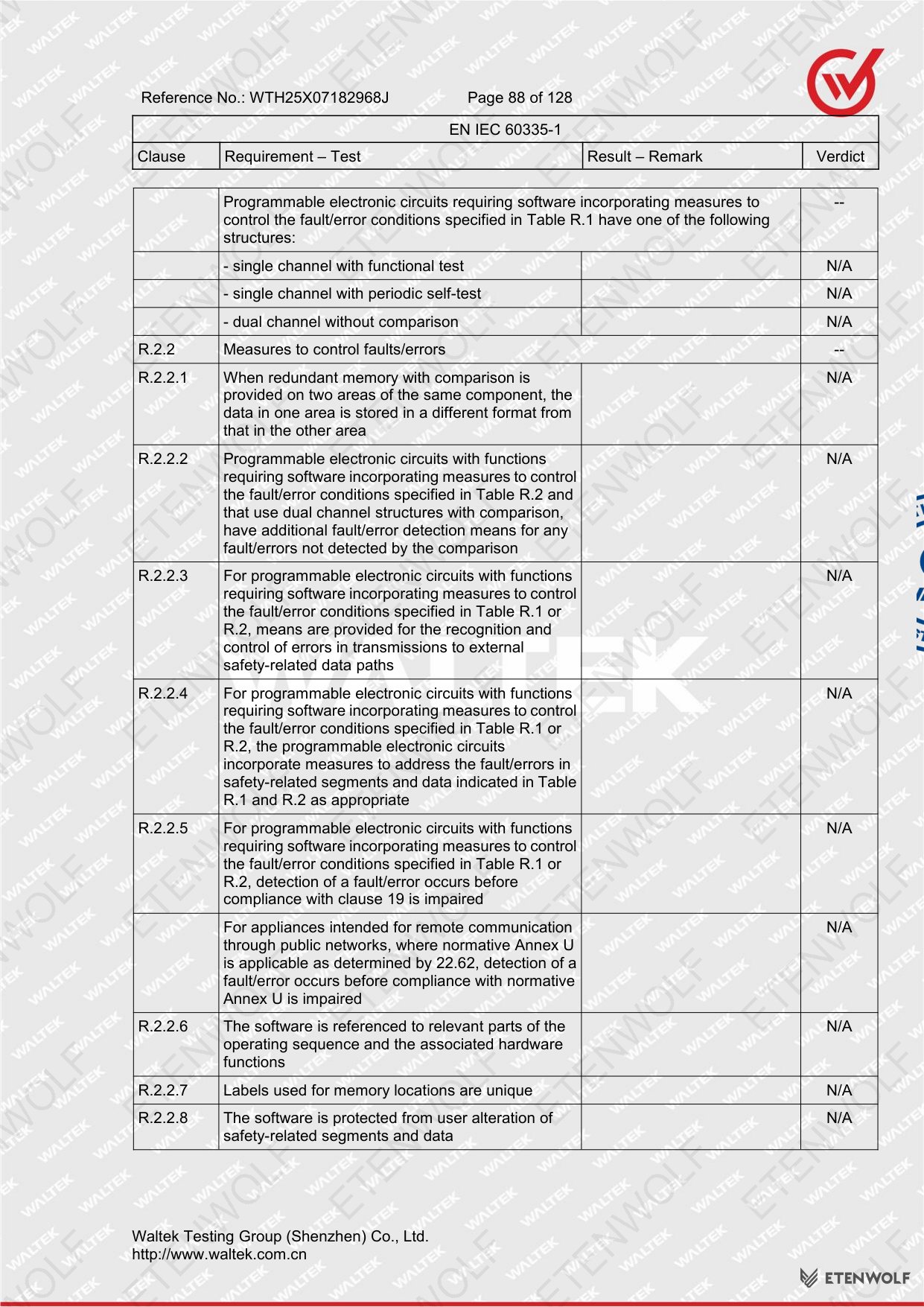

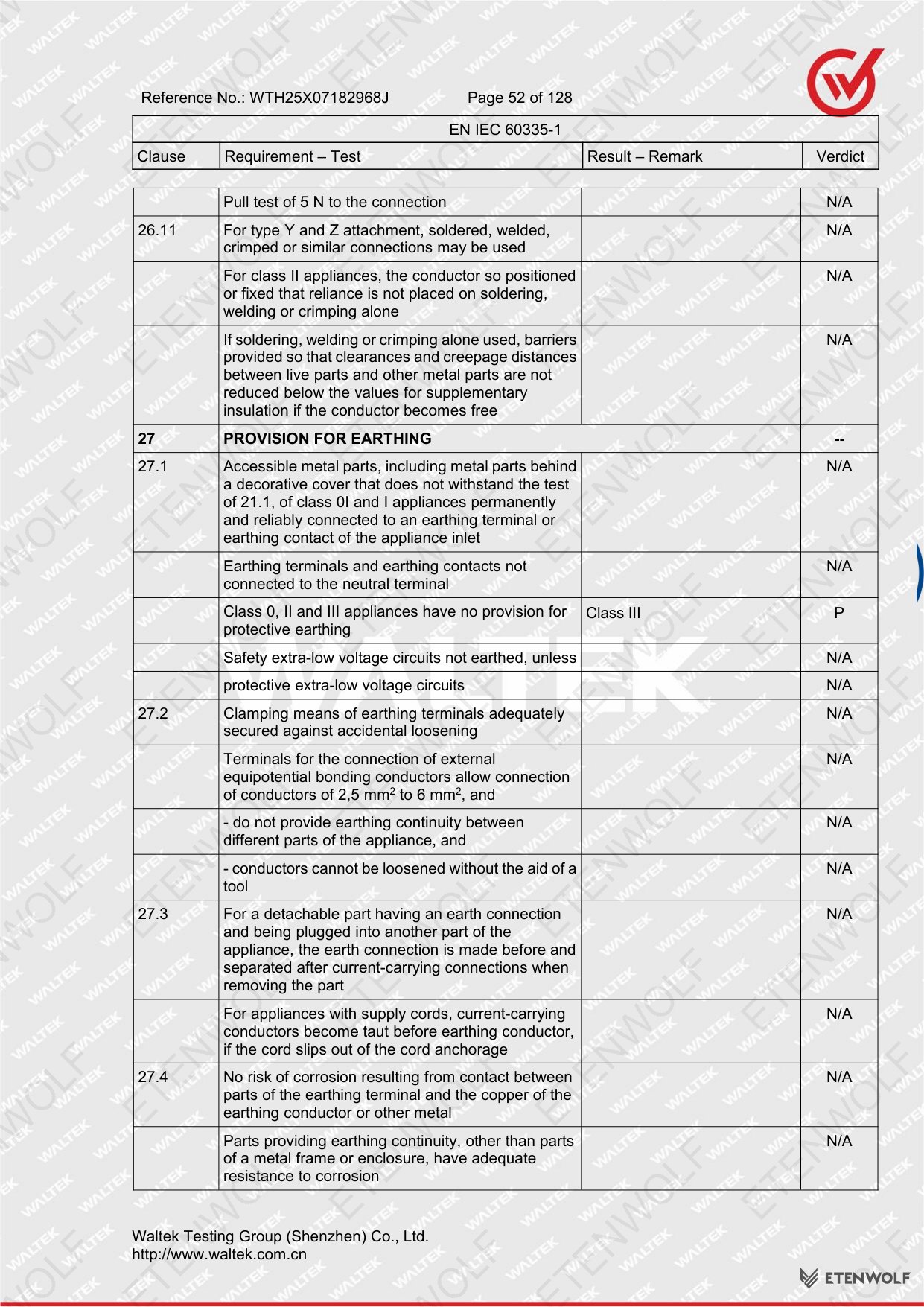

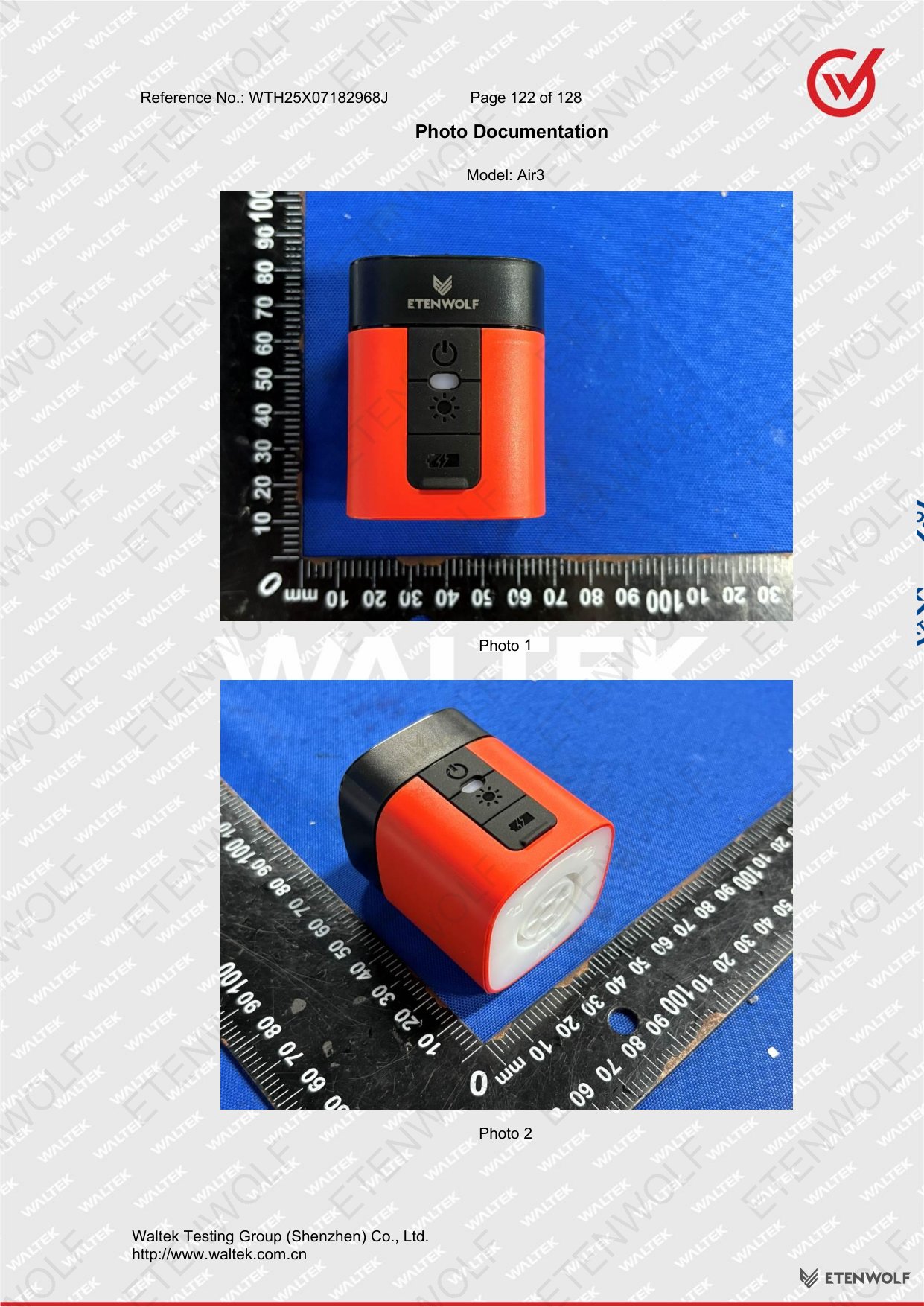

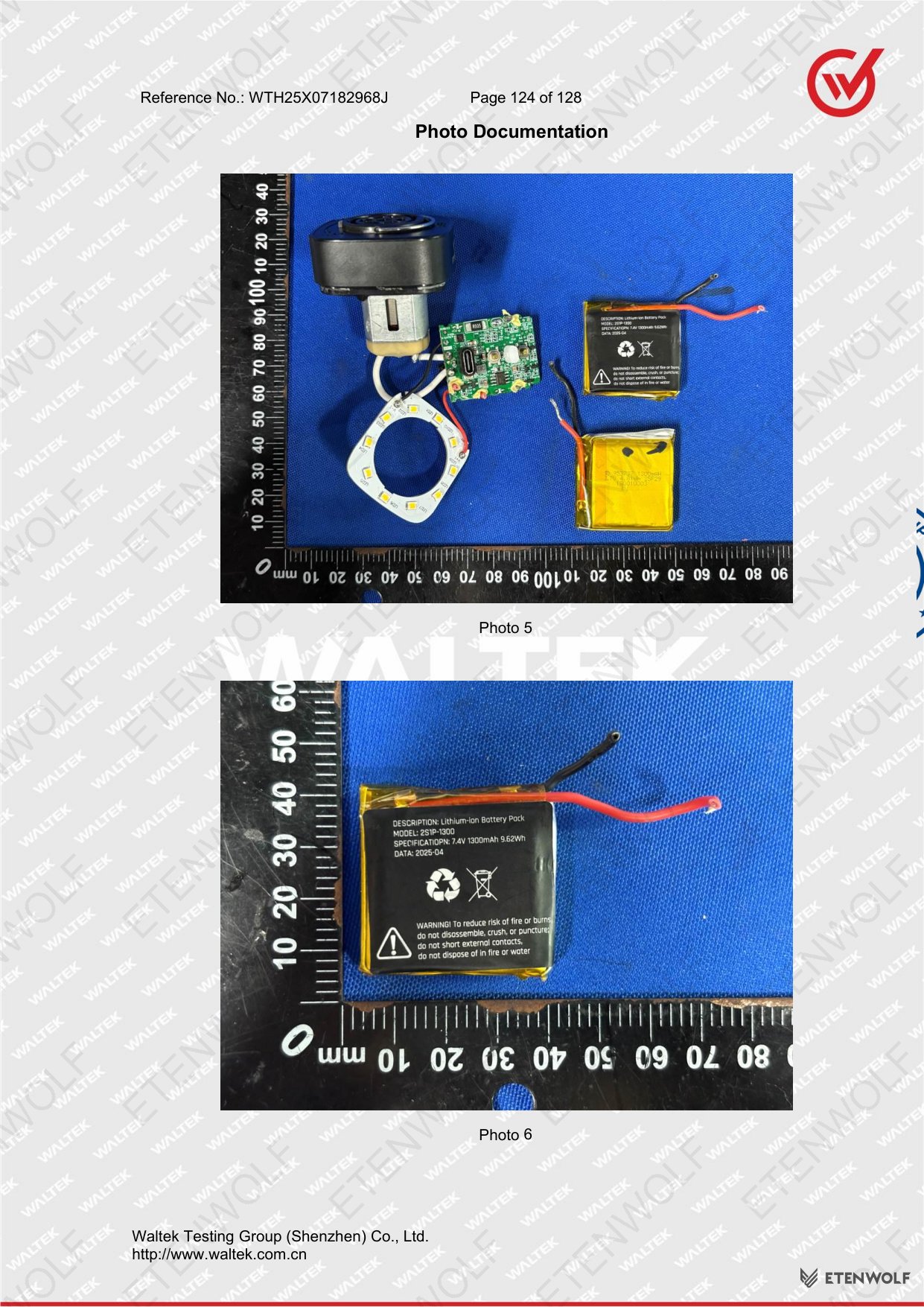

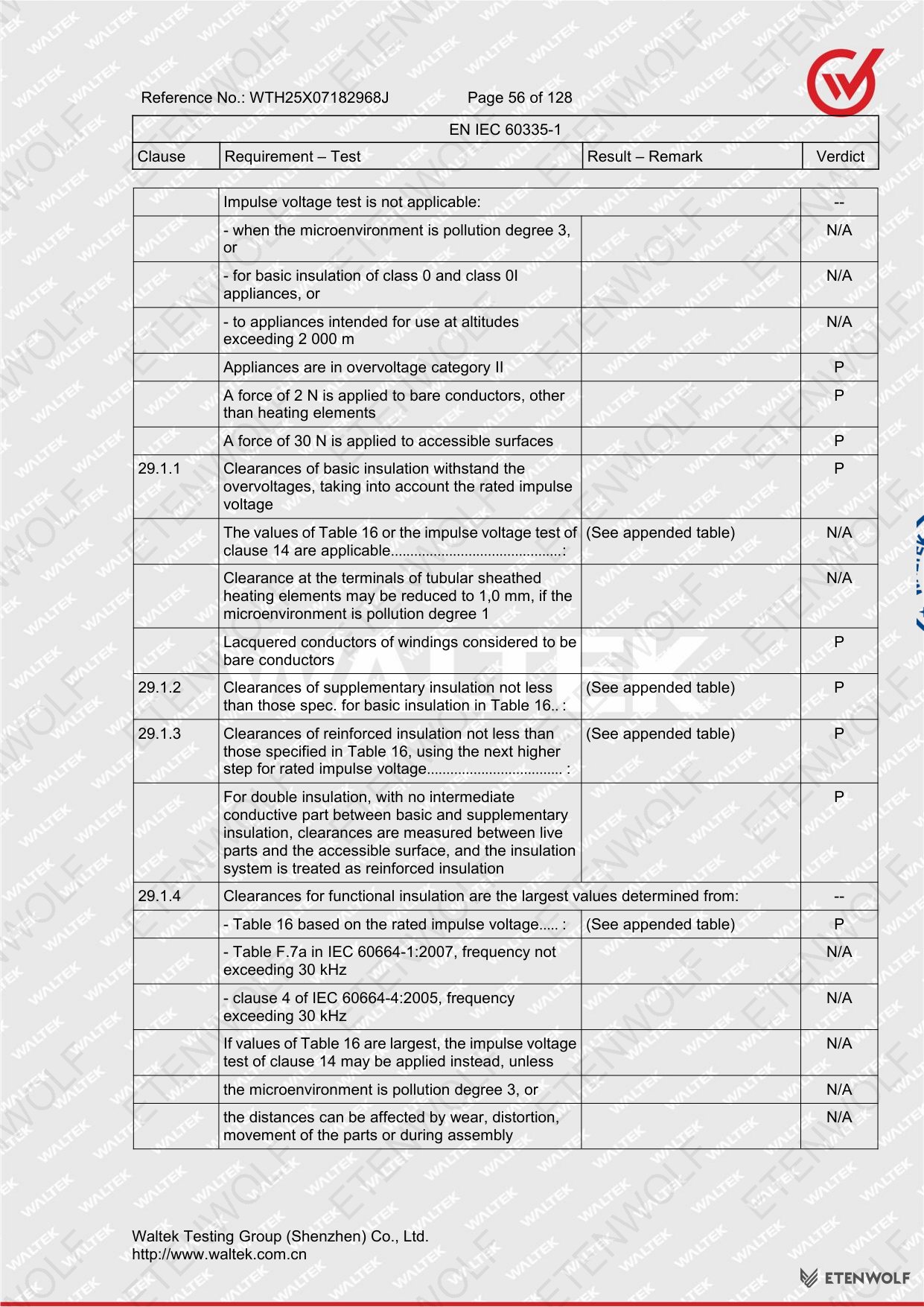

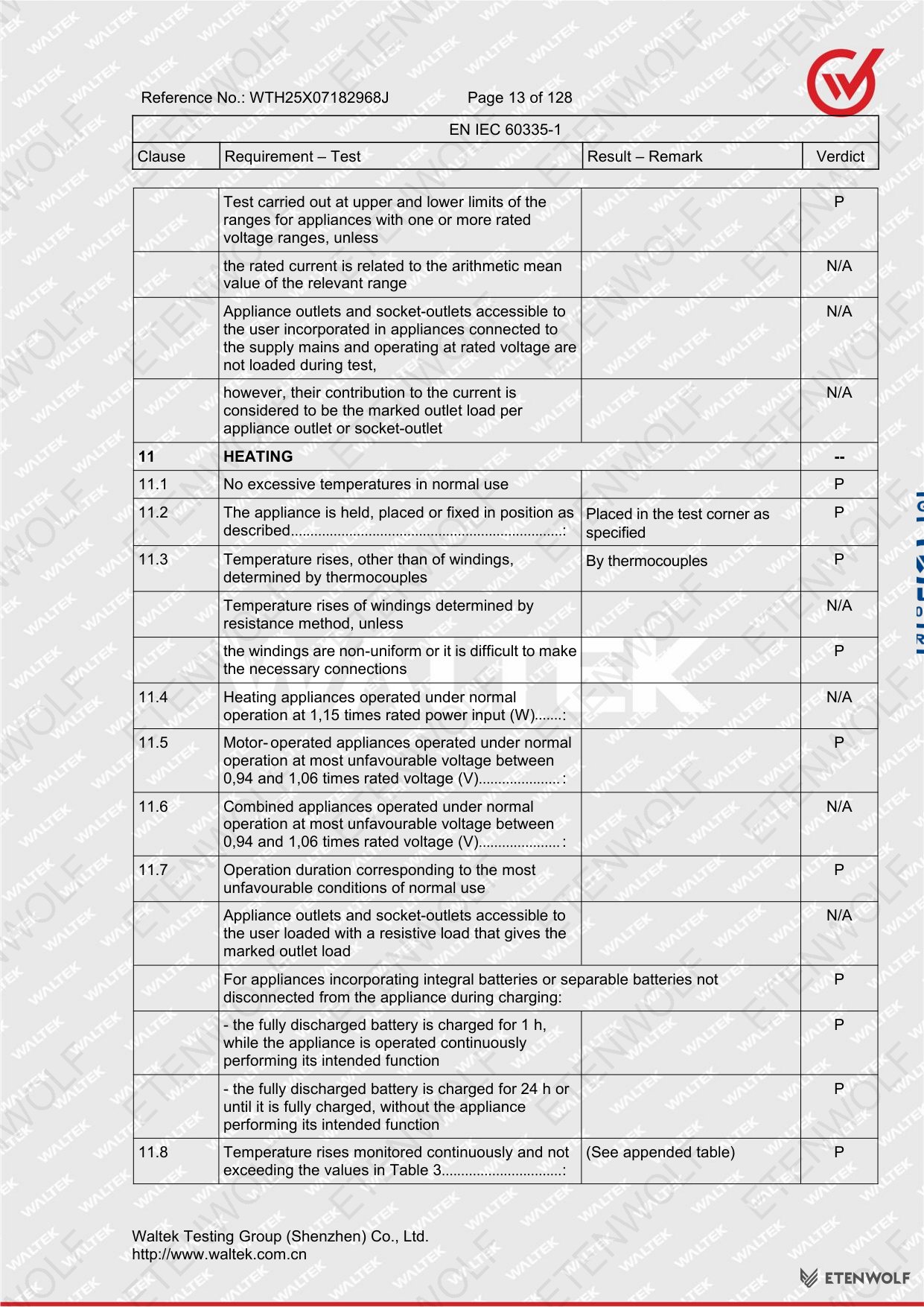

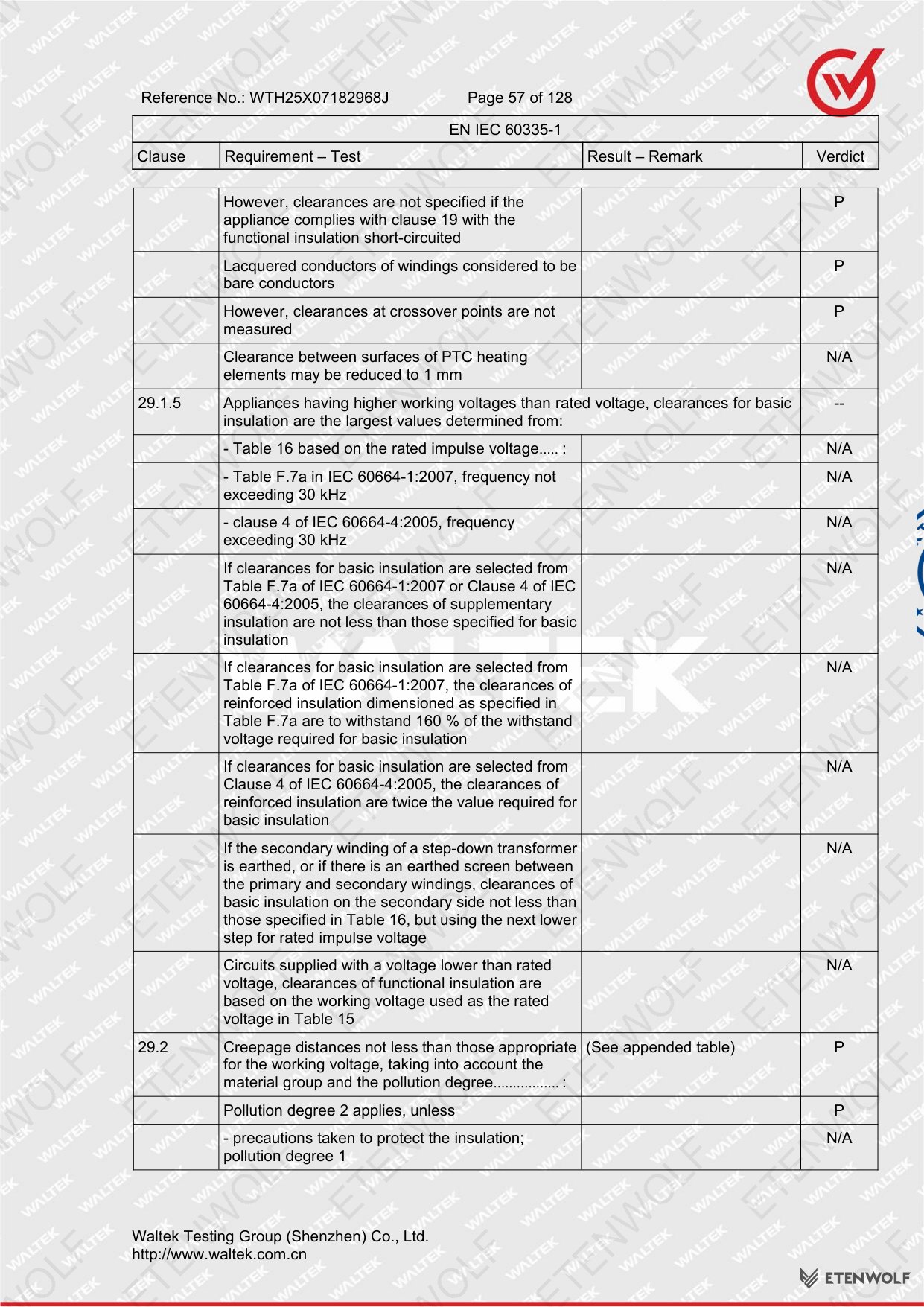

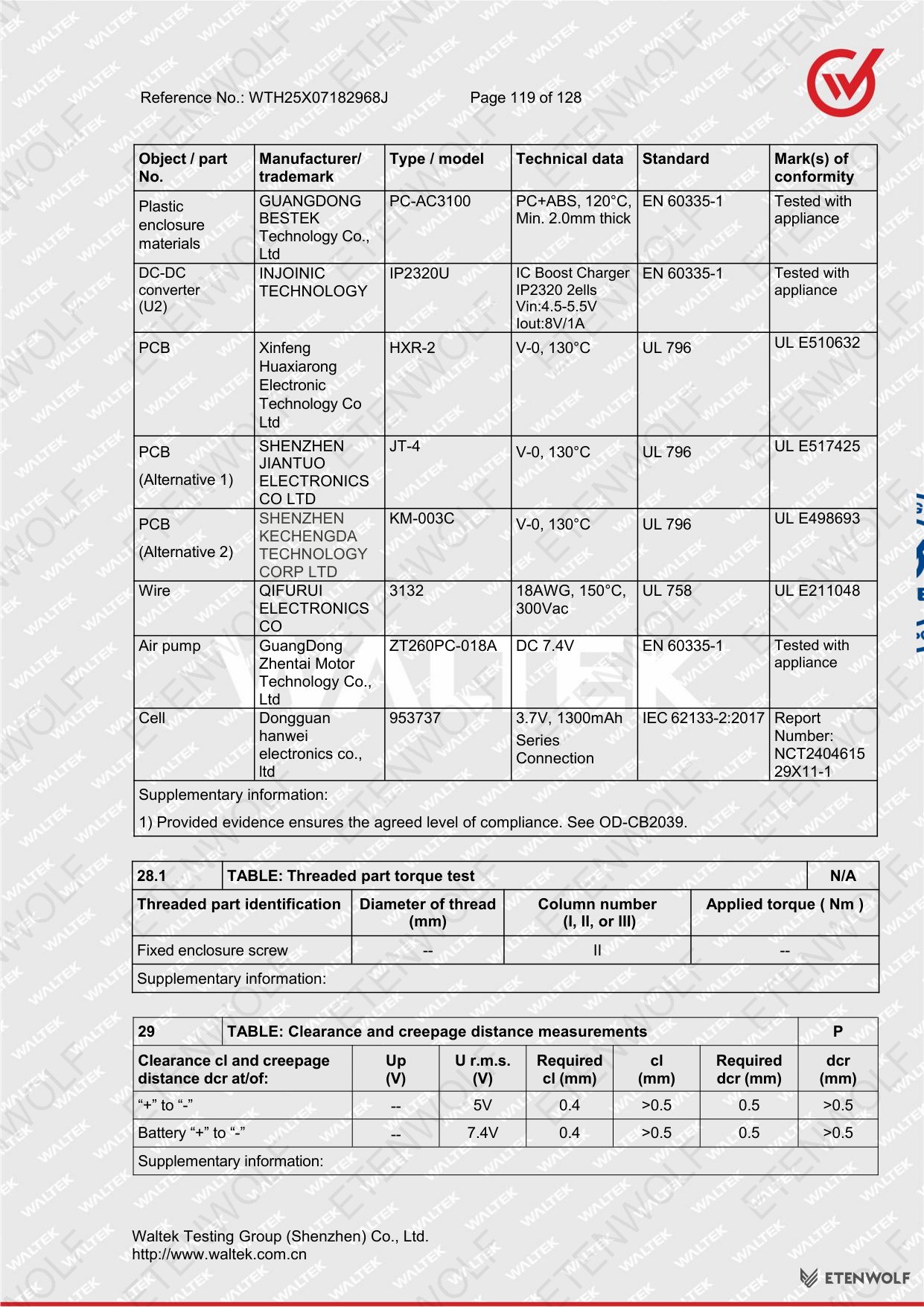

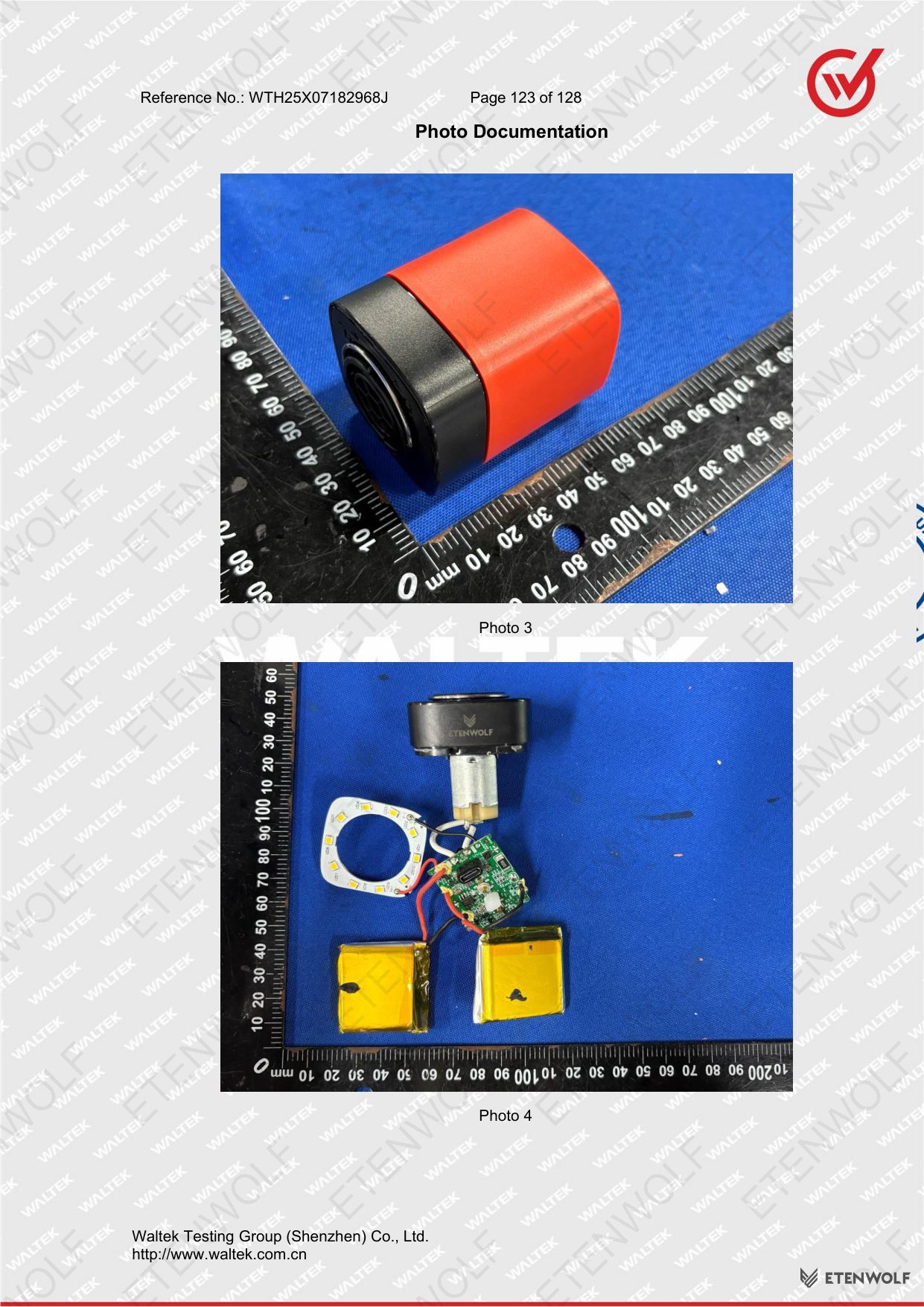

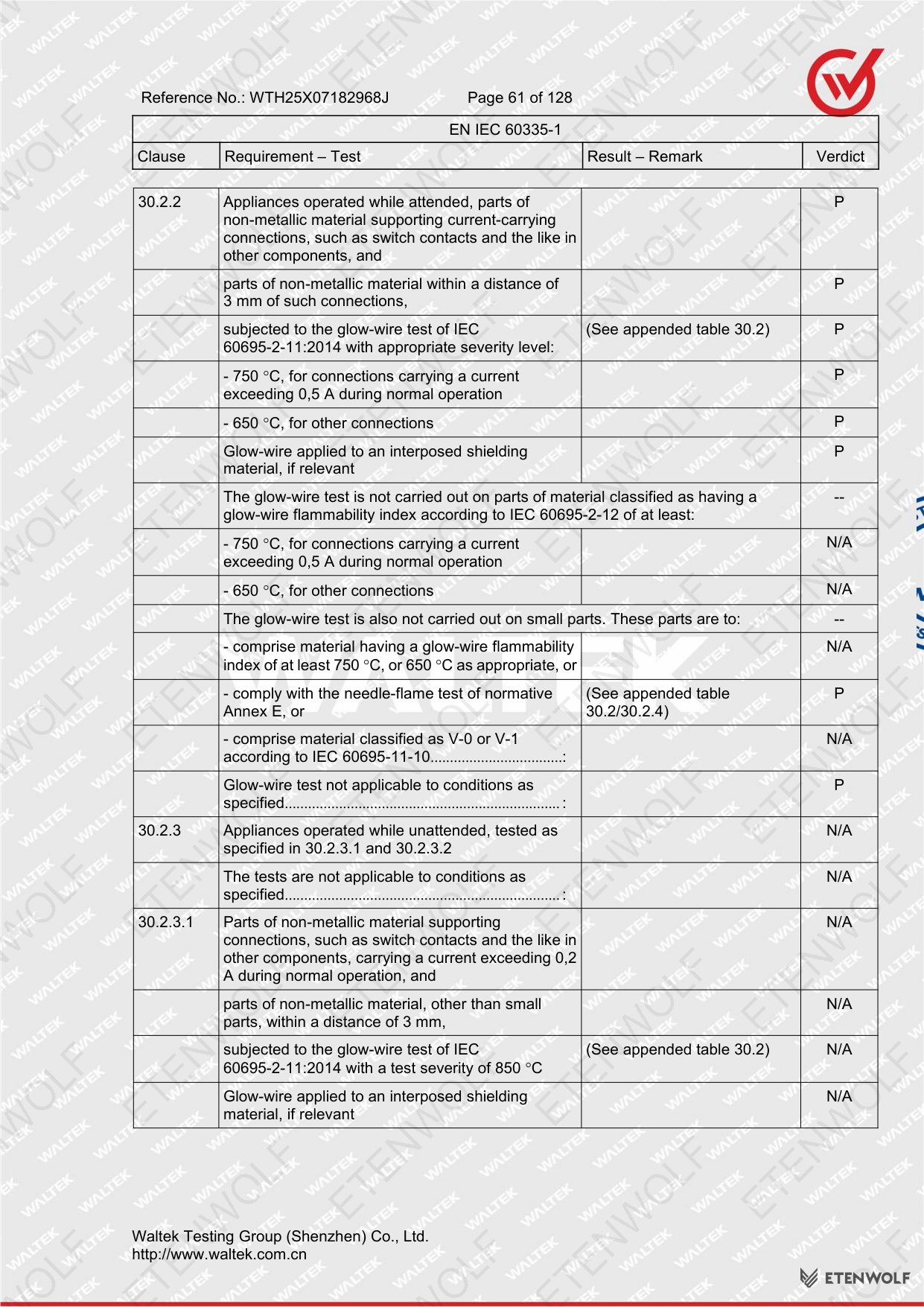

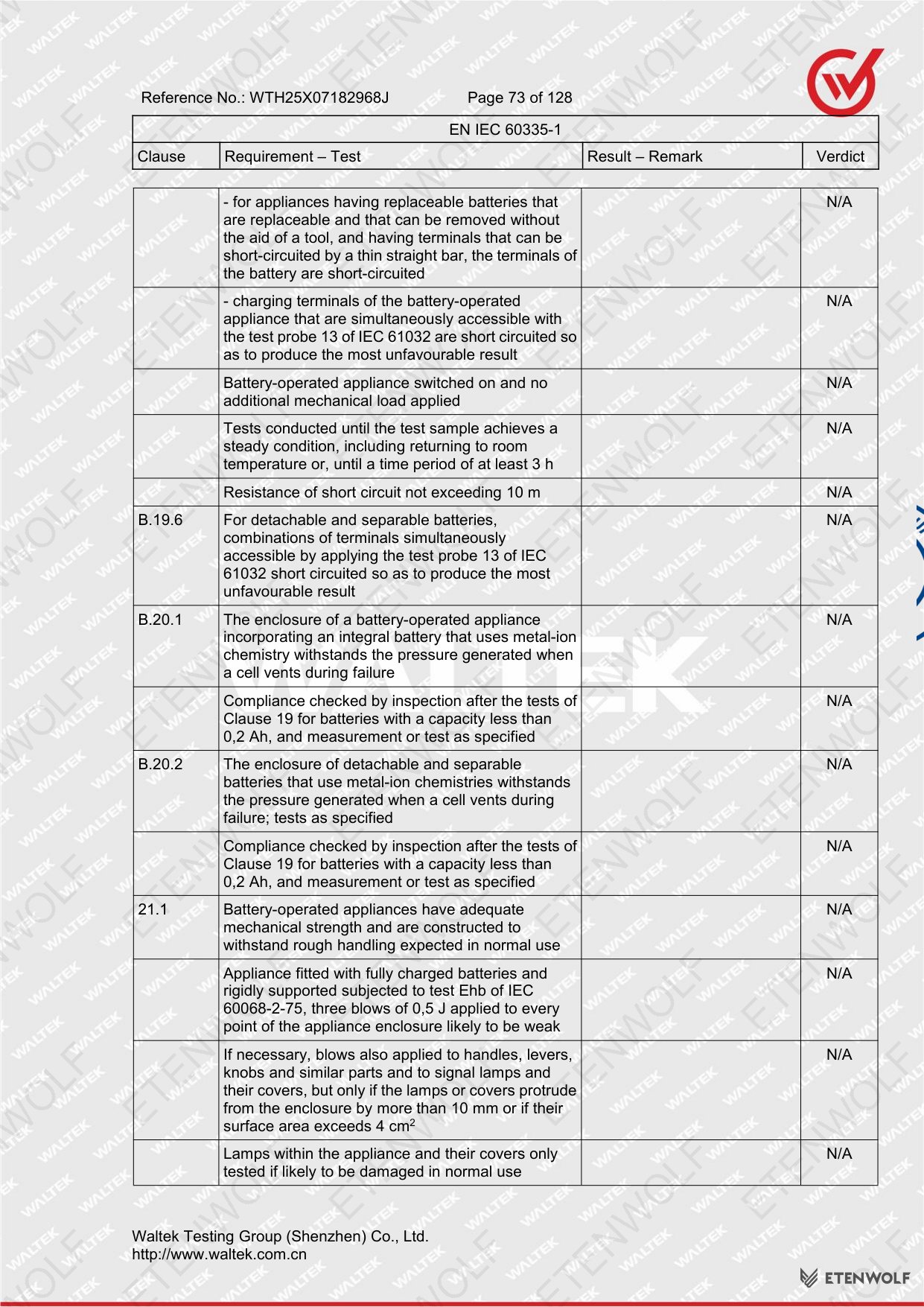

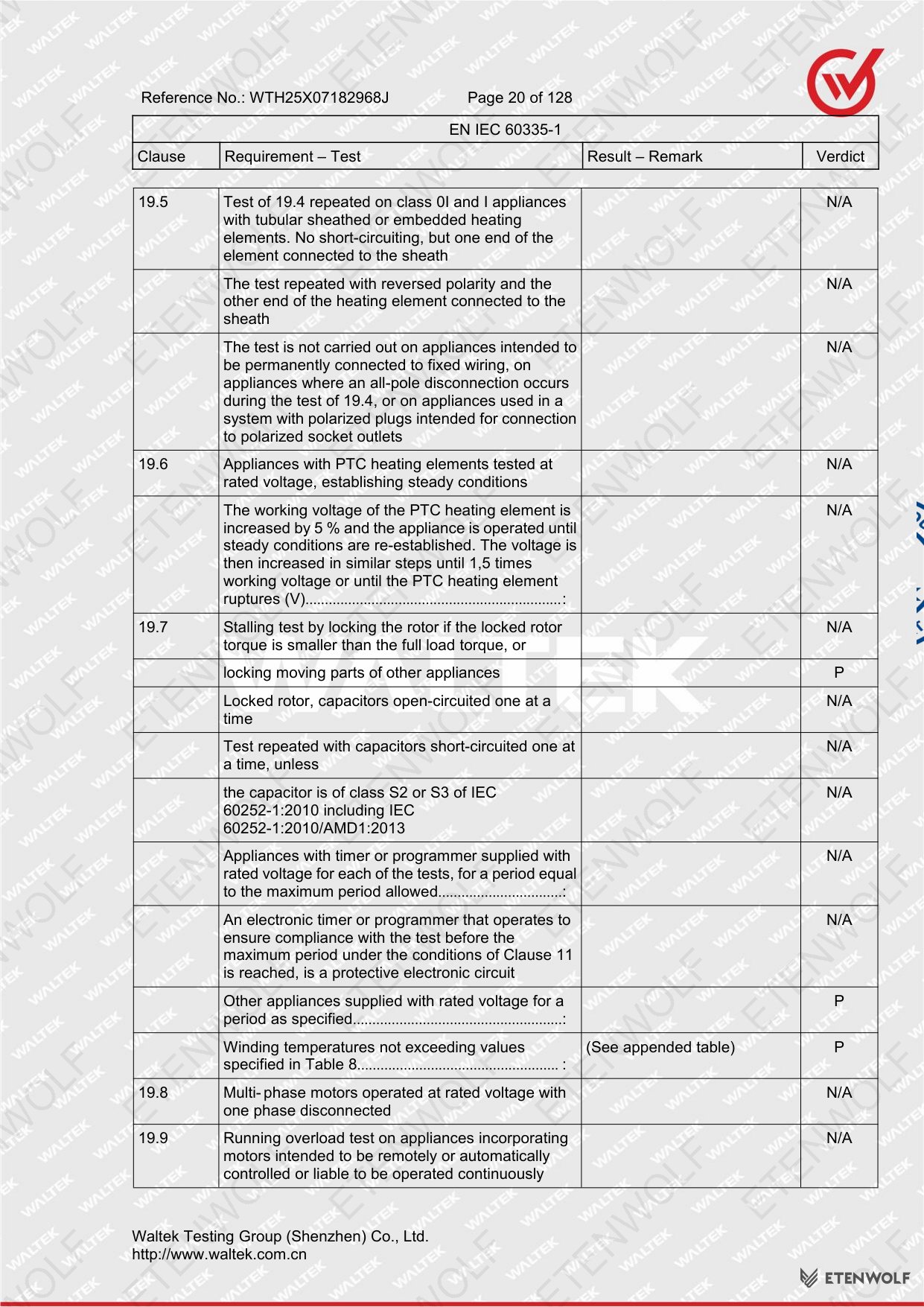

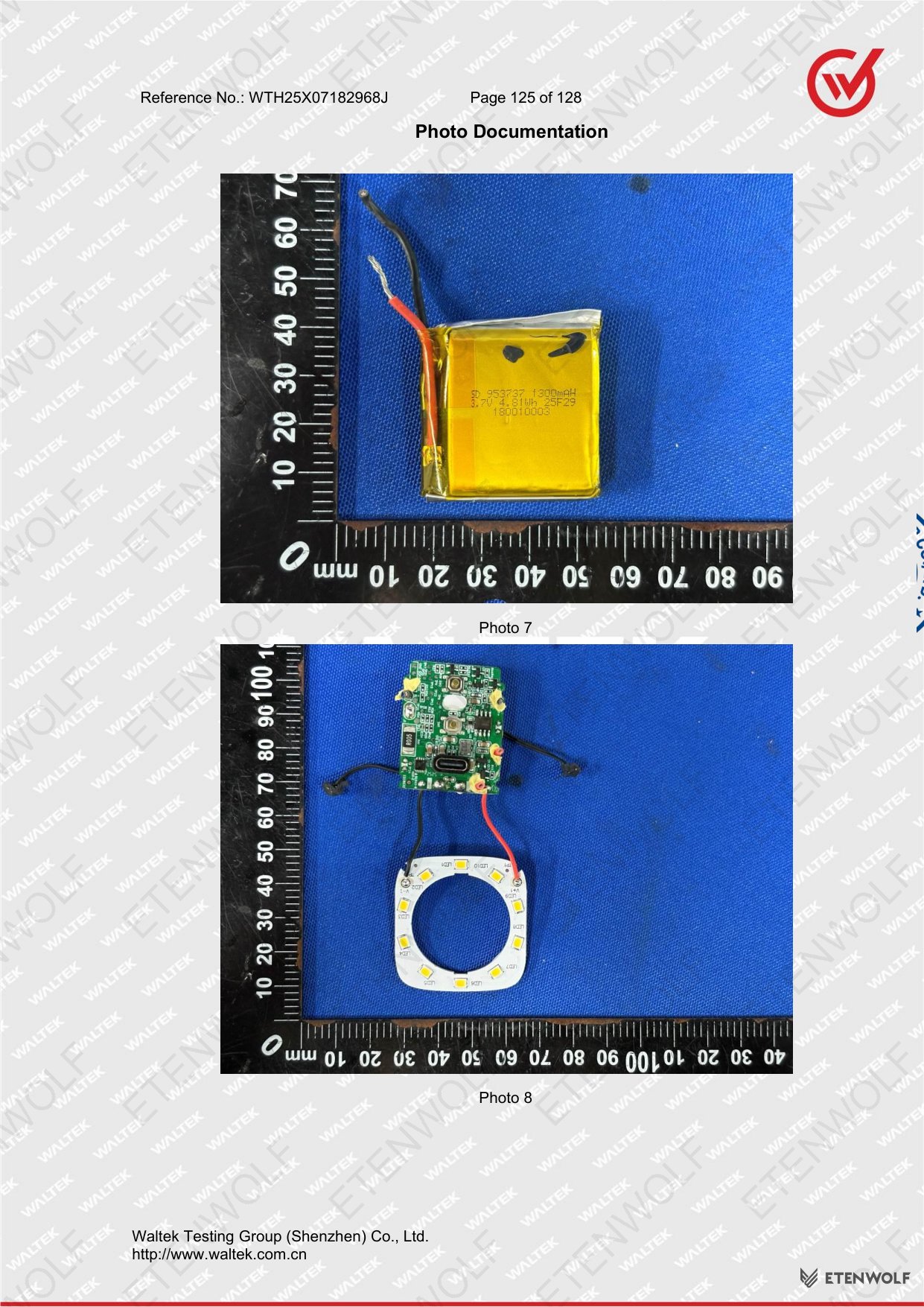

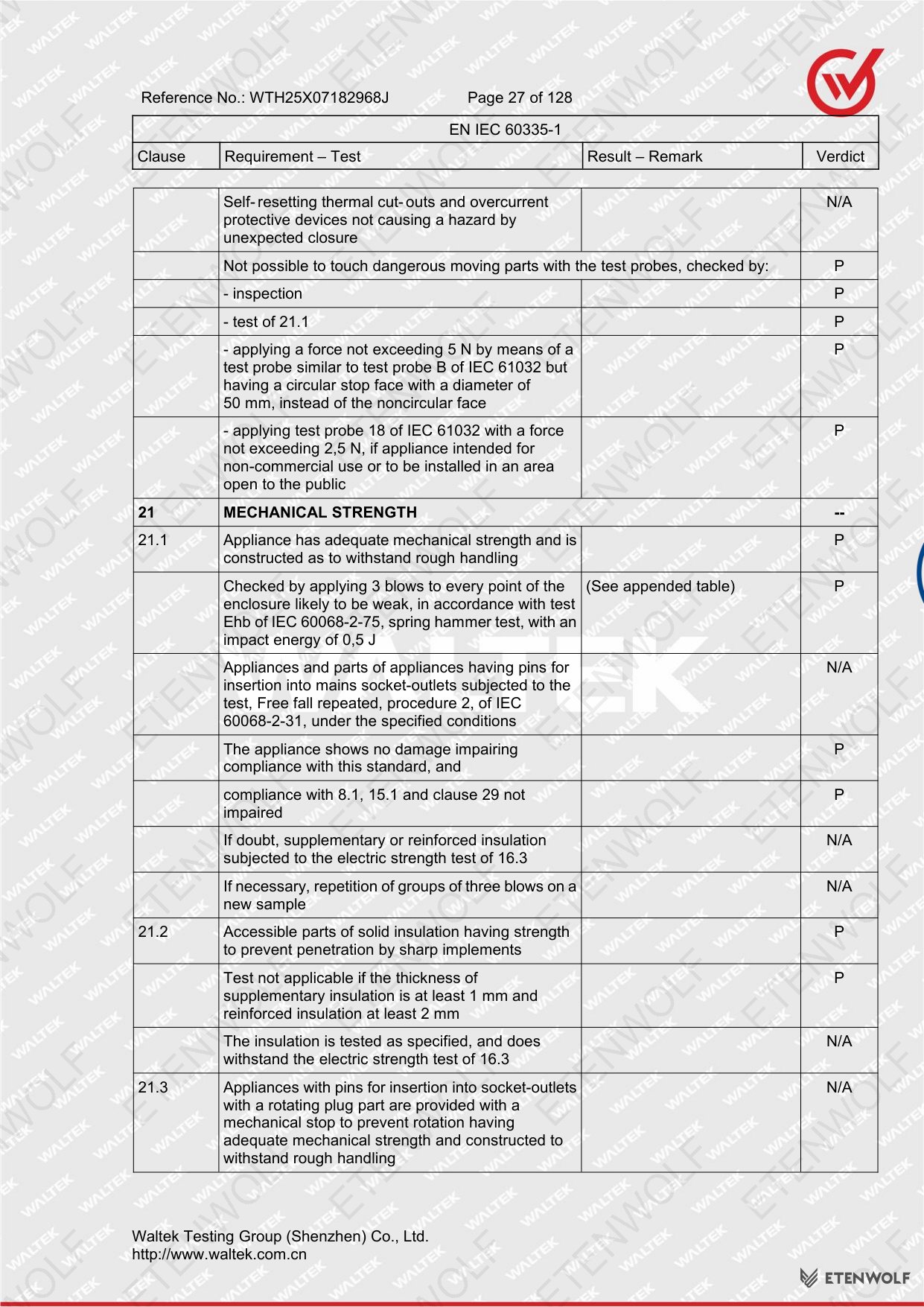

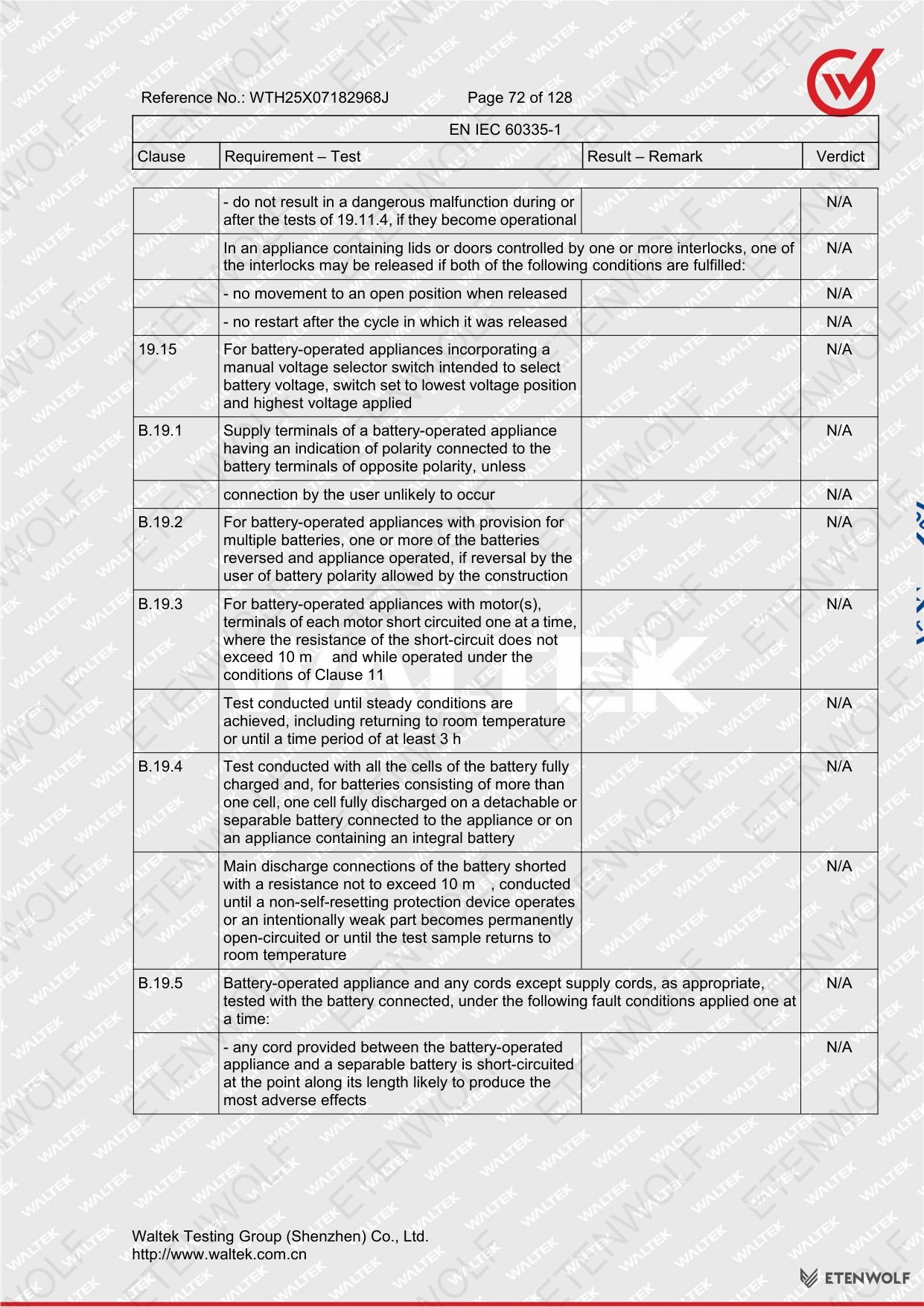

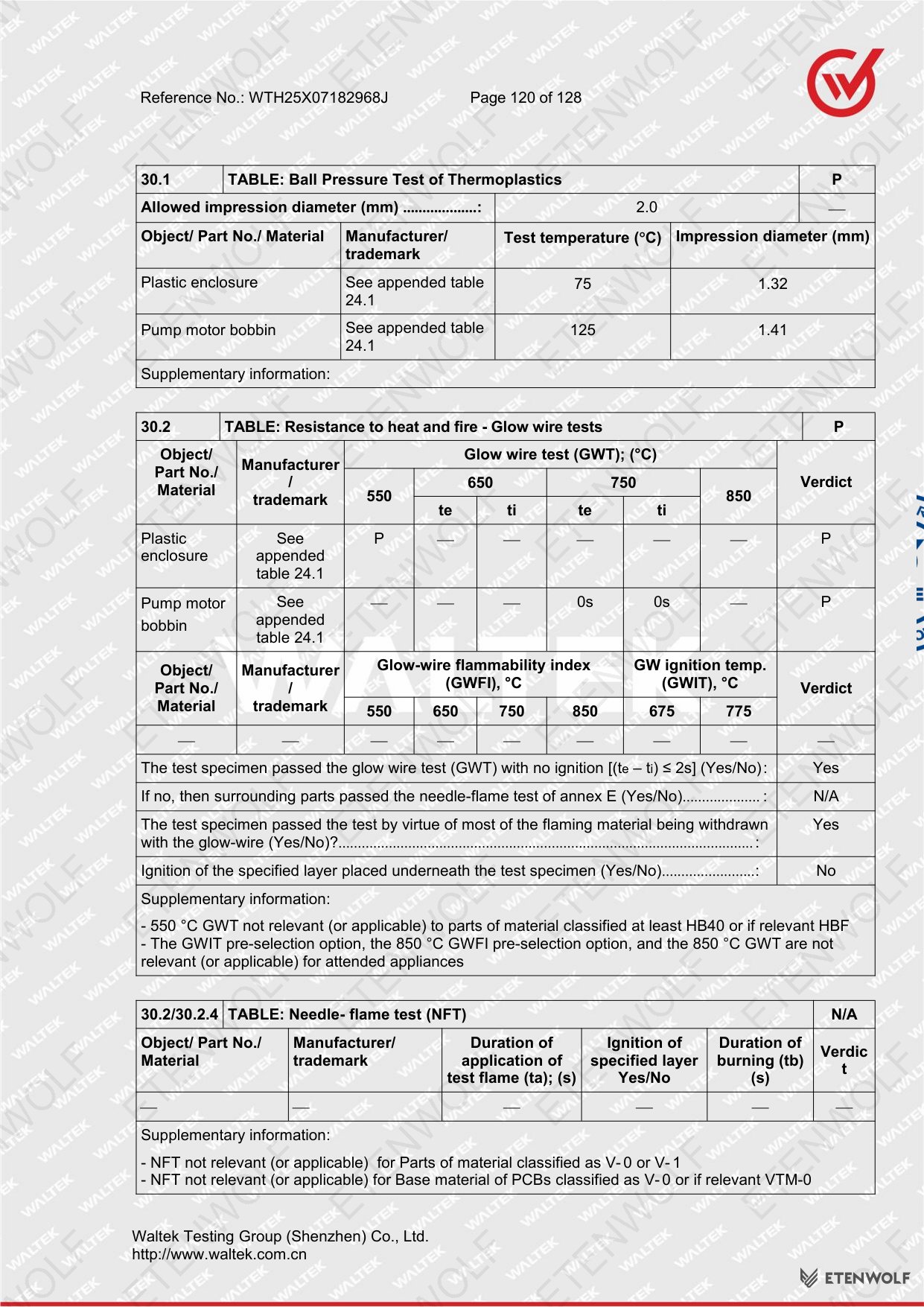

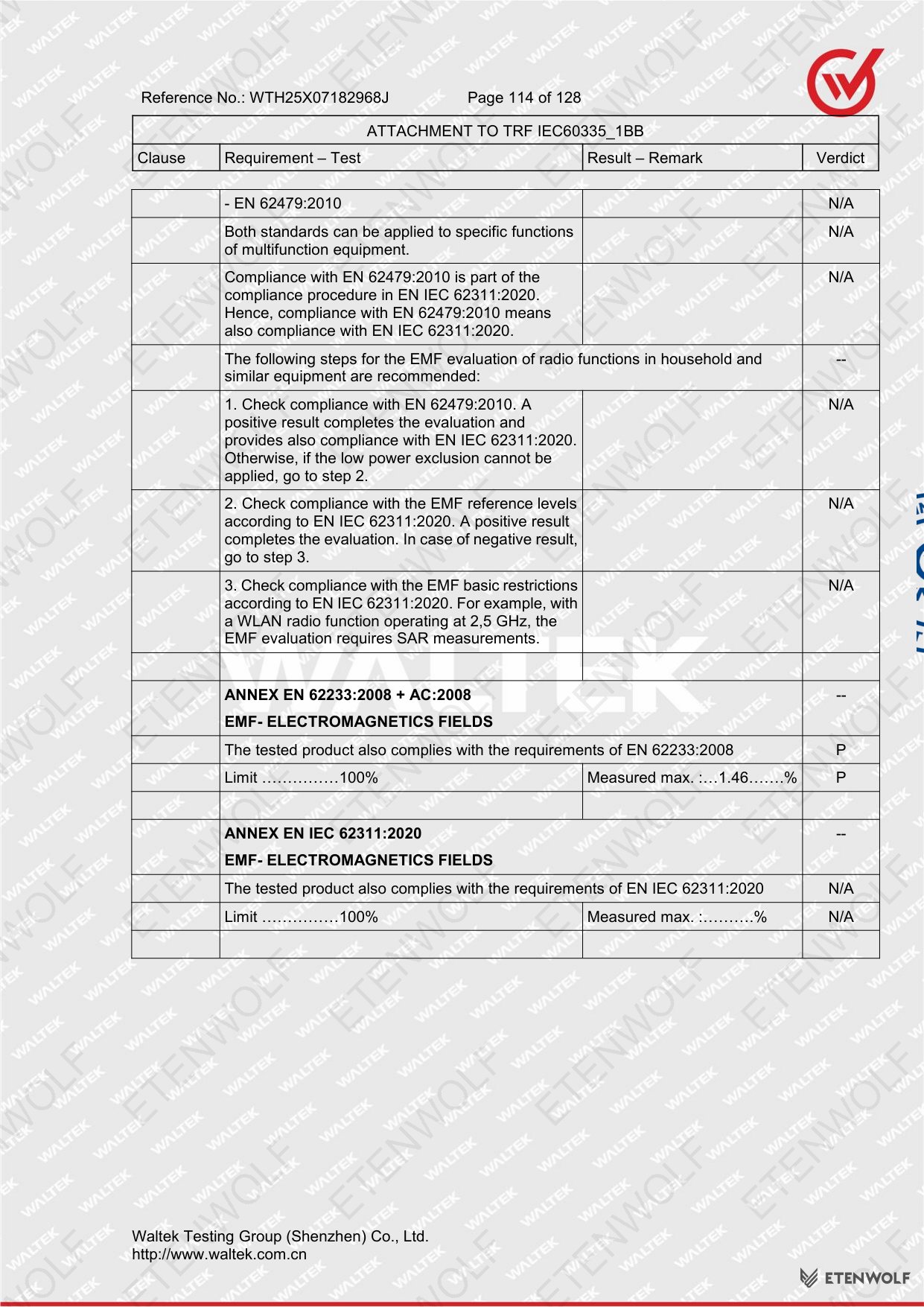

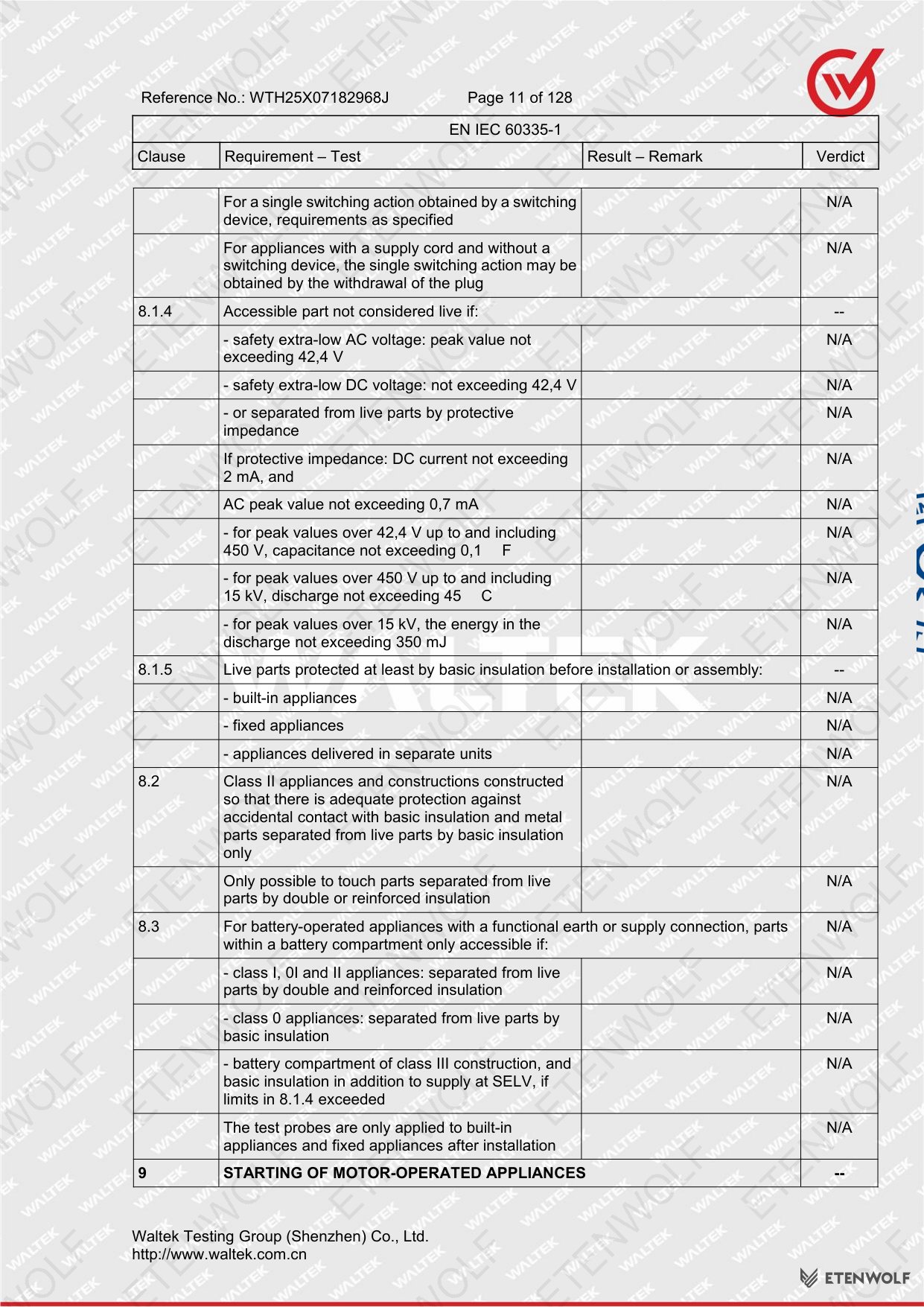

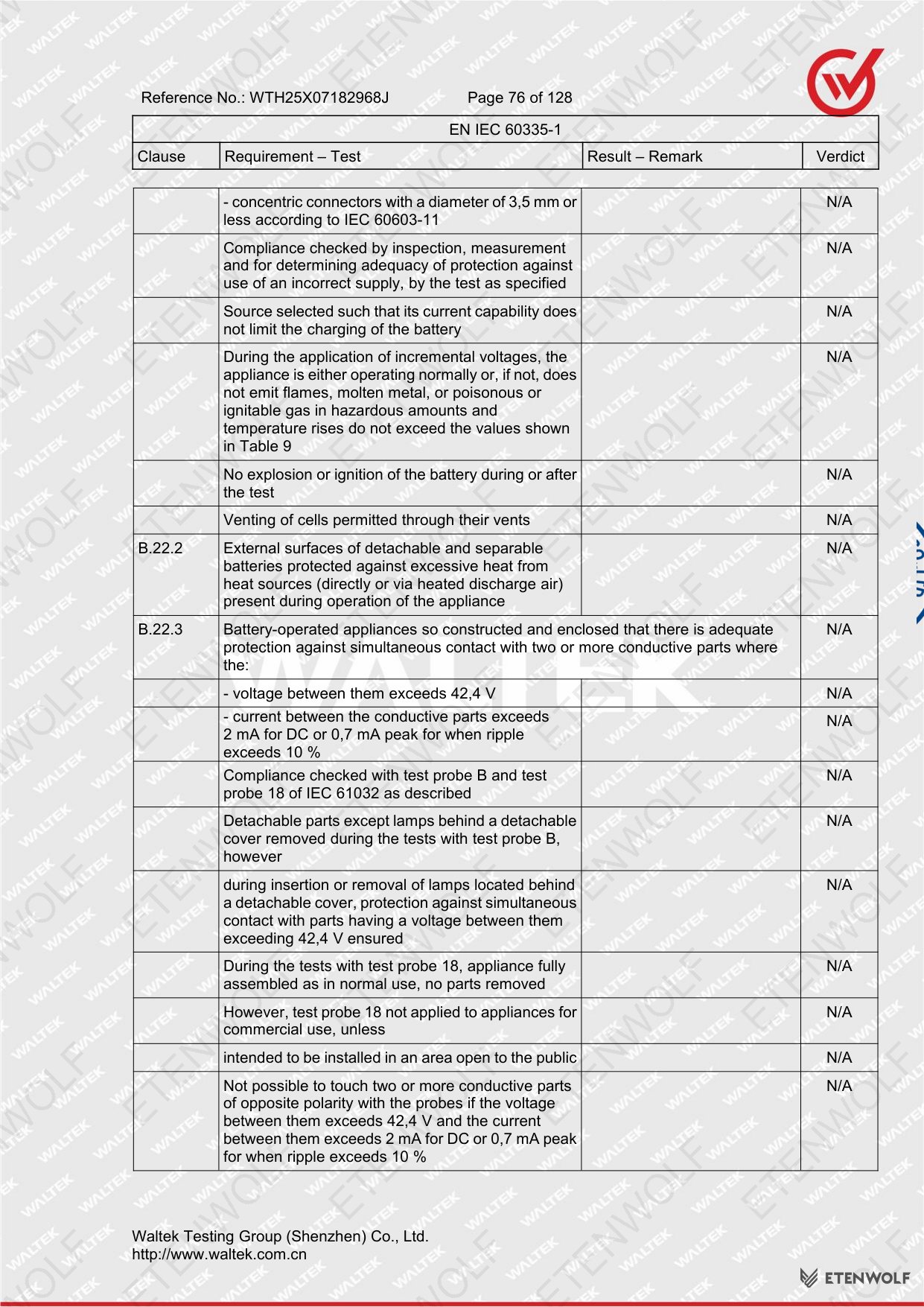

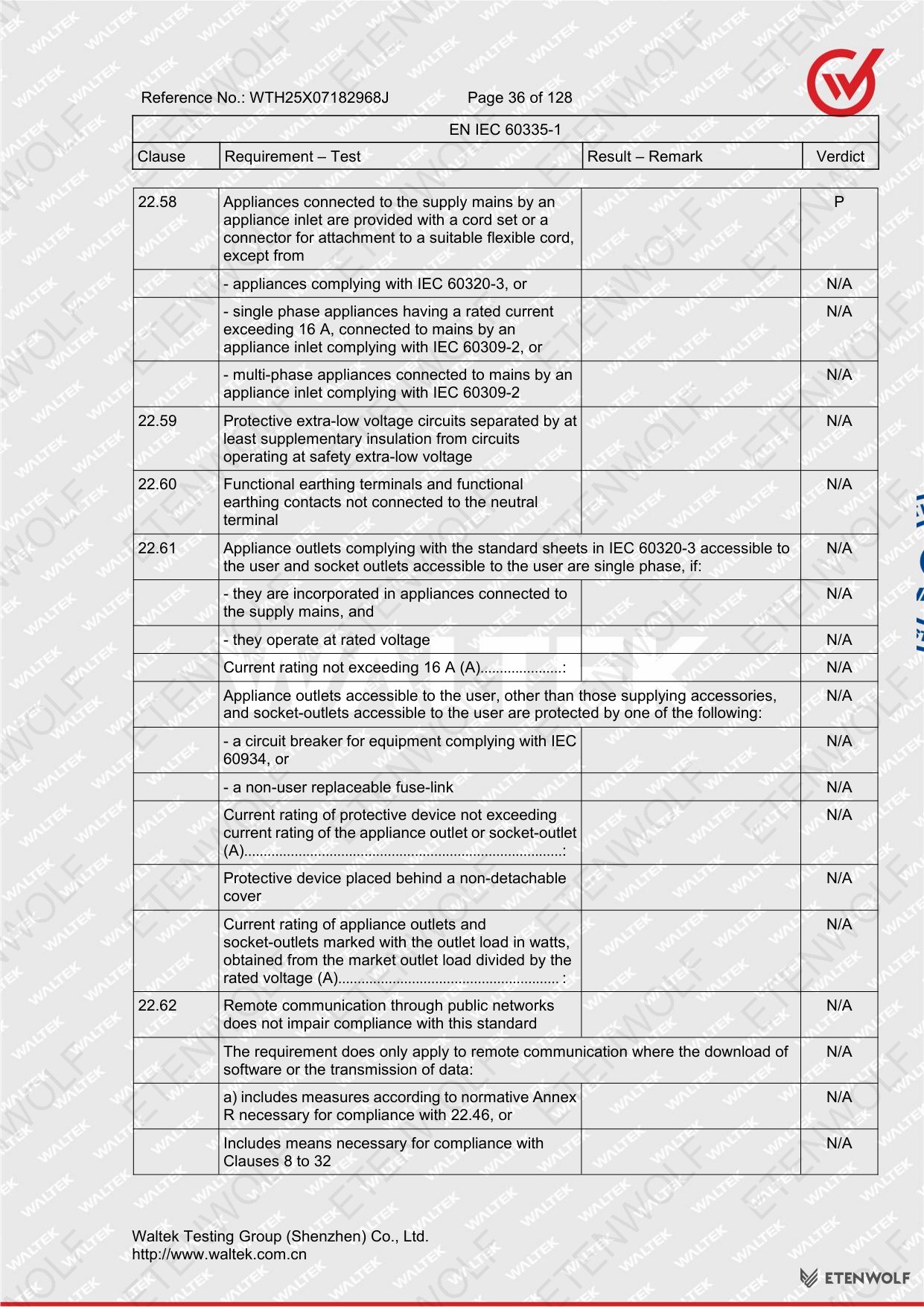

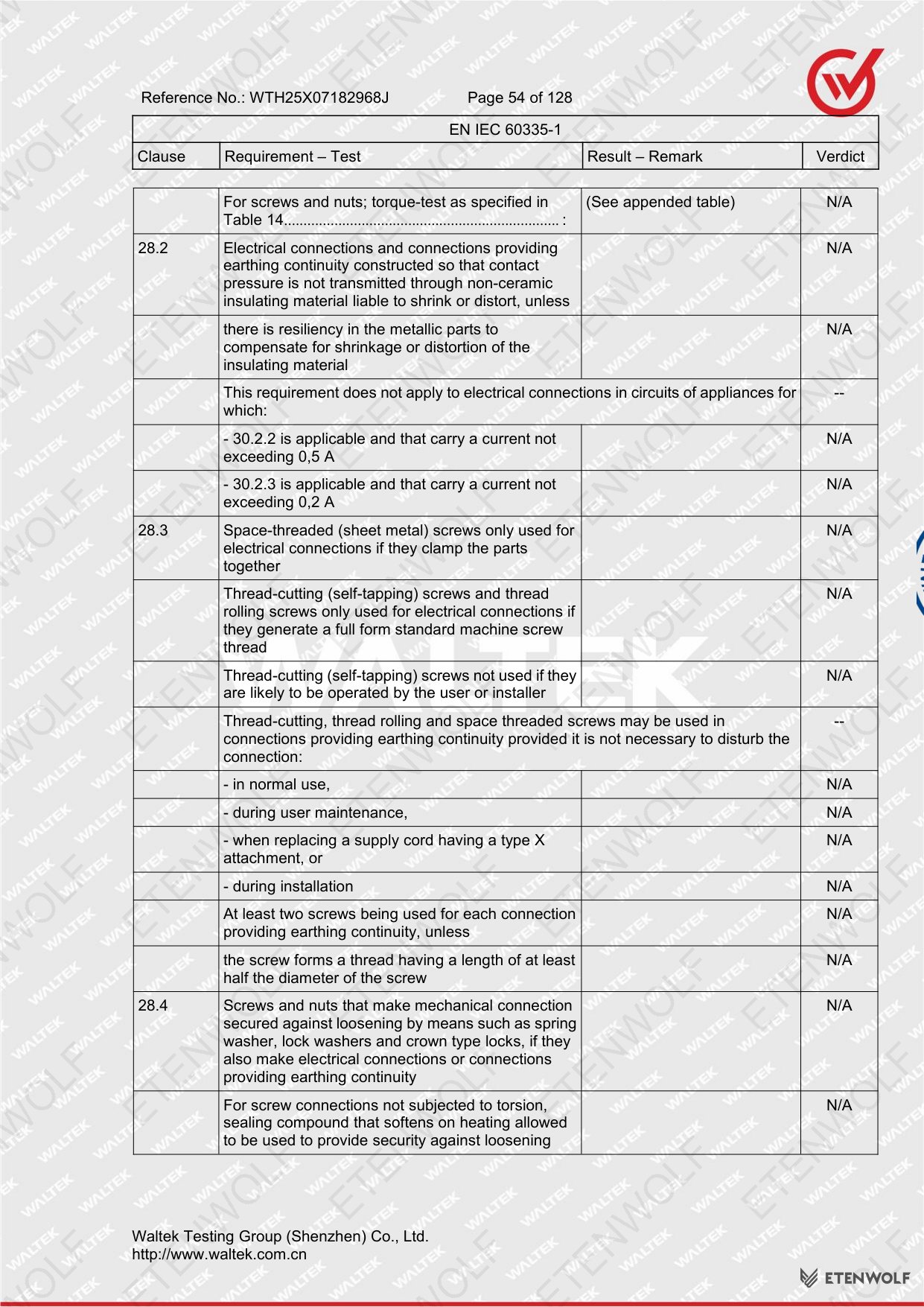

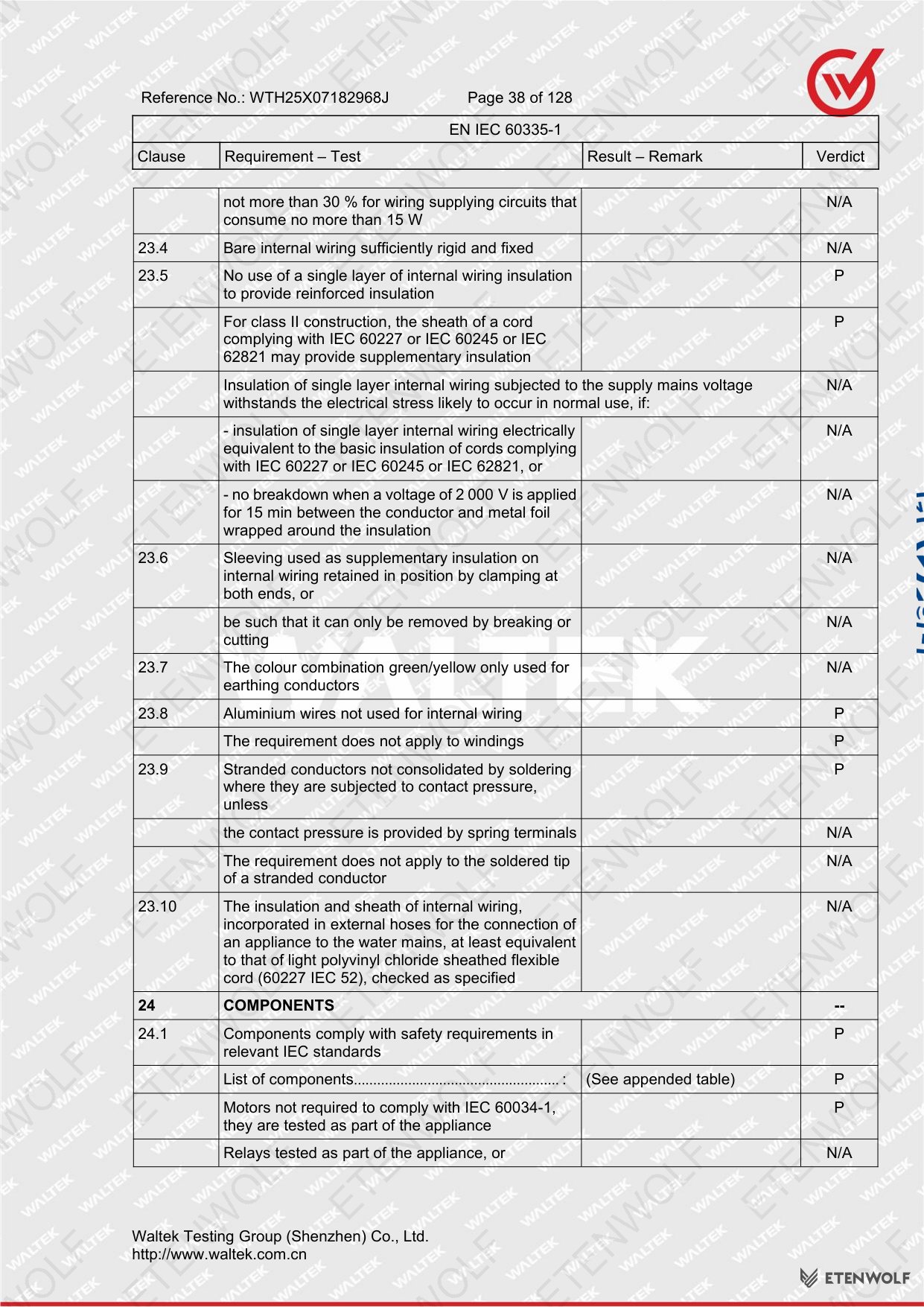

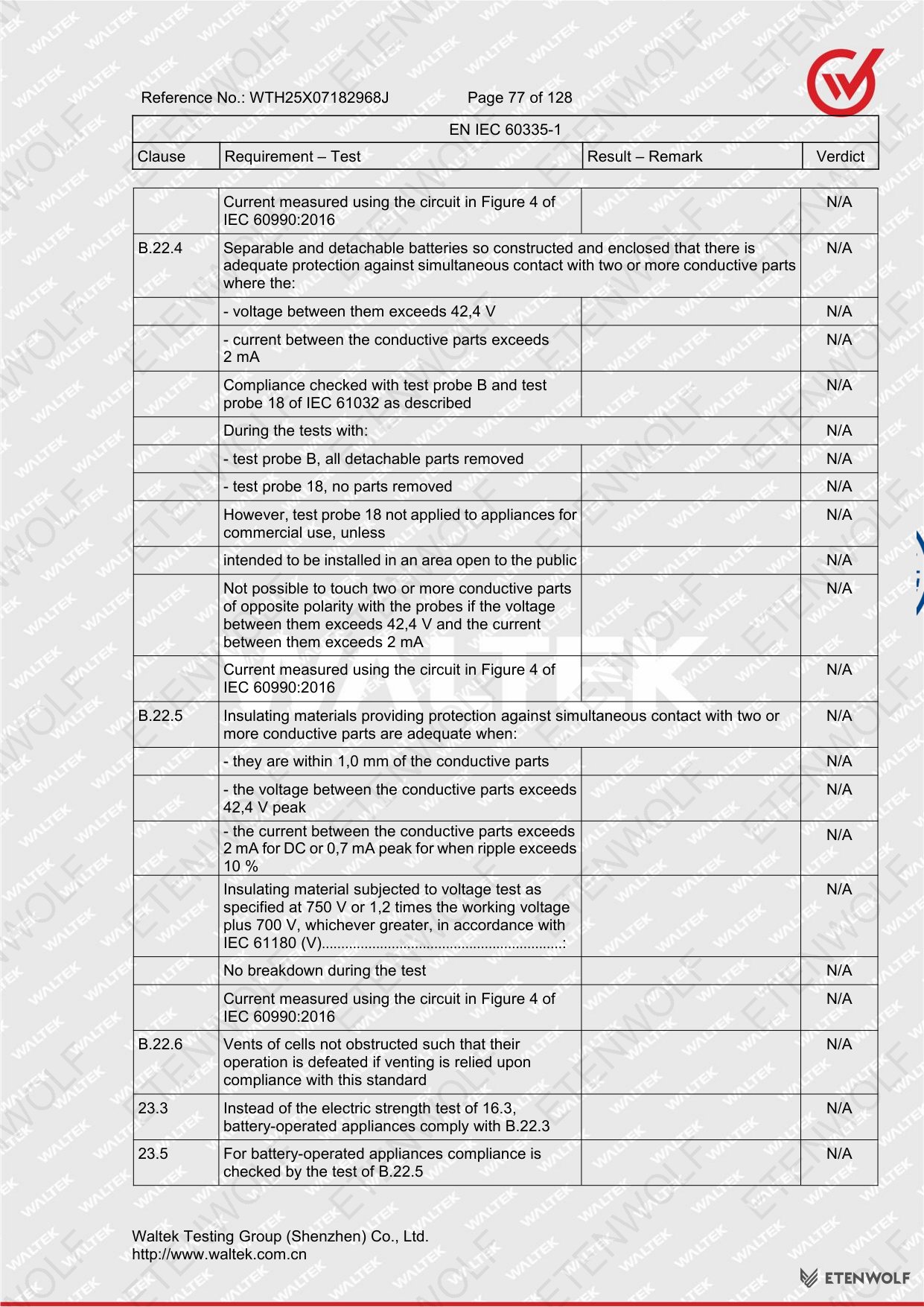

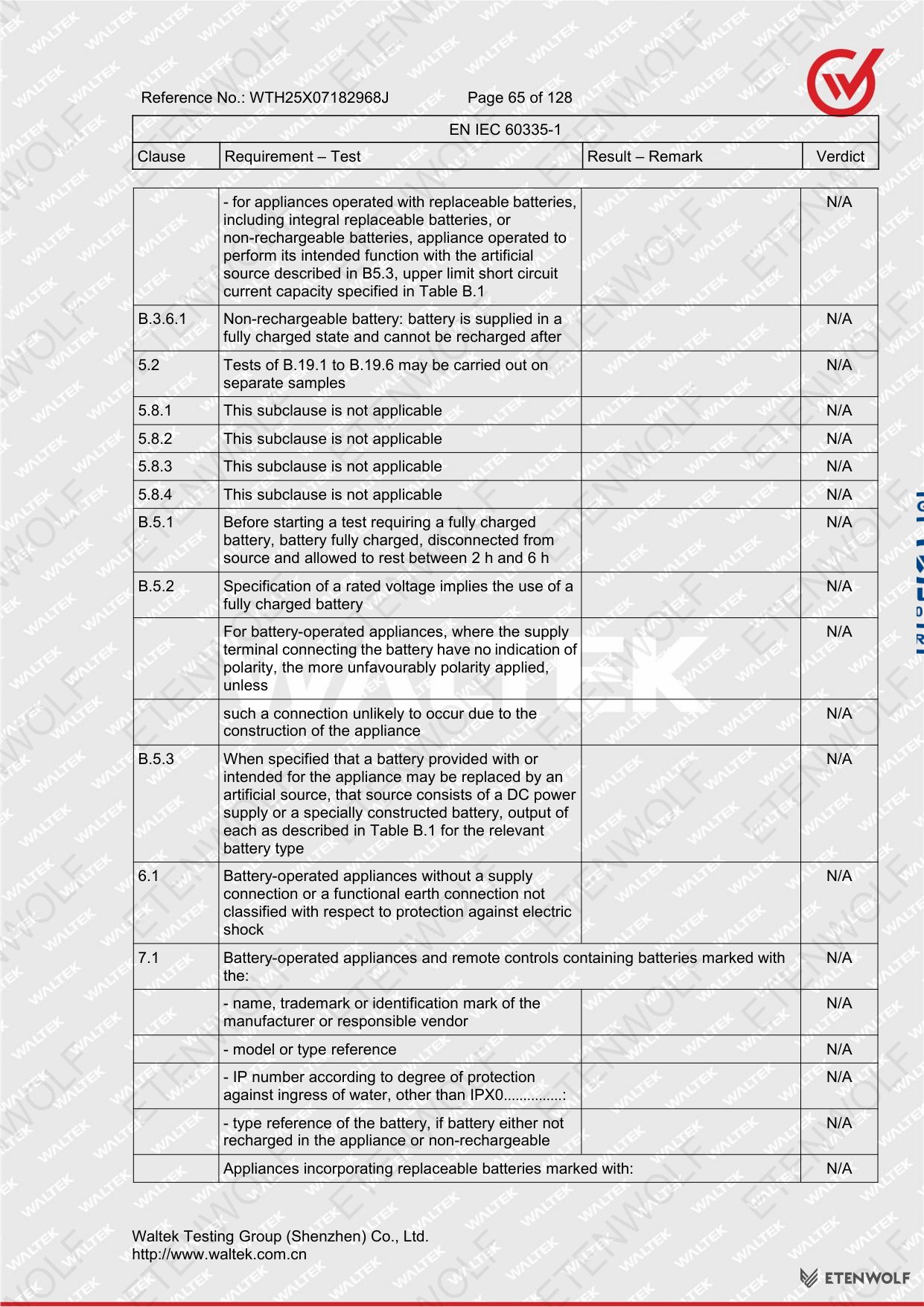

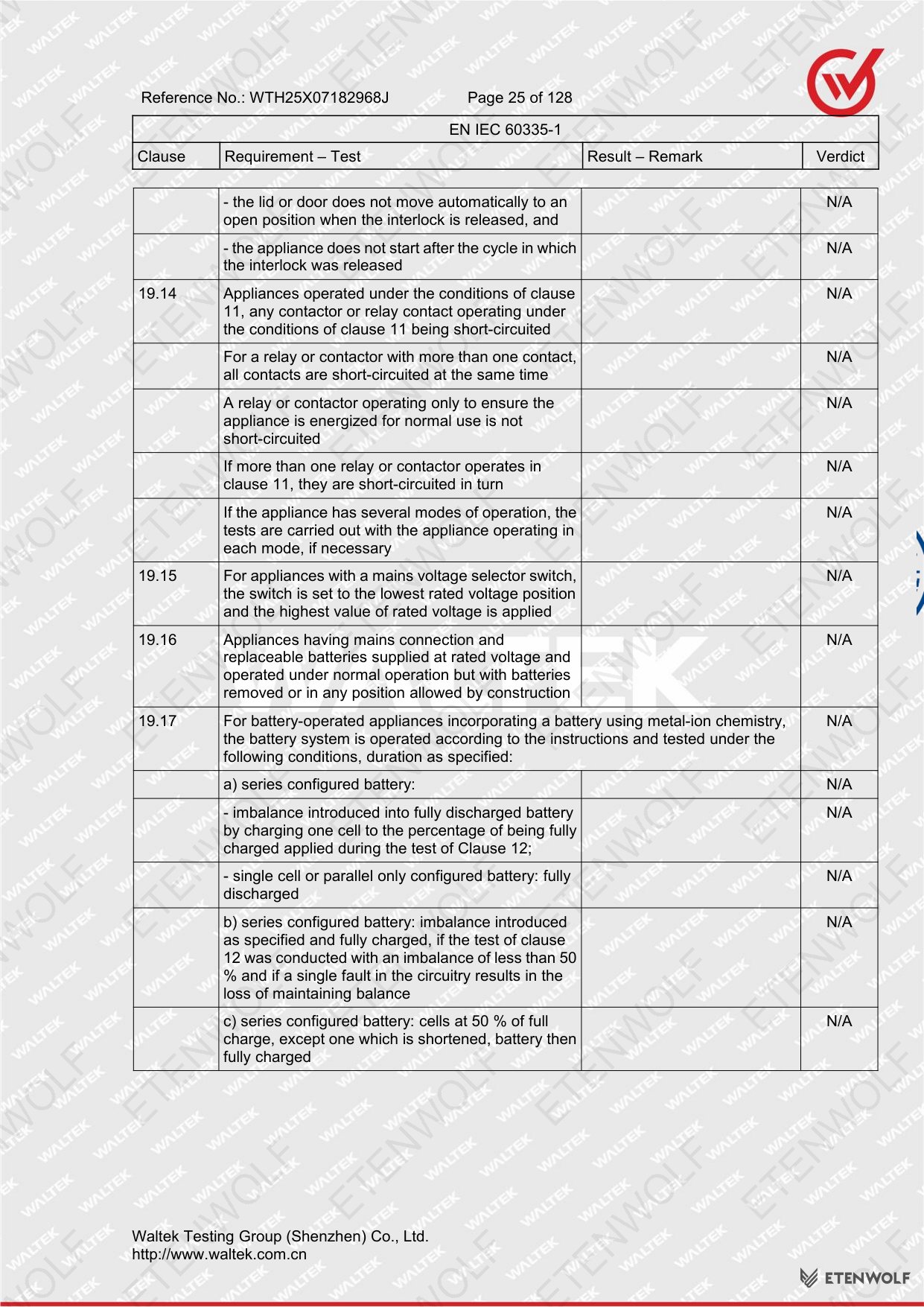

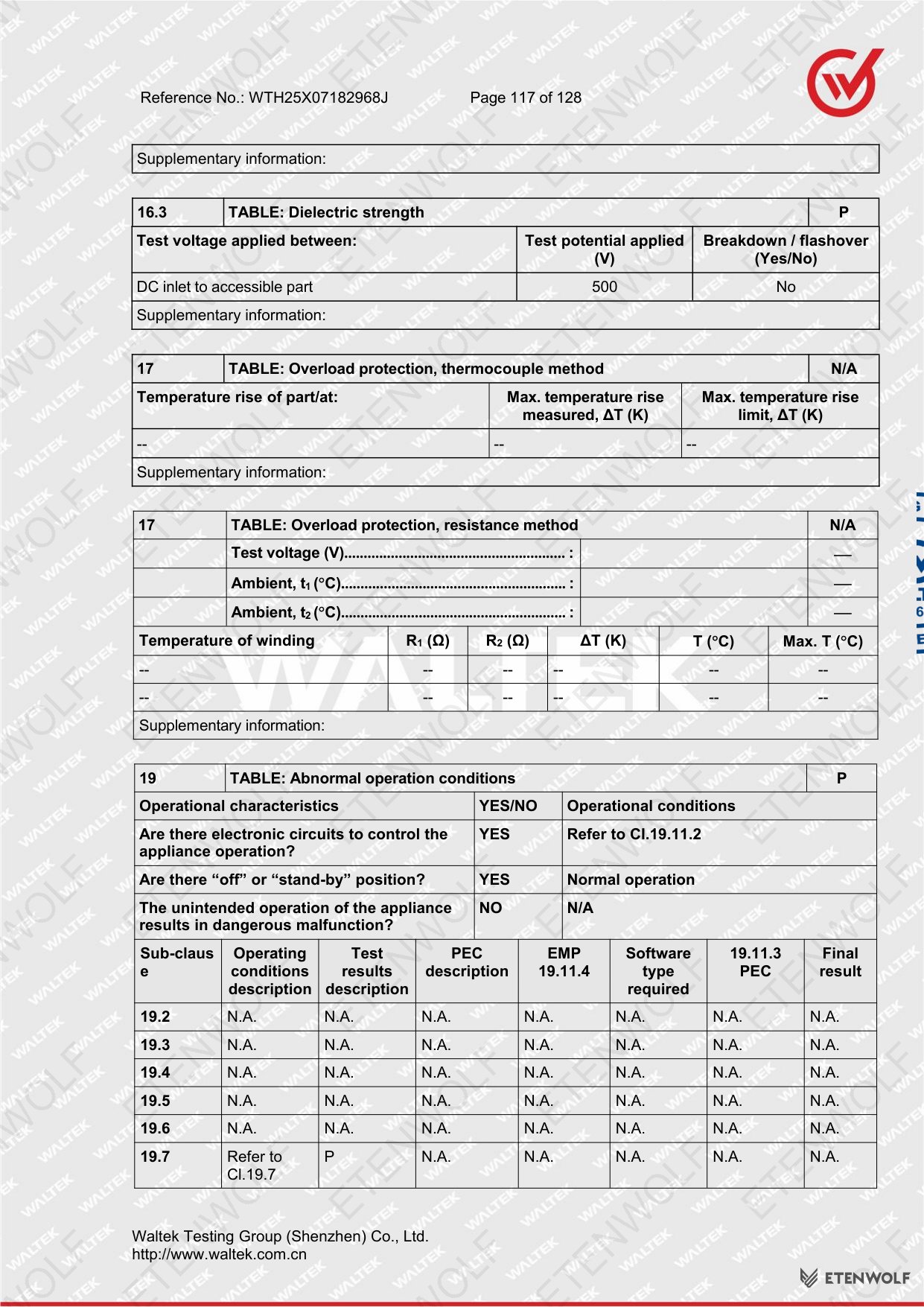

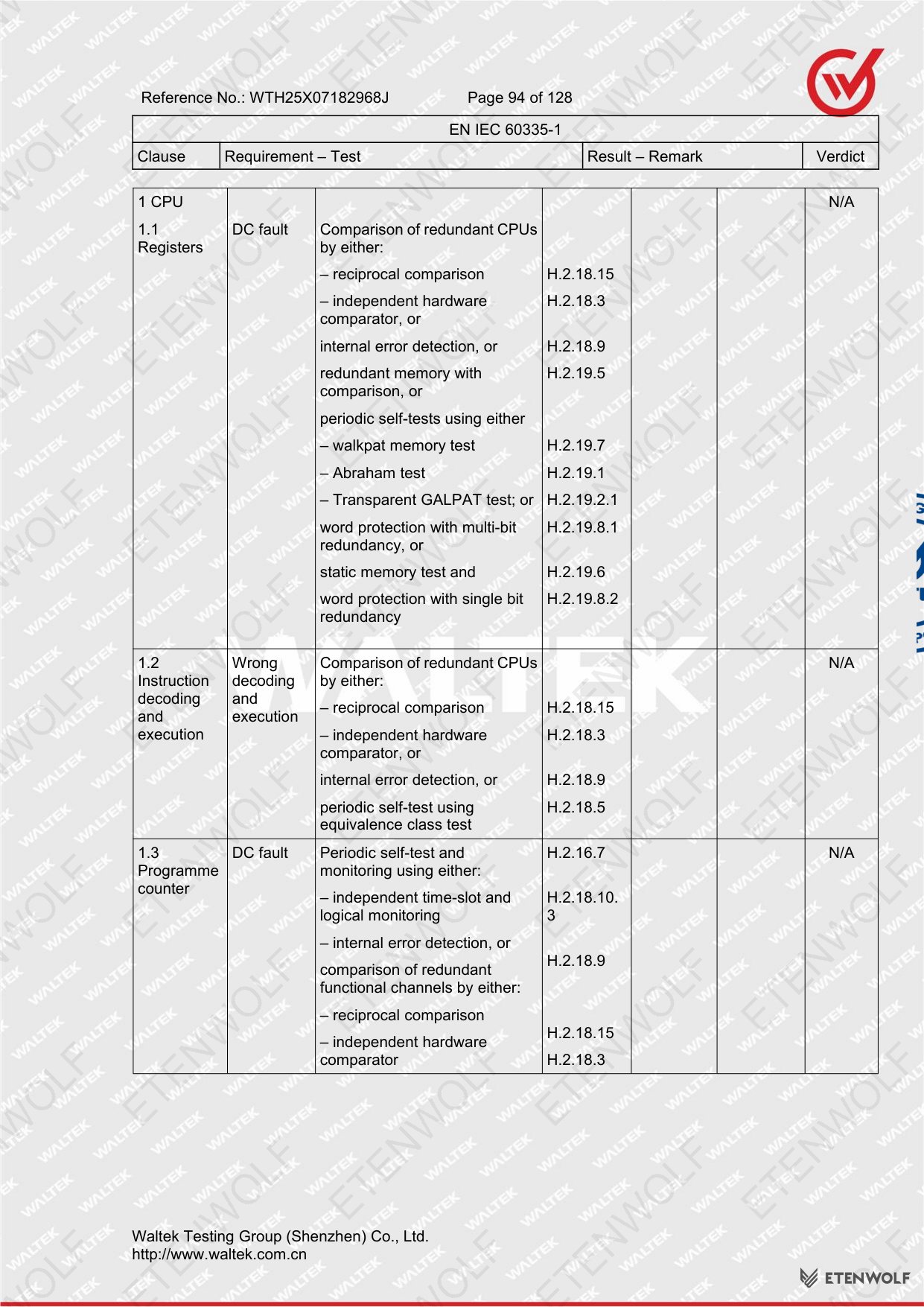

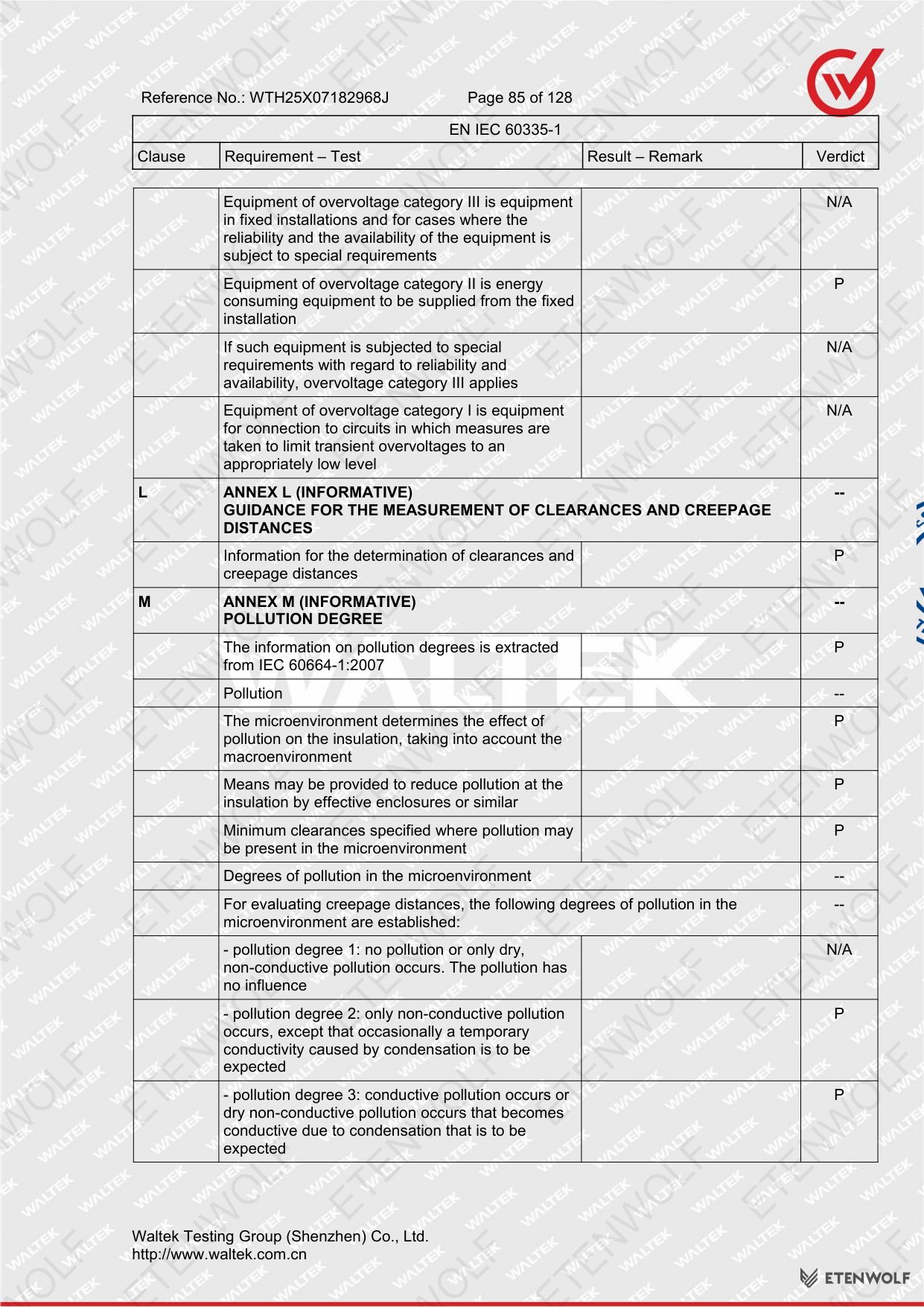

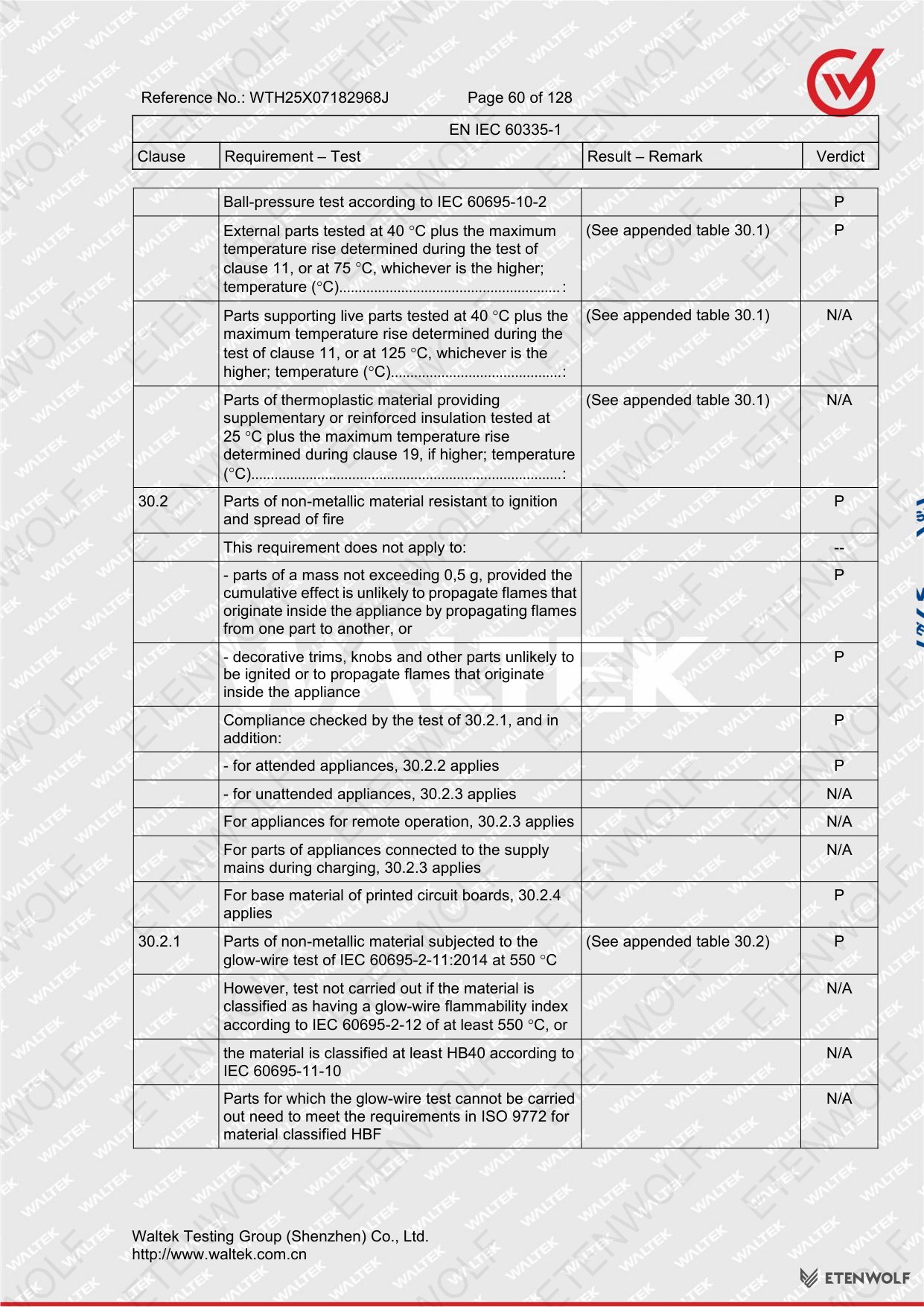

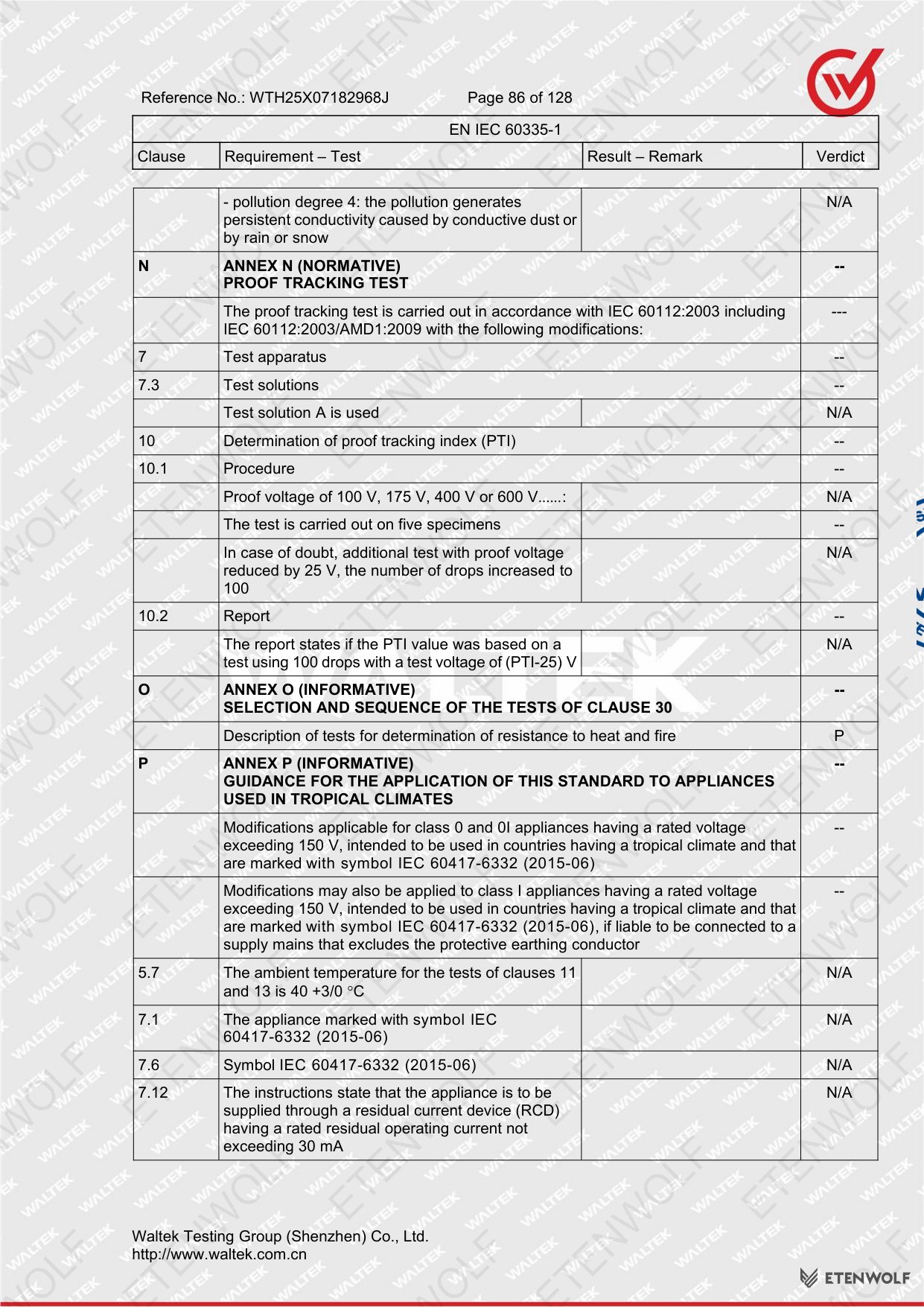

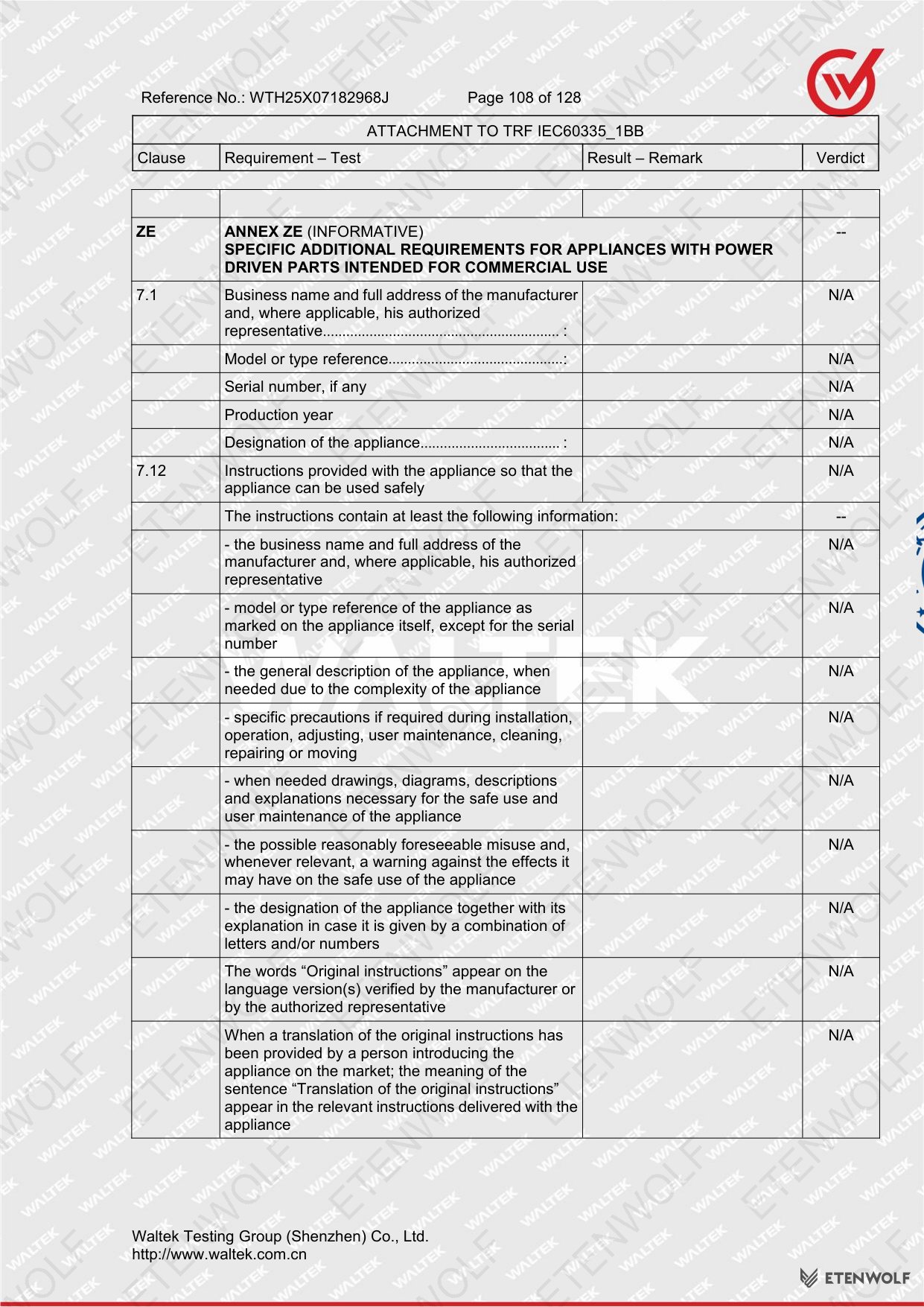

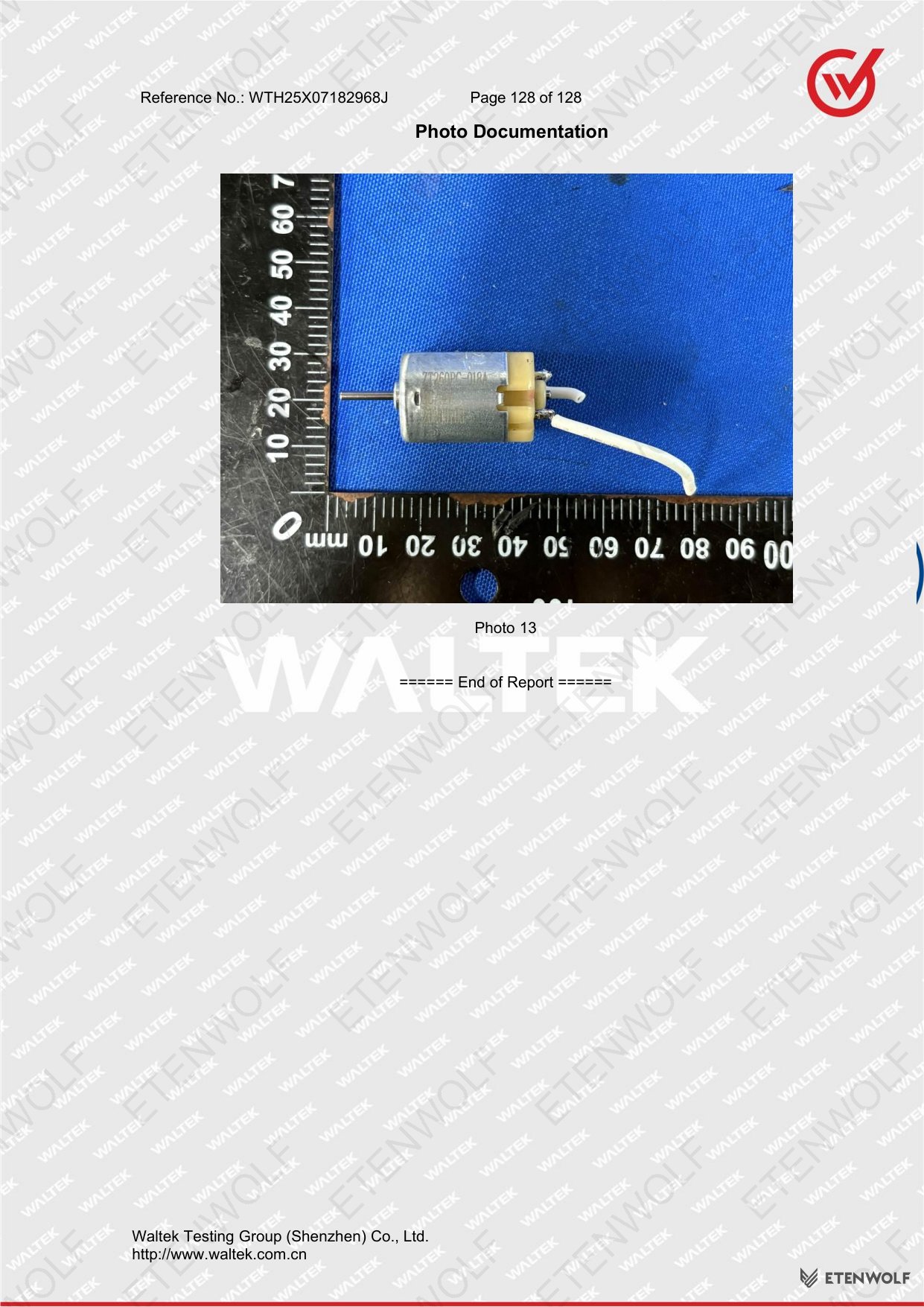

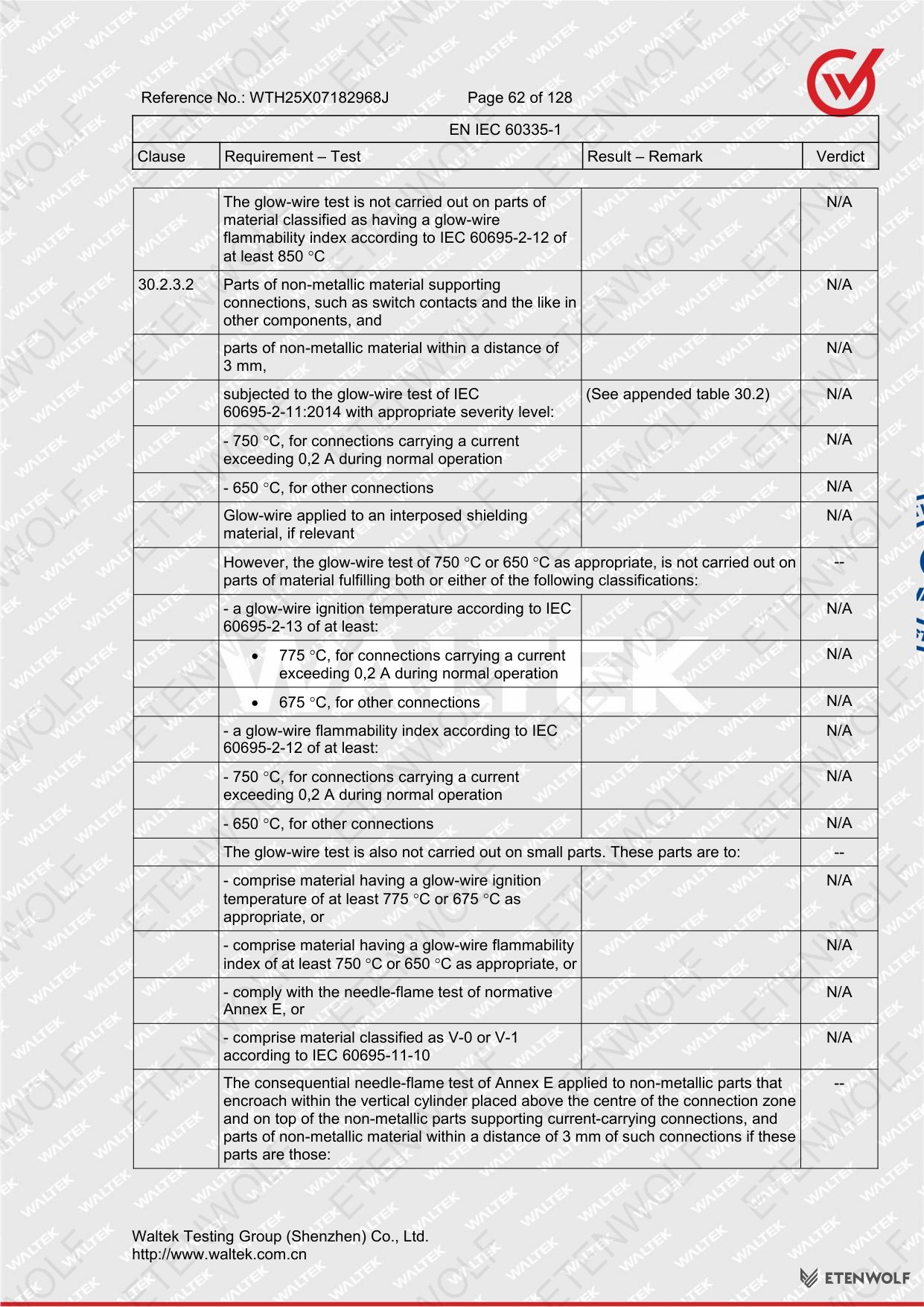

Document Pages
