Document Overview This page presents the CE Low Voltage Directive (CE-LVD) compliance test report for the ETENWOLF HB2 inflation pump. The report was issued by Waltek Testing Group (Shenzhen) Co., Ltd., an accredited third-party safety testing laboratory based in Shenzhen, Guangdong, China. Field Detail Reference…
- Document type
- Certification Report
- Prepared by
- Michelle Torres
- Published
- Last reviewed
- Topics
- European Union: CE / RoHS / REACH / WEEE
Document Overview
This page presents the CE Low Voltage Directive (CE-LVD) compliance test report for the ETENWOLF HB2 inflation pump. The report was issued by Waltek Testing Group (Shenzhen) Co., Ltd., an accredited third-party safety testing laboratory based in Shenzhen, Guangdong, China.

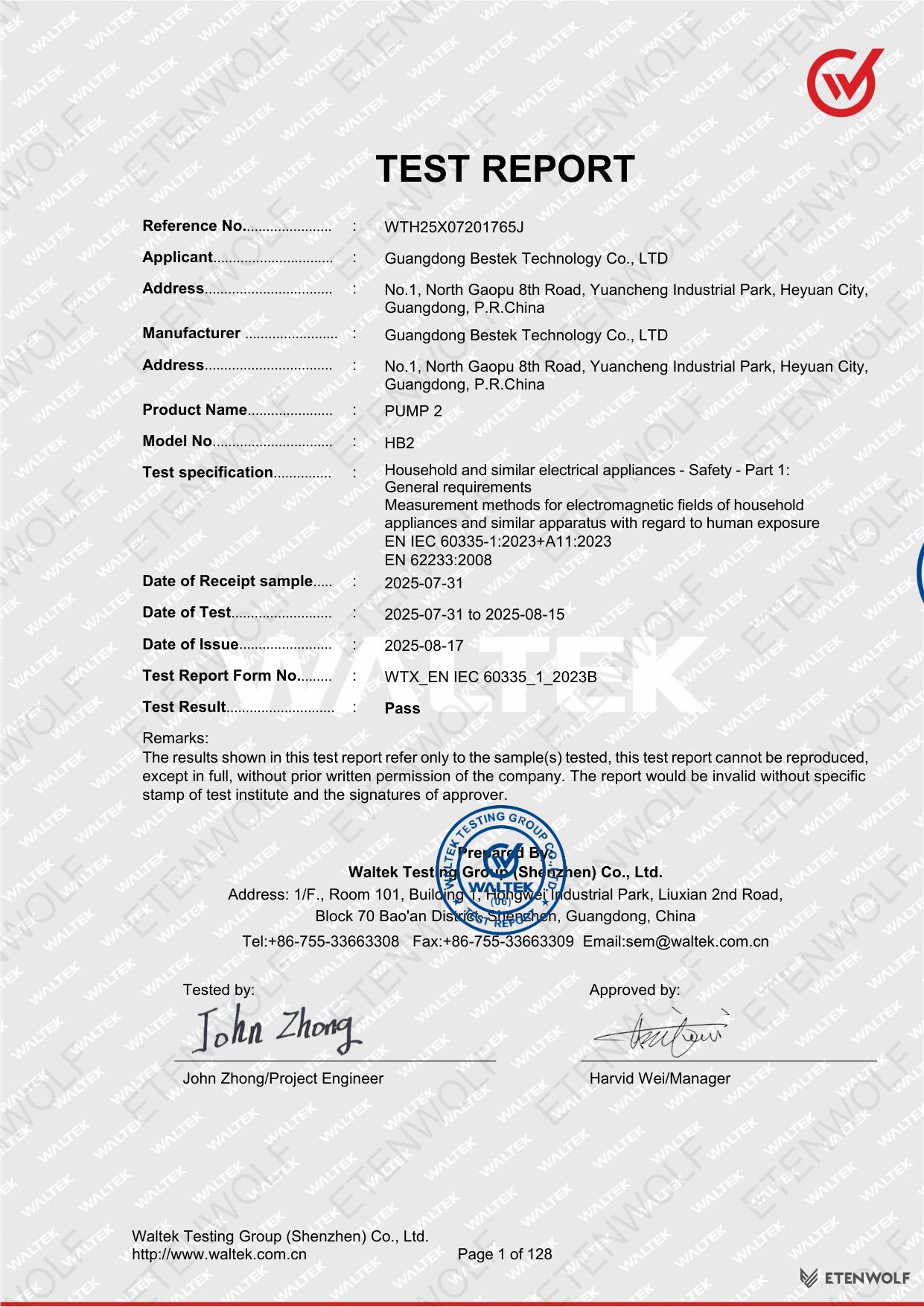

| Field | Detail |
|---|---|
| Reference Number | WTH25X07201765J |
| Document Type | CE-LVD Safety Test Report |
| Test Report Form No. | WTX_EN IEC 60335_1_2023B |
| Date of Sample Receipt | 2025-07-31 |
| Date of Testing | 2025-07-31 to 2025-08-15 |
| Date of Issue | 2025-08-17 |
| Overall Test Result | Pass |
| Issuing Laboratory | Waltek Testing Group (Shenzhen) Co., Ltd. |
| Scope | Household and similar electrical appliances — Safety and electromagnetic field exposure |
The test report covers safety requirements applicable to household and indoor-use portable electrical appliances under the IEC and European harmonised standard framework, confirming the product’s eligibility for CE marking and placement on the EU market.
Product Information
The ETENWOLF HB2, marketed under the product name PUMP 2, is a compact portable inflation pump designed for household and indoor use. It is powered via a DC connector and classified as a Class III appliance, meaning it operates on safety extra-low voltage (SELV) and does not pose the shock hazards associated with mains-connected Class I or Class II devices.
| Attribute | Value |
|---|---|
| Product Name | PUMP 2 |
| Model Number | HB2 |
| Rated Input Voltage | 5 V DC |
| Rated Input Current | 3.0 A |
| Equipment Class | Class III |
| Installation Type | Portable appliance, indoor use only |
| Supply Connection | DC Connector |
| IP Rating | IPX0 |
| Manufacturer | Guangdong Bestek Technology Co., Ltd. |
| Manufacturer Address | No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China |
| Country of Origin | Made in China |

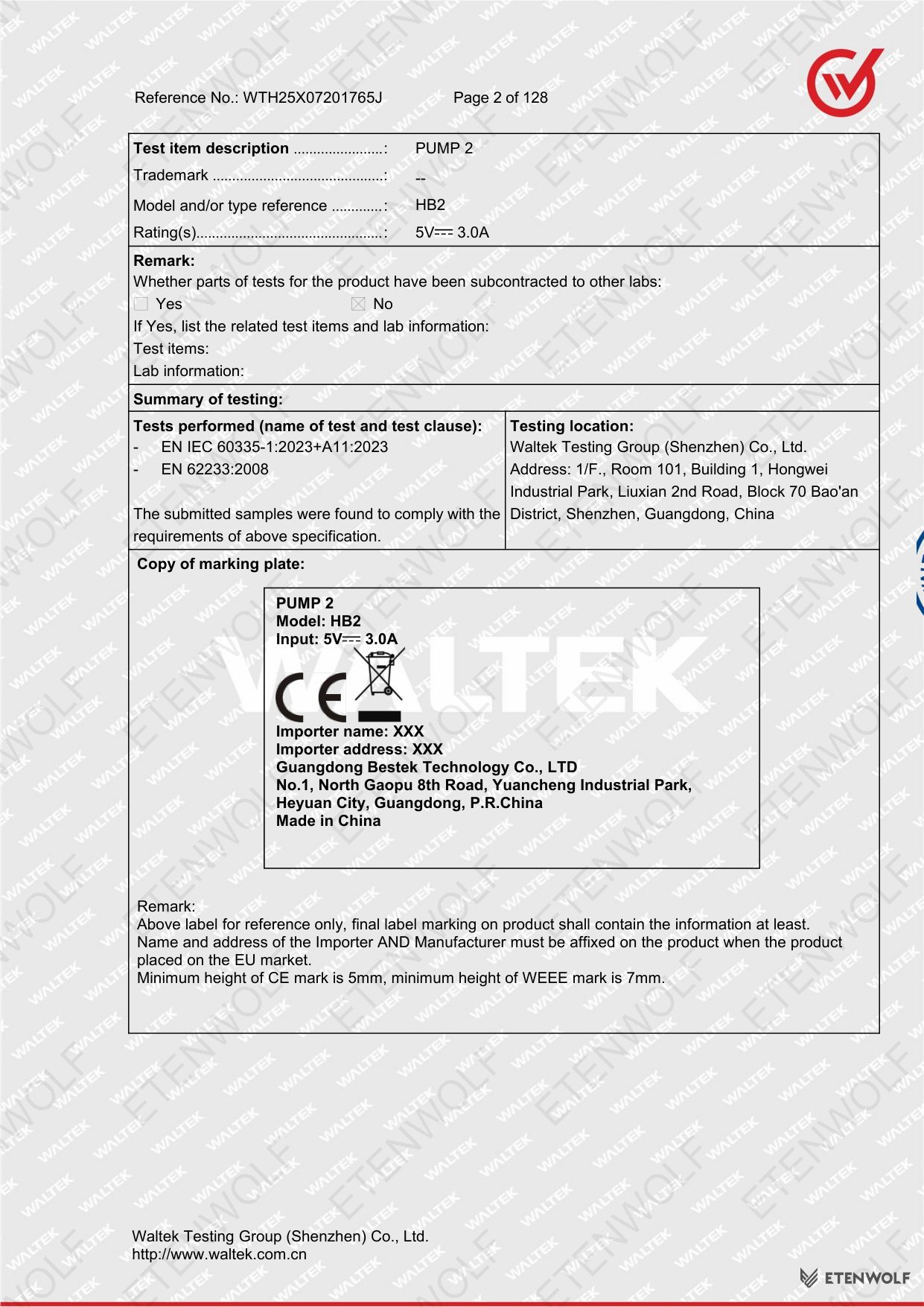

As a Class III appliance, the HB2 is powered by rechargeable batteries or a low-voltage supply source. The product label must display the rated input, manufacturer name and address, model reference, and importer details when placed on the EU market. The CE mark minimum height requirement is 5 mm and the WEEE symbol minimum height is 7 mm.
Key Details
The following tables summarise the principal test clauses evaluated during the CE-LVD assessment of the HB2 under EN IEC 60335-1:2023+A11:2023.

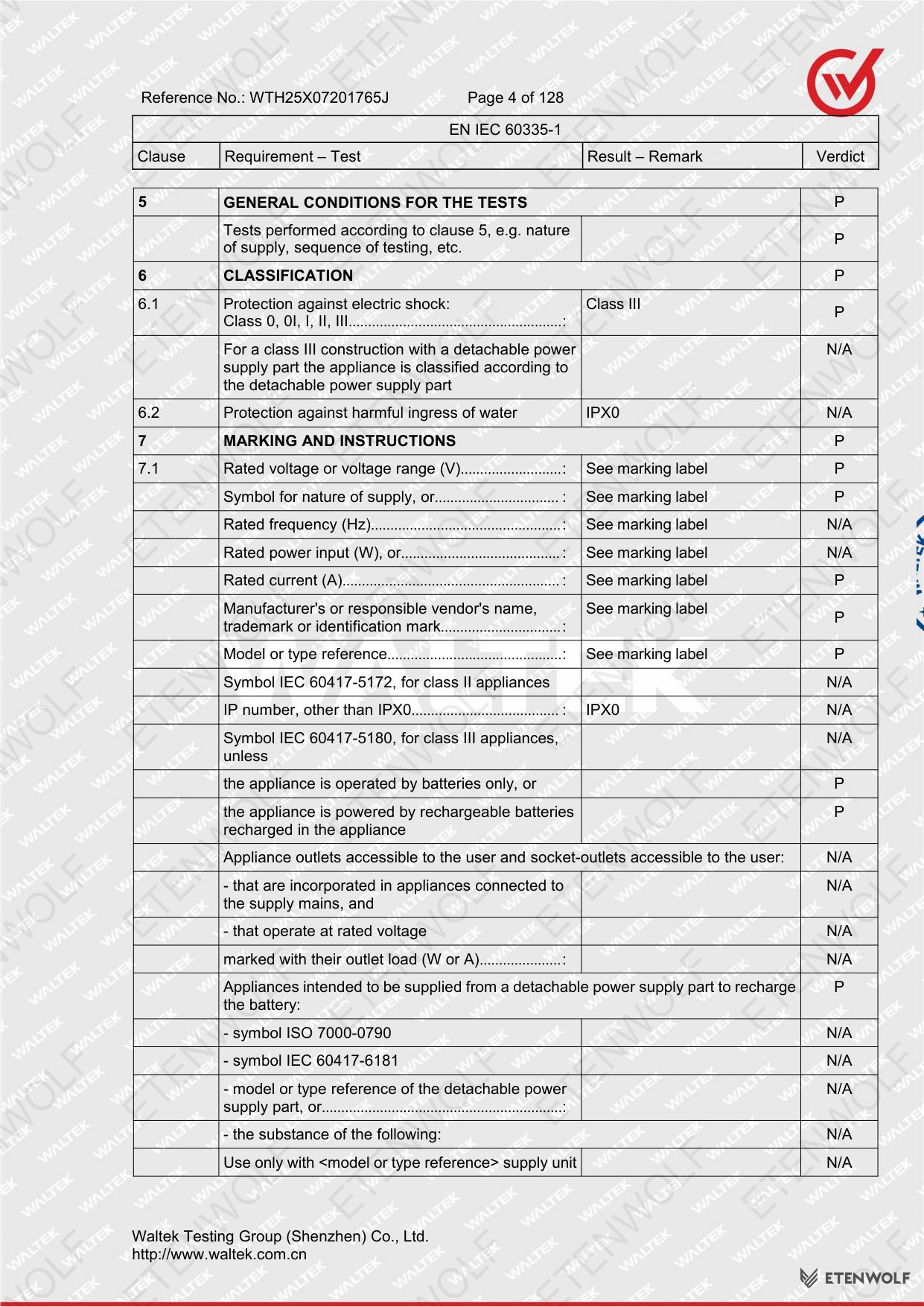

| Clause | Test Area | Verdict |
|---|---|---|
| Clause 5 | General Conditions for Tests (nature of supply, sequence of testing) | Pass |
| Clause 6.1 | Classification — Protection against electric shock: Class III | Pass |
| Clause 6.2 | Protection against harmful ingress of water — IPX0 | N/A |
| Clause 7 | Marking and Instructions (general) | Pass |
| Clause 7.1 | Rated voltage, current, manufacturer identity, model reference on marking label | Pass |
| Clause 7.1 | Class III symbol (IEC 60417-5180) — battery-operated exemption applies | Pass |
| Clause 7.1 | Appliances supplied from detachable power supply part to recharge battery | Pass |
Test verdict codes used throughout the report:
- P (Pass) — the test object meets the requirement.
- F (Fail) — the test object does not meet the requirement.
- N/A (Not Applicable) — the test case does not apply to this product.
All applicable clauses resulted in a Pass verdict. The submitted sample was found to fully comply with the requirements of EN IEC 60335-1:2023+A11:2023 and EN 62233:2008. Testing was performed exclusively at the Waltek Shenzhen facility with no subcontracting to external laboratories.
Standards & Compliance
The ETENWOLF HB2 was evaluated against the following harmonised European standards, which support the CE marking declaration under the Low Voltage Directive (LVD) 2014/35/EU.
| Standard | Title | Scope |
|---|---|---|
| EN IEC 60335-1:2023+A11:2023 | Household and Similar Electrical Appliances — Safety — Part 1: General Requirements | Primary safety standard covering construction, marking, protection against electric shock, mechanical hazards, and thermal requirements for household appliances |
| EN 62233:2008 | Measurement Methods for Electromagnetic Fields of Household Appliances and Similar Apparatus with Regard to Human Exposure | Defines measurement methods and limits for EMF exposure from household appliances to ensure safety for end users |
The product is classified as a Class III appliance under EN IEC 60335-1, meaning it is supplied at safety extra-low voltage (SELV). This classification is significant for CE-LVD purposes because it eliminates risks associated with mains voltages and reduces the applicable test burden accordingly. The operating input is 5 V DC at 3.0 A, well within SELV thresholds defined by IEC standards.
Compliance with these standards supports the manufacturer’s EU Declaration of Conformity (DoC) and authorises the affixing of the CE mark on the product. When placed on the EU market, the product label must also include the name and address of the EU importer.
Validity & Certification Body
The test report WTH25X07201765J was prepared and issued by Waltek Testing Group (Shenzhen) Co., Ltd., a professional third-party testing and certification laboratory operating in China with international recognition for CE, FCC, and other global compliance testing services.
| Field | Detail |
|---|---|
| Report Reference | WTH25X07201765J |
| Date of Issue | 2025-08-17 |
| Testing Period | 2025-07-31 to 2025-08-15 |
| Laboratory Name | Waltek Testing Group (Shenzhen) Co., Ltd. |
| Laboratory Address | 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70, Bao’an District, Shenzhen, Guangdong, China |
| Laboratory Website | http://www.waltek.com.cn |
| Laboratory Tel | +86-755-33663308 |
| Laboratory Fax | +86-755-33663309 |
| Laboratory Email | [email protected] |
| Project Engineer | John Zhong |
| Approving Manager | Harvid Wei |
| Subcontracting | No — all tests performed at the issuing laboratory |
The test report is valid only with the specific stamp of the test institute and the signatures of the approver. The report may not be reproduced except in full, and only with prior written permission from Waltek Testing Group. The results are applicable solely to the sample(s) tested and do not constitute a blanket certification of all production units. Manufacturers are responsible for maintaining ongoing production conformity.
Frequently Asked Questions
- What does the CE-LVD test report WTH25X07201765J confirm for the HB2?
-
Report WTH25X07201765J confirms that the ETENWOLF HB2 (PUMP 2) passed all applicable safety tests under EN IEC 60335-1:2023+A11:2023 and EN 62233:2008. This means the product meets EU Low Voltage Directive safety requirements and is eligible for CE marking, allowing it to be legally placed on the European market.
- Why is the HB2 classified as Class III and what does that mean for safety?
-
Class III classification means the HB2 operates exclusively on safety extra-low voltage (SELV) — in this case 5 V DC at 3.0 A. Class III appliances do not rely on protective earth conductors for shock protection because the operating voltage is inherently too low to pose a significant electric shock hazard under normal and single-fault conditions. This makes the product safer for portable consumer use.
- Which standards were used to test the HB2 and who conducted the testing?
-
The HB2 was tested against EN IEC 60335-1:2023+A11:2023 (general household appliance safety) and EN 62233:2008 (electromagnetic field exposure measurement). All testing was performed in-house by Waltek Testing Group (Shenzhen) Co., Ltd. between 2025-07-31 and 2025-08-15, with no subcontracting to other laboratories.
- What labelling is required on the HB2 when it is sold in the EU?
-
When the HB2 is placed on the EU market, the product label must include the rated input (5 V, 3.0 A), the manufacturer name and address (Guangdong Bestek Technology Co., Ltd.), the model reference (HB2), and the name and address of the EU importer. The CE mark must have a minimum height of 5 mm, and the WEEE symbol must be at least 7 mm in height.
Related Documents
The CE-LVD test report is one component of a complete compliance documentation package for the ETENWOLF HB2. The following related certification and compliance documents are typically required or recommended for this product category:
- CE-EMC Test Report — Electromagnetic compatibility testing under the EMC Directive 2014/30/EU, typically covering EN 55014-1 (emissions) and EN 55014-2 (immunity) for household appliances.
- CE Radio Equipment Directive (RED) Report — Required if the HB2 incorporates any wireless communication module (Bluetooth, Wi-Fi, etc.) under Directive 2014/53/EU.
- EU Declaration of Conformity (DoC) — The manufacturer’s formal declaration referencing applicable directives and harmonised standards, required for CE marking.
- UN 38.3 Battery Transport Test Report — If the HB2 contains a lithium battery, UN 38.3 certification is required for air and sea transport compliance.
- RoHS Compliance Report — Restriction of Hazardous Substances compliance documentation confirming the product is free from restricted materials under EU Directive 2011/65/EU.
- REACH SVHC Declaration — Declaration confirming the product does not contain Substances of Very High Concern above threshold concentrations under EU REACH Regulation (EC) No 1907/2006.
- FCC / IC Certification — Required for market access in the United States and Canada if the product is sold in North American markets.

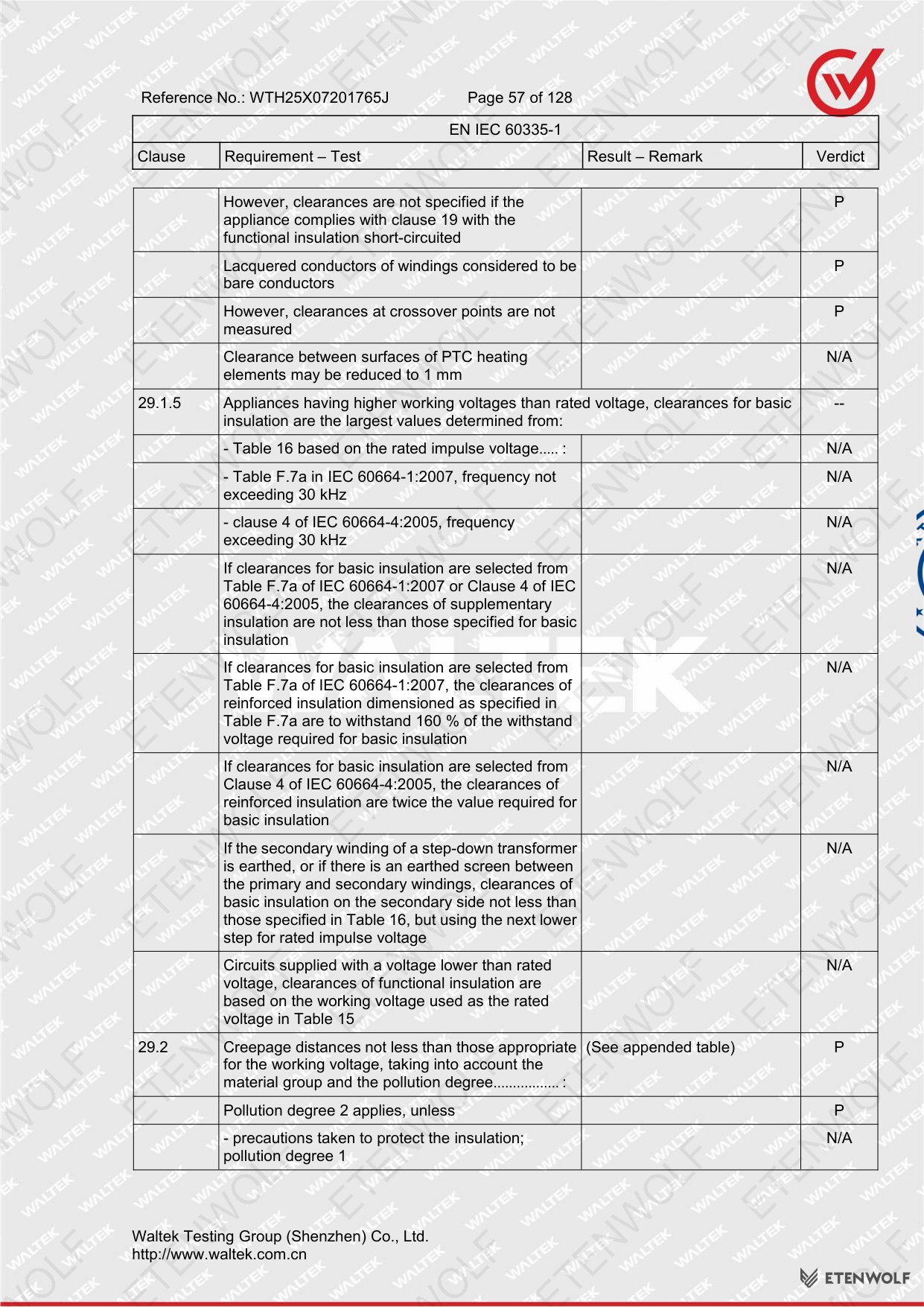

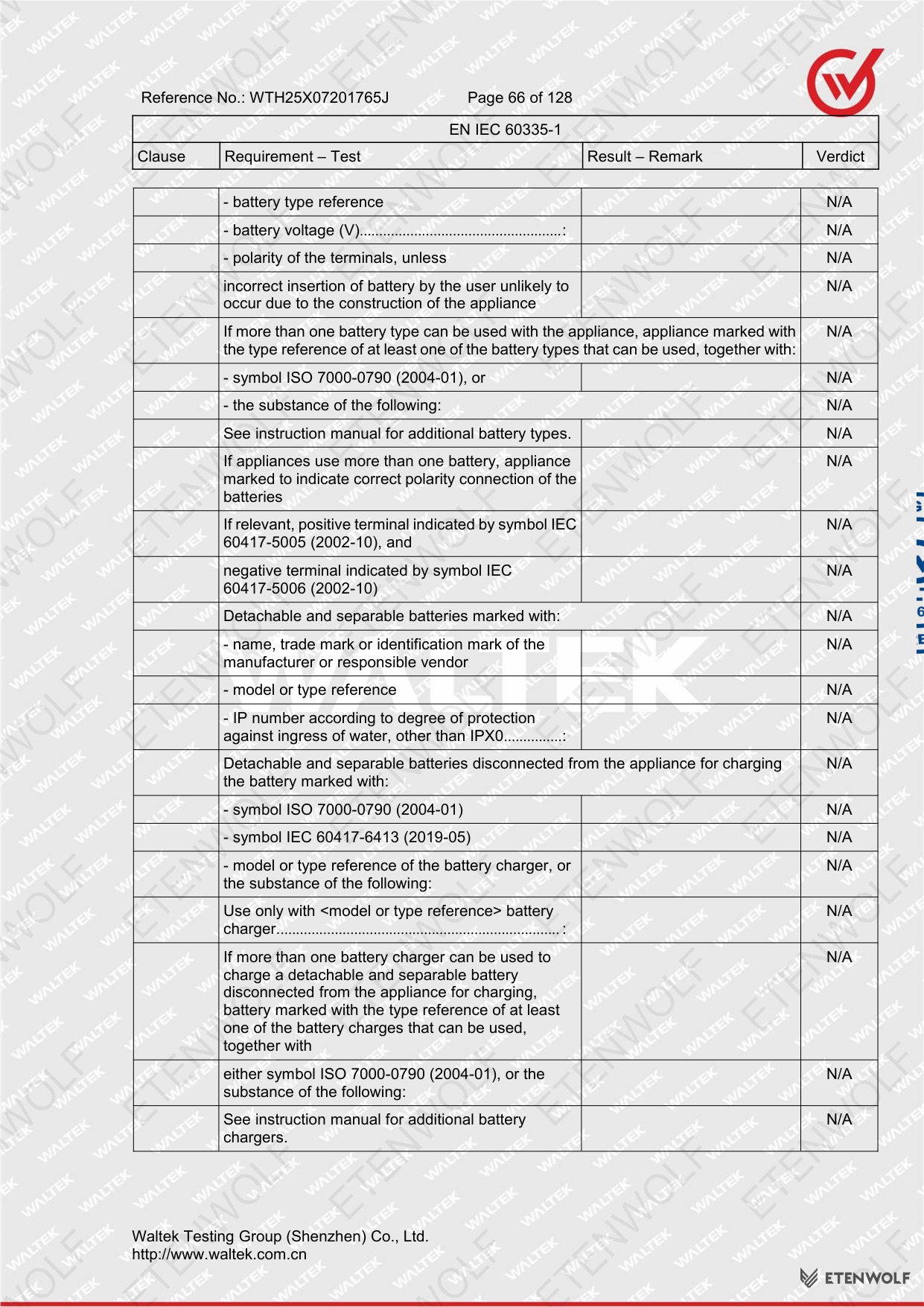

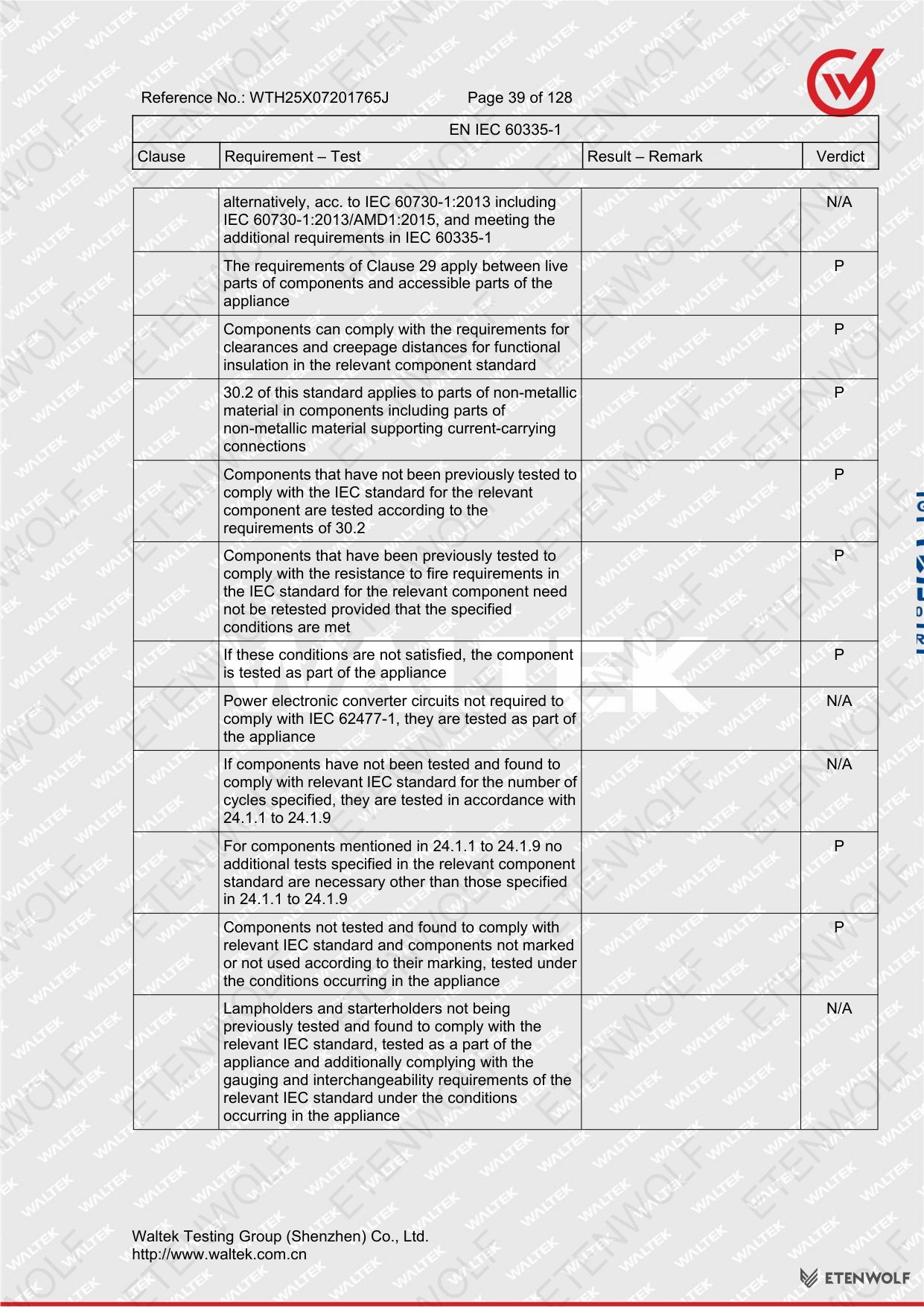

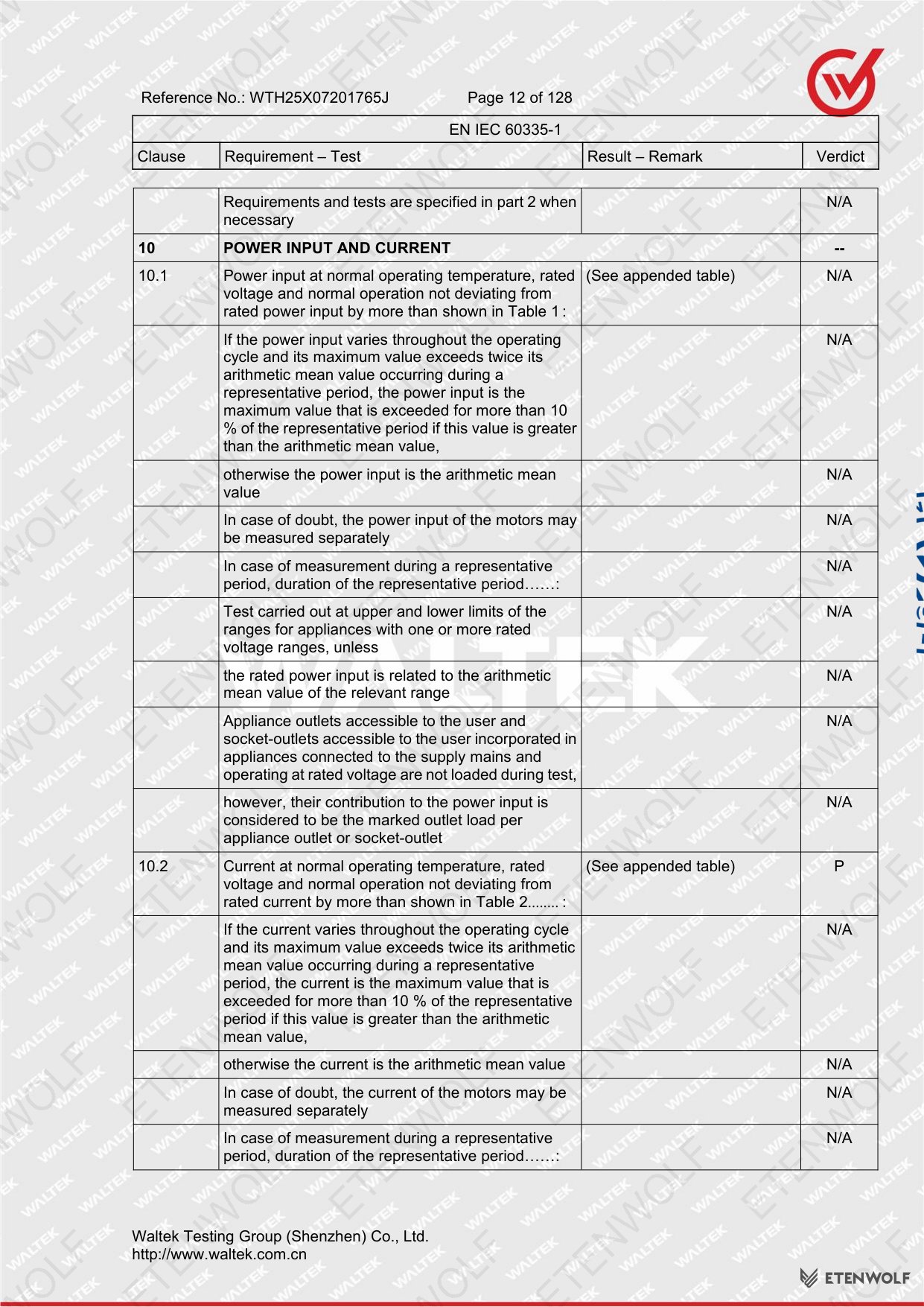

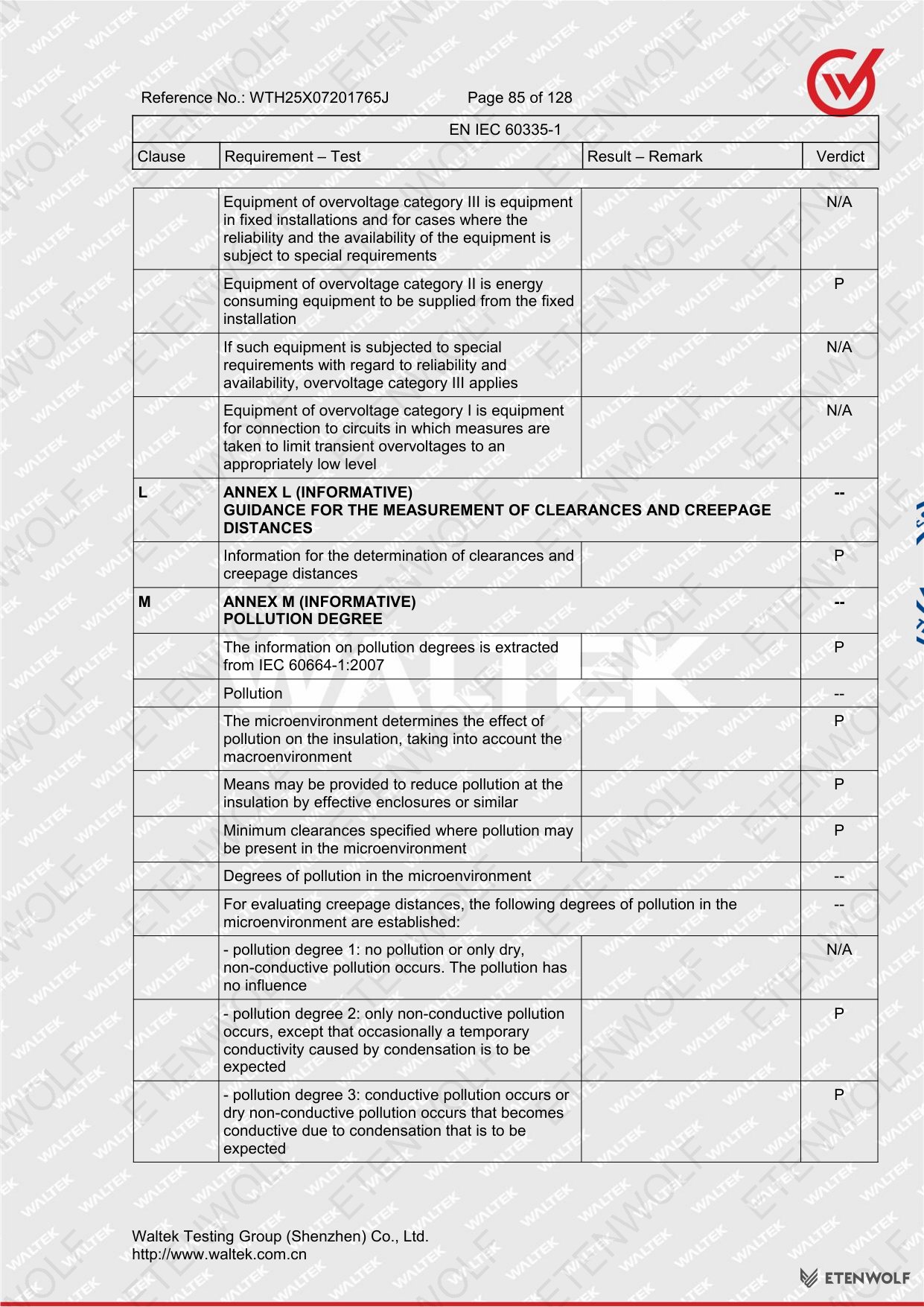

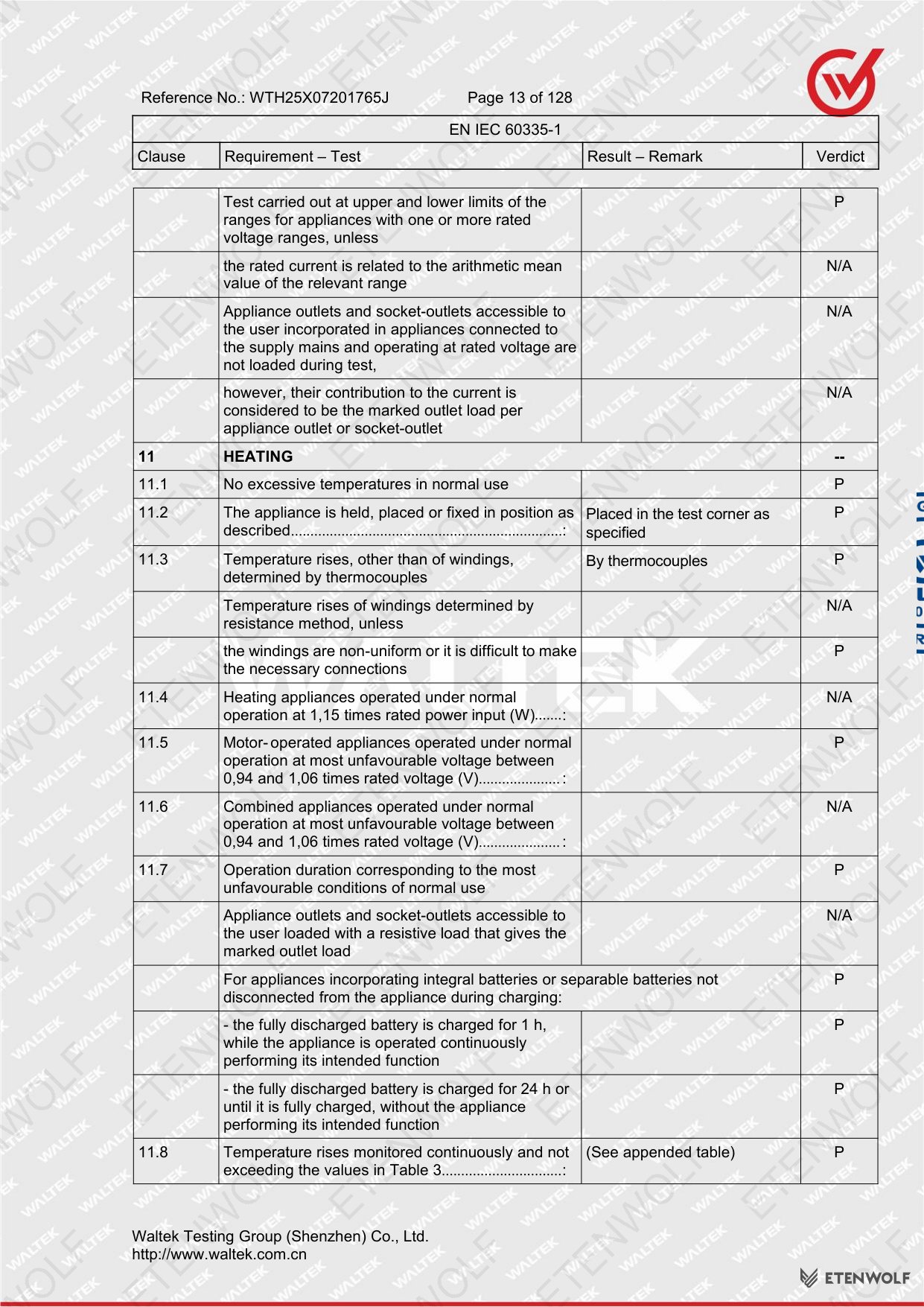

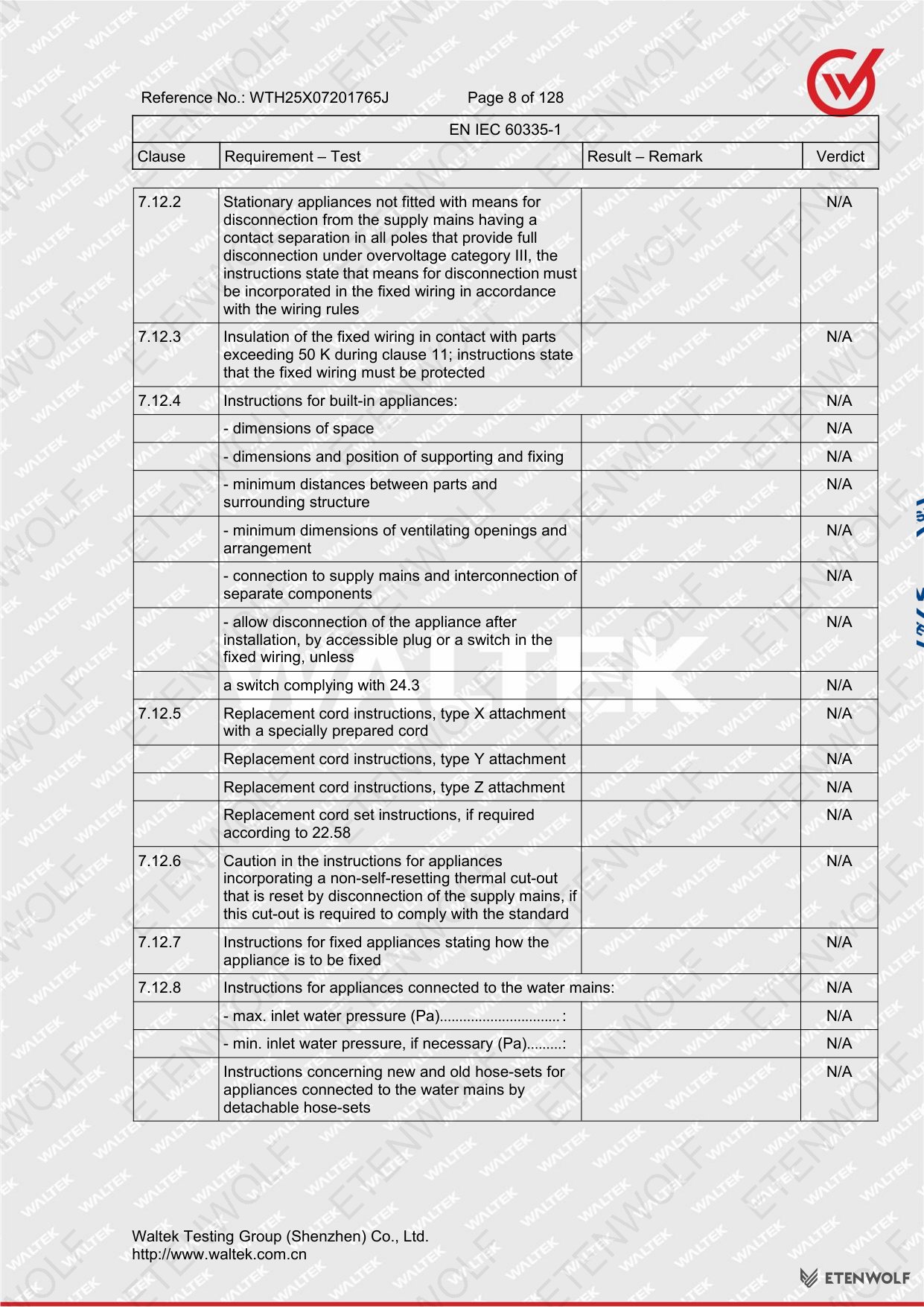

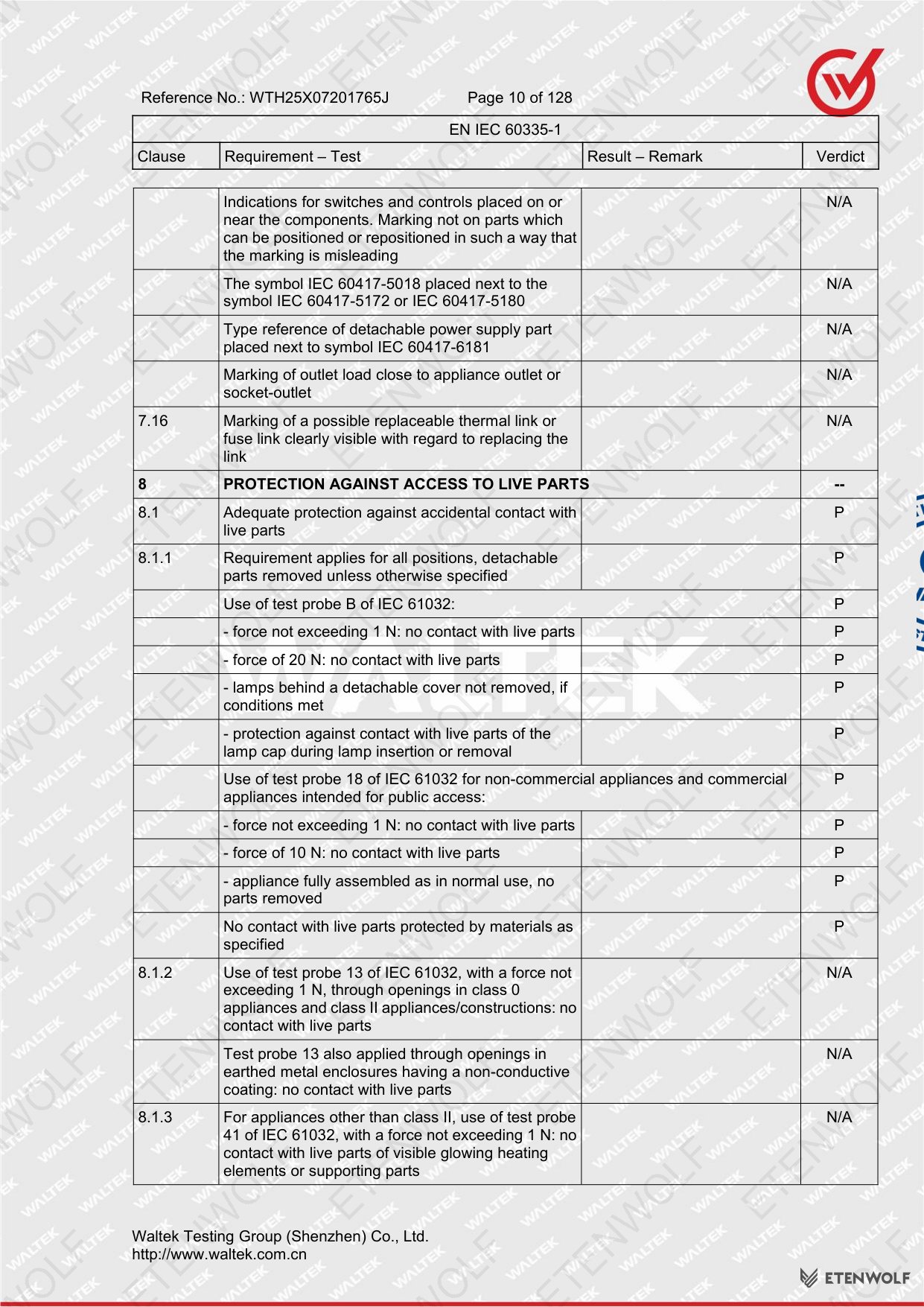

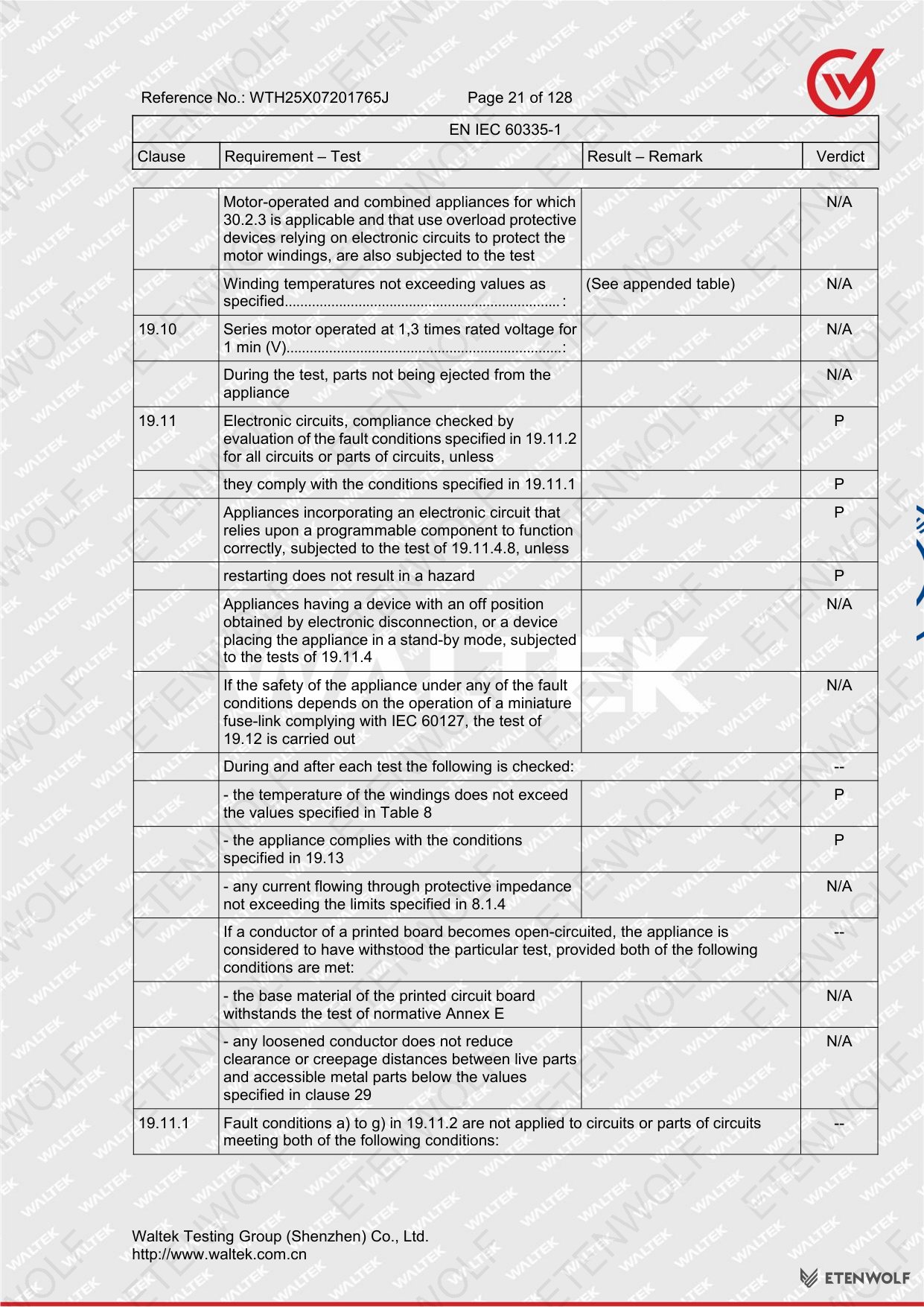

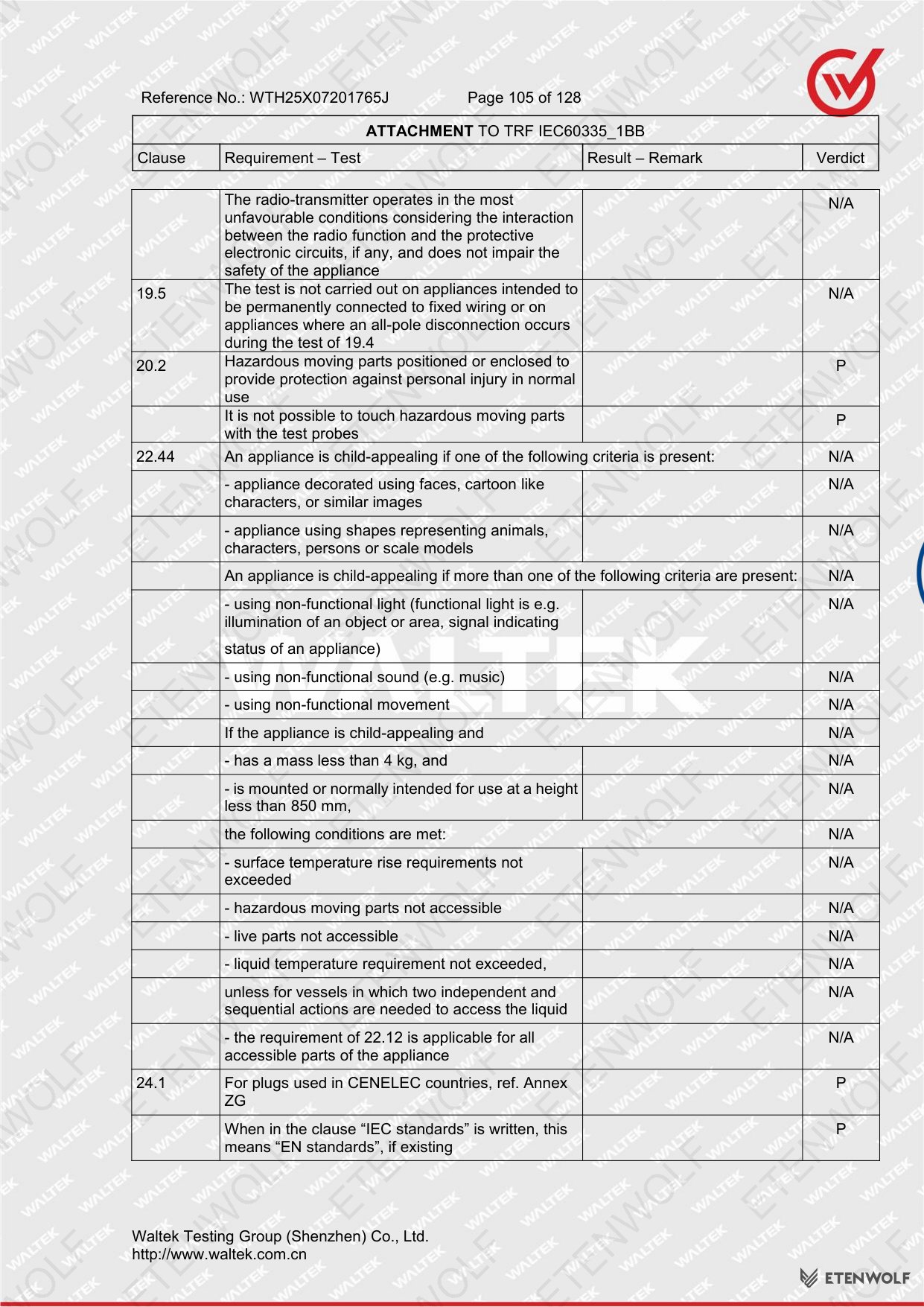

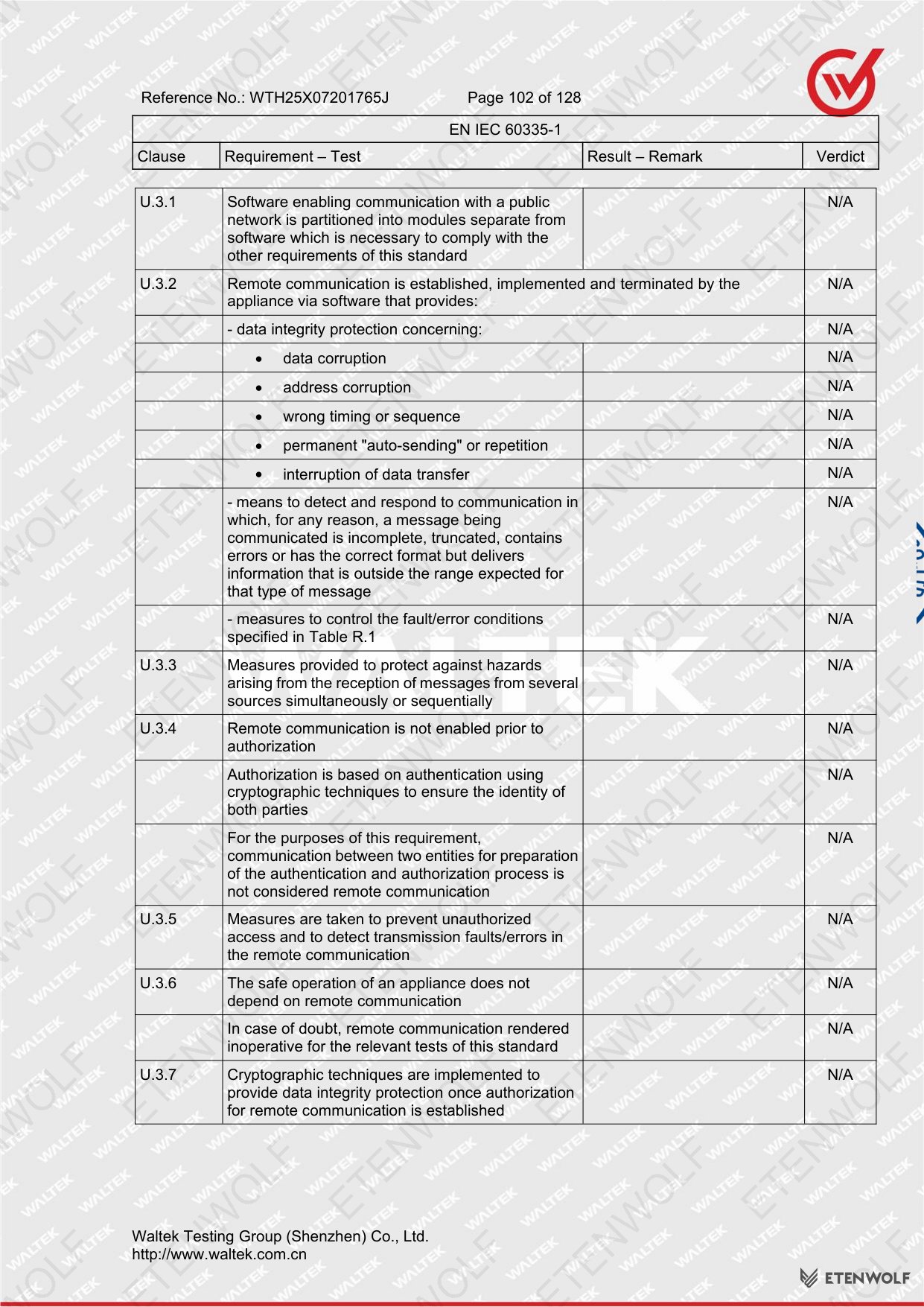

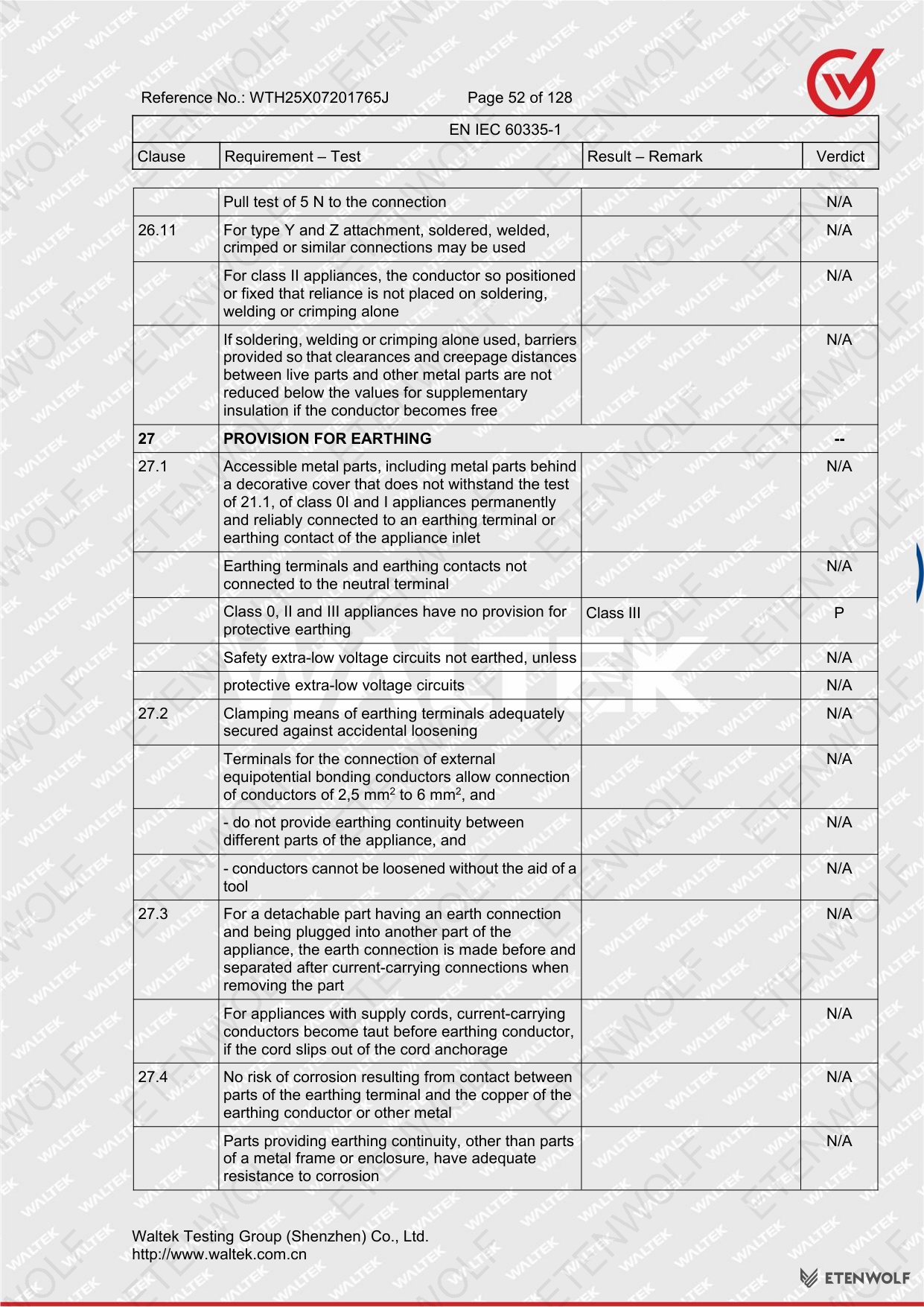

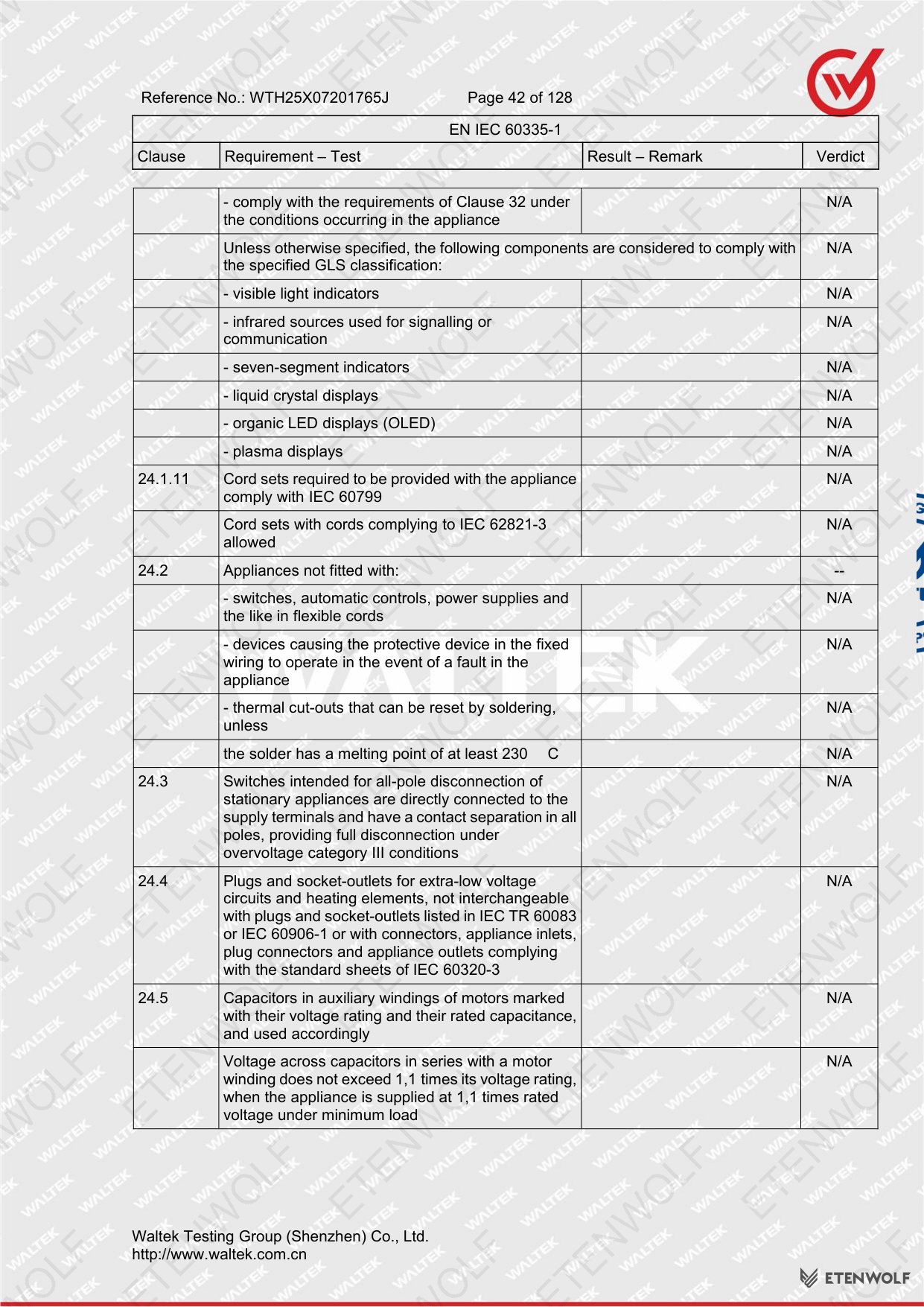

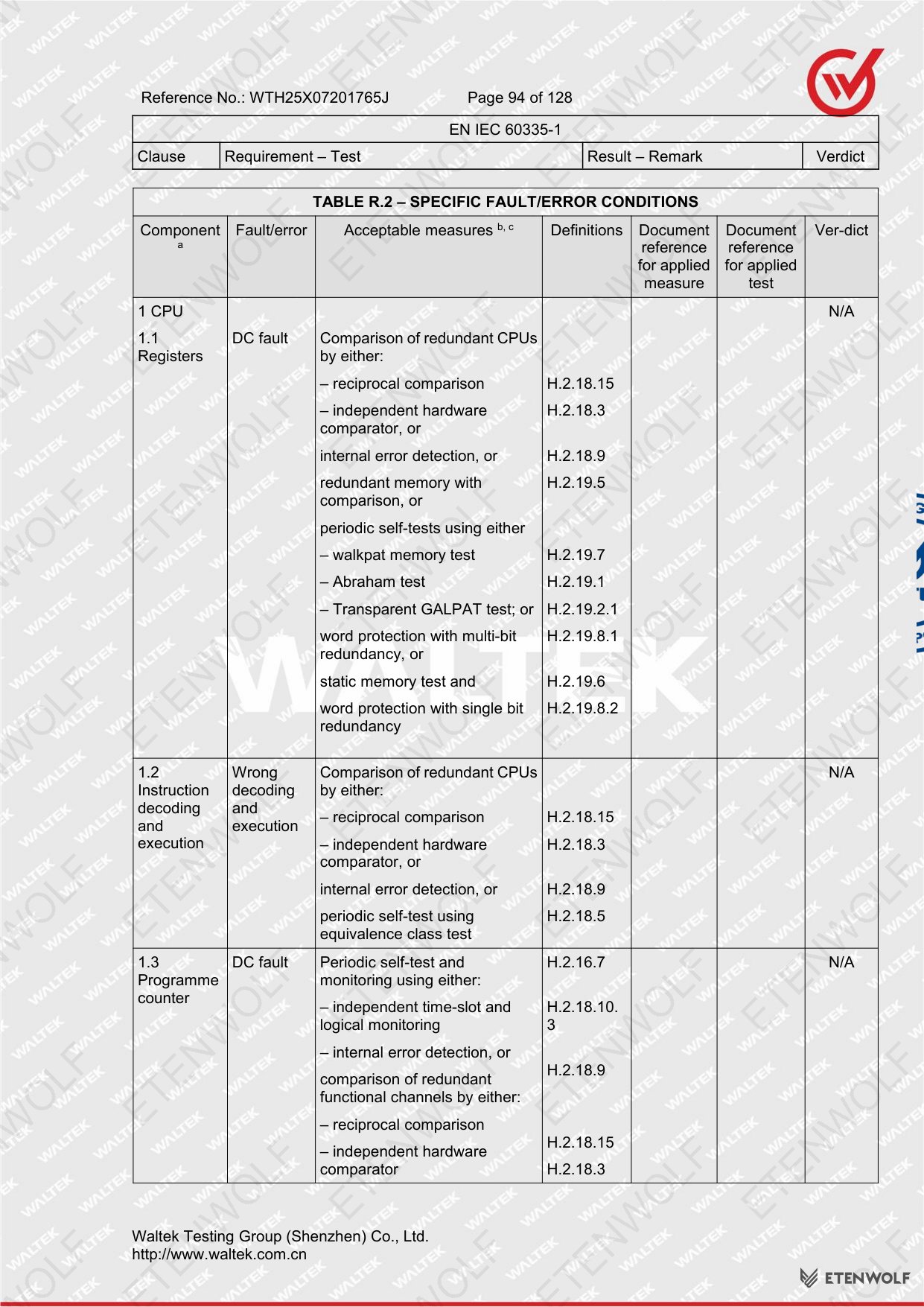

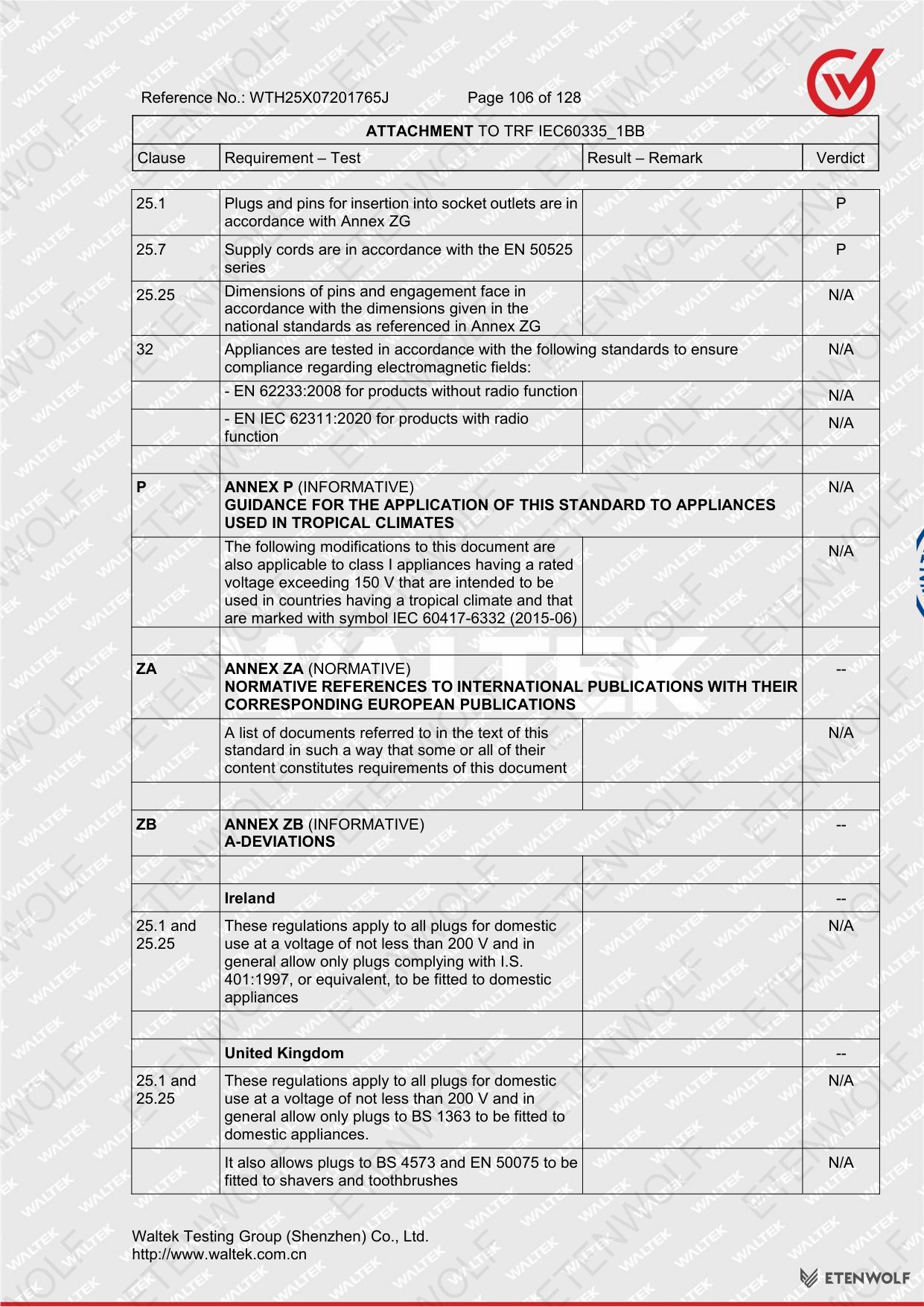

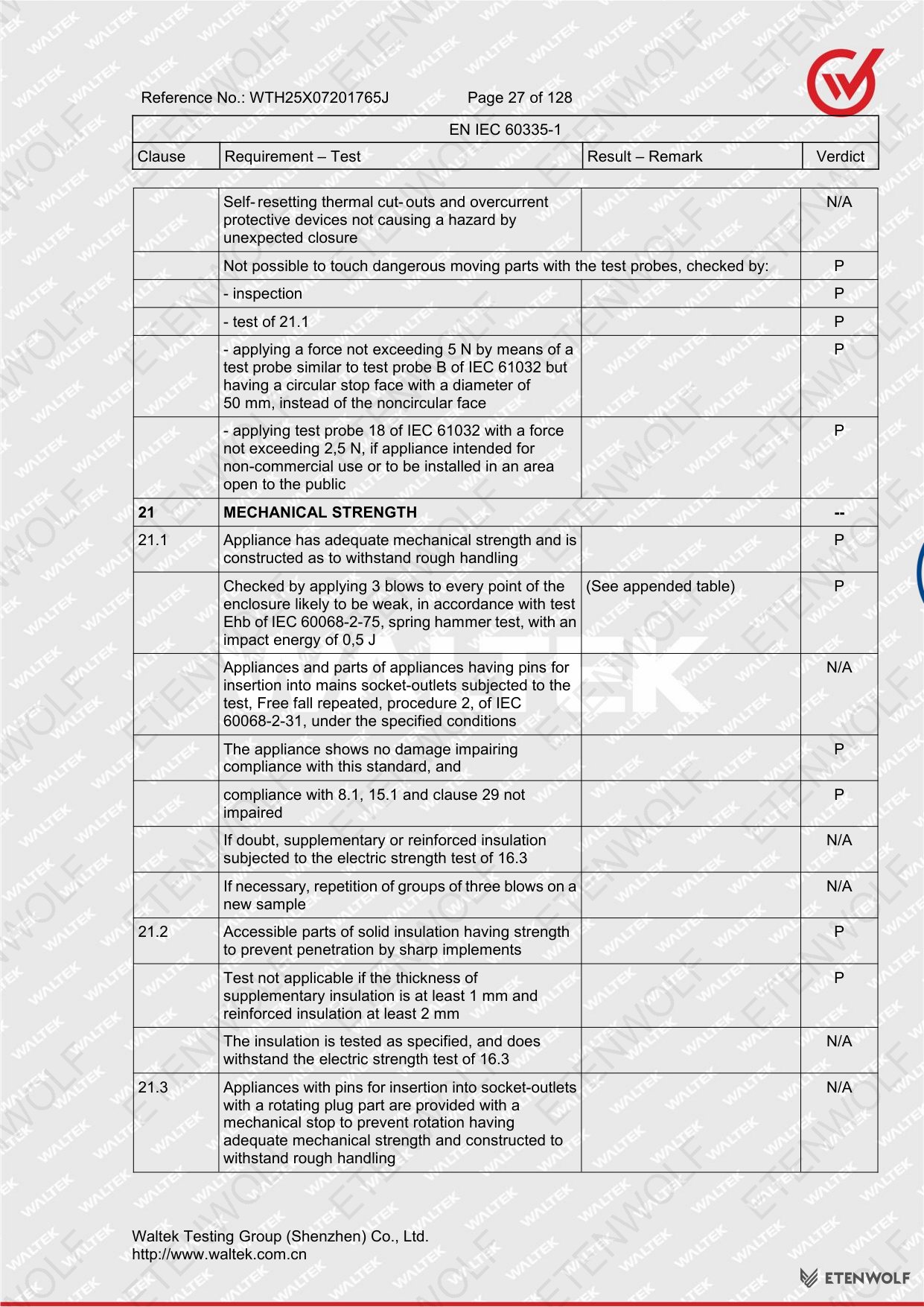

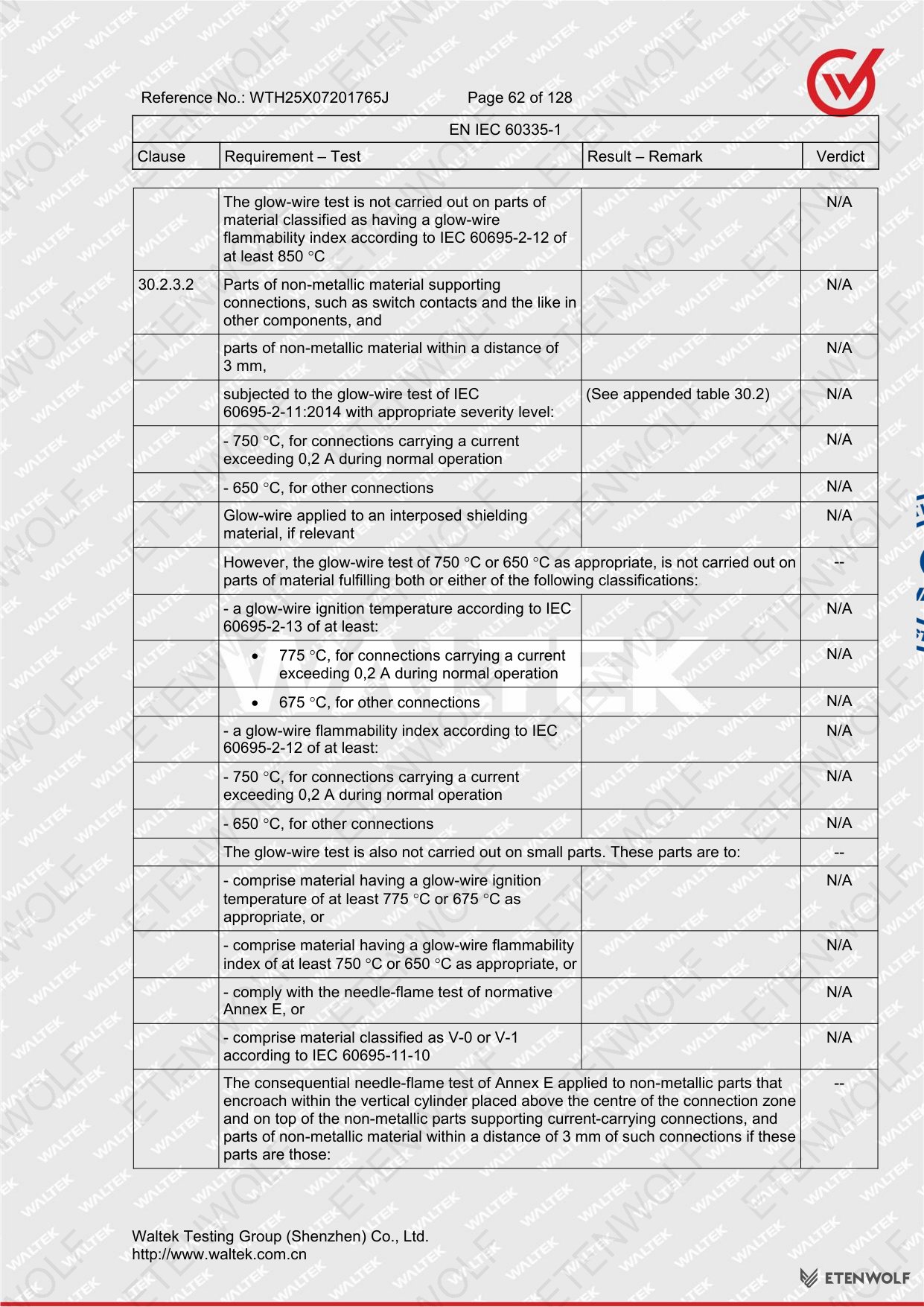

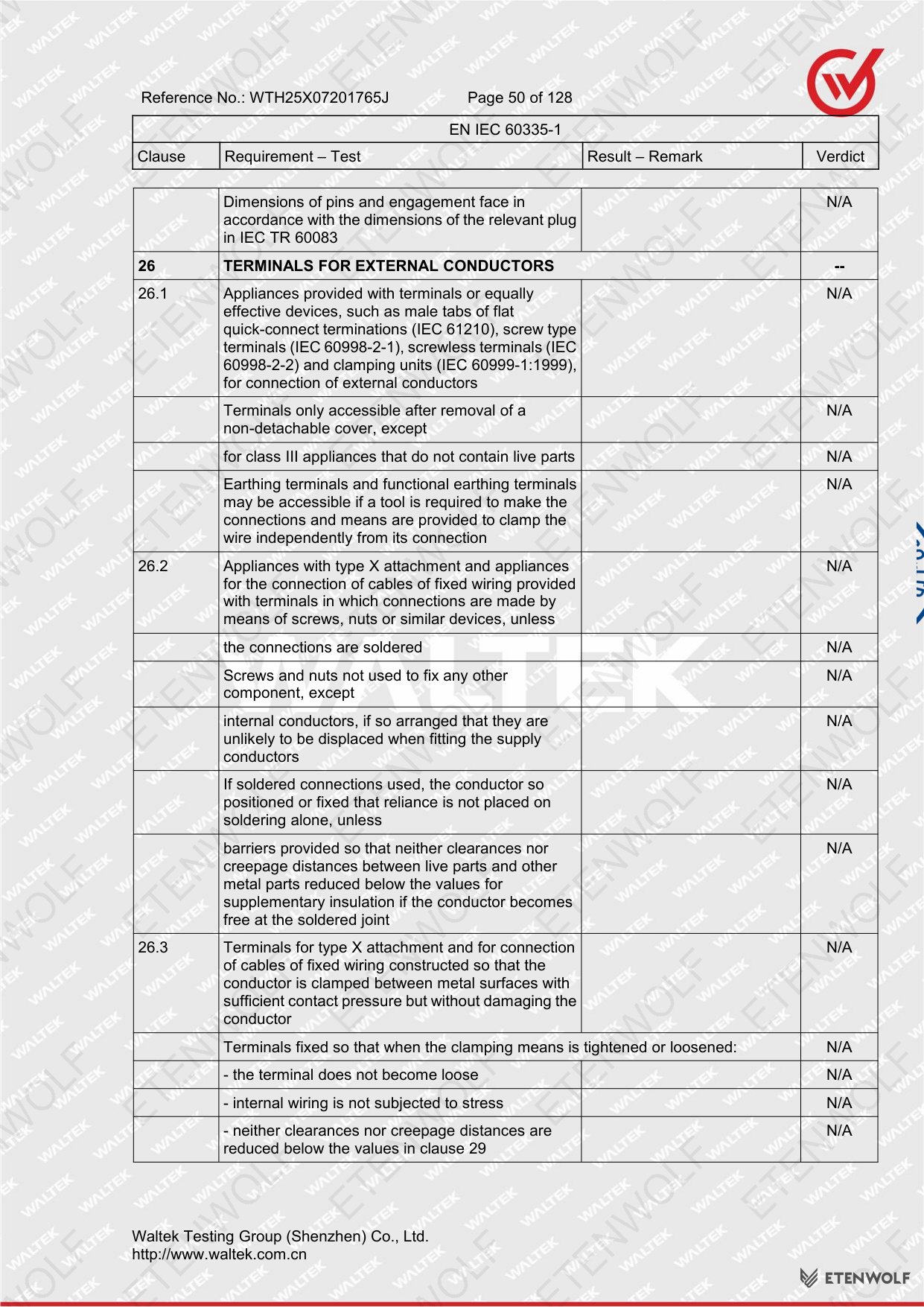

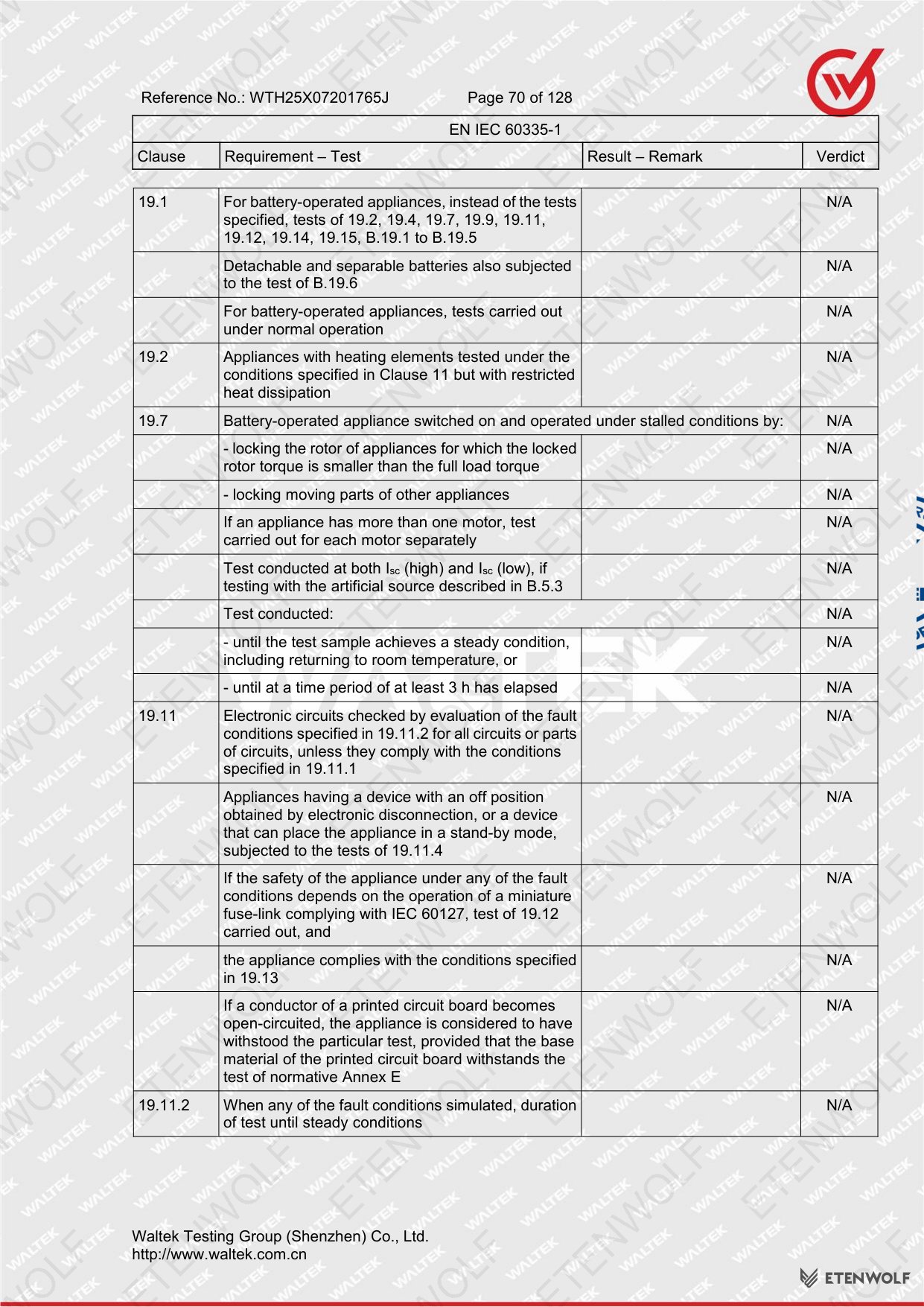

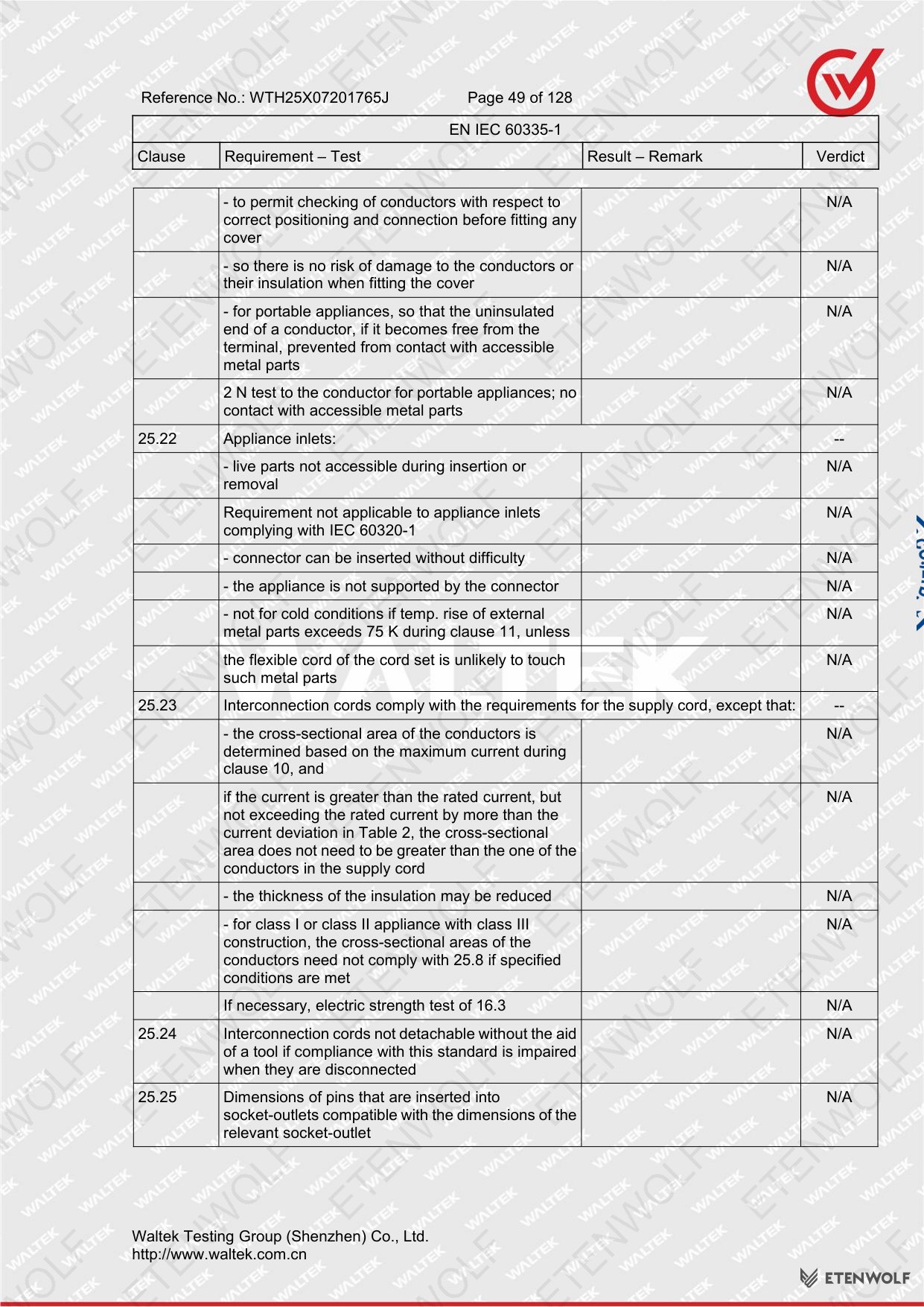

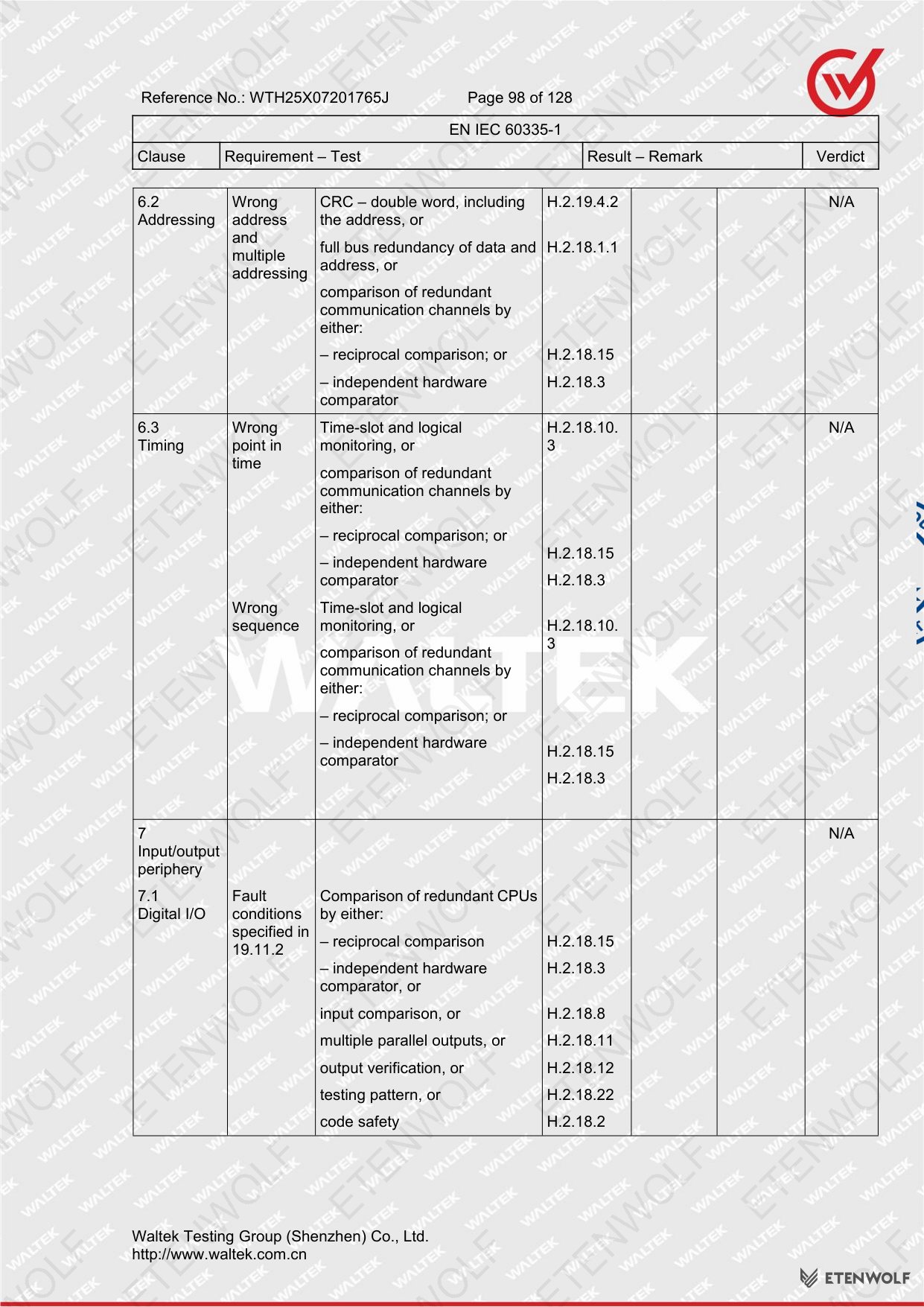

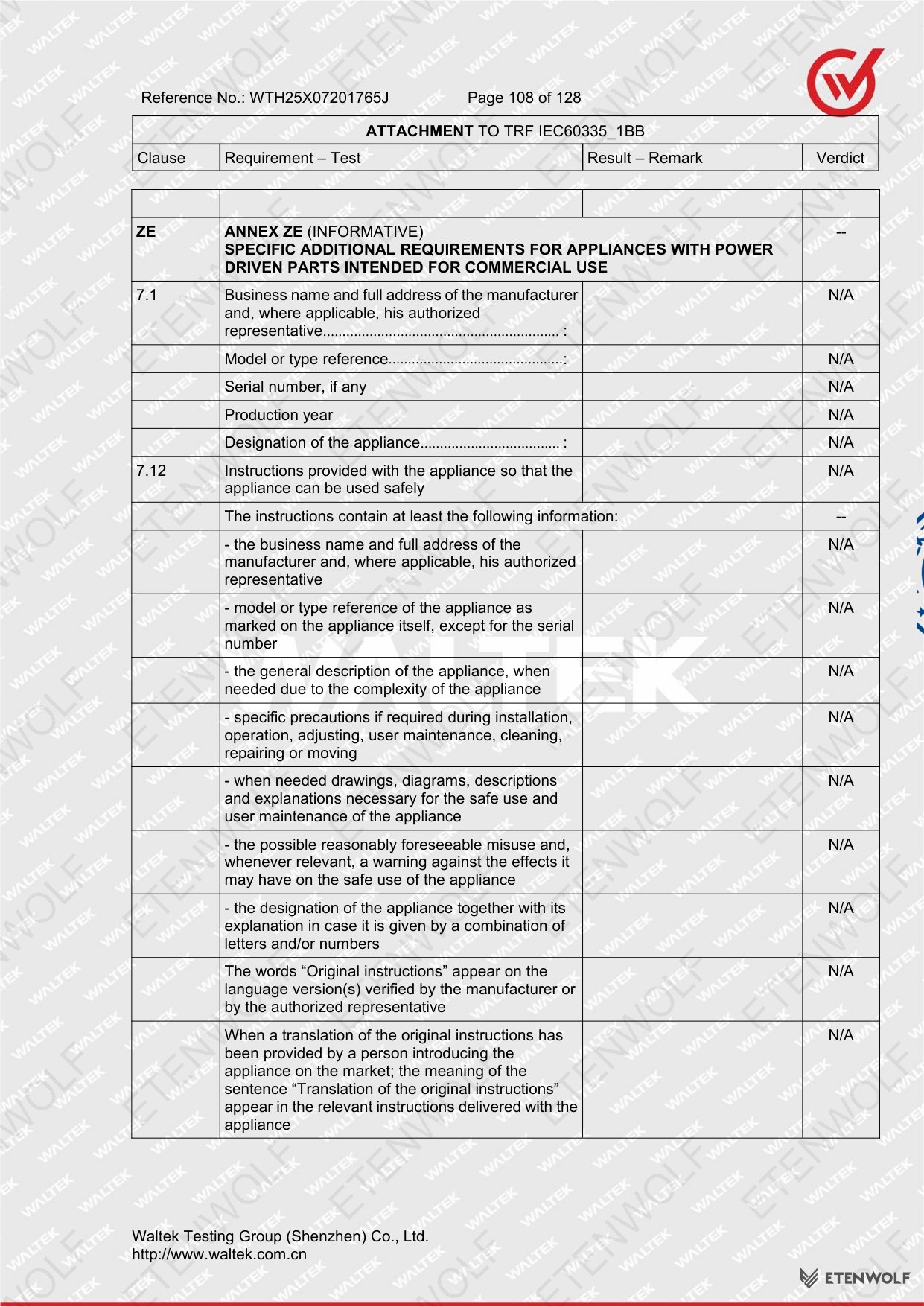

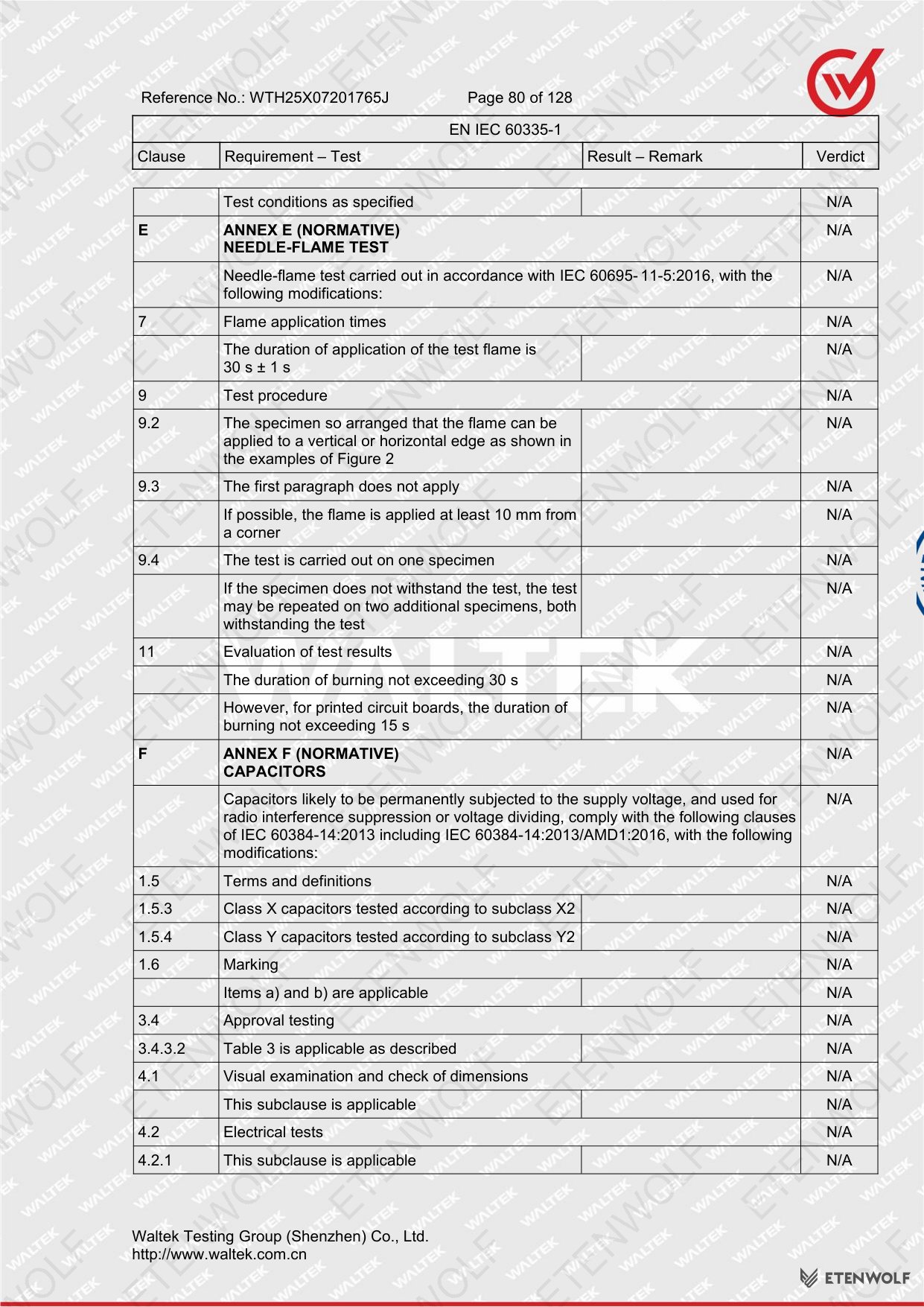

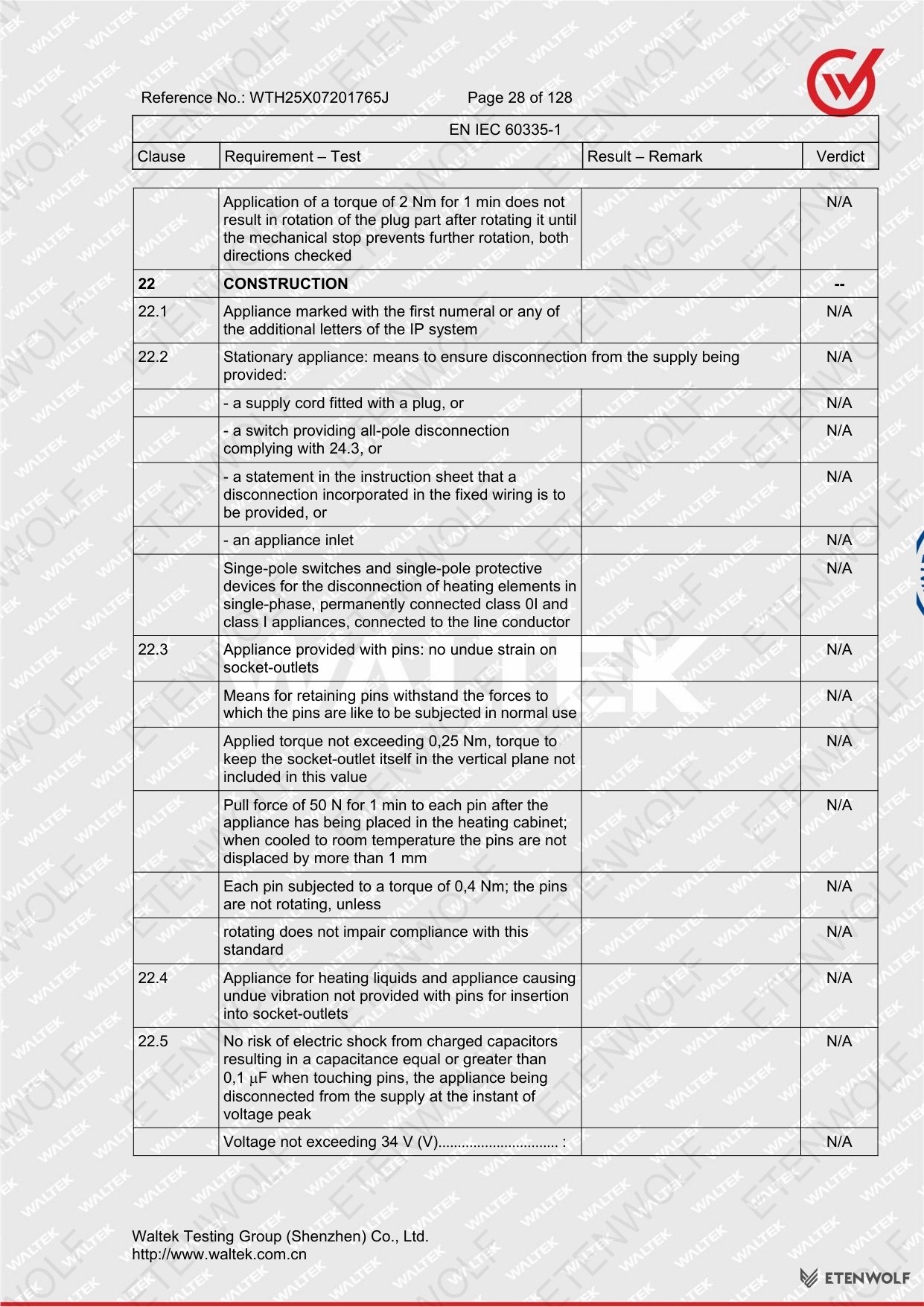

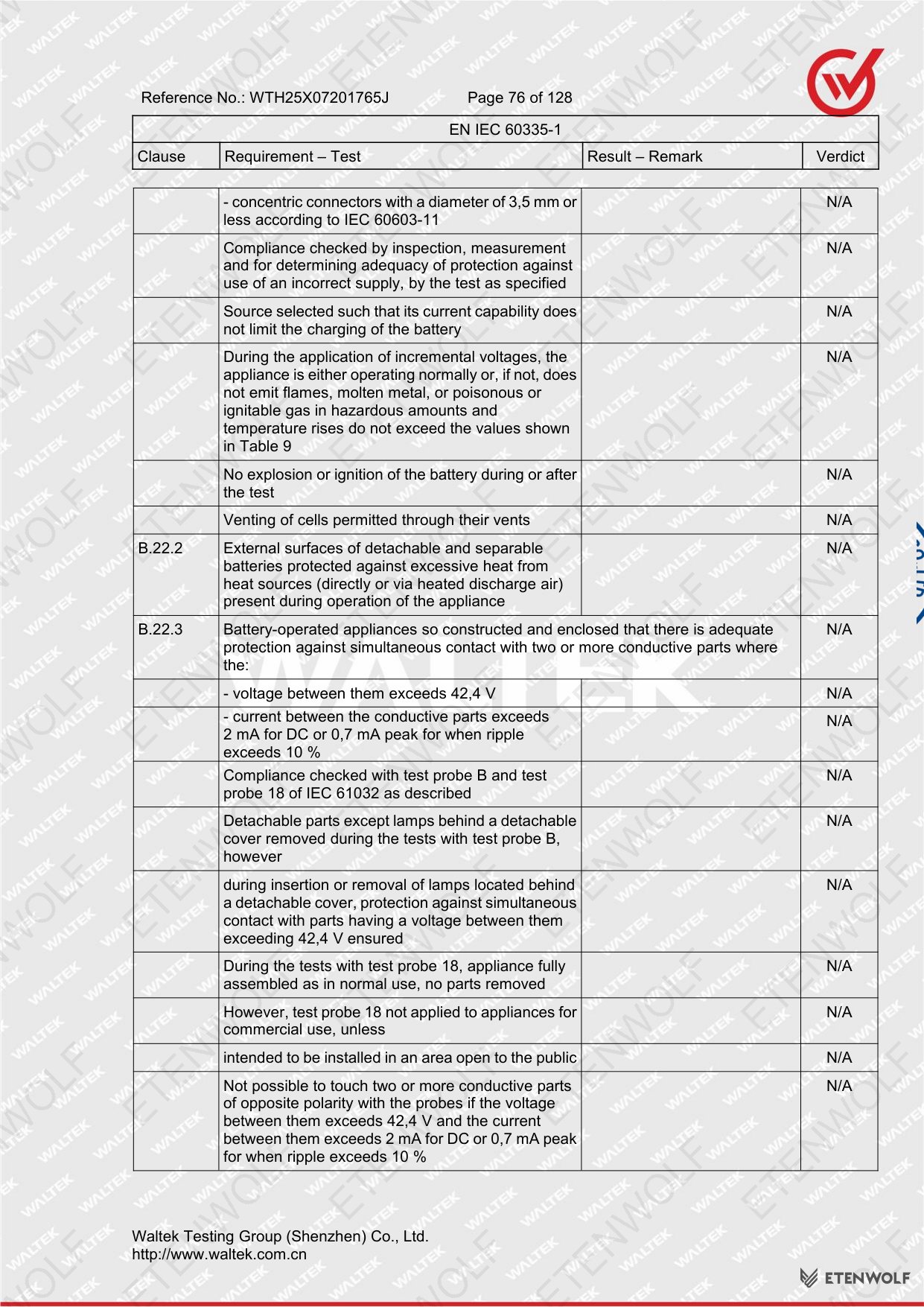

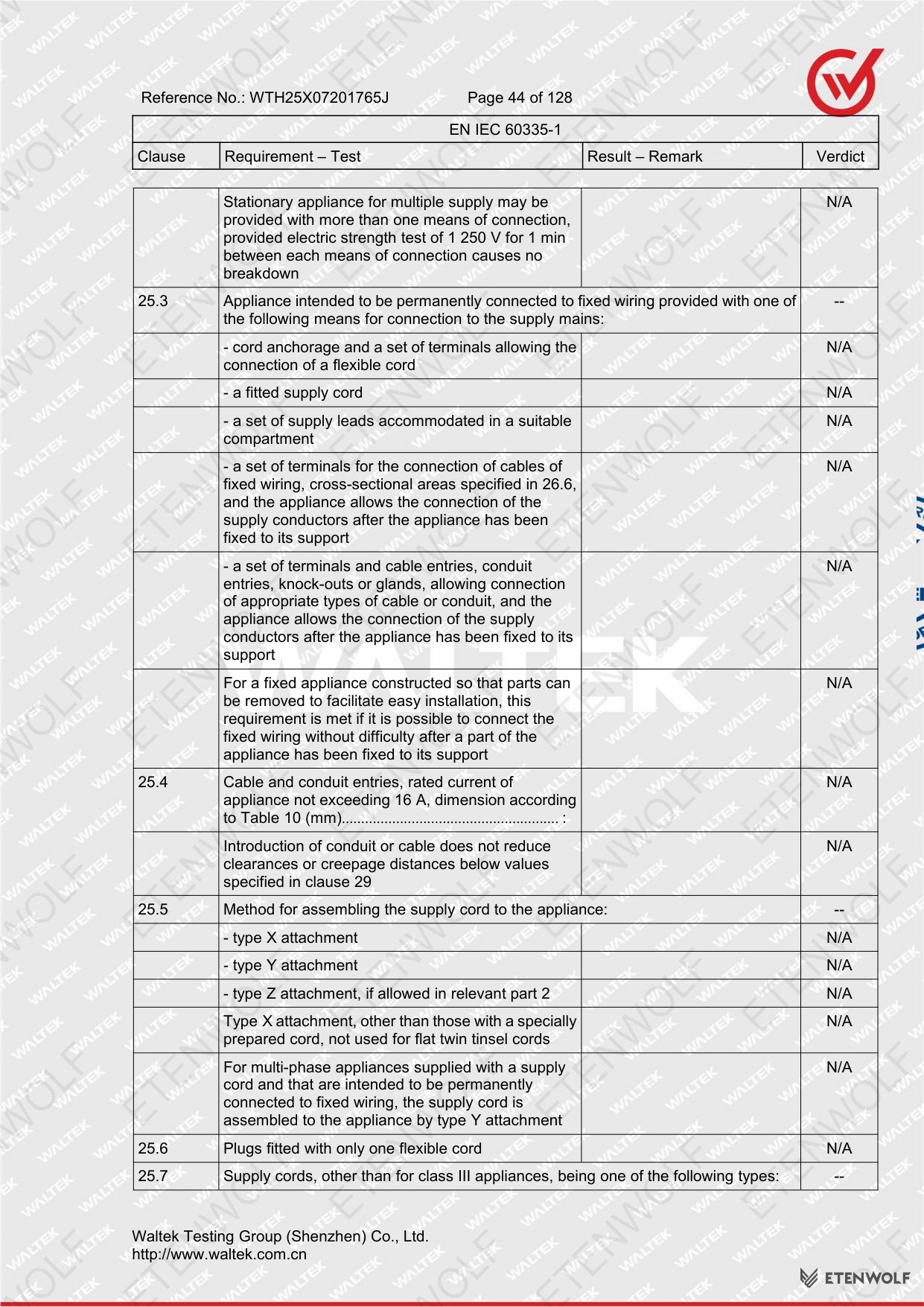

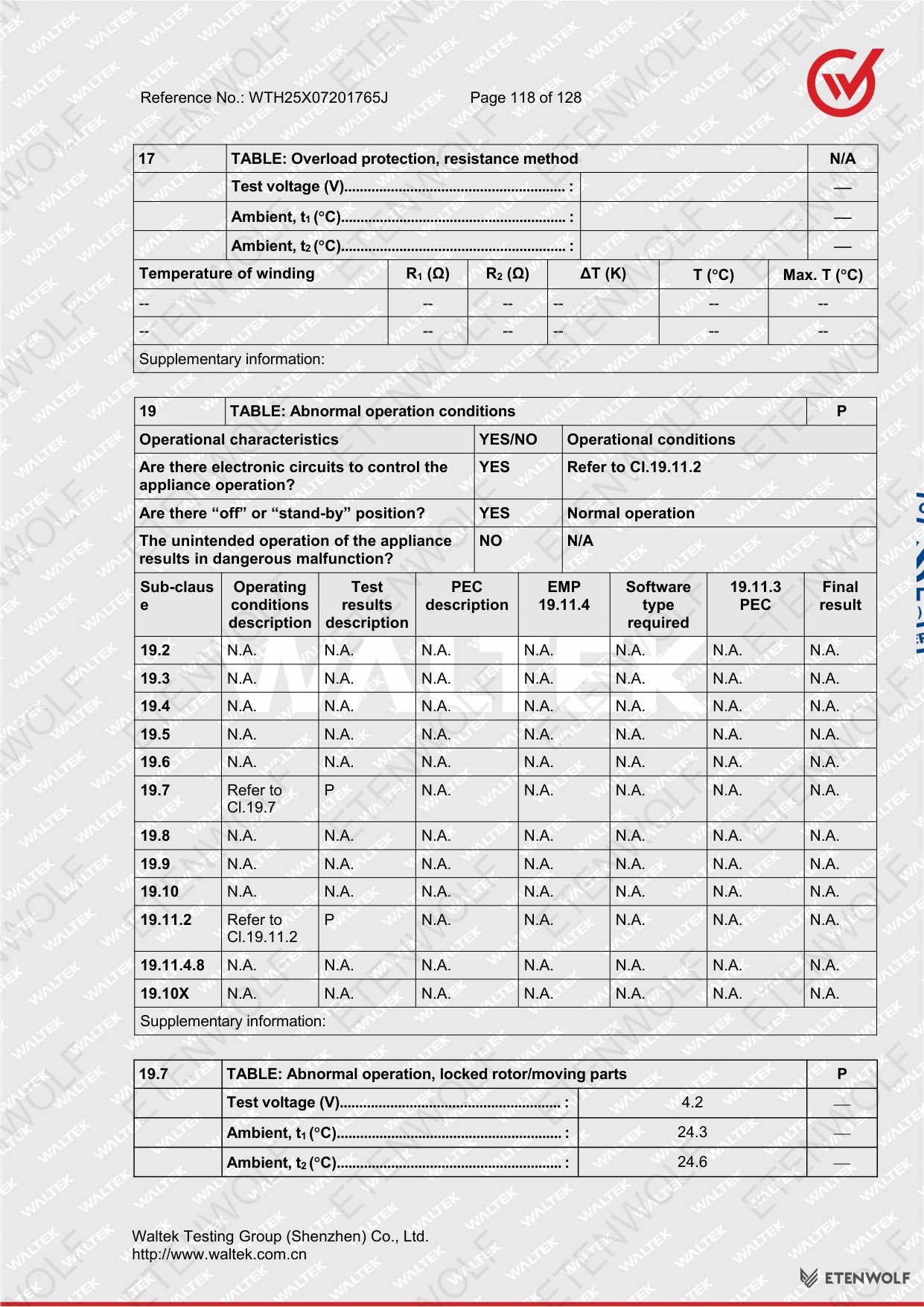

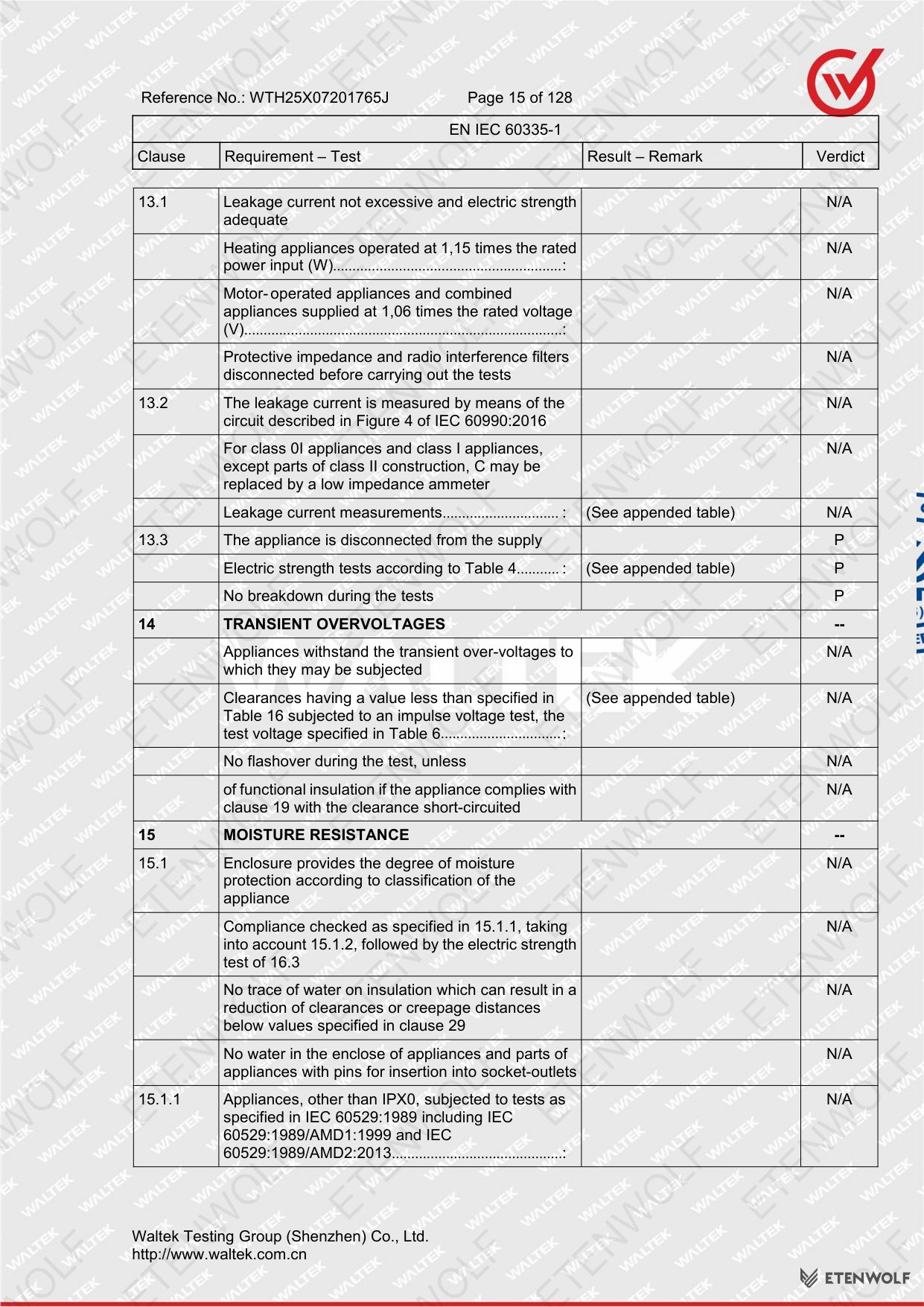

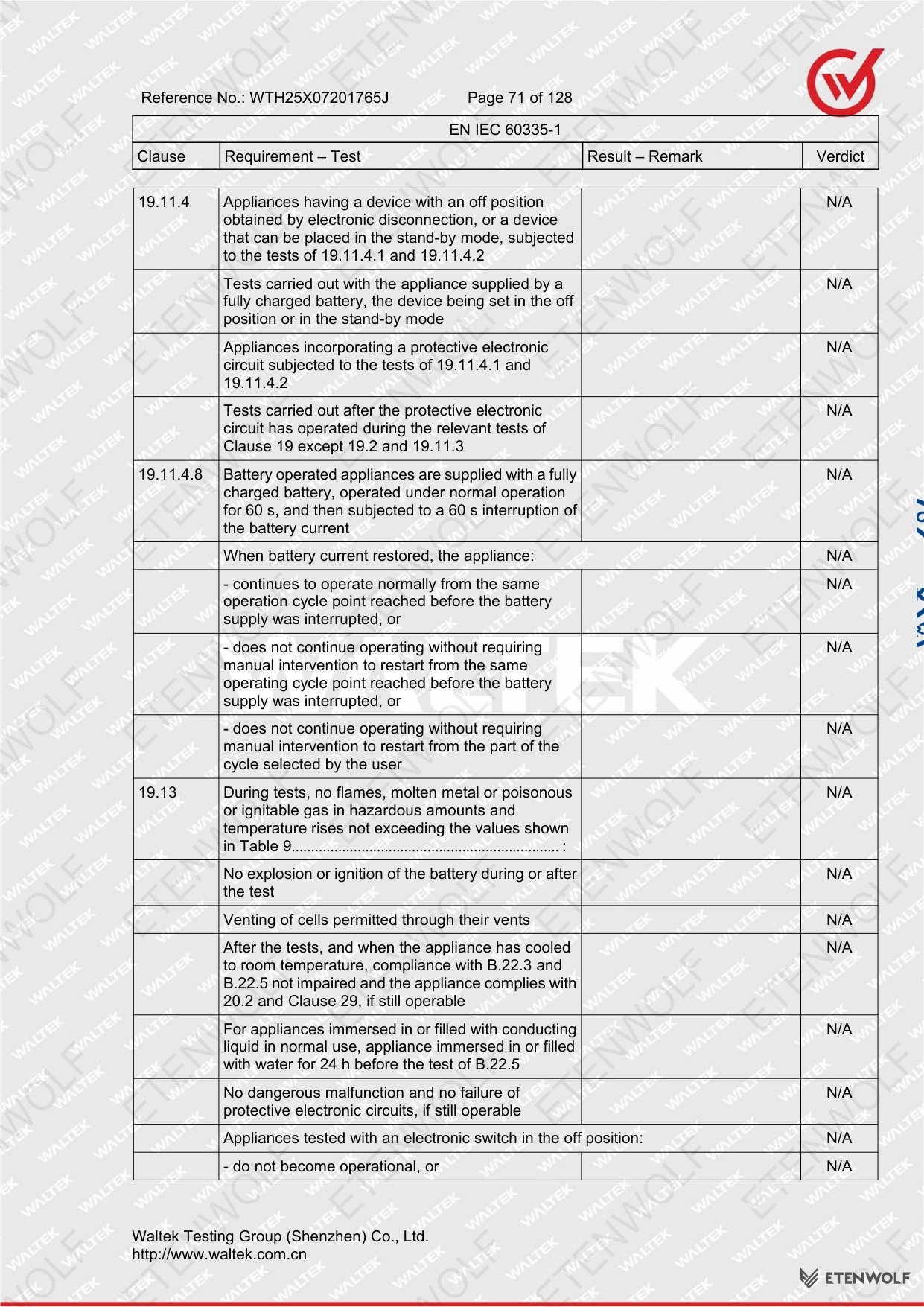

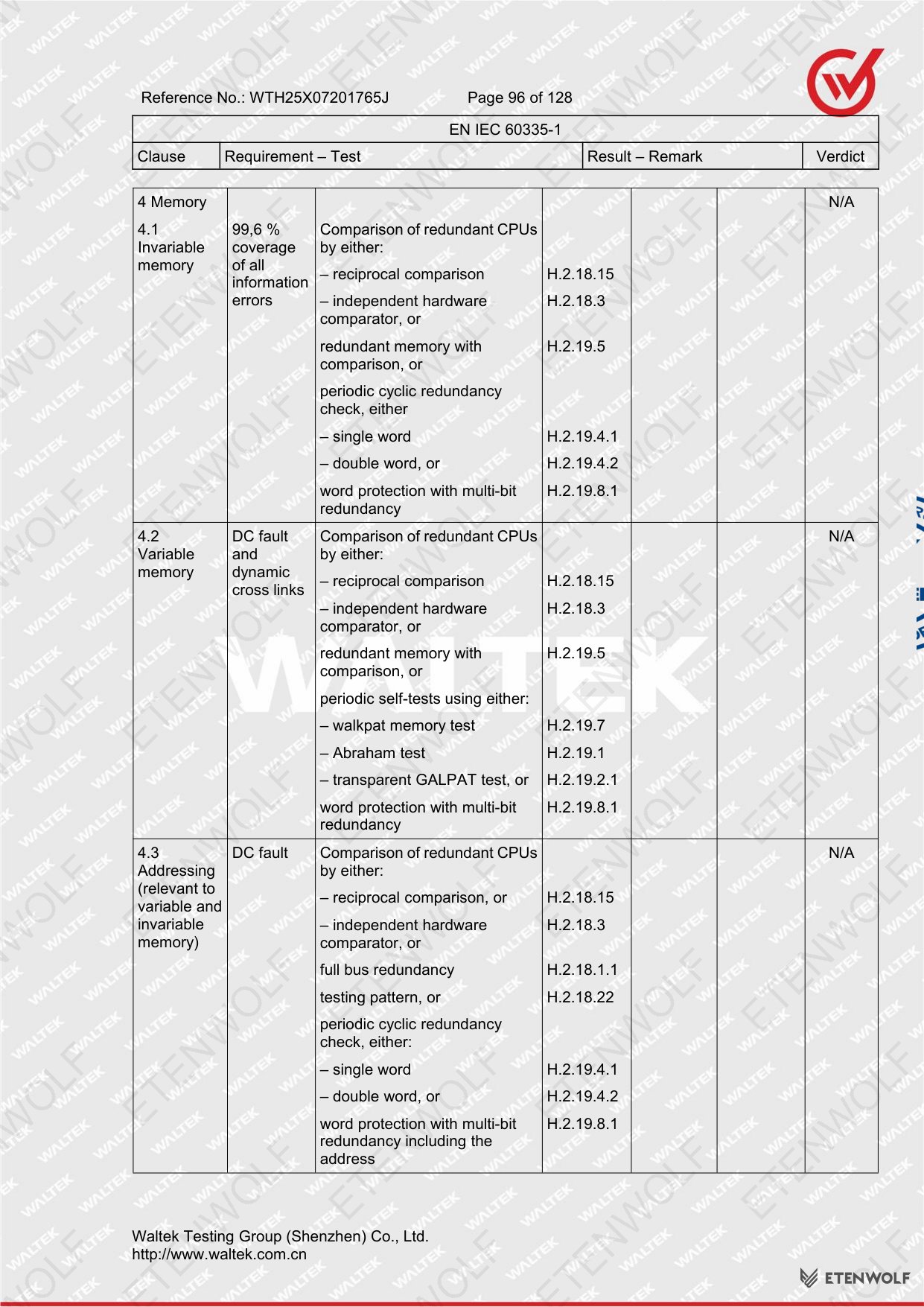

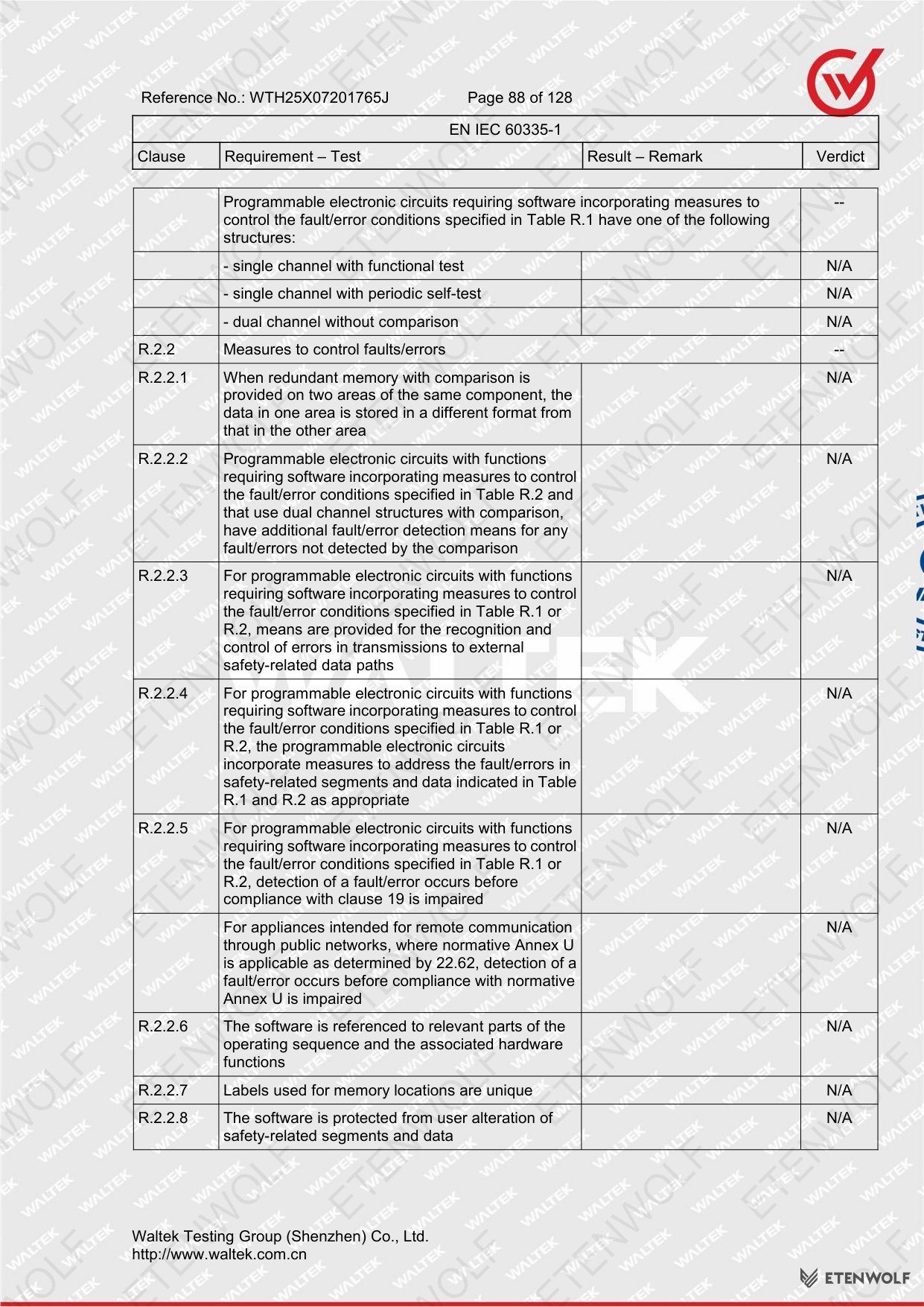

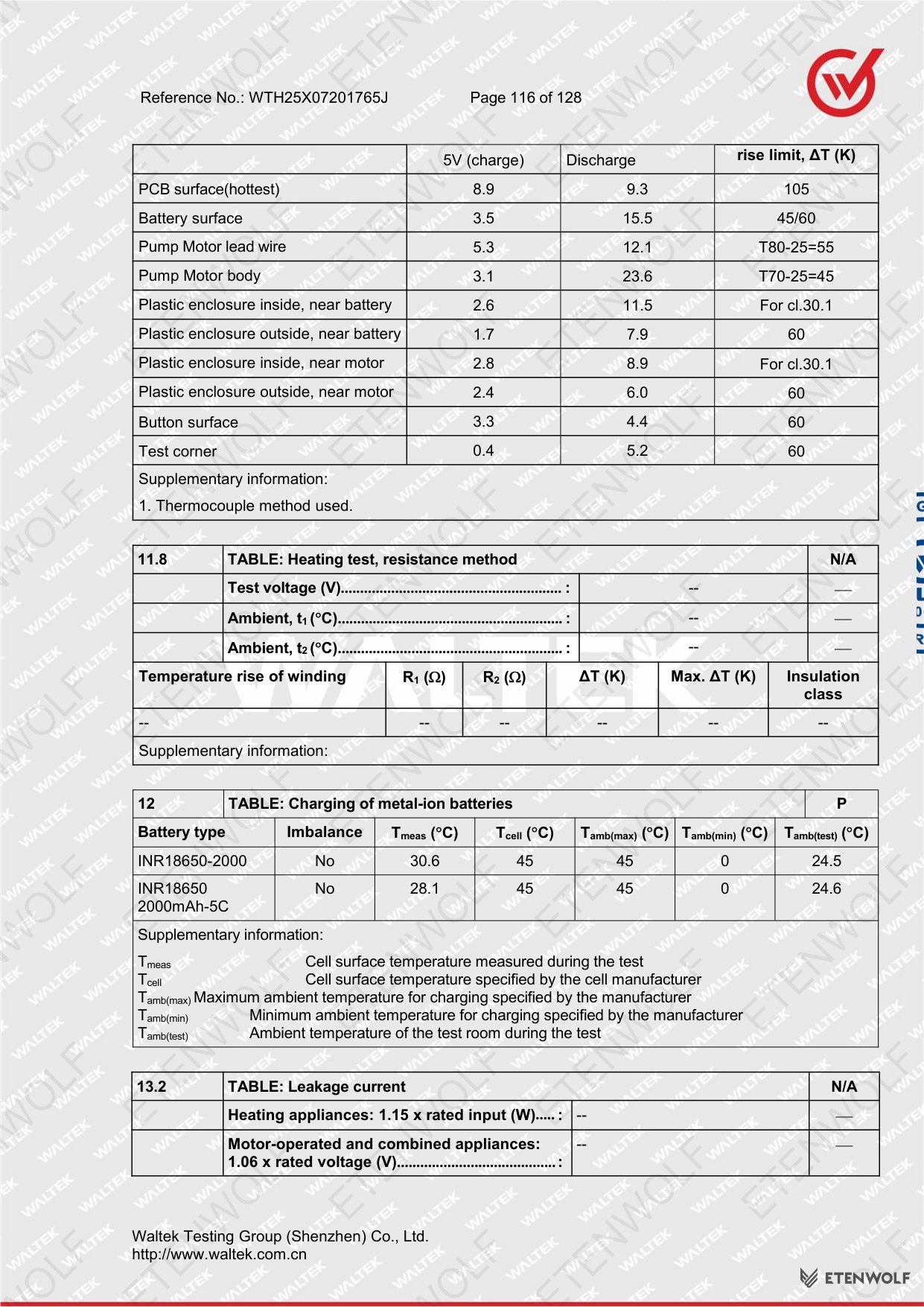

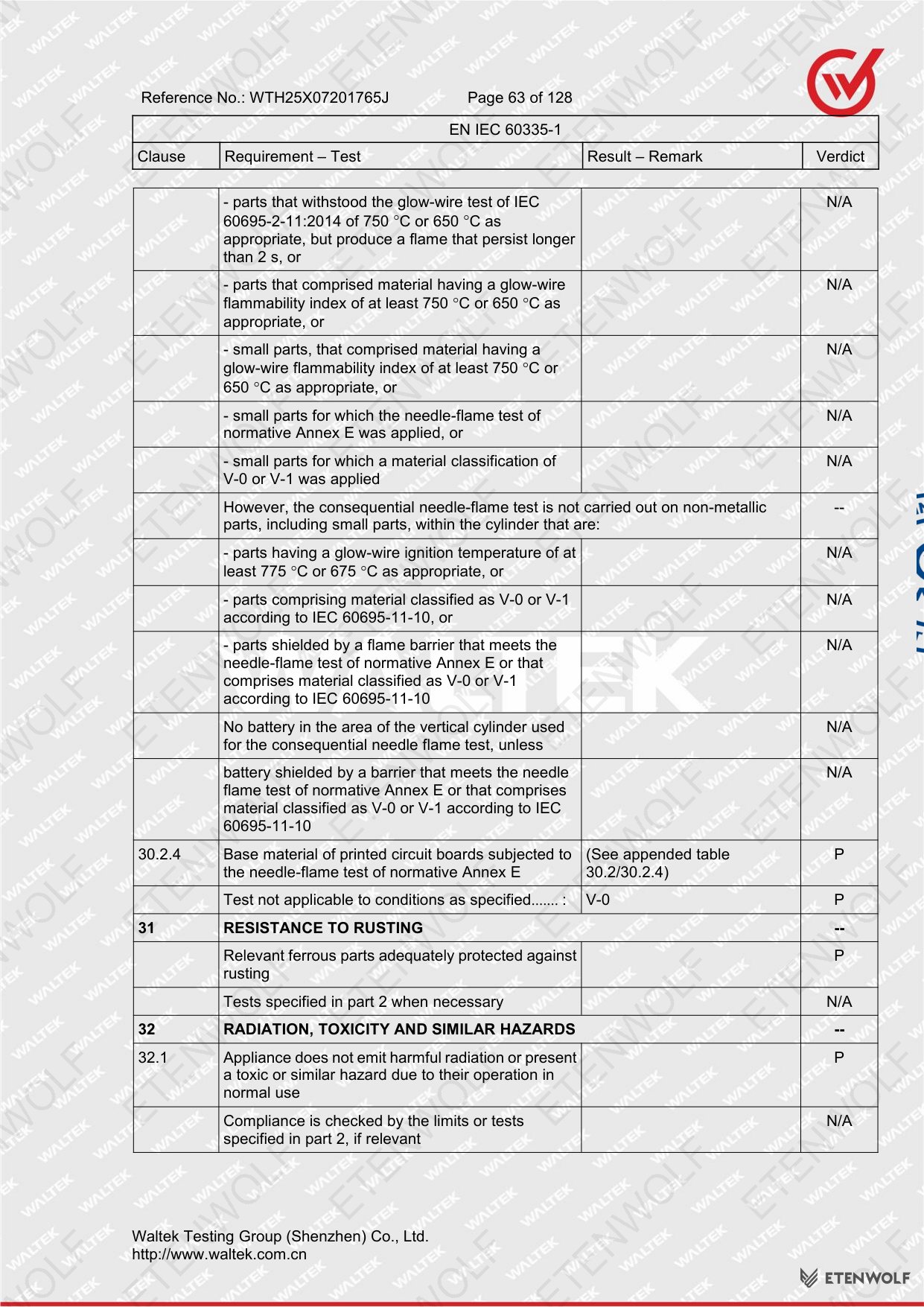

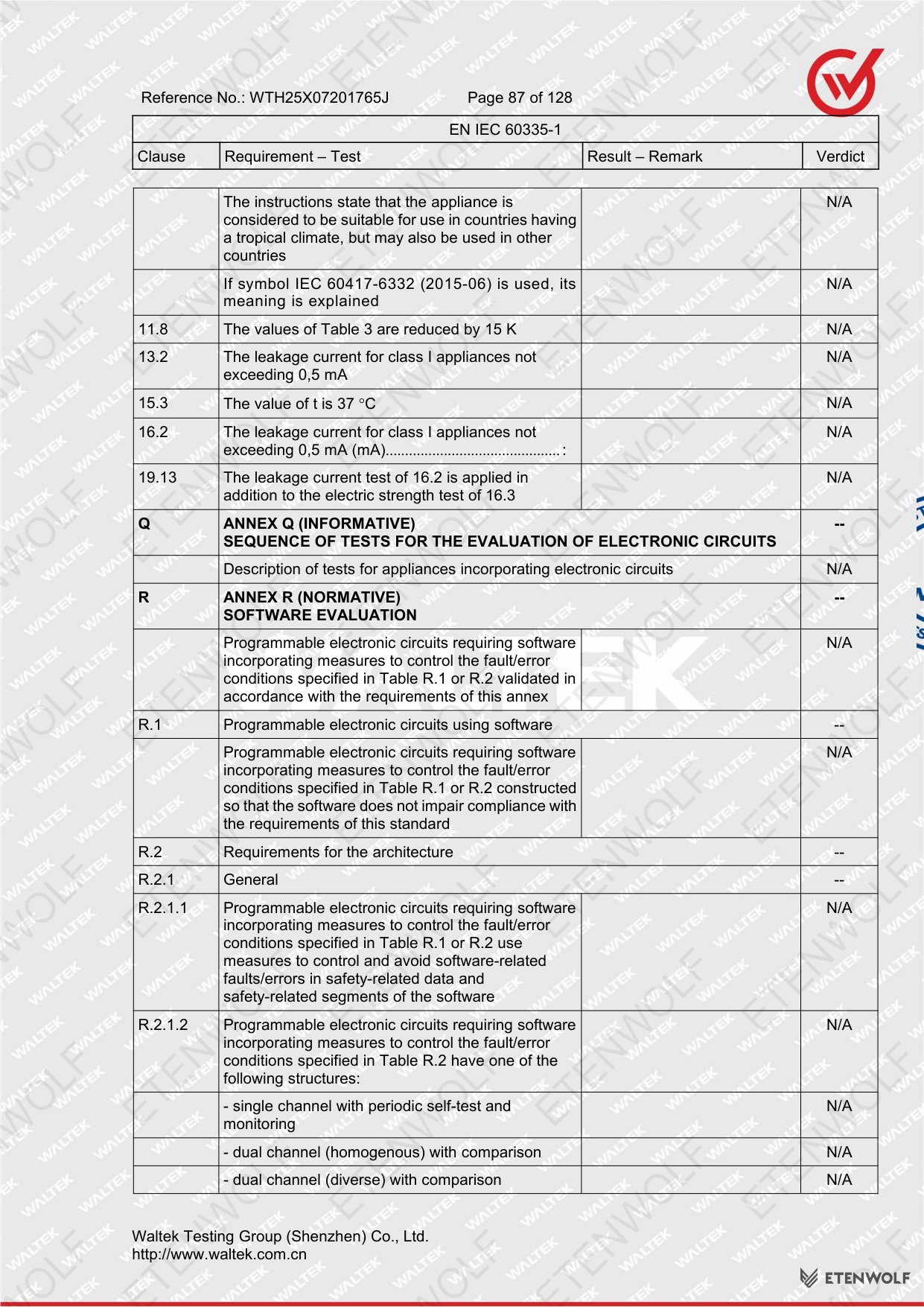

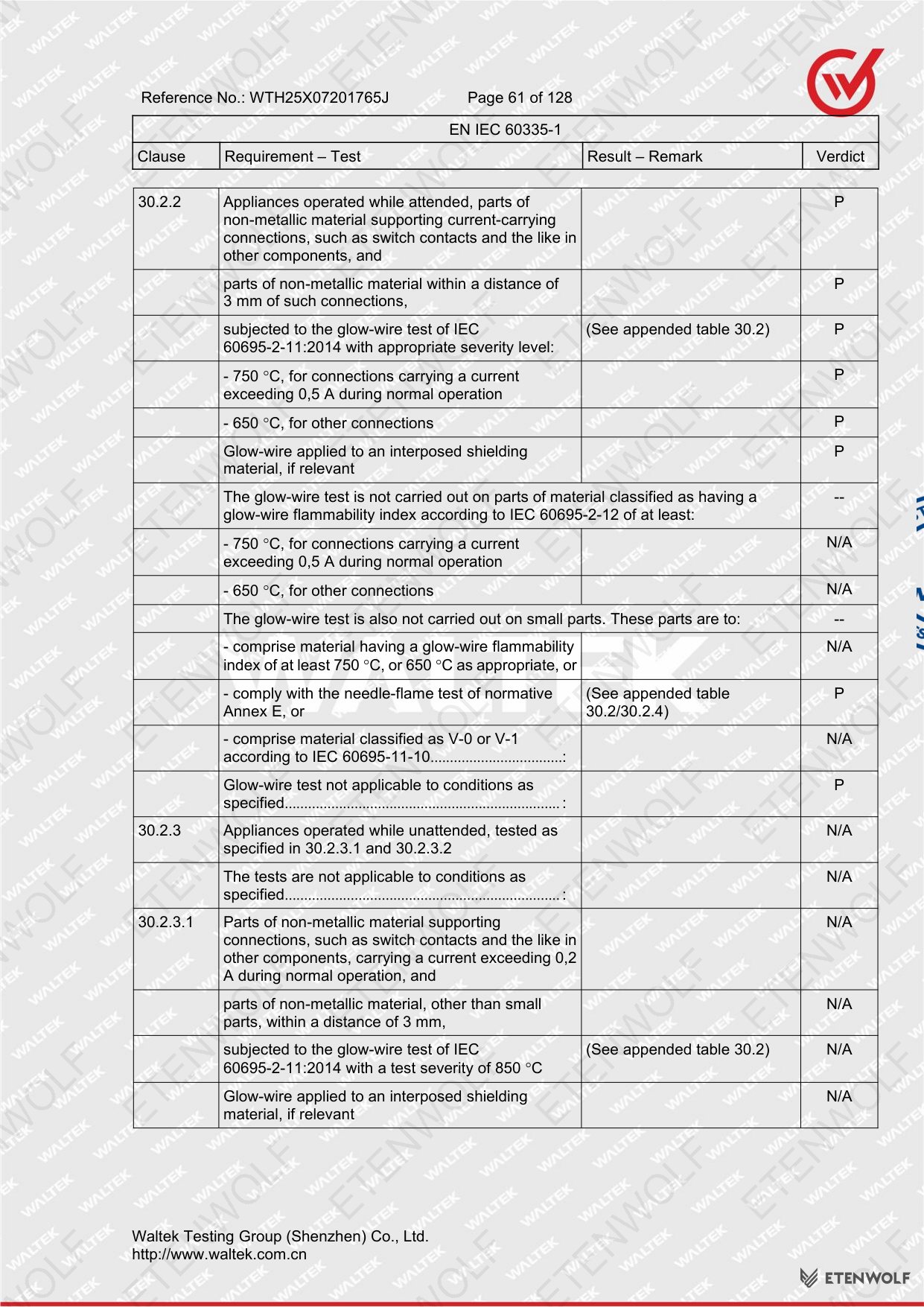

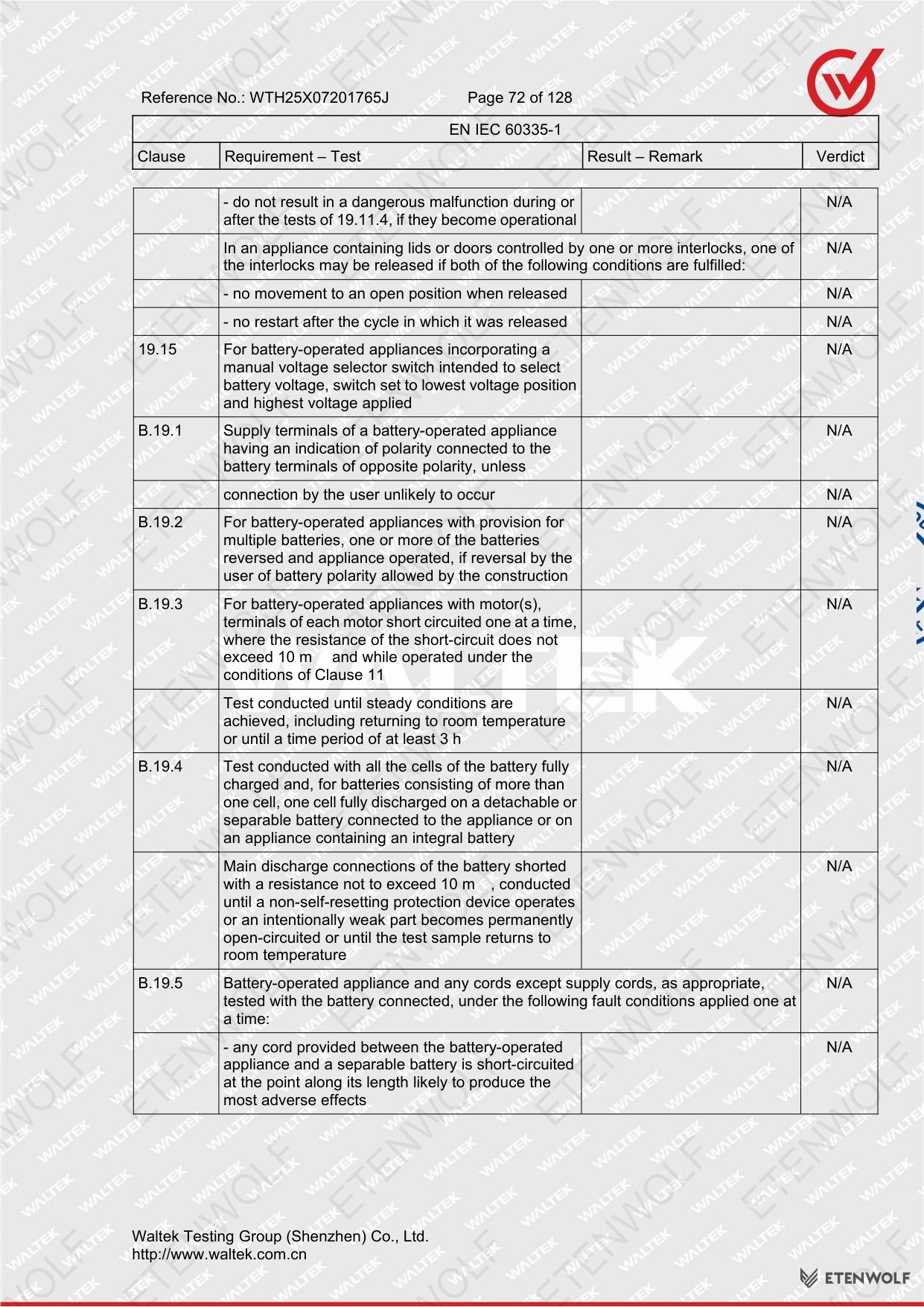

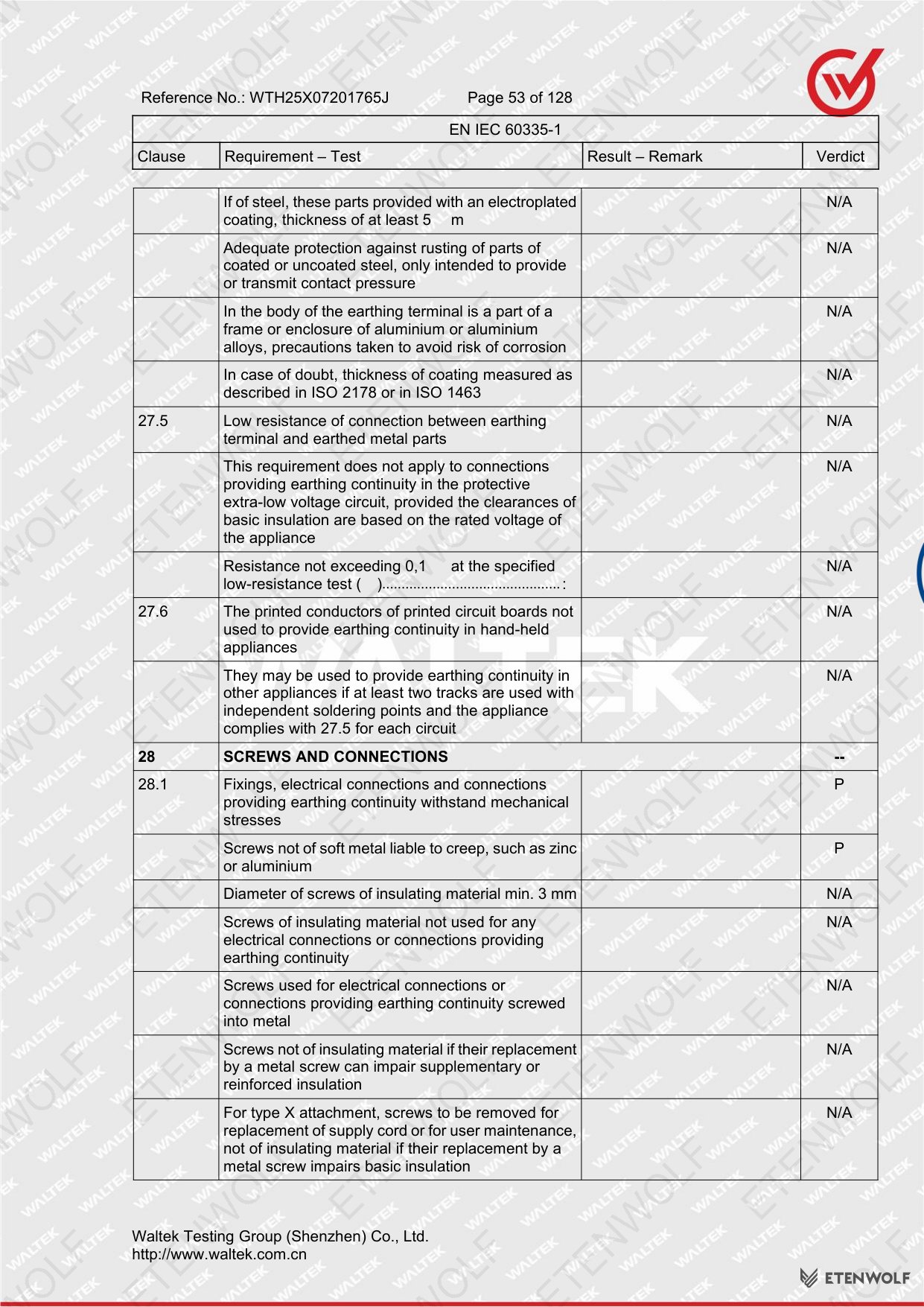

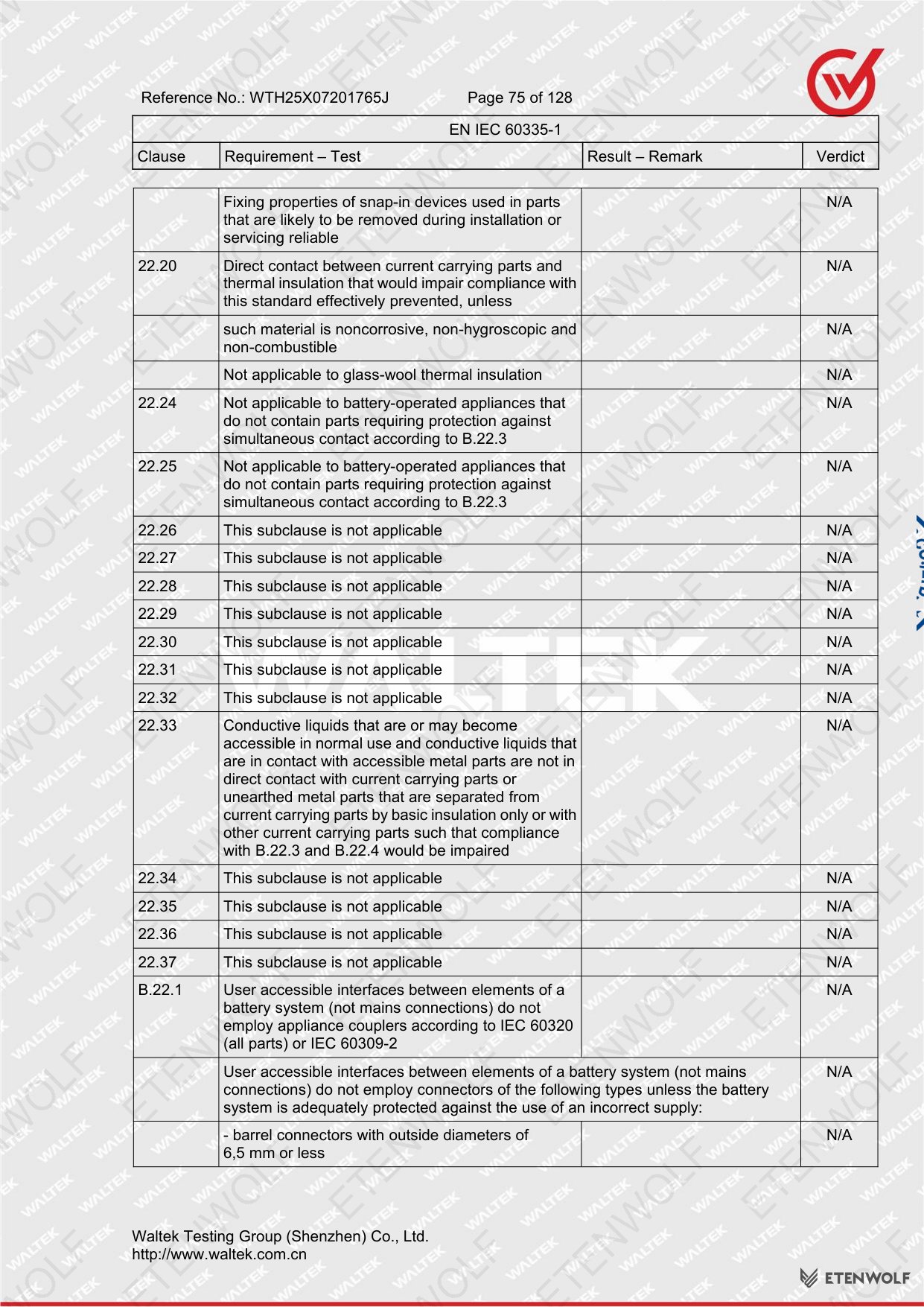

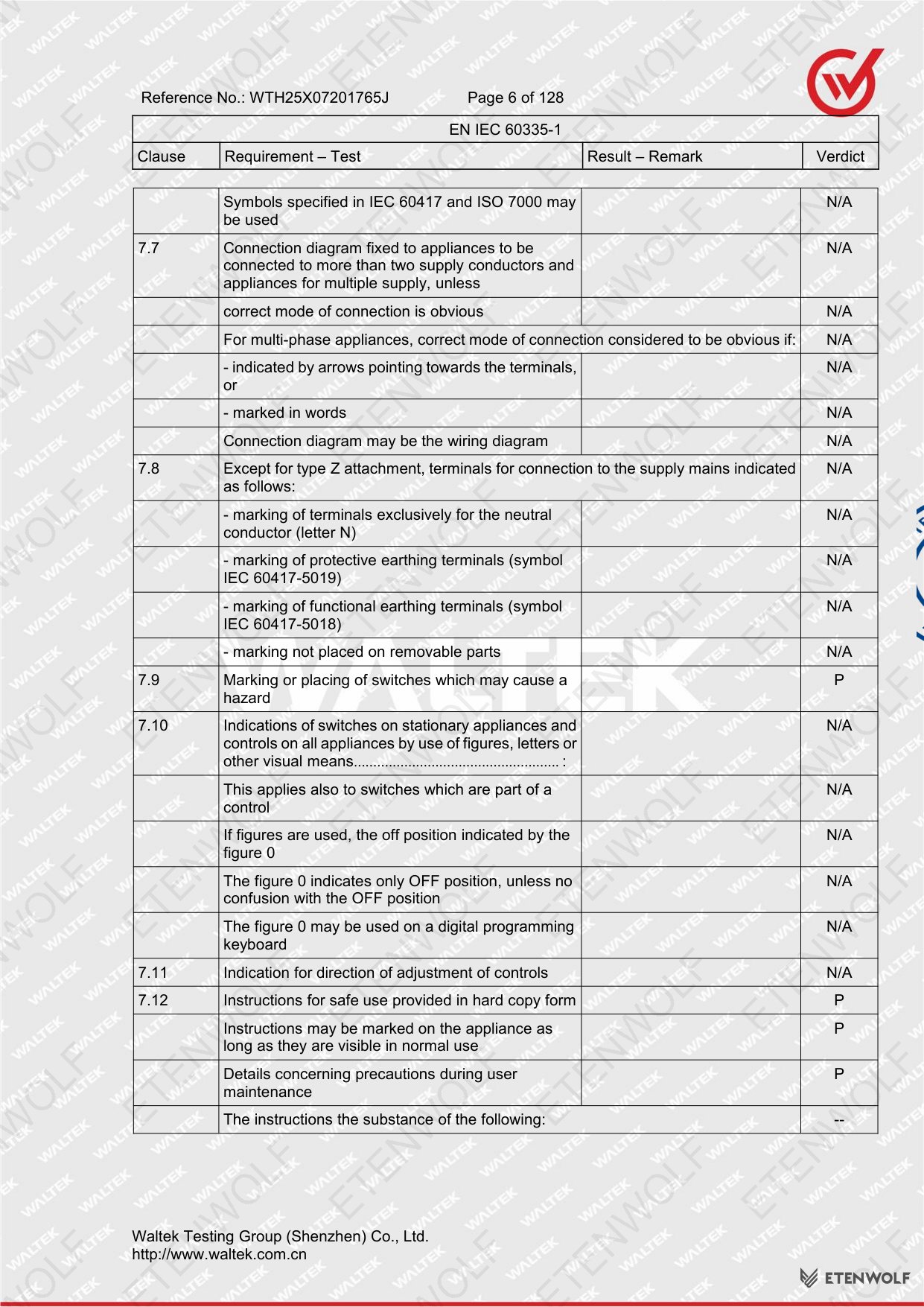

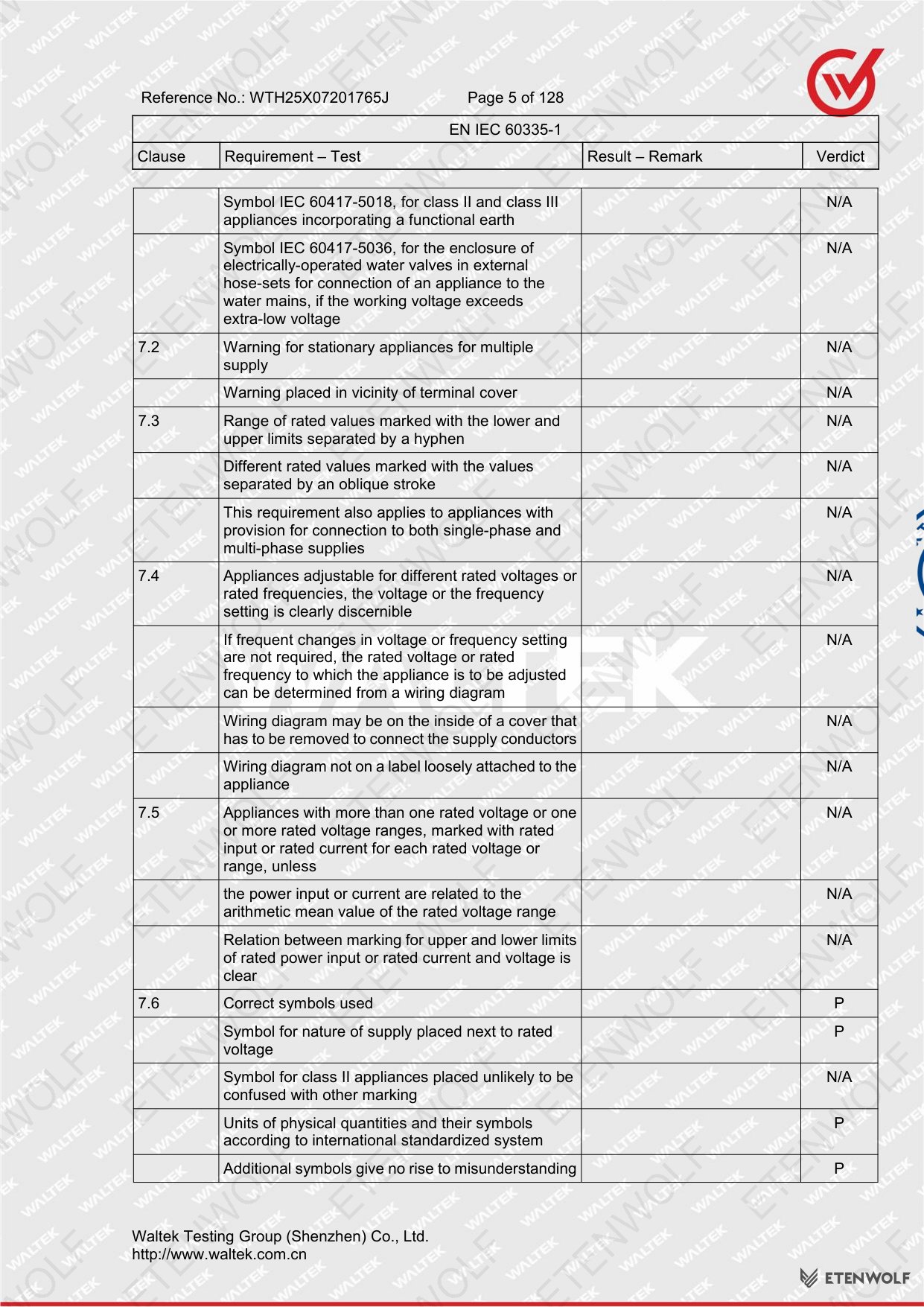

Document Pages
