UN38.3 1.2m Drop Test Report – ETENWOLF X5PRO Jump Starter with Air Compressor (WTH25D12334288B002)

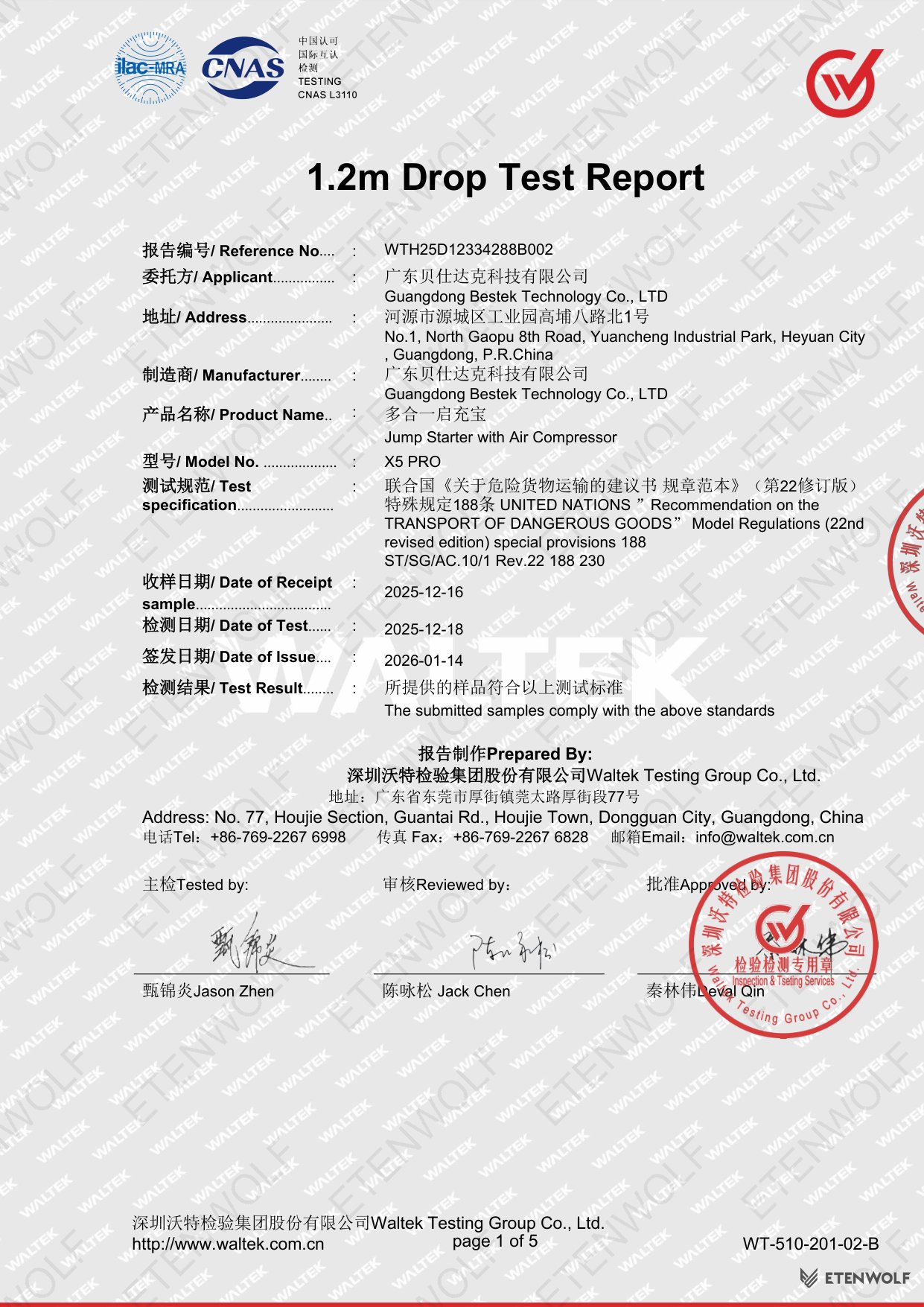

Document Overview

Document Overview This article covers the official 1.2m Drop Test Report issued under the United Nations Recommendations on the Transport of Dangerous Goods, Model Regulations (22nd Revised Edition), Special Provisions 188 (ST/SG/AC.10/1 Rev.22 188 230). The document verifies that the packaging used for the X5PRO…

Document type: Certification Report
Prepared by: Michelle Torres
Published: July 22, 2026
Last reviewed: July 22, 2026
Topics: International Transportation: CB / MSDS / UN38.3

Document Overview

This article covers the official 1.2m Drop Test Report issued under the United Nations Recommendations on the Transport of Dangerous Goods, Model Regulations (22nd Revised Edition), Special Provisions 188 (ST/SG/AC.10/1 Rev.22 188 230). The document verifies that the packaging used for the X5PRO Jump Starter with Air Compressor meets the prescribed drop-test requirements for lithium battery transport.

Report Number: WTH25D12334288B002
Document Type: UN38.3 1.2m Drop Test Report
Issuing Body: Waltek Testing Group Co., Ltd. (深圳沃特检验集团股份有限公司)
Date of Receipt of Sample: 2025-12-16
Date of Test: 2025-12-18
Date of Issue: 2026-01-14
Scope: Packaging drop-test compliance for lithium battery cells contained in the X5PRO unit, covering 6 drop orientations at 1.2 m height
Test Result: The submitted samples comply with the above standards (PASS)

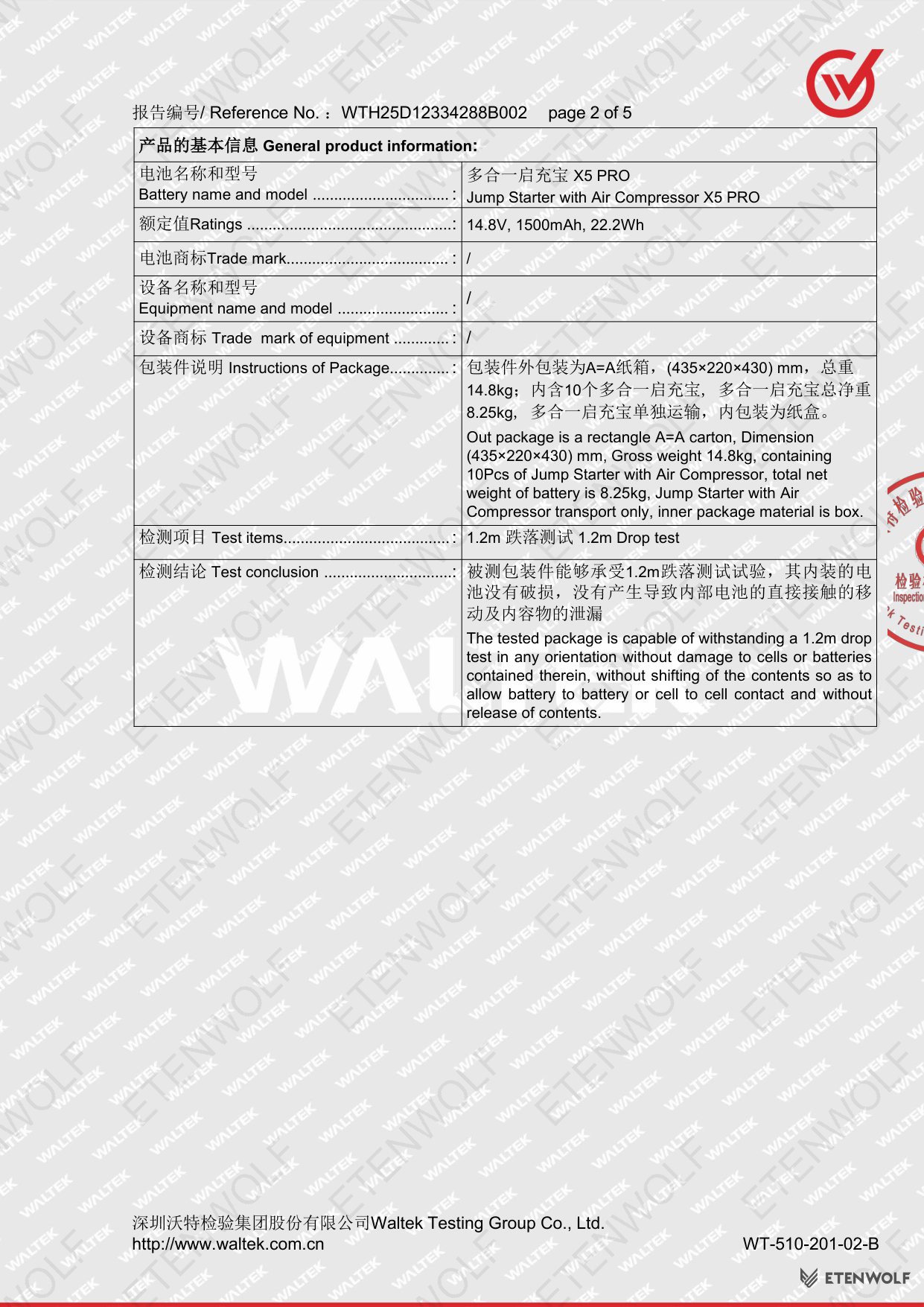

Product Information

The product tested under this report is the X5PRO Jump Starter with Air Compressor (多合一启充宝), manufactured and commercialised by Guangdong Bestek Technology Co., Ltd. It is a multi-function portable power device combining jump-start capability with an integrated air compressor, designed for roadside emergency use.

Field	Details
Product Name	Jump Starter with Air Compressor (多合一启充宝)
Model Number	X5 PRO
Battery Ratings	14.8 V, 1500 mAh, 22.2 Wh
Applicant / Manufacturer	Guangdong Bestek Technology Co., Ltd.
Manufacturer Address	No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China
Battery Trade Mark	—
Equipment Trade Mark	—

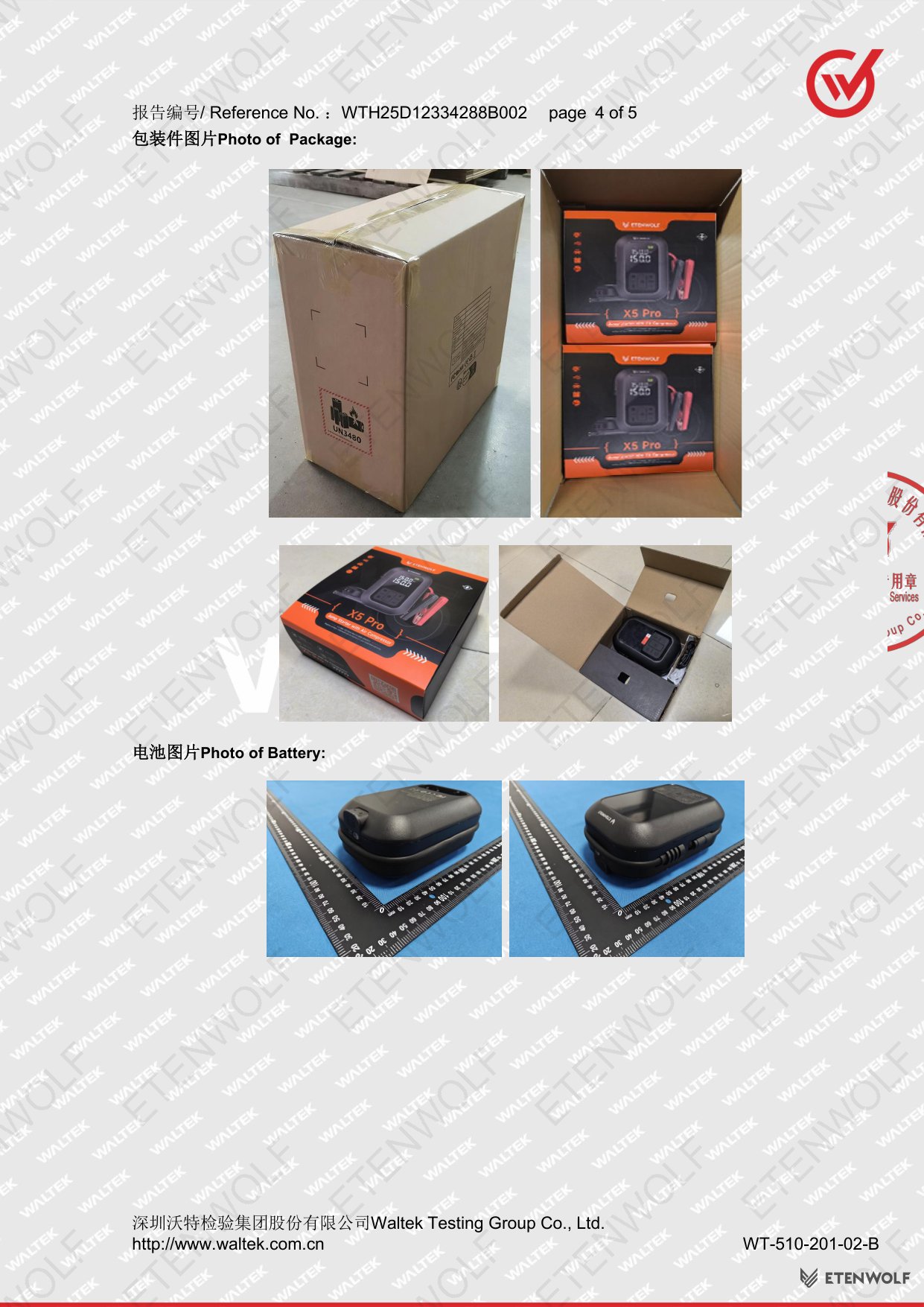

Packaging Details: Outer package is a rectangular A=A carton with dimensions 435 × 220 × 430 mm and a gross weight of 14.8 kg. Each carton contains 10 units of the X5PRO; total net battery weight is 8.25 kg. Units are transported separately; inner packaging material is a cardboard box.

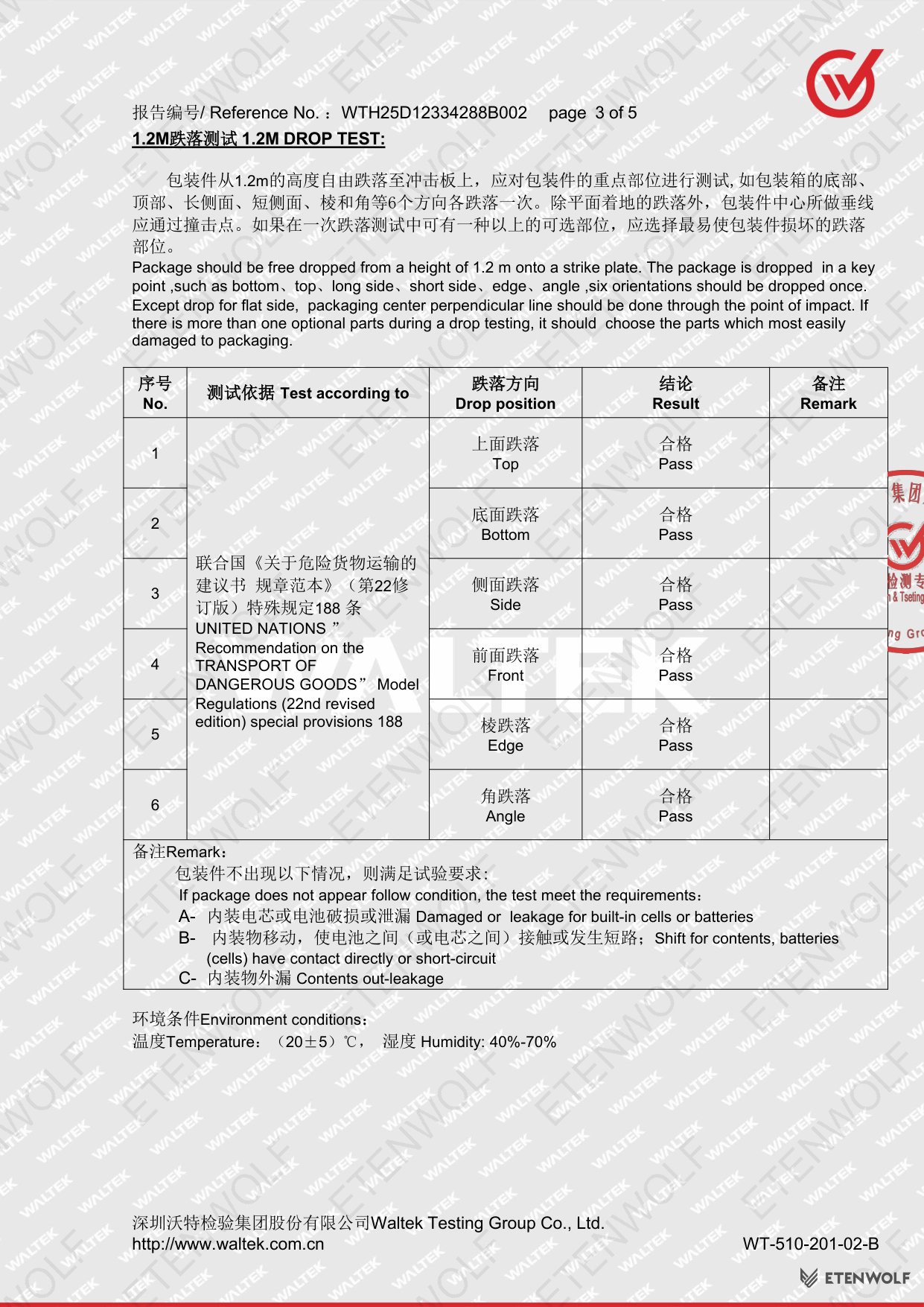

Key Details

The 1.2 m drop test was performed in accordance with UN Model Regulations (22nd Revised Edition), Special Provisions 188. The package was free-dropped from a height of 1.2 m onto a strike plate in six orientations. The centre-of-package perpendicular line passed through the point of impact for all non-flat drops. The most damage-prone part was selected wherever multiple options existed.

No.	Test Standard	Drop Orientation	Result
1	UN Model Regulations (22nd Ed.), Special Provisions 188	Top	Pass
2	UN Model Regulations (22nd Ed.), Special Provisions 188	Bottom	Pass
3	UN Model Regulations (22nd Ed.), Special Provisions 188	Side	Pass
4	UN Model Regulations (22nd Ed.), Special Provisions 188	Front	Pass
5	UN Model Regulations (22nd Ed.), Special Provisions 188	Edge	Pass
6	UN Model Regulations (22nd Ed.), Special Provisions 188	Angle / Corner	Pass

Pass Criteria: The package passes the test if none of the following failure conditions are observed:

(A) Damage or leakage of built-in cells or batteries
(B) Shifting of contents causing battery-to-battery or cell-to-cell contact or short-circuit
(C) Release or leakage of contents from the outer packaging

Environmental Conditions during Testing: Temperature: (20 ± 5) °C; Relative Humidity: 40%–70%

Standards & Compliance

The X5PRO packaging was evaluated against the following internationally recognised standard for the safe transport of lithium batteries:

Standard / Regulation	Description	Applicability
UN ST/SG/AC.10/1 Rev.22	United Nations Recommendations on the Transport of Dangerous Goods, Model Regulations, 22nd Revised Edition, Special Provisions 188 & 230	Packaging drop-test for lithium batteries in equipment

UN38.3 is the globally accepted test framework for lithium cells and batteries intended for transport. Special Provisions 188 defines the conditions under which small lithium cells and batteries may be transported, including packaging performance requirements such as the 1.2 m drop test documented in this report. Compliance with this standard is required by air carriers (IATA), sea carriers (IMDG), and road/rail authorities worldwide.

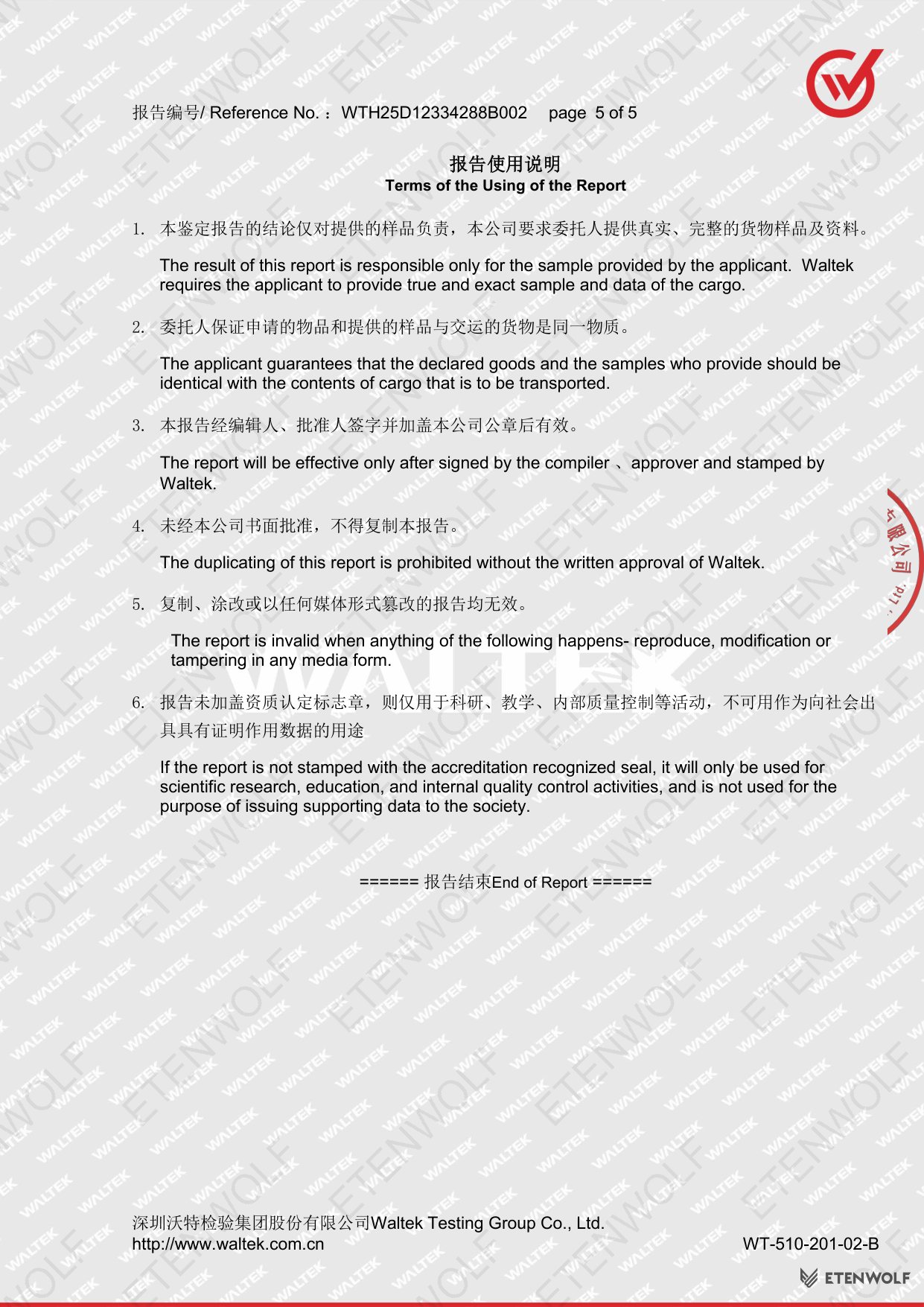

Validity & Certification Body

This report is valid as an original document bearing the signatures of the tester, reviewer, and approving authority, together with the official company seal of Waltek Testing Group Co., Ltd. Reproduction or alteration in any form renders the report invalid.

Report Issue Date: 2026-01-14
Testing Laboratory: Waltek Testing Group Co., Ltd. (深圳沃特检验集团股份有限公司)
Laboratory Address: No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China
Tel: +86-769-2267 6998
Fax: +86-769-2267 6828
Email: [email protected]
Website: http://www.waltek.com.cn
Tested by: 甄锦炎 (Jason Zhen)
Reviewed by: 陈咏松 (Jack Chen)
Approved by: 秦林伟 (Deval Qin)

Important Usage Terms: The conclusions of this report apply solely to the samples provided by the applicant. The applicant guarantees that the declared goods and provided samples are identical to the cargo to be transported. If the report is not stamped with the accreditation recognition seal, it is restricted to internal quality control, scientific research, or educational use and may not be used as publicly issued supporting data.

Frequently Asked Questions

What does the UN38.3 1.2m drop test verify for the X5PRO?: The 1.2 m drop test confirms that the outer packaging of the X5PRO Jump Starter with Air Compressor can withstand a free-fall impact from 1.2 metres in six orientations (top, bottom, side, front, edge, and corner) without causing damage to the internal lithium battery cells, without allowing battery-to-battery contact or short-circuit, and without releasing any contents from the package.
Why is UN38.3 compliance required for shipping the X5PRO?: The X5PRO contains a lithium battery (14.8 V, 1500 mAh, 22.2 Wh), which is classified as a dangerous good under international transport regulations. UN38.3 compliance is mandatory for air freight (IATA), sea freight (IMDG Code), and road/rail transport to ensure safe handling and protect against fire or chemical hazard risks during transit.
Who conducted the drop test and is Waltek an accredited laboratory?: The test was conducted by Waltek Testing Group Co., Ltd. (深圳沃特检验集团股份有限公司), based in Dongguan, Guangdong, China. Waltek is a professional third-party testing and certification body. Report No. WTH25D12334288B002 is signed by the tester (Jason Zhen), reviewer (Jack Chen), and approving authority (Deval Qin), and is valid only when bearing the official company seal and accreditation recognition stamp.
How many units were packed per carton and what were the packaging dimensions tested?: Each outer A=A carton contained 10 units of the X5PRO. The carton dimensions were 435 × 220 × 430 mm with a gross weight of 14.8 kg. The total net battery weight per carton was 8.25 kg. Each unit was individually packed in an inner cardboard box before being placed in the outer carton.
