REACH SVHC Test Report for ETENWOLF HB1 Air Pump (Mini) — Report No. WTH25X09256007C

Document Overview

Document Overview This page presents the findings of a REACH SVHC (Substances of Very High Concern) test report issued by Waltek Testing Group (Shenzhen) Co., Ltd., an accredited third-party testing laboratory. The document is classified as a chemical compliance test report under European Commission Regulation…

Document type
Certification Report
Prepared by
Michelle Torres
Published
Last reviewed
Topics
European Union: CE / RoHS / REACH / WEEE

Document Overview

This page presents the findings of a REACH SVHC (Substances of Very High Concern) test report issued by Waltek Testing Group (Shenzhen) Co., Ltd., an accredited third-party testing laboratory. The document is classified as a chemical compliance test report under European Commission Regulation (EC) No 1907/2006 (REACH).

  • Report Number: WTH25X09256007C
  • Document Type: REACH SVHC Test Report
  • Issuing Body: Waltek Testing Group (Shenzhen) Co., Ltd.
  • Date of Issue: 2025-10-16
  • Testing Period: 2025-09-25 to 2025-09-29
  • Date of Sample Receipt: 2025-09-25
  • Scope: Determination of 251 Substances of Very High Concern (SVHC) and 4 potential substances listed on the ECHA Candidate List as published at https://echa.europa.eu/candidate-list-table

Overall Test Conclusion: According to the specified scope and analytical techniques applied, the concentrations of all SVHC substances, potential substances, and SVHC-intended compounds are less than 0.1% (w/w) in all submitted sample groups. This confirms compliance with the REACH regulation threshold for articles.

Product Information

The tested product is the ETENWOLF HB1 compact air pump, marketed under the PUMP MINI/A3/HiPUMP model designation. This portable inflation device is designed for versatile inflation tasks and represents a core product line within the ETENWOLF inflation tools range.

Field Detail
Sample Name AIR PUMP
Model Number PUMP MINI / A3 / HiPUMP
Reference Model Number NA
Brand ETENWOLF (HB1)
Applicant Guangdong Bestek Technology Co., LTD
Applicant Address No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China
Manufacturer Guangdong Bestek Technology Co., LTD
Manufacturer Address No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China

The ETENWOLF HB1 is composed of a broad range of material types including metals (casings, coils, contacts, solder), non-metallic polymers and rubbers (shells, wire jackets, soft plastics), electronic components (PCB, SMD components, LED, ICs), and an integrated battery cell. All 54 identified sample parts across four test groups were evaluated for SVHC content.

Key Details

The testing laboratory divided the product samples into four test groups (T01–T04) based on material category. Each group was analysed against the full ECHA Candidate List of 251 SVHC substances plus 4 potential substances. All groups returned a result of ND (Not Detected).

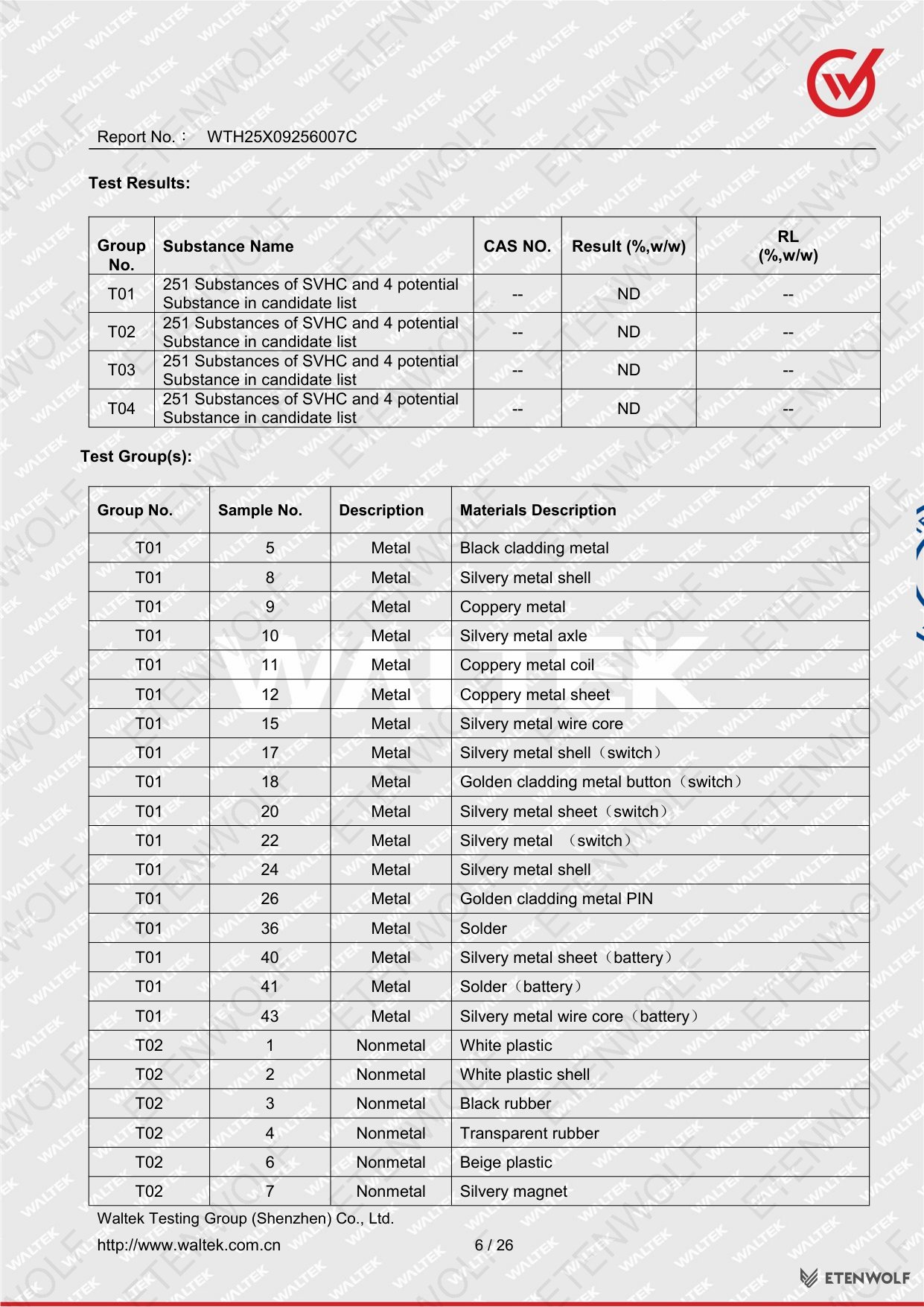

Summary of Test Results by Group

Group No. Material Category Result (%,w/w) RL (%,w/w)
T01 Metal components ND
T02 Non-metal components (plastics, rubber, magnets) ND
T03 Electronic / PCB components and battery parts ND
T04 Battery cell ND

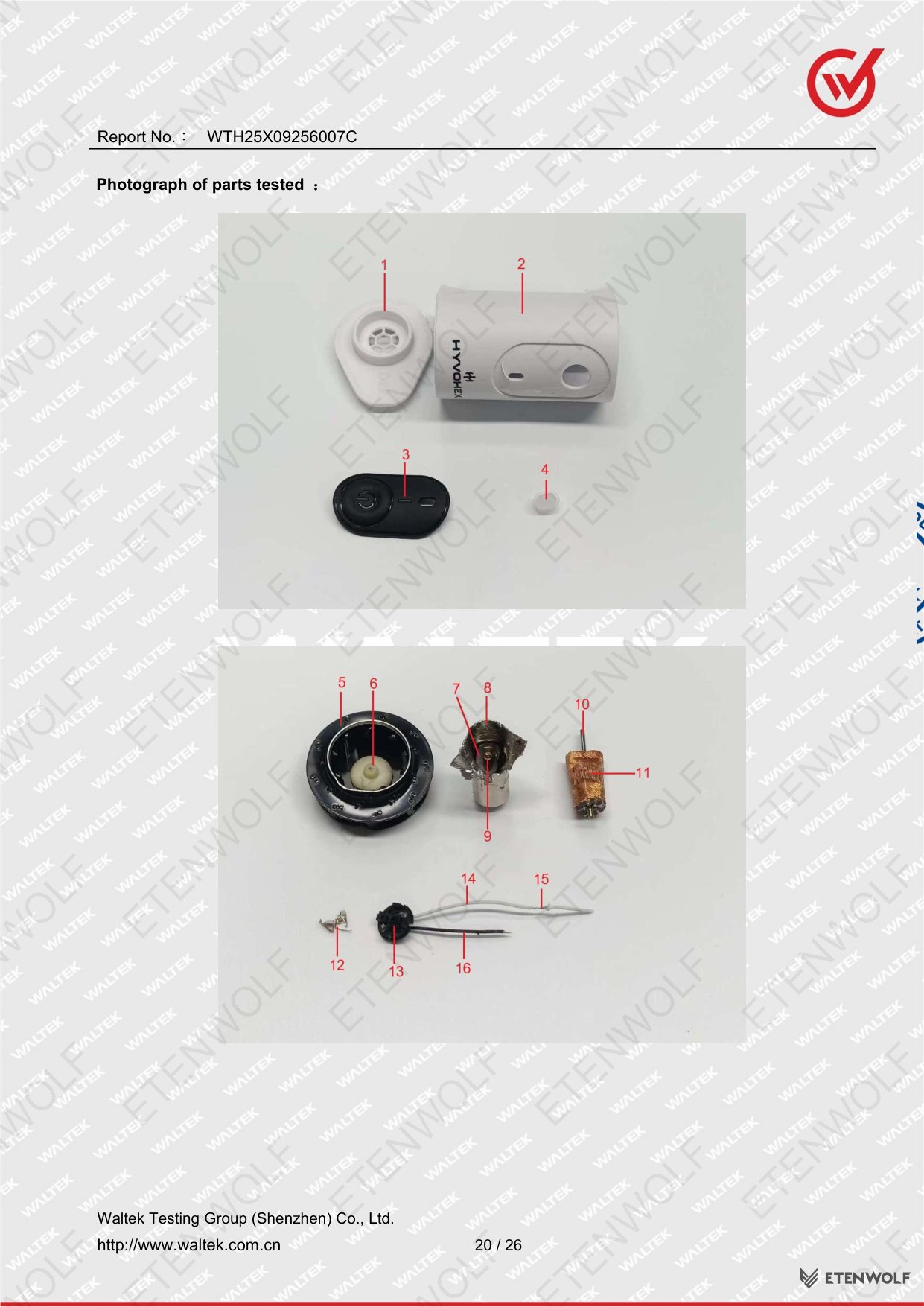

T01 — Metal Components (Sample Details)

Sample No. Description Materials Description
5 Metal Black cladding metal
8 Metal Silvery metal shell
9 Metal Coppery metal
10 Metal Silvery metal axle
11 Metal Coppery metal coil
12 Metal Coppery metal sheet
15 Metal Silvery metal wire core
17 Metal Silvery metal shell (switch)
18 Metal Golden cladding metal button (switch)
20 Metal Silvery metal sheet (switch)
22 Metal Silvery metal (switch)
24 Metal Silvery metal shell
26 Metal Golden cladding metal PIN
36 Metal Solder
40 Metal Silvery metal sheet (battery)
41 Metal Solder (battery)
43 Metal Silvery metal wire core (battery)

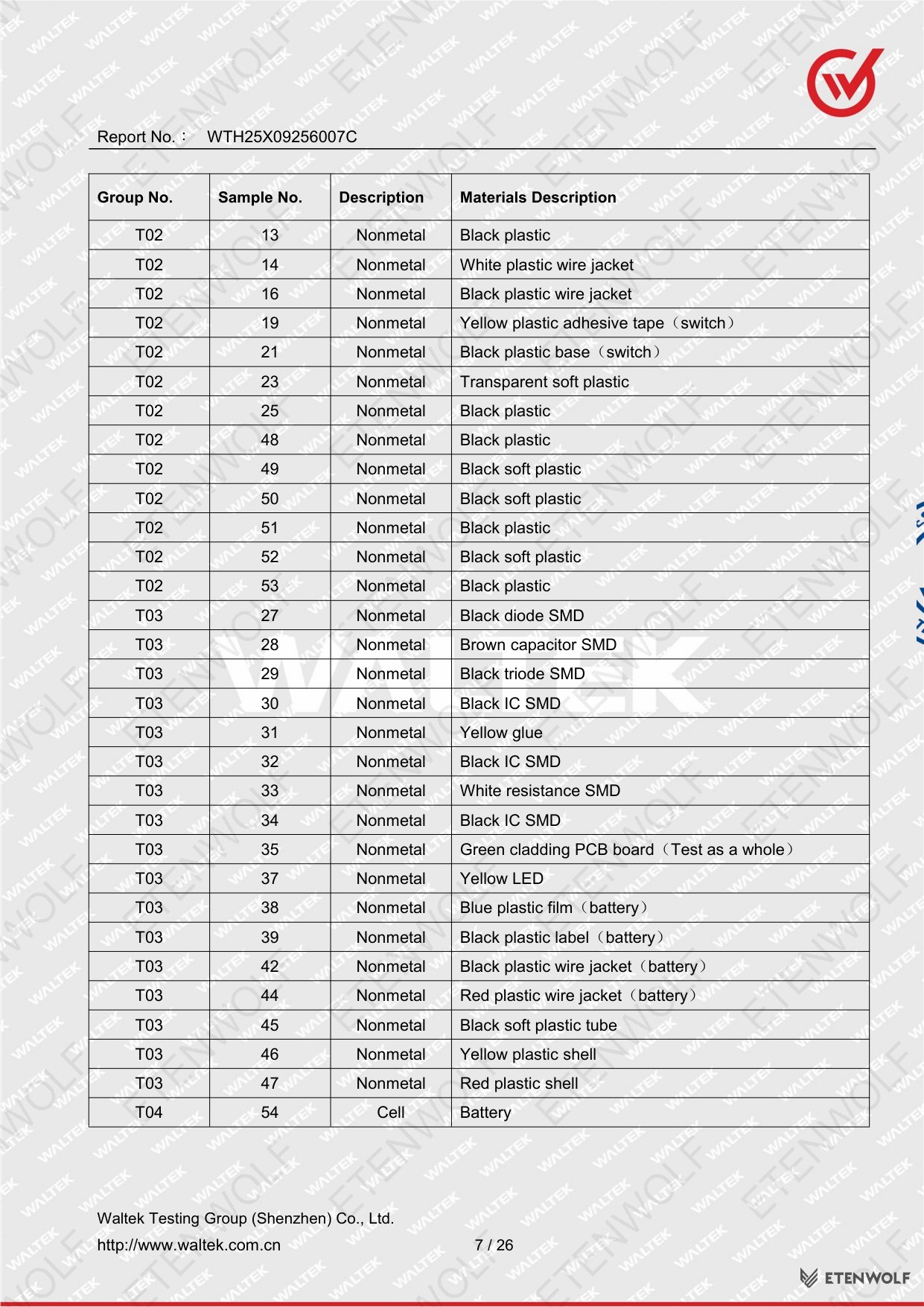

T02 — Non-Metal Components (Sample Details)

Sample No. Description Materials Description
1 Nonmetal White plastic
2 Nonmetal White plastic shell
3 Nonmetal Black rubber
4 Nonmetal Transparent rubber
6 Nonmetal Beige plastic
7 Nonmetal Silvery magnet
13 Nonmetal Black plastic
14 Nonmetal White plastic wire jacket
16 Nonmetal Black plastic wire jacket
19 Nonmetal Yellow plastic adhesive tape (switch)
21 Nonmetal Black plastic base (switch)
23 Nonmetal Transparent soft plastic
25 Nonmetal Black plastic
48 Nonmetal Black plastic
49 Nonmetal Black soft plastic
50 Nonmetal Black soft plastic
51 Nonmetal Black plastic
52 Nonmetal Black soft plastic
53 Nonmetal Black plastic

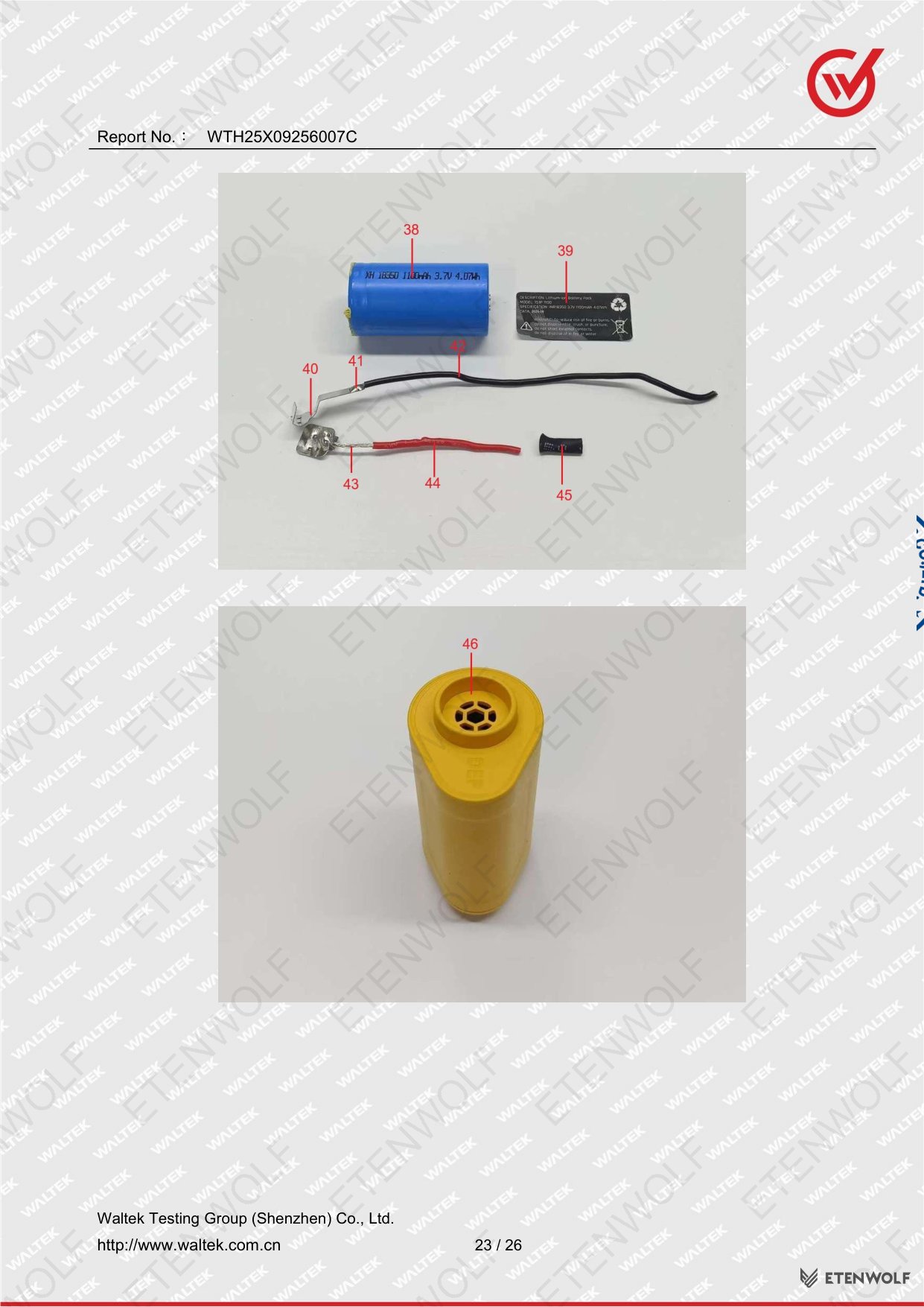

T03 — Electronic / PCB and Battery Housing Components

Sample No. Description Materials Description
27 Nonmetal Black diode SMD
28 Nonmetal Brown capacitor SMD
29 Nonmetal Black triode SMD
30 Nonmetal Black IC SMD
31 Nonmetal Yellow glue
32 Nonmetal Black IC SMD
33 Nonmetal White resistance SMD
34 Nonmetal Black IC SMD
35 Nonmetal Green cladding PCB board (tested as a whole)
37 Nonmetal Yellow LED
38 Nonmetal Blue plastic film (battery)
39 Nonmetal Black plastic label (battery)
42 Nonmetal Black plastic wire jacket (battery)
44 Nonmetal Red plastic wire jacket (battery)
45 Nonmetal Black soft plastic tube
46 Nonmetal Yellow plastic shell
47 Nonmetal Red plastic shell

T04 — Battery Cell

Sample No. Description Materials Description
54 Cell Battery

ND = Not Detected. All substance concentrations are below the reporting limit (RL). Results are calculated based on the minimum weight of mixed components.

Standards & Compliance

The ETENWOLF HB1 was tested against the ECHA SVHC Candidate List in accordance with European Commission Regulation (EC) No 1907/2006 (REACH). The test scope covered 251 officially listed SVHC substances and 4 additional potential substances identified by ECHA.

Applicable Regulation

Regulation / Standard Description
EC No 1907/2006 (REACH) Registration, Evaluation, Authorisation and Restriction of Chemicals — EU chemical safety regulation

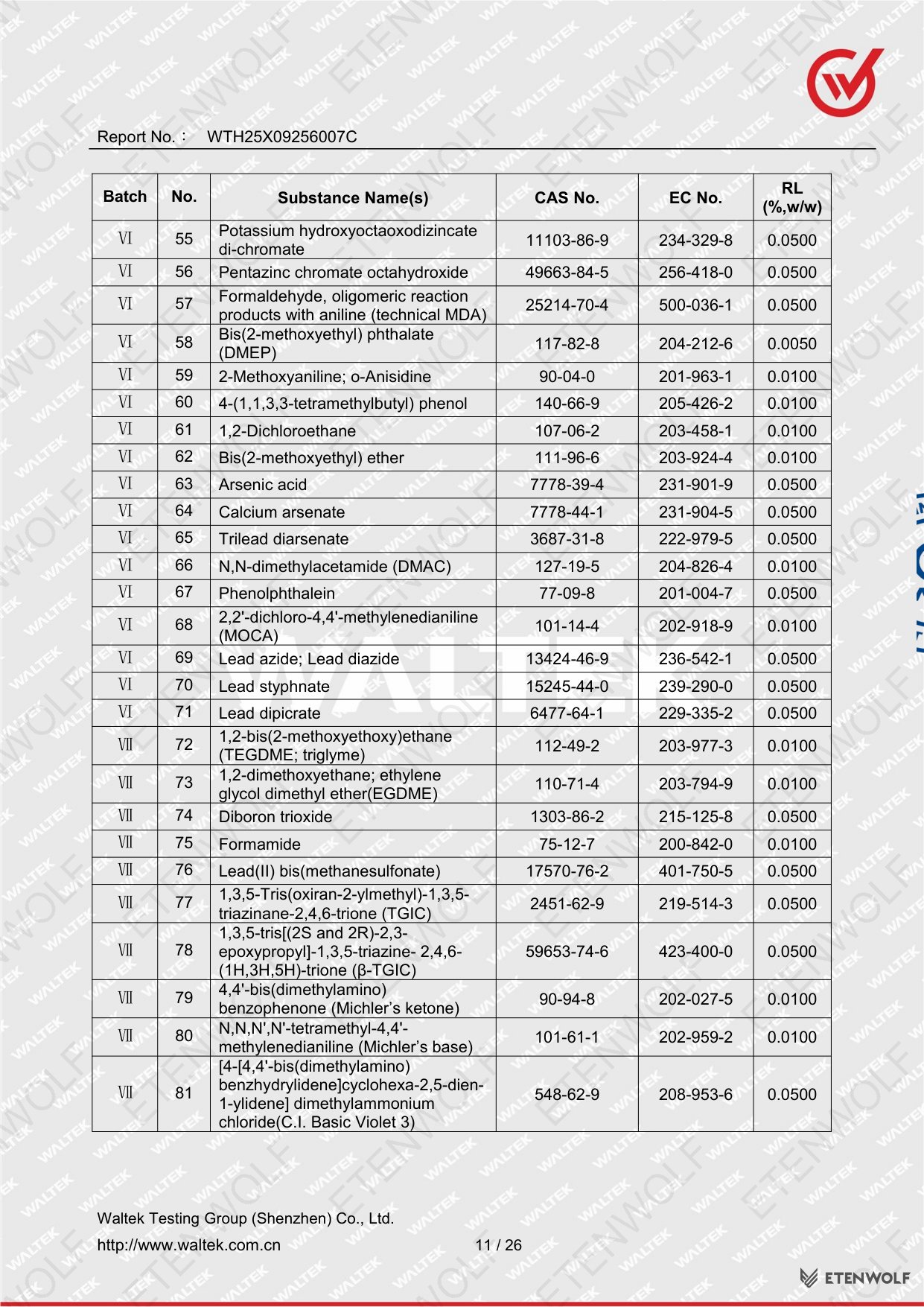

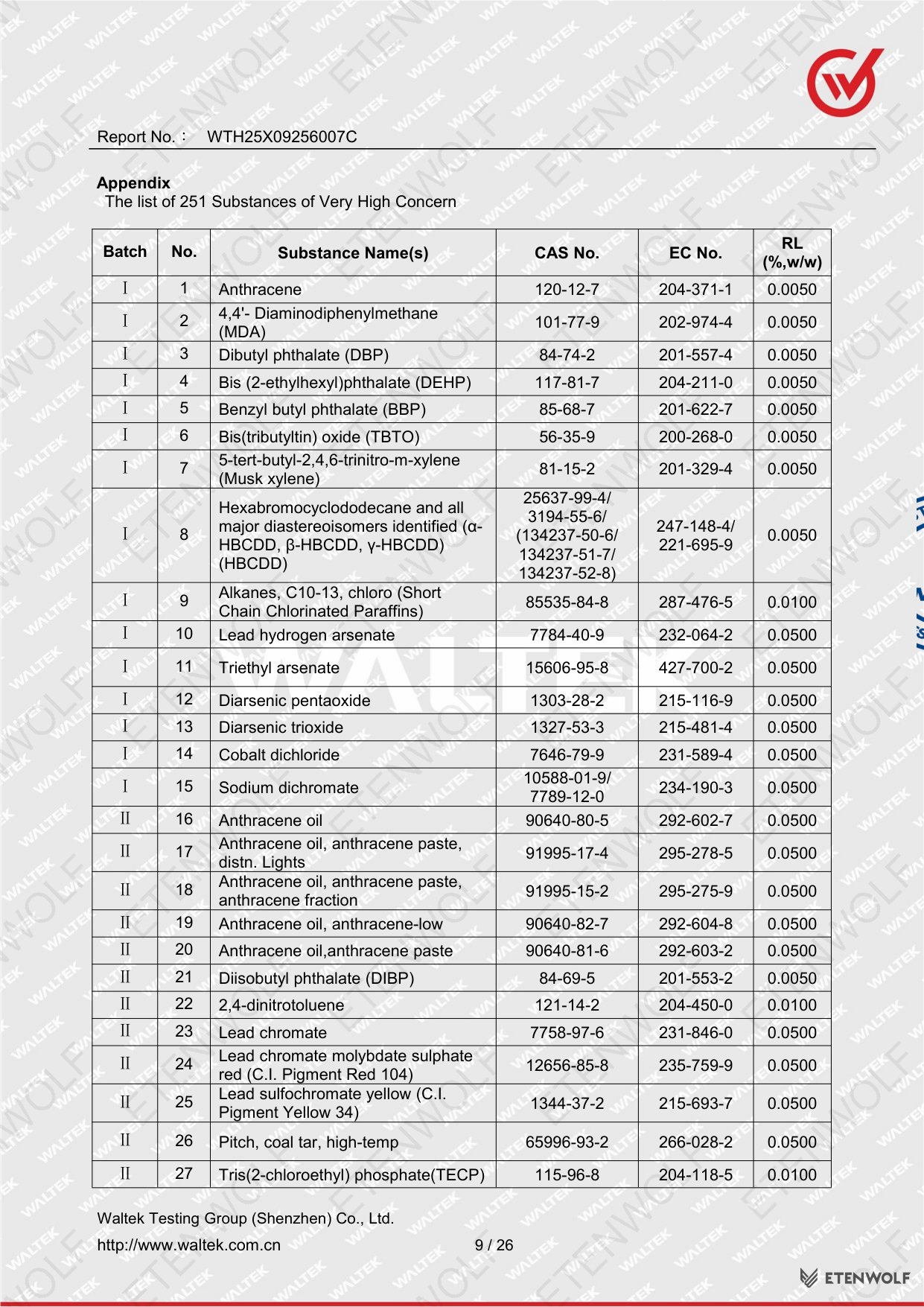

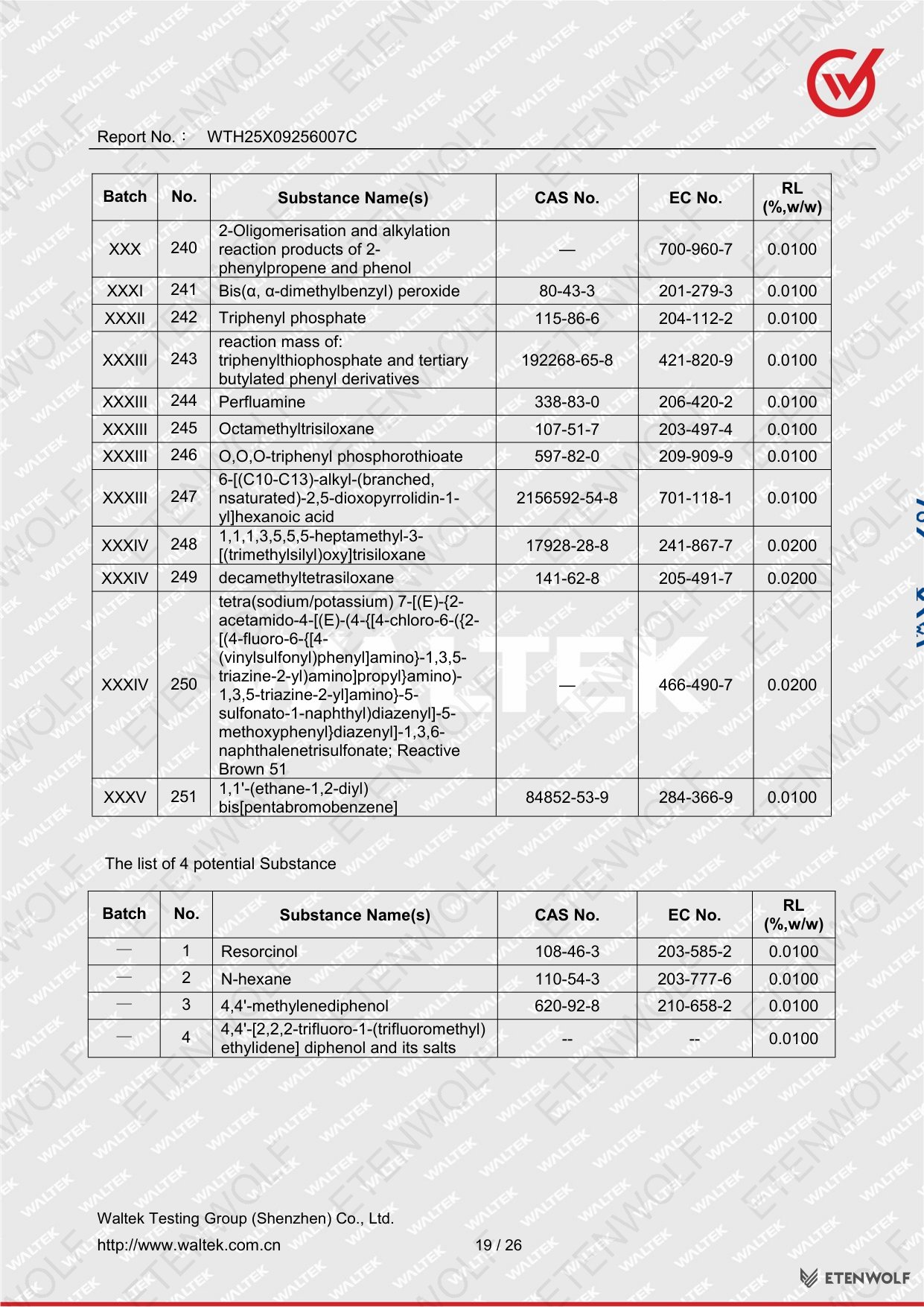

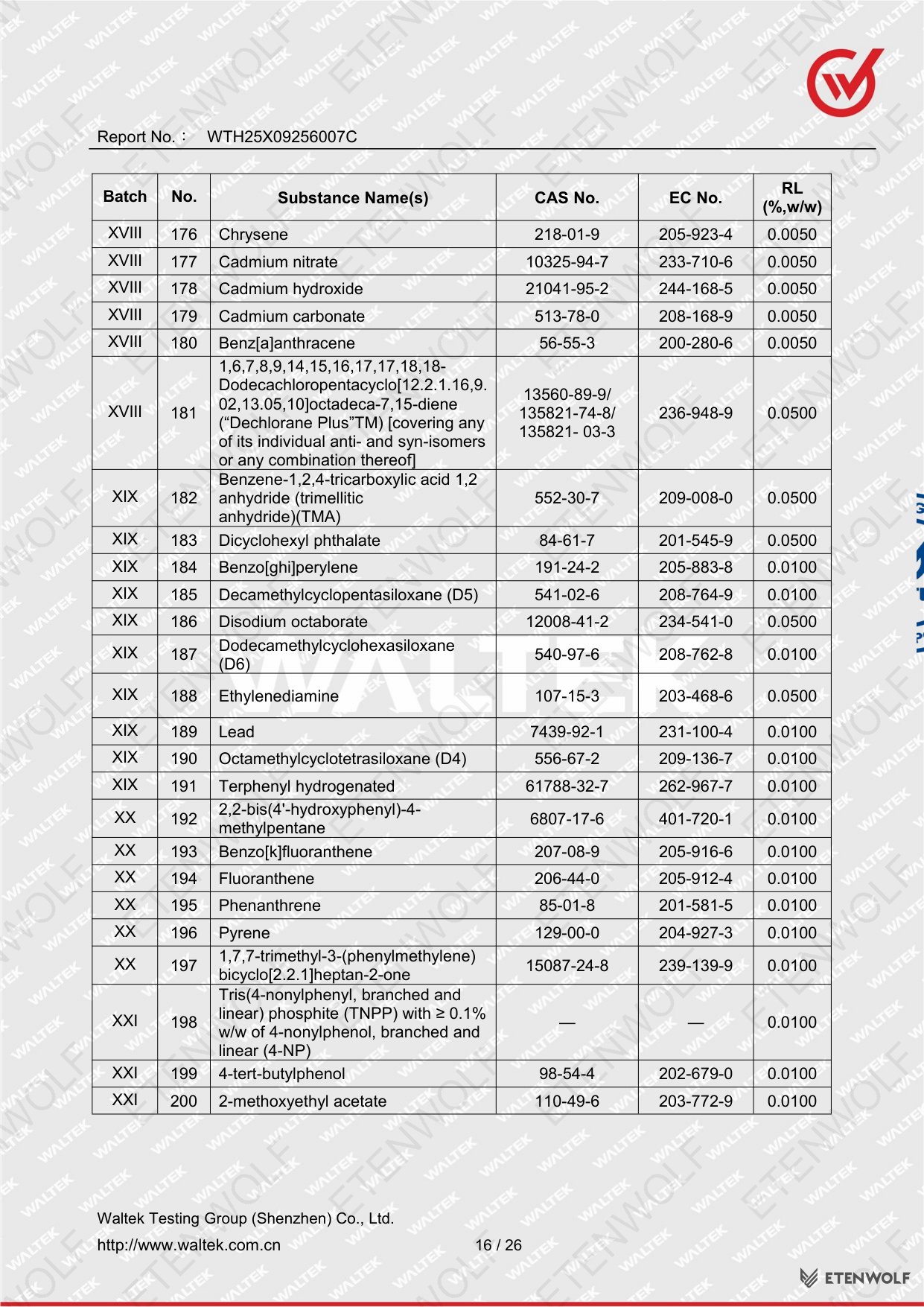

ECHA Candidate List 251 SVHC + 4 potential substances as listed at echa.europa.eu/candidate-list-table

Test Methods Applied

Method Reference Scope
EPA 3550C:2007 Ultrasonic extraction for solid/semi-solid matrices
US EPA 8270D:2018 GC/MS analysis of semi-volatile organic compounds
US EPA 3052:1996 Microwave assisted acid digestion of siliceous and organically based matrices
US EPA 3050B:1996 Acid digestion of sediments, sludges, and soils
US EPA 6010D:2018 Inductively coupled plasma — optical emission spectrometry (ICP-OES)
BS EN ISO 14362-1:2017 Determination of certain aromatic amines derived from azo dyes — Part 1
BS EN ISO 14362-3:2017 Determination of certain aromatic amines derived from azo dyes — Part 3
ISO 17234-1:2020 Chemical tests for coloured leather — determination of certain azo colorants
ISO 17234-2:2011 Chemical tests for leather — determination of 4-aminoazobenzene
ISO 17353:2004 Water quality — determination of selected organotin compounds
AfPS GS 2019:01 PAK Polycyclic aromatic hydrocarbons (PAH) testing in consumer articles

The measurement workflow followed a standard chain: sampling → sample pretreatment by acid digestion and solvent extraction → instrumental analysis → data evaluation. An in-house method was applied with reference to the above published standards.

Validity & Certification Body

The test report was prepared and issued by Waltek Testing Group (Shenzhen) Co., Ltd., a professional third-party testing and certification organisation with extensive experience in consumer product chemical compliance for global markets.

Field Detail
Report Number WTH25X09256007C
Date of Issue 2025-10-16
Testing Period 2025-09-25 to 2025-09-29
Sample Receipt Date 2025-09-25
Signed By Hugo Chen, Waltek Testing Group (Shenzhen) Co., Ltd.
Laboratory Name Waltek Testing Group (Shenzhen) Co., Ltd.
Laboratory Address 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70, Bao’an District, Shenzhen, Guangdong, China
Telephone +86-755-33663308
Fax +86-755-33663309
Email [email protected]
Website http://www.waltek.com.cn

REACH SVHC test reports do not carry a fixed expiry date in the same manner as type certifications. However, the report reflects the ECHA Candidate List as it stood at the time of testing. As ECHA periodically updates the Candidate List, manufacturers and importers are advised to monitor updates and retest when new substances are added that may be relevant to their product materials.

Under Article 7(2) and Article 33 of REACH, EU and EEA suppliers of articles containing SVHC above 0.1% (w/w) are required to notify ECHA and provide information to customers and consumers on request within 45 days. This report confirms that no such obligation is triggered for the ETENWOLF HB1 at the time of testing.

Frequently Asked Questions

What does REACH SVHC compliance mean for the ETENWOLF HB1 air pump?

REACH is the European Union regulation on the Registration, Evaluation, Authorisation and Restriction of Chemicals (EC No 1907/2006). SVHC (Substances of Very High Concern) are chemicals identified by the European Chemicals Agency (ECHA) as having serious hazardous properties, such as being carcinogenic, mutagenic, or toxic to reproduction. Compliance means that none of the 251 SVHC substances (plus 4 potential substances) on the ECHA Candidate List were detected above 0.1% by weight in any part of the ETENWOLF HB1, confirming the product is safe to sell and import in the EU and EEA.

Which parts of the HB1 were tested, and how many samples were examined?

A total of 54 individual material samples were extracted from the product and grouped into four test groups: T01 (17 metal components including shells, coils, contacts, and solder), T02 (19 non-metal components including plastics, rubber, and magnets), T03 (17 electronic and PCB-related components including SMD parts, LED, PCB board, and battery housing materials), and T04 (1 battery cell). All groups returned ND (Not Detected) results for every SVHC substance.

What does ND (Not Detected) mean in this report?

ND means Not Detected — the substance concentration in the tested sample is below the laboratory’s reporting limit (RL) for that substance. Reporting limits vary by substance and analytical method, but all are set at or below the 0.1% (w/w) regulatory threshold defined by REACH. A result of ND therefore confirms the sample does not trigger any REACH notification or disclosure obligation for that substance.

Does this REACH SVHC report expire, and when should it be renewed?

The report itself does not carry a formal expiry date. However, ECHA updates the SVHC Candidate List periodically — typically one to two times per year — by adding newly identified hazardous substances. Manufacturers and importers should monitor ECHA updates and commission a new test report when materials in their products could be affected by newly listed substances. Report WTH25X09256007C reflects the Candidate List as assessed during the testing period of 2025-09-25 to 2025-09-29.

Related Documents

The REACH SVHC test report is one component of a complete chemical and electrical compliance documentation package. For the ETENWOLF HB1 air pump and similar portable inflation products, the following related certification and compliance documents are typically required or recommended:

  • RoHS Test Report — confirms restriction of hazardous substances (cadmium, lead, mercury, hexavalent chromium, PBB, PBDE, DEHP, BBP, DBP, DIBP) under EU Directive 2011/65/EU (RoHS2), mandatory for electrical and electronic equipment sold in the EU.
  • UN 38.3 Battery Transport Test Report — required for products containing lithium batteries; certifies safe air and sea transport compliance under UN Manual of Tests and Criteria, Part III, Section 38.3.
  • CE Declaration of Conformity — self-declaration confirming the product meets all applicable EU directives (e.g., LVD, EMC, Battery Directive) for the CE marking affixed to the product.
  • FCC Declaration of Conformity — required for electronic devices sold in the United States, confirming compliance with FCC Part 15 electromagnetic emissions requirements.
  • KC Certification — required for electrical products sold in South Korea under the KC mark scheme administered by the Korea Agency for Technology and Standards (KATS).
  • REACH Article 33 Disclosure Statement — a formal supplier communication confirming SVHC content status for downstream users and consumers, complementing the test report.
  • ISO 9001 / ISO 14001 Quality & Environmental Management Certificates — manufacturer-level certifications demonstrating quality system controls and environmental management compliance.

Document Pages

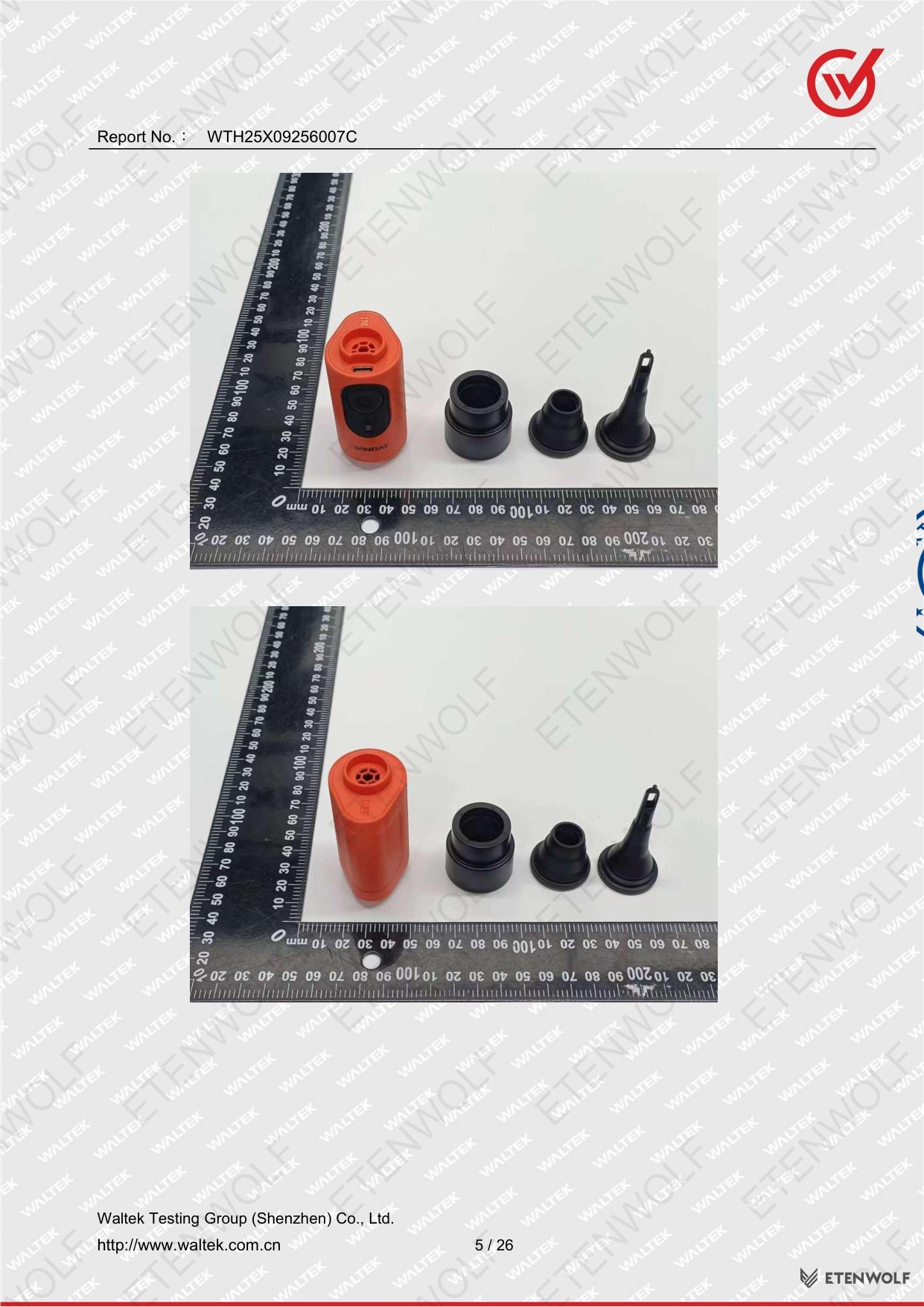

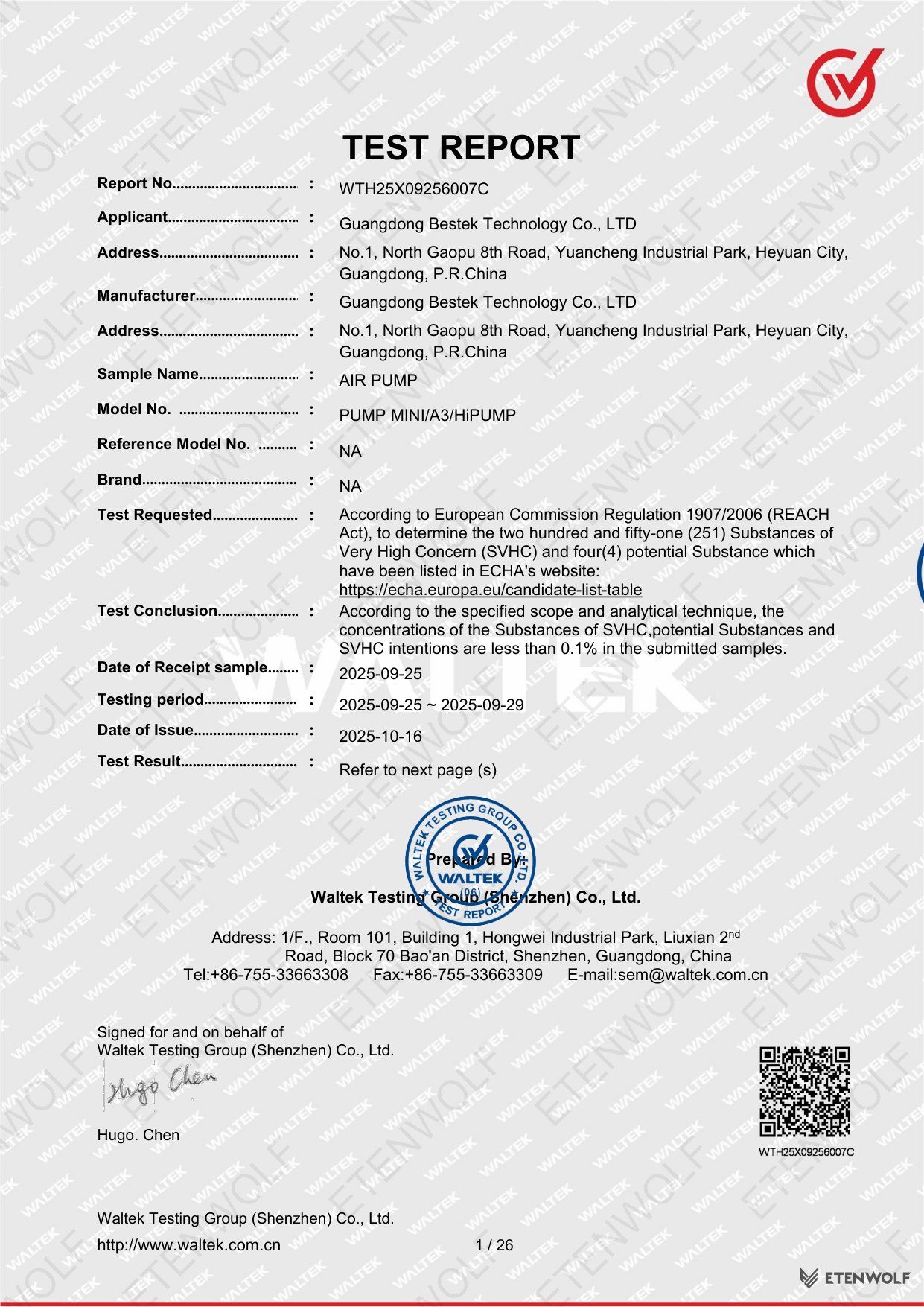

Document Page 1

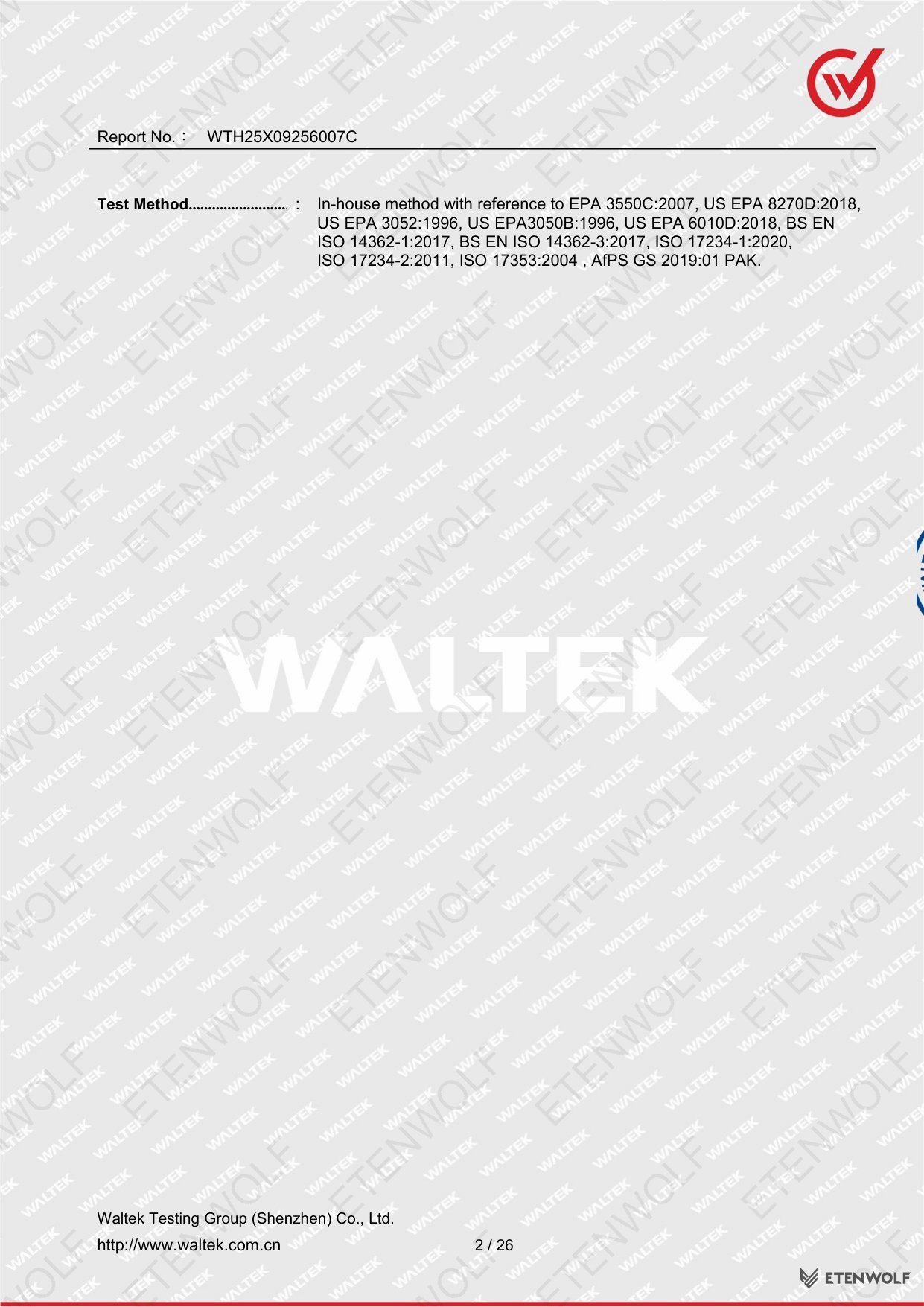

Document Page 2

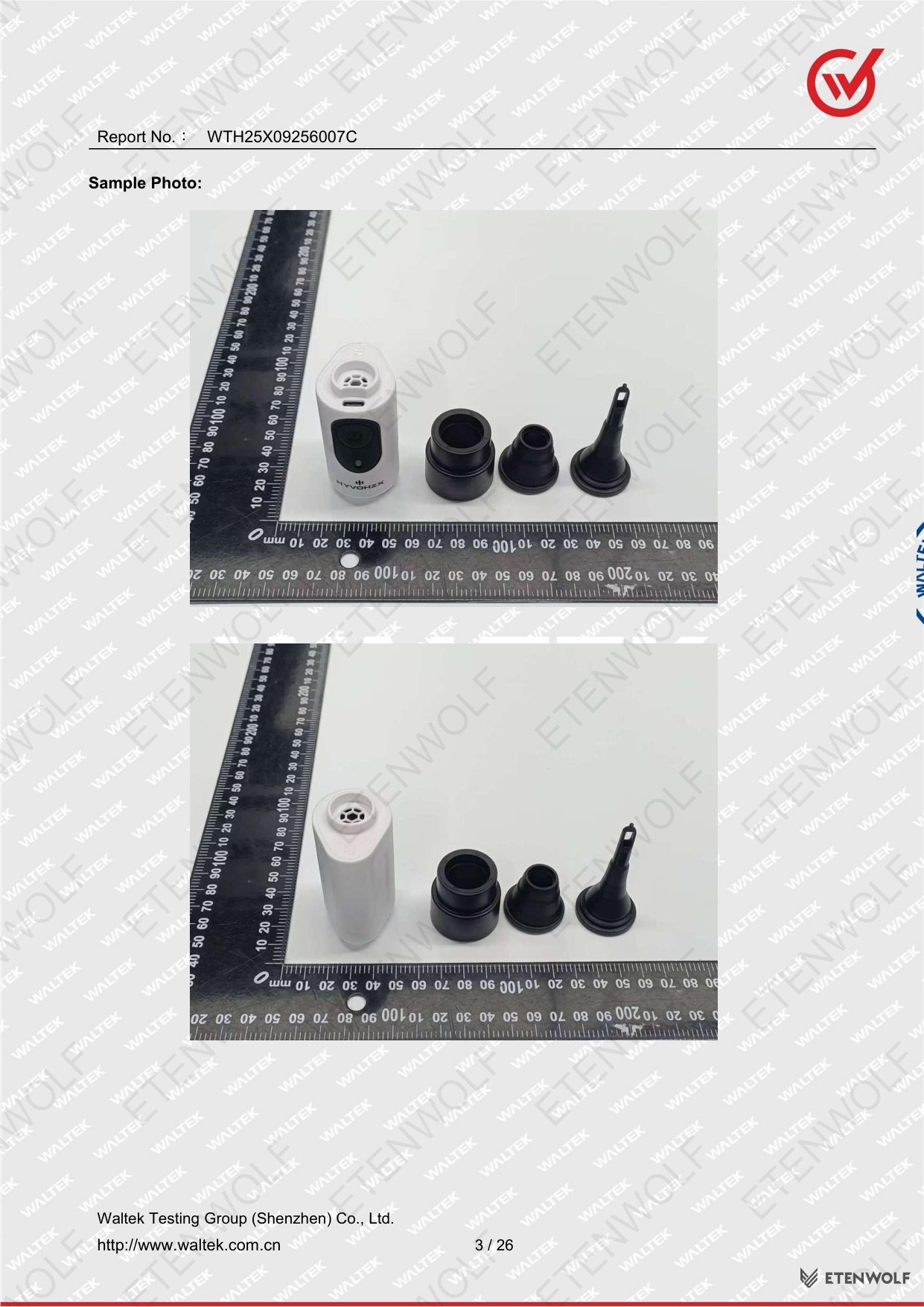

Document Page 3
Document Page 4
Document Page 5
Document Page 6
Document Page 7

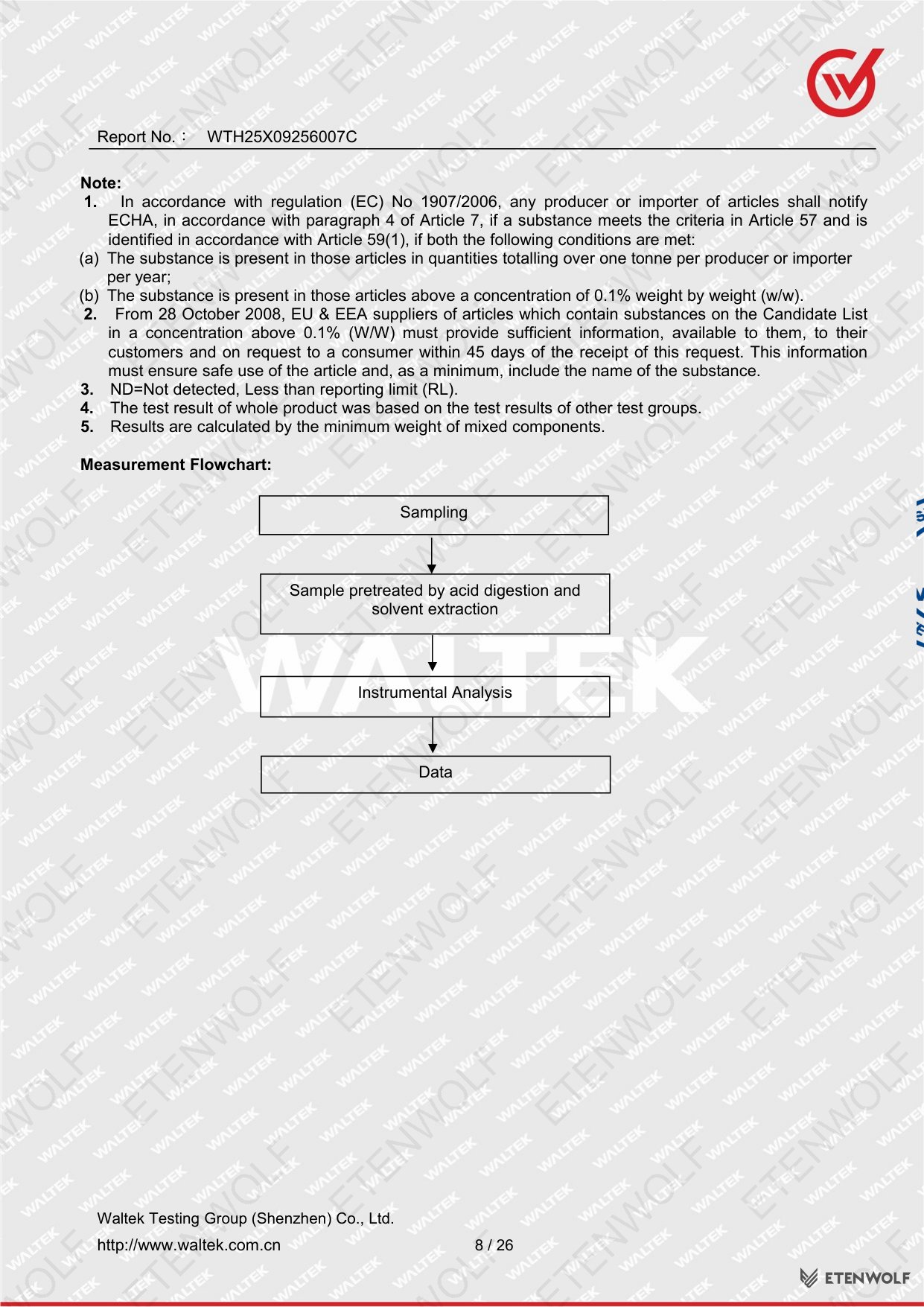

Document Page 8
Document Page 9
Document Page 10
Document Page 11

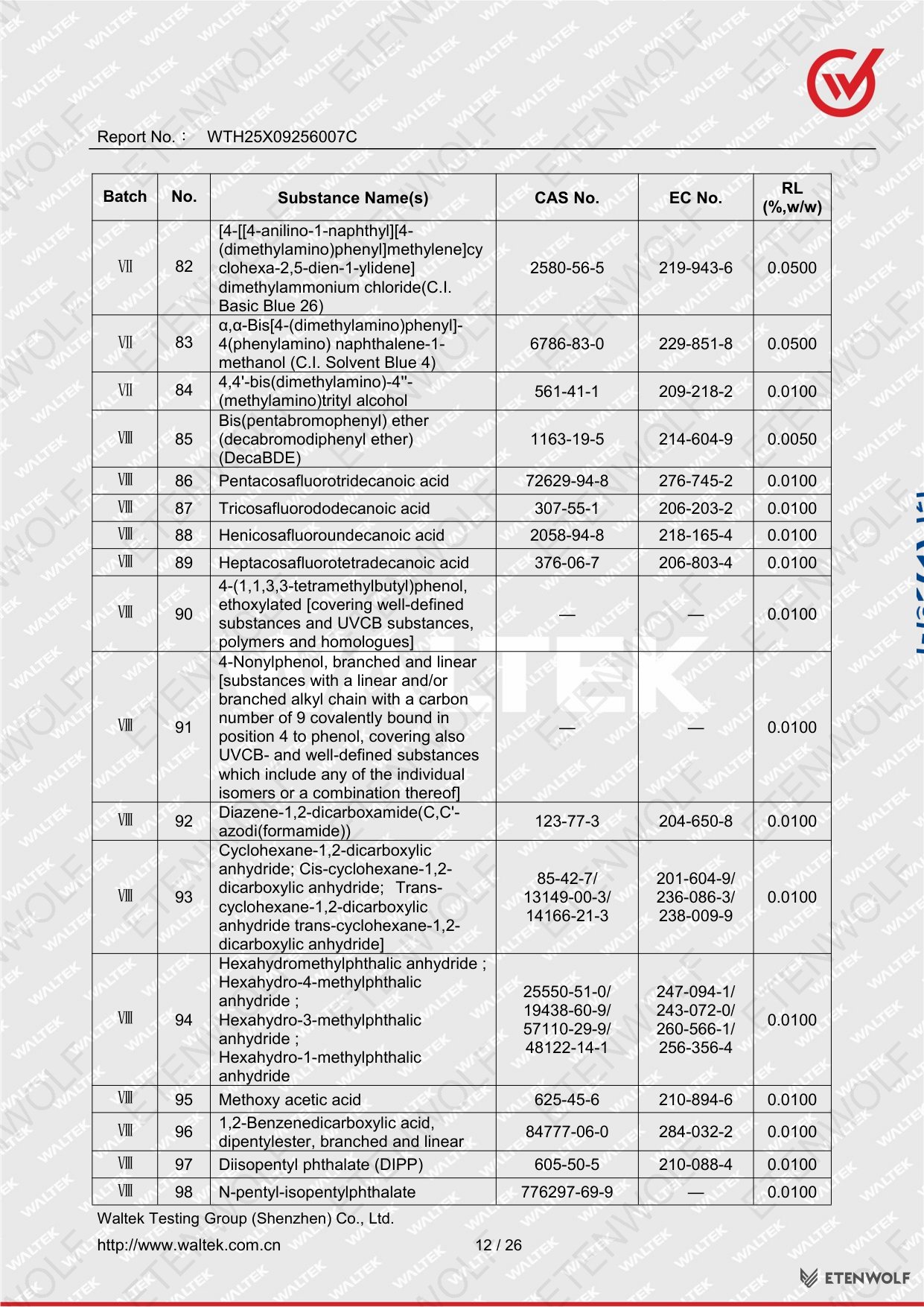

Document Page 12
Document Page 13

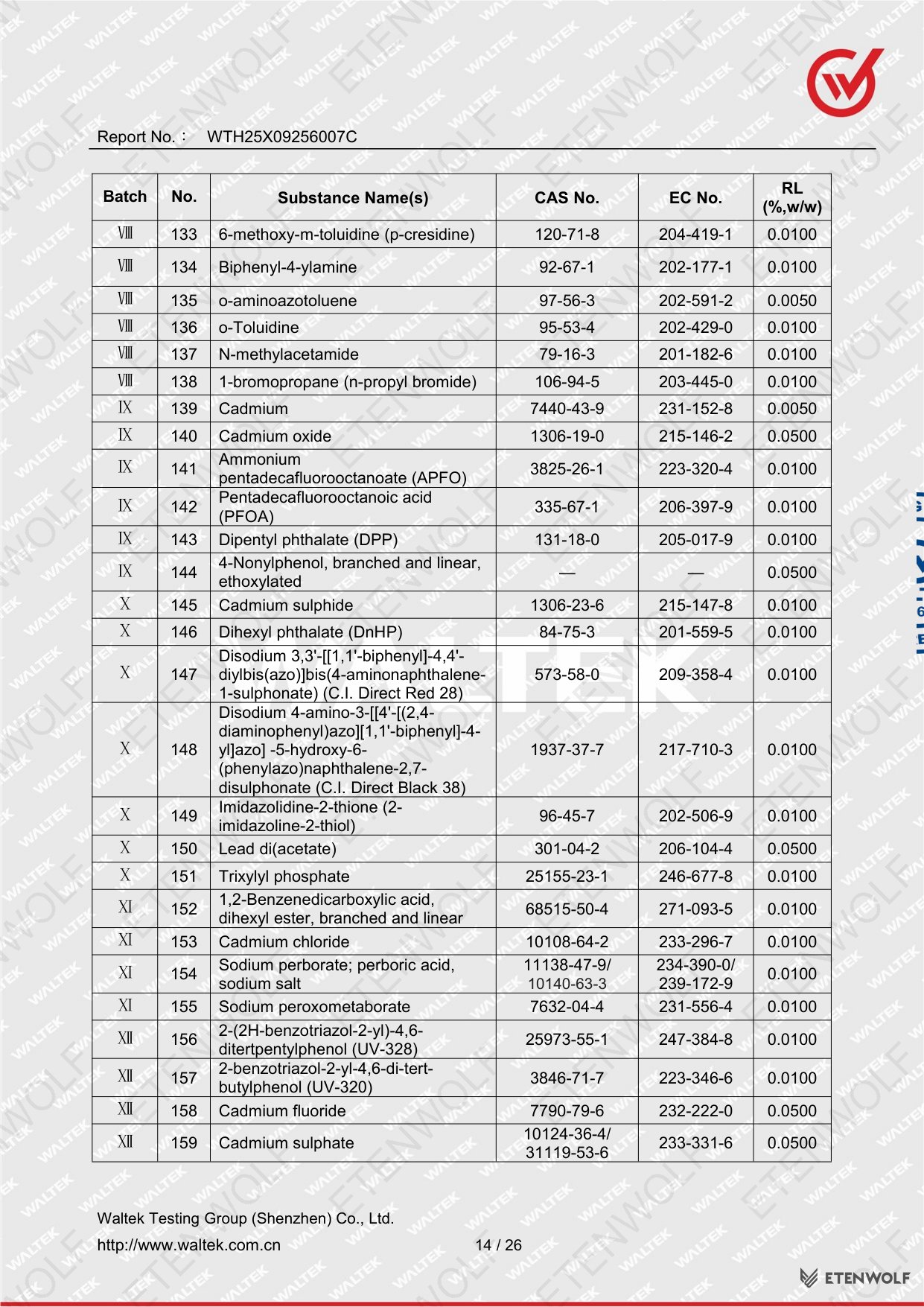

Document Page 14
Document Page 15
Document Page 16
Document Page 17

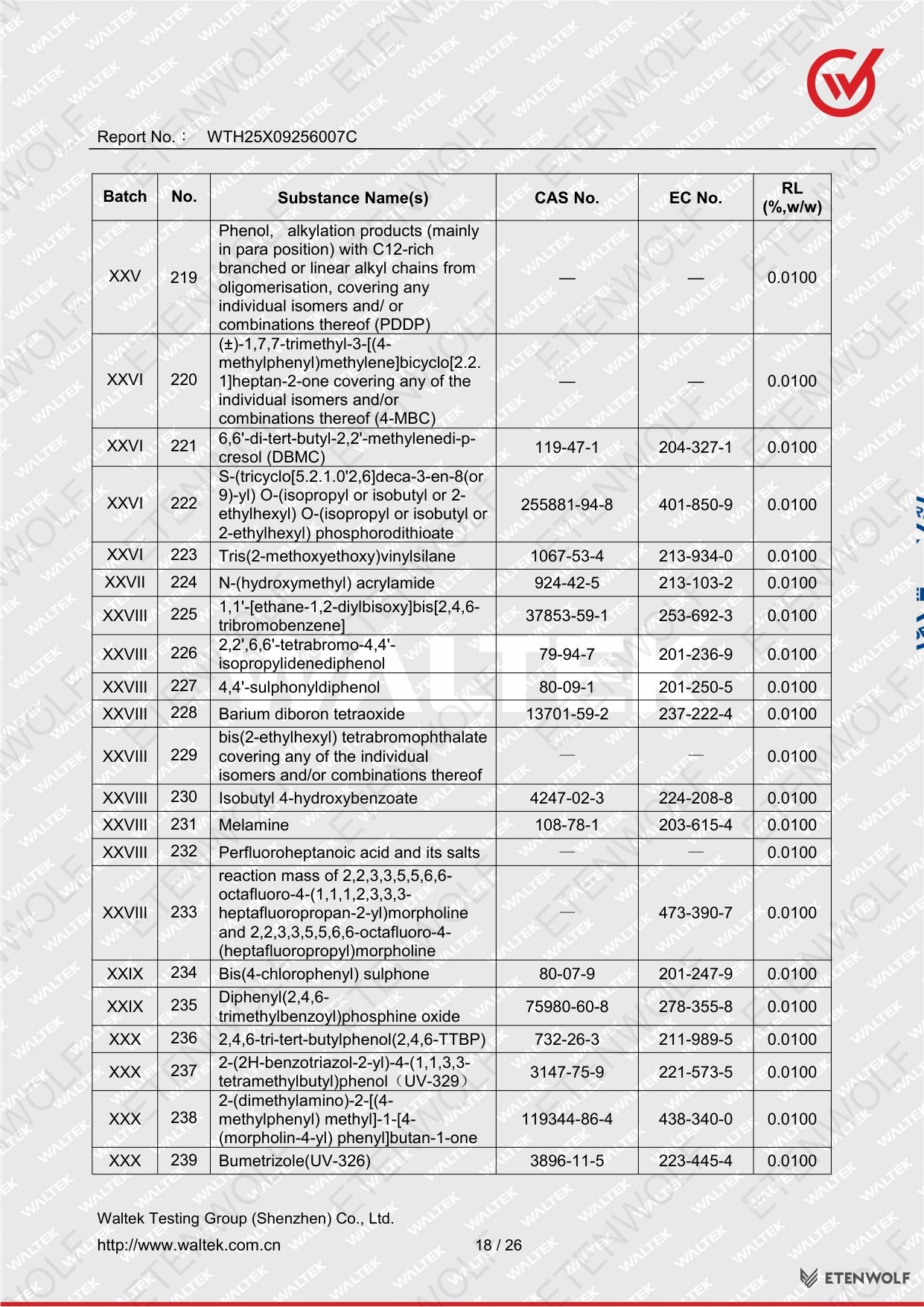

Document Page 18
Document Page 19
Document Page 20

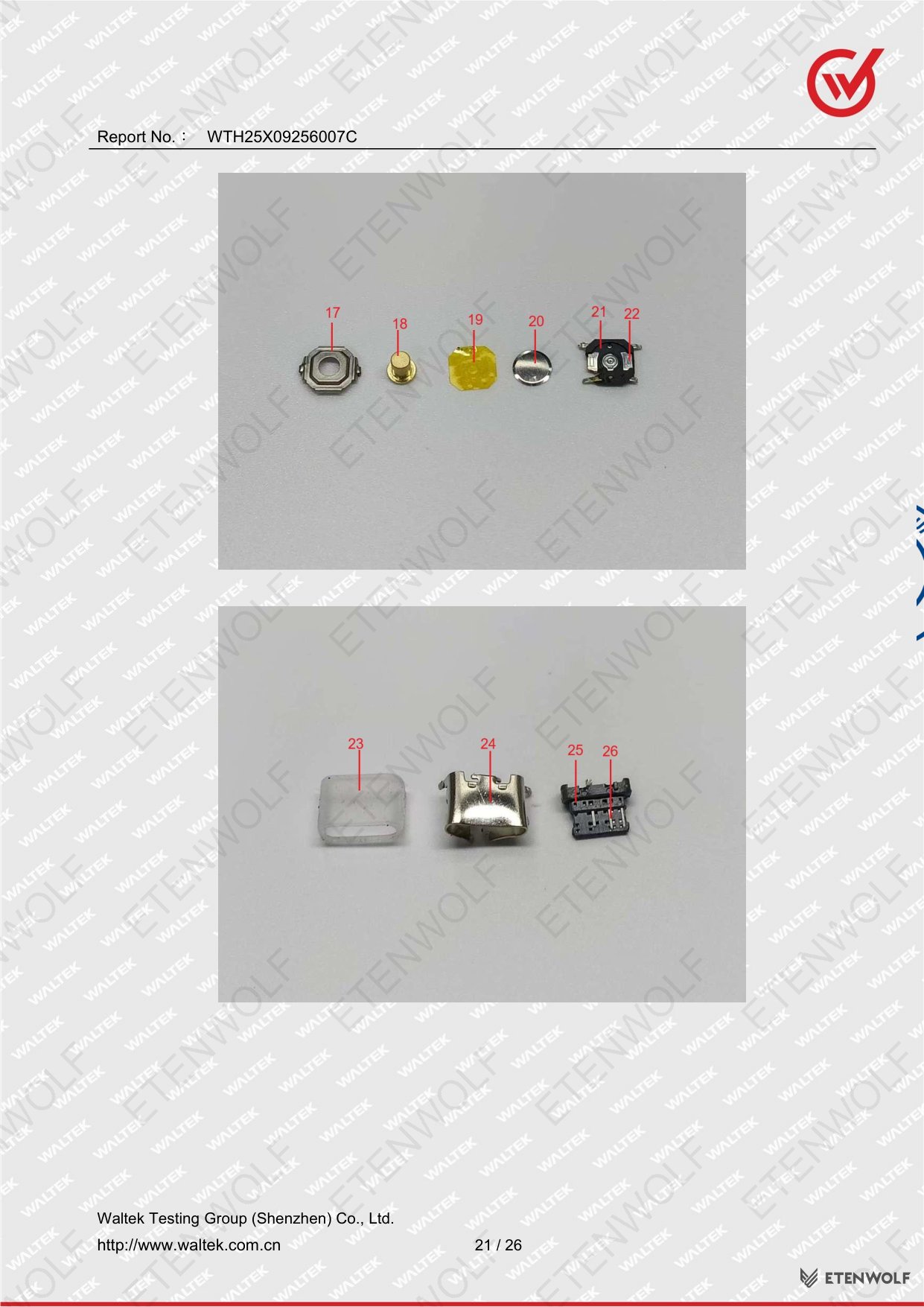

Document Page 21

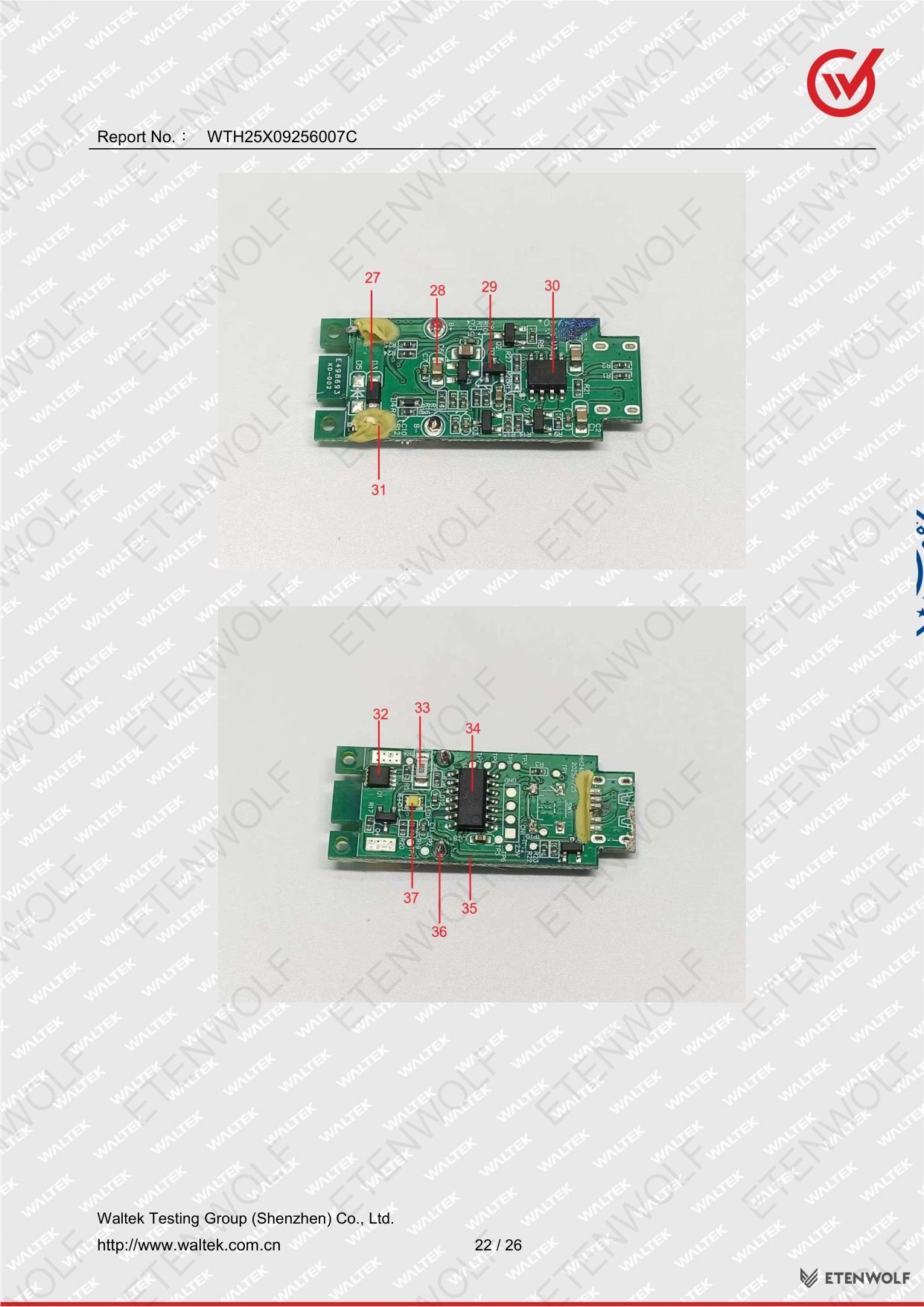

Document Page 22
Document Page 23
Document Page 24

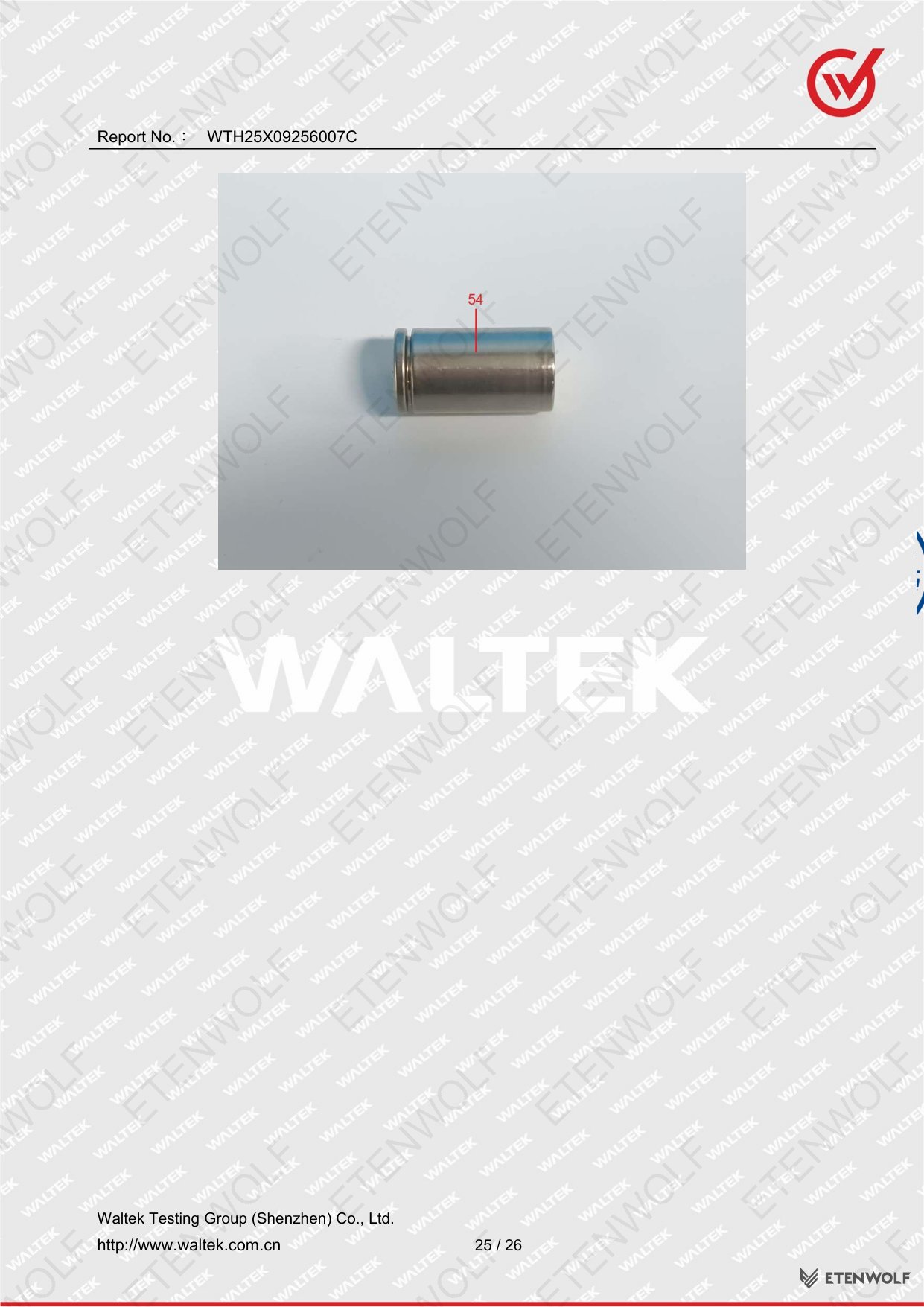

Document Page 25
