Document Overview

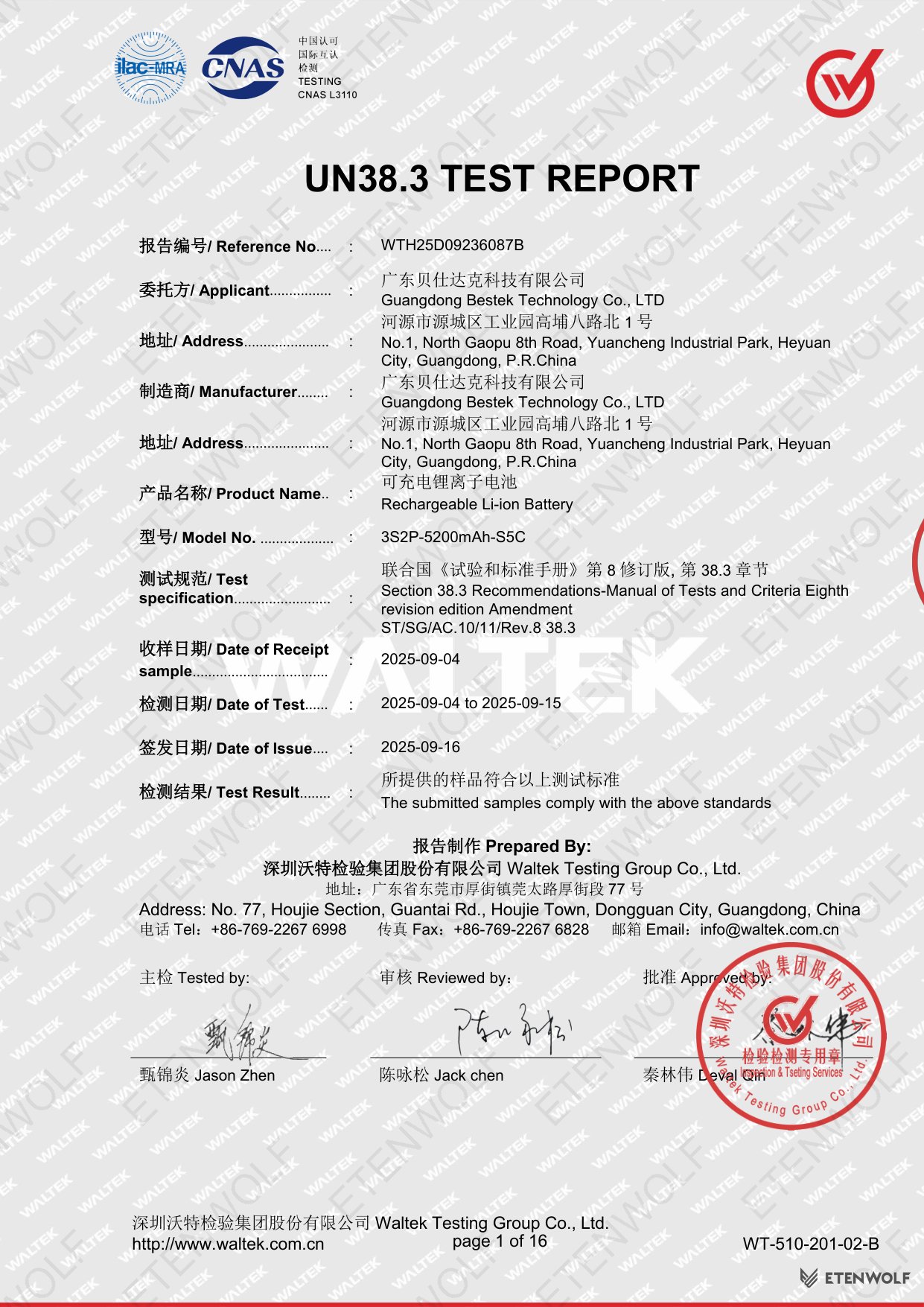

This article presents the details of UN38.3 Transport Test Report WTH25D09236087B, issued by Waltek Testing Group Co., Ltd. (深圳沃特检验集团股份有限公司), an accredited third-party testing laboratory headquartered in Dongguan, Guangdong, China. The document is classified as a transport safety certification report and governs the air, sea, and ground shipment of lithium-ion battery packs under the provisions of the UN Manual of Tests and Criteria, Eighth Revised Edition, Section 38.3 (ST/SG/AC.10/11/Rev.8).
- Report Number: WTH25D09236087B
- Document Type: UN38.3 Transport Test Report
- Issuing Body: Waltek Testing Group Co., Ltd.
- Date of Receipt of Sample: 2025-09-04
- Date of Testing: 2025-09-04 to 2025-09-15
- Date of Issue: 2025-09-16
- Scope: Rechargeable Li-ion Battery Pack used in ETENWOLF inflation tools and lighting gear
The report confirms that the submitted samples fully comply with the referenced test standard, authorising the product for international transport as a classified dangerous good (lithium battery).

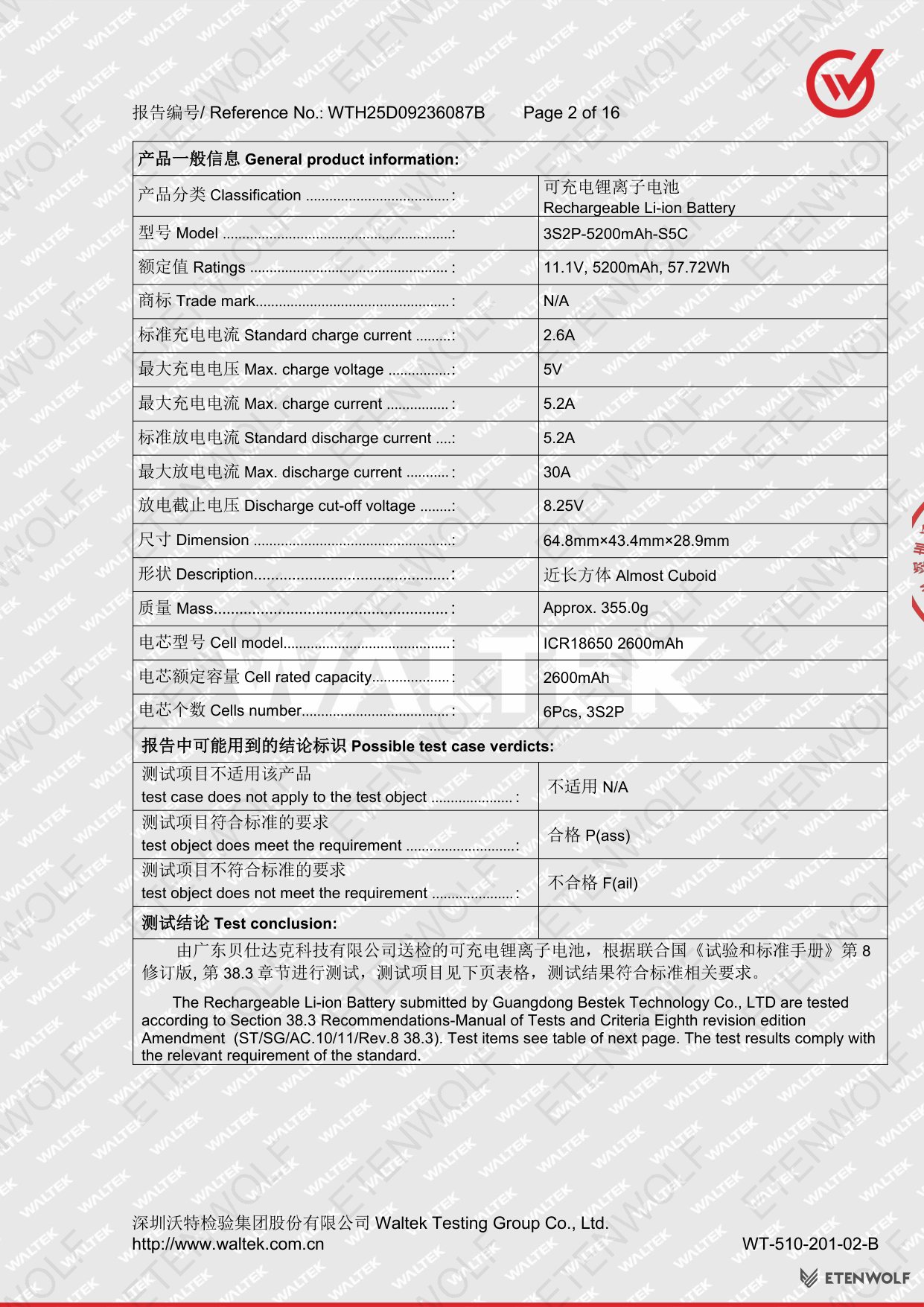

Product Information
The battery pack assessed in this report is used in the ETENWOLF S5C portable inflation tool. Manufactured and supplied by Guangdong Bestek Technology Co., Ltd. (广东贝仕达克科技有限公司), located at No. 1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China, the pack is a high-capacity 3S2P lithium-ion configuration designed to deliver reliable high-current discharge performance required by the S5C inflator motor.
| Attribute | Detail |
|---|---|
| Product Classification | Rechargeable Li-ion Battery |
| Model Number | 3S2P-5200mAh-S5C |
| Rated Voltage | 11.1 V |
| Rated Capacity | 5200 mAh |
| Energy | 57.72 Wh |
| Cell Model | ICR18650 2600mAh |
| Cell Configuration | 6 cells, 3 Series × 2 Parallel (3S2P) |
| Cell Rated Capacity | 2600 mAh per cell |
| Physical Form | Almost Cuboid |
| Dimensions | 64.8 mm × 43.4 mm × 28.9 mm |
| Mass | Approx. 355.0 g |
| Trade Mark | N/A |
Key Details
The following tables summarise the critical electrical parameters and test verdict legend used throughout report WTH25D09236087B.
Electrical Ratings
| Parameter | Value |
|---|---|
| Standard Charge Current | 2.6 A |
| Maximum Charge Voltage | 5 V |
| Maximum Charge Current | 5.2 A |
| Standard Discharge Current | 5.2 A |
| Maximum Discharge Current | 30 A |
| Discharge Cut-off Voltage | 8.25 V |
Test Verdict Legend
| Symbol | Meaning |
|---|---|
| N/A | Test case does not apply to the test object |
| P (Pass) | Test object meets the requirement of the standard |
Overall Test Result
The submitted samples of the S5C battery pack comply with all applicable requirements of UN Manual of Tests and Criteria, Section 38.3, Eighth Revised Edition. This result authorises the product for classification and transport as a lithium-ion battery under international dangerous goods regulations (IATA, IMDG, ADR).
Responsible Personnel
| Role | Name |
|---|---|
| Tested By | Jason Zhen (甄锦炎) |
| Reviewed By | Jack Chen (陈咏松) |
| Approved By | Deval Qin (秦林伟) |
Standards & Compliance
The S5C battery pack was evaluated against the following international transport safety standard:
| Standard | Full Title | Edition |
|---|---|---|
| UN38.3 | United Nations Recommendations on the Transport of Dangerous Goods — Manual of Tests and Criteria, Section 38.3: Lithium Metal and Lithium Ion Batteries | Eighth Revised Edition (ST/SG/AC.10/11/Rev.8) with Amendment |
UN38.3 testing encompasses a mandatory series of eight sequential abuse and stress tests designed to demonstrate that lithium battery cells and packs will not present a safety hazard during normal transport conditions. These tests verify resistance to altitude simulation, thermal extremes, vibration, mechanical shock, external short circuit, impact/crush, overcharge, and forced discharge. A battery pack must pass all applicable tests to be considered compliant and eligible for transport documentation.
Internal report template reference: WT-510-201-02-B (Waltek internal document control number).
Validity & Certification Body
Issuing Laboratory
| Field | Detail |
|---|---|
| Laboratory Name | Waltek Testing Group Co., Ltd. (深圳沃特检验集团股份有限公司) |
| Website | http://www.waltek.com.cn |
| Address | No. 77, Houjie Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong, China |
| Telephone | +86-769-2267 6998 |
| Fax | +86-769-2267 6828 |
| [email protected] |
Report Validity
UN38.3 test reports do not carry a fixed expiry date under the UN standard itself; however, the report remains valid for the specific product model, cell configuration, and electrical parameters tested. Any change to the cell chemistry, configuration (e.g., moving from 3S2P to a different topology), rated capacity, or protective circuit module (PCM/BMS) design may require re-testing. Carriers, freight forwarders, and customs authorities may impose their own validity windows — typically up to 3 years from the date of issue — so it is advisable to verify current acceptance policies with your logistics partner.
- Report Issue Date: 2025-09-16
- Report Number: WTH25D09236087B
- Total Pages: 16 pages
- Applicant on File: Guangdong Bestek Technology Co., Ltd.
- Manufacturer on File: Guangdong Bestek Technology Co., Ltd.
Frequently Asked Questions
- Q1: What is a UN38.3 test report and why does the S5C battery pack need one?
-
UN38.3 is the internationally recognised test standard for lithium batteries intended for transport. Regulators including IATA (air freight), IMDG (sea freight), and ADR (road transport) require that lithium-ion battery packs such as the one in the S5C pass UN38.3 testing before they can be legally shipped. Without a valid UN38.3 report, carriers are obligated to refuse the shipment.
- Q2: Which specific tests does UN38.3 Section 38.3 require?
-

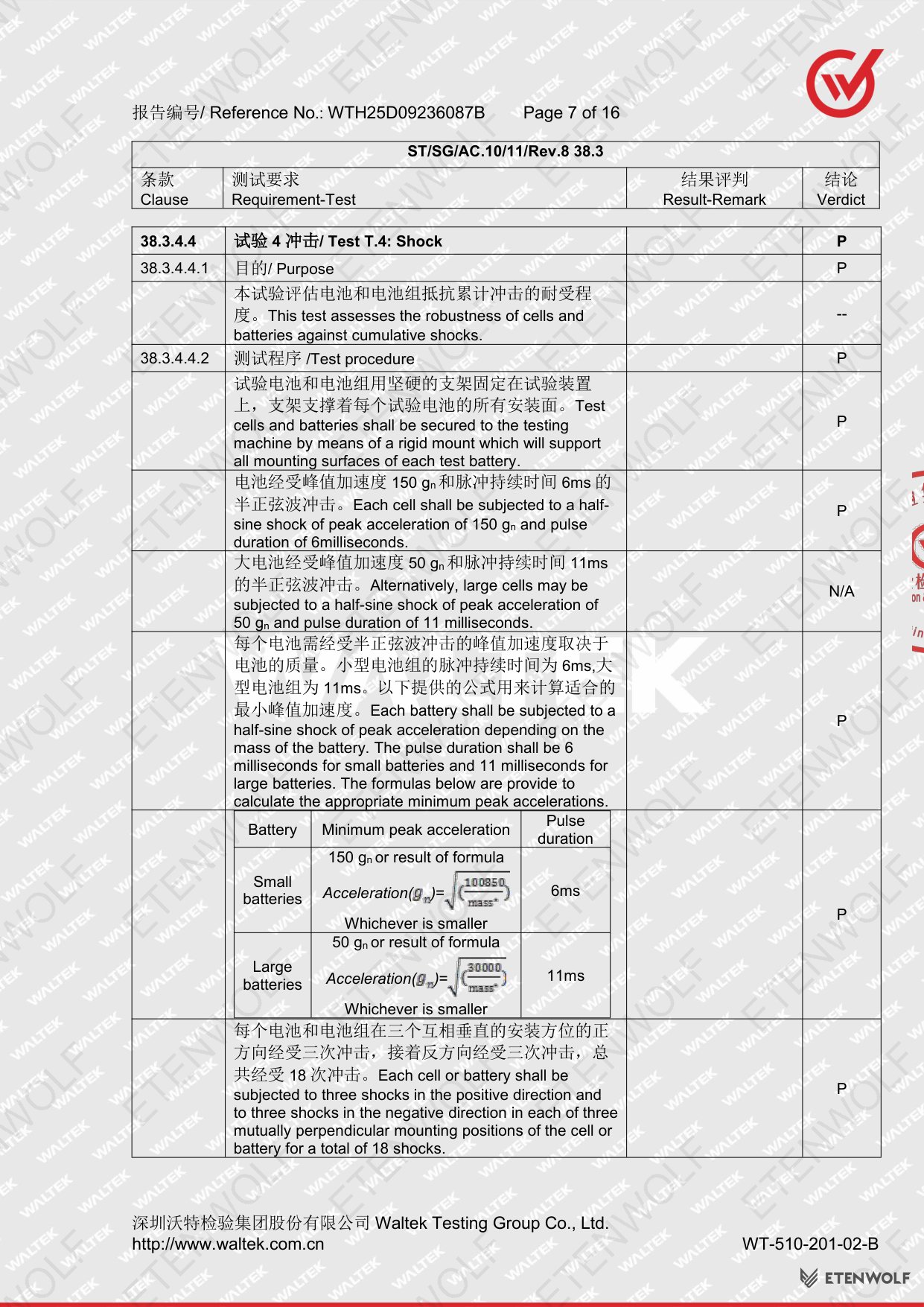

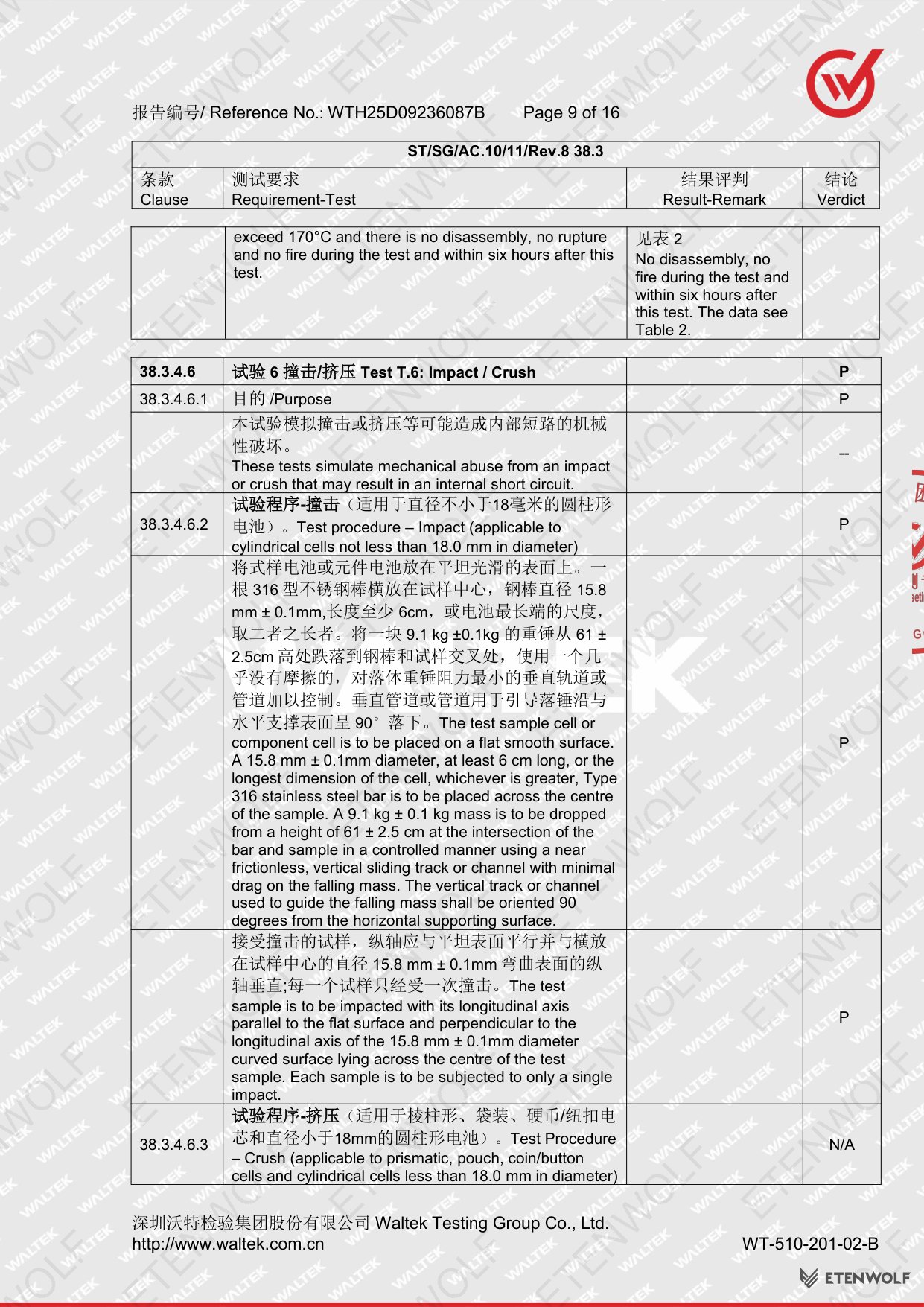

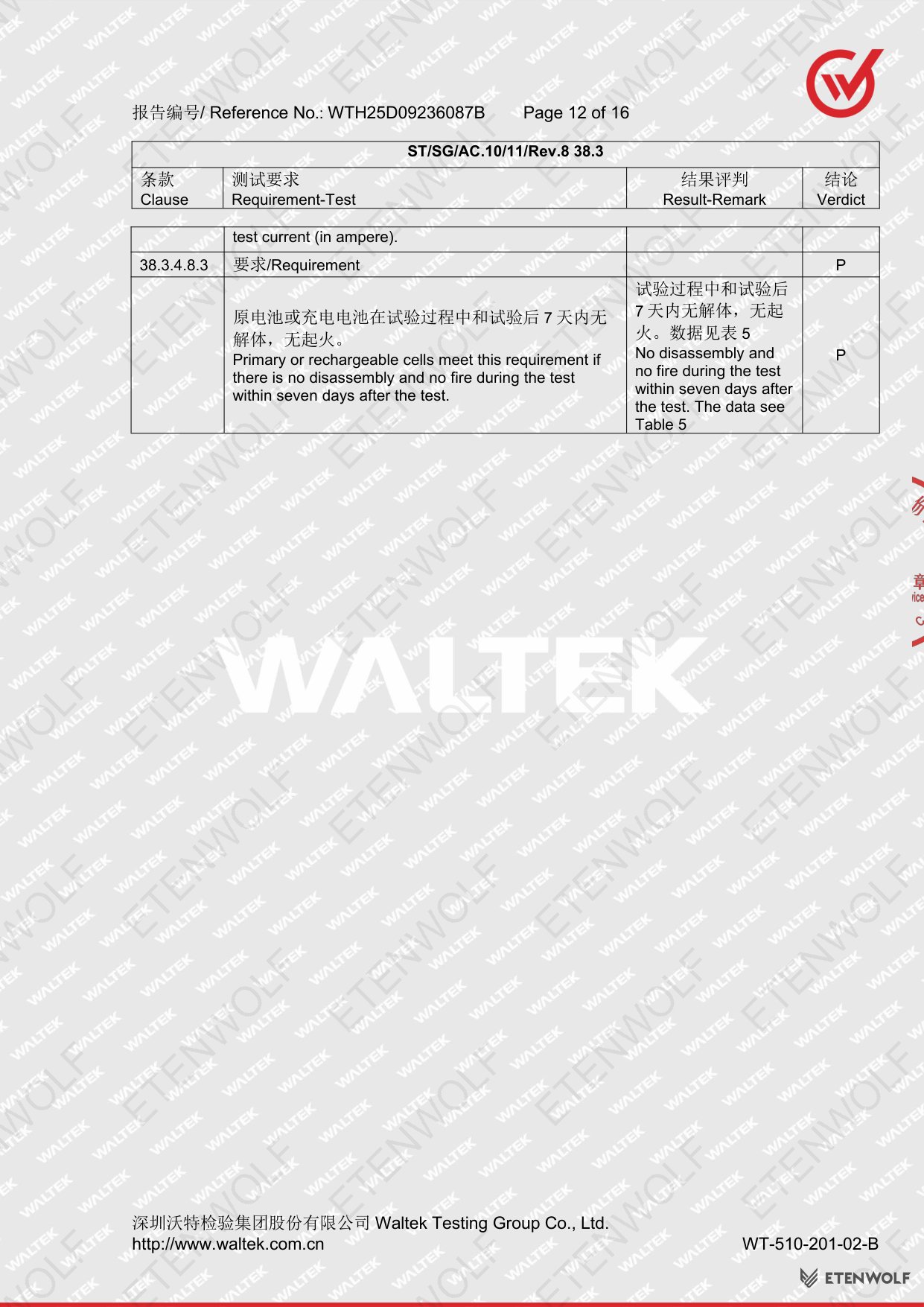

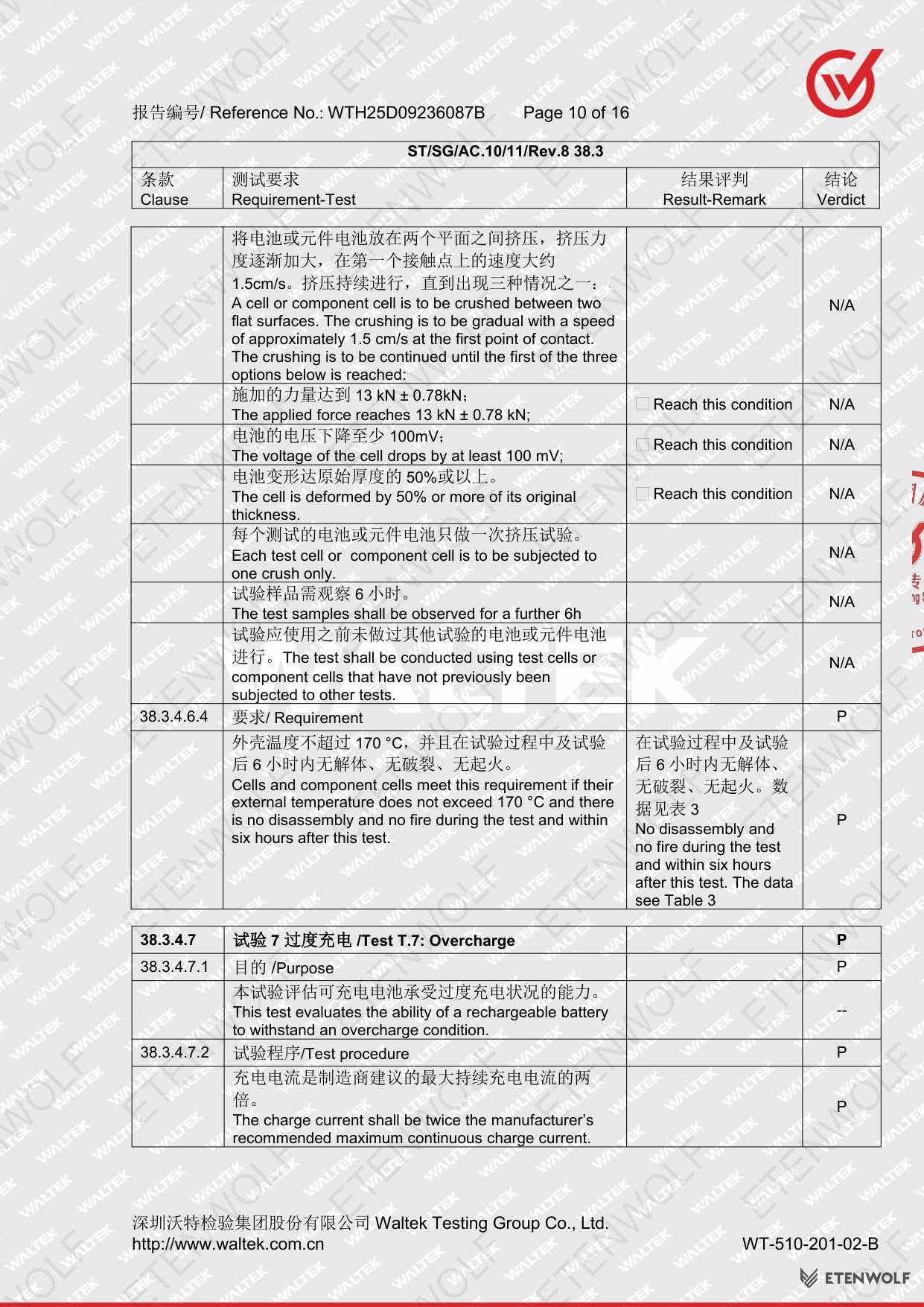

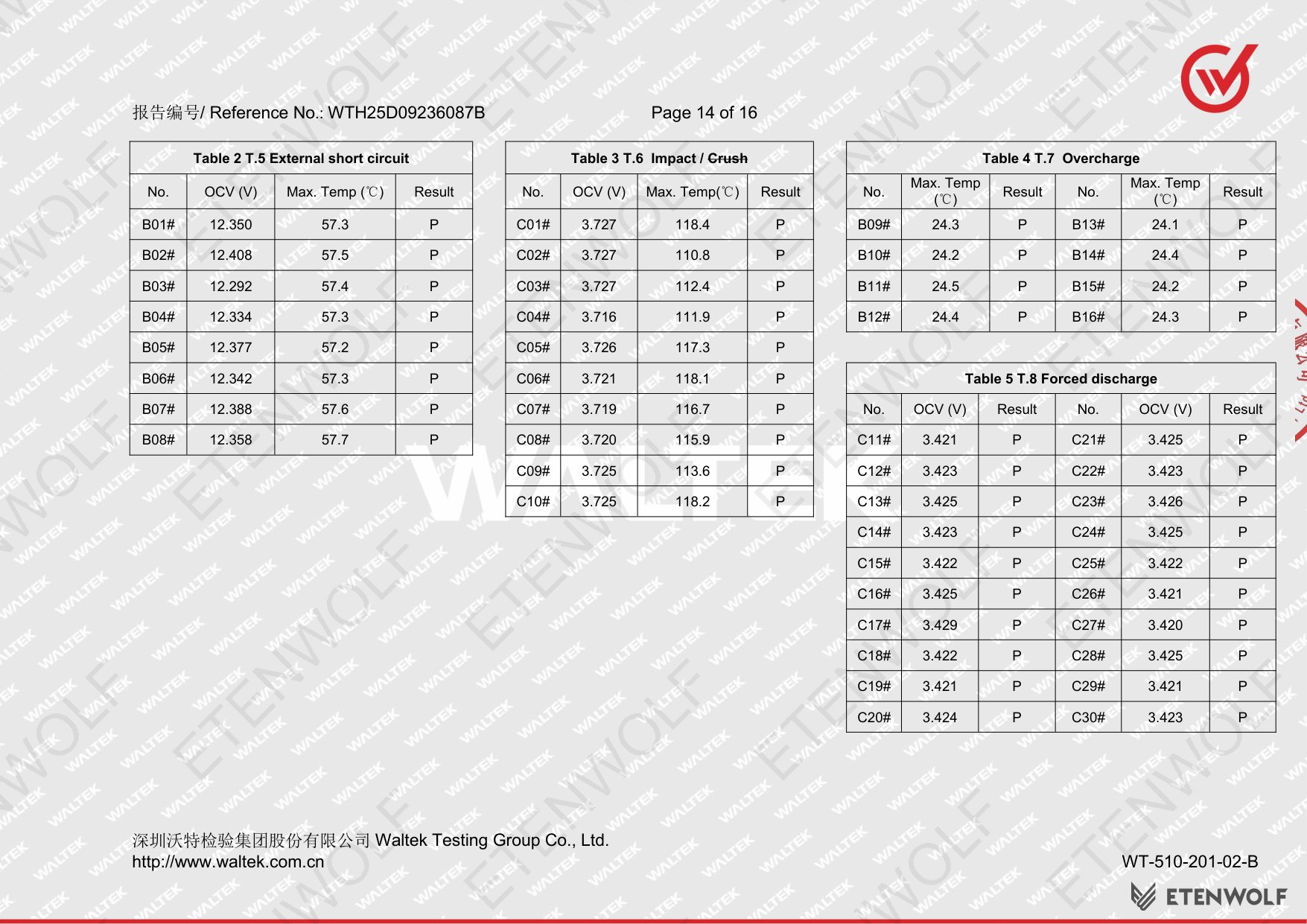

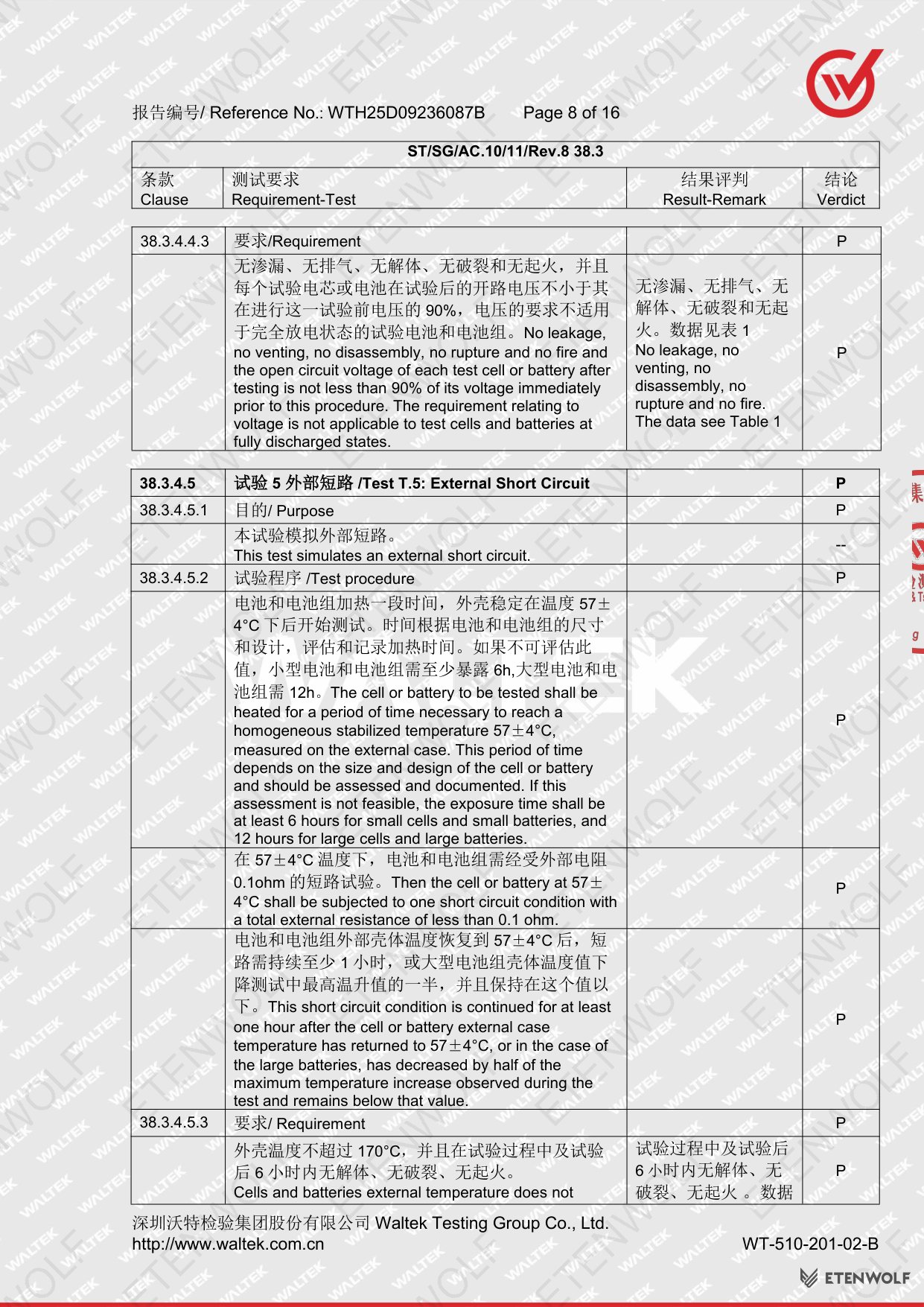

The standard mandates up to eight tests: T.1 Altitude Simulation, T.2 Thermal Test, T.3 Vibration, T.4 Shock, T.5 External Short Circuit, T.6 Impact/Crush, T.7 Overcharge, and T.8 Forced Discharge. Tests marked N/A in the report are those that do not apply to the specific battery type or form factor. All applicable tests for the S5C 3S2P pack were passed successfully.
- Q3: Does the UN38.3 report cover the complete S5C product or only the battery?
-
Report WTH25D09236087B covers the battery pack only — specifically the 3S2P-5200mAh-S5C pack (11.1 V, 57.72 Wh, model ICR18650 cells). The complete S5C inflator as a finished goods assembly may require additional compliance documentation (e.g., CE, FCC, RoHS) for market access in different regions.
- Q4: How can I verify the authenticity of report WTH25D09236087B?
-
Waltek Testing Group is an accredited laboratory. You can verify the report by contacting Waltek directly at [email protected] or by phone at +86-769-2267 6998, quoting report number WTH25D09236087B. The report carries the signatures of the tester (Jason Zhen), reviewer (Jack Chen), and approving authority (Deval Qin) as part of its authentication chain.
Related Documents
For full market compliance of the S5C inflation tool and its battery system, ETENWOLF recommends maintaining the following related certification documents alongside this UN38.3 transport report:
- IEC 62133 / UL 2054 Battery Safety Test Report — Covers safety performance of the Li-ion pack under consumer use conditions, required for major retail and e-commerce platforms.
- CE Declaration of Conformity — Required for sale in the European Economic Area; covers Low Voltage Directive (LVD) and Battery Directive compliance for the S5C system.
- FCC ID Certification — Required for sale in the United States if the S5C contains radio-frequency or digital circuitry.
- RoHS Compliance Report — Confirms restriction of hazardous substances in the battery and product materials, required for EU and UK markets.
- REACH SVHC Declaration — Substance of Very High Concern declaration required for EU chemical safety compliance.
- MSDS / Safety Data Sheet for the Li-ion Battery — Required by freight forwarders and customs as a companion document to the UN38.3 report for dangerous goods declarations.
- Packing Group II / Section II Shipper Declaration — Transport document to be completed by the exporter referencing the UN38.3 report number when shipping the S5C battery pack.

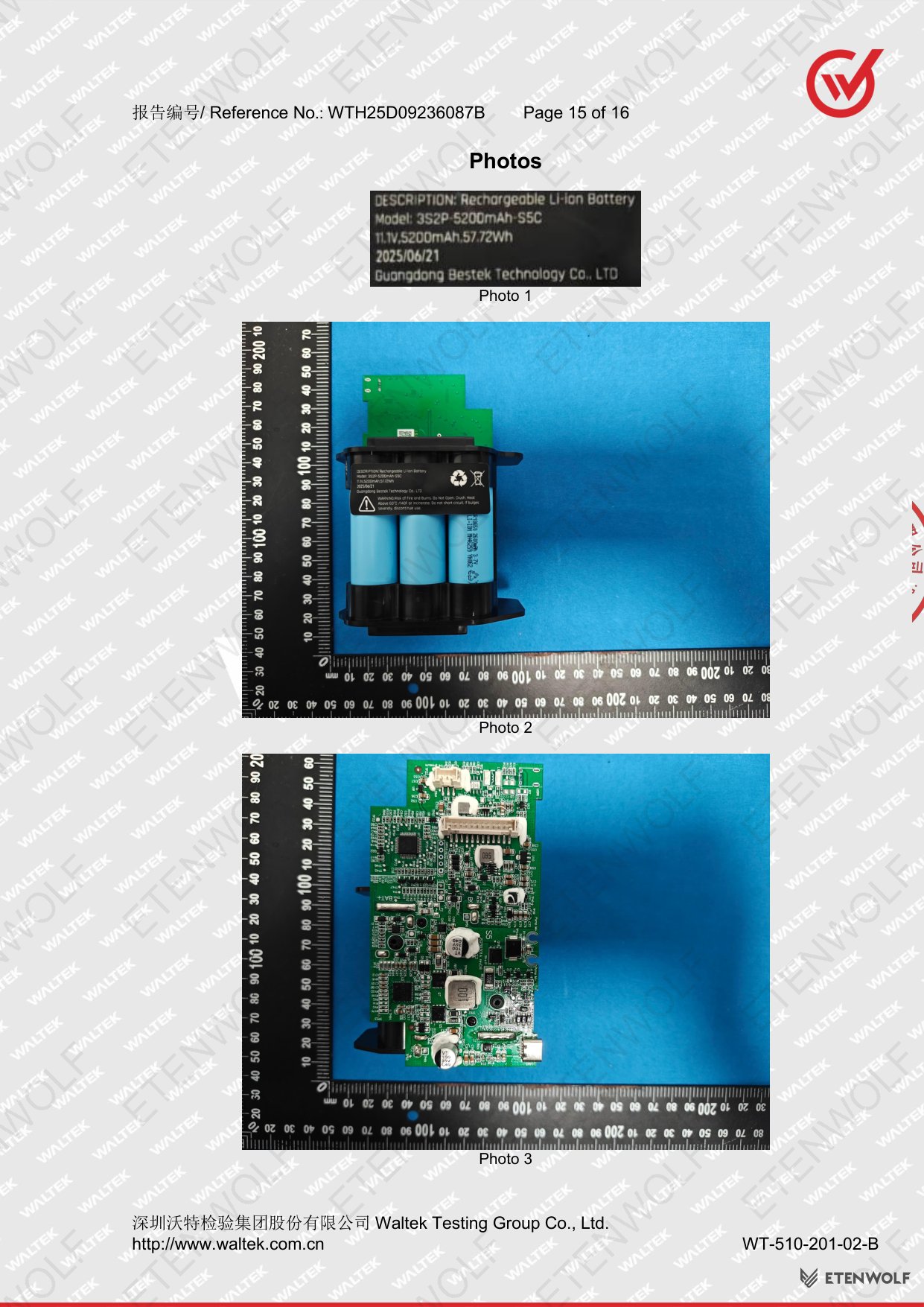

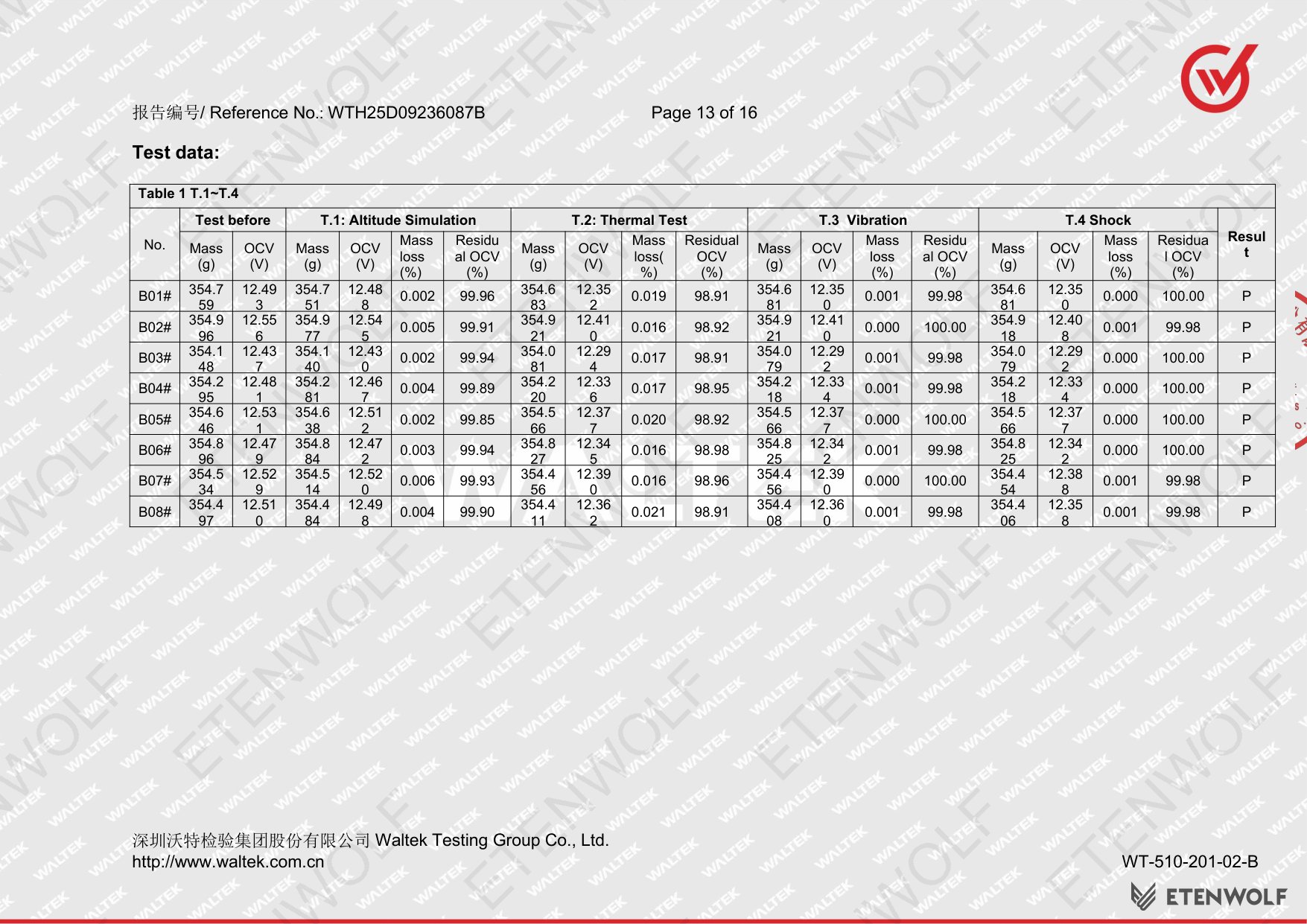

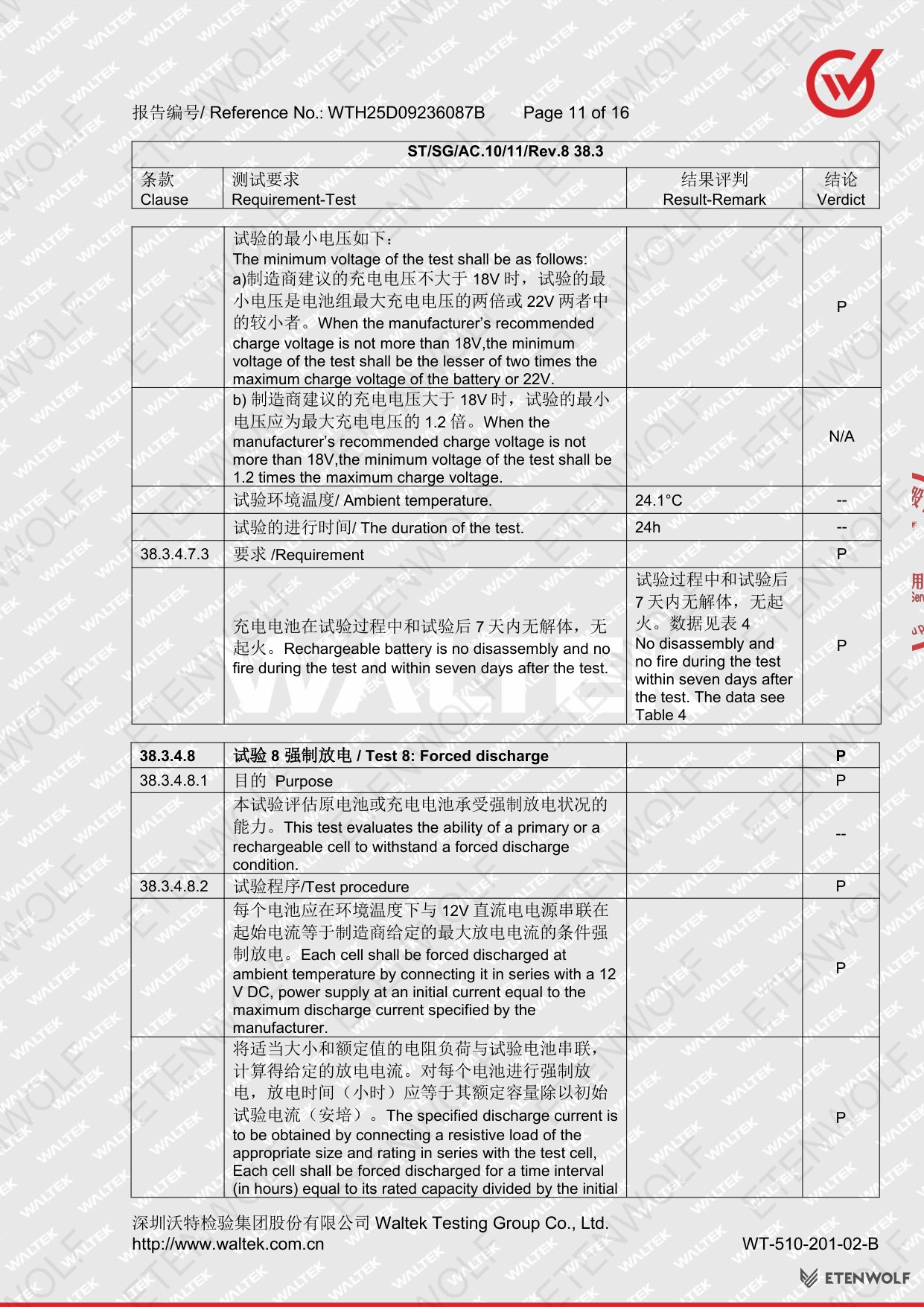

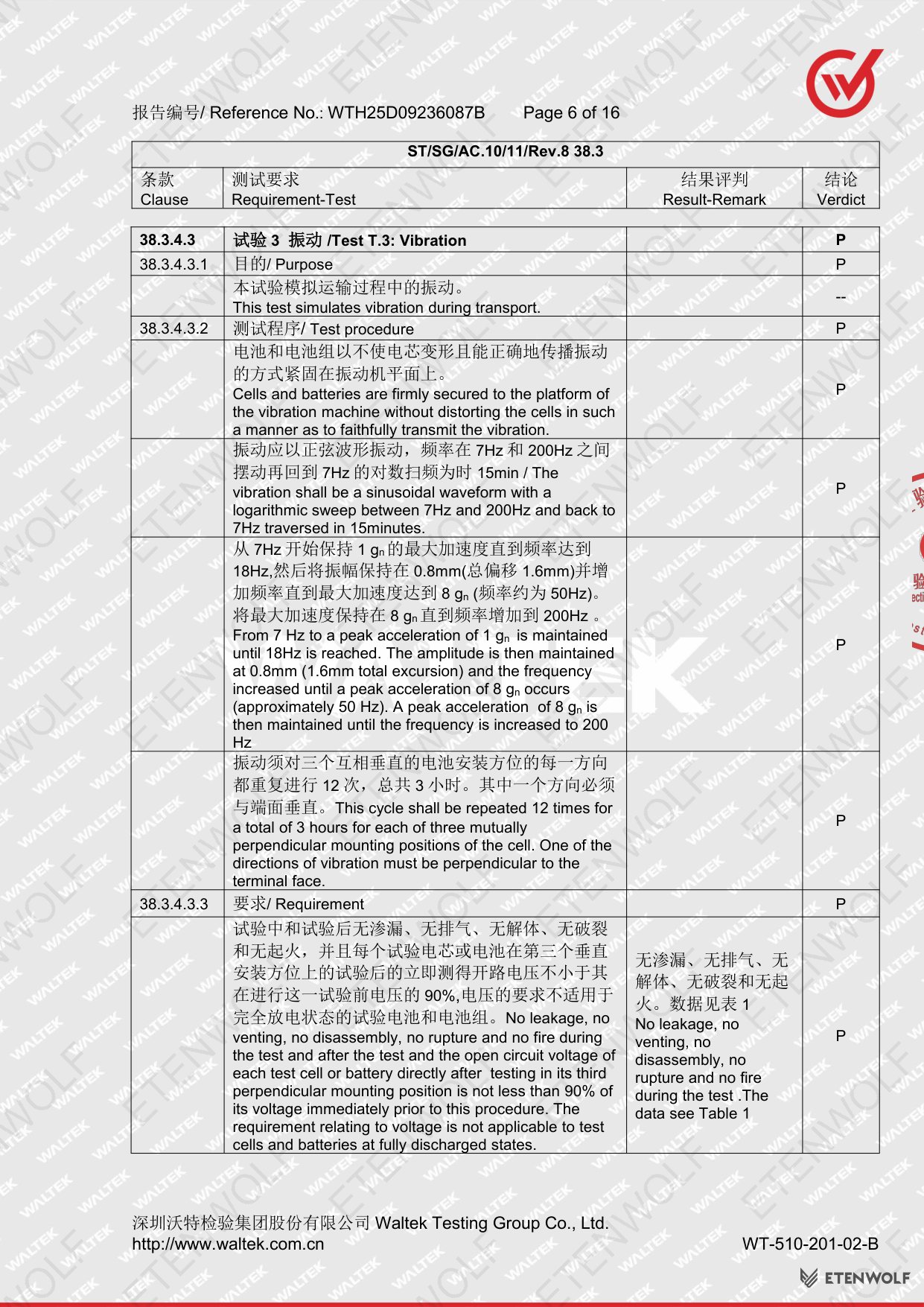

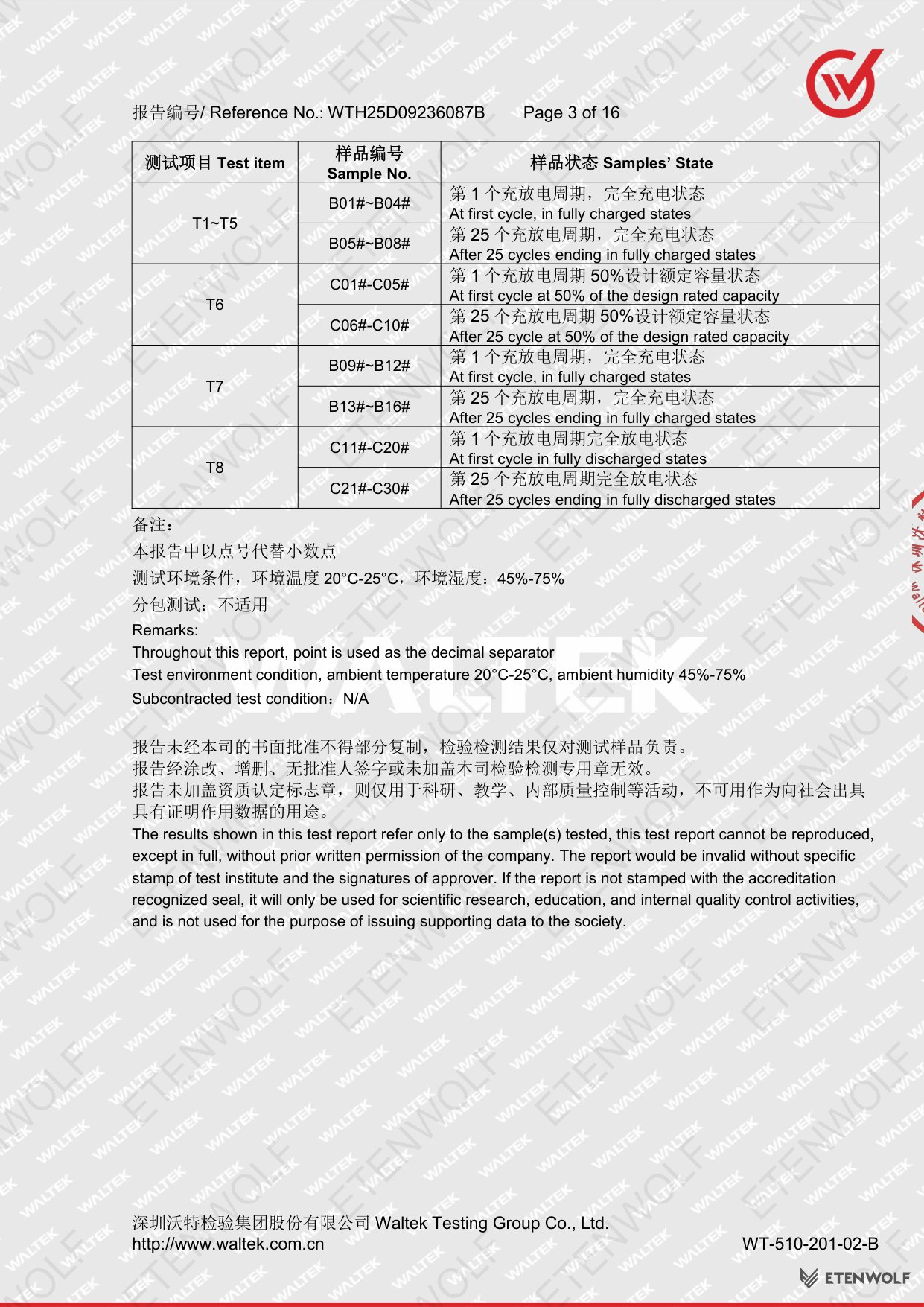

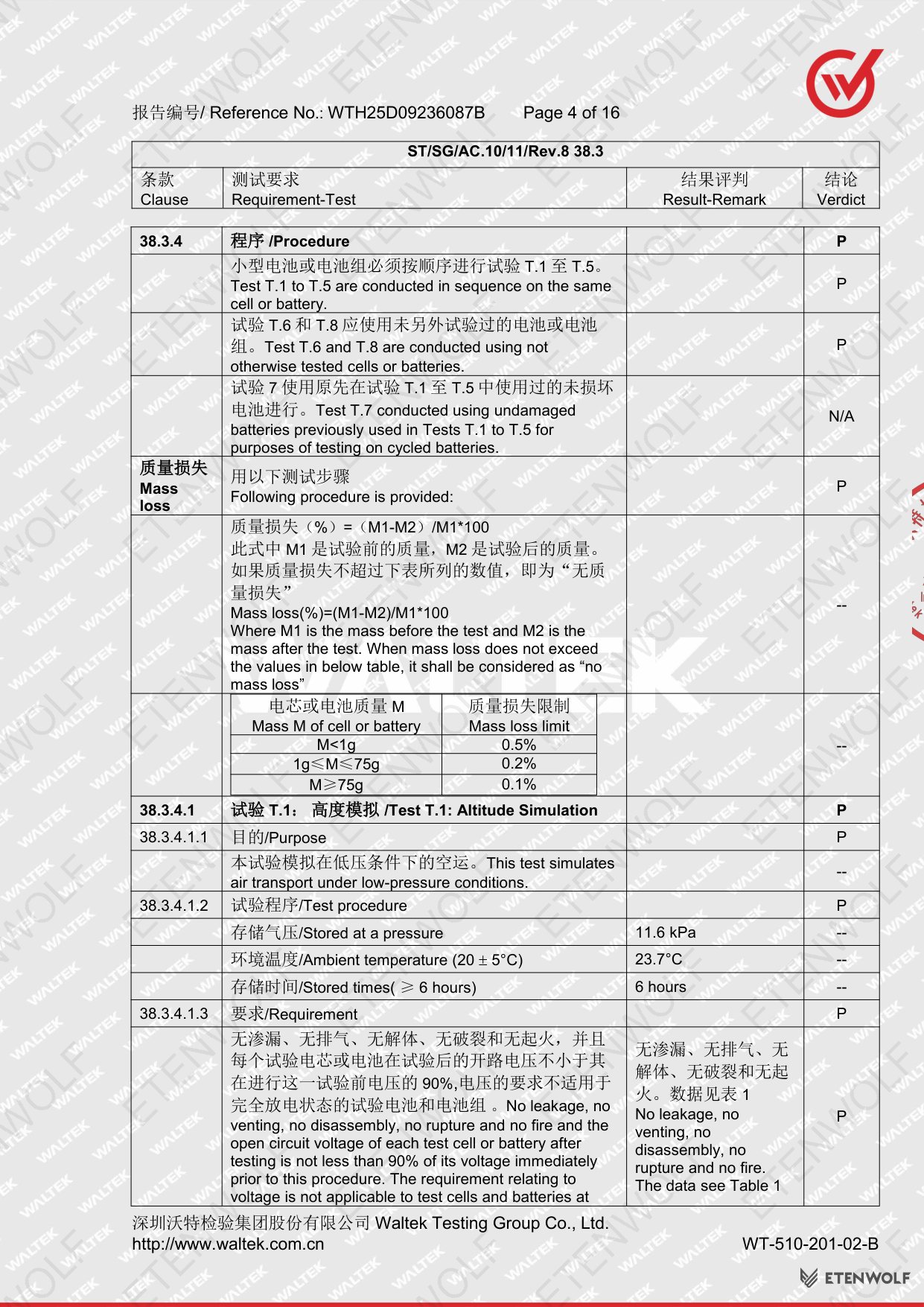

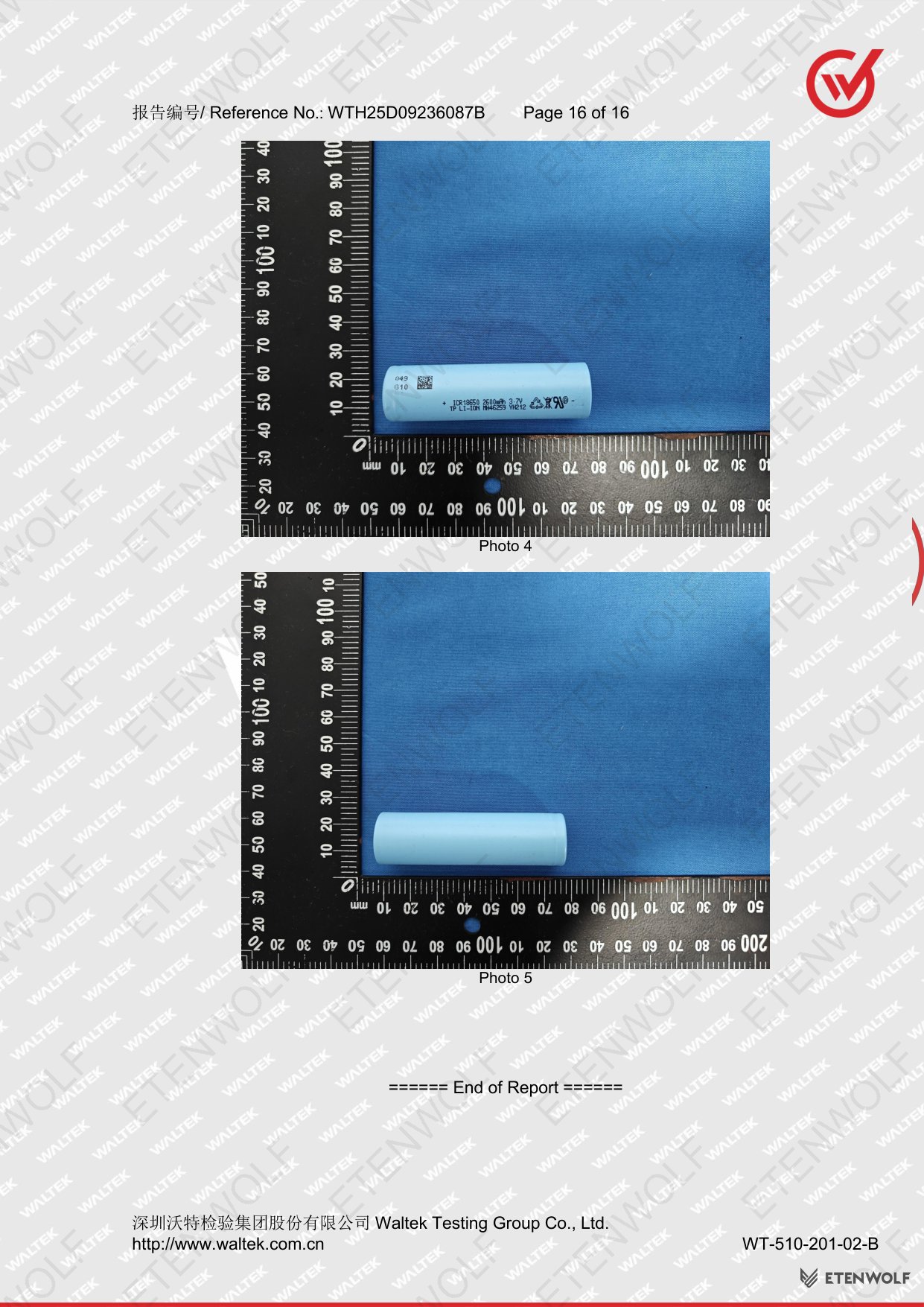

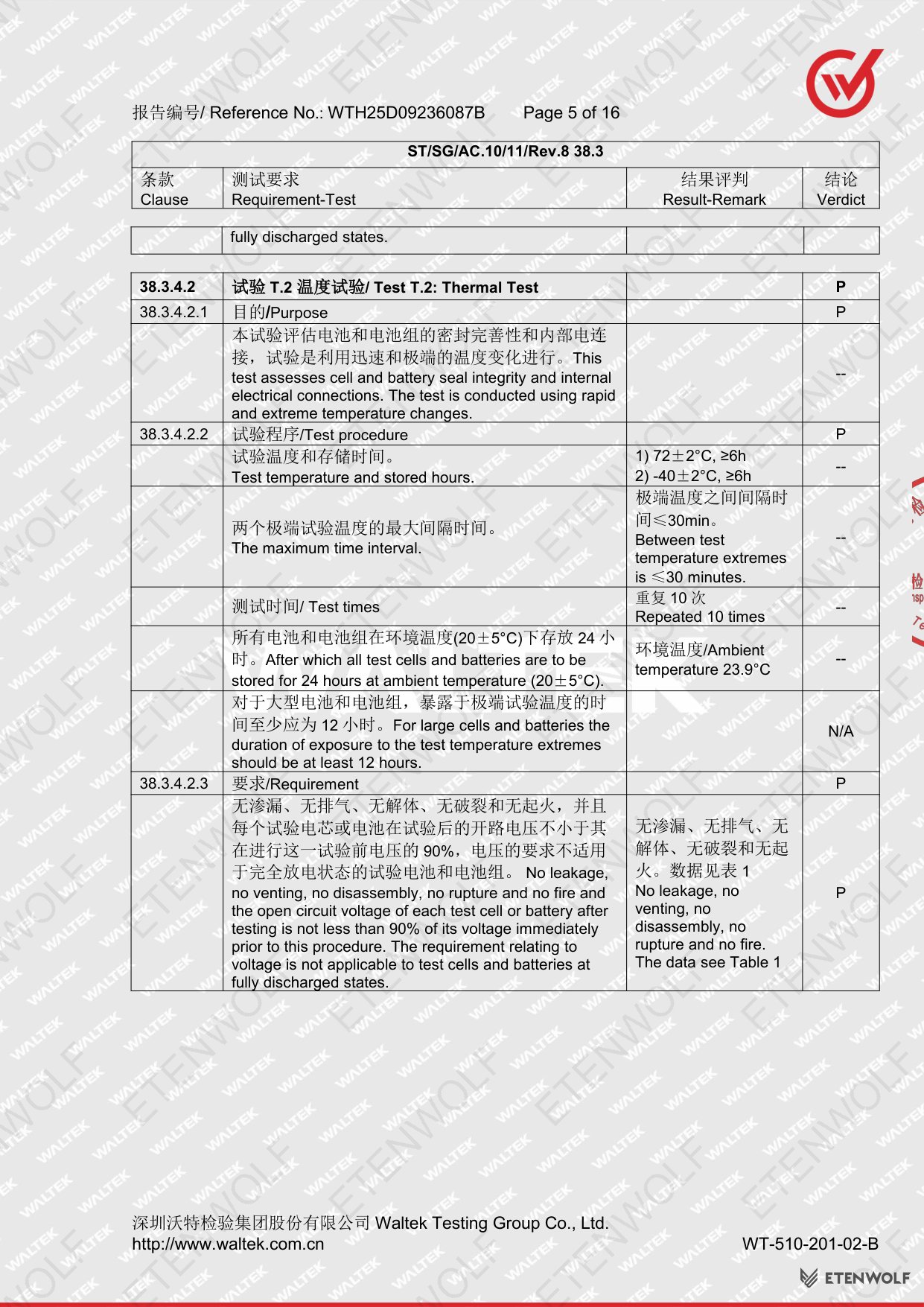

Document Pages
