Document Overview

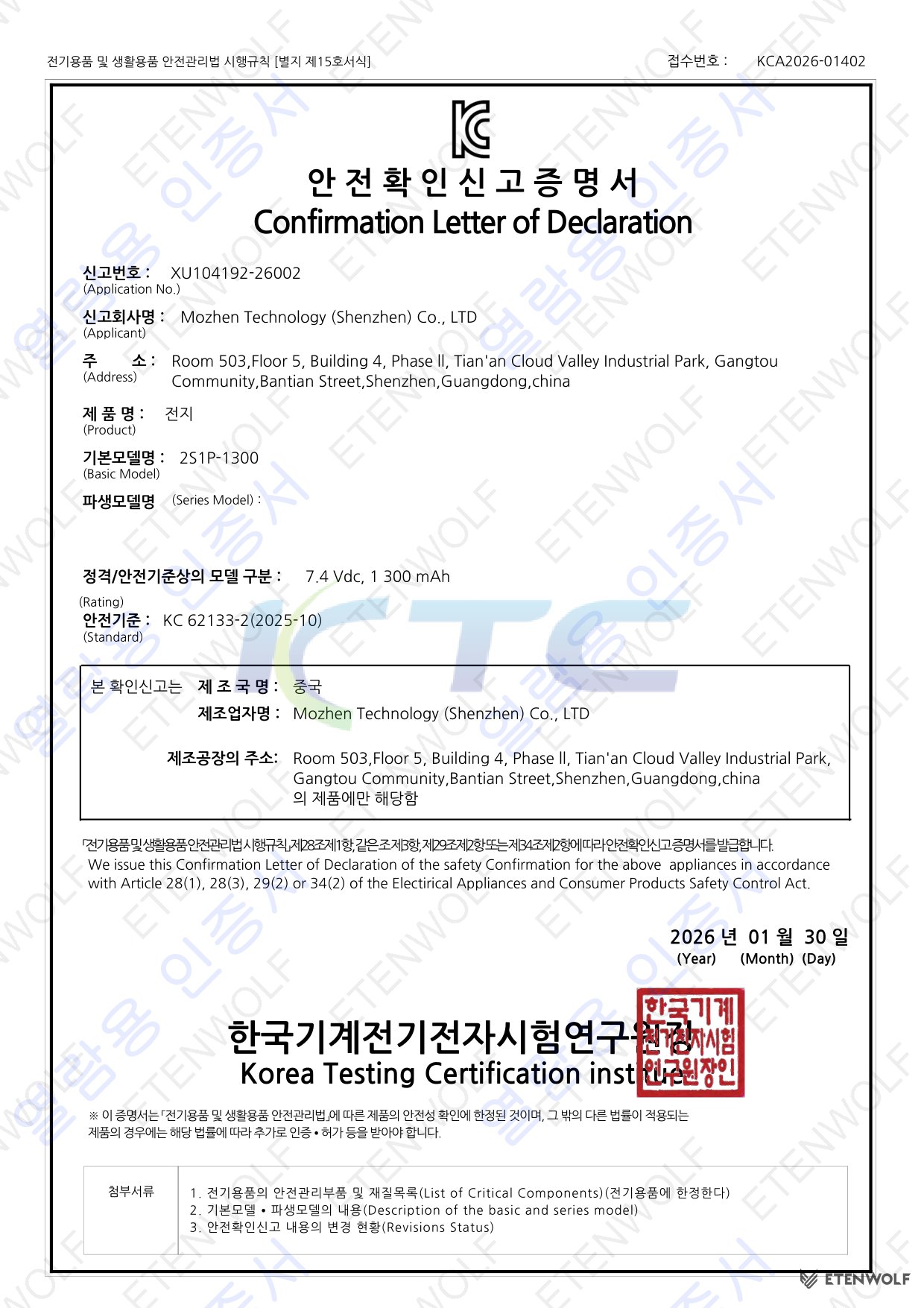

This page presents the official Confirmation Letter of Declaration (안전확인신고증명서) issued under the South Korean Electrical Appliances and Consumer Products Safety Control Act (전기용품 및 생활용품 안전관리법). The certificate was issued in accordance with Articles 28(1), 28(3), 29(2), and 34(2) of the Enforcement Rule of that Act.
| Field | Detail |
|---|---|
| Document Type | Confirmation Letter of Declaration (Safety Confirmation) |
| Certificate Number (신고번호) | XU104192-26002 |
| Application / Receipt Number (접수번호) | KCA2026-01402 |
| Issuing Authority | Korea Testing Certification (한국기계전기전자시험연구원, KTC) |
| Date of Issue | 2026-01-30 |
| Applicable Safety Standard | KC 62133-2 (2025-10) |
| Scope | Lithium-ion secondary battery packs for portable applications |
The certificate is marked as a viewer copy (열람용 인증서) and carries a time-stamp verification seal and a 2D barcode for authenticity checks through the KTC customer service portal.
Product Information
The certified product is the lithium battery pack integrated into the ETENWOLF Air3 portable inflation tool. The battery pack is manufactured by Mozhen Technology (Shenzhen) Co., LTD and is the primary power source for the Air3 device.
| Attribute | Value |
|---|---|
| Product Name (제품명) | 전지 (Lithium Battery Pack) |
| Basic Model (기본모델명) | 2S1P-1300 |
| Series / Derived Model (파생모델명) | — |
| Configuration | 2S1P (2 cells in series, 1 cell in parallel) |
| Nominal Voltage (정격전압) | 7.4 V DC |
| Nominal Capacity (정격용량) | 1300 mAh |
| Country of Manufacture (제조국) | China (중국) |
| Manufacturer (제조업자명) | Mozhen Technology (Shenzhen) Co., LTD |
| Manufacturing Address | Room 503, Floor 5, Building 4, Phase II, Tian’an Cloud Valley Industrial Park, Gangtou Community, Bantian Street, Shenzhen, Guangdong, China |

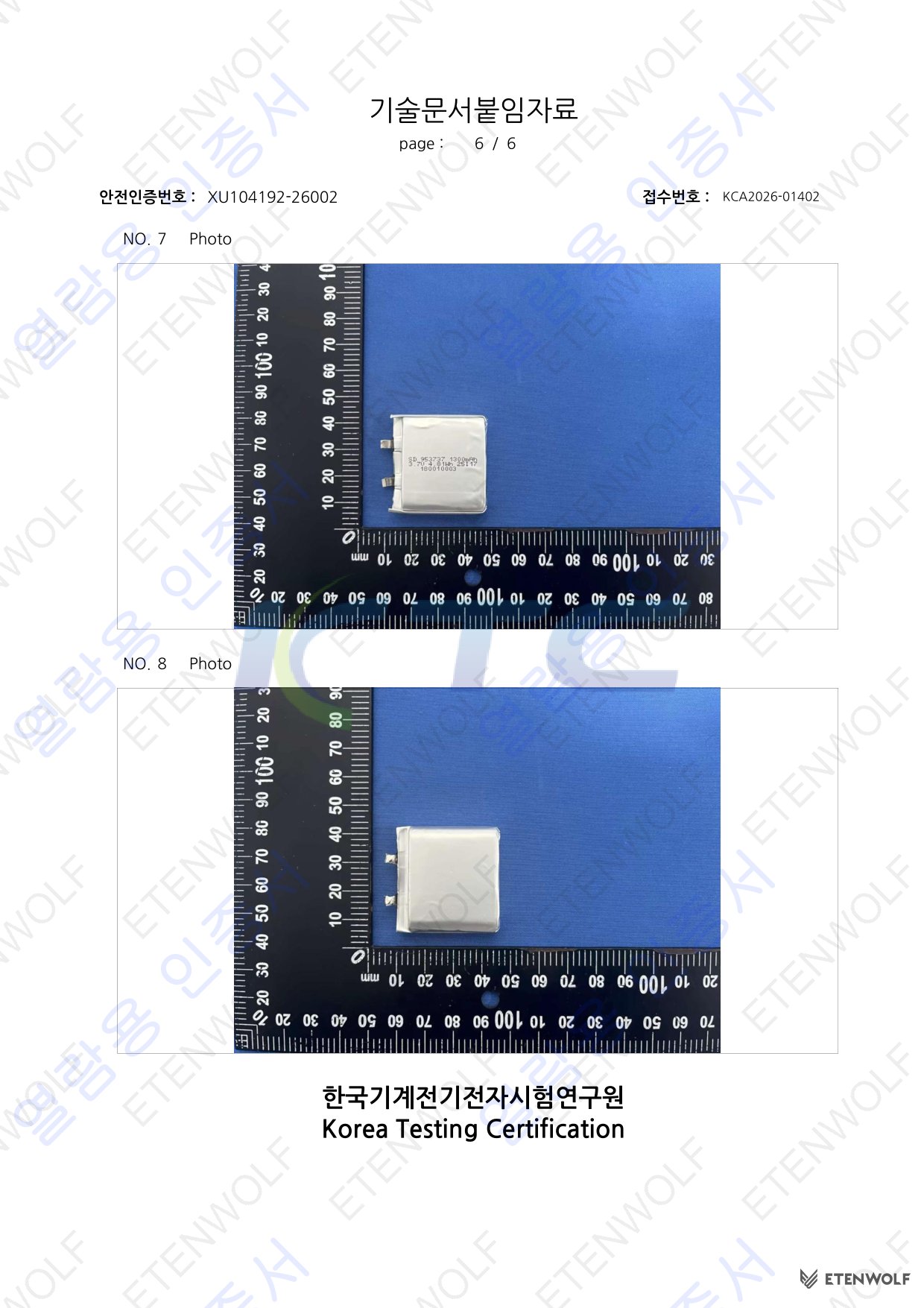

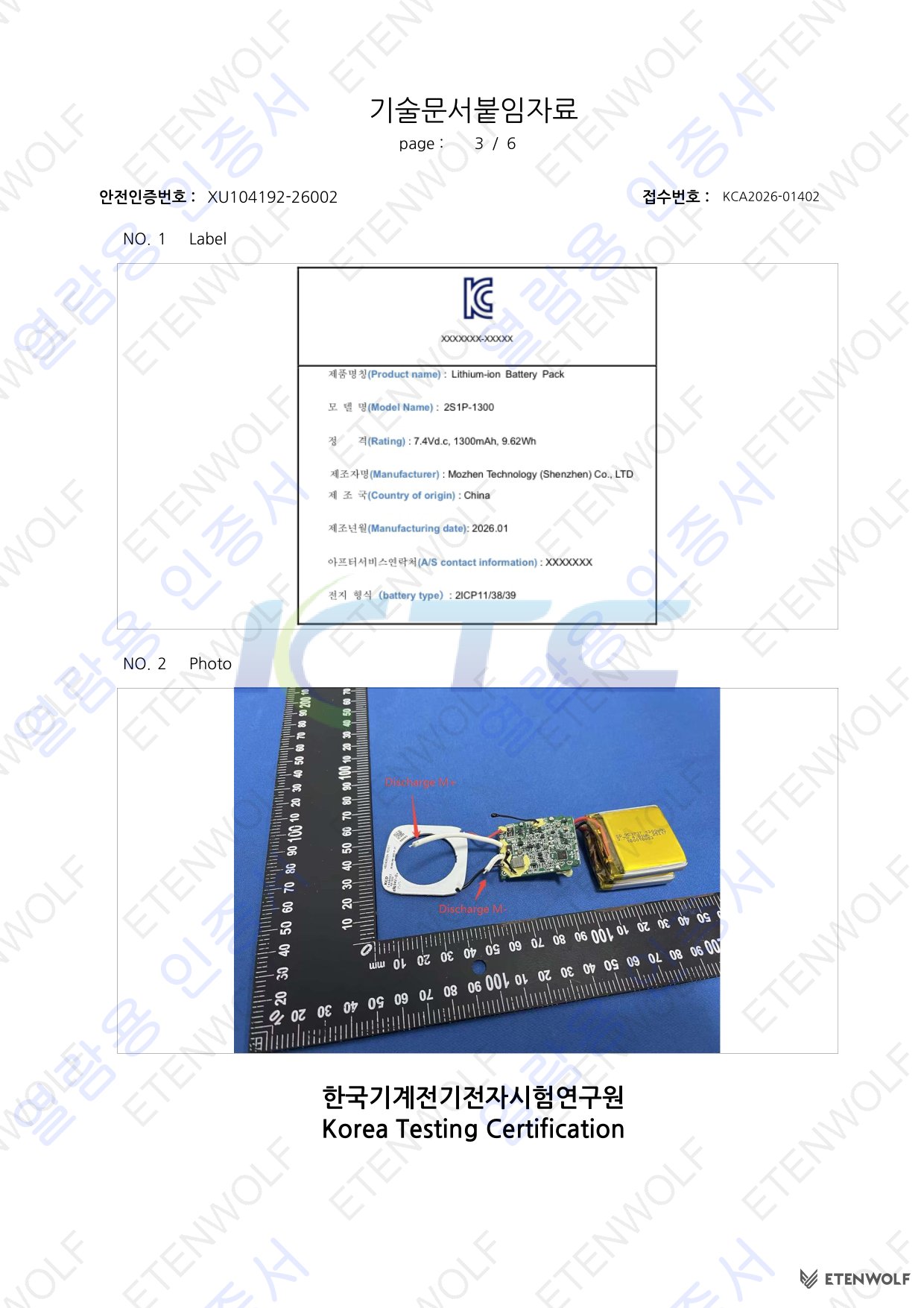

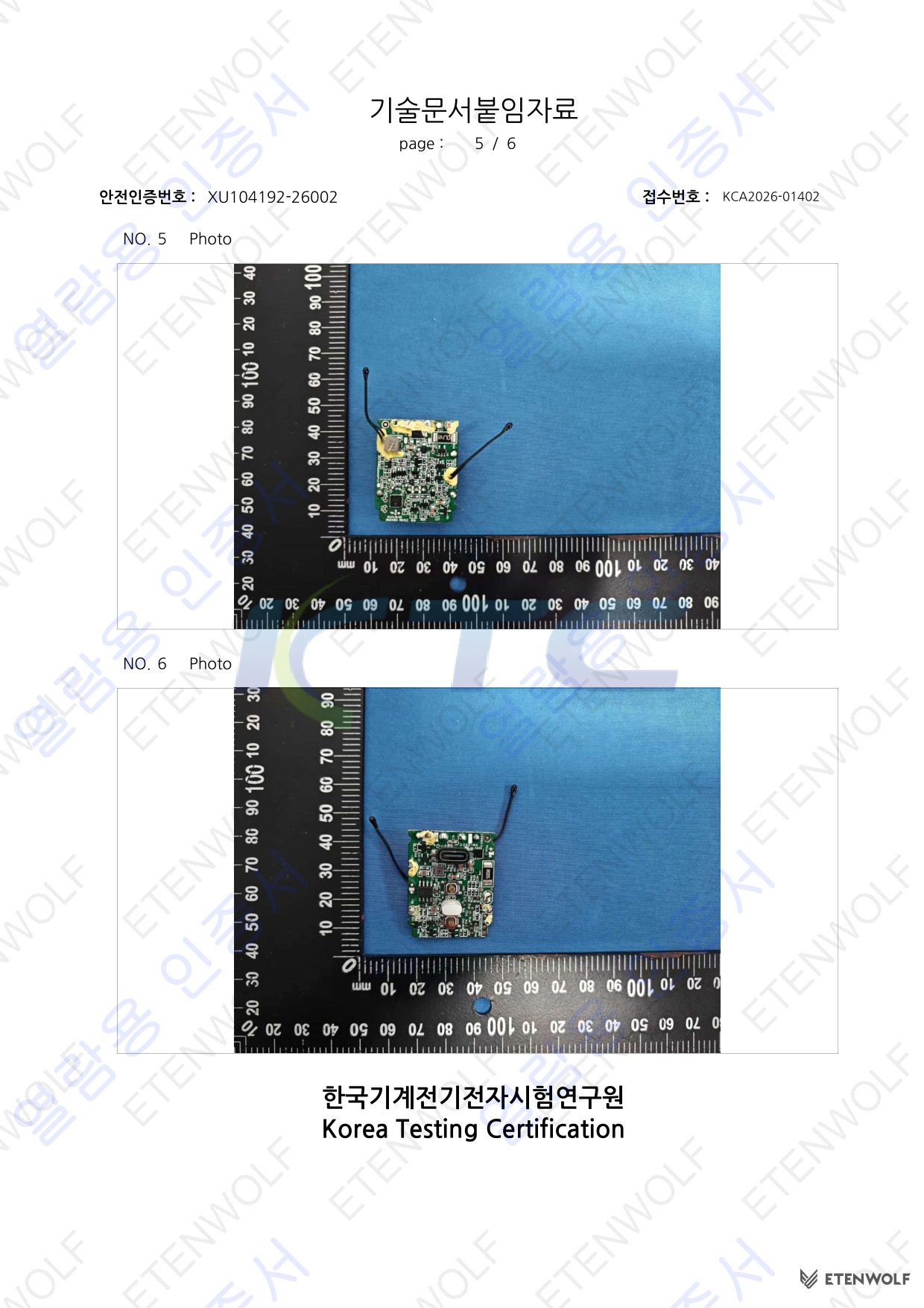

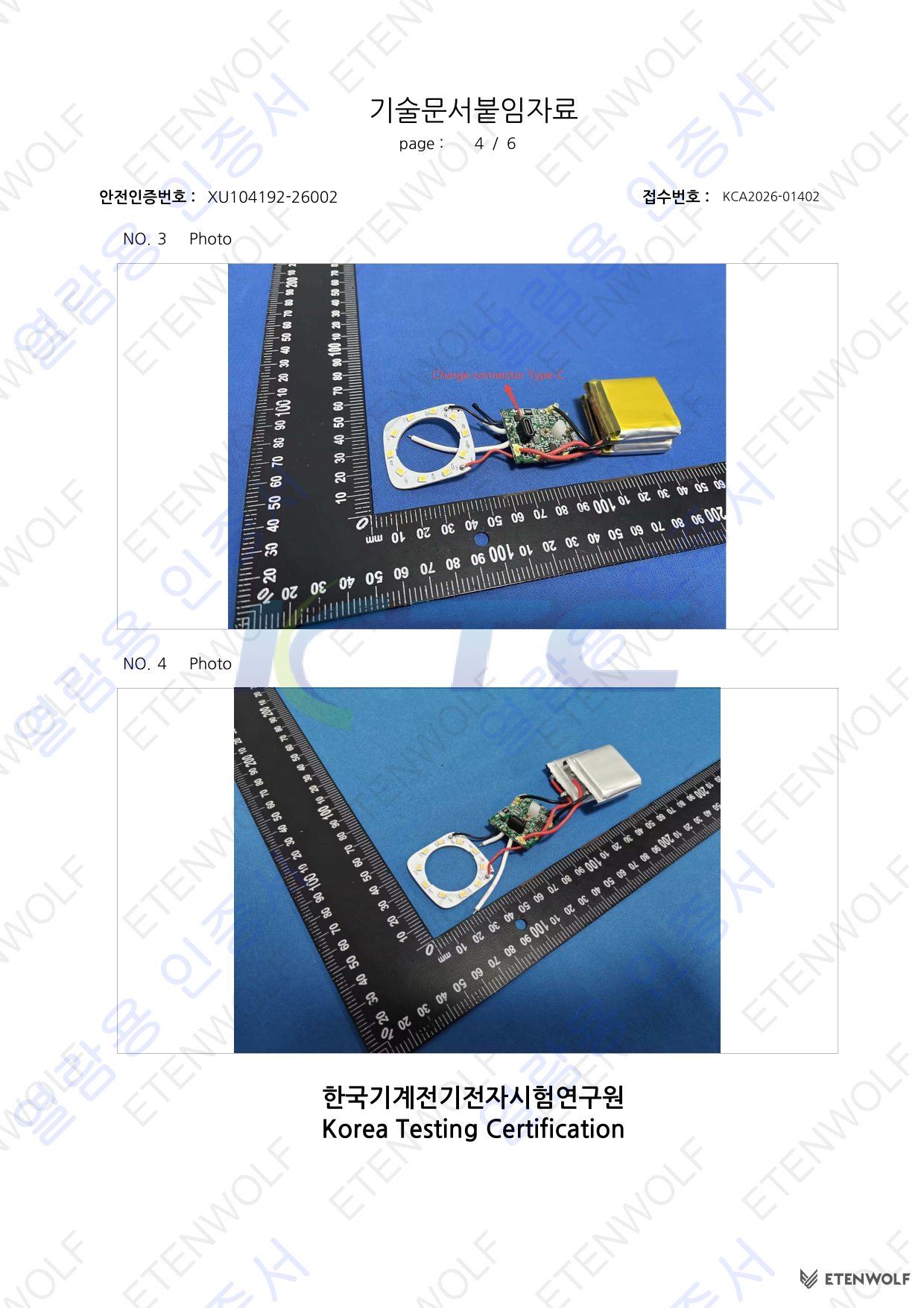

The internal construction consists of the attached critical components list and insulating materials arranged in a 2S-1P cell configuration. The external construction is detailed in the attached technical drawings within the original document.
Key Details

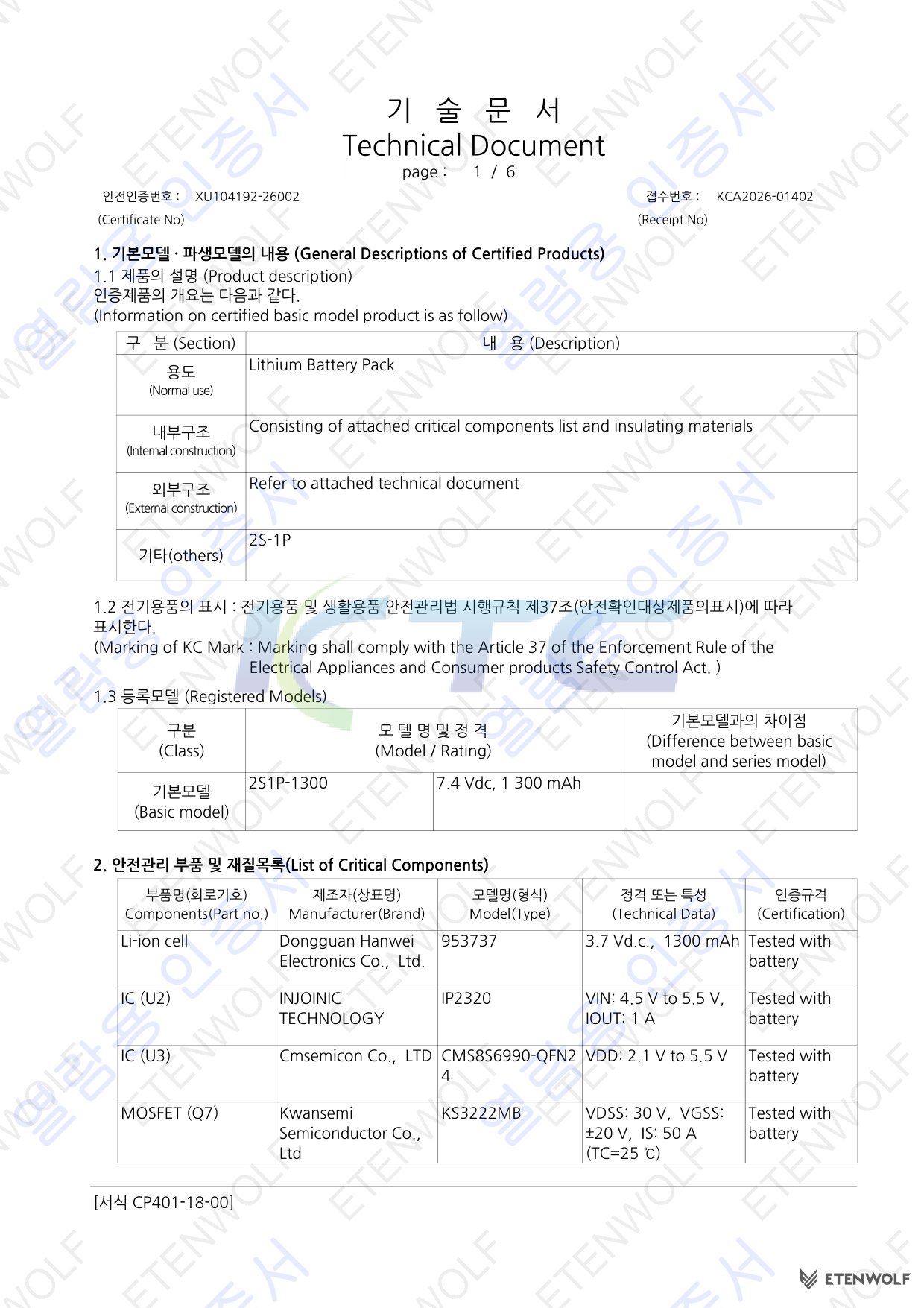

The technical document (기술문서) associated with certificate XU104192-26002 lists the following safety-critical components (안전관리 부품) that were evaluated as part of the conformity assessment. Any change to these components requires a formal revision application before production may continue.
| Component (부품명) | Manufacturer | Model / Type | Rated Characteristics | Certification Basis |
|---|---|---|---|---|
| Li-ion Cell | Dongguan Hanwei Electronics Co., Ltd. | 953737 | 3.7 V DC, 1300 mAh | Tested with battery |
| IC (U2) — Charging Controller | INJOINIC TECHNOLOGY | IP2320 | VIN: 4.5 V to 5.5 V, IOUT: 1 A | Tested with battery |
| IC (U3) — Microcontroller | Cmsemicon Co., LTD | CMS8S6990-QFN24 | VDD: 2.1 V to 5.5 V | Tested with battery |
| MOSFET (Q7) — Protection Switch | Kwansemi Semiconductor Co., Ltd | KS3222MB | VDSS: 30 V, VGSS: ±20 V, IS: 50 A (TC=25°C) | Tested with battery |

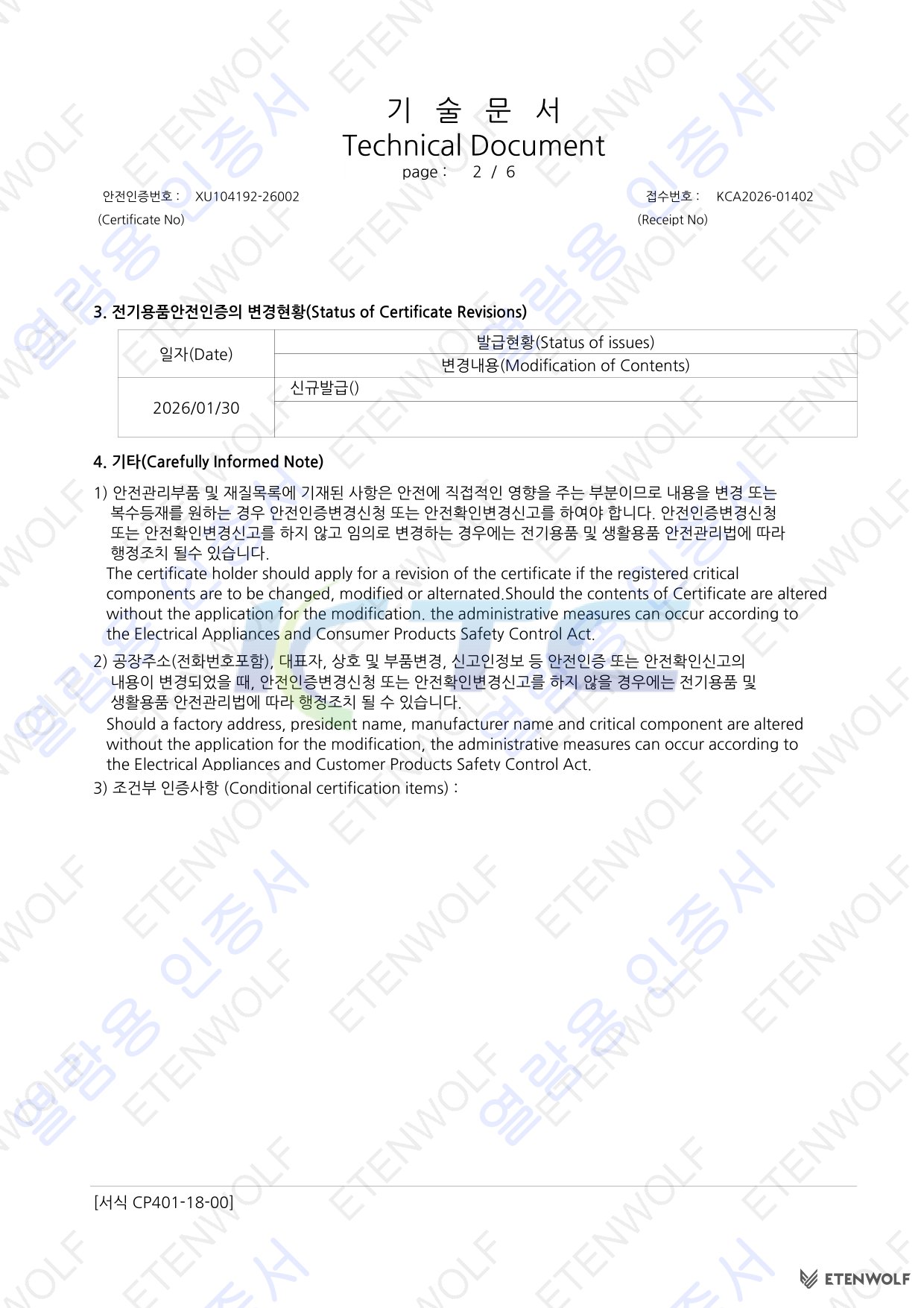

Revision history recorded in the technical document:
| Date | Issue Status | Modification |
|---|---|---|
| 2026/01/30 | Initial Issue (신규발급) | New certificate — no prior revisions |
The KC marking on the Air3 battery pack must comply with the marking requirements of Article 37 of the Enforcement Rule of the Electrical Appliances and Consumer Products Safety Control Act.
Standards & Compliance
The battery pack in the ETENWOLF Air3 was evaluated against the following standard under the South Korean KC certification scheme:
| Standard | Edition / Date | Scope |
|---|---|---|
| KC 62133-2 | 2025-10 | Safety requirements for portable sealed secondary lithium cells and batteries for use in portable applications — Part 2: Lithium systems |
KC 62133-2 is the Korean national adoption of IEC 62133-2, covering electrical, mechanical, and environmental safety tests for lithium secondary battery systems. Tests include overcharge, over-discharge, short-circuit, crush, thermal abuse, and vibration evaluations, among others.

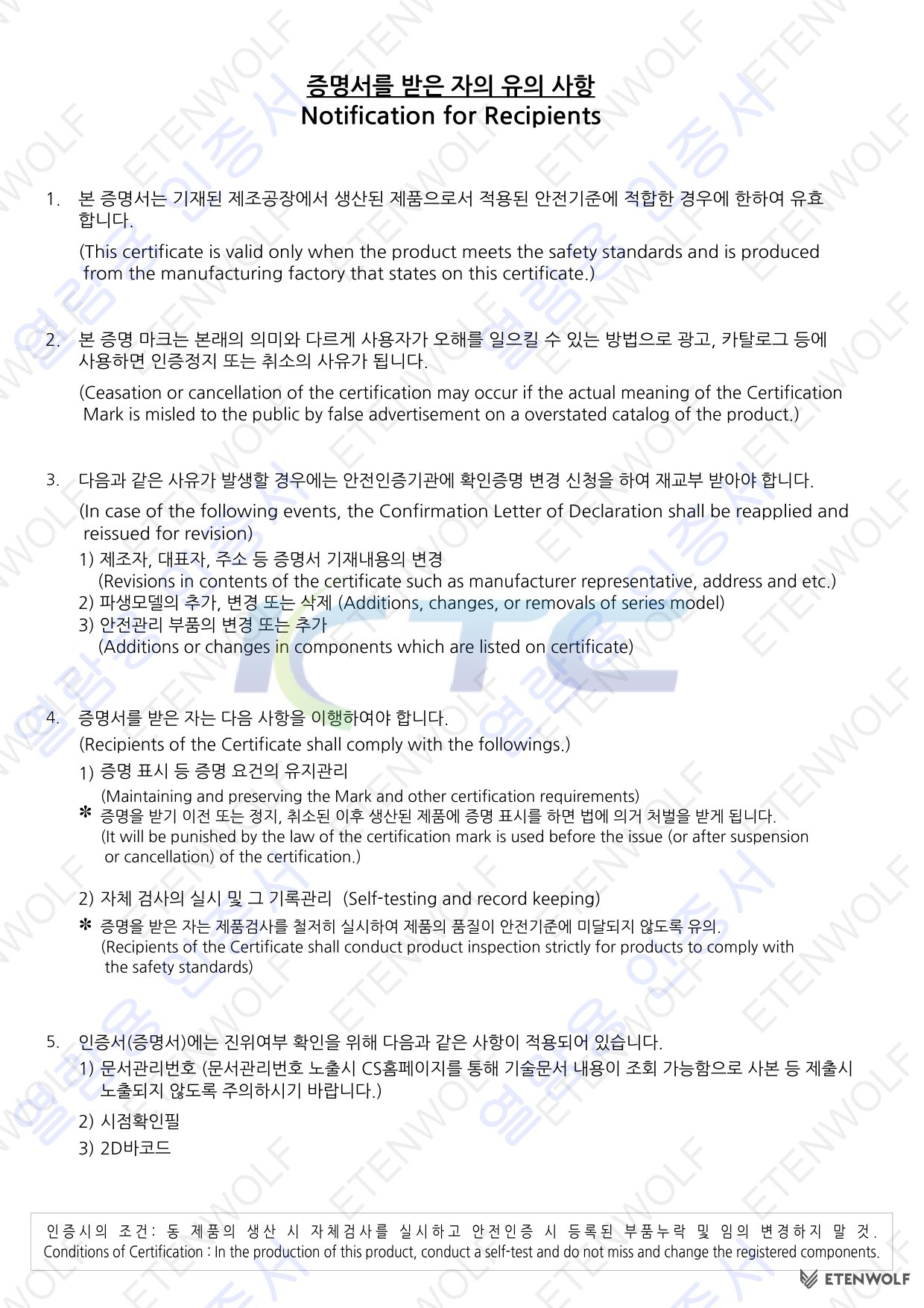

The certificate holder is required to:
- Conduct self-inspection (자체검사) during production and maintain records.
- Ensure no registered critical component is omitted or arbitrarily changed without a formal revision application.
- Refrain from applying the KC mark before certificate issuance or after suspension or cancellation of the certificate.
Validity & Certification Body
The Confirmation Letter of Declaration (안전확인신고증명서) for the Air3 battery pack is valid as long as the following conditions are continuously met:
- The product is manufactured exclusively at the declared factory: Mozhen Technology (Shenzhen) Co., LTD, Shenzhen, Guangdong, China.
- The product continues to conform to the applicable safety standard KC 62133-2 (2025-10).
- No changes are made to the critical components, factory address, representative, or company name without prior notification and re-issuance of the certificate.
Should any of the following events occur, a certificate revision application must be submitted to the certification authority before continuing production:
- Changes to manufacturer name, representative, or address.
- Addition, modification, or removal of series/derived models.
- Addition or change of safety-critical components listed in the technical document.
| Attribute | Detail |
|---|---|
| Issuing Body | Korea Testing Certification (한국기계전기전자시험연구원, KTC) |
| Certificate Number | XU104192-26002 |
| Receipt Number | KCA2026-01402 |
| Issue Date | 2026-01-30 |
| Validity Condition | Continuous compliance with KC 62133-2 and no unauthorized component changes |
| Document Pages | 6 pages (technical document) + 2 pages (certificate + notices) |
Frequently Asked Questions
- What does the KC certificate XU104192-26002 confirm about the Air3 battery pack?
-
It confirms that the 2S1P-1300 lithium battery pack (7.4 V DC, 1300 mAh) used in the ETENWOLF Air3 has been evaluated and declared compliant with the Korean safety standard KC 62133-2 (2025-10) by the Korea Testing Certification authority (KTC). The certificate was issued on 2026-01-30 under application number KCA2026-01402.
- Is the KC mark the same as CE or other international certifications?
-
No. The KC mark is South Korea’s mandatory safety mark under the Electrical Appliances and Consumer Products Safety Control Act. It is a national requirement specific to the Korean market. It is separate from CE marking (European Union), FCC (United States), or other regional certifications, though the underlying test standard KC 62133-2 is closely aligned with the international standard IEC 62133-2.
- Can the critical components in the Air3 battery pack be changed without re-certification?
-
No. Any addition or change to the safety-critical components listed in the technical document — including the Li-ion cells (Dongguan Hanwei 953737), the charging IC (IP2320), the microcontroller (CMS8S6990-QFN24), or the protection MOSFET (KS3222MB) — requires a formal certificate revision application to KTC before the change can be implemented in production. Unauthorized changes may result in administrative action under the Act.
- Where can I verify the authenticity of this KC certificate?
-
Authenticity can be verified through the Korea Testing Certification (KTC) customer service portal using the document management number embedded in the certificate. The original certificate also carries a time-stamp verification seal and a 2D barcode. Note that the document management number should not be exposed when submitting copies of the certificate to avoid unauthorized access to the technical document contents.
Related Documents
The following certification and compliance documents are typically associated with a portable lithium battery-powered inflation tool such as the ETENWOLF Air3. Obtaining and maintaining these documents ensures comprehensive market access and regulatory compliance across major regions:
- UN 38.3 Transport Test Report — Mandatory for air and sea transport of lithium battery products. Confirms the battery pack meets the UN 38.3 test requirements for safe transport.
- IEC 62133-2 Test Report — The international basis for the KC 62133-2 standard. A full IEC 62133-2 report from an accredited laboratory supports CE marking and other regional approvals.
- CE Declaration of Conformity (DoC) — Required for sale in the European Union. Covers the Low Voltage Directive (LVD) and, where applicable, the Radio Equipment Directive (RED).
- FCC Declaration of Conformity — Required for sale in the United States market, covering electromagnetic compatibility and radio frequency emissions.
- RoHS Compliance Certificate — Confirms the product does not contain restricted hazardous substances under EU RoHS Directive 2011/65/EU.
- REACH SVHC Declaration — Confirms compliance with the REACH Regulation (EC) No 1907/2006 regarding substances of very high concern.
- PSE Certification (Japan) — Required for lithium battery products sold in Japan under the Electrical Appliance and Material Safety Act.
