UN38.3 Test Report for ETENWOLF Air3 Lithium-ion Battery Pack (WTH25D05129163B)

Document Overview

Document Overview This page presents the official UN38.3 Test Report issued for the lithium-ion battery pack used in the ETENWOLF Air3 portable inflator. UN38.3 is the internationally recognised transportation safety standard for lithium batteries, defined under the UN Recommendations on the Transport of Dangerous Goods…

Document type
Certification Report
Prepared by
Michelle Torres
Published
Last reviewed
Topics
International Transportation: CB / MSDS / UN38.3

Document Overview

This page presents the official UN38.3 Test Report issued for the lithium-ion battery pack used in the ETENWOLF Air3 portable inflator. UN38.3 is the internationally recognised transportation safety standard for lithium batteries, defined under the UN Recommendations on the Transport of Dangerous Goods – Manual of Tests and Criteria.

  • Report Number: WTH25D05129163B
  • Document Type: UN38.3 Test Report
  • Issuing Body: Waltek Testing Group Co., Ltd. (Shenzhen / Dongguan, China)
  • Test Specification: ST/SG/AC.10/11/Rev.8 – Section 38.3, Eighth Revised Edition (Amendment)
  • Date of Sample Receipt: 2025-05-22
  • Testing Period: 2025-05-22 to 2025-05-30
  • Date of Issue: 2025-06-05
  • Overall Test Result: PASS — The submitted samples comply with the above standards.

The report was prepared by Waltek Testing Group Co., Ltd., located at No. 77, Houjie Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong, China. The document spans 16 pages under internal form reference WT-510-201-02-B.

Product Information

The battery pack evaluated in this report is the internal power cell for the ETENWOLF Air3 cordless inflator. Full product details as documented in the test report are listed below.

Field Detail
Product Name Lithium-ion Battery Pack
Model Number 1S1P-1300
Cell Model 953737
Classification Prismatic Lithium-ion Battery Pack
Trade Mark N/A
Rated Voltage 3.7 V
Rated Capacity 1300 mAh
Energy 4.81 Wh
Cell Count & Configuration 1 cell, 1S1P
Cell Rated Capacity 1300 mAh
Dimensions 37.0 mm × 37.0 mm × 19.0 mm
Mass Approx. 33.7 g
Standard Charge Current Type-C: 5 V / 1.3 A
Max. Charge Voltage Type-C: 5 V / 1.3 A
Max. Charge Current Type-C: 5 V / 1.3 A
Standard Discharge Current 1300 mA
Max. Discharge Current 6500 mA
Discharge Cut-off Voltage 3.0 V

The applicant and manufacturer is Guangdong Bestek Technology Co., Ltd., located at No. 1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China.

Key Details

UN38.3 requires lithium batteries to pass a series of eight individual abuse and environmental tests before they are approved for air, sea, and ground transportation. The table below summarises the test items covered under this report and their verdict conventions as defined in the document.

Test Item UN38.3 Sub-section Description Result
T.1 – Altitude Simulation 38.3.4.1 Simulates low-pressure conditions during air transport (11.6 kPa, 6 hours) Pass
T.2 – Thermal Test 38.3.4.2 Rapid temperature cycling between +75 °C and −40 °C Pass
T.3 – Vibration 38.3.4.3 Sinusoidal vibration across 7–200 Hz frequency range Pass
T.4 – Shock 38.3.4.4 Half-sine shock pulses at 150 gn peak acceleration Pass
T.5 – External Short Circuit 38.3.4.5 Short circuit at ambient and elevated temperature Pass
T.6 – Impact / Crush 38.3.4.6 Mechanical impact or crush depending on cell form factor (prismatic: crush) Pass
T.7 – Overcharge 38.3.4.7 Charge at twice the maximum rated current for 24 hours Pass
T.8 – Forced Discharge 38.3.4.8 Forced discharge by connecting cells in series with a 12 V source Pass

Verdict key used in the report: P (Pass) — test object meets the requirement; F (Fail) — test object does not meet the requirement; N/A — test case does not apply to the test object.

All eight applicable test items received a Pass verdict, confirming that the 1S1P-1300 battery pack is compliant for transport classification purposes.

Standards & Compliance

The ETENWOLF Air3 battery pack was evaluated against the following normative reference:

UN38.3 compliance is mandatory for the international shipment of lithium batteries and cells by all transport modes. The standard is referenced by:

  • IATA Dangerous Goods Regulations (DGR) for air freight
  • IMDG Code for sea freight
  • ADR/RID for road and rail transport in Europe

A prismatic single-cell battery pack of 4.81 Wh falls below the 20 Wh per-cell threshold, which allows it to ship under Section II provisions when packed with or contained in equipment. This report provides the documentation required by carriers and customs authorities to verify that the battery has been properly tested prior to shipment.

Validity & Certification Body

The test report WTH25D05129163B was issued on 2025-06-05 by Waltek Testing Group Co., Ltd. (深圳沃特检验集团股份有限公司), one of China’s leading independent third-party testing laboratories.

Field Detail
Report Number WTH25D05129163B
Issue Date 2025-06-05
Testing Laboratory Waltek Testing Group Co., Ltd.
Lab Address No. 77, Houjie Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong, China
Lab Website http://www.waltek.com.cn
Lab Tel +86-769-2267 6998
Lab Fax +86-769-2267 6828
Lab Email [email protected]
Tested By Jacky Sun (孙纤)
Reviewed By Jack Chen (陈咏松)
Approved By Deval Qin (秦林伟)
Internal Form Ref. WT-510-201-02-B

UN38.3 test reports do not carry a fixed expiry date under the standard itself; however, the report is linked to the specific cell model (953737) and configuration (1S1P) tested. Any change in cell chemistry, configuration, or safety circuitry requires re-testing. Carriers and regulatory bodies may impose their own validity windows, typically 12–36 months from the date of issue.

Frequently Asked Questions

What is UN38.3 and why does the ETENWOLF Air3 need it?

UN38.3 is the transport safety standard under the UN Recommendations on the Transport of Dangerous Goods that all lithium batteries must pass before they can be shipped commercially. The ETENWOLF Air3 contains a 3.7 V / 1300 mAh lithium-ion battery pack, so this certification is required by airlines, freight carriers, and customs authorities worldwide to permit the product to be transported safely.

Which test report number corresponds to the Air3 battery pack?

The UN38.3 test report for the Air3 lithium-ion battery pack (model 1S1P-1300, cell model 953737) is WTH25D05129163B, issued by Waltek Testing Group Co., Ltd. on 2025-06-05.

Did the Air3 battery pass all UN38.3 tests?

Yes. All applicable test items — including altitude simulation, thermal cycling, vibration, shock, external short circuit, crush, overcharge, and forced discharge — received a Pass verdict. The report confirms full compliance with ST/SG/AC.10/11/Rev.8 Section 38.3.

How does the Air3 battery pack’s energy rating affect shipping classification?

At 4.81 Wh per cell, the Air3 battery pack is well below the 20 Wh per-cell threshold defined in UN38.3. This means it qualifies for Section II shipping provisions when packed with or contained in equipment, which simplifies documentation requirements for air and ocean freight.

Related Documents

For a complete compliance profile of the ETENWOLF Air3 inflator, the following related certification and test documents are relevant:

  • IEC 62133 — Safety requirements for portable sealed secondary lithium cells and batteries. Complements UN38.3 for product-level battery safety.
  • CE Declaration of Conformity — Required for sale in the European Economic Area; covers the Low Voltage Directive (LVD) and Radio Equipment Directive (RED) where applicable.
  • FCC ID / FCC Part 15 — Radio frequency and electromagnetic interference compliance for the US market.
  • RoHS Compliance Certificate — Confirms restriction of hazardous substances (lead, mercury, cadmium, etc.) in the product and its components, required for EU and many global markets. See the EU RoHS Directive.
  • REACH SVHC Declaration — Substance compliance under the EU REACH Regulation, confirming no Substances of Very High Concern above threshold limits.
  • MSDS / SDS (Battery) — Material Safety Data Sheet for the lithium-ion cell, required by freight carriers alongside the UN38.3 report for dangerous goods documentation.
  • KC Certification — Korean Certification mark required for sale in the Republic of Korea, covering electrical safety and EMC for the ETENWOLF Air3.

Document Pages

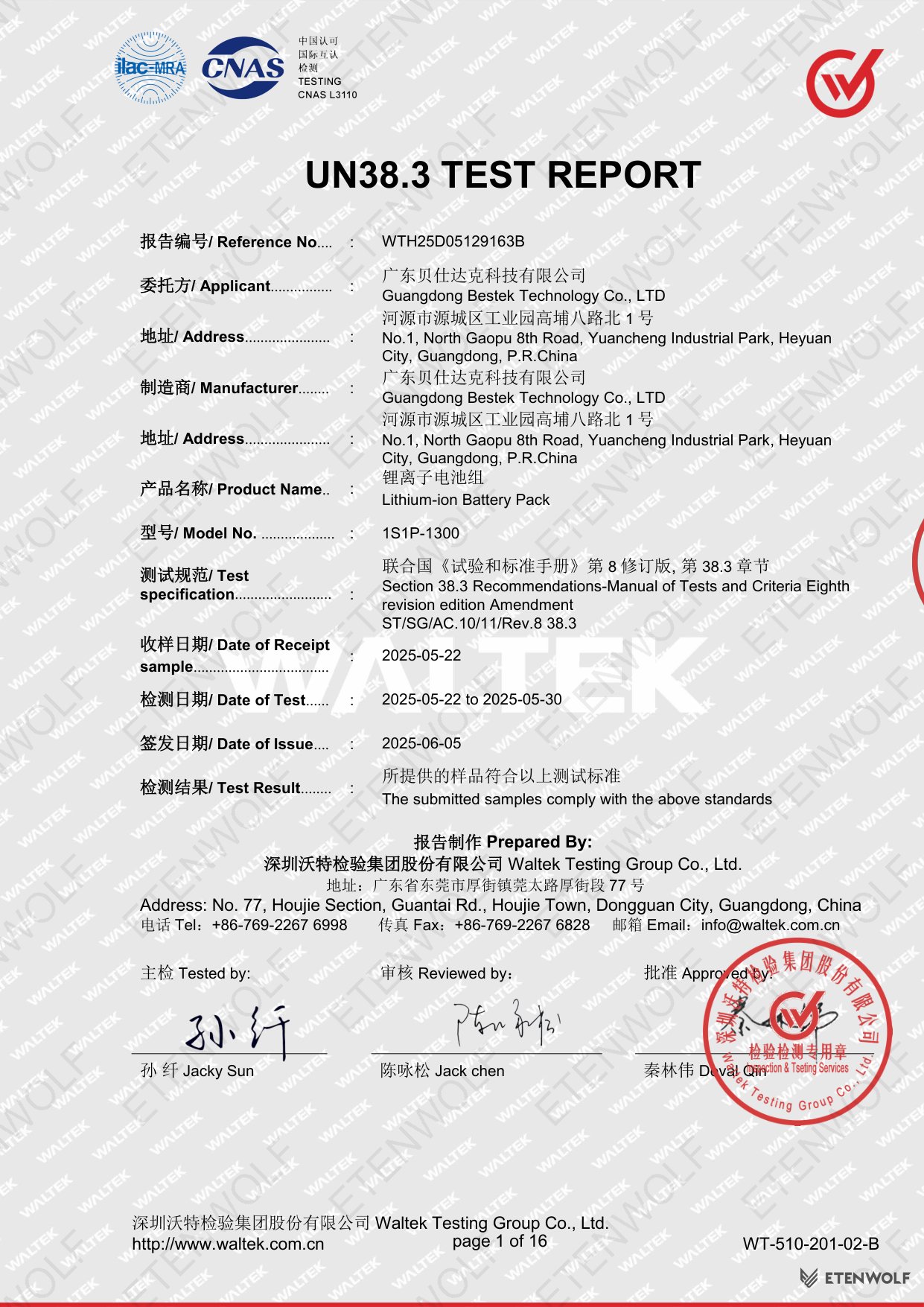

Document Page 1

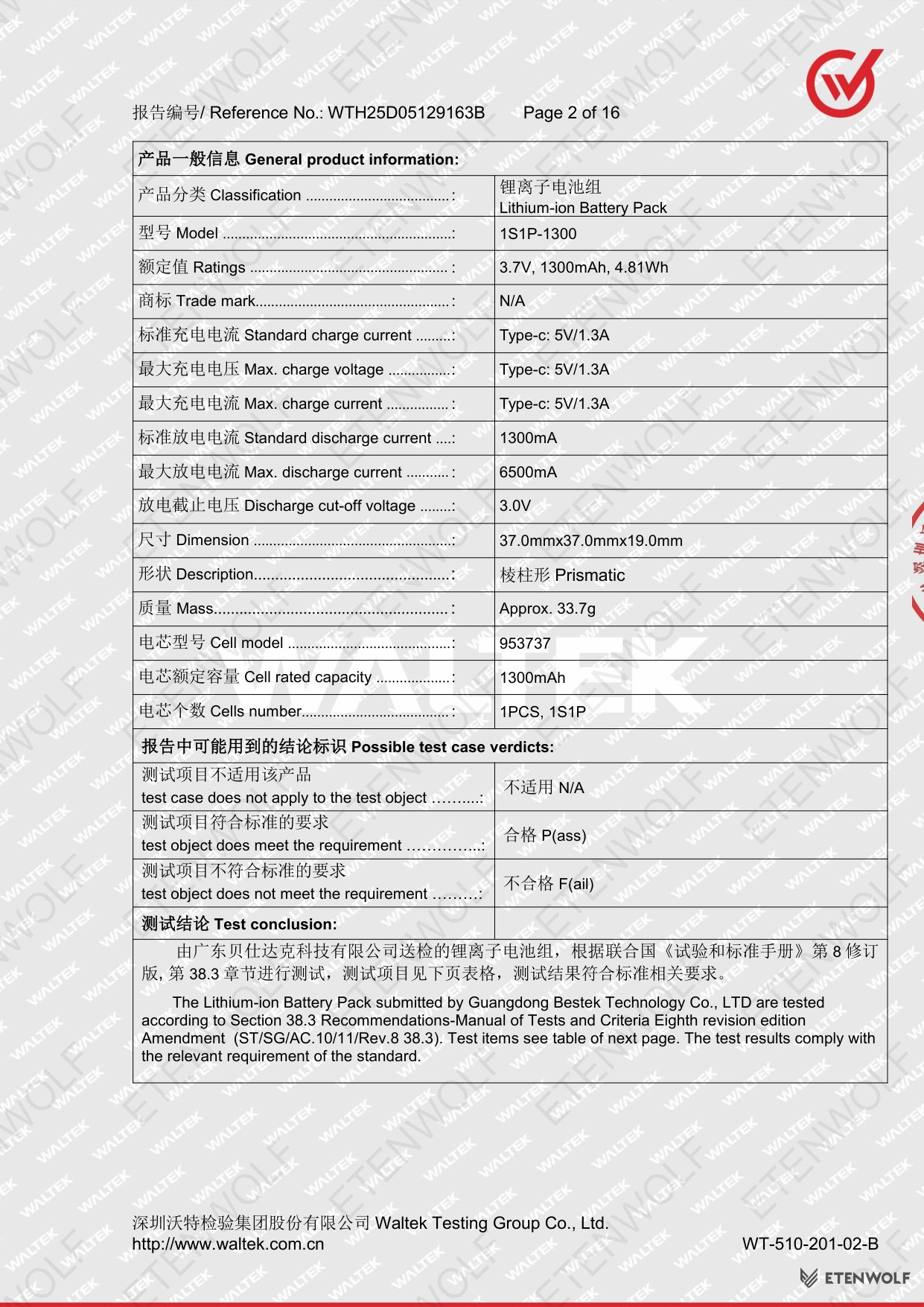

Document Page 2

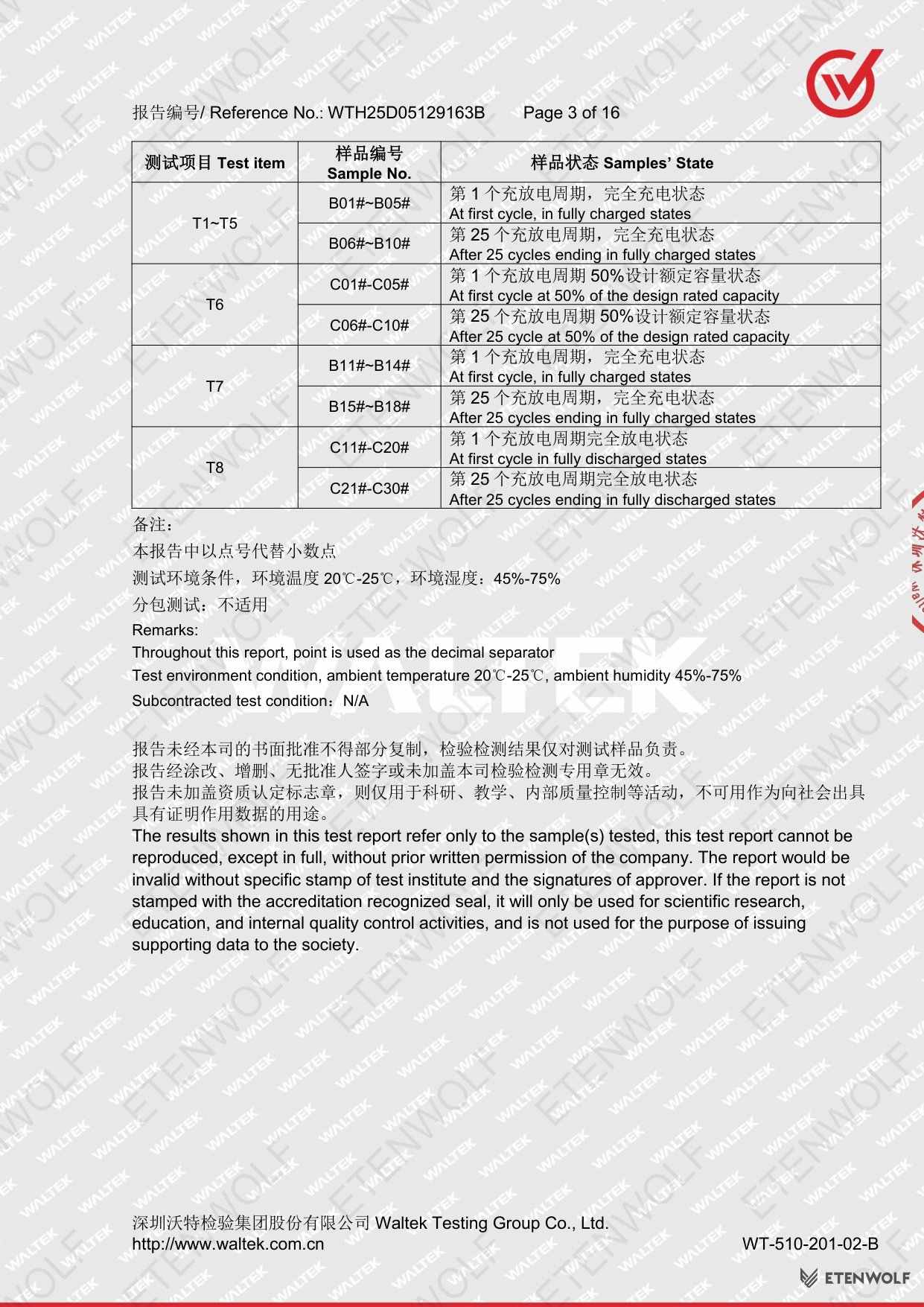

Document Page 3

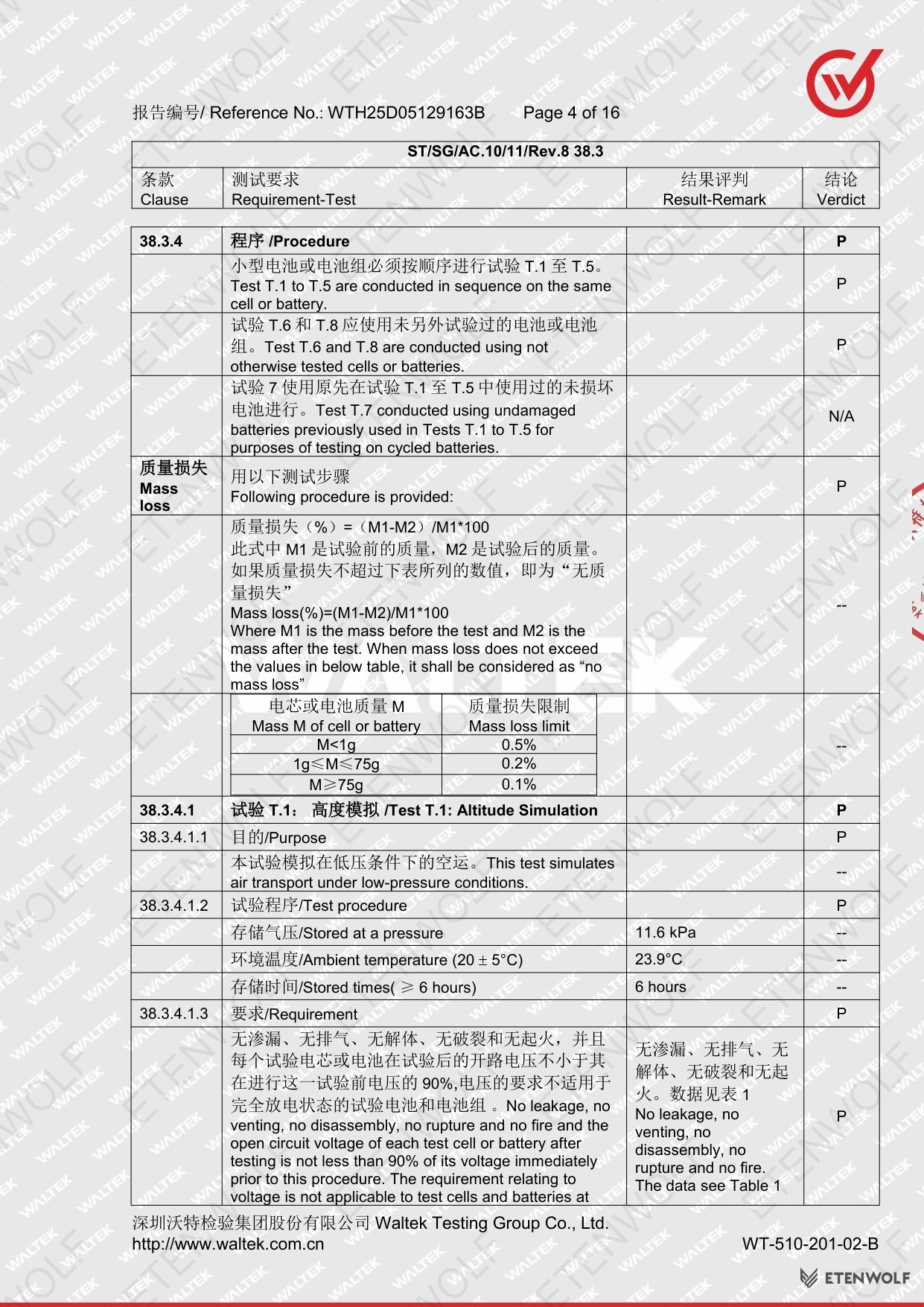

Document Page 4

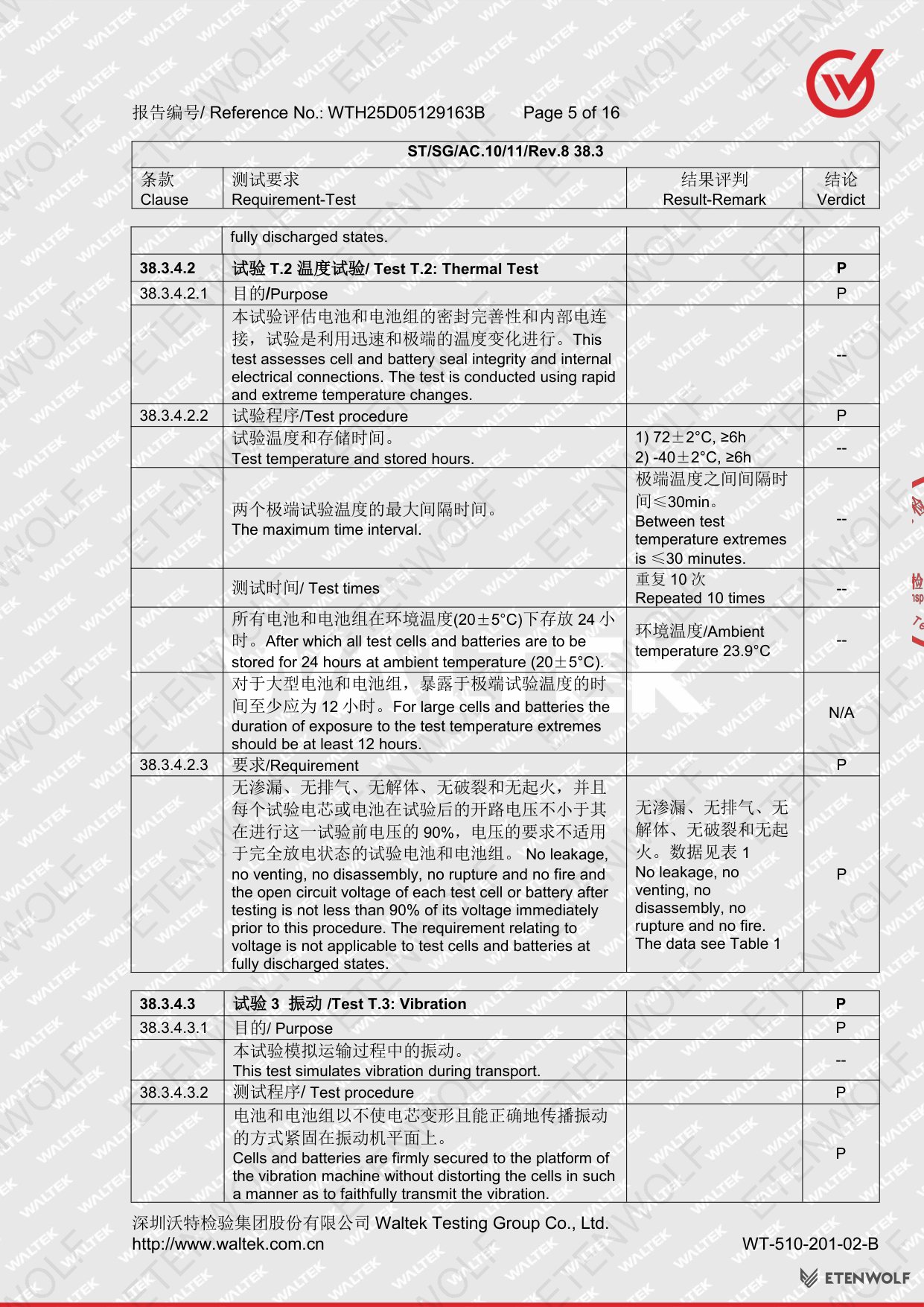

Document Page 5

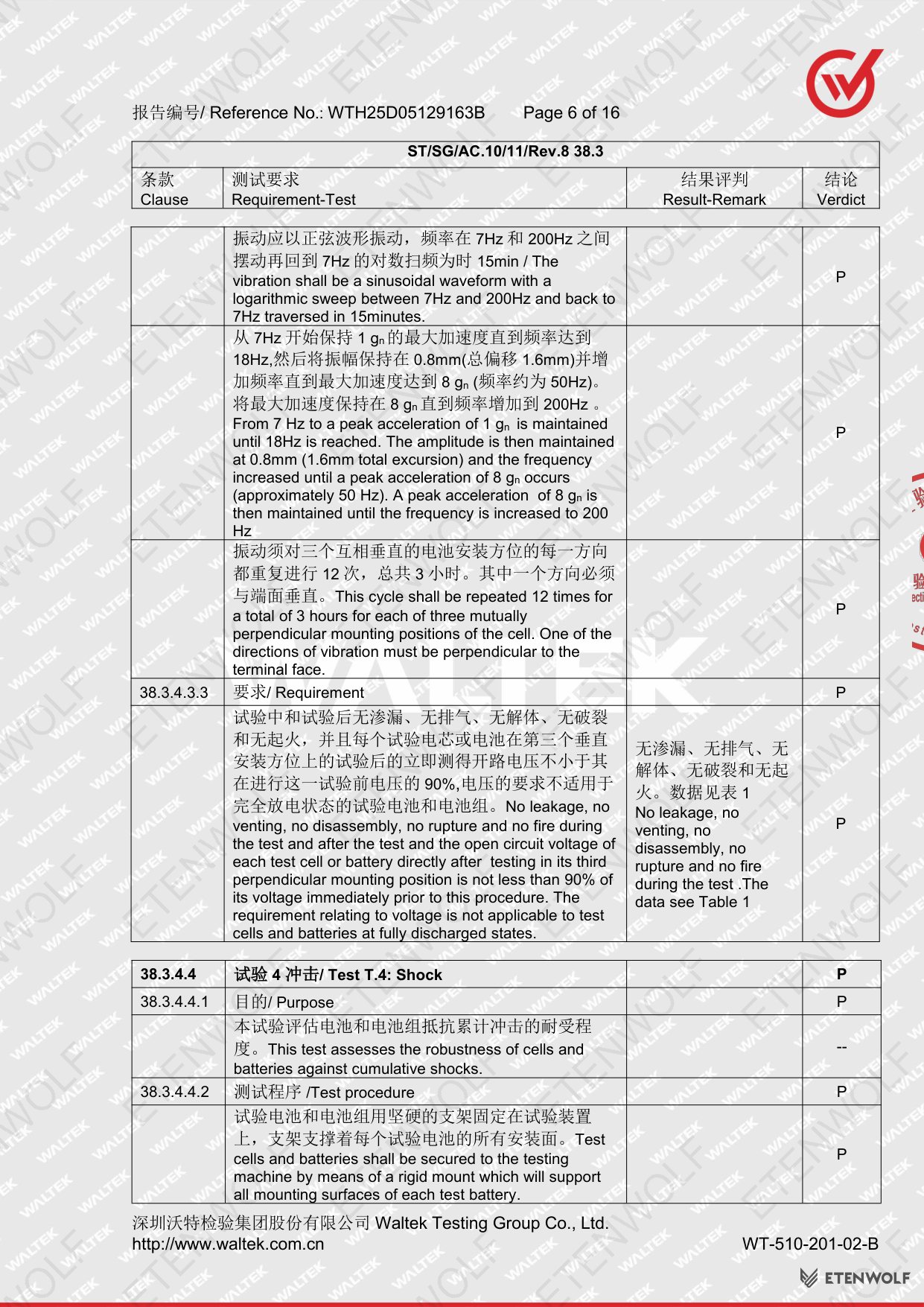

Document Page 6

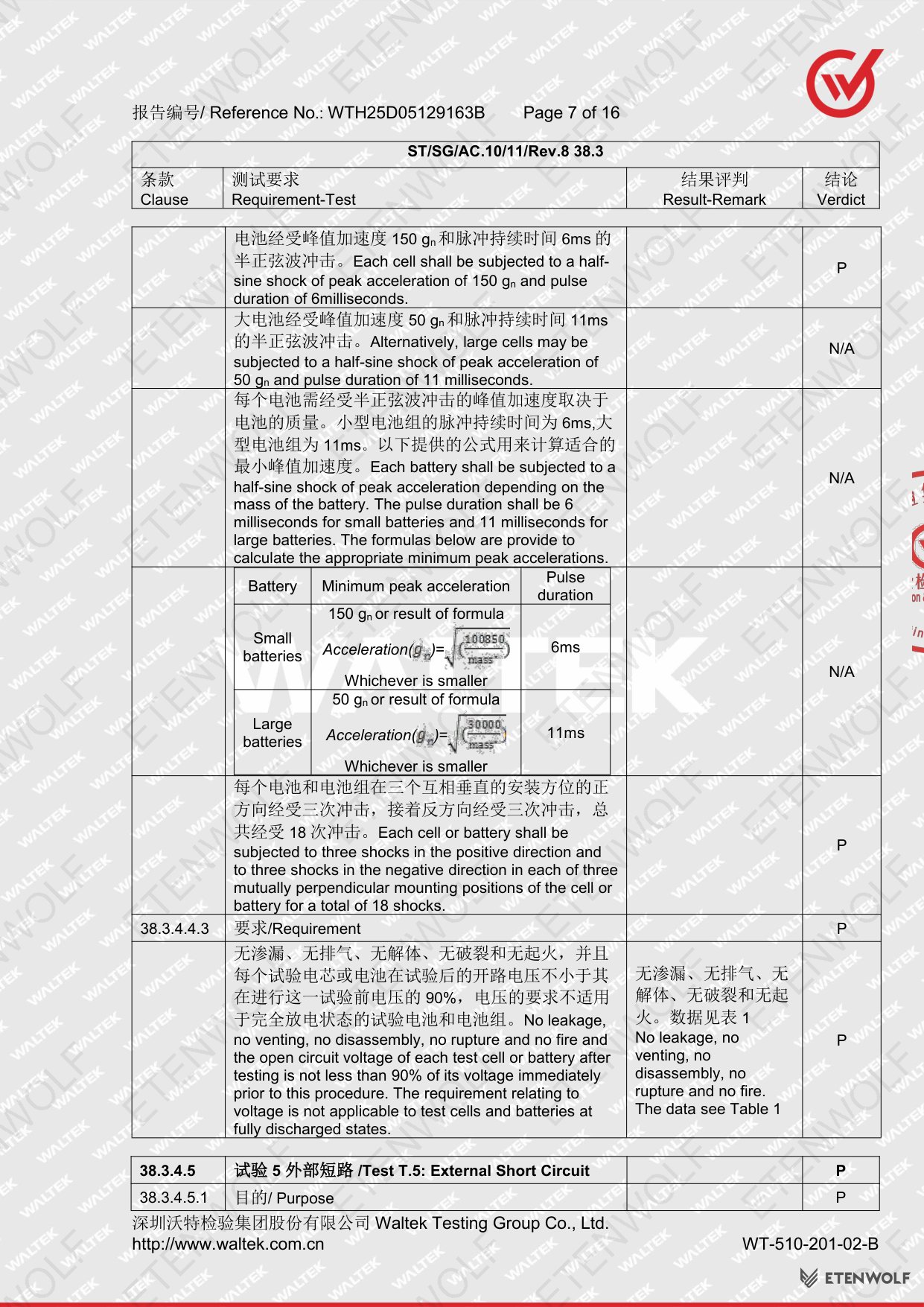

Document Page 7

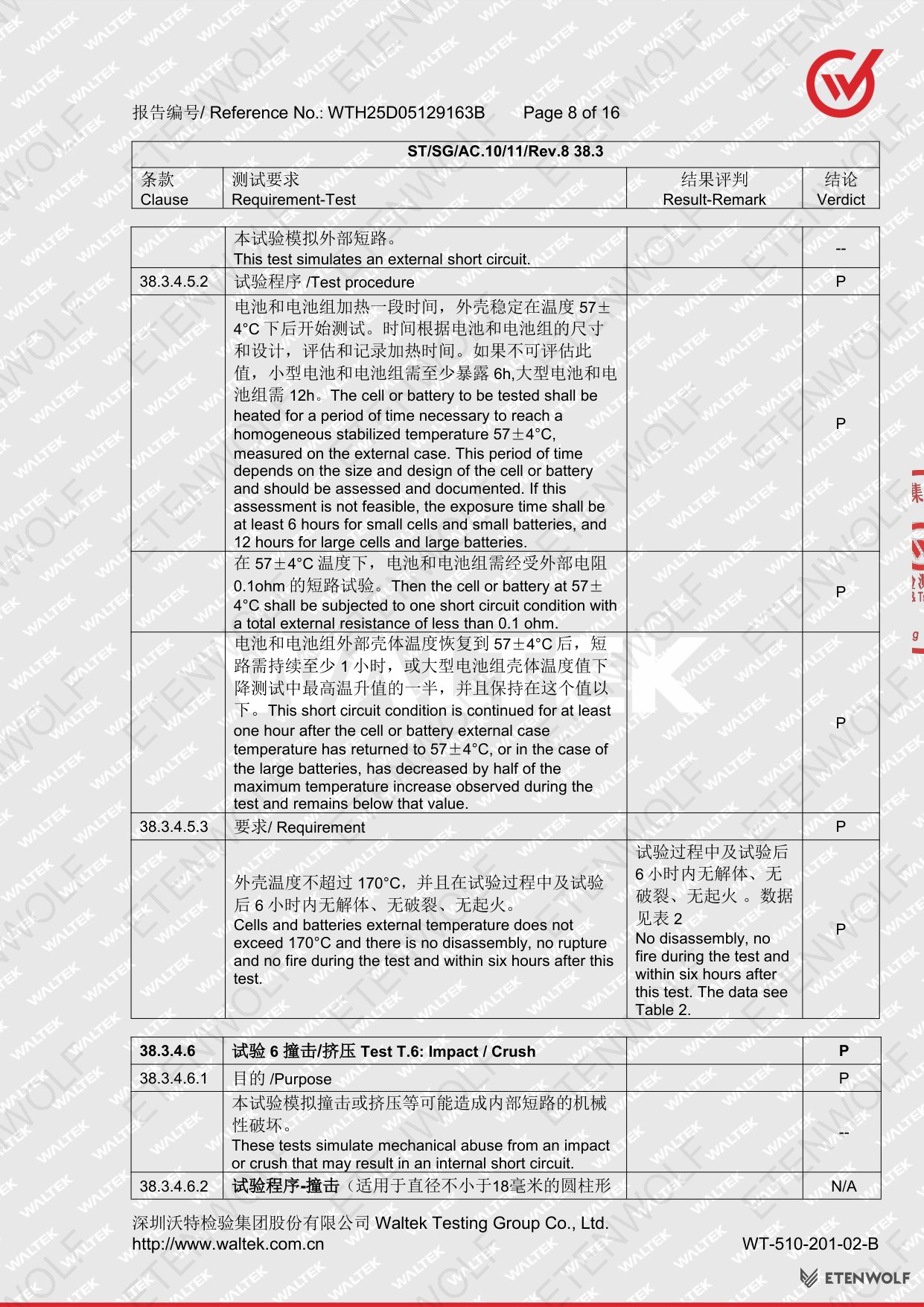

Document Page 8

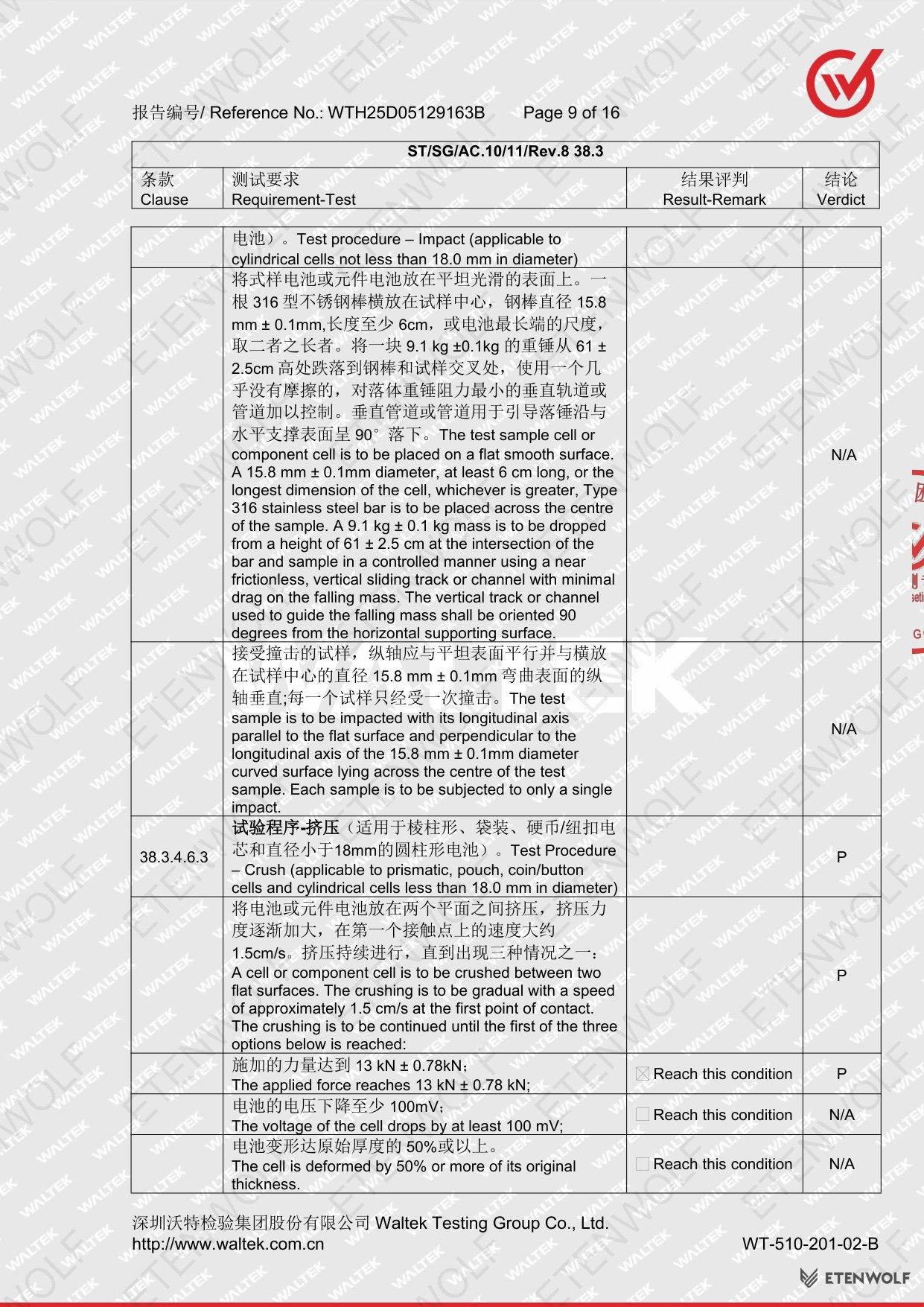

Document Page 9

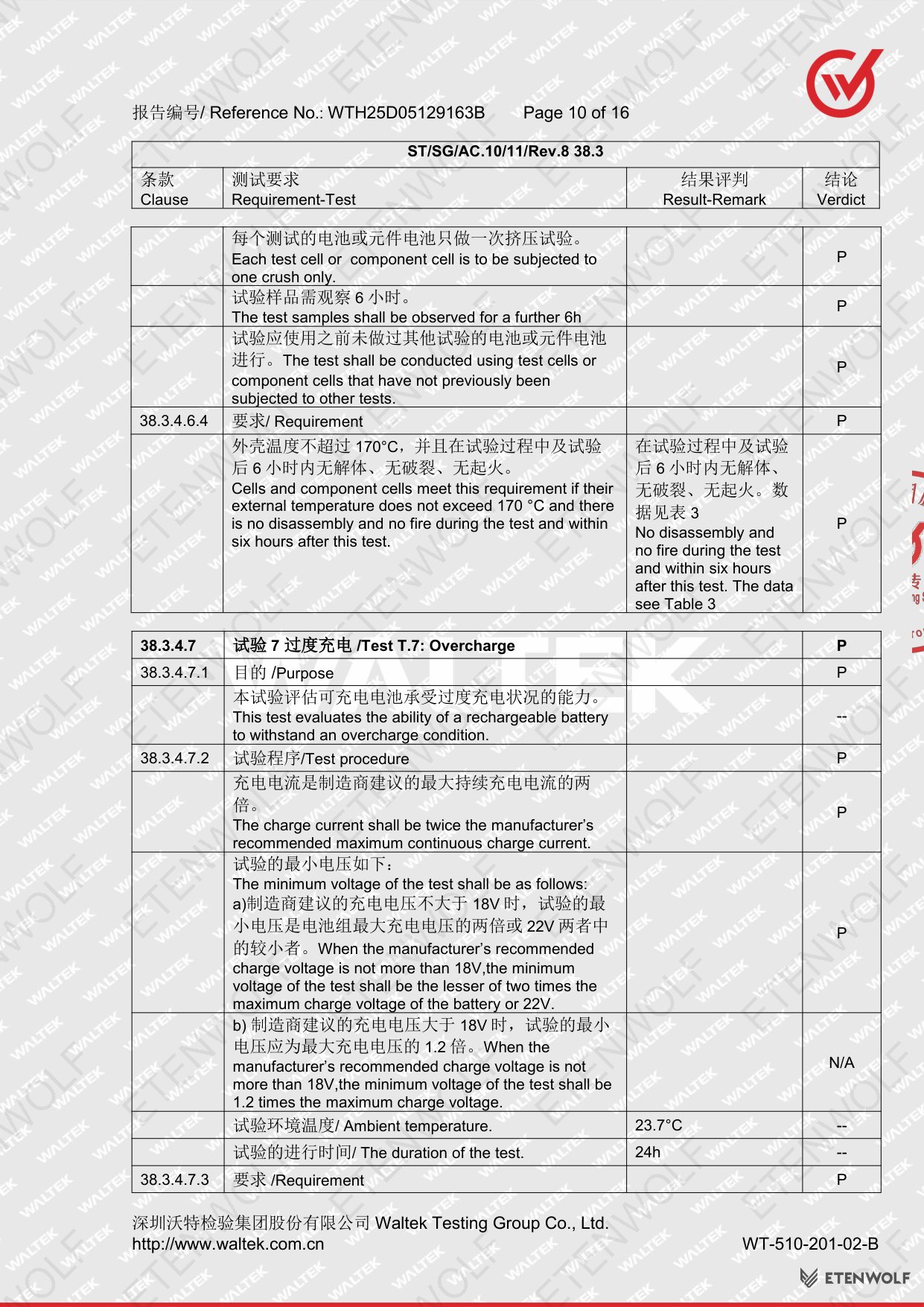

Document Page 10

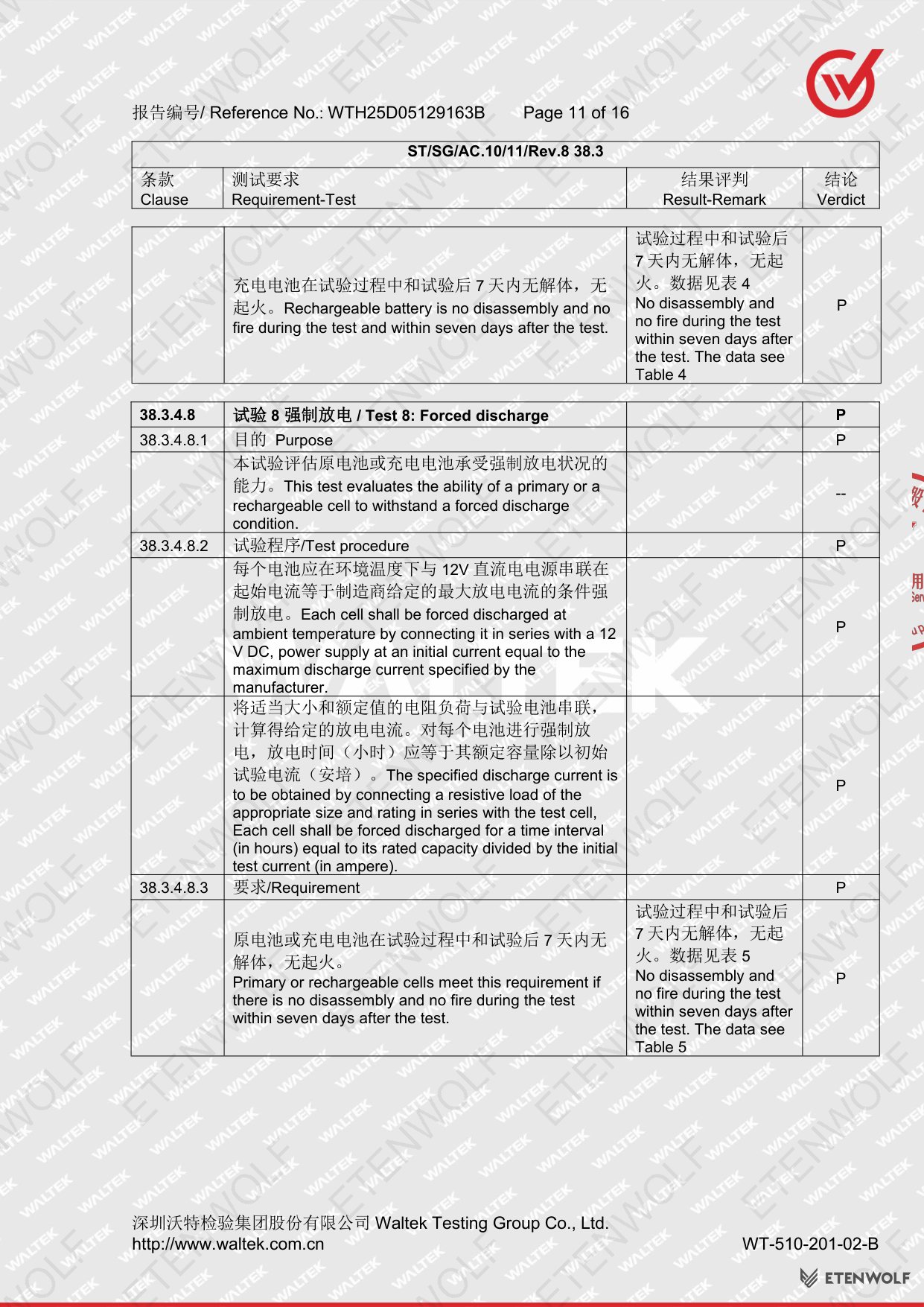

Document Page 11

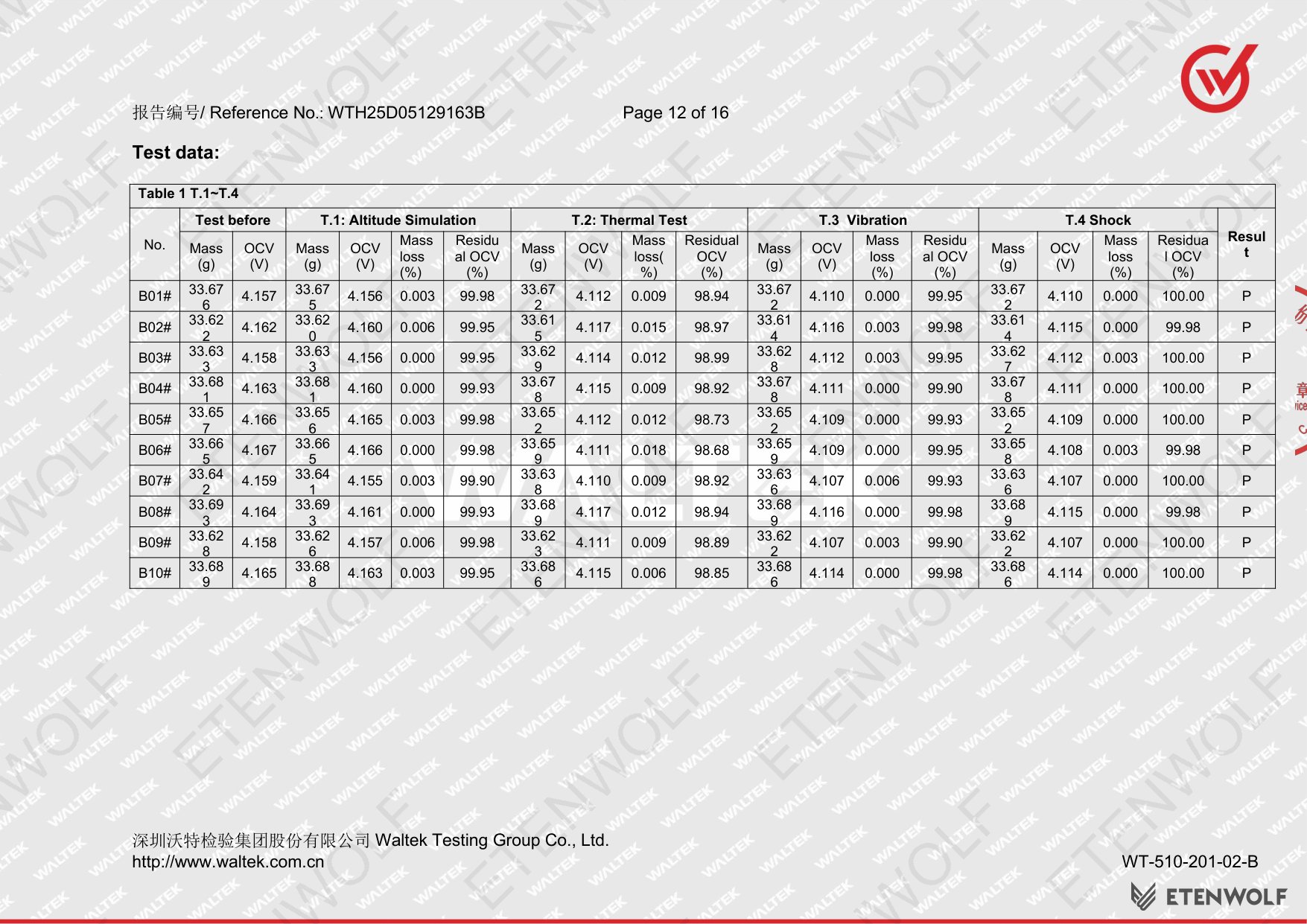

Document Page 12

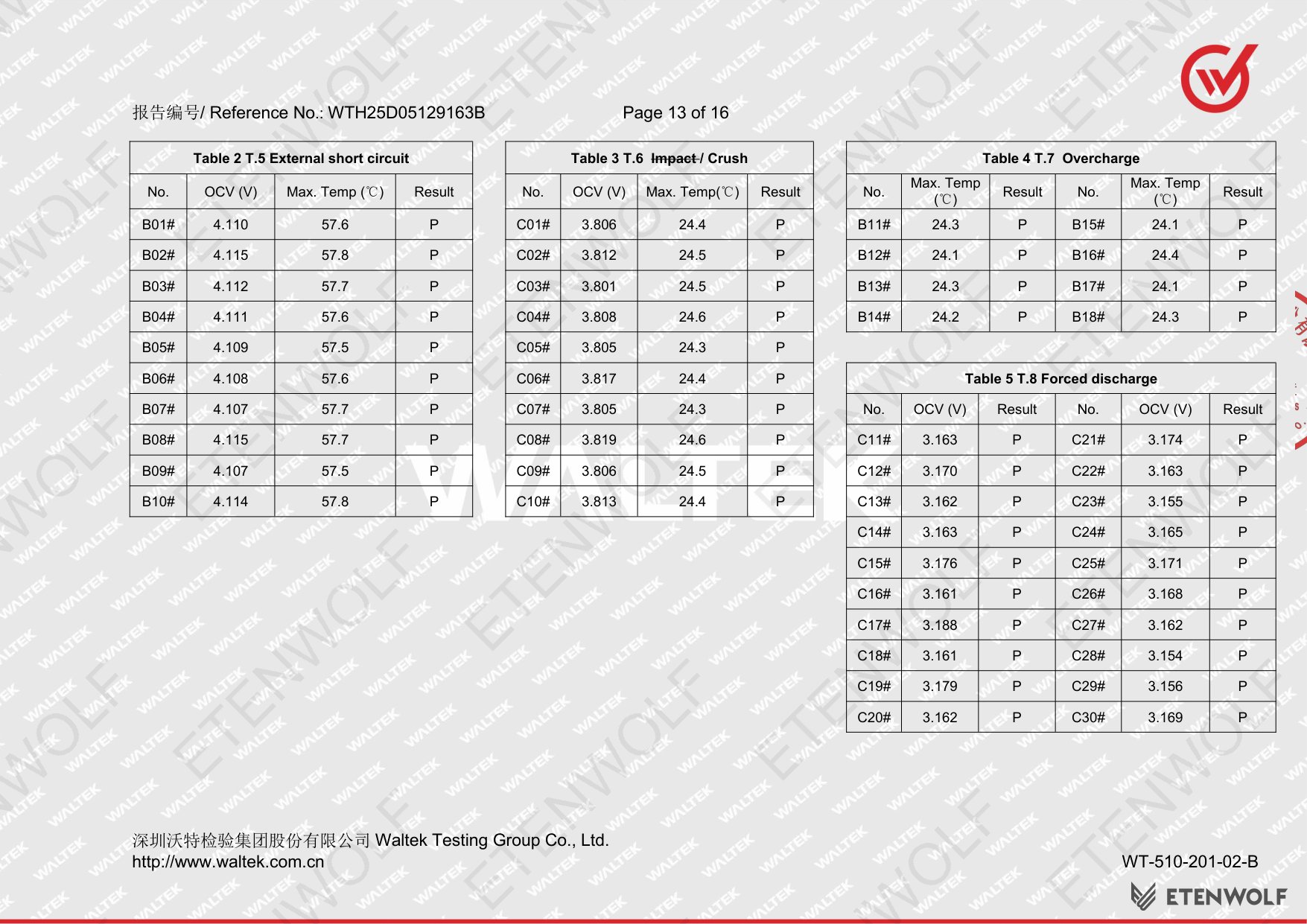

Document Page 13

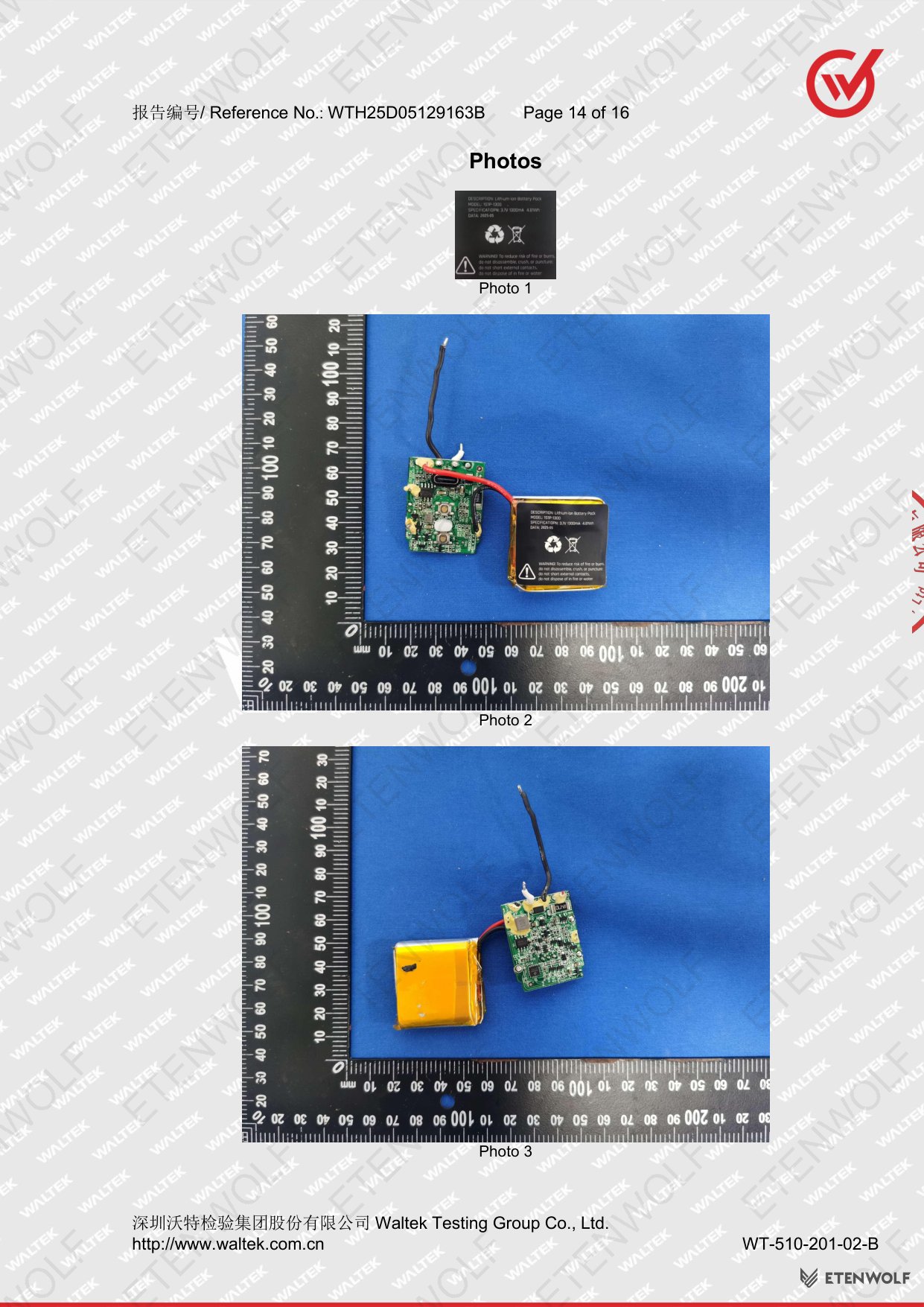

Document Page 14

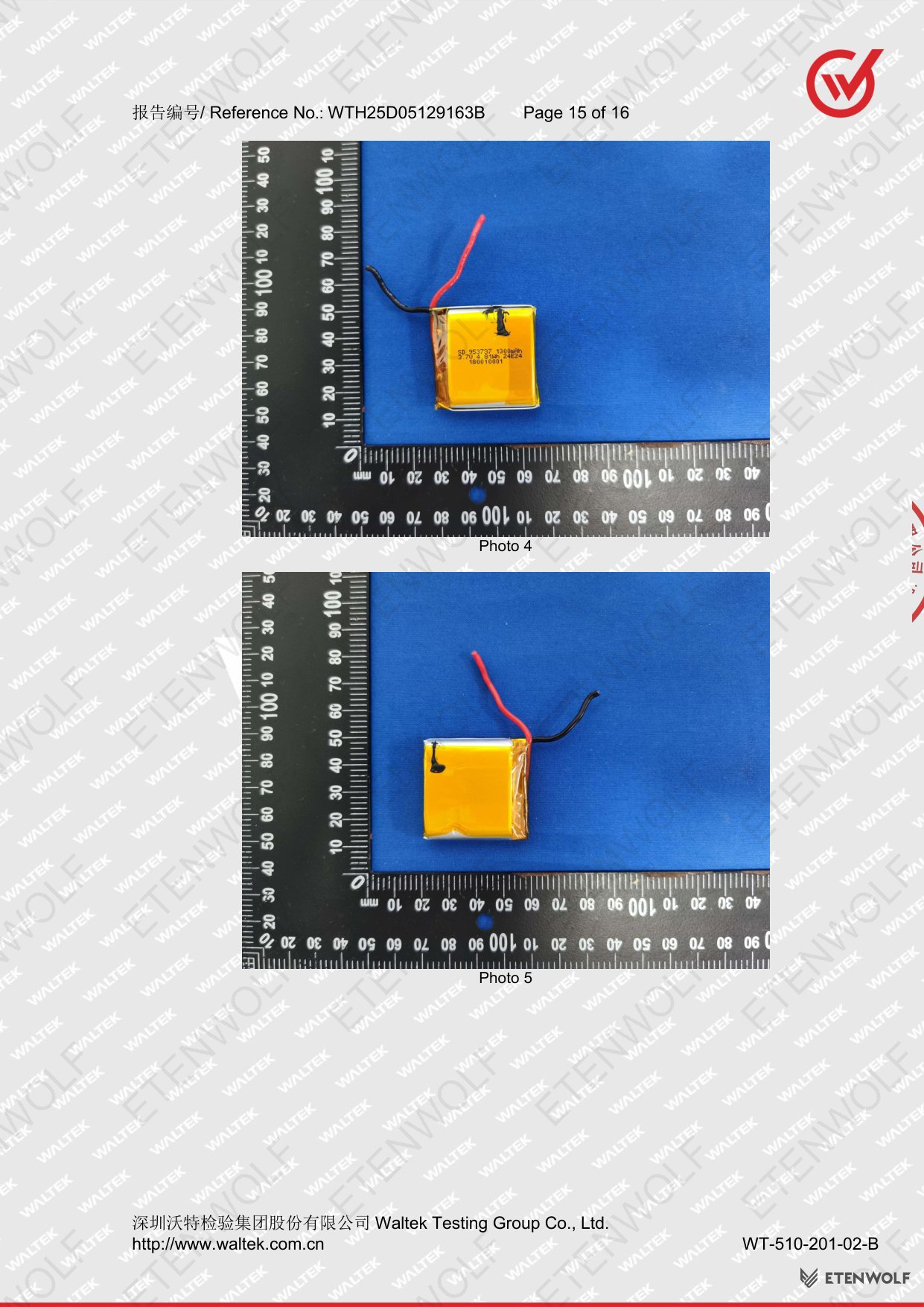

Document Page 15

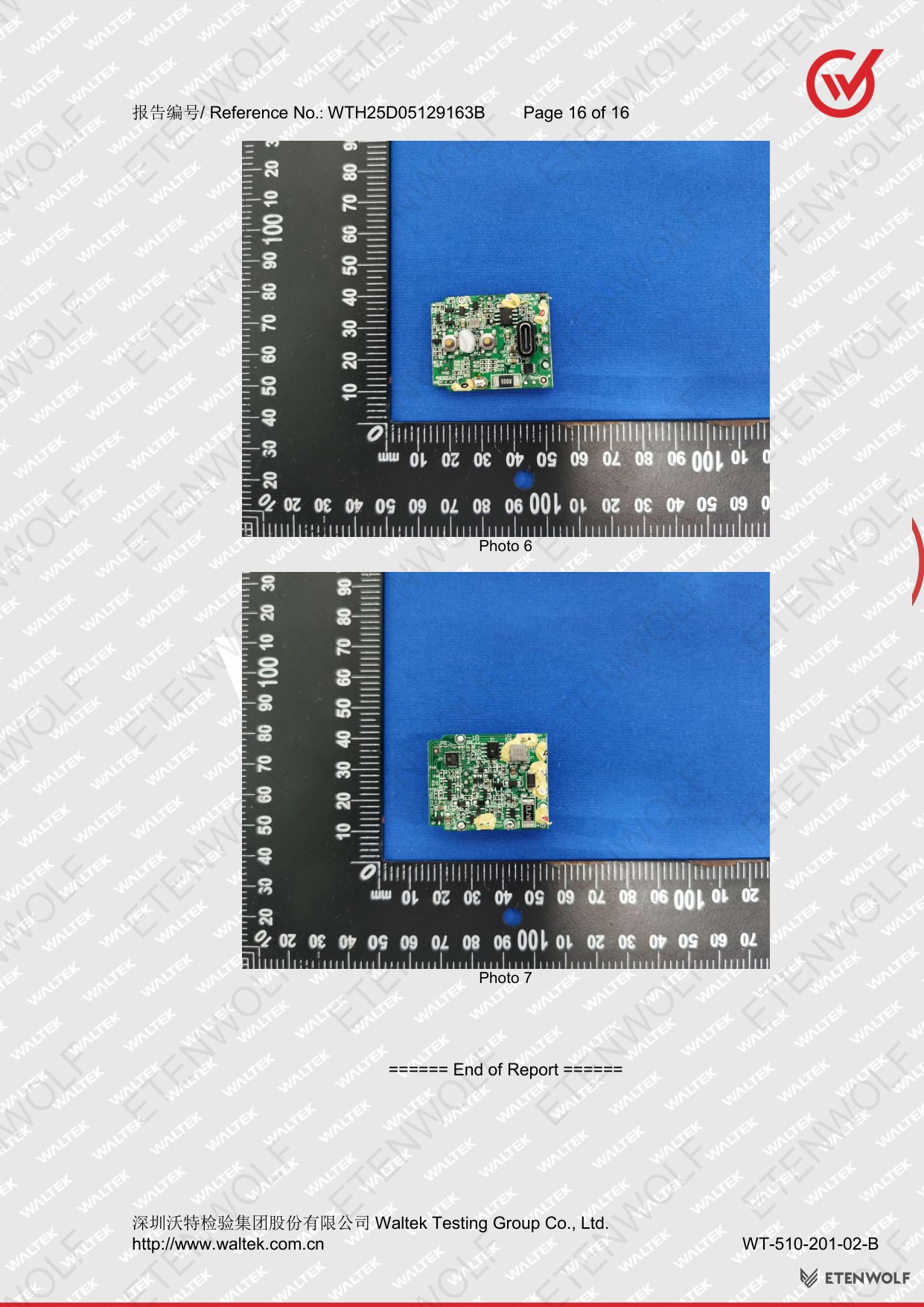

Document Page 16
