Document Overview

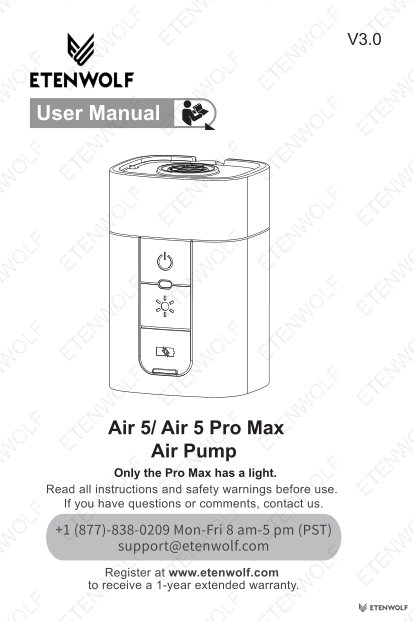

This article is based on the official User Manual for the Air5PROMAX Air Pump, document version V3.0, published by ETENWOLF (brand owner: Mozhen Technology (Shenzhen) Co., LTD) and released on 22 August 2025 (filename: Air5PROMAX_manual_EN_20250822.pdf). The manual covers the complete Air 5 and Air 5 Pro Max product line, providing end-users with instructions for safe operation, inflation and deflation procedures, camping light usage, battery charging, technical specifications, safety warnings, and warranty terms. It is intended for adult consumers purchasing the product globally and is available in English, Spanish, and French. For support, users may contact [email protected] or call (1) 877-838-0209, Monday through Friday, 8AM–5PM PST.
Product Information
The Air5PROMAX is a portable, rechargeable air pump designed for inflating and deflating air mattresses, floating beds, air pillows, vacuum storage bags, and camping sleeping pads. The Pro Max variant distinguishes itself from the standard Air 5 by including a built-in multi-mode camping light with a removable lampshade.

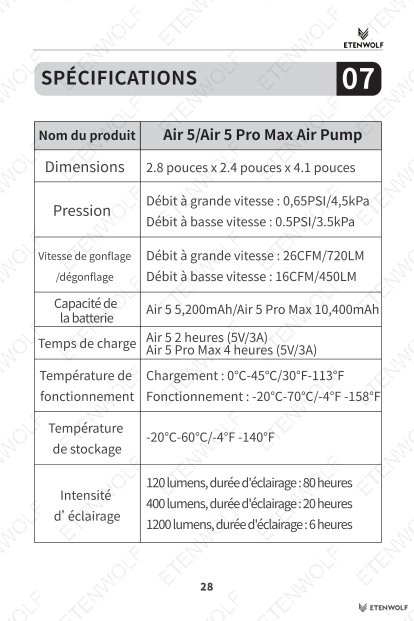

| Attribute | Air 5 | Air 5 Pro Max |
|---|---|---|
| Product Name | Air 5 Air Pump | Air 5 Pro Max Air Pump |
| Dimensions | 2.8 in × 2.4 in × 4.1 in | |
| Battery Capacity | 5,200 mAh / 3.7V (19.2 Wh) | 10,400 mAh / 3.7V (38.5 Wh) |
| Charging Time (5V/3A) | 2 hours | 4 hours |
| Camping Light | Not included | Included (120 / 400 / 1200 lm) |
| Manufacturer | Guangdong Bestek Technology Co., Ltd | |
| Brand Owner | Mozhen Technology (Shenzhen) Co., LTD | |
| Country of Origin | Made in P.R.C. | |

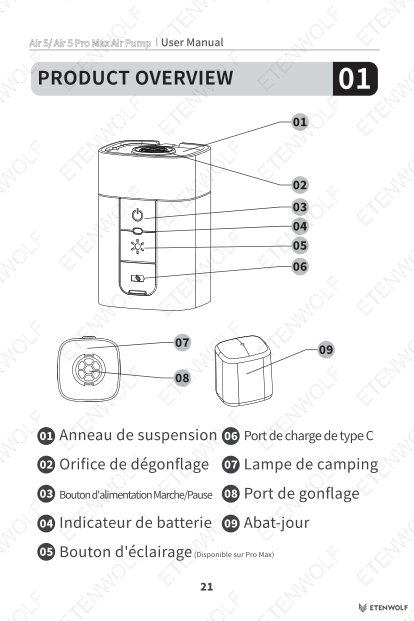

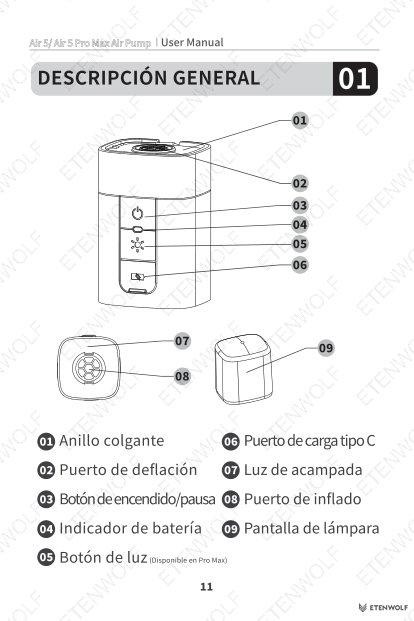

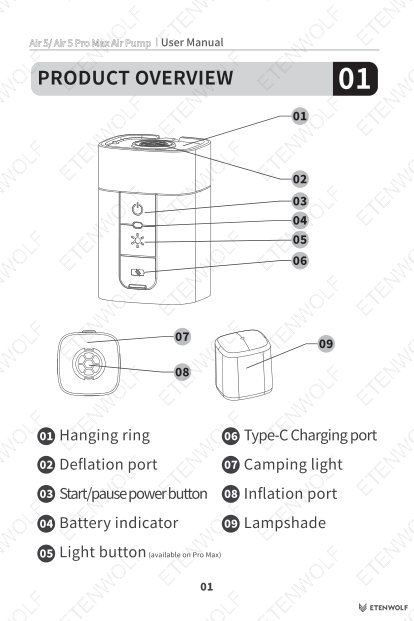

The unit features a hanging ring, Type-C charging port, deflation port, inflation port, Start/Pause power button, battery indicator, light button (Pro Max only), and a lampshade (Pro Max only). Register at www.etenwolf.com to receive a 1-year extended warranty.
Key Details

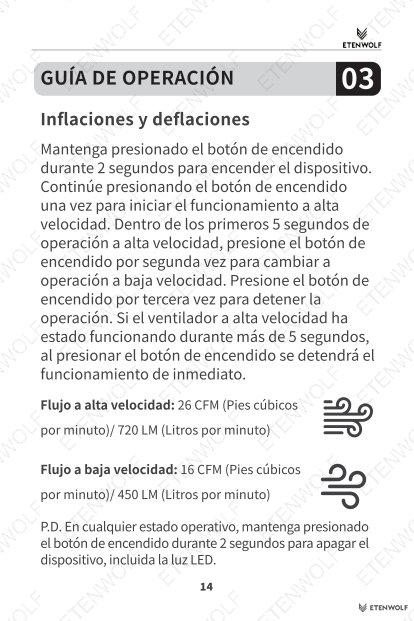

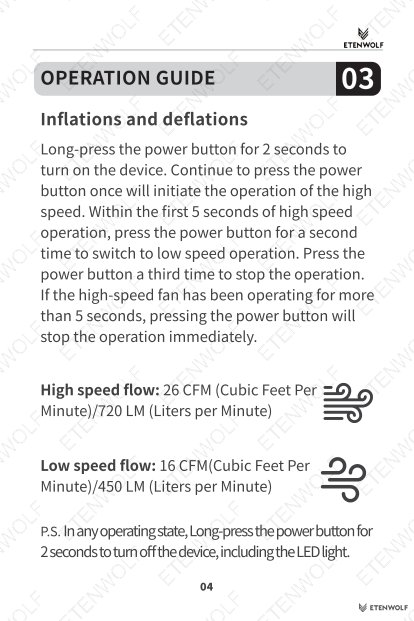

Operation Guide – Inflation and Deflation

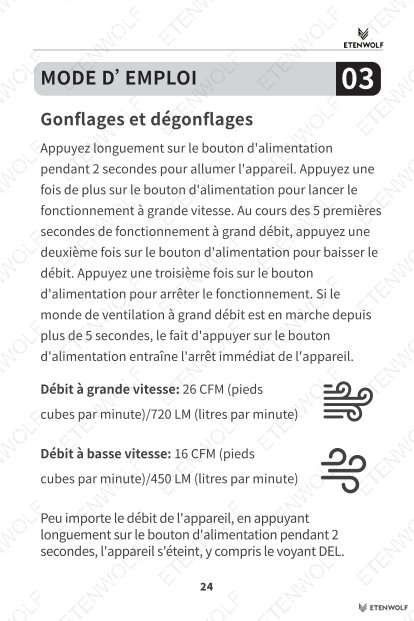

Long-press the power button for 2 seconds to power on the device. A single press initiates high-speed operation. Within the first 5 seconds of high-speed operation, press the button a second time to switch to low speed. Press a third time to stop. If the device has been running at high speed for more than 5 seconds, a single press will stop the pump immediately. In any operating state, long-press the power button for 2 seconds to turn off the device, including the LED light.

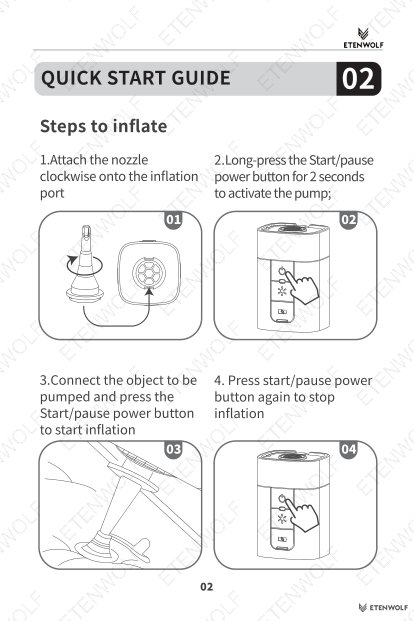

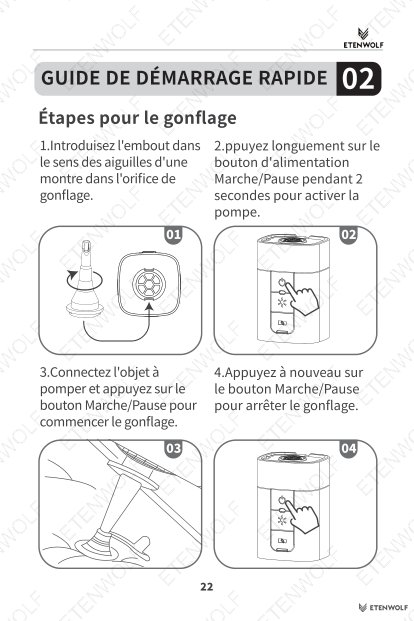

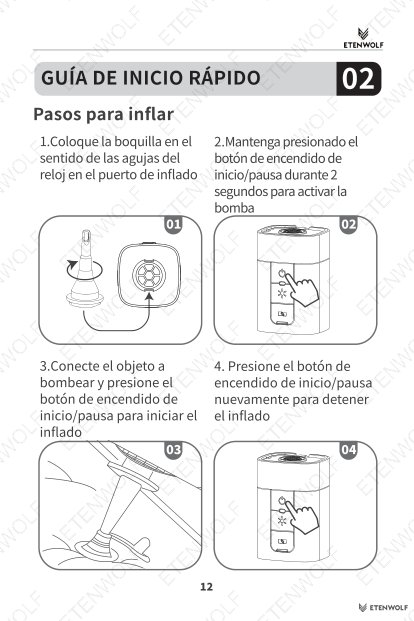

- To inflate: Attach the appropriate nozzle clockwise onto the inflation port. Long-press the power button for 2 seconds to activate. Connect the object to be inflated and press the Start/Pause button. Press again to stop.

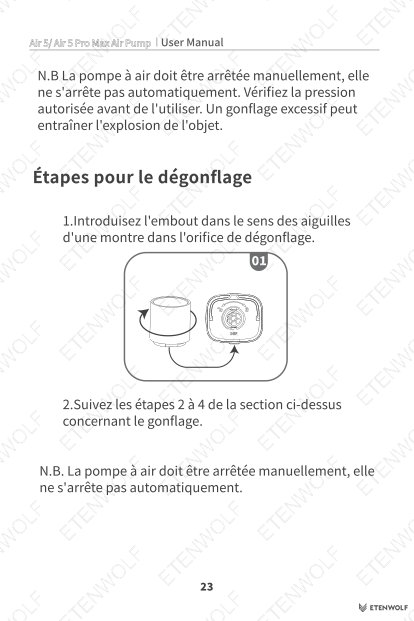

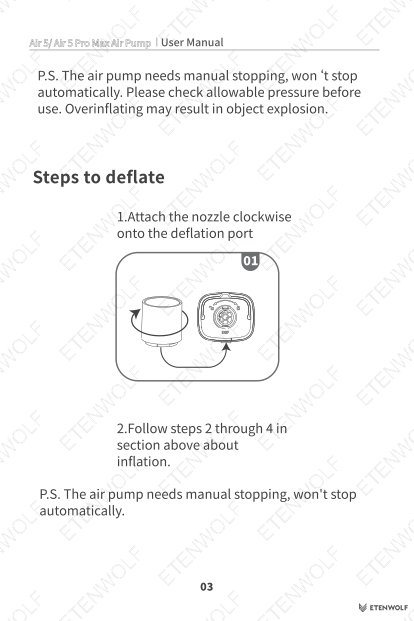

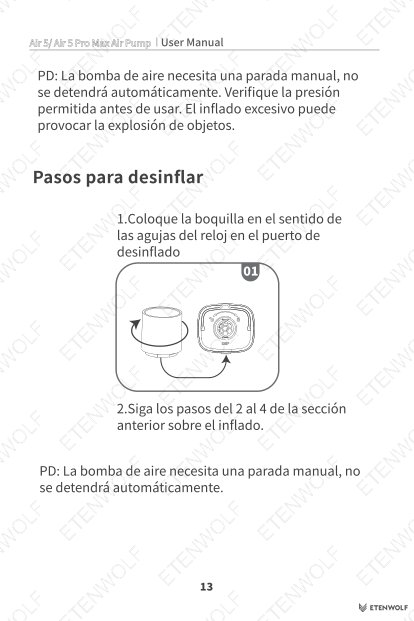

- To deflate: Attach the nozzle clockwise onto the deflation port and follow the same power button sequence as inflation.
- Important: The pump does not stop automatically. Always check the allowable pressure of the object before use. Overinflating may cause the object to burst.

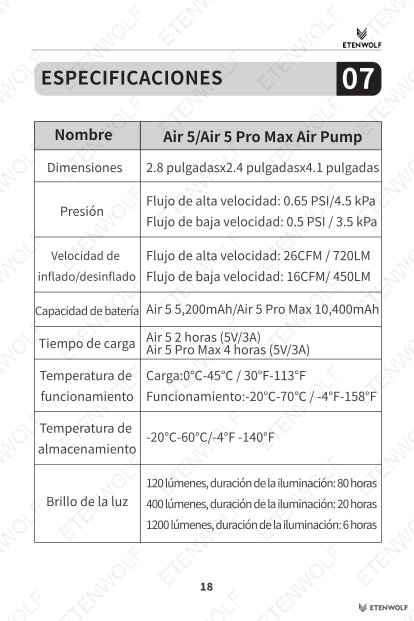

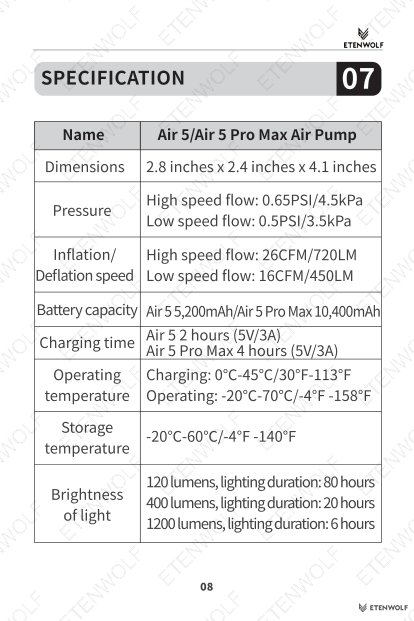

Airflow and Pressure Specifications
| Parameter | High Speed | Low Speed |
|---|---|---|
| Flow Rate | 26 CFM / 720 LPM | 16 CFM / 450 LPM |
| Pressure | 0.65 PSI / 4.5 kPa | 0.50 PSI / 3.5 kPa |

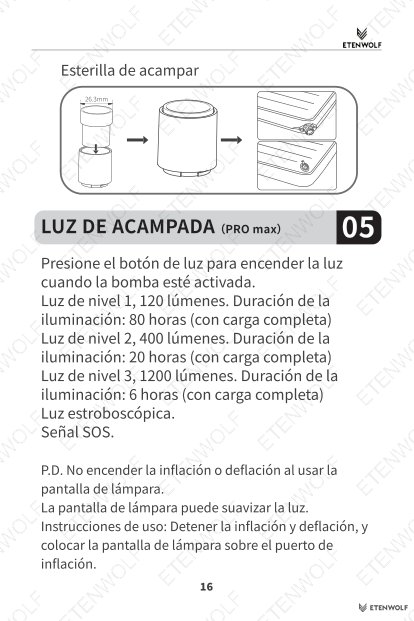

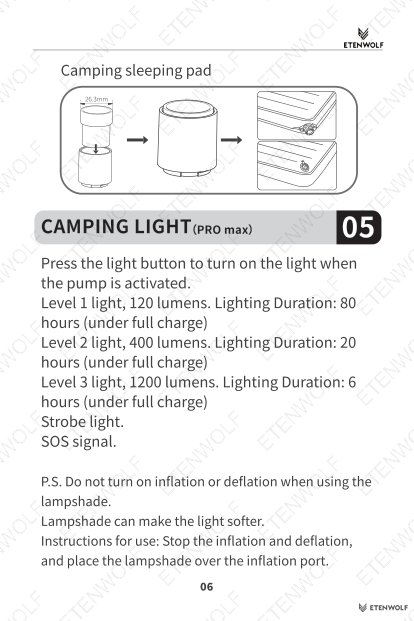

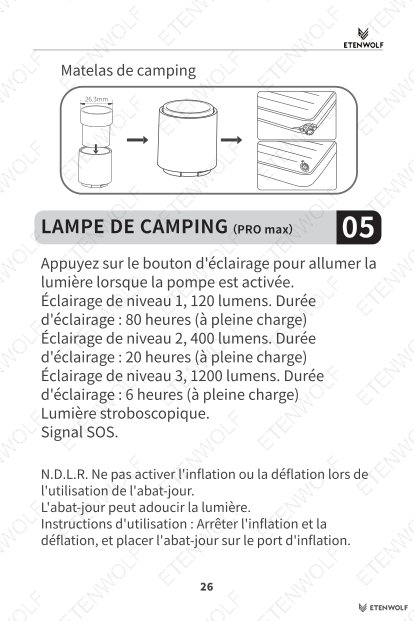

Camping Light (Air 5 Pro Max Only)
Press the light button to turn on the light when the pump is activated. The light cycles through the following modes:
| Mode | Brightness | Duration (Full Charge) |
|---|---|---|
| Level 1 | 120 lumens | 80 hours |
| Level 2 | 400 lumens | 20 hours |
| Level 3 | 1,200 lumens | 6 hours |
| Strobe | — | — |
| SOS Signal | — | — |
To use the lampshade: stop all inflation and deflation operations, then place the lampshade over the inflation port. Do not operate the pump while the lampshade is attached. The lampshade diffuses the light for a softer output.

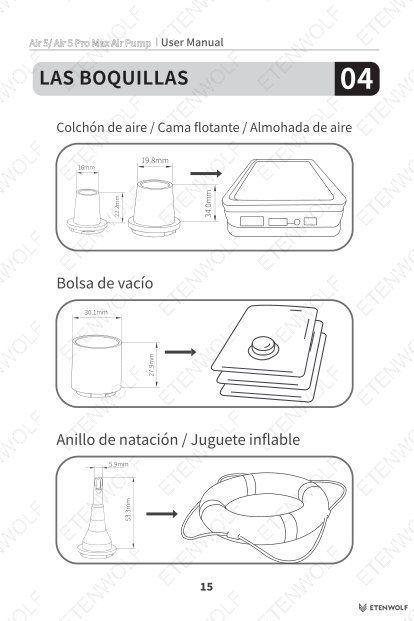

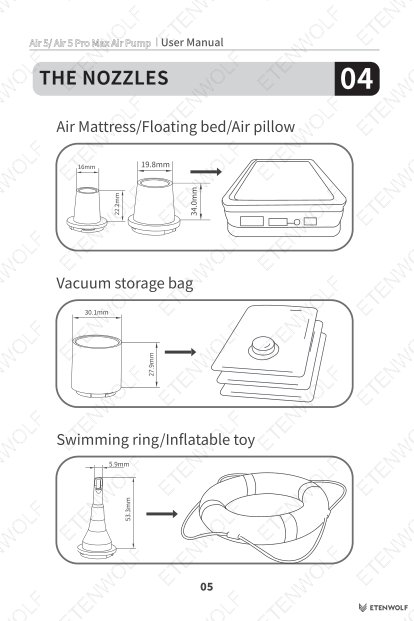

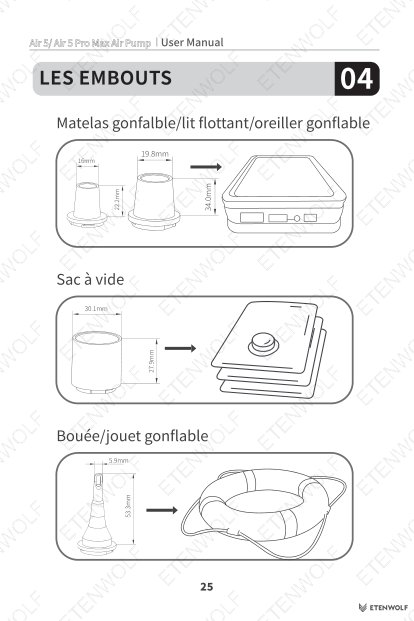

Nozzle Compatibility
- Air mattress / floating bed / air pillow nozzle
- Vacuum storage bag nozzle
- Camping sleeping pad nozzle

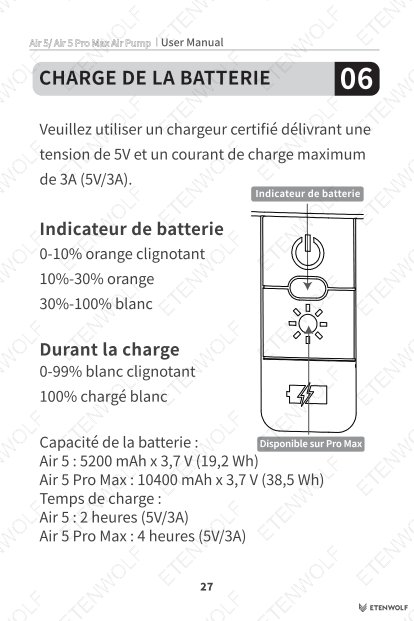

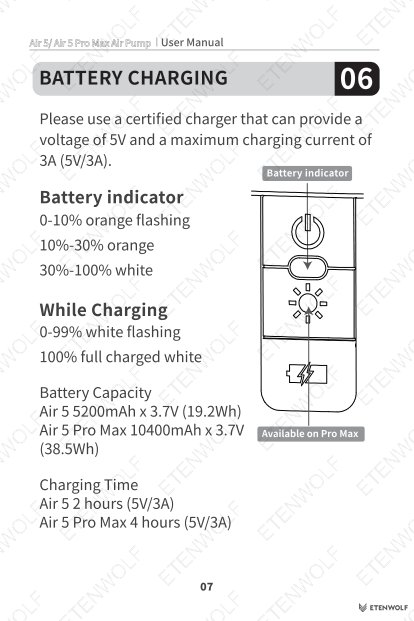

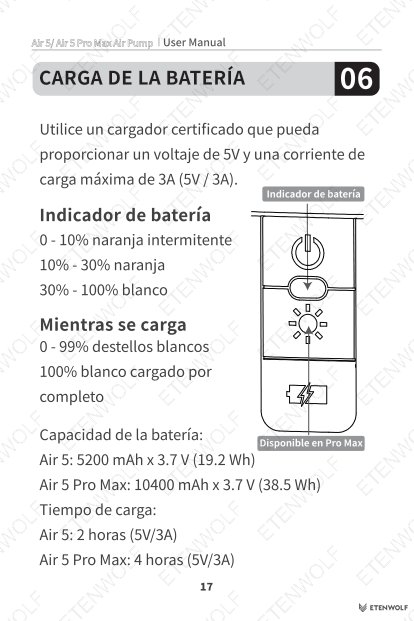

Battery Charging
Use a certified charger providing 5V and a maximum charging current of 3A (5V/3A). Do not use uncertified or incompatible chargers.
| Battery Level | Indicator (Not Charging) | Indicator (Charging) |
|---|---|---|
| 0–10% | Orange flashing | — |
| 10–30% | Orange (solid) | — |
| 30–100% | White (solid) | White flashing |
| 100% (Full) | White (solid) | White (solid) |
Temperature Ratings
| Condition | Range (°C) | Range (°F) |
|---|---|---|
| Charging | 0°C – 45°C | 32°F – 113°F |
| Operating | -20°C – 70°C | -4°F – 158°F |
| Storage | -20°C – 60°C | -4°F – 140°F |
Standards & Compliance
The Air5PROMAX carries the following regulatory marks as indicated on the product packaging and warranty page:
- CE – Conformité Européenne mark, indicating compliance with applicable EU directives for electrical safety and electromagnetic compatibility.
- FCC – Federal Communications Commission compliance, indicating the device meets US electromagnetic interference requirements for consumer electronics.
- RoHS – Restriction of Hazardous Substances compliance, confirming the product is manufactured without restricted hazardous materials.
The manual instructs users to use only certified chargers (5V/3A) and emphasizes that the product is tested by ETENWOLF engineers before delivery. All safety instructions align with international consumer electrical product standards for portable battery-powered devices. No specific IEC, ISO, UN38.3, KC, or REACH certificate numbers are cited in this manual version.

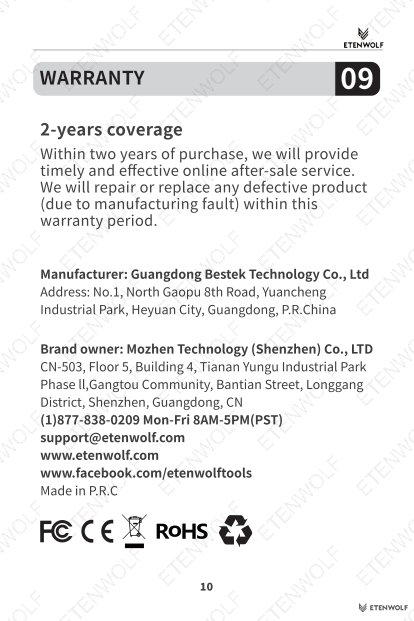

Validity & Certification Body

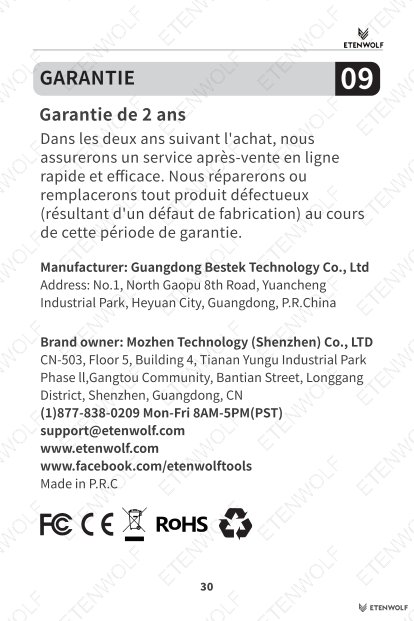

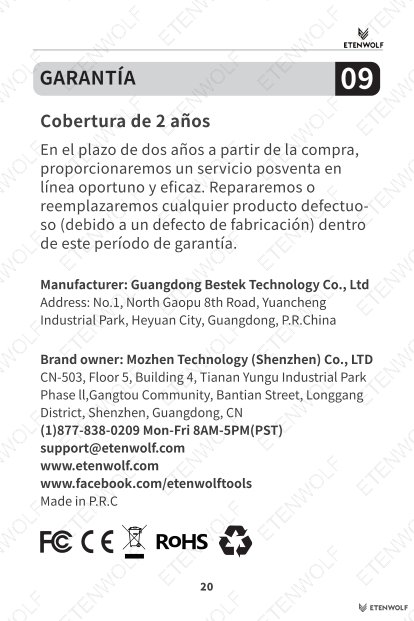

This user manual (version V3.0, dated 22 August 2025) is current as of its publication date. Product compliance marks (CE, FCC, RoHS) are displayed on the warranty page of the manual and apply to the commercially sold units.
- Manufacturer: Guangdong Bestek Technology Co., Ltd, No. 1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China
- Brand Owner: Mozhen Technology (Shenzhen) Co., LTD, CN-503, Floor 5, Building 4, Tianan Yungu Industrial Park Phase II, Gangtou Community, Bantian Street, Longgang District, Shenzhen, Guangdong, China
- Warranty Period: 2 years from date of purchase (manufacturing defects). An additional 1-year extended warranty is available upon registration at www.etenwolf.com.
- Customer Support: (1) 877-838-0209, Mon–Fri 8AM–5PM PST | [email protected]
Frequently Asked Questions
- Does the Air5PROMAX stop automatically when the item is fully inflated?
- No. The pump does not stop automatically. You must press the Start/Pause button manually to stop inflation. Always check the maximum allowable pressure of the object before inflating to avoid overinflation and potential bursting.
- What is the difference between the Air 5 and the Air 5 Pro Max?
- The primary difference is the built-in camping light and larger battery. The Air 5 Pro Max includes a multi-mode LED light (120, 400, and 1,200 lumens, plus strobe and SOS modes) and a removable lampshade, along with a 10,400 mAh battery compared to the Air 5’s 5,200 mAh battery. Both models share the same pump dimensions and airflow specifications.
- What charger should I use with the Air5PROMAX?
- Use a certified charger with an output of 5V and a maximum current of 3A (5V/3A). The device charges via a Type-C port. Charging time is approximately 4 hours for the Air 5 Pro Max and 2 hours for the Air 5 using a 5V/3A charger. Do not use non-certified or incompatible chargers.
- What does the red flashing indicator light mean?

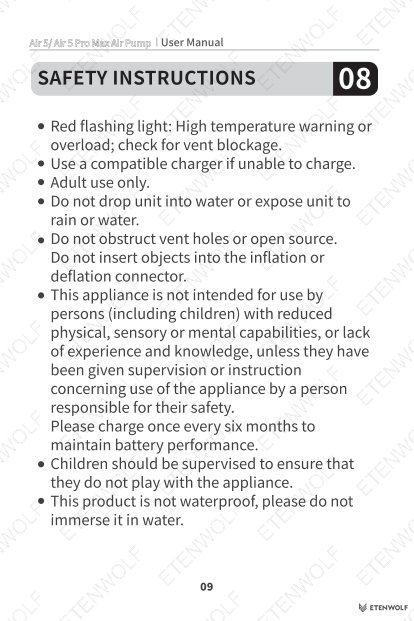

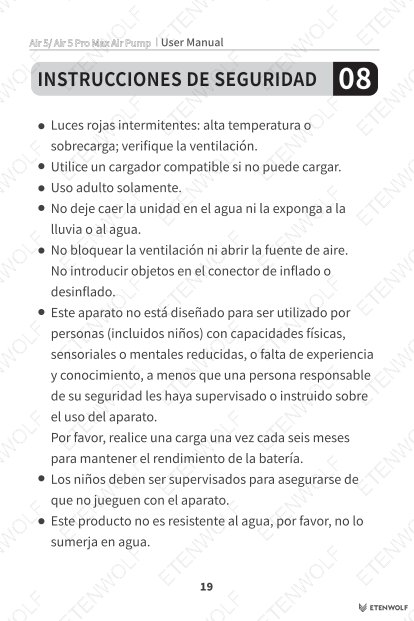

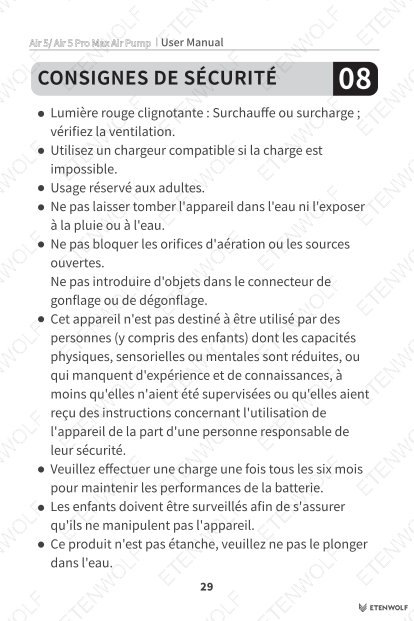

- A red flashing light indicates a high-temperature warning or an overload condition. Stop using the device immediately and check whether the vent holes are blocked. Allow the unit to cool before resuming use. If the problem persists, contact ETENWOLF support at [email protected].
Related Documents
The following certification and compliance document types are recommended for the Air5PROMAX and may be available from ETENWOLF upon request:
- CE Declaration of Conformity – Confirms compliance with EU Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC) Directive.
- FCC ID Certificate – Verifies electromagnetic compatibility compliance for the US market.
- RoHS Test Report – Documents the absence of restricted hazardous substances in materials used.
- UN 38.3 Battery Transport Test Report – Required for safe international air and ground shipping of lithium-ion battery products; applies to both the 5,200 mAh and 10,400 mAh battery variants.
- REACH Compliance Declaration – Confirms substances of very high concern (SVHC) are within regulated limits under EU REACH regulations.
- KC Certification – Korean Certification mark required for sale in the Republic of Korea market.
- Product Safety Data Sheet (PSDS) – Provides detailed safety handling information for the integrated lithium-ion battery pack.
