Document Overview
This article is based on the official user manual for the ETENWOLF AIR3 Air Pump (document version V3.0, filename: AIR3_manual_EN_20251112.pdf), published by ETENWOLF (brand owner: Mozhen Technology (Shenzhen) Co., Ltd). The manual covers product overview, quick start procedures, inflation and deflation operation, nozzle selection, integrated camping light usage, battery charging, technical specifications, safety instructions, and warranty terms. It is intended for all end users of the AIR3 portable pump and should be read in full before operating the device.
Product Information
The ETENWOLF AIR3 is a compact, rechargeable portable air pump designed for inflating and deflating a wide range of inflatables including air mattresses, floating beds, air pillows, swimming rings, inflatable toys, camping sleeping pads, and vacuum storage bags. It also features a built-in multi-mode camping light, making it a versatile outdoor tool.
| Attribute | Detail |
|---|---|
| Product Name | Air 3 Pump |
| Dimensions | 1.8 in × 1.9 in × 2.3 in |
| Battery Capacity | 2,600 mAh (9.6 Wh) |
| Charging Time | Approximately 1.5 hours (5V/2A) |
| Charging Port | Type-C |
| High-Speed Flow Rate | 13 CFM / 360 LM |
| Low-Speed Flow Rate | 8 CFM / 225 LM |
| High-Speed Pressure | 0.65 PSI / 4.5 kPa |
| Low-Speed Pressure | 0.5 PSI / 3.5 kPa |
| Operating Temperature (Charging) | 0°C – 45°C / 32°F – 113°F |
| Operating Temperature (Running) | -20°C – 74°C / -4°F – 165°F |
| Storage Temperature | -20°C – 55°C / -4°F – 131°F |
| Manufacturer | Guangdong Bestek Technology Co., Ltd |
| Brand Owner | Mozhen Technology (Shenzhen) Co., Ltd |
| Country of Origin | P.R. China |
Key Details

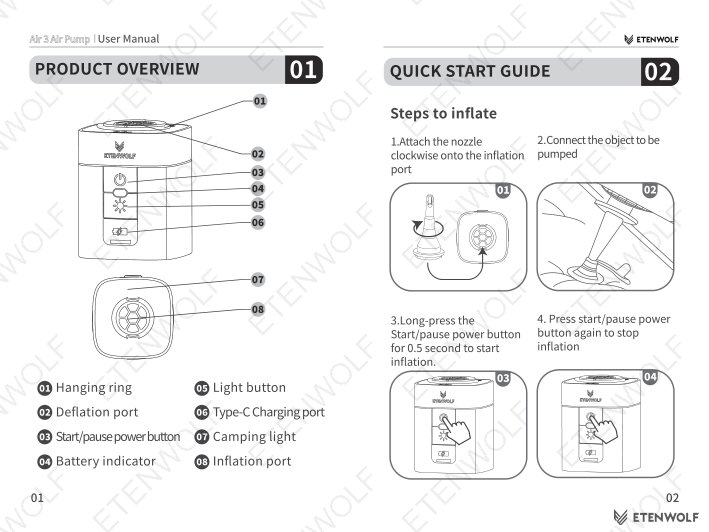

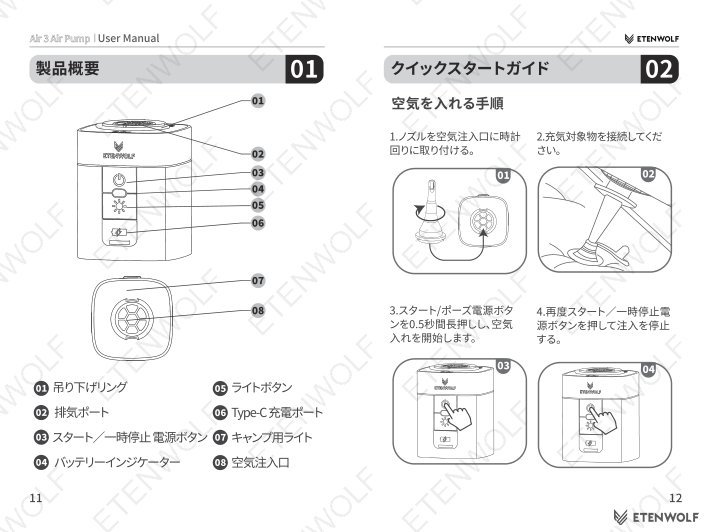

Physical Features
- Hanging ring
- Light button
- Deflation port
- Type-C charging port
- Start/pause power button
- Camping light
- Battery indicator
- Inflation port
Quick Start: Inflation
- Attach the appropriate nozzle clockwise onto the inflation port.
- Connect the nozzle to the object to be inflated.
- Long-press the Start/Pause power button for 0.5 seconds to begin inflation.
- Press the Start/Pause power button again to stop inflation.
Note: The pump does not stop automatically. Always check the allowable pressure of the object before use. Overinflation may cause the object to burst.

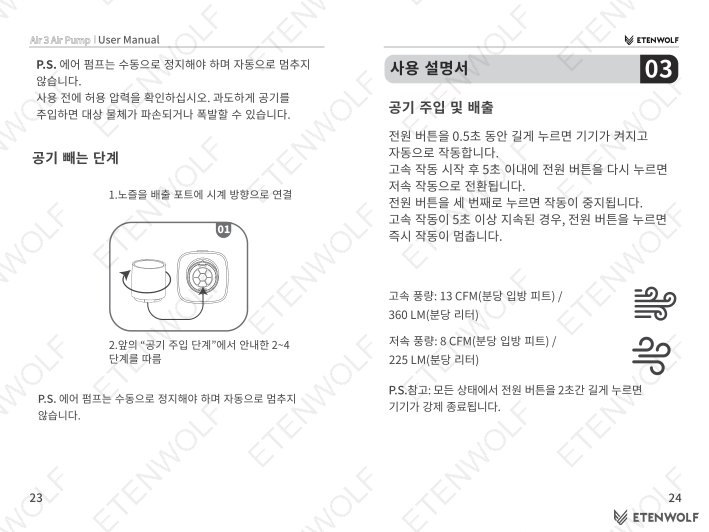

Quick Start: Deflation
- Attach the appropriate nozzle clockwise onto the deflation port.
- Connect the nozzle to the object to be deflated.
- Long-press the Start/Pause power button for 0.5 seconds to begin deflation.
- Press the Start/Pause power button again to stop deflation.
Note: The pump does not stop automatically during deflation either.
Operation Guide – Speed Modes
Long-press the power button for 0.5 seconds to turn on the device; it will automatically start at high speed. Within the first 5 seconds of high-speed operation, press the power button a second time to switch to low speed. Press the power button a third time to stop. If high-speed operation has exceeded 5 seconds, a single press of the power button will stop the device immediately. In any operating state, long-press the power button for 2 seconds to turn off the device.
Nozzle Guide
| Nozzle Size | Compatible Application |
|---|---|
| 6 mm | Air mattress, floating bed, air pillow |
| 20 mm | Vacuum storage bag |
| 2.9 mm | Swimming ring, inflatable toy |
| 53.3 mm | Camping sleeping pad |
Camping Light Modes
| Mode | Brightness | Duration (Full Charge) |
|---|---|---|
| Level 1 | High brightness | 3 hours |
| Level 2 | Medium brightness | 10 hours |
| Level 3 | Low brightness | 40 hours |
| Strobe | Strobe flash | — |
| SOS | SOS signal | — |
Press the light button for 0.5 seconds to turn on the light. Briefly press to cycle through modes. In any active light mode, press and hold the light button for 2 seconds to turn off the light.

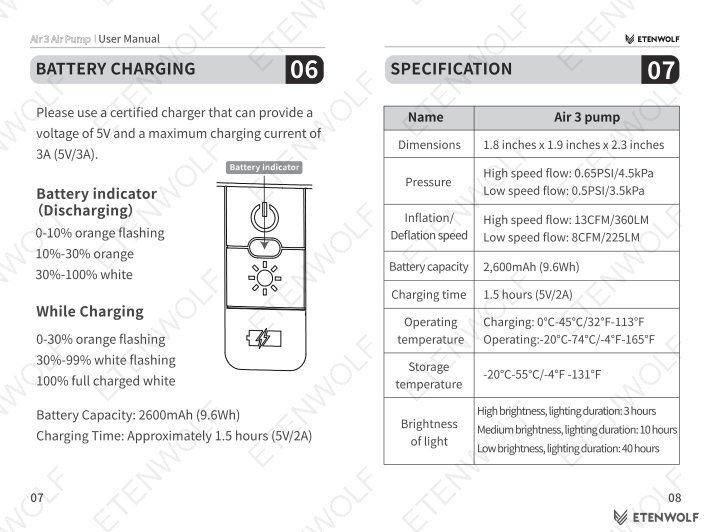

Battery Indicator Status
| State | Battery Level | Indicator |
|---|---|---|
| Discharging | 0–10% | Orange flashing |
| Discharging | 10–30% | Orange solid |
| Discharging | 30–100% | White solid |
| Charging | 0–30% | Orange flashing |
| Charging | 30–99% | White flashing |
| Charging | 100% (full) | White solid |

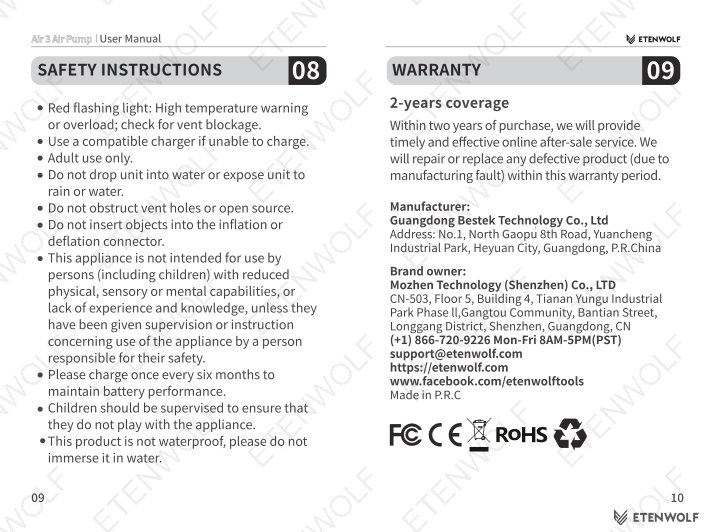

Standards & Compliance
The ETENWOLF AIR3 air pump has passed regulatory testing and carries the following certifications as indicated on the product:
- FCC – Federal Communications Commission compliance (USA)
- CE – Conformité Européenne marking (European Union)
- RoHS – Restriction of Hazardous Substances compliance
- Additional regional certifications visible on product labeling
The product is manufactured in compliance with applicable electrical safety and electromagnetic compatibility standards relevant to portable rechargeable consumer devices. Charging requirements: 5V / maximum 3A (5V/3A) via certified charger.
Validity & Certification Body
This user manual (V3.0) is valid for the ETENWOLF AIR3 as shipped. Product warranty coverage is two (2) years from the date of purchase.
Manufacturer Details
- Manufacturer: Guangdong Bestek Technology Co., Ltd
- Address: No. 1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China
Brand Owner Details
- Brand Owner: Mozhen Technology (Shenzhen) Co., Ltd
- Address: CN-503, Floor 5, Building 4, Tianan Yungu Industrial Park Phase II, Gangtou Community, Bantian Street, Longgang District, Shenzhen, Guangdong, China
- Phone: (+1) 866-720-9226, Mon–Fri 8AM–5PM (PST)
- Email: [email protected]
- Website: https://etenwolf.com
- Facebook: www.facebook.com/etenwolftools
Warranty service: Within two years of purchase, ETENWOLF will provide timely online after-sales service and will repair or replace any product defective due to manufacturing fault. Register at https://etenwolf.com to receive an additional 1-year extended warranty (total 3 years).
Frequently Asked Questions
- Q: Does the AIR3 pump stop automatically when the object is fully inflated?
- No. The AIR3 does not stop automatically. You must monitor the inflation pressure and manually press the power button to stop the pump. Always check the maximum allowable pressure of the object before use to avoid overinflation and potential bursting.
- Q: What charger should I use for the AIR3?
- Use a certified charger capable of delivering 5V with a maximum charging current of 3A (5V/3A) via the Type-C port. A 5V/2A charger is also compatible and will charge the battery in approximately 1.5 hours. Do not use uncertified chargers as they may damage the battery or create a safety hazard.
- Q: How do I switch between high-speed and low-speed inflation?
- After turning on the device, it defaults to high speed (13 CFM / 360 LM). Within the first 5 seconds of operation, press the power button once to switch to low speed (8 CFM / 225 LM). Press again to stop. If more than 5 seconds have elapsed in high-speed mode, pressing the button will stop the device directly.
- Q: What should I do if the red light is flashing during operation?
- A red flashing light indicates a high temperature warning or an overload condition. Stop the device immediately and check that all vent holes are unobstructed. Allow the unit to cool down before resuming use. If the problem persists, contact ETENWOLF support at [email protected].
Related Documents
The following document types are relevant to the ETENWOLF AIR3 and may be available upon request or through official regulatory databases:
- FCC Declaration of Conformity – Confirms electromagnetic compatibility and radio frequency compliance for the US market.
- CE Declaration of Conformity – Confirms compliance with EU directives including Low Voltage Directive (LVD) and EMC Directive.
- RoHS Compliance Certificate – Confirms restriction of hazardous substances in electrical and electronic equipment.
- UN 38.3 Battery Test Report – Confirms safe transport classification for the integrated 2,600 mAh lithium-ion battery pack.
- Battery Safety Datasheet – Detailed electrochemical and safety data for the 9.6 Wh lithium battery cell used in the AIR3.
- REACH Compliance Statement – Confirms the product does not contain Substances of Very High Concern (SVHC) above threshold limits under EU REACH regulation.

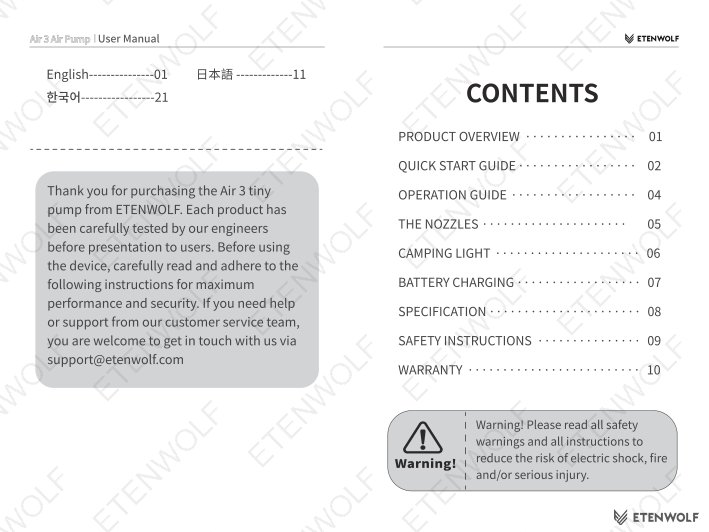

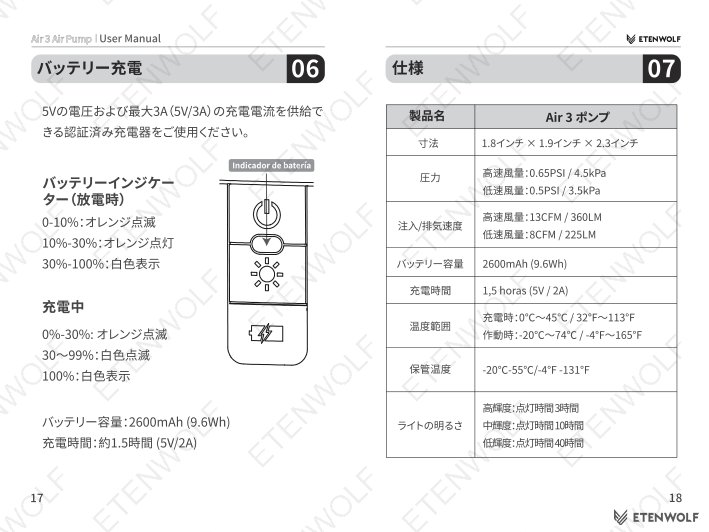

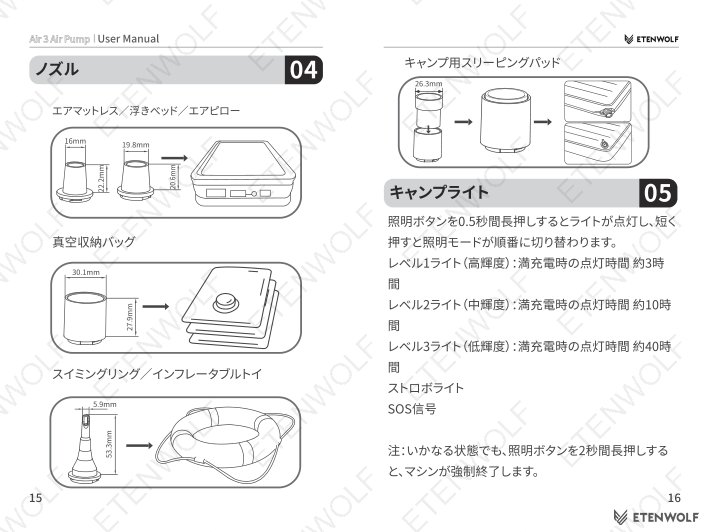

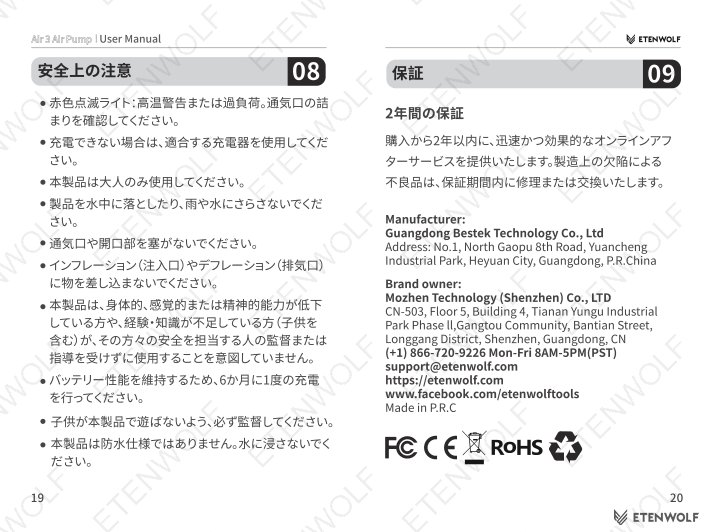

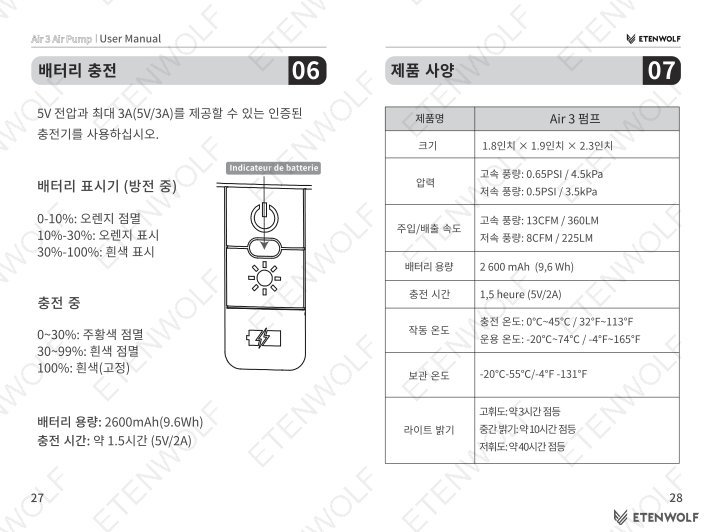

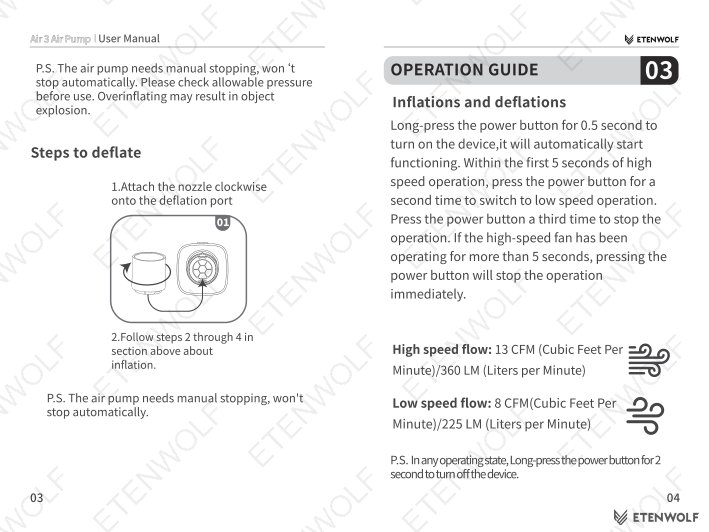

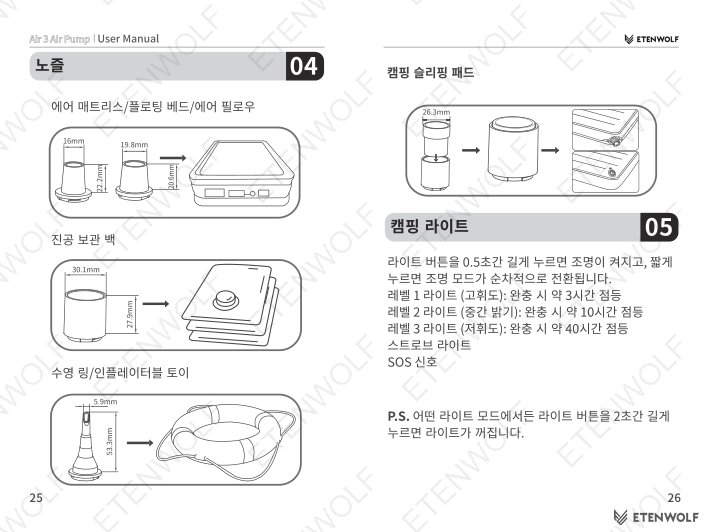

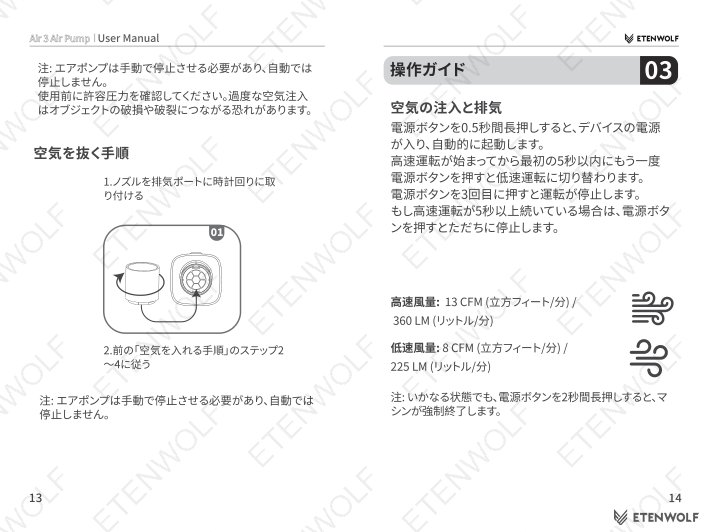

Document Pages
