Document Overview This article summarises Test Report WTH25X12334286C, a RoHS compliance test report issued by Waltek Testing Group (Shenzhen) Co., Ltd. on 2026-01-19. The report was prepared following the requirements of the EU RoHS Directive 2011/65/EU and its amending regulation (EU) No. 2015/863, which restrict…
- Document type
- Certification Report
- Prepared by
- Michelle Torres
- Published
- Last reviewed
- Topics
- European Union: CE / RoHS / REACH / WEEE
Document Overview
This article summarises Test Report WTH25X12334286C, a RoHS compliance test report issued by Waltek Testing Group (Shenzhen) Co., Ltd. on 2026-01-19. The report was prepared following the requirements of the EU RoHS Directive 2011/65/EU and its amending regulation (EU) No. 2015/863, which restrict the use of ten hazardous substances in electrical and electronic equipment placed on the European market.
The scope of the testing covers the determination of restricted substance content across all homogeneous material parts of the submitted product sample. The test conclusion is Pass: all tested parts comply with the concentration limits stipulated by the directive.

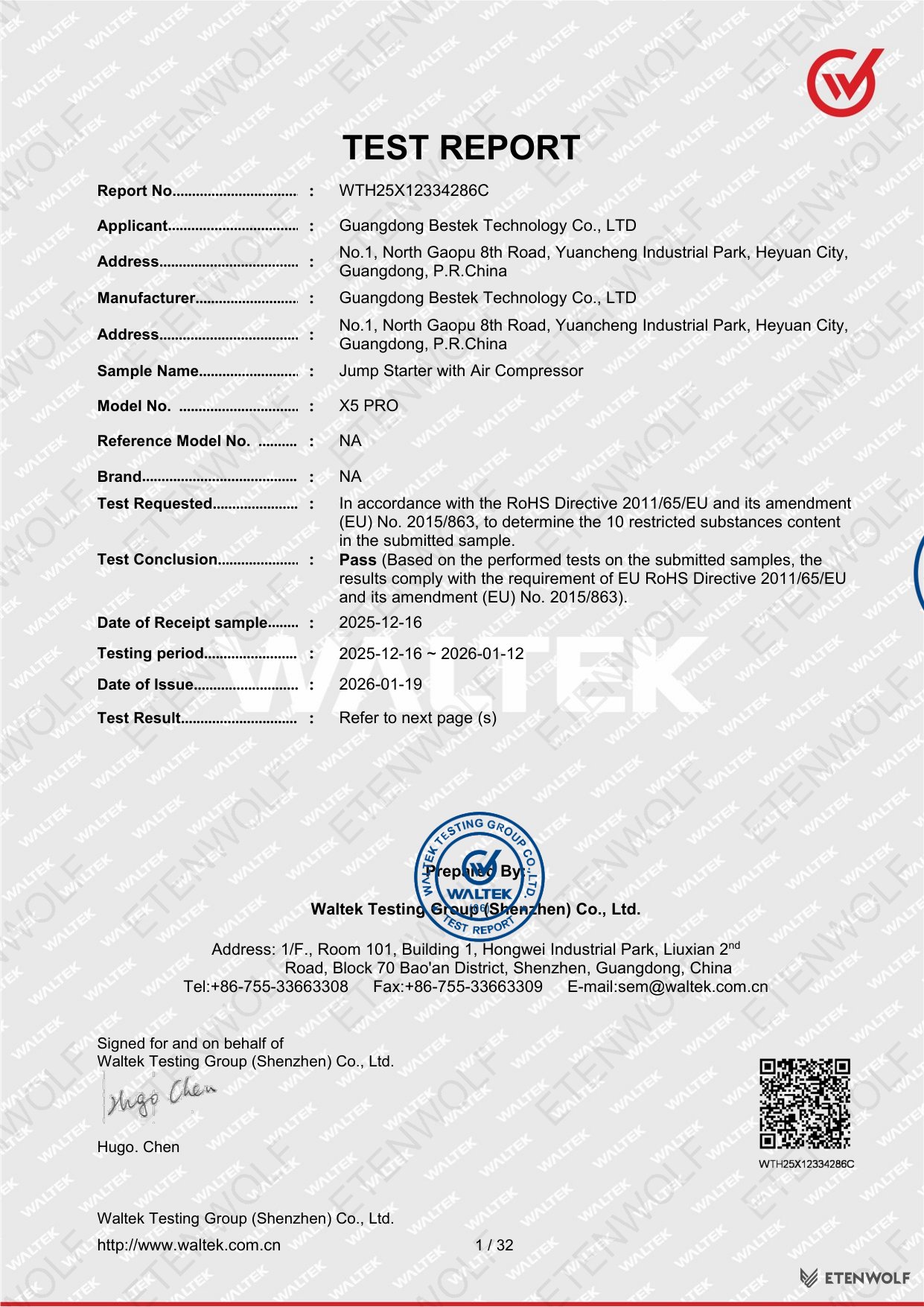

| Field | Detail |
|---|---|
| Report Number | WTH25X12334286C |
| Document Type | RoHS Test Report |
| Issuing Laboratory | Waltek Testing Group (Shenzhen) Co., Ltd. |
| Date of Issue | 2026-01-19 |
| Testing Period | 2025-12-16 to 2026-01-12 |
| Date of Sample Receipt | 2025-12-16 |
| Applicable Directive | EU RoHS 2011/65/EU & Amendment (EU) 2015/863 |
| Overall Conclusion | Pass |
Product Information

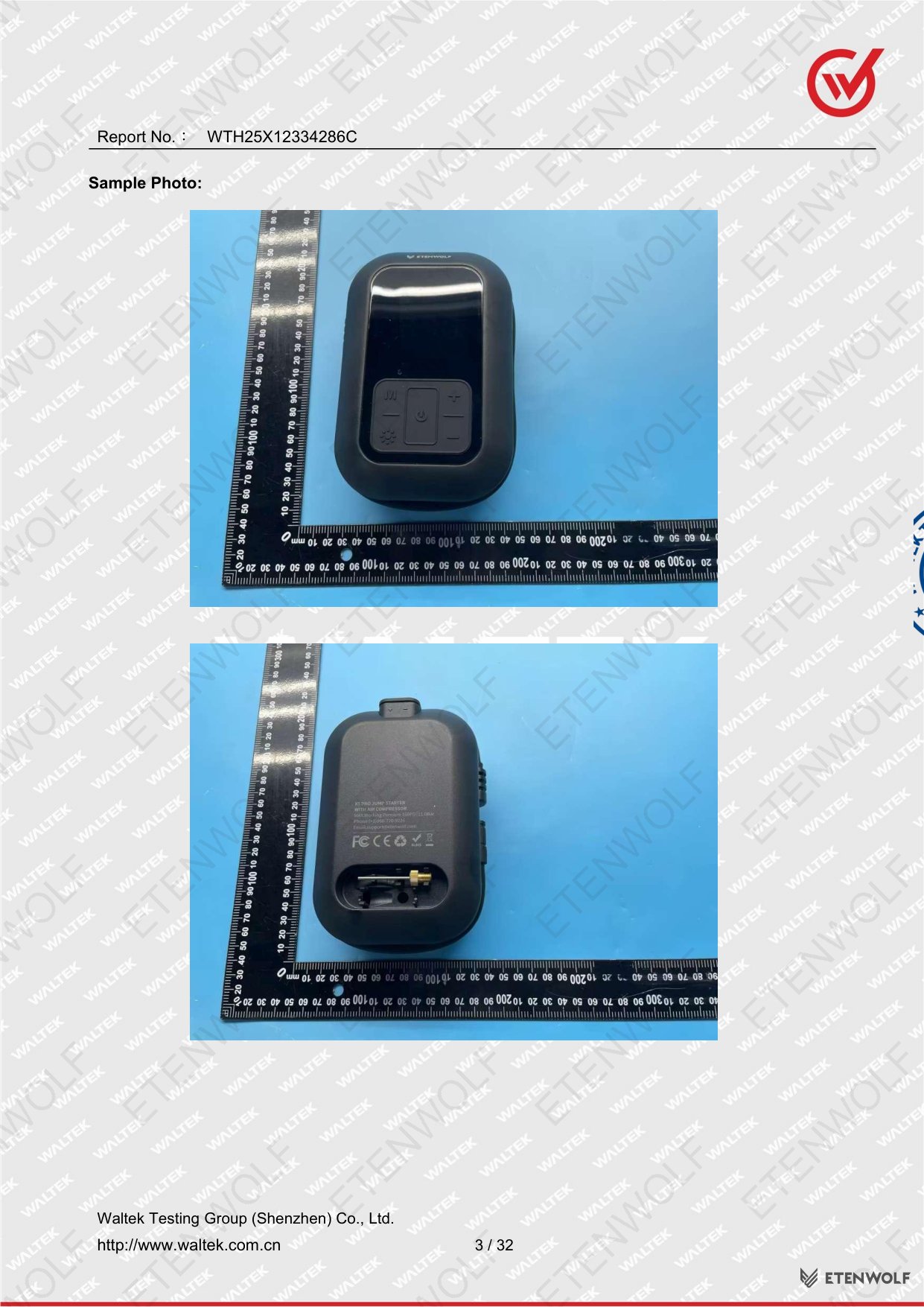

The tested product is the X5 PRO Jump Starter with Air Compressor, manufactured and sold by ETENWOLF. The applicant and manufacturer on record is Guangdong Bestek Technology Co., Ltd., located at No. 1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China.
| Field | Detail |
|---|---|
| Sample Name | Jump Starter with Air Compressor |
| Model Number | X5 PRO |
| Reference Model | NA |
| Brand | ETENWOLF |
| Applicant | Guangdong Bestek Technology Co., Ltd. |
| Manufacturer | Guangdong Bestek Technology Co., Ltd. |
| Manufacturer Address | No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China |
The X5 PRO is a combined portable jump starter and air compressor, integrating a motor assembly, PCB boards, capacitors, wiring harnesses, rubber seals, and multiple metal and plastic structural components. Its multi-material construction requires comprehensive part-by-part RoHS analysis to verify compliance across all homogeneous materials.
Key Details

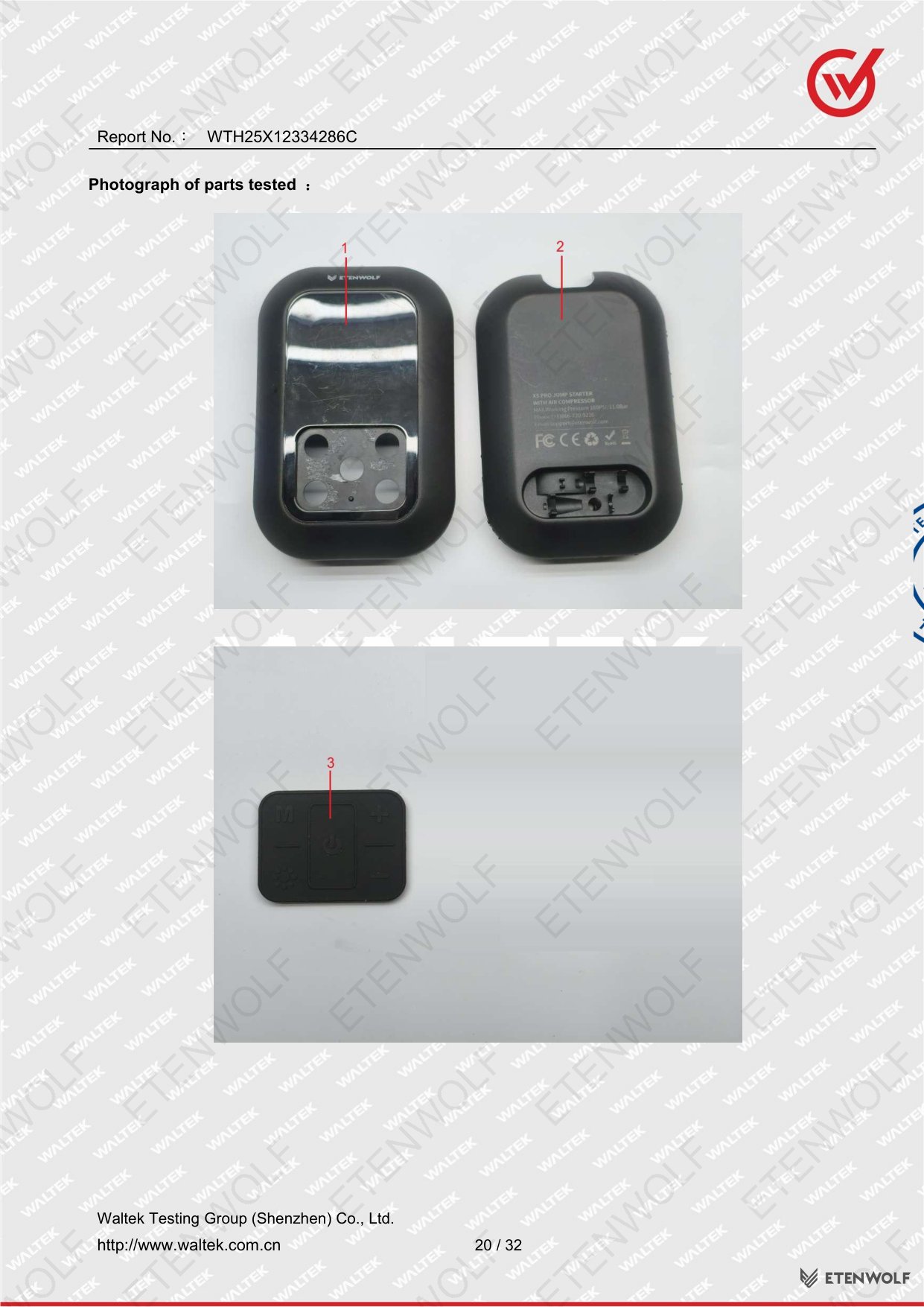

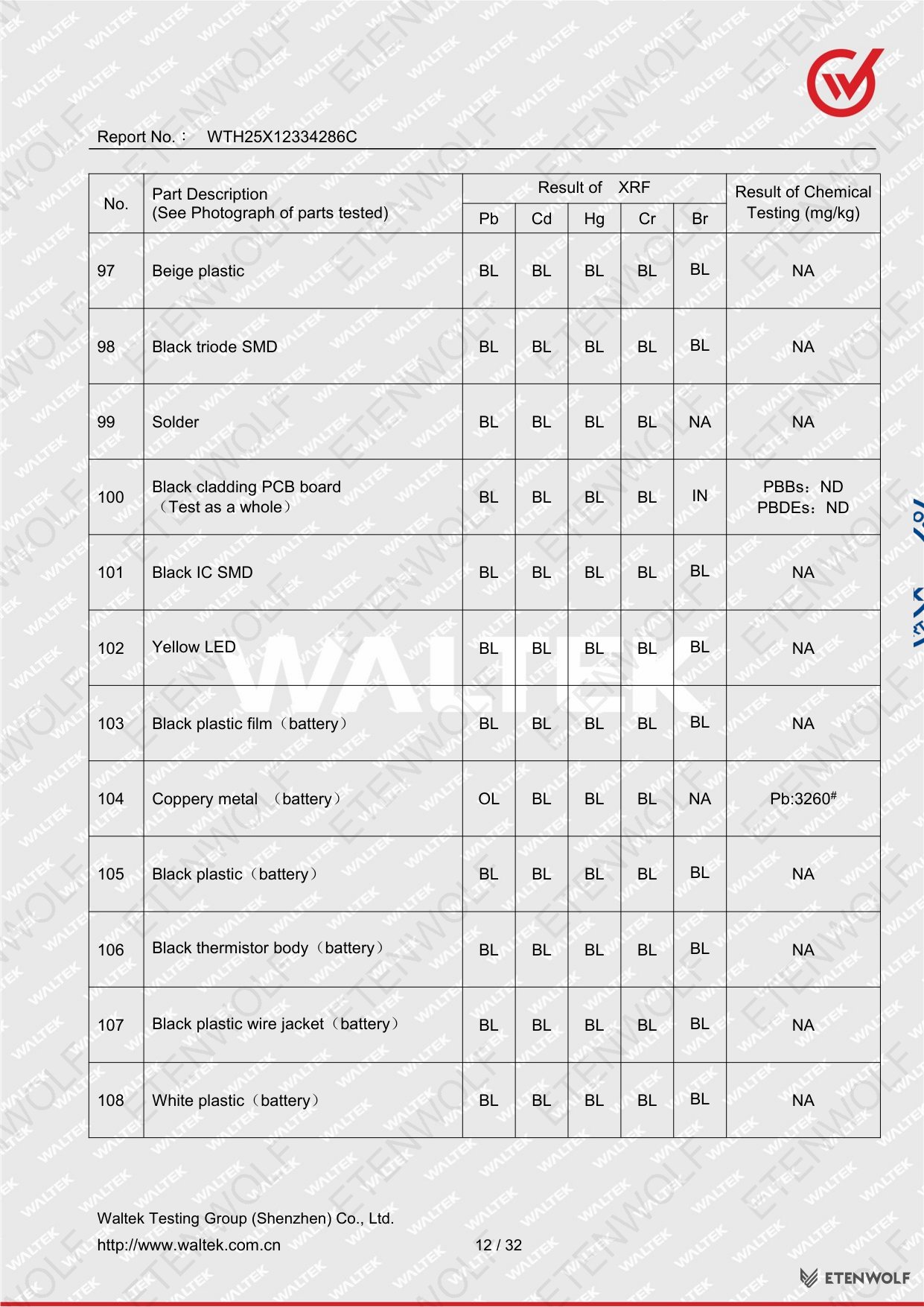

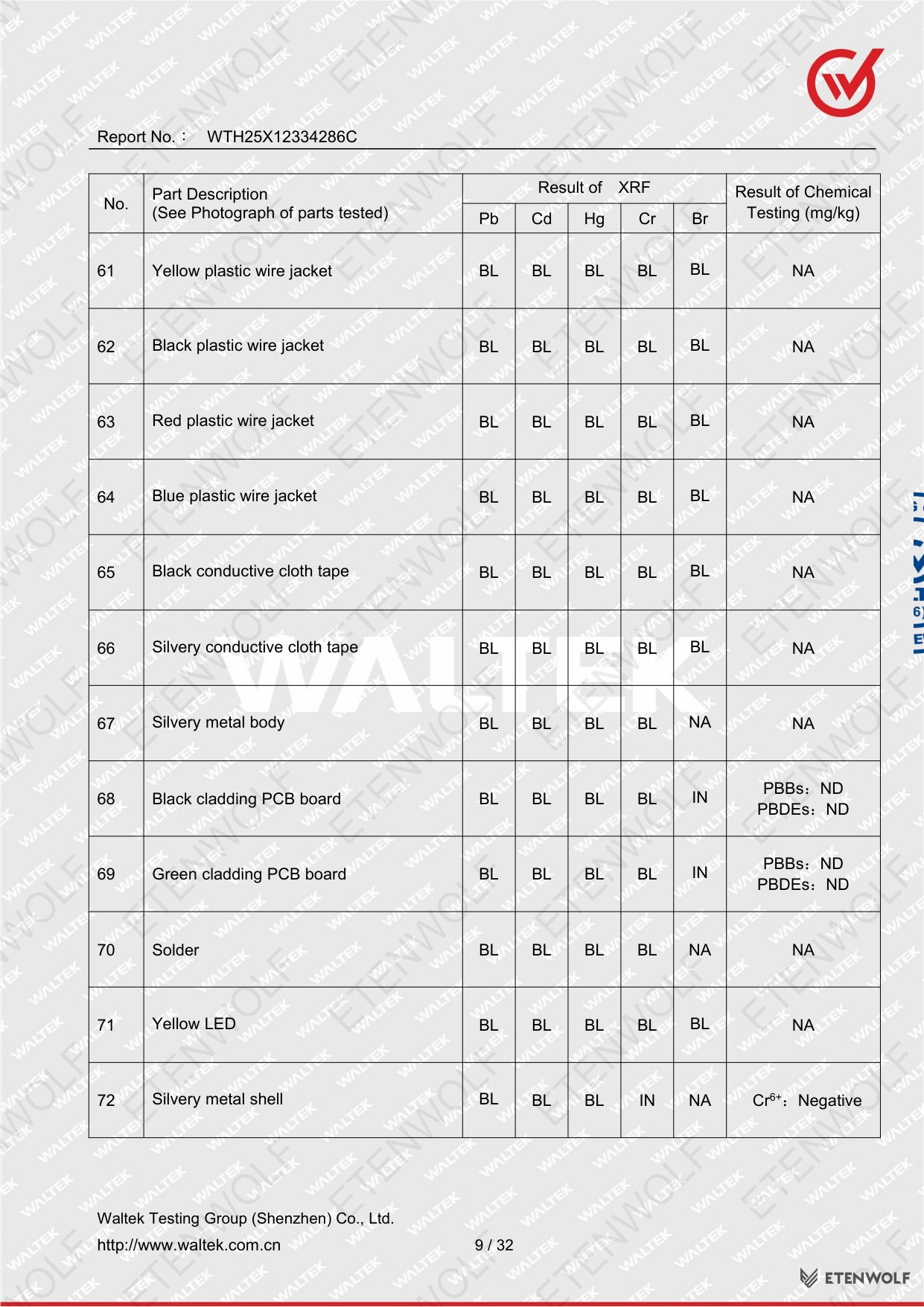

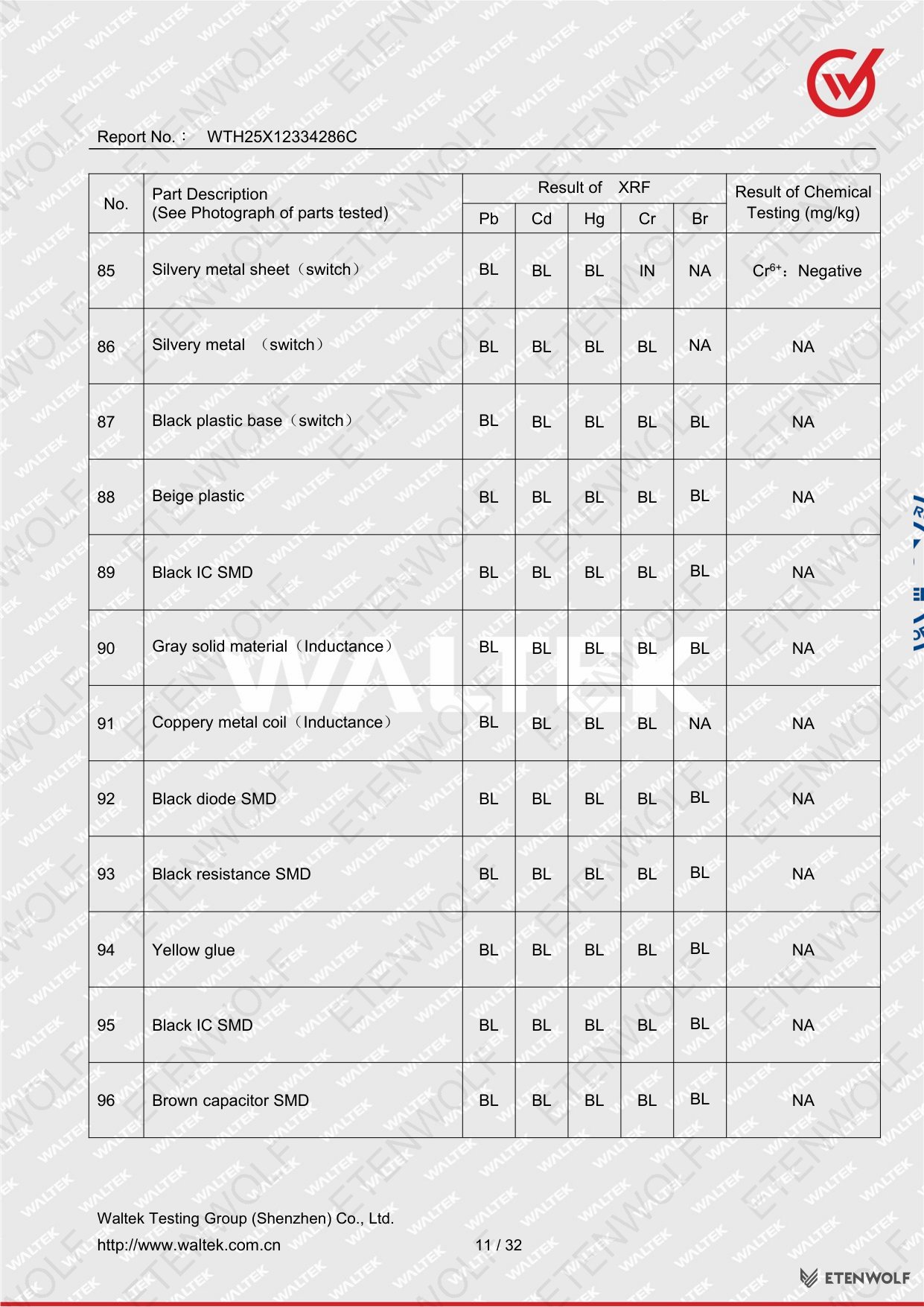

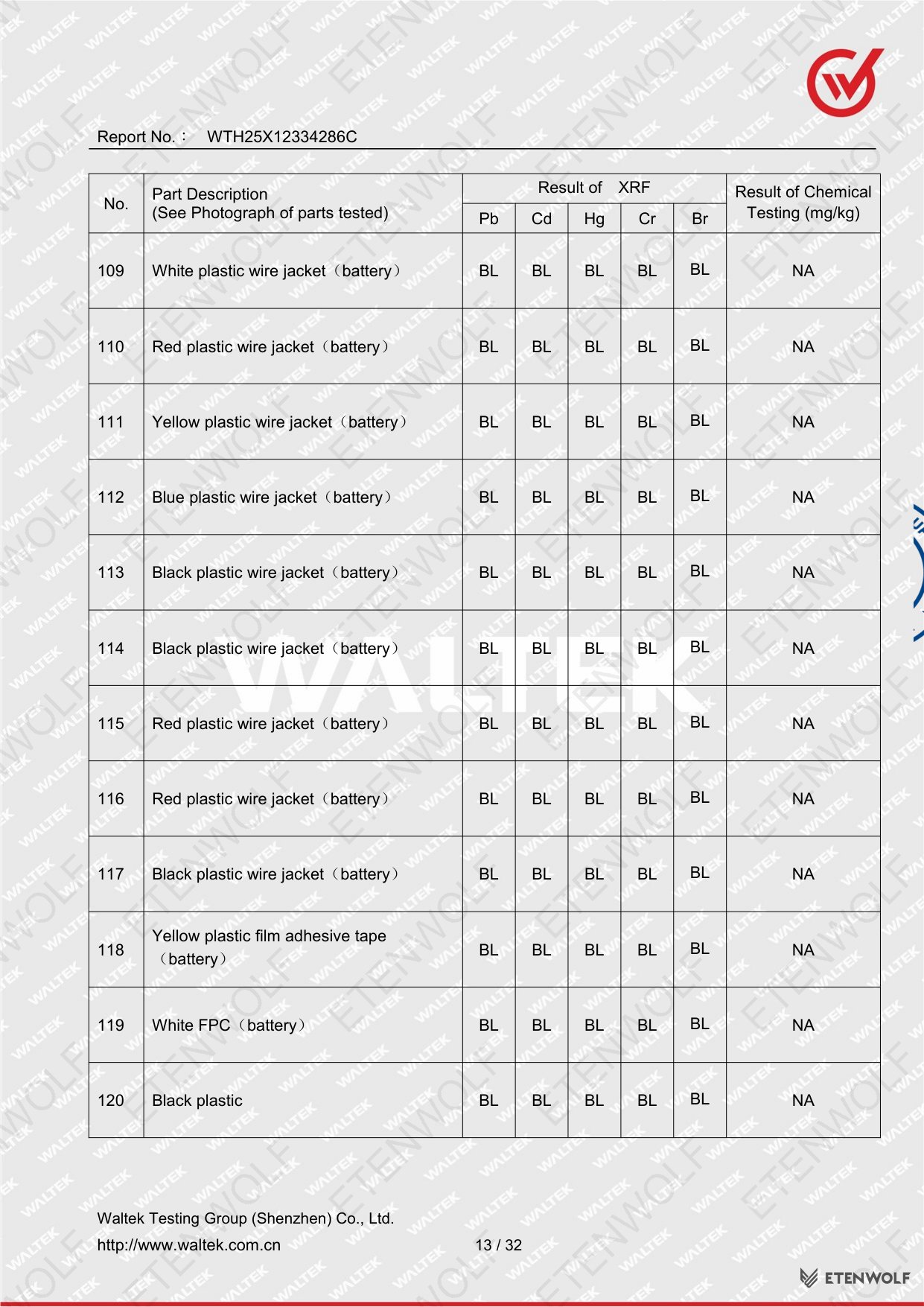

Testing covered 81 or more individually identified parts sampled from the X5 PRO. Each part was first screened by X-ray fluorescence spectrometry (XRF) and, where the XRF result was over the limit (OL) or inconclusive (IN), subjected to confirmatory chemical analysis. The table below lists all parts with notable chemical testing results; parts with all XRF results below limit (BL) and no chemical testing required are indicated as compliant.
| Part No. | Part Description | XRF Result (Pb/Cd/Hg/Cr/Br) | Chemical Test Result | Status |
|---|---|---|---|---|

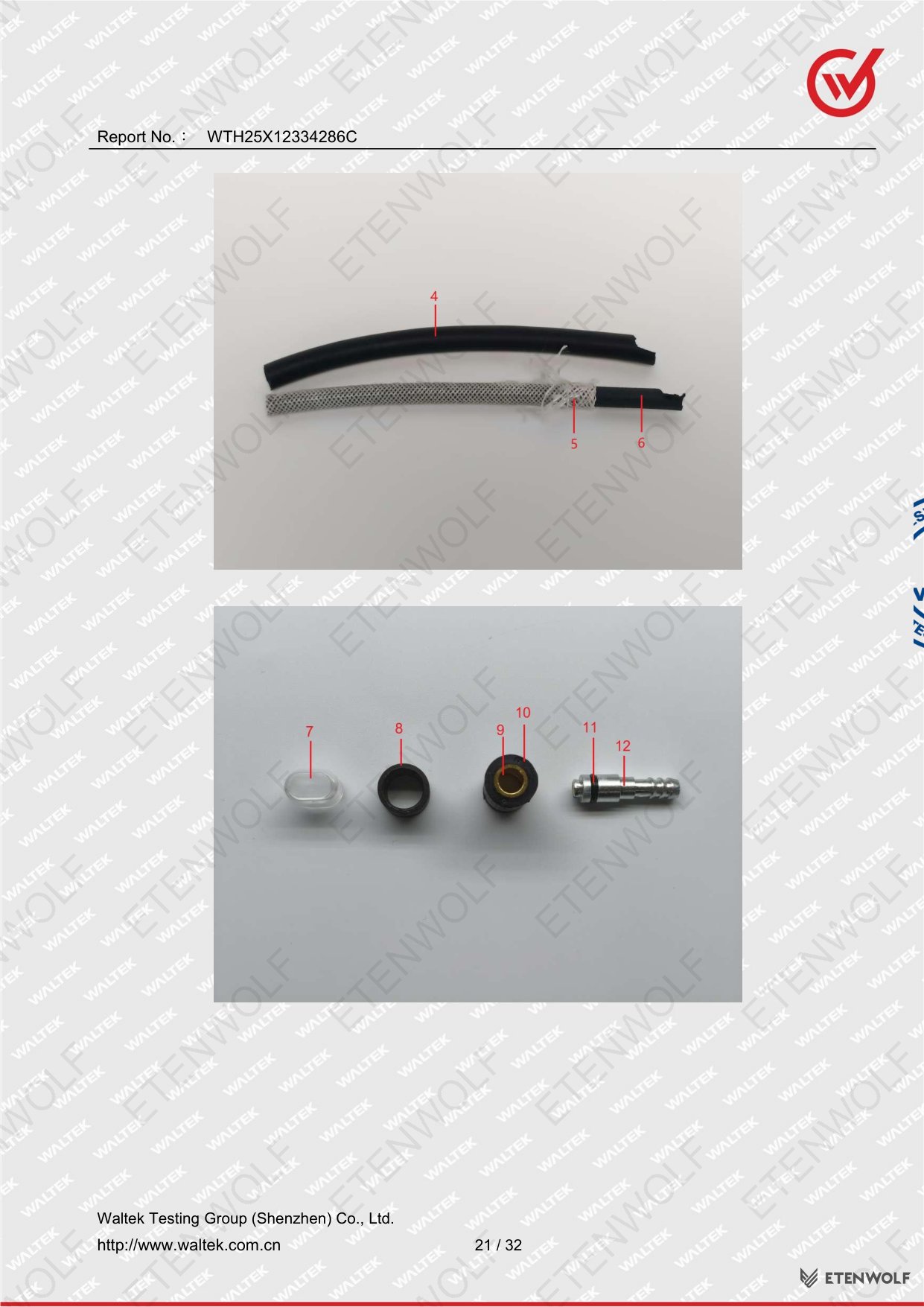

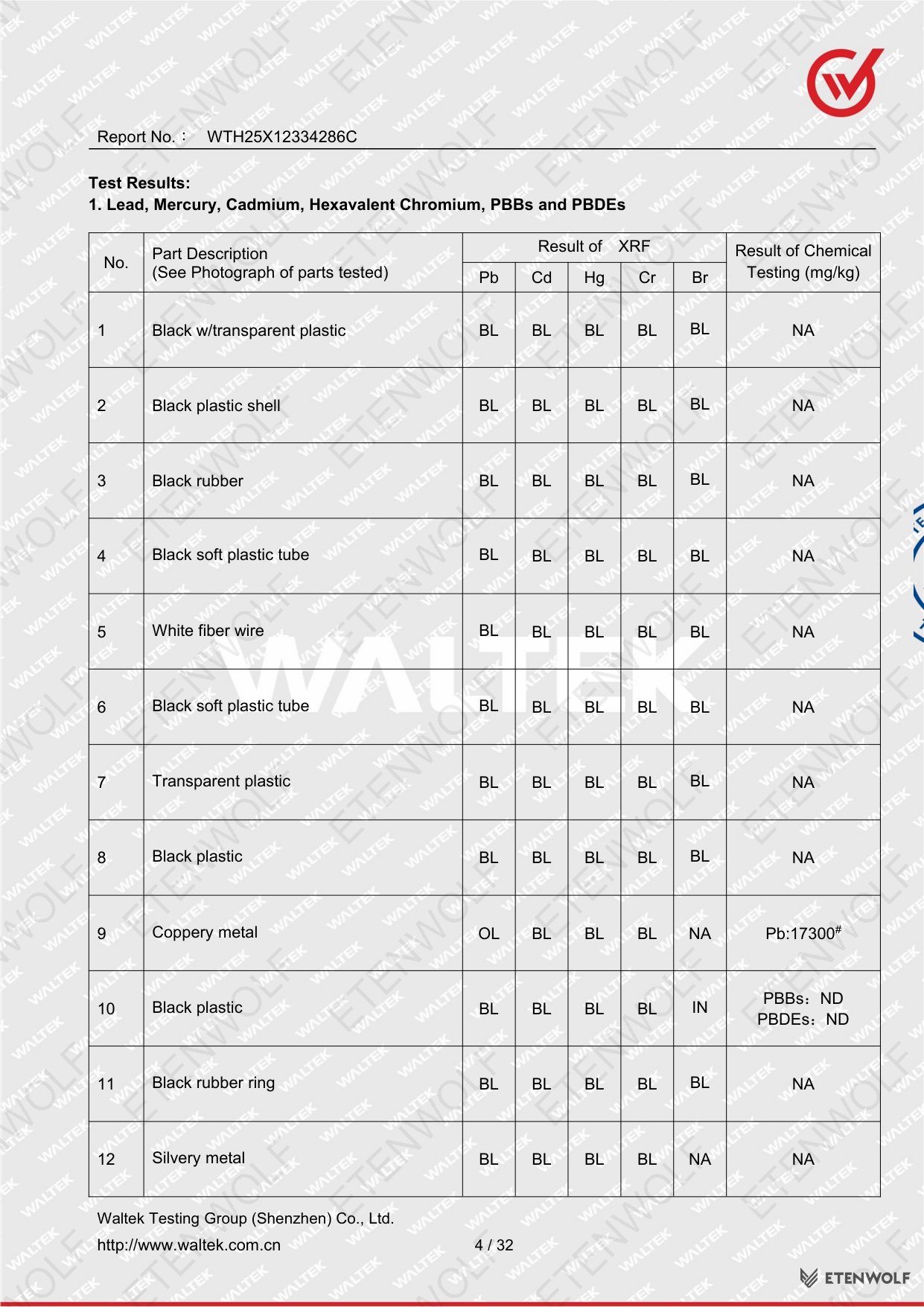

| 9 | Coppery metal | OL / BL / BL / BL / NA | Pb: 17,300 mg/kg (#) | See note |
| 10 | Black plastic | BL / BL / BL / BL / IN | PBBs: ND; PBDEs: ND | Pass |

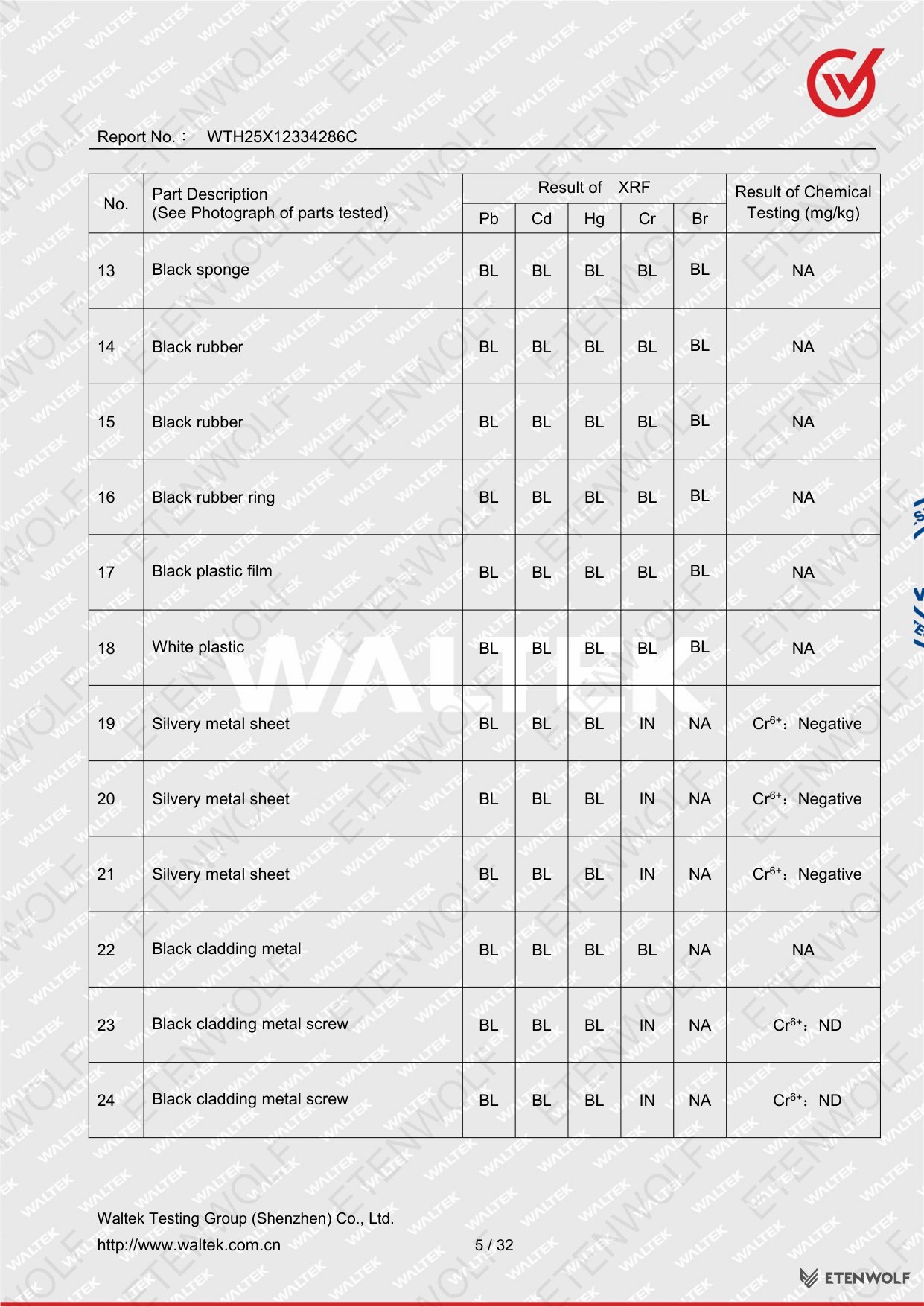

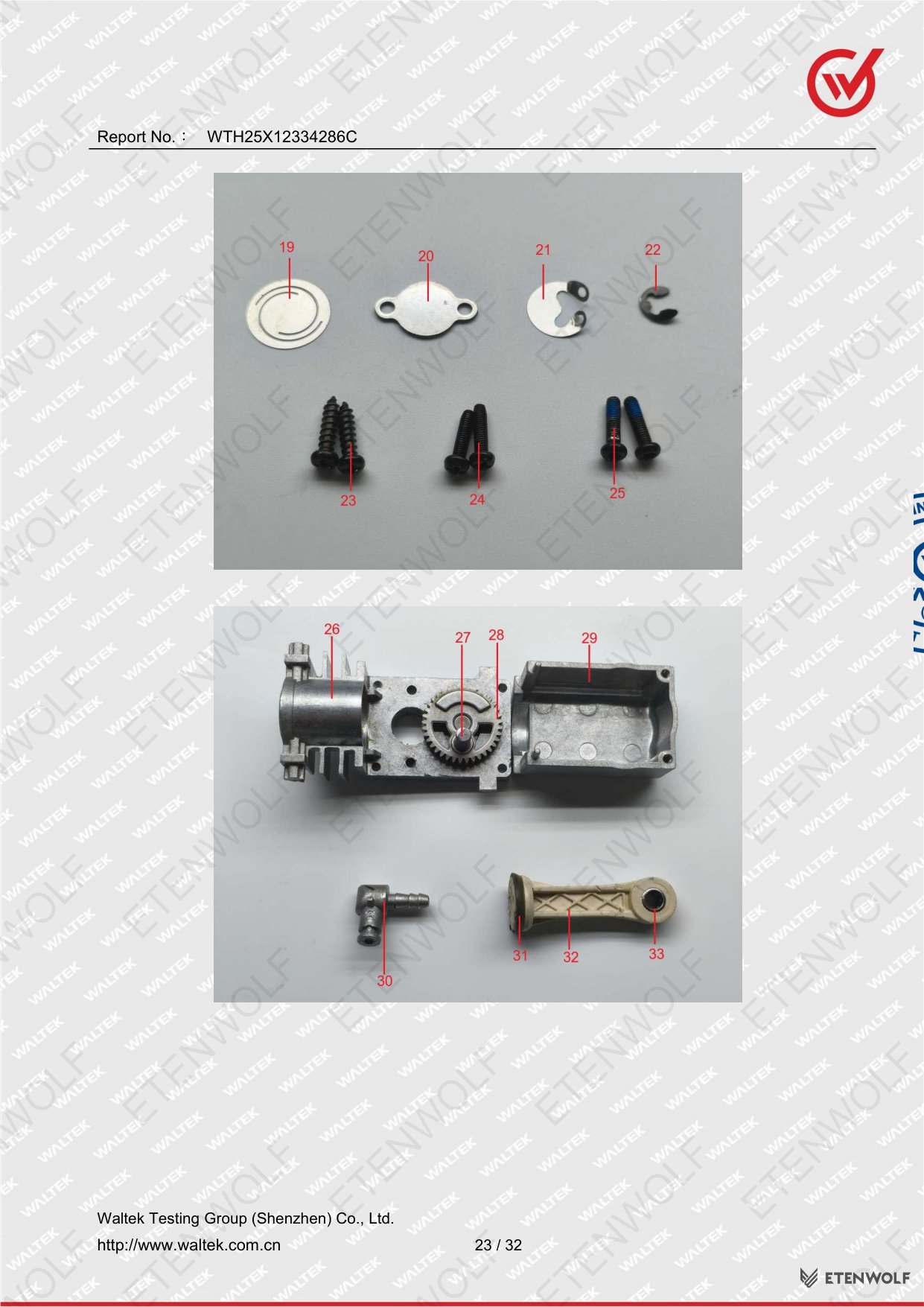

| 19 | Silvery metal sheet | BL / BL / BL / IN / NA | Cr6+: Negative | Pass |
| 20 | Silvery metal sheet | BL / BL / BL / IN / NA | Cr6+: Negative | Pass |
| 21 | Silvery metal sheet | BL / BL / BL / IN / NA | Cr6+: Negative | Pass |
| 23 | Black cladding metal screw | BL / BL / BL / IN / NA | Cr6+: ND | Pass |
| 24 | Black cladding metal screw | BL / BL / BL / IN / NA | Cr6+: ND | Pass |

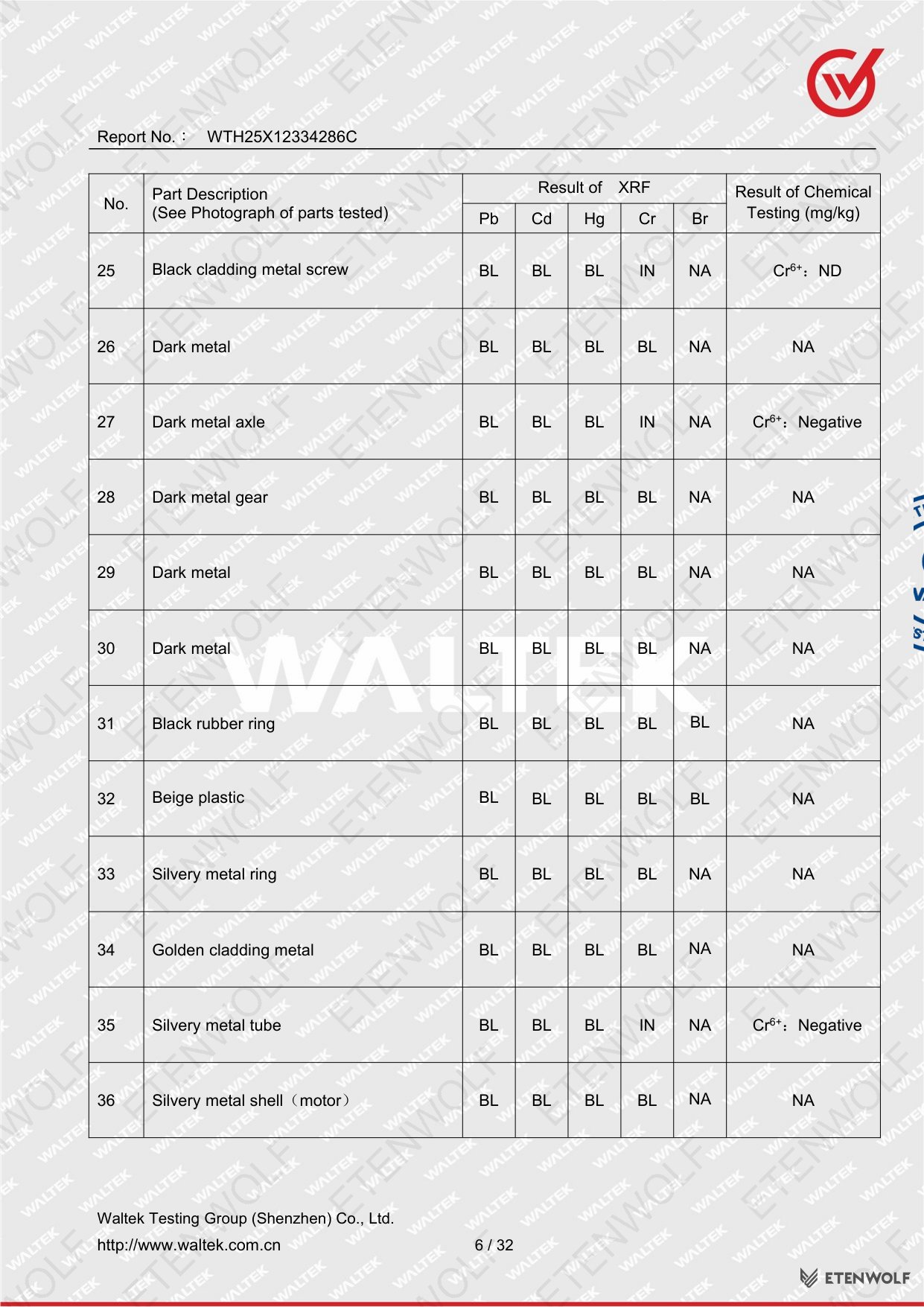

| 25 | Black cladding metal screw | BL / BL / BL / IN / NA | Cr6+: ND | Pass |
| 27 | Dark metal axle | BL / BL / BL / IN / NA | Cr6+: Negative | Pass |

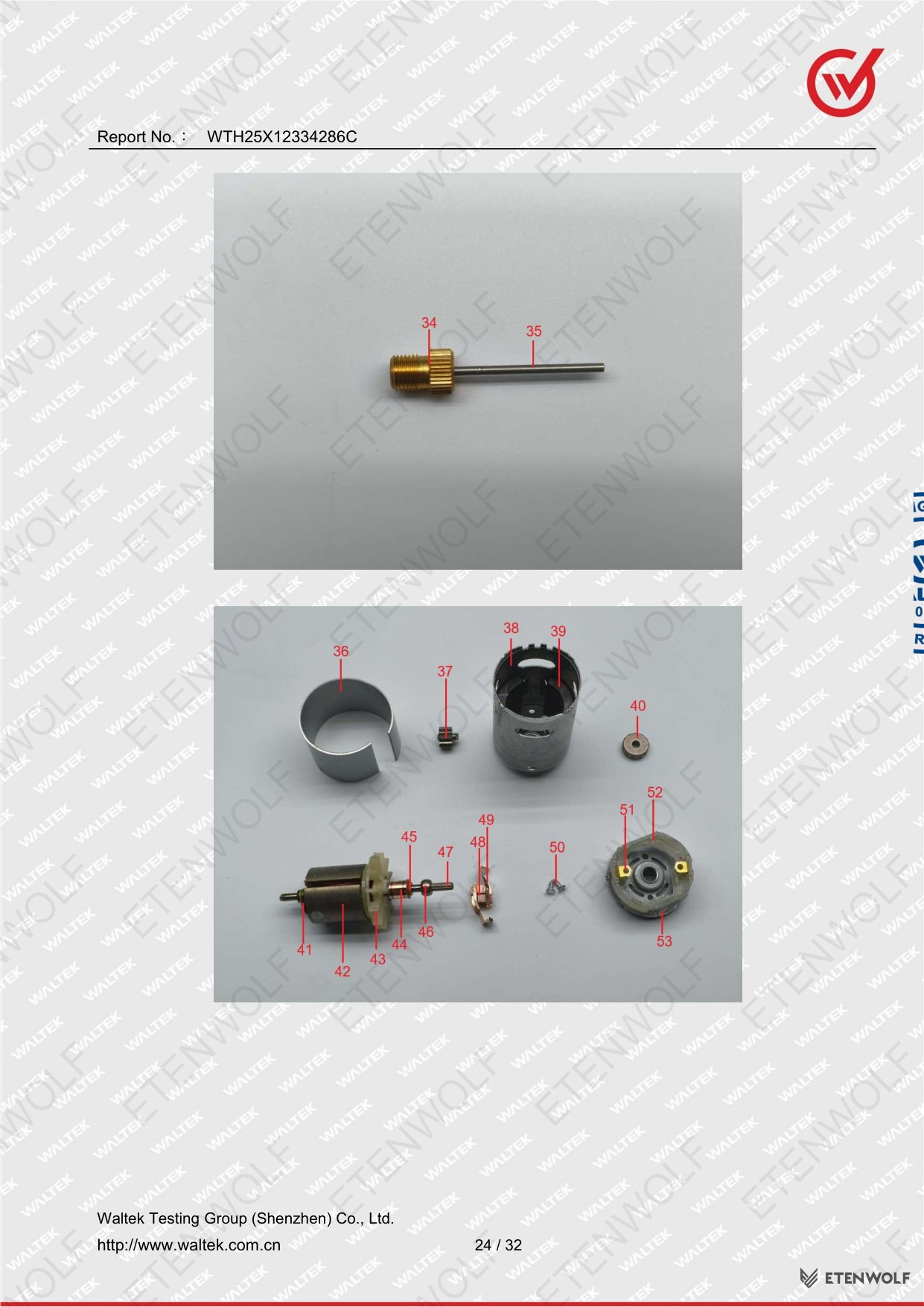

| 35 | Silvery metal tube | BL / BL / BL / IN / NA | Cr6+: Negative | Pass |

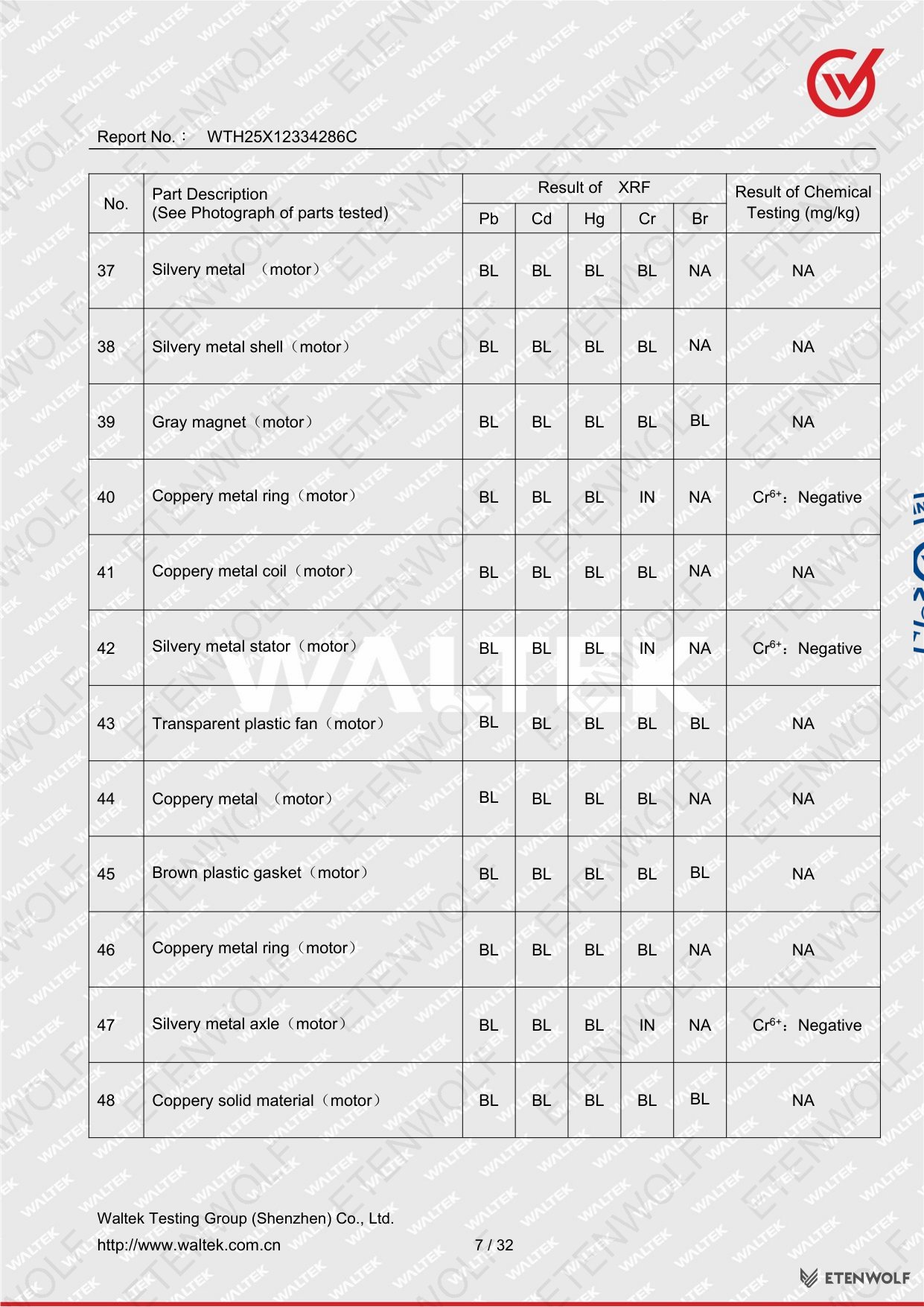

| 40 | Coppery metal ring (motor) | BL / BL / BL / IN / NA | Cr6+: Negative | Pass |
| 42 | Silvery metal stator (motor) | BL / BL / BL / IN / NA | Cr6+: Negative | Pass |
| 47 | Silvery metal axle (motor) | BL / BL / BL / IN / NA | Cr6+: Negative | Pass |

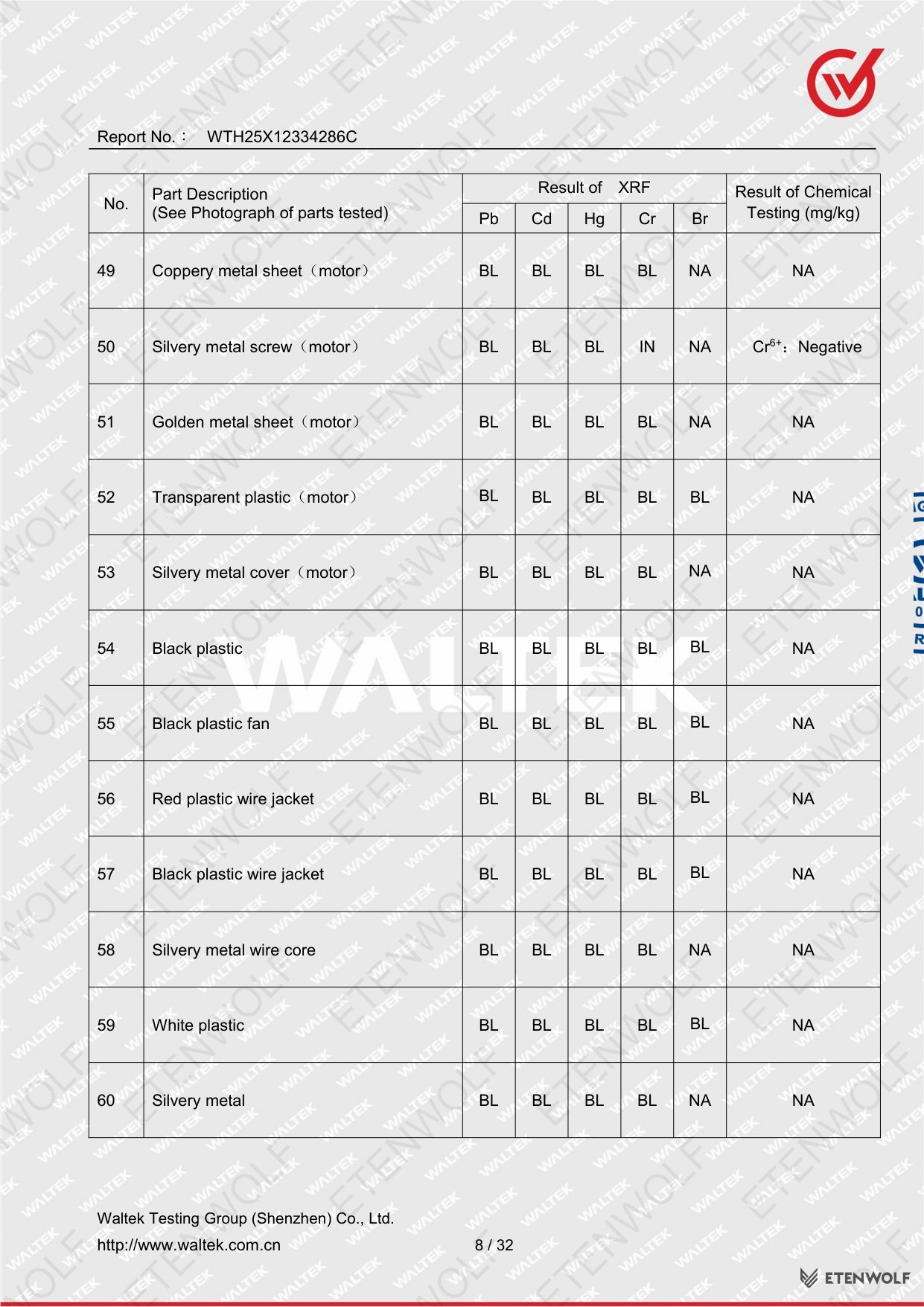

| 50 | Silvery metal screw (motor) | BL / BL / BL / IN / NA | Cr6+: Negative | Pass |

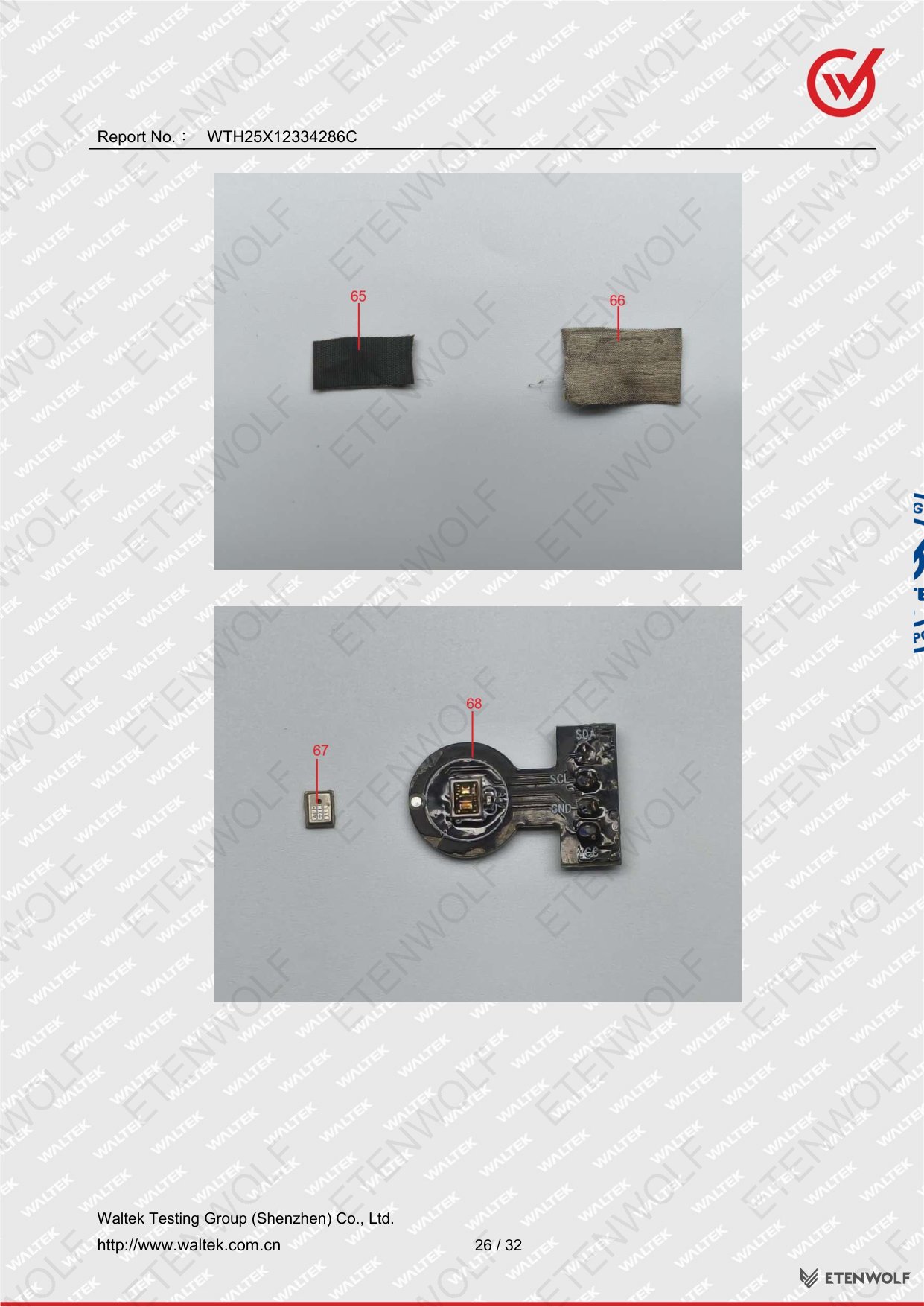

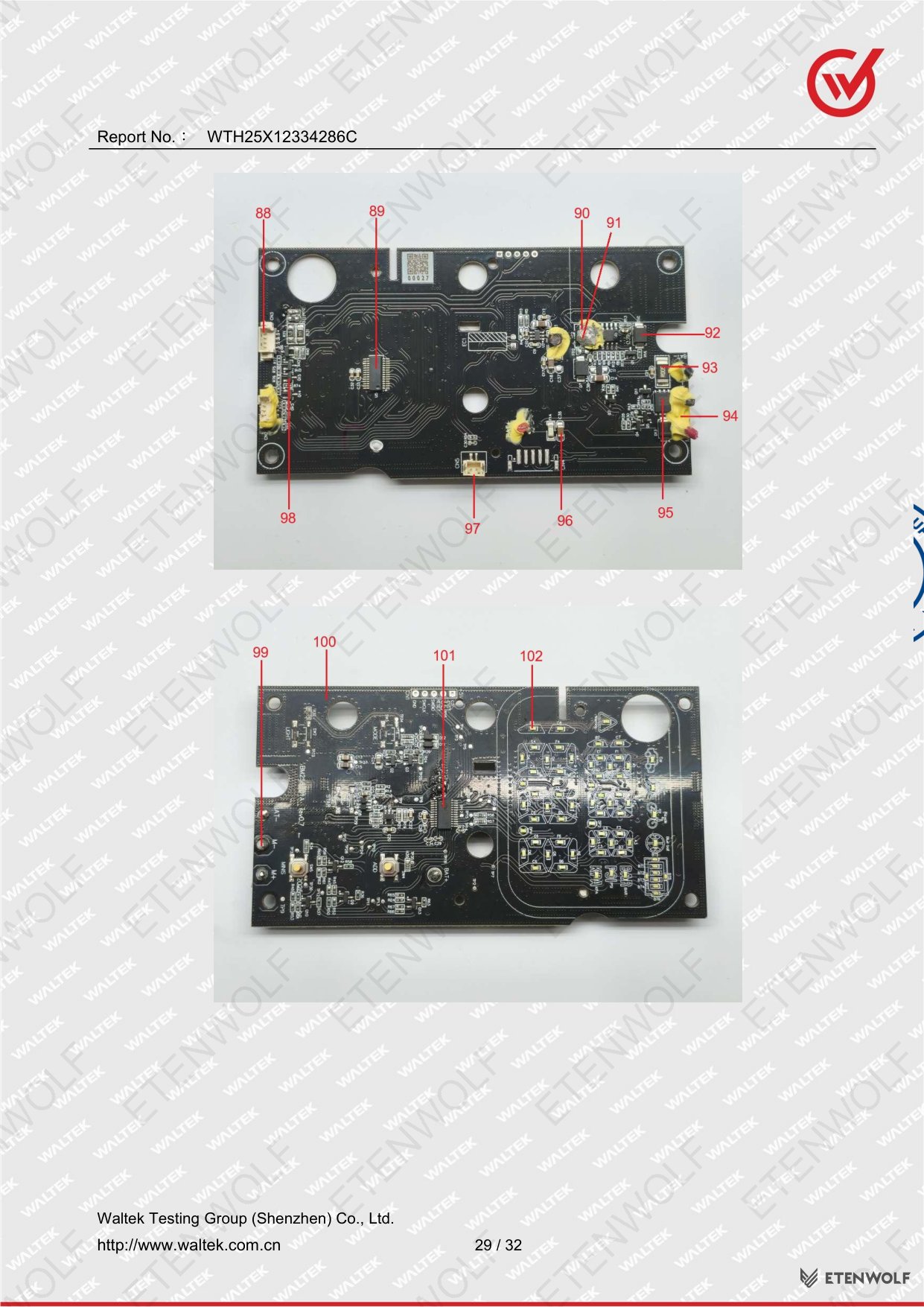

| 68 | Black cladding PCB board | BL / BL / BL / BL / IN | PBBs: ND; PBDEs: ND | Pass |

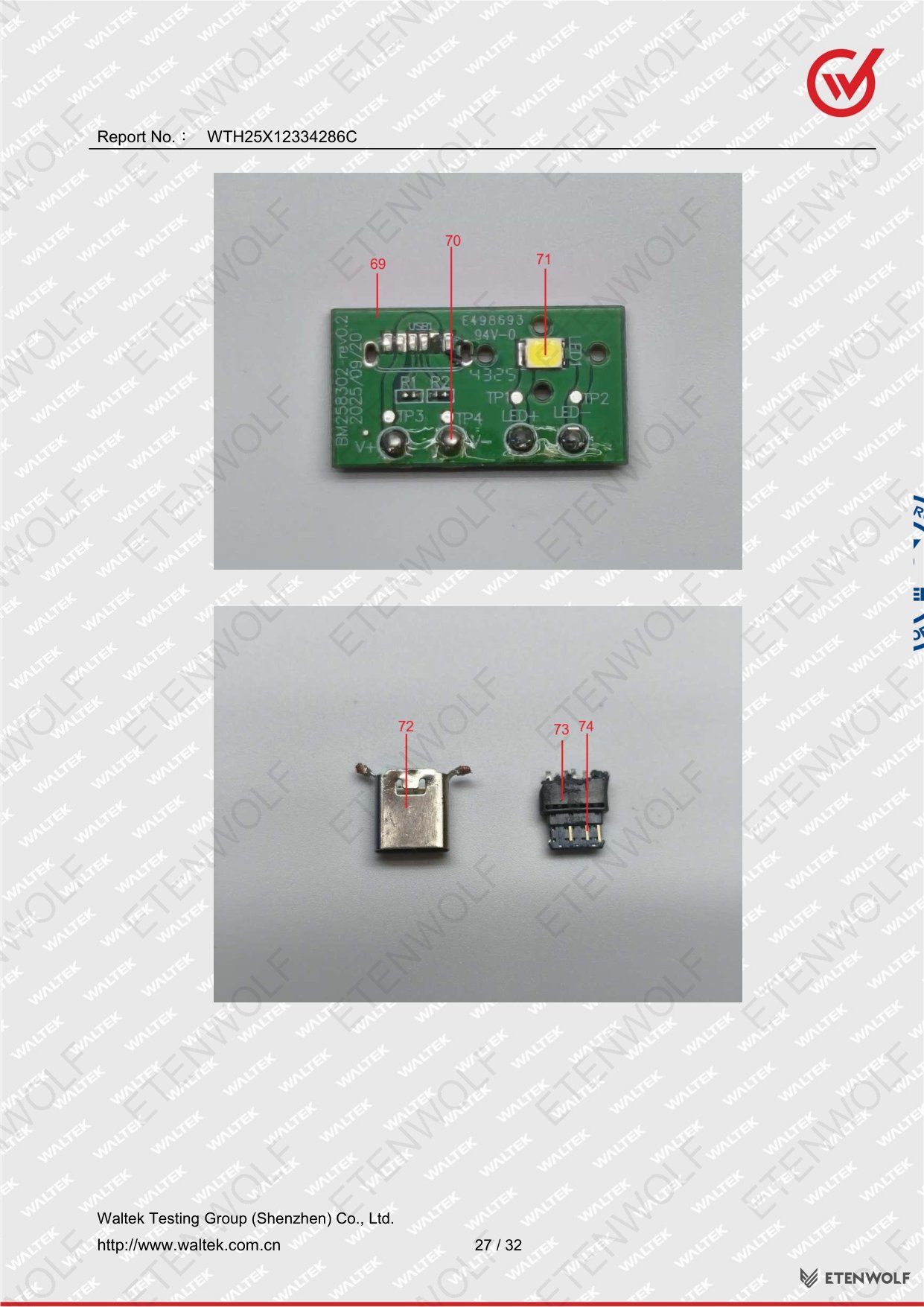

| 69 | Green cladding PCB board | BL / BL / BL / BL / IN | PBBs: ND; PBDEs: ND | Pass |
| 72 | Silvery metal shell | BL / BL / BL / IN / NA | Cr6+: Negative | Pass |
Note on Part 9 (Coppery metal): Lead content measured at 17,300 mg/kg by ICP-OES chemical testing. This high lead concentration is typical of free-machining copper alloys (e.g., leaded brass), which are covered by RoHS Annex III exemption 6(c). The overall test conclusion remains Pass as documented by the issuing laboratory.
All remaining parts (not listed above) returned XRF results below the detection limit (BL) for all five screened elements — Pb, Cd, Hg, Cr, and Br — and required no further chemical testing, confirming compliance by screening.
Standards & Compliance

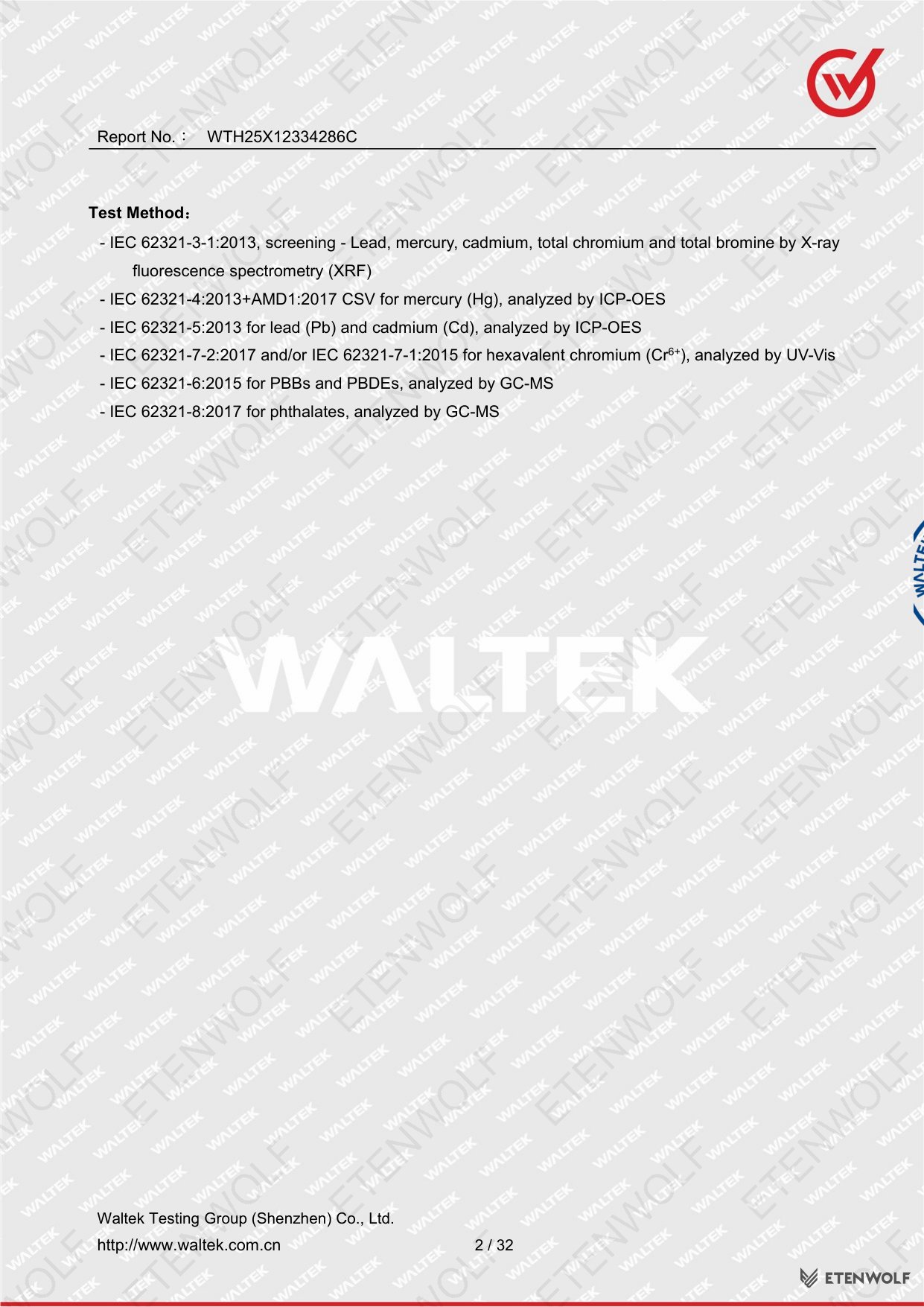

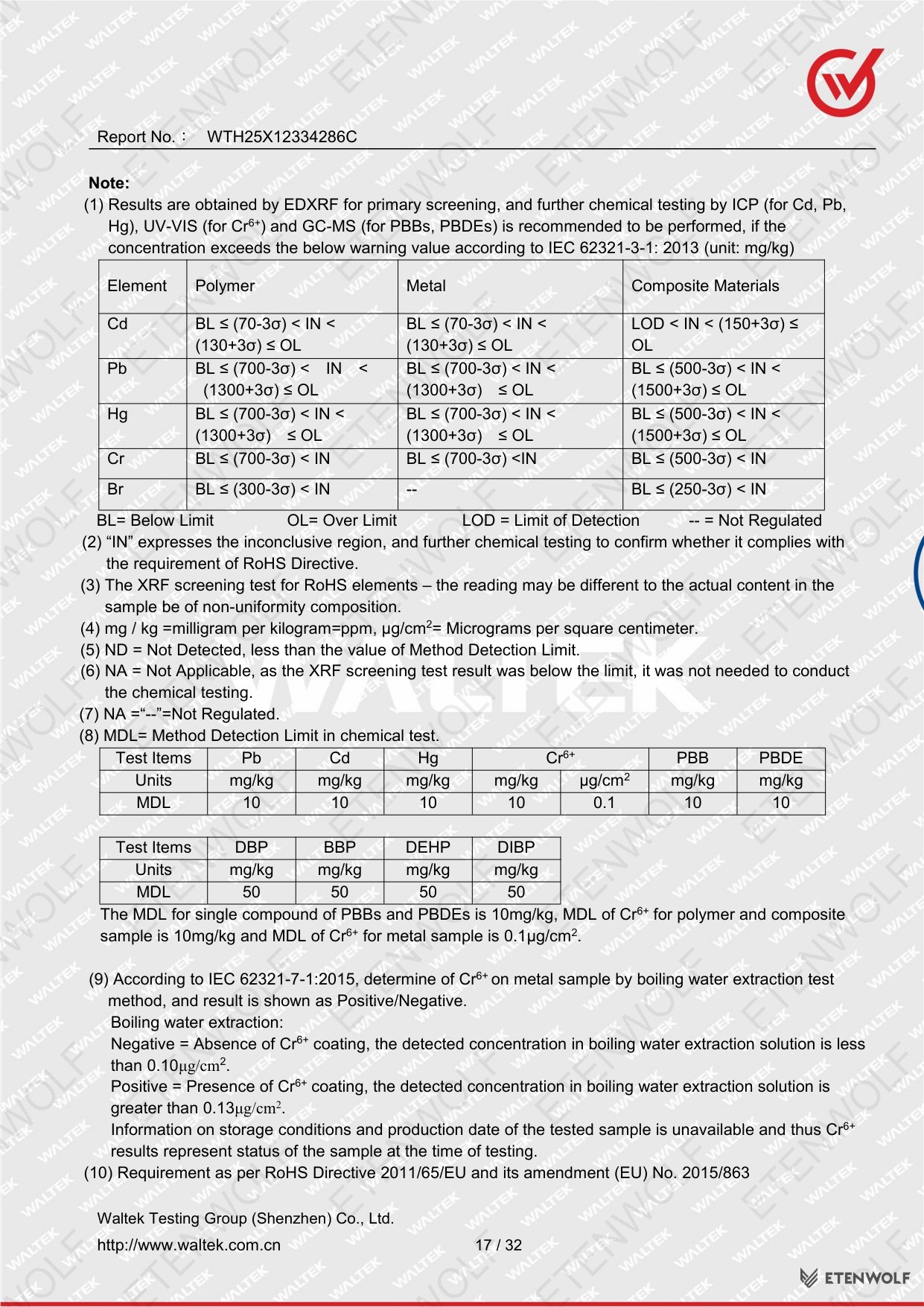

The testing was conducted in accordance with the following internationally recognised IEC test methods for determination of restricted substances in electrotechnical products:
| Standard | Scope | Analytical Method |
|---|---|---|
| IEC 62321-3-1:2013 | Screening – Pb, Hg, Cd, total Cr, total Br | X-ray fluorescence spectrometry (XRF) |
| IEC 62321-4:2013+AMD1:2017 CSV | Mercury (Hg) | ICP-OES |
| IEC 62321-5:2013 | Lead (Pb) and Cadmium (Cd) | ICP-OES |
| IEC 62321-7-2:2017 and/or IEC 62321-7-1:2015 | Hexavalent chromium (Cr6+) | UV-Vis spectrophotometry |
| IEC 62321-6:2015 | Polybrominated biphenyls (PBBs) and polybrominated diphenyl ethers (PBDEs) | GC-MS |

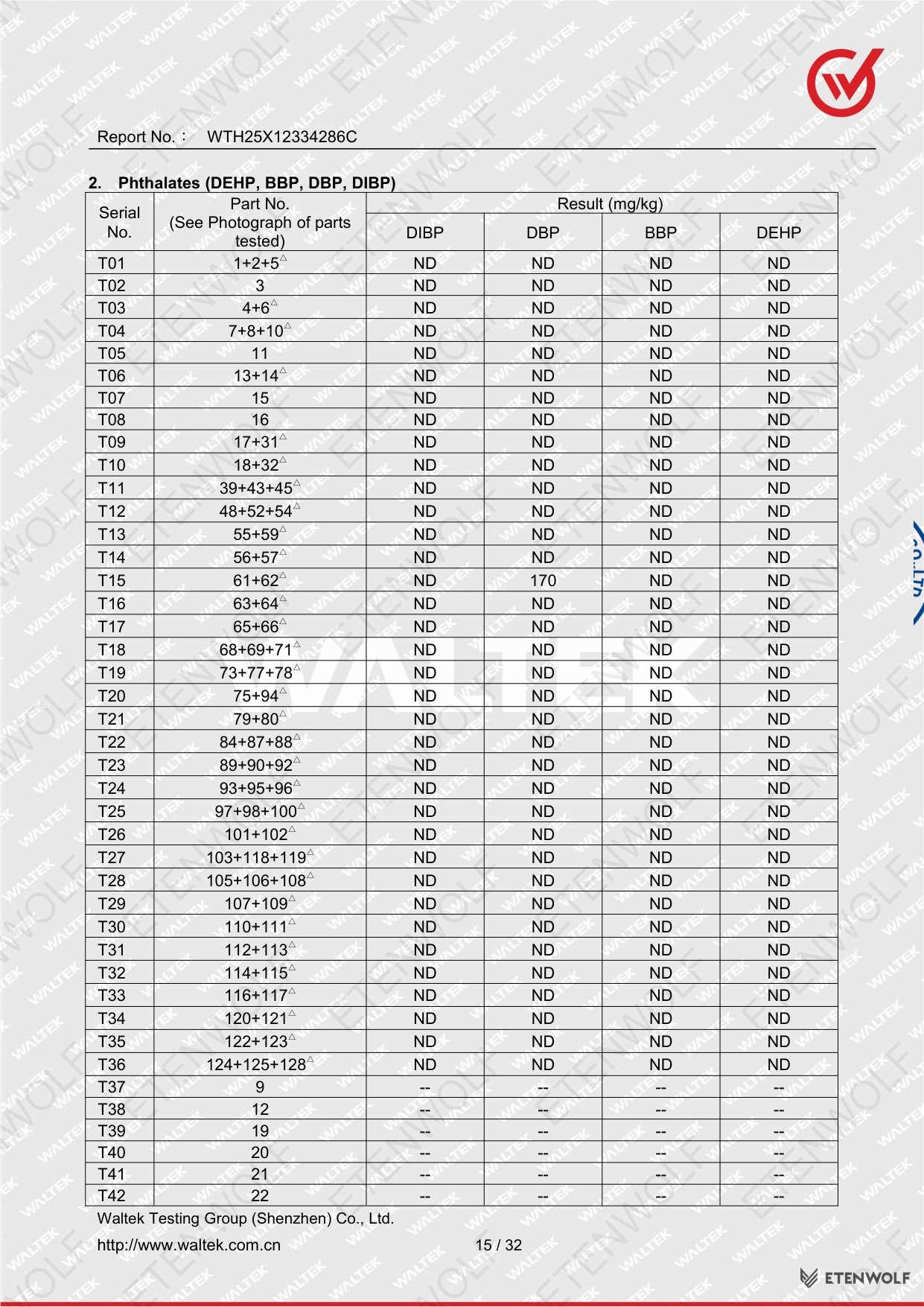

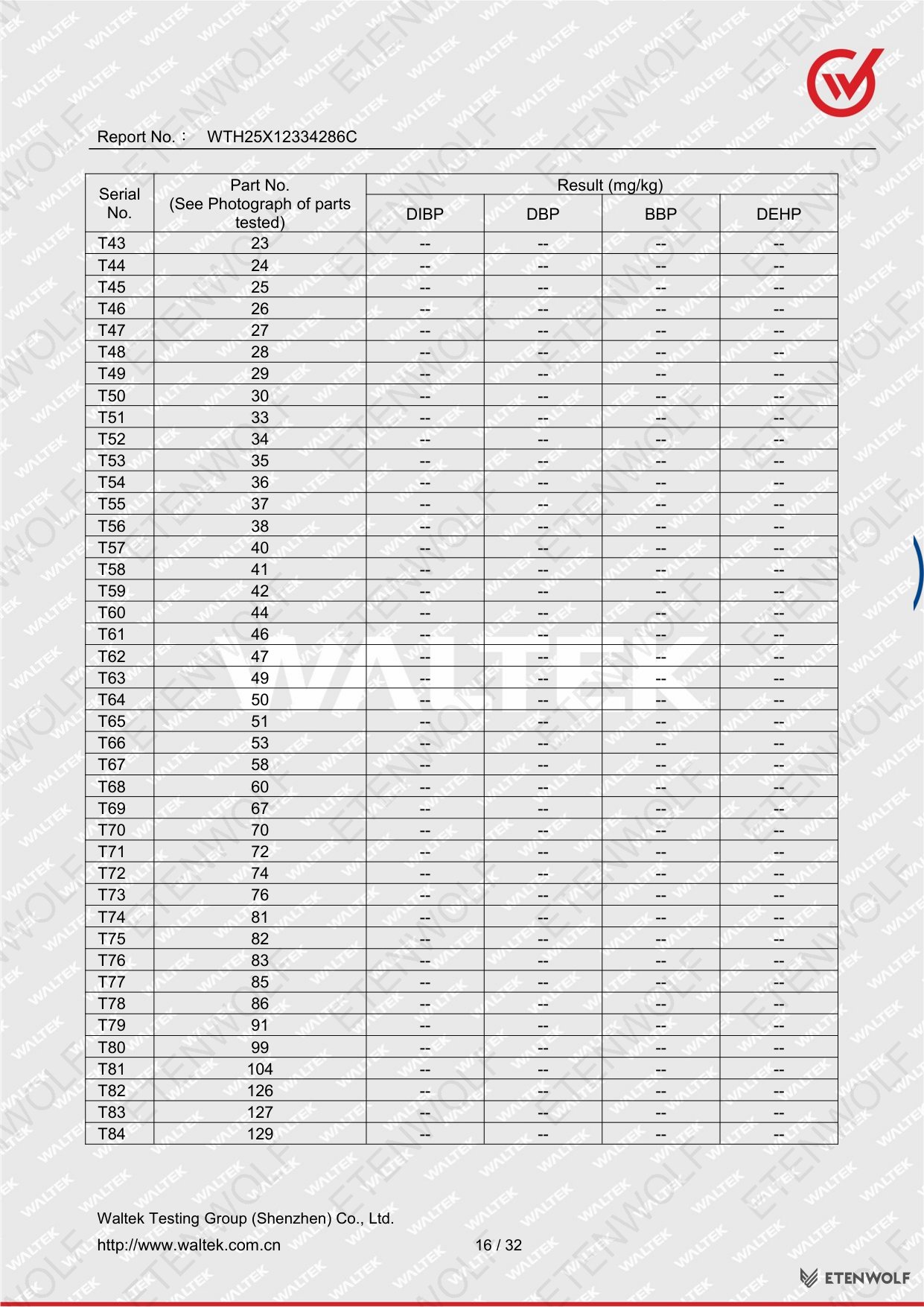

| IEC 62321-8:2017 | Phthalates (DEHP, BBP, DBP, DIBP) | GC-MS |
The ten restricted substances assessed under EU RoHS 2011/65/EU as amended by (EU) 2015/863 are: Lead (Pb), Mercury (Hg), Cadmium (Cd), Hexavalent Chromium (Cr6+), Polybrominated Biphenyls (PBBs), Polybrominated Diphenyl Ethers (PBDEs), Bis(2-ethylhexyl) phthalate (DEHP), Butyl benzyl phthalate (BBP), Dibutyl phthalate (DBP), and Diisobutyl phthalate (DIBP).
Validity & Certification Body

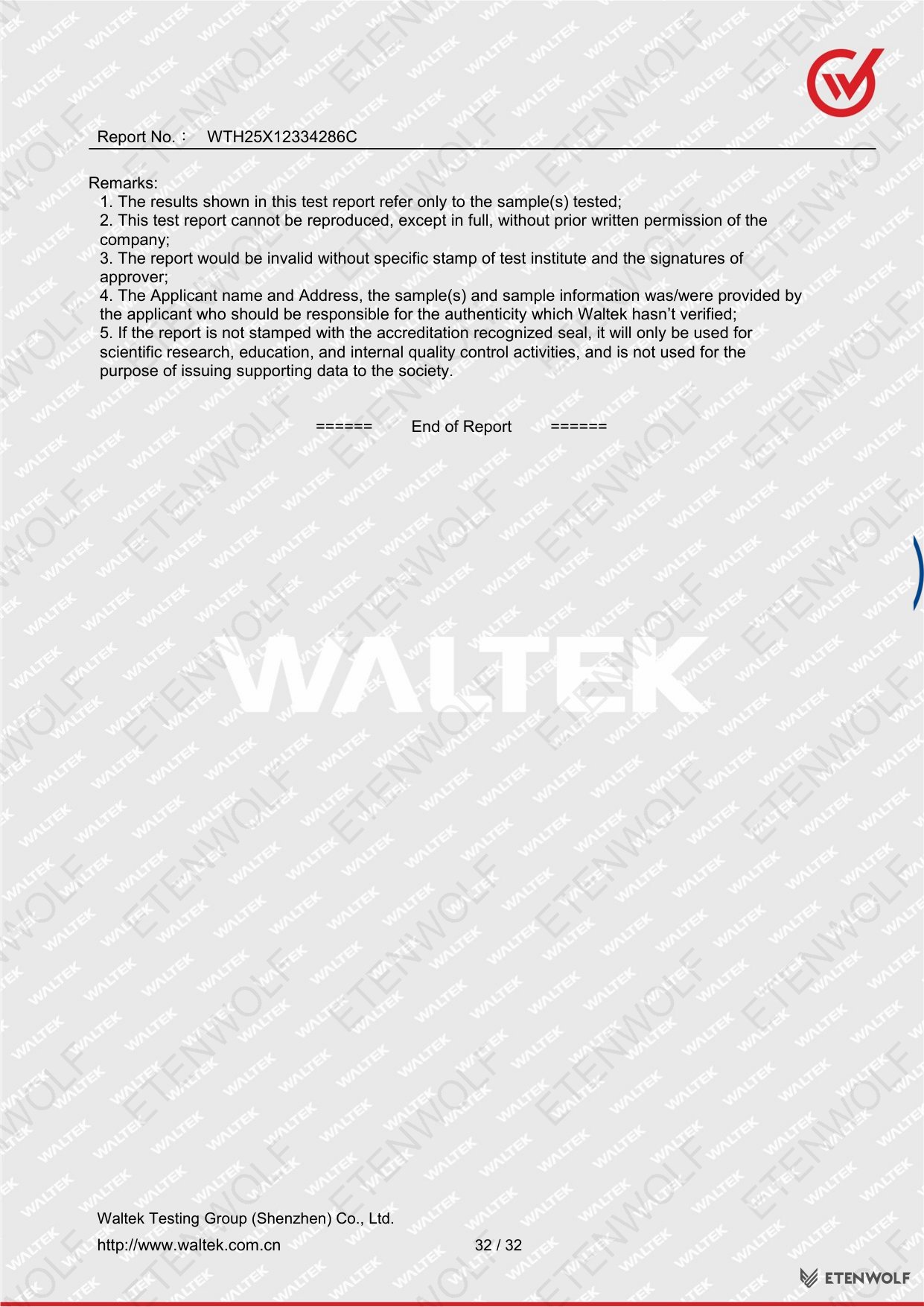

This test report was issued by Waltek Testing Group (Shenzhen) Co., Ltd., an accredited third-party testing laboratory based in Shenzhen, China. The report is valid for the specific sample submitted and the test conditions described herein.
| Field | Detail |
|---|---|
| Report Number | WTH25X12334286C |
| Date of Issue | 2026-01-19 |
| Testing Period | 2025-12-16 to 2026-01-12 |
| Signed By | Hugo Chen |
| Laboratory Name | Waltek Testing Group (Shenzhen) Co., Ltd. |
| Laboratory Address | 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70, Bao’an District, Shenzhen, Guangdong, China |
| Telephone | +86-755-33663308 |
| Fax | +86-755-33663309 |
| [email protected] | |
| Website | http://www.waltek.com.cn |
RoHS test reports cover the specific sample batch tested and do not carry a fixed expiry date in the same way as product certifications. However, any design change, material substitution, or new supplier introduction may require re-testing to maintain compliance. ETENWOLF recommends periodic re-evaluation in line with evolving regulatory requirements.
Frequently Asked Questions
- Q: What does it mean that the X5 PRO has passed EU RoHS testing?
-
It means that all homogeneous material parts of the X5 PRO Jump Starter with Air Compressor were tested for ten restricted hazardous substances under EU RoHS Directive 2011/65/EU and amendment (EU) 2015/863, and all results complied with the maximum concentration limits. The product is confirmed safe for use and sale within the European market with respect to these restricted substances.
- Q: Why does Part 9 (Coppery metal) show a lead content of 17,300 mg/kg, yet the overall result is still Pass?
-

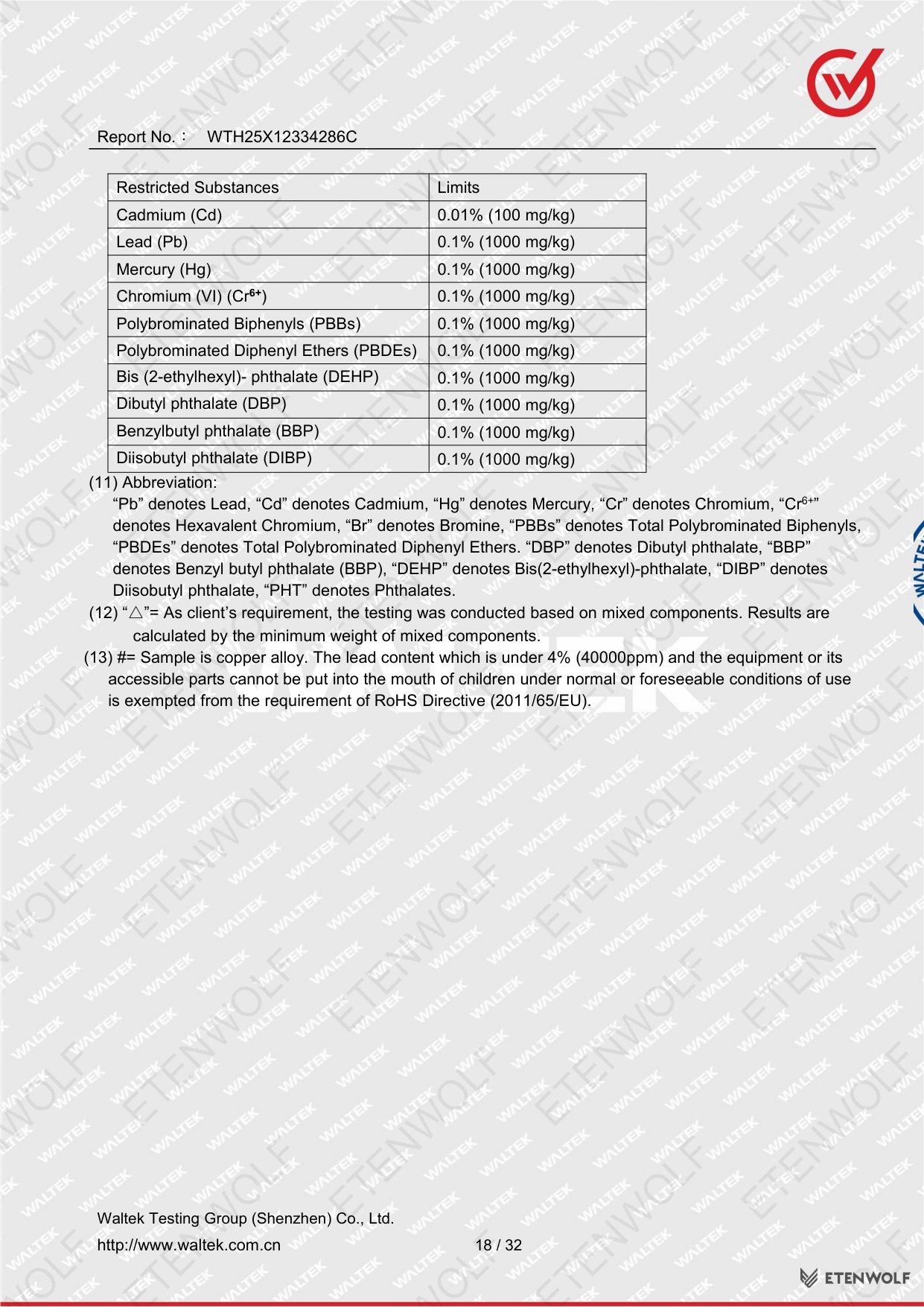

Lead content above the standard 1,000 mg/kg threshold in certain copper alloys is permitted under RoHS Annex III, exemption 6(c), which covers lead as an alloying element in copper with up to 4% lead content. Free-machining brass and similar copper alloys used in mechanical components such as fittings and connectors commonly fall under this exemption. The issuing laboratory, Waltek Testing Group, reviewed the result against applicable exemptions and issued a Pass conclusion accordingly.
- Q: Which analytical techniques were used to test the X5 PRO for RoHS compliance?
-

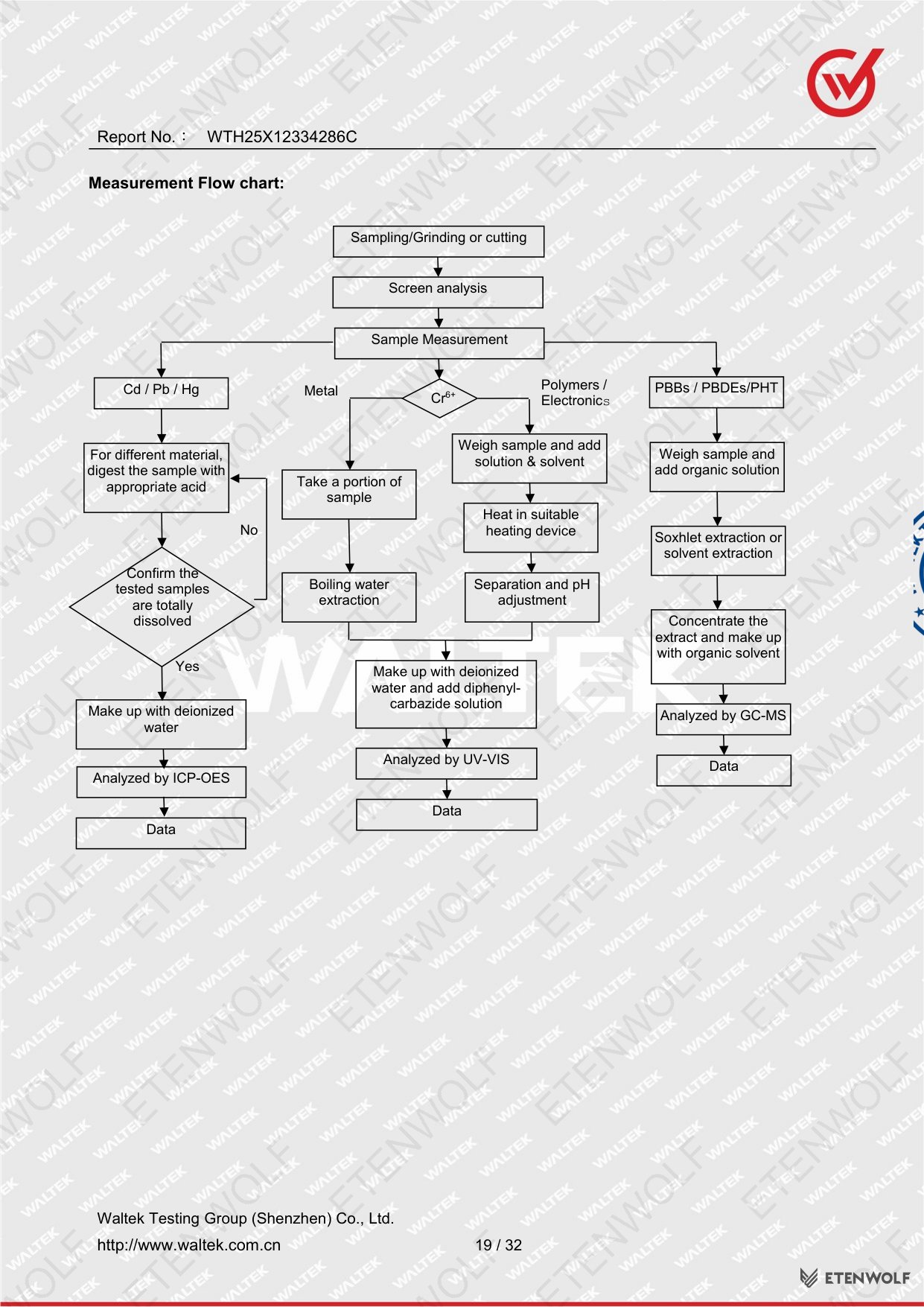

Testing employed a two-stage approach. First, all parts were screened using X-ray fluorescence spectrometry (XRF) per IEC 62321-3-1:2013. Parts that triggered an over-limit or inconclusive XRF result were then subjected to confirmatory chemical testing: ICP-OES for lead, cadmium, and mercury; UV-Vis spectrophotometry for hexavalent chromium; and GC-MS for PBBs, PBDEs, and phthalates, following the relevant IEC 62321 series standards.
- Q: How can I obtain a copy of the full test report for the X5 PRO?
-
The full test report bearing report number WTH25X12334286C was issued by Waltek Testing Group (Shenzhen) Co., Ltd. You may contact ETENWOLF directly through the product page or reach Waltek at [email protected] or +86-755-33663308 to request documentation for compliance verification purposes.
