Document Overview
Document Overview This document is the official UN38.3 Test Summary issued by Waltek Testing Group Co., Ltd. (深圳沃特检验集团股份有限公司), a certified third-party testing laboratory based in Dongguan, Guangdong, China. The test summary covers all mandatory UN38.3 transport safety tests applied to the lithium-ion battery pack used…
- Document type
- Certification Report
- Prepared by
- Michelle Torres
- Published
- Last reviewed
- Topics
- Lighting Gear
Document Overview

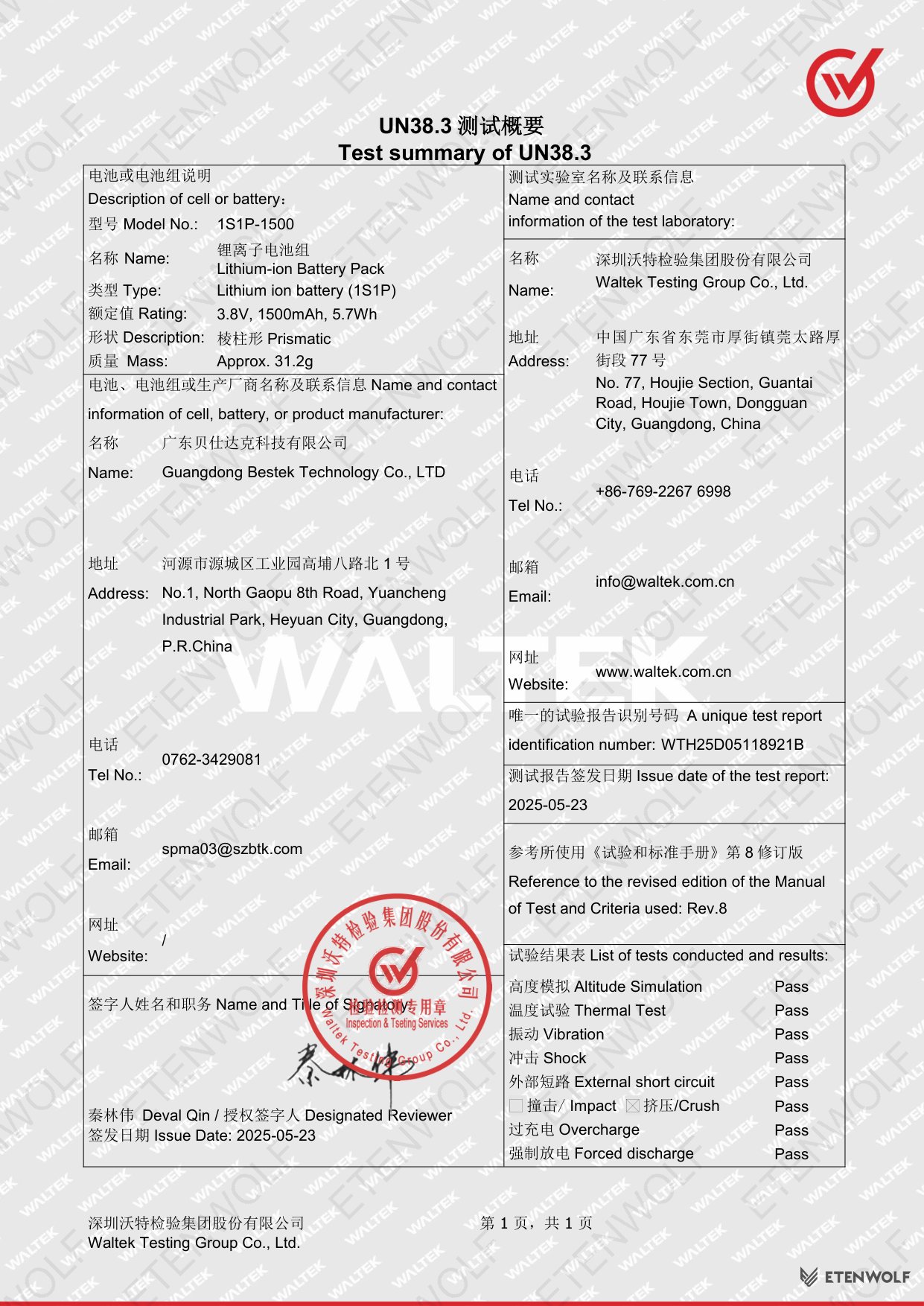

This document is the official UN38.3 Test Summary issued by Waltek Testing Group Co., Ltd. (深圳沃特检验集团股份有限公司), a certified third-party testing laboratory based in Dongguan, Guangdong, China. The test summary covers all mandatory UN38.3 transport safety tests applied to the lithium-ion battery pack used in the ETENWOLF L1 inflation tool product line.
The report was issued on 2025-05-23 under the unique identification number WTH25D05118921B. Tests were conducted in accordance with the 8th Revised Edition of the UN Manual of Tests and Criteria (Rev. 8), the globally recognised standard governing the safe transport of lithium cells and batteries by air, sea, and road. The UN38.3 standard is administered by the United Nations Economic Commission for Europe (UNECE).
Product Information
The battery pack subject to this certification is integrated into the ETENWOLF L1 portable inflation tool. Full product and battery details are listed below.
| Attribute | Detail |
|---|---|
| Product Model | L1 |
| Battery Model No. | 1S1P-1500 |
| Battery Name | Lithium-ion Battery Pack (锂离子电池组) |
| Battery Type | Lithium-ion (1S1P configuration) |
| Rated Voltage | 3.8 V |
| Rated Capacity | 1500 mAh |
| Rated Energy | 5.7 Wh |
| Physical Shape | Prismatic (棱柱形) |
| Mass | Approx. 31.2 g |
| Manufacturer | Guangdong Bestek Technology Co., Ltd. (广东贝仕达克科技有限公司) |
| Manufacturer Address | No. 1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China |
| Manufacturer Tel | 0762-3429081 |
| Manufacturer Email | [email protected] |
Key Details
The table below lists all eight UN38.3 transport safety tests performed on the ETENWOLF L1 battery pack, together with the outcome of each test. All tests were passed without exception.
| Test Item | UN38.3 Section | Result |
|---|---|---|
| Altitude Simulation (高度模拟) | T.1 | Pass |
| Thermal Test (温度试验) | T.2 | Pass |
| Vibration (振动) | T.3 | Pass |
| Shock (冲击) | T.4 | Pass |
| External Short Circuit (外部短路) | T.5 | Pass |
| Impact / Crush (撞击 / 挤压) | T.6 / T.7 | Pass |
| Overcharge (过充电) | T.8 | Pass |
| Forced Discharge (强制放电) | T.9 | Pass |
The signatory for this report is Qin Linwei (秦林伟), designated as Deval Qin — Designated Reviewer at Waltek Testing Group Co., Ltd., confirming all results on 2025-05-23.
Standards & Compliance
This test summary was prepared in full conformance with the transport safety requirements for lithium cells and batteries established by the United Nations Manual of Tests and Criteria, 8th Revised Edition (Rev. 8). UN38.3 compliance is a mandatory prerequisite for the international transport of lithium-ion batteries by any mode, including air freight under IATA Dangerous Goods Regulations and sea freight under IMDG Code requirements.
- Standard Applied: UN Manual of Tests and Criteria — Section 38.3, Rev. 8
- Battery Chemistry: Lithium-ion (Li-ion), 1S1P cell configuration
- Energy Threshold: 5.7 Wh (below the 20 Wh per cell threshold for Section II shipping)
- Test Methodology: Independent third-party laboratory testing at Waltek Testing Group facilities, Dongguan, Guangdong, China
- Scope of Compliance: Covers altitude simulation, thermal cycling, mechanical vibration and shock, electrical abuse (short circuit, overcharge, forced discharge), and physical integrity (impact/crush)
The 5.7 Wh energy rating of this battery pack keeps it well within the limits applicable to consumer-grade lithium-ion cells transported under standard dangerous goods exemptions, supporting straightforward logistics for the ETENWOLF L1 globally.
Validity & Certification Body
The test report bearing number WTH25D05118921B was issued on 2025-05-23 and remains valid subject to no changes to the battery cell design, chemistry, configuration, or manufacturing process. Any material modification to the product requires re-testing under UN38.3.
Issuing Laboratory: Waltek Testing Group Co., Ltd. (深圳沃特检验集团股份有限公司)
| Field | Detail |
|---|---|
| Laboratory Name | Waltek Testing Group Co., Ltd. |
| Laboratory Address | No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China |
| Contact Email | [email protected] |
| Contact Tel | +86-769-2267 6998 |
| Website | www.waltek.com.cn |
| Report Number | WTH25D05118921B |
| Issue Date | 2025-05-23 |
| Criteria Revision | UN Manual of Tests and Criteria, Rev. 8 |
| Signatory | Qin Linwei (秦林伟) / Deval Qin — Designated Reviewer |
Frequently Asked Questions
- What is UN38.3 and why does the ETENWOLF L1 battery need it?
-
UN38.3 is the section of the United Nations Manual of Tests and Criteria that defines the safety tests lithium cells and batteries must pass before they can be legally transported internationally. The ETENWOLF L1 battery pack requires UN38.3 certification so that the finished product can be shipped by air, sea, or road without restriction under IATA, IMDG, and ADR dangerous goods regulations.
- Which revision of UN38.3 was used for this test, and does it matter?
-
This test was conducted under Rev. 8 of the UN Manual of Tests and Criteria, which is the most current edition. Using the latest revision ensures the certification is accepted by carriers and customs authorities worldwide and will not be rejected due to an outdated test standard.
- What does the 1S1P configuration mean for the L1 battery pack?
-
1S1P means one cell in series and one cell in parallel — in other words, the pack consists of a single lithium-ion cell. The cell operates at 3.8 V with a capacity of 1500 mAh, giving a total energy of 5.7 Wh. This compact, single-cell design contributes to the lightweight and portable nature of the ETENWOLF L1 inflation tool.
- Is the UN38.3 certificate permanent, or does it expire?
-
The UN38.3 test report (No. WTH25D05118921B) does not carry a fixed expiry date in the same way as some other certifications; however, it becomes invalid if the battery design, cell chemistry, electrical ratings, or manufacturing process are changed. Any such modification requires a new round of UN38.3 testing before the product can continue to be shipped internationally.
Related Documents
The following certification types are typically required alongside a UN38.3 test summary for a lithium-ion battery-powered portable inflation tool such as the ETENWOLF L1. Obtaining and maintaining these documents ensures full regulatory compliance across major global markets.
- CE Declaration of Conformity — Required for sale in the European Economic Area; covers the Low Voltage Directive (LVD 2014/35/EU) and Radio Equipment Directive (RED 2014/53/EU) where applicable. See CE Marking (European Commission).
- IEC 62133 Battery Safety Test Report — The primary international safety standard for portable sealed secondary lithium cells and batteries; complements UN38.3 for product certification purposes. See IEC (International Electrotechnical Commission).
- RoHS Compliance Certificate — Confirms the battery and product are free from restricted hazardous substances under EU RoHS Directive 2011/65/EU.
- REACH SVHC Declaration — Required for products sold in the EU; declares that no Substances of Very High Concern exceed 0.1% w/w. See REACH (ECHA).
- FCC ID / DoC (USA) — Required if the L1 product contains any intentional radiator or falls under FCC Part 15 rules for the US market. See FCC Equipment Authorization.
- KC Certification (South Korea) — Mandatory for lithium batteries and powered consumer products sold in the South Korean market under the Electrical Appliances and Consumer Products Safety Control Act.
- MSDS / Safety Data Sheet — A material safety data sheet specific to the lithium-ion cell, required by most freight carriers and customs authorities as a companion document to the UN38.3 summary.
Document Pages
