Document Overview
Document Overview This page presents the official water resistance (防水) test report for the ETENWOLF CL5 2-in-1 Camping Flashlight. The report was issued by Waltek Testing Group HCT (Shenzhen) Co., Ltd. (深圳市沃特虹彩检测技术有限公司), an accredited third-party testing laboratory based in Shenzhen, Guangdong, China. Field Details Report…
- Document type
- Certification Report
- Prepared by
- Michelle Torres
- Published
- Last reviewed
- Topics
- Mechanical Reliability
Document Overview
This page presents the official water resistance (防水) test report for the ETENWOLF CL5 2-in-1 Camping Flashlight. The report was issued by Waltek Testing Group HCT (Shenzhen) Co., Ltd. (深圳市沃特虹彩检测技术有限公司), an accredited third-party testing laboratory based in Shenzhen, Guangdong, China.
| Field | Details |
|---|---|
| Report Number | WTH25H10275786P |
| Document Type | Water Resistance Test Report (防水测试报告) |
| Issuing Laboratory | Waltek Testing Group HCT (Shenzhen) Co., Ltd. |
| Test Standard | IEC 60529:1989+A1:1999+A2:2013 |
| Date of Issue | 2025-10-28 |
| Report Form No. | TRFEN-SE-001-V01 |
| Scope | IPX5 ingress protection against water jets for portable lighting equipment |
Product Information
The product under test is the ETENWOLF CL5, a 2-in-1 Camping Flashlight designed for outdoor use. The product is manufactured and supplied by Guangdong Bestek Technology Co., Ltd., the applicant for this certification.
| Field | Details |
|---|---|
| Product Name | 2-in-1 Camping Flashlight (二合一露营手电筒) |
| Model Number | CL5 |
| Brand | ETENWOLF |
| Applicant | Guangdong Bestek Technology Co., Ltd. (广东贝仕达克科技有限公司) |
| Manufacturer | Guangdong Bestek Technology Co., Ltd. (广东贝仕达克科技有限公司) |
| Manufacturer Address | No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R.China |
| Sample ID | WTH25H10275786P_S-01 |
| Date Sample Received | 2025-10-21 |
| Date of Test | 2025-10-23 |
Key Details
The IPX5 test was conducted in accordance with IEC 60529:1989+A1:1999+A2:2013 using calibrated water spray equipment. The test verifies that the CL5 can withstand directed water jets without allowing harmful ingress into the enclosure.
Test Equipment
| Equipment Name | Model | Equipment Number | Calibration Date | Valid Until |
|---|---|---|---|---|
| Water Spray Tester (喷水试验装置) | PL-IPX56 | WTHP1067A1-001 | 2024-01-17 | 2025-01-16 |
Environmental Conditions During Test
| Parameter | Value |
|---|---|
| Temperature | 24.0 °C |
| Humidity | 56.0 % RH |
IPX5 Test Conditions
| Parameter | Value |
|---|---|
| Water Flow Rate | 12.5 L/min |
| Nozzle to Sample Distance | 2.5 m – 3 m |
| Inside Diameter of Nozzle | 6.3 mm |
| Rotary Speed | 1 r/min |
| Test Duration | 3 minutes |
Test Results
| Sample No. | Sample Name | Visual Inspection Result |
|---|---|---|
| WTH25H10275786P_S-01 | 2-in-1 Camping Flashlight (CL5) | PASS — No water ingress found inside the sample after testing. |
Standards & Compliance
The CL5 was evaluated against the following international standard for degrees of protection provided by enclosures (IP Code):
| Standard | Title | Protection Level Tested |
|---|---|---|
| IEC 60529:1989+A1:1999+A2:2013 | Degrees of Protection Provided by Enclosures (IP Code) | IPX5 — Protection against water jets from any direction |
The IPX5 rating specifically requires that the product withstand a sustained jet of water (12.5 L/min) delivered through a 6.3 mm nozzle from any direction for a minimum of 3 minutes without permitting harmful water ingress. The CL5 met this requirement, confirming its suitability for outdoor and camping environments where exposure to rain or splashing water is expected.
All instruments used during testing were calibrated and traceable to national or international standards, ensuring measurement validity and reliability.
Validity & Certification Body
This test report was prepared, inspected, and approved by qualified personnel at Waltek Testing Group HCT (Shenzhen) Co., Ltd. and is valid only when bearing the approving signature and official laboratory seal.
| Role | Name |
|---|---|
| Tested By (主检) | Jack L (钟祺泷) |
| Inspected By (审核) | Jeson Qi (戚照刚) |
| Approved By (批准) | Sem Huang (黄庆盛) |
| Field | Details |
|---|---|
| Laboratory Name | Waltek Testing Group HCT (Shenzhen) Co., Ltd. |
| Laboratory Address | Building B, Tianji Industrial Park, 1/F, 2/F & 3/F, No.30-9, Laiyin Road, Xinsheng Community, Longgang Subdistrict, Longgang District, Shenzhen, Guangdong, China |
| Laboratory Website | http://www.hct-test.com |
| Telephone | +86-0755-84616666 |
| [email protected] | |
| Date of Issue | 2025-10-28 |
| Report Validity | Results apply only to the specific sample tested (WTH25H10275786P_S-01). Reproduction of this report in part is not permitted without written approval from HCT. Disputes must be raised within 15 days of report receipt. |
Frequently Asked Questions
- What does the IPX5 rating on the ETENWOLF CL5 mean?
-
IPX5 is a protection rating defined under IEC 60529 that indicates the CL5 is protected against water jets from any direction. This means the lantern can withstand direct water spray without allowing water to enter its internal components, making it suitable for outdoor use in rain or wet camping conditions.
- Which laboratory conducted the IPX5 water resistance test for the CL5?
-
The test was conducted by Waltek Testing Group HCT (Shenzhen) Co., Ltd., an accredited third-party testing laboratory located in Shenzhen, Guangdong, China. The report number is WTH25H10275786P, issued on 2025-10-28.
- Can the ETENWOLF CL5 be submerged in water?
-
No. The CL5 holds an IPX5 rating, which covers protection against water jets but does not certify protection against immersion or submersion. For submersion protection, an IPX7 or IPX8 rating would be required. The CL5 should not be deliberately submerged.
- Does this test report cover all production units of the CL5?
-
Per standard laboratory practice and as stated in the report, the results of Report No. WTH25H10275786P apply only to the specific sample tested (sample ID: WTH25H10275786P_S-01). The report is issued as a representative assessment of the product design and manufacturing standard at the time of testing.
Related Documents
The following certification and compliance documents are relevant to the ETENWOLF CL5 2-in-1 Camping Flashlight and are recommended for a complete regulatory compliance picture:
- CE Declaration of Conformity — Required for sale in the European Union; covers essential safety, EMC, and where applicable, radio equipment directives.
- FCC ID Certification — Required for sale in the United States if the product contains any wireless or radio frequency components.
- UN 38.3 Battery Safety Test Report — Mandatory transport safety certification for products containing lithium-ion or lithium polymer rechargeable batteries.
- RoHS Compliance Report — Confirms restriction of hazardous substances (lead, mercury, cadmium, etc.) in electrical and electronic equipment per RoHS Directive 2011/65/EU.
- REACH SVHC Declaration — Documents compliance with REACH regulation regarding Substances of Very High Concern.
- Drop Test / Mechanical Durability Report — Validates structural integrity of the product housing under impact conditions relevant to camping and outdoor use.
- Photometric / Lumen Output Test Report — Verifies the stated brightness and beam performance specifications of the CL5 as a lighting device.

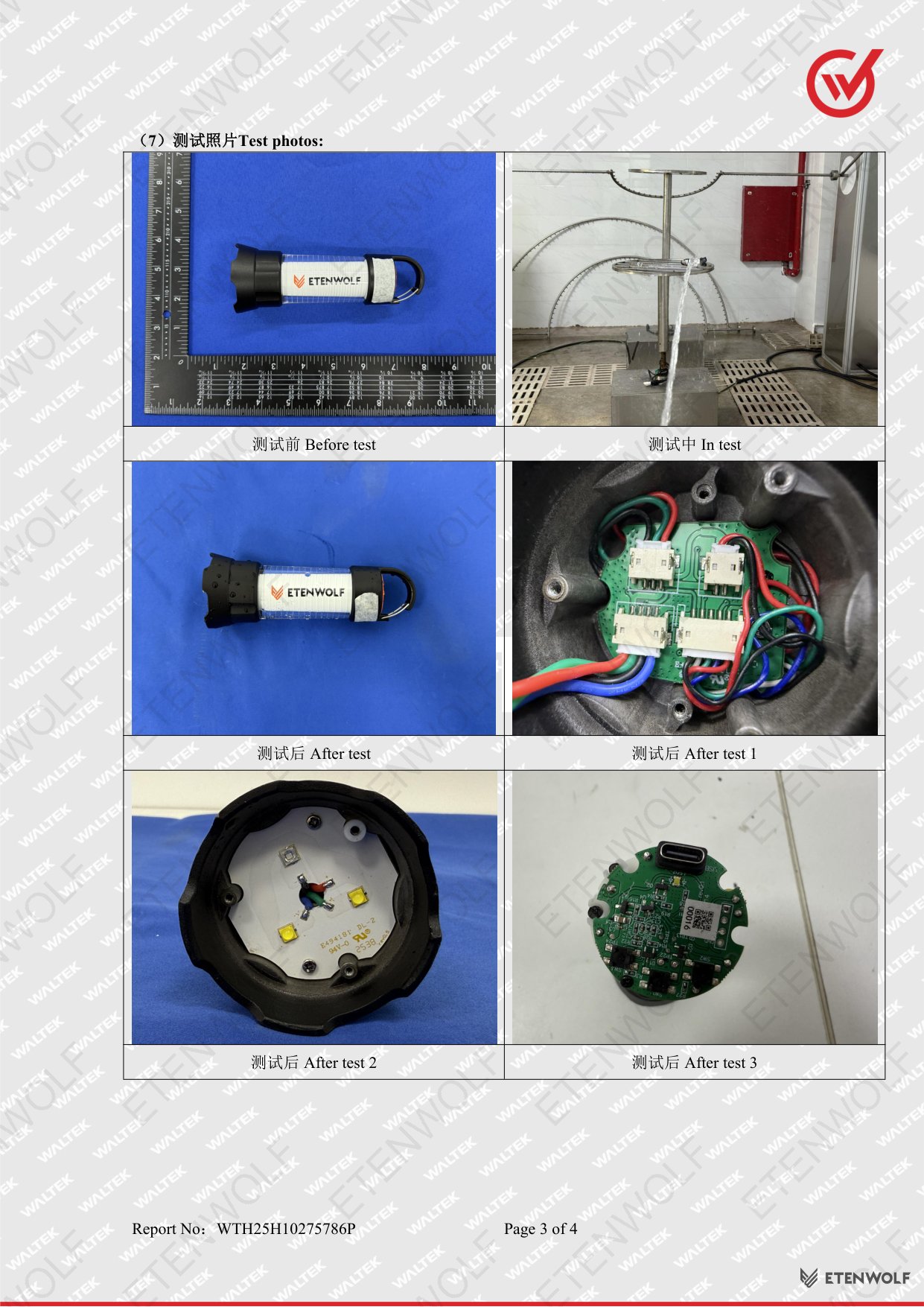

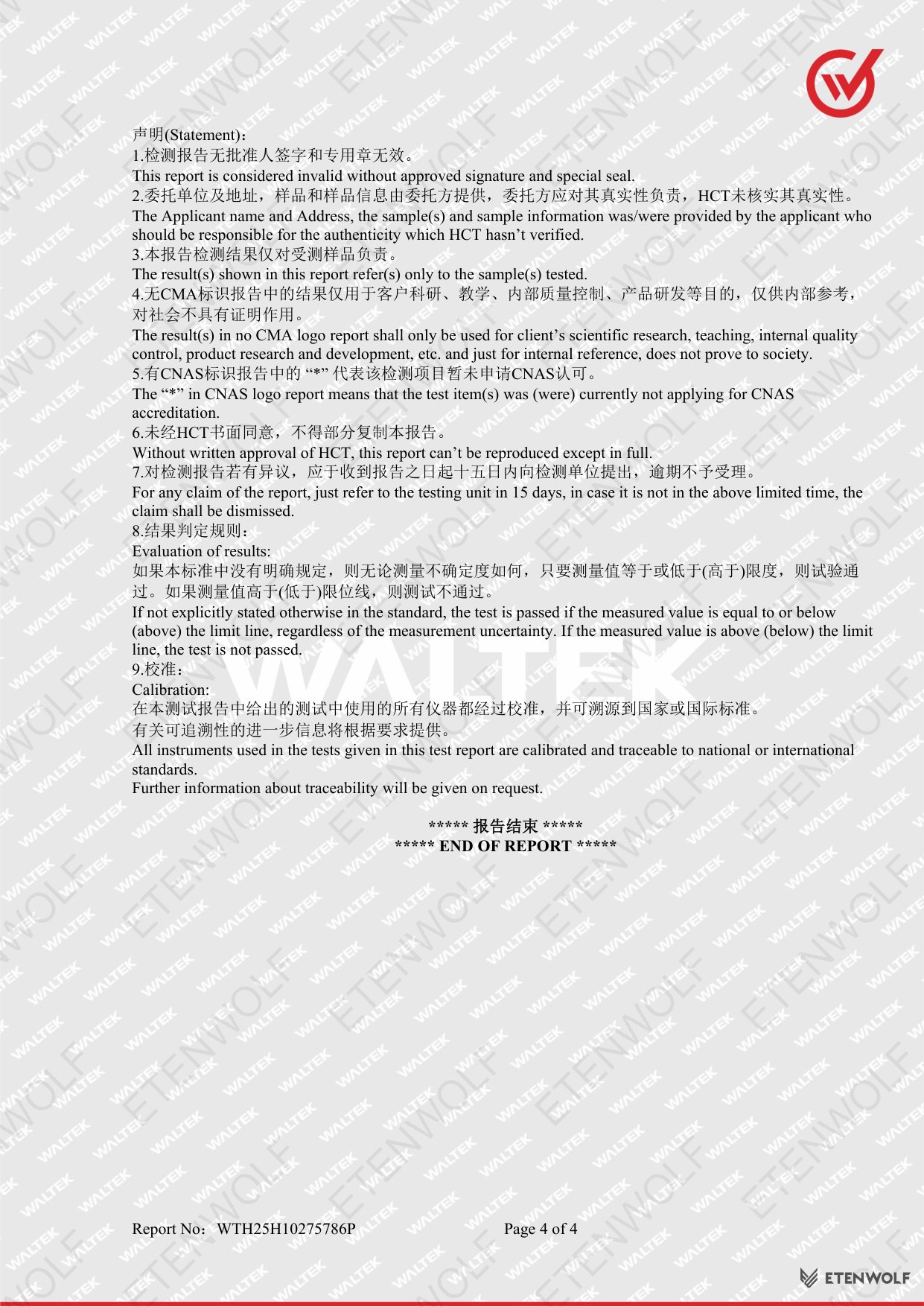

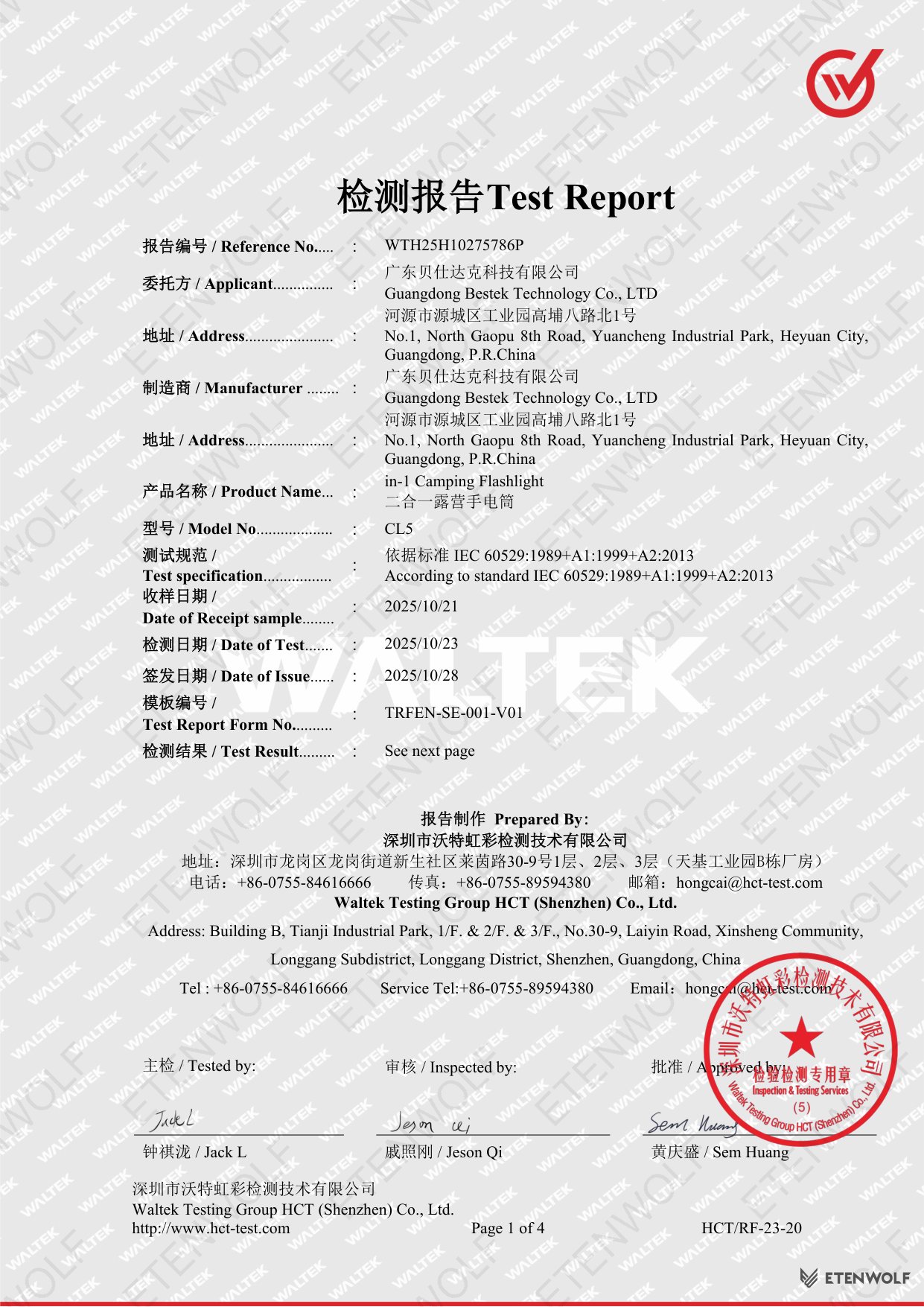

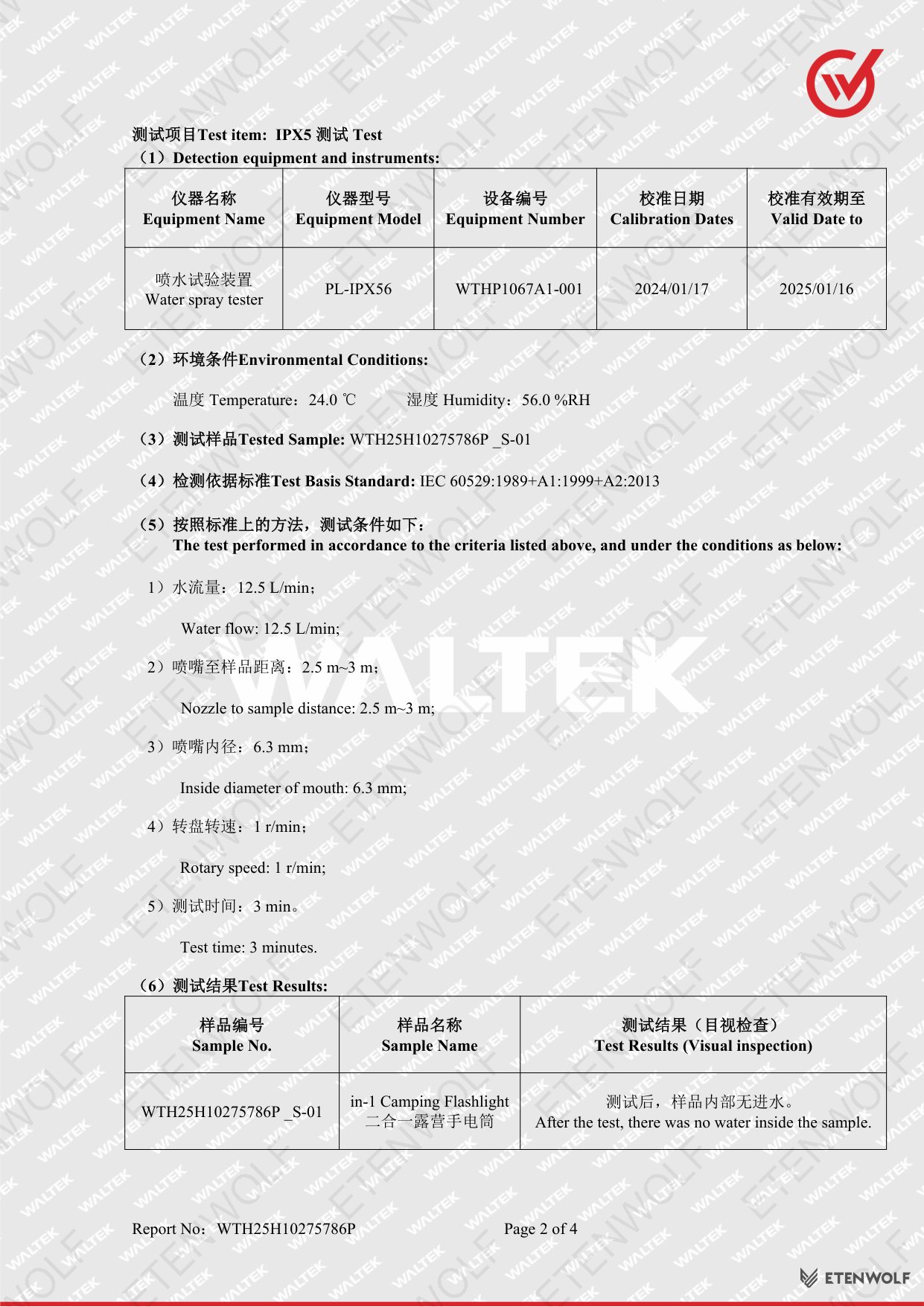

Document Pages
